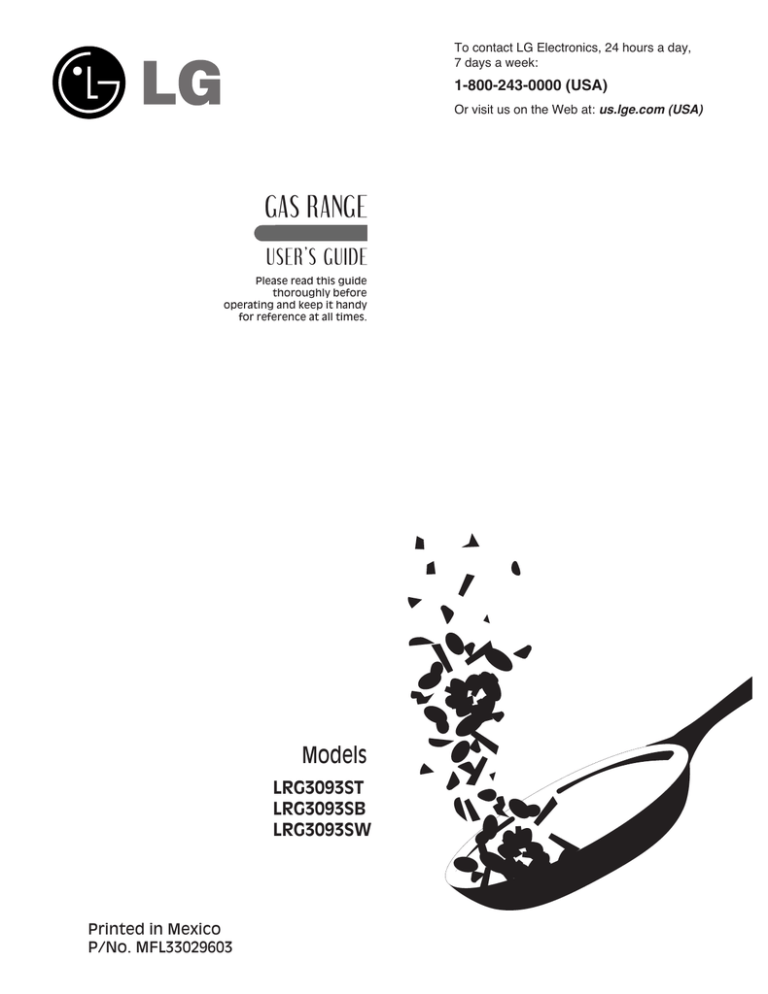

GAS RANGE
USER’S GUIDE
Please read this guide
thoroughly before
operating and keep it handy
for reference at all times.
Models
LRG3093ST
LRG3093SB
LRG3093SW
Printed in Mexico
P/No. MFL33029603
I N T RO D U C T I O N
IMPORTANT SAFETY INFORMATION
Important Safety Instructions. .........................................3
What to Do if You Smell Gas. .........................................3
Anti-Tip Device.............................................................3-4
Basic Safety Precautions .............................................4-8
OPERATING INSTRUCTIONS
Parts and Features..........................................................9
Using the Gas Surface Burners ..............................10-11
Control Panel—LRG3093S ...........................................12
Using the Oven ......................................................13–16
Using the Clock and Timer............................................17
Using the Timed Baking Features...........................18–19
Setting the Warm Feature ............................................20
Setting the Proof Feature .............................................20
Special Features of Your Oven Control ..................21–22
Using the Self-Cleaning Oven.................................23–24
THANK YOU!
Congratulations on your purchase
and welcome to the LG family.
Your new LG Gas Range
combines precision cooking
features with simple operation and
stylish design. By following the
CARE AND CLEANING OF THE RANGE
Care and Cleaning ........................................................25
Burner Caps and Heads................................................26
Burner Grates................................................................27
Cooktop Surface ...........................................................27
Stainless Steel Surfaces ...............................................28
Oven Air Vents ..............................................................28
Control Panel ................................................................28
Front Manifold Panel and Knobs...................................28
Oven Door.....................................................................29
Oven Bottom .................................................................30
Broiler Pan and Grid......................................................30
Oven Racks...................................................................31
Oven Light Replacement...............................................31
Removing & Replacing the storage drawer...................32
operating and care instructions
in this manual, your range will
provide you with many years of
reliable service.
TROUBLESHOOTING
Before Calling for Service ........................................33-36
WARRANTY
Product Registration Information...................................37
Product Registration Information
Model:
Serial Number:
Date of Purchase:
2
I M P O RTA N T S A F E T Y I N F O R M AT I O N
I M P O R TA N T S A F E T Y I N S T RU C T I O N S
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or
damage when using the range. This guide do not cover all possible conditions that may occur. Always contact your
service agent or manufacturer about problems that you do not understand.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and
others. All safety messages will follow the safety alert symbol and either the word “WARNING” or
“CAUTION”.
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious bodily
harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or
property damage.
WARNING:
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
• Open windows.
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
ANTI-TIP DEVICE
WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSONS
COULD RESULT
• INSTALL ANTI-TIP DEVICES
PACKED WITH RANGE
• SEE INSTALLATION
3
ENGLISH
READ ALL INSTRUCTIONS BEFORE USE
I M P O RTA N T S A F E T Y I N F O R M AT I O N
READ ALL INSTRUCTIONS BEFORE USE
ANTI-TIP DEVICE (continued)
• DO NOT step or sit on the door. Install the AntiTip Bracket packed with range.
- The range could be tipped and injury might result
from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning,
service, or any other reason, ensure that the Anti-Tip
Device is properly reengaged when the range is
pushed back against the wall.
• To reduce the risk of tipping of the range, the range
must be secured by properly installing anti-tip
devices.
• To check that the anti-tip bracket is properly installed:
Grasp the top rear edge of the range back guard and
carefully attempt to tilt it forward. Verify that the antitip devices are engaged.
• Warming drawer or Storage drawer : Remove drawer
and visually inspect that the rear leveling leg is fully
inserted into the anti-tip bracket.
• Refer to the installation manual for proper anti-tip
bracket installation.
IMPORTANT SAFETY NOTICE
Enforcement Act requires the Governor of California
to publish a list of substances known to the state to
cause birth defects or other reproductive harm, and
requires businesses to warn customers of potential
exposure to such substances.
Gas appliances can cause minor exposure to four of
these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily
by the imperfect combustion of natural or LP gas.
Correctly adjusted burners, indicated by a bluish
rather than a yellow flame, will minimize imperfect
combustion. Exposure to these substances can be
minimized by opening windows or using a ventilation
fan or hood.
SAFETY PRECAUTIONS
Have the installer show you the location of the range gas shut-off valve and how to
shut it off if necessary.
4
• Make sure your range is properly installed and
grounded by a qualified installer, according to the
installation instructions. Any adjustment and service
should be performed only by qualified gas range
installers or service technicians.
• DO NOT use an adapter plug, an extension cord, or
remove grounding prong from electrical power cord
to prevent fire hazard or electrical shock. Failure to
follow this warning can cause serious injury, fire or
death.
• Plug your range into a 120-volt grounded outlet only.
Do not remove the round grounding prong from the
plug. If in doubt about the grounding of the home
electrical system, it is your personal responsibility
and obligation to have an ungrounded outlet
replaced with a properly grounded, three-prong
outlet in accordance with the National Electrical
Code. Do not use an extension cord with this range.
• To prevent poor air circulation, place the range out
of kitchen traffic path and out of drafty locations.
• DO NOT attempt to repair or replace any part of
your range unless it is specifically mentioned in this
manual. All other service should be referred to a
qualified technician.
• Make sure all packaging materials are removed from
the range before operating it to prevent fire or
smoke damage should the packaging material
ignite.
I M P O RTA N T S A F E T Y I N F O R M AT I O N
SAFETY PRECAUTIONS (continued)
• Make sure your range is properly adjusted by a
qualified service technician or installer for the type of
gas (natural or LP) that is to be used. Your range
can be converted for use with either type of gas.
See the installation instructions.
• DO NOT place flammable materials in an oven, a
warming drawer or near a cooktop.
WARNING: These adjustments
• DO NOT allow cooking grease or other flammable
materials in or near the range.
must be done by a qualified service technician
according to the manufacturer’s instructions and all
codes and requirements of the authority having
jurisdiction. Failure to follow these instructions
could result in serious injury or property damage.
The qualified agency performing this work
assumes responsibility for the conversion.
• After using your range for a long time, high floor
temperatures may result and many floor coverings
will not withstand this kind of use.
Never install the range over vinyl tile or linoleum that
cannot withstand such type of use. Never install it
directly over interior kitchen carpeting.
• DO NOT place or use combustible materials such as
gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
• DO NOT use water on grease fires. Never touch a
flaming pan. Turn the controls off. Smother a flaming
pan on a surface burner by covering the pan
completely with a well-fitting lid, cookie sheet or flat
tray. Use a multi-purpose dry chemical or foam-type
fire extinguisher.
A grease fire can be put out by covering it with
baking soda or, if available, by using a multi-purpose
dry chemical or foam-type fire extinguisher.
Flame in the upper oven or lower oven drawer can
be smothered completely by closing the oven door
or drawer and turning the control to off or by using a
multi-purpose dry chemical or foam-type fire
extinguisher.
• DO NOT use the oven or the drawer for storage.
CAUTION: Items of interest to
children should not be placed in cabinets above a
range or on the backsplash of a range—children
climbing on the range to reach items could be
seriously injured.
• DO NOT leave children alone or unattended where
a range is hot or in operation. They could be
seriously burned.
• DO NOT let anyone climb, stand or hang on the
oven door, warming drawer or cooktop. They could
damage the range and even tip it over, causing
severe personal injury.
WARNING:
NEVER use your
range as a space heater to heat or warm the room.
Doing so may result in carbon monoxide poisoning
and overheating of the oven.
• NEVER wear loose fitting or hanging garments while
using the appliance. Be careful when reaching for
items placed in cabinets over the range. Flammable
material could be ignited if brought in contact with
flame or hot oven surfaces and may cause severe
burns.
• Let the burner grates and other surfaces cool before
touching them.
• NEVER block the vents (air holes) of the range.
They provide the air inlet and outlet that are
necessary for the range to operate properly with
correct combustion. Air openings are located at the
rear of the cooktop, at the top and bottom of the
oven door, and at the bottom of the range under the
warming drawer.
• Large scratches or impacts to glass doors can lead
to broken or shattered glass.
• Stepping, leaning or sitting on the doors or drawers
of this range can result in serious injuries and also
cause damage to the range. Do not allow children to
climb or play around the range. The weight of a child
on an open door may cause the range to tip,
resulting in serious burns or other injury.
• Leak testing of the appliance shall be conducted
according to the manufacturer’s instructions.
5
ENGLISH
READ ALL INSTRUCTIONS BEFORE USE
I M P O RTA N T S A F E T Y I N F O R M AT I O N
READ ALL INSTRUCTIONS BEFORE USE
SURFACE BURNERS
WARNING:
• If the top burner flame goes out, gas is still flowing
to the burner until the knob is turned to the “OFF”
position. Do not leave the burners “ON”
unattended.
• Use proper pan size - DO NOT use pans that are
unstable or easily tipped. Select cookware having
flat bottoms large enough to cover burner grates.
To avoid spillovers, make sure cookware is large
enough to contain the food properly. This will both
save cleaning time and prevent hazardous
accumulations of food, since heavy spattering or
spillovers left on range can ignite. Use pans with
handles that can be easily grasped and remain
cool.
• NEVER leave the surface burners unattended at
high flame settings. Boilovers cause smoking and
greasy spillovers that may catch on fire.
• Always turn knob to the “LITE” position when
igniting the top burners and make sure the burners
have ignited.
• Control the top burner flame size so it does not
extend beyond the edge of the cookware. Excessive
flame is hazardous.
• Use only dry pot holders—moist or damp pot
holders on hot surfaces may result in burns from
steam. Do not let pot holders come near open
flames when lifting cookware. Do not use a towel or
other bulky cloth Instead of a pot holder.
• Using glass cookware—make sure it is designed for
top-of-range cooking.
• To prevent burns, ignition of flammable materials
and spillage, turn cookware handles toward the side
or back of the range without extending over adjacent
burners.
• NEVER place any items on the cooktop. The hot air
from the vent may ignite flammable items and will
increase pressure in closed containers, which may
cause them to burst.
• Carefully watch foods being fried at a high flame
setting.
6
• Always heat fat slowly, and watch as it heats.
• If frying combinations of oils and fats stir together
before heating.
• Use a deep fat thermometer if possible to prevent
overheating fat beyond the smoking point.
• Use the least possible amount of fat for effective
shallow or deep-fat frying. Filling the pan too full of
fat can cause spillovers when food is added.
• DO NOT flame foods on the cooktop.
• DO NOT use a wok on the surface burners if the
wok has a round metal ring that is placed over the
burner grate to support the wok. This ring acts as a
heat trap, which may damage the burner grate and
burner head. Also, it may cause the burner to work
improperly. This may cause a carbon monoxide
level above that allowed by current standards,
resulting in a health hazard.
• Foods for frying should be as dry as possible. Frost
or moisture on foods can cause hot fat to bubble up
and over the sides of the pan.
• NEVER try to move a pan of hot fat, especially a
deep fat fryer. Wait until the fat is cool.
• DO NOT place plastic items on the cooktop—they
may melt if left too close to the vent.
• Keep all plastics away from the surface burners.
• To prevent burns, always be sure that the controls
for all burners are at the “OFF” position and all
grates are cool before attempting to remove them.
• If you smell gas, turn off the gas to the range and
call a qualified service technician. Never use an
open flame to locate a leak.
• Always turn knob to the “OFF” position before
removing cookware.
• DO NOT lift the cooktop. Lifting the cooktop can
cause damage and improper operation of the range.
• If range is located near a window, do not hang long
curtains that could blow over the surface burners
and catch on fire.
I M P O RTA N T S A F E T Y I N F O R M AT I O N
COOK MEAT AND POULTRY THOROUGHLY
Cook meat and poultry thoroughly—meat to at least
an INTERNAL temperature of 160°F and poultry to at
least an INTERNAL temperature of 180°F.
To protect against foodborne illness, cook them to
these temperatures.
SELF-CLEANING OVEN
• Make sure to wipe off excess spillage before selfcleaning operation.
• DO NOT use oven cleaners. No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
Residue from oven cleaners will damage the inside
of the oven when the self-clean cycle is used.
• Clean only parts listed in this manual.
• DO NOT clean the door gasket. The door gasket is
necessary for a good seal. Care should be taken not
to rub, damage or move the gasket.
• If the self-cleaning mode malfunctions, turn the
range off and disconnect the power supply. Let it
serviced by a qualified technician.
• Oven racks and accessories should be removed
from the oven before self clean is started. Also
remove any items placed in the bottom drawer
before starting a self clean cycle.
7
ENGLISH
READ ALL INSTRUCTIONS BEFORE USE
I M P O RTA N T S A F E T Y I N F O R M AT I O N
READ ALL INSTRUCTIONS BEFORE USE
OVEN
When opening the door of a hot oven, stand away from the range. The hot air and steam that
escape can cause burns to hands, face and eyes.
WARNING: NEVER block any
slots, holes or passages in the oven bottom
or cover an entire rack with materials such as
aluminum foil. Doing so blocks air flow
through the oven and may cause carbon
monoxide poisoning. Aluminum foil linings
may also trap heat, causing a fire hazard.
• DO NOT heat closed food containers.
Pressure could increase and the container could
burst, causing an injury.
• DO NOT use aluminum foil anywhere in the oven
except as described in this manual.
Doing so could create a fire hazard or cause
damage to the range.
• DO NOT use the oven for a storage area.
Items stored in the oven can catch on fire.
• When using cooking or roasting bags in the oven,
follow the manufacturer’s directions.
• Use only glass cookware that is recommended for
use in gas ovens.
• Always remove the broiler pan from the range after
you finish broiling. Grease left in the pan can catch
fire if oven is used without removing the grease from
the broiler pan.
• When broiling, if meat is too close to the flame, the
fat may ignite. To prevent excessive flare-ups, trim
excess fat.
• Make sure the broiler pan is in place correctly to
minimize the possibility of grease fires.
• If you should have a grease fire in the broiler pan,
press the “CLEAR OFF” pad, and keep the oven
door closed to contain fire until it burns out.
• For safety and better cooking performance, always
bake and broil with the oven door closed.
• Keep the oven free from grease buildup.
• Insert the oven racks in the desired position while
the oven is cool.
• To prevent burns when removing food, slide racks
out until the stop engages, then remove food items.
It is also a precaution against burns from touching
hot surfaces of the door or oven walls.
• When placing or removing griddle always wear oven
mitts.
NOTE: Open door baking or broiling can cause
damage to the knobs or valves.
DO NOT LEAVE THE OVEN DOOR OPEN DURING
COOKING OR COOL DOWN.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
8
O P E R AT I N G I N S T RU C T I O N S
ENGLISH
PARTS AND FEATURES
Grates
Oven vent
Oval burner
Small burner
Medium burner
Extra large burner
Large burner
Automatic oven
light switch
Knobs (5 ea)
Self clean latch
Broiler pan & Grid
Standard racks
Gasket
Standard racks
Oven door
Anti-tip bracket
Storage door
Model and serial
number plate
Grid
Broiler pan
Anti-tip
Screws (6 ea)
Template
Anchors (6 ea)
Standard racks (2ea)
9
O P E R AT I N G I N S T RU C T I O N S
USING THE GAS SURFACE BURNERS
Throughout this manual, features and appearance may vary from your model.
• Make sure all grates on the range are properly
placed before using any burner.
• Be sure the burners and grates are cooled down
before you place your hand, a pot holder, cleaning
cloths or other materials on them.
• DO NOT operate the burner for an extended period
of time without cookware on the grate.
The finish on the grate may chip without cookware
to absorb the heat.
HOW TO LIGHT A GAS SURFACE BURNER
SEALED GAS BURNERS
• Be sure all the surface
burners are placed in their
respective positions.
• Push the control knob in
and turn it to the “LITE”
position.
• You will hear a little
clicking noise— the
Push the control knob in and
sound of the electric
turn it to the “LITE” position.
spark igniting the burner.
• To control the flame size, turn the knob. If the knob
stays at “LITE”, it will continue to click.
• When turning a burner to “LITE”, all the burners
spark. Do not attempt to disassemble or clean
around any burner while another burner is on. An
electric shock may result, which could cause you to
knock over hot cookware.
Your gas range
cooktop has five
Oval
Small
Medium
sealed gas burners.
They offer
convenience,
cleanability and
flexibility to be used
in a wide range of
cooking applications.
The smallest burners
are in the right rear
position.
This burner can be
Large
Extra Large
turned down to a low
simmer setting.
It provides precise cooking performance for delicate
foods such as sauces or foods that require low heat
for a long cooking time.
The medium (left rear) and the large (left front)
burners are the primary burners for most cooking.
These general-purpose burners can be turned down
from “HI” to “LO” to suit a wide range of cooking
needs.
The extra large burner (right front) is the maximum
output burner. Like the other four burners, it can be
turned down from “HI” to “LO” for a wide range of
cooking applications.
This burner is also designed to quickly bring large
amounts of liquid to a boil. It can be used with
cookware 10 inches or larger in diameter.
The oval burner (center) is for use with a griddle or
oval pots.
NOTE: The right front burner, by design, is raised up
from the cooktop. This is normal.
IN CASE OF POWER FAILURE
In case of a power failure, you can light the gas
surface burners on your range with a match.
Hold a lit match to the burner, then push in and turn
the control knob to the “LITE” position. Use extreme
caution when lighting burners this way.
Surface burners in use when an electrical power
failure occurs will continue to operate normally.
10
• Make sure all burners are in place.
O P E R AT I N G I N S T RU C T I O N S
ENGLISH
USING THE GAS SURFACE BURNERS
HOW TO SELECT FLAME SIZE
NEVER let the flames extend up the sides of the
cookware for safe handling of cookware.
Watch the flame, not the knob, as you reduce heat.
When fast heating is desired, the flame size on a gas
burner should match the cookware you are using.
Flames larger than the
bottom of the cookware
will not result in faster
heating of the
cookware and could be
hazardous.
TOP-OF-RANGE COOKWARE
Aluminum: Medium-weight cookware is
recommended because it heats quickly and evenly.
Most of the foods brown evenly in an aluminum skillet.
Use saucepans with tightfitting lids when cooking with
minimum amounts of water.
Cast-Iron: If heated slowly, most skillets will give
satisfactory results.
Stainless Steel: This metal alone has poor heating
properties and is usually combined with copper,
aluminum or other metals for improved heat
distribution. Combination metal skillets usually work
satisfactorily if they are used with medium heat as the
manufacturer recommends.
Enamelware: Under some conditions, the enamel of
some cookware may melt. Follow cookware
manufacturer’s recommendations for cooking
methods.
Glass: There are two types of glass cookware—those
for oven use only and those for top-ofrange cooking
(saucepans, coffee and teapots). Glass conducts heat
very slowly.
Heatproof Glass Ceramic: Can be used for either
surface or oven cooking. It conducts heat very slowly
and cools very slowly. Check cookware
manufacturer’s directions to be sure it can be used on
gas ranges.
USING A WOK
STOVE-TOP GRILLS
DO NOT use a wok
support ring. Placing
the ring over the burner
or grate may cause the
burner to work
improperly, resulting in
carbon monoxide levels
above allowable
standards.
DO NOT use stove top
grills on your surface
burners. If you use the
stove top grill on the
surface burner, it will
cause incomplete
combustion and can
result in exposure to carbon monoxide levels above
allowable current standards.
This can be hazardous
to your health.
Use a flat-bottomed wok
This can be hazardous to your health.
Only a flat-bottomed wok should be used.
We recommend that you use a 14-inch or smaller
flatbottomed wok. Make sure the wok bottom sits flat
on the grate. They are available at your local retail
store.
11
O P E R AT I N G I N S T RU C T I O N S
CONTROL PANEL—LRG3093S
Throughout this manual, features and appearance may vary from your model.
4
11
5
1
12
2
13
3
6
7
8
9
10
OVEN CONTROL, CLOCK, AND TIMER FEATURES
1 BAKE PAD – Press the pad to enter the normal
bake function.
2 WARM PAD / OPTIONS
– Press this pad to hold food warm in the oven.
– Press and hold the pad for 3 seconds to
change the special settings.
NOTE: Special settings can only be used if no
other function (Bake, Broil, Timer Ect.) of the
control panel is in use.
3 OVEN LIGHT PAD – Press the pad to turn the
oven light on or off.
4 BROIL PAD – Press the pad to select broil
function.
5 PROOF PAD – Press the pad to proof bread.
6 SELF CLEAN PAD – Press the pad to select
self-cleaning function.
7 CLOCK PAD – Press the pad to set the time of
day.
8 COOK TIME PAD – Press this pad and then
press the number pads to set the amount of time
you want your food to cook. The oven will shut off
when the cooking time has run out.
12
9 START TIME PAD – Press this pad and then
press the number pad to set delayed start time.
The oven will start at a time you set.
10 TIMER ON/OFF PAD – Press the pad to set or
cancel the timer function.
11 NUMBER PADS – Use to set any function
requiring numbers such as clock, timer or
temperature.
12 START PAD / OVEN LOCK
– Press the pad to start all oven features.
– Press and hold the pad for 3 seconds to
activate/deactivate the Oven Lockout function.
13 CLEAR OFF PAD – Press this pad to cancel ALL
oven operations except the clock, timer and
warming drawer settings.
O P E R AT I N G I N S T RU C T I O N S
BEFORE YOU BEGIN
POWER OUTAGE
The oven has 7 rack positions
for various types of cooking.
G
F
E
D
C
B
A
To install a rack insert the
curved end of the rack into the
desired position and push all
the way back.
To remove a rack pull out until
the rack stops, then tilt up and
pull out.
The oven has 7 rack
positions.
CAUTION: Always use potholders
or oven mitts when removing food or adjusting
the oven racks. Wait until the oven has
completely cooled if possible. Oven racks may
be HOT and may cause burns.
OVEN VENT
Your oven is vented though ducts at the center above
the burner grate. Do not block the oven vent when
cooking to allow for proper air flow. Do not touch vent
openings or nearby surfaces during the use of any
cooking operation.
• DO NOT place plastic or
flammable items on the
cooktop—they may melt or
ignite if left too close to the
vent.
• DO NOT place closed
containers on the cooktop.
The pressure in closed
containers may increase,
which may cause them to burst.
ENGLISH
USING THE OVEN
CAUTION:
DO NOT attempt to operate the electric ignition
oven during an electrical power failure.
The oven or broiler can not be used during a power
outage.
If the oven is in use when a power failure occurs, the
oven burner shuts off and cannot be re-lit until power
is restored. Once power is restored you will need to
restart the oven or broil function.
OVEN LIGHT
The oven light automatically turns ON when
the door is opened. The oven light may also
be manually turned ON or OFF by pressing
the “OVEN LIGHT” pad.
NOTE :
• The oven light can not be turned on during a self
clean cycle. The oven light can not be turned on until
the oven temperature has cooled below
500˚F(260˚C) after a self clean cycle is complete.
OVEN MOISTURE
As your oven heats up, the temperature increase of
the air in the oven may cause water droplets to form
on the door glass. These droplets are harmless and
will evaporate as the oven continues to heat up.
Plastic items on the
cooktop may melt if left
too close to the vent.
• Metal items will become very hot if they are left on
the cooktop, and could cause burns.
• Handles of pots and pans on the cooktop may
become hot if left too close to the vent.
ALUMINUM FOIL
NEVER cover the oven bottom with aluminum foil.
Aluminum foil may also be used to catch a spillover.
To do so, place a small sheet of foil on a lower rack
several inches below the food.
NEVER entirely cover a rack with aluminum foil. This
will disturb the heat circulation and result in poor
baking.
13
O P E R AT I N G I N S T RU C T I O N S
USING THE OVEN
To avoid possible burns, place the racks in the desired position before you turn the oven on.
HOW TO SET THE OVEN FOR BAKING OR
ROASTING
Your oven is not designed for open-door cooking.
Press the “BAKE” pad.
Press the number pads to set the
desired temperature.
Press the “START” pad.
The word “BAKE” and 100° will be displayed. As the
oven heats up, the display will show the changing
temperature. After the oven has reached the desired
temperature, long beeps will sound 5 times and oven
lamp will flash.
PREHEATING AND PAN PLACEMENT
Preheat the oven if the recipe calls for it. To preheat,
set the oven at the correct temperature. Preheating is
necessary when convection baking and for good
results when baking cakes, cookies, pastry and
breads.
Baking results will be better if baking pans are
centered in the oven as much as possible. If baking
with more than one pan, place the pans so each has
at least 1” to 1-1/2” of air space around it.
If cooking on multiple racks,place the oven racks in
positions C and E (For 2 racks) Place the cookware
as shown in Fig. 1, 2.
To change the oven temperature during a BAKE
cycle, press the “BAKE” pad and then the number
pads to set the new temperature.
Check food for doneness at minimum
time on recipe. Cook longer if
necessary.
Press the “CLEAR OFF” pad when
cooking is complete.
Fig. 1
Type of Food
Frozen pies (on cookie sheet)
Rack Position
B or C
BAKING TIP
Angel food cake, bundt or pound cakes
C
D
THE TYPE OF MARGARINE WILL AFFECT
BAKING PERFORMANCE
Biscuits, muffins, brownies, cookies,
cupcakes, layer cakes, pies
Casseroles
D
Roasting
A
Most recipes for baking have been developed using
high fat products such as butter or margarine (80%
fat). To decrease the fat, the recipe may not give the
same results as with a higher fat product.
It can result in recipe failure if cakes, pies, pastries,
cookies or candies are made with low fat spreads.
The lower the fat content of a spread product, the
more noticeable these differences become.
14
Fig. 2
Federal standards require products labeled
“margarine” to contain at least 80% fat by weight. Low
fat spreads, on the other hand, contain less fat and
more water. The high moisture content of these
spreads affects the texture and flavor of baked goods.
It can get best results with your old favorite recipes to
use margarine, butter or stick spreads containing at
least 70% vegetable oil.
O P E R AT I N G I N S T RU C T I O N S
ENGLISH
USING THE OVEN
HOW TO SET THE OVEN FOR BROILING
Your oven is designed for CLOSED DOOR broiling.
Place the food on the grid of the broiler
pan.
Follow suggested rack positions
in the Broiling Guide.
The oven door must be closed to begin
broiling.
The oven door must be closed during
broiling.
Serve the food
immediately, and place
the pan outside the
oven to cool during the
meal for easiest
cleaning.
Use LO Broil to cook
foods such as poultry
or thick cuts of meat
thoroughly without
over-browning them.
Always use the broiler pan
and grid that came with
your oven.
It is designed to minimize
smoking and spattering by
trapping juices in the shielded
lower part of the pan.
NOTE :
• Some smoke may occur during broiling.
This is normal.
NOTE: If the oven door remains open
for more than 15 seconds during broil
the burner will shut off. The broil burner
will automatically come back on once
the door is closed.
Press the “BROIL” pad once for “Hi”
and twice for “Lo”.
Press the “START” pad.
When broiling is finished, press
the “CLEAR OFF” pad.
CAUTION:
• DO NOT use the broiler pan without the grid.
• DO NOT cover the broil pan or grid with aluminum
foil. Exposed grease could ignite.
• To prevent food from contacting the broil burner
and to prevent grease splattering, do not use the
roasting rack when broiling.
15
O P E R AT I N G I N S T RU C T I O N S
USING THE OVEN
BROILING GUIDE
G
F
E
D
C
B
A
Broiling times will be affected by the size, weight, thickness,
starting temperature and your preference of doneness.
This guide is based on meats at refrigerated temperatures.
Food
Ground Beef
Well Done
Beef Steaks
Rare
Medium
Well Done
Rare
Medium
Well Done
Bacon
Pork Chops
Well Done
Lamb Chops
Medium
Well Done
Medium
Well Done
Chicken
Lobster Tails
Fish Fillets
Ham Slices
(precooked)
16
Quantity and/or
Thickness
1 lb. (4 patties)
1/2 to 3/4” thick
Rack
Position
F
First Side Second Side
Comments
Time (min.) Time (min.)
Space evenly. Up to 8 patties may be
7~8
5-6
broiled at once.
Steaks less than 1” thick cook through
7
before browning.
5
12
Pan frying is recommended.
5-6
13
Slash fat.
8-9
1” thick
1 to 11/2 lb.
F
F
F
11/2” thick
2 to 21/2 lb.
D
D
D
D
10
12-15
25
8
6-7
10-12
16–18
3
2 (1/2” thick.)
2 (1” thick)
about 1 lb.
D
D
10
13
8
8~9
2 (1” thick) about
10 to 12 oz.
E
E
6
10
4–7
10
2 (11/2” thick) about
1 lb
1 whole
2 to 21/2 lbs.,
split lengthwise
4 bone-in breasts
2–4
6 to 8 oz. each
E
E
B
10
17
35-40
4-6
12-14
25
B
C
25-30
13–16
to 1/2” thick
E
7~8
1” thick
thick
C
D
10
7
1/2 lb.
(about 8 thin slices)
Your oven has 7 rack
positions.
Arrange in single layer.
Slash fat.
Slash fat.
1/4
1/2”
Brush each side with melted butter.
Broil skin-side-down first.
10-15
Do not turn Cut through back of shell. Spread
open. Brush with melted butter before
over.
broiling and after half of broiling time.
Handle and turn very carefully. Brush
6
with lemon butter before and during
cooking, if desired. Preheat broiler to
increase browning.
Increase time 5 to 10 minutes per side
5
for 11/2” thick or home-cured ham.
4
† The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140˚F(60˚C).
means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June
1985.)
* See illustration for description of rack positions.
O P E R AT I N G I N S T RU C T I O N S
HOW TO SET THE CLOCK
HOW TO SET THE TIMER
The clock should be set to the correct time of day for
the automatic oven timing functions to work properly.
The time of day cannot be changed during cooking or
self-clean mode.
The timer does not control oven operations. The
maximum setting on the timer is 11 hours and 59
minutes.
Press the “CLOCK” pad once to set.
Press the number pads to enter the
time. Press the number pads the same
way you read them. For example, to set
12:12, press the number pads 1, 2, 1,
and 2 in that order.
If number pads are not pressed within
30 seconds after you press the
“CLOCK” pad, the display reverts to
the original setting. If this happens,
press the “CLOCK” pad and reenter
the time of day.
Press the “START” pad.
To check the time of day when the display is showing
other information, simply press the “CLOCK” pad.
Press the “TIMER ON/OFF” pad once
for minutes and seconds, press the pad
twice for hours and minutes.
Press the number pad to select the
desired time. A maximum of 59 minutes
can be set using the minutes and
seconds function. To set times longer
than 59 minutes use the hours and
minute function (press the pad twice).
NOTE: If you make a mistake, press the
“TIMER ON/OFF” pad and begin again.
Press the “TIMER ON/OFF” pad to start
the countdown.
NOTE: If “TIMER ON/OFF” is not pressed
the timer will return to the time of day.
When the timer reaches :00, “End” will
show in the display. The clock will sound
with 3 beeps every 15 seconds until
“TIMER ON/OFF” pad is pressed.
HOW TO CHANGE HOUR MODE ON CLOCK
(12HR OR 24HR)
NOTE: If the remaining time is not in the display, recall
the remaining time by pressing the “TIMER ON/OFF”.
Your control is set to use a 12-hour clock. If you
would prefer to have a 24-hour time clock, follow the
steps below.
HOW TO CANCEL THE TIMER
Press the “CLOCK” pad for 3 seconds.
Press the number 1 pad once for 12hr
and twice for 24hr.
Press the “START” pad to accept the
desired change.
Press the “TIMER ON/OFF” pad.
POWER OUTAGE
If a flashing time is in the display, you have
experienced a power failure. You will need to reset
the clock time.
Press the “CLOCK” pad once to reset. Enter the
correct time of day by pressing the appropriate
number pads. Press the “START” pad.
17
ENGLISH
USING THE CLOCK AND TIMER
O P E R AT I N G I N S T RU C T I O N S
USING THE TIMED BAKING FEATURES
NOTE: DO NOT leave foods that spoil easily – such as
milk, eggs, fish, stuffings, poultry and pork – more than 1
hour before or after cooking. Room temperature
promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will
speed harmful bacteria growth.
The oven will turn ON, and the display will show the
cooking time countdown and the changing
temperature starting at 100°F(38°C).
After the oven has reached the desired temperature,
long beeps will sound 5 times and oven lamp will
flash.
HOW TO SET AN IMMEDIATE START
AND AUTOMATIC STOP
The oven will continue to cook for the set amount of
time, then turn off automatically, unless the WARM
feature was set. See the “SETTING THE WARM
FEATURE” section.
The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time, the oven will turn off automatically.
Press the “BAKE” pad.
Press the number pads to set the
desired oven temperature.
Press the “COOK TIME” pad.
NOTE: If your recipe requires preheating,
you may need to add additional time to the
length of the cooking time.
Press the number pads to set the
desired length of cooking time.
The cooking time you can set is
between 1 minute to 11 hours and
59minutes.
To enter a cooking time of 1 hr 30
minutes, press 1, 3, 0.
The entered oven temperature and the
cooking time will be shown in the
display.
Press the “START” pad.
18
After the oven turns off, the control will continue to beep
3 times every 1 minute until “CLEAR OFF” pad is
pressed.
Press the “CLEAR OFF” pad to clear
the display. Remove the food from the
oven. Remember, although the oven
turns off automatically, food left in the
oven will continue cooking after the oven
turns off.
O P E R AT I N G I N S T RU C T I O N S
HOW TO SET A DELAYED START AND
AUTOMATIC STOP
The oven will turn on at the time of day you set, cook
for a specific length of time and then turn off
automatically.
Be sure the clock shows the correct time of day.
Press the “BAKE” pad.
Press the number pads to set the
desired oven temperature.
Press the “COOK TIME” pad.
NOTE: If your recipe requires preheating,
you may need to add additional time to the
length of the cooking time.
Press the number pads to set the
desired length of cooking time.
To enter a cooking time of 1 hr 30
minutes, press 1, 3, 0.
The entered oven temperature and the
cooking time will be shown in the
display.
NOTE: If you would like to check the times you have
set, press the “START TIME” pad to check the start
time you have set or press the “COOK TIME” pad to
check the length of cooking time you have set.
The oven will turn ON, and the display will show the
cooking time countdown and the changing
temperature starting at 100°F(38°C).
After the oven has reached the desired temperature,
long beeps will sound 5 times and oven lamp will
flash.
The oven will continue to cook for the set amount of
time, then turn off automatically, unless the WARM
feature was set. See the “SETTING THE WARM
FEATURE” section.
After the oven turns off, the end-of-cycle tone will
sound.
Press the “CLEAR OFF” pad to clear
the display. Remove the food from the
oven. Remember, although the oven
turns off automatically, food left in the
oven will continue cooking after the
oven turns off.
Press the “START TIME” pad.
Press the number pads to set the time
of day you want the oven to turn on and
start cooking.
Press the “START” pad.
19
ENGLISH
USING THE TIMED BAKING FEATURES (continued)
O P E R AT I N G I N S T RU C T I O N S
SETTING THE WARM FEATURE
The WARM feature will maintain an oven temperature
of 170°F(77°C). This feature should not be used to
reheat cold foods. The Warm feature will keep
cooked food warm for serving up to 3 hours after
cooking has finished. After 3 hours the WARM feature
will shut the oven OFF automatically. The Warm
feature may be used without any other cooking
operations or can be used after cooking has finished
using TIMED BAKE (CONV. BAKE, CONV. ROAST)
or DELAYED TIMED BAKE (CONV. BAKE, CONV.
ROAST).
HOW TO SET WARM FEATURE WHEN
TIMED COOKING
Set the cooking feature that you want to
use: TIMED (BAKE, CONV. BAKE,
CONV. ROAST), DELAY TIMED
(BAKE, CONV. BAKE, CONV. ROAST)
refer to the relevant previous page.
Press the “START” pad.
Press the “WARM” pad.
HOW TO SET WARM
WARM mode is set to turn on
automatically after completing the
TIMED COOKING or DELAY TIMED
COOKING.
Press the “WARM” pad.
Press the “START” pad.
To turn Warm off at any time press the
“CLEAR OFF” pad.
To turn Warm off, press the
“CLEAR OFF” at any time.
NOTE: If “CLEAR OFF” is pressed prior to the delay
functions starting all settings will be canceled.
SETTING THE PROOF FEATURE
The Proof feature maintains a warm environment for
rising yeast leavened products before baking.
Place the covered dough in a dish in
the oven on rack B or C.
NOTE: For best results, cover the dough
with a cloth or with plastic wrap (the plastic
may need to be anchored underneath the
container so the oven fan will not blow it
off).
Press the “PROOF” pad.
PROOF will be displayed.
To avoid lowering the oven temperature and
lengthening proofing time,do not open the oven door
unnecessarily. Check bread products early to avoid
over-proofing.
NOTES:
• DO NOT use the proofing mode for warming food or
keeping food hot. The proofing oven temperature is
not hot enough to hold foods at safe temperatures.
Use the WARM feature to keep food warm.
• Proofing will not operate when oven is above
125°F(52°C). Oven is Hot will show in the display.
Press the “START” pad.
When proofing is finished, press the
“CLEAR OFF” pad.
20
O P E R AT I N G I N S T RU C T I O N S
Your new control has additional features that you may
choose to use. The following pages describe these
features and how you may activate them.
The special feature modes can only be activated
while the display is showing the time of day.
They remain in the control’s memory until the steps
are repeated.
When the display shows your choice, press the
“START” pad. The special features will remain in
memory after a power failure.
HOW TO ADJUST THE OVEN THERMOSTAT
You may find that your new oven cooks differently
than the one it replaced. Use your new oven for a few
weeks to become more familiar with it. If you still think
your new oven is too hot or too cold, you can adjust
the thermostat yourself.
DO NOT use thermometers, such as those found in
grocery stores, to check the temperature setting of
your oven. These thermometers may vary 20–40
degrees.
NOTE: This adjustment will not affect the broiling or
the self-cleaning temperatures. The adjustment will be
retained in memory after a power failure.
The oven temperature can be increased (+) or
decreased (-) as much as 35°F or 19°C.
To increase(+) temperature adjustment
Press and hold the “WARM” pad for 3
seconds and “Adj” will display.
Using the number pad, enter the
temperature amount you wish to
increase(+).
For example, to increase(+) the oven
temperature 15, press 1 and 5.
To decrease(-) temperature adjustment
Press and hold the “WARM” pad for 3
seconds “Adj” will display.
Using the number pad, enter the
temperature amount you wish to
decrease(-).
For example, to decrease(-) the oven
temperature 15, press 1 and 5.
Press the “WARM” pad again, the
decreased(-) temperature will appear in
the display.
Press the “START” pad to set the
increased (+) temperature.
NOTE: Once the temperature is increased or
decreased, the display will show the adjusted
temperature until it is readjusted.
NOTE: The thermostat adjustment will change the
temperature for bake, roast, convection bake and
convection roast.
Press the “START” pad to set the
increased (+) temperature.
21
ENGLISH
SPECIAL FEATURES OF YOUR OVEN CONTROL
O P E R AT I N G I N S T RU C T I O N S
SPECIAL FEATURES OF YOUR OVEN CONTROL
HOW TO SET PREHEATING ALARM LIGHT
ON/OFF
HOW TO SELECT FAHRENHEIT OR CELSIUS
TEMPERATURE
The interior oven light automatically turn on when the
oven door is opened.
Your oven control is set to use the Fahrenheit
temperature selections but you may change this to
use the Celsius selections.
When oven reaches set-temperature after preheat,
the oven notifies preheat-end by flashing oven lamp
until the door is opened.
You can activate or deactivate the smart oven light
feature. Default Setting is on.
Press and hold the “WARM” pad for 3
seconds. Then press the “WARM” pad
once and “PrE” will display.
Press the number 1 to switch between
ON and OFF.
Press the “START” pad to accept the
change.
HOW TO ADJUST BEEPER VOLUME
The beeper volume feature allows you to adjust the
volumes to a more acceptable volume. There are four
possible volume levels, Hi, Med, Lo and Off.
Press and hold the “WARM” pad for 3
seconds. Then press the “WARM” pad
twice and “BEEP” will display.
Press the number 1 Key pad to toggle
between the various beeper volumes.
Press the “START” pad to accept the
change.
NOTE:
When the display reads:
Hi or 3 = Highest volume
-- or 2 = Normal volume
Lo or 1 = Lowest volume
Off = Mute
22
Press and hold the “WARM” pad for 3
seconds. Then press the “WARM” pad
3 times and “Unit” will display.
Press the number 1 to switch between
the F and C.
Press the “START” pad to accept the
change.
O P E R AT I N G I N S T RU C T I O N S
BEFORE A CLEAN CYCLE
When running a self
clean cycle, it is
recommended that a
kitchen window be
opened or the use of
ventilation fan or hood
be used.
Remove the oven
racks, broiler pan,
Wipe up heavy soil on the
oven bottom.
broiler grid, all
cookware and any
aluminum foil from the oven—they cannot withstand
the high cleaning temperatures.
IMPORTANT: The health of some birds is extremely
sensitive to the fumes given off during the selfcleaning cycle of any range. Move birds to another
well ventilated room.
NOTES:
• Soil on the front frame of the range and outside the
gasket on the door will need to be cleaned by hand.
Clean these areas with hot water, soap-filled
scouring pads or cleansers such as Soft Scrub.
Rinse well with clean water and dry.
• DO NOT clean the gasket. The fiberglass material of
the oven door gasket cannot withstand abrasion. It
is essential for the gasket to remain intact. If you
notice it becoming worn or frayed, replace it.
• Wipe up any heavy spillovers on the oven bottom.
• Make sure the oven light bulb cover is in place and
the oven light is off.
• Use caution when opening the oven after the selfclean cycle has ended. The oven may still be hot.
HOW TO SET THE OVEN FOR CLEANING
Press the “SELF CLEAN” pad once for
a 3 hour cycle, twice for a 2 hour cycle
or three times for a 4 hour cycle.
A 3-hour self-clean is recommended for
use when cleaning small, contained
spills. A SELF CLEAN time of 4 hours
is recommended for heavily soiled
ovens.
Press the “START” pad.
When the DOOR LOCKED light is off, the door will
unlock automatically.
• The words DOOR LOCKED will flash and the oven
control will signal if you set the clean cycle and
forget to close the oven door.
• To stop a clean cycle, press the “CLEAR OFF” pad.
When the DOOR LOCKED light goes off indicating
the oven has cooled below the locking temperature,
open the door.
The door locks automatically. The display will show
the clean time remaining. It will not be possible to
open the oven door until the temperature drops below
the lock temperature and the DOOR LOCKED light
goes off.
The oven shuts off automatically when the clean cycle
is complete.
23
ENGLISH
USING THE SELF-CLEANING OVEN
O P E R AT I N G I N S T RU C T I O N S
USING THE SELF-CLEANING OVEN
The oven door must be closed and all controls set correctly for the cycle to work properly.
HOW TO DELAY THE START OF CLEANING
Make sure the clock shows the correct time of day.
Press the “SELF CLEAN” pad.
Select the desired self clean time by
pressing the “SELF CLEAN” pad.
Press the “START TIME” pad.
Enter the desired Self-Clean starting
time of day using the number pads.
Press the “START” pad. "DELAY" and
"CLEAN" will remain on.
The door locks automatically. The display will show
the start time. Self-Cleaning cycle will turn on
automatically at the set time. At that time the icon
"DELAY" will go out. It will not be possible to open the
oven door until the temperature drops below the lock
temperature and the DOOR LOCKED light goes off.
WARNING:
During the self-clean cycle, the outside of the
appliance can become very hot to the touch. Do not
leave small children unattended near the appliance.
The oven shuts off automatically when the clean cycle
is complete.
• When the DOOR LOCKED light is off, the door will
unlock automatically.
• The words DOOR LOCKED will flash and the oven
control will signal if you set the clean cycle and
forget to close the oven door.
• To stop a clean cycle, press the “CLEAR OFF” pad.
When the DOOR LOCKED light goes off indicating
the oven has cooled below the locking temperature,
open the door.
CAUTION:
• DO NOT line the oven walls, oven racks, bottom
or any other part of the range with aluminum foil.
Doing so will stop heat distribution, produce poor
baking results and cause permanent damage to
the oven interior (aluminum foil will melt to the
interior surface of the oven).
• Use caution when opening the door after the selfclean cycle is finished. The oven may still be
VERY HOT.
• The health of some birds is extremely sensitive to
the fumes given off during the self-cleaning cycle
of any range. Move birds to another wellventilated room.
AFTER A CLEAN CYCLE
• You may notice some white ash in the oven. Wipe it
up with a damp cloth after the oven cools.
• You cannot set the oven for cooking until the oven is
cool enough for the door to unlock.
• If white spots remain, remove them with a soap-filled
scouring pad and rinse thoroughly with a vinegar
and water mixture.
• While the oven is self-cleaning, you can press the
CLOCK pad to display the time of day. To return to
the clean countdown, press the COOK TIME pad.
• These deposits are usually a salt residue that
cannot be removed by the clean cycle.
• If the racks become hard to slide, apply a small
amount of vegetable oil or cooking oil to a paper
towel and wipe the edges of the oven racks with the
paper towel.
• If the oven is not clean after one clean cycle, repeat
the cycle.
24
CARE AND CLEANING OF THE RANGE
Make sure electrical power is off and all surfaces
are cool before cleaning any part of the range.
If your range is pulled away from the wall
for cleaning, servicing or any reason,
ensure that the anti-tip device is reengaged properly when the range is
pushed back against the wall.
Failure to take this precaution could result
in tipping of the range and cause injury.
CAUTION:
• DO NOT remove any parts from the cooktop until
they have completely cooled and are safe to
handle.
• DO NOT operate the surface burners without all
burner parts and grates in place.
The electrode of the spark igniter is exposed when
the burner head is removed. When turning a
burner to “LITE”, all the burners spark. Do not
attempt to disassemble or clean around any burner
while another burner is on. An electric shock may
result.
SEALED BURNER ASSEMBLIES
OVAL BURNER ASSEMBLY
Turn all controls OFF before removing the burner
parts. The burner grates, caps, and burner heads can
be lifted off, making them easy to clean.
The electrodes are not removable.
The oval burner assembly can be lifted off, making it
easy to clean. The burner electrode is not removable.
Burner head and cap
assembly
Electrode
Burner Grate
Burner Cap
Burner Head
Electrode
Cooktop
25
ENGLISH
CARE AND CLEANING
CARE AND CLEANING OF THE RANGE
BURNER CAPS AND HEADS
• DO NOT use bleach on product to clean.
BURNER CAPS
Lift off when cool. Wash burner caps in hot, soapy
water and rinse with clean water. To remove burned
on food particles, you may scour with a plastic
scouring pad.
If you want to remove burned-on food, soak the
burner heads in a solution of mild liquid detergent and
hot water for 20–30 minutes. For more stubborn
stains, use a toothbrush.
NOTES:
• DO NOT use steel wool or scouring powders to
clean the burners.
• Burners will not light if the cap is removed.
Burner cap is
properly seated.
Burner cap is NOT
properly seated.
BURNER HEADS AND OVAL (CENTER)
BURNER HEAD/CAP ASSEMBLY
AFTER CLEANING
Before replacing the burner caps and burner heads
shake out excess water and then dry them
thoroughly.
REPLACEMENT
Replace burner heads and caps over the electrodes
on the cooktop, in the correct locations according to
their size.
Oval (Center) Burner
Head/Cap Assembly
The burner heads and the oval burner head/cap
assembly are removable. Simply lift them off the
range for cleaning. For even and unhampered flame,
the slits in the burner heads must be kept clean at all
times. Clogged or dirty burner ports or electrodes will
not allow the burner to operate properly.
Any spill on or around an electrode must be carefully
cleaned. Take care to not hit an electrode with
anything hard or it could be damaged.
You should clean the burner caps and heads
routinely, especially after bad spillovers which could
clog the openings. Lift them off when they are cool.
Small burner
head and cap
Medium burner
head and cap
Large burner
head and cap
Extra large burner
head and cap
Make sure the hole in the burner head is positioned
over the electrode.
Hole
Electrode
26
CARE AND CLEANING OF THE RANGE
ENGLISH
BURNER GRATES
Your range has three professional-style grates.
For maximum stability, these grates should only be
used in their proper position; Two side grates can be
interchanged left to right and front to back. Center
grate can be also interchanged front to back.
side grate center grate side grate
DO NOT operate a burner for an extended period of
time without cookware on the grate. The finish on the
grate may chip without cookware to absorb the heat.
Although they are durable, the grates will gradually
lose their shine, regardless of the best care you can
give them.
CLEANING
Lift the grates out when they have cooled. They
should be washed regularly and, of course, after
spillovers. Wash them in hot, soapy water and rinse
with clean water. When replacing the grates, be sure
they are positioned securely over the burners.
Replace the grates so that continuous arcs are
formed with the center ribs of all three grates. The
grates are dishwasher safe.
Appearance may vary. The
grates are dishwasher safe.
NOTE: DO NOT clean the grates in a self-cleaning
oven.
COOKTOP SURFACE
To avoid damaging the porcelain enamel surface of
the cooktop and to prevent it from becoming dull,
clean up spills right away. Foods with a lot of acid
such as tomatoes, sauerkraut, fruit juices, etc. or
foods with high sugar content could cause a dull spot
if allowed to set. Wash and rinse when the surface
has cooled.
NOTE: DO NOT lift the cooktop. Lifting the cooktop
can lead to damage and improper operation of the
range.
For other spills such as fat spatterings, etc., wash with
soap and water once the surface has cooled. Then
rinse and polish with a dry cloth.
27
CARE AND CLEANING OF THE RANGE
STAINLESS STEEL SURFACES
DO NOT use a steel wool pad; it will scratch the
surface.
To clean the stainless steel surface, use warm sudsy
water or a stainless steel cleaner or polish. Always
wipe the surface in the direction of the grain. Follow
the cleaner instructions for cleaning the stainless steel
surface.
To inquire about purchasing stainless steel appliance
cleaner or polish, or to find the location of a dealer
nearest you, please call our toll-free customer service
number:
1-800-243-0000
or visit our website at:
us.lgservice.com
OVEN AIR VENTS
DO NOT block the vents and air openings of the
range. They provide the air inlet and outlet that are
necessary for the range to operate properly with
correct combustion.
Air openings are located at the rear of the cooktop, at
the top and bottom of the oven door, and at the
bottom of the range, under the warming drawer.
CONTROL PANEL
Clean up splatters with a damp cloth.
You may also use a glass cleaner.
NOTE: To prevent activating the control panel during
cleaning, unplug the range.
Remove heavier soil with warm soapy water.
Do not use abrasives of any kind.
FRONT MANIFOLD PANEL AND KNOBS
It’s better to clean the manifold panel after each use
of the oven. Use a damp cloth to clean or rinse. For
cleaning, use mild soap and water or a 50/50 solution
of vinegar and water. For rinsing, use clean water.
Polish dry with a soft cloth.
DO NOT use abrasive cleansers, strong liquid
cleaners, plastic scouring pads or oven cleaners on
the manifold panel—they will damage the finish.
DO NOT try to bend knobs by pulling them up or
down or by hanging a towel or other such loads.
This can damage the gas valve shaft.
28
The control knobs may be
removed for easier cleaning.
Make sure the knobs are in
the “OFF” positions and pull
them straight off the stems
for cleaning.
Surface burner knob
To replace the knobs, make
sure the knob has the “OFF” position centered at the
top and slide the knob directly onto the stem.
CARE AND CLEANING OF THE RANGE
ENGLISH
OVEN DOOR
The oven door is removable, but it is heavy. You may
need help removing and replacing the door.
TO REPLACE THE DOOR
CAUTION:
• Be careful when removing and lifting the door.
• DO NOT lift the door by the handle.
- The door is very heavy.
Firmly grasp both sides of the door at the top.
Step. 2
TO REMOVE THE DOOR
Step. 1
Open the door fully.
Step. 1
Lock
Unlock
Slot
With the door at the same angle as the removal
position, seat the indentation of the hinge arm into the
bottom edge of the hinge slot. The notch in the hinge
arm must be fully seated into the bottom of the slot.
about 5°
Step. 2
Pull the hinge locks down
toward the door frame to
the unlocked position.
Step. 3
Hinge
lock
Step. 3
Firmly grasp both sides of the door at the top.
Step. 4
Close door to the door removal
position, which is approximately
5 degrees.
about 5°
Open the door fully.
If the door will not
open fully, the
indentation is not
seated correctly in
the bottom edge of
the slot.
Step. 4
Push the hinge
locks up against the front
frame of the oven cavity to the
locked position.
Step. 5
Lift door up and out until the hinge
arm is clear of the slot.
Hinge arm
Bottom
edge of
slot
Indentation
Hinge arm
Hinge lock
Step. 5
Close the oven door.
TO CLEAN THE INSIDE OF THE DOOR
TO CLEAN THE OUTSIDE OF THE DOOR
• DO NOT allow excess water to run into any holes or
slots in the door.
• Use soap and water to thoroughly clean the top,
sides and front of the oven door. Rinse well. You
may also use a glass cleaner to clean the glass on
the outside of the door.
• Because the area inside the gasket in front of the
cavity is cleaned during the self clean cycle, you do
not need to clean this by hand.
• The area outside the gasket can be cleaned with a
soap-filled plastic scouring pad.
• Spillage of marinades, fruit juices, tomato sauces
and basting materials containing acids may cause
discoloration and should be wiped up immediately.
When the surface is cool, clean and rinse.
• DO NOT use oven cleaners, cleansing powders or
harsh abrasives on the outside of the door.
29
CARE AND CLEANING OF THE RANGE
OVEN BOTTOM
The oven bottom has a porcelain enamel finish.
To make cleaning easier, protect the oven bottom
from excessive spillovers by placing a cookie sheet
on the rack below the rack you are cooking on. This is
especially important when baking a fruit pie or other
foods with a high acid content. Hot fruit fillings or
other foods with a lot of acid (tomatoes, sauerkraut,
sauces with vinegar or lemon juice) may cause pitting
and damage to the porcelain enamel surface and
should be wiped up right away.
DO NOT use aluminum foil on the bottom of the
range. It can damage the oven cavity and block the
air flow of the burner causing poor heat distribution.
To clean up spillovers, use soap and water, an
abrasive cleaner or soap-filled scouring pad. Rinse
well to remove any soap before self-cleaning.
BROILER PAN AND GRID
After broiling, remove the
Grid
broiler pan from the oven.
Remove the grid from the
pan. Carefully pour out
grease from the pan into a
proper container. Wash and
rinse the broiler pan and grid
in hot water with a soap-filled
Pan
or plastic scouring pad.
If food has been burned on the broiler pan or grid,
spray the pan and grid with a detergent and let them
soke. Use a paper towel or wash rag with warm water
to clean.
30
NOTES:
• The broiler pan and grid may be cleaned with a
commercial oven cleaner.
• Both the broiler pan and grid are dishwasher safe.
• DO NOT store a soiled broiler pan and grid
anywhere in the range.
• DO NOT clean the broiler pan or grid in a selfcleaning oven.
CARE AND CLEANING OF THE RANGE
Your oven is equipped with nickel oven racks, remove
them from the oven before beginning the self-clean
cycle.
To clean the oven racks, use an abrasive cleanser.
After cleaning, rinse the racks with clean water and
dry with a clean cloth. If the racks ever become hard
to slide, wipe the rack edges or oven rack supports
with vegetable oil.
OVEN LIGHT REPLACEMENT
The oven light is a standard 40-watt appliance bulb. It
will come on when the oven door is open. When the
oven door is closed, thouch OVEN LIGHT to turn ON
or OFF. It will not work during the Self-Clean cycle.
WARNING:
• Before replacing your oven light bulb,
DISCONNECT the electrical power to the range
at the main fuse or circuit breaker panel.
- Failure to do so can result in severe personal
injury,death or electrical shock.
• Make sure oven and bulb are cool completely.
TO REPLACE
• Make sure oven and bulb are cool.
Unplug range or disconnect power.
Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
Turn bulb counterclockwise to remove from
socket.
Replace bulb and bulb cover by turning clockwise.
Plug in range or reconnect power.
31
ENGLISH
OVEN RACKS
CARE AND CLEANING OF THE RANGE
REMOVING & REPLACING THE STORAGE DRAWER
To Remove Storage Drawer:
CAUTION - Turn power OFF before removing the
storage drawer.
Pull the drawer out until it stops.
Lift the front of the drawer until the stops clear the
guides.
Remove the drawer.
Pull the drawer
WARNING
• Turn POWER OFF before removing the
Warming Drawer.
- Failure to do so can result in severe personal
injury, death, or electrical shock.
To Replace the Storage Drawer:
Place the drawer rails on the guides.
Push the drawer back until it stops.
Lift the front of the drawer and push back until the
stops clear the guides.
Lower the front of the drawer and push back until
it closes.
32
Lift the front
T RO U B L E S H O OT I N G
Before you call for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of a defect in workmanship or materials.
Problem
Top burners do not
light or do not burn
evenly
Possible Causes
• The plug on range is not completely
inserted in the electrical outlet.
Solutions
• Make sure the electrical plug is inserted into a live,
properly grounded outlet.
• Burner slits on the side of the burner • Remove the burners and clean them. Check the
electrode area for burned-on food or grease. See the
may be clogged.
“CARE AND CLEANING OF THE RANGE” section.
• Improper burner assembly.
• Make sure the burner parts are installed correctly. See
the “CARE AND CLEANING OF THE RANGE” section.
Burner flames very
large or yellow
• Improper air to gas proportion.
• If range is connected to LP gas, contact the technician
who installed your range or made the conversion.
Surface burners light
but the oven does not
• The oven gas shut-off valve may
have accidentally been moved
during cleaning or moving.
• To check the oven gas shut-off valve, remove the
warming drawer (see the “CARE AND CLEANING OF
THE RANGE” section) and look for the gas shut-off
lever at the back of the range.
Lever is shown closed.
PULL TO OPEN.
Food does not bake or
roast properly
• Improper oven controls setting.
• See the “USING THE OVEN” section.
• Incorrect rack position.
• See the “USING THE OVEN” section.
• Incorrect cookware or cookware of
improper size being used.
• See the “USING THE OVEN” section.
• Oven thermostat needs adjustment.
• See the “HOW TO ADJUST THE OVEN
THERMOSTAT” section.
• Clock not set correctly.
• See the “USING THE CLOCK AND TIMER” section.
• Aluminum foil used improperly in
the oven.
• See the “CARE AND CLEANING OF THE RANGE”
section.
33
ENGLISH
BEFORE CALLING FOR SERVICE
T RO U B L E S H O OT I N G
BEFORE CALLING FOR SERVICE
Problem
Solutions
• Make sure you press the “BROIL HI/LO” pad.
• Oven door not closed.
• See the “USING THE OVEN” section.
• Incorrect rack position.
• See the “BROILING GUIDE”.
• Food being cooked in a hot pan.
• Use the broiling pan and grid that came with your
range. Make sure it is cool.
• Cookware not suited for broiling.
• Use the broiling pan and grid that came with your
range.
• Aluminum foil used on the broiling
pan and grid has not been fitted
properly and slit as recommended.
• See the “USING THE OVEN” section.
Oven temperature too
hot or too cold
• Oven thermostat needs adjustment.
• See the “HOW TO ADJUST THE OVEN
THERMOSTAT” section.
Clock and timer does
not work
• The plug on range is not completely
inserted in the electrical outlet.
• Make sure the electrical plug is inserted into a live,
properly grounded outlet.
• A fuse in your home may be blown
or the circuit breaker tripped.
• Replace the fuse or reset the circuit breaker.
• Improper oven controls setting.
• See the “USING THE CLOCK AND TIMER” section.
• The light bulb is loose or defective.
• Tighten or replace the bulb.
• The plug on range is not completely
inserted in the electrical outlet.
• Make sure the electrical plug is inserted into a live,
properly grounded outlet.
• The oven temperature is too high to
set a self-clean operation.
• Allow the range to cool to room temperature and
reset the controls.
• Improper oven controls setting.
• See the “USING THE SELF-CLEANING OVEN” section.
“Crackling” or
“popping” sound
• This is the sound of the metal
heating and cooling during both the
cooking and cleaning functions.
• This is normal.
Too much smoking
during a self clean
cycle.
• Too much soil.
• Press the “CLEAR OFF” pad. Open the windows to
get rid of smoke from the room. Wait until the DOOR
LOCKED light goes off. Wipe up the excess soil and
reset the clean cycle.
Oven light does not
work
Oven will not selfclean
34
Possible Causes
• Improper oven controls setting.
Food does not broil
properly in the oven
T RO U B L E S H O OT I N G
Problem
Possible Causes
Broil or self-clean
doesn’t work
• The oven temperature is too high.
• Allow the oven to cool below locking temperature.
• This can take up to 1 hr after the cycle is complete.
Solutions
Oven not clean after a
self-clean cycle
• Improper oven controls setting.
• See the Using the “USING THE SELF-CLEANING
OVEN” section.
• The oven was heavily soiled.
• Clean up heavy spillovers before beginning the
self- clean cycle. Heavily soiled ovens may need to
self-clean again or for a longer period of time.
“CLOSE DOOR TO
CONTINUE BROILING”
or “DOOR OPENED”
appears in the display
• The broil or self-clean cycle has
been selected but the door is not
closed.
• Close the oven door.
“DOOR LOCKED” light
is on when you want to
cook
• The oven door is locked because the
temperature inside the oven has not
dropped below the locking
temperature.
• Touch the “CLEAR OFF” pad. Allow the oven to
cool.
Oven control beeps
and displays any F
code error.
• You have “F3”.
• Touch the “CLEAR OFF” pad. Allow the oven to
cool for one hour. Put the oven back into
operation.
• You have “F11”.
• Check the main gas shut-off valve or the oven gas
shut-off valve(see “Surface burners light but oven
burner does not” column).
• If the function code repeats.
• Disconnect all power to the range for 5 minutes
and then reconnect power. If the function error
code repeats, call for service.
Oven racks are
difficult to slide
• The oven racks were cleaned in a
self-clean cycle.
• Apply a small amount of vegetable oil to a paper
towel and wipe the edges of the oven racks with
the paper towel. Do not use lubricant sprays.
Power outage, clock
flashes
• Power outage or surge.
• Reset the clock. If the oven was in use, you must
reset it by touching the “CLEAR OFF” pad,
setting the clock and resetting any cooking
function.
“Burning” or “oily”
odor emitting from the
vent
• This is normal in a new oven and
will disappear in time.
• To speed the process, set a self-clean cycle for a
minimum of 3 hours. See the “USING THE SELFCLEANING OVEN” section.
Strong odor
• An odor from the insulation around
the inside of the oven is normal for
the first few times the oven is used.
• This is temporary.
35
ENGLISH
BEFORE CALLING FOR SERVICE
T RO U B L E S H O OT I N G
BEFORE CALLING FOR SERVICE
Problem
Drawer does not slide
smoothly or drags
Warming drawer will
not work
Possible Causes
• Fully extend the drawer and push it all the way in.
See the Care and Cleaning of the Range section.
• Drawer is over-loaded or load is
unbalanced.
• Reduce weight. Redistribute drawer contents.
• A fuse in your home may be blown or
the circuit breaker tripped.
• Replace the fuse or reset the circuit breaker.
• The oven is self-cleaning.
Excessive
condensation in the
drawer
Food dries out in
warming drawer
36
Solutions
• The drawer is out of alignment.
• Wait for the self-clean cycle to finish and the oven
to cool.
• Controls improperly set.
• See the Using the Electric Warming Drawer
section.
• Liquid in drawer.
• Remove liquid.
• Uncovered foods.
• Cover food with lid or aluminum foil.
• Temperature setting too high.
• Reduce temperature setting.
• Moisture escaping.
• Cover food with lid or aluminum foil.
• Drawer not fully closed.
• Push drawer in until latch engages.
LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or
workmanship under normal use, during the warranty period set forth below, effective from the date of original consumer
purchase of the product. This limited warranty is good only to the original purchaser of the product and effective only
when used in U.S.A.
WARRANTY PERIOD:
One Year
From the date of the
original purchase
HOW SERVICE IS HANDLED:
Any part of the oven which fails due to a defect in materials or workmanship. During this
full one-year warranty, LG will also provide, free of charge, all labour and in-home service
to replace the defective part.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN
DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY
CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST
REVENUES OR PROFITS, IN CONNECTION WITH THE PRODUCT. SOME STATES DO NOT ALLOW
LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house
fuses or correct house wiring, or to replace owner-accessible light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repairable in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of
products not approved by LG Corporation.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labour costs for units operated outside the united states.
7. Any labour costs during the limited warranty period.
This warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska, the
warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from
states to states. To know what your legal rights are, consult your local or state consumer affairs or your state’s Attorney
General.
CUSTOMER ASSISTANCE INFORMATION:
To Prove Warranty Coverage
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the time warranty
service is provided.
To Obtain Nearest Authorized
Service Center or Sales Dealer, or to
Obtain Product, Customer, or
Service Assistance
Call 1-800-243-0000 (Phone answered 24 hours - 365 days a year) and
choose the appropriate prompt from the menu; or visit our website at:
http://us.lgservice.com.
37
ENGLISH
LG GAS RANGE LIMITED WARRANTY – USA
Memo
38
