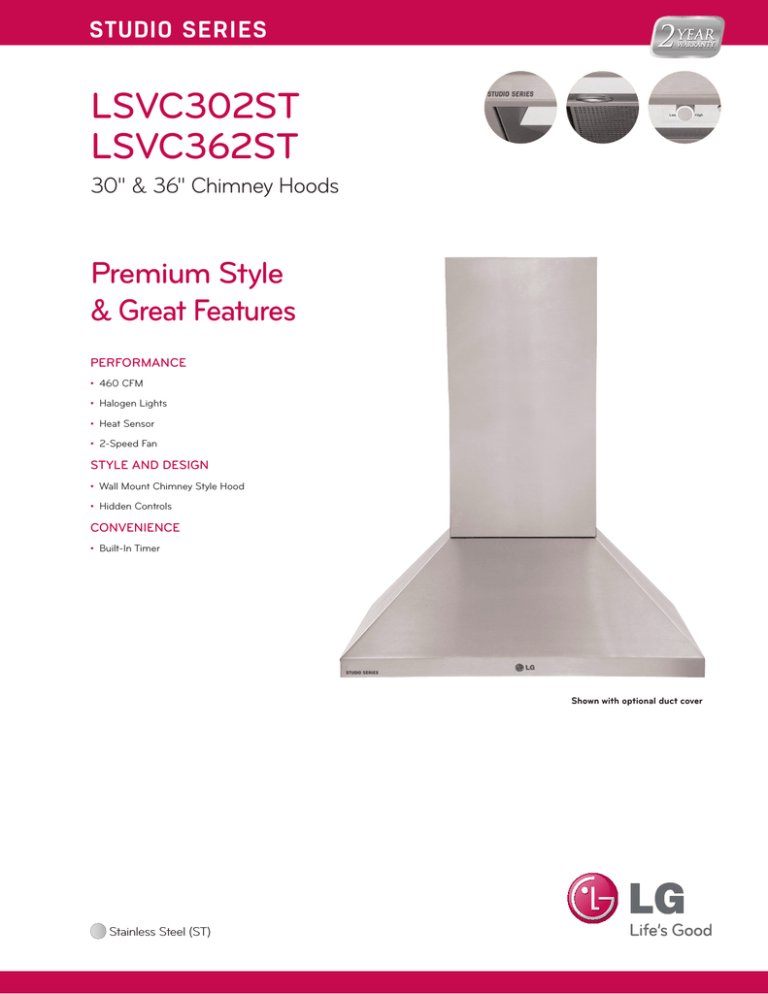

LG LSVC302ST Specification Sheet

LSVC302ST
LSVC362ST
30" & 36" Chimney Hoods
Premium Style
& Great Features
PERFORMANCE
• 460 CFM
• Halogen Lights
• Heat Sensor
• 2-Speed Fan
STYLE
AND DESIGN
• Wall Mount Chimney Style Hood
• Hidden Controls
CONVENIENCE
• Built-In Timer
Shown with optional duct cover
Stainless Steel (ST)
LSVC302ST
LSVC362ST
30" & 36" Chimney Hoods
460 CFM
Powerful ventilator removes smoke, heat, and odors
from your kitchen.
Heat Sensor
Reacts to high heat conditions by automatically boosting
ventilator power to keep the cooking area as cool and
comfortable as possible.
Built-In Timer
12-hour timer lets you set ventilation time for entire
cooking process. After cooking, the timer can be used to
keep fan running for a preset period, allowing you to tend
to other activities.
Halogen Lights
Dimmer controlled halogen lights enable you to illuminate
your cooking activity or to provide ambient light after hours.
30"
TYPE
Type
Size (LSVC302ST)
Size (LSVC362ST)
FEATURES
Venting Type
CFM/Sones Rating
Control Location
No. of Lights
Fan Speed Control
Light Control
Dishwasher Safe Filters
Interior Duct Size
12 Hour Timer
Heat Sensor
MATERIALS/FINISHES
Available Colors
DIMENSIONS (LSVC302ST)
Overall Width
Overall Height
Overall Depth (from rear)
Duct Cover Width
Duct Cover Height
Duct Cover Depth
Net Weight
DIMENSIONS (LSVC362ST)
Overall Width
Overall Height
Overall Depth (from rear)
Duct Cover Width
Duct Cover Height
Duct Cover Depth
Net Weight
POWER SOURCE
Electrical Requirements
Max. Amps
Certification
WARRANTY
UPC CODES
LSVC302ST 30" Chimney Hood
LSVC362ST 36" Chimney Hood
Chimney Hood
30"W, 12"H
36"W, 12"H
Interior Power Ventilator
460 CFM
Hidden
2 (50W Halogen)
2-Speed
Dimmer Knob
2
7"
•
•
Stainless Steel (ST)
29 7/8"
12"
24"
16"
18" – 30"
12"
56 lbs.
35 7/8"
12"
24"
16"
18" – 30"
12"
60 lbs.
120 VAC/60Hz
5.6
UL/cUL Listed
2 Years Parts and Labor
48231316774
48231316781
36"
Images shown with optional duct cover
www.LG.com
Dimensions and weights are approximate. Design, features and specifications
subject to change without notice.
LG Electronics U.S.A., Inc.
© 2010 LG Electronics USA, Inc. All rights reserved. “LG Life’s Good” is a
registered trademark of LG Corp. All other product and brand names are
trademarks or registered trademarks of their respective companies. 09/10
1000 Sylvan Avenue Englewood Cliffs, NJ 07632
Customer Service and Technical Support: (800) 243-0000
