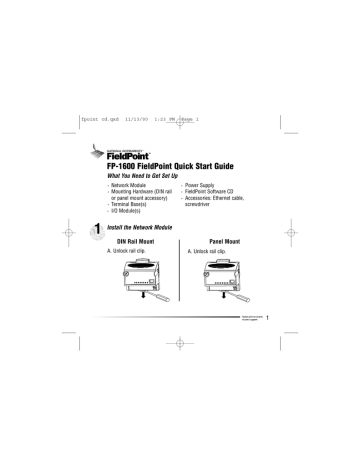

FP-1600 FieldPoint Quick Start Guide

What You Need to Get Set Up

· Network Module

· Mounting Hardware (DIN rail or panel mount accessory)

· Terminal Base(s)

· I/O Module(s)

· Power Supply

· FieldPoint Software CD

· Accessories: Ethernet cable, screwdriver

1

Install the Network Module

DIN Rail Mount

A. Unlock rail clip.

Panel Mount

A. Unlock rail clip.

1

fpoint cd.qxd 11/13/00 1:23 PM Page 2

DIN Rail Mount

NOTE: Do not use spliced DIN rails. Use only a single DIN rail.

B. Hook lip on back of module onto top of DIN rail, press down, and snap into place.

Panel Mount

B. Snap panel mount accessory

(which you can order separately) onto module.

C. Lock rail clip.

C. Slide module into position and lock rail clip.

D. Use template that came with your accessory to drill pilot holes and mount module onto panel using accessory.

2

fpoint cd.qxd 11/13/00 1:23 PM Page 3

2

Install the Terminal Base(s)

CAUTION: Terminal bases must be connected to the network module before applying power to the module. Do not connect or disconnect terminal bases while power is applied to the network module.

DIN Rail Mount

A. Unlock rail clip.

Panel Mount

A. Use template that came with your accessory to drill pilot holes.

B. Press base onto rail.

B. Connect terminal base to network module connector, being careful not to bend any connector pins.

C. Fasten terminal base to panel.

3

fpoint cd.qxd 11/13/00 1:23 PM Page 4

DIN Rail Mount

C. Slide into position and lock the rail clip. Be careful not to bend any pins.

Panel Mount

D. Repeat for each terminal base, up to nine for each network module in most cases. You can use one or two extender cables (which you can order separately) if your FieldPoint bank is too long for your available space.

E. Place protective cover on last base.

D. Repeat for each terminal base, up to nine for each network module in most cases. You can use one or two extender cables (which you can order separately) if your FieldPoint bank is too long for your available space.

E. Place protective cover on last base, and install rail locks at each end.

4

fpoint cd.qxd 11/13/00 1:23 PM Page 5

3

Install the I/O Module(s)

It does not matter where you install each I/O module, except for these types of situations:

···· If you plan to cascade power between any I/O modules using the

V and C terminals, those modules should be grouped together.

···· For more accurate measurements, you might want to locate any thermocouple modules away from heat sources, including network modules or relay modules, unless you are mounting them on an FP-TB-3.

A. Align slots on module with guide rails on base, and press onto base until terminal base’s latch locks the module in place.

B. Repeat for each I/O module.

4

Connect the Network Cables

Connect the FP-1600 to an Ethernet network by connecting the RJ-45

Ethernet port of the FP-1600 to an Ethernet hub using a standard Category 5

Ethernet cable.

Straight-Through

UTP Cable

Straight-Through

UTP Cable

5

fpoint cd.qxd 11/13/00 1:23 PM Page 6

Optionally, you can connect an FP-1600 directly to a computer using an

Ethernet crossover cable.

6

Cross-Over Cable

Do not use a cable longer than 100 m. If you are using a 100 Mbps Ethernet,

National Instruments recommends using a Category 5 shielded twisted-pair

Ethernet. If you need to build your own cable, refer to the FP-1600 User

Manual for cabling details.

5

Wire Power to Your FieldPoint System

A. Connect 11-30 VDC power supply leads to V and C terminals of the network module. If you want to verify that your power supply is sufficient for your modules and devices, refer to your FieldPoint hardware documents for instructions on calculating power requirements.

B. Connect power to the FieldPoint modules that require external power for outputs (output modules, counter modules, PWM, PG, QUAD). Refer to the I/O module’s operating instructions for power requirement details.

You can power a module by connecting the V and C inputs on its terminal base to a separate power supply, connecting the V and C outputs of a neighboring terminal base or network module, or using a combination of both methods. If you want to power field I/O devices from a terminal base, supply power to the terminal base, and then connect the terminal base V and C output terminals to the field device.

fpoint cd.qxd 11/13/00 1:23 PM Page 7

CAUTION: Cascading power from neighboring bases or network modules defeats isolation between cascaded modules.

Separate Power Supply

(Recommended)

Cascaded Power

(Reduces Isolation)

No External

Power Required

FP-1600 FP-AI-100 FP-AO-200 FP-RLY-420 FP-TC-120

Power Supply Power Supply

15 16 V

Shades of gray indicate different voltage potentials.

V 1 2 3

C 17 18

CAUTION: Cascading power defeats isolation.

7

fpoint cd.qxd 11/13/00 1:23 PM Page 8

6

Connect to Field Devices

Use each I/O module’s operating instructions, or the diagram under its removable label, to help you connect your field devices.

FP-AI-110

8 Channel, 16-Bit Analog Input Module

Highlights

FP-AI-110

To Power

Supply

Overview

8-Ch.

16-Bit

Analog mV

Input

, 2

0 m

A

1

-11

0

FP

-AI

FP-AI-110

0

T

1

EMP

T

_1

_2

EMP

T EMP

2

FP-AI-110

4

_3

5

CH0

CH1

CH2

CH3

CH4

CH5

CH6

CH7

3

5

V

IN

1

11

13

15

7

9

I

IN

2

8

10

12

14

16

4

6

17

19

21

23

25

27

29

31

6

7

COM

18

20

22

24

26

28

30

32

8-Ch. 16-Bit Analog Input

V CURRENT

V

SOURCE

SUP

POWERED

SOURCE

V

IN

I

IN +

-

COM

C

VOLTAGE

SOURCE

17 2

Loop-Powered

Sensor

I

Sensor

Channel 0

15 32

Self-Powered

Floating Sensor

V

Sensor

Channel 7

NOTE: Either the self-powered sensor or power supply should be floating (not tied to earth ground).

8

fpoint cd.qxd 11/13/00 1:23 PM Page 9

7

Power Up Your FieldPoint System

CAUTION: Terminal bases must be connected to the FP-1600 before power is applied to the FP-1600.

Plug in each power supply to your FieldPoint bank. You should see all except the STATUS and

PROCESS LEDs flash once, and the POWER LED come on and stay on. After a few seconds, the

POWER and READY LEDs should be lit on each I/O module. If this is not the case, refer to your

FP-1600 user manual for troubleshooting instructions.

POWER and READY LEDs Stay Lit

The READY LEDs will not light until an IP address is assigned. Likewise, the

STATUS LED will stay lit until an IP address is assigned.

After the hardware is installed, you should verify communication, configure the modules, configure your power-up states and watchdog settings. If you are using National Instruments FieldPoint software for these tasks, continue to the following section.

9

fpoint cd.qxd 11/13/00 1:24 PM Page 10

8

Install the FieldPoint Software

A. Close all other applications. If you plan to install National Instruments development software such as

Lookout, LabVIEW, or Measurement

Studio, install them before you install the FieldPoint software.

B. Insert the FieldPoint software CD and follow the onscreen instructions.

9

Verify the Installation

A. Select Start»Programs»National Instruments FieldPoint»FieldPoint

Explorer.

B. Right-click on the FieldPoint icon and select Add a comm resource to this

server.

10

fpoint cd.qxd 11/13/00 1:24 PM Page 11

C. In the Comm Resource

Configuration dialog box, select

Ethernet as the Type.

D. Click Browse, select the

FP-1600, and click the Device

Properties button.

11

fpoint cd.qxd 11/13/00 1:24 PM Page 12

E. In the FP-1600 Properties box, enter values for the IP address, Subnet

mask, and Time server IP. You might also want to enter a comment to help you identify the FP-1600 module.

• IP address is the address of the

FP-1600 on the network.

• Subnet mask is the mask that is applied to the IP address that the device uses to find other devices on the Ethernet network (255.255.255.0

is the most common).

• Time server IP is the address of the host computer that the FP-1600 will synchronize its clock to. The computer must have the Lookout Time Synch service (installed with

Lookout 4.x or FieldPoint 2.x).

F Click on Apply, then OK twice to return to the Comm Resource

Configuration dialog box.

G. Click on Find Devices.

H. Expand the +FP Res item on the left side of the Explorer window to see the devices found on the network.

12

fpoint cd.qxd 11/13/00 1:24 PM Page 13

If your modules are not listed, check the cable and connections and make sure the modules are all powered on. If you still have problems, refer to your FP-1600 user manual for troubleshooting information.

I. Select an input module and click on the start monitoring button to view live data.

J. Select an output channel and click on the write button to change outputs.

K. Select File»Save.

13

fpoint cd.qxd 11/13/00 1:24 PM Page 14

10

Configure I/O Modules

A. Right-click on the device name in FieldPoint Explorer and select Edit this

Device from the pop-up menu.

B. Click on the Channel Configuration button to bring up the Channel

Configuration dialog box.

C. Select the type of channel to show, then select the channel(s) that you want to change. To select more than one channel, uncheck the One channel

at a time box.

14

NOTE: Configuration options are module-dependent. The options listed here might not be available for your particular module. Refer to your I/O module operating instructions for details on configuration options.

fpoint cd.qxd 11/13/00 1:24 PM Page 15

D. Set the range and output values of the selected channel(s).

E. Set the attributes for the selected channel(s) by selecting the attribute and entering the desired value.

F. Send commands to the selected channel(s) by choosing a command and value and clicking on Send.

G. Repeat this procedure for each channel you want to configure.

H. Click on the OK button when you are finished, or click on the Apply button to save the changes and continue to configure channels. When you click on OK or Apply, the changes are immediately sent to the device.

I. Select File»Save when you are done.

15

fpoint cd.qxd 11/13/00 1:24 PM Page 16

11

Where to Go from Here

After you get your hardware up and running, you might want to implement features such as power-up defaults or network watchdog settings. Refer to your FP-1600 user manual or online help for information about features, configuration, application development, and troubleshooting.

16

fpoint cd.qxd 11/13/00 1:24 PM Page 17

FP-1600 Specifications

Network interface . . . . . . . . . . . . . . . . . . . . 10BaseT and 100BaseTX Ethernet

Compatibility. . . . . . . . . . . . . . . . . . . . . . . . IEEE 802.3

Communications rate . . . . . . . . . . . . . . . . . 10 Mbps, 100 Mbps, autonegotiated

Cabling distance . . . . . . . . . . . . . . . . . . . . . 100 m

Power supply range . . . . . . . . . . . . . . . . . . 11 to 30 VDC

Power consumption . . . . . . . . . . . . . . . . . . 7 W + 1.15

* (I/O module power requirements)

Maximum terminal bases per bank . . . . . . . 9

Maximum number of banks. . . . . . . . . . . . . determined by network topology

Operating temperature. . . . . . . . . . . . . . . . . –20 to +55 °C

Storage temperature . . . . . . . . . . . . . . . . . . –55 to +85 °C

Relative humidity . . . . . . . . . . . . . . . . . . . . 5% to 90% non-condensing

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280 g (9.9 oz.)

Compliance

Electrical safety . . . . . . . . . . . . . . . . . . . . . . designed to meet IEC 1010

EMI emissions/immunity . . . . . . . . . . . . . . . CISPR 11

CE Mark Compliance

This product meets applicable EU directive(s) as follows:

EMC directive

Immunity . . . . . . . . . . . . . . . . . . . . . . EN 50082–1:1994

Emissions . . . . . . . . . . . . . . . . . . . . . EN 55011:1991 Group I Class A at 10 meters

17

fpoint cd.qxd 11/13/00 1:24 PM Page 18

Mechanical Dimensions

Dimensions are given in inches [millimeters].

4.22 [107.19]

4.31

[109.5]

3.60 [91.44]

18
