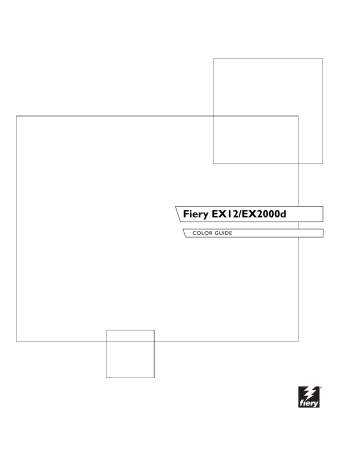

Xerox Fiery EX12 Color server Color Manual

Fiery EX12/EX2000d
COLOR GUIDE
About the
Documentation
This manual is part of a set of Fiery® documentation that includes the following
manuals for users and system administrators:
• The Quick Start Guide summarizes the steps for configuring the Fiery and printing.
It also describes how to access the online documentation.
• The User Software Installation Guide describes how to install software from the
User Software CD to enable users to print to the Fiery, and also describes setting up
printing connections to the Fiery.
• The Configuration Guide explains basic configuration and administration of the
Fiery for the supported platforms and network environments. It also includes
guidelines for setting up UNIX, Windows NT 4.0, and Novell NetWare servers
to provide printing services to users.
• The Printing Guide describes the printing features of the Fiery for users who send
jobs from their computers.
• The Color Guide provides information on managing the color output of the Fiery.
It explains how to calibrate your Fiery and take advantage of the ColorWise®
color management system, as well as features in ColorWise Pro Tools™.
• The Fiery Color Reference addresses concepts and issues associated with managing
color output of the Fiery and outlines key workflow scenarios. In addition, it offers
information on printing color documents from popular Microsoft Windows and
Apple Mac OS applications.
• The Job Management Guide explains the functions of the Fiery client utilities,
including EFI Command WorkStation™ and Fiery DocBuilder Pro™, and how you
can use them to manage jobs and maintain color quality. This manual is intended
for an operator or administrator, or a user with the necessary access privileges, who
needs to monitor and manage job flow, perform color calibration, and troubleshoot
problems that may arise.
• Customer Release Notes provide last-minute product information and workarounds
for some of the problems you may encounter.
Copyright © 2002 Electronics For Imaging, Inc. All rights reserved.
This publication is protected by copyright, and all rights are reserved. No part of it may be reproduced or transmitted in any form or by any means for any purpose
without express prior written consent from Electronics For Imaging, Inc., except as expressly permitted herein. Information in this document is subject to change
without notice and does not represent a commitment on the part of Electronics For Imaging, Inc.
The software described in this publication is furnished under license and may only be used or copied in accordance with the terms of such license.
This product may be covered by one or more of the following U.S. Patents: 4,500,919, 4,837,722, 5,212,546, 5,343,311, 5,424,754, 5,467,446, 5,506,946,
5,517,334, 5,537,516, 5,543,940, 5,553,200, 5,615,314, 5,619,624, 5,625,712, 5,666,436, 5,760,913, 5,818,645, 5,835,788, 5,867,179, 5,959,867,
5,970,174, 5,982,937, 5,995,724, 6,002,795, 6,025,922, 6,041,200, 6,065,041, 6,112,665, 6,122,407, 6,134,018, 6,141,120, 6,166,821, 6,185,335,
6,201,614, 6,215,562, 6,219,659, 6,222,641, 6,224,048, 6,225,974, 6,226,419, 6,238,105, 6,239,895, 6,256,108, 6,269,190, 6,289,122, 6,292,270,
6,310,697, 6,327,047, 6,327,050, 6,327,052, RE36,947, D406,117, D416,550, D417,864, D419,185. D426,206, D439,851, D444,793
Trademarks
ColorWise, EDOX, EFI, Fiery, the Fiery logo, Fiery Driven and RIP-While-Print are registered trademarks of Electronics For Imaging, Inc. in the U.S. Patent
and Trademark Office and/or certain other foreign jurisdictions.
The eBeam logo, the Electronics For Imaging logo, the Fiery Driven logo, the Splash logo, AutoCal, ColorCal, Command WorkStation, DocBuilder, DocBuilder
Pro, DocStream, eBeam, EFI Color Profiler, EFI Production System, EFI ScanBuilder, Fiery X2, Fiery X2e, Fiery X2-W, Fiery X3e, Fiery X4, Fiery ZX, Fiery Z4,
Fiery Z5, Fiery Z9, Fiery Z16, Fiery Z18, Fiery Document WorkStation, Fiery Downloader, Fiery Driver, Fiery FreeForm, Fiery Link, Fiery Prints, Fiery Print
Calibrator, Fiery Production System, Fiery Scan, Fiery ScanBuilder, Fiery Spark, Fiery Spooler, Fiery WebInstaller, Fiery WebScan, Fiery WebSpooler, Fiery
WebStatus, Fiery WebTools, NetWise, RIPChips, Splash, Velocity, Velocity Balance, Velocity Build, Velocity Design, Velocity Estimate, Velocity Scan, and
VisualCal are trademarks of Electronics For Imaging, Inc.
All other terms and product names may be trademarks or registered trademarks of their respective owners, and are hereby acknowledged.
Legal Notices
APPLE COMPUTER, INC. (“APPLE”) MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE APPLE SOFTWARE.
APPLE DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE
OF THE APPLE SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE
RISK AS TO THE RESULTS AND PERFORMANCE OF THE APPLE SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED
WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL APPLE, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL,
INCIDENTAL OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF
BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE APPLE SOFTWARE EVEN IF APPLE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Apple’s liability to you for actual damages from any cause whatsoever, and regardless of the form of the action (whether in contract, tort [including negligence],
product liability or otherwise), will be limited to $50.
Restricted Rights Legends
For defense agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause at 252.227.7013.
For civilian agencies: Restricted Rights Legend. Use, reproduction, or disclosure is subject to restrictions set forth in subparagraph (a) through (d) of the
commercial Computer Software Restricted Rights clause at 52.227-19 and the limitations set forth in Electronics For Imaging’s standard commercial agreement
for this software. Unpublished rights reserved under the copyright laws of the United States.
Part Number: 45026396
FCC Information
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void
the user’s authority to operate this equipment.
Class B Declaration of Conformity
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded
cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the
approval of manufacturer could void the user’s authority to operate this equipment.
Industry Canada Class B Notice
This Class B digital apparatus complies with Canadian ICES-003.
Avis de Conformation Classe B de l’Industrie Canada
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
RFI Compliance Notice
This equipment has been tested concerning compliance with the relevant RFI protection requirements both individually and on system level (to simulate normal
operation conditions). However, it is possible that these RFI Requirements are not met under certain unfavorable conditions in other installations. It is the user
who is responsible for compliance of his particular installation.
Dieses Gerät wurde sowohl einzeln als auch in einer Anlage, die einen normalen Anwendungsfall nachbildet, auf die Einhaltung der Funkentstörbestimmungen
geprüft. Es ist jedoch möglich, dass die Funkentstörbestimmungen unter ungünstigen Umständen bei anderen Gerätekombinationen nicht eingehalten werden.
Für die Einhaltung der Funkentstörbestimmungen einer gesamten Anlage, in der dieses Gerät betrieben wird, ist der Betreiber verantwortlich.
Compliance with applicable regulations depends on the use of shielded cables. It is the user who is responsible for procuring the appropriate cables.
Die Einhaltung zutreffender Bestimmungen hängt davon ab, dass geschirmte Ausführungen benützt werden. Für die Beschaffung richtiger Ausführungen ist der
Betreiber verantwortlich.
Software License Agreement
YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS BEFORE USING THIS SOFTWARE. IF YOU DO NOT
AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT USE THE SOFTWARE. INSTALLING OR USING THE
SOFTWARE INDICATES THAT YOU AGREE TO AND ACCEPT THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO ACCEPT
THE TERMS OF THIS AGREEMENT YOU MAY RETURN THE UNUSED SOFTWARE FOR A FULL REFUND TO THE PLACE OF PURCHASE.
License
EFI grants you a non-exclusive license to use the software (“Software”) and accompanying documentation (“Documentation”) included with the Product. The
Software is licensed, not sold. You may use the Software solely for your own customary business or personal purposes. You may not rent, lease, sublicense or lend
the Software. You may, however, permanently transfer all of your rights under this Agreement to another person or legal entity provided that: (1) you transfer to
the person or entity all of the Software and Documentation (including all copies, updates, upgrades, prior versions, component parts, the media and printed
materials, and this Agreement); (2) you retain no copies of the Software and Documentation, including copies stored on a computer; and (3) the recipient agrees
to the terms and conditions of this Agreement.
You may not make or have made, or permit to be made, any copies of the Software or portions thereof, except as necessary for backup or archive purposes in
support of your use of the Software as permitted hereunder. You may not copy the Documentation. You may not attempt to alter, disassemble, decompiler, decrypt
or reverse engineer the Software.
Proprietary Rights
You acknowledge that the Software is proprietary to EFI and its suppliers and that title and other intellectual property rights therein remain with EFI and its
suppliers. Except as stated above, this Agreement does not grant you any right to patents, copyrights, trade secrets, trademarks (whether registered or unregistered),
or any other rights, franchises or licenses in respect of the Software. You may not adopt or use any trademark or trade name which is likely to be similar to or
confusing with that of EFI or any of its suppliers or take any other action which impairs or reduces the trademark rights of EFI or its suppliers.
Confidentiality
You agree to hold the Software in confidence, disclosing the Software only to authorized users having a need to use the Software as permitted by this Agreement
and to take all reasonable precautions to prevent disclosure to other parties.
Remedies and Termination
Unauthorized use, copying or disclosure of the Software, or any breach of this Agreement will result in automatic termination of this license and will make available
to EFI other legal remedies. In the event of termination, you must destroy all copies of the Software and all of its component parts. All provisions of this Agreement
relating to disclaimers of warranties, limitation of liability, remedies, damages, and EFI’s proprietary rights shall survive termination.
Limited Warranty and Disclaimer
EFI warrants to the original purchaser (“Customer”) for thirty (30) days from the date of original purchase from EFI or its authorized retailer that the Software
will perform in substantial conformance to the Documentation when the Product is used as authorized by EFI’s specifications. EFI warrants the media containing
the Software against failure during the above warranty period. EFI makes no warranty or representation that the Software will meet your specific requirements,
that the operation of the Software will be uninterrupted or error free, or that all defects in the Software will be corrected. EFI makes no warranty, implied or
otherwise, regarding the performance or reliability of any third party products (software or hardware) not provided by EFI. THE INSTALLATION OF ANY
THIRD PARTY PRODUCTS OTHER THAN AS AUTHORIZED BY EFI WILL VOID THIS WARRANTY. IN ADDITION, USE, MODIFICATION,
AND/OR REPAIR OF THE PRODUCT OTHER THAN AS AUTHORIZED BY EFI WILL VOID THIS WARRANTY.
EXCEPT FOR THE ABOVE EXPRESS LIMITED WARRANTY, EFI MAKES AND YOU RECEIVE NO WARRANTIES OR CONDITIONS ON THE
SOFTWARE, EXPRESS, IMPLIED, STATUTORY, OR IN ANY OTHER PROVISION OF THIS AGREEMENT OR COMMUNICATION WITH YOU,
AND EFI SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.
Limitation of Liability
TO THE MAXIMUM EXTENT PERMITTED BY LAW, EFI AND ITS SUPPLIERS SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING
LOSS OF DATA, LOST PROFITS, COST OF COVER OR OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES
ARISING FROM THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE OR FAILURE OF THE SOFTWARE, HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY. THIS LIMITATION WILL APPLY EVEN IF EFI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. YOU ACKNOWLEDGE THAT THE PRICE OF THE PRODUCT REFLECTS THIS ALLOCATION OF RISK. BECAUSE SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES,
THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
Export Controls
You agree that you will not export or re-export the Software in any form in violation of any applicable laws or regulations of the United States or the country in
which you obtained them.
U.S. Government Restricted Rights:
The Software and Documentation are provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the United States Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or subparagraphs (c)(1)
and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.
General
The laws of the State of California govern this Agreement. You agree that this Agreement shall not be subject to the United Nations Convention on Contracts for
the International Sale of Goods (1980). This Agreement is the entire agreement held between us and supersedes any other communications or advertising with
respect to the Software. If any provision of this Agreement is held invalid, the remainder of this Agreement shall continue in full force and effect.
If you have any questions, please see EFI’s web site at www.efi.com.
Electronics For Imaging
303 Velocity Way
Foster City, CA 94404
Contents
About the Documentation
Introduction
About this manual
xi
Key features of ColorWise
xii
Chapter 1: Fiery Color Management
Managing color on the Fiery
1-1
Combine Separations
Rendering styles
RGB Source Profile
RGB Separation
1-5
1-6
1-7
1-8
CMYK Simulation Profile
CMYK Simulation Method
Output profile
Pure Black Text/Graphics
1-9
1-10
1-10
1-11
Black Overprint
1-12
Spot Color Matching
1-13
PostScript printer driver for Windows and Mac OS
1-14
Setting color management print options for Windows
1-15
Adobe PostScript printer driver for Mac OS
1-17
Chapter 2: Color Calibration
An overview of calibration
2-2
Understanding calibration
2-2
How calibration works
2-3
Scheduling calibration
2-4
Checking calibration status
2-5
viii
Contents
Using Calibrator
2-5
Starting Calibrator
2-6
Expert Mode
2-8
Restoring default calibration measurements
2-10
Calibrating the Fiery with the DTP41
2-10
Calibrating the Fiery with the DTP32
2-14
Using the EFI Spectrometer ES-1000 and EFI Densitometer ED-100
2-16
Setting up the ES-1000
2-16
Setting up the ED-100
2-17
Calibrating the Fiery with the ES-1000 or ED-100
2-17
Using AutoCal and ColorCal
2-21
Calibrating with ColorWise Pro Tools and AutoCal or ColorCal
2-21
Calibrating from the Control Panel with AutoCal or ColorCal
2-24
Chapter 3: ColorWise Pro Tools
Profile Manager
3-1
Setting the default profiles
3-3
Downloading profiles
3-4
Editing profiles
3-6
Managing profiles
3-6
Defining profiles
3-8
Color Editor
3-10
Editing profiles
3-11
Undoing simulation edits
3-18
Correcting gray balance
3-18
Checking edited profiles
3-21
ix
Contents
Using Spot On (Fiery Graphic Arts Package option)
3-22
Starting Spot On
Using the Spot On main window
Working with existing colors
Creating custom colors
Downloading custom color groups
Uploading custom color groups
Editing color values
Using a measurement instrument to target colors
3-22
3-24
3-26
3-27
3-29
3-30
3-31
3-35
Saving changes and exiting Spot On
3-36
Color Setup
3-37
Setting default ColorWise options
3-37
Appendix A: Color Measurement Instruments
Using the X-Rite DTP41 spectrophotometer
A-1
Setting up the DTP41
A-1
Calibrating the DTP41
A-5
Using the X-Rite DTP32 densitometer
A-8
Setting up the DTP32
A-8
Calibrating the DTP32
A-11
Appendix B: Importing density measurements
Simple ASCII Import File Format (SAIFF)
B-1
Example of 1D Status T density for EFI 34 patch page
B-2
Example of 1D Status T density for EFI 21 patch page
B-2
Example of 1D Status T density for an arbitrary page
B-3
Glossary
Index
xi
About this manual
This manual explains how to manage color output on the Fiery EX12/EX2000d Color
Server™, and provides information on calibration and color profiles.
Introduction
This manual is part of a set of documentation that includes manuals for users and
system administrators. The other manuals should be available at your site—refer to
them for a complete description of your Fiery EX12/EX2000d Color Server.
N OTE : The term “Fiery” is used in this manual to refer to the Fiery EX12/EX2000d
Color Server. The term “copier/printer” is used to refer to the device supported by the
Fiery. “Aero” is used in illustrations throughout this manual to represent the Fiery.
EX12
EX2000d
This icon specifies information that applies only to the Fiery EX12.
This icon specifies information that applies only to the Fiery EX2000d.
About this manual
This manual is organized to supply you with key information about managing
the color output of your Fiery.
• Chapter 1 describes the Fiery print options and how to get the best color results.
• Chapter 2 covers various methods of calibrating the Fiery.
• Chapter 3 takes you through the features of ColorWise Pro Tools. ColorWise Pro
Tools include Profile Manager™, used to manage color profiles on the Fiery, and
Color Editor™, which allows you to customize simulation and output profiles. This
chapter also describes Spot On, which allows you to define CMYK equivalents for
spot colors.
• Appendix A provides information about color measurement instruments, available
as separately purchased options.
• Appendix B describes the Simple ASCII File Format (SAIFF), which can be used to
import toner density measurements from measurement devices.
xii
Introduction
• The Glossary defines words in bold—for example, output profile—that appear
throughout this manual. Color terms and concepts such as “RGB data,” “color
space,” “spot color,” “gamut,” and “source profile” are used throughout this manual.
If you are new to desktop color, or if any terms are unfamiliar, check the Glossary.
Key features of ColorWise
ColorWise is the color management system (CMS) designed and built into the Fiery
and designed to provide both casual and expert users with the best color output for a
variety of purposes. The ColorWise default settings provide great out-of-box color
from many Windows and Mac OS applications. This allows casual users to achieve
good quality output without knowing about or changing any color settings on the
Fiery.
For consistent color, calibrate the Fiery on a regular basis. ColorWise Pro Tools include
a simple-to-use calibrator, which allows you to calibrate using either the scanner that
comes with the copier/printer or an optional spectrophotometer or densitometer
(see Chapter 2).
ColorWise features let you modify printing results. Depending on your particular
needs, you can:
• Set the behavior of CMYK printing to emulate DIC, Euroscale, and SWOP offset
press standards.
• Match PANTONE and other spot colors for the best match when printed using
four-color press conditions or when printed using presses with extra, custom plates.
• Select a color rendering dictionary (CRD), also called a rendering style, for RGB
printing. CRDs allow for rich, saturated printing of presentation graphics; smooth,
accurate printing of photographs; and relative or absolute colorimetric rendering for
specialized needs.
• Define the source of incoming RGB color data for better screen matching and
provide for better color conversion of RGB data with no source information.
• Define whether RGB data is converted into the full gamut of the copier/printer or
whether it is first converted into the gamut of another device, such as a press
standard. This feature is very helpful for making one device behave like another. It is
also useful for evaluating the appearance of the RGB file under different printing
conditions without having to reprocess the RGB data each time.
xiii
Key features of ColorWise
ColorWise color management (ColorWise) offers an open color architecture, letting
users customize the Fiery to meet new printing needs as they arise. ColorWise supports
ICC profiles, which are industry standard color profiles that describe the color
behavior of a device. Downloading ICC profiles to the Fiery enables the Fiery to
simulate a custom press (or another copier/printer), as well as accurately print colors
from a particular monitor or a scanner. In addition, you can create customized ICC
profiles for the copier/printer.
ColorWise also lets you use any Status T densitometer by importing data in a standard
file format (see Appendix B). In this case, it is important to note that the quality of the
instrument used will determine the quality of the calibration.
1
1-1
Chapter 1:
Fiery Color
Management
Managing color on the Fiery
The first part of this chapter describes the options available from the ColorWise
color management system and explains how to customize the color settings for your
particular needs. It provides descriptions of the preset ColorWise default settings and
covers additional options for users who need to customize ColorWise.
Beginning on page 1-14 is a detailed explanation of what a PostScript Level 2 or 3
printer driver does, as well as information on the capabilities of various printer drivers
and instructions for setting color options with the PostScript drivers for Windows and
Mac OS computers.
Managing color on the Fiery
To modify the Fiery’s printing behavior, do any of the following:
• Select ColorWise options for an individual print job using menus that appear in the
printer driver.
• Select most ColorWise options as server defaults from the Color Setup application
in ColorWise Pro Tools (see page 3-37). Defaults can also be set from Fiery Setup or
from the Control Panel, as described in the Configuration Guide. These defaults will
apply to all subsequent print jobs unless you override them.
• Select some ColorWise options, particularly default ICC profile settings and
calibration options, from ColorWise Pro Tools. These options include default
Simulation Profile (see page 1-9), Simulation Method (see page 1-10), Appear in
Driver as (see page 3-8), default Source Profile (see page 1-7), RGB Separation
(see page 1-8), and associated calibration set (see page 2-4).
Applications can generate color data for the Fiery in many different color spaces.
The most common type of color data produced from office applications is RGB, while
prepress applications generally produce CMYK data. Desktop applications can also
generate spot colors, such as PANTONE colors. To complicate matters, a single page
may contain a mix of RGB, CMYK, and spot colors. The Fiery lets users control the
printing of these mixed-color documents with features that apply specifically to RGB,
CMYK, or spot color data.
1
1-2
Fiery Color Management
Fiery color management generates CMYK data to be sent to the copier/printer.
The following diagram illustrates the print options in the Fiery color management
process that affect color data conversions. You access these print options when you
send a print job to the Fiery. Most of these options and settings are described in
subsequent sections of this chapter.
RGB data
RGB Source Profile
Gamma
Phosphors
White Point
Rendering Style (CRD)
Brightness
Pure Black Text/Graphics
RGB Separation
Output profile
CMYK data
CMYK Simulation Profile
Fiery
color
processor
Color data sent to
copier/printer
CMYK Simulation Method
Brightness
Pure Black Text/Graphics
Combine Separations
Output profile
Spot color data
Spot Color Matching
RGB Source Profile is the only color option that applies strictly to RGB color data.
The other options that affect RGB color also affect the more rarely used Lab, XYZ,
and other calibrated color spaces.
N OTE : For users who are familiar with PostScript 3 color, RGB Source Profile affects all
CIEBasedABC color spaces (if the source space is RGB). If you send CMYK data
to the Fiery in CIEBasedDEFG format, for example, by choosing PostScript Color
Management in Adobe Photoshop, the Fiery Rendering Style selection—which
normally affects only RGB data—will also affect this CMYK data.
1
1-3
Managing color on the Fiery
Settings for the following options can be specified via print options when you send a
job to the Fiery. Some can also be set as defaults by the administrator during Fiery
Setup or using ColorWise Pro Tools. Settings specified via print options override the
defaults.
Fiery color print option
Color Mode
CMYK/Grayscale
or
What it does
Specifies the output color space of the job. Select CMYK, Standard Color, or
Expert Color for a full-color document.
Print Mode
Standard Color/Expert Color/Grayscale
Combine Separations
EX12
On/Off/1–PgAutomatic
EX2000d
On/Off
Rendering Style
Photographic/Presentation/Relative
Colorimetric/Absolute Colorimetric
(Default set at Setup)
Brightness
85% Lightest to 115% Darkest
RGB Source Profile
EFIRGB/sRGB
(PC)/Apple Standard/Other/
Source 1-10/None
(Default set at Setup or with
ColorWise Pro Tools)
(Other) Gamma
1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.4/2.6/2.8/3.0
(Other) Phosphors
Hitachi EBU/Hitachi-Ikegami/NTSC/
Radius Pivot/SMPTE/Trinitron
Specifies whether to print separated CMYK data as a single, four-color
composite document (see page 1-5). If you have the Fiery Graphic Arts
Package option, you can combine an unlimited number of spot color
separations along with the CMYK separations.
Applies a Fiery color rendering dictionary (CRD) to RGB data (see
page 1-6), or to any incoming data with a PostScript source color space
definition, including CMYK.
Performs a color adjustment on all color channels to make the printed output
lighter or darker.
Applies an RGB source space definition to RGB data (see page 1-7). If you
choose the Other setting, you can specify particular settings for Gamma,
Phosphors, and White Point. See the corresponding options in this table. This
option, along with Gamma, Phosphors, and White Point, only affects
DeviceRGB or calibrated RGB color spaces.
Applies the specified gamma value to the RGB source space definition (see
page 1-7). To use this print option, you must choose Other as the RGB Source
setting.
Applies the specified phosphor (monitor type) information to the RGB source
space definition (see page 1-7). To use this print option, you must choose
Other as the RGB Source setting.
1
1-4
Fiery Color Management
Fiery color print option
(Other) White Point
5000 K (D50)/5500 K/6500 K (D65)/
7500 K/9300 K
RGB Separation
Output/Simulation
CMYK Simulation Profile
EX12 SWOP-Coated/DIC/Euroscale/
Simulation 1-10/Match Copy/None
(Default set at Setup or in
ColorWise Pro Tools)
SWOP-Coated/DIC/Euroscale/
Simulation 1-10/None
(Default set at Setup or in
ColorWise Pro Tools)
What it does
Applies the specified white point value to the RGB source color space
definition (see page 1-7). To use this print option, you must choose Other as
the RGB Source setting.
Determines which CMYK color space your original RGB data will be
separated into—CMYK for the copier/printer (Output) or CMYK for a
specified simulation (Simulation) (see page 1-8). It is important to note that
when RGB Separation is set to Simulation, RGB colors are affected by CMYK
Simulation Profile and CMYK Simulation Method.
Adjusts CMYK color data to simulate an offset press standard or a custom
color gamut defined at your site. The Match Copy setting bypasses Fiery
calibration to match a copy made from the copier glass. Choosing None
bypasses simulation (see page 1-9).
N OTE : Some of the Simulation settings have slightly different names depending
on the model of copier/printer.
EX2000d
CMYK Simulation Method
Quick/Full (Source GCR)/Full (Output
GCR)/With CRD
(Default set at Setup or in
ColorWise Pro Tools)
Paper Simulation
No/Yes
Output Profile
Output 1-10
(Default set at Setup or in
ColorWise Pro Tools)
Pure Black Text/Graphics
On/Off
(Default set at Setup)
Quick simulation applies one-dimensional transfer curves that adjust output
density only. The Full simulations apply colorimetric transformations that
adjust hue as well as output density (see page 1-10).
Adjusts color output to compensate for the white point value of the paper
stock used. This option is only available as part of the Fiery Graphic Arts
Package feature set.
The output profile is applied to all data in the print job (see page 1-10).
User-defined output profiles can be downloaded to the Fiery using
ColorWise Pro Tools (see Chapter 3).
The On setting optimizes the quality of black text and line art output.
(see page 1-11).
1
1-5
Managing color on the Fiery
Fiery color print option
What it does
The On setting overprints black text placed on colored backgrounds; it
automatically activates the Pure Black Text/Graphics option (see page 1-11).
Black Overprint
On/Off (Default set at Setup)
Specifies whether black overprinting should apply to text only or to both text
and graphics. For this option to take effect, the Black Overprint option must
be set to On (see page 1-11).
Black Overprint Style
Text/Text & Graphics
The On setting enables Fiery-defined matching of spot colors to their best
CMYK equivalents. If you have the Fiery Graphic Arts Package option
installed, you can use Spot On to manage and edit these spot color matches
(see page 3-22). Off instructs the Fiery to match color output to a CMYK
combination specified by the source application for the document (see
page 1-13).
Spot Color Matching
On/Off
(Default set at Setup or with
ColorWise Pro Tools)
The On setting enhances the print quality of low-resolution images.
Image Smoothing
Automatic/Off/On/Below 90–300 ppi
Detailed explanations of how these and other settings affect your print jobs are
provided in subsequent sections of this chapter.
Combine Separations
The Combine Separations setting specifies how to print separated CMYK data. If you
have the Fiery Graphic Arts Package option, you can combine an unlimited number of
spot color separations along with the CMYK separations. The Combine Separations
options are:
• Off prints each separation individually.
• On combines separations as a single, composite-color document, and constrains the
settings of the following print options: Color Mode (CMYK), Rendering Style
(None), Pure Black Text/Graphics (Off ), Spot Color Matching (Off ).
EX12
• 1–PgAutomatic combines separations as a single, composite-color document,
overprinting plates in the order defined by the source application.
1
1-6
Fiery Color Management
Rendering styles
The Rendering Style option specifies a CRD for color conversions. You can modify the
Rendering Style option to control the appearance of images, such as prints from office
applications or RGB photographs from Adobe Photoshop. The Fiery allows you to
select from the four rendering styles currently found in industry standard ICC profiles.
Fiery rendering style
Best used for
Equivalent ICC
rendering style
Photographs, including scans
and images from stock
photography CDs.
Image, Contrast, and
Perceptual
Presentation—Creates
saturated colors but does not
match printed colors precisely
to displayed colors.
In-gamut colors such as flesh
tones are rendered well; similar
to the Photographic rendering
style.
Artwork and graphs in
presentations. In many cases, it
can be used for mixed pages
that contain both presentation
graphics and photographs.
Saturation, Graphics
Relative Colorimetric—Provides
white-point transformation
between the source and
destination white points. For
example, the bluish gray of a
monitor will map to neutral
gray. You may prefer this style
to avoid visible borders when
not printing full-bleed.
Advanced use when color
matching is important but you
prefer white colors in the
document to print as paper
white. It may also be used with
PostScript color management to
affect CMYK data for
simulation purposes.
Relative Colorimetric
Absolute Colorimetric—
Provides no white point
transformation between the
source and destination white
points. For example, the bluish
gray of a monitor will map to a
bluish gray.
Situations when exact colors are
needed and visible borders are
not distracting. It may also be
used with PostScript color
management to affect CMYK
data for simulation purposes.
Absolute Colorimetric
Photographic—Typically results
in less saturated output than
presentation rendering when
printing out-of-gamut colors. It
preserves tonal relationships in
images.
1
1-7
Managing color on the Fiery
RGB Source Profile
The RGB source profile setting allows you to define the characteristics of the RGB
data in your document so that the appropriate color conversion can occur on the Fiery.
Commonly used monitor color spaces are available from the driver and from the
ColorWise Pro Tools Profile Manager. In addition, for special needs you can use
ColorWise Pro Tools to download custom monitor or scanner profiles.
When you specify a setting other than None for the RGB Source Profile, the Fiery
overrides source color space definitions or profiles that other color management
systems may have specified. For example, if you specified a ColorSync System Profile
on your Mac OS computer, the RGB Source Profile setting overrides it. In cases where
you do not want this setting to override another specified source color space, choose
the None setting.
When you specify a setting other than None for the RGB Source Profile—since the
color space definitions are overridden—the prints from the Fiery will be consistent
across platforms. The Fiery RGB Source Profile options are:
• EFIRGB specifies an EFI-defined color space recommended for users who have no
detailed information about their RGB data.
• sRGB (PC) specifies the industry standard definition for a generic Windows PC
monitor.
• Apple Standard specifies the definition of all standard Mac OS computer monitors.
• Other allows you to specify custom RGB source settings. If you choose Other as the
RGB Source setting, you can choose settings for the Gamma, Phosphors, and White
Point options.
• Sources 1-10 specify the definitions you download as RGB source profiles. For more
information about downloading RGB source profiles, see page 3-4.
If you are printing with the PostScript driver from a Windows computer and have
two-way communication enabled, the name of each downloaded profile is
represented in the RGB Source Profile setting pop-up menu. If you are printing with
the AdobePS driver from a Mac OS computer, downloaded profiles appear as
Source-1 through Source-10. For more information on two-way communication,
see the User Software Installation Guide.
1
1-8
Fiery Color Management
• None instructs the Fiery to allow the RGB sources you defined elsewhere, such as in
the application, to be used. When you set RGB Source to None, the appearance of
colors will not be independent of the file type. For example, RGB EPS files will look
different from RGB TIFF files.
With RGB Source set to None, PostScript RGB data that contains a source color
space definition is converted using the CRD specified by the Rendering Style option
(see page 1-6). Non-PostScript RGB data and PostScript RGB data that does not
contain a source color space definition are converted using a general undercolor
removal (UCR) conversion method.
RGB Separation
The RGB Separation option determines how RGB colors (as well as Lab and XYZ
colors) are converted to CMYK. The name of this option is meant to be descriptive,
since the option defines the color spaces that will be used by the Fiery to “separate” the
RGB data into CMYK values.
The two choices available for this option determine whether RGB data is converted
into the full gamut of the copier/printer (output) or is first converted into the gamut
of another digital printer or press standard (Simulation). This feature is helpful for
making one device behave like another for RGB data. For example, if a high-quality
ICC profile is available for another print device, the copier/printer can simulate the
behavior of that device.
RGB Separation is also useful for prepress applications. For example, it lets you
experiment with the appearance of an RGB scan under different press printing
conditions, without having to convert the RGB data to CMYK data for each
condition. When the desired printing condition is found, you can then convert the
file to CMYK, using the same CMYK simulation profile you used during the
experimentation.
N OTE : The RGB Separation print option should be used in conjunction with the
Output Profile or CMYK Simulation Profile print options.
• Output converts all RGB colors into the CMYK color space of your copier/printer
(when set to the printer’s default), or a customized CMYK color space for your
copier/printer (when set to Output 1-10).
1
1-9
Managing color on the Fiery
• Simulation converts all RGB colors into the CMYK color space for a specified
simulation (make sure to select the desired simulation with the CMYK Simulation
Profile print option).
CMYK Simulation Profile
The CMYK Simulation Profile print option allows you to print press proofs or
simulations. This setting specifies the offset press standard or other color printing
device that you want to simulate. This option affects CMYK data only.
With the Windows 9x/Me or Windows NT printer driver, you can also view an
unlimited number of custom Full simulations created using ColorWise Pro Tools.
On Windows 2000/XP and Mac OS computers, you can view up to 10 Full
custom simulations. The number of custom simulations is limited by the disk space
on the Fiery.
If you are printing with the PostScript driver from a Windows computer and have
two-way communication enabled, the name of each downloaded or custom profile is
represented in the CMYK Simulation Profile setting pop-up menu. If you are printing
with the AdobePS driver from a Mac OS computer, downloaded or custom profiles
appear as Simulation-1 through Simulation-10. For more information on two-way
communication, see the User Software Installation Guide.
The CMYK Simulation Profile setting you specify depends on the press standard for
which the CMYK data was separated.
• For images that were separated using a custom separation (such as a separation
produced with an ICC profile), choose the corresponding profile on the Fiery
with the CMYK Simulation Profile setting.
• For images that were separated for SWOP, choose SWOP as the CMYK Simulation
Profile setting.
N OTE : To properly simulate a printed image that was separated through the use of
an ICC profile, the same profile must be present on the Fiery. For more information
about downloading ICC profiles to the Fiery, see “Downloading profiles” on page 3-4.
1
1-10
Fiery Color Management
CMYK Simulation Method
The CMYK Simulation Method setting specifies the quality of simulation to perform.
• Quick applies one-dimensional transfer curves that adjust output density in the cyan,
magenta, yellow, and black channels.
• Full (Source GCR) provides a more complete and accurate simulation by applying
colorimetric transformations that adjust the hue as well as output density of the
cyan, magenta, and yellow channels. This option preserves the black amount
determined by the simulation profile. Choose this option if you are printing a
color proof to simulate output from a device represented by the simulation profile.
• Full (Output GCR) applies the same simulation method as Full (Source GCR), but
preserves the black amount determined by the output profile. Choose this option if
you are printing final output on the Fiery.
You should choose one of the Full options if you are printing an image separated using
an optimized black generation (UCR/GCR) setting, either from a scan or from within
an application such as Photoshop.
Output profile
The output profile is applied to all data in the print job, so make sure the selected
profile is the right one for your job. The default output profile consists of both a profile
for your copier/printer, describing its color characteristics, and a calibration target that
describes the expected behavior of the copier/printer.
In certain cases, you may want to customize the default output profile using the
ColorWise Pro Tools Color Editor to achieve particular color effects (see page 3-10).
If you do so, the new customized output profile is applied to all data in the print job.
Changing the output profile only does not affect its associated calibration target
(since the target is based on a copier/printer model). You can edit D-Max values of the
calibration target separately (see page 3-6).
1
1-11
Managing color on the Fiery
You can use the ColorWise Pro Tools Profile Manager to download your own output
profile to the Fiery (see page 3-4). Downloaded output profiles are at first associated
with the calibration target that is tied to the default output profile. As mentioned
above, you can edit calibration target D-Max values separately.
If you are printing with the PostScript driver from a Windows computer and have
enabled two-way communication, the name of each downloaded or custom profile is
represented in the Output Profile setting pop-up menu. If you are printing with the
AdobePS driver from a Mac OS computer, downloaded or custom profiles appear as
Output-1 through Output-10. For more information on two-way communication, see
the User Software Installation Guide.
Pure Black Text/Graphics
The Pure Black Text/Graphics option affects the printout for black text and vector
graphics on a page. Under most circumstances, it is preferable to leave this option set
to On. When Pure Black Text/Graphics is on, black colors generated by applications
are printed using 100 percent black-only toner (for example, RGB = 0, 0, 0;
CMYK = 0%, 0%, 0%, 100%; or K = 100%). This means the black text and line art
will not exhibit halftone artifacts and will not be misregistered, since there is only one
toner used. In addition, this setting eliminates blasting. This option is automatically
set to On when the Black Overprint option is set to On.
For some jobs, it is preferable to clear this option, for example, if the page includes
gradient fills that use black. The following table describes the behavior of the Pure
Black Text/Graphics option with black data defined in different color spaces.
1
1-12
Fiery Color Management
N OTE : The Pure Black Text/Graphics option can be used only when printing
composites, not when printing separations.
Pure Black Text/Graphics
Input
black color
RGB
On
Prints 100% black
Off
With the default profile, prints a rich black using all
toners.
CMYK
Prints only with black toner, because CMYK
simulations preserve the black channel. The actual
amount of toner used depends on the current
simulation and the calibration state of the
copier/printer.
Spot
Prints only with black toner, because spot color
simulations preserve the black channel. The actual
amount of toner used depends on the current
simulation and the calibration state of the
copier/printer.
N OTE : PostScript applications, such as QuarkXPress, may convert elements defined as
RGB = 0, 0, 0 to four-color CMYK black before sending the job to the Fiery. These
elements are not affected by the Pure Black Text/Graphics option. For details, see
the application notes. Also, black text and line art defined as RGB = 0, 0, 0 in office
applications (such as Microsoft Word) are converted to single-color black
(CMYK = 0%, 0%, 0%, 100%) by the Microsoft PostScript Level 3 driver for
Windows 2000/XP. To print this single-color black at the maximum toner density of
the copier/printer, set the Pure Black Text/Graphics option to On.
Black Overprint
The Black Overprint option lets you specify whether or not black text—defined as
RGB = 0, 0, 0, or as CMYK = 0%, 0%, 0%, 100%—overprints colored backgrounds.
• On—Black text overprints colored backgrounds, eliminating white gaps and
reducing halo effects or misregistration of colors. Setting Black Overprint to On
automatically activates the Pure Black Text/Graphics option.
• Off—Black text knocks out colored backgrounds.
1
1-13
Managing color on the Fiery
N OTE : PostScript applications may perform their own black overprint conversions
before sending the print job to the Fiery.
One example of how you might use this setting is with a page that contains black text
on a light blue background. The background blue color is CMYK = 40%, 30%, 0%,
0% and the black text is CMYK = 0%, 0%, 0%, 100%.
• With Black Overprint On, the final text portions of the page are overprinted, or
combined with the underlying colors. This results in CMYK = 40%, 30%, 0%,
100% for the color used for the text. There is no transition in the cyan and magenta
toners, and the quality of the output is improved since it will not show artifacts near
the edges of the text. The option also works with text defined in the RGB color
space, that is RGB = 0, 0, 0.
• With Black Overprint Off, the border of the text is on an edge that has cyan and
magenta toners on one side (outside the text) and black toner on the other side
(inside the text). This transition may cause visible artifacts because of the practical
limitations of the copier/printer.
Spot Color Matching
The Spot Color Matching option provides automatic matching of spot colors with
their best CMYK equivalents.
• On—The Fiery uses a built-in table to generate the closest CMYK matches of spot
colors your copier/printer can produce. (New tables are generated when you add
new output profiles.) If you have the Graphics Art option installed, the Fiery uses
the CMYK matches determined through Spot On (see page 3-22).
N OTE : Spot colors not included in the built-in table are treated as CMYK.
• Off—The Fiery uses CMYK equivalents defined by the spot color manufacturer,
such as PANTONE. These are the same CMYK equivalents used by applications
that include spot color libraries.
For jobs that include spot colors, set Spot Color Matching to On unless you are
printing press simulations. In that case, set Spot Color Matching to Off and choose the
appropriate CMYK Simulation setting (see page 1-9).
N OTE : You can use the Spot Color Matching option only when printing composites,
not when printing separations.
1
1-14
Fiery Color Management
Spot Color Matching and the PANTONE Coated Color Reference
The PANTONE Coated Color Reference (described in the Fiery Color Reference)
prints differently depending on the Spot Color Matching setting.
• On—The Fiery uses a built-in table or, if you have the Fiery Graphic Arts Package
option, the Spot On color dictionaries (see page 3-22) to generate the best matches
of the PANTONE colors that your copier/printer can produce. The PANTONE
number is printed below each swatch.
• Off—The Fiery prints swatches using the CMYK values recommended by Pantone,
Inc. (and used by applications that provide PANTONE color libraries). The CMYK
values used to generate the color, as well as the PANTONE number of the color, are
printed below each swatch. These CMYK values are printed through the selected
CMYK Simulation and Output Profile settings.
PostScript printer driver for Windows and Mac OS
You can access the printer driver options described in this section by choosing
Start\Settings\Printers, right-clicking the appropriate PPD name, and choosing
Properties (Windows 9x/Me), Document Defaults (Windows NT), or Printing
Preferences (Windows 2000/XP) from the pop-up menu. To access the Mac OS driver
options, choose Print from the File menu of your application. These settings are also
accessible from the Print Setup or Page Setup dialog boxes of most applications.
For Windows computers, the Fiery driver interface enables you to save combinations
of settings that you can later access. Additionally, you can choose different settings for
individual jobs from the applications you use.
The printer driver writes a PostScript file containing the instructions generated by your
application and the Fiery print options you chose. The printer driver sends the
PostScript file to the Fiery. The Fiery then performs PostScript processing and color
conversions and sends raster color data to the print device.
N OTE : The following illustrations and instructions do not apply to all applications.
Many applications, such as Adobe PageMaker, Adobe Photoshop, Adobe Illustrator,
QuarkXPress, and CorelDRAW, have other color management options in addition to
those presented in the printer driver. For information on specific applications, see the
Fiery Color Reference.
1
1-15
PostScript printer driver for Windows and Mac OS
Setting color management print options for Windows
This section explains how to set Fiery color print options with the Adobe PostScript
Printer Driver for Windows. This driver is a PostScript 3 printer driver that takes full
advantage of the color features of the Fiery. Before you proceed, make sure you have
completed the following procedures:
• Install the Adobe PostScript Printer Driver and the Fiery PPD (see the User Software
Installation Guide).
• Set up the Fiery for printing (see the Configuration Guide).
• Install the ICC output profile for the Fiery on your Windows computer (see
page 3-4).
TO
Choose ColorWise
SET PRINT OPTIONS FOR
W INDOWS
1.
Access the printer driver option, as described on page 1-14.
2.
Click the Fiery Printing tab, and choose settings from the ColorWise menu for the
print options described on page 1-3.
1
1-16
Fiery Color Management
Click Expert Settings
to access additional
ColorWise options
3.
Click Expert Settings.
The Expert Color Settings flowchart appears. This window displays additional color
settings for the Fiery. Each option includes a menu from which you can select settings
for your specific job.
4.
Click Update to display the current Fiery settings.
If Update does not appear, make sure that two-way communication is set up as
described in the User Software Installation Guide.
5.
To specify custom RGB source settings, choose Other for the RGB Source Profile, and
then click Custom Setup.
The following dialog box allows you to specify custom RGB source settings
(see page 1-7).
1
1-17
PostScript printer driver for Windows and Mac OS
For most users, the default settings provide the right level of color control. For more
information about individual print options, see page 1-3.
Adobe PostScript printer driver for Mac OS
This section explains how to set color management print options with the AdobePS
printer driver for Mac OS, a PostScript 3 driver that takes full advantage of the color
features of the Fiery and lets you save a set of print option settings.
Before you continue, make sure you have completed the following procedures, as
described in the User Software Installation Guide:
• Install the AdobePS printer driver and the Fiery PPD.
• Select the Fiery in the Chooser and set it up with the Fiery PPD.
• Install the ICC output profile for the Fiery on your Mac OS computer
(see page 3-4).
N OTE : The following illustrations and instructions do not apply to all applications.
Many applications, such as PageMaker, Photoshop, Illustrator, QuarkXPress, and
CorelDRAW have other color management options in addition to those presented in
the printer driver. For information on specific applications, see the Fiery Color
Reference.
Setting color management print options
You can choose print options from the various panes of the AdobePS driver dialog box.
To access the initial AdobePS dialog box, choose Print from the File menu of your
application.
N OTE : The word “pane” is used to describe the different pages that appear in the driver
dialog box when you make selections from the pull-down menu at the upper left. Each
pane presents a particular set of print options.
1
1-18
Fiery Color Management
The AdobePS driver includes the following Color Matching options.
• Color/Grayscale—When this setting is used to print to the Fiery, ColorWise
provides all color conversions on the Fiery. Typically, you should use this option
when printing to the Fiery.
• PostScript Color Matching—Can be used with PostScript devices such as the Fiery.
It provides for color conversion using a color rendering dictionary (CRD) that is
downloaded with the print job. This method requires that the file is saved as an EPS
with PostScript Color Management selected.
N OTE : If you use the PostScript Color Matching option, the driver may, depending on
the application in use, attach a CMYK source definition to the CMYK data in your
document. In such a case, the CMYK data in the document is reseparated using a Fiery
CRD. The destination color space for the CRD is determined by the RGB Separation
print option. When RGB Separation is set to Simulation, CMYK data is printed
according to all specified CMYK Simulation Profile and CMYK Simulation Method
settings. When RGB Separation is set to Output, CMYK data is converted to the
selected output profile’s CMYK color space.
• ColorSync Color Matching—Provides for color conversion on the host computer.
This option can be used with PostScript devices such as the Fiery, but it is intended
for use with PostScript Level 1 devices. If you use this option, be sure to specify
the Fiery ICC profile as the Printer Profile. ColorSync Color Matching is not a
suggested color matching method because it does not work in conjunction with all
applications and requires that you disable features of ColorWise on the Fiery.
1
1-19
TO
SET
F IERY
PostScript printer driver for Windows and Mac OS
COLOR MANAGEMENT OPTIONS
1.
In the AdobePS Print dialog box, choose Color Matching.
2.
Choose Color/Grayscale from the Print Color menu.
Choose Color Matching
Choose Color/Grayscale
1
1-20
Fiery Color Management
3.
In the Printer Specific Options menus, choose settings for the print options described
on page 1-3.
4.
If these settings are used regularly, click Save Settings to save them for subsequent
jobs.
2
2-1
Chapter 2:
Color Calibration
An overview of calibration
Calibrating the Fiery ensures consistent, reliable color output. You can calibrate
the Fiery using ColorWise Pro Tools in combination with any of the following color
measurement instruments, available as separately purchased options:
• X-Rite DTP41 automatic scanning spectrophotometer
• X-Rite DTP32 automatic scanning densitometer
• EFI Densitometer ED–100 hand-held densitometer
• EFI Spectrometer ES–1000 hand-held spectrometer
By connecting the instrument to the serial port on your computer, you can quickly
measure calibration color patches and download measurements to the Fiery. For
information on setting up and operating the DTP41 and DTP32, see Appendix A.
EX12
You can also obtain measurements from the copier’s built-in scanner and calibrate
using AutoCal™ or ColorCal™, which do not require the use of a measurement
instrument and can be run from ColorWise Pro Tools or the Control Panel.
This chapter explains how calibration works and provides instructions for all
calibration procedures.
For information on advanced calibration and simulation features available with
ColorWise Pro Tools, such as editing profiles and creating custom profiles, see
Chapter 3. A format for inputting color measurements from other densitometers
is described in Appendix B.
N OTE : The procedures described in this chapter are fundamentally the same for
Windows and Mac OS computers. The main differences are the interface cable and the
port used to connect to the measurement instrument. This chapter shows screens and
dialog boxes for the Windows version.
N OTE : The term computer is used to refer to any computer running
ColorWise Pro Tools.
2
2-2
Color Calibration
An overview of calibration
Calibration generates curves that adjust for the difference between the actual toner
densities (measurements) and the response expected by the output profile.
• Measurements represent the actual color behavior of the copier/printer.
• Calibration sets are sets of measurements.
• A calibration target that describes the expected behavior of the copier/printer is
contained in each output profile.
Once you have calibrated the Fiery, a calibration set is stored. This calibration set will
be used when it is associated with an output profile. Every output profile has an
associated calibration set. If you have not specified one, the calibration set associated
with the default output profile is used.
N OTE : Changing calibration has the potential to affect all jobs for all users, so you
may want to limit the number of people authorized to perform calibration. You can set
an Administrator password in Fiery Setup to control access to calibration (see the
Configuration Guide).
Understanding calibration
Although most users’ needs are met by the default calibration set, the Fiery allows you
to choose a calibration set to customize calibration for specialized jobs.
Calibration allows you to:
• Maximize the color reproduction capabilities of the Fiery.
• Ensure consistent color quality over time.
• Produce consistent output across Fiery servers that are connected to the same
copier/printer.
• Achieve better color matches when reproducing spot colors such as PANTONE
colors or other named color systems.
• Optimize the Fiery for using ColorWise rendering styles (CRDs) and CMYK
simulations, and for using ICC profiles.
2
2-3
Understanding calibration
How calibration works
Success in obtaining satisfactory print quality from a color server such as a Fiery
connected to a copier/printer depends on many factors. Among the most important
are establishing and maintaining optimal toner densities. The density is the measure of
the light absorbed by a surface. By carefully regulating toner densities, you can obtain
consistent printed color.
Even with a calibrated system, toner density is affected by service settings, humidity,
and temperature; density also tends to drift over time. Regular measurement detects
day-to-day variations in densities, and calibration corrects for them.
Calibration works by creating calibration curves on the Fiery that compensate for the
difference between actual (measured) and desired (target) density values. These
calibration curves are the graphic equivalent of transfer functions, which are
mathematical descriptions of changes that will be made to the data you start with.
Transfer functions are often graphed as input or output curves.
The Fiery generates calibration curves after comparing measured values to the final
target values for each of the four toner colors. The target values are based on the output
profile specified.
Measurements
Measurement files contain numerical values that correspond to the toner density
produced by the copier/printer when it prints solid cyan, magenta, yellow, and black,
and graduated tints of those colors.
To create a measurement file, first print a page of color patches. Then measure the
patches using either a color measurement instrument connected to a computer on the
network or, if it is available, the print device’s scanner. The new measurements are
automatically downloaded to the Fiery.
2
2-4
Color Calibration
Output profiles and calibration sets
Output profiles and calibration sets define desired calibration results. One or more
output profiles and one or more calibration sets are provided with the Fiery. When you
calibrate the Fiery, you can select the calibration set that corresponds to the typical
printing jobs at your site. This same calibration set can be associated with one or more
output profiles. (For more information on output profiles, see page 1-10.)
Scheduling calibration
In general, you should calibrate the Fiery at least once a day, depending on the
volume of print jobs. If it is very important to maintain consistent color, or if the
copier/printer is subject to wide fluctuations in temperature or humidity, calibrate
every few hours. For the best performance, calibrate whenever there is a noticeable
change in print quality.
If you need to split a print job into two or more batches to be printed at different
times, it is especially important to calibrate before printing each batch. You should
also calibrate the Fiery after copier/printer maintenance. However, because the
copier/printer may be less stable immediately after maintenance, wait until you have
printed approximately 50 pages before you calibrate.
N OTE : Since printed output from the copier/printer is very sensitive to changes in
temperature and humidity, the copier/printer should not be installed near a window
or in direct sunlight, or near a heater or air conditioner. Paper is sensitive to climate
changes, as well. It should be stored in a cool, dry, stable environment, and reams
should remain sealed until they are needed.
Print color reference pages. You can print Color Charts from the Control Panel (see the
Configuration Guide) or Command WorkStation (see the Job Management Guide), and
the color reference pages included with the user software (see the User Software
Installation Guide ). All of these pages include fully saturated color patches and pale
tints of cyan, magenta, yellow, and black. Images with skin tones offer a very good
basis for comparison. You can save and compare pages you printed at different times.
If there is a noticeable change in appearance, calibrate the Fiery.
2
2-5
Using Calibrator
When you examine the Test Page, keep in mind that all color patches should be visible,
even though they may be very faint in the five percent and two percent range. Each
color’s patch set should show uniform gradation from patch to patch as the color
lightens from 100 percent to zero percent.
If the solid density patches (100% cyan, magenta, yellow, or black) look less saturated
with time, show the pages to your copier/printer service technician to find out whether
adjusting the copier/printer can improve output.
Checking calibration status
You can check whether the Fiery is calibrated, which calibration set and output profile
were used, and when the copier/printer was last calibrated:
• Print a Configuration page or Test Page from the Control Panel or
Command WorkStation.
• Select a calibration set in Calibrator—the last calibration and the user who
performed it are displayed.
Using Calibrator
ColorWise Pro Tools Calibrator lets you calibrate the Fiery using the measurement
method of your choice.
Changing the calibration has the potential to affect all jobs for all users, so you may
want to limit the number of people authorized to perform calibration. You can set an
Administrator password to control access to calibration (see the Configuration Guide).
N OTE : Multiple users can be connected to one server with ColorWise Pro Tools, but
only one user at a time can use Calibrator. An error message appears if you try to
calibrate when another user is already using ColorWise Pro Tools to calibrate.
2
2-6
Color Calibration
Starting Calibrator
You start Calibrator from the ColorWise Pro Tools main window.
T O C ALIBRATE
1.
THE
F IERY
USING
C ALIBRATOR
Start ColorWise Pro Tools and connect to the Fiery.
N OTE : Spot On is only available if you have installed the Fiery Graphic Arts Package
option.
For instructions on configuring the connection to the Fiery, see the User Software
Installation Guide.
N OTE : If the connection to the Fiery from Command WorkStation (which also allows
for access to ColorWise Pro Tools) is not established, you can start
ColorWise Pro Tools independently of Command WorkStation.
2
2-7
2.
Using Calibrator
Click Calibrator.
The Calibrator window appears.
Calibration methods
appear here
You can use the Calibrator window controls to perform the calibration method of your
choice. Procedures for each calibration method are described in sections later in this
chapter.
2
2-8
Color Calibration
Expert Mode
You can set the Calibrator to either Standard or Expert Mode. You can perform all
essential calibration tasks while in Standard Mode. Expert Mode offers two additional
options: Print Pages and View Measurements.
Calibration methods
appear here
With the Print Pages option, you can print a calibration Comparison Page showing the
results of the new measurements with any profile associated with the currently selected
calibration set. You can also create a custom comparison page and save it as a
PostScript or Encapsulated PostScript (EPS) file called CALIB.PS. You can then print
the file to the Hold Queue of the Fiery from your application or download it to the
Hold Queue with Fiery Downloader. An additional way to create the CALIB.PS file is
to rename any job in the Hold Queue using Command WorkStation (see the Job
Management Guide).
2
2-9
Using Calibrator
With the View Measurements option, you can view the current set of measurements as
a table or as a graph that shows both the measurements and the target curves.
Output profile name
appears here
When more than one profile uses the same target, an additional menu called Plot
Against appears in the upper-right corner of the dialog box. It lists all output profiles
that use that same calibration set. Selecting an output profile from this menu displays
the target curves associated with that profile. If each output profile contains a unique
calibration target, when you switch profiles, the curves displayed also change.
2
2-10
Color Calibration
Restoring default calibration measurements
Use the following procedure to return to default preset calibration measurements.
TO
RESTORE DEFAULT CALIBRATION MEASUREMENTS
1.
In the main Calibrator window, click Restore Device.
A warning message appears.
2.
Click OK to restore the preset default calibration set.
N OTE : Restore Device applies only to the currently selected calibration set.
Calibrating the Fiery with the DTP41
Using the ColorWise Pro Tools Calibrator application and the DTP41
spectrophotometer, you can quickly measure color patches generated by the
copier/printer and automatically download these measurements to the Fiery.
N OTE : Before using ColorWise Pro Tools and the DTP41 to calibrate the Fiery, follow
the instructions on page A-5 for calibrating the DTP41 spectrophotometer.
TO
CALIBRATE THE
1.
F IERY
USING THE
DTP41
Start Calibrator.
For instructions on starting Calibrator, see page 2-6.
2.
Choose X-Rite DTP41 as the measurement method.
3.
In the Check Print Settings pane, choose the desired calibration set.
Choose the appropriate calibration set for the type of and media you will use
most often.
2
2-11
Using Calibrator
N OTE : For this calibration to take effect, the calibration set must be associated with one
or more output profiles. There is no need to make any new associations for the default
calibration set, since it is already associated with the default output profile.
4.
In the Generate Measurement Page pane, click Print.
The Print Options dialog box appears.
5.
Choose the Page Type, Paper Size, and Input Tray to use for the measurement page and
click Print.
In the Page Type menu, choose either 34 or 21 Sorted Patches.
In the Paper Size menu, the menu will automatically choose LTR/A4 for 21 Sorted
Patches or 11x17/A3 for 34 Sorted Patches.
In the Input Tray menu, choose the paper source.
6.
Retrieve the measurement page from the copier/printer.
7.
In the Get Measurements pane, click Measure.
The Measurement Options dialog box appears, displaying the specified Page Type and
Paper Size options.
2
2-12
8.
Color Calibration
Click Measure.
The Start dialog box appears.
9.
If necessary, choose the appropriate COM port for the DTP41 from the Available Ports
menu. Click Start Measurements.
The Measurements dialog box appears.
10.
Feed the measurement page into the DTP41, starting with the cyan strip.
Align the page in the measurement page slot of the DTP41 so the appropriate color
column is centered below the alignment mark (see the diagram on page A-2). Insert
the page about 3 inches, past the front idler rollers, until it rests against the rear
drive rollers.
2
2-13
11.
Using Calibrator
Click Read Strip.
The DTP41 pulls the measurement page through automatically.
Once the measurement page is read, Calibrator instructs you to insert and align the
page again for the next color.
12.
Repeat the measurement process for the magenta, yellow, and black strips.
A check mark appears on the circle of the color just read, and the Status field indicates
that color was measured successfully.
You can use the Previous and Next buttons to reverse or advance to another step in the
measurement sequence.
13.
When the Status field indicates that all four color strips have been read successfully,
click Accept Measurements.
14.
In the Measure dialog box, click OK.
15.
Click Apply in the Calibrator window to implement the new calibration set.
16.
Click OK in the Information dialog box.
This completes the Fiery calibration process.
2
2-14
Color Calibration
Calibrating the Fiery with the DTP32
Using the DTP32, you can quickly measure color patches and download these
measurements to the Fiery using ColorWise Pro Tools Calibrator.
TO
CALIBRATE THE
1.
F IERY
USING THE
DTP32
Start Calibrator.
For instructions on starting Calibrator, see page 2-6.
2.
In the Select Measurement Method pane, choose X-Rite DTP32.
3.
In the Check Print Settings pane, choose the desired calibration set.
If more than one option appears, choose the appropriate calibration set for the type of
media you will use most often.
N OTE : For this calibration to take effect, the calibration set must be associated with one
or more output profiles. The default calibration set is already associated with the
default output profile, so there is no need to make any new associations.
4.
In the Generate Measurement Page pane, click Print.
The Print Options dialog box appears.
5.
Choose the appropriate Page Type, Paper Size, and Input Tray to use for the
measurement page and click Print.
For Page Type, choose either 34 or 21 Sorted Patches.
In the Paper Size menu, the menu will automatically choose LTR/A4 for 21 Sorted
Patches or 11x17/A3 for 34 Sorted Patches.
For Input Tray, specify the paper source.
2
2-15
Using Calibrator
6.
Retrieve the measurement page from the copier/printer.
7.
Click Measure in the Get Measurements pane.
The Measurement Options dialog box appears, displaying the specified Page Type and
Paper Size options.
8.
Click Measure.
In the dialog box that appears, follow the directions for feeding the measurement
page through the X-Rite DTP32.
The Status field displays instructions for selecting the port and feeding the
measurement page through the DTP32 four times, once for each color strip.
9.
When the Status field indicates that the measurements were read successfully,
click Accept.
10.
Click OK in the Measure dialog box.
11.
Click Apply in the Calibrator window to implement the new calibration set.
12.
Click OK in the Information dialog box.
This completes the calibration process.
2
2-16
Color Calibration
Using the EFI Spectrometer ES-1000 and
EFI Densitometer ED-100
The EFI Spectrometer ES-1000 is a hand-held spectrophotometer that measures the
spectral light reflected from printed output and other colored materials. Since the ES1000 accurately measures both the density and color of printed output, it is an
effective tool for calibrating the Fiery.
The EFI Densitometer ED-100 is a hand-held instrument that measures the density
of printed ink and toner. Like the DTP32, the ED-100 is a reflection densitometer
that you can use to calibrate the Fiery.
The ES-1000 and the ED-100 are available as separately purchased options.
Setting up the ES-1000
To use the ES-1000 for calibration purposes, you must first set it up for use with your
computer. For best results, you should also calibrate the ES-1000 itself using the white
point calibration card that is included with the instrument.
For complete instructions on setting up and calibrating the ES-1000, see the
documentation that is included with the instrument.
The following illustration shows the different parts of the ES-1000.
Indicator light
Measure button
Sample aperture
2
2-17
Using the EFI Spectrometer ES-1000 and EFI Densitometer ED-100
Setting up the ED-100
To use the ED-100 for calibration purposes, you must first set it up for use with your
computer. For complete instructions on setting up the ED-100, see the documentation
that is included with the instrument.
The following illustration shows the different components of the ED-100.
Indicator light
Measure button
Sample aperture
(underneath)
Calibrating the Fiery with the ES-1000 or ED-100
You can use ColorWise Pro Tools in conjunction with the ES-1000 or ED-100 to
calibrate the Fiery.
TO
CALIBRATE THE
1.
F IERY
USING THE
ES-1000
OR
ED–100
Start Calibrator.
For instructions on starting Calibrator, see page 2-6.
2.
Choose EFI Spectrometer ES-1000 or EFI Densitometer ED-100 as the
measurement method.
3.
In the Check Print Settings pane, choose the desired calibration set.
Choose the appropriate calibration set for the type of media you will use most often.
N OTE : For this calibration to take effect, the calibration set must be associated with one
or more output profiles. There is no need to make any new associations for the default
calibration set, since it is already associated with the default output profile.
2
2-18
4.
Color Calibration
In the Generate Measurement Page pane, click Print.
The Print Options dialog box appears.
5.
Choose the Page Type, Paper Size, and Input Tray to use for the measurement page,
and then click Print.
In the Page Type menu, choose either 34 or 21 Sorted Patches, or 34 or 21
Randomized Patches. Sorted patches are printed on the page in order of their hue and
saturation levels. Randomized patches are printed on the page in random order, to help
compensate for density inconsistencies on different areas of the page.
In the Paper Size menu, the menu will automatically select LTR/A4 for 21 Patches or
11x17/A3 for 34 Patches.
In the Input Tray menu, specify the paper source.
6.
Retrieve the measurement page from the copier/printer.
7.
Click Measure in the Get Measurements pane.
The Measurements Options dialog box appears.
2
2-19
8.
Using the EFI Spectrometer ES-1000 and EFI Densitometer ED-100
Choose Clicks Per Patch, Audio Feedback, and Port options, and then click Start.
The Page Type menu automatically chooses the measurement page type that you
printed in step 6.
Use the arrow buttons next to the Clicks Per Patch field to choose the number of
measurements you want to take for each patch on the page. When you choose multiple
clicks, the average value of all measurements taken for the patch is returned to the
Fiery. Multiple measurements are more accurate, but may take more time.
Select the Audio Feedback option if you want to hear a confirmation tone each time a
measurement is recorded. A single tone indicates a successful measurement; two tones
indicate a measurement error. If you have specified multiple clicks per patch, the tone
sounds after you take the final measurement.
If necessary, choose the appropriate COM port for the ES-1000 or ED-100 from the
Port menu.
When you click Start, the Measurements window appears. Directions for measuring
the patches appear in the Status area.
9.
Place the ES-1000 or ED-100 over the specified patch on the Measurement Page,
making sure to center the sample aperture over the patch. Press Measure to take the
measurement.
N OTE : For a more accurate measurement, place several plain sheets of paper beneath
the Measurement Page to block underlying colors from being read by the instrument.
2
2-20
Color Calibration
If you have specified multiple clicks per patch, continue pressing Measure to take the
required number of measurements. We recommend that you move the ES-1000 or
ED-100 slightly after each measurement while keeping it within the patch circle.
When the patch has been measured successfully, a checkmark appears in the patch
preview in the Measurements window. The window identifies and highlights the next
patch to be measured.
10.
Repeat step 9 to measure each successive patch on the Measurement Page.
To retake a measurement, first select the desired patch preview in the Measurements
window. Then measure the patch on the page using the ES-1000 or ED-100.
N OTE : You must take the measurements in the order outlined in the Measurements
window and on the measurement page.
11.
When all the patches have been read successfully, click Accept.
12.
Click Apply in the Calibrator window to implement the new calibration set.
13.
Click OK in the Information dialog box.
This completes the Fiery calibration process.
2
2-21
EX12
Using AutoCal and ColorCal
Using AutoCal and ColorCal
AutoCal and ColorCal let you calibrate the Fiery without the use of an additional
spectrophotometer or densitometer. Instead, these methods use the copier’s built-in
scanner to measure toner density values.
You can perform AutoCal and ColorCal calibration from either ColorWise Pro Tools
or the Fiery Control Panel. For troubleshooting during the AutoCal procedure, see the
Job Management Guide.
N OTE : To calibrate using AutoCal or ColorCal, you will need the Kodak Gray Scale
strip included in the customer media pack that came with your Fiery.
EX12
Calibrating with ColorWise Pro Tools and AutoCal or ColorCal
When you run ColorCal from ColorWise Pro Tools, you have the option to calibrate
the copier’s scanner before calibrating the Fiery itself. This option is not available for
AutoCal.
TO
CALIBRATE WITH
1.
C OLOR W ISE P RO T OOLS
AND
A UTO C AL
OR
C OLOR C AL
Start Calibrator.
For instructions on starting Calibrator, see page 2-6.
2.
In the Select Measurement Method pane, choose AutoCal or ColorCal.
3.
In the Check Print Settings pane, choose the desired calibration set.
If more than one option appears, choose the appropriate calibration set for the type of
media you will use most often.
N OTE : For this calibration to take effect, the calibration set must be associated with one
or more output profiles. The default calibration set is already associated with the
default output profile, so there is no need to make any new associations.
2
2-22
4.
Color Calibration
Click Print in the Generate Measurement Page pane.
The Print Options dialog box appears.
AutoCal
5.
ColorCal
Choose the Input Tray to use for the measurement page and click Print.
The Page Type is automatically set to AutoCal Page or ColorCal Measurement Page.
The Paper Size is automatically set to LTR/A4.
6.
Retrieve the Measurement Page from the copier.
7.
Click Measure in the Get Measurements pane.
If you chose the AutoCal method, skip to step 11.
If you chose the ColorCal method, an alert message appears, asking if you want to
calibrate the copier’s scanner.
8.
If you are using ColorCal and want to calibrate the scanner, click Yes in the alert
message.
9.
Choose the Input Tray to use for the scanner measurement page, and click Print.
Retrieve the scanner measurement page from the copier.
2
2-23
10.
Using AutoCal and ColorCal
Place the Gray Scale strip, Color Scale strip, and scanner measurement page in the
correct positions on the copier glass for scanner calibration.
Place the Gray Scale face down on the copier glass so that it will be centered along the
top edge of the scanner measurement page. Then place the Color Scale strip face down
on the copier glass so it is centered below the Gray Scale strip, keeping a distance of
0.25 inch to 0.5 inch between the two strips. Finally, place the scanner measurement
page face down over the strips.
To perform the scanner calibration, click Continue in the dialog box that appears.
After the scanner has been calibrated, another dialog box appears, prompting you to
calibrate the Fiery.
11.
Follow the directions in the dialog box for placing the Gray Scale strip and the AutoCal
or ColorCal measurement page on the copier glass. Click Continue to perform the Fiery
calibration.
AutoCal
ColorCal
12.
Click Apply in the main Calibrator window to implement the new calibration set.
13.
Click OK in the Information dialog box.
This completes the calibration process.
2
2-24
EX12
Color Calibration
Calibrating from the Control Panel with AutoCal or ColorCal
If an Administrator password has been set, you will need it to perform calibration
from the Control Panel. For instructions on using the Fiery Control Panel, see the
Configuration Guide.
It is also possible to remove calibration measurements from the Fiery. In general, it is
not necessary, because any new calibration replaces the existing one if the same
calibration set is selected.
TO
USE
A UTO C AL
OR
C OLOR C AL
FROM THE
C ONTROL P ANEL
1.
At the Idle screen, press Menu to enter the Functions menu.
2.
Using the Up and Down arrow buttons and the Line Selection buttons, choose
Calibration, and then choose Set Up Calibration.
If a password is set on the Fiery, enter it and press OK.
3.
For Calibration Mode, choose Standard or Expert.
Expert Mode adds the option to print a Comparison Page (see page 2-8).
4.
For Tray, choose the paper source for the patch page and press OK.
Choose LTR/A4 from the Fiery Control Panel.
N OTE : If you print a measurement page from the Manual Feed tray, you must load the
appropriate paper in the tray and select the correct paper size from the copier/printer
touch panel display.
5.
Choose Calibrate.
6.
Select the Calibration Set.
You can choose from the list of all calibration sets on the Fiery. This screen appears
only if more than one calibration set is available.
7.
When prompted, choose Yes to print the measurement page.
This page is comprised of swatches of color that will be measured by the copier’s
scanner and then compared to the target color values. After the page is printed, the
Measure Page screen appears.
2
2-25
Using AutoCal and ColorCal
8.
Choose Yes in the Measure Page screen.
9.
When prompted on the Control Panel, place the Kodak Gray Scale strip face down along
the top of the copier glass.
Place the strip so it will be centered along the top edge of the AutoCal or ColorCal
measurement page.
Place grayscale strip face down
10.
Place color measurement page face
down over grayscale strip
Place the color measurement page face-down over the grayscale strip.
Place the page at the upper-left corner of the copier/printer glass. Slide the grayscale
strip to the top center of the color measurement page. Make sure the patches on the
grayscale strip do not overlap the color patches.
Close the platen glass cover, being careful not to move the grayscale strip and color
measurement page.
11.
On the Control Panel, choose OK.
Status messages display the progress of scanning and calculating measurements.
12.
When prompted to Print Comparison Page (Expert Mode only), choose Yes to print a
preview of the selected calibration.
Choose from a list of output profiles that use the same calibration set and press OK.
This option appears only in Expert Mode calibration.
13.
When prompted to apply or overwrite the calibration, choose Yes.
14.
Choose Yes to confirm.
Status messages display progress information. When calibration is complete, the
Control Panel display returns to the Functions menu.
2
2-26
TO
Color Calibration
REMOVE CALIBRATION FROM THE
CONTROL PANEL
1.
From the Fiery Control Panel, access the Calibration menu as described on page 2-24.
2.
Choose Remove Calibration.
3.
When prompted, verify that you want to proceed with removing calibration.
The current measurements are removed and a default calibration is restored.
3
3-1
Chapter 3:
ColorWise
Pro Tools
Profile Manager
Designed to give you flexible control of color printing, ColorWise Pro Tools include
the following color management tools:
• Calibrator (see Chapter 2)
• Color Editor
• Profile Manager
• Spot On (only available if you have installed the Fiery Graphic Arts Package)
• Color Setup
ColorWise Pro Tools for Windows and Mac OS computers are fundamentally the
same; differences are noted in this chapter. The windows and dialog boxes illustrated
are the Windows versions. For information on installing and configuring a connection
to ColorWise Pro Tools, see the User Software Installation Guide.
N OTE : If the connection to the Fiery from Command WorkStation (which also allows
for access to ColorWise Pro Tools) is not established, you can start
ColorWise Pro Tools independently of Command WorkStation.
Profile Manager
Profile Manager allows you to manage and edit ICC profiles. In the case of the Fiery,
these profiles are divided into RGB Source, Simulation, and Output profiles.
• RGB Source contains all monitor profiles resident on the Fiery. RGB Source profiles
are used to define the source color space for RGB colors processed by the Fiery.
3
3-2
ColorWise Pro Tools
N OTE : If you use Photoshop 5.x or 6.x, you can upload the profile for your selected
working space to the Fiery and choose that as your RGB Source profile. For more
information, see the Fiery Color Reference.
• Simulation contains printer profiles used to simulate another device on the Fiery.
• Output contains copier/printer profiles that describe the connected copier/printer.
For more information on output profiles, see page 1-10.
N OTE : Changing the Fiery default profiles affects all jobs for all users. You may want to
limit the number of people authorized to use ColorWise Pro Tools by setting an
Administrator password.
The following profiles are provided with the Fiery.
RGB Source:
• sRGB (PC)—source color space for a generic Windows computer monitor
• Apple Standard—standard source color space for Mac OS computer monitors with
older versions of ColorSync
• EFIRGB—preset default setting for a Fiery
Simulation:
• SWOP-Coated—United States press standard
• Euroscale—European press standard
• DIC—Japanese press standard
In addition, one or more output profiles are provided with the Fiery. For more
information on output profiles, see page 1-10.
3
3-3
Profile Manager
Setting the default profiles
The default profiles are applied to all print jobs sent to the Fiery, unless you override
them using print options. Therefore, the defaults should be the most commonly used
profiles.
TO
SPECIFY A DEFAULT PROFILE
1.
Start ColorWise Pro Tools and click Profile Manager.
Output profiles
appear here
The left side of the main Profile Manager window lists the ICC profiles in the default
directory of your computer; the right side lists the three profiles on the Fiery.
The Lock icon ( ) to the left of a profile name indicates that the profile cannot be
deleted and can be edited only if saved under a new name. Only Simulation and
Output profiles can be edited.
A small icon to the left of a profile name indicates the default profile for each category
(RGB Source, Simulation, and Output). If you designate a different profile as the
default, the icon appears next to your designated profile. The icon indicating the
default RGB Source and Output profiles looks like a target ( ). The icon indicating
the default Simulation profile changes in appearance depending on whether the default
RGB Separation setting is set to Simulation ( ) or Output ( ).
2.
Select the profile you want as the default for a profile type and click Profile Settings.
3
3-4
ColorWise Pro Tools
3.
In the Profile Settings dialog box, click Default and click Apply.
4.
Click OK.
Profile Settings dialog box
for RGB Source (left) and
Simulation (right)
In the main Profile Manager window, the target icon appears next to the new default
profile you specified.
5.
Repeat steps 2 through 4 for each type of profile.
If no default is set for RGB Source, the RGB Source print option is set to None. If no
default profile is set for Simulation, the CMYK Simulation print option is set to None.
For more information on print options, see Chapter 1.
The Output profile always has a default profile. You can change the Output default by
selecting a preset profile you want as the default and clicking Profile Settings. Or create
a new default under a new name by selecting a preset profile and specifying your choice
of the calibration set in the Use Calibration Set menu and a new name in the Profile
Description menu.
Downloading profiles
The Fiery comes with default profiles. You can download additional profiles from any
computer connected to the Fiery.
3
3-5
TO
Profile Manager
DOWNLOAD A PROFILE
1.
Start ColorWise Pro Tools and click the Profile Manager.
The left side of the main Profile Manager windows lists the ICC profiles in the default
directory of your workstation.
• Windows 9x/Me—Windows\System\Color
• Windows NT 4.0—Winnt\System32\Color
• Windows 2000—Winnt\System32\Spool\Drivers\Color
• Windows XP—Windows\System32\Spool\Drivers\Color
• Mac OS—System Folder:Preferences:ColorSync Profiles for ColorSync 2.0, and
System Folder:ColorSync Profiles for ColorSync 2.5 or later
2.
If the desired profile does not appear, click Browse to go to a different directory.
Browse to the directory containing the profile you want to download and click OK.
3.
When the profile you want to download appears in the list in the main Profile Manager
window, select it.
If the profile is compatible with the Fiery, a green arrow indicates that the profile is
available for downloading. Only output device profiles are downloadable to Simulation
and Output. Only input device profiles are downloadable to RGB Source.
N OTE : On Windows computers, the profiles must have an extension of .icc or .icm to
be listed. On Mac OS computers, the profiles must have a file type of “profile.”
All ICC profiles in the selected directory on your computer are displayed in the list in
the main Profile Manager window. However, because a profile is listed does not
necessarily mean it can be downloaded to the Fiery.
3
3-6
ColorWise Pro Tools
Simulation profiles should only be profiles for those devices you want the Fiery to
match in terms of color output characteristics. Output profiles should only be profiles
for the device to which your Fiery is connected. Although CMYK printer profiles can
be downloaded as Simulation or Output, consider how they will be used. If you want
the Fiery prints to look like another printer, download that profile as a Simulation.
If you have a custom profile of the copier/printer your Fiery is connected to, download
that profile as an Output profile.
4.
Click the arrow to download the profile and click OK when the download is complete.
The new profile now appears in the list of profiles on the right side of the Profile
Manager main window.
For Mac OS computers, this profile must be associated with one of the predefined
names (Source-1 through Source-10 for RGB Source, Simulation-1 through
Simulation-10 for Simulation, or Output-1 through Output-10 for Output) or set as
the default before it can be used. For Windows computers, all profiles can appear in
the printer driver by their profile descriptions (see “Defining profiles” on page 3-8).
N OTE : When an output profile is downloaded, it inherits the calibration target of the
current default output profile.
Editing profiles
The profiles on the Fiery can be customized to meet your specific needs and the
characteristics of your copier/printer using Color Editor, either directly or through
Profile Manager. For more information on editing profiles, see “Color Editor” on
page 3-10.
Managing profiles
Profile Manager lets you back up profiles to ensure that no custom profiles are lost
when the Fiery software is updated. You can also upload a copy of a built-in Fiery
profile to your workstation in order to use it with an ICC-aware application, such as
Photoshop. Profile Manager also lets you delete unwanted profiles.
N OTE : You can back up and delete only those profiles that appear in the main Profile
Manager window without a Lock icon next to them. Locked profiles cannot be deleted,
but most can be backed up.
3
3-7
TO
Profile Manager
BACK UP PROFILES
1.
Start ColorWise Pro Tools and click Profile Manager.
2.
Select the profile on the Fiery to upload.
The arrow in the middle of the Profile Manager window turns green and points to the
left, indicating the profile is available for upload.
3.
Click the green arrow, choose a name and location for the profile, and click Save.
The name will be the file name of the profile, but the profile description will be the
original description, or the one you entered in the Profile Settings dialog box.
N OTE : When saving the profile on a Windows computer, be sure to include the
extension .icm. If the extension is not included, additional dialog boxes appear.
4.
Click OK when you are notified that the profile was successfully uploaded.
Delete profiles to make sure no one uses the wrong profile and to free up disk space on
the Fiery (although profiles are small and do not take up much space).
TO
DELETE PROFILES FROM THE
F IERY
HARD DISK
1.
Start ColorWise Pro Tools and click Profile Manager.
2.
Select the profile you want to delete and click Delete.
A Warning dialog box asks you to confirm the deletion.
N OTE : You cannot delete preset profiles, profiles that are currently set as default, or
profiles that are linked to any of the predefined custom names, for example
Simulation-1.
3.
Click Yes to delete the profile.
4.
To delete a profile currently set as the default or associated with a custom name,
click Profile Settings and clear the default option.
3
3-8
ColorWise Pro Tools
Defining profiles
For Mac OS computers, before you can apply any downloaded or edited profile to a
print job, that profile must be linked to one of the predefined custom names, or you
can set the profile as the default for all print jobs (see setting default profiles, page 3-3).
Ten names are available for custom profiles—Source-1 through Source-10 for RGB
Source, Simulation-1 through Simulation-10 for Simulation, or Output-1 through
Output-10 for Output.
For Windows computers, all profiles appear by their actual names in the printer driver.
These fixed names are used in the PPD so you can select profiles for each job even if
your driver does not have the capability to obtain an updated list from the server.
N OTE : A custom simulation profile is used to illustrate this procedure. The same steps
apply for defining custom or downloaded output profiles.
TO
DEFINE A PROFILE
1.
Start ColorWise Pro Tools and click Profile Manager.
Custom profile
created with
Color Editor
For the purposes of this example, assume DIC-new is a custom simulation profile
created with Color Editor and, as such, no information is displayed for DIC-new
under the heading “Appear in Driver as.”
3
3-9
Profile Manager
2.
Select DIC-new in the Simulation list, and click Profile Settings or double-click
DIC-new.
3.
Select the “Appear in Driver as” option, choose one of the predefined custom
simulation names (Simulation-1 through Simulation-10) from the menu, and then
click Apply.
N OTE : Choose a name that is not already linked with another simulation. If you try to
define two profiles with the same name, you will get an error message.
For an output profile, the predefined custom names would be Output-1 through
Output-10.
N OTE : While you cannot delete a preset profile, you can use the name of a preset
profile name for your edited profile when you select the “Appear in Driver as” option.
This replaces the preset profile with your own profile.
When you choose Profile Settings for an output profile, the Use Calibration Set
options also appear. You must calibrate the Fiery with this calibration set before
this option has any effect. If you have never measured for this calibration set, default
measurements will be used. For more information about calibration sets, see page 2-2.
In Profile Settings, you can also change profile descriptions for all non-locked profiles.
3
3-10
4.
ColorWise Pro Tools
Click OK.
DIC-new will appear
in driver as
Simulation-1
Simulation-1 now appears under the “Appear in Driver as” column for DIC-new.
Choosing Simulation-1 from the CMYK Simulation option of the printer driver
applies the DIC-new simulation to the print job.
If you do not define a custom simulation profile, your job will print with CMYK
Simulation Profile set to None. If you do not define a custom RGB Source or Output
profile, the default profile is used.
Color Editor
Color Editor allows you to customize simulation and output profiles. You can access
Color Editor directly by clicking its icon in the ColorWise Pro Tools main window, or
indirectly, through the Profile Manager.
3
3-11
Color Editor
Editing profiles
Color Editor allows you to create custom profiles by editing existing simulation or
output profiles and saving the changes as a new profile. With Color Editor, you can
fine-tune a profile on your Fiery to meet your exact specifications.
N OTE : You cannot edit source profiles; only simulation and output profiles can be
customized.
Color Editor has two Edit Modes for editing output profiles.
• Custom—Edit output profiles and save customized versions of them.
• % Density—View the calibration target, which is one component of the output
profile. You cannot make changes to the calibration target in this window, but you
can import a new target (see page 2-2).
Color Editor also has several Edit Modes for editing simulations.
• Master—Create a custom master simulation that affects all print jobs to which it is
applied, unless a linked simulation exists for the selected combination of simulation
profile, simulation method, and output profile.
• Quick, Full (Source GCR), or Full (Output GCR)—Create custom linked simulations.
Linked simulations affect the print job only if the corresponding simulation profile,
simulation method, and output profile are selected. If you choose an output profile
and simulation method for which you have created a custom linked simulation, that
simulation is applied automatically to the job. If you choose a simulation method or
output profile for which there is no custom linked simulation, the master simulation
is automatically applied. For detailed information about simulation methods, see
page 1-10.
N OTE : If you made edits to a master simulation after you created a linked simulation,
the edits are not applied to the linked simulation.
3
3-12
TO
ColorWise Pro Tools
EDIT A SIMULATION PROFILE IN
OUTPUT PROFILE IN C USTOM M ODE
MASTER MODE
OR AN
1.
Start ColorWise Pro Tools and click Color Editor.
2.
Choose Simulation or Output from the View menu.
Simulation lists the simulation profiles resident on the Fiery, and Output lists the
output profiles resident on the Fiery.
3.
Choose a profile to edit and click Select.
You can also open the Profile Manager, select a profile, and then click Edit.
3
3-13
4.
Color Editor
For a simulation profile, choose Master from the Edit Mode menu. For an output
profile, choose Custom from the Edit Mode menu.
For instructions for using Quick, Full (Source GCR), or Full (Output GCR) mode, see
page 3-17.
You can use this dialog box to view or edit profiles. The graph allows you to view and
manipulate color output values.
N OTE : When editing an output profile in Custom mode, clicking Import at the bottom
of the Color Editor window lets you import a calibration target file (.trg) created on
another Fiery using the previous version of ColorWise. The current version of
ColorWise does not allow you to save a target separately; rather, it saves the target in
conjunction with an output profile.
3
3-14
5.
ColorWise Pro Tools
Select the colors you want to edit by turning colors off and on.
The Eye icon to the left of each color indicates whether that color is visible on the
graph and will be affected by changes to the curves, brightness, and dot gain controls.
You can view and edit all four colors (cyan, magenta, yellow, and black) at once, or any
combination thereof. Working with only one or two colors at a time helps you finetune your adjustments. To turn off a color, click its Eye icon. In the following example,
cyan and magenta are visible and can be edited.
6.
To adjust the dot gain value for simulating press output, click Dot Gain.
You can choose either the North American or European standard. Use the sliders to
adjust to the desired Dot Gain:
• The range of values for North American at 50% input are from 0% to 50% gain
on output.
• The range of values for European at 40% input are from 0% to 59% gain on output;
the range of values for European at 80% input are from 0% to 20% gain on output.
3
3-15
Color Editor
If you use Dot Gain values, apply the settings first, so that the curves are deflected from
their straight-line positions. Then make edits to the new curves. When you adjust Dot
Gain values, all existing points on the curve are removed. A warning dialog box allows
you to cancel Dot Gain settings before they are applied.
7.
Use the plus and minus buttons to adjust brightness.
Changes to the brightness are reflected in the curve(s).
8.
To adjust the curves directly, click and drag points on the curve or enter numbers into
the input and output boxes.
The graph maps the input percentage to the output percentage. (These percentages
refer to the size of the CMYK halftone dots.) The curve you selected appears, and
points along the curve are marked so you can adjust them.
A curve with this shape
makes a color appear
lighter by reducing
density in the midtones.
A curve with this shape
makes a color appear
darker by adding density
in the midtones.
A curve with this shape
increases contrast.
N OTE : You should adjust points in this way only after you have entered the Dot Gain
and Brightness values.
3
3-16
ColorWise Pro Tools
For greater precision, you can type percentages in the Input and Output boxes or use
the arrow keys on the keyboard to adjust the curve. To use the arrow keys, you must
first click the curve to establish an anchor point that serves as a reference.
9.
For an output profile, you can set maximum densities of the C, M, Y, and K channels.
You can enter the maximum densities, called D-Max values, of individual colors for
profiles that support density settings. D-Max settings are not available when editing
Simulation profiles in Master mode.
10.
When you are finished, click Save and enter a name for the new profile.
The new custom profile is saved to the Fiery with the new name. If you edit one of the
press standard targets (for example, SWOP-Coated, DIC, or Euroscale), you may want
to include the original name as part of the new target name (for example, DIC-new) to
help you remember the source of the new target.
N OTE : Preset default profiles are locked and must be saved with a new name.
For Mac OS computers, custom profiles must be linked to one of the 10 predefined
custom profile names (Simulation-1 through Simulation-10 for Simulation or
Output-1 through Output-10 for Output) in order to be accessible from the printer
driver. You can create as many custom profiles as you want, but a maximum of 10 are
available from the printer driver at any one time. For information on linking custom
profiles to the predefined custom profile names, see “Defining profiles” on page 3-8.
If you are using the printer driver for Windows, custom profiles will appear in the
driver window without being associated with a predefined profile name.
If you set a custom profile as the default, you can access it from the printer driver
without linking it to one of the predefined custom names. Simply select “Printer’s
default” from the printer driver.
3
3-17
Color Editor
T O EDIT A SIMULATION IN Q UICK , F ULL (S OURCE GCR),
F ULL (O UTPUT GCR) MODE
OR
1.
Start ColorWise Pro Tools and click Color Editor.
2.
Choose Simulation from the View menu, select the simulation profile to edit, and then
click Select.
N OTE : You can also open the Profile Manager, select a simulation profile, and
click Edit.
3.
Choose Quick, Full (Source GCR), or Full (Output GCR) from the Edit Mode menu, and
choose an output profile with which your edited simulation will be linked from the
Link with menu.
The edited simulation will be linked with the output profile you choose from the
“Link with” menu.
N OTE : When editing a simulation profile in Quick mode, clicking Import at the
bottom of the Color Editor window lets you import a custom Quick Simulation
created on another Fiery using the previous version of ColorWise. The current
version of ColorWise does not allow you to save custom Quick or Full Simulations
independently; rather, they are saved as components of the same profile.
3
3-18
4.
ColorWise Pro Tools
Edit and save the simulation as described in steps 5 through 10 of the procedure
starting on page 3-14.
For this new simulation to be automatically applied to a print job, the CMYK
Simulation, Simulation Method, and Output Profile settings must be the same as those
used when you edited the profile. If the Simulation Method is different or a different
output profile is selected, the Master simulation is applied.
N OTE : A Simulation Profile can have a custom Master and one or more custom links—
up to three links (Quick mode and the two Full modes) for each output profile on the
system. (For the CMYK Simulation Profile option in the printer driver, note that if
you select a custom profile for which the output ink percentage is greater than 0 and
the input ink percentage is 0, the Use Master print option will have no effect.)
Undoing simulation edits
You can undo the changes you made to simulations (master and linked) in the
following ways:
• If you have not yet saved your edits, click Done on the Color Editor menu bar, and
do not save the changes.
• If you saved your edits under a new simulation name and want to delete all edits (in
Master, Quick, and Full modes) to the simulation, see page 3-7.
EX12
Correcting gray balance
The AutoGray feature lets you use the copier’s built-in scanner as a measurement
device for correcting the gray balance of output profiles. Gray balance refers to the
quality of neutral gray tones in a profile. In many cases, gray tones may contain a
bluish or reddish color cast. AutoGray helps shift these tones back toward
neutral grays.
3
3-19
TO
Color Editor
CORRECT THE GRAY BALANCE OF AN OUTPUT PROFILE
1.
Start ColorWise Pro Tools and click Color Editor.
2.
Choose Output from the View menu.
3.
Select a profile to edit and click Select.
You can also open the Profile Manager, select a profile, and then click Edit.
4.
Choose Custom from the Edit Mode menu.
5.
Click AutoGray.
3
3-20
6.
ColorWise Pro Tools
In the Print Options dialog box that appears, choose the Input Tray to use for the
measurement page and click Print.
The Page Type is automatically set to AutoGray Measurement Page.
The Paper Size is automatically set to LTR/A4.
7.
Click OK to confirm printing of the measurement page.
8.
Retrieve the page from the copier/printer.
The AutoGray dialog box appears.
9.
Follow the directions in the dialog box for placing the Gray Scale strip and the
AutoGray measurement page on the copier glass, and then click Continue.
A message appears, displaying the progress of the gray balance adjustment.
10.
When the adjustment is complete, click OK.
Color Editor displays the adjusted output profile curve.
3
3-21
Color Editor
Checking edited profiles
You can view a printed sample of a profile before you save it to the Fiery by printing
one of the following:
• Comparison Page provided with ColorWise Pro Tools, which shows a comparison of
images and colored patches with and without edits
• User-defined CALIB.PS in the Hold Queue
You can create a custom comparison page and save it as a PostScript or Encapsulated
PostScript (EPS) file called CALIB.PS. Print the file to the Hold Queue of the Fiery
from your application, or download it to the Hold Queue with Fiery Downloader (see
page 2-8).
TO
CHECK A PROFILE
1.
Click Test Print from the Color Editor window.
2.
Select a page to print, specify the paper size and input tray (Comparison Page only),
and then click Print.
For Comparison Page, choose the paper size (LTR/A4 or 11 x 17/A3) from the Paper
Size menu. In the Input Tray menu, choose the paper source.
3
3-22
ColorWise Pro Tools
Using Spot On (Fiery Graphic Arts Package option)
The ColorWise Spot Color Matching option automatically matches spot colors with
their best CMYK equivalents, so that spot colors can be simulated using the CMYK
toner of the copier/printer. However, you may want to adjust the default CMYK
equivalents to achieve a better match for your specific printing conditions.
Spot On allows you to adjust and manage lists of spot colors and their CMYK
equivalents. The matching lists of spot colors and CMYK values are known as Spot
Color Dictionaries. Spot On lets you maintain multiple Spot Color Dictionaries—one
for each output profile on the Fiery.
N OTE : In order to use Spot On CMYK equivalents, you must enable the Spot Color
Matching option (see page 1-13).
Starting Spot On
You can start Spot On from ColorWise Pro Tools.
To work with Spot On, you must first specify the output profile associated with the
Spot Color Dictionary that you want to edit. However, you may switch to a different
output profile at any time while working with Spot On.
N OTE : The Fiery allows only one user connection through Spot On at a time.
3
3-23
TO
START
Using Spot On (Fiery Graphic Arts Package option)
SPOT ON
1.
Start ColorWise Pro Tools and click Spot On.
The Select Output Profile dialog box appears.
Output profile names
appear here
2.
Choose the desired output profile and click OK.
The Spot On main window appears. The CMYK values you see in the window are
calculated with respect to the specified profile.
3
3-24
ColorWise Pro Tools
Using the Spot On main window
The Spot On main window displays a list of color groups which represent libraries of
spot colors on the Fiery. Tool icons for working with colors appear at the top of the
window.
Cut
Copy
Download
Paste
Upload
Up
Save
Down
Print
Custom color group
Close All
Default color group
By default, the Fiery includes several PANTONE libraries along with a System library.
The DIC, HKS, and TOYO libraries are available as part of the Fiery Graphic Arts
Package option. These factory default libraries appear marked with the default group
icon (
).
You can also add custom color groups and colors to the Spot On window (see
page 3-27). Added groups appear marked with the custom group icon (
).
Both default and custom groups can be opened to display their included colors.
3
3-25
TO
Using Spot On (Fiery Graphic Arts Package option)
OPEN AND CLOSE A COLOR GROUP
1.
To open a color group, click the icon to the left of the group name.
You can also open a group by double-clicking the blank area to the right of the
group name.
When you open a group, all colors in the group are displayed, and the group icon
changes appearance.
2.
To close a color group, click the icon to the left of the group name, or double-click the
blank area to the right of the name.
3.
To close all color groups in the list, choose Close All from the Edit menu.
You can also close all color groups by clicking the Close All icon above the color list.
3
3-26
ColorWise Pro Tools
Working with existing colors
With Spot On, you can view and manage existing groups of colors on the Fiery. You
can also search for a particular color in the Spot On list.
Color groups in the Spot On window appear in order of their priority. Highest priority
is given to color groups at the top of the list. For instance, if two colors from two
different color groups have the same name, the Fiery uses the color from the higher
group and disregards the other color. By managing the priority of colors in this way,
you can maintain several CMYK variants for the same spot color.
TO
REARRANGE THE PRIORITY OF COLORS
1.
To rearrange an entire color group, select the desired color group.
To rearrange an individual color, select the desired color.
Individual spot colors are marked with circular color icons.
2.
To move the selection up or down in the list, click the Up or Down icon in the toolbar.
3.
To paste the selection in a different location in the list, click the Cut or Copy icon in
the toolbar.
N OTE : The Cut operation is only available for custom colors.
4.
Click the location in the list where you want to paste the cut or copied selection, and
click the Paste icon in the toolbar.
When you paste a default color group or color, a warning message may appear asking
you to rename the selection. Use the menus to choose the desired prefix and suffix for
the new name, and click OK. The pasted selection becomes a custom color group or
color with the specified name.
3
3-27
TO
Using Spot On (Fiery Graphic Arts Package option)
FIND A SPECIFIC COLOR
1.
Choose Find from the Edit menu.
The Find dialog box appears.
2.
Enter the name of the color you want to find and click OK.
Spot On searches for the specified color, starting from the top of the color list.
The located color appears selected in the color list.
3.
To find additional colors based on the same search criteria, choose Find Again from the
Edit menu.
Creating custom colors
Spot On provides a number of default color groups, such as PANTONE and DIC, in
the color list. You can add your own custom spot colors and groups to the list.
TO
ADD A NEW COLOR OR COLOR GROUP
1.
Select the line in the group or color list where your addition is intended.
2.
Choose New Group from the Edit menu to insert a new group or choose New Color to
insert a new color.
A new color group entry or color entry appears as “Untitled.”
3
3-28
TO
ColorWise Pro Tools
RENAME A CUSTOM COLOR OR COLOR GROUP
1.
Select the Color Name or specific color you want to edit.
2.
Type the new name exactly as it appears in the print job documents, including upper
and lowercase characters and spaces, as needed.
N OTE : Default groups or colors (such as PANTONE) cannot be renamed.
3
3-29
Using Spot On (Fiery Graphic Arts Package option)
Downloading custom color groups
You can download custom color groups from your computer to the Fiery. Downloaded
groups are added as custom groups to the Spot On color list and are enabled
immediately for use on the Fiery.
TO
DOWNLOAD CUSTOM COLOR GROUPS
1.
Select the line in the color list where you want to add the downloaded group.
2.
Choose Download from the File menu.
The Select File dialog box appears.
3.
Locate and select the desired color group, and click Open.
The downloaded group is added to the specified location in the Spot On list. If you did
not specify a location, the group is added to the top of the list.
If the downloaded group has the same name as an existing group in the list, you are
prompted to rename the downloaded group.
3
3-30
ColorWise Pro Tools
Uploading custom color groups
You can upload custom color groups from the Fiery to your computer as ICC files.
The upload feature allows you to share a group by creating a local copy that can be
downloaded to another Fiery.
A color group must be saved to the Fiery before you can upload it to your computer.
To upload a factory default group, first copy and paste the group as a new custom
group. You can then upload the group as desired.
TO
UPLOAD CUSTOM COLOR GROUPS
1.
Select the name of the color group you want to upload.
2.
Choose Upload from the File menu.
The Save As dialog box appears.
3.
Browse to the location where you want to save the file, name the file, and then
click Save.
3
3-31
Using Spot On (Fiery Graphic Arts Package option)
Editing color values
The Spot Color Search targets the exact CMYK toner equivalents required to simulate
a desired spot color on the copier/printer. If an existing spot color is not printing as
desired, you can modify the color values as needed to achieve your intended result.
Beginning with an approximate color, you can adjust the hue, saturation, and lightness
of the color until you achieve a desirable match.
TO
TARGET A COLOR USING
1.
S POT C OLOR S EARCH
Select a color icon from a color group and choose Color Search from the Edit menu.
The Spot On Color Search window appears. You can also display this window by
double-clicking a color icon in the color list.
The current color appears in the center patch of the window.
Center Patch
2.
To update the center patch to a neighboring color that more closely matches the
target, click the corresponding neighbor patch.
Neighboring patches represent variations from the center patch and can be selected if
they offer a closer match to the desired color. Clicking one of these patches updates the
center patch to the new color and provides a new selection of neighboring colors.
These patches are either lightness or saturation neighbors, depending on the option
specified in the following step.
3
3-32
ColorWise Pro Tools
N OTE : When you select certain colors, an exclamation point icon may appear in the
upper right corner of the window. This icon indicates that the center patch color lies at
the edge of the copier/printer’s printable gamut and may not be reproducible. In such
cases it is recommended that you use an approximate target that lies within the gamut,
rather than the out-of-gamut color.
You can also click the center patch to enter CMYK values directly. For more
information, see the procedure on page 3-34.
3.
Use the following techniques to control how neighboring color patches are generated:
Select either Lightness or Saturation in the Color Directions Legend.
Lightness generates neighbor patches based on darker to lighter shades of the original
color. This variation is displayed from left to right, with the original color remaining in
the center of the middle group.
Saturation generates neighbor patches based on less saturated to more saturated
variations of the original color. This variation is displayed from left to right, with the
original color remaining in the center of the middle group.
Choose a setting from the Color Spacing menu to control the closeness of the neighbor
patches.
A higher setting generates neighbor patches that differ more noticeably from the center
color. As you get closer to your target color, you will want to reduce the color spacing
to a smaller value.
Select Monitor Compensation to simulate how all the on-screen color patches will
appear when printed on paper.
This simulation depends on the monitor profile that has been configured for the
display. To specify the monitor profile, choose Preferences from the Edit menu in the
Spot-On main menu.
4.
Continue adjusting the color patch controls and clicking neighbor patches until the
desired color appears in the center patch. Then click Print Pattern.
3
3-33
Using Spot On (Fiery Graphic Arts Package option)
The Print Setup dialog box appears.
5.
Choose Output Style, Paper Size, and Paper Tray options.
For Output Style, choose between Color Search Pattern and Color Neighbor Pattern.
Color Search Pattern prints patches with the same pattern as displayed in the Color
Search window. Color Neighbor Pattern prints patches in a three column by eight row
format.
For Paper Size, choose the size of the paper you want to use for printing the patches.
For Paper Tray, specify the input tray for the paper you want to use.
6.
Click OK to print the patches.
The Print Pattern test page prints with following information:
• Center patch color CMYK value
• Color spacing
• Lightness or Saturation neighbors selected
• Output profile selected
The goal of the Spot Color Search is to find the color values that make a printed color
patch match a target, not the screen simulation of it. Printing a Print Pattern of the
neighbor color patches allows you to compare the printed patches to the color target.
Once you compare the printed patches and find the one that matches most closely, you
can then select the corresponding patch on the screen.
7.
When you have selected the desired target color in the Spot On Color Search window,
click OK.
The edited color appears in the color list of the main Spot On window.
3
3-34
TO
ColorWise Pro Tools
TARGET A COLOR USING EXACT
1.
CMYK
VALUES
Click the center patch in the Spot On Color Search window.
The Set Center Patch Color dialog box appears.
2.
Select how you want to enter the CMYK values.
The Percentages option lets you enter color values between 0 and 100%, in increments
of 0.5. Values out of this range are rounded to the nearest whole or half percentage.
The Device Codes option lets you enter color values between 0 and 255. This option
reflects the full range of color values that the Fiery can actually reproduce, and provides
finer gradations of color than are possible with Percentages.
3.
Enter the C, M, Y, and K values of your specific color in the appropriate fields.
Use the Tab key to move from field to field. As you enter each new value, the preview
patch updates to reflect the old and new colors.
4.
Click OK.
The new color appears as the center patch in the Spot On Color Search window.
3
3-35
Using Spot On (Fiery Graphic Arts Package option)
Using a measurement instrument to target colors
If you have the EFI Densitometer ED-100 or EFI Spectrometer ES-1000 option, you
can import measured color values directly into Spot On. This feature lets you target
matches based on the actual colors of immediate objects, such as the red of a printed
logo or the yellow of a packaging envelope.
N OTE : For best results, download and save any measurement data you have gathered
with the ED-100 or ES-1000 in its offline state. Spot On automatically clears stored
data when it establishes a connection with the instrument. For information on
downloading stored data from the ED-100 or ES-1000, see the documentation
included with the instrument.
TO
IMPORT COLOR MEASUREMENTS INTO
1.
S POT O N
Make sure you have installed and set up the ED-100 or ES-1000 for use with
your computer.
For installation and setup instructions, see the documentation that came with the
instrument.
For an illustration of the ED-100, see the section beginning on page 2-17. For an
illustration of the ES-1000, see the section beginning on page 2-16.
2.
Choose Start from the Instrument menu.
The Choose Port dialog box appears.
3.
For Instrument, choose the instrument you will use to take measurements. For Port,
choose the serial port connection of the instrument. Click OK.
The indicator light on the instrument flashes for a few moments as the connection to
Spot On is established. When the flashing stops, the instrument is ready to read
measurements.
3
3-36
4.
ColorWise Pro Tools
Place the ED-100 or ES-1000 over the target color, making sure to center the sample
aperture over the color. Press Measure to take the measurement.
The measured CMYK values are imported into Spot On as follows:
• If an individual color is selected in the color list, it updates to the measured color.
• If a group is selected in the color list, a new color with the measured values is created
within the group.
• If the Spot On Color Search window is open, the center patch updates with the
measured values, and the neighbor patches update accordingly.
• If the Set Center Patch Color dialog box is open, the measured values are imported
into the CMYK entry fields.
5.
When you are finished taking color measurements, choose Stop from the
Instrument menu.
Spot On closes the connection to the instrument.
Saving changes and exiting Spot On
To enable your spot color matches for use on the Fiery, you must save your edits before
exiting Spot On. This action ensures that all your changes to Spot On color definitions
are stored on the Fiery and available for use when printing documents that contain
spot colors.
The following edits do not require saving to take effect:
• Rearranging the priority level of a color group
• Downloading a color group
• Clearing or deleting a color group
TO
SAVE THE
S POT O N
COLOR LIST
1.
Choose Save from the File menu.
2.
Click Close in the upper-right corner of the Spot On main window to exit the utility.
3
3-37
Color Setup
Color Setup
You can use Color Setup to set the default ColorWise settings for the Fiery. To access
Color Setup, click its icon in the ColorWise Pro Tools main window.
Setting default ColorWise options
Color Setup allows you to configure the default color management settings for the
Fiery. These settings are applied to all print jobs sent to the Fiery, unless a user
overrides them for an individual job by changing settings in the printer driver.
These default settings can also be overridden using Command WorkStation or Fiery
WebSpooler™. Color Setup maintains a connection to the Fiery, so changes made in
Profile Manager appear automatically. In addition, the defaults set in Color Setup are
automatically reflected in other Fiery tools that list default settings.
You can also reset the Fiery to its factory default settings by clicking Factory Default in
the lower-left corner of the Color Setup window.
The options in Color Setup are arranged in a pattern representing the flow of color
processing that takes place on the Fiery.
3
3-38
ColorWise Pro Tools
For those color options that offer multiple choices, make your selection from the menu
that appears. For RGB Separation, make your selection by selecting the appropriate
radio button. Other options are selected simply by selecting a check box next to the
option name. Once you have made your changes, you must click OK or Apply for the
changes to take effect. Clicking OK sets the new defaults and closes the Color Setup
window. Clicking Apply sets the new defaults and keeps the Color Setup window
open. Clicking Cancel closes the Color Setup window without applying any changes
to the default settings.
For most users, the factory defaults result in optimal color output.
A
A-1
Appendix A:
Color
Measurement
Instruments
Color Measurement Instruments
This appendix explains how to set up and calibrate the following color measurement
instruments, available as separately purchased options:
• X-Rite DTP41 automatic scanning spectrophotometer
• X-Rite DTP32 automatic scanning densitometer
Using the X-Rite DTP41 spectrophotometer
ColorWise Pro Tools Calibrator supports the X-Rite DTP41 spectrophotometer, a
device that measures density and color data. The DTP41 communicates directly with
the Calibrator application in ColorWise Pro Tools, sending measurements to the Fiery
automatically.
Setting up the DTP41
Before you calibrate the Fiery, you must connect, configure, and calibrate the
spectrophotometer to prepare for measuring the printed patches. For additional
information about setting up and using the DPT41, see the documentation included
with the instrument.
A
A-2
TO
Color Measurement Instruments
CONNECT THE
X-RITE DTP41
TO THE COMPUTER
1.
Turn off the computer.
2.
Unpack the X-Rite DTP41 and remove the spacer from the measurement page slot.
3.
Plug the square end of the interface cable (looks like a modular phone plug) into the
serial interface connection on the side of the X-Rite DTP41.
Instrument button
Alignment mark
LED indicator
Measurement page slot
Power input
Calibration strip entrance
Serial interface connection
A
A-3
4.
Color Measurement Instruments
Attach the connector to the computer.
For a Windows computer, insert the 8-pin mini-DIN end of the interface cable into
the 9-pin DB9 Connector cable adapter. Insert the 9-pin end into the COM1 or
COM2 port on the computer and tighten the screws. If the available port on your
computer is 25-pin, you must use the 8-pin-to-25-pin adapter.
Unused connector
Connect to computer
Connect to adapter
Square connector
Interface cable
A
A-4
Color Measurement Instruments
For a Mac OS computer, connect the 8-pin mini-DIN plug directly into the serial port
of the computer.
Unused connector
Connect to serial port
N OTE : For Mac OS computers with a USB port (for example, an iMac), you need an
adapter to connect the DTP41 to your computer. For information on supported
adapters, see the X-Rite, Inc. web site (www.x-rite.com).
5.
Use the AC adapter to provide power.
Plug the small connector on the adapter cable into the power input of the X-Rite
DTP41 and plug the AC adapter into the power cord. Plug the power cord into a
wall outlet.
AC adapter
Power cord
Small connector
A
A-5
Color Measurement Instruments
6.
Turn on the computer.
7.
Calibrate the X-Rite DTP41 using ColorWise Pro Tools (see the following section).
8.
Calibrate the Fiery using ColorWise Pro Tools and the DTP41 (see page 2-10).
Calibrating the DTP41
For the best color accuracy, you should calibrate the X-Rite DTP41 spectrophotometer
every time you calibrate the Fiery. You can initiate the calibration sequence in
ColorWise Pro Tools Calibrator as part of the process of Fiery calibration. The
computer may also prompt you that it is necessary to calibrate the spectrophotometer.
Alternatively, you can initiate the DTP41 calibration process using the Instrument
button on the DTP41. For more information on this method, see the documentation
that came with the X-Rite DTP41.
Multiple users can be connected to one Fiery server with ColorWise Pro Tools, but
only one user at a time can use the Calibrator module. An error message appears if you
try to calibrate when another user is already using ColorWise Pro Tools to calibrate.
You will need the Color Reflection Reference strip that is included with the
spectrophotometer. Remove the strip from its protective envelope, handling it by the
edges only. Keep the strip free of dust and smudges and always store it in the protective
envelope.
TO
CALIBRATE THE
X-R ITE DTP41
1.
Connect the spectrophotometer to the computer and turn on power (see page A-2).
2.
Start Calibrator.
For instructions on starting Calibrator, see page 2-6.
3.
Choose DTP41 as the measurement method.
A
A-6
Color Measurement Instruments
4.
In the Get Measurements pane, click Measure.
5.
In the Measurement Options dialog box, click Measure.
6.
Choose the appropriate COM port for the DTP41 from the Available Ports menu.
The Instructions area displays instructions for selecting the port.
A
A-7
7.
Color Measurement Instruments
Click Utilities.
The Utilities dialog box appears.
To view version and serial number information, click Show DTP-41 Info, and then
click Done when you are finished.
8.
Click Calibrate DTP-41.
The Instrument Calibration dialog box appears.
9.
If you have not already done so, remove the shipping spacer from the measurement
page slot.
A
A-8
10.
Color Measurement Instruments
Insert the end of the Color Reflection Reference strip with the arrow into the
calibration strip entrance on the DTP41, centering it below the alignment mark
(see the diagram on page A-2).
Insert the strip about 3 inches, past the front idler rollers, until it rests against the rear
drive rollers.
11.
Click Read Reference in the Instrument Calibration dialog box.
The DTP41 pulls the calibration strip through automatically.
A message appears in the Status area when the calibration is finished.
12.
Click Done.
13.
Close the Utilities window.
This completes DTP41 calibration.
When the DTP41 requires calibration, your computer prompts you. When the
prompt message appears, click Calibrate Now and follow the instructions, starting
with step 8 on page A-7.
After calibrating the DTP41, calibrate the Fiery (see page 2-10).
Using the X-Rite DTP32 densitometer
ColorWise Pro Tools are designed to work with the X-Rite DTP32 reflection
densitometer, which feeds color measurements to the Fiery automatically.
N OTE : Measurements from other densitometers can be input using a simple
ASCII file format (see Appendix B).
Setting up the DTP32
Before you calibrate the Fiery using the X-Rite DTP32, you need to connect,
configure, and calibrate the densitometer to prepare for measuring the printed patches
(see “Calibrating the DTP32” on page A-11). For additional information about setting
up and using the DTP32, see the separate documentation included with the
densitometer.
A
A-9
TO
Color Measurement Instruments
CONNECT THE
X-R ITE DTP32
TO THE COMPUTER
1.
Turn off the computer.
2.
Plug the square end of the interface cable (looks like a modular phone plug) into the
I/O port on the side of the X-Rite DTP32.
Square connector
3.
Attach the connector to the computer.
For a Windows computer, insert the 8-pin mini-DIN end of the interface cable into
the 9-pin DB9 Connector cable adapter. Insert the 9-pin end into the COM1 or
COM2 port on the computer and tighten the screws. If the available port on your
computer is 25-pin, you must use the 8-pin-to-25-pin adapter.
Unused connector
Square connector
Connect to computer
Connect to adapter
Interface cable
A
A-10
Color Measurement Instruments
For a Mac OS computer, connect the 8-pin mini-DIN plug directly into the serial port
of the computer.
Unused connector
Connect to serial port
N OTE : For Mac OS computers with a USB port (for example, an iMac), you need an
adapter to connect the DTP32 to your computer. For information on supported
adapters, see the X-Rite, Inc. web site (www.x-rite.com).
4.
Plug the small connector on the adapter cable into the side of the X-Rite DTP32 and
plug the AC adapter into a wall outlet.
5.
Turn on the computer.
6.
Calibrate the DTP32 (see the following section).
7.
Calibrate the Fiery using ColorWise Pro Tools (see page 2-21).
Small connector
AC adapter
A
A-11
Color Measurement Instruments
Calibrating the DTP32
You will need the black-and-white X-Rite Auto-Cal Strip included with the
densitometer. Calibrating the densitometer does not require ColorWise Pro Tools.
TO
CALIBRATE THE
X-R ITE DTP32
1.
Connect the densitometer to the computer and supply power (see page A-8).
2.
From the Main Menu on the X-Rite DTP32 display, press the p1 key once to reach p2.
3.
Press the cal key.
Calibrating motor speed is displayed, followed by the words INSERT CAL STRIP.
4.
Insert the arrow end of the X-Rite Auto-Cal Strip into the 35mm slot on the front of
the X-Rite DTP32 until it stops or the roller starts pulling the strip.
Reading appears momentarily, followed by the density values and CALIBRATION OK.
The densitometer automatically returns to the MAIN MENU.
If UNRECOGNIZABLE STRIP appears, repeat the process or try cleaning the strip (see the
X-Rite DTP32 Operating Manual).
5.
Start ColorWise Pro Tools and calibrate the Fiery (see the following section).
Recalibrate the DTP32 at least once per month. For critical color, calibrate the
densitometer every time you calibrate the Fiery. The DTP32 may also warn
periodically that it requires calibration.
B
B-1
Appendix B:
Importing
density
measurements
Importing density measurements
This appendix describes Simple ASCII File Format, which can be used to import
density measurements from measurement devices. To use your own measurement data
from an alternate measurement instrument, record your individual readings in a text
file and structure it as follows.
Simple ASCII Import File Format (SAIFF)
This format describes Status T measurement data and is for import into the
ColorWise Pro Tools Calibrator. The three possible file formats are:
• 1D Status T density for EFI 34 patch page
• 1D Status T density for EFI 21 patch page
• 1D Status T density for other pages (maximum of 256 patches per ink)
The file format is ASCII and has no tabs. A single space or multiple spaces are used
as delimiters. Blank lines are not allowed. Each line in the file represents four patches
(C, M, Y, K) of a specific ink value. Comments may be on any line in the file, and
these lines start with a pound sign (#) followed by a space. A line with a pound sign
followed by any character other than a space has been reserved. Comments must be
on an entire line by themselves.
Each line of data contains five values. The first number is the sequential patch number
(for EFI 34 and EFI 21 pages) or the ink value percentage (for other pages). The four
values that follow are the density values of C, M, Y, and K of the corresponding patch.
Lines are ordered either by increasing sequential patch numbers or by increasing the
ink percentage.
For Windows computers, the file extension must be .cm1. For Mac OS computers, the
file type must be ‘TEXT’.
Measurement data in EFI 34 and EFI 21 are paper-relative. For other pages, if the first
line corresponds to zero ink value, the Calibrator assumes that the measurement data is
absolute and adjusts it to become paper-relative by subtracting the density values of the
first line from the remaining patches.
B
B-2
Importing density measurements
Example of 1D Status T density for EFI 34 patch page
This file format is used to specify the Status T density measurements of the EFI 34
patch page. The value in the first column is the patch number. The first patch must be
1 and the last must be 34.
#!EFI 3
# EFI ColorWise 2.0 Data
type: 1DST34
# Cyan
Magent Yellow Black
1 0.0300 0.0400 0.0200 0.0400
2 0.0600 0.0700 0.0800 0.0700
3 0.1000 0.1000 0.1000 0.1000
(…more data…)
33 1.6700 1.3400 0.8900 1.6700
34 1.7200 1.4300 0.9300 1.7500
Example of 1D Status T density for EFI 21 patch page
This file format is used to specify the Status T density measurements of the EFI 21
patch page. The value in the first column is the patch number. The first patch must be
1 and the last must be 21.
#!EFI 3
# EFI ColorWise 2.0 Data
type: 1DST21
# Cyan
Magent Yellow Black
1 0.0300 0.0400 0.0200 0.0400
2 0.0600 0.0700 0.0800 0.0700
3 0.1000 0.1000 0.1000 0.1000
(…more data…)
20 1.6700 1.3400 0.8900 1.6700
21 1.7200 1.4300 0.9300 1.7500
B
B-3
Importing density measurements
Example of 1D Status T density for an arbitrary page
This file format is used to specify the Status T density measurements of a user-defined
patch page. The value in the first column is the ink/toner percentage of the patch. The
first percentage must be 0 and the last percentage must be 100. The percentages must
increase in between.
#!EFI 3
# EFI ColorWise 2.0 Data
type: 1DST
# percnt Cyan Magent Yellow Black
0.0000 0.0300 0.0400 0.0200 0.0400
0.3922 0.0600 0.0700 0.0800 0.0700
1.1765 0.1000 0.1000 0.1000 0.1000
(…more data…)
98.0000 1.6700 1.3400 0.8900 1.6700
100.0000 1.7200 1.4300 0.9300 1.7500
Glossary
additive color model
blasting
A system in which colors are produced
by combining red, green, and blue light
(the additive primaries). An RGB video
monitor is based on an additive color
model.
An undesirable effect that occurs when
excess amounts of toner, possibly
combined with certain types of paper
stock, cause objects in an image to
spread beyond its boundaries as defined
in the file.
additive primaries
Red, green, and blue light that is used in
additive color systems. When added
together in proper amounts, these colors
of light produce white.
BMP
artifact
calibration
A visible defect in an image, usually
caused by limitations in the input or
output process (hardware or software);
a blemish or error.
The process of ensuring that a device
behaves consistently with respect to a set
of specifications.
banding
See color management system.
Visible steps between shades in a color
gradient.
CMYK
bit depth
Amount of information used for each
pixel in a raster image. Black and white
images require only one bit per pixel.
Grayscale images with 256 shades of gray
require 8 bits (or 1 byte) per pixel.
Photographic quality color images can
require 24 bits per pixel (RGB images)
or 32 bits per pixel (CMYK images).
bitmap
An image comprised of small squares
arranged in a grid. Each square in the
grid is a pixel. The number of pixels per
inch defines the resolution of a bitmap.
A graphics file format established by
Microsoft and native to the Windows
operating system.
CMS
A subtractive color model that uses cyan,
magenta, yellow, and black, or process
colors, used in color printing; a color
model used in the printing of colors in
four-color process printing.
color channel
A single-color image that can be edited
separately from the other color channels
comprising a color space—for example,
the red channel of an RGB image.
color gamut
See gamut.
G-2
Glossary
color management system (CMS)
ColorWise color management
System used to match color across
different input, display, and output
devices.
Fiery ICC-open color management
solution, which is an easy-to-use system
that addresses the needs of both casual
and experienced color management
users.
color rendering dictionary
See CRD (color rendering dictionary).
color separation
The process of separating a color
image into the color components for
printing—cyan, magenta, yellow, and
black. Also used to refer to the four
sheets of film that result from the process
of separating a color image.
color space
A model for representing color in terms
of measurable values, such as the amount
of red, green, and blue in an image. RGB
and CMYK color spaces correspond to
color devices—monitors and copier/
printers respectively. Other color spaces,
such as CIE Lab, are based on
mathematical models and are deviceindependent. They are not based on the
color response of a particular device. See
gamut.
colorant
An ink, dye, toner, paint, or other
pigment that modifies the color of media
to which it is applied.
ColorWise
See ColorWise color management.
composite printer
Any output device that can print directly
in color without first creating color
separations. A composite print can be
used as an early proof of an offset print
job.
continuous tone (contone)
Describes a photographic image that
contains gradient tones from black to
white (such as a 35mm transparency or a
photograph). Continuous tones cannot
be reproduced in that form for printing,
but must be screened to translate the
image into dots.
continuous tone (contone) image
An image containing fine gradations of
tones, such as a photographic image.
CRD (Color Rendering Dictionary)
A feature of color management systems
and PostScript Level 2 and PostScript 3
color copier/printers that maintains the
best possible translation of color from
one color device to another. A color
rendering dictionary (CRD) is used by
the color management system or the
copier/printer’s PostScript interpreter
when converting data between color
spaces. The Fiery includes several CRDs,
each of which provides a different color
rendering style.
G-3
Glossary
custom color system
Euroscale
A system of named color swatches that
can be matched on press using process or
spot colors. PANTONE and TruMatch
are examples of custom color systems.
A European standard of specifications
for separations, proofs, and color
printing.
DCS (Desktop Color Separation)
A printing technology that uses flexible
raised-image plates. Flexography can be
used to print on non-flat materials such
as cans.
A data file standard defined by Quark,
Inc., to assist in making color separations
with desktop publishing system; five files
are created, four color files (one each for
C, M, Y, and K) and a composite color
preview file of the color image. It allows
an image-editing application to perform
color separation and pass it through to
final output with its integrity intact.
densitometer
An instrument commonly used in the
graphic arts industry to measure density
according to a specified standard.
density
A measurement of the light-absorbing
quality of a photographic or printed
image.
desktop color separation
See DCS.
DIC
A Japanese standard of specifications for
separations, proofs, and color printing.
EPS or EPSF (Encapsulated PostScript)
A PostScript file format designed to be
embedded in another PostScript stream.
flexography
four-color printer
A printing device that uses cyan,
magenta, yellow, and black ink or toner.
gamma
A numeric value representing the
relationship (gamma curve) between the
input and output values of a color
device. If gamma equals 1, input values
are mapped exactly to output values.
gamut
A range of colors. A device gamut is the
range of colors that a device, such as a
copier/printer, can produce. An image
gamut is the range of colors in a
particular image.
gamut mapping
The conversion of color coordinates
from one device’s gamut to another—
usually accomplished with algorithms or
look-up tables.
G-4
Glossary
GDI (Graphics Device Interface)
gray component replacement (GCR)
Graphics and display technology used
by computers running Windows. GDI
applications rely on GDI (rather than
the PostScript language) to send text and
pictures to copier/printers.
In shadow, midtone, and quarter-tone
areas where all three process colors (C,
M, Y) overprint, the gray components of
those colors are reduced and replaced by
black. This improves wet ink trapping
and reduces ink costs in process color
printing.
GIF (Graphics Interchange Format)
A standard developed by CompuServe
for bitmap graphics of up to 256 colors
and used for posting photographic
images on the Internet or intranet pages;
rarely used for professional printing.
halftoning
A method for representing an original
continuous tone image using a pattern of
dots, lines or other patterns.
gradient
HSB
A smooth transition between two
different colors or between two shades
of a color.
A color model where each color is
represented by its hue, saturation, and
brightness components; supported by
most color applications.
Graphics Device Interface
See GDI.
Graphics Interchange Format
See GIF.
gravure
A printing technology that uses an
etched cylinder that has been immersed
in ink. The ink that remains in the
etched areas is applied to the paper. The
non-etched surfaces of the cylinder are
non-printing areas.
ICC profile
An industry standard color profile
format developed by the International
Color Consortium (ICC) that describes
the color capabilities, including the
gamut, of a color device based on the
differences between an ideal and the
current device. The ideal is often
provided by the manufacturer as a
color reference file. ICC profiles are
implemented on Mac OS computers in
ColorSync and on Windows computers
in Image Color Matching (ICM). The
Fiery color management system,
ColorWise, supports ICC profiles.
G-5
Glossary
imagesetter
office applications
Raster-based film output device; a highresolution laser output device that writes
bitmapped data onto photosensitive
paper or film.
Software applications commonly used
for business purposes, including
presentation applications, spreadsheets,
and word processing programs.
JPEG
offset lithography
A graphics file format defined by the
Joint Photographic Experts Group
committee of International Standards
Organization (ISO); a standard for
digital compression of still image
graphic data.
Printing in which ink is transferred from
printing plates to a rubber blanket and
then from the blanket to paper.
metamerism
Phenomenon in which two colors
composed of different combinations of
light wavelengths appear identical under
a specific light source, but may look
different under other light sources. The
colors are called “metamers.”
moiré
An undesirable pattern in images made
using halftone screens. Moiré can be
caused by the improper line frequency
of the screens, improper screen angles,
improper alignment of halftone screens,
or by the combination of a halftone
screen with patterns in the image itself.
named color
A color that is defined according to a
custom color system. For example,
PANTONE 107 C is a named color.
output
See output profile.
output profile
The output profile describes the color
characteristics of a printing device. It
consists of both a profile for your copier/
printer and a calibration target that
defines the expected density response
of the copier/printer.
phosphor
Material used in making computer
monitors; phosphors glow and emit red,
green, and blue light when struck by an
electron beam, thus creating an image.
photographic rendering
A color rendering style that preserves
tonal relationships in images.
Unprintable colors are mapped to
printable colors in a way that retains
differences in lightness, sacrificing color
accuracy as necessary.
G-6
Glossary
pixel
process colors
The smallest distinct element of a raster
image. The term is a combination of the
words “picture” and “element.”
The four colors used in printing to
simulate full-spectrum color images:
Cyan, Magenta, Yellow, blacK (CMYK).
PostScript
QuickDraw
A device-independent page description
language developed by Adobe, which is
used to print and display pictures and
text. PostScript 3 includes many
enhancements to older versions of
PostScript, including improved image
quality and color with Enhanced Image
Technology, faster performance with
Advanced Page Processing, and ease of
use and setup with NetWorks System.
Graphics and display technology built
into Mac OS computers. QuickDraw
applications rely on QuickDraw (rather
than the PostScript language) to send
text and pictures to copier/printers.
PPD (PostScript Printer Description
file)
A file containing information about
a particular PostScript print device’s
capabilities and restrictions. The
information in the PPD is presented
via the printer driver.
prepress proof
A print made from a set of film
separations or other file to simulate the
results of printing. A prepress proof is
the last opportunity to catch problems
before the print job goes to press.
presentation graphics rendering
A color rendering style that creates
saturated colors but does not match
printed colors precisely to displayed
colors. It is appropriate for bright
saturated colors used in illustrations
and graphs.
raster image
Electronic representation of a page or
image using a grid of points called pixels.
rendering intent
The style of color rendering, or gamut
mapping, designed for a particular type
of color job. An example of a rendering
intent is Photographic rendering—also
referred to as Image rendering or
Contrast rendering—which is designed
for photographic images.
resolution
The number of pixels per inch (ppi) in a
bitmap image or the number of dots per
inch (dpi) that a device can render.
RGB
An additive color model that makes a
range of colors by combining red, green,
and blue light, called the additive
primaries. Commonly used to refer to
the color space, mixing system, or
monitor in color computer graphics.
G-7
Glossary
Simulation
spot color
See simulation profile.
A color that is printed on its own
separation plate when separations are
specified. A spot color is printed using a
custom ink for that color, in contrast to
process colors that are printed using
combinations of cyan, magenta, yellow,
and black.
simulation profile
The simulation profile describes the
color characteristics of another print
device, such as a printing press, that
you want the Fiery to simulate.
solid color rendering
A color rendering style intended for
use when color accuracy is crucial.
Unprintable colors are mapped to the
closest printable colors. Solid color
rendering does the best job of preserving
the saturation of displayed colors.
source color space
The color environment of the
originating source of an image, including
scanners and color monitors.
source profile
A profile used by the color management
system to determine the characteristics of
the color values specified in a source
digital image.
Status T
A spectral response for graphic arts
reflection densitometers defined by
ANSI (the American National Standards
Institute).
subtractive color model
A system in which color is produced by
combining colorants such as paint, inks,
or dyes on media such as paper or
transparent film or acetate. All printing
devices use the subtractive color model.
subtractive primaries
The wavelengths of electromagnetic
radiation emitted by a given light source
that can be seen by the human eye.
Cyan, magenta, and yellow colorants
used in subtractive color systems for
color printing. Combining the
subtractive primaries produces darker
colors. Black is added to the subtractive
primaries to compensate for deficiencies
of the toners or inks, and for more
efficient black printing.
spectrophotometer
substrate
An instrument commonly used in the
graphic arts industry to measure spectral
light according to a specified standard.
In printing, the material upon which the
job is printed.
spectral light
G-8
Glossary
SWOP
white point
The abbreviation for Specifications for
Web Offset Publications. A standard of
specifications for separations, proofs, and
color printing on a web offset press (not a
sheet fed press).
The color temperature of any white light
source, typically expressed in degrees
Kelvin (for example, 6500 K, typical for
the white of a monitor).
undercolor removal (UCR)
The path a print job follows from
creation to destination. A workflow may
originate with an RGB scan imported to
the client workstation and opened on the
desktop in an image processing
application, such as Photoshop. After
adjustments are made to the scanned
image, it is evaluated on a color proofing
device for eventual color printing on the
same device or on press.
In shadow areas where all three process
colors (C, M, Y) overprint, the amounts
of those colors are reduced and replaced
by black. This improves wet ink trapping
and reduces ink costs in process color
printing.
vector graphic
Graphic illustration created on
computers where picture objects are
defined mathematically as lines or curves
between points. These mathematical
definitions are interpreted by an image
language such as PostScript. Vector
graphics include artwork created with
illustration applications (such as
Illustrator or FreeHand) and page layout
applications (such as PageMaker).
workflow
Index
A
Absolute Colorimetric rendering style 1-6
Apple Standard setting, RGB Source Profile
option 3-2
Apple Standard setting, RGB Source profile
option 1-7
AutoCal calibration
from ColorWise Pro Tools 2-21
from Control Panel 2-24
B
Black Overprint option 1-5, 1-12
Black Overprint Style option 1-5
black text and line art 1-4, 1-11 to 1-13
Brightness option 1-3
C
CALIB.PS file 3-21
calibration
AutoCal 2-21 to 2-25
bypassing 1-4
checking status 2-5
ColorCal 2-21 to 2-25
Comparison Page 2-8
curves 2-3, 2-9
DTP32 2-14
DTP41 2-10
ED-100 2-17
ES-1000 2-17
from Control Panel 2-24
from the Control Panel 2-5
importing density measurements
B-1 to B-3
importing target file 3-13
measurement page 2-3
measurements 2-2
overview 2-2 to 2-5
patches 2-3
restoring defaults 2-10
scanner 2-22
scheduling 2-4
targets 2-2, 2-3
viewing measurements 2-9
Calibrator
Expert Mode 2-8
printing Comparison Page 2-8
restoring defaults 2-10
using 2-5 to 2-10
viewing measurements 2-9
CMYK Simulation Method
option 1-4, 1-10
CMYK Simulation Profile option 1-4, 1-9
Color Charts 2-4
Color Editor
AutoGray 3-19
dot gain adjustment 3-14
Edit Modes 3-11
importing calibration target 3-13
undoing simulation edits 3-18
color management system (CMS) xii
Color Mode option 1-3
color profiles, see ICC profiles
Color Reference pages 2-4
color rendering dictionary
(CRD) xii, 1-3, 1-6, 1-18
color rendering styles, see rendering styles
color separations, see separations
Color Setup 3-37
color space 1-1, 1-3, 1-4
ColorCal calibration
from ColorWise Pro Tools 2-21
from Control Panel 2-24
ColorSync Color Matching option 1-18
ColorWise
key features xii, 3-37
print options 1-3 to 1-14, 3-37
workflow diagram 1-2
I-2
Index
ColorWise Pro Tools
Calibrator 2-5 to 2-10
checking calibration status 2-5
Color Editor 3-10 to 3-21
Color Setup 3-37
Profile Manager 3-1 to 3-10
Combine Separations option 1-3, 1-5
Comparison Page 2-8, 3-21
composites, printing 1-3, 1-5, 1-12, 1-13
Configuration page 2-5
Contrast ICC rendering style 1-6
Control Panel
calibration from 2-5, 2-24
removing calibration 2-26
custom simulations 1-9
D
default color controls set in Setup 1-3
densitometer
DTP32 2-14 to 2-15, A-8 to A-11
ED-100 2-16 to 2-20
density values 2-3, 2-5
importing B-1 to B-3
DIC, CMYK Simulation option 3-2
dot gain values, adjusting 3-14
drivers, see printer drivers
DTP32
calibrating with 2-14
instrument calibration A-11
setup A-8
DTP41
calibrating with 2-10
instrument calibration A-5
setup A-2
E
ED-100
calibrating with 2-17
importing measurements with 3-35
overview 2-17
EFI Densitometer, see ED-100
EFI Spectrometer, see ES-1000
EFIRGB, RGB Source Profile
option 1-7, 3-2
ES-1000
calibrating with 2-17
importing measurements with 3-35
overview 2-16
Euroscale, CMYK Simulation option 3-2
F
Fiery Graphic Arts Package option
Paper Simulation 1-4
Spot On 1-5, 1-13, 3-22 to 3-36
unlimited separations 1-3, 1-5
Full (Output GCR) setting, CMYK
Simulation Method option 1-10
Full (Source GCR) setting, CMYK
Simulation Method option 1-10
G
Gamma option 1-3
Graphics ICC rendering style 1-6
gray balance, correcting 3-19
I
ICC profiles
backing up 3-7
default directory 3-5
defined xiii
defining 3-8
deleting 3-7
descriptions 3-2
downloading 3-5
editing 3-10 to 3-21
gray balance, correcting 3-19
rendering styles 1-6
setting defaults 3-3
Image ICC rendering style 1-6
Image Smoothing option 1-5
I-3
Index
M
N
Profile Manager
backing up profiles 3-7
defining profiles 3-8
deleting profiles 3-7
downloading profiles 3-5
setting defaults 3-3
profiles, see ICC profiles
Pure Black Text/Graphics option 1-4, 1-11
None setting, RGB Source Profile
option 1-8
Q
O
Quick setting, CMYK Simulation Method
option 1-10
Mac OS color management options
1-17 to 1-20
Match Copy setting of CMYK Simulation
option 1-4
measurements page 2-3
Other setting, RGB Source Profile
option 1-7
Output Profile option 1-4, 1-10
output profiles
calibration sets for 2-3, 2-4, 3-9
P
PANTONE Coated Color Reference 1-14
passwords
for calibration 2-2, 2-5
for profile management 3-2
patches page 2-3
Perceptual ICC rendering style 1-6
Phosphors option 1-3
Photographic rendering style 1-6
PostScript color issues 1-2, 1-8, 1-12, 1-13
PostScript Color Management 1-18
PostScript Color Matching option 1-18
PPD 1-15, 1-17, G-6
Presentation rendering style 1-6
Print Mode option 1-3
print options 1-3 to 1-14
Mac OS 1-17 to 1-20
setting defaults 3-37
Windows 1-15 to 1-17
printer drivers
Mac OS 1-17 to 1-20
two-way communication 1-7, 1-9, 1-11
Windows 1-15 to 1-17
R
Relative Colorimetric rendering style 1-6
Rendering Style option 1-3
rendering styles xii, 1-2, 1-3, 1-6
RGB images
defining source profile for 1-7
defining source profiles for 3-1
PostScript and non-PostScript
conversion 1-8
RGB Separation option 1-4, 1-8
RGB Source Profile option 1-2, 1-3, 1-7
S
SAIFF format B-1 to B-3
Saturation ICC rendering style 1-6
scanner
calibrating 2-22
separations
printing 1-3, 1-5, 1-12, 1-13
target color space 1-4, 1-8
Setup, default color controls set in 1-3
simulations, custom 1-9
Source 1–10 setting, RGB Source Profile
option 1-7
spectrometer, see spectrophotometer
spectrophotometer
DTP41 2-10 to 2-13, A-1 to A-8
ES-1000 2-16 to 2-20
I-4
Index
Spot Color Matching option 1-5, 1-13
spot colors, matching to CMYK
equivalents 1-13, 3-22 to 3-36
Spot On 1-5, 1-13
sRGB, RGB Source Profile option 1-7, 3-2
Status T B-1
SWOP setting, CMYK Simulation Profile
option 1-9, 3-2
T
targets, for calibration 2-3
Test Page 2-5
transfer functions 2-3
two-way communication 1-7, 1-9, 1-11
U
undercolor removal (UCR) 1-8
W
White Point option 1-4
Windows color management options
1-15 to 1-17
