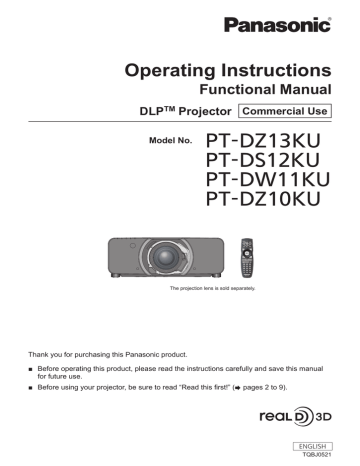

Panasonic PT-DZ13KU Operating Instructions

Operating Instructions
Functional Manual
DLPTM Projector   Commercial Use
Model No.
PT-DZ13KU
PT-DS12KU
PT-DW11KU
PT-DZ10KU
The projection lens is sold separately.
Thank you for purchasing this Panasonic product.
■■ Before operating this product, please read the instructions carefully and save this manual
for future use.
■■ Before using your projector, be sure to read “Read this first!” (x pages 2 to 9).
ENGLISH
TQBJ0521
Read this first!
Read this first!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
product.
CAUTION:
This equipment is equipped with a three-pin grounding-type power
plug. Do not remove the grounding pin on the power plug. This plug
will only fit a grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the grounding plug.
2 - ENGLISH
Do not remove
Read this first!
FCC NOTICE (USA)
Verification
Model Number: PT-DZ13KU/PT-DS12KU/PT-DW11KU/PT-DZ10KU
Trade Name: Panasonic
Responsible Party: Panasonic Corporation of North America
Address:
One Panasonic Way, Secaucus, NJ 07094
Telephone number: (877)803-8492
E-mail: projectorsupport@us.panasonic.com
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
To assure continued compliance, follow the attached installation instructions and do not make any unauthorized
modifications.
Caution:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
NOTIFICATION (Canada)
This class A digital apparatus complies with Canadian ICES-003.
WARNING:
ff Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
ff For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the
building installation wiring.
ff For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily
accessible.
NOTICE USA only:
ff This product has a High Intensity Discharge (HID) lamp that contains mercury. Disposal may be regulated
in your community due to environmental considerations. For disposal or recycling information, please visit
Panasonic website: http://www.panasonic.com/environmental or call 1-888-769-0149.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
ENGLISH - 3
Read this first!
WARNING:
rr POWER
The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible
when problems occur. If the following problems occur, cut off the power supply immediately.
Continued use of the projector in these conditions will result in fire or electric shock.
ff If foreign objects or water get inside the projector, cut off the power supply.
ff If the projector is dropped or the cabinet is broken, cut off the power supply.
ff If you notice smoke, strange smells or noise coming from the projector, cut off the power supply.
Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.
During a thunderstorm, do not touch the projector or the cable.
Electric shocks can result.
Do not do anything that might damage the power cord or the power plug.
If the power cord is used while damaged, electric shocks, short-circuits or fire will result.
ff Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it
excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.
Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.
Completely insert the power plug into the wall outlet and the power connector into the projector terminal.
If the plug is not inserted correctly, electric shocks or overheating will result.
ff Do not use plugs which are damaged or wall outlets which are coming loose from the wall.
Clean the power plug regularly to prevent it from becoming covered in dust.
Failure to observe this will cause a fire.
ff If dust builds up on the power plug, the resulting humidity can damage the insulation.
ff If not using the projector for an extended period of time, pull the power plug out from the wall outlet.
Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.
Do not handle the power plug and power connector with wet hands.
Failure to observe this will result in electric shocks.
Do not overload the wall outlet.
If the power supply is overloaded (ex., by using too many adapters), overheating may occur and fire will result.
rr ON USE/INSTALLATION
Do not place the projector on soft materials such as carpets or sponge mats.
Doing so will cause the projector to overheat, which can cause burns, fire or damage to the projector.
Do not set up the projector in humid or dusty places or in places where the projector may come into
contact with oily smoke or steam, ex. a bathroom.
Using the projector under such conditions will result in fire, electric shocks or deterioration of components.
Deterioration of components (such as ceiling mount brackets) may cause the projector which is mounted on the
ceiling to fall down.
Do not install this projector in a place which is not strong enough to take the full weight of the projector
or on top of a surface which is sloped or unstable.
Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage
could result.
4 - ENGLISH
Read this first!
WARNING:
Do not cover the air intake/exhaust ports or place anything within 500 mm (20") of them.
Doing so will cause the projector to overheat, which can cause fire or damage to the projector.
ff Do not place the projector in narrow, badly ventilated places.
ff Do not place the projector on cloth or papers, as these materials could be drawn into the air intake port.
Do not place your hands or other objects close to the air exhaust port.
Doing so will cause burns or damage your hands or other objects.
ff Heated air comes out of the air exhaust port. Do not place your hands or face, or objects which cannot
withstand heat close to this port.
Do not look at the light emitted from the lens while the projector is being used.
Doing so can cause loss of sight.
ff Strong light is emitted from the projector’s lens. Do not directly look at this light.
ff Be especially careful not to let young children look into the lens. In addition, turn off the power and
disconnect the power plug when you are away from the projector.
Never attempt to remodel or disassemble the projector.
High voltages can cause fire or electric shocks.
ff For any inspection, adjustment and repair work, please contact an Authorized Service Center.
Do not project an image with the lens cover of the projection lens (optional) attached.
Doing so can cause fire.
Do not allow metal objects, flammable objects, or liquids to enter inside of the projector. Do not allow
the projector to get wet.
Doing so may cause short circuits or overheating, and result in fire, electric shock, or malfunction of the
projector.
ff Do not place containers of liquid or metal objects near the projector.
ff If liquid enters inside of the projector, consult your dealer.
ff Particular attention must be paid to children.
Use the ceiling mount bracket specified by Panasonic.
Using the ceiling mount bracket other than the specified one will result in falling accidents.
ff Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
Installation work (such as ceiling mount bracket) should only be carried out by a qualified technician.
If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.
ff Do not use anything other than an authorized ceiling mount bracket.
ff Be sure to use the provided accessory wire with an eye bolt as an extra safety measure to prevent the
projector from falling down. (Install in a different location to the ceiling mount bracket.)
ENGLISH - 5
Read this first!
WARNING:
rr ACCESSORIES
Do not use or handle the batteries improperly, and refer to the following.
Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire.
ff Use AA/R6 batteries.
ff Do not use unspecified batteries.
ff Do not use chargeable batteries.
ff Do not disassemble dry cell batteries.
ff Do not heat the batteries or place them into water or fire.
ff Do not allow the + and – terminals of the batteries to come into contact with metallic objects such as
necklaces or hairpins.
ff Do not store or carry batteries together with metallic objects.
ff Store the batteries in a plastic bag and keep them away from metallic objects.
ff Make sure the polarities (+ and –) are correct when inserting the batteries.
ff Do not use a new battery together with an old battery or mix different types of batteries.
ff Do not use batteries with the outer cover peeling away or removed.
If the battery fluid leaks, do not touch it with bare hands, and take the following measures if necessary.
ff Battery fluid on your skin or clothing could result in skin inflammation or injury.
Rinse with clean water and seek medical advice immediately.
ff Battery fluid coming in contact with your eyes could result in loss of sight.
In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.
Do not remove unspecified screws during the lamp unit replacement.
Doing so can cause electric shocks, burns, or injury.
Do not disassemble the lamp unit.
If the lamp breaks, it could cause injury.
Lamp replacement
The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will
result.
ff The lamp can easily explode if struck against hard objects or dropped.
ff Before replacing the lamp unit, be sure to turn the power off and to disconnect the power plug from the wall
outlet.
Electric shocks or explosions can result if this is not done.
ff When replacing the lamp unit, turn the power off and allow the lamp to cool for at least one hour before
handling it otherwise it can cause burns.
Do not use the supplied power cord with devices other than this projector.
ff Using the supplied power cord with devices other than this projector may cause short circuits or
overheating, and result in electric shock or fire.
Keep accessories (screws) out of the reach of small children.
Accidentally swallowing them can cause physical harm.
ff If you believe that parts have been swallowed, seek medical advice immediately.
Remove the depleted batteries from the remote control promptly.
ff Leaving them in the unit may result in fluid leakage, overheating, or explosion of the batteries.
6 - ENGLISH
Read this first!
CAUTION:
rr POWER
When disconnecting the power cord, be sure to hold the power plug and power connector.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks
will result.
When not using the projector for an extended period of time, disconnect the power plug from the wall
outlet.
Failure to do so may result in fire or electric shock.
Disconnect the power plug from the wall outlet before carrying out any cleaning and replacing the unit.
Failure to do so may result in electric shock.
rr ON USE/INSTALLATION
Do not place heavy objects on top of the projector.
Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or
injury. The projector will be damaged or deformed.
Do not put your weight on this projector.
You could fall or the projector could break, and injury will result.
ff Be especially careful not to let young children stand or sit on the projector.
Do not place the projector in extremely hot locations.
Doing so will cause the outer casing or internal components to deteriorate, or result in fire.
ff Take particular care in locations exposed to direct sunlight or near stoves.
Do not place your hands in the openings beside the optical lens, while shifting the lens.
Failure to observe this could cause injury.
Do not stand in front of the lens while the projector is being used.
Doing so can cause damage and burns to clothing.
ff Extremely strong light is emitted from the projector’s lens.
Do not place objects in front of the lens while the projector is being used.
Doing so can cause damage to the object and can cause the set to malfunction.
ff Extremely strong light is emitted from the projector’s lens.
Always disconnect all cables before moving the projector.
Moving the projector with cables still attached can damage the cables, which will cause fire or electric shocks to
occur.
When mounting the projector on the ceiling, keep mounting screws and power cord from contact with
metal parts inside the ceiling.
Contact with metal parts inside the ceiling can cause electric shocks.
rr ACCESSORIES
Do not use the old lamp unit.
If used it could cause lamp explosion.
If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the
broken pieces.
Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and
which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces will cause
injury.
ff If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical
advice immediately.
ff Ask your dealer about replacing the lamp unit and check the inside of the projector.
When not using the projector for an extended period of time, remove the batteries from the remote
control.
Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire
or contamination of surrounding area.
ENGLISH - 7
Read this first!
CAUTION:
rr MAINTENANCE
Do not attach the air filter unit while it is wet.
Doing so may result in electric shock or malfunctions.
ff After you clean the air filter units, dry them thoroughly before reattaching them.
Do not touch the fan with your fingers or any other parts of your body when replacing the lamp unit.
Doing so can cause injury.
Ask your dealer about cleaning inside the projector once a year.
Continuous use while dust is accumulated inside the projector may result in fire.
ff For cleaning fee, ask your dealer.
rr VIEWING 3D VIDEO (PT-DZ13KU, PT-DS12KU, and PT-DW11KU only)
Those with a medical history of oversensitivity to light, heart problems, or poor physical health should
not view 3D images.
This may lead to a worsening of medical conditions.
If you feel tiredness or discomfort, or other abnormality while viewing with 3D Eyewear, discontinue
viewing.
Continuing use may cause health problems. Take a break as necessary.
When viewing 3D movies, aim to view one movie at a time and take a break as necessary.
When viewing 3D images, for example when playing 3D games or using a PC where two way interaction
is possible, take an appropriate break every 30 to 60 minutes.
Watching for long periods of time may cause eye fatigue.
When preparing contents, use contents properly created to be used for 3D.
This may cause eye fatigue or health problems.
When viewing 3D images, pay attention to people and objects in the vicinity.
3D video may be mistaken for actual objects, and the related bodily movements can cause damage to objects
and lead to injury.
Use 3D Eyewear when viewing 3D videos.
Do not tilt your head when viewing with 3D Eyewear.
Those who are near or far sighted, those with weaker eyesight in one eye, or those with astigmatism
should use corrective glasses etc. when using 3D Eyewear.
If the image appears distinctly double when viewing 3D video, discontinue viewing.
Watching for long periods of time may cause eye fatigue.
View at a distance of at least three times the effective height of the screen.
Viewing at distance closer than the recommended distance may cause eye fatigue. As with movies, if there are
black bands at the top and bottom of the video, view at a distance of 3 times or more of the height of the video
section.
Children younger than 5 or 6 years old should not use 3D Eyewear.
As it is difficult to gauge the reactions of children to fatigue and discomfort their condition may worsen suddenly.
If a child uses the 3D Eyewear, guardians should beware of the child’s eyes becoming tired.
8 - ENGLISH
Read this first!
Brazil Only
Brasil Apenas
rr Manuseio de baterias usadas
BRASIL
Após o uso, as pilhas e/ou baterias deverão
ser entregues ao estabelecimento comercial
ou rede de assistência técnica autorizada.
Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa
destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor, romper
a blindagem e produzir fogo. (Fig. 1)
Fig. 1
Como isolar os terminais
Fita Isolante
Fita Isolante
Não desmonte, não remova o invólucro, nem amasse a bateria. O gás liberado pela bateria pode irritar a
garganta, danificar o lacre do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo
devido ao curto circuito dos terminais. Não incinere nem aqueça as baterias, elas não podem ficar expostas a
temperaturas superiores a 100 °C (212 °F). O gás liberado pela bateria pode irritar a garganta, danificar o lacre
do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos
terminais provocado internamente.
Evite o contato com o liquido que vazar das baterias. Caso isto ocorra, lave bem a parte afetada com bastante
água. Caso haja irritação, consulte um médico.
rr Remoção das baterias
1. Pressione a guia e levante a tampa.
2. Remova as baterias.
(ii)
(i)
ENGLISH - 9

rTrademarks
r
ff Windows®, Windows Vista®, and Internet Explorer® are registered trademarks or trademarks of Microsoft Corporation in the
United States and other countries.
ff Mac, Mac OS, OS X, and Safari are trademarks of Apple Inc., registered in the United States and other countries.
ff PJLinkTM is a registered trademark or pending trademark in Japan, the United States, and other countries and regions.
ff HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
ff VGA and XGA are trademarks of International Business Machines Corporation in the United States.
ff SVGA is a trademark or registered trademark of Video Electronics Standards Association.
ff RoomView and Crestron RoomView are registered trademarks of Crestron Electronics, Inc.
Crestron Connected and Fusion RV are trademarks of Crestron Electronics, Inc.
ff Adobe Flash Player is a trademark or registered trademark of Adobe Systems Inc. in the United Stated and/or other
countries.
ff RealD 3D is a trademark of RealD Inc.
ff Some of the fonts used in the on-screen menu are Ricoh bitmap fonts, which are manufactured and sold by Ricoh Company,
Ltd.
ff All other names, company names, and product names mentioned in this manual are trademarks or registered trademarks of
their respective owners.
Please note that the ® and TM symbols are not specified in this manual.
rIllustrations
r
in this manual
ff Illustrations of the projector, screen, and other parts may vary from the actual product.
rReference
r
pages
ff Reference pages in this manual are indicated as (x page 00).
rTerm
r
ff In this manual, the “Wireless/wired remote control unit” accessory is referred to as “Remote control”.
10 - ENGLISH

Features of the Projector
Quick Steps
For details, refer to the corresponding pages.
High luminance and high color
reproduction
1. Set up the projector.
(x page 31)
▶▶High luminance and high color
reproduction are achieved with a small size
by means of a unique optical system and
lamp drive system.
2. Attach the projection lens
(optional).
(x page 46)
Easy setup and improved
serviceability
3. Connect with external devices.
(x page 48)
▶▶In addition to the extensive lineup of
optional lenses that allows more flexible
setup of the projector, “portrait mode” is
supported.
4. Connect the power cord.
(x page 52)
Improved cost performance in
maintenance fee
5. Switch on the projector.
(x page 53)
▶▶The extended-life filter reduces
maintenance costs.
6. Make initial settings.
(x page 22)
ff Take this step when you switch on the power for the
first time after purchasing the projector.
7. Select the input signal.
(x page 56)
8. Adjust the image.
(x page 56)
ENGLISH - 11
Contents
Contents
Be sure to read “Read this first!” from page 2.
56
Read this first! 2 Projecting Selecting the input signal 56
Adjusting the focus, zoom, and shift 56
Chapter 1 Preparation
Moving the lens to the home position 57
Adjustment
range
by
the
lens
position
shift
Precautions for use 16
(optical shift) 57
Cautions when transporting 16
Adjusting the lens mounter when the focus is
Cautions when installing 16
unbalanced 58
Security 18
Operating with the remote control 61
Disposal 18
Using the shutter function 61
Cautions on use 18
Using the on-screen display function 61
Software information regarding this product 19
Switching the input signal 62
Accessories 20
Using the Status function 62
Optional accessories 21
Using the Automatic setup function 62
Start-up display 22
Using the Function button 63
Focus adjustment 22
Displaying the internal test pattern 63
Initial setting (display language) 22
Changing the picture aspect ratio 63
Initial setting (installation setting) 23
Initial setting (screen setting) 23
Chapter 4 Settings
About your projector 24
Menu navigation 65
Remote control 24
Navigating through the menu 65
Projector body 25
Main
menu 66
Using the remote control 28
Sub-menu 67
Inserting and removing the batteries 28
[PICTURE] menu 71
Setting the remote control ID numbers 28
[PICTURE
MODE] 71
Connecting to the projector with a cable 29
[CONTRAST] 71
Chapter 2 Getting Started
[BRIGHTNESS] 72
[COLOR] 72
Setting up 31
[TINT] 72
Installation mode 31
[COLOR TEMPERATURE] 72
Parts for ceiling mount (optional) 32
[GAMMA] 74
Screen size and throw distance 32
[SYSTEM DAYLIGHT VIEW] 75
Adjusting adjustable feet 45
[SHARPNESS] 75
Attaching/removing the projection lens
[NOISE REDUCTION] 76
(optional) 46
[DYNAMIC IRIS] 76
Attaching the projection lens 46
[SYSTEM SELECTOR] 77
Removing the projection lens 46
sRGB-compliant video 78
Connecting 48
[POSITION] menu 79
Before connecting 48
[SHIFT] 79
Connecting example: AV equipment 49
[ASPECT] 79
Connecting example: Computers 50
[ZOOM] 80
[CLOCK
PHASE] 81
Chapter 3 Basic Operations
[GEOMETRY] 81
Switching on/off the projector 52
[KEYSTONE] 84
Connecting the power cord 52
Power indicator 52
Switching on the projector 53
Making adjustments and selections 54
Switching off the projector 55
Direct power off function 55
12 - ENGLISH
Contents
[PROJECTOR SETUP] menu [ADVANCED MENU] menu 85
108
[DIGITAL CINEMA REALITY] [PROJECTOR ID] 85
108
[BLANKING] [PROJECTION METHOD] 85
108
[INPUT RESOLUTION] [COOLING CONDITION] 86
109
[CLAMP POSITION] [HIGH ALTITUDE MODE] 86
109
[EDGE BLENDING] [LAMP SELECT] 87
109
[FRAME RESPONSE] [LAMP RELAY] 88
110
[FRAME LOCK] [LAMP POWER] 89
111
[RASTER POSITION] [BRIGHTNESS CONTROL] 89
111
[STANDBY MODE] 115
[DISPLAY LANGUAGE] menu 90
[SCHEDULE] 116
Changing the display language 90
[STARTUP INPUT SELECT] 117
[3D SETTINGS] menu 91
[RS-232C] 118
[3D SYSTEM SETTING] 91
[STATUS] 119
[3D SYNC SETTING] 91
[NO SIGNAL SHUT-OFF] 120
[3D SIMUL INPUT SETTING] 92
[REMOTE2 MODE] 120
[3D INPUT FORMAT] 92
[FUNCTION BUTTON] 121
[LEFT/RIGHT SWAP] 93
[DATE
AND
TIME] 121
[3D COLOR MATCHING] 93
[LENS CALIBRATION] 122
[3D PICTURE BALANCE] 93
[LENS
MEMORY] 122
[DARK TIME SETTING] 94
[SAVE ALL USER DATA] 124
[3D FRAME DELAY] 94
[LOAD ALL USER DATA] 124
[3D TEST MODE] 94
[INITIALIZE] 124
[3D TEST PATTERN] 95
[SERVICE PASSWORD] 124
[SAFETY PRECAUTIONS MESSAGE] 95
[P IN P] menu 125
[3D SAFETY PRECAUTIONS] 95
Using P IN P function 125
[DISPLAY OPTION] menu 96
[TEST PATTERN] menu 127
[COLOR MATCHING] 96
[TEST
PATTERN] 127
[LARGE SCREEN CORRECTION] 97
[SCREEN SETTING] [SIGNAL LIST] menu 97
128
[AUTO SIGNAL] Registering new signals 98
128
[AUTO SETUP] Renaming the registered signal 98
128
[RGB IN] Deleting the registered signal 99
128
[DVI-D IN] Protecting the registered signal 100
129
[HDMI IN] Expanding signal lock-in range 100
129
[SDI IN] Sub memory 100
130
[ON-SCREEN DISPLAY] 102
[SECURITY] menu 131
[BACK COLOR] 103
[SECURITY PASSWORD] 131
[STARTUP LOGO] 104
[SECURITY PASSWORD CHANGE] 131
[UNIFORMITY] 104
[DISPLAY SETTING] 132
[SHUTTER SETTING] 105
[TEXT CHANGE] 132
[FREEZE] 105
[CONTROL DEVICE SETUP] 132
[WAVEFORM MONITOR] 105
[CONTROL DEVICE PASSWORD CHANGE] 133
[CUT OFF] 107
[NETWORK] menu 135
[NETWORK SETUP] 135
[NETWORK CONTROL] 135
[NETWORK STATUS] 136
Network connections 136
Accessing from the web browser 137
ENGLISH - 13
Contents
Chapter 5
Maintenance
Lamp/temperature/filter indicators 155
When an indicator lights up 155
Maintenance/replacement 157
Before performing maintenance/replacement 157
Maintenance 157
Replacing the unit 159
Troubleshooting 163
Chapter 6
Appendix
Technical information 166
PJLink protocol 166
Control commands via LAN 167
<SERIAL IN>/<SERIAL OUT> terminal 169
<REMOTE 2 IN> terminal 173
Two-window display combination list 174
Control device password 174
Upgrade Kit 175
List of compatible signals 175
Specifications 180
Dimensions 183
Precautions for Ceiling Mount Bracket for
Projectors 184
Index 185
14 - ENGLISH
Chapter 1
Preparation
This chapter describes things you need to know or check before using the projector.
ENGLISH - 15
Chapter 1 Preparation — Precautions for use
Precautions for use
Cautions when transporting
ff The projection lens (optional) is susceptible to effects due to vibration or impact. Make sure to remove the lens when
transporting.
ff When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. They may damage
the internal components and result in malfunctions.
ff Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Cautions when installing
rAfter
r
removing the projection lens (optional), attach the dust sponge included with the
projector.
Otherwise dust will accumulate inside and may cause malfunctions.
rDo
r not set up the projector outdoors.
The projector is designed for indoor use only.
rDo
r not set up the projector in the following locations.
ff Places where vibration and impacts occur such as in a car or vehicle: Doing so may cause damage to internal components
or malfunction.
ff Near the exhaust of an air conditioner: Depending on the conditions of use, the screen may fluctuate in rare cases due
to the heated air from the air exhaust port or the hot or cooled air. Make sure that the exhaust from the projector or other
equipment, or the air from the air conditioner does not blow toward the front of the projector.
ff Places with sharp temperature fluctuations such as near lights (studio lamps): Doing so may shorten the life of the lamp, or
result in deformation of the outer case due to heat, which may cause malfunctions.
The operating environment temperature of the projector should be between 0 °C (32 °F) and 45 °C (113 °F) when using it at
elevations lower than 1 400 m (4 593') above sea level, and between 0 °C (32 °F) and 40 °C (104 °F) when using it at high
altitudes (1 400 m (4 593') or higher – lower than 2 700 m (8 858') above sea level).
If you use the Smoke cut filter, the operating environment temperature should be between 0 °C (32 °F) and 35 °C (95 °F).
However, it cannot be used at high altitudes.
If you use the Replacement lamp unit (for portrait mode), the operating environment temperature should be between 0 °C
(32 °F) and 40 °C (104 °F) when using the projector at elevations lower than 1 400 m (4 593') above sea level, and between
0 °C (32 °F) and 35 °C (95 °F) when using the projector at high altitudes. If you use the Smoke cut filter together, the
operating environment temperature should be between 0 °C (32 °F) and 30 °C (86 °F).
ff Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector.
ff Places where there is high-power laser equipment: Directing a laser beam onto the lens surface causes damage to the DLP
chips.
rBe
r sure to ask a specialized technician or your dealer when installing the projector on
a ceiling.
The optional Ceiling Mount Bracket for Projectors is required.
Model No.: ET‑PKD310H (for High Ceilings), ET‑PKD310S (for Low Ceilings)
rLens
r
focus
The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in the period
just after switching on the power. Wait at least 30 minutes with the image projected before adjusting the lens focus.
rMake
r
sure to set [HIGH ALTITUDE MODE] to [ON] when using the projector at
elevations between 1 400 m (4 593') or higher and lower than 2 700 m (8 858') above
sea level.
Failure to do so may shorten the life of the components and result in malfunctions.
rMake
r
sure to set [HIGH ALTITUDE MODE] to [OFF] when using the projector at
elevations lower than 1 400 m (4 593') above sea level.
Failure to do so may shorten the life of the components and result in malfunctions.
rDo
r not install the projector at elevations of 2 700 m (8 858') or higher above sea level.
Doing so may shorten the life of the components and result in malfunctions.
16 - ENGLISH
Chapter 1 Preparation — Precautions for use
rDo
r not use the projector tilted to the right or left.
Using the projector at a vertical angle that exceeds 15° may reduce product life or result in malfunction.
rWhen
r
installing and using the projector at an angle that exceeds 30° vertically, set
[COOLING CONDITION] (x page 109).
Failure to observe this may shorten the life of the components or result in malfunctions.
rWhen
r
using the Replacement lamp unit (for portrait mode), install the projector with
the terminals surface facing down.
Do not use the projector tilted to the right and left, front and back. Using the projector at an angle that exceeds 15° in either
direction may reduce the life of the components or result in malfunctions.
rCautions
r
when setting up the projector
ff When installing and using the projector with a method other than the floor standing installation using the adjustable feet, fix
the projector using the five screw holes for ceiling mount (as shown in the figure).
(Screw diameter: M6, tapping depth inside the set: 16 mm (5/8"), torque: 4 ± 0.5 N·m)
ff Make a clearance of at least 5 mm (3/16") between the projector bottom and the setting surface by inserting spacers
(metallic) between them.
Adjustable feet
Mount
Spacer
Screw holes for ceiling mount
(M6)
Adjustable feet
The positions of screw holes for ceiling mount and adjustable feet
Clearance (5 mm (3/16") or longer)
Ensure the inflow of air into the air intake port. Otherwise
the projector may not work properly.
ff The adjustable feet can be removed if not needed in the installation. However, do not use the screw holes where the
adjustable feet were removed to fix the projector in place.
Also, do not install other screws in the screw holes of adjustable feet. Doing so may damage the projector.
Note that the length of the front feet differ from that of the rear feet when attaching the removed adjustable feet. The ones
with a longer screw are for the front. (Length of the screw for front feet: 65 mm (2-9/16"), length of the screw for rear feet:
23 mm (29/32"))
ff Use the adjustable feet only for the floor standing installation and for adjusting the angle. Using them for other purposes may
damage the projector.
ff Do not stack projectors on top of each other.
ff Do not use the projector supporting it by the top.
ff Do not use the projector tilted at an angle that exceeds ±15° from the horizontal plane.
ff Do not block the ventilation ports (intake and exhaust) of the projector.
ENGLISH - 17
Chapter 1 Preparation — Precautions for use
ff Prevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and exhaust) of the
projector.
SDI 1/2
+15°
-15°
SDI 1/2
500 mm (20") or longer
500 mm (20") or longer
500 mm (20") or longer
SDI 1/2
SDI 1/2
100 mm (4") or longer
ff Do not install the projector in a confined space.
When it is necessary to install the projector in a confined space, install the air conditioning or ventilation separately. Exhaust
heat may accumulate when the ventilation is not enough, triggering the protection circuit of the projector.
Security
When using this product, take safety measures against the following incidents.
ff Personal information being leaked via this product
ff Unauthorized operation of this product by a malicious third party
ff Interfering or stopping of this product by a malicious third party
Take sufficient security measures. (x pages 131, 150)
ff Make your password difficult to guess as much as possible.
ff Change your password periodically.
ff Panasonic Corporation or its affiliate companies will never ask for your password directly. Do not divulge your password in
case you receive such inquiries.
ff The connecting network must be secured by a firewall, etc.
ff Set a password for the web control and restrict the users who can log in.
Disposal
To dispose of the product, ask your local authorities or dealer for correct methods of disposal.
The lamp contains mercury. When disposing of used lamp units, contact your local authorities or dealer for correct methods of
disposal.
Cautions on use
rTo
r get a good picture quality
In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over
windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.
rDo
r not touch the surface of the projection lens with your bare hands.
If the surface of the projection lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto
the screen.
Attach the supplied lens cover to the projection lens when you do not use the projector.
rDLP
r
chips
ff The DLP chips are precision-made. Note that in rare cases, pixels of high precision could be missing or always lit. Note that
such phenomena does not indicate malfunction.
18 - ENGLISH
Chapter 1 Preparation — Precautions for use
ff Directing a high-power laser beam onto the lens surface can damage the DLP chips.
rDo
r not move the projector or subject it to vibration or impact while it is operating.
Doing so may shorten the life of the built-in motor.
rLamp
r
The light source of the projector is a high-pressure mercury lamp.
A high-pressure mercury lamp has the following characteristics.
ff The luminance of the lamp will decrease by duration of usage.
ff The lamp may burst with a loud sound or have its service life shortened because of shock, chipping, or degradation due to
cumulative runtime.
ff The lamp life varies greatly depending on individual differences and usage conditions. In particular, frequent on/off switching
of the power greatly deteriorate the lamp and affects the lamp life.
ff Continuous use for over one week will deteriorate the lamp. The degradation of the lamp due to continuous use can be
reduced by using the [PROJECTOR SETUP] menu → [LAMP RELAY].
ff In rare cases, the lamps burst shortly after projection starts.
ff The risk of bursting increases when the lamp is used beyond its replacement cycle. Make sure to replace the lamp unit
regularly.
(“When to replace the lamp unit” (x page 160), “How to replace the lamp unit” (x page 161))
ff If the lamp bursts, gas contained inside of the lamp is released in the form of smoke.
ff It is recommended that you store the Replacement lamp unit as a contingency.
rComputer
r
and external device connections
ff When connecting a computer or an external device, read this manual carefully regarding the use of power cords and
shielded cables as well.
ff Use a commercial cable with a ferrite core for connecting with the <DVI-D IN> terminal.
rViewing
r
3D images
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
The projector can display 3D video signals that are input through various systems such as “frame packing” and “side by side”.
You are required to prepare external devices for viewing 3D images (such as 3D eyewear, video signal output devices) which
are suitable for your 3D system. For connections of the projector and external devices, they are different depends on the 3D
system to be used, see the operating instructions of external devices you use.
Refer to “List of 3D compatible signals” (x page 177) for the types of 3D video signals that can be used with the projector.
Software information regarding this product
© Panasonic Corporation 2013
This product is equipped with the following software:
(1) Software which is developed independently by or for Panasonic Corporation
(2) Software which is licensed under GNU GENERAL PUBLIC LICENSE
(3) Software which is licensed under GNU LESSER GENERAL PUBLIC LICENSE
For license conditions related to software in (2) and (3), refer to the provisions of the software licenses (GNU GENERAL
PUBLIC LICENSE and GNU LESSER GENERAL PUBLIC LICENSE) in the supplied CD-ROM. (Those provisions are written
in English because they have been stipulated by third parties.)
If you have any questions regarding the software, please contact us via email (sav.pj.gpl.pavc@ml.jp.panasonic.com).
ENGLISH - 19
Chapter 1 Preparation — Precautions for use
Accessories
Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of
accessories.
Wireless/wired remote control unit <1>
(N2QAYB000769)
CD-ROM <1>
(TXFQB02VLF9)
AA/R6 battery <2>
Power cord <1>
(TXFSX01RGQZ)
(For remote control unit)
Lens fixing screw <1>
(XYN4+J18FJ)
Attention
ff After unpacking the projector, discard the power cord cap and packaging material properly.
ff Do not use the supplied power cord for devices other than this projector.
ff For missing accessories, consult your dealer.
ff Store small parts in an appropriate manner, and keep them away from small children.
Note
ff The model numbers of accessories are subject to change without prior notice.
Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
Instruction/list (PDF)
Software
20 - ENGLISH
Operating Instructions – Functional Manual
Multi Projector Monitoring & Control Software Operating Instructions
Logo Transfer Software Operating Instructions
List of Compatible Projector This is a list of projectors that are compatible with the software
Models
contained in the CD-ROM and their restrictions.
Software license
GNU GENERAL PUBLIC LICENSE, GNU LESSER GENERAL
PUBLIC LICENSE
Multi Projector Monitoring & This software allows you to monitor and control multiple
Control Software (Windows) projectors connected to the LAN.
Logo Transfer Software
This software allows you to transfer original images, such as
(Windows)
company logos to be displayed when projection starts, to the
projector.
Chapter 1 Preparation — Precautions for use
Optional accessories
Optional accessories
(product name)
Projection lens
Model No.
Zoom lens
Fixed-focus lens
Ceiling Mount Bracket for
Projectors
Projector ceiling mount
bracket
Projector Frame for
projectors
Replacement lamp unit
Replacement lamp unit (for
portrait mode)
Replacement Filter Unit
Smoke cut filter
Smoke cut filter
(Replacement)
Upgrade Kit
ET‑D75LE6, ET‑D75LE8, ET‑D75LE10, ET‑D75LE20,
ET‑D75LE30, ET‑D75LE40
ET‑D75LE50
ET‑PKD310H (for High Ceilings), ET‑PKD310S (for Low Ceilings)
ET‑PAD310
ET‑PFD310
ET‑LAD310A (1 pc), ET‑LAD310AW (2 pcs)
ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)
ET‑EMF320
ET‑SFD320
ET‑SFR320
ET‑UK20 (only for PT‑DZ13KU, PT‑DS12KU)
Note
ff The model numbers of optional accessories are subject to change without prior notice.
ENGLISH - 21
Chapter 1 Preparation — Start-up display
Start-up display
When the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu →
[INITIALIZE] is executed, the focus adjustment screen is displayed after projection starts, then the initial setting screen is displayed. Set them
in accordance with circumstances.
In other occasions, you can change the settings by menu operations.
Focus adjustment
Adjust the focus to display the menu screen clearly.
You may also need to adjust the zoom and shift.
Refer to “Adjusting the focus, zoom, and shift” (x page 56) for details.
1) Press asqw to adjust the focus.
LENS
FOCUS
FOCUS POSITION
+0
ADJUST
2) Press the <MENU> button to proceed to the initial setting.
Initial setting (display language)
Select the language to show on the screen.
After completed the initial setting, you can change the display language from the [DISPLAY LANGUAGE] menu.
1) Press as to select the display language.
INITIAL SETTING
Please select DISPLAY LANGUAGE.
SELECT
ENTER
SET
2) Press the <ENTER> button to proceed to the initial setting.
22 - ENGLISH
Chapter 1 Preparation — Start-up display
Initial setting (installation setting)
Set [PROJECTION METHOD] and [COOLING CONDITION] depending on the installation mode. Refer to “Installation mode” (x page 31)
for details.
Set [HIGH ALTITUDE MODE] to [ON] when using the projector at high altitudes between 1 400 m (4 593') or higher and lower than 2 700 m
(8 858') above sea level.
After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu.
1) Press as to select an item.
2) Press qw to switch the setting.
INITIAL SETTING
PROJECTION METHOD
FRONT/FLOOR
When PROJECTION METHOD is changed, confirm that
COOLING CONDITION is set correctly.
COOLING CONDITION
AUTO
It may shorten the life of the lamp and projector if used
in incorrect setting.
HIGH ALTITUDE MODE
OFF
Switch to HIGH ALTITUDE MODE "ON" if over 1400m
(4593Ft).
MENU SELECT
ENTER
CHANGE
SET
3) Press the <ENTER> button to proceed to the initial setting.
Initial setting (screen setting)
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each
item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
1) Press as to select an item.
2) Press qw to switch the setting.
INITIAL SETTING
16:10
SCREEN FORMAT
SCREEN POSITION
Set as necessary for the screen in use.
MENU SELECT
ENTER
CHANGE
SET
ff [SCREEN FORMAT] (x page 97)
ff [SCREEN POSITION] (x page 97)
3) Press the <ENTER> button.
ff Confirm the setting value and complete the initial setting.
Note
ff If you press the <MENU> button on the initial setting screen, you can go back to the previous screen.
ff To continue operations after completed the initial settings, refer to “Selecting the input signal” (x page 56).
ff By default, the time zone of the projector is set to +09:00 (Japan and Korean Standard Time). Change the setting in the [PROJECTOR
SETUP] menu → [DATE AND TIME] → [TIME ZONE] to the time zone of the region where you use the projector.
ENGLISH - 23
Chapter 1 Preparation — About your projector
About your projector
Remote control
Front
1
2
3
Side
Top
11
20
19
4
12
5
6
13
14
7
15
8
9
10
21
16
17
18
1 Remote control indicator
Flashes if any button in the remote control is pressed.
2 Power standby <v> button
Sets the projector to the state where the projector is switched
off (standby mode) when the <MAIN POWER> switch on the
projector is set to <ON> and in projection mode.
3 Power on <b> button
Starts projection when the <MAIN POWER> switch on the
projector is set to <ON> when the power is switched off
(standby mode).
4 Input selection (<RGB1>, <RGB2>, <DVI-D>, <VIDEO>,
<HDMI>, <SDI 1/2>) buttons
Switches the input signal to project. (x page 62)
5 <MENU> button/<ENTER> button/asqw buttons
Used to navigate through the menu screen. (x page 65)
6 <ON SCREEN> button
Switches on (display)/off (hide) the on-screen display function.
(x page 61)
7 <TEST> button
Displays the test pattern. (x page 63)
8 Number (<0> - <9>) buttons
Used when the system uses multiple projectors.
Used to input ID numbers or passwords.
9 <STATUS> button
Displays the projector information.
10 <LIGHT> button
Pressing this button lights up the remote control buttons. The
lights will go off when the remote control operation goes idle for
10 seconds.
Attention
ff Do not drop the remote control.
ff Avoid contact with liquids or moisture.
ff Do not attempt to modify or disassemble the remote control.
24 - ENGLISH
Bottom
11 <AUTO SETUP> button
Automatically adjusts the image display position while projecting
the image.
[PROGRESS] is displayed on the screen while adjusting
automatically. (x page 62)
12 <SHUTTER> button
Used to temporarily turn off the image. (x page 61)
13 <ASPECT> button
Switches the aspect ratio of the image. (x page 63)
14 Lens (<FOCUS>, <ZOOM>, <SHIFT>) buttons
Adjusts the projection lens. (x page 56)
15 <FUNC> button
Assigns a frequently used operation as a shortcut button.
(x page 63)
16 <DEFAULT> button
Resets the content of the sub-menu to the factory default.
(x page 66)
17 <ID SET> button
Sets the ID number of the remote control to use for a system
using multiple projectors. (x page 28)
18 <ID ALL> button
Used to simultaneously control all the projectors with one
remote control for a system using multiple projectors.
(x page 28)
19 <LOCK> button
Used to prevent unintended operation by careless pressing of
the buttons and prevent draining the remote control batteries.
20 Remote control signal transmitter
21 Remote control wired terminal
Connects to the projector with a cable. (x page 29)
Chapter 1 Preparation — About your projector
Note
ff The remote control can be used within a distance of about 30 m (98'5") if pointed directly at the remote control signal receiver. The remote
control can control at angles of up to ±15° vertically and ±30° horizontally, but the effective control range may be reduced.
ff If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly.
ff The signal will be reflected off the screen. However, the operating range may be limited from light reflection loss due to the screen material.
ff If the remote control signal receiver directly receives strong light, such as fluorescent light, the remote control may not operate properly. Use
it in a place distant from the light source.
ff The power indicator <ON (G)/STANDBY (R)> will flash if the projector receives a remote control signal.
Projector body
Front
Side
11
1 2 3 4 5
12
13
14
SDI 1/2
6
7
15
6
16
Rear
8
Bottom
9
8
18
10
14
14
17
14
WARNING
Keep your hands and other objects away from the air
exhaust port.
ff Keep your hands and face away.
ff Do not insert your fingers.
ff Keep heat-sensitive objects away.
Heated air from the air exhaust port can cause burns, injury, or
deformations.
1 Power indicator <ON (G)/STANDBY (R)>
Displays the status of the power.
2 Lamp indicator <LAMP1>
Displays the status of lamp 1.
3 Lamp indicator <LAMP2>
Displays the status of lamp 2.
4 Temperature indicator <TEMP>
Displays the internal temperature status.
5 Filter indicator <FILTER>
Displays the status of the air filter unit.
6 Adjustable feet
Adjusts the projection angle.
Projection direction
7 Remote control signal receiver (front)
8 Air exhaust port
9 Lamp unit cover
10 Remote control signal receiver (rear)
11 Control panel (x page 26)
12 Connecting terminals (x page 27)
ENGLISH - 25
Chapter 1 Preparation — About your projector
16 <MAIN POWER> switch
Turns on/off the main power.
13 Security slot
This security slot is compatible with the Kensington security
cables.
14 Air intake port
17 Air filter cover
The air filter unit is inside.
15 <AC IN> terminal
Connect the supplied power cord.
18 Burglar hook port
Attaches a burglar prevention cable, etc.
Attention
ff Do not block the ventilation ports (intake and exhaust) of the projector.
rrControl panel
9
1
2
MENU
LENS
10
11
3
VIDEO
4
RGB 1
5
RGB 2
6
DVI-D
13
7
HDMI
14
8
SDI 1/2
1 Power standby <v> button
Sets the projector to the state where the projector is switched
off (standby mode) when the <MAIN POWER> switch on the
projector is set to <ON> and in projection mode.
ENTER
AUTO
SETUP
SHUTTER
12
9 <MENU> button
Displays or hides the main menu. (x page 65)
Returns to the previous menu when a sub-menu is displayed.
If you press the <MENU> button on the control panel for at least
three seconds while the on-screen display is off, the on-screen
display is turned on.
2 Power on <b> button
Starts projection when the <MAIN POWER> switch on the
projector is set to <ON> when the power is switched off
(standby mode).
10 <LENS> button
Adjusts the focus, zoom, and shift (position) of the lens.
3 <VIDEO> button
Switches the input to VIDEO.
11 <ENTER> button
Determines and executes an item in the menu screen.
4 <RGB1> button
Switches the input to RGB1.
12 <SHUTTER> button
Used to temporarily turn off the image. (x page 61)
5 <RGB2> button
Switches the input to RGB2.
13 asqw buttons
Use to select items in the menu screen, change settings, and
adjust levels.
Also used to enter a password in [SECURITY] or enter
characters.
6 <DVI-D> button
Switches the input to DVI‑D.
7 <HDMI> button
Switches the input to HDMI.
8 <SDI 1/2> button
Switches the input to SDI.
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
26 - ENGLISH
14 <AUTO SETUP> button
Automatically adjusts the image display position while projecting
the image. [PROGRESS] is displayed on the screen while
adjusting automatically. (x page 62)
Chapter 1 Preparation — About your projector
rrConnecting terminals
1
5
6
6
2
3
7
1 <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal
These are the terminals to connect the remote control for serial
control when the system uses multiple projectors.
2 <REMOTE 2 IN> terminal
This is a terminal to remotely control the projector using the
external control circuit.
3 <SERIAL IN> terminal
This is the RS‑232C compatible terminal to externally control
the projector by connecting a computer.
4 <SERIAL OUT> terminal
This is a terminal to output the signal connected to the <SERIAL
IN> terminal.
5 <SDI IN> terminal
This is the terminal to input SDI signals. (Only for PT‑DZ10KU)
6 <SDI IN 1> terminal / <SDI IN 2> terminal
This is the terminal to input SDI signals.
(Only for PT‑DZ13KU, PT‑DS12KU)
7 <HDMI IN> terminal
This is the terminal to input HDMI signals.
4
8
9
10 11
12
13
8 <RGB 1 IN> (<R/PR>, <G/Y>, <B/PB/C>, <SYNC/HD>, <VD>)
terminal
This is a terminal to input RGB signals or the YCBCR/YPBPR and
Y/C signals.
9 <RGB 2 IN> terminal
This is a terminal to input RGB signals or YCBCR/YPBPR signals.
10 <DVI-D IN> terminal
This is the terminal to input DVI‑D signals.
11 <VIDEO IN> terminal
This is the terminal to input video signals.
12 <3D SYNC 1 IN/OUT> terminal / <3D SYNC 2 OUT> terminal
This is a terminal to input or output control signals when using
the projector in 3D systems.
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
13 <LAN> terminal
This is a terminal to connect to the network.
Used for control and monitoring. Image input through network
connections is not possible.
Attention
ff When a LAN cable is directly connected to the projector, the network connection must be made indoors.
ENGLISH - 27
Chapter 1 Preparation — Using the remote control
Using the remote control
Inserting and removing the batteries
(ii)
(i)
Fig. 1
Fig. 2
1) Open the cover. (Fig. 1)
2) Insert the batteries and close the cover (insert the m side first). (Fig. 2)
ff When removing the batteries, perform the steps in reverse order.
Setting the remote control ID numbers
When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single
remote control, if a unique ID number is assigned to each projector.
After setting the ID number of the projector, set same ID number on the remote control.
The factory default ID number of the projector is set to [ALL]. When using a single projector, press the <ID ALL> button on the
remote control. Also, you can control a projector by pressing the <ID ALL> button on the remote control even if you do not know the
projector ID.
How to set
1) Press the <ID SET> button on the remote control.
2) Within five seconds, press the two-digit ID number set on the projector using the number (<0> - <9>)
buttons.
ff If you press the <ID ALL> button, you can control the projectors regardless of the ID number setting of the projector.
Attention
ff Since the ID number of the remote control can be set without the projector, do not press the <ID SET> button carelessly. If the <ID SET>
button is pressed and no number (<0> - <9>) buttons are pressed within five seconds, the ID number returns to its original value before the
<ID SET> button was pressed.
ff The ID number set on the remote control will be stored unless it is set again. However, it will be erased if the remote control is left with dead
batteries. Set the same ID number again when the batteries are replaced.
Note
ff Set the ID number of the projector from the [PROJECTOR SETUP] menu → [PROJECTOR ID].
28 - ENGLISH
Chapter 1 Preparation — Using the remote control
Connecting to the projector with a cable
When you use the system with multiple projectors, use commercial M3 stereo mini jack cables and connect the other devices to the <REMOTE
1 IN>/<REMOTE 1 OUT> terminals of the projector body.
The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.
M3 stereo mini jack cable (commercially
available)
Remote control
Connecting to a second projector
Connecting to the remote control wired
terminal
Connecting terminals
Attention
ff Use a cable that is 15 m (49'2") or shorter, with 2 core shield. The remote control may not operate when the length of the cable exceeds
15 m (49'2") or when the shielding of the cable is inadequate.
ENGLISH - 29
Chapter 2
Getting Started
This chapter describes things you need to do before using the projector such as the setup and connections.
30 - ENGLISH
Chapter 2 Getting Started — Setting up
Setting up
Installation mode
There are six ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 108) depending
on the installation location. Set [COOLING CONDITION] (x page 109) to [AUTO]. Using the projector with [COOLING CONDITION] set
incorrectly may shorten the life of the lamp.
Mounting on the ceiling and projecting forward
Menu item
Setting on a desk/floor and projecting from rear
(Using the translucent screen)
Method
Menu item
[PROJECTION METHOD]
[FRONT/CEILING]
[PROJECTION METHOD]
[REAR/FLOOR]
[COOLING CONDITION]
[CEILING SETTING]
[COOLING CONDITION]
[FLOOR SETTING]
Mounting on the ceiling and projecting from rear
(Using the translucent screen)
Method
Setting on a desk/floor and projecting forward
Menu item
Method
Menu item
Method
[PROJECTION METHOD]
[REAR/CEILING]
[PROJECTION METHOD]
[FRONT/FLOOR]
[COOLING CONDITION]
[CEILING SETTING]
[COOLING CONDITION]
[FLOOR SETTING]
Portrait setting and projecting from the rear*1
(Using the translucent screen)
Portrait setting and projecting forward*1
Menu item
Method
Menu item
Method
[PROJECTION METHOD]
[REAR/FLOOR]
[PROJECTION METHOD]
[FRONT/FLOOR]
[COOLING CONDITION]
[PORTRAIT SETTING]*2
[COOLING CONDITION]
[PORTRAIT SETTING]*2
*1 For the portrait setting, use the optional Replacement lamp unit (for portrait mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)).
*2 Using the optional Replacement lamp unit (for portrait mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)) will set the cooling condition
to [PORTRAIT SETTING].
Note
ff In the portrait setting, the on-screen menu is displayed sideways.
ENGLISH - 31
Chapter 2 Getting Started — Setting up
Parts for ceiling mount (optional)
You can install the projector on the ceiling using the optional Ceiling Mount Bracket for Projectors (Model No.: ET‑PKD310H (for High Ceilings),
ET‑PKD310S (for Low Ceilings)).
ff Be sure to use the Ceiling Mount Bracket for Projectors specified for this projector.
ff Refer to the Installation Instructions supplied with the Ceiling Mount Bracket for Projectors when installing the projector with the bracket.
Attention
ff To ensure projector performance and security, installation of the Ceiling Mount Bracket for Projectors must be carried out by your dealer or a
qualified technician.
Screen size and throw distance
Refer to the screen size and projection distances to install the projector. Image size and image position can be adjusted in accordance with the
screen size and screen position.
SD
SH
SH
Projection screen
L1
Screen
L (LW/LT)
SW
L1
SW
L (LW/LT)
Screen
(Unit: m)
L (LW/LT)*1
Projection distance
L1
Lens protrusion dimension
SH
Image height
SW
Image width
SD
Image diagonal size
*1 LW: Minimum projection distance when the Zoom Lens is used
LT: Maximum projection distance when the Zoom Lens is used
Projection lens Model No.
(Unit: m)
L1 dimension (approximate value)
ET‑D75LE1
0.1144
ET‑D75LE2
0.0989
ET‑D75LE3
0.1024
ET‑D75LE4
0.1263
ET‑D75LE5
0.2024
ET‑D75LE6
0.2119
ET‑D75LE8
0.2544
ET‑D75LE10
0.125
ET‑D75LE20
0.121
ET‑D75LE30
0.121
ET‑D75LE40
0.124
ET‑D75LE50
0.203
Attention
ff Before setting up, read “Precautions for use” (x page 16).
ff Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the
lens surface.
32 - ENGLISH
Chapter 2 Getting Started — Setting up
[GEOMETRY] projection range
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
[VERTICAL KEYSTONE] (viewed from the side)
[HORIZONTAL KEYSTONE] (viewed from above)
Screen
Screen
Vertical arc correction (viewed from the side)
Horizontal arc correction (viewed from above)
Projection distance
Arc radius
Projection distance
Arc radius
Screen
Screen
Arc center
Arc center
Screen
Screen
Projection distance
Arc radius
Projection distance
Arc radius
Standard status
Only for [KEYSTONE]
[KEYSTONE] and [CURVED] used together
Only for [CURVED]
Projection
lens Model
No.
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
ET‑D75LE1
±40
±15
±20
±15
1.0
2.3
0.6
1.3
ET‑D75LE2
±40
±15
±20
±15
0.8
1.6
0.5
0.9
ET‑D75LE3
±40
±15
±20
±15
0.6
1.1
0.3
0.6
ET‑D75LE4
±40
±15
±20
±15
0.4
0.7
0.2
0.4
ET‑D75LE5
±22
±15
±8
±8
2.0
4.9
1.2
2.9
Min. value of Min. value of Min. value of Min. value of
R2/L2
R3/L3
R2/L2
R3/L3
ET‑D75LE6
±28
±15
±10
±10
1.6
3.9
0.9
2.3
ET‑D75LE8
±40
±15
±20
±15
0.2
0.4
0.2
0.3
ET‑D75LE10
±40
±15
±20
±15
1.1
2.6
0.6
1.5
ET‑D75LE20
±40
±15
±20
±15
0.9
1.7
0.5
1.0
ET‑D75LE30
±40
±15
±20
±15
0.6
1.2
0.4
0.7
ET‑D75LE40
±40
±15
±20
±15
0.4
0.7
0.2
0.4
ET‑D75LE50
±22
±15
±8
±8
2.0
4.9
1.2
2.9
ENGLISH - 33
Chapter 2 Getting Started — Setting up
When using the optional Upgrade Kit (Model No.: ET‑UK20)
(Only for PT‑DZ13KU, PT‑DS12KU)
Only for [KEYSTONE]
[KEYSTONE] and [CURVED] used together
Only for [CURVED]
Projection
lens Model
No.
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
Vertical
keystone
correction
angle α (°)
Horizontal
keystone
correction
angle β (°)
ET‑D75LE1
±40
±40
±20
±15
0.8
1.8
0.5
1.0
ET‑D75LE2
±40
±40
±20
±15
0.6
1.2
0.4
0.7
ET‑D75LE3
±45
±40
±20
±15
0.4
0.8
0.3
0.5
ET‑D75LE4
±45
±40
±20
±15
0.3
0.5
0.2
0.3
ET‑D75LE5
±22
±15
±8
±8
1.5
3.7
0.9
2.2
ET‑D75LE6
±28
±15
±10
±10
1.2
3.0
0.7
1.7
ET‑D75LE8
±45
±40
±20
±15
0.2
0.3
0.1
0.2
ET‑D75LE10
±40
±40
±20
±15
0.9
2.0
0.5
1.1
ET‑D75LE20
±40
±40
±20
±15
0.7
1.3
0.4
0.7
ET‑D75LE30
±45
±40
±20
±15
0.5
0.9
0.3
0.5
ET‑D75LE40
±45
±40
±20
±15
0.3
0.5
0.2
0.3
ET‑D75LE50
±22
±15
±8
±8
1.5
3.7
0.9
2.2
Min. value of Min. value of Min. value of Min. value of
R2/L2
R3/L3
R2/L2
R3/L3
*1 Cannot correct [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] if the total exceeds 55° when used at the same time.
Note
ff When [GEOMETRY] is used, the focus of the entire screen may be lost as correction increases.
ff Make the curved screen a circular arc shape with one part of a perfect circle removed.
ff Adjustment range of the [GEOMETRY] items may not match the listed projection range depending on the projection lens. Use this projector
within the projection range, otherwise the correction may not work.
34 - ENGLISH
Chapter 2 Getting Started — Setting up
Projection distance of each projection lens
A ±5 % error in listed projection distances may occur.
In addition, when [GEOMETRY] and [KEYSTONE] are used, distance is corrected to become smaller than the specified screen size.
For PT‑DZ13KU, PT‑DZ10KU
rrWhen the screen aspect is 16:10
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.942
1.508
2.03 (80")
1.077
1.723
2.29 (90")
1.212
1.939
2.54 (100")
1.346
2.154
3.05 (120")
1.615
2.585
3.81 (150")
2.019
3.231
5.08 (200")
2.692
4.308
6.35 (250")
3.365
5.385
7.62 (300")
4.039
6.462
8.89 (350")
4.712
7.539
10.16 (400")
5.385
8.616
12.70 (500")
6.731
10.770
15.24 (600")
8.077
12.923
25.40 (1000")
13.462
21.539
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.942
1.508
2.03 (80")
1.077
1.723
2.29 (90")
1.212
1.939
2.54 (100")
1.346
2.154
3.05 (120")
1.615
2.585
3.81 (150")
2.019
3.231
5.08 (200")
2.692
4.308
6.35 (250")
3.365
5.385
7.62 (300")
4.039
6.462
8.89 (350")
4.712
7.539
10.16 (400")
5.385
8.616
12.70 (500")
6.731
10.770
15.24 (600")
8.077
12.923
25.40 (1000")
13.462
21.539
ET‑D75LE1
1.4‑1.8:1
Min.
(LW)
2.01
2.31
2.61
2.91
3.51
4.40
5.89
7.39
8.88
10.37
11.86
14.85
17.83
29.77
Max.
(LT)
2.69
3.09
3.49
3.89
4.68
5.88
7.87
9.87
11.86
13.86
15.85
19.84
23.82
39.77
ET‑D75LE10
1.3‑1.7:1
Min.
(LW)
1.90
2.19
2.47
2.76
3.32
4.18
5.60
7.02
8.44
9.86
11.28
14.12
16.96
28.33
Max.
(LT)
2.46
2.83
3.20
3.56
4.30
5.40
7.24
9.07
10.91
12.74
14.58
18.25
21.92
36.61
ET‑D75LE2
1.8‑2.8:1
Min.
(LW)
2.72
3.12
3.52
3.92
4.73
5.93
7.93
9.93
11.93
13.93
15.94
19.94
23.94
39.96
Max.
(LT)
4.10
4.70
5.30
5.90
7.10
8.90
11.91
14.91
17.91
20.91
23.92
29.92
35.93
59.95
Zoom lens
ET‑D75LE3
ET‑D75LE4
2.8‑4.6:1
4.6‑7.4:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
4.11
6.90
6.91 11.06
4.71
7.90
7.91 12.66
5.31
8.91
8.91 14.25
5.91
9.91
9.91 15.85
7.11 11.91 11.92 19.04
8.91 14.92 14.93 23.82
11.92 19.94 19.95 31.80
14.92 24.95 24.96 39.77
17.92 29.97 29.98 47.75
20.92 34.98 34.99 55.72
23.93 40.00 40.01 63.70
29.93 50.03 50.04 79.65
35.94 60.06 60.07 95.60
59.96 100.18 100.19 159.40
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
1.7‑2.4:1
2.4‑4.7:1
4.6‑7.4:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
2.46
3.58
3.56
6.94
6.87 11.04
2.82
4.11
4.08
7.96
7.88 12.65
3.19
4.64
4.61
8.98
8.88 14.25
3.55
5.17
5.13
9.99
9.88 15.85
4.28
6.22
6.18 12.03 11.89 19.05
5.37
7.81
7.75 15.08 14.90 23.85
7.19 10.45 10.38 20.16 19.92 31.86
9.00 13.09 13.0 25.25 24.95 39.86
10.82 15.73 15.62 30.34 29.97 47.87
12.64 18.37 18.24 35.42 34.99 55.87
14.46 21.01 20.86 40.51 40.01 63.87
18.09 26.29 26.11 50.68 50.05 79.88
21.73 31.58 31.35 60.85 60.09 95.89
36.27 52.70 52.33 101.53 100.25 159.93
ET‑D75LE8
7.3‑13.8:1
Min.
(LW)
10.78
12.37
13.97
15.57
18.76
23.54
31.52
39.49
47.47
55.44
63.42
79.37
95.32
159.13
Max.
(LT)
20.56
23.55
26.54
29.53
35.50
44.47
59.41
74.36
89.30
104.24
119.19
149.08
178.96
—
ET‑D75LE6
0.9‑1.1:1
Min.
(LW)
1.35
1.55
1.76
1.96
2.36
2.96
3.97
4.98
5.99
6.99
8.00
10.01
12.03
20.08
Max.
(LT)
1.62
1.86
2.10
2.34
2.82
3.55
4.75
5.96
7.17
8.37
9.58
11.99
14.40
24.06
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
0.7:1
0.7:1
Fixed
Fixed
0.99
1.15
1.30
1.45
1.76
2.22
2.99
3.76
4.53
—
—
—
—
—
1.01
1.16
1.32
1.47
1.78
2.24
3.01
3.78
4.56
5.33
6.10
7.64
9.18
15.35
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
ENGLISH - 35
Chapter 2 Getting Started — Setting up
rrWhen the screen aspect is 16:9
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.872
1.550
2.03 (80")
0.996
1.771
2.29 (90")
1.121
1.992
2.54 (100")
1.245
2.214
3.05 (120")
1.494
2.657
3.81 (150")
1.868
3.321
5.08 (200")
2.491
4.428
6.35 (250")
3.113
5.535
7.62 (300")
3.736
6.641
8.89 (350")
4.358
7.748
10.16 (400")
4.981
8.855
12.70 (500")
6.226
11.069
15.24 (600")
7.472
13.283
25.40 (1000")
12.453
22.138
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.872
1.550
2.03 (80")
0.996
1.771
2.29 (90")
1.121
1.992
2.54 (100")
1.245
2.214
3.05 (120")
1.494
2.657
3.81 (150")
1.868
3.321
5.08 (200")
2.491
4.428
6.35 (250")
3.113
5.535
7.62 (300")
3.736
6.641
8.89 (350")
4.358
7.748
10.16 (400")
4.981
8.855
12.70 (500")
6.226
11.069
15.24 (600")
7.472
13.283
25.40 (1000")
12.453
22.138
ET‑D75LE1
1.4‑1.8:1
Min.
(LW)
2.07
2.38
2.68
2.99
3.60
4.53
6.06
7.59
9.13
10.66
12.19
15.26
18.33
30.60
Max.
(LT)
2.77
3.18
3.59
4.00
4.82
6.05
8.10
10.15
12.19
14.24
16.29
20.39
24.49
40.88
ET‑D75LE10
1.3‑1.7:1
Min.
(LW)
1.96
2.25
2.54
2.83
3.42
4.29
5.75
7.21
8.67
10.13
11.59
14.51
17.44
29.12
Max.
(LT)
2.53
2.91
3.29
3.67
4.42
5.55
7.44
9.33
11.21
13.10
14.99
18.76
22.54
37.63
ET‑D75LE2
1.8‑2.8:1
Min.
(LW)
2.80
3.21
3.62
4.04
4.86
6.09
8.15
10.21
12.27
14.32
16.38
20.50
24.61
41.07
Max.
(LT)
4.21
4.83
5.45
6.07
7.30
9.15
12.24
15.33
18.41
21.50
24.58
30.76
36.93
61.62
Zoom lens
ET‑D75LE3
ET‑D75LE4
2.8‑4.6:1
4.6‑7.4:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
4.23
7.09
7.10 11.37
4.84
8.13
8.13 13.01
5.46
9.16
9.16 14.65
6.08 10.19 10.19 16.29
7.31 12.25 12.26 19.57
9.16 15.34 15.35 24.49
12.25 20.50 20.50 32.69
15.34 25.65 25.66 40.88
18.42 30.81 30.81 49.08
21.51 35.96 35.97 57.28
24.60 41.12 41.12 65.47
30.77 51.42 51.43 81.87
36.94 61.73 61.74 98.26
61.63 102.97 102.98 163.83
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
1.7‑2.4:1
2.4‑4.7:1
4.6‑7.4:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
2.53
3.68
3.66
7.14
7.07 11.36
2.91
4.23
4.20
8.19
8.10 13.00
3.28
4.77
4.74
9.23
9.13 14.65
3.65
5.31
5.28 10.28 10.16 16.29
4.40
6.40
6.35 12.37 12.23 19.58
5.52
8.03
7.97 15.50 15.32 24.52
7.39 10.74 10.67 20.73 20.48 32.75
9.26 13.46 13.36 25.96 25.64 40.97
11.13 16.17 16.06 31.18 30.80 49.20
12.99 18.88 18.75 36.41 35.96 57.43
14.86 21.60 21.45 41.64 41.12 65.65
18.60 27.03 26.84 52.09 51.44 82.11
22.33 32.46 32.23 62.54 61.76 98.56
37.28 54.17 53.79 104.36 103.05 164.38
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
36 - ENGLISH
ET‑D75LE8
7.3‑13.8:1
Min.
(LW)
11.09
12.73
14.37
16.01
19.29
24.21
32.40
40.60
48.80
57.00
65.19
81.59
97.98
163.56
Max.
(LT)
21.14
24.21
27.29
30.36
36.50
45.72
61.08
76.44
91.79
107.15
122.51
153.23
183.95
—
ET‑D75LE6
0.9‑1.1:1
Min.
(LW)
1.39
1.60
1.81
2.01
2.43
3.05
4.08
5.12
6.15
7.19
8.22
10.29
12.36
20.64
Max.
(LT)
1.66
1.91
2.16
2.41
2.90
3.65
4.89
6.13
7.37
8.61
9.85
12.33
14.81
24.73
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
0.7:1
0.7:1
Fixed
Fixed
1.02
1.18
1.34
1.50
1.81
2.29
3.08
3.87
4.66
—
—
—
—
—
1.04
1.20
1.36
1.51
1.83
2.31
3.10
3.89
4.68
5.48
6.27
7.85
9.44
15.78
Chapter 2 Getting Started — Setting up
rrWhen the screen aspect is 4:3
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
1.067
1.422
2.03 (80")
1.219
1.626
2.29 (90")
1.372
1.829
2.54 (100")
1.524
2.032
3.05 (120")
1.829
2.438
3.81 (150")
2.286
3.048
5.08 (200")
3.048
4.064
6.35 (250")
3.810
5.080
7.62 (300")
4.572
6.096
8.89 (350")
5.334
7.112
10.16 (400")
6.096
8.128
12.70 (500")
7.620
10.160
15.24 (600")
9.144
12.192
25.40 (1000")
15.240
20.320
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
1.067
1.422
2.03 (80")
1.219
1.626
2.29 (90")
1.372
1.829
2.54 (100")
1.524
2.032
3.05 (120")
1.829
2.438
3.81 (150")
2.286
3.048
5.08 (200")
3.048
4.064
6.35 (250")
3.810
5.080
7.62 (300")
4.572
6.096
8.89 (350")
5.334
7.112
10.16 (400")
6.096
8.128
12.70 (500")
7.620
10.16
15.24 (600")
9.144
12.192
25.40 (1000")
15.240
20.320
ET‑D75LE1
1.6‑2.2:1
Min.
(LW)
2.29
2.63
2.96
3.30
3.98
4.99
6.68
8.37
10.06
11.75
13.44
16.82
20.20
33.71
Max.
(LT)
3.06
3.51
3.96
4.41
5.32
6.67
8.93
11.18
13.44
15.70
17.96
22.47
26.98
45.04
ET‑D75LE10
1.6‑2.0:1
Min.
(LW)
2.17
2.49
2.81
3.13
3.77
4.74
6.35
7.96
9.56
11.17
12.78
16.00
19.21
32.08
Max.
(LT)
2.80
3.22
3.63
4.05
4.88
6.13
8.21
10.28
12.36
14.44
16.52
20.68
24.83
41.46
ET‑D75LE2
2.2‑3.3:1
Min.
(LW)
3.09
3.55
4.00
4.45
5.36
6.72
8.99
11.25
13.52
15.79
18.05
22.58
27.12
45.25
Max.
(LT)
4.65
5.33
6.01
6.69
8.05
10.09
13.49
16.89
20.29
23.69
27.09
33.89
40.69
67.88
Zoom lens
ET‑D75LE3
ET‑D75LE4
3.3‑5.5:1
5.6‑8.9:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
4.66
7.83
7.83 12.54
5.34
8.96
8.97 14.34
6.02 10.10 10.10 16.15
6.70 11.23 11.24 17.96
8.06 13.50 13.51 21.57
10.10 16.91 16.92 26.98
13.50 22.59 22.59 36.01
16.90 28.27 28.27 45.04
20.30 33.94 33.95 54.07
23.70 39.62 39.63 63.10
27.10 45.30 45.31 72.13
33.90 56.65 56.66 90.18
40.70 68.01 68.02 108.24
67.90 113.43 113.44 180.46
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
2.0‑2.9:1
2.9‑5.6:1
5.5‑8.9:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
2.80
4.07
4.04
7.88
7.80 12.52
3.21
4.67
4.64
9.03
8.94 14.34
3.62
5.27
5.23 10.19 10.07 16.15
4.03
5.86
5.82 11.34 11.21 17.96
4.86
7.06
7.01 13.64 13.48 21.59
6.09
8.85
8.79 17.09 16.89 27.02
8.15 11.84 11.76 22.85 22.58 36.09
10.20 14.83 14.73 28.61 28.26 45.15
12.26 17.82 17.70 34.36 33.94 54.21
14.32 20.81 20.67 40.12 39.63 63.27
16.38 23.80 23.63 45.88 45.31 72.33
20.49 29.78 29.57 57.39 56.68 90.45
24.61 35.76 35.51 68.91 68.05 108.58
41.07 59.68 59.26 114.96 113.52 181.07
ET‑D75LE8
8.8‑16.5:1
Min.
(LW)
12.25
14.06
15.87
17.67
21.28
26.70
35.73
44.76
53.79
62.82
71.85
89.91
107.96
180.20
Max.
(LT)
23.32
26.71
30.09
33.47
40.24
50.39
67.31
84.23
101.14
118.06
134.98
168.81
202.65
—
ET‑D75LE6
1.1‑1.3:1
Min.
(LW)
1.54
1.77
2.00
2.22
2.68
3.36
4.50
5.64
6.78
7.92
9.06
11.34
13.62
22.74
Max.
(LT)
1.84
2.11
2.38
2.66
3.20
4.02
5.39
6.76
8.12
9.49
10.85
13.58
16.32
27.24
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
0.8:1
0.8:1
Fixed
Fixed
1.13
1.31
1.48
1.66
2.00
2.53
3.40
4.27
5.14
—
—
—
—
—
1.15
1.33
1.50
1.67
2.02
2.55
3.42
4.29
5.17
6.04
6.91
8.66
10.40
17.39
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
ENGLISH - 37
Chapter 2 Getting Started — Setting up
For PT‑DS12KU
rrWhen the screen aspect is 4:3
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
1.067
1.422
2.03 (80")
1.219
1.626
2.29 (90")
1.372
1.829
2.54 (100")
1.524
2.032
3.05 (120")
1.829
2.438
3.81 (150")
2.286
3.048
5.08 (200")
3.048
4.064
6.35 (250")
3.810
5.080
7.62 (300")
4.572
6.096
8.89 (350")
5.334
7.112
10.16 (400")
6.096
8.128
12.70 (500")
7.620
10.160
15.24 (600")
9.144
12.192
25.40 (1000")
15.240
20.320
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
1.067
1.422
2.03 (80")
1.219
1.626
2.29 (90")
1.372
1.829
2.54 (100")
1.524
2.032
3.05 (120")
1.829
2.438
3.81 (150")
2.286
3.048
5.08 (200")
3.048
4.064
6.35 (250")
3.810
5.080
7.62 (300")
4.572
6.096
8.89 (350")
5.334
7.112
10.16 (400")
6.096
8.128
12.70 (500")
7.620
10.160
15.24 (600")
9.144
12.192
25.40 (1000")
15.240
20.320
ET‑D75LE1
1.5‑2.0:1
Min.
(LW)
2.07
2.38
2.68
2.99
3.60
4.53
6.06
7.59
9.13
10.66
12.19
15.26
18.33
30.60
Max.
(LT)
2.77
3.18
3.59
4.00
4.82
6.05
8.10
10.15
12.19
14.24
16.29
20.39
24.49
40.88
ET‑D75LE10
1.4‑1.8:1
Min.
(LW)
1.95
2.24
2.53
2.82
3.40
4.27
5.72
7.17
8.62
10.07
11.52
14.42
17.33
28.93
Max.
(LT)
2.52
2.89
3.27
3.64
4.39
5.52
7.39
9.27
11.14
13.02
14.90
18.65
22.40
37.40
ET‑D75LE2
2.0‑30:1
Min.
(LW)
2.80
3.21
3.62
4.04
4.86
6.09
8.15
10.21
12.27
14.32
16.38
20.50
24.61
41.07
Max.
(LT)
4.21
4.83
5.45
6.07
7.30
9.15
12.24
15.33
18.41
21.50
24.58
30.76
36.93
61.62
Zoom lens
ET‑D75LE3
ET‑D75LE4
3.0‑5.0:1
5.0‑8.0:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
4.23
7.09
7.10 11.37
4.84
8.13
8.13 13.01
5.46
9.16
9.16 14.65
6.08 10.19 10.19 16.29
7.31 12.25 12.26 19.57
9.16 15.34 15.35 24.49
12.25 20.50 20.50 32.69
15.34 25.65 25.66 40.88
18.42 30.81 30.81 49.08
21.51 35.96 35.97 57.28
24.60 41.12 41.12 65.47
30.77 51.42 51.43 81.87
36.94 61.73 61.74 98.26
61.63 102.97 102.98 163.83
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
1.8‑2.6:1
2.6‑5.1:1
5.0‑8.0:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
2.52
3.66
3.64
7.10
7.02 11.28
2.89
4.20
4.17
8.13
8.05 12.92
3.26
4.74
4.71
9.17
9.07 14.56
3.63
5.28
5.24 10.21 10.10 16.19
4.37
6.36
6.31 12.29 12.15 19.46
5.49
7.98
7.92 15.41 15.23 24.37
7.34 10.67 10.60 20.60 20.35 32.54
9.20 13.37 13.28 25.79 25.48 40.72
11.06 16.07 15.96 30.99 30.61 48.89
12.91 18.77 18.63 36.18 35.74 57.07
14.77 21.46 21.31 41.38 40.87 65.25
18.48 26.86 26.67 51.77 51.12 81.60
22.19 32.25 32.03 62.15 61.38 97.95
37.05 53.83 53.45 103.71 102.41 163.36
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
38 - ENGLISH
ET‑D75LE8
7.9‑15.0:1
Min.
(LW)
11.09
12.73
14.37
16.01
19.29
24.21
32.40
40.60
48.80
57.00
65.19
81.59
97.98
163.56
Max.
(LT)
21.14
24.21
27.29
30.36
36.50
45.72
61.08
76.44
91.79
107.15
122.51
153.23
183.95
—
ET‑D75LE6
1.0‑1.2:1
Min.
(LW)
1.39
1.60
1.81
2.01
2.43
3.05
4.08
5.12
6.15
7.19
8.22
10.29
12.36
20.64
Max.
(LT)
1.66
1.91
2.16
2.41
2.90
3.65
4.89
6.13
7.37
8.61
9.85
12.33
14.81
24.73
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
0.8:1
0.8:1
Fixed
Fixed
1.02
1.18
1.34
1.50
1.81
2.29
3.08
3.87
4.66
—
—
—
—
—
1.03
1.19
1.35
1.50
1.82
2.29
3.08
3.87
4.65
5.44
6.23
7.80
9.38
15.68
Chapter 2 Getting Started — Setting up
rrWhen the screen aspect is 16:9
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.872
1.550
2.03 (80")
0.996
1.771
2.29 (90")
1.121
1.992
2.54 (100")
1.245
2.214
3.05 (120")
1.494
2.657
3.81 (150")
1.868
3.321
5.08 (200")
2.491
4.428
6.35 (250")
3.113
5.535
7.62 (300")
3.736
6.641
8.89 (350")
4.358
7.748
10.16 (400")
4.981
8.855
12.70 (500")
6.226
11.069
15.24 (600")
7.472
13.283
25.40 (1000")
12.453
22.138
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.872
1.550
2.03 (80")
0.996
1.771
2.29 (90")
1.121
1.992
2.54 (100")
1.245
2.214
3.05 (120")
1.494
2.657
3.81 (150")
1.868
3.321
5.08 (200")
2.491
4.428
6.35 (250")
3.113
5.535
7.62 (300")
3.736
6.641
8.89 (350")
4.358
7.748
10.16 (400")
4.981
8.855
12.70 (500")
6.226
11.069
15.24 (600")
7.472
13.283
25.40 (1000")
12.453
22.138
ET‑D75LE1
1.5‑2.0:1
Min.
(LW)
2.26
2.60
2.93
3.27
3.93
4.94
6.61
8.28
9.95
11.62
13.29
16.63
19.97
33.34
Max.
(LT)
3.02
3.47
3.92
4.36
5.26
6.60
8.83
11.06
13.29
15.52
17.76
22.22
26.69
44.54
ET‑D75LE10
1.4‑1.8:1
Min.
(LW)
2.13
2.44
2.76
3.08
3.71
4.66
6.24
7.82
9.40
10.98
12.56
15.72
18.88
31.53
Max.
(LT)
2.75
3.16
3.57
3.98
4.79
6.02
8.06
10.11
12.15
14.19
16.23
20.32
24.41
40.75
ET‑D75LE2
2.0‑30:1
Min.
(LW)
3.06
3.51
3.95
4.40
5.30
6.64
8.89
11.13
13.37
15.61
17.85
22.33
26.82
44.75
Max.
(LT)
4.60
5.27
5.95
6.62
7.96
9.98
13.34
16.70
20.07
23.43
26.79
33.51
40.24
67.13
Zoom lens
ET‑D75LE3
ET‑D75LE4
3.0‑5.0:1
5.0‑8.0:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
4.61
7.74
7.75 12.40
5.28
8.86
8.87 14.18
5.96
9.99
9.99 15.97
6.63 11.11 11.11 17.76
7.97 13.35 13.36 21.33
9.99 16.72 16.73 26.68
13.35 22.34 22.34 35.61
16.71 27.95 27.96 44.54
20.08 33.57 33.57 53.47
23.44 39.18 39.19 62.40
26.80 44.80 44.80 71.33
33.52 56.03 56.03 89.19
40.25 67.26 67.26 107.04
67.15 112.18 112.18 178.47
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
1.8‑2.6:1
2.6‑5.1:1
5.0‑8.0:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
2.75
4.00
3.97
7.74
7.66 12.31
3.15
4.59
4.55
8.88
8.78 14.09
3.56
5.17
5.14 10.01 9.90 15.87
3.96
5.76
5.72 11.14 11.01 17.65
4.77
6.94
6.89 13.40 13.25 21.21
5.98
8.70
8.64 16.80 16.60 26.56
8.01 11.64 11.56 22.46 22.19 35.46
10.03 14.58 14.47 28.11 27.77 44.37
12.05 17.51 17.39 33.77 33.36 53.27
14.07 20.45 20.31 39.43 38.95 62.18
16.10 23.39 23.23 45.09 44.53 71.09
20.14 29.27 29.06 56.40 55.70 88.90
24.18 35.15 34.90 67.72 66.88 106.71
40.36 58.65 58.24 112.98 111.56 177.96
ET‑D75LE8
8.0‑15.0:1
Min.
(LW)
12.12
13.90
15.69
17.47
21.04
26.40
35.33
44.26
53.19
62.12
71.05
88.91
106.77
178.20
Max.
(LT)
23.06
26.41
29.76
33.10
39.79
49.83
66.56
83.29
100.02
116.75
133.48
166.95
200.41
—
ET‑D75LE6
1.0‑1.2:1
Min.
(LW)
1.52
1.75
1.97
2.20
2.65
3.33
4.45
5.58
6.71
7.84
8.96
11.22
13.47
22.49
Max.
(LT)
1.82
2.09
2.36
2.63
3.17
3.98
5.33
6.68
8.03
9.38
10.73
13.43
16.14
26.94
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
0.8:1
0.7:1
Fixed
Fixed
1.12
1.29
1.47
1.64
1.98
2.5
3.36
4.22
5.08
—
—
—
—
—
1.13
1.30
1.47
1.64
1.99
2.50
3.36
4.22
5.08
5.93
6.79
8.51
10.22
17.09
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
ENGLISH - 39
Chapter 2 Getting Started — Setting up
For PT‑DW11KU
rrWhen the screen aspect is 16:9
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.872
1.550
2.03 (80")
0.996
1.771
2.29 (90")
1.121
1.992
2.54 (100")
1.245
2.214
3.05 (120")
1.494
2.657
3.81 (150")
1.868
3.321
5.08 (200")
2.491
4.428
6.35 (250")
3.113
5.535
7.62 (300")
3.736
6.641
8.89 (350")
4.358
7.748
10.16 (400")
4.981
8.855
12.70 (500")
6.226
11.069
15.24 (600")
7.472
13.283
25.40 (1000")
12.453
22.138
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
0.872
1.550
2.03 (80")
0.996
1.771
2.29 (90")
1.121
1.992
2.54 (100")
1.245
2.214
3.05 (120")
1.494
2.657
3.81 (150")
1.868
3.321
5.08 (200")
2.491
4.428
6.35 (250")
3.113
5.535
7.62 (300")
3.736
6.641
8.89 (350")
4.358
7.748
10.16 (400")
4.981
8.855
12.70 (500")
6.226
11.069
15.24 (600")
7.472
13.283
25.40 (1000")
12.453
22.138
ET‑D75LE1
1.5‑2.0:1
Min.
(LW)
2.32
2.66
3.01
3.35
4.03
5.06
6.77
8.49
10.20
11.91
13.63
17.05
20.48
34.18
Max.
(LT)
3.10
3.56
4.02
4.48
5.39
6.76
9.05
11.34
13.63
15.92
18.21
22.78
27.36
45.67
ET‑D75LE10
1.4‑1.9:1
Min.
(LW)
2.18
2.51
2.83
3.15
3.80
4.78
6.40
8.02
9.64
11.26
12.88
16.12
19.36
32.32
Max.
(LT)
2.82
3.24
3.66
4.08
4.92
6.17
8.27
10.36
12.46
14.55
16.65
20.83
25.02
41.78
ET‑D75LE2
2.1‑3.1:1
Min.
(LW)
3.14
3.60
4.06
4.52
5.44
6.81
9.11
11.41
13.71
16.00
18.30
22.90
27.49
45.88
Max.
(LT)
4.72
5.41
6.10
6.79
8.17
10.23
13.68
17.13
20.57
24.02
27.47
34.36
41.25
68.83
Zoom lens
ET‑D75LE3
ET‑D75LE4
3.1‑5.2:1
5.2‑8.2:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
4.73
7.94
7.94 12.71
5.42
9.09
9.09 14.54
6.11 10.24 10.25 16.37
6.80 11.39 11.40 18.21
8.18 13.69 13.70 21.87
10.24 17.15 17.15 27.36
13.69 22.90 22.91 36.51
17.14 28.66 28.67 45.67
20.58 34.42 34.42 54.82
24.03 40.17 40.18 63.97
27.48 45.93 45.93 73.13
34.37 57.44 57.45 91.43
41.26 68.95 68.96 109.74
68.84 115.00 115.01 182.97
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
1.8‑2.7:1
2.7‑5.2:1
5.1‑8.2:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
2.82
4.10
4.07
7.94
7.86 12.62
3.23
4.70
4.67
9.10
9.01 14.45
3.65
5.31
5.27 10.26 10.15 16.27
4.06
5.91
5.87 11.42 11.30 18.10
4.89
7.11
7.07 13.74 13.59 21.75
6.14
8.92
8.86 17.22 17.02 27.23
8.21 11.93 11.85 23.03 22.75 36.36
10.28 14.95 14.84 28.83 28.48 45.49
12.36 17.96 17.83 34.63 34.20 54.62
14.43 20.97 20.82 40.43 39.93 63.75
16.50 23.98 23.81 46.23 45.66 72.88
20.65 30.01 29.80 57.83 57.11 91.14
24.80 36.03 35.78 69.43 68.56 109.40
41.38 60.13 59.70 115.83 114.38 182.44
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
40 - ENGLISH
ET‑D75LE8
8.2‑15.4:1
Min.
(LW)
12.43
14.26
16.09
17.92
21.58
27.08
36.23
45.39
54.54
63.70
72.85
91.16
109.47
182.70
Max.
(LT)
23.65
27.08
30.51
33.94
40.80
51.09
68.25
85.40
102.55
119.70
136.85
171.16
205.46
—
ET‑D75LE6
1.0‑1.2:1
Min.
(LW)
1.56
1.79
2.02
2.25
2.72
3.41
4.56
5.72
6.87
8.03
9.18
11.49
13.80
23.04
Max.
(LT)
1.87
2.14
2.42
2.70
3.25
4.08
5.47
6.85
8.24
9.62
11.01
13.78
16.55
27.63
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
0.8:1
0.8:1
Fixed
Fixed
1.15
1.33
1.50
1.68
2.03
2.56
3.44
4.33
5.21
—
—
—
—
—
1.16
1.34
1.51
1.69
2.04
2.57
3.45
4.33
5.21
6.09
6.96
8.72
10.48
17.52
Chapter 2 Getting Started — Setting up
rrWhen the screen aspect is 4:3
(Unit: m)
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
1.067
1.422
2.03 (80")
1.219
1.626
2.29 (90")
1.372
1.829
2.54 (100")
1.524
2.032
3.05 (120")
1.829
2.438
3.81 (150")
2.286
3.048
5.08 (200")
3.048
4.064
6.35 (250")
3.810
5.080
7.62 (300")
4.572
6.096
8.89 (350")
5.334
7.112
10.16 (400")
6.096
8.128
12.70 (500")
7.620
10.160
15.24 (600")
9.144
12.192
25.40 (1000")
15.240
20.320
Lens type
Projection lens Model No.
Throw ratio*1
Projection screen size
Height
Diagonal (SD)
Width (SW)
(SH)
1.78 (70")
1.067
1.422
2.03 (80")
1.219
1.626
2.29 (90")
1.372
1.829
2.54 (100")
1.524
2.032
3.05 (120")
1.829
2.438
3.81 (150")
2.286
3.048
5.08 (200")
3.048
4.064
6.35 (250")
3.810
5.080
7.62 (300")
4.572
6.096
8.89 (350")
5.334
7.112
10.16 (400")
6.096
8.128
12.70 (500")
7.620
10.160
15.24 (600")
9.144
12.192
25.40 (1000")
15.240
20.320
ET‑D75LE1
2.0‑2.7:1
Min.
(LW)
2.86
3.28
3.70
4.12
4.96
6.21
8.31
10.41
12.51
14.60
16.70
20.89
25.09
41.86
Max.
(LT)
3.82
4.38
4.94
5.50
6.62
8.30
11.11
13.91
16.71
19.51
22.31
27.92
33.52
55.93
ET‑D75LE10
1.9‑2.5:1
Min.
(LW)
2.69
3.09
3.49
3.88
4.68
5.87
7.85
9.83
11.82
13.80
15.78
19.75
23.72
39.59
Max.
(LT)
3.48
3.99
4.51
5.02
6.05
7.58
10.15
12.71
15.28
17.84
20.40
25.53
30.66
51.17
ET‑D75LE2
2.7‑4.1:1
Min.
(LW)
3.86
4.42
4.98
5.55
6.67
8.36
11.17
13.99
16.80
19.61
22.43
28.05
33.68
56.18
Max.
(LT)
5.80
6.65
7.49
8.33
10.02
12.55
16.77
20.99
25.21
29.43
33.65
42.09
50.53
84.29
Zoom lens
ET‑D75LE3
ET‑D75LE4
4.1‑6.9:1
6.9‑11.0:1
Projection distance (L)
Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
5.81
9.74
9.75 15.59
6.66 11.15 11.16 17.83
7.50 12.56 12.57 20.07
8.34 13.97 13.98 22.31
10.03 16.79 16.80 26.79
12.56 21.02 21.03 33.52
16.78 28.07 28.07 44.72
21.00 35.12 35.12 55.93
25.22 42.16 42.17 67.14
29.44 49.21 49.22 78.34
33.66 56.26 56.26 89.55
42.10 70.35 70.36 111.96
50.54 84.45 84.45 134.38
84.30 140.83 140.83 224.03
Zoom lens
ET‑D75LE20 ET‑D75LE30 ET‑D75LE40
2.5‑3.6:1
3.6‑6.9:1
6.8‑10.9:1
Projection distance (L)
Min. Max. Min. Max. Min. Max.
(LW)
(LT)
(LW)
(LT)
(LW)
(LT)
3.47
5.05
5.01
9.77
9.66 15.49
3.98
5.78
5.75 11.19 11.06 17.72
4.49
6.52
6.48 12.61 12.46 19.96
4.99
7.26
7.21 14.03 13.86 22.19
6.01
8.74
8.68 16.87 16.67 26.67
7.53 10.95 10.87 21.13 20.88 33.37
10.07 14.64 14.53 28.23 27.89 44.55
12.61 18.32 18.20 35.33 34.90 55.73
15.15 22.01 21.86 42.43 41.91 66.91
17.68 25.70 25.52 49.53 48.92 78.08
20.22 29.39 29.18 56.64 55.93 89.26
25.30 36.76 36.50 70.84 69.95 111.62
30.38 44.14 43.83 85.04 83.98 133.97
50.68 73.64 73.12 141.85 140.07 223.40
ET‑D75LE8
10.9‑20.5:1
Min.
(LW)
15.30
17.55
19.79
22.03
26.51
33.24
44.44
55.65
66.86
78.07
89.28
111.69
134.11
223.77
Max.
(LT)
29.04
33.24
37.44
41.64
50.04
62.64
83.63
104.63
125.63
146.63
167.63
209.62
251.62
—
ET‑D75LE6
1.4‑1.6:1
Min.
(LW)
1.92
2.21
2.49
2.77
3.34
4.19
5.60
7.01
8.43
9.84
11.26
14.08
16.91
28.22
Max.
(LT)
2.30
2.64
2.98
3.32
4.00
5.01
6.71
8.40
10.10
11.80
13.49
16.88
20.27
33.84
Fixed-focus lens
ET‑D75LE5
ET‑D75LE50
1.0:1
1.0:1
Fixed
Fixed
1.43
1.64
1.86
2.08
2.51
3.16
4.24
5.32
6.40
—
—
—
—
—
1.44
1.65
1.87
2.08
2.51
3.16
4.24
5.31
6.39
7.47
8.54
10.70
12.85
21.46
*1 The throw ratio is based on the value during projection onto a 3.81 m (150") screen size.
ENGLISH - 41
Chapter 2 Getting Started — Setting up
Formula to calculate projection distance per projection lens
To use a screen size not listed in this manual, check the screen size SD (m) and use the respective formula to calculate projection distance.
The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.)
For PT‑DZ13KU, PT‑DZ10KU
rrZoom lens
Projection lens Model No.
ET‑D75LE1
ET‑D75LE2
ET‑D75LE3
ET‑D75LE4
ET‑D75LE8
ET‑D75LE6
ET‑D75LE10
ET‑D75LE20
42 - ENGLISH
Throw ratio
Aspect ratio
1.4 to 1.8:1
16:10
1.4 to 1.8:1
16:9
1.6 to 2.2:1
4:3
1.8 to 2.8:1
16:10
1.8 to 2.8:1
16:9
2.2 to 3.3:1
4:3
2.8 to 4.6:1
16:10
2.8 to 4.6:1
16:9
3.3 to 5.5:1
4:3
4.6 to 7.4:1
16:10
4.6 to 7.4:1
16:9
5.6 to 8.9:1
4:3
7.3 to 13.8:1
16:10
7.3 to 13.8:1
16:9
8.8 to 16.5:1
4:3
0.9 to 1.1:1
16:10
0.9 to 1.1:1
16:9
1.1 to 1.3:1
4:3
1.3 to 1.7:1
16:10
1.3 to 1.7:1
16:9
1.6 to 2.0:1
4:3
1.7 to 2.4:1
16:10
1.7 to 2.4:1
16:9
2.0 to 2.9:1
4:3
Projection distance (L) formula
Min. (LW)
L = 1.1732 x SD - 0.0760
Max. (LT)
L = 1.5709 x SD - 0.1004
Min. (LW)
L = 1.2087 x SD - 0.0760
Max. (LT)
L = 1.6142 x SD - 0.1004
Min. (LW)
L = 1.3307 x SD - 0.0760
Max. (LT)
L = 1.7756 x SD - 0.1004
Min. (LW)
L = 1.5748 x SD - 0.0795
Max. (LT)
L = 2.3661 x SD - 0.1064
Min. (LW)
L = 1.6220 x SD - 0.0795
Max. (LT)
L = 2.4291 x SD - 0.1064
Min. (LW)
L = 1.7835 x SD - 0.0795
Max. (LT)
L = 2.6772 x SD - 0.1064
Min. (LW)
L = 2.3661 x SD - 0.0958
Max. (LT)
L = 3.9488 x SD - 0.1216
Min. (LW)
L = 2.4291 x SD - 0.0958
Max. (LT)
L = 4.0591 x SD - 0.1216
Min. (LW)
L = 2.6772 x SD - 0.0958
Max. (LT)
L = 4.4724 x SD - 0.1216
Min. (LW)
L = 3.9488 x SD - 0.1158
Max. (LT)
L = 6.2795 x SD - 0.1013
Min. (LW)
L = 4.0591 x SD - 0.1158
Max. (LT)
L = 6.4528 x SD - 0.1013
Min. (LW)
L = 4.4724 x SD - 0.1158
Max. (LT)
L = 7.1102 x SD - 0.1013
Min. (LW)
L = 6.2795 x SD - 0.3862
Max. (LT)
L = 11.7677 x SD - 0.3598
Min. (LW)
L = 6.4567 x SD - 0.3862
Max. (LT)
L = 12.0945 x SD - 0.3598
Min. (LW)
L = 7.1102 x SD - 0.3862
Max. (LT)
L = 13.3189 x SD - 0.3598
Min. (LW)
L = 0.7913 x SD - 0.0566
Max. (LT)
L = 0.9488 x SD - 0.0736
Min. (LW)
L = 0.8150 x SD - 0.0566
Max. (LT)
L = 0.9764 x SD - 0.0736
Min. (LW)
L = 0.8976 x SD - 0.0566
Max. (LT)
L = 1.0748 x SD - 0.0736
Min. (LW)
L = 1.1186 x SD - 0.0857
Max. (LT)
L = 1.4458 x SD - 0.1085
Min. (LW)
L = 1.1497 x SD - 0.0857
Max. (LT)
L = 1.4860 x SD - 0.1085
Min. (LW)
L = 1.2663 x SD - 0.0857
Max. (LT)
L = 1.6367 x SD - 0.1085
Min. (LW)
L = 1.4312 x SD - 0.0832
Max. (LT)
L = 2.0795 x SD - 0.1162
Min. (LW)
L = 1.4709 x SD - 0.0832
Max. (LT)
L = 2.1373 x SD - 0.1162
Min. (LW)
L = 1.6202 x SD - 0.0832
Max. (LT)
L = 2.3542 x SD - 0.1162
Chapter 2 Getting Started — Setting up
Projection lens Model No.
ET‑D75LE30
ET‑D75LE40
Throw ratio
Aspect ratio
2.4 to 4.7:1
16:10
2.4 to 4.7:1
16:9
2.9 to 5.6:1
4:3
Projection distance (L) formula
Min. (LW)
L = 2.0647 x SD - 0.1131
Max. (LT)
L = 4.0041 x SD - 0.1765
Min. (LW)
L = 2.1221 x SD - 0.1131
Max. (LT)
L = 4.1155 x SD - 0.1765
Min. (LW)
L = 2.3374 x SD - 0.1131
Max. (LT)
L = 4.5330 x SD - 0.1765
Min. (LW)
L = 3.9532 x SD - 0.1577
Max. (LT)
L = 6.3027 x SD - 0.1615
4.6 to 7.4:1
16:10
4.6 to 7.4:1
16:9
5.5 to 8.9:1
4:3
Throw ratio
Aspect ratio
0.7:1
16:10
L = 0.6063 x SD - 0.0835
0.7:1
16:9
L = 0.6220 x SD - 0.0835
Min. (LW)
L = 4.0631 x SD - 0.1577
Max. (LT)
L = 6.4779 x SD - 0.1615
Min. (LW)
L = 4.4754 x SD - 0.1577
Max. (LT)
L = 7.1351 x SD - 0.1615
rrFixed-focus lens
Projection lens Model No.
ET‑D75LE5
ET‑D75LE50
Projection distance (L) formula
0.8:1
4:3
L = 0.6850 x SD - 0.0835
0.7:1
16:10
L = 0.6072 x SD - 0.0713
0.7:1
16:9
L = 0.6240 x SD - 0.0713
0.8:1
4:3
L = 0.6873 x SD - 0.0713
Throw ratio
Aspect ratio
For PT‑DS12KU
rrZoom lens
Projection lens Model No.
4:3
ET‑D75LE1
1.5 to 2.0:1
16:9
4:3
ET‑D75LE2
2.0 to 3.0:1
16:9
4:3
ET‑D75LE3
3.0 to 5.0:1
16:9
4:3
ET‑D75LE4
5.0 to 8.0:1
16:9
7.9 to 15.0:1
4:3
8.0 to 15.0:1
16:9
ET‑D75LE8
4:3
ET‑D75LE6
1.0 to 1.2:1
16:9
4:3
ET‑D75LE10
1.4 to 1.8:1
16:9
Projection distance (L) formula
Min. (LW)
L = 1.2087 x SD - 0.0760
Max. (LT)
L = 1.6142 x SD - 0.1004
Min. (LW)
L = 1.3150 x SD - 0.0760
Max. (LT)
L = 1.7559 x SD - 0.1004
Min. (LW)
L = 1.6220 x SD - 0.0795
Max. (LT)
L = 2.4291 x SD - 0.1064
Min. (LW)
L = 1.7638 x SD - 0.0795
Max. (LT)
L = 2.6457 x SD - 0.1064
Min. (LW)
L = 2.4291 x SD - 0.0958
Max. (LT)
L = 4.0591 x SD - 0.1216
Min. (LW)
L = 2.6457 x SD - 0.0958
Max. (LT)
L = 4.4213 x SD - 0.1216
Min. (LW)
L = 4.0591 x SD - 0.1158
Max. (LT)
L = 6.4528 x SD - 0.1013
Min. (LW)
L = 4.4213 x SD - 0.1158
Max. (LT)
L = 7.0315 x SD - 0.1013
Min. (LW)
L = 6.4567 x SD - 0.3862
Max. (LT)
L = 12.0945 x SD - 0.3598
Min. (LW)
L = 7.0315 x SD - 0.3862
Max. (LT)
L = 13.1732 x SD - 0.3598
Min. (LW)
L = 0.8150 x SD - 0.0566
Max. (LT)
L = 0.9764 x SD - 0.0736
Min. (LW)
L = 0.8858 x SD - 0.0566
Max. (LT)
L = 1.0630 x SD - 0.0736
Min. (LW)
L = 1.1425 x SD - 0.0857
Max. (LT)
L = 1.4767 x SD - 0.1085
Min. (LW)
L = 1.2446 x SD - 0.0857
Max. (LT)
L = 1.6086 x SD - 0.1085
ENGLISH - 43
Chapter 2 Getting Started — Setting up
Projection lens Model No.
Throw ratio
Aspect ratio
4:3
ET‑D75LE20
1.8 to 2.6:1
16:9
4:3
ET‑D75LE30
2.6 to 5.1:1
16:9
4:3
ET‑D75LE40
5.0 to 8.0:1
16:9
Projection distance (L) formula
Min. (LW)
L = 1.4618 x SD - 0.0832
Max. (LT)
L = 2.1241 x SD - 0.1162
Min. (LW)
L = 1.5924 x SD - 0.0832
Max. (LT)
L = 2.3137 x SD - 0.1162
Min. (LW)
L = 2.1089 x SD - 0.1131
Max. (LT)
L = 4.0899 x SD - 0.1765
Min. (LW)
L = 2.2972 x SD - 0.1131
Max. (LT)
L = 4.4552 x SD - 0.1765
Min. (LW)
L = 4.0379 x SD - 0.1577
Max. (LT)
L = 6.4377 x SD - 0.1615
Min. (LW)
L = 4.3985 x SD - 0.1577
Max. (LT)
L = 7.0126 x SD - 0.1615
rrFixed-focus lens
Projection lens Model No.
Throw ratio
ET‑D75LE5
0.8:1
ET‑D75LE50
0.8:1
Aspect ratio
Projection distance (L) formula
4:3
L = 0.6220 x SD - 0.0835
16:9
L = 0.6772 x SD - 0.0835
4:3
L = 0.6202 x SD - 0.0713
16:9
L = 0.6755 x SD - 0.0713
For PT‑DW11KU
rrZoom lens
Projection lens Model No.
Throw ratio
Aspect ratio
1.5 to 2.0:1
16:9
2.0 to 2.7:1
4:3
2.1 to 3.1:1
16:9
2.7 to 4.1:1
4:3
3.1 to 5.2:1
16:9
4.1 to 6.9:1
4:3
5.2 to 8.2:1
16:9
6.9 to 11.0:1
4:3
8.2 to 15.4:1
16:9
10.9 to 20.5:1
4:3
1.0 to 1.2:1
16:9
ET‑D75LE1
ET‑D75LE2
ET‑D75LE3
ET‑D75LE4
ET‑D75LE8
ET‑D75LE6
1.4 to 1.6:1
4:3
1.4 to 1.9:1
16:9
1.9 to 2.5:1
4:3
ET‑D75LE10
44 - ENGLISH
Projection distance (L) formula
Min. (LW)
L = 1.3504 x SD - 0.0760
Max. (LT)
L = 1.8031 x SD - 0.1004
Min. (LW)
L = 1.6496 x SD - 0.0760
Max. (LT)
L = 2.2047 x SD - 0.1004
Min. (LW)
L = 1.8110 x SD - 0.0795
Max. (LT)
L = 2.7126 x SD - 0.1064
Min. (LW)
L = 2.2165 x SD - 0.0795
Max. (LT)
L = 3.3228 x SD - 0.1064
Min. (LW)
L = 2.7126 x SD - 0.0958
Max. (LT)
L = 4.5315 x SD - 0.1216
Min. (LW)
L = 3.3228 x SD - 0.0958
Max. (LT)
L = 5.5472 x SD - 0.1216
Min. (LW)
L = 4.5315 x SD - 0.1158
Max. (LT)
L = 7.2087 x SD - 0.1013
Min. (LW)
L = 5.5472 x SD - 0.1158
Max. (LT)
L = 8.8228 x SD - 0.1013
Min. (LW)
L = 7.2087 x SD - 0.3862
Max. (LT)
L = 13.5039 x SD - 0.3598
Min. (LW)
L = 8.8228 x SD - 0.3862
Max. (LT)
L = 16.5354 x SD - 0.3598
Min. (LW)
L = 0.9094 x SD - 0.0566
Max. (LT)
L = 1.0906 x SD - 0.0736
Min. (LW)
L = 1.1142 x SD - 0.0566
Max. (LT)
L = 1.3346 x SD - 0.0736
Min. (LW)
L = 1.2759 x SD - 0.0857
Max. (LT)
L = 1.6491 x SD - 0.1085
Min. (LW)
L = 1.5620 x SD - 0.0857
Max. (LT)
L = 2.0190 x SD - 0.1085
Chapter 2 Getting Started — Setting up
Projection lens Model No.
Throw ratio
Aspect ratio
1.8 to 2.7:1
16:9
2.5 to 3.6:1
4:3
2.7 to 5.2:1
16:9
ET‑D75LE20
ET‑D75LE30
Projection distance (L) formula
Min. (LW)
L = 1.6324 x SD - 0.0832
Max. (LT)
L = 2.3720 x SD - 0.1162
Min. (LW)
L = 1.9986 x SD - 0.0832
Max. (LT)
L = 2.9040 x SD - 0.1162
Min. (LW)
L = 2.3550 x SD - 0.1131
Max. (LT)
L = 4.5673 x SD - 0.1765
Min. (LW)
L = 2.8833 x SD - 0.1131
Max. (LT)
L = 5.5917 x SD - 0.1765
3.6 to 6.9:1
4:3
5.1 to 8.2:1
16:9
6.8 to 10.9:1
4:3
Throw ratio
Aspect ratio
0.8:1
16:9
L = 0.6929 x SD - 0.0835
1.0:1
4:3
L = 0.8504 x SD - 0.0835
0.8:1
16:9
L = 0.6925 x SD - 0.0713
1.0:1
4:3
L = 0.8479 x SD - 0.0713
ET‑D75LE40
Min. (LW)
L = 4.5092 x SD - 0.1577
Max. (LT)
L = 7.1891 x SD - 0.1615
Min. (LW)
L = 5.5206 x SD - 0.1577
Max. (LT)
L = 8.8016 x SD - 0.1615
rrFixed-focus lens
Projection lens Model No.
ET‑D75LE5
ET‑D75LE50
Projection distance (L) formula
Adjusting adjustable feet
Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular.
If the screen is tilted downward, the projection screen can be adjusted to be rectangular by adjusting the front adjustable feet. The adjustable
feet can also be used to adjust the projector to be level when it is tilted in the horizontal direction.
Extend the adjustable feet by rotating in the direction shown in the figure and retract by rotating in the opposite direction.
Adjustable amount
Front adjustable feet: Approx. 50 mm (1-31/32")
Rear adjustable feet: Approx. 10 mm (13/32")
Attention
ff Heated air is expelled from the air exhaust port while the lamp is lit. Do not touch the air exhaust port directly when adjusting the adjustable
feet. (x page 25)
ENGLISH - 45
Chapter 2 Getting Started — Attaching/removing the projection lens (optional)
Attaching/removing the projection lens (optional)
Move the projection lens to the home position before replacing or removing the projection lens. (x page 57)
Attention
ff Replace the projection lens after turning off the power of the projector.
ff Do not touch the lens signal receiver. Dust or dirt may cause defective contact.
ff Do not touch the surface of the projection lens with your bare hands.
ff Before attaching the projection lens, remove the lens cover attached to the projection lens.
Attaching the projection lens
Attach the projection lens using the following procedure.
Screw hole A
Fig. 1
Lens fixing screw
Fig. 2
1) Insert by aligning the projection lens mark (orange) with the mark on the projector body (E to the left
of LOCK) and turn clockwise until it clicks. (Fig. 1)
2) Secure the projection lens with the lens fixing screw supplied. (Fig. 2)
ff Use a Phillips screwdriver to secure it in the screw hole A to the right of the projection lens mark (orange).
Note
ff Some lenses may not have a screw hole for securing the projection lens.
Attention
ff Turn the projection lens counterclockwise to confirm that it does not come out.
ff Store the removed dust sponge in a safe place to transport or store.
Removing the projection lens
Remove the projection lens using the following procedure.
Lock button
1) Remove the lens fixing screw.
ff Use a Phillips screwdriver to remove the first screw to the right of the projection lens mark (orange).
2) While pressing the lock button, turn the projection lens counterclockwise to remove.
ff Turn counterclockwise until the projection lens mark (orange) is at the mark on the projector body (E to the left of LOCK).
Note
ff Some lenses may not have a screw hole to use to secure the projection lens.
46 - ENGLISH
Chapter 2 Getting Started — Attaching/removing the projection lens (optional)
Attention
ff Store the removed projection lens where it will be free from vibration and impact.
ff Store the removed lens fixing screw in a safe place.
ENGLISH - 47
Chapter 2 Getting Started — Connecting
Connecting
Before connecting
ff Before connecting, carefully read the operating instructions for the external device to be connected.
ff Turn off the power of all devices before connecting cables.
ff Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.
gg When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static
electricity from your body before performing work.
gg Do not use unnecessarily long cables to connect to a device connected to the projector or to the projector body. The longer the cable, the
more it is susceptible to noise. Since using a cable while it is wound makes it act like an antenna, it is more susceptible to noise.
gg When connecting cables, connect GND first, then insert the connecting terminal of the connecting device in a straight manner.
ff Acquire any connection cable necessary to connect the external device to the system that is neither supplied with the device nor available
as an option.
ff Video signals containing too much jitter may cause the images on the screen to randomly wobble or wafture. In this case, a time base
corrector (TBC) must be connected.
ff The projector accepts video signals (including Y/C signals), analog RGB signals (synchronous signals are TTL level), and digital signals.
ff Some computer models are not compatible with the projector.
ff Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image may not display properly.
ff Refer to “List of compatible signals” (x page 175) for the types of video signals that can be used with the projector.
<RGB 2 IN> terminal pin assignments and signal names
Outside view
(11)
(15)
(6)
(10)
(1)
(5)
Pin No.
Signal name
Pin No.
Signal name
(1)
R/PR
(9)
―
GND
(2)
G/Y
(10)
(3)
B/PB
(11)
GND
(4)
―
(12)
DDC data
SYNC/HD
(5)
GND
(13)
(6)
GND
(14)
VD
(7)
GND
(15)
DDC clock
(8)
GND
<HDMI IN> terminal pin assignments and signal names
Outside view
Even-numbered pins of (2) to (18)
(2)
(1)
(18)
(19)
Odd-numbered pins of (1) to (19)
48 - ENGLISH
Pin No.
Signal name
Pin No.
Signal name
(1)
T.M.D.S data 2+
(11)
T.M.D.S clock shield
(2)
T.M.D.S data 2 shield
(12)
T.M.D.S clock-
(3)
T.M.D.S data 2-
(13)
CEC
(4)
T.M.D.S data 1+
(14)
—
(5)
T.M.D.S data 1 shield
(15)
SCL
(6)
T.M.D.S data 1-
(16)
SDA
DDC/CEC
GND
(7)
T.M.D.S data 0+
(17)
(8)
T.M.D.S data 0 shield
(18)
+5 V
(9)
T.M.D.S data 0-
(19)
Hot plug detection
(10)
T.M.D.S clock+
Chapter 2 Getting Started — Connecting
<DVI-D IN> terminal pin assignments and signal names
Outside view
(24)
(17)
(16)
(9)
(8)
(1)
Pin No.
Signal name
Pin No.
Signal name
(1)
T.M.D.S data 2-
(13)
—
(2)
T.M.D.S data 2+
(14)
+5 V
(3)
T.M.D.S data 2/4 shield
(15)
GND
(4)
—
(16)
Hot plug detection
(5)
—
(17)
T.M.D.S data 0-
(6)
DDC clock
(18)
T.M.D.S data 0+
(7)
DDC data
(19)
T.M.D.S data 0/5 shield
(8)
—
(20)
—
(9)
T.M.D.S data 1-
(21)
—
(10)
T.M.D.S clock1+
(22)
T.M.D.S clock shield
(11)
T.M.D.S data 1/3 shield
(23)
T.M.D.S clock+
(12)
—
(24)
T.M.D.S clock-
Connecting example: AV equipment
For <HDMI IN>/<DVI-D IN>/<VIDEO IN> terminals
DVD player with HDMI terminal (HDCP)
Blu-ray disc player
VCR (with built-in TBC)
Attention
ff Always use one of the following when connecting a VCR.
gg A VCR with built-in time base corrector (TBC)
gg A time base corrector (TBC) between the projector and the VCR
ff If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the
projector and the external devices.
Note
ff When entering DVI‑D, some external devices to be connected may require switching the setting using the [DISPLAY OPTION] menu →
[DVI-D IN] → [EDID].
ff The <DVI-D IN> terminal can be connected to HDMI- or DVI‑D-compliant devices. However, images may not appear or may not be
displayed properly on some devices.
ff For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards
is used, images may be interrupted or may not be displayed.
ff The <HDMI IN> terminal of the projector can be connected to an external device with a DVI‑D terminal by using an HDMI/DVI conversion
cable, but some devices may not project the image properly or function properly.
ff The projector does not support VIERA Link (HDMI).
ENGLISH - 49
Chapter 2 Getting Started — Connecting
For <SDI IN 1>/<SDI IN 2> terminals (PT‑DZ13KU, PT‑DS12KU), <SDI IN> terminal (PT‑DZ10KU)
The connection example is for PT‑DZ13KU, PT‑DS12KU.
Digital VCR for commercial use
SD-SDI signal, HD-SDI signal or 3G-SDI
signal
Note
ff Use the [PICTURE] menu → [SYSTEM SELECTOR] to switch the input format.
ff Some external devices to be connected require the [DISPLAY OPTION] menu → [SDI IN] to be set.
ff Use a 5CFB or higher (such as 5CFB, or 7CFB) or a Belden 1694A or higher connection cable to properly transmit images. Use a
connection cable of 100 m (328'1") length or less.
ff To enter dual link signals, the [SDI LINK] in [SDI IN] must be set. (Only for PT‑DZ13KU, PT‑DS12KU)
ff Use the same length and same type of cables to connect <SDI IN 1>/<SDI IN 2> terminals when entering dual link signals. If there is a
difference of 4 m (13'1") or greater in cable length, images may not be projected properly. (Only for PT‑DZ13KU, PT‑DS12KU)
ff To input dual link signals, connect directly without going through a distributor or other such device to the external device which outputs
signals. A phase difference may occur between the LINK‑A signal and the LINK‑B signal and images may not be projected properly. (Only
for PT‑DZ13KU, PT‑DS12KU)
ff When an unsteady signal is connected, an error in signal detection may occur. In such a case, use the [PICTURE] menu → [SYSTEM
SELECTOR] to switch to a system that matches the signal format.
Connecting example: Computers
Control computer
Computer
Computer
Control computer
Computer
Computer
Attention
ff When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially
available shielded cables.
ff Use a commercial cable with a ferrite core for connecting with the <DVI-D IN> terminal.
Note
ff When entering DVI‑D, some external devices to be connected may require switching the setting using the [DISPLAY OPTION] menu →
[DVI-D IN] → [EDID].
ff For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI standards. If a cable that does not conform to HDMI standards
is used, images may be interrupted or may not be displayed.
ff The <HDMI IN> terminal of the projector can be connected to an external device with a DVI‑D terminal by using an HDMI/DVI conversion
cable, but some devices may not project the image properly or function properly.
ff The <DVI-D IN> terminal supports single links only.
ff When entering the SYNC ON GREEN signal, do not enter sync signals to the <SYNC/HD> terminal or the <VD> terminal.
ff If you operate the projector using the computer with the resume feature (last memory), you may have to reset the resume feature to operate
the projector.
50 - ENGLISH
Chapter 3
Basic Operations
This chapter describes basic operations to start with.
ENGLISH - 51
Chapter 3 Basic Operations — Switching on/off the projector
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord.
For details of power cord handling, refer to “Read this first!” (x page 2).
Attaching the power cord
1) Check the shapes of the <AC IN> terminal on the side of the projector body and the power cord
connector and insert the plug completely in the correct direction (until you hear the side tabs click in
place).
Removing the power cord
1) Confirm that the <MAIN POWER> switch on the side of the projector body is on the <OFF> side, and
remove the power plug from the outlet.
2) Remove the power cord connector from the <AC IN> terminal of the projector body while pressing the
side tabs.
Power indicator
Displays the status of the power. Check the <ON (G)/STANDBY (R)> status of the power indicator before operating the projector.
Power indicator <ON (G)/STANDBY (R)>
Indicator status
Projector status
Off
The main power is switched off.
Red
Lit
The power is switched off (in standby mode).
Projection will start when the power on <b> button is pressed.
ff The projector may not operate when the lamp indicators <LAMP1>/<LAMP2> or
temperature indicator <TEMP> are flashing. (x page 155)
Green
Lit
Projecting.
Orange
Lit
The projector is preparing to switch off the projector.
The power is switched off after a while. (Changes to the standby mode.)
52 - ENGLISH
Chapter 3 Basic Operations — Switching on/off the projector
Note
ff While the power indicator <ON (G)/STANDBY (R)> is lit in orange, the fan is running to cool the projector.
ff For about 75 seconds after the projector is switched off and the luminous lamp cooling is started, the lamp indicators will not light up even if
the power is switched on. After the power indicator <ON (G)/STANDBY (R)> lights in red, turn on the power again.
ff The projector consumes power even in standby mode (power indicator <ON (G)/STANDBY (R)> lit in red). Refer to “Power consumption”
(x page 180) for the power consumption.
ff The power indicator <ON (G)/STANDBY (R)> flashes if a remote control signal is received.
ff The power indicator <ON (G)/STANDBY (R)> flashes slowly in green while the shutter is closed.
ff If the power indicator <ON (G)/STANDBY (R)> is flashing in red, consult your dealer.
Switching on the projector
Install the projection lens before switching on the projector.
Remove the lens cover first.
4)
MENU
VIDEO
SDI 1/2
4)
LENS
ENTER
RGB 1
RGB 2
AUTO
SETUP
SHUTTER
DVI-D
HDMI
SDI 1/2
1)
2)
3)
1) Connect the power cord to the projector body.
2) Connect the power plug to an outlet.
ff (AC 120 V, 50 Hz/60 Hz)
3) Press the <ON> side of the <MAIN POWER> switch to turn on the power.
ff The power indicator <ON (G)/STANDBY (R)> will light in red, and the projector will enter the standby mode.
4) Press the power on <b> button.
ff The power indicator <ON (G)/STANDBY (R)> lights in green and the image is soon projected on the screen.
Attention
ff Using the projector while the lens cover is attached may cause the device to heat up and result in a fire.
Note
ff If the projector is switched on at around 0 °C (32 °F), a warm-up period of approximately five minutes may be necessary until an image is
displayed.
The temperature indicator <TEMP> lights during the warm-up period. When the warm-up is completed, the temperature indicator <TEMP>
turns off and the projection starts. Refer to “When an indicator lights up” (x page 155) for the indicator status.
ff If the operating environment temperature is low and warm-up takes more than five minutes, the projector will judge that a problem has
occurred and the power will automatically be set to standby mode. If this happens, increase the operating environment temperature to 0 °C
(32 °F) or higher, turn off the main power, and then switch on the projector again.
ff If the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO], it may take approx. 10 seconds longer before the projector starts
projecting after the power is turned on, compared with when [NORMAL] is set.
ff If the <MAIN POWER> switch was set to <OFF> during projection to end the projection using the direct power off function last time, and the
<MAIN POWER> switch is set to <ON> with the power plug connected to the outlet, the power indicator <ON (G)/STANDBY (R)> will light in
green and the image will soon be projected on the screen.
ENGLISH - 53
Chapter 3 Basic Operations — Switching on/off the projector
Making adjustments and selections
It is recommended that images are projected continuously for at least 30 minutes before the focus is adjusted.
2)
MENU
VIDEO
SDI 1/2
1) 5) 7) 8) 9)
6)
3)
LENS
2)
ENTER
RGB 1
3)
RGB 2
DVI-D
AUTO
SETUP
SHUTTER
1) 8)
5)
7) 9)
6)
HDMI
4)
SDI 1/2
1) Press the <FOCUS> button to roughly adjust the focus of the image. (x page 56)
2) Change the settings of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] and [COOLING
CONDITION] depending on the installation mode. (x page 31)
ff Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
3) Press the input selection (<RGB1>, <RGB2>, <DVI-D>, <VIDEO>, <HDMI>, <SDI 1/2>) buttons to select
the input signal.
(SDI input is only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
4) Adjust the front, back and sideway tilt of the projector with the adjustable feet. (x page 45)
5) Press the <SHIFT> button to adjust the position of the image.
6) If the input signal is an RGB signal, press the <AUTO SETUP> button.
7) Press the <ZOOM> button to adjust the size of the image to match the screen.
8) Press the <FOCUS> button again to adjust the focus.
9) Press the <ZOOM> button again to adjust the zoom and the size of the image to match the screen.
Note
ff When the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu →
[INITIALIZE] is executed, the focus adjustment screen is displayed after projection starts, then the initial setting screen is displayed. Refer to
“Start-up display” (x page 22) for details.
54 - ENGLISH
Chapter 3 Basic Operations — Switching on/off the projector
Switching off the projector
1)
1)
3)
4)
MENU
VIDEO
LENS
2)
ENTER
RGB 1
RGB 2
AUTO
SETUP
2)
SHUTTER
DVI-D
HDMI
SDI 1/2
SDI 1/2
1) Press the power standby <v> button.
ff The [POWER OFF(STANDBY)] confirmation screen is displayed.
2) Press qw to select [OK], and press the <ENTER> button.
(Or press the power standby <v> button again.)
ff Projection of the image will stop, and the power indicator <ON (G)/STANDBY (R)> on the projector body lights in orange. (The fan
keeps running.)
3) Wait until the power indicator <ON (G)/STANDBY (R)> on the projector body lights in red (and the fan
stops) for 170 seconds.
4) Press the <OFF> side of the <MAIN POWER> switch to turn off the power.
Note
ff Do not switch on the projector and project images immediately after switching off the projector.
Turning on the power while the lamp is still hot may shorten the lamp life.
ff For about 75 seconds after the projector is switched off and the luminous lamp cooling is started, the lamp indicators will not light up even
if the power is switched on. Even after 75 seconds, the lamp may not light up if the projector is switched on. In such a case, after the power
indicator <ON (G)/STANDBY (R)> lights in red, switch on the projector again.
ff The projector consumes power even when the power standby <v> button is pressed and the projector is switched off if the main
power of the projector is on.
When the [PROJECTOR SETUP] menu → [STANDBY MODE] is set to [ECO], use of some functions is restricted, but the power
consumption during standby can be conserved.
Direct power off function
Even if the main power <MAIN POWER> switch is turned <OFF> during projection or immediately after turning off the luminous lamp, the
fan runs using internally stored power to cool the luminous lamp. When the projector is mounted on the ceiling or installed in an environment
where the main power <MAIN POWER> switch of the projector cannot be easily turned <OFF>, the power can be turned off directly using the
circuit breaker. It is also safe in case a power outage occurs or the power cord is pulled out immediately after the projector is switched off.
Note
ff If the projector was turned off by turning off the circuit breaker directly during projection last time, then the power indicator <ON (G)/
STANDBY (R)> will light in green a while after the circuit breaker is turned on, and then projection of the image will start.
ff If cooled with the direct power off function, projection may take a longer time than usual to start when the projector is switched on the next
time.
ff Make sure that the fan is not running when packing the projector for transportation or storage.
ENGLISH - 55
Chapter 3 Basic Operations — Projecting
Projecting
Check the projection lens attachment (x page 46), external device connection (x page 48), power cord connection (x page 52),
switch on the power (x page 53) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Selecting the input signal
Select an input signal.
1) Press the input selection (<RGB1>, <RGB2>, <DVI-D>, <VIDEO>, <HDMI>, <SDI 1/2>) buttons on the
control panel or the remote control.
ff The image of the signal being input in the selected terminal is projected.
Attention
ff Images may not be projected properly depending on the external device, or the blu-ray disc or DVD disc, to be played back.
Set the [PICTURE] menu → [SYSTEM SELECTOR].
ff Confirm the aspect ratio of the projection screen and the image, and switch to an optimum aspect ratio from the [POSITION] menu →
[ASPECT].
Adjusting the focus, zoom, and shift
If the projected image or the position is not correct when the positioning of the projector and the screen is correctly installed, adjust the focus,
zoom, and shift.
Using the control panel
1) Press the <LENS> button on the control panel.
ff Pressing the button changes the adjustment menu in the order of [FOCUS], [ZOOM], and [SHIFT].
2) Select each item and press asqw to adjust it.
Using the remote control
1) Press the lens (<FOCUS>, <ZOOM>, <SHIFT>) buttons on the remote control.
ff <FOCUS> button: Adjusts focus.
ff <ZOOM> button: Adjusts zoom.
ff <SHIFT> button: Adjusts shift.
2) Select each item and press asqw to adjust it.
Caution
During the lens shift operation, do not insert your hand in any opening around the lens.
Your hand may be caught and result in injuries.
Note
ff The zoom adjust menu will not be displayed when the projection lens without the zoom function is attached.
ff Use the projection lens (Model No.: ET‑D75LE5, ET‑D75LE50) with the lens position set to the home position. (x page 57)
ff The adjustment can be performed faster by pressing and holding asqw while adjusting the focus and shift.
ff It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.
ff Only [FOCUS] is shown in yellow so that the displayed menu item can be recognized by color, even when the projector is not focused and
displayed characters are unreadable. (Factory default)
The display color of [FOCUS] depends on the setting of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN].
ff When the power is switched off during focus and shift adjustment, lens calibration needs to be performed the next time the power is
switched on. (x page 122)
ff When the main power is switched off during focus adjustment, lens calibration is performed automatically during the next focus adjustment.
ff When the main power is switched off during shift adjustment, a lens calibration error screen will be displayed during the next shift
adjustment. Execute the [PROJECTOR SETUP] menu → [LENS CALIBRATION].
ff When the lens calibration error is displayed even though [LENS CALIBRATION] was executed, ask your dealer to repair the unit.
56 - ENGLISH
Chapter 3 Basic Operations — Projecting
Moving the lens to the home position
To move the lens to the home position, perform the following procedure.
1) While the [SHIFT] adjustment screen is displayed, press the <DEFAULT> button.
ff The [HOME POSITION] screen is displayed.
LENS
HOME POSITION
ENTER
EXECUTE
MENU
CANCEL
2) While the [HOME POSITION] screen is displayed (for approximately five seconds), press the <ENTER>
button.
ff [PROGRESS] is displayed in the [HOME POSITION] screen, and the lens returns to the home position.
Note
ff The home position of the lens is the lens position when the lens is being replaced or when the projector is being stored, and it is not the
optical center of the screen.
ff You can also display the [HOME POSITION] screen by pressing the <LENS> button on the control panel or the <SHIFT> button on the
remote control for at least three seconds.
Adjustment range by the lens position shift (optical shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range. This is because the movement of the lens is restricted
to protect the optical parts. Projection position can be adjusted with the optical axis shift based on the standard projection position in the
respective range.
ET‑D75LE1, ET‑D75LE2, ET‑D75LE3, ET‑D75LE4,
ET‑D75LE8, ET‑D75LE10, ET‑D75LE20,
ET‑D75LE30, ET‑D75LE40
ET‑D75LE6
Standard projection position
Standard projection position
0.12 V
0.1 V
Standard projection position
0.12 V
Projection screen width H
0.2 H
0.2 H
0.5 V
0.5 V
Projection screen height V
0.1 V
Projection screen width H
0.3 H
0.3 H
PT‑DS12KU
0.44 V
0.44 V
Projection screen height V
0.12 V
0.12 V
PT‑DZ13KU, PT‑DZ10KU
0.12 V
Projection screen width H
0.15 H
0.15 H
0.55 V
0.55 V
Projection screen height V
0.12 V
Projection screen width H
0.2 H
0.2 H
0.4 V
0.4 V
Projection screen height V
Projection lens Model No.
Standard projection position
ENGLISH - 57
Chapter 3 Basic Operations — Projecting
ET‑D75LE1, ET‑D75LE2, ET‑D75LE3, ET‑D75LE4,
ET‑D75LE8, ET‑D75LE10, ET‑D75LE20,
ET‑D75LE30, ET‑D75LE40
ET‑D75LE6
Projection screen width H
0.3 H
0.3 H
0.2 V
PT‑DW11KU
0.2 V
0.2 V
0.2 V
0.7 V
0.7 V
Projection screen height V
Projection screen width H
0.2 H
0.2 H
0.6 V
0.6 V
Projection screen height V
Projection lens Model No.
Standard projection position
Standard projection position
Note
ff When the optional fixed-focus lens (Model No.: ET‑D75LE5, ET‑D75LE50) is attached, the shift cannot be adjusted.
Adjusting the lens mounter when the focus is unbalanced
Focus balance
Relationship between the tilt of the lens and the screen focus surface
When the projection lens is tilted in contrast with the image forming surface, tilting the front side (screen side) of the projection lens downwards
(in the direction of the dotted arrow line), the upper side of the screen focus surface will tilt inwards and the lower side will tilt outwards as
shown in the example.
Projection lens
Image forming surface
Screen focus surface
How to adjust the focus balance (adjustment by tilting the lens mounter)
When the entire screen surface is not uniform even if the focus has been adjusted, the lens mounter has focus adjustment screws in three
locations.
ff Tool used: Hex driver or Allen wrench (diagonal 2.5 mm (3/32"))
ff The Allen wrench is included with the projection lens ET‑D75LE6, ET‑D75LE8.
Lens mounter structure
Focus adjustment screws (a), (b), and (c) can be turned to move the lens mount bracket back and forth.
Also, tightening the fixed screws locks the lens mount bracket in place so it does not move.
When a projection lens with a large weight is installed, or when the projector is installed on an inclination, the lens may tilt and the focus may
become unbalanced. In these cases, perform adjustment by referring to the relationship between the adjustment location and adjustment
screws.
58 - ENGLISH
Chapter 3 Basic Operations — Projecting
rrFront view diagram of the lens mounter (viewed from the screen side)
(a)
Lens mount bracket
Fixing screws
(b)
(c)
Note
ff Focus adjustment screws (a), (b), and (c) are adjusted with the lens attached.
Adjustment procedure
rrRelationship between the adjustment location and adjustment screws
(b)+(c)
(b)
(c)
(a)
Adjustment location:
Location where the just focus point of the screen is in the
inner side of the screen
When the just focus point of
the screen in V up (top in the
vertical direction) is in the inner
side of the screen
When the just focus point of the
screen in V bottom (bottom in
the vertical direction) is in the
inner side of the screen
When the just focus point of
the screen in H left (left in the
horizontal direction) is in the
inner side of the screen
When the just focus point of the
screen in H right (right in the
horizontal direction) is in the
inner side of the screen
(a)
Rotate counterclockwise
―
―
(b)
―
Rotate counterclockwise
Rotate counterclockwise
―
―
(c)
―
Rotate counterclockwise
―
Rotate counterclockwise
1) Press the <FOCUS> button on the remote control or the <LENS> button on the control panel to
display the [FOCUS] adjustment menu.
2) Press s to shift the focus of the entire screen once.
3) Press a to stop on any part of the screen to be the first just focus point.
ff For the location where focus is shifted in this state, the just focus point is on the inner side of the screen.
4) Loosen the fixed screws in the position relative to the location where the focus is shifted the most
(the location where the just focus point is shifted the most towards the inner side in Step 2)) up to two
rotations.
ff Turn screws clockwise in two locations, or at least in one location to be adjusted.
5) Little by little, turn the focus adjustment screws corresponding to the locations counterclockwise and
stop where the image is in focus. (x page 58)
ff If the screws are turned counterclockwise, the tilt of the lens will change by moving the lens mount bracket of the lens mounter forward
(screen side), and in the projected image on the screen, the focus point in the opposite direction of the adjustment screws will move
from the inner side of the screen to the outside.
ENGLISH - 59
Chapter 3 Basic Operations — Projecting
6) Press the <SHIFT> button on the remote control or the <LENS> button on the control panel to display
the [SHIFT] adjustment menu, and reset the screen position of the projected image on the screen
surface back to an optimal state.
7) Perform focus adjustment again near the center of the screen and if it is still not enough, fine tune the
amount of rotation of the adjustment screws.
8) When adjustments have been made, securely tighten the loosened fixing screws.
9) Adjust the focus again using the remote control.
60 - ENGLISH
Chapter 3 Basic Operations — Operating with the remote control
Operating with the remote control
Using the shutter function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image
temporarily.
button
1) Press the <SHUTTER> button.
ff The image disappears.
ff This operation can be also performed using the <SHUTTER> button on the control panel.
2) Press the <SHUTTER> button again.
ff The image is displayed.
Note
ff The power indicator <ON (G)/STANDBY (R)> will flash slowly in green while the shutter is closed .
ff You can set the speed of shutter opening/closing via the [DISPLAY OPTION] menu → [SHUTTER SETTING].
Using the on-screen display function
Turn off the on-screen display function (no display) when you do not wish the viewers to see the on-screen display, such as the menu or the
input terminal name.
button
1) Press the <ON SCREEN> button.
ff The on-screen display disappears.
2) Press the <ON SCREEN> button again.
ff The on-screen display appears.
Note
ff If you press the <MENU> button on the control panel for at least three seconds while the on-screen display is off (hidden), the on-screen
display is turned on.
ENGLISH - 61
Chapter 3 Basic Operations — Operating with the remote control
Switching the input signal
The input for projection can be switched.
button
1) Press the input selection (<RGB1>, <RGB2>, <DVI-D>, <VIDEO>, <HDMI>, <SDI 1/2>) buttons.
ff This operation can be also performed using the buttons on the control panel.
<RGB1>
Switches the input to RGB1.
<RGB2>
Switches the input to RGB2.
<DVI-D>
Switches the input to DVI‑D.
<VIDEO>
Switch the input to VIDEO.
<HDMI>
Switch the input to HDMI.
<SDI 1/2>*1
(PT‑DZ13KU, PT‑DS12KU)
Switches the input to SDI1 or SDI2. Switches to another input when one input has already been
chosen. You can also fix the input selection to either SDI1 or SDI2 from the [SECURITY] menu →
[CONTROL DEVICE SETUP].
(PT‑DZ10KU)
Switches the input to SDI.
*1 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU
Using the Status function
You can display the status of the projector.
button
1) Press the <STATUS> button.
ff The [STATUS] screen is displayed.
STATUS
INPUT
RGB2
SIGNAL NAME
XGA60-A8
SIGNAL FREQUENCY
48.36kHz/ 60.03Hz
PROJECTOR RUNTIME
140h
LAMP1
68h/ ON/
LAMP2
69h/ ON/
INTAKE AIR TEMP.
27°C/ 80°F
OPTICS MODULE TEMP.
33°C/ 92°F
AROUND LAMP TEMP.
33°C/ 92°F
ENTER
SEND STATUS VIA E-MAIL
CHANGE
MENU
EXIT
Note
ff This can be displayed from the [PROJECTOR SETUP] menu → [STATUS] (x page 119).
Using the Automatic setup function
The automatic setup function can be used to automatically adjust the resolution, clock phase, and image position when analog RGB signals
consisting of bitmap images such as computer signals are being input, or to automatically adjust the image position when DVI‑D/HDMI signals
are input. Supplying images with bright white borders at the edges and high-contrast black and white characters is recommended when the
system is in automatic adjustment mode.
Avoid supplying images that include halftones or gradation, such as photographs and computer graphics.
button
1) Press the <AUTO SETUP> button.
ff [COMPLETE] is displayed when it has completed without any problem.
62 - ENGLISH
Chapter 3 Basic Operations — Operating with the remote control
ff This operation can be also performed using the <AUTO SETUP> button on the control panel.
Note
ff The clock phase may shift even if it has completed without any incident. In such cases, adjust the [POSITION] menu → [CLOCK PHASE]
(x page 81).
ff If an image with blurred edges or a dark image is input, [INCOMPLETE] may appear or adjustment may not be performed properly even
when [COMPLETE] appears. In this case, adjust the settings in the [ADVANCED MENU] menu → [INPUT RESOLUTION] (x page 86),
[POSITION] → [CLOCK PHASE] (x page 81), and [SHIFT] (x page 79).
ff Adjust special signals according to the [DISPLAY OPTION] menu → [AUTO SETUP] (x page 98).
ff Automatic adjustment may not work depending on the model of the computer.
ff Automatic adjustment may not work for a synchronization signal of C-SY or SYNC ON GREEN.
ff Images may be disrupted for a few seconds during automatic adjustment, but it is not a malfunction.
ff Adjustment is required for each input signal.
ff Automatic adjustment can be canceled by pressing the <MENU> button during the automatic adjustment operation.
ff If the automatic setup function is used while moving images are being input, the adjustment may not be performed properly even for an RGB
signal that can use automatic setup. [INCOMPLETE] may appear, or adjustment may not be finished properly even if [COMPLETE] appears.
Using the Function button
[P IN P], [SUB MEMORY], [SYSTEM SELECTOR], [SYSTEM DAYLIGHT VIEW], [FREEZE], [WAVEFORM MONITOR], [LENS MEMORY
LOAD], or [LEFT/RIGHT SWAP] operations can be assigned to the <FUNC> button on the remote control so that it can be used as an easy
shortcut button.
button
1) Press the <FUNC> button.
Note
ff [LEFT/RIGHT SWAP] can only be assigned in PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU.
ff Assignment of the function is performed from the [PROJECTOR SETUP] menu → [FUNCTION BUTTON] (x page 121).
Displaying the internal test pattern
The projector has eight types of internal test patterns to check the condition of the set. To display test patterns, perform the following steps.
button
1) Press the <TEST> button.
2) Press qw to select the test pattern.
Note
ff Setting is also available from the [TEST PATTERN] (x page 127) menu.
ff Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing
various adjustments.
Changing the picture aspect ratio
You can toggle through aspect ratios to select the one that is appropriate for the input signal.
button
1) Press the <ASPECT> button.
ff The setting will change each time you press the button.
ff Refer to [ASPECT] (x page 79) for details.
ENGLISH - 63
Chapter 4
Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.
64 - ENGLISH
Chapter 4 Settings — Menu navigation
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
button
1) Press the <MENU> button on the remote control or control panel.
ff The [MAIN MENU] screen is displayed.
MAIN MENU
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
3D SETTINGS
DISPLAY OPTION
PROJECTOR SETUP
P IN P
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
ENTER
SUB MENU
2) Press as to select an item from the main menu.
ff The selected item is highlighted in yellow.
MAIN MENU
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
3D SETTINGS
DISPLAY OPTION
PROJECTOR SETUP
P IN P
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
ENTER
SUB MENU
3) Press the <ENTER> button.
ff The sub-menu items of the selected main menu are displayed.
POSITION
SHIFT
ASPECT
DEFAULT
ZOOM
CLOCK PHASE
0
GEOMETRY
MENU SELECT
ENTER
SUB MENU
ENGLISH - 65
Chapter 4 Settings — Menu navigation
4) Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings.
ff Some items will switch in order as follows each time you press qw.
A
B
C
ff For some items, press qw to display an individual adjustment screen with a bar scale as shown below.
CONTRAST
0
ADJUST
Note
ff Pressing the <MENU> button while the menu screen is displayed returns to the previous menu.
ff Some items may not be adjusted or used for certain signal formats to be input to the projector. The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected. [DIGITAL CINEMA REALITY] and [FRAME LOCK] may not be displayed
depending on the input signal.
ff Some items can be adjusted even if signals are not input.
ff Individual adjustment screen is cleared automatically if no operation is performed for approximately five seconds.
ff For menu items, refer to “Main menu” (x page 66) and “Sub-menu” (x page 67).
ff The cursor color depends on the settings of the [DISPLAY OPTION] menu → [ON-SCREEN DISPLAY] → [OSD DESIGN]. The selected
item is displayed with the yellow cursor by the factory default.
ff In the portrait setting, the menu is displayed sideways.
Resetting adjustment values to the factory default
If the <DEFAULT> button on the remote control is pressed, the values adjusted in the menu items are restored to the factory default settings.
button
1) Press the <DEFAULT> button on the remote control.
CONTRAST
0
ADJUST
Note
ff You cannot reset all the settings to the factory default at a time.
ff To reset all the settings adjusted in the sub-menu item to the factory default one at a time, execute [PROJECTOR SETUP] menu →
[INITIALIZE] (x page 124).
ff Some items cannot be reset by pressing the <DEFAULT> button. Adjust each item manually.
ff The triangular mark under the bar scale in the individual adjustment screen indicates the factory default setting. The position of the triangular
mark varies according to the selected input signals.
Current adjustment value
Factory default setting
Main menu
The following items are in the main menu.
When a main menu item is selected, the screen changes to a sub-menu selection screen.
Main menu item
Page
[PICTURE]
71
[POSITION]
79
[ADVANCED MENU]
85
[DISPLAY LANGUAGE]
90
[3D SETTINGS]*1
91
[DISPLAY OPTION]
96
66 - ENGLISH
Chapter 4 Settings — Menu navigation
Main menu item
Page
[PROJECTOR SETUP]
108
[P IN P]
125
[TEST PATTERN]
127
[SIGNAL LIST]
128
[SECURITY]
131
[NETWORK]
135
*1 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.
[PICTURE]
Sub-menu item
Factory default
Page
[STANDARD]*1
71
[CONTRAST]
[0]
71
[BRIGHTNESS]
[0]
72
[COLOR]
[0]
72
[TINT]
[0]
72
[COLOR TEMPERATURE]
[DEFAULT]
72
[GAMMA]
[DEFAULT]
74
[OFF]
75
[+6]
75
[OFF]
76
[2]
76
[PICTURE MODE]
[SYSTEM DAYLIGHT VIEW]
[SHARPNESS]
[NOISE REDUCTION]
[DYNAMIC IRIS]
[SYSTEM SELECTOR]
[YPBPR
]*1
77
*1 Depends on the signal input.
Note
ff The factory default settings may vary depending on the picture mode.
[POSITION]
Sub-menu item
[SHIFT]
[ASPECT]
[ZOOM]
[CLOCK PHASE]
Factory default
Page
―
79
[DEFAULT]*1
79
―
80
[0]*1
81
[GEOMETRY]*2
[OFF]
81
[KEYSTONE]*3
―
84
Factory default
Page
[AUTO]*1
85
[BLANKING]
―
85
[INPUT RESOLUTION]
―
86
*1 Depends on the signal input.
*2 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU
*3 Only for PT‑DW11KU
[ADVANCED MENU]
Sub-menu item
[DIGITAL CINEMA REALITY]
ENGLISH - 67
Chapter 4 Settings — Menu navigation
Sub-menu item
Factory default
Page
[CLAMP POSITION]
[24]*1
86
[EDGE BLENDING]
[OFF]
87
[NORMAL]
88
[FRAME RESPONSE]
[FRAME LOCK]*2
[RASTER POSITION]
[OFF]
89
―
89
*1 Depends on the signal input.
*2 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU
Note
ff Sub-menu items and factory default settings differ depending on the selected input terminal.
[DISPLAY LANGUAGE]
Details (x page 90)
[3D SETTINGS]
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
Sub-menu item
Factory default
Page
[SINGLE]
91
[3D SYNC SETTING]
—
91
[3D SIMUL INPUT SETTING]
—
92
[3D INPUT FORMAT]
[AUTO]*1
92
[LEFT/RIGHT SWAP]
[NORMAL]
93
[3D COLOR MATCHING]
[SHARED 2D/3D]
93
[3D PICTURE BALANCE]
—
93
[1.5 ms]
94
[3D SYSTEM SETTING]
[DARK TIME SETTING]
[3D FRAME DELAY]
[0us]
94
[NORMAL]
94
—
95
[ON]
95
―
95
Factory default
Page
[COLOR MATCHING]
[OFF]
96
[LARGE SCREEN CORRECTION]
[OFF]
97
―
97
[3D TEST MODE]
[3D TEST PATTERN]
[SAFETY PRECAUTIONS MESSAGE]
[3D SAFETY PRECAUTIONS]
*1 Depends on the selected input terminal.
[DISPLAY OPTION]
Sub-menu item
[SCREEN SETTING]*1
[AUTO SIGNAL]
[OFF]
98
[AUTO SETUP]
―
98
[RGB IN]
―
99
[DVI-D IN]
―
100
[HDMI IN]
―
100
[SDI
IN]*1
[ON-SCREEN DISPLAY]
[BACK COLOR]
[STARTUP LOGO]
―
100
―
102
[BLUE]
103
[DEFAULT LOGO]
104
[UNIFORMITY]
―
104
[SHUTTER SETTING]
―
105
[FREEZE]
―
105
[WAVEFORM MONITOR]
[CUT OFF]
*1 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU.
68 - ENGLISH
[OFF]
105
—
107
Chapter 4 Settings — Menu navigation
[PROJECTOR SETUP]
Sub-menu item
[PROJECTOR ID]
Factory default
Page
[ALL]
108
[PROJECTION METHOD]
[FRONT/FLOOR]
108
[COOLING CONDITION]
[AUTO]
109
[HIGH ALTITUDE MODE]
[OFF]
109
[DUAL]
109
[LAMP RELAY]
[LAMP SELECT]
[OFF]
110
[LAMP POWER]
[HIGH]*1
111
[BRIGHTNESS CONTROL]
[STANDBY MODE]
[SCHEDULE]
[STARTUP INPUT SELECT]
―
111
[NORMAL]
115
[OFF]
116
[LAST USED]
117
[RS-232C]
―
118
[STATUS]
―
119
[NO SIGNAL SHUT-OFF]
[DISABLE]
120
[REMOTE2 MODE]
[DEFAULT]
120
―
121
[FUNCTION BUTTON]
[DATE AND TIME]
―
121
[LENS CALIBRATION]
―
122
[LENS MEMORY]
―
122
[SAVE ALL USER DATA]
―
124
[LOAD ALL USER DATA]
―
124
[INITIALIZE]
―
124
[SERVICE PASSWORD]
―
124
Factory default
Page
*1 In PT‑DZ10KU, it is [NORMAL].
[P IN P]
Details (x page 125)
[TEST PATTERN]
Details (x page 127)
[SIGNAL LIST]
Details (x page 128)
[SECURITY]
Sub-menu item
[SECURITY PASSWORD]
[SECURITY PASSWORD CHANGE]
[DISPLAY SETTING]
[TEXT CHANGE]
[OFF]
131
―
131
[OFF]
132
―
132
[CONTROL DEVICE SETUP]
―
132
[CONTROL DEVICE PASSWORD CHANGE]
―
133
ENGLISH - 69
Chapter 4 Settings — Menu navigation
[NETWORK]
Sub-menu item
Factory default
Page
[NETWORK SETUP]
―
135
[NETWORK CONTROL]
―
135
[NETWORK STATUS]
―
136
Note
ff Some items may not be adjusted or used for certain signal formats to be input to the projector.
The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected.
ff Sub-menu items and factory default settings differ depending on the selected input terminal.
70 - ENGLISH
Chapter 4 Settings — [PICTURE] menu
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the submenu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2) Press the qw.
ff The [PICTURE MODE] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
[STANDARD]
[CINEMA]
[NATURAL]
[DICOM SIM.]
The image becomes suitable for moving images in general.
The image becomes suitable for movie contents.
The image is sRGB compliant.
The image becomes similar to that of DICOM Part 14 Grayscale Standard.
[DYNAMIC]
The light output is maximized for use in bright areas.
[GRAPHIC]
The image becomes suitable for input from the personal computer.
[USER]
Set any desired picture mode.
Note
ff The factory default picture mode is [GRAPHIC] for still image input signals and [STANDARD] for movie-based input signals.
ff DICOM is an abbreviation of “Digital Imaging and Communication in Medicine” and is a standard for medical imaging devices. Although the
DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.
ff Press the <ENTER> button when each [PICTURE MODE] is selected to save as a specified value when a new signal is input. The data of
all items except [SYSTEM SELECTOR] in the [PICTURE] menu is saved.
ff In the factory default settings, [USER] is set to images that comply with the ITU‑R BT.709 standard.
Changing the [USER] name
1) Press as to select [PICTURE MODE].
2) Press qw to select [USER].
3) Press the <ENTER> button.
ff The [PICTURE MODE] detailed screen is displayed.
4) Press as to select [PICTURE MODE NAME CHANGE], and press the <ENTER> button.
ff The [PICTURE MODE NAME CHANGE] screen is displayed.
5) Press asqw to select the text, and press the <ENTER> button to enter the text.
6) Press asqw to select [OK], and press the <ENTER> button.
ff The picture mode name is changed.
[CONTRAST]
You can adjust the contrast of the colors.
1) Press as to select [CONTRAST].
ENGLISH - 71
Chapter 4 Settings — [PICTURE] menu
2) Press qw or the <ENTER> button.
ff The [CONTRAST] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation
Adjustment
Press the w button.
Brightens the screen and makes the color deeper.
Press the q button.
Darkens the screen and makes the color lighter.
Range of adjustment
-31 - +31
Attention
ff Adjust [BRIGHTNESS] first when you need to adjust the black level.
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2) Press qw or the <ENTER> button.
ff The [BRIGHTNESS] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation
Adjustment
Press the w button.
Increases the brightness of the dark (black) parts of the screen.
Press the q button.
Reduces the brightness of the dark (black) parts of the screen.
Range of adjustment
-31 - +31
[COLOR]
You can adjust the color saturation of the projected image.
1) Press as to select [COLOR].
2) Press qw or the <ENTER> button.
ff The [COLOR] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation
Adjustment
Press the w button.
Deepens colors.
Press the q button.
Weakens colors.
Range of adjustment
-31 - +31
[TINT]
You can adjust the skin tone in the projected image.
1) Press as to select [TINT].
2) Press qw or the <ENTER> button.
ff The [TINT] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation
Adjustment
Press the w button.
Adjusts skin tone toward greenish color.
Press the q button.
Adjusts skin tone toward reddish purple.
[COLOR TEMPERATURE]
You can switch the color temperature if the white areas of the projected image are bluish or reddish.
Adjusting with color temperature
1) Press as to select [COLOR TEMPERATURE].
72 - ENGLISH
Range of adjustment
-31 - +31
Chapter 4 Settings — [PICTURE] menu
2) Press qw or the <ENTER> button.
ff The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
[DEFAULT]
[USER1]
[USER2]
[3200K] - [9300K]
Factory default setting.
Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 73) for
details.
Allows you to set in increments of 100 K. Select so that images become natural.
Note
ff When [PICTURE MODE] (x page 71) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected.
ff When [COLOR MATCHING] (x page 96) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
ff The color temperature numerical values are guidelines.
Adjusting desired white balance
1) Press as to select [COLOR TEMPERATURE].
2) Press qw or the <ENTER> button.
ff The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press qw to select [USER1] or [USER2].
4) Press the <ENTER> button.
ff The [COLOR TEMPERATURE] screen is displayed.
5) Press as to select [WHITE BALANCE].
6) Press the <ENTER> button.
ff The [WHITE BALANCE] screen is displayed.
7) Press as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8) Press the <ENTER> button.
ff The [WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.
9) Press as to select [RED], [GREEN], or [BLUE].
10) Press qw to adjust the level.
Item
[RED]
[GREEN]
[BLUE]
Operation
Adjustment
Press the w button.
Deepens red.
Press the q button.
Weakens red.
Press the w button.
Deepens green.
Press the q button.
Weakens green.
Press the w button.
Deepens blue.
Press the q button.
Weakens blue.
Range of adjustment
[WHITE BALANCE HIGH]: 0 - +255 (factory default is
+255)
[WHITE BALANCE LOW]: -127 - +127 (factory default is
0)
Note
ff Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment
does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the
factory default setting.
Adjusting desired white balance based on existing color temperature settings
1) Press as to select [COLOR TEMPERATURE].
2) Press qw or the <ENTER> button.
ff The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press qw to select an item other than [DEFAULT], [USER1], or [USER2].
ENGLISH - 73
Chapter 4 Settings — [PICTURE] menu
4) Press the <ENTER> button.
ff The [CHANGE TO *****] screen is displayed.
5) Press as to select [USER1] or [USER2].
ff The status of the color temperature changed is saved to the selected item.
6) Press the <ENTER> button.
ff The confirmation screen is displayed.
7) Press qw to select [OK], and press the <ENTER> button.
ff The [USER1] or [USER2] data is overwritten.
ff If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten.
ff The [WHITE BALANCE HIGH] screen is displayed.
8) Press as to select [RED], [GREEN], or [BLUE].
9) Press qw to adjust the level.
Note
ff Adjust [COLOR TEMPERATURE] correctly. All colors will not be displayed properly unless adequate adjustment is made. If the adjustment
does not look suitable, you can press the <DEFAULT> button on the remote control to return the setting for the selected item only to the
factory default setting.
ff When color temperature has been changed, the colors before and after the change will differ slightly.
Changing the name of [USER1] or [USER2]
1) Press as to select [COLOR TEMPERATURE].
2) Press qw or the <ENTER> button.
ff The [COLOR TEMPERATURE] individual adjustment screen is displayed.
3) Press qw to select [USER1] or [USER2].
4) Press the <ENTER> button.
ff The [COLOR TEMPERATURE] screen is displayed.
5) Press as to select [COLOR TEMPERATURE NAME CHANGE].
6) Press the <ENTER> button.
ff The [COLOR TEMPERATURE NAME CHANGE] screen is displayed.
7) Press asqw to select the text, and press the <ENTER> button to enter the text.
8) Press asqw to select [OK], and press the <ENTER> button.
ff The name set to color temperature is changed.
Note
ff When a name is changed, display of [USER1], [USER2] is also changed.
[GAMMA]
You can switch gamma mode.
1) Press as to select [GAMMA].
2) Press qw or the <ENTER> button.
ff The [GAMMA] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
[DEFAULT]*1
[USER1]
[USER2]
[DICOM SIM.]
74 - ENGLISH
Factory default setting.
Allows you to change the name.
Refer to “Changing the name of [USER1] or [USER2]” (x page 75) for details.
The picture becomes similar to that of DICOM standard.
Chapter 4 Settings — [PICTURE] menu
[1.0]
[1.8]
Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1.
[2.0] - [2.8] (increments of 0.1)
*1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected.
Note
ff DICOM is an abbreviation of “Digital Imaging and Communication in Medicine” and is a standard for medical imaging devices. Although the
DICOM name is used, the projector is not a medical device, and should not be used for purposes such as diagnosis of display images.
Changing the name of [USER1] or [USER2]
1) Press as to select [GAMMA].
2) Press qw or the <ENTER> button.
ff The [GAMMA] individual adjustment screen is displayed.
3) Press qw to select [USER1] or [USER2].
4) Press the <ENTER> button.
ff The [GAMMA] screen is displayed.
5) Press the <ENTER> button.
ff The [GAMMA NAME CHANGE] screen is displayed.
6) Press asqw to select the text, and press the <ENTER> button to enter the text.
7) Press asqw to select [OK], and press the <ENTER> button.
ff The selected gamma name is changed.
Note
ff When a name is changed, display of [USER1], [USER2] is also changed.
[SYSTEM DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projected under a bright light.
1) Press as to select [SYSTEM DAYLIGHT VIEW].
2) Press qw or the <ENTER> button.
ff The [SYSTEM DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
No correction.
[1]
Corrects the image to weaken vividness.
[2]
Corrects the image to medium vividness.
[3]
Corrects the image to high vividness.
[SHARPNESS]
You can adjust the sharpness of the projected image.
1) Press as to select [SHARPNESS].
2) Press qw or the <ENTER> button.
ff The [SHARPNESS] individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation
Adjustment
Press the w button.
Contours become sharper.
Press the q button.
Contours become softer.
Range of adjustment
0 - +15
ENGLISH - 75
Chapter 4 Settings — [PICTURE] menu
Note
ff If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will
become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occurring in the image signal.
1) Press as to select [NOISE REDUCTION].
2) Press qw or the <ENTER> button.
ff The [NOISE REDUCTION] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
No correction.
[1]
Slightly corrects the noise.
[2]
Moderately corrects the noise.
[3]
Strongly corrects the noise.
Attention
ff When this is set for an input signal with less noise, the image may look different from what it originally was. In such a case, set it to [OFF].
[DYNAMIC IRIS]
Aperture correction and signal compensation are performed automatically based on the image to result in an image of optimum contrast.
1) Press as to select [DYNAMIC IRIS].
2) Press qw or the <ENTER> button.
ff The [DYNAMIC IRIS] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
No correction.
[1]
Slightly corrects aperture and compensate signals.
[2]
Moderately corrects aperture and signal.
[3]
Strongly corrects aperture and signal.
Set any desired correction.
Refer to “Adjusting desired correction amount” (x page 76) for details.
[USER]
Adjusting desired correction amount
1) Press as to select [DYNAMIC IRIS].
2) Press qw or the <ENTER> button.
ff The [DYNAMIC IRIS] individual adjustment screen is displayed.
3) Press qw to select [USER].
4) Press the <ENTER> button.
ff The [DYNAMIC IRIS] screen is displayed.
5) Press as to select [AUTO IRIS], [MANUAL IRIS], or [DYNAMIC GAMMA].
6) Press qw to adjust the correction amount.
Item
[AUTO IRIS]
(Automatic adjustment of
aperture)
[MANUAL IRIS]
(Fixed adjustment of aperture)
76 - ENGLISH
Adjustment
[OFF]
[1] - [255]
[OFF]
[1] - [255]
No correction.
Allows you to set in increments of 1. The larger the value, the
stronger the correction.
No correction.
Allows you to set in increments of 1. The larger the value, the
stronger the correction.
Chapter 4 Settings — [PICTURE] menu
Item
Adjustment
[OFF]
[DYNAMIC GAMMA]
(Adjustment of signal
compensation)
No correction.
[1]
Slightly compensates the signal.
[2]
Moderately compensates the signal.
[3]
Strongly compensates the signal.
Note
ff When [DYNAMIC GAMMA] is set to [3], the contrast will be maximized.
ff Brightness control and iris operate simultaneously, but the iris is fully open and does not operate while a brightness measurement is
performed.
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the
system method matching the input signal.
1) Press as to select [SYSTEM SELECTOR].
2) Press the <ENTER> button.
3) Press as to select a system format.
ff Available system formats vary depending on the input signal.
Terminal
<VIDEO IN> terminal, <G/
Y>/<B/PB/C> terminals
<RGB 1 IN> terminal, <RGB 2
IN> terminal
System format
Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL‑M], [PAL‑N], [SECAM], or [PAL60].
Set it to [AUTO] normally. (Setting [AUTO] will automatically select [NTSC], [NTSC4.43], [PAL],
[PAL‑M], [PAL‑N], [SECAM], or [PAL60].)
Switch the setting to the signal method for the TV used.
480i, 576i, or 576p signal
VGA60 or 480p signal
Other movie-based signals
Select [RGB] or [YPBPR].
480i, 576i, 480p, or 576p
signal
Select [RGB] or [YCBCR].
Other movie-based signals
Select [RGB] or [YPBPR].
<DVI-D IN> terminal
480i, 576i, 480p, or 576p
signal
Select [AUTO], [RGB], or [YCBCR].
Other movie-based signals
Select [AUTO], [RGB], or [YPBPR].
<HDMI IN> terminal
Single link
<SDI IN 1> terminal, <SDI
IN 2> terminal (only for
PT‑DZ13KU, PT‑DS12KU)
Dual link
<SDI IN> terminal (only for
PT‑DZ10KU)
Select [RGB] or [YCBCR].
Select [VGA60], [480p YCBCR], or [480p RGB].
During SDI1 (SDI) input, select [AUTO], [480i YCBCR], [576i
YCBCR], [720/50p YPBPR], [720/60p YPBPR], [1035/60i YPBPR],
[1080/24p YPBPR], [1080/24sF YPBPR], [1080/25p YPBPR],
[1080/30p YPBPR], [1080/50i YPBPR], [1080/60i YPBPR],
[1080/50p YPBPR], [1080/60p YPBPR], [1080/24p RGB],
[1080/24sF RGB], [1080/25p RGB], [1080/30p RGB],
[1080/50i RGB], or [1080/60i RGB].
During SDI2 input, select [AUTO], [480i YCBCR], [576i
YCBCR], [720/50p YPBPR], [720/60p YPBPR], [1035/60i YPBPR],
[1080/24p YPBPR], [1080/24sF YPBPR], [1080/25p YPBPR],
[1080/30p YPBPR], [1080/50i YPBPR], or [1080/60i YPBPR].
Select [AUTO], [1080/24p RGB], [2K/24p RGB], [2K/24p XYZ],
[1080/24sF RGB], [2K/24sF RGB], [2K/24sF XYZ], [1080/25p RGB],
[1080/30p RGB], [1080/50i RGB], or [1080/60i RGB].
Select [AUTO], [480i YCBCR], [576i YCBCR], [720/50p YPBPR], [720/60p YPBPR], [1035/60i YPBPR],
[1080/24p YPBPR], [1080/24sF YPBPR], [1080/25p YPBPR], [1080/30p YPBPR], [1080/50i YPBPR],
[1080/60i YPBPR], [1080/50p YPBPR], [1080/60p YPBPR], [1080/24p RGB], [1080/24sF RGB],
[1080/25p RGB], [1080/30p RGB], [1080/50i RGB], or [1080/60i RGB].
4) Press the <ENTER> button.
Note
ff Refer to “List of compatible signals” (x page 175) for the types of video signals that can be used with the projector.
ff This may not function properly for some connected external devices.
ENGLISH - 77
Chapter 4 Settings — [PICTURE] menu
sRGB-compliant video
sRGB is an international standard (IEC61966‑2‑1) for color reproduction defined by IEC (International Electrotechnical Commission).
Set according to the following steps to reproduce more faithful, sRGB compliant colors.
1) Set [COLOR MATCHING] adjustments to [OFF].
ff Refer to [COLOR MATCHING] (x page 96).
2) Display the [PICTURE] menu.
ff Refer to “[PICTURE] menu” (x page 71).
3) Press as to select [PICTURE MODE].
4) Press qw to set [NATURAL].
5) Press as to select [COLOR].
6) Press the <DEFAULT> button on the remote control to set the factory default setting.
7) Follow Steps 5) to 6) to set [TINT], [COLOR TEMPERATURE], [GAMMA], and [SYSTEM DAYLIGHT
VIEW] to the factory default settings.
Note
ff sRGB is available for RGB signal input only.
78 - ENGLISH
Chapter 4 Settings — [POSITION] menu
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the submenu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[SHIFT]
Move the image position vertically or horizontally if the image position projected on the screen is shifted even when the relative position of the
projector and the screen is installed correctly.
1) Press as to select [SHIFT].
2) Press the <ENTER> button.
ff The [SHIFT] screen is displayed.
3) Press asqw to adjust the position.
Orientation
Operation
Adjustment
Press the a button.
The image position moves up.
Press the s button.
The image position moves down.
Press the w button.
The image position moves to the right.
Press the q button.
The image position moves to the left.
Vertical (up and down)
adjustment
Horizontal (right and left)
adjustment
Note
ff For the portrait setting, image position is moved horizontally when “Vertical (up and down) adjustment” is made. Image position is moved
vertically when “Horizontal (right and left) adjustment” is made.
[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x page 97)
1) Press as to select [ASPECT].
2) Press qw or the <ENTER> button.
ff The [ASPECT] individual adjustment screen is displayed.
3) Press qw to switch the item.
ff The items will switch each time you press the button.
ENGLISH - 79
Chapter 4 Settings — [POSITION] menu
[DEFAULT]
[VID AUTO]*1
[AUTO]*2
[THROUGH]
The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for 480i/480p
signals.
Displays images without changing the resolution of the input signals.
[16:9]
Displays images with the aspect ratio converted to 16:9 when standard signals are input*3. Display
images without changing the aspect ratio when wide-screen signals are input*4.
[4:3]
Displays images without changing the aspect ratio when standard signals are input*3. Displays images
without changing the aspect ratio so that the images will fit in the 4:3 screen when wide-screen
signals are input*2.
[H FIT]
Displays images using the entire width of the screen. When signals have the aspect ratio vertically
longer than the aspect ratio of the screen selected in [SCREEN FORMAT], the images are displayed
with the top and bottom parts cut off.
[V FIT]
Displays images using the entire height of the screen range selected in [SCREEN FORMAT]. When
signals have the aspect ratio horizontally longer than the aspect ratio of the screen selected in
[SCREEN FORMAT], the images are displayed with the right and left parts cut off.
[HV FIT]
*1
*2
*3
*4
Displays images without changing the aspect ratio of the input signals.
The projector identifies the video ID (VID) embedded in the video signals and displays the image by
automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC
signals.
Displays images in the entire screen range selected in [SCREEN FORMAT]. When the aspect ratio of
the input signals differs from that of the screen range, the images are displayed with the aspect ratio
converted to that of the screen selected in [SCREEN FORMAT].
For video signals and Y/C signals (NTSC) only
For RGB (480i or 480p) signal input only
Standard signals are input signals with an aspect ratio of 4:3 or 5:4.
Wide-screen signals are input signals with an aspect ratio of 16:10, 16:9, 15:9 or 15:10.
Note
ff Some size modes are not available for certain types of input signals. [DEFAULT] cannot be selected for video signal, Y/C signal (NTSC), or
RGB (480i, 480p) signal.
ff If an aspect ratio which is different from the aspect ratio for the input signals is selected, the images will appear differently from the originals.
Be careful of this when selecting the aspect ratio.
ff If using the projector in places such as cafes or hotels to display programs for a commercial purpose or for public presentation, note that
adjusting the aspect ratio or using the zoom function to change the screen images may be an infringement of the rights of the original
copyright owner for that program under copyright protection laws. Take care when using a function of the projector such as the aspect ratio
adjustment and zoom function.
ff If conventional (normal) 4:3 images which are not wide-screen images are displayed on a wide screen, the edges of the images may not
be visible or they may become distorted. Such images should be viewed as with an aspect ratio of 4:3 in the original format intended by the
creator of the images.
[ZOOM]
You can adjust the image size.
When [ASPECT] is set to other than [DEFAULT] and [THROUGH]
1) Press as to select [ZOOM].
2) Press the <ENTER> button.
ff The [ZOOM] screen is displayed.
3) Press as to select [INTERLOCKED].
4) Press qw to switch the item.
[OFF]
Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.
[ON]
Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the
same magnification.
5) Press as to select [VERTICAL] or [HORIZONTAL].
ff If [ON] is selected, select [BOTH].
6) Press qw to adjust.
Note
ff When [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted.
80 - ENGLISH
Chapter 4 Settings — [POSITION] menu
When [ASPECT] is set to [DEFAULT]
1) Press as to select [ZOOM].
2) Press the <ENTER> button.
ff The [ZOOM] screen is displayed.
3) Press as to select [MODE].
4) Press qw to switch the item.
[INTERNAL]
[FULL]
Enlarges the size within the aspect range set with [SCREEN FORMAT].
Enlarges or reduces the size using the entire display area set with [SCREEN FORMAT].
5) Press as to select [INTERLOCKED].
6) Press qw to switch the item.
[OFF]
Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.
[ON]
Uses [BOTH] to set zoom ratio. Image can be enlarged or reduced vertically and horizontally at the
same magnification.
7) Press as to select [VERTICAL] or [HORIZONTAL].
ff If [ON] is selected, select [BOTH].
8) Press qw to adjust.
Note
ff When [ASPECT] is not set to [DEFAULT], [MODE] is not displayed.
[CLOCK PHASE]
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press as to select [CLOCK PHASE].
2) Press qw or the <ENTER> button.
ff The [CLOCK PHASE] individual adjustment screen is displayed.
3) Press qw to adjust.
ff Adjustment value will change between [0] and [+31]. Adjust so that the amount of interference is at a minimum.
Note
ff Certain signals may not be adjustable.
ff Optimal value may not be achieved if the output from the input computer is unstable.
ff Optimal value may not be achieved when there is a shift in the total dot numbers.
ff [CLOCK PHASE] can be adjusted only when a signal is input to the <RGB 1 IN> terminal or the <RGB 2 IN> terminal.
ff [CLOCK PHASE] cannot be adjusted when a digital signal is input.
ff If you press w while the adjustment value is [+31], the value will become [0]. If you press q while the adjustment value is [0], the value will
become [+31].
[GEOMETRY]
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
You can correct various types of distortion in a projected image.
Unique image processing technology enables projection of a square image on a special screen shape.
1) Press as to select [GEOMETRY].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
[KEYSTONE]
[CORNER CORRECTION]
[CURVED]
Does not perform geometric adjustment.
Adjusts any trapezoidal distortion in the projected image.
Adjusts any distortion in the four corners of the projected image.
Adjusts any curved distortion in the projected image.
ENGLISH - 81
Chapter 4 Settings — [POSITION] menu
[PC‑1]*1
[PC‑2]*1
Uses the computer to perform geometric adjustment.
[PC‑3]*1
*1 Advanced skills are necessary to use a computer to control geometric adjustment. Consult your dealer. Up to three geometric adjustments
performed using the computer can be saved.
Setting [KEYSTONE] or [CURVED]
1) Press as to select [GEOMETRY].
2) Press qw to select [KEYSTONE] or [CURVED].
3) Press the <ENTER> button.
ff The [GEOMETRY:KEYSTONE] or [GEOMETRY:CURVED] screen is displayed.
4) Press as to select the item to adjust.
5) Press qw to adjust.
[KEYSTONE]
[LENS THROW RATIO]
Set the throw ratio for the lens used.
[VERTICAL KEYSTONE]
[HORIZONTAL KEYSTONE]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
Adjust the setting according to the lens shift range in the vertical
direction.
Adjust the setting according to the lens shift range in the horizontal
direction.
[CURVED]
[LENS THROW RATIO]
Set the throw ratio for the lens used.
[VERTICAL KEYSTONE]
[HORIZONTAL KEYSTONE]
[VERTICAL ARC]
[HORIZONTAL ARC]
82 - ENGLISH
Chapter 4 Settings — [POSITION] menu
[CURVED]
[HORIZONTAL BALANCE]
[VERTICAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press as to select [GEOMETRY].
2) Press qw to select [CORNER CORRECTION].
3) Press the <ENTER> button.
ff The [GEOMETRY:CORNER CORRECTION] screen is displayed.
4) Press as to select the item to adjust, and press the <ENTER> button.
5) Press asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER RIGHT]
[LOWER LEFT]
[LOWER RIGHT]
[LINEARITY]
Horizontal direction
Vertical direction
Note
ff The menu or logo may run off the screen when [GEOMETRY] is set.
ff If [EDGE BLENDING] (x page 87) adjustment and [GEOMETRY] are used together, correct edge blending adjustment may not be
possible in certain environments.
ff The optional Upgrade Kit (Model No.: ET‑UK20) can be used to expand the correctable range. To purchase the product, consult your dealer.
ENGLISH - 83
Chapter 4 Settings — [POSITION] menu
[KEYSTONE]
(Only for PT‑DW11KU)
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2) Press the <ENTER> button.
3) Press as to select the item to adjust.
4) Press qw to adjust.
[KEYSTONE]
[SUB KEYSTONE]
[LINEARITY]
Note
ff The menu or logo may run off the screen when adjustments are performed with [KEYSTONE].
ff Correcting up to ±40° for the tilt in the vertical direction is available for adjustments with [KEYSTONE]. However, the image quality will
degrade and it will get harder to focus with more correction. Install the projector so that the correction will be as small as possible. (±22°
when using projection lens ET‑D75LE5/ET‑D75LE50, or ±28° when using the projection lens ET‑D75LE6.)
ff Screen size will also change when [KEYSTONE] is used to perform various adjustments.
ff When the keystone is corrected with [KEYSTONE], the edge blending cannot be adjusted together.
ff Aspect ratio of the image size may shift depending on the correction or lens zoom value.
ff For the portrait setting, keystone is corrected for horizontal tilt.
84 - ENGLISH
Chapter 4 Settings — [ADVANCED MENU] menu
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing cinema processing when the PAL (or SECAM) 576i
signal, the NTSC 480i signal, and 1080/50i, 1080/60i are input.
1) Press as to select [DIGITAL CINEMA REALITY].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[AUTO]
[OFF]
Performs automatic detection and cinema processing. (Factory default)
Does not perform cinema processing.
[25p FIXED]
Only during 576i or 1080/50i
signal input
[30p FIXED]
Only during 480i or 1080/60i
signal input
Performs forced cinema processing (2:2 pulldown).
Note
ff In [DIGITAL CINEMA REALITY], the picture quality will degrade when a signal other than the 2:2 pulldown is set as [25p FIXED] or [30p
FIXED]. (Vertical resolution will degrade.)
ff When [FRAME RESPONSE] is set to [FAST], [DIGITAL CINEMA REALITY] cannot be set.
[BLANKING]
You can adjust the blanking width if there are noises at the edge of the screen or the image is slightly running out from the screen while an
image from the VCR or other devices are projected.
1) Press as to select [BLANKING].
2) Press the <ENTER> button.
ff The [BLANKING] adjustment screen is displayed.
3) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT].
ff When [CUSTOM MASKING] is set to an item ([PC‑1], [PC‑2], or [PC‑3]) other than [OFF], the blanking width can be adjusted to any
shape using the computer. Up to three blanking settings adjusted using the computer can be saved.
To use the [CUSTOM MASKING] function, the optional Upgrade Kit (Model No.: ET‑UK20) is required. To purchase the product,
consult your dealer.
4) Press qw to adjust the blanking width.
ENGLISH - 85
Chapter 4 Settings — [ADVANCED MENU] menu
Blanking correction
Top of the screen
Bottom of the
screen
Left side of the
screen
Right side of the
screen
Item
Operation
Adjustment
Press the q
button.
The blanking zone
moves upward.
Press the w
button.
The blanking zone
moves downward.
Press the w
button.
The blanking zone
moves upward.
Press the q
button.
The blanking zone
moves downward.
Press the w
button.
The blanking zone
moves to the right.
Press the q
button.
The blanking zone
moves to the left.
Press the q
button.
The blanking zone
moves to the right.
Press the w
button.
The blanking zone
moves to the left.
[UPPER]
Range of adjustment
PT‑DZ13KU, PT‑DZ10KU:
Top to bottom 0 - 599
PT‑DS12KU: Top to bottom
0 - 524
PT‑DW11KU: Top to bottom
0 - 383
[LOWER]
[LEFT]
PT‑DZ13KU, PT‑DZ10KU:
Left to right 0 - 959
PT‑DS12KU: Left to right
0 - 699
PT‑DW11KU: Left to right
0 - 682
[RIGHT]
[INPUT RESOLUTION]
You can adjust to achieve an optimal image when there is a flickering image or smeared outlines.
1) Press as to select [INPUT RESOLUTION].
2) Press the <ENTER> button.
ff The [INPUT RESOLUTION] screen is displayed.
3) Press as to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press
qw to adjust it.
ff Values corresponding to the signal being input are displayed automatically for each item. Increase or decrease the displayed values
and adjust to the optimal point viewing the screen when there are vertical stripes or sections are missing from the screen.
Note
ff Previously mentioned vertical banding will not occur with all white signal input.
ff The image may be disrupted while performing the adjustment, but it is not a malfunction.
ff [INPUT RESOLUTION] can be adjusted only when an RGB signal is input to the <RGB 1 IN> terminal or the <RGB 2 IN> terminal.
ff Certain signals may not be adjustable.
[CLAMP POSITION]
You can adjust the optimal point when the black part of the image is blunt or it has turned green.
1) Press as to select [CLAMP POSITION].
2) Press qw to adjust.
Status
Rough guide for optimal value
The black part is blunt.
The point where bluntness of the black part improves the most is
the optimal value.
The black part is green.
The point where the green part becomes black, and the bluntness
has improved is the optimal value.
Range of adjustment
1 - 255
Note
ff [CLAMP POSITION] can be adjusted only when a signal is input to the <RGB 1 IN> terminal or the <RGB 2 IN> terminal.
ff Certain signals may not be adjustable.
86 - ENGLISH
Chapter 4 Settings — [ADVANCED MENU] menu
[EDGE BLENDING]
The edge blending function allows multiple projector images to be seamlessly overlapped by using the inclination of the brightness at the
overlapped area.
1) Press as to select [EDGE BLENDING].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
Sets the edge blending function to off.
[ON]
Use the setting value of the internal distortion of the set for the inclination of the edge blending area.
[USER]
Use the user-setting value for the inclination of the edge blending area. (Configuration/registration
requires separate software. Consult your dealer.)
ff To adjust edge blending, proceed to Step 3).
3) When [ON] or [USER] is selected, press the <ENTER> button.
ff The [EDGE BLENDING] screen is displayed.
4) Press as to specify the location to be corrected.
ff When joining at top: Set [UPPER] to [ON]
ff When joining at bottom: Set [LOWER] to [ON]
ff When joining at left: Set [LEFT] to [ON]
ff When joining at right: Set [RIGHT] to [ON]
5) Press qw to switch between [ON] and [OFF].
6) Press as to select [START] and [WIDTH].
7) Press qw to adjust the starting position and correction width.
8) Press as to select [MARKER].
9) Press qw to switch to [ON].
ff A marker for image position adjustment is displayed. The position where the red and green lines overlap for the projectors to be joined
will be the optimal point. Make sure to set the correction width for the projectors to be joined with the same value. Optimal joining is not
possible with projectors that have different correction widths.
The optimal point is the point at which these lines overlap.
Green line
Red line
10) Press as to select [BRIGHTNESS ADJUST].
11) Press the <ENTER> button.
ff The [BRIGHTNESS ADJUST] screen is displayed.
ff By setting [AUTO TESTPATTERN] on the [EDGE BLENDING] screen to [ON], the black test pattern is displayed when you enter the
[BRIGHTNESS ADJUST] screen.
12) Press as to select [NON-OVERLAPPED BLACK LEVEL].
13) Press the <ENTER> button.
ff The [NON-OVERLAPPED BLACK LEVEL] screen is displayed.
ff If [INTERLOCKED] is set to [OFF], [RED], [GREEN], and [BLUE] can be adjusted individually.
14) Press as to select an item, and press qw to adjust the setting.
ff Once the adjustment is completed, press the <MENU> button to return to the [BRIGHTNESS ADJUST] screen.
ENGLISH - 87
Chapter 4 Settings — [ADVANCED MENU] menu
15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH].
16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.
ff When PT‑DZ13KU, PT‑DS12KU, or PT‑DZ10KU is used, proceed to Step 17).
ff When PT‑DW11KU is used, proceed to Step 19).
17) Press as to select [UPPER KEYSTONE AREA], [LOWER KEYSTONE AREA], [LEFT KEYSTONE
AREA], or [RIGHT KEYSTONE AREA].
18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK
BORDER LEVEL].
19) Press as to select [BLACK BORDER LEVEL].
20) Press the <ENTER> button.
ff The [BLACK BORDER LEVEL] screen is displayed.
ff If [INTERLOCKED] is set to [OFF], [RED], [GREEN], and [BLUE] can be adjusted individually.
21) Press as to select an item, and press qw to adjust the setting.
Projection range
[BLACK BORDER WIDTH] (Right)
Edge blending [WIDTH] (Right)
[MARKER] (Red)
Edge blending [START] (Right)
([MARKER] (Green))
[NON-OVERLAPPED BLACK LEVEL]
[OVERLAPPED BLACK LEVEL] (Right)
[BLACK BORDER LEVEL]
Note
ff [BRIGHTNESS ADJUST] is a function that makes the increased brightness in black level of the overlapping image area difficult to notice
when [EDGE BLENDING] is used to configure multiple screens. The optimal point of correction is set by adjusting [NON-OVERLAPPED
BLACK LEVEL] so the black level of the overlapping image area will be the same level as the non-overlapping area. If the border area of the
part where the image is overlapping and the non-overlapping part gets brighter after adjusting [NON-OVERLAPPED BLACK LEVEL], adjust
the width of the top, bottom, left, or right. Adjust [BLACK BORDER LEVEL] when the width adjustment makes only the border area darker.
ff The joining part may look discontinuous depending on the position you are looking from when a screen with high gain or rear screen is used.
ff When configuring multiple screens using both horizontal and vertical edge blending, adjust [OVERLAPPED BLACK LEVEL] first before
making adjustments in Step 12). Adjustment method is same as the procedure of [NON-OVERLAPPED BLACK LEVEL].
ff If only horizontal or vertical edge blending is used, set all items in [OVERLAPPED BLACK LEVEL] to 0.
ff [AUTO TESTPATTERN] settings change together with the [AUTO TESTPATTERN] of [COLOR MATCHING].
ff Adjustment of the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] and [BLACK BORDER LEVEL] is a function to perform
the adjustment of [GEOMETRY] (x page 81) together with the edge blending. If [NON-OVERLAPPED BLACK LEVEL] is tilted by
correcting the keystone from [KEYSTONE] in [GEOMETRY], perform Steps 17) and 18) to adjust the edge blending according to the shape
of [NON-OVERLAPPED BLACK LEVEL].
ff When the keystone is corrected with [KEYSTONE], the edge blending cannot be adjusted together. (Only for PT‑DW11KU)
[FRAME RESPONSE]
Set image frame delay.
1) Press as to select [FRAME RESPONSE].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[NORMAL]
Standard setting.
[FAST]*1
Simplifies the image processing to reduce image frame delay.
[FIXED]*2
Sets image frame delay to be constant regardless of the image position or magnification.
*1 When input signals are other than interlaced signals, [FAST] cannot be set.
*2 Only when movie-based signals and still image signals with the vertical scanning frequency of 50 Hz or 60 Hz are input
Note
ff When [FRAME RESPONSE] is set to [FAST], picture quality deteriorates. Also, [DIGITAL CINEMA REALITY] cannot be set.
ff [FRAME RESPONSE] cannot be set during P IN P.
88 - ENGLISH
Chapter 4 Settings — [ADVANCED MENU] menu
[FRAME LOCK]
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
Set this to view 3D display when the vertical scanning frequency of the signal is 25 Hz, 50 Hz, and 100 Hz.
1) Press as to select [FRAME LOCK].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
Decreases the flickering of the display.
[ON]
Synchronizes the display to the vertical scanning frequency of the input signal.
Note
ff [FRAME LOCK] is not displayed when the vertical scanning frequency of a signal other than the above is input or 2D images are displayed.
ff The screen may flicker when [FRAME LOCK] is set to [ON].
ff The display may look discontinuous when [FRAME LOCK] is set to [OFF].
[RASTER POSITION]
This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area.
1) Press as to select [RASTER POSITION].
2) Press the <ENTER> button.
ff The [RASTER POSITION] screen is displayed.
3) Press asqw to adjust the position.
ENGLISH - 89
Chapter 4 Settings — [DISPLAY LANGUAGE] menu
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the submenu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff Press as to select a language, and press the <ENTER> button to set.
Changing the display language
You can select the language of the on-screen display.
INITIAL SETTING
SELECT
ENTER
SET
ff Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected language.
ff The language can be changed to English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian, or Korean.
Note
ff The on-screen display language of the projector is set to English by default and when [ALL USER DATA] (x page 124) in [INITIALIZE] is
executed.
90 - ENGLISH
Chapter 4 Settings — [3D SETTINGS] menu
[3D SETTINGS] menu
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the
sub-menu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[3D SYSTEM SETTING]
Set a picture display method for use during 3D signal input as necessary for the 3D system in use.
1) Press as to select [3D SYSTEM SETTING].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[SINGLE]
[DUAL (LEFT)]
[DUAL (RIGHT)]
During 3D signal input, sequential frames of images for the right eye and images for the left eye are
alternately displayed.
Only images for the left eye are displayed during 3D signal input.
Only images for the right eye are displayed during 3D signal input.
Note
ff When 2D images are input, 2D images are displayed regardless of [3D SYSTEM SETTING] settings.
[3D SYNC SETTING]
Set the way in which the <3D SYNC 1 IN/OUT> terminal and the <3D SYNC 2 OUT> terminal will be used.
Attention
ff Before connecting external devices to the <3D SYNC 1 IN/OUT> terminal and the <3D SYNC 2 OUT> terminal using cables, complete the
[3D SYNC MODE] setting and confirm that the external devices to be connected are turned off.
ff Changing [3D SYNC MODE] while the cables are connected may result in malfunctions of the projector or the connected external devices.
1) Press as to select [3D SYNC SETTING].
2) Press the <ENTER> button.
ff The precaution message related to [3D SYNC SETTING] is displayed.
3) Press the <ENTER> button.
ff The [3D SYNC SETTING] screen is displayed.
4) Press as to select [3D SYNC MODE].
5) Press qw to switch the item.
[3D SYNC MODE]
[OFF]
Items set in [3D SYNC1]
Not used.
Items set in [3D SYNC2]
Not used.
[1]
3D trigger output
Stereo synch output
[2]
3D trigger output
3D trigger output
[3]
Stereo synch input
Through 3D SYNC1
[4]
Stereo synch input
Stereo synch output
[5]
Stereo synch input
3D trigger output
[6]
Frame synch input
Through 3D SYNC1
[7]
Frame synch input
Stereo synch output
[8]
Frame synch input
3D trigger output
[9]
3D trigger output
Frame synch output
ENGLISH - 91
Chapter 4 Settings — [3D SETTINGS] menu
[3D SYNC MODE]
Items set in [3D SYNC1]
Items set in [3D SYNC2]
[10]
Stereo synch output
Frame synch output
[11]
3D IR TRANSMITTER (+) output
3D IR TRANSMITTER (-) output
6) When [1], [4], [7], or [10] is selected, press as to select [STEREO SYNC OUTPUT DELAY], and press
qw to set the amount of delay output.
[0us] - [25 000 us]
Allows you to set in increments of 10 us.
ff To synchronize multiple projectors to display 3D images, use a frame synch input and output.
Select [9] or [10] for the first projector.
Select [6], [7], or [8] for the second and subsequent projectors.
ff Stereo synchronization is a signal having a 50 % duty cycle where High is for the left eye and Low is for the right eye.
ff “H” is output to the 3D image display and “L” is output to the 2D image display from the terminal for which 3D trigger output is selected.
Note
ff [11] or [3D SYNC MODE] is the setting when the 3D IR transmitter TY-3DTRW of Panasonic is used with the projector. Consult your dealer
regarding the connection method.
[3D SIMUL INPUT SETTING]
Set this item to input and use 3D video signals of the simultaneous system.
1) Press as to select [3D SIMUL INPUT SETTING].
2) Press the <ENTER> button.
ff The [3D SIMUL INPUT SETTING] screen is displayed.
3) Press as to select [LEFT:RGB1 RIGHT:RGB2], [LEFT:HDMI RIGHT:DVI-D], or [LEFT:SDI1 RIGHT:SDI2]
(only for PT‑DZ13KU, PT‑DS12KU).
4) Press qw to switch the setting.
[OFF]
[AUTO]
Cannot use 3D simultaneous.
Displays 3D images of the simultaneous system.
Note
ff When set to [AUTO], 3D images are displayed when the same 3D compatible signals are entered to each input. However, the P IN P status
during P IN P is maintained.
ff This may not function properly for some connected external devices.
ff Certain signals may not function properly.
[3D INPUT FORMAT]
Set the 3D format for the image signals being input.
Set a 3D format that matches the input signal.
1) Press as to select [3D INPUT FORMAT].
2) Press the <ENTER> button.
ff The [3D INPUT FORMAT] screen is displayed.
3) Press as to select a 3D format.
[AUTO]*1
Automatically detects 3D format of input image signals and displays images.
[NATIVE]
Forcibly displays 2D images regardless of input image signals.
[SIMULTANEOUS]*2
[SIDE BY SIDE]
[TOP AND BOTTOM]
[LINE BY LINE]*3
[FRAME SEQUENTIAL]*4
*1
*2
*3
*4
Forcibly displays 3D images in simultaneous system regardless of input video signals.
Forcibly displays 3D images in side by side format regardless of input image signals.
Forcibly displays 3D images in top and bottom format regardless of input image signals.
Forcibly displays 3D images in line by line system regardless of input video signals.
Forcibly displays 3D images in frame sequential format regardless of input image signals.
During DVI‑D or HDMI input only
During 3G‑SDI level B input only
Only while signals other than interlaced signals are input
Only while progressive signals with the vertical scanning frequency of 100 Hz or 120 Hz are input to the <RGB1>/<RGB2>/<DVI-D> terminals
4) Press the <ENTER> button.
92 - ENGLISH
Chapter 4 Settings — [3D SETTINGS] menu
Note
ff When set to [AUTO], [SIMULTANEOUS], [SIDE BY SIDE], [TOP AND BOTTOM], [LINE BY LINE], or [FRAME SEQUENTIAL], 3D images
are not displayed in [3D SIMUL INPUT SETTING]. In [AUTO], however, this only occurs when 3D format can be recognized.
ff This may not function properly for some connected external devices.
[LEFT/RIGHT SWAP]
Display images by inverting the timing of horizontal image switching. Change the settings when there is something wrong with the 3D image
being viewed.
1) Press as to select [LEFT/RIGHT SWAP].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[NORMAL]
[SWAPPED]
Do not change the [NORMAL] setting if the 3D images are displayed correctly.
Select this when left and right 3D images are swapped to be displayed.
Note
ff This is disabled when [3D SYSTEM SETTING] is set to other than [SINGLE].
[3D COLOR MATCHING]
Switches the color matching correction data applied to the displayed image.
1) Press as to select [3D COLOR MATCHING].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[SHARED 2D/3D]
2D signals and 3D signals use the same correction data.
[SEPARATE 2D/3D]
2D signals and 3D signals use different correction data.
Note
ff Switch the setting of [COLOR MATCHING] (x page 96) while inputting the signal to be adjusted.
[3D PICTURE BALANCE]
Correct a shift when the brightness or color differ in the right eye and left eye images.
1) Press as to select [3D PICTURE BALANCE].
2) Press the <ENTER> button.
ff The [3D PICTURE BALANCE] screen is displayed.
3) Press as to select an item, and press qw to adjust the setting.
ff Correct the setting value parts of the right eye image based on the left eye image.
ff For [3D WAVEFORM MONITOR], the left eye and right eye images are divided and displayed in a waveform on the left and right.
[CONTRAST]
Adjusts the contrast of the colors.
[WHITE BALANCE HIGH
RED]
Adjusts the high red white balance.
[WHITE BALANCE HIGH
GREEN]
Adjusts the high green white balance.
[WHITE BALANCE HIGH
BLUE]
Adjusts the high blue white balance.
[BRIGHTNESS]
Adjusts the dark (black) part of the projected image.
[WHITE BALANCE LOW RED] Adjusts the low red white balance.
[WHITE BALANCE LOW
GREEN]
Adjusts the low green white balance.
[WHITE BALANCE LOW
BLUE]
Adjusts the low blue white balance.
[COLOR]
[TINT]
[CLOCK PHASE]
Adjusts the color saturation of the projected image.
Adjusts the skin tone in the projected image.
Adjusts when the screen flickers or outline blurs.
ENGLISH - 93
Chapter 4 Settings — [3D SETTINGS] menu
[3D WAVEFORM MONITOR]
[OFF]
Hides the 3D waveform monitor.
[ON]
Displays the 3D waveform monitor.
Note
ff The [CLOCK PHASE] setting is enabled at simultaneous input of RGB1 and RGB2 to adjust the right eye image.
ff This is disabled when [3D SYSTEM SETTING] is set to other than [SINGLE].
ff This is disabled when [3D TEST PATTERN] is displayed.
ff This is disabled when [3D TEST MODE] is set to other than [NORMAL] or [SIDE BY SIDE].
ff The 3D waveform monitor is displayed only when the [3D PICTURE BALANCE] screen is displayed.
ff The normal waveform monitor cannot be displayed in 3D images.
[DARK TIME SETTING]
Set the black display period to be displayed between the right eye image and the left eye image as necessary for the 3D system used.
1) Press as to select [DARK TIME SETTING].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[0.5 ms]
[1.0 ms]
[1.5 ms]
[2.0 ms]
Set so that the 3D setting is displayed correctly.
[2.5 ms]
[2.7 ms]
Note
ff This is disabled when [3D SYSTEM SETTING] is set to other than [SINGLE].
ff When the setting does not correspond to the 3D system in use, phenomenon such as increased crosstalk and darkening of displayed
images may occur.
[3D FRAME DELAY]
Adjust the timing of the left-right switch of an image.
1) Press as to select [3D FRAME DELAY].
2) Press qw to switch the item.
[0us] - [25 000 us]
Allows you to set in increments of 10 us.
ff The adjustment range depends on the input signal.
[3D TEST MODE]
Set the image display system for use with 3D system adjustments.
1) Press as to select [3D TEST MODE].
2) Press qw to switch the item.
[NORMAL]
[SIDE BY SIDE]
[LEFT/LEFT]
Standard setting.
The left eye image is displayed on the left, next to the right eye image displayed on the right.
Both the left eye image and right eye image display the left eye input signal.
[RIGHT/RIGHT]
Both the left eye image and right eye image display the right eye input signal.
[LEFT/BLACK]
The left eye input signal is displayed in the left eye image and a completely black image is displayed
in the right eye image.
[BLACK/RIGHT]
A completely black image is displayed in the left eye image and the right input signal is displayed in
the right eye image.
Note
ff The [3D TEST MODE] settings return to [NORMAL] when the projector is switched off.
ff This is disabled when [3D SYSTEM SETTING] is set to other than [SINGLE].
ff This is disabled when [3D TEST PATTERN] is displayed.
94 - ENGLISH
Chapter 4 Settings — [3D SETTINGS] menu
[3D TEST PATTERN]
The 3D test pattern can be used to check operation and make adjustments even without a 3D signal.
1) Press as to select [3D TEST PATTERN].
2) Press qw to switch the item.
Menu screen + Entry screen
Menu screen + Left: white/
Right: black
Select a test pattern so that it is easy to check operations and make adjustments.
Menu screen + Left: black/
Right: white
Note
ff The 3D test pattern cannot be displayed when the following inputs are selected.
gg VIDEO input
gg RGB1 input (only when [RGB IN] is set to [Y/C])
ff This is disabled when [3D SYSTEM SETTING] is set to other than [SINGLE].
[SAFETY PRECAUTIONS MESSAGE]
Set to show or hide the safety precautions message related to 3D viewing when the projector is switched on.
1) Press as to select [SAFETY PRECAUTIONS MESSAGE].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[ON]
Shows the safety precautions message related to 3D viewing when the projector is switched on.
[OFF]
Hides the safety precautions message related to 3D viewing when the projector is switched on.
Note
ff Set to [OFF] to hide the safety precautions message related to 3D viewing when the projector is switched on.
ff A confirmation screen is displayed when switched from [ON] to [OFF]. Press qw to select [OK], and press the <ENTER> button to change
the setting to [OFF].
Attention
ff When 3D images are viewed by unspecified number of people for commercial use, display the safety precautions message related to 3D
viewing to notify viewers.
[3D SAFETY PRECAUTIONS]
Show the safety precautions message related to 3D viewing.
1) Press as to select [3D SAFETY PRECAUTIONS].
2) Press the <ENTER> button.
ff The [3D SAFETY PRECAUTIONS] screen is displayed.
ff Press qw to switch the page.
3D SAFETY PRECAUTIONS
If you view 3D images, please note below.
In addition, when 3D images will be viewed
by unspecified number of people
or used for commercial applications,
someone in authority should convey
the following precautions.
To enjoy 3D images safely and comfortably,
please refer to the Operating Instructions
for in-depth description.
1/2
3D SAFETY PRECAUTIONS
Please refrain from viewing 3D images
if you do not feel well or are experiencing
visual fatigue.
Please use the contents which has been
properly made for 3D.
View from at least the recommended distance.
(3 times the effective height of the screen)
Refer to the Operating Instructions
if this message is no longer needed.
CHANGE
CHANGE
MENU
EXIT
2/2
MENU
EXIT
ENGLISH - 95
Chapter 4 Settings — [DISPLAY OPTION] menu
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from
the sub-menu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[COLOR MATCHING]
Correct the color difference between projectors when using multiple projectors simultaneously.
Adjusting the color matching as desired
1) Press as to select [COLOR MATCHING].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
Color matching adjustment is not carried out.
[3COLORS]
Adjusts the three colors [RED], [GREEN], or [BLUE].
[7COLORS]
Adjusts the seven colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE].
[709MODE]
[MEASURED]
Refer to “Adjusting the color matching using a colorimeter” (x page 97) for details about this mode.
3) Select [3COLORS] or [7COLORS], and press the <ENTER> button.
ff The [3COLORS] or [7COLORS] screen is displayed.
4) Press as to select [RED], [GREEN], or [BLUE] ([RED], [GREEN], [BLUE], [CYAN], [MAGENTA],
[YELLOW], or [WHITE] for [7COLORS]).
5) Press the <ENTER> button.
ff The [3COLORS:RED], [3COLORS:GREEN], or [3COLORS:BLUE] screen is displayed.
For [7COLORS], the [7COLORS:RED], [7COLORS:GREEN], [7COLORS:BLUE], [7COLORS:CYAN], [7COLORS:MAGENTA],
[7COLORS:YELLOW], or [7COLORS:WHITE] screen is displayed.
ff Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
6) Press as to select [RED], [GREEN], or [BLUE].
7) Press qw to adjust.
ff The adjustment value changes between 0 and 2 048.
Note
ff Operation when correcting the adjustment color
When the correction color same as the adjustment color is changed: The luminance of the adjustment color changes.
When correction color red is changed: Red is added to or subtracted from the adjustment color.
When correction color green is changed: Green is added to or subtracted from the adjustment color.
When correction color blue is changed: Blue is added to or subtracted from the adjustment color.
ff This adjustment should be carried out by a person who is familiar with the projector or by a service person because a high level of skill is
required to make a successful adjustment.
ff Pressing the <DEFAULT> button will restore the factory default settings for all items.
ff When [COLOR MATCHING] is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER1].
ff Set [3D COLOR MATCHING] (x page 93) to set whether 2D and 3D signals are set separately or whether common data is used. (Only
for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
ff When 2D and 3D settings are set separately, [NATIVE] or [3D] is displayed in the upper right of the menu. (Only for PT‑DZ13KU,
PT‑DS12KU, PT‑DW11KU)
96 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
Adjusting the color matching using a colorimeter
Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN],
[MAGENTA], [YELLOW], or [WHITE] to desired colors.
1) Press as to select [COLOR MATCHING].
2) Press qw to select [709MODE] or [MEASURED].
3) Press the <ENTER> button.
ff The [709MODE] or [MEASURED MODE] screen is displayed.
4) Press as to select [MEASURED DATA].
5) Press the <ENTER> button.
ff The [MEASURED DATA] screen is displayed.
6) Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter.
7) Press as to select a color, and press qw to adjust the setting.
ff Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
8) Once all the input is completed, press the <MENU> button.
ff The [709MODE] or [MEASURED MODE] screen is displayed.
ff When [MEASURED] is selected in Step 2), proceed to Step 9) and enter the coordinates of desired colors.
9) Press as to select [TARGET DATA].
10) Press the <ENTER> button.
ff The [TARGET DATA] screen is displayed.
11) Press as to select a color and press qw to input coordinates for desired colors.
ff Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
12) Once all the input is completed, press the <MENU> button.
Note
ff When [709MODE] is selected in [COLOR MATCHING], the ITU‑R BT.709 standard three primary colors are set as target data.
ff Colors are not displayed properly when target data is a color outside the region of this projector.
ff The [709MODE] may differ slightly from the ITU‑R BT.709 standard colors.
ff Set the [AUTO TESTPATTERN] to [ON] to automatically display a test pattern for use in adjusting the selected adjustment colors.
ff Before using a colorimeter or similar instrument to measure measurement data, set [PICTURE MODE] to [DYNAMIC].
ff A difference in the color coordinates of target data and measurement values obtained from an instrument may occur for certain instruments
and measurement environments used.
ff [AUTO TESTPATTERN] settings change together with the [AUTO TESTPATTERN] of [EDGE BLENDING].
[LARGE SCREEN CORRECTION]
Corrects the phenomenon in which colors that appear lighter when viewed on a large screen viewed from a close distance compared to when
viewed on an average screen size so that colors appear the same.
1) Press as to select [LARGE SCREEN CORRECTION].
2) Press qw to switch the item.
[OFF]
Performs no correction.
[1]
Performs weak correction.
[2]
Performs strong correction.
[SCREEN SETTING]
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
Set the screen size.
When changing the aspect of a projected image, correct to the optimum image position for the set screen. Set as necessary for the screen in
use.
1) Press as to select [SCREEN SETTING].
2) Press the <ENTER> button.
ff The [SCREEN SETTING] screen is displayed.
ENGLISH - 97
Chapter 4 Settings — [DISPLAY OPTION] menu
3) Press qw to switch the [SCREEN FORMAT] item.
ff The items will switch each time you press the button.
Model No.
[SCREEN FORMAT]
[16:10]
PT‑DZ13KU, PT‑DZ10KU
PT‑DS12KU
Range when [SCREEN POSITION] is selected
Cannot be adjusted.
[4:3]
Adjusts the horizontal position between ‑160 and 160.
[16:9]
Adjusts the vertical position between ‑60 and 60.
[4:3]
Cannot be adjusted.
[16:9]
Adjusts the vertical position between ‑132 and 131.
4) Press as to select [SCREEN POSITION].
ff If [SCREEN FORMAT] is set to [16:10] in PT‑DZ13KU and PT‑DZ10KU, or [SCREEN FORMAT] is set to [4:3] in PT‑DS12KU, then
selection and adjustment of [SCREEN POSITION] are not available.
5) Press qw to adjust [SCREEN POSITION].
[AUTO SIGNAL]
Set whether to execute automatic setup of signals automatically.
The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP> button on the remote control
on each occasion if you input unregistered signals frequently at meetings, etc.
1) Press as to select [AUTO SIGNAL].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
Sets the auto signal function to off.
[ON]
Executes automatic setup automatically when images are changed to unregistered signals during
projection.
[AUTO SETUP]
Set this when adjusting a special signal or horizontally long (such as 16:9) signal.
Setting with [MODE]
1) Press as to select [AUTO SETUP].
2) Press the <ENTER> button.
ff The [AUTO SETUP] screen is displayed.
3) Press as to select [MODE].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[DEFAULT]
Standard setting.
[WIDE]
Select when an image aspect is a wide-screen signal, which does not meet the [DEFAULT] settings.
[USER]
Select when receiving a signal with a special horizontal resolution (number of display dots).
ff When [DEFAULT] or [WIDE] is selected, proceed to Step 7).
ff When [USER] is selected, proceed to Step 5).
5) Press as to select [DISPLAY DOTS], and press qw to adjust [DISPLAY DOTS] to the horizontal
resolution of the signal source.
6) Press as to select [MODE].
7) Press the <ENTER> button.
ff Automatic adjustment is executed. [PROGRESS] is displayed while automatically adjusting. When complete, the system returns to the
[AUTO SETUP] screen.
Adjusting position automatically
1) Press as to select [AUTO SETUP].
98 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
2) Press the <ENTER> button.
ff The [AUTO SETUP] screen is displayed.
3) Press as to select [POSITION ADJUST].
4) Press qw to switch the item.
[OFF]
Does not perform automatic adjustment.
[ON]
Adjust the screen position and size when automatic setup is executed.
Adjusting signal level automatically
1) Press as to select [AUTO SETUP].
2) Press the <ENTER> button.
ff The [AUTO SETUP] screen is displayed.
3) Press as to select [SIGNAL LEVEL ADJUST].
4) Press qw to switch the item.
[OFF]
Does not perform automatic adjustment.
[ON]
Adjusts black level (on-screen menu [BRIGHTNESS]) and white level (on-screen menu
[CONTRAST]) when automatic setup is executed.
Note
ff [SIGNAL LEVEL ADJUST] may not function properly unless a still image containing clear blacks and whites is input.
[RGB IN]
Set to match the signal to input to the <RGB 1 IN> terminal.
Setting [RGB1 INPUT SETTING]
1) Press as to select [RGB IN].
2) Press the <ENTER> button.
ff The [RGB IN] screen is displayed.
3) Press as to select [RGB1 INPUT SETTING].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[RGB/YPBPR]
[Y/C]
Select when inputting an RGB signal or YCBCR/YPBPR signals to the <RGB 1 IN> terminal.
Select when inputting a luminance signal and color signal to the <RGB 1 IN> terminal.
Switching the slice level of an input sync signal
1) Press as to select [RGB IN].
2) Press the <ENTER> button.
ff The [RGB IN] screen is displayed.
3) Press as to select [RGB1 SYNC SLICE LEVEL] or [RGB2 SYNC SLICE LEVEL].
4) Press qw to switch the item.
[LOW]
Sets the slice level to [LOW].
[HIGH]
Sets the slice level to [HIGH].
ENGLISH - 99
Chapter 4 Settings — [DISPLAY OPTION] menu
[DVI-D IN]
Switch the setting when the external device is connected to the <DVI-D IN> terminal of the projector and the image is not projected correctly.
1) Press as to select [DVI-D IN].
2) Press the <ENTER> button.
ff The [DVI-D IN] screen is displayed.
3) Press as to select [EDID].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[EDID3]
Recognizes movie-based video signals and still image signals automatically.
[EDID1]
Select mainly when an external device that outputs movie-based video signals (such as a blu-ray disc
player) is connected to the <DVI-D IN> terminal.
[EDID2:PC]
Select mainly when an external device that outputs still image signals (such as a computer) is
connected to the <DVI-D IN> terminal.
5) Press as to select [SIGNAL LEVEL].
6) Press qw to switch the item.
ff The items will switch each time you press the button.
[AUTO]
Automatically sets the signal level.
[0‑255:PC]
Select when an external device (such as a computer) is connected via the DVI‑D terminal output.
[16‑235]
Select when an external device (such as a blu-ray disc player) is connected via the HDMI terminal
output using a conversion cable, etc.
Note
ff The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the
external device regarding the output of the external device.
ff The data for Plug and play will change when the setting is changed. Refer to “List of compatible signals” (x page 175) for a resolution that
supports plug and play.
[HDMI IN]
Switch the setting when the external device is connected to the <HDMI IN> terminal of the projector and the image is not projected correctly.
1) Press as to select [HDMI IN].
2) Press the <ENTER> button.
ff The [HDMI IN] screen is displayed.
3) Press qw to switch the [SIGNAL LEVEL] item.
ff The items will switch each time you press the button.
[AUTO]
Automatically sets the signal level.
[64‑940]
Select when the HDMI terminal of an external device (such as a blu-ray disc player) is connected to
the <HDMI IN> terminal.
[0‑1023]
Select when the DVI‑D terminal output of an external device (such as a computer) is connected to the
<HDMI IN> terminal via a conversion cable or similar cable.
Select also when the HDMI terminal output of a computer or other device is connected to the <HDMI
IN> terminal.
Note
ff The optimal setting varies depending on the output setting of the connected external device. Refer to the operating instructions of the
external device regarding the output of the external device.
ff The HDMI signal level is displayed for every 30 bits of input.
[SDI IN]
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
Set to match the signal to input to the <SDI IN 1>/<SDI IN 2> terminals (PT‑DZ13KU, PT‑DS12KU) or <SDI IN> terminal (PT‑DZ10KU).
100 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
Setting [SDI LINK]
(Only for PT‑DZ13KU, PT‑DS12KU)
1) Press as to select [SDI IN].
2) Press the <ENTER> button.
ff The [SDI IN] screen is displayed.
3) Press as to select [SDI LINK].
4) Press qw to switch the item.
[SINGLE LINK]
[DUAL LINK]
Sets SDI1 input and SDI2 input to single link.
Sets SDI1 input and SDI2 input to dual link.
Setting [SIGNAL LEVEL]
Select the amplitude of the signal to input.
1) Press as to select [SDI IN].
2) Press the <ENTER> button.
ff The [SDI IN] screen is displayed.
3) Press as to select [SIGNAL LEVEL].
4) Press qw to switch the item.
[64‑940]
Normally use this setting.
[4‑1019]
Select when gray is displayed as black.
Setting [BIT DEPTH]
1) Press as to select [SDI IN].
2) Press the <ENTER> button.
ff The [SDI IN] screen is displayed.
3) Press as to select [BIT DEPTH].
4) Press qw to switch the item.
[AUTO]
Automatically select 12 bits or 10 bits.
[12‑bit]
Fix to 12 bits.
[10‑bit]
Fix to 10 bits.
Setting [3G‑SDI MAPPING]
1) Press as to select [SDI IN].
2) Press the <ENTER> button.
ff The [SDI IN] screen is displayed.
3) Press as to select [3G‑SDI MAPPING].
4) Press qw to switch the item.
[AUTO]
Automatically select level A or level B.
[LEVEL A]
Fix to level A.
[LEVEL B]
Fix to level B.
Note
ff Does not operate during SD‑SDI or HD‑SDI input.
ENGLISH - 101
Chapter 4 Settings — [DISPLAY OPTION] menu
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [OSD POSITION]
Set the position of the menu screen (OSD).
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the <ENTER> button.
ff The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [OSD POSITION].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[2]
Sets to the center left of the screen.
[3]
Sets to the bottom left of the screen.
[4]
Sets to the top center of the screen.
[5]
Sets to the center of the screen.
[6]
Sets to the bottom center of the screen.
[7]
Sets to the upper right of the screen.
[8]
Sets to the center right of the screen.
[9]
Sets to the bottom right of the screen.
[1]
Sets to the upper left of the screen.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the <ENTER> button.
ff The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [OSD DESIGN].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[1]
Sets to yellow.
[2]
Sets to blue.
[3]
Sets to white.
[4]
Sets to green.
[5]
Sets to peach.
[6]
Sets to brown.
Setting [OSD MEMORY]
Set hold for the position of the menu screen (OSD) cursor.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the <ENTER> button.
ff The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [OSD MEMORY].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[ON]
Holds the cursor position.
[OFF]
Does not hold the cursor position.
102 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
Note
ff Even if [OSD MEMORY] is set to [ON], the cursor position will not be held when the <MAIN POWER> switch of the projector body is turned
<OFF>.
Setting [INPUT GUIDE]
Set whether to display the input guide (input terminal name, signal name, and memory number currently selected) in the position set in the
[OSD POSITION].
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the <ENTER> button.
ff The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [INPUT GUIDE].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[ON]
Displays the input guide.
[OFF]
Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the <ENTER> button.
ff The [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [WARNING MESSAGE].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[ON]
Displays the warning message.
[OFF]
Hides the warning message.
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press as to select [BACK COLOR].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[BLUE]
Displays the entire projection area in blue.
[BLACK]
Displays the entire projection area in black.
[DEFAULT LOGO]
[USER LOGO]
Displays the Panasonic logo.
Displays the image registered by the user.
Note
ff To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
ENGLISH - 103
Chapter 4 Settings — [DISPLAY OPTION] menu
[STARTUP LOGO]
Set the logo display when the power is turned on.
1) Press as to select [STARTUP LOGO].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[DEFAULT LOGO]
[USER LOGO]
[NONE]
Displays the Panasonic logo.
Displays the image registered by the user.
Disables the startup logo display.
Note
ff The startup logo will disappear in approximately 15 seconds.
ff To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[UNIFORMITY]
Correct the brightness and color unevenness of the entire screen.
Setting each color
1) Press as to select [UNIFORMITY].
2) Press the <ENTER> button.
ff The [UNIFORMITY] screen is displayed.
3) Press as to select [WHITE], [RED], [GREEN], or [BLUE].
4) Press qw to switch.
Parameter
[VERTICAL]
[HORIZONTAL]
Operation
Adjustment
Press the w button.
Deepens upper colors.
Press the q button.
Deepens lower colors.
Press the w button.
Deepens colors on the left.
Press the q button.
Deepens colors on the right.
Range of adjustment
-127 - 127
Setting [PC CORRECTION]
To use the [PC CORRECTION] function, the optional Upgrade Kit (Model No.: ET‑UK20) is required. To purchase the product, consult your
dealer.
1) Press as to select [UNIFORMITY].
2) Press the <ENTER> button.
ff The [UNIFORMITY] screen is displayed.
3) Press as to select [PC CORRECTION].
4) Press qw to switch the item.
[OFF]
Does not use a computer to correct.
[ON]*1
Use a computer to correct the brightness and color unevenness of the entire screen.
*1 Advanced skills are necessary to use computer controls to correct. Consult your dealer.
Note
ff [UNIFORMITY] can be set for each [LAMP SELECT] setting.
ff The [UNIFORMITY] settings are not reset to the factory default when [INITIALIZE] is executed.
104 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
[SHUTTER SETTING]
Set image fade-in and fade-out at opening and closing of the shutter. Set automatic opening and closing of the shutter when power is turned
on.
Setting [FADE-IN] or [FADE-OUT]
1) Press as to select [SHUTTER SETTING].
2) Press the <ENTER> button.
ff The [SHUTTER SETTING] screen is displayed.
3) Press as to select [FADE-IN] or [FADE-OUT].
4) Press qw to switch the item.
Item
Adjustment
[OFF]
[FADE-IN]
[FADE-OUT]
[0.5 s] - [10.0 s]
Does not set fade-in or fade-out.
Allows you to set the fade-in or fade-out time.
Select an item from [0.5 s] to [4.0 s], [5.0 s], [7.0 s], and [10.0 s].
[0.5 s] - [4.0 s] can be selected in increments of 0.5.
Note
ff Press the <SHUTTER> button on the remote control or the control panel during fade-in or fade-out to cancel the fade operation.
Setting [STARTUP]
1) Press as to select [SHUTTER SETTING].
2) Press the <ENTER> button.
ff The [SHUTTER SETTING] screen is displayed.
3) Press as to select [STARTUP].
4) Press qw to switch the item.
[OPEN]
Projection begins with the shutter open when the power is turned on.
[CLOSE]
Projection begins with the shutter close when the power is turned on.
[FREEZE]
Pause the projected image temporarily regardless of the playback of the external device.
1) Press as to select [FREEZE].
2) Press the <ENTER> button.
ff Press the <MENU> button to release.
Note
ff [FREEZE] is displayed on the screen when video is paused.
[WAVEFORM MONITOR]
Use the input signals from a connected external device to display in a waveform. Check whether video output (luminance) signal level is within
the recommended range for the projector and adjust.
1) Press as to select [WAVEFORM MONITOR].
2) Press qw to switch the item.
[OFF]
Does not display the waveform monitor.
[ON]
Displays the waveform monitor.
3) Press the <MENU> button two times to clear.
4) Press as to select any horizontal line.
ENGLISH - 105
Chapter 4 Settings — [DISPLAY OPTION] menu
5) Press the <ENTER> button to switch the Select line to either luminance, red, green, or blue.
ff Line selection items switch each time the <ENTER> is pressed only when the waveform monitor is displayed.
“Select line (luminance)”
“Select line (red)”
“Select line (green)”
“Select line (blue)”
Displayed in white waveform.
Displayed in red waveform.
Displayed in green waveform.
Displayed in blue waveform.
Note
ff Setting is also available from [FUNCTION BUTTON] (x page 121).
ff Waveform monitor cannot be displayed in [P IN P].
ff The waveform monitor turns off when [P IN P] is executed during waveform monitoring.
ff The waveform monitor is not displayed when on-screen display is hidden (off).
ff To display the waveform monitor in 3D images, use [3D WAVEFORM MONITOR]. (Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
Adjusting the waveform
Signal level
Project the luminance adjustment signal of a commercial test disk (0 % (0 IRE or 7.5 IRE) – 100 % (100 IRE)) and adjust.
Image displayable area
Screen position
1) Select “Select line (luminance)” on the waveform monitor.
2) Adjust black level.
ff Use [BRIGHTNESS] in the on-screen menu [PICTURE] to adjust the black level 0 % of the video signal to the 0 % position of the
waveform monitor.
3) Adjust white level.
ff Use [CONTRAST] in the on-screen menu [PICTURE] to adjust the white level 100 % of the video signal to the 100 % position of the
waveform monitor.
Adjusting red, green, and blue
1) Set [COLOR TEMPERATURE] to [USER1] or [USER2] (x page 72).
2) Select “Select line (red)” on the waveform monitor.
3) Adjust dark red areas.
ff Use [RED] in [WHITE BALANCE LOW] to adjust the black level 0 % of the video signal to the 0 % position of the waveform monitor.
4) Adjust bright red areas.
ff Use [RED] in [WHITE BALANCE HIGH] to adjust the white level 100 % of the video signal to the 100 % position of the waveform
monitor.
5) Use the procedure for [RED] to adjust [GREEN] and [BLUE].
Note
ff Before adjusting the black level for DVI‑D signals, HDMI signals, and SDI signals, confirm that the [SIGNAL LEVEL] setting is correct.
106 - ENGLISH
Chapter 4 Settings — [DISPLAY OPTION] menu
[CUT OFF]
Each red, green, and blue color component can be removed.
1) Press as to select [CUT OFF].
2) Press the <ENTER> button.
ff The [CUT OFF] screen is displayed.
3) Press as to select [RED], [GREEN], or [BLUE].
4) Press qw to switch the item.
[OFF]
Disables cutoff.
[ON]
Enables cutoff.
Note
ff When input is switched or a signal is switched, the cutoff setting returns to its original setting (off).
ENGLISH - 107
Chapter 4 Settings — [PROJECTOR SETUP] menu
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item
from the sub-menu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous
control or individual control via a single remote control.
1) Press as to select [PROJECTOR ID].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[ALL]
Select when controlling projectors without specifying an ID number.
[1] - [64]
Select when specifying an ID number to control individual projector.
Note
ff To specify an ID number for individual control, the ID number of a remote control must match the ID number of the projector.
ff When the ID number is set to [ALL], the projector will operate regardless of the ID number specified during remote control or computer
control.
If multiple projectors are set up side by side with IDs set to [ALL], they cannot be controlled separately from the projectors with other ID
numbers.
ff Refer to “Setting the remote control ID numbers” (x page 28) for how to set the ID number on the remote control.
[PROJECTION METHOD]
Set the projection method in accordance with the installation status of the projector.
Change the projection method if the screen display is upside down or inverted.
1) Press as to select [PROJECTION METHOD].
2) Press the <ENTER> button.
ff The [PROJECTION METHOD] screen is displayed.
3) Press as to select the projection method.
[FRONT/FLOOR]
When installing the projector on the desk, etc., in front of the screen
[FRONT/CEILING]
When installing the projector in front of the screen using the Ceiling Mount Bracket for Projectors
(optional)
[REAR/FLOOR]
When installing the projector on the desk, etc., behind the screen (with a translucent screen)
[REAR/CEILING]
When installing the projector behind the screen (with a translucent screen) using the Ceiling Mount
Bracket for Projectors (optional)
4) Press the <ENTER> button.
5) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
Attention
ff When the [PROJECTION METHOD] setting is changed, confirm that [COOLING CONDITION] (x page 109) is set correctly.
108 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
[COOLING CONDITION]
Change the fan control depending on the direction of projection.
Set [COOLING CONDITION] according to the projection direction, but set it to [AUTO] normally. Using the projector with incorrect setting may
shorten the life of the lamp.
[VERTICAL UP SETTING]
[FLOOR SETTING]
30°
30°
30°
30°
[CEILING SETTING]
[VERTICAL DOWN SETTING]
: Projection direction
1) Press as to select [COOLING CONDITION].
2) Press the <ENTER> button.
ff The [COOLING CONDITION] screen is displayed.
3) Press as to select a cooling condition.
ff When [AUTO] is selected, the cooling conditions of [FLOOR SETTING], [CEILING SETTING], [VERTICAL UP SETTING], and
[VERTICAL DOWN SETTING] are set automatically.
You can check the setting from [COOLING CONDITION] on the [STATUS] screen.
4) Press the <ENTER> button.
5) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
Note
ff This item cannot be set when using the optional Replacement lamp unit (for portrait mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW
(2 pcs)). (Setting is fixed to [PORTRAIT SETTING].)
[HIGH ALTITUDE MODE]
Set to [ON] when using the projector at high altitudes between 1 400 m (4 593') or higher and lower than 2 700 m (8 858') above sea level.
1) Press as to select [HIGH ALTITUDE MODE].
2) Press qw to switch the item.
[OFF]
When using at a location lower than 1 400 m (4 593') above sea level
[ON]
When using at high altitudes (1 400 m (4 593') or higher and lower than 2 700 m (8 858') above sea
level)
3) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
Note
ff The speed of the fan increases and the operation sound becomes louder when set to [ON].
ff This item cannot be set when using the optional Smoke cut filter (Model No.: ET‑SFD320). (Setting is fixed to [OFF].) Use it at elevations
lower than 1 400 m (4 593') above sea level.
[LAMP SELECT]
Select the lamp to be turned on from the two built-in luminous lamps according to the use conditions or purposes.
1) Press as to select [LAMP SELECT].
2) Press qw to switch the item.
[DUAL]
Two lamps will light.
[SINGLE]
One lamp will light. (The lamp with shorter runtime will automatically light.)
[LAMP1]
Lamp 1 will light.
[LAMP2]
Lamp 2 will light.
ENGLISH - 109
Chapter 4 Settings — [PROJECTOR SETUP] menu
3) Press the <ENTER> button.
Note
ff For a certain time after [LAMP SELECT] is switched, [LAMP SELECT] cannot be switched again, because the speed of the lamp
replacement cycle will increase. Repeatedly switching [LAMP SELECT] in a short time will also increase the speed of the lamp replacement
cycle.
ff The colors of the items indicate the status.
Green
Current setting
Yellow
Current setting (when there is a lamp that cannot turn on or failed to turn on)
Red
White
Lamp that has failed to turn on
Any other status
ff When a lamp cannot turn on or the runtime exceeds 2 500 hours*1*2, the lamp is turned off and the other lamp is turned on. The projector
enters standby mode when the runtime of both lamps exceeds 2 500 hours*1*2.
*1 500 hours when using the optional Replacement lamp unit (for portrait mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)).
*2 3 500 hours for PT‑DZ10KU.
ff Ensure that lamp units not to be turned on are also installed.
ff More lamps than the specified number of lamps light temporarily to prevent decreased illuminance when a lamp is switched.
[LAMP RELAY]
Switch the lamp to be turned on automatically by specifying the day of the week and time.
The degradation of the lamp due to continuous usage can be reduced by automatically switching the lamp to be turned on when using the
projector continuously for a week or more.
1) Press as to select [LAMP RELAY].
2) Press qw to switch the item.
[OFF]
Disables lamp relay.
[24H]
Switches the lamp daily.
[1WEEK]
Switches the lamp weekly.
ff When [24H] or [1WEEK] is selected, proceed to Step 3).
3) Press as to select [TIME].
4) Press the <ENTER> button.
ff Enters adjustment mode (the display is blinking).
5) Press qw to select “hour” or “minute”, and press as or the number (<0> - <9>) buttons to set a
time.
ff Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in
increments of one minute between 00 and 59.
6) Press the <ENTER> button.
ff The adjusted time is established.
ff When [1WEEK] is selected in Step 2), proceed to Step 7).
7) Press as to select [DAY OF THE WEEK].
8) Press qw to switch the item.
[SUNDAY]
[MONDAY]
[TUESDAY]
[WEDNESDAY]
Switches the lamp automatically on the set day of the week.
[THURSDAY]
[FRIDAY]
[SATURDAY]
Note
ff The [LAMP RELAY] function is enabled when [SINGLE] or [DUAL] is selected in [LAMP SELECT].
ff When [DUAL] is selected in [LAMP SELECT], only one lamp will light for four hours from the specified time.
ff The operating time will be the local time. (x page 121)
110 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
[LAMP POWER]
Switch the brightness of the lamp according to the operating environment of the projector or the purpose.
1) Press as to select [LAMP POWER].
2) Press qw to switch the item.
[HIGH]*1
Select when high luminance is required.
[MIDDLE]*1
Select when using the projector with slightly reduced luminance compared to [HIGH].
[NORMAL]*2
Select when high luminance is required.
[ECO]
Select when high luminance is not required.
*1 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU
*2 Only for PT‑DZ10KU
Note
ff You can reduce power consumption and operation noise, and extend the life of the lamps by setting to [MIDDLE] rather than [HIGH], or by
setting to [ECO] rather than [MIDDLE] or [NORMAL].
[BRIGHTNESS CONTROL]
The projector is equipped with a luminance sensor to measure brightness and functions to correct screen brightness resulting from changes in
lamp brightness.
Use the projector when using multiple projectors to display on multiple screens to reduce changes in overall brightness of the multiple screens
due to lamp degradation and suppress variation in brightness to preserve uniformity.
Setting [BRIGHTNESS CONTROL GAIN]
Adjust the brightness when displaying multiple screens using multiple projectors.
1) Press as to select [BRIGHTNESS CONTROL].
2) Press the <ENTER> button.
ff The [BRIGHTNESS CONTROL] screen is displayed.
3) Press as to select [BRIGHTNESS CONTROL GAIN].
4) Press qw to adjust.
Adjustment
Operation
Maximum amount of
brightness correction
Brightness
Press the w button.
The screen becomes brighter.
The maximum amount of
correction is reduced.
Press the q button.
The screen becomes darker.
The maximum amount of
correction is increased.
Range of adjustment
20 % - 100 %
Note
ff When using only one projector, the value obtained by subtracting the value of the [BRIGHTNESS CONTROL GAIN] from 100 % is the
maximum amount of brightness correction. Brightness cannot be corrected through brightness control since the maximum amount of
correction becomes 0 % when [BRIGHTNESS CONTROL GAIN] is at 100 %.
ff Luminance will be unsteady for eight minutes after a lamp is turned on. Make adjustments at least 8 minutes after starting projection.
ff The result of [BRIGHTNESS CONTROL GAIN] adjustments is reflected on all image signals, internal test patterns, and on-screen menus.
ff The [BRIGHTNESS CONTROL GAIN] setting is enabled even if [BRIGHTNESS CONTROL SETUP] is [OFF].
Setting [BRIGHTNESS CONTROL SETUP]
Set brightness control operation.
1) Press as to select [BRIGHTNESS CONTROL].
2) Press the <ENTER> button.
ff The [BRIGHTNESS CONTROL] screen is displayed.
3) Press as to select [BRIGHTNESS CONTROL SETUP].
4) Press the <ENTER> button.
ff The [BRIGHTNESS CONTROL SETUP] screen is displayed.
ENGLISH - 111
Chapter 4 Settings — [PROJECTOR SETUP] menu
5) Press as to select [MODE].
6) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
[AUTO]
[PC]
Does not correct the brightness of the screen by the brightness sensor.
Corrects the brightness of the screen by the brightness sensor.
Automatically corrects screen brightness when lamp brightness changes.
Synchronizes nine or more projectors through a computer using the dedicated software “Multi
Projector Monitoring & Control Software”*1.
*1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM.
ff When [AUTO] is selected, proceed to Step 7).
7) Press as to select [LINK].
8) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
[GROUP A]
[GROUP B]
[GROUP C]
[GROUP D]
Performs corrections by the brightness sensor in one projector without synchronizing with the other
projectors.
The period, in which the constant brightness kept by the small value of [BRIGHTNESS CONTROL
GAIN], is prolonged.
Synchronizes corrections in multiple projectors by the brightness sensor.
You can set up to four groups (A to D) within the same subnet by using the network function.
You can also register and synchronize up to eight projectors in one group.
9) Press as to select [CALIBRATION TIME].
10) Press the <ENTER> button.
ff Enters adjustment mode (the display is blinking).
11) Press qw to select “hour” or “minute”, and press as or the number (<0> - <9>) buttons to set a
time.
ff Selecting “hour” allows setting of only the hour in increments of one hour, and selecting “minute” allows setting of only the minute in
increments of one minute between 00 and 59.
ff If you do not specify the time, select [OFF] between 23 and 00 o’clock or between 59 and 00 minutes.
12) Press the <ENTER> button.
ff [CALIBRATION TIME] is set.
ff Brightness is measured at the specified time. Dynamic iris is fixed to open during measurement.
13) Press as to select [CALIBRATION MESSAGE].
14) Press qw to switch the item.
ff The items will switch each time you press the button.
[ON]
Messages are displayed during calibration.
[OFF]
Messages are not displayed during calibration.
15) Press as to select [APPLY].
16) Press the <ENTER> button.
ff The set [MODE] and [LINK] are enabled, and LAMP RELAY screen alert is displayed when the [LAMP RELAY] setting is [OFF]. When
[CALIBRATION MESSAGE] is set to [ON], a calibration running message is displayed which will automatically disappear 30 seconds
after calibration completes.
ff If the <ENTER> button is pressed with [MODE] in [BRIGHTNESS CONTROL SETUP] set to other than [OFF], the brightness of the
lamp at the time the button was pressed is recorded as the standard brightness.
ff If the <ENTER> button is pressed when [LINK] is set from [GROUP A] to [GROUP D], the group name is displayed on the screens of
projectors that have been set in the same group.
LINK
112 - ENGLISH
GROUP A
Chapter 4 Settings — [PROJECTOR SETUP] menu
Note
ff When [MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], keep the shutter open for at least two minutes to perform the
brightness sensor calibration after completed the [BRIGHTNESS CONTROL SETUP] setting.
ff If the shutter is closed within approx. 10 minutes after the lamp has turned on while [MODE] in [BRIGHTNESS CONTROL SETUP] is set to
[AUTO] or [PC], brightness cannot be measured. Therefore, brightness may be corrected approx. two minutes after the shutter opens.
ff When [MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] or [PC], the lamp brightness is automatically measured eight minutes
after the lamp is turned on, and correction is performed so that the screen brightness will be the same as the standard brightness when the
brightness control is adjusted. Lamp brightness cannot be measured during the eight minutes after it is turned on because it is not steady.
ff If a lamp turns off or lamp relay is performed while [MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LAMP SELECT] is
set to [DUAL], brightness is corrected to the extent possible one minute later.
ff When [MODE] in [BRIGHTNESS CONTROL SETUP] is set to [AUTO] and [LINK] is set to [OFF], brightness will be corrected until it reaches
the maximum amount of correction.
ff The variation in brightness may increase due to dust accumulating on the lens, screen, or inside the projector, depending on the installation
environment of the projector.
ff Adjust brightness control again when lamp degradation causes increased variation in brightness or a lamp is replaced.
ff For continued use longer than 24 hours, set the [BRIGHTNESS CONTROL SETUP] to [CALIBRATION TIME], or set [LAMP RELAY]
(x page 110). If it is not set, correction will not be performed automatically.
ff Brightness control and iris operate simultaneously, but the iris is fully open and does not operate while a brightness measurement is
performed.
ff The [CALIBRATION TIME] setting will be reflected at the time when you enter the time.
ff The [CALIBRATION MESSAGE] setting will be reflected at the time when items are switched using qw.
Displaying [BRIGHTNESS CONTROL STATUS]
Display the brightness control status.
1) Press as to select [BRIGHTNESS CONTROL].
2) Press the <ENTER> button.
ff The [BRIGHTNESS CONTROL] screen is displayed.
3) Press as to select [BRIGHTNESS CONTROL STATUS].
4) Press the <ENTER> button.
ff The [BRIGHTNESS CONTROL STATUS] screen is displayed.
[BRIGHTNESS CONTROL STATUS] screen display example
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[OFF]
The screen shows the status that the brightness control is disabled.
BRIGHTNESS CONTROL STATUS
MODE
PROJECTOR
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[AUTO] and [LINK] is set to [OFF]
The screen shows the status of the brightness control in one
projector
BRIGHTNESS CONTROL STATUS
OFF
LINK
1
OFF
PROJECTOR
5
1
6
MENU
RETURN
MENU
RETURN
ENGLISH - 113
Chapter 4 Settings — [PROJECTOR SETUP] menu
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[AUTO] and [LINK] is set from [GROUP A] to [GROUP D]
The screen shows the status of the brightness control of
synchronized projectors (up to eight units), including the projector
being controlled through the on-screen menu.
BRIGHTNESS CONTROL STATUS
MODE
PC
PROJECTOR
BRIGHTNESS CONTROL STATUS
LINK
When [MODE] of [BRIGHTNESS CONTROL SETUP] is set to
[PC]
GROUP A
PROJECTOR
192. 168. 30. 2
1:
PROJECTOR2
192. 168. 30. 3
2:
PROJECTOR3
192. 168. 30. 4
3:
1
2
3
5
1
6
MENU
RETURN
4
4:
5:
6:
7:
5
UPDATE
7
MENU SELECT
8
1 Display the name of the projector.
2 Display the synchronized group.
3 Display the IP address of the projector.
4 Display the names and IP addresses of projectors in same group detected over the network.
5 Display the status by color.
Green: There is an allowance for brightness correction.
Yellow: There is little allowance for brightness correction.
Red: There is a brightness control error.
6 Display error detailed messages.
7 Display error messages.
When the message [Failed to apply BRIGHTNESS CONTROL to some projectors.] appears, it means that synchronization with the
projector displayed in red has failed.
Press as to select the projector displayed in red, and press the <ENTER> button to display the error details.
8 Update to the latest status information.
rrError details
Error message
Measures to take
[Exceed maximum number of
projectors.]
ff Limit the number of projectors in one group to eight.
ff When synchronizing nine or more projectors, use the dedicated software “Multi Projector
Monitoring & Control Software”*1 through a computer.
[Please check the COMMAND
CONTROL setting.]
ff Set [NETWORK CONTROL] → [COMMAND CONTROL] to [ON] for the projector in error.
ff Set [NETWORK CONTROL] → [COMMAND PORT] of all projectors to be linked to the same value.
[Please check the USER NAME
and PASSWORD in the COMMAND
CONTROL setting.]
ff Assign the same [User name] and [Password] strings that have web control administrator rights to
all projectors to be linked.
[Cannot apply BRIGHTNESS
CONTROL. Please check projector
status.]
ff The projector is in standby. Switch on the power.
[Brightness Sensor Error]
ff There is a problem with the brightness sensor. If problems persist even after switching on the
power, consult your dealer.
*1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM.
Note
ff If the synchronized projectors are not displayed in the list, check the following:
gg Are there devices with the same IP address on the network?
gg Are the LAN cables connected correctly? (x page 136)
gg Are the subnets of the projectors the same?
gg Are the same [LINK] settings applied to a group?
ff Refer to [NETWORK SETUP] (x page 135) or “[Network config] page” (x page 143) on how to change the projector name.
114 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
Brightness control adjustment procedure example
The steps exemplify an adjustment to link the brightness of eight projectors connected in a network.
1) Connect all projectors to the hub using LAN cables. (x page 136)
2) Switch on all projectors and start projection.
3) Set [LAMP SELECT] to either [DUAL] or [SINGLE] for all projectors.
4) Set [MODE] of [BRIGHTNESS CONTROL SETUP] to [OFF], and select [APPLY], and then press the
<ENTER> button.
5) Set [SUBNET MASK] and [IP ADDRESS] in each projector.
ff To be able to communicate over the network, set the same value in [SUBNET MASK] for all projectors and set a different value in [IP
ADDRESS] for each projector.
6) Wait for at least eight minutes after starting projection until the lamp brightness becomes steady.
7) Set all items in the [PICTURE] menu of all projectors to the same values.
8) Adjust [COLOR MATCHING] to match colors.
9) Display the internal test pattern “All white” in all projectors.
10) Set [BRIGHTNESS CONTROL GAIN] to 100 % in all projectors.
11) Set [BRIGHTNESS CONTROL GAIN] to 90 % in the projector with the least brightness.
12) Adjust [BRIGHTNESS CONTROL GAIN] in each projector.
ff Adjust [BRIGHTNESS CONTROL GAIN] of all the other projectors so that the brightness is matched to the projector of which
[BRIGHTNESS CONTROL GAIN] is set to 90 %.
13) Set [MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
14) Select [APPLY] of [BRIGHTNESS CONTROL SETUP] and press the <ENTER> button in all projectors.
ff Brightness control starts.
Note
ff Brightness is automatically corrected each time the lamp blinks when the power is switched on or off.
ff Adjust brightness control again when variation in brightness has increased or a lamp is replaced.
[STANDBY MODE]
Set the power consumption during the standby.
1) Press as to select [STANDBY MODE].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[NORMAL]
[ECO]
Use this setting to use the network function during standby.
Use this setting to reduce power consumption during standby.
Note
ff When set to [ECO], network functions, <SERIAL OUT> terminal, and some RS‑232C commands are not available during standby.
ff When set to [ECO], it may take approx. 10 seconds longer before the projector starts projecting after the power is turned on, compared with
when [NORMAL] is set.
ENGLISH - 115
Chapter 4 Settings — [PROJECTOR SETUP] menu
[SCHEDULE]
Set the command execution schedule for each day of the week.
Enabling/disabling the schedule function
1) Press as to select [SCHEDULE].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
Disables the schedule function.
[ON]
Enables the schedule function. Refer to “How to assign a program” (x page 116) or “How to set a
program” (x page 116) for how to set the schedule.
Note
ff When [SCHEDULE] is set to [ON], the [STANDBY MODE] setting is forcibly switched to [NORMAL], and the setting cannot be changed.
Even if [SCHEDULE] is then set to [OFF] when in this state, the setting of [STANDBY MODE] remains at [NORMAL].
How to assign a program
1) Press as to select [SCHEDULE].
2) Press qw to select [ON], and press the <ENTER> button.
ff The [SCHEDULE] screen is displayed.
3) Select and assign program to each day of week.
ff Press as to select the day of week, and press qw to select a program number.
ff You can set the program from No.1 to No.7. “‑ ‑ ‑” indicates that the program number has not been set.
How to set a program
Set up to 16 commands to each program.
1) Press as to select [SCHEDULE].
2) Press qw to select [ON], and press the <ENTER> button.
ff The [SCHEDULE] screen is displayed.
3) Press as to select [PROGRAM EDIT].
4) Press qw to select a program number, and press the <ENTER> button.
5) Press as to select a command number, and press the <ENTER> button.
ff You can change the page using qw.
6) Press asqw to select [TIME], and press the <ENTER> button.
7) Press qw to select “hour” or “minute”, and press as or the number (<0> - <9>) buttons to set a
time, and then press the <ENTER> button.
8) Press asqw to select [COMMAND].
9) Press qw to switch the item.
ff The items will switch each time you press the button.
ff For the detailed settings of [COMMAND], the details set in Step 11) are displayed.
[COMMAND]
Detailed settings of
[COMMAND]
Description
[POWER ON]
―
Switches on the projector.
[STANDBY]
―
Enters standby.
[SHUTTER]
116 - ENGLISH
[OPEN]
Opens the shutter.
[CLOSE]
Closes the shutter.
Chapter 4 Settings — [PROJECTOR SETUP] menu
Detailed settings of
[COMMAND]
[COMMAND]
[INPUT]
[LAMP SELECT]
[VIDEO]
Switches the input to VIDEO.
[RGB1]
Switches the input to RGB1.
[RGB2]
Switches the input to RGB2.
[DVI‑D]
Switches the input to DVI‑D.
[HDMI]
Switches the input to HDMI.
[SDI1]*1
(PT‑DZ13KU, PT‑DS12KU)
Switches the input to SDI1.
(PT‑DZ10KU)
Switches the input to SDI.
[SDI2]*2
Switches the input to SDI2.
[DUAL]
Turns on two lamps.
[SINGLE]
[HIGH]*3
[LAMP POWER]
[P IN P]
*1
*2
*3
*4
Description
Turns on one lamp. (The lamp with shorter runtime will
automatically light.)
Sets the lamp brightness to high luminance.
[MIDDLE]*3
Sets the lamp brightness to slightly lower luminance compared to
[HIGH].
[NORMAL]*4
Sets the lamp brightness to high luminance.
[ECO]
Sets the lamp brightness to low luminance.
[OFF]
P IN P function is not used.
[USER1]
Lays out the sub-screen with the settings of [USER1].
[USER2]
Lays out the sub-screen with the settings of [USER2].
[USER3]
Lays out the sub-screen with the settings of [USER3].
Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU
Only for PT‑DZ13KU, PT‑DS12KU
Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU
Only for PT‑DZ10KU
10) Press the <ENTER> button.
ff The [COMMAND] detailed screen is displayed.
11) Press as to select a [COMMAND].
ff For [COMMAND] which requires detailed settings, the items of the detailed settings will switch each time you press qw.
12) Press the <ENTER> button.
ff The command is fixed and n is displayed at the left of the selected command.
ff After the command is fixed, press the <MENU> button to close the detailed setting screen.
13) Press asqw to select [STORE], and press the <ENTER> button.
Note
ff If you attempt to register the setting that would make the lamp turn on for a short time, an error message will be displayed on the screen.
Set the time and command again.
ff To delete a command already set, press the <DEFAULT> button on the Step 5) screen, or select [DELETE] on the Step 6) screen and press
the <ENTER> button.
ff If multiple commands have been set for the same time, they are executed in chronological order starting from the smallest command
number.
ff The operating time will be the local time. (x page 121)
ff If an operation is executed with the remote control or control panel of the projector or with a control command before the command set in
[SCHEDULE] is executed, the command set with this function may not be executed.
[STARTUP INPUT SELECT]
Set the input when the projector is switched on to start projection.
1) Press as to select [STARTUP INPUT SELECT].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[LAST USED]
Keeps the input selected last.
[VIDEO]
Sets the input to VIDEO.
[RGB1]
Sets the input to RGB1.
[RGB2]
Sets the input to RGB2.
[DVI‑D]
Sets the input to DVI‑D.
ENGLISH - 117
Chapter 4 Settings — [PROJECTOR SETUP] menu
[HDMI]
[SDI1]*1/[SDI]*2
[SDI2]*1
Sets the input to HDMI.
Sets the input to SDI/SDI1.
Sets the input to SDI2.
*1 Only for PT‑DZ13KU, PT‑DS12KU
*2 Only for PT‑DZ10KU
[RS-232C]
Set the communication conditions of the <SERIAL IN>/<SERIAL OUT> terminal.
Setting the communication condition of the <SERIAL IN> terminal
1) Press as to select [RS-232C].
2) Press the <ENTER> button.
ff The [RS-232C] screen is displayed.
3) Press as to select [(IN) BAUDRATE].
4) Press qw to switch the item.
ff The items will switch each time you press the button.
[9600]
[19200]
Select the proper speed.
[38400]
5) Press as to select [(IN) PARITY].
6) Press qw to switch the item.
ff The items will switch each time you press the button.
[NONE]
[EVEN]
Select the parity condition.
[ODD]
Setting the communication condition of the <SERIAL OUT> terminal
1) Press as to select [RS-232C].
2) Press the <ENTER> button.
ff The [RS-232C] screen is displayed.
3) Press as to select [(OUT) BAUDRATE].
4) Press qw to switch the item.
[9600]
[19200]
Select the proper speed.
[38400]
5) Press as to select [(OUT) PARITY].
6) Press qw to switch the item.
ff The items will switch each time you press the button.
[NONE]
[EVEN]
Select the parity condition.
[ODD]
Setting the response
1) Press as to select [RS-232C].
118 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
2) Press the <ENTER> button.
ff The [RS-232C] screen is displayed.
3) Press as to select [RESPONSE(ID ALL)].
4) Press qw to switch the item.
[ON]
Returns the response when the ID setting is ALL.
[OFF]
Does not return the response when the ID setting is ALL.
5) Press as to select [GROUP].
6) Press qw to switch the item.
[A] - [Z]
Controls multiple projectors simultaneously by sending the ID of RS‑232C. You can set groups from
[A] to [Z]. The projector responds when the ID of RS‑232C matches the setting.
7) Press as to select [RESPONSE(ID GROUP)].
8) Press qw to switch the item.
[ON]
Returns the response when the ID setting is GROUP.
[OFF]
Does not return the response when the ID setting is GROUP.
Note
ff Refer to “<SERIAL IN>/<SERIAL OUT> terminal” (x page 169).
[STATUS]
Display the status of the projector.
1) Press as to select [STATUS].
2) Press the <ENTER> button.
ff The [STATUS] screen is displayed.
3) Press qw to switch the pages.
ff The page will change each time you press the button.
[INPUT]
[SIGNAL NAME]
[SIGNAL FREQUENCY]
[PROJECTOR RUNTIME]
Displays the input terminal currently selected.
Displays the input signal name.
Displays the frequency of the input signal.
Displays the operation times of the projector.
[LAMP1]*1
Displays the runtime and status of Lamp 1.
[LAMP2]*1
Displays the runtime and status of Lamp 2.
[INTAKE AIR TEMP.]
[OPTICS MODULE TEMP.]
[AROUND LAMP TEMP.]
[PROJECTOR TYPE]
[SERIAL NUMBER]
[LAMP UNIT MODEL NO.]
Displays the status of the air intake temperature of the projector.
Displays the status of the internal temperature of the projector.
Displays the status of the temperature around the lamps of the projector.
Displays the type of the projector.
Displays the serial number of the projector.
Displays the model no. of the lamp unit.
[LAMP1 SERIAL NUMBER]
Displays the serial number of the lamp 1.
[LAMP2 SERIAL NUMBER]
Displays the serial number of the lamp 2.
[MAIN VERSION]
Displays the main version of the firmware of the projector.
[SUB VERSION]
Displays the sub version of the firmware of the projector.
[NETWORK VERSION]
Displays the firmware version of the projector.
[UPGRADE(ET‑UK20)]
Displays the activation status based on the Upgrade Kit.
[POWER ON TIMES]
[ON COUNT]
[LAMP1 ON]
[LAMP2 ON]
[LAMP1]
Displays runtime in detail.
[LAMP2]
Displays runtime in detail.
[NUMBER OF REGISTERED
SIGNAL]
Displays the number of times the power is turned on.
Displays the number of times the lamp is turned on.
Displays the number of registered signals.
ENGLISH - 119
Chapter 4 Settings — [PROJECTOR SETUP] menu
[REMOTE2 STATUS]
[AC VOLTAGE]
[COOLING CONDITION]
Displays the control status of the REMOTE2.
Displays the status of the AC voltage.
Displays the set cooling conditions. When [AUTO] is set, automatically recognized result is displayed.
[MEMORY NO.]
Displays the memory number of the input signal.
[INPUT]
Displays the input terminal currently selected.
[SIGNAL NAME]
Displays the input signal name.
[SIGNAL FREQUENCY]
[SYNC.STATE]
Displays the synch polarity of the input signal.
[V.SYNC WIDTH]
[SIGNAL INFORMATION]
Displays the frequency of the input signal.
Displays the vertical sync signal pulse width of the input signal.
[SCAN TYPE]
Displays the scan type of the input signal.
[TOTAL DOTS]
Displays the total dot count of the input signal.
[DISPLAY DOTS]
[TOTAL LINES]
Displays the number of input signal display dots.
Displays the total line count of the input signal.
[DISPLAY LINES]
[SAMPLING]
Displays the number of input signal display lines.
Displays the sampling information of the input signal.
[SIGNAL LEVEL]
[BIT DEPTH]
Displays the signal level of the input signal.
Displays the gradation of the input signal.
*1 The lamp runtime to be displayed is real time. The following conversion is required to calculate the rough estimate for lamp replacement.
Model No.
Formula for lamp replacement time (rough estimate)
PT‑DZ13KU
PT‑DS12KU
PT‑DW11KU
(A x 56 + B x 40 + C x 35) ÷ 56
ff A: Runtime when [LAMP POWER] is set to [HIGH]
ff B: Runtime when [LAMP POWER] is set to [MIDDLE]
ff C: Runtime when [LAMP POWER] is set to [ECO]
The formula when the optional Replacement lamp unit (for portrait mode) is used is:
A+B+C
PT‑DZ10KU
(A x 40 + B x 35) ÷ 40
ff A: Runtime when [LAMP POWER] is set to [NORMAL]
ff B: Runtime when [LAMP POWER] is set to [ECO]
The formula when the optional Replacement lamp unit (for portrait mode) is used is:
A+B
Note
ff The content of status can be sent via E-mail by pressing the <ENTER> button while displaying the status.
ff Some items in [SIGNAL INFORMATION] may be displayed and others not displayed, depending on the signal being input.
ff If you attach a lamp unit used in a projector of a model different from the projector (PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU, PT‑DZ10KU)
to the projector, or when the lamp unit used in the projector to a projector of a different model, the “lighting time” and “runtime” displayed in
[STATUS] may differ from the actual time.
[NO SIGNAL SHUT-OFF]
A function that automatically switches the power source of the projector to standby if there is no input signal for a certain period of time. The
time before switching to standby can be set.
1) Press as to select [NO SIGNAL SHUT-OFF].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[DISABLE]
[10MIN.] - [90MIN.]
Disables the No signal shut-off function.
Allows you to set in ten minutes intervals.
[REMOTE2 MODE]
You can set the <REMOTE 2 IN> terminal.
1) Press as to select [REMOTE2 MODE].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[DEFAULT]
[USER]
[L6500 SERIES]
120 - ENGLISH
The pin assignment of the <REMOTE 2 IN> terminal is used by the factory default setting of the
projector.
Used to change the setting of the <REMOTE 2 IN> terminal.
The setting of <REMOTE 2 IN> terminal is used for the L6500 series compatibility.
Chapter 4 Settings — [PROJECTOR SETUP] menu
ff When [USER] is selected, proceed to Step 3).
3) Press the <ENTER> button.
4) Press as to select one from [PIN2] to [PIN8], and press qw to switch the setting.
[FUNCTION BUTTON]
Set the functions of the <FUNC> button on the remote control.
1) Press as to select [FUNCTION BUTTON].
2) Press the <ENTER> button.
ff The [FUNCTION BUTTON] screen is displayed.
3) Press as to select a function.
[DISABLE]
[P IN P]
[SUB MEMORY]
[SYSTEM SELECTOR]
[SYSTEM DAYLIGHT VIEW]
[FREEZE]
[WAVEFORM MONITOR]
Disables the <FUNC> button.
Switches [OFF]/[USER1]/[USER2]/[USER3] in [P IN P]. (x page 125)
Displays the sub memory list. (x page 130)
Switches the [SYSTEM SELECTOR] setting. (x page 77)
Switches the [SYSTEM DAYLIGHT VIEW] setting. (x page 75)
Temporarily pauses the image. (x page 105)
Displays the waveform of the input signal. (x page 105)
[LENS MEMORY LOAD]
Calls the registered lens memory. (x page 122)
[LEFT/RIGHT SWAP]*1
Switches the flip horizontal settings. (x page 93)
*1 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU
4) Press the <ENTER> button.
[DATE AND TIME]
Set the time zone, date, and time of the built-in clock of the projector.
Setting the time zone
1) Press as to select [DATE AND TIME].
2) Press the <ENTER> button.
ff The [DATE AND TIME] screen is displayed.
3) Press as to select [TIME ZONE].
4) Press qw to switch [TIME ZONE].
Setting the date and time manually
1) Press as to select [DATE AND TIME].
2) Press the <ENTER> button.
ff The [DATE AND TIME] screen is displayed.
3) Press as to select [ADJUST CLOCK].
4) Press the <ENTER> button.
ff The [ADJUST CLOCK] screen is displayed.
5) Press as to select an item, and press qw to set the local date and time.
6) Press as to select [APPLY], and press the <ENTER> button.
ff The setting of the date and time will be completed.
Setting the date and time automatically
1) Press as to select [DATE AND TIME].
ENGLISH - 121
Chapter 4 Settings — [PROJECTOR SETUP] menu
2) Press the <ENTER> button.
ff The [DATE AND TIME] screen is displayed.
3) Press as to select [ADJUST CLOCK].
4) Press the <ENTER> button.
ff The [ADJUST CLOCK] screen is displayed.
5) Press as to select [NTP SYNCHRONIZATION], and press qw to change the setting to [ON].
6) Press as to select [APPLY], and press the <ENTER> button.
ff The setting of the date and time will be completed.
Note
ff To set the date and time automatically, the projector must be connected to the network.
ff If synchronization with the NTP server fails just after [NTP SYNCHRONIZATION] is turned [ON], or if [NTP SYNCHRONIZATION] is turned
[ON] while the NTP server is not set, [NTP SYNCHRONIZATION] will return to [OFF].
ff Access the projector via a web browser to set the NTP server. Refer to “[Adjust clock] page” (x page 144) for details.
[LENS CALIBRATION]
Automatically set the lens shift limit values and home position for the projector.
1) Press as to select [LENS CALIBRATION].
2) Press the <ENTER> button.
ff The confirmation screen is displayed.
3) Press qw to select [OK], and press the <ENTER> button.
ff To cancel, select [CANCEL].
ff The lens moves up, down, left, and right to automatically set the lens shift limit values and home position.
ff The lens stops to complete the calibration.
Note
ff [PROGRESS] is displayed on the menu during lens calibration. Cannot cancel mid-operation.
ff When lens calibration executes correctly, [COMPLETE] is displayed and [INCOMPLETE] is displayed when it does not execute correctly.
ff Pressing the <FOCUS> button on the remote control for at least three seconds will also display the confirmation screen for lens calibration
execution.
[LENS MEMORY]
Save and load the focus position, shift position, and zoom position of an adjusted lens.
Saving lens position
1) Press as to select [LENS MEMORY].
2) Press the <ENTER> button.
3) Press as to select [LENS MEMORY SAVE].
4) Press the <ENTER> button.
ff The [LENS MEMORY SAVE] screen is displayed.
5) Press as to select the item to save, and press the <ENTER> button.
6) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
ff The [LENS MEMORY NAME INPUT] screen is displayed.
7) Press asqw to select the text, and press the <ENTER> button to enter the text.
8) After the name is input, press asqw to select [OK], and press the <ENTER> button.
ff The registration completes and returns to the [LENS MEMORY SAVE] screen.
ff If you press asqw to select [CANCEL] and then press the <ENTER> button, the lens memory will not be saved.
ff If you press asqw to select [DEFAULT] and press the <ENTER> button, the entered name will not be registered and the default
name will be used.
ff If you select [OK] without entering any characters and press the <ENTER> button, the default name will be used.
122 - ENGLISH
Chapter 4 Settings — [PROJECTOR SETUP] menu
Loading the lens position
1) Press as to select [LENS MEMORY].
2) Press the <ENTER> button.
3) Press as to select [LENS MEMORY LOAD].
4) Press the <ENTER> button.
ff The [LENS MEMORY LOAD] screen is displayed.
5) Press as to select the item to load, and press the <ENTER> button.
6) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
ff The lens moves automatically to the registered shift, zoom, and focus positions.
Note
ff Lens memory is not guaranteed to be 100 % reproduced.
ff The zoom and focus positions may have shifted after lens memory was loaded. Readjust as necessary.
ff Beware of shift, as errors in zoom position are particularly significant.
ff When a lens is replaced, readjust and save the lens memory again.
ff If a lens without zoom function is used, the lens memory of the zoom position does not operate.
ff When [LENS MEMORY LOAD] is assigned to the <FUNC> button, the lens memory is loaded in order each time you press the <FUNC>
button.
Deleting a lens memory
1) Press as to select [LENS MEMORY].
2) Press the <ENTER> button.
3) Press as to select [LENS MEMORY EDIT].
4) Press the <ENTER> button.
ff The [LENS MEMORY EDIT] screen is displayed.
5) Press as to select [LENS MEMORY DELETE].
6) Press the <ENTER> button.
ff The [LENS MEMORY DELETE] screen is displayed.
7) Press as to select the item to delete, and press the <ENTER> button.
8) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
Changing the lens memory name
1) Press as to select [LENS MEMORY].
2) Press the <ENTER> button.
3) Press as to select [LENS MEMORY EDIT].
4) Press the <ENTER> button.
ff The [LENS MEMORY EDIT] screen is displayed.
5) Press as to select [LENS MEMORY NAME CHANGE].
6) Press the <ENTER> button.
ff The [LENS MEMORY NAME CHANGE] screen is displayed.
7) Press as to select the name to change, and press the <ENTER> button.
ff The [LENS MEMORY NAME INPUT] screen is displayed.
8) Press asqw to select the text, and press the <ENTER> button to enter the text.
9) After the name is changed, press asqw to select [OK], and press the <ENTER> button.
ff The registration completes and returns to the [LENS MEMORY NAME CHANGE] screen.
ENGLISH - 123
Chapter 4 Settings — [PROJECTOR SETUP] menu
ff If you press asqw to select [CANCEL] and then press the <ENTER> button, the changed name will not be registered.
ff If you press asqw to select [DEFAULT] and press the <ENTER> button, the changed name will not be registered and the default
name will be used.
ff If you select [OK] without entering any characters and press the <ENTER> button, the default name will be used.
[SAVE ALL USER DATA]
Save the various setting values as a backup in the built-in memory of the projector.
1) Press as to select [SAVE ALL USER DATA].
2) Press the <ENTER> button.
ff The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the <ENTER> button.
4) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
ff [PROGRESS] is displayed while saving data.
[LOAD ALL USER DATA]
Load the various setting values saved as a backup in the built-in memory of the projector.
1) Press as to select [LOAD ALL USER DATA].
2) Press the <ENTER> button.
ff The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the <ENTER> button.
4) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
Note
ff The projector will go into the standby status to reflect the setting values when [LOAD ALL USER DATA] is executed.
ff Data registered from a computer is not included in [ALL USER DATA].
[INITIALIZE]
Return various setting values to their factory default settings.
1) Press as to select [INITIALIZE].
2) Press the <ENTER> button.
ff The [SECURITY PASSWORD] screen is displayed.
3) Enter a security password and press the <ENTER> button.
ff The [INITIALIZE] screen is displayed.
4) Press as to select an item to initialize.
[ALL USER DATA]
[REGISTERED SIGNAL]
[NETWORK/E-MAIL]
[LOGO IMAGE]
Returns all setting items including [REGISTERED SIGNAL], [NETWORK SETUP], [E-mail set up],
and [USER LOGO] to factory default settings.
The projector will go into the standby status to reflect the setting values.
Deletes all the setting values saved for each input signal.
To delete only a part of a registered signal, perform the procedure described in “Deleting the
registered signal” (x page 128).
Returns [NETWORK SETUP] and [E-mail set up] to factory default settings.
Deletes the image registered in [USER LOGO].
5) Press the <ENTER> button.
6) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
[SERVICE PASSWORD]
This function is used by a service person.
124 - ENGLISH
Chapter 4 Settings — [P IN P] menu
[P IN P] menu
On the menu screen, select [P IN P] from the main menu, and select an item from the submenu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously.
1) Press as to select [P IN P MODE].
2) Press the <ENTER> button.
ff The [P IN P MODE] screen is displayed.
3) Press as to select a function.
[OFF]
P IN P function is not used.
[USER1]
[USER2]
The items set in “Setting P IN P function” (x page 125) are used in P IN P function.
[USER3]
4) Press the <ENTER> button.
Setting P IN P function
P IN P function settings can be saved to [USER1], [USER2], and [USER3].
1) Press as to select [P IN P MODE].
2) Press the <ENTER> button.
ff The [P IN P MODE] screen is displayed.
3) Press as to select the desired mode from [USER1], [USER2], and [USER3], and press the <ENTER>
button.
4) Press as to select [MAIN WINDOW] or [SUB WINDOW], and press the <ENTER> button.
5) Press as to select the input terminal to be displayed in the window, and press the <ENTER> button.
6) Press asto select an item.
[SIZE]
Set the window display size between 10 % and 100 %.
[POSITION]
Set the display position of the window within the screen.
[CLOCK PHASE]
When the sub window is input from the <RGB 1 IN> terminal or the <RGB 2 IN> terminal and a
flickering image or smeared outline appears, set between 0 and +31.
7) If [SIZE] is selected in Step 6), press the <ENTER> button.
ff The sub-menu is displayed.
8) Press asto select an item.
9) Press qw to make adjustment, and press the <MENU> button.
10) If [POSITION] is selected in Step 6), press the <ENTER> button.
11) Press asqw to adjust the position, and press the <MENU> button.
ENGLISH - 125
Chapter 4 Settings — [P IN P] menu
12) If [CLOCK PHASE] is selected in Step 6), press qw to make adjustment.
13) Press as to select [FRAME LOCK].
14) Press qw to switch the item.
[MAIN WINDOW]
Set frame lock to the input signal set in the main window.
[SUB WINDOW]
Set frame lock to the input signal set in the sub window.
15) Press as to select [TYPE].
16) Press qw to switch the item.
[MAIN WINDOW]
The main window has display priority.
[SUB WINDOW]
The sub window has display priority.
Note
ff The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display
combination list” (x page 174) for details.
ff The main window setting values are applied to image adjustment values such as [PICTURE MODE], [GAMMA], and [COLOR
TEMPERATURE].
ff On the main screen (when no menu is displayed), press qw to switch the sizes and positions of the main window and sub window while P
IN P is operating.
ff When [FRAME RESPONSE] is set to other than [NORMAL], [P IN P] cannot be set.
ff 3D images cannot be displayed in P IN P. (Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
ff The P IN P state continues while the P IN P function is used, even if 3D images of the simultaneous system are displayed. (Only for
PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
126 - ENGLISH
Chapter 4 Settings — [TEST PATTERN] menu
[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff Press qw to switch.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input signal before performing various
adjustments.
1) Press qw to switch the [TEST PATTERN] item.
ff The items will switch each time you press the button.
Menu screen + All white
Menu screen + All black
Menu screen + Window
Menu screen + Window
(inversion)
Menu screen + Color bar
(vertical)
Displays test patterns with the menu screen. Select a test pattern so that it is easy to make various
adjustments.
Menu screen + Color bar
(horizontal)
Menu screen + 16:9/4:3
aspect frame
Menu screen + Focus
Menu screen + Entry screen
Displays the menu screen and input signal.
Built-in test patterns are not displayed.
Note
ff Press the <ON SCREEN> button on the remote control while the test pattern is displayed to hide the menu screen.
Changing color or a focus test pattern
When the “Menu Screen + Focus” test pattern is displayed, the color can be changed.
1) Press qw to select the “Menu Screen + Focus” test pattern.
2) Press the <ENTER> button.
ff The [TEST PATTERN COLOR] screen is displayed.
3) Press as to select a color, and press the <ENTER> button.
ff The test pattern color changed to the color selected.
Note
ff The test pattern color settings return to [WHITE] when the projector is switched off.
ff Colors of the test patterns other than focus test patterns cannot be changed.
ENGLISH - 127
Chapter 4 Settings — [SIGNAL LIST] menu
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
rrRegistered signal details
Memory number: A1 (1-2)
Sub memory number
When the address number (A1, A2, ... L7, L8) signal is registered
ff A name can be set for each sub memory (x page 130).
Registering new signals
After a new signal is input and the <MENU> button on the remote control or the control panel is pressed, the registration is completed and the
[MAIN MENU] screen is displayed.
Note
ff Up to 96 signals, including sub memories, can be registered to the projector.
ff There are 12 pages (eight memories of A through L, with eight memories possible on each page) for memory numbers, and the signal is
registered to the lowest number that is available. If there is no available memory number it will be overwritten from the oldest signal.
ff The names to be registered are automatically determined by the input signals and memory numbers.
ff If a menu is being displayed, the new signals will be registered at the instant they are input.
Renaming the registered signal
Registered signals can be renamed.
1) Press asqw to select the signal of which name is to be changed.
2) Press the <ENTER> button.
ff The [REGISTERED SIGNAL STATUS] screen is displayed.
ff The memory number, input terminal, input signal name, frequency, synch polarity, etc., are displayed.
ff Press the <MENU> button to return to the [SIGNAL LIST] screen.
3) Press the <ENTER> button.
ff The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press as to select [SIGNAL NAME CHANGE].
5) Press the <ENTER> button.
ff The [SIGNAL NAME CHANGE] screen is displayed.
6) Press asqw to select the text, and press the <ENTER> button to enter the text.
7) After the name is changed, press asqw to select [OK], and press the <ENTER> button.
ff The registration is completed and the [REGISTERED SIGNAL SETUP] screen returns.
ff When pressing asqw to select [CANCEL] and pressing the <ENTER> button, the changed signal name will not be registered and
an automatically registered signal name will be used.
Deleting the registered signal
Registered signals can be deleted.
1) Press asqw to select the signal to delete.
2) Press the <DEFAULT> button.
ff The [REGISTERED SIGNAL DELETE] screen is displayed.
128 - ENGLISH
Chapter 4 Settings — [SIGNAL LIST] menu
ff To cancel the deletion, press the <MENU> button to return to the [REGISTERED SIGNAL LIST] screen.
3) Press the <ENTER> button.
ff The selected signal will be deleted.
Note
ff A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press asqw to select the signal to protect.
2) Press the <ENTER> button.
ff The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the <ENTER> button.
ff The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press as to select [LOCK].
5) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
The signal is not protected.
[ON]
The signal is protected.
Note
ff When [LOCK] is set to [ON], signal deletion, image adjustment, and automatic setup are not available. To perform these operations, set
[LOCK] to [OFF].
ff A signal can be registered to the sub memory even if it is protected.
ff Even a protected signal will be deleted if [INITIALIZE] is executed.
Expanding signal lock-in range
1) Press asqw to select the signal to set.
2) Press the <ENTER> button.
ff The [REGISTERED SIGNAL STATUS] screen is displayed.
3) Press the <ENTER> button.
ff The [REGISTERED SIGNAL SETUP] screen is displayed.
4) Press as to select [LOCK-IN RANGE].
5) Press qw to switch the item.
ff The items will switch each time you press the button.
[NARROW]
[WIDE]
Select in most cases.
Widens the lock-in range.
Note
ff Switch the range that determines that a signal to be input is the same signal that is already registered.
ff To prioritize the determination that it is the same signal that is already registered, set to the [WIDE] setting.
ff Use in cases such as when the synchronizing frequency of a signal to be input has changed slightly, or multiple signal lists are registered.
ff Can only be used when a signal is input from the <RGB 1 IN> terminal, <RGB 2 IN> terminal, <DVI-D IN> terminal, or <HDMI IN> terminal.
ff When [WIDE] is set, the image may appear distorted because a signal is determined to be the same signal even if a synchronizing
frequency changes slightly.
ff When a signal to be input corresponds to multiple signals set in [WIDE], a registered signal with a high memory number receives priority.
Example: a signal to be input that corresponds to memory numbers A2, A4 and B1 will be determined to be B1.
ff When a registration signal is deleted, the settings are also deleted.
ff In an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the
setting is set to [WIDE].
ENGLISH - 129
Chapter 4 Settings — [SIGNAL LIST] menu
Sub memory
The projector has a sub memory function that can register the multiple image adjustment data, even if it is recognized as the same signal by
the frequency or format of the synchronization signal source.
Use this function when you need to adjust the picture quality such as switching of the aspect ratio or white balance by the same
synchronization signal source. The sub memory includes all the data that can be adjusted for each signal, such as the screen aspect ratio and
data adjusted in the [PICTURE] item ([CONTRAST], [BRIGHTNESS], etc.).
Registering to the sub memory
1) Press qw on the normal screen (when the menu is not displayed).
ff The sub memory registration screen is displayed if the sub memory is not registered. Proceed to Step 3).
ff A list of sub memories registered to the signal currently input is displayed.
ff By selecting [SUB MEMORY] in the [PROJECTOR SETUP] menu → [FUNCTION BUTTON], the <FUNC> button can be used instead
of qw.
2) Press asqw to select the sub memory number to register in [SUB MEMORY LIST].
3) Press the <ENTER> button.
ff The [SIGNAL NAME CHANGE] screen is displayed.
4) Press asqw to select [OK], and press the <ENTER> button.
ff To rename the registered signal, follow the procedure in Steps 6) and 7) in “Renaming the registered signal” (x page 128).
Switching to the sub memory
1) Press qw on the normal screen (when the menu is not displayed).
ff A list of sub memories registered to the signal currently input is displayed.
2) Press asqw to select the signal to switch in [SUB MEMORY LIST].
3) Press the <ENTER> button.
ff This switches to the signal selected in Step 2).
Deleting the sub memory
1) Press qw on the normal screen (when the menu is not displayed).
ff The [SUB MEMORY LIST] screen is displayed.
2) Press asqw to select the sub memory to delete, and press the <DEFAULT> button.
ff The [REGISTERED SIGNAL DELETE] screen is displayed.
ff To cancel the deletion, press the <MENU> button to return to the [SUB MEMORY LIST] screen.
3) Press the <ENTER> button.
ff The selected sub memory will be deleted.
130 - ENGLISH
Chapter 4 Settings — [SECURITY] menu
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an item from the submenu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff When the projector is used for the first time
Initial password: Press awsqawsq in order, and press the <ENTER> button.
ff After selecting the item, press asqw to set.
Attention
ff When you select the [SECURITY] menu and press the <ENTER> button, entering a password is required. Enter the preset password and
then continue operations of the [SECURITY] menu.
ff When the password has been changed previously, enter the changed password, and press the <ENTER> button.
Note
ff The entered password is displayed with*marks on the screen.
ff An error message is displayed on the screen when the entered password is incorrect. Re-enter the correct password.
[SECURITY PASSWORD]
The [SECURITY PASSWORD] screen is displayed when the power is turned on. When the entered password is incorrect, the operation will be
restricted to the power standby <v> button, the <SHUTTER> button, and the <LENS> (<FOCUS>, <ZOOM>, and <SHIFT>) buttons.
1) Press as to select [SECURITY PASSWORD].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
Disables the security password entry.
[ON]
Enables the security password entry.
Note
ff The [SECURITY PASSWORD] setting is set to [OFF] by the factory default or when [ALL USER DATA] in [INITIALIZE] (x page 124) is
executed.
ff Change the password periodically that is hard to guess.
ff The security password is enabled after setting [SECURITY PASSWORD] to [ON] and turning the <MAIN POWER> switch to <OFF>.
[SECURITY PASSWORD CHANGE]
Change the security password.
1) Press as to select [SECURITY PASSWORD CHANGE].
2) Press the <ENTER> button.
ff The [SECURITY PASSWORD CHANGE] screen is displayed.
3) Press asqw and the number (<0> - <9>) buttons to set the password.
ff Up to eight button operations can be set.
4) Press the <ENTER> button.
5) Re-enter the password for the confirmation.
6) Press the <ENTER> button.
Note
ff The entered password is displayed with*marks on the screen.
ff An error message is displayed on the screen when the entered password is incorrect. Re-enter the correct password.
ENGLISH - 131
Chapter 4 Settings — [SECURITY] menu
[DISPLAY SETTING]
Overlap the security message (text or image) over the projecting image.
1) Press as to select [DISPLAY SETTING].
2) Press qw to switch the item.
ff The items will switch each time you press the button.
[OFF]
The text display is disabled.
[TEXT]
The text display is enabled.
[USER LOGO]
Displays the image registered by the user.
Note
ff To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Change the text displayed when the text display is enabled by selecting [TEXT] in [DISPLAY SETTING].
1) Press as to select [TEXT CHANGE].
2) Press the <ENTER> button.
ff The [TEXT CHANGE] screen is displayed.
3) Press asqw to select the text, and press the <ENTER> button to enter the text.
4) Press asqw to select [OK], and press the <ENTER> button.
ff The text is changed.
[CONTROL DEVICE SETUP]
Enable/disable the button operations on the control panel and the remote control.
1) Press as to select [CONTROL DEVICE SETUP].
2) Press the <ENTER> button.
ff The [CONTROL DEVICE SETUP] screen is displayed.
3) Press as to select [CONTROL PANEL] or [REMOTE CONTROL].
[CONTROL PANEL]
[REMOTE CONTROL]
You can set the limitation on the control from the control panel.
You can set the limitation on the control from the remote control.
4) Press the <ENTER> button.
ff The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5) Press as to select [CONTROL PANEL] or [REMOTE CONTROL].
6) Press qw to switch the item.
ff You can set the operation restriction from the control panel or the remote control.
[ENABLE]
Enables all button operations.
[DISABLE]
Disables all button operations.
[USER]
Operation of all buttons can be enabled/disabled separately.
Refer to “Enabling/disabling any button” (x page 132) for details.
7) Press as to select [APPLY], and press the <ENTER> button.
ff The confirmation screen is displayed.
8) Press qw to select [OK], and press the <ENTER> button.
Enabling/disabling any button
1) Press as to select [CONTROL DEVICE SETUP].
132 - ENGLISH
Chapter 4 Settings — [SECURITY] menu
2) Press the <ENTER> button.
ff The [CONTROL DEVICE SETUP] screen is displayed.
3) Press as to select [CONTROL PANEL] or [REMOTE CONTROL].
4) Press the <ENTER> button.
5) Press as to select [CONTROL PANEL] or [REMOTE CONTROL].
6) Press qw to switch [USER].
7) Press as to select the button item to set.
ff When [INPUT SELECT BUTTON] is selected, press the <ENTER> button, and then press as to select the button to set.
Buttons that can be set
[CONTROL PANEL]
[POWER BUTTON]
[INPUT SELECT BUTTON]
<VIDEO> button, <RGB1> button, <RGB2> button, <DVI-D> button, <HDMI> button, and <SDI 1/2>
button*1
[MENU BUTTON]
<MENU> button
[LENS BUTTON]
<LENS> button
[AUTO SETUP BUTTON]
[SHUTTER BUTTON]
[REMOTE CONTROL]
Power standby <v> button, power on <b> button
<FOCUS> button, <ZOOM> button, <SHIFT>
button
<AUTO SETUP> button
<SHUTTER> button
[ASPECT BUTTON]
—
<ASPECT> button
[ON SCREEN BUTTON]
—
<ON SCREEN> button
[OTHER BUTTON]
asqw, <ENTER> button
Buttons not listed above
*1 Only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU
8) Press qw to switch the item.
[ENABLE]
Enables button operations.
[DISABLE]
Disables button operations.
ff The following items are available when [SDI1/2 BUTTON] is selected in [INPUT SELECT BUTTON] in PT‑DZ13KU and PT‑DS12KU.
[TOGGLE]
Switches between SDI1 and SDI2 when the button is operated.
[SDI1]
Fixes to SDI1.
[SDI2]
Fixes to SDI2.
[DISABLE]
Disables button operations.
ff When [INPUT SELECT BUTTON] is selected in Step 7), press the <MENU> button to return to the [CONTROL PANEL] screen or the
[REMOTE CONTROL] screen.
9) Press as to select [APPLY], and press the <ENTER> button.
ff The confirmation screen is displayed.
10) Press qw to select [OK], and press the <ENTER> button.
Note
ff When a button operation is performed on the device set to [DISABLE], the [CONTROL DEVICE PASSWORD] screen is displayed.
Enter the control device password.
ff The [CONTROL DEVICE PASSWORD] screen will disappear when there is no operation for approx. 10 seconds.
ff If the operations of both [CONTROL PANEL] and [REMOTE CONTROL] are set to [DISABLE], the projector cannot be turned off (cannot
enter standby).
ff When the setting has completed, the menu screen will disappear. To operate continuously, press the <MENU> button to display the main
menu.
ff Even when button operation on the remote control is disabled, the <ID SET> button and the <ID ALL> button are enabled.
[CONTROL DEVICE PASSWORD CHANGE]
The control device password can be changed.
1) Press as to select [CONTROL DEVICE PASSWORD CHANGE].
2) Press the <ENTER> button.
ff The [CONTROL DEVICE PASSWORD CHANGE] screen is displayed.
3) Press asqw to select the text, and press the <ENTER> button to enter the text.
ENGLISH - 133
Chapter 4 Settings — [SECURITY] menu
4) Press asqw to select [OK], and press the <ENTER> button.
ff To cancel, select [CANCEL].
Attention
ff The initial password is “AAAA” by the factory default or when [ALL USER DATA] in [INITIALIZE] (x page 124) is executed.
ff Change the password periodically that is hard to guess.
134 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the submenu.
Refer to “Navigating through the menu” (x page 65) for the operation of the menu screen.
ff After selecting the item, press asqw to set.
[NETWORK SETUP]
Perform the initial setting of the network before using the network function.
1) Press as to select [NETWORK SETUP].
2) Press the <ENTER> button.
ff The [NETWORK SETUP] screen is displayed.
3) Press as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME]
[DHCP]
[IP ADDRESS]
[SUBNET MASK]
[DEFAULT GATEWAY]
[STORE]
Change the setting when using a DHCP server.
Set to [ON] when obtaining an IP address automatically using a DHCP server. Set to [OFF] when not
using a DHCP server.
Enter the IP address when not using a DHCP server.
Enter the subnet mask when not using a DHCP server.
Enter the default gateway address when not using a DHCP server.
Save the current network settings.
4) Press as to select [STORE], and press the <ENTER> button.
5) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
Note
ff When using a DHCP server, confirm that the DHCP server is running.
ff Consult your network administrator regarding the IP address, subnet mask, and default gateway.
[NETWORK CONTROL]
Set up the control method of the network.
1) Press as to select [NETWORK CONTROL].
2) Press the <ENTER> button.
ff The [NETWORK CONTROL] screen is displayed.
3) Press as to select an item, and press qw to change the setting.
[WEB CONTROL]
[PJLink CONTROL]
[COMMAND CONTROL]
[COMMAND PORT]
[CRESTRON RoomView]
[AMX D.D.]
[STORE]
Set to [ON] to control with the web browser.
Set to [ON] to control with the PJLink protocol.
Set to [ON] to control with the <SERIAL IN>/<SERIAL OUT> terminal control command format
(x page 172). Refer to “Control commands via LAN” (x page 167).
Set the port number used for command control.
Set to [ON] to control with RoomView of Crestron Electronics, Inc.
Set to [ON] to control with the controller of AMX Corporation.
Setting this function to [ON] enables detection through “AMX Device Discovery”. For details, refer to
the website of AMX Corporation.
URL http://www.amx.com/
Save the current network control settings.
ENGLISH - 135
Chapter 4 Settings — [NETWORK] menu
4) Press as to select [STORE], and press the <ENTER> button.
5) When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button.
[NETWORK STATUS]
Display the status of the projector network.
1) Press as to select [NETWORK STATUS].
2) Press the <ENTER> button.
ff The [NETWORK STATUS] screen is displayed.
Network connections
The projector has a network function, and the following operations are available from the computer using the web control.
ff Setting and adjustment of the projector
ff Display of the projector status
ff Sending of E-mail messages when there is a problem with the projector
The projector supports “Crestron RoomView”, and the following application software of Crestron Electronics, Inc. can be used.
ff RoomView Express
ff Fusion RV
ff RoomView Server Edition
Attention
ff When a LAN cable is directly connected to the projector, the network connection must be made indoors.
Note
ff “Crestron RoomView” is a system of Crestron Electronics, Inc. that collectively manages and controls devices on multiple systems
connected to a network using a computer.
ff For details of “Crestron RoomView”, refer to the website of Crestron Electronics, Inc. (English only)
URL http://www.crestron.com
To download “RoomView Express”, go to the following website of Crestron Electronics, Inc. (English only)
URL http://www.crestron.com/getroomview
ff A LAN cable is required to use the network function.
rrExample of a normal network connection
Computer
Projector
SDI 1/2
LAN cable (straight)
LAN cable (straight)
Hub
ff A web browser is required to use this function. Confirm that the web browser can be used beforehand.
Compatible OS: Windows XP/Windows Vista/Windows 7/Windows 8, Mac OS X v10.4/v10.5/v10.6/v10.7/v10.8
Compatible browser: Internet Explorer 7.0/8.0/9.0/10.0, Safari 4.0/5.0/6.0 (Mac OS)
ff Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand.
ff Use a LAN cable that is compatible with category 5 or higher.
ff Use a LAN cable of 100 m (328'1") or shorter.
136 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
Name and function of network function parts
1
2
3
1 LAN LINK/ACT lamp (green)
Lights on when connected.
Flashes when transmitting/receiving data.
2 <LAN> terminal (10Base‑T/100Base‑TX)
Used to connect the LAN cable here.
3 LAN10/100 lamp (yellow)
Lights on when connected to the 100Base‑TX.
Accessing from the web browser
1) Start up the web browser on the computer.
2) Enter the IP address set on the projector into the URL entry field of the web browser.
3) Enter the user name and the password.
ff The factory default setting of the user name is user1 (user rights)/admin1 (administrator rights) and the password is panasonic (lower
case).
4) Click OK.
ff The [Projector status] page is displayed.
ENGLISH - 137
Chapter 4 Settings — [NETWORK] menu
Note
ff If you use a web browser to control the projector, set [WEB CONTROL] to [ON] in [NETWORK CONTROL] (x page 135).
ff Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple
computers.
ff Change the password first. (x page 150)
ff The administrator rights allow use of all functions. The user rights allow use of [Projector status] (x page 139), confirmation of the error
information page (x page 140), [Network status] (x page 141), [Basic control] (x page 142), and [Change password] (x page 150)
only.
ff Access will be locked for few minutes when an incorrect password is entered three times consecutively.
ff Some items on the projector setting page use the Javascript function of the web browser. The projector may not be able to be controlled
properly if it is set with a browser that does not have this function enabled.
ff If the screen for the web control is not displayed, consult your network administrator.
ff While updating the screen for the web control, the screen may become white for a moment, but it is not a malfunction.
Descriptions of items
1
2
3
4
5
6
1 Page tab
Switches pages by clicking this item.
4 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
2 [Status]
The status of the projector is displayed by clicking this item.
5 [Change password]
The [Change password] page is displayed by clicking this item.
3 [Projector control]
The [Projector control] page is displayed by clicking this item.
6 [CRESTRON RoomView]
The control page of RoomView is displayed by clicking this item.
138 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1 [PROJECTOR TYPE]
Displays the type of the projector.
10 [LAMP POWER]
Displays the setting status of [LAMP POWER] (x page 111).
2 [MAIN VERSION]
Displays the firmware version of the projector.
11 [INPUT]
Displays the status of the selected input.
3 [POWER]
Displays the status of the power.
12 [INTAKE AIR TEMPERATURE]
Displays the status of the air intake temperature of the projector.
4 [SHUTTER]
Displays the status of the shutter (ON: closed, OFF: open).
13 [OPTICS MODULE TEMPERATURE]
Displays the status of the internal temperature of the projector.
5 [LAMP SELECT]
Displays the setting status of [LAMP SELECT] (x page 109).
14 [AROUND LAMP TEMPERATURE]
Displays the status of the temperature around the lamp of the
projector.
6 [SERIAL NUMBER]
Displays the serial number of the projector.
7 [NETWORK VERSION]
Displays the version of the firmware of the network.
8 [REMOTE2 STATUS]
Displays the control status of the <REMOTE 2 IN> terminal.
9 [OSD]
Displays the status of the on-screen display.
15 [LAMP1][LAMP2][RUNTIME]
Displays the status and the runtime (converted value) of the
lamp.
16 [SELF TEST]
Displays the self-diagnosis information.
17 [PROJECTOR RUNTIME]
Displays the runtime of the projector.
ENGLISH - 139
Chapter 4 Settings — [NETWORK] menu
Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the self-diagnosis display of the [Projector status] screen, click it to display the
error/warning details.
ff The projector may go into the standby status to protect the projector depending on the contents of the error.
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[FAILED]:
Indicates that there is a problem.
[WARNING]:
Indicates that there is a warning.
rr[FAILED] items displayed when a problem occurs
Parameter
Description
[MAIN CPU BUS]
There is a problem with the microcomputer circuitry. Consult your dealer.
[FAN]
There is a problem with the fan or the fan drive circuit. Consult your dealer.
[INTAKE AIR TEMPERATURE]
The air intake temperature is too high. The projector may be used in an operating
environment where the temperature is high, such as near a heating appliance.
[OPTICS MODULE TEMPERATURE]
The temperature around the optics module inside the projector is high. The projector
may be used in an operating environment where the temperature is high, such as near a
heating appliance.
[AROUND LAMP TEMPERATURE]
The temperature around the lamp is high. The air exhaust port may be blocked.
[LAMP1 REMAIN TIME]
The runtime of the lamp has exceeded the specified time, and it is time to replace the
lamp.
[LAMP2 REMAIN TIME]
[LAMP1 STATUS]
[LAMP2 STATUS]
The lamp has failed to turn on. Wait a while until the luminous lamp cools off, and then
turn on the power.
[APERTURE(CONTRAST-SHUTTER)]
There is a problem in the contrast shutter circuit for dynamic iris. Consult your dealer.
[INTAKE AIR TEMP.SENSOR]
There is a problem with the sensor used to detect intake temperature. Consult your
dealer.
[OPTICS MODULE TEMP.SENSOR]
There is a problem with the sensor used to detect temperature inside the projector.
Consult your dealer.
[AROUND LAMP TEMP. SENSOR]
There is a problem with the sensor used to detect exhaust air temperature. Consult your
dealer.
[BATTERY]
Battery replacement is required. Consult your dealer.
[LENS MOUNTER]
There is a problem in the lens mounter. Consult your dealer.
[COVER OPEN]
Installation of the lamp unit cover is incomplete. Check the installation of the lamp unit
cover. (x page 161)
[BRIGHTNESS SENSOR]
There is a problem with the luminance sensor. If problems persist even after switching
on the power, consult your dealer.
[ANGLE SENSOR]
There is a problem with the sensor that detects angle. Consult your dealer.
[FILTER UNIT]
The air filter unit is not attached. Check the connection of the air filter unit.
(x page 157)
[AIR FILTER]
There is too much dust accumulated in the air filter unit. Turn the <MAIN POWER>
switch <OFF> (x page 55), and clean the air filter. (x page 157)
[AC POWER]
AC input voltage is weak. Use electric wiring that can sufficiently withstand the power
consumption of the projector.
140 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.
[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or
passwords.
[Access log] page
Click [Status] → [Access log].
The log such as user name accessed to the WEB control page, accessed IP address, accessed time is displayed.
Note
ff [Access error log]/[Access log] will display the recent few thousand accesses/requests. All information may not be displayed when many
accesses/requests are made at one time.
ff When [Access error log]/[Access log] exceeds a certain amount, old information will be deleted.
ff Check [Access error log]/[Access log] periodically.
ENGLISH - 141
Chapter 4 Settings — [NETWORK] menu
[Basic control] page
Click [Projector control] → [Basic control].
1
2
3
4
5
1 [POWER]
Turns on/off the power.
3 [OSD]
Switches on (display)/off (hide) the on-screen display function.
2 [SHUTTER]
Switches the setting whether to use the shutter function
(closing/opening of the shutter).
4 [SYSTEM]
Switches the system method.
5 [INPUT SELECT]
Switches the input signal.
[Detail control] page
Click [Projector control] → [Detail control].
1
7
2
3
4
5
6
8
9
10
11
1 Control of the projector
The projector is controlled by clicking the buttons in the same
way as the buttons on the remote control. After control, the onscreen display of the projector at the right of the control page is
updated.
7 On-screen display of the projector
Displays the same items as shown on the on-screen display
of the projector. You can check or change the settings of the
menus. It is displayed even if the on-screen display function is
set to off (hide).
2 [SUB MEMORY]
Switches the sub memory.
8 [WAVEFORM MONITOR]
Displays the waveform of the input signal.
3 [SYSTEM DAYLIGHT VIEW]
Switches to system daylight view settings.
9 [LENS]
Adjusts the projection lens.
4 [FREEZE]
Temporarily pauses the image.
10 [TEST PATTERN]
Displays the test pattern.
5 [P IN P]
Switches the P IN P setting.
11 [GET OSD]
Updates the on-screen display of the projector at the right of the
control page.
6 [LEFT/RIGHT SWAP] (only for PT‑DZ13KU, PT‑DS12KU,
PT‑DW11KU)
Switches the flip horizontal settings.
142 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
[Network config] page
Click [Detailed set up] → [Network config].
ff Click [Network config] to display the [CAUTION!] screen.
ff The current settings are displayed by pressing the [Next] button.
ff Click [Change] to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECTOR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2 [DHCP ON]/[DHCP OFF]
To enable the DHCP client function, set to [DHCP ON].
3 [IP ADDRESS]
Enter the IP address when not using a DHCP server.
4 [SUBNET MASK]
Enter the subnet mask when not using a DHCP server.
5 [DEFAULT GATEWAY]
Enter the default gateway address when not using a DHCP
server.
6 [DNS1]
Enter the DNS1 server address.
Permissible characters for the entry of DNS1 server address
(primary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.253)
7 [DNS2]
Enter the DNS2 server address.
Available characters for the entry of DNS2 server address
(secondary):
Numbers (0 - 9), period (.)
(Example: 192.168.0.254)
8 [Back]/[Next]
Click the [Back] button to return to the original screen. The
current settings are displayed by pressing the [Next] button.
Click the [Submit] button to update the settings.
Note
ff When you use the “Forward” and “Back” functions of your browser, a warning message “Page has Expired” may appear. In that case, click
[Network config] again since the following operation will not be guaranteed.
ff Changing LAN settings while connected to the LAN may cause the connection to cut out.
ENGLISH - 143
Chapter 4 Settings — [NETWORK] menu
[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
5 [Date]
Enter the date to be changed.
2 [Set time zone]
Updates the time zone setting.
6 [Time]
Enter the time to be changed.
3 [NTP SYNCHRONIZATION]
Set to [ON] to adjust the date and time automatically.
7 [Set date and time]
Updates the date and time settings.
4 [NTP SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.)
Note
ff The replacement of the battery inside the projector is required when the time goes out of alignment right after correcting the time. Consult
your dealer.
[Ping test] page
Check whether the network is connected to the mail server, POP server, DNS server, etc.
Click [Detailed set up] → [Ping test].
1
3
2
4
1 [Input IP address]
Enter the IP address of the server to be tested.
2 [Submit]
Executes the connection test.
144 - ENGLISH
3 Example of display when the connection has succeeded
4 Example of display when the connection has failed
Chapter 4 Settings — [NETWORK] menu
[E-mail set up] page
When there is a problem or the runtime of a lamp reaches a set value, an E-mail can be sent to preset E-mail addresses (up to two
addresses).
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [Enable] to use the E-mail function.
2 [SMTP SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3 [MAIL FROM]
Enter the E-mail address of the projector. (Up to 63 characters
in single byte)
4 [MEMO]
Enter information such as the location of the projector that
notifies the sender of the E-mail. (Up to 63 characters in single
byte)
5 [MINIMUM TIME]
Change the minimum interval for the temperature warning
E-mail. The default value is 60 minutes. In this case, another
E-mail will not be sent for 60 minutes after sending the
temperature warning E-mail even if it reaches the warning
temperature.
6 [INTAKE AIR TEMPERATURE]
Change the temperature setting for the temperature warning
mail. A temperature warning E-mail is sent when the
temperature exceeds this value.
ENGLISH - 145
Chapter 4 Settings — [NETWORK] menu
7
7
8
8
9
7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS
2] blank when two E-mail addresses are not to be used.
8 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[LAMP1 RUNTIME]:
An E-mail message is sent when the remaining lamp on time for
the lamp 1 has reached the value set at the right field.
[LAMP2 RUNTIME]:
An E-mail message is sent when the remaining lamp on time for
the lamp 2 has reached the value set at the right field.
[INTAKE AIR TEMPERATURE]:
Send an E-mail when the air intake temperature has reached
the value set at the above field.
[PERIODIC REPORT]:
Place a check mark on this to send an E-mail periodically.
It will be sent on the days and time with the check mark.
9 [Submit]
Update the settings.
Note
ff Set each item of [LAMP1 RUNTIME] to [LAMP2 RUNTIME] to 500 hours or less when using the optional Replacement lamp unit (for portrait
mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)).
146 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider.
2 [SMTP Auth]
Set when the SMTP authentication is selected.
3 [POP server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0 - 9)
Minus sign (-) and period (.)
4 [User name]
Enter the user name for the POP server or the SMTP server.
5 [Password]
Enter the password for the POP server or the SMTP server.
6 [SMTP server port]
Enter the port number of the SMTP server.
(Normally 25)
7 [POP server port]
Enter the port number of the POP server.
(Normally 110)
8 [Submit]
Update the settings.
ENGLISH - 147
Chapter 4 Settings — [NETWORK] menu
Contents of E-mail sent
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
=== Panasonic projector report(CONFIGURE) ===
Projector Type
: DS12K
Serial No
: SW1234567
----- E-mail setup data ----TEMPERATURE WARNING SETUP
MINIMUM TIME
at [ 60] minutes interval
INTAKE AIR TEMPERATURE
Over [ 46degC / 114degF ]
ERROR
[ OFF ]
LAMP1 RUNTIME
[ OFF ] at REMAIN [
LAMP1 RUNTIME
[ OFF ] at REMAIN [
LAMP2 RUNTIME
[ OFF ] at REMAIN [
LAMP2 RUNTIME
[ OFF ] at REMAIN [
INTAKE AIR TEMPERATURE
[ OFF ]
PERIODIC REPORT
Sunday
[ OFF ] Monday [ ON ] Tuesday
Thursday [ ON ] Friday
[ OFF ] Saturday
00:00
04:00
08:00
12:00
16:00
20:00
[
[
[
[
[
[
ON
OFF
OFF
OFF
OFF
OFF
]
]
]
]
]
]
01:00
05:00
09:00
13:00
17:00
21:00
[
[
[
[
[
[
OFF
OFF
OFF
OFF
OFF
OFF
]
]
]
]
]
]
02:00
06:00
10:00
14:00
18:00
22:00
[
[
[
[
[
[
OFF
OFF
OFF
OFF
OFF
OFF
400]
200]
400]
200]
H
H
H
H
[ OFF ] Wednesday [ OFF ]
[ OFF ]
]
]
]
]
]
]
03:00
07:00
11:00
15:00
19:00
23:00
----- check system ----MAIN CPU BUS
[ OK ]
FAN
[ OK ]
INTAKE AIR TEMPERATURE
[ OK ]
OPTICS MODULE TEMPERATURE
[ OK ]
AROUND LAMP TEMPERATURE
[ OK ]
LAMP1 REMAIN TIME
[ OK ]
LAMP2 REMAIN TIME
[ OK ]
LAMP1 STATUS
[ OK ]
LAMP2 STATUS
[ OK ]
APERTURE(CONTRAST-SHUTTER)
[ OK ]
INTAKE AIR TEMP.SENSOR
[ OK ]
OPTICS MODULE TEMP.SENSOR
[ OK ]
AROUND LAMP TEMP.SENSOR
[ OK ]
BATTERY
[ OK ]
LENS MOUNTER
[ OK ]
COVER OPEN
[ OK ]
BRIGHTNESS SENSOR
[ OK ]
ANGLE SENSOR
[ OK ]
FILTER UNIT
[ OK ]
AIR FILTER
[ OK ]
AC POWER
[ OK ]
(Error code 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00)
Intake air temperature
Optics module temperature
Around lamp temperature
PROJECTOR RUNTIME
POWER ON
LAMP1 ON
LAMP1 LOW
LAMP1 MID
LAMP1 HIGH
LAMP1 REMAIN
LAMP2 ON
LAMP2 LOW
LAMP2 MID
LAMP2 HIGH
LAMP2 REMAIN
: 27 degC / 80 degF
: 33 degC / 91 degF
: 32 degC / 89 degF
200 H
1 times
1 times
200 H
0H
0H
1800 H
1 times
200 H
0H
0H
1800 H
-------- Current status --------MAIN VERSION
1.00
NETWORK VERSION
1.00
SUB VERSION
1.00
LAMP STATUS
LAMP1=ON LAMP2=ON
INPUT
RGB1
REMOTE2 STATUS
DISABLE
----- Wired Network configuration ----DHCP Client
OFF
IP address
192.168.0.8
MAC address
70:85:12:00:00:00
Fri Nov 01 16:38:50 2013
----- Memo -----
148 - ENGLISH
[
[
[
[
[
[
OFF
OFF
OFF
OFF
OFF
OFF
]
]
]
]
]
]
Chapter 4 Settings — [NETWORK] menu
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== Panasonic projector report(ERROR) ===
Projector Type
: DS12K
Serial No
: SW1234567
----- check system ----MAIN CPU BUS
[
FAN
[
INTAKE AIR TEMPERATURE
[
OPTICS MODULE TEMPERATURE
[
AROUND LAMP TEMPERATURE
[
LAMP1 REMAIN TIME
[
LAMP2 REMAIN TIME
[
LAMP1 STATUS
[
LAMP2 STATUS
[
APERTURE(CONTRAST-SHUTTER) [
INTAKE AIR TEMP.SENSOR
[
OPTICS MODULE TEMP.SENSOR
[
AROUND LAMP TEMP.SENSOR
[
BATTERY
[
LENS MOUNTER
[
COVER OPEN
[
BRIGHTNESS SENSOR
[
ANGLE SENSOR
[
FILTER UNIT
[
AIR FILTER
[
AC POWER
[
(Error code 00 00 00 60 00 00 00 00 00 00
Intake air temperature
Optics module temperature
Around lamp temperature
PROJECTOR RUNTIME
POWER ON
LAMP1 ON
LAMP1 LOW
LAMP1 MID
LAMP1 HIGH
LAMP1 REMAIN
LAMP2 ON
LAMP2 LOW
LAMP2 MID
LAMP2 HIGH
LAMP2 REMAIN
OK ]
OK ]
OK ]
OK ]
OK ]
OK ]
OK ]
FAILED ]
FAILED ]
OK ]
OK ]
OK ]
OK ]
OK ]
OK ]
FAILED ]
OK ]
OK ]
OK ]
OK ]
OK ]
00 00 23 00 00 00)
: 27 degC / 80 degF
: 33 degC / 91 degF
: 32 degC / 89 degF
200 H
1 times
1 times
200 H
0H
0H
1800 H
1 times
200 H
0H
0H
1800 H
-------- Current status --------MAIN VERSION
1.00
NETWORK VERSION
1.00
SUB VERSION
1.00
LAMP STATUS
LAMP1=ON LAMP2=ON
INPUT
RGB1
REMOTE2 STATUS
DISABLE
----- Wired Network configuration ----DHCP Client
OFF
IP address
192.168.0.8
MAC address
70:85:12:00:00:00
Fri Nov 01 16:50:14 2013
----- Memo -----
ENGLISH - 149
Chapter 4 Settings — [NETWORK] menu
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
3 [Next]
Used to change the setting of the password.
2 [User]
Used to change the setting of the [User].
[Administrator] account
1
2
3
4
5
6
7
1 [Account]
Displays the account to change.
2 [Current][User name]
Enter the user name before the change.
3 [Current][Password]
Enter the current password.
4 [New][User name]
Enter the desired new user name. (Up to 16 characters in single
byte)
150 - ENGLISH
5 [New][Password]
Enter the desired new password. (Up to 16 characters in single
byte)
6 [New][Password(Retype)]
Enter the desired new password again.
7 [OK]
Determines the change of password.
Chapter 4 Settings — [NETWORK] menu
[User] account
1
2
3
4
5
1 [Account]
Displays the account to change.
2 [New][User name]
Enter the desired new user name. (Up to 16 characters in single
byte)
3 [New][Password]
Enter the desired new password. (Up to 16 characters in single
byte)
4 [New][Password(Retype)]
Enter the desired new password again.
5 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
3
4
1 [Old Password]
Enter the current password.
3 [Retype]
Enter the desired new password again.
2 [New Password]
Enter the desired new password. (Up to 16 characters in single
byte)
4 [OK]
Determines the change of password.
Note
ff To change the account of the administrator, you must enter the [User name] and [Password] in [Current].
[CRESTRON RoomView] page
The projector can be monitored/controlled with RoomView.
To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the
[CRESTRON RoomView] button is not displayed on the web control screen.)
The control page of RoomView is displayed by clicking [CRESTRON RoomView].
It is not displayed if Adobe Flash Player is not installed on the computer used, or the browser used does not support Flash. In that case, click
[Back] on the control page to go back to the previous page.
ENGLISH - 151
Chapter 4 Settings — [NETWORK] menu
Control page
1
2
3
4
5
6
7
1 [Tools][Info][Help]
Tabs for selecting the setting, information, or help page of the
projector.
4 [Input Select]
Controls input selection.
Not available when the power of the projector is turned off.
2 [POWER]
Turns on/off the power.
5 Menu screen control buttons
Navigates the menu screen.
3 [SHUTTER]
Switches the setting whether to use the shutter function
(closing/opening of the shutter).
6 Freeze/image quality adjustment
Controls items related to freeze/image quality.
7 [Back]
Performs return to the previous page.
[Tools] page
Click [Tools] on the control page.
1
2
3
4
5
1 [Control System]
Set the information required for communicating with the
controller to be connected with the projector.
2 [User Password]
Set the user rights password for the RoomView control page.
3 [Admin Password]
Set the administrator rights password for the RoomView control
page.
4 Network status
Displays the settings of wired LAN.
[DHCP]
Displays the current setting.
[Ip Address]
Displays the current setting.
[Subnet Mask]
Displays the current setting.
[Default Gateway]
Displays the current setting.
[DNS Server]
Displays the current setting.
5 [Exit]
Returns to the control page.
152 - ENGLISH
Chapter 4 Settings — [NETWORK] menu
[Info] page
Click [Info] on the control page.
4
5
1
2
6
3
7
8
1 [Projector Name]
Displays the projector name.
5 [Source]
Displays the selected input.
2 [Mac Address]
Displays the MAC address.
6 [Lamp Mode]
Displays [LAMP POWER] (x page 111).
3 [Lamp Hours]
Displays the runtime of the lamps (converted value).
7 [Error Status]
Displays the error status.
4 [Power Status]
Displays the status of the power.
8 [Exit]
Returns to the control page.
[Help] page
Click [Help] on the control page.
The [Help Desk] window is displayed.
1
1 [Help Desk]
Send/receive messages to/from an administrator who uses
Crestron RoomView.
ENGLISH - 153
Chapter 5
Maintenance
This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units.
154 - ENGLISH
Chapter 5 Maintenance — Lamp/temperature/filter indicators
Lamp/temperature/filter indicators
When an indicator lights up
If a problem should occur inside the projector, the lamp indicators <LAMP1>/<LAMP2>, the temperature indicator <TEMP>, and the filter
indicator <FILTER> will inform you by lighting or flashing. Check the status of the indicators and manage the indicated problems as follows.
Attention
ff When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector” (x page 55).
Lamp indicator <LAMP1>
Lamp indicator <LAMP2>
Temperature indicator <TEMP>
Filter indicator <FILTER>
Lamp indicators <LAMP1>/<LAMP2>
Indicator status
Lighting in red/lighting in
orange*1
Flashing in red
(1 time)
Flashing in red
(3 times)
Status
Time to replace the lamp
unit. (x page 160)
ff The lamp unit is not
installed.
ff The unspecified lamp unit
is installed.
A problem is detected in the lamp or the power supply for
the lamp.
Cause
ff Was [REPLACE LAMP]
displayed when you
turned on the power?
ff The indicator lights up
when the runtime of the
lamp unit has reached
2 300 hours (when
[LAMP POWER] is set to
[HIGH])*2 *3.
ff Is the specified lamp unit
installed?
ff Have you turned on the
power again immediately
after turning it off?
ff Some error has occurred
in the lamp circuit. Check
for fluctuation (or drop) in
the source voltage.
ff Replace the lamp unit.
ff Install the lamp unit if it is
not installed.
ff Install the specified lamp
unit.
ff If the indicator is still
flashing in red even when
having installed the lamp
unit, consult your dealer.
ff Wait a while until the
luminous lamp cools
off, and then turn on the
power.
ff Turn the <MAIN POWER>
switch to <OFF>
(x page 55), and
consult your dealer.
Solution
*1 The indicator lights up in red while the lamp is turned off, and lights up in orange while the lamp is turned on.
*2 For PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU. 3 300 hours (when [LAMP POWER] is set to [NORMAL]) for PT‑DZ10KU.
*3 300 hours when using the optional Replacement lamp unit (for portrait mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)), regardless
of the [LAMP POWER] setting.
Note
ff If the lamp indicators <LAMP1>/<LAMP2> are still lit or flashing after taking the preceding measures, ask your dealer for repair.
ENGLISH - 155
Chapter 5 Maintenance — Lamp/temperature/filter indicators
Temperature indicator <TEMP>
Indicator status
Flashing in red
(2 times)
Lighting in red
Internal temperature is high
(warning).
Internal temperature is high
(standby status).
Status
Warm-up status
Cause
ff Did you turn on the power ff Is the air intake/exhaust port blocked?
when the temperature
ff Is the room temperature high?
was low (around 0 °C
ff Is the filter indicator <FILTER> lit?
(32 °F))?
Solution
ff Remove any objects that are blocking the air intake/
ff Wait at least five minutes
exhaust port.
in the current status.
ff Install the projector in a location with an ambient
ff Install the projector in a
temperature of 0 °C (32 °F) to 45 °C (113 °F)*1.
location with an ambient
ff Do not use the projector at high altitudes of 2 700 m
temperature of 0 °C
(8 858') or higher above sea level.
(32 °F) to 45 °C (113 °F)*1.
ff Clean or replace the air filter unit. (x page 157)
Flashing in red
(3 times)
The cooling fan has
stopped.
―
ff Turn the <MAIN POWER>
switch to <OFF>
(x page 55), and
consult your dealer.
*1 When using the projector at high altitudes (1 400 m (4 593') or higher – lower than 2 700 m (8 858') above sea level), the operating environment
temperature should be between 0 °C (32 °F) and 40 °C (104 °F).
If you use the Smoke cut filter, the operating environment temperature should be between 0 °C (32 °F) and 35 °C (95 °F). However, it cannot be
used at high altitudes.
If you use the Replacement lamp unit (for portrait mode), the operating environment temperature should be between 0 °C (32 °F) and 40 °C
(104 °F) when using the projector at elevations lower than 1 400 m (4 593') above sea level, and between 0 °C (32 °F) and 35 °C (95 °F) when
using the projector at high altitudes. If you use the Smoke cut filter together, the operating environment temperature should be between 0 °C (32 °F)
and 30 °C (86 °F).
Note
ff If the temperature indicator <TEMP> is still lit or flashing after taking the preceding measures, ask your dealer for repair.
ff If you use the projector with the following two settings made, the light output may drop by approx. 20 % to protect the projector when an
ambient temperature becomes 40 °C (104 °F) or higher (35 °C (95 °F) or higher if [HIGH ALTITUDE MODE] is set to [ON], or if the Smoke
cut filter is used).
gg When [LAMP SELECT] is set to [DUAL] from the menu
gg When [LAMP POWER] is set to [HIGH], [MIDDLE], or [NORMAL] from the menu
Filter indicator <FILTER>
Indicator status
Lighting in red
Flashing in red
Status
The filter is clogged.
The temperature inside or outside the projector is abnormally high.
Cause
ff Is the air filter unit dirty?
ff Is the air intake/exhaust
port blocked?
ff Clean or replace the air
filter unit. (x page 157)
ff When using the projector
at high altitudes between
1 400 m (4 593') or higher
and lower than 2 700 m
(8 858') above sea level,
ff Remove any objects that
set [HIGH ALTITUDE
ff Attach the air filter unit.
are blocking the air intake/
MODE] (x page 109) to
exhaust port.
[ON].
ff Do not use the projector
at high altitudes of
2 700 m (8 858') or higher
above sea level.
Solution
ff Is [HIGH ALTITUDE
MODE] set correctly?
The air filter unit is not
attached.
ff Is the air filter unit
attached?
Note
ff If the filter indicator <FILTER> is still lit or flashing after taking the preceding measures, ask your dealer for repair.
ff If the filter is clogged, only one lamp may light even when [LAMP SELECT] is set to [DUAL]. By cleaning the air filter unit or replacing it with
a new one, the lamp will light properly.
156 - ENGLISH
Chapter 5 Maintenance — Maintenance/replacement
Maintenance/replacement
Before performing maintenance/replacement
ff Make sure to turn off the power before maintaining or replacing the unit. (x pages 52, 55)
ff When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 55).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
ff If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector with a dry cloth.
ff Do not use benzene, thinner, or rubbing alcohol, other solvents, or household cleaners. Doing so may deteriorate the outer case.
ff When using chemically treated dust cloths, follow the instructions written on its packaging.
Lens front surface
Wipe off dirt and dust from the front surface of the lens with a soft clean cloth.
ff Do not use a cloth that is fluffy, dusty, or soaked with oil/water.
ff Since the lens is fragile, do not use excessive force when wiping the lens.
Attention
ff The lens is made of glass. Impacts or excessive force when wiping may scratch its surface. Handle with care.
Air filter unit
Perform maintenance of the air filter unit in the following cases.
ff The air filter is clogged with dust, causing the filter replacement message to appear on the screen and the filter indicator <FILTER> to light
in red.
Removing the air filter unit
Air filter unit compartment and the
projector’s air intake port
Air filter cover fixing screw
Tabs on the
projector body
Tabs on the
projector body
Air filter cover
Fig. 1
Air filter unit
Fig. 2
Fig. 3
1) Remove the air filter cover. (Fig. 1)
ff Use a Phillips screwdriver to turn the air filter cover screw counterclockwise until it turns freely, and then remove the air filter cover.
ff Loosen the air filter cover fixing screw while putting your hand on.
2) Pull out the air filter unit.
ff Pull out the air filter unit frame from the tabs of the projector body while slightly pressing around the center of the frame at the front
side (with the lens) inward as described with the arrow, and pull out the frame at the opposite side from the tabs to remove the air filter
unit. (Fig. 2)
ff After pulling out the air filter unit, remove large foreign objects and dust from the air filter unit compartment and the air intake port of
the projector body if there are any. (Fig. 3)
ENGLISH - 157
Chapter 5 Maintenance — Maintenance/replacement
Cleaning the air filter unit
Remove the air filter unit beforehand with the previously described procedure of “Removing the air filter unit”.
Fig. 1
Fig. 2
1) Wash the air filter unit. (Fig. 1)
i) Soak the air filter unit in cold or warm water and then lightly rinse it.
ff Do not use cleaning tools such as brushes.
ff When rinsing, hold the frame of the air filter unit without putting strong pressure on the filter unit.
ii) Rinse the air filter unit two to three times using fresh water each time.
ff Insufficient rinsing may result in odors.
2) Dry the air filter unit. (Fig. 2)
ff Let the air filter unit naturally dry off in a well-ventilated place where there is little dust and is not exposed to direct sunlight.
ff Do not dry using drying devices such as dryers.
ff After the air filter is dried, proceed to “Attaching the air filter unit” (x page 158).
Attaching the air filter unit
Tabs on the projector body
Protrusion of the air filter unit
Groove on the projector body
Groove on the projector body
Protrusion of the air filter unit
Tabs on the projector body
1) Attach the air filter unit to the projector.
ff The air filter unit has no difference between top and bottom, but is two-sided. Match the protrusion position of the air filter with the
grooves on the projector body.
ff Hook the air filter unit frame at the exhaust port side to the two tabs of the back side of the projector’s air filter unit compartment and
perform Step 2) in “Removing the air filter unit” in the reverse order to attach.
ff Confirm that the tabs of the air filter unit compartment of the projector body are hooked to the air filter unit frame.
2) Attach the air filter cover to the projector and use a Phillips screwdriver to tighten the air filter cover
screw.
ff Perform Step 2) in “Removing the air filter unit” (x page 157) in the reverse order.
Attention
ff After washing the air filter unit, dry it thoroughly before attaching it back to the projector. Attaching a wet unit will cause an electric shock or
malfunction.
ff Do not disassemble the air filter unit.
Note
ff Make sure that the air filter unit is properly attached before using the projector. If it is not properly attached, the projector will suck in dirt and
dust causing a malfunction.
ff If you use the projector without attaching the air filter unit, the filter indicator <FILTER> flashes in red and the message appears on the
projection screen for approximately 30 seconds.
ff Replace the air filter unit with the new optional Replacement Filter Unit (Model No.: ET‑EMF320) if it is damaged or if the dirt does not come
off even after washing.
ff Air filter replacement is recommended after cleaning the unit two times.
ff The dust-proof properties may be reduced after each cleaning.
158 - ENGLISH
Chapter 5 Maintenance — Maintenance/replacement
Replacing the unit
Air filter unit
If dirt does not come off even after the unit is maintained, it is time for the unit to be replaced.
The Replacement Filter Unit (Model No.: ET‑EMF320) is an optional accessory. To purchase the product, consult your dealer.
Replacing the air filter unit
Attention
ff Make sure to turn off the power before replacing the air filter unit.
ff When attaching the unit, make sure that the projector is stable, and perform the replacement in a safe place where the unit will not be
damaged even if you drop the air filter unit.
1) Remove the air filter unit.
ff Refer to “Removing the air filter unit” (x page 157).
2) Attach the optional Replacement Filter Unit (Model No.: ET‑EMF320) to the projector.
ff The air filter unit has no difference between top and bottom, but is two-sided. Match the protrusion position of the air filter with the
grooves on the projector body.
ff Refer to “Attaching the air filter unit” (x page 158).
Attention
ff When switching on the projector, make sure that the air filter unit is attached. If it is not properly attached, the projector will suck in dirt and
dust causing a malfunction.
ff If you use the projector without attaching the air filter unit, the filter indicator <FILTER> flashes in red and the message appears on the
projection screen for approximately 30 seconds.
Note
ff The replacement cycle of the air filter unit varies greatly depending on the usage environment.
Lamp unit
The lamp unit is a consumable component. Refer to “When to replace the lamp unit” (x page 160) for details about the replacement cycle.
When purchasing the optional Replacement lamp unit (Model No.: ET‑LAD310A (1 pc), ET‑LAD310AW (2 pcs)) or the Replacement lamp unit
(for portrait mode) (Model No.: ET‑LAD320P (1 pc), ET‑LAD320PW (2 pcs)), consult your dealer.
It is recommended that you request a qualified technician to replace the lamp unit. Consult your dealer.
Warning
Replace the lamp unit after the lamp has cooled (after waiting at least one hour).
The high temperature inside the cover will cause burns.
Checking the lamp unit to be replaced
1) Check the status of the lamp indicators <LAMP1>/<LAMP2>.
ff The lamp unit corresponding to the lamp indicator that is lit in red is required to be replaced.
Notes on the replacement of the lamp unit
ff A Phillips screwdriver is necessary when replacing the lamp unit.
ff Since the luminous lamp is made of glass, it may burst if dropped or hit with a hard object. Handle with care.
ff Do not disassemble or modify the lamp unit.
ff When replacing the lamp unit, be sure to hold it by the handle because its surface is pointed and its shape is protruded.
ff The lamp contains mercury. When disposing of used lamp units, contact your local authorities or dealer for correct methods of disposal.
Attention
ff Panasonic takes no responsibility for any damage or malfunction of the product resulting from use of lamp units which are not manufactured
by Panasonic. Use only specified lamp units.
ff For the portrait setting, be sure to use the optional Replacement lamp unit (for portrait mode).
ff Do not use the Replacement lamp unit (for portrait mode) and normal lamp unit together.
ff Use the Replacement lamp unit (for portrait mode) only when installing the projector in the portrait setting.
ENGLISH - 159
Chapter 5 Maintenance — Maintenance/replacement
Note
ff The model numbers of accessories and optional accessories are subject to change without prior notice.
When to replace the lamp unit
The lamp unit is a consumable component. Since its brightness gradually decreases over time, it is necessary to replace the lamp unit
regularly. The estimated duration before replacement is 2 500 hours*1, but the lamp may go off before 2 500 hours*1 has elapsed depending
on individual lamp characteristics, usage conditions, and the installation environment. It is recommended that the Replacement lamp unit be
prepared earlier.
If you continue to use the lamp unit after 2 500 hours*1 has elapsed, the lamp turns off automatically after approximately 10 minutes, as it will
cause malfunction of the projector.
If the runtime of both of two lamp unit bulbs exceeds 2 500 hours*1, the power will be switch off after approximately 10 minutes.
On-screen display
Lamp indicator
REPLACE LAMP
Over 2 300 hours*2
The message is displayed for 30 seconds. Pressing
any button on the control panel or remote control
within 30 seconds will clear the message.
Over 2 500 hours*1
The message remains displayed until you press any
button.
The indicator lights in red even during the standby
mode.
*1 For PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU. 3 500 hours for PT‑DZ10KU.
*2 For PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU. 3 300 hours for PT‑DZ10KU.
Note
ff To predict when to replace the lamp, check the lamp runtime displayed in [LAMP1] and [LAMP2] in [STATUS] (x page 119).
ff 2 500 hours and 3 500 hours are estimated duration before replacement, and is not guaranteed.
ff The estimated duration before replacing the Replacement lamp unit (for portrait mode) is 500 hours regardless of the [LAMP POWER]
setting. The on-screen message for replacing the lamp appears after 300 hours.
160 - ENGLISH
Chapter 5 Maintenance — Maintenance/replacement
How to replace the lamp unit
Attention
ff When the projector is mounted on the ceiling, do not conduct work while your face is near the lamp unit.
ff Do not remove or loosen the screws other than specified ones when replacing the lamp unit.
ff Use same type of lamp unit for both lamps.
ff When replacing the lamp unit, loosen the lamp unit cover fixing screw while putting your hand on.
Lamp unit cover
Grooves for the guide to attach the lamp unit
(i)
(ii)
Lamp unit cover fixing screw
Fig. 1
Guide to attach the
lamp unit
Lamp unit 2
Handles
Lamp unit 1
Fan power connector
Lamp unit fixing screws
Fig. 2
Grooves for the guide to attach the lamp unit
Fig. 3
1) Set the <MAIN POWER> switch to <OFF> and disconnect the power plug from the power outlet.
ff Wait at least one hour and check if the lamp unit has cooled down.
2) Remove the lamp unit cover. (Fig. 1)
i) Use a Phillips screwdriver to turn the lamp unit cover fixing screw (x1) counterclockwise until it turns freely, and open the lamp unit cover
slowly in the direction of the arrow.
ff Opening the lamp unit cover quickly may result in damage to the cover.
ff If you loosen the lamp unit cover fixing screw with the projector installed upward in the vertical direction, the lamp unit cover may open
on its weight and the lamp unit may be dropped off.
ii) Hold the lamp unit cover securely and slide it in the direction of the arrow, and then pull it out backward to remove.
ff Fan and other components are attached to the lamp unit cover; handle the removed lamp unit cover with care.
3) Remove the lamp unit. (Fig. 2)
ff Use a Phillips screwdriver to turn the lamp unit fixing screws (x2) counterclockwise until they turn freely, and then remove the lamp
unit.
ff Hold the handles of the lamp unit and remove it in the horizontal direction.
ff Do not remove the screws other than the lamp unit fixing screws.
4) Push in the new lamp unit while paying attention to the insertion position. (Fig. 3)
ff Push the guides to attach the lamp unit slowly into the projector body along the grooves for guide to attach the lamp unit.
ff If the lamp unit is not installed properly, remove it and then push it in slowly. Pushing it in quickly or forcibly may break the connector.
ENGLISH - 161
Chapter 5 Maintenance — Maintenance/replacement
5) Use a Phillips screwdriver to firmly tighten the lamp unit fixing screws (x2 each).
ff Make sure to attach the lamp unit securely.
6) Attach the lamp unit cover.
i) Close the lamp unit cover in Step 2) in the reverse order.
ff Attach the lamp unit cover so that the connector of the lamp unit cover is inserted to the fan power connector securely.
ii) Use a Phillips screwdriver to firmly tighten the lamp unit fixing screw (x1).
ff Make sure to attach the lamp unit cover securely.
Note
ff When you replace the lamp unit with new one, the projector resets the runtime of the lamp unit automatically.
162 - ENGLISH
Chapter 5 Maintenance — Troubleshooting
Troubleshooting
Review the following points. For details, see the corresponding pages.
Problems
Power does not turn on.
No image appears.
Image is fuzzy.
Color is pale or grayish.
Remote control does not
respond.
Menu screen does not
appear.
Buttons on the control
panel do not operate.
Image does not display
correctly.
Image from a computer
does not appear.
Image output from DVI‑D
of the computer does not
appear.
Video from HDMI
compatible device does
not appear or it appears
jumbled.
Points to be checked
Page
ff Is the power plug firmly inserted into the outlet?
―
ff Is the <MAIN POWER> switch set to <OFF>?
55
ff Is the wall outlet supplying electricity?
―
ff Have the circuit breakers tripped?
―
ff Are the lamp indicator <LAMP1>/<LAMP2> or the temperature indicator <TEMP> lit
or flashing?
155
ff Is the lamp unit cover attached?
161
ff Are connections to external devices correctly performed?
48
ff Is the input selection setting correct?
62
ff Is the [BRIGHTNESS] adjustment setting at a minimum?
72
ff Is the external device that is connected to the projector working properly?
―
ff Is the shutter function in use?
61
ff If the power indicator <ON (G)/STANDBY (R)> is flashing in red, consult your
dealer.
―
ff Is the lens cover still attached to the lens?
53
ff Is the lens focus set correctly?
56
ff Is the projection distance appropriate?
32
ff Is the lens dirty?
18
ff Is the projector installed perpendicular to the screen?
―
ff Is [COLOR] or [TINT] adjusted correctly?
72
ff Is the external device connected to the projector adjusted correctly?
48
ff Is the RGB cable damaged?
―
ff Are the batteries depleted?
―
ff Is the polarity of the batteries set correctly?
28
ff Are there any obstructions between the remote control and the remote control
signal receiver of the projector?
24
ff Is the remote control being used beyond its effective operation range?
25
ff Are other forms of light, such as fluorescent light, affecting the projection?
25
ff Is the [REMOTE CONTROL] setting in [CONTROL DEVICE SETUP] set to
[DISABLE]?
132
ff Is the <REMOTE 2 IN> terminal used for contact control?
173
ff Is the ID number setting operation correct?
28
ff Is the on-screen display function turned off (hidden)?
102
ff Is the [CONTROL PANEL] setting in [CONTROL DEVICE SETUP] set to
[DISABLE]?
132
ff Is the <REMOTE 2 IN> terminal used for contact control?
173
ff Is the [SYSTEM SELECTOR] selection set correctly?
77
ff Is there a problem with the video tape or other image sources?
―
ff Is a signal which is not compatible with the projector being input?
175
ff Is the cable too long? (Use D‑Sub cables that are 10 m (32'10") or shorter.)
―
ff Is the external video output of the laptop computer set correctly? (Ex.: The external
output settings may be switched by pressing the “Fn” + “F3” or “Fn” + “F10”
simultaneously. Since the method varies depending on the computer type, refer to
the user manual provided with your computer.)
―
ff Is the [DVI-D IN] setting [EDID3]/[EDID2:PC]?
100
ff The graphics accelerator driver of the computer may need to be updated to the
latest version.
―
ff The computer may need to be restarted after performing the [DVI-D IN] setting.
100
ff Is the HDMI cable connected securely?
48
ff Turn the power of the projector and the external device on and off.
―
ff Is a signal which is not compatible with the projector being input?
175
ff Is the [3D INPUT FORMAT] setting of [3D SETTINGS] correct?
92
3D function is not working. ff Check the 3D eyewear settings.
ff Is a signal which is supported by the projector being input?
―
177
ENGLISH - 163
Chapter 5 Maintenance — Troubleshooting
Problems
Left and right images are
reversed (not showing
properly).
Image in the 3D eyewear
flickers.
3D eyewear is not
functioning.
Points to be checked
―
ff Change the [LEFT/RIGHT SWAP] setting of [3D SETTINGS].
93
ff Are you within the reception range?
―
ff Are batteries of the 3D eyewear drained? If you use the rechargeable 3D eyewear,
charge it. If you use the battery-powered 3D eyewear, replace the battery.
―
ff Is the [3D SETTINGS] setting correct?
91
Attention
ff If problems persist even after checking the preceding points, consult your dealer.
164 - ENGLISH
Page
ff Are the devices synchronized? Check the 3D eyewear settings.
Chapter 6
Appendix
This chapter describes specifications and after-sales service for the projector.
ENGLISH - 165
Chapter 6 Appendix — Technical information
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform projector setting and
projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector.
ff x characters in tables are non-specific characters.
Command
Control details
POWR
Power supply control
POWR?
Power supply status
query
INPT
INPT?
Input selection
Input selection query
Parameter / return string
Remark
0
Standby
1
Power on
0
Standby
1
Power on
2
Preparing for switching off the projector
3
Warm-up
11
RGB1
12
RGB2
21
VIDEO
31
DVI‑D
32
HDMI
33
SDI1 (only for PT‑DZ13KU, PT‑DS12KU), SDI (only for PT‑DZ10KU)
34
SDI2 (only for PT‑DZ13KU, PT‑DS12KU)
AVMT
Shutter control
30
Shutter function off (shutter open)
AVMT?
Shutter status query
31
Shutter function on (shutter closed)
ERST?
Error status query
1st byte
Indicates fan errors, and returns
0 - 2.
2nd byte
Indicates lamp errors, and returns
0 - 2.
3rd byte
Indicates temperature errors, and
returns 0 - 2.
4th byte
Indicates cover open errors, and
returns 0 or 2.
5th byte
Indicates filter errors, and returns
0 - 2.
6th byte
Indicates other errors, and returns
0 - 2.
xxxxxx
xxxxxxxxxxxx
1st digits (1 - 5 digits): Lamp 1 runtime
2nd digit: 0 = Lamp 1 off, 1 = Lamp 1 on
3rd digits (1 - 5 digits): Lamp 2 runtime
4th digit: 0 = Lamp 2 off, 1 = Lamp 2 on
11 12 21 31 32 33 34
Only for PT‑DZ13KU, PT‑DS12KU
LAMP?
Lamp status query
INST?
Input selection list query 11 12 21 31 32
ff 0 = No error is
detected
ff 1 = Warning
ff 2 = Error
Only for PT‑DW11KU
11 12 21 31 32 33
Only for PT‑DZ10KU
NAME?
Projector name query
xxxxx
Returns the name set in [PROJECTOR NAME] of [NETWORK
SETUP].
INF1?
Manufacturer name
query
Panasonic
Returns manufacturer name.
INF2?
Model name query
DZ13K
DS12K
DW11K
DZ10K
Returns model name.
INF0?
Other information
queries
xxxxx
Returns information such as version number.
CLSS?
Class information query
1
Returns class for PJLink.
166 - ENGLISH
Chapter 6 Appendix — Technical information
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a password for web control.
ff For specifications related to PJLink, refer to the website of Japan Business Machine and Information System Industries Association.
URL http://pjlink.jbmia.or.jp/english/
Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a
connection to the projector.
ff You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK] → [NETWORK STATUS]
Port number
Obtain from the main menu → [NETWORK] → [NETWORK CONTROL] → [COMMAND PORT]
2) Check the response from the projector.
Data section
Blank
Mode
Blank
Random number section
Termination
symbol
Command
example
“NTCONTROL”
(ASCII string)
‘’
0x20
‘1’
0x31
‘’
0x20
“zzzzzzzz”
(ASCII code hex number)
(CR)
0x0d
Data length
9 bytes
1 byte
1 byte
1 byte
8 bytes
1 byte
ff Mode: 1 = Protect mode
3) Generate a 32-byte hash value from the following data using MD5 algorithm.
ff “xxxxxx:yyyyy:zzzzzzzz”
xxxxxx
Administrator rights user name for the web control (default user name is “admin1”)
yyyyy
Password of above administrator rights user (default password is “panasonic”)
zzzzzzzz
8-byte random number obtained in Step 2)
Command transmission method
Transmit using the following command formats.
rrTransmitted data
Header
Data section
Termination
symbol
Command
example
Hash value
(Refer to “Connecting” above)
‘0’
0x30
‘0’
0x30
Control command
(ASCII string)
(CR)
0x0d
Data length
32 bytes
1 byte
1 byte
Undefined length
1 byte
Data section
Termination
symbol
rrReceived data
Header
Command
example
‘0’
0x30
‘0’
0x30
Control command
(ASCII string)
(CR)
0x0d
Data length
1 byte
1 byte
Undefined length
1 byte
ENGLISH - 167
Chapter 6 Appendix — Technical information
rrError response
String
Message
Data length
Termination
symbol
Details
“ERR1”
Undefined control command
“ERR2”
Out of parameter range
“ERR3”
Busy state or no-acceptable period
“ERR4”
Timeout or no-acceptable period
“ERR5”
Wrong data length
“ERRA”
Password mismatch
4 bytes
(CR)
0x0d
―
1 byte
When web control administrator rights password is not set (Non-protect mode)
Connecting
1) Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a
connection to the projector.
ff You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK] → [NETWORK STATUS]
Port number
Obtain from the main menu → [NETWORK] → [NETWORK CONTROL] → [COMMAND PORT]
2) Check the response from the projector.
Data section
Blank
Mode
Termination
symbol
Command
example
“NTCONTROL”
(ASCII string)
‘’
0x20
‘0’
0x30
(CR)
0x0d
Data length
9 bytes
1 byte
1 byte
1 byte
ff Mode: 0 = Non-protect mode
Command transmission method
Transmit using the following command formats.
rrTransmitted data
Header
Data section
Termination
symbol
Command
example
‘0’
0x30
‘0’
0x30
Control command
(ASCII string)
(CR)
0x0d
Data length
1 byte
1 byte
Undefined length
1 byte
Data section
Termination
symbol
rrReceived data
Header
Command
example
‘0’
0x30
‘0’
0x30
Control command
(ASCII string)
(CR)
0x0d
Data length
1 byte
1 byte
Undefined length
1 byte
168 - ENGLISH
Chapter 6 Appendix — Technical information
rrError response
String
Message
Data length
Termination
symbol
Details
“ERR1”
Undefined control command
“ERR2”
Out of parameter range
“ERR3”
Busy state or no-acceptable period
“ERR4”
Timeout or no-acceptable period
“ERR5”
Wrong data length
“ERRA”
Password mismatch
4 bytes
(CR)
0x0d
―
1 byte
<SERIAL IN>/<SERIAL OUT> terminal
The <SERIAL IN>/<SERIAL OUT> terminal of the projector conforms with RS‑232C so that the projector can be connected to and controlled
from a computer.
Connection
Single projector
Projector connecting terminals
D-Sub 9p (female)
Computer
D-Sub 9p (male)
D-Sub 9p (male)
Communication cable (straight)
Multiple projectors
Connecting terminals on projector 1
D-Sub 9p (female)
Connecting terminals on projector 2
D-Sub 9p (female)
D-Sub 9p (male)
D-Sub 9p (male)
Computer
D-Sub 9p (male)
D-Sub 9p (male)
D-Sub 9p (female)
Communication cable
Communication cable
Note
ff The destination of [RS-232C] (x page 118) must be set according to the connection method.
Pin assignments and signal names
D‑Sub 9-pin (female)
Outside view
(5)
(9)
(1)
(6)
Pin No.
Signal name
Details
(1)
―
(2)
TXD
Transmitted data
(3)
RXD
Received data
(4)
―
(5)
GND
(6)
―
(7)
CTS
(8)
RTS
(9)
―
NC
NC
Earth
NC
Connected internally
NC
ENGLISH - 169
Chapter 6 Appendix — Technical information
D‑Sub 9-pin (male)
Outside view
(1)
(5)
(6)
(9)
Pin No.
Signal name
(1)
―
Details
NC
(2)
RXD
Received data
(3)
TXD
Transmitted data
(4)
―
(5)
GND
(6)
―
(7)
RTS
(8)
CTS
(9)
―
NC
Earth
NC
Connected internally
NC
Communication conditions (Factory default)
Signal level
Sync. method
Baud rate
RS‑232C-compliant
Asynchronous
9 600 bps
Parity
None
Character length
8 bits
Stop bit
1 bit
X parameter
None
S parameter
None
Basic format
Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according
to the details of control.
ID designate
ZZ, 01 to 06
(2 bytes)
Start (1 byte)
End (1 byte)
Parameter (undefined length)
Colon (1 byte)
3 command characters (3 bytes)
Semi-colon (1 byte)
2 ID characters (2 bytes)
Basic format (has subcommands)
Same as the basic format
Sub command (5 bytes)
Parameter (6 bytes)*1
Symbol “+” or “–” (1 byte) and setting or adjustment value (5
bytes)
Operation (1 byte)*1
“=” (Set the value specified using parameter)
*1 When transmitting a command which does not need a parameter, an operation (E) and parameter are not necessary.
170 - ENGLISH
Chapter 6 Appendix — Technical information
Attention
ff If a command is transmitted after the lamp starts illuminating, there may be a delay in response or the command may not be executed. Try
sending or receiving any command after 60 seconds.
ff When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before
sending the next command. When transmitting a command which does not need a parameter, a colon (:) is not necessary.
Note
ff If a command cannot be executed, the “ER401” response is sent from the projector to the computer.
ff If an invalid parameter is sent, the “ER402” response is sent from the projector to the computer.
ff ID transmission in RS‑232C supports ZZ (ALL) and 01 to 64, as well as 0A to 0Z groups.
ff If a command is sent with a specified ID, a response will be sent to the computer only in the following cases.
gg It matches the projector ID
gg ID setting is set to ALL and [RESPONSE(ID ALL)] is [ON]
gg ID setting is set to GROUP and [RESPONSE(ID GROUP)] is [ON]
ff STX and ETX are character codes. STX shown in hexadecimal is 02, and ETX shown in hexadecimal is 03.
When multiple projectors are controlled
When multiple projectors are all controlled
When controlling multiple projectors together via RS‑232C, perform the following settings.
1) Set a different ID for each projector.
2) Set [RESPONSE(ID ALL)] to [ON] in only one projector.
3) Set [RESPONSE(ID ALL)] to [OFF] for all other projectors set in Step 2).
When multiple projectors are all controlled by group unit
When controlling multiple projectors by group unit via RS‑232C, perform the following settings.
1) Set a different ID for each projector.
2) Set [RESPONSE(ID GROUP)] to [ON] in only one projector.
3) Set [RESPONSE(ID GROUP)] to [OFF] for all other projectors set in Step 2).
Note
ff There will be no response if two or more projectors have [RESPONSE(ID ALL)] set to [ON].
ff There will be no response if two or more projectors of the same group have [RESPONSE(ID GROUP)] set to [ON].
ff When setting multiple groups, set [RESPONSE(ID ALL)] to [ON] in only one projector in each group.
Cable specification
When connected to a computer
1
NC NC
2
Projector
(<SERIAL IN> terminal)
3
4
1
2
2
3
4
NC NC
6
5
7
8
9
1
NC NC
5
6
When multiple projectors are connected
NC NC
Computer
(DTE specifications)
Projector 1
(<SERIAL OUT>
terminal)
NC NC
2
3
4
3
NC NC
4
NC NC
6
5
6
7
7
8
8
9
9
1
5
Projector 2
(<SERIAL IN>
terminal)
7
8
NC NC
9
ENGLISH - 171
Chapter 6 Appendix — Technical information
Control command
The following table lists the commands that can be used to control the projector using a computer.
rrProjector control command
Command
PON
Power on
POF
Power standby
QPW
Power query
IIS
QSL
LPM
Parameter/response
string
Details
Switching the input
signal
Query for lamp selection
Lamp selection
―
Lamp power
To check if the power is on, use the “Power query” command.
000
001
STANDBY
Power on
VID
VIDEO
RG1
RGB1
RG2
RGB2
DVI
DVI‑D
HD1
HDMI
SD1
SDI1 (only for PT‑DZ13KU, PT‑DS12KU, PT‑DZ10KU)
SD2
SDI2 (only for PT‑DZ13KU, PT‑DS12KU)
0
DUAL
1
SINGLE
2
LAMP1
3
LAMP2
0
DUAL
1
SINGLE*1
2
LAMP1
3
LAMP2
HIGH (only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
0
OLP
Remark (parameter)
NORMAL (only for PT‑DZ10KU)
1
ECO
8
MIDDLE (only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
1
LAMP1
2
LAMP2
Q$L
Lamp cumulative
runtime query
OSH
Shutter
0
OPEN
QSH
Shutter status query
1
CLOSE
0
DEFAULT/VID AUTO
1
4:3
2
16:9
5
THROUGH
6
HV FIT
9
H FIT
VSE
QSE
OPP
QPP
Aspect ratio switch
Aspect ratio settings
query
P IN P execute
P IN P setting query
OCS
Sub memory switch
QSB
Sub memory status
query
Response is 0000 to 4000
10
V FIT
0
OFF
1
USER1
2
USER2
3
USER3
0
OFF
1
USER1
2
USER2
3
USER3
01 - 96
Sub memory number
*1 Use Lamp 1 or Lamp 2 whichever has a shorter runtime.
rrProjector control command (with sub command)
Command
VXX
Sub command
RYCI1
172 - ENGLISH
Details
RGB1 input setting
Remark
+00000 = RGB/YPBPR, +00001 = Y/C
Chapter 6 Appendix — Technical information
rrLens control command
Command
Sub command
Details
VXX
LNSI2
Lens H shift
VXX
LNSI3
Lens V shift
VXX
LNSI4
Lens focus
VXX
LNSI5
Lens zoom
Remark
+00000 = Fine adjustment 1+, +00001 = Fine adjustment 1-, +00100
= Fine adjustment 2+, +00101 = Fine adjustment 2-, +00200 = Coarse
adjustment+, +00201 = Coarse adjustment-
<REMOTE 2 IN> terminal
It is possible to control the projector remotely (by external contact) from a control panel located away from the projector where remote control
signals cannot reach.
Use the <REMOTE 2 IN> terminal on the connecting terminals of the projector to connect to the control panel.
Remote control
Contact control
Remote control/contact control
Standby
Lit
Lamp
RGB1
VIDEO
RGB2
HDMI
DVI-D
Installation locations in meeting rooms, etc.
Remote control board in another location
Pin assignments and signal names
D‑Sub 9-pin
Outside view
(5)
(9)
(1)
(6)
Pin No.
Signal name
Open (H)
Short (L)
(1)
GND
(2)
POWER
OFF
ON
(3)
RGB1
Other
RGB1
RGB2
―
GND
(4)
RGB2
Other
(5)
VIDEO
Other
VIDEO
(6)
HDMI
Other
HDMI
(7)
DVI‑D
Other
DVI‑D
(8)
SHUTTER
OFF
ON
RST/SET
Controlled by remote
control
Controlled by external
contact
(9)
Attention
ff When controlling, make sure to short-circuit pins (1) and (9).
ff When pins (1) and (9) are short-circuited, the following buttons on the control panel and the remote control cannot be used.
The power on <b> button, the power standby <v> button, the <SHUTTER> button, and the RS‑232C commands and network functions
corresponding to these functions cannot be used either.
ff When pins (1) and (9) are short-circuited, if any pins from (3) to (7) are short-circuited with pin (1), the following buttons on the control panel
and the remote control cannot be used.
The power on <b> button, the power standby <v> button, <RGB1> button, <RGB2> button, <DVI-D> button, <VIDEO> button, <HDMI>
button, <SDI 1/2> button, <SHUTTER> button, and the RS‑232C commands and network functions corresponding to these functions cannot
be used either.
Note
ff For pin (2) to pin (8) settings, you can make changes if you set [REMOTE2 MODE] to [USER]. (x page 120)
ENGLISH - 173
Chapter 6 Appendix — Technical information
Two-window display combination list
Sub window
RGB1
RGB2
RGB
Movie*3
Y/C input
RGB
Movie*3
VIDEO
input
RGB
―
―
―
l
l
l
Movie*3
―
―
―
l
a
a
Y/C input
―
―
―
l
a
―
RGB
l
l
l
―
―
l
Movie*3
l
a
a
―
―
a
―
Main window
RGB1
RGB2
VIDEO input
DVI‑D
HDMI
l
a
―
l
a
RGB*2
l
l
l
l
l
l
Movie*1
l
a
a
l
a
a
RGB*2
l
l
l
l
l
l
Movie*1
l
a
a
l
a
a
l
a
a
SDI1*4/SDI*6
l
a
a
SDI2*5
l
a
a
l
a
a
Dual link HD‑SDI*7
―
―
a
―
―
a
SDI1*4
SDI2*5
Dual link
HD‑SDI*7
―
Sub window
DVI‑D
Main window
HDMI
RGB*2
Movie*1
RGB*2
Movie*1
RGB
l
l
l
l
l
l
Movie*3
l
a
l
a
a
a
―
Y/C input
l
a
l
a
a
a
a
RGB
l
l
l
l
l
l
―
Movie*3
l
a
l
a
a
a
―
l
a
l
a
a
a
a
RGB1
RGB2
VIDEO input
RGB*2
―
―
l
l
l
―
―
Movie*1
―
―
l
a
a
―
―
RGB*2
l
l
―
―
―
l
―
Movie*1
l
a
―
―
―
a
―
SDI1*4/SDI*6
l
a
―
―
―
a
―
SDI2*5
―
―
l
a
a
―
―
Dual link HD‑SDI*7
―
―
―
―
―
―
―
DVI‑D
HDMI
l: P IN P (picture in picture) combination is possible
a: P IN P (picture in picture) combination is possible through the same frequency
-: P IN P (picture in picture) combination is not possible
*1 Only supports 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, and 1080/60p
*2 VGA (640 x 480) - WUXGA (1 920 x 1 200)
Non-interlace signal, dot clock frequency: 25 MHz to 162 MHz (The WUXGA signal is only compatible with VESA CVT RB (Reduced Blanking)
signals.)
*3 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24sF, 1080/24p, 1080/25p, 1080/30p, 1080/50p, 1080/60p
*4 SDI1 (only for PT‑DZ13KU, PT‑DS12KU)
*5 SDI2 (only for PT‑DZ13KU, PT‑DS12KU)
*6 SDI (only for PT‑DZ10KU)
*7 Dual link HD‑SDI (only for PT‑DZ13KU, PT‑DS12KU)
Control device password
To initialize your password, consult your distributor.
174 - ENGLISH
Chapter 6 Appendix — Technical information
Upgrade Kit
(Only for PT‑DZ13KU, PT‑DS12KU)
If the optional Upgrade Kit (Model No.: ET‑UK20) is applied, the following functions are extended.
Function
Standard status
Adjustment range of
[VERTICAL KEYSTONE]
Adjustment range of
[CURVED]
Maximum of ±45°*1
Maximum of ±15°*1
Maximum of ±40°*1
Vertical arc, Maximum ±50°*1
Horizontal arc, Maximum ±50°*1
Vertical arc, Maximum ±100°*1
Horizontal arc, Maximum ±100°*1
Maximum of
Adjustment range of
[HORIZONTAL KEYSTONE]
When the Upgrade Kit is applied
±40°*1
[CUSTOM MASKING]
Cannot be used.
The image can be masked in optional form.
[PC CORRECTION] of
[UNIFORMITY]
Cannot be used.
The brightness and unevenness of color of the entire
screen can be corrected.
*1 The adjustment range of the menu. Refer to “[GEOMETRY] projection range” (x page 33) for the possible projection range.
For details, refer to the Operating Instructions included in the CD-ROM of the optional Upgrade Kit (Model No.: ET‑UK20).
List of compatible signals
The following table specifies the video signals compatible with the projector.
ff Symbols that indicate formats are as follows.
gg V: VIDEO, Y/C
gg R: RGB
gg Y: YCBCR/YPBPR
gg D: DVI‑D
gg H: HDMI
gg S: SDI
Mode
Resolution
(Dots)
NTSC/NTSC4.43/
PAL‑M/PAL60
720 x 480i
PAL/PAL‑N/SECAM
525i (480i)
Scanning freq.
Horizontal Vertical
(kHz)
(Hz)
Plug and play*1
Dot clock
freq.
(MHz)
Format
―
V
RGB2
―
DVI‑D
EDID1 EDID2 EDID3
―
―
―
HDMI
15.7
59.9
―
720 x 576i
15.6
50.0
―
V
―
―
―
―
―
720 x 480i
15.7
59.9
13.5
R/Y/S*2
―
―
―
―
―
625i (576i)
720 x 576i
15.6
50.0
13.5
R/Y/S*2
―
―
―
―
―
525i (480i)
720 (1440) x 480i*3
15.7
59.9
27.0
D/H
―
―
―
―
―
625i (576i)
720 (1440) x 576i*3
15.6
50.0
27.0
D/H
―
―
―
―
―
525p (480p)
720 x 483
31.5
59.9
27.0
R/Y/D/H
―
l
―
l
l
625p (576p)
720 x 576
31.3
50.0
27.0
R/Y/D/H
―
l
―
l
l
750 (720)/60p
1 280 x 720
45.0
60.0
74.3
R/Y/D/H/S*2
―
l
―
l
l
750 (720)/50p
1 280 x 720
37.5
50.0
74.3
R/Y/D/H/S*2
―
l
―
l
l
1 920 x 1 080i
33.8
60.0
74.3
R/Y/D/H/S
―
l
―
l
l
1125 (1080)/50i
1 920 x 1 080i
28.1
50.0
74.3
R/Y/D/H/S
―
l
―
l
l
1125 (1080)/24p
1 920 x 1 080
27.0
24.0
74.3
R/Y/D/H/S
―
l
―
l
l
1125 (1080)/24sF
1 920 x 1 080i
27.0
48.0
74.3
R/Y/D/H/S
―
―
―
―
―
1125 (1080)/25p
1 920 x 1 080
28.1
25.0
74.3
R/Y/D/H/S
―
l
―
l
―
1125 (1080)/30p
1 920 x 1 080
33.8
30.0
74.3
R/Y/D/H/S
―
―
―
―
―
1125 (1080)/60p
1 920 x 1 080
67.5
60.0
148.5
R/Y/D/H/S*2*5
―
l
―
l
l
1125 (1080)/50p
1 920 x 1 080
56.3
50.0
148.5
R/Y/D/H/S*2*5
―
l
―
l
l
2K/24p
2 048 x 1 080
27.0
24.0
74.3
S*6
―
―
―
―
―
2K/24sF
2 048 x 1 080
27.0
24.0
74.3
S*6
―
―
―
―
―
640 x 400
31.5
70.1
25.2
R/D/H
―
―
―
―
―
―
1125
(1080)/60i*4
VESA400
VGA480
640 x 400
37.9
85.1
31.5
R/D/H
―
―
―
―
640 x 480
31.5
59.9
25.2
R/D/H
l
l
l
l
l
640 x 480
35.0
66.7
30.2
R/D/H
―
―
―
―
―
640 x 480
37.9
72.8
31.5
R/D/H
l
―
l
l
l
640 x 480
37.5
75.0
31.5
R/D/H
l
―
l
l
l
640 x 480
43.3
85.0
36.0
R/D/H
―
―
―
―
―
ENGLISH - 175
Chapter 6 Appendix — Technical information
Resolution
(Dots)
Mode
SVGA
MAC16
XGA
MXGA
MAC21
1280 x 720
1280 x 768
1280 x 800
WSXGA+
36.0
R/D/H
l
―
l
l
l
RGB2
DVI‑D
EDID1 EDID2 EDID3
HDMI
800 x 600
35.2
56.3
800 x 600
37.9
60.3
40.0
R/D/H
l
―
l
l
l
800 x 600
48.1
72.2
50.0
R/D/H
l
―
l
l
l
800 x 600
46.9
75.0
49.5
R/D/H
l
―
l
l
l
800 x 600
53.7
85.1
56.3
R/D/H
―
―
―
―
―
832 x 624
49.7
74.6
57.3
R/D/H
l
―
l
l
l
1 024 x 768
39.6
50.0
51.9
R/D/H
―
―
―
―
―
1 024 x 768
48.4
60.0
65.0
R/D/H
l
―
l
l
l
1 024 x 768
56.5
70.1
75.0
R/D/H
l
―
l
l
l
1 024 x 768
60.0
75.0
78.8
R/D/H
l
―
l
l
l
1 024 x 768
65.5
81.6
86.0
R/D/H
―
―
―
―
―
1 024 x 768
68.7
85.0
94.5
R/D/H
―
―
―
―
―
1 024 x 768
81.4
100.0
113.3
R/D/H
―
―
―
―
―
1 024 x 768
98.8
120.0
139.1
R/D/H
l
―
l
l
l
1 152 x 864
53.7
60.0
81.6
R/D/H
―
―
―
―
―
1 152 x 864
64.0
70.0
94.2
R/D/H
―
―
―
―
―
1 152 x 864
67.5
74.9
108.0
R/D/H
―
―
―
―
―
―
1 152 x 864
76.7
85.0
121.5
R/D/H
―
―
―
―
1 152 x 870
68.7
75.1
100.0
R/D/H
l
―
l
l
l
1 280 x 720
37.1
49.8
60.5
R/D/H
―
―
―
―
―
1 280 x 720
44.8
59.9
74.5
R/D/H
―
―
―
―
―
1 280 x 720
76.3
100.0
131.8
R/D/H
―
―
―
―
―
1 280 x 720
92.6
120.0
161.6
R/D/H
―
―
―
―
―
1 280 x 768
39.6
49.9
65.3
R/D/H
―
―
―
―
―
―
47.8
59.9
79.5
R/D/H
―
―
―
―
47.4
60.0
68.3
R/D/H
―
―
―
―
―
1 280 x 768
60.3
74.9
102.3
R/D/H
―
―
―
―
―
1 280 x 768
68.6
84.8
117.5
R/D/H
―
―
―
―
―
1 280 x 800
41.3
50.0
68.0
R/D/H
―
―
―
―
―
―
1 280 x 800
49.7
59.8
83.5
R/D/H
―
―
―
―
1 280 x 800*7
49.3
59.9
71.0
R/D/H
―
―
―
―
―
1 280 x 800
62.8
74.9
106.5
R/D/H
―
―
―
―
―
1 280 x 800
71.6
84.9
122.5
R/D/H
―
―
―
―
―
1 280 x 960
60.0
60.0
108.0
R/D/H
―
―
―
―
―
―
―
―
1 280 x 1 024
52.4
50.0
88.0
R/D/H
―
―
1 280 x 1 024
64.0
60.0
108.0
R/D/H
l
―
l
l
l
1 280 x 1 024
72.3
66.3
125.0
R/D/H
―
―
―
―
―
―
1 280 x 1 024
78.2
72.0
135.1
R/D/H
―
―
―
―
1 280 x 1 024
80.0
75.0
135.0
R/D/H
l
―
l
l
l
1 280 x 1 024
91.1
85.0
157.5
R/D/H
―
―
―
―
―
1 366 x 768
47.7
59.8
85.5
R/D/H
l*8
―
l*8
l*8
l*8
1 366 x 768
39.6
49.9
69.0
R/D/H
―
―
―
―
―
1 400 x 1 050
54.1
50.0
99.9
R/D/H
―
―
―
―
―
―
1 400 x 1 050
64.0
60.0
108.0
R/D/H
―
―
―
―
1 400 x 1 050
65.2
60.0
122.6
R/D/H
l
―
l
l
l
1 400 x 1 050
65.3
60.0
121.8
R/D/H
―
―
―
―
―
1 400 x 1 050
78.8
72.0
149.3
R/D/H
―
―
―
―
―
1 400 x 1 050
82.2
75.0
155.9
R/D/H
―
―
―
―
―
1 440 x 900
55.9
59.9
106.5
R/D/H
―
―
―
―
―
―
WXGA+
UXGA60
Format
1 280 x 768
1366 x 768
SXGA+
Horizontal Vertical
(kHz)
(Hz)
Plug and play*1
Dot clock
freq.
(MHz)
1 280 x 768*7
MSXGA
SXGA
Scanning freq.
1 440 x 900
46.3
49.9
86.8
R/D/H
―
―
―
―
1 600 x 1 200
75.0
60.0
162.0
R/D/H
l
―
l
l
l
1 680 x 1 050
65.3
60.0
146.3
R/D/H
―
―
―
―
―
1 680 x 1 050
54.1
50.0
119.5
R/D/H
―
―
―
―
―
176 - ENGLISH
Chapter 6 Appendix — Technical information
Mode
1920 x 1080
WUXGA
Resolution
(Dots)
Scanning freq.
Horizontal Vertical
(kHz)
(Hz)
Plug and play*1
Dot clock
freq.
(MHz)
Format
RGB2
DVI‑D
EDID1 EDID2 EDID3
HDMI
1 920 x 1 080
55.6
49.9
141.5
R/D/H
―
―
―
―
―
1 920 x 1 080*7
66.6
59.9
138.5
R/D/H
―
―
―
―
―
1 920 x 1 080*9
67.2
60.0
173.0
R
―
―
―
―
―
1 920 x 1 200
61.8
49.9
158.3
R/D/H
―
―
―
―
―
1 920 x 1 200*7
74.0
60.0
154.0
R/D/H
l
―
l
l*10
l*10
1 920 x 1 200*9
74.6
59.9
193.3
R
―
―
―
―
―
*1 Signals with l in the Plug and play columns are signals described in EDID (extended display identification data) of the projector. A signal, which
has no l in the Plug and play columns but has an entry in the Format column, can be input. For signals without l in the Plug and play columns,
resolution may not be selected in the computer even though the projector supports them.
*2 For single link connections only
*3 Pixel-Repetition signal (dot clock frequency 27.0 MHz) only
*4 When a 1125 (1035)/60i signal was input, it is displayed as a 1125 (1080)/60i signal.
*5 Only for SDI1
*6 For dual link connections only
*7 VESA CVT-RB (Reduced Blanking)-compliant
*8 Only for PT‑DW11KU
*9 Samples the pixels in the image processing circuit and projects the image.
*10 Only for PT‑DZ13KU, PT‑DZ10KU
Note
ff There are 1 920 x 1 080 display dots for PT‑DZ13KU and PT‑DZ10KU, 1 400 x 1 050 for PT‑DS12KU, and 1 366 x 768 for PT‑DW11KU. A
signal with a different resolution is converted to the number of display dots.
ff The “i” at the end of the resolution indicates an interlaced signal.
ff When interlaced signals are connected, flickering may occur on the projected image.
List of 3D compatible signals
(Only for PT‑DZ13KU, PT‑DS12KU, PT‑DW11KU)
The following table specifies the 3D compatible video signals that the projector can project.
Items that are applicable to 1 to 10 in the table are as follows.
1 Frame packing system
2 Side by side system
3 Top and bottom system
4 Line by line system
5 Frame sequential system
6 3G‑SDI Level B simultaneous system
7 HDMI & DVI‑D
8 RGB1 & RGB2
9 SDI1 & SDI2 (only for PT‑DZ13KU, PT‑DS12KU)
10 Simultaneous system
Scanning freq.
HDMI
DVI‑D
Horizontal
(kHz)
Vertical
(Hz)
Dot clock
freq.
(MHz)
1 280 x 720
45.0
60.0
74.3
750 (720)/50p
1 280 x 720
37.5
50.0
74.3
l
l
l
l
l
l
―
1080/60i
1 920 x 1 080i
33.8
60.0
74.3
l
l
―
l
l
―
―
1080/50i
1 920 x 1 080i
28.1
50.0
74.3
l
l
―
l
l
―
―
1080/24p
1 920 x 1 080
27.0
24.0
74.3
l
l
l
l
l
―
―
1080/24sF
1 920 x 1 080i
27.0
48.0
74.3
―
―
―
l
l
―
―
1080/25p
1 920 x 1 080
28.1
25.0
74.3
―
―
―
l
l
―
―
1080/30p
1 920 x 1 080
33.8
30.0
74.3
―
―
―
l
l
―
―
1080/60p
1 920 x 1 080
67.5
60.0
148.5
―
l
l
l
l
―
―
1080/50p
1 920 x 1 080
56.3
50.0
148.5
―
l
l
l
l
―
―
VGA480
640 x 480
31.5
59.9
25.2
―
―
―
l
―
―
―
SVGA
800 x 600
37.9
60.3
40.0
―
―
―
l
―
―
―
1 024 x 768
39.6
50.0
51.9
―
―
―
l
―
―
―
1 024 x 768
48.4
60.0
65.0
―
―
―
l
―
―
―
1 024 x 768
81.4
100.0
113.3
―
―
―
―
―
―
l
1 024 x 768
98.8
120.0
139.1
―
―
―
―
―
―
l
3D compatible signal
Resolution
(Dots)
750 (720)/60p
XGA
1
2*1
3
2*1
3
4
5
l
l
l
l
l
l
―
ENGLISH - 177
Chapter 6 Appendix — Technical information
1280 x 800
MSXGA
SXGA
1366 x 768
SXGA+
WXGA+
UXGA60
WSXGA+
1920 x 1080
WUXGA
DVI‑D
Dot clock
freq.
(MHz)
1
2*1
3
2*1
3
4
5
1 152 x 864
53.7
60.0
81.6
―
―
―
l
―
―
―
1 280 x 720
37.1
49.8
60.5
―
―
―
l
―
―
―
1 280 x 720
44.8
59.9
74.5
―
―
―
l
―
―
―
1 280 x 720
76.3
100.0
131.8
―
―
―
―
―
―
l
1 280 x 720
92.6
120.0
161.6
―
―
―
―
―
―
l
1 280 x 768
39.6
49.9
65.3
―
―
―
l
―
―
―
1 280 x 768
47.8
59.9
79.5
―
―
―
l
―
―
―
1 280 x 768*2
47.4
60.0
68.3
―
―
―
l
―
―
―
1 280 x 800
41.3
50.0
68.0
―
―
―
l
―
―
―
1 280 x 800
49.7
59.8
83.5
―
―
―
l
―
―
―
1 280 x 800*2
49.3
59.9
71.0
―
―
―
l
―
―
―
MXGA
1280 x 768
HDMI
Vertical
(Hz)
Resolution
(Dots)
1280 x 720
Scanning freq.
Horizontal
(kHz)
3D compatible signal
1 280 x 960
60.0
60.0
108.0
―
―
―
l
―
―
―
1 280 x 1 024
52.4
50.0
88.0
―
―
―
l
―
―
―
1 280 x 1 024
64.0
60.0
108.0
―
―
―
l
―
―
―
1 366 x 768
47.7
59.8
85.5
―
―
―
l
―
―
―
1 366 x 768
39.6
49.9
69.0
―
―
―
l
―
―
―
1 400 x 1 050
54.1
50.0
99.9
―
―
―
l
―
―
―
1 400 x 1 050
64.0
60.0
108.0
―
―
―
l
―
―
―
1 400 x 1 050
65.2
60.0
122.6
―
―
―
l
―
―
―
1 400 x 1 050
65.3
60.0
121.8
―
―
―
l
―
―
―
1 440 x 900
55.9
59.9
106.5
―
―
―
l
―
―
―
1 440 x 900
46.3
49.9
86.8
―
―
―
l
―
―
―
1 600 x 1 200
75.0
60.0
162.0
―
―
―
l
―
―
―
1 680 x 1 050
65.3
60.0
146.3
―
―
―
l
―
―
―
1 680 x 1 050
54.1
50.0
119.5
―
―
―
l
―
―
―
1 920 x 1 080
55.6
49.9
141.5
―
―
―
l
―
―
―
1 920 x 1 080*2
66.6
59.9
138.5
―
―
―
l
―
―
―
1 920 x 1 200
61.8
49.9
158.3
―
―
―
l
―
―
―
1 920 x 1 200*2
74.0
60.0
154.0
―
―
―
l
―
l
―
*1 Supports half.
*2 VESA CVT RB (Reduced Blanking)-compliant
178 - ENGLISH
Chapter 6 Appendix — Technical information
3D compatible
signal
Resolution
(Dots)
Scanning freq.
Horizontal Vertical
(kHz)
(Hz)
Dot clock
freq.
(MHz)
RGB1/RGB2
2*1
3
4
SDI1/SDI2
5
2*1
3
4
6*3
7
8
9
10
10
10
750 (720)/60p
1 280 x 720
45.0
60.0
74.3
l
l
l
―
l
l
l
l
l
l
l
750 (720)/50p
1 280 x 720
37.5
50.0
74.3
l
l
l
―
l
l
l
l
l
l
l
l
l
―
―
l
l
―
l
l
l
l
―
l
l
―
l
l
l
l
―
l
l
―
l
l
l
l
1080/60i
1 920 x 1 080i
33.8
60.0
74.3
1080/50i
1 920 x 1 080i
28.1
50.0
74.3
l
l
―
1080/24p
1 920 x 1 080
27.0
24.0
74.3
l
l
―
1080/24sF
1 920 x 1 080i
27.0
48.0
74.3
l
l
―
―
l
l
―
l
l
l
l
1080/25p
1 920 x 1 080
28.1
25.0
74.3
l
l
―
―
l
l
―
l
l
l
l
1080/30p
1 920 x 1 080
33.8
30.0
74.3
l
l
―
―
l
l
―
l
l
l
l
1080/60p
1 920 x 1 080
67.5
60.0
148.5
l
l
―
―
l*3
l*3
―
―
l
l
―
1080/50p
1 920 x 1 080
56.3
50.0
148.5
l
l
―
―
l*3
l*3
―
―
l
l
―
VGA480
640 x 480
31.5
59.9
25.2
l
―
―
―
―
―
―
―
―
―
―
SVGA
800 x 600
37.9
60.3
40.0
l
―
―
―
―
―
―
―
―
―
―
1 024 x 768
39.6
50.0
51.9
l
―
―
―
―
―
―
―
―
―
―
1 024 x 768
48.4
60.0
65.0
l
―
―
―
―
―
―
―
―
―
―
XGA
MXGA
1280 x 720
1280 x 768
1280 x 800
MSXGA
SXGA
1366 x 768
SXGA+
WXGA+
UXGA60
WSXGA+
1920 x 1080
WUXGA
1 024 x 768
81.4
100.0
113.3
―
―
―
l
―
―
―
―
―
―
―
1 024 x 768
98.8
120.0
139.1
―
―
―
l
―
―
―
―
―
―
―
1 152 x 864
53.7
60.0
81.6
l
―
―
―
―
―
―
―
―
―
―
1 280 x 720
37.1
49.8
60.5
l
―
―
―
―
―
―
―
―
―
―
1 280 x 720
44.8
59.9
74.5
l
―
―
―
―
―
―
―
―
―
―
1 280 x 720
76.3
100.0
131.8
―
―
―
l
―
―
―
―
―
―
―
1 280 x 720
92.6
120.0
161.6
―
―
―
l
―
―
―
―
―
―
―
1 280 x 768
39.6
49.9
65.3
l
―
―
―
―
―
―
―
―
―
―
1 280 x 768
47.8
59.9
79.5
l
―
―
―
―
―
―
―
―
―
―
1 280 x 768 *2
47.4
60.0
68.3
l
―
―
―
―
―
―
―
―
―
―
1 280 x 800
41.3
50.0
68.0
l
―
―
―
―
―
―
―
―
―
―
1 280 x 800
49.7
59.8
83.5
l
―
―
―
―
―
―
―
―
―
―
1 280 x 800*2
49.3
59.9
71.0
l
―
―
―
―
―
―
―
―
―
―
1 280 x 960
60.0
60.0
108.0
l
―
―
―
―
―
―
―
―
―
―
1 280 x 1 024
52.4
50.0
88.0
l
―
―
―
―
―
―
―
―
―
―
1 280 x 1 024
64.0
60.0
108.0
l
―
―
―
―
―
―
―
―
―
―
1 366 x 768
47.7
59.8
85.5
l
―
―
―
―
―
―
―
―
―
―
1 366 x 768
39.6
49.9
69.0
l
―
―
―
―
―
―
―
―
―
―
1 400 x 1 050
54.1
50.0
99.9
l
―
―
―
―
―
―
―
l
l
―
1 400 x 1 050
64.0
60.0
108.0
l
―
―
―
―
―
―
―
l
l
―
1 400 x 1 050
65.2
60.0
122.6
l
―
―
―
―
―
―
―
l
l
―
1 400 x 1 050
65.3
60.0
121.8
l
―
―
―
―
―
―
―
l
l
―
1 440 x 900
55.9
59.9
106.5
l
―
―
―
―
―
―
―
―
―
―
1 440 x 900
46.3
49.9
86.8
l
―
―
―
―
―
―
―
―
―
―
1 600 x 1 200
75.0
60.0
162.0
l
―
―
―
―
―
―
―
―
―
―
1 680 x 1 050
65.3
60.0
146.3
l
―
―
―
―
―
―
―
―
―
―
1 680 x 1 050
54.1
50.0
119.5
l
―
―
―
―
―
―
―
―
―
―
1 920 x 1 080
55.6
49.9
141.5
l
―
―
―
―
―
―
―
―
―
―
1 920 x 1 080 *2
66.6
59.9
138.5
l
―
―
―
―
―
―
―
―
―
―
1 920 x 1 200
61.8
49.9
158.3
l
―
―
―
―
―
―
―
l
l
―
1 920 x 1 200*2
74.0
60.0
154.0
l
―
l
―
―
―
―
―
l
l
―
*1 Supports half.
*2 VESA CVT RB (Reduced Blanking)-compliant
*3 Only supports SDI1
ENGLISH - 179
Chapter 6 Appendix — Specifications
Specifications
The specifications of the projector are as follows.
Power supply
Power consumption
AC 120 V, 50 Hz/60 Hz
PT‑DZ13KU
1 000 W (9.3 A)
PT‑DS12KU, PT‑DW11KU
980 W (9.1 A)
PT‑DZ10KU
925 W (9 A)
0.2 W when [STANDBY MODE] is set to [ECO]
6 W when [STANDBY MODE] is set to [NORMAL]
Size
DLP chip
Display system
PT‑DZ13KU, PT‑DZ10KU
24.4 mm (0.96") (aspect ratio 16:10)
PT‑DS12KU
24.1 mm (0.95") (aspect ratio 4:3)
PT‑DW11KU
21.6 mm (0.85") (aspect ratio 16:9)
3-unit DLP chips, DLP type
PT‑DZ13KU, PT‑DZ10KU
Number of pixels PT‑DS12KU
PT‑DW11KU
2 304 000 pixels (1 920 x 1 200 dots)
1 470 000 pixels (1 400 x 1 050 dots)
1 049 088 pixels (1 366 x 768 dots)
Lens
Optional
Luminous lamp
PT‑DZ13KU, PT‑DS12KU,
PT‑DW11KU
380 W UHM lamp x 2
PT‑DZ10KU
355 W UHM lamp x 2
PT‑DZ13KU, PT‑DS12KU
12 000 lm (ANSI)
PT‑DW11KU
11 000 lm (ANSI)
PT‑DZ10KU
10 600 lm (ANSI)
Light output*1
Contrast ratio*1
10 000:1 (when [DYNAMIC IRIS] is set to [3])
Color system
7 standards (NTSC/NTSC4.43/PAL/PAL‑N/PAL‑M/SECAM/PAL60)
Projection screen size
1.78 m (70") to 25.40 m (1 000")
Screen aspect ratio
PT‑DZ13KU, PT‑DZ10KU
16:10
PT‑DS12KU
4:3
PT‑DW11KU
16:9
Projection method
[FRONT/CEILING], [FRONT/FLOOR], [REAR/CEILING], [REAR/FLOOR]
Power cable length
3.0 m (118-1/8")
Outer case
Molded plastic
Width
Dimensions Height
Depth
530 mm (20-7/8")
200 mm (7-7/8") (with legs at shortest position)
548.5 mm (21-19/32") (excluding the lens)
Weight
Approx. 24.0 k] (52.9 lbs.)*2
Noise level*1
PT‑DZ13KU, PT‑DS12KU,
PT‑DW11KU
45 dB
PT‑DZ10KU
43 dB
Operating
environment
temperature*3
Operating
environment Operating
environment
humidity
Remote
control
0 °C (32 °F) to 45 °C (113 °F)
10 % to 80 % (no condensation)
Power supply
DC 3 V (AA/R6 battery x 2)
Operating range
Within approx. 30 m (98'5") (when operated directly in front of signal receiver)
Weight
134 ] (4.7 ozs.) (including batteries)
Dimensions
Width: 51 mm (2"), Height: 176 mm (6-15/16"), Depth: 28 mm (1-3/32")
*1 Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.
*2 Average value. Weight varies for each product.
*3 When using the projector at high altitudes (1 400 m (4 593') or higher – lower than 2 700 m (8 858') above sea level), the operating environment
temperature should be between 0 °C (32 °F) and 40 °C (104 °F).
If you use the Smoke cut filter, the operating environment temperature should be between 0 °C (32 °F) and 35 °C (95 °F). However, it cannot be
used at high altitudes.
If you use the Replacement lamp unit (for portrait mode), the operating environment temperature should be between 0 °C (32 °F) and 40 °C
(104 °F) when using the projector at elevations lower than 1 400 m (4 593') above sea level, and between 0 °C (32 °F) and 35 °C (95 °F) when
using the projector at high altitudes. If you use the Smoke cut filter together, the operating environment temperature should be between 0 °C (32 °F)
and 30 °C (86 °F).
If the [LAMP SELECT] menu is set to [DUAL], and [LAMP POWER] is set to [HIGH], [MIDDLE], or [NORMAL], and an ambient temperature reaches
40 °C (104 °F) or higher (35 °C (95 °F) or higher when [HIGH ALTITUDE MODE] is set to [ON] or the Smoke cut filter is used), the light output may
decrease by approx. 20 % to protect the projector.
180 - ENGLISH
Chapter 6 Appendix — Specifications
rrApplicable scanning frequency
Refer to “List of compatible signals” (x page 175) for the types of video signals that can be used with the projector.
For video signal
(including Y/C signal)
For RGB signal
Horizontal: 15.75 kHz/15.63 kHz, Vertical: 50 Hz/60 Hz
Horizontal: 15 kHz to 100 kHz, Vertical: 24 Hz to 120 Hz
PIAS (Panasonic Intelligent Auto Scanning) system
ff Dot clock frequency: 162 MHz or less
For YCBCR/YPBPR signal
ff 625i (576i)
Horizontal: 15.63 kHz, Vertical: 50 Hz
ff 625p (576p)
Horizontal: 31.25 kHz, Vertical: 50 Hz
ff 750 (720)/50p
Horizontal: 37.5 kHz, Vertical: 50 Hz
ff 1125 (1080)/60i
Horizontal: 33.75 kHz, Vertical: 60 Hz
ff 1125 (1080)/24p
Horizontal: 27 kHz, Vertical: 24 Hz
ff 1125 (1080)/25p
Horizontal: 28.13 kHz, Vertical: 25 Hz
ff 1125 (1080)/60p
Horizontal: 67.5 kHz, Vertical: 60 Hz
ff 525i (480i)
Horizontal: 15.75 kHz, Vertical: 60 Hz
ff 525p (480p)
Horizontal: 31.5 kHz, Vertical: 60 Hz
ff 750 (720)/60p
Horizontal: 45 kHz, Vertical: 60 Hz
ff 1125 (1035)/60i
Horizontal: 33.75 kHz, Vertical: 60 Hz
ff 1125 (1080)/50i
Horizontal: 28.13 kHz, Vertical: 50 Hz
ff 1125 (1080)/24sF
Horizontal: 27 kHz, Vertical: 48 Hz
ff 1125 (1080)/30p
Horizontal: 33.75 kHz, Vertical: 30 Hz
ff 1125 (1080)/50p
Horizontal: 56.25 kHz, Vertical: 50 Hz
ff The SYNC/HD and VD terminals do not support 3 value SYNC.
For DVI‑D signal
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p,
1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p,
1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p,
1125 (1080)/60p, 1125 (1080)/50p
ff Displayable resolution: VGA to WUXGA (non-interlaced)
ff Dot clock frequency: 25 MHz to 162 MHz
For HDMI signal
525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p,
1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p,
1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p,
1125 (1080)/60p, 1125 (1080)/50p
ff Displayable resolution: VGA to WUXGA (non-interlaced)
ff Dot clock frequency: 25 MHz to 162 MHz
For SDI signal
(Only for PT‑DZ13KU,
PT‑DS12KU, PT‑DZ10KU)
SD‑SDI signal
SMPTE ST 259 compliant
YCBCR 4:2:2 10‑bit
480i, 576i
Single link HD‑SDI signal
SMPTE ST 292 compliant
YPBPR 4:2:2 10‑bit
720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p
Dual link HD‑SDI signal*1
SMPTE ST 372 compliant
RGB 4:4:4 12‑bit/10‑bit
1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
X'Y'Z' 4:4:4 12‑bit
2048 x 1080/24p, 2048 x 1080/24sF
3G‑SDI signal
SMPTE ST 424 compliant
YPBPR 4:2:2 10‑bit
1080/50p, 1080/60p
RGB 4:4:4 12‑bit/10‑bit
1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
ff The 3G‑SDI signal is only compatible with SDI1.
*1 Only for PT‑DZ13KU, PT‑DS12KU
ENGLISH - 181
Chapter 6 Appendix — Specifications
rrTerminal
1 set (BNC x 5 (RGB/YPBPR/YCBCR/YC x 1))
RGB signal
<RGB 1 IN> terminal
0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)
SYNC/HD
TTL high impedance, automatic positive/negative
polarity compatible
VD
TTL high impedance, automatic positive/negative
polarity compatible
YPBPR signal
Y: 1.0 V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
Y/C signal
Y: 1.0 V [p-p], C: 0.286 V [p-p] 75 Ω
1 set, high-density D‑Sub 15 p (female)
RGB signal
<RGB 2 IN> terminal
YPBPR signal
0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)
SYNC/HD
TTL high impedance, automatic positive/negative
polarity compatible
VD
TTL high impedance, automatic positive/negative
polarity compatible
Y: 1.0 V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
<DVI-D IN> terminal
1 set, DVI‑D 24 p, single link, DVI 1.0 compliant, HDCP compatible
<HDMI IN> terminal
1 set, HDMI 19 pin, HDCP compatible, Deep Color compatible
<VIDEO IN> terminal
1 set, BNC 1.0 V [p-p] 75 Ω
1 set (BNC)
<SDI IN 1> terminal (Only for
PT‑DZ13KU, PT‑DS12KU)
<SDI IN> terminal (Only for
PT‑DZ10KU)
SD‑SDI signal
SMPTE ST 259 compliant
HD‑SDI signal
SMPTE ST 292 compliant
3G‑SDI signal
SMPTE ST 424 compliant
Dual link HD‑SDI
(LINK‑A) signal*1
SMPTE ST 372 compliant
1 set (BNC)
<SDI IN 2> terminal
(Only for PT‑DZ13KU,
PT‑DS12KU)
SD‑SDI signal
SMPTE ST 259 compliant
HD‑SDI signal
SMPTE ST 292 compliant
Dual link HD‑SDI
(LINK‑B) signal
SMPTE ST 372 compliant
<3D SYNC 1 IN/OUT> terminal
(Only for PT‑DZ13KU,
PT‑DS12KU, PT‑DW11KU)
1 set (BNC)
<3D SYNC 2 OUT> terminal
(Only for PT‑DZ13KU,
PT‑DS12KU, PT‑DW11KU)
1 set (BNC)
During input setting
TTL high impedance
During output setting
TTL output: Maximum 10 mA
TTL output: Maximum 10 mA
<SERIAL IN>/ <SERIAL OUT>
terminal
D‑Sub 9 p, 1 set each, RS‑232C compliant, for computer control
<REMOTE 1 IN>/ <REMOTE 1
OUT> terminal
M3 stereo mini jack cable, 1 set each, for remote control (wired)/projector connection control
<REMOTE 2 IN> terminal
1 set, D‑Sub 9 p, for contact control
<LAN> terminal
1 set, RJ‑45, for network connection, PJLink compatible, 10Base‑T/100Base‑TX
*1 Only for PT‑DZ13KU, PT‑DS12KU
Note
ff The model numbers of accessories and optional components are subject to change without prior notice.
182 - ENGLISH
Chapter 6 Appendix — Dimensions
Dimensions
462 (18-3/16")
530 (20-7/8")
200 (7-7/8")
100 (3-15/16")
8.5 (11/32")
540 (21-1/4")
Unit: mm
26 (1-1/32")
468 (18-7/16")
*Actual dimensions may differ depending on the product.
ENGLISH - 183
Chapter 6 Appendix — Precautions for Ceiling Mount Bracket for Projectors
Precautions for Ceiling Mount Bracket for Projectors
ff When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket for Projectors (Model No.:
ET‑PKD310H (for High Ceilings), ET‑PKD310S (for Low Ceilings), ET‑PAD310 (Projector ceiling mount bracket)).
ff When installing the projector, attach the drop-prevention kit included with the Ceiling Mount Bracket for Projectors.
ff Ask a qualified technician to do the installation work such as mounting the projector on the ceiling.
ff Panasonic takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by
Panasonic or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired.
ff Unused products must be removed promptly by a qualified technician.
ff Use a torque screwdriver or Allen torque wrench to tighten bolts to their specified tightening torques. Do not use electric screwdrivers or
impact screwdrivers.
ff Read the Installation Instructions for the Ceiling Mount Bracket for Projectors for details.
ff The model numbers of accessories and optional accessories are subject to change without prior notice.
Bottom view
Model No. of Ceiling Mount Bracket for Projectors: ET-PKD310H (for High Ceilings)
ET-PKD310S (for Low Ceilings)
ET-PAD310 (Projector ceiling mount bracket)
M6
16 mm (5/8")
Torque: 4 ± 0.5 N·m
184 - ENGLISH
Index
Index
0–9
[FREEZE] 105
Precautions for Ceiling Mount Bracket for
184
<FUNC> button
Projectors [3D COLOR MATCHING] 93
24, 63
16
Precautions for use Remote control 94
[3D FRAME DELAY] 63
56
Function button Projecting 92
[3D INPUT FORMAT] 121
108
[FUNCTION BUTTON] [PROJECTION METHOD] 93
[3D PICTURE BALANCE] 25
Projector body 95
[3D SAFETY PRECAUTIONS] G
108
[PROJECTOR ID] 68, 91
[3D SETTINGS] [GAMMA] 74
69, 108
[PROJECTOR SETUP] 92
[3D SIMUL INPUT SETTING] 81
[GEOMETRY] 129
Protecting the registered signal 91
[3D SYNC SETTING] 91
[3D SYSTEM SETTING] H
R
94
[3D TEST MODE] <HDMI> button
[RASTER POSITION] 89
95
[3D TEST PATTERN] 26, 62
Projector body 2
Read this first! 24, 62
Remote control 128
Registering new signals A
100
[HDMI IN] 27
<REMOTE 1 IN> terminal Accessories 20
109
[HIGH ALTITUDE MODE] 27
<REMOTE 1 OUT> terminal 26, 52
<AC IN> terminal 173
<REMOTE 2 IN> terminal 45
Adjusting adjustable feet I
120
[REMOTE2 MODE] 67, 85
[ADVANCED MENU] <ID ALL> button
24
Remote control 157
Air filter unit 24, 28
Remote control 61
Remote control operations 159
Air filter unit compartment <ID SET> button
128
Renaming the registered signal 79
[ASPECT] 24, 28
Remote control 159
Replacing the air filter unit <ASPECT> button
124
[INITIALIZE] 159
Replacing the lamp unit 24, 63
Remote control 22
Initial setting 159
Replacing the unit 63
Aspect function 86
[INPUT RESOLUTION] 66
Resetting to the factory default 46
Attaching/removing the projection lens 31
Installation mode <RGB1> button
62
Automatic setup function 26, 62
Projector body 98
[AUTO SETUP] K
24, 62
Remote control <AUTO SETUP> button
[KEYSTONE] 84
<RGB2> button
26, 62
Projector body 26, 62
Projector body 24, 62
Remote control L
24, 62
Remote control 98
[AUTO SIGNAL] Lamp indicator 155
99
[RGB IN] 111
[LAMP POWER] 151
RoomView B
110
[LAMP RELAY] 118, 169
[RS-232C] [BACK COLOR] 103
109
[LAMP SELECT] 85
[BLANKING] 25
Lamp unit cover S
72
[BRIGHTNESS] 97
[LARGE SCREEN CORRECTION] [SAFETY PRECAUTIONS MESSAGE] 95
111
[BRIGHTNESS CONTROL] 93
[LEFT/RIGHT SWAP] 124
[SAVE ALL USER DATA] <LENS> button
116
[SCHEDULE] C
26
Projector body 97
[SCREEN SETTING] Cautions on use 18
122
[LENS CALIBRATION] <SDI 1/2> button
16
Cautions when installing 122
[LENS MEMORY] 26, 62
Projector body 16
Cautions when transporting <LIGHT> button
24, 62
Remote control 184
Ceiling Mount Bracket for Projectors 24
Remote control 100
[SDI IN] 86
[CLAMP POSITION] 175
List of compatible signals 18
Security 81
[CLOCK PHASE] 124
[LOAD ALL USER DATA] 69, 131
[SECURITY] 72
[COLOR] <LOCK> button
131
[SECURITY PASSWORD] 96
[COLOR MATCHING] 24
Remote control 131
[SECURITY PASSWORD CHANGE] 72
[COLOR TEMPERATURE] 56
Selecting the input signal 52
Connecting the power cord M
169
<SERIAL IN> terminal 29
Connecting to the projector with a cable Main menu 66
169
<SERIAL OUT> terminal 48
Connection 26, 53
Main power switch 124
[SERVICE PASSWORD] 71
[CONTRAST] 157
Maintenance 28
Setting remote control ID numbers [CONTROL DEVICE PASSWORD CHANGE] 133
<MENU> button
31
Setting up 132
[CONTROL DEVICE SETUP] 26, 65
Projector body 75
[SHARPNESS] 109
[COOLING CONDITION] 24, 65
Remote control 79
[SHIFT] 136, 151
Crestron RoomView 67
Menu item <SHIFT> button
107
[CUT OFF] 24, 56
Remote control N
<SHUTTER> button
D
Navigating through the menu 65
26, 61
Projector body [DARK TIME SETTING] 94
70,  135
[NETWORK] 24, 61
Remote control 121
[DATE AND TIME] 136
Network connections 105
[SHUTTER SETTING] <DEFAULT> button
135
[NETWORK CONTROL] 69, 128
[SIGNAL LIST] 24, 66
Remote control 135
[NETWORK SETUP] 180
Specifications 128
Deleting the registered signal 136
[NETWORK STATUS] 78
sRGB-compliant video 85
[DIGITAL CINEMA REALITY] 76
[NOISE REDUCTION] 115
[STANDBY MODE] 183
Dimensions 120
[NO SIGNAL SHUT-OFF] 117
[STARTUP INPUT SELECT] 68, 90
Display language 104
[STARTUP LOGO] 68, 96
[DISPLAY OPTION] O
119
[STATUS] 132
[DISPLAY SETTING] <ON SCREEN> button
<STATUS> button
18
Disposal 24, 61
Remote control 24, 62
Remote control <DVI-D> button
102
[ON-SCREEN DISPLAY] 130
Sub memory 26, 62
Projector body 65
On-screen menu 55
Switching off the projector 24
Remote control 21
Optional accessories 53
Switching on the projector 100
[DVI-D IN] 62
Switching the input signal 76
[DYNAMIC IRIS] P
75
[SYSTEM DAYLIGHT VIEW] [PICTURE] 67, 71
E
77
[SYSTEM SELECTOR] 71
[PICTURE MODE] [EDGE BLENDING] 87
69, 125
[P IN P] T
<ENTER> button
125
P IN P function Temperature indicator 155
26
Projector body 67, 79
[POSITION] <TEST> button
24
Remote control 52
Power cord 24, 63
Remote control 129
Expanding signal lock-in range 52
Power indicator 69, 127
[TEST PATTERN] Power on button
F
132
[TEXT CHANGE] 26
Projector body 72
[TINT] Filter indicator 155
24
Remote control 163
Troubleshooting <FOCUS> button
Power standby button
174
Two window 24, 56
Remote control 26
Projector body 89
[FRAME LOCK] 24
Remote control 88
[FRAME RESPONSE] ENGLISH - 185
Index
U
[UNIFORMITY] 104
175
Upgrade Kit V
<VIDEO> button
26, 62
Projector body 24, 62
Remote control W
[WAVEFORM MONITOR] 105
Z
[ZOOM] 80
<ZOOM> button
24, 56
Remote control 186 - ENGLISH
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
Environment care information for users in China
This symbol is only valid in China.
Panasonic Corporation
Web Site : http://panasonic.net/avc/projector/
© Panasonic Corporation 2013
Panasonic System Communications Company of North America
One Panasonic Way 2F-13, Secaucus, NJ 07094
TEL: (877) 803 - 8492
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
TEL: (905) 624 - 5010
W0513HM0 -YI
