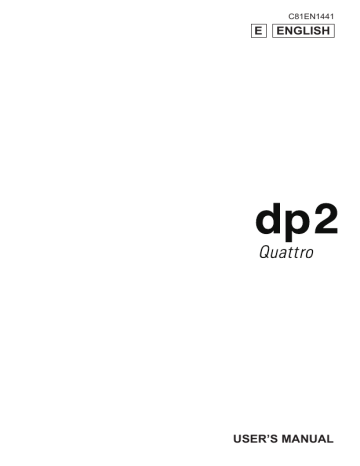

Sigma DP2 Quattro Owner Manual

C81EN1441
E
ENGLISH
USER’S MANUAL
Thank you for purchasing the Sigma dp2 Quattro
Digital Compact Camera
You will get the greatest performance and enjoyment from your new dp2
Quattro camera’s features by reading this instruction manual carefully
before operating it. Enjoy your new Sigma camera!
x Please
keep this instruction booklet handy for future reference.
Doing so will allow you to understand and take advantage of the
camera’s unique features at any time.
x The warranty of this product is one year from the date of purchase.
Warranty terms and warranty card are on a separate sheet,
attached. Please refer to these materials for details.
NOTES ON COPYRIGHT
This camera is intended only for personal use and should never be used
in a way that infringes upon or contravenes international or domestic
copyright laws and regulations. In addition, although it is intended purely
for personal use, some restrictions may be applied to the photographing
of demonstrations, performances, shows, exhibitions, or commercial
properties, etc. Copyright or other legal rights should not be contravened.
z FOVEON is a registered trademark of Foveon, Inc. X3, and the X3
Logos are trademarks of Foveon, Inc.
z IBM PC/AT series computer is a trademark or registered trademark of
International Business Machines Corporation (IBM) in the U.S.A.
and Windows are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
z Macintosh and MAC OS are registered trademarks or trademarks of
Apple Inc. in the U.S.A. and /or other countries.
z Adobe and Photoshop are trademarks of Adobe Systems Incorporated.
z All other company or product names used in documents are
trademarks or registered trademarks of their respective holders.
z Element font designed by Ricoh CO., Ltd. is used for the display of the
menu window of this camera.
z Microsoft
2
Disposal of Electric and Electronic Equipment in Private Households
Disposal of used Electrical & Electronic Equipment (Applicable in the
European Union and other European countries with separate collection
systems)
This symbol indicates that this product shall not be treated as household waste.
Instead it shall be collected separately for the recycling of electrical and electronic
equipment. If the new products are purchased, this product might be handed
over to the distributor or the collection system of waste electrical and electronic
equipment eventually. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of this
product or components of this product. If this product is disposed illegally, it
might cause a possibility of penalties. For more detailed information about
recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you have purchased the product.
PACKAGE CONTENTS / ACCESSORIES
Please make sure that following standard accessories are included with
your camera. If any of them is missing, contact the retailer from which
you purchased your camera immediately.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Camera Body (dp2 Quattro)
Lens Cap (on the camera)
Hot Shoe Cover (on the camera)
Strap
Battery Case
Li-ion Battery BP-51 (2 pieces)
Battery Charger BC-51
Battery Charger Cable
USB Cable
Instruction Manual
Limited Warranty
Warranty Sticker
Battery Marking Sticker
x No memory card is included with this camera. Please purchase this
separately.
3
TABLE OF CONTENTS
PACKAGE CONTENTS / ACCESSORIES ........................................... 3
TABLE OF CONTENTS ........................................................................ 4
SAFETY PRECAUTIONS ..................................................................... 7
HANDLING PRECAUTIONS .............................................................. 10
SD MEMORY CARD ........................................................................ 11
DESCRIPTION OF THE PARTS ......................................................... 12
COLOR LCD MONITOR INDICATION ................................................ 14
BASIC OPERATION AND QUICK REFERENCE ............................... 15
PREPARATION ........................................................................... 18
ATTACHING THE CARRY STRAP ..................................................... 19
LENS CAP .......................................................................................... 20
LOADING THE BATTERY .................................................................. 20
TO CHARGE THE BATTERY ........................................................... 20
LOADING THE BATTERY ................................................................ 22
SETTING THE LANGUAGE ............................................................... 24
SETTING THE TIME AND DATE ........................................................ 25
CAMERA SET-UP MENU ................................................................... 27
QUICK SET MENU ............................................................................. 34
CHANGING THE COLOR LCD MONITOR DISPLAY ......................... 36
INSERTING AND REMOVING THE CARD ........................................ 37
FORMATTING THE CARD ................................................................. 39
SHUTTER BUTTON ........................................................................... 40
QUICK PREVIEW ............................................................................... 41
BASIC OPERATION ................................................................... 42
SELECTING THE EXPOSURE MODE ............................................... 43
SELECTING THE EXPOSURE MODE ............................................ 43
P PROGRAM AE ........................................................................... 44
A APERTURE PRIORITY AE ......................................................... 45
S SHUTTER SPEED PRIORITY AE .............................................. 46
M MANUAL EXPOSURE ................................................................ 47
FOCUSING ......................................................................................... 48
FOCUS MODE ................................................................................. 48
HOW TO USE AUTOFOCUS ........................................................... 48
4
SETTING THE FOCUS FRAME ...................................................... 49
FOCUS LOCK ................................................................................. 50
AF+MF MODE ................................................................................. 50
AF LIMIT MODE .............................................................................. 51
FACE DETECTION AF MODE......................................................... 53
SPEED PRIORITY AF ..................................................................... 54
MANUAL FOCUS ............................................................................ 54
OPERATION OF THE DRIVE MODE................................................. 56
SINGLE FRAME SHOOTING .......................................................... 56
CONTINUOUS SHOOTING............................................................. 57
SELF TIMER .................................................................................... 57
INTERVAL TIMER............................................................................ 58
ADVANCED OPERATION .......................................................... 60
SETTING THE WHITE BALANCE (WB) ............................................ 61
SETTING THE SENSITIVITY (ISO EQUIVALENCY) ......................... 66
IMAGE FILE SETTING....................................................................... 69
SELECTING THE METERING MODE ............................................... 72
AE LOCK ............................................................................................ 73
EXPOSURE COMPENSATION.......................................................... 75
AUTO BRACKETING ......................................................................... 75
COLOR MODE ................................................................................... 78
OVEREXPOSURE CORRECTION .................................................... 81
TONE CONTROL ............................................................................... 81
COLOR SPACE .................................................................................. 82
AUTO ROTATE .................................................................................. 82
CUSTOM MODE ................................................................................ 83
USING THE EXTERNAL FLASH ....................................................... 85
USING THE EXTERNAL FLASH ..................................................... 85
SETTING THE FLASH MODE ......................................................... 86
FLASH EXPOSURE COMPENSATION .......................................... 88
REVIEWING AND DELETING IMAGES ..................................... 89
REVIEWING IMAGES ........................................................................ 90
VIEWING ONE IMAGE AT A TIME .................................................. 91
MAGNIFYING IMAGES (ZOOMED-IN VIEW) .............................. 92
5
VIEWING NINE IMAGES AT A TIME (CONTACT SHEET VIEW) .... 93
VIEWING IMAGE INFORMATION ...................................................... 94
HISTOGRAM .................................................................................... 96
DELETING FILES ............................................................................... 97
DELETE A FILE WITH THE DELETE BUTTON ............................... 97
DELETE FILES FROM THE DELETE MENU .................................. 98
OTHER REVIEWING FEATURES .............................................. 99
LOCKING FILES ............................................................................... 100
MARKING IMAGES .......................................................................... 102
ROTATING IMAGES ......................................................................... 104
EXPOSURE WARNING .................................................................... 106
OK BUTTON SHORTCUT ................................................................ 107
RECORDING SOUND MEMO .......................................................... 108
SHOWING A SLIDESHOW ............................................................... 110
DPOF (DIGITAL PRINT ORDER FORMAT) ..................................... 112
CHANGING OTHER SETTINGS............................................... 113
FILE NUMBERING SYSTEM ............................................................ 114
TO CHANGE FILE NAMES .............................................................. 115
CUSTOMIZE THE DISPLAY OF LCD MONITOR ............................. 116
CUSTOMIZING THE DIAL ................................................................ 119
LCD OFF AND AUTO POWER OFF ................................................. 120
ECO MODE ...................................................................................... 121
SOUND SETTINGS .......................................................................... 122
RESET TO THE DEFAULTS ............................................................. 123
CONNECTING TO A COMPUTER ............................................ 124
REFERENCE ............................................................................ 126
OPTIONAL ACCESSORIES ............................................................. 127
USING A HOME POWER SUPPLY .................................................. 128
MAINTENANCE ................................................................................ 130
TROUBLESHOOTING ...................................................................... 131
SPECIFICATIONS ............................................................................ 134
6
SAFETY PRECAUTIONS
To avoid causing damage or injury, please read this instruction
manual carefully, before using the camera.
Please take special note of the following two cautionary symbols.
Using the product and disregarding this warning sign may
Warning !! cause serious injury or other dangerous results.
Using the product disregarding this caution sign may cause
Caution !! injury or damage.
This symbol denotes a warning or point, where caution is required.
This Symbol contains information regarding the actions that must be avoided.
WARNING (BATTERY)
Keep batteries in a safe place out of children’s reach. If a battery is
swallowed, call for emergency medical aid immediately.
Do not use any battery other than the designated battery types.
Doing so may cause battery explosion, battery leakage, camera
damage, injury or fire.
Do not use any battery other than that specified in this booklet.
Otherwise, it might cause battery explosion, battery leakage,
camera damage, injury or fire.
Avoid any shock, shake and drop. Ignoring this warning may cause
battery explosion, or battery leakage, resulting in injury or fire.
Never disassemble, short circuit, heat, or put batteries into fire. Ignoring
this warning may cause battery explosion, battery leakage, injury or fire.
Please only use charger with the dedicated battery. Charging other
battery types causes battery explosion, battery leakage, camera
damage, injury or fire.
If for some reason, the camera or batteries emit smoke, or if
overheating or the smell of burning is detected, remove the batteries,
taking care to avoid being burned. Take the camera to the retailer
where you bought it, or to an authorized Sigma service station.
Please follow all guidelines, rules and regulations of your
community regarding the disposal of batteries. If you do not use the
camera for a long period of time, remove the battery.
Do not use any AC adapter other than the one provided with your
camera. Using other brands may cause electrical shock and fire
Keep batteries in a safe place out of children’s reach. If a battery is
swallowed, call for emergency medical aid immediately.
7
WARNING (BATTERY CHARGER AND AC ADAPTER)
The battery charger is for indoor use only. Do not store the charger
in humid or dusty locations.
Use it within the 0°C - 40°C temperature range only.
The AC Adapter is designed for use with this product only. Do not
use it with any other appliance. Doing so may cause overheating,
fire, electric shock or injury.
If the adapter is emitting smoke, generating a strange odor or making
an abnormal noise, while in use, disconnect the power plug from the
outlet immediately. Otherwise, fire or electric shock may result.
If water or a foreign object gets into the adapter, unplug from the AC
outlet immediately. It could cause fire or electric shock.
Do not attempt to modify or disassemble this product. Doing so can
cause fire or electric shock.
Do not place any heavy objects on the power cord, or pull it, bend it unduly,
or heat it. It could damage the cord, and could cause fire or electric shock.
Do not use this product with AC voltage other than the specified
power supply voltage AC110V - 240V (120V in U.S.A. and CANADA).
Doing so could cause fire or electric shock.
Use a safety approved AC power cord as is specified by each country.
WARNING (CAMERA)
Never use your camera in an environment where flammable or
burnable, gas, liquids or chemicals, such as Propane, Gasoline,
etc., are present.
Keep the camera in a safe place that children cannot reach. Playing
with the camera strap around one’s neck can cause strangulation.
Do not disassemble the camera; Doing so can cause electric
shocks and burns.
Do not touch internal parts of the camera that become exposed as a
result of damage, it could cause fire or electric shock. Remove the
batteries and contact an authorized Sigma service station.
Keep the camera away from moisture or water. If you drop your
camera/lens in water, please contact the retailer where you
purchased the camera, or a service station immediately. If you use
the camera with this condition it can cause electric shock or fire.
8
Prevent water, or metallic and other conductive objects from coming
into contact with the terminals of the camera body. This can result in
electric shock, overheating and fire.
Do not fire the flash close to eyes, otherwise the bright light could
damage the eye. Keep at least 1m/3feet distance between the face
and the camera when taking a picture with flash.
Do not cover the flash with your finger or hand, it can cause skin burn.
CAUTION (BATTERY CHARGER AND AC ADAPTER)
Do not pull the Battery Charger or the AC power cord, when
disconnecting the AC adapter from the AC outlet. It could cause fire
or electric shock due to damaged cord. Always take hold of the
molded AC plug, when unplugging it from the outlet.
Do not cover the Battery Charger or the AC adapter with cloth, cushions,
etc. It could cause excessive heat, deform the case, and cause fire.
When Battery Charger is not used unplug it from the outlet.
CAUTION (CAMERA)
Do not leave the camera without the lens cap in place. Light
entering through the lens for long periods of time could cause
damage to the camera.
Please do not carry your camera while a tripod is attached, as this
could result in injury or a fall.
Please do not grasp the camera with wet hand, as it might cause
electric shock
Do not leave the camera in a hot place or in a car parked in the sun.
If the camera becomes hot, it might cause burns to the skin.
If the liquid crystal display (LCD) monitor becomes damaged, be
careful of the fragments of glass, which can cause injury. If the liquid
inside the LCD monitor leaks out, and you are faced with the
following situations, please do as follows.
z If the liquid adheres to clothes or the skin, wash it away with soap
immediately.
z If the liquid enters the eye, flush the affected eye with clean water
immediately for 15 minutes, and seek medical assistance.
z If the liquid is swallowed, drink a large quantity of water, induce
vomiting and seek medical assistance.
9
HANDLING PRECAUTIONS
Please read this section before using the camera.
Study and familiarize yourself with the functions of your camera before
using it. No compensation or guarantee is provided for unsatisfactory
pictures or loss of profit, etc.
Carry spare batteries when you use the camera in a cold
environment, on a field trip, or when taking many pictures at one time.
ENVIRONMENT
z Your camera is a precision instrument. Do not drop it or subject it to
physical shock.
z This camera is not waterproof, and cannot be used underwater. Wipe
off any water droplets with a dry cloth as soon as possible. If the
camera gets really wet, promptly consult your nearest Sigma Service
Center.
z Do not leave the camera in a dusty, hot, or highly humid environment
for a long period of time.
z If the camera is moved from a cold place to a warm room, water
droplets may appear on the camera. Please keep the camera in a bag
until it is acclimatized to the ambient room temperature.
z The camera will work within a temperature range between 0ÛC/32ÛF
and +40ÛC/104ÛF and humidity less than 85% (no condensation).
However, in cold temperatures below 0ÛC, the power performance of
the battery is reduced. Please carry a spare battery in these
circumstances, and keep the batteries warm.
z Static electricity or magnetic fields may affect the operation of the
camera. If such exposure occurs, please remove the battery from the
camera and re-insert it, to reset the camera’s microprocessors.
DURING PROLONGED USE
z Although there are cases where the surface of camera gets hot, this is
not a malfunction.
10
z If you use the camera for an extended period of time, the camera may
get hot and the warning mark ( ) will be displayed. If the camera gets
too heat, a warning message will be displayed and the camera will
turn off automatically.
z If the camera turns off, please leave it switched off for more than ten
minutes to lower its temperature.
z Image quality may lower when the camera gets hot. If the warning
mark ( ) is displayed, we recommend turning off the camera and
wait until the temperature of the camera becomes lower.
SD MEMORY CARD
(sold separately)
The dp2 Quattro camera uses a SD memory card, SDHC memory card*
and SDXC memory card*.
* UHS-1 standard memory card can also be used.
z In this instruction manual, SD memory card, SDHC memory card and
SDXC memory card are referred to as the ‘Card’.
z We recommend using the SDHC memory card or SDXC memory card
to store images.
z SD memory card, SDHC memory card or
SDXC memory card incorporate the write
protection switch, which prevents writing or
formatting the card accidentally. If the switch is
placed in the ‘LOCK’ position, it is not possible
to overwrite or erase your data accidentally.
z Do not leave the card in direct sunlight or near a heating device.
z Avoid storing cards in environments of high temperature and humidity
or where static electricity or electromagnetic fields may be generated.
z For proper usage of the card, please refer to their instruction manuals.
z The “Delete” feature of the Camera and PC may not delete the data in
the memory card completely. Some data might still remain. If you wish
to remove all data from card securely, please use third party software.
11
DESCRIPTION OF THE PARTS
1
6
7
2
8
9
3
4
5
10
12
20
12
13
14
11
15 16 17 18
21 22 23 24 25 26 27
28
2
19
29 30 31
1
2
3
4
5
6
7
8
9
10
11
AF AUXILIARY LIGHT
CAMERA STRAP EYELET
DC CONNECTOR COVER
RELEASE LEVER
BATTERY COVER
LENS
FILTER ATTACHMENT THREAD
FOCUS RING
MICROPHONE
TRIPOD SOCKET
CARD / USB COVER
12
13
14
15
16
17
18
19
FOCAL PLANE MARK
AUTO FOCUS LAMP
HOT SHOE
POWER SWITCH
MODE BUTTON
FRONT DIAL
SHUTTER BUTTON
REAR DIAL
20 BUSY LAMP
21 COLOR LCD MONITOR
22
23
24
25
(DISPLAY) BUTTON
(QUICK SET) BUTTON
/
(AE LOCK / DELETE) BUTTON
(VIEW) BUTTON
26
(MENU) BUTTON
27 SPEAKER
28
(FOCUSING POINT) BUTTON
29 SELECTOR
30
31
(OK) BUTTON
(FOCUS MODE) BUTTON
SELECTOR (29)
In this instruction manual, each position of selector is shown as
/ / / .
(Up button)
(Left button)
button
(Right button)
(Down button)
z The buttons are used as follows: To operate Up and Down buttons:
To operate Left and Right buttons:
.
and Left and Right buttons:
.
. To operate both Up and Down,
13
COLOR LCD MONITOR INDICATION
Explanation of the icons displayed in still image shooting.
1 Battery Level Indicator
2 ISO Sensitivity
3 Drive Mode
White Balance
4 (Filtering Effect)
5 Image Size
6 Aspect Ratio
7 Image Quality
8 Number of shots remaining
9 Auto Bracket *
10 Camera Shake Warning
11 AE Lock *
12 Date / Time *
13 Flash Mode *
Flash Exposure
14 Compensation value *
15 Face detection AF *
16 AF Limit Mode *
17 Focus Mode *
18 Electronic Level *
19 Focusing Frame
* Displayed only during setting.
14
20 Temperature rise caution mark
21 Overexposure Correction *
22 Tone Control
Color Mode
23 (Toning Effect)
24 Contrast *
25 Sharpness *
26 Saturation *
27 Histogram *
28 Interval timer *
29 Scale Bar *
30 Focus Indicator
31 Exposure Mode
32 Custom Mode *
33 Shutter Speed
34 F Number
Exposure Compensation
35 Value / Exposure Meter
36 Metering Mode
Number of shots remaining
37 before memory buffer full
This mark shows that the image is being processed in camera
after shooting. While this mark is displayed, it is not possible
to operate the camera.
This mark shows that the camera is still shooting with a slow
shutter speed.
BASIC OPERATION AND QUICK REFERENCE
The dp2 Quattro camera has many advanced features. This section,
describes basic camera operation. You can find more details in later
sections.
PREPARATION
Charging the battery (P.20)
Charge the supplied lithium-ion battery
with the provided battery charger.
To insert the battery (P.22)
Set the language (P.24)
15
Set the date and time (P.25)
Loading the card (P.37)
TAKING THE PICTURE
Turn the camera body on.
Remove the lens cap and press the
Power switch.
Select the exposure mode (P.43)
Press the ‘Mode’ button in P (Program
AE) position
16
Focus (P.48)
Compose your image with the color LCD
monitor and press the shutter button
“half-way” to activate exposure metering
and autofocus.
Take a picture
Fully press the shutter button to take the
picture.
Review the image. (P.41)
The image is displayed for 2 seconds on
the LCD monitor.
17
PREPARATION
This section describes necessary preparations before using the
camera.
18
ATTACHING THE CARRY STRAP
1
Undo the strap end.
2
Attach the carry strap as shown.
This strap can be attached to a battery case that is convenient for
carrying a spare battery.
CAUTION !!
x The battery and battery case are not water-proof. Be sure not to get
water on them.
19
LENS CAP
To preserve the lens, the lens cap is
attached. If you do not use the camera,
please keep the lens cap attached.
Attach or remove the lens cap as
shown in the illustration.
LOADING THE BATTERY
A lithium-ion battery, BP-51, is provided with the dp2 Quattro camera.
Charge the battery before using the camera for the first time. Charge the
battery by the supplied battery charger, BC-51, when the battery is
empty.
TO CHARGE THE BATTERY
1
Attach the battery by sliding it in the
direction of the arrow, as shown in the
diagram.
2
Connect the power cable to the charger
and insert the plug into the wall outlet.
20
z The charge lamp will be green whilst the
battery is charging
z It takes about 140 minutes to recharge
the battery.
z Required time for recharging the battery
depends on the ambient temperature
and status of recharge level.
3
When the charge lamp goes out, charging is completed. Remove the
battery from the charger and remove the charger from the wall outlet.
z We recommend charging the battery before using the camera again. If
it is not used for several days, the battery performance decreases.
z If the number of possible images from one charge of the battery
considerably decreases, it may indicate the end of battery’s life. In this
case, please purchase a new battery.
21
LOADING THE BATTERY
1
Slide the Release lever to the OPEN
position, and open the Battery Cover as
shown in the illustration.
2
Insert the battery until it locks into place.
3
Close the Battery Cover and Slide the
Release lever to the LOCK position as
shown in the illustration.
CHECKING THE BATTERY STATUS
The battery icon, which shows the capacity of the battery, is shown on
the left corner on the color LCD panel. Please take notice of the battery
status before and when in use.
22
The power of the battery is insufficient, replace or
recharge the battery immediately.
(Red)
The power of the battery is empty; the camera will no
longer work. Replace or recharge the battery immediately.
The battery is working with the connected AC adapter.
(P.128)
TO REMOVE THE BATTERY
1
Slide the Release lever to the OPEN
position, and open the Battery Cover as
shown in the illustration.
2
Eject the battery by sliding the battery
compartment cover latch in the direction
of the arrow, as shown in the illustration.
WARNING!!
x Busy Lamp is on or flashing, do not remove the battery or memory
card. By doing so, it may result in data loss. This could also cause
damage to the camera and/or memory card.
23
SETTING THE LANGUAGE
You should receive the dp2 Quattro camera pre-set to English, however,
if necessary, you can change the camera language yourself.
1
Turn the camera on.
2
Press the
button on the back of
the camera to display the Camera Set-up
Menu. (See P.27)
3
Select [
Camera Settings (3)] by
rotating the Front Dial or the Rear Dial.
4
Use the
ᚕᛖ].
buttons to select [Language/
5
Press the
or
button to open the
language set-up page.
6
Use the
language.
buttons to select the desired
7
Press the
button to apply the setting
or the
button to return to the
language set-up page without making
any changes.
Selectable languages
English
English (Default)
Japanese
ଐஜᛖ
Deutsch
German
Français
French
Español
Spanish
Italiano
Italian
ㆰփѝ᮷
Simplified Chinese
Traditional Chinese
㑱億ѝ᮷
䚐ạ㛨
Korean
24
Ɋɭɫɫɤɢɣ
Nederlands
Polski
Português
Dansk
Svenska
Norsk
Suomi
Russian
Dutch
Polish
Portuguese
Danish
Swedish
Norwegian
Finnish
SETTING THE TIME AND DATE
Please set the camera’s internal clock, before using the camera for the
first time or after extended periods of disuse.
1
Turn the camera on.
2
Press the
button on the back of
the camera to display the Camera Set-up
Menu. (See P.27)
3
Select [
Camera Settings (3)] by
rotating the Front Dial or the Rear Dial.
4
Use the
buttons to select [Date/Time].
5
Press the
or
button to open the
date/time set-up page.
6
Press the
button or the
to set the Date / Time.
button again
7
Press the
button to select an item
and change it by pressing the
button.
8
Press the
button to apply the setting
or the
button to return to the
date/time set-up page without making
any changes.
25
CAUTION !!
x The camera’s internal clock is powered by a capacitor that receives
its charge from camera’s battery. If the camera is without battery for
an extended period of time, such as after prolonged storage, the
internal clock will need to be reset.
TO CHANGE THE ORDER OF THE DATE
The date can be displayed in one of three formats: M/D/Y (month/day/
year), D/M/Y (day/month/year), or Y/M/D (year/month/day).
1
Use the
buttons to select [Date
Format], and press the
or the
button to open the sub menu.
2
Use the
buttons to select your
preferred format, and press the
button
or the button to confirm.
TO SWITCH 24 HOUR AND 12 HOUR (AM/PM) DISPLAY
1
Use the
buttons to select [Time
Format], and press the
button or the
button to open the sub menu.
2
Use the
buttons to select your
preferred format and press the
button
or the button to confirm.
26
CAMERA SET-UP MENU
This section describes the various settings in the Camera Set-up menu.
It is possible to set the camera functions from the Camera Set-up menu
display.
Tab area
TO DISPLAY THE SET-UP MENU
Press the
button on the back of
the camera.
button again to close
Press the
the Set-up Menu and the camera will be
shooting mode. (If you reviewed images
(P.90), it will return to the last previewed
image.)
Move to any other tab
Each time the Front Dial or the Rear Dial
is rotated, it will move to the next tab.
(When the icon in the tab area is
selected, it is possible to change the
setting menu by pressing the
buttons as well.)
While in the Set-up Menu:
Use the
buttons to select menu items.
or button to open sub-
Press the
menus or dialogs.
While in set-up sub-menus:
Use the
buttons to select setting
options.
Press the
or button to apply new
settings.
button to close sub-menus
Press the
without applying changes.
27
z The Camera Set-up menu is divided into three groups.
CAPTURE SETTINGS
(Blue Tab)
This menu relates to shooting settings.
When an exposure mode is selected and
the
button is pressed [
Capture
Settings] will be displayed.
PLAYBACK MENU
(Red Tab)
This menu is for setting the playback
related functions of the still images. The
settings for printing, such as DPOF
setting, is included in the Playback
Settings menu.
If the
button is pressed during
playback mode, [ Playback Menu] will
be displayed.
CAMERA SETTINGS
(Yellow Tab)
This menu is used for camera setup such
as date and language selection.
Open the Camera Set-up menu by
button and move to
pressing the
the [
Camera Settings] menu by
rotating the Front Dial or the Rear Dial.
TIP
x Depending
on the settings of the camera, some menu items and
setting options cannot be seletced. They will be displayed with a
gray color.
28
LIST OF MENU FUNCTIONS
For more detailed information about each function, please refer to the
individual pages.
CAPTURE SETTINGS
1)
(1
Menu Item
Description
ISO Sensitivity
The higher value indicates a higher
sensitivity. (The Image may have more
“noise” with higher sensitivities.)
66
ISO Sensitivity
Step
Sets the ISO Sensitivity in steps of
1EV or 1/3EV.
67
Auto Bracketing
Sets the steps and order of Auto
Bracketing.
75
AE Metering
Mode
Selects the Metering Mode depending
on the shooting conditions.
72
Drive Mode
Selects the Drive Mode such as
Self-Timer.
56
Flash
Sets the mode of flash setting and
Flash Exposure Compensation.
85-88
Menu Item
Description
Page
White Balance
Selects the White Balance Mode
depending on the shooting conditions.
61
Overexposure
Correction
Sets or cancels the [Overexposure
Correction] that minimizes blown out
highlights at the time of overexposure.
81
Sets or cancels the [Tone Control]
(Strong / Mild) that achieves the natural
rendering image.
81
Image Quality
Selects the quality of image to record.
69
Image Size
Selects recording Image Size.
70
Aspect Ratio
Sets the aspect ratio of the image.
70
2) Tone Control
(2
Page
29
CAPTURE SETTINGS
Menu Item
Description
Color Mode
Selects the desired Color mode
depending on the shooting conditions.
78
Color space
Sets the color space to [sRGB] or
[Adobe RGB].
82
Sets or cancels to record the vertical
image information.
82
Sets the duration of the Quick Preview
image that is automatically displayed
on the color LCD monitor after the
image is captured.
41
(3
3) Auto Rotate
Quick Preview
Menu Item
Switch Dial
Functions
4)
(4
Description
Sets the allocation of dials for
exposure setting and exposure
compensation in each shooting mode.
30
Page
119
Dial / Manual
Ring Rotation
Sets the direction of Dials and Focus
ring.
119
AEL Button
Settings
Sets the function that the AEL button
will perform.
73
Sets or cancels the exposure lock
Half pressed AEL when the shutter button is pressed
halfway.
5)
(5
Page
74
Menu Item
AF Auxiliary
Light
Description
Sets whether or not the AF auxiliary
light is used in low light conditions.
AF+MF
Select normal AF mode or AF+MF
mode to allow manual focus override.
50
MF Auto
Magnification
Sets the duration for the image to
return to normal display from MF Auto
Magnification.
56
AF Limit Mode
Set whether or not the AF Limit Mode
is added to the Focus Mode button.
51
Page
49
CAPTURE SETTINGS
Page
Menu Item
Description
Sets the AF mode between Normal AF
Speed Priority AF
54
mode or Speed Priority AF mode.
(5
5)
Face Detection
Select normal AF Mode or Face
53
AF
detection AF Mode.
PLAYBACK MENU
1)
(1
Menu Item
Description
Page
Lock
Lock the image, or unlock the locked
image.
100
Mark
Mark the image, or unmark the marked
image.
102
Rotate
Rotate the image to the desired
position for display.
104
Delete
Delete the image.
98
Slideshow
Start the slideshow (playback images
automatically) or change the slideshow
settings.
110
DPOF
Select the images and set the quantity
for printing.
112
Menu Item
Description
Page
Exposure
Warning
Sets whether or not the over-exposure
warning is shown on images.
106
OK Button
Settings
Sets the function that the
button
will perform during image review.
107
Image Rotation
Sets whether or not vertically
orientated images are automatically
rotated and displayed vertically.
—
Sound Memo
Sets or cancels the Sound Memo, which
can be recorded to a stored image.
2)
(2
108
31
CAMERA SETTINGS
Menu Item
Description
Custom Mode
Setting
Register the setting of Custom Mode
(C1 / C2 / C3).
83
Custom QS
Selects which functions to allocate to
the Quick Set menu.
35
Display Mode
Settings
Sets or cancels the 4 Display Modes
and its details.
36
Sets the Manual Focus Scale Units when
MF is used.
55
Sets the Shutter Sound, the Operation
Sound, the Sound Volume and the
Playback Volume for movie and Sound
Memo.
122
1) MF Distance
(1
Scale Units
Sound Settings
Page
Adjust Electronic
Adjusts the Electronic Level.
Level
118
Menu Item
Description
Page
File Name
Sets the File Name for the image.
115
File Numbering
Sets the file numbering system used
when a new card is inserted in the
camera.
114
ECO Mode
Sets or cancels ECO Mode that saves
battery usage.
121
2) LCD Brightness
(2
Sets the color LCD monitor brightness.
(Images will not be affected by this
change.)
—
32
LCD Off
Sets the delay before the backlight of the
color LCD monitor turns off automatically 120
if no operation has occurred.
Auto Power Off
Sets the delay before the camera shuts
down automatically if no operation has 120
occurred.
CAMERA SETTINGS
(3
3)
4)
(4
Menu Item
Description
Release Without
Memory Card
Sets whether or not it is possible to
release the shutter when the card is
not inserted into the camera.
40
Memory Card
Format
Formats the card. (Formatting will
erase all data on the card.)
39
Date / Time
Sets the date and time in the camera’s
internal clock and the format in which
the date and time will be displayed.
25
Language / ᚕᛖ
Sets the language in which menus and
messages will be displayed.
24
Menu Item
Description
Information
Displays the camera’s firmware
version, model name, serial number
information, and certification mark*.
—
Firmware Update
Confirm current firmware version and
update the latest firmware version from
card.
—
Camera Reset
Restores all menu options to their
default settings.
Page
Page
123
* Certification Mark
Other Certification Marks that this camera supports are displayed at the
bottom of the camera, on gift boxes, and in this instruction manual.
33
QUICK SET MENU
By pressing the
button, it is possible to quickly access and change
the settings of the following most commonly used camera functions.
Quick Set Menu (Default)
AE Metering Mode
(P.72)
ISO Sensitivity
(P.66)
Drive Mode
(P.56)
White Balance
(P.61)
Image Quality
(P.69)
Image Size
(P.70)
Color Mode
(P.78)
Aspect Ratio
(P.70)
Option list display of the selected items
When the camera is in the Still Image Mode, the Quick Set
button.
Menu will be displayed by pressing the
For example, to change the quality of image to RAW
1
Press the
Menu.
button to display Quick Set
2
Press the
buttons to select the
section related to quality of image (
).
3
Rotate the Front Dial or the Rear Dial to
display [RAW].
4
By pressing
or the shutter button halfway, the settings will be applied
and the camera will return to shooting mode.
34
CAUTION !!
x Items
that you cannot set are displayed in gray, and the option
cannot be changed by rotating the dials.
The functions allocated to the Quick Set menu can be changed.
Available functions to be allocated to the Quick Set menu
ISO Sensitivity (P.66)
AE Metering Mode (P.72)
Drive Mode (P.56)
White Balance (P.61)
Image Quality (P.69)
Image Size (P.70)
Aspect Ratio (P.70)
Color Mode (P.78)
Exposure Mode (P.43)
Bracketing Amount (P.75)
Flash Mode (P.86)
Flash Exposure Compensation (P.88)
The function of the Quick Set menu can be set from [
Settings] (P.27) ă[Custom QS]
Camera
1
Press the
buttons on the [Custom
QS] screen to select the item to change
the allocated position, and press the
button to confirm.
2
From the list at the bottom of the screen,
use the
buttons to select the item to
allocate position, and press the
button to confirm.
3
When you have finished setting the allocation, press the
close the [Custom QS] menu.
button to
35
CHANGING THE COLOR LCD MONITOR DISPLAY
LCD Monitor Display can be changed by pressing the
button.
OPERATION
Ź
Ź
Ź
Display Mode 1
Display Mode 2
Viewfinder Mode LCD Off Mode
z Refer P.14 [COLOR LCD MONITOR INDICATION] for the meaning of
each icon.
z In the View Finder Mode, only Icons will be displayed. This mode is
convenient for shooting with the optional View Finder.
z Information to display on Display Mode 1 and Display Mode 2 can be
customized (Refer P.116).
z The size of the icon displayed during operation on Viewfinder Mode
and LCD Off Mode can be changed (Refer P.116).
REVIEWING
Ź
Display Icons
Display Icons
(Display date and (Display Image
time) (P.91)
Info) (P.91)
36
Ź
Ź
Display Image
Info Screen
(P.94)
Hide Icons
INSERTING AND REMOVING THE CARD
The dp2 Quattro camera uses a SD memory card, SDHC memory card
and SDXC memory card to store data.
TO INSERT THE CARD
1
Turn off the camera and open the Card /
USB cover as shown.
2
Insert the card in accordance with the
instruction of Card / USB chamber.
Insert the card until it clicks.
3
Close the Card / USB cover.
TIP
x It may be necessary to format the card before use. (See P.39)
37
TO REMOVE THE CARD
1
Turn off the camera and open the Card /
USB cover as shown.
2
Push the card until it clicks and pull out it.
3
Close the Card / USB cover.
WARNING!!
x While the Busy Lamp is on or flashing, do not take out the battery or
the card. By doing so, it may result in data loss. This could also
cause damage to the camera and/or memory card.
38
TIP
x If the camera is turned off while the Busy Lamp is on, the camera will
remain on until it has finished accessing the card.
FORMATTING THE CARD
New cards must be formatted before use. In addition, cards with corrupt
or incompatible file systems may need to be formatted before use.
Camera Settings] (P.27) ă Select [Format] and format the card.
In [Format] menu, Select [Yes] by
pressing the
button and press the
button.
To cancel formatting, select [No] by using the
button and press the
button.
[
CAUTION !!
x Formatting
erases all card contents, including locked dp2 Quattro
files and all non-dp2 Quattro files.
TIP
x Cards
formatted in other cameras or devices may not operate
correctly in the dp2 Quattro camera or may have reduced capacity.
To store the maximum number of dp2 Quattro files, format the card
in the dp2 Quattro camera before use.
39
SHUTTER BUTTON
The shutter button of the dp2 Quattro cameras has two positions. When
you press the shutter button “halfway down”, the camera’s autofocus
systems will activate. When pressing the button “all-the-way down”, the
shutter will release to take a picture.
TIP
x Before
you start to take pictures, we recommend that you operate
the camera, to become familiar with the “halfway down” position and
other features of the camera.
z Normally, if the card is not inserted in to the camera body, it is not
possible to release the shutter. If you would like to release the shutter
Camera Settings] (P.27) ă
without a card, please set from [
[Release without Card].
40
Disable
(Default)
When the card is not inserted in the camera body, it is
not possible to release the shutter.
Enable
It is possible to release the shutter, even if the card is
not inserted in the camera body.
QUICK PREVIEW
The dp2 Quattro camera can be set to
automatically display a preview of each
image immediately after it is taken. This is
useful for instantly checking exposure
and framing.
CHANGING THE QUICK PREVIEW DURATION
The Quick Preview image can be completely disabled, if you select ‘Off’,
or displayed for 2, 5, or 10 seconds.
The Quick Preview Duration can be set from [
(P.27) ă [Quick Preview].
Capture Settings]
QUICK PREVIEW OPTIONS
Off
No preview image is displayed.
2 sec. (Default)
Preview image is displayed for 2 seconds.
5 sec.
Preview image is displayed for 5 seconds.
10 sec.
Preview image is displayed for 10 seconds.
TIP
x To
manually turn off the Quick Preview image, press the shutter
button half-way.
CAUTION !!
x It will not be possible to zoom in to the preview image, or change to
another image while the Quick Preview is up.
41
BASIC OPERATION
This section describes basic operations to start taking
photography.
42
SELECTING THE EXPOSURE MODE
The features and the operation methods of the four different exposure
modes of the camera are explained below.
WARNING !!
x In
this section, the instruction is written on the assumption that
[Switch Dial Functions] of [
Capture Settings] (P.27) is in the
initial setting. If the actual proceeding is different with the instruction
manual, see P.119 for instruction of [Switch Dial Functions].
SELECTING THE EXPOSURE MODE
1
Press the Mode button (The mode
selection will be displayed on the bottom
of the LCD monitor.)
2
Select the desired exposure mode by
using the Front and Rear Dials, or press
the
buttons.
3
Press the
button or shutter button
“half-way” to return to shooting mode.
43
P PROGRAM AE
To make picture taking easier, the camera will automatically select an
appropriate combination of shutter speed and aperture value, according
to the brightness of the subject.
1
Set the Exposure Mode to the P position.
(The exposure indicator is illuminated in
green.)
2
Press the shutter button “half-way” to
verify the focus and take the picture.
WARNING !!
x When
is shown on the color LCD monitor, the camera is set
slower than 1/50. If this mark is displayed, please use the flash
(P.85) or a tripod.
x If the subject is too bright or dark, both shutter speed and aperture
value indicators will blink and will show the limit values. If you take a
picture with these settings, the picture will be overexposed or
underexposed.
PROGRAM SHIFT
You can change the combination of
shutter speed and aperture value, which
were automatically selected by the
camera. While turning the Front Dial, the
combination of shutter speed and
aperture value will change within the
range of combinations that give the
equivalent exposure.
z It will be canceled automatically, after taking the picture.
44
A APERTURE PRIORITY AE
After you set the aperture, the camera will determine the appropriate
shutter speed. If you select smaller apertures, depth of field will be
greater. Larger apertures tend to blur the background, as depth of field
will be shallower.
1
Set the Exposure Mode to the A position.
(The aperture value indicator is
illuminated in green.)
2
Set the desired aperture value by rotating
the Front Dial.
(The aperture value can be set in 1/3 stop
increments from F2.8 to F16.)
3
Press the shutter button “half-way” to
verify the focus and take the picture.
z Depending on the selected aperture value, the camera automatically
sets the shutter speed in following range.
Aperture
F2.8 ~ F3.5
F4.0 ~ F5.0
F5.6 ~ F16
Shutter Speed
30s ~ 1/1250s
30s ~ 1/1600s
30s ~ 1/2000s
WARNING !!
x When
is shown on the color LCD monitor, camera shake may
occur (the shutter speed is set slower than 1/50). If this mark is
displayed, please use the flash (P.85) or a tripod.
x If
the appropriate shutter speed is outside the range of suitable
combinations due to the subject being too bright or too dark, the
shutter speed indicator will blink. If the subject is too bright, set the
aperture value to a smaller one (larger F-number). If the subject is
too dark, set the aperture value to a larger one (smaller F-number)
until the indicator stops blinking.
45
S SHUTTER SPEED PRIORITY AE
When you set the desired shutter speed, the camera will select the
appropriate aperture value for correct exposure. You can achieve stop
action effects by selecting a fast shutter speed, or give the feeling of
motion to a moving subject by selecting a slow shutter speed.
1
Set the Exposure Mode to the S position.
(The shutter speed value is illuminated in
green.)
2
Set the desired shutter speed by rotating
the Front Dial.
(The shutter speed value can be set in
1/3 stop increments from 30 seconds to
1/2000 seconds.)
3
Press the shutter button “half-way” to
verify the focus and take the picture.
z Depending on the selected shutter speed, the camera automatically
sets the aperture in the following range.
Shutter Speed
30s ~ 1/1250s
1/1600s
1/2000s
Aperture
F2.8 ~ F16
F4.0 ~ F16
F5.6 ~ F16
WARNING !!
x If the appropriate aperture value is beyond the range of the lens in
use, due to the subject being too bright or too dark, the aperture
value indicator will blink. If the subject is too bright, set the shutter
speed to a faster one, or if the subject is too dark, set the shutter
speed to a slower one, until the indicator stops blinking.
46
M MANUAL EXPOSURE
Set both the shutter speed and aperture value according to the
indication of the exposure meter. You can change the exposure, as you
desire.
1
Set the Exposure Mode to the M position.
(The shutter speed is illuminated in
orange. The aperture value indicator is
illuminated in green.)
2
Set the desired aperture value by rotating
the Front Dial.
3
Set the shutter speed by rotating the Rear
Dial to adjust the value of the exposure
meter to ±0.0.
z The exposure meter can display an
exposure error of up to ± 3 stops from
the correct exposure in 1/ 3 steps. If the
exposure error is more than three stops,
the exposure meter will blink.
4
Press the shutter button “half-way” to verify the focus and take the
picture.
z It is possible to change the combination of shutter speed and aperture
value as follows.
Shutter Speed
30s ~ 1/1250s
1/1600s
1/2000s
Aperture
F2.8 ~ F16
F4.0 ~ F16
F5.6 ~ F16
z When the aperture value is set to an unavailable value by changing
the shutter speed value, the shutter speed value will be changed to an
available value automatically.
z When the shutter speed value is set to an unavailable value by
changing the aperture value, the aperture value will be changed to an
available value automatically.
47
FOCUSING
Adjustment of autofocus and manual focus operation are explained
below.
FOCUS MODE
button is pressed, AF mode (without
Each time the
an icon) and MF mode ( icon) will alternate.
HOW TO USE AUTOFOCUS
Position the photographic subject within
the centre of the composition and press
the shutter button “half-way”.
z If autofocus is selected, the focusing
point will be illuminated in green. (At
the same time, the auto focus lamp will
be illuminated in green.)
z If autofocus cannot set correctly, the focusing point will blink. (At the
same time, the auto focus lamp will blink in red)
z The focusing distance is from 28cm to infinity.
Although your camera is equipped with highly precise AF system,
in some cases autofocus cannot set correctly.
z Low-contrast subjects, such as blue sky or a blank wall, etc. or when
the color of the subject is same as background
z The subject is located in a very low light environment
z Overlapping near and far objects, such as an animal behind a fence
z A subject, which moves at high speed
In such cases, please use one of the following focusing methods.
1. Use the Focus Lock function to focus on another subject, which has a
similar focusing distance as your subject.
2. Set the lens to MF mode and focus manually.
48
AF AUXILIARY LIGHT
The built-in AF auxiliary light of the dp2 Quattro enables focusing in low
light conditions.
z The effective distance of the AF auxiliary light is 3m.
z The AF auxiliary light can be turned off. Please set [
Capture
Settings] (P.27) ă [AF Auxiliary Light] ă [Off].
SETTING THE FOCUS FRAME
The dp2 Quattro is equipped with two focusing modes. When using the
“9 points select mode” it is possible to choose the desired focusing point
from 9 different frames. When using “Free move mode” it is possible to
move the desired point as you like. In addition, you can choose the size
of the Focus Frame from three types [Spot], [Regular], [Large].
9 points select mode Free move mode
Focusing point moving area
How to setᲴ
Press the
button.
z [9 points select mode] and [Free move mode] will be switched back
and forth each time the
button is pressed.
z When [9 points select mode] is selected, choose the desired focusing
point by pressing the
buttons.
z When [Free move mode] is selected, move the focusing point as you
buttons (focusing points can be moved inside
like by pressing the
the focusing point moving area).
z When the Front Dial or the Rear Dial is rotated, you can change the
size of the Focus Frame.
button.
Confirm by pressing the
49
FOCUS LOCK
This photographic method is useful if the subject is not positioned within
the selected focusing point.
1
Position the photographic subject into the selected focusing point, and
focus by pressing the shutter button “half-way”.
2
When the subject is in focus, the selected focusing point will be
illuminated in green. Press the shutter button to take the picture.
AF+MF MODE
It is possible to manually adjust the focus after verifying the AF.
1
Normal AF mode can be switched to AF+MF mode by selecting
[
Capture Settings] (P.27) ă [AF+MF] ă [On].
2
Press the
icon).
button and select AF+MF mode (
3
Press the shutter button halfway to verify focus.
4
While pressing the shutter button halfway and rotating the Focus ring,
the display can be magnified. Adjust focus by rotating the Focus ring.
50
5
The enlarged display returns to normal one second after stopping
rotation of the Focus ring. Compose the image as desired and take the
picture.
z To return to normal AF mode, select [Off] in step 1.
z The enlarged display will be magnified from the selected focusing
point of the LCD monitor by pressing
button. It is possible to set the
enlarged area to be the same as the focusing point selection. See
P.49 for information regarding focusing point.
WARNING !!
x It is not possible to set AF+MF Mode when Face detection AF mode
setting is selected.
AF LIMIT MODE
The dp2 Quattro has an AF Limit Mode that can speed up the Auto
Focusing while limiting the focusing range. Four optional modes are
available and each is designed to offer a unique shooting function.
1
Limit mode can be set by selecting
[
Capture Settings] (P.27) ă [AF
Limit Mode] ă [On]. (AF Limit mode
will be added to the Focus mode.)
2
Press the
button and select the
AF Limit mode.
(The icon of AF Limit Mode and the
scale bar will appear at the bottom of the
LCD display.)
51
3
Select the desired AF Limit mode by using the Front and the Rear Dial or
buttons.
press the
‒
mode
Focusing Range
Macro
Approx. 0.28m ~ 1m (Approx. 0.92ft ~ 3.3ft)
Portrait
Approx. 0.5m ~ 2m (Approx. 1.6ft ~ 6.5ft)
Landscape /
Snap shooting
Approx. 0.5m ~ Ṃ (Approx. 1.6ft ~ Ṃ)
(Default)
Personal Customization available (refer to the
Custom
next article)
4
By pressing
or the shutter button halfway, the settings will be applied
and the camera will return to shooting mode.
Custom Mode Setting
It is possible to customize the focus range and save the setting in (
AF Limit Mode.
) of
1
Select [
Capture Settings] (P.27) ă[AF Limit Mode] ă [On], and
press the button to go to the customization screen of the AF Limit
Mode.
2
Select the
or
icon by using the
button, and set the desired focus
button while
range by using the
checking the scale bar on the screen.
z It is possible to set a value from the following 6 points between close
and long range.
0.28m / 0.92ft
1m / 3.3ft
0.35m / 1.1ft
2m / 6.5ft
0.5m / 1.6ft
Ṃᴾ
3
Press the
button to apply the setting or the
the set-up menu without making any changes.
52
button to return to
FACE DETECTION AF MODE
The dp2 Quattro offers Face Detection AF Mode that prioritizes to detect
and focus on the faces in the image.
Normal AF mode can be switched to Face detection AF mode by
Capture Settings] (P.27) ă [Face detection AF] ă
selecting [
[On].
button and
button to set the Face
Press
Detection AF Mode ON/OFF.
OFF
ON
A Face Detection Frame will appear in
orange once faces are detected in the
display.
Press the shutter button halfway, and the
Face Detection Frame will turn green
once it is properly focused on the face.
z When the Face Detection Mode is in operation, AE Metering Mode will
be set to “Measuring” and focus on the detected faces in the image.
z It is possible to detect up to 8 faces at one time in an image, and the
Face Detection Frame will appear on the closest face in the display.
CAUTION !!
z Face Detection AF Mode is unavailable when it is set in MF Mode.
z Face Detection AF Mode may not work well in the following
conditions;
z When a part of the face is covered by sunglasses, a hat, etc.
z When the person is facing away from the camera.
z When it is out of focus.
z When the object is either too close or too far.
z When it does not detect faces well, it will switch to focus by the
selected Focus Frame.
53
To return to normal AF mode, select [
[Face detection AF] ă[Off].
Capture Settings] (P.27) ă
SPEED PRIORITY AF
The Speed Priority AF enables faster autofocus by freezing the LCD
monitor while focusing.
Normal AF mode can be switched to Speed Priority AF mode by
Capture Settings] (P.27) ă [Speed Priority AF] ă
selecting [
[On].
CAUTION !!
x As the LCD monitor freazes while the the camera is autofocusing, a
still image will be dispayed when the shutter button is pressed
halfway until the AF is finished.
z To return to normal AF mode, select [
Capture Settings] (P.27) ă
[Speed Priority AF] ă[Off].
MANUAL FOCUS
In situations where autofocus or focus lock is not effective, you can
focus manually.
1
Set the focus mode to MF mode by
pressing the
button. (
icon
and “the scale bar” will be displayed on
the color LCD monitor).
2
Turn the Focus ring until you get a clear
sharp image.
54
z The green bar which appears on both sides of the
meter on the scale bar shows the depth of field. If you
select larger apertures, the depth of field will be
shallower (area in focus is narrower) and if you select
smaller apertures, the depth of field will be greater
(area in focus is wider).
WARNING!!
x The
focus point on the scale bar and the depth of field may differ
from the actual distance. Please use it as a guide only.
TIP
x It
is possible to change the indicator of the scale bar. Select m
(meters) or ft (feet) from [
Camera Settings](P.27) ă [MF
Distance Scale Units].
FOCUSING WITH MAGNIFICATION DISPLAY
It is possible to magnify the display by pressing the
button while in
MF mode. Press the button again to change to the normal display.
z Whilst the display is enlarged, the
is displayed on the color LCD
monitor. Press the shutter button “half-way” to return to the original
display.
z The enlarged display will be magnified from the selected focusing
point of the LCD monitor by pressing
button. It is possible to set the
enlarged area to be the same as the focusing point selection. See
P.49 for information regarding focusing point.
z Whilst the display is enlarged, it is possible to change the magnification
ratio by rotating the Front Dial or the Rear Dial. (Normally the
magnification ratio is x8.0, and it is possible to change to x4.0.)
MF Auto Magnification
It is possible to magnify the display by pressing the shutter button
halfway and rotate the focus ring.
z The enlarged display returns to normal one second after stopping
rotation of the Focus ring.
55
z Change the duration for the image to return to normal display or set it
off so the image is not going to be enlarged by rotating the focus ring.
Capture Settings] (P.27) ă[MF Auto Magnification] to
Refer to [
set.
Off (Default)
1 sec.
2 sec.
5 sec.
No magnification.
Return to normal display after 1 second.
Return to normal display after 2 seconds.
Return to normal display after 5 seconds.
OPERATION OF THE DRIVE MODE
Operation of the self-timer, and other functions of the camera are
explained by the following:
Operation of The Drive Mode can be set
Capture
in Quick Set Manu (P.34) or [
Settings] (P.27) ă [Drive Mode].
Single Capture (Default)
Continuous
Self Timer 2 sec.
Self Timer 10 sec.
Interval timer
SINGLE FRAME SHOOTING
When you press the shutter button in the single frame-shooting mode,
only one frame will be exposed. Then the camera will be ready for the
next shot by advancing one frame. Single frame shooting mode is
recommended for ordinary photography.
56
CONTINUOUS SHOOTING
In this mode, when you keep the shutter button fully depressed, the
camera will take pictures continuously.
CAUTION !!
x Images
taken in rapid succession, such as during Continuous
shooting, are initially stored in the camera's internal memory buffer.
Once the memory buffer is full, the shutter will be disabled until
some images have been processed in the camera.
The number on the lower right of the color LCD monitor
is the buffer capacity. It is the maximum number of
frames for continuous shooting. (If the maximum
number of frames for continuous shooting exceeds 9
frames, the display will not change from 9)
z The maximum number of frames and speed of continuous shooting
are as follows:
Image Size (Resolution mode)
JPEG
Quality
RAW
RAW+JPEG
7
3.7
7
3.7
7
3.7
7
3.7
14
4.5
14
4.5
14
4.5
The upper rows show the maximum number of frames, the lower rows
show the maximum shooting speed in continuous mode (frames per
second).
SELF TIMER
When you want to include yourself in the picture or avoid camera shake,
please use the self-timer.
Self Timer 2 sec
The shutter will be released 2 seconds after the shutter button is fully
depressed.
57
Self Timer 10 sec
The shutter will be released 10 seconds after the shutter button is fully
depressed.
After composing the picture, press the shutter button “half-way” and
adjust the focusing. Then, press the shutter button the rest of the way
and the self-timer will activate. During the self-timer operation you will
hear an electronic beeping sound. The beeping sound will be much
faster during the last two seconds, before the shutter is released.
z When [
Camera Settings](P.27) ă[Sound Settings] ă[Operation
Sound] menu is set to [Off], the electronic sound will not beep even if
the self-timer is operated.
z If you want to cancel the self-timer operation, please turn off the
camera.
INTERVAL TIMER
It is possible to take pictures automatically at selected intervals.
1
Select [
Capture Settings] (P.27) ă [Drive Mode] ă [Interval
timer], and press the button to move the interval timer setting screen.
button is pressed after selecting [Interval timer], the
(When the
current setting will be applied.)
When the Interval timer shooting mode is set in the Quick Set menu
] and press the
button to display the Interval
(P.34), select [
button or the shutter botton
timer setting screen (By pressing the
], the current setting will be applied.).
halfway after selecting [
2
Set the desired interval and number of
buttons.
exposures by using the
(Interval can be set from 15 seconds to
60 minutes. The number of exposures
can be set between 2~99 times, or
unlimited (Đ).)
58
3
Press the
button to apply the setting, and press the
go back to shooting mode.
button to
4
Press the shutter button to start the interval timer shooting.
z During the interval timer shooting, the next exposure interval begins
and the numbers of remaining exposures will be displayed.
z During the interval timer shooting, the auto focus lamp will blink in
green.
z When the focus mode is set to AF, the AF will be locked at the first
frame. From the second frame, pictures will be taken with the same
focus position as the first frame.
z When the focus mode is set to MF, it is possible to change the focus
during the interval timer shooting by turning the Focus ring.
(It is not possible to magnify the display from the second frame.)
(If you wish to keep the same focus position, ensure the Focus ring is
not turned during the interval timer shooting.)
z Exposure value is measured at each interval shooting. If you wish to
take pictures with the same exposure value, set the Exposure Mode to
Manual Exposure or fix the exposure value by pressing the AEL Button
before shooting.
z To terminate the interval timer shooting, press the Shutter button.
z Interval timer shooting cannot be used with the Auto Bracketing
function.
WARNING !!
x The
interval timer shooting will be terminated automatically if the
battery is empty. We recommend using the AC adapter “SAC-6”
(sold separetely).
x Once
you set the Interval Timer, the camera will continously hold
that Interval Timer. To dismiss the Interval Timer, switch to another
modes in [Drive Mode].
x Depending
on the settings, it takes time process the image. It may
make the actual interval time longer than the selected time.
59
ADVANCED OPERATION
This section explains the application of the more advanced
functions of your camera, when composing the expressions of
your picture.
60
SETTING THE WHITE BALANCE (WB)
The color of light reflected by an object can vary depending on the color
of the light source illuminating it.
For example, a neutral colored object will reflect reddish light under
incandescent lighting, and greenish light under fluorescent lighting. The
human brain is able to compensate for differences in the color of a light
source, allowing us to see white objects as white, independent of the
lighting condition. Film cameras rely on special color-correcting filters
and film types to adjust for these differences in lighting. Digital cameras,
however, are able to use software to mimic the adjustments made by the
brain, so that colors that appear white to the human eye also appear
white in your photographs.
61
WHITE BALANCE OPTIONS
OPTION
COLOR TEMP. DESCRIPTION
Select this setting to allow the
camera to automatically determine
Auto
the appropriate white balance
(Default)
adjustments.
Select this setting to allow the
camera to automatically determine
Auto
the appropriate white balance while
(Lighting Source Priority)
valuing the color and atmosphere of
light source.
Approx.
Select this setting when taking
Daylight
5400 K
pictures in full sunlight.
Select this setting when taking
Approx.
Shade
pictures in the shade under sunny
8000 K
skies.
Select this setting when taking
Approx.
Overcast
pictures under cloudy, overcast
6500 K
skies.
Select this setting when taking
Approx.
Incandescent
pictures indoors under
3000 K
incandescent (tungsten) lighting.
Select this setting when taking
Approx.
Fluorescent
pictures indoors under fluorescent
4100 K
lighting.
Select this setting when taking
Approx.
Flash
pictures with the Sigma EF-140S
7000 K
SA-STTL flash.
Select this setting to adjust the
Color
white balance by setting color
Temperature
temperature in numerical value.
Select this setting to determine the
white balance based on the image
Custom
taken. (P.65)
The White Balance can be set in Quick Set Menu (P.34) or [
Settings] (P.27) ă [White Balance].
62
Capture
ADJUSTING WHITE BALANCE
Each White Balance Mode can be adjusted.
1
Select preferred White Balance Mode from [
Capture Settings] (P.27)
button to display the White
ă [White Balance], and press the
Balance Adjustment screen.
To set from Quick Set Menu (P.34), select preferred White Balance
button to display the White Balance
Mode, and press the
Adjustment screen.
2
Press the
buttons to adjust.
z B stands for Blue, A for Amber, M for Magenta, and G for Green. The
image will be adjusted with colors in the moving direction.
z In each direction, adjustments can be made up to 8 steps.
3
To confirm, press the
button. To return without making any changes,
press the
button.
z To reset, press the
button.
When an adjustment was made, the adjustment value is
displayed under the White Balance Icon.
63
SETTING THE VALUE OF COLOR TEMPERATURE
White Balance can be adjusted by setting the color temperature in
numerical value.
1
Select [
Capture Settings] (P.27) ă [White Balance] ă[Color
Temperature
] and press the
button to display the Color
Temperature setting screen.
To set from the Quick Set Menu (P.34), select [
], and press the
button to display the Color Temperature setting screen. (After
selecting [
] and pressing the
button or the shutter button
“half-way”, images can be taken at the value set previously.)
2
Press the
buttons to set the value.
3
To confirm, press the
button. To return without making any changes,
press the
button.
White Balance can also be adjusted when setting the color
temperature.
1
Press the
button to display the White Balance Adjustment screen on
the Color Temperature Setting screen.
2
Follow the instruction 2 and onwards in [ADJUSTING WHITE
BALANCE] in the previous page.
64
TIP
x Light source can be reddish or bluish, the color of light described as
absolute temperature (K: Kelvin) is called “Color Temperature”. The
lower the color temperature is, the more reddish the color of light
turns out, and the higher, the more blueish. Please refer P.62 for the
approximate color temperature of the light source.
SETTING A CUSTOM WHITE BALANCE
For more precise control of the white balance setting or when
photographing under unusual lighting conditions, the "Set Custom WB"
option can be used to capture a sample of neutral object in a scene to
be used for color correction.
1
To capture a custom white balance image, please select [
Capture
], then press the
Settings] (P.27) ă [White Balance] ă [Custom
button. (When the
button is pressed after selecting [Custom
],
the current white balance setting will be set.)
When a custom white balance is set in the Quick Set menu (P.35), select
[ ] and press the
button to display the custom white balance
setting screen (By pressing the
button or the shutter button halfway
after selecting [ ], the current setting will be applied.).
2
Under the lighting conditions that will be used for the final photograph,
frame a white color object, such as a sheet of white paper or a white wall,
so that it fills the frame in the center of the color LCD monitor, and then
press the shutter button.
If a valid white balance settings was captured, a message “White
balance image captured successfully” will appear on the color LCD
monitor that the white balance image was captured successfully.
If the capture was not successful, “Failed ! Please retry the custom
WB capture.” will be displayed on the color LCD monitor.
Press the shutter button to capture a white balance image once again.
button.
To dismiss the capture, press the
65
SETTING THE SENSITIVITY (ISO EQUIVALENCY)
The photosensitivity of digital cameras is
described in terms of “ISO equivalent” like
silver-halide film cameras.
The ISO Sensitivity can be set in Quick Set Menu (P.34) or [
Settings] (P.27) ă [ISO Sensitivity].
ISO Auto (ISO AUTO) (Default)
ISO 100
ISO 200
ISO 400
Capture
ISO 800
ISO 1600
ISO 3200
ISO 6400
CAUTION !!
x When Exposure Mode is set to M mode, it is not possible to select
[ISO Auto]. When AUTO is selected in S, A, P mode and then
changed to M mode, images are taken at the lower limit set in the
next section [ISO AUTO RANGE].
ISO AUTO RANGE
It is possible to set the Lower limit and
Upper limit of the ISO Sensitivity in ISO
Auto mode.
66
1
Select [
Capture Settings] (P.27) ă [ISO Sensitivity] ă [ISO
Auto], and press the button to move the ISO Auto Range setting
button is pressed after selecting [ISO Auto], the
screen. (When the
current setting will be applied).
When the ISO Auto Range is set in the Quick Set menu (P.34), select
button to display the ISO Auto Range
[ISO AUTO] and press the
button or the shutter botton halfway
setting screen. (By pressing the
after selecting [ISO AUTO], the current setting will be applied.)
2
Set [Lower limit] and [Upper limit].
Lower limit
ISO 100 (Default)
ISO 200
ISO 400
Upper limit
ISO 200
ISO 400
ISO 800 (Default)
ISO 1600
ISO 3200
ISO 6400
CAUTION !!
x It is not possible to set the same value to the Lower limit and Upper
limit and reversed value.
By default, the ISO sensitivity step setting is 1 EV. However, it is
possible to select 1/3 EV.
It is possible to set the ISO sensitivity from [
ă [ISO Sensitivity Step].
Capture Settings] (P.27)
1 EV (Default) It is possible to set the ISO sensitivity step 1EV.
1/3 EV
It is possible to set the ISO sensitivity step 1/3EV.
67
When the 1/3 EV is selected, the following ISO sensitivity can be set.
ISO AUTO
ISO 100
ISO 125
ISO 160
ISO 200
ISO 250
ISO 320
ISO 400
ISO 500
ISO 640
ISO 800
ISO 1000
ISO 1250
ISO 1600
ISO 2000
ISO 2500
ISO 3200
ISO 4000
ISO 5000
ISO 6400
TIP
x When Exposure Mode is set to [1/3 EV], Lower limit and Upper limit
of ISO AUTO RANGE can be set in 1/3 steps.
68
IMAGE FILE SETTING
According to your preference, “Image Quality”, “Image Size” and “Aspect
Ratio” of recorded images can be changed.
IMAGE QUALITY SETTING
It is possible to record images in the widely used JPEG or RAW formats.
Image Quality Setting can be set in Quick
Capture Settings]
Set Menu (P.34), or [
(P.27) ă [Image Quality].
RAW
RAW format
RAW+JPEG
RAW+FINE(JPEG) simultaneous
FINE (Default) JPEGȷHigh quality image
NORMAL
JPEGȷStandard quality image
BASIC
JPEGȷFile size priority
z RAW images are recorded without digital processing in the camera
body and require post-processing with Sigma Photo Pro software
which can convert RAW images to JPEG or TIFF format.
z SIGMA Photo Pro can be downloaded free of charge from the
following website: http://www.sigma-global.com
TIP
x When
RAW+JPEG is selected, the Image Quality of JPEG will be
FINE.
x When
RAW+JPEG is selected, the selected Image Size will be
applied to both the RAW and JPEG files.
69
IMAGE SIZE SETTING
The number of record pixels (Image Size)
can be set.
Image Size Setting can be set in Quick
Capture
Set Menu (P.35) or [
Settings] (P.27) ă [Image Size].
S-HI
39.3M
7,680×5,120 (When it is set as 3:2)
HIGH (Default) 19.6M
5,424×3,616 (When it is set as 3:2)
LOW
2,704×1,808 (When it is set as 3:2)
4.9M
z [S-HI] can be selected only when the image quality setting is set as
JPEG (FINE, NORMAL, and BASIC).
ASPECT RATIO SETTING
Aspect Ratio of the image can be changed.
Aspect Ratio Setting can be set in Quick Set Menu (P.34) or [
Settings] (P.27) ă [Aspect Ratio].
21:9
16:9
Capture
Aspect Ratio similar to those of wide screens used in
cinema.
Aspect Ratio the same as those of high vision TVs.
3:2 (Default) Aspect Ratio the same as those of 35mm film cameras.
Aspect Ratio the same as those of traditional TVs and
4:3
PC screens.
z Each image of Aspect Ratio is made by cutting images of this
camera’s standard Aspect Ratio 3:2.
TIP
x Images recorded as RAW format can be changed to different ratio in
SIGMA Photo Pro.
70
Combination of Image QualityȷImage SizeȷAspect Ratio results in
approximate file size per image as follows.
When Image Size Setting is set to [
Aspect
Ratio
21:9
16:9
3:2
4:3
1:1
Image Quality
Image Size
25M
7680×3296
33M
7680×4320
39M
7680×5120
35M
6816×5120
26M
5120×5120
18.1 MB
9.7 MB
7.4 MB
23.7 MB
12.7 MB
9.5 MB
28.1 MB
15.0 MB
11.3 MB
25.0 MB
13.3 MB
10.0 MB
18.8 MB
10.0 MB
7.5 MB
When Image Size Setting is set to [
Aspect
Ratio
21:9
16:9
3:2
4:3
1:1
21:9
16:9
3:2
4:3
1:1
]
Image Quality
Image Size
13M
5424×2328
17M
5424×3048
20M
5424×3616
17M
4816×3616
13M
3616×3616
50.4 MB
8.4 MB
4.8 MB
3.6 MB
53.0 MB
11.0 MB
6.3 MB
4.7 MB
55.1 MB
13.1 MB
7.5 MB
5.6 MB
53.6 MB
11.6 MB
6.6 MB
5.0 MB
50.7 MB
8.7 MB
5.0 MB
3.7 MB
When Image Size Setting is set to [
Aspect
Ratio
]
Image Quality
Image Size
3.1M
2704×1160
4.1M
2704×1520
4.9M
2704×1808
4.3M
2400×1808
3.3M
1808×1808
]
23.2 MB
2.2 MB
1.2 MB
0.9 MB
23.9 MB
2.9 MB
1.6 MB
1.2 MB
24.5 MB
3.5 MB
1.9 MB
1.4 MB
24.1 MB
3.1 MB
1.7 MB
1.2 MB
23.3 MB
2.3 MB
1.3 MB
0.9 MB
* The file sizes change depending on subjects.
71
SELECTING THE METERING MODE
The camera has three advanced metering
modes.
The Metering Mode can be set in Quick Set Menu (P.34) or [
Capture Settings] (P.27) ă [AE Metering Mode]
Evaluative (Default)
Center Weighted Average
Spot
EVALUATIVE METERING
The camera divides its screen into 256 and measures the brightness of
the scene by independently measuring each segment of the focusing
screen and analyzing the correct exposure for the main subject under
any lighting situation. Even under strong back lighting or complex
lighting situations, the camera will give you the correct exposure.
CENTER WEIGHTED AVERAGE METERING
The camera will measure the average brightness of the entire scene with
additional emphasis on the center area. It will determine the most
suitable exposure with respect to lighting conditions.
SPOT METERING
The camera will measure the brightness only inside of the selected
focusing point on the color LCD monitor. This mode is suitable when you
wish to set exposure for a portion of the scene and ignore the influence
of rest of the scene.
72
AE LOCK
The camera will fix and memorize the exposure value whilst the “AE”
Lock button is depressed. When you wish to lock the exposure of a
subject off-center, AE lock is very useful. Use of this function with Spot
Metering Mode is recommended.
1
Center the subject, for which you wish to
lock the exposure inside the color LCD
button. (With
monitor and press the
spot metering, set the subject for which
you wish to lock the exposure to the
selected focusing point, and press the
button.)
The exposure value is memorized and
AEL is displayed in the upper part of the
color LCD monitor.
2
Compose the picture and press the shutter button.
z It is possible to continue taking pictures with the memorized exposure
value until this setting is disabled by pressing the
button again.
SETTING THE AEL BUTTON
It is possible to use the
[AEL].
button to select settings other than AE Lock
The AE Lock can be set in [
Button Settings].
AEL (Default)
AFL
Capture Settings] (P.27) ă [AEL
AEL+AFL
AF-ON
AEL
It is the normal operation of AE Lock. Refer the above section [AE
LOCK].
73
AFL
Press the
button to lock the focus. Until pressing the
button again, images are taken with the same focusing
point (Exposure can be locked when pressing shutter
“half-way”.).
AEL + AFL
Press the
button to lock both AE and Focus
simultaneously. Until pressing the
button again,
images are taken with the same exposure and focusing
point.
AF-ON
While pressing the
button, Auto Focus continues to operate until
focusing is set. Once focusing is set, it is locked and once shutter is
released, focus lock is cancelled.
HALF PRESSED AEL
It is possible to set the exposure lock when the shutter button is pressed
“half-way” or cancel the exposure lock.
The Half Pressed AEL mode can be set in [
ă [Half Pressed AEL].
74
Capture Settings] (P.27)
OFF
The exposure will not be locked while pressing the
shutter button “half-way”. The exposure will be
determined when depressing the shutter button.
ON
(Default)
The exposure will be locked when the shutter button
is pressed ”half-way”. While pressing the shutter
button is “half-way”, the exposure will not change.
EXPOSURE COMPENSATION
If you want to intentionally overexpose or
underexpose the picture, use this
function.
Select the desired compensation value by
rotating the Rear Dial.
z Exposure compensation can be set in
1/3 stop increments from +3.0 to -3.0
stops.
CAUTION !!
x The
exposure compensation will not disable automatically. After
taking the picture, set the compensation value to ±0.0 by rotating the
Rear Dial.
x Exposure
compensation function cannot be used with Manual
Operation mode.
AUTO BRACKETING
This function of the camera lets you take a sequence of pictures of the
same subject at three different exposure levels; Appropriate Exposure,
Under Exposure and Over Exposure. If it is difficult to determine the
proper exposure, please use this function.
75
1
Select [
Capture Settings] (P.27) ă [Auto Bracketing] ă
button.
[Bracketing Amount], and press the button or the
2
Use the
buttons to set the bracketing amount.
z It can be set in 1/3 stop increments up to ±3
3
Press the
button to confirm, press the shutter button
‘‘half-way’’ to return to shooting mode. (The Auto
Bracketing icon will be displayed on the bottom right
corner of the LCD monitor.)
z The camera will take three pictures in the following sequence;
Appropriate exposure, under exposure and over exposure.
z The operations in each Drive Mode are shown below.
Single Capture
Continuous
Self Timer
2 sec.
Self Timer
10 sec.
Each time the shutter button is pressed, an image
will be taken one frame at a time.
Three frames will be taken continuously by
pressing and holding the shutter button.
2 seconds after pressing the shutter button, three
frames will be taken continuously.
10 seconds after pressing the shutter button, three
frames will be taken continuously.
CAUTION !!
x This function cannot be used with the interval timer shooting.
z The exposure bracketing can be used with 4 different modes.
P Mode
Both shutter speed and aperture value will be changed.
A Mode
Only shutter speed will be changed.
S Mode
Only aperture value will be changed.
M Mode
Only shutter speed will be changed.
76
WARNING !!
x Once
you set the auto bracketing mode, the camera will
continuously hold that auto bracketing mode until you set the
bracketing amount to “±0.0”.
x Auto Bracketing functuion cannot be used with the flashgun.
z Auto bracketing icon will change as follows depending on the frame
number.
First Frame
Second Frame
Third Frame
z It is possible to change the Auto Bracketing Order.
The Auto Bracketing Order can be set in [
Capture Settings] (P.27)
ă [Auto Bracketing] ă [Bracketing Order]
0 ă - ă + appropriate exposure ă under exposure ă over exposure
(Default)
- ă 0 ă + under exposure ă appropriate exposure ă over exposure
+ ă 0 ă - over exposure ă appropriate exposure ăunder exposure
Auto Bracketing mode can be used in combination with Exposure
Compensation.
You can take pictures with Auto Bracketing mode based on a
compensated exposure, which you set. To do so, please set both the
Auto Bracketing mode and Exposure Compensation mode as desired.
The combined value (Exposure Compensation and Auto Bracketing) will
be indicated on the viewfinder display.
Example : Exposure Compensation +1.7 with Auto Bracketing amount
1.0
First Frame
+1.7 (Exposure compensation +1.7 & no shift value)
Second Frame
+0.7 (Exposure compensation +1.7 & shift value -1.0)
Third Frame
+2.7 (Exposure compensation +1.7 & shift value +1.0)
77
COLOR MODE
It is possible to select the desired Color mode depending on the
shooting conditions. In addition to the above settings, Monochrome
photography mode can be selected.
The Color Mode can be set in the Quick Set Menu (P.34) or [
Settings] (P.27) ă [Color Mode].
STD.
Standard
(Default)
Capture
Standard color mode for various situations.
VIVID
Vivid
Saturation and contrast are enhanced for making
pictures appear vivid.
NTR.
Neutral
Subdued saturation and contrast makes images
natural.
PORT.
Portrait
This color mode makes skin tone soft. It is ideal for
portraits.
This mode makes blue and green more vivid and
emphasizes pictures.
LAND
Landscape
CINE
Cinema
This mode reduces saturation and emphasizes
shadows to recreate an image like in a cinema.
Sun R.
Sunset Red
This mode emphasizes red color rendering, and
expresses the scenes, such as sunsets, more
impressively.
This mode emphasizes green color rendering, and
expresses greens, such as plants, more impressively.
For G.
Forest Green
Fov B.
FOV Classic Blue
This mode recreates impressive blue sky, with the
expression of rich blue tone.
This mode recreates an impressive and rich color
Fov Y.
FOV Classic Yellow tone with the emphasis on yellow-like color.
MONO.
Monochrome
It is possible to take Monochrome pictures.
z The selected color setting icon is displayed on the color
LCD monitor.
78
TIP
x In Sigma Photo Pro, Monochrome
mode is designed for RAW data
capture using MONO. (Monochrome) mode. Sigma Photo Pro can
convert Monochrome RAW images into color however it is not
possible to convert Monochrome JPEG images into color.
COLOR MODE DETAILED SETTING
With each color mode, image parameters (Contrast, Sharpness, and
Saturation) can be adjusted to create preferred images.
Contrast
Contrast can be increased by moving the cursor to + side, or decreased,
preserving image detail, by moving the cursor to - side.
Sharpness
It is possible to make the pictures appear sharper, by moving the cursor
to + side, or softer by moving the cursor to – side.
Saturation (Except Monochrome)
It is possible to increase saturation thus making pictures appear vivid, if
the cursor is moved to + side. Moving the cursor to – side, decreases
saturation and makes images less vivid.
Filtering Effect (Only with Monochrome)
Contrast can be changed on Monochrome images. To the color of filters,
similar colors are expressed brighter, and complementary colors are
expressed darker.
YE
OR
OFF
Yellow
Orange
Off (Default)
R
G
B
Red
Green
Blue
z Normally, set it to [OFF] (Off).
Toning Effect (Only with Monochrome)
Monochrome images can be finished with preferred color tones.
79
B/W
B&W (Default)
BG
Blue Green
R
Red
B
Blue
WARM
SEPIA
Warm Tone
Sepia
COLD
BP
Cold Tone Blue Purple
G
Green
P
Purple
1
Select your preferred Color Mode from [
Capture Settings] (P.27) ă
[Color Mode], and press the button to display Color Mode Detailed
Setting screen.
To set from Quick Set Menu (P.34), select preferred Color Mode, and
press the
button to display Color Mode Detailed Setting screen.
2
Press the
buttons to select [Contrast],
[Sharpness] or [Saturation] on the Color
Mode Detailed Setting screen, and use
the
buttons to select adjustment
value (Adjustable up to ±1.0 with 0.2
steps) or set the preferred option.
3
Press the
button to apply the setting or the
sub-menu without making any changes.
z To reset, press the
button to close the
button.
If you adjust image parameters, their icon is displayed
on the left of the color LCD monitor.
TIP
x JPEG
files are compressed after a parameter adjustment. In the
case of the RAW format, parameter information is recorded without
adjustment. It is possible to re-adjust RAW images using Sigma
Photo Pro software.
80
OVEREXPOSURE CORRECTION
Blown-out highlights caused by overexposure can be
corrected, based on the gradation information obtained
through the arrangement of pixels on the sensor, to minimize
loss of detail.
Overexposure Correction : Off
Select [On] from [
Correction].
Overexposure Correction : On
Capture Settings] (P.27) ă [Overexposure
CAUTION !!
x In
the following circumstances, Overexposure Correction does not
work even when you turn it [On]. (The
icon on screen will turn to
grey.) A. When shutter speed is set lower than 0.8 sec. B. When
ISO is set higher than ISO400.
x Depending on light conditions, it cannot be adequately adjusted even
with Overexposure Correction, which causes tinting on a part of the
subject. In this case, please turn Overexposure Correction [Off].
TONE CONTROL
By automatically optimizing the tone curve according to the scene, even
for the scene with high contrast, the image can have a natural tone.
Tone Control : Off
Tone Control : Strong
81
Set from [
Capture Settings] (P.27) ă [Tone Control]
OFF
Off
Mild (Default)
Strong
Set Tone Control function OFF.
Mild effect can be achieved.
Strong effect can be achieved.
CAUTION !!
x Depending on the scene, noise may be visible due to the correction
effect. In such case, set it to [Off].
COLOR SPACE
It is possible to select sRGB, which is a common color space or Adobe
RGB, which is mainly used for commercial printing, and other industrial
purposes.
Color Space can be set in [
Capture Settings] (P.27) ă [Color Space].
sRGB (Default)
Adobe RGB
CAUTION !!
x Please set the color space to sRGB for regular usage. If you select
Adobe RGB, please be sure to use the Sigma Photo Pro software or
another image processing software supporting DCF 2.0.
AUTO ROTATE
It is possible to record the vertical image information to images.
The Auto Rotate can be set by [
Rotate].
Capture Settings] (P.27) ă[Auto
Off
The vertical image information will not be recorded.
On (Default)
The vertical image information will be recorded.
82
z When vertically orientated images are reviewed, they will automatically
rotate and be displayed vertically.
z When vertically orientated images are reviewed in Sigma Photo Pro,
they will automatically rotate and be displayed vertically.
z When vertically orientated images are rotated by pressing [
Playback Menu] ă [Rotate], this rotated orientation will be stored.
WARNING !!
x If the images are taken while the camera is pointed up or down, the
vertical position information may not be recorded properly.
CUSTOM MODE
It is possible to customize the Custom Mode Setting. (Up to three
patterns can be stored.)
The following settings are available.
z All items in [
Capture Settings] (Blue Tab) (P.27)
z Exposure mode (M, S, A, P) (P.43)
z Setting Value for Aperture / Shutter
z Setting the focus frame (P.49)
z Exposure compensation (P.75)
SAVE THE CUSTOM MODE SETTING
1
Set the above settings to your desired
combination.
2
In [
Camera Settings] (P.27) ă
[Custom Mode Setting], select from C1,
buttons. After
C2 or C3 by using
button. A
selecting, press the
confirmation dialog will appear.
83
3
Use the
buttons to select [Yes], and press the
button to confirm.
buttons to select [No] and press the
button.
To cancel, use the
WARNING !!
x When
the new setting is saved, the previous stored setting will be
overwritten.
LOAD THE CUSTOM MODE SETTING
Press the Mode button and set to C1, C2
or C3.
In custom mode, it is possible to change the above
settings temporarily (except Exposure Mode).
If the setting is changed, Ɣ mark will appear in Function
Display.
Return to original registered setting by doing the following.
z Turn the camera off (this includes the camera turning off automatically
with the Auto Power Off function)
z Press the Mode button and set to another position.
84
USING THE EXTERNAL FLASH
This section explains how to use a compact, dedicated, external
flashgun.
THE EXTERNAL FLASH
The dp2 Quattro camera is equipped with a hot shoe, allowing the use of
you a compact, dedicated, external flashgun.
ELECTRONIC FLASH EF-140S SA-STTL (sold SEPARATELY)
z This compact design flashgun has a maximum Guide Number of 14
(ISO100 / m).
z The TTL exposure is controlled by the automatic S-TTL system.
z This flash unit uses two “AAA” type Ni-MH batteries allowing it to have
a compact design.
z It is also possible to use the EF-140S SA-STTL in manual mode.
z It can be used with the SD1 Merrill / SD1 / SD15 / SD14 digital SLR
camera and its exposure will be controlled with the S-TTL system.
USING THE EXTERNAL FLASH
1
Turn
off the camera and attach the
flashgun by referring to its instruction
manuals.
2
Turn on the camera and set the flashgun
switch to TTL.
3
Make sure that the Flash Mode icon is displayed on the
LCD monitor.
85
WARNING !!
x Please be aware that when you charge the external flash, the flash
mode icon will turn on and off. If you release a shutter during such
time, it will not flash and causes camera shake or underexposure.
x When camera exposure mode P, A, or S is used, shutter speed can
be set up to 1/200 sec. (There is no limit when M mode is used.)
z Flash photography can be used in the following range. (P Mode)
ISO
ISO100
ISO200
ISO400
ISO800
ISO1600
ISO3200
ISO6400
Flash Exposure Range
Approx. 1m - 5m
Approx. 1m - 7m
Approx. 1m - 10m
Approx. 1m - 14m
Approx. 1m - 20m
Approx. 1m - 28m
Approx. 1m - 40m
TIP
x If
the ISO sensitivity setting is set to [ISO AUTO] and the external
flash is used, the value set in [Lower limit] of [ISO Auto Range] will
be applied.
SETTING THE FLASH MODE
It is possible to select other flash modes such as Exposure
Compensation mode or Red-Eye Reduction mode.
The Flash Mode can be set in the Quick Set Menu (P.34) or [
Settings] (P.27) ă [Flash] ă [Flash Mode].
Normal Flash (Default)
Redeye
Slow Sync.
Redeye + Slow
86
Capture
NORMAL FLASH
When you pop-up the built-in flash, you can use your camera in this
mode.
z Please use this mode for ordinary photography.
RED-EYE REDUCTION FLASH (REDEYE)
When taking a picture with flash, sometimes the person’s eyes reflects
the flash light and the “redeye” phenomenon will appear in the picture. In
order to avoid this effect, the flash will blink several times, for about one
second before the picture is taken, in order to reduce the effect of this
phenomenon.
z Depending on the lighting and subject conditions, the Redeye
Reduction flash may not completely eliminate the redeye in all cases.
SLOW SYNCHRO MODE
When using the flash with P / A mode, the shutter speed value is limited
to faster than 1/50. The slow synchro mode changes the shutter speed
up to 30 second depending on light condition. This mode is suitable for a
portrait in a nightscape.
CAUTION!!
x The Flash Mode can not be set if the flashgun is not attached to the
camera, or the flashgun is turned off.
x It
is not possible to use the Red-eye reduction flash when Manual
Flash mode is selected on the external flash unit.
87
FLASH EXPOSURE COMPENSATION
It is possible to compensate the flash output level without changing the
background’s exposure.
Capture
The Flash Exposure Compensation can be set from [
Settings] (P.27) ă [Flash] ă [Flash Exposure Compensation].
Select the desired compensation value by using the
buttons.
z Flash Exposure compensation can be set in 1/3 stop increments from
+3.0 to -3.0 stops.
z When the Flash Exposure Compensation is set, the
icon and compensation value will be displayed on the
left of the LCD monitor.
CAUTION!!
x The
flash exposure compensation can not be set if the flashgun is
not attached to the camera, or the flashgun is turned off.
x The
flash exposure compensation will not disable automatically.
After taking the picture, set the compensation value to ±0.0 by above
procedure.
88
REVIEWING AND DELETING
IMAGES
This section explains how to review and delete images after they have
been captured.
89
REVIEWING IMAGES
The pictures captured by the dp2 Quattro can be reviewed in various
ways.
To review images captured by the dp2 Quattro camera press the
button on the back of the camera. The last image recorded on the card
will be displayed on the color LCD monitor.
Press the
button to display an image on the color
LCD monitor.
Press the
button again to change to shooting mode.
TIP
x Even
if the camera is switched off, images can be reviewed by
pressing and holding the
button for 2 seconds.
x If no new images have been captured, the last reviewed image will
be displayed.
x If there are no images on the card, an error message “No images on
Memory card” will be displayed.
x When
reviewing images, if the
button is pressed or the shutter
button is pressed “half-way”, the dp2 Quattro will be changed back to
shooting mode.
CAUTION!!
x The
dp2 Quattro may not be able to display images captured by
other cameras, or “dp2 Quattro” images that have been renamed or
moved from the DCIM folder on the card.
90
VIEWING ONE IMAGE AT A TIME
Press the
button on the back of the camera to see the recorded
images in Single-Image View.
WHILE IN SINGLE-IMAGE VIEW:
z Rotate the Rear Dial to see the previous or next images.
z Press the
button to see the next image.
z Press the
button to see the previous image.
z Press the
button to switch the information as follows (P.36).
Display Date and Time
1
2
6
1
2
3
4
5
6
3 4
7
Display Image Info
5
8
1
Battery Level Indicator
Image Size
Aspect Ratio
Image Quality
Folder numbering - File numbering
File number / Total files recorded
2
6
7
8
9
10
11
12
3 4
9
5
10 11 12
Date
Time
Shutter Speed
F Number
Exposure Compensation Value
ISO Sensitivity
TIP
x To
scroll through images more quickly, press and hold the
buttons. Images will advance automatically until the button is
released.
x The first and last recorded images on the card are linked. Pressing
the
button while the first image is displayed brings up the last
recorded image on the card. Pressing the button while the last
image is displayed brings up the first recorded image on the card.
91
MAGNIFYING IMAGES
(ZOOMED-IN VIEW)
Reviewed images can be magnified, making it possible to check image
details and focusing.
While reviewing images, rotate the Front Dial to the
position.
The magnification ratio will be changed as follows.
OriginalăX1.25ăX1.6ăX2.0ăX2.5ăX3.15ăX4.0ăX5.0ăX6.3ăX8.0
ăX10.0
WHILE IN ZOOMED-IN VIEW:
z Rotate the Front Dial to the
z Rotate the Front Dial to the
position to increase magnification.
position to decrease magnification.
z Press the
buttons or the
z Press the
button to return to the original ratio.
buttons to pan around the image.
z Rotate the Rear Dial to see the previous or next images.
TIP
x Images are magfinied based on the position of the focus point duing
shooting.
92
VIEWING NINE IMAGES AT A TIME (CONTACT SHEET VIEW)
Images can be viewed in a "contact sheet" of nine thumbnail images.
While reviewing images, rotate the Front Dial to the
position.
WHILE IN CONTACT SHEET VIEW:
z Press the
buttons to change the thumbnail image selection.
z Rotate the Front Dial to the
position, the selected thumbnail image
will be reviewed.
z Rotate the Rear Dial to see the previous or next pages.
TIP
x The
first and last page are linked. The first page is displayed after
the last page.
93
VIEWING IMAGE INFORMATION
The Image Info Screen contains additional information about each
image.
Press the
View.
button several times from the Single-Image or Zoomed-In
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Battery Level Indicator
Image Size
Aspect Ratio
Image Quality
Folder numbering
File numbering
Lock *
Mark *
Focusing Frame
File Size
Sound Memo *
Overexposure Correction *
Tone Control
Auto Bracket *
Flash Mode *
Flash Exposure Compensation
Value *
Exposure Mode
Shutter Speed
F Number
Exposure Compensation Value*
21 ISO Sensitivity
22 Focus Mode *
23 Metering Mode
White Balance
24 (Filtering Effect)
25 Drive Mode
Color Mode
26 (Toning Effect)
27
28
29
30
31
32
33
Contrast *
Sharpness *
Saturation *
Focal Length
Camera name
File Number / total files recorded
Date
34 Time
35
36
37
38
Histogram (Brightness)
Histogram (Red)
Histogram (Green)
Histogram (Brue)
*If these features are set, the icon will be displayed.
94
WHILE IN IMAGE INFO SCREEN:
z Press the
button again to return to the original Single-Image View
.
z Rotate the Rear Dial to see the previous and next pages.
z Different images can be selected in Single-Image View by pressing
MAGNIFIED IMAGES IN IMAGE INFO SCREEN
While the Image Info Screen is
displayed, it is possible to magnify
the image by rotating the Front Dial
direction. It is possible to
to the
obtain detailed histogram information
for a particular section of an image.
z For more information on the histogram see the next section.
While magnifying the image in the Image Info Screen:
z Press the
buttons to pan to another part of the image. (Histogram
will update automatically to reflect the new values.)
z Rotate the Front Dial to the
z Rotate the Front Dial to the
position to increase magnification.
position to decrease magnification.
z Press
to cancel magnification and view the Image Info Screen for
full image.
z Rotate the Rear Dial to see the previous or next pages.
95
HISTOGRAM
The histogram is a graph depicting the distribution of brightness values
in the image for each of the three color channels (Red, Green, and Blue)
(The histogram displayed in the Shooting Mode is the distribution of
tones in the image). The horizontal axis shows the brightness level, with
darker pixels towards the left side and brighter pixels toward the right.
The vertical axis shows the proportion of pixels at each level of
brightness.
By examining the histogram of the full image, you can gauge the overall
exposure of that image. You can also use the histogram to determine if
zoomed-in sections of an image are over or under exposed.
This histogram shows that the higher pixel
values are never used in the image,
indicating that the image is underexposed,
and therefore will appear dark. In general,
when the histogram is higher on the left side,
the image is mostly composed of dark pixels,
causing it to appear dark—either because
the image is underexposed or because it is
a dark scene such as night shot or sunset.
This histogram shows a fairly even
distribution of pixel values, indicating that
the image is well exposed, with good
contrast.
However,
the
histogram
distribution of a well exposed image will
vary greatly depending on the subject.
This histogram shows that many of the
pixel values are at their brightness limit,
indicating that some areas of the image
may be blown out. In general, when the
histogram runs off the right side, the
image will have many white pixels—either
because the image is overexposed or
because it is a bright scene such as the
beach or snow.
96
DELETING FILES
This section describes how to delete the files recorded on a card.
z In this chapter, "file" refers to still images.
DELETE A FILE WITH THE DELETE BUTTON
A single file that is displaying can be deleted by pressing
button.
the
1
Select the file that you wish to delete.
2
Press the
displayed.
and a confirmation dialog [Delete current file?] will be
3
To delete the file, select [Yes] by using the
buttons and press the
button. If you don’t delete the file, select [No] by using the
buttons and press the
button.
WARNING !!
x If
the file is locked, a confirmation dialog [This file is locked.] will
come up and protect from deletion. If you wish to delete the file, it is
necessary to unlock it first. (See P.100-102 for information on
locking and unlocking files.)
x Images stored as RAW+JPEG, both the RAW and JPEG files will be
deleted.
97
DELETE FILES FROM THE DELETE MENU
It is possible to delete a single file or
multiple file from the Delete menu.
1
While the image is displayed, press the
button and open [
Playback
Menu] (P.27) to select [Delete].
2
Select from the following options from the
sub-menu.
Select Files
buttons to
Select multiple files to delete. Use the
display the file to delete, and the
buttons to display
icon. Repeat the process to select files to delete.
Current File
Delete the currently selected file only.
All Marked
Delete all marked images on the card.
(See P.102-104 for information on marking images.)
All
Delete all files on the card.
3
Press the
will appear.
or
button to confirm your selection. A confirmation dialog
4
Select [Yes] by using the
buttons and press the
button to apply
the setting. If you want to cancel to apply the setting, select [No] by
using the
buttons and press the
button.
WARNING !!
x Locked
files are not deleted. (See P.100-102 for information on
locking files.)
x When [Select Files], [All Marked] or [All] is done, it may take time
to finish them depending on the number of files in the card.
TIP
x Files except [Select Files] can be activated without viewing images.
98
OTHER REVIEWING
FEATURES
This section explains how to use Slideshow, Lock, Mark, Rotate
and so on.
99
LOCKING FILES
Locking protects files
accidentally deleted.
from
being
CAUTION !!
x Locking
does not prevent files from being erased when the card is
formatted. Review card contents carefully before formatting.
TIP
x Locked files have a “read-only” status when viewed on a computer.
TO LOCK A SINGLE FILE
1
Display images to lock, press the
Menu] (P.27) to select [Lock].
button and open [
Playback
2
Select [Lock] from sub menu.
3
Press the
button or
button.
z A key icon
will appear in the file
indicating that the file is locked.
100
TIP
x If the file is already locked, the menu item changes to [Unlock].
x To unlock a locked file, select the locked file and follow the same
steps as above.
x The
button can be used as a shortcut key for locking files. (See
P.107)
TO LOCK MULTIPLE FILES
1
Press the
[Lock].
button and open [
Playback Menu] (P.27) to select
2
Select from the following options from the sub-menu.
Select Files
Lock
Lock All
buttons to
Select multiple files to lock. Use the
display the file to lock, and the
buttons to display
icon. Repeat the process to select files to lock.
Lock all marked images on the card.
(See P.102-104 for information on marking images.)
Lock all files on the card.
3
A confirmation dialog will be displayed by pressing the
or
button.
4
Select [Yes] by using the
buttons and press the
button to apply
the setting. If you want to cancel to apply the setting, select [No] by
buttons and press the
button.
using the
z A key icon
will appear in all locked files.
101
WARNING !!
x When
[Select Files], [ Lock] or [ Unlock] is done, it may take
time to complete this depending on the number of files in the card.
TIP
x To unlock multiple files, select the [Unlock All] or [
Unlock] in the
Lock Menu.
MARKING IMAGES
Images can be marked for various
reasons, such as to identify favorites, to
select images for a Slideshow, or to
select images to be deleted with the “All
marked” menu item in the Delete Menu
(P.98).
TIP
x Images marked on the camera will retain their marked status when
viewed in SIGMA Photo Pro.
TO MARK A SINGLE IMAGE
1
Display images to mark, press the
Menu] (P.27) to select [Mark].
2
Select [Mark] from sub menu.
102
button and open [
Playback
3
Press the
or
button.
z
A flag icon
will appear in the image
indicating that the image is marked.
TIP
x If the image is already marked, the menu item changes to [Unmark].
x To unmark a marked image, select the marked image and follow the
same steps as above.
x The
button can be used as a shortcut key for marking images.
(See P.107)
TO MARK MULTIPLE IMAGES
1
Press the
[Mark].
button and open [
Playback Menu] (P.27) to select
2
Select from the following options from the sub-menu.
Select Files
buttons to
Select multiple files to mark. Use the
buttons to display
display the file to mark, and the
icon. Repeat the process to select files to mark.
Mark All
Mark all images on the card.
3
A confirmation dialog will be displayed by pressing the
or
button.
103
4
Select [Yes] by using the
buttons to and press the
button to
apply the setting. If you want to cancel to apply the setting, please select
buttons to and press the
button.
[No] by using the
z A flag icon
will appear in all marked images.
WARNING !!
x When [Select Files], [Mark All] or [Unmark All] is done, it may take
much time to finish them depending on the number of files in the
card.
TIP
x Select
[Unmark All] from the Mark Menu to unmark all marked
images on the card.
ROTATING IMAGES
It is possible to rotate the displayed
image.
TO ROTATE AN IMAGE
1
Display an image to rotate, press the
[ Playback Menu] (P.27) to select [Rotate].
104
button and open
2
Select from the following options from the sub-menu.
Rotate
Rotate the image 90 degrees to the right (clockwise).
Rotate
Rotate the image 90 degrees to the left (counterclockwise).
WARNING !!
x When [Applied Rotate] in [
Playback Menu] (P.27) is set to [Off],
it is not possible to select the Rotate Menu.
TIP
x To rotate an image 180 degrees, rotate it twice in the same direction.
x To get an image back into its original orientation, rotate it in the
opposite direction.
x The
button can be used as a shortcut key for rotating images.
(See P.107)
x Images
rotated on the camera will be displayed in their rotated
orientation in SIGMA Photo Pro.
TO ROTATE MULTIPLE IMAGES
1
Press the
[Rotate].
button to open [
Playback Menu] (P.27), and select
2
Select [Select Files] from sub menu.
3
Use the
buttons to display the file to rotate, and the
button to
rotate the image 90 degrees to the right, and the
buttons to rotate the
image 90 degrees to the left. Repeat the process to select files to rotate.
105
4
A confirmation dialog will be displayed by pressing the
or
button.
5
Select [Yes] by using the
buttons and press the
button to apply
the setting. If you want to cancel to apply the setting, select [No] by
buttons and press the
button.
using the
EXPOSURE WARNING
It is possible to indicate the over-exposed areas by highlighting them in
red.
Set to [On] from [
Playback Menu] (P.27) ă [Exposure Warning].
z The Exposure Warning is not indicated in the Quick Preview.
To dismiss the Exposure Warning, set to [Off] from [
(P.27) ă [Exposure Warning].
Playback Menu]
TIP
x The
button can be set as a shortcut button for Exposure
Warning [On/Off] (Refer P.107).
106
OK BUTTON SHORTCUT
It is possible to allocate a function from the Playback
Menu to the
button. The allocated function can be
button.
changed by pressing the
The OK Button Shortcut can be set in [
[OK Button Settings].
Available functions to allocate to the
Playback Menu] (P.27) ă
button.
Lock
Lock the currently selected image by pressing the
button. If the current image is already locked, the
image will be unlocked.
Mark
Mark the currently selected image by pressing the
button. If the current image is already marked,
the image will be unmarked.
Exposure
Warning
Each time the
button is pressed, toggle the
exposure warning on or off.
Rotate
Each time the
button is pressed, rotate the
currently selected image 90 degrees to the right
(clockwise).
Rotate
Each time the
button is pressed, rotate the
currently selected image 90 degrees to the left
(counterclockwise).
Magnification
(Default)
button is pressed, toggle between
Each time the
zoomed-in view (10x) and original ratio.
To dismiss the allocated function, set to [None] from [
Menu] (P.27) ă [OK Button Settings].
Playback
107
RECORDING SOUND MEMO
It is possible to record a sound memo for 30 seconds to a stored image,
making it convenient to record the shooting situation by voice.
1
Set to [On] from [
Playback Menu] (P.27) ă[Sound Memo].
2
Close [
Playback Menu] by pressing the
button.
3
Press the
button to start the recording.
z If the
button is pressed during the
recording, the recording will be terminated.
z Recording will be terminated automatically
when 30 seconds has passed. To play the recording sound memo, press
button. (See P.109 for instruction
the
of Viewing Images With Sound.)
z Confirmation message for overwriting the sound memo is displayed by
button when the image already has some sound. To
pressing the
buttons to select [Yes], and
overwrite the sound memo, use the
button. To cancel, use the
buttons to select [No], and
press the
press the
button.
z To turn off the sound memo function, set it to [Off] from [
Playback
Menu] (P.27) ă[Sound Memo].
WARNING !!
x It is not possible to record sound memo if the card has little capacity.
108
VIEWING IMAGES WITH SOUND
1
When the image with sound is selected
Icon and the
during image review, the
Control Icons are displayed on the color
LCD monitor.
2
Press the
sound.
button to play the recorded
Press the
sound.
button again to stop the
WARNING !!
x It is not possible to play the recorded sound when the camera is in
Zoomed-In View or Contact Sheet.
TIP
x If
you want to change the volume of the recorded sound, it is
possible to change the setting from [ Camera Settings] (P.27) ă
[Sound Settings] ă [Playback Volume]. Please see [Sound
Settings] in P.122 for more information.
x The sound recording (.WAV file) that is attached to the still image will
be stored in the same folder and have the same file name as the
image file. For example, the image file name will be SDIM0010.JPG
and sound file name will be SDIM0010.WAV. When reviewing the
files with your PC it is not possible to open still image and sound
image at same time. Please open “WAV” file with dedicated
software.
109
SHOWING A SLIDESHOW
All images on the card, or only selected images, can be shown in an
automatic playback mode using the dp2 Quattro camera’s Slideshow
feature.
SLIDESHOW MENU
All Images
Start an automated slideshow of all images on the
card.
Locked Images
Start an automated slideshow of all locked images
on the card.
Marked Images
Start an automated slideshow of all marked images
on the card.
Slideshow
Settings
It is possible to set the length of time that each
picture will be displayed and the availability of
Repeat.
TO START A SLIDESHOW
1
Press the
button while displaying an image and open [
Playback Menu] (P.27) to select [Slideshow].
2
Select [All Images], [Locked Images] or [Marked Images] in the
sub-menu.
3
The Slideshow starts by pressing the
or
button.
To terminate the slideshow, press the
button.
WARNING !!
x When
[Marked Images] is selected, it may take time to start the
Slideshow depending on the number of files to be displayed.
110
CHANGING SLIDESHOW SETTINGS
Select the [Slideshow Settings] in
Slideshow Menu and then press the
or button to open the setting display.
SLIDESHOW SETTING MENU
Duration
2 sec.
5 sec.
10 sec.
Set the length of time that each image in a
slideshow is displayed.
Repeat
No
Yes
Set whether the slideshow loops
continuously or stops on the last image.
Duration
Select [Duration]using the
of seconds by pressing the
Repeat
Select [Repeat] using the
buttons.
pressing the
buttons, then select the desired number
buttons.
buttons, then select [No] or [Yes] by
Press
button to confirm the Slideshow settings or
close the confirmation dialog without any change.
button to
111
DPOF (DIGITAL PRINT ORDER FORMAT)
When printing images at a photo lab, it is possible to specify which
photos and quantity to print in advance, using the DPOF menu. This is
also available when making prints using a DPOF compatible printer.
WARNING !!
x In the case of RAW images (files with X3F extension), DPOF printing
is not possible.
1
Press the
button to select [DPOF] in [
while displaying an image.
Playback Menu] (P.27)
2
Select the desired option using the
or
button.
DPOF MENU
Select Files
Set the print quantity by pressing the
buttons. To set number of copies from
multiple images, select the image that you
wish to print by pressing the
buttons and
then set the print quantity for each image by
pressing the
buttons.
Select All
This option selects all still images on the card
for printing. Set print quantity by pressing the
buttons.
Cancel All Selectionsᴾ
Reset all print quantity settings.
3
A confirmation dialog will be displayed by pressing the
or
button.
4
Select [Yes] by using the
buttons and press the
button to apply
the setting. If you want to cancel to apply the setting, select [No] by
buttons and press the
button.
using the
112
CHANGING OTHER SETTINGS
This section explains how to change the setting of basic camera
operation to your desired settings.
113
FILE NUMBERING SYSTEM
Stored data is automatically assigned file numbers from 0001 to 9999.
When data is being reviewed, the file number of each image is displayed
in the right corner on the color LCD monitor (see P.91,94). The file
number is also incorporated into the filename of the image. The filename
consists of “SDIM” followed by the 4-digit file number and extension. For
example: image number 0023 will be stored in the file SDIM0023.X3F.
All dp2 Quattro image files will be stored to ###SIGMA folder of the
DCIM folder in the card.
z When [Adobe RGB] is selected from [
Capture Settings] (P.27) ă
[Color space], the filename will consist of “_SDI” instead of “SDIM”.
z File numbering can be continuous, or can be reset every time an
empty card is detected. The File Numbering can be set from
[ Camera Settings] (P.27) ă [File Numbering].
FILE NUMBERING OPTIONS
Numbering is continuous. The first file number
assigned on an empty card will be one higher than the
Continuous last assigned number. (If the inserted card contains dp2
(Default)
Quattro images with file numbers greater than the last
assigned number, file numbering will continue with one
higher than the highest file number on the card.)
Auto Reset
114
Each time an empty card is inserted, or all images on
the current card are deleted, the file number will reset
to its default value of 0001. (If the inserted card already
contains dp2 Quattro images, the file number will not
be reset).
WARNING !!
z When Folder numbering / File numbering is reached to “999-9999”,
even if the card has the capacity, the message of [Card Full] will be
displayed and it is not possible to take pictures any more. Please
check the File numbering in reviewing display. If the file number of
“999-9999” exists in the card, please proceed as follow.
1. Transfer all files in the card to your PC.
2. Format the card.
3. If the [File Numbering] is set to [Continuous], once set to [Auto
Reset].
4. If you usually set [File numbering] to [Continuous], set to
[Continuous] once again.
z If you wish to continue to take pictures with any other card, please
proceed it from step 3.
TO CHANGE FILE NAMES
File name of images can be selected from either “SDIM” or “DP2Q”.
Select the setting from [
Camera Settings] (P.27) ă [File Name].
SDIM (Default)
File name will be “SDIMxxxx.xxx”.
DP2Q
File name will be “DP2Qxxxx.xxx”.
z The number in the file name will be continuous even after changing
the setting from SDIM to DP2Q or vice versa.
z When [Adobe RGB] is selected from [
Capture Settings] (P.27) ă
[Color space], the file name will consist of “_SDI” instead of “SDIM”,
and become “_P2Q” instead of “DP2Q”.
115
CUSTOMIZE THE DISPLAY OF LCD MONITOR
Size of icon displayed during shooting can be changed, or useful
functions for photography can be added.
1
Select mode to customize from [
Camera Settings](P.27) ă [Display Mode
Settings].
2
Select [On] and press the
button.
3
Select items to change and press the
button.
TIP
x Unrequired display mode can be set to hide. Select unrequired mode
from [Display Mode Settings] and set them to [Off].
Display Info
Shooting information to display can be selected.
Off
Only the information at the bottom of the screen is
displayed.
Minimum
Only the information at the bottom of the screen, the
battery level and the maximum number of images to
be taken are displayed.
Standard
Standard display
Font Size
Font Size for shooting information can be selected.
Normal
Display in normal size.
Large
Display in large size.
116
Grid Lines
Grid Lines that is useful in determining
composition can be displayed.
Off
- 4 (Black)
- 9 (Black)
- 16 (Black)
- 4 (White)
- 9 (White)
- 16 (White)
Grid Line Off
4 segments with a black line
9 segments with a black line
16 segments with a black line
4 segments with a white line
9 segments with a white line
16 segments with a white line
Histogram
Histogram that is useful in determining exposure can be displayed.
z Refer P.96 [Histogram] for further information on Histogram.
Off
No display.
On
Display.
Date / Time
Date and Time can be displayed.
Off
No display.
Date
Display Date only.
Time
Display Time only.
Date + Time
Display both Date and Time.
117
Electronic Level
An Electronic level that is useful in determining composition can be
displayed.
Off
No display.
On
Display.
ELECTRONIC LEVEL
Camera’s horizontal direction and vertical direction are displayed.
Vertical direction guide
Horizontal direction guide
z When the camera is horizontal or vertical, the guide becomes green.
z When shooting vertically, the display changes to one for vertical
shooting.
WARNING !!
x Electronic level usually has error about ±1°. The more it is tilted, the
larger the error becomes, and in such case it does not work properly.
x When the camera is facing down, the Electronic level does not work
properly.
ADJUSTMENT OF ELECTRONIC LEVEL
Electronic level’s tilt can be adjusted.
1
Select from [
Camera Settings] (P.27) ă [Adjust Electronic Level].
2
Place the camera on a horizontal surface, and press the
z To reset, press the
default.
118
button.
button. The adjustment value returns to factory
CUSTOMIZING THE DIAL
The dial’s functions or operating directions to set exposure, and the
focus ring’s operating directions can be customized.
SWITCH DIAL FUNCTIONS
The Front Dial and the Rear Dial are used for changing the aperture
value, shutter speed and exposure compensation. It is possible to
change the function of them for each Exposure Mode.
It is possible to set from [
Functions].
Capture Settings] (P.27) ă [Switch Dial
Select the desired Exposure Mode by
button and change the
pressing the
function by using the
button. To apply
button.
the setting, press the
z To reset to the default setting, please
press the
button and then press
the
button.
DIAL / MANUAL RING ROTATION
It is possible to reverse the Dial direction and Focus ring direction.
It is possible to set from [
Ring Rotation].
Capture Settings] (P.27) ă [Dial / Manual
Select the option you want to change by
using the
buttons. Then select [Original]
or [Reverse] and press the
button to
apply the setting.
119
Aperture / Shutter speed
Aperture Value
Original
Stop down
Open
(Default)
Reverse
Stop down
Open
Shutter Speed
Slow
Fast
Fast
Slow
Exposure compensation
Exposure Compensation Value
Original
Over Expose
Under Expose
(Default)
Reverse
Focus Ring
Over Expose
Under Expose
Focus Position
Original
(Default)
Close
Reverse
Distant
Distant
Close
LCD OFF AND AUTO POWER OFF
The dp2 Quattro has [LCD Off] and [Auto Power Off] functions in order
to conserve battery power. If not used for a predetermined amount of
time, the color LCD monitor or power will be turned off automatically.
LCD Off
If not used for a predetermined amount of time, the backlight of the color
LCD monitor will be turned off automatically. Although the color LCD
monitor is turned off, the camera power remains ON, therefore, each
button can be operated normally. It is possible to change to shooting
mode, upon pressing the shutter button halfway.
120
Auto Power Off
If not used for a predetermined amount of time, the camera will be
turned off automatically. While the camera is in Auto Power Off, each
button will not function. It is necessary to press the Power switch to
terminate Auto Power Off.
Set the Auto Power Off from [
and [Auto Power Off].
LCD Off Option
Off
10 sec.
30 sec.
1 min. (Default)
5 min.
10 min.
Camera Settings] (P.27) ă [LCD Off]
Auto Power Off Option
Off
30 sec.
1 min.
5 min. (Default)
10 min.
TIP
x To disable LCD Off, set [LCD Off] to [Off].
x To disable Auto Power Off, set [Auto Power Off] to [Off].
WARNING !!
x It is not possible to set [LCD Off] for a longer time than [Auto Power
Off]. For example, when [LCD Off] is set to [5min.] and [Auto Power
Off] is set to [1min.], the [LCD Off] setting will be changed to [1 min.]
automatically.
ECO MODE
ECO Mode saves battery usage by reducing the brightness of the LCD
monitor and frame rate when the camera has not been used for 10
seconds.
121
Set to [On] from [
Camera Settings] (P.27) ă[ECO Mode].
Off (Default)
Set to Standard Mode.
On
Set to ECO Mode.
SOUND SETTINGS
This section explains settings about the Shutter Sound, Operation
Sound, Sound Volume and Playback Volume.
These sound settings can be set from [
[Sound Setting].
Camera Settings] (P.27) ă
Shutter Sound
It is possible to set the Shutter Sound by setting to [On] or [Off].
z The default setting is [On].
Operation Sound
It is possible to set the Operation Sound when the focus is verified,
alarm when the focus is not verified and operation sound of the
self-timer by setting to [On] or [Off].
z The default setting is [On].
Sound Volume
It is possible to set the volume of Shutter Sound and Operation Sound
from 0 to 5 in six levels. It is possible to down the volume by the
button and up by the button.
z Setting of 0 does not make sound.
z The default setting is 3.
Playback Volume
It is possible to set the Playback Volume and Sound Memo volume from
0 to 5 in six levels. It is possible to reduce the volume by pressing the
button and increase the volume by pressing the button.
z Setting of 0 does not make sound.
z The default setting is 3.
122
RESET TO THE DEFAULTS
It is possible to reset the settings to the defaults.
It is possible to reset settings to defaults from [
(P.27) ă[Reset Settings].
Reset all settings of [
Camera Settings]
Capture Settings] (Blue tab) to the defaults.
In [Reset Settings] menu, Select [Yes]
button and press the
by pressing the
button.
To cancel the reset settings, select [No]
button and press the
by pressing the
button.
If you want to reset all the camera settings, including other settings, you
will have to reset the camera to factory defaults. In [Reset Settings]
to show the message [Reset all camera settings to
menu, press
factory defaults?].
To reset all camera settings to factory defaults, please select [Yes] by
pressing the
buttons and press the
button.
To cancel the reset settings, select [NO] by pressing the
button.
press the
buttons and
123
CONNECTING TO A COMPUTER
124
CONNECTING YOUR CAMERA TO A COMPUTER
The dp2 Quattro camera can be connected directly to a computer using
the provided USB cable. Make sure that the camera is off before
connecting it to the computer. Data transfer rates will vary depending on
the computer and operating system used. For further information, please
refer to Help within SIGMA Photo Pro.
1
Turn the computer on.
2
Connect your camera to a computer with
the provided USB cable.
WARNING!!
x Please
ensure your computer is not in sleep mode whilst your
camera connects to the computer. It may cause the data to be lost or
damaged.
x Do
not connect another USB cable to the computer while your
camera is connecting to the computer. It may cause the data to be
lost or damaged.
x Please use only the USB cable supplied with your camera.
x The shutter button and color LCD monitor will be disabled while the
camera is connected to the computer via a USB cable.
x The
Auto Power Off function does not work while connecting the
USB cable.
125
REFERENCE
This section introduces optional accessories, and explains
specifications of the camera.
126
OPTIONAL ACCESSORIES
ELECTRONIC FLASH EF-140S SA-STTL
This compact design flashgun has a maximum Guide Number of 14
(ISO100 / m). Please see P.85 for more information.
LENS HOOD LH4-01
This lens hood blocks out extraneous light and reduces flare and
ghosting. It can be attached to the tip of the lens easily.
VIEW FINDER VF-41
This high performance Albada inversed Galilean type Finder mounts on
the hot shoe. It offers a framing guide for deciding the composition
without the color LCD monitor and accurate framing unaffected by
external light condition.
CABLE RELEASE SWITCH CR-31
This cable release allows releasing the shutter without touching the
camera by connecting it to camera USB terminal. It is useful when
attaching the camera to a tripod, and releasing the shutter from a
distance, or slow shutter. (Cable length: Approximately 1m)
CAMERA CASE HC-21
This jacket type camera case can be attached to the camera while
photographing. It perfectly fits the camera, which improves the usability
of the camera.
AC ADAPTER SAC-6
This is used to provide a constant electricity supply and is recommended
when taking indoor shots or connecting the camera to your computer to
transfer data. (DC Connecter CN-21 is included with this camera to
connect the AC adapter to the computer.) (P.128)
127
USING A HOME POWER SUPPLY
(sold separately)
You can power the camera from a wall outlet using the provided AC
Adapter SAC-6 and DC Connector CN-21. When using your camera for
an extended period of time, reviewing the pictures or connecting the
camera to a computer, we recommend that you operate the camera from
a household power outlet.
1
Connect the AC cable to the AC adapter.
2
Open the Battery Cover, and open the DC
connector cover as shown in the
illustration.
Do not pull too hard on the DC connector
cover as it may come away from camera
body.
3
Insert the DC connector as shown in the
illustration until it is locks into place.
128
4
Close the Battery Cover carefully so as
not to pinch the DC connector code.
5
Connect the plug of the AC adapter and
jack of the DC connector.
WARNING!!
x While the Busy Lamp is on, please do not open the Battery Cover or
Card Cover. By doing so, the camera will turn off and result in data
loss. This could also cause damage to the camera and/or memory
card.
z When you have finished using the camera, please turn off the camera
and disconnect the plug from the wall socket.
After taking the DC connector off from the
camera body, close the DC connector
cover as shown in the illustration.
129
MAINTENANCE
z Do not use chemicals or other cleaning agents such as thinners or
benzene for cleaning the camera and lens. Use a clean, soft cloth and
blower to clean the camera and lens. Lens cleaners can be used for
removing fingerprints.
z Do not lubricate the camera.
z Use a blower to remove dust and dirt from the color LCD monitor. To
remove fingerprints or other stains from the LCD monitor, wipe the
surface gently with a soft, clean cloth. Do not apply excessive force,
as this could damage the LCD monitor.
HOW TO STORE THE CAMERA
z If you intend to store the camera for a long time, remove the battery.
z To avoid growth of fungus, store the camera and lens in a dry, cool
and ventilated place, with a drying agent such as silica gel. Keep your
equipment away from chemicals.
NOTE ON THE TFT COLOR LCD MONITOR
z A few pixels may always be lit or may never light on the LCD monitor.
This is not a failure or malfunction. Images recorded with the camera
will not be affected.
z Because of the normal physical characteristics of the liquid crystal, the
reaction of the display may become slow at low temperatures. At high
temperatures, the display may become dark, but it will return to normal
at room temperature.
130
TROUBLESHOOTING
If you have a problem with your camera or cannot take good pictures,
consult the list below as you check the camera before requesting
repairs.
Nothing is displayed on the color LCD monitor.
Battery is exhausted.
Ź Replace the battery. (P.20 - 23)
LCD Monitor is set to OFF mode.
Ź Press the
button to display the color LCD monitor. (P.36)
Camera is in LCD Off mode.
Ź Press the shutter button “half-way” or any other button. (P.120)
The shutter does not release.
The camera is busy writing to the card.
Ź Please wait until the card busy light goes off.
Card is full.
Ź Insert a new card or delete unwanted images. (P.97 - 98)
Autofocus does not operate.
Focusing mode is set to MF.
Ź Change the focusing mode by pressing the Focus mode button.
(P.48)
The camera has turned off automatically.
Auto Power Off is activated.
Ź The Auto Power Off function is set in order to conserve battery
power. If it is inconvenient, please set the Auto Power Off to “Off”.
(P.120)
131
Cannot shoot or store images.
Card is full
Ź Insert a new card or delete unwanted images. (P.97 - 98)
Battery is exhausted.
Ź Replace the battery. (P.20 - 23)
The write protection switch is in the ‘LOCK’ position.
Ź Please unlock the write protection switch on the card. (P.11)
Image data on the card is corrupted.
Ź If important data remains in the card after transferring it to your PC,
please format the card. (P.39)
Difficulty seeing the images on the color LCD monitor.
Dust or dirt has adhered to the color LCD monitor.
Ź Clean the color LCD monitor with a blower or eyeglass cloth. (P.130)
The color LCD monitor is worn out.
Ź Please consult the retailer from which you purchased the camera or
contact the nearest Sigma Service Center.
Pictures are coming out blurred
AF may not be activated when the shutter was pressed.
Ź Press the shutter button “half-way” and press it after the focusing
point is illuminated in green. (P.48)
Focusing mode is set to MF.
Ź Change the focusing mode by pressing the Focus mode button.
(P.48)
Camera shake is occurred.
Ź Use the flashguns or tripod. (P.85)
132
White or colored dots and haze appear on a part of the image.
Due to the camera facing a strong light source, ghosting and flare
appear on the image.
Ź Strong light source may cause ghosting and flare. Changing the
composition or aperture and additionally attaching the lens hood
(optional) will help minimize the extraneous light from diagonal
directions. (P.127)
Keeping Overexposure Correction [On].
Ź Depending on light conditions, it cannot be adequately adjusted
even with Overexposure Correction, which causes tinting on a part
of the subject. In this case, please turn Overexposure Correction
[Off].(P.81)
Cannot delete images.
Images may be locked.
Ź Unlock the images. (P.100 - 102)
The write protection switch is in the ‘LOCK’ position.
Ź Please unlock the write protection switch on the card. (P.11)
Incorrect date and time is shown.
Date and time setting may be incorrect.
Ź Enter the correct date and time in the Set-up Menu. (P.25)
Cannot play-back sound
Sound volume is set 0.
Ź The Sound Volume can be set from [
Camera Settings] (P.27) ă
[Sound Settings] ă [Sound Volume]. (P.122)
133
SPECIFICATIONS
Image Sensor
FOVEON X3 Direct Image Sensor (CMOS)
Image Sensor Size 23.5 × 15.7mm
Effective Pixels : 29MP
Color Photo
(T:5424×3616, M:2712×1808, B:2712×1808)
Detectors
Total Pixels : 33MP
Aspect Ratio
3:2 (21:9, 16:9, 4:3, 1:1)
Lens
30mm (35mm equivalent focal lengthᲴ45mm)
Lens F number
Lens Construction
F2.8 ~ F16
6 Groups, 8 Elements
Shooting Range
Magnification
Filter Size
Storage Media
Recording Format
File Format
Image size (3:2)
(Number of Pixels)
Image Quality
White Balance
Color Mode
ISO Sensitivity
Auto Focus
134
28 cm ~ Đ, LIMIT Mode (It is possible to choose
Macro, Portrait and Scenery.)
1:7.6
58mm
SD Card, SDHC Card, SDXC Card
Exif 2.3, DCF 2.0, DPOF
Lossless compression RAW Data (14-bit),
JPEG (Exif 2.3),
RAW+JPEG
SUPER-HIGH(JPEG) : 7680 x 5120
HIGHᲴ5424 x 3616
LOWᲴ2704 x 1808
RAW, JPEG (Fine, Normal, Basic),
RAW+JPEG(Fine)
10 types (Auto, Auto (Lighting Source Priority),
Daylight, Shade, Overcast, Incandescent,
Fluorescent, Color Temperature, Flash, Custom)
11 types (Standard, Vivid, Neutral, Portrait, Landscape,
Cinema, Sunset Red, Forest Green, FOV Classic Blue,
FOV Classic Yellow, Monochrome)
ISO100~6400 (1/3 steps for appropriate sensitivity)
AUTO: Upper limit, Lower limit setting is possible
between ISO 100 ~ ISO 6400.
(When using with flash, it changes depending on the
low limit setting.)
Contrast Detection Type
AF Point
Focus Lock
Manual Focus
Metering System
Exposure Control
System
Exposure
Compensation
AE Lock
9 points select mode, Free move mode (It is possible
to change the size of Focus Frame to Spot, Regular
and Large.), Face Detection AF Mode
Shutter release halfway-down position (AF lock can
be done by AE lock button from menu setting)
Focus Ring type
Evaluative metering,
Center-Weighted Average Metering,
Spot metering
(P) Program AE, (S) Shutter Priority AE,
(A) Aperture Priority AE, (M) Manual
±3EV (1/3 stop increments)
AE lock button
Appropriate, under, over; 1/3EV steps up to ±3EV for
Auto Bracketing
appropriate exposure
1/2000* - 30sec. (*Depending on the aperture value,
Shutter Speed
shutter speed changes)
Forced Flash,
Flash Mode
Red-Eye Reduction Flash,
Slow Synchro Mode
External Flash Sync. Hotshoe (X Sync. Contact)
Single, Continuous, Self Timer (2sec. /10sec.)
Drive Modes
Interval timer
approx. 920,000 pixels, 3.0 inches TFT color LCD
LCD Monitor
monitor
English / Japanese / German / French / Spanish /
LCD Monitor
Italian / Simplified Chinese / Traditional Chinese /
Language
Korean / Russian / Dutch / Polish / Portuguese /
Danish / Swedish / Norwegian / Finnish
Interface
USB (USB2.0) / Cable Release Switch
Li-ion Battery BP-51,
Power
AC Adapter SAC-6 (with DC Connector CN-21)
(Optional)
Battery Life
Approx. 200 (+25°c)
Dimensions
161.4mm/6.4”(W) × 67mm /2.6”(H) × 81.6mm/3.2”(D)
Weight
410g / 14.5oz (without battery and card)
135
dp2 Quattro
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
SIGMA CORPORATION OF AMERICA
15 Fleetwood Court, Ronkonkoma, NY 11779, U.S.A.
TEL: 631 585 1144
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For customers in the U.S.A.
Federal Communications Commission (FCC) Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for class B digital
devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Use of interface cable is required to comply with class B limits in Subpart B of Part 15
of FCC Rules.
Any changes or modifications to this equipment not specified in this manual may void
your warranty.
For customers in the Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This mark shows that the construction of the product is double-insulated.
Cette marque indique que la construction du produit a une double isolation.
The CE Mark is a Directive conformity mark of the European Community
(EC).
SIGMA (Deutschland) GmbH
Carl-Zeiss-Str. 10/2, D-63322 Roedermark, Germany
Verkauf: 01805-90 90 85-0 Service: 01805-90 90 85-85 Fax(Service): 01805-90 90 85-35
SIGMA CORPORATION
2-4-16 Kurigi, Asao-ku, Kawasaki-shi, Kanagawa 215-8530 Japan
Phone : 044 - 989 - 7430 Fax : 044 - 989 - 7451
136
