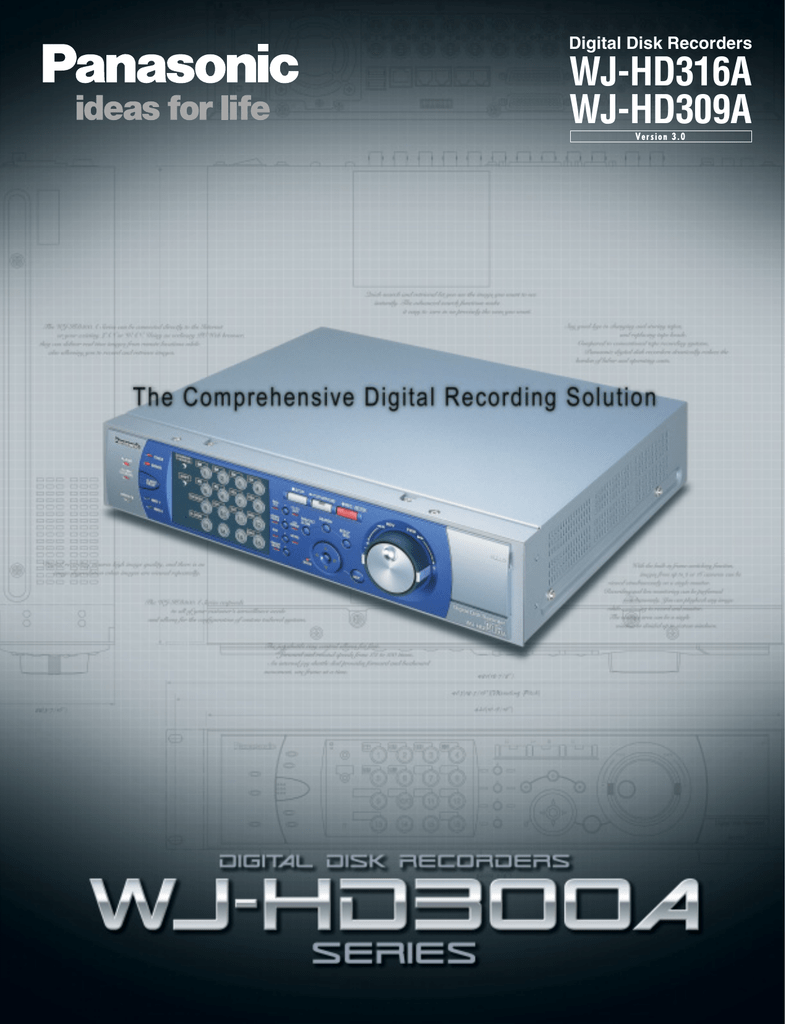

Digital Disk Recorders

WJ-HD316A

WJ-HD309A

The WJ-HD300A Series offers high quality pictures and disk saving recording utilizing a new compression technology.

Panasonic presents the new WJ-HD300A Series with a unique new system featuring a high compression ratio of

1/30 Super Compression: Proprietary Algorithm,

Core Development of the WJ-HD300A Series

1/30 for practical use. Under the "All-in-One Solution" concept, all the vital recording components and features are condensed into one unit. With one single unit, unprecedented, highly reliable surveillance recording is possible in a wide range of applications. The WJ-HD300A Series also features System Scalability to meet extended user needs.

• New algorithm divides entire screen into high and low frequency elements to reduce artificial distortion and noise compared to conventional compression.

• In addition, the mode-A compression data calculation within four (4) field images (called “Temporal Transforms”), outputs data according to the amount of movement: “No Movement,”

“Slow Speed Movement,” “Medium Speed Movement,” and

“High Speed Movement.” Redundant data can be reduced through this compression process.

2

WJ-HD316A

Picture Quality & Disk Saving

Compared to a conventional algorithm, the data compression ratio has improved approximately 1.5 ~ 2, depending on object and compression mode.

Data Size and Compression Mode Comparison

Disk Saving

40KB

30KB

Mode B

20KB

Mode A

10KB

WJ-HD300A Series

New Compression

Conventional

Compression

Super Fine Fine Normal

Compression Mode

Extended New Compression

WJ-HD300A Series

Conventional Compression

WJ-HD309A

Instinctive Operation

Simple and instinctive, the functional base layout of the WJ-HD300A Series front panel is designed for ease-of-use. Eight (8)* directly connected Panasonic dome cameras can be controlled from the front panel. Also, the GUI based menu screen enables quick set up for flexible, more complex operations.

(* Six (6) cameras for the WJ-HD309A)

OPERATION BASE LAYOUT

STATUS MON.OPERATION

RECORDER OPERATION (OUTPUT)

GUI BASE MENU

CAMERA PTZ,

SEARCH & SETUP

Value Added Features

The WJ-HD300A Series is equipped with the latest value added features to satisfy your requirements such as system reliability, operation efficiency, and cost savings.

Features include:

• High-density recording: 60 ips* (120 ips* @SIF).

• Full rate live multi screen: 60 ips*.

• Simultaneous Live/Rec./Playback/Network.

• 16 independent recording profiles.

• Disk partitioning: Normal, Alarm, and Copy.

• RAID 5 and mirror redundant recording.

• Advanced VMD (Video Motion Detector):

Area, vector, and duration.

• Various Network Operations: Live, PTZ control,

Recording, Playback, and Downloading.

• Network and serial open architecture.

• Improved picture quality by optimized compression algorithm.

• Enhanced archive solutions via USB port.

• Scheduling of WV-CS954 Auto Tracking function from admin. software.

(* ips = image per second)

*The above all photographs were taken for the purpose of explanation ; actual images may differ.

3

Superior surveillance made possible by state-of-the-art digital features.

High-Refresh Rate Recording

High-speed digital processing enables high-refresh rate recording - to ensure critical moments are not missed.

Max. 30 image per sec. @ 720 x 480 (FRAME/NTSC)

Max. 60 image per sec. @ 720 x 240 (FIELD/NTSC)

Max.

120 image per sec. @ 360 x 240 (SIF/NTSC)

WJ-HD300A

Series

Full Rate Live Multi-Screen

Even when images from multiple cameras are displayed on a multi-screen, live monitoring can be achieved on all cameras at a full rate of 60 ips

(image per second). Experience real-time, full surveillance with full-rate video images.

Multi-screen in versatile variations

Conventional

4

4-window 7-window 9-window 10-window* 13-window* 16-window*

(* 10, 13, and 16 screens are available only with the WJ-HD316A.)

16 Independent Recording Profiles

Flexible recording setup

Independent recording settings (recording mode/recording rate/picture quality) for each camera* enables flexible setup.

(*16 cameras for the WJ-HD316A and 9 cameras for the WJ-HD309A.)

Recording mode: Manual / Schedule / Event / Emergency • Recording rate: Set the ips (image per second) as needed. • Picture quality: Super Fine / Fine / Normal / Extended

User-friendly setup

The user friendly GUI supports easy and smooth setup while confirming current status graphically.

GUI Setup Menu

6AM 12PM 6PM

MON

TUE

WED

THU

12AM

REC

EVT

REC

EVT

REC

EVT

REC

EVT

FRI

SAT

SUN

DAILY

EXT

REC

EVT

REC

EVT

REC

EVT

REC

EVT

REC

EVT

OK CANCEL

12AM

Time Table

(ips = image per second)

Recording Action PROG 1

Recording Program 1

Resolution

Recording Table

Total REC Rate

FIELD

60 ips

53 ips

CAM1

CAM2

CAM3

CAM4

CAM5

CAM6

CAM7

CAM8

CAM9

CAM10

CAM11

CAM12

CAM13

CAM14

CAM15

CAM16

2ips

2ips

2ips

2ips

2ips

2ips

2ips

2ips

2ips

MANUAL

RATE

2ips

2ips

QUALITY

EXA

NQA

SCHEDULE

RATE

1ips

1ips

QUALITY

EXA

NQA

1ips

1ips

PRE EVENT

RATE QUALITY

FQB

FQB

2ips

2ips

2ips

2ips

2ips

FQA

SFA

NQA

FQA

SFA

1ips

1ips

1ips

1ips

1ips

FQA

SFA

EXA

NQA

FQA

1ips

1ips

1ips

1ips

1ips

FQB

SFB

EXB

NQB

FQB

TIME

5s

5s

5s

5s

5s

5s

5s

SFA

EXA

NQA

FQA

SFA

EXA

NQA

FQA

SFA

1ips

OFF

OFF

OFF

OFF

1ips

1ips

1ips

1ips

NQA

EXA

NQA

FQA

SFA

EXA

NQA

FQA

SFA

1ips

1ips

1ips

1ips

1ips

1ips

1ips

1ips

1ips

SFB

EXB

NQB

FQB

SFB

SFB

SFB

FQB

SFB

5s

5s

5s

5s

5s

5s

5s

5s

5s

POST EVENT

RATE

5ips

5ips

QUALITY

EXB

NQB

TIME

30s

30s

5ips

5ips

3ips

3ips

3ips

3ips

2ips

2ips

2ips

2ips

5ips

3ips

3ips

2ips

FQB

SFB

EXB

NQB

FQB

SFB

EXB

NQB

FQB

SFB

EXB

NQB

FQB

SFB

10s

30s

30s

30s

30s

30s

30s

30s

30s

10s

20s

30s

30s

30s

Actual recording result (Example)

Manual Schedule Event

CAM1

CAM2

CAM3

CAM4

CAM5

CAM6

CAM7

CAM8

CAM9

CAM10

00:00

1ips EXA

1ips NQA

1ips FQA

1ips SFA

1ips EXA

1ips NQA

1ips FQA

1ips NQA

2ips EXA

2ips NQA

CAM11

CAM12

CAM13

CAM14

CAM15

CAM16

2ips FQA

2ips SFA

1ips EXA

1ips NQA

5ips EXB

5ips NQB

07:00

1ips EXA

1ips NQA

5ips SFB

5ips EXB

5ips FQB

2ips NQA

2ips FQA

2ips SFA

2ips SFA

OFF

OFF

OFF

OFF

1ips FQA

1ips SFA

1ips EXA

3ips NQB

1ips FQA

1ips SFA

1ips EXA

1ips NQA

1ips FQA

1ips NQA

2ips EXA

2ips NQA

2ips FQA

2ips SFA

1ips NQA

O K CANCEL

Instant Search and Playback

Filtered Search

Various parameters/filters such as time & date, camera channel, REC events, text and VMD enables instant search and playback from mass recorded data.

VMD

*REC Events

* REC Event filter

Camera Channel

Filtered records

Text

Time & Date

REC mode Emergency, Event, Schedule, Manual

Alarm mode VMD, Terminal, Command, Video loss

Filtered Search (Example)

Filtered records

Filter parameters

Time & Date : 9:40~10:10

CAM Channel : CAM1 · CAM2 · CAM3 · CAM4

REC mode : Event

Alarm mode : VMD · TRM · COM · LOSS

VMD TRM CAM1

CAM2

CAM3

CAM4

CAM5

Manual

Manual

COM

VMD

Manual

VMD

LOSS

TRM

Thumbnail Display

In addition to search result by "list", "thumbnail" display is available for visual confirmation.

Camera channel/

Recording event

Live / Recording / Playback / Network

Simultaneous Performance

By adopting high speed signal processing, live / recording / playback / network can be operated simultaneously.

Network

+

Recording Playback image

Time and date

Number of listed data

Disk Management

Hard Disk Partitioning Function* automatically selects the partition to be recorded.

The hard disk is divided into three partitions: "Normal Recording,"

"Event Recording," and "Copy." Image data is automatically recorded to the appropriate partition according to the recording mode. For the normal recording partition, the data is overwritten when the capacity is full. The event recording partition prohibits overwriting to protect data. Copy partition prepares data for retrieval to external medium.

Image of manual recording

Image of normal scheduled recording

Image of event recording

Image of emergency recording

Normal recording area

Overwriting

Event recording area

Overwriting prohibited

Copied image

Copy area

Optional setting

(* partitioning is virtual)

RAID5 / Mirroring Function

RAID5 distributes image data to multiple hard disks in the extension unit. Upon hard disk breakdown, lost data can be restored from other hard disks. When using one WJ-HD300A

Series unit, mirroring function is available for data backup.

RAID Controller

WJ-HD300A Series

+

Restore

WJ-HDE300

Advanced VMD

A new mode is added for sophisticated VMD detection.

DETECT VECTOR & DURATION

Playback VMD

One VMD area can set one playback image for motion search.

A

C

Playback

B

VMD area setting

Live images on a Multi-screen

DETECT A 5sec.

B

10sec.

C • -------

• -------

Alarm list

*The above all photographs were taken for the purpose of explanation ; actual images may differ.

5

MAJOR OPERATING CONTROLS: WJ-HD316A

Front View Rear View

DIMENSIONS: WJ-HD316A

88(3-7/16")

Unit : mm (inches)

480(18-7/8")

465(18-5/16")(Mounting Pitch)

420(16-9/16")

320(12-5/8")

SPECIFICATIONS: WJ-HD316A

General

Power Source

Power Consumption

Ambient Operating Temperature

Ambient Operating Humidity

Dimensions

120 V AC, 60 Hz

75 W

+5

°C - +45°C (41°F - 113°F)

Less than 90 %

420 mm (W) x 88 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D)]

(excluding rubber feet and projections)

Weight 9.5 kg (21 lbs.)

Input/Output

Video Video Input Connectors 1 V [P-P] / 75

Ω, with auto termination loop-thru, vertical timing pulse multiplexed, x8 (1 to 8 CH) (BNC)

1 V [P-P] / 75

Ω, with auto-termination loop-thru, x8 (9 to 16 CH) (BNC)

Cascade Input Connector 1 V [P-P] / 75

Ω (BNC)

Video Output Connectors 1 V [P-P] / 75

Ω, active loop-thru output, x8 (1 to 8 CH) (BNC)*1

1 V [P-P] / 75

Ω, active loop-thru output, x8 (9 to 16 CH) (BNC)

Monitor Output Connectors 1 V [P-P] / 75

Ω, x2 (BNC)

Monitor Output Connector (VGA) RGB output, x1 (15-pin D-sub)

S-Video Output Connector Y = 1 V [P-P] / 75

Ω, C = 0.286 V [P-P] / 75 Ω, x1 (S-video output connector)

Video Output Connector (Front Panel) 1 V [P-P] / 75

Ω, x1 (RCA pin)

Audio Audio Input Connectors –10 dB, 10 K

Ω, x4 (RCA pin)

Audio Output Connectors –10 dB, 600

Ω, unbalanced, x2 (RCA pin)

Others Expansion Connector High-speed serial interface, 480 Mbps (theoretical value), x1

Copy Connectors

Control Connectors

High-speed serial interface, 480 Mbps (theoretical value), x2

Emergency recording input *2 , additional space warning output *3 (for devices connected to copy connectors), HDD trouble output *3 , camera trouble output *3 , trouble output *3 , electricity failure recovery completion output *4 , time adjust

Alarm Port

RS-485 Ports

DATA Ports

SERIAL Connector

Ethernet Port input/output *5 , sequence switching input/output *5 , electricity failure detection input *2 , external recording mode switching *2 (25-pin D-sub), +5 V output *7

1 to 8 CH alarm input *6 , 1 to 16 CH alarm input *2 , 1 to 16 alarm output *3 , alarm recovery input *2 , alarm suspension input *5 (25-pin D-sub)

RS-485 (full duplex/half duplex *8 ), x2 (RJ-11)

RS-485, x2 (RJ-11)

RS-232C, x1 (9-pin D-sub)

10 Base-T/100 Base-TX (RJ-45)

*1. When power is not supplied, video output signal was not sent from the unit even if video input signal is supplied.

*2. Non-voltage N.O. Contact, 100 mA, +5 V pull-up *3. Open collector output, maximum under conditions of 24 V DC and

100 mA or less *4. High (+12 V, 6.3 mA) *5. 30 K

Ω, 5 V pull-up, –100 mA, N.O. Contact *6. 5 V pull-up, –100 mA,

Non-voltage N.O. Contact input *7. 240 mA at maximum *8. Changeable with the mode switch

DISK DATA REFERENCE CHART • NTSC color video signal • Recording images from a single camera channel • 250GB HDD • Auto mode • Manual recording • Audio OFF

COLOR FINE

Field Mode (Sampling Pixel Size: 720 x 240)

COLOR STD

Field Mode (Sampling Pixel Size: 720 x 240)

One Camera ch (ips*)

0.1

0.5

7.5

15

1

5

30

60

SFB

17,880

3,570

1,780

350

230

110

50

20

FQB

26,820

5,360

2,680

530

350

170

80

40

NQB

35,760

7,150

3,570

710

470

230

110

50

EXB

53,650

10,730

5,360

1,070

710

350

170

80

One Camera ch (ips*)

0.1

0.5

7.5

15

1

5

30

60

SFB

23,840

4,760

2,380

470

310

150

70

30

FQB

35,760

7,150

3,570

710

470

230

110

50

NQB

47,680

9,530

4,760

950

630

310

150

70

EXB

71,530

14,300

7,150

1,430

950

470

230

110

*ips (image per second)

COLOR FINE

One Camera ch (ips*)

SIF Mode (Sampling Pixel Size: 360 x 240)

(Hours) *ips (image per second)

COLOR STD

One Camera ch (ips*)

SIF Mode (Sampling Pixel Size: 360 x 240)

(Hours)

0.1

0.5

1

5

7.5

15

30

60

SFB

35,760

7,150

3,570

710

470

230

110

50

FQB

53,650

10,730

5,360

1,070

710

350

170

80

NQB

71,530

14,300

7,150

1,430

950

470

230

110

EXB

107,300

21,460

10,730

2,140

1,430

710

350

170

0.1

0.5

1

5

7.5

15

30

60

SFB

47,680

9,530

4,760

950

630

310

150

70

FQB

71,530

14,300

7,150

1,430

950

470

230

110

NQB

95,370

19,070

9,530

1,900

1,270

630

310

150

EXB

143,060

28,610

14,300

2,860

1,900

950

470

230

*ips (image per second) (Hours) *ips (image per second)

(above figures are approximate, actual recording time may differ depending on picture imaging under the conditions)

(Hours)

*The above all photographs were taken for the purpose of explanation ; actual images may differ.

7

6

System Scalability:

Viewing cascade connection (up to 4 main units)

Up to four (4) WJ-HD316A units can be cascaded to increase maximum 64 video inputs. All 64 cameras can be switched and viewed in live and playback from the master, while each slave unit has its own live viewing monitor.

1~64ch

(1) (2) (3) (16)

1~16ch

Live

(17) (18) (19) (32)

17~32ch

(33) (34) (35)

Live

(48)

33~48ch

(49) (50) (51)

Live

(64)

49~64ch

Live

Master Slave Slave Slave

+ + +

+

Live / Playback

WJ-HD316A WJ-HD316A WJ-HD316A

WJ-HD316A

2 drive bays (500GB)

WV-CU650

System Controller for 1~64ch camera/recorder control

WV-CU650 for 17~32ch live viewing

WV-CU650 for 33~48ch live viewing

WV-CU650 for 49~64ch live viewing

1

4

2

5

WJ-HDE300

4 drive bays (1.0TB)

3

6 7

1

4

2

5

WJ-HDE300

6

3

7

1

4

2

5

WJ-HDE300

6

3

7

1

4

2

5

WJ-HDE300

6

3

7

Expandable to 7.5 Terabytes (TB) storage

In addition to a total 500 GB capacity of the main unit WJ-HD316A/309A, one WJ-HDE300 extension unit provides up to 1.0 TB (1,000 GB). With seven (7) extension units, the maximum capacity can be extended up to 7.5 TB to satisfy long recording requirements.

Built-In Network Interface:

Network functions include live image monitoring through multi-screen display, camera PTZ control, recording/search/playback, downloading image/log data, e-mail notification, and setup data upload/download.

PC

WJ-HD300A Series 10Base-T/

100Base-TX

+

Network

Network Operating Menu

Control Tab

The switcher function for live monitoring is operable.

Setup Tab

Setup of WJ-HD300A Series can be performed.

Cam Tab

Remote control the camera selected on control tab page.

(Only for 1-8ch Panasonic PTZ dome cameras)

HDD Tab

Operation for recorded images such as

Control Tab

The Surveillance Cockpit for Total Control of the WJ-HD300A Series

MAJOR OPERATING CONTROLS

KEY FEATURES

• Controller for the WJ-HD300A Series of Digital Disk Recorders

Integrated System Control

Camera Control

• Detached joystick controls Pan/Tilt and Zoom, allowing seamless tracking.

• Larger numeric keypad provides direct access to cameras.

Recorder Control

• Jog Dial and Shuttle Ring for smoother control

• Dedicated Record, Play, and Search buttons

Switcher Control

• Image switching and sequencing buttons for Matrix System150

Easy to Operate While Focused on Surveillance

Universal Design for Right or Left Hand Use

• Detached joystick pad

• Layout with Jog Dial and Shuttle Ring in center

More Comfortable Extended Surveillance

• Soft padding on joystick

• Adjustable joystick height for large or small hands

• Designed with a low center of gravity and adjustable angle to minimize strain

Instinctive Operation

• Cockpit style button layout

System Management Capability

• User level management for registered users

• User assignable buttons: four in main unit plus three in palm rest

• Setup data can be transferred via RS485 to another WV-CU650.

DIMENSIONS

SPECIFICATIONS

(for WJ-HD300A Series)

Power Source

Power Source (supplied AC adapter)

Data Output/Input Port

Serial Port

Controller Number

Ambient Operating Temperature

Unit Number Selection

Monitor Number Selection

Camera Number Selection

Dimensions (W x H x D)

Weight (without the AC adapter)

9 V DC, 300 mA (using the supplied AC adapter)

120 V AC, 60 Hz, 200 mA

6-conductor modular jack (RS-485, Full duplex) x2

9-pin D-sub connector

1 to 8 (rotary switch)

–10

°C to +50°C (14°F to 122°F)

Up to 16 (PS-Data)

1 to 2

1 to 256 (up to 16 WJ-HD316A)

Main Unit: 290 x 111 x 221 mm (11-7/16" x 4-3/8" x 8-11/16")

3D Joystick Unit: 134 x 146 x 218 mm (5-1/4" x 5-3/4" x 8-9/16")

Main Unit: 1.3 kg (2.86 lbs.)

3D Joystick Unit: 0.8 kg (1.76 lbs.)

DC9V IN OLLER CONTOR

MODE

DA TA SERIAL JOYSTICK

111(4

-3/8"

)

)

2.5(1

/8"

221(8

194(7

180(7

-11/16"

-5/8"

)

-1/16"

)

)

290(11 -7/16" )

WV-CU650

ALARM

ACK ALM RESET

ALM SUSPEND

OSD

ALM RECALL

ALM ALL RESET

CAM FUNC

SEQ PAUSE

TOUR SEQ

SYS FUNC

MON LOCK

SEQ STOP

MULTI SCREEN

GROUP SEQ

EL-ZOOM

LOGOUT

GOTO LAST

AUX2 ON

MARK

AUX1 ON

OFF

WIPER

OFF

DEF ON

SEARCH

OFF T&D SEARCH

ADJUST MENU F1 F2 F3 F4 EXIT ENTER

SYSTEM CONTROLLER

SHIFT

OPERATE ALARM

ALM

SUSPEND

CLEAR

STOP PLAY/PAUSE REC REC STOP

REV FWD

+

PREV

RECORDER

UNIT

PRESET

PGM

PRESET

1 2

4

5

3

6

7

8

9

MON

(ESC)

0

134(5 -1/4" )

A

OPEN

IRIS

CLOSE

FAR

FOCUS

NEAR

B

146(5 -3/4" )

64(2 -1/2" )

Unit : mm (inches)

8

The Software for Integrated Management of Up to 100 WJ-HD300A Series

Main Application

Network mode

WV-AS65 operates the WJ-HD300A Series of Digital Disk

Recorders remotely via the network.

• Facilitates monitoring live images captured by cameras

connected to the recorder and camera operation.

• Makes possible the recording, search and playback of

recorded images from multiple recorders.

Local mode

WV-AS65 facilitates search, playback and management of image files downloaded on PC hard disk.

Downloader

WV-AS65 downloads images recorded on the disk recorder.

Displays four patterns (1, 4, 9, 16 screens) of recorded live images or playback images.

System Integration with WJ-ND300 Network Disk Recorder

Up to a total of 100 WJ-HD300A and WJ-ND300 Network Disk Recorders can be combined to create a hybrid system.

SYSTEM DIAGRAM

1 2 3 ~ 16 1 2 3 ~ 16 1 2 3 ~ 16 Network Cameras

Full screen 4-split screen 9-split screen 16-split screen

Main unit operation

There are a variety of operations that can be performed with the disk recorder alone: manually starting and stopping the recording, text attachment to recorded image, recorder log display, and data copying.

WJ-HD316A

PC

WJ-HD316A WJ-HD316A

PC

WJ-ND300

PC up to 100

Three search functions

Three types of search functions are installed: recorded event search, playback VMD search, and marking search. A number of recorders can be searched simultaneously and required images can be retrieved quickly.

WV-AS65 WV-AS65 WV-AS65 up to 32 user registration

SPECIFICATIONS OPERATING ENVIRONMENT

This PC software can be installed in PCs with the following environments

WJ-HD300A Series Registration Capacity

User Registration Capacity

User Types

Schedule Registration Capacity

Favorite Registration Capacity

Simultaneous Downloads

Simultaneous Camera Image Displays

Simultaneous File Playbacks up to 100 sets up to 32 users

5 types up to 400 schedules up to 500 up to 10 accesses up to 16 cameras up to 4 files

OS Microsoft ® Windows ® 2000 Professional SP4

Microsoft ® Windows ® XP Professional or Home Edition SP2

Computer

CPU

Memory

IBM PC / AT Compatible

Pentium ® 4, 3.0 GHz or above

512MB or above

Hard Disk Capacity About 80MB level is required for application installation.*

Interface

Web Browser

1,024 x 768 pixel resolution level or above, HIGH color 16 bits or above

(Full-color environment is recommended)

10/100/1000 Mbps network interface card installed

Microsoft ® Internet Explorer 6.0 SP1 or later

*It is necessary to prepare space to receive files from the recorder that is separate from the application installation.

*Trademark and registered trademark

• Microsoft ® , Windows ® are registered trademarks of U.S. Microsoft Corporation or the corresponding Microsoft Corporation of another country. • Intel ® and Pentium ® are registered trademarks or trademarks of Intel

Corporation of the U.S. or the corresponding Intel Corporation of another country and subsidiary companies. • Adobe ® , Adobe logo, and Acrobat ® , are trademarks of Adobe Systems Incorporated (Adobe Systems Co.).

• Other company names and product names are trademarks or registered trademarks of the respective companies.

*The above all photographs were taken for the purpose of explanation ; actual images may differ.

9

STANDARD PRODUCT CONFIGURATIONS OPTIONAL COMPONENTS & ACCESSORIES

Digital Disk Recorders

WJ-HD316A

(16ch)

WJ-HD309A

(9ch)

Extension Unit

WJ-HDE300

(4 drive bays for optional HDD units)

System Controllers

WV-CU360C

WV-CU650

• Built-in 250GB HDD unit, and

1 drive bay for optional HDD unit

• Built-in an Ethernet port

SYSTEM EXAMPLES

1

Basic System Configurations

WV-CW964 x 8

CH1 CH8

WV-CP480 Series x 8

CH9 CH16

Color Monitor x 2

Management PC Software

WV-AS65

3

Up to 7.5TB Capabilities with Optional Extension Unit & HDDs

CH1

WV-CS954 x 8

CH2 CH8 CH9

WV-CW374 x 8

CH15 CH16

Color Monitor x 2

Live Live/Playback/Menu

RGB Monitor

+

VIDEO output

RGB output

Video Y/C output

VCR

Digital Disk Recorder

WJ-HD316A

Ethernet

(10Base-T/100Base-TX)

Copy Playback

LAN/WAN

PC

Internet

PC

CD-R/DVD-R/HDD/SD Memory Card

2

With optional Matrix System 150

PC

RS-232C Port

Camera

(1)

Camera

(2)

Camera

(3)

Camera

(16)

Live/Playback/Menu

Monitor Outputs (Max. 4)

System Controllers (Max. 4)

WV-CU650

PS-Data

System Controllers (Max. 4)

WV-CU650

Max. 16

Camera Inputs

RGB Monitor

+

Digital Disk Recorder

WJ-HD316A

2 drive bays (500GB)

Ethernet

(10Base-T/100Base-TX)

LAN/WAN

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

PC

Internet

PC

Matrix Switcher

WJ-SX150A

Loop-through

+

LAN/WAN

Ethernet

(10Base-T/100Base-TX)

WV-CU360C

Digital Disk Recorder

WJ-HD316A

OPTIONAL SURVEILLANCE EQUIPMENTS

COLOR SURVEILLANCE CAMERAS

Super Dynamic III

Color Dome Camera

WV-CS954

Weather Proof

Super Dynamic III

Color Dome Camera

WV-CW964

PC Internet

PC

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

Weather Proof

Super Dynamic II Color Camera

WV-CW374

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

Vandal Proof

Super Dynamic II Color Cameras

WV-CW474A Series

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

Extension Unit

WJ-HDE300

4 drive bays (1.0TB)

Vandal Proof Color Cameras

WV-CW244 Series

Super Dynamic III

Color Surveillance Cameras

WV-CP480 Series

Compact Color Surveillance Camera

WV-CP254H

1/3-type CCD Color Surveillance Cameras

WV-CP240EX Series

Color Dome Camera

WV-CF224EX

MATRIX SYSTEM 150

(Lens: option) (Lens: option) (Lens: option)

Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.

– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.

• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.

DISTRIBUTED BY:

Panasonic System Solutions Company

Unit Company of Panasonic Corporation of North America

Security Systems

Website : www.panasonic.com/security

For Customer Support : call 1.877.733.3689

Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094

Zone Offices

Eastern : Three Panasonic Way, Secaucus, New Jersey 07094

Central : 1707 N. Randal Road, Elgin, IL 60123

Southern : 1225 Northbrook Parkway, Suwanee, GA 30024

Western : 6550 Katella Ave., Cypress, CA 90630

PANASONIC CANADA INC.

5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010

PANASONIC PUERTO RICO INC.

DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA

San Gabriel Industrial Park, 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300

Printed in Japan

WJ-JHHD300C(2P-517E)

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
