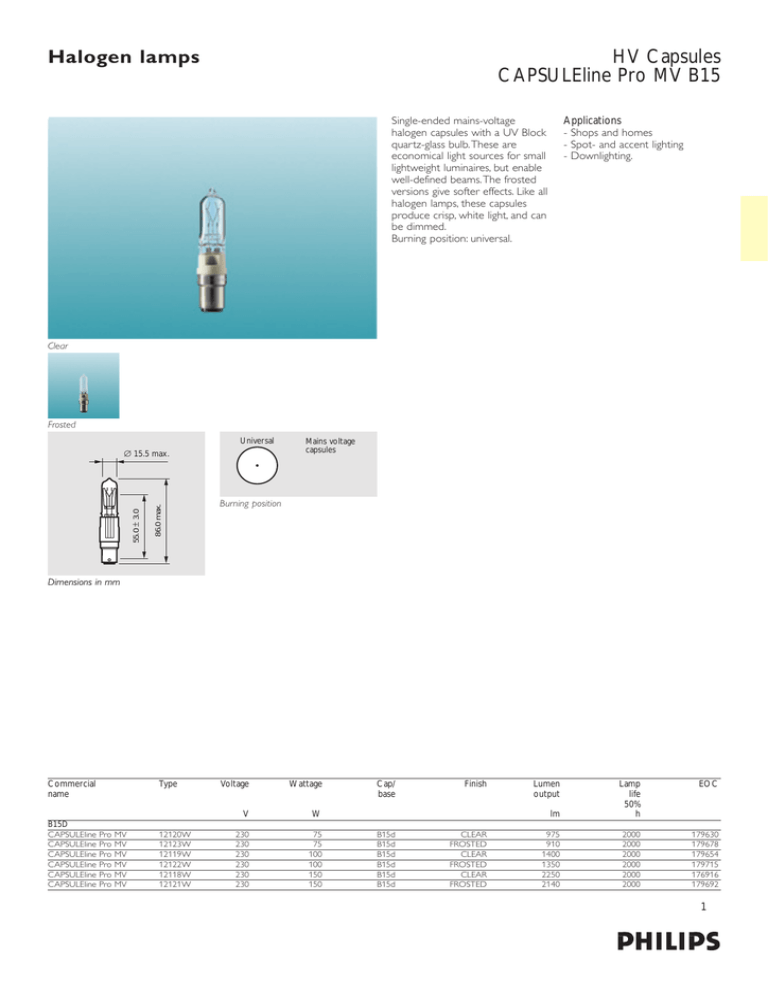

Philips B15 User's Manual

Halogen lamps
HV Capsules
CAPSULEline Pro MV B15
Applications
- Shops and homes
- Spot- and accent lighting
- Downlighting.
Single-ended mains-voltage
halogen capsules with a UV Block
quartz-glass bulb.These are
economical light sources for small
lightweight luminaires, but enable
well-defined beams.The frosted
versions give softer effects. Like all
halogen lamps, these capsules
produce crisp, white light, and can
be dimmed.
Burning position: universal.
Clear
Frosted
Universal
86.0 max.
55.0 ± 3.0
∅ 15.5 max.
Mains voltage
capsules
Burning position
Dimensions in mm
Commercial
name
B15D
CAPSULEline
CAPSULEline
CAPSULEline
CAPSULEline
CAPSULEline
CAPSULEline
Type
Pro
Pro
Pro
Pro
Pro
Pro
MV
MV
MV
MV
MV
MV
12120W
12123W
12119W
12122W
12118W
12121W
Voltage
Wattage
V
W
230
230
230
230
230
230
75
75
100
100
150
150
Cap/
base
B15d
B15d
B15d
B15d
B15d
B15d
Finish
CLEAR
FROSTED
CLEAR
FROSTED
CLEAR
FROSTED
Lumen
output
EOC
lm
Lamp
life
50%
h
975
910
1400
1350
2250
2140
2000
2000
2000
2000
2000
2000
179630
179678
179654
179715
176916
179692
1
