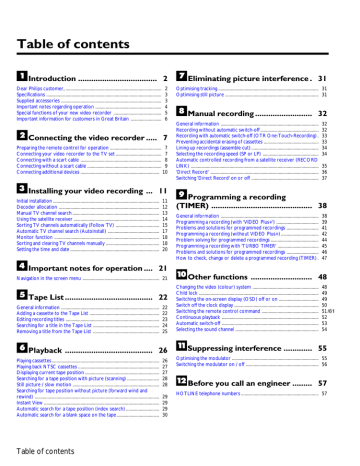

Table of contents
AIntroduction ....................................
2
Dear Philips customer, ....................................................................................
Specifications .....................................................................................................
Supplied accessories ........................................................................................
Important notes regarding operation ..........................................................
Special functions of your new video recorder ..........................................
Important information for customers in Great Britain ...........................
BConnecting the video recorder .....
2
3
3
4
5
6
7
Preparing the remote control for operation ............................................. 7
Connecting your video recorder to the TV set ........................................ 7
Connecting with a scart cable ....................................................................... 8
Connecting without a scart cable ................................................................. 9
Connecting additional devices ..................................................................... 10
CInstalling your video recording ...
11
Initial installation .............................................................................................
Decoder allocation ........................................................................................
Manual TV channel search ............................................................................
Using the satellite receiver ...........................................................................
Sorting TV channels automatically (Follow TV) ......................................
Automatic TV channel search (Autoinstall) .............................................
Monitor function ............................................................................................
Sorting and clearing TV channels manually ...............................................
Setting the time and date ..............................................................................
DImportant notes for operation ....
11
12
13
14
15
17
18
18
20
21
Navigation in the screen menu ................................................................... 21
ETape List ........................................
22
General information ......................................................................................
Adding a cassette to the Tape List .............................................................
Editing recording titles ..................................................................................
Searching for a title in the Tape List ..........................................................
Removing a title from the Tape List ..........................................................
FPlayback ........................................
26
Playing cassettes ..............................................................................................
Playing back NTSC cassettes .......................................................................
Displaying current tape position .................................................................
Searching for a tape position with picture (scanning) ............................
Still picture / slow motion ............................................................................
Searching for tape position without picture (forward wind and
rewind) .............................................................................................................
Instant View .....................................................................................................
Automatic search for a tape position (index search) .............................
Automatic search for a blank space on the tape .....................................
Table of contents
22
22
23
24
25
26
27
27
28
28
29
29
29
30
GEliminating picture interference .
31
Optimising tracking ........................................................................................ 31
Optimising still picture .................................................................................. 31
HManual recording ..........................
32
General information ......................................................................................
Recording without automatic switch-off ...................................................
Recording with automatic switch-off (OTR One-Touch-Recording) .
Preventing accidental erasing of cassettes ................................................
Lining up recordings (assemble cut) ...........................................................
Selecting the recording speed (SP or LP) .................................................
Automatic controlled recording from a satellite receiver (RECORD
LINK) ................................................................................................................
'Direct Record' ...............................................................................................
Switching 'Direct Record' on or off ...........................................................
32
32
33
33
34
34
35
36
37
IProgramming a recording
(TIMER) .............................................. 38
General information ......................................................................................
Programming a recording (with 'VIDEO Plus+') .....................................
Problems and solutions for programmed recordings ............................
Programming a recording (without VIDEO Plus+) .................................
Problem solving for programmed recordings ..........................................
Programming a recording with 'TURBO TIMER' ....................................
Problems and solutions for programmed recordings ............................
How to check, change or delete a programmed recording (TIMER) .
JOther functions ............................
48
Changing the video (colour) system ..........................................................
Child lock .........................................................................................................
Switching the on-screen display (OSD) off or on ...................................
Switch off the clock display ..........................................................................
Switching the remote control command ..................................................
Continuous playback .....................................................................................
Automatic switch-off .....................................................................................
Selecting the sound channel .........................................................................
KSuppressing interference .............
38
39
41
42
44
45
46
47
48
49
49
50
51 /61
52
53
54
55
Optimising the modulator ............................................................................ 55
Switching the modulator on / off ................................................................ 56
LBefore you call an engineer .........
57
HOTLINE telephone numbers .................................................................... 57
TAPE LIST
Tape List: To call up the Tape List
STANDBY/ON m
Switch on or off: To switch set on or off, interrupt menu function,
interrupt a programmed recording (TIMER)
CLEAR (CL)
Delete: To delete last entry/Clear programmed recording (TIMER)
SELECT
Select: To select a function
CHILD LOCK
Child lock: To switch child lock on/off
MONITOR
TV monitor: To switch between TV reception and VCR playback
0-9
Number buttons: 0 - 9
TURBO TIMER
TurboTimer: To programme a recording with the function Turbo
Timer
TIMER k
TIMER: To make a TIMER programming with VIDEO Plus+ or to alter
or clear a programmed TIMER
MENU
Menu: To call up or end main menu
OK
Store/Confirm: To store or confirm entry
Q
Select: Cursor left
P
Select: Cursor right
;qP
Select: To select the next line or programme number
P r=
Select: To select the previous line or programme number
PLAY G
Playback: To play a cassette
H
Rewind: During STOP and STANDBY: rewind, during PLAYBACK:
reverse scanning
STOP h
Pause/Stop: To stop the tape, except during TIMER-recording
I
Forward wind: During STOP and STANDBY: forward wind, during
PLAYBACK: forward scanning
INDEX E
Index search: In combination with H / I : to search for previous
or next recording on the cassette
RECORD/OTR n
Record: To record the TV channel selected at this moment
STILL R
Still picture: To stop the tape and show a still picture
ENGLISH
The remote control
Additional TV functions
qS
TV volume: TV volume up
Sr
TV volume: TV volume down
TV y
TV sound off: To switch the sound on or off
TV m
Standby: To switch off the TV
qTV
TV programme number: To select next programme number
TV r
TV programme number : To select previous programme number
Front of the device
STANDBY/ON m/I
Switch on or off: To switch off or on, interrupt a function, interrupt a
programmed recording (TIMER)
RECORD n
Record: To record the TV channel selected at this moment
PROGRAMME r
Select: One line or programme number down
PROGRAMME q
Select: One line or programme number up
STOP/EJECT ?
Pause/Stop, eject cassette: To stop the tape and eject the cassette
H
Rewind: During STOP and STANDBY: rewind, during PLAYBACK:
reverse scanning
G
Playback: To play a cassette
I
Forward wind: During STOP and STANDBY: forward wind, during
PLAYBACK: forward scanning
Behind the flap at the left-hand corner on
the front
White and red
socket
L AUDIO R
Yellow socket
VIDEO
Audio input socket left/right : To connect a camera recorder or
video recorder (programme number 'E3')
Video input socket: To connect a camera recorder or video recorder
(programme number 'E3')
These symbols can light up on your video recorder display:
This is where the current operating mode is shown as a symbol.
LP
When you have switched on the LP (Long Play) function or when you
play a tape that has been recorded in LP (Long Play).
When you have switched on the child lock.
When a satellite recording has been programmed.
DEC
When a decoder has been allocated to the TV channel (currently
selected programme number on the video recorder) you have currently
selected on the video recorder.
When you play a cassette that has been recorded with hifi sound, or
when a hifi sound is transmitted.
When you are making a recording.
k
When you have programmed a recording or when a programmed
recording is being made.
D
When you are programming daily recordings.
W
When you are programming weekly recordings.
When you have put a cassette in the video recorder.
DATE
When the date of the programmed recording is shown.
START
When the start time of the programmed recording is shown.
PROG.
When the programme number of the programmed recording is shown.
END
When the end time of the programmed recording is shown.
VPS/PDC
Video Programming System / Programme Delivery Control: when a VPS
or PDC code is being transmitted.
Display of programme number of the TV channel / tape position /
channel name / function.
Tape position in seconds.
ENGLISH
The symbols on your video recorder
display
A
Introduction
Dear Philips customer,
Instruction manuals are usually very dry since they are technically-oriented and often poorly
translated. I have been employed by Philips for this reason.
Allow me to introduce myself.
My name is Phil. I will be guiding you through the instruction manual and try to be of help in
operating your new device. At appropriate points along the way, I will be providing you with the
following information:
Excuse me?
Here I will be
explaining seemingly
unimportant things.
Tip
Here I will be giving
you instructions on
functions that help
make it easier to
use your device.
Problem
Here I will help you
to find the cause of
problems and their
solutions.
For experts
Here I will be giving
you instructions on
functions that are
necessary for special
applications.
I hope you have lots of fun with your new device.
Phil
P.S. If you have questions or if problems come up during operation, please see the helpful
information in the chapter 'Before you call an engineer'. If this doesn't help you to resolve the
problem, please call the customer support service for your country. The corresponding
telephone numbers and e-mail addresses can be found on the last page of this instruction
manual.
2
Introduction
ENGLISH
Welcome to the large family of owners of PHILIPS VHS video recorders.
Thank you for buying a VR620/07 .
Please take the time to read this operating manual before using your video recorder. It contains
important information and notes regarding operation.
The video recorder should not be turned on immediately after transportation from a
cold to a hot area or vice versa, or in conditions of extreme humidity.
Wait at least three hours after transporting the device. The video recorder needs this time in
order to become acclimatised to its new environment (temperature, air humidity, etc.).
Your Philips team hopes that you
will enjoy using your new video
recorder.
This video recorder is used for the recording and playback of VHS video cassettes.
Cassettes with the VHS-C label (VHS cassettes for camcorders) may only be used with a suitable
adapter.
This product complies with the requirements of Directive 73/23/EEC +89/336/EEC +93/68 EEC.
Specifications
Voltage: 220-240V/50Hz
Energy consumption : 16W
Energy consumption (Standby): less than 4W (clock display switched off)
Rewind time: approx. 100 seconds (cassette E-180)
Dimensions in cm (B/H/T): 38.0/9.3/26.0
Number of video heads : 4
Number of video heads (HIFI): 2
Recording/playback time: 4 hours (SP) (cassette E-240)
8 hours (LP) (cassette E-240)
Supplied accessories
Operating instructions
Remote control and batteries
Antenna cable
Power cable
Quick install guide
Introduction
3
Important notes regarding operation
Danger: High voltage!
Do not remove the top cover as there is a risk of an electrical shock!
The video recorder does not contain any components that can be repaired by the customer. Please
leave all maintenance work for qualified personnel.
As soon as the video recorder is connected to the power supply, there are some components
that are in constant operation. To switch off the video recorder completely you must disconnect
it from the power supply.
These operating instructions have been printed on non-polluting paper.
Deposit old batteries at the appropriate collection points.
Please make use of the facilities available in your country for disposing of the packaging of the video
recorder in a way that helps to protect the environment.
This electronic device contains many materials that can be recycled. Please enquire about the
possibilities for recycling your old device.
Make sure that air can circulate freely through the ventilation slots on the video recorder. Do not
place the device on an unsteady base.
Make sure that no objects or liquids enter the video recorder. Do not place vases or the like on
the video recorder. If liquid is spilt into it, immediately disconnect the video recorder from the
power supply and call After-sales Service for advice.
Do not place any combustible objects on the device (candles, etc.).
Make sure that children do not place any foreign objects within the openings or ventilation slots.
4
Introduction
ENGLISH
Special functions of your new video
recorder
Your PHILIPS video recorder is not just for recording and playing back VHS cassettes. It also has
a whole range of special functions which will make the day-to-day use of your new video
recorder much easier.
Philips has developed a system which produces the best possible playback quality. For old and
often-used video cassettes, this system reduces interference. For new or high quality cassettes, it
emphasises the details.
When you connect your video recorder to your television and plug it into the wall socket, you will
be welcomed with a screen menu. All you have to do is follow the instructions in the 'intelligent
help line' for the next step. Enjoy the automatic TV channel search/save function and the automatic
time setting.
You can operate the main functions on your television using your video recorder remote
control, even if your television is not a Philips.
This function automatically transfers all the television channel settings onto your video recorder.
Recordings made on your video recorder can be controlled by an external satellite receiver.
Your video recorder can ascertain which channel is currently playing on your television and record
from it at the touch of a button.
The precision tape drive from Philips provides short rewind times and automatic tape length
recognition.
Simple programming system for video recorders. Makes programming as easy as making a
telephone call. Simply enter the number code associated with your television programme. This
number is located in your favourite television listings magazine.
VIDEO Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation. The
VIDEO Plus+ system is manufactured under licence from Gemstar Development Corporation.
Introduction
5
So that you can identify your machine for service questions or in the event of theft, enter the
serial number here. The serial number (PROD.NO.) is printed on the type plate fixed at the
back of the device.
MODEL NO.
VR620/07
PROD. NO.
..................
Important information for customers in
Great Britain
This set is fitted with an approved moulded 13 amp plug. To change the fuse in this plug or to
attach a different plug, please proceed as follows:
1
Take off the fuse cover and remove the old fuse.
2
Insert a new fuse. Suitable fuses are those of the type BS 1362 3A,
A.S.T.A. standard or BSI standard.
3
Close the fuse cover.
If the attached plug does not meet your requirements, you can cut it off and replace it with a
suitable plug. Please observe the following conditions:
If your new plug uses a built-in fuse, this should be a 3A fuse.
If your new plug does not contain a built-in fuse, please do not use any fuses in your fusebox with a
rating of more than 5A.
Please destroy the old, cut-off plug so that it cannot be used elsewhere.
4
Connect the blue cable (neutral 'N') to the terminal in the plug which
is marked with the letter 'N' or coloured black.
5
Connect the brown cable (live, 'L') to the terminal in the plug which is
marked with the letter 'L' or coloured red.
6
Do not in any circumstances connect either of the two cables to the
terminal in the plug which is marked with the letter 'E', the symbol "\"
or coloured green or green / yellow.
Before you refit the plug cover, make sure, that the grip at the bottom of the plug is clamped
over the plastic cover of the lead, not just over the two wires.
6
Introduction
B
ENGLISH
Connecting the video recorder
Preparing the remote control for
operation
The remote control and its batteries are packed separately in the original video recorder
packaging. You must install the batteries in the remote control before use - described in the
following section.
1
Take the remote control and the enclosed batteries (2 batteries).
2
Open the remote control's battery compartment and place the
batteries in it as shown in the picture and close the battery
compartment.
The remote control is now ready to use. Its range is approximately 5 meters.
Connecting your video recorder to the TV
set
The necessary cable connections must be made before you can record or playback TV
programmes using your video recorder.
We recommend that you use a scart cable to connect your TV set and video recorder.
What is a scart cable?
The scart or Euro AV cable serves as the universal connector for picture,
sound and control signals. With this type of connection, there is practically no
loss of quality during the picture or sound transfer.
When you install your video recorder for the first time, select one of the following options:
'Connecting with a scart cable'
If your TV set has a scart socket and you are using a scart cable.
'Connecting without a scart cable'
If you do not wish to use a scart cable.
Connecting the video recorder
7
Connecting with a scart cable
Have the following cables ready:
an aerial cable (1, supplied), a mains cable (2, supplied), a scart cable (3).
1
Remove the aerial cable plug from your TV set. Insert it into the
socket 2 at the back of the video recorder.
2
Insert one end of the supplied aerial cable into the socket TV at the
back of the video recorder and the other end into the aerial input
socket at the back of the TV set.
3
Plug one end of a scart cable into the scart socket EXT.1 AV. 1 at
the back of the video recorder and the other end into the suitable
scart socket on your TV set reserved for the video recorder
operation (see your TV's operating instructions).
My TV set has several scart sockets. Which one should I use?
Select that scart socket which is suited for the video output as well as for the
video input.
My TV offers me a selection menu for the scart socket.
Select 'TV' as a connection source of this scart socket.
8
4
Switch on the TV set.
5
Insert one end of the supplied mains cable into the mains socket
4 at the back of the video recorder and the other end into the wall
socket.
6
If the connection was properly made and your TV was automatically
switched to the programme number for the scart socket, e.g. 'EXT',
'0', 'AV', you will see the following picture:
Connecting the video recorder
ENGLISH
a My screen is empty
b Many TV sets are switched to the programme number for the scart socket
by way of a control signal sent through the scart cable.
b If the TV set does not automatically switch to the scart socket programme
number, manually change to the corresponding programme number on your
TV set (see your TV's operating instructions).
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
CONTINUEpOK
Then, read the paragraph 'Initial installation' in the chapter 'Installing your video recorder'.
Connecting without a scart cable
Have the following cables ready:
an aerial cable (1, supplied), a mains cable (2, supplied).
1
Switch off your TV set.
2
Remove the aerial cable plug from the aerial input socket of the TV
set. Insert it into the socket 2 at the back of the video recorder.
3
Insert one end of the supplied aerial cable into the socket TV at the
back of the video recorder and the other end into the aerial input
socket at the back of the TV set.
4
Insert one end of the supplied mains cable into the mains socket
4 at the back of the video recorder and the other end into the wall
socket.
5
Switch on your TV set and select the programme number used for
video playback on your TV set (see your TV's operating instructions).
Which programme number is used for video recorder operation?
To ensure the stability of the television picture during cassette playback
(prevention of waves or streaks), special programme numbers have been set
aside on the TV for the use of video recorders. This is usually the highest
possible programme number, e.g. '12', '16', '99' or even programme number
'0'. For more information, please see your TV's operating instructions.
Connecting the video recorder
9
6
a I do not see a 'test screen'
b Check the cable connections.
b The video recorder 'transmits' on the 583MHz frequency (channel 35)
Repeat the channel search on your TV set.
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
CONTINUEpOK
Select this programme number and manually start the TV's channel
search as if you wanted to save a new TV channel until the 'test
image' appears.
7
Save this programme number setting on your TV set for video
recorder operation.
Programme number for video recorder operation
You have now saved a programme number for use by your video recorder as
you would a regular TV channel. This programme number must now be used
in future for video recorder playback ('video recorder' TV channel).
You can find more details in chapter 'Initial Installation'.
Connecting additional devices
You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the
socket EXT.2 AV. 2 .
Two audio sockets AUDIO OUT L R are located on the back of the video recorder (audio
signal output left/right). These can be used to connect stereo systems.
10
Connecting the video recorder
C
Initial installation
This chapter shows you how to start the initial installation. The video recorder automatically
seeks out and stores all available TV channels.
'Aim' correctly
In the following sections, you require the remote control for the first time.
When using, always aim the front of the remote control at the video recorder
and not at the TV set.
Connecting additional devices
After you have connected additional devices (satellite receiver, etc.) through
the aerial cable, switch them on. The automatic channel search will recognise
them and save them.
1
Confirm the image on the TV screen by pressing the OK button on
the remote control.
Autoinstall starts. This picture will appear on the screen:
AUTO INSTALL
a The video recorder does not find any TV channels during the
search
b Select channel 1 on the TV set. Can you see the saved TV channel on the
TV set?
If not, check the cable connection of the aerial (aerial socket), video
recorder, TV set.
b Please have patience.
The video recorder searches the entire frequency range in order to find
and save the largest possible number of TV channels. It is possible that the
TV channels in your country are broadcast in a higher frequency range. As
soon as this range is reached during the search, the video recorder will find
the TV channels.
SEARCHING
00 TV CHANNELS FOUND
ƒƒƒƒƒƒƒ__________________
PLEASE WAIT...
2
When 'Autoinstall' is complete, 'STORED' will briefly appear on the TV
screen.
The initial installation is now complete.
Check the date and time. Please read 'Setting the time and date' in this chapter.
Satellite receiver
If you are connecting a satellite receiver, please read the section 'Using the
satellite receiver'.
Decoder
If you are connecting a decoder, you must install it as described in the next
section.
Installing your video recording
11
ENGLISH
Installing your video recording
Decoder allocation
Some TV channels transmit encoded TV signals which can only be viewed with a commercially
purchased or hired decoder without disturbances. You can connect such a decoder
(descrambler) to this video recorder. The following function will automatically activate the
connected decoder for the desired TV channel.
MANUAL SEARCH
PROGRAMME NUMBER
S-CHANNEL
CHANNEL NUMBER
DECODER
NICAM
è P01
NO
21
OFF
ON
p
1
Switch the TV on. If applicable, select the programme number for the
video recorder operation.
2
Use the buttons ;qP , P r= on the video recorder or the number
buttons 0-9 on the remote control to select the TV channel which
you would like to allocate the decoder to.
3
Press the button MENU on the remote control. The main menu will
appear.
4
Use the buttons ;qP or P r= to select the line 'MANUAL
SEARCH' and confirm with OK .
5
Use the buttons P r= or ;qP to select the line 'DECODER'.
6
Use the buttons Q or P to select 'ON' (Decoder switched on).
How can I switch off the decoder?
Use the button P on the screen to select 'OFF' (Decoder switched off).
________________________________
EXITpMENU
STOREpOK
BBC1
12
7
Confirm with OK .
8
End with the button MENU .
The decoder has now been allocated to this TV channel.
If this TV channel is chosen, the symbol 'DEC' will appear in the video recorder display.
Installing your video recording
ENGLISH
Manual TV channel search
In some cases it could occur that all of the TV channels were not found and saved during the
initial installation. In this case, the missing or coded TV channels must be searched for and
stored manually.
MANUAL SEARCH
PROGRAMME NUMBER
S-CHANNEL
CHANNEL NUMBER
DECODER
NICAM
è P01
NO
21
OFF
ON
p
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control.
The main menu will appear.
3
Select line 'MANUAL SEARCH' using P r= or ;qP and confirm with
OK .
4
Select line 'PROGRAMME NUMBER' using P r= or ;qP .
5
Using Q or P , select the desired programme number that you
want to use for the TV channel, e.g. 'P01'.
6
In line 'S-CHANNEL', select the desired display using P .
________________________________
EXITpMENU
STOREpOK
What is hidden behind the settings?
'NO': Display/Entry of channels
'YES': Display/Entry of special channels
What is a special channel?
TV channels are transmitted in certain pre-defined frequency ranges. These
ranges are divided into channels. A specific frequency/channel is assigned to
each TV station. Certain frequency ranges are specified as special channels
(hyperband channels).
7
Installing your video recording
In line 'CHANNEL NUMBER', enter the channel of the desired TV
station using the number buttons 0-9 .
13
a I don't know the channels for my TV stations
b In this case, press P in line 'CHANNEL NUMBER' to start the automatic
channel search. A changing channel number will appear on the TV screen.
Continue the automatic search until you have found the desired TV
channel.
What is NICAM?
NICAM is a digital sound transmission system. Using NICAM, you can
transmit either 1 stereo channel or 2 separate mono channels. However, if
you experience poor reception resulting in sound disruptions, you can turn off
NICAM.
In line 'NICAM', select 'OFF' using Q or P .
8
Save the TV channel with OK . 'STORED' will briefly appear on the
TV screen.
9
To search for other TV channels, begin again at step 3 .
0
To end, press MENU .
Using the satellite receiver
TV channels from a satellite receiver (connected to the scart socket EXT.2 AV. 2 ) are
received on the video recorder on programme number 'E2'.
To do this, select programme number 'E1' with 0 on the remote control and then select
programme number 'E2' with P r= .
You should select the TV channels to be received by the satellite receiver directly on the
receiver itself.
14
Installing your video recording
When the automatic channel search function is activated, the TV channels are saved in a specific
order. This may vary from the order of TV channels on the TV set.
This function changes the order of TV channels saved in the video recorder to match that of the
TV set.
This only works if the video recorder (socket EXT.1 AV. 1 ) and the TV set are connected
with a scart cable.
MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
FOLLOW TV
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
VIDEOSYSTEM
SPECIAL SETTINGS
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press the MENU button on the remote control. The main menu will
appear.
3
Select line 'FOLLOW TV' using P r= or ;qP and confirm with
OK .
4
Press the OK button. 'TV01' will appear in the video recorder display.
5
Select programme number '1' on the TV set.
________________________________
…EXITpMENU
OK
†HOTLINEpCL
TV01
a I cannot switch my TV set to programme number '1'
b If you have connected additional devices to socket EXT.2 AV. 2 , please
disconnect these devices. Because of other connected devices, the TV set
could switch to the programme number of the scart socket.
6
Installing your video recording
Confirm with OK on the video recorder remote control. The video
recorder compares the TV channels on the TV set and the video
recorder.
If the video recorder finds the same TV channel as on the TV set,
then it stores it at 'P01'.
15
ENGLISH
Sorting TV channels automatically (Follow
TV)
a 'NOTV' will appear in the display. The video recorder is not
receiving a video signal from the TV set.
b Check the plug on the scart cable.
b Check your TV's operating instructions to see which scart socket is used
for video signals.
b If this does not help, it's not possible to use this function.
Please read the section 'Sorting TV channels manually'.
7
Wait until the next number, e.g. 'TV02' appears in the display.
8
Select the next programme number on the TV set, e.g. '2'.
9
Confirm with OK on the video recorder remote control.
Deleting sorting
You can delete an incorrect TV channel sorting by pressing CLEAR (CL) .
16
0
Repeat steps 7 to 9 until you have assigned a programme number
to all TV channels.
A
To end, press MENU .
Installing your video recording
ENGLISH
Automatic TV channel search
(Autoinstall)
During installation, all available TV channels are searched for and saved. If the channel
assignments of your cable or satellite TV provider change or if you are reinstalling the video
recorder, e.g. after moving house, you can start this procedure again. This will replace the TV
channels already saved with the new ones.
AUTO INSTALL
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press the MENU button on the remote control. The main menu will
appear.
3
Select line 'AUTO INSTALL' using P r= or ;qP .
4
Press OK .
5
'Autoinstall' starts. Wait until all TV channels have been found. This
can take several minutes.
6
When Autoinstall is complete, 'STORED' will briefly appear on the TV
screen.
Date and time have been set and saved.
7
To end, press MENU .
SEARCHING
00 TV CHANNELS FOUND
ƒƒƒƒƒƒƒ__________________
PLEASE WAIT...
You can read about how to search for a TV channel manually in the section 'Manual TV channel
search'.
Installing your video recording
17
Monitor function
You can switch back and forth between the TV picture and video recorder picture with
MONITOR . But this only works when you use a scart cable to connect the video recorder to
your TV set and your TV set responds to this switch-over.
Sorting and clearing TV channels manually
After you have performed the automatic channel search you may not agree with the sequence in
which the individual TV channels have been allocated to the programme positions (programme
numbers) of the video recorder. You can use this function to individually sort the TV channels
already saved or to delete unwanted TV channels or those with poor reception.
TV CHANNEL ALLOC.
ALLOCATE ON
TV CHANNEL
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'TV CHANNEL ALLOC.' using P r= or ;qP .
4
Confirm with OK .
5
Using Q or P , select the saved TV channel that you want to
assign to the programme number 'P01'.
6
Confirm with OK . The following message will briefly appear on the
TV screen: 'ALLOCATED ON P01'.
7
Then the sorting for the next highest programme number will appear
on the screen, e.g. 'ALLOCATE ON P02'.
8
Using Q or P , select the saved TV channel that you want to
assign to this programme number, e.g. 'P02'.
P01
è BBC1
p
________________________________
ALLOCATEpOK
EXITpMENU
18
Installing your video recording
ENGLISH
Deleting TV channels
Using CLEAR (CL) you can delete unwanted TV channels or those with
poor reception.
9
Confirm with OK . The following message will briefly appear on the
TV screen: 'STORED'.
a The main menu will appear on the screen
b After you have confirmed the last channel that can be sorted, you will
automatically return to the main menu since no more TV channels can be
assigned.
0
Installing your video recording
To assign other TV channels to a programme number, repeat steps
7 to 9 .
A
Confirm the assignment of the TV channel with MENU .
B
To exit the main menu, press MENU .
19
Setting the time and date
If the display shows an incorrect time or '--:--', the time and date must be reset manually.
If a TV channel which transmits TXT/PDC (teletext/PDC) is stored under programme number
'P01', time/date will automatically be taken from the TXT/PDC information. (SMART CLOCK)
CLOCK
YEAR
MONTH
DATE
TIME
SMART CLOCK
è 2001 p
01
01
20:00
ON
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'CLOCK' using P r= or ;qP and confirm with OK .
4
Check the year in line 'YEAR'. If required, please change the year with
the number buttons 0-9 on the remote control.
5
Select the next line with ;qP or P r= .
6
Check 'MONTH', 'DATE' and 'TIME' in the same way.
________________________________
EXITpMENU
STOREpOK
20
a Time/date is displayed incorrectly despite manual setting
b With Smart Clock, time/date is transferred from the TV channel saved on
'P01' and automatically corrected.
Switch off Smart Clock. In line 'SMART CLOCK', select 'OFF' using Q or
P.
You can switch on 'SMART CLOCK' again when you select 'ON'.
7
Check the displayed settings and confirm with OK .
'STORED' will appear briefly on the screen.
8
To end, press MENU .
Installing your video recording
D
Switching on
You can switch on the video recorder with the STANDBY/ON m button, the number buttons
0-9 or by putting in a cassette.
Automatic switch-off
If the video recorder is not used for several minutes, it switches itself off automatically. This
function can be deactivated (e.g. if you want to use the video recorder as a TV receiver). For more
information, please read the section 'Automatic switch-off' in chapter 'Additional functions'.
Time in the display
If you have switched the video recorder off with STANDBY/ON m , the time will show in the
display, e.g. '18:00'.
If the clock has not been set, '--:--' will appear.
When the video recorder is switched off and the time isn't shown in the video recorder display,
the clock display may be switched off. You will find more information in the chapter 'Additional
functions' section 'Switch off the clock display'.
Energy consumption
The video recorder should always be connected to the mains so as not to affect the use of the TV
or programmed recordings.
Your video recorder uses less than 4W (with clock display switched off).
Power outage/no
power
Channel information remains saved for up to 1 year, the time and timer information is saved for up
to 3 hours.
Emergency exit
The video recorder and the remote control have the option of an 'Emergency exit'. You can use
the STANDBY/ON m button to interrupt any function or step during use.
You can operate your device without worry. There is no risk whatsoever of damaging the video
recorder by performing user steps incorrectly.
Navigation in the screen menu
You can check/change many functions and settings of your video recorder via the screen menu.
The individual functions are selected as follows:
MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
FOLLOW TV
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
VIDEOSYSTEM
SPECIAL SETTINGS
________________________________
…EXITpMENU
OK
†HOTLINEpCL
Important notes for operation
Call up the menu: with MENU .
To select: with P r= or ;qP .
To enter or change your selection: with the number buttons 0-9 or with Q or P .
To save or confirm: with OK .
To cancel: with STANDBY/ON m .
To end: with MENU .
21
ENGLISH
Important notes for operation
E
Tape List
General information
The 'Tape List is an integrated database in the video recorder that remembers all recordings
made by this video recorder. The Tape List helps you keep track of which film is on which
cassette. The 'Tape List' also gives you quick and easy access to recordings.
And: If desired, the video recorder will rewind to the beginning of the selected recording and
automatically start playback.
Can I add cassettes that already have recordings on them to the
Tape List?
Yes. Tape List can manage a maximum of 9 cassettes. However, there must be
recordings on the cassettes in order to copy them to the Tape List database.
Adding a cassette to the Tape List
You can add any cassette to the 'Tape List'. Please note that the process for adding cassettes
that already have recordings on them lasts longer than with new (blank) cassettes.
TAPE LIST
CHECKING CASSETTE
PLEASE WAIT...
________________________________
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Label the cassette to be inserted with a number from 1 to 9.
3
Insert the cassette into the video recorder.
4
'TAPE-' will appear in the display.
5
Enter the cassette number using the 0-9 number buttons on the
remote control.
The video recorder will briefly check the cassette inserted.
'CHECKING CASSETTE' appears on the TV screen.
If the cassette is new (blank), no information will appear on the
screen.
a I see a cassette number and an overview of all recordings on this
cassette
b You have selected a number which has already been included in the Tape
Manager and contains a recording.
On the screen after 'CHECKING CASSETTE' I see the message ''
There are already recordings on the cassette. This cassette is searched for
recordings and added to the Tape List.
22
Tape List
ENGLISH
Why must I note the cassette number?
When searching for available recordings, you will need to insert the
corresponding cassettes (cassette numbers).
How many cassettes can I save in the Tape List?
You can store up to 9 cassettes. You can store a maximum number of 50
titles in the Tape Manager.
a I see the message 'TAPE LIST- MEMORY FULL' on the screen
b The maximum of cassettes/titles is reached. You cannot add any cassette. It
isn't possible any more to store recordings in the Tape List.
If you want to use the Tape List again, please, delete titles (recordings) or
cassettes out of the Tape List.
Editing recording titles
In the Tape List, all recordings longer than 10 minutes are displayed with cassette number,
recording title and length of recording. The TV channel, time and date are saved as a title. The
title of this recording can only be changed after the recording has been completed.
To do this, the corresponding cassette does not have to be in the video recorder. In the
following, you will read how to customise the titles to your wishes.
TAPE LIST
CASS.
1
2
TITLE
RECORDING
RECORDING
RECORDING
LENGTH
1
2
1
1
061 MIN
065 MIN
MIN
Press TAPE LIST on the remote control. An overview of all saved
titles/cassettes from the Tape List appears on the screen.
a I can see the message 'TAPE LIST- MEMORY EMPTY'
b There are no recordings saved in the Tape List. Therefore, it is not
possible to add or change a title.
________________________________
EXITpMENU
EDITp p
FINDpOK
2
Using ;qP or P r= select the title to be edited and confirm with
P.
3
Using P or Q select the position where the letter/number/symbol
is to be changed or re-entered.
4
Change the desired symbol using ;qP or P r= .
Deleting symbols
To delete all symbols of a recording title, press CLEAR (CL) at a symbol
position.
Tape List
23
5
Repeat step 3 and step 4 until you have made the desired changes.
6
Save the new title with OK .
7
If you want to change more titles, repeat step 3 through step 7 .
8
To end, press TAPE LIST .
Searching for a title in the Tape List
This function can be used to quickly and easily find and play back a recording saved in the Tape
List. The video recorder automatically rewinds to the beginning of the selected recording and
automatically starts playback.
TAPE LIST
CASS.
1
2
TITLE
RECORDING
RECORDING
RECORDING
1
Press TAPE LIST on the remote control.
2
An overview of all recordings saved in Tape List appears on the
screen.
LENGTH
1
2
1
061 MIN
065 MIN
MIN
What do the displays on the screen mean?
'CASS.' = Cassette number
'TITLE' = Title (TV channel, time, date)
'LENGTH' = Length of the recording
________________________________
EXITpMENU
EDITp p
FINDpOK
3
Select the title that you want to play back with P r= or ;qP .
a I see the message 'INSERT CASSETTE X' on the screen
b The selected recording is located on the Tape List cassette with the
displayed cassette number. Please insert the corresponding cassette. After a
brief check, the video recorder will rewind to the beginning of the selected
recording and start playback.
a I want to cancel the search
b If you want to cancel the search, press MENU .
TAPE LIST
4
Confirm with OK . The video recorder winds to the start of the
selected recording and automatically starts playback.
SEARCHING
PLEASE WAIT...
P01 BBC1
________________________________
REMAIN
3:29
EXITpMENU
24
Tape List
ENGLISH
Removing a title from the Tape List
You can delete titles not used any longer to create space in the memory of the Tape List for
new recordings. If all titles of a cassette are deleted, also the cassette number will be removed
from the Tape List.
TAPE LIST
CASS.
1
2
TITLE
RECORDING
RECORDING
RECORDING
1
Press TAPE LIST on the remote control.
2
An overview of all recordings saved in Tape List appears on the
screen.
3
Select with P r= or ;qP the title to be deleted.
4
Press CLEAR (CL) .
LENGTH
1
2
1
061 MIN
065 MIN
MIN
________________________________
EXITpMENU
EDITp p
FINDpOK
Cassette contents are not deleted!
The title was only removed from the Tape List memory. Its contents remain
unchanged!
Tape List
25
F
Playback
Playing cassettes
You can use this video recorder to play back recorded VHS video cassettes. You can operate
the video recorder using the remote control or the buttons on the front of the video recorder.
What does VHS mean?
'Video Home System' (VHS) has become the world-wide standard for the
playback and recording of amateur video cassettes. This popular standard
continues to be improved. Super VHS (S-VHS) provides a sharper picture and
less noise. Digital VHS (D-VHS) works with digital picture and sound signals.
Your video recorder can only record and play standard VHS cassettes.
1
Put a cassette into the cassette slot.
The cassette is inserted automatically. ' v ' will appear on the display.
a I see 'TAPE-' in the display
b The video recorder is waiting for you to enter a cassette number from the
'Tape List'. You can find more information on the Tape List in the chapter
'Tape List'. If you don't use the Tape List, interrupt with STOP h or
PLAY G .
2
a Picture/ sound quality is poor
b When playing rental videos or older, poorer quality cassettes, it may not be
possible to completely filter out picture and sound interference. This is not
a fault in your machine.
Read the chapter 'Eliminating picture interference'.
b During playback the automatic TV system will switch-over automatically. If
picture/sound interference occurs, attempt to fix the problem by manually
switching the TV system. In that case, turn to chapter 'Additional functions'
section 'Switching the video (color) system'.
0:00:02
26
Press the Play button PLAY G to view the tape.
This will, for example, appear in the display:
3
To stop the playback, press STOP h on the remote control or
STOP/EJECT ? on the video recorder.
4
To eject the cassette, press STOP/EJECT ? on the video
recorder when the video recorder stops the playback (STOP).
Playback
ENGLISH
Automatic switch-off of special functions
Many functions (e.g. pause, still picture, search) switch themselves off
automatically after a short time in order to protect the cassette and to save
energy.
Do I need to change the playback speed when playing back LP
recordings?
For playback, the correct recording speed 'SP' will automatically be selected.
For more information, please read the section 'Selecting the recording speed
(SP/LP)' in the chapter 'Manual recording'.
Playing back NTSC cassettes
Cassettes that have been recorded in the NTSC standard (for example, American cassettes) can
be played back using this video recorder. However, this only works on PAL-television sets which
are suitable for a picture frequency of 60Hz.
When you play an NTSC cassette '60HZ' will appear on the display.
Some special features (for example, still picture) are not possible while you are playing an NTSC
cassette.
Displaying current tape position
The display shows the tape position in hours, minutes and seconds. In addition, by pressing
OK you can show the present tape position on the TV screen.
The following information is displayed on the screen:
e.g.: 0:02:45 Shows the tape position in hours, minutes and seconds.
Moving/blinking arrow: This indicates the current tape position. The arrow moves in a line from
left (tape start) to right (tape end).
'REMAIN 0:06': will show the actual amount of playing/recording time left on the tape in hours
and minutes.
When you play an NTSC cassette, the video recorder will not show 'REMAIN 0:06'.
How can I set the counter to '0:00:00'?
You can set the counter to '0:00:00' using CLEAR (CL) .
When you put a cassette in the machine, the counter will automatically reset
to 0:00:00'.
Playback
27
a The counter does not move
b This occurs when there are no recordings on a portion of a tape.
Therefore, the video recorder cannot receive any information from the
tape. This is not a fault in your machine.
a The display/the screen shows '-0:01:20'
b If you rewind a cassette from the tape position '0:00:00', the counter will
show for instance, '-0:01:20' (the cassette will be rewound to 1 minute
and 20 seconds before '0:00:00').
a '-:--' is displayed in the 'REMAIN' counter
b This counter will automatically recognise the length of the tape. In addition,
when you put in a cassette the video recorder must first calculate the time
played. Therefore, '-:--' appears first and only after the tape has been
running for a few seconds will the correct playing time be shown.
Searching for a tape position with picture
(scanning)
0:30:21
1
While a cassette is playing, press H (reverse) or I (forward) one
or more times. This will, for example, appear in the display:
2
To stop at a certain place on the tape, press PLAY G .
Decreased picture quality
Scanning interferes with the picture quality. The sound is switched off. This is
not a fault in your machine.
Still picture / slow motion
0:00:02
28
1
During playback, press STILL R to stop the tape and display a still
picture. This will, for example, appear in the display:
2
Each time you press STILL R , the picture will advance one frame.
3
When you hold down the STILL R button, the tape will be played
in slow motion.
4
When you press I several times, you have a choice of several
playback speeds for slow motion.
5
To continue playback, press PLAY G .
Playback
ENGLISH
Searching for tape position without
picture (forward wind and rewind)
0:30:21
1
Stop the tape with STOP h .
2
Press H (reverse) or I (forward). This will, for example, appear
in the display:
3
To stop at a certain place on the tape, press STOP h .
Instant View
With this function you can switch to picture search during wind and rewind.
1
If you hold H (rewind) or I (wind) during wind or rewind, you
will switch to picture search.
2
As soon as you release the button, the video recorder will
automatically switch back to rewind or wind.
Automatic search for a tape position
(index search)
Every time a tape is recorded an index marking is written on the tape. This marking can be
compared with a bookmark. These marked positions can be found again quickly and easily later
by pressing a button.
0:30:02
Playback
1
To search for the previous marking, press INDEX E and then H .
2
For the next marking, press INDEX E and then I . This will, for
example, appear in the display for the next marking.
3
As soon as the video recorder finds this marking, it automatically
switches to playback.
29
Automatic search for a blank space on the
tape
You can search for space on the tape (at least 1 minute of blank tape) for a new recording, for
example, after an existing recording on the tape.
0:00:00
1
Press INDEX E . Then press STOP h . This will, for example,
appear in the display:
2
As soon as the video recorder finds the corresponding tape position,
it automatically switches to pause.
a The cassette is ejected
b The video recorder was unable to find any blank space on the tape
inserted.
30
Playback
G
ENGLISH
Eliminating picture interference
Optimising tracking
This video recorder has an automatic tracking function. In order for the video heads to optimally
read the video track of the newly inserted video cassette, the tape speed is slightly corrected
automatically.
In some cases however, interference will still occur.
The following section will explain how to manually adjust the tracking settings.
1
While a cassette is playing, hold
appears in the display.
2
Hold down the buttons ;qP or P r= until the playback quality is
at its best.
3
Wait a few seconds, until 'TRAC' disappears from the display.
;qP until 'TRAC' (TRACking)
These selected picture settings will not change until you eject the cassette.
Optimising still picture
If the still picture vibrates vertically, you can improve the still picture as follows:
1
During still picture, hold ;qP or P r= until the picture quality is at
its best.
'JITT' will appear in the display.
2
When you release the button, 'JITT' will disappear.
The video recorder will store these settings automatically.
a I cannot reach optimal quality for the still picture
b Interference which cannot be alleviated by this function can occur in
cassettes of poor quality or camcorder cassettes .
Eliminating picture interference
31
H
Manual recording
General information
Use 'Manual Recording' to make a spontaneous recording (for example, a programme currently
being shown).
If you want to start and stop a recording manually, read the section 'Recording without
automatic switch-off'.
If you want to start a recording manually but have it stopped automatically, read the section
'Recording with automatic switch-off'. (e.g. not to record to the end of the tape)
Read the section 'Direct record' if you want to record a programme currently being shown.
Read the section 'Automatic recording from a satellite receiver', if you want a recording to
be controlled automatically by a satellite receiver.
Recording without automatic switch-off
1
Insert a cassette.
Using 'Tape List'
To save a recording in the 'Tape List' or to use a 'Tape List' cassette, enter
the cassette number using the number buttons 0-9 on the remote control.
The cassette is being checked. You can find more information on the 'Tape
List' in the chapter 'Tape List'. If you don't use the Tape List, interrupt with
STOP h .
2
BBC1
Use ;qP or P r= to select the programme number you want to
record, for example, 'P01'. This will appear on the display:
Station name
If a TV station transmits a station name, it will be shown in the display.
Programme numbers 'E1' 'E2'
This programme number is provided for recording from external sources (via
the scart socket EXT.1 AV. 1 , EXT.2 AV. 2 ) .
Programme number 'E3'
This programme number is used for recording from the audio and video front
sockets.
3
BBC1
32
To start recording, press RECORD/OTR n on the remote control
or RECORD n on the video recorder. This will, for example, appear
in the display:
Manual recording
ENGLISH
Displaying tape position
Using OK you can show the tape position in the display.
4
Stop recording with STOP h .
Recording with automatic switch-off
(OTR One-Touch-Recording)
1
Insert a cassette.
Using 'Tape List'
To save a recording in the 'Tape List' or to use a 'Tape List' cassette, enter
the cassette number using the number buttons 0-9 on the remote control.
The cassette is being checked. You can find more information on the 'Tape
List' in the chapter 'Tape List'. If you don't use the Tape List, interrupt with
STOP h .
2
Use ;qP or P r= to select the programme number you want to
record.
3
Press RECORD/OTR n on the remote control.
4
Each time you press RECORD/OTR n you will add 30 minutes to
the recording time.
How can I clear the recording time just setted?
To delete an entry, press CLEAR (CL) while the display shows the
recording time.
Preventing accidental erasing of cassettes
All cassettes (except for rental and store cassettes) have a security tab on the back of the
cassette (see arrow).
To prevent recording over important recordings (erasing), you can remove this security tab or
slide it to the left.
If you later decide to record on a protected cassette, simply cover the hole with adhesive tape
or slide the tab to the right.
Manual recording
33
Lining up recordings (assemble cut)
When you add a further recording to a cassette, which already has a recording on it, a short
blank (flicker) can appear between the old and the new recording or the picture itself can flicker.
To help reduce these from occurring, proceed as follows:
1
Find the tape position of the old recording where you want to insert
the new recording.
2
Look at the last minute of the old recording (playback).
3
Press STOP h on the remote control at the tape position where the
new recording is to go. 9 ' will appear on the display.
4
Now start recording as usual by pressing RECORD/OTR n on the
remote control.
5
Stop recording with STOP h .
Selecting the recording speed (SP or LP)
You can reduce the recording speed by half. This makes it possible to record, for example,
eight-hours instead of four-hours on an 'E240' (four-hour) cassette.
For playback, the correct recording speed will automatically be selected.
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'RECORD SPEED' using P r= or ;qP and confirm with
OK .
4
Select the required recording speed with Q or P .
'SP'/'LP' AUTO'
'SP': StandardPlay (normal recording speed) offers the usual first-class picture
quality.
'LP': LongPlay (half recording speed, double recording time). 8 hours can be
recorded on a 4 hour cassette (E240) with a somewhat reduced picture
quality.
'AUTO': AUTOmatic Long Play. If there is not enough space on the tape to
record a programmed recording in standard speed, the recording will
automatically be made in 'LP' (Longplay). Otherwise, the recording speed will
be 'SP' (Standardplay).
34
5
Confirm with OK .
6
To end, press MENU .
Manual recording
ENGLISH
Automatic controlled recording from a
satellite receiver (RECORD LINK)
This function automatically starts recording on the switched-off video recorder when a video
signal is recognised through the connected scart cable. If your satellite receiver has a
programming function, the recording will start automatically (as long as the satellite receiver is
switched on).
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
RECORD LINK
REPEAT PLAY
DIRECT RECORD
è ON
OFF
OFF
OFF
ON
p
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'SPECIAL SETTINGS' using P r= or ;qP and confirm
with OK .
4
Select line 'RECORD LINK' using P r= or ;qP .
5
Select function 'ON' with Q or P .
Switching off 'Record Link'
To switch off the function, select 'OFF'.
________________________________
EXITpMENU
STOREpOK
6
Confirm with OK .
7
To end, press MENU .
8
Insert a cassette.
9
Use a scart cable to connect scart socket EXT.2 AV. 2 on the video
recorder to the corresponding scart socket on the satellite receiver.
0
Programme the satellite receiver with the required information
(programme number of the TV channel, start time, end time).
If necessary, please see the operating instructions for your satellite
receiver.
A
Switch off the video recorder with STANDBY/ON m .
The video recorder is now ready to record. The beginning and end of the recording is
controlled via scart socket EXT.2 AV. 2 .
When this function is switched on, ' x ' will appear on the video recorder display.
Manual recording
35
'Direct Record'
Can you record the right TV channel in seconds when the video recorder is switched off? No
problem. If recording is started manually, the switched-off video recorder uses the current TV
channel setted on the TV set.
You will find more information on how to switch 'Direct record' on or off in the next section
'Direct record'.
How does Direct Record work?
The video recorder compares the TV channel selected on the TV set with its
stored TV channels via the scart cable. If the same TV channel is found, it
switches the video recorder to the corresponding programme number and
starts recording.
Please do not change the TV channel on the TV set during the search so as
not to affect the process.
1
On the TV set, select the programme number you want make the
recording from.
2
Press RECORD/OTR n with the video recorder switched off.
a A 'search symbol' appears in the display (a moving symbol)
b The video recorder is comparing its saved TV channels with those of the
TV set. Please do not change the TV channel on the TV set as long as the
'search symbol' (a moving symbol) is being displayed.
a 'NOTV' appears in the display
b This TV channel could not be found in the video recorder's memory.
Check that all TV channels saved on the TV set are available in the video
recorder. If required, save any missing channels. Please read the section
'Manual TV channel search'.
3
36
Stop recording with STOP h .
Manual recording
ENGLISH
Switching 'Direct Record' on or off
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
RECORD LINK
REPEAT PLAY
DIRECT RECORD
è ON
OFF
OFF
OFF
ON
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'SPECIAL SETTINGS' using P r= or ;qP and confirm
with OK .
4
In line 'DIRECT RECORD', select 'OFF' (Direct Record off) or 'ON'
(Direct Record on) using Q or P .
5
Confirm with OK .
6
To end, press MENU .
7
Switch off with STANDBY/ON m .
p
________________________________
EXITpMENU
STOREpOK
Manual recording
1
37
I
Programming a recording (TIMER)
General information
Use programming a recording (TIMER) to automatically start and stop a recording at a later date.
The video recorder will switch to the right programme number and begin recording at the
correct time.
With this video recorder, you can pre-programme up to six recordings within a period of one
month.
To make a programmed recording, your video recorder needs to know:
* the date you want to make the recording
* the programme number of the TV channel
* the start and stop time of the recording
This information is saved in a 'TIMER block'.
What is 'VPS/PDC'?
'VPS' (Video Programming System)/ 'PDC'(Programme Delivery Control) are
used to control the start and duration of TV channel recordings. If a TV
programme starts earlier or ends later, the video recorder will then turn on
and off and the correct time.
What do I need to know about 'VPS/PDC'?
You must enter the start time exactly to the minute.
If you want to programme a time that is different from the VPS or PDC time,
you must switch off VPS or PDC.
Only one TV program of a TV channel can be controlled using 'VPS/PDC' at a
time. If you want to record two or more TV programmes on a TV channel
using 'VPS/PDC', you will need to programme these as two separate
recordings.
38
Programming a recording (TIMER)
ENGLISH
Programming a recording (with 'VIDEO
Plus+')
Thanks to this programming system, you no longer need to tediously enter the date, programme
number, start and end time. All the information needed for programming is contained in the
PlusCode-programming number. This 9-digit PlusCode number is found in every TV listings
magazine.
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press TIMER k on the remote control.
3
Enter the entire PlusCode number. This number is up to 9 digits long
and can be found next to the start time of the TV programme in your
TV listings magazine.
e.g. 5-234-89 or 5.234 89
Enter 523489 for the PlusCode number.
If you make a mistake, you can clear your instructions with CLEAR
(CL) .
VIDEO PLUS+
PLUSCODE NUMBER
53124----
REP.
èONCE
Selecting onetime/daily/weekly recordings
p
Using SELECT , select from the following options:
'ONCE': Recording once
'MO-FR': Repeated daily recordings (Monday to Friday)
'WEEK.': Repeated weekly recordings (every week on the same day)
________________________________
REP.pSELECT
STOREpOK
TIMER LISTpTIMER
4
Programming a recording (TIMER)
Confirm with OK .
39
TIMER
DATE
REP.
21
MO-FR
a The following message appears on the screen: 'SELECT PROG.
NR.'
b The programme number of the TV channel has not yet been assigned to
the PlusCode number. Using the number buttons 0-9 on the remote
control, select the corresponding programme number (programme name)
of the TV channel and confirm with OK .
VPS
PROG. START PDC END
01
20:00
]
21:30
a The following message appears on the screen: 'PLUSCODE NUMBER
NOT VALID'
b The entered PlusCode number is incorrect. Correct your instructions or
end with MENU .
b Check the time/date (see chapter 'Installing your video', section 'Setting the
time and date').
________________________________
REP.pSELECT
STOREpOK
a The following message appears on the screen: 'MO-FR
PROGRAMMING NOT POSSIBLE FOR WEEKEND'
b A daily recording was entered for the wrong day. Daily programming can
only be used for recordings to be made from Monday to Friday.
5
The decoded data appears after confirmation. You can go back to
change the data. Select the corresponding input field using P or
Q . Change the data with ;qP , P r= or with the number
buttons 0-9 .
Switching on 'VPS/PDC' in the 'START' input field
Select the 'START' input field using P . Using SELECT switch on
'VPS/PDC' (']' lights up). If you press SELECT again, you will switch
'VPS/PDC' off (']' goes out).
6
When all informations are correctly, confirm with
programming information is stored in a TIMER block.
7
Insert a cassette with an intact security tab (unprotected).
OK . The
Using 'Tape List'
To save a recording in the 'Tape List' or to use a 'Tape List' cassette, enter
the cassette number using the number buttons 0-9 on the remote control.
The cassette is being checked. You can find more information on the 'Tape
List' in the chapter 'Tape List'. If you don't use the Tape List, interrupt with
STOP h .
8
40
Switch off with STANDBY/ON m .
The programmed recording will only function when the video
recorder is switched off with STANDBY/ON m .
If any of the TIMER blocks are in use, ' k ' will light up on the video
recorder display.
Programming a recording (TIMER)
ENGLISH
Problems and solutions for programmed
recordings
PROBLEM
The video recorder
will not operate
'SWITCH TO
STANDBY- TIMER
RECORDING' flashes on
the TV screen
Cassette is ejected
during recording
Error message: 'NO
CASSETTE' k ' will flash
in the video recorder
display
SOLUTION
bWhile a programmed recording is being made, you cannot operate your video recorder manually.
If you want to cancel the programmed recording, press STANDBY/ON m .
bThe video recorder was switched on several minutes before the start of a programmed recording.
Switch off the video recorder with STANDBY/ON m . A programmed recording (timer) will
only function if the video recorder is switched off.
bThe end of the tape was reached during recording.
bNo cassette was inserted. Insert a cassette and switch off the video recorder using
STANDBY/ON m .
Cassette was ejected
as soon as the
OK button was pressed
bA cassette was inserted with the security tab removed. Undo the erase protection (chapter
Error message: 'ALL
TIMERS OCCUPIED'
bIf this error message appears after pressing TIMER k , then all TIMER blocks are already
'Manual Recording', section 'Preventing accidental erasing of cassettes') or insert a different
cassette.
programmed. No more recordings can be programmed. If you want to clear a programmed
recording (TIMER block), select it with ;qP or P r= and then press CLEAR (CL) .
Programming a recording (TIMER)
41
Programming a recording
(without VIDEO Plus+)
TIMER
DATE
REP.
21
MO-FR
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press TIMER k on the remote control twice . A free TIMER block
will be highlighted.
3
Press TIMER k . The information will appear on the screen.
4
With TIMER k , P or Q you can select 'DATE' (date), 'PROG.'
(programme number), 'START' (start time) and 'END' (end time).
Enter or change your information with ;qP or P r= , or with the
number buttons 0-9 on the remote control.
VPS
PROG. START PDC END
01
20:00
]
21:30
Selecting onetime/daily/weekly recordings
________________________________
REP.pSELECT
STOREpOK
In 'DATE' use SELECT to select from the following options:
'ONCE': Recording once
'MO-FR': Repeated daily recordings from Monday to Friday
'WEEK.': Repeated weekly recordings (every week on the same day)
Programme numbers of the 'E1' and 'E2' scart socket
You can also programme recordings from external sources via scart socket
EXT.1 AV. 1 ('E1') or EXT.2 AV. 2 ('E2').
'Switching on 'VPS/PDC' in the 'START' input field
Select the 'START' input field using TIMER k . Using SELECT switch on
'VPS/PDC' (']' lights up). If you press SELECT again, you will switch
'VPS/PDC' off (']' goes out).
5
42
When all informations are correctly, confirm with
programming information is stored in a TIMER block.
OK . The
Programming a recording (TIMER)
ENGLISH
6
Insert a cassette with an intact security tab (unprotected).
Using 'Tape List'
To save a recording in the 'Tape List' or to use a 'Tape List' cassette, enter
the cassette number using the number buttons 0-9 on the remote control.
The cassette is being checked. You can find more information on the 'Tape
List' in the chapter 'Tape List'. If you don't use the Tape List, interrupt with
STOP h .
7
Programming a recording (TIMER)
Switch off with STANDBY/ON m .
The programmed recording will only function when the video
recorder is switched off with STANDBY/ON m .
If any of the TIMER blocks are in use, ' k ' will light up on the video
recorder display.
43
Problem solving for programmed
recordings
PROBLEM
The video recorder
does not react
'SWITCH TO
STANDBY- TIMER
RECORDING' flashes on
the TV screen
A cassette was
automatically ejected
during recording
Error message: 'NO
CASSETTE' ' k ' will
flash in the video
recorder display
The 'PROTECTED
CASSETTE' error
message appears
briefly on the screen
then the cassette is
ejected
Error message: 'ALL
TIMERS OCCUPIED'
The 'DATA ERROR'
message appears on
the screen
44
SOLUTION
bWhile a programmed recording is being made, you cannot operate your video recorder manually.
If you want to cancel the programmed recording, press STANDBY/ON m .
bThe video recorder was switched on several minutes before the start of a programmed recording.
Switch off the video recorder with STANDBY/ON m . A programmed recording (timer) will
only function if the video recorder is switched off.
bThe end of the tape was reached during recording.
bNo cassette was inserted. Insert a cassette and switch off the video recorder using
STANDBY/ON m .
bA cassette was inserted with the security tab removed. Undo the erase protection (chapter
'Manual Recording', section 'Preventing accidental erasing of cassettes') or insert a different
cassette.
bIf this error message appears after pressing TIMER k , then all TIMER blocks are already
programmed. No more recordings can be programmed. If you want to clear or check a
programmed recording (TIMER block), select it with ;qP or P r= .
bThe data for the recording could not be transferred. Please check date, start time and end time
of the programmed recording.
Programming a recording (TIMER)
ENGLISH
Programming a recording with
'TURBO TIMER'
With this function, programming a recording that takes place within the next 24 hours, will be
quick and easy. The following pre-set information will appear in the display when you programme
a recording using 'TURBO TIMER'.
Programme number = the programme number currently selected (TV channel)
Start time = current time
End time = current time +2 hours
1
BBC1
Press TURBO TIMER on the remote control.
The current set programme number will appear in the display, for
instance, 'PROG. 01'. If required, you can change this using ;qP or
P r= .
a 'CLK' will flash in the video recorder display
b This display means that the video recorder clock is not set correctly. Please
read the section 'Setting the time and date' in chapter 'Installing your video
recorder'
2
Press TURBO TIMER .
The current time (= start time) will appear in the display, for instance,
'START 20:00'. If required, you can change this using ;qP or
P r= .
3
Press TURBO TIMER .
The end time will appear in the display, for instance, 'END 22:00'.
'END 22:00'. If required, you can change this using ;qP or P r= .
4
Press TURBO TIMER .
'OK' will briefly appear in the video recorder display. Programming is
now complete.
5
Insert a cassette with an intact security tab (unprotected).
20:00
22:00
Using Tape List
Enter the cassette number with the number buttons 0-9 .
The cassette is being checked. You can find more information on the 'Tape
List' in the chapter 'Tape List'.
Programming a recording (TIMER)
45
6
Switch off with STANDBY/ON m .
The programmed recording will only function when the video
recorder is switched off with STANDBY/ON m .
If any of the TIMER blocks are in use, ' k ' will light up on the video
recorder display.
Problems and solutions for programmed
recordings
PROBLEM
The video recorder
does not react
SOLUTION
bWhile a programmed recording is being made, you cannot operate your video recorder manually.
If you want to cancel the programmed recording, press STANDBY/ON m .
bThe video recorder was switched on several minutes before the start of a programmed recording.
' k ' will flash in the
video recorder display
Cassette is ejected
during recording
The 'PROT' error
message appears
briefly in the display
then the cassette is
ejected
Switch off the video recorder with STANDBY/ON m . A programmed recording (timer) will
only function if the video recorder is switched off.
bNo cassette was inserted. Insert a cassette and switch off the video recorder using
STANDBY/ON m .
bThe end of the tape was reached during recording.
bA cassette was inserted with the security tab removed. Undo the erase protection (chapter
'Manual Recording', section 'Preventing accidental erasing of cassettes') or insert a different
cassette.
bIf this error message appears after pressing TIMER k , then all TIMER blocks are already
Error message: 'FULL'
46
programmed. No more recordings can be programmed. If you want to clear or check a
programmed recording (TIMER block), select it with ;qP or P r= .
Programming a recording (TIMER)
ENGLISH
How to check, change or delete a
programmed recording (TIMER)
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press TIMER k on the remote control twice .
3
Select the programmed recording (TIMER) you want to check, change
or delete with P r= or ;qP .
Delete programmed recording
Press CLEAR (CL) .
'--' appears rather than the displayed values
To end, press MENU .
4
Press TIMER k .
Select the input field with Q or P .
If required, change the information with ;qP , P r= or the number
buttons 0-9 .
5
Confirm with OK .
6
Switch off with STANDBY/ON m .
Programming a recording (TIMER)
47
J
Other functions
Changing the video (colour) system
If you play back recordings made on a different kind of tape, the automatic video (colour) system
switch-over may lead to colour distortion.
You can manually switch off the video (colour) system for playback or switch off the colour.
Video (colour) systems
Other countries, other video (colour) systems:
In central Europe transmissions are broadcast in the PAL system (Phase
Alternation Line) standard. France uses SECAM (Séquentiel à mémoire). In
some countries (USA and Japan), TV viewers receive their programmes as an
NTSC signal (National Television System Committee).
MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
FOLLOW TV
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
VIDEOSYSTEM
SPECIAL SETTINGS
1
During playback , press the MENU button on the remote control.
The main menu will appear.
2
Select line 'VIDEOSYSTEM' using P r= or ;qP and confirm with
OK .
3
Select the TV (colour) system with the least disruptions using P or
Q.
If colour interference still occurs, you can switch to 'B/W' (black and
white).
4
Confirm with OK .
5
To end, press MENU .
________________________________
…EXITpMENU
OK
†HOTLINEpCL
How can I change back to 'Automatic Switch-over'?
If you change the programme number, the video (colour) system for recording
will switch itself back to 'AUTO' (automatic switch-over).
If you eject the cassette, the video (colour) system for playback will switch
itself back to 'AUTO' (automatic switch-over).
48
Other functions
ENGLISH
Child lock
You can prevent unauthorised use of your video recorder with this function. When the child
lock is active, the buttons on the front of the device are blocked (will not function). You can
make programmed recordings while the child lock is on.
1
With the video recorder switched on, press CHILD LOCK on the
remote control for five seconds. ' { ' will appear on the video
recorder display.
2
Put away the remote control somewhere out of reach of children.
3
If you want to switch off the child lock, press CHILD LOCK again for
five seconds, with the video recorder switched on. ' { ' will
disappear from the video recorder display.
a ' { ' will flash in the video recorder display
b This symbol flashes when a button is pressed when the child lock is active.
Switching the on-screen display (OSD) off
or on
Along with the on screen menu, the OSD (On Screen Display) also displays information on the
current operating status (counter, playback, recording, TV channel, etc.) on the TV screen. You
can switch off the information about the operating status so that the on screen display (OSD) is
not recorded when copying video cassettes.
Other functions
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'SPECIAL SETTINGS' using P r= or ;qP and confirm
with OK .
49
4
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
RECORD LINK
REPEAT PLAY
DIRECT RECORD
è ON
OFF
OFF
OFF
ON
In the line 'OSD', select the desired setting with P .
p
Which settings can I choose?
'ON': Shows the OSD for a few seconds only.
'OFF': Switches off the OSD.
________________________________
EXITpMENU
STOREpOK
5
Confirm with OK .
6
To end, press MENU .
Switch off the clock display
To save energy, you can switch off the clock display on the video recorder. Programmed
(TIMER) recordings will still take place.
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
RECORD LINK
REPEAT PLAY
DIRECT RECORD
è ON
OFF
OFF
OFF
ON
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select the line 'SPECIAL SETTINGS' with P r= or ;qP and
confirm with OK .
4
To switch off the time display on the video recorder, select in the line
'CLOCK DISPLAY' with P 'OFF'.
p
How can I switch on the clock display?
Select with Q 'ON' (time display switched on).
________________________________
EXITpMENU
STOREpOK
50
5
Confirm with OK .
'STORED' will briefly appear on the TV screen.
6
To end, press MENU .
Other functions
ENGLISH
Switching the remote control command
If you use a second video recorder that reacts to the same remote control command (stop, play,
record, etc.) as this video recorder, then you can change the remote control and this video
recorder.
MENU
CLOCK
AUTO INSTALL
MANUAL SEARCH
FOLLOW TV
TV CHANNEL ALLOC.
RECORD SPEED
AUTO STANDBY
VIDEOSYSTEM
SPECIAL SETTINGS
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Press the SELECT button on the remote control. In addition, press
the number button 2 to change the remote control to 'VCR2'.
4
Confirm with OK .
The main menu will disappear. If you have switched the remote
control and the video recorder to 'VCR2', 'RESPONDS TO VCR2' will
appear on the TV screen.
________________________________
…EXITpMENU
OK
†HOTLINEpCL
What do I need to pay attention to when changing the remote
control and video recorder?
You must always change both video recorder and remote control to the same
setting, e.g. video recorder and remote control to 'VCR1' or 'VCR2'.
After you change the batteries in the remote control, it will switch back to
'VCR1'.
How can I change back to 'VCR1'?
- Press MENU . The main menu will appear.
- Press the SELECT button on the remote control. Then press the number
button 1 to change the remote control to 'VCR1'.
- Confirm with OK on the remote control. The main menu will disappear.
This picture will appear on the screen: 'RESPONDS TO VCR1'
a The main menu will not disappear and no message appears
b The remote control command was not recognised by the video recorder.
Repeat step 3 .
a This will, for example, appear in the display: 'VCR2'
b Remote control and video recorder were not both changed. If you press a
button for a long time, the video recorder settings appear in the display. In
this case 'VCR2'. You need to also change the remote to 'VCR2' (button
SELECT and 2 ).
Using your video recorder remote control with
your TV set - see page 61
Other functions
51
Continuous playback
This function can be used to play a cassette over and over again. When the end of the cassette
is reached, the video recorder will rewind and start from the beginning again. This function is
activated or deactivated as follows.
SPECIAL SETTINGS
OSD
CLOCK DISPLAY
RECORD LINK
REPEAT PLAY
DIRECT RECORD
è ON
OFF
OFF
OFF
ON
p
________________________________
EXITpMENU
STOREpOK
1
Press MENU on the remote control. The main menu will appear.
2
Select line 'SPECIAL SETTINGS' using ;qP or P r= and confirm
with OK .
3
Select line 'REPEAT PLAY' using ;qP or P r= .
4
Select function 'ON' with Q or P .
If you select 'OFF', continuous playback will be switched off.
5
Confirm with OK .
'STORED' will appear briefly on the screen.
6
To end, press MENU .
7
Insert a cassette.
Using 'Tape List'
Enter the 'Tape List' cassette number with the number buttons 0-9 on the
remote control.
The cassette is being checked. You can find more information on the 'Tape
List' in the chapter 'Tape List'. If you don't use the Tape List, interrupt with
STOP h or PLAY G .
8
52
Start the continuous playback with the PLAY G playback button.
Other functions
ENGLISH
Automatic switch-off
If you haven't used the video recorder for a few minutes in certain modes (e.g.: STOP), it will
switch to standby automatically. You can cancel this function to use the video recorder as a
television receiver.
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU on the remote control. The main menu will appear.
3
Select line 'AUTO STANDBY' using P r= or ;qP .
4
Select 'OFF' (no automatic switch-off) or 'ON' (automatic switch-off)
with the menu buttons P or Q .
5
Confirm with OK . 'STORED' will briefly appear on the TV screen.
6
To end, press MENU .
7
Hold down the TV y button.
8
By using the TV buttons on the panel in the middle of the control,
you can::
qS
Sr
TV y
TV m
qTV
TV r
Other functions
increase the TV volume
decrease the TV volume
switch off sound
switch off the TV set
next programme number
previous programme number
53
Selecting the sound channel
You can select the desired sound channel during playback or while receiving TV channels via the
video recorder. This allows you to select a desired language for multi-language transmissions.
1
Press SELECT . This will show the current sound setting.
What goes on behind the settings?
'STEREO':
Left and right stereo (HIFI) sound tracks can be heard.
'LEFT':
The left stereo (HIFI) sound track can be heard.
'RIGHT':
The right stereo (HIFI) sound track can be heard.
'MONO':
The mono (linear) sound track can be heard.
'MIXED':
The mono (linear) sound track can be heard at the same time as the stereo
(HIFI) sound tracks.
2
Keep pressing SELECT until the desired setting appears in the
display.
Automatic switch to 'MONO'
If a TV channel does not transmit a stereo signal or if there is no stereo signal
recorded on the video cassette, the video recorder will automatically switch
to 'MONO'. You will not be able to select any other settings.
Playing back an audio dubbing
When dubbing video recordings, the mono (linear) sound track is recorded
with a new sound signal. The stereo (HIFI) sound track is kept. To hear the
dubbed section, you must select either 'MONO' or 'MIXED'.
54
Other functions
Suppressing interference
Optimising the modulator
In some reception locations it is possible that a TV channel will be sent on the same or similar
frequency as the video recorder.
Result: As soon as the video recorder is switched on, the reception quality for this or several
other TV channels will decreased.
The following steps will show you how to change the pre-set 'transmission' (modulator)
frequency on the video recorder.
What is a modulator?
This electronic component in the video recorder allows the device to transmit
audio and video signals via the aerial cable. These signals can be received TV
set just like TV channels.
What is an modulator frequency?
This frequency or channel indicates the frequency or channel on which the
audio or video signal is transmitted.
1
Switch on the TV set. Select the programme number used for video
recorder playback (see TV operating instructions).
2
Press STOP/EJECT ? to eject any cassette that might be in the
device.
3
Hold the STOP h button on the remote control.
4
In addition press the STOP/EJECT ? button on the video
recorder until the modulator frequency appears on the screen, e.g.
'M583' (583MHz or UHF channel 35).
The video recorder will now transmit a test image on UHF channel
35/Frequency 583MHz.
5
OPTIMIZE MODULATOR
OPTIMIZE FREQUENCY
MODULATOR
583
ON
Select line 'OPTIMIZE FREQUENCY' using ;qP or P r= . Enter
the new modulator frequency with the number buttons 0-9 .
p
Can the modulator frequency be changed automatically?
Pressing P starts the automatic channel search. When the video recorder
finds a 'free' channel (not used be a TV channel), the frequency of this channel
will be shown in the display.
________________________________
EXITpMENU
STOREpOK
6
Suppressing interference
Tune in the TV set to the new modulator frequency (channel 21 - 69)
shown in the video recorder display.
55
ENGLISH
K
7
Confirm with OK .
'STORED' will appear briefly on the screen.
Optimising the modulator is now complete.
Switching the modulator on / off
If you cannot clear picture or sound interference despite optimisation, you can switch off the
built-in modulator.
Warning:
this is only possible if you have connected the video recorder to the TV set with a
scart cable. Without a scart cable you will not receive a picture from the video
recorder on the TV set when the modulator is switched off.
OPTIMIZE MODULATOR
OPTIMIZE FREQUENCY
MODULATOR
583
ON
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press STOP/EJECT ? to eject any cassette that might be in the
device.
3
Hold the STOP h button on the remote control.
4
In addition press the STOP/EJECT ? button on the video
recorder until the modulator frequency appears on the screen, e.g.
'M583' (583MHz or UHF channel 35).
5
Select the line 'MODULATOR' on the TV screen or 'MOD+' in the
display with ;qP or P r= .
6
Select 'OFF' on the TV screen with Q or in the display 'MOD-'
(modulator off).
p
How can I switch the modulator back on?
________________________________
EXITpMENU
STOREpOK
56
In the display, select 'MOD+' (modulator on) with Q .
7
Confirm with OK .
8
To end, press MENU .
Suppressing interference
L
If, contrary to expectation, you have any problems using this video recorder, it may be caused by
the following reasons.
You will find the phone number in the enclosed guarantee leaflet.
The telephone numbers can be found on the back of this instruction manual. Have the model
number (MODEL NO) and the production number (PROD.NO.) of your video recorder ready.
HOTLINE telephone numbers
The telephone numbers for after-sales service (HOTLINE) are also saved in your video recorder.
To call them up, proceed as follows:
PROBLEM
Your video recorder
does not respond to
any button being
pressed:
1
Switch on the TV set. If required, select the programme number for
the video recorder.
2
Press MENU . The main menu appears.
3
Press CLEAR (CL) . The after-sales service telephone numbers will
appear on the screen.
4
Using OK , you can select more telephone numbers.
5
To end, press MENU .
SOLUTION
bThere is no power supply: check the power supply.
bA programmed recording is currently being made: if desired, cancel the programmed recording
with STANDBY/ON m .
bChild lock active: switch the child lock off.
bThere is a technical problem: disconnect from the mains power supply for 30 seconds, then
connect again.
If this doesn't help, you could reset your video recorder to the default factory settings.
bAttention:
Resetting devices to
default factory settings
Cassette is jammed in
the video recorder:
Remote control does
not work:
All the information stored (TV channels, time and date, TIMER) will be cleared.
1. Disconnect from the mains power supply.
2. Press and hold the STANDBY/ON m/I button on the device and reconnect to the mains
power supply.
3. Release the button when 'OSD' appears in the video recorder display.
bDon't use force. Pull out the mains plug for a moment.
bRemote control not pointed toward the video recorder: point it at the video recorder.
bThere is a technical problem: Take out the batteries, wait for 10 seconds and place them back.
bBatteries have run out: change the batteries.
bYou have given the wrong remote control command: read 'Switching remote control command' in
chapter 'Additional functions'.
Before you call an engineer
57
ENGLISH
Before you call an engineer
PROBLEM
No picture when you
play a cassette:
Poor picture quality
when you play a
cassette:
SOLUTION
bThere is no recording on the cassette: change the cassette.
bYou have selected the wrong programme number on the TV for playing cassette: on the TV,
select the correct programme number for the video recorder.
bThe cable connecting the TV set and the video recorder has come loose: check the cable.
bYour TV set is not properly adjusted.
bThe cassette is badly worn or of poor quality: use new cassette.
bTracking is not properly adjusted: turn to chapter 'Eliminating picture interference' and read the
section 'Optimising tracking'.
bPlease read chapter 'Eliminating picture interference'.
bThe TV channel you want to record is not stored or you selected the wrong programme number:
check TV channels stored.
bA cassette was inserted that does not have the security tab (cannot be used to record): Insert a
No recording possible:
Programmed
recording does not
work:
The wrong TV channel
was decoded (entered)
after you programmed
a recording using
Video Plus+
There is picture or
sound interference on
TV reception:
58
cassette with an intact security tab or change cassette. For more information, please see the
section 'Preventing accidental erasing of cassettes' in chapter 'Manual Recording'.
b'VPS/PDC' switched on but 'VPS/PDCtime' wrong: 'enter 'VPS/PDCtime exactly to the minute.
Have your aerial checked.
bYou have programmed the wrong time or date: check time and date.
bCheck time and date. If time and date are wrong despite manual setting, you can switch 'SMART
CLOCK' off. Please read the section 'Setting the time and date' in the chapter 'Installing your
video recorder'.
bYou have not set the TIMER properly: Check the programmed recordings (TIMER block).
bYou have put in a cassette that cannot be recorded on: undo the erase protection on the
cassette.
b1. Enter the PlusCode programming number of the desired TV channel.
2. Confirm with OK .
3. Check the programme number/channel name in the 'PROG.' input field
4. If this does not correspond to the desired TV channel, select the input field and change the
programme number/channel name.
5. Confirm with TIMER k .
bTurn to chapter 'Suppressing interference' and read 'Optimising the modulator' and 'Switching
on/off the modulator'.
bHave your aerial checked.
Before you call an engineer
59
ENGLISH
ENGLISH
Code numbers of the remote control
Acura ............................................... 02
Adyson ...................................... 05, 20
Akai ............................................. 33,18
Akura ......................................... 21, 25
Alba .................................... 02, 21, 07
Allorgan .......................................... 28
Amplivision .................................... 20
Amstrad .......................................... 02
Anitech ........................................... 02
Arcam ............................................. 20
Asuka ............................................... 21
Audiosonic ..................................... 15
BPL ................................................... 26
BSR .................................................. 28
BTC ................................................. 21
Basic Line .................................. 02, 21
Baur ............................................ 33,03
Beko ................................................ 35
Binatone ......................................... 20
Blaupunkt ....................................... 17
Blue Sky .......................................... 21
Blue Star ......................................... 26
Bondstec ......................................... 23
Boots ............................................... 20
Brandt ............................................. 15
Bush ........ 21, 02, 07, 26, 28, 36, 42
3103 166 30751
1142/010
(Wwn N Nw nwN nwNWwn n wWNWnwnN) VR620/07
CGE ................................................. 23
CTC ................................................. 23
Carrefour ....................................... 07
Cascade .......................................... 02
Cimline ............................................ 02
Clatronic .................................. 23, 35
Condor ..................................... 30, 35
Contec ...................................... 02, 07
Crown ................................ 35, 02, 38
Cybertron ...................................... 21
Daewoo .................................... 36, 02
Dainichi ........................................... 21
Dayton ............................................ 02
De Graaf ......................................... 18
Decca .............................................. 10
Dixi .................................................. 02
Dual ................................................. 42
Elite ............................................ 21, 30
Elta ................................................... 02
Emerson ......................................... 33
Ferguson ......................................... 15
Fidelity ............................................. 33
60
Finlandia .................................... 32, 18
Finlux .................................. 32, 13, 10
Firstline ................ 31, 02, 20, 23, 28
Fisher .................................. 20, 18, 35
Flint .................................................. 40
Formenti ......................................... 30
Frontech ................................... 23, 25
Fujitsu .............................................. 10
Funai .......................................... 28, 25
GEC ........................................... 10, 20
GPM ................................................. 21
Geloso ............................................ 02
Genexxa ......................................... 21
GoldStar ............................ 20, 15, 27
Goodmans ........... 10, 07, 20, 29, 36
Gorenje .......................................... 35
Graetz ............................................. 33
Granada ............................. 10, 18, 20
Grandin ........................................... 26
Grundig ........................................... 17
HCM .......................................... 02, 26
Hanseatic ........................... 33, 30, 01
Hinari ................................. 02, 07, 21
Hisawa ....................................... 26, 40
Hitachi .... 22, 15, 08, 05, 20, 07, 13
Huanyu ............................................ 36
Hypson ...................................... 25, 26
ICE ............................................. 20, 25
ICeS ................................................. 21
ITT ................................................... 33
Imperial .............................. 23, 38, 35
Inno Hit .......................................... 10
Interfunk ................................... 33, 23
Intervision ......................... 12, 20, 25
Isukai ............................................... 21
JVC ............................................. 09, 07
Kaisui ........................... 21, 20, 02, 26
Kathrein .......................................... 01
Koyoda ............................................ 02
Leyco .................................. 10, 25, 28
Lloytron .......................................... 05
Luxor ............................................... 33
M Electronic . 32,13,20,02,15,36,41
Magnadyne ............................... 12, 23
Magnafon ........................................ 12
Manesth ............................. 30, 20, 25
Marantz ........................................... 01
Matsui .. 02,39,18,20,04,06,07,10,28
Memorex ........................................ 02
Metz ................................................. 34
Mitsubishi .......................... 07, 14, 16
Mivar ............................................... 27
Multitech .................................. 02, 12
Neckermann .................................. 01
Nikkai ................... 06, 21, 05, 10, 25
Nobliko ........................................... 12
Nokia ......................................... 41, 33
Nordmende ................................... 15
Oceanic ........................................... 33
Orion .......................... 28, 30, 31, 39
Osaki .................... 05, 10, 20, 21, 25
Oso .................................................. 21
Osume ...................................... 05, 10
Otake .............................................. 29
Otto Versand ..... 03, 07, 20, 30, 01
Palladium .................................. 35, 38
Panama ...................................... 20, 25
Panasonic .................................. 24, 34
Pathe Cinema ................................ 30
Pausa ................................................ 02
Perdio .............................................. 30
Phase ............................................... 05
Philco ............................................... 23
Philips ........................................ 01, 36
Pioneer ............................................ 15
Profex ........................................ 02, 33
Proline ............................................. 31
Protech ......... 12, 02, 20, 23, 25, 38
Quelle ................................ 03, 04, 33
Questa ............................................ 07
Rank Arena .................................... 07
Rediffusion ..................................... 33
Rex ................................................... 25
Roadstar ..................... 02, 25, 21, 38
SEG ..................................... 20, 07, 25
SEI ....................................... 12, 03, 28
Saba ................................................. 15
Saisho ................................. 04, 02, 25
Salora .............................................. 33
Sambers .......................................... 12
Samsung ........ 20, 25, 27, 35, 02, 01
Sanyo ........................... 07, 18, 04, 10
Schaub Lorenz ............................... 33
Schneider .................................. 21, 23
Sentra .............................................. 06
Sharp ......................................... 11, 07
Shorai .............................................. 28
Siarem ............................................. 12
Siemens ........................................... 17
Silver ................................................ 07
Sinudyne ............................ 12, 03, 28
Solavox ........................................... 05
Sonitron .......................................... 18
Sonoko ............................................ 02
Sonolor ........................................... 18
Sony .................................... 04, 03, 07
Soundwave ..................................... 38
Standard ............................. 20, 21, 02
Sunkai ........................................ 28, 31
Susumu ............................................ 21
Tandy ................................. 21, 10, 20
Tashiko ..................................... 07, 20
Tatung ....................................... 10, 20
Tec ............................................. 20, 23
Technema ....................................... 30
Technics .......................................... 24
Telefunken ..................................... 15
Telemeister .................................... 30
Teletech .................................... 07, 20
Teleton ........................................... 20
Tensai .......................... 21, 28, 29, 30
Texet ............................................... 21
Thomson ........................................ 15
Thorn ................................. 06, 10, 33
Tomashi .......................................... 26
Toshiba ..................................... 06, 07
Uher ................................................ 30
Ultravox ......................................... 12
Universum .................. 13, 32, 25, 35
Videosat .......................................... 23
Videotechnic .................................. 20
Vision .............................................. 30
Waltham .........................................
Watson ...........................................
Watt Radio ....................................
Wega ...............................................
White Westinghouse ..................
20
30
12
07
30
Yoko .......................................... 20, 25
ADDENDUM SHEET
Your video recorder is equipped with the following
feature:
Using your video recorder remote
control with your TV set
Your video recorder remote control can transmit several
commands to TV sets of different makes.
By using the TV buttons on the panel in the middle of
the control, you can:
Sq
increase the TV volume
Sr
reduce the TV volume
TV y
switch off sound
TV m
switch off the TV set
TV q
next programme number
TV r
previous programme
number
a Hold
TV y and enter the correct remote control
command with the number buttons 0-9 .
When you have entered the code number correctly,
the TV set will switch off.
You will find a list of all available remote control
60
commands on thepage
last page
of this manual.
D If the selected code does not work with your TV
set, or if the make of your TV is not in the list,
you can try out the codes one after the other.
61 1
(Wwn N Nw nWn nWnwWNnNwWn WnwnN)
3103 116 06551
1443/000
VR620/07
2
