Pioneer DVR-550HX-S is a versatile HDD/DVD recorder that combines advanced recording and playback capabilities. With its built-in hard disk drive, you can record digital TV broadcasts, external video sources, or DVD discs. The DVD burner allows you to create your own DVDs from recorded content or other sources. Its user-friendly interface and intuitive controls make it easy to navigate and operate.
advertisement
▼
Scroll to page 2
of 155

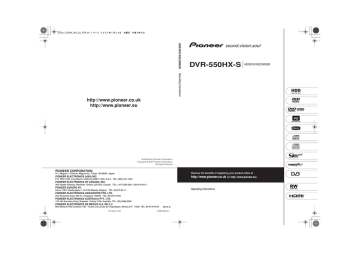

Cover_550HX_WV_En_PTK.fm 1 ページ 2007年1月24日 水曜日 午後3時5分 HDD/DVD RECORDER DVR-550HX-S HDD/DVD RECORDER Operating Instructions http://www.pioneer.co.uk http://www.pioneer.eu ® Published by Pioneer Corporation. Copyright © 2007 Pioneer Corporation. All rights reserved. PIONEER CORPORATION ® 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan Discover the benefits of registering your product online at PIONEER ELECTRONICS (USA) INC. http://www.pioneer.co.uk (or http://www.pioneer.eu) P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901, 905-479-4411 PIONEER EUROPE NV Operating Instructions Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11 PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: (03) 9586-6300 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270 Printed in UK K002_B_En <VRB1458-A> DVR550HXS_WV_EN.book 2 ページ 2007年3月30日 金曜日 午前10時48分 Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. IMPORTANT CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. D3-4-2-1-1_En-A WARNING WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain D3-4-2-1-3_A_En or moisture. Before plugging in for the first time, read the following section carefully. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V D3-4-2-1-4_A_En or 120 V) written on the rear panel. CAUTION This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the rear of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit. Location: inside of the unit CAUTION ATTENTION ADVARSEL VARNING VORSICHT PRECAUCIÓN VARO! VRW2262 - A CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN, AVOID EXPOSURE TO THE BEAM. RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSE 3B QUAND OUVERT. ÉVITEZ TOUT EXPOSITION AU FAISCEAU. KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÆTTELSE FOR STRÅLING. KLASS 3B SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. UNDVIK ATT UTSÄTTA DIG FÖR STRÅLEN. BEI GEÖFFNETER ABDECKUNG IST SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG DER KLASSE 3B IM GERÄTEINNEREN VORHANDEN. NICHT DEM LASERSTRAHL AUSSETZEN! CUANDO SE ABRE HAY RADIACIÓN LÁSER DE CLASE 3B VISIBLE E INVISIBLE. EVITE LA EXPOSICIÓN A LOS RAYOS LÁSER. AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LUOKAN 3B LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. D3-4-2-1-8_B_En This product complies with the Low Voltage Directive (73/23/EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC). D3-4-2-1-9a_En WARNING To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the D3-4-2-1-7a_A_En equipment. If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please contact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. K058_A_En DVR550HXS_WV_EN.book 3 ページ 2007年3月30日 金曜日 午前10時48分 Operating Environment Operating environment temperature and humidity: +5 ºC to +35 ºC (+41 ºF to +95 ºF); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En VENTILATION CAUTION When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side). CAUTION The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time D3-4-2-2-2a_A_En (for example, when on vacation). WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the D3-4-2-1-7b_A_En equipment on thick carpet or a bed. This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the K041_En warranty period. POWER-CORD CAUTION If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when D3-4-2-2-1a_A_En on vacation). Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002_En Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. IMPORTANT: THE MOULDED PLUG This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer. If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket. If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows ; The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse. D3-4-2-1-2-2_B_En DVR550HXS_WV_EN.book 4 ページ 2007年3月30日 金曜日 午前10時48分 01 Contents 01 Before you start What’s in the box . . . . . . . . . . . . . . . . . . . 6 Putting the batteries in the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using the remote control . . . . . . . . . . . . . . 6 Disc/content format playback compatibility . . . . . . . . . . . . . . . . . . . . . . . 7 About the internal hard disk drive . . . . . . 12 Symbols used in this manual . . . . . . . . . 13 02 Connections Rear panel connections. . . . . . . . . . . . . . 14 Front panel connections . . . . . . . . . . . . . 15 Connecting a TV antenna . . . . . . . . . . . . 15 Easy connections . . . . . . . . . . . . . . . . . . 16 Using other types of audio/ video output . . . . . . . . . . . . . . . . . . . . . . 16 Connecting to a cable box or satellite receiver . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Connecting an external decoder box (1) . . . . . . . . . . . . . . . . . . . . 18 Connecting an external decoder box (2) . . . . . . . . . . . . . . . . . . . . 19 Connecting to an AV amplifier/ receiver . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Connecting using HDMI . . . . . . . . . . . . . 21 Connecting other AV sources . . . . . . . . . 22 Plugging in . . . . . . . . . . . . . . . . . . . . . . . 22 03 Controls and displays Front panel . . . . . . . . . . . . . . . . . . . . . . . 23 Common Interface . . . . . . . . . . . . . . . . . 24 Display . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Remote control . . . . . . . . . . . . . . . . . . . . 26 04 Getting started Switching on and setting up . . . . . . . . . . 29 For users receiving digital broadcast services . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Setting up the GUIDE Plus+® system . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 4 En 05 Using the GUIDE Plus+® electronic programme guide The GUIDE Plus+® system . . . . . . . . . . Using the GUIDE Plus+® system . . . . . Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . GUIDE Plus+® FAQ and troubleshooting . . . . . . . . . . . . . . . . . . . 36 36 38 47 06 Using the digital electronic programme guide The Digital EPG system . . . . . . . . . . . . . Using the Digital EPG . . . . . . . . . . . . . . . Setting timer programmes . . . . . . . . . . . Other useful EPG functions . . . . . . . . . . 50 51 51 56 07 Recording About DVD recording . . . . . . . . . . . . . . . About HDD recording. . . . . . . . . . . . . . . Recorded audio . . . . . . . . . . . . . . . . . . . Restrictions on video recording . . . . . . . Using the built-in A.TV and D.TV tuners. . . . . . . . . . . . . . . . . . . . . . . Setting the picture quality/ recording time . . . . . . . . . . . . . . . . . . . . Basic recording from the TV . . . . . . . . . . Pause Live TV . . . . . . . . . . . . . . . . . . . . . About timer recordings . . . . . . . . . . . . . Timer recording FAQ . . . . . . . . . . . . . . . Simultaneous recording and playback (Chase Play) . . . . . . . . . . . . . . . . . . . . . . Recording from an external component . . . . . . . . . . . . . . . . . . . . . . . Playing your recordings on other DVD players . . . . . . . . . . . . . . . . . . . . . . . . . . Initializing recordable DVD discs . . . . . . DVD-RW Auto Initialize. . . . . . . . . . . . . . 58 59 59 60 60 63 63 65 67 68 69 69 70 71 72 08 Playback Introduction . . . . . . . . . . . . . . . . . . . . . . Basic playback . . . . . . . . . . . . . . . . . . . . Using the Disc Navigator to browse the contents of a disc . . . . . . . . . . . . . . . . . . Scanning discs. . . . . . . . . . . . . . . . . . . . Playing in slow motion . . . . . . . . . . . . . . Frame advance/frame reverse . . . . . . . . The Play Mode menu . . . . . . . . . . . . . . . Displaying and switching subtitles . . . . . 73 73 77 78 78 79 79 81 DVR550HXS_WV_EN.book 5 ページ 2007年3月30日 金曜日 午前10時48分 Switching DVD and DivX soundtracks . . . . . . . . . . . . . . . . . . . . . . 81 Switching audio channels . . . . . . . . . . . . 82 Switching camera angles . . . . . . . . . . . . 82 Displaying disc information on-screen . . . . . . . . . . . . . . . . . . . . . . . . 83 14 The Disc Setup menu 09 Playing and recording from a DV camcorder 15 The Video Adjust menu Basic settings . . . . . . . . . . . . . . . . . . . . Initialize settings. . . . . . . . . . . . . . . . . . Finalize settings . . . . . . . . . . . . . . . . . . Optimize HDD . . . . . . . . . . . . . . . . . . . Initialize HDD . . . . . . . . . . . . . . . . . . . . 116 117 117 117 118 Playing from a DV camcorder . . . . . . . . . 84 Recording from a DV camcorder . . . . . . . 84 About DV . . . . . . . . . . . . . . . . . . . . . . . . . 86 Setting the picture quality for TV and external inputs . . . . . . . . . . . . . . . . 119 Setting the picture quality for disc playback . . . . . . . . . . . . . . . . . . . . . . . . 120 10 Editing 16 The Initial Setup menu Editing options . . . . . . . . . . . . . . . . . . . . 87 The Disc Navigator screen . . . . . . . . . . . . 88 Using the Initial Setup menu . . . . . . . . 122 Selecting other languages for language options . . . . . . . . . . . . . . . . . 136 Using Software Update (Digital tuner) . . . . . . . . . . . . . . . . . . . . 136 11 Copying and backup Introduction . . . . . . . . . . . . . . . . . . . . . . 98 One Touch Copy . . . . . . . . . . . . . . . . . . . 98 Using Copy Lists . . . . . . . . . . . . . . . . . . 100 Using disc backup . . . . . . . . . . . . . . . . . 104 12 Using the Jukebox Copying music to the HDD . . . . . . . . . . 106 Playing music from the Jukebox . . . . . . 107 Editing Jukebox albums . . . . . . . . . . . . 108 13 The PhotoViewer Locating JPEG picture files . . . . . . . . . . 109 Changing the display style of the PhotoViewer . . . . . . . . . . . . . . . . . . . . . 110 Playing a slideshow . . . . . . . . . . . . . . . . 110 Reloading files from a disc . . . . . . . . . . 111 Importing files to the HDD. . . . . . . . . . . 111 Selecting multiple files or folders . . . . . 112 Copying selected files to a DVD-R/-RW . . . . . . . . . . . . . . . . . . . . . . 112 Editing files on the HDD . . . . . . . . . . . . 113 17 Additional information Setting up the remote to control your TV . . . . . . . . . . . . . . . . . . . . . . . . . 138 Minimum copying times. . . . . . . . . . . . 139 Manual recording modes . . . . . . . . . . . 140 Troubleshooting . . . . . . . . . . . . . . . . . . 141 If the picture freezes and the front panel and remote control buttons stop working . . . . . . . . . . . . . . . . . . . . . . . . 145 On-screen displays . . . . . . . . . . . . . . . . 146 Front-panel displays . . . . . . . . . . . . . . . 148 Language code list . . . . . . . . . . . . . . . . 149 Country/Area code list . . . . . . . . . . . . . 149 Screen sizes and disc formats . . . . . . . 150 Handling discs . . . . . . . . . . . . . . . . . . . 151 Cleaning the pickup lens . . . . . . . . . . . 151 Condensation . . . . . . . . . . . . . . . . . . . . 151 Hints on installation . . . . . . . . . . . . . . . 152 Moving the recorder . . . . . . . . . . . . . . . 152 Resetting the recorder . . . . . . . . . . . . . 152 Specifications. . . . . . . . . . . . . . . . . . . . 153 5 En DVR550HXS_WV_EN.book 6 ページ 2007年3月30日 金曜日 午前10時48分 01 Before you start Chapter 1 Before you start What’s in the box Please confirm that the following accessories are in the box when you open it; • • • • • • • • Remote control AA/R6P dry cell batteries x 2 Audio/video cable (red/white/yellow) G-LINK™ cable RF antenna cable x 2 Power cable These operating instructions Warranty card Putting the batteries in the remote control • Insert two AA/R6P batteries into the battery compartment following the indications (,) inside the compartment. Important Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following: 6 En • Don’t mix new and old batteries together. • Don’t use different kinds of batteries together — although they may look similar, different batteries may have different voltages. • Make sure that the plus and minus ends of each battery match the indications in the battery compartment. • Remove batteries from equipment that isn’t going to be used for a month or more. • When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area. WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the D3-4-2-3-3_En life or performance of batteries. Using the remote control Please keep in mind the following when using the remote control: • Make sure that there are no obstacles between the remote and the remote sensor on the unit. • Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit’s remote sensor. • Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit. • Replace the batteries when you notice a fall off in the operating range of the remote. • When the batteries run down or you change the batteries, the remote control mode is reset to Recorder 1. See Remote Control Mode on page 134. • Use within the operating range in front of the remote control sensor on the front panel, as shown. 7m DVR550HXS_WV_EN.book 7 ページ 2007年3月30日 金曜日 午前10時48分 Before you start • You can control this recorder using the remote sensor of another Pioneer component via the CONTROL IN jack on the rear panel. See Rear panel connections on page 14 for more information. Disc/content format playback compatibility Compatible media • DVD-RW ver. 1.1 / 1x / 1x to 2x, ver. 1.2 / 2x to 4x / 2x to 6x • DVD-R ver. 2.0 /1x / 1x to 4x / 1x to 8x / 1x to 16x, ver. 2.1 / 1x to 8x / 1x to 16x • DVD+RW 1x to 2.4x / 1x to 4x / 3.3x to 8x • DVD+R 1x to 2.4x / 1x to 4x / 1x to 8x / 1x to 16x • DVD-RAM ver. 2.0 / 2x, ver. 2.1 / 2x / 2x to 3x / 2x to 5x, ver. 2.2 / 2x / 2x to 3x / 2x to 5x • DVD-R DL ver. 3.0 / 2x to 4x / 2x to 8x • DVD+R DL 2.4x / 2.4x to 8x Note that older models of DVD recorders and DVD writers may reject DVD-RW ver. 1.2 discs and/or corrupt the data on the disc. If you want to share DVD-RW discs between this recorder and an older recorder/writer, we recommend using ver. 1.1 discs. 01 The following table shows older Pioneer DVD recorders’ limited compatibility with DVDRW ver. 1.2 discs. Model DVR-7000 DVR-3100/ DVR-5100H Playable Yes* 1,2,3 Yes*1 Recordable No No *1 Discs should be finalized in this recorder before playing. Unfinalized VR mode and Video mode discs may not play. *2 Cannot read the CPRM information will show in the display when you load a disc. However, this will not affect playback. *3 Copy-once protected disc titles will not play. Readable file system This recorder can play DVDs recorded under the following file systems1: ISO 9660*, UDF 1.02, UDF 1.50, UDF 2.00, UDF 2.01. * ISO 9660 Level 1 or 2 compliant. Romeo and Joliet file systems are both compatible with this recorder. Note 1 • Depending on the recording technique used, even files recorded in compatible file systems may not play correctly. • MP3/WMA files can be played back when recorded onto a DVD that contains no video files and uses the UDF 1.02, UDF 1.50, UDF 2.01 or ISO 9660 file systems. 7 En DVR550HXS_WV_EN.book 8 ページ 2007年3月30日 金曜日 午前10時48分 01 Before you start HDD/DVD Recording and playback compatibility This recorder can play and record all widely-used DVD disc types, and additionally provides HDD functionality. The table below shows some specific compatibility differences between the different disc types. HDD Marks used in this manual HDD DVD-R DVD (VR) DVD-RW DVD (Video) *1 DVD (VR) DVD (Video) *1 *2 DVD+R DVD +RW DVDRAM DVD+R DVD+RW DVD-RAM *13, 16 Logos Re-recordable/ Erasable *3 *3 *3 *14 Editing of recorded programmes *4 *4 *4 *4 Recording of Copyonce protected material *12 Playback in other players/recorders n/a *5 Chase play 16:9 and 4:3 programme recording Bilingual broadcast *10, 11 recording of both audio channels *12 *6 En *6 *6, 15 *8 *9 *11 *11 *11 Notes to table 8 *7 *12 *1 Must be initialized for VR mode recording (page 117). *2 Must be initialized for Video mode recording (page 117). *3 Erasable, but free space does not increase. *4 Cannot erase sections, edit chapters or use playlist editing. *5 Must be compatible with DVD-R(VR) playback. *6 Finalize using this recorder (may not playback in some units) (page 70). *7 Must be compatible with DVD-RW(VR) playback. *8 Must be compatible with DVD+RW playback. *9 Must be compatible with DVD-RAM playback. *10 Only when HDD Recording Format is set to Video Mode Off (page 131). *11 Only when the recording mode is not set to LPCM. *12 CPRM-compatible discs only. *13 Take the disc out of the cartridge before use. Only Panasonic and Maxell discs have been tested to work reliably with this recorder. Discs from other makers may become unusable when recorded or edited. *14 Erasing a title does not increase the available recording time, nor increase the number of recordable titles left. *15 Must be compatible with DVD+R playback. *16 Depending on the disc, it may have to be initialized before it can be recorded (page 117). In this case, initialization will take about an hour. is a trademark of DVD Format/Logo Licensing Corporation. DVR550HXS_WV_EN.book 9 ページ 2007年3月30日 金曜日 午前10時48分 Before you start Using DVD-R DL/DVD+R DL discs DVD-R DL (Dual-Layer) and DVD+R DL (Double-Layer) discs contain two recordable layers on a single side, giving about 1.8 times the recording capacity of a conventional single-layer disc. This unit can record to both DVD-R DL and DVD+R DL discs. • If you intend to play DVD-R DL (Video mode) or DVD+R DL discs recorded on this unit on other DVD recorders/players, you must finalize them. (Note that some DVD recorders/players may not play even finalized DL discs.) • This logo indicates that the disc is a DVD-R DL or DVD+R DL disc: 01 The DVD side of a DualDisc plays in this product. DVD-Audio content will not play. For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer. Other disc compatibility In addition to DVD, this recorder is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the logos on the disc and/or disc packaging shown below. Note however that some disc types, such as recordable CD (and DVD), may be in an unplayable format — see below for further compatibility information. Audio CD Correct operation has been confirmed for DL discs: • DVD-R DL ver. 3.0/2x to 4x Mitsubishi Kagaku Media (Verbatim) • DVD-R DL ver. 3.0/2x to 8x Mitsubishi Kagaku Media (Verbatim) That’s JVC • DVD+R DL 2.4x Mitsubishi Kagaku Media (Verbatim) RICOH • DVD+R DL 2.4x to 8x Mitsubishi Kagaku Media (Verbatim) RICOH About DualDisc playback A DualDisc is a new two -sided disc, one side of which contains DVD content –video, audio, etc. –while the other side contains non-DVD content such as digital audio material. The non-DVD, audio side of the disc is not compliant with the CD Audio specification and therefore may not play. It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable. Video CD CD-R CD-RW Super Video CD (Super VCD) CD-R/-RW compatibility This recorder cannot record CD-R or CD-RW discs. • Readable formats: CD-Audio, Video CD/ Super VCD, ISO 9660 CD-ROM* containing MP3, WMA, JPEG or DivX files * ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible with this recorder. • Multi-session playback: Yes (except CDAudio and Video CD/Super VCD) • Unfinalized disc playback: CD-Audio only Compressed audio compatibility • Compatible media: DVD-ROM, DVD-R/-RW, DVD+R/+RW, DVD-RAM, CD-ROM, CD-R, CD-RW • Compatible formats: MPEG-1 Audio Layer 3 (MP3), Windows Media Audio (WMA) 9 En DVR550HXS_WV_EN.book 10 ページ 2007年3月30日 金曜日 午前10時48分 01 Before you start • Sampling rates: 32 kHz, 44.1 kHz or 48 kHz • Bit-rates: Any (128 kbps or higher recommended) • Variable bit-rate (VBR) MP3 playback: Yes • VBR WMA playback: No • WMA encoder compatibility: Windows Media Codec 8 (files encoded using Windows Media Codec 9 may be playable but some parts of the specification are not supported; specifically, Pro, Lossless, Voice and VBR) • DRM (Digital Rights Management)1 file playback: No • File extensions: .mp3, .wma (these must be used for the recorder to recognize MP3 and WMA files – do not use for other file types) • File structure: Up to 99 folders/999 files (if these limits are exceeded, only files and folders up to these limits are playable) WMA (Windows Media™ Audio) compatibility This recorder can playback Windows Media Audio content. WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows Media Player for Windows XP, Windows Media Player 9 or Windows Media Player 10 series. DivX video compatibility DivX is a compressed digital video format created by the DivX® video codec from DivX, Inc. This recorder can play DivX video files burned on CD-R/-RW/-ROM discs. Keeping the same terminology as DVD-Video, individual DivX video files are called “Titles”. When naming files/titles on a CD-R/-RW disc prior to burning, keep in mind that by default they will be played in alphabetical order. • Official DivX® Certified product. • Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files. • File extensions: .avi and .divx (these must be used for the recorder to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this recorder. • File structure: Up to 99 folders or 999 files. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. Windows Media is a trademark of Microsoft Corporation. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. 10 En Note 1 DRM (digital rights management) copy protection is a technology designed to prevent unauthorized copying by restricting playback, etc. of compressed audio files on devices other than the PC (or other recording equipment) used to record it. For detailed information, please see the instruction manuals or help files that came with your PC and/or software. DVR550HXS_WV_EN.book 11 ページ 2007年3月30日 金曜日 午前10時48分 Before you start DivX® VOD content DivX In order to play DivX VOD (video on demand) content on this recorder, you first need to register the recorder with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider. Some DivX VOD content may only be playable a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays), or stopping. If you load a disc that contains expired DivX VOD content (for example, content that has zero remaining plays), the message Rental Expired is displayed. If your DivX VOD content allows an unlimited number of plays, then you may load the disc into your recorder and play the content as often as you like, and no message will be displayed. 01 • File extensions: .jpg, .jpeg, .jpe, .jif, .jfif (must be used for the recorder to recognize JPEG files – do not use for other file types) • File structure: The recorder can load up to 99 folders/999 files at one time (if there are more files/folders that this on the disc then more can be reloaded) PC-created disc compatibility Discs recorded using a personal computer may not be playable in this unit due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information. Discs recorded in packet write mode (UDF format) are not compatible with this recorder. Check the DVD-R/-RW or CD-R/-RW software disc boxes for additional compatibility information. Dolby Digital Important • DivX VOD content is protected by a DRM system. This restricts playback of content to specific, registered devices. • If you load a disc that contains DivX VOD content not authorized for this recorder, the message Authorization Error is displayed and the content will not play. • Resetting the recorder (as described in Resetting the recorder on page 152) will not cause you to lose your registration code. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. DTS JPEG file compatibility • Compatible formats: Baseline JPEG and EXIF 2.2* still image files *File format used by digital still cameras • Sampling ratio: 4:4:4, 4:2:2, 4:2:0 • Horizontal resolution: 160 to 5120 pixels • Vertical resolution: 120 to 3840 pixels • Progressive JPEG compatible: No “DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc. 11 En DVR550HXS_WV_EN.book 12 ページ 2007年3月30日 金曜日 午前10時48分 01 Before you start DVB The Digital Video Broadcasting Project, or DVB for short, is a set of open standards for digital broadcasting, covering terrestrial, cable and satellite broadcasts. Based around the MPEG-2 coding system, these open standards ensure that compliant systems are able to work together, independent of manufacturer. DVB is extremely flexible, being able to deliver virtually any kind of digital content to the home, including High Definition and Standard Definition TV, broadband multimedia content and interactive services. DVB is a registered trademark of the DVB Project. About the internal hard disk drive The internal hard disk drive (HDD) is a fragile piece of equipment. When used without the proper care or in the wrong conditions, it is possible that recorded contents may be damaged or lost entirely, in some cases making even normal playback or recording impossible. Please understand that in the event of repair or replacement of the HDD or related components, all your HDD recordings will be lost. Please use the recorder following the guidelines below to protect against possible HDD failure. The HDD should not be regarded as a place to store recordings permanently. We recommend that you back up your important recordings onto DVD discs in order to protect against accidental loss. Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from HDD failure. 12 En • Do not move the recorder while it is on (this includes during EPG download when the display shows EPG). • Install and use the recorder on a stable, level surface. • Do not block the rear vent/cooling fan. • Do not use the recorder in excessively hot or humid places, or in places that may be subject to sudden changes in temperature. Sudden changes in temperature can cause condensation to form inside the recorder. This can be a cause of HDD failure. • While the recorder is switched on (including during EPG download when the display shows EPG), do not unplug from the wall socket or switch the electricity off from the breaker switch. • Do not move the recorder immediately after switching it off. If you need to move the recorder, please follow the steps below: 1 After the message POWER OFF is shown on the front panel display, wait at least two minutes. 2 Unplug from the wall socket. 3 Move the recorder. • If there’s a power failure while the recorder is on there is a chance that some data on the HDD will be lost. • The HDD is very delicate. If used over time in an improper manner or in an unsuitable environment, it is possible that the HDD will fail. Signs of problems include playback unexpectedly freezing and noticeable block noise (mosaic) in the picture. However, sometimes there will be no warning signs of HDD failure. If the HDD fails, no playback of recorded material will be possible. In this case it will be necessary to replace the HDD unit. DVR550HXS_WV_EN.book 13 ページ 2007年3月30日 金曜日 午前10時48分 Before you start Optimizing HDD performance As you record and edit material on the HDD, the data on the disk becomes fragmented, eventually affecting the recorder’s performance. Before this happens, the recorder will warn you that it is time to optimize the HDD (which you can do from the Disc Setup menu; see Optimize HDD on page 117). 01 Symbols used in this manual The following icons are provided to help you quickly identify which instructions you need for which kind of disc. HDD HDD DVD Any type of DVD disc (recordable or playback only), finalized or not. DVD-Video Commercially produced DVD, finalized Video mode DVD-R/-RW. DVD (Video) Video mode DVD-R/-RW (unfinalized) DVD (VR) VR mode DVD-R/-RW DVD+R DVD+R DVD+RW DVD+RW DVD-RAM DVD-RAM CD Audio CD Video CD Video CD Super VCD Super VCD WMA/MP3 WMA or MP3 files DivX DivX files ALL All of the above 13 En 02 Connecting _Up_EU.fm 14 ページ 2007年3月30日 金曜日 午後6時52分 02 Connections Chapter 2 Connections Rear panel connections 1 2 ANTENNA R IN AUDIO L 3 4 VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN PB Y PR COMPONENT VIDEO OUT 6 AV 1 (RGB) – TV 7 8 CONTROL 9 10 1 ANTENNA IN (RF IN)/OUT Connect your TV antenna to the ANTENNA IN (RF IN) jack. The signal is passed through to the ANTENNA OUT jack for connection to your TV. 2 INPUT 3 Stereo analog audio, video and S-video inputs for connection to a VCR or other source component. 3 AV2 (INPUT 1/DECODER) AV connector Audio/video input/output SCART-type AV connector for connecting to a VCR, or other equipment with a SCART connector. The input accepts video, S-video and RGB. See AV2/L1 In on page 127 for how to set this up. En OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT 14 5 5V 30 mA 11 12 8 AV1 (RGB)-TV AV connector Audio/video output SCART-type AV connector for connecting to a TV or other equipment with a SCART connector. The video output is switchable between video, S-video and RGB. See AV1 Out on page 126 for how to set this up. 9 G-LINK™ Use to connect the supplied G-LINK™ cable to enable GUIDE Plus+® to control an external satellite receiver, etc. 4 HDMI OUT HDMI output for high quality digital audio and video. 10 CONTROL IN Use to control this recorder from the remote sensor of another Pioneer component with a CONTROL OUT terminal and bearing the Pioneer mark. Connect the CONTROL OUT of the other component to the CONTROL IN of this recorder using a miniplug cord. 5 DIGITAL AUDIO OUT (COAXIAL) Coaxial digital audio jack for connecting to an AV amplifier/receiver, Dolby Digital/DTS/ MPEG decoder or other equipment with a digital input. 11 ANTENNA (DIGITAL) IN/OUT Connect your DTV antenna to the ANTENNA (DIGITAL) IN jack. The signal is passed through to the ANTENNA (DIGITAL) OUT jack for connection to your TV. 6 COMPONENT VIDEO OUT A high-quality video output for connecting to a TV or monitor with a component video input. 12 AC IN – Power inlet 7 OUTPUT Stereo analog audio, video and S-video outputs for connection to a TV or AV amplifier/receiver. DVR550HXS_WV_EN.book 15 ページ 2007年3月30日 金曜日 午前10時48分 Connections 02 Front panel connections Antenna wall outlet or indoor antenna Antenna wall outlet On the front panel there is a flip-down cover that hides more connections. ANTENNA (DIGITAL) IN ANTENNA IN (RF IN) Left side: ANTENNA R IN DV IN AUDIO L VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT CONTROL AV 1 (RGB) – TV 5V 30 mA ANTENNA OUT 13 13 DV IN A DV input i.LINK connector, suitable for connecting a DV camcorder. To antenna input Right side: TV INPUT 2 S-VIDEO VIDEO L(MONO) R AUDIO Important 14 14 INPUT 2 Audio/video input (stereo analog audio; composite and S-video), especially suitable for camcorders, game consoles, portable audio, etc. Connecting a TV antenna This recorder has separate built-in TV tuners for terrestrial digital and terrestrial analog TV broadcasts. If you are ready to receive digital broadcasts now, use one of the supplied RF antenna cables connect an antenna (either an antenna wall outlet or indoor antenna) to the ANTENNA (DIGITAL) IN connector. Next, connect the other supplied RF antenna cable to connect an antenna to the ANTENNA IN (RF IN) connector. Lastly, connect the recorder to your TV from the ANTENNA OUT connector. • If there is only one antenna outlet on your wall, use a divider. • Do not connect a component that can receive analog signals to the ANTENNA (DIGITAL) OUT. If your area is not yet served with terrestrial digital services, connect your antenna’s output to the ANTENNA IN (RF IN) connector using one of the supplied RF antenna cables. Next, connect the recorder to your TV from the ANTENNA OUT connector. Antenna wall outlet ANTENNA IN (RF IN) ANTENNA R IN AUDIO L VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA ANTENNA OUT To antenna input TV We strongly recommend using an outdoor antenna for better broadcast picture quality. If, however, you want to use an indoor antenna, use one with a signal amplifier rated at 5 V, 30 mA and set Aerial Power to On in the Initial Setup menu (see page 124). 15 En DVR550HXS_WV_EN.book 16 ページ 2007年3月30日 金曜日 午前10時48分 02 Connections Easy connections The setup described below is a basic setup that allows you to watch and record TV programmes, and play discs. Other types of connections are explained starting on the following page. Important • These connections use SCART cables (not supplied). If your TV (or VCR) does not have a SCART connection, and you want to use the supplied audio/video cable, see Using the supplied audio/video cable below. • The AV1 (RGB)-TV AV connector can output ordinary (composite), S-video or RGB video, plus stereo analog audio. The AV2 (INPUT 1/DECODER) connector accepts ordinary, S-video and RGB video input, as well as stereo analog audio. See AV1 Out on page 126 and AV2/L1 In on page 127 for how to setup these options. • Before making or changing any rear panel connections, make sure that all components are switched off and unplugged from the wall outlet. 1 Connect your TV antenna to the recorder and TV. See Connecting a TV antenna on page 15 for details. • If you want to incorporate a VCR in your setup, connect it before the recorder (i.e., between the antenna wall outlet and the antenna input on the recorder). 2 Use a SCART cable (not supplied) to connect the AV1 (RGB)-TV AV connector on this recorder to the SCART AV connector on your TV. 3 Use another SCART cable to connect the AV2 (INPUT 1/DECODER) AV connector to a SCART AV connector on your VCR. Tip • This recorder has a ‘through’ function which allows you to record a TV programme from the built-in TV tuner in this recorder while watching a video playing on your VCR (To use this feature when the recorder is in standby, Power Save must be set to Off — see Power Save on page 122). Using other types of audio/ video output 1 Antenna/cable TV wall outlet To antenna input From antenna output VCR From SCART AV connector To recorder's antenna input Using the supplied audio/video cable 3 AV2 (INPUT 1/ DECODER) ANTENNA R IN AUDIO L If you can’t use the SCART AV connector to connect your TV to this recorder, there are standard audio/video output jacks, as well as an S-video and component video output. VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL To audio input OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA AV1 (RGB) - TV To video input 2 TV AUDIO OUTPUT To SCART AV connector VIDEO OUTPUT 2 ANTENNA R IN AUDIO L VIDEO En TV DIGITAL AUDIO OUT INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN OUTPUT PB Y PR COMPONENT VIDEO OUT 16 1 S-VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA HDMI OUT COAXIAL DVR550HXS_WV_EN.book 17 ページ 2007年3月30日 金曜日 午前10時48分 Connections 02 1 Connect the VIDEO OUTPUT jack to a video input on your TV. Use the yellow jack of the supplied audio/ video cable for the video connection. 2 Connect the AUDIO OUTPUT jacks to the corresponding audio inputs on your TV. Use the red and white jacks of the supplied audio/video cable for the audio connection. Make sure you match up the left and right outputs with their corresponding inputs for correct stereo sound. Using the S-video or component video output 2 Connect the AUDIO OUTPUT jacks to the corresponding audio inputs on your TV. You can use the supplied audio/video cable, leaving the yellow video plug disconnected. Make sure you match up the left and right outputs with their corresponding inputs for correct stereo sound. Connecting to a cable box or satellite receiver If you have a cable box or satellite receiver with a built-in decoder, connect it to this recorder and your TV as shown on this page.1 If you are using a separate decoder box for your cable/satellite TV, set up following the instructions on the next page. To component video input To video input To audio input Using the setup on this page you can: 2 TV 1 S-VIDEO OUTPUT AUDIO OUTPUT ANTENNA R IN AUDIO L VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA COMPONENT VIDEO OUT 1 Connect the S-video or component video output to a similar input on your TV. For an S-video connection, use an S-video cable (not supplied) to connect the S-VIDEO OUTPUT jack to an S-video input on your TV. For a component video connection, use a component video cable (not supplied) to connect the COMPONENT VIDEO OUT jacks to a component video input on your TV. See also Component Video Out on page 126 for how to set up the component video output for use with a progressive scancompatible TV. • Record any channel by selecting it on the cable box, satellite receiver or digital terrestrial receiver. • Change channels and set timer recordings on the external receiver using the GUIDE Plus+® system (via the G-LINK™ cable, and after setting up). Important • Do not connect this recorder to your TV ‘through’ your VCR, satellite receiver or other component. Always connect each component directly to your TV or AV amplifier/receiver. • When using the GUIDE Plus+ system to make a timer recording from an external receiver, make sure that the external receiver is switched on. Note 1 The diagram shows SCART video connections, but you can alternatively use any of the other audio/video connections. 17 En DVR550HXS_WV_EN.book 18 ページ 2007年3月30日 金曜日 午前10時48分 02 Connections 1 Satellite dish/ antenna/cable TV wall outlet To antenna input From antenna output Cable/Satellite receiver Position the IR transmitter end of the G-LINK™ cable so that the IR receiver on your cable/satellite receiver will pick up the control signals (see diagram). O From SCART AV connector S-VIDEO INPUT 3 AV 2 (INPUT 1/DECODER) G-LINK IN OUTPUT AV 1 (RGB) – TV To recorder's antenna input ANTENNA R IN AUDIO L AV2 (INPUT 1/ DECODER) 4 G-LINK cable VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA AV1 (RGB) - TV 2 To SCART AV connector TV 1 Connect RF antenna cables as shown. See Connecting a TV antenna on page 15 for more on RF antenna connections, including from this recorder to your TV. 2 Use a SCART cable (not supplied) to connect the AV1 (RGB)-TV AV connector to a SCART AV connector on your TV. This enables you to watch discs. 3 Use another SCART cable to connect the AV2 (INPUT 1/DECODER) AV connector to a SCART AV connector on your cable box/satellite receiver. This enables you to record scrambled TV channels. 4 Plug the supplied G-LINK™ cable to the G-LINK™ jack. This enables you to control the tuner in the external receiver using the GUIDE Plus+® system. 18 En CONTROL 3 See the manual that came with your cable/ satellite receiver if you’re not sure where the IR receiver is on the front panel. Alternatively, experiment with the remote control, operating it from very close range until you find the place where the receiver responds. Tip • This recorder has a ‘through’ function which allows you to record a TV programme from the built-in TV tuner in this recorder while watching a video playing on your VCR (To use this feature when the recorder is in standby, Power Save must be set to Off — see Power Save on page 122). Connecting an external decoder box (1) If you have an external, dedicated decoder box for your satellite or cable TV system, use the setup described on this page. See above for how to connect the G-LINK™ cable. Important • Do not connect your decoder box directly to this recorder. • Information from the decoder (for example, relating to pay TV services), is only viewable when this recorder is off (in standby). • For timer recording to work properly on this recorder, the VCR/satellite receiver/ cable box must also be switched on during recording. DVR550HXS_WV_EN.book 19 ページ 2007年3月30日 金曜日 午前10時48分 Connections 02 Connecting an external decoder box (2) • It is not possible to watch one TV programme and record another using this setup. If you only have a decoder, connect it to this recorder and your TV as shown on this page.1 SCART AV connection 1 Antenna/cable TV wall outlet 2 To antenna input Using the setup on this page you can: VCR/Satellite receiver /Cable box From SCART AV connector • Record scrambled channels received using the recorder’s built-in analog TV tuner. Decoder 3 AV2 (INPUT 1/ DECODER) ANTENNA R IN AUDIO L Important VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA AV1 (RGB) - TV 4 • Do not connect this recorder ‘through’ your VCR, satellite receiver or cable box. Always connect each component directly to your TV or AV amplifier/ receiver. Decoder From SCART AV connector To SCART AV connector 3 TV 1 Connect the cable from the antenna/ cable TV outlet to the antenna input on your VCR/satellite receiver/cable box. 2 Use a SCART cable (not supplied) to connect your decoder to your VCR/ satellite receiver/cable box. See the manual for your decoder box for more detailed instructions. 3 Use a SCART cable to connect your VCR/satellite receiver/cable box to the AV2 (INPUT 1/DECODER) AV connector on this recorder. 4 Use a SCART cable to connect the AV1 (RGB)-TV AV connector to your TV. AV2 (INPUT 1/ DECODER) ANTENNA R IN AUDIO L VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA AV1 (RGB) - TV 2 To SCART AV connector TV 1 Connect your TV antenna to the recorder and TV. See Connecting a TV antenna on page 15 for details. Note 1 In order to use this setup, you will need to make the following settings from the Initial Setup menu: • Set the AV2/L1 In setting to Decoder from the Initial Setup menu (see AV2/L1 In on page 127). • From the Manual CH Setting screen, set the Decoder setting for the scrambled channels to On (see Manual CH Setting on page 125). 19 En DVR550HXS_WV_EN.book 20 ページ 2007年3月30日 金曜日 午前10時48分 02 Connections 2 Use a SCART cable (not supplied) to connect the AV1 (RGB)-TV AV connector to a SCART AV connector on your TV. This enables you to watch discs. 3 Use another SCART cable to connect the AV2 (INPUT 1/DECODER) AV connector to a SCART AV connector on your decoder box. This enables you to record scrambled TV channels. ANTENNA R IN AUDIO L VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 G-LINK PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV AUDIO/VIDEO OUTPUT In addition to a digital connection, we recommend also connecting using the stereo analog connection for compatibility with all discs and sources. You’ll probably also want to connect a video output to your AV amplifier/receiver. Use the ordinary video output (as shown here), or the S-video output. Important • Noise may be output from your speakers if the recorder is not set up to work with your AV amplifier/receiver properly (see Audio Out on page 128). • When watching D.TV only linear PCM audio is output from the coaxial digital out jack. • Do not connect this recorder to your TV ‘through’ your VCR using A/V cables. Always connect it directly to your TV. 20 En IN CONTROL OUT ANTENNA(DIGITAL) IN 5V HDMI OUT COAXIAL 30 mA DIGITAL AUDIO OUT 3 2 To audio/video input AV amp/ receiver To digital input From video output 4 Connecting to an AV amplifier/receiver To enjoy multichannel surround sound you need to connect this recorder to an AV amplifier/receiver using the digital coaxial output. AC IN AV 2 (INPUT 1/DECODER) OUTPUT OUT To video input TV 1 Connect your TV antenna to the recorder and TV. See Connecting a TV antenna on page 15 for details. This enables you to watch and record TV channels. 2 Connect the DIGITAL AUDIO OUT (COAXIAL) jack on this recorder to a coaxial digital input on your AV amplifier/receiver. This enables you to listen to multichannel surround sound. 3 Connect the analog AUDIO OUTPUT and VIDEO OUTPUT jacks on this recorder to an analog audio and video input on your AV amplifier/receiver. 4 Connect the AV amplifier/receiver’s video output to a video input on your TV. DVR550HXS_WV_EN.book 21 ページ 2007年3月30日 金曜日 午前10時48分 Connections 02 Connecting using HDMI page 133 for more information. Note that the HDMI settings remain in effect until you change them, or connect a new HDMI component. If you have an HDMI or DVI-equipped1 monitor or display2, you can connect it to this recorder using an HDMI cable (not supplied). Important The HDMI connector outputs uncompressed digital video, as well as almost every kind of digital audio. 1 Use an HDMI cable to connect the HDMI OUT connector on this recorder to an HDMI connector on an HDMIcompatible display. HDMI To HDMI IN input HDMI-compatible display HDMI OUT ANTENNA R IN AUDIO L VIDEO DIGITAL AUDIO OUT S-VIDEO INPUT 3 AC IN AV 2 (INPUT 1/DECODER) G-LINK IN OUT ANTENNA(DIGITAL) IN HDMI OUT COAXIAL OUTPUT OUT PB Y PR COMPONENT VIDEO OUT AV 1 (RGB) – TV CONTROL 5V 30 mA • The arrow on the cable connector body should be face down for correct alignment with the connector on the recorder. When connected to an HDMI component or HDCP-compatible DVI component, the HDMI indicator lights. HDMI setup is generally automatic. There are however settings you can change if you need to. See HDMI Output (only available when an HDMI device is connected) on • An HDMI connection can only be made with DVI-equipped components compatible with both DVI and Highbandwidth Digital Content Protection (HDCP). If you choose to connect to a DVI connector, you will need a DVI to HDMI adaptor cable. A DVI to HDCP connection, however, does not support audio. Consult your local audio dealer for more information. • The HDMI connection is compatible with 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 16 bit/ 20 bit/24 bit 2-channel linear PCM signals, as well as Dolby Digital, DTS and MPEG audio bitstream. • If your connected component is only compatible with Linear PCM, the signal is output as Linear PCM (DTS audio is not output). • If you have connected to a Pioneer plasma display, please select the HDMI setup on the display (refer to the supplied manual for more on this). About HDMI HDMI (High-Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players and recorders, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of Highbandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays. Note 1 Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers. 2 The pixel resolution of this recorder’s HDMI video output is (according to TV format): NTSC (720 x 480i/p, 1280 x 720p, 1920 x 1080i/p) and PAL (720 x 576i/p, 1280 x 720p, 1920 x 1080i/p). If your display is not compatible with these resolutions the picture may not be correctly reproduced. 21 En DVR550HXS_WV_EN.book 22 ページ 2007年3月30日 金曜日 午前10時48分 02 Connections HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surroundsound audio. HDMI features include uncompressed digital video, a bandwidth of up to five gigabits per second (Dual Link), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. Connecting other AV sources D.TV PLTV DivX You can connect a DV camcorder or DVD recorder with DV output to the front panel DV IN jack. OPEN/CLOSE HDD/DVD A.TV COPY • You can use standard video or S-video cables for the video connection. • The front panel connections make convenient connections for a camcorder input. • When connecting an external AV source that only supports monaural sound, only insert the left (white) audio jack to this device. Doing so will allow the same sound track to be recorded to both channels. You must connect to the INPUT 2 jack on the front panel. Connecting a DV camcorder Connecting a VCR or analog camcorder STANDBY/ON This enables you to record tapes from your VCR or camcorder. HDMI COMMON INTERFACE DV IN INPUT 2 CH AUDIO/VIDEO OUTPUT (Rear panel) STOP REC ONE TOUCH COPY INPUT SELECT A.TV/D.TV S-VIDEO VIDEO L(MONO) R AUDIO REC Important AUDIO/VIDEO INPUT (Front panel) 1 • This jack is for connection to DV equipment only. It is not compatible with digital satellite receivers or D-VHS video decks. 2 OPEN/CLOSE HDD/DVD A.TV STANDBY/ON D.TV PLTV DivX COPY HDMI COMMON INTERFACE DV IN INPUT 2 CH To audio/video input Analog camcorder From audio/video output STOP REC ONE TOUCH COPY INPUT SELECT A.TV/D.TV S-VIDEO VIDEO L(MONO) R AUDIO REC DV IN VCR 1 Connect a set of audio and video inputs of your VCR or camcorder to a set of outputs on this recorder. This enables you to record from this recorder to your VCR or camcorder. • You can use standard video or S-video cables for the video connection. • Alternatively, you can use the AV2 (INPUT 1/DECODER) SCART connector for audio/video input and output with just one SCART cable. 2 Connect a set of audio and video outputs of your VCR or camcorder to a set of inputs on this recorder. 22 En From DV output DV camcorder • Use a DV cable (not supplied) to connect the DV jack of your DV camcorder to the front panel DV IN jack of this recorder. Plugging in After checking all the connections, plug in the recorder. • Use the supplied power cable to connect this recorder to a power outlet. DVR550HXS_WV_EN.book 23 ページ 2007年3月30日 金曜日 午前10時48分 Controls and displays 03 Chapter 3 Controls and displays Front panel 1 2 3 4 A.TV D.TV PLTV DivX COPY DV IN 1 9 10 A.TV indicator Lights when analog TV is selected. D.TV indicator Lights when digital TV is selected. PLTV indicator Lights during recording started using the Pause Live TV feature. DivX indicator Lights during DivX playback. COPY indicator Lights when copying is underway. 2 HDD/DVD Press to switch between HDD and DVD for recording and playback. 3 Disc tray 7 HDMI COMMON INTERFACE INPUT 2 CH 8 6 OPEN/CLOSE HDD/DVD STANDBY/ON 5 STOP REC ONE TOUCH COPY INPUT SELECT A.TV/D.TV 11 S-VIDEO VIDEO L(MONO) R 9 AUDIO REC 12 4 HDD/DVD indicator Indicator lights blue when the hard disk (HDD) is selected; orange when the DVD drive is selected. 5 OPEN/CLOSE Press to open/close the disc tray. 6 HDMI indicator Lights when this recorder is connected to HDMI (HDCP) compatible component. 7 Front panel display and IR remote sensor See Display on page 25 for details. 8 STANDBY/ON Press to switch the recorder on/into standby. 9 Front panel inputs See Front panel connections on page 15 for more information on these. 10 COMMON INTERFACE slot Slot for CA module and smart card used to decode scrambled D.TV channels. See Common Interface on page 24. 23 En DVR550HXS_WV_EN.book 24 ページ 2007年3月30日 金曜日 午前10時48分 03 Controls and displays 11 Press to start or restart playback. Press to stop playback. STOP REC Press to stop recording. ONE TOUCH COPY Press to start One Touch Copy of the currently playing title to DVD or the HDD. CH +/– Use to change channels, skip chapters/ tracks, etc. INPUT SELECT Press to change the input used for recording. A.TV/D.TV Switches between analog TV antenna input and digital TV antenna input. The A.TV and D.TV indicators show which is selected. Common Interface To receive scrambled D.TV channels you will need a CA module and smart card provided by your service provider. Different CA modules support different encryption systems. This recorder is designed to work with modules that support the DVB standard. Contact your service provider to obtain the right kind of CA module. Note that neither CA modules nor smart cards are supplied or sold by Pioneer. Inserting a CA module The Common Interface card slot is located on the front panel of the recorder. • Insert the CA module into the card slot as far as it will go. 12 REC Press to start recording. Press repeatedly to set the recording time in 30 minute blocks. The Common Interface card slot accepts Type I and Type II PC Cards (PCMCIA cards). 24 En DVR550HXS_WV_EN.book 25 ページ 2007年3月30日 金曜日 午前10時48分 Controls and displays 03 Display 1 2 3 4 L R 8 7 P 6 1 Lights during playback; blinks when playback is paused. LP/SLP Lights when the recording mode is set to LP (long play) or SLP (super-long play). 2 Lights when copying. EP/SEP Lights when the recording mode is set to EP (extended play) or SEP (superextended play). 3 Lights during recording; blinks when recording is paused. 4 5 (page 67) Lights when a timer recording has been set. (Indicator blinks if the timer has been set to DVD but there isn’t a recordable disc loaded, or the timer has been set to record to the HDD but the HDD is not recordable.) NTSC Lights when the video output signal format is NTSC. MN Lights when the recording mode is set to MN (manual recording level) mode. 6 Character display 7 R/RW Lights when a recordable DVD-R or DVD-RW disc is loaded. 8 PL (page 88) Lights when a VR mode disc is loaded and the recorder is in Play List mode. (page 127) Indicates which channels of a bilingual broadcast are recorded. 2 3 (page 134) Shows the remote control mode (if nothing is displayed, the remote control mode is 1). (page 126) Lights when the component video output is set to progressive scan. V Lights when an unfinalized Video mode disc is loaded. VPS/PDC (page 67) Lights when receiving a VPS/PDC broadcast during a VPS/PDC-enabled timer recording. 5 Recording quality indicators (page 63) XP Lights when the recording mode is set to XP (high quality). SP Lights when the recording mode is set to SP (standard play). 25 En DVR550HXS_WV_EN.book 26 ページ 2007年3月30日 金曜日 午前10時48分 Controls and displays 03 (page 78) Press to start reverse or forward scanning. Press again to change the speed. Remote control HDD/DVD STANDBY/ON 1 12 PREV STOP NEXT STOP REC INFO PAUSE 2 / / (page 78) While paused, press and hold to start slow-motion playback. Press repeatedly to change the playback speed. PLAY HELP REC 3 13 14 While paused, press to advance a single frame in either direction. TOP MENU 4 5 DISC NAVIGATOR HOME MENU GUIDE CHANNEL + CM BACK 15 16 When GUIDE Plus+® is displayed, use to display the previous/next day. ENTER – CHANNEL CM SKIP RETURN/EXIT A.TV/D.TV 6 17 7 8 9 18 PAUSE LIVE TV TIMER REC AUDIO SUBTITLE REC MODE ONE TOUCH COPY 19 ABC ANGLE INPUT SELECT DEF MENU DISPLAY GHI JKL MNO PQRS TUV WXYZ 10 CLEAR CLEAR + TEXT TV CONTROL 11 20 21 22 23 INPUT SELECT CHANNEL VOLUME TV/DVD 24 OPEN 1 STANDBY/ON Press to switch the recorder on/into standby. 2 PLAY (page 73) Press to start playback. PAUSE Press to pause playback or recording. 26 En 3 HELP Press for help on how to use the current GUI screen. 4 DISC NAVIGATOR (page 77, 88)/ TOP MENU (page 74) Press to display the Disc Navigator screen, or the top menu if a DVD-Video or finalized DVD-R/-RW (Video) disc is loaded. 5 /// and ENTER (Smart Jog) Used to navigate all on-screen displays. Rotate the Smart Jog to move the cursor up or down. Press ENTER to select the currently highlighted option. When using the Smart Jog, turn it lighty to avoid pressing down on the cursor keys. While watching D.TV press ENTER to display the Channel List screen. Rotate the Smart Jog when playback is paused to do a frame-by-frame search back/forward. STOP (page 73) Press to stop playback. CM BACK (commercial back) Turn the Smart Jog counter-clockwise during playback to skip progressively backward through the video playing. PREV NEXT Press to skip to the previous or next title/ chapter/track/folder; or to display the previous or next menu page. CM SKIP (commercial skip) Turn the Smart Jog clockwise during playback to skip progressively forward through the video playing. When GUIDE Plus+® is displayed, use to display the previous/next page. CHANNEL +/– (page 60) While stopped, turn the Smart Jog to change the channel of the built-in TV tuner. DVR550HXS_WV_EN.book 27 ページ 2007年3月30日 金曜日 午前10時48分 Controls and displays 6 A.TV/D.TV Press to switch between analog TV antenna input and digital TV antenna input. The A.TV and D.TV indicators on the front panel show which is selected. 7 Colour buttons (RED, GREEN, YELLOW, BLUE) Use when an EPG screen is displayed or when tuned to a data channel of a digital broadcast. The function of each button will be described on-screen, and changes depending on the screen being displayed. 8 PAUSE LIVE TV (page 65) Press to start recording the current TV channel, but with playback paused, effectively pausing the broadcast. 9 AUDIO (page 61, 62, 81, 82) Press to change the audio language or channel. (When the recorder is stopped, press to change the tuner audio.) SUBTITLE (page 81) Press to display/change the subtitles included in multilingual DVD-Video discs. While watching D.TV, press to change the D.TV subtitles. ANGLE (page 82) Press to switch camera angles on discs with multi-angle scenes. 10 Number buttons, CLEAR, + Use the number buttons for track/chapter/ title selection; channel selection, and so on. The same buttons can also be used to enter names for titles, discs and so on. 03 13 Recording controls (page 63) REC Press to start recording. Press repeatedly to set the recording time in blocks of 30 mins. When the red action button is visible in a GUIDE Plus+® screen, use for OneButton-Record. STOP REC Press to stop recording. 14 INFO While watching D.TV, press to display the information banner. Press to see additional information for the highlighted item in the EPG. 15 GUIDE Press to display the EPG screen; press again to exit. 16 HOME MENU Press to display the Home Menu, from which you can navigate all the functions of the recorder. 17 RETURN/EXIT Press to go back one level in the on-screen menu or display. Also press to exit the MHEG application. 18 TIMER REC (page 37, 67) Press to set a timer recording. REC MODE (page 63) Press repeatedly to change the recording mode (picture quality). Use CLEAR to clear an entry and start again. 19 ONE TOUCH COPY (page 98) Press to start One Touch Copy of the currently playing title to DVD or the HDD. 11 TV CONTROL buttons (page 138) After setting up, use these controls to control your TV. 20 INPUT SELECT (page 69) Press to change the input to use for recording. 12 HDD/DVD (page 63) Press to select the hard disk (HDD) or DVD for recording and playback. 21 MENU (page 74) Press to display the disc menu if a DVDVideo, finalized DVD-R/-RW (Video mode) or finalized DVD+R/+RW disc is loaded. When in the GUIDE Plus+® system, use to jump directly to the Menu bar. 27 En DVR550HXS_WV_EN.book 28 ページ 2007年3月30日 金曜日 午前10時48分 03 Controls and displays 22 DISPLAY (page 83) Displays/changes the on-screen information displays. 23 TEXT (page 61, 62) Press to display Teletext information (in European countries except the UK) or to start the MHEG application display (UK only) if available during digital broadcasts. 24 TV/DVD Press to switch between ‘TV mode’, in which you get the picture and sound from the TV’s tuner, and ‘DVD mode’, in which you get picture and sound from the recorder’s tuner (or an external input). 28 En DVR550HXS_WV_EN.book 29 ページ 2007年3月30日 金曜日 午前10時48分 Getting started 04 Chapter 4 Getting started Switching on and setting up 4 Start the Setup Navigator. ENTER When you switch the recorder on for the first time, you can make several basic settings using the Setup Navigator feature. This takes you through setting the clock, the internal TV tuner and the video output. k Setting t Line Complete System this setup before you start using your recorder. er Save Start P p Navigator Cancel Please use the Initial Setup if you want to make more detailed settings. If you’re using the recorder for the first time, we strongly recommend you use the Setup Navigator before starting to use the recorder. • If you don’t want to use the Setup Navigator, press to select Cancel, then press ENTER to exit the Setup Navigator. 1 Switch on your TV and set the video input to this recorder. STANDBY/ON ENTER Switch on the recorder. 2 When you switch on for the first time, your TV should display the Setup Navigator screen (If the Setup Navigator doesn’t appear, you can also access it from the Initial Setup menu; see page 122). • If this recorder is connected to a compatible TV using a fully-wired 21-pin SCART cable, the recorder will take a few seconds to download country, TV screen size and language information. (Check the manual that came with your TV for compatibility information.) ENTER 3 Choose a language (then press ENTER). 5 Select an Aerial Power 1 setting for the built-in digital tuner. • On: power is always supplied to the connected aerial, whether the recorder is on or in standby. • Auto: power is only supplied when this recorder is on. • Off: power is never supplied to the aerial. 6 ENTER Select ‘Auto Scan’ to start scanning for D.TV channels. • Select Do not set if you want to skip D.TV channel setup (because they have already been set up, for example), then skip to step 8 below. Initial Setup ENTER Basic Language Clock Setting Tuner Input Line System Video In/ O ut Pow er Save Audio In HELPp Audio O ut Setup N avig ator Language Re cording Playback 7 Select your country. The recorder starts scanning for new channels. After the scan is complete the recorder will let you know how many new channels were found. • The country setting will apply to both the digital and analog TV tuners. Note 1 If the recorder does not accept the On or Auto setting (the highlight jumps back to Off), check that the antenna is properly connected and that it is not shorted, then try making the setting again. 29 En DVR550HXS_WV_EN.book 30 ページ 2007年3月30日 金曜日 午前10時48分 Getting started 04 • The clock will also be set automatically here if D.TV channels are found. • If no new channels were found a message appears asking if you want to scan again. Check the aerial connection before selecting Yes. (If you select No, skip to step 8 below.) • Downloading channels from your TV Use the Download from TV option to download all the channels that your TV is tuned to. Downloading Pr 5 32/99 Cancel ENTER 8 Select the analog TV (A.TV) Auto Channel Setting (‘Auto Scan’ or ‘Download from TV’), or ‘Do not set’. k Setting Auto Channel Setting Line System er Save English Auto Scan P Download from TV ENTER 9 Select ‘Auto’ for automatic time setting, or ‘Manual’ to set the clock manually. If the clock was already set from a D.TV channel in step 6, this step is skipped. k Setting Clock Setting p Navigator Do not Set Line System • Select Do not set if you want to skip channel setup (because they have already been set up, for example). • You can only use the Download from TV feature if this recorder is connected to your TV using a fully-wired 21-pin SCART cable via the AV1 (RGB)-TV connector, and if your TV supports this function (check your TV’s instruction manual for more details). ENTER • Select your country. k Setting Country Selection Auto P Manual Auto clock setting Some TV channels broadcast time signals together with the programme. This recorder can use these signals to set the clock automatically. Set ‘Clock Set CH‘ to the channel preset number that broadcasts a time signal, then move the cursor down to ‘Start’ and press ENTER. k Setting Auto Clock Setting Line System Date er Save Time P –– / –– / –––– –– : –– p Navigator Clock Set CH t Line System er Save Country • er Save Pr 1 Start UK P • Auto-tuning channels The Auto Scan option automatically scans and sets the channel presets. Tuning 32/99 Cancel The recorder takes a short while to set the time. After you see that it’s set, select Next to proceed. k Setting Auto Clock Setting Line System Date er Save Time P p Navigator Clock Set CH M ON 01 / 01 / 2007 11 : 20 Pr 1 Start Next If the time could not be set automatically, press RETURN/EXIT to go back to the previous screen and select Manual. 30 En DVR550HXS_WV_EN.book 31 ページ 2007年3月30日 金曜日 午前10時48分 Getting started • 04 Manual clock setting If no stations in your area are broadcasting time signals, you can set the clock manually. Use the / buttons to set your time zone. You can set this by selecting a city or a time relative to GMT. 1/2 k Setting Manual Clock Setting Line System Time Zone er Save England London P p Navigator Summer Time Off Press then use the / buttons to select ‘On’ or ‘Off’ for summer time, then press ENTER. Select On if you are currently using summer time. 1/2 k Setting Manual Clock Setting Line System Time Zone er Save England London ENTER 10 Select the EPG (Electronic Programme Guide) type to use. • GUIDE Plus+: Use the Gemstar GUIDE Plus+ EPG (see also Setting up the GUIDE Plus+® system on page 32 and Using the GUIDE Plus+® electronic programme guide on page 36). • Digital EPG: Use the SI EPG (programme information broadcast together with digital channels). • If no channels were found when scanning for digital TV channels then this screen does not appear and the EPG is set according to the country set in step 7 above. ENTER 11 Select the TV screen type, ‘Wide (16:9)’ or ‘Standard (4:3)’. k Setting TV Screen Size P p Navigator Summer Time Line System On er Save Wide (16:9) P Standard (4:3) p Navigator Set the date (day/month/year) and time, then press ENTER to make all the settings. 2/2 k Setting Manual Clock Setting Line System Date er Save P Time p Navigator Time Zone Summer Time MON 01 / 01 / 2007 00 : 00 England London On • Use the / buttons to change the value in the highlighted field. • Use the / buttons to move from one field to another. • You can go back to the previous screen in the Setup Navigator by pressing RETURN/EXIT. ENTER 12 Select whether or not your TV is compatible with progressive scan video. k Setting Progressive Line System er Save Compatible P Not Compatible p Navigator Don't Know • Note that progressive scan video is only output through the AV1 (RGB)-TV connector and the component video outputs. 13 ENTER Press to continue after reading the HDD caution. k Setting In the event of HDD failure, recordings may be lost or normal playback/recording may Line not System be possible. er Save As recordings might be lost in case of a HDD P failure, we recommend to use the HDD only as temporary storage media. p Navigator Please copy recordings you want to keep to recordable DVD. Press ENTER to continue. 31 En DVR550HXS_WV_EN.book 32 ページ 2007年3月30日 金曜日 午前10時48分 Getting started 04 ENTER 14 Select ‘Finish Setup’ to exit the Setup Navigator, or ‘Go Back’ if you want to start again. k Setting S et u p i s co m p l et e! Line System er Save Fi n i sh S et u p p Navigator G o B ack That completes basic setup using the Setup Navigator. • If there are blank channels with no station, you can set these to skip using the manual channel setting. See Manual CH Setting on page 125. For users receiving digital broadcast services This unit can set its internal clock automatically from digital broadcasts. However, depending on the broadcaster, the clock information received may not be accurate. Use the following procedure (while the recorder is not recording) to set the clock manually. 1 HOME MENU Press HOME MENU. Setting up the GUIDE Plus+® system This section is only applicable if you chose to use the GUIDE Plus+ system as the EPG type in step 10 of the Setup Navigator above. The GUIDE Plus+® system is a free, interactive on-screen television programming guide. The system offers programme listings for all major channels, one-touch recording, search by genre, recommendations according to your profile and more. For the GUIDE Plus+ system to function correctly, it is important that you set the language and country correctly in the Setup Navigator, and that you have performed a scan for available channels, as these are all used by the GUIDE Plus+ system. If any of these things are not yet set, please run the Setup Navigator first (see Switching on and setting up on page 29). TV listings information is received via ‘host channels’. In order to receive the correct TV listings information for your country or region you need to set up the GUIDE Plus+ system and ‘download’ the TV listings information. The initial download can take up to 24 hours, but once this is done, all future updates are automatic. ENTER 2 Select ‘Initial Setup’ > ‘Basic’ > ‘Clock Setting’. 3 Highlight the time setting. GUIDE 1 Display the GUIDE Plus+ setup menu. ENTER 4 Press to display the manual clock setting screen. 5 Set the correct time. Return to automatic clock setting • To return to the automatic clock setting, follow the instructions for ‘Replace Channels’ (page 123). 32 En The language and country settings are already set to whatever you selected in the Setup Navigator. DVR550HXS_WV_EN.book 33 ページ 2007年3月30日 金曜日 午前10時48分 Getting started ENTER 2 Highlight ‘Postal Code’. ENTER 3 code. Enter your postal The system uses your postal code to identify which TV listings data is correct for the area in which you live, so it is important that you enter it correctly. 04 4 If you are using an external receiver (such as a satellite receiver) with the supplied G-LINK cable, complete this step, otherwise jump to step 5 below. • See Connecting to a cable box or satellite receiver on page 17 for more on using the supplied G-LINK cable. • Select External Receiver 1, 2 or 3, then press ENTER. (If you have just one external receiver, use External Receiver 1. You can add further receivers in 2 and 3 if you need to.) After pressing ENTER: • Select your reception method (Terrestrial, Cable or Satellite). • Select your provider (if applicable). • Select the brand of your external receiver. • Identify which input your external receiver is connected to. After completing these steps the recorder will try and communicate with your external receiver and change the channel via the GLINK cable. If the channel was successfully changed, select Yes to confirm. If the channel did not change, select No. The GUIDE Plus+ system will try other codes assigned to your external receiver. If none of the codes changes the channel successfully, tune your external receiver to the host channel for your country (refer to step 5 below) and leave it on overnight. The 33 En DVR550HXS_WV_EN.book 34 ページ 2007年3月30日 金曜日 午前10時48分 04 Getting started recorder needs to be in standby; it will wake up automatically and download new codes from the host channel. The next day, try this setup process again: • Press GUIDE to display the GUIDE Plus+ screen. • Press to highlight the Menu bar, then use to reach the Setup area and select Setup. • Continue setting up from the start of this step again. If your external receiver still doesn’t respond to the G-LINK controller, please call customer support and report the brand and model of your external receiver. See also GUIDE Plus+ FAQ and troubleshooting on page 47. 5 Identify the host channel for your country. The TV listings information available in the GUIDE Plus+ system is distributed throughout Europe by selected broadcasters called host channels. It is important that the host (analog) channel for your country is correctly identified in order to receive listings information (EPG download). Follow A, B or C below depending on your setup: A If you are not using an external receiver, this recorder will automatically scan all channels for the host channel: • Leave the recorder in standby overnight (do not leave it switched on). B If you are using an external receiver, you need to identify the host channel from the table below: 34 En Country/ Region Host channels Austria Eurosport Belgium RTL-TVI France Canal+ Germany Eurosport Italy MTV Netherlands Eurosport Spain Tele 5 Comments Analog only Analog only Analog only Switzerland Eurosport UK ITV, Eurosport ITV is analog only. Use Eurosport if you are a SKY subscriber and you no longer have an analog terrestrial antenna. • Tune your external receiver to the appropriate host channel and leave the receiver on and the recorder in standby overnight. C If you use both an external receiver and this recorder as sources, follow the instructions above for setting up without an external receiver. Only if this is unsuccessful try the external receiver method. About EPG download • EPG data can only be received when the recorder is in standby. (When not using the recorder, therefore, please switch it into standby.) If you’re using an external receiver, leave this on when EPG data is downloading. • If you cannot receive any of the host channels (see the above table) then you won’t be able to use the GUIDE Plus+ system. In this case do not set the postal code (or set Country to Other) in the GUIDE Plus+ setup screen. (When GUIDE Plus+ service starts in your area, set the postal code again.) If digital broadcasts start in your area, please set the EPG Type Select setting in the Initial Setup menu to Digital EPG. DVR550HXS_WV_EN.book 35 ページ 2007年3月30日 金曜日 午前10時48分 Getting started 04 • For any channel that you turn ON, the GUIDE Plus+ system will need to know how it is received (the source) and on which programme number. The source may be the built-in tuner of this recorder, or an external receiver. The programme number is the number on which the channel can be found on its receiving device/source. The entry in the Editor screen must match this number for correct recording of that channel. • The above is especially important for the ‘host channel’. Please make sure that the host channel is always switched ON. • Even if you can’t use the EPG functions where you live, you can still set VIDEO Plus+ recordings and manual recordings — see Setting a manual recording on page 44. • The front panel display shows EPG when receiving data. If you power on the recorder during an EPG download, the download is cancelled. • EPG data may be received several times a day. All updates are automatic. • When downloading EPG data, the recorder may sound as though it is on. This is normal. Checking the downloaded data the following day 1 GUIDE Display the GUIDE Plus+ screen. You should see a grid filled with channel logos and TV listings information. Use the / buttons to review the list. If you notice that there are channels missing, or that there are channels in the list that you don’t get, go to the Editor screen: • Press repeatedly until the Menu bar is highlighted. • Press until Editor is highlighted. The main area of the screen now shows a list of channels. Those that are turned ON are displayed in the grid; those that are OFF are hidden. Use the /// buttons to move down the list and turn channels ON or OFF as necessary. 2 Change the programme numbers as you like. Changing the programme numbers allows you to decide the order in which the channels change when stepping through them sequentially. You can do this to group certain channels together, for example. Name BBC1 BBC2 ITV CH4 CH5 BBC3 ITV2 E4 UKGOL On/Off On On On On On On On Off On Source D. TV D. TV D. TV D. TV D. TV Ext. Rec. 1 D. TV D. TV D. TV Prog. No. 001 002 003 004 005 007 006 014 017 3 When you’re done, press the BLUE Action button (Home) to get back to the GUIDE Plus+ home screen. • You can find detailed information on using the GUIDE Plus+ system in the following chapter. 35 En DVR550HXS_WV_EN.book 36 ページ 2007年3月30日 金曜日 午前10時48分 05 Using the GUIDE Plus+® electronic programme guide Chapter 5 Using the GUIDE Plus+® electronic programme guide This chapter is only applicable if the EPG Type Select setting made in the Setup Navigator (or the Initial Setup menu) is set to GUIDE Plus+. The GUIDE Plus+ system The GUIDE Plus+® system* is a free, interactive on-screen television programming guide.1 The system provides programme listings for all major channels, one-touch recording, searching by genre, recommendations according to your profile and more. The GUIDE Plus+ system is a convenient way to find out what’s on right now or during the coming week, by channel or by genre. The GUIDE Plus+ system also allows you to automatically set your viewing and recording selections quickly and easily. In order to receive the correct TV listings information for your country or region you need to set up the GUIDE Plus+ system and ‘download’ the TV listings information. If you haven’t already done this, please turn to Setting up the GUIDE Plus+® system on page 32 before proceeding. * GUIDE Plus+, SHOWVIEW, VIDEO Plus+, G-LINK are (1) registered trademarks or trademarks of, (2) manufactured under license from and (3) subject of various international patents and patent applications owned by, or licensed to, Gemstar-TV Guide International, Inc. and/or its related affiliates. Legal Notice GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/ OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAMME SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL 36 En GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/ OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM. Using the GUIDE Plus+ system All the various features and areas are colourcoded for ease of navigation. All screens (with the exception of some setup screens) have the following common elements: 3 1 4 5 2 6 1 Video window – Allows you to continue watching the current programme while using the GUIDE Plus+ system. 2 Information panels – Display programme promotions or instructions on the GUIDE Plus+ system. 3 Action bar – Colour-coded Action buttons change function depending on the area. 4 Information box – Shows short programme descriptions or help menus. Note 1 The GUIDE Plus+ system can’t be used when the Input Line System is set to 525 System (see also Input Line System on page 122). DVR550HXS_WV_EN.book 37 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 5 Menu bar – Gives access to the various areas of the GUIDE Plus+ system. 6 Grid – Shows TV listings information for the next seven days by channel and time. GUIDE Plus+ navigation The table below shows a summary of the remote buttons you’ll use to navigate the GUIDE Plus+ system. Key What it does REC Press to set or cancel One Button Recording. GUIDE Press to display the GUIDE Plus+ screen (also use to exit). /// Use to navigate screens (highlight an item). 05 One-Button-Record The RED Action button (Record) is visible anytime you can highlight a programme title, including from the Grid, after a search, or in your recommendations in the My TV area. The programme name, date, channel, recording start and end times are all set automatically when you set a timer recording using One-Button-Record. If you need to, you can edit the settings at any time before the recording is due to start (see Editing a scheduled recording on page 42). 1 Highlight a programme title. RED, GREEN, Action buttons that change YELLOW, BLUE functionality depending on the Area. MENU Press to jump directly to the Menu bar. TIMER REC Press to go directly to the Schedule area. INFO Press to display extended information for the current programme. ENTER Press to confirm a selection or to leave the GUIDE Plus+ screen. Number buttons Use for numeric entry. PREV/ NEXT Press to select the previous/ next page of information (in the grid, for example). / Press to select the previous/ next day. 2 Press the RED Action button (Record). The programme is now set for recording. When the programme is due to start, the recorder will switch to the correct channel and start recording1. • You can also use the REC button to set the recording. • You can review the shows you have set to record in the Schedule Area (see also The Schedule Area on page 41). Note 1 Recording times set using the GUIDE Plus+ system do not automatically change to reflect any changes that may occur in the programme broadcast schedules. 37 En DVR550HXS_WV_EN.book 38 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 05 Lock/Unlock video window Areas When you enter the GUIDE Plus+ system, the channel you were watching remains visible in the video window. The date stamp above the window lets you know the channel, date and time. The GUIDE Plus+® system consists of seven Areas. All Areas can be accessed from the Menu bar. The default setting for this window is ‘locked’, as indicated by a closed padlock icon above the video window. When locked, the video window always shows the channel you were previously watching as you move up and down through the listings grid. If you prefer, you can unlock the video window so that as you highlight different channels in the listings grid, that channel is shown in the video window. 1 Highlight a channel logo. • Grid – The GUIDE Plus+ system Home Area. Displays TV listings information for the next seven days by time and channel. • Search – Search for TV programmes by category (e.g., Sport), subcategory (e.g., Football) or keyword. • My TV – Set up a profile and receive recommendations according to your preferences. • Schedule – Show all scheduled recordings. • Info – Area for additional information, such as weather (not available in all regions). • Editor – Change channel settings. • Setup – Setup the GUIDE Plus+® system. The Grid Area Channel logos are displayed to the left of programme titles. 2 Press the RED Action button (Unlock). The padlock icon above the video window becomes unlocked. It remains unlocked for the remainder of your current TV viewing session. If you want to lock the video window again, follow the same procedure. The RED Action button will now act as Lock. Channel mosaic screen You can switch the display style of channels in the Grid Area, Schedule Area or My TV Area from a list to a mosaic of channel icons by pressing the YELLOW Action button. Select the channel icon you want using the cursor buttons, then press ENTER to return to the previous screen on that channel. 38 En The Grid is the main TV listings screen of the GUIDE Plus+ system and is the first screen that you see when you press GUIDE. You can see TV listings for the next seven days, starting with the current day. When you highlight a programme in the Grid, you can see information about it in the Information Box, including title, synopsis, channel, source, time and length. If there is an i symbol in the Information Box, it means that there is an extended synopsis available. Press the INFO button to see it. In some countries, you can also see a rating for a particular programme (mostly movies). These ratings are provided by local partners, such as TV magazines. From the Grid Area you can: • View and scroll through programme listings • Read programme synopses DVR550HXS_WV_EN.book 39 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide • Tune to a programme that’s currently showing1 • Set a programme to record • Lock or unlock the video window • Access Information panels Browsing the Grid 1 bar. 05 Select ‘Search’ from the Menu 2 Select a category and a subcategory. Use the following remote buttons to browse the grid: /// (cursor buttons) – Navigate the Grid PREV/ NEXT – Previous / next page / – Previous / next day BLUE Action button – Return to the current time/date in the Grid ENTER – Press on the current selection to exit the GUIDE Plus+ system and start watching the programme The Search Area From the Search Area you can: • • • • • Search by category Search by subcategory Search by keyword Read programme synopses Tune to a programme that’s currently showing • Set a programme to record • Access Information panels • If you choose All as the subcategory, all programmes in the category you selected will show up in the search results. ENTER 3 Start the search. The search results are shown sorted by time and date. • If no search results are displayed, it means there are no programmes for the current day that match your search criteria. Searching You can search for programmes by category, subcategory or by keyword (My Choice). Categories for searching include Movies (purple), Sport (green), Children (blue) and Others (teal). In some countries there is a further subcategory available called ‘Tip of the Day’. These are programmes recommended by a local partner, such as a TV magazine. Note 1 If you’re using an external tuner (satellite tuner, for example), there will be a short delay of a couple of seconds while it tunes to the channel. This is normal. 39 En DVR550HXS_WV_EN.book 40 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 05 Using My Choice keywords for a search My TV Area In addition to the standard categories, you can also set your own keywords. The My TV Area allows you to set up a personal profile. You can define a profile by channels, themes and/or keywords. As soon as a personal profile has been set, the GUIDE Plus+ system continuously scans the TV listings for the next seven days. Whenever you access the My TV Area, a list of programmes matching your profile appears. 1 Access My Choice. From the My TV Area you can: 2 Press the YELLOW Action button to add a keyword. • Set up a profile by channel, theme and/ or keyword • Edit and delete profiles • Read programme synopses • Tune to a programme that’s currently showing • Set a programme to record • Access Information panels Setting up a profile ENTER 3 Enter a keyword to appear in the menu. You can set up a profile with any combination of up to 16 channels, four categories and 16 keywords. 1 Select ‘My TV’ from the Menu bar. 2 Press the YELLOW Action button to set a profile. When you’re finished, press the GREEN Action button to exit and continue. 4 40 En ENTER Start the keyword search. • You can delete or edit keywords using the RED and GREEN Action buttons. • When you have set more than two keywords, an All subcategory automatically appears which allows you to search for all your keywords. Channels is now highlighted. DVR550HXS_WV_EN.book 41 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 3 To add a channel to your profile, press the YELLOW Action button. Select a channel from the mosaic of channel icons and press ENTER. Repeat this step to add up to 16 channels. 4 To add a category to your profile, highlight ‘Categories’ and press the YELLOW Action button. 05 5 To add a keyword to your profile, highlight ‘Keywords’ and press the YELLOW Action button. Use the /// buttons followed by ENTER to select characters from the onscreen keyboard. When you’re finished, press the GREEN Action button to exit and continue. 6 Press ENTER to activate your profile. • You can add up to 16 keywords by repeating step 5. • You can edit or delete your profile using the RED and GREEN Action buttons. The Schedule Area The Schedule Area is where you can set, see, edit and delete scheduled (timer) recordings. From the Schedule Area you can: Select a category from the Search Area categories and press ENTER. Repeat this step to add up to four categories. • Edit or delete a One-Button-Recording • Set, edit or delete a VIDEO Plus+ recording • Set, edit or delete a manual recording 41 En DVR550HXS_WV_EN.book 42 ページ 2007年3月30日 金曜日 午前10時48分 05 Using the GUIDE Plus+® electronic programme guide Editing a scheduled recording You can edit any parameter in a scheduled recording, or delete it if you no longer require it1. 4 Enter a name for the scheduled recording. 1 Highlight the left tile of a scheduled recording. Use the /// buttons followed by ENTER to select characters from the onscreen keyboard. • If you only want to edit the recording quality, frequency, destination, timing or genre settings, skip to step 5 below. 2 Press the GREEN Action button (Edit). 3 Use the cursor and number buttons to edit the recording date, start time, end time and channel. Use the / buttons or the number buttons to edit. After entering the whole name, press the GREEN Action button to continue. 5 Highlight the right recording tile. 6 Press the RED Action button (Quality) to change the recording quality. Select from AUTO2, XP, SP, LP, EP, SLP, SEP or a manual recording mode (see Manual Recording on page 130 and Manual recording modes on page 140). Press the GREEN Action button to go to continue, or the RED Action button to go back. 42 En Note 1 See About timer recordings on page 67 for more information about scheduled recordings. 2 This mode maximizes the recording quality to fit on to a single DVD disc. Can also be used when recording to HDD. DVR550HXS_WV_EN.book 43 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 7 Press the GREEN Action button (Frequency) to change the recording frequency. 05 • Auto Replace Recording is only available as an option with regular daily or weekly recordings. 9 Press to access the extended recording options. Select from the various options for one-time, daily and weekly recordings. 8 Press YELLOW Action button (Destination) to select the recording destination. • If you want to record to a particular HDD genre, use the YELLOW Action button (Genre) to select one. • Use the GREEN Action button (Timing) to add extra time to the end of the recording (+0, +10, +20, +30 or VPS/ PDC2 (V–P)). • Press to display the standard recording options again. Select from DVD, HDD or HDDr (Auto Replace Recording)1. Note 1 • For a DVD timer recording, if Optimized Rec (see Optimized Rec on page 130) is set to On (and VPS/PDC is off), the recorder will adjust the recording quality to try and fit the recording on the disc. If the recording will not fit onto the disc even on MN1 recording quality (MN4 for DVD+R/+RW) then the Recovery Recording feature will automatically make the recording to the HDD instead. • If there is very little free space left on the HDD, an Auto Replace Recording may not complete successfully. • If the HDD is being used for playback or high-speed copying when an Auto Replace Recording is due to start, the new timer recording will not replace the old one. However, the next time the timer recording starts, both of the older two programmes will be erased. 2 • If you set the timer recording to use VPS/PDC, you must switch the recorder into standby before the timer recording is due to start for it to work correctly. For non-VPS/PDC timer recordings there is no need to switch the recorder into standby. • Optimized Recording will not work if VPS/PDC is on. • Up to eight timer recordings can be set with VPS/PDC. • VPS/PDC cannot be set for recordings made from digital broadcasts or an external input, or when the recording mode is set to AUTO. 43 En DVR550HXS_WV_EN.book 44 ページ 2007年3月30日 金曜日 午前10時48分 05 Using the GUIDE Plus+® electronic programme guide Deleting a scheduled recording 1 Highlight the left tile of a scheduled recording. 3 Use the number buttons to enter a PlusCode programming number. Please enter the PlusCode programming number and press ENTER to confirm. 2 Press the RED Action button (Delete). The scheduled event is deleted. Setting a VIDEO Plus+® recording • If you live in an area not yet covered by the GUIDE Plus+ system you may also have to input a channel number. Follow the on-screen display to do this. 4 Press ENTER to confirm. 1 Select ‘Schedule’ from the Menu bar. Setting a manual recording 1 Select ‘Schedule’ from the Menu bar. 2 Press the RED Action button (VIDEO Plus+). 2 Press the GREEN Action button (Manual). 44 En DVR550HXS_WV_EN.book 45 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 3 Use the number and /// buttons to enter the recording date, then press the GREEN Action button (Next). 05 The Info Area This area is reserved for additional information such as news, weather reports, stock quotes, and so on, and varies by region. (Note that this feature is not available in all countries/regions.) The Editor Area The Editor Area is the central location for you to manage your channels. Any changes you make here will affect what is displayed in the Grid Area. The Editor Area is mainly used when setting up the GUIDE Plus+ system to make any manual changes as necessary. 4 In the same way, enter the recording start time, followed by the GREEN Action button (Next) to confirm. 5 Enter the recording end time in the same way, followed by the GREEN Action button (Next) to confirm. 6 Use the number buttons to enter a channel number, then press the GREEN Action button (Next) to confirm. You can also use the Editor Area if new channels become available in your area, or if you change from cable to satellite, say, or move house. From the Editor Area you can: • Display/hide channels in the grid (switch the channel on/off) • Select a channel source (A.TV, D.TV, Ext. Rec. 1, Ext. Rec. 2, etc.) • Enter a channel programme number Switching a channel on/off D.TV 001 You can choose whether or not to display a channel in the Grid Area by switching the channel on or off in the Editor Area. 1 Alternatively, you can press the YELLOW Action button (Mosaic) and use the // / buttons to select a channel from the mosaic, followed by ENTER. Select ‘Editor’ from the Menu bar. Name BBC1 BBC2 ITV CH4 CH5 BBC3 ITV2 E4 UKGOL On/Off On On On On On On On Off On Source D. TV D. TV D. TV D. TV D. TV Ext. Rec. 1 D. TV D. TV D. TV Prog. No. 001 002 003 004 005 007 006 014 017 2 Highlight the left channel tile of the channel you want to switch on or off. 3 Press the RED Action button to switch the channel on or off. 45 En DVR550HXS_WV_EN.book 46 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide 05 Changing the source and programme number 1 Select ‘Editor’ from the Menu bar. The Setup Area The Setup Area is where you can set up the GUIDE Plus+ system for your particular region, TV reception conditions, and so on. Making changes to your GUIDE Plus+ setup Name BBC1 BBC2 ITV CH4 CH5 BBC3 ITV2 E4 UKGOL On/Off On On On On On On On Off On Source D. TV D. TV D. TV D. TV D. TV Ext. Rec. 1 D. TV D. TV D. TV Prog. No. 001 002 003 004 005 007 006 014 017 1 Select ‘Setup’ from the Menu bar. Press ENTER to access the Basic Setup screen. Basic Setup 2 Highlight the right channel tile of the channel you want to make a change to. 3 Press the RED Action button to change the channel source, or the GREEN Action button to enter a programme number. Each press of the RED Action button changes the channel source (A.TV, D.TV, Ext. Rec. 1, etc.). To set a programme number, use the number buttons to enter a programme number then press ENTER (When set to A.TV or D.TV, make sure that the programme number matches the preset number of this recorder for what you want to record). Host Channel Setup GUIDE Plus+ System Information 2 Highlight the part you want to change. You can change the Language, Country, Postal Code1 and the External Receiver settings. 3 46 En Press ENTER to confirm. Note 1 Making changes to the Country or Postal Code settings may require a new download of TV listings information. This can take up to 24 hours. DVR550HXS_WV_EN.book 47 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide Manual Host Channel setup The GUIDE Plus+ system will automatically identify your Host Channel as soon as the recorder is put into standby for the first time. See the table on page 34 for a list of all the European Host Channels. If you know your Host Channel details (source and programme number) or if the automatic identification did not provide the expected result, you can identify your Host Channel manually. Select Host Channel Setup in the Setup area and follow the instructions on the TV. Select the correct source (e.g., internal tuner or external receiver) and enter the respective programme number (e.g., if you have to press 9 on the remote to watch your Host Channel, enter 9 as the programme number). When you next switch the recorder into standby the GUIDE Plus+ system will complete the Host Channel setup. You can reset the Host Channel settings at any time back to the default setting of automatic. Please be aware that resetting the Host Channel will erase all TV listings data. 05 GUIDE Plus+ FAQ and troubleshooting This FAQ covers only a few questions. For a complete list please consult the GUIDE Plus+ website at: www.europe.guideplus.com FAQ • When I tried setting up my external receiver I could not get any of the attempts to work, what should I do? There could be several reasons why your external receiver could not be controlled. – The connections could be wrong. Make sure that the G-LINK cable is connected to the G-LINK connector on the recorder and the IR blaster is in front of the external receiver, pointing towards the IR receiver of your external receiver. See Connecting to a cable box or satellite receiver on page 17. – The code that is listed under your brand could be wrong. Please try other codes for your brand under satellite, cable or terrestrial. Go to the Setup Area and choose one of the three options (cable, satellite or terrestrial) that you have not already tried. Follow the onscreen prompts to make sure that the GUIDE Plus+ system can change channels on your external receiver. If it does not work, repeat the process, choosing different reception and external receiver combinations until you have tried all the codes for your brand of receiver that are already in the GUIDE Plus+ system. If it still does not work, see below on how to receive new codes overnight. – The unit has not yet received new codes. The nightly data downloads frequently include new codes for controlling external receivers. Please tune your external receiver to your local host channel and leave it on overnight. 47 En DVR550HXS_WV_EN.book 48 ページ 2007年3月30日 金曜日 午前10時48分 05 Using the GUIDE Plus+® electronic programme guide Switch this recorder into standby. The next morning, please perform the GUIDE Plus+ setup again to see if your external receiver can now be controlled. terrestrial or cable connection only to receive data this way. It is important that you identify your host channel correctly in the Editor Area. – The external receiver that you use is currently not supported. If, after leaving your external receiver on overnight, and doing the Reception and External Receiver Setup again, it still does not respond, please call Customer Support to report your brand and model. • After I performed the initial set-up I found that the line-up for all the channels received via the external set top box is incorrect. How do I correct this? • My external receiver was successfully setup. However I have found that when the GUIDE Plus+ system has to change to a channel with a three-digit programme number in the external receiver’s preset, it does not work. It looks like the GUIDE Plus+ system can only send two digits. With the number of channels increasing, the number of digits has increased as well. While older boxes use only two digits, newer boxes require up to four. It is possible that you selected an older code for your brand during set-up. Please access the Setup Area, select External Receiver and repeat the setup for your brand (Note: Every time you see the on-screen question about whether the receiver has changed to a certain channel, the GUIDE Plus+ system has sent a different code). Try all the different codes until your GUIDE Plus+ system can control your external receiver correctly. If you have no success, try to receive new codes overnight. • I used to receive data through my terrestrial antenna or analog cable without a set-top box. Now, I have “upgraded” to a satellite system or to digital cable with external receiver. What should I do to receive data for the GUIDE Plus+ system? You can try to receive your host channel through your new reception method. If you have problems to receive data we recommend that you keep your analog 48 En You can change the line-up in the editor according to your preferences. Access the Editor Area. Select the channels that you would like to change. Change the source and preset number according to your preferences. • I performed the set-up but after many hours I still have a blank EPG what is going wrong? There are several possibilities: – Connections are wrong. See Connections on page 14 to double check everything. – The initial setup of GUIDE Plus+ was completed incorrectly. Try setting it up again (see Setting up the GUIDE Plus+® system on page 32). – Your cabling and setup is OK, but the recorder has not been connected for enough time to receive the TV listings data. Leave the recorder in standby overnight. – For external receiver users only: The connections and setup are OK, but the external receiver was not tuned to the correct host channel. Check the list of host channels (see step 5 of Setting up the GUIDE Plus+® system on page 32) and leave the recorder in standby and the external receiver on overnight tuned to the correct host channel. – You live in a country/region where the GUIDE Plus+ system is not yet available. Check the list of countries to see if you are in a region that is supported. DVR550HXS_WV_EN.book 49 ページ 2007年3月30日 金曜日 午前10時48分 Using the GUIDE Plus+® electronic programme guide • I used the One-Button-Record feature (red Action button) to set a recording, but I recorded the wrong channel. If the channel to be recorded is received via the external receiver first make sure that the external receiver was left switched on. Next, in the Editor Area, make sure that the channel to be recorded is correctly set: Access the Editor Area. Check the source and programme number of the channel that you wanted to record. Change the source and preset numbers if incorrect. 05 • The automatic Host Channel search failed or the GUIDE Plus+ system identified the wrong Host Channel for my region. You can identify your Host Channel manually. See Manual Host Channel setup on page 47 for how to do this. If you are recording from the recorder’s internal tuner (the A.TV or D.TV setting), make sure that the programme number is the same as the preset number set on this recorder. If they are different, go to the Editor Area and change the programme number to match the recorder’s preset number. • The TV listings information doesn’t update. The latest TV listings information is automatically downloaded by the recorder overnight. This only happens if the recorder is in standby; if the recorder is left on, it will not download. When not using the recorder, please switch it into standby. Data downloads can take several hours. The front panel display shows EPG when downloading. If you switch the recorder on while EPG is displayed, the download will be cancelled. • The GUIDE Plus+ system is not supported in my area, but when I switch the recorder into standby, after a while the front panel display shows EPG. Can I stop this from happening? If the GUIDE Plus+ system is not supported in your area, please do not set the postal code in the GUIDE Plus+ setup (see Setting up the GUIDE Plus+® system on page 32). When the GUIDE Plus+ service starts in your area, please set the postal code again. 49 En DVR550HXS_WV_EN.book 50 ページ 2007年3月30日 金曜日 午前10時48分 06 Using the digital electronic programme guide Chapter 6 Using the digital electronic programme guide This chapter is only applicable if the EPG Type Select setting made in the Setup Navigator (or the Initial Setup menu) is set to Digital EPG. The Digital EPG system The Digital EPG shows a table of scheduled digital TV programmes and detailed information about individual programmes. It also allows you easily to select and tune to a particular programme.1 The Digital EPG screen consists of programme Information, Channel List and General Programme List. This section describes information displayed in the schedule and information windows. Note that the recorder’s clock must be set to the correct time and date to ensure all relevant EPG information is displayed. General Programme List D007 5 Indicates the programme set for recording 6 Appears when other programmes (often short ones) have been scheduled for the same period 7 Programme title 8 Time dividers • The general programme list may show sections whose bottom right corners have been folded. This indicates that other programmes have been scheduled for that period. To view the title of such a programme and related information, highlight a folded section, and then press /. Programme information D007 1 Channel number 2 Station name 3 Programme title 4 Appear when other programmes have been scheduled for the same period 5 Programme schedule 6 Programme genre 1 Appears when the schedule table can be scrolled forward or backward 2 Time schedule 3 Channel list 4 Highlights the currently selected channel 50 En Note 1 EPG information is only viewable for D.TV programmes that provide EPG information. DVR550HXS_WV_EN.book 51 ページ 2007年3月30日 金曜日 午前10時48分 Using the digital electronic programme guide Using the Digital EPG 06 • To quit the display of detailed information, press INFO again (or RETURN/EXIT). Using the Digital EPG you can check the schedule of digital TV programmes, view information about desired programmes, and/or select programmes. D007 13:40 - 14:05 ************ ************* ************************** GUIDE 1 Press to display the Digital EPG screen. The EPG screen updates automatically if the EPG data is acquired successfully. If not, the Digital EPG screen shows a blank image. More... GUIDE 4 Press to exit the Digital EPG screen. 2 Select a TV programme. Setting timer programmes D007 Using the Digital EPG, it’s easy to set digital TV programmes for recording2. GUIDE 1 Press to display the Digital EPG screen. • Press PREV/ NEXT to skip to the next or previous channel list page. • Information about the selected programme appears in the information window.1 • To watch a programme currently on air, select the programme (then press ENTER). • You can check information about programmes scheduled up to one week ahead, depending on conditions. • Depending on conditions, it may take some time to acquire EPG data. INFO 3 Press to view more information about the selected programme. Detailed information appears in the schedule window. ENTER 2 Select a programme. D007 • Select a programme currently on-air: press ENTER to close the Digital EPG screen and watch the channel immediately, or press RED to set the programme for recording immediately. • Select a programme not yet started then press ENTER or RED to set the programme for recording. If the screen contains further information, More ... is displayed. Note 1 The general programme list does not show programmes that have already finished. 2 For more information on timer programmes, see About timer recordings on page 67. 51 En DVR550HXS_WV_EN.book 52 ページ 2007年3月30日 金曜日 午前10時48分 06 Using the digital electronic programme guide 3 Enter the timer recording settings. Use the / buttons to select a field; use the / buttons to change the value1. Record to – Select HDD for hard disk recording or DVD for DVD recording2. Timer Programme Set Manhattan Open Tennis CH Date D.TV003 Start SUN 1/4 Detailed Settings Record To Recording Mode VPS/PDC Auto Replace Rec. Genre 4 If you want to change the recording mode, recording destination, etc., select ‘Set Detailed’. In this area you can set: Stop 18:00 19:00 Enter Details HDD XP ----------No Category Extend Off Store Programme Set Detailed Set Title Name Cancel VPS/PDC 0/8 • CH – Choose a channel (Pr 1 to Pr 99 for analog channels and available digital channels (excluding skip channels)), or one of the external inputs from which to record. • Date – Choose a date up to one month in advance, or select a daily or weekly programme. • Start – Set the recording start time. Recording Mode – Select from AUTO3, XP, SP, LP, EP, SLP, SEP (See Setting the picture quality/recording time on page 63). If Manual Recording is on, then you can also select the LPCM setting, XP+ or MN (press ENTER then use the / buttons to select the level). VPS/PDC4 – Choose whether or not to use VPS/PDC when making timer recordings of analog programmes (see About timer recordings on page 67). Auto Replace Rec. – Automatically erases the previous daily or weekly recording when the next one is recorded. Genre – Select a record genre (for HDD recording only). • Stop – Set the recording end time (maximum length of a timer recording is 24 hours). • Extend – Extend the end time of the timer recording (select Off, 10, 20 or 30 mins.) 52 En Note 1 You cannot change the CH, Date, Start, Stop, Extend and title name when you have EPG Link set to On (see page 53). 2 • For a DVD timer recording, if Optimized Rec (see Optimized Rec on page 130) is set to On (and VPS/PDC is off), the recorder will adjust the recording quality to try and fit the recording on the disc. If the recording will not fit onto the disc even on MN1 recording quality (MN4 for DVD+R/+RW) then the Recovery Recording feature will automatically make the recording to the HDD instead. • If there is very little free space left on the HDD, an Auto Replace Recording may not complete successfully. • If the HDD is being used for playback or high-speed copying when an Auto Replace Recording is due to start, the new timer recording will not replace the old one. However, the next time the timer recording starts, both of the older two programmes will be erased. 3 This mode maximizes the recording quality to fit on to a single DVD disc. Can also be used when recording to HDD. 4 • If you set the timer recording to use VPS/PDC, you must switch the recorder into standby before the timer recording is due to start for it to work correctly. For non-VPS/PDC timer recordings there is no need to switch the recorder into standby. • Optimized Recording will not work if VPS/PDC is on. • Up to eight timer recordings can be set with VPS/PDC. • VPS/PDC cannot be set for recordings made from digital broadcasts or an external input, or when the recording mode is set to AUTO. DVR550HXS_WV_EN.book 53 ページ 2007年3月30日 金曜日 午前10時48分 Using the digital electronic programme guide EPG Link1 (UK only) – Choose whether or not to have this device automatically record scheduled programmes from the Digital EPG even if the times in which they are broadcast change. Series Recording2 (UK only) – Choose whether or not to record all programmes from a series when you make a recording from the Digital EPG (for HDD recordings only). 5 After entering all the timer recording information, highlight ‘Store Programme’ and press ENTER. A red clock icon appears for the programme. GUIDE 6 screen. Press to exit the Digital EPG Tip • To enter a title name for the timer recording in advance, select Set Title Name and follow the on-screen display. Editing a timer programme You can change any of the settings in a timer programme before the recording is due to start. Even if a programme is currently being recorded, you can program a new end time or edit its extend time parameter. TIMER REC 1 Press to display the Timer Programme View screen. You can also access the Timer Programme View screen from the Home Menu (press HOME MENU, select Timer Recording, then Timer Recording). 06 This screen shows all the timer programmes currently set. Timer Programme View SUN 25/3 15:00 Tmr Pgms 3/32 VPS/PDC 0/8 Manhattan Open Tennis OK SUN 25/3 18:00 – 19:00 Pr 4 World Journey OK MON 26/3 19:30 – 21:00 Pr 6 Flower MON – FRI 13:30 – 14:00 Pr 8 Until 20/4 New Input HDD Remain DVD Remain 59h59m(SP) 1h59m(SP) • Each row is for one timer recording programme, with the date and time information, channel, recording mode, DVD or HDD and recording status. • The amount of free space available on the HDD and the currently loaded recordable DVD is shown towards the bottom of the screen. • In the upper-right corner, the number of timer programmes already set is shown next to Tmr Pgms. • If there are more than five timer programmes already set, press NEXT to switch page (go back using the PREV button). • You can also delete a timer programme before it’s started (before the recorder enters timer recording standby) by highlighting it and pressing CLEAR. See also Deleting a timer programme on page 55. Note 1 • You cannot set an EPG Link when recording mode is set to AUTO. • You cannot change the CH, Date, Start, Stop, Extend and title name when you have EPG Link set to On. • When you have EPG Link set to On and you set a timer recording for a programme that is divided into multiple parts, all parts of that programme are recorded automatically. In the programme list, the earliest part of the icon, with successive parts indicated by a gray icon. Data provided programme to be recorded has a red by the broadcaster determines which programmes are classified as divided programmes. 2 • In the programme list, the earliest programme to be recorded has a red icon, with successive programmes icon. indicated by a gray • There is a limit to the number of programmes you can schedule to record with the Series Recording function. • Data provided by the broadcaster determines which programmes are classified as part of a series. 53 En DVR550HXS_WV_EN.book 54 ページ 2007年3月30日 金曜日 午前10時48分 06 Using the digital electronic programme guide • Cancel Once – A regular timer programme is set to skip. 2 Highlight the timer programme you want to change.. If you want to set a new timer programme, select ‘New Input’ and skip to step 4. ENTER 3 Press then select ‘Modify’ from the command menu panel. Alternatively, press ENTER. The Timer Programme Set screen appears from which you can edit the settings. ENTER 4 Enter the timer recording settings. Use the / buttons to select a field; use the / buttons to change the value. For more information on the options available at the Timer Programme Set screen, See Setting timer programmes on page 51. ENTER 5 After entering all the timer recording information, highlight ‘Store Programme’ and press ENTER. The timer recording list screen is displayed again. The timer programme you just input appears in the list. The rightmost column shows various timer recording status messages: • OK – Can be recorded. • Time Over – Not enough space on the HDD (the recording won’t finish). • Over 12h – Recording time of over 12 hours set (when recording to the HDD the recording will be split into two titles). • Overlap – Two timer programmes partially or completely overlap. The one starting earlier will take priority. • Until ... (eg., Until 13/8) – For a regular recording, the last programme that could be recorded is shown. 54 En • Data Over – Can’t record because the disc management area of the disc is full. • Can’t Rec – Not possible to record. • Title Over – Can’t record because there is already the maximum number of titles on the disc (HDD: 999; DVD: 99). • Recording – The programme is currently recording. • Standby – The recorder is in timer recording standby. • Valid Until ... (eg., Valid Until 13/8) (UK only) – When you have set to make a series recording of a programme that has no new scheduled broadcasts, the date displayed indicates the last day until which the scheduled programme settings remain valid. (If the programme is not broadcast for over 13 weeks, its settings are automatically deleted.) • No Broadcast (UK only) – Displays when a programme for which you had the EPG Link set to On does not record because the date of the scheduled recording has already passed. • nothing displayed – Another timer recording or copying is in progress. 6 HOME MENU Press to exit the timer recording screen. Note • If you set a DVD timer recording but there is no recordable DVD disc loaded, or the disc loaded doesn’t have enough free space for the complete recording, Recovery is shown. In this case (unless you load a suitable disc before the recording actually starts), the recorder will use the HDD for recording. (The message Can’t Rec will appear if there are already 999 titles on the HDD or if there is not enough free space on the HDD for recording.) DVR550HXS_WV_EN.book 55 ページ 2007年3月30日 金曜日 午前10時48分 Using the digital electronic programme guide • When you have EPG Link or Series Recording set to On, any changes in broadcast time or division of broadcasts are automatically accommodated for and your scheduled recordings are carried out without any additional settings. As a result, even when you have not scheduled programmes to record at the same time, changes in broadcasting schedules can cause scheduled recordings to overlap. 06 ENTER 3 Press then select ‘Cancel Once’ from the command menu panel. • In the timer programme list, Cancel Once appears by the programme. • You can also just press PAUSE when the timer programme is highlighted. Checking for alternative broadcast times Deleting a timer programme (UK only) You can delete timer programmes you no longer need. You can check to see if a programme you have scheduled to record is airing at an alternative time slot1. TIMER REC 1 Press TIMER REC. TIMER REC 1 2 Highlight the timer programme you want to erase.. Press TIMER REC. 2 Highlight the timer programme you want to search. ENTER ENTER 3 Press then select ‘Erase’ from the command menu panel. • Select Yes to confirm or No to cancel. • You can also just press CLEAR when the timer programme is highlighted. Skipping a regular timer programme If you’ve set a regular daily or weekly timer programme, you can set the recorder to skip the next scheduled recording. TIMER REC 1 3 Press then select ‘Alternate Search’ from the command menu panel. • The search results are displayed. Choose the programme you would like to record and press either the RED button or ENTER to schedule a recording. Searching for series (UK only) You can search for broadcasts of programmes of the same series as a programme you have scheduled to record1. Press TIMER REC. TIMER REC 1 2 Highlight the timer programme you want to skip.. Press TIMER REC. 2 Highlight the timer programme you want to search. Note 1 • Programme search results are based upon data provided by the broadcaster. • This function may not be applicable to all programmes. 55 En DVR550HXS_WV_EN.book 56 ページ 2007年3月30日 金曜日 午前10時48分 Using the digital electronic programme guide 06 Other useful EPG functions ENTER 3 Press then select ‘Series Search’ from the command menu panel. • The search results are displayed. Choose the programme you would like to record and press either the RED button or ENTER to schedule a recording. EPG Jump 1 Press GREEN when the Digital EPG screen (Programme List, Detailed information or Search Result) is displayed. Searching for recommendations (UK only) You can search for recommended programmes generated from the content of the programmes you have scheduled to record1. 2 In the ‘Date’ field select a date (within one week) to jump to. Date Mon.13.Sep Time 14:00 Jump Cancel TIMER REC 1 Press TIMER REC. 2 Highlight the timer programme you want to search. 3 In the ‘Time’ field select a time of the day (0:00 to 23:00) to jump to. ENTER ENTER 3 Press then select ‘Recommendation Search’ from the command menu panel. The search results are displayed. Choose the programme you would like to record and press either the RED button or ENTER to schedule a recording. 4 Select ‘Jump’. The Programme List for the specified day and time is displayed. EPG Search 1 Press YELLOW when the EPG screen (Programme List, Detailed information or Search Result) is displayed. 2 In the ‘Date’ field select a date (within one week) to search in. Date Sun.12.Sep Time 12:00 Genre Select 0/16 • • • • • • Search 56 En Note 1 • Programme search results are based upon data provided by the broadcaster. • This function may not be applicable to all programmes. Cancel DVR550HXS_WV_EN.book 57 ページ 2007年3月30日 金曜日 午前10時48分 Using the digital electronic programme guide 06 3 In the ‘Time’ field select the time of day (0:00 to 23:00) to search in. 4 In the ‘Genre’ field, select the genre to search for. You can search for multiple genres by pressing ENTER after each genre. ENTER 5 Select ‘OK’. ENTER 6 Select ‘Search’. The results of your search are displayed. 57 En DVR550HXS_WV_EN.book 58 ページ 2007年3月30日 金曜日 午前10時48分 07 Recording Chapter 7 Recording About DVD recording This recorder can record to DVD-R, DVDRW, DVD+R, DVD+RW, DVD-RAM, DVD-R DL and DVD+R DL media. DVD-R and DVD-RW discs can be initialized for Video mode or VR mode recording. Each has its advantages, and it depends on what you want to do with the recording which mode you choose. If you want to edit your recordings in any significant way, VR mode offers greater possibilities for cutting, copying, and changing the way the video is presented. Video mode is less flexible when it comes to editing, but it has the advantage that it is compatible with standard DVD players (many of which won’t play VR mode discs1). Once a disc is initialized for a particular mode, all recording on that disc will be in that mode. DVD+RW discs can be initialized for +VR mode recording. DVD-RAM discs can be initialized for VR mode recording. DVD+R discs do not require initializing. Important • The table below shows the maximum number of titles recordable per disc and the maximum number of chapters per title: 58 En Max. titles (per disc) Max. chapters (per title) DVD-R/-RW Video mode 99 99 DVD-R/-RW/-RAM VR mode 99 999*1 DVD+R/+RW 49 99*2 Disc type/rec. format *1 A maximum of 999 chapters are recordable per disc. *2 A maximum of 254 chapters are recordable per disc. • This recorder cannot play or record unfinalized DVD-R/-RW (Video mode) and DVD+R discs recorded on another recorder. DVD+RW discs recorded on another recorder are playable on this recorder but are not recordable. • The maximum continuous recording time for one title is eight hours when using a DVD+R/+RW disc. • If you delete a title from a DVD+R/+RW disc, the total number of recordable titles remaining may not increase. • Although this recorder can record PAL, SECAM, NTSC and PAL-60, you can’t mix multiple TV line systems on one disc. A disc can contain PAL and SECAM recordings, or NTSC and PAL-60. See also Additional information about the TV system settings on page 135. • Fingerprints, dirt and small scratches on a disc can affect playback and/or recording performance. Please take proper care of your discs. • Pioneer takes no responsibility for recording failure due to power cuts, defective discs, or damage to the recorder. Note 1 Some DVD players, such as some Pioneer models, are compatible with VR mode discs. Check the operating instructions for your player for VR mode compatibility information. DVR550HXS_WV_EN.book 59 ページ 2007年3月30日 金曜日 午前10時48分 Recording • See also Disc/content format playback compatibility on page 7 for detailed disc compatibility information. Recording to DVD-R DL/DVD+R DL discs Recording to DVD-R DL/DVD+R DL discs is generally the same as recording to regular single-layer discs; however, please note the following points: • When the recorder switches from the first layer to the second during recording a DVD-R DL (Video mode) disc, a new title is automatically started on the new layer. • Up to 99 titles can be recorded on a DVD-R DL (Video mode) disc. If the 99th title is being recorded when the layer is switched, recording will stop. • Up to 49 titles can be recorded on a DVD+R DL disc. • You cannot play, record additional material to, edit or finalize a DVD-R DL or DVD+R DL disc that has been recorded on but not yet finalized on another DVD recorder. About HDD recording Recording to the hard disk drive (HDD) is very flexible; you have the full choice of recording quality options, including manual mode, and of course you can record, erase and re-record as many times as you like. The capacity of the hard disk drive means that you can store many hours of video on it, even using the higher quality recording modes. Important • The maximum number of titles/chapters per title that can be recorded on the HDD is 999 and 99 respectively. No more recording is possible on the HDD after the maximum number of titles has been reached. • The maximum continuous recording time for one title is 12 hours. 07 • It is possible to record both PAL and NTSC titles on the HDD. Before recording, you need to make sure that the Input Line System setting (page 135) matches the TV line system of the source you’re recording. HDD Video mode compatibility When recording to the HDD you can choose to record in one of two formats. Set the format from the HDD Recording Format item in the Initial Setup menu (see page 131). When set to Video Mode On, high-speed copying from HDD to DVD-R/-RW (Video mode) or DVD+R/+RW is possible. When recording a bilingual broadcast, set which channel you want to record from the Initial Setup menu (see Bilingual Recording on page 127). When HDD Recording Format is set to Video Mode Off, high-speed copying from HDD to DVD-R/-RW (Video mode) or DVD+R/+RW isn’t possible. However, both channels of bilingual broadcasts are recorded and you can switch the audio on playback. Recorded audio In all except the LPCM mode, sound is recorded in two channel Dolby Digital format (only Dolby Digital 2.0 can be recorded; Dolby Digital 5.1 recording is not possible). When set to LPCM, sound is recorded in high quality, uncompressed Linear PCM format. If the broadcast audio is bilingual and you are recording to DVD-R/-RW (Video mode), DVD+R/+RW, or to the HDD with the HDD Recording Format set to Video Mode On, or on the LPCM setting, use the Bilingual Recording setting (page 127) to select the A/L or B/R audio channel to record before recording starts. In other cases, both channels of a bilingual broadcast will be recorded and you can switch on playback. 59 En DVR550HXS_WV_EN.book 60 ページ 2007年3月30日 金曜日 午前10時48分 07 Recording Restrictions on video recording You cannot record copy-protected video using this recorder. Copy-protected video includes DVD-Video discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording will pause automatically and an error message will be displayed on-screen. Video that is ‘copy-once only’ can only be recorded to DVD-RAM or HDD, CPRMcompatible VR mode DVD-R/-RW (see below). When recording a TV broadcast or through an external input, you can display copy control information on screen (see Displaying disc information on-screen on page 83). Copying of copyrighted material such as films or music is unlawful unless permitted by a legal exception or consented to by the rightowners. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Using the built-in A.TV and D.TV tuners Switching between A.TV and D.TV tuners CPRM • Press to switch between D.TV (digital) and A.TV (analog). This recorder is CPRM compatible, which means that you can record copy-once broadcast programmes, but you cannot then make a copy of those recordings. CPRM recordings can only be made on CPRMcompatible DVD-R (ver. 2.0/8x or higher) or DVD-RW (ver. 1.1 or higher) discs formatted in VR mode, DVD-RAM discs or on the HDD. There are a number of ways to select analog and digital TV channels.1 Note that you can’t change the TV channel during playback, recording or during recording standby. DVD CPRM recordings can only be played on players that are specifically compatible with CPRM. Recording equipment and copyright Recording equipment should be used only for lawful copying. You are advised to check carefully what constitutes lawful copying in the country in which you are making a copy. 60 En A.TV/D.TV CPRM is a copy protection/scrambling system developed for the recording of ‘copy once’ broadcast programmes. CPRM stands for Content Protection for Recordable Media. Changing channels CHANNEL + • • – CHANNEL Smart Jog Number buttons For example, to select channel 4 (digital channel D004), press 4 then ENTER; for channel 34 (digital channel D034), press 3, 4, ENTER.2 • CH +/– buttons on the front panel. • For D.TV channels only, you can also use the Channel List — see below. Note 1 • If you select a locked channel, you will need to enter your password to access it. • While listening to D.TV radio channels, the screen saver automatically starts after no button has been pressed for three minutes. 2 Analog channel presets are numbered 1 to 99; digital channel presets are numbered D001 to D999. DVR550HXS_WV_EN.book 61 ページ 2007年3月30日 金曜日 午前10時48分 Recording 07 Tip • When changing terrestrial digital broadcast channels, channels with a low signal strength may result in a black screen being displayed. • For other channels, it may take a short while for the channel picture to appear, and/or for the channel number to appear. • In both of the above cases, some improvement may be possible by adjusting the antenna. Using the D.TV Channel List When in D.TV mode, you can call up the onscreen Channel List anytime by pressing ENTER. Use the / buttons to select a channel, then press ENTER to switch to that channel.1 D001 ************ D002 ************ • The channel banner displays the Subtitles ( ) and Teletext/MHEG ( ) icon if they apply to the selected channel.2 • To see more detailed channel information, press INFO again.3 Now ************************ 11:30 - 12:00 More... Use the / buttons to display information about previous and following programmes. Use the / buttons to see information about other channels. • If there is still more information to be displayed, More ... is displayed; press the BLUE button to see the extra information. • To hide the channel banner, press RETURN/EXIT. Changing D.TV audio languages D003 ****** D004 ************ D005 **** AUDIO D006 ****** Displaying a channel banner A channel banner shows programme titles, start and end times of the current programme and other channel information. The information is updated every minute. INFO • Press to display the channel banner for the current channel. D001 ************ Now ******************** Next ************* Wed.30.Apr 12:46 11:30 - 12:00 12:00 - 12:30 • Use the / buttons to display the channel banner for other channels. To switch to the displayed banner’s channel, press ENTER. • Press to display the current audio language. Press repeatedly to change it to other available languages. Changing D.TV subtitle languages SUBTITLE • Press to display the current subtitle language. Press repeatedly to change it to other available languages. Using the MHEG application (UK only) Some stations bring you programmes with the MHEG (Multimedia and Hypermedia Expert Group) application encoded, letting you experience D.TV interactively.4 Note 1 • If you select a locked channel, you will need to enter your password to access it. • While listening to D.TV radio channels, the screen saver automatically starts after no button has been pressed for three minutes. 2 Due to inaccurate information provided by the broadcaster, some icons may occasionally be present or absent in error. 3 Not all channels supply more detailed information. 4 If you start recording while the MHEG application is running, the MHEG application screen will also be recorded. To avoid this, quit the application first, then start recording. It is not possible to start the MHEG application while recording is in progress. 61 En DVR550HXS_WV_EN.book 62 ページ 2007年3月30日 金曜日 午前10時48分 Recording 07 The channel banner displays an icon ( ) to indicate that the MHEG application can be run. • You can also select the language for a non-NICAM bilingual broadcast. A (L) TEXT • Press to start the MHEG application.1 • You can also use any of the colour buttons. • Press TEXT to quit the MHEG application. • When watching a recording made from an external input with Bilingual recording selected (see External Audio on page 127), you can switch the audio channel between left (L), right (R) or both (L+R). L Viewing Teletext (European countries except the UK.) TEXT Press to display the Teletext. • You can also use any of the colour buttons. • Press the TEXT button again to hide the Teletext screen. Changing A.TV audio channels You can change the audio channel of the broadcast or external input signal. • If the NICAM audio setting (see NICAM Select on page 127) is set to NICAM and you are watching a NICAM broadcast, you can switch between NICAM and Regular (non-NICAM) audio. NICAM Regular • If the NICAM broadcast is bilingual, you can also select the language. NICAM A Regular En Note • When recording to the HDD with HDD Recording Format set to Video Mode On, to DVD-R/-RW (Video mode), to DVD+R/ +RW, or on the LPCM setting, only one channel of a bilingual broadcast is recorded. In this case, decide which language you want to record before recording by setting the Bilingual Recording setting (see Bilingual Recording on page 127). Switching between TV and DVD AUDIO • Press to change the audio type. The current audio channel is displayed onscreen. 62 R L+R You can view the Teletext that comes simultaneously with certain programmes. • B (R) A + B (L+R) When the recorder is stopped or recording you can choose whether to have the audio/ video from the built-in TV tuner (or external input) play on your TV (‘DVD mode’), or watch the channel that the TV is currently set to (‘TV mode’). During playback or when a menu is being displayed on-screen, the sound and video is always routed to your TV and is unaffected by the TV/DVD mode setting. Note that the recorder must be connected to your TV using a SCART cable to be able to use this feature. NICAM B NICAM A+B TV/DVD • Switch between TV mode and DVD mode. Note 1 This function is not available when subtitle display is active. DVR550HXS_WV_EN.book 63 ページ 2007年3月30日 金曜日 午前10時48分 Recording Setting the picture quality/ recording time DVD (VR) DVD (Video) DVD+R DVD+RW DVD-RAM HDD Before starting a recording, you will usually want to set the picture quality/recording time. There are six standard settings available, which allow you to choose a balance between picture quality and recording time. When Manual Recording is set to On (see Manual Recording on page 130), a further option will be available (MN1 to MN32, LPCM, or XP+ (a super-high quality HDD recording mode that features a transfer rate of around 15 Mbps) depending on what you set). When recording to DVD, MN32 is the highest recording quality available. If you select XP+, the recording mode will automatically revert to MN32. When recording to DVD+R/+RW, SLP is the longest recording time available. If you select SEP or MN1 to MN3, the recording mode will automatically revert to SLP. 07 • SLP (Super Long Play) – Lower quality than EP, but gives about eight hours of recording time on a DVD disc. • SEP (Super Extended Play) – Lowest video quality but gives about ten hours of recording time on a DVD disc. • MN1 to MN32/LPCM1/XP+2 – Manual/ Linear PCM/XP+ (available only when manual recording is on). The setting is indicated in the front panel display, and shown on-screen together with the recording time for a blank recordable disc. If a recordable disc is loaded, the approximate remaining recording time for that disc is also shown. (Note that if the On Screen Display setting (see On Screen Display on page 134) is Off then this information is not displayed.) Basic recording from the TV DVD (VR) DVD (Video) DVD+R DVD+RW DVD-RAM HDD Basic recording from the TV involves just setting the channel to record, choosing whether to record to the HDD or a DVD and selecting the recording quality. REC MODE • Press repeatedly to select the recording quality. • XP – High quality setting, gives about one hour of recording time on a DVD disc. • SP (Standard Play) – Default quality, used for most applications, gives about two hours of recording time on a DVD. • LP (Long Play) – Lower video quality than SP, but doubles the recording time on a DVD to about four hours. • EP (Extended Play) – Lower quality than LP, but gives about six hours of recording time on a DVD disc. HDD/DVD 1 Select the HDD or DVD for recording. • If you’re recording to DVD, load a recordable disc (if you load a new blank DVD-RW or DVD+RW disc, the recorder takes a short while to initialize the disc). • If you want to record a VR mode DVD-R or a Video mode DVD-RW, you must initialize it before proceeding (see Initializing recordable DVD discs on page 71). A.TV/D.TV 2 Press to switch between D.TV (digital) and A.TV (analog). Note 1 Audio is recorded in 16-bit Linear PCM format, video is recorded at XP quality. When recording a bilingual broadcast, select which audio channel to record (see Bilingual Recording on page 127). 2 Applicable only to HDD recording. (If this setting is used when recording to DVD, MN32 is used.) When copied to DVD, XP+ recordings are always copied in real time. 63 En DVR550HXS_WV_EN.book 64 ページ 2007年3月30日 金曜日 午前10時48分 07 Recording REC CHANNEL + 3 Select a TV channel to record. The front panel display shows the channel number, or channel name if it’s available: – CHANNEL A.TV Channel preset • While the recorder is stopped, you can also use the number buttons on the remote to select the channel (For channel 24, press 2, 4 then ENTER). • If the recorder is stopped, you can also use the CH +/– buttons on the front panel to select the channel number. 7 Start recording. If you want to set a recording end time, press the REC button repeatedly. The recording time increases in 30 minute increments, up to a maximum of six hours. The time the recording will end is shown on-screen and in the front panel display. When the recording ends, the recorder automatically switches into standby if no other operation is being performed. • To cancel the set recording time, press REC. • If you want to pause recording at any time1, press PAUSE. Press again to restart the recording (If recording to the HDD, DVD-RAM or in VR mode, a new chapter is started after recording restarts). REC MODE 4 Set the picture quality/recording time. • See Setting the picture quality/recording time on page 63 for detailed instructions. STOP REC AUDIO 5 If you’re recording from the A.TV tuner, select the audio channel to record. See Changing A.TV audio channels on page 62 for more on this. • When recording in VR mode, if a broadcast is bilingual, both audio channels are recorded, allowing you to switch the audio channel on playback. The only exception to this is when the picture quality is set to LPCM, in which case you do need to select the audio channel before recording. AUDIO 6 If you’re recording from the D.TV tuner, select the audio language to record. • You may also be able to set which subtitle language to record; use SUBTITLE to select. • Note that audio and subtitle languages cannot be changed during the recording of a digital broadcast. 64 En Note 1 Except during Chase Play. 8 Press to stop recording. • If you set the recording time in the previous step, you can still stop the recording anytime by pressing STOP REC. • Recording will stop automatically when there is no more space on the HDD/ DVD, or after 12 hours of HDD recording (whichever is sooner). Tip • During recording you can turn on/off the SCART loop through function. During recording, press the front panel CH + button to switch to SCART THRU (loop through on), or CH – to switch to SCART NORM (loop through off). Loop through is automatically reset to off after recording has finished. Note that you can’t switch loop through on if recording from the AV1(RGB)-TV connector. DVR550HXS_WV_EN.book 65 ページ 2007年3月30日 金曜日 午前10時48分 Recording Pause Live TV HDD The Pause Live TV feature lets you effectively pause a TV programme you’re watching. When you’re ready to resume watching, just press the PLAY button. Setting up for Pause Live TV You can use the Pause Live TV feature with an AV Link-compatible TV connected using a SCART cable (see TV tuner setup for Pause Live TV below), or using this recorder’s internal tuner (see Using the recorder’s internal tuner for Pause Live TV below). TV tuner setup for Pause Live TV To use this feature with an external TV tuner, the recorder must be connected to your TV using a SCART cable, and the AV. Link setting (page 134) should be set to This Recorder Only.1 See also Pause Live TV on page 135 for more on this. In order to use Pause Live TV, make the following connections and settings. • Pause Live TV will not work as expected when watching TV via an external component such as a VCR or digital tuner. It only works with the channel selected on the TV. 07 1 Connect this recorder to your TV with a SCART cable. 2 Press HOME MENU. 3 Select ‘Initial Setup’ > ‘Options2’ > ‘Pause Live TV’ > ‘TV’s Tuner’. 4 Select ‘Initial Setup’ > ‘Analog Tuner’ > ‘Auto Channel Setting’ > ‘Download from TV’. • If the Download from TV option appears grayed out, check the connections to your TV and try again. • Depending on your TV, you might have to switch off and unplug it for a few moments before plugging it back in and switching it on again. 5 Follow the on-screen instructions. Using the recorder’s internal tuner for Pause Live TV If you haven’t connected to your TV using a SCART cable (or your TV is not compatible with AV Link) you can use the recorder’s internal tuner for the Pause Live TV. 1 Press HOME MENU. 2 Select ‘Initial Setup’ > ‘Options2’ > ‘Pause Live TV’ > ‘Recorder’s Tuner’. See Pause Live TV on page 135 to do this. You can record the channel selected on the recorder. Important • Pause Live TV only works with the built-in A.TV (analog) tuner. It does not work with the D.TV tuner or the external inputs. Make sure the Auto Channel Setting is set to Download from TV (see Auto Channel Setting on page 125). Note 1 • Not all TVs support this feature. Check the instructions that came with your TV if you are unsure. • This feature will not work unless your TV is compatible with AV Link. See the operating instructions that came with your TV if you’re unsure about your TV’s compatibility with this feature. 65 En DVR550HXS_WV_EN.book 66 ページ 2007年3月30日 金曜日 午前10時48分 07 Recording Using Pause Live TV Tip PAUSE LIVE TV 1 Start recording the current TV channel. Recording continues with playback paused. • Note that it may take up to 10 seconds for recording to start. 2 Press to start playback. You can also use the scan buttons (/ ), pause ( PAUSE) and stop ( STOP) — all without affecting the recording. STOP REC 3 Press to stop the recording. The operation is slightly different depending on the viewing source. See the Operation table below for details. • When the Pause Live TV setting (see page 135) is set to TV’s Tuner, you can press PAUSE LIVE TV while the recorder is in standby to switch on and immediately start recording. When set to Recorder’s Tuner, it is not possible to use the Pause Live TV feature from standby. • After pressing PAUSE LIVE TV, it will take at least 10 seconds for the picture to change (during this time, all controls except the power button are inoperative). (Note that startup from standby is not possible if you have selected Recorder’s Tuner in Pause Live TV on page 135.) • Please note that you can’t record from another component (VCR, etc.) that is connected by a SCART cable to the AV2 (INPUT 1/DECODER) connector using the Pause Live TV feature. Operation table Viewing source TV built-in analog tuner TV/DVD Pause Live TV mode of DVR source function button DVR TV – Condition Pause Live TV Preset channel of DVR and TV are matched after downloading from TV. Direct TV recording*1 Preset channel of DVR and TV are NOT matched after downloading from TV. Record TV programme that you’re watching. TV built-in digital tuner TV – Direct TV recording*1 Preset channel info. in D.TV cannot be shared by DVR even after Download from TV. Record TV programme that you’re watching. External input of TV TV – Direct TV recording*1 Record TV programme that you’re watching. DVR built-in analog tuner DVD DVR built-in Pause Live TV analog tuner DVR built-in digital tuner DVD DVR built-in Pause Live TV digital tuner *1 No Chase Play! Warning if you change input this will stop the recording. 66 En DVR550HXS_WV_EN.book 67 ページ 2007年3月30日 金曜日 午前10時48分 Recording About timer recordings DVD (VR) DVD (Video) DVD+R DVD+RW DVD-RAM HDD Using the timer recording features you can program up to 32 timer recordings up to a month in advance. Timer recording programmes can be set to record just once, every day, or every week. You can set the recording quality for your timer recording in the same way as for a regular recording, but with the added option of an AUTO mode, which maximizes the recording quality for the space available on the disc (if recording to DVD), or to fit on to a blank DVD disc (if recording to the HDD). You can set timer recordings to record to a recordable DVD or to the hard disk drive. For regular (daily or weekly) HDD timer recordings that you don’t need to keep, you can use the Auto Replace Recording feature to automatically replace the previous timer recording with the new one. Note that when you use this feature, the previous recording made on that timer programme will be replaced by the next one, regardless of whether you have watched it yet or not. You can also set the recorder so that it will adjust the recording quality to try and fit the recording on to the disc if it would not otherwise fit at the recording quality you set (see Optimized Rec on page 130 for more on this). Finally, if you set a timer recording to record to DVD but there isn’t a recordable DVD loaded at the time of the recording, the Recovery Recording feature will automatically record the programme to the HDD for you. This recorder is compatible with VPS (Video Programming System) and PDC (Programme Delivery Control) systems used by many analog TV stations to ensure that a timer recording catches the whole programme even when the programme is not running to schedule. Up to eight timer programmes can be set with VPS/PDC on. 07 Important • A timer recording can’t be set if there are already 32 timer programmes waiting to be recorded. • Timer recording will not start if: – The recorder is already recording. – A disc is being initialized, finalized or unfinalized. • Timer recording will start when the operation preventing timer recording has finished. • When the front panel display is set to ON, the timer indicator ( ) lights in the front panel display when the timer is active. If the indicator is blinking it means that (for a DVD timer recording) there is no disc loaded, or the disc loaded is not recordable (for an HDD timer recording it means that the HDD is not recordable). • Approximately two minutes before a timer recording is set to start, the recorder will go into timer recording standby. In timer recording standby you cannot use some functions. • The maximum length for timer recordings made to the HDD is 24 hours. However, because one title (HDD) is limited to 12 hours, recordings over 12 hours will be spread over two titles. Note that there will be a break in the recording of a few seconds between titles. • VPS/PDC works only with analog stations; it does not work with digital TV stations. • VPS/PDC may not work with all broadcast stations in your country/area. Check with the stations for compatibility. • The hours between 3:00 and 5:00 in the morning are used by the GUIDE Plus+ system to download programme information. During these times, VPS/ PDC may not work reliably; leave VPS/ PDC off if you set a timer recording for these times. 67 En DVR550HXS_WV_EN.book 68 ページ 2007年3月30日 金曜日 午前10時48分 Recording 07 • If VPS/PDC is active for two timer programmes that are programmed to start at the same time, then the programme that actually starts first takes priority. Extending a timer recording in progress You can extend a timer recording beyond the programmed end time. This can be useful if a broadcast programme overruns, for example. Cancelling or extending the timer REC 2 Press repeatedly to extend recording in 30 minute blocks. Stopping a timer recording STOP REC 1 Press during a timer recording. ENTER 2 Select ‘Yes’ to confirm. Preventing use of the recorder before a timer recording (child lock) You can make all the front panel and remote control buttons inoperative using the child lock feature. This is useful when you set a timer recording and want to make sure that the timer settings are not changed before recording has finished. STANDBY/ON 1 If the recorder is on, switch it into standby. En • To unlock the recorder, press and hold (Stop) on the front panel (while the recorder is stopped) for three seconds until the display shows UNLOCKED. Timer recording FAQ Frequently Asked Questions REC 1 Press and hold for three seconds during a timer recording. Recording continues, but the timer indicator disappears from the front panel display indicating that the timer has been cancelled. 68 2 [Front panel] Press and hold for three seconds to lock the controls. The front panel display briefly shows LOCKED. If any buttons are pressed on the remote or front panel, LOCKED is briefly displayed again. • Even though the timer is set, the recorder doesn’t start recording! Check that the disc loaded or HDD is recordable, not locked (see Lock Disc on page 116), and that there are fewer than 99/999 titles already on the DVD/HDD. • The recorder won’t let me enter a timer programme! Why not? You can’t enter a timer programme if the clock isn’t set. • What happens when two or more timer programmes overlap? Basically, the programme with the earlier recording start time has priority. However, the recorder will start recording the programme with the later start time after the earlier programme is finished. If schedule to record two programmes have the same times (but different channels, for example), then only one of the two programmes will be recorded. In this event you should cancel the scheduled recording of the lesser important programme. If one of the overlapping programmes is a regular timer programme for a digital broadcast, you may choose ‘Cancel Once’ in order to avoid having it overlap with a separately scheduled programme (see Skipping a regular timer programme on page 55). DVR550HXS_WV_EN.book 69 ページ 2007年3月30日 金曜日 午前10時48分 Recording 07 Simultaneous recording and playback (Chase Play) Also, during simultaneous recording and playback, if the TV line system of the playback track/title changes then playback will automatically stop. HDD Chase Play allows you to watch a recording that is still in progress from the start, without having to wait until the recording has finished (i.e., playback is ‘chasing’ the recording). In fact, you’re not just limited to watching the recording in progress. You can watch anything else already on the HDD (or on a DVD if you’re recording to the HDD) by selecting it from the Disc Navigator screen (see Using the Disc Navigator with recordable discs and the HDD on page 77). Chase Play is not possible when DV is the recording input. • Press during recording to start playback from the beginning of the current recording1. DISC • NAVIGATOR Press during recording to select another title to play. You can use all the usual playback controls, such as pause, slow-motion play, scan and skip. • To stop playback, press STOP (recording will continue). • To stop recording, press STOP REC (playback will continue). • During recording or in timer recording standby, you can’t play an HDD title, DVD or Video CD/Super VCD disc if the Input Line System setting doesn’t match the TV line system of the disc/HDD title (see also Additional information about the TV system settings on page 135). Recording from an external component DVD (VR) DVD (Video) DVD+R DVD+RW DVD-RAM HDD You can record from an external component, such as a camcorder or VCR, connected to one of the recorder’s external inputs. 1 Make sure that the component you want to record from is connected properly to the HDD/DVD recorder. See Chapter 2 (Connecting up) for connection options. INPUT SELECT 2 Press repeatedly to select one of the external inputs to record from. The current input is shown on-screen and in the front panel display: • AV2/L1 – Input 12 • L2 – Input 2 (front panel) • L3 – Input 3 Check that the Audio In settings for External Audio and Bilingual Recording are as you want them (see Audio In on page 127). • If the aspect ratio is distorted (squashed or stretched), adjust on the source component or your TV before recording. • To watch video coming in via the DV input (front panel), select DV > DV Video Playback from the Home Menu (see also Playing from a DV camcorder on page 84). 3 REC MODE Set the recording quality. • See Setting the picture quality/recording time on page 63 for detailed information. Note 1 You can’t start playback immediately after recording starts. Simultaneous playback and recording doesn’t work while copying or backing up. 2 This cannot be selected if AV2/L1 In is set to Decoder (see AV2/L1 In on page 127). 69 En DVR550HXS_WV_EN.book 70 ページ 2007年3月30日 金曜日 午前10時48分 Recording 07 HDD/DVD 4 Select the HDD or DVD for recording. REC 5 Press to start recording. • If your source is copy-protected using Copy Guard, you will not be able to record it. See Restrictions on video recording on page 60 for more details. Playing your recordings on other DVD players DVD (VR) DVD (Video) DVD+R DVD+RW Most regular DVD players can play finalized discs recorded in DVD-R/-RW (Video mode) and DVD+R discs. A number of players (including many Pioneer models) can also play DVD-RW discs recorded in VR mode, finalized or not. Most players will not play VR mode DVD-R discs, although some DVDROM drives and DVD recorders may be able to (finalization might be necessary). Check the manual that came with the player to check what kinds of discs it will play. When you finalize a DVD-R/-RW (Video mode) or DVD+R disc, a title menu is created from which you can select titles when you play the disc. There are a number of different styles of title menu to choose from to suit the content of the disc. All the title menus are navigated in the usual way, pressing MENU or TOP MENU to display the menu, then using the /// followed by ENTER to select titles and start playback. 70 En Finalizing a disc DVD (VR) DVD (Video) DVD+R DVD+RW Finalizing ‘fixes’ the recordings on the disc so that it can be played on a regular DVD player or computer equipped with a suitable DVD-ROM drive.1 Note that the disc name will appear in the title menu after you finalize a disc. Make sure the disc name is as you want it before you finalize the disc as it can’t be changed afterwards. If you want to rename the disc, see Input Disc Name on page 116 before starting the steps below. DVD+RW discs don’t generally need finalizing. However, if you want a title menu to appear when you play the disc, then you will need to finalize. When using a DVD+RW, you can still record and edit even after finalizing. although the title menu will disappear if you do so. Finalize the disc again to generate a new title menu. Important • Once you’ve finalized a DVD-R/-RW (Video mode) or DVD+R disc, you can’t edit or record anything else on that disc. However, the finalization on a DVD-RW disc maybe ‘undone’; see Undo Finalize on page 117 for how to do this. • A VR mode DVD-R/-RW (excluding DVDR DL) disc can still be recorded and edited on this recorder even after finalizing. • DVD-R DL (Video mode) discs and DVD+R DL discs must be finalized in order to play in other recorders/players. Note however that some recorders/ players will not play even finalized duallayer discs. Note 1 If the TV line system of the disc is different to the current setting of the recorder, you will not be able to finalize the disc. See Additional information about the TV system settings on page 135 for how to change the recorder’s setting. DVR550HXS_WV_EN.book 71 ページ 2007年3月30日 金曜日 午前10時48分 Recording 07 1 Load the disc you want to finalize. Make sure that the recorder is stopped before proceeding. 2 HOME MENU Select ‘Disc Setup’ from the Home Menu. ENTER 3 Select ‘Finalize’ > ‘Finalize’ > ‘Next Screen’. Disc Setup Basic Finalize Next Screen Initialize Finalize Undo Finalize Start Optimize HDD 5 The recorder will now start finalizing the disc. During finalization: • If the finalization process of a DVD-RW or DVD+R/+RW disc is going to take more than around four minutes, you can press ENTER to cancel. Around four minutes before completion, the option to cancel disappears. • You can’t cancel the finalization of a VR mode DVD-R disc. • How long finalization takes depends on the type of disc, how much is recorded on the disc and the number of titles on the disc. A disc recorded in VR mode can take up to one hour to finalize. DVD-R/ -RW (Video mode) and DVD+R/+RW discs can take up to 20 minutes. ENTER 4 For DVD-R/-RW (Video mode) and DVD+R/+RW discs only, select a title menu style, then select ‘Yes’ to start finalization or ‘No’ to cancel. The menu you select will be the one that appears when the ‘top menu’ (or ‘menu’ for a DVD+R/+RW) is selected on any DVD player. Finalize Initializing recordable DVD discs DVD-R DVD-RW DVD+RW DVD-RAM DVD-R/-RW discs can be initialized for either Video mode recording or VR mode recording.1 When you first load a blank DVD-RW or DVD+RW disc, the recorder initializes it for recording automatically. By default, blank DVD-RW discs are initialized for VR mode recording. See DVD-RW Auto Initialize on page 72 if you want to change the default to Video mode. • Discs recorded partially or fully on the Pioneer DVR-7000 DVD recorder do not support this feature. These discs will have only a text title menu when finalized on this recorder. DVD-R discs are ready for Video mode recordings out of the box; if you want to use a DVD-R for VR mode recording, you must initialize it before recording anything on the disc. DVD+RW and DVD-RAM discs can also be initialized in order to erase the contents of the disc. Note 1 If a disc was previously finalized on an older DVD recorder, you may not be able to re-initialize and/or initialize it for Video mode recording. 71 En DVR550HXS_WV_EN.book 72 ページ 2007年3月30日 金曜日 午前10時48分 07 Recording DVD-RW Auto Initialize Important • Initializing a DVD-RW, DVD+RW or DVD-RAM disc will erase everything recorded on it. Make sure there is nothing on the disc that you want to keep! • You may not be able to re-initialize a DVD-RW disc in a different format if it was originally initialized on an older DVD recorder. • Once initialized for VR mode recording, you can’t re-initialize a DVD-R back to Video mode. DVD-RW • Default setting: VR Mode Initialization mode is automatically carried out when you insert a blank DVD-RW. You must set the desired initialization mode before inserting a disc. 1 HOME MENU Select ‘Disc Setup’ from the Home Menu. ENTER 1 HOME MENU Select ‘Disc Setup’ from the Home Menu. 2 Select ‘Basic’>’DVD-RW Auto Init.’, then ‘VR Mode’ or ‘Video Mode’. Disc Setup ENTER 2 Select ‘Initialize’ > ‘Video Mode’, ‘VR Mode’ or ‘Initialize DVD+RW’. Disc Setup Basic VR Mode Start Initialize Video Mode Start Finalize Initialize DVD+RW Start Optimize HDD ENTER 3 Select ‘Start’. It takes about 30 seconds to initialize the disc (except DVD-RAM discs, which can take up to an hour). Initializing Disc Pr 1 1 min left 72 En Basic Input Disc Name VR Mode Initialize Lock Disc Video Mode Finalize DVD-RW Auto Init. Optimize HDD DVR550HXS_WV_EN.book 73 ページ 2007年3月30日 金曜日 午前10時48分 Playback 08 Chapter 8 Playback Introduction Most of the features described in this chapter make use of on-screen displays. Navigate these using the cursor buttons and ENTER. To go back one level from any screen, use the RETURN/EXIT button. Remember also that the button guide at the bottom of every screen shows which buttons do what. Many of the functions covered in this chapter apply to the HDD, DVD discs, Video CDs, Super VCDs, WMA/MP3/DivX discs and CDs, although the exact operation of some varies slightly with the kind of disc loaded. • Many functions are not available when a Video CD is playing in PBC mode. Start playback from the Disc Navigator screen for non-PBC playback (see Using the Disc Navigator with playback-only discs on page 78). • For discs that contain JPEG picture files, see The PhotoViewer on page 109. • Some DVD-Video, DVD+R and DVD+RW discs don’t allow certain playback controls to operate at certain points in the disc. This is not a malfunction. HDD/DVD 1 Select the HDD or DVD for playback. • If playing video from the HDD, skip to step 3 below. • Select DVD for any kind of disc playback. OPEN/CLOSE 2 [Front panel] Load a disc. Load a disc with the label side facing up, using the disc tray guide to align the disc (if you’re loading a double-sided DVD-Video disc, load it with the side you want to play face down). • If you want to play a DTS audio CD, please first read the note on page 75. 3 Basic playback ALL This section shows you how to use your recorder for playback of discs (DVD, CD, etc.), and for playback of video from the HDD. Important • Throughout this manual, the term ‘DVD’ means any kind of playable or recordable DVD. If a function is specific to a particular kind of DVD disc, it is specified. Start playback. • If you’re playing a DVD-Video or Video CD, a disc menu may appear when you start playback. Use the /// buttons, number buttons, and ENTER to navigate DVD disc menus, and the number buttons and ENTER for Video CD menus. • When playing video from the HDD, playback will automatically stop after the end of a title is reached. • There may be a slight pause when playback switches from the first to the second layer of a dual-layer disc. • See the following sections for more details on playing specific kinds of discs. STOP 4 Press to stop playback. 5 When you’ve finished using the recorder, eject the disc and switch the recorder back into standby. 73 En DVR550HXS_WV_EN.book 74 ページ 2007年3月30日 金曜日 午前10時48分 08 Playback Playing DVD discs / / TOP MENU MENU The table below shows the basic playback controls for DVD-Video, and recordable DVD discs. Press to start playback. If RESUME is displayed onscreen, playback starts from the place last stopped. STOP PAUSE Press to stop playback. You can resume playback from the same point by pressing PLAY. (Press STOP again to cancel the resume function.) Pauses playback, or restarts playback when paused. Press to start scanning. Press repeatedly to increase the scanning speed. PREV NEXT CLEAR CLEAR ENTER CM BACK CM SKIP 74 En DISC NAVIGATOR Press to skip to previous/next chapter/title. (During playback you can also use the front panel CH +/– buttons.) DVD+R/DVD+RW only: PREV may not always skip to the previous title. Except VR mode: During playback, enter a chapter number then press ENTER to skip directly to that chapter within the currently playing title. On some discs, you can also use the number buttons to select numbered items in the disc menu. VR mode only: During playback, enter a title number then press ENTER. All: Press CLEAR to clear a number entry and start again. (Commercial back/skip) Turn the Smart Jog counterclockwise for backward skip; turn clockwise for forward skip. You can search up to two hours in either direction. While paused, press and hold to start slow-motion playback. Press repeatedly to change the playback speed. While paused, press to advance a single frame in either direction. You can also execute frame-by-frame playback/backward scanning via the Smart Jog. Press to display the menu of a DVD-Video disc. (DVD+R/+RW discs finalized on this recorder will display the Disc Navigator. Press MENU to display the disc menu.) Use the cursor buttons to navigate DVD-Video disc menus; press ENTER to select items. ENTER RETURN/EXIT Press to return to the previous level of a DVD-Video disc menu. Playing from the HDD The table below shows the basic playback controls when playing video recorded on the hard disk (HDD). Press to start playback. If RESUME is displayed onscreen, playback starts from the place last stopped. Playback automatically stops after the end of a title is reached. STOP PAUSE Press to stop playback. You can resume playback from the same point by pressing PLAY. (Press STOP again to cancel the resume function.) Pauses playback, or restarts playback when paused. Press to start scanning. Press repeatedly to increase the scanning speed. DVR550HXS_WV_EN.book 75 ページ 2007年3月30日 金曜日 午前10時48分 Playback PREV NEXT CLEAR CLEAR 08 Press to skip to previous/next chapter/title. (During playback you can also use the front panel CH +/– buttons.) During playback, enter a title number then press ENTER to skip directly to that title. Press CLEAR to clear a number entry and start again. Except WMA: Press to start scanning. Press again to increase the scanning speed. (There are two scan speeds; the current scan speed is shown on-screen.) PREV NEXT ENTER CM BACK CM SKIP / / (Commercial back/skip) Turn the Smart Jog counterclockwise for backward skip; turn clockwise for forward skip. You can search up to two hours in either direction. While paused, press and hold to start slow-motion playback. Press repeatedly to change the playback speed. While paused, press to advance a single frame in either direction. You can also execute frame-by-frame playback/backward scanning via the Smart Jog. CLEAR CLEAR Playing Video CD/Super VCDs The table below shows the basic playback controls for Video CD/Super VCDs. Some discs feature Playback Control (PBC for short) menus. These discs show PBC in the display when you load them and display a menu on-screen from where you can select what to watch.2 Press to start playback. Video CD only: If RESUME is displayed on-screen, playback starts from the place last stopped. The table below shows the basic playback controls for audio CDs1, and WMA/MP3 files. STOP PAUSE Press to stop playback. Pauses playback, or restarts playback when paused. During playback, enter a track number then press ENTER to skip directly to that track. Press CLEAR to clear a number entry and start again. ENTER Playing CDs and WMA/MP3 discs Press to start playback. Press to skip to previous/next track (or folder for WMA/MP3 disc). (During playback you can also use the front panel CH +/– buttons.) STOP Press to stop playback. Video CD only: You can resume playback from the same point by pressing PLAY. (Press STOP again to cancel the resume function.) Note 1 If you want to play a DTS audio CD, make sure the recorder is connected to a DTS-compatible amp/receiver with a digital connection. Noise will be output through the analog outputs. Also make sure that STEREO is selected using the AUDIO button (see Switching audio channels on page 82). 2 When playing in PBC mode, some playback features, such as search, repeat and programme play are not available. You can play a PBC Video CD/Super VCD in non-PBC mode by starting playback using the Disc Navigator (see Using the Disc Navigator with playback-only discs on page 78). 75 En DVR550HXS_WV_EN.book 76 ページ 2007年3月30日 金曜日 午前10時48分 08 Playback PAUSE Pauses playback, or restarts playback when paused. Playing DivX video files The table below shows the basic playback controls for DivX video files. Press to start scanning. Press repeatedly to increase the scanning speed. PREV NEXT CLEAR CLEAR ENTER CM BACK CM SKIP / RETURN/EXIT 76 En Press to start playback. If RESUME is displayed onscreen, playback starts from the place last stopped. Playback of titles (DivX files) proceeds in alphabetical order. Press to skip to previous/next track. When a PBC menu is displayed, press to display the previous/next page. (During playback you can also use the front panel CH +/– buttons.) STOP During playback, enter a track number then press ENTER to skip directly to that track. Press CLEAR to clear a number entry and start again. While a PBC menu screen is displayed, use to select numbered menu items. Video CD in non-PBC mode only: (Commercial back/skip) Turn the Smart Jog counterclockwise for backward skip; turn clockwise for forward skip. You can search up to two hours in either direction. While paused, press and hold to start slow-motion playback. Press repeatedly to change the playback speed (forward only). While paused, press to advance a single frame (forward only). You can also execute frame-byframe playback via the Smart Jog. Press to display the disc menu of a Video CD/Super VCD playing in PBC mode. PAUSE Press to stop playback. You can resume playback from the same point by pressing PLAY. (Press STOP again to cancel the resume function.) Pauses playback, or restarts playback when paused. Press to start scanning. Press repeatedly to increase the scanning speed. PREV NEXT / AUDIO SUBTITLE Press to skip to previous/next title. (During playback you can also use the front panel CH +/– buttons.) While paused, press to advance one frame. Press and hold to start slow motion playback (press repeatedly to change the slow motion play speed). You can also execute frame-byframe playback via the Smart Jog. Press to display the playback audio type; press repeatedly to change the playback audio type. Press to display subtitle information; press repeatedly to change subtitles. DVR550HXS_WV_EN.book 77 ページ 2007年3月30日 金曜日 午前10時48分 Playback 08 Using the Disc Navigator to browse the contents of a disc Use the Disc Navigator to browse the contents of a disc and start playback. Using the Disc Navigator with recordable discs and the HDD DVD-R DVD-RW DVD+R DVD+RW DVD-RAM HDD You can use the Disc Navigator to browse and edit video on recordable DVDs and the HDD, and to view information on titles. See also Editing on page 87 for more on editing recordable discs. HDD/DVD 1 2 Select the HDD or DVD. DISC NAVIGATOR 4 ENTER Play the highlighted title. • You can also select Play from the command menu options. Changing the display style of the Disc Navigator You can choose to display titles in the Disc Navigator in various different ways, sorted alphabetically, by recording date, by genre, and so on. You can also choose whether to display four or eight titles on the screen at the same time. 1 panel. Display the View Options The View Options panel Open the Disc Navigator. Disc Navigator (HDD) 11 Style Disc Navigator (HDD) 101 Sort order SP 9 Recent first 2h00m(1.0G) 8 22:00 THU 2/12 Pr 7 SP 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP All Genres Genre 20:00 FRI 3/12 Pr 9 SP 20:00 Fri 3/12 Pr 9 SP MENU 20:00 FRI 3/12 Pr 9 SP 20:00 Fri 3/12 Pr 9 SP 3 22:00 THU 2/12 Pr 7 SP 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP 1h00m(1.0G) 2h00m(1.0G) All Genres All Genres HDD SP Remain 30h30m SP 2h00m(1.0G) 2h00m(1.0G) 2 Recent first NEW first 2h00m(1.0G) 2h00m(1.0G) 4 Titles HDD SP Remain 30h30m 4 Titles 4 Titles 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM 23:00 Fri 3/12 Pr 4 SP 11/29Mon 7:00PM 2ch 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM 23:00 Fri 3/12 Pr 4 SP 11/29Mon 7:00PM 2ch MENU 1h00m(1.0G) 1h00m(1.0G) 1h00m(1.0G) ENTER • You can also access the Disc Navigator from the Home Menu. 3 Browse the list of titles. • You can also use the Smart Jog to select titles. • Use the PREV/ NEXT buttons to display the previous/next page of titles. • To change the thumbnail picture displayed for a title see Set Thumbnail on page 91. • For HDD recordings, you should be able to see a thumbnail title digest. If it doesn’t display, set Set Preview to Normal. See Set Preview on page 134. 2 Choose ‘Style’, ‘Sort order’ or ‘Genre’, then press ENTER to see the available view options. • Style – Select four or eight titles per screen view • Sort order – Sort by date (most recent first), unwatched first, title name or recording date (oldest first) • Genre – Display all genres or just a selected genre ENTER 3 Choose a view option, then press ENTER. The title list display is updated according to the new display preferences. 77 En DVR550HXS_WV_EN.book 78 ページ 2007年3月30日 金曜日 午前10時48分 Playback 08 Using the Disc Navigator with playback-only discs Video CD Super VCD WMA/MP3 DivX DVD-Video CD 1 Display the Home Menu. HOME MENU ENTER 2 Select ‘Disc Navigator’. Alternatively, for a CD, Video CD, Super VCD or WMA/MP3/DivX disc, you can press DISC NAVIGATOR, which takes you straight to the Disc Navigator screen. 1 During playback, start reverse or forward scanning. • The scanning speed is shown on-screen. 2 Press repeatedly to change the scanning speed. There are four scanning speeds available when playing HDD video, a DVD or a DivX title. Reverse playback is also possible with HDD and DVD video.2 There are two scanning speeds for other types of disc. 3 Resume normal playback. ENTER 3 Select what you want to play. Depending on the type of disc you have loaded, the Disc Navigator looks slightly different, but they are all navigated in the same way. Playing in slow motion The screen below shows a WMA/MP3/DivX disc. Navigate to the folder, or the track/title within a folder that you want to play. You can play video at various slow motion speeds. DVDs and video on the HDD can be played in slow motion in either direction, while Video CDs/Super VCDs and DivX titles can only be played forwards in slow motion. Disc Navigator CD WMA/MP3 Divx Folder (01-03) 01.Rock 02.Pop 03.Dance Track(001-004) 001.Intro 002.Escape 003.Everything You Say 004.What I Do DVD HDD Video CD Super VCD DivX There is no sound when playing in slow motion. PAUSE 1 Playback starts after you press ENTER. • For discs that contain CD-Audio tracks and WMA/MP3 tracks or DivX titles, you can switch the playback area between CD, WMA/MP3 and DivX. This can only be done while the disc is stopped. Scanning discs Pause playback. / / / / 2 Press and hold to start slow motion reverse or forward play. 3 Press repeatedly to change the slow motion speed. The current playback speed is indicated onscreen. 4 Resume normal playback. A L L (except WMA) You can scan discs at various speeds, forwards or backwards.1 78 En Note 1 • No subtitles are displayed when scanning DVDs and DivX titles. • No sound is output when scanning from the HDD, DVDs and DivX, except on forward SCAN 1. • Depending on the disc, normal playback may automatically resume when a new chapter is reached on a DVD disc. 2 Reverse playback may not be smooth. DVR550HXS_WV_EN.book 79 ページ 2007年3月30日 金曜日 午前10時48分 Playback Frame advance/frame reverse DVD HDD Video CD Super VCD DivX You can advance or back up video on a DVD disc1 or the HDD frame-by-frame. With Video CDs/Super VCDs and DivX titles, you can only use frame advance. PAUSE 1 Pause playback. / 08 ENTER 1 Select ‘Search Mode’ from the Play Mode menu, then choose a search option. The available search options depend on the type of disc. 2 Enter a title/chapter/folder/ track number or a search time. Play Mode / 3 Resume normal playback. The Play Mode menu ALL Time Search Title Search Chapter Search Search Mode A-B Repeat Repeat Programme 2 Back up or advance one frame with each press. • You can also do this by rotating the Smart Jog. Input Time 0.01.00 Time Search (HDD, DVD): For example, for 25 minutes into the current title, press 2, 5, 0, 0. For 1 hour and 15 minutes and 20 seconds into the title, press 1, 1, 5, 2, 0. Time Search (Video CD): For example, for 2 minutes and 30 seconds into the current track, press 2, 3, 0. The Play Mode menu gives you access to search functions, repeat and programme play functions. Title/Chapter/Folder/Track Search: For example, for track 6, press 6. • HOME MENU Select ‘Play Mode’ from the Home Menu. 3 Play Mode Search Mode A-B Repeat Repeat Programme Time Search Title Search Chapter Search Search Mode ENTER Start playback. A-B Repeat DVD HDD CD Video CD DivX The A-B Repeat function allows you to specify two points (A and B) within a track or title that form a loop which is played over and over.3 ALL ENTER The Search Mode feature lets you start playback from a specified point in a disc by time2 or by title/chapter/folder/track number. 1 During playback, select ‘A-B Repeat’ from the Play Mode menu. Note 1 Depending on the disc, normal playback may automatically resume when a new chapter is reached. 2 When using time search, playback may occasionally start slightly before or after the time you input. 3 If you switch camera angles on a DVD during A-B repeat play, A-B repeat is cancelled. 79 En DVR550HXS_WV_EN.book 80 ページ 2007年3月30日 金曜日 午前10時48分 08 Playback ENTER 2 With ‘A (Loop Start)’ highlighted, press at the point you want the loop to start. Play Mode Search Mode A-B Repeat Repeat Programme A (Loop Start) B (Loop End) Off ENTER 3 With ‘B (Loop End)’ highlighted, press at the point you want the loop to end. Playback immediately jumps back to the start point and plays the loop round and round. • When playing a DVD-Video, DVD-R/-RW (Video mode), DVD+R/+RW, or from the HDD, the start and end points of the loop must be in the same title. • To resume normal playback, select Off from the A-B Repeat menu, or press CLEAR if no menu OSD (such as the Play Mode menu) is displayed. Repeat play ALL There are various repeat play options, depending on the kind of disc loaded, or if you’re using the HDD for playback. It’s also possible to use repeat play together with programme play to repeat the tracks/ chapters in the programme list (see Programme play below).1 ENTER • Select ‘Repeat’ from the Play Mode menu, then choose a repeat play mode. Play Mode Repeat Title Repeat Chapter Repeat Off Search Mode A-B Repeat Repeat Programme • To resume normal playback, select Repeat Off from the Repeat Play menu, or press CLEAR if no menu OSD (such as the Play Mode menu) is displayed. Programme play HDD DVD-Video CD Video CD Super VCD WMA/MP3 This feature lets you program the play order of titles/chapters2/folders/tracks on a disc or the HDD. ENTER 1 Select ‘Programme’ from the Play Mode menu, then ‘Input/Edit Programme’. The Input/Edit Programme screen varies according to the disc type. Below is the DVD input screen. Programme Title Title Title Title Step 01.001 02. 03. 04. 05. 06. 07. 08. (01-03) 01 02 03 Chapter(001-015) Chapter 001 Chapter 002 Chapter 003 Chapter 004 Chapter 005 Chapter 006 Chapter 007 Chapter 008 ENTER 2 Select a title, chapter, folder or track for the current step in the programme list. 80 En Note 1 If you switch the camera angle during repeat play of a DVD-Video disc, repeat play is cancelled. 2 When playing a programme list of DVD-Video chapters, chapters not included in the programme list may be sometimes be played, depending on the disc. DVR550HXS_WV_EN.book 81 ページ 2007年3月30日 金曜日 午前10時48分 Playback After pressing ENTER to add the title/ chapter/folder/track, the step number automatically moves down one. • To insert a step into the programme list, highlight the step number where you want to insert another step, then select a chapter/title/folder/track as usual. After pressing ENTER, all the subsequent steps move down one. • To delete a step from the programme list, highlight the step you want to delete, then press CLEAR. 3 Repeat step 2 to build up a programme list. A programme list can contain up to 24 titles/ chapters/folders/tracks. 4 Play the programme list. Programme play remains active until you cancel programme play, erase the programme list, eject the disc or switch off the recorder. Tip • To save your programme list and exit the programme edit screen without starting playback, press HOME MENU. • During programme play, press NEXT to skip to the next programme step. • To repeat play the programme list, select Programme Repeat from the Repeat Play Mode menu (see Repeat play on page 80). • Press CLEAR during playback to switch off programme play (if no menu OSD, such as the Disc Navigator, is displayed). Press while stopped to erase the programme list. 08 • From the programme menu you can also: Start Programme Play – Starts playback of a saved programme list Cancel Programme Play – Turns off programme play, but does not erase the programme list Erase Programme List – Erases the programme list and turns off programme play Displaying and switching subtitles DVD-Video DivX Some DVD and DivX discs have subtitles in one or more languages; the disc box will usually tell you which subtitle languages are available. You can switch subtitle language during playback.1 Check the disc packaging for details of the subtitle options. SUBTITLE • Select/change the subtitle language. The current subtitle language is shown onscreen and in the front panel display. • To switch off subtitles, press SUBTITLE then CLEAR. Switching DVD and DivX soundtracks DVD-Video DivX When playing a DVD disc or DivX title recorded with two or more soundtracks (often in different languages), you can switch the soundtrack during playback.2 Note 1 • Some discs only allow you to change subtitle language from the disc menu. Press MENU or TOP MENU to access. • To set subtitle preferences, see Subtitle Language on page 129. 2 • Some discs only allow you to change audio language from the disc menu. Press MENU or TOP MENU to access. • To set audio language preferences, see Audio Language on page 129. 81 En DVR550HXS_WV_EN.book 82 ページ 2007年3月30日 金曜日 午前10時48分 08 Playback Check the disc packaging for details of the soundtrack options. HDD DVD (VR) DVD-RAM L+R – Both channels (default) L – Left channel only R – Right channel only AUDIO • Change the audio soundtrack. The current audio language is shown onscreen and in the front panel display. CD • The sound may drop out for a few seconds when switching soundtracks. • Some discs feature both Dolby Digital and DTS soundtracks. There is no analog audio output when DTS is selected. To listen to the DTS soundtrack, connect this recorder to a DTS decoder or AV amp/receiver with built-in DTS decoder via the digital output. See Connecting to an AV amplifier/receiver on page 20 for connection details. Stereo – Stereo (default) 1/L – Left channel only 2/R – Right channel only Super VCD 1 Stereo – Soundtrack 1/Stereo (default) 1 L – Soundtrack 1/Left channel 1 R – Soundtrack 1/Right channel 2 Stereo – Soundtrack 2/Stereo 2 L – Soundtrack 2/Left channel 2 R – Soundtrack 2/Right channel Switching audio channels DVD (VR) DVD-RAM HDD CD Video CD Super VCD WMA/MP3 For HDD and VR mode content recorded with bilingual audio, you can switch between left (L) channel, right (R) channel, or both (L+R).2 When playing Video CDs and audio CDs you can switch between stereo, just the left channel or just the right channel. Some Super VCDs have two soundtracks. With these discs you can switch between the two soundtracks as well as individual channels in each. • Press repeatedly to display/switch the audio channel. The audio channel(s) currently playing are indicated on-screen. 82 En Switching camera angles DVD-Video 1 AUDIO Video CD WMA/MP3 Some DVD-Video discs feature scenes shot from two or more angles — check the disc box for details: it should be marked with a icon if it contains multi-angle scenes. When a multi-angle scene is playing, the same icon appears on screen to let you know that other angles are available (this can be switched off if you prefer — see Angle Indicator on page 132). ANGLE • Switch the camera angle. • The angle number is displayed onscreen. • If the disc was paused, playback starts again with the new angle. Note 1 Only when HDD Recording Format is set to Video Mode Off (HDD Recording Format on page 131). 2 When playing a Bilingual recording on a VR mode disc, if you are listening to the Dolby Digital soundtrack via the digital output, you cannot switch the audio channel. Set Dolby Digital Out to Dolby Digital PCM (see Dolby Digital Out on page 128) or listen via the analog outputs if you need to switch the audio channel. DVR550HXS_WV_EN.book 83 ページ 2007年3月30日 金曜日 午前10時48分 Playback 08 Displaying disc information on-screen You can display various on-screen information about the disc loaded or the HDD. Shows recording restrictions for the current channel programme Stop DVD-RW VR Original Disc Name Resume XP (1h00m/DVD) Finalized Rem. 0h35m ABC Pr 1 Stereo Copy Once : Comedy shows DVD Mode DISPLAY Indicates copy-protected material • Display/change the on-screen information. • Press once to show the HDD and removable disc (DVD, etc.) activity together. Press again to show the status of just the currently selected playback/ recording device (HDD or removable disc). • To hide the information display, press DISPLAY repeatedly until it disappears. HDD and removable disc activity display Press DISPLAY once to see the HDD and removable disc (DVD, etc.) activity. Use the HDD/DVD button to switch between the two kinds of display. The example displays below show highspeed copying from HDD to DVD, and HDD chase playback. Rec Mode SP(2h00m/DVD) HDD Remain 10h35m Stop Hi-Speed Copy HDD DVD 0h08m left DVD-RW Video Remain –h––m Stop Rec Mode SP(2h00m/DVD) HDD DVD-RW Video Remain 10h35m Chase Play Rec Remain 0h52m Stop Recording time Relative playback position Indicates a multi-angle scene Play DVD-R Video Title Name 3–2 0. 00. 15 Chapter Time 0. 00. 21 Chapter Total 0h01m52s 4.32Mbps ! : 21/11 Football match Indicates the data transfer rate Tip • See Switching camera angles on page 82 for more on multi-angle scene switching. • When using the simultaneous play and record feature, the display shows information for playback only. • During real-time copy, the copy source playback information is displayed. • The Video mode DVD-R/-RW displays become the same as a DVD-Video disc once the disc is finalized. • The total recording time figure shown in parenthesis is calculated based on a 12 cm/4.7 GB disc at the displayed record setting. • Recording and playback times for TV recordings are approximately 0.1 % shorter than the actual time. This is because of the slightly different frame rates of TV broadcasts versus DVD. • The frame number is shown next to the elapsed time display when the disc is paused. • Copy Once or Can’t Record messages may appear in the stop or recording displays. These indicate that the broadcast TV programme contains copy control information. 83 En DVR550HXS_WV_EN.book 84 ページ 2007年3月30日 金曜日 午前10時48分 09 Playing and recording from a DV camcorder Chapter 9 Playing and recording from a DV camcorder You can play back and record video from a DV camcorder connected to the DV IN jack on the front panel of this recorder. Important • If you connect a second recorder using a DV cable, you cannot control the second unit from this one. • You can’t control this unit remotely from a component connected to the DV IN jack. Playing from a DV camcorder 1 Make sure your DV camcorder is connected to the front panel DV IN jack. 2 From the Initial Setup menu, check that the DV audio input is setup as you would like. See DV Input on page 128 for more on this. • Check also that the Audio In settings for External Audio and Bilingual Recording are as you want them (see Audio In on page 127). 3 HOME MENU Select ‘DV’, then ‘DV Video Playback’ from the Home Menu. 4 Start playback on the camcorder. Images from the camcorder should appear on your TV. • To record the incoming video, press HDD/DVD to select the HDD or a DVD for recording, then press REC. Press STOP REC to finish recording. If there is no signal from the device connected to the DV jack, or the signal is copy-protected, recording will pause. It will automatically restart once there is a recordable signal. 84 En • The recorder will only start recording from the DV IN jack if there is a valid signal. Recording will pause if the signal is interrupted during recording. • If your source is copy-protected using Copy Guard, you will not be able to record it. See Restrictions on video recording on page 60 for more details. Recording from a DV camcorder • The source signal must be DVC-SD format. • You can’t record date and time information from DV cassette. • During DV recording, if a part of the tape is blank, or has copy-protected material on it, this recorder will pause recording. Recording will restart automatically when there is a recordable signal. However, if there is more than two minutes of blank tape, this recorder will stop recording and the camcorder should stop (depending on the camcorder). Copying from a DV source Using the recorder’s remote, you can control both the camcorder and this recorder. Important • Some camcorders cannot be controlled using this recorder’s remote. • For best results when recording from a DV camcorder to this recorder, we recommend cueing the camcorder to the place you want to start recording from and setting the camcorder to play-pause. DVR550HXS_WV_EN.book 85 ページ 2007年3月30日 金曜日 午前10時48分 Playing and recording from a DV camcorder 1 Make sure your DV camcorder is connected to the front panel DV IN jack. Also, set the camcorder to VTR mode. • If you restart recording after stopping the camcorder, the first few seconds of the camcorder tape will not be recorded. Use the pause button on your camcorder instead and recording will start immediately. • HDD, DVD (VR Mode) and DVD-RAM only: A chapter marker is inserted every time there is a break in the timecode on the DV tape. This happens when the recording is stopped or paused then restarted, for example. • If you don’t want to see the DV recording screen during recording, press DISPLAY to hide it (press again to display). • While recording, you cannot exit the DV recording screen using the HOME MENU or RETURN/EXIT button. REC MODE 2 Set the recording quality. • See Setting the picture quality/recording time on page 63 for detailed information. 3 From the Initial Setup menu, check that the DV audio input is setup as you would like. See DV Input on page 128 for more on this. • Check also that the Audio In settings for External Audio and Bilingual Recording are as you want them (see Audio In on page 127). 4 HOME MENU Select ‘DV’, then ‘Copy from a DV Source’ from the Home Menu. • DV recording only works when the DV camcorder is in VTR mode with a tape loaded. ENTER 5 Select ‘Record to Hard Disk Drive’ or ‘Record to DVD’. 6 Find the place on the camcorder tape that you want to start recording from. For best results, pause playback at the point from which you want to record. • Depending on your camcorder, you can use this recorder’s remote to control the camcorder using the , , , , , and buttons. ENTER 7 Select ‘Start Rec’. Stop 1.02.22 Stop Control with these buttons DV Auto Copy DV Auto Copy allows you to make an exact copy of the contents of a DV source to the HDD or a DVD. 1 Make sure your DV camcorder is connected to the front panel DV IN jack. Also, set the camcorder to VTR mode. REC MODE 2 Set the recording quality. • See Setting the picture quality/recording time on page 63 for detailed information. 3 From the Initial Setup menu, check that the DV audio input is setup as you require. See DV Input on page 128 for more on this. • Check also that the Audio In settings for External Audio and Bilingual Recording are as you want them (see Audio In on page 127). Start Rec Pause Rec 09 Stop Rec HDD Rem. SP (2h00m/DVD) 32h45m • You can pause or stop the recording by selecting Pause Rec or Stop Rec from the on-screen display. You cannot control the camcorder from this remote control during recording. 4 HOME MENU Select ‘DV’, then ‘DV Auto Copy’ from the Home Menu. • DV recording only works when the DV camcorder is in VTR mode with a tape loaded. 85 En DVR550HXS_WV_EN.book 86 ページ 2007年3月30日 金曜日 午前10時48分 09 Playing and recording from a DV camcorder • There’s a picture, but no sound! ENTER 5 Select ‘Record to Hard Disk Drive’ or ‘Record to DVD’. The DV tape is rewound to the beginning. Once it is rewound, the DV tape is played from the beginning and copied to either the HDD or a DVD. • If there is a gap of two minutes or more between recorded contents, the copying process is automatically stopped. • Once copying is finished, the DV tape is automatically rewound. • To cancel the copying process, press STOP REC for more than three seconds. About automatic finalization If you use a DVD-R/-RW (Video mode) or DVD+R/+RW disc for copying, it will automatically be finalized after copying is complete. • You can’t customize the background for DVD-R/-RW or DVD+R/+RW disc finalization. • No title names are assigned. • If you want to give the disc a name, please do so before you start the copy (see Input Disc Name on page 116). • If a timer recording is scheduled to start, and in some other instances, the disc will not be finalized. Frequently Asked Questions • I can’t get my DV camcorder to work with the recorder! Check that the DV cable is properly connected. Also make sure that what you’re trying to record is not copyprotected. If it still doesn’t work, try switching off the camcorder then switch back on. 86 En Try switching the DV Input setting (see DV Input on page 128) between Stereo 1 and Stereo 2.1 About DV Using DV, also known as i.LINK or IEEE 13941995, you can connect a DV camcorder to this recorder using a DV cable for input of audio, video, data and control signals. “i.LINK” and the “i.LINK” logo are trademarks. • This recorder is only compatible with DVformat (DVC-SD) camcorders. Digital satellite receivers and Digital VHS video recorders are not compatible. • You cannot connect more than one DV camcorder at a time to this recorder. • You cannot control this recorder from external equipment connected via the DV IN jack. • It may not always be possible to control the connected camcorder via the DV IN jack. • DV camcorders can usually record audio as stereo 16-bit/48 kHz, or twin stereo tracks of 12-bit/32 kHz. This recorder can only record one stereo audio track. Set the DV Input setting as required (see DV Input on page 128). • Audio input to the DV IN jack should be 32 kHz or 48 kHz (not 44.1 kHz). • Picture disturbance in the recording may occur if the source component pauses playback or plays an unrecorded section of tape, or if the power fails in the source component, or the DV cable is disconnected. • The DV IN jack is an input only. There is no output functionality. Note 1 If the audio subcode on the DV tape cannot be read correctly, the audio type will not switch automatically. You can switch the audio manually from the External Audio setting (page 127). DVR550HXS_WV_EN.book 87 ページ 2007年3月30日 金曜日 午前10時48分 Editing 10 Chapter 10 Editing Editing options The table below shows which commands you can use with the HDD and different disc types. HDD DVD-R/-RW (Video mode), DVD+R/+RW DVD-R/-RW, DVD-RAM (VR mode) Original Play List Create (page 89) Play (page 89) Erase (page 89) Edit > Title Name (page 90) Edit > Set Thumbnail (page 91) Edit > Erase Section (page 91) Edit > Divide (page 92) Edit > Chapter Edit (page 93) Edit > Set Genre (page 94) Edit > Lock (page 94) Edit > Move (page 95) Edit > Combine (page 95) Genre Name (page 96) Multi-Mode (page 97) Undo (page 97) *1 *1 *1 DVD-R/-RW only 87 En DVR550HXS_WV_EN.book 88 ページ 2007年3月30日 金曜日 午前10時48分 Editing 10 The Disc Navigator screen PREV • The Disc Navigator screen is where you can edit video content on unfinalized Video mode and DVD-R/-RW (VR mode) discs, DVD+R/ +RW and DVD-RAM, as well as video content on the hard disk drive. NEXT When in the title list, press to display the previous/next page if there are more titles than can be displayed. DISPLAY • Press to change the title information displayed in the title list. HDD/DVD Important • Press to switch between the HDD and DVD Disc Navigator screens. • If you are editing a DVD-R/-RW (VR mode) or DVD-RAM disc you can display the Play List by selecting Play List from the view options panel (press , then select Play List from the view options, then Play List). • Titles that have been recorded with a Input Line System setting different to the current setting of the recorder are shown in the Disc Navigator with a blank thumbnail image. See also Additional information about the TV system settings on page 135. • During recording, if you display the Disc Navigator for the HDD, some of the titles Disc Navigator (DVD) Style may appear with a mark. These titles were recorded with a Input Line System setting different to the current setting of the recorder. During recording, these titles cannot be played. 101 4 Titles 4 Titles PlayList Original Original 10Titles 23:00 FRI 11/29 MON3/12 7:00PM 23:00 Fri 3/12 Pr 4 2ch SP 11/29Mon 7:00PM SP 2h00m(1.0G) 2h00m(1.0G) 9 20:00 FRI 3/12 20:00 Fri 3/12 Pr 9 SP 2h00m(1.0G) MENU • Titles on the HDD marked with a icon are recently recorded titles that haven’t yet been played. HDD/DVD 1 Select the HDD or DVD. 3 DISC 2 NAVIGATOR Display the Disc Navigator screen. Playback will automatically stop when you do this. • The Disc Navigator is also accessible from the Home Menu. View options panel Title list Disc Navigator (HDD) 101 9 Recent first Available recording time Selected title SP 20:00 FRI 3/12 Pr 9 SP 20:00 Fri 3/12 Pr 9 SP 2h00m(1.0G) 8 22:00 THU 2/12 Pr 7 SP 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP All Genres HDD SP Remain 30h30m 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM 23:00 Fri 3/12 Pr 4 2ch SP 11/29Mon 7:00PM 2h00m(1.0G) 2h00m(1.0G) 4 Titles MENU 1h00m(1.0G) 1h00m(1.0G) Title thumbnail Title information Command menu panel • 88 En Press to display the command menu panel. Use the / and ENTER buttons to navigate the menus. DISC NAVIGATOR Press to exit the Disc Navigator. Editing accuracy Some editing commands ask you whether you want to keep Video mode compatibility or frame accuracy (Video Mode Compatible Editing or Frame Accurate Editing). Frame Accurate Editing is very precise. The edit point is accurate to the exact frame you choose. However, this accuracy is not preserved in any copy you make if you use the high-speed copy function to make a DVD-R/-RW (Video mode) or DVD+R/+RW. Video Mode Compatible Editing is less precise. The edit point you choose will only be accurate to within one-half to one second. On the other hand, these edit points will be preserved if you use high-speed copy to make a DVD-R/-RW (Video mode) or DVD+R/+RW. DVR550HXS_WV_EN.book 89 ページ 2007年3月30日 金曜日 午前10時48分 Editing 10 HDD genres Play The large capacity of the HDD means that there may be many hours of video in the recorder. To help you organize your HDD video content you can assign different genres to titles. There are 20 genres in total, including five user-definable ones that you can name as you like. Create DVD (Video) DVD (VR) DVD+R DVD+RW DVD-RAM HDD Use this function to start playback of a title. 1 Highlight the title you want to play. • You can also use the Smart Jog to select titles. DVD (VR) DVD-RAM Play List only Use this function to create a Play List and add titles to it. Before you can use this command, make sure that the Play List is switched on in the view options panel on the left. ENTER 2 Select ‘Play’ from the command menu panel. Playback of the title you selected starts. Disc Navigator (HDD) 101 Erase 2h00m(1.0G) 2h00m(1.0G) 4 Titles ENTER 1 Select ‘Create’ from the command menu panel. 9 20:00 FRI 3/12 Pr 9 SPEdit 20:00 Fri 3/12 Pr 9 SP 8 22:00 THU 2/12 Pr 7 SP 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP Recent first 2h00m(1.0G) Genre Name All Genres Disc Navigator (DVD) 0Titles No title 4 Titles Play Erase 2h00m(1.0G) HDD SP Remain 30h30m 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM 23:00 Fri 3/12 Pr 4 2ch SP Play 11/29Mon 7:00PM SP 1h00m(1.0G) Multi-Mode 1h00m(1.0G) Edit Play List 2h00m(1.0G) Erase Undo 1h00m(1.0G) DVD (Video) DVD (VR) DVD+R DVD+RW DVD-RAM HDD Create DVD VR Mode Remain 0h30m ENTER 2 Select an original title to add to the Play List. • You can also use the Smart Jog to select titles. Repeat these two steps to add as many titles as necessary to the Play List. Use this function to erase unwanted titles. When you erase titles from the HDD or Original titles from a VR mode DVD-RW, the available recording space increases accordingly. Erasing a title from a DVD-RW (Video mode) or DVD+RW disc increases the available recording time only if it is the last title on the disc.1 Erasing Play List titles, or titles from a DVD-R (VR mode or Video mode) or DVD+R, will not result in any more free space on the disc. Note 1 There may be cases where erasing a title from a DVD+R/+RW disc will result in incontiguous title numbers. 89 En DVR550HXS_WV_EN.book 90 ページ 2007年3月30日 金曜日 午前10時48分 10 Editing ENTER 1 Highlight the title you want to erase. • You can also use the Smart Jog to select titles. 3 title. Input a name for the selected Input Title Name 23:00 Fri 3/12 Pr 4 SP ABC DE F GH I J KLM . , ? ! N O P Q R S T U V WX Y Z ( ) : ; AA A A A AÆ ç E E E E I I I I # DN O OOO 0 1 2 3 4 5 + – /@ [ c £ \ § 2 3 ´ µ¶ · 2 Select ‘Erase’ from the command menu panel. OK Clear O ø ß$% = > _ & ± { _| } ~ ¡ – ® ˚ 1 3 /2 /4 ¿ ` UUUUY 6 7 8 9 < ¥ ] ˆ ÷ x ¨ © a– << ¬ ¸ 1 –o 1/4 << CAPS small ENTER Space ENTER 3 Select ‘Yes’ to confirm or ‘No’ to cancel. Tip • You can erase a title quickly by pressing CLEAR when the title is highlighted. Confirm the edit by pressing ENTER. Title Name DVD (Video) DVD (VR) DVD+R DVD+RW DVD-RAM HDD You can give titles new names of up to 64 characters long for VR mode, DVD-RAM and HDD recordings, and up to 40 characters for Video mode recordings and DVD+R/+RW discs. 1 Highlight the title you want to name (or rename). • You can also use the Smart Jog to select titles. ENTER 2 Select ‘Edit’ > ‘Title Name’ from the command menu panel. Disc Navigator (HDD) 101 Erase 2h00m(1.0G) 2h00m(1.0G) Set Thumbnail 4 Titles 9 Erase Edit Section 20:00 FRI 3/12 Pr 9 SP Divide 20:00 Fri 3/12 Pr 9 SP 8 22:00 THU 2/12 Pr 7 Lock SPGenre Name 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP Recent first All Genres HDD SP 90 En Remain 30h30m 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM Play 23:00 Fri 3/12 Pr 4 2ch SP 11/29Mon 7:00PM SP Title Name Chapter Edit 2h00m(1.0G) SetMulti-Mode Genre 1h00m(1.0G) Cancel Cancel 1h00m(1.0G) • A name generated automatically by the recorder will already be in the name input section of the screen. Use the / buttons to change the cursor position. • Select CAPS or small to change to upper or lower-case, or use the CASE SELECTION buttons ( PREV/ NEXT). • You can also use the CLEAR button to delete characters directly (press and hold for two seconds to delete the whole name). For other remote control key shortcuts, see Using the remote key shortcuts to input a name on page 91. • For discs formatted on a different DVD recorder, you will see only a limited character set. ENTER 4 Select ‘OK’ to enter the name and return to the main Disc Navigator screen. • To return to the main Disc Navigator screen without saving changes to the title name, press RETURN/EXIT. DVR550HXS_WV_EN.book 91 ページ 2007年3月30日 金曜日 午前10時48分 Editing 10 Using the remote key shortcuts to input a name The table below shows the remote control key shortcuts that you can use to input characters in the name input screen. Pressing a button repeatedly cycles through the characters shown. If you want to enter two characters in succession that are both on the same button (for example a P and an R), press to advance the cursor one space manually between inputting the two characters. • You can also use the Smart Jog to select titles. ENTER 2 Select ‘Edit’ > ‘Set Thumbnail’ from the command menu panel. The thumbnail setting screen appears from which you can find the frame you want. Disc Navigator (HDD) 101 9 Key Characters Key Characters 1 .,’?!–&1 6 mno6öôòó øñ All Genres abc2äàáâã æç 7 3 def3èéëê 8 tuv8üùûú 4 ghi4îïìí¡ 9 wxyz9 5 jkl5£ 0 0 [cursor back] [cursor forward] pqrs7$ ÿ/ß *1 Erase 2h00m(1.0G) 2h00m(1.0G) Set Thumbnail 4 Titles Recent first 2 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM Play 23:00 Fri 3/12 Pr 4 2ch SP 11/29Mon 7:00PM Title SP Name HDD SP Remain 30h30m Erase Edit Section 20:00 FRI 3/12 Pr 9 SP Divide 20:00 Fri 3/12 Pr 9 SP Chapter Edit 2h00m(1.0G) SetMulti-Mode Genre 8 22:00 THU 2/12 Pr 7 Lock SPGenre Name 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP Cancel Cancel 1h00m(1.0G) 1h00m(1.0G) 3 Use the playback controls (, , , , etc.) to find a suitable frame, then press ENTER to set. Set Thumbnail (HDD) 23:00 Fri 3/12 Pr 4 SP Rec. time / [change case] CLEAR [clear charac ter] *1 <space> + ~ [finish name input] ()_/:;”`^@#∗%¥|+= {}[]<> lower-case: ÿ; upper-case: ß Set Thumbnail HDD DVD (Video) DVD (VR) DVD+R DVD+RW DVD-RAM You can change the thumbnail picture that appears in the Disc Navigator for a title to any frame that appears in that title. 1 Highlight the title you want to change the thumbnail picture for. 2h00m 10-1 00.00.09.15 Play Pause OK OK Exit Exit You can also use the chapter and time search features (press the YELLOW button), and the Smart Jog (for CM SKIP and CM BACK). 4 Select ‘Exit’ to return to the Edit screen. Erase Section HDD DVD (VR) DVD-RAM Using this command you can delete a part of a title, ideal for cutting out the commercial breaks in a recording made from the TV. 1 Highlight the title containing the section you want to erase. 91 En DVR550HXS_WV_EN.book 92 ページ 2007年3月30日 金曜日 午前10時48分 10 Editing • You can also use the Smart Jog to select titles. ENTER 2 Select ‘Edit’ > ‘Erase Section’ from the command menu panel. ENTER 3 edit. HDD only: Select the type of ! HDD/DVD RECORDER ENTER 6 Select ‘Yes’ to confirm, or ‘No’ to cancel. In the thumbnail viewer you can see a few seconds of video either side of the marked section to see how the edit will look. • When editing VR mode Original content, you may not be able to erase very short sections (less than five seconds). Divide Please select the type of editing. Video Mode Compatible Editing is recommended for compatibility with high-speed copying. HDD DVD (VR) DVD-RAM Play List only Use this command to divide a title into two. Note that once divided, the two new HDD titles cannot be recombined into one again. Video Mode Compatible Editing Frame Accurate Editing • For more information about these options, see Editing accuracy on page 88. 4 Highlight ‘From’ then use the playback controls (, , , , etc.) to find the start of the section to erase, then press ENTER. The bar at the bottom of the screen indicates the current play position in the title. After pressing ENTER, a marker shows the start of the section. 23:00 Fri 3/12 Pr 4 SP Rec. time 2h00m 10-1 00.00.09.15 Play Pause From To Exit ENTER 5 Highlight ‘To’ then, in the same way, find the end of the section to erase, then press ENTER. After pressing ENTER, another marker indicates the end of the section, with the section itself marked in red. En ENTER 2 Select ‘Edit’ > ‘Divide’ from the command menu panel. 3 HDD only: Select the type of edit. ! Erase Section (HDD) 92 1 Highlight the title you want to divide. • You can also use the Smart Jog to select titles. HDD/DVD RECORDER Please select the type of editing. Video Mode Compatible Editing is recommended for compatibility with high-speed copying. Video Mode Compatible Editing Frame Accurate Editing • For more information about these options, see Editing accuracy on page 88. DVR550HXS_WV_EN.book 93 ページ 2007年3月30日 金曜日 午前10時48分 Editing 10 4 Use the playback controls (, , , , etc.) to find the place you want to divide the title. Divide Title (HDD) 23:00 Fri 3/12 Pr 4 SP Rec. time 2h00m ENTER HDD only: Select the type of 3 edit. ! HDD/DVD RECORDER Please select the type of editing. Video Mode Compatible Editing is recommended for compatibility with high-speed copying. 10–1 00.00.09.15 Play Pause Divide Video Mode Compatible Editing Cancel Frame Accurate Editing 5 Press to divide the title at the current playback position. ENTER ENTER 6 Select ‘Yes’ to confirm or ‘No’ to cancel. ! Divided titles cannot be combined. OK? Yes • For more information about these options, see Editing accuracy on page 88. 4 Select the command you want: • Divide – Divide a chapter into two or more parts: Use the playback controls (, , , , etc.) to find the point at which you want to divide the chapter, then press ENTER. No Chapter Edit (DVD VR mode Play List) 19:00 Mon 29/11 Pr 2 SP Rec. time Chapters Chapter Edit 1–1 DVD (VR) DVD-RAM HDD When editing a VR mode DVD or video on the HDD you can edit individual chapters within a title, with commands for erasing, combining and dividing. 1 Highlight the title that contains the chapters you want to edit. • You can also use the Smart Jog to select titles. ENTER 2 Select ‘Edit’ > ‘Chapter Edit’ from the command menu panel. 1h00m 5 0.00.00 Play Exit Divide Erase/Move Combine You can keep dividing the chapter as many times as you wish (up to 999 chapters per DVD-R/-RW/-RAM disc or 99 chapters per HDD title). • Erase1/Move2 – Erase or move chapters: Select the chapter you want to erase/move and press ENTER. Select whether you want to erase or move the chapter. Move command only: Select the destination for the chapter, and press ENTER. Chapter Edit (DVD VR mode Play List) 19:00 Mon 29/11 Pr 2 SP Erase 1h00m Rec. time Move 0h01m Chapter Cancel 001 002 003 004 005 Exit Divide Erase/Move Combine Note 1 When editing VR mode Original content, it may not be possible to erase chapters less than five seconds long. 2 VR mode Play List only. 93 En DVR550HXS_WV_EN.book 94 ページ 2007年3月30日 金曜日 午前10時48分 10 Editing • Combine1 – Combine two adjacent chapters into one: Highlight the bar divider between two adjacent chapters and press ENTER. ENTER 3 Select a genre for the title. Disc Navigator (HDD) 101 Chapter Edit (DVD VR mode Play List) 19:00 Mon 29/11 Pr 2 SP Rec. time 1 2 3 No Category Erase 2h00m(1.0G) 2h00m(1.0G) Set Thumbnail Movies Erase Edit Section 4 Titles 1h00m 4 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM Play 23:00 Fri 3/12 Pr 4 2ch SP 11/29Mon 7:00PM Title SP name 9 20:00 FRI 3/12 Pr 9 SPDrama Edit Chapter 20:00 Fri 3/12 Pr 9 SPEntertainmt. 8 22:00 THU 2/12 Pr 7 Lock SPGenre Name Comedy 22:00 Thu 2/12 Pr 7 SP 7 19:00 MON 29/11 Pr 2 SP 19:00 Mon 29/11 Pr 2 SP Recent first 5 Exit Divide Erase/Move Combine All Genres HDD SP Remain 30h30m Divide News 2h00m(1.0G) SetMulti-Mode Genre Sport Cancel Cancel 1h00m(1.0G) 1h00m(1.0G) ENTER 5 Select ‘Exit’ to get back to the main Disc Navigator screen. Lock HDD DVD (Video) DVD (VR) DVD+R DVD+RW DVD-RAM Set Genre Original only HDD Use this command to assign a genre to a title. You can lock a title so that it can’t be edited or erased accidently. If you do need to edit it, you can always unlock it later. Important 1 Highlight the title you want to assign a genre to. • You can also use the Smart Jog to select titles. ENTER 2 Select ‘Edit’ > ‘Set Genre’ from the command menu panel. Disc Navigator (HDD) 101 9 Recent first En 10Titles 23:00 FRI Pr 4 SP 11/29 MON3/12 7:00PM Play 23:00 Fri 3/12 Pr 4 2ch SP 11/29Mon 7:00PM Title SP Name Erase Edit Section 20:00 FRI 3/12 Pr 9 SP Divide 20:00 Fri 3/12 Pr 9 SP Chapter Edit 2h00m(1.0G) SetMulti-Mode Genre 8 22:00 THU 2/12 Pr 7 Lock SPGenre Nam
