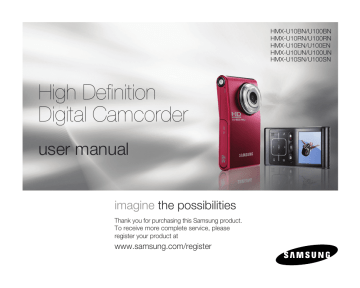

High Definition
Digital Camcorder user manual imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register
HMX-U10BN/U100BN
HMX-U10RN/U100RN
HMX-U10EN/U100EN
HMX-U10UN/U100UN
HMX-U10SN/U100SN
key features of your camcorder
10 Mega pixel CMOS (1/2.3")
This camcorder's 10 mega pixel CMOS sensor catches your important moments and records them in fi ne detail.
Unlike traditional CCD imagers, CMOS sensors require less power, providing effi cient battery performance.
Full HD 1080 Viewing Performance
This camcorder uses advanced H.264 compression technology to realize the clearest video quality. Its full HD resolution displays your videos clearer than normal standard (SD)-quality.
10 Mega Pixel Photo Quality
Samsung's Pixel Rising technology yields high resolution still images that retain colors and resolution in extraordinary detail. The result is the
10 mega pixel image quality that is equivalent to a digital camera.
High-Defi nition (Full HD)
1920
<Wide Full HD Camcorder (1080p/16:9)>
1080
Ultra Compact Size
Approximately 0.6" thick and 2.2" wide, this camcorder is ultra compact and easy to carry with you in your bag or pocket.
Standard-Defi nition (SD)
720
480
<Standard Digital Camcorder (480p)>
Touch Navigation
This camcorder has adopted the touch sensitive button technology to conveniently navigate menus and functions.
Easy Sharing Capability
Providing an additional mode specifi cally designed for sharing with not only TVs but also computers, web postings and other mobile devices, the camcorder supports the optimal recording and playback environment for YouTube, etc.
<HDTV>
1920x1080 30p
1280x720 60p
1280x720 30p
<PC/Web/Mobile device>
1280x720 60p
1280x720 30p
720x480 60p
ii_English
<Normal TV>
720x480 60p
Shooting Custom Scenes
In Scene mode, appropriate options are already set for each scene so that you can select any of them for easy shooting.
High Speed Recording
This camcorder can record at 120 frames per second (fps). In addition, the recorded video can be played back at low speed (x1/2).
Simple & Easy User Interface
Designed to provide optimized and easy use with an ergonomic design.
An improved Graphics User Interface offers a new and fresh look as well as easy operation.
Time Lapse Recording Catches the Moment
You can record a long scene in short intervals. Record artistic, documentary videos including the passage of clouds, blooming fl owers etc. Use this function to make UGC (User-Generated Contents) videos, educational programs or for other purposes.
Direct Upload of Your Videos to the Web!
The built-in editing software Intelli-studio installs directly from this camcorder to your PC, when you simply connect your camcorder to a PC via USB cable. Intelli-studio also allows direct uploading of your contents to YouTube with the press of a button. Sharing the contents with your friends is simpler than ever before.
English _iii
safety warnings
What the icons and signs in this user manual mean :
WARNING
Death or risk of serious personal injury.
Potential risk of personal injury or material damage.
CAUTION
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your camcorder, follow these basic safety precautions:
Hints or referential pages that may be helpful when operating the camcorder.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly. After reading this section, keep it in a safe place for future reference.
precautions
Warning!
This camcorder should always be connected to an AC outlet with a protective grounding connection.
Caution!
If this power supply is used at 240V ac, a suitable plug adaptor should be used.
iv_English
important safety instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE REFFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.
Warning
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
Caution
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipping over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
English _v
important safety instructions
15. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
16. VENTILATION:
Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the
CAMCORDER and to protect it from overheating.
These openings must not be blocked or covered.Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register.
This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
17. POWER SOURCES:
The CAMCORDER should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company.
A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions.
18. GROUNDING OR POLARIZATION:
This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.
19. POWER-CORD PROTECTION:
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit.
20. OUTDOOR ANTENNA GROUNDING:CAMCORDER, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See figure below.
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC NATIONAL ELECTRICAL CODE
vi_English
21. LIGHTNING:
For added protection of this CAMCORDER during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the CAMCORDER due to lightning and powerline surges.
22. POWER LINES:
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
23. OVERLOADING:
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
24. OBJECTS AND LIQUIDS:
Never push objects of any kind into this CAMCORDER through openings as they may touch dangerous voltage points or short out a part that could result in a fire or electric shock. Never spill liquids of any kind onto the
CAMCORDER. Should spillage occur, unplug unit and have it checked by a technician before use.
25. SERVICING:
Do not attempt to service this CAMCORDER yourself.
Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
26. DAMAGE REQUIRING SERVICE:
Unplug this CAMCORDER from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If any liquid has been spilled onto, or objects have fallen into the CAMCORDER.
c. If the CAMCORDER has been exposed to rain or water.
d. If the CAMCORDER does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the CAMCORDER to its normal operation.
e. If the CAMCORDER has been dropped or the cabinet has been damaged.
f. When the CAMCORDER exhibits a distinct change in performance, this indicates a need for service.
27. REPLACEMENT PARTS:
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer and has the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
28. SAFETY CHECK:
Upon completion of any service or repairs to this
CAMCORDER, ask the service technician to perform safety checks to determine that the CAMCORDER is in safe operating order.
29. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.
30. If this power supply is used at 240V ac, a suitable plug adaptor should be used.
English _vii
important safety instructions
31. This product is covered by one or more of the following
U.S. patents:
5,060,220 5,457,669 5,561,649 5,705,762 5,987,417
6,043,912 6,222,983 6,272,096 6,377,524 6,377,531
6,385,587 6,389,570 6,408,408 6,466,532 6,473,736
6,477,501 6,480,829 6,556,520 6,556,521 6,556,522
6,578,163 6,594,208 6,631,110 6,658,588 6,674,697
6,674,957 6,687,455 6,697,307 6,707,985 6,721,243
6,721,493 6,728,474 6,741,535 6,744,713 6,744,972
6,765,853 6,765,853 6,771,890 6,771,891 6,775,465
6,778,755 6,788,629 6,788,630 6,795,637 6,810,201
6,862,256 6,868,054 6,894,963 6,937,552
USER INSTALLER CAUTION:
Your authority to operate this FCC certified equipment could be voided if you make changes or modifications not expressly approved by this party responsible for compliance to part 15 FCC rules.
NOTE:
Hg LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY
AND MUST BE RECYCLED OR DISPOSED OF
ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.
For details see lamprecycle.org, eiae.org, or call 1-800-
Samsung (7267864)
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR
(Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA
" Perchlorate Material - special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate."
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications
Commission helpful: "How to Identify and Resolve Radio-TV
Interference Problems." This Booklet is available from the U.S.
Government Printing Office, Washington, D.C. 20402, Stock
No. 004-000-00345-4.
FCC Warning
The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
viii_English
important information on use
•
•
BEFORE USING THIS CAMCORDER
•
•
•
•
This camcorder records video in H.264 Main Profile format and in High Definition Video (HD-VIDEO) or Standard
Definition Video (SD-VIDEO).
Please note that this camcorder is not compatible with other digital video formats.
Before recording important video, make a trial recording.
- Play back your trial recording to make sure the video and audio have been recorded properly.
The recorded contents cannot be compensated for:
- Samsung cannot compensate for any damages caused when recording is not made normally or recorded contents cannot be played back because of a defect in the camcorder or memory card.
Also, Samsung cannot be held responsible for your recorded video and audio.
- Recorded contents may be lost due to an error when handling this camcorder or memory card, etc.
Samsung shall not be held responsible for the loss of recorded contents, and cannot compensate for any damages.
Make a backup of important recorded data.
- Protect your important recorded data by copying the files to a PC. We recommend copying the data to your PC or other recording media for storage. Refer to the software installation and USB connection guide.
Copyright: Please note that this camcorder is intended for consumer use only.
- Data recorded on a card in this camcorder from other digital/analog media or devices is protected by the copyright act and cannot be used without permission of the copyright owner except for personal enjoyment. Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.
ABOUT THIS USER MANUAL
Thank you for purchasing this Samsung Camcorder. Please read this user manual carefully before you use the camcorder and keep it handy for future reference. Should your camcorder fail to operate correctly, refer to Troubleshooting.
•
•
•
•
This User Manual covers model HMX-U10/U100.
Illustrations of model HMX-U10 are used in this user manual.
The displays in this user manual may not be exactly the same as those you see on the LCD screen.
Designs and specifications of the camcorder and other accessories are subject to change without any notice.
The following terms are used in this manual:
- The terms 'video' and 'movie images' refer to one video unit from the point you press the Record start/stop button to start recording until you press again to pause the recording.
- The terms 'photo' and 'still image' are used interchangeably with the same meaning.
• In this user manual's function descriptions, the icon on the on-screen display section means that it will appear on the screen when you set the corresponding function.
Ex) Submenu item of " Video Quality" page 44 on-screen display item
Super Fine contents
Records in the best possible quality.
(If set, corresponding icon ( ) will appear on the screen.)
English _ix
important information on use
•
•
•
•
•
NOTES REGARDING TRADEMARK
•
•
•
•
All the trade names and registered trademarks mentioned in this manual or other documentation provided with your Samsung product are trademarks or registered trademarks of their respective holders.
The SD logo is a trademark. The SDHC logo is a trademark.
Microsoft ® , Windows ® , Windows Vista ® and DirectX ® are either registered trademarks or trademarks of the
Microsoft Corporation in the United States and/or other countries.
Intel ® , Core™, and Pentium ® are the registered trademarks or trademarks of the Intel Corporation in the United
States and other countries.
Macintosh, Mac OS are either registered trademarks or trademarks of Apple Inc. in the United States and/or other countries.
YouTube is a trademark of Google Inc.
Flickr™ is a trademark of Yahoo! Inc.
Adobe, the Adobe logo, and Adobe Acrobat are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
All the other product names mentioned here in may be the trademark or registered trademarks of their respect companies. Furthermore, "™" and " ® " are not mentioned in each case in this manual.
x_English
precautions during use
The safety precautions illustrated below are to prevent personal injury or material damage. Heed all instructions carefully.
WARNING
Death or risk of serious personal injury.
Prohibited action.
Do not touch product.
Unplug from power supply.
CAUTION
Means that there is a potential risk of personal injury or material damage.
Do not disassemble product.
This precaution must be kept.
WARNING
Do not overload outlets or extension cords as this may result in abnormal heat or fire.
O
LI
SAND
Using the camcorder at temperatures over 140°F (60°
C) may result in fire. Keeping the battery at a high temperature may cause an explosion.
Do not allow water or metal and inflammable matter to enter the camcorder or AC power adaptor.
Doing so may pose a fire hazard.
No sand or dust! Fine sand or dust entering the camcorder or
AC power adaptor could cause malfunctions or defects.
No oil! Oil entering the camcorder or AC power adaptor could cause electric shock, malfunctions or defects.
Do not aim the LCD screen directly into the sun. Doing so could cause eye injuries, as well as lead to malfunctioning of internal parts of the product.
Do not bend the power-cord or damage the AC power adaptor by pressing on it with a heavy object.
There may be a risk of fire or electric shock.
Do not disconnect the AC adaptor by pulling on its powercord, as this could damage the power-cord.
English _xi
precautions during use
Do not use the AC adaptor if it has damaged, split or broken cords or wires.
Doing so may cause fire or electric shock.
Do not connect the AC adaptor unless the plug can be fully inserted with no part of the blades exposed.
Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the camcorder.
Keep the camcorder away from water when used near the beach or pool or when it rains. There is a risk of malfunction or electric shock.
Keep the used lithium battery or memory card out of the reach of children. If the lithium battery or memory card is swallowed by children, consult a physician immediately.
Do not attempt to disassemble, repair, or reform the camcorder or the AC adaptor to avoid a risk of fire or electric shock.
Do not plug or unplug the power cord with wet hands. There is a risk of electric shock.
Keep the power-cord unplugged when not in use or during lightning storms to prevent fire hazard.
When cleaning the AC adaptor, unplug the power-cord to avoid a risk of a malfunction or electric shock.
If the camcorder makes an abnormal sound, or smells or smokes, unplug the power-cord immediately and request service from a Samsung service center. There is a risk of fire or personal injury.
xii_English
If the camcorder malfunctions, immediately detach the AC adaptor or battery from the camcorder immediately to avoid fire or injury.
CAUTION
Do not press the surface of the LCD with force, or hit it with a sharp object.
If you push the LCD surface, display unevenness may occur.
Do not drop or expose the camcorder, battery, AC adaptor or other accessories to severe vibrations or impact. This may cause a malfunction or injury.
Do not use the camcorder on a tripod (not supplied) in a place where it is subject to severe vibrations or impact.
Do not expose the camcorder to sand or water when recording at the beach or pool, or recording on a rainy day. Doing so may cause a malfunction or electric shock.
Do not leave the camcorder in a closed vehicle where the temperature is very high for a long time.
Do not expose the camcorder to soot or steam. Thick soot or steam could damage the camcorder case or cause a malfunction.
Do not use the camcorder near dense exhaust gas generated by gasoline or diesel engines, or corrosive gas such as hydrogen sulphide.
Doing so may corrode the external or internal terminals, disabling normal operation.
Do not expose the camcorder to insecticide.
Insecticide entering the camcorder could cause the product to operate abnormally. Turn the camcorder off and cover it with vinyl sheet, etc. before using insecticide.
Do not expose the camcorder to sudden changes in temperature or a humid places.
There is also a risk of defect or electric shock when using outdoors during lightning storms.
English _xiii
precautions during use
Do not wipe the camcorder body with benzene or thinner. The exterior coating could peel off or the case surface could deteriorate.
Do not use the camcorder near TV or radio. This could cause noise on the TV screen or to radio broadcasts.
Do not use the camcorder near strong radio waves or magnetism such as speakers or large motors. Noise could enter video or audio that are being recorded.
Use Samsung-approved accessories only. Using products from other manufacturers may cause overheating, fire, explosion, electric shock or personal injuries due to abnormal operation.
Place the camcorder on a stable surface and a place with ventilation openings.
Keep important data separately.
Samsung is not responsible for data loss.
xiv_English
contents
QUICk START GUIDE
06
GETTING TO kNOW YOUR
CAMCORDER
10
PREPARATION
13
ABOUT THE STORAGE MEDIA
27
06 You can record videos in H.264 format!
10 What's included with your camcorder
11 Front & right side
12 Rear/left/top side
13 Using the wrist strap
13 Installing the camcorder on a tripod
14 Connecting a power source
19 Basic operation of your camcorder
19 Using the touch buttons
20 LCD screen indicators
23 Using the shortcut menu (OK guide)
25 Initial setting : date and time & OSD language
27 Inserting / ejecting the memory card
28 Selecting a suitable memory card
30 Recordable time and capacity
31 Basic camcorder positioning
English _03
contents
RECORDING
32
PLAYBACk
35
RECORDING OPTIONS
40
PLAYBACk OPTIONS
48
SETTINGS OPTIONS
55
32 Recording videos or photos
34 Zooming in and out
35 Changing the playback mode
36 Playing videos
38 Viewing photos
40 Changing the menu settings
41 Recording menu items
42 Using the recording menu items
48 Playback menu items
49 Delete
50 Protect
51 Edit: divide
53 Share mark
54 Slide show
54 File info
55 Changing the menu settings in "settings"
56 Setting menu items
56 Using the setting menu items
04_English
USING WITH A WINDOWS
COMPUTER
62
CONNECTING TO OTHER
DEVICES
73
MAINTENANCE & ADDITIONAL
INFORMATION
77
TROUBLESHOOTING
79
SPECIFICATIONS
88
62 Checking your computer type
63 What you can do with a Windows computer
64 Using the Intelli-studio program
71 Transferring videos/photos from the camcorder to your computer
73 Connecting to a TV
75 Viewing on a TV screen
76 Recording (dubbing) images on a VCR or DVD/HDD recorder
77 Maintenance
78 Additional information
78 Using your camcorder abroad
79 Troubleshooting
88 Specifications
English _05
quick start guide
✪ This quick start guide introduces the basic operation and features of your camcorder. See the reference pages for more information.
YOU CAN RECORD VIDEOS IN H.264 FORMAT!
You can record videos in H.264 format, which enables you to conveniently email and share videos with your friends and family. You can also take photos with your camcorder.
Step1: Get ready
1. Insert a memory card. page 27
• You can use commercially available SDHC (SD High Capacity) or SD memory cards with this camcorder.
2. Check the charge status of the battery.
• After turning on the camcorder by pressing the Power ( )
• button, check the battery level on the LCD screen.
If you necessary, charge it by using the AC power adaptor.
page 14
This camcorder features a built-in battery that can be charged by connecting the
AC power adaptor. There is no need to replace batteries.
06_English
90Min STBY 3058
JAN/01/2009 12:00 AM
Step 2: Record with your camcorder
LCD screen
Recording start/stop ( ) button
Zoom button
Power ( ) button
Photo ( ) button
RECORDING VIDEOS WITH HD
(HIGH DEFINITION) IMAGE QUALITY
Your camcorder uses advanced H.264 compression technology to realize the clearest video quality.
1. Press the Power ( ) button.
2. Press the Recording start/stop (
start/stop ( ) button.
) button.
• To stop recording, press the Recording
90Min 0:00:03
RECORDING PHOTOS
Your camcorder can record a high quality photo with a 4:3 or 16:9 aspect ratio.
1. Press the Power ( ) button.
2. Press the Photo ( ) button halfway down to check the target image.
3. Press the Photo ( ) button fully when you are ready.
3058
•
•
•
JAN/01/2009 12:00AM JAN/01/2009 12:00AM
Your camcorder is compatible with H.264 recording format, which achieves effi cient coding of high quality video with less capacity.
The default setting is " 1080/30p (Fine)". You can also record with SD (standard defi nition) video quality. ➥page 43
You can not take photos while you are recording videos.
English _07
quick start guide
Step 3: Play back videos or photos
VIEWING THE LCD SCREEN OF YOUR CAMCORDER
You can fi nd your desired recordings quickly by using the thumbnail index view.
1. Press the Play ( ) button to select the Play mode.
• The recorded videos and photos appear in the thumbnail index view.
The thumbnail of the latest created or played fi le is highlighted.
2. Touch the ▲/▼/◄/► button to select the desired video or photo, then touch the OK button.
This camcorder provides one play mode for both video and photo recordings.
You can easily play videos or photos in the same mode without having to switch modes.
0:00:55 1/10
Move Play
VIEWING ON A HIGH DEFINITION TV
You can enjoy HD (High Defi nition) videos on a connected HDTV. page 73
Step 4: Save recorded videos or photos
Simple and fun! Enjoy the various features of Intelli-studio on your Windows computer.
Using the Intelli-studio program built-in your camcorder, you can import videos/photos into your computer, edit or share the videos/photos with your friends. page 64
08_English
IMPORTING AND VIEWING VIDEOS/PHOTOS FROM THE CAMCORDER TO YOUR PC
1. Launch the Intelli-studio program by connecting the camcorder to your PC via the USB cable.
• A new fi le saving screen appears with the Intelli-studio main window. Click "Yes", the uploading procedure will start.
2. Click "Import folder" to import the videos or photos from the PC to the Intelli-studio, you will see the fi les location on the Intelli-studio browser.
3. You can double-click on the fi le you would like to start playing.
Folders directory on your PC
"Import folder" button Imported fi les
SHARING VIDEOS/PHOTOS ON Youtube/Flickr
Share your contents with the world, by uploading videos and photos directly to a web site with a single click.
Click on the "Share" "Upload to Share Site" tab on the browser. page 67
The Intelli-studio runs automatically once the camcorder is connected to a Windows computer (when you specify "PC Software: On").
page 60
Step 5: Delete videos or photos
If the storage media is full, you cannot record new videos or photos. Delete videos or photos data that have been saved on a computer from the storage media. Then you can record new videos or photos on newly freed-up space.
Press the Play ( ) button to switch the Play mode touch the Menu ( ) button touch the ▲/▼/◄/
►/OK button to select "Delete." ➥page 49
English _09
getting to know your camcorder
WHAT'S INCLUDED WITH YOUR CAmCORDER
Your new camcorder comes with the following accessories. If any of these items are missing from your box, call
Samsung's Customer Care Center.
• model name
HMX-U10BN/U100BN
HMX-U10RN/U100RN
HMX-U10EN/U100EN
HMX-U10UN/U100UN
HMX-U10SN/U100SN
Color
Black
Red
Green
Purple
Silver memory card slot
1 slot
The shape is the same for all models. Only the color is different.
LCD screen
Color
Lens x3.5 ~ x4
(Digital zoom ratio)
AC power adaptor
(AA-MA9 type)
AD44-00151A
Component / AV cable
AD39-00142D
USB cable
AD82-00589A
Wrist strap
AD82-00587A
Quick start guide
AD82-00581A
User manual CD
AD82-00578A
Tripod gender
AD82-00588A
Pouch
(Optional)
AD69-02426A
Memory card
(Optional)
1109-001370
•
•
•
•
The contents may vary depending on the sales region.
Parts and accessories are available for purchase at your local Samsung dealer.
SAMSUNG is not responsible for reduced built-in battery life time or malfunctions caused by any unauthorized use of accessories such as the AC power adaptor.
A memory card is not included. See page 28 for memory cards compatible with your camcorder.
Your camcorder includes a user manual CD and a quick start guide (printed).
10_English
FRONT & RIGHT SIDE
1
2
3
4
5
6
ⓐ ⓑ ⓒ ⓓ
₇
₈
₉
�
�
�
�
1 LCD screen
2 Photo ( ) button
3 Play ( ) button
4 Recording start/stop ( ) button
5 Built-in speaker
6 Touch sensitive buttons
ⓐ Back ( ) button ⓑ ▲ (zoom-Wide) / ▼ (zoom-Tele) / ◄ / ► /
OK button
ⓒ Share ( ) button ⓓ Menu ( ) button
₇ Power ( ) button
₈ CHG (changing) lamp
₉ DC IN jack / Memory card cover
� Reset button
� DC IN jack
� Memory card slot
� Wrist strap hook
English _11
getting to know your camcorder
REAR/LEFT/TOP SIDE
1
2
3
4
1 Internal microphone
2 Lens
3 Component/AV jack
4 USB jack
5 Jack cover (Component/AV jack, USB jack)
6 Tripod receptacle
CAUTION
Be careful not to cover the internal microphone and lens during recording.
5
6
12_English
preparation
This section provides information that you should know before using this camcorder; such as how to use the provided accessories, how to charge the battery, and how to setup the operation mode and initialize setup.
USING THE WRIST STRAP
Attach the strap and place your hand through the loop to prevent the camcorder from damage by being dropped.
INSTALLING THE CAMCORDER ON A TRIPOD
When making high speed or self recordings, use the tripod for stable shooting. Use the tripod gender provided with the camcorder to install it on the tripod as shown in the fi gure.
The tripod is not supplied.
Tripod gender
English _13
preparation
CONNECTING A POWER SOURCE
•
•
•
Be sure to charge the battery before you start using your camcorder.
This camcorder features a built-in battery that can be charged by connecting the AC power adaptor. There is no need to replace batteries.
The battery may be charged a little at the time of purchase.
Charging the battery
You can charge the battery using the AC power adaptor or
USB cable.
1. Press the Power ( ) button to turn off the camcorder.
2. Open the jack cover of the camcorder.
3. Charge the battery using the AC power adaptor or USB cable.
• The CHG (charge) lamp lights up and charging starts.
When the battery is fully charged, the charging (CHG) lamp turns green. page 15
Using the AC power adaptor
Yes
No
Using the USB cable
Using the AC power adaptor
Using the USB cable
Connect the AC power adaptor to the camcorder properly and plug the AC Power adaptor in the wall outlet.
Connect the USB cable to the camcorder properly and connect the other end to a USB port of a
PC.
Yes
No
14_English
CAUTION
•
•
•
•
•
•
Charging the battery at low temperature may take longer or fail to fully charge (green indicator will not turn on).
Please make sure that there are no foreign substances in the plug and socket when you connect the AC power supply to the camcorder.
When recording indoors with an available wall outlet, it is convenient to use the AC power supply.
It is recommended to charge the battery in a place with ambient temperature of 32˚F~113˚F (0°C ~ 45°C).
When charging, if both the USB cable and AC power adaptor are connected, the AC power adaptor will override the USB.
If the camcorder is turned on and connected to an AC outlet, the battery will still charge, but more charging time will be needed. We recommend keeping the camcorder turned off while charging.
Charging (CHG) indicator
Tips for battery identifi cation
•
•
The LED color indicates the charge status.
If the battery has been fully charged, the charging indicator is green.
While the battery is being charged, the charging indicator lights orange.
• If an error occurs while the battery is being charged, the charging lamp is off.
The Charging indicator color shows the charge status.
Charging state Charging
LED Color
(Orange)
Fully Charged
(Green)
Error
(Off)
English _15
preparation
Battery Level Display
The Battery Level Display shows the amount of battery power remaining in the battery.
Battery
Level
Indicator
State Message
Fully charged -
20%~40% used
40%~60% used -
-
60%~80% used -
80%~99% used -
Exhausted (fl ickers): The device will soon turn off.
Charge the battery as soon as possible.
-
The device will be forced to turn off after 3 seconds.
"Low battery" -
Above fi gures are based on a fully charged battery at normal temperature.
Low ambient temperature may affect the use time.
90Min STBY 3058
JAN/01/2009 12:00AM
16_English
Charging, recording and playback times with fully charged battery
(with no zoom operation, etc.)
• For your reference, the approximate time with fully charged battery:
Charging time 3hr. (AC power adaptor) / 6hr. (USB cable)
Video resolution
Continuous recording time
1920x1080 30p
90min.
Mode
Playback time 120min.
- The time is only for reference. Figures shown above are measured under Samsung's test environment, and may differ according to user and condition.
- We recommend using the AC power adaptor when using the Time Lapse REC function.
Continuous Recording (without zoom)
The continuous recording time of the camcorder in the table shows the available recording time when the camcorder is in the recording mode without using any other function. When actually recording, the battery may discharge 2-3 times faster than this reference, since the record start/stop and zoom functions are being operated, and playback is performed. Note that the battery discharges faster in a cold environment.
About the battery
•
•
This camcorder features a built-in battery that can be charged by connecting the AC power adaptor. There is no need to replace batteries.
The benefits of the battery: the battery is small but has a large power capacity. It should be recharged at temperatures between 32°F ~ 113°F (0°C ~ 45°C). However, when it is exposed to cold temperatures (below 32°
F (0°C)), its usage time is reduced and it may cease to function.
English _17
preparation
•
•
•
Maintaining the battery
•
•
Frequent use of the LCD screen or using the fast forward or rewind buttons wears out the battery faster.
A battery which is completely discharged may not turn on the recharging LED during charging.
It is designed to protect the battery.
When charge starts but the charge indicator does not light even within 5 minutes, contact your local dealer.
The batteries have to be dealt with as chemical waste. Do not throw them in the trash.
When fully discharged, a battery damages the internal cells. The battery may be prone to leakage when fully discharged.
When not using the camcorder for an extended period: it is recommended to keep your camcorder with the battery fully charged.
In this case, charge it every 2 months.
About the battery life
• Battery capacity decreases over time and through repeated use. If decreased usage time between charges becomes signifi cant, it is probably time to replace it with a new one. Please contact your local dealer.
• Each battery's life is governed by storage, operating and environmental conditions.
Using the camcorder with the AC power adaptor
It is recommended that you use the AC power adaptor to power the camcorder when you perform settings on it, play back, or edit images, or use it indoors. Make the same connections as you do when charging the battery. page 14
•
CAUTION •
•
Use a nearby wall outlet when using the AC power adaptor. Disconnect the AC power adaptor from the wall outlet immediately if any malfunction occurs while using your camcorder.
Do not use the AC power adaptor in a narrow space, such as between a wall and furniture.
•
Be sure to use the specifi ed AC power adaptor to power the camcorder. Using other AC power adaptors could cause electric shock or result in fi re.
The AC power adaptor can be used around the world. An AC plug adaptor is required in some foreign countries. If you need one, purchase it from your distributor.
To save battery power:
•
•
•
Keep your camcorder turned off when you are not operating it.
When there is no operation for more than 2 minutes in the STBY mode or during recording, the power saving mode starts with the LCD screen dimmed. (When you specify "Auto LCD Off: On"). page 58
You can set the " Auto Power Off" function which turns off the camcorder if there is no operation for 5 minutes. page 59
18_English
BASIC OPERATION OF YOUR CAMCORDER
This section explains the basic techniques of recording videos or photos and also basic settings on your camcorder.
Set the appropriate operation mode according to your preference using the Power ( ) button and Play ( ) buttons.
Turning the camcorder on or off
You can turn the power on or off by pressing the Power ( ) button.
1. Press the Power ( ) button to turn on the camcorder.
2. To turn off the camcorder, press the Power ( ) button.
Setting the operating modes
• You can switch the operating mode in the following order each time you press the Play ( ) button: Record mode ↔ Play mode
Mode
Record mode
Play mode
Functions
To record videos or photos.
To play videos or photos, or edit them.
•
•
•
This camcorder provides one record mode for both video and photo recordings.
You can easily record videos or photos in the same mode without having to switch modes.
One play mode is also provided for video and photo recordings.
When the camcorder is turned on, the self-diagnosis function operates and a message may appear. In this case, refer to "Warning indicators and messages" (on pages 79-80) and take corrective action.
Power ( ) button
Play ( ) button
USING THE TOUCH BUTTONS
This camcorder has touch sensitive button technology to conveniently navigate menus and functions.
Touch on the touch button with your fi ngertip.
To avoid damage to the touch buttons:
- Do not use any object other than your fi ngers to operate it.
The touch buttons may not function if you use a fi ngernail or other instruments such as a ballpoint pen.
- Do not touch the touch buttons if your fi ngers are not clean.
- Do not touch the touch buttons with gloves on.
English _19
preparation
LCD SCREEN INDICATORS
1 2 3
90Min STBY
1Sec / 24Hr
4 5
3058
�
�
�
�
�
�
6
₇
₈
JAN/01/2009 12:00 AM ₉
•
•
•
•
•
•
•
•
� �
The above screen is an example for explanation:
It is different from the actual display.
The on-screen indicators are based on an 8GB SDHC memory card.
Functions marked with * will not be kept when the camcorder is turned off and on again.
For enhanced performance, the display indications and the order are subject to change without prior notice.
This camcorder provides one combined video and photo record mode. You can easily record videos or photos in the same mode without having to change it.
The total number of recordable photos is counted based on available space on the storage media.
The number of recordable photos on the OSD is a maximum of
9999.
You can check the selected mode indicator only when the onscreen information mode is set to full display. ➥page 24
20_English
Record mode
1 Video record mode
2 Remaining recordable time
3 Operating mode ( STBY (Standby) / ● (Recording))
4 Photo counter (total number of recordable photos)
5 Photo record mode
6 Photo resolution
₇ TV Out (when the component/AV cable is connected.)
₈ Digital zoom
₉ Battery information (remaining battery level)
� No memory card display
� Date/Time display
� iSCENE
� Back light
� Digital effect
� Time Lapse REC *
� Video quality
� Video resolution
5
4
3
�
₉
90Min STBY
1Sec / 24Hr
Move
₈
Play
3058
Record mode: Shortcut menu (Ok Guide)
1 Quick View
2 Back light
3 Shortcut menu (OK Guide) / Return
4 Display
5 iSCENE
The shortcut menu (OK guide) represents the most frequently accessed functions according to the selected mode. Touching the Ok button will display a shortcut menu of frequently used functions on the LCD screen.
JAN/01/2009 12:00 AM
2 1
1 2
0:00:55
3 4 5
1/10 6
₇
Play mode : Thumbnail View
1 Play mode
2 Recorded video time
3 Video fi le
4 Photo fi le
5 Error fi le
6 Image counter
(current fi le/total number of recorded fi les)
₇ Scroll bar
₈ Button guide
₉ Share mark
� Protection
This camcorder provides one play mode for both video and photo recordings. You can easily play videos or photos in the same mode without having to switch modes.
English _21
₉
₈
₇
₈
�
₉ preparation
1 2 3
0:00:00/0:00:55
JAN/01/2009 12:00 AM
₇
1 2
JAN/01/2009 12:00 AM
6
22_English
100-0001 4
5
6
100-0001 3
4
5
Video play mode : Single View
1 Video play mode
2 Operating status ( : Play / : Pause)
3 Time code (elapsed time/recorded time)
4 File name (fi le number)
5 TV Out (when the component/AV cable is connected.)
6 Battery information (remaining battery level)
₇ Recorded date/time display
₈ Shortcut menu (OK Guide)
/ : : Move to previous fi le / REW (rewind)
/ : Move to next fi le / FF (fast forward)
✚ / ▂ : Volume up/volume down
/ : Play/pause
₉ Share mark
� Protection
� Video resolution
Photo play mode : Single View
1 Photo play mode
2 Slide show
3 File name (fi le number)
4 TV Out (when the component/AV cable is connected.)
5 Battery information (remaining battery level)
6 Recorded date/time display
₇ Shortcut menu (OK Guide)
/ : Previous/next photo
: Playback zoom
₈ Protection
₉ Photo resolution
USING THE SHORTCUT MENU (OK GUIDE)
The Shortcut menu (OK guide) represents the most frequently accessed functions according to the selected mode.
Touching the Ok button will display a shortcut menu of frequently used functions on the LCD screen.
✪ For example: Setting iSCENE in the Record mode using the Shortcut menu (Ok guide)
1. Touch the OK button in STBY mode.
• The Shortcut menu is displayed.
2. Touch the ▲ button to select "iSCENE".
• The iSCENE icon is highlighted.
3. Each time touch the ▲ button, the iSCENE mode changes.
Select the desired mode, then touch the Ok button to confi rm your selection.
•
•
The selected mode indicator ( ) will display on the screen.
Touch the Ok button to exit the shortcut menu.
90Min STBY 3058
•
•
Before selecting a menu item, please check that you set the appropriate mode fi rst.
You can check the selected mode indicator only when the on-screen information mode is set to full display.
➥page 24
JAN/01/2009 12:00AM
English _23
preparation
Button
OK
▲(W)
▼(T)
◄(•)
►(•)
Play mode
Record mode
Video play mode:
Single view
- Display
- Access the shortcut menu
- Confirm selection
- Exit the shortcut menu
- Digital zoom (wide)
- iSCENE
(in the shortcut menu)
Each time the ▲ button is touched, the iSCENE mode changes.
- Digital zoom (tele)
- Back Light
(in the shortcut menu)
Touching the ▼ button toggles the back light on or off.
(in the shortcut menu)
Each time the ◄ button is touched, the following onscreen information display modes appear: simple display
full display display off
- Quick View
(in the shortcut menu)
You can view the most recently recorded video or photo right after your recording.
➥ page 33
- Access the shortcut menu
- Playback / Pause lncreases the volume
Decreases the volume
- Search playback RPS
(Reverse Playback Search) rate: x2x4x8x16x32
- Previous skip playback
- Frame-by- frame playback
- Reverse slow motion playback rate: x1/2x1/4x1/8
- Search playback FPS
(Forward Playback Search) rate: x2x4x8x16x32
- Next skip playback
- Frame-by- frame playback
- Forward slow motion playback rate: x1/2x1/4x1/8
Photo play mode:
Single view
- Access the shortcut menu
- Playback /
Playback zoom
(x2.0 - x5.0)
-
-
Previous image
Next image
Menu selection
Confirms selection
Moves the cursor up
Moves the cursor down
Moves to the previous menu
Moves to the next menu
24_English
•
•
•
INITIAL SETTING : DATE AND TIME & OSD LANGUAGE
Initial setting is available in all operating modes.
To read the menus or messages in your desired language, set the OSD language.
To store the date and time during recording, set the date/time.
Turning the power on and setting the date and time
Set the date and time of your local area when turning on this camcorder for the fi rst time. If you do not set date and time, the date and time screen appears every time you turn on your camcorder.
1. Press the Power ( ) button to turn on the camcorder.
• When you turn on your camcorder for the fi rst time, the Date/Time Set screen appears.
2. Select the date and time information and change the setting values by using the
▲/▼/◄/► button.
3. Make sure the date/time is correctly set, then touch the Ok button.
Date/Time Set
Month Day Year
JAN / 01 / 2009
Hr Min
12 : 00 AM
Move OK
•
•
•
After setting, the date and time are automatically recorded on a special data area of the storage media.
The year can be set up to 2039.
This camcorder adopts a built-in battery. When its charged capacity decreases, saved user settings may be reset so be sure to charge the battery after use.
- When the battery use time is signifi cantly decreased, the battery is near the end of its useful life and must be replaced by a
Samsung authorized service center.
- When keeping your camcorder with the battery fully charged, the user settings remain for 2 months or more.
- When the battery is discharged, the date/time is initialized to "JAN/01/2009 12:00 AM."
English _25
preparation
Selecting the OSD language
You can select the desired language to display the menu screen and the messages.
1. Touch the Menu ( ) button.
• The menu screen appears.
2. Touch the ◄/► button to select "Settings."
• The settings menu appears.
3. Touch the ▲/▼ button to select "Language," then touch the Ok button.
4. Touch the ▲/▼ button to select the desired OSD language, then touch the Ok button.
•
•
•
•
•
English / 한국어 / Français / Deutsch / Italiano / Español / Português /
/ /
Settings
TV Display
Default Set
Language
English
Français
5. To exit, touch the Menu ( ) button.
• The OSD language is refreshed in the selected language.
Back Move Select
Even though you turn the camcorder off and on, the current language setting is preserved.
The "Language" options may be changed without prior notice.
The date and time format may change depending on the selected language.
This camcorder adopts a built-in battery. When its charged capacity decreases, saved user settings may be reset so be sure to charge the battery after use.
- When the battery use time is signifi cantly decreased, the battery is near the end of its useful life and must be replaced by a
Samsung authorized service center.
- When keeping your camcorder with the battery fully charged, the user settings remain for 2 months or more.
26_English
•
•
• about the storage media
You can record on a memory card, so you should insert the desired storage media before starting recording or playback.
You can use SDHC and SD cards on your camcorder.
(Some cards are not compatible depending on the memory card manufacturer and memory card type.)
Before inserting or ejecting the memory card, turn the camcorder off.
INSERTING / EJECTING THE MEMORY CARD
Inserting a memory card
1. Turn the camcorder off.
2. Open the memory card cover as shown in the fi gure.
3. Insert the memory card into the memory card slot until it softly clicks in the direction of the arrow shown in the fi gure.
4. Close the cover.
Ejecting a memory card
1. Turn the camcorder off.
2. Open the memory card cover as shown in the fi gure.
3. Slightly push the memory card inwards to pop it out.
4. Pull the memory card out of the memory card slot and close the cover.
CAUTION
As shown in the fi gure, be sure to slide the memory card inwards with the label facing down.
•
•
Never format a memory card using a PC.
Do not eject a memory card while it is being used in the camcorder.
The memory card and its data may be damaged.
English _27
about the storage media
SELECTING A SUITABLE MEMORY CARD
A memory card is a compact portable storage media.
•
•
•
•
You can use an SDHC memory card.
(Memory cards must be purchased separately.)
- You can also use an SD memory card, but recommended that you use an SDHC memory card with your camcorder. (SD cards up to 2GB are supported with this camcorder. Normal operation is not guaranteed with SD cards bigger than 2GB.)
In this camcorder, you can use memory cards (SD/SDHC) of the following capacity.
- SD: 1GB~2GB, SDHC: 4GB~32GB
SDHC/SD memory cards
Terminals
Protection tab
Compatible recording media
- The following recording media have been recommended for use with this camcorder. Others are not recommended, so buy such products with caution.
SDHC or SD memory cards: by Panasonic, SanDisk, and TOSHIBA
<Usable memory cards>
If other media are used, they may fail to record data correctly, or they may lose data that has already been recorded.
For video recording, use a memory card that supports faster write speed.
- Write speed: 5MB/sec is recommended.
SDHC (Secure Digital High Capacity) memory card
•
•
•
The SDHC card is a higher version (Ver.2.00) SD card and supports capacity above 4GB.
An SDHC card has a mechanical write protection switch. Setting the switch prevents accidental erasure of fi les recorded on the card. To enable writing, move the switch up towards the terminals. To set write protection, move the switch down.
Due to changes In File Allocation System and physical specifi cations, SDHC memory cards can not be used with current SD enabled host devices. SDHC memory cards can only be used with only SDHC enabled host devices.
Common cautions for memory card use
•
•
•
Damaged data may not be recovered. It is recommended you make a back-up of important data on the hard disk of your PC.
Turning the power off or removing a memory card during operations such as formatting, deleting, recording, and playback may cause data loss.
After you modify the name of a fi le or folder stored in the memory card using your PC, your camcorder may not recognize the modifi ed fi le.
28_English
•
•
•
•
•
•
•
•
•
Handling a memory card
•
•
•
•
It is recommended that you power off before inserting or removing the memory card to avoid data loss.
It is not guaranteed that you can use a memory card formatted by other devices. Be sure to format your memory card using this camcorder.
You have to format newly-purchased memory cards, memory cards with data that your camcorder cannot recognize or are saved by other devices. Note that formatting erases all data on the memory card.
If you cannot use a memory card that has been used with another device, format it with your camcorder.
Note that formatting erases all information on the memory card.
A memory card has a certain life span. If you cannot record new data, you have to purchase a new memory card.
A memory card is a precision electronic media. Do not bend, drop, or cause strong impact to the card.
Do not use or store at high temperatures, in humidity or a dusty environment.
Do not bring foreign substances on the memory card terminals. Use a soft, dry cloth to clean the terminals if required.
Do not paste anything other than the label supplied with the card on the label pasting portion.
Be careful to keep the memory card out of the reach of children, who might swallow it.
Samsung is not responsible for data loss due to misuse.
We recommend using a memory card case to avoid losing data from moving and static electricity.
After a period of use, the memory card may get warm. This is normal and is not a malfunction.
•
•
The camcorder supports SDHC/SD memory cards for data storage.
The data storage speed may differ, depending on the manufacturer and production system.
Using a lower write speed memory card when recording a video may cause problems when storing the video on the memory card. You may even lose your video data during the recording.
• In an attempt to preserve every bit of the recorded video, the camcorder forcibly stores the video on the memory card and displays a warning: "Low speed card. Please record at lower quality."
To facilitate video recording, you are recommended to use a memory card that supports faster write speed.
•
•
If you are forced to use a low speed memory card, resolution of the recording may be lower than the set value. However, the higher the resolution, the more memory will be used.
For optimal performance of the camcorder, ensure that you purchase a fast speed memory card.
Actual formatted capacity may be less as the internal firmware uses a portion of the memory.
English _29
about the storage media
RECORDABLE TIME AND CAPACITY
•
•
The following shows the camcorder's maximum recording time and number of images according to the resolution
/ memory capacity.
For recording videos and photos, please note the approximate maximum limits.
Recordable time for videos
Media
Capacity
Resolution Quality
Super Fine
1080/30p
Fine
Super Fine
720/60p
Fine
Super Fine
720/30p
Fine
Super Fine
480/60p
Fine
Slow Motion Super Fine
1GB
7 min.
11 min.
11 min.
16 min.
16 min.
22 min.
29 min.
45 min.
67 min.
2GB
Memory Card (SDHC/SD)
15 min.
21 min.
21 min.
32 min.
32 min.
43 min.
58 min.
87 min.
131 min.
4GB
31 min.
45 min.
45 min.
67 min.
67 min.
90 min.
120 min.
180 min.
270 min.
8GB 16GB 32GB
63 min.
126 min.
254 min.
90 min.
90 min.
134 min.
134 min.
180 min.
240 min.
260 min.
540 min.
179 min.
179 min.
269 min.
269 min.
359 min.
479 min.
719 min.
1079 min.
360 min.
360 min.
541 min.
541 min.
721 min.
962 min.
1444 min.
2165 min.
(Unit: Approximate minutes of recording)
1GB≒ 1,000,000,000 bytes : actual formatted capacity may be less as the internal firmware uses a portion of the memory.
30_English
Recordable number of photos
Media
Capacity
Resolution
3648X2736
3648X2052
2816X2112
2816X1584
2048X1536
2048X1152
•
•
•
•
•
•
•
•
1GB
379
458
680
889
1363
1759
2GB
740
892
1324
1731
2651
3421
Memory Card (SDHC/SD)
4GB
1529
1843
2734
3572
5470
7058
8GB
3058
3686
5468
7144
9999
9999
16GB
6103
7352
9999
9999
9999
9999
32GB
9999
9999
9999
9999
9999
9999
(Unit: Approximate number of images)
The previous fi gures are measured under Samsung's standard recording test conditions and may differ depending on the test or use condition.
The higher the resolution and quality settings, the more memory is used.
High resolution images occupy more memory space than low resolution images. If the higher resolution is selected, there is less space to record videos in the memory.
When recording complex videos with a lot of action and color, the fi le size will be larger.
Memory cards of bigger than 32GB in capacity may not work properly.
The maximum size of a video fi le that can be recorded at one time is 3.5GB (HD resolution) and 1.3GB (SD resolution).
You can store up to 9999 videos and photos in one folder.
The recording length of a Time Lapse REC may vary depending on settings.
BASIC CAMCORDER POSITIONING
Hold your camcorder properly while recording to avoid covering the lens and the internal microphone with your fi ngers and pressing any button without purpose.
Adjusting the shooting angle
Aim the camcorder as shown in the illustration.
1. Hook up the wrist strap to your hand.
2. Make sure your footing is stable and there is no danger of colliding with another person or object.
3. Aim and focus as shown in the illustration.
It is recommended to keep the sun behind you while shooting.
English _31
recording
Basic procedures to record a video or photo image are described below and on the following pages.
This camcorder provides one combined video and photo record mode. You can easily record videos or photos in the same mode without having to change it.
RECORDING VIDEOS OR PHOTOS
•
•
This camcorder supports both High Defi nition (HD) and Standard Defi nition (SD) resolutions. You can also record photos with various resolutions.
Before recording, set the resolution for your purpose. ➥pages 43-44
•
•
•
PRECHECk
Insert the memory card. ➥page 27
Press the Power ( ) button to turn on the camcorder.
Check the subject on the LCD screen.
To record videos
1. Press the Recording start/stop ( ) button.
•
•
The recording indicator (
) will display and recording will start.
To stop recording, press the Recording start/
stop ( ) button again.
2. When recording is fi nished, turn the camcorder off.
To record photos
1. Press the Photo ( ) button halfway down (half press).
• Check the target image.
2. Press the Photo ( ) button down fully (full press).
• A shutter sound is heard. When the capturing
•
( ) indicator disappears, the photo is recorded.
While saving the photo on the storage media, you cannot proceed with the next recording.
3. When recording is fi nished, turn the camcorder off.
3058 90Min 0:00:00
JAN/01/2009 12:00AM
32_English
JAN/01/2009 12:00AM
WARNING
Do not operate the Power ( ) button or remove the memory card while accessing the storage media.
Doing so may damage the storage media or the data on the storage media.
•
•
•
•
•
•
•
•
•
•
•
For on-screen information display. ➥page 20
For various functions available when you record videos and photos. ➥pages 42-47
During recording, some button operations are unavailable. ( Play ( ) button, Menu ( ) button, etc.)
Sound is recorded from the internal stereo microphone on the top of the camcorder. Take care that this microphone is not blocked.
Before recording an important video and photo, make sure to test the recording function to check if there is any problem with the audio and video recording.
You cannot use a locked memory card for recording. You will see a message saying recording is disabled due to the lock.
You can switch the play mode to the record mode by pressing the Recording start/stop ( ), Photo ( ), Play ( ) or
Back ( ) button.
Audio will not be recorded with the photo on the storage media.
Photo fi les recorded by your camcorder conform to the "DCF (Design rule for Camera File system)" universal standard established by the
JEITA (Japan Electronics and Information Technology Industries Association).
DCF is an integrated image-fi le format for digital cameras: Image fi les can be used on all digital devices conforming to DCF.
Using the Quick View function, you can view the most recently recorded video or photo image right after your recording.
QUICK VIEW
Using the Quick View function, you can view the most recently recorded video or photo image right after your recording.
1. Touch the Ok button in STBY mode right after your recording.
• Shortcut menu is displayed on the LCD screen.
2. Touch the ► button to view the most recent video (or photo) you have recorded.
•
•
During a quick view, use the ▲/▼/◄/►/Ok buttons for playback search the current fi le.
Touch the Menu ( ) button to delete the recording which is being played back.
3. After the quick view is fi nished, your camcorder switches back to the STBY mode.
90Min
JAN/01/2009 12:00AM
English _33
recording
•
•
ZOOMING IN AND OUT
Use the zoom function for close-up or wide-angle recording.
This camcorder allows you to record using the digital zoom.
To zoom in
Touch the ▼(T) button to zoom in.
Digital Zoom is available from 3.5 to 4 times according to the video resolution.
To zoom out
Touch the ▲(W) button to zoom out.
•
•
•
•
• The digital zoom function is not available in the following conditions:
- When recording a video at " Video Resolution: 1080/30p."
- When connecting to a TV.
- During slow motion recording
Note that the image quality decreases when you use the digital zoom. The image quality may deteriorate depending on how much you zoom in on the subject.
Frequent use of the digital zoom function consumes more power.
If you use the digital zoom while recording, the operation noises such as button touch sound can be recorded.
The minimum focal length between the camcorder and the subject is 1.3m.
W: Recording wide area
(wide-angle)
W: Wide angle
90Min STBY
T: Recording enlarged image
(telephoto)
T: Telephoto
3058
JAN/01/2009 12:00AM
34_English
•
• playback
You can view recorded videos and photos in thumbnail index view and play them in various ways.
This camcorder provides one combined video and photo play mode. You can easily play videos or photos in the same mode without having to change it.
•
•
CHANGING THE PLAYBACK MODE
Record/play mode can be switched with the Play ( ) button
Single view screen can be moved to thumbnail index view screen with the Back ( ) button.
90Min STBY 3058
JAN/01/2009 12:00AM
0:00:55
Move Play
1/10
English _35
playback
PLAYING VIDEOS
You can fi nd desired videos quickly using the thumbnail index view.
•
•
PRECHECk
Insert the memory card. ➥ page 27
Press the Power ( ) button to turn on the camcorder.
1. Press the Play ( ) button to select the Play mode.
•
•
•
•
The thumbnail index view appears.
In thumbnail index view, a video is displayed with a fi lm border and a photo is displayed with its screen ratio.
The thumbnail highlight is on the latest created or played fi le.
When a video fi le is selected, the playing time appears on the screen.
2. Touch the ▲/▼/◄/► button to select the desired video, then touch the Ok button.
•
•
•
The Shortcut menu for playback is displayed and the selected video is played.
When a playback is complete, the thumbnail index view appears.
To return to thumbnail index view while playing, touch the Back ( ) button.
CAUTION
Do not power off or eject the memory card during video playback. Doing so may damage the recorded data.
•
•
•
•
•
Video fi les may not playback on the camcorder in the following cases:
- Video fi les were edited or renamed on a PC
- Video fi les were recorded by devices other than the camcorder
- Video fi le formats that are not supported
The built-in speaker and LCD screen automatically turn off when the component/AV cable is connected to the camcorder. (When connected to external devices, volume adjustment should be done on the connected external device.)
You can playback recorded video on a TV or a PC. ➥pages 73, 64
You can upload recorded videos or photos to YouTube or Flickr using Intelli-studio. ➥page 67
For various functions available during playback, see "playback options." ➥page 37
0:00:55
Move
Video
Play
0:00:05/0:00:55
JAN/01/2009 12:00AM
1/10
100-0001
36_English
Adjusting the volume
1. Touch the Ok button to display the shortcut menu.
2. Touch the ▲/▼ button to increase or decrease the volume.
•
•
•
The volume bar disappears after 3~4 seconds.
You can hear the recorded sound from the built-in speaker.
The level can be set to anywhere between 0 and 10.
6
0:00:05/0:00:55
100-0001
Various playback operations
Still playback (pause) ( / ❙❙ )
• Touch the Ok button during playback.
- To resume normal playback, touch the Ok button again.
Search playback ( / )
•
•
•
During playback, place and hold your fi nger on the ◄/► button for reverse search/forward search.
Touching the ◄/► button repeatedly increases the search speed for each direction.
- RPS (Reverse Playback Search) rate: x2 →x4→x8→x16→x32
- FPS (Forward Playback Search) rate: x2 →x4→x8→x16→x32
To resume normal playback, touch the Ok button.
Skip playback ( / )
•
•
•
During playback, touch the ► button to locate the start point of the next fi le.
Touching the ► button repeatedly skips fi les in the forward direction.
During playback, touch the ◄/► button to locate the start point of the current fi le.
Touching the ◄/► button repeatedly skips fi les in the reverse direction.
Touch the ◄/► button within 3 seconds from the start point, and the fi rst image of the previous fi le is skipped.
Frame-by-frame playback ( / )
• During pause, touching the ◄/► button makes play go reverse/forward one frame at a time.
- To resume normal playback, touch the Ok button.
Slow motion playback ( / )
•
•
During pause, place and hold your fi nger on the ◄/► button for reverse/forward slow playback.
During slow motion playback, touching the ◄/► button changes the playback speed.
- Reverse/forward slow playback rate: x1/2 → x1/4 → x1/8
- To resume normal playback, touch the Ok button.
Playing back for search, skip, slow motion or frame-by-frame except normal playback, it does not support the audio function.
JAN/01/2009 12:00AM
0:00:05/0:00:55
JAN/01/2009 12:00AM
0:00:05/0:00:55
JAN/01/2009 12:00AM
100-0001
100-0001
English _37
playback
VIEWING PHOTOS
You can fi nd and view desired photos quickly using the thumbnail index view.
•
•
PRECHECk
Insert the memory card. ➥page 27
Press the Power ( ) button to turn on the camcorder.
1. Press the Play ( ) button to select the Play mode.
•
•
•
The thumbnail index view appears.
In thumbnail index view, a video is displayed with a fi lm border and a photo is displayed with its screen ratio.
The thumbnail highlight is on the latest created or played fi le.
2. Touch the ▲/▼/◄/► button to select the desired photo, then touch the Ok button.
•
•
•
The Shortcut menu for playback is displayed and the selected photo is displayed in the full screen view.
To view the previous/next fi le, touch the ◄/► button.
To return to the thumbnail index view, touch the Back ( ) button.
WARNING
Do not power off or eject the memory card during photo playback. Doing so may damage the recorded data.
•
•
Your camcorder may not playback the following photo fi les normally;
- A photo with its fi le name changed on a PC.
- A photo recorded on other devices.
- A photo with a fi le format not supported on this camcorder (does not conform to DCF standards).
Loading time may vary depending on the size and quality of the selected photo.
Move
Video
Full View
5/10
100-0005
JAN/01/2009 12:00 AM
38_English
Zooming during photo playback
You can magnify the playback photo image from the original size.
Magnifi cation can be adjusted with the Ok button on the camcorder.
1. Select the photo you want to magnify.
2. Adjust the magnifi cation with the Ok button.
• The screen is framed and the image is magnifi ed starting from the center of
•
• image.
You can zoom in from x2.0 to x5.0 by touching the Ok button.
While the playback zoom is in use, other images cannot be selected.
3. Touch the ▲/▼/◄/► button to get the part you want in the center of the screen.
4. To cancel, touch the Back ( ) button.
•
•
You cannot apply the playback zoom function to the images that are recorded on other devices.
The playback zoom function is available only in photo single view.
x3.0
JAN/01/2009 12:00 AM
English _39
recording options
CHANGING THE MENU SETTINGS
•
•
You can change the menu settings to customize your camcorder.
Access the desired menu screen by following the steps below, then change the various settings.
✪ Follow the instructions below to use each of the menu items listed after this page.
For example: Setting the iSCENE in Record mode.
1. Press the Power ( ) button to turn on the camcorder.
2. Touch the Menu ( ) button.
• The menu screen appears.
3. Touch the ◄/► button to select "iSCENE."
4. Select the desired submenu item with the ▲/▼ button, then touch the Ok button.
5. To exit, touch the Menu ( ) or Back ( ) button.
•
•
The selected item is applied and the indicator is displayed.
- However, if "Auto" is selected in the iSCENE mode, the item's indicator may not be displayed on the screen.
- You can check the selected mode indicator only when the on-screen information mode is set to full display.
➥page 24
You can also access the shortcut menu using the Ok button. ➥page 23 iSCENE
Auto
Sports
Beach/Snow
Back
90Min STBY
JAN/01/2009 12:00AM
Button Tips a. Menu ( ) button : Use it to enter or exit the menu.
b. ▲/▼/◄/► button : Use it to move up/down/left/right.
c. Ok button : Use it to select or confi rm the menu.
40_English
3058
•
•
RECORDING MENU ITEMS
Accessing items in the menu depends on the operation mode.
For operation details, see the corresponding page. ➥pages 42-47
Items iSCENE
Video Resolution
Video Quality
Photo Resolution
Back Light
Digital Effect
Time Lapse REC
Default value
Auto
1080/30p
Fine
3648x2736 (4:3)
Off
Off
Off
Page
42
43
44
44
45
45
46
There are some functions you cannot activate simultaneously in the menu. You cannot select the grey menu items. Refer to the troubleshooting for examples of unworkable combinations of functions and menu items. ➥page 87
English _41
recording options
USING THE RECORDING MENU ITEMS
You can the menu items for video or photo images recording.
iSCENE
This camcorder automatically sets the shutter speed according to the subject's brightness for optimal recording: You can also specify one of various modes depending on subject conditions, recording environment or purpose of filming.
item contents on-screen display
Auto
Sports
Beach/Snow
- You can shoot images in Auto adjustment mode.
- Reduces blurring when recording rapidly moving subjects such as in golf or tennis. If the Sports mode is used under a fluorescent light, the image may flicker. In this case, use the Auto mode for recording.
- Prevents underexposure of subject's face, etc. in a place where light reflection is intense, such as at the beach in midsummer or on a ski slope.
The iSCENE also can be set in the shortcut menu. ➥page 23
None
42_English
Video Resolution
You can select the resolution of video to be recorded.
item
1080/30p
720/60p
720/30p
480/60p
Slow Motion
•
•
•
•
•
•
• contents
Records in the HD (1920x1080 30p) format.
Records in the HD (1280x720 60p) format.
Records in the HD (1280x720 30p) format.
Records in the SD (720x480 60p) format.
•
•
Records in the slow motion (320x240 120fps).
This camcorder can record by 120 frames per second (fps). In addition, the recorded video can be played back at low speed (x1/2).
on-screen display
"60p"/"30p" indicates the camcorder will record in progressive scan mode at 60/30 frames per second.
Recorded fi les are encoded with Variable Bit Rate (VBR). VBR is an encoding system that automatically adjusts the bit rate according to the recording image.
High resolution images occupy more memory space than low resolution images. If the higher resolution is selected, there is less space to record videos in the memory.
Zoom can not be performed slow motion recording.
The recording times depend on the resolution of a video to be recorded. ➥page 30
Audio is not recorded while recording in slow motion.
The image quality of “ Slow Motion” is not as good as that of normal recording.
Recommended recording resolution settings for playback on external devices
<HDTV>
1920x1080 30p
1280x720 60p
1280x720 30p
<PC/Web/Mobile device>
1280x720 60p
1280x720 30p
720x480 60p
<Normal TV>
720x480 60p
English _43
recording options
Video Quality
You can select the quality of a video to be recorded.
item
Super Fine
Fine contents
Records in the best possible quality.
Records in high quality.
•
• on-screen display
The lower quality of a video is, the higher compression rate is. The recordable time of a video is increased, but its quality is decreased.
Regarding detailed image capacity, see page 30
Photo Resolution
You can select the resolution of the photo to be recorded. item contents
3648x2736
3648X2052
2816X2112
2816X1584
2048X1536
2048X1152
Records in 3648x2736 resolution with 4:3 aspect ratio.
Records in 3648X2052 resolution with 16:9 aspect ratio.
Records in 2816X2112 resolution with 4:3 aspect ratio.
Records in 2816X1584 resolution with 16:9 aspect ratio.
Records in 2048X1536 resolution with 4:3 aspect ratio.
Records in 2048X1152 resolution with 16:9 aspect ratio.
on-screen display
•
•
•
•
For photo development, the higher the resolution, the finer the image quality.
The number of recordable images varies depending on the recording environment.
High resolution images occupy more memory space than low resolution images. If a higher resolution is selected, there is less space to store photos in the memory.
For detailed information image capacity. ➥page 31
44_English
Back Light
When the subject is lit from behind, this function will compensate for lighting so that the subject is not too dark.
item contents on-screen display
None Off Disables the function.
On
- Backlight compensation is executed.
- Backlight compensation brightens the subject quickly.
Back lighting influences recording when the subject is darker than the background:
•
•
•
•
•
The subject is in front of a window.
The subject is against a snowy background.
The subject is outdoors and the background is overcast.
The light sources are too bright.
The person to be recorded is wearing white or shiny clothes and is placed against a bright background:
The person’s face is too dark to distinguish his/her features.
This function also can be set in the shortcut menu. ➥page 23 <Backlight off> <Backlight on>
Digital Effect
•
•
•
The digital effect enables you to give a creative look to your recording.
Select the appropriate digital effect for the type of picture that you wish to record and the effect you wish to create.
There are 4 different digital effect options.
item
Off
1 B&W
2 Sepia
3 Negative
4 Art contents
Disables the function.
Changes the images into Black and
White.
This mode gives the images a reddish brown pigment.
Reverses the colors and the brightness, creating the look of a negative.
Adds artistic effects to an image.
on-screen display
None
1
3
2
4
English _45
recording options
Time Lapse REC
• Time Lapse REC records still images at specifi c intervals you can set, and plays them as one video fi le.
• This function is useful for observing the movement of clouds, the changes in daylight or blooming fl owers, etc.
Settings Contents On-screen display
Off
On
Disables the function.
When you start video recording, images of the subject are captured and saved to the storage media by set interval and total recording period.
Setting the Time Lapse REC mode:
To record in the Time Lapse REC mode, you need to set the recording interval and total recording time in the menu.
1. Touch the Menu ( ) button.
2. Touch the ◄/► button to select “Time Lapse REC.”
3. Touch the ▲/▼ button to select “On,” then touch the Ok button.
• The recording interval and total time for recording items are displayed.
(" Sec": seconds, "Hr": hours)
4. Set a desired recording interval ("Sec") with the ▲/▼ button. ("1 Sec" "10 Sec"
"30 Sec")
5. Move to the next setting with the ► button and set a desired total recording time ("Hr") in the same way. ( "24 Hr" "72 Hr" "48 Hr")
• While you set the preparatory settings (recording interval and total recording time), the approximate time-lapse recording time will be displayed on the menu screen.
6. Touch the OK button to fi nish the setting and touch the Menu ( ) or Back ( ) button to exit the menu.
7. After setting the Time Lapse REC mode, press the Recording start/stop (
•
•
The Time Lapse REC starts.
) button.
For Time Lapse REC, the [HD]720/60p resolution and Super Fine quality are supported only.
Time Lapse REC
Off
On
Back
Time Lapse REC
Off
1
On
Sec
= 24 Min
24 Hr
Back
None
Move
90Min 0:00:00
1Sec/24Hr
► 1 Sec
24 Hr
Time Lapse Recording...
JAN/01/2009 12:00AM
Ok
46_English
Example of Time Lapse REC
Total time for recording
Recording interval
Timeline
Time for recording on the storage media (a video clip of Time Lapse REC)
•
•
Time Lapse REC records image frames at a predefi ned interval to produce a time-lapse video.
Time Lapse REC is useful for fi lming in the following situations:
Blooming fl owers
Clouds rolling by in the sky
•
•
•
•
•
•
•
•
•
•
This function is shut off after being used one time.
60 captured images compose a video of 1 second length. Since the minimum length of a video to be saved by your camcorder is one second, the interval defi nes how long the Time Lapse Recording should be set for. For example, if you set the interval to " 30 Sec," Time Lapse Recording should be set for at least 30 minutes to record a minimum video length of 1 second (60 images).
Once the Time Lapse REC fi nishes recording for its total recording time, it switches to standby mode.
Press the Recording start/stop ( ) button if you want to stop the Time Lapse REC.
Audio is not recorded during Time Lapse Recording.
When a video recording fi lls up 3.5GB of storage media, a new recording fi le is automatically started at that point.
When the battery is discharged during Time Lapse REC, it saves the recording up to that point and switches to standby mode. After a while, it displays a warning message, then turns off automatically.
When memory runs out while performing Time Lapse REC, the camcorder switches to standby mode after saving what was recorded so far.
We recommend using the AC power adaptor when using the Time Lapse REC function.
When a time lapse recording starts, the "Time Lapse Recording" message blinks on the screen and it appears that the screen has stopped. This is a normal operation; do not remove the power source or memory card from the camcorder.
English _47
playback options
•
•
•
PLAYBACK MENU ITEMS
Accessible items in the menu vary depending on the operation mode.
See page 40 for playback information and button operation.
See pages 49-54 for details on menu items during playback.
Items
● : Possible
✕ : Not possible
Thumbnail index view
●
Video single view Photo single view
● ●
Page
49 Delete
Edit
Protect
Share Mark
Divide
●
●
●
(Video only)
✕
●
●
●
●
✕
✕
50
51
53
Slide Show ✕ ● 54
File Info 54 ✕ ● ●
Depending on the mode selected, not all items can be selected and changed.
Before selecting a menu item, set the appropriate operation mode first. page 19
48_English
DELETE
You can erase your recordings one by one, or all at once.
1. Insert the memory card and press the Power ( ) button to turn on the camcorder.
2. Press the Play ( ) button to select the Play mode.
3. Touch the Menu ( ) button touch the ◄/► button to select “Delete.”
4. Select the option by touching the ▲/▼ button, then touch the Ok button.
item
Select Files
All Files contents
Deletes individual selected videos or photos.
Select the desired videos or photos to delete by touching the
Ok button, then touch the Menu ( ) button. Select "Yes" and touch the Ok button to delete.
•
•
The indicator ( ) is displayed on the selected videos or photos.
Touching the Ok button toggles between selecting the videos or photos to be deleted or not.
Deletes all videos and photos.
5. The pop-up selection menu will appear depending on the selected menu item.
Select the desired item with the ◄/► button and the Ok button.
•
•
•
•
•
•
•
When the battery’s charged capacity is insuffi cient, the delete function may not operate. To prevent an unexpected power off while deleting, use the AC power adaptor if possible.
Note that disconnecting the AC power adaptor while you delete fi les may damage the storage media.
To protect important images from accidental deletion, activate the image protection.
➥ page 50
The protect ( ) indicator will blink if you try to delete an image that was previously protected.
➥ page 50
You must release the protect function to delete the image.
If the write protection tab on the memory card is set to lock, you cannot delete.
➥ page 28
You can also format the storage media to delete all the images at once.
Be aware that all fi les and data including protected fi les will be erased.
0:00:55
Move
Delete
Select Files
All Files
Play
Back
Delete
Back
1/10
1/10
Delete Cancel
English _49
playback options
•
•
PROTECT
You can protect saved important videos or photos from accidental deletion.
Protected images will not be deleted unless you release the protection or format the memory.
1. Insert the memory card and press the Power ( ) button to turn on the camcorder.
2. Press the Play ( ) button to select the Play mode.
3. Touch the Menu ( ) button touch the ◄/► button to select “Protect.”
4. Select the option by touching the ▲/▼ button, then touch the Ok button.
item
Select Files contents
Protects selected videos or photos from deletion.
Select the desired videos or photos to protect by touching the
Ok button, then touch the Menu ( ) button. Select "Yes" and touch the Ok button to confi rm.
•
•
The indicator ( ) is displayed on the selected videos or photos.
Touching the Ok button toggles the selection between protection and release.
All On Protects all videos and photos.
All Off Cancels the protection for all videos and photos.
5. The pop-up selection menu will appear depending on the selected menu item.
Select the desired item with the ◄/► button and the Ok button.
•
•
Protected videos or photos will show the indicator ( ) when they are displayed.
If the write protection tab on the memory card is set to lock, you cannot set image protection.
0:00:55
Move
Protect
Select Files
All On
All Off
Back
Protect
Play
1/10
1/10
Back Protect Cancel
50_English
EDIT: DIVIDE
You can divide a video as many times as you want in order to delete a section you no longer need.
The videos will be divided in groups of two.
1 Insert the memory card and press the Power ( ) button to turn on the camcorder.
2. Press the Play ( ) button to select the Play mode.
3. Touch the Menu ( ) button touch the ◄/► button to select “Edit” touch the Ok button to select “Divide.”
4. Select the desired video using the ▲/▼/◄/► button, then touch the Ok button.
• The select ed video will be paused.
5. Search the point of division by using the ◄/► button.
6. Touch the Menu ( ) button to pause at the point of division.
• A message appears asking for your confi rmation.
7. Select “Yes.”
•
•
The selected video is divided into two videos.
The second image of the divided image will be displayed at the end of the thumbnail index.
Edit
Divide
Back
Divide 1/10
Back Move
Divide
0:00:27/0:00:55
Select
100-0001
Back Divide
English _51
playback options
Example: You can divide a video into two in order to delete a section you no longer need.
1. Before dividing
2. After image is divided at 30 second point.
3. After deleting fi rst video.
0~60 seconds 0~30 seconds 31~60 seconds
• The video is divided into two videos.
•
•
•
• The Divide function is not available in the following conditions:
- If the total recorded time of the video is less than 6 seconds.
- If you trying to divide sections without leaving 3 seconds at the beginning and the end.
- If the remaining section of the storage media space is less than 15MB.
- Videos recorded or edited by other devices.
- Videos transferred to this camcorder by using Samsung Intelli-studio.
You can not delete a protected image. You must fi rst release the protect function to delete it. page 50
The division point may drift before or after the designated point by approximately 0.5 seconds.
When a share marked video is divided, two divided videos also have the share marking.
0~30 seconds
52_English
SHARE MARK
You can set the share mark on the video. Then you can directly upload the marked fi le to the YouTube site.
1. Insert the memory card and press the Power ( ) button to turn on the camcorder.
2. Press the Play ( ) button to select the Play mode.
• The thumbnail index screen appears.
3. Touch the Menu ( ) button touch the ◄/► button to select “Share Mark” touch the Ok button to select “Select Files.”
4. Touch the ▲/▼/◄/► button to select the desired videos, then touch the Ok button.
•
•
The indicator ( ) is displayed on the selected videos.
You can also set the share mark on the video by simply touching the Share
( ) button.
5. Touch the Menu ( ) button.
• A message appears asking for your confi rmation.
6. Select “Yes.”
•
•
By using the software Intelli-studio embedded in the camcorder, you can easily upload videos marked with share marks.
page 67
The Share Mark is not available in the following conditions:
- Videos longer than 10 minutes
Share Mark
Select Files
Back
Share Mark
Back Mark
1/10
Cancel
Share marking procedure for a video longer than 10 minutes
When uploading a video fi le to a website such as YouTube, the one-time upload capacity is a maximum of 100MB or 10 minutes.
To upload a video over 10 minutes long, follow the procedure below to automatically divide it into 10 minute segments with a share mark added:
1. Move to the desired fi le by touching the ▲/▼/◄/► button and touch the Ok button.
2. Touch the Share ( ) button.
•
•
◄/► button and touch the Ok button.
The share mark ( ) appears on each divided video fi le.
English _53
playback options
SLIDE SHOW
You can playback all the photos stored in the storage media automatically.
1. Insert the memory card and press the Power ( ) button to turn on the camcorder.
2. Press the Play ( ) button to select the Play mode.
• The thumbnail index screen appears.
3. Touch the ▲/▼/◄/► button to select the desired photo, then touch the Ok button.
• The selected photo appears in the single view.
4. Touch the Menu ( ) button touch the ◄/► button to select “Slide Show” touch the Ok button to select “Start.”
•
•
•
The indicator ( ) is displayed and the slide show starts from the current image.
All photos are played back consecutively for 3 seconds each.
To stop the slide show, touch the ▲, ▼, Ok, or Back ( ) button.
This function works only in the photo single view.
FILE INFO
You can see the image information for all images.
1. Insert the memory card and press the Power ( ) button to turn on the camcorder.
2. Press the Play ( ) button to select the Play mode.
• The thumbnail index screen appears.
3. Touch the ▲/▼/◄/► button to select the desired image, then touch the Ok button.
• The selected image appears in the single view.
4. Touch the Menu ( ) button.
5. Touch the ◄/► button to select “File Info,” then touch the Ok button.
• The information of the selected image is displayed as shown below.
- Date, Duration, Size, Resolution
6. To exit, touch the Back ( ) button.
This function is available only in the video or photo single view.
54_English
Slide Show
Start
Back
JAN/01/2009 12:00AM
File Info
This File
Back
File Info
Date
100VIDEO HDV_0001.MP4
Duration
Size
Resolution :
:
:
: JAN/01/2009
00:00:55
68.0MB
[HD] 1080/30p
Back
100-0005
settings options
CHANGING THE MENU SETTINGS IN "SETTINGS"
•
•
You can change the menu settings to customize your camcorder.
Access the desired menu screen by following the steps below and change the various settings.
1. Press the Power ( ) button to turn on the camcorder.
2. Touch the Menu ( ) button.
• The menu screen appears.
3. Touch the ◄/► button to select "Settings."
• The settings menu appears.
4. Select the desired submenu and menu item with the ▲/▼/◄/► button and the
Ok button.
• To return to the normal screen, touch the Menu ( ) or Back ( ) button.
•
•
If there is no storage media inserted, the menu item cannot be selected and will be dimmed in the menu:" Storage Info", "Format", etc.
The pop-up selection menu will appear depending on the selected menu item.
In this case, select the desired item with the ◄/► button and the Ok button.
Button Tips a. Menu ( ) button : Use to enter or exit the menu.
b. ▲/▼/◄/► button : Use to move up/down/left/right.
c. Ok button : Use to select or confi rm the menu.
Settings
Storage Info
Format
File No.
Back Select
:
Settings
Storage Info
Format
File No.
Series
Reset
:
Back Move Select
English _55
settings options
•
•
SETTING MENU ITEMS
You can setup the date/time, OSD language and display settings of the camcorder.
For operation details, see the corresponding page. ➥pages 56-61
Items
Storage Info
Format
File No.
Date/Time Set
LCD Brightness
Auto LCD Off
Beep Sound
Shutter Sound
Auto Power Off
PC Software
NTSC/PAL
TV Out
TV Connect Guide
TV Display
Default Set
Language
Default values
-
-
Series
-
Bright
On
On
On
5 Min
On
NTSC
Component Auto
-
On
-
-
These items and default values may be changed without notice.
USING THE SETTING MENU ITEMS
Storage Info
It shows you the storage information. You can view the storage media, used memory space and available memory space.
If there is no storage media inserted, it cannot be selected and will be dimmed on the menu.
Storage Info
• Used : 62KB • Free : 7.68GB
[HD] 1080/30p
:90 Min
Back
56_English
59
59
60
60
60
61
61
Page
56
57
57
57
58
58
58
61
61
Format
The format function completely deletes all files and options on the storage media, including protected files.
You can format (initialize) recording data in the storage media. You have to format the pre-used storage media or newly purchased memory cards with this camcorder before using them. This enables stable speeds and operation when accessing the storage media.
Be aware that all files and data including protected files will be erased.
WARNING
Do not format the storage media with a PC or a different device.
Make sure to format the storage media on the camcorder.
•
•
•
Do not remove the storage media or perform any other operation (such as turning off the power) during formatting. Also, be sure to use the provided AC power adaptor, as the storage media may be corrupted if the battery becomes exhausted during formatting. If the storage media becomes corrupted, format it again.
A memory card with the protection tab set to lock will not be formatted. ➥page 28
If there is no storage media inserted, it cannot be selected and will be dimmed on the menu.
File No.
File numbers are assigned to recorded files in the order they were recorded.
settings
Series
Reset contents
Assigns file numbers in sequence even if the memory card is replaced with another one or after formatting or deleting all files. The file number is reset when a new folder is created.
Resets the file number to 0001 even after formatting, deleting all files or inserting a new memory card. on-screen display
None
None
When you set " File No." to "Series," each file is assigned with a different number so as to avoid duplicating file names.
This is convenient when you want to manage your files on a PC.
Date/Time Set
Set the current date and time so they can be recorded correctly. ➥page 25
English _57
settings options
LCD Brightness
You can adjust the brightness of the LCD screen to compensate for ambient lighting conditions.
settings
Normal Standard brightness.
contents
Bright
•
•
•
Brightens the LCD screen.
A brighter LCD screen setting consumes more battery power.
If you adjust the LCD brightness when the ambient lighting is too bright, it is hard to see the LCD screen indoors.
LCD Brightness does not affect the brightness of images to be stored.
on-screen display
None
None
Auto LCD Off
To reduce power consumption, the brightness of the LCD screen is automatically dimmed if the camcorder is idle for more than 2 minutes.
settings
Off Disables the function.
contents on-screen display
None
On
When there is no operation for more than 2 minutes in the STBY mode or during recording, the power saving mode starts with the LCD screen dimmed.
None
•
•
When this “ Auto LCD Off” function is enabled, you can press any button on the camcorder to return LCD brightness to normal.
Auto LCD Off will be disabled in the following cases:
- If the DC power cable (AC power adaptor) is connected.
Beep Sound
You can set the beep sound to on/off. If there is a beep sound when operating the menu settings, the setting is turned on.
settings
Off Disables the function.
contents
On When on, a beep will sound every time a button is pressed.
The Beep sound function is canceled in the following cases:
- During recording, playing
- When the camcorder has a cable connection. (component/AV cable) on-screen display
None
None
58_English
Shutter Sound
You can turn the shutter sound on or off.
settings
Off
On contents
Disables the function.
When on, the shutter will sound with each press of the Photo ( ) button.
on-screen display
None
None
Auto Power Off
To save battery power, you can set the " Auto Power Off" function which turns off the camcorder if there is no operation for a certain period of time.
settings
Off
5 Min contents
The camcorder does not turn off automatically.
For power saving purpose, the camcorder will automatically turn power off if there is no operation for 5 minutes in STBY mode or in thumbnail index view.
on-screen display
None
None
•
•
Auto Power Off will be disabled in the following cases:
- If the DC power cable (AC power adaptor, USB cable) is connected.
- During recording, playing (pause excluded), or a slideshow.
Press the Power ( ) button to restart the camcorder.
Auto LCD Off / Auto Power Off
90Min STBY 3058
After 2 minutes
JAN/01/2009 12:00AM
90Min 0:00:00
After 2 minutes
JAN/01/2009 12:00AM
<During recording> <LCD Brightness: Normal>
After 3 minutes
After 3 minutes
<Power Off>
PC Software is operating
Select Share button.
you can upload fi le
<USB cable >
After
2 minutes
Select Share button.
you can upload fi le
<LCD Brightness: Normal>
<LCD screen is darkened.
> <Back Light off / LCD Off >
After 3 minutes
English _59
settings options
PC Software
If you set PC Software to on, you can simply use the PC software by connecting the USB cable between the camcorder and your
PC. You can download the stored videos and photos stored on the camcorder to your PC’s hard disk. Editing videos/photos is also available using the PC software.
settings
Off
On contents
Disables the function.
You can simply use the PC software by connecting the USB cable between the camcorder and your PC.
on-screen display
None
None
The PC Software is compatible with the Windows OS only.
NTSC/PAL
TV color systems differ depending on the country or region.
Sets the video output signal according to the TV color system of the connected video equipment. settings
NTSC
PAL contents
Sets the video output signal to NTSC mode.
Sets the video output signal to PAL mode.
on-screen display
None
None
To view your recordings on a TV, check the TV color system of the country or region where the camcorder is used. ➥page 78
This function is for setting the video output method and does not affect the original recorded video source.
TV Out
•
•
You can set the component or composite video output to match the TV you have connected.
This camcorder provides the two-in-one component/AV cable that fits the purpose of the component and the AV cable. Therefore, when using the component/AV cable, you must check the right method for the TV output by setting the “ TV Out” menu.
on-screen display settings contents
Component Auto Select it to set the resolution to that of the recording.
Component 480p Select it when connecting to an SD resolution TV that supports progressive scan.
Component 480i Select when connecting to an SD resolution TV that does not support progressive scan.
Composite
Select it when you connected the camcorder to a TV that only has a composite jack.
(Video, Audio L/R).
•
•
The on-screen display indicators for the TV Out setting are displayed only when the component/AV cable is connected.
For more information about the connected TV, refer to your TV’s user manual.
60_English
•
•
TV Connect Guide
Following the TV Connect Guide, use an appropriate connection method for your TV type.
Shows information on cables and jacks used to connect the camcorder to a TV.
settings contents
Component
Select it when you want to know how to connect a component ( Y/P
B
/P
R
, Audio L/R) cable to TV.
Composite
Select it when you want to know how to connect a composite ( Video, Audio L/R) cable to TV.
on-screen display
None
None
TV Display
When the camcorder is connected to a TV, the OSD (on screen display) of the camcorder can be turned on and off on the TV screen.
settings contents on-screen display
Off The OSD of the camcorder does not appear on the screen of the connected TV.
None
On The OSD of the camcorder appears on the screen of the connected TV.
None
The “TV Display” function sets whether to display camcorder’s screen indicators on the TV screen. Hence, setting it to “Off” does not remove screen indicators from the camcorder’s LCD monitor.
Default Set
You can initialize your camcorder settings to the factory defaults (initial settings at the factory).
Initializing the camcorder settings to factory defaults does not affect recorded images.
•
•
After resetting the camcorder, set " Date/Time Set." ➥page 25
Do not turn off the power while initializing the settings. The "Default Set" function does not affect the files recorded on the storage media.
Language
You can select the desired language to display the menu and messages. ➥page 26
English _61
using with a Windows computer
CHECKING YOUR COMPUTER TYPE
This chapter explains how to connect the camcorder to a computer using the USB cable.
Check your computer type before using!!!
To view your recordings on a computer, you need to check your computer type fi rst. Then, take the steps below according to your computer type.
Using with Macintosh OS Using with Windows
Connect your camcorder to the computer using the USB cable.
• The built-in editing software Intelli-studio, runs on the PC automatically once the camcorder is connected to a Windows computer. (When you specify “PC Software: On”). page 60
Play back or edit your recordings on the computer using the built-in, Intelli-studio application.
page 66
• The built-in software on your camcorder, ‘Intellistudio’, is not Macintosh compliant.
You can also upload your recordings to YouTube or other web sites using Intellistudio. ➥ page 67
Yes
No
62_English
WHAT YOU CAN DO WITH A WINDOWS COMPUTER
You can enjoy the following operations by connecting your camcorder to your Windows computer by using a USB cable.
Main Functions
• By using the built-in editing software, ‘Intelli-studio’ on your camcorder, you can enjoy the following operations:
- Playing back recorded videos or photos. page 66
- Editing recorded videos or photos. page 66
- Uploading the recorded videos and photos to YouTube or Flickr, etc. page 67
• You can transfer or copy the files (videos and photos) saved on the storage media to your computer.
(Mass storage function) page 71
System Requirements
The following requirements must be met for using the built-in editing software (Intelli-studio):
Items System Requirements
OS (Operating System) Microsoft XP SP2, Vista
CPU
RAM
Intel® Core 2 Duo® 1.66 GHz or higher recommended,
AMD Athlon™ X2 Dual-Core 2.2 GHz or higher recommended
512 MB (1 GB or higher recommended)
Video Card
Display nVIDIA Geforce 7600GT or higher,
Ati X1600 series or higher
1024 x 768, 16-bit color or higher (1280 x 1024, 32-bit color recommended)
USB USB 2.0 support
Direct X DirectX 9.0c or higher
•
•
•
System requirements mentioned above are recommendations. Even on a system that meets the requirements, operations may not be ensured depending on the system.
On a slower computer than recommended, video playback may skip frames or operate unexpectedly.
When the version of DirectX on your computer is lower than 9.0c, install the program in version 9.0c or higher.
English _63
using with a Windows computer
USING THE Intelli-studio PROGRAM
Using the built-in Intelli-studio program in your camcorder, you can transfer video/photo fi les onto your PC and edit them on your computer. The Intelli-studio offers the most convenient way for you to manage video/photo fi les by using the simple USB cable connection between the camcorder and your PC.
Starting the Intelli-studio program
Step 1. Connecting the USB cable
1. Set the menu setting to “PC Software: On”. page 60
•
•
•
You will fi nd the default menu settings are set as shown at right.
2. Connect the camcorder and the PC with the USB cable.
A new fi le saving screen appears with the Intelli-studio main window.
According to your computer type, the corresponding removable disk window appears.
3. Click “Yes”, the uploading procedure will start.
•
•
Uploading to the computer is fi nished.
If you do not want to save a new fi le, select “No.”
Settings
PC Software
NTSC/PAL
TV Out
Off
On
Back Move
:
Select
Disconnecting the USB cable
After completing the data transfer, make sure to disconnect the cable in the following way:
1. Click on the “Safely Remove Hardware icon” icon on the taskbar.
2. Select “USB Mass Storage Device”, and then click “Stop”.
3. If the “Stop a Hardware device” window appears, click “OK.”
4. Disconnect the USB cable from the camcorder and PC.
•
•
•
•
•
•
•
•
•
Use the provided USB cable. (Supplied by Samsung)
Don’t apply excessive force when inserting or extracting the USB cable into/from a USB jack.
Insert the USB after checking the correct direction of its insertion.
We recommend using the AC power adaptor as the power supply instead of the battery.
When the USB cable is connected, turning the camcorder on or off may cause the PC to malfunction.
If you disconnect the USB cable from the PC or the camcorder while transferring data, the data transfer will stop and the data may be damaged.
If you connect the USB cable to a PC via a USB HUB or simultaneously connect the USB cable along with other USB devices, the camcorder may not work properly. If this occurs, remove all USB devices from the PC and reconnect the camcorder.
According to your computer type, the Intelli-studio program may not run automatically. In this case, open the desired CD-ROM drive that has the
Intelli-studio program in My Computer and run iStudio.exe.
When a USB cable is connected, if you have EmoDio (Samsung's MP3 player software) installed on your computer, the EmoDio software may load fi rst.
While the camcorder and the PC with the USB cable, the built-in battery are use as the camcorder power. And so we recommend using the AC power adaptor as the power supply instead of the battery.
64_English
Step 2. About the Intelli-studio main window
• When the Intelli-studio starts up, thumbnails of videos and photos are displayed in the main window.
❽
❶ ❷ ❸ ❹
❾ ❿ ⓫
❺ ❻ ❼
⓬ ⓭ ⓮
1. Menu items
2. Selects the Desktop or Favorite on the PC.
3. Slide show of the photo files from the PC or camcorder.
Playback of the video files from the PC or camcorder.
4. Switches to Library of the PC and connected camcorder.
5. Switches to Edit mode.
6. Switches to Share mode.
7. Changes the size of thumbnails.
Displays all files (videos and photos)/Displays video files only.
Displays photo files only.
Sorts the files.
8. Imports folders from PC.
9. Selects the connected camcorder or storage.
10. Saves new files to PC.
11. Slide show of the photo files from the connected camcorder.
Playback of the video files from the connected camcorder.
12. Saves the selected file to PC.
Saves the selected file to connected camcorder.
13. Moves the file selected in the PC to the Edit mode.
Moves the file(s) selected in the PC to the Share mode.
14. Moves the file(s) selected in the connected camcorder to the Share mode.
English _65
using with a Windows computer
Step 3. Playing back videos (or photos)
• You can play back the recordings conveniently using the Intellistudio application.
1. Run the Intelli-studio program. page 64
2. Click the desired folder to display your recordings.
• Video (or photo) thumbnails appear on the screen, according to the selected source.
3. Select the video (or photo) that you want to play, and then double-click to play back.
• Playback starts and the playback controls appear.
Videos recorded at the 1920 X 1080 30p resolution may not play back if software other than Intelli-studio is used.
Step 4. Editing videos (or photos)
With Intelli-studio, you can edit videos or photos in various ways.
(Movie Effect, Fine-Tuning, Transition Effect, Insert Text etc.)
• Select the video (or photo) you want to edit, and then click on the
“EDIT” icon.
66_English
Step 5. Sharing the video/photo images online
Share your contents with the world by uploading photos and videos directly to a web site with one click.
1. To do this, select “Share” in the main Video window.
2. Click “Add” and move the video or photo (drag and drop) to the sharing window for upload.
• The selected file appears in the sharing window.
3. Click on the website you would like to upload files to.
• You can choose “YouTube,” “Flickr,” or the specified website you want to set for your uploading management.
4. Click “Upload to Share Site” to start uploading.
• A pop-up window appears asking for your ID and the password.
5. Enter your ID and password to access.
• Access to the web site contents can be limited depending on your web access environment.
•
•
For more information about the Intelli-studio use, see the Help Guide by clicking the “Menu” “Help”.
You can simply upload share marked videos onto YouTube by touching the
Share ( ) button.
English _67
using with a Windows computer
Direct uploading your videos onto YouTube
One-Touch Share ( ) button lets you directly upload and share your videos onto YouTube. Just touch the
Share ( ) button while your camcorder is connected to a Windows computer using the supplied USB cable.
Step 1
•
•
Set the Share mark on the desired videos which you want to upload directly onto the
YouTube site. Touch the ▲/▼/◄/► button to select the desired video in the video thumbnail index view, then touch Share ( ) button.
The Share mark ( ) is displayed on the selected videos.
You can also set the Share mark on selected videos using the menu. ➥page 53
Step 2
Connect the camcorder and a PC with the supplied USB cable. ➥page 64
• The Intelli-studio runs automatically once the camcorder is connected to a
Windows computer (when you specify “PC Software: On”).
0:00:55
Move Play
1/10
Step 3
Touch the Share ( ) button while your camcorder is connected to a
•
• computer using the supplied USB cable.
Selected videos with the Share marks are displayed on the sharing screen.
•
Click "Yes" on the PC screen to begin uploading your videos to YouTube.
If you want to upload directly without showing a pop-up sharing window, check "Intelli-studio does not show a list of share marked fi les from the connected device."
•
•
•
•
•
•
When uploading to the YouTube, the selected video will be converted into a format playable by YouTube before uploading.
Time spent for uploading may vary depending on the user’s conditions including computer and network performance.
There is no guarantee of uploading operation in all environments, and YouTube server-side changes in the future may disable this function.
For more information on YouTube, visit the YouTube website: http://www.youtube.com/
This product’s YouTube uploading functionality is provided under the license from YouTube LLC. The presence of YouTube uploading functionality of this product is not an endorsement or recommendation of the product by YouTube LLC.
If you do not have an account of the specifi ed website, you can register fi rst before proceeding with the authorization.
According to YouTube’s policy, direct video uploading may not be available in your nation / region.
68_English
Other functions with the Intelli-Studio
Importing and viewing the video/photo images from your PC
1. Launch the Intelli-studio program by double-clicking the program icon on the desktop screen or connect the camcorder to your PC.
2. Click “Import Folder” to import the video or photo files from your PC.
3. The selected video or photo files are imported from your PC, and you can see the files' location on the Intelli-studio browser.
4. You can double-click on the file you would like to start playback.
Folders directory on your PC
The following is the file format supportable in Intelli-studio:
- Video formats: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9)
- Photo formats: JPG, GIF, BMP, PNG, TIFF
“ Import Folder” button Imported files
Exporting the videos to your camcorder.
1. Select the desired files to export.
2. Click on the ( ) icon to export the files to your camcorder.
3. The following pop-up window appears.
4. Click on the “Ok” to export files. The files are saved to your camcorder.
WARNING
While transferring any file, do not disconnect the USB cable.
It may cause damage to the camcorder or computer.
•
•
•
When storing a video through Intelli-studio, it is automatically stored into an MP4 file that can be played back. However, only video file formats supported in Intelli-studio can be converted and stored in the camcorder.
According to the resolution and type of the video, the storing time may differ.
Photos cannot be stored on the camcorder through Intelli-studio.
English _69
using with a Windows computer
Installing Intelli-studio application on a Windows computer
• When the Intelli-studio application is installed on a Windows computer, it will run faster after connecting the camcorder to your computer. Moreover, the application can be updated automatically and run directly on the
Windows computer.
• The Intelli-studio application can be installed on a Windows computer as follows:
Click on “Menu” “Install Intelli-studio on PC.” in the Intelli-studio screen.
70_English
TRANSFERRING VIDEOS/PHOTOS FROM THE CAMCORDER TO YOUR COMPUTER
You can transfer or copy recorded data to a Windows computer by connecting the USB cable to the camcorder.
Step 1. Viewing the contents of storage media (memory card)
1. Check the “PC Software: Off” setting. page 60
2. Insert the memory card.
3. Connect the camcorder to the PC with the USB cable. page 64
• The “Removable Disk” or “Samsung” window appears on the PC’s screen after a moment.
• The removable disk appears when connecting a USB.
• Select “Open folders to view fi les using Windows Explorer” and click “OK.”
4. The folders in the storage media appear.
• Different fi le types are stored in different folders.
5. Save the desired fi les on the storage media to your PC.
•
•
•
•
If the “Removable Disk” window does not appear, confi rm the connection
(page 64) or repeat steps 1 and 3 again.
When the removable disk does not appear automatically, open the removable disk folder of
My Computer.
If the connected camcorder’s disk drive does not open or the context menu that appears when right-clicking your mouse (open or browse) appears broken, your computer may be infected by an Autorun virus. Be sure to update your antivirus software to the latest version.
While the camcorder and the PC with the USB cable, the built-in battery are use as the camcorder power. And so we recommend using the AC power adaptor as the power supply instead of the battery.
Photos Videos
English _71
using with a Windows computer
•
•
Structure of folders and fi les on the storage media
The folder and fi le structure for storage media is as follows.
Don’t arbitrarily change or remove the folder or fi le name. It may not be playable.
•
•
•
•
Videos (H.264) ❶
• The HD-quality (1920x1080 30p, 1280x720 60p, or 1280x720 30p) videos have
HDV_####.MP4 format.
The SD-quality videos have SDV_####.MP4 format.
The HD and SD quality videos will be named as HDE_####.MP4 and
SDE_####.MP4 respectively when you edit videos using the PC software.
The fi le number automatically increases when a new video fi le is created.
Up to 9,999 fi les can be created in one folder. A new folder is created when more than
9,999 fi les are created.
VIDEO
100VIDEO
HDV_0001.MP4
HDV_0002.MP4
SDV_0001.MP4
SDV_0002.MP4
HDE_0001.MP4
SDE_0001.MP4
•
•
Photos ❷
•
•
As with video fi les, the fi le number automatically increases when a new photo fi le is created.
The maximum fi le number allowed is the same as in video fi les.
DCIM
100PHOTO
A new folder stores fi les starting with SAM_0001.JPG.
The folder name increases in the order of 100PHOTO 101PHOTO etc.
Up to 9,999 fi les can be created in one folder. A new folder is created when more than 9,999 fi les are created.
1
2
Image format
•
•
•
•
Videos
Videos are compressed in H.264 format. The fi le extension is ".MP4."
Refer to page 43 for video resolution.
Photos
Photos are compressed in JPEG (Joint Photographic Experts Group) format. The fi le extension is ".JPG."
Refer to page 44 for photo resolution.
•
•
When the 9,999th fi le is created in the 999th folder (i.e. HDV_9999.MP4 is created in the 999 VIDEO folder), no more folders can be created.
Backup your fi les to a PC and format the storage media, then reset the fi le numbering from the menu.
We don't recommend you modify the name of a fi le/folder stored in the storage media using a PC.
If you modify it, this camcorder may not recognize the modifi ed fi les.
72_English
connecting to other devices
You can view the recorded videos and photos on a large screen by connecting the camcorder to an HDTV or
Standard TV.
CONNECTING TO A TV
•
•
•
PRECHECk
Set the video signal output according to the TV color system of the connected TV (NTSC/PAL). ➥page 60
Set the video signal output for TV using the “ TV Out” function. ➥page 60
We recommend that you use the AC power adaptor as power source for the camcorder.
Connecting to a high defi nition TV
To play back the HD-quality (1080/30p,
720/60p, or 720/30p) videos, you need a HDTV
(high defi nition TV).
Connect your camcorder to a HDTV with the provided Component/AV ( Y/P
R
, Audio L/R) cable.
B
/P
Camcorder
Signal fl ow
HDTV
Component/AV cable
•
•
•
•
Do not use excessive force when connecting the cables.
When connecting the component/AV, make sure to match the color of the cable plugs to the TV jacks.
For more information about the connection, refer to your TV’s user manual.
If you have an SD digital TV, the cable connections are the same as above mentioned but the recorded fi les are played back in SD quality.
(When you specify “TV Out: Component 480p or Component 480i ”). page 60
English _73
connecting to other devices
Connecting to a SD (standard defi nition) TV (16:9/4:3)
This connection is used when downconverting recorded HD-quality images to SD-quality images for playback. When playing back HDquality (1080/30p, 720/60p, or 720/30p) videos on a SDTV, the images are downconverted to
480/60p standard defi nition images.
1. Set “TV Out” to “Composite.” ➥page 60
Camcorder
Signal fl ow
Blue plug with the yellow label
Standard TV
2. Connect your camcorder to a TV with the
Component/AV ( Video, Audio L/R) cable.
When connecting the component/AV, make sure to match the color of the cable plugs to the TV jacks. The
Blue plug must be connected to the Video input on your
TV (usually Yellow).
Component/AV cable
Stereo Type Monaural Type
Blue
White
Red
White
Blue
74_English
VIEWING ON A TV SCREEN
1. Turn on the TV and set the input selector to the Input connection the camcorder is connected to.
• This is often referred to as "line." Refer to the TV instruction manual for how to switch the TV input.
2. Turn the camcorder on.
•
•
Press the Play ( ) button to select the Play mode.
➥ page 19
The camcorder image will appear on the TV screen.
3. Perform playback.
• You can perform playback, recording or setting the menu while viewing on a TV screen.
•
•
When "TV Display" is set to "Off ", OSD (On-Screen-Display) does not appear on the TV screen. ➥page 61
When the component/AV cable is connected to the camcorder, the built-in speaker and LCD screen will automatically turn off and you cannot adjust the volume bar.
Image display depending on LCD and TV screen ratio
Record Photo LCD
16:9
16:9
Icon
TV
Subject
4:3
4:3
English _75
connecting to other devices
RECORDING (DUBBING) IMAGES ON A VCR OR DVD/HDD RECORDER
You can record (dub) images played back on this camcorder onto other video devices, such as VCRs or DVD/HDD recorders.
PRECHECk
•
•
Set the video signal output according to the TV color system of the connected video device (NTSC/PAL).
➥ page 60
Set “ TV Out” to “Composite.” ➥page 60
Use the provided Component/AV (Video, Audio L/R) cable to connect the camcorder to another video device as shown in the following fi gure:
1. Press the Play ( ) button to select the Play mode. ➥page 19
2. Choose the recorded (dubbed) images on the thumbnail view and then touch the Ok button.
3. Press the record button on the connected device.
• The camcorder will start playback and the recording device will record (dub) it.
Camcorder Blue plug with the yellow label
Signal fl ow
VCR or DVD/
HDD recorder
Component/AV cable
Be sure to use the AC adaptor to power the camcorder from a household AC outlet to prevent battery power from shutting off during recording on another video device.
76_English
maintenance & additional information
MAINTENANCE
Your camcorder is a product of superior design and craftsmanship and should be treated with care.
The suggestions below will help you fulfil any warranty obligations and allow you to enjoy this product for many years.
✪ For safekeeping of the camcorder, be sure to turn it off.
- Remove the AC power adaptor. ➥page 14
- Remove the memory card. ➥page 27
Cautions on storing
•
•
•
Do not leave the camcorder in a place where the temperature is very high for a long period of time:
The temperature inside a closed vehicle or trunk can become very high in a hot season. If you leave the camcorder in such a place, it could malfunction or the case could be damaged. Do not expose the camcorder to direct sunlight or place it near a heater.
Do not store the camcorder in a place where the humidity or dust level is high:
Dust entering the camcorder could cause a malfunction. If humidity is high, the lens could become moldy, and the camcorder could become inoperative. It is recommended that you put the camcorder in a box together with a desiccant packet to help protect it from humidity when storing it in a closet, etc.
Do not store the camcorder in a place subject to strong magnetism or intense vibrations:
This could cause malfunctions.
Cleaning the camcorder
✪ Before cleaning, turn off the camcorder and remove the AC power adaptor.
• To clean the exterior
•
- Wipe gently with a soft dry cloth. Do not apply excessive force when cleaning, gently rub the surface.
- Do not use benzene or thinner to clean the camcorder. The coating of exterior could peel off or the case could deteriorate.
To clean the LCD monitor
•
Wipe gently with a soft dry cloth. Be careful not to damage the monitor.
To clean the lens
Use an optional air blower to blow out dirt and other small objects. Do not wipe the lens with cloth or your fingers.
If necessary, wipe gently with lens cleaning paper.
- Mold may form if the lens is left dirty.
- If the lens looks dimmer, turn off the camcorder and leave it for about 1 hour.
English _77
maintenance & additional information
ADDITIONAL INFORMATION
•
•
LCD screen
• To prevent damage to the LCD screen
- Do not push it too hard or knock it on anything.
- Do not place the camcorder with LCD screen facing down.
To prolong service life, avoid rubbing it with a coarse cloth.
Be aware of the following phenomena for LCD screen use. They are not malfunctions.
- While using the camcorder, the surface around the LCD screen may heat up.
- If you leave power on for a long time, the surface around the LCD screen becomes hot.
USING YOUR CAMCORDER ABROAD
•
•
Each country or region has its own electric and color systems.
Before using your camcorder abroad, check the following items.
Power sources
The provided AC adaptor enables you to use your camcorder in any country/region within the AC 100 V to 240 V,
50/60 Hz range. Use a commercially available AC plug adaptor, if necessary, depending on the design of the wall outlet.
On TV color systems
Your camcorder is an NTSC-system-based camcorder. When playing back or copying the NTSC formed recordings in an external device, set the video output signal according to the TV color system of the connected video equipment.
➥ page 60
NTSC-compatible countries/regions
Bahamas, Canada, Central America, Japan, Korea, Mexico, Philippines, Taiwan, United States of America, etc.
PAL-compatible countries/regions
Australia, Austria, Belgium, Bulgaria, China, CIS, Czech Republic, Denmark, Egypt, Finland, France, Germany, Greece, Great
Britain, Netherlands, Hong Kong, Hungary, India, Iran, Iraq, Kuwait, Libya, Malaysia, Mauritius, Norway, Romania, Saudi Arabia,
Singapore, Slovak Republic, Spain, Sweden, Switzerland, Syria, Thailand, Tunisia, etc.
You can make recordings with your camcorder and view pictures on the LCD screen from anywhere in the world.
78_English
troubleshooting
TROUBLESHOOTING
✪ Before contacting a Samsung authorized service center, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Warning indicators and messages
Power source
Message Icon Informs that...
Action
Low Battery The battery is almost discharged.
• Charge the battery or use the AC power adaptor.
Storage media
Message
Insert Card
Icon
Card Full
Card Error
Card Locked
Not Supported
Card
Not Formatted
Not Supported
Format
Low speed card.
Please record at lower quality.
-
Informs that...
There is no memory card inserted in the card slot.
There is not enough space to record on the memory card.
The memory card has some problem and cannot be recognized.
The write protection tab on an SDHC/SD card has been set to lock.
The memory card is not supported in this camcorder.
The memory card is not formatted.
The memory card may have been formatted by another device and may still have existing images on it.
The memory card does not have enough speed to record.
• Insert a memory card.
Action
•
•
•
•
Delete unnecessary files on the memory card.
Back-up files to your PC or another storage media and delete files.
Change to another memory card which has enough free space.
Format the memory card or replace it with a new one.
• Release the write protection tab.
• Change to a memory card that we recommended.
• Format the memory card using the menu.
•
•
•
•
•
•
The image format is not supported.
Check the supported file format. ➥ page 72
Format the memory card using menu item.
Change the memory card to a faster one. ➥ page 29
Change to a lower resolution.
Change to a lower quailty.
English _79
troubleshooting
Recording
Message Icon Informs that...
Write Error -
Some problems occured while writing data to storage media.
The Number of video files is full.
Cannot record video.
The Number of photo files is full.
Cannot take photo.
Playback
Message
Read Error
-
-
Icon
-
Folder and files have reached capacity and you can not record.
Folder and files have reached their capacity and you cannot take a picture.
•
•
•
Action
Format storage media using menus after backingup important files to your PC or another storage media.
Format the storage media using the menu after backing up important files to your PC or another storage device. Set "File No." to "Reset."
Format storage media using the menu item after backing up important files to your PC or another storage device. Set "File No." to "Reset."
Informs that...
Some problems occurred during reading data from storage media.
•
Action
Format storage media using menus after backing up important files to PC or another storage device.
CAUTION
When there is condensation, put aside for a while before using
•
•
•
What is condensation?
Condensation occurs when a camcorder is moved to a place where the temperature differs significantly from the previous place. In other words, the water vapor in the air turns into dew because of the temperature difference, and it condensates like dew on the external or internal lenses of the camcorder and on the reflection lens.
When this happens, you temporarily may not use the record or play functions of the camcorder. Also, it may cause a malfunction or damage to the camcorder when using the device with the power on while there is condensation.
What can I do?
Turn the power off and leave it in a dry area for 1~2 hours before using it.
When does condensation occur?
When the device is relocated to a place with a higher temperature than the previous location, or when using it in a hot area suddenly.
- When recording outdoors in cold weather during the winter and then using it in indoors.
- When recording outdoors in hot weather after being indoors or inside a car where the air conditioner was running.
Note before sending your camcorder for repair.
• If these instructions do not solve your problem, contact your nearest Samsung authorized service center.
80_English
✪ If you encounter any problems using your camcorder, check the following before asking for service repair.
If these instructions do not solve your problem, contact the nearest Samsung authorized service center.
Symptoms and solutions
Power
Symptom
The camcorder does not turn on.
The power automatically turns off.
Power cannot be turned off .
The battery is quickly discharged.
•
•
•
•
•
•
•
•
•
•
Explanation/Solution
Charge the battery.
If you use an AC power adaptor, make sure it is properly connected to the wall outlet.
Unplug the AC power adaptor, and reconnect the power supply to the camcorder before turning it on.
Is "Auto Power Off" set to "5 Min"? If no button is pressed for about 5 minutes, the camcorder is automatically turned off. To disable this option, change the setting of "Auto Power Off" to "Off." ➥page 59
The battery is almost discharged. Charge the battery.
Use the AC power adaptor.
Unplug the AC power adaptor, and reconnect the power supply to the camcorder before turning it on.
The temperature is too low.
The battery is not fully charged. Recharge the battery.
The battery reached the end of its lifespan and cannot be recharged.
Contact your nearest Samsung authorized service center.
Displays
Symptom
The recorded image is more narrow or fat than original image.
Explanation/Solution
• You should check the resolution before you record. ➥pages 43-44
Unknown indicator appears on the screen.
The after image remains on the LCD screen.
The image on the LCD screen looks dark.
• A warning indicator or message appears on the screen. ➥pages 79-80
• This occurs if you disconnect the AC power adaptor before turning the power off.
• Ambient light is too bright. Adjust the brightness and angle of the LCD.
English _81
troubleshooting
Storage media
Symptom
Memory card functions are not operable.
Image cannot be deleted.
You cannot format the memory card.
The data file name is not indicated correctly.
•
•
•
•
•
•
•
•
•
Explanation/Solution
Insert a memory card into your camcorder properly. ➥page 27
If you use a memory card formatted on a computer, format it again directly on your camcorder. ➥page 57
You cannot delete the images protected by another device.
Release the protection of the image on the device. ➥page 50
Release the lock on the write-protect tab of the memory card (SDHC memory card, etc.), if any. ➥page 28
Release the lock on the write-protect tab of the memory card (SDHC memory card, etc.), if any. ➥page 28
Copy all important recorded files to your PC before formatting.
Samsung shall not be responsible for any loss of data. (It is recommended that you copy the data to your PC or other storage media.)
The file may be corrupted.
The file format is not supported by your camcorder.
Only the file name is displayed, if the directory structure does not comply with the international standard.
Recording
Symptom
(
Pressing the Recording start/stop
) button does not start recording.
The actual recording time is less than the estimated time.
•
•
•
•
•
•
Explanation/Solution
There is not enough free space to record on the storage media.
Make sure the memory card is inserted and write-protect tab is set to unlock.
The internal temperature of your camcorder is unusually high.
Turn off your camcorder and leave it for a while in a cool place.
Your camcorder is damp and moist inside (condensation).
Turn off your camcorder and leave it for about 1 hour in a cool place.
The estimated recording time may vary depending on contents and features used.
Recording a fast-moving subject increases the bit rate and consequently the amount of storage space required for the recording, which can lead to a shorter available recording time.
82_English
Symptom
The recording stops automatically.
The beep sound is not heard.
•
•
Explanation/Solution
There is no more free space for recording on the storage media.
Back up important files on your PC and format the storage media or delete the unnecessary files.
If you use a memory card with a low writing speed, the camcorder automatically stops recording the videos and the corresponding message appears on the LCD screen.
• The camcorder is unable to record these levels of brightness.
When recording a subject illuminated by bright light, vertical lines appear.
When the screen is exposed to direct sunlight during recording, the screen turns red or black for an instant.
During recording, the date/time does not display.
• Do not leave the camcorder with the LCD screen exposed to direct sunlight.
•
•
•
•
"Date/Time Set" is set to off. Set the "Date/Time Set" to on. ➥page 25
Set the "Beep Sound" to "On." ➥page 58
The beep sound is temporally off while recording videos.
When the component/AV cable jack is connected to the camcorder, the beep sound will automatically turn off.
There is a time difference between the point where you press starts/stops.
Recording start/stop ( button and the point where the recorded video
)
The recording stops.
You cannot record a photo
The digital zoom function is not available.
• On your camcorder, there may be a slight time delay between the point when you press Recording start/stop ( ) button and the actual point where the recorded video starts/stops. This is not an error.
•
•
•
•
•
•
•
The internal temperature of your camcorder is unusually high. Turn off your camcorder and leave it for a while in a cool place.
Your camcorder is damp and moist inside (condensation). Turn off your camcorder and leave it for about 1 hour in a cool place.
Set your camcorder to Record mode. ➥page 19
Release the lock on the write-protection tab of the memory card if set.
The storage media is full. Use a new memory card or format the storage media.
➥ page 57 Or remove unnecessary images. ➥page 49
When the video resolution is set to 1080/30p or Slow Motion, the digital zoom function is not available.
Choose another video resolution.
English _83
troubleshooting
Adjusting the image during recording
Symptom
It is out of focus.
The image appears too bright or flickering, or changes in color.
Playback on your camcorder
•
•
•
Explanation/Solution
This camcorder has no user-adjustable focus control function.
The minimum focal length between the camcorder and the subject is 1.3m.
This occurs when recording images under a fluorescent lamp, sodium lamp, or mercury lamp. Cancel "iSCENE" to minimize these phenomena. ➥page 42
Symptom
Pressing the playback (play/pause) button did not start playing.
The skip or search function does not work properly.
Playback is interrupted unexpectedly.
You cannot hear sound when playing a
Time Lapse recording.
Photos stored on a storage media are not displayed in the actual size.
•
•
•
•
•
•
•
Explanation/Solution
Press the Play ( ) button to set the Play mode.
Image files recorded on another camcorder may not play on your camcorder.
Check out the memory card compatibility. ➥page 28
If the temperature inside the camcorder is too high, it cannot function properly.
Turn the camcorder off, wait for a few moments, and turn it on again.
Check if the AC power adaptor is properly connected and stable.
The Time Lapse REC function does not support sound.
Photos recorded on other devices may not appear at actual size.
This is not an error.
Playback on other devices (TV, etc.)
Symptom
•
You cannot view the image or hear the sound on the connected device.
The image does not appear on the TV.
The image appears distorted on TV or
PC player.
•
•
•
•
•
Explanation/Solution
Connect the audio of the component/AV to your camcorder or connected device (TV,
HD recorder, etc). (Red color- right, White color- left)
The component/AV cable is not connected properly.
Make sure that the connection cable is connected to the proper jack. ➥pages 73-74
This camcorder provides the two-in-one component/AV cable that fits the purpose of the component and the AV cable. Therefore, when using the component/AV cable, you must check the right method for the TV output by setting the “ TV Out” menu. ➥page 60
Set the video output signal according to the TV color system of the connected TV.
➥ page 60
The display mode of the recorded video does not match that of playback device.
A video recorded in 16:9 wide mode should be played back on a TV or PC that supports 16:9 screen mode.
84_English
Connecting to a computer
Symptom
When using the videos, a computer does not recognize your camcorder.
• Disconnect the USB cable from the computer and camcorder, restart the computer, then reconnect it correctly.
Explanation/Solution
Cannot play a video file properly on a PC.
Intelli-studio does not function properly.
The image or sound on your camcorder is not played on your computer properly.
The playback screen is paused or distorted.
•
•
•
•
A video codec is needed to play the file recorded on your camcorder. Install or run the built-in edit software (Intelli-studio).
Make sure you insert the connector in the correct direction, and connect the USB cable to the
USB jack on your camcorder firmly.
Disconnect the cable from the computer and camcorder, restart the computer. Reconnect it properly.
Your computer may not have the necessary performance specifications to playback a video file.
Check the recommended computer specifications.
•
•
•
•
Exit the Intelli-studio application, and restart the Windows computer.
Intelli-studio is not Macintosh compliant.
Set “PC Software” to “On” in the Settings menu.
According to your computer type, the Intelli-studio program may not run automatically. In this case, open the desired CD-ROM drive that has the Intelli-studio program in My Computer and run iStudio.exe.
•
• video playback or sound may stop temporarily depending on your computer.
The video or sound copied to your computer is not affected.
If your camcorder is connected to a computer that does not support Hi-speed USB (USB2.0), the images or sound may not be played back correctly.
The images and sound copied to your computer are not affected.
•
•
•
Check the system requirements to play a video. ➥page 63
Exit all other applications running on the current computer.
If a recorded video is played on your camcorder when it is connected to a computer, the image may not play smoothly, depending on the transfer speed. Please copy the file to your PC, and then play it back.
English _85
troubleshooting
Connecting/Dubbing with other devices (TV, DVD recorder, etc.)
Symptom
You cannot dub correctly using the component/AV
(Video, Audio L/R) cable.
Explanation/Solution
•
•
The component/AV (Video, Audio L/R) cable is not connected properly.
Make sure that the component/AV (Video, Audio L/R) cable is connected to the proper jack, i.e. to the input jack of the device used for dubbing images from your camcorder. ➥page 76
This camcorder provides the two-in-one Component/AV cable that fi ts the purpose of the component and the AV cable. Therefore, when using the component/AV cable, you must check the right method for the TV output by setting the “ TV Out” menu. ➥page 60
General operations
Symptom
The date and time are incorrect.
Your camcorder does not turn on or the buttons do not operate normally.
Your camcorder is not recognized by a computer.
Explanation/Solution
• Has the camcorder been left unused for a long period of time?
The backup built-in rechargeable battery may be discharged. ➥page 25
•
•
Unplug the AC power adaptor, and reconnect the power supply to the camcorder before turning it on.
Press the Reset button with a pointed object such as a safety clip to initialize the system.
When the system initialization is complete, your camcorder automatically turns on. The system reset function does not affect the recorded images and custom settings.
86_English
Menu
Symptom
Menu items are grayed out.
•
•
•
Explanation/Solution
You cannot select grayed items in the current recording/playback mode.
If there is no storage media inserted, it cannot be selected and will be dimmed on the menu : "Storage Info", "Format", etc.
There are some functions you cannot activate simultaneously. The following list shows examples of unworkable combinations of functions and menu items.
If you want to set the desired functions, do not set the following items first.
Cannot Use
Digital Zoom
"Video Resolution"
"Video Quality"
"Video Quality"
Because of the following setting
"Video Resolution: 1080/30p, Slow Motion"
"Time Lapse REC: On"
"Video Resolution: Slow Motion"
English _87
specifications
Model Name: HMX-U10BN/U100BN/U10RN/U100RN/U10EN/U100EN/U10UN/U100UN/U10SN/U100SN
Composite output
Component output
Audio output
USB output
System
Video signal
Recording
Output
NTSC
NTSC / PAL
Picture compression format H.264 (MPEG-4.AVC)
Audio compression format AAC (Advanced Audio Coding)
Image device 1/2.3” CMOS (Complementary Metal-Oxide Semiconductor) (Max: 10M pixels)
Lens
Focal length
F3.0, 1x (Optical), 3.5x~4x (Digital) (Video resolution 1080/30, Slow Motion excluded)
7.9mm
LCD screen
Size/dot number
LCD screen method
2 inch 154k
TFT LCD
Connectors
1Vp-p (75 Ω terminated)
Y: 1Vp-p, 75 Ω, P
B
/P
R
, Cb/Cr: 0.350Vp-p, 75 Ω
-7.5dBs (600 Ω terminated)
Mini-B type connector
General
Power source
Power source type
Power consumption
Operating temperature
Operating humidity
Storage temperature
Dimensions (WxHxD)
Weight
Internal MIC
Storage media
5.0V (using AC power adaptor), 3.7V (using built-in lithium Ion battery)
Lithium Ion battery (built-in type), Power supply (100V~240V) 50/60Hz
2.4W
32˚F~104˚F (0˚~40˚C)
10% ~80%
-4˚F ~ 140˚F (-20˚C ~ 60˚C)
2.21” x 4.06” x 0.61” (56 mm x 103mm x 15.5 mm)
0.21 lb (95g, 3.35 oz) (battery included, built-in type)
Omni-directional stereo microphone memory card (SD/SDHC)
- These technical specifications and design may be changed without notice.
88_English
warranty
SAMSUNG
LIMITED WARRANTY
SAMSUNG Electronics America Inc. (SEA), warrants that this product is free from defective material and workmanship.
SEA further warrants that if product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SEA will repair or replace the product at it’s option.
All warranty repairs must be performed by a SEA authorized service center. The name and address of the location nearest you can be obtained by calling toll free: 1-800 SAMSUNG (1-800-726-7864).
Labor
90 days carry-in
Parts
1 year
On carry-in models, transportation to and from the service center is the customer’s responsibility.
The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase.
It must be presented to the authorized service center.
EXCLUSIONS (WHAT IS NOT COVERED)
This warranty does not cover damage due to accident, fire, flood and/or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs in shipping.
Exterior and interior finish, lamps, and glass are not covered under this warranty.
Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty.
This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased in the United States and Puerto Rico.
Some States do not allow the exclusions or limitations of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
If you have any questions or comments relating to
Samsung products, please contact the SAMSUNG customer care center Samsung Electronics America, inc.
1-800-SAMSUNG (726-7864) www.samsung.com/us
RoHS compliant
Our product complies with “The Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment”, and we do not use the 6 hazardous materials-
Cadmium(Cd), Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr +6), Poly Brominated
Biphenyls (PBBs), Poly Brominated Diphenyl Ethers(PBDEs)- in our products.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 10 MP CMOS 25.4 / 2.3 mm (1 / 2.3") Red
- Optical zoom: 1x Digital zoom: 4x
- LCD 5.08 cm (2")
- 1920 x 1080 pixels
- Built-in microphone Built-in speaker(s)
- HDMI
- Lithium-Ion (Li-Ion)
Related manuals
advertisement
Table of contents
- 2 key features of your camcorder
- 4 safety warnings
