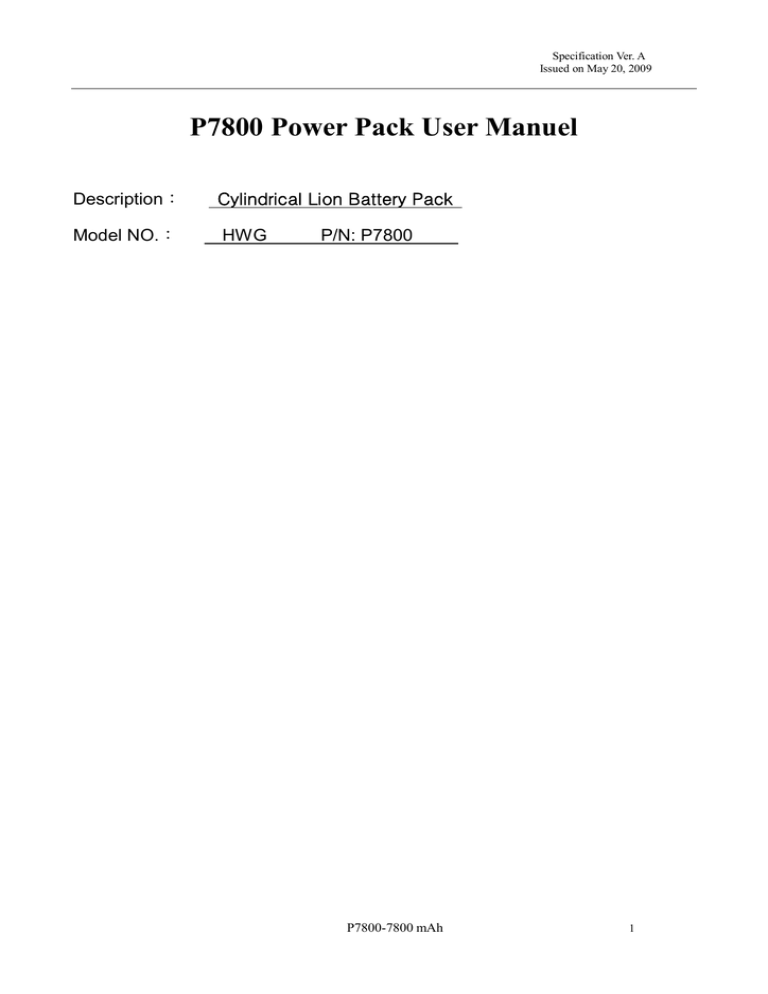

Specification Ver. A
Issued on May 20, 2009
P7800 Power Pack User Manuel
Description:
Cylindrical Lion Battery Pack
Model NO.:
HWG
P/N: P7800
P7800-7800 mAh
1
Specification Ver. A
Issued on May 20, 2009
Chapter 1 - Product Picture:
Chapter 2 - Overview
HWG’s P7800 made up with 9-cells Samsung 18650 Li-ion battery cells,
arrange in 3-cells as a group. It is design for notebook and USB compatible
electronis.
Main Features of the unit:
1、Wide Compatibility: The product is compatible with 95% notebooks on the
market.. There are a total of 12 Connector types: give out voltage at 15V、16V、
18.5V、19V、19.5V、20V with 20 choices
2、Power indicators: Charging indicator and 4 level capacity indicator
3、Lasts Long and runs long: The product uses High capacity Samsung battery
cells, total capacity is 7800mAh. More than 500 charge-recharge cycle is
guranteed.
4、High Power: Output power is up to 40W
5、Extra USB output connector: Compatible with all USB based electronic
devices which use 5V DC
P7800-7800 mAh
2
Specification Ver. A
Issued on May 20, 2009
Chapter 3、Usage Guide
1.Product Specification
①、INPUT:DC15-20V~2.0A&DC5.0V~0.8A;
②、OUTPUT:DC 15-20V~1.2A;
③、Battery Capacity:7,800mAh;
④、Storage Time:5Months;
⑤、Capacity & Charging Indicators;
⑥、Compatible Genre:Notebook、PDA、PSP、MP4、Mobile Telephone、
iPhone、Digital Camera、Bluetooth Earphone etc.
2.Part Names and functions
100% Capacity LED
80% Capacity LED
60% Capacity LED
40% Capacity LED
20% Capacity LED
OFF ON
Input 15V~20V
Charger LED
Capacity LED Switch
Output 15V~20V
Shutdown Switch
P7800-7800 mAh
Output
5V
3
Specification Ver. A
Issued on May 20, 2009
3.To charge this Power pack
Charger LED Show Red
Switch→ON
Input:15V~20V—≥1.2A
Notes:
1、When Charging, please flip the Switch to ON position, to make sure
proper charging
2、When P7800 is fully charged, the charge indicator goes out, it takes
roughly 8-9 hours。
4.Sketch diagram of powering up notebooks
Caution: When powering up a notebook, make sure:
1、Flip the Switch to ON position
2、Disconnect the battery pack of the notebook;
P7800-7800 mAh
4
Specification Ver. A
Issued on May 20, 2009
Chapter 4 –Standard Accessories
Accessories Parts
Fit for Laptops
Type
Out Put
Connector Size
TOSHIBA
15.0V/M1
15.0V/Max90W
6.3*3.0mm
IBM、LENOVO
16.0V/M2
16.0V/Max90W
5.5*2.5mm
SONY、FUJITSU
16.0V/M3
16.0V/Max90W
6.5*4.4mm
COMPAQ、HP
18.5V/M4
18.5V/Max90W
4.8*1.7mm
ACER,COMPAQ,DEITA,
GATEWAY,TOSHIBA,HP
LITEON,FUJITSU
19.0V/M5
19.0V/Max90W
5.5*2.5mm
SAMSUNG
19.0V/M6
19.0V/Max90W
5.0*3.0mm
ACER,COMPAQ,DEITA,
GATEWAY,TOSHIBA,HP
LITEON,FUJITSU
19.0V/M7
19.0V/Max90W
5.5*2.1mm
SONY
19.5V/M8
19.5V/Max90W
6.5*4.4mm
DELL
19.5V/M9
19.5V/Max90W
7.4*5.0mm
DELL
20.0V/M10 20.0V/Max90W
3 holes
IBM、LENOVO
20.0V/M11
20.0V/Max90W
7.9*5.4mm
HP、COMPAQ
18.5V/M12 18.5V/Max90W
7.0*5.0mm
P7800-7800 mAh
5
Specification Ver. A
Issued on May 20, 2009
Chapter 5 – Specifications
Cell Type
Cell Model
Cell Size
Cell Capacity
Input Voltage
Output Voltage
Total Capacity
Storage Time
Indicators
Li-ion
Samsung Cell
18650
2600mAh
DC15-20V~2.0A&DC5.0V~0.8A
DC 15-20V~1.2A
7,800mAh
5 Months
Capacity & Charging Indicators
P7800-7800 mAh
6
