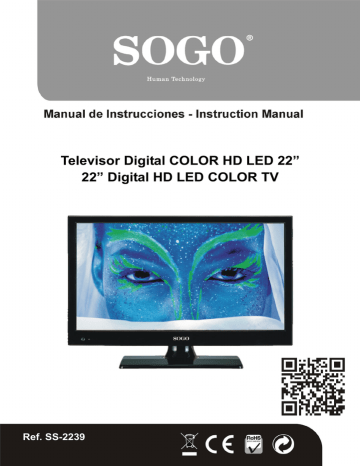

Televisor Digital COLOR HD LED 22”
22” Digital HD LED COLOR TV
Ref. SS-2239
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
INSTRUCCIONES DE SEGURIDAD
ADVERTENCIA - PARA REDUCIR EL RIESGO DE INCENDIOS,
DESCARGAS ELÉCTRICAS O LESIONES GRAVES:
● Este producto no debe ser expuesto a goteos o salpicaduras y no coloque objetos que contengan líquidos, como floreros, sobre el aparato.
● Sitúe este producto lejos de fuentes de calor tales como radiadores, calefactores, estufas u otros aparatos (incluyendo amplificadores) que produzcan calor.
● Limpie el producto únicamente como lo recomienda el fabricante (ver "Mantenimiento")
para más detalles). Desconecte el cable de alimentación de la toma de corriente antes de limpiar.
● Desenchufe el adaptador de alimentación de la toma de corriente cuando no se utiliza durante un período prolongado.
● Evitar que los objetos y líquidos que se caiga o se derrama sobre el producto.
● Utilice el producto únicamente con el adaptador de corriente suministrado. Cables de alimentación por lo que no es probable que sean pisados o aplastados por elementos colocados encima o contra ellos, prestando especial atención a los enchufes, tomacorrientes y el punto donde salen del producto.
● Cuando el enchufe de alimentación o un aparato es utilizado como dispositivo de desconexión, el dispositivo de desconexión debe ser accesible fácilmente.
● No utilice este producto bajo las siguientes condiciones.
- Cuando el cable de alimentación o el enchufe están dañados.
- Si se ha derramado líquido en o han caído objetos en el producto.
- Si el producto ha estado expuesto a la lluvia o el agua.
- Si el producto no funciona cuando se usa según las instrucciones de funcionamiento.
- Si el producto se ha caído o dañado de alguna manera.
● No intente reparar el producto, llévelo a la tienda de reparación de la electrónica de su elección para cualquier servicio o reparación.
● No sobrecargue los enchufes, extensiones eléctricas, o receptáculos integrales.
1 Español English
PRECAUCIÓN: PARA REDUCIR EL RIESGO DE LESIONES PERSONALES O
PRODUCTO / DAÑOS A LA PROPIEDAD:
● Este producto está destinado exclusivamente para uso no comercial, no industrial, el uso personal como una televisión portátil. No utilice este producto para ningún otro propósito.
● No exponga el producto a los choques violentos, temperaturas extremas, o períodos largos o luz solar directa.
● Mantenga el producto lejos de objetos magnéticos, motores y transformadores.
● No utilice al aire libre en las inclemencias del tiempo.
No utilice el televisor durante la conducción, lo que es peligroso y es ilegal en algunas áreas.
BATERÍA DE MANEJO Y USO:
● Mantenga las pilas lejos de los niños y las mascotas. Sólo los adultos deben manipular las baterías.
● No tire las pilas al fuego ni las exponga a fuentes de calor, fuego o de otro tipo.
● Siga la seguridad de la fabricación de la batería y las instrucciones de uso.
Español English 2
ELIMINACIÓN DE ANTIGUOS APARATOS ELÉCTRICOS
The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. La directiva Europea 2002/96/CE sobre residuos de aparatos eléctricos y electrónicos (RAEE), requiere que los electrodomésticos viejos no pueden ser arrojados en los que los desechos sólidos municipales. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. Aparatos tienen que ser recogidos selectivamente para optimizar la recuperación y el reciclado de los materiales que contienen, y reducir el impacto en la salud humana y el medio ambiente.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. El tachado "contenedor de basura" símbolo en el producto que usted recuerda de su obligación, que cuando se tire el aparato, debe recogerse de forma selectiva.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Los consumidores deben ponerse en contacto con la autoridad local o minorista para obtener información sobre la correcta eliminación de su electrodoméstico viejo.
ACCESSORIOS
Manual de instrucciones ...................................................................................................... 1
Mando a Distancia con batería ............................................................................................ 1
AC Corriente alterna ............................................................................................................ 1
3 Español English
CONTENIDO
PRIMEROS PASOS
INSTRUCCIONES IMPORTANTES ..................................................................................1-2
ACCESORIOS ......................................................................................................................3
CARACTERÍSTICAS ............................................................................................................5
PARTES GENERALES ......................................................................................................6-7
MANDO A DISTANCIA ......................................................................................................8-9
PREPARACIÓN DEL MANDO A DISTANCIA .....................................................................10
CONEXIÓN BÁSICA .....................................................................................................11-15
OPERACIONES
OPERACIONES BÁSICAS ............................................................................................16-24
MENÚ PRINCIPAL ........................................................................................................25-41
PRIMERA INSTALACIÓN………………….………………………………………………25-26
MODO DTV ...............................................................................................................27-40
MODO DE ATV ...............................................................................................................40
MODO PC …..............................................................................................................40-41
PARA REFERENCIA
MANTENIMIENTO ..............................................................................................................42
MONTAJE EN LA PARED ……………………………………………………..……………..….42
INSTALACIÓN CON PIE……………………………………………………….…………………43
ESPECIFICACIONES .........................................................................................................44
SOLUCIÓN DE PROBLEMAS ............................................................................................45
Español English 4
CARACTERISTICAS
22 "TFT pantalla
Este reproductor tiene un built-in de 22 " LED pantalla de visualización para proporcionar una visión clara y baja radiación.
AUTO AYUDA DE ESCANEO DE TV
APOYO DE ALTA DEFINICIÓN H.264 FUNCIÓN
APOYO RECEPCIÓN DE EMISIONES DIGITALES
GUÍA DE AYUDA PARA LA TELEVISIÓN
APOYO TELETEXTO (EUROPA) FUNCIÓN
SOPORTA USB REPRODUCCIÓN MULTIMEDIA
APOYO MULTI-IDIOMAS EN PANTALLA
APOYO COMPLETO FUNCIONES DE MANDO A DISTANCIA
COMPATIBLES CON HDMI, VGA, AUDIO PC, SCART, VÍDEO, AUDIO R / L,
YPBPR Y ENTRADA IC
APOYO Y COAX SALIDA DE AURICULARES
CON TITULAR SOPORTE DESMONTABLE
CON JACK DE ANTENA EXTERNA
CON ALTAVOCES INCORPORADOS
CON LA FUNCIÓN DE REDUCCIÓN DE RUIDO
5 Español English
UNIDAD PRINCIPAL
Vista Frontal
PARTES GENERALES
Vista Superior
1. Pantalla LED
2. El indicador de energía-el modo de espera la luz del indicador se mostrará de color rojo, al poner en marcha la unidad de la luz del indicador se mostrará de color azul.
3. Sensor de mando a distancia
4. El Pie
5. Boton POWER - para encender y apagar el televisor
6. Para botón SOURCE seleccionar la entrada.
7. Botón MENÚ Para acceder a la página menú de configuración.
8. Boton CH + /- Para seleccionar el canal anterior y siguiente o para mover hacia abajo o subir.
9. Botón VOL + / - para bajar o subir el volumen o mover hacia la izquierda o derecha.
Español English 6
Vista Trasera
PARTES GENERALES
1. Entrada Corriente
2. Salida Auricular
3. Entrada euro conector
4. Entrada PC Audio
5. Entrada VGA
6. Entrada HDMI
7. Entrada AV
8. Entrada CI
9. Entrada YPbPr
10. Entrada USB
11. Entrada RF para antena exterior
12. Salida Coaxial
13. Altavoces Integradas
7 Español English
MANDO A DISTANCIA
1 ENCENDIDO
Pone la unidad en modo espera; pulsar de nuevo para encenderlo.
2 RADIO/TV
Cambia la unidad entre TV y radio.
3 Botón ROJO
4 Botón VERDE
5 Botón AZUL
6 Botón AMARILLO
7 FAV
Muestra la lista de canales favoritos.
8 TEXTO
Muestra el teletexto disponible.
9 GTV
Muestra la guía electrónica de programas.
10 MANTENER
Mantener el teletexto.
11 SUBTÍTULOS
Activa/desactiva subtítulos.
12 TAMAÑO
Cambia el tamaño del teletexto.
13 SUBPÁGINA
Accede a la subpágina del teletexto.
14 ASPECTO
Pulsar repetidamente para seleccionar el tamaño de pantalla deseado.
15 MEDIO
Accede directamente al modo medio (USB).
16
Inicia/pausa la reproducción.
17
Avance rápido.
18
Retroceso rápido.
19 ● (TDT)
Inicia la GRABACIÓN al ver programas digitales disponibles.
20
Detiene la reproducción.
Español English 8
MANDO A DISTANCIA
21
Reproduce el archivo siguiente.
ÍNDICE
Muestra la lista de grabaciones o el índice del teletexto.
22
Reproduce el archivo anterior.
23 MENÚ
Muestra el menú principal o vuelve al menú anterior.
24 AUDIO
Cambia la pista de audio disponible.
25 Aceptar
Confirma la selección.
26 ▲/▼/◄/►
Botones de navegación
27 REPOSO
Establece el tiempo de reposo deseado.
28 SALIR
Salir de la página de menú.
29 SILENCIO
Silencia el sonido.
30 VOL +/-
Aumenta/reduce el nivel de volumen.
31 CH +/-
Reproduce el programa siguiente/anterior.
32 MOSTRAR
Muestra la información de programa disponible.
33 Botones numéricos (0-9)
Introduce la información numérica, como el número de canal y otros.
34 -/--
Cambia el dígito al cambiar de programa de TV.
35
Vuelve al canal anterior.
36 FUENTE
Selecciona la fuente de entrada deseada.
37 MODO I
Cambia el modo de imagen.
38 MODO S
Cambia el modo de sonido.
9 Español English
PREPARACIÓN DEL MANDO A DISTANCIA
INSTALACIÓN DE LA BATERÍA
Instale las baterías como las siguientes imágenes.
Asegúrese de terminales + y - se colocan como se indica en el compartimiento de la batería (Fig 1).
SERVICIO DE LA VIDA DE LAS BATERÍAS
- Las baterías suelen durar un año aunque esto depende de la frecuencia del mando a distancia se utiliza.
- Si el mando a distancia deja de funcionar incluso si se utiliza cerca del aparato, reemplace las baterías.
- Utiliza dos pilas secas de tamaño AAA.
NOTA:
● No deje caer, pisar ni golpear el mando a distancia. Esto puede dañar las piezas o provocar un mal funcionamiento.
● Si el mando a distancia no va a ser utilizado por un largo tiempo, retire las pilas.
Fig1 Fig2
MANDO A DISTANCIA
FUNCIONAMIENTO
Apunte el mando a distancia de no más de alrededor de 6 m desde el mando a distancia sensor y dentro de aproximadamente 60 ° de la parte frontal del reproductor (Fig. 2).
NOTAS:
- La distancia de funcionamiento puede variar de acuerdo con el brillo de la habitación.
- No dirija la luz brillante en la distancia controlar el sensor.
- No coloque objetos entre el mando a distancia y el sensor.
- No utilice este mando a distancia, mientras que operen simultáneamente el mando a distancia control de cualquier otros equipos.
Empuje
Abrir
Pulsar
Sensor del control remoto
Español English 10
BASIC CONNECTION
● Asegúrese de que todos los cables están desconectados de la unidad principal antes de conectar a la fuente de alimentación de CA.
● Lea detenidamente las instrucciones antes de conectar otros equipos.
CONEXIÓN A LA FUENTE DE ALIMENTACIÓN DE CA
Unidad principal
Conecte la antena externa A LA UNIDAD
Salida de corriente
Adaptador ca/cc
Instalación de antena externa en toma de antena a la mejor imagen.
Antena
Enchufe eléctrico del
Amplificado r de la antena interior
Amplificador de la antena exterior amplificador de la antena
75 OHM
Conector de la antena
11 Español English
Conexión HDMI
Utilice un cable HDMI para conectar la unidad con otros dispositivos para recibir la señal de alta definición multimedia.
PC / VGA CONEXIÓN
Detrás de DVD/VCR
Utilice un cable VGA y el cable de audio para conectar la unidad con la TV o PC, y utilizar este producto como un monitor.
Cable audio
Cable HDMI
Cable VGA
Detrás del PC
Español English 12
Conexión SCART
Detrás de DVD/VCR
COAXIAL OUT CONEXIÓN
Cable SCART
Utilice un cable coaxial para conectar la unidad con el amplificador de audio u otros dispositivos de descodificación de la señal de salida coaxial de audio.
13 Español English
COMPUESTO conexión AV
Para la conexión básica, utilice el compuesto de L / D de audio (blanco / rojo) y el cable CVBS (amarillo) para conectar la unidad con otros dispositivos.
Detrás de DVD/VCR
Componente (YPbPr) CONEXIÓN
Cable YPbPr
Detrás de DVD/VCR
Cable AV
Cable audio
Español English 14
Conecte el dispositivo USB a la unidad
Enchufa memoria USB para reproducir
PELICULAS / MUSICA / FOTOS archivos de multimedia.
INSERTAR UNA TARJETA CI A LA UNIDAD
Enchufa su tarjeta CI (Conditional
Access Module) para mirar los digital canals especiales.
CONEXION AURICULARES
Cable Auriculares
15 Español English
ASEGÚRESE DE TODOS LOS EQUIPOS Y EL ADAPTADOR DE CA ESTEN
CONECTADOS CORRECTAMENTE Y LA UNIDAD PERMANECERA EN MODO
CORRECTO ANTES DE CADA OPERACION.
OPERACIONES BASICOS
- Presione el botón POWER en la parte superior la unidad o del control remoto para encender la unidad (el indicador se iluminará en azul), pulse de nuevo para apagar
(modo de espera) de la unidad (el indicador se ilumina en rojo).
- Pulse el botón SOURCE en la unidad o en el mando a distancia para establecer la unidad en modo DTV o ATV.
SELECCIONAR EL PROGRAMA DESEADO
1. Presione CH + para reproducir el siguiente canal.
2. Presione CH-botón para reproducir el canal anterior.
3. Pulse los botones numéricos del control remoto directamente para seleccionar el programa deseado.
NOTA:
CONTROL DE VOLUMEN
- Presione el botón VOL + o VOL-para ajustar el nivel de volumen actual.
Disponible: 0-100.
CONTROL DE SILENCIO
- Presione el botón MUTE para silenciar el sonido, pulse de nuevo para activar el sonido.
AJUSTE DE LA FUENTE
- Pulse el botón SOURCE en la unidad o en el mando a distancia para mostrar la lista de funciones.
- Pulse Arriba o abajo botón de navegación para seleccionar la fuente de entrada que desee, luego presione el botón Aceptar para confirmar la selección.
Opciones disponibles: DTV, ATV, AV, SCART, YPBPR, HDMI, PC, MEDIA.
MODO DE IMAGEN
- Pulse P-MODE en el mando a distancia para seleccionar el modo de imagen que desee directamente.
Opciones disponibles: Estándar, Suave, Usuario, Dinámico.
MODO DE SONIDO
- S-Pulse la tecla MODE en el mando a distancia para seleccionar el modo de sonido directamente.
Opciones disponibles: Estándar, Película, Música, Voz, Usuario.
Español English 16
CONFIGURACIÓN SLEEP
- Presione el botón SLEEP del mando a distancia para seleccionar TIEMPO dormir directamente.
Opciones disponibles: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min.
VALOR DE TAMAÑO DEL VIDEO
Pulse el botón ASPECT del mando a distancia varias veces para seleccionar el tamaño video directamente.
Opciones disponibles: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTA: El tamaño de vídeo disponibles pueden ser diferentes en diferentes fuentes de entrada.
AJUSTE DE MULTI-AUDIO
- Presione el botón AUDIO del mando a distancia para entrar
Multi-audio página del menú.
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la banda de sonido disponibles.
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar el idioma de audio disponible.
NOTA: Para activar esta función, asegúrese de que el canal que está viendo es compatible con múltiples idiomas de audio.
INFORMACIÓN EN LA PANTALLA
- Pulse el botón DISPLAY en el mando a distancia para mostrar la información del programa actual.
GUIA DE TELEVISOR (para el modo DTV SOLAMENTE)
- Pulse el botón EPG en el mando a distancia para entrar en la página siguiente menú:
17 Español English
- Pulse los botones de navegación para seleccionar el canal deseado
- Presione el botón rojo para entrar en modo semanal o modo diario.
- Pulse el botón AMARILLO para acceder a la guía del dia anterior.
- Pulse el botón AZUL para acceder a la guía del dia siguiente.
LISTA DE FAVORITOS
Al ver un canal disponible, pulse el botón FAV del mando a distancia para entrar en la página favorita menú Lista.
- Presione Arriba o abajo para seleccionar el canal de navegación preferido.
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar el grupo favorito preferido.
- Pulse el botón OK para confirmar la selección.
NOTAS:
- Para añadir / borrar un canal de la lista de favoritos, por favor, consulte la Parte 3.2
"Gestión Favorito".
- Pulse el botón ROJO del mando a distancia para mostrar el teclado. A continuación, puede cambiar el nombre de un tipo favorito deseado con los botones de navegación.
Selección rápida
Al ver un canal disponible, pulse el botón OK en el mando a distancia para introducir la lista de canales página del menú.
- Presione Arriba o abajo para seleccionar el canal de navegación preferido.
- Pulse el botón OK para confirmar la selección.
TELETEXTO
- Pulse el botón TEXT del mando a distancia para ver la información de teletexto disponible.
TV / RADIO (para el modo DTV SOLAMENTE)
- Presione el botón TV / RADIO en el mando a distancia para cambiar la unidad entre la TV y el modo de radio.
SUBTÍTULOS
- Pulse el botón SUBTITLE del mando a distancia para entrar en la página Subtítulo menú.
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la opción preferida.
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar los subtítulos disponibles.
- Pulse el botón OK para confirmar la selección.
Español English 18
NOTA: Para activar esta función, asegúrese de que el canal que está viendo soporta multi-subtítulos.
GRABADOR (para el modo DTV SOLAMENTE)
- Enchufas la memoria USB en la ranura USB.
Cuando ve un programa digital:
- ● Pulse el botón del mando a distancia para iniciar la grabación directamente y pulse de nuevo para ver el menú.
- Utilice IZQUIERDA / DERECHA botón de navegación para mover el cursor, utilice los botones numéricos para ingresar el valor deseado y pulse el botón OK para confirmar el ajuste.
- Pulse el botón del mando a distancia para llamar a un cuadro de diálogo y seleccione
Aceptar para detener la grabación, seleccione Cancelar para cerrar el cuadro de diálogo.
Para ver programas grabados:
- Pulse el botón INDEX en el mando a distancia para destacar el menú de la lista de grabación.
- Pulse ARRIBA / ABAJO de navegación para seleccionar los archivos grabados y pulse el botón OK para iniciar la reproducción.
TIME SHIFT (para el modo DTV SOLAMENTE)
- Enchufas la memoria USB en la ranura USB.
Cuando se ve un programa digital:
-Si no te quieres perder ningún programa cuando se fue, pulse el botón del mando a distancia para llamar a un cuadro de diálogo y seleccione OK para entrar en el modo TIME
SHIFT, seleccione Cancelar para cerrar el cuadro de diálogo. Pulse otra vez el botón para activar la función Time Shift.
- Pulse el botón otra vez cuando vuelvas a ver el programa en el modo TIME SHIFT.
- Para detener el Time Shift, pulse en el mando a distancia para detener la reproducción
TIME SHIFT y pulse de nuevo para llamar a un cuadro de diálogo. Seleccione Aceptar para salir del modo TIME SHIFT y seleccione Cancelar para cerrar el cuadro de diálogo.
19 Español English
Reproducción de medios
- Pulse el botón SOURCE en la unidad o en el mando a distancia para seleccionar la fuente de entrada de MEDIA.
- Enchufas la memoria USB en la ranura USB.
- Pulse ARRIBA / ABAJO / IZQUIERDA / DERECHA botón de navegación para mover el cursor.
- Pulse el botón EXIT para volver a la página anterior del menú.
NOTA: Pulse el botón MEDIA del mando a distancia para acceder al modo multimedia directamente.
1. FOTO
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la foto en el menú principal y pulse el botón OK para entrar en él.
NOTA: Al seleccionar los archivos de fotos, pulse el botón EXIT para mover el cursor a
TITLE y pulse el botón de navegación derecha para ver los archivos en el modo de vista en miniatura.
- Utilice los botones de navegación para seleccionar el archivo que prefiera.
- Pulse el botón ROJO para entrar en un cuadro de diálogo y seleccione Sí para eliminar el archivo resaltado, seleccione No para cancelar esta operación.
- Pulse el botón VERDE para agregar / quitar todos los archivos de lista de reproducción.
- Pulse el botón Aceptar para agregar / eliminar archivo resaltado de la lista de reproducción.- Pulse el botón para iniciar la reproducción.
Español English 20
Durante la reproducción normal de la foto:
- Pulse el botón OK en el mando a distancia para mostrar la barra de herramientas, pulse el botón EXIT para ocultarlo.
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la opción preferida en la barra de herramientas y pulse el botón OK para confirmar la selección / entrar en el submenú.
- Pulse el botón del mando a distancia para reproducir o pausar la reproducción.
- Presione el botón del mando a distancia para detener la reproducción.
- Pulse button on remote control to play previous photo. botón en el mando a distancia para reproducir la foto anterior.
- Pulse button on remote control to play next photo. botón en el mando a distancia para reproducir la siguiente foto.
2. MÚSICA
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar Música del menú principal y pulse el botón OK para entrar en él.
-Pulsar los botones de navegación para seleccionar el archivo deseado.
- Presione el botón rojo para entrar en un cuadro de diálogo, y presione el botón de navegación izquierda o derecha para decidir si borrar o no.
- Pulse el botón VERDE para añadir / eliminar todos los archivos de lista de reproducción.
- Pulse el botón OK para reproducir la música en este archivo.
- Pulse el botón para iniciar la reproducción.
21 Español English
Durante la reproducción normal de la musica:
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la opción preferida en la barra de herramientas y pulse el botón OK para confirmar la selección / entrar en el submenú.
- Pulse el botón AZUL del mando a distancia para cerrar el menú en pantalla, pulse cualquier botón del mando a distancia para que aparezca de nuevo.
- Pulse el botón del mando a distancia para reproducir o pausar la reproducción.
- Pulse el botón en el mando a distancia para detener la reproducción.
- Presione el botón del mando a distancia para moverse rápidamente hacia atrás.
- Presione el botón del mando a distancia para moverse rápidamente hacia adelante.
- Pulse el botón del mando a distancia para reproducir el archivo anterior.
- Pulse el botón del mando a distancia para reproducir el archivo siguiente.
3. PELÍCULA
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la película en el menú principal y pulse el botón OK para entrar en él.
Español English 22
-Pulsar los botones de navegación para seleccionar el archivo deseado.
- Presione el botón rojo para entrar en un cuadro de diálogo, y presione el botón de navegación izquierda o derecha para decidir si borrar o no.
- Pulse el botón VERDE para añadir / eliminar todos los archivos de lista de reproducción.
- Pulse el botón OK para reproducir la película en este archivo.
- Pulse el botón para iniciar la reproducción.
Durante la reproducción normal de la pelicula:
- Pulse el botón OK en el mando a distancia para mostrar la barra de herramientas, pulse el botón EXIT para ocultarlo.
- Press LEFT or RIGHT navigation button to select wanted option in the tool bar, and press
OK button to confirm selection. - Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar la opción preferida en la barra de herramientas y pulse el botón OK para confirmar la selección / entrar en el submenú.
- Pulse el botón AZUL del mando a distancia para cerrar el menú en pantalla, pulse cualquier botón del mando a distancia para que aparezca de nuevo.
- Pulse el botón del mando a distancia para reproducir o pausar la reproducción.
- Pulse el botón en el mando a distancia para detener la reproducción.
- Presione el botón del mando a distancia para moverse rápidamente hacia atrás.
- Presione el botón del mando a distancia para moverse rápidamente hacia adelante.
- Pulse el botón del mando a distancia para reproducir el archivo anterior.
- Pulse el botón del mando a distancia para reproducir el archivo siguiente.
4. TEXTO
- Pulse IZQUIERDA / DERECHA botón de navegación para seleccionar e-Book en el menú principal y pulse el botón OK para entrar en él.
23 Español English
-Pulsar los botones de navegación para seleccionar el archivo deseado.
- Presione el botón rojo para entrar en un cuadro de diálogo, y presione el botón de navegación izquierda o derecha para decidir si borrar o no.
- Pulse el botón VERDE para añadir / eliminar todos los archivos de lista de reproducción.
- Pulse el botón Aceptar para agregar / eliminar archivo markado de la lista de reproducción.
- Pulse el botón para iniciar la reproducción.
Durante la reproducción normal del E-Book:
- Pulse el botón ROJO del mando a distancia para agregar / eliminar la página actual de la lista de marcadores.
- Pulse el botón VERDE del mando a distancia para entrar en el modo GOTO. Introduzca el número válido y pulse el botón OK para entrar en la página deseada directamente.
- Pulse el botón AMARILLO del mando a distancia para ver la lista de
marcadores.
- Pulse el botón AZUL del mando a distancia para visualizar la lista de reproducción.
- Pulse el botón en el mando a distancia para reproducir la página anterior.
- Pulse el botón en el mando a distancia para reproducir la siguiente página.
NOTA: Para reproducir archivos multimedia, asegúrese de que ha seleccionado el icono correcto en el menú principal de reproducción de medios. Es decir, sólo se pueden reproducir archivos de fotos en el apartado de fotos, archivos de música en el punto MUSIC, etc.
Español English 24
MENU PRINCIPAL
● La unidad contiene los diferentes menús de configuración. Una vez que la programación inicial se introduce, se mantuvo en la memoria hasta que se cambia, y la unidad siempre puede ser operado bajo las mismas condiciones.
● Este ajuste se quedó en la memoria hasta que se cambian las configuraciones, incluso después de ajustar el jugador a modo de espera.
Procedimiento común para la configuración inicial
- Pulse el botón MENU en la unidad o en el mando a distancia para visualizar el menú principal.
- Presione Arriba o abajo para seleccionar submenús de navegación.
- Pulse el botón OK o navegación DERECHA para entrar en la página submenú.
- Presione Arriba o abajo para seleccionar la opción de navegación preferido.
- Presione el botón de navegación hacia la izquierda o derecha para ajustar el valor.
- Pulse el botón OK para confirmar la selección.
- Pulse el botón MENU para regresar a la página anterior del menú.
- Pulse el botón EXIT para salir de la página de menú.
La primera instalación
Si primera vez que utiliza, por debajo de la página de menú aparecerá en la pantalla después de encender esta unidad en:
Configuración 1
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar el modo de imagen deseado.
- Pulse el botón OK para llamar a un cuadro de diálogo. Seleccione Aceptar para confirmar la selección y pasar a la página siguiente, seleccione Cancelar para cerrar el cuadro de diálogo.
Configuración 2
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar el país que usted vive pulg
- Pulse el botón OK para confirmar la selección y pasar a la página siguiente.
25 Español English
Configuración 3
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar el idioma deseado del menú.
- Pulse el botón OK para confirmar la selección y pasar a la página siguiente.
Configuración 4
- Pulse ARRIBA / ABAJO navegación para seleccionar la potencia deseada tiempo de apagado automático.
- Pulse el botón OK para confirmar la selección y pasar a la página siguiente.
Configuración 5
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar el tipo deseado de búsqueda.
- Pulse el botón OK para confirmar la selección y luego esta unidad buscará automáticamente los programas.
NOTA:
- Para saltar ATV o DTV sintonización, pulse el botón MENU del mando a distancia para llamar a un cuadro de diálogo y seleccione OK para saltar, seleccione Cancelar para cerrar el cuadro de diálogo.
- Para salir del ajuste, pulse el botón EXIT del mando a distancia para llamar a un cuadro de diálogo y seleccione Aceptar para salir de sintonización, seleccione Cancelar para cerrar el cuadro de diálogo.
Español English 26
Modo DTV
- Pulse el botón SOURCE en la unidad o en el mando a distancia para seleccionar la fuente de entrada de DTV.
1.
IMAGEN
1.1 Modo de imagen
Opciones disponibles: Estándar, Suave usuario, y dinámica.
1.2 Brillo
El valor de brillo de la imagen se puede ajustar de 0-100.
1.3 Contraste
El valor de contraste de imagen puede ser ajustada de 0-100.
1.4 Definición
El valor de nitidez de la imagen se puede ajustar de 0-10.
1.5 Color
El valor de saturación de color de la imagen se puede ajustar de 0-100.
NOTA: El valor de brillo, contraste, nitidez y color es ajustable sólo en el modo de Imagen del usuario.
1.6 Tint
Este elemento se utiliza para ajustar el tono de color en sistema NTSC de 0-100.
1.7 Temperatura de color
Este elemento se utiliza para ajustar la temperatura de color óptima para la visualización adecuada. Opciones disponibles: Estándar, Frío, Caliente.
27 Español English
1.8 Relación de aspecto
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar la opción preferida.
Opciones disponibles: Automático, 4:3, 16:9, Zoom1, Zoom2.
NOTA: Si no hay señal, al pulsar el botón ASPECT del mando a distancia no funcionará. Y el tamaño del vídeo disponible puede ser diferente en diferentes fuentes de entrada.
1.9 Reducción de ruido
Este elemento se utiliza para eliminar el ruido de la imagen para obtener un mejor efecto de la imagen. Opciones disponibles: Desactivado, Bajo, Medio, Alto.
2. SONIDO
2.1 Modo de sonido
Opciones disponibles: Estándar, Película, Música, Voz, User.
2.2 Bajo
Este elemento se utiliza para ajustar el nivel de tonos de baja frecuencia de 0-100.
2.3 Treble
Este elemento se utiliza para ajustar el nivel de tonos de alta frecuencia de 0-100.
NOTA: El valor de los graves y los agudos se puede ajustar sólo en modo Usuario sonido.
2.4 Equilibrio
Este elemento se utiliza para ajustar la salida de audio entre los altavoces izquierdo y derecho de -50 a 50.
2.5 Surround
Este elemento se utiliza para activar / desactivar la función Surround.
Español English 28
2.6 AVL (Nivel automático de volumen)
Este elemento se utiliza para encender / apagar la función AVL.
2.7 SPDIF
Este elemento se utiliza para seleccionar el tipo deseado de audio SPDIF de salida.
Opciones disponibles: Off, PCM, Auto.
2.8 Descripción Audio
Este elemento se utiliza para activar / desactivar la función de “Audio-Description”. Para usuarios con minusvalías visuales, esta función puede ayudarles a conocer una determinada escena o acción a través de la narración.
NOTA: La función de “Audio-Description” sólo funciona cuando el programa contenga esta información.
3. Canal
3.1 Administración de canales
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar este elemento y pulse OK o el botón de navegación derecha para acceder al submenú.
29 Español English
- Pulse ARRIBA / ABAJO navegación para seleccionar el programa preferido. a) Pulse el botón ROJO del mando a distancia y utilice los botones numéricos para ingresar la contraseña si "Bloqueo de canales" está encendido. A continuación, pulse el botón
ROJO para añadir / quitar una marca de eliminación en el programa resaltado. Después de eso, pulse el botón MENU para entrar en un cuadro de diálogo. Seleccione OK para borrarlo, seleccione Cancelar para cancelar esta operación. b) Pulse el botón VERDE del mando a distancia y utilice los botones numéricos para ingresar la contraseña si "Bloqueo de canales" está encendido. A continuación, pulse el botón VERDE para bloquear / desbloquear el programa. c) Pulse el botón AMARILLO del mando a distancia para agregar / quitar marca de salto. d) Pulse el botón AZUL del mando a distancia para acceder al modo MOVE. A continuación, utilice los botones ARRIBA / ABAJO botón de navegación para seleccionar la posición que desee y pulse el botón OK para que se mueva.
3.2 Gestión favorite
- Pulse ARRIBA / ABAJO navegación para seleccionar el programa preferido. a) Pulse el botón ROJO del mando a distancia para agregar canal resaltado a favoritos 1 Lista. b) Pulse el botón VERDE en el mando a distancia para añadir canal resaltado a favoritos 2 lista. c) Pulse el botón AMARILLO del mando a distancia para agregar canal resaltado a favoritos 3 lista. d) Pulse el botón AZUL del mando a distancia para agregar canal resaltado a la lista 4 de favoritos.
3.3 País
Este elemento se utiliza para seleccionar el país que usted vive pulg.
Español English 30
3.4 Búsqueda automática
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar este elemento y pulse OK o el botón de navegación derecha para acceder al submenú.
- A continuación, pulse ARRIBA / ABAJO botón de navegación para seleccionar Todo DTV o ATV y pulse el botón OK o navegación DERECHA para entrar en un cuadro de diálogo.
Seleccione OK para iniciar la búsqueda automática, seleccione Cancelar para cancelar esta operación.
Para salir de la sintonización automática, pulse el botón MENU o EXIT y pulse Aceptar.
3.5 Búsqueda manual DTV
3.51 Canal
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar el programa preferido.
3.52 Frecuencia (KHz)
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
- Pulse IZQUIERDA / DERECHA botón de navegación para mover el cursor, pulse los botones numéricos del mando a distancia para introducir el valor deseado.
31 Español English
3.53 Ancho de banda (MHz)
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar el ancho de banda preferida.
Una vez que los ajustes de parte a parte 3,51 3,53 terminado, seleccione Iniciar en el menú y pulse OK para iniciar la búsqueda.
3.6 ATV Manual Search (para la fuente de entrada sólo ATV)
3.61 Canal actual
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar el programa preferido.
3.62 Frecuencia
Este artículo no es ajustable por el usuario.
3.63 Buscar
Este elemento se utiliza para iniciar la búsqueda.
3.64 Afinar
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse
IZQUIERDA / DERECHA botón de navegación para afinarlo.
Español English 32
3.65 Sistema de Color
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar el sistema de color que prefiera.
Opciones disponibles: Auto, PAL, SECAM.
3.66 Sistema de sonido
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar el sistema de sonido preferido.
Opciones disponibles: BG, DK, I, L, L .
NOTA: Las opciones de sistema de sonido puede variar debido a las diferentes configuraciones de color del sistema.
3.7 LCN On / Off
Este elemento se utiliza para encender / apagar LCN (Logic Channel Number).
NOTA: Este artículo no puede ser ajustable si su país no es compatible con LCN.
4. Característica
4.1 Bloqueo
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
- Introduzca la contraseña predeterminada "0000" utilizando los botones numéricos del mando a distancia.
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar la opción preferida
33 Español English
4.11 Bloquear canal
Este elemento se usa para activar/desactivar la función Bloquear canal.
4.12 Supervisión de los padres
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar la opción preferida.
Opciones disponibles: Off, 3 a 18 años.
4.13 Cambio del código PIN
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
- Introduzca la contraseña anterior, Contraseña nueva y Confirmar nueva contraseña a su vez. Después de eso, esta unidad se guardará la nueva contraseña de forma automática.
Español English 34
4.14 Modo Hotel
- Pulse el botón Aceptar o el botón de navegación DERECHA para acceder al submenú.
- Pulse el botón de navegación ARRIBA/ABAJO para seleccionar el elemento deseado.
- Pulse el botón de navegación IZQUIERDA o
DERECHA para ajustar el valor.
- Pulse el botón Aceptar o el botón de navegación
DERECHA para acceder al submenú.
- Pulse el botón MENÚ para volver a la página anterior.
Recomendación: Recomendamos que use el Modo
Hotel en hoteles; ignore esta sección si ha adquirido esta TV solo para uso doméstico.
Bloqueo de Hotel: Activar/desactivar Bloqueo de Hotel.
Bloquear canal: Activar/desactivar el bloqueo del menú de canales.
Bloquear imagen: Activar/desactivar el bloqueo del menú de imagen.
Bloquear sonido: Activar/desactivar el bloqueo del menú de sonido.
Bloquear funciones: Activar/desactivar el bloqueo del menú de funciones.
Bloquear configuración: Activar/desactivar el bloqueo del menú de configuración.
Bloqueo de teclas: Activar/desactivar Bloqueo de teclas.
Bloquear fuente: Activar/desactivar el bloqueo de fuentes disponibles.
Establecer fuente: Selecciona la fuente deseada.
Número de canal: Selecciona el canal deseado.
Volumen máximo: Establece el volumen máximo.
Volumen por defecto: Establece el volumen por defecto.
Borrar bloqueos: Borra las configuraciones anteriores.
Exportar base de datos: Exportar base de datos a otros dispositivos.
Importar base de datos: Importar base de datos de otros dispositivos.
4.2 Idioma
- Pulse el botón OK o navegación DERECHA para entrar al submenú. A continuación, seleccione el idioma preferido del menú OSD, idioma de subtítulos, idioma de audio, y DTV
/ ATV idioma del teletexto con los botones de navegación.
35 Español English
4.3 Reloj
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar la opción preferida.
4.31 Fecha
Cuando la búsqueda automática se acaba, esta unidad tendrá la fecha a partir de la señal y se guarda automáticamente.
4.32 Hora
Cuando se realiza la búsqueda automática, la unidad se obtiene el tiempo de la señal y se guardar automáticamente.
4.33 Zona Horaria
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar la opción preferida.
4.34 DST (Horario de verano)
Este elemento se utiliza para activar / desactivar la función de horario de verano.
4.4 Apagado automático
Este elemento se utiliza para ajustar el tiempo de apagado automático en el modo de espera.
Opciones disponibles: Off, 10 minutos, 20 minutos, 30 minutos, 60 minutos, 90 minutos,
120 minutos, 180 minutos, 240 minutos.
4.5 Auto Power Off
Este elemento se utiliza para ajustar el tiempo de apagado automático.
Opciones disponibles: OFF, 1 hora, 2 horas, 4 horas.
Español English 36
4.6 personas con discapacidad auditiva
Este elemento se utiliza para activar / desactivar la función auditiva alterada. Para los usuarios con discapacidad auditiva, esta función puede ayudarles a conocer una determinada escena o acción a través de la leyenda, en lugar de escucharlo.
NOTA: la función auditiva alterada sólo funciona cuando está viendo programas que contienen información relacionada con leyenda.
4.7 Información CI
Este elemento se utiliza para mostrar la información de CI.
4.8 PVR / Timeshift
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar la opción preferida.
37 Español English
4.81 Selección de partición
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
- Pulse el botón ROJO para entrar en un cuadro de diálogo y luego seleccione OK para formatear el dispositivo de memoria USB.
- Pulse el botón VERDE para configurar la partición por defecto.
4.82 Auto Timeshift
Este elemento se utiliza para activar / desactivar la función Auto Timeshift.
4.83 Buffer Timeshift
Este elemento se utiliza para seleccionar el desplazamiento deseado tiempo de duración del buffer.
Opciones disponibles: Automático, 30 minutos, 1 hora, 2 horas.
4.84 Timer
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
Español English 38
- Pulse el botón ROJO del mando a distancia para borrar la opción resaltada.
- Pulse el botón VERDE del mando a distancia para borrar todo.
- Pulse el botón AZUL del mando a distancia para entrar en la página de edición.
- Pulse el botón AMARILLO del mando a distancia para entrar en la página Añadir.
Grabadora: Encender / apagar la grabadora.
Tipo: Seleccione el tipo de grabación: DTV, Radio.
Canal: Seleccione el canal que desea grabar.
Hora de inicio: Establezca la hora de inicio de grabación.
Duración: Configure la duración de la grabación.
Fecha: Establecer la fecha de la grabación.
Modo: Ajuste el modo de grabación.
NOTA: Para cambiar la visualización numérica de los elementos anteriores, pulse el botón
OK para entrar en él y luego utilice IZQUIERDA / DERECHA botón de navegación para mover el cursor, utilice los botones numéricos para ingresar el valor deseado y pulse el botón OK para confirmar el ajuste.
4.85 Lista de Grabaciones
- Pulse el botón OK o navegación DERECHA para entrar al submenú.
39 Español English
- Pulse ARRIBA / ABAJO de navegación para seleccionar los archivos grabados y pulse el botón OK para iniciar la reproducción.
4.86 Grabadora de inicio
Este elemento se utiliza para iniciar la grabación cuando se ve un programa digital disponible.
NOTA: Antes de grabar, inserte el dispositivo de memoria USB en la ranura USB.
5. Configuracion
5.1 OSD Temporizador
- Pulse el botón OK o navegación DERECHA para entrar en el submenú y pulse ARRIBA /
ABAJO botón de navegación para seleccionar la opción preferida. Opciones disponibles:
5/10/15/20/25/30 segundos y nunca.
5.2 Auto SCART
Este elemento se utiliza para activar / desactivar la función Auto SCART. Si SCART automática está activada, puede ver los programas por euroconector SCART automáticamente cuando está conectado el cable.
5.3 PC de configuración (para la fuente de entrada de PC sólo)
Este artículo se puede ajustar sólo con la señal de entrada de PC.
5.4 Pantalla Azul
Este elemento se utiliza para activar / desactivar la función de fondo azul. El fondo de la pantalla se vuelve azul al estado de la señal es muy débil o no, si la pantalla azul está encendido.
NOTA: Este elemento no se puede ajustar en el modo DTV.
Español English 40
5.5 Modo de Inicio
Este elemento se utiliza para seleccionar el modo de imagen deseado.
Opciones disponibles: Inicio, Dinámico, Estándar leves.
5.6 Ajuste Reiniciar TV
Este elemento se utiliza para restablecer la configuración predeterminada de fábrica.
5.7 Actualización del software
Este elemento se utiliza para actualizar el software del televisor a través de un dispositivo de memoria USB.
ATV y otros modos
- Pulse el botón SOURCE en la unidad o en el mando a distancia para seleccionar la fuente de entrada que desee.
- En estos modos, consulte las operaciones de menú del modo DTV.
MODO PC
- Conectar un ordenador personal a la unidad.
- Encienda el ordenador y esta unidad.
- Pulse el botón SOURCE en la unidad o en el mando a distancia para seleccionar la fuente de entrada de PC.
- Pulse el botón MENU para visualizar el menú principal. Seleccione Setup utilizando los botones ARRIBA / ABAJO navegación. A continuación, pulse el botón OK o navegación
DERECHA para entrar al submenú.
- Seleccione Configuración de PC y entrar en él.
- Pulse ARRIBA / ABAJO botón de navegación para seleccionar la opción preferida.
- Pulse el botón OK o navegación DERECHA para entrar al submenú. Pulse IZQUIERDA /
DERECHA botón de navegación para ajustar el valor.
41 Español English
1. Ajuste automático
Este elemento se utiliza para ajustar la pantalla del PC.
2. Posición H
Este elemento se utiliza para ajustar el valor de la posición horizontal (disponible rango: -16 a 16).
3. Posición V
Este elemento se utiliza para ajustar el valor de la posición vertical (rango disponible: de
-16 a 16).
4. Fase
Este elemento se utiliza para ajustar la imagen se aplican a la televisión (disponible rango:
0 a 100).
5. Reloj
Este elemento se utiliza para ajustar la velocidad de transferencia de señales (rango disponible: de 50 a +50).
NOTA: Para otros menús, consulte las operaciones de menú del modo DTV.
Español English 42
MANTENIMIENTO
● Asegúrese de presionar el botón POWER para poner el reproductor en el modo de espera y desconecte el cable de potencia antes de dar el jugador.
● Limpie el reproductor con un paño suave y seco.
● Si la superficie está muy sucia, límpiela con un paño que se ha sumergido en una débil solución de agua de jabón y bien escurrido, y luego vuelva a limpiar con un paño seco.
● Nunca utilice alcohol, benceno, disolventes, líquidos de limpieza u otros químicos. And do not use compressed air to remove dust. Y no se utilice aire comprimido para eliminar el polvo.
● Contacte a un profesional para la asistencia al montaje en la pared su televisor. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own. No nos hacemos responsables de cualquier daño al producto o lesiones a usted, si desea montar el televisor en su cuenta.
● No montaje en la pared de la TV mientras que la televisión está encendida. It may cause personal injury due to electric shock. Puede causar daños personales debido a una descarga eléctrica.
● El uso estándar de tornillos M4*8mm (4 piezas) para montar el televisor.
Parte de atrás de la TV
43 Español English
INSTALACIÓN CON PIE
Su televisor se suministra con el soporte y el Gabinete separados. Antes de disfrutar de este televisor, por favor haga la instalación según las instrucciones de abajo.
Paso 1
Coloque el televisor boca abajo sobre un paño suave o un cojín para evitar que el panel se dañe.
Paso 2
Alinee los orificios para tornillos de soporte y parte inferior del televisor.
Paso 3
Apriete los tornillos incluidos con un destornillador.
NOTAS:
- Desenchufe el adaptador de alimentación de primera hora de instalar o retirar el soporte para
TV.
- Póngase en contacto con uno o más socios para la asistencia al instalar o retirar el soporte del televisor.
Español English 44
ESPECIFICACIONES
Dispositivo de
visualización
Resolución
Colores de pantalla
22 pulgadas LED TV
1920×1080
16.7M
Ratio de Contraste
Relación de aspecto
1000:1
16:9
Duración de la lámpara 30,000 Hrs
Formato de reproducción
multimedia (modo TV)
Película: AVI, MPEG 1/2, MPEG-4, WMV, TS
Música:
WMA, AAC, AC3, MP3
Foto:
JPEG, BMP, PNG, GIF
Texto: TXT
FUENTE DE
ALIMENTACIÓN
CONSUMO DE
ENERGÍA
TEMPERATURA
MEDIDAS
PESO
Adaptador de CA (normal de 12 V CC 3A)
<36W
-5℃ to 45℃
506(W)×176 (D)×351(H)mm
Approx. 3,4 Kg
Las especificaciones y el diseño de este producto están sujetos a cambios sin previo aviso para mejoras de los mismos.
45 Español English
SOLUCIÓN DE PROBLEMAS
Compruebe los siguientes puntos antes de asumir el mal funcionamiento de esta unidad:
Problema Solución
No hay alimentación. Inserte el enchufe de alimentación en la toma de corriente.
No hay imagen. Asegúrese de que el equipo está conectado correctamente.
● No hay sonido.
● Sonido distorsionado.
No hay operaciones se pueden realizar con el mando a distancia .
No funcionan los botones (por la unidad principal y / o del control remoto unidad de control es eficaz.
● Asegúrese de que el equipo está conectado correctamente.
● Asegúrese de que el ajuste de entrada para el sistema de
TV y equipo de música son correctos.
● Ajuste el volumen maestro a un volumen adecuado presionando VOL + / VOL-.
● Compruebe las pilas están instaladas con la polaridad correcta.
● Las pilas están agotadas: sustituirlas por otras nuevas.
● Punto de control de distancia hacia el sensor del control remoto y operar de nuevo.
● Utilice el mando a distancia a una distancia de no más de 6 metros desde el sensor de mando a distancia.
● Elimine los obstáculos entre el mando a distancia y el sensor de mando a distancia.
Desconecte el adaptador de corriente y vuelva a conectarlo.
(El aparato no puede funcionar correctamente debido a un rayo, la electricidad estática o algunos otros factores.)
Problema (TV)
No hay o la imagen es baja.
No hay sonido o es pobre.
Ruido o de otra interfaz.
Solución
● Ajuste la antena o el uso de una antena externa.
● Instale la unidad cerca de una ventana (si es dentro de un edificio).
● Mover las unidades fuera de este producto que causa la interferencia.
● Hacer el Auto Tuning de nuevo.
● Pruebe con otro canal.
● Compruebe los ajustes de audio.
● Pulse el botón MUTE del mando a distancia para cancelar la función de silencio. ● Desconecte los auriculares.
Los equipos electrónicos cerca de la unidad es la causa de la interfaz. Vuelva a colocar la unidad o mover el equipo.
Español English 46
IMPORTANT INSTRUCTIONS
SAFETY INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
● This product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
● Situate this product away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
● Clean the product only as recommended by the manufacturer (see “Maintenance” section for details). Unplug the power plug from the wall outlet before cleaning,
● Unplug the power adaptor from the wall outlet when left unused for an extended period.
● Prevent objects/liquids from falling or spilled on the product.
● Operate the product only with the supplied power adaptor. Route power cords so they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to plugs, convenience receptacles, and the point where they exit from the product.
● Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
● Do not operate this product under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating instructions.
- If the product has been dropped or damaged in any way.
● Do not attempt to service the product; take it to the electronics repair shop of your choice for any servicing or repair.
● Do not overload wall outlets, extension cords, or integral convenience receptacles.
1 Español English
● Connect this product to the power outlet which has protective earth connection.
CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
● This product is intended solely for non-commercial, non-industrial, personal use as a television. Do not use this product for any other purpose.
● Do not subject the product to violent shocks, extreme temperatures, or lengthy periods or direct sunlight.
● Keep the product away from magnetic objects, motors, and transformers.
● Do not use outdoors in inclement weather.
● Do not use the TV while driving; this is dangerous and is illegal in some areas.
At full volume, prolonged listening may damage the user’s hearing.
BATTERY HANDLING AND USAGE:
● Keep batteries away from children and pets. Only adults should handle batteries.
● Never throw batteries into a fire or expose them to fire or other heat sources.
● Follow the battery satiety and usage instructions provided by the manufacturer.
Español English 2
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
ACCESSORIES
User Manual…………………………………………………………………………………………1
Remote Control……………..………………………………………………………………………1
AC Adaptor............................................................................................................................1
All the pictures in this manual are just for your reference, appearance and display should subject to the final product.
3 Español English
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...................................................................................1-3
ACCESSORIES……….......................................................................................................3
FEATURES....................................................................................................................5
GENERAL PARTS..............................................................................................................6-7
REMOTE CONTROL.....................................................................................................8-9
REMOTE CONTROL PREPARATION.................................................................................10
BASIC CONNECTION....................................................................................................11-15
OPERATIONS
BASIC OPERATIONS.............................................................................................16-24
MAIN MENU...........................................................................................................25-41
FIRST TIME INSTALLATION……..………………………………………………………25-26
DTV MODE.........................................................................................................27-40
ATV AND OTHER MODES.............................................................................................40
PC MODE..................................................................................................................40-41
FOR REFERENCE
MAINTENANCE..................................................................................................................42
WALL MOUNTING………………………………………………………………………………...42
STAND INSTALLATION…………………………………………………………………………..43
SPECIFICATIONS...............................................................................................................44
TROUBLESHOOTING.........................................................................................................45
Español English 4
FEATURES
22" LED Display
This unit has a built-in 22” LED display window to provide clear vision and low radiation.
Support Auto TV Scanning
Support H.264 High Definition Function
Support Digital Broadcasting Reception
Support EPG (Electric Program Guide) Function
Support TELETEXT (Europe) Function
Support USB Multimedia Playback
Support PVR Function
Support TIME SHIFT Function
Support Multi-languages On Screen Display
Support Full Function Remote Control
Support HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input
Support EARPHONE and COAXIAL Output
With Detachable Stand Holder
With External Antenna Jack
With Built-in Speakers
5 Español English
Top View
MAIN UNIT
Front View
GENERAL PARTS
1. LED display screen
2. Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color.
3. Remote control sensor
4. Stand holder
5. POWER button- To turn the TV ON/OFF.
6. SOURCE button- To select the input source.
7. MENU button- To enter menu setting page.
8. CH +/- button- To select next/previous channel or move up/down.
9. VOL +/- button- To increase/decrease the volume level or move left/right.
Español English 6
Back View
GENERAL PARTS
1. Power input terminal
2. EARPHONE output terminal
3. SCART input terminal
4. PC AUDIO input terminal
5. VGA input terminal
6. HDMI input terminal
7. AV (Composite Video) input terminal
8. CI input terminal
9. YPbPr (Component) input terminal
10. USB input terminal
11. RF input terminal- To connect the external antenna.
12. COXIAL output terminal
13. Built-in speakers
7 Español English
REMOTE CONTROL
1 POWER
Set the unit in standby mode; press it again to switch it on.
2 TV/RADIO
Switch the unit between TV and Radio.
3 RED button
4 GREEN button
5 BLUE button
6 YELLOW button
7 FAV
Display the favorite channels list.
8 TEXT
Display the available Teletext.
9 TVG
Display electronic program guide.
10 HOLD
Hold the Teletext.
11 SUBTITLE
Enable/disable subtitles.
12 SIZE
Switch Teletext size.
13 SUBPAGE
Enter Teletext sub-page.
14 ASPECT
Press it repeatedly to select desired screen size.
15 MEDIA
Enter Media (USB) mode directly.
16
Start/pause playing.
17
Move fast forward.
18
Move fast backward.
19 ● (DTV)
Start RECORDING when watching available digital programs.
20
Stop playing.
Español English 8
REMOTE CONTROL
21
Play the next file.
INDEX
Display the record list or Teletext index.
22
Play the previous file.
23 MENU
Call out the main menu or return to previous menu.
24 AUDIO
Switch the available sound-track.
25 OK
Confirm selection.
26 ▲/▼/◄/►
Navigation buttons
27 SLEEP
Set desired sleep time.
28 EXIT
Exit the menu page.
29 MUTE
Mute the sound.
30 VOL +/-
Increase/decrease the volume level.
31 CH +/-
Play the next/previous program.
32 DISPLAY
Display the available program information.
33 Number buttons (0-9)
Input the number information, such as channel number and so on.
34 -/--
Switch the digit when watching TV programs.
35
Return to previous channel.
36 SOURCE
Select desired input source.
37 P-MODE
Switch the picture mode.
38 S-MODE
Switch the sound mode.
9 Español English
REMOTE CONTROL PREPARATION
BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the batteries.
- Use two size AAA dry batteries.
NOTE:
● Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
● If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more than about 6m from the remote control sensor and within about 60°of the
Fig1 Fig2
Push
Remote Control
Sensor front of the player (Fig2).
NOTES:
- The operating distance may vary according to the brightness of the room.
- Do not point bright light at remote control sensor.
Open
- Do not place objects between the remote control and the remote control sensor.
- Do not use this remote control while simultaneously operating the remote control of any other equipments. Press
Español English 10
BASIC CONNECTION
● Ensure all the cables are disconnected from the main unit before connecting to AC power source.
● Read through the instructions before connecting other equipments.
CONNECTING TO AC POWER SOURCE
Main unit
To power outlet
AC Adaptor
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
Antenna
Indoor antenna amplifier
Outdoor antenna amplifier
Power plug of antenna amplifier
75 OHM antenna plug
11 Español English
HDMI CONNECTION
Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal.
PC/VGA CONNECTION
Back of DVD/VCR
Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.
Audio cable
HDMI cable
VGA cable
Back of PC
Español English 12
SCART CONNECTION
Back of DVD/VCR
COAXIAL CONNECTION
for coaxial audio signal output.
SCART cable
Use coaxial cable to connect the unit with amplifier or other audio decoding devices
13 Español English
AV (COMPOSITE VIDEO) CONNECTION
For basic connection, use the composite Audio L/R (white/red) and
CVBS (yellow) cable to connect the unit with other devices.
YPBPR CONNECTION
Back of DVD/VCR
YPbPr cable
Back of DVD/VCR
AV cable
AUDIO cable
Español English 14
USB CONNECTION
INSERT A CI CARD
digital channels in your area.
Insert a USB memory device to playback MOVIE/MUSIC/PHOTO multimedia files.
Insert your CI card (Conditional
Access Module) to watch special
EARPHONE CONNECTION
Earphone cable
15 Español English
MAKE SURE ALL THE EQUIPMENTS AND POWER ADAPTOR ARE
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
BASIC OPERATIONS
- Press POWER button on the unit or remote control to power ON the unit
(indicator will glow blue); press it again to power OFF (standby mode) the unit
(indicator will glow red).
- Press SOURCE button on the unit or remote control to set the unit in DTV or
ATV mode.
SELECT DESIRED PROGRAM
1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.
NOTE: Press -/-- button repeatedly to switch the digit.
VOLUME CONTROL
- Press VOL+ or VOL- to adjust the level of current volume.
Available range: 0-100.
MUTE CONTROL
- Press MUTE button to mute the sound, press it again to turn on the sound.
SOURCE SETTING
- Press SOURCE button on the unit or remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection.
Available options: DTV, ATV, AV, SCART, YPBPR, HDMI, PC, MEDIA.
PICTURE MODE
- Press P-MODE button on remote control repeatedly to select desired PICTURE mode directly.
Available options: Standard, Mild, User, Dynamic.
SOUND MODE
- Press S-MODE button on remote control repeatedly to select SOUND mode directly.
Available options: Standard, Movie, Music, Speech, User.
Español English 16
SLEEP TIME SETTING
- Press SLEEP button on remote control repeatedly to select SLEEP TIME directly.
Available options: Off, 10 Mins, 20 Mins, 30 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240
Mins.
VIDEO SIZE SETTING
- Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: If there’s no signal, pressing ASPECT button will not work. And the available video size may be different for different input source.
MULTIAUDIO SETTING
- Press AUDIO button on remote control to enter Multi-Audio menu page.
- Press LEFT/RIGHT navigation button to select the available soundtrack.
- Press UP/DOWN navigation button to select the available audio language.
NOTE: To enable this function, make sure that the channel you are viewing supports multi-audio languages.
INFORMATION DISPLAY
- Press DISPLAY button on remote control to display information of current program.
TV GUIDE (FOR DTV MODE ONLY)
- Press EPG button on remote control to enter EPG menu page.
17 Español English
- Press UP/DOWN navigation button to select preferred channel.
- Press LEFT/RIGHT navigation button to switch between left column and right column.
- Press RED button to switch between weekly mode and daily mode.
- Press YELLOW button to display the TV guide of previous day.
- Press BLUE button to display the TV guide of next day.
FAVORITE LIST
When viewing an available channel, press FAV button on remote control to enter Favorite List menu page.
- Press UP or DOWN navigation button to select preferred channel.
- Press LEFT/RIGHT navigation button to select preferred favorite group.
- Press OK button to confirm selection.
NOTES:
- To add/remove a channel from Favorite List, please see Part 3.2 “Favorite Management”.
- Press RED button on remote control to display the keyboard. Then you can rename a desired favorite type using navigation buttons.
QUICK SELECT
When viewing an available channel, press OK button on remote control to enter Channel List menu page.
- Press UP or DOWN navigation button to select preferred channel.
- Press OK button to confirm selection.
TELETEXT
- Press TEXT button on remote control to display the available teletext information and press it again to stop playing the teletext.
TV/RADIO (FOR DTV MODE ONLY)
- Press TV/RADIO button on remote control to switch the unit between TV and radio mode.
SUBTITLE
- Press SUBTITLE button on remote control to enter Subtitle menu page.
- Press LEFT/RIGHT navigation button to select preferred option.
- Press UP/DOWN navigation button to select available subtitle.
- Press OK button to confirm selection.
NOTE: To enable this function, make sure that the channel you are viewing supports multi-subtitle.
Español English 18
RECORDER (FOR DTV MODE ONLY)
- Insert your USB memory device into USB slot first.
When watching a digital program:
- Press ● button on remote control to start recording directly and press it again to call out below menu.
- Use LEFT/RIGHT navigation button to move the cursor; use number buttons to input your desired value and press OK button to confirm your setting.
- Press button on remote control to call out a dialog box, and select OK to stop recording; select Cancel to dismiss the dialog box.
To watch recorded programs:
- Press INDEX button on remote control to call out the Record List menu.
- Press UP/DOWN navigation button to select recorded files and press OK button to start playback.
TIME SHIFT (FOR DTV MODE ONLY)
- Insert your USB memory device into USB slot first.
When watching a digital program:
-If you don’t want to miss any programs when left, press button on remote control to call out a dialog box, and select OK to enter TIME SHIFT mode; select Cancel to dismiss the dialog box. Press button again to enable TIME SHIFT function.
- Press button again when you’re back to watch the program in TIME SHIFT mode.
- To stop TIME SHIFT, press on remote control to stop TIME SHIFT playing and press it again to call out a dialog box. Select OK to exit TIME SHIFT mode and select Cancel to dismiss the dialog box.
19 Español English
MEDIA PLAYBACK
- Press SOURCE button on the unit or remote control to set the unit in MEDIA mode.
- Insert a USB memory device into USB slot before following operations.
- Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor.
- Press EXIT button to return to previous menu page.
NOTE: Press MEDIA button on remote control to enter MEDIA mode directly.
1. Photo
- Press LEFT/RIGHT navigation button to select Photo in the main menu and press OK button to enter it.
NOTE: When selecting Photo files, press EXIT button to move the cursor to TITLE and then press RIGHT navigation button to view files in thumbnail mode.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select No to cancel this operation.
Español English 20
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.
During photo normal playing:
- Press OK button on remote control to display the tool bar; press EXIT button to hide it.
- Press LEFT/RIGHT navigation button to select preferred option in the tool bar and press
OK button to confirm selection/enter submenu.
- Press button on remote control to play or pause playing.
- Press button on remote control to stop playing.
- Press button on remote control to play previous file.
- Press button on remote control to play next file.
2. Music
- Press LEFT/RIGHT navigation button to select Music in the main menu and press OK button to enter it.
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.
21 Español English
During music normal playing:
- Press LEFT/RIGHT navigation button to select preferred option in the tool bar and press
OK button to confirm selection/enter submenu.
- Press BLUE button on remote control to close the on-screen display; press any button on remote control to display it again.
- Press button on remote control to play or pause playing.
- Press button on remote control to stop playing.
- Press button on remote control to move fast backward.
- Press button on remote control to move fast forward.
- Press button on remote control to play previous file.
- Press button on remote control to play next file.
3. Movie
- Press LEFT/RIGHT navigation button to select Movie in the main menu and press OK button to enter it.
Español English 22
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.
During movie normal playing:
- Press OK button on remote control to display the tool bar; press EXIT button to hide it.
- Press LEFT/RIGHT navigation button to select preferred option in the tool bar and press
OK button to confirm selection/enter submenu.
- Press button on remote control to play or pause playing.
- Press button on remote control to stop playing.
- Press button on remote control to move fast backward.
- Press button on remote control to move fast forward.
- Press button on remote control to play previous file.
- Press button on remote control to play next file.
4. e-Book
- Press LEFT/RIGHT navigation button to select e-Book in the main menu and press OK button to enter it.
23 Español English
- Use navigation buttons to select preferred file.
- Press RED button to enter a dialog box, and select Yes to delete highlighted file; select No to cancel this operation.
- Press GREEN button to add/remove all the files from play list.
- Press OK button to add/remove highlighted file from play list.
- Press button to start playing.
During e-book normal playing:
- Press RED button on remote control to add/remove current page from Bookmark List.
- Press GREEN button on remote control to enter GOTO mode. Input valid number and press OK button to enter desired page directly.
- Press YELLOW button on remote control to display the Bookmark list.
- Press BLUE button on remote control to display the play list.
- Press button on remote control to play previous page.
- Press button on remote control to play next page.
NOTE: To play your multimedia files, make sure you have selected correct icon in the main menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item,
Music files in MUSIC item and so on.
Español English 24
MAIN MENU
● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions.
● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode.
Common procedure for initial settings
- Press MENU button on the unit or remote control to display the main menu.
- Press UP or DOWN navigation button to select submenus.
- Press OK or RIGHT navigation button to enter submenu page.
- Press UP or DOWN navigation button to select preferred option.
- Press LEFT or RIGHT navigation button to adjust the value.
- Press OK button to confirm selection.
- Press MENU button to return to previous menu page.
- Press EXIT button to exit menu page.
First Time Installation
- Connect to power source and turn on this TV, then below installation menu page will display on the screen:
Setup 1
- Press UP/DOWN navigation button to select desired picture Mode.
- Press OK button to call out a dialog box. Select OK to confirm selection and turn to next page; select Cancel to dismiss the dialog box.
Setup 2
- Press UP/DOWN navigation button to select the country that you are living in.
- Press OK button to confirm selection and turn to next page.
25 Español English
Setup 3
- Press UP/DOWN navigation button to select desired menu language.
- Press OK button to confirm selection and turn to next page.
Setup 4
- Press UP/DOWN navigation button to select desired auto power off time.
- Press OK button to confirm selection and turn to next page.
Setup 5
- Press UP/DOWN navigation button to select desired searching type.
- Press OK button to confirm selection and then this unit will search programs automatically.
NOTE:
- To skip ATV or DTV tuning, press MENU button on remote control to call out a dialog box, and select OK to skip it; select Cancel to dismiss the dialog box.
- To exit tuning, press EXIT button on remote control to call out a dialog box, and select OK to exit tuning; select Cancel to dismiss the dialog box.
Español English 26
DTV MODE
- Press SOURCE button on the unit or remote control to select DTV input source.
1. Picture
1.1 Picture Mode
Available options: Standard, Mild, User, Dynamic.
1.2 Brightness
The brightness value of picture can be adjusted from 0-100.
1.3 Contrast
The contrast value of picture can be adjusted from 0-100.
1.4 Sharpness
The sharpness value of picture can be adjusted from 0-10.
1.5 Colour
The colour saturation value of picture can be adjusted from 0-100.
NOTE: The value of Brightness, Contrast, Sharpness, and Colour is adjustable only in User picture mode.
1.6 Tint
This item is used to adjust the tone of color in NTSC system from 0-100.
1.7 Colour Temperature
This item is used to adjust the optimum colour temperature for suitable viewing.
Available options: Standard, Cold, Warm.
27 Español English
1.8 Aspect Ratio
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred option.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: If there’s no signal, pressing ASPECT button on remote control will not work. And the available video size may be different in different input source.
1.9 Noise Reduction
This item is used to eliminate the image noise to gain better image effect.
Available options: Off, Low, Middle, High.
2. SOUND
2.1 Sound Mode
Available options: Standard, Movie, Music, Speech, User.
2.2 Bass
This item is used to adjust the level of lower-pitched sounds from 0-100.
2.3 Treble
This item is used to adjust the level of higher-pitched sounds from 0-100.
NOTE: The value of Bass and Treble is adjustable only in User sound mode.
2.4 Balance
This item is used to adjust the audio output between left and right speaker from -50 to 50.
2.5 Surround
This item is used to turn on/off Surround function.
Español English 28
2.6 AVL (Auto Volume Level)
This item is used to turn on/off AVL function.
2.7 SPDIF
This item is used to select desired SPDIF audio output type.
Available options: Off, PCM, Auto.
2.8 Audio Description
This item is used to turn on/off Audio Description function. For Visual Impaired users, this function can assist them to know a certain scene or action through the narration.
NOTE: Audio Description function works only when you are viewing programs that contain related narration information.
3. Channel
3.1 Channel Management
- Press UP/DOWN navigation button to select this item and press OK or RIGHT navigation button to enter submenu.
29 Español English
- Press UP/DOWN navigation to select preferred program. a) Press RED button on remote control and use number buttons to input the password if
“Lock Channel” is on. Then press RED button to add/remove a delete mark on highlighted program. After that, press MENU button to enter a dialogue box. Select OK to delete it; select Cancel to cancel this operation. b) Press GREEN button on remote control and use number buttons to input the password if
“Lock Channel” is on. Then press GREEN button to lock/unlock a program. c) Press YELLOW button on remote control to add/remove skip mark. d) Press BLUE button on remote control to enter MOVE mode. Then use UP/DOWN navigation button to select preferred position and press OK button to move it.
3.2 Favorite Management
- Press UP/DOWN navigation to select preferred program. a) Press RED button on remote control to add highlighted channel to Favorite 1 list. b) Press GREEN button on remote control to add highlighted channel to Favorite 2 list. c) Press YELLOW button on remote control to add highlighted channel to Favorite 3 list. d) Press BLUE button on remote control to add highlighted channel to Favorite 4 list.
3.3 Country
This item is used to select the country that you are living in.
Español English 30
3.4 Auto Search
- Press UP/DOWN navigation button to select this item and press OK or RIGHT navigation button to enter submenu.
- Then press UP/DOWN navigation button to select All, DTV or ATV and press OK or RIGHT navigation button to enter a dialog box. Select OK to start auto searching; select Cancel to cancel this operation.
To exit auto tuning, press MENU or EXIT button and select OK.
3.5 DTV Manual Search
3.51 Channel
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred program.
31 Español English
3.52 Frequency (KHz)
- Press OK or RIGHT navigation button to enter submenu.
- Press LEFT/RIGHT navigation button to move the cursor; press number buttons on remote control to input desired value.
3.53 Bandwidth (MHz)
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred bandwidth.
Once the settings of part 3.51 to part 3.53 are finished, select Start in the menu and press
OK button to start searching.
3.6 ATV Manual Search (for ATV input source only)
3.61 Current Channel
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred program.
3.62 Frequency
This item is not user adjustable.
3.63 Search
This item is used to start searching.
3.64 Fine Tune
- Press OK or RIGHT navigation button to enter submenu and press LEFT/RIGHT navigation button to fine tune it.
Español English 32
3.65 Color System
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred color system.
Available options: Auto, PAL, SECAM.
3.66 Sound System
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred sound system.
Available options: BG, DK, I, L, L’.
NOTE: The Sound System options may vary due to different Color System settings.
3.7 LCN On/Off
This item is used to turn on/off LCN (Logic Channel Number).
NOTE: This item may not be adjustable if your country doesn’t support LCN.
4. Feature
4.1 Lock
- Press OK or RIGHT navigation button to enter submenu.
- Input the factory default password “0000” using number buttons on remote control.
- Press UP/DOWN navigation button to select preferred item.
33 Español English
4.11 Lock Channel
This item is used to turn on/off Lock Channel function.
4.12 Parental Guidance
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred option.
Available options: Off, 3 to 18.
4.13 Change Pin Code
- Press OK or RIGHT navigation button to enter submenu.
- Input the Old Password, New Password, and Confirm New Password in turn. After that, this unit will save the new password automatically.
Español English 34
4.14 Hotel Mode
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select desired item.
- Press LEFT/RIGHT navigation button to adjust the value.
- Press OK or RIGHT navigation button to enter submenu.
- Press MENU button to return to previous page.
Warm Tip: We strongly advise that you use Hotel
Mode in hotels and you should just ignore it if take this
TV for home use only.
Hotel Lock: Turn on/off Hotel Lock.
Channel Lock: Turn on/off Channel menu lock.
Picture Lock: Turn on/off Picture menu lock.
Sound Lock: Turn on/off Sound menu lock.
Feature Lock: Turn on/off Feature menu lock.
Setup Lock: Turn on/off Setup menu lock.
Key Lock: Turn on/off Key Lock.
Source Lock: Turn on/off the lock of all available sources.
Set Source: Select desired source.
Channel Number: Select desired channel.
Max Volume: Set the maximum volume.
Default Volume: Set the default volume.
Clear Lock: Clear above settings.
DataBase Export: Export database to other devices.
DataBase Import: Import database from other devices.
4.2 Language
- Press OK or RIGHT navigation button to enter submenu. Then select preferred OSD menu language, subtitle language, audio language, and DTV/ATV TELETEXT language using navigation buttons.
35 Español English
4.3 Clock
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select preferred item.
4.31 Date
When auto searching is done, this unit will get the date from the signal and save it automatically.
4.32 Time
When auto searching is done, this unit will get the time from the signal and save it automatically.
4.33 Time Zone
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred option.
4.34 DST (Daylight Saving Time)
This item is used to turn on/off DST function.
4.4 Sleep Timer
This item is used to set the automatic sleep time in standby mode.
Available options: Off, 10 Mins, 20 Mins, 30 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240
Mins.
4.5 Auto Power Off
This item is used to set the Auto Power Off time.
Available options: Off, 1 Hour, 2 Hours, 4 Hours.
Español English 36
4.6 Hearing Impaired
This item is used to turn on/off Hearing Impaired function. For Hearing Impaired users, this function can assist them to know a certain scene or action through the caption, instead of hearing it.
NOTE: Hearing Impaired function works only when you are viewing programs that contain related caption information.
4.7 CI Info
This item is used to display the CI information.
4.8 PVR/Timeshift
- Press OK or RIGHT navigation button to enter submenu.
- Press UP/DOWN navigation button to select preferred item.
37 Español English
4.81 Partition Select
- Press OK or RIGHT navigation button to enter submenu.
- Press RED button to enter a dialog box and then select OK to format your USB memory device.
- Press GREEN button to set default partition.
4.82 Auto Timeshift
This item is used to turn on/off Auto Timeshift function.
4.83 Timeshift Buffer
This item is used to select desired time shift buffer duration.
Available options: Auto, 30Mins, 1hr, 2hr.
4.84 Timer
- Press OK or RIGHT navigation button to enter submenu.
Español English 38
- Press RED button on remote control to delete highlighted option.
- Press GREEN button on remote control to delete all.
- Press BLUE button on remote control to enter Edit page.
- Press YELLOW button on remote control to enter Add page.
Recorder: Turn on/off Recorder.
Type: Select your recording type: DTV, Radio.
Channel: Select a channel you want to record.
Start Time: Set the recording start time.
Duration: Set the recording duration.
Date: Set the date of recording.
Mode: Set the recording mode.
NOTE: To change the numerical display of above items, press OK button to enter it and then use LEFT/RIGHT navigation button to move the cursor; use number buttons to input your desired value and press OK button to confirm your setting.
4.85 Record List
- Press OK or RIGHT navigation button to enter submenu.
39 Español English
- Press UP/DOWN navigation button to select recorded files and press OK button to start playback.
4.86 Recorder Start
This item is used to start recording when watching an available digital program.
NOTE: Before recording, insert your USB memory device into USB slot first.
5. Setup
5.1 OSD Timer
- Press OK or RIGHT navigation button to enter submenu and press UP/DOWN navigation button to select preferred option.
Available options: 5/10/15/20/25/30 Seconds and Never.
5.2 Auto SCART
This item is used to turn on/off Auto SCART function. If Auto SCART is on, you can view the programs by SCART automatically when SCART cable is connected.
5.3 PC Setup (for PC input source only)
This item is adjustable only with PC input signal.
5.4 Blue Screen
This item is used to turn on/off blue background function. The screen background will turn blue at very weak or no signal condition, if Blue Screen is ON.
NOTE: This item is not adjustable in DTV mode.
5.5 Home Mode
This item is used to select desired picture mode.
Available options: Home, Dynamic, Standard, Mild.
Español English 40
5.6 Reset TV Setting
This item is used to reset to factory default settings.
5.7 Software Upgrade
This item is used to upgrade the TV software through USB memory device.
ATV AND OTHER MODES
- Press SOURCE button on the unit or remote control to select desired input source.
- For these modes, please refer to the menu operations of DTV mode.
PC MODE
- Connect a personal computer to this unit.
- Power on your computer and this unit.
- Press SOURCE button on the unit or remote control to select PC input source.
- Press MENU button to display the main menu. Select Setup using UP/DOWN navigation button. Then press OK or RIGHT navigation button to enter submenu.
- Select PC Setup and enter it.
- Press UP/DOWN navigation button to select preferred item.
- Press OK or RIGHT navigation button to enter submenu. Press LEFT/RIGHT navigation button to adjust the value.
1. Auto Adjust
This item is used to adjust the PC screen automatically.
2. H Position
This item is used to adjust the value of horizontal position (available range: -16 to 16).
41 Español English
3. V Position
This item is used to adjust the value of vertical position (available range: -16 to 16).
4. Phase
This item is used to adjust the picture apply to the TV (available range: 0 to 100).
5. Clock
This item is used to adjust the signals transfer speed (available range: -50 to +50).
NOTE: For other menus, please refer to the menu operations of DTV mode.
Español English 42
MAINTENANCE
● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player.
● Wipe the player with a dry, soft cloth.
● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.
WALL MOUNTING
● Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
● Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.
● Use standard M4*8mm screws (4 pieces) to mount this TV.
Back of your TV
43 Español English
STAND INSTALLATION
Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below.
Step 1
Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.
Step 2
Align the screw holes on stand and TV bottom.
Step 3
Tighten the included screws with a screw driver.
NOTES:
- Unplug the power adaptor first when installing or removing the TV Stand.
- To avoid any damage to this TV, contact one or more partner for assistance when installing or removing the TV stand.
Español English 44
Display Device
Resolution
Display Colors
Contrast Ratio
Aspect Ratio
Life Time
SPECIFICATIONS
22 inch LED TV
1920×1080
16.7M
1000:1
16:9
30,000 Hrs
USB Multimedia
Playback Format
Movie: AVI, MPEG 1/2, MPEG-4, WMV, TS
Music: WMA, AAC, AC3, MP3
Photo: JPEG, BMP, PNG, GIF
Text: TXT
Power Source
Power Consumption
AC adaptor(normal DC 12 V 3A)
<36W
Operation Temperature -5℃ to 45℃
Measurement
Weight
506(W)×176 (D)×351(H)mm
Approx. 3.4 Kg
Specifications are subject to change without notice.
45 Español English
GENERAL TROUBLESHOOTING
Check the following points before assuming malfunctions of this unit:
Symptom
No power.
No picture.
● No sound.
● Distorted sound.
No operations can be performed with the remote control unit.
No key operation (by the main unit and/or the remote control unit) is effective.
Symptom(TV)
No or poor picture.
No sound or poor sound.
Remedy
Insert the power adaptor securely into the power outlet.
Ensure that the equipment is connected properly.
● Ensure that the equipment is connected properly.
● Ensure that the input setting for the TV and stereo system are correct.
● Adjust the master volume to a suitable volume by pressing VOL+/VOL- button.
● Check the batteries are installed with the correct polarities.
● The batteries are exhausted: Replace them with new ones.
●Point remote control at the remote control sensor and operate it again.
● Operate the remote control unit at a distance of no more than 6m from the remote control sensor.
● Remove the obstacles between the remote control and remote control sensor.
Disconnect the power adaptor and then reconnect it.
(The player may not be operating properly due to lightning, static electricity or some other factors.)
Remedy
● Adjust antenna or use an external antenna.
● Relocate the unit near a window (if inside a building).
● Move units away from this product that causes interference.
● Do Auto Tuning again.
● Try another channel.
● Check the audio settings.
● Press MUTE button on remote control to cancel mute function.
● Unplug the headphone.
Noise or other interface.
Electronic equipment near the unit is causing interface.
Relocate the unit or move the equipment.
Español English 46
Ref. SS-2239
advertisement
Key Features
- 22-inch Digital HD LED display for sharp and vivid picture quality
- Built-in digital tuner for access to local broadcasts and digital channels
- Compact and sleek design suitable for smaller spaces or as a secondary TV
- Multiple connectivity options (HDMI and USB) for connecting external devices
- Easy-to-use interface and remote control for convenient operation
