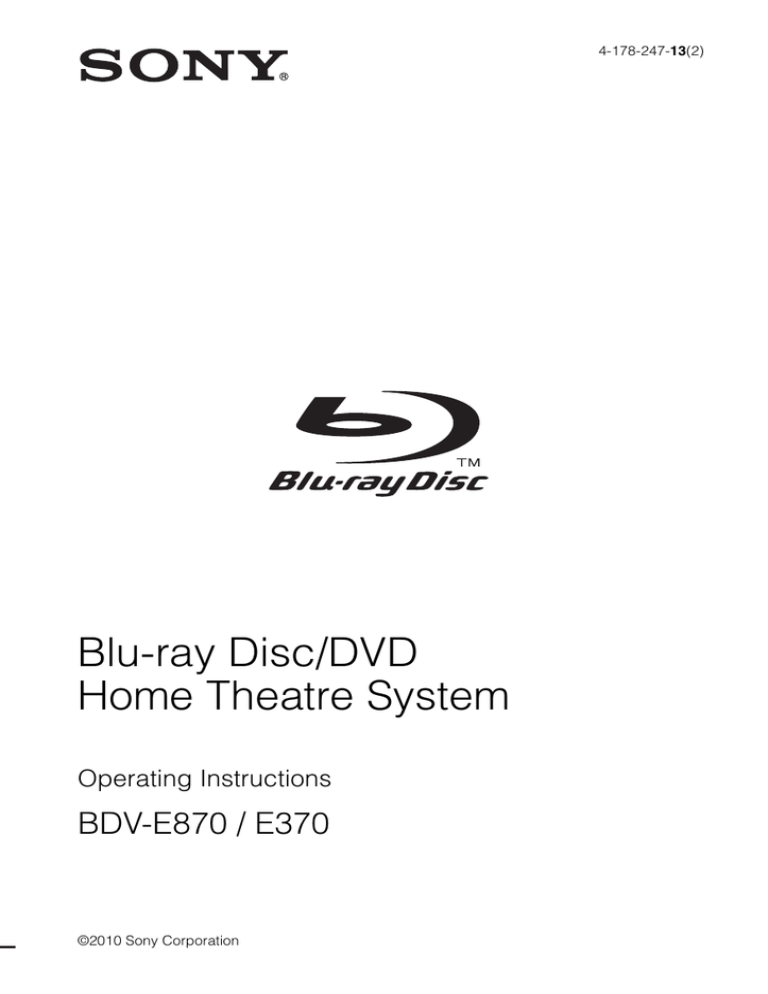

4-178-247-13(2)
Blu-ray Disc/DVD
Home Theatre System
Operating Instructions
BDV-E870 / E370
©2010 Sony Corporation
WARNING
Do not install the appliance in a
confined space, such as a bookcase
or built-in cabinet.
To reduce the risk of fire, do not
cover the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc. Do not
place the naked flame sources such
as lighted candles on the apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus
to dripping or splashing, and do not
place objects filled with liquids,
such as vases, on the apparatus.
Do not expose batteries or
apparatus with battery-installed to
excessive heat such as sunshine,
fire or the like.
To prevent injury, this apparatus
must be securely attached to the
floor/wall in accordance with the
installation instructions.
Indoor use only.
CAUTION
The use of optical instruments with
this product will increase eye
hazard. As the laser beam used in
this Blu-ray Disc / DVD Home
Theatre System is harmful to eyes,
do not attempt to disassemble the
cabinet.
Refer servicing to qualified
personnel only.
This appliance is classified as a
CLASS 3R LASER product.
Visible and invisible laser radiation
is emitted when the laser protective
housing is opened, so be sure to
avoid direct eye exposure.
This marking is located on the laser
protective housing inside the
enclosure.
2GB
This appliance is classified as a
CLASS 1 LASER product. This
marking is located on the rear
exterior.
Disposal of
Old Electrical
& Electronic
Equipment
(Applicable in
the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this
product shall not be treated as
household waste. Instead it shall be
handed over to the applicable
collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment
and human health, which could
otherwise be caused by
inappropriate waste handling of
this product. The recycling of
materials will help to conserve
natural resources. For more
detailed information about
recycling of this product, please
contact your local Civic Office,
your household waste disposal
service or the shop where you
purchased the product.
Disposal of
waste batteries
(applicable in
the European
Union and other European
countries with separate
collection systems)
This symbol on the battery or on the
packaging indicates that the battery
provided with this product shall not
be treated as household waste. On
certain batteries this symbol might
be used in combination with a
chemical symbol. The chemical
symbols for mercury (Hg) or lead
(Pb) are added if the battery
contains more than 0.0005%
mercury or 0.004% lead. By
ensuring these batteries are
disposed of correctly, you will help
prevent potentially negative
consequences for the environment
and human health which could
otherwise be caused by
inappropriate waste handling of the
battery. The recycling of the
materials will help to conserve
natural resources. In case of
products that for safety,
performance or data integrity
reasons require a permanent
connection with an incorporated
battery, this battery should be
replaced by qualified service staff
only. To ensure that the battery will
be treated properly, hand over the
product at end-of-life to the
applicable collection point for the
recycling of electrical and
electronic equipment. For all other
batteries, please view the section on
how to remove the battery from the
product safely. Hand the battery
over to the applicable collection
point for the recycling of waste
batteries. For more detailed
information about recycling of this
product or battery, please contact
your local Civic Office, your
household waste disposal service or
the shop where you purchased the
product.
Notice for customers: the following
information is only applicable to
equipment sold in countries
applying EU directives.
The manufacturer of this product is
Sony Corporation, 1-7-1 Konan
Minato-ku Tokyo, 108-0075 Japan.
The Authorized Representative for
EMC and product safety is Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart,
Germany. For any service or
guarantee matters please refer to
the addresses given in separate
service or guarantee documents.
Precautions
This equipment has been tested and
found to comply with the limits set
out in the EMC Directive using a
connection cable shorter than 3
meters. (European and Russian
models only)
On power sources
• The unit is not disconnected from
the mains as long as it is
connected to the AC outlet, even
if the unit itself has been turned
off.
• As the main plug is used to
disconnect the unit from the
mains, connect the unit to an
easily accessible AC outlet.
Should you notice an abnormality
in the unit, disconnect the main
plug from the AC outlet
immediately.
On watching 3D video
images
Some people may experience
discomfort (such as eye strain,
fatigue, or nausea) while watching
3D video images. Sony
recommends that all viewers take
regular breaks while watching 3D
video images. The length and
frequency of necessary breaks will
vary from person to person. You
must decide what works best. If you
experience any discomfort, you
should stop watching the 3D video
images until the discomfort ends;
consult a doctor if you believe
necessary. You should also review
(i) the instruction manual and/or the
caution message of any other
device used with, or Blu-ray Disc
contents played with this product
and (ii) our website (for customers
in Europe and Russia: http://
www.sony-europe.com/
myproduct/; for customers in Asia
and Australia: http://www.sonyasia.com/support/) for the latest
information. The vision of young
children (especially those under six
years old) is still under
development. Consult your doctor
(such as a pediatrician or eye
doctor) before allowing young
children to watch 3D video images.
Adults should supervise young
children to ensure they follow the
recommendations listed above.
Copyrights and
Trademarks
• This system incorporates with
Dolby* Digital and Dolby Pro
Logic (II) adaptive matrix
surround decoder and the DTS**
Digital Surround System.
* Manufactured under license
from Dolby Laboratories.
Dolby, Pro Logic, and the
double-D symbol are
trademarks of Dolby
Laboratories.
** Manufactured under license
under U.S. Patent #’s:
5,451,942; 5,956,674;
5,974,380; 5,978,762;
6,226,616; 6,487,535;
7,212,872; 7,333,929;
7,392,195; 7,272,567 &
other U.S. and worldwide
patents issued & pending.
DTS is a registered
trademark and the DTS
logos, Symbol, DTS-HD
and DTS-HD Master Audio
are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All
Rights Reserved.
• This system incorporates HighDefinition Multimedia Interface
(HDMITM) technology.
HDMI, the HDMI logo and HighDefinition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC.
• Java and all Java-based
trademarks and logos are
trademarks or registered
trademarks of Sun Microsystems,
Inc.
• “BD-LIVE” and
“BONUSVIEW” are trademarks
of Blu-ray Disc Association.
• “Blu-ray Disc” is a trademark.
• “Blu-ray Disc,” “DVD+RW,”
“DVD-RW,” “DVD+R,” “DVDR,” “DVD VIDEO,” and “CD”
logos are trademarks.
• “Blu-ray 3D” and “Blu-ray 3D”
logo are trademarks of Blu-ray
Disc Association.
• “BRAVIA” is a trademark of
Sony Corporation.
• “AVCHD” and the “AVCHD”
logo are trademarks of Matsushita
Electric Industrial Co., Ltd. and
Sony Corporation.
• “S-AIR” and its logo are
trademarks of Sony Corporation.
• , “XMB,” and “xross media
bar” are trademarks of Sony
Corporation and Sony Computer
Entertainment Inc.
• “PLAYSTATION” is a trademark
of Sony Computer Entertainment
Inc.
• DivX®, DivX Certified® and
associated logos are registered
trademarks of DivX, Inc. and are
used under license.
• Music and video recognition
technology and related data are
provided by Gracenote®.
Gracenote is the industry standard
in music recognition technology
and related content delivery. For
more information, please visit
www.gracenote.com.
CD, DVD, Blu-ray Disc, and
music and video-related data from
Gracenote, Inc., copyright ©
2000-present Gracenote.
Gracenote Software, copyright ©
2000-present Gracenote. One or
more patents owned by Gracenote
apply to this product and service.
See the Gracenote website for a
nonexhaustive list of applicable
Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype,
and the “Powered by Gracenote”
logo are either registered
trademarks or trademarks of
Gracenote in the United States
and/or other countries.
3GB
• “PhotoTV HD” and the “PhotoTV
HD” logo are trademarks of Sony
Corporation.
• MPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and
Thomson.
• iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
• “Made for iPod” means that an
electronic accessory has been
designed to connect specifically
to iPod and has been certified by
the developer to meet Apple
performance standards.
• Apple is not responsible for the
operation of this device or its
compliance with safety and
regulatory standards.
• Windows Media is either a
registered trademark or trademark
of Microsoft Corporation in the
United States and/or other
countries.
• DLNA®, the DLNA Logo and
DLNA CERTIFIED™ are
trademarks, service marks, or
certification marks of the Digital
Living Network Alliance.
• Other system and product names
are generally trademarks or
registered trademarks of the
manufacturers. ™ and ® marks
are not indicated in this document.
4GB
About These
Operating
Instructions
• The instructions in these
Operating Instructions
describe the controls on the
remote. You can also use the
controls on the unit if they
have the same or similar
names as those on the remote.
• In this manual, “disc” is used
as a general reference for
BDs, DVDs, Super Audio
CDs, or CDs unless otherwise
specified by the text or
illustrations.
• The instructions in this
manual are for BDV-E870
and BDV-E370. BDV-E870
is the model used for
illustration purposes. Any
difference in operation is
clearly indicated in the text,
for example, “BDV-E870.”
• The items displayed on the
TV screen may vary
depending on the area.
• The default setting is
underlined.
• The system is compatible
with the S-AIR function,
which allows transmission of
sound between S-AIR
products wirelessly. For
details on the S-AIR function,
see “Using an S-AIR
Product” (page 41).
• Notes or instructions for the
surround amplifier, surround
back amplifier, or S-AIR
receiver in these Operating
Instructions refer only to
when the surround amplifier,
surround back amplifier, or
S-AIR receiver is used.
Table of Contents
About These Operating Instructions ....... 4
Unpacking ............................................... 6
Index to Parts and Control ...................... 8
Getting Started
Step 1: Installing the System....... 13
Step 2: Connecting the System... 19
Step 3: Performing the Easy
Setup........................................ 25
Step 4: Selecting the Source ....... 26
Step 5: Enjoying Surround
Sound....................................... 27
Playback
Playing a Disc ....................................... 29
Playing from a USB Device.................. 30
Enjoying an iPod................................... 31
Playing via a Network........................... 32
Available Options ................................. 34
Sound Adjustment
Selecting the Effect to Suit
the Source ....................................... 36
Selecting the Audio Format, Multilingual
Tracks, or Channel.......................... 36
Enjoying Multiplex Broadcast
Sound .............................................. 37
Using the Sound Effect ......................... 37
Tuner
Controlling Your TV with the Supplied
Remote ........................................... 51
Saving Power in Standby Mode ........... 51
Settings and Adjustments
Using the Setup Display ....................... 52
[Network Update] ................................. 52
[Screen Settings]................................... 53
[Audio Settings].................................... 54
[BD/DVD Viewing Settings]................ 55
[Parental Control Settings] ................... 55
[Music Settings].................................... 56
[System Settings].................................. 56
[Network Settings]................................ 57
[Easy Setup].......................................... 58
[Resetting] ............................................ 58
Additional Information
Precautions............................................ 59
Notes about the Discs ........................... 60
Troubleshooting.................................... 61
Playable Discs....................................... 68
Playable Types of Files......................... 69
Supported Audio Formats..................... 70
Video Output Resolution ...................... 70
Specifications........................................ 71
Language Code List.............................. 73
Glossary ................................................ 74
Index ..................................................... 77
Listening to the Radio ........................... 39
Using the Radio Data System
(RDS).............................................. 40
External Audio Device
Using an S-AIR Product .......................41
Other Operations
Using the Control for HDMI Function for
“BRAVIA” Sync ............................ 46
Calibrating the Appropriate Settings
Automatically ................................. 48
Setting the Speakers ..............................49
Using the Sleep Timer .......................... 51
Deactivating the Buttons on
the Unit ........................................... 51
5GB
Unpacking
BDV-E870
• Front speakers (2)
• FM wire antenna (aerial) (1)
• Screws (6)
or
• Speaker-bottom covers (2)
• Speaker cords (3, blue/gray/
green)
• Video cord (1)
• Surround speakers (2)
• Remote commander
(remote) (1)
• R6 (size AA) batteries (2)
• Center speaker (1)
• Calibration mic (1)
• Subwoofer (1)
6GB
• Bases (2)
•
•
•
•
•
Operating Instructions
Speaker Installation Guide
Quick Setup Guide
End user license agreement
HDMI cable (1)
(Taiwan models only)
BDV-E370
• Front speakers (2)
• FM wire antenna (aerial) (1)
• Calibration mic (1)
or
• Surround speakers (2)
• Speaker cords (5, white/red/
blue/gray/green)
• Center speaker (1)
• Video cord (1)
•
•
•
•
Operating Instructions
Quick Setup Guide
End user license agreement
HDMI cable (1)
(Singapore, Thai, and
Taiwan models only)
• Remote commander
(remote) (1)
• Subwoofer (1)
• R6 (size AA) batteries (2)
Preparing the remote
Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the
markings inside the compartment.
7GB
Index to Parts and Control
For more information, refer to the pages indicated in parentheses.
Front panel
FUNCTION
A "/1 (on/standby)
C
(USB) port (page 30)
D Front panel display
Z (open/close) (page 29)
E
Opens or closes the disc tray.
F Power indicator
N (play)
Starts or re-starts playback (resume play).
Plays a slideshow when a disc containing
JPEG image files is inserted.
x (stop)
Stops playback and remembers the stop
point (resume point).
The resume point for a title/track is the last
point you played or the last photo for a
photo folder.
FUNCTION
Selects the playback source.
VOLUME +/–
Adjusts the system’s volume.
8GB
VOLUME
Used for connecting a USB device.
Turns on the unit, or sets it to standby mode.
B Play operation buttons
VOLUME
(remote sensor)
Lights up while the system is turned on.
G Disc tray (page 29)
Front panel display
About the indications in the front panel display
A Displays the current sound format.
B Lights up when the system is playing
via the PARTY STREAMING function.
C Lights up when outputting 1920 ×
1080p/24 Hz video signals.
D Lights up when outputting 720p/1080i/
1080p video signals from the HDMI
OUT jack or 720p/1080i video signals
from the COMPONENT VIDEO OUT
jacks.
E Lights up when the HDMI OUT jack is
correctly connected to an HDCP (Highbandwidth Digital Content Protection)compliant device with HDMI or DVI
(Digital Visual Interface) input.
F Lights up when a station is received.
(Radio only) (page 39)
G Lights up when stereo sound is
received. (Radio only) (page 39)
H Flashes when the sleep timer is set.
(page 51)
I S-AIR indicator (only when the wireless
transmitter (not supplied) is inserted
into the unit)
Lights up during wireless
transmission. Flashes when [Standby]
is set to [On] and the system is in
standby mode while wireless
transmission between the unit and
S-AIR receiver is not activated. (page
41)
J Displays system’s status such as
chapter, title, or track number, time
information, radio frequency, playing
status, surround setting, etc.
K Lights up when repeat play is
activated.
L Displays system’s playing status.
M Lights up when muting is on.
9GB
Rear panel
Screws*
VIDEO OUT
LAN(100)
ARC
Y
PB / CB
PR / CR
OUT
COMPONENT VIDEO OUT
SPEAKERS
SPEAKERS
SAT/CABLE
TV
DIGITAL IN
DIGITAL IN
EZW-T100
A. CAL MIC
FM COAXIAL 75
AUDIO
ECM-AC2
ANTENNA
FRONT R
A
FRONT L SUBWOOFER
CENTER
SUR R
SUR L
COAXIAL
OPTICAL
R AUDIO IN L
B LAN (100) terminal (page 24)
I ANTENNA (FM COAXIAL 75Ω) jack
(page 23)
C COMPONENT VIDEO OUT jacks (page
20)
J TV (DIGITAL IN OPTICAL) jack (page
21)
D VIDEO OUT jack (page 20)
K SAT/CABLE (DIGITAL IN COAXIAL)
jack (page 22)
(USB) port (page 30)
E HDMI OUT jack (page 20)
F EZW-T100 slot (page 41)
L SPEAKERS jacks (page 19)
G AUDIO (AUDIO IN L/R) jacks (page 22)
H A.CAL MIC jack (pages 25, 48)
*
CAUTION
Please do not remove the screws unless you
are installing the EZW-T100.
10GB
B Number buttons (pages 40, 51)
Remote control
Enters the title/chapter numbers, radio
frequencies, etc.
(audio) (pages 36, 37)
THEATRE
ONE-TOUCH
PLAY
Selects the audio format/track.
TV
1
BRAVIA Sync
1
2
3
4
5
6
7
8
9
SLEEP
9
SYSTEM
MENU
0
2
D.TUNING (page 39)
Selects the radio frequencies.
D.TUNING
3
TOP MENU
POP UP/ MENU
4
RETURN
SOUND MODE
HOME
PRESET
PRESET
TUNING
TUNING
C Color buttons (red/green/yellow/blue)
Short cut keys for selecting items on some
BD menus (can also be used for Java
interactive operations on BDs).
D TOP MENU
OPTIONS
FUNCTION
(subtitle) (page 55)
Selects the subtitle language when
multilingual subtitles are recorded on a BDROM/DVD VIDEO.
5
Opens or closes the BD’s or DVD’s Top
Menu.
POP UP/MENU
8
6
DISPLAY
Opens or closes the BD-ROM’s Pop-up
Menu, or the DVD’s menu.
OPTIONS (page 34)
TV
TV
7
Displays the options menu on the TV
screen.
RETURN
Number 5,
, 2 +, and N buttons have a
tactile dot. Use the tactile dot as a reference
when operating the remote.
Returns to the previous display.
C/X/x/c
Moves the highlight to a displayed item.
(ENTER)
•
: For TV operations
(For details, see “Controlling Your TV with
the Supplied Remote” (page 51).)
A THEATRE (page 47)
Switches to the optimum video mode for
watching movies automatically.
ONE-TOUCH PLAY (page 47)
Activates One-Touch Play.
TV "/1 (on/standby) (page 51)
Turns on the TV or sets it to standby mode.
"/1 (on/standby) (pages 25, 39)
Turns on the system or sets it to standby
mode.
Enters the selected item.
E FUNCTION (pages 26, 39)
Selects the playback source.
HOME (pages 25, 39, 41, 48, 49, 52)
Enters or exits the system’s home menu.
SOUND MODE (page 36)
Selects the sound mode.
F Playback operation buttons
See “Playback” (page 29).
./> (previous/next)
Skip to the previous/next chapter, track, or
file.
(replay/advance)
Briefly replay the current scenes for 10
seconds./Briefly fast forwards the current
scenes for 15 seconds.
11GB
m/M (fast reverse/fast forward)
Opens or closes the disc tray.
N (play)
Displays the Internet contents added to the
Favorites List. You can save 18 favorite
Internet contents.
Starts or re-starts playback (resume play).
Plays a slideshow when a disc containing
JPEG image files is inserted.
X (pause)
Pauses or re-starts playback.
x (stop)
Stops playback and remembers the stop
point (resume point). The resume point for
a title/track is the last point you played or
the last photo for a photo folder.
Radio operation buttons
See “Tuner” (page 39).
PRESET +/–
TUNING +/–
G
(muting)
Turns off the sound temporarily.
2 (volume) +/– (page 39)
Adjusts the volume.
TV 2 (volume) +/–
Adjusts the TV volume.
TV t (TV input)
Switches the TV’s input source between the
TV and other input sources.
H DISPLAY (pages 29, 32)
Displays the playback information on the
TV screen.
When the function is “TUNER FM,”
changes the radio information in the front
panel display (European and Russian
models only).
When the function is “TV” or “SAT/
CABLE” and digital signals are input via
the DIGITAL IN jack, displays the stream
information in the front panel display.
12GB
I Z (open/close)
Fast reverse/fast forward the disc during
playback. Each time you press the button,
search speed changes.
Activates slow-motion play when pressed
for more than one second in pause mode.
Plays one frame at a time when pressed in
pause mode.
SLEEP (page 51)
Sets the sleep timer.
SYSTEM MENU (pages 27, 35, 37, 39)
Enters the system menu.
(favorites)
Getting Started
Getting Started
Step 1: Installing the System
Positioning the speakers
For the best possible surround sound, place all speakers at the same distance from the listening position
(A). The distance can be between 0.0 to 7.0 meters.
If you cannot place the center speaker and surround speakers at the same distance as (A), place them
within 7.0 meters of the listening position.
Place the surround speakers to the rear of the listening position (B).
The subwoofer can be placed anywhere in the room.
Center speaker
Subwoofer
Front left speaker (L)
Front right speaker (R)
A
A
B
Surround left speaker (L)
A
30
45
30
45
A
A
B
Surround right speaker (R)
Note
• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed,
oiled, polished, etc.) floor, as staining or discoloration may result.
• Do not lean or hang on a speaker, as it may fall down.
13GB
Getting Started
To add the optional surround back speakers
You can enjoy 7.1 surround sound by purchasing the Wireless Surround Speaker Kit (WAHT-SBP2,
optional). The optional product lineup differs depending on the area.
For the position of the surround back speakers, refer the illustration below (C).
Center speaker
Subwoofer
Front left speaker (L)
Front right speaker (R)
Surround left
speaker (L)
Surround right
speaker (R)
30
45
C
Surround back left speaker (L)
(optional)
30
45
C
Surround back right speaker (R)
(optional)
Note
• To use the surround back speakers, set [Surround Back] (page 49) in [Speaker Settings] to [Yes] while performing
the Easy Setup (page 25).
Installing the speakers on a wall
Caution
• Contact a screw shop or installer regarding the wall material or screws to be used.
• Use screws that are suitable for the wall material and strength. As a plaster board wall is especially fragile, attach
the screws securely to a beam and fasten them to the wall. Install the speakers on a vertical and flat wall where
reinforcement is applied.
• Sony is not responsible for accidents or damage caused by improper installation, insufficient wall strength or
improper screw installation, natural calamity, etc.
Before installing the front speakers of BDV-E870 on a wall, you need to disassemble the speakers. You
can install the upper part of the speakers on a wall.
14GB
To disassemble the speaker
(Front speakers of BDV-E870 only)
Disconnect the speaker cords from the speaker.
Getting Started
1
Rear of the speaker
2
Remove the screw (pre-installed) at the rear of the speaker.
This screw is used when reassembling the speaker. Be sure not to lose the screw.
Screw
3
Rear of the speaker
Disassemble the speaker by lifting the upper part of the speaker.
Upper part
Lower part
Rear of the speaker
15GB
4
Pull out the speaker cord from the bottom of the lower part of the speaker.
Getting Started
The removed speaker cord is used when installing the speaker on a wall.
Lower part of the speaker
,
Speaker cord
5
Remove the protection paper from the speaker-bottom cover, then attach the speakerbottom cover to the bottom of the upper part of the speaker.
Bottom of the upper part of
the speaker
Protection paper
,
,
Speaker-bottom cover
Note
• When removing the protection paper, pull it off via the section exposed by the notch in the speaker-bottom cover.
Fully-disassembled illustration
Upper part of
the speaker
Lower part of
the speaker
Speaker cord
Screw
16GB
To install the speakers on a wall
Color tube
Front left speaker (L): White
Front right speaker (R): Red
Center speaker: Green
Surround left speaker (L): Blue
Surround right speaker (R): Gray
1
Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.
See the illustrations below.
4 mm
30 mm
5 mm
Hole on the back of
the speaker
10 mm
17GB
Getting Started
Before installing the speakers on a wall, connect the speaker cord to the speaker.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to 3, and the speaker cord without the color tube to #.
Getting Started
2
Fasten the screws to the wall.
BDV-E870
BDV-E370
For the front speakers
For the center speaker
219 mm
304 mm
8 to 10 mm
8 to 10 mm
For the center speaker
219 mm
For the other speakers
8 to 10 mm
8 to 10 mm
For the surround speakers
8 to 10 mm
3
Hang the speakers on the screws.
5 mm
10 mm
Rear of the speaker
18GB
Hole on the back of
the speaker
Step 2: Connecting the System
Note
• When you connect another component with a volume control, turn down the volume of the other components to a
level where sound is not distorted.
Connecting the speakers
The connector of the speaker cords and the color tube are color-coded depending on the type of speaker.
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to 3, and the speaker cord without the color tube to #. Do not catch the speaker cord
insulation (rubber covering) in the speaker terminals.
To connect speaker cords to the unit
When connecting to the unit, insert the connector until it clicks.
Rear panel of the unit
Gray
(Surround right speaker (R))
KERS
SPEA
SUR R
KERS
SPEA
TR
FRON
BW
T L SU
FRON
OOFER
CENTE
SUR L
Blue
(Surround left speaker (L))
R
Green
(Center speaker)
Red
(Front right
speaker (R))
Purple
(Subwoofer)
White
(Front left speaker (L))
To connect speaker cords to the speaker
Color tube
Connector
Rear or bottom of the speaker
(+)
(–)
19GB
Getting Started
For connecting the system, read the information on the following pages.
Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other
connections are made.
Getting Started
Connecting the TV (Video connection)
This connection sends a video signal to the TV.
Depending on the jacks on your TV, select the connection method.
Rear panel of the unit
B Component video
cable (not supplied)
VIDEO
OUT
ARC
OUT
PB / CB
Y
COMP
ONEN
T VID
PR / CR
EO
OUT
A HDMI cable*
C Video cord (supplied)
To the component
video input jacks of
the TV.
To the video input
jack of the TV.
To the HDMI IN jack
of the TV.
* The HDMI cable is supplied with Singapore, Thai, and Taiwan models only.
Method 1: HDMI cable (A) connection
If your TV has an HDMI jack, connect to the TV with an HDMI cable. Picture quality will be improved
compared to using the component video cable connection or the video cord connection.
When connecting with the HDMI cable, you need to select the type of output signal (page 53).
Method 2: Component video cable (B) connection
If your TV does not have an HDMI jack, but has component video input jacks, connect to the TV with
a component video cable. Picture quality will be improved compared to using the video cord
connection.
When connecting with the component video cable, you need to select the type of output signal (page
53).
Method 3: Video cord (C) connection
If you do not have an HDMI cable or a component video cable, temporarily make this connection.
20GB
Connecting the TV (Audio connection)
Rear panel of the unit
AUDIO
DIO IN
R AU
L
TV
ABLE
SAT/C
L IN
DIGITA
L
DIGITA
IN
AL
OPTIC
IAL
COAX
Digital optical cord (not
supplied)
To the digital optical out jack of
the TV.
With a digital audio connection, the system receives a Dolby Digital multiplex broadcast signal and
you can enjoy multiplex broadcast sound.
Note
• When you connect the TV and the unit with an audio cord, see “Connecting the other components” (page 22).
About Audio Return Channel
If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also
sends a digital audio signal from the TV. You do not need to make a separate audio connection for
listening to TV sound. For details of the Audio Return Channel function, see [Audio Return Channel]
(page 56).
21GB
Getting Started
This connection sends an audio signal to the unit from the TV. To listen to TV sound via the system,
perform this connection.
Getting Started
Connecting the other components
When you connect the system and other components to the TV, video signals from the system and the
components are sent to the TV, and audio signals from the components are sent to the system as
follows.
TV
Signal flow
System
: Video signal
: Audio signal
You can enjoy connected components via the system’s speakers.
• VCR or digital satellite receiver, etc. (not supplied), which has a digital coaxial output jack: D
• VCR, digital satellite receiver, PlayStation, or portable audio source, etc. (not supplied): E
Rear panel of the unit
D Digital coaxial cord
(not supplied)
AUDIO
DIO IN
R AU
ABLE
SAT/C
L IN
DIGITA
L
TV
L IN
DIGITA
AL
OPTIC
IAL
COAX
To the digital coaxial out jack
of the VCR or digital satellite
receiver, etc.
22GB
E Audio cord
(not supplied)
To the audio out jacks of the VCR,
digital satellite receiver, PlayStation,
or portable audio source, etc.
Connecting the antenna (aerial)
Getting Started
To connect the antenna (aerial)
Rear panel of the unit
FM
AL 75
COAXI A
NN
ANTE
or
FM wire antenna (aerial)
(supplied)
Note
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
Tip
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM
antenna (aerial) as shown below.
Outdoor FM antenna (aerial)
Unit
FM COAXIAL 75
ANTENNA
23GB
Getting Started
Connecting to the network
Wireless LAN Adapter and the wireless LAN router
closer to each other.
Wired Setup
To set the network settings
Use a LAN cable to connect to the LAN (100)
terminal on the unit.
For details, see [Network Settings] (page 57)
and follow the on-screen instructions to
complete the setup.
About wireless LAN security
LAN cable
(not supplied)
Internet
ADSL modem/
cable modem
Broadband
router
Since communication via the wireless LAN
function is established by radio waves, the
wireless signal may be susceptible to
interception. To protect wireless
communication, this system supports various
security functions. Be sure to correctly
configure the security settings in accordance
with your network environment.
No Security
USB Wireless Setup
Use a wireless LAN via the USB Wireless LAN
Adapter (Sony UWA-BR100* only) (not
supplied).
The USB Wireless LAN Adapter may not be
available in some regions/countries.
* As of January 2010.
Although you can easily make settings, anyone
can intercept wireless communication or intrude
into your wireless network, even without any
sophisticated tools. Keep in mind that there is a
risk of unauthorized access or interception of
data.
WEP
Turn the unit off before connecting the
extension cable or inserting the USB Wireless
LAN Adapter. After inserting the USB Wireless
LAN Adapter to the base of the extension cable
and connecting the extension cable to the
(USB) port (front or rear), turn the unit on again.
WEP applies security to communications to
prevent outsiders from intercepting
communications or intruding into your wireless
network. WEP is a legacy security technology
that enables older devices, which do not support
TKIP/AES, to be connected.
WPA-PSK (TKIP), WPA2-PSK (TKIP)
VIDEO OUT
LAN(100)
ARC
Y
PB / CB
PR / CR
OUT
COMPONENT VIDEO OUT
SPEAKERS
SPEAKERS
EZW-T100
SAT/CABLE
TV
DIGITAL IN
DIGITAL IN
A. CAL MIC
FM COAXIAL 75
AUDIO
ECM-AC2
ANTENNA
FRONT R
FRONT L SUBWOOFER
CENTER
SUR R
SUR L
COAXIAL
OPTICAL
R AUDIO IN L
TKIP is a security technology developed to
correct for the deficiencies of WEP. TKIP
assures a higher security level than WEP.
WPA-PSK (AES), WPA2-PSK (AES)
USB
Wireless
LAN
Adapter
Internet
LAN cable
(not supplied)
ADSL modem/ Wireless LAN
cable modem router
Note
• The placement distance between the USB Wireless
LAN Adapter and your wireless LAN router differs
depending on the usage environment. If the system
cannot connect to the network or the network
connection is unstable, move the USB Wireless LAN
Adapter to a different position or place the USB
24GB
AES is a security technology that uses an
advanced security method that is distinct from
WEP and TKIP.
AES assures a higher security level than WEP or
TKIP.
Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
Set up the calibration mic at ear level using
a tripod, etc. (not supplied). The front of
each speaker should face the calibration
mic, and there should be no obstruction
between the speakers and the calibration
mic.
Before performing Step 3
Make sure all connections are secure, and then
connect the AC power cord (mains lead).
Follow the Steps below to make the basic
adjustments for using the system.
Displayed items vary depending on the country
model.
Note
MIC
A. CAL
C2
ECM-A
• To use the optional surround back speakers, set
[Surround Back] in [Speaker Settings] to [Yes]
(page 49).
"/1
1
2
3
4
5
6
7
8
9
0
Calibration mic
C/X/x/c,
HOME
1
Turn on the TV.
3
4
Press [/1 on the unit.
Switch the input selector on your TV so
that the signal from the system
appears on the TV screen.
The Easy Setup Display for OSD language
selection appears.
Easy Setup - OSD
Select the language to be displayed by this unit.
English
Deutsch
Français
Italiano
Español
25GB
Getting Started
Step 3: Performing the
Easy Setup
2
Getting Started
5
Perform the [Easy Setup]. Follow the
on-screen instructions to make the
basic settings using C/X/x/c, and
.
For details about [Auto Calibration]
settings in [Easy Setup], see “Calibrating
the Appropriate Settings Automatically”
(page 48).
Step 4: Selecting the
Source
You can select the playback source.
To recall the Easy Setup Display
1
Press HOME.
1
2
3
4
5
6
7
8
9
The home menu appears on the TV screen.
2
3
4
Press C/c to select
0
[Setup].
Press X/x to select [Easy Setup], then
press
.
FUNCTION
Press C/c to select [Start], then press
.
The Easy Setup Display appears.
Press FUNCTION repeatedly until the
desired function appears in the front panel
display.
Each time you press FUNCTION, the function
changes as follows.
“BD/DVD” t “D. MEDIA” t “TUNER FM”
t“TV” t “SAT/CABLE” t “AUDIO” t
“BD/DVD” t …
Function
26GB
Source
“BD/DVD”
Disc that is played by the system
“D. MEDIA”
USB device, iPod, BRAVIA
Internet Video, or DLNA server
“TUNER FM”
FM radio (page 39)
“TV”
Component (TV, etc.) that is
connected to the TV (DIGITAL
IN OPTICAL) jack on the rear
panel, or a TV compatible with the
Audio Return Channel function
that is connected to the HDMI
OUT jack on the rear panel
(page 21).
“SAT/CABLE”
Component that is connected to
the SAT/CABLE (DIGITAL IN
COAXIAL) jack on the rear panel
(page 22)
“AUDIO”
Component that is connected to
the AUDIO (AUDIO IN L/R)
jacks on the rear panel (page 22)
Step 5: Enjoying Surround Sound
SYSTEM MENU
1
2
3
4
5
6
7
8
9
0
X/x/c,
Selecting surround settings based on your listening preference
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “SUR.SETTING” appears in the front panel display, then
press
or c.
Press X/x repeatedly until the surround setting you want appears in the front panel
display.
See the table below for surround sound setting descriptions.
4
Press
.
The setting is made.
5
Press SYSTEM MENU.
The system menu turns off.
About speaker output of each surround setting
The table below describes the options when you connect all the speakers to the unit.
The default setting is “A.F.D. MULTI.”
Sound from
Surround setting
Effect
Depending on the source.
“A.F.D. STD”
The system discriminates the sound format of the source and
presents sound as it was recorded/encoded.
(AUTO FORMAT
DIRECT STANDARD)
27GB
Getting Started
After performing the previous Steps and starting playback, you can easily enjoy surround sound. You
can also select pre-programmed surround settings that are tailored to different kinds of sound sources.
They bring the exciting and powerful sound of movie theaters into your home.
Sound from
Surround setting
Effect
“A.F.D. MULTI”
• 2 channel source: The system simulates surround sound
from 2 channel sources and outputs sound from the 5.1
channel speakers by duplicating 2 channel source sound
across each speaker.
• Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
Getting Started
(AUTO FORMAT
DIRECT MULTI)
“PRO LOGIC”
“PLII MOVIE”
• 2 channel source: The system simulates surround sound
from 2 channel sources and outputs sound from the 5.1
channel speakers.
– “PRO LOGIC” performs Dolby Pro Logic decoding.
– “PLII MOVIE” performs Dolby Pro Logic II movie
mode decoding.
• Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
“NEO6 CIN”
“NEO6 MUS”
• 2 channel source: The system simulates surround sound
from 2 channel sources and produces 6.1 channel sound.
– “NEO6 CIN” performs DTS Neo:6 Cinema mode
decoding.
– “NEO6 MUS” performs DTS Neo:6 Music mode
decoding.
• Multi-channel source: The system outputs sound from the
speakers depending on the number of channels of the
source.
“2CH STEREO”
The system outputs the sound from the front speakers and
subwoofer regardless of sound format or number of channels.
Multi-channel surround formats are downmixed to 2
channels.
Note
• When you select “A.F.D. MULTI,” depending on the disc or source, the beginning of the sound may be cut off
while the optimum mode is automatically selected. To avoid cutting the sound, select “A.F.D. STD.”
• When bilingual broadcast sound is input, “PRO LOGIC” and “PLII MOVIE” are not effective.
• Depending on the input stream, the surround settings may not be effective.
• When changing the surround setting while using the S-AIR receiver, sound from the S-AIR receiver may skip.
• When you play a Super Audio CD, surround settings are not activated.
Tip
• The system memorizes the last surround setting selected for each function.
Whenever you select a function such as “BD/DVD” or “TUNER FM,” the surround setting that was last applied to
the function is automatically applied again. For example, if you select “BD/DVD” with “PRO LOGIC” as the
surround setting, then change to another function, and then return to “BD/DVD,” “PRO LOGIC” will be applied
again.
28GB
Tip
Playback
Playing a Disc
1
2
Switch the input selector on your TV so
that the signal from the system
appears on your TV screen.
Press Z, and place a disc on the disc
tray.
Enjoying Blu-ray 3D
Playback
For playable discs, see “Playable Discs”
(page 68).
• Delete unnecessary data in internal memory or USB
memory. Select [Erase BD Data] in
[Video] to
delete unnecessary data. If you use USB memory as
local storage, all saved data in the [BUDA/BUDB]
folder is deleted. Make sure to backup any video/
music/photo data in the [BUDA/BUDB] folder.
Note
• If [3D Output Setting] (page 53) is not displayed on
the TV screen, this function will be available via a
future update.
You can enjoy Blu-ray 3D Discs with the 3D
logo*.
*
1
3
• Connect the system to your 3Dcompatible TV using a High-Speed
HDMI cable (not supplied).
• Set [3D Output Setting] and [TV Screen
Size Setting for 3D] in [Screen Settings]
(page 53).
Press Z to close the disc tray.
appears on the home menu and playback
starts.
If playback does not start automatically,
select
in the
[Video],
[Music], or
[Photo] category, and press
.
Enjoying BONUSVIEW/BD-LIVE
Prepare for Blu-ray 3D Disc playback.
2
Insert a Blu-ray 3D Disc.
The operation method differs depending on
the disc. Refer to the operating instructions
supplied with the disc.
Tip
• Refer also to the operating instructions of your 3Dcompatible TV.
Some BD-ROMs with “BD-LIVE Logo*” have
bonus content and other data that can be
downloaded for enjoyment.
*
1
Prepare for BONUSVIEW/BD-LIVE.
• Connect the unit to a network (page 24).
• Set [BD Internet Connection] to [Allow]
(page 55).
2
Insert a BD-ROM with BONUSVIEW/
BD-LIVE.
The operation method differs depending on
the disc. Refer to the operating instructions
of the disc.
29GB
Displaying the play information
You can check the playback information, etc.,
by pressing DISPLAY.
The displayed information differs depending on
the disc type and player status.
Example: when playing a BD-ROM
Playing from a USB
Device
You can play video/music/photo files on the
connected USB device.
For playable types of files, see “Playable Types
of Files” (page 69).
1
Connect the USB device to the
(USB) port on the unit.
Refer to the operating instructions of the
USB device before connecting.
USB device
A Output resolution/Video frequency
B Title number or name
C The currently selected audio setting
D Available functions (
subtitle)
angle,
audio,
E Playback information
Displays disc type, play mode, repeat type,
video codec, bit rate, playing status bar,
playing time, total time
F Chapter number
G The currently selected angle
USB device
2
3
Press C/c to select
[Video],
[Music], or
[Photo].
Press X/x to select
[USB device
(front)] or [USB device (rear)], then
press
.
Note
• Do not remove the USB device during
operation. To avoid data corruption or damage
to the USB device, turn the system off when
connecting or removing the USB device.
30GB
Enjoying an iPod
To operate the iPod using the
remote
You can enjoy the sound and charge the battery
of an iPod via the system.
You can operate the iPod using the buttons on
the remote. The following table shows an
example of buttons that can be used.
The compatible iPod models are as follows.
Update your iPod with the latest software before
using with the system.
Press
Operation
N, X
Same operation as the N/X button
of the iPod.
x
Pause.
m or M
Fast reverse or forward.
. or >
Same operation as the . or >
buttons of the iPod.
DISPLAY,
RETURN,
C
Same operation as the MENU button
of the iPod.
X/x
Same operation as the Click Wheel
of the iPod.
,c
Playback
Compatible iPod models
Same operation as the Center button
of the iPod.
Note
1
2
3
Connect the iPod to the front
(USB)
port on the unit with the iPod’s USB
cable.
Press C/c to select
Press X/x to select
then press
.
[Music].
• The iPod is charged when connected to the system
while the system is turned on.
• You cannot transfer songs onto the iPod.
• Sony cannot accept responsibility in the event that
data recorded to iPod is lost or damaged when using
an iPod connected to this unit.
• This product has been designed specifically to work
with iPod and has been certified to meet Apple
performance standards.
• Do not remove the iPod during operation. To avoid
data corruption or damage to the iPod, turn the system
off when connecting or removing the iPod.
[iPod (front)],
The sound from the iPod is played on the
system.
You can operate the iPod using the buttons
on the remote.
For operation details, refer to the operating
instructions of the iPod.
31GB
Playing files stored on a DLNA
server (DLNA Player)
Playing via a Network
Streaming BRAVIA Internet
Video
BRAVIA Internet Video serves as a gateway
delivering the selected Internet content and a
variety of on-demand entertainment straight to
your unit.
1
Prepare for BRAVIA Internet Video.
Connect the unit to a network (page 24).
2
3
Press C/c to select
[Video],
[Music], or
[Photo].
Note
• If [Connection Server Settings] (page 57) is not
displayed on the TV screen, this function will be
available via a future update.
You can play video/music/photo files on your
home server, such as a DLNA-certified network
audio system or a PC with software that enables
a DLNA-certified server function, by
connecting the system to your home network.
1
Prepare for playing files on a DLNA
server.
• Connect the unit to a network (page 24).
• Set [Connection Server Settings]
(page 57).
Press X/x to select an Internet content
provider icon, then press
.
When the Internet content list has not been
retrieved, it will be represented by an
unacquired icon or a new icon.
2
Press C/c to select
[Video],
[Music], or
[Photo].
3
Press X/x to select a DLNA server, then
press
.
To use the control panel
The control panel appears when the video file
starts playing. The displayed items may differ
depending on Internet content providers.
To display again, press DISPLAY.
The file list or folder list appears.
Playing the same audio in
different rooms (PARTY
STREAMING)
Note
A Control display
Press C/X/x/c or
for playback operations.
B Playing status bar
Status bar, cursor indicating the current
position, playing time, duration of the video
file
• If [Party Auto Start] (page 58) is not displayed on the
TV screen, this function may be available via a future
update. However, the function may not be available
in some regions/countries.
C The next video file name
D The currently selected video file name and
rating
You can play the same audio at the same time
across all Sony components which are
32GB
compatible with the PARTY STREAMING
function.
The component that plays audio for the party
through the use of [Start Party] is called the
“party host.” A component that is invited to the
party from the party host and plays the same
audio as the party host is called a “party guest.”
To close a party
To start a party
To leave from a party
(for the party host only)
(for a party guest only)
You can use other components to play the
content that is playing on the system.
Press OPTIONS, press C/c to select [Leave
Party], then press
.
Turn on the system and other Sony
components compatible with the
PARTY STREAMING function.
Make sure that each component is
connected to the network.
2
Press C/X/x/c to select the audio
content in
[Music] or a radio station.
For selecting a radio station, see “Listening
to the Radio” (page 39).
3
4
(for a party guest only)
You can use the system to play the content that
is playing on other components.
Turn on the system and other Sony
components compatible with the
PARTY STREAMING function.
Make sure that each component is
connected to the network.
3
4
5
Press OPTIONS, press C/c to select [Close
Party], then press
in Step 3 above.
Note
• The sale and product lineup of products that are
compatible with the PARTY STREAMING function
differ depending on the area.
Operating the system with a
DLNA controller (DLNA
renderer)
Note
Press X/x to select [Start Party], then
press
.
To join in a party
2
For a party guest
Press OPTIONS.
All party guests’ components start playing
the same audio content as the party host.
1
Press x, then press HOME.
Playback
1
For the party host
Start a party on another networked
component.
Press C/c to select
Press X/x to select
press
.
• If [Renderer Options] (page 57) is not displayed on
the TV screen, this function may be available via a
future update. However, the function may not be
available in some regions/countries.
The system is compatible with the DLNA
renderer (network controlled player) function.
You can operate the system with a DLNA
controller.
For details of operation, see the operating
instructions of the DLNA controller.
Note
• Do not operate the system with the supplied remote
when operating the system by the DLNA controller.
Tip
• The system is compatible with the “Play To” function
of Windows Media® Player 12 that comes standard
with Windows 7.
[Music].
[Party], then
Press X/x to select the party host that
you set up in Step 2, then press
.
33GB
[Video] only
Available Options
Various settings and playback operations are
available by pressing OPTIONS. The available
items differ depending on the situation.
Items
Details
[3D Output Setting]
Sets whether or not to output
3D video automatically.
[Video Settings]
• [Picture Quality Mode]:
Selects the picture settings
for different lighting
environments.
• [FNR]: Reduces the random
noise appearing in the
picture.
• [BNR]: Reduces the
mosaic-like block noise in
the picture.
• [MNR]: Reduces minor
noise around the picture
outlines (mosquito noise).
[Play/Pause]
Starts or pauses playback.
[Top Menu]
Displays the BD’s or DVD’s
Top Menu.
[Menu/Popup Menu]
Displays the BD-ROM’s
Pop-up Menu or DVD’s
menu.
[Title Search]
Searches for a title on BDROMs/DVD VIDEOs and
starts playback from the
beginning.
[Chapter Search]
Searches for a chapter and
starts playback from the
beginning.
[Angle]
Switches to other viewing
angles when multi-angles are
recorded on BD-ROMs/DVD
VIDEOs.
Common options
Items
Details
[Playback History]
Displays titles/tracks in the
playback history of a
BD-ROM/DVD-ROM/
CD-DA (music CD) using
Gracenote technology.
[Search History]
Searches for related
information based on
keywords from Gracenote via
the Information Display.
[Search Contents]
Searches for BRAVIA
Internet Video content based
on keywords from Gracenote
via the Information Display .
[Repeat Setting]
Sets the repeat play.
[Favourites List]
Displays the Favorites List.
[Play/Stop]
Starts or stops playback.
[Play from start]
Plays the item from the
beginning.
[Information Display] Displays information on the
BD-ROM/DVD-ROM/
CD-DA (music CD) by using
Gracenote technology.
34GB
[Add to Favourites]
Adds an Internet content to
the Favorites List.
[Remove from
Favourites]
Erases an Internet content
from the Favorites List.
[Music] only
Items
Details
[Add Slideshow
BGM]
Registers music files in the
USB memory as slideshow
background music.
[Photo] only
Details
[Slideshow]
Starts a slideshow.
[Slideshow Speed]
Changes the slideshow speed.
[Slideshow Effect]
Sets the effect when playing a
slideshow.
[Slideshow BGM]
• [Off]: Turns off the
function.
• [My Music from USB]: Sets
the music files registered in
[Add Slideshow BGM]. If
no music file is registered,
[(Not registered)] is
displayed.
• [Play from disc]: Sets the
tracks on CD-DAs (music
CDs).
[Rotate Left]
Adjusting the delay between
the picture and sound
(A/V SYNC)
When the sound does not match the pictures on
the TV screen, you can adjust the delay between
the picture and sound.
1
2
3
Playback
Items
Press SYSTEM MENU.
Press X/x repeatedly until “A/V SYNC”
appears in the front panel display, then
press
or c.
Press X/x to adjust the delay between
the picture and sound.
You can adjust from 0 ms to 300 ms in 25
ms increments.
Rotates the photo
counterclockwise by
90 degrees.
4
[Rotate Right]
Rotates the photo clockwise
by 90 degrees.
5
[View Image]
Displays the selected picture.
Press
.
The setting is made.
Press SYSTEM MENU.
The system menu turns off.
Note
• Depending on the input stream, A/V SYNC may not
be effective.
35GB
Sound Adjustment
Selecting the Effect to
Suit the Source
You can select a suitable sound mode for movies
or music.
1
2
3
4
5
6
7
8
9
0
SOUND
MODE
• When changing the sound mode while using the
S-AIR receiver, sound from the S-AIR receiver may
skip.
• When you play a Super Audio CD, this function does
not work.
Selecting the Audio
Format, Multilingual
Tracks, or Channel
When the system is playing a BD/DVD VIDEO
or DATA CD/DATA DVD (DivX video files)
recorded in multiple audio formats (PCM,
Dolby Digital, MPEG audio, or DTS) or
multilingual tracks, you can change the audio
format or language.
With a CD, you can select the sound from the
right or left channel and listen to the sound of the
selected channel through both the right and left
speakers.
Press SOUND MODE repeatedly during
playback until the desired mode appears in
the front panel display.
• “AUTO”: The system selects “MOVIE” or
“MUSIC” automatically to produce the sound
effect depending on the disc or sound stream.
• “MOVIE”: The system provides the sound for
movies.
• “MUSIC”: The system provides the sound for
music.
• “SPORTS”: The system adds reverberation for
sports programs.
• “NEWS”: The system provides the sound for
voice programs, such as news.
• “GAME ROCK”: The system provides the
sound for music/rhythm games.
Note
• Depending on the disc or source, when you select
“AUTO,” the beginning of the sound may be cut off
as the system selects the optimum mode
automatically. To avoid cutting the sound, select
other than “AUTO.”
• Depending on the input stream, the sound mode may
not be effective.
36GB
1
2
3
4
5
6
7
8
9
0
Press
repeatedly during playback to
select the desired audio signal.
The audio information appears on the TV
screen.
x BD/DVD VIDEO
Depending on the BD/DVD VIDEO, the choice
of language varies.
When 4 digits are displayed, they indicate a
language code. See “Language Code List”
(page 73) to confirm which language the code
represents. When the same language is
displayed two or more times, the BD/DVD
VIDEO is recorded in multiple audio formats.
x DVD-VR
The types of sound tracks recorded on a disc are
displayed.
Example:
• [ Stereo]
• [ Stereo (Audio1)]
• [ Stereo (Audio2)]
• [ Main]
• [ Sub]
• [ Main/Sub]
1
2
3
4
5
6
7
8
9
0
x DATA CD (DivX video file)/DATA DVD
(DivX video file)
The choice of DATA CD or DATA DVD audio
signal formats differs, depending on the DivX
video file contained on the disc. The format
appears on the TV screen.
Press
repeatedly until the desired
signal appears in the front panel display.
Sound Adjustment
Note
• [ Stereo (Audio1)] and [ Stereo (Audio2)] do not
appear when only one audio stream is recorded on the
disc.
• “MAIN”: Sound of the main language will be
output.
• “SUB”: Sound of the sub language will be
output.
• “MAIN/SUB”: Mixed sound of both the main
and sub languages will be output.
x CD
• [ Stereo]: The standard stereo sound.
• [ 1/L]: The sound of the left channel
(monaural).
• [ 2/R]: The sound of the right channel
(monaural).
Using the Sound Effect
SYSTEM
MENU
Enjoying Multiplex
Broadcast Sound
1
2
3
4
5
6
7
8
9
0
C/X/x/c,
(DUAL MONO)
You can enjoy multiplex broadcast sound when
the system receives or plays a Dolby Digital
multiplex broadcast signal.
Note
• To receive the Dolby Digital signal, you need to
connect a TV or other component to the unit with a
digital coaxial or optical cord (pages 21, 22). If your
TV is compatible with the Audio Return Channel
function (page 47), you can receive a Dolby Digital
signal via an HDMI cable.
Enjoying sound at low volume
You can enjoy sound effects or dialog, as you
would in a movie theater, even at low volume. It
is useful for watching movies at night.
1
Press SYSTEM MENU.
37GB
2
3
Press X/x repeatedly until “NIGHT
MODE” appears in the front panel
display, then press
or c.
Press X/x to select a setting.
• “NIGHT ON”: On.
• “NIGHT OFF”: Off.
4
Press SYSTEM MENU.
The system menu turns off.
Note
• When sound is output from the center speaker, this
effect is more pronounced, as speech (movie dialog,
etc.) is easy to hear. When sound is not output from
the center speaker, the system optimally adjusts the
volume.
Reinforcing bass frequencies
You can reinforce bass frequencies.
1
2
3
Press SYSTEM MENU.
Press X/x repeatedly until “D.BASS”
appears in the front panel display, then
press
or c.
Press X/x to select a setting.
• “D.BASS ON”: On.
• “D.BASS OFF”: Off.
4
Press SYSTEM MENU.
The system menu turns off.
38GB
Manual tuning
Press TUNING +/– repeatedly.
Tuner
3
Adjust the volume by pressing 2 +/–.
Listening to the Radio
If an FM program is noisy
You can enjoy radio sound with the system’s
speakers.
If an FM program is noisy, you can select
monaural reception. There will be no stereo
effect, but reception will improve.
"/1
2
3
4
5
6
7
8
9
Number
buttons
1
2
Press SYSTEM MENU.
Press X/x repeatedly until “FM MODE”
appears in the front panel display.
D.TUNING
0
C/X/x/c,
HOME
PRESET +/–
FUNCTION
3
4
x
5
Press X/x to select “MONO.”
Press SYSTEM MENU.
The system menu turns off.
Current station
Current band and preset number
or c.
• “STEREO”: Stereo reception.
• “MONO”: Monaural reception.
TUNING +/–
2 +/–
Press
Tuner
SYSTEM
MENU
1
To turn off the radio
Press "/1.
FM 7
88.00 MHz
Presetting radio stations
SONY FM
You can preset up to 20 stations. Before tuning,
make sure to turn down the volume to minimum.
1
Station name (European and
Russian models only)
1
2
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
2
Press and hold TUNING +/– until the auto
scanning starts.
[Auto Tuning] appears on the TV screen.
Scanning stops when the system tunes in a
station.
To stop the automatic tuning manually,
press TUNING +/– or x.
Press and hold TUNING +/– until the
auto scanning starts.
Scanning stops when the system tunes in a
station.
Select the radio station.
Automatic tuning
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
3
4
Press SYSTEM MENU.
Press X/x repeatedly until “MEMORY”
appears in the front panel display, then
press
or c.
A preset number appears in the front panel
display.
39GB
5
Press X/x to select the preset number
you want.
1
2
3
Tip
• You can select the preset number directly by
pressing the number buttons.
6
Press
8
Press D.TUNING.
Press the number buttons to select the
frequencies.
Press
.
.
“COMPLETE” appears in the front panel
display, and the station is stored.
7
4
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
Repeat Steps 2 to 6 to store other
stations.
Using the Radio Data
System (RDS)
Press SYSTEM MENU.
(European and Russian models only)
The system menu turns off.
To change the preset number
Select the desired preset number by pressing
PRESET +/–, then perform the procedure from
Step 3.
Selecting the preset station
1
Press FUNCTION repeatedly until
“TUNER FM” appears in the front panel
display.
What is the Radio Data
System?
The Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features, such as station name display.
The station name appears on the TV screen as
well.
The last received station is tuned in.
2
Press PRESET +/– repeatedly to select
the preset station.
The preset number and frequency appear on
the TV screen and front panel display.
Each time you press the button, the system
tunes in one preset station.
Tip
• You can select the preset station number directly
by pressing the number buttons.
Selecting a radio station by
inputting a frequency directly
When you know the frequencies, you can select
radio stations by inputting the frequencies
directly.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name* appears in the front
panel display.
* If an RDS broadcast is not received, the station
name may not appear in the front panel display.
Note
• RDS may not work properly if the station you are
tuned to is not transmitting the RDS signal properly,
or if the signal strength is weak.
• Not all FM stations provide RDS service, nor do they
provide the same type of services. If you are not
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Tip
• While receiving an RDS broadcast and pressing
DISPLAY, you can change between the station name
and frequency in the front panel display.
40GB
Note
External Audio Device
Using an S-AIR Product
When you purchase the S-AIR product, you
need to perform the following settings to
activate wireless transmission.
About S-AIR products
• When you insert the wireless transmitter/transceiver,
make sure that the AC power cord (mains lead) is not
connected to a wall outlet (mains).
• Do not touch the terminals of the wireless transmitter/
transceiver.
To insert the wireless transmitter
into the unit
1
There are two types of S-AIR product.
• S-AIR main unit (this unit): This is for
transmitting sound. You can use up to three
S-AIR main units. (The number of usable
S-AIR main units depends on the use
environment.)
• S-AIR sub unit: This is for receiving sound.
– Surround amplifier (optional): You
can enjoy surround speaker sound
wirelessly.
– S-AIR receiver (optional): You can
enjoy system sound in another room.
Rear of the unit
EZW-T100
-T1
EZW
00
External Audio Device
Room A
Remove the screws directly below the
mark.
Note
S-AIR main unit
• Remove the screws that are indicated in the
illustration. Do not remove other screws.
2
Insert the wireless transmitter.
Rear of the unit
EZW-T100
S-AIR sub unit
(surround amplifier)
Room B
0
-T10
EZW
S-AIR sub unit
(S-AIR receiver)
(not supplied)
Inserting the wireless
transmitter/transceiver
To make use of the S-AIR function, you need to
insert the wireless transmitter into the unit and
the wireless transceiver into the S-AIR sub unit.
Note
• Insert the wireless transmitter with the S-AIR
logo facing up.
• Insert the wireless transmitter so that the V
marks are aligned.
• Do not insert anything other than the wireless
transmitter into the EZW-T100 slot.
41GB
3
Make sure to use the same screws to
secure the wireless transmitter.
3
4
Rear of the unit
5
EZW-T100
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
6
7
Press X/x to select [ID], then press
.
Press X/x to select the desired ID.
You can select any ID (A, B, or C).
0
-T10
EZW
8
Press
.
The setting is made.
9
Note
• Do not use other screws to fasten the wireless
transmitter.
Set the S-AIR sub unit to the same ID.
Wireless transmission is activated as
follows (example):
ID A
To insert the wireless
transceiver into the S-AIR sub
unit
For details on installing the wireless transceiver
into the S-AIR sub unit, such as a surround
amplifier or S-AIR receiver, see the operating
instructions of the S-AIR sub unit.
ID A
ID A
Tip
• When you change the S-AIR configuration, Sony
recommends that you perform [Auto Calibration].
For details, see “Calibrating the Appropriate Settings
Automatically” (page 48).
Setting the S-AIR ID to activate
wireless transmission
For the surround amplifier
For the S-AIR receiver
Simply by matching the ID of the unit and the
S-AIR sub unit, you can activate wireless
transmission.
To set the ID of the unit
1
Press "/1 on the unit.
The system turns on.
2
Press HOME.
The home menu appears on the TV screen.
42GB
To set the ID of the surround
amplifier
Refer to the operating instructions of the
surround amplifier.
To set the ID of the S-AIR
receiver
Refer to the operating instructions of the S-AIR
receiver.
To enjoy a 7.1 channel system
You can enjoy the more realistic surround sound
effect of 7.1 channels when you use the Wireless
Surround Speaker Kit (WAHT-SBP2, optional).
For details, refer to the operating instructions of
the Wireless Surround Speaker Kit.
In this case, set [Surround Back] in [Speaker
Settings] to [Yes] (page 49).
Enjoying the system’s sound in
another room
For the S-AIR receiver
Enjoying the S-AIR receiver
while the unit is in standby
mode
For the S-AIR receiver
You can enjoy the system’s sound in another
room by using the S-AIR receiver.
1
Press HOME.
The home menu appears on the TV screen.
4
Press C/c to select
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
5
6
Press X/x to select [Mode], then press
.
Press
8
2
3
4
When you select [Separate] in Step 6,
press S-AIR CH on the S-AIR receiver
to select the function.
The S-AIR receiver’s function changes as
follows.
“MAIN UNIT” t “TUNER FM” t
“AUDIO” t …
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
5
6
Press X/x to select [Standby], then
press
.
Press X/x to select the desired setting.
• [On]: You can enjoy the S-AIR receiver
while the unit is in standby mode or turned
on. The power consumption during
standby mode increases.
• [Off]: You cannot enjoy the S-AIR
receiver while the unit is in standby mode.
.
The setting is made.
Press HOME.
The home menu appears on the TV screen.
Press X/x to select the desired setting.
• [Party]: The S-AIR receiver outputs
sound according to functions set on the
unit.
• [Separate]: You can set the desired
function for the S-AIR receiver while unit
functions do not change.
7
1
[Setup].
External Audio Device
2
3
You can enjoy the S-AIR receiver while the unit
is in standby mode by setting [Standby] to [On].
7
Press
.
The setting is made.
Note
• When you turn the system off while [Standby] is set
to [On], “S-AIR” flashes (when wireless transmission
between the unit and S-AIR receiver is not activated),
or lights up (when wireless transmission between the
unit and S-AIR receiver is activated) in the front
panel display.
To enjoy the same function as the unit,
select “MAIN UNIT.”
9
Adjust the volume on the S-AIR
receiver.
43GB
Identifying the unit with a
specific S-AIR sub unit
(Pairing operation)
Refer to the operating instructions of the
S-AIR receiver.
9
The unit starts pairing.
The PAIRING indicator of the surround
amplifier flashes when pairing starts.
When wireless transmission is activated,
the PAIRING indicator of the surround
amplifier turns on.
To cancel pairing, select [Cancel].
For the surround amplifier
For the S-AIR receiver
When using S-AIR products, neighbors may
also receive your system’s sound if IDs are the
same, or you may receive sound from neighbors.
To prevent this, you can identify the unit with a
specific S-AIR sub unit by performing the
pairing operation.
When you perform pairing, wireless
transmission is activated between the paired
main unit and S-AIR sub unit only.
1
2
To cancel pairing
Match the IDs of the unit and the S-AIR
sub unit.
Change the ID of the main and sub unit
(page 42).
Press HOME.
The home menu appears on the TV screen.
4
5
6
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
7
8
Note
• Perform pairing within several minutes of Step
9. If you do not, [Pairing failed. Retry?] appears
on the TV screen. To continue pairing, select
[OK] and press , then start again from Step 8.
To cancel pairing, select [Cancel].
Place the S-AIR sub unit that you want
to pair near the unit.
• To set the ID of the unit, see “To set the ID
of the unit” (page 42).
• To set the ID of the surround amplifier,
refer to the operating instructions of the
surround amplifier.
• To set the ID of the S-AIR receiver, refer
to the operating instructions of the S-AIR
receiver.
3
Press X/x to select [Pairing], then
press
.
Start pairing of the S-AIR sub unit.
If wireless transmission is
unstable
For the surround amplifier
For the S-AIR receiver
If you use multiple wireless systems, such as
wireless LAN or Bluetooth, the transmission of
S-AIR signals or other wireless signals may be
unstable. In this case, the transmission may be
improved by changing the following [RF
Change] setting.
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [S-AIR Settings],
then press
.
The [S-AIR Settings] display appears.
x For the surround amplifier
44GB
Press C/c to select [Start], then press
.
Refer to the operating instructions of the
surround amplifier.
5
x For the S-AIR receiver
6
Press X/x to select [RF Change], then
press
.
Press X/x to select the desired setting,
then press
.
• [Auto]: Normally select this. The system
changes [RF Change] to [On] or [Off]
automatically.
• [On]: The system transmits sound by
searching for the better channel for
transmitting.
• [Off]: The system transmits sound by
fixing the channel for transmitting.
7
Press
.
The setting is made.
8
Note
• In most cases, you will not need to change this
setting.
– If [RF Change] is set to [Off], transmission
between the unit and S-AIR sub unit can be
performed using one of the following channels.
– S-AIR ID A: equivalent channel for IEEE
802.11b/g channel 1
– S-AIR ID B: equivalent channel for IEEE
802.11b/g channel 6
– S-AIR ID C: equivalent channel for IEEE
802.11b/g channel 11
• The transmission may be improved by changing the
transmission channel (frequency) of the other
wireless system(s). For details, refer to the operating
instructions of the other wireless system(s).
External Audio Device
When you set [RF Change] to [Off],
select the ID so that wireless
transmission is most stable (page 42).
45GB
Other Operations
Using the Control for
HDMI Function for
“BRAVIA” Sync
This function is available on TVs with the
“BRAVIA” Sync function.
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cable, operation is simplified as
below:
– System Power Off (page 47)
– One-Touch Play (page 47)
– Theatre Mode (page 47)
– System Audio Control (page 47)
– Volume Limit (page 47)
– Audio Return Channel (page 47)
– Remote Easy Control (page 48)
– Language Follow (page 48)
Control for HDMI is a mutual control function
standard used by CEC (Consumer Electronics
Control) for HDMI (High-Definition
Multimedia Interface).
The Control for HDMI function will not work
when you connect this system to a component
which is not compatible with the Control for
HDMI function.
There are convenient buttons on the system’s
remote for operating the TV, such as
THEATRE, ONE-TOUCH PLAY, and TV "/1.
For details, see “Remote control” (page 11) and
refer to the operating instructions of the TV.
ONE-TOUCH
THEATRE PLAY
TV
2
Preparing for the Control for
HDMI function
(Control for HDMI - Easy Setting)
If your TV is compatible with the Control for
HDMI - Easy Setting function, you can set the
system’s [Control for HDMI] function
automatically by setting the TV. For details,
refer to the operating instructions of the TV.
If the TV is not compatible with the Control for
HDMI - Easy Setting function, set the Control
for HDMI function of the system and TV
manually.
Note
• For details on setting the TV, refer to the operating
instructions of the TV.
1
2
3
Make sure that the system and the TV
are connected with an HDMI cable.
Turn on the TV and press [/1 to turn on
the system.
Set the Control for HDMI function of the
system and TV.
The Control for HDMI function for the
system and TV is simultaneously set to on.
To set the [Control for HDMI]
function of the system to on/off
manually
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
BRAVIA Sync
1
• The Control for HDMI function may not work if you
connect other than a Sony component, even if the
component is compatible with the Control for HDMI
function.
3
Press C/c to select
[Setup].
Press X/x to select [System Settings],
then press
.
Press X/x to select [HDMI Settings],
then press
.
The [HDMI Settings] display appears.
Note
• Depending on the connected component, the Control
for HDMI function may not work. Refer to the
operating instructions supplied with the component.
46GB
5
Press X/x to select [Control for HDMI],
then press
.
6
Press X/x to select the setting, then
press
.
• [On]: On.
• [Off]: Off.
Turning the system off in sync
with the TV
(System Power Off)
When you turn the TV off by using the POWER
button on the TV’s remote or TV "/1 on the
system’s remote, the system turns off
automatically.
Note
Watching BD/DVD by a single
button press
(One-Touch Play)
Press ONE-TOUCH PLAY.
The system and your TV turn on, your TV’s
input is set to the HDMI input to which the
system is connected, and the system starts
playing a disc automatically.
The System Audio Control function is also
activated automatically.
Also, when you insert a disc, One-Touch Play is
enabled. If One-Touch Play does not start (in the
case of inserting a disc that is not compatible
with the auto playback function), press
FUNCTION repeatedly to select “BD/DVD”
and press N or ONE-TOUCH PLAY.
Using the Theatre Mode
(Theatre Mode)
Press THEATRE.
If your TV is compatible with the Theatre Mode,
you can enjoy optimal image and sound quality
suited for movies, and the System Audio Control
function is activated automatically.
(System Audio Control)
You can simplify operation to enjoy TV sound
via this system.
To use this function, connect the system and the
TV with an audio cord and an HDMI cable
(pages 20, 21).
You can use the System Audio Control function
as follows:
• When the system is turned on, TV sound can
be output from the speakers of the system.
• When TV sound is output from the speakers of
the system, you can change the output method
to the speakers of the TV via the TV menu.
• When TV sound is output from the speakers of
the system, you can adjust the volume and turn
off the sound of the system using the TV
remote.
Other Operations
• This function depends on the settings of your TV. For
details, refer to the operating instructions of the TV.
Enjoying TV sound from the
speakers in this system
Note
• While the TV is in PAP (picture and picture) mode,
the System Audio Control function will not work.
• Depending on the TV, when you adjust the unit's
volume, the volume level appears on the TV screen.
In this case, the volume level that appears on the TV
screen and the unit's front panel display may differ.
Setting the Maximum Volume
Level of the System
(Volume Limit)
When the System Audio Control function is
activated, loud sound may be output depending
on the volume level of the system. You can
prevent this by limiting the maximum level of
the volume. For details, see [Volume Limit]
(page 56).
Receiving the digital audio
signal of the TV
(Audio Return Channel)
The system can receive the digital audio signal
of the TV via an HDMI cable when your TV is
47GB
compatible with the Audio Return Channel
function. You can enjoy TV sound via the
system by using just one HDMI cable. For
details, see [Audio Return Channel] (page 56).
4
Press X/x to select [Auto Calibration],
then press
.
The confirmation display for [Auto
Calibration] appears.
5
Operating the system via the
TV remote
Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
Set up the calibration mic at ear level using
a tripod, etc. (not supplied). The front of
each speaker should face the calibration
mic, and there should be no obstruction
between the speakers and the calibration
mic.
(Remote Easy Control)
You can control the basic functions of the
system via the TV remote when the system’s
video output is displayed on the TV screen. For
details, refer to the operating instructions of the
TV.
Changing the language for the
on-screen display of the TV
MIC
A. CAL
C2
ECM-A
(Language Follow)
When you change the language for the on-screen
display of the TV, the system’s on-screen
display language is also changed after turning
the system off and on.
Calibration mic
Calibrating the
Appropriate Settings
Automatically
[Auto Calibration]
D. C. A. C. (Digital Cinema Auto Calibration)
can set the appropriate surround sound
automatically.
6
Note
7
• The system outputs a loud test sound when [Auto
Calibration] starts. You cannot turn the volume
down. Give consideration to children and neighbors.
1
Press HOME.
The home menu appears on the TV screen.
2
3
48GB
Press C/c to select
Press X/x to select [OK].
To cancel, select [Cancel].
Press
.
[Auto Calibration] starts.
The system adjusts the speaker settings
automatically.
Be quiet during the measurement.
Note
[Setup].
Press X/x to select [Audio Settings],
then press
.
• Before [Auto Calibration], make sure that the
surround amplifier turns on and you install the
surround amplifier in the appropriate location. If
you install the surround amplifier in an improper
location, such as another room, proper
measurement will not be obtained.
• When you use the Wireless Surround Speaker
Kit (WAHT-SBP2, optional) for the surround
back speakers (page 14), install the speakers in
appropriate location and turn the surround
amplifier on. To use the surround back speakers,
set [Surround Back] in [Speaker Settings] to
[Yes] (page 49)
8
Confirm the conclusions of [Auto
Calibration].
The speakers connected to the unit are listed
as [Yes] on the TV screen.
1
Press HOME.
The home menu appears on the TV screen.
2
3
4
Press C/c to select
[Setup].
Press X/x to select [Audio Settings],
then press
.
Press X/x to select [Speaker Settings],
then press
.
The [Speaker Settings] display appears.
5
Press X/x to select the item, then press
.
Check the following settings.
Note
9
Press X/x to select [OK] or [Cancel],
then press
.
x The measurement is OK.
Disconnect the calibration mic, then select
[OK]. The result is implemented.
x [Connection]
If you do not connect center or surround
speakers, set the parameters for [Center] and
[Surround]. Since the front speaker and
subwoofer settings are fixed, you cannot change
them.
When you use the Wireless Surround Speaker
Kit (WAHT-SBP2, optional) for the surround
back speakers (page 14), set [Surround Back]
also.
[Front]
x The measurement is not OK.
[Yes]
Follow the message, then select [OK] to
retry.
[Center]
Note
• While the Auto Calibration function works:
– do not turn off the power.
– do not press any button.
– do not change the volume.
– do not change the function.
– do not change the disc.
– do not insert a disc.
– do not disconnect the calibration mic.
Setting the Speakers
Other Operations
• If measurement fails, follow the message then
retry [Auto Calibration].
• The measurement for [Subwoofer] is always
[Yes] and [Speaker Settings] returns to the
default setting when you perform [Auto
Calibration].
[Yes]: Normally select this.
[None]: Select this if no center speaker is used.
[Surround]
[Yes]: Normally select this.
[None]: Select this if no surround speaker is
used.
[Surround Back]
[Yes]: Select this if surround back speakers are
used.
[None]: Select this if no surround back speakers
is used.
[Subwoofer]
[Yes]
[Speaker Settings]
x [Distance]
To obtain the best possible surround sound, set
connection of the speakers and their distance
from your listening position. Then use the test
tone to adjust the level and the balance of the
speakers to the same level.
When you move the speakers, be sure to set the
parameters of the distance (A) from the
listening position to the speakers.
You can set the parameters from 0.0 to 7.0
meters.
49GB
The speakers in the illustration correspond to the
following:
1Center speaker
2Front left speaker (L)
3Front right speaker (R)
4Subwoofer
5Surround left speaker (L)
6Surround right speaker (R)
7Surround back left speaker (L) (optional)
8Surround back right speaker (R) (optional)
1
2
3
4
A
5
6
[Surround Back Left/Right]* 0.0 dB: Set the
surround back speaker level.
[Subwoofer] 0.0 dB: Set the subwoofer level.
* This item appears when you set it to [Yes] in the
[Connection] setting.
x [Test Tone]
The speakers will emit a test tone to adjust
[Level].
[Off]: The test tone is not emitted from the
speakers.
[On]: The test tone is emitted from each speaker
in sequence while adjusting level. When you
select one of the [Speaker Settings] items, the
test tone is emitted from each speaker in
sequence.
Adjust the sound level as follows.
1
2
7
A
8
[Front Left/Right] 3.0 m: Set the front speaker
distance.
[Center]* 3.0 m: Set the center speaker distance.
[Surround Left/Right]* 3.0 m: Set the surround
speaker distance.
[Surround Back Left/Right]* 3.0 m: Set the
surround back speaker distance.
[Subwoofer] 3.0 m: Set the subwoofer distance.
* This item appears when you set it to [Yes] in the
[Connection] setting.
3
4
5
6
7
x [Level]
You can adjust the sound level of the speakers.
You can set the parameters from –6.0 dB to +6.0
dB. Be sure to set [Test Tone] to [On] for easy
adjustment.
[Front Left/Right] 0.0 dB: Set the front speaker
level.
[Center]* 0.0 dB: Set the center speaker level.
[Surround Left/Right]* 0.0 dB: Set the surround
speaker level.
50GB
Press X/x to select [Level], then press
.
Press X/x to select the desired speaker
type, then press
.
Press C/c to select the left or right
speaker, then press X/x to adjust the
level.
Press
.
Repeat Steps 3 to 5.
Press RETURN.
The system returns to the previous display.
8
Note
• Depending on the input stream, [Distance] may not
be effective.
Set [Test Tone] to [On].
9
Press X/x to select [Test Tone], then
press
.
Press X/x to select [Off], then press
.
Note
• The test tone signals are not output from the HDMI
OUT jack.
Tip
• To adjust the volume of all the speakers at one time,
press 2 +/–.
Using the Sleep Timer
You can set the system to turn off at a preset
time, so you can fall asleep listening to music.
The time can be preset in intervals of 10
minutes.
Press SLEEP.
Each time you press SLEEP, the minutes display
(the remaining time) changes by 10 minutes.
When you set the sleep timer, “SLEEP” flashes
in the front panel display.
To check the remaining time
Press SLEEP once.
Press SLEEP repeatedly to select the desired
time.
Deactivating the Buttons
on the Unit
(Child Lock)
You can deactivate the buttons on the unit
(except for "/1) for preventing misoperation,
such as child mischief (child lock function).
Press x on the unit for more than 5
seconds.
“CHILD LOCK” and “ON” appear in the front
panel display.
The child lock function is activated and the
buttons on the unit are locked. (You can operate
the system by using the remote.)
To cancel, press x for more than 5 seconds so
that “CHILD LOCK” and “OFF” appear in the
front panel display.
Note
• When you operate the buttons on the unit while the
child lock function is on, “CHILD LOCK” appears in
the front panel display.
By adjusting the remote signal, you can control
your TV with the supplied remote.
Note
• When you replace the batteries of the remote, the
code number may reset itself to the default (SONY)
setting. Reset the appropriate code number.
Preparing the remote for
controlling the TV
Press and hold TV [/1 while entering your
TV’s manufacturer’s code (see the table)
using the number buttons. Then release TV
[/1.
If the setting is unsuccessful, the currently
registered code is not changed. Re-enter the
code number.
Other Operations
To change the remaining time
Controlling Your TV with
the Supplied Remote
Code numbers of controllable TVs
If more than one code number is listed, try
entering them one at a time until you find the
code that works with your TV.
Manufacturer
Code number
SONY
01 (default)
SAMSUNG
02, 08
LG
05
PHILIPS
02, 03, 07
PANASONIC
06
TOSHIBA
04
Saving Power in Standby
Mode
Check that the following settings are made:
– [Control for HDMI] in [HDMI Settings] is set
to [Off] (page 46).
– [Standby] in [S-AIR Settings] is set to [Off]
(page 43).
– [Quick Start Mode] is set to [Off] (page 56).
51GB
Icon
Explanation
[Audio Settings] (page 54)
Settings and Adjustments
Using the Setup Display
You can make various adjustments of items such
as picture and sound.
Select
(Setup) on the home menu when you
need to change the settings of the system.
The default settings are underlined.
Note
Makes the audio settings
according to the type of
connecting jacks.
[BD/DVD Viewing Settings]
(page 55)
Makes detailed settings for BD/
DVD playback.
[Parental Control Settings]
(page 55)
Makes detailed settings for the
Parental Control function.
• Playback settings stored in the disc take priority over
the Setup Display settings and not all the functions
described may work.
[Music Settings] (page 56)
1
[System Settings] (page 56)
Press HOME.
The home menu appears on the TV screen.
2
Press C/c to select
[Setup].
Makes detailed settings for
Super Audio CD playback.
Makes the system-related
settings.
[Network Settings] (page 57)
Makes detailed settings for
Internet and network.
[Easy Setup] (page 58)
Re-runs the Easy Setup to make
the basic settings.
[Resetting] (page 58)
Resets the system to the factory
settings.
3
Press X/x to select the setup category
icon to change, then press
.
Example: [Screen Settings]
[Network Update]
You can update and improve the functions of the
system.
For information about update functions, refer to
the following website:
Setup
TV Type
Set the screen aspect ratio of your TV.
Screen Format
Original
DVD Aspect Ratio
Letter Box
Cinema Conversion Mode
Auto
You can setup the following options.
Icon
Explanation
[Network Update] (page 52)
Updates the software of the
system.
[Screen Settings] (page 53)
Makes the screen settings
according to the type of
connecting jacks.
52GB
For customers in Europe and Russia
http://support.sony-europe.com/
For customers in Asia and Australia
http://www.sony-asia.com/support
[Screen Settings]
x [3D Output Setting]
[Auto]: Normally select this.
[Off]: Select this to display all contents in 2D.
x [TV Screen Size Setting for 3D]
Sets the screen size of your 3D compatible TV.
x [Output Video Format]
[HDMI]: Normally select [Auto]. Select
[Original Resolution] to output the resolution
recorded on the disc. (When the resolution is
lower than SD resolution, it is scaled up to SD
resolution.)
[Component Video]: Select the resolution that
suits your TV.
[Video]: Automatically sets the lowest
resolution.
x [TV Type]
Note
[16:9]: Select this when connecting to a widescreen TV or a TV with a wide-mode function.
[4:3]: Select this when connecting to a 4:3
screen TV without a wide-mode function.
• When connecting the HDMI OUT jack and other
video output jacks at the same time, select
[Component Video].
• If no picture appears when setting [HDMI] or
[Component Video] resolution, try another resolution
setting.
x [Screen Format]
x [BD/DVD-ROM 1080/24p Output]
[Auto]: Outputs 1920 × 1080p/24 Hz video
signals only when connecting a 1080/24pcompatible TV using the HDMI OUT jack.
[Off]: Select this when your TV is not
compatible with 1080/24p video signals.
x [YCbCr/RGB (HDMI)]
x [DVD Aspect Ratio]
[Letter Box]: Displays a wide picture with black
bands on the top and bottom.
[Pan & Scan]: Displays a full-height picture on
the entire screen, with trimmed sides.
[Auto]: Automatically detects the type of
external device, and switches to the matching
color setting.
[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video
signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video
signals.
[RGB]: Select this when connecting to a device
with an HDCP-compliant DVI jack.
Settings and Adjustments
[Original]: Select this when connecting to a TV
with a wide-mode function. Displays a 4:3
screen picture in 16:9 aspect ratio even on a
wide-screen TV.
[Fixed Aspect Ratio]: Changes the picture size
to fit the screen size with the original picture
aspect ratio.
x [HDMI Deep Colour Output]
x [Cinema Conversion Mode]
[Auto]: Normally select this. The unit
automatically detects whether the material is
video-based or film-based, and switches to the
appropriate conversion method.
[Video]: The conversion method suited for
video-based material will always be selected
regardless of the material.
[Auto]: Normally select this.
[12bit], [10bit]: Outputs 12bit/10bit video
signals when the connected TV is compatible
with Deep Colour.
[Off]: Select this when the picture is unstable or
colors appear unnatural.
x [Pause Mode] (BD/DVD VIDEO/DVD-R/
DVD-RW only)
[Auto]: The picture, including subjects that
move dynamically, is output with no jitter.
Normally select this position.
53GB
[Frame]: The picture, including subjects that do
not move dynamically, is output in high
resolution.
[HDMI]: Outputs sound from the HDMI OUT
jack only. Sound format depends on the
connected component.
[Audio Settings]
• When you set [Audio Output] to [HDMI], the
SOUND MODE, “D.BASS,” “NIGHT MODE,” and
“SUR.SETTING” functions are disabled.
• When the System Audio Control function (page 47)
is activated, this setting may change automatically.
Note
x [BD Audio MIX Setting]
[On]: Outputs the audio obtained by mixing the
interactive audio and secondary audio to the
primary audio.
[Off]: Outputs the primary audio only. Select
this when outputting HD audio signals to an AV
receiver.
x [Audio DRC]
You can compress the dynamic range of the
sound track.
[Auto]: Performs playback at the dynamic range
specified by the disc (BD-ROM only).
[Off]: No compression of dynamic range.
[On]: The system reproduces the sound track
with the kind of dynamic range that the
recording engineer intended.
x [Attenuate - AUDIO]
Distortion may occur when you listen to a
component connected to the AUDIO (AUDIO
IN L/R) jacks. You can prevent distortion by
reducing the input level on the unit.
[On]: Attenuates the input level. The output
level is changed.
[Off]: Normal input level.
x [Audio Output]
The system cannot output multi-channel sound
from both the HDMI OUT jack and system’s
speakers simultaneously.
[Speaker]: Outputs multi-channel sound from
the system’s speakers only.
[Speaker + HDMI]: Outputs multi-channel
sound from the system’s speakers and 2-channel
linear PCM signals from the HDMI OUT jack.
54GB
x [Sound Effect]
You can set the system’s sound effects (SOUND
MODE, “D.BASS,” “NIGHT MODE,” and
“SUR.SETTING”) to on/off.
[On]: Enables all of the system’s sound effects.
The upper limit of sampling frequency is set to
48 kHz.
[Off]: The sound effects are disabled. Select this
when you do not want to set the upper limit of
sampling frequency.
x [Speaker Settings]
To obtain the best possible surround sound, set
the speakers. For details, see “Setting the
Speakers” (page 49).
x [Auto Calibration]
You can calibrate the appropriate settings
automatically. For details, see “Calibrating the
Appropriate Settings Automatically” (page 48).
[BD/DVD Viewing
Settings]
[Parental Control
Settings]
You can make detailed settings for BD/DVD
playback.
x [Password]
x [BD/DVD Menu]
You can select the default menu language for
BD-ROMs or DVD VIDEOs.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 73).
x [Audio]
x [Subtitle]
You can select the default subtitle language for
BD-ROMs or DVD VIDEOs.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 73).
x [BD Hybrid Disc Playback Layer]
[BD]: Plays BD layer.
[DVD/CD]: Plays DVD or CD layer.
x [BD Internet Connection]
[Allow]: Normally select this.
[Do not allow]: Prohibits Internet connection.
x [BD Data Storage Options]
[Internal memory]: Selects the internal memory
to store BD data.
[USB device (front)]: Selects the
(USB) port
on the front panel to store BD data.
[USB device (rear)]: Selects the
(USB) port
on the rear panel to store BD data.
x [Parental Control Area Code]
Playback of some BD-ROMs or DVD VIDEOs
can be limited according to the geographic area.
Scenes may be blocked or replaced with
different scenes. Follow the on-screen
instructions and enter your four-digit password.
x [BD Parental Control]
Playback of some BD-ROMs can be limited
according to the age of the users. Scenes may be
blocked or replaced with different scenes.
Follow the on-screen instructions and enter your
four-digit password.
x [DVD Parental Control]
Settings and Adjustments
You can select the default track language for
BD-ROMs or DVD VIDEOs.
When you select [Original], the language given
priority in the disc is selected.
When you select [Select Language Code], the
display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 73).
Set or change the password for the Parental
Control function. A password allows you to set
a restriction on BD-ROM, DVD VIDEO, or
Internet video playback. If necessary, you can
differentiate the restriction levels for BD-ROMs
and DVD VIDEOs.
Playback of some DVD VIDEOs can be limited
according to a predetermined level such as the
age of the users. Scenes may be blocked or
replaced with different scenes. Follow the onscreen instructions and enter your four-digit
password.
x [Internet Video Parental Control]
Playback of some Internet videos can be limited
according to the age of the users. Scenes may be
blocked or replaced with different scenes.
Follow the on-screen instructions and enter your
four-digit password.
x [Internet Video Unrated]
[Allow]: Allows the playback of unrated
Internet videos.
[Block]: Blocks the playback of unrated Internet
videos.
55GB
[Music Settings]
You can make detailed settings for Super Audio
CD playback.
x [Super Audio CD Playback Layer]
[Super Audio CD]: Plays the Super Audio CD
layer.
[CD]: Plays the CD layer.
x [Super Audio CD Playback Channels]
[DSD 2ch]: Plays the 2ch area.
[DSD Multi]: Plays the multi-channel area.
[System Settings]
You can make the system-related settings.
x [OSD]
You can select your language for the system onscreen displays.
x [S-AIR Settings]
You can set up the S-AIR settings. For details,
see “Using an S-AIR Product” (page 41).
[ID]: You can set the ID of the system.
[Pairing]: You can pair the system and S-AIR
sub unit, such as a surround amplifier or S-AIR
receiver.
[RF Change]: If wireless transmission is
unstable, set this function.
[Mode]: You can enjoy the system’s sound in
another room.
[Standby]: You can enjoy the S-AIR receiver
while the unit is in standby mode.
[Audio Return Channel]
This function is available when you connect the
system and TV that is compatible with the Audio
Return Channel function.
[Auto]: The system can receive the digital audio
signal of the TV automatically via an HDMI
cable.
[Off]: Off.
Note
• This function is available only when [Control for
HDMI] is set to [On].
[Volume Limit]
When the System Audio Control (page 47) is
activated, loud sound may be output depending
on the volume level of the system. You can
prevent this by limiting the maximum level of
the volume when the System Audio Control
function activates.
[Level3]: Maximum volume level is set to 10.
[Level2]: Maximum volume level is set to 15.
[Level1]: Maximum volume level is set to 20.
[Off]: Off.
Note
• This function is available only when [Control for
HDMI] is set to [On].
x [Quick Start Mode]
x [Dimmer]
[On]: Shortens the startup time from standby
mode. You can operate the system quickly after
turning it on.
[Off]: The default setting.
[Bright]: Bright lighting.
[Dark]: Low lighting.
x [Auto Standby]
x [HDMI Settings]
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cable, operation is simplified.
For details, see “Using the Control for HDMI
Function for “BRAVIA” Sync” (page 46).
56GB
[Control for HDMI]
You can set the [Control for HDMI] function to
on/off.
[On]: On. You can operate mutually between
components that are connected with an HDMI
cable.
[Off]: Off.
[On]: Turns on the [Auto Standby] function.
When you do not operate the system for about
30 minutes, the system enters standby mode
automatically.
[Off]: Turns off the function.
x [Auto Display]
x [System Information]
[On]: Automatically displays information on the
screen when changing the viewing titles, picture
modes, audio signals, etc.
[Off]: Displays information only when you
press DISPLAY.
You can display the system’s software version
information and the MAC address.
[Network Settings]
x [Screen Saver]
[On]: Turns on the screen saver function.
[Off]: Off.
You can make detailed settings for Internet and
network.
x [Software Update Notification]
x [Internet Settings]
[On]: Sets the system to inform you of newer
software version information (page 52).
[Off]: Off.
Connect the system to the network beforehand.
For details, see “Connecting to the network”
(page 24).
x [Gracenote Settings]
For more information, go to
x [DivX® VOD]
For customers in Europe and Russia
http://support.sony-europe.com/
You can display the registration or
deregistration code for this system, or deregister
this system after registration.
For customers in Asia and Australia
http://www.sony-asia.com/support
Settings and Adjustments
[Auto]: Automatically downloads disc
information when you stop playback of the disc.
To download, the system must be connected to
the network.
[Manual]: Downloads disc information when
you select [Playback History] or [Information
Display] in the options menu.
[View Network Status]: Displays the current
network status.
[Wired Setup]: Select this when you connect to
a broadband router directly.
[USB Wireless Setup]: Select this when you use
a USB Wireless LAN Adapter.
When the registration is disabled
[Registration Code]: The registration code is
displayed.
[Deregistration Code]: The deregistration code
is displayed. (This item can be selected only
after the registration code is displayed.)
When the registration is enabled
Press C/c to select [OK] or [Cancel], then
press
.
[OK]: The device is deregistered and the
deregistration code is displayed.
[Cancel]: The system returns to the previous
display.
For more information, go to
http://www.divx.com on the Internet.
x [Network Connection Diagnostics]
You can run the network diagnostic to check if
the network connection has been made properly.
x [Connection Server Settings]
Sets whether or not to display the connected
DLNA server.
x [Renderer Options]
[Automatic Access Permission]: Sets whether or
not to allow automatic access from newly
detected DLNA controller.
[Smart Select]: Allows a Sony DLNA controller
to find the system as the target component to
operate by using the infrared ray. You can set
this function to on or off.
57GB
[Renderer Name]: Displays the system’s name
as it is listed on other DLNA devices on the
network.
x [Party Auto Start]
[On]: Starts a party or joins an existing party at
the request of a networked device compatible
with the PARTY STREAMING function.
[Off]: Off.
x [BD Remote Device Registration]
Registers your “BD remote” device.
x [Registered BD Remote Devices]
Displays a list of your registered “BD remote”
devices.
[Easy Setup]
Re-runs the Easy Setup to make the basic
settings. Follow the on-screen instructions.
[Resetting]
x [Reset to Factory Default Settings]
You can reset the system settings to the factory
default by selecting the group of settings. All the
settings within the group will be reset.
x [Initialize Personal Information]
You can erase your personal information stored
in the system.
58GB
On operation
Additional Information
Precautions
On safety
• To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the system, or
place the system near water, such as near a bathtub or
shower room. Should any solid object or liquid fall
into the cabinet, unplug the system and have it
checked by qualified personnel before operating it
any further.
• Do not touch the AC power cord (mains lead) with
wet hands. Doing so may cause an electric shock.
On power sources
• Unplug the unit from the wall outlet (mains) if you do
not intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
• Place the system in a location with adequate
ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet
becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do
not place the system in a confined space where
ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything
on the system. The system is equipped with a high
power amplifier. If the ventilation slots are blocked,
the system can overheat and malfunction.
• Do not place the system on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that may
block the ventilation slots.
• Do not install the system in a confined space, such as
a bookshelf or similar unit.
• Do not install the system near heat sources such as
radiators, air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration, or
shock.
• Do not install the system in an inclined position. It is
designed to be operated in a horizontal position only.
• Keep the system and discs away from components
with strong magnets, such as microwave ovens, or
large loudspeakers.
• Do not place heavy objects on the system.
On adjusting volume
• Do not turn up the volume while listening to a section
with very low level inputs or no audio signals. If you
do, the speakers may be damaged when a peak level
section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any questions or problems concerning
your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens
cleaners
• Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may cause
the apparatus to malfunction.
Additional Information
On placement
• If the system is brought directly from a cold to a warm
location, or is placed in a very damp room, moisture
may condense on the lenses inside the unit. Should
this occur, the system may not operate properly. In
this case, remove the disc and leave the system turned
on for about half an hour until the moisture
evaporates.
• When you move the system, take out any disc. If you
do not, the disc may be damaged.
• If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
On replacement of parts
• In the events that this system is repaired, repaired
parts may be collected for reuse or recycling
purposes.
On your TV’s color
• If the speakers should cause the TV screen to have
color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist,
place the speakers further away from the TV set.
IMPORTANT NOTICE
Caution: This system is capable of holding a still
video image or on-screen display image on your
television screen indefinitely. If you leave the still
video image or on-screen display image displayed
on your TV for an extended period of time you risk
permanent damage to your television screen.
Projection televisions are especially susceptible to
this.
59GB
On moving the system
• Before moving the system, make sure that there is no
disc inserted, and remove the AC power cord (mains
lead) from the wall outlet (mains).
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning
cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.
This system can only play a standard circular
disc. Using neither standard nor circular discs
(e.g., card, heart, or star shape) may cause a
malfunction.
Do not use a disc that has a commercially
available accessory attached, such as a label or
ring.
60GB
Troubleshooting
If you experience any of the following difficulties while using the system, use this troubleshooting
guide to help remedy the problem before requesting repairs. Should any problem persist, consult your
nearest Sony dealer.
Note that if service personnel changes some parts during repair, these parts may be retained.
In the event of a problem with the S-AIR function, have a Sony dealer check the entire system together
(S-AIR main unit and sub unit).
Power
Symptom
Problems and solutions
The power is not turned on.
• Check that the AC power cord (mains lead) is connected securely.
“PROTECTOR” and “PUSH
POWER” appear alternately in
the front panel display.
Press "/1 to turn off the system, and check the following items after
“STANDBY” disappears.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the system?
• After checking the above items and fixing any problems, turn on the system. If
the cause of the problem cannot be found even after checking all the above
items, consult your nearest Sony dealer.
Symptom
Problems and solutions
The remote does not function.
• The distance between the remote and the unit is too far.
• The batteries in the remote are weak.
• When you cannot perform menu operations via the front panel display, press
HOME on the remote.
The system does not work
normally.
• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then
reconnect after several minutes.
Additional Information
General
Symptom
Problems and solutions
There is no picture.
• Check the video connection (page 20).
• The unit is not connected to the correct TV input jack (page 20).
• The video input on the TV is not set so that you can view pictures from the
system.
• Check the output method on your system (page 20).
• The unit is connected to an input device that is not HDCP (High-bandwidth
Digital Content Protection) compliant (“HDMI” on the front panel does not
light up) (page 20).
• When playing a double-layer DVD, the video and audio may be momentarily
interrupted at the point where the layers switch.
No picture appears when the
• Press and hold N and VOLUME – on the unit for more than 5 seconds to reset
video output resolution selected the video output resolution to the lowest resolution.
in [Output Video Format] is
incorrect.
61GB
Symptom
Problems and solutions
Video signals are only output
• Set [Output Video Format] in [Screen Settings] to [Component Video]
from the HDMI OUT jack when (page 53).
connecting the HDMI OUT jack
and other video output jacks at
the same time.
The dark area of the picture is too • Set [Picture Quality Mode] to [Standard] (default) (page 34).
dark/the bright area is too bright
or unnatural.
The picture is not output
correctly.
• Check the [Output Video Format] settings in [Screen Settings] (page 53).
• If the analog and digital signals are output at the same time, set [BD/DVDROM 1080/24p Output] in [Screen Settings] to [Off] (page 53).
• For BD-ROMs, check the [BD/DVD-ROM 1080/24p Output] settings in
[Screen Settings] (page 53).
Picture noise appears.
• The disc is dirty or flawed.
• If the picture output from your system goes through your VCR to get to your
TV, the copy-protection signal applied to some BD/DVD programs could affect
picture quality. If you still experience problems even when you connect your
unit directly to your TV, try connecting your unit to the other input jacks.
Even though you set the aspect • The aspect ratio on the disc is fixed.
ratio in [TV Type] of [Screen
Settings], the picture does not fill
the TV screen.
Color irregularity occurs on the
TV screen.
• If the speakers are used with a CRT-based TV or projector, install the speakers
at least 0.3 meters from the TV set.
• If the color irregularity persists, turn off the TV set once, then turn it on after 15
to 30 minutes.
• Make sure that no magnetic object (magnetic latch on a TV stand, health care
device, toy, etc.) is placed near the speakers.
Sound
62GB
Symptom
Problems and solutions
There is no sound.
• The speaker cord is not connected securely.
• Check the speaker settings (page 49).
• Fast forward or fast reverse is performed. Press N to return to normal play
mode.
• Slow forward or freeze frame is performed. Press N to return to normal play
mode.
No sound is output from the
HDMI OUT jack.
• Set [Audio Output] to [HDMI] (page 54).
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
There is no sound from the
subwoofer.
• Check the speaker connections and settings (pages 19, 49).
Symptom
Problems and solutions
There is no digital sound from
• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]
the HDMI OUT jack when using (page 56). Also, set [Audio Return Channel] in [HDMI Settings] of [System
the Audio Return Channel
Settings] to [Auto] (page 56).
function.
• Make sure that your TV is compatible with the Audio Return Channel function.
• Make sure that an HDMI cable is connected to a jack on your TV that is
compatible with the Audio Return Channel function.
• The sampling frequency of the input stream is more than 48 kHz.
The system does not output
• Set [Audio Return Channel] in [HDMI Settings] of [System Settings] to [Off]
sound correctly when connected (page 47).
to a set-top box.
Severe hum or noise is heard.
• Check that the connecting cords are away from a transformer or motor, and at
least 3 meters away from your TV set or a fluorescent light.
• Move your TV away from the audio components.
• Clean the disc.
The sound loses stereo effect
when you play a CD.
• Select stereo sound by pressing
(page 36).
The sound comes from the center • Depending on the disc, the sound may come from the center speaker only.
speaker only.
No sound is heard from the
center speaker.
• Check the speaker connections and settings (pages 19, 49).
• Check the surround setting (page 27).
• Depending on the source, the effect of the center speaker may be less
noticeable.
• A 2 channel source is being played.
No sound or only a very lowlevel sound is heard from the
surround speakers.
• Check the speaker connections and settings (pages 19, 49).
• Check the surround setting (page 27).
• Depending on the source, the effect of the surround speakers may be less
noticeable.
• A 2 channel source is being played.
Additional Information
The surround effect is difficult to • Check the surround setting (page 27).
hear when you are playing a
• Check the speaker connections and settings (pages 19, 49).
sound track of Dolby Digital,
• Depending on the BD/DVD, the output signal may not be the entire 5.1 channel.
DTS, or MPEG audio.
It may be monaural or stereo even if the sound track is recorded in Dolby
Digital or MPEG audio format.
The beginning of the sound is cut • Set the sound mode to “MOVIE” or “MUSIC” (page 36).
off.
• Select “A.F.D. STD” for “SUR.SETTING” (page 27).
The sound effects are disabled.
• The effects of SOUND MODE, “D.BASS,” “NIGHT MODE,” and
“SUR.SETTING” may be disabled depending on the input stream (page 54).
Distortion occurs in the sound of • Reduce the input level for the connected component by setting [Attenuate a connected component.
AUDIO] (page 54).
Operation
Symptom
Problems and solutions
Radio stations cannot be tuned
in.
• Check that the antenna (aerial) is connected securely. Adjust the antenna
(aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic
tuning). Use direct tuning.
63GB
Symptom
Problems and solutions
The disc does not play.
• You are attempting to play a disc with a format that cannot be played back by
this system (page 68).
• The region code on the BD/DVD does not match the system.
• Moisture has condensed inside the unit and may cause damage to the lenses.
Remove the disc and leave the unit turned on for about half an hour.
• The system cannot play a recorded disc that is not correctly finalized (page 68).
File names are not displayed
correctly.
• The system can only display ISO 8859-1-compliant character formats. Other
character formats may be displayed differently.
• Depending on the writing software used, the input characters may be displayed
differently.
A disc does not start playing
from the beginning.
• Resume play has been selected. Press OPTIONS and select [Play from start],
then press .
• The title or BD/DVD menu automatically appears on the TV screen.
Playback does not start from the • The resume point may be cleared from memory depending on the disc when
resume point where you last
– you open the disc tray.
stopped playing.
– you disconnect the USB device.
– you play other content.
– you turn off the unit.
The system starts playing the
disc automatically.
• The BD/DVD features an auto playback function.
Playback stops automatically.
• Some discs may contain an auto pause signal. While playing such a disc, the
system stops playback at the auto pause signal.
You cannot perform some
• Depending on the disc, you may not be able to perform some of the operations.
functions such as stop or search. Refer to the operating instructions supplied with the disc.
Messages do not appear on the
TV screen in the language you
want.
• In the Setup Display, select the desired language for the on-screen display in
[OSD] in [System Settings] (page 56).
The language for the soundtrack/ • Try using the BD’s or DVD’s menu.
subtitle or angles cannot be
• Multi-lingual tracks/subtitles or multi-angles are not recorded on the BD or
changed.
DVD being played.
• The BD or DVD prohibits the changing of the language for the sound track/
subtitle or angles.
The disc tray does not open and • Try the following: 1 Press and hold N and Z on the unit for more than 5
you cannot remove the disc even seconds to open the disc tray. 2 Remove the disc. 3 Disconnect the AC power
after you press Z.
cord (mains lead) from the wall outlet (mains), then reconnect after several
minutes.
A disc cannot be ejected and
• Contact your Sony dealer or local authorized Sony service facility.
“LOCKED” appears in the front
panel display.
64GB
Symptom
Problems and solutions
The Control for HDMI function • Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]
does not work.
(page 56).
• Make sure that the connected component is compatible with the [Control for
HDMI] function.
• Check the connected component’s setting for the Control for HDMI function.
Refer to the operating instructions supplied with the component.
• If you change the HDMI connection, connect and disconnect the AC power
cord (mains lead), or have a power failure, set [Control for HDMI] in [HDMI
Settings] of [System Settings] to [Off], then set [Control for HDMI] to [On]
(page 56).
• For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 46).
No sound is output from the
• Make sure that the connected TV is compatible with the System Audio Control
system and TV while using the
function.
System Audio Control function. • For details, see “Using the Control for HDMI Function for “BRAVIA” Sync”
(page 46).
Bonus contents or other data that • Try the following: 1 Remove the disc. 2 Turn the system off. 3 Remove and
are contained in a BD-ROM
reconnect the USB device (page 30). 4 Turn the system on. 5 Insert the BDcannot be played.
ROM with BONUSVIEW/BD-LIVE.
The system menu does not work. • Press HOME on the remote.
USB device
Symptom
Problems and solutions
The USB device is not
recognized.
• Try the following: 1 Turn the system off. 2 Remove and reconnect the USB
device. 3 Turn the system on.
• Make sure that the USB device is securely connected to the
(USB) port.
• Check if the USB device or a cable is damaged.
• Check if the USB device is on.
• If the USB device is connected via a USB hub, disconnect it and connect the
USB device directly to the unit.
Additional Information
The unit does not work and
• Set the child lock function to off (page 51).
“CHILD LOCK” appears in the
front panel display when you
press any button on the unit.
65GB
S-AIR
Symptom
Problems and solutions
There is no sound from the
S-AIR sub unit, noise is heard
from the S-AIR sub unit, or
sound from the S-AIR sub unit
skips.
• If you use another S-AIR main unit, place it more than 8 meters away from the
unit.
• Place the S-AIR main unit and S-AIR sub unit closer together.
• Avoid use of equipment that generates electromagnetic energy, such as a
microwave oven.
• Place the S-AIR main unit and S-AIR sub unit away from other wireless
products.
• See “If wireless transmission is unstable” (page 44).
• Change the S-AIR ID settings of the S-AIR main unit and S-AIR sub unit.
• Turn off the system and S-AIR sub unit, then turn them on.
BRAVIA Internet Video
Symptom
Problems and solutions
The picture/sound is poor/certain • Picture/sound quality may be poor depending on Internet content providers.
programs display with a loss of • Picture/sound quality may be improved by changing the connection speed.
detail, especially during fastSony recommends a connection speed of at least 2.5 Mbps for standardmotion or dark scenes.
definition video and 10 Mbps for high-definition video.
• Not all videos contain sound.
The picture is small.
• Press X to zoom in.
Network connection
Symptom
Problems and solutions
The system cannot connect to the • Check the network connection (page 24) and the network settings (page 57).
network.
You cannot connect your PC to
the Internet after [Wi-Fi
Protected Setup (WPS)] is
performed.
• The wireless settings of the router may change automatically if you use the WiFi Protected Setup function before adjusting the settings of the router. In this
case, change the wireless settings of your PC accordingly.
You cannot connect the system
to your wireless LAN router.
• Check if the wireless LAN router is on.
• Depending on the usage environment, including the wall material, radio wave
reception conditions, or obstacles between the system and the wireless LAN
router, the possible communication distance may be shortened. Move the
system and the wireless LAN router closer to each other.
• Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or
digital cordless device, may interrupt the communication. Move the unit away
from such devices, or turn off such devices.
The desired wireless router is not • Press RETURN to return to the previous screen, and try [Scan] again. If the
detected even if [Scan] is
desired wireless router is still not detected, press RETURN to select [Manual
performed.
registration].
The message [A new software
• See [Network Update] (page 52) to update the system to a newer software
version has been found on the
version.
network. Perform update under
“Network Update.”] appears on
the screen when turning the
system on.
66GB
Other
Symptom
Problems and solutions
“Exxxx” appears in the front
panel display.
• Contact your nearest Sony dealer or local authorized Sony service facility and
give the error code.
appears without any
messages on the entire screen.
• Contact your nearest Sony dealer or local authorized Sony service facility.
Additional Information
67GB
Playable Discs
Blu-ray Disc
BD-ROM1)
BD-R/BD-RE2)
DVD3)
DVD-ROM
DVD-R/DVD-RW
DVD+R/DVD+RW
CD3)
CD-DA (Music CD)
CD-ROM
CD-R/CD-RW
Super Audio CD
1)Since
the Blu-ray Disc specifications are new and
evolving, some discs may not be playable depending
on the disc type and the version. Also, the audio
output differs depending on the source, connected
output jack, and selected audio settings.
2)BD-RE: Ver.2.1
BD-R: Ver.1.1, 1.2, 1.3 including organic pigment
type BD-R (LTH type)
BD-Rs recorded on a PC cannot be played if
postscripts are recordable.
3)
A CD or DVD disc will not play if it has not been
correctly finalized. For more information, refer to the
operating instructions supplied with the recording
device.
Discs that cannot be played
•
•
•
•
•
•
•
•
BDs with cartridge
DVD-RAMs
HD DVDs
DVD Audio discs
PHOTO CDs
Data part of CD-Extras
VCDs/Super VCDs
Audio material side on DualDiscs
Notes on discs
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
DualDiscs and some music discs encoded with
copyright protection technologies do not
conform to the Compact Disc (CD) standard.
Therefore, these discs may not be compatible
with this product.
68GB
Note on playback operations of a
BD/DVD
Some playback operations of a BD/DVD may be
intentionally set by software producers. Since
this system plays a BD/DVD according to the
disc contents the software producers designed,
some playback features may not be available.
Note about double-layer BDs/
DVDs
The playback picture and sound may be
momentarily interrupted when the layers switch.
Region code (BD-ROM/DVD
VIDEO only)
Your system has a region code printed on the
rear of the unit and will only play a BD-ROM/
DVD VIDEO (playback only) labeled with
identical region codes or ALL .
7)
Playable Types of Files
The system does not play these files via the DLNA
renderer function.
Note
Video7)
File format
Extensions
MPEG-1 Video/PS1)5)
MPEG-2 Video/PS,
TS1)6)
“.mpg,” “.mpeg,” “.m2ts,”
“.mts”
DivX2)
“.avi,” “.divx”
MPEG4/AVC1)5)
“.mkv,” “.mp4,” “.m4v,”
“.m2ts,” “.mts”
WMV91)5)
“.wmv,” “.asf”
AVCHD
3)5)
Music
Extensions
MP3 (MPEG-1 Audio
Layer III)
“.mp3”
AAC1)4)5)
“.m4a”
WMA9 Standard1)4)
“.wma”
LPCM
“.wav”
Photo7)
File format
Extensions
JPEG
“.jpg,” “.jpeg,” “.jpe”
1)The
system does not play files encoded with DRM.
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an official DivX
Certified device that plays DivX video. Visit
www.divx.com for more information and software
tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to play
DivX Video-on-Demand (VOD) content. To
generate the registration code, locate the DivX VOD
section in the device setup menu. Go to
vod.divx.com with this code to complete the
registration process and learn more about DivX
VOD.
3)The system plays AVCHD-format files that are
recorded via a digital video camera, etc. To watch
AVCHD-format files, the disc with AVCHD-format
files on it must be finalized.
4)The system does not play files encoded with
Lossless, etc.
5)The system does not play these files via the DLNA
function.
6)
The system plays SD resolution only via the DLNA
function.
2)
Additional Information
File format
• Some files may not play depending on the file format,
the file encoding, the recording condition, or DLNA
server condition.
• Some files edited on a PC may not play.
• The system can recognize the following files or
folders in BDs, DVDs, CDs and USB devices:
– up to folders in the 5th tree
– up to 500 files in a single tree
• The system can recognize the following files or
folders stored in the DLNA server:
– up to folders in the 20th tree
– up to 999 files in a single tree
• Some USB devices may not work with this system.
• The system can recognize Mass Storage Class (MSC)
devices (such as flash memory or an HDD) that are
FAT-compatible and non-partitioned, Still Image
Capture Devices (SICDs), and 101-key keyboards
(front
(USB) port only).
• To avoid data corruption or damage to USB memory
or other devices, turn the system off before
connecting or removing USB memory or other
devices.
• The system may not play high bit rate video files from
a DATA CD smoothly. It is recommended to play
high bit rate video files using a DATA DVD.
69GB
Supported Audio Formats
Audio formats supported by this system are as follows.
Format
LPCM 2ch
LPCM 5.1ch,
LPCM 7.1ch
Dolby Digital
Dolby
TrueHD,
Dolby Digital
Plus
DTS
DTS-ES
Discrete 6.1,
DTS-ES
Matrix 6.1,
DTS96/24
DTS-HD
High
Resolution
Audio
DTS-HD
Master
Audio
“BD/DVD”
a
a
a
a
a
a
a
a
“SAT/CABLE”
“TV”
(DIGITAL IN)
a
–
a
–
a
–
–
–
Function
a: Supported format.
–: Unsupported format.
Video Output Resolution
Output resolution differs depending on the [Output Video Format] setting in [Screen Settings]
(page 53).
Resolution
setting
When [Output Video Format] is set to
[HDMI]
VIDEO OUT
jack
COMPONENT
VIDEO OUT
jacks
HDMI OUT
jack
When [Output Video Format] is set to
[Component Video]
VIDEO OUT
jack
COMPONENT
VIDEO OUT
jacks
HDMI OUT
jack
480i/576i
480i/576i
480i/576i
480i/576i
480i/576i
480i/576i
480i/576i
480p/576p
480i/576i
480p/576p
480p/576p
480i/576i
480p/576p
480p/576p
720p
480i/576i
720p*
720p
480i/576i
720p*
720p
1080i
480i/576i
1080i*
1080i
480i/576i
1080i*
1080i
1080p
480i/576i
1080i*
1080p
unselectable
unselectable
unselectable
* Protected contents on DVDs are output at 480p/576p resolution.
When [Output Video Format] is set to [Video]
480i/576i video signals are output from the VIDEO OUT or COMPONENT VIDEO OUT jack, and
480p/576p video signals are output from the HDMI OUT jack.
70GB
Tuning range
Specifications
Amplifier Section
Front/Surround (SS-TSB101) for BDV-E370
Surround (SS-TSB101) for BDV-E870
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
VIDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
HDMI OUT: Type A (19
pin)
Full range Bass reflex
55 mm × 80 mm cone type
3 ohms
75 mm × 225 mm × 71 mm
(w/h/d)
0.45 kg
Front (SS-TSB104) for BDV-E870
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Full range Bass reflex
55 mm × 80 mm cone type
3 ohms
75 mm × 610 mm × 70 mm
(w/h/d) (wall-mounted
part)
251 mm × 1,205 mm × 251
mm (w/h/d) (whole
speaker)
0.9 kg (wall-mounted part)
2.7 kg (whole speaker)
Center (SS-CTB101)
Speaker system
Video Section
Outputs
Speakers
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Full range Acoustic
suspension, Magnetically
Shielded
30 mm × 60 mm cone type
3 ohms
290 mm × 49 mm × 49 mm
(w/h/d)
0.28 kg
BD/DVD/Super Audio CD/CD System
Subwoofer (SS-WSB101)
Signal format system
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
PAL/NTSC
USB Section
(USB) port:
Maximum current:
Type A (For connecting
USB memory, memory
card reader, digital still
camera, and digital video
camera)
500 mA
LAN Section
LAN (100) terminal
100BASE-TX Terminal
Tuner Section
System
Mass (approx.)
Subwoofer Bass reflex
160 mm cone type
3 ohms
260 mm × 320 mm × 260
mm (w/h/d)
5.2 kg
General
Power requirements
Taiwan models:
Other models:
Power consumption
PLL quartz-locked digital
synthesizer
Additional Information
BDV-E870:
POWER OUTPUT (rated)
Front L/Front R:
108 W + 108 W (at 3 ohms,
1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Center/Surround L/Surround R:
167 W (per channel at 3
ohms, 1 kHz)
Subwoofer:
165 W (at 3 ohms, 80 Hz)
BDV-E370:
POWER OUTPUT (rated)
Front L/Front R:
108 W + 108 W (at 3 ohms,
1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Center/Surround L/Surround R:
142 W (per channel at 3
ohms, 1 kHz)
Subwoofer:
140 W (at 3 ohms, 80 Hz)
Inputs (Analog)
AUDIO (AUDIO IN)
Sensitivity: 450/250 mV
Inputs (Digital)
SAT/CABLE (COAXIAL), TV (OPTICAL)
Supported formats: LPCM
2CH (up to 48 kHz), Dolby
Digital, DTS
87.5 MHz - 108.0 MHz
(50 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
120 V AC, 50/60 Hz
220 V - 240 V AC,
50/60 Hz
On: 170 W
Standby: 0.3 W (at the
Power Saving mode)
FM tuner section
71GB
Dimensions (approx.)
Mass (approx.)
430 mm × 85 mm × 335
mm (w/h/d) incl.
projecting parts
4.8 kg
Design and specifications are subject to change
without notice.
• Standby power consumption 0.3 W.
• Halogenated flame retardants are not used in the
certain printed wiring boards.
• Over 85% power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
72GB
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
1703
Not specified
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan)Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
RhaetoRomance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Additional Information
Code Language
Parental Control/Area Code List
Code Area
Code Area
Code Area
Code Area
2044
2047
2046
2057
2070
2090
2092
2093
2115
2165
2174
2109
2200
2219
2248
2238
2239
2254
2276
2304
2333
2363
2362
2376
2390
2379
2427
2424
2428
2436
2489
2501
2149
2499
2086
2543
2528
2184
Argentina
Australia
Austria
Belgium
Brazil
Chile
China
Colombia
Denmark
Finland
France
Germany
Greece
Hong Kong
India
Indonesia
Ireland
Italy
Japan
Korea
Luxembourg
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Poland
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Taiwan
Thailand
United
Kingdom
73GB
BD-ROM
Glossary
AVCHD
The AVCHD format is a high-definition digital
video camera format used to record SD
(standard definition) or HD (high definition)
signals of either the 1080i specification* or the
720p specification** on DVDs, using efficient
data compression coding technology. The
MPEG-4 AVC/H.264 format is adopted to
compress video data, and the Dolby Digital or
Linear PCM system is used to compress audio
data. The MPEG-4 AVC/H.264 format is
capable of compressing images at higher
efficiency than that of the conventional image
compression format. The MPEG-4 AVC/H.264
format enables a high definition (HD) video
signal shot on a digital video camera recorder to
be recorded on DVD discs in the same way as it
would be for a standard definition (SD)
television signal.
* A high definition specification that utilizes 1080
effective scanning lines and the interlace format.
** A high definition specification that utilizes 720
effective scanning lines and the progressive format.
BD-J application
The BD-ROM format supports Java for
interactive functions.
“BD-J” offers content providers almost
unlimited functionality when creating
interactive BD-ROM titles.
BD-R
BD-R (Blu-ray Disc Recordable) is a
recordable, write-once Blu-ray Disc, available
in the same capacities as the BD below. Since
contents can be recorded and cannot be
overwritten, a BD-R can be used to archive
valuable data or store and distribute video
material.
BD-RE
BD-RE (Blu-ray Disc Rewritable) is a
recordable and rewritable Blu-ray Disc,
available in the same capacities as the BD
below. The re-recordable feature makes
extensive editing and time-shifting applications
possible.
74GB
BD-ROMs (Blu-ray Disc Read-Only Memory)
are commercially produced discs and are
available in the same capacities as the BD
below. Other than conventional movie and video
contents, these discs have enhanced features
such as interactive content, menu operations
using pop-up menus, selection of subtitle
display, and slideshow. Although a BD-ROM
may contain any form of data, most BD-ROM
discs will contain movies in High Definition
format, for playback on Blu-ray Disc/DVD
players.
Blu-ray Disc (BD)
A disc format developed for recording/playing
high-definition (HD) video (for HDTV, etc.),
and for storing large amounts of data. A single
layer Blu-ray Disc holds up to 25 GB, and a
dual-layer Blu-ray Disc holds up to 50 GB of
data.
Digital Cinema Auto Calibration
(D.C.A.C)
Digital Cinema Auto Calibration was developed
by Sony to automatically measure and adjust the
speaker settings to your listening environment in
a short period of time.
Dolby Digital
This movie theater sound format is more
advanced than Dolby Surround Pro Logic. In
this format, the surround speakers output stereo
sound with an expanded frequency range, and a
subwoofer channel for deep bass is
independently provided. This format is also
called “5.1” with the subwoofer channel
designed as the 0.1 channel (since it functions
only when a deep bass effect is needed). All six
channels in this format are recorded separately
for superior channel separation. Furthermore,
since all the signals are processed digitally, less
signal degradation occurs.
Dolby Digital Plus
Developed as an extension to Dolby Digital, the
audio coding technology supports 7.1 multichannel surround sound.
Dolby Pro Logic II
DTS-HD Master Audio
Dolby Pro Logic II creates five full-bandwidth
output channels from 2 channel sources. This is
done using an advanced, high-purity matrix
surround decoder that extracts the spatial
properties of the original recording without
adding any new sounds or tonal colorations.
DTS-HD Master Audio has a maximum
transmission rate of 24.5 Mbps, and uses
lossless compression, and DTS-HD Master
Audio corresponds to a maximum sampling
frequency of 192 kHz, and maximum of 7.1ch.
x Movie mode
The Movie mode is for use with stereo television
shows and all programs encoded in Dolby
Surround. The result is enhanced sound field
directionality that approaches the quality of
discrete 5.1-channel sound.
Dolby Surround Pro Logic
HDMI is an interface that supports both video
and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Content Protection), a copy protection
technology that incorporates coding technology
for digital video signals.
Interlace format
(Interlaced scanning)
The Interlace format is the NTSC standard
method for displaying TV images at 30 frames
per second. Each frame is scanned twice alternately between the even numbered scanning
lines and then odd numbered scanning lines, at
60 times per second.
Dolby TrueHD
LTH (Low to High)
Dolby TrueHD is a lossless coding technology
that supports up to 8 channels of multi-channel
surround sound for the next generation of optical
discs. The reproduced sound is true to the
original source bit-for-bit.
LTH is a recording system that supports organic
pigment type BD-R.
DTS
Digital audio compression technology
developed by DTS, Inc. This technology
conforms to 5.1-channel surround. This format
includes a stereo rear channel and a discrete
subwoofer channel. DTS provides the same 5.1
discrete channels of high quality digital audio.
The good channel separation is realized due to
the all channel data being recorded discretely
and processed in digitally.
DTS-HD High Resolution Audio
Developed as an extension to DTS Digital
Surround format. It supports a maximum
sampling frequency of 96 kHz, and 7.1 multichannel surround.
DTS-HD High Resolution Audio has a
maximum transmission rate of 6 Mbps, with
lossy compression.
Parental Control
A function of the BD/DVD to limit playback of
the disc by the age of the users according to the
limitation level in each country. The limitation
varies from disc to disc; when it is activated,
playback is completely prohibited, violent
scenes are skipped or replaced with other scenes
and so on.
Additional Information
As one method of decoding Dolby Surround,
Dolby Surround Pro Logic produces four
channels from 2 channel sound. Compared with
the former Dolby Surround system, Dolby
Surround Pro Logic reproduces left-to-right
panning more naturally and localizes sounds
more precisely. To take full advantage of Dolby
Surround Pro Logic, you should have one pair of
surround speakers and a center speaker. The
surround speakers output monaural sound.
HDMI (High-Definition Multimedia
Interface)
PhotoTV HD
“PhotoTV HD” allows for highly-detailed
pictures, and photo-like expression of subtle
textures and colors. By connecting Sony
“PhotoTV HD” compatible devices using an
HDMI cable, a whole new world of photos can
be enjoyed in breathtaking Full HD quality. For
instance, the delicate texture of the human skin,
flowers, sand and waves can now be displayed
on a large screen in beautiful photo-like quality.
75GB
Pop-up menu
An enhanced menu operation available on BDROMs. The pop-up menu appears when POP
UP/MENU is pressed during playback, and can
be operated while playback is in progress.
Progressive format
(sequential scanning)
In contrast to the Interlace format, the
progressive format can reproduce 50 - 60 frames
per second by reproducing all scanning lines
(525 lines for the NTSC system). The overall
picture quality increases and still images, text
and horizontal lines appear sharper. This format
is compatible with the 525 or 625 progressive
format.
S-AIR
(Sony Audio Interactive Radio
frequency)
Recent times have seen the rapid spread of BD/
DVD media, digital broadcasting, and other
high-quality media.
To ensure that the subtle nuances of these highquality media are transmitted with no
deterioration, Sony has developed a technology
called “S-AIR” for the radio transmission of
digital audio signals with no compression, and
has incorporated this technology into the EZWRT10/EZW-RT10A/EZW-T100.
This technology transfers digital audio signals
with no compression using the 2.4 GHz band
range of ISM band (Industrial, Scientific, and
Medical band), such as wireless LANs and
Bluetooth applications.
24p True Cinema
Movies shot with a film camera consist of 24
frames per second.
Since conventional televisions (both CRT and
flat panels) display frames either at 1/60 or 1/50
second intervals, the 24 frames do not appear at
an even pace.
When connected to a TV with 24p capabilities,
the player displays each frame at 1/24 second
intervals — the same interval originally shot
with the film camera, thus faithfully reproducing
the original cinema image.
76GB
Index
Numerics
D
M
24p True Cinema 76
3D 29
3D Output Setting 53
Multiplex broadcast sound 37
Music Settings 56
A/V SYNC 35
Attenuate - AUDIO 54
Audio 55
Audio DRC 54
Audio Output 54
Audio Return Channel 56
Audio Settings 54
Auto Calibration 48, 54
Auto Display 57
Auto Standby 56
AVCHD 74
D. C. A. C. (Digital Cinema
Auto Calibration) 48, 74
D.BASS 38
Dimmer 56
DivX® VOD 57
DLNA 32, 57
Dolby Digital 36, 74
Dolby Digital Plus 74
Dolby Pro Logic II 75
Dolby Surround Pro Logic 75
Dolby TrueHD 75
DTS 36, 75
DTS-HD 75
DVD 68
DVD Aspect Ratio 53
DVD Parental Control 55
B
E
BD Audio MIX Setting 54
BD Data Storage Options 55
BD Hybrid Disc Playback
Layer 55
BD Internet Connection 55
BD Parental Control 55
BD Remote Device
Registration 58
BD/DVD Menu 55
BD/DVD Viewing Settings 55
BD/DVD-ROM 1080/24p
Output 53
BD-LIVE 29
BD-R 74
BD-RE 74
Blu-ray Disc 74
BONUSVIEW 29
BRAVIA Internet Video 32
Easy Setup 25, 58
C
Initialize Personal Information
58
Interlace format 75
Internal memory 29
Internet content 32
Internet Settings 57
Internet Video Parental Control
55
Internet Video Unrated 55
A
CD 68
Child Lock 51
Cinema Conversion Mode 53
Connection Server Settings 57
Control for HDMI 46, 56
F
FM MODE 39
Front panel 8
Front panel display 9
G
Gracenote Settings 57
H
HDMI
YCbCr/RGB (HDMI) 53
HDMI (High-Definition
Multimedia Interface) 75
HDMI Deep Colour Output 53
I
L
Language Code List 73
LTH 75
N
Network Connection
Diagnostics 57
Network Settings 57
Network Update 52
NIGHT MODE 38
O
OSD 56
Output Video Format 53
P
Parental Control 75
Parental Control Area Code 55
Parental Control Settings 55
Party 32
Party Auto Start 58
Password 55
Pause Mode 53
PhotoTV HD 75
Play information 30
Playable discs 68
Progressive format 76
Q
Quick Start Mode 56
R
RDS 40
Rear panel 10
Region code 68
Registered BD Remote Devices
58
Remote control 11
Renderer Options 57
Reset to Factory Default
Settings 58
Resetting 58
S
S-AIR 41, 76
Mode 43
Pairing 44
RF Change 44
S-AIR receiver 41
Standby 43
S-AIR Settings 56
77GB
Screen Format 53
Screen Saver 57
Screen Settings 53
SLEEP 51
Slideshow 35
Sound Effect 54
Speaker Settings 49, 54
Connection 49
Distance 49
Level 50
Subtitle 55
Super Audio CD Playback
Channels 56
Super Audio CD Playback
Layer 56
Surround amplifier 41
System Information 57
SYSTEM MENU 27, 35, 37,
38
T
Test Tone 50
TV Screen Size Setting for 3D
53
TV Type 53
U
Update 52
USB 30
W
WEP 24
WPA2-PSK (AES) 24
WPA2-PSK (TKIP) 24
WPA-PSK (AES) 24
WPA-PSK (TKIP) 24
78GB
