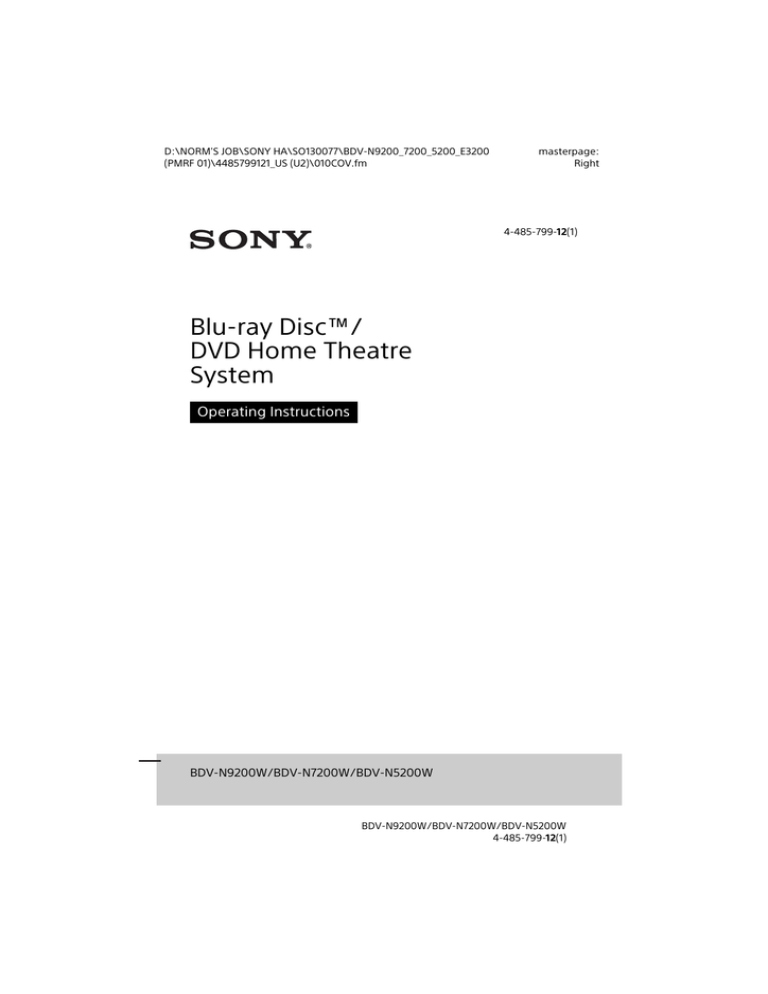

Sony BDV-N5200W Operating Instructions

D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\010COV.fm
masterpage:
Right
4-485-799-12(1)
Blu-ray Disc™/
DVD Home Theatre
System
Operating Instructions
BDV-N9200W/BDV-N7200W/BDV-N5200W
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
masterpage: Left
WARNING
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
To reduce the risk of fire, do not cover
the ventilation opening of the appliance
with newspapers, tablecloths, curtains,
etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
Do not expose batteries or appliances
with battery-installed to excessive heat,
such as sunshine and fire.
To prevent injury, this apparatus must
be securely attached to the floor/wall in
accordance with the installation
instructions.
Indoor use only.
5.15 GHz – 5.25 GHz band is restricted to
indoor operations only.
On power sources
• The unit is not disconnected from the
mains as long as it is connected to the
AC outlet, even if the unit itself has
been turned off.
• As the main plug is used to disconnect
the unit from the mains, connect the
unit to an easily accessible AC outlet.
Should you notice an abnormality in
the unit, disconnect the main plug
from the AC outlet immediately.
For the main unit and surround
amplifier
The nameplate is located on the bottom
exterior.
CAUTION
The use of optical instruments with this
product will increase eye hazard.
As the laser beam used in this Blu-ray
Disc/DVD Home Theatre System is
harmful to eyes, do not attempt to
disassemble the cabinet.
Refer servicing to qualified personnel
only.
Pick-up unit of this appliance is
classified as a CLASS 3R LASER product.
Visible and invisible laser radiation is
emitted when the laser protective
housing is opened, so be sure to avoid
direct eye exposure.
This marking is located on the bottom
exterior of the main unit.
FOR UNITED STATES CUSTOMERS.
NOT APPLICABLE IN CANADA,
INCLUDING IN THE PROVINCE OF
QUEBEC.
POUR LES CONSOMMATEURS AUX
ÉTATS-UNIS. NON APPLICABLE AU
CANADA, Y COMPRIS LA
PROVINCE DE QUÉBEC.
For the customers in the USA
To reduce the risk of fire or electric
shock, do not expose this apparatus
to rain or moisture.
Owner’s Record
The model and serial numbers are
located on the bottom exterior of the
unit. Record these numbers in the space
provided below. Refer to them
whenever you call upon your Sony
dealer regarding this product.
Model No._____________________________
Serial No._____________________________
2US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
These following indications are located
on the bottom exterior of the main unit
and rear exterior of the surround
amplifier.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing) instructions in
the literature accompanying the
appliance.
Properly shielded and grounded cables
and connectors must be used for
connection to host computers and/or
peripherals in order to meet FCC
emission limits.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
masterpage:
Right
– Reorient or relocate the receiving
antenna (aerial).
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.
Blu-ray Disc/DVD receiver
(HBD-N9200W/HBD-N7200W/
HBD-N5200W)
Surround amplifier
(TA-SA700WR/TA-SA500WR)
This equipment must not be co-located
or operated in conjunction with any
other antenna or transmitter.
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment and meets
the FCC radio frequency (RF) Exposure
Guidelines.
This equipment should be installed and
operated keeping the radiator at least
20cm or more away from person’s body
(excluding extremities: hands, wrists,
feet and ankles).
Compliance with FCC requirement
15.407(c)
Data transmission is always initiated by
software, which is the passed down
through the MAC, through the digital
and analog baseband, and finally to the
RF chip. Several special packets are
initiated by the MAC. These are the only
ways the digital baseband portion will
turn on the RF transmitter, which it then
turns off at the end of the packet.
Therefore, the transmitter will be on
only while one of the aforementioned
3US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
packets is being transmitted. In other
words, this device automatically
discontinue transmission in case of
either absence of information to
transmit or operational failure.
masterpage: Left
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
Frequency Tolerance: ±20 ppm
Important Safety Instructions
1)
2)
3)
4)
5)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings. Install in accordance with
the manufacturer’s instructions.
8) Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of
the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety. If
the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
13) Unplug this apparatus during
lightning storms or when unused for
long periods of time.
14) Refer all servicing to qualified service
personnel. Servicing is required
when the apparatus has been
damaged in any way, such as powersupply cord or plug is damaged,
liquid has been spilled or objects
have fallen into the apparatus, the
apparatus has been exposed to rain
or moisture, does not operate
normally, or has been dropped.
For the customers in Canada
To reduce the risk of fire or electric
shock, do not expose this appliance to
dripping or splashing, and do not place
objects filled with liquids, such as vases,
on the appliance.
Properly shielded and grounded cables
and connectors must be used for
connection to host computers and/or
peripherals.
For the main unit and surround
amplifier
The serial number is located on the
bottom exterior.
4US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
Blu-ray Disc/DVD receiver
(HBD-N9200W/HBD-N7200W/
HBD-N5200W)
Surround amplifier
(TA-SA700WR/TA-SA500WR)
This device complies with Industry
Canada licence-exempt RSS
standard(s).
Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of this device.
This equipment complies with IC
radiation exposure limits set forth for an
uncontrolled environment and meets
RSS-102 of the IC radio frequency (RF)
Exposure rules.
This equipment should be installed and
operated keeping the radiator at least
20cm or more away from person’s body
(excluding extremities: hands, wrists,
feet and ankles).
On watching 3D video images
Some people may experience
discomfort (such as eye strain, fatigue,
or nausea) while watching 3D video
images. Sony recommends that all
viewers take regular breaks while
watching 3D video images. The length
and frequency of necessary breaks will
vary from person to person. You must
decide what works best. If you
experience any discomfort, you should
stop watching the 3D video images until
the discomfort ends; consult a doctor if
you believe necessary. You should also
review (i) the instruction manual and/or
the caution message of any other
device used with, or Blu-ray Disc
contents played with this product and
(ii) our website
(http://esupport.sony.com/) for the
latest information. The vision of young
children (especially those under six
masterpage:
Right
years old) is still under development.
Consult your doctor (such as a
pediatrician or eye doctor) before
allowing young children to watch 3D
video images.
Adults should supervise young children
to ensure they follow the
recommendations listed above.
Copy Protection
• Please be advised of the advanced
content protection systems used in
both Blu-ray Disc and DVD media.
These systems, called AACS (Advanced
Access Content System) and CSS
(Content Scramble System), may
contain some restrictions on playback,
analog output, and other similar
features. The operation of this product
and the restrictions placed may vary
depending on the date of purchase, as
the governing board of the AACS may
adopt or change its restriction rules
after the time of purchase.
• Cinavia Notice
This product uses Cinavia technology
to limit the use of unauthorized copies
of some commercially-produced film
and videos and their soundtracks.
When a prohibited use of an
unauthorized copy is detected, a
message will be displayed and
playback or copying will be
interrupted.
More information about Cinavia
technology is provided at the Cinavia
Online Consumer Information Center
at http://www.cinavia.com. To
request additional information about
Cinavia by mail, send a postcard with
your mailing address to: Cinavia
Consumer Information Center, P.O.
Box 86851, San Diego, CA, 92138, USA.
5US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
Copyrights and Trademarks
• This system incorporates with Dolby*
Digital and Dolby Pro Logic adaptive
matrix surround decoder and the DTS**
Digital Surround System.
* Manufactured under license from
Dolby Laboratories. Dolby, Pro
Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
** For DTS patents, see
http://patents.dts.com.
Manufactured under license from
DTS Licensing Limited. DTS,
DTS-HD, the Symbol, & DTS and the
Symbol together are registered
trademarks of DTS, Inc. © DTS, Inc.
All Rights Reserved.
• This system incorporates HighDefinition Multimedia Interface
(HDMI™) technology.
The terms HDMI and HDMI HighDefinition Multimedia Interface, and
the HDMI Logo are trademarks or
registered trademarks of HDMI
Licensing LLC in the United States and
other countries.
• Java is a trademark of Oracle and/or its
affiliates.
• DVD Logo is a trademark of DVD
Format/Logo Licensing Corporation.
• “Blu-ray Disc”, “Blu-ray”, “Blu-ray 3D”,
“BD-LIVE”, “BONUSVIEW”, and logos
are trademarks of the Blu-ray Disc
Association.
• “Blu-ray Disc”, “DVD+RW”, “DVD-RW”,
“DVD+R”, “DVD-R”, “DVD VIDEO”, and
“CD” logos are trademarks.
• “Super Audio CD” is a trademark.
• App Store is a service mark of Apple
Inc.
• “BRAVIA” is a trademark of Sony
Corporation.
• “AVCHD 3D/Progressive” and the
“AVCHD 3D/Progressive” logo are
trademarks of Panasonic Corporation
and Sony Corporation.
• , “XMB”, and “xross media bar” are
trademarks of Sony Corporation and
Sony Computer Entertainment Inc.
masterpage: Left
• “PlayStation” is a registered trademark
of Sony Computer Entertainment Inc.
• “Sony Entertainment Network” logo
and “Sony Entertainment Network” are
trademarks of Sony Corporation.
• Music and video recognition
technology and related data are
provided by Gracenote®. Gracenote is
the industry standard in music
recognition technology and related
content delivery. For more
information, please visit
www.gracenote.com.
CD, DVD, Blu-ray Disc, and music and
video-related data from Gracenote,
Inc., copyright © 2000-present
Gracenote. Gracenote Software,
copyright © 2000-present Gracenote.
One or more patents owned by
Gracenote apply to this product and
service. See the Gracenote website for
a nonexhaustive list of applicable
Gracenote patents. Gracenote, CDDB,
MusicID, the Gracenote logo and
logotype, and the “Powered by
Gracenote” logo are either a registered
trademark or a trademark of
Gracenote, Inc. in the United States
and/or other countries.
• Wi-Fi®, Wi-Fi Protected Access® and
Wi-Fi Alliance® are registered
trademarks of Wi-Fi Alliance.
• Wi-Fi CERTIFIED™, WPA™, WPA2™,
Wi-Fi Protected Setup™, Miracast™
and Wi-Fi CERTIFIED Miracast™ are
trademarks of Wi-Fi Alliance.
• The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the
United States and in other countries.
• Android™ is a trademark of Google Inc.
• Google Play™ is a trademark of Google
Inc.
• “Xperia” is a trademark of Sony Mobile
Communications AB.
6US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
• The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under
license. Other trademarks and trade
names are those of their respective
owners.
• MPEG Layer-3 audio coding
technology and patents licensed from
Fraunhofer IIS and Thomson.
• This product incorporates proprietary
technology under license from
Verance Corporation and is protected
by U.S. Patent 7,369,677 and other U.S.
and worldwide patents issued and
pending as well as copyright and trade
secret protection for certain aspects of
such technology. Cinavia is a
trademark of Verance Corporation.
Copyright 2004-2010 Verance
Corporation. All rights reserved by
Verance. Reverse engineering or
disassembly is prohibited.
• Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States
and/or other countries.
This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of
such technology outside of this
product is prohibited without a license
from Microsoft or an authorized
Microsoft subsidiary.
masterpage:
Right
Content owners use Microsoft
PlayReady™ content access
technology to protect their intellectual
property, including copyrighted
content. This device uses PlayReady
technology to access PlayReadyprotected content and/or WMDRMprotected content. If the device fails to
properly enforce restrictions on
content usage, content owners may
require Microsoft to revoke the
device’s ability to consume PlayReadyprotected content. Revocation should
not affect unprotected content or
content protected by other content
access technologies. Content owners
may require you to upgrade PlayReady
to access their content. If you decline
an upgrade, you will not be able to
access content that requires the
upgrade.
• DLNA™, the DLNA Logo and DLNA
CERTIFIED™ are trademarks, service
marks, or certification marks of the
Digital Living Network Alliance.
• Opera® Devices SDK from Opera
Software ASA. Copyright 1995-2013
Opera Software ASA. All rights
reserved.
• All other trademarks are trademarks of
their respective owners.
• Other system and product names are
generally trademarks or registered
trademarks of the manufacturers. ™
and ® marks are not indicated in this
document.
7US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
End User License Information
Gracenote® End User License
Agreement
This application or device contains
software from Gracenote, Inc. of
Emeryville, California (“Gracenote”). The
software from Gracenote (the
“Gracenote Software”) enables this
application to perform disc and/or file
identification and obtain music-related
information, including name, artist,
track, and title information (“Gracenote
Data”) from online servers or embedded
databases (collectively, “Gracenote
Servers”) and to perform other
functions. You may use Gracenote Data
only by means of the intended End-User
functions of this application or device.
You agree that you will use Gracenote
Data, the Gracenote Software, and
Gracenote Servers for your own
personal non-commercial use only. You
agree not to assign, copy, transfer or
transmit the Gracenote Software or any
Gracenote Data to any third party. YOU
AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED
HEREIN.
You agree that your non-exclusive
license to use the Gracenote Data, the
Gracenote Software, and Gracenote
Servers will terminate if you violate
these restrictions. If your license
terminates, you agree to cease any and
all use of the Gracenote Data, the
Gracenote Software, and Gracenote
Servers. Gracenote reserves all rights in
Gracenote Data, the Gracenote
Software, and the Gracenote Servers,
including all ownership rights. Under no
circumstances will Gracenote become
liable for any payment to you for any
information that you provide. You agree
that Gracenote, Inc. may enforce its
rights under this Agreement against you
directly in its own name.
masterpage: Left
The Gracenote service uses a unique
identifier to track queries for statistical
purposes. The purpose of a randomly
assigned numeric identifier is to allow
the Gracenote service to count queries
without knowing anything about who
you are. For more information, see the
web page for the Gracenote Privacy
Policy for the Gracenote service.
The Gracenote Software and each item
of Gracenote Data are licensed to you
“AS IS.” Gracenote makes no
representations or warranties, express
or implied, regarding the accuracy of
any Gracenote Data from in the
Gracenote Servers. Gracenote reserves
the right to delete data from the
Gracenote Servers or to change data
categories for any cause that Gracenote
deems sufficient. No warranty is made
that the Gracenote Software or
Gracenote Servers are error-free or that
functioning of Gracenote Software or
Gracenote Servers will be
uninterrupted. Gracenote is not
obligated to provide you with new
enhanced or additional data types or
categories that Gracenote may provide
in the future and is free to discontinue
its services at any time.
GRACENOTE DISCLAIMS ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE
DOES NOT WARRANT THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES.
© Gracenote, Inc. 2009
8US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\020REG.fm
masterpage:
Right
About These Operating
Instructions
• The instructions in these Operating
Instructions describe the controls on
the remote control. You can also use
the controls on the main unit if they
have the same or similar names as
those on the remote control.
• In this manual, “disc” is used as a
general reference for BDs, DVDs, Super
Audio CDs, or CDs unless otherwise
specified by the text or illustrations.
• The instructions in this manual are for
BDV-N9200W, BDV-N7200W and
BDV-N5200W. BDV-N9200W is the
model used for illustration purposes.
Any difference in operation is clearly
indicated in the text, for example,
“BDV-N9200W only”.
• Some illustrations are presented as
conceptual drawings, and may be
different from the actual products.
• The items displayed on the TV screen
may vary depending on the area.
• The default setting is underlined.
9US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\010COVTOC.fm
masterpage: Left
Table of Contents
About These Operating
Instructions ...........................9
Unpacking ................................ 12
Guide to Parts and Controls .... 14
Getting Started
Step 1: Installing the
Speakers ........................ 20
Step 2: Connecting the
System ........................... 20
Connecting the speakers ... 21
Connecting the TV ............. 22
Connecting the other
equipment ..................... 23
Connecting the antenna
(aerial) ........................... 25
Step 3: Preparing for
Network Connection ......
Step 4: Setting up the
Wireless System .............
Step 5: Performing the Easy
Setup ..............................
Step 6: Selecting the
Playback Source .............
Step 7: Enjoying Surround
Sound .............................
25
26
Playback
Playing a Disc ........................... 31
Playing from a USB Device ....... 33
Enjoying Music from a
BLUETOOTH Device ............ 33
Using Screen mirroring ............ 35
Connecting to a Remote
Device by One-touch
Function (NFC) ....................36
Using “SongPal” .......................38
Playing via a Network ..............38
Available Options ..................... 41
Sound Adjustment
Selecting the Audio Format,
Multilingual Tracks, or
Channel ..............................43
Enjoying Multiplex Broadcast
Sound .................................43
Tuner
27
Listening to the Radio ..............44
28
29
10US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\010COVTOC.fm
Other Operations
masterpage:
Right
Additional Information
Using the Control for HDMI
Function for “BRAVIA”
Sync .................................... 45
Calibrating the Appropriate
Speaker Settings
Automatically .................... 46
Setting the Speakers ................47
Using the Sleep Timer ............. 48
Deactivating the Buttons on
the Main Unit ..................... 49
Changing the Brightness ......... 49
Enjoying the Visualization on
the TV Screen ..................... 49
Saving Power in Standby
Mode .................................. 49
Browsing Websites .................. 50
Further Settings for the
Wireless System ................. 51
Precautions .............................. 62
Notes about Discs ................... 65
Troubleshooting ...................... 65
Playable Discs ........................... 71
Playable Types of Files .............72
Supported Audio Formats ........74
Specifications ...........................74
Language Code List ..................77
Index .........................................79
Settings and Adjustments
Using the Setup Display ...........53
[Software Update] ................... 54
[Screen Settings] ..................... 54
[Audio Settings] ....................... 56
[BD/DVD Viewing Settings] ..... 58
[Parental Control Settings] ...... 58
[Music Settings] ....................... 59
[System Settings] ..................... 59
[External Input Settings] .......... 60
[Network Settings] .................... 61
[Easy Network Settings] ........... 61
[Resetting] ............................... 62
11US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
masterpage: Left
Unpacking
• Operating Instructions
• Quick Setup Guide
• Speaker Installation Guide
• Remote control (1)
• R03 (size AAA) batteries (2)
• FM wire antenna (aerial) (1)
• Center speaker (1)
• Subwoofer (1)
or
• Calibration mic (1) (BDV-N9200W/
BDV-N7200W only)
• Speaker cords (5, red/white/gray/
blue/green)
• Surround amplifier (1)
• Bases (4)
BDV-N9200W only
• Front speakers (2), Surround speakers
(2)
• Lower parts of the front and surround
speakers (4)
• Screws (large) (4)
• Screws (small) (12)
12US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
BDV-N7200W only
BDV-N5200W only
• Front speakers (2), Surround speakers
(2)
• Front speakers (2)
masterpage:
Right
• Surround speakers (2)
• Center speaker (1)
• Center speaker (1)
• Subwoofer (1)
• Subwoofer (1)
• Speaker cords (5, red/white/gray/
blue/green)
• Stands (for front and surround
speakers) (4)
• Screws (8)
13US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
masterpage: Left
Guide to Parts and Controls
For more information, refer to the pages indicated in parentheses.
Main unit
Top and front panel
2
3
4
5
6
1 9
8
A "/1 (on/standby)
Turns on the main unit, or sets it to
standby mode.
B Disc lid (page 31)
C Top panel display
D
(N-Mark) (page 36)
Position the NFC-compatible device
near this indication to activate the
NFC function.
7 Slot
E LED indicator
White: Lights up when the main unit
is turned on.
Blue (for BLUETOOTH status):
– System is ready for pairing:
Flashes quickly
– During pairing: Flashes quickly
– NFC device is detected: Flashes
– Connection is established: Lights
up
14US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
F Soft-touch buttons/indicators
N* (play)
x* (stop)
./> (previous/next)
VOL +/–
FUNCTION (page 28)
Selects the playback source.
H
(remote control sensor)
I Z (open/close)
About soft-touch buttons/
indicators
* Touch and hold N on the main unit
for more than 2 seconds, the built-in
sound demonstration will be played
back on the system. If a USB device is
connected, the audio contents from
the USB device will be played back as
sound demonstration.
Touch x to stop the demonstration.
Note
During the demonstration, the volume
level may be higher than the volume
level you have set.
G
masterpage:
Right
The soft-touch button indicators flash
each time you turn on the main unit,
wait until the indicators stop flashing.
The buttons only function when the
indicators are lit.
Note
• These buttons work when you touch
them lightly. Do not press on them with
excessive force.
• If the button does not work, release the
button and wait for a few seconds. Then,
touch the button again with your finger
covering the button indicator.
(USB) port (page 33)
Place your fingernail in the slot to
open the cover.
Indicators in the top panel display
Muting is on
Repeat play
Stereo sound
is received
(Radio only)
The system’s status
(radio frequency, etc.)**
BLUETOOTH power
is on
The HDMI (OUT) jack
is correctly
connected to an
HDCP* compliant
equipment with
HDMI input
* High-bandwidth Digital Content Protection
** When you press DISPLAY, the stream information/decoding status is displayed when
the function is set to “TV”. The stream information/decoding status may not appear
depending on the stream or item being decoded.
15US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
masterpage: Left
Rear panel
1
8
7
A TV (DIGITAL IN OPTICAL) jack
(pages 22, 23)
B A.CAL MIC jack (BDV-N9200W/
BDV-N7200W only) (pages 28, 46)
C AUDIO IN (L/R) jacks (pages 22, 23)
2 3
6
4
5
D ANTENNA (FM COAXIAL 75 ) jack
(page 25)
E HDMI (OUT) jack (page 22)
F HDMI (IN 1/IN 2) jacks (page 23)
G LAN (100) terminal (page 25)
H SPEAKERS jacks (page 21)
Surround amplifier
Rear panel
Front panel
12
3
A "/1 (on/standby)
B LINK/STANDBY indicator
(page 27)
You can check the status of wireless
transmission between the main unit
and surround amplifier.
4
C SPEAKERS jacks
D SECURE LINK button (page 52)
Starts the Secure Link function.
16US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
masterpage:
Right
A Z (open/close)
Opens or closes the disc lid.
Remote control
SPEAKERS TVyAUDIO
Selects whether TV sound is output
from the system’s speakers or the
TV’s speaker(s). This function works
only when you set [Control for
HDMI] to [On] (page 59).
TV "/1 (on/standby) (page 19)
1
2
3
4
5
B
6
7
8
C
9
• AUDIO, N, and VOL + buttons have a
tactile dot. Use the tactile dot as a
reference when operating the remote
control.
•
: For TV operations
(For details, see “Preparing the remote
control for controlling your TV”
(page 19).)
The system automatically returns
to standby mode
If any button on the main unit or remote
control is not pressed within
20 minutes, the system automatically
returns to standby mode.
D
E
Turns on the TV or sets it to standby
mode.
"/1 (on/standby) (page 28)
Turns on the system or sets it to
standby mode.
VISUALIZER (page 49)
Selects the visualization pattern.
DIMMER (page 49)
Adjusts the brightness of the top
panel display, soft-touch buttons
indicators, and LED indicator.
Sound field buttons
See “Step 7: Enjoying Surround
Sound” (page 29).
CLEARAUDIO+, SOUND FIELD,
MUSIC EQ, GAME, NIGHT,
CONCERT HALL, FOOTBALL,
CINEMA STUDIO, MUSIC ARENA
Color buttons
Shortcut keys for selecting items on
some BD menus (can also be used
for Java interactive operations on
BDs).
TOP MENU
Opens or closes the BD’s or DVD’s
Top Menu.
POP UP/MENU
Opens or closes the BD-ROM’s
Pop-up Menu, or the DVD’s menu.
OPTIONS (pages 30, 41, 51)
Displays the options menu on the
TV screen or in the top panel
display. (The location differs
depending on the selected
function.)
17US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
RETURN
Returns to the previous display.
B/V/v/b
Moves the highlight to a displayed
item.
Tip
V/v are shortcut keys for track search
during music CD playback.
(enter)
Enters the selected item.
F MIRRORING (pages 35, 38)
Selects the “SCR M” function.
BLUETOOTH (page 34)
Selects the “BT” function.
HOME (pages 28, 47, 53)
Enters or exits the system’s home
menu.
SEN
Accesses the “Sony Entertainment
Network™” online service.
NETFLIX
Accesses the “NETFLIX” online
service.
G FUNCTION (page 28)
Selects the playback source.
By setting [Input Skip Setting]
(page 60), you can skip unused
inputs when selecting a function.
DISPLAY (pages 32, 39, 44, 50)
Displays playback and web
browsing information on the TV
screen.
Displays the preset radio station,
frequency, etc., in the top panel
display.
SLEEP (page 48)
Sets the sleep timer.
AUDIO (page 43)
Selects the audio format/track.
SUBTITLE
Selects the subtitle language when
multilingual subtitles are recorded
on a BD-ROM/DVD VIDEO.
masterpage: Left
3D
Converts 2D content into simulated
3D content when connected to a
3D-compatible device.
H Playback operation buttons
See “Playback” (page 31).
m/M (fast/slow/freeze frame)
Fast reverse/fast forward during
playback. Each time you press the
button, the search speed changes.
Activates slow-motion play when
pressed for more than one second
in pause mode.
Plays one frame at a time when
pressed in pause mode.
Note
During Blu-ray 3D Disc playback, slowmotion reverse play and single-frame
reverse play are not available.
./> (previous/next)
Selects the previous/next chapter,
track, or file.
N PLAY
Starts or re-starts playback (resume
play).
Activates One-Touch Play (page 45)
when the system is on and set to
the “BD/DVD” function.
X PAUSE
Pauses or re-starts playback.
x STOP
Stops playback and remembers the
stop point (resume point). The
resume point for a title/track is the
last point you played or the last
photo for a photo folder.
Stops the built-in or USB sound
demonstration.
Radio operation buttons
See “Tuner” (page 44).
TUNING +/–
PRESET +/–
18US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\030UNP.fm
I MUTING
Turns off the sound temporarily.
VOL +/–
Adjusts the volume.
TV VOL +/–
Adjusts the TV volume.
TV INPUT
Switches the TV’s input source
between the TV and other input
sources.
masterpage:
Right
Note
The TV’s manufacturer’s codes are
registered to the buttons in the table
above. If the setting is unsuccessful, the
currently registered code is not
changed. Press the corresponding
button again.
If more than one button is listed, try
pressing them one at a time until you
find the button that works with your TV.
3
Preparing the remote control for
controlling your TV
By adjusting the remote control signal,
you can control your TV with the
supplied remote control.
Release TV ?/1.
Now you can use the TV ?/1,
TV VOL +/– and TV INPUT buttons to
control your TV.
Note
When you replace the batteries of the
remote control, the code number may
reset to the default (SONY) setting. Set the
remote control again.
1
2
Hold down TV ?/1.
Press the corresponding button for
your TV (see table below), then press
.
Manufacturer
Button
SONY (default)
CLEARAUDIO+
FUNAI
CINEMA STUDIO
LG
MUSIC EQ
PANASONIC
GAME
SAMSUNG
SOUND FIELD,
MUSIC EQ
SHARP
CONCERT HALL
TOSHIBA
FOOTBALL
VIZIO
NIGHT
19US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
masterpage: Left
Getting Started
Note
Getting Started
Step 1: Installing the
Speakers
Install the speakers by referring to the
illustration below.
To assemble the speakers, refer to the
supplied “Speaker Installation Guide”.
A Front left speaker (L)
B Front right speaker (R)
C Center speaker
D Surround left speaker (L)
E Surround right speaker (R)
F Subwoofer
G TV
Tip
Installing the surround speakers
in rear position
(Speaker layout: [Standard])
A
G C
• Be sure to select the speakers layout
setting (page 47) according to your
speakers placement.
• Use caution when placing the speakers
and/or speaker stands attached to the
speakers on a specially treated (waxed,
oiled, polished, etc.) floor, as staining or
discoloration may result.
• Do not lean or hang on a speaker, as it
may fall down.
• The speakers of this system are not
magnetically shielded. This may result in
color irregularity when they are placed
near a CRT TV or projector.
• In order to output more effective sound
when [All Front] setting is selected, we
recommend you to install your front
speakers and surround speakers closer to
each other.
• You can install the speakers on a wall. For
details, refer to the supplied “Speaker
Installation Guide”.
B
Step 2: Connecting the
System
F
E
D
Installing all speakers in front
position
(Speaker layout: [All Front])
DA
G C BE
Do not connect the AC power cord
(mains lead) of the main unit to a wall
outlet (mains) until all the other
connections are made.
Note
When you connect other equipment with a
volume control, turn down the volume of
the equipment to a level where sound is
not distorted.
F
20US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
masterpage:
Right
Connecting the speakers
Getting Started
Connect the speaker cords to match the
color of the SPEAKERS jacks of the main
unit and surround amplifier. Be sure to
insert the speaker connector until it
clicks.
To the main unit
Red
(Front right
speaker (R))
White
(Front left
speaker (L))
Purple
(Subwoofer)
Green
(Center
speaker)
To the surround amplifier
Blue
(Surround
left speaker
(L))
Gray
(Surround right
speaker (R))
21US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
masterpage: Left
Getting Started
Connecting the TV
Select one of the following connection methods according to the input jacks on your
TV.
B
C
A
Video connection
A
HDMI cable1) (not supplied)
2)
or
1)
2)
High Speed HDMI cable
The Audio Return Channel (ARC) function enables the TV to output sound through the
system with an HDMI connection, without performing the B or C connection below. To
set the ARC function on this system, see [Audio Return Channel] (page 59). To check the
compatibility of your TV’s ARC function, refer to the operating instructions supplied with
your TV.
Audio connections
If your TV’s HDMI jack is not compatible with the ARC function, make an appropriate
audio connection (B or C) for listening to TV sound via the system’s speakers.
B
High quality
Optical digital cord (not supplied)
DIGITAL OUT
OPTICAL
C
Audio cable (not supplied)
L
AUDIO
OUTPUT
R
Standard quality
22US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
masterpage:
Right
Note
Getting Started
To enjoy TV sound, select “TV” function for connection B or “AUDIO” function for
connection C.
Connecting the other equipment
Connect the system, TV and other equipment as follows.
You cannot enjoy the audio and video of the connected equipment on the TV
through this system when the system is off or in standby mode.
TV
Video out*
Equipment
(Set-top box, VCR, PlayStation®, or
digital satellite receiver, etc.)
A
System
B, C
Signal flow
: Video signal
: Audio signal
* This connection is unnecessary for connection A (HDMI connection).
Select one of the following connection methods according to the jack type of the
equipment.
B
C
A
23US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
Getting Started
A
masterpage: Left
High quality
HDMI cable* (not supplied)
HDMI OUT
* High Speed HDMI cable
B
Optical digital cord (not supplied)
DIGITAL OUT
OPTICAL
C
Audio cable (not supplied)
L
AUDIO
OUTPUT
R
Standard quality
When you make connection A
This connection can transmit both video and audio signals.
Note
• Video signals from the HDMI (IN 1/2) jacks are output to the HDMI (OUT) jack only when
the “HDMI1” or “HDMI2” function is selected.
• To output an audio signal from the HDMI (IN 1/2) jacks to the HDMI (OUT) jack, you may
need to change the audio output setting. For details, see [Audio Output] in [Audio
Settings] (page 57).
When you make connection B, C
Connect the system so that video signals from the system and other equipment are
output to the TV, and audio signals from the equipment are output to the system.
Note
• If you make either connection above, set [Control for HDMI] in [HDMI Settings] of [System
Settings] to [Off] (page 59).
• You can enjoy equipment sound by selecting “TV” function for connection B or “AUDIO”
function for connection C.
24US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
Step 3: Preparing for
Network Connection
Rear of the main unit
Tip
To connect the system to your network,
perform [Easy Network Settings]. For
details, see “Step 5: Performing the Easy
Setup” (page 27).
Select the method based on your LAN
(Local Area Network) environment.
• If you use a wireless LAN
The system has built-in Wi-Fi, and you
can connect the system to the network
by making the network settings.
• If you use a wired LAN
Use a LAN cable to connect to the LAN
(100) terminal on the main unit.
or
FM wire antenna (aerial)
(supplied)
Note
• Be sure to fully extend the FM wire
antenna (aerial).
• After connecting the FM wire antenna
(aerial), keep it as horizontal as possible.
Tip
Broadband router
If you have poor FM reception, use a
75-ohm coaxial cable (not supplied) to
connect the main unit to an outdoor FM
antenna (aerial).
LAN cable (not supplied)
Tip
We recommend that you use a shielded
and straight interface cable (LAN cable).
25US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Getting Started
Connecting the antenna
(aerial)
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
Getting Started
Before performing the network
settings
When your wireless LAN router (access
point) is Wi-Fi Protected Setup (WPS)compatible, you can easily set the
network settings with the WPS button.
If not, check the following information in
advance, and record it in the space
provided below.
• The network name (SSID*) that
identifies your network.**
• If security is set on your wireless
network, the security key (WEP key,
WPA key).**
* SSID (Service Set Identifier) is a name
that identifies a particular wireless
network.
** You need to check the settings of your
wireless LAN router to get the
information about SSID and security key.
For details:
– visit the following website:
http://www.sony.com/
blurayhtsupport/
– refer to the operating instructions
supplied with the wireless LAN router
– consult the manufacturer of the
wireless LAN router
About wireless LAN security
Since communication via the wireless
LAN function is established by radio
waves, the wireless signal may be
susceptible to interception. To protect
wireless communication, this system
supports various security functions. Be
sure to correctly configure the security
settings in accordance with your
network environment.
masterpage: Left
x No Security
Although you can easily make settings,
anyone can intercept wireless
communication or intrude into your
wireless network, even without any
sophisticated tools. Keep in mind that
there is a risk of unauthorized access or
interception of data.
x WEP
WEP applies security to
communications to prevent outsiders
from intercepting communications or
intruding into your wireless network.
WEP is a legacy security technology that
enables older devices which do not
support TKIP/AES to be connected.
x WPA-PSK (TKIP), WPA2-PSK
(TKIP)
TKIP is a security technology developed
in response to the deficiencies of WEP.
TKIP assures a higher security level than
WEP.
x WPA-PSK (AES), WPA2-PSK (AES)
AES is a security technology that uses an
advanced security method distinct from
WEP and TKIP. AES assures a higher
security level than WEP or TKIP.
Step 4: Setting up the
Wireless System
The main unit transmits sound to the
surround amplifier that is connected to
the surround speakers. To activate
wireless transmission, perform the
following Steps.
1
Connect the AC power cord (mains
lead) of the main unit.
Before connecting the AC power
cord, make sure all connections in
“Step 2: Connecting the System”
(page 20) are secure.
26US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
2
Press "/1 to turn on the system.
3
Connect the AC power cord (mains
lead) of the surround amplifier.
About the standby mode
The surround amplifier enters standby
mode automatically when the main unit
is in standby mode or wireless
transmission is deactivated.
The surround amplifier turns on
automatically when the main unit is
turned on and wireless transmission is
activated.
To specify the wireless
connection
LINK/STANDBY indicator
When wireless transmission is
activated, the LINK/STANDBY
indicator turns green.
If the LINK/STANDBY indicator does
not turn on, see “Wireless sound”
(page 68).
About the LINK/STANDBY
indicator
The LINK/STANDBY indicator shows
wireless transmission status as follows.
Turns green
The system is turned on, wireless
transmission is activated and surround
signals are being received.
Turns orange
The system is turned on, wireless
transmission is activated with the Secure Link
function, and surround signals are being
received.
If you use multiple wireless products or
your neighbors use wireless products,
interference may occur. To prevent this,
you can specify the wireless connection
to link the main unit to the surround
amplifier (Secure Link function). For
details, see “Further Settings for the
Wireless System” (page 51).
Step 5: Performing the
Easy Setup
Follow the Steps below to make the
basic adjustments and network settings
for the system.
Displayed items vary depending on the
area.
1
Flashes green or orange slowly
Wireless transmission is deactivated.
Turns red
The surround amplifier is in standby mode
while the system is in standby mode or
wireless transmission is deactivated.
Insert two R03 (AAA) batteries
(supplied) by matching the 3 and
# ends on the batteries to the
markings inside the
compartment.
Turns off
The surround amplifier is turned off.
Flashes red
The surround amplifier’s protection is active.
2
Turn on the TV.
27US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Getting Started
"/1
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
Getting Started
3
4
5
6
Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
(BDV-N9200W/BDV-N7200W
only)
Set up the calibration mic at ear
level using a tripod, etc. (not
supplied). The calibration mic
should aim the TV screen. The front
of each speaker should face the
calibration mic, and there should be
no obstruction between the
speakers and the calibration mic.
7
8
Press [/1 to turn on the system.
Switch the input selector on your
TV so that the signal from the
system appears on the TV screen.
The [Easy Initial Settings] for OSD
language selection appears.
Perform [Easy Initial Settings].
Follow the on-screen instructions
to make the basic settings using
B/V/v/b and
.
B/V/v/b
For details about [Auto Calibration],
see “Calibrating the Appropriate
Speaker Settings Automatically”
(page 46). (BDV-N9200W/
BDV-N7200W only)
masterpage: Left
After completing the [Easy Initial
Settings], press V/v to select [Easy
Network Settings], then press
.
The [Easy Network Settings] display
appears.
Follow the on-screen instructions
to make the network settings
using B/V/v/b and
.
If the system cannot connect to the
network, see “Network connection”
(page 70) or “Wireless LAN
connection” (page 70).
To recall the [Easy Network
Settings] display
1
Press HOME.
The home menu appears on the TV
screen.
2
3
Press B/b to select
[Setup].
Press V/v to select [Easy Network
Settings], then press
.
Step 6: Selecting the
Playback Source
Press FUNCTION repeatedly.
When you press FUNCTION once, the
current function appears in the top
panel display, then each time you press
FUNCTION, the function changes
cyclically as follows.
“BD/DVD” t “USB” t “FM” t
“HDMI1” t “HDMI2” t “TV” t
“SCR M” t “BT” t “AUDIO”
“BD/DVD”
Disc or network device to be played by the
system
“USB”
USB device that is connected to the
port (page 14)
(USB)
28US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
“FM”
FM radio (page 44)
masterpage:
Right
Selecting the sound field
“TV”
Equipment (TV, etc.) that is connected to the
TV (DIGITAL IN OPTICAL) jack, or a TV
compatible with the Audio Return Channel
function that is connected to the HDMI (OUT)
jack (pages 22, 23)
Press SOUND FIELD repeatedly during
playback.
You can also press CLEARAUDIO+,
GAME and NIGHT to select respective
sound field.
“BT”
[Bluetooth AUDIO]
BLUETOOTH device that supports A2DP
ClearAudio+
You can enjoy the sound with Sonyrecommended sound field. Sound field is
automatically optimized according to
playback content and function.
• 2-channel source: The system will recreate
5.1 channel speaker output.
• Multi-channel source: The system outputs
sound from the speakers as it was
recorded.
“AUDIO”
Equipment that is connected to the AUDIO IN
(L/R) jacks (pages 22, 23)
Movie
The system provides the optimized sound for
watching movies.
Tip
Music
The system provides the optimized sound for
listening to music.
“SCR M”
[Screen mirroring]
Screen mirroring-compatible device (pages
35, 37)
• Some functions may be changed via the
TV screen by pressing FUNCTION, V/v,
and .
• You can also press BLUETOOTH and
MIRRORING on the remote control to
select “BT” and “SCR M” function
respectively.
Digital Music Enhancer
[Digital Music]
This is a technology developed by Sony to
enhance the sound quality of compressed
audio files by restoring high frequency range
sound after compression process.
Game
The system provides the optimized sound for
playing video games.
Night
Suitable for watching movies at night by
reducing loud sounds while maintaining
clear dialog.
Step 7: Enjoying
Surround Sound
After performing the previous Steps and
starting playback, you can easily enjoy
pre-programmed sound fields that are
tailored to different kinds of sound
sources. They bring the exciting and
powerful sound into your home.
Note
The sound field can be selected only when
[Sound Effect] is set to [Sound Field On]
(page 57). When [Sound Effect] is set to
other than [Sound Field On], the sound
field setting does not apply.
Tip
• To enjoy 2-channel source such as a CD in
multi-channel output, we recommend
you to select [ClearAudio+].
• If you set the sound field to [ClearAudio+]
and play Internet content of the Berlin
Philharmonic, the [Philharmonic Hall]
mode (page 30) is automatically selected
(only for areas that are offered the
service).
29US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Getting Started
“HDMI1”/“HDMI2”
Equipment that is connected to the HDMI
(IN 1) or HDMI (IN 2) jack (page 23)
Getting Started
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\040GET.fm
• When the speaker layout is set to [All
Front] and you play back multi-channel
source, select [ClearAudio+], [Movie],
[Game] or [Night] to enjoy virtual
surround sound.
To select the sound field from the
option menu
1
Press OPTIONS and V/v to select
[Sound Field], then press
.
2
Press V/v to select the sound field,
then press
.
masterpage: Left
Press CINEMA STUDIO to select
[Cinema Studio 9.1ch : On].
This system reproduces the sound
characteristics of the cinema production
studio. This setting can expand a source
sound up to 9.1 channels to which a
vertical component is applied, and give
a dimension of presence and depth.
Press MUSIC ARENA to select [Music
Arena : On].
You can enjoy Live Music Concert filled
with great excitement created by Sony
unique Audio DSP technology. (Digital
Music Arena)
To select the pre-programmed
music equalizer
To select the advanced sound
field from the option menu
Press MUSIC EQ repeatedly during
playback.
You can select the sound to suit your
preference.
Each time you press the button, the
setting changes cyclically as follows.
[Standard] t [Rock] t [Hiphop] t
[Electronica]
You can also select the music equalizer
from the option menu. Follow steps 1
and 2 above. Select [Music] in step 2.
Then, press V/v and
to select the
setting.
Selecting the advanced
sound field
1
Press OPTIONS and V/v to select
[Cinema Studio 9.1ch], [Music Arena]
or [Philharmonic Hall], then press
.
2
Press V/v to select [On], then press
.
Note
The advanced sound fields are
automatically set to [Off] when you
perform the following.
– Turn off the system.
– Press any of the sound field buttons
(page 17).
You can bring the exciting and powerful
sound of movie theaters and concert
halls into your home by selecting one of
the following sound fields.
Press CONCERT HALL to select
[Philharmonic Hall : On].
The system reproduces the sound
characteristics of a Berlin philharmonic
hall. This mode can reproduce
hi-resolution sound.
30US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
masterpage:
Right
To select the football mode
• [Football : Narration On]: You can
enjoy an immersive feeling of being in
a football stadium through enhanced
stadium cheers.
• [Football : Narration Off]: You can
enjoy a more immersive feeling of
being in a football stadium by
minimizing the volume level of
narration in addition to the
enhancement of cheers.
• [Football Off]: The football mode is
turned off.
Playback
Playing a Disc
For playable discs, see “Playable Discs”
(page 71).
1
2
Switch the input selector on your
TV so that the signal from the
system appears on your TV
screen.
Press Z, and place a disc on the
disc compartment until it clicks.
Note
• We recommend you to select the football
mode when watching a football match
broadcast.
• If you hear unnatural sound in the content
when [Football : Narration Off] is selected,
[Football : Narration On] is
recommended.
• The football mode is automatically set to
[Football Off] when you perform the
following.
– Turn off the system.
– Press any of the sound field buttons
(page 17).
• This feature does not support monaural
sound.
Tip
• You can also select the football mode
from the option menu.
• If 5.1 channel audio stream is available,
we recommend you to select it on your TV
or set-top box.
3
Press Z to close the disc lid.
Playback starts.
If playback does not start
automatically, select
in the
[Video],
[Music], or
[Photo] category, and press
.
Enjoying BONUSVIEW/
BD-LIVE
Some BD-ROMs with “BD-LIVE Logo*”
have bonus content and other data that
can be downloaded for enjoyment.
*
1
Connect the USB device to the
(USB) port (page 33).
For local storage, use a 1 GB or
larger USB memory.
31US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Playback
Press FOOTBALL repeatedly while
watching a football match broadcast.
You can experience a feeling of
presence in the stadium when watching
the football match broadcast.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
2
3
Prepare for BD-LIVE (BD-LIVE
only).
• Connect the system to a network
(page 25).
• Set [BD Internet Connection] to
[Allow] (page 58).
Insert a BD-ROM with
BONUSVIEW/BD-LIVE.
The operation method differs
depending on the disc. Refer to the
operating instructions of the disc.
masterpage: Left
Displaying the playback
information
You can check the playback
information, etc., by pressing DISPLAY.
The displayed information differs
depending on the disc type and system
status.
Example: when playing a BD-ROM
Tip
To delete data in the USB memory, select
[Delete BD Data] in
[Video], and press
. All data stored in the buda folder will be
deleted.
Enjoying Blu-ray 3D
You can enjoy Blu-ray 3D Discs with the
3D logo*.
*
1
2
A Output resolution/Video frequency
B Title number or name
C The currently selected audio setting
D Available functions (
angle,
audio,
subtitle,
Closed Caption (USA model
only))
Prepare for Blu-ray 3D Disc
playback.
• Connect the system to your
3D-compatible TV using a High
Speed HDMI cable (page 22).
• Set [3D Output Setting] and [TV
Screen Size Setting for 3D] in
[Screen Settings] (page 54).
Insert a Blu-ray 3D Disc.
The operation method differs
depending on the disc. Refer to the
operating instructions supplied with
the disc.
E Playback information
Displays play mode, playing status
bar, disc type, video codec, bit rate,
repeat type, elapsed time, total
playing time
F Chapter number
G The currently selected angle
Tip
Refer also to the operating instructions of
your 3D-compatible TV.
32US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
Playing from a USB
Device
Enjoying Music from a
BLUETOOTH Device
2
3
4
Connect the USB device to the
(USB) port.
Refer to the operating instructions
of the USB device before
connecting.
Press HOME.
The home menu appears on the TV
screen.
Press B/b to select
[Video],
[Music], or
[Photo].
Press V/v to select
device], then press
[USB
.
Playback
You can play video/music/photo files
on a connected USB device.
For playable types of files, see “Playable
Types of Files” (page 72).
1
masterpage:
Right
About the BLUETOOTH
wireless technology
BLUETOOTH wireless technology is a
short-range wireless technology that
enables wireless data communication
between digital devices. BLUETOOTH
wireless technology operates within a
range of about 10 meters (33 feet).
Supported BLUETOOTH version
and profiles
Profile refers to a standard set of
capabilities for various BLUETOOTH
product capabilities. For details on the
supported BLUETOOTH version and
profiles, see “BLUETOOTH Section”
(page 75).
Note
Note
Do not remove the USB device during
operation. To avoid data corruption or
damage to the USB device, turn the system
off before connecting or removing the USB
device.
• Depending on the specifications of the
BLUETOOTH device, the functions may
differ even though the device supports
the same profile as this system.
• The audio playback on this system may
be delayed from that on the BLUETOOTH
device because of the characteristics of
the BLUETOOTH wireless technology.
33US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
Note
Pairing this system with a
BLUETOOTH device
Pairing is an operation where
BLUETOOTH devices register with each
other beforehand. Once a pairing
operation is performed, it does not need
to be performed again.
1
2
3
4
Place the BLUETOOTH device
within 1 meter (3.3 feet) from the
main unit.
Press BLUETOOTH.
You can also select
[Bluetooth
AUDIO] from
[Input] in home
menu.
You can pair up to 9 BLUETOOTH
devices. If the 10th BLUETOOTH device
is paired, the least recently connected
device will be replaced by the new
one.
6
7
Start playback on the BLUETOOTH
device.
Adjust the volume.
Adjust the volume of the
BLUETOOTH device first, if the
volume level is still too low, adjust
the volume level on the main unit.
To cancel pairing operation
Set the BLUETOOTH device in
pairing mode.
For details on setting the
BLUETOOTH device in pairing mode,
refer to the operating instructions
supplied with the device.
Select your system’s name (for
example, “BDV-N9200W”) on the
device’s display.
Perform this step within 5 minutes,
otherwise pairing will be canceled.
Note
If passkey is required on the
BLUETOOTH device, enter “0000”.
Passkey may be called “Passcode”,
“PIN code”, “PIN number” or
“Password”.
Press HOME or FUNCTION.
Connecting to a BLUETOOTH
device from this system
You can connect to a BLUETOOTH
device from this main unit.
Check the following before playing
music:
– The BLUETOOTH function of the
BLUETOOTH device is turned on.
– The pairing has been completed
(page 34).
1
Press BLUETOOTH.
Note
To connect to the most recent
connected BLUETOOTH device, press
N. Then proceed to Step 5.
Tip
You can change the system’s name
appears on your device by using
[Device Name] in [System Settings]
(page 60).
5
masterpage: Left
2
3
Once pairing is completed, the
device is automatically connected
to the system.
Device name appears on the TV
screen.
4
5
Press OPTIONS.
Select [Device List], then press
.
A list of paired BLUETOOTH devices
appears.
Press V/v repeatedly to select the
device you want, then press
.
Press N to start playback.
34US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
6
Note
• Once the main unit and the BLUETOOTH
device are connected, you can control
playback by pressing N, X, x, m/M
and ./>.
• You can connect to the system from a
paired BLUETOOTH device in functions
other than “BT”, if you set [Bluetooth
Power Setting] in [External Input Settings]
to [On] (page 61).
Tip
Using Screen mirroring
“Screen mirroring” is a function to
display the screen of a mobile device on
the TV by Miracast technology.
The main unit can be connected directly
with a Screen mirroring-compatible
device (e.g. smartphone, tablet). You
can enjoy the display screen of the
device on your large TV screen. No
wireless router (or access point) is
required to use this feature.
1
2
You can enable or disable the reception of
AAC audio from BLUETOOTH device
(page 60).
To disconnect the BLUETOOTH
device
Press MIRRORING.
Follow the on-screen instructions.
Activate the Screen mirroring
function from your device.
For details on how to activate the
function, refer to the operating
instructions supplied with your
device.
Note
Press HOME, FUNCTION or RETURN.
To delete a paired BLUETOOTH
device from the device list
1
2
Follow Steps 1 to 3 above.
3
Press V/v repeatedly to select
[Remove], then press
.
4
Press B/b repeatedly to select [OK],
then press
.
Press V/v repeatedly to select the
device, then press OPTIONS.
• When using Screen mirroring, the quality
of picture and sound may sometimes be
deteriorated due to interference from
other network.
• Some network functions may not be
available during Screen mirroring.
• Make sure that the device is compatible
with Miracast. Connectivity with all
Miracast compatible devices is not
guaranteed.
• Depending on the usage environment,
the quality of the picture and sound may
be deteriorated.
Tip
You can also wirelessly mirror your entire
Xperia smartphone screen on a large TV
screen by using One-touch mirroring
function (NFC) (page 37).
35US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Playback
Adjust the volume.
Adjust the volume of the
BLUETOOTH device first, if the
volume level is still too low, adjust
the volume level on the main unit.
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
Connecting to a remote
device by One-touch
listening function (NFC)
Connecting to a Remote
Device by One-touch
Function (NFC)
What is “NFC”?
NFC (Near Field Communication) is a
technology enabling short-range
wireless communication between
various devices, such as mobile phones
and IC tags. Thanks to the NFC function,
data communication can be achieved
easily just by holding the device near
the
masterpage: Left
(N-Mark) on the
NFC-compatible devices.
By holding an NFC-compatible remote
device near to the N-Mark on the main
unit, the main unit and remote device
proceed to complete pairing and the
BLUETOOTH connection automatically.
Compatible remote devices
Remote devices with a built-in NFC
function
(OS: Android 2.3.3 – 4.x.x excluding
Android 3.x)
1
Note
• The system only can recognizes and
connects to one NFC-compatible device
at a time.
• Depending on your remote device, you
may need to turn on the NFC function on
your remote device in advance. For
details, refer to the operating instructions
of the remote device.
• To use the NFC function, be sure to set
[NFC] to [On] (page 59).
Download and install the “NFC
Easy Connect” application.
“NFC Easy Connect” is a free
application for Android remote
devices that can be obtained on
Google Play. Search for the
application using the keyword “NFC
Easy Connect” on the site, or access
the download site directly by
reading the two-dimensional code
below.
Note that “NFC Easy Connect” is free
but data communication fees when
downloading are charged
separately.
Two-dimensional code* for direct
access
* Use a two-dimensional code reader
application.
36US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
2
Note
Tip
The application may not be available
in some countries/regions.
If the volume level is low, adjust the
volume of the remote device first. If the
volume level is still too low, adjust the
volume level on the main unit.
Start the “NFC Easy Connect”
application on the remote device.
Make sure that the application
screen is displayed.
Hold the remote device near to
the N-Mark on the main unit
(page 36) until the remote device
vibrates.
Vibration cue is provided when the
remote device is recognized by the
main unit. Follow the on-screen
instructions displayed on the
remote device, and complete the
procedure for BLUETOOTH
connection.
When the BLUETOOTH connection
is established, the blue LED
indicator on the top panel stops
flashing. The playback time appears
in the top panel display.
Note
For some remote devices, this function
may be available without downloading
“NFC Easy Connect”. In this case, the
operation and specifications of the remote
device may differ from the description in
this manual.
Tip
If pairing and the BLUETOOTH connection
fail, do the following.
– Relaunch “NFC Easy Connect” and move
the remote device slowly over the
N-Mark.
– Remove the case from the remote device
if using a commercially available remote
device case.
To stop playback
The playback will be stopped when you
perform any of the following items.
– Hold the remote device near to the
N-Mark on the main unit again.
– Stop the music player of the remote
device.
– Turn off the main unit or the remote
device.
– Change the function.
– Disable the BLUETOOTH function on
the remote device.
Connecting to an Xperia
smartphone by One-touch
mirroring function (NFC)
By holding a One-touch mirroringcompatible Xperia near to the N-Mark
on the main unit, you can wirelessly
mirror your entire Xperia smartphone
screen on a big screen TV. You can
watch videos or browse together with
your family and friends. No wireless
router (or access point) is required to
use this function.
Compatible Xperia smartphones
Xperia with the One-touch mirroring
function
To listen to music
Start playback of an audio source on the
remote device. For details on playback
operations, refer to the operating
instructions of your remote device.
37US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Playback
3
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
1
2
3
Press MIRRORING.
Hold the Xperia smartphone near
to the N-Mark on the main unit
(page 36) until the Xperia
smartphone vibrates.
Vibration cue is provided when the
Xperia smartphone is recognized by
the main unit.
The main unit establishes a
connection with Xperia
smartphone.
Once connection is established,
the Xperia smartphone screen
appears on the TV screen.
The Xperia smartphone is
registered to the system.
masterpage: Left
Using “SongPal”
A dedicated App for this model is
available on both Google Play and App
Store. Search for “SongPal” and
download the free App to find out more
about the convenient features.
Easy Control app, “SongPal”, supports
wireless operation. It allows you to:
– choose music/audio contents from
integrated functions of various device
and smartphone.
– control various settings intuitively.
– enhance the music visually with your
smartphone display.
Note
To exit mirroring
To use this function, be sure to perform the
software update (page 54).
Press HOME, RETURN or FUNCTION.
Note
• You cannot access to any other networks
during mirroring.
• The quality of picture and sound may
sometimes be deteriorated due to
interference from other network.
Tip
You can select your preference sound field
during mirroring. Press the sound field
buttons (page 17).
Playing via a Network
Enjoying Sony
Entertainment Network
(SEN)
Sony Entertainment Network serves as a
gateway delivering selected Internet
content and a variety of on-demand
entertainment straight to your main
unit.
Tip
• Some Internet content requires
registration via a PC before it can be
played. For further details, visit the
following website:
http://www.sony.com/blurayhtsupport/
• Some Internet content may not be
available in some countries/regions.
38US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
1
Playing files on a Home
Network (DLNA)
Press SEN.
Press B/V/v/b to select the
Internet content and a variety of
on-demand entertainment, then
press
.
Video streaming control panel
The control panel appears when a video
file starts playing. The displayed items
may differ depending on the Internet
content provider.
To display again, press DISPLAY.
A Control display
Press B/V/v/b or
operations.
You can play video/music/photo files
on other DLNA-certified equipment by
connecting them to your home network.
This main unit can be used as a player
and renderer.
• Server: Stores and shares digital
media contents
• Player: Finds and plays digital media
content from the DMS
• Renderer: Receives and plays files
from the server, and can be operated
by another equipment (controller)
• Controller: Operates the renderer
equipment
Prepare for using the DLNA function.
• Connect the system to a network
(page 25).
• Prepare other DLNA-certified
equipment. For details, refer to the
operating instructions of the
equipment.
for playback
B Playing status bar
Status bar, cursor indicating the
current position, playing time,
duration of the video file
C Network condition indicator
Indicates signal strength for a
wireless connection.
Indicates a wired connection.
D Network transmission speed
E The next video file name
To play files stored on a DLNA
server via the system (DLNA
Player)
Select the DLNA server icon from
[Video],
[Music], or
[Photo]
in the home menu, then select the file
that you want to play.
Server
Player
(This system)
F The currently selected video file
name
39US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Playback
2
3
Prepare for Sony Entertainment
Network.
Connect the system to a network
(page 25).
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
To play remote files by operating
the system (Renderer) via a DLNA
controller
You can operate the system with a
DLNA-certified controller (a mobile
phone, etc), when playing files stored
on a DLNA server.
Renderer
(This system)
Server
Controller
[Video] or
Press V/v to select
[Video
Search] or
[Music Search].
The content information (such as
title, cast, track, or artist), [Playback
History] and [Search History] are
displayed.
• [Playback History]
Displays a list of previously played
BD-ROM/DVD-ROM/CD-DA
(music CD) titles. Select a title to
acquire content information.
• [Search History]
Displays a list of previous searches
performed via the [Video Search]
or [Music Search] function.
Select an item in the lists, then select the
service for searches.
Note
Do not operate the system with the
supplied remote control and a DLNA
controller at the same time.
Using the TV SideView
Tip
The system is compatible with the “Play
To” function of Windows Media® Player 12
that comes standard with Windows 7.
Searching for video/music
information
You can acquire content information
using Gracenote technology and search
for related information.
2
4
Press B/b to select
[Music].
To search for further related
information
For details on operation, refer to the
operating instructions of the DLNA
controller.
1
3
masterpage: Left
Connect the system to a network
(page 25).
Insert a disc with content about
which you want to search.
You can perform a video search
from a BD-ROM or DVD-ROM, and a
music search from a CD-DA (music
CD).
TV SideView is a free mobile application
for the remote device (smartphone, etc).
By using the TV SideView with this
system, you can easily enjoy the system
by the operation on your remote device.
You can launch a service or application
directly from the remote device and
view the disc information during the
disc playback. The TV SideView also can
be used as a remote control and
software keyboard.
Before you use the TV SideView device
with this system for the first time, be
sure to register the TV SideView device.
Follow the on-screen instructions on the
TV SideView device for registration.
Note
The registration will be possible only when
home menu appears on the TV screen.
40US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
masterpage:
Right
Available Options
[3D Output Setting]
Sets whether or not to output 3D video
automatically.
Various settings and playback
operations are available by pressing
OPTIONS. The available items differ
depending on the situation.
3D video from the HDMI (IN 1) or HDMI (IN 2)
jack is output regardless of this setting.
Note
Common options
[Football]
Selects the football mode (page 31).
You can customize the following picture
settings according to your preference and
saved them in [Custom1]/[Custom2] settings.
• [Texture Remaster]: Adjusts the sharpness
and detail of the edges.
• [Super Resolution]: Improves the resolution.
• [Smoothing]: Reduces on-screen banding by
smoothing gradations on flat areas.
• [Contrast Remaster]: Automatically arranges
the black and white levels so that the screen
is not too dark and the image is modulated.
• [Clear Black]: Adjusts the display of the dark
elements of the image. All shading is not
suppressed; it allows beautifully reproduced
black tones.
[Repeat Setting]
Sets repeat playback.
[Pause]
Pauses playback.
[3D Menu]
[Simulated 3D]: Adjusts the simulated 3D
effect.
[3D Depth Adjustment]: Adjusts the depth of
3D images.
[2D Playback]: Sets playback to 2D image.
[Top Menu]
Displays the BD’s or DVD’s Top Menu.
[Sound Field]
Changes the sound field setting (page 29).
[Cinema Studio 9.1ch]
Turns on or off the Cinema Studio 9.1 channel
mode (page 30).
[Music Arena]
Turns on or off the Digital Music Arena mode
(page 30).
[Philharmonic Hall]
Turns on or off the Philharmonic Hall mode
(page 30).
[Play/Stop]
Starts or stops playback.
[Play from beginning]
Plays the item from the beginning.
[Change Category]
Switches among the
[Video],
[Music]
and
[Photo] category in “BD/DVD” (for disc
only), “USB” function or DLNA server. This item
only available when the display list is available
for the category.
[Video] only
[A/V SYNC]
Adjusts the time gap between picture and
sound (page 42).
[Menu/Popup Menu]
Displays the BD-ROM’s Pop-up Menu or DVD’s
menu.
[Title Search]
Searches for a title on BD-ROMs/DVD VIDEOs
and starts playback from the beginning.
[Chapter Search]
Searches for a chapter and starts playback
from the beginning.
[Audio]
Selects the audio format/track.
[Subtitle]
Selects the subtitle language when
multilingual subtitles are recorded on
BD-ROMs/DVD VIDEOs.
[Closed Captions] (USA model only)
Selects the Closed Captions.
[Angle]
Switches the viewing angles when multiangles are recorded on BD-ROMs/DVD
VIDEOs.
[IP Content NR Pro]
Adjusts the video quality for Internet content.
41US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Playback
[Video Settings]
[Picture Quality Mode]: Selects the picture
settings ([Direct], [Brighter Room], [Theater
Room], [Auto], [Custom1] and [Custom2]).
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\050PLA.fm
[Video Search]
Displays information on the BD-ROM/
DVD-ROM based on Gracenote technology.
Adjusting the delay between
the picture and sound
[Number Entry]
Inputs numbers. Use B/V/v/b to select the
number.
(A/V SYNC)
[Music] only
[Track Search]
Searches the track number during music CD
playback.
[Add Slideshow BGM]
Registers music files in the USB memory as
slideshow background music (BGM).
[Music Search]
Displays information on the audio CD (CD-DA)
based on Gracenote technology.
[Visualizer]
Changes the visualizer color effect on the TV
screen (page 49).
[Photo] only
When the sound does not match the
pictures on the TV screen, you can
adjust the delay between the picture
and sound for the following functions.
The setting method differs depending
on the function.
When the “BD/DVD”, “USB”,
“HDMI1” or “HDMI2” function is
selected
1
2
3
[Slideshow]
Starts a slideshow.
[Slideshow Speed]
Changes the slideshow speed.
Press OPTIONS.
The option menu appears on the TV
screen.
Press V/v to select [A/V SYNC],
then press
.
Press B/b to adjust the delay, then
press
.
You can adjust from 0 ms to 300 ms
in 25 ms increments.
When the “TV” function is
selected
[Slideshow Effect]
Sets the effect when playing a slideshow.
[Slideshow BGM]
• [Off]: Turns off the function.
• [My Music from USB]: Sets the music files
registered in [Add Slideshow BGM].
• [Play from Music CD]: Sets the tracks on
CD-DAs.
1
[Change Display]
Switches between [Grid View] and [List View].
2
3
[Rotate Left]
Rotates the photo counterclockwise by
90 degrees.
[Rotate Right]
Rotates the photo clockwise by 90 degrees.
[View Image]
Displays the selected picture.
masterpage: Left
4
Press OPTIONS.
“AV.SYNC” appears in the top panel
display.
Press
or b.
Press V/v to adjust the delay, then
press
.
You can adjust from 0 ms to 300 ms
in 25 ms increments.
Press OPTIONS.
The option menu in the top panel
display turns off.
42US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\060SOU.fm
masterpage:
Right
Note
[ Stereo (Audio1)] and [ Stereo (Audio2)]
do not appear if only one audio stream is
recorded on the disc.
Sound Adjustment
When the system is playing a BD/DVD
VIDEO recorded in multiple audio
formats (PCM, Dolby Digital, MPEG
audio, or DTS) or multilingual tracks, you
can change the audio format or
language.
With a CD, you can select the sound
from the right or left channel and listen
to the sound of the selected channel
through both the right and left
speakers.
Press AUDIO repeatedly during
playback to select the audio signal
you want.
The audio information appears on the
TV screen.
x BD/DVD VIDEO
Depending on the BD/DVD VIDEO, the
option of language varies.
When 4 digits are displayed, they
represent a language code. See
“Language Code List” (page 77). When
the same language is displayed two or
more times, the BD/DVD VIDEO is
recorded in multiple audio formats.
x DVD-VR
The types of sound tracks recorded on a
disc are displayed.
Example:
• [ Stereo]
• [ Stereo (Audio1)]
• [ Stereo (Audio2)]
• [ Main]
• [ Sub]
• [ Main/Sub]
x CD
• [ Stereo]: The standard stereo
sound.
• [ 1/L]: The sound of the left channel
(monaural).
• [ 2/R]: The sound of the right
channel (monaural).
• [ L+R]: The sound of both the left and
right channels output from each
individual speaker.
Enjoying Multiplex
Broadcast Sound
(DUAL MONO)
You can enjoy multiplex broadcast
sound when the system receives or
plays a Dolby Digital multiplex
broadcast signal.
Note
To receive a Dolby Digital signal, you need
to connect a TV or other equipment to the
TV (DIGITAL IN OPTICAL) jack with a optical
digital cord (pages 22, 23).
If your TV’s HDMI IN jack is compatible with
the Audio Return Channel function (pages
22, 59), you can receive a Dolby Digital
signal via an HDMI cable.
Press AUDIO repeatedly until the
signal you want appears in the top
panel display.
• “MAIN”: Sound of the main language
will be output.
• “SUB”: Sound of the sub language will
be output.
• “MN/SUB”: Mixed sound of both the
main and sub languages will be
output.
43US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Sound Adjustment
Selecting the Audio
Format, Multilingual
Tracks, or Channel
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\070TUN.fm
masterpage: Left
Presetting radio stations
Tuner
Listening to the Radio
You can preset up to 20 stations. Before
tuning, make sure to turn down the
volume to minimum.
1
1
2
Press FUNCTION repeatedly until
“FM” appears in the top panel
display.
2
Select the radio station.
Automatic tuning
Hold down TUNING +/– until the
auto scanning starts.
[Auto Tuning] appears on the TV
screen. Scanning stops when the
system tunes in a station.
To cancel automatic tuning, press
any buttons.
Press VOL +/– repeatedly to adjust
the volume.
If an FM program is noisy, you can select
monaural reception. There will be no
stereo effect, but reception will
improve.
2
3
3
Press OPTIONS.
The option menu appears on the TV
screen.
4
Press V/v to select [Preset
Memory], then press
.
Press V/v to select the preset
number you want, then press
6
.
Repeat Steps 2 to 5 to store other
stations.
To change a preset number
If an FM program is noisy
1
Hold down TUNING +/– until the
auto scanning starts.
Scanning stops when the system
tunes in a station.
5
Manual tuning
Press TUNING +/– repeatedly.
3
Press FUNCTION repeatedly until
“FM” appears in the top panel
display.
Select the preset number you want by
pressing PRESET +/–, then perform the
procedure from Step 3.
To select a preset station
Press OPTIONS.
The option menu appears on the TV
screen.
1
Press FUNCTION repeatedly until “FM”
appears in the top panel display.
The last received station is tuned in.
Press V/v to select [FM Mode],
then press
.
2
Press PRESET +/– repeatedly to select
the preset station.
Press V/v to select [Monaural],
then press
.
• [Stereo]: Stereo reception.
• [Monaural]: Monaural reception.
Tip
You can set [FM Mode] for each preset
station separately.
Tip
Each time you press DISPLAY, the display in
the top panel display changes cyclically as
follows:
Frequency t Preset number t Decoding
status*
* Appears when [Sound Effect] is set to
[Dolby Pro Logic], [DTS Neo:6 Cinema], or
[DTS Neo:6 Music] (page 57).
44US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
masterpage:
Right
System Audio Control
You can enjoy the sound from TV or
other equipment by a simple operation.
Other Operations
Using the Control for
HDMI Function for
“BRAVIA” Sync
Note
To use the “BRAVIA” Sync function, be sure
to turn on the system and all connected
equipment after completed the HDMI
connection.
Control for HDMI - Easy Setting
You can set the system’s [Control for
HDMI] function automatically by
enabling the corresponding setting on
the TV.
For details about the Control for HDMI
function, see “[HDMI Settings]”
(page 59).
Audio Return Channel
You can enjoy TV sound via the system
by using just one HDMI cable. For details
of the setting, see “[Audio Return
Channel]” (page 59).
Language Follow
System Power Off
When you change the language for the
on-screen display of the TV, the
system’s on-screen display language is
also changed after turning off and on
the system.
You can turn the system off in sync with
the TV.
Routing Control
Note
The system does not turn off automatically
while playing music or when “FM” function
is selected.
One-Touch Play
When you press N on the remote
control, the system and TV turn on, and
the TV’s input is switched to the HDMI
input which the system is connected.
When you perform One-Touch Play on
the connected equipment, the system
turns on and sets the system’s function
to “HDMI1” or “HDMI2” (depending on
the HDMI input jack in use), and your
TV’s input is automatically set to the
HDMI input to which the system is
connected.
45US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Tuner/Other Operations
This function is available on TVs with the
“BRAVIA” Sync function.
By connecting Sony equipment that is
compatible with the Control for HDMI
function via an HDMI cable, operation is
simplified.
You can use the System Audio Control
function as follows:
• When the system is turned on, the
sound of the TV or other equipment
can be output from the speakers of the
system.
• When sound from the TV or other
equipment is output via the speakers
of the system, you can switch the
sound to output from the TV speakers
by pressing SPEAKERS TVyAUDIO.
• When sound from the TV or other
equipment is output via the speakers
of the system, you can adjust the
volume and turn off the sound of the
system by operating the TV.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
5
Calibrating the
Appropriate Speaker
Settings Automatically
[Auto Calibration]
(BDV-N9200W/BDV-N7200W
only)
6
Note
• The system outputs a loud test sound
when [Auto Calibration] starts. You
cannot turn the volume down. Give
consideration to children and neighbors.
• Before [Auto Calibration], make sure that
– all the speakers are connected to the
main unit and surround amplifier.
– the surround amplifier is turned on and
you have installed the surround
amplifier in an appropriate location to
ensure wireless connection with it.
2
3
4
7
8
Press HOME.
The home menu appears on the TV
screen.
Press B/b to select
Press V/v to select setting
according to your speakers
placement, then press
.
• [Standard]: The surround
speakers are installed in the rear
position.
• [All Front]: All speakers are
installed in the front position.
The confirmation display for [Auto
Calibration] appears.
D.C.A.C. DX (Digital Cinema Auto
Calibration DX) brings you the ideal
sound experience by automatically
adjusting the setting of the speakers’
distance, location, and acoustic.
1
masterpage: Left
Connect the calibration mic to the
A.CAL MIC jack on the rear panel.
Set up the calibration mic at ear
level using a tripod, etc. (not
supplied). The calibration mic
should aim the TV screen. The front
of each speaker should face the
calibration mic, and there should be
no obstruction between the
speakers and the calibration mic.
Press V/v to select [OK].
To cancel, select [Cancel].
Press
.
[Auto Calibration] starts.
The system adjusts the speaker
settings automatically.
Be quiet during the measurement.
Note
While [Auto Calibration] is in progress,
do not operate the system.
[Setup].
9
Press V/v to select [Audio
Settings], then press
.
Press V/v to select [Auto
Calibration], then press
.
The [Select speaker layout.] display
appears.
Confirm the result of [Auto
Calibration].
The distance and level for each
speaker appear on the TV screen.
Note
• If measurement fails, follow the
message then retry [Auto
Calibration].
• If no center speaker is detected, the
[Center Speaker] will be
automatically set to [Off].
46US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
10 Press V/v to select [OK] or
[Cancel], then press
masterpage:
Right
Note
.
x The measurement is OK.
Disconnect the calibration mic, then
select [OK]. The result is
implemented.
All settings are reset to default
settings each time you change the
speaker layout setting.
6
7
x The measurement is not OK.
Follow the message, then select
[OK] to retry.
Tip
Press V/v to select the item, then
press
.
Press V/v to adjust the parameter.
Press B/b and
to confirm the
settings.
Check the following settings.
x [Center Speaker]
[On]: The center speaker is connected.
[Off]: The center speaker is not
connected.
Setting the Speakers
[Speaker Settings]
To obtain optimum surround sound, set
the speakers’ distance from your
listening position.
1
2
3
4
5
Press HOME.
The home menu appears on the TV
screen.
Press B/b to select
[Setup].
Press V/v to select [Audio
Settings], then press
.
Press V/v to select [Speaker
Settings], then press
.
The [Select speaker layout.] display
appears.
Press V/v to select setting
according to your speakers
placement, then press
.
• [Standard]: The surround
speakers are installed in the rear
position.
• [All Front]: All speakers are
installed in the front position.
x [Distance]
When you move the speakers, be sure
to set the parameters of the distance
from the listening position to the
speakers.
You can set the parameters from 0 to
23 feet (0.0 to 7.0 meters).
[Front Left/Right] 10 ft/3.0 m: Set the
front speaker distance.
[Center] 10 ft/3.0 m: Set the center
speaker distance. This setting is only
available when [Center Speaker] is set to
[On].
[Surround Left/Right] 10 ft/3.0 m: Set
the surround speaker distance.
[Subwoofer] 10 ft/3.0 m: Set the
subwoofer distance.
Tip
You can change the unit of measurement
(feet or meters) by pressing the color
button (RED).
47US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Other Operations
You can change the unit of measurement
(feet or meters) by pressing the color
button (RED).
8
9
Press B/b to select [OK] or
[Cancel], then press
.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
x [Level]
You can adjust the sound level of the
speakers. You can set the parameters
from –6.0 dB to +6.0 dB. Be sure to set
[Test Tone] to [On] for easy adjustment.
[Front Left/Right] 0.0 dB: Set the front
speaker level.
[Center] 0.0 dB: Set the center speaker
level. This setting is only available when
[Center Speaker] is set to [On].
[Surround Left/Right] 0.0 dB: Set the
surround speaker level.
[Subwoofer] 0.0 dB: Set the subwoofer
level.
x [Relocation] (BDV-N9200W/
BDV-N7200W only)
You can correct the speaker position
virtually to improve the surround effect.
[On]: You can hear sound from a
virtually relocated speaker position
determined by [Auto Calibration].
[Off]: You can hear sound from the
actual speaker position.
3
Press V/v to select the speaker type
you want, then press
.
4
Press B/b to select the left or right
speaker, then press V/v to adjust the
level.
5
6
7
Press
8
Press V/v to select [Test Tone], then
press
.
9
Press V/v to select [Off], then press
.
.
Repeat Steps 3 to 5.
Press RETURN.
The system returns to the previous
display.
Note
• The test tone signals are not output from
the HDMI (OUT) jack.
• The test tone is not emitted from the
center speaker if [Center Speaker] is set to
[Off].
Tip
Note
• This setting is only reflected after
performing [Auto Calibration].
• You cannot select this function when the
speaker layout is set to [All Front].
x [Test Tone]
The speakers will emit a test tone to
adjust [Level].
[Off]: The test tone is not emitted from
the speakers.
[On]: The test tone is emitted from each
speaker in sequence while adjusting
level. When you select one of the
[Speaker Settings] items, the test tone is
emitted from each speaker in sequence.
Adjust the sound level as follows.
1
2
masterpage: Left
Set [Test Tone] to [On].
Press V/v to select [Level], then press
.
To adjust the volume of all the speakers at
the same time, press VOL +/–.
Using the Sleep Timer
You can set the system to turn off at a
preset time, so you can fall asleep
listening to music.
Press SLEEP.
Each time you press SLEEP, the minutes
display (the remaining time) in the top
panel display changes by 10 minutes.
When you set the sleep timer, the
remaining time appears every
5 minutes.
When the remaining time is less than
2 minutes, “SLEEP” flashes in the top
panel display.
48US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
masterpage:
Right
To check the remaining time
Enjoying the
Visualization on the TV
Screen
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly.
Deactivating the Buttons
on the Main Unit
(Child Lock)
Touch and hold x on the main unit for
more than 5 seconds.
“LOCKED” appears in the top panel
display.
The child lock function is activated and
the buttons on the main unit are locked.
(You can operate the system by using
the remote control.)
To cancel, touch and hold x for more
than 5 seconds until “UNLOCK” appears
in the top panel display.
Press VISUALIZER repeatedly.
The visualization appears on the TV
screen and synchronizes with the beat
of the music. Each time you press the
button, the color effect changes
cyclically as follows:
[RAINBOW] t [PASSION] t [OCEAN] t
[FOREST] t [Off]
Note
The visualizer effect may become
unsmooth when you play back High Bitrate
Audio content more than 15 Mbps.
Tip
Changing the Brightness
You can change the brightness of the
following items:
– Top panel display
– Indicator of the soft-touch buttons
– LED indicator on the top panel
• To avoid the information appears on the
TV screen and overlaps with the
visualization, set [Auto Display] in
[System Settings] to [Off] (page 60).
• You can also select the visualizer effect by
using the option menu.
Saving Power in Standby
Mode
Press DIMMER.
Each time you press the button, the
brightness of the item is changed.
You can adjust the brightness in
3 levels.*
* For top panel display, the brightness for
[Dimmer : 1], [Dimmer : 2] and
[Dimmer : 3] settings are the same.
Check that you have made the following
settings:
– [Control for HDMI] in [HDMI Settings] is
set to [Off] (page 59).
– [Quick Start Mode] is set to [Off]
(page 60).
– [Remote Start] is set to [Off] (page 61).
– [NFC] is set to [Off] (page 59).
49US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Other Operations
You can deactivate the buttons on the
main unit (except for "/1) for preventing
misoperation, such as child mischief.
You can enjoy the visualizer effect
which simulates the beat of the played
back sources to the colorful designs and
graphics. You can stream the effects
during music playback (only for
“BD/DVD”, “USB”, “FM”, “TV”, “BT” and
“AUDIO” functions) and built-in sound
demonstration.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
Internet Browser display
Browsing Websites
1
2
3
4
masterpage: Left
You can check website information by
pressing DISPLAY. The display
information differs depending on the
website and page status.
Prepare for Internet browsing.
Connect the system to a network
(page 25).
Press HOME.
The home menu appears on the TV
screen.
Press B/b to select
[Network].
Press V/v to select [Internet
Browser], then press
.
The [Internet Browser] display
appears.
A Page title
Note
Some websites may not display correctly,
or not function.
To enter a URL
Select [URL entry] from the options
menu.
Enter the URL using the software
keyboard, then select [Enter].
B Page address
C Cursor
Move by pressing B/V/v/b. Place
the cursor on the link you want to
view, then press . The linked
website is displayed.
To set the default start page
D SSL icon
Appears when the linked URL is
secured.
While the page you want to set is
displayed, select [Set as start page] from
the options menu.
E Signal strength indicator
Appears when the system is
connected to a wireless network.
To return to the previous page
Select [Previous page] from the options
menu.
When the previous page does not
appear even if you select [Previous
page], select [Window List] from the
options menu and select the page you
want to return to from the list.
To quit Internet Browser
Press HOME.
F Progress bar/Loading icon
Appears when the page is being
read, or during file download/
transfer.
G Text input field
Press , then choose [Input] from
the options menu to open the
software keyboard.
H Scroll bar
Press B/V/v/b to move the page
display left, up, down, or right.
50US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
[Break]
Moves the cursor to the next line in the text
input field.
Available options
Various settings and operations are
available by pressing OPTIONS.
The available items differ depending on
the situation.
[Delete]
Erases one character on the left side of the
cursor during text input.
Further Settings for the
Wireless System
You can make further settings for the
wireless system by using the [Wireless
Sound Connection] settings.
[Window List]
Displays a list of all current opened websites.
Allows you to return to a previous displayed
website by selecting the window.
1
[Bookmark List]
Displays the bookmark list.
2
3
[URL entry]
Allows you to enter a URL when the software
keyboard is displayed.
[Next page]
Moves to the next page.
[Cancel loading]
Stops loading a page.
[Reload]
Reloads the same page.
4
Press HOME.
The home menu appears on the TV
screen.
Press B/b to select
[Setup].
Press V/v to select [System
Settings], then press
.
Press V/v to select [Wireless
Sound Connection], then press .
The [Wireless Sound Connection]
display appears.
• [Secure Link] (page 52)
• [RF Band] (page 52)
• [RF Channel] (page 53)
[Add to Bookmark]
Adds the current displayed website to the
bookmark list.
[Set as start page]
Sets the current displayed website as the
default start page.
[Open in new window]
Opens a link in a new window.
[Character encoding]
Sets the character encoding system.
[Display certificate]
Displays server certificates sent from pages
that support SSL.
[Input]
Displays the software keyboard to enter
characters while browsing a website.
51US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Other Operations
[Browser Setup]
Displays the Internet Browser settings.
• [Zoom]: Increases or decreases the size of
the displayed contents.
• [JavaScript Setup]: Sets whether to enable
or disable JavaScript.
• [Cookie Setup]: Sets whether or not to
accept browser cookies.
• [SSL Alarm Display]: Sets whether to enable
or disable SSL.
[Previous page]
Moves to a previous displayed page.
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\080OTH.fm
To cancel the Secure Link function
Activating wireless
transmission between
specific units
For the main unit
Select [Off] on Step 3 above.
For the surround amplifier
[Secure Link]
You can specify the wireless connection
to link the main unit to the surround
amplifier using the Secure Link function.
This function can help prevent
interference if you use multiple wireless
products or your neighbors use wireless
products.
1
2
3
4
5
6
masterpage: Left
Hold down SECURE LINK on the rear of
the surround amplifier until the LINK/
STANDBY indicator turns green or
flashes green.
Selecting the frequency
bandwidth
Select [Wireless Sound
Connection] in [System Settings]
(page 51).
[RF Band]
Press V/v to select [Secure Link],
then press
.
1
Press V/v to select [On], then
press
.
You can select the frequency bandwidth
which [RF Channel] belongs to.
2
Press SECURE LINK on the rear of
the surround amplifier.
Proceed to the next Step within a
few minutes.
3
Press B/b to select [Start], then
press
.
To return to the previous display,
select [Cancel].
After the message [Secure Link
setting is complete.] appears,
press
.
The surround amplifier is linked to
the main unit and the LINK/
STANDBY indicator turns orange.
If the message [Cannot set Secure
Link.] appears, follow the on-screen
messages.
Select [Wireless Sound
Connection] in [System Settings]
(page 51).
Press V/v to select [RF Band], then
press
.
Press V/v to select the setting you
want, then press
.
• [Auto]: Normally select this. The
system automatically selects the
strongest frequency bandwidth
for transmission.
• [5.2GHz], [5.8GHz]: The system
transmits sound according to the
selected frequency bandwidth.
Tip
We recommend you to set [RF Band] to
[Auto].
52US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
If wireless transmission is
unstable
Settings and Adjustments
[RF Channel]
If you use multiple wireless systems,
such as a wireless LAN (Local Area
Network), the wireless signals may be
unstable. In this case, the transmission
may be improved by changing the
following [RF Channel] setting.
1
3
Using the Setup Display
You can make various adjustments to
items such as picture and sound.
The default settings are underlined.
Note
Select [Wireless Sound
Connection] in [System Settings]
(page 51).
Playback settings stored in the disc take
priority over the Setup Display settings.
Therefore, some of the functions may not
be performed.
Press V/v to select [RF Channel],
then press
.
1
Press V/v to select the setting you
want, then press
.
• [Auto]: Normally select this. The
system automatically selects the
better channel for transmission.
• [1], [2], [3]: The system transmits
sound by fixing the channel for
transmitting. Select the channel
with the better transmission.
Note
• The transmission may be improved by
changing the transmission channel
(frequency) of the other wireless
system(s). For details, refer to the
operating instructions of the other
wireless system(s).
• You cannot select this function when the
[RF Band] is set to [Auto] (page 52).
2
3
Press HOME.
The home menu appears on the TV
screen.
Press B/b to select
[Setup].
Press V/v to select the setup
category icon, then press
.
Icon
Explanation
[Software Update]
(page 54)
Updates the software of the
system.
[Screen Settings] (page 54)
Makes the screen settings
according to the type of TV.
[Audio Settings] (page 56)
Makes the audio settings
according to the type of
connecting jacks.
[BD/DVD Viewing
Settings] (page 58)
Makes detailed settings for
BD/DVD playback.
[Parental Control Settings]
(page 58)
Makes detailed settings for
the Parental Control
function.
[Music Settings] (page 59)
Makes detailed settings for
Super Audio CD playback.
53US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Settings and Adjustments
2
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
Icon
Explanation
masterpage: Left
x [Update via Internet]
Updates the system’s software using
available network. Make sure network is
connected to the Internet. For details,
see “Step 3: Preparing for Network
Connection” (page 25).
[System Settings]
(page 59)
Makes the system-related
settings.
[External Input Settings]
(page 60)
Sets the input skip setting
for each external input.
[Network Settings]
(page 61)
Makes detailed settings for
Internet and network.
x [Update via USB Memory]
Updates software using USB memory.
Make sure that the Software Update
Folder is correctly named as “UPDATE”.
[Easy Network Settings]
(page 61)
Runs [Easy Network
Settings] to make the basic
network settings.
[Resetting] (page 62)
Resets the system to the
factory settings.
[Screen Settings]
x [3D Output Setting]
[Auto]: Normally select this.
[Off]: Select this to display all contents in
2D.
[Software Update]
Note
By updating your software to the latest
version, you can take advantage of the
newest functions.
During a software update, “UPDATE”
appears in the top panel display. After
the update completes, the main unit
automatically turns off.
While the updating operation is in
progress, do not turn on or off the main
unit, or operate the main unit or TV.
Wait for the software update to
complete.
Note
For information about update functions,
visit the following website:
http://www.sony.com/blurayhtsupport/
3D video from the HDMI (IN 1) or HDMI (IN 2)
jack is output regardless of this setting.
x [TV Screen Size Setting for 3D]
Sets the screen size of your
3D-compatible TV.
Note
This setting does not work for 3D video
from the HDMI (IN 1) or HDMI (IN 2) jack.
x [TV Type]
[16:9]: Select this when connecting to a
wide-screen TV or a TV with a widemode function.
[4:3]: Select this when connecting to a
4:3 screen TV without a wide-mode
function.
54US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
x [Screen Format]
[Full]: Select this when connecting to a
TV with a wide-mode function. Displays
a 4:3 screen picture in 16:9 aspect ratio
even on a wide-screen TV.
[Normal]: Changes the picture size to fit
the screen size with the original picture
aspect ratio.
x [DVD Aspect Ratio]
[Letter Box]: Displays a wide picture
with black bands on the top and
bottom.
masterpage:
Right
x [Output Video Resolution]
[Auto]: Outputs video signal according
to the resolution of the TV or connected
equipment.
[Original Resolution]: Outputs video
signal according to the resolution
recorded on the disc. (When the
resolution is lower than SD resolution, it
is scaled up to SD resolution.)
[480i/576i]*, [480p/576p]*, [720p],
[1080i], [1080p]: Outputs video signal
according to the selected resolution
setting.
[Pan & Scan]: Displays a full-height
picture on the entire screen, with
trimmed sides.
x [Cinema Conversion Mode]
[Auto]: Normally select this. The main
unit automatically detects whether the
material is video-based or film-based,
and switches to the appropriate
conversion method.
[Video]: The conversion method suited
for video-based material will always be
selected regardless of the material.
x [BD-ROM 24p Output]
[Auto]: Outputs 24p video signals only
when you connect a 1080/24pcompatible TV via an HDMI connection
and the [Output Video Resolution] is set
to [Auto] or [1080p].
[On]: Select this when your TV is
compatible with 1080/24p video
signals.
[Off]: Select this when your TV is not
compatible with 1080/24p video
signals.
x [DVD-ROM 24p Output]
[Auto]: Outputs 24p video signals only
when you connect a 1080/24pcompatible TV via an HDMI connection
and the [Output Video Resolution] is set
to [Auto] or [1080p].
[Off]: Select this when your TV is not
compatible with 1080/24p video
signals.
55US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Settings and Adjustments
* If the color system of your disc is NTSC,
the video signals resolution can be
converted to [480i] and [480p] only.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
x [4K Output]
[Auto1]: Outputs 2K (1920 × 1080) video
signals during video playback and 4K
video signals during photo play when
connecting to a Sony 4K-compatible
equipment.
Outputs 4K video signals during
playback of 24p video contents in
BD/DVD ROMs or photo play when
connecting to a non-Sony
4K-compatible equipment.
This setting does not work for 3D video
image playback.
[Auto2]: Automatically outputs
4K/24p video signals when you connect
a 4K/24p-compatible equipment and
make the appropriate settings in
[BD-ROM 24p Output] or [DVD-ROM 24p
Output], and also outputs 4K/24p photo
images when you play 2D photo files.
[Off]: Turns off the function.
Note
If your Sony equipment is not detected
when [Auto1] is selected, the setting will
have the same effect as [Auto2] setting.
x [YCbCr/RGB (HDMI)]
[Auto]: Automatically detects the type
of external equipment, and switches to
the matching color setting.
[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2
video signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4
video signals.
[RGB]: Select this when connecting to
an equipment with an HDCP compliant
DVI jack.
x [HDMI Deep Color Output]
[Auto]: Normally select this.
[16bit], [12bit], [10bit]: Outputs 16bit/
12bit/10bit video signals when the
connected TV is compatible with Deep
Color.
[Off]: Select this when the picture is
unstable or colors appear unnatural.
masterpage: Left
x [SBM] (Super Bit Mapping)
[On]: Smooths the gradation of video
signals output from the HDMI (OUT)
jack.
[Off]: Select this when outputting
distorted video signals or unnatural
color.
x [IP Content NR Pro]
[Video3]/[Video2]/[Video1]/
[Film1]/[Film2]/[Film3]: Adjusts the
video quality for Internet content. This
setting is same as the setting in option
menu when using the Internet service.
[Off]: Off.
x [Pause Mode]
[Auto]: Normally select this. The picture,
including subjects that move
dynamically, is output with no jitter.
[Frame]: The picture, including subjects
that do not move dynamically, is output
in high resolution.
[Audio Settings]
x [BD Audio MIX Setting]
[On]: Outputs the audio obtained by
mixing the interactive audio and
secondary audio to the primary audio
during BDMV playback.
[Off]: Outputs the primary audio only.
x [Audio DRC]
You can compress the dynamic range of
the sound track.
[Auto]: Performs playback at the
dynamic range specified by the disc
(BD-ROM only).
[On]: The system reproduces the sound
track with the kind of dynamic range
that the recording engineer intended.
56US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
[Off]: No compression of dynamic
range.
x [Attenuation settings - AUDIO]
Distortion may occur when you listen to
an equipment connected to the AUDIO
IN (L/R) jacks. You can prevent
distortion by attenuating the input level
on the main unit.
[On]: Attenuates the input level. The
output level will decrease at this setting.
[Off]: Normal input level.
[Speaker]: Outputs multi-channel sound
from the system’s speakers only.
[Speaker + HDMI]: Outputs multichannel sound from the system’s
speakers and 2-channel linear PCM
signals from the HDMI (OUT) jack.
[HDMI]: Outputs sound from the HDMI
(OUT) jack only. Sound format depends
on the connected equipment.
Note
When [Control for HDMI] is set to [On]
(page 59), [Audio Output] is set to
[Speaker + HDMI] automatically and this
setting cannot be changed.
x [Sound Effect]
You can turn on or off the system’s
sound effects (SOUND FIELD setting
(page 29)).
For a 2-channel source, you can select
[Dolby Pro Logic], [DTS Neo:6 Cinema],
or [DTS Neo:6 Music] to simulate
surround sound.
[Sound Field On]: Enables the surround
effect of the sound field (pages 29, 30).
[Dolby Pro Logic]: The systems
simulates surround sound from
2-channel sources and outputs sound
from all speakers (5.1 channel) (Dolby
Pro Logic decoding).
[DTS Neo:6 Cinema]/[DTS Neo:6 Music]:
The system simulates surround sound
from 2-channel sources and produces
multi-channel sound (DTS Neo:6
Cinema/DTS Neo:6 Music mode
decoding).
[2ch Stereo]: This system outputs the
sound from the front left/right speakers
and subwoofer only.
Multi-channel surround formats are
downmixed to 2-channel.
[Off]: The sound effects are disabled.
You can hear sound as it is recorded.
x [Speaker Settings]
To obtain optimum surround sound, set
the speakers. For details, see “Setting
the Speakers” (page 47).
x [Auto Calibration]
(BDV-N9200W/BDV-N7200W only)
You can calibrate the appropriate
settings automatically. For details, see
“Calibrating the Appropriate Speaker
Settings Automatically” (page 46).
57US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Settings and Adjustments
x [Audio Output]
You can select the output method
where the audio signal is output.
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
masterpage: Left
[BD/DVD Viewing
Settings]
[Parental Control
Settings]
x [BD/DVD Menu Language]
You can select the default menu
language for BD-ROMs or DVD ROMs.
When you select [Select Language
Code], the display for entering the
language code appears. Enter the code
for your language by referring to
“Language Code List” (page 77).
x [Password]
Set or change the password for the
Parental Control function. A password
allows you to set a restriction on
BD-ROM, DVD VIDEO, or Internet video
playback. If necessary, you can
differentiate the restriction levels for
BD-ROMs and DVD VIDEOs.
x [Audio Language]
You can select the default track
language for BD-ROMs or DVD VIDEOs.
When you select [Original], the
language given priority in the disc is
selected.
When you select [Select Language
Code], the display for entering the
language code appears. Enter the code
for your language by referring to
“Language Code List” (page 77).
x [Parental Control Area Code]
Playback of some BD-ROMs or DVD
VIDEOs can be limited according to the
geographic area. Scenes may be
blocked or replaced with different
scenes. Follow the on-screen
instructions and enter your four-digit
password.
x [Subtitle Language]
You can select the default subtitle
language for BD-ROMs or DVD VIDEOs.
When you select [Select Language
Code], the display for entering the
language code appears. Enter the code
for your language by referring to
“Language Code List” (page 77).
x [BD Hybrid Disc Playback Layer]
[BD]: Plays BD layer.
[DVD/CD]: Plays DVD or CD layer.
x [BD Parental Control]/[DVD
Parental Control]/[Internet Video
Parental Control]
By setting Parental Control, scenes can
be blocked or replaced with different
scenes. Follow the on-screen
instructions and enter your four-digit
password.
x [Internet Video Unrated]
[Allow]: Allows the playback of unrated
Internet videos.
[Block]: Blocks the playback of unrated
Internet videos.
x [BD Internet Connection]
[Allow]: Normally select this.
[Do not allow]: Prohibits Internet
connection.
58US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
[Music Settings]
x [Super Audio CD Playback Layer]
[Super Audio CD]: Plays the Super Audio
CD layer.
[CD]: Plays the CD layer.
x [Super Audio CD Playback Channel]
[DSD 2ch]: Plays the 2-channel area.
[DSD Multi]: Plays the multi-channel
area.
x [OSD Language]
You can select the language you want
for the system on-screen display.
x [Closed Captions Settings] (USA
model only)
You can set the format of Closed
Captions (CC) that displays on the TV
screen.
[Text Settings]: Customizes the text that
is displayed on the TV screen.
• [Original]: Original setting.
• [Custom]: You can change the text
display.
Available [Custom] settings:
[Character Size]: Sets the character’s
size.
[Character Style]: Sets the character’s
font style.
[Character Color]: Sets the character’s
color.
[Character Opacity]: Sets the character’s
opacity.
[Edge Type]: Sets the type of font’s
edge.
[Edge Color]: Sets the edge’s color.
[Background Color]: Sets the
background’s color.
[Background Opacity]: Sets the
background’s opacity.
[Window Color]: Sets the window’s color
(DLNA and network service only).
[Window Opacity]: Sets the window’s
opacity (DLNA and network service
only).
x [Wireless Sound Connection]
You can make further settings for the
wireless system. For details, see
“Further Settings for the Wireless
System” (page 51).
You can also check the wireless
transmission status. When wireless
transmission is activated, [OK] appears
to the right of [Status].
x [HDMI Settings]
[Control for HDMI]
[On]: Turns on the [Control for HDMI]
function. You can operate mutually
between equipment that are connected
with an HDMI cable.
[Off]: Off.
[Audio Return Channel]
This function is available when you
connect the system to a TV’s HDMI IN
jack that is compatible with the Audio
Return Channel function and [Control
for HDMI] is set to [On].
[Auto]: The system can receive the
digital audio signal of the TV
automatically via an HDMI cable.
[Off]: Off.
x [NFC]
[On]: Turns on NFC function to enjoy the
One-touch listening and mirroring
function on this system (page 36).
[Off]: Off.
59US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Settings and Adjustments
[System Settings]
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
x [Quick Start Mode]
[On]: Shortens the startup time from
standby mode. You can operate the
system quickly after turning it on.
[Off]: The default setting.
masterpage: Left
x [Device Name]
You can change the name of this system
according to your preference so that it is
more recognizable during “BT” or
“SCR M” function. The name is also used
in other network usage such as DLNA,
TV SideView. Follow on-screen
instructions and use software keyboard
to enter the name.
x [Power Save Drive]
[On]: Reduces power consumption
when volume level is low.
[Off]: Normal status. The system can
output sound volume.
x [System Information]
You can display the system’s software
version information and the MAC
address.
x [Auto Display]
[On]: Automatically displays
information on the screen when
changing the viewing titles, picture
modes, audio signals, etc.
[Off]: Displays information only when
you press DISPLAY.
x [Software License Information]
You can display the Software License
Information.
x [Screen Saver]
[On]: Turns on the screen saver
function.
[Off]: Off.
[External Input
Settings]
x [Software Update Notification]
[On]: Sets the system to inform you of
latest software version information
(page 54).
[Off]: Off.
x [Input Skip Setting]
The skip setting is a convenient feature
that allows you to skip unused inputs
when selecting a function by pressing
FUNCTION.
x [Gracenote Settings]
[Auto]: Automatically downloads disc
information when you start or stop
playback of the disc. To download, the
system must be connected to the
network.
[Manual]: Downloads disc information
when [Video Search] or [Music Search] is
selected.
[Do not skip]: The system does not skip
the selected function.
[Skip]: The system skips the selected
function.
x [Bluetooth AUDIO - AAC]
You can enable and disable AAC audio.
[On]: AAC audio if the BLUETOOTH
device supports AAC.
[Off]: SBC audio.
60US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\090SET.fm
Note
You can enjoy high quality sound if the AAC
is enabled. In case you cannot listen to AAC
sound from your device, select [Off].
x [Bluetooth Power Setting]
[On]: The BLUETOOTH power is turned
on. A paired BLUETOOTH device can
always connect to the main unit.
[Off]: The BLUETOOTH power is only
turned on when “BT” function is
selected.
masterpage:
Right
x [Network Connection Status]
Displays the current network
connection status.
x [Network Connection Diagnostics]
You can run the network diagnostic to
check if the network connection has
been made properly.
x [Connection Server Settings]
Sets whether or not to display the
connected DLNA server.
Note
x [Auto Renderer Access Permission]
[On]: Allows automatic access from a
newly detected DLNA controller.
[Off]: Off.
x [Renderer Access Control]
Sets whether or not to accept
commands from DLNA controllers.
[Network Settings]
x [Registered Remote Devices]
Displays a list of your registered remote
devices.
x [Internet Settings]
Connect the system to the network
beforehand. For details, see “Step 3:
Preparing for Network Connection”
(page 25).
[Wired Setup]: Select this when you
connect to a broadband router using a
LAN cable. When you select this setting,
the built-in wireless LAN is disabled
automatically.
[Wireless Setup(built-in)]: Select this
when you use the built-in wireless LAN
of the system for wireless network
connection.
Tip
For further details, visit the following
website and check the FAQ:
http://www.sony.com/blurayhtsupport/
x [Remote Start]
[On]: Allows turn on the system by a
device linked via network when the
system is in standby mode.
[Off]: The system cannot be turned on
by a device linked via network.
[Easy Network
Settings]
Runs [Easy Network Settings] to make
the basic network settings. Follow the
on-screen instructions.
61US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Settings and Adjustments
In some applications, you may not be able
to make the connection directly from the
BLUETOOTH device even though you have
set [Bluetooth Power Setting] to [On]. In
this case, press BLUETOOTH.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
[Resetting]
masterpage: Left
Additional Information
x [Reset to Factory Default Settings]
You can reset the system settings to the
factory default by selecting the group of
settings. All the settings within the
group will be reset.
x [Initialize Personal Information]
You can erase your personal
information stored in the system.
Note
If you dispose, transfer or resell this
system, please delete all Personal
Information for security purposes. Please
take the appropriate measures such as
logging out after using a network service.
Precautions
On safety
• Should any solid object or liquid fall
into the cabinet, unplug the system
and have it checked by qualified
personnel before operating it any
further.
• Do not touch the AC power cord
(mains lead) with wet hands. Doing so
may cause an electric shock.
On power sources
If you are not going to use the system
for a long time, be sure to disconnect
the system from the wall outlet. To
disconnect the AC power cord (mains
lead), grasp the plug itself; never pull
the cord.
On placement
• Place the system in a location with
adequate ventilation to prevent heat
build-up in the system.
• Although the system heats up during
operation, this is not a malfunction. If
you continuously use this system at a
large volume, the cabinet temperature
of the top, side and bottom rises
considerably. To avoid burning
yourself, do not touch the cabinet.
• Do not place the system on a soft
surface (rugs, blankets, etc.) that
might block the ventilation holes.
• Do not install the system near heat
sources such as radiators, air ducts, or
in a place subject to direct sunlight,
excessive dust, mechanical vibration,
or shock.
• Do not install the system in an inclined
position. It is designed to be operated
in a horizontal position only.
62US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
• Keep the system and discs away from
components with strong magnets,
such as microwave ovens, or large
loudspeakers.
• Do not place heavy objects on the
system.
• Do not place metal objects in front of
the front panel. It may limit reception
of radio waves.
• Do not place the system in a place
where medical equipment is in use. It
may cause a malfunction of medical
equipment.
• If you use a pacemaker or other
medical device, consult your physician
or the manufacturer of your medical
device before using the wireless LAN
function.
If the system is brought directly from a
cold to a warm location, or is placed in a
very damp room, moisture may
condense on the lenses inside the main
unit. Should this occur, the system may
not operate properly. In this case,
remove the disc and leave the system
turned on for about half an hour until
the moisture evaporates.
On adjusting volume
Do not turn up the volume while
listening to a section with very low level
inputs or no audio signals. If you do, the
speakers may be damaged when a peak
level section is suddenly played.
On cleaning
Clean the cabinet, panel, and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine.
On cleaning discs, disc/lens
cleaners
Do not use cleaning discs or disc/lens
cleaners (including wet or spray
types). These may cause the
apparatus to malfunction.
On replacement of parts
In the events that this system is
repaired, repaired parts may be retained
for reuse or recycling purposes.
On your TV’s color
If the speakers cause the color
irregularity on your TV screen, turn off
the TV then turn it on after 15 to
30 minutes. If color irregularity persist,
place the speakers further away from
the TV set.
IMPORTANT NOTICE
Caution: This system is capable of
holding a still video image or
on-screen display image on your TV
screen indefinitely. If you leave the
still video image or on-screen display
image displayed on your TV for an
extended period of time, you risk
permanent damage to your TV
screen. Plasma display panel
televisions and projection televisions
are susceptible to this.
On moving the system
Before moving the system, make sure
that there is no disc inserted, and
disconnect the AC power cord (mains
lead) from the wall outlet (mains).
63US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
On operation
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
On BLUETOOTH communication
• BLUETOOTH devices should be used
within approximately 10 meters
(33 feet) (unobstructed distance) of
each other. The effective
communication range may become
shorter under the following
conditions.
– When a person, metal object, wall or
other obstruction is between the
devices with a BLUETOOTH
connection
– Locations where a wireless LAN is
installed
– Around microwave ovens that are in
use
– Locations where other
electromagnetic waves occur
• BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g) use the same
frequency band (2.4 GHz). When using
your BLUETOOTH device near a device
with wireless LAN capability,
electromagnetic interference may
occur. This could result in lower data
transfer rates, noise, or inability to
connect. If this happens, try the
following remedies:
– Use this main unit at least 10 meters
(33 feet) away from the wireless LAN
device.
– Turn off the power to the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters
(33 feet).
– Install this main unit and
BLUETOOTH device as closer to each
other as possible.
• The radio waves broadcast by this
main unit may interfere with the
operation of some medical devices.
Since this interference may result in
malfunction, always turn off the power
on this main unit and BLUETOOTH
device in the following locations:
– In hospitals, on trains, in airplanes, at
gas stations, and any place where
flammable gasses may be present
– Near automatic doors or fire alarms
masterpage: Left
• This main unit supports security
functions that comply with the
BLUETOOTH specification to ensure
secure connection during
communication using BLUETOOTH
technology. However, this security
may be insufficient depending on the
setting contents and other factors, so
always be careful when performing
communication using BLUETOOTH
technology.
• Sony cannot be held liable in any way
for damages or other loss resulting
from information leaks during
communication using BLUETOOTH
technology.
• BLUETOOTH communication is not
necessarily guaranteed with all
BLUETOOTH devices that have the
same profile as this main unit.
• BLUETOOTH devices connected with
this main unit must comply with the
BLUETOOTH specification prescribed
by the Bluetooth SIG, Inc., and must be
certified to comply. However, even
when a device complies with the
BLUETOOTH specification, there may
be cases where the characteristics or
specifications of the BLUETOOTH
device make it impossible to connect,
or may result in different control
methods, display or operation.
• Noise may occur or the audio may cut
off depending on the BLUETOOTH
device connected with this main unit,
the communications environment, or
surrounding conditions.
If you have any questions or problems
concerning your system, please consult
your nearest Sony dealer.
64US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
masterpage:
Right
Notes about Discs
Troubleshooting
On handling discs
If you experience any of the following
difficulties while using the system, use
this troubleshooting guide to help
remedy the problem before requesting
repairs. Should any problem persist,
consult your nearest Sony dealer.
In the event of a problem with the
wireless sound function, have a Sony
dealer check the entire system (main
unit and surround amplifier).
• To keep the disc clean, handle the disc
by its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
On cleaning
The power does not turn on.
t Check that the AC power cord
(mains lead) is connected securely.
The remote control does not function.
t The distance between the remote
control and the main unit is too far.
t The batteries in the remote control
are weak.
• Before playing, clean the disc with a
cleaning cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine,
thinner, commercially available
cleaners, or anti-static spray intended
for vinyl LPs.
This system can only play a standard
circular disc. Using neither standard nor
circular discs (e.g., card, heart, or star
shape) may cause a malfunction.
Do not use a disc that has a
commercially available accessory
attached, such as a label or ring.
General
The disc lid does not open and you
cannot remove the disc even after you
press Z.
t Try the following:
1 Press and hold N and Z on the
main unit for more than
5 seconds to open the disc lid.
2 Remove the disc.
3 Disconnect the AC power cord
(mains lead) from the wall outlet
(mains), then reconnect after
several minutes.
The system does not work normally.
t Disconnect the AC power cord
(mains lead) from the wall outlet
(mains), then reconnect after
several minutes.
65US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
• Do not expose the disc to direct
sunlight or heat sources such as hot air
ducts, or leave it in a car parked in
direct sunlight as the temperature
may rise considerably inside the car.
• After playing, store the disc in its case.
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
Messages
[A new software version is available.
Please go to the “Setup” section of the
menu and select “Software Update” to
perform the update.] appears on the
TV screen.
t See [Software Update] (page 54) to
update the system to a latest
software version.
“PRTECT”, “PUSH” and “POWER”
appear alternately in the top panel
display.
t Press "/1 to turn off the system,
and check the following items after
“STBY” disappears.
• Are the + and – speaker cords
short-circuited?
• Are you using only the supplied
speakers?
• Is anything blocking the
ventilation holes of the system?
• After checking the above items
and fixing any problems, turn on
the system. If the cause of the
problem cannot be found even
after checking all the above items,
consult your nearest Sony dealer.
“LOCKED” flashes in the top panel
display when you press any button on
the main unit.
t Set the child lock function to off
(page 49).
“D. LOCK” appears in the top panel
display.
t Contact your nearest Sony dealer or
local authorized Sony service
facility.
“E xxxx” (x is a number) appears in the
top panel display.
t Contact your nearest Sony dealer or
local authorized Sony service facility
and give the error code.
masterpage: Left
appears without any messages on
the entire TV screen.
t Contact your nearest Sony dealer or
local authorized Sony service
facility.
“NOT.USE” appears in the top panel
display when you press any of the
sound field buttons (page 17).
t The setting for the sound field
buttons cannot be changed when
the [Sound Effect] is set to other
than [Sound Field On]. Set [Sound
Effect] in [Audio Settings] to [Sound
Field On] (page 57).
There is no picture or the picture is not
output correctly.
t Check the output method on your
system (page 22).
t Touch and hold N and VOL – on
the main unit for more than
5 seconds to reset the video output
resolution to the lowest resolution.
t For BD-ROMs, check the [BD-ROM
24p Output] settings in [Screen
Settings] (page 55).
There is no picture when you make an
HDMI cable connection.
t The main unit is connected to an
input device that is not HDCP (Highbandwidth Digital Content
Protection) compliant (“HDMI” in
the top panel does not light up)
(page 22).
3D images from the HDMI (IN 1) or
HDMI (IN 2) jack do not appear on the
TV screen.
t Depending on the TV or video
equipment, 3D images may not
appear.
66US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
The dark area of the picture is too dark/
the bright area is too bright or
unnatural.
t Set [Picture Quality Mode] to [Auto]
(default) (page 41).
Picture noise appears.
t Clean the disc.
t If the picture output from your
system goes through your
equipment to get to your TV, the
copy-protection signal applied to
some BD/DVD programs could
affect picture quality. If you still
experience problems even when
you connect your main unit directly
to your TV, try connecting your main
unit to the other input jacks.
Color irregularity occurs on the TV
screen.
t If the speakers are used with a CRTbased TV or projector, install the
speakers at least 0.3 meters (1 foot)
from the TV set.
t If the color irregularity persists, turn
off the TV set once, then turn it on
after 15 to 30 minutes.
t Make sure that no magnetic object
(magnetic latch on a TV stand,
health care device, toy, etc.) is
placed near the speakers.
Sound
There is no sound.
t The speaker cords are not
connected securely.
t Check the speaker settings
(page 47).
The Super Audio CD sound of an
equipment that is connected to the
HDMI (IN 1) or HDMI (IN 2) jack is not
output.
t HDMI (IN 1) and HDMI (IN 2) does not
accept an audio format that
contains copy protection. Connect
the analog audio output of the
equipment to the AUDIO IN (L/R)
jacks of the main unit.
There is no sound from the TV via the
HDMI (OUT) jack when using the Audio
Return Channel function.
t Set [Control for HDMI] in [HDMI
Settings] of [System Settings] to
[On] (page 59). Also, set [Audio
Return Channel] in [HDMI Settings]
of [System Settings] to [Auto]
(page 59).
t Make sure that your TV is
compatible with the Audio Return
Channel function.
t Make sure that an HDMI cable is
connected to a jack on your TV that
is compatible with the Audio Return
Channel function.
The system does not output sound of
TV programs correctly when connected
to a set-top box.
t Set [Audio Return Channel] in [HDMI
Settings] of [System Settings] to
[Off] (page 59).
t Check the connections (page 23).
Severe hum or noise is heard.
t Move your audio equipment away
from the TV.
t Clean the disc.
The sound loses stereo effect when
you play a CD.
t Select stereo sound by pressing
AUDIO (page 43).
67US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
An image is not displayed on the entire
TV screen.
t Check the setting of [TV Type] in
[Screen Settings] (page 54).
t The aspect ratio on the disc is fixed.
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
The sound outputs from the center
speaker only.
t Depending on the disc, the sound
may output from the center speaker
only.
No sound or only a very low-level
sound is heard from the surround
speakers.
t Check the speaker connections and
settings (pages 21, 47).
t Check the sound field setting
(page 29).
t Depending on the source, the effect
of the surround speakers may be
less noticeable.
t Set [Sound Field] to [ClearAudio+]
(page 29).
Distortion occurs in the sound of a
connected equipment.
t Reduce the input level for the
connected equipment by setting
[Attenuation settings - AUDIO]
(page 57).
A sudden loud music is heard.
t The built-in or USB sound
demonstration is activated. Press
VOL – to reduce the volume or press
x to stop the demonstration.
Wireless sound
Wireless transmission is not activated
or there is no sound from the surround
speakers.
t Check the status of the LINK/
STANDBY indicator on the surround
amplifier.
• Turns off.
– Check that the AC power cord
(mains lead) of the surround
amplifier is connected securely.
– Turn the surround amplifier on
by pressing "/1 on the surround
amplifier.
masterpage: Left
• Flashes red.
– Press "/1 to turn off the
surround amplifier, and check
the following items.
1 Are the + and – speaker cords
short-circuited?
2 Is anything blocking the
ventilation holes of the
surround amplifier?
After checking the above items
and fixing any problems, turn on
the surround amplifier. If the
cause of the problem cannot be
found even after checking all the
above items, consult your
nearest Sony dealer.
• Flashes green or orange slowly or
turns red.
– Make the [Secure Link] setting
again (page 52).
– Sound transmission is poor.
Move the surround amplifier so
that the LINK/STANDBY
indicator turns green or orange.
– Move the system away from
other wireless devices.
– Avoid using any other wireless
devices.
• Turns green or orange.
– Check the speaker connections
and settings.
Noise is heard from surround speakers
or sound from the surround speakers
skips.
t Wireless transmission is unstable.
Change the [RF Channel] setting in
[Wireless Sound Connection]
(page 53).
t Install the main unit and surround
amplifier closer to each other.
t Do not install the main unit and
surround amplifier in a closed rack,
on a metal rack, or under a table.
68US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
Tuner
Radio stations cannot be tuned in.
t Check that the antenna (aerial) is
connected securely. Adjust the
antenna (aerial) or connect an
external antenna (aerial) if
necessary.
t The signal strength of the stations is
too weak (when tuning in with
automatic tuning). Use manual
tuning.
Playback
File names are not displayed correctly.
t The system can only display ISO
8859-1 compliant character
formats. Other character formats
may be displayed differently.
t Depending on the writing software
used, the input characters may be
displayed differently.
A disc does not start playing from the
beginning.
t Resume play has been selected.
Press OPTIONS and select [Play
from beginning], then press
.
Playback does not start from the
resume point where you last stopped
playing.
t The resume point may be cleared
from memory depending on the
disc when
• you open the disc lid.
• you disconnect the USB device.
• you play other content.
• you turn off the main unit.
The language for the soundtrack/
subtitle or angles cannot be changed.
t Try using the BD’s or DVD’s menu.
t Multilingual tracks/subtitles or
multi-angles are not recorded on
the BD or DVD being played.
Bonus contents or other data that are
contained in a BD-ROM cannot be
played.
t Try the following:
1 Remove the disc.
2 Turn the system off.
3 Remove and reconnect the USB
device (page 33).
4 Turn the system on.
5 Insert the BD-ROM with
BONUSVIEW/BD-LIVE.
USB device
The USB device is not recognized.
t Try the following:
1 Turn the system off.
2 Remove and reconnect the USB
device.
3 Turn the system on.
t Make sure that the USB device is
securely connected to the (USB)
port.
t Check if the USB device or a cable is
damaged.
t Check if the USB device is on.
t If the USB device is connected via a
USB hub, disconnect it and connect
the USB device directly to the main
unit.
69US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
The disc does not play.
t The region code on the BD/DVD
does not match the system.
t Moisture has condensed inside the
main unit and may cause damage
to the lenses. Remove the disc and
leave the main unit turned on for
about half an hour.
t The system cannot play a recorded
disc that is not correctly finalized
(page 71).
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
BRAVIA Internet Video
masterpage: Left
Network connection
The picture/sound is poor/certain
programs display with a loss of detail,
especially during fast-motion or dark
scenes.
t Picture/sound quality may be poor
depending on Internet content
providers.
t Picture/sound quality may be
improved by changing the
connection speed. Sony
recommends a connection speed of
at least 2.5 Mbps for standarddefinition video and 10 Mbps for
high-definition video.
t Not all videos contain sound.
The picture is small.
t Press V to zoom in.
“BRAVIA” Sync ([Control for
HDMI])
The [Control for HDMI] function does
not work (“BRAVIA” Sync).
t Check that [Control for HDMI] is set
to [On] (page 59).
t If you change the HDMI connection,
turn the system off and on again.
t If power failure occurs, set [Control
for HDMI] to [Off], then set [Control
for HDMI] to [On] (page 59).
t Check the following and refer to the
operating instructions supplied with
the equipment.
• The connected equipment is
compatible with the [Control for
HDMI] function.
• The connected equipment’s
setting for the [Control for HDMI]
function is correct.
The system cannot connect to the
network.
t Check the network connection
(page 25) and the network settings
(page 61).
Wireless LAN connection
You cannot connect your PC to the
Internet after [Wi-Fi Protected Setup
(WPS)] is performed.
t The wireless settings of the router
may change automatically if you
use the Wi-Fi Protected Setup
function before adjusting the
settings of the router. In this case,
change the wireless settings of your
PC accordingly.
The system cannot connect to the
network or the network connection is
unstable.
t Check if the wireless LAN router is
on.
t Check the network connection
(page 25) and the network settings
(page 61).
t Depending on the usage
environment, including the wall
material, radio wave reception
conditions, or obstacles between
the system and the wireless LAN
router, the possible communication
distance may be shortened. Move
the system and the wireless LAN
router closer to each other.
t Devices that use a 2.4 GHz
frequency band, such as a
microwave, BLUETOOTH, or digital
cordless device, may interrupt
communication. Move the main
unit away from such devices, or turn
off such devices.
70US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
t The wireless LAN connection may
be unstable depending on the
usage environment, especially
while using the BLUETOOTH
function of the system. In this case,
adjust the usage environment.
The wireless router you want is not
shown in the wireless network list.
t Press RETURN to return to the
previous screen, and try [Wireless
Setup(built-in)] again. If the wireless
router you want is still not detected,
select [New connection registration]
from the network list, then select
[Manual registration] to input a
network name (SSID) manually.
Pairing cannot be done.
t Move the BLUETOOTH device closer
to the main unit.
t Pairing may not be possible if other
BLUETOOTH devices are present
around the main unit. In this case,
turn off the other BLUETOOTH
devices.
t Delete the system from your
BLUETOOTH device and perform
pairing again (page 34).
t Pair this system and the
BLUETOOTH device again.
t Keep the main unit away from metal
objects or surfaces.
t Make sure “BT” function is selected.
t Adjust the volume of the
BLUETOOTH device first, if the
volume level is still too low, adjust
the volume level on the main unit.
The sound skips or fluctuates, or the
connection is lost.
t The main unit and the BLUETOOTH
device are too far apart.
t If there are obstacles between the
main unit and your BLUETOOTH
device, remove or avoid the
obstacles.
t If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other BLUETOOTH
device, or a microwave oven
nearby, move them away.
Playable Discs
Connecting cannot be done.
t The pairing registration information
has been erased. Perform the
pairing operation again (page 34).
There is no sound.
t Make sure this main unit is not too
far from the BLUETOOTH device, or
this system is not receiving
interference from a Wi-Fi network,
other 2.4 GHz wireless device, or
microwave oven.
t Check that the BLUETOOTH
connection is made properly
between this system and the
BLUETOOTH device.
Blu-ray Disc
BD-ROM1)
BD-R/BD-RE2)
DVD3)4)
DVD-ROM
DVD-R/DVD-RW
DVD+R/DVD+RW
CD3)
CD-DA (Music CD)
CD-ROM
CD-R/CD-RW
Super Audio CD
1)
Since Blu-ray Disc specifications are new
and evolving, some discs may not be
playable depending on the disc type and
version. Also, the audio output differs
depending on the source, connected
output jack, and selected audio settings.
2)
BD-RE: Ver.2.1
BD-R: Ver.1.1, 1.2, 1.3 including organic
pigment type BD-R (LTH type)
BD-Rs recorded on a PC cannot be played
if postscripts are recordable.
71US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
BLUETOOTH device
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
3)
A CD or DVD disc will not play if it has not
been correctly finalized. For more
information, refer to the operating
instructions supplied with the recording
device.
4)
The system cannot play DVD disc that is
recorded in AVCREC or HD Rec format.
masterpage: Left
Region code (BD-ROM/DVD
VIDEO only)
Your system has a region code printed
on the bottom of the main unit and will
only play a BD-ROM/DVD VIDEO
(playback only) labeled with identical
region codes or ALL .
Discs that cannot be played
• BDs with cartridge
• BDXLs
• DVD-RAMs
• HD DVDs
• DVD Audio discs
• PHOTO CDs
• Data part of CD-Extras
• Super VCDs
• Audio material side on DualDiscs
• A disc recorded in a color system other
than NTSC, such as PAL (This system
conforms to the NTSC color system.)
Playable Types of Files
Video
Codec
Container
Extension
MPEG-1 Video*1
PS
.mpg,
.mpeg
MPEG-2 Video*2
Notes on discs
This product is designed to play back
discs that conform to the Compact Disc
(CD) standard.
DualDiscs and some music discs
encoded with copyright protection
technologies do not conform to the
Compact Disc (CD) standard. Therefore,
these discs may not be compatible with
this product.
Xvid
MPEG4/AVC*5
Note on playback operations of a
BD/DVD
Some playback operations of a BD/DVD
may be intentionally set by software
producers. Since this system plays a
BD/DVD according to the disc contents
the software producers designed, some
playback features may not be available.
VC1*1
WMV9*1
Motion JPEG*6
MKV
.mkv
PS*3
.mpg,
.mpeg
TS*4
.m2ts, .mts
MKV*1
.mkv
AVI
.avi
MKV
.mkv
MKV*1
.mkv
MP4*1
.mp4, .m4v
TS*1
.m2ts, .mts
Quick
Time*6
.mov
3gpp/
3gpp2*6
.3gp, .3g2,
.3gpp, .3gp2
FLV
.flv, .f4v
TS
.m2ts, .mts
MKV
.mkv
MKV
.mkv
ASF
.wmv, .asf
Quick Time .mov
AVI
.avi
Note on double-layer BDs/DVDs
The playback picture and sound may be
momentarily interrupted when the
layers switch.
Format
AVCHD (Ver. 2.0)*1*7*8
72US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
Music
Note
Codec
Extension
MP3 (MPEG-1 Audio
Layer III)*11
.mp3
AAC/HE-AAC*1*11
.m4a, .aac*6
WMA9
Standard*1
.wma
LPCM*11
.wav
FLAC*6
.flac, .fla
Dolby Digital*6*11
.ac3
DSF*6
.dsf
DSDIFF*6*12
.dff
AIFF*6
.aiff, .aif
ALAC*6
.m4a
Extension
.jpeg, .jpg, .jpe
PNG
.png*9
GIF
.gif*9
MPO
.mpo*6*10
The system may not play this file format
on a DLNA server.
The system can only play standard
definition video on a DLNA server.
*3 The system does not play DTS format
files on a DLNA server.
*4
The system can only play Dolby Digital
format files on a DLNA server.
*5
The system can support AVC up to Level
4.1.
*6 The system does not play this file format
on a DLNA server.
*7
The system can support frame rate up to
60 fps.
*8
The system plays AVCHD format files
that are recorded on a digital video
camera, etc.
The AVCHD format disc will not play if it
has not been correctly finalized.
*9
The system does not play animated PNG
or animated GIF files.
*10
For MPO files other than 3D, the key
image or the first image is displayed.
*11 The system can play “.mka” files. This file
cannot be played on a DLNA server.
*12
The system does not play DST encoded
files.
*2
• Some files may not play depending on
the file format, the file encoding, the
recording condition, or DLNA server
condition.
• Some files edited on a PC may not play.
• Some files may not be able to perform
fast forward or fast reverse function.
• The system does not play coded files such
as DRM and Lossless.
• The system can recognize the following
files or folders in BDs, DVDs, CDs and USB
devices:
– up to folders in the 9th layer (including
the root folder)
– up to 500 files/folders in a single layer
• The system can recognize the following
files or folders stored in the DLNA server:
– up to folders in the 19th layer
– up to 999 files/folders in a single layer
• The system can support frame rate:
– up to 60 fps for AVCHD only.
– up to 30 fps for other video codecs.
• The system can support video bit rate up
to 40 Mbps.
• The system can support video resolution
up to 1920 × 1080p.
• Some USB devices may not work with this
system.
• The system can recognize Mass Storage
Class (MSC) devices (such as flash
memory or an HDD), Still Image Capture
Devices (SICDs), and 101-key keyboards.
• The system may not play high bit rate
video files from a DATA CD smoothly. It is
recommended to play high bit rate video
files using a DATA DVD or DATA BD.
73US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
Format
JPEG
*1
masterpage:
Right
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
masterpage: Left
Supported Audio
Formats
Specifications
Audio formats supported by this system
are as follows.
USA model only:
AUDIO POWER SPECIFICATIONS POWER
OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
Front L + Front R:
With 6 ohms loads, both channels
driven, from 180 Hz – 20,000 Hz; rated
70 watts per channel minimum RMS
power, with no more than 1% total
harmonic distortion from
250 milliwatts to rated output.
Amplifier Section
Function
Format
“BD/DVD”
“HDMI1”
“HDMI2”
“TV”
(DIGITAL IN)
LPCM 2ch
a
a
a
LPCM 5.1ch
a
a
–
LPCM 7.1ch
a
–
–
Dolby Digital
a
a
a
Dolby TrueHD,
Dolby Digital
Plus
a
–
–
DTS
a
a
a
DTS-ES Discrete
6.1,
DTS-ES Matrix
6.1
a*
a*
a*
DTS96/24
a
a*
a*
DTS-HD High
Resolution
Audio
a
–
–
DTS-HD Master
Audio
a
–
–
Other models:
POWER OUTPUT (rated)
Front L/Front R:
125 W + 125 W (at 6 ohms, 1 kHz,
1% THD)
POWER OUTPUT (reference)
Front L/Front R:
200 W (per channel at 6 ohms, 1 kHz)
Center:
200 W (at 6 ohms, 1 kHz)
Subwoofer:
200 W (at 6 ohms, 80 Hz)
a: Supported format.
–: Unsupported format.
* Decoded as DTS core.
Note
• The HDMI (IN 1/2) jacks do not input
sound in the case of an audio format that
contains copy protections such as Super
Audio CD or DVD-Audio.
• For LPCM 2ch format, the supported
sampling frequency of the digital signal is
up to 96 kHz when using the “HDMI1” or
“HDMI2” function, and 48 kHz when using
the “TV” function.
• For LPCM 5.1ch format, the supported
sampling frequency of the digital signal is
up to 48 kHz when using the “HDMI1” or
“HDMI2” function.
Inputs (Analog)
AUDIO IN
Sensitivity: 2 V/700 mV
Inputs (Digital)
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM 2CH
(up to 48 kHz), Dolby Digital, DTS
HDMI (IN 1)/HDMI (IN 2)
Supported formats: LPCM 5.1CH
(up to 48 kHz), LPCM 2CH (up to
96 kHz), Dolby Digital, DTS
HDMI Section
Connector
Type A (19pin)
BD/DVD/Super Audio CD/CD System
Signal format system
NTSC
74US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
USB Section
masterpage:
Right
FM Tuner Section
(USB) port:
Type A (For connecting USB memory,
memory card reader, digital still
camera, and digital video camera)
LAN (100) terminal
100BASE-TX Terminal
System
PLL quartz-locked digital synthesizer
Tuning range
87.5 MHz – 108.0 MHz (100 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Wireless LAN Section
Speakers
Blu-ray Disc/DVD receiver
(HBD-N9200W/HBD-N7200W/
HBD-N5200W)
Front (SS-TSB133)/Surround
(SS-TSB138) for BDV-N9200W
LAN Section
Standards Compliance
IEEE 802.11 a/b/g/n
Frequency band
2.4 GHz, 5 GHz
BLUETOOTH Section
1)
The actual range will vary depending on
factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
cordless phone, reception sensitivity,
antenna’s performance, operating
system, software application, etc.
2) BLUETOOTH standard profiles indicate
the purpose of BLUETOOTH
communication between devices.
3) Codec: Audio signal compression and
conversion format
4)
Subband Codec
Front (SS-TSB135)/Surround
(SS-TSB140) for BDV-N7200W
Dimensions (w/h/d) (approx.)
100 mm × 450 mm × 57 mm
(4 in × 17 3/4 in × 2 1/4 in) (without
stand)
147 mm × 455 mm × 147 mm
(5 7/8 in × 18 in × 5 7/8 in) (with stand)
Mass (approx.)
1.1 kg (2 lb 7 oz) (without stand)
1.2 kg (2 lb 11 oz) (with stand)
Front (SS-TSB137) for BDV-N5200W
Dimensions (w/h/d) (approx.)
91 mm × 275 mm × 96 mm
(3 5/8 in × 10 7/8 in × 3 7/8 in)
Mass (approx.)
0.71 kg (1 lb 10 oz) (with speaker cord)
Surround (SS-TSB142) for
BDV-N5200W
Dimensions (w/h/d) (approx.)
90 mm × 205 mm × 91 mm
(3 5/8 in × 8 1/8 in × 3 5/8 in)
Mass (approx.)
0.58 kg (1 lb 5 oz) (with speaker cord)
75US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
Communication system
BLUETOOTH Specification version 3.0
Output
BLUETOOTH Specification Power
Class 2
Maximum communication range
Line of sight approx. 10 m (33 ft)1)
Frequency band
2.4 GHz
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles2)
A2DP 1.2 (Advanced Audio Distribution
Profile)
AVRCP 1.3 (Audio Video Remote
Control Profile)
Supported Codecs3)
SBC4), AAC
Transmission range (A2DP)
20 Hz – 20,000 Hz (Sampling
frequency 44.1 kHz, 48 kHz)
Dimensions (w/h/d) (approx.)
102 mm × 705 mm × 71 mm
(4 1/8 in × 27 7/8 in × 2 7/8 in)
(wall-mounted part)
270 mm × 1,200 mm × 270 mm
(10 3/4 in × 47 1/4 in × 10 3/4 in)
(whole speaker)
Mass (approx.)
1.9 kg (4 lb 4 oz) (wall-mounted part)
4.2 kg (9 lb 5 oz) (whole speaker)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
Center (SS-CTB125) for
BDV-N9200W/BDV-N7200W
Surround amplifier (TA-SA500WR) for
BDV-N9200W/BDV-N7200W
Dimensions (w/h/d) (approx.)
365 mm × 73 mm × 77 mm
(14 3/8 in × 2 7/8 in × 3 1/8 in)
Mass (approx.)
1.1 kg (2 lb 7 oz)
Surround amplifier (TA-SA700WR) for
BDV-N5200W
Amplifier Section
Center (SS-CTB127) for
BDV-N5200W
Dimensions (w/h/d) (approx.)
240 mm × 90 mm × 85 mm
(9 1/2 in × 3 5/8 in × 3 3/8 in)
Mass (approx.)
0.58 kg (1 lb 5 oz) (with speaker cord)
Subwoofer (SS-WSB126) for
BDV-N9200W/BDV-N7200W
Dimensions (w/h/d) (approx.)
265 mm × 430 mm × 265 mm
(10 1/2 in × 17 in × 10 1/2 in)
Mass (approx.)
6.3 kg (13 lb 15 oz)
Subwoofer (SS-WSB128) for
BDV-N5200W
Dimensions (w/h/d) (approx.)
225 mm × 365 mm × 345 mm
(8 7/8 in × 14 3/8 in × 13 5/8 in)
Mass (approx.)
5.8 kg (12 lb 13 oz) (with speaker cord)
General
Main unit
Power requirements
120 V AC, 60 Hz
Power consumption
On: 95 W
Standby: 0.3 W (For details on the
setting, see page 49.)
Dimensions (w/h/d) (approx.)
480 mm × 78 mm × 212.5 mm
(19 in × 3 1/8 in × 8 3/8 in) incl.
projecting parts
Mass (approx.)
3.1 kg (6 lb 14 oz)
masterpage: Left
USA model only:
TA-SA500WR
AUDIO POWER SPECIFICATIONS POWER
OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
With 6 ohms loads, both channels
driven, from 180 Hz – 20,000 Hz; rated
55 watts per channel minimum RMS
power, with no more than 1% total
harmonic distortion from
250 milliwatts to rated output.
TA-SA700WR
AUDIO POWER SPECIFICATIONS POWER
OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
With 6 ohms loads, both channels
driven, from 180 Hz – 20,000 Hz; rated
45 watts per channel minimum RMS
power, with no more than 1% total
harmonic distortion from
250 milliwatts to rated output.
Other models:
TA-SA500WR
POWER OUTPUT (reference)
Surround L/Surround R:
200 W (per channel at 6 ohms, 1 kHz)
TA-SA700WR
POWER OUTPUT (reference)
Surround L/Surround R:
100 W (per channel at 6 ohms, 1 kHz)
Rated impedance
6
Communication system
Wireless sound Specification version
3.0
Frequency band
5.2 GHz, 5.8 GHz
Modulation method
DSSS
Power requirements
120 V AC, 60 Hz
Power consumption
On: 55 W (TA-SA500WR)
45 W (TA-SA700WR)
76US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
Standby power consumption
0.5 W (standby mode)
0.3 W (turned off)
Dimensions (w/h/d) (approx.)
200 mm × 64 mm × 211.5 mm
(7 7/8 in × 2 5/8 in × 8 3/8 in)
Mass (approx.)
1.3 kg (2 lb 14 oz)
Design and specifications are subject to
change without notice.
masterpage:
Right
Language Code List
The language spellings conform to the
ISO 639: 1988 (E/F) standard.
1130
1060
1061
1070
1059
1363
1057
1299
1079
1684
1093
1226
1097
1105
1376
1144
1145
1150
1171
1166
1165
1174
1181
1194
1287
1109
1142
1298
1196
Language
(Afan)Oromo
Abkhazian
Afar
Afrikaans
Albanian
Amharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali;
Bangla
Bhutani
Bihari
Bislama
Breton
Bulgarian
Burmese
Byelorussian
Cambodian
Catalan
Chinese
Corsican
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Code
1203
1209
1257
1217
1229
1253
1248
1235
1239
1245
1183
1254
1261
1283
1300
1305
1297
1491
1311
1482
1301
1307
1327
1313
1334
1326
1332
1349
1345
1357
1350
1358
1347
1356
1353
1352
1365
1369
1379
1393
1408
1435
Language
Gujarati
Hausa
Hebrew
Hindi
Hungarian
Icelandic
Indonesian
Interlingua
Interlingue
Inupiak
Irish
Italian
Japanese
Javanese
Kannada
Kashmiri
Kazakh
Kinyarwanda
Kirghiz
Kirundi
Korean
Kurdish
Laothian
Latin
Latvian;
Lettish
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Occitan
Oriya
Pashto;
Pushto
77US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
Additional Information
Code
1403
1028
1027
1032
1511
1039
1044
1233
1045
1051
1052
1053
1151
1066
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\100ADD.fm
Code
1157
1428
1436
1417
1463
1481
1483
1489
1507
1501
1495
1186
1512
1502
1514
1534
1508
1498
1503
1513
1505
1506
1509
1149
1515
1517
Language
Persian
Polish
Portuguese
Punjabi
Quechua
RhaetoRomance
Romanian
Russian
Samoan
Sangho
Sanskrit
Scots Gaelic
Serbian
SerboCroatian
Sesotho
Setswana
Shona
Sindhi
Singhalese
Siswati
Slovak
Slovenian
Somali
Spanish
Sundanese
Swahili
Code
1516
1532
1527
1521
1540
1525
1528
1067
1529
1535
1539
1538
1531
1543
1557
1564
1572
1581
1587
1103
1613
1632
1269
1665
1697
Language
Swedish
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Tsonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
1703
Not specified
masterpage: Left
Parental Control/Area Code
List
Code
2044
2047
2046
2057
2070
2090
2092
2093
2115
2165
2174
2109
2200
2219
2248
2238
2239
2254
2276
2304
Area
Argentina
Australia
Austria
Belgium
Brazil
Chile
China
Colombia
Denmark
Finland
France
Germany
Greece
Hong Kong
India
Indonesia
Ireland
Italy
Japan
Korea
Code
2333
2363
2362
2376
2390
2379
2427
2424
2428
2436
2489
2501
2149
2499
2086
2543
2528
2184
2586
Area
Luxembourg
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Poland
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Taiwan
Thailand
United
Kingdom
Vietnam
78US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\010COVIX.fm
masterpage:
Right
Index
Numerics
C
3D 32
3D Output Setting 54
CD 71
Child Lock 49
Cinema Conversion Mode 55
Closed Captions Settings 59
Connection Server Settings 61
Control for HDMI 45, 59
A
B
BD Audio MIX Setting 56
BD Hybrid Disc Playback Layer 58
BD Internet Connection 58
BD Parental Control 58
BD/DVD Menu Language 58
BD/DVD Viewing Settings 58
BD-LIVE 31
BD-ROM 24p Output 55
BLUETOOTH 33
Bluetooth AUDIO - AAC 60
Bluetooth Power Setting 61
BONUSVIEW 31
BRAVIA Sync 45
Browsing websites 50
D
D.C.A.C. DX (Digital Cinema Auto
Calibration DX) 46
Digital Music Arena 30, 41
Dimmer 49
DLNA 39, 61
Dolby Digital 43
DTS 43
DVD 71
DVD Aspect Ratio 55
DVD Parental Control 58
DVD-ROM 24p Output 55
Additional Information
A/V SYNC 42
Attenuation settings - AUDIO 57
Audio DRC 56
Audio Language 58
Audio Output 57
Audio Return Channel 59
Audio Settings 56
Auto Calibration 46, 57
Auto Display 60
Auto Renderer Access Permission 61
E
Easy Network Settings 61
Easy Setup 27
External Input Settings 60
F
FM Mode 44
Football mode 31
Front panel 14
G
Gracenote Settings 60
H
HDMI
YCbCr/RGB (HDMI) 56
HDMI Deep Color Output 56
79US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\010COVIX.fm
masterpage: Left
I
R
Initialize Personal Information 62
Input Skip Setting 60
Internet content 38
Internet Settings 61
Internet Video Parental Control 58
Internet Video Unrated 58
Rear panel 16
Region code 72
Registered Remote Devices 61
Remote control 17
Remote Start 61
Renderer Access Control 61
Reset to Factory Default Settings 62
Resetting 62
L
Language Code List 77
S
M
Multiplex broadcast sound 43
Music Settings 59
N
Network Connection Diagnostics 61
Network Settings 61
NFC 36
O
OSD Language 59
P
Parental Control Area Code 58
Parental Control Settings 58
Password 58
Pause Mode 56
Play information 32
Playable discs 71
Power Save Drive 60
Q
Quick Start Mode 60
SBM 56
Screen Format 55
Screen mirroring 35, 37
Screen Saver 60
Screen Settings 54
SLEEP 48
Slideshow 42
Software License Information 60
Software Update 54
SongPal 38
Sound Effect 57
Speaker Settings 47, 57
Distance 47
Level 48
Subtitle Language 58
Super Audio CD Playback Channel 59
Super Audio CD Playback Layer 59
Surround amplifier 16
System Information 60
T
Test Tone 48
Top panel 14
Top panel display 15
TV Screen Size Setting for 3D 54
TV SideView 40
TV Type 54
U
Update 54
USB 33
80US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\010COVIX.fm
masterpage:
Right
V
Visualizer 49
W
WEP 26
Wireless Sound Connection 59
WPA2-PSK (AES) 26
WPA2-PSK (TKIP) 26
WPA-PSK (AES) 26
WPA-PSK (TKIP) 26
Additional Information
81US
BDV-N9200W/BDV-N7200W/BDV-N5200W
4-485-799-12(1)
D:\NORM'S JOB\SONY HA\SO130077\BDV-N9200_7200_5200_E3200
(PMRF 01)\4485799121_US (U2)\110BCO.fm
masterpage: Left
The software of this system may be updated in the future. To find out details on
any available updates, please visit the following URL.
http://www.sony.com/blurayhtsupport/
©2014 Sony Corporation
Printed in Malaysia
