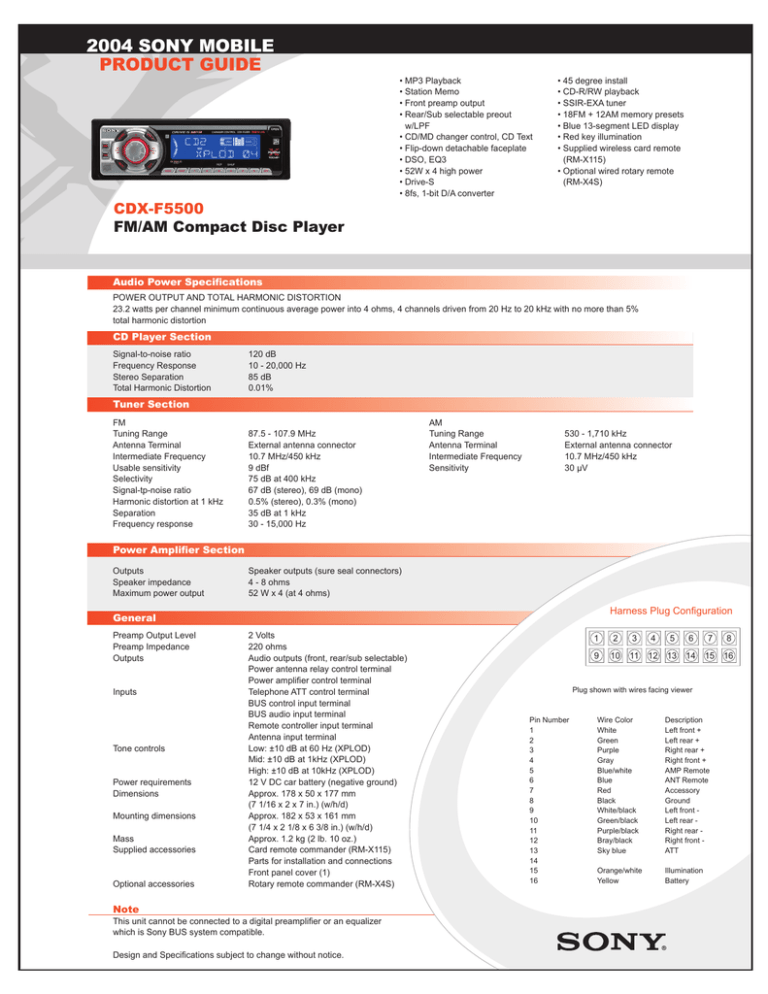

Sony CDX-F5500 Marketing Specifications

2004 SONY MOBILE
PRODUCT GUIDE
CDX-F5500
FM/AM Compact Disc Player
• MP3 Playback
• Station Memo
• Front preamp output
• Rear/Sub selectable preout
w/LPF
• CD/MD changer control, CD Text
• Flip-down detachable faceplate
• DSO, EQ3
• 52W x 4 high power
• Drive-S
• 8fs, 1-bit D/A converter
• 45 degree install
• CD-R/RW playback
• SSIR-EXA tuner
• 18FM + 12AM memory presets
• Blue 13-segment LED display
• Red key illumination
• Supplied wireless card remote
(RM-X115)
• Optional wired rotary remote
(RM-X4S)
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion
CD Player Section
Signal-to-noise ratio
Frequency Response
Stereo Separation
Total Harmonic Distortion
120 dB
10 - 20,000 Hz
85 dB
0.01%
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable sensitivity
Selectivity
Signal-tp-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 - 107.9 MHz
External antenna connector
10.7 MHz/450 kHz
9 dBf
75 dB at 400 kHz
67 dB (stereo), 69 dB (mono)
0.5% (stereo), 0.3% (mono)
35 dB at 1 kHz
30 - 15,000 Hz
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530 - 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs (sure seal connectors)
4 - 8 ohms
52 W x 4 (at 4 ohms)
Harness Plug Configuration
General
Preamp Output Level
Preamp Impedance
Outputs
Inputs
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Optional accessories
2 Volts
220 ohms
Audio outputs (front, rear/sub selectable)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
BUS control input terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
Low: ±10 dB at 60 Hz (XPLOD)
Mid: ±10 dB at 1kHz (XPLOD)
High: ±10 dB at 10kHz (XPLOD)
12 V DC car battery (negative ground)
Approx. 178 x 50 x 177 mm
(7 1/16 x 2 x 7 in.) (w/h/d)
Approx. 182 x 53 x 161 mm
(7 1/4 x 2 1/8 x 6 3/8 in.) (w/h/d)
Approx. 1.2 kg (2 lb. 10 oz.)
Card remote commander (RM-X115)
Parts for installation and connections
Front panel cover (1)
Rotary remote commander (RM-X4S)
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Wire Color
White
Green
Purple
Gray
Blue/white
Blue
Red
Black
White/black
Green/black
Purple/black
Bray/black
Sky blue
Description
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Orange/white
Yellow
Illumination
Battery
2004 SONY MOBILE
PRODUCT GUIDE
CDX-F5500
FM/AM Compact Disc Player
50mm (2”)
178 mm (7-1/16”)
Antenna connector
Bus audio input
Rear/Sub audio out
Front audio out
Rotary remote input
Bus control in
Fuse (10A)
177 mm (7”)
88 mm (3-7/16”)
53 mm (2-1/16”)
50mm (2”)
47 mm (1-7/8”)
161 mm (6-3/8”)
Design and Specifications subject to change without notice.
