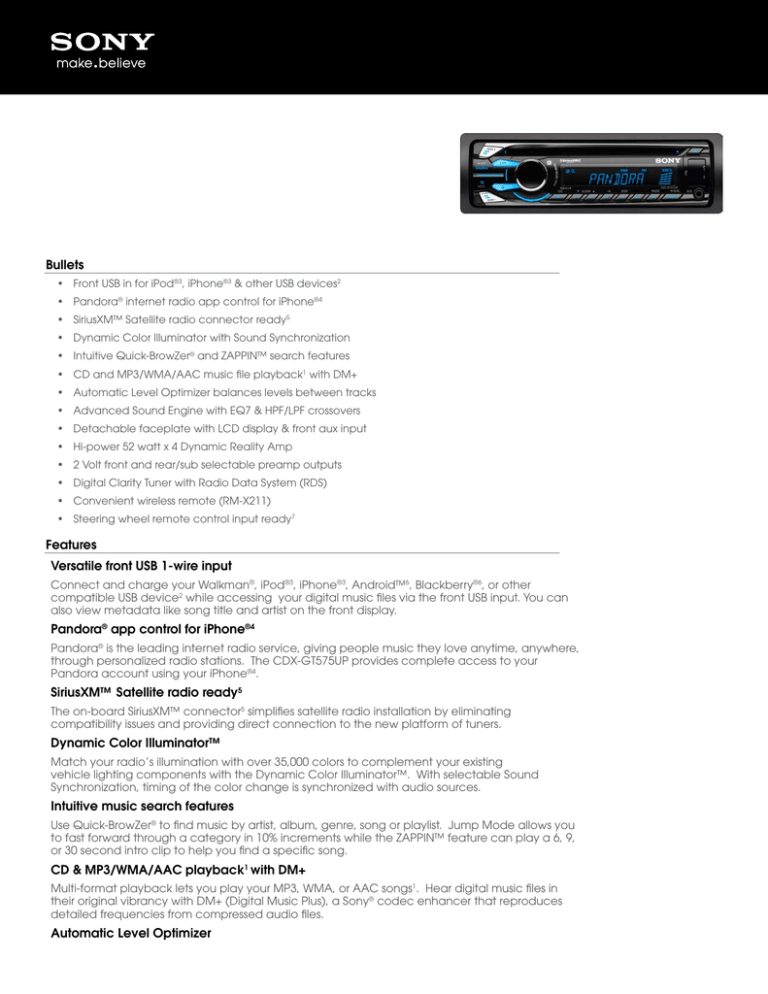

Sony CDX-GT575UP Marketing Specifications

CDX-GT575UP
Bullets
• Front USB in for iPod®3, iPhone®3 & other USB devices2
• Pandora® internet radio app control for iPhone®4
• SiriusXM™ Satellite radio connector ready5
• Dynamic Color Illuminator with Sound Synchronization
• Intuitive Quick-BrowZer® and ZAPPIN™ search features
• CD and MP3/WMA/AAC music file playback1 with DM+
• Automatic Level Optimizer balances levels between tracks
• Advanced Sound Engine with EQ7 & HPF/LPF crossovers
• Detachable faceplate with LCD display & front aux input
• Hi-power 52 watt x 4 Dynamic Reality Amp
• 2 Volt front and rear/sub selectable preamp outputs
• Digital Clarity Tuner with Radio Data System (RDS)
• Convenient wireless remote (RM-X211)
• Steering wheel remote control input ready7
Features
Versatile front USB 1-wire input
Connect and charge your Walkman®, iPod®3, iPhone®3, Android™6, Blackberry®6, or other
compatible USB device2 while accessing your digital music files via the front USB input. You can
also view metadata like song title and artist on the front display.
Pandora® app control for iPhone®4
Pandora® is the leading internet radio service, giving people music they love anytime, anywhere,
through personalized radio stations. The CDX-GT575UP provides complete access to your
Pandora account using your iPhone®4.
SiriusXM™ Satellite radio ready5
The on-board SiriusXM™ connector5 simplifies satellite radio installation by eliminating
compatibility issues and providing direct connection to the new platform of tuners.
Dynamic Color Illuminator™
Match your radio’s illumination with over 35,000 colors to complement your existing
vehicle lighting components with the Dynamic Color Illuminator™. With selectable Sound
Synchronization, timing of the color change is synchronized with audio sources.
Intuitive music search features
Use Quick-BrowZer® to find music by artist, album, genre, song or playlist. Jump Mode allows you
to fast forward through a category in 10% increments while the ZAPPIN™ feature can play a 6, 9,
or 30 second intro clip to help you find a specific song.
CD & MP3/WMA/AAC playback1 with DM+
Multi-format playback lets you play your MP3, WMA, or AAC songs1. Hear digital music files in
their original vibrancy with DM+ (Digital Music Plus), a Sony® codec enhancer that reproduces
detailed frequencies from compressed audio files.
Automatic Level Optimizer
Automatic Level Optimizer analyzes each tracks playback levels and adjusts output level to
optimize transitions between tracks and sources. Advanced Sound Engine with EQ7
The Advanced Sound Engine uses EQ7 equalizer, adjustable LPF/HPF crossovers, Listener Position/
Time Alignment calibration, DM+ advanced sound restoration, Rear Bass Enhancer, and Dynamic
Loudness to deliver an impressive listening experience.
Convenient control panel design
The easy-to-read single line LCD display shows clock, station ID and track data when playing
back digital files from the CD or external USB devices. Front auxiliary input lets you connect
almost any portable audio device to your car's sound system.
Hi-power 52 watt x 4 Dynamic Reality Amp
The internal Dynamic Reality Amp delivers 52 watts x 4 to your interior speakers, allowing you to
crank up the volume while maintaining low distortion, low noise levels and smooth frequency
response. Your music isn’t just louder, its clearer too. 2V front & rear/sub preamp outputs
When you’re ready to expand your system, the CDX-GT575UP offers 2 volt front and rear/sub
selectable pre-amp RCA outputs for external amplifiers. The adjustable subwoofer level control
lets you dial in the bass when you’re ready to pump it up. Digital Clarity Tuner with Radio Data System (RDS)
The Digital Clarity Tuner delivers industry leading signal to noise ratios, lower interference, better
multipath rejection and better stereo separation. The RDS feature displays broadcast information
when listening to compatible AM/FM stations.
Convenient wireless card remote
Control your receiver while keeping your eyes on the road with the included wireless card remote
(RM-X211).
Steering wheel remote input ready7
This receiver is compatible with aftermarket remote control adapters7 designed to utilize the
vehicles existing, primary radio controls directly from the steering wheel. The 1/8” rear panel
mounted remote input jack allows for simple connectivity. Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven
from 20 Hz to 20 kHz with less than 1% THD+N.
Speaker Impedance
4-8 Ohms
AMP & General Feature
Automatic Level Optimizer
Yes
Aux-In
Front
DM+ (Codec enhancer)
Gen2.1
EQ
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3
kHz and 16 kHz.
High Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Loudness
Dynamic
Low Pass Filter
Selectable on/off at: 50, 60, 80, 100 or 120 Hz.
Output Power (4ohm, 1kHz,16V)(W)
52 W
Pre Out
(2) Front+Rear/Sub switchable
Rear/Sub initial
Sub
Rear Bass Enhancer
Yes
Sirius/XM Connector
Yes
Subwoofer Direct Connection
Yes
Time Alignment Custom
Adjustment
Time Alignment Preset
Yes
USB
Front
Audio
Band
AM / FM
Equalizer
EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3
kHz and 16 kHz.
Format(s) Supported
MP3/WMA/AAC files1
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM Tuner Frequency Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Tuner Type
Digital clarity tuner with RDS
Wow and Flutter
Below measurable limit
AUX in Feature
Level Adjustment
-8dB - +18dB
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Selectable Auto adjust or manual on/off
Key Illumination
Variable color illumination
On-Screen Clock
12H
Display
Display Color
Black / Variable color
Display Technology
LCD
Text Displayed
Source, artist, track, playback time, menu, clock and Pandora® data
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Auto
Key Illumination Initial
Variable
Panel Design
Display color (Color Variation/Nega or Posi)
Black color/Negative
Display Device (LCD/FL/OEL/TFT)
LCD
Key Illumination
Variable
Knob finish
Cap + Rubber
Panel finish color
Dark Titanium
USB Shutter
Yes
Feature
CODEC (for USB)
MP3, WMA, AAC
Jump Mode
Yes
List Browsing (Folders/Files)
Yes
Pause
Yes
Repeat
OFF/ TRACK/ ALBUM
Resume Play
Yes
Shuffle
OFF/ALBUM/DEVICE
ZAPPIN
Yes
General
CEA2006 output power
17
CEA2006 S/N
80
Dimensions (WxHxD) (mm)
178 x 50 x 177
Maximum output power (4ohm, 1kHz, 16V)(W)
52
Mounting dimensions (WxHxD)(mm)
182 x 53 x 160
Preout impedance (ohms)
220
Preout output level (V)
2
Weight (kg)
1.2
Inputs and Outputs
12V Trigger Output(s)
Power remote on
Antenna Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
Front USB input
SiriusXM™ connector
Ability to use all forms of USB devices may vary as not all devices are compatible. This
unit is compliant with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type
USB devices compliant with the USB standard. This unit cannot recognize USB devices
via a USB hub.
Digital Audio Input(s)
This unit can be connected to the following iPods. Update your iPod to the latest
software before you use it.
iPod Nano 1st - 6th generation
iPod Touch 1st - 4th generation
iPod Classic
iPod with video
iPhone
iPhone 3G
iPhone 3GS
iPhone 4
iPhone 4S
If you have any questions or problems concerning your unit that are not covered in the
owners manual, consult your nearest Sony dealer.
Infrared Port
Wireless remote
RCA Audio Output(s)
Front and selectable Rear/Subwoofer RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
USB Port(s)
Front
iPod Control Feature
Accessory Information
Yes
CODEC (for iPod)
Depend on iPod® content
List Browsing (Folders / Files)
Quick-BrowZer®
Pandora Link (USB)
Yes
Passenger Control
Yes
Pause
Yes
Repeat
Track, Album, Artist, Playlist, Genre, Podcast
Resume Play
Yes
Shuffle
Track, Album, Artist, Playlist, Genre, Podcast
ZAPPIN
Yes
USB Capable
USB Mass Storage Device
Yes
Instruction Manual Language
English
Yes
French
Yes
Other Features
Card Remote ( ): Option
RM-X211
CD lock mode
Yes
Clock
12H
Rotary commander ( ):Option
Optional wired remote input
Security
Detachable
Tuner
FM Usable Sensitivity
8 dBf
Frequency Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel separation (dB)
50 dB at 1 kHz
FM: Frequency response (Hz)
20 - 15k
FM: Intermediate frequency (MHz)
25 KHz
FM: S/N ratio (mono) (dB)
80 dB stereo
FM: Selectivity (400 kHz) (dB)
75 dB
FM: Tuning range (MHz)
87.5-107.9
FM: Usable sensitivity (75 ohm) (dBf)
8 dBf
MW: Tuning range(kHz)
530-1710
MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA Only:RBDS, Others:RDS)
RBDS
Weights and Measurements
Dimensions (Approx.)
178 x 50 x 177 mm, 7.125 x 2 x 7 inch (w/h/d)
Dimensions (Approx) Depth
7" (177 mm)
Dimensions (Approx) Height
2" (50 mm)
Dimensions (Approx) Width
7.125" (178 mm)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
Supplied Accessories
Supplied Accessories
Parts for installation and connections (1 set)
RM-X211 wireless remote
Optional Accessories
Optional Accessories
USB connection cable for iPod®: RC-100IP
SiriusXM™ Connect tuner: SXV100
1. Not all files may playback due to file variations. Copyright protected ACC-LC files not supported.
2. Not all USB devices are compatible. Consult www.esupport.sony.com for complete details.
3. Works with iPod touch® (1st – 4th generations), iPod nano® (1st – 6th generations), iPod classic®, iPod with video and iPhone, 3G, 3GS, 4 and 4S.
4. Works with iPhone® 3G, 3GS, 4 and 4S via USB port.
5. Requires tuner and subscription, sold separately.
6. Compatible with Android or Blackberry smartphones supporting Mass Storage Class (MSC) devices, users required to manually select MSC/USB connection in smartphone menu for
proper functionality. 7. Compatibility varies as not all vehicles are compatible; please consult with each interface manufacturer for details. © 2012 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, ZAPPIN, SensMe, Walkman, Quick-BrowZer, Dynamic Color
Illuminator and their respective logos are trademarks of Sony. iPod, iPod classic, iPod nano, iPod mini, and iPhone are trademarks of Apple Inc. PANDORA, the PANDORA logo, and the
Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission. All other trademarks are trademarks of their respective owners. Features and
specifications are subject to change without notice. Updated: July 11, 2012
