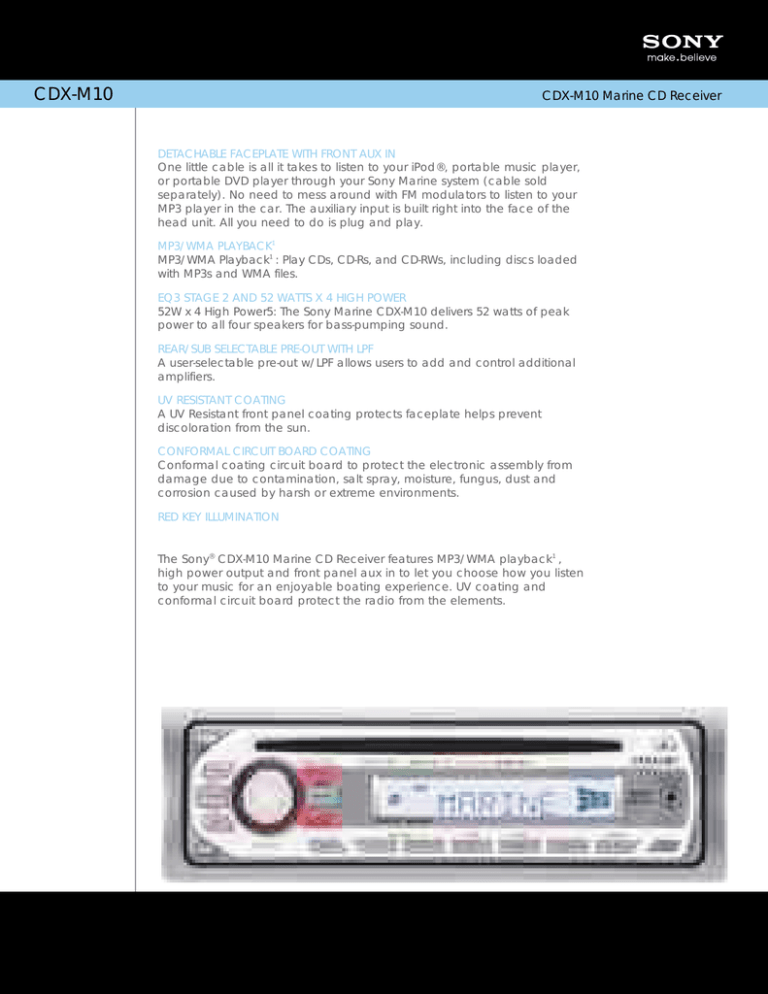

CDX-M10
CDX-M10 Marine CD Receiver
DETACHABLE FACEPLATE WITH FRONT AUX IN
One little cable is all it takes to listen to your iPod®, portable music player,
or portable DVD player through your Sony Marine system (cable sold
separately). No need to mess around with FM modulators to listen to your
MP3 player in the car. The auxiliary input is built right into the face of the
head unit. All you need to do is plug and play.
MP3/WMA PLAYBACK1
MP3/WMA Playback1 : Play CDs, CD-Rs, and CD-RWs, including discs loaded
with MP3s and WMA files.
EQ3 STAGE 2 AND 52 WATTS X 4 HIGH POWER
52W x 4 High Power5: The Sony Marine CDX-M10 delivers 52 watts of peak
power to all four speakers for bass-pumping sound.
REAR/SUB SELECTABLE PRE-OUT WITH LPF
A user-selectable pre-out w/LPF allows users to add and control additional
amplifiers.
UV RESISTANT COATING
A UV Resistant front panel coating protects faceplate helps prevent
discoloration from the sun.
CONFORMAL CIRCUIT BOARD COATING
Conformal coating circuit board to protect the electronic assembly from
damage due to contamination, salt spray, moisture, fungus, dust and
corrosion caused by harsh or extreme environments.
RED KEY ILLUMINATION
The Sony® CDX-M10 Marine CD Receiver features MP3/WMA playback1 ,
high power output and front panel aux in to let you choose how you listen
to your music for an enjoyable boating experience. UV coating and
conformal circuit board protect the radio from the elements.
CDX-M10
Specifications
CDX-M10 Marine CD Receiver
Power
CD Text Display: CD/MP3/WMA data
displayed
On-Screen Clock: 12H
Dimmer Adjust: Manual - on/off
Key Illumination: Switchable: Blue / Red
Output Power: 52W x4 High Power-23.2
watts per channel minimum continuous
average power into 4 Ohms, 4 channels
driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
Current Drain: 3 - 5 amps
Input Voltage: 12 V DC car battery
(negative ground)
General
Inputs and Outputs
Color: White on Silver
RCA Audio Output(s): Rear/Sub selectable
RCA pre-amp outputs
Antenna Terminal(s): AM/FM Antenna
Input Terminal
12V Trigger Output(s):
Power antenna
Convenience Features
Audio
Preout Impedance: 220 ohms
Preout Voltage: 2 volt
S/N Ratio: Audio Power: CEA2006 S/N 82 dB
Frequency Response: CD: 10-20,000 Hz
Wow and Flutter: Below Measurable Limit
Station Preset(s): FM18/AM12
Digital-to-Analog Converter: 24bit
Tuner Frequency Range:
FM:Tuner Frequency Range(MHz): 87.5107.9
AM:Tuner Frequency Range(kHz): 5301602 (9 kHz step), 530-1710 (10 kHz step)
Tuner Type: SSIR-EXA
Volume Control: Tel/Nav Attenuation
Band: AM / FM
Signal-to-Noise Ratio (dB): CD: 120dB
Format(s) Supported: MP3/WMA files1
Equalizer: EQ3: 3 band EQ
+/- 10 dB at 60 Hz
+/- 10 dB at 1 kHz
+/- 10 dB at 10 kHz
Convenience
Tilt Range: 0-45° mounting angle
Display
Technology: LCD
Display Color: White color / Positive
Text Displayed: Source, artist, track,
playback time, menu and clock
Text Lines: 1 line of information
Amplifier Section
Speaker Impedance: 4-8 Ohms
Max power output: 52 watts x 4 at 4 ohms
Amplifier turn on
Remote Jack: Optional Wired Remote input
Audio In:
Front Aux with variable level: -8dB ∼
+18dB
Infrared Port: Wireless remote input
Dimensions
Weight: 1.3 kg (2 lb. 14 oz.)
Measurements: 178 x 50 x 180mm
Supplied Accessories
Parts for installation and connections (1
set)
RM-X151 wireless remote
Optional Accessories
Card Remote Commander: RM-X114
Marine Remote Commander: RM-X11M
Waterproof Stereo Cover: GMD-616
Color: White on Silver
UPC Code: 027242718746
1.Not all MP3, WMA, AAC files may playback due to file variations.
Copyright protected ACC-LC files cannot be played back.
© 2009 Sony Electronics Inc. All rights reserved. Reproduction in whole or
in part without written permission is prohibited. Sony, Memory Stick, navu, Quick-BrowZer, Walkman, Xplod, ZAPPIN, and the Sony, nav-u and Xplod
logos are trademarks of Sony. iPhone and iPod are trademarks of Apple
Inc., registered in the U.S. and other countries. Bluetooth is a trademark of
Bluetooth SIG, Inc. NAVTEQ Maps & Traffic is a trademark of NAVTEQ. All
other trademarks are trademarks of their respective owners. Features
and specifications are subject to change without notice. Non-metric
weights and measures are approximate.
Tuner
FM Usable Sensitivity: 10 dBf
Selectivity: 75 dB at 400 kHz
S/N Ratio: 69 dB (mono)
Frequency Response: 30 - 15,000 Hz
Stereo Separation: 35 dB at 1 kHz
Sony Electronics Inc. •16530 Via Esprillo •San Diego, CA 92127 •1.800.222.7669 •www.sony.com
Last Updated: 04/13/2011
