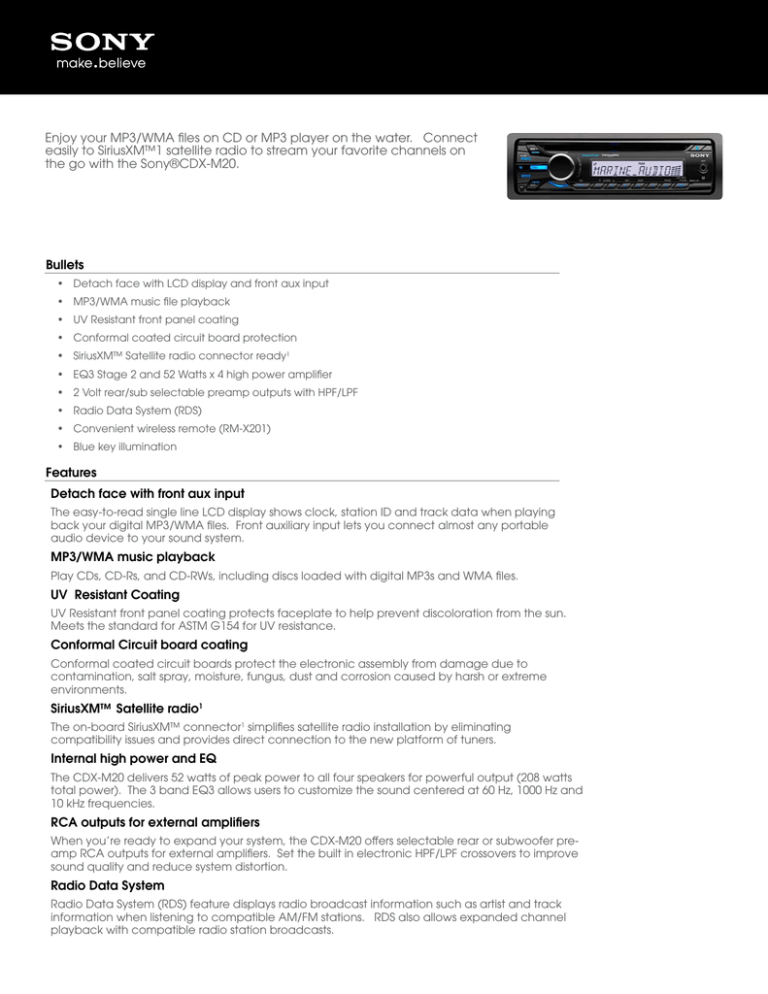

Sony CDX-M20 Marketing Specifications

CDX-M20
CDX-M20 Marine CD Receiver
Enjoy your MP3/WMA files on CD or MP3 player on the water. Connect
easily to SiriusXM™1 satellite radio to stream your favorite channels on
the go with the Sony®CDX-M20.
Bullets
• Detach face with LCD display and front aux input
• MP3/WMA music file playback
• UV Resistant front panel coating
• Conformal coated circuit board protection
• SiriusXM™ Satellite radio connector ready1
• EQ3 Stage 2 and 52 Watts x 4 high power amplifier
• 2 Volt rear/sub selectable preamp outputs with HPF/LPF
• Radio Data System (RDS)
• Convenient wireless remote (RM-X201)
• Blue key illumination
Features
Detach face with front aux input
The easy-to-read single line LCD display shows clock, station ID and track data when playing
back your digital MP3/WMA files. Front auxiliary input lets you connect almost any portable
audio device to your sound system.
MP3/WMA music playback
Play CDs, CD-Rs, and CD-RWs, including discs loaded with digital MP3s and WMA files.
UV Resistant Coating
UV Resistant front panel coating protects faceplate to help prevent discoloration from the sun.
Meets the standard for ASTM G154 for UV resistance.
Conformal Circuit board coating
Conformal coated circuit boards protect the electronic assembly from damage due to
contamination, salt spray, moisture, fungus, dust and corrosion caused by harsh or extreme
environments.
SiriusXM™ Satellite radio1
The on-board SiriusXM™ connector1 simplifies satellite radio installation by eliminating
compatibility issues and provides direct connection to the new platform of tuners.
Internal high power and EQ
The CDX-M20 delivers 52 watts of peak power to all four speakers for powerful output (208 watts
total power). The 3 band EQ3 allows users to customize the sound centered at 60 Hz, 1000 Hz and
10 kHz frequencies.
RCA outputs for external amplifiers
When you’re ready to expand your system, the CDX-M20 offers selectable rear or subwoofer preamp RCA outputs for external amplifiers. Set the built in electronic HPF/LPF crossovers to improve
sound quality and reduce system distortion.
Radio Data System
Radio Data System (RDS) feature displays radio broadcast information such as artist and track
information when listening to compatible AM/FM stations. RDS also allows expanded channel
playback with compatible radio station broadcasts.
Wireless card remote
Control your receiver with the included wireless card remote (RM-X201).
Key illumination
Blue key illumination helps you locate buttons quickly during evening playback.
Specifications
Amplifier Section
Max power output
52 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven
from 20 Hz to 20 kHz with less than 1% THD+N.
Speaker Impedance
4-8 Ohms
AMP & General Feature
Aux-In
Yes (Front)
EQ
EQ3: 3 band EQ with +/- 10 dB adjustment at 60 Hz, 1 kHz and 10 kHz.
High Pass Filter
Selectable on/off at: 80, 100, 120, 140 or 160 Hz.
Loudness
Yes
Low Pass Filter
Selectable on/off at: 80, 100, 120, 140 or 160 Hz.
Output Power (4ohm, 1kHz,16V)(W)
52 watts x 4
Pre Out
(1) Rear / Sub switchable
Rear/Sub initial
Sub
Sirius/XM Connector
Yes
Audio
Band
AM / FM
Equalizer
EQ3:3 band EQ with +/- 10 dB adjustment at 60 Hz, 1 kHz and 10 kHz.
Format(s) Supported
MP3/WMA files
Preout Impedance
220 ohms
Preout Voltage
2 volt
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
Signal-to-Noise Ratio (dB)
CD: 120 dB
Station Preset(s)
18 FM / 12 AM
Tuner Frequency Range
FM (MHz): 87.5-107.9
AM (kHz): 530-1710
Tuner Type
SSIR-EXA with RDS
Wow and Flutter
Below measurable limit
AUX in Feature
Level Adjustment
Yes (-8dB / +18dB)
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
Dimmer Adjust
Manual - on/off
Key Illumination
Blue
On-Screen Clock
12H
Display
Display Color
White color / Positive
Display Technology
LCD
Text Displayed
Source, artist, track, playback time, menu and clock
Text Lines
1 line of information
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual
Panel Design
Display color (Color Variation/Nega or Posi)
White color / Positive
Display Device (LCD/FL/OEL/TFT)
LCD
Key Illumination
Blue
Panel finish color
Black (Bare)
General
CEA2006 output power
17
CEA2006 S/N
80
Dimensions (WxHxD) (mm)
178x50x180
Maximum output power (4ohm, 1kHz, 16V)(W)
52
Mounting dimensions (WxHxD)(mm)
182 x 53 x 162
Preout impedance (ohms)
220
Preout output level (V)
2
Weight (kg)
1.2
Inputs and Outputs
12V Trigger Output(s)
Power amplifier turn on
Antenna Terminal(s)
AM/FM Antenna Input Terminal
Audio In
Front Aux in with variable level
SiriusXM connector
Infrared Port
Wireless remote
RCA Audio Output(s)
Rear/Subwoofer selectable RCA pre-amp outputs
Remote Jack
Optional wired remote terminal
Other Features
Card Remote ( ): Option
RM-X201
CD lock mode
Yes
Clock
12H
Rotary commander ( ):Option
(RM-X4S)
Security
Detachable
Tuner
FM Usable Sensitivity
8 dBf
Frequency Response
FM: 20-15,000 Hz
S/N Ratio
80 dB (stereo)
Selectivity
75 dB at 400 kHz
Stereo Separation
50 dB at 1 KHz
FM: Channel separation (dB)
50 dB at 1 kHz
FM: Frequency response (Hz)
20 - 15k
FM: Intermediate frequency (MHz)
25KHz
FM: S/N ratio (mono) (dB)
80 dB stereo
FM: Selectivity (400 kHz) (dB)
75 dB
FM: Tuning range (MHz)
87.5-107.9
FM: Usable sensitivity (75 ohm) (dBf)
8 dBf
MW: Tuning range(kHz)
530-1710
MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV)
26/-/-
Tuner Feature
Preset
FM18/AM12
RDS/EON (NA Only:RBDS, Others:RDS)
Yes (RBDS)
Weights and Measurements
Dimensions (Approx.)
178 x 50 x 180 mm, 7.125 x 2 x 7.125 inch (w/h/d)
Dimensions (Approx) Depth
7.125" (180 mm)
Dimensions (Approx) Height
2" (50 mm)
Dimensions (Approx) Width
7.125" (178 mm)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
Supplied Accessories
Supplied Accessories
Parts for installation and connections (1 set)
RM-X201 wireless remote
Optional Accessories
Optional Accessories
Waterproof Stereo Cover: GMD-616
1. Requires antenna and tuner, both sold separately.
