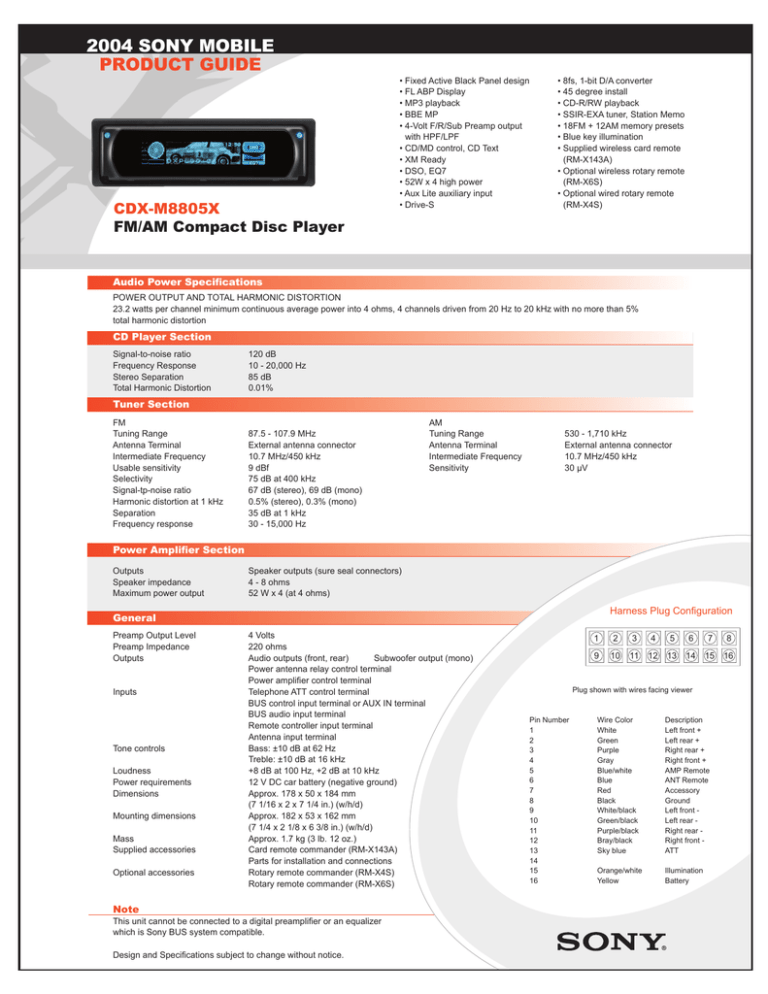

Sony CDX-M8805X Marketing Specifications

2004 SONY MOBILE
PRODUCT GUIDE
CDX-M8805X
FM/AM Compact Disc Player
• Fixed Active Black Panel design
• FL ABP Display
• MP3 playback
• BBE MP
• 4-Volt F/R/Sub Preamp output
with HPF/LPF
• CD/MD control, CD Text
• XM Ready
• DSO, EQ7
• 52W x 4 high power
• Aux Lite auxiliary input
• Drive-S
• 8fs, 1-bit D/A converter
• 45 degree install
• CD-R/RW playback
• SSIR-EXA tuner, Station Memo
• 18FM + 12AM memory presets
• Blue key illumination
• Supplied wireless card remote
(RM-X143A)
• Optional wireless rotary remote
(RM-X6S)
• Optional wired rotary remote
(RM-X4S)
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion
CD Player Section
Signal-to-noise ratio
Frequency Response
Stereo Separation
Total Harmonic Distortion
120 dB
10 - 20,000 Hz
85 dB
0.01%
Tuner Section
FM
Tuning Range
Antenna Terminal
Intermediate Frequency
Usable sensitivity
Selectivity
Signal-tp-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 - 107.9 MHz
External antenna connector
10.7 MHz/450 kHz
9 dBf
75 dB at 400 kHz
67 dB (stereo), 69 dB (mono)
0.5% (stereo), 0.3% (mono)
35 dB at 1 kHz
30 - 15,000 Hz
AM
Tuning Range
Antenna Terminal
Intermediate Frequency
Sensitivity
530 - 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs (sure seal connectors)
4 - 8 ohms
52 W x 4 (at 4 ohms)
Harness Plug Configuration
General
Preamp Output Level
Preamp Impedance
Outputs
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Optional accessories
4 Volts
220 ohms
Audio outputs (front, rear)
Subwoofer output (mono)
Power antenna relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
BUS control input terminal or AUX IN terminal
BUS audio input terminal
Remote controller input terminal
Antenna input terminal
Bass: ±10 dB at 62 Hz
Treble: ±10 dB at 16 kHz
+8 dB at 100 Hz, +2 dB at 10 kHz
12 V DC car battery (negative ground)
Approx. 178 x 50 x 184 mm
(7 1/16 x 2 x 7 1/4 in.) (w/h/d)
Approx. 182 x 53 x 162 mm
(7 1/4 x 2 1/8 x 6 3/8 in.) (w/h/d)
Approx. 1.7 kg (3 lb. 12 oz.)
Card remote commander (RM-X143A)
Parts for installation and connections
Rotary remote commander (RM-X4S)
Rotary remote commander (RM-X6S)
Note
This unit cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS system compatible.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Wire Color
White
Green
Purple
Gray
Blue/white
Blue
Red
Black
White/black
Green/black
Purple/black
Bray/black
Sky blue
Description
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Orange/white
Yellow
Illumination
Battery
2004 SONY MOBILE
PRODUCT GUIDE
CDX-M8805X
FM/AM Compact Disc Player
178 mm (7-1/16”)
50mm (2”)
Sub output
Antenna connector
Bus audio input/Aux in
Rear audio out
Front audio out
Rotary remote input
Bus control in
Fuse (10A)
184 mm (7-1/4”)
88 mm (3-7/16”)
53 mm (2-1/16”)
50mm (2”)
47 mm (1-7/8”)
162 mm (6-3/8”)
Design and Specifications subject to change without notice.
