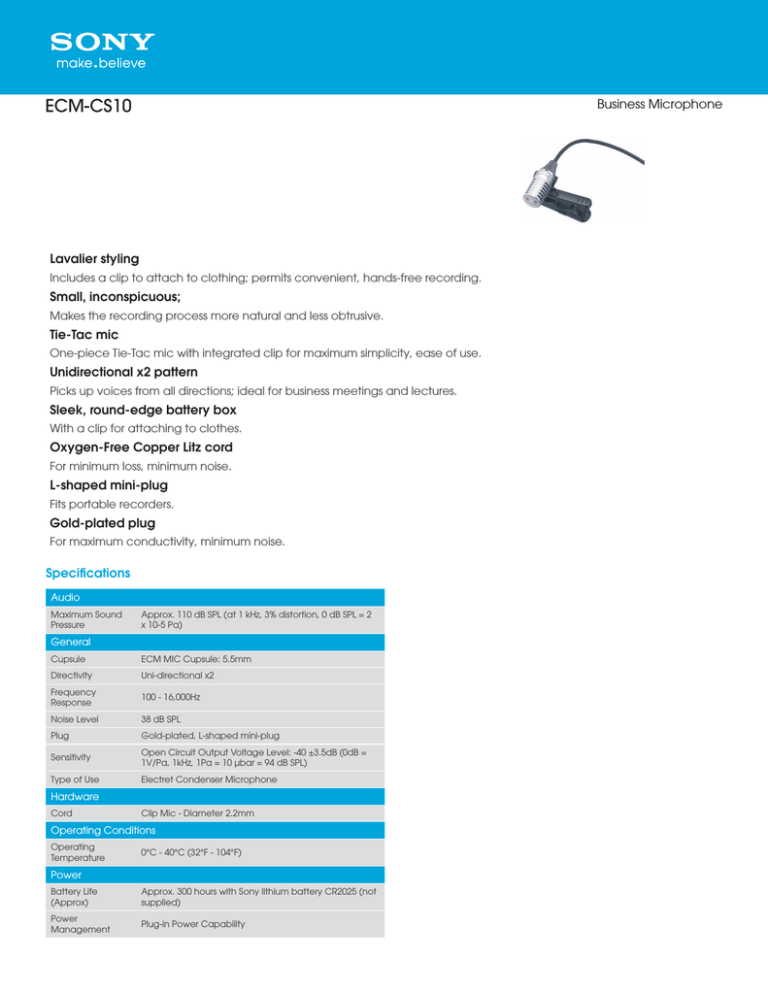

Sony ECM-CS10 Marketing Specifications

ECM-CS10
Business Microphone
Lavalier styling
Includes a clip to attach to clothing; permits convenient, hands-free recording.
Small, inconspicuous;
Makes the recording process more natural and less obtrusive.
Tie-Tac mic
One-piece Tie-Tac mic with integrated clip for maximum simplicity, ease of use.
Unidirectional x2 pattern
Picks up voices from all directions; ideal for business meetings and lectures.
Sleek, round-edge battery box
With a clip for attaching to clothes.
Oxygen-Free Copper Litz cord
For minimum loss, minimum noise.
L-shaped mini-plug
Fits portable recorders.
Gold-plated plug
For maximum conductivity, minimum noise.
Specifications
Audio
Maximum Sound
Pressure
Approx. 110 dB SPL (at 1 kHz, 3% distortion, 0 dB SPL = 2
x 10-5 Pa)
General
Cupsule
ECM MIC Cupsule: 5.5mm
Directivity
Uni-directional x2
Frequency
Response
100 - 16,000Hz
Noise Level
38 dB SPL
Plug
Gold-plated, L-shaped mini-plug
Sensitivity
Open Circuit Output Voltage Level: -40 ±3.5dB (0dB =
1V/Pa, 1kHz, 1Pa = 10 µbar = 94 dB SPL)
Type of Use
Electret Condenser Microphone
Hardware
Cord
Clip Mic - Diameter 2.2mm
Operating Conditions
Operating
Temperature
0°C - 40°C (32°F - 104°F)
Power
Battery Life
(Approx)
Approx. 300 hours with Sony lithium battery CR2025 (not
supplied)
Power
Management
Plug-in Power Capability
Power
Requirements
CR2025 Battery (not supplied), plug-in power
Weights and Measurements
Dimensions
(Approx.)
Clip Mic - Approx 31mm (without Cord), Diameter
11mm
Weight (Approx.)
Clip Mic - Approx 15g (with Cord)
Accessories
Supplied
Accessories
Holder Clip
©2004 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and
Sony is a trademark of Sony. All other trademarks are property of their respective owners.
measures are approximate. /Updated: August 23, 2013
