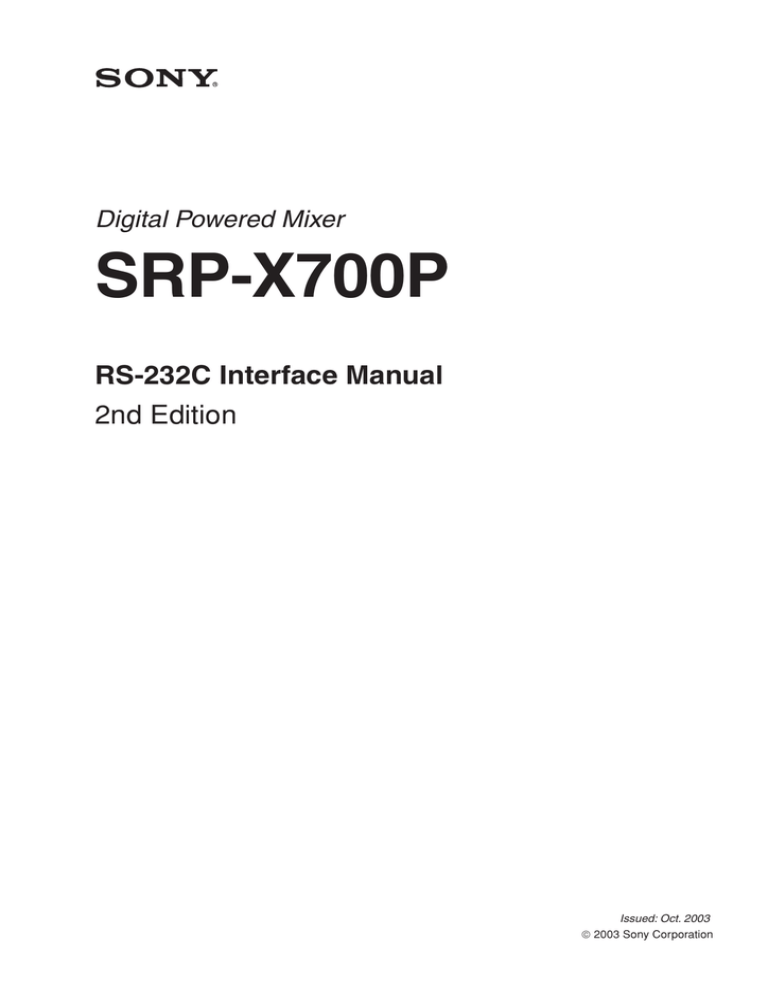

Digital Powered Mixer
SRP-X700P
RS-232C Interface Manual
2nd Edition
Issued: Oct. 2003
 2003 Sony Corporation
Table of Contents
Overview ................................................................................................................................... 4
Connecting Computer ............................................................................................................. 4
Communication Format .......................................................................................................... 4
Communication Protocol ........................................................................................................ 5
Handshake Code ...................................................................................................................... 5
Communication Packet Format ............................................................................................. 5
Command Reference ............................................................................................................... 6
Basic Control Commands ................................................................................................... 6
CONTROL S Command .............................................................................................. 6
FADER LEVEL Command ......................................................................................... 7
LEVEL DOWN Command .......................................................................................... 8
LEVEL UP Command ................................................................................................. 9
LEVEL UP/DOWN STOP Command ......................................................................... 9
LINE 4 SELECT Command ........................................................................................ 9
MUTING Command .................................................................................................. 10
PARALLEL OUTPUT OFF Command ..................................................................... 10
PARALLEL OUTPUT ON Command ...................................................................... 11
PROJECTOR POWER CONTROL Command ......................................................... 11
SCENE RECALL Command ..................................................................................... 12
STATUS REQUEST Command ................................................................................ 12
Parameter Setting Commands ........................................................................................... 21
AUTO MIX Command .............................................................................................. 21
AUTO MIX PARAMETER REQUEST Command .................................................. 21
AUTO MIX EDIT PARAMETER Command ........................................................... 22
AUTO MIX EDIT PARAMETER REQUEST Command ........................................ 27
FACTORY PRESET Command ................................................................................ 27
FIRMWARE VERSION REQUEST Command ....................................................... 28
FR SETUP Command ................................................................................................ 28
GROUP FADER Command ....................................................................................... 29
GROUP FADER PARAMETER REQUEST Command ........................................... 31
INFORMATION Command ...................................................................................... 31
INFORMATION PARAMETER REQUEST Command .......................................... 32
LINE 3 INPUT Command ......................................................................................... 32
LINE 3 INPUT PARAMETER REQUEST Command ............................................. 35
LINE 4 INPUT Command ......................................................................................... 36
LINE 4 INPUT PARAMETER REQUEST Command ............................................. 36
LINE OUTPUT1,2 Command ................................................................................... 37
–2–
LINE OUTPUT1,2 PARAMETER REQUEST Command ....................................... 39
LINE OUTPUT3-8 Command ................................................................................... 39
LINE OUTPUT3-8 PARAMETER REQUEST Command ....................................... 41
MIC INPUT Command .............................................................................................. 41
MIC INPUT PARAMETER REQUEST Command .................................................. 44
MUTING/LINE4 SELECT Command ...................................................................... 44
MUTING/LINE4 SELECT PARAMETER REQUEST Command .......................... 46
PANEL LOCK Command ......................................................................................... 47
PARALLEL I/O Command ....................................................................................... 47
PARALLEL I/O PARAMETER REQUEST Command ........................................... 50
REC OUT Command ................................................................................................. 50
REC OUT PARAMETER REQUEST Command ..................................................... 51
REMOTE Command .................................................................................................. 51
REMOTE PARAMETER REQUEST Command ...................................................... 53
ROUTING Command ................................................................................................ 54
ROUTING PARAMETER REQUEST Command .................................................... 56
SCENE INDEX REQUEST Command ..................................................................... 56
SCENE PARAMETER REQUEST Command ......................................................... 57
SCENE RECALL BUTTON Command .................................................................... 58
SCENE RECALL BUTTON PARAMETER REQUEST Command ........................ 59
SCENE STORE Command ........................................................................................ 59
SPEAKER OUTPUT Command ................................................................................ 61
SPEAKER OUTPUT PARAMETER REQUEST Command ................................... 62
–3–
Overview
This is the Interface Manual for the Sony SRP-X700P Digital Powered Mixer. This protocol is designed to control the SRP-X700P Digital
Powered Mixer from an externally connected computer. Read this manual together with Operating Instructions.
Caution
The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the
purchasers of the equipment described in this manual.
Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation
or maintenance of the equipment described in this manual without the express written permission of Sony Corporation.
Numeric expression and nomenclature of character
The numeric values followed by [H] indicate the hexadecimal numbers. Other numeric values are the decimal values.
The characters surrounded by apostrophes (‘ ’) indicate the hexadecimal numbers converted the by the ASCII code.
Connecting Computer
Connect the COM port of a computer to the REMOTE RS-232C terminal of the SRP-X700P Digital Powered Mixer.
The REMOTE RS-232C terminal of the SRP-X700P Digital Powered Mixer has the following specifications.
Terminal shape
: D-SUB 9-pins, male, inch-sized screws
Electrical specifications : Conforms to the RS-232C standard
Connection
:
Pin No.
Name
1
F.G
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
OPEN
1 2 3 4 5
6 7 8 9
SRP-X700P
REMOTE RS-232C terminal
Name
RXD
TXD
GND
Computer COM port
(for D-SUB 9-pins male connector)
Pin No.
2
3
5
Pin No.
3
2
5
Communication Format
The communication format is described below.
Baud rate
Communication mode
Data length
Parity
Stop bit
Flow control
: 9600 bps
: Half-duplex start stop system (asynchronous)
: 8 bits
: Odd
: 1 bit
: None
–4–
Name
TXD
RXD
GND
Communication Protocol
The communication protocol is described below.
• When the SRP-X700P has received a command from computer successfully, the SRP-X700P returns “ACK” (Acknowledge). When the
SRP-X700P fails to process the command due to reception error or others, it returns “NAK” (Not Acknowledge).
• When a computer has sent a command, the computer should wait “ACK” or “NAK” to be returned from the SRP-X700P. Upon receipt of
the return, a computer can send the next command.
• If a computer does not receive any return even after 1000 ms has elapsed since the transmission of a command, it means that the SRPX700P has not received the command normally. A computer should re-send the command again.
• A command transmission from a computer should be completed within 500 ms.
If transmission of a command cannot be completed within 500 ms, the command will not be processed and “NAK” will be returned.
• When a computer receives “NAK” during transmission of a command, a computer should stop sending the command immediately.
Handshake Code
ACK: 41[H] ( ‘A’ )
When the SRP-X700P has received and processed the command from an external computer successfully, it returns “ACK” notifying that the
command is executed. There are cases that other data are added to “ACK” and are returned together depending on the command.
Refer to Command Reference for details.
NAK: 4E[H] ( ‘N’ )
When the SRP-X700P fails to process the command supplied from an external computer, it returns “NAK” to a computer.
DELIMITER: 0D[H] ( ‘CR’ )
The SRP-X700P adds the delimiter code 0D [H] (equivalent to the carriage return of the ASCII code) to the last byte of all commands.
Communication Packet Format
Communication packet has the variable data length.
A communication packet consists of command, parameter and delimiter as shown below.
Example; When selecting C with LINE4 SELECT.
43[H] 53[H] 45[H] 4C[H] 33[H] 0D[H] (‘C S E L 3 CR’)
1
Command
2
Parameter
3
Delimiter
1. Command
A command consists of the four bytes.
2. Parameter
Length of a parameter changes depending on command.
Refer to Command Reference for details.
3. Delimiter
The SRP-X700P adds the delimiter code 0D [H] (equivalent to the carriage return of the ASCII code) to the last byte of all commands.
–5–
Command Reference
Basic Control Commands
The group of the Basic Control Commands contains 12 commands that enable you to perform the basic operations such as changing the
sound volume, switching the LINE4 SELECTOR of the SRP-X700P and others.
CONTROL S: 43[H] 52[H] 43[H] 53[H] (‘CRCS’)
This command is used to control an external equipment that is connected to the CONTROL S terminal of the SRP-X700P.
• Packet format
43[H] 52[H] 43[H] 53[H] “parameter” 0D[H]
• Parameter
The parameter consists of the two-byte data in the following order.
byte
Parameter name
1st
CHANNEL
2nd
REMOTE COMMAND
• Channel
Specify the equipment to which you want to send the command.
CHANNEL
LINE 3 INPUT
31[H] ( ‘1’ )
LINE 4A INPUT
32[H] ( ‘2’ )
LINE 4B INPUT
33[H] ( ‘3’ )
LINE 4C INPUT
34[H] ( ‘4’ )
LINE 4D INPUT
35[H] ( ‘5’ )
LINE 4E INPUT
36[H] ( ‘6’ )
LINE 4F INPUT
37[H] ( ‘7’ )
LINE 4 INPUT
38[H] ( ‘8’ )
When LINE 4 INPUT is specified, a remote command is sent to the channel that is currently selected by LINE 4 input.
–6–
• Remote command
Specify the command that you want to send.
REMOTE COMMAND
Stop sending
30[H] ( ‘0’ )
PLAY
31[H] ( ‘1’ )
PAUSE
32[H] ( ‘2’ )
STOP
33[H] ( ‘3’ )
F. F.
34[H] ( ‘4’ )
REW.
35[H] ( ‘5’ )
REC
36[H] ( ‘6’ )
NEXT
37[H] ( ‘7’ )
PREV.
38[H] ( ‘8’ )
POWER ON
39[H] ( ‘9’ )
POWER STANDBY
3A[H] ( ‘:’ )
Because the SRP-X700P keeps sending the CONTROL S signal since its starts sending the “REMOTE COMMAND” of 31[H] - 3A[H]
until it the “Stop sending command” 30[H] is sent, the computer must surely send the “Stop sending command” 30[H] after it sends the
command of 31[H] - 3A[H] once.
Example: When activating PLAY (playback) of LINE3
43[H] 52[H] 43[H] 53[H] 31[H] 31[H] 0D[H] (‘C R C S 1 1 CR’)
FADER LEVEL: 43[H] 4C[H] 56[H] 4C[H] ('CLVL')
This command is used to adjust the sound volume of the specified channel.
Adjustable range of a sound volume is from – ∞ to +10 dB when the sound volume is set to the reference level of 0 dB.
When the power of the SRP-X700P is turned off, the sound volume level is reset to 0 dB.
Caution
This command is supported by the SRP-X700P firmware versions of 1.30 and higher.
• Packet format
43[H] 4C[H] 56[H] 4C[H] “parameter” 0D[H]
• Parameter
The parameter consists of the two-byte data in the following order.
byte
Parameter name
1st
CHANNEL
2nd
FADER LEVEL
• Channel (1st byte)
Specify the channel that you want to use as the parameter.
CHANNEL
CHANNEL
MASTER A
40[H] ( ‘@’ )
REMOTE 3
44[H] ( ‘D’ )
MASTER B
41[H] ( ‘A’ )
REMOTE 4
45[H] ( ‘E’ )
REMOTE 1
42[H] ( ‘B’ )
REMOTE 5
46[H] ( ‘F’ )
REMOTE 2
43[H] ( ‘C’ )
REMOTE 6
47[H] ( ‘G’ )
–7–
• Fader level (2nd byte)
Set the fader level [dB].
LEVEL
LEVEL
LEVEL
LEVEL
-∞
30[H] (‘0’)
-20.0
40[H] (‘@’)
-4.5
50[H] (‘P’)
+3.5
60[H] (‘`’)
-70.0
31[H] (‘1’)
-19.0
41[H] (‘A’)
-4.0
51[H] (‘Q’)
+4.0
61[H] (‘a’)
-60.0
32[H] (‘2’)
-18.0
42[H] (‘B’)
-3.5
52[H] (‘R’)
+4.5
62[H] (‘b’)
-55.0
33[H] (‘3’)
-17.0
43[H] (‘C’)
-3.0
53[H] (‘S’)
+5.0
63[H] (‘c’)
-50.0
34[H] (‘4’)
-16.0
44[H] (‘D’)
-2.5
54[H] (‘T’)
+5.5
64[H] (‘d’)
-45.0
35[H] (‘5’)
-15.0
45[H] (‘E’)
-2.0
55[H] (‘U’)
+6.0
65[H] (‘e’)
-40.0
36[H] (‘6’)
-14.0
46[H] (‘F’)
-1.5
56[H] (‘V’)
+6.5
66[H] (‘f’)
-35.0
37[H] (‘7’)
-13.0
47[H] (‘G’)
-1.0
57[H] (‘W’)
+7.0
67[H] (‘g’)
-32.5
38[H] (‘8’)
-12.0
48[H] (‘H’)
-0.5
58[H] (‘X’)
+7.5
68[H] (‘h’)
-30.0
39[H] (‘9’)
-11.0
49[H] (‘I’)
0
59[H] (‘Y’)
+8.0
69[H] (‘i’)
-27.5
3A[H] (‘:’)
-10.0
4A[H] (‘J’)
+0.5
5A[H] (‘Z’)
+8.5
6A[H] (‘j’)
-25.0
3B[H] (‘;’)
-9.0
4B[H] (‘K’)
+1.0
5B[H] (‘[’)
+9.0
6B[H] (‘k’)
-24.0
3C[H] (‘<’)
-8.0
4C[H] (‘L’)
+1.5
5C[H] (‘\’)
+10.0
6C[H] (‘l’)
-23.0
3D[H] (‘=’)
-7.0
4D[H] (‘M’)
+2.0
5D[H] (‘)’)
-22.0
3E[H] (‘>’)
-6.0
4E[H] (‘N’)
+2.5
5E[H] (‘^’)
-21.0
3F[H] (‘?’)
-5.0
4F[H] (‘O’)
+3.0
5F[H] (‘_’)
Example: When changing the sound volume of the MASTER A to 0 dB
43[H] 4C[H] 56[H] 4C[H] 40[H] 59[H] 0D[H] (‘C L V L @ Y CR’)
LEVEL DOWN: 43[H] 4C[H] 56[H] 2D[H] (‘CLV – ’)
This command is used to decrease the sound volume of the specified channel.
When this comma is sent, the sound volume keeps decreasing. When the LEVEL UP/DOWN STOP command that is described later, is sent,
the sound volume stops decreasing.
Variable range of a sound volume is from – ∞ to +10 dB when the sound volume is set to the reference level 0 dB.
When the power of the SRP-X700P is turned off, the sound volume level is reset to 0 dB.
• Packet format
43[H] 4C[H] 56[H] 2D[H] “parameter” 0D[H]
• Parameter
CHANNEL
CHANNEL
MIC1/WL1 INPUT
30[H] ( ‘0’ )
LINE OUTPUT5
3C[H] ( ‘<’ )
MIC2/WL2 INPUT
MIC3 INPUT
31[H] ( ‘1’ )
LINE OUTPUT6
3D[H] ( ‘=’ )
32[H] ( ‘2’ )
LINE OUTPUT7
3E[H] ( ‘>’ )
MIC4 INPUT
33[H] ( ‘3’ )
LINE OUTPUT8
3F[H] ( ‘?’ )
MIC5/LINE1 INPUT
34[H] ( ‘4’ )
MASTER A
40[H] ( ‘@’ )
MIC6/LINE2 INPUT
35[H] ( ‘5’ )
MASTER B
41[H] ( ‘A’ )
LINE 3 INPUT
36[H] ( ‘6’ )
REMOTE 1
42[H] ( ‘B’ )
LINE 4 INPUT
37[H] ( ‘7’ )
REMOTE 2
43[H] ( ‘C’ )
LINE OUTPUT1
38[H] ( ‘8’ )
REMOTE 3
44[H] ( ‘D’ )
LINE OUTPUT2
39[H] ( ‘9’ )
REMOTE 4
45[H] ( ‘E’ )
LINE OUTPUT3
3A[H] ( ‘:’ )
REMOTE 5
46[H] ( ‘F’ )
LINE OUTPUT4
3B[H] ( ‘;’ )
REMOTE 6
Specify the channel that you want to use, as the parameter.
47[H] ( ‘G’ )
Example: When decreasing the sound volume of LINE4
43[H] 4C[H] 56[H] 2D[H] 37[H] 0D[H] (‘C L V - 7 CR’)
–8–
LEVEL UP: 43[H] 4C[H] 56[H] 2B[H] (‘CLV+’)
This command is used to increase the sound volume of the specified channel.
When this command is sent, the sound volume keeps increasing. When the LEVEL UP/DOWN STOP command that is described later, is
sent, the sound volume stops increasing.
Variable range of a sound volume is from – ∞ to +10 dB when the sound volume is set to the reference level 0 dB.
When the power of the SRP-X700P is turned off, the sound volume level is reset to 0 dB.
• Packet format
43[H] 4C[H] 56[H] 2B[H] “parameter” 0D[H]
• Parameter
Same as that of the LEVEL DOWN command.
Example: When increasing the sound volume of MIC 3 INPUT
43[H] 4C[H] 56[H] 2B[H] 32[H] 0D[H] (‘C L V + 2 CR’)
LEVEL UP/DOWN STOP: 43[H] 4C[H] 56[H] 53[H] (‘CLVS’)
This command is used to stop increasing or to stop decreasing the sound volume caused by the LEVEL UP command and the LEVEL
DOWN command.
• Packet format
43[H] 4C[H] 56[H] 53[H] “parameter” 0D[H]
• Parameter
Same as that of LEVEL DOWN command.
Example: When stopping increasing/decreasing the sound volume of LINE4
43[H] 4C[H] 56[H] 53[H] 37[H] 0D[H] (‘C L V S 7 CR’)
LINE 4 SELECT: 43[H] 53[H] 45[H] 4C[H] (‘CSEL’)
This command is used to select the desired channel (A to F) for the LINE 4 input terminal.
• Packet format
43[H] 53[H] 45[H] 4C[H] “parameter” 0D[H]
• Parameter
Specify the channel that you want to select, as the parameter.
CHANNEL
OFF
30[H] ( ‘0’ )
A
31[H] ( ‘1’ )
B
32[H] ( ‘2’ )
C
33[H] ( ‘3’ )
D
34[H] ( ‘4’ )
E
35[H] ( ‘5’ )
F
36[H] ( ‘6’ )
Example: When selecting the channel-B of the LINE4 input terminal.
43[H] 53[H] 45[H] 4C[H] 32[H] 0D[H] (‘C S E L 2 CR’)
–9–
MUTING: 43[H] 4D[H] 55[H] 54[H] (‘CMUT’)
This command is used to mute the specified channel or cancel muting of the specified channel.
• Packet format
43[H] 4D[H] 55[H] 54[H] “parameter” 0D[H]
• Parameter
The parameter consists of the two-byte data in the following order.
byte
Parameter name
1st
CHANNEL
2nd
MUTING
• Channel
Same as that of LEVEL DOWN command.
• Muting
MUTING
CANCEL MUNTING
40[H] ( ‘@’ )
MUTING
41[H] ( ‘A’ )
Example: When muting REMOTE1
43[H] 4D[H] 55[H] 54[H]42[H] 41[H] 0D[H] (‘C M U T B A CR’)
PARALLEL OUTPUT OFF: 43[H] 50[H] 4F[H] 46[H] (‘CPOF’)
This command is used to turn off OUTPUT of the REMOTE PARALLEL terminals separately of the SRP-X700P.
• Packet format
43[H] 50[H] 4F[H] 46[H] “parameter” 0D[H]
• Parameter
Specify any single channel that you want to turn off, as the parameter.
CHANNEL
1
31[H] ( ‘1’ )
2
32[H] ( ‘2’ )
3
33[H] ( ‘3’ )
4
34[H] ( ‘4’ )
5
35[H] ( ‘5’ )
6
36[H] ( ‘6’ )
7
37[H] ( ‘7’ )
8
38[H] ( ‘8’ )
9
39[H] ( ‘9’ )
10
3A[H] ( ‘:’ )
Example: When turning off channel 2
43[H] 50[H] 4F[H] 46[H] 32[H] 0D[H] (‘C P O F 2 CR’)
– 10 –
PARALLEL OUTPUT ON: 43[H] 50[H] 4F[H] 4E[H] (‘CPON’)
This command is used to turn on OUTPUT of the REMOTE PARALLEL terminals separately of the SRP-X700P.
• Packet format
43[H] 50[H] 4F[H] 4E[H] “parameter” 0D[H]
• Parameter
Same as that of the PARALLEL OUT OFF command.
Example: When turning on channel 1
43[H] 50[H] 4F[H] 4E[H] 31[H] 0D[H] (‘C P O N 1 CR’)
PROJECTOR POWER CONTROL: 43[H] 50[H] 4A[H] 50[H] (‘CPJP’)
This command is used to turn on the power or to set the power standby of the projected that is connected to the PROJECTOR CONTROL
terminal of the SRP-X700P.
• Packet format
43[H] 50[H] 4A[H] 50[H] “parameter” 0D[H]
• Parameter
Specify either POWER ON or POWER STANDBY as the parameter.
POWER
STANDBY
40[H] ( ‘@’ )
ON
41[H] ( ‘A’ )
Example: When turning on the power of projector
43[H] 50[H] 4A[H] 50[H]41[H] 0D[H] (‘C P J P A CR’)
– 11 –
SCENE RECALL: 43[H] 52[H] 43[H] 4C[H] (‘CRCL’)
This command is used to recall the desired scene.
• Packet format
43[H] 52[H] 43[H] 4C[H] “parameter” 0D[H]
• Parameter
Specify the scene number that you want to use, as the parameter.
• Scene No.
Specify the scene number that you want to use.
SCENE No.
SCENE No.
1
31[H] ( ‘1’ )
11
3B[H] ( ‘;’ )
2
32[H] ( ‘2’ )
12
3C[H] ( ‘<’ )
3
33[H] ( ‘3’ )
13
3D[H] ( ‘=’ )
4
34[H] ( ‘4’ )
14
3E[H] ( ‘>’ )
5
35[H] ( ‘5’ )
15
3F[H] ( ‘?’ )
6
36[H] ( ‘6’ )
16
40[H] ( ‘@’ )
7
37[H] ( ‘7’ )
17
41[H] ( ‘A’ )
8
38[H] ( ‘8’ )
18
42[H] ( ‘B’ )
9
39[H] ( ‘9’ )
19
43[H] ( ‘C’ )
10
3A[H] ( ‘:’ )
20
44[H] ( ‘D’ )
Example: When recalling scene No.7
43[H] 52[H] 43[H] 4C[H] 3A[H] 0D[H] (‘C R C L 7 CR’)
STATUS REQUEST: 52[H] 53[H] 54[H] 54[H] (‘RSTT’)
This command is used to acquire the statuses such as level meter value and others from the SRP-X700P.
• Packet format
52[H] 53[H] 54[H] 54[H] “specified value” 0D[H]
Specify any single value that corresponds to the parameter name in the following table.
Example: When reading the MIC5/LINE1 level meter value.
52[H] 53[H] 54[H] 54[H] 34[H] 0D[H] (‘R S T T 4 CR’)
• Return packet format
When communication with the SRP-X700P is established with success, the single-byte parameter corresponding to the specified value is
returned together with ACK (41[H] (‘A’)) in the order shown below.
41[H] “parameter” 0D[H]
Global reading of all parameters
When you want to read all of the parameters that can be read by the STATUS REQUEST command, send the command in the following
format.
• Packet format
52[H] 41[H] 53[H] 54[H] 0D[H] (‘R A S T CR’)
• Return packet format
The parameter containing the 74 bytes is returned always in the order shown in the following table.
– 12 –
• Parameter
byte
Parameter name
Specified
Value
byte
Parameter name
Specified
Value
1st
MIC 1/WL 1 LEVEL METER VALUE
30[H] (‘0’)
38th
PARALLEL INPUT7-12
55[H] (‘U’)
2nd
MIC 2/WL 2 LEVEL METER VALUE
31[H] (‘1’)
39th
PARALLEL OUTPUT1-6
56[H] (‘V’)
3rd
MIC 3 LEVEL METER VALUE
32[H] (‘2’)
40th
PARALLEL OUTPUT7-10
57[H] (‘W’)
4th
MIC 4 LEVEL METER VALUE
33[H] (‘3’)
41st
MIC 1/WL 1 FADER VALUE
58[H] (‘X’)
5th
MIC 5/LINE 1 LEVEL METER VALUE
34[H] (‘4’)
42nd
MIC 2/WL 2 FADER VALUE
59[H] (‘Y’)
6th
MIC 6/LINE 2 LEVEL METER VALUE
35[H] (‘5’)
43rd
MIC 3 FADER VALUE
5A[H] (‘Z’)
7th
LINE 3 L LEVEL METER VALUE
36[H] (‘6’)
44th
MIC 4 FADER VALUE
5B[H] (‘[’)
8th
LINE 3 R LEVEL METER VALUE
37[H] (‘7’)
45th
MIC 5/LINE 1 FADER VALUE
5C[H] (‘\’)
9th
LINE 4 L LEVEL METER VALUE
38[H] (‘8’)
46th
MIC 6/LINE 2 FADER VALUE
5D[H] (‘]’)
10th
LINE 4 R LEVEL METER VALUE
39[H] (‘9’)
47th
LINE 3 FADER VALUE
5E[H] (‘^’)
11th
LINE 4 RL LEVEL METER VALUE
3A[H] (‘:’)
48th
LINE 4 FADER VALUE
5F[H] (‘_’)
12th
LINE 4 RR LEVEL METER VALUE
3B[H] (‘;’)
49th
LINE OUTPUT 1 FADER VALUE
60[H] (‘`’)
13th
LINE 4 C LEVEL METER VALUE
3C[H] (‘<’)
50th
LINE OUTPUT 2 FADER VALUE
61[H] (‘a’)
14th
LINE 4 SW LEVEL METER VALUE
3D[H] (‘=’)
51st
LINE OUTPUT 3 FADER VALUE
62[H] (‘b’)
15th
LINE OUTPUT 1 LEVEL METER VALUE
3E[H] (‘>’)
52nd
LINE OUTPUT 4 FADER VALUE
63[H] (‘c’)
16th
LINE OUTPUT 2 LEVEL METER VALUE
3F[H] (‘?’)
53rd
LINE OUTPUT 5 FADER VALUE
64[H] (‘d’)
17th
LINE OUTPUT 3 LEVEL METER VALUE
40[H] (‘@’)
54th
LINE OUTPUT 6 FADER VALUE
65[H] (‘e’)
18th
LINE OUTPUT 4 LEVEL METER VALUE
41[H] (‘A’)
55th
LINE OUTPUT 7 FADER VALUE
66[H] (‘f’)
19th
LINE OUTPUT 5 LEVEL METER VALUE
42[H] (‘B’)
56th
LINE OUTPUT 8 FADER VALUE
67[H] (‘g’)
20th
LINE OUTPUT 6 LEVEL METER VALUE
43[H] (‘C’)
57th
MASTER A FADER VALUE
68[H] (‘h’)
21st
LINE OUTPUT 7 LEVEL METER VALUE
44[H] (‘D’)
58th
MASTER B FADER VALUE
69[H] (‘i’)
LINE OUTPUT 8 LEVEL METER VALUE
45[H] (‘E’)
59th
REMOTE 1 FADER VALUE
6A[H] (‘j’)
23rd
REC OUT 1 LEVEL METER VALUE
46[H] (‘F’)
60th
REMOTE 2 FADER VALUE
6B[H] (‘k’)
24th
REC OUT 2 LEVEL METER VALUE
47[H] (‘G’)
61st
REMOTE 3 FADER VALUE
6C[H] (‘l’)
25th
MIC SWICTH
48[H] (‘H’)
62nd
REMOTE 4 FADER VALUE
6D[H] (‘m’)
26th
WL RF
49[H] (‘I’)
63rd
REMOTE 5 FADER VALUE
6E[H] (‘n’)
27th
MIC INPUT OVER GAIN
4A[H] (‘J’)
64th
REMOTE 6 FADER VALUE
6F[H] (‘o’)
28th
LINE INPUT OVER GAIN
4B[H] (‘K’)
65th
MIC INPUT MUTING
70[H] (‘p’)
29th
MIC INPUT – ∞
4C[H] (‘L’)
66th
LINE INPUT MUTING
71[H] (‘q’)
30th
LINE INPUT – ∞
4D[H] (‘M’)
67th
LINE OUTPUT1-6 MUTING
72[H] (‘r’)
31st
LINE OUTPUT1-6 OVER GAIN
4E[H] (‘N’)
68th
32nd
LINE OUTPUT7,8 OVER GAIN
4F[H] (‘O’)
69th
MASTER MUTING
74[H] (‘t’)
33rd
LINE OUTPUT1-6 – ∞
50[H] (‘P’)
70th
GROUP MUTING
75[H] (‘u’)
34th
LINE OUTPUT7,8 – ∞
51[H] (‘Q’)
71st
LINE4 SELECT
76[H] (‘v’)
35th
CLIP/PROTECTION
52[H] (‘R’)
72nd
SCENE RECALL
77[H] (‘w’)
GATE
53[H] (‘S’)
73rd
LOCK/FADER ACTIVE
78[H] (‘x’)
PARALLEL INPUT1-6
54[H] (‘T’)
74 th
FR SETUP STATUS
79[H] (‘y’)
22nd
36th
37th
The parameters to be returned have the following meaning.
– 13 –
LINE OUTPUT / REC OUT /
73[H] (‘s’)
SPEAKER OUTPUT MUTING
Level meter value
The level meter values [dB] are indicated as shown below.
LEVEL
LEVEL
under -30
30[H] (‘0’)
-4
39[H] (‘9’)
-30
31[H] (‘1’)
-3
3A[H] (‘:’)
-20
32[H] (‘2’)
-2
3B[H] (‘;’)
-15
33[H] (‘3’)
-1
3C[H] (‘<’)
-10
34[H] (‘4’)
0
3D[H] (‘=’)
-8
35[H] (‘5’)
1
3E[H] (‘>’)
-7
36[H] (‘6’)
2
3F[H] (‘?’)
-6
37[H] (‘7’)
3
40[H] (‘@’)
-5
38[H] (‘8’)
MIC SWITCH
This command is used to display the status of the +48V switches of the MIC1/WL1 to MIC6/LINE2 by the 8-bit data.
bit7
0
bit6
1
bit5
MIC6/LINE2
bit4
bit3
MIC5/LINE1 MIC4
bit2
MIC3
bit1
MIC2/WL2
bit0
MIC1/WL1
When the corresponding bit is ‘1’, the +48V switch is in the ON state. When the corresponding bit is ‘0’, it is in the OFF state.
Bit-6 and bit-7 are fixed all the time.
WL RF
Turning on/off of the RF indicator of the wireless tuner that is installed in the SRP-X700P is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
WL2
RF
bit0
WL1
RF
When the corresponding bit is ‘1’, the RF indicator turns on. When the corresponding bit is ‘0’, the RF indicator turns off.
Bit-2 to bit-7 are fixed all the time.
MIC OVER GAIN
Turning on/off of the OVER GAIN indicators of MIC1/WL1 to MIC6/LINE2 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
When the corresponding bit is ‘1’, the OVER GAIN turns on. When the corresponding bit is ‘0’, the OVER GAIN turns off.
Bit-6 and bit-7 are fixed all the time.
LINE INPUT OVER GAIN
Turning on/off of the OVER GAIN indicators of LINE3 and 4 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
LINE4
bit0
LINE3
When the corresponding bit is ‘1’, the OVER GAIN turns on. When the corresponding bit is ‘0’, the OVER GAIN turns off.
Bit-2 to bit-7 are fixed all the time.
– 14 –
MIC INPUT –∞
Turning on/off of the -∞ indicators of MIC1/WL1 to MIC6/LINE2 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
When the corresponding bit is ‘1’, –∞ indicator turns on. When the corresponding bit is ‘0’, –∞ indicator turns off.
Bit-6 and bit-7 are fixed all the time.
LINE INPUT OVER GAIN
Turning on/off of the –∞ indicator of LINE3 and 4 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
LINE4
bit0
LINE3
When the corresponding bit is ‘1’, –∞ indicator turns on. When the corresponding bit is ‘0’, -∞ indicator turns off.
Bit-2 to bit-7 are fixed all the time.
LINE OUTPUT1-6 OVER GAIN
Turning on/off of the OVER GAIN indicators of LINE OUTPUT1 to 6 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
OUT6
bit4
OUT5
bit3
OUT4
bit2
OUT3
bit1
OUT2
bit0
OUT1
When the corresponding bit is ‘1’, the OVER GAIN turns on. When the corresponding bit is ‘0’, the OVER GAIN turns off.
Bit-6 and bit-7 are fixed all the time.
LINE OUTPUT7,8 OVER GAIN
Turning on/off of the OVER GAIN indicators of LINE OUTPUT7 and 8 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
OUT8
bit0
OUT7
When the corresponding bit is ‘1’, the OVER GAIN turns on. When the corresponding bit is ‘0’, the OVER GAIN turns off.
Bit-2 to bit-7 are fixed all the time.
LINE OUTPUT1-6 –∞
Turning on/off of the –∞ indicators of LINE OUTPUT1 to 6 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
OUT6
bit4
OUT5
bit3
OUT4
bit2
OUT3
bit1
OUT2
bit0
OUT1
When the corresponding bit is ‘1’, -∞ indicator turns on. When the corresponding bit is ‘0’, –∞ indicator turns off.
Bit-6 and bit-7 are fixed all the time.
LINE OUTPUT7,8 –∞
Turning on/off of the –∞ indicator of OUTPUT7 and 8 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
OUT8
bit0
OUT7
When the corresponding bit is ‘1’, –∞ indicator turns on. When the corresponding bit is ‘0’, –∞ indicator turns off.
Bit-2 to bit-7 are fixed all the time.
– 15 –
CLIP/PROTECTION
Turning on/off of the CLIP and PROTECTION indicators of speaker output is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
PROTECTION
bit1
CH2 CLIP
bit0
CH1 CLIP
When the corresponding bit is ‘1’, the indicator turns on. When the corresponding bit is ‘0’, the indicator turns off.
Bit-2 to bit-7 are fixed all the time.
GATE
Operating status of the GATE of the automatic mixer block is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
When the corresponding bit is ‘1’, the GATE is in the close state (operating). When the corresponding bit is ‘0’, the GATE is in the open
state.
Bit-6 and bit-7 are fixed all the time.
PARALLEL INPUT1-6
Presence or absence of input signal to the PARALLEL INPUT1 to 6 connectors on the rear panel of the SRP-X700P is indicated by the 8-bit
data.
bit7
0
bit6
1
bit5
IN6
bit4
IN5
bit3
IN4
bit2
IN3
bit1
IN2
bit0
IN1
When the corresponding bit is ‘1’, input signal is present. When the corresponding bit is ‘0’, input signal is absent.
Bit-6 and bit-7 are fixed all the time.
PARALLEL INPUT7-12
Presence or absence of input signal to the PARALLEL INPUT7 to 12 connectors on the rear panel of the SRP-X700P is indicated by the
8-bit data.
bit7
0
bit6
1
bit5
IN12
bit4
IN11
bit3
IN10
bit2
IN9
bit1
IN8
bit0
IN7
When the corresponding bit is ‘1’, input signal is present. When the corresponding bit is ‘0’, input signal is absent.
Bit-6 and bit-7 are fixed all the time.
PARALLEL OUTPUT1-6
Presence or absence of output signal at the PARALLEL OUTPUT1 to 6 connectors on the rear panel of the SRP-X700P is indicated by the 8bit data.
bit7
0
bit6
1
bit5
OUT6
bit4
OUT5
bit3
OUT4
bit2
OUT3
bit1
OUT2
bit0
OUT1
When the corresponding bit is ‘1’, output signal is present. When the corresponding bit is ‘0’, output signal is absent.
Bit-6 and bit-7 are fixed all the time.
– 16 –
PARALLEL OUTPUT7-10
Presence or absence of output signal at the PARALLEL OUTPUT7 to 10 connectors on the rear panel of the SRP-X700P is indicated by the
8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
OUT10
bit2
OUT9
bit1
OUT8
bit0
OUT7
When the corresponding bit is ‘1’, output signal is present. When the corresponding bit is ‘0’, output signal is absent.
Bit-4 to bit-7 are fixed all the time.
FADER VALUE
The fader value [dB] of each input channel, output channel and of the group fader is indicated as shown in the table below.
The fader value of each input channel and output channel is the value that is shown by the yellow marker on the side of the fader in the
INPUT OVERVIEW screen and OUTPUT OVERVIEW screen of the supplied software SRP-X700P Manager.
FADER VALUE
FADER VALUE
FADER VALUE
-∞
30[H] (‘0’)
-12.0
48[H] (‘H’)
-70.0
31[H] (‘1’)
-11.0
49[H] (‘I’)
+4.0
61[H] (‘a’)
-60.0
32[H] (‘2’)
-10.0
4A[H] (‘J’)
+4.5
62[H] (‘b’)
-55.0
33[H] (‘3’)
-9.0
4B[H] (‘K’)
+5.0
63[H] (‘c’)
-50.0
34[H] (‘4’)
-8.0
4C[H] (‘L’)
+5.5
64[H] (‘d’)
-45.0
35[H] (‘5’)
-7.0
4D[H] (‘M’)
+6.0
65[H] (‘e’)
-40.0
36[H] (‘6’)
-6.0
4E[H] (‘N’)
+6.5
66[H] (‘f’)
-35.0
37[H] (‘7’)
-5.0
4F[H] (‘O’)
+7.0
67[H] (‘g’)
-32.5
38[H] (‘8’)
-4.5
50[H] (‘P’)
+7.5
68[H] (‘h’)
-30.0
39[H] (‘9’)
-4.0
51[H] (‘Q’)
+8.0
69[H] (‘i’)
-27.5
3A[H] (‘:’)
-3.5
52[H] (‘R’)
+8.5
6A[H] (‘j’)
-25.0
3B[H] (‘;’)
-3.0
53[H] (‘S’)
+9.0
6B[H] (‘k’)
-24.0
3C[H] (‘<’)
-2.5
54[H] (‘T’)
+10.0
6C[H] (‘l’)
-23.0
3D[H] (‘=’)
-2.0
55[H] (‘U’)
+11.0
6D[H] (‘m’)
-22.0
3E[H] (‘>’)
-1.5
56[H] (‘V’)
+12.0
6E[H] (‘n’)
-21.0
3F[H] (‘?’)
-1.0
57[H] (‘W’)
+13.0
6F[H] (‘o’)
-20.0
40[H] (‘@’)
-0.5
58[H] (‘X’)
+14.0
70[H] (‘p’)
+3.5
60[H] (‘`’)
-19.0
41[H] (‘A’)
0
59[H] (‘Y’)
+15.0
71[H] (‘q’)
-18.0
42[H] (‘B’)
+0.5
5A[H] (‘Z’)
+16.0
72[H] (‘r’)
-17.0
43[H] (‘C’)
+1.0
5B[H] (‘[’)
+17.0
73[H] (‘s’)
-16.0
44[H] (‘D’)
+1.5
5C[H] (‘\’)
+18.0
74[H] (‘t’)
-15.0
45[H] (‘E’)
+2.0
5D[H] (‘]’)
+19.0
75[H] (‘u’)
-14.0
46[H] (‘F’)
+2.5
5E[H] (‘^’)
+20.0
76[H] (‘v’)
-13.0
47[H] (‘G’)
+3.0
5F[H] (‘_’)
– 17 –
MIC MUTING
Status of muting of MIC1/WL1 to MIC6/LINE2 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
When the corresponding bit is ‘1’, the audio is muted. When the corresponding bit is ‘0’, muting is released.
Bit-6 and bit-7 are fixed all the time.
LINE INPUT MUTING
Status of muting of LINE3 and 4 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
LINE4
bit0
LINE3
When the corresponding bit is ‘1’, the audio is muted. When the corresponding bit is ‘0’, muting is released.
Bit-2 to bit-7 are fixed all the time.
LINE OUTPUT1-6 MUTING
Status of muting of OUTPUT1 to 6 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
OUT6
bit4
OUT5
bit3
OUT4
bit2
OUT3
bit1
OUT2
bit0
OUT1
When the corresponding bit is ‘1’, the output signal is muted. When the corresponding bit is ‘0’, muting is released.
Bit-6 and bit-7 are fixed all the time.
LINE OUTPUT7,8/REC OUT1,2/SPEAKER OUTPUT 1,2 MUTING
Status of muting of OUTPUT7 and 8/RECOUT1 and 2/SPEAKER OUT1 and 2 is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
SPK2
bit4
SPK1
bit3
REC2
bit2
REC1
bit1
OUT8
bit0
OUT7
When the corresponding bit is ‘1’, the output signal is muted. When the corresponding bit is ‘0’, muting is released.
Bit-6 and bit-7 are fixed all the time.
MASTER MUTING
Status of muting of MASTER A and B faders among the GROUP FADER is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
MASTER B
bit0
MASTER A
When the corresponding bit is ‘1’, the MASTER fader is muted. When the corresponding bit is ‘0’, muting is released.
Bit-2 to bit-7 are fixed all the time.
– 18 –
GROUP MUTING
Status of muting of REMOTE1 to 6 among the GROUP FADER is indicated by the 8-bit data.
bit7
0
bit6
1
bit5
bit4
bit3
bit2
bit1
bit0
REMOTE6 REMOTE5 REMOTE4 REMOTE3 REMOTE2 REMOTE1
When the corresponding bit is ‘1’, it is is muted. When the corresponding bit is ‘0’, muting is released.
Bit-6 and bit-7 are fixed all the time.
LINE4 SELECT
It indicates which channel of A to F is being selected in the LINE4.
The following value is returned from the SRP-X700P.
CHANNEL
OFF
30[H] (‘0’)
A
31[H] (‘1’)
B
32[H] (‘2’)
C
33[H] (‘3’)
D
34[H] (‘4’)
E
35[H] (‘5’)
F
36[H] (‘6’)
SCENE RECALL
It indicates the scene No. that is being selected at present.
The following value is returned from the SRP-X700P.
SCENE No.
SCENE No.
NONE
30[H] (‘0’)
11
3B[H] (‘;’)
1
31[H] (‘1’)
12
3C[H] (‘<’)
2
32[H] (‘2’)
13
3D[H] (‘=’)
3
33[H] (‘3’)
14
3E[H] (‘>’)
4
34[H] (‘4’)
15
3F[H] (‘?’)
5
35[H] (‘5’)
16
40[H] (‘@’)
6
36[H] (‘6’)
17
41[H] (‘A’)
7
37[H] (‘7’)
18
42[H] (‘B’)
8
38[H] (‘8’)
19
43[H] (‘C’)
9
39[H] (‘9’)
20
44[H] (‘D’)
10
3A[H] (‘:’)
When the value is “NONE” (30[H]), it indicates the state that any scene call has never been attempted after the power is turned on.
– 19 –
LOCK/FADER
Status of the PANEL LOCK and that of FADER MODE are indicated by the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
PANEL LOCK
bit0
FADER
When bit 0 is ‘1’, it indicates that the fader is in the ACTIVE mode. When bit 0 is ‘0’, it indicates that the fader is in the INACTIVE mode.
When bit 1 is ‘1’, it indicates that operations from the front panel of the SRP-X700P are in the LOCKed state. When bit 1 is ‘0’, it indicates
that operations from the front panel of the SRP-X700P are in the UNLOCKed state.
Bit-2 to bit-7 are fixed all the time.
FR SETUP STATUS
The progress status of the feedback reducer setup is indicated in the 16 steps.
The “Finished (30[H])” flag indicates the setup is completed.
Progress
status
Progress
status
Finished
30[H] (‘0’)
9
39[H] (‘9’)
1
31[H] (‘1’)
10
3A[H] (‘:’)
2
32[H] (‘2’)
11
3B[H] (‘;’)
3
33[H] (‘3’)
12
3C[H] (‘<’)
4
34[H] (‘4’)
13
3D[H] (‘=’)
5
35[H] (‘5’)
14
3E[H] (‘>’)
6
36[H] (‘6’)
15
3F[H] (‘?’)
7
37[H] (‘7’)
16
40[H] (‘@’)
8
38[H] (‘8’)
– 20 –
Parameter Setting Commands
The following commands are the group of commands used to enable you the detailed setting of internal functions of the SRP-X700P.
AUTO MIX : 43[H] 41[H] 4D[H] 58[H] (‘CAMX’)
This command is used to set ON/OFF of the automatic mixer.
• Packet format
43[H] 41[H] 4D[H] 58[H] “parameter” 0D[H]
The parameter consists of the 5 bytes all the time in the order as shown in the table below.
byte
ON
OFF
1st
3B[H] (‘;’)
3B[H] (‘;’)
2nd
33[H] (‘3’)
33[H] (‘3’)
3rd
31[H] (‘1’)
31[H] (‘1’)
4th
43[H] (‘C’)
40[H] (‘@’)
5th
7F[H] (‘DELETE’)
40[H] (‘@’)
Example: When turning OFF the automatic mixer
43[H] 41[H] 4D[H] 58[H] 3B[H] 33[H] 40[H] 40[H] 0D[H] ( ‘C A M X ; 3 1 @ @ CR’ )
AUTO MIX PARAMETER REQUEST : 52[H] 41[H] 4D[H] 58[H] (‘RAMX’)
This command is used to read the ON/OFF setup of automatic mixer from the SRP-X700P.
• Packet format
52[H] 41[H] 4D[H] 58[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
Parameters are the same as those of the AUTO MIX command in the case of ON/OFF.
Example: When the automatic mixer is set to OFF
41[H] 3B[H] 33[H] 40[H] 40[H] 0D[H] ( ‘A ; 3 1 @ @ CR’ )
– 21 –
AUTO MIX EDIT PARAMETER: 43[H] 41[H] 4D[H] 50[H] ('CAMP')
This command is used to set up the parameter of the automatic mixer.
Caution
This command is supported by the SRP-X700P firmware versions of 1.20 and higher.
• Packet format
43[H] 41[H] 4D[H] 50[H] "parameter (14 bytes)" 0D[H]
• Parameter
The parameter consists of the 14 bytes all the time in the order as shown in the table below.
byte
Parameter name
1st
INPUT COMPRESSOR THRESHOLD
2nd
INPUT COMPRESSOR RATIO
3rd
INPUT COMPRESSOR ATTAC K TIME
4th
INPUT COMPRESSOR RELEASE TIME
5th
INPUT GATE THRESHOLD
6th
INPUT GATE HOLD TIME
7th
INPUT GATE RELEASE TIME
8th
OUTPUT LIMITER THRESHOLD
9th
OUTPUT LIMITER ATTACK TIME
10th
OUTPUT LIMITER RELEASE TIME
11th
FUNCTION ON/OFF
12th
MIC INPUT ON/OFF
13th
LINE OUTPUT 1-6 ON/OFF
14th
LINE OUTPUT 7,8
REC OUT 1,2 ON/OFF
– 22 –
• INPUT COMPRESSOR THRESHOLD (1st byte)
This command is used to set the threshold level of the compressor of the input channel.
LEVEL [dB]
LEVEL [dB]
LEVEL [dB]
-60
20[H] (' s')
-33
3B[H] (';')
-6
56[H] ('V')
-59
21[H] ('!')
-32
3C[H] ('<')
-5
57[H] ('W')
-58
22[H] (' ” ')
-31
3D[H] ('=')
-4
58[H] ('X')
-57
23[H] ('#')
-30
3E[H] ('>')
-3
59[H] ('Y')
-56
24[H] ('$')
-29
3F[H] ('?')
-2
5A[H] ('Z')
-55
25[H] ('%')
-28
40[H] ('@')
-1
5B[H] ('[')
-54
26[H] ('&')
-27
41[H] ('A')
0
5C[H] ('\')
-53
27[H] (' ’ ')
-26
42[H] ('B')
+1
5D[H] (']')
-52
28[H] ('(')
-25
43[H] ('C')
+2
5E[H] ('^')
-51
29[H] (')')
-24
44[H] ('D')
+3
5F[H] ('_')
-50
2A[H] ('*')
-23
45[H] ('E')
+4
60[H] ('`')
-49
2B[H] ('+')
-22
46[H] ('F')
+5
61[H] ('a')
-48
2C[H] (',')
-21
47[H] ('G')
+6
62[H] ('b')
-47
2D[H] ('-')
-20
48[H] ('H')
+7
63[H] ('c')
-46
2E[H] ('.')
-19
49[H] ('I')
+8
64[H] ('d')
-45
2F[H] ('/')
-18
4A[H] ('J')
+9
65[H] ('e')
-44
30[H] ('0')
-17
4B[H] ('K')
+10
66[H] ('f')
-43
31[H] ('1')
-16
4C[H] ('L')
+11
67[H] ('g')
-42
32[H] ('2')
-15
4D[H] ('M')
+12
68[H] ('h')
-41
33[H] ('3')
-14
4E[H] ('N')
+13
69[H] ('i')
-40
34[H] ('4')
-13
4F[H] ('O')
+14
6A[H] ('j')
-39
35[H] ('5')
-12
50[H] ('P')
+15
6B[H] ('k')
-38
36[H] ('6')
-11
51[H] ('Q')
+16
6C[H] ('l')
-37
37[H] ('7')
-10
52[H] ('R')
+17
6D[H] ('m')
-36
38[H] ('8')
-9
53[H] ('S')
+18
6E[H] ('n')
-35
39[H] ('9')
-8
54[H] ('T')
+19
6F[H] ('o')
-34
3A[H] (':')
-7
55[H] ('U')
+20
70[H] ('p')
• INPUT COMPRESSOR RATIO (2nd byte)
This command is used to set the ratio of the compressor of the input channel.
RATIO
RATIO
1:1
30[H] ('0')
4:1
37[H] ('7')
1.2:1
31[H] ('1')
5:1
38[H] ('8')
1.5:1
32[H] ('2')
6:1
39[H] ('9')
2:1
33[H] ('3')
8:1
3A[H] (':')
2.5:1
34[H] ('4')
10:1
3B[H] (';')
3:1
35[H] ('5')
20:1
3C[H] ('<')
3.5:1
36[H] ('6')
∞:1
3D[H] ('=')
– 23 –
• INPUT COMPRESSOR ATTACK TIME (3rd byte)
This command is used to set the attack time of the compressor of the input channel.
TIME [ms]
TIME [ms]
TIME [ms]
0.1
30[H] ('0')
3.3
38[H] ('8')
68
40[H] ('@')
0.15
31[H] ('1')
4.7
39[H] ('9')
100
41[H] ('A')
0.22
32[H] ('2')
6.8
3A[H] (':')
150
42[H] ('B')
0.33
33[H] ('3')
10
3B[H] (';')
220
43[H] ('C')
0.47
34[H] ('4')
15
3C[H] ('<')
330
44[H] ('D')
0.68
35[H] ('5')
22
3D[H] ('=')
470
45[H] ('E')
1.0
36[H] ('6')
33
3E[H] ('>')
680
46[H] ('F')
2.2
37[H] ('7')
47
3F[H] ('?')
1000
47[H] ('G')
• INPUT COMPRESSOR RELEASE TIME (4th byte)
This command is used to set the release time of the compressor of the input channel.
TIME [ms]
TIME [ms]
TIME [ms]
10
3B[H] (';')
100
41[H] ('A')
1000
47[H] ('G')
15
3C[H] ('<')
150
42[H] ('B')
1500
48[H] ('H')
22
3D[H] ('=')
220
43[H] ('C')
2200
49[H] ('I')
33
3E[H] ('>')
330
44[H] ('D')
4700
4A[H] ('J')
47
3F[H] ('?')
470
45[H] ('E')
6800
4B[H] ('K')
68
40[H] ('@')
680
46[H] ('F')
10000
4C[H] ('L')
• INPUT GATE THRESHOLD (5th byte)
This command is used to set the threshold level of the gate of the input channel.
LEVEL [dB]
LEVEL [dB]
LEVEL [dB]
-60
20[H] (' s')
-39
35[H] ('5')
-18
4A[H] ('J')
-59
21[H] ('!')
-38
36[H] ('6')
-17
4B[H] ('K')
-58
22[H] (' ” ')
-37
37[H] ('7')
-16
4C[H] ('L')
-57
23[H] ('#')
-36
38[H] ('8')
-15
4D[H] ('M')
-56
24[H] ('$')
-35
39[H] ('9')
-14
4E[H] ('N')
-55
25[H] ('%')
-34
3A[H] (':')
-13
4F[H] ('O')
-54
26[H] ('&')
-33
3B[H] (';')
-12
50[H] ('P')
-53
27[H] (' ’ ')
-32
3C[H] ('<')
-11
51[H] ('Q')
-52
28[H] ('(')
-31
3D[H] ('=')
-10
52[H] ('R')
-51
29[H] (')')
-30
3E[H] ('>')
-9
53[H] ('S')
-50
2A[H] ('*')
-29
3F[H] ('?')
-8
54[H] ('T')
-49
2B[H] ('+')
-28
40[H] ('@')
-7
55[H] ('U')
-48
2C[H] (',')
-27
41[H] ('A')
-6
56[H] ('V')
-47
2D[H] ('-')
-26
42[H] ('B')
-5
57[H] ('W')
-46
2E[H] ('.')
-25
43[H] ('C')
-4
58[H] ('X')
-45
2F[H] ('/')
-24
44[H] ('D')
-3
59[H] ('Y')
-44
30[H] ('0')
-23
45[H] ('E')
-2
5A[H] ('Z')
-43
31[H] ('1')
-22
46[H] ('F')
-1
5B[H] ('[')
-42
32[H] ('2')
-21
47[H] ('G')
0
5C[H] ('\')
-41
33[H] ('3')
-20
48[H] ('H')
-40
34[H] ('4')
-19
49[H] ('I')
– 24 –
Cautio
on
• INPUT GATE HOLD TIME (6th byte)
This command is used to set the hold time of the gate of the input channel.
The setup procedure is the same as the input compressor release time (the fourth byte).
• INPUT GATE RELEASE TIME (7th byte)
This command is used to set the release time of the gate of the input channel.
The setup procedure is the same as the input compressor release time (the fourth byte).
• OUTPUT LIMITER THRESHOLD (8th byte)
This command is used to set the threshold level of the limiter of the output channel.
LEVEL [dB]
LEVEL [dB]
LEVEL [dB]
0
5C[H] ('\')
+7
63[H] ('c')
+14
6A[H] ('j')
+1
5D[H] (']')
+8
64[H] ('d')
+15
6B[H] ('k')
+2
5E[H] ('^')
+9
65[H] ('e')
+16
6C[H] ('l')
+3
5F[H] ('_')
+10
66[H] ('f')
+17
6D[H] ('m')
+4
60[H] ('`')
+11
67[H] ('g')
+18
6E[H] ('n')
+5
61[H] ('a')
+12
68[H] ('h')
+19
6F[H] ('o')
+6
62[H] ('b')
+13
69[H] ('i')
+20
70[H] ('p')
• OUTPUT LIMITER ATTACK TIME (9th byte)
This command is used to set the attack time of the limiter of the output channel.
The setup procedure is the same as the input compressor attack time (the third byte).
• OUTPUT LIMITER RELEASE TIME (10th byte)
This command is used to set the release time of the limiter of the output channel.
The setup procedure is the same as the input compressor release time (the fourth byte).
• FUNCTION ON/OFF (11th byte)
Switches between DEFAULT/EDIT, and turns ON/OFF the respective functions NOM, ONLY ONE, and LAST.
When DEFAULT/EDIT is 1 (EDIT), the automatic mixer is activated with the parameter specified by this command. When it is 0
(DEFAULT), it operates with the default parameter value when shipped from the factory.
When you want to turn ON NOM, ONLY ONE, and LAST ON, set the corresponding bit to 1. When you want to turn them OFF, set the
corresponding bit to 0.
MSB
bit7
0
bit6
1
bit5
0
bit4
0
bit3
DEFAULT
/EDIT
bit2
NOM
LSB
bit1
bit0
ONLY ONE LAST ON
Caution
When DEFAULT/EDIT is set to 0 (DEFAULT), the settings of NOM, ONLY ONE, and LAST ON return to the default state when
shipped from the factory.
• MIC INPUT ON/OFF (12th byte)
This command is used to turn ON/OFF the automatic mixer according to the input channels.
When you want to turn it ON, set the corresponding bit to 1. When you want to turn it OFF, set the corresponding bit to 0. Bit-6 and bit-7
are fixed all the time.
MSB LSB
bit7
0
bit6
1
bit5
MIC6
/LINE2
bit4
MIC5
/LINE1
bit3
MIC4
– 25 –
bit2
MIC3
bit1
bit0
MIC2/WL2 MIC1/WL1
• LINE OUTPUT 1-6 ON/OFF (13th byte)
This command is used to turn ON/OFF the automatic mixer according to the output channels.
When you want to turn it ON, set the corresponding bit to 1. When you want to turn it OFF, set the corresponding bit to 0. Bit-6 and bit-7
are fixed all the time.
MSB
bit7
0
bit6
1
bit5
OUT6
bit4
OUT5
bit3
OUT4
bit2
OUT3
bit1
OUT2
LSB
bit0
OUT1
• LINE OUTPUT 7,8, RECOUT 1,2 ON/OFF (14th byte)
This command is used to turn ON/OFF the automatic mixer according to the output channels.
When you want to turn it ON, set the corresponding bit to 1. When you want to turn it OFF, set the corresponding bit to 0. Bit-4 to bit-7
are fixed all the time.
MSB
bit7
0
bit6
1
bit5
0
bit4
0
bit3
REC2
bit2
REC1
bit1
OUT8
LSB
bit0
OUT7
Example: When setting the respective parameters as shown below.
INPUT COMPRESSOR THRESHOLD
INPUT COMPRESSOR RATIO
INPUT COMPRESSOR ATTACK TIME
INPUT COMPRESSOR RELEASE TIME
INPUT GATE THRESHOLD
INPUT GATE HOLD TIME
INPUT GATE RELEASE TIME
OUTPUT LIMITER THRESHOLD
OUTPUT LIMITER ATTACK TIME
OUTPUT LIMITER RELEASE TIME
FUNCTION ON/OFF
:
:
:
:
:
:
:
:
:
:
:
–3 dB
4:1
33 ms
100 ms
–25 dB
1000 ms
470 ms
10dB
0.47 ms
100 ms
Set DEFAULT/EDIT to EDIT, turn on NOM, and turn off ONLY ONE and
LAST ON.
MIC INPUT ON/OFF
: Turn on MIC 1-4, and turn off MIC 5, 6.
LINE OUTPUT1-6 ON/OFF
: Turn on LINE OUTPUT1-4, and turn off LINE OUTPUT5, 6.
LINE OUTPUT7-8, REC OUT 1,2 ON/OFF : Turn on LINE OUTPUT7, 8, and turn off REC OUT1, 2.
43[H] 41[H] 4D[H] 50[H] 59[H] 37[H] 3E[H] 41[H] 43[H] 47[H] 45[H] 66[H] 34[H] 41[H] 4C[H] 4F[H] 4F[H] 43[H] 0D[H]
('C A M P Y 7 > A C G E f 4 A L O O C CR')
– 26 –
AUTO MIX EDIT PARAMETER REQUEST: 52[H] 41[H] 4D[H] 50[H] ('RAMP')
This command is used to read respective parameters of the automatic mixer from the SRP-X700P.
Caution
This command is supported by the SRP-X700P firmware versions of 1.20 and higher.
• Packet format
52[H] 41[H] 4D[H] 50[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK(41[H]('A')) in the
order shown below.
41[H]"parameter"0D[H]
The parameter is the same as the 14 bytes of the AUTO MIX PARAMETER command.
FACTORY PRESET : 43[H] 52[H] 53[H] 54[H] ( ‘CRST’ )
This command is used to return the parameters of the SRP-X700P to the default values when shipped from the factory.
• Packet format
43[H] 52[H] 53[H] 54[H] 0D[H]
When communication with the SRP-X700P is established with success, all parameters including scene memories return to the default
state when shipped from the factory.
Caution
When the parameters are returned to the default state when shipped from the factory, all parameters that have been set by users will be
overwritten.
Before starting to execute this command, create backup of the parameter values using the supplied software SRP-X700P Manager.
– 27 –
FIRMWARE VERSION REQUEST : 52[H] 56[H] 45[H] 52[H] ( ‘RVER’ )
This command is used to read the version number of the SRP-X700P firmware.
• Packet format
52[H] 56[H] 45[H] 52[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter consists of the 8 bytes all the time in the following order.
byte
Parameter name
1st-7th
FIRMWARE VERSION
8th
30[H] (‘0’) fixed
• FIRMWARE VERSION (1-7th byte)
The 7-bytes ASCII code indicate the firmware version of the SRP-X700P.
Example: When the firmware version is 1.00
41[H] 31[H] 2E[H] 30[H] 30[H] 20[H] 20[H] 20[H] 30[H] 0D[H] ( ‘A 1 . 0 0 s s s 1 CR’ )
(“s” indicates the space. )
FR SETUP : 43[H] 46[H] 52[H] 53[H] (‘CFRS’)
This command is used to indicate start/stop of setting up the feedback reducer, to the SRP-X700P.
• Packet format
43[H] 52[H] 53[H] 41[H] “parameter” 0D[H]
• Parameter
Specify the channel that you want to implement setup, as the parameter.
By sending the command CANCEL (37[H]), you can stop the setting up.
CHANNEL
MIC1/WL1
31[H] (‘1’)
MIC2/WL2
32[H] (‘2’)
MIC3
33[H] (‘3’)
MIC4
34[H] (‘4’)
MIC5/LINE1
35[H] (‘5’)
MIC6/LINE2
36[H] (‘6’)
CANCEL
37[H] (‘7’)
You can check the progress status of the feedback reducer setting up using the STATUS REQUEST command or the ALL STATUS
REQUEST command that are described later.
When setting up is complete, the SRP-X700P turns ON the feedback reducer automatically.
You can acquire the parameter of the notch filter that is set during the setting up, using the MIC INPUT STATUS REQUEST command.
Example: When setting the MIC1/WL1 feedback reducer to the automatic setup
43[H] 52[H] 53[H] 41[H] 31[H] 0D[H] (‘C F R S 1 CR’)
– 28 –
GROUP FADER : 43[H] 47[H] 46[H] 41[H],42[H] (‘CGFA,B’)
43[H] 47[H] 46[H] 31[H]-36[H] (‘CGF1-2’)
This command is used to set any desired single channel of the GROUP FADER.
Various setups can be memorized in the scene memories by specifying these scene Nos.
The commands that correspond to the respective channels are shown below.
GROUP FADER
Command
MASTER A
43[H] 47[H] 46[H] 41[H] ‘CGFA’
MASTER B
43[H] 47[H] 46[H] 42[H] ‘CGFB’
REMOTE 1
43[H] 47[H] 46[H] 31[H] ‘CGF1’
REMOTE 2
43[H] 47[H] 46[H] 32[H] ‘CGF2’
REMOTE 3
43[H] 47[H] 46[H] 33[H] ‘CGF3’
REMOTE 4
43[H] 47[H] 46[H] 34[H] ‘CGF4’
REMOTE 5
43[H] 47[H] 46[H] 35[H] ‘CGF5’
REMOTE 6
43[H] 47[H] 46[H] 36[H] ‘CGF6‘
• Packet format
43[H] 47[H] 46[H] 41[H] “parameter” 0D[H]
(In the case of MASTER A)
• Parameter
This parameter consists of the 13-byte data all the time in the order as shown in the table below.
byte
Parameter name
1st
SCENE No.
2nd-9th
INDEX
10 th
MIC INPUT FADER
11 th
LINE INPUT FADER
12 th
LINE OUTPUT1-6 FADER
13 th
LINE OUTPUT7,8 FADER
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
When you specify the scene No.(31[H] (‘1’) to 44[H] (‘D’)), parameters of the subsequent 2nd to 13th bytes are written in the scene
memory.
• Scene No. (1st byte)
SCENE No.
SCENE No.
SCENE No.
NONE
30[H] (‘0’)
7
37[H] (‘7’)
14
3E[H] (‘>’)
1
31[H] (‘1’)
8
38[H] (‘8’)
15
3F[H] (‘?’)
2
32[H] (‘2’)
9
39[H] (‘9’)
16
40[H] (‘@’)
3
33[H] (‘3’)
10
3A[H] (‘:’)
17
41[H] (‘A’)
4
34[H] (‘4’)
11
3B[H] (‘;’)
18
42[H] (‘B’)
5
35[H] (‘5’)
12
3C[H] (‘<’)
19
43[H] (‘C’)
6
36[H] (‘6’)
13
3D[H] (‘=’)
20
44[H] (‘D’)
– 29 –
• Index (2-9th byte)
This command is used to specify index of the input channels with 8 bytes of the ASCII code.
Caution
If number of index characters does not reach the 8 bytes, be sure to fill the blanks with the space (20[H]).
• MIC INPUT fader (10th byte)
This command is used to set the MIC1/WL1 to MIC6/LINE2 channels’ assign to the GROUP FADER with the 8-bit data.
Set 1 to implement assign. Set 0 not to implement assign.
Bit-6 and bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
• LINE INPUT fader (11th byte)
This command is used to set the LINE3 and 4 channels’ assign to the GROUP FADER with the 8-bit data.
Set 1 to implement assign. Set 0 not to implement assign.
Bit-2 to bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
LINE4
bit0
LINE3
• LINE OUTPUT1-6 fader (12th byte)
This command is used to set the LINE OUTPUT1 to 6 channels’ assign to the GROUP FADER with the 8-bit data.
Set 1 to implement assign. Set 0 not to implement assign.
Bit-6 and bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
bit4
LINE
LINE
OUTPUT6 OUTPUT5
bit3
bit2
LINE
LINE
OUTPUT4 OUTPUT3
bit1
bit0
LINE
LINE
OUTPUT2 OUTPUT1
• LINE OUTPUT7,8 fader (13th byte)
This command is used to set the LINE OUTPUT7 and 8 channels’ assign to the GROUP FADER with the 8-bit data.
Set 1 to implement assign. Set 0 not to implement assign.
Bit-2 to bit-7 are fixed all the time.
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
0
1
0
0
0
0
LINE
LINE
OUTPUT8 OUTPUT7
Caution
Do no assign the INPUT fader and the OUTPUT fader to the GROUP FADER of the same channel.
Example: When setting the MASTER A as shown below.
Index
: MIC
MIC INPUT fader
: Assign the MIC1/WL1 through MIC4.
: MIC5/LINE1 and MIC6/LINE2 are not assigned.
LINE INPUT fader
: LINE 3 and 4 INPUTs are not assigned.
LINE OUTPUT1-6 fader : LINE OUTPUT1 through 6 are not assigned.
LINE OUTPUT7,8 fader : LINE OUTPUT7 and 8 are not assigned.
43[H] 47[H] 46[H] 41[H] 30[H] 4D[H] 49[H] 43[H] 20[H] 20[H] 20[H] 20[H] 20[H] 4F[H] 40[H] 40[H] 40[H] 0D[H]
(‘ C G F A M I C s s s s s O @ @ @ CR’)
“s” indicates the space.
– 30 –
GROUP FADER PARAMETER REQUEST: 52[H] 47[H] 46[H] 41[H],42[H] (‘RGFA,B’)
52[H] 47[H] 46[H] 31[H]-36[H] (‘RGF1-2’)
This command is used to read the setup of any desired single channel of the GROUP FADER from the SRP-X700P.
The commands that correspond to the respective channels are shown below.
GROUP FADER
Command
MASTER A
52[H] 47[H] 46[H] 41[H] ‘RGFA’
MASTER B
52[H] 47[H] 46[H] 42[H] ‘RGFB’
REMOTE 1
52[H] 47[H] 46[H] 31[H] ‘RGF1’
REMOTE 2
52[H] 47[H] 46[H] 32[H] ‘RGF2’
REMOTE 3
52[H] 47[H] 46[H] 33[H] ‘RGF3’
REMOTE 4
52[H] 47[H] 46[H] 34[H] ‘RGF4’
REMOTE 5
52[H] 47[H] 46[H] 35[H] ‘RGF5’
REMOTE 6
52[H] 47[H] 46[H] 36[H] ‘RGF6’
• Packet format
52[H] 52[H] 4C[H] 31[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter. For the method of specifying the scene No., refer to
the GROUP FADER command (page 29).
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameters are the same as the 12 bytes of the GROUP FADER command from which the scene No. is exempted.
INFORMATION : 43[H] 49[H] 4E[H] 46[H] (‘CINF’)
This command is used to set the information and to implement the power-on setting.
• Packet format
43[H] 50[H] 49[H] 4F[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 129-byte data all the time in the order as shown in the table below.
byte
Parameter name
1st
Power On Setting
2nd-129th
INFORMATION
• Power On Setting (1st byte)
This command is sued to implement the Power On Setting.
Power On Setting
LAST MEMORY
30[H] (‘0’)
DEFAULT
31[H] (‘1’)
SCENE No.1
32[H] (‘2’)
– 31 –
• INFORMATION (2-129th byte)
Specify the information of the input channels using the ASCII code.
Caution
If number of information characters does not reach the 128 bytes, be sure to fill the blanks with the space (20[H]) so that it becomes 128
bytes all the time.
INFORMATION PARAMETER REQUEST : 52[H] 49[H] 4E[H] 46[H] (‘RINF’)
This command is used to read the information and the power-on setting from the SRP-X700P.
• Packet format
52[H] 49[H] 4E[H] 46[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 129-byte parameter of the INFORMATION command.
LINE 3 INPUT : 43[H] 49[H] 4D[H] 33[H] (‘CIL3’)
This command is used to implement setting up the LINE 3 input channel.
Various setups can be memorized in the scene memories by specifying these scene Nos.
• Packet format
43[H] 49[H] 4D[H] 33[H] “parameter (19 bytes)” 0D[H]
• Parameter
The parameter consists of the 19 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.
14 th
PEQ1 GAIN
2nd-9th
INDEX
15 th
PEQ2 Frequency
10 th
TRIM
16 th
PEQ2 Q
11 th
FUNCTION ON/OFF
17 th
PEQ2 GAIN
12 th
PEQ1 Frequency
18 th
GAIN LIMIT LEVEL
13 th
PEQ1 Q
19 th
FADER LEVEL
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup. At the same time, when you
specify the scene No.(31[H] (‘1’) through 44[H] (‘D’)), the parameters of the subsequent 2nd through 19th bytes are written in the scene
memories.
For the method of setting the scene No. and index, refer to the GROUP FADER command (pages 29 and 30).
– 32 –
• TRIM (10th byte)
This command is used to set the reference level of the input terminal.
REF LEVEL
-10dBu
30[H] (‘0’)
-9dBu
31[H] (‘1’)
-8dBu
32[H] (‘2’)
-7dBu
33[H] (‘3’)
-6dBu
34[H] (‘4’)
-5dBu
35[H] (‘5’)
-4dBu
36[H] (‘6’)
-3dBu
37[H] (‘7’)
-2dBu
38[H] (‘8’)
-1dBu
39[H] (‘9’)
0dBu
3A[H] (‘:’)
• Function ON/OFF (11th byte)
This command is used to turn ON/OFF the parametric equalizer with the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
PEQ
bit1
0
bit0
0
When you want to turn ON the function, set bit 2 to 1. When you want to turn OFF the function, set bit 2 to 0.
Bit-0, bit-1 and bit-3 to bit-7 are fixed all the time.
• PEQ frequency (12 and 15th byte)
This command is used to set the center frequency [Hz] of parametric equalizer.
Frequency
Frequency
Frequency
Frequency
25
20[H] (‘s’)
280
38[H] (‘8’)
1.12k
50[H] (‘P’)
4.50k
68[H] (‘h’)
31.5
21[H] (‘!’)
297
39[H] (‘9’)
1.18k
51[H] (‘Q’)
4.75k
69[H] (‘i’)
40
22[H] (‘ ” ’)
315
3A[H] (‘:’)
1.25k
52[H] (‘R’)
5.00k
6A[H] (‘j’)
50
23[H] (‘#’)
335
3B[H] (‘;’)
1.32k
53[H] (‘S’)
5.30k
6B[H] (‘k’)
63
24[H] (‘$’)
355
3C[H] (‘<’)
1.40k
54[H] (‘T’)
5.60k
6C[H] (‘l’)
80
25[H] (‘%’)
375
3D[H] (‘=’)
1.50k
55[H] (‘U’)
5.95k
6D[H] (‘m’)
100
26[H] (‘&’)
400
3E[H] (‘>’)
1.60k
56[H] (‘V’)
6.30k
6E[H] (‘n’)
106
27[H] (‘ ’ ’)
425
3F[H] (‘?’)
1.70k
57[H] (‘W’)
6.70k
6F[H] (‘o’)
112
28[H] (‘(’)
450
40[H] (‘@’)
1.80k
58[H] (‘X’)
7.10k
70[H] (‘p’)
118
29[H] (‘)’)
474
41[H] (‘A’)
1.90k
59[H] (‘Y’)
7.50k
71[H] (‘q’)
125
2A[H] (‘*’)
500
42[H] (‘B’)
2.00k
5A[H] (‘Z’)
8.00k
72[H] (‘r’)
132
2B[H] (‘+’)
530
43[H] (‘C’)
2.12k
5B[H] (‘[’)
8.50k
73[H] (‘s’)
140
2C[H] (‘,’)
560
44[H] (‘D’)
2.24k
5C[H] (‘\’)
9.00k
74[H] (‘t’)
150
2D[H] (‘-’)
595
45[H] (‘E’)
2.37k
5D[H] (‘]’)
9.50k
75[H] (‘u’)
160
2E[H] (‘.’)
630
46[H] (‘F’)
2.50k
5E[H] (‘^’)
10.0k
76[H] (‘v’)
170
2F[H] (‘/’)
670
47[H] (‘G’)
2.65k
5F[H] (‘_’)
10.6k
77[H] (‘w’)
180
30[H] (‘0’)
710
48[H] (‘H’)
2.80k
60[H] (‘`’)
11.2k
78[H] (‘x’)
190
31[H] (‘1’)
750
49[H] (‘I’)
2.97k
61[H] (‘a’)
11.8k
79[H] (‘y’)
200
32[H] (‘2’)
800
4A[H] (‘J’)
3.15k
62[H] (‘b’)
12.5k
7A[H] (‘z’)
212
33[H] (‘3’)
850
4B[H] (‘K’)
3.35k
63[H] (‘c’)
13.2k
7B[H] (‘{’)
224
34[H] (‘4’)
900
4C[H] (‘L’)
3.55k
64[H] (‘d’)
14.0k
7C[H](‘|’)
237
35[H] (‘5’)
950
4D[H] (‘M’)
3.75k
65[H] (‘e’)
16.0k
7D[H](‘}’)
250
36[H] (‘6’)
1.00k
4E[H] (‘N’)
4.00k
66[H] (‘f’)
20.0k
7E[H](‘~’)
265
37[H] (‘7’)
1.06k
4F[H] (‘O’)
4.25k
67[H] (‘g’)
– 33 –
• PEQ Q (13 and 16th byte)
This command is used to set the Q value of parametric equalizer.
Q
Q
Q
Q
0.15
30[H] (‘0’)
0.56
37[H] (‘7’)
2.20
3E[H] (‘>’)
8.20
45[H] (‘E’)
0.18
31[H] (‘1’)
0.68
38[H] (‘8’)
2.70
3F[H] (‘?’)
10.0
46[H] (‘F’)
0.22
32[H] (‘2’)
0.82
39[H] (‘9’)
3.30
40[H] (‘@’)
12.0
47[H] (‘G’)
0.27
33[H] (‘3’)
1.00
3A[H] (‘:’)
3.90
41[H] (‘A’)
15.0
48[H] (‘H’)
0.33
34[H] (‘4’)
1.20
3B[H] (‘;’)
4.70
42[H] (‘B’)
18.0
49[H] (‘I’)
0.39
35[H] (‘5’)
1.50
3C[H] (‘<’)
5.60
43[H] (‘C’)
22.0
4A[H] (‘J’)
0.47
36[H] (‘6’)
1.80
3D[H] (‘=’)
6.80
44[H] (‘D’)
• PEQ gain (14 and 17th byte)
This command is used to set the gain [dB] at the center frequency of parametric equalizer.
GAIN
GAIN
GAIN
GAIN
-15.0
30[H] (‘0’)
-7.0
40[H] (‘@’)
+1.0
50[H] (‘P’)
+9.0
60[H] (‘`’)
-14.5
31[H] (‘1’)
-6.5
41[H] (‘A’)
+1.5
51[H] (‘Q’)
+9.5
61[H] (‘a’)
-14.0
32[H] (‘2’)
-6.0
42[H] (‘B’)
+2.0
52[H] (‘R’)
+10.0
62[H] (‘b’)
-13.5
33[H] (‘3’)
-5.5
43[H] (‘C’)
+2.5
53[H] (‘S’)
+10.5
63[H] (‘c’)
-13.0
34[H] (‘4’)
-5.0
44[H] (‘D’)
+3.0
54[H] (‘T’)
+11.0
64[H] (‘d’)
-12.5
35[H] (‘5’)
-4.5
45[H] (‘E’)
+3.5
55[H] (‘U’)
+11.5
65[H] (‘e’)
-12.0
36[H] (‘6’)
-4.0
46[H] (‘F’)
+4.0
56[H] (‘V’)
+12.0
66[H] (‘f’)
-11.5
37[H] (‘7’)
-3.5
47[H] (‘G’)
+4.5
57[H] (‘W’)
+12.5
67[H] (‘g’)
-11.0
38[H] (‘8’)
-3.0
48[H] (‘H’)
+5.0
58[H] (‘X’)
+13.0
68[H] (‘h’)
-10.5
39[H] (‘9’)
-2.5
49[H] (‘I’)
+5.5
59[H] (‘Y’)
+13.5
69[H] (‘i’)
-10.0
3A[H] (‘:’)
-2.0
4A[H] (‘J’)
+6.0
5A[H] (‘Z’)
+14.0
6A[H] (‘j’)
-9.5
3B[H] (‘;’)
-1.5
4B[H] (‘K’)
+6.5
5B[H] (‘[’)
+14.5
6B[H] (‘k’)
-9.0
3C[H] (‘<’)
-1.0
4C[H] (‘L’)
+7.0
5C[H] (‘\’)
+15.0
6C[H] (‘l’)
-8.5
3D[H] (‘=’)
-0.5
4D[H] (‘M’)
+7.5
5D[H] (‘]’)
-8.0
3E[H] (‘>’)
0
4E[H] (‘N’)
+8.0
5E[H] (‘^’)
-7.5
3F[H] (‘?’)
+0.5
4F[H] (‘O’)
+8.5
5F[H] (‘_’)
• Gain Limit level (18th byte)
This command is used to set the level [dB] at the Gain Limit.
GAIN LIMIT
GAIN LIMIT
-10
30[H] (‘0’)
+1
3B[H] (‘;’)
-9
31[H] (‘1’)
+2
3C[H] (‘<’)
-8
32[H] (‘2’)
+3
3D[H] (‘=’)
-7
33[H] (‘3’)
+4
3E[H] (‘>’)
-6
34[H] (‘4’)
+5
3F[H] (‘?’)
-5
35[H] (‘5’)
+6
40[H] (‘@’)
-4
36[H] (‘6’)
+7
41[H] (‘A’)
-3
37[H] (‘7’)
+8
42[H] (‘B’)
-2
38[H] (‘8’)
+9
43[H] (‘C’)
-1
39[H] (‘9’)
+10
44[H] (‘D’)
0
3A[H] (‘:’)
– 34 –
• Fader level (19th byte)
This command is used to set the fader level [dB].
This fader levels are shown as the fader values on the INPUT OVERVIEW screen of the supplied software SRP-X700P Manager.
LEVEL
LEVEL
LEVEL
LEVEL
-∞
30[H] (‘0’)
-20.0
40[H] (‘@’)
-4.5
50[H] (‘P’)
+3.5
60[H] (‘`’)
-70.0
31[H] (‘1’)
-19.0
41[H] (‘A’)
-4.0
51[H] (‘Q’)
+4.0
61[H] (‘a’)
-60.0
32[H] (‘2’)
-18.0
42[H] (‘B’)
-3.5
52[H] (‘R’)
+4.5
62[H] (‘b’)
-55.0
33[H] (‘3’)
-17.0
43[H] (‘C’)
-3.0
53[H] (‘S’)
+5.0
63[H] (‘c’)
-50.0
34[H] (‘4’)
-16.0
44[H] (‘D’)
-2.5
54[H] (‘T’)
+5.5
64[H] (‘d’)
-45.0
35[H] (‘5’)
-15.0
45[H] (‘E’)
-2.0
55[H] (‘U’)
+6.0
65[H] (‘e’)
-40.0
36[H] (‘6’)
-14.0
46[H] (‘F’)
-1.5
56[H] (‘V’)
+6.5
66[H] (‘f’)
-35.0
37[H] (‘7’)
-13.0
47[H] (‘G’)
-1.0
57[H] (‘W’)
+7.0
67[H] (‘g’)
-32.5
38[H] (‘8’)
-12.0
48[H] (‘H’)
-0.5
58[H] (‘X’)
+7.5
68[H] (‘h’)
-30.0
39[H] (‘9’)
-11.0
49[H] (‘I’)
0
59[H] (‘Y’)
+8.0
69[H] (‘i’)
-27.5
3A[H] (‘:’)
-10.0
4A[H] (‘J’)
+0.5
5A[H] (‘Z’)
+8.5
6A[H] (‘j’)
-25.0
3B[H] (‘;’)
-9.0
4B[H] (‘K’)
+1.0
5B[H] (‘[’)
+9.0
6B[H] (‘k’)
+10.0
6C[H] (‘l’)
-24.0
3C[H] (‘<’)
-8.0
4C[H] (‘L’)
+1.5
5C[H] (‘\’)
-23.0
3D[H] (‘=’)
-7.0
4D[H] (‘M’)
+2.0
5D[H] (‘]’)
-22.0
3E[H] (‘>’)
-6.0
4E[H] (‘N’)
+2.5
5E[H] (‘^’)
-21.0
3F[H] (‘?’)
-5.0
4F[H] (‘O’)
+3.0
5F[H] (‘_’)
Example: When setting the respective parameters as shown below.
Scene No.
: NONE
Index
: CD
TRIM
: -10dBu
Function OFF
: PEQ ON
PEQ1,2 frequency : 1kHz
PEQ1,2 Q
: 10
PEQ1,2 gain
: 0dB
Gain Limit level
: +10dBu
Fader level
: 0dB
43[H] 49[H] 4D[H] 33[H] 30[H] 43[H] 44[H] 20[H] 20[H] 20[H] 20[H] 20[H] 20[H] 30[H] 41[H] 4E[H] 46[H]
4E[H] 4E[H] 46[H] 4E[H] 44[H] 59[H] 0D[H]
(‘ C I L 3 0 C D s s s s s s 0 @ N F N N F N D Y CR’)
“s” indicates the space.
LINE 3 INPUT PARAMETER REQUEST : 52[H] 49[H] 4D[H] 33[H] (‘RIL3’)
This command is used to read setup of the LINE 3 input channel from the SRP-X700P.
• Packet format
52[H] 49[H] 4D[H] 33[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameters are the same as the 18-byte parameter of the LINE3 INPUT command from which the scene No. is exempted.
– 35 –
LINE 4 INPUT : 43[H] 49[H] 4D[H] 34[H] (‘CIL4’)
This command is used to implement setting up the LINE 4 input channel.
Various setups can be memorized in the scene memories by specifying these scene Nos.
• Packet format
43[H] 49[H] 4D[H] 34[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 64 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.
54th
LINE4 E TRIM
2nd-9th
LINE4 A INDEX
55th
LINE4 F TRIM
10th-17th
LINE4 B INDEX
56th
FUNCTION ON/OFF
18th-25th
LINE4 C INDEX
57th
PEQ1 Frequency
26th-33rd
LINE4 D INDEX
58th
PEQ1 Q
34th-41st
LINE4 E INDEX
59th
PEQ1 GAIN
42nd-49th
LINE4 F INDEX
60st
PEQ2 Frequency
50th
LINE4 A TRIM
61st
PEQ2 Q
51st
LINE4 B TRIM
62nd
PEQ2 GAIN
52nd
LINE4 C TRIM
63rd
GAIN LIMIT LEVEL
53rd
LINE4 D TRIM
64th
FADER LEVEL
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
At the same time, when you specify the scene No.(31[H] (‘1’) through 44[H] (‘D’)), parameters of the subsequent 2nd through 64th bytes
are written in the scene memory.
The method of setting the scene No. and index of LINE4A through F, is the same as that of the GROUP FADER command. See pages 29
and 30.
Method of setting the LINE4A-F TRIM, FUNCTION ON/OFF, PEQ1,2 frequency, PEQ1,2 Q, PEQ1,2 Gain, Gain Limit level and input
fader level is the same as that of the LINE 3 INPUT command. See pages 32 to 35.
For the packet example, see the example of the LINE 3 INPUT command on page 35. However, the parameter length becomes 64 bytes.
LINE 4 INPUT PARAMETER REQUEST : 52[H] 49[H] 4D[H] 34[H] (‘RIL4’)
This command is used to read setup of the LINE 4 input channel from the SRP-X700P.
• Packet format
52[H] 49[H] 4D[H] 34[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 63 bytes of the LINE4 INPUT command parameter from which the scene No. is exempted.
– 36 –
LINE OUTPUT1,2 : 43[H] 4F[H] 4C[H] 31[H],32[H] (‘COL1,2’)
This command is used to implement setup of any desired single channel of the LINE OUTPUT1 and 2.
Various setups can be memorized in the scene memories by specifying these scene Nos.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
LINE OUTPUT 1
43[H] 4F[H] 4C[H] 31[H] ‘COL1’
LINE OUTPUT 2
43[H] 4F[H] 4C[H] 32[H] ‘COL2’
• Packet format
43[H] 4F[H] 4C[H] 31[H] “parameter” 0D[H]
(In the case of LINE OUTPUT 1)
• Parameter
The parameter consists of the 47 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.
28th
PEQ6 Q
2nd-9th
INDEX
29th
PEQ6 GAIN
10th
REF LEVEL
30th
PEQ7 Frequency
11th
FUNCTION ON/OFF
31st
PEQ7 Q
12th
PEQ1 Frequency
32nd
PEQ7 GAIN
13th
PEQ1 Q
33rd
PEQ8 Frequency
14th
PEQ1 GAIN
34th
PEQ8 Q
15th
PEQ2 Frequency
35th
PEQ8 GAIN
16th
PEQ2 Q
36th
PEQ9 Frequency
17th
PEQ2 GAIN
37th
PEQ9 Q
18th
PEQ3 Frequency
38th
PEQ9 GAIN
19th
PEQ3 Q
39th
PEQ10 Frequency
20th
PEQ3 GAIN
40th
PEQ10 Q
21st
PEQ4 Frequency
41st
PEQ10 GAIN
22nd
PEQ4 Q
42nd
PEQ11 Frequency
23rd
PEQ4 GAIN
43rd
PEQ11 Q
24th
PEQ5 Frequency
44th
PEQ11 GAIN
25th
PEQ5 Q
45th
Delay
26th
PEQ5 GAIN
46th
GAIN LIMIT LEVEL
27th
PEQ6 Frequency
47th
FADER LEVEL
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
When you specify the scene Nos.(31[H] (‘1’) through 44[H] (‘D’)), the parameters of the subsequent 2nd to 47th bytes are written in the
scene memory.
For the method of setting the scene No. and index, refer to the GROUP FADER command (pages 29 and 30).
Method of setting the PEQ1-11 frequency, PEQ1-11 Q, PEQ1-11 Gain, Gain Limit level and fader level is the same as that of the LINE 3
INPUT command. See pages 32 to 35.
For the packet example, see the example of the LINE 3 INPUT command on page 35. However, the parameter length becomes 47 bytes.
– 37 –
• REF LEVEL (10th byte)
This command is used to set the reference output level [dBu].
REF LEVEL
-10
30[H] (‘0’)
-5
35[H] ((‘5’)
0
3A[H] ( ‘:’ )
4
3E[H] ( ‘>’)
• Function ON/OFF (11th byte)
This command is used to turn ON/OFF the delay (DELAY), parametric equalizer (PEQ) and high-cut filter (HCF) with the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
HCF
bit1
PEQ
bit0
DELAY
Set the corresponding bit to 1 to turn ON the delay (DELAY), parametric equalizer (PEQ) and high-cut filter (HCF). Set the
corresponding bit to 0 to turn them OFF.
Bit-3 to bit-7 are fixed all the time.
Caution
When the high-cut filter (HCF) is turned ON, the parameters that are set in PEQ11 are invalidated.
• Delay (45th byte)
This command is used to set the delay.
[ms]
[m]
[feet]
[ms]
[m]
[feet]
0
0
0
30[H] (‘0’)
78.3
27
90.0
4B[H] (‘K’)
2.9
1
3.3
31[H] (‘1’)
81.2
28
93.3
4C[H] (‘L’)
5.8
2
6.7
32[H] (‘2’)
84.1
29
96.7
4D[H] (‘M’)
8.7
3
10.0
33[H] (‘3’)
87.0
30
100.0
4E[H] (‘N’)
11.6
4
13.3
34[H] (‘4’)
89.9
31
103.3
4F[H] (‘O’)
14.5
5
16.7
35[H] (‘5’)
92.8
32
106.7
50[H] (‘P’)
17.4
6
20.0
36[H] (‘6’)
95.7
33
110.0
51[H] (‘Q’)
20.3
7
23.3
37[H] (‘7’)
98.6
34
113.3
52[H] (‘R’)
23.2
8
26.7
38[H] (‘8’)
101.5
35
116.7
53[H] (‘S’)
26.1
9
30.0
39[H] (‘9’)
104.4
36
120.0
54[H] (‘T’)
29.0
10
33.3
3A[H] (‘:’)
107.3
37
123.3
55[H] (‘U’)
31.9
11
36.7
3B[H] (‘;’)
110.2
38
126.7
56[H] (‘V’)
34.8
12
40.0
3C[H] (‘<’)
113.1
39
130.0
57[H] (‘W’)
37.7
13
43.3
3D[H] (‘=’)
116.0
40
133.3
58[H] (‘X’)
40.6
14
46.7
3E[H] (‘>’)
118.9
41
136.7
59[H] (‘Y’)
43.5
15
50.0
3F[H] (‘?’)
121.8
42
140.0
5A[H] (‘Z’)
46.4
16
53.3
40[H] (‘@’)
124.7
43
143.3
5B[H] (‘[’)
49.3
17
56.7
41[H] (‘A’)
127.6
44
146.7
5C[H] (‘\’)
52.2
18
60.0
42[H] (‘B’)
130.5
45
150.0
5D[H] (‘]’)
55.1
19
63.3
43[H] (‘C’)
133.4
46
153.3
5E[H] (‘^’)
58.0
20
66.7
44[H] (‘D’)
136.3
47
156.7
5F[H] (‘_’)
60.9
21
70.0
45[H] (‘E’)
139.2
48
160.0
60[H] (‘`’)
63.8
22
73.3
46[H] (‘F’)
142.1
49
163.3
61[H] (‘a’)
66.7
23
76.7
47[H] (‘G’)
145.0
50
166.7
62[H] (‘b’)
69.6
24
80.0
48[H] (‘H’)
147.9
51
170.0
63[H] (‘c’)
72.5
25
83.3
49[H] (‘I’)
150.8
52
173.3
64[H] (‘d’)
75.4
26
86.7
4A[H] (‘J’)
– 38 –
LINE OUTPUT 1,2 PARAMETER REQUEST :
52[H] 4F[H] 4D[H] 31[H],32[H] (‘ROL1,2’)
This command is used to read the setup of any desired single channel of the LINE OUTPUT 1 and 2 from the SRP-X700P.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
LINE OUTPUT 1
52[H] 4F[H] 4C[H] 31[H] ‘ROL1’
LINE OUTPUT 2
52[H] 4F[H] 4C[H] 32[H] ‘ROL2’
• Packet format
52[H] 4F[H] 4C[H] 31[H] “parameter” 0D[H]
(In the case of LINE OUTPUT 1)
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 46 bytes of the LINE OUTPUT1 and 2 commands’ parameter from which the scene No. is exempted.
LINE OUTPUT3-8 : 43[H] 4F[H] 4C[H] 33[H]-38[H] (‘COL3-8’)
This command is used to implement setting up the desired single channel of the LINE OUTPUT3 to 8.
Various setups can be memorized in the scene memories by specifying these scene Nos.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
LINE OUTPUT 3
43[H] 4F[H] 4C[H] 33[H] ‘COL3’
LINE OUTPUT 4
43[H] 4F[H] 4C[H] 34[H] ‘COL4’
LINE OUTPUT 5
43[H] 4F[H] 4C[H] 35[H] ‘COL5’
LINE OUTPUT 6
43[H] 4F[H] 4C[H] 36[H] ‘COL6’
LINE OUTPUT 7
43[H] 4F[H] 4C[H] 37[H] ‘COL7’
LINE OUTPUT 8
43[H] 4F[H] 4C[H] 38[H] ‘COL8’
• Packet format
43[H] 4F[H] 4C[H] 33[H] “parameter” 0D[H]
(In the case of LINE OUTPUT 3)
– 39 –
• Parameter
The parameter consists of the 26 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.
18 th
PEQ3 Frequency
2nd-9th
INDEX
19 th
PEQ3 Q
10 th
REF LEVEL
20 th
PEQ3 GAIN
11th
FUNCTION ON/OFF
21 st
PEQ4 Frequency
12th
PEQ1 Frequency
22 nd
PEQ4 Q
13 th
PEQ1 Q
23 rd
PEQ4 GAIN
14 th
PEQ1 GAIN
24 th
DELAY
15th
PEQ2 Frequency
25 th
GAIN LIMIT LEVEL
16th
PEQ2 Q
26 th
FADER LEVEL
17 th
PEQ2 GAIN
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
At the same time, when you specify the scene No.(31[H] (‘1’) through 44[H] (‘D’)), parameters of the subsequent 2nd to 26th bytes are
written in the scene memory.
For the method of setting the scene No. and index, refer to the GROUP FADER command (pages 29 and 30).
Method of setting the PEQ1-4 frequency, PEQ1-4 Q, PEQ1-4 Gain, Gain Limit and fader level is the same as that of the LINE 3 INPUT
command. See pages 32 to 35.
Method of setting the REF LEVEL, Function ON/OFF and delay is the same as that of the LINE OUTPUT1 and 2 commands. See page
37.
For the packet example, see the example of the LINE 3 INPUT command on page 35. However, the parameter length becomes 26 bytes.
• REF LEVEL (10th byte)
This command is used to set the reference output level [dBu].
REF LEVEL
-10
30[H] (‘0’)
-5
35[H] (‘5’)
0
3A[H] ( ‘:’)
– 40 –
LINE OUTPUT3-8 PARAMETER REQUEST :
52[H] 4F[H] 4D[H] 33[H]-38[H] (‘ROL3-8’)
This command is used to read the setup of any desired single channel of the LINE OUTPUT 3 to 8 from the SRP-X700P.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
LINE OUTPUT 3
43[H] 4F[H] 4C[H] 33[H] ‘ROL3’
LINE OUTPUT 4
43[H] 4F[H] 4C[H] 34[H] ‘ROL4’
LINE OUTPUT 5
43[H] 4F[H] 4C[H] 35[H] ‘ROL5’
LINE OUTPUT 6
43[H] 4F[H] 4C[H] 36[H] ‘ROL6’
LINE OUTPUT 7
43[H] 4F[H] 4C[H] 37[H] ‘ROL7’
LINE OUTPUT 8
43[H] 4F[H] 4C[H] 38[H] ‘ROL8’
• Packet format
52[H] 4F[H] 4C[H] 33[H] “parameter” 0D[H]
(In the case of LINE OUTPUT 3)
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 25 bytes of the LINE OUTPUT 3 through 8 commands’ parameter from which the scene No. is
exempted.
MIC INPUT : 43[H] 49[H] 4D[H] 31[H]-36[H] (‘CIM1-6’)
This command is used to implement setting up the desired single channel of the MIC1/WL1 to MIC6/LINE2 input channels.
Various setups can be memorized in the scene memories by specifying these scene Nos.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
MIC1/WL1
43[H] 49[H] 4D[H] 31[H] (‘CIM1’)
MIC2/WL2
43[H] 49[H] 4D[H] 32[H] (‘CIM2’)
MIC3
43[H] 49[H] 4D[H] 33[H] (‘CIM3’)
MIC4
43[H] 49[H] 4D[H] 34[H] (‘CIM4’)
MIC5/LINE1
43[H] 49[H] 4D[H] 35[H] (‘CIM5’)
MIC6/LINE2
43[H] 49[H] 4D[H] 36[H] (‘CIM6’)
– 41 –
• Packet format
43[H] 49[H] 4D[H] 31[H] “parameter” 0D[H]
(In the case of MIC1/WL1 input channels)
• Parameter
The parameter consists of the 41 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.
25th
46[H] (‘F’) fixed
2nd-9th
INDEX
26th
FR1 GAIN
10th
TRIM
27th
FR2 Frequency
11th
FUNCTIONON/OFF
28th
46[H] (‘F’) fixed
12th
PEQ1 Frequency
29th
FR2 GAIN
13th
PEQ1 Q
30th
FR3 Frequency
14th
PEQ1 GAIN
31st
46[H] (‘F’) fixed
15th
PEQ2 Frequency
32nd
FR3 GAIN
16th
PEQ2 Q
33rd
FR4 Frequency
17th
PEQ2 GAIN
34th
46[H] (‘F‘) fixed
18th
PEQ3 Frequency
35th
FR4 GAIN
19th
PEQ3 Q
36th
FR5 Frequency
20th
PEQ3 GAIN
37th
46[H] (‘F’) fixed
21st
26[H] (‘&’) fixed
38th
FR5 GAIN
22nd
2F[H] (‘/’) fixed
39th
COMPRESSOR
23rd
30[H] (‘0’) fixed
40th
GAIN LIMIT LEVEL
24th
FR1 Frequency
41st
FADER LEVEL
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
At the same time, when you specify the scene No.(31[H] (‘1’) through 44[H] (‘D’)), parameters of the subsequent 2nd through 41th bytes
are written in the scene memory.
For the method of setting the scene No. and index, refer to the GROUP FADER command (pages 29 and 30).
Method of setting the PEQ1-3 frequency, PEQ1-3 Q, PEQ1-3 Gain, Gain Limit level and fader level is the same as that of the LINE 3
INPUT command. See pages 32 to 35.
For the packet example, see the example of the LINE 3 INPUT command on page 35. However, the parameter length becomes 41 byts.
– 42 –
• TRIM (10th byte)
This command is used to set the reference level [dBu] of the input terminals.
REF LEVEL
Mic level input
Line level input
-60
-10
30[H] (‘0’)
-59
-9
31[H] (‘1’)
-58
-8
32[H] (‘2’)
-57
-7
33[H] (‘3’)
-56
-6
34[H] (‘4’)
-55
-5
35[H] (‘5’)
-54
-4
36[H] (‘6’)
-53
-3
37[H] (‘7’)
-52
-2
38[H] (‘8’)
-51
-1
39[H] (‘9’)
-50
0
3A[H] (‘:’)
-49
+1
3B[H] (‘;’)
-48
+2
3C[H] (‘<’)
-47
+3
3D[H] (‘=’)
-46
+4
3E[H] (‘>’)
-45
+5
3F[H] (‘?’)
• Function ON/OFF (11th byte)
This command is used to turn ON/OFF the parametric equalizer (PEQ), feedback reducer (FR) and low-cut filter (LCF) with the 8-bit
data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
PEQ
bit1
FR
bit0
LCF
When you want to turn ON PEQ, FR and LCF, set the corresponding bit to 1. When you want to turn them OFF, set the corresponding bit
to 0.
Bit-3 to bit-7 are fixed all the time.
• FR frequency (24, 27, 30, 33 and 36th bytes), FR gain (26, 29, 32, 35 and 38th bytes)
This command is used to set the center frequency and the gain of the notch filter used for the feedback reducer.
Method of setting is the same as the of the PEQ frequency and PEQ gain. See pages 33 and 34.
• Compressor (39th byte)
This command is used to set the compressor.
COMPRESSOR
OFF
30[H] (‘0’)
SOFT
31[H] (‘1’)
MID
32[H] (‘2’)
HARD
33[H] (‘3’)
– 43 –
MIC INPUT PARAMETER REQUEST : 52[H] 49[H] 4D[H] 31[H]-36[H] (‘RIM1-6’)
This command is used to read the setup of any desired single channel of the MIC input channels from the SRP-X700P.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
MIC1/WL1
52[H] 49[H] 4D[H] 31[H] (‘RIM1’)
MIC2/WL2
52[H] 49[H] 4D[H] 32[H] (‘RIM2’)
MIC3
52[H] 49[H] 4D[H] 33[H] (‘RIM3’)
MIC4
52[H] 49[H] 4D[H] 34[H] (‘RIM4’)
MIC5/LINE1
52[H] 49[H] 4D[H] 35[H] (‘RIM5’)
MIC6/LINE2
52[H] 49[H] 4D[H] 36[H] (‘RIM6’)
• Packet format
52[H] 49[H] 4D[H] 31[H] “parameter” 0D[H]
(In the case of MIC1/WL1)
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 40 bytes of the MIC INPUT command parameter from which the scene No. is exempted.
MUTING/LINE4 SELECT : 43[H] 4D[H] 54[H] 53[H] (‘CMTS’)
This command is used to write the muting setup of the respective input/output channels and GROUP FADER, and the LINE4 SELECT setup
for each scene memory.
• Packet format
43[H] 4D[H] 54[H] 53[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 8 bytes in the order as shown in the table below.
byte
Parameter name
1st
SCENE No.
2nd
MIC MUTING
3rd
LINE3,4 MUTING
4th
LINE OUTPUT1-6 MUTING
5th
LINE OUTPUT7,8/REC OUT/SPEAKER OUTPUT MUTING
6th
MASTER MUTING
7th
GROUP MUTING
8th
LINE4 SELECT
– 44 –
When you specify the scene No.(31[H] (‘1’) through 44[H] (‘D’)), parameters of the subsequent 2nd through 8th bytes are written in the
scene memory.
• Scene No. (1st byte)
This command is used to specify the scene No.
SCENE No.
SCENE No.
1
31[H] ( ‘1’ )
11
3B[H] ( ‘;’ )
2
32[H] ( ‘2’ )
12
3C[H] ( ‘<’ )
3
33[H] ( ‘3’ )
13
3D[H] ( ‘=’ )
4
34[H] ( ‘4’ )
14
3E[H] ( ‘>’ )
5
35[H] ( ‘5’ )
15
3F[H] ( ‘?’ )
6
36[H] ( ‘6’ )
16
40[H] ( ‘@’ )
7
37[H] ( ‘7’ )
17
41[H] ( ‘A’ )
8
38[H] ( ‘8’ )
18
42[H] ( ‘B’ )
9
39[H] ( ‘9’ )
19
43[H] ( ‘C’ )
10
3A[H] ( ‘:’ )
20
44[H] ( ‘D’ )
• MIC MUTING (2nd byte)
This command is used to specify muting of the MIC input channels with the 8-bit data.
When you want to set the MUTING status, set the corresponding bit to 1. When you want to cancel MUTING, set the corresponding bit
to 0.
Bit-6 and bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
• LINE MUTING (3rd byte)
This command is used to specify muting of the LINE input channels with the 8-bit data.
When you want to set the MUTING status, set the corresponding bit to 1. When you want to cancel MUTING, set the corresponding bit
to 0.
Bit-2 to bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
LINE4
bit0
LINE3
• LINE OUTPUT1-6 MUTING (4th byte)
This command is used to specify muting of the LINE OUTPUT1 to 6 channels with the 8-bit data.
When you want to set the MUTING status, set the corresponding bit to 1. When you want to cancel MUTING, set the corresponding bit
to 0.
Bit-6 and bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
OUT6
bit4
OUT5
bit3
OUT4
bit2
OUT3
bit1
OUT2
bit0
OUT1
• LINE OUTPUT7,8/REC OUT1,2 /SPEAKER OUTPUT1,2 MUTING (5th byte)
This command is used to specify muting of the LINE OUTPUT7,8, REC OUT1,2, SPEAKER OUTPUT1 and 2 with the 8-bit data.
When you want to set the MUTING status, set the corresponding bit to 1. When you want to cancel MUTING, set the corresponding bit
to 0.
Bit-6 and bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
bit4
bit3
SPEAKER SPEAKER REC
OUTPUT2 OUTPUT1 OUT2
– 45 –
bit2
REC
OUT1
bit1
bit0
OUTPUT8 OUTPUT7
• MASTER MUTING (6th byte)
This command is used to specify muting of the MASTER A and B with the 8-bit data.
When you want to set the MUTING status, set the corresponding bit to 1. When you want to cancel MUTING, set the corresponding bit
to 0.
Bit-2 to bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
bit2
0
bit1
bit0
MASTER B MASTER A
• GROUP FADER MUTING (7th byte)
This command is used to specify muting of the REMOTE1 to 6 with 8-bit data.
When you want to set the MUTING status, set the corresponding bit to 1. When you want to cancel MUTING, set the corresponding bit
to 0.
Bit-6 and bit-7 are fixed all the time.
bit7
0
bit6
1
bit5
bit4
bit3
bit2
bit1
bit0
REMOTE6 REMOTE5 REMOTE4 REMOTE3 REMOTE2 REMOTE1
• LINE4 SELECT (8th byte)
This command is used to specify the selection channel for the LINE4 SELECT.
CH
OFF
30[H] (‘0’)
A
31[H] (‘1’)
B
32[H] (‘2’)
C
33[H] (‘3’)
D
34[H] (‘4’)
E
35[H] (‘5’)
F
36[H] (‘6’)
Example: When you want to write the following channels in the scene No.1 after setting MIC1/WL1-MIC4 in the MUTING status,
LINE OUTPUT7 and 8 in the MUTING status, other channels in the MUTING-released status and LINE4 SELECT in B.
43[H] 4D[H] 54[H] 53[H] 31[H] 4F[H] 40[H] 40[H] 43[H] 40[H] 40[H] 32[H] 0D[H]
(‘ C M T S 1 O @ @ C @ @ 2 CR’)
MUTING/LINE4 SELECT PARAMETER REQUEST:
52[H] 4D[H] 54[H] 53[H] (‘RMTS’)
This command is used to read the muting setup of the respective input/output channels and GROUP FADER for each scene memory and to
read the LINE4 SELECT setup from the SRP-X700P.
• Packet format
52[H] 4D[H] 54[H] 53[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter. Method to specify the scene No. is the same as that of
the MUTING/LINE4 SELECT command. See page 44.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 7 bytes of the MUTING/LINE4 SELECT command parameter from which the scene No. is exempted.
– 46 –
PANEL LOCK : 43[H] 4C[H] 43[H] 4B[H] ( ‘CLCK’ )
This command is used to set the PANEL LOCK.
• Packet format
43[H] 4C[H] 43[H] 4B[H] “parameter” 0D[H]
• Parameter
Specify the setup or release of the PANEL LOCK as the parameter.
PANEL
LOCK RELEASE
40[H] ( ‘@’ )
LOCK
42[H] ( ‘B’ )
Example: When specifying release of the PANEL LOCK.
43[H] 4C[H] 43[H] 4B[H] 40[H] 0D[H] (‘C L C K @ CR’)
PARALLEL I/O : 43[H] 50[H] 49[H] 4F[H] (‘CPIO’)
This command is used to set the functions of the REMOTE PARALLEL terminal.
• Packet format
43[H] 50[H] 49[H] 4F[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 44 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
INPUT1 FUNCTION1
23rd
INPUT12 FUNCTION1
2nd
INPUT1 FUNCTION2
24th
INPUT12 FUNCTION2
3rd
INPUT2 FUNCTION1
25th
OUTPUT1 FUNCTION1
4th
INPUT2 FUNCTION2
26th
OUTPUT1 FUNCTION2
5th
INPUT3 FUNCTION1
27th
OUTPUT2 FUNCTION1
6th
INPUT3 FUNCTION2
28th
OUTPUT2 FUNCTION2
7th
INPUT4 FUNCTION1
29th
OUTPUT3 FUNCTION1
8th
INPUT4 FUNCTION2
30th
OUTPUT3 FUNCTION2
9th
INPUT5 FUNCTION1
31st
OUTPUT4 FUNCTION1
10th
INPUT5 FUNCTION2
32nd
OUTPUT4 FUNCTION2
11th
INPUT6 FUNCTION1
33rd
OUTPUT5 FUNCTION1
12th
INPUT6 FUNCTION2
34th
OUTPUT5 FUNCTION2
13th
INPUT7 FUNCTION1
35th
OUTPUT6 FUNCTION1
14th
INPUT7 FUNCTION2
36th
OUTPUT6 FUNCTION2
15th
INPUT8 FUNCTION1
37th
OUTPUT7 FUNCTION1
16th
INPUT8 FUNCTION2
38th
OUTPUT7 FUNCTION2
17th
INPUT9 FUNCTION1
39th
OUTPUT8 FUNCTION1
18th
INPUT9 FUNCTION2
40th
OUTPUT8 FUNCTION2
19th
INPUT10 FUNCTION1
41st
OUTPUT9 FUNCTION1
20th
INPUT10 FUNCTION2
42nd
OUTPUT9 FUNCTION2
21st
INPUT11 FUNCTION1
43rd
OUTPUT10 FUNCTION1
22nd
INPUT11 FUNCTION2
44th
OUTPUT10 FUNCTION2
– 47 –
• INPUT Function 1 (1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23rd byte)
This command is used to set the PARALLEL INPUT function 1.
FUNCTION1
NONE
FUNCTION1
30[H] (‘0‘)
Muting
35[H] (‘5’)
AV SEL
31[H] (‘1‘)
RECALL
36[H] (‘6’)
LV L+
32[H] (‘2‘)
LINE3 Control
37[H] (‘7’)
LVL–
33[H] (‘3‘)
LINE4 Control
38[H] (‘8’)
LVL
34[H] (‘4‘)
PJ Power
39[H] (‘9’)
• INPUT Function 2 (2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24th byte)
This command is used to set the PARALLEL INPUT function 2.
The different functions are supported for the respective values depending on the setup of the PARALLEL INPUT function 1.
FUNCTION2
LVL+
LVL–
PJ Power
AV SEL
NONE
A
Mic1
1
Play
B
Mic2
2
Pause
31[H] (‘1’)
C
Mic3
3
Stop
32[H] (‘2’)
D
Mic4
4
FF
33[H] (‘3’)
E
Mic5Line1
5
Rew
34[H] (‘4’)
F
Mic6Line2
6
Rec
35[H] (‘5’)
LVL
RECALL
LINE3 Control
NONE
LINE4 Control
Muting
OFF
NONE
30[H] (‘0’)
Line3
7
Next
36[H] (‘6’)
Line4
8
Prev
37[H] (‘7’)
Out1
9
On
38[H] (‘8’)
Out2
10
Standby
39[H] (‘9’)
Out3
11
3A[H] (‘:’)
Out4
12
3B[H] (‘;’)
Out5
13
3C[H] (‘<’)
Out6
14
3D[H] (‘=’)
Out7
15
3E[H] (‘>’)
Out8
16
3F[H] (‘?’)
MasterA
17
40[H] (‘@’)
MasterB
18
41[H] (‘A’)
Remote1
19
42[H] (‘B’)
Remote2
20
43[H] (‘C’)
Remote3
44[H] (‘D’)
Remote4
45[H] (‘E’)
Remote5
46[H] (‘F’)
Remote6
47[H] (‘G’)
– 48 –
• OUTPUT Function 1 (25, 27, 29, 31, 33, 35, 37, 39, 41, 43rd byte)
This command is used to set the PARALLEL OUTPUT function 1.
FUNCTION1
NONE
30[H] (‘0’)
AV SEL
31[H] (‘1’)
–∞
32[H] (‘2’)
OVER
33[H] (‘3’)
RECALL
34[H] (‘4’)
PJ
35[H] (‘5’)
• OUTPUT Function 2 (26, 28, 30, 32, 34, 36, 38, 40, 42, 44th byte)
This command is used to set the PARALLEL OUTPUT function 2.
The different functions are supported for the respective values depending on the setup of the PARALLEL OUTPUT function 1.
FUNCTION2
NONE
NONE
AV
-∞
SEL
Over
A
RECALL
PJ Power
Mic1
1
On
30[H] (‘0’)
B
Mic2
2
Standby
31[H] (‘1’)
C
Mic3
3
32[H] (‘2’)
D
Mic4
4
33[H] (‘3’)
E
MicLine5
5
34[H] (‘4’)
F
MicLine6
6
35[H] (‘5’)
OFF
Line3
7
36[H] (‘6’)
Line4
8
37[H] (‘7’)
Out1
9
38[H] (‘8’)
Out2
10
39[H] (‘9’)
Out3
11
3A[H] (‘:’)
Out4
12
3B[H] (‘;’)
Out5
13
3C[H] (‘<’)
Out6
14
3D[H] (‘=’)
Out7
15
3E[H] (‘>’)
Out8
16
3F[H] (‘?’)
MasterA
17
40[H] (‘@’)
MasterB
18
41[H] (‘A’)
19
42[H] (‘B’)
20
43[H] (‘C’)
Example: When setting the respective parameters as shown below.
INPUT1 function 1
: AV SEL
INPUT1 function 2
:B
INPUT2-12 function 1
: NONE
INPUT2-12 function 2
: NONE
OUTPUT1 function 1
: RECALL
OUTPUT1 function 2
:1
OUTPUT2-10 function 1 : NONE
OUTPUT2-10 function 2 : NONE
43[H] 4D[H] 54[H] 53[H] 31[H] 31[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H]
30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H]
34[H] 32[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 30[H]
30[H] 30[H] 30[H] 30[H] 30[H] 30[H] 0D[H]
(‘C P I O 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 CR’)
– 49 –
PARALLEL I/O PARAMETER REQUEST : 52[H] 50[H] 49[H] 4F[H] ('RPIO')
This command is used to read setup of the REMOTE PARALLEL terminal from the SRP-X700P.
• Packet format
52[H] 50[H] 49[H] 4F[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 44 bytes of the PARALLEL I/O command parameter from which the scene No. is exempted.
REC OUT : 43[H] 4F[H] 52[H] 31[H],32[H] (‘COR1,2’)
This command is used to implement setting up the desired single channel of the REC OUT 1 and 2.
Various setups can be memorized in the scene memories by specifying these scene Nos.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
REC OUT 1
52[H] 4F[H] 52[H] 31[H] ‘ROR1’
REC OUT 2
52[H] 4F[H] 52[H] 32[H] ‘ROR2’
• Packet format
43[H] 4F[H] 52[H] 31[H] “parameter” 0D[H]
(In the case of REC OUT 1)
• Parameter
The parameter consists of the 10 bytes all the time in the order as shown in the table below.
byte
Parameter name
1st
SCENE No.
2nd-9th
INDEX
10th
REF LEVEL
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
At the same time, when you specify the scene No. (31[H] (‘1’) through 44[H] (‘D’)), the parameters of the subsequent 2nd to 10th bytes
are written in the scene memory.
Method to set the scene No. and index is the same as that of the GROUP FADER command. See pages 29 and 30.
Method to set the REF LEVEL is the same as that of the LINE OUTPUT3-8 commands. See page 40.
For the packet example, see the example of the LINE 3 INPUT command on page 35. However, the parameter length becomes 10 bytes.
– 50 –
REC OUT PARAMETER REQUEST : 52[H] 4F[H] 4D[H] 33[H],32[H] (‘ROR1,2’)
This command is used to read parameter of the desired single channel of the REC OUT 1 and 2 from the SRP-X700P.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
REC OUT 1
52[H] 4F[H] 52[H] 31[H] ‘ROR1’
REC OUT 2
52[H] 4F[H] 52[H] 32[H] ‘ROR2’
• Packet format
52[H] 4F[H] 52[H] 31[H] “parameter” 0D[H]
(In the case of REC OUT 1)
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 9 bytes of the REC OUT1, 2 commands’ parameter from which the scene No. is exempted.
REMOTE : 43[H] 53[H] 49[H] 4F[H] (‘CSIO’)
This command is used to set the CONTROL S OUTPUT and the PROJECTOR CONTROL.
• Packet format
43[H] 53[H] 49[H] 4F[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 24 bytes all the time in the order as shown in the table below.
The 24th byte should always be set to the fixed value (30[H] (‘0’)).
byte
byte
1st
LINE3 MACHINE TYPE
13th
LINE4F MACHINE TYPE
2nd
LINE3 CONNECTED CHANNEL
14th
LINE4F CONNECTED CHANNEL
3rd
LINE4A MACHINE TYPE
15th
CONTROL S I/F TYPE
4th
LINE4A CONNECTED CHANNEL
16th
PJ CONTROL
5th
LINE4B MACHINE TYPE
17th
LINE4 A SIGNAL DEFINE
6th
LINE4B CONNECTED CHANNEL
18th
LINE4 B SIGNAL DEFINE
7th
LINE4C MACHINE TYPE
19th
LINE4 C SIGNAL DEFINE
8th
LINE4C CONNECTED CHANNEL
20th
LINE4 D SIGNAL DEFINE
9th
LINE4D MACHINE TYPE
21st
LINE4 E SIGNAL DEFINE
10th
LINE4D CONNECTED CHANNEL
22nd
LINE4 F SIGNAL DEFINE
11th
LINE4E MACHINE TYPE
23rd
PROJECTOR PROTOCOL
12th
LINE4E CONNECTED CHANNEL
24th
30[H] (‘0‘) fixed
– 51 –
• LINE3-4F machine type (1, 3, 5, 7, 9, 11 and 13th byte)
This command is used to set category of the Control S.
Supported firmware
version
MACHINE TYPE
NONE
30[H] (‘0’)
1.00 and higher
DVD
31[H] (‘1’)
1.00 and higher
VTR1(Beta)
32[H] (‘2’)
1.00 and higher
VTR2(8mm)
33[H] (‘3’)
1.00 and higher
VTR3(VHS)
34[H] (‘4’)
1.00 and higher
VTR4(DV)
35[H] (‘5’)
1.00 and higher
MD
36[H] (‘6’)
1.00 and higher
CD
37[H] (‘7’)
1.00 and higher
CD-R
38[H] (‘8’)
1.00 and higher
Blu-ray Disc
VTR(Inst.)
39[H] (‘9’)
1.30 and higher
3A[H] (‘:’)
1.30 and higher
Cassette Deck
3B[H] (‘;’)
1.30 and higher
• LINE3-4F connection (2, 4, 6, 8, 10, 12 and 14th byte)
This command is used to set the output channel of the CONTROL S signal.
CHANNEL TYPE
1
40[H] (‘@’)
2
41[H] (‘A’)
3
42[H] (‘B’)
4
43[H] (‘C’)
• CONTROL S I/F TYPE (15th byte)
This command is used to set the connection type of the channels 1 to 4 of the CONTROL S OUTPUT terminal.
When you want to set the I/F type to WIRED, set the corresponding bit to 0. When you want to set the I/F type to IR, set the
corresponding bit to 1.
Bits 4 through 7 are fixed all the time.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
CH4
CONNECTION
TYPE
bit2
CH3
CONNECTION
TYPE
bit1
CH2
CONNECTION
TYPE
bit0
CH1
CONNECTION
TYPE
• PJ CONTROL (16th byte)
This command is used to set ON/OFF of the REMOTE POWER ENABLE and selection of the PROJECTOR CONTROL terminal with
the 8-bit data.
When you want to set the REMOTE POWER ENABLE to ON, set bit 1 to 1. When you to set it to OFF, set bit 1 to 0.
Bit 0 (I/F) changes depending on the setup of the “Projector Protocol” described later.
Bits 2 through 7 are fixed all the time.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
0
– 52 –
bit2
0
bit1
REMOTE
POWER
ENABLE
bit0
I/F
• Video signal type (17th through 22nd byte)
This command is used to set the type of video signal of the equipment connected to LINE4 A to F.
SIGNAL DEFINE
VIDEO
30[H] (‘0’)
S VIDEO
31[H] (‘1’)
RGB
32[H] (‘2’)
COMPONENT
33[H] (‘3’)
LAN
34[H] (‘4’)
• Projector protocol (23rd byte)
This command is used to select protocol of the projector to be connected.
Bit 0 of the “PJ CONTROL” changes depending on the protocol.
PROTOCOL
PJ CONTROL
bit0
Supported firmware
version
VPL-FX50
30[H] (‘0’)
0
1.00 and higher
VPL-PX32/31/21
31[H] (‘1’)
0
1.00 and higher
PFM-42B1
32[H] (‘2’)
0
1.00 and higher
VPL-PX15
33[H] (‘3’)
1
1.00 and higher
VPL-PX10/PS10
34[H] (‘4’)
1
1.00 and higher
VPL-CX11/CX10
35[H] (‘5’)
1
1.00 and higher
SANYO LP-XP45/40
VPL-PX11
VPL-PX40/35
PFM-50C1
36[H] (‘6’)
37[H] (‘7’)
38[H] (‘8’)
39[H] (‘9’)
1.00 and higher
1.20 and higher
1.20 and higher
1.20 and higher
User define
7A[H] (‘z’)
0
0
0
0
0
1.10 and higher
Example: When setting the respective parameters as shown below.
LINE3 machine type
: CD
LINE3 connected channel
:1
LINE4A-F machine type
: NONE
LINE4A-F machine type
:2
CONTROL S I/F TYPE
: CH1 is set to IR, and CH2-4 are set to WIRED.
PJ CONTROL
: REMOTE POWER ENABLE is set to ON.
LINE4 A-C signal define
: VIDEO
LINE4 D-F signal define
: RGB
Projector protocol
: VPL-FX50
43[H] 4D[H] 54[H] 53[H] 37[H] 40[H] 30[H] 41[H] 30[H] 41[H] 30[H] 41[H] 30[H] 41[H] 30[H]
41[H] 30[H] 41[H] 41[H] 42[H] 30[H] 30[H] 30[H] 32[H] 32[H] 32[H] 30[H] 30[H] 0D[H]
(‘C S I O 7 @ 0 A 0 A 0 A 0 A 0 A 0 A A B 0 0 0 2 2 2 0 0 CR’)
REMOTE PARAMETER REQUEST : 52[H] 50[H] 49[H] 4F[H] (‘RPIO’)
This command is used to read setups of the CONTROL S OUTPUT and PROJECTOR CONTROL from the SRP-X700P.
• Packet format
52[H] 50[H] 49[H] 4F[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 24 byte parameter of the REMOTE command.
– 53 –
ROUTING : 43[H] 52[H] 4C[H] 31[H]-38[H] (‘CRL1-8’)
43[H] 52[H] 52[H] 31[H]-32[H] (‘CRR1-2’)
This command is used to set the routing for the OUTPUT channels.
Various setups can be memorized in the scene memories by specifying these scene Nos.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
LINE OUTPUT 1
43[H] 52[H] 4C[H] 31[H] ‘CRL1’
LINE OUTPUT 2
43[H] 52[H] 4C[H] 32[H] ‘CRL2’
LINE OUTPUT 3
43[H] 52[H] 4C[H] 33[H] ‘CRL3’
LINE OUTPUT 4
43[H] 52[H] 4C[H] 34[H] ‘CRL4’
LINE OUTPUT 5
43[H] 52[H] 4C[H] 35[H] ‘CRL5’
LINE OUTPUT 6
43[H] 52[H] 4C[H] 36[H] ‘CRL6’
LINE OUTPUT 7
43[H] 52[H] 4C[H] 37[H] ‘CRL7’
LINE OUTPUT 8
43[H] 52[H] 4C[H] 38[H] ‘CRL8’
REC OUT 1
43[H] 52[H] 52[H] 31[H] ‘CRR1’
REC OUT 2
43[H] 52[H] 52[H] 32[H] ‘CRR2’
• Packet format
43[H] 52[H] 4C[H] 31[H] “parameter” 0D[H]
(In the case of LINE OUTPUT1)
• Parameter
The parameter consists of the 20 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.
11 th
LINE4 A-C,F R LEVEL
2nd
MIC1/WL1 LEVEL
12 th
LINE4 D-E L LEVEL
3rd
MIC2/WL2 LEVEL
13 th
LINE4 D-E R LEVEL
4th
MIC3 LEVEL
14 th
LINE4 D-E LS LEVEL
5th
MIC4 LEVEL
15 th
LINE4 D-E RS LEVEL
6th
MIC5/LINE1 LEVEL
16 th
LINE4 D-E C LEVEL
7th
MIC6/LINE2 LEVEL
17 th
LINE4 D-E SW LEVEL
8th
LINE3 L LEVEL
18 th
MIC1/WL1-MIC6/LINE2 ON/OFF
9th
LINE3 R LEVEL
19 th
LINE3-LINE4A-C ON/OFF
10th
LINE4 A-C,F L LEVEL
20 th
LINE4 D,E ON/OFF
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
At the same time, when you specify the scene No.(31[H] (‘1’) through 44[H] (‘D’)), parameters of the subsequent 2nd through 20th byte
are written in the scene memory.
For the method of setting the scene No., see the GROUP FADER command (pages 29 and 30).
– 54 –
• Level (2-17th byte)
This command is used to set the ASSIGN level [dB].
LEVEL
-20
40[H] (‘@’)
-15
45[H] (‘E’)
-12
48[H] (‘H’)
-9
4B[H] (‘K’)
-6
4E[H] (‘N’)
-3
53[H] (‘S’)
0
59[H] (‘Y’)
• MIC1/WL1-MIC6/LINE2 ON/OFF (18th byte)
This command is used to turn ON/OFF the routing of the MIC1/WL1 to MIC6/LINE2 with the 8-bit data.
bit7
0
bit6
1
bit5
MIC6/
LINE2
bit4
MIC5/
LINE1
bit3
MIC4
bit2
MIC3
bit1
MIC2/
WL2
bit0
MIC1/
WL1
When you want to set the respective input channels to ON, set the corresponding bit to 1. When you want to set the corresponding bit
to 0.
Bit-6 and bit-7 are fixed all the time.
• LINE3-LINE4 A-C ON/OFF (19th byte)
This command is used to turn ON/OFF the routing of the LINE3 and LINE4 A to C with the 8-bit data.
bit7
0
bit6
1
bit5
0
bit4
0
bit3
bit2
bit1
LINE4 A-C LINE4 A-C LINE3
R
L
R
bit0
LINE3
L
When you want to set the respective input channels to ON, set the corresponding bit to 1. When you want to set the corresponding bit
to 0.
Bit-4 to bit-7 are fixed all the time.
• LINE4 D,E ON/OFF (20th byte)
This command is used to turn ON/OFF the routing of the LINE4 D and E with the 8-bit data.
bit7
0
bit6
1
bit5
LINE4
D,E
RS
bit4
LINE4
D,E
LS
bit3
LINE4
D,E
SW
bit2
LINE4
D,E
R
bit1
LINE4
D,E
C
bit0
LINE4
D,E
L
When you want to set the respective input channels to ON, set the corresponding bit to 1. When you want to set the corresponding bit
to 0.
Bit-6 and bit-7 are fixed all the time.
Example: When setting the respective parameters of LINE OUTPUT1 as shown below.
MIC1/WL1-MIC5/LINE2 level
: 0dB
LINE3 L - LINE 4D-E SW level
: -9dB
MIC1/WL1-MIC6/LINE2 ON/OFF
: MIC1/WL1 through MIC4 are set to ON.
MIC5/LINE1 and MIC6/LINE2 are set to OFF.
LINE3 - LINE4A-C ON/OFF: LINE3
: Set all to OFF.
LINE4 D,E ON/OFF
: Set all to OFF.
43[H] 52[H] 4C[H] 31[H] 30[H] 59[H] 59[H] 59[H] 59[H] 59[H] 59[H] 4B[H] 4B[H] 4B[H]
4B[H] 4B[H] 4B[H] 4B[H] 4B[H] 4B[H] 4B[H] 4B[H] 4B[H] 4F[H] 40[H] 40[H] 0D[H]
( ‘C R L 1 0 Y Y Y Y Y Y K K K K K K K K K K O @ @’ )
– 55 –
ROUTING PARAMETER REQUEST : 52[H] 52[H] 4C[H] 31[H]-38[H] (‘RRL1-8’)
52[H] 52[H] 52[H] 31[H]-32[H] (‘RRR1-2’)
This command is used to read setup of the routing to the OUTPUT channels with the 8-bit data from the SRP-X700P.
The commands that correspond to the respective channels are shown below.
CHANNEL
Command
LINE OUTPUT 1
52[H] 52[H] 4C[H] 31[H] ‘RRL1’
LINE OUTPUT 2
52[H] 52[H] 4C[H] 32[H] ‘RRL2’
LINE OUTPUT 3
52[H] 52[H] 4C[H] 33[H] ‘RRL3’
LINE OUTPUT 4
52[H] 52[H] 4C[H] 34[H] ‘RRL4’
LINE OUTPUT 5
52[H] 52[H] 4C[H] 35[H] ‘RRL5’
LINE OUTPUT 6
52[H] 52[H] 4C[H] 36[H] ‘RRL6’
LINE OUTPUT 7
52[H] 52[H] 4C[H] 37[H] ‘RRL7’
LINE OUTPUT 8
52[H] 52[H] 4C[H] 38[H] ‘RRL8’
REC OUT 1
52[H] 52[H] 52[H] 31[H] ‘RRR1’
REC OUT 2
52[H] 52[H] 52[H] 32[H] ‘RRR2’
• Packet format
52[H] 52[H] 4C[H] 31[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 19 bytes of the ROUTING command parameter from which the scene No. is exempted.
SCENE INDEX REQUEST : 52[H] 53[H] 43[H] 49[H] (‘RSCI’)
This command is used to read index of the scene memory from the SRP-X700P.
• Packet format
52[H] 53[H] 43[H] 49[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the SCENE STORE command.
• Return packet format
When communication with the SRP-X700P is established with success, the 8-bytes index is returned together with ACK (41[H] (‘A’)) in
the order shown below.
41[H] “index” 0D[H]
– 56 –
SCENE PARAMETER REQUEST : 52[H] 53[H] 43[H] 52[H] (‘RSTR’)
This command is used to read the setups of the functions of recalling at the event of scene recall from the SRP-X700P for all scene
memories.
• Packet format
52[H] 53[H] 43[H] 52[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter consists of the 40 bytes all the time in the order as shown in the table below.
byte
Parameter name
byte
Parameter name
1st
SCENE No.1 FUNCTION1
21st
SCENE No.11 FUNCTION1
2nd
SCENE No.1 FUNCTION2
22nd
SCENE No.11 FUNCTION2
3rd
SCENE No.2 FUNCTION1
23rd
SCENE No.12 FUNCTION1
4th
SCENE No.2 FUNCTION2
24th
SCENE No.12 FUNCTION2
5th
SCENE No.3 FUNCTION1
25th
SCENE No.13 FUNCTION1
6th
SCENE No.3 FUNCTION2
26th
SCENE No.13 FUNCTION2
7th
SCENE No.4 FUNCTION1
27th
SCENE No.14 FUNCTION1
8th
SCENE No.4 FUNCTION2
28th
SCENE No.14 FUNCTION2
9th
SCENE No.5 FUNCTION1
29th
SCENE No.15 FUNCTION1
10th
SCENE No.5 FUNCTION2
30th
SCENE No.15 FUNCTION2
11th
SCENE No.6 FUNCTION1
31st
SCENE No.16 FUNCTION1
12th
SCENE No.6 FUNCTION2
32nd
SCENE No.16 FUNCTION2
13th
SCENE No.7 FUNCTION1
33rd
SCENE No.17 FUNCTION1
14th
SCENE No.7 FUNCTION2
34th
SCENE No.17 FUNCTION2
15th
SCENE No.8 FUNCTION1
35th
SCENE No.18 FUNCTION1
16th
SCENE No.8 FUNCTION2
36th
SCENE No.18 FUNCTION2
17th
SCENE No.9 FUNCTION1
37th
SCENE No.19 FUNCTION1
18th
SCENE No.9 FUNCTION2
38th
SCENE No.19 FUNCTION2
19th
SCENE No.10 FUNCTION1
39th
SCENE No.20 FUNCTION1
20th
SCENE No.10 FUNCTION2
40th
SCENE No.20 FUNCTION2
Parameters of the Functions 1 and 2 are the same as those of the SCENE STORE command. See page 60.
– 57 –
SCENE RECALL BUTTON : 43[H] 52[H] 53[H] 41[H] (‘CRSA’)
This command is used to set the scene No. to be recalled, to the SCENE RECALL A to D buttons on the front of the SRP-X700P.
• Packet format
43[H] 52[H] 53[H] 41[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 4 bytes all the time in the order as shown in the table below.
byte
Parameter name
1st
RECALL A SCENE No.
2nd
RECALL B SCENE No.
3rd
RECALL C SCENE No.
4th
RECALL D SCENE No.
Method of specifying the scene No. is the same as that of the SCENE STORE command.
Example: When you want to set the respective buttons as shown below.
RECALL A
: Scene No.1
RECALL B
: Scene No.2
RECALL C
: Scene No.3
RECALL D
: Scene No.4
43[H] 52[H] 53[H] 41[H] 31[H] 32[H] 33[H] 34[H] 0D[H]
(‘C R S A 1 2 3 4 CR’)
– 58 –
SCENE RECALL BUTTON PARAMETER REQUEST :
52[H] 52[H] 53[H] 41[H] (‘RRSA’)
This command is used to read the scene Nos. that are set to the SCENE RECALL A to D buttons on the front of the SRP-X700P.
• Packet format
52[H] 52[H] 53[H] 41[H] 0D[H]
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as that of the SCENE RECALL BUTTON command.
SCENE STORE : 43[H] 53[H] 54[H] 52[H] ( ‘CSTR’ )
This command is used to store the scenes to the scene memory.
The procedure to store the scenes to the scene memory is shown below.
1. Specify the scene numbers that you want to store using the respective commands of MIC INPUT, LINE3 INPUT, LINE4 INPUT,
ROUTING, LINE OUTPUT 1 and 2, LINE OUTPUT 3 through 8, REC OUT, SPEAKER OUTPUT, MUTING/LINE 4 SELECT
and GROUP FADER. Then send the parameters that you want to store, to the scene memory.
2. Send the SCENE STORE command to store the scenes.
• Packet format
43[H] 53[H] 54[H] 52[H] “parameter” 0D[H]
• Parameter
The parameter consists 11 bytes all the time in the order as shown in the table below.
byte
Parameter name
1st
SCENE No.
2nd-9th
INDEX
10th
FUNCTION1
11th
FUNCTION2
Method of setting index is the same as that of the GROUP FADER command. See page 29.
– 59 –
• Scene No. (1st byte)
This command is used to specify the scene No. to be stored.
SCENE No.
SCENE No.
1
31[H] ( ‘1’ )
11
3B[H] ( ‘;’ )
2
32[H] ( ‘2’ )
12
3C[H] ( ‘<’ )
3
33[H] ( ‘3’ )
13
3D[H] ( ‘=’ )
4
34[H] ( ‘4’ )
14
3E[H] ( ‘>’ )
5
35[H] ( ‘5’ )
15
3F[H] ( ‘?’ )
6
36[H] ( ‘6’ )
16
40[H] ( ‘@’ )
7
37[H] ( ‘7’ )
17
41[H] ( ‘A’ )
8
38[H] ( ‘8’ )
18
42[H] ( ‘B’ )
9
39[H] ( ‘9’ )
19
43[H] ( ‘C’ )
10
3A[H] ( ‘:’ )
20
44[H] ( ‘D’ )
• Function 1, 2 (10, 11th byte)
This command is used to specify the function to implement recalling at the event of scene recall with the two 8-bit data.
When you want to recall the scene, set the corresponding bit to 1. When you do not want to recall the scene, set the corresponding bit
to 0.
If bit 5 (Clear) of the function 1 is 1, the scene memory is cleared and the scene will not be recalled.
Bit-6 and bit-7 of the function 1 and bit-5 to bit-7 of the function 2 are fixed all the time.
<Function 1>
bit7
bit6
0
1
bit5
Clear
bit4
ROUTING
bit3
bit2
AV
INPUT
SELECTOR FADER
bit1
INPUT
MUTING
bit0
INPUT
FUNCTION
<Function 2>
bit7
bit6
0
1
bit5
0
bit4
FADER
GROUP
bit3
GROUP
MUTING
bit1
OUTPUT
MUTING
bit0
OUTPUT
FUNCTION
bit2
OUTPUT
FADER
Example: When setting the respective parameters as shown below.
Scene No.
:1
Index
: START
Function 1,2 : All recall
43[H] 53[H] 54[H] 52[H] 31[H] 53[H] 54[H] 41[H] 52[H] 54[H] 20[H] 20[H] 20[H] 5F[H]
5F[H] 0D[H]
(‘C S T R 1 S T A R T s s s _ _ CR’)
“s” indicates the space.
– 60 –
SPEAKER OUTPUT : 43[H] 4F[H] 53[H] 50[H] (‘COSP’)
This command is used to set the SPEAKER OUTPUT.
Various setups can be memorized in the scene memories by specifying these scene Nos.
• Packet format
43[H] 4F[H] 4C[H] 33[H] “parameter” 0D[H]
• Parameter
The parameter consists of the 22 bytes all the time in the order as shown in the table below.
byte
Parameter name
1st
SCENE No.
2nd
FUNCTION ON/OFF
3rd-10th
CH1 INDEX
11th
CH1 SELECTOR
12th
CH1 ATT
13th-20th
CH2 INDEX
21st
CH2 SELECTOR
22nd
CH2 ATT
When you specify NONE (30[H] ‘0’) as the scene No. in the 1st byte, you can establish the present setup.
At the same time, when you specify the scene No. (31[H] (‘1’) through 44[H] (‘D’)), parameters of the subsequent 2nd through 22nd
byte are written in the scene memory.
Method of setting the scene No. and setting index of each channel, refer to the GROUP FADER command (pages 29 and 30).
For the packet example, see the example of the LINE 3 INPUT command on page 35. However, the parameter length becomes 22 bytes.
• Function ON/OFF (2nd byte)
This command is used to set the mode of the SPEAKER OUT terminal.
When you want to set the Lo Imp. mode, set 40[H] (‘@’). When you want to set the 70V LINE mode, set 41[H] (‘A’).
• CH1, 2 selector (11, 21st byte)
This command is used to select the signal to be output from the SPEAKER OUTPUT terminal.
CHANNEL
CHANNEL
LINE OUTPUT 1
30[H] (‘0’)
LINE OUTPUT 6
35[H] (‘5’)
LINE OUTPUT 2
31[H] (‘1’)
LINE OUTPUT 7
36[H] (‘6’)
LINE OUTPUT 3
32[H] (‘2’)
LINE OUTPUT 8
37[H] (‘7’)
LINE OUTPUT 4
33[H] (‘3’)
REC OUT1
38[H] (‘8’)
LINE OUTPUT 5
34[H] (‘4’)
REC OUT2
39[H] (‘9’)
– 61 –
• ATT (12, 22nd byte)
This command is used to set the ATT level [dB] of SPEAKER OUTPUT.
ATT LEVEL
ATT LEVEL
ATT LEVEL
∞
30[H] (‘0‘)
18
42[H] (‘B’)
8
4C[H] (‘L’)
30
39[H] (‘9‘)
17
43[H] (‘C’)
7
4D[H] (‘M’)
27
3A[H] (‘:‘)
16
44[H] (‘D’)
6
4E[H] (‘N’)
25
3B[H] (‘;‘)
15
45[H] (‘E’)
5
4F[H] (‘O’)
24
3C[H] (‘<‘)
14
46[H] (‘F’)
4
51[H] (‘Q’)
23
3D[H] (‘=‘)
13
47[H] (‘G’)
3
53[H] (‘S’)
22
3E[H] (‘>‘)
12
48[H] (‘H’)
2
55[H] (‘U’)
21
3F[H] (‘?‘)
11
49[H] (‘I’)
1
57[H] (‘W’)
20
40[H] (‘@‘)
10
4A[H] (‘J’)
0
59[H] (‘Y’)
19
41[H] (‘A‘)
9
4B[H] (‘K’)
SPEAKER OUTPUT PARAMETER REQUEST : 52[H] 4F[H] 53[H] 50[H] (‘ROSP’)
This command is used to read the setup of the SPEAKER OUTPUT from the SRP-X700P.
• Packet format
52[H] 4F[H] 53[H] 50[H] “parameter” 0D[H]
• Parameter
Specify the scene No. of the scene memory that you want to read, as the parameter.
Method of specifying the scene No. is the same as that of the GROUP FADER command. See page 29.
• Return packet format
When communication with the SRP-X700P is established with success, the parameter is returned together with ACK (41[H] (‘A’)) in the
order shown below.
41[H] “parameter” 0D[H]
The parameter is the same as the 21 bytes of the SPEAKER OUTPUT command parameter from which the scene No. is exempted.
9-870-518-12
Sony Corporation
– 62 –
Printed in Japan
