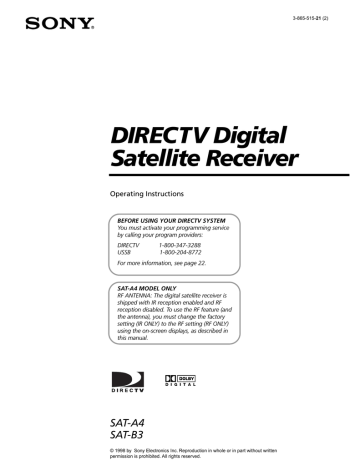

3-865-51521 (2)
DIRECTV Digital
Satellite Receiver
Operating Instructions
BEFORE USING YOUR DIRECTV SYSTEM
You must activate your programming service by calling your program providers:
DIRECTV
USSB
1-800-347-3288
1-800-204-8772
For more information, see page 22.
SAT-A4 MODEL ONLY
RF ANTENNA: The digital satellite receiver is shipped with IR reception enabled and RF reception disabled. To use the RF feature (and the antenna), you must change the factory setting (IR ONLY) to the RF setting (RF ONLY) using the on-screen displays, as described in this manual.
®
SAT-A4
SAT-B3
© 1998 by Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved.
2
WARNING
To reduce the risk of fire or shock hazard, do not expose the unit to rain or moisture.
Owner’s Record
The model and serial numbers are located on the bottom of the
Digital Satellite Receiver. The number for the access card is on the back of the card and on the carton label. Record these numbers in the space provided below. Refer to these numbers whenever you need to call your sales or service representative regarding this product.
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of significant magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Note to the CATV Installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.
Note to the Satellite Dish Antenna Installer
This reminder is provided to call the Satellite Antenna installer’s attention to Article 810 and in particular Article 810-15 of the NEC, which covers proper installation and grounding of television receiving equipment, as well as to Article 820-40 of the NEC, which specifies that the Satellite Antenna cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.
Telephone Line Interruption
Periodically, information on your DIRECT TICKET® and Pay Per
View selections is sent, free of charge, via your telephone line to an
800 number. During the time the information is being forwarded, you cannot use your telephone and you will hear static noise for approximately 30 seconds. If you would like to use your telephone while the information is being sent, you can interrupt the sending of this information at any time by temporarily unplugging the phone line to the receiver.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Model Number: ___________________________________________
Serial Number:_____________________________________________
Access Card Number:_______________________________________
Customer Support
For Programming
For subscription information, or to resolve problems related to programming, call:
DIRECTV at 1-800-DIRECTV (347-3288) or
USSB at 1-800-204-USSB (8772).
For Hardware and Installation
To arrange for the installation of your DIRECTV System, call the dealer from whom you purchased your system.
For general information, or to resolve problems related to the operation of your Digital Satellite Receiver or Satellite Antenna, please contact your Sony dealer. If your dealer or installer is unable to answer your questions, call the Sony Satellite System
Information Center at 1-800-838-7669.
Trademark and Copyrights
Sony and Express Navigator are trademarks of Sony. DIRECTV is a trademark of DIRECTV, Inc., a unit of Hughes Electronics, and is used with permission. USSB and USSB Entertainment Plus are official service marks of the United States Satellite Broadcasting
Company, Inc.
Manufactured under license from Dolby Laboratories Licensing
Corporation. “Dolby”, the double-D symbol, and “AC-3” are trademarks of Dolby Laboratories Licensing Corporation.
Macrovision Information
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology is granted by
Macrovision for home and other limited pay-per-view uses only.
Reverse engineering or disassembly is prohibited.
Note on Recording Programming
Programming may be taped for home viewing only. All other taping is expressly prohibited. Some programming may not be taped. An additional taping fee may be applied. Call your program providers for details.
StarSight Licensed
The manufacture and sale of the television schedule feature of this product was licensed under one or more of the following patents of StarSight Telecast, Inc.: U.S. Patent Nos. 4,706,121; 4,977,455;
5,151,789; and 5,353,121; with use rights reserved.
Network Broadcasting Information
ABC, CBS, NBC, FOX, and PBS networks are available from
DIRECTV. Some restrictions apply.
2
Contents
4
5
6
Chapter 1
Introducing the DIRECTV System
Features
Package Contents
Inserting Batteries into the Remote Control
Chapter 2
Using Basic Functions
7
8
9
10
Remote Control for Model SAT-A4
Remote Control for Model SAT-B3
Using a Program Guide
Using the Station Index
Chapter 3
Connecting Your DIRECTV System
11
12
14
16
18
19
20
Overview
TV Only
TV and VCR
Home Entertainment System
(Hi-Fi TV, Hi-Fi VCR, Audio/Video
Receiver)
Connecting the IR Blaster
Setting Up the RF Antenna (SAT-A4 Only)
Setting Up Your DIRECTV System
29
30
33
35
24
25
26
28
37
40
41
Chapter 4
Using the DIRECTV System Features
21
22
23
Overview
Before You Get Started ...
Using the On-Screen Displays:
Highlight and Select
Displaying the Program Guide
Features of the Program Guide
Moving Through the Program Guide
Selecting a Program from the Guide
Selecting a Category List
Selecting a Different Category Guide or List
Using the Station Index
Setting Up the Timer
Using the Favorite Station Guides
Displaying the Program Banner
Using the DISPLAY Feature
Chapter 5
Using the Options Menu
48
49
54
56
43
44
45
46
59
61
Overview
Displaying the Options Menu
Checking and Cancelling PPV Purchases
Setting Display Options
Using the Jump Loop Feature
Setting Locks and Limits
Setting Up a List of Custom Stations
Setting Audio Options
Reading Your Messages
Selecting Data Services
Chapter 6
Using the Setup Menu
63
64
65
66
68
70
71
75
76
Overview
Displaying the Setup Menu
Setting Up the Satellite Dish Antenna
VCR Recording
Replacing Your Access Card
Setting the Aspect Ratio
Setting Up the Remote Control (SAT-A4
Only)
Running a System Test
Displaying Help, Tips, and Shortcuts
Appendix
Other Information
90
91
92
93
94
78
81
85
87
Location and Function of Controls
Using the Remote Control
Programming the Remote Control
Troubleshooting
Precautions
FCC Regulations and Information
Limited Warranty
Specifications
Index
Contents 3
4
Chapter 1
Introducing the DIRECTV System
Welcome to the Sony brand DIRECTV System, the ultimate digital entertainment experience. Read this chapter for an overview of features of the system and to check the carton contents of the Digital Satellite
Receiver.
Features
Here are just a few benefits you’ll enjoy:
Excellent Performance
q Superior, digital-quality video that rivals the performance of laserdisc players.
q Crisp digital-quality audio that will enhance your TV or home theater experience.
Premium Entertainment
q Choose from a variety of program packages available through your program providers, DIRECTV and USSB.
q Connect this receiver to your Dolby
®
Digital decoder or Dolby
Digital A/V receiver for dynamic surround sound.
Convenience and Ease-of-Use
q Order premium pay per view (PPV) movies. PPV programs start as often as every 30 minutes, so you can watch programs when you want to see them.
q Sony’s Express Navigator
on-screen display system guides you through all the system features and functions.
q Select from a variety of program guides that are sorted by program categories, including Sports, Movies, News, and more.
q The Timer feature, when used with Sony’s IR Blaster, allows easy
One Button Recording of digital satellite programs.
Easy to Customize
q Create a Custom Category Guide and up to five of your own
Favorite Station Guides for stations you watch most often. q Change the color palette, and station ordering of the program guides. Use the DISPLAY button to toggle among different sizes of on-screen displays.
q Set up a passcode, which lets you choose spending limits and control viewing of programs by rating and station.
Package Contents
Check to make sure you’ve received the following items in the Digital
Satellite Receiver’s carton:
Digital Satellite
Receiver
*
MUTING
POWER
TV
SAT
SLEEP
CABLE
CABLE
TV
FUNCTION
POSITION
AUDIO
SWAP
TV/SAT
SAT
PIP
OFF
+
CH -
JUMP
FAVORITE
TV/VIDEO 1
2
4
3
5
7
DISPLAY
8
6
9
ENTER
INDEX
0
GUIDE
CATEGORY
MENU
VOL
CH
EXIT
PAGE
*
Access Card
*
* RF Antenna and S-Video cable are not included with SAT-B3. SAT-A4 includes the RM-Y800 remote control shown above; SAT-B3 includes the RM-Y139 remote control shown on page 8.
If you are missing items, contact the dealer from whom you purchased the Digital Satellite Receiver.
Note
Keep the original carton and packing materials to safely transport the system in the future.
5
Inserting Batteries into the Remote Control
Before you can use the remote control, you must first insert the supplied batteries. If you want to use this remote control to operate other video components, such as a TV or cable box, you must also program the remote as described in the Appendix on page 85.
To install the batteries:
1
Push and slide open the battery compartment.
SAT-A4 Remote Control:
SAT-B3 Remote Control:
2
Insert two size AA batteries (supplied). Be sure to match the + and
– marks on the batteries with the + and – marks in the battery compartment.
Notes on Batteries
q When the batteries become weak, the Function button indicator flashes. If the remote control does not operate properly, the batteries might be weak. When replacing batteries, replace both batteries with new ones. Do not mix different types of batteries together.
q
When you remove the batteries — to replace them, for example — any codes you’ve set may be erased. If this happens, you must reprogram the remote. See “Programming the Remote Control” on page 85 for details.
q
When replacing the batteries, do not touch any buttons on the remote control.
6
frutiger bold
Chapter 2
Using Basic Functions
You can start watching programs using just a few buttons on the remote control. Here’s an overview of the buttons you’ll use most often.
Remote Control for Model SAT-A4
MUTING SLEEP CABLE
POWER
TV
SAT
FUNCTION CABLE TV SAT
POSITION AUDIO SWAP
TV/VIDEO TV/SAT
PIP
+
CH
-
JUMP
OFF
FAVORITE
1 2 3
4 5 6
7
DISPLAY
8
0
CATEGORY INDEX
9
ENTER
GUIDE
VOL
MENU
EXIT
CH
PAGE
RM-Y800
SAT POWER Button
Turns the Digital Satellite Receiver on and off.
FUNCTION Buttons
Selects the component (SAT, TV, CABLE) that you want to operate.
These buttons flash to indicate which component the remote control is set to operate. To switch from the TV to SAT mode, press the
SAT FUNCTION button, and then press the TV/SAT button. To control your TV or cable box, you must first program the remote control, as described on page 85.
PIP Buttons
Control the Picture-In-Picture functions of your Sony TV (see page 81).
0–9 and ENTER Buttons
Pressing the 0–9 buttons and then the ENTER button selects a station number directly.
GUIDE Button
Press to display the Custom Guide.
CATEGORY Button
Press to display the Category Guide.
INDEX Button
Press to display the Station Index.
S
SATELLITE
RECEIVER
CH/PAGE Buttons
Changes the channel. When a program guide is displayed, pressing the CH/PAGE buttons pages through the guide.
Joystick/ Button
Moving the joystick up, down, left, right, and diagonally scrolls through the program guides. Pressing the button selects the program that’s highlighted.
See Also
q Pages 9–10 for a quick start to using the program guide and the
Station Index.
q Pages 81–83 for a complete description of the buttons on the remote.
7
Remote Control for Model SAT-B3
frutiger
MUTING
VTR TV
POWER
SAT
TV/VIDEO VTR
FUNCTION
TV SAT
TV/VTR
TV/SAT
1 2 3
4 5 6
7
DISPLAY
8
0
CATEGORY INDEX
9
ENTER
GUIDE
JUMP EXIT MENU FAVORITE
VOL CH
PAGE
CODE SET
RM-Y139
SATELLITE
RECEIVER
SAT POWER Button
Turns the Digital Satellite Receiver on and off.
FUNCTION Buttons
Selects the component (SAT, TV, VTR) that you want to operate. These buttons flash to indicate which component the remote control is set to operate. To control your TV or VTR(VCR), you must first program the remote control, as described on page 85.
VCR Control Buttons
Pressing the buttons will activate standard VCR features: Play, Record,
Pause, Stop, Rewind and Fast Forward.
0–9 and ENTER Buttons
Pressing the 0–9 buttons and then the ENTER button selects a station number directly.
GUIDE Button
Press to display the Custom Guide.
CATEGORY Button
Press to display the Category Guide.
INDEX Button
Press to display the Station Index.
Button
Selects the program that’s highlighted.
Arrow Buttons
Scroll through the program guide.
CH/PAGE Buttons
Change the channel. When a program guide is displayed, pressing the CH/PAGE buttons pages through the guide.
See Also
q Pages 9–10 for a quick start to using the program guide and the
Station Index.
q Page 84 for a complete description of the buttons on the remote.
8
Using a Program Guide
The program guide displays the programming that’s available from your program providers.
1
Press the GUIDE button to bring up the Custom Guide.
CUSTOM GUIDE
First Knight
8:00 PM 10:00 PM PG-13
Act. Adv. 1995 Richard Gere, Sean Connery, Julia
Ormond. Thrilling romance results when rogue knight
Lancelot becomes torn between his loyalty to King
Arthur and his love for Queen Guinevere (CC, ST) (A, V)
WED
DTV 106
8:00 PM
The Rainmaker
8:30 PM
Wynonna in Concert
DTV 107
DTV 108
Mr. Magoo
Ellen—All Day Ticket
DTV 109 The Postman (lbx)
DTV 110 Spice World—All Day Ticket
DTV 111
DTV 112
First Knight
Switchback
WED OCT 5 8:45 PM
9:00 PM
Mr. Magoo
Ellen All...
Mouse Hunt
2
3
Move the highlight to the name of the program you want.
You’ll hear the audio and see the video (in the background) of each program as they are highlighted.
The table below lists the various ways in which you can move around in the guide.
Press the button to select the highlighted program .
Moving Around
In a Program Guide
To Do This ...
Go to other stations in the guide one station at a time
You can also change the look of the program guide by pressing the DISPLAY button. See
“Using the DISPLAY Feature” on page 41.
Go to other time slots in the guide one program at a time
In program guides, you can select station call letters/numbers to display a description of the station.
Go to other stations in the guide one “page” at a time
Go to a station directly
Use This Button
SAT-A4 : Move the joystick up and down
SAT-B3 : Press the and buttons
SAT-A4: Move the joystick left and right to move one time slot at a time.
SAT-B3: Press the and buttons
Both Models: Or press the GUIDE button to “page” to future time slots.
Press the PAGE (CH+) and
PAGE (CH-) buttons
Press the 0-9 buttons and press ENTER
(to specify the station number)
Return to the last station you were watching
Press the EXIT button
9
Using the Station Index
The Station Index lets you select a program from a grid of station logos and call letters.
Note
Pressing EXIT removes all on-screen displays. Also, you may need to change to another station if a message appears, which requests that you press the button to purchase the program, etc.
1 INDEX
Press to bring up the Station Index .
STATION INDEX Sports Center
Your Station Index may not look exactly like this. The stations displayed depend on the programming you’ve ordered.
100 101 102 103 104 105 106
107 108 109 110 111 112 113
114 115 116 117 118 119 120
Moving Around
In the Station Index
2
3
Move the highlight to the station you want.
The program title is displayed at the top of the Station Index. Also, you’ll hear the audio and see the video (in the background) of each program, as they are highlighted.
The table below lists the various ways in which you can move around in the Station Index.
Press the button to tune to the program that’s highlighted.
To Do This ...
Go to other stations in the guide, one station at a time
You can also change the look of the Station
Index by pressing the DISPLAY button. See
“Using the DISPLAY Feature” on page 41.
Go to other stations in the Station
Index, one “page” at a time
Go to a station directly
Return to the last station you were watching
Use This Button
SAT-A4: Move the joystick in any direction
SAT-B3: Press the buttons
Press the PAGE (CH+) and
PAGE (CH-) buttons
Press the 0-9 buttons and press
ENTER (to specify the station number)
Press the EXIT button
10
Chapter 3
Connecting Your DIRECTV System
Read this chapter to set up your Digital Satellite Receiver for the first time, or to add or remove audio or video components connected to your system.
Overview
Note:
Before you connect the RG-6 coaxial cable from the LNB to the Digital Satellite
Receiver, make sure the Digital Satellite
Receiver is unplugged. This will prevent your Digital Satellite Receiver from experiencing a short.
(SAT-A4 Only)
You can connect the Digital Satellite Receiver in a variety of configurations. The answers to the following questions will determine how you hook up and operate your Digital Satellite Receiver. For example: q q q q
Do you have cable TV or a broadcast (terrestrial) TV antenna?
What type of connectors do your TV and VCR have: S-VIDEO,
A/V (RCA-type), or RF coaxial?
Do you plan to integrate your Digital Satellite Receiver with your audio or video system?
Do you have a Dolby Digital decoder or Dolby Digital A/V receiver?
Detailed hookup instructions are provided on the pages that follow.
For optimum audio and video performance, follow these general recommendations as much as possible when hooking up your components: q q q
If you have an audio or audio/video system, consider integrating the Digital Satellite Receiver into a home entertainment configuration to take advantage of your hi-fi system’s audio capabilities.
If your TV has an S-VIDEO jack, use it to connect your TV to the
Digital Satellite Receiver. An S-Video connection provides a better picture than A/V or RF connections.
If your TV does not have an S-VIDEO jack, use your TV’s A/V connectors to connect your components. An A/V connection provides a better picture and audio when compared to an RF connection.
q q
If you have a Dolby Digital decoder, or an A/V receiver with Dolby
Digital, you can connect these components using an optical cable and set the Audio options to allow Dolby Digital signals to be output to your other components (see page 58). Dolby Digital provides up to six discrete channels of audio for a complete surround sound experience
.
If your A/V receiver has a digital optical input terminal, you can connect it to your A/V receiver using an optical cable.
11
TV Only
TV With RF Connector Only
Your VHF/UHF IN jack may be labeled as
RF IN.
Refer to the illustration below.
1
Connect the RG-6 cable from the Satellite Antenna’s LNB to the
Digital Satellite Receiver’s SATELLITE IN jack.
2
Connect the Digital Satellite Receiver’s VHF(SAT)/UHF OUT jack to the TV’s VHF/UHF IN jack.
Note
A VHF/UHF connection does not provide stereo sound. To receive stereo sound, you must use an A/V connection (described on page 13).
3
Connect one end of the telephone line cord to the Digital Satellite
Receiver’s TEL LINE jack. Connect the other end to your home’s modular telephone outlet. Do not connect to a “wireless” telephone extension. Since these devices typically do not support high data rates, connecting to one may result in very slow operation or may even prevent connection with your program provider.
4
Connect one end of the AC power cord to the Digital Satellite
Receiver’s AC IN jack. Connect the plug end to an AC outlet.
Digital Satellite Receiver
ACCESS CARD
DIGITAL
OUT
(OPTICAL) LOW SPEED DATA
VCR CONTROL
SATELLITE IN
1
R
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
2 3
AC IN~
4
SAT-A4 receiver is pictured, but connections are identical for SAT-B3.
Optional Connections
q If you have a cable input, cable box, or a terrestrial TV antenna, connect it to the Digital Satellite Receiver’s VHF/UHF IN jack.
q You can also connect the Digital Satellite Receiver to your audio receiver’s AUDIO IN jacks using audio cables.
12
TV With A/V Connectors
If your TV has only one AUDIO IN jack, connect the lower (mono) AUDIO L jack on the Digital Satellite Receiver to the
TV’s AUDIO IN jack.
Refer to the illustration below.
1
Connect the RG-6 cable from the Satellite Antenna’s LNB to the
Digital Satellite Receiver’s SATELLITE IN jack.
2
Connect the Digital Satellite Receiver’s A/V jacks to the TV’s A/V
IN jacks.
3
Connect one end of the telephone line cord to the Digital Satellite
Receiver’s TEL LINE jack. Connect the other end to your home’s modular telephone outlet. Do not connect to a “wireless” telephone extension. Since these devices typically do not support high data rates, connecting to one may result in very slow operation or may even prevent connection with your program provider.
4
Connect one end of the AC power cord to the Digital Satellite
Receiver’s AC IN jack. Connect the plug end to an AC outlet.
Digital Satellite Receiver
ACCESS CARD
DIGITAL
OUT
(OPTICAL)
VCR CONTROL
SATELLITE IN
LOW SPEED DATA
R
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
3
1
2
AC IN~
4
SAT-A4 receiver is pictured, but connections are identical for SAT-B3.
Your VHF/UHF IN jack may be labeled as
RF IN.
Optional Connections
q If you have a cable input, cable box, or a terrestrial TV antenna, connect it to the TV’s VHF/UHF IN jack.
q Best Connection : If your TV has an S-VIDEO jack, use an S-VIDEO cable to connect the Digital Satellite Receiver’s S-VIDEO jack to the
TV’s S-VIDEO IN jack. This provides the best picture quality. Then use audio cables to connect one set of the Digital Satellite
Receiver’s audio jacks to the TV’s AUDIO IN jacks.
q
You can also connect the Digital Satellite Receiver to your audio receiver’s AUDIO IN jacks using audio cables.
13
TV and VCR
Your VHF/UHF IN jack may be labeled as
RF IN.
Refer to the illustration on the opposite page.
1
Connect the RG-6 cable from the Satellite Antenna’s LNB to the
Digital Satellite Receiver’s SATELLITE IN jack.
2
Complete one of the following to connect the Digital Satellite
Receiver: q
Better Connection : Connect the Digital Satellite Receiver’s A/V jacks to the A/V IN jacks on the TV and VCR. If your VCR has only one AUDIO IN jack (monoaural VCR), connect it to the lower AUDIO L (mono) jack on the Digital Satellite Receiver.
q
Good Connection : Connect the Digital Satellite Receiver’s
VHF(SAT)/UHF OUT jack to the VCR’s VHF/UHF IN jack.
3
Complete one of the following to connect the VCR to the TV: q Better Connection : If both your TV and VCR have A/V jacks, connect the VCR’s A/V OUT jacks to the TV’s A/V IN jacks.
q Good Connection : If your TV or VCR has only an RF jack, connect the VCR’s VHF/UHF OUT jack to the TV’s VHF/UHF
IN jack.
4
Connect one end of the telephone line cord to the Digital Satellite
Receiver’s TEL LINE jack. Connect the other end to your home’s modular telephone outlet. Do not connect to a “wireless” telephone extension. Since these devices typically do not support high data rates, connecting to one may result in very slow operation or may even prevent connection with your program provider.
5
Connect one end of the AC power cord to the Digital Satellite
Receiver’s AC IN jack. Connect the plug end to an AC outlet.
Optional Connections
q If you have a cable input, cable box, or a terrestrial TV antenna, connect it to the TV or VCR’s VHF/UHF IN jack.
q Best Connection : If your TV has an S-VIDEO jack, use an S-VIDEO cable to connect the Digital Satellite Receiver’s S-VIDEO jack to the
TV’s S-VIDEO IN jack. This provides the best picture quality. Then use audio cables to connect one set of the Digital Satellite
Receiver’s audio jacks to the TV’s AUDIO IN jacks.
q
You can also connect the Digital Satellite Receiver to your audio receiver’s AUDIO IN jacks using audio cables.
q
If you are using the IR Blaster, see page 18 for setup instructions.
Note
If the screen appears fuzzy, the program you are watching may be protected by
Macrovision. Turn the VCR off to improve the picture quality.
14
2
Digital Satellite Receiver
ACCESS CARD
DIGITAL
OUT
(OPTICAL)
VCR CONTROL
SATELLITE IN
LOW SPEED DATA
R
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
1 4
2 5
AC IN~
2
3
SAT-A4 receiver is pictured, but connections are identical for SAT-B3.
15
Home Entertainment System
(Hi-Fi TV, Hi-Fi VCR, Audio/Video Receiver)
Your VHF/UHF IN jack may be labeled as
RF IN.
Refer to the illustration on the opposite page.
1
Connect the RG-6 cable from the Satellite Antenna’s LNB to the
Digital Satellite Receiver’s SATELLITE IN jack.
2
Connect the Digital Satellite Receiver’s A/V jacks to the VCR and
A/V receiver’s A/V IN jacks.
3
Connect the Digital Satellite Receiver’s DIGITAL OUT jack to the
A/V receiver’s digital optical input jack (SAT-A4 only).
4
Connect the VCR’s A/V OUT jacks to one set of the A/V receiver’s
A/V IN jacks.
5
Connect the A/V receiver’s MONITOR OUT jack to the TV’s
VIDEO IN jack.
6
Connect one end of the telephone line cord to the Digital Satellite
Receiver’s TEL LINE jack. Connect the other end to your home’s modular telephone outlet. Do not connect to a “wireless” telephone extension. Since these devices typically do not support high data rates, connecting to one may result in very slow operation or may even prevent connection with your program provider.
7
Connect one end of the AC power cord to the Digital Satellite
Receiver’s AC IN jack. Connect the plug end to an AC outlet.
Optional Connections
q
If you have a cable input, cable box, or a terrestrial TV antenna, connect it to the VCR’s VHF/UHF IN jack.
q Best Connection: If your A/V receiver has an S-VIDEO jack, use an
S-VIDEO cable to connect the Digital Satellite Receiver’s S-VIDEO jack to the A/V receiver’s S-VIDEO IN jack. Then connect an S-
VIDEO cable from the A/V receiver to the TV’s S-VIDEO IN jack.
This provides the best picture quality. Then use audio cables to connect one set of the Digital Satellite Receiver’s audio jacks to the
A/V receiver’s AUDIO IN jacks.
q If you are using the IR Blaster, see page 18 for setup instructions.
Note
If the screen appears fuzzy, the program you are watching may be protected by
Macrovision. Turn the VCR off to improve the picture quality.
In this configuration, the A/V receiver must be turned on in order to view TV programs.
16
Digital Satellite Receiver
2
3
1
2
6
7
5
4
17
Connecting the IR Blaster
SAT-A4 receiver is pictured, but connections are identical for SAT-B3.
The IR Blaster works with the Digital Satellite Receiver’s Timer function to automatically start and stop the recording function of your
VCR.
1
Connect the IR Blaster to the Digital Satellite Receiver’s VCR
CONTROL jack. Then place the IR Blaster below and in front of the
VCR, about
1
/
2
” to 1”. For best results, place the IR Blaster directly below the VCR’s IR receiving area.
Digital Satellite Receiver
ACCESS CARD
DIGITAL
OUT
(OPTICAL)
VCR CONTROL
SATELLITE IN
LOW SPEED DATA
R
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
AC IN~
IR Sensor
1 /
2
" to 1 "
If the IR Blaster doesn’t seem to be working correctly, first check that the IR
Blaster is positioned directly below the
VCR’s IR receiving area and that the
VCR’s line input is set to the Digital
Satellite Receiver. If it’s still not working, try this procedure again using the other codes listed for your VCR on page 86.
2
Set the manufacturer, and code type of your VCR using the VCR
RECORDING Screen on page 66. This must be done for the IR
Blaster to function properly.
3
To use the IR Blaster: 1) Set the Timer (page 35), 2) Turn on the VCR and set the VCR’s line input to the Digital Satellite
Receiver, 3) Insert a tape, 4) Turn off the VCR.
18
Setting Up the RF Antenna (SAT-A4 Only)
Do not place the RF antenna directly on top of the Digital Satellite Receiver or any other metal object. For best results, place the RF antenna in a visible location.
The RF (radio frequency) antenna enables the remote control to operate the Digital Satellite Receiver even if the Digital Satellite Receiver is located in another room or is placed behind a cabinet door.
Note
You must set up the RF antenna if you plan on using the RF feature.
To set up the RF antenna:
1
Connect the RF antenna to the Digital Satellite Receiver’s RF
REMOTE jack.
2
Place the RF antenna at least one foot away from the Digital
Satellite Receiver.
3
Use the on-screen displays to set up the Digital Satellite Receiver to accept RF transmission (RF ONLY). See “Setting Up the Remote
Control” on page 71 for details.
The Digital Satellite Receiver is shipped with IR transmission enabled and RF transmission disabled. To use the RF feature, you must first change the factory setting (IR ONLY) to the RF setting (RF ONLY) using the on-screen displays, as described on page 71.
Digital Satellite Receiver
ACCESS CARD
DIGITAL
OUT
(OPTICAL)
VCR CONTROL
SATELLITE IN
LOW SPEED DATA
R
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
AC IN~
The operating range of the remote control is about 100 ft. This may decrease due to ambient radio wave conditions, your room’s walls, weak batteries, etc.
19
Setting Up Your DIRECTV System
Viewing Satellite Programs
Viewing Cable or
Off-Air Programs
Recording Satellite
Programs While Watching
Cable or Off-Air Programs
1
Turn on the TV, and then set the TV’s line input to the Digital
Satellite Receiver. (For example, set the TV to channel 3 or 4, if you used an RF connection; or set to VIDEO1, etc., if you used an A/V connection.)
2
Turn on the VCR and A/V receiver, if you connected these components. Then set their output switches accordingly.
3
Turn on the Digital Satellite Receiver and select a station.
The following instructions apply only if you connected your cable TV or terrestrial antenna to your Digital Satellite Receiver.
1
Turn off your Digital Satellite Receiver, or press the TV/SAT button to set the Digital Satellite Receiver to TV mode.
2
Turn on the TV and then: q If you have a cable box, turn it on and then tune the TV to the output channel of your cable box, usually channel 3 or 4.
q If you do not have a cable box, just tune your TV to the station you want to watch.
The following instructions apply only if you connected your cable TV or terrestrial antenna to your Digital Satellite Receiver.
1
Turn on the TV and then: q If you have a cable box, turn it on and then tune the TV to the output channel of your cable box, usually channel 3 or 4.
q If you do not have a cable box, tune your TV to the station you want to watch.
2
Turn on the Digital Satellite Receiver, and tune to the program you want to record. Then select the VCR to line input, and start recording, according to your VCR’s instruction manual.
3
Press the TV/SAT button to set the Digital Satellite Receiver to TV.
The Digital Satellite Receiver’s signal is sent to the VCR, while the offair signal is sent to your TV for you to watch.
Note
For information on using the Digital Satellite Receiver’s automatic timer, see
“Setting Up the Timer” on page 35.
You cannot record one satellite program while watching another satellite program (unless you have a second Digital Satellite Receiver).
If the screen appears fuzzy, the program you are watching may be protected by
Macrovision. Turn the VCR off to improve the picture quality.
20
Chapter 4
Using the DIRECTV System Features
Read this chapter to learn how to use system features including the
Master program guide, Station Index, Favorite Station Guide, and the ordering of pay per view programs.
Overview
q q q q q q q q q
This chapter provides detailed instructions for using the main features of your Digital Satellite Receiver. Topics include: q Checking to make sure your system is completely set up and ready to be used (page 22).
q Using Highlight and Select, the simple, two-step process for operating the on-screen displays (page 23).
Displaying and navigating through the program guide (page 24).
Selecting subscription and pay per view programs from the program guides (page 28).
Using the program list (page 29).
Selecting other program guides that are sorted by category and subcategory (page 30).
Using the Station Index (page 33).
Setting the Timer (page 35).
Using the five Favorite Station Guides (page 37).
Displaying the Program Banner (page 40).
Using the DISPLAY feature (page 41).
21
Before You Get Started ...
Make sure you (or your DIRECTV System installer) have completed the following procedures before you start using your Digital Satellite
Receiver:
1
Install the Satellite Antenna as described in the Satellite Dish
Antenna Operating Instructions .
Note
Make certain that you (or your installer) have optimized the signal strength. If the signal is not optimized, you may experience losses in audio or video, especially during rain, snow, or other conditions that tend to degrade signal performance. See the Satellite Dish Antenna Operating Instructions for details on pointing the dish and optimizing the antenna’s signal strength.
2
Connect the Satellite Antenna to your Digital Satellite Receiver.
Then connect the Digital Satellite Receiver to your television and telephone line. (See Chapter 3.)
Note
Your phone line must be connected to the Digital Satellite Receiver in order for you to purchase a pay per view program with the remote control.
3
Make sure the access card is inserted into the Digital Satellite
Receiver. (See page 68 for details on inserting the access card.)
4
Call your program providers (DIRECTV and USSB) to activate your service. You’ll need to provide information, including the model and serial numbers of your Digital Satellite Receiver and the access card number.
If Your System Is Not
Completely Installed ...
See the manual that came with the Satellite Antenna and Chapter 3 of this manual for complete installation instructions. Or, see your dealer to arrange for a professional installation or the purchase of the Sonybrand Installation Kit.
22
Using the On-Screen Displays: Highlight and Select
Shortcut
(SAT-A4 Only)
In many of the on-screen displays you can move the joystick in eight directions: left, right, up, down, and diagonally (up left, up right, down left, and down right).
All of the features and functions of the Digital Satellite Receiver can be operated using a simple, two-step process: Highlight and Select. These two steps are explained below.
Step 1: Highlight
q To highlight, move the joystick (SAT-A4) or press the arrow buttons
(SAT-B3) on the remote to move the on-screen highlight to the item that you want to select.
Step 2: Select
q After you’ve highlighted the item that you want, select it by pressing the button.
Example: Highlight and Select
1
In the sample menu that follows, moving the joystick up (SAT-A4) or pressing the button (SAT-B3) moves the highlight from
ITEM 5...
SAMPLE MENU
ITEM 1 ITEM 2 ITEM 3
ITEM 4 ITEM 5 ITEM 6
ITEM 7 ITEM 8 ITEM 9
... to ITEM 2.
SAMPLE MENU
ITEM 1 ITEM 2
ITEM 4 ITEM 5
ITEM 7 ITEM 8
ITEM 3
ITEM 6
ITEM 9
2
Pressing the button selects ITEM 2.
You can apply this basic operation of highlighting and selecting to perform any of the system’s functions.
23
Displaying the Program Guide
You can select programs using the CH+ and CH- buttons, or you can enter the station number directly using the 0-9 buttons. However, because the DIRECTV System offers you such a variety of programming choices, you’ll get the most out of the system by using one of the on-screen program guides to find the programs you want to watch.
To display the Master Guide:
q
Press the MENU button to bring up the Main Menu. Then highlight and select MASTER GUIDE from the menu.
Shortcut
You can select menu items directly by pressing the corresponding number button. For example, press 2 to select the Master Guide from the Main
Menu.
MAIN MENU
CATEGORY
GUIDE
1
MOVIES
GUIDE 4
OPTIONS MENU
7
MASTER
GUIDE
EXIT
TIMER
SETUP
2
5
8
CATEGORY
LIST 3
MOVIES
LIST 6
SETUP MENU
9
Note
To bring up the Custom Guide, press the GUIDE button on the remote control. See “Setting Up a List of Custom Stations” on page 54 for details.
Features of the program guide are discussed in more detail on the following pages.
24
Features of the Program Guide
When you select a guide from the Main Menu or press the GUIDE button on the remote, a program guide appears, similar to the following:
Program Guide
Program
Description
Schedule Grid
MASTER GUIDE
First Knight
8:00 PM - 10:00 PM xxxx PG-13
Act. Adv. 1995 Richard Gere, Sean Connery, Julia
Ormond. Thrilling romance results when rogue knight
Lancelot becomes torn between his loyalty to King
Arthur and his love for Queen Guinevere (CC, ST) (A, V)
WED
DTV 106
8:00 PM
The Rainmaker
8:30 PM
Wynonna in Concert
DTV 107
DTV 108
Mr. Magoo
Ellen—All Day Ticket
DTV 109 The Postman (lbx)
DTV 110
DTV 111
DTV 112
Spice World—All Day Ticket
First Knight
Switchback
WED OCT 5 8:45 PM
9:00 PM
Mr. Magoo
Ellen—All...
Mouse Hunt
Day, Date, Time
Station logo
Page Indicator q q q q
Program guides, such as the Master Guide shown above, feature a variety of elements, including: q
Program guide title, such as Master Guide, Custom Guide, Movie
Guide, Sports Guide, etc.
Current day of the week, date and time.
Station logo (when available) and program description of the currently highlighted station.
One Button Recording of programs.
Schedule grid, which includes: q q q
Station names, numbers, and program titles. These appear in ascending numerical order from top to bottom (unless you have changed the listing to alphabetical order. See “Setting the
Station Order” on page 47 for details).
Time slots. These appear left to right, with the current time’s programming in the leftmost position.
Page indicator. This shows you approximately which page you’re on, relative to all the pages in the guide. The size of the indicator is proportional to the overall size of the entire program guide.
25
Moving Through the Program Guide
Scrolling
Paging Vertically
Through the Stations
Paging Through Later
Program Start Times
Direct Station Tuning
The on-screen program guides are displayed only one page at a time.
Because the program guide usually contains many pages, you need to move through the guide to see more of the programs contained in the guide. You can move by scrolling, paging, and direct station tuning.
To scroll, use the remote control to move the highlight one position at a time. You can scroll to different stations or time slots.
To move to other stations in the guide one station at a time:
q SAT-A4 : Move the joystick up or down. q
SAT-B3 : Press the up or down arrow buttons.
To move to other time slots in the guide:
q SAT-A4: Move the joystick left or right. q SAT-B3: Press the left or right arrow buttons.
To page, use the PAGE buttons to move through the guide one page at a time. This allows you to move through the guide more quickly than scrolling.
To page through the guide:
q Press the PAGE or PAGE buttons.
The PAGE button pages in the up direction. The PAGE button pages in the down direction.
To display future time slots in the guide:
q Press the GUIDE button.
Pressing the GUIDE button repeatedly cycles through all the available time slots in the guide as they are made available by your program providers (for example, THU 3:00 PM, THU 10:00 PM, FRI 3:00 AM, etc.).
Note
To select a future program guide directly, press the MENU button and then select SELECT GUIDE/TIME. See page 31 for details.
To move to a station directly:
q Press the 0-9 buttons to specify the station number. Press the
ENTER button to change the station more quickly.
26
Displaying Favorite Stations To see your favorite stations at the top of the program guide:
q Press the FAVORITE button.
Pressing the FAVORITE button repeatedly cycles through the stations currently set for the five Favorite Station Guides (FAVORITE 1, 2, 3, 4,
5), and then back to the normal guide.
Note
See page 37 for instructions on setting up your favorite stations.
Changing the Appearance of the Guide
To toggle through the three variations of program guide:
q Press the DISPLAY button repeatedly. (See “Using the DISPLAY
Feature” on page 41 for details.)
Exiting the Guide
One Button Recording
There are two ways to exit the program guide:
q Select a program from the guide by pressing the button. (See
“Selecting a Program from the Guide” on page 28 for details.)
OR q Press the EXIT button on the remote. You will be returned to the last program you were watching before the program guide was displayed.
Setting up the IR Blaster (See “Connecting the IR Blaster” on page 18 for details) and the VCR (See “VCR Recording” on page 66 for details) will allow you to record a future program, simply and automatically, when selected from a guide and added to the timer.
27
Selecting a Program from the Guide
Ordering Pay Per View
Programs
Selecting RETURN returns you to the previous screen, without purchasing the program.
Selecting TIMES brings up a list of additional show times that you can choose from for the program you selected.
A PREVIEW button, which gives you a free preview of the program, appears only when the preview is available.
If the BUY button does not appear (and the message “Purchase information not available” appears), you must call your program provider to order the program in advance.
For all programs except pay per view (PPV), you can select a program from the guide just by pressing the button. If the program is currently showing, the guide disappears and the program you selected appears.
If the program has not yet started, a pop-up window appears, which gives you the option of adding the program to the Timer list, returning to the program guide, or tuning to the current program on that station.
See “Setting Up the Timer” on page 35 for details on using the Timer.
Watching a PPV program is similar, except it requires you to order the program before you can watch it beyond the free preview period
(usually about five minutes after the program starts).
To order a PPV program listed in the program guide:
1
Highlight the program name in the guide and press the button.
2
Select BUY from the Purchase Program screen.
PURCHASE PROGRAM
First Knight
WED OCT 5 XX 8:00 PM - 9:30 PM
DTV 102 X X X X Rating:PG-13
Act. Adv. 1995 Richard Gere, Sean Connery, Julia
Ormond.Thrillingromance results when rogue knight
Lancelot becomes torn between his loyalty to King Arthur and his love for Queen Guinevere (CC, ST, (A, V)
Price/View:$2.99
RETURN
BUY
TIMES
HELP
3
When the Confirm Purchase pop-up window appears, select YES to confirm your purchase. Selecting NO returns you to the
Purchase Program screen, without purchasing the program.
If the program has not yet started, a pop-up window appears, which gives you the option of adding the program to the Timer list, returning to the program guide, or tuning to the current program on that station.
See “Setting Up the Timer” on page 35 for details on using the Timer.
To watch a PPV program you’ve purchased in advance, just tune to the station when the program is about to start. Your program providers will bill you automatically.
About Copy-Protection
Some PPV programs are copy-protected by Macrovision at the discretion of the copyright owner. When watching a PPV program, turn the VCR off to ensure a quality picture.
28
Selecting a Category List
The buttons that appear for each program indicate start times.
For example, in this sample Movie
List, “First Knight,” with a start time of 9:00PM, is highlighted.
To select a program, highlight the start time button and then press the button.
The Category List displays programs alphabetically by program title, as opposed to the Guide format, which sorts the programs numerically by station number. A sample Movies List is shown below.
MOVIES LIST
First Knight
8:00 PM - 10:00 PM xxxx PG-13
Act. Adv. 1995 Richard Gere, Sean Connery, Julia
Ormond. Thrilling romance results when rogue knight
Lancelot becomes torn between his loyalty to King
Arthur and his love for Queen Guinevere (CC, ST) (A, V)
WED OCT 5 8:45 PM
WED 9 PM 9:30 10 PM 10:30
Ellen—All Day Ticket
First Knight
Johnny Mnemonic
Judge Dredd (Letterbox)
The Postman
Spice World—All Day Ticket
Switchback
To display a Category List, select MOVIES LIST from the Main Menu.
To set up a different program category for the Category List, see
“Selecting a Different Category Guide or List” on page 30.
To move to other programs in the list one program at a time:
q SAT-A4: Move the joystick up or down. q SAT-B3: Press the up or down arrow buttons.
To move to other time slots in the list:
q SAT-A4: Move the joystick left or right. q SAT-B3: Press the left or right arrow buttons.
To page through the list:
q Press the PAGE or PAGE buttons.
To toggle through the three variations of lists:
q Press the DISPLAY button repeatedly. (See “Using the DISPLAY
Feature” on page 41 for details.)
To exit the list:
q Select a program from the list by pressing the button.
Or q Press the EXIT button on the remote. You will be returned to the last program you were watching before the list was displayed.
29
Selecting a Different Category Guide or List
The GUIDE and TIME options are not available when you select CATEGORY
LIST.
Selecting RESET resets the screen to the default guide (Custom/Current/Movies/
All).
You can use the SELECT GUIDE and SELECT LIST options in the Main
Menu to select subsets of the Master Guide in either the Guide or List format.
1
Press the MENU button to bring up the Main Menu.
2
Select CATEGORY GUIDE or CATEGORY LIST from the Main
Menu. The Select Guide (or List) screen appears.
CATEGORY GUIDE
GUIDE
TIME
CATEGORY
SUBCATEGORY
CUSTOM
CURRENT
MOVIES
ALL
OK
RETURN
RESET
HELP
Selecting a Category Guide
Type
Press the
CATEGORY button on the remote control to bring up the CATEGORY
GUIDE screen directly.
3
Select a different Guide, Time, Category, and Subcategory, described as follows.
The GUIDE option lets you select from a list of alternative program guides, which are made available by your program providers. These guides may contain groups of stations with similar subjects, for example, special promotions or pay per view programs.
To select a guide type:
1
Select GUIDE from the Category Guide screen.
2
Select the type of guide you want to display.
CATEGORY GUIDE
GUIDE
TIME
CATEGORY
SUBCATEGORY
SELECT GUIDE
CUSTOM
MASTER
SUBSCRIPTION
PPV
PROMO
MUSIC
OK
RETURN
RESET
HELP
3
Select OK to display the selected program guide, or select different options for time, category, or subcategory.
30
Selecting a Guide Time
The TIME option lets you select from a list of future program guides.
To select a future program guide:
1
Select TIME from the Category Guide screen.
2
Select the time you want to display.
CATEGORY GUIDE
GUIDE
TIME
CATEGORY
SUBCATEGORY
SELECT TIME
CURRENT
SAT 5:00 PM
SAT 9:30 PM
SUN 2:00 AM
SUN 6:30 AM
SUN 11:00 AM
OK
RETURN
RESET
HELP
3
Select OK to display the selected program guide, or select different options for guide, category, or subcategory.
Selecting a Guide Category
The CATEGORY option lets you select from a list of program guide categories.
To select a program guide category:
1
Select CATEGORY from the Category Guide screen.
2
Select the program category you want to display.
Press the
CATEGORY button on the remote control to bring up the CATEGORY
GUIDE screen directly.
CATEGORY GUIDE
GUIDE
TIME
CATEGORY
SELECT CATEGORY
ALL
MOVIES
SPORTS
SPECIALS
SERIES
NEWS
OK
RETURN
RESET
HELP
SUBCATEGORY
3
Select OK to display the selected program guide, or select different options for guide, time, or subcategory.
31
Selecting a Guide
Subcategory
The SUBCATEGORY option lets you select from a list of program guide subcategories, based on the selected program category.
Note
You cannot select SUBCATEGORIES if CATEGORY is set to ALL.
To select a program guide subcategory:
1
Select SUBCATEGORY from the Category Guide screen.
The Select Subcategory screen appears.
2
Select the program subcategories you want (you can select more than one subcategory). A selected subcategory appears with a checkmark (
ü
) beside it. To deselect a subcategory, just select it again. The checkmark disappears. After you’ve made your selections, select OK to return to the Select Guide screen.
Selecting ALL places a checkmark beside all the subcategories. Selecting NONE removes the checkmark from all the subcategories.
Selecting CANCEL returns you to the previous screen, without saving your selections.
How CATEGORY GUIDE and
CATEGORY LIST Change the
Main Menu
Example: If you select the Sports
Guide using CATEGORY GUIDE, button 4 of the Main Menu automatically changes to SPORTS
GUIDE.
Similarly, button 6 of the Main Menu automatically updates to the last selection you made using
CATEGORY LIST.
SELECT MOVIES SUBCATEGORY
ACTION/
ADVENTURE
ü
CHILDREN
FANTASY
ü
HORROR
SCIENCE FICTION WESTERN
ü
ü
COMEDY
ü
MUSICAL
ü
OTHER
ü
DRAMA
ü
ROMANCE
ü
ü
ü
OK
CANCEL
ALL
NONE
HELP
3
Select OK to display the selected program guide, or select different options for guide, category, or subcategory.
The next time you display the Main Menu, it will include the Guide or
List category that you selected. To change category selections, select
CATEGORY GUIDE or CATEGORY LIST from the Main Menu or hit the category button on the remote control.
The selections you make using CATEGORY GUIDE and CATEGORY
LIST affect the program categories displayed in the Main Menu. The category you select using CATEGORY GUIDE changes button 4 of the
Main Menu. The category you select using CATEGORY LIST changes button 6 of the Main Menu.
This feature allows you to recall the last program guide or list that you selected.
MAIN MENU
CATEGORY
GUIDE 1
SPORTS
GUIDE 4
OPTIONS MENU
7
MASTER
GUIDE
EXIT
TIMER
SETUP
2
5
8
CATEGORY
LIST 3
NEWS
LIST 6
SETUP MENU
9
32
Using the Station Index
The Station Index is an on-screen display that contains the station logo
(or call letters) of all the stations in the system.
To display the Station Index:
q Press the INDEX button on the remote control.
The Station Index appears. The station you are currently tuned to is automatically highlighted and program title is displayed at the top.
Your Station Index may not look exactly like this. The stations displayed depend on the programming you’ve ordered.
STATION INDEX Sports Center
100 101 102 103 104 105 106
107 108 109 110 111 112 113
114 115 116 117 118 119 120
Moving Through the Station Index
To move through the Station Index:
q Move the joystick (SAT-A4) or press the arrow buttons
(SAT-B3) to move one station at a time.
q Press the PAGE or PAGE buttons to page (move up or down several rows at a time).
q Enter the station number, using the 0-9 buttons and press ENTER.
33
Displaying Favorite
Stations in the Station
Index
The top row contains your seven favorite stations from one of your five
Favorite Station Guides.
Changing the Appearance of the Station Index
Selecting a Program from the Station Index
To display your favorite stations on the top row of the Station
Index:
q Press the FAVORITE button.
Pressing the FAVORITE button repeatedly cycles through the five
Favorite Station Guides.
FAVORITE 1 Matlock
100 101 102 103 104 105 106
107 108 109 110 111 112 113
114 115 116 117 118 119 120
Note
See page 37 for instructions on setting up your favorite stations.
To toggle through the three variations of Station Index:
q Press the DISPLAY button repeatedly. (See “Using the DISPLAY
Feature” on page 41 for details.)
To select a program:
q Press the button to tune to the highlighted station. The Station
Index disappears.
To exit the Station Index without changing stations:
q Press the EXIT button. The Station Index disappears, and you return to the station you were watching before displaying the
Station Index.
34
Setting Up the Timer
Setting the Timer
One Button Recording
If you’ve entered the Timer Setup screen by selecting a future program from a program guide, the Day, Start and Stop times, Station, and program title are displayed automatically.
However, if you make any changes to the Timer Setup options, the program title disappears (although the Timer will still work as you’ve set it).
You can select from two ways to automate VCR recording of programs: q Setting the Timer and then setting your VCR timer.
q Setting the Timer and using the Sony IR Blaster to automatically control the VCR (see “Connecting the IR Blaster” on page 18, and
“VCR Recording” on page 66 for details).
To set the timer:
1
Press the MENU button to bring up the Main Menu.
2
Select TIMER SETUP. The Timer Setup screen appears.
Shortcut
You can automatically add future programs to the Timer screen by just selecting them from the program guide. See “Selecting a Program from the
Guide” on page 28 for details.
3
Select one of the 10 timer setting buttons. Then highlight the DAY field (today’s date automatically appears).
TIMER SETUP
3
4
1 ü
DAY
11/9 SAT
2 -/--
-/--
-/--
5
-/--
START
-:--
-:--
-:--
-:--
-:--
STOP
-:--
-:--
-:--
-:--
-:--
STATION
------
------
------
------
------
OK
CANCEL
CLEAR
HELP
4
Set the day, start time, stop time, and station number as follows: q To set each item (day, time, etc.), move the joystick up or down
(SAT-A4) or press up or down arrow buttons (SAT-B3). q To move to the next or previous item, move the joystick right or left (SAT-A4) or press the right or left arrow buttons (SAT-
B3).
Note
You can set the timer up to 30 days in advance. You can also set the timer for every day or for the same day(s) every week. See “Setting the Daily/Weekly
Timer” on page 36.
5
Select OK to save your settings.
35
Setting the Daily/Weekly
Timer
Changing/Checking/
Clearing Timer Settings
Notes on Using the Timer
To set the timer for every day or for the same day(s) every week:
1
In step 4 (page 35), move the highlight down repeatedly to select one of the DAY options, which are displayed in the following sequence:
Current Date à DAILY à MON-FRI à EVERY SAT ...à
EVERY MON à EVERY SUN à 1 Month Later à (Cycles backward) à Current Date
2
Set the start time, stop time, and channel, then select OK to save your settings.
To change, check, or clear timer settings:
1
Bring up the Timer Setup screen, as described on page 35.
2
Check your settings. q If you don’t want to make any changes, select OK.
q If you want to change or clear settings, select the numbered button of the timer setting you want to change.
3
Change or clear the setting as follows: q To change the setting, highlight the item you want to change.
Then reset the item by moving the joystick up or down (SAT-
A4) or press the up or down arrow buttons (SAT-B3).
q To clear the setting, select CLEAR.
4
Select OK to save your settings.
q After the timer is set, the TIMER indicator on the front panel lights up, indicating that the timer has been set.
q To use the timer to record a PPV program, you must first purchase it in advance of its showing. See “Ordering Pay Per View
Programs” on page 28. q Use the MON-FRI option only if you do not plan to EXIT during your timer event. If you think you may want to EXIT during your timer event, set each day of the week individually.
q If locks and limits are set (and the system is locked), check to make sure they do not conflict with the program you’re trying to record.
q About 60 seconds before the timer automatically tunes to the specified channel, a message appears. To cancel the timer setting and continue watching the current program, press the EXIT button.
q If you set overlapping (conflicting) timer settings, the Digital
Satellite Receiver handles these timer settings as follows: q q
If you set two timer settings to start at the same time, the timer setting that’s listed first has priority over any other conflicting timer settings. Conflicting timer settings are automatically cleared from the Timer Setup screen when the first timer setting is activated.
If you set a second timer setting to start before the first timer setting is set to stop, the second timer setting will start before the first timer setting stops.
36
Using the Favorite Station Guides
Setting Up and Using the
Favorite Station Guides
The Favorite Station Guide is a program guide that includes up to seven of your favorite stations. You can create up to five Favorite
Station Guides: FAVORITE 1, 2, 3, 4, 5.
To set up the Favorite Station Guide:
1
Press the FAVORITE button. The first Favorite Station Guide appears (FAVORITE 1).
Before you can bring up the Favorite
Station Guide, you must first clear the program guide from your TV screen.
Pressing EXIT turns off any on-screen displays.
FAVORITE STATION GUIDE- FAVORITE 1TITLE
1 2 3 4
5 6 7
EXIT TO CURRENT
STATION
The system is shipped with no favorite stations set, so the first time you see this guide, the seven Favorite Station buttons are blank.
2
Highlight a Favorite Station button that you want to set. Then press and hold the button.
The Favorite Station Guide switches to edit mode: The station list appears, the selected Favorite Station button flashes, and the highlight moves to the current station in the station list.
EDIT FAVORITE STATION GUIDE- FAVORITE 1
1 2 3 4
5
CLEAR
STATION
100
105
6
101 102
106
7
107
103
108
104
109
EXIT TO
PRIOR STATION
37
To clear a Favorite Station button that is already assigned, select CLEAR
STATION.
3
To assign a station to the flashing Favorite Station button, do one of the following: q q
Select it from the station list by highlighting it and then pressing the button.
Enter the station number (such as 100), using the 0-9 buttons on the remote. Then press the button.
EDIT FAVORITE STATION GUIDE - FAVORITE 1
1
100
DIRECT TICKET
PREVIEWS
2 3
5
CLEAR
STATION 100
105
6
101 102
106
7
107
4
103
108
104
109
EXIT TO
PRIOR STATION
The station list disappears, and the Favorite Station Guide reappears with the stations you’ve set up.
FAVORITE STATION GUIDE - FAVORITE 1
1
100
DIRECT TICKET
PREVIEWS
2 3 4
TITLE
5 6 7
EXIT TO
PRIOR STATION
38
Creating a Custom Favorite
Station Guide Title
To set other Favorite Station buttons:
q Repeat steps 2 and 3.
To clear a Favorite Station button setting:
q Overwrite the setting by repeating steps 2 and 3. Or, highlight the button and then select CLEAR STATION.
To set up or display a different Favorite Station Guide:
q Press the FAVORITE button repeatedly to select the Favorite
Station Guide you want (FAVORITE 1, 2, 3, 4, 5).
To tune to a Favorite Station (and exit the Favorite Station Guide):
q Press the number button that represents the station. Or highlight and then select the Favorite Station button that you want to tune to.
To exit the Favorite Station Guide without changing stations:
q Select “Exit to Current Station,” which appears in the bottom right corner of the Favorite Station Guide or press the EXIT button.
To create a custom title for the Favorite Station Guide:
1
Select TITLE from the Favorite Station Guide. The Set Favorite
Guide Title screen appears.
2
To edit the title, move the joystick up or down (SAT-A4) or press the up or down arrow buttons (SAT-B3) to enter each character.
To move from character to character, move the joystick left or right
(SAT-A4) or press the left or right arrow buttons (SAT-B3).
Selecting CANCEL returns you to the previous screen, without saving your selections.
Selecting CLEAR erases all the characters in the title.
SET FAVORITE GUIDE TITLE
F A V O R I T E 1
OK
CANCEL
CLEAR
HELP
3
Select OK to save your new title and return to the Favorite Station
Guide.
39
Displaying the Program Banner
The program banner provides useful information about the program you’re currently watching.
Note
Before you can bring up the program banner, you must first clear the program guide from your TV screen. Pressing EXIT turns off any on-screen displays.
Also, you may need to change to another station if a message appears, which requests that you press the button to purchase the program, etc.
To display the program banner:
q Press the DISPLAY button.
First Knight
8:00 PM - 10:00 PM PG-13
MON JUNE 24, 1996 DOLBY DIGITAL IN ENGLISH
DTV 102
Act. Adv. 1995 Richard Gere, Sean Connery, Julia Ormond. Thrilling romance results when rogue knight Lancelot becomes torn between his loyalty to King
Arthur and his love for Queen Guinevere (CC, ST) (A, V)
The program banner shows the program title, station name and number, current date and time, start and end times, rating, and program description. It may also include any of the following indicators:
Symbol Indicates
Data services available
New and unread messages
Audio tracks available
Dolby Digital available
System is locked
System is temporarily unlocked
For Details See page 61 page 59 page 56 page 56 page 49 page 52
To clear the program banner:
q Press the DISPLAY or EXIT button or wait a few seconds (except some music channels) for it to automatically disappear.
40
Using the DISPLAY Feature
Program Guide/List
7 stations with program description
WED OCT 5 8:45 PM MASTER GUIDE
First Knight
8:00 PM - 10:00 PM PG-13
Act. Adv. 1995 Richard Gere, Sean Connery, Julia
Ormond. Thrilling romance results when rogue knight
Lancelot becomes torn between his loyalty to King
Arthur and his love for Queen Guinevere (CC, ST, (A, V)
WED
DTV 106
DTV 107
DTV 108
DTV 109
DTV 110
DTV 111
DTV 112
8:00 PM
The Rainmaker
Mr. Magoo
Ellen—All Day Ticket
8:30 PM
Wynonna in Concert
The Postman (lbx)
Spice World—All Day Ticket
First Knight
Switchback
9:00 PM
Mr. Magoo
Ellen—All...
Mouse Hunt
DISPLAY
You can use the DISPLAY button to change the appearance of the onscreen displays.
The chart below illustrates how the DISPLAY button toggles through the three types of displays of Program Guides (and Lists), Station Index, and
Favorite Station Guide.
Station Index
3 rows
Favorite Station Guide
Standard
FAVORITE STATION GUIDE
240 989
Night
Gallery Music Videos
212
Shogun
980
The Natural
STATION INDEX Sports Center
100 101 102 103 104 105 106
107 108 109 110 111 112 113
114 115 116 117 118 119 120
198
Philadelphia
256
Biography
233
Tom and Jerry
967
Exit to
Current Station
DISPLAY DISPLAY
Display 5 stations with large text description
WED OCT 5 8:45 PM MASTER GUIDE
First Knight
Act. Adv. 1995 Richard Gere, Sean Connery, Julia Ormond. Thrilling romance results when rogue knight Lancelot becomes torn between his loyalty to King Arthur and his love for Queen
Guinevere (CC, ST, (A, V)
WED
DTV 108
DTV 109
DTV 110
DTV 111
DTV 112
8:00 PM
Ellen—All Day Ticket
8:30 PM
The Postman (lbx)
Spice World—All Day Ticket
First Knight
Switchback
9:00 PM
Ellen—All...
Mouse Hunt
DISPLAY
Display 9 stations with no program description
WED OCT 5 8:45 PM MASTER GUIDE
First Knight
8:00 PM - 10:00 PM
WED
DTV 104
DTV 105
8:00 PM
Nobody’s Fool
3 Ninjas Kick Back
DTV 106
DTV 107
DTV 108
DTV 109
DTV 110
DTV 111
DTV 112
The Rainmaker
Mr. Magoo
PG-13
8:30 PM
Wynonna in Concert
Ellen—All Day Ticket
The Postman (lbx)
Spice World—All Day Ticket
First Knight
Switchback
9:00 PM
The Scout
Mr. Magoo
Ellen—All...
Mouse Hunt
DISPLAY
Return to 7 stations with program description
Display 4 rows
STATION INDEX Sports Center
100 101 102 103 104 105 106
107 108 109 110 111 112 113
114 115 116 117 118 119 120
121 122 123 124 125 126 127
DISPLAY
Display 2 rows
STATION INDEX Sports Center
100 101 102 103 104 105 106
107 108 109 110 111 112 113
DISPLAY
Return to 3 rows
Move to bottom of screen
FAVORITE STATION GUIDE
240 989
Night
Gallery Music Videos
198 256
Philadelphia Biography
212
Shogun
233
Tom and Jerry
980
The natural
967
Exit to
Current Station
DISPLAY
Move to top of screen
FAVORITE STATION GUIDE
240 989
Night
Gallery Music Videos
212
Shogun
980
The natural
198 256 233 967
Exit to
Current Station Philadelphia Biography Tom and Jerry
DISPLAY
Return to Standard
41
42
Chapter 5
Using the Options Menu
Read this chapter to get information about using the Options Menu to customize the setup of the on-screen displays, review and cancel your purchases, and read mail messages that have been sent to you.
Overview
q q
This chapter describes how to: q Check and cancel pay per view programs you’ve ordered
(page 45).
q Change the look of the program guides, including the color of the on-screen displays and the order in which the stations are displayed (page 46).
Setting up and using the Jump Loop feature (pages 47–48).
Set system locks and limits, which allow you to control program viewing by ratings, spending amount, and station (page 49).
q Create a Custom Guide by selecting stations from the Master
Guide that you want to skip (page 54).
q Select an audio track for the program you’re currently watching, set a default language for the audio of programs and set the Dolby
Digital default (page 56).
q Read mail messages that have been sent to your Digital Satellite
Receiver (page 59).
q Select a data service for stations that include data services offered by your program providers (page 61).
43
Displaying the Options Menu
To bring up the Options Menu:
1
Press the MENU button to bring up the Main Menu.
2
Select OPTIONS MENU.
MAIN MENU
CATEGORY
GUIDE
MASTER
GUIDE
MOVIE
GUIDE 4
EXIT
OPTIONS MENU
7
TIMER
SETUP
2
5
8
CATEGORY
LIST 3
MOVIE
LIST 6
SETUP MENU
9
The Options Menu appears.
OPTIONS MENU
AUDIO 1
DISPLAY
OPTIONS
DATA
SERVICES
4
7
PURCHASES
2
EXIT
5
CUSTOM
STATIONS 8
MESSAGES
3
LOCKS AND
LIMITS 6
The following pages describe how to use the Options Menu to alter your system’s setup.
44
Checking and Cancelling PPV Purchases
Use the Review/Cancel Purchases screen to see a record of recent purchases you’ve made through your Digital Satellite Receiver. You can also use this screen to cancel pay per view (PPV) programs you’ve ordered, but haven’t yet watched.
Note
The Review/Cancel Purchases screen lists only purchases made using the
Digital Satellite Receiver’s remote control. It doesn’t include purchases made by calling your program provider.
To display the Review/Cancel Purchases screen:
1
Select PURCHASES from the Options Menu. The Review/Cancel
Purchases screen appears, which lists the programs purchased and canceled.
If there is more than one page of purchases, press the PAGE and
PAGE buttons to page through the displays.
REVIEW/CANCEL PURCHASES
ü FIRST KNIGHT
JOHNNY MNEMONIC
SPEED
JEFFERSON IN PARIS
<NO TITLE AVAILABLE>
<NO TITLE AVAILABLE>
<NO TITLE AVAILABLE>
UPCOMING
UPCOMING
CANCELLED
UPCOMING
RETURN
REVIEW
CANCEL PPV
HELP
2
3
To review the details of a pay per view program you’ve purchased: q Select the program you want to review. Then select REVIEW.
To cancel a pay per view program you’ve ordered: q
Select the program you want to cancel. Then select CANCEL
PPV.
Select RETURN to return to the Options Menu.
Note
Once you tune to a purchased program, you cannot cancel its purchase.
45
Setting Display Options
The Set Display Options screen allows you to customize the look of the on-screen displays and to select how you want the JUMP button to function (Standard or Jump Loop).
To bring up the Set Display Options screen:
1
Select DISPLAY OPTIONS from the Options Menu.
2
The Set Display Options screen appears, with the current settings shown next to each button.
Select an option from the screen (see the following descriptions).
SET DISPLAY OPTIONS
COLORS EMERALD
RETURN
HELP
STATION ORDER NUMERICAL
JUMP STANDARD JUMP
Setting the Colors
Selecting CANCEL returns you to the previous screen, without saving your selections.
The COLORS option lets you change the color palette of the on-screen displays. The default color is EMERALD.
1
Select COLORS from the Set Display Options screen. The Set
Colors screen appears.
2
To preview a color, move the highlight. The Set Colors screen automatically changes to reflect the color that’s highlighted.
SET COLORS
EMERALD
USA
ü
MAJESTIC
REGAL
PACIFIC
INDIGO
RUGBY
CANDY
OK
CANCEL
HELP
3
4
To change the color, select a different color and then select OK to return to the Set Display Options screen.
Select RETURN to return to the Options Menu.
46
Setting the Station Order
ALPHABETICAL station order defines the sequence of the stations according to their call letters, such as ABC, CNN, etc. It does not define the sequence of stations by program name.
1
2
The STATION ORDER option lets you change the order in which stations are displayed in the program guides to alphabetical or numerical. The default setting is NUMERICAL.
Select STATION ORDER from the Set Display Options screen.
Select NUMERICAL or ALPHABETICAL.
SET DISPLAY OPTIONS
COLORS
STATION ORDER
JUMP
SET STATION ORDER
Select the station order for guides.
NUMERICAL
ALPHABETICAL
RETURN
HELP
Setting the Jump Mode
3
Select RETURN to return to the Options Menu.
The JUMP option lets you select from two Jump modes: q Standard Jump, which sets the JUMP button to jump back and forth between the two most recently selected stations.
q Jump Loop, which sets the JUMP button to jump among as many as 5 preset stations (see “Using the Jump Loop Feature” on page 48 for details on presetting stations).
To set the Jump Mode:
1
Select JUMP from the Set Display Options screen.
2
Select STANDARD JUMP or JUMP LOOP.
SET DISPLAY OPTIONS
COLORS
EMERALD
STATION ORDER
JUMP
SET JUMP
Select jump mode.
STANDARD JUMP
JUMP LOOP
RETURN
HELP
3
Select RETURN to return to the Options Menu.
47
Using the Jump Loop Feature
Standard Jump vs.
Jump Loop Mode
Using Jump Loops
When the Digital Satellite Receiver is set to Standard Jump mode, pressing the JUMP button toggles back and forth between the two most recently selected stations.
When the Digital Satellite Receiver is set to Jump Loop mode, pressing the JUMP button toggles among as many as 5 stations that you assign to a Jump Loop. Once you assign a station to the Jump Loop, you can use the JUMP button to quickly toggle through all the stations in the loop.
To set jump stations:
1
Set the Digital Satellite Receiver to Jump Loop mode, as described on page 47. (You need to do this only the first time you create a
Jump Loop.)
2
Tune to a station you want to assign to the Jump Loop.
Note
You cannot set jump stations while a program guide, menu, etc., is being displayed.
3
Press and hold the JUMP button. A message appears, indicating that the station has been assigned to the Jump Loop.
4
To set additional jump stations, repeat steps 2 and 3 of this procedure.
Note
If you set more than 5 jump stations, the sixth jump station automatically overwrites the first jump station in the loop, and so on.
To jump through the Jump Loop:
q Press the JUMP button repeatedly. The stations are displayed in the order they were set.
To clear a station from the Jump Loop:
1
Tune to the station you want to clear from the Jump Loop.
Note
You cannot clear Jump stations while a program guide, menu, etc., is being displayed.
2
Press and hold the JUMP button. A message appears, indicating that the station has been cleared from the Jump Loop.
3
To clear additional Jump stations, repeat steps 1 and 2 of this procedure.
Note
Jump Loops are cleared automatically when you shut off the Digital Satellite
Receiver.
48
Setting Locks and Limits
If your system is locked, the padlock symbol appears ( ), and you must first unlock it before you can make any changes to the locks and limits settings.
See “Unlocking Your System” on page 53 for details.
The Locks and Limits feature gives you control over the use of your system. You can restrict program viewing by cost, ratings, and station.
You can also set a lock to prevent the ordering of pay per view programs.
To display the Locks and Limits screen:
1
Select LOCKS AND LIMITS from the Options Menu.
The Set Locks and Limits screen appears, with the current settings shown next to each button.
2
Select a lock or limit from the screen (see the descriptions below).
SET LOCKS AND LIMITS
SPENDING LIMIT $10.00
RATINGS LIMIT R
RETURN
LOCK
HELP
PAY PER VIEW UNLOCKED
STATION LOCKS 0 STATIONS CURRENTLY LOCKED
Note
Your Digital Satellite Receiver is shipped to you unlocked, with the default settings as described below.
Spending Limit
Ratings Limit
Pay Per View
Station Locks
Lets you set a maximum spending limit for a single pay per view program. When the system is locked, you cannot purchase a program that costs more than the amount set. The default setting is $10.00.
Allows you to set a maximum ratings limit. When the system is locked, you cannot view programs rated higher than the rating set. The default rating is R.
Allows you to prevent PPV purchases. When the system and the PPV option are locked, pay per view programs cannot be purchased. The default setting is
unlocked.
Lets you prevent the viewing of stations that you lock.
When the system is locked, programs that appear on locked stations cannot be viewed. The default is no stations locked.
Note
After you’ve set a lock or limit, you must lock the system before any locks or limits take effect. Locking the system is described on page 52.
49
Setting a Spending Limit
Setting a Ratings Limit
To set a spending limit:
1
Select SPENDING LIMIT from the Set Locks and Limits screen.
2
Enter a spending limit, using the 0-9 buttons to enter the dollar value. Then press the button.
SET LOCKS AND LIMITS
SPENDING LIMIT
RATINGS LIMIT
Enter the spending limit and press .
PAY PER VIEW
STATION LOCKS
UNLOCKED
0 STATIONS CURRENTLY LOCKED
RETURN
LOCK
HELP
3
Select another lock or limit to set, or go to step 4.
4
Lock your system, as described in “Locking Your System” on page 52.
To set a ratings limit:
1
Select RATINGS LIMIT from the Set Locks and Limits screen.
2
Select a rating, beyond which programs cannot be watched.
SET LOCKS AND LIMITS
SPENDING LIMIT
RATINGS LIMIT
PAY PER VIEW
SET RATINGS LIMIT
PG-13
NR-CONTENT
NR-MATURE
NC17
STATION LOCKS
RETURN
LOCK
HELP
3
Select another lock or limit to set, or go to step 4.
4
Lock your system, as described in “Locking Your System” on page 52.
50
Setting the
Pay Per View Lock
To set the pay per view lock:
1
Select PAY PER VIEW from the Set Locks and Limits screen.
2
Select LOCKED to prevent PPV program purchases. Select
UNLOCKED to allow PPV program purchases.
SET LOCKS AND LIMITS
SPENDING LIMIT
RATINGS LIMIT
RETURN
LOCK
HELP
PAY PER VIEW
STATION LOCKS
SET PPV LOCK
Select pay per view lock status.
UNLOCKED
LOCKED
Setting Station Locks
To quickly unlock or lock all stations, select
ALL (to lock all) or NONE (to unlock all).
Selecting CANCEL returns you to the previous screen, without saving your selections.
You can use the PAGE and PAGE buttons to quickly move through the rows of stations. You can also use the 0-9 buttons to enter the station number directly.
3
Select another lock or limit to set, or go to step 4.
4
Lock your system, as described in “Locking Your System” on page 52.
Note
You can also set a PPV lock by setting the spending limit to $0.00. See
“Setting a Spending Limit” on page 50 for details.
To set station locks:
1
Select STATION LOCKS from the Set Locks and Limits screen.
2
Select stations that you want to lock from viewing. A locked station appears with a key ( ) beside it. For example, in the following screen, stations 203, 204, 206, and 209 have been locked.
To unlock a station, just select it again. The key ( ) disappears.
SET STATION LOCKS
CNN
202
DTV
209
DTV
216
DTV
223
CRT
203
DTV
210
DTV
217
DIS2
224
HLN
204
DTV
211
DTV
218
DISC
225
DTV
205
TNT
212
DTV
219
TLC
226
ESPN
206
DTV
213
TCM
220
TOON
227
DTV
207
DTV
214
DTV
221
DTV
228
ESN2
208
E!
215
DIS1
222
USA
229
OK
CANCEL
ALL
NONE
HELP
3
Select OK to return to the Set Locks and Limits screen.
4
Select another lock or limit to set, or go to step 5.
5
Lock your system, as described in “Locking Your System” on page 52.
51
Locking Your System
DON’T FORGET YOUR PASSCODE.
You’ll need this number to unlock your system or to make any changes to the locks and limits you’ve set. If you do forget your passcode, call your program provider for assistance.
To lock an unlocked system:
1
Select LOCK from the Set Locks and Limits screen.
2
Enter a four-digit passcode number. Use the 0-9 buttons to enter the numerical value.
SET LOCKS AND LIMITS
SPENDING LIMIT
LOCK SYSTEM
Enter Your Four
Digit Passcode
RATINGS LIMIT R
RETURN
LOCK
HELP
PAY PER VIEW UNLOCKED
STATION LOCKS 4 STATIONS LOCKED
Each number you enter appears as an asterisk ( ), which keeps your passcode secret.
3
When prompted, enter your passcode again. (This confirms your selection of a passcode number.)
Your system is now locked, as indicated by the closed padlock ( ) in the Set Locks and Limits screen. All locks and limits you’ve set are now in effect. The padlock also appears in the Program Banner to remind you of the locked status.
Overriding the System Lock
You can temporarily override any locks or limits that have been set if you know the system passcode.
For example, if you try to watch a program on a locked station, a message identifies the lock or limit exceeded. After you press the button, the Temporary Unlock window appears. By entering the passcode and then selecting when you want the system to automatically relock, you can temporarily unlock the system.
Note
If you override the system lock, you can reset the lock by turning the power off and then on again. If you want to unlock the system on a more permanent basis, follow the procedures under “Unlocking Your System” on page 53.
52
Unlocking Your System
Determining the Status of the System Lock
To unlock a locked system:
1
Select LOCKS AND LIMITS from the Options Menu.
The Set Locks and Limits screen appears, with the current settings shown next to each button. The padlock ( ) indicates that the system is currently locked.
2
Select UNLOCK.
3
Enter the passcode number you used to lock the system. Use the 0-
9 buttons to enter the numerical value.
SET LOCKS AND LIMITS
SPENDING LIMIT $10
RATINGS LIMIT PG
UNLOCK SYSTEM
RETURN
UNLOCK
HELP
PAY PER VIEW UNLOCKED
STATION LOCKS 4 STATIONS LOCKED
Each number you enter appears as an asterisk ( ), which keeps your passcode secret.
Your system is now unlocked, and all locks and limits previously set are no longer in effect.
While you’re watching programs, you can check the status of the system lock by pressing the DISPLAY button to bring up the Program
Banner, which includes the following lock symbols.
Symbol
No padlock
System Lock Status
Unlocked (default setting)
Locked
Temporarily unlocked using the system lock override
53
Setting Up a List of Custom Stations
To quickly skip or “unskip” stations, select ALL (to skip all) or NONE (to skip none).
Selecting CANCEL returns you to the previous screen, without saving your selections.
If there are stations listed in the Master Guide that you don’t subscribe to or watch often, you can use the Custom Stations feature to specify which stations from the Master Guide you want to skip. After you’ve set skipped stations, they will not appear in the: q Custom Guide q Station Index q Stations that appear when you’re using the CH+/CH- buttons to change channels
Note
Skipped stations will continue to be listed in the Master Guide, which you can always access through the Main Menu.
To define a list of custom stations:
1
Select CUSTOM STATIONS from the Options Menu.
2
Select stations that you want to skip.
A station that appears with a checkmark (
ü
) beside it will be skipped. For example, in the following screen, stations 203, 208, and 213 are set to be skipped.
To set a station so that it is not skipped, just select it again. The checkmark (
ü
) disappears.
SET CUSTOM STATIONS
CNN
202
DTV
209
DTV
216
DTV
223
CRT
203
DTV
210
DTV
217
DIS2
224
ü
HLN
204
DTV
211
DTV
218
DISC
225
DTV
205
TNT
212
DTV
219
TLC
226
ESPN
206
DTV
207
DTV
213 ü
TCM
220
DTV
214
DTV
221
TOON
227
DTV
228
ESN2
208
ü
E!
215
DIS1
222
USA
229
OK
CANCEL
AUTO
ALL
NONE
HELP
Note
Use the PAGE and PAGE buttons to quickly move through the rows of stations. You can also use the 0-9 buttons to enter the three-digit station number directly.
3
Select OK when you’re finished setting skipped stations.
To see the results of your Custom Stations settings:
q Bring up Custom Guide, by pressing the GUIDE button, the Station
Index (see page 33), or use the CH+/CH- buttons.
54
Using the AUTO
Skip Feature
Selecting STOP interrupts the Auto
Skip process and returns you to the previous screen, which displays the stations that have been set to be skipped thus far.
When you select the AUTO button, the Digital Satellite Receiver automatically scans all the stations in the current Master Guide. During this scanning process, the Digital Satellite Receiver determines which stations you are not authorized to watch and then sets these stations to be skipped. You can use this feature as a starting point to creating your own list of custom stations.
For example, if there are stations to which you do not subscribe that appear in the Master Guide, the AUTO function automatically marks these stations to be skipped. This saves you the trouble of having to determine which of the 150+ stations in the Master Guide you cannot view and then having to manually set each of these stations to be skipped.
Note
The AUTO function does not skip pay per view stations.
To use the AUTO Skip feature:
1
Select CUSTOM STATIONS from the Options Menu.
2
Select the AUTO button.
The Digital Satellite Receiver begins to evaluate all the stations in the Master Guide, and displays a status bar, similar to the following.
SET CUSTOM STATIONS
STOP
28% completed
Evaluating channel 150.
Please wait ...
Note
This process may take a few minutes to complete.
When the Digital Satellite Receiver is finished scanning, the station list reappears, with checkmarks (
ü
) beside stations that are set to be skipped.
3
Select OK to save your selections. Or select additional stations to be skipped or unskipped.
Note
You may want to re-run the Auto skip procedure periodically in case your program providers make changes or additions to their station lineups, or if you order new program subscriptions.
55
Setting Audio Options
How to Determine which
Audio Tracks Are Available for a Program
Selecting an Audio Track
Your program providers may broadcast multiple audio tracks with a single video source. For example, a football game might use a different audio track for each sports commentator or a movie might include
Dolby Digital sound as well as both English and Spanish language audio tracks.
To determine which audio track is available:
1
Tune to the program.
2
Press the DISPLAY button to bring up the Program Banner.
If the Program Banner includes the audio symbol ( ), this indicates that multiple audio tracks are available for that program.
If the Program Banner includes the Double-D symbol ( ), this indicates that Dolby Digital sound is available for that program
Using the on-screen menus:
1
Press the MENU button to bring up the Main Menu.
2
Select OPTIONS MENU.
3
Select AUDIO.
OPTIONS MENU
AUDIO
1
DISPLAY
OPTIONS
DATA
SERVICES
4
7
PURCHASES
2
EXIT
5
CUSTOM
STATIONS
8
MESSAGES
3
LOCKS AND
LIMITS 6
The Set Audio screen appears, which lists only the audio tracks available for the program you are currently tuned to.
SET AUDIO
ENGLISH 1
SCIENCE
SPANISH 1
ü
DOLBY DIGITAL
ENGLISH
RETURN
DEFAULT
DOLBY
DIGITAL
HELP
* For SAT-B3 model, Dolby Digital does not appear.
56
4
To change the audio track for the current program, select an audio track.
To change the default language for all programs, select DEFAULT.
Then see “Setting a Default Language” below.
To change the default Dolby Digital setting, select DOLBY
DIGITAL. Then see “Setting Dolby Digital” on page 58.
5
To save your changes and return to the Options Menu, select OK.
Then select EXIT from the Options Menu to return to the program you were watching.
Setting a Default Language
Use the DEFAULT button to specify the language you want to hear for programs broadcast in multiple languages.
To set a default language:
1
Select DEFAULT from the Set Audio screen.
2
Select a default language.
SET AUDIO
ENGLISH 1
SCIENCE
SPANISH 1
ü
SET DEFAULT LANGUAGE
Select the default language for the audio of all stations.
ENGLISH
SPANISH
FRENCH
GERMAN
ITALIAN
JAPANESE
RETURN
DEFAULT
HELP
3
Select RETURN to return to the Options Menu.
Note
If the default language you select is not available for a program that you tune to, you will not hear the default language. Instead, you’ll hear one of the languages available for that program (usually English). For example, if you set the default language to Spanish and a program is broadcast in English only, you’ll automatically hear the audio in English.
57
Setting Dolby Digital
(SAT-A4 only)
Use the DOLBY DIGITAL button to select the default setting for receiving Dolby Digital sound. This setting determines the output from the DIGITAL OUT terminal only. The AUDIO out jacks do not output
Dolby Digital signals.
Note
To enjoy Dolby Digital sound, you must connect your Digital Satellite
Receiver to a Dolby Digital decoder or Dolby Digital A/V receiver.
To set Dolby Digital:
1
Select DOLBY DIGITAL from the Set Audio screen.
2
Select the Dolby Digital option you want.
SET AUDIO
ENGLISH 1
ü
SPANISH 1
SET DOLBY DIGITAL OPTION
Select Dolby Digital Option for your Digital Satellite Receiver.
OFF
AUTO SELECT
SCIENCE
RETURN
DEFAULT
DOLBY
DIGITAL
HELP
Select “OFF” if you do not have a Dolby Digital decoder or Dolby
Digital A/V receiver.
Select “AUTO SELECT” to allow Dolby Digital signals to be output to your Dolby Digital decoder or Dolby Digital receiver when those signals are available.
58
Reading Your Messages
How to Determine When
You’ve Received Mail
Displaying Your Messages
Occasionally, your program providers will send messages to your
Digital Satellite Receiver. These messages contain useful information about your system, such as information about new services, program promotions, or billing.
There are several ways to tell if you have unread mail: q The Digital Satellite Receiver front panel MESSAGE indicator lights up.
q An envelope ( ) appears in the Program Banner, accessed by pressing the DISPLAY button. q An envelope ( ) appears in menu item 7 (Options Menu) of the
Main Menu.
To display your messages:
1
Press the MENU button to bring up the Main Menu.
2
Select OPTIONS MENU.
3
Select MESSAGES.
OPTIONS MENU
AUDIO
1
DISPLAY
OPTIONS
DATA
SERVICES
4
7
PURCHASES
2
EXIT
5
CUSTOM
STATIONS
8
MESSAGES
3
LOCKS AND
LIMITS 6
The date of the message, along with the first few words of the message, appear.
59
Reading a Message To read a message:
1
Select the envelope from the Messages screen. A selected message appears with a checkmark (
ü
) beside it. Then select READ.
MESSAGES
ü
11/6 Sign up now for our special ...
11/8 Welcome to USSB ....
11/23 Happy Thanksgiving ....
RETURN
READ
HELP
The full text of the message appears.
READ MESSAGE
ü
11/23
Happy Thanksgiving from everyone at DIRECTV.
RETURN
ERASE
HELP
2
To erase a message after you’ve read it, select ERASE. To keep a message after you’ve read it, select RETURN.
Note
Your mailbox can hold about 50 messages before exhausting the Digital
Satellite Receiver’s memory.
60
Selecting Data Services
How to Determine if Data
Services Are Available on a
Station
Selecting a
Data Service
DATA SERVICES appears only when the station you’ve tuned to includes data services.
In the future, your program providers may provide data services, which you can access through specific stations using the Digital
Satellite Receiver’s low-speed data port. For details about using a data port to access these data services, call your program providers.
To determine if data services are available on a specific station:
1
Tune to the station.
2
Press the DISPLAY button to bring up the Program Banner.
If the Program Banner includes the data services symbol ( ), this indicates that data services are available for that specific station.
To select a data service:
1
Select DATA SERVICES from the Options Menu.
OPTIONS MENU
AUDIO 1
DISPLAY
OPTIONS
DATA
SERVICES
4
7
PURCHASES
2
EXIT
5
CUSTOM
STATIONS 8
MESSAGES
3
LOCKS AND
LIMITS
6
Selecting CANCEL returns you to the previous screen, without saving your selections.
The titles of the data services may be different, based on the service being provided.
2
The Data Services screen appears, which lists only the data services that are available for the station you are currently tuned to.
LOW SPEED DATA
DATA 1
DATA 5
ü
DATA 2
DATA 6
DATA 3
DATA 7
DATA 4
DATA 8
RETURN
DEFAULT
BAUD
HELP
61
Changing the Default
Data Service
The titles of the data services may be different, based on the service being provided.
3
Select one of the following:
To Do This ...
Change the data service for the current station only
Change the data service for all stations
Change the baud rate for the
Digital Satellite Receiver’s wide band data port
Do This ...
Select the data service and then select RETURN.
Select DEFAULT (then see
“Changing the Default Data
Service” below).
Select BAUD (then see “Setting the Baud Rate” below).
Use the DEFAULT button to select a default data service for all stations that provide data services.
To change the data service for all stations:
1
Select DEFAULT from the Data Services screen.
2
Select a default data service.
LOW SPEED DATA
DATA 1
DATA 5
ü
DATA 2
DATA 6
DATA 3
DATA 7
DATA 1
DATA 2
DATA 3
DATA 4
DATA 5
RETURN
DEFAULT
BAUD
HELP
Setting the Baud Rate
The baud rates displayed may be different, depending on which data port is being used.
To set the baud rate for the Digital Satellite Receiver’s data port:
1
Select BAUD from the Data Services screen.
2
Select a baud rate for the data port.
LOW SPEED DATA
DATA 1
DATA 5
ü
DATA 2
DATA 6
DATA 3
DATA 7
DATA 4
SET BAUD RATE
2400
DATA 8
4800
9600
19200
RETURN
DEFAULT
BAUD
HELP
62
Chapter 6
Using the Setup Menu
Read this chapter to set up your Digital Satellite Receiver for the first time, check the antenna’s signal strength, or to run a system test to diagnose any difficulties you may be having with your system.
Overview
The Setup Menu includes several options you can use to set up and troubleshoot your system. q q
Use the Setup Menu to: q q q q
Set up and point your Satellite Antenna (page 65).
Set up your VCR Recording feature (page 66).
Replace your access card (page 68).
Change the aspect ratio of the Digital Satellite Receiver to match your TV screen: standard or widescreen (page 70).
q SAT-A4 Only: Change the Digital Satellite Receiver to receive RF
(radio frequency) remote control signals or IR (infrared) remote control signals (page 71).
q Display a list of programmable codes for other components you may want to operate using the remote control (page 74).
q Run a system test to check the operation of your system, including the access card, phone line, satellite signal, and tuning (page 75).
Display helpful troubleshooting information (page 76).
Get hints and shortcuts on using your DirecTV System (page 76).
63
Displaying the Setup Menu
To set up your system, first bring up the Setup Menu, as follows:
1
2
Press the MENU button to bring up the Main Menu.
Select SETUP MENU.
MAIN MENU
CATEGORY
GUIDE 1
MASTER
GUIDE 2
CATEGORY
LIST 3
EXIT MOVIES
GUIDE
4
OPTIONS MENU
7
TIMER
SETUP
5
8
MOVIES
LIST
6
SETUP MENU
9
3
The Setup Menu appears:
SETUP MENU
REMOTE
CONTROL 1
ACCESS
CARD
ANTENNA EXIT
4
TROUBLE
SHOOTING
7
SYSTEM
TEST
2
5
8
VCR
RECORDING 3
ASPECT
RATIO 6
TIPS AND
SHORTCUTS
9
The following pages describe how to use the Setup Menu to set up your system.
64
Setting Up the Satellite Dish Antenna
Selecting RETURN returns you to the Setup Menu.
To install the Satellite Antenna, or to check the current signal level of the antenna, use the Set Up Antenna screen.
Note
Make ertain that the signal strength of the Satellite Antenna is optimized. If the signal is not optimized, you may experience losses in audio or video, especially during rain, snow, or other conditions that tend to degrade signal performance. See the Satellite Dish Antenna Operating Instructions for details on using the Set Up Antenna screen to point the Satellite Antenna and optimize the Satellite Antenna’s signal strength.
1
Select ANTENNA from the Setup Menu.
2
The Set Up Antenna screen appears.
SET UP ANTENNA
ZIP CODE LAT/LONG
Transponder
2
RETURN
HELP
LOCKED
80
CURRENT LEVEL
85
PEAK LEVEL
3
To determine the elevation and azimuth settings for the Satellite
Antenna, select ZIP CODE or LAT/LONG.
q ZIP CODE uses your five-digit zip code to determine the elevation and azimuth settings.
q LAT/LONG uses your location’s latitude and longitude to determine the azimuth and elevation settings.
q The Signal Strength Meter indicates the current signal strength of the Satellite Antenna. q The Transponder option allows you to select a transponder number from 1 to 32. You should not need to change this number (the default is 2) unless you’re instructed to do so by your program provider.
See the Satellite Dish Antenna Operating Instructions for details on using the Set Up Antenna screen to point the Satellite Antenna and optimize the Satellite Antenna’s signal strength.
Select RETURN to return to the Setup Menu.
65
VCR Recording
After hooking up your IR Blaster (see “Connecting the IR Blaster” on page 18 for details), you must identify and set the manufacturer and code type of your VCR. After doing this, you should perform an IR test to ensure that all of your VCR functions are working properly.
1
Select VCR RECORDING from the Setup Menu.
VCR RECORDING
Manufacturer
Code
Test
Sony
3
OK
CANCEL
HELP
2
When the VCR RECORDING test screen appears, select
MANUFACTURER, and select the manufacturer name for your
VCR.
VCR RECORDING
Code
Test
3
VCR MANUFACTURERS
Select your VCR’s
Manufacturer
Sony
Admiral
Aiwa
Audio Dynamic
Bell & Howell
OK
CANCEL
HELP
66
Note:
You will need to reenter the
Manufacturer and Code each time you enter the VCR RECORDING screen.
3
After selecting the manufacturer, select the CODE type of your
VCR.
VCR RECORDING
Manufacturer
Test
0
SONY CODE
Select the code for your
Sony VCR
1
2
3
4
OK
CANCEL
HELP
4
Select TEST to determine if the POWER ON/OFF, RECORD and
STOP functions of your VCR are working properly.
VCR RECORDING
Manufacturer
Code
BEFORE TESTING
1) Put a tape in your VCR xx to be RECORDED OVER
2) Select the correct VCR xx line input
3) Turn off your VCR
OK
CANCEL
OK
CANCEL
HELP
5
If the test is succesful, select OK to return to the Setup Menu. If the test fails, check the connection between the IR Blaster and your
Digital Satellite Receiver, make sure the correct video input is selected, and/or try a different code.
67
Replacing Your Access Card
In the event that your program providers need to send you a new access card, use the Access Card option to initialize your new card.
During this process, you’ll follow the on-screen instructions to copy information from the old card onto the new card. After you initialize the new card, your old card becomes invalid.
To replace your access card:
1
Select ACCESS CARD from the Setup Menu.
SETUP MENU
REMOTE
CONTROL 1
ANTENNA
4
TROUBLE
SHOOTING
7
ACCESS
CARD
EXIT
SYSTEM
TEST
2
5
8
VCR
RECORDING 3
ASPECT
RATIO 6
TIPS AND
SHORTCUTS
9
2
When the Replace Access Card screen appears, insert your old access card, if you removed it, as follows: q
Slide the access card, arrow side up, into the slot located in the rear of the Digital Satellite Receiver, as shown in the illustration.
ACCESS CARD
DIGITAL
OUT
(OPTIONAL)
SATELLITE IN
LOW SPEED DATA
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
VCR CONTROL
R L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
AC IN~
68
Selecting RETURN returns you to the Setup Menu, without starting the initialization process.
3
Select OK from the Replace Access Card screen.
REPLACE ACCESS CARD
OK
RETURN
HELP
Please insert OLD access card and select OK to initialize NEW card.
CAUTION: After you select OK, you cannot stop this process, and your OLD access card will no longer be valid.
4
Follow the instructions as they are displayed to complete the procedure.
When the message “Replace Access Card Procedure Complete” appears, select OK to return to the Setup Menu.
69
Setting the Aspect Ratio
Selecting CANCEL returns you to the
Setup Menu, without saving your selection.
Use the Aspect Ratio option to set the Digital Satellite Receiver’s display to match your TV’s picture.
To set the aspect ratio:
1
Select ASPECT RATIO from the Setup Menu.
2
Select one of the options, based on the type of TV you have: q If you have a standard TV, select 4:3.
q If you have a wide-screen TV, select 16:9.
SET ASPECT RATIO
4:3 ü
STANDARD
16:9
WIDE
OK
CANCEL
HELP
3
Select OK to return to the Setup Menu.
70
Setting Up the Remote Control (SAT-A4 Only)
Selecting IR/RF Transmission
(SAT-A4 Only)
The Set Up Remote screens let you set up the Digital Satellite Receiver to accept IR (infrared) or RF (radio frequency) signals from the remote control and to change the RF security code for the Digital Satellite
Receiver.
You can also use this screen to display a list of codes you can use to program the remote control to operate other components, such as TVs and cable boxes.
In addition to having IR remote control capability, your DirecTV
System includes an RF feature, which enables the remote control to operate the Digital Satellite Receiver even if the receiver is located in another room or is placed behind a cabinet door. In other words, with the RF feature, the remote control does not require a direct line-of-sight to the front panel of the Digital Satellite Receiver.
Note
You must set up the RF antenna to take advantage of the RF feature. See
“Setting up the RF Antenna (SAT-A4 Only)” on page 19 for details.
The Digital Satellite Receiver is shipped with IR transmission enabled and RF transmission disabled. To use the RF feature, you must change the factory setting (IR ONLY) to the RF setting (RF ONLY).
To select IR or RF transmission:
1
Select REMOTE CONTROL from the Setup Menu.
2
Select REMOTE SIGNAL and select a transmission type (IR or RF).
SET UP REMOTE
REMOTE CODES
RF SECURITY CODE
REMOTE CODES
REMOTE SIGNAL
Select IR or RF transmission for the
Digital Satellite Receiver.
IR ONLY
RF ONLY
OK
CANCEL
IDENTIFY
HELP
3
Select OK to save your selections and return to the Setup Menu.
71
Setting the Security Code
(SAT-A4 Only)
The Digital Satellite Receiver and remote control are shipped with the RF security code set to 000.
If the Digital Satellite Receiver is accepting or receiving signals from another RF remote control in your home (or from a neighbor’s house), you can eliminate this problem by changing the security codes for the
Digital Satellite Receiver and remote control.
Note
As an alternative, you can eliminate this problem by disabling the RF capability of the Digital Satellite Receiver, if you have no need for RF transmission. See “Selecting IR/RF Transmission (SAT-A4 Only)” on page 71 for details.
There are two steps to changing the RF security code: Step 1 is changing the Digital Satellite Receiver’s security code; step 2 is changing the remote control’s security code. Both the Digital Satellite
Receiver and the remote control must use the same three-digit security code.
Step 1: Select the Digital Satellite Receiver’s RF Security Code
1
Select REMOTE CONTROL from the Setup Menu.
2
Select RF SECURITY CODE and then select a different security code.
SET UP REMOTE
REMOTE SIGNAL IR ONLY
RF SECURITY CODE
REMOTE CODES
000
RF SECURITY CODE
Select the RF security code for the Digital
Satellite Receiver.
CODE
CODE 001
CODE 002
CODE 003
CODE 004
OK
CANCEL
IDENTIFY
HELP
3
Select OK to save your changes and return to the Setup Menu.
4
Go to “Step 2: Set the Remote Control’s RF Security Code” on page
73 to continue.
72
To Determine the Current
Security Code for the
Remote Control
(SAT-A4 Only)
Step 2: Set the Remote Control’s RF Security Code
1
Press the CODE SET button on the remote control.
2
Using the number buttons on the remote control, enter the threedigit security code you selected for the Digital Satellite Receiver in step 2 on page 72.
3
Press the ENTER button on the remote control.
The RF security code is now changed for both the Digital Satellite
Receiver and remote control.
You can determine the current RF security code for the remote control using the IDENTIFY button in the Set Up Remote screen.
1
Bring up the Set Up Remote screen, as described on page 71.
2
Select IDENTIFY.
SET UP REMOTE
REMOTE SIGNAL
RF SECURITY CODE
IR ONLY
000
OK
CANCEL
IDENTIFY
HELP
REMOTE CODES
Press the joystick within 5 seconds.
3
When the message “Press the joystick within 5 seconds” appears, press the joystick before the 5 seconds expire.
The current RF security code for the remote control appears.
SET UP REMOTE
REMOTE SIGNAL
RF SECURITY CODE
IR ONLY
000
OK
CANCEL
IDENTIFY
HELP
REMOTE CODES
Your remote is currently set at 000.
Note
If the message, “Security code could not be identified” appears, check to make sure that RF is enabled and that the RF antenna is connected properly. See
“Selecting IR/RF Transmission (SAT-A4 Only)” on page 71.
4
Select OK to return to the Setup Menu.
73
Displaying the
Programmable Codes
SAT-A4: The SAT-A4 remote control can be programmed to control most brands of TVs, cable boxes, VCRs, and laserdisc players (LDP).
SAT-B3: The SAT-B3 remote control cannot be programmed to control cable boxes or laserdisc players.
You can also use the Setup Remote screen to display a list of codes you can use to program the remote control to operate other components, such as TVs and VCRs.
Note
These code numbers and instructions are also described in “Programming the
Remote Control” on page 85.
To display the list of programmable codes:
1
Select REMOTE CONTROL from the Setup Menu.
2
Select REMOTE CODES and then select the type of component you want to use with the remote.
SET UP REMOTE
REMOTE SIGNAL
RF SECURITY CODE
REMOTE CODES
IR ONLY
REMOTE CODES
Select the category of manufacturer codes to be displayed.
TV CODES
CABLE BOX CODES
VCR CODES
LDP CODES
INSTRUCTIONS
OK
CANCEL
IDENTIFY
HELP
3
Scroll through the list that appears to find the remote codes for the manufacturer of your component. Press the button to return to the Set Up Remote screen.
4
To program the remote control, select INSTRUCTIONS and follow the on-screen instructions.
5
Select OK to return to the Setup Menu.
74
Running a System Test
If The System Test Reports
Any Problems...
The System Test lets you check the integrity of your system's components, including: q Antenna signal q System tuning q Phone line q Access card
Use the System Test if you are experiencing problems with your system.
To run the System Test:
1
Select SYSTEM TEST from the Setup Menu.
2
Select TEST.
RUN SYSTEM TEST
SIGNAL
TUNING
PHONE
CARD
TEST
RETURN
HELP
The System Test checks all the components automatically, and displays the result of each test.
3
Select RETURN to return to the Setup Menu.
Check your system for any of the following: q Check that all cables are connected properly to the Digital Satellite
Receiver.
q Check that the Satellite Antenna is installed correctly, and that the signal has been optimized. See the manual that came with the
Satellite Antenna for details.
q Check that the phone line connected to the Digital Satellite
Receiver is working properly.
q Check that the access card is inserted properly.
If you cannot resolve problems reported by the System Test, see
“Customer Support” on page 2.
75
Displaying Help, Tips, and Shortcuts
Displaying Troubleshooting
Information
To display troubleshooting information:
1
Select TROUBLESHOOTING from the Setup Menu.
SETUP MENU
REMOTE
CONTROL
1
ANTENNA
4
TROUBLE
SHOOTING 7
ACCESS
CARD
EXIT
SYSTEM
TEST
2
5
8
VCR
RECORDING
3
ASPECT
RATIO 6
TIPS AND
SHORTCUTS 9
2
Select the topic for which you want information. Details of that topic are displayed.
3
Press the button to return to the Troubleshooting screen.
4
Select RETURN to return to the Setup Menu.
Displaying Tips and
Shortcut Information
To display tips and shortcut information:
1
Select TIPS AND SHORTCUTS from the Setup Menu.
SETUP MENU
REMOTE
CONTROL 1
ANTENNA
4
TROUBLE
SHOOTING
7
ACCESS
CARD
EXIT
SYSTEM
TEST
2
5
8
VCR
RECORDING 3
ASPECT
RATIO
6
TIPS AND
SHORTCUTS
9
2
Select the topic for which you want information. Details of that topic are displayed.
3
Press the button to return to the Tips and Shortcuts screen.
4
Select RETURN to return to the Setup Menu.
76
Appendix
Other Information
q q q q q q q q
This appendix includes supplementary information, including: q Locations and descriptions of the controls and indicators on the front and back panels of the Digital Satellite Receiver (page 78).
Remote control button descriptions (page 81).
Programming the remote to operate your TV and other video components (page 85).
Troubleshooting information (page 87).
Precautions (page 90).
FCC Information (page 91).
Limited warranty (page 92).
Specifications (page 93).
Index (page 94).
77
Location and Function of Controls
Front Panel
POWER
32 BIT
MICRO PROCESSOR
POWER TIMER MESSAGE
GUIDE
DIGITAL SATELLITE RECEIVER SAT-A4
MENU
Button
POWER Button
MENU Button
GUIDE Button
Description
Turns the Digital Satellite Receiver on and off.
Brings up the Main Menu.
Brings up the Custom Guide.
The arrow buttons highlight items in the on-screen displays (program guides, menus, etc.). The button selects highlighted items.
Power Indicator
Timer Indicator
Message Indicator
Indicates whether the Digital Satellite Receiver is on or off.
Indicates that the Timer is set.
Indicates that you have an unread message.
78
Back Panel (SAT-A4)
ACCESS CARD
DIGITAL
OUT
(OPTICAL)
VCR CONTROL
SATELLITE IN
LOW SPEED DATA
R
AUDIO
RF REMOTE
VIDEO
S VIDEO
1
CH3
CH4
VHF/UHF IN
2
L(MONO)
VIDEO OUT
VHF(SAT)/UHF
OUT
TEL LINE
AC IN~
Connector
SATELLITE IN
Description
Connects to the LNB on the Satellite Antenna.
DIGITAL OUT
LOW SPEED DATA
VCR CONTROL
RF REMOTE
AUDIO (R)/(L)
OUT
VIDEO OUT
S-VIDEO OUT
CH3/CH4 Switch
VHF/UHF IN
VHF(SAT)/UHF OUT
TEL LINE
AC IN
Connects to the optical in jack on your Dolby Digital decoder or
Dolby Digital A/V receiver.
Allows you to connect your Digital Satellite Receiver to new technologies, as they are introduced. Additional accessories may be required.
Sends IR signal from Digital Satellite Receiver to VCR. Allows the
Digital Satellite Receiver to automatically control your VCR’s recording functions when you record a program.
Connects to the RF antenna.
Connects your Digital Satellite Receiver to the right and left audio inputs of your audio or video component.
Connects your Digital Satellite Receiver to your TV or VCR’s video input.
Allows you to connect your Digital Satellite Receiver directly to your
TV (if your TV has S-VIDEO IN).
When you use an RF connection, this setting determines the TV channel on which programs from the Digital Satellite Receiver can be viewed.
Allows you to connect your Digital Satellite Receiver to your normal
(terrestrial) TV or cable TV service.
Connects to your TV or VCR.
Connects your Digital Satellite Receiver to a telephone jack. This allows you to order pay per view programs.
Connects your Digital Satellite Receiver to a 120 V AC outlet.
Cable Type
Solid Bare Copper
RG-6 Coaxial
(75-ohm/F-type)
Optical cable
Depends on future applications
(D-sub 9 pin)
Audio mono miniplug
RCA-type
Audio (2)
(RCA-type)
Video
(RCA-type)
S-Video
(4-pin mini DIN)
RG-59 Coaxial
(75-ohm/F-type)
RG-59 Coaxial
(75-ohm/F-type)
Telephone (RJ-11)
AC
79
Back Panel (SAT-B3)
ACCESS CARD
SATELLITE IN AUDIO VIDEO
LOW SPEED DATA
VCR CONTROL R L(MONO)
S VIDEO
CH3
CH4
VHF/UHF IN
VHF(SAT)/UHF
OUT
TEL LINE
AC IN~
Connector
SATELLITE IN
LOW SPEED DATA
VCR CONTROL
AUDIO (R)/(L)
OUT
VIDEO OUT
S-VIDEO OUT
CH3/CH4 Switch
VHF/UHF IN
VHF(SAT)/UHF OUT
TEL LINE
AC IN
Description Cable Type
Connects to the LNB on the Satellite Antenna.
Allows you to connect your Digital Satellite Receiver to new technologies, as they are introduced. Additional accessories may be required.
Sends IR signal from Digital Satellite Receiver to VCR. Allows the Digital Satellite Receiver to automatically control your
VCR’s recording functions when you record a program.
Connects your Digital Satellite Receiver to the right and left audio inputs of your audio or video component.
Connects your Digital Satellite Receiver to your TV or VCR’s video input.
Allows you to connect your Digital Satellite Receiver directly to your TV (if your TV has S-VIDEO IN).
When you use an RF connection, this setting determines the
TV channel on which programs from the Digital Satellite Receiver can be viewed.
Allows you to connect your Digital Satellite Receiver to your normal (terrestrial) TV or cable TV service.
Connects to your TV or VCR.
Solid Bare Copper
RG-6 Coaxial
(75-ohm/F-type)
Connects your Digital Satellite Receiver to a telephone jack.
This allows you to order pay per view programs.
Connects your Digital Satellite Receiver to a 120V AC outlet.
Depends on future applications
(D-sub 9 pin)
Audio mono miniplug
Audio (2)
(RCA-type)
Video
(RCA-type)
S-Video
(4-pin mini DIN)
RG-59 Coaxial
(75-ohm/F-type)
RG-59 Coaxial
(75-ohm/F-type)
Telephone (RJ-11)
AC
80
Using the Remote Control
The FUNCTION buttons flash to indicate which component the remote control is set to operate.
After you’ve installed the batteries and programmed the remote control, use these procedures to operate your system components:
1
Select the component that you want to use: To operate a cable box,
TV, or the Digital Satellite Receiver, press the corresponding
FUNCTION button.
SAT-A4 Only : To operate a VCR or laserdisc player, open the lid on the remote control and set the slide switch to the position that you set for the component.
2
3
Aim the remote control at the component.
Press the POWER button of the component to turn it on and off.
To control other functions of the component, see the table that follows.
SAT-A4 Remote Control
Outside Panel (SAT-A4)
MUTING SLEEP CABLE
POWER
TV
SAT
FUNCTION CABLE TV SAT
POSITION AUDIO SWAP
TV/VIDEO TV/SAT
PIP
+
CH
-
JUMP
OFF
FAVORITE
1 2 3
4 5 6
7
DISPLAY
8
0
CATEGORY INDEX
9
ENTER
GUIDE
MENU
VOL CH
EXIT
S
SATELLITE
RECEIVER
PAGE
RM-Y800
Note
Buttons described in the following table can operate components other than the
Digital Satellite Receiver only if you’ve programmed the remote and the component supports the function described. See page 85 for instructions on programming the remote.
Button
MUTING
Operates Description
TV Mutes the volume. Press again to restore the volume.
SLEEP
CABLE
POWER
TV
SAT
FUNCTION
TV
CABLE TV SAT
POSITION AUDIO SWAP
+
CH
-
PIP
OFF
Automatically turns off the TV, after the time period that you specify.
CABLE: Turns the cable box on and off.
TV: Turns the TV on and off.
SAT: Turns the Digital Satellite Receiver on and off.
CABLE: Puts the remote in cable mode. In cable mode, the remote operates your cable box.
TV: Puts the remote in TV mode. In TV mode, the remote operates your TV.
SAT: Puts the remote in SAT receiver mode. In
SAT mode, the remote operates your Digital
Satellite Receiver. To switch from the TV to SAT mode, press the SAT FUNCTION button, and then press the TV/SAT button.
Only works with Sony TVs.
POSITION: Changes the PIP position.
AUDIO: Swaps the audio between PIP and the main picture.
SWAP: Swaps the PIP picture and the main picture.
+/–: Changes the PIP channel.
PIP: Turns PIP on.
OFF: Turns PIP off.
81
82
Button
TV/VIDEO
TV/SAT
JUMP
FAVORITE
DISPLAY
ENTER
INDEX
GUIDE
VOL
0
EXIT to
CATEGORY
9
CH
PAGE
Operates Description
TV Switches the input of the TV.
SAT
SAT
TV
SAT
SAT
TV
Cable box
SAT
TV
SAT
TV
Cable box
SAT
Switches the output of the Digital Satellite
Receiver to TV (normal TV programs), if you’ve connected a TV cable or antenna, or to SAT programs.
SAT: Used to tune to and set stations in the Jump
Loop (SAT). See “Using the Jump Loop Feature” on page 48 for details. TV, Cable: Tunes to the last station you were tuned to.
Used for setting up and using the Favorite
Station Guides. See “Using the Favorite Station
Guides” on page 37 for details.
Specifies the station number. SAT: In menus, selects the menu item with the corresponding number. Also, in some screens, used to enter numerical values (such as a spending limit or passcode).
Toggles through the different displays of onscreen guides (SAT) or other display (TV). See
“Using the DISPLAY Feature” on page 41 for details.
Used with 0-9 buttons to change stations without any delay in tuning.
Brings up the Index.
Brings up the Category Guide. SAT
SAT
SAT
TV
SAT
TV
SAT
TV
Brings up the Custom Guide. If you’re already in a program guide, pressing GUIDE repeatedly brings up future time slots in the guide.
When moved forward, back, left, right, and diagonally, highlights items in the on-screen displays (program guides, menus, etc.). When pressed, selects highlighted items.
VOL: Increases and decreases the volume.
CH/PAGE: Moves to the next (+) or previous (-) station during normal viewing. In SAT program guides and some setup screens, these buttons page through the on-screen displays.
Clears all on-screen displays, including program guides, menus, etc. If you press EXIT before you complete your selections, the previous selections are restored.
Inside Panel (SAT-A4)
MUTING
SLEEP
––––––––––– POWER –––––––––––
SAT
CABLE TV
VTR 2 DVD
VTR 3 AMP
TV/VTR
CODE SET
––––––– FUNCTION –––––––
CABLE TV SAT
POWER
+
AUDIO VOL
-
+
CH
-
Button
VTR 2 DVD
VTR 3 AMP
POWER
TV/VTR
VCR
DVD
VCR
DVD
VCR
DVD
AMP
VCR
AMP
VCR
DVD
VCR
DVD
VCR
Operates Description
VCR
DVD
AMP
Switches to VCR, DVD or AMP mode, depending on how you’ve set up the remote for these positions.
VCR
DVD
Eject
VCR
DVD
Rewind
Play
Fast-forward
Turns the VCR, DVD or amp on and off.
Changes the VHF/UHF output of the VCR.
Changes the input of the amp.
Stop
Pause
Record
CH
CODE SET
+
AUDIO VOL
-
VCR
SAT
AMP
Changes the channel.
Used for programming the remote to operate your TV, cable box, VCR, DVD, or amp. Also used to change the RF security code.
Changes the audio volume on the amp.
83
SAT-B3 Remote Control
MUTING
VTR TV
POWER
SAT
TV/VIDEO VTR
FUNCTION
TV SAT
TV/VTR
TV/SAT
1 2 3
4 5 6
7
DISPLAY
8
0
CATEGORY INDEX
9
ENTER
GUIDE
JUMP EXIT MENU FAVORITE
VOL CH
PAGE
CODE SET
RM-Y139
SATELLITE
RECEIVER
CODE SET
FAVORITE
TV/VIDEO
TV/SAT
JUMP
0 to 9
DISPLAY
INDEX
CATEGORY
EXIT
MENU
GUIDE
SAT
TV
SAT
TV
SAT
TV
SAT
SAT
SAT
TV
SAT
TV
SAT
SAT
TV
SAT
TV
SAT
Button
VTR TV
POWER
SAT
Operates
VTR
FUNCTION
TV SAT
Description
VTR(VCR): Turns the VTR(VCR) on and off.
TV: Turns the TV on and off.
SAT: Turns the Digital Satellite Receiver on and off.
VTR(VCR): Puts the remote in VTR mode. In VTR mode, the remote operates your VCR.
TV: Puts the remote in TV mode. In TV mode, the remote operates your TV.
SAT: Puts the remote in Digital Satellite Receiver mode. In SAT mode, the remote operates your digital satellite receiver.
Used for programming the remote to operate your TV or VTR(VCR).
Used for setting up and using the Favorite Station
Guides. See “Using the Favorite Station Guides” on page 37 for details.
Switches the input of the TV.
Switches the output of the Digital Satellite Receiver to
TV (normal TV programs), if you’ve connected a TV cable or antenna, or to SAT programs.
SAT: Used to tune to and set stations in the Jump Loop
(SAT). See “Using the Jump Loop Feature” on page 48 for details. TV: Tunes to the last station you were tuned to.
Specifies the station number. SAT: In menus, selects the menu item with the corresponding number. Also, in some screens, used to enter numerical values (such as a spending limit or passcode).
Toggles through the different displays of on-screen guides (SAT) or other display (TV). See “Using the
DISPLAY Feature” on page 41 for details.
Brings up the Station Index.
Brings up the Category Guide.
Clears all on-screen displays, including program guides, menus, etc. If you press EXIT before you complete your selections, the previous selections are restored.
Brings up the Main Menu (Sony-brand TVs only.)
Brings up the Custom Guide. If you’re already in a program guide, pressing GUIDE repeatedly brings up future time slots in the guide.
When moved up, down, left, and right, highlights items in the on-screen displays (program guides, menus, etc.).
VOL CH
PAGE
TV
SAT
VCR
VOL: Increases and decreases the volume.
CH/PAGE: Moves to the next (+) or previous (-) station during normal viewing. In SAT program guides and some setup screens, these buttons page through the on-screen displays.
84
Programming the Remote Control
You can also find these code numbers using the on-screen displays. See
“Displaying the Programmable Codes” on page 74.
You must perform step 3 within 10 seconds of step 2, or you must start again from step 2.
You must perform step 4 within 10 seconds of step 3, or you must start again from step 2. To cancel the operation, press the ENTER button.
The Digital Satellite Receiver’s remote control is preset at the factory to operate Sony brand TVs.
If you have a TV other than Sony brand, or you have other video components that you want to control with the Digital Satellite
Receiver’s remote, use the following procedures to program the remote.
Note
Your components must have infrared (IR) remote control capability in order to be used with the Digital Satellite Receiver’s remote.
4
5
To program the Digital Satellite Receiver’s remote:
1
Turn to “Programmable Codes” on page 86, and find the threedigit code number for your component. If more than one code number is listed, use the number listed first to complete the following procedures.
2
Press the CODE SET button.
3
Press the FUNCTION button (VTR, SAT or TV) for the component you’re setting up. SAT-A4 Only: To set up a VCR or laserdisc player, set the slide switch to any position (VTR3/VTR2/DVD/
AMP).
Enter the three-digit code number.
Press the ENTER button.
To Check if the Code Number Works
Use the following procedure to make sure the code you’ve entered works:
1
Aim the Digital Satellite Receiver’s remote control at the component and press the POWER button that corresponds to that component.
2
For TVs and VCRs : If the component responds, try the POWER,
CH+ and CH- buttons. If the component responds, you’re done.
3
If the code doesn’t work for your component: q Try programming the remote using the other codes listed for your component.
q If you cannot get your component to respond to the Digital
Satellite Receiver’s remote — even after trying all the code numbers for your component — your component may not be compatible with the Digital Satellite Receiver’s remote. If this happens, you must use your component’s own remote to operate it.
85
Programmable Codes
TV Codes
Manufacturer
Sony
Admiral (M.
Wards)
ABC
Bell & Howell
(M. Wards)
Broksonic
Craig
Croslex
Curtis Mathis
Daewoo
Daytron
Emerson
Code
101
102, 114, 109
112
114, 109, 138
103, 112
122, 123, 120, 121
111
103, 119, 123
135, 136, 103
113
122, 113, 120, 121,
123, 103, 115
Fisher 125
General Electric 102, 118, 103, 107
Goldstar
Hitachi
103, 113, 112, 130
131, 113, 103, 132
JC Penney
JVC
KTV
LXI (Sears)
103, 102, 130, 107
128, 129
133, 113, 103, 123,
134
102, 103 111, 125,
119, 112
Magnavox 111, 112, 113, 107
Mitsubishi/MGA 124, 103, 112
NEC
Panasonic
103, 112
118, 116, 117, 107
Philco
Philips
Pilot
Pioneer
111, 118, 109
111
103
137, 118, 119
Portland
Quasar
Radio Shack
RCA/Proscan
Samsung
Sanyo
Scott
Sharp
Signature 2000
(M. Wards)
Sylvania
103, 108
110, 107
102, 112, 124, 123
102, 103, 104, 105,
106, 107, 108
126, 112, 113, 103
125
123, 112
114, 113, 115
114, 109
Symphonic
Tenika
Toshiba
Videch
Wards
Zenith
111, 112, 108
123, 139
109
119, 114
131, 103, 112
113, 103, 115, 112
108, 110
Cable Box Codes (SAT-A4 Only)
Manufacturer
Hamlin/Regal
Code
222, 223, 224, 225,
228
Jerrold/G.I.
201, 202, 203, 204,
205, 206, 207 208,
218
227, 228, 229 Oak
Panasonic
Pioneer
219, 220, 221
214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212
VCR Codes
Manufacturer Code
Sony
Aiwa
300, 301,302, 303
338
Audio Dynamic 314, 347
Bell & Howell
(M. Wards)
330, 343
Broksonic 317, 319
Canon
Citizen
309, 308
332
Craig 315, 302, 332
Curtis Mathis 304, 338, 309
Daewoo
DBX
Dimensia
Emerson
341, 312, 309
314, 336, 337
304
319, 320, 316, 317,
318, 341
330, 334, 335, 333 Fisher
Funai 338
General Electric 329, 304, 309
Go Video
Goldstar
Hitachi
HQ
322, 339, 340
332
306, 304, 305, 338
315
Instant Replay 309, 308
JC Penney 309, 305, 304, 330,
314, 336, 337
JVC 314, 336, 337
Kenwood
LXI (Sears)
314, 336, 332, 337
332, 305, 333, 334,
330, 335, 338
310, 308, 309 Magnavox
Marantz
Marta
Memorex
Minolta
Mitsubishi/
MGA
314, 336, 337
332
309, 335
305, 304
323, 324, 325, 326
Multitech
NEC
Olympic
Optimus
325, 338, 321
314, 336, 337
309, 308
327
86
Manufacturer Code
Panasonic 308, 309, 306, 307
Pentax
Philco
Philips
Pioneer
305, 304
308, 309
310, 308, 309
308
Quasar
Realistic
306, 308, 309
RCA/Proscan 304, 305, 308, 309,
310, 311, 312, 313
309, 330, 328, 335,
324, 338
Sansui 314
Singer
Samsung
Sanyo
Scott
Sharp
Shintom
Signature 2000
(M. Wards)
Sylvania
315
322, 313, 321
330, 335
312, 313, 321, 335,
323, 324, 325, 326
327, 325, 328
315
336, 327
Symphonic
Tashiro
Tatung
Teac
Technics
Teknika
Toshiba
Wards
Yamaha
Zenith
310, 308, 309, 338
338
332
314, 336, 337
314, 336, 338, 337
309, 308
338, 342
312, 311
327, 328, 335, 331,
332
330, 314, 336, 337
331
DVD (Digital Video Disc) Codes
(SAT-A4 Only)
Manufacturer Code
Sony
Panasonic
601
604
Pioneer
RCA
Toshiba
605
602
603
AMP (Amplifier) Codes
(SAT-A4 Only)
Manufacturer Code
Sony 501
Denon (Sharp) 516, 517, 518
Harmon 519
JVC
Kenwood
506, 507, 508
504, 505
McIntosh
Onkyo
Pioneer
Technics
Yamaha
520
512, 513
502, 503
509, 510, 511
514, 515
Troubleshooting
Symptom Possible Causes and Remedies
No picture
(poor picture quality or loss of picture) q
If you are receiving only a few stations, for example, stations 100, 205, and 999, call your program providers to have your programming activated. q
Check to make sure the Digital Satellite Receiver is on and set to SAT mode. See page 81 or 84.
q
Check to make sure your access card is inserted properly into the Digital
Satellite Receiver. q
Run the System Test to verify that your system is working properly. See page 75.
q
Check the Satellite Antenna’s signal strength. See page 65.
q
Check the connections to your TV (and other components). See the Satellite Dish
Antenna Operating Instructions and Chapter 3 of this manual.
q
Check to make sure your TV (and other components) are set to receive the signal
(channel 3 or 4, VIDEO1, etc.), as appropriate to the way your system is connected. See Chapter 3.
q
Some pay per view programs may be protected by Macrovision copy-protection at the discretion of the copyright owner. To ensure a quality picture, make sure that the signal is coming directly from the Digital Satellite Receiver and not through your VCR. Call your program providers for details.
q
Make sure the RG-6 cable is properly connected to the Satellite Antenna’s LNB.
If the Signal Seeker is not flashing on the LNB when the Set Up Antenna screen is displayed, there may be an electrical short in the RG-6 cable and you will need to replace it.
q
In rare cases, the picture may be distorted if you connected a terrestrial TV antenna to the UHF/VHF IN jack of the Digital Satellite Receiver. This distortion could occur if the channel selector on the back of the Digital Satellite
Receiver is set to a channel that is normally received on channel 3 or 4 of your
TV. For example, you can receive a local station on channel 4, and the channel selector is set to channel 4. If this happens, set the channel selector to the other channel (3 or 4), whichever one is not used on your TV.
q
Avoid placing 300-ohm wires above your Digital Satellite Receiver, i.e., off-air antenna wire, rabbit ear antenna.
q
If the cable distance between the Satellite Antenna and Digital Satellite Receiver exceeds 100 feet, you must use the Sony brand Amplifier EAC-DA1.
Cannot access program
Cannot order pay per view program q
Check to make sure that you are subscribing to the station you are trying to tune to. Call your program providers if you are not sure.
q
Check to make sure the system is not locked. See Chapter 5.
q
Check to make sure the station isn’t set to be skipped. See page 54.
q
Check to make sure you’ve connected the Digital Satellite Receiver to a phone line.
q
It may be too late to purchase this program. Check for other show times. See page 29.
q
If the message “Purchase information not available” appears, you must call your program provider (DIRECTV or USSB) to order the program.
q
Check to make sure the PPV option is not locked. See Chapter 5.
q
Your access card may be full. Call your program provider.
87
Symptom
One Button Recording/IR Blaster is not working
Main Menu, buttons 4 and 6, do not include the program categories that you want
Possible Causes and Remedies
Cannot find the station of the pay per view program you’ve ordered q
See “Checking and Cancelling PPV Purchases” on page 45 to get information
(station, start times, etc.) about programs you’ve ordered.
Cannot cancel a pay per view order via the Purchase menu option
Program guide does not bring up the program you’ve chosen q
You cannot cancel pay per view orders that you’ve watched or tuned to. Also, you can cancel only programs you’ve ordered using the remote control. Call your program providers for details.
q
You must press the button to select the program you’ve highlighted.
Although the guide automatically tunes to current stations that you highlight in any of the guides, you must press the button to complete your selection.
Cannot display favorite stations
Ratings limit, spending limit, or pay per view lock not working properly q
You must set up your Favorite Station Guides before favorite stations can be displayed. See page 37.
q
If you selected a program guide using CATEGORY GUIDE or CATEGORY LIST, some of your Favorite Stations may not be displayed when you press the
FAVORITE button. This is probably because the program that’s on the Favorite
Station is in a program category that’s different from the category or subcategory you selected for the displayed guide or list.
q
Check locks and limits. Then check that the system is locked. See Chapter 5.
Cannot access locks or limits screens
Cannot lock or unlock the system
Audio track is not available
Language of audio track is incorrect
Cannot record programs on VCR q
The system must be unlocked before you can make changes to the locks and limits. See Chapter 5.
q
Make sure you’ve entered the correct passcode. If you’ve lost or forgotten your passcode, call your program provider. See “Customer Support” on page 2.
q
Not all programs offer audio tracks. See page 56.
q
Check default language setting. The program provider may not make available all the languages displayed in the Set Default Language screen. See page 57.
Check the audio track setting. See page 56.
q
Check to make sure the VCR is connected correctly, and that the VCR is set to receive the signal from the Digital Satellite Receiver. See Chapter 3.
q
If you are using the automatic timer to facilitate the recording of programs, make sure the program you are trying to record does not conflict with any locks or limits that have been set. If you are using the timer for PPV programs, you must purchase these programs in advance, which may require that you call your program provider to order the program.
q
Make sure you are not trying to record a pay per view program that is copyprotected by Macrovision. Some pay per view programs are copy-protected at the discretion of the copyright owner. Call your program provider for details.
q
Check to make sure the IR Blaster is connected and placed correctly. See
“Connecting the IR Blaster” on page 18 .
q
Check the code for your VCR. See “VCR Recording” on page 66.
q
Check to make sure the Video line input, which connect the Digital Satellite
Receiver to the VCR, is correctly selected.
q
Use CATEGORY GUIDE to change the program category shown in button 4.
Use CATEGORY LIST to change the program category shown in button 6. See page 32.
88
Symptom
Access card problems
Remote control does not work
Audio Noise
Possible Causes and Remedies q
Check that the card is inserted properly. See page 68.
q
Call your program providers. See “Customer Support” on page 2.
q
To operate your TV or other video components, make sure you’ve programmed the remote properly. See “Programming the Remote Control” on page 85. Note:
The remote codes may be erased whenever you remove the batteries. Program the remote again if you’ve removed or replaced the batteries.
q
Press the appropriate FUNCTION button (SAT, TV, VTR(VCR)) for the component you want to operate. These buttons flash to indicate which component the remote control is set to operate. q
Check to make sure the batteries are inserted correctly, and that the batteries are not dead. See page 6.
q
SAT-A4 Only: If you are having problems with the RF function, check that the RF antenna is connected properly and that you are using the remote control within operating range of the Digital Satellite Receiver (see “Setting Up the RF Antenna
(SAT-A4 Only)” on page 19). Make sure that RF transmission is enabled (see
“Selecting IR/RF Transmission (SAT-A4 Only)” on page 71). Make sure the
Digital Satellite Receiver and remote control are using the same security code
(see “Setting the Security Code (SAT-A4 Only)” on page 72). q
Try removing the batteries and reinserting them without touching any buttons on the remote control.
q
If you connect the DIGITAL OUT terminal to a device that is not Dolby Digital compatible, set the Dolby Digital Option to OFF (page 58).
Not all optical terminals on A/V receivers are Dolby Digital compatible.
If you are unable to resolve problems with your system, please see
“Customer Support” on page 2 for customer support information and telephone numbers.
89
Precautions
On Safety
On Power Sources
On Placement
On Cleaning
On Repacking
90 q If you spill or drop anything into the cabinet, unplug the Digital
Satellite Receiver and have it checked by qualified personnel before operating it any further.
q Operate the Digital Satellite Receiver only on 120 V AC.
q For detailed safety precautions, see the “Important Safeguards” leaflet that came with the Digital Satellite Receiver.
q The Digital Satellite Receiver continues to draw power from the
AC power source as long as it is connected to the wall outlet, even if the Digital Satellite Receiver itself has been turned off. q If you are not going to use the Digital Satellite Receiver for a long time, be sure to disconnect the Digital Satellite Receiver from the wall outlet and cancel your programming subscription. To disconnect the AC power cord, grasp the plug itself; never pull the cord.
q To further protect the Digital Satellite Receiver from damage caused by lightning or power surges, connect a power surge protector to your telephone line, AC power cord, and external antennas.
q One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
q If the AC power cord gets damaged and needs to be replaced, have it done at a qualified service shop only.
q Place the Digital Satellite Receiver in a location with adequate ventilation to prevent heat build-up in the Digital Satellite Receiver and prolong the life of the Digital Satellite Receiver.
q Do not place the Digital Satellite Receiver in a location where it will be exposed to extreme hot or cold temperatures. Avoid direct sunlight and do not place near heat sources.
q Do not place the Digital Satellite Receiver in a location subject to excessive dust or mechanical vibration. Protect from vibration at all times.
q Do not place anything on top of the Digital Satellite Receiver, which might block the ventilation holes and cause malfunctions.
q Before connecting other components, be sure to turn off and unplug the Digital Satellite Receiver.
q Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.
q Keep the original cartons and packing materials to safely transport the equipment in the future.
FCC Regulations and Information
FCC Registration Information
Your Digital Satellite Receiver has been registered by the Federal
Communication Commission (FCC) as not being harmful to the telephone network when connected directly to the telephone lines. In order to fully comply with the Rules of the FCC, the following instructions should be read carefully and followed completely where applicable:
1 The Federal Communication Commission (FCC) has established Rules which permit this device to be directly connected to the telephone network. Standardized jacks are used for these connections. This equipment should not be used on party lines or coin phones.
2 If this device is malfunctioning, it may also be causing harm to the telephone network; this device should be disconnected until the source of the problem can be determined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service.
3 The telephone company may make changes in its technical operations and procedures; if such changes affect the compatibility or use of this device, the telephone company is required to give adequate notice of the changes. You will be advised of your right to file a complaint with the FCC.
4 If the telephone company requests information on what equipment is connected to their lines, inform them of: a The telephone number to which this unit is connected.
b.
The ringer equivalence number.
c.
The USOC jack required.
d.
The FCC Registration Number.
5 Items (b) and (d) are indicated on the label. The Ringer
Equivalence Number (REN) is used to determine how many devices can be connected to your telephone line. In most areas, the sum of the RENs of all devices on any one line should not exceed five (5). If too many devices are attached, they may not ring properly.
Service Requirements
In the event of equipment malfunction, all repairs should be performed by our Company or an authorized agent. It is the responsibility of users requiring service to report the need for service to our company or to one of our authorized agents. For service, call 1-800-838-7669.
Declaration of Conformity
Trade Name:
Model No.:
Sony
SAT-A4
Responsible Party: Sony Electronics Inc.
Address: 1 Sony Drive, Park Ridge, NJ. 07656 USA
Telephone No.: 201-930-6972
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Radio Interference Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception (which you can determine by turning the equipment off and on), you are encouraged to try to correct the interference by one or more of the following measures: q
Reorient or relocate the receiving antenna (the antenna for radio or television that is receiving the interference) q
Change the position of the Digital Satellite Receiver with respect to the radio or television equipment that is receiving the interference q
Move the Digital Satellite Receiver away from the equipment that is receiving the interference q
Plug the Digital Satellite Receiver into a different outlet so that the Digital Satellite Receiver and the equipment receiving the interference are on different branch circuits
Shielded cables and I/O cords must be used for this equipment to comply with the relevant FCC regulations. Changes or modifications not expressly approved in writing by Sony
Electronics, Inc., void the user’s authority to operate this equipment.
If these measures do not eliminate the interference, you should consult your DIREC
TV System dealer or an experienced radio/television technician for additional suggestions. In addition, you may find the following booklet prepared by he Federal Communications
Commission helpful: “How to Identify and Resolve Radio-TV
Interference Problems.” This booklet is available from the U.S.
Government Printing Office, Washington, D.C., 20402 Stock No.
004-000-00345-4.
Canadian Residents
Le present appareil numerique n’emet pas de bruits radioelectriques depassant les limites applicables aux appareils numeriques de la class B prescrites dans le Reglement sur le brouillage radioelectrique edicte par le ministere des
Communications du Canada.
91
Limited Warranty
DIRECTV Systems
SONY ELECTRONICS INC. (“SONY”) warrants this Product
(including any accessories) against defects in material or workmanship as follows:
1 LABOR. For a period of 90 days from the original date of purchase, if the Product is determined to be defective, SONY will repair or replace the Product at no charge. After this 90 day period, you must pay for all labor charges.
2 PARTS. For a period of one (1) year from the original date of purchase, SONY will supply, at no charge, new or rebuilt replacements in exchange for defective parts. Any replacements will be warranted for the remainder of the original warranty period or ninety (90) days from installation by SONY’s authorized facility, whichever is longer.
3 ACCESSORIES. Parts and labor for all accessories are for one
(1) year.
4 IN-HOME. For a period of one (1) year from installation date, if the unit was professionally installed by a SONY authorized DIRECTV System Installer and the LNB
(Electronic Antenna Element) fails to function properly,
SONY will repair or replace the LNB with a new or rebuilt part. Labor to repair or replace the LNB (after 90 days from purchase) will be at your expense. If no problem is found, or any other item fails, it will be your responsibility to pay the installer their regular rate for an in-home service call.
To obtain warranty service, you must take the Product, or deliver the Product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to a SONY authorized DIRECTV System service facility. Please see the telephone number at the end of this section for a number to call to locate the closest facility.
This warranty does not cover customer instruction, installation, setup adjustments or signal reception problems.
This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of the Product, including the antenna. This warranty does not cover improper installation (if self-installed), loss of use of the product, or wasted programming charges due to product malfunction. This warranty does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or attempted repair by anyone other than a facility authorized by SONY to service the Product. This warranty does not cover Products sold AS IS or WITH ALL
FAULTS. This warranty is valid only in the United States.
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the Warranty period must be presented to obtain warranty service.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT. IN NO EVENT SHALL SONY BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES
WHATSOEVER ARISING OUT OF THE USE OR INABILITY TO
USE THE PRODUCT. UNDER NO CIRCUMSTANCES SHALL
SONY’S LIABILITY, IF ANY, EXCEED THE PURCHASE PRICE
PAID FOR THE PRODUCT. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY.
This warranty is invalid if the factory applied serial number has been altered or removed from the Product.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition, if you enter into a service contract with the SONY Partnership within 90 days of the date of sale, the limitation on how long an implied warranty lasts does not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
For your convenience, SONY ELECTRONICS INC. has established telephone numbers for frequently asked questions. To locate the servicer or dealer nearest you, for assistance or resolution of a service problem, or for product information or operatio n, call:
SONY SATELLITE SYSTEM INFORMATION CENTER
1-800-838-7669 (Sony)
For an accessory or part not available from your authorized dealer, call :
1-800-488-7669
About Sony Customer Support
Every Sony brand DIRECTV System comes with Sony’s Express
Support at no charge to you. In the event of a system failure, our
Express Support Program can have a replacement receiver on its way to you via overnight Federal Express (for calls Monday-
Friday until 7:30 pm Eastern Time; Saturday delivery depends upon zip code). All it takes is a valid credit card to cover a security deposit, and Sony will pay freight in both directions. Our Express
Support continues with our 800 number, staffed by dedicated technical representatives who can answer questions on dealer locations, system operation, installation, hookup, accessories, and how to get the most out of your home entertainment system.
Sony’s Express Support program: another expression of our commitment to excellence in customer service.
92
Specifications
Input Jacks
Output Jacks
Input Frequency
Power
Requirements
Power
Consumption
Dimensions
(w/h/d)
Weight
UHF/VHF
75 ohm f-type
Satellite Dish Antenna
75 ohm f-type
RF Remote (SAT-A4)
AC Power (120 V, 60 Hz)
S-VIDEO OUT
4-pin mini DIN
VIDEO (RCA jacks) (2)
OPTICAL OUT (1)
AUDIO R/L (RCA jacks) (2)
VHF(SAT)/UHF, f-type
Low-Speed Data
9-pin D-Sub Female
TEL LINE
VCR CONTROL (1)
950 - 1450 MHz
AC 120 V
20 W max
280 x 66.5 x 228.5 mm
11 x 2 5 /
8
x 9 inches
Set: 2.7 / 6.0 lbs (SAT-A4)
2.5 kg/5.4 lbs (SAT-B3)
Unit: 1.6 kg/3.6 lbs (SAT-A4)
1.5 kg / 3.4 lbs (SAT-B3)
Note
Design and specifications are subject to change without notice.
Supplied
Accessories
Remote Control
RM-Y800 (SAT-A4)
RM-Y139 (SAT-B3)
Size AA Batteries (2)
Access Card (1)
Audio/Video Cable (1)
S-VIDEO Cable (1) (SAT-A4)
RF Antenna (1) (SAT-A4)
RF Cable (1)
Telephone Line Cord (1)
AC Power Cord (1)
IR Blaster (1)
Optional
Sony-brand
Digital Satellite
System Accessories
Local TV Antenna
ANJ-AA1
Installation Kit
ANJ-DS2
Amplifier
EAC-DA1
Diplexer
EAC-DD1
Voltage Switch
EAC-DV1
93
Index
0-9 buttons 7, 8, 26, 82, 84
16:9 aspect ratio 70
4:3 aspect ratio 70
(audio symbol) 40, 56
(data services symbol) 40, 61
Dolby Digital Audio symbol 40,
56
(lock symbol) 49, 53
(messages symbol) 59
button 7, 8, 27, 78
Hi-Fi A/V system 16 home entertainment system 16
IR Blaster 18
RF antenna 19
TV and VCR 14
TV with A/V connectors 13
TV with RF connector 12
Custom Guide 54
See also Master Guide customer support numbers 2, 92
A access card, replacing 68 antenna
See also RF antenna.
setting up 65 signal level 65 arrow buttons on front panel 78 on SAT-B3 remote control 8, 84 aspect ratio, setting 70 audio 56
AUDIO button 56 audio option 56 audio screen 56
AUTO skip feature 55 audio track 56 azimuth 65
B back panel connectors
SAT-A4 79
SAT-B3 80 batteries, inserting into remote control 6 baud rate, setting 62
C
CATEGORY button 7, 8, 82, 84
CATEGORY GUIDE 30, 32
CATEGORY LIST 30, 32
CH +/- buttons 83
CH/PAGE buttons 7, 8, 82, 84
CODE SET button 83, 84 colors, setting 46 connecting audio system16, 17 cable TV, terrestrial antenna 12,
13, 14, 16
94
D, E data services, setting 61 default language, setting 57
Digital Out terminal 16, 58, 79
DISPLAY button 29, 34, 40, 59, 82,
84
Dolby Digital 11, 56, 57, 79
Dolby Digital button 56, 57
Eject button 83 elevation 65
ENTER button 7, 8, 82
EXIT button 9, 10, 29, 34, 82, 84
Express Navigator 4
F
Fast-forward button 83
FAVORITE button 34, 37, 82, 84
Favorite Station Guide changing the title 39 clearing a station 39 displaying and setting up 37 displaying different Favorite
Station Guides 39 exiting 39 using DISPLAY button with 41 features, described 4 front panel controls 78
FUNCTION buttons 81, 84
G
GUIDE button 7, 8, 9, 30, 82, 84 guides selecting a guide category 31 selecting a guide subcategory 32 selecting a guide time 31 selecting a guide type 30
H, I, J
Highlight and Select, explained 23
INDEX button 7, 8, 82, 84
IR Blaster 18, 66 joystick 7, 82
Jump button 82, 84
Loop 48
L languages. See default language and audio.
latitude and longitude, for setting antenna 65 locking the system 51, 52 locks and limits overriding 52 setting 49–52 unlocking 53 with timer settings 36
M
Macrovision copy-protection 28 mail. See messages.
Main Menu 24
Master Guide 24 adding programs to the Timer 28 displaying favorite stations in 27 exiting 27, 29 selecting programs in 28 using DISPLAY button with 41
MENU button 24, 78, 84 messages erasing 60 indicator 78 reading 60 receiving 59
MUTING button 81
O
One Button Recording 27, 35
Options Menu, displaying 44 overriding the system lock 52
P paging 26, 29 passcode, setting 52, 53
Pause button 83 pay per view cancelling programs 45 free preview 28 locking 49 reviewing purchases 45 watching programs 28
PIP 81
Play button 83
POWER buttons 7, 8, 78, 81, 83, 84 power indicator 78 precautions 90 problems diagnosing 75 troubleshooting 87
Program Banner 40 purchases. See pay per view.
R ratings limit explained 49 setting 50
Record button 83 recording SAT programs 20 with IR Blaster 18 with Timer 35 remote control inserting batteries 6 programmable codes 86 programming 85
RF security code 72
SAT-A4 button descriptions 81
SAT-B3 button descriptions 84 setting IR and RF 71 troubleshooting 89
Rewind button 83
RF antenna 19
S satellite antenna, setting 65 scrolling 8, 26
Setup Menu, displaying 64
SLEEP button 81 spending limit explained 49 setting 50
Station Index displaying 7, 8, 10, 33
95 displaying favorite stations in 34 exiting 34 selecting programs in 10, 34 using DISPLAY button with 41 station locks setting 51 station order, setting 47
Stop button 83
S-VIDEO jack 11, 13, 14, 16 system test, running 75
T timer checking and changing 36 indicator 36, 78 setting up 35 tips and shortcuts 76 transponder 65
TV/SAT button 82, 84
TV/VIDEO button 82, 84
TV/VTR button 83
U, V unlocking the system 53
VCR Recording 66
VOL button 84
VTR3/VTR2/DVD/AMP switch 83
W, Z
Warranty 92 zip code, for setting antenna 65
96
Printed in the U.S.A.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
