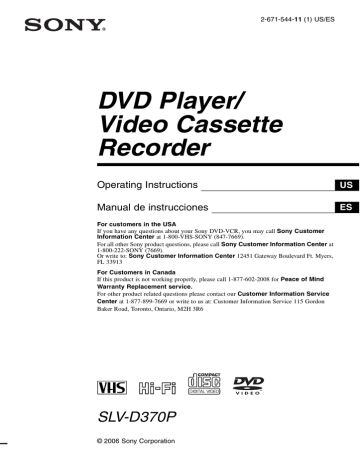

2-671-544-11 (1) US/ES DVD Player/ Video Cassette Recorder Operating Instructions US Manual de instrucciones ES For customers in the USA If you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Center at 1-800-VHS-SONY (847-7669). For all other Sony product questions, please call Sony Customer Information Center at 1-800-222-SONY (7669). Or write to: Sony Customer Information Center 12451 Gateway Boulevard Ft. Myers, FL 33913 For Customers in Canada If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 SLV-D370P © 2006 Sony Corporation WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For customers in the U.S.A CAUTION Model No. ______________ Serial No.______________ The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. Owner’s Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 2US WARNING • To keep the disc clean, handle the disc by its edge. Do not touch the surface. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Notes about discs This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case. • Clean the disc with a cleaning cloth. Wipe the disc from the center out. • Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or antistatic spray intended for vinyl LPs. • If you have printed the disc’s label, dry the label before playing. On adjusting volume Precautions On safety Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played. • To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. • Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. On cleaning On power sources On cleaning discs, disc/lens cleaners • Operate the unit only on 120 V AC, 60 Hz. • This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. • Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord. Do not use a commercially available cleaning disc or disc/lens cleaner (wet or spray type). These may cause the apparatus to malfunction. Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzine. On cleaning the video heads • Rough picture • Unclear picture • No picture (or black & white screen appears) On placement • Do not install the unit in a confined space such as a bookshelf or similar unit. • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit, discs and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers. • Do not place heavy objects on the unit. On operation • When you move the player, take out any discs. If you don’t, the disc may be damaged. • If the unit is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player and cause damage to the video head, tape, and the optical block. Should this occur, the player may not operate properly. When you first install the player, or when you move it from a cold to a warm location, remove the disc and tape and leave the player turned on for about three hours before operating the player. initial contamination terminal When the video heads are dirty, clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads. continued Precautions 3US US Copyright Important Safety Instructions • Television programs, films, video tapes and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmission and/or program owner. • This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. 1 2 3 4 5 6 7 IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this. 4US Precautions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Table of contents 2 2 3 7 7 WARNING Notes about discs Precautions About this manual This player can play the following discs Getting Started 10 11 14 20 22 26 Step 1 : Unpacking Step 2 : Setting up the remote commander Step 3 : Basic hookups Step 4 : Selecting a language Step 5 : Setting the clock Step 6 : Presetting channels Advanced Hookups 30 S-Video/Component Video hookup 32 A/V Receiver hookup Basic Operations 34 38 41 45 48 51 53 Playing discs Guide to the on-screen display Playing a tape Recording TV programs Recording TV programs using the timer Checking/changing/canceling timer settings Locking the DVD-VCR (Child Lock) continued Table of contents 5US DVD Settings and Adjustments 54 56 60 62 Audio Setup Screen Setup Setting the display or sound track language Parental Control (limiting playback by children) DVD Additional Operations 65 66 67 68 70 74 76 78 84 88 Using the DVD’s menu Zooming into a scene Changing the angles Displaying the subtitle Various play mode functions (Program play, Shuffle play, Repeat play) Changing the sound Virtual surround setting Playing an MP3 audio track Playing JPEG image files Playing VIDEO CDs with “PBC ON/OFF” Functions VCR Additional Operations 90 91 92 94 96 Quick Timer Recording Recording stereo and bilingual programs Searching using various functions Changing menu options Editing with another VCR Additional Information 98 101 106 108 109 113 114 6US General setup information Troubleshooting Glossary Specifications Index to parts and controls DVD Audio/Subtitle Language Index Table of contents About this manual • This manual mainly explains operations using the remote, but the same operations can also be performed using the buttons on the DVD-VCR having the same or similar names. • “DVD” may be used as a general term for DVD VIDEOs, DVD-RWs/DVD-Rs, and DVD+RWs/ DVD+Rs. • The meaning of the icons used in this manual is described below: Icon Meaning This player can play the following discs Format of discs DVD VIDEO DVD-RW/-R DVD+RW/+R Functions available for DVD VIDEOs and DVD-RWs/DVDRs in video mode or DVD+RWs/ DVD+Rs Functions available for DVDRWs/DVD-Rs in VR (Video Recording) mode Functions available for VIDEO CDs, Super VCDs or CD-Rs/CDRWs in video CD format or Super VCD format Functions available for music CDs or CD-Rs/CD-RWs in music CD format Functions available for DATA CDs (CD-ROMs/CD-Rs/CDRWs containing MP3* audio tracks or JPEG files) Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/ DVD+Rs/DVD-RWs/DVD-Rs containing MP3* audio tracks or JPEG files) Functions available for VHS VIDEOs * MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data. VIDEO CD/ Music CD CD-RW/-R “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks. Note about CDs/DVDs The player can play CD-ROMs/CD-Rs/CD-RWs recorded in the following formats: – music CD format – video CD format – MP3 audio tracks and JPEG image files of format conforming to ISO 9660* Level 1/ Level 2, or its extended format, Joliet – KODAK Picture CD format * A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for Standardization). The player can play DVD-ROMs/DVD+RWs/ DVD+Rs/DVD-RWs/DVD-Rs recorded in the following formats: – MP3 audio tracks and JPEG image files of format conforming to UDF (Universal Disk Format). – 8 cm DVD+RW, DVD-RW, and DVD-R recorded with a DVD Video camera continued About this manual 7US Region code Your player has a region code printed on the back of the unit and only will play DVD VIDEO discs (playback only) labeled with identical region codes. This system is used to protect copyrights. DVDs labeled ALL will also play on this player. If you try to play any other DVD VIDEO, a message will appear on the TV screen to indicate that the disc is not playable. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions. SLV-DXXXX NO. X Notes about DVD+RWs/ DVD+Rs, DVD-RWs/DVD-Rs or CD-Rs/CD-RWs Some DVD+RWs/DVD+Rs, DVD-RWs/DVDRs or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played. Region code Note on playback operations of DVDs and VIDEO CDs Example of discs that the player cannot play The player cannot play the following discs: • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on the previous page. • CD-ROMs recorded in PHOTO CD format. • Data part of CD-Extras • DVD Audios • HD layer on Super Audio CDs Also, the player cannot play the following discs: • A DVD VIDEO with a different region code. • A disc recorded in a color system other than NTSC, such as PAL or SECAM (this player conforms to the NTSC color system). • A disc that has a non-standard shape (e.g., card, heart). • A disc with paper or stickers on it. • A disc that has the adhesive of cellophane tape or a sticker still left on it. 8US This player can play the following discs Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs. Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Note on DualDiscs This product is designed to playback discs that conform to the Compact Disc (CD) standard. A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side of a DualDisc may not play on this product because these discs do not conform to the CD standard. “DualDisc” is a trademark of the Recording Industry Association of America (RIAA). This player can play the following discs 9US Getting Started Step 1 : Unpacking Check that you have received the following items with the DVD-VCR: • Remote commander • 75-ohm coaxial cable with F-type connectors • Size AA (R6) batteries Note • The supplied remote commander is for the exclusive use of this DVD-VCR. 10US Unpacking Step 2 : Setting up the remote commander Getting Started Inserting the batteries Insert two size AA (R6) batteries by matching the + and – on the batteries to the diagram inside the battery compartment. Insert the negative (–) end first, then push in and down until the positive (+) end clicks into position. Reattach the cover after inserting the battery. Using the remote commander You can use this remote commander to operate this DVD-VCR and a Sony TV. Buttons on the remote commander marked with an orange dot (•) can be used to operate your Sony TV. If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV. Remote sensor TV / DVD·VIDEO switch SELECT VIDEO SELECT DVD To operate Set TV / DVD·VIDEO switch to the DVD player DVD·VIDEO, then press SELECT DVD and point at the remote sensor at the DVD-VCR the VCR DVD·VIDEO, then press SELECT VIDEO and point at the remote sensor at the DVD-VCR your TV TV and point at the remote sensor at your TV continued Setting up the remote commander 11US Notes • With normal use, the batteries should last about three to six months. • If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage. • Do not use a new battery with an old one. • Do not use different types of batteries. • Do not leave the remote commander in an extremely hot or humid place. • Do not drop any foreign object into the remote casing, particularly when replacing the batteries. • Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction. Controlling TVs with the remote commander The remote commander is preprogrammed to control non-Sony TVs. If your TV is listed in the following table, set the appropriate manufacturer’s code number. 1 Set TV / DVD·VIDEO switch at the top of the remote commander to TV. down ?/1, and enter your TV’s code number using the number buttons. Then release 2 Hold ?/1. Buttons Operations ?/1 Turns your TV on or off VOL +/– Adjusts the volume of your TV CH +/– Selects the channel on your TV Number buttons and ENTER* Selects the channel on a Sony TV MUTING* Mutes a Sony TV equipped with the muting function TV/VIDEO Switches your TV’s input source * for Sony TV only 12US Setting up the remote commander Code numbers of controllable TVs If more than one code number is listed, try entering them one at a time until you find the one that works with your TV. Code number TV brand Code number Sony 01 (default) Panasonic 06, 19 Akai 04 Philco 03, 04 AOC 04 Philips 08 Centurion 12 Pioneer 16 Coronado 03 Portland 03 Curtis-Mathes 12 Quasar 06, 18 Daewoo 22 Radio Shack 05, 14 Daytron 12 RCA 04, 10 Emerson 03, 04, 14 Sampo 12 Fisher 11 Sanyo 11 General Electric 06, 10 Scott 12 LG/Gold Star 03, 04, 17 Sears 07, 10, 11 Hitachi 02, 03 Sharp 03, 05, 18 J.C.Penney 04, 12 Sylvania 08, 12 JVC 09 Teknika 03, 08, 14 KMC 03 Toshiba 07 Magnavox 03, 08, 12 Wards 03, 04, 12 Marantz 04, 13 Yorx 12 MGA/Mitsubishi 04, 12, 13, 17 Zenith 15 NEC 04, 12 Getting Started TV brand Notes • If you enter a new code number, the code number previously entered will be erased. • If the TV uses a different remote control system from the one programmed to work with the DVD-VCR, you cannot control your TV with the remote commander. • When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries. Setting up the remote commander 13US Step 3 : Basic hookups Before you get started • Be sure to disconnect the AC power cord of each component before connecting. • Turn off the power to all equipment. • Do not connect the AC power cords until all of the connections are completed. If you connect the AC power cord before the connections are completed, you may not be able to use the Plug and Play function. • Be sure you make connections firmly. Loose connections may cause picture distortion. • If your TV does not match any of the examples provided, see your nearest Sony dealer or qualified technician. Selecting the best hookup option There are many ways in which your DVD-VCR can be hooked up. To hook up your DVD-VCR so that it works best for you, first scan through the table below. Then use the accompanying diagrams and procedures on the following pages to set up your DVD-VCR. If your TV has audio/video inputs, refer to page 15 for audio/video (A/V) hookup. Then follow one of the hookups below. If your TV does not have A/V inputs, go directly to one of the hookups below. If you have Use Refer to Antenna only, no cable TV Hookup 1 A or B (Plug and Play) Page 16 and 18 No cable box or cable box with only a few scrambled channels Hookup 1 C (Plug and Play) Page 17 and 18 Cable box with many scrambled channels Hookup 2 Page 19 After you have completed the connections, follow the instructions for setup. After you have completed the setup, you are ready to use your DVD-VCR. Procedures differ depending on the hookup you used. Caution Connections between the DVD-VCR’s VHF/UHF connector and the antenna terminals of the TV receiver should be made only as shown in the following instructions. Failure to do so may result in operation that violates the regulations of the Federal Communications Commission regarding the use and operation of RF devices. Never connect the output of the DVD-VCR to an antenna or make simultaneous (parallel) antenna and DVD-VCR connections at the antenna terminals of your receiver. Note to CATV system installer (in USA) This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. 14US Basic hookups Audio/video (A/V) hookup If you are not planning to use your DVD-VCR to record programs, you only need to make the connections shown on this page. If you want to record regular or cable TV programs, complete these connections first, and then go to the following pages for antenna or cable hookups. A Use this hookup if your TV has stereo jacks DVD-VCR Getting Started If your TV has audio/video (A/V) input jacks, you will get better picture and sound if you hook up your DVD-VCR using these connections. If your TV does not have A/V inputs, see the following pages for antenna or cable hookups. Note that “Advanced Hookups” (page 30) explains additional hookup methods that will optimize the picture and sound for a true “hometheater” experience. Stereo receiver TV Audio/video cord (not supplied) Audio cord (not supplied) B Use this hookup if your TV does not have stereo jacks DVD-VCR Stereo receiver TV Video cord (not supplied) Audio cord (not supplied) Notes • To play a tape/disc in stereo, you must use the A/V connection. • If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the AUDIO IN jack on your TV. continued Basic hookups 15US Hookup 1 (Plug and Play) A Use this hookup if you are using: • VHF/UHF antenna (you get channels 2–13 and channels 14 and higher) • UHF-only antenna (you get channels 14 and higher) • Separate VHF and UHF antennas Rear of TV VHF/UHF A or DVD-VCR VHF Match the type of connector on your TV: A, B, or C. B UHF or VHF C UHF B Use this hookup if you are using a VHF-only antenna (you get channels 2–13 only) Rear of TV VHF/UHF DVD-VCR or or A Match the type of connector on your TV: A, B, or C. B For connector types B and C, no UHF connection is required. VHF UHF VHF C UHF If you cannot connect your antenna cable to the DVD-VCR directly If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external antenna connector (not supplied) so you can connect the cable to the IN connector. If you have separate cables for VHF and UHF antennas, you should use a U/V band mixer (not supplied) (page 100). 16US Basic hookups C Use this hookup if you have no cable box, or a cable box with only a few scrambled channels What you can do with this hookup • Record any unscrambled channel by selecting the channel on the VCR Getting Started What you cannot do • Record scrambled channels that require a cable box DVD-VCR Rear of TV VHF/UHF Wall or A Match the type of connector on your TV: A, B, or C. VHF B Connect this cable directly to your TV if you do not have a cable box. or For connector types B and C, no UHF connection is required. UHF VHF Cable box C UHF continued Basic hookups 17US DVD-VCR setup (Hookup 1 continued) Plug the DVD-VCR into an AC outlet. The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels when the DVD-VCR is plugged into the AC outlet. to AC outlet AC power cord The DVD-VCR starts presetting the clock and channels. When Auto preset is completed, the current time appears in the display window. You have now completed DVD-VCR setup. To begin using your DVD-VCR, go to “Basic Operations” on page 34. To change the on-screen display language to French or Spanish, see “Step 4 : Selecting a language” on page 20. The clock is set using a time signal provided by some TV channels. If the clock is incorrect, or “–:–” appears in the display window, see “Using Manual Clock Set” on page 24. To add or disable channels manually, see “Presetting/disabling channels manually” on page 28. Notes • If you connect the AC power cord before the antenna connections are completed, the channels may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 26. • Do not press any buttons on the DVD-VCR or remote commander during Auto preset. • Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the DVD-VCR. • Auto preset can be performed by pressing x on the unit continuously for 5 seconds or more with the DVD-VCR power turned off. 18US Basic hookups Hookup 2 Use this hookup if you are connecting a cable box with many scrambled channels Getting Started What you can do with this hookup • Record any channel by selecting the channel on the cable box What you cannot do • Record with the cable box turned off • Record one channel while watching another channel Wall Cable box Rear of TV VHF/UHF A or Match the type of connector on your TV: A, B, or C. VHF B or For connector types B and C, no UHF connection is required. UHF VHF DVD-VCR C UHF After you have completed hookup… After you have completed hookup, plug the DVD-VCR into an AC outlet and see “Step 4 : Selecting a language” on page 20. to AC outlet AC power cord Basic hookups 19US Step 4 : Selecting a language You can change the on-screen display language. Before you start… • Turn on the DVD-VCR and your TV. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. 1 Press SET UP, then press V/v to select (OPTION) and press ENTER. 2 Press V/v to select “Language”, then press ENTER. SET UP V/v ENTER The “LANGUAGE/IDIOMA/LANGUE” menu appears. 3 20US Press V/v to select the desired language, English, Spanish or French, then press ENTER. Selecting a language 4 Press SET UP to exit the menu. Getting Started Selecting a language 21US Step 5 : Setting the clock You must set the clock on the DVD-VCR to use the timer features properly. Using the Auto Clock Set feature Some TV and cable channels transmit time signals with their broadcasts. Your DVDVCR can pick up this time signal to automatically set the clock. SET UP The Auto Clock Set feature works only if a channel in your area is broadcasting a time signal. If broadcasters in your area are not sending time signals, set the time manually (page 24). Before you start… • Turn on the DVD-VCR and your TV. When using a cable box, turn it on. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. 1 Press SET UP, then press V/v to select (OPTION) and press ENTER. 2 Press V/v to select “Clock Set/Adjust”, then press ENTER. The “CLOCK SET/ADJUST” menu appears. 22US Setting the clock V/v/B/b ENTER O RETURN Press V/v to select “Auto”, then press ENTER. 4 Press V/v to select the item you want, then press B/b to make the setting. • For “Clock data CH” Leave the setting to “Auto” to have the DVD-VCR automatically search for a channel that carries a time signal. Press B/b to select a channel that carries a time signal. Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station. • For “Time zone” Select the time zone of your area, or select “Auto” to have the DVD-VCR automatically set your time zone. The options are: Auto y Atl. (Atlantic) y East (Eastern) y Cen. (Central) y Mtn. (Mountain) y Pac. (Pacific) y Alas (Alaska) y Haw. (Hawaii) y Auto • For “Daylight saving” Select “Yes” or “No” (standard time), or “Auto” to have the DVD-VCR automatically set the daylight saving time. 5 Press O RETURN, then press SET UP to exit the menu. 6 To activate the Auto Clock Set function, turn off the DVD-VCR. Getting Started 3 continued Setting the clock 23US Notes • The clock cannot be set automatically if you do not receive a channel that carries a time signal in your area. If so, set the clock manually (page 24). • If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 20 minutes. If nothing happens even after you wait about 20 minutes, set the clock manually (page 24). • If you made Hookup 2, make sure you leave the cable box on. • The clock display appears when VIDEO mode is selected with no tape inserted or when the DVD-VCR is turned off. Using Manual Clock Set Before you start… • Turn on the DVD-VCR and your TV. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. SET UP V/v/B/b ENTER 1 Press SET UP, then press V/v to select (OPTION) and press ENTER. 2 Press V/v to select “Clock Set/Adjust”, then press ENTER. The “CLOCK SET/ADJUST” menu appears. 24US Setting the clock Press V/v to select “Manual”, then press ENTER. 4 Set the hour, minutes, month, day and year in sequence by pressing B/b to select the item to be set, and press V/v to select the digits. The day of the week is set automatically. 5 Press ENTER to confirm the setting. 6 Press SET UP to exit the menu. Getting Started 3 Note • The clock display appears when VIDEO mode is selected with no tape inserted or when the DVD-VCR is turned off. Setting the clock 25US Step 6 : Presetting channels This DVD-VCR is capable of receiving VHF channels 2 to 13, UHF channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods. Then, if there are any unwanted channels, disable them manually. If you have already decided which channels you wish to preset, set them directly using manual presetting methods (page 28). Presetting all receivable channels automatically Before you start… • Turn on the DVD-VCR and your TV. When using a cable box, turn it on. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. SET UP V/v/B/b ENTER 1 26US Press SET UP, then press V/v to select (OPTION) and press ENTER. Presetting channels 2 Press V/v to select “Channel Setup”, then press ENTER. The “CHANNEL SETUP” menu appears. Press V/v to select “Ant/Cable.” 4 • To preset cable TV channels: Press B/b to select “Cable TV.” Getting Started 3 • To preset VHF and UHF channels: Press B/b to select “Antenna.” 5 Press V/v to select “Auto Channel Memory,” then press ENTER. All receivable channels are preset in numerical sequence. When no more receivable channels can be found, presetting stops and the picture from the lowest numbered channel is displayed on the TV screen. continued Presetting channels 27US Presetting/disabling channels manually Before you start… • Turn on the DVD-VCR and your TV. When using a cable box, turn it on. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. CH +/– Number buttons SET UP V/v/B/b ENTER O RETURN 1 Press SET UP, then press V/v to select (OPTION) and press ENTER. 2 Press V/v to select “Channel Setup”, then press ENTER. The “CHANNEL SETUP” menu appears. 28US Presetting channels Press V/v to select “Channel Add/Delete,” then press ENTER. 4 To preset/disable a channel: 1 Press CH +/– or number buttons to enter Channel to be preset the channel number. 2 Press B/b to select “ADD” (in memory) or “DELETE” (deleted). 3 Press ENTER. Getting Started 3 Channel to be disabled 5 Press O RETURN to confirm the setting. 6 Press SET UP to exit the menu. Note • If you have not preset channels automatically, you cannot preset/disable channels manually. Presetting channels 29US Advanced Hookups S-Video/Component Video hookup Select one of the following patterns A or B, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). You can enjoy higher quality images when playing DVDs. Make audio connections using the LINE OUT AUDIO L/R jacks or DIGITAL AUDIO OUT (COAXIAL) jacks on the right side of the DVD-VCR when you use S-VIDEO/Component Video hookup. See page 32 for audio connections. If your TV accepts progressive (480p) format signals, you must use the connection B. DVD-VCR to S-VIDEO OUT to COMPONENT VIDEO OUT (blue) (red) (green) S-VIDEO cord (not supplied) TV TV Component video cord (not supplied) (green) (red) (blue) l : Signal flow (DVD only) 30US S-Video/Component Video hookup AUse this hookup if your TV has an S-VIDEO input jack Connect an S-VIDEO cord (not supplied). You will enjoy high quality images. BUse this hookup if your TV has component video input jacks Connect a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images. If your TV accepts progressive (480p) format signals, you must use this connection and then set “Progressive” to “On” in the “SCREEN SETUP” menu. For details, see “To set the “Progressive” setting” (page 58). Notes • The connection using S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only for the DVD player. The signal from the VCR will not be output. • In the connection using S-VIDEO OUT jack, if you set “Progressive” to “On” in the “SCREEN SETUP” menu, S-Video playback may be distorted. Advanced Hookups S-Video/Component Video hookup 31US A/V Receiver hookup Select one of the following patterns A or B, accordiing to the input jack on your AV amplifier (receiver). This will enable you to listen to DVD audio tracks through your AV amplifier (receiver). For correct speaker location, see the operating instructions supplied with the connected components. DVD-VCR (white) Stereo audio cord (not supplied) or (red) to DIGITAL AUDIO OUT (COAXIAL) Coaxial digital cord (not supplied) to LINE OUT L/R (AUDIO) l : Signal flow (white) (red) to coaxial digital input to audio input [Speakers] [Speakers] Rear (L) Rear (R) Front (L) Front (R) AV amplifier (receiver) with a decoder Center 32US A/V Receiver hookup Subwoofer A Connecting to audio L/R jacks This connection uses a stereo amplifier’s (receiver’s) two front speakers for sound. You can enjoy the surround function that creates virtual speakers from two stereo speakers. Select from “Surround1”, “Surround2” or “Surround3” of the surround effects (page 76). B Connecting to a digital audio (COAXIAL) input jack Use this connection if your AV amplifier (receiver) has a Dolby*1 Digital or DTS*2 decoder and a digital input jack. You can enjoy the surround effect of Dolby Digital (5.1ch) or DTS (5.1ch). *1 Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. *2 “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. A/V Receiver hookup Advanced Hookups Notes • After you have completed the connection using DIGITAL AUDIO OUT (COAXIAL), be sure to set “Dolby Digital” to “Dolby Digital” and “DTS” to “On” in “AUDIO SETUP” menu (page 54). Otherwise, no sound or a loud noise will come from the speakers. • With a coaxial digital connection, you cannot use the virtual surround effects of this recorder. 33US Basic Operations Playing discs Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc. Z SELECT DVD Before you start ... • Turn on the DVD-VCR and your TV. • Set the TV to video input so that the signal from the player appears on the TV screen. / m/M y ./ > X PAUSE x STOP H PLAY 1 Press SELECT DVD to control the DVD player. 2 Press Z to open the disc tray and place a disc on the disc tray. with the playback side facing down 34US Playing discs 3 Press H PLAY. The disc tray closes and the DVD player starts playback. The display window shows the playback time*. Hour Minute Second Depending on the disc, a menu may appear on the TV screen. For DVDs, see page 65. For VIDEO CDs, see page 88. * “– – – – –” appears when no disc is loaded. Tip • To make a video timer reservation during DVD playback, we recommend performing the operations under “Quick Timer Recording” (page 90). Additional operations To Press Stop play x STOP Pause play X PAUSE If you pause the DVD player for more than 5 minutes, the DVD player will automatically stop. Resume play after pause H PLAY Go to the next frame in pause mode SKIP Go to the previous frame in pause mode REPLAY Go to the next chapter, track, or scene in continuous play mode > NEXT on the remote or M on the unit Go back to the previous chapter, track, or scene in continuous play mode . PREV on the remote or m on the unit Basic Operations Notes • You can change the screen type using the “SCREEN SETUP” menu (see “Screen Setup” on page 56). • Stop VIDEO playback while playing back a disc. • If you play a DVD or VIDEO CD that has scratches, the player may stop playback at the point of the scratch. • Playback of play lists longer than 10 hours recorded in VR mode is not guaranteed. continued Playing discs 35US To Press Locate a point quickly m or M on the remote (or hold down m or M on the unit) The playback speed changes as follows each time you press the button on the remote (or depending on how long you press the button on the unit): • DVD fast forward: PLAY t ×1.4 ••N•*1 t 1M t 2M t 3M t 4M t 5M t 6M fast reverse: PLAY t 1m t 2m t 3m t 4m t 5m t 6m • CD, MP3 and VIDEO CD fast forward: PLAY t 1M t 2M t 3M fast reverse: PLAY t 1m t 2m t 3m When you find the point you want, press H PLAY. Watch slow motion in continuous play mode (DVD and VIDEO CD only) X PAUSE during playback, then press or y The playback speed changes as follows each time you press or y: • DVD forward slow motion: ×0.6 ••N•*1 t 2 y t 3 y reverse slow motion (except for DVD-RW in VR mode): 1 t2 t3 • VIDEO CD forward slow motion only: 1 y t 2 y t 3 y To resume normal playback, press H PLAY. Replay the previous scene for 10 seconds in continuous play mode*2 (Instant Replay) REPLAY Briefly fast forward the current scene for 30 seconds in continuous play mode*2 (Instant Advance) SKIP You can press SKIP up to 4 times. This allows you to fast forward up to 2 minutes in total. Stop play and remove the disc Z 1 * Playback quickly or slowly with sound (See “To playback quickly or slowly with sound (DVD only)” on page 37.) *2 For DVD VIDEOs and DVD-RWs/DVD-Rs or DVD+RWs/DVD+Rs only Notes • No sound is output except for: – during normal play – during playback quickly or slowly with sound • You cannot perform playback quickly or slowly with sound when a virtual surround effect is set. • The fast reverse operation may not be possible for CD, MP3 and VIDEO CD depending on the recording method. • You may not be able to use the Instant Replay or Instant Advance function with some scenes. • Switching between original (ORG) and play list (PL) within a disc recorded in VR mode is possible only while the disc is stopped. Press TOP MENU to switch between ORG and PL. 36US Playing discs To playback quickly or slowly with sound (DVD only) You can listen to dialog or sound while playing the current scene quickly or slowly. To playback quickly, press M during playback. To playback slowly, press X PAUSE, then press y during playback. Press H PLAY to return to normal playback. Notes • You cannot set virtual surround effects while performing playback quickly or slowly with sound. In addition, you cannot perform playback quickly or slowly with sound when a virtual surround effect is set. • You cannot perform DTS audio output during playback quickly or slowly with sound. In addition, you cannot perform playback quickly or slowly with sound when DTS audio output is set. To Resume playback for the current disc (Resume Play) The DVD player remembers the point where you stopped the disc even if the DVD player enters standby mode by pressing ?/1. Step 1. Tip • To begin playback from the top of the disc, press x STOP twice then press H PLAY. Notes on playing DTS* sound tracks on a CD • When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be connected to the digital jack of the DVD player. • Set the sound to “Stereo” using the AUDIO button when you play DTS sound tracks on a CD (page 74). • Do not play DTS sound tracks without first connecting the DVD player to an audio component having a built-in DTS decoder. The DVD player outputs the DTS signal via the DIGITAL AUDIO OUT (COAXIAL) jack even if “DTS” is set to “Off” in “AUDIO SETUP” menu (page 54), and may affect your ears or cause your speakers to be damaged. Basic Operations 1 While playing a disc, press x STOP to stop playback. H PLAY. 2 Press The DVD player starts playback from the point where you stopped the disc in Notes on playing DVDs with a DTS sound track • DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL) jack. • When you play a DVD with DTS sound tracks, set “DTS” to “On” in “AUDIO SETUP” menu (page 54). • If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to “On” in “AUDIO SETUP” menu (page 54). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged. * “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. Playing discs 37US Guide to the on-screen display You can check disc information during playback. The displayed contents differ according to the type of disc being played. Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. Number buttons V/v/B/b ENTER O RETURN DISPLAY Press DISPLAY during playback. The following information appears; type of disc, current title/ track, chapter, counter position, voice language, subtitle language and Custom AV Mode setting. Refer to “DVD Audio/Subtitle Language” on page 113 for the abbreviation of the language. Type of disc Current title/track number Current chapter number Counter position Voice language Subtitle language Custom AV Mode Note • You cannot select disc information items when the disc is stopped. 38US Guide to the on-screen display To playback the desired title/track or chapter You can playback the desired title/track or chapter using this menu. 1 Press V/v during playback to select the desired item. 2 Press B/b to change the item. 3 Press ENTER to start playback. DISPLAY or O RETURN to turn off the 4 Press menu. The title/track or chapter icon will appear on the DVD playback screen followed by the current title/track or chapter number and the counter position. To playback from the desired title/track counter position You can playback from the desired title/track counter position using this menu. Tip • You can change the counter position information (playing time or remaining time) using B/b (DVD and CD only). Basic Operations Press V/v during playback to select the counter 1 position icon. Enter the desired elapsed playing time of the current 2 title/track using the number buttons. 3 Press ENTER to start playback. DISPLAY or O RETURN to turn off the 4 Press menu. DVD Indication Counter information T ∗ : ∗∗ : ∗∗ Elapsed playing time of the current title T– ∗ : ∗∗ : ∗∗ Remaining time of the current title C ∗ : ∗∗ : ∗∗ Elapsed playing time of the current chapter C– ∗ : ∗∗ : ∗∗ Remaining time of the current chapter CD Indication Counter information T ∗ : ∗∗ : ∗∗ Elapsed playing time of the current track T– ∗ : ∗∗ : ∗∗ Remaining time of the current track D ∗ : ∗∗ : ∗∗ Elapsed playing time of the disc D– ∗ : ∗∗ : ∗∗ Remaining time of the disc continued Guide to the on-screen display 39US Notes • The display may not change as operated depending on the disc. • The display window continue indicating the playing time even when the counter position information on the on-screen display is being changed. To adjust the playback picture (Custom AV Mode) You can adjust the video signal of the DVD or VIDEO CD (with PBC function off) from the player to obtain the picture quality you want. Choose the setting that best suits the program you are watching. Press V/v during playback to select the Custom AV Mode icon. 1 2 Press B/b to change the setting. Setting Video Setting Audio Setting Dynamic 1 Produces a bold dynamic picture by increasing the picture contrast and the color intensity. Full (modulated) sound with clear treble and bass. Dynamic 2 Produces a more dynamic picture than Dynamic 1 by further increasing the picture contrast and the color intensity. Full (modulated) sound with even clearer treble and bass than Dynamic 1. Standard Off (Default setting) Displays a standard picture. Standard sound. Cinema 2 Enhances details in dark areas by increasing the black level. Powerful sound with even stronger bass than Cinema 1. Cinema 1 White colors become brighter and black colors become richer, and the color contrast is increased. Powerful sound with strong bass. Tip • When you watch a movie, “Cinema 1” or “Cinema 2” is recommended. 40US Guide to the on-screen display Playing a tape Before you start ... • Turn on the DVD-VCR and your TV. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. Z ?/1 SELECT VIDEO TRACKING +/– CLEAR / m/M y ./> DISPLAY 1 Press SELECT VIDEO to control the VCR player. 2 Insert a tape. 3 Press H PLAY. Basic Operations X PAUSE x STOP H PLAY The VCR starts playing automatically if you insert a tape with its safety tab removed. The display window shows the playback time. When the tape reaches the end, it will rewind automatically. Hour Minute Second continued Playing a tape 41US Additional operations To Press Stop play x STOP Pause play X PAUSE If you pause the VCR for more than 5 minutes, the VCR will automatically resume play. Resume play after pause X PAUSE or H PLAY Fast-forward the tape M during stop Rewind the tape m during stop Eject the tape Z View the picture during fast-forward or rewind During fast-forward, hold down M. During rewind, hold down m. Play at high speed • During playback, briefly press M or m. The tape continues to play at 5 times normal speed. • During playback, hold down M or m. The tape continues to play at 5 times normal speed. When you release the button, normal playback resumes. Play in slow motion During pause, press y. Play frame by frame During pause, press Replay the previous scene in continuous play mode* (Instant Replay) During playback, press Fast forward the current scene for 30 seconds in continuous play mode (Instant Skip) During playback, press SKIP. You can press SKIP up to 4 times. This allows you to fast forward up to 2 minutes in total. Play at various speeds (Shuttle play) During playback, press .or >. You can change the playback speed as follows. –×7 y –×5 y –×3 y STILL y SLOW y PLAY y ×2 y ×3 y ×5 y ×7 SKIP. REPLAY. * For 10 seconds in SP or LP mode/for 15 seconds in EP mode To resume normal playback Press H PLAY. To turn off the power while rewinding (Rewind Shut Off) Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end. 42US Playing a tape To use the time counter Press CLEAR at the point on the tape that you want to find later. The counter in the display window resets to “0:00:00.” To search for the counter 0:00:00 point automatically, see “Searching using various functions” on page 92. To display the counter on the TV screen, press DISPLAY during normal playback. Tip • Adjust the picture using the TRACKING +/– buttons if: – Streaks appear while playing in slow motion. – Bands appear at the top or bottom while pausing. – The picture shakes during pause. Basic Operations Notes • Tapes recorded in LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed. • The counter resets to “0:00:00” whenever a tape is reinserted. • The counter stops counting when it comes to a portion with no recording. • When 10 hours have passed, the counter in the display window returns to “0:00:00” and the count starts over again. • No sound is output during playback at various speeds. • The picture may show noise when playing at high speed in reverse. • While playing a tape, you can display the setup menu, but the remote commander’s function switches to DVD automatically. Press O RETURN repeatedly to exit the menu. • When playback does not start even if you insert a tape with its safety tab removed, set “Auto Play” to “On” in the “VIDEO FUNCTION SETUP” menu (page 94). • Stop disc playback while playing back a video. • The VCR can also play S-VHS tapes recorded by S-VHS mode. The VCR will automatically identify the type of tape inserted in the VCR (either VHS or S-VHS). When S-VHS tapes are played in the VCR, the enhanced resolution will not be visible on screen; there may also be picture distortion while playing the S-VHS tape in slow motion or while utilizing other special playback modes. The VCR will not record in S-VHS mode on an S-VHS tape. • The playback of S-VHS tapes recorded in EP/LP mode cannot be guaranteed. continued Playing a tape 43US Adjusting the picture (tracking) Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking. Press TRACKING +/– to display the tracking meter. The distortion should disappear as you press one of the two tracking buttons. To resume automatic tracking adjustment, eject the tape and reinsert it. Tracking meter Note • The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP mode on other VCRs. 44US Playing a tape Recording TV programs Before you start ... • Turn on the DVD-VCR and your TV. When using a cable box, turn it on. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • Make sure the tape is longer than the total recording time. Z TV / DVD·VIDEO switch SELECT VIDEO CH +/– TV/VIDEO INPUT SELECT z REC SP/EP Basic Operations x STOP H PLAY DISPLAY 1 Press SELECT VIDEO to control the VCR. 2 Insert a tape with its safety tab in place. 3 Press CH +/– to select the channel or line input video source you want to record. You can select a video source from the LINE IN 1 or LINE-2 IN jacks using the INPUT SELECT button. “L1” or “L2” appears in the display window. continued Recording TV programs 45US 4 Press SP/EP to select the tape speed, SP or EP. 5 Press z REC to start recording. EP (Extended Play) provides recording time three times as long as SP (Standard Play). However, SP produces better picture and audio quality. “REC” appears in the display window. To stop recording Press x STOP. To check the remaining tape length Press DISPLAY to display the time counter. With the display on, press DISPLAY again to check the remaining time. The white bar indicates the current location in relation to the entire tape length. The remaining time also appears. Press DISPLAY to turn off the indicators. Time counter Remaining tape length To check the remaining tape length of a tape, set “Tape Length” in the “VIDEO FUNCTION SETUP” menu correctly (page 94). Maximum Recording Time 46US Tape Length SP EP T-120 2 hrs 6 hrs T-160 2 hrs 40 mins 8 hrs T-180 3 hrs 9 hrs Recording TV programs To watch another TV program while recording 1 Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. 2 Press TV/VIDEO to display “TV” in the display window. your TV is connected to the VCR using A/V connections, set the TV to the 3 IfTV’s antenna input; if not, skip this step. Select another channel on the TV. 4 To watch a DVD while recording automatically change to the DVD playback screen. To save a recording To prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape. Basic Operations 1 Press SELECT DVD to control the DVD player. 2 Press Z and place the disc on the disc tray. H PLAY. 3 Press The disc tray closes and the DVD player starts playback. The TV screen will Safety tab Tips • To select a channel, you can use the number buttons on the remote commander. Enter the channel number, then press ENTER. • The display appears on the TV screen indicating information about the tape, but the information will not be recorded on the tape. • If you do not want to watch TV while recording, you can turn off the TV. When using a cable box, make sure to leave it on. Notes • The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-30, or tapes recorded in LP mode. • It may take up to one minute for the VCR to calculate and display the remaining tape length after you press DISPLAY. • You cannot record a DVD directly to a VCR tape using your DVD-VCR. • To watch a TV program during video recording, stop disc playback. Recording TV programs 47US Recording TV programs using the timer You can preset up to eight programs at a time. Before you start… • Check that the DVD-VCR clock is set to the correct time. • Turn on the DVD-VCR and your TV. When using a cable box, turn it on. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. Z TV / DVD·VIDEO switch SELECT VIDEO CLEAR TV/VIDEO TIMER INPUT SELECT x STOP H PLAY V/v/B/b ENTER O RETURN 48US 1 Press SELECT VIDEO to control the VCR. 2 Press TIMER. The timer programming menu appears. Recording TV programs using the timer 3 Set the channel number, start and stop times, date, and tape speed: 1 Press b to select each item in turn. 2 Press V/v to set each item. To correct a setting, press B to return to that setting and reset. • To record from a source connected to the LINE IN 1 or LINE-2 IN jacks, press INPUT SELECT or V/v to display “L1” or “L2” in the “CH” position. • To record the same program every day or the same day every week, press v while the date is flashing. For details, see “Daily/weekly recording” on page 49. • To use the Auto Tape Speed function, press v to display “Auto” in the “SPEED” position. For details, see “To use the Auto Tape Speed function” on page 50. 4 Press b to confirm the setting. To enter another setting, press V/v to select the next row and repeat step 3. Basic Operations Press CLEAR to cancel the setting. 5 Press O RETURN to exit the menu. 6 The indicator appears in the display window and the VCR stands by for recording. Timer recording will operate properly regardless if the DVDVCR power is on or off. To record from a decoder or other source, leave the connected equipment switched on. To stop recording To stop the DVD-VCR while recording, press SELECT VIDEO and then press x STOP. Daily/weekly recording In step 3, press v to select the recording pattern. Each time you press v, the indication changes as shown below. Press V to change the indication in reverse order. the current date t Daily t Mo~Sa t Mo~Fr tSun’s t Mon’s t ..... t Sat’s t 1 month later t (dates count down) t the current date continued Recording TV programs using the timer 49US To use the Auto Tape Speed function When you are recording a program in the Auto mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to EP mode. Note that some noise will appear on the picture when the tape speed is changed. If you want to keep the tape speed, select SP. To operate this function, set “Tape Length” in “VIDEO FUNCTION SETUP” menu correctly (page 94). To watch another TV program after setting the timer 1 Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. 2 Press TV/VIDEO to display “TV” in the display window. your TV is connected to the VCR using A/V connections, set the TV to the 3 IfTV’s antenna input; if not, skip this step. Select another channel on the TV. 4 To watch a DVD after setting the timer 1 Press SELECT DVD to control the DVD player. 2 Press Z and place the disc on the disc tray. H PLAY. 3 Press The disc tray closes and the DVD player starts playback. The TV screen will automatically change to the DVD playback screen. Tips • If the indicator appears, the timer settings overlap. To check, change or cancel the timer setting, see “Checking/changing/canceling timer settings” on page 51. • If the indicator appears, this means that the VCR is currently recording this program. • You can also do the following tasks while the VCR is recording: – Reset the counter (page 43). – Display tape information on the TV screen (page 46). • You can also display the timer programming menu by first pressing SET UP, then V/v to select (PROGRAM) and pressing ENTER in step 2. Note • The indicator flashes in the display window when you complete the timer setting with no tape inserted. 50US Recording TV programs using the timer Checking/changing/canceling timer settings Before you start… • Check that the DVD-VCR clock is set to the correct time. • Turn on the DVD-VCR and your TV. When using a cable box or a decoder, turn it on. • Set the TV to video input so that the signal from the player appears on the TV screen. • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. • Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time. • If the DVD player is in play mode, you cannot display the setup menu. Stop the DVD playback. SELECT VIDEO CLEAR TIMER O RETURN 1 Press SELECT VIDEO to control the VCR. 2 Press TIMER. Basic Operations V/v/B/b ENTER The timer programming menu appears. continued Checking/changing/canceling timer settings 51US 3 Press V/v to select setting you want to change or cancel. • To change the setting, press B/b to select the item you want to change, and press V/v to change it. • To cancel the setting, press CLEAR. 4 Press O RETURN to confirm the setting. Press O RETURN again to exit the menu. When the timer settings overlap The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority. Program 1 about 20 seconds Program 2 will be cut off Program 1 Program 2 about 20 seconds will be cut off Tips • If the indicator appears, the timer settings overlap. • You can also display the timer programming menu by first pressing SET UP, then V/v to select (PROGRAM) and pressing ENTER in step 2. 52US Checking/changing/canceling timer settings Locking the DVD-VCR (Child Lock) After you have set the timer, you can lock all of the buttons on the DVD-VCR so that the settings are not canceled by mistake. ?/1 POWER To lock the DVD-VCR When the DVD-VCR is turned on, hold down ?/1 POWER on the unit until “LOCK” appears in the display window. The DVD-VCR turns off and the indicator remains lit if there is a timer setting. The DVD-VCR will not work except for timer recordings. To stop timer recording while the DVD-VCR is locked, press x. The recording stops and the DVD-VCR is unlocked. Note • The DVD-VCR will be unlocked when: – You stop timer recording by pressing x. – You insert a tape. – The AC power cord is disconnected or power supply stops. Locking the DVD-VCR (Child Lock) Basic Operations To unlock the DVD-VCR Hold down ?/1 POWER on the unit until “LOCK” disappears from the display window. The DVD-VCR is unlocked and turns on. 53US DVD Settings and Adjustments Audio Setup “Audio Setup” allows you to set the sound according to the playback and connection conditions. SET UP Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. V/v/B/b ENTER 54US 1 Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD), then press ENTER. 2 Press V/v to select “Audio Setup,” then press ENTER. 3 Press V/v to select the setup item from the displayed list: “Dolby Digital,” “DTS” or “Audio DRC.” Audio Setup 4 Press B/b to select an item. 5 Press SET UP to exit the menu. Menu choices • Dolby Digital Selects the type of Dolby Digital signal. The default setting is indicated in bold print. D-PCM Select this when the player is connected to an audio component lacking a built-in Dolby Digital decoder. Dolby Digital Select this when the player is connected to an audio component with a built-in Dolby Digital decoder. • DTS Selects whether or not to output DTS signals. The default setting is indicated in bold print. Select this when the player is connected to an audio component lacking a built-in DTS decoder. On Select this when the player is connected to an audio component with a built-in DTS decoder. • Audio DRC (Dynamic Range Control) Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks: – LINE OUT AUDIO L/R jacks – DIGITAL AUDIO OUT (COAXIAL) jack only when “Dolby Digital” is set to “D-PCM”. The default setting is indicated in bold print. Standard Normally select this positon. Wide Range Gives you the feeling of being at alive performance. DVD Settings and Adjustments Off Notes • If you connect a component that does not conform to the selected audio signal, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged. • Noise may occur in the LinearPCM double-speed audio. This is not a malfunction. Audio Setup 55US Screen Setup “Screen Setup” allows you to set the screen according to the playback and connection conditions. SET UP Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. V/v/B/b ENTER O RETURN 1 Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD), then press ENTER. 2 Press V/v to select “Screen Setup,” then press ENTER. 3 Press V/v to select the setup item from the displayed list: “TV Type,” or “Black Level.” To set the “Progressive” setting, see page 58. 56US Screen Setup 4 Press B/b to select an item. 5 Press SET UP to exit the menu. Menu choices • TV Type Selects the aspect ratio of the connected TV (4:3 standard or wide). The default setting is indicated in bold print. 4:3 Letter Box Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 Pan Scan Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. 4:3 Pan Scan 16:9 • Black Level You can enhance the black level by increasing the brightness and contrast when viewing DVD VIDEOs with the PROGRESSIVE indicator turned off. The default setting is indicated in bold print. Off Stops the increase of the contrast. On Increases the contrast. DVD Settings and Adjustments 4:3 Letter Box Notes • Playback settings stored in the disc take priority over the “DVD SETUP” menu settings and not all the functions described may work. • Depending on the DVD VIDEO, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa. continued Screen Setup 57US To set the “Progressive” setting If your TV accepts progressive (480p) format signals, you will enjoy accurate color reproduction and high quality image. step 1 and 2 on page 56, then press V/v to select 1 Follow “Progressive.” 2 Press B/b to select “On,” then press ENTER. 3 Follow the instructions appearing on the screen. 1 Ensure your TV is (480p) Progressive Scan capable. 2 Connect with Component Video Output jacks (red/green/ blue connections). For details, see the connection B on page 30. 3 Press B/b to select [OK] to test your video signal. video signal appears OK, video connection is complete. 4 IfPress ENTER. The PROGRESSIVE indicator on the unit lights up in orange. PROGRESSIVE indicator If picture is distorted, press O RETURN. Check the connection (page 30). 58US Screen Setup 5 Press SET UP to exit the menu. To cancel the “Progressive” setting Select “Off” in step 2. You can also cancel by pressing SELECT DVD and then press X on the unit continuously for 5 seconds or more. Note • If you select progressive signal when you connect the DVD player to a TV that cannot accept the signal in progressive format, the image quality will deteriorate. In this case, set “Progressive” to “Off”. DVD Settings and Adjustments Screen Setup 59US Setting the display or sound track language You can set various languages for the disc’s menu, sound track or subtitle. SET UP Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. V/v/B/b ENTER 1 Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD) and press ENTER. 2 Press V/v to select “Language Setup,” then press ENTER. The “LANGUAGE SET UP” menu appears. 3 60US Press V/v to select the language setup item from the displayed list: “DVD Menu,” “Audio,” or “Subtitle.” Then press ENTER. Setting the display or sound track language 4 Press V/v to select the desired language, then press ENTER. • DVD MENU LANGUAGE You can select the desired language for the disc’s menu. • AUDIO LANGUAGE Switches the language of the sound track. When you select “Original,” the language given priority in the disc is selected. • SUBTITLE LANGUAGE Switches the language of the subtitle recorded on the DVD VIDEO. When you select “Audio Follow,” the language for the subtitle changes according to the language you selected for the sound track. Press SET UP to exit the menu. Tip • If you select “Others” in step 4, an additional language menu appears. Press V/v/B/b to select the desired language, then press ENTER. Notes • When you select a language that is not recorded on the DVD VIDEO in step 4, one of the recorded languages will be automatically selected. • Playback settings stored in the disc take priority over the DVD SETUP settings and not all the functions described may work. Setting the display or sound track language DVD Settings and Adjustments 5 61US Parental Control (limiting playback by children) Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The “Parental Control” function allows you to set a playback limitation level. Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. Number buttons SET UP H PLAY V/v/B/b ENTER 62US 1 Press SET UP when the DVD player is in stop mode, then press V/v to select (DVD) and press ENTER. 2 Press V/v to select “Parental Setup,” then press ENTER. Parental Control (limiting playback by children) 3 Press b to set the parental control. • If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons. The display for confirming the password appears. Re-enter the password. • When you have already registered a password The display for entering the password appears. Enter a 4-digit password using the number buttons. After registering a password, if you set “Use Password” to “No,” “PASSWORD CHECK” screen will not appear. Press V/v to select “Rating Level,” then press ENTER. 5 Press V/v to select the level you want, then press ENTER. DVD Settings and Adjustments 4 The options are as follows. Level 8 Adult y Level 7 y Level 6 y Level 5 y Level 4 y Level 3 y Level 2 y Level 1 Kids Safe The lower the value, the stricter the limitation. 6 Press SET UP to exit the menu. continued Parental Control (limiting playback by children) 63US To change the password “Change Password” in step 4 on page 63. 1 Select The display for entering a new password appears. a new 4-digit password using the number buttons. 2 Enter The display for confirming the password appears. 3 Re-enter the new password. To turn off the Parental Control function Set “Use Password” to “No” in step 3 on page 63. To play a disc for which Parental Control is set the disc, then press H PLAY. 1 Insert The display for entering your password appears. your 4-digit password using the number buttons. 2 Enter The player starts playback. If you forget your password 1 Turn on the DVD-VCR. 2 Remove the disc and close the disc tray. down m and M on the front panel simultaneously for 5 seconds. 3 Hold “Reset OK” appears on the screen. off the DVD-VCR. 4 Turn The password is cleared. 5 To create a new password, follow step 3 on page 63. Notes • When you play DVD VIDEOs which do not have the Parental Control function, playback cannot be limited on this player. • All the ratings higher than the level you select will be blocked. • Write your password down and keep it in a safe place in case you forget it. • When you clear the password, “Language” in the “OPTION SETUP” menu and all items in the “DVD SETUP” menu are returned to the default setting. 64US Parental Control (limiting playback by children) DVD Additional Operations Using the DVD’s menu A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD VIDEO which contains several titles, you can select the title you want using the TOP MENU button. When you play DVD VIDEOs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using the MENU button. Number buttons Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. V/v/B/b ENTER TOP MENU 1 Press TOP MENU or MENU. The disc’s menu appears on the TV screen. The contents of the menu vary from disc to disc. 2 Press V/v/B/b to select the item you want to play or change, then press ENTER. DVD Additional Operations MENU You can also use the number buttons to select the item. Note • Depending on the DVD VIDEO, you may not be able to use the TOP MENU button or search a point by setting the time. Using the DVD’s menu 65US Zooming into a scene You can zoom into a scene during playback or still mode. To zoom into a JPEG image, see “Playing JPEG image files” on page 84. ZOOM Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. V/v/B/b ENTER 1 Press ZOOM. 2 Press V/v/B/b to move “ 3 Press ENTER repeatedly to change the magnification. “ ” appears. ” to the position where you want to zoom in. Each time you press the button, the magnification changes as shown below. 2× t 4× t 2× t normal magnification Notes • You cannot use 4× magnification when you play VIDEO CDs. • The zoom function may not work depending on the DVD. 66US Zooming into a scene Changing the angles If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears in the display window. This means that you can change the viewing angle. ANGLE B/b DVD Additional Operations 1 Press ANGLE during playback. The angle number appears on the display. The number after the slash indicates the total number of angles. 2 Press B/b repeatedly to select the angle number. The scene changes to the selected angle. Note • Depending on the DVD VIDEO, you may not be able to change the angles even if multiangles are recorded on the DVD VIDEO. Changing the angles 67US Displaying the subtitle If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD. SELECT DVD SUBTITLE V/v/B/b 1 Press SELECT DVD to control the DVD player. 2 Press SUBTITLE during playback. 3 Press B/b repeatedly to select the language. Depending on the DVD, the choice of language varies. Refer to “DVD Audio/Subtitle Language” on page 113 for the abbreviation of the language. 68US Displaying the subtitle 4 Press V/v repeatedly to select “On.” To turn off the subtitles Select “Off” in step 4. Note • Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off. DVD Additional Operations Displaying the subtitle 69US Various play mode functions (Program play, Shuffle play, Repeat play) Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. SELECT DVD Notes • The play mode is canceled when: – you open the disc tray – the player enters standby mode by pressing [/1. CLEAR REPEAT H PLAY V/v/B/b ENTER Creating your own program (Program play) You can play the contents of a disc in the order you want by arranging the order of the tracks on the disc to create your own program. You can program up to 20 tracks. To program MP3 audio tracks, see page 80. 1 Press SELECT DVD to control the DVD player. 2 Press REPEAT when the DVD player is in stop mode. 70US Various play mode functions (Program play, Shuffle play, Repeat play) 3 Press B/b to select “PROGRAM”, then press ENTER. V/v/B/b to select the track number you want to 4 Press program, then press ENTER. program other tracks, repeat step 4. 5 To The programmed track numbers are displayed in the selected order. H PLAY to start program play. 6 Press Program play starts. When the program ends, you can restart the same program again by pressing H PLAY. To stop program play Press CLEAR until “Off” appears at the upper left top of the TV screen during programme play. To change or cancel a program 3 the last programmed number by pressing CLEAR. Follow step 4 for new programming. To cancel all the programmed numbers 1 Follow steps 1 to 3 of “Creating your own program (Program play).” v repeatedly to select “Clear last track,” then press b to select “Clear all 2 Press tracks” and press ENTER. DVD Additional Operations 1 Follow steps 1 to 3 of “Creating your own program (Program play).” v repeatedly to select “Clear last track,” then press ENTER. Each time you 2 Press press the button, the last programmed number is canceled. You can also cancel All the programmed numbers are canceled. Notes • Up to 99 tracks can be displayed. • You cannot repeat play while in program play. continued Various play mode functions (Program play, Shuffle play, Repeat play) 71US Playing in random order (Shuffle play) You can shuffle the playback order of tracks. Subsequent “shuffling” may produce a different playing order. To shuffle MP3 audio tracks, see page 81. 1 Press SELECT DVD to control the DVD player. 2 Press REPEAT when the DVD player is in stop mode. 3 Press B/b to select “SHUFFLE”, then press ENTER. To return to normal play Press CLEAR until “Off” appears at the upper left top of the TV screen during shuffle play. Tip • Shuffle play will stop when all the tracks are played back. Note • You cannot repeat play while in shuffle play. 72US Various play mode functions (Program play, Shuffle play, Repeat play) Playing repeatedly (Repeat play) You can play all of the titles or tracks on a disc or a single title, chapter, or track repeatedly. 1 Press SELECT DVD to control the DVD player. 2 Press REPEAT during playback. REPEAT or B/b repeatedly to select the item to be repeated. 3 Press When playing a DVD • Chapter: repeats the current chapter. • Title: repeats the current title on a disc. When playing a VIDEO CD (with PBC function off) or CD • Track: repeats the current track. • Disc: repeats all of the tracks. When playing a DATA CD/DATA DVD (MP3 audio) • FILE: repeats the current track (file). • DIR: repeats the current album (directory). • DISC: repeats the current disc. Tip • When you press x STOP during repeat play, repeat play is canceled. Notes • You cannot repeat play with DVD-RW in VR mode. • You cannot repeat play VIDEO CDs with PBC function on. See “Playing VIDEO CDs with “PBC ON/OFF” Functions” on page 88. • You cannot repeat play while in program play or shuffle play. Various play mode functions (Program play, Shuffle play, Repeat play) DVD Additional Operations To return to normal play Select “Off” in step 3 or press CLEAR during repeat play. 73US Changing the sound When playing a DVD recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD is recorded with multilingual tracks, you can also select the language. AUDIO With CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a Karaoke VIDEO CD containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel. 74US Disc type Playback instruments only Karaoke VIDEO CD Yes Karaoke DVD No B/b 1 Press AUDIO during playback. 2 Press B/b repeatedly to select the desired language/audio setting. • When playing a DVD Depending on the DVD, the choice of language varies. Refer to “DVD Audio/Subtitle Language” on page 113 for the abbreviation of the language. • When playing a VIDEO CD or CD The default setting is indicated in bold print. Changing the sound Stereo The standard stereo sound Left The sound of the left channel (monaural) Right The sound of the right channel (monaural) Notes • To enjoy Dolby Digital or DTS effect from a LinearPCM format disc, you have to make the connection using DIGITAL AUDIO OUT (COAXIAL) (page 32). • When you play a DVD with DTS sound tracks, set “DTS” to “On” in “AUDIO SETUP” menu (page 54). • If you set DTS audio output, you cannot select surround setting (page 76). • You cannot perform playback quickly or slowly with sound when DTS audio output is set (page 37). DVD Additional Operations Changing the sound 75US Virtual surround setting When you connect a stereo TV or 2 front speakers, SURROUND lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers. SURROUND B/b 1 Press SURROUND during playback. 2 Press B/b repeatedly to select “Surround1,” “Surround2,” “Surround3.” Surround effect increases as shown below. Surround1 Surround2 Surround3 TV TV TV : Virtual speaker 76US Virtual surround setting To cancel the setting Select “Off” in step 2. Notes • When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear. • When you activate the surround effect, turn off the surround setting of the connected TV or amplifier (receiver). • Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings. • If you use the DIGITAL AUDIO OUT (COAXIAL) jack and set “Dolby Digital” to “Dolby Digital” or “DTS” to “On” in “AUDIO SETUP” menu (page 54), sound will come from your speakers but it will not have the surround effect. • You cannot perform playback quickly or slowly with sound when a virtual surround effect is set (page 37). DVD Additional Operations Virtual surround setting 77US Playing an MP3 audio track You can play back DATA CDs (CD-ROMs/ CD-Rs/CD-RWs) or DATA DVDs (DVDROMs/DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs) recorded in MP3 (MPEG1 Audio Layer 3) format. Z SELECT DVD Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. REPEAT H PLAY x STOP V/v/B/b ENTER O RETURN TOP MENU 1 Press SELECT DVD to control the DVD player. 2 Press Z and place a DATA CD or DATA DVD on the disc tray, then press Z to close the tray. When you load a DATA CD or DATA DVD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears. If you load a DATA CD or DATA DVD which contains only MP3 audio files, the MP3 display appears. Then you can skip step 3. 78US Playing an MP3 audio track 3 Press V/v to select “MP3”, then press ENTER. Repeat mode Elapsed playing time The first track starts playing. Press x STOP if necessary. 4 Press O RETURN, then press V/v to select the desired directory in the left column, then press ENTER. 5 Press V/v to select the desired track in the right column, then press ENTER. The selected track starts playing. DVD Additional Operations When a track or album is being played, the title is shown in a box. The playing track number appears on the display window. To stop play Press x STOP. To repeat play Press REPEAT repeatedly during playback to change the repeat mode. • FILE: repeats the current track (file). • DIR: repeats the current album (directory). • DISC: repeats the current disc. For details, see “Playing repeatedly (Repeat play)” (page 73). To go to the next or previous page Press b or B. To return to the previous display Press O RETURN. To return to the “Select a Media Type” menu Press x STOP twice, then press TOP MENU. continued Playing an MP3 audio track 79US To turn off the display Press x STOP twice, then press O RETURN repeatedly. Notes • Only the letters in the alphabet and numbers can be used for album or track names. Anything else is displayed as an asterisk. • Up to 12 alphanumeric characters can be displayed for album or track names. • ID3 tags cannot be displayed. • You cannot repeat play while in program play or shuffle play. To program MP3 audio tracks 1 Press x STOP twice, then press REPEAT. 2 Press B/b to select “PROGRAM,” then press ENTER. V/v to select the desired directory in the left column, 3 Press then press ENTER. V/v to select the track you want to program, then press 4 Press ENTER. program other tracks, repeat step 4. 5 To The programmed tracks are displayed in the selected order. Press CLEAR to cancel the last programmed track. Press H PLAY to start program play. 6 Program play starts. When the program ends, you can restart the same program again by pressing H PLAY. 80US Playing an MP3 audio track To stop program play Press x STOP during program play. To return to normal play Press CLEAR during program play. Notes • Up to 20 tracks can be programmed at one time. • You cannot repeat play while in program play. To shuffle MP3 audio tracks 1 Press REPEAT when the MP3 is in stop mode. 2 Press B/b to select “SHUFFLE,” then press ENTER. To return to normal play Press CLEAR during shuffle play. Tip • Shuffle play will stop when all the tracks are played back. About MP3 audio tracks You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) format. However, the discs must be recorded according to ISO9660 Level 1/Level 2 or Joliet format and DATA DVDs of Universal Disk Format (UDF) for the player to recognize the tracks (or files). You can also play DATA CDs or DATA DVDs recorded in Multi Session or Multi Border (see “Note on Multi Session/Border discs” on page 81). Refer to the instructions supplied with the CD-R/CD-RW/DVD-R/DVD-RW drives and the recording software (not supplied) for details on the recording format. DVD Additional Operations Note • You cannot repeat play while in shuffle play. Note on Multi Session/Border discs If MP3 audio tracks are recorded in the first session/border, the player will also play MP3 audio tracks in other session/border. If audio tracks and images in Music CD format or Video CD format are recorded in the first session/border, only the first session/border will be played back. continued Playing an MP3 audio track 81US Notes • If you put the extension “.MP3” to data not in MP3 format, the player cannot recognize the data properly and will generate a loud noise which could damage your speaker system. • The player cannot play audio tracks in MP3PRO format. • The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format. • If both video data and MP3 audio tracks exist on a DATA DVD, the player recognizes only the video data. • This player supports MP3 audio tracks recorded with a bit rate of 128 kbps and a sampling frequency of 44.1 kHz. Attempting to play MP3 audio tracks recorded with different specifications may result in loud noise, sound skipping or speaker damage. • Depending on the disc contents, playback may take some time to start. The Playback order of MP3 audio tracks The playback order of albums and tracks recorded on a DATA CD or DATA DVD is as follows. • Structure of disc contents Tree 1 Tree 2 Tree 3 Tree 4 Tree 5 album track When you insert a DATA CD or DATA DVD and press H PLAY, the numbered tracks are played sequentially, from 1 through 7. Any sub-albums/tracks contained within a currently selected album does not take priority over the next album in the same tree. (Example: E contains G but 6 is played before 7.) When you press O RETURN and the list of MP3 albums appears (page 79), the albums are arranged in the following order: A t B t D t E t F t G. Albums that do not contain tracks (such as album C) do not appear in the list. 82US Playing an MP3 audio track Tips • If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be played in that order. • A disc with many trees takes longer to start playback. Some discs with many trees cannot be played back. Notes • Depending on the software you use to create the DATA CD or DATA DVD, the playback order may differ from the illustration above. • The playback order above may not be applicable if there are more than a total of 1000 albums and tracks in the DATA CD or DATA DVD. • A total of up to 999 files can be recognized for discs that contain both MP3 and JPEG files. Files are recognized in the order that they were recorded. For example, if 990 JPEG files are recorded then 100 MP3 files are recorded, the 990 JPEG files recorded first and only the first 9 MP3 files can be recognized. • Depending on the disc contents, playback may take some time to start. DVD Additional Operations Playing an MP3 audio track 83US Playing JPEG image files You can play JPEG image files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/DVDRWs/DVD-Rs). Z SELECT DVD Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. ./ > H PLAY x STOP V/v/B/b ENTER MENU TOP MENU DISPLAY 1 Press SELECT DVD to control the DVD player. 2 Press Z and place a DATA CD or DATA DVD on the disc tray, then press Z to close the tray. When you load a DATA CD or DATA DVD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears. If you load a DATA CD or DATA DVD which contains only JPEG image files, the “Album” display appears. Then you can skip step 3. 84US Playing JPEG image files 3 Press V/v to select “JPEG”, then press ENTER. The “Album” display will appears. If you do not press ENTER after selecting a media type, the selected media will be automatically played. 4 Press ./> to select the next/previous album page, then press V/v/ B/b to select an image in the “Album” display. To display the selected image 1 Press ENTER. The selected image number appears in the display window. 2 To display the next/previous image, press ./>. To play the Slide show 1 Press H PLAY. DVD Additional Operations You can also play the Slide show using the menu on the selected image. For details, see “To enjoy the Slide show” on page 86. 2 Press B/b to select the desired playing speed on the “Interval” menu, then press ENTER. Slide show starts from the selected image. : Fast : Normal : Slow To rotate the selected image V/v/B/b to select an image in the “Album” 1 Press display, then press ENTER. Press B/b to select “ ”, then press ENTER. 2 Each time you press ENTER, the image turns clockwise by 90°. continued Playing JPEG image files 85US To zoom in an image V/v/B/b to select an image in the “Album” 1 Press display, then press ENTER. to select “ ”, then press ENTER. 2 “Press B/b ” appears. Press V/v/B/b move “ ” to the position 3 where you want totozoom in. ENTER repeatedly to change the 4 Press magnification. Each time you press ENTER, the magnification changes as shown below. 2× t normal magnification Note • You cannot use ZOOM on the remote in JPEG image files on DATA CD/DATA DVD. To enjoy the Slide show V/v/B/b to select an image in the “Album” 1 Press display, then press ENTER. 2 Press B/b to select “ ”, then press ENTER. 3 The “Interval” menu appears. Press B/b to select the desired play speed, then press ENTER. Slide show starts. To turn on/off the menu in the single image display Press CLEAR to turn off the menu. Press B or b to turn on the menu. To return to the “Album” display Press MENU to return to the “Album” display. Press . repeatedly to return to the first “Album” page. To return to the “Select a Media Type” menu Press x STOP twice, then press TOP MENU. Notes • Slide show can play in only one direction. • You cannot rotate or zoom in the image during Slide show. ” in the rotated image display, the images in the “Album” display will not • If you select “ be rotated. But if you start the slide show, the images will be rotated. Correct the rotation in ” menu. the “ 86US Playing JPEG image files About JPEG image files You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) recorded in JPEG format. However, the discs must be recorded according to ISO9660 Level 1/Level 2 or Joliet format and DATA DVDs of Universal Disk Format (UDF) for the player to recognize the tracks (or files). You can also play DATA CDs or DATA DVDs recorded in Multi Session or Multi Border (see “Note on Multi Session/Border discs” on page 87). Refer to the instructions supplied with the CD-R/CD-RW/DVD-R/DVD-RW drives and the recording software (not supplied) for details on the recording format. Notes • If both video data and JPEG image files exist on a DATA DVD, the player recognizes only the video data. • A total of up to 999 files can be recognized for discs that contain both MP3 and JPEG files. Files are recognized in the order that they were recorded. For example, if 990 JPEG files are recorded then 100 MP3 files are recorded, the 990 JPEG files recorded first and only the first 9 MP3 files can be recognized. Note on Multi Session/Border discs If JPEG image files are recorded in the first session/border, the player will also play JPEG image files in other session/border. If audio tracks and images in Music CD format or Video CD format are recorded in the first session/border, only the first session/border will be played back. Notes • This player can play JPEG image files with the extension “.JPEG” or “.JPG.” • Some DATA CDs or DATA DVDs cannot be played on this system depending on file format. • The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format. • If you add the extension “.JPG” or “.JPEG” to data not in JPEG format, “Can not Display” will appear. • Depending on the disc or the size of image files, playback may take some time to start. • Progressive and lossless compression JPEG image files are not supported. • The image size that can be displayed is limited. You can display the following images; width 32 - 7680 pixels by height 32 - 8192 pixels. Playing JPEG image files DVD Additional Operations Tip • If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order. 87US Playing VIDEO CDs with “PBC ON/OFF” Functions The PBC (Playback control) function allows you to search and perform other operations interactively. PBC playback follows a selection menu displayed on your TV screen. Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. Number buttons V/v ENTER O RETURN MENU 88US 1 Press MENU to select “PBC ON.” 2 Press V/v to select the item number you want. You can also use the number buttons to select the item number and track. The menu for your selection appears. Playing VIDEO CDs with “PBC ON/OFF” Functions 3 Press ENTER. 4 Follow the instructions in the menu for interactive operations. Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD. To return to the menu Press O RETURN. To play using “PBC OFF” Press MENU to select “PBC OFF.” When “PBC OFF” is selected, the DVD player starts continuous play. You cannot play still pictures such as a menu. To return to “PBC ON,” press MENU to select “PBC ON.” Note • Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H PLAY. DVD Additional Operations Playing VIDEO CDs with “PBC ON/OFF” Functions 89US VCR Additional Operations Quick Timer Recording After you have started recording, you can have the VCR stop recording automatically after a specified duration. z REC x STOP 1 While recording, press z REC. Press z REC repeatedly to set the duration time. 2 Each press advances the time as follows. 0:30 1:00 1:30 4:00 Normal recording The tape counter decreases minute by minute to 0:00, then the VCR stops recording. To extend the duration Press z REC repeatedly to set a new duration time. To cancel the duration Press z REC repeatedly until the normal recording mode. indicator disappears and the VCR returns to To stop while recording Press x STOP. Note • You cannot display the current tape time in the display window when setting the recording duration time. 90US Quick Timer Recording Recording stereo and bilingual programs Recording stereo programs When you receive a program broadcast in stereo, press AUDIO to display “Hi-Fi” on the TV screen. You can also select “Left,” “Right,” or “Mono.” If there is noise in the stereo program, select “Mono.” The sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with less noise. Recording bilingual programs Press AUDIO to display “SAP” on the TV screen. When a SAP (Second Audio Program) is received, “SAP” appears on the TV screen. When “MAIN” is selected, the VCR records only the main sound. Selecting the sound during playback During playback, press AUDIO to select the sound you want. To listen to On-screen display Display window Stereo Hi-Fi STEREO indicator Left channel Left STEREO indicator Right STEREO indicator Monaural sound on the normal audio track Mono No indicator How sound is recorded on a video tape The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape. Monaural sound Normal audio track VCR Additional Operations Right channel Hi-fi audio track (main track) Stereo sound (left/right channels) Notes • To play a tape in stereo, you must use the A/V connections. • When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO setting. Recording stereo and bilingual programs 91US Searching using various functions The VCR automatically marks the tape with an index signal at the point where each recording begins. You can easily find a specific point using various search functions. SELECT VIDEO SEARCH H PLAY V/v/B/b 92US 1 Press SELECT VIDEO to control the VCR. 2 Insert an indexed tape into the VCR. 3 Press SEARCH. Searching using various functions 4 • Scan and Play (To search using the index function): 1 Press b to scan ahead, or B to scan backwards. The VCR searches and then plays back for about five seconds. 2 Press H PLAY to view the program. If you do not press H PLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape. • Go to [0:00:00] (To search for the counter 0:00:00 point): Press V. The VCR starts searching and automatically stops at the 0:00:00 point. To mark a point on the tape that you want to find later, press CLEAR to reset the tape counter to “0:00:00.” • End search (To search for a blank portion of the tape) Press v. The VCR starts searching and automatically stops at the beginning of a blank space. If no blank space is found, the VCR reaches the end. Searching using various functions VCR Additional Operations Note • Once in recording mode, if the VCR is put in pause and then released to start the recording, no index mark will be inserted. An index mark will be inserted if the channel is changed while VCR is put in pause. 93US Changing menu options You can change the tape length, auto play and auto repeat settings. Normally the default settings are used. Change these settings if necessary. SET UP Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. V/v/B/b ENTER 94US 1 Press SET UP when the DVD player is in stop mode. 2 Press V/v to select ENTER. 3 Press V/v to select the option to change. Changing menu options (VIDEO) and press 4 Press B/b to change the setting. 5 Press SET UP to exit the menu. Menu choices The default settings are indicated in bold print. Menu option Set this option to Tape Length • T-120 when using a T-120 or shorter length tape. • T-160 when using a T-160 length tape. • T-180 when using a T-180 or longer length tape. Auto Play • On to start playback automatically, when you insert a tape with its safety tab removed. • Off to turn off Auto play. You need to press H PLAY to start playback, even if you insert a tape with its safety tab removed. Auto Repeat • On to play back a tape repeatedly. The VCR rewinds a tape to the beginning and restarts playback automatically. • Off to turn off Auto repeat. VCR Additional Operations Changing menu options 95US Editing with another VCR How to connect to record on this VCR TV This VCR (Recorder) LINE-2 IN Other VCR (Player) LINE OUT Audio/video cord (not supplied) : Signal flow Notes • Make sure you connect the plugs to jacks of the same color. • If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right channel. • If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select the input correctly to prevent a humming noise. • You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channels, connect the audio plugs to the AUDIO L/R jacks using an audio/video cord (not supplied). 96US Editing with another VCR Operation (when recording on this VCR) Before you start editing • Turn on the VCR and the TV and set it to the video channel. • Press INPUT SELECT to display “L1” or “L2” in the display window. • Press SP/EP to select the tape speed, SP or EP. x X z REC a source tape with its safety tab removed into the other (playback) VCR. Search for 1 Insert the point to start playback and set it to playback pause. 2 Insert a tape into this (recording) VCR. Search for the point to start recording and press X. 3 Press z REC on this VCR to set it to recording pause. 4 To start editing, press the X (pause) buttons on both VCRs at the same time. To stop editing Press the x (stop) buttons on both VCRs. Tip • To cut out unwanted scenes while editing, press X on this VCR when an unwanted scene begins. When it ends, press X again to resume recording. VCR Additional Operations Editing with another VCR 97US Additional Information General setup information Before you start… • Set TV / DVD·VIDEO switch to DVD·VIDEO on the remote. SET UP V/v/B/b ENTER 98US 1 Press SET UP when the DVD player is in stop mode, then press V/v to select (OPTION), then press ENTER. 2 Press V/v to select the option to change. 3 Press B/b to change the setting. When changing the “RF Output Channel,” confirmation messages will appear. Press ENTER to confirm the messages. General setup information 4 Press SET UP to exit the menu. Menu choices The default settings are indicated in bold print. Menu option Set this option to Auto Power Off • “Off” to deactivate the Auto Power Off function. • “1Hr”/“2Hr” to turn the DVD-VCR off automatically if no signal is received and you do not press any of the buttons during this time. RF Output Channel • “3CH” when using channel 3 to receive the VCR signal. • “4CH” when using channel 4 to receive the VCR signal. For details, see page 99. Setting the RF Output channel When connecting the DVD-VCR to the TV using only the antenna cable, you must set the RF Output channel in the “OPTION SETUP” menu so that the TV can receive the correct signal from the DVD-VCR. ?/1 CH +/– the RF Output channel to “3CH” or “4CH” (see page 98 to set the channel), whichever 1 Set channel is not used in your area. If both are used, set the switch to either channel. 2 Press ?/1 to turn on the DVD-VCR. TV/VIDEO to turn on “VIDEO” in the 3 Press DVD-VCR’s display window. Additional Information TV/VIDEO CH +/– to display a channel number in the display window. 4 Press Select an active channel number in your area. continued General setup information 99US on your TV and set it to the channel you selected in step 1 (3CH or 4CH). 5 Turn The channel you selected in step 4 appears on the TV screen. If the channels change when you press CH +/–, you have made the correct setting. Whenever you use the DVD-VCR, set the TV to the channel selected in step 1. Attaching the external antenna connector When using a 300-ohm twin lead cable for a VHF/UHF antenna, use an antenna connector (not supplied) to connect the antenna to the DVD-VCR. 300-ohm twin lead cable Antenna connector (not supplied) 1 Loosen the screws on the antenna connector. 2 Wind the twin leads around the screws on the antenna connector. 3 Retighten the screws. Attaching a VHF/UHF band mixer When using both a 75-ohm coaxial cable and a 300-ohm twin lead cable for a VHF/UHF antenna, use a VHF/UHF band separator/mixer (not supplied) to connect the antenna to the DVD-VCR. 300-ohm twin lead cable VHF/UHF band separator/ mixer (not supplied) 75-ohm coaxial cable 1 Loosen the screws on the mixer. 2 Wind the twin leads around the screws on the mixer. 3 Retighten the screws. 4 Connect the 75-ohm coaxial cable to the mixer. 100US General setup information Troubleshooting If you have any questions or problems not covered below, please consult your nearest Sony dealer. (For customers in USA) Remedy The ?/1 switch does not function. • Connect the AC power cord securely. Power The power is turned on but the DVDVCR does not operate. • Moisture condensation has occurred. Turn the power off, unplug the AC power cord and leave the DVD-VCR to dry for over three hours. The clock has stopped and “–:–” appears in the display window. • The clock stops if the DVD-VCR is disconnected from the wall outlet. Reset the clock (and timer). The remote commander does not function. • Make sure you are pointing the remote commander at the remote sensor on the DVD-VCR. • Replace all the batteries in the remote commander with new ones if they are weak. • Make sure the TV / DVD·VIDEO switch is set correctly. • Select correctly VIDEO or DVD with the SELECT DVD/ VIDEO button. The tracking meter does not appear on the screen. • The recording condition of the tape is very poor and tracking cannot be adjusted. You cannot control other TVs. • Set your TV’s code number. The code number may change when you replace the batteries of the remote commander. Others Symptom Clock General Troubleshooting Additional Information continued Troubleshooting 101US DVD Troubleshooting Remedy There is no picture/picture noise appears. • Re-connect the connecting cord securely. • The connecting cords are damaged. • Check the connection to your TV (page 14) and switch the input selector on your TV so that the signal from the player appears on the TV screen. • The disc is dirty or flawed. • If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, please try connecting your player to your TV’s S-VIDEO input (page 30). • You have set the player to progressive format (the PROGRESSIVE indicator lights up in orange) even though your TV cannot accept the progressive signal. In this case, set “Progressive” to “Off” (page 58). • Even if your TV is compatible with progressive format (480p) signals, the image may be affected when you set the player to progressive format. In this case, set “Progressive” to “Off” and the player is set to normal (interlace) format (page 58). • COMPONENT VIDEO OUT jack is not used or “Progressive” of the “SCREEN SETUP” menu is not set correctly while the PROGRESSIVE indicator lights up in orange. Check the setting (page 56) and connection (page 30). Even though you set the aspect ratio in “TV Type” of the “SCREEN SETUP” menu the picture does not fill the screen. • The aspect ratio of the disc is fixed on your DVD. There is no picture from your VCR connected to the LINE IN jacks. • The DVD player must be in standby mode to view pictures from your VCR. There is no sound. • Re-connect the connecting cord securely. • The connecting cord is damaged. • The player is connected to the wrong input jack on the amplifier (receiver) (page 15). • The amplifier (receiver) input is not correctly set. • The player is in pause mode or in Slow-motion Play mode. • The player is in fast forward or fast reverse mode. • If the audio signal does not come through the DIGITAL AUDIO OUT (COAXIAL) jack, check the audio settings (page 54). Sound is noisy. • When playing a CD with DTS sound tracks, noise will come from the LINE OUT L/R (AUDIO) jacks (page 37) or DIGITAL AUDIO OUT (COAXIAL) jack. The sound volume is low. • The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” to “Wide Range” (page 55). Sound Picture Symptom 102US Troubleshooting The disc does not play. • The disc is turned over. • Insert the disc with the playback side facing down on the disc tray. • The disc is skewed. • The player cannot play certain discs (page 7). • The region code on the DVD does not match the player. • Moisture has condensed inside the player (page 3). • The player cannot play a recorded disc that is not correctly finalized (page 8). • Make sure the TV / DVD·VIDEO switch is set correctly. • Select correctly VIDEO or DVD with SELECT DVD/ VIDEO button. The MP3 audio track cannot be played (page 78). • The DATA CD or DATA DVD is not recorded in the MP3 format that conforms to ISO9660 Level 1/Level 2 or UDF. • The MP3 audio track does not have the extension “.MP3.” • The data is not formatted in MP3 even though it has the extension “.MP3.” • The data is not MPEG1 Audio Layer 3 data. • The player cannot play audio tracks in MP3PRO format. The JPEG image file cannot be played. • The DATA CD or DATA DVD is not recorded in JPEG format that conforms to ISO9660 Level 1/Level 2 or UDF. • The JPEG image file does not have the extension “.JPG” or “.JPEG.” • The data is not formatted in JPEG even though it has the extension “.JPG” or “JPEG.” • Length or width of the image is more than 4720 dots. The title of the MP3 audio album/ track or JPEG image album/file is not correctly displayed. • The player can only display numbers and alphabet. Other characters are displayed as asterisks. The disc does not start playing from the beginning. • Program play, shuffle play, or repeat play, has been selected (pages 70, 72, 73). • Resume play has taken effect (page 37). The player starts playing the disc automatically. • The disc features an auto playback function. Playback stops automatically. • While playing discs with an auto pause signal, the player stops playback at the auto pause signal. You cannot perform some functions such as stop, search, slow-motion play, repeat play, shuffle play, or program play. • Depending on the disc, you may not be able to do some operations. See the operating manual that comes with the disc. The language for the sound track cannot be changed. • Try using the DVD’s menu instead of the direct selection button on the remote (page 65). • Multilingual tracks are not recorded on the DVD being played. • The DVD prohibits the changing of the language for the sound track. Operation Remedy Additional Information Symptom continued Troubleshooting 103US Operation Symptom Remedy The subtitle language cannot be changed or turned off. • Try using the DVD’s menu instead of the direct selection button on the remote (page 65). • Multilingual subtitles are not recorded on the DVD being played. • The DVD prohibits the changing of the subtitles. The angles cannot be changed. • Try using the DVD’s menu instead of the direct selection button on the remote (page 65). • Multi-angles are not recorded on the DVD being played. • The DVD prohibits changing of the angles. The player does not operate properly. • When static electricity, etc., causes the player to operate abnormally, unplug the player. VCR Troubleshooting Remedy The playback picture does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input. The picture is not clear. • Adjust the tracking with the TRACKING +/– buttons. • The video heads are dirty (see “On cleaning the video heads” (page 3)). Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads. • The video heads may have to be replaced. Consult your local Sony dealer for more information. The picture rolls vertically during picture search. • Adjust the vertical hold control on the TV or monitor. The picture has no sound. • The tape is defective. • If you made A/V connections, check the audio cord connection. A TV program does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input. • Select the correct source with the INPUT SELECT or CH +/– buttons. Select a channel number when recording TV programs; select “L1” or “L2” when recording from other equipment. TV reception is poor. • Adjust the TV antenna. The tape starts playing as soon as it is inserted. • The safety tab has been removed. To record on this tape, cover the tab hole. The tape is ejected when you press z REC. • Check that the safety tab has not been removed. Nothing happens when you press z REC. • Make sure the tape is not at its end. Recording Playback Symptom 104US Troubleshooting Remedy The timer does not operate. • • • • • • • • A tape cannot be inserted. • Check that a tape is not already in the tape compartment. Control by AV mouse is not possible. • The unit is not compatible with satellite TV receiver AV mouse, etc. Others Timer recording Symptom Check that the clock is set. Make sure a tape has been inserted. Check that the safety tab has not been removed. Make sure the tape is not at its end. Make sure a program has been set for timer recording. Make sure your timer settings are past the current time. Check that the cable box is turned on. The clock stops if the DVD-VCR is disconnected from the wall outlet for more than one minute. Reset the clock and timer. • Turn the power off and unplug the AC power cord. Additional Information Troubleshooting 105US Glossary Chapter (page 38) Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded. Dolby Digital (pages 32 and 55) Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital. Dolby Surround (page 33) Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the process outputs the front, center and rear signals. The rear channel is monaural. DTS (page 55) Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. 106US Glossary DVD (page 7) A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and doublesided DVD is 9.4 GB, and double-layer and double-sided DVD is 17GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD. DVD+R (page 7) A DVD+R (read “plus R”) is a recordable disc that is the same size as a DVD VIDEO. Contents can be recorded only once to a DVD+R, and will have the same format as a DVD VIDEO. DVD-R (page 7) A DVD-R is a recordable disc that is the same size as a DVD VIDEO. Contents can be recorded only once to a DVD-R, and will have the same format as a DVD VIDEO. The DVD-R has two different modes: VR mode and Video mode. DVDs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited. DVD-RW (page 7) A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited. DVD+RW (page 7) A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format. Interlace format Interlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image. Additional Information Progressive format (pages 31 and 58) Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 480 progressive format. Title (page 38) The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software. Track (page 38) Sections of a picture or a music feature on a CD or VIDEO CD (the length of a song). Glossary 107US Specifications System Laser Semiconductor laser Format VHS NTSC standard Video recording system Rotary head helical scanning FM system Video heads Double azimuth four heads Video signal NTSC color, EIA standards Tape speed SP: 33.35 mm/s (1 3 8 inches/s) EP: 11.12 mm/s ( 7 16 inches/s) LP: 16.67 mm/s ( 11 16 inches/s), playback only Maximum recording/playback time 8 hrs. in EP mode (with T-160 tape) Rewind time Approx. 1 min (with T-120 tape) Tuner section Channel coverage VHF 2 to 13 UHF 14 to 69 CATV A-8 to A-1, A to W, W+1 to W+84 Antenna 75-ohm antenna terminal for VHF/UHF Inputs and outputs LINE IN 1 and LINE-2 IN VIDEO IN, phono jack (1 each) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2 each) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms DIGITAL OUT COAXIAL, phono jack Output signal: 0.5 Vp-p, 75 ohms 108US Specifications COMPONENT VIDEO OUT (Y, Pb, Pr) Phono jack Y: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohms S-VIDEO OUT 4-pin, mini-DIN jack Y: 1.0 Vp-p, unbalanced, sync negative C: 0.286 Vp-p, load impedance 75 ohms Timer section Clock Quartz locked Timer indication 12-hour cycle Timer setting 8 programs (max.) General Power requirements 120 V AC, 60 Hz Power consumption 25 W Power back-up Back-up duration: 0 min Operating temperature 0°C to 45°C (32°F to 113°F) Storage temperature –20°C to 60°C (–4°F to 140°F) Operating humidity 25% to 80% Dimensions including projecting parts and controls (w/h/d) Approx. 430 × 85 × 287 mm (Approx. 17 × 3 3 8 × 11 3 8 inches) Mass Approx. 3.6 kg (Approx. 7.9 lbs) Supplied accessories Remote commander (1) Size AA (R6) batteries (2) 75-ohm coaxial cable with F-type connectors (1) Design and specifications are subject to change without notice. Index to parts and controls Refer to the pages indicated in parentheses ( ) for details. Front panel A ?/1 POWER (on/standby) switch (37) (42) B Disc tray (34) C A (open/close) button (34) (36) D Tape compartment (41) E A (eject) button (42) I X (pause) button (35) (42) J H (play) button (35) (41) K SELECT DVD/VIDEO buttons (11) L Remote sensor (11) M PROGRESSIVE indicator (58) N CHANNEL/TRACKING +/– buttons* (44) (45) G m (rewind)/M (fast-forward) button (36) (42) O LINE-2 IN VIDEO/AUDIO L (MONO)/ R jacks (96) H x (stop) button (35) (42) ∗ CHANNEL/TRACKING + buttons have a tactile dot. Use the tactile dot as a reference. Additional Information F z REC (record) button (46) continued Index to parts and controls 109US Display window A DVD indicator (35) G STEREO indicator (91) B Angle indicator (67) H Playing time/clock/current status indicator (35) (41) C Record indicator (46) D VIDEO indicator (41) E Tape indicator (41) F Timer indicator (49) I SURR (surround) indicator (76) J DTS indicator (55) K Disc indicator (35) Rear panel DVD player and VCR A AC power cord (14) (18) DVD player only F LINE OUT AUDIO L/R jacks (30) B LINE IN 1 VIDEO/AUDIO L/R jacks (96) G COMPONENT VIDEO OUT Pr/Pb/Y jacks (31) C LINE OUT VIDEO/AUDIO L/R jacks (15) H S-VIDEO OUT jack (31) D IN (FROM ANT.) connector (16) E OUT (TO TV) connector (16) 110US Index to parts and controls I DIGITAL AUDIO OUT/COAXIAL jack (33) Remote commander for DVD G SET UP button (20) H SUBTITLE button (68) I AUDIO button* (74) J SKIP button (35) K REPLAY button (35) L X PAUSE button (35) M H PLAY button* (35) N V/v/B/b buttons (20) ENTER button (20) O DISPLAY button (39) P TOP MENU button (65) Q ?/1 (on/standby) switch (12) (37) R VOL (volume) +/– buttons (12) S ZOOM button (66) T ENTER button (20) U REPEAT button (70) V SURROUND button (76) W m/M y buttons (35) Y x STOP button (35) Z O RETURN button (23) wj MENU button (65) A Z (open/close) button (34) (36) ∗ Number 5, AUDIO and H PLAY buttons have a tactile dot. Use the tactile dot as a reference. B TV / DVD·VIDEO switch (11) Additional Information X .PREV (previous)/> NEXT button (35) C SELECT DVD button (11) D Number buttons* (29) E CLEAR button (71) F ANGLE button (67) continued Index to parts and controls 111US *Remote commander for VIDEO F SET UP button (20) G TIMER button (48) H AUDIO button* (91) I SKIP button (42) J REPLAY button (42) K SP (Standard Play)/EP (Extended Play) button (46) L z REC (record) button (46) M X PAUSE button (42) N H PLAY button* (41) O V/v/B/b buttons (20) ENTER button (20) P DISPLAY button (43) Q ?/1 (on/standby) switch (12) (42) R CH (channel)/TRACKING +/– buttons* (44) (45) S VOL (volume) +/– buttons (12) T ENTER button (20) U MUTING button (12) V SEARCH button (92) W TV/VIDEO button (47) X INPUT SELECT button (45) Y m (rewind)/M (fast-forward)/y (slow) buttons (42) A Z (eject) button (42) Z ./> SHUTTLE button (42) B TV / DVD·VIDEO switch (11) wj x STOP button (42) C SELECT VIDEO button (11) wk O RETURN button (23) D Number buttons* (29) ∗ Number 5, AUDIO, H PLAY and CH/TRACKING + buttons have a tactile dot. Use the tactile dot as a reference. E CLEAR button (43) (49) 112US Index to parts and controls DVD Audio/Subtitle Language Abbreviation Language ARA Arabic BUL Bulgarian CHI Chinese CRO Croatian CZE Czech DAN Danish DEU German ENG English ESP Spanish FIN Finish FRA French GRE Greek HUN Hungarian Indonesian IND Hindi ISL Icelandic ITA Italian IWR Hebrew JPN Japanese KOR Korean MAL Malay NLD Dutch NOR Norwegian POL Polish POR Portuguese RUS Russian SVE Swedish THA Thai TUR Turkish VIE Vietnamese ZAF Afrikaans Additional Information IDN DVD Audio/Subtitle Language 113US Index Numerics L 16:9 57 4:3 Letter Box 57 4:3 Pan Scan 57 Language selecting 20 LP mode 47 A Adjusting picture 44 tracking 44 Angle 67 Audio track 91 Audio/video (A/V) hookup 15 Auto Clock Set 22 C Cable hookup 14 Cleaning the video heads 3 Clock setting 22 Connecting Cable TV 19 external antenna connector 100 VHF/UHF band mixer 100 Counter 43 Custom AV Mode 40 D DATA CD 7, 78, 84 DATA DVD 7, 78, 84 Disabling channels 28 DOLBY DIGITAL 74 DTS 74 Dubbing. see Editing DVD 7 E Editing 96 EP mode 46 H Handling discs 2 Hi-fi audio track 91 I Instant Advance 36 Instant Replay 36, 42 Instant Skip 42 J JPEG 7, 84 114US Index Normal audio track 91 Searching at various speeds 36, 42 for a blank portion 93 for the counter 0 point 93 Scan and Play 93 Shuffle play 72 Shuttle play 42 SP mode 46 STEREO 74 Stereo 91 Subtitle 68 Surround 76 P T Parental Control 62 PBC (Playback control) 88 Picture adjustment 44 Playback at various speeds 36, 42 frame by frame 42 MP3 audio track 78 program play 70 repeat play 73 selecting the sound 91 shuffle play 72 shuttle play 42 slow motion 36, 42 VIDEO CDs 88 Playback quickly or slowly with sound 37 Presetting channels 26 Program play 70 Progressive 107 Timer setting daily/weekly recording 49 Tracking adjustment. see Adjusting M Monaural 91 Monitoring audio during playback 91 MP3 7, 78 N R Recording bilingual programs 91 SAP broadcasts 91 saving 47 stereo broadcasts 91 while watching another program 47, 50 Repeat play 73 Resume Play 37 RF channel 99 S Safety tab 47 SAP (Second Audio Program) 91 U Usable discs 7 V VIDEO CD 7, 88 Z Zoom 66 Índice Este manual muestra la configuración básica para utilizar la Videograbadora-DVD. Para ver detalles, consulte el manual de instrucciones en inglés. Procedimientos iniciales 3 9 10 11 Conexiones básicas Selección del idioma Ajuste del reloj Memorización de canales Operaciones básicas 12 Reproducción de discos 14 Reproducción de cintas 16 Grabación de programas de TV 2ES Índice Procedimientos iniciales Conexiones básicas Procedimientos Antes de comenzar • Asegúrese de desconectar el cable de alimentación de CA de cada componente antes de conectarlo. • Desactive la alimentación de todo el equipo. • No conecte los cables de alimentación de CA hasta no realizar todas las conexiones. Si conecta el cable de alimentación de CA antes de haber completado las conexiones, es posible que no pueda utilizar la función Plug and Play. • Asegúrese de hacer las conexiones firmemente. Las conexiones flojas pueden provocar distorsiones en la imagen. • Si su televisor no coincide con ninguno de los ejemplos suministrados, consulte con el proveedor Sony o técnico calificado más cercano. Selección de la mejor opción de conexión Si su televisor tiene entradas de audio/video, consulte la página 4 para la conexión de audio/ video (A/V). Siga después uno de los siguientes procedimientos de conexión. Si su televisor no tiene entradas de A/V, vaya directamente a una de las siguientes conexiones. Si tiene Utilice Consulte Antena sólo, sin TV por cable Conexión 1 A o B (Plug and Play) Página 5 e 7 Decodificador con muy pocos canales codificados o sin decodificador Conexión 1 C (Plug and Play) Página 6 e 7 Decodificador con muchos canales codificados Conexión 2 Página 8 ES Después de realizar las conexiones, siga las instrucciones para el ajuste. Después de realizar el ajuste podrá utilizar la Videograbadora-DVD. Los procedimientos varían en función de la conexión utilizada. Precaución Las conexiones entre el conector VHF/UHF del Videograbadora-DVD y los terminales de antena del receptor de TV deberán ser hechas solamente como se muestra en las siguientes instrucciones. Si no lo hace así podrá resultar en una operación que violará los reglamentos de la Comisión de Comunicaciones Federal (FCC) relacionada con el uso y la operación de dispositivos de radiofrecuencia. No conecte nunca la salida de la Videograbadora-DVD a una antena ni haga conexiones simultáneas (en paralelo) de antena y Videograbadora-DVD en los terminales de antena de su receptor. Nota para el instalador del sistema CATV (en EE.UU.) Este recordatorio está provisto para llamar la atención del instalador del sistema CATV sobre el artículo 820-40 del NEC que ofrece directrices para la apropiada puesta a tierra y, en particular, especifica que el cable de tierra deberá ser conectado al sistema de puesta a tierra del edificio, lo más cerca posible del punto de entrada del cable como sea práctico. continúa Conexiones básicas 3ES Conexión de audio/video (A/V) Si su televisor tiene tomas de entrada de audio/vídeo (A/V), obtendrá mejor imagen y sonido si conecta su Videograbadora-DVD utilizando estas conexiones. Si su televisor no tiene entrada A/V, consulte las páginas siguientes para la conexión de antena o cable. Si no piensa utilizar su Videograbadora-DVD para grabar programas, solamente necesitará hacer las conexiones mostradas en esta página. Si desea grabar programas normales o de TV por cable, realice primero estas conexiones y, después, siga con las páginas siguientes para realizar las conexiones de antena o cable. A Utilice esta conexión si su televisor tiene tomas estéreo Videograbadora-DVD Receptor estéreo Televisor Cable de audio/video (no suministrado) Cable de audio (no suministrado) B Utilice esta conexión si su televisor no tiene tomas estéreo Videograbadora-DVD Receptor estéreo Televisor Cable de video (no suministrado) Cable de audio (no suministrado) Notas • Para reproducir una cinta/disco en estéreo, debe utilizar la conexión de A/V. • Si no dispone de receptor estéreo, conecte la toma LINE OUT/AUDIO L blanca a la toma AUDIO IN del televisor. 4ES Conexiones básicas Conexión 1 (Plug and Play) Parte posterior del televisor VHF/UHF A o Videograbadora-DVD VHF Case con el tipo de conector de su televisor: A, B, o C. Procedimientos A Utilice esta conexión si está utilizando: • Antena VHF/UHF (obtendrá los canales 2–13 y canales 14 y superior) • Antena UHF sólo (obtendrá los canales 14 y superiores) • Antenas VHF y UHF independientes B UHF o VHF C UHF B Utilice esta conexión si emplea una antena sólo para VHF (obtendrá sólo los canales 2–13) Parte posterior del TV VHF/UHF Videograbadora-DVD o o A Case con el tipo de conector de su televisor: A, B, o C. B Para los conectores tipo B y C, no se requiere conexión UHF. VHF UHF VHF C UHF Si no puede conectar directamente el cable de la antena a la Videograbadora-DVD Si su cable de antena es un cable plano (cable bifilar de 300 ohm), enchufe un conector de antena externa (no suministrado) para poder conectar el cable al conector IN. Si tiene cables independientes para antenas VHF y UHF, debe utilizar un mezclador de bandas de U/V (no suministrado). continúa Conexiones básicas 5ES C Utilice esta conexión si no tiene decodificador de cable, o si tiene un decodificador de cable con sólo unos pocos canales codificados Uso recomendado Utilice esta conexión si no tiene un decodificador. Utilice también esta conexión si su sistema de cable sólo codifica algunos canales. Con esta conexión podrá • Grabar cualquier canal no codificado seleccionando el canal en la Videogradadora Con esta conexión no podrá • Grabar canales codificados que requieran un decodificador Videograbadora-DVD Parte posterior del TV VHF/UHF Pared o Conecte este cable directamente a su televisor si no tiene decodificador. o Decodificador A Case con el tipo de conector de su televisor:A, B, VHF o C. B Para los conectores UHF tipo B y C, no se requiere VHF conexión UHF. C UHF 6ES Conexiones básicas Videograbadora-DVD configuración (Conexión 1 continuación) Enchufe la Videograbadora-DVD en la toma de CA. Procedimientos Cuando enchufe la Videograbadora-DVD en la toma de CA, la Videograbadora-DVD preajustará automáticamente el reloj y memorizará los canales de TV de la Videograbadora-DVD. a la toma de CA Cable de alimentación de CA La Videograbadora-DVD empezará a preajustar el reloj y memorizar los canales. Cuando el preajuste automático esté completo, aparecerá la hora actual en el visualizador. Ha finalizado el ajuste de la Videograbadora-DVD. Para empezar a utilizar su Videograbadora-DVD, vaya a “Operaciones básicas” en la página 12. Para cambiar el idioma de las indicaciones en pantalla a español, consulte “Selección del idioma” en la página 9. El reloj se ajusta utilizando una señal horaria ofrecida por algunos canales de TV. Si el reloj es incorrecto, o si aparece “--:--” en el visualizador, consulte “Ajuste del reloj” en la página 10. Notas • Si conecta el cable de alimentación de CA antes de haber completado las conexiones de la antena, los canales podrán ajustarse incorrectamente. Si se diera el caso, consulte “Memorización de canales” en la página 11. • No presione ningún botón en la videograbadora-DVD ni en el mando a distancia durante el preajuste automático. • El preajuste automático sólo comienza automáticamente cuando usted enchufa el cable de alimentación de CA por primera vez después de comprar la Videograbadora-DVD. • El preajuste automático puede realizarse presionando x en la unidad continuamente durante 5 segundos o más con la alimentación del Videograbadora-DVD desconectada. continúa Conexiones básicas 7ES Conexión 2 Utilice esta conexión si va a conectar un decodificador de cable con muchos canales codificados Con esta conexión podrá • Grabar cualquier canal seleccionando el canal en el decodificador Con esta conexión no podrá • Grabar con el decodificador apagado • Grabar un canal mientras ve otro canal Decodificador Pared Parte posterior del televisor VHF/UHF A o Case con el tipo de conector de su televisor: A, B, o C. VHF B o UHF VHF Videograbadora-DVD C Para los conectores tipo B y C, no se requiere conexión UHF. UHF Después de haber completado la conexión… Después de haber completado la conexión, enchufe la videograbadora-DVD en la toma de CA y consulte “Selección del idioma” en la página 9. a la toma de CA Cable de alimentación de CA 8ES Conexiones básicas Selección del idioma Es posible cambiar el idioma de las indicaciones en pantalla. 1 Pulse SET UP, después pulse V/v para seleccionar (OPTION) y pulse ENTER. 2 Pulse V/v para seleccionar “Language”, después pulse ENTER. Procedimientos Antes de comenzar… • Encienda la Videograbadora-DVD y su televisor. • Ajuste el televisor a entrada de vídeo para que aparezca en la pantalla de televisor la señal procedente del reproductor. • Si el reproductor de DVD está en el modo de reproducción, no podrá visualizar el menú de ajustes. Pare la reproducción de DVD. • Utilice el mando a distancia para realizar las siguientes funciones. B Aparecerá el menú “LANGUAGE/IDIOMA/LANGUE”. 3 Pulse V/v para seleccionar el idioma deseado, inglés, español o francés, después pulse ENTER. 4 Pulse SET UP para salir del menú. Selección del idioma 9ES Ajuste del reloj Antes de comenzar… • Encienda la Videograbadora-DVD y su televisor. • Ajuste el televisor a entrada de vídeo para que aparezca en la pantalla de televisor la señal procedente del reproductor. • Si el reproductor de DVD está en el modo de reproducción, no podrá visualizar el menú de ajustes. Pare la reproducción de DVD. • Utilice el mando a distancia para realizar las siguientes funciones. 1 Pulse SET UP, después pulse V/v para seleccionar (OPTION) y pulse ENTER. 2 Pulse V/v para seleccionar “Ajuste de la hora”, después pulse ENTER. Aparecerá el menú “AJUSTE DE LA HORA”. 3 Pulse V/v para seleccionar “Manual”, y pulse ENTER. 4 Ajuste la hora, los minutos, el mes, el día y el año consecutivamente pulsando B/b para seleccionar el elemento a ajustar, y pulse V/v para seleccionar los dígitos. El día de la semana se ajusta automáticamente. 5 Pulse ENTER para confirmar el ajuste. 6 Pulse SET UP para salir del menú. Notas • Para grabar programas de TV utilizando el temporizador, deberá ajustar el reloj con exactitud. • La visualización del reloj aparecerá cuando se seleccione el modo VIDEO sin cinta insertada o cuando sea apagada la Videograbadora-DVD. 10ES Ajuste del reloj Memorización de canales Antes de comenzar… • Encienda la Videograbadora-DVD y su televisor. Si utiliza un decodificador, enciéndalo. • Ajuste el televisor a entrada de vídeo para que aparezca en la pantalla de televisor la señal procedente del reproductor. • Si el reproductor de DVD está en el modo de reproducción, no podrá visualizar el menú de ajustes. Pare la reproducción de DVD. • Utilice el mando a distancia para realizar las siguientes funciones. 1 Pulse SET UP, después pulse V/v para seleccionar (OPTION) y pulse ENTER. 2 Pulse V/v para seleccionar “Ajuste de canales”, después pulse ENTER. Procedimientos Esta Videograbadora-DVD puede recibir los canales VHF 2 al 13, los canales UHF 14 al 69 y los canales CATV no codificados 1 al 125. Se recomienda que primero memorice los canales sintonizables en su área utilizando los métodos de memorización automática. Aparecerá el menú “AJUSTE DE CANALES”. 3 4 Pulse V/v para seleccionar “Antena/Cable”. • Para memorizar los canales de TV por cable: Pulse B/b para seleccionar “Cable”. • Para memorizar los canales VHF y UHF: Pulse B/b para seleccionar “Antena”. 5 Pulse V/v para seleccionar “Auto-programación”, después pulse ENTER. Se memorizarán todos los canales sintonizables en secuencia numérica. Cuando ya no puedan encontrarse más canales, la memorización se detendrá y aparecerá la imagen del canal de número más bajo en la pantalla del televisor. Memorización de canales 11ES Operaciones básicas Reproducción de discos Dependiendo del disco, algunas operaciones podrán variar o estar restringidas. Consulte el manual de instrucciones suministrado con su disco. Antes de comenzar... • Encienda la Videograbadora-DVD y su televisor. • Ajuste el televisor a entrada de vídeo para que aparezca en la pantalla de televisor la señal procedente del reproductor. • Utilice el mando a distancia para realizar las siguientes funciones. 1 Pulse SELECT DVD para controlar el reproductor de DVD. 2 Pulse Z para abrir la bandeja de discos y poner un disco en ella. con la cara de reproducción hacia abajo 3 Pulse H PLAY. La bandeja de discos se cerrará y el reproductor de DVD comenzará a reproducir. El visualizador mostrará el tiempo de reproducción*. Hora Minuto Segundo * Cuando no haya disco cargado aparecerá “– – – ––”. Notas • Detenga la reproducción VIDEO mientras reproduzca un disco. • Si reproduce un DVD o VIDEO CD que esté rayado, el reproductor podrá parar la reproducción en el punto donde esté rayado. • La reproducción de listas de reproducción de duración superior a 10 horas grabadas en el modo VR no está garantizada. Operaciones adicionales 12ES Para Pulse Detener la reproducción x STOP Reproducción de discos Para Pulse Hacer pausas durante la reproducción X PAUSE Si hace una pausa en el reproductor de DVD de más de 5 min (minuto), el reproductor de DVD se parará automáticamente. Reanudar la reproducción después de la pausa H PLAY Avanzar al siguiente fotograma en el modo de pausa SKIP Volver al fotograma anterior en el modo de pausa REPLAY > NEXT en el mando a distancia o M en la unidad Volver al capítulo, tema o escena anterior en el modo de reproducción continua . PREV en el mando a distancia o m en la unidad Localizar un punto rápidamente m o M en el mando a distancia (o mantenga pulsado m o M en la unidad) La velocidad de reproducción cambia de la forma siguiente cada vez que se pulsa el botón en el mando a distancia (o dependiendo del tiempo que mantenga pulsado el botón en la unidad): Cuando encuentre el punto que quiera, pulse H PLAY. Ver a cámara lenta en el modo de reproducción continua (DVD y VIDEO CD solamente) X PAUSE durante la reproducción, y pulse oy La velocidad de reproducción cambia de la forma siguiente cada vez que se pulsa o y: Para reanudar la reproducción normal, pulse H PLAY. Operaciones básicas Ir al siguiente capítulo, tema, o escena en el modo de reproducción continua REPLAY Reproducción de la escena anterior en 10 s (segundo) el modo de reproducción continua*1 (Reproducción instantánea) Avanzar ligeramente la escena actual 30 s (segundo) en el modo de reproducción continua*1 (Avance instantáneo) SKIP Puede pulsar SKIP hasta 4 veces. Esto le permitirá avanzar rápidamente hasta 2 minutos en total. Parar la reproducción y extraer el disco Z 1 * Para DVD VIDEO y DVD-RW/DVD-R o DVD+RW/DVD+R solamente Notas • No saldrá sonido excepto: – durante la reproducción normal – durante la reproducción rápida o lenta con sonido • Dependiendo del método empleado para la grabación es posible que no pueda realizarse la operación de retroceso rápido para CD, MP3 y VIDEO CD. • Tal vez no pueda utilizar la función de reproducción instantánea o avance instantáneo con algunas escenas. Reproducción de discos 13ES Reproducción de cintas Antes de comenzar... • Encienda la Videograbadora-DVD y su televisor. • Ajuste el televisor a entrada de vídeo para que aparezca en la pantalla de televisor la señal procedente del reproductor. • Utilice el mando a distancia para realizar las siguientes funciones. 1 Pulse SELECT VIDEO para controlar el reproductor de Videograbadora. 2 Inserte una cinta. 3 Pulse H PLAY. La videograbadora comenzará a reproducir automáticamente si inserta una cinta con su lengüeta de seguridad quitada. El visualizador mostrará el tiempo de reproducción. Cuando la cinta llegue al final, se rebobinará automáticamente. Hora Minuto Segundo Operaciones adicionales Para 14ES Pulse Detener la reproducción x STOP Hacer pausas durante la reproducción X PAUSE Si hace una pausa en la videograbadora de más de 5 min (minuto), la videograbadora reanudará automáticamente la reproducción. Reanudar la reproducción después de la pausa X PAUSE o bien H PLAY Avanzar la cinta rápidamente M durante la parada Rebobinar la cinta m durante la parada Expulsar la cinta Z Visualización de la imagen durante el avance rápido o el rebobinado Durante el avance rápido, mantenga pulsado M. Durante el rebobinado, mantenga pulsado m. Reproducción de cintas Para Pulse Reproducción a alta velocidad • Durante la reproducción, pulse brevemente M o m. La cinta continuará reproduciéndose a una velocidad 5 veces mayor que la reproducción normal. • Durante la reproducción, mantenga pulsado M o m. La cinta continuará reproduciéndose a una velocidad 5 veces mayor que la reproducción normal. Al dejar de pulsar el botón, se reanuda la reproducción normal. Reproducción a cámara lenta Durante la pausa, pulse y. Reproducción fotograma a fotograma Durante la pausa, pulse Reproducción de la escena anterior en el modo de reproducción continua* (Reproducción instantánea) Durante la reproducción, pulse Salto de la escena actual 30 s (segundo) en el modo de reproducción continua*(Salto instantáneo) Durante la reproducción, pulse SKIP. Puede pulsar SKIP hasta 4 veces. Esto le permitirá avanzar rápidamente hasta 2 minutos en total. Reproducción a varias velocidades (Reproducción Shuttle) Durante la reproducción, pulse .o >. Podrá cambiar la velocidad de reproducción de la siguiente forma. –×7 y –×5 y –×3 y Reproducción de la imagen fija y Reproducción a cámara lenta y Reproducción normaly ×2 y ×3 y ×5 y ×7 SKIP. REPLAY. Operaciones básicas * 10 s (segundo) en el modo SP o en el modo LP/15 s (segundo) en el modo EP Para reanudar la reproducción normal Pulse H PLAY. Para desconectar la alimentación durante el rebobinado (Parada del rebobinado) Pulse ?/1 mientras la cinta se está rebobinando. La alimentación se desactivará pero la cinta seguirá rebobinándose hasta que llegue al final. Notas • A varias velocidades de reproducción no sale sonido. • La imagen puede aparecer con ruido al reproducirse a alta velocidad en sentido inverso. • Pare la reproducción de disco mientras esté reproduciendo un vídeo. Reproducción de cintas 15ES Grabación de programas de TV Antes de comenzar... • Encienda la Videograbadora-DVD y su televisor. • Cambie el selector de entrada de su televisor de forma que aparezca la señal procedente del reproductor en la pantalla del televisor. • Para grabar desde un decodificador, enciéndalo. • Compruebe que la longitud de la cinta sea superior al tiempo total de grabación. • Utilice el mando a distancia para realizar las siguientes funciones. 1 2 3 Pulse SELECT VIDEO para controlar la videograbadora. 4 Pulse SP/EP para seleccionar la velocidad de cinta, SP (reproducción estándar) o EP (reproducción extendida). Inserte una cinta provista de lengüeta de seguridad. Presione CH +/– para seleccionar el canal o la fuente de video de entrada de línea que desee grabar. El modo EP proporciona un tiempo de grabación tres veces superior al modo SP. No obstante, se obtiene una mejor calidad de imagen y sonido con el modo SP. 5 Pulse z REC para iniciar la grabación. Aparecerá “REC” en el visualizador. Para detener la grabación Pulse x STOP. Notas • No es posible grabar un DVD directamente a una cinta Videograbadora utilizando su Videograbadora-DVD. 16ES Grabación de programas de TV Sony Corporation Printed in China AK68-00921A
