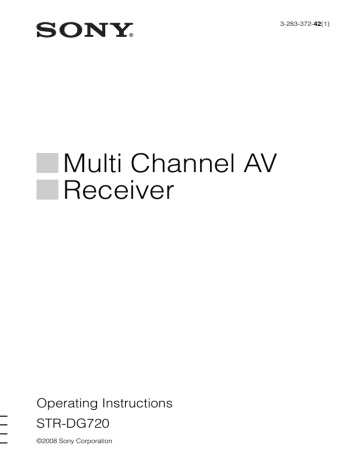

Multi Channel AV
Receiver
3-283-372-42(1)
Operating Instructions
STR-DG720
©2008 Sony Corporation
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.
Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.
For customers in Europe
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Disposal of waste batteries
(applicable in the European
Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.
By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.
To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the product safely.
Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local
Civic Office, your household waste disposal service or the shop where you purchased the product.
Notice for the customer in the countries applying EU Directives
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan Minato-ku Tokyo,
108-0075 Japan. The Authorized Representative for
EMC and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
2 GB
About This Manual
• The instructions in this manual are for model
STR-DG720. Check your model number by looking at the lower right corner of the front panel.
In this manual, models of area code CEL is used for illustration purposes unless stated otherwise.
Any difference in operation is clearly indicated in the text, for example, “Models of area code TH1 only”.
• The instructions in this manual describe the controls on the supplied remote. You can also use the controls on the receiver if they have the same or similar names as those on the remote.
About area codes
The area code of the receiver you purchased is shown on the lower right portion of the rear panel
(see the illustration below).
This receiver incorporates High-Definition
Multimedia Interface (HDMI TM ) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
“x.v.Colour” and “x.v.Colour” logo are trademarks of Sony Corporation.
“BRAVIA” and
Sony Corporation.
are trademarks of
CENTER FRONT B
R L
L
FRONT A
R
KERS
Area code
Any differences in operation, according to the area code, are clearly indicated in the text, for example,
“Models of area code AA only”.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, and the double-
D symbol are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,003,467; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS, DTS Digital Surround, ES, and
Neo:6 are registered trademarks and the DTS logos, Symbol and DTS 96/24 are trademarks of
DTS, Inc. © 1996-2007 DTS, Inc. All Rights
Reserved.
3 GB
Table of Contents
Getting Started
Description and location of parts...................5
1: Installing the speakers .............................14
2: Connecting the speakers ..........................15
3: Connecting the TV ..................................17
4a: Connecting the audio components.........18
4b: Connecting the video components ........19
5: Connecting the antennas (aerials)............26
6: Preparing the receiver and the remote .....27
7: Selecting the speaker system ...................28
8: Calibrating the appropriate settings automatically
(AUTO CALIBRATION) .......................29
9: Adjusting the speaker levels and balance
(TEST TONE) ........................................33
Playback
Selecting a component.................................34
Listening/Watching a component ................35
Amplifier Operations
Navigating through menus...........................37
Adjusting the level (LEVEL menu).............41
Adjusting the equalizer (EQ menu) .............42
Settings for the surround sound
(SUR menu)............................................42
Settings for the tuner (TUNER menu).........44
Settings for the audio (AUDIO menu).........45
Settings for the video (VIDEO menu).........46
Settings for the system (SYSTEM menu) ...47
Calibrating the appropriate settings automatically (A. CAL menu)................50
Enjoying Surround Sound
Enjoying Dolby Digital and DTS Surround sound (AUTO FORMAT DIRECT) .......51
Selecting a pre-programmed sound field.....53
(2CH STEREO)......................................55
Listening to the sound without any adjustment
(ANALOG DIRECT) .............................56
Tuner Operations
Listening to FM/AM radio.......................... 57
Presetting radio stations .............................. 58
Using the Radio Data System (RDS).......... 61
(Models of area code CEL, CEK only)
Control for HDMI
Using the Control for HDMI function for
“BRAVIA” Sync .................................... 62
Preparing Control for HDMI function ........ 64
Watching a DVD (One-Touch Play) ........... 65
Enjoying the TV sound from the speakers connected to the receiver
(System Audio Control)......................... 66
Turning off the receiver with the TV
(System Power Off) ............................... 67
Other Operations
Switching between digital and analog audio
(INPUT MODE) .................................... 68
Listening to digital sound from other inputs
(DIGITAL ASSIGN) ............................. 68
Enjoying the DIGITAL MEDIA PORT
(DMPORT) ............................................ 69
Naming inputs............................................. 71
Changing the display .................................. 72
Using the Sleep Timer ................................ 72
Recording using the receiver....................... 73
Using the Remote
Changing button assignments ..................... 74
Additional Information
Glossary ...................................................... 75
Precautions.................................................. 77
Troubleshooting .......................................... 78
Specifications .............................................. 82
Index ............................................. Back cover
4 GB
Getting Started
Description and location of parts
Front panel
1 2 3 4 5 6 7 8
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT
MUTING ql qk qj qf qd qs qa q; 9
Name
A ?/1
(on/standby)
B SPEAKERS
(OFF/A/B)
C TUNING
MODE
TUNING +/–
D Display
E Remote sensor
F DISPLAY
Function
Press to turn the receiver on
Press to select the front
Press or turn to operate the
The current status of the selected component or a list of selectable items appears
Receives signals from remote commander.
Press to select information displayed on the display
Name Function
G INPUT MODE Press to select the input mode when the same components are connected to both digital
H MASTER
VOLUME
Turn to adjust the volume level of all speakers at the
I MUTING
Press to turn off the sound temporarily.
Press MUTING again to
J ANALOG
DIRECT
K INPUT
SELECTOR
Press to listen to high quality
Turn to select the input
35, 36, 56, 57, 59, 60, 68, 71,
continued
5 GB
Name
L 2CH
Function
Press to select a sound field
A.F.D.
MOVIE
MUSIC
M SUR BACK
DECODING
Press to select the surround
N SLEEP
Press to activate the Sleep
Timer function and the duration which the receiver
O DIMMER
Press to adjust the brightness
P MEMORY/
ENTER
Press to store a station or enter the selection when selecting the settings (page
Q VIDEO 2 IN/
PORTABLE AV
IN jacks
Connects to a portable audio/ video component such as a camcorder or video game
R AUTO CAL
MIC jack
Connects to the supplied optimizer microphone for the
Auto Calibration function
S PHONES jack Connects to headphones
6 GB
About the indicators on the display
1 2 3 4 5 6 7 8 9
SW LFE SP A
SP B
L C R
SL S
SBL SB
SR
SBR
; D EX ; PLIIx ; PL OPT DTS -ES 96/24
HDMI COAX NEO:6 qg qf qd qs
Name Function
A SW Lights up when sub woofer
selection is set to “YES” (page
output from the SUB
WOOFER jack.
B LFE
C SP A/SP B
Lights up according to the speaker system used. However, these indicators do not light up if the speaker output is turned off or if headphones are connected.
D ; D/
; D EX
Lights up when the disc being played back contains an LFE
(Low Frequency Effect) channel and the LFE channel signal is actually being reproduced.
“; D” lights up when the receiver is decoding Dolby
Digital signals.
“; D EX” lights up when the receiver is decoding Dolby
Digital Surround EX signals.
Note
When playing a Dolby Digital format disc, be sure that you have made digital connections and that INPUT MODE is set
Name
E ; PL/
; PLII/
; PLIIx
F OPT
MEMORY RDS ST
D.RANGE
MONO qa q;
Function
“; PL” lights up when the receiver applies Pro Logic processing to 2 channel signals in order to output the center and surround channel signals.
“; PLII” lights up when the
Pro Logic II Movie/Music/
Game decoder is activated.
“; PLIIx” lights up when the
Pro Logic IIx Movie/Music/
Game decoder is activated.
However, these indicators do not light up if both the center and surround speakers are set to
a sound field using the A.F.D. button.
Note
Dolby Pro Logic IIx decoding does not function for DTS format signals or for signals with a sampling frequency of more than 48 kHz.
Lights up when INPUT MODE is set to “AUTO” and the source signal is a digital signal being input through the
continued
7 GB
Name
G DTS/
DTS-ES/
DTS 96/24
H MEMORY
I Tuner indicators
J Preset station indicators
K D.RANGE
L NEO:6
M COAX
N HDMI
Function
“DTS” lights up when the receiver is decoding DTS signals.
“DTS-ES” lights up when the receiver is decoding DTS-ES signals.
“DTS 96/24” lights up when the receiver is decoding DTS
96/24 (96 kHz/24 bit) signals.
Note
When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is set to
Lights up when a memory function, such as Preset
activated.
Lights up when using the receiver to tune in radio
Note
“RDS” appears for models of area code CEL, CEK only.
Lights up when using the receiver to tune in radio stations you have preset. For details on presetting radio
Lights up when dynamic range
compression is activated (page
Lights up when DTS Neo:6
Cinema/Music decoder is
Lights up when INPUT MODE is set to “AUTO” and the source signal is a digital signal being input through the
Lights up when the receiver recognizes a component connected via an HDMI IN
Name
O Playback
C
SL
SR
S
SBL
SBR
SB
L
R channel indicators
Function
The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound (based on the speaker settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the surround components obtained by Pro Logic processing)
Surround Back Left
Surround Back Right
Surround Back (the surround back components obtained by
6.1 channel decoding)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When surround speakers are set to
Sound Field: A.F.D. AUTO
SW
L C R
SL SR
8 GB
Rear panel
1 2 1 3
OPTICAL
TV
IN
ANTENNA
AM
SAT IN DVD IN BD IN
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL
(ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT IN IN
AUDIO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
IN
R
SA-CD/CD/CD-R TV SAT DVD VIDEO 1
AUDIO
OUT
SUB WOOFER
OUT
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
7 5 6 5
A DIGITAL INPUT/OUTPUT section
OPTICAL
IN jacks
COAXIAL IN jack
Connects to a DVD player, etc. The
COAXIAL jack provides a better sound quality (page
HDMI IN/
OUT* jacks
Connects to a DVD player, satellite tuner, or a Blu-ray disc player. The image is output to a
TV or projector while the sound can be output from a TV or/and speakers connected to this
B ANTENNA section
FM
ANTENNA jack
Connects to the supplied FM wire antenna (aerial)
AM
ANTENNA terminals
Connects to the supplied AM loop antenna (aerial)
4
C COMPONENT VIDEO INPUT/
OUTPUT section
Green
(Y)
Blue
(P
B
/C
B
)
Red
(P
R
/C
R
)
Y, P
B
/C
B
, P
R
/C
R
Connects to a
IN/OUT* jacks DVD player, TV, satellite tuner, etc.
You can enjoy high quality image
D SPEAKERS section
Connects to the
E AUDIO INPUT/OUTPUT section
White (L)
AUDIO IN/
OUT jacks
Red (R)
Connects to a Super
Audio CD player,
CD recorder, etc.
Black
AUDIO OUT jack
Connects to a sub
continued
9 GB
F VIDEO/AUDIO INPUT/OUTPUT section
White (L)
AUDIO IN/
OUT jacks
Connects to a VCR,
DVD player, etc.
Red (R)
Yellow
VIDEO IN/
OUT* jacks
G DMPORT
DMPORT jack
Connects to a
DIGITAL MEDIA
PORT adapter
* You can watch the selected input image when you connect the MONITOR OUT or HDMI OUT jack
to a TV or projector (page 17).
Remote commander
You can use the supplied RM-AAU023
Remote Commander to operate the receiver and to control the Sony audio/video components that the remote is assigned to
wa w; ql qk qj qh qg
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
2
3
4
5
6
7
8
9 q; qa qs qd
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
TUNING – m H
TUNING +
M
TV
X
FM MODE x qf
10 GB
Name Function
A TV ?/1
(on/standby)
Press TV ?/1 and TV (O) at the same time to turn the TV on or off.
AV ?/1
(on/standby)
Press to turn on or off the
Sony audio/video components that the remote is assigned to
If you press ?/1 (B) at the same time, it will turn off the receiver and other Sony components (SYSTEM
STANDBY).
Note
The function of the AV ?/1 switch changes automatically each time you press the input buttons (C).
B ?/1
(on/standby)
Press to turn the receiver on or off.
To turn off all Sony components, press ?/1 and
AV ?/1 (A) at the same time
(SYSTEM STANDBY).
C Input buttons Press one of the buttons to select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned to control
Sony components.
You can change the button assignments following the
steps in “Changing button assignments” on page 74.
D 2CH
Press to select a sound field.
A.F.D.
MOVIE
MUSIC
E THEATRE
Press to enjoy optimal image suited for movies and to output the sound from the speakers connected to this receiver automatically.
Note
This button will only function if your TV is compatible with
Theatre Mode.
Refer to the operating instructions supplied with the
TV for details.
Name
F DVD/BD
MENU
AUTO CAL
Function
Press to display the menu of the DVD or Blu-ray disc on the TV screen. Then, use V, v,
B, b and (Q) to perform menu operations.
Press to activate the Auto
Calibration function.
G D.TUNING
D.SKIP
Press to enter direct tuning mode.
Press to skip a disc when using a multi-disc changer.
H
ENTER Press to enter the value after selecting a channel, disc or track using the numeric buttons of the TV, VCR or satellite tuner.
MEMORY Press to store a station.
I AMP MENU Press to display the menu of the receiver. Then, use V, v,
B, b and (Q) to perform menu operations.
J TOOLS/
OPTIONS
Press to display and select the options of the DVD player or
Blu-ray disc player.
Press TOOLS/OPTIONS and
TV (O) at the same time to display the options applicable to the Sony TV.
K MUTING
Press to turn off the sound temporarily.
Press MUTING again to restore the sound.
Press MUTING and TV (O) at the same time to activate the TV’s muting function.
L TV VOL
+ a)
/–
Press TV VOL +/– and TV
(O) at the same time to adjust the volume level of the TV.
MASTER
VOL + a)
/–
Press to adjust the volume level of all speakers at the same time.
continued
11 GB
Name Function
M MENU/HOME Press to display the menu of the VCR, DVD player, satellite tuner or Blu-ray disc player on the TV screen.
Press MENU/HOME and TV
(O) at the same time to display the TV’s menu.
Then, use V, v, B, b and
(Q) to perform menu operations.
N ./> b)
Press to skip a track of the CD player, DVD player or Blu-ray disc player.
ADVANCE m/M
H
X x b) b) a)b) b)
<
Press to replay the previous scene or fast forward the current scene of the VCR,
DVD player or Blu-ray disc player.
Press to
– search tracks in the forward/ reverse direction of the DVD player.
– start fast forward/rewind of the VCR, CD player or Bluray disc player.
Press to start playback of the
VCR, CD player, DVD player or Blu-ray disc player.
Press to pause playback or recording of the VCR, CD player, DVD player or Blu-ray disc player. (Also starts recording with components in recording standby.)
Press to stop playback of the
VCR, CD player, DVD player or Blu-ray disc player.
TV CH +/– Press TV CH +/– and TV (O) at the same time to select preset TV channels.
PRESET +/– Press to select
– preset stations.
– preset channels of the VCR or satellite tuner.
TUNING +/– Press to scan a station.
FM MODE Press to select the FM monaural or stereo reception.
Name
O TV
P RETURN/
EXIT O
Q
,
V/v/B/b
R DISPLAY
S -/--
>10
CLEAR
Function
Press TV and the button with orange printing at the same time to enable TV operation.
Press to
– return to the previous menu.
– exit the menu while the menu or on-screen guide of the VCR, DVD player, satellite tuner or Blu-ray disc player is displayed on the TV screen.
Press RETURN/EXIT O and TV (O) at the same time to return to the previous menu or exit the TV’s menu while the menu is displayed on the
TV screen.
After pressing DVD/BD
MENU (F), AMP MENU
(I), or MENU/HOME (M), press V, v, B or b to select the settings. Then, press to enter the selection if you have pressed DVD/BD MENU or
MENU/HOME previously.
Press also to enter the selection of the receiver,
VCR, satellite tuner, CD player, DVD player or Bluray disc player.
Press to select information displayed on the TV screen of the VCR, satellite tuner, CD player, DVD player or Bluray disc player.
Press DISPLAY and TV (O) at the same time to display
TV’s information on the TV screen.
Press to select the channel entry mode, either one or two digits of the VCR.
Press -/-- and TV (O) at the same time to select the channel entry mode, either one or two digits of the TV.
Press to select the track numbers over 10 of the CD player.
Press to clear a mistake when you press the incorrect numeric button.
12 GB
Name
T Numeric buttons
(number 5 a)
)
U TV INPUT
SLEEP
Function
Press to
– preset/tune to preset stations.
– select track numbers of the
CD player, DVD player or
Blu-ray disc player. Press
0/10 to select track number
10.
– select channel numbers of the VCR or satellite tuner.
Press the numeric buttons and
TV (O) at the same time to select the TV channels.
Press TV INPUT and TV (O) at the same time to select the input signal (TV input or video input).
Press to activate the Sleep
Timer function and the duration which the receiver turns off automatically.
a)
The number 5, TV VOL +, MASTER VOL + and
H buttons have tactile dots. Use the tactile dots as references when operating the receiver.
b)
This button is also available for DIGITAL MEDIA
PORT adapter operation. For details on the function of the button, refer to the operating instructions supplied with the DIGITAL MEDIA
PORT adapter.
Notes
• Some functions explained in this section may not work depending on the model.
• The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described.
13 GB
1: Installing the speakers
This receiver allows you to use a 7.1 channel system (7 speakers and one sub woofer).
Enjoying a 5.1/7.1 channel system
To fully enjoy theater-like multi channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a sub woofer (5.1 channel).
Example of a 5.1 channel speaker system configuration
You can enjoy high fidelity reproduction of
DVD software recorded sound in the Surround
EX format if you connect one additional surround back speaker (6.1 channel system) or two surround back speakers (7.1 channel
system). See “Using the surround back decoding mode (SB DEC)” (page 43).
Example of a 7.1 channel speaker system configuration
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
HSub woofer
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSurround back speaker (left)
GSurround back speaker (right)
HSub woofer
Tips
• When you connect a 6.1 channel speaker system, place the surround back speaker behind the listening position.
• Since the sub woofer does not emit highly directional signals, you can place it wherever you want.
14 GB
2: Connecting the speakers
Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
H F C A
A B
SAT IN DVD IN BD IN OUT
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
P
B
C
B
/
P
R
/
C
R
COMPONENT VIDEO
SURROUND BACK
R L
SURROUND
R L
AUDIO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
CENTER FRONT B
R L
L
FRONT A
R
SAT DVD VIDEO 1 SUB WOOFER SPEAKERS
B
SPEAKERS FRONT
B terminals a)
10 mm
G E D
A Monaural audio cord (not supplied)
B Speaker cords (not supplied)
AFront speaker A (left)
BFront speaker A (right)
CCenter speaker
DSurround speaker (left)
B
ESurround speaker (right)
FSurround back speaker (left) b)
GSurround back speaker (right) b)
HSub woofer c) continued
15 GB
a)
If you have an additional front speaker system, connect them to the SPEAKERS FRONT B terminals. You can select the front speakers you want to use with SPEAKERS (OFF/A/B) on the
b)
If you connect only one surround back speaker, connect it to the SPEAKERS SURROUND
BACK L terminals.
c)
When you connect a sub woofer with an auto standby function, turn off the function when watching movies. If the auto standby function is set to on, it turns to standby mode automatically based on the level of the input signal to a sub woofer, then sound may not be output.
16 GB
3: Connecting the TV
You can watch the selected input image when you connect the HDMI OUT or MONITOR
OUT jack to a TV.
It is not necessary to connect all the cords.
Connect audio and video cords according to the jacks of your components.
Audio signals Audio/video signals
TV
Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
Video signals
A B C D E
OPTICAL
TV
IN
ANTENNA
AM
SAT IN DVD IN BD IN
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
IN
SAT DVD VIDEO 1
AUDIO
OUT
SUB WOOFER
OUT
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
D Component video cord (not supplied)
E Video cord (not supplied) continued
17 GB
Notes
• Be sure to turn on the receiver when the video and audio signals of a playback component are being output to a TV via the receiver. Unless the power is turned on, neither video nor audio signals will be transmitted.
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tips
• To output the sound of the TV from the speakers connected to the receiver, be sure to
– connect the audio output jacks of the TV to the
TV IN jacks of the receiver.
– turn off the TV’s volume or activate the TV’s muting function.
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
4a: Connecting the audio components
Connecting a Super Audio CD/
CD player or CD recorder
The following illustration shows how to connect a Super Audio CD player, CD player or CD recorder. Before connecting the cords, be sure to disconnect the AC power cord
(mains lead).
After connecting your audio component,
proceed to “4b: Connecting the video components” (page 19).
Super Audio CD player/CD player/
CD recorder
A
OPTICAL
IN
TV ANTENNA
AM
SAT IN DVD IN BD IN
HDMI
SAT IN
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
AUDIO
OUT
SAT DVD
AUDIO
IN
VIDEO 1
AUDIO
OUT
SUB WOOFER
A Audio cord (not supplied)
18 GB
4b: Connecting the video components
How to connect your components
This section describes how to connect your video components to this receiver. Before you
begin, refer to “Component to be connected”
below for the pages which describe how to connect each component.
Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
After connecting all your components,
proceed to “5: Connecting the antennas
Component to be connected
Component Page
TV
With HDMI jack
DVD player
Satellite tuner/Set-top box
DVD recorder, VCR
Camcorder, video game, etc.
If you want to connect several digital components, but cannot find an unused input
See “Listening to digital sound from other inputs (DIGITAL ASSIGN)” (page 68).
Video input/output jacks to be connected
The image quality depends on the connecting jack. Refer to the illustration that follows.
Select the connection according to the jacks on your components.
HDMI
Digital
Y
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
Analog
VIDEO
High quality image
Note
Be sure to turn on the receiver when the video and audio signals of a playback component are being output to a TV via the receiver. Unless the power is turned on, neither video nor audio signals will be transmitted.
19 GB
Connecting components with
HDMI jacks
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an interface which transmits video and audio signals in digital format.
Satellite tuner
Audio/video signals
DVD player
Audio/video signals
Notes
• Be sure to change the factory setting of the DVD input button on the remote so that you can use the
button to control your DVD player. For details, see
“Changing button assignments” (page 74).
• You can also rename the DVD input so that it can be displayed on the receiver’s display. For details,
see “Naming inputs” (page 71).
Blu-ray disc player
Audio/video signals
TV, projector, etc.
Audio/video signals
A A A A
OPTICAL
TV
IN
ANTENNA
AM
SAT IN DVD IN BD IN
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
IN
SAT DVD VIDEO 1
AUDIO
OUT
SUB WOOFER
OUT
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
P
B
C
B
/
P
R
/
C
R
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
20 GB
HDMI features
• A digital audio signal transmitted by HDMI can be output from the speakers connect to this receiver. This signal supports Dolby
Digital, DTS, and Linear PCM.
• This receiver supports xvYCC transmission.
• This receiver supports the Control for HDMI
function. For details, see “Control for
Notes on HDMI connections
• An audio signal input to the HDMI IN jack is output from the speaker output jack and
HDMI OUT jack. It is not output from any other audio jacks.
• Video signals input to the HDMI IN jack can only be output from the HDMI OUT jack.
The video input signals cannot be output from the VIDEO OUT jacks or MONITOR
OUT jacks.
• When you want to listen to the sound from the TV speaker, set “AUDIO FOR HDMI” to
“TV+AMP” in the VIDEO menu (page 39).
If you cannot play back multi channel software, set to “AMP”. However, the sound will not output from the TV speaker.
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected component. Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the HDMI cable.
• Sound may be interrupted when the sampling frequency, the number of channels or the audio format of the audio output signals from the playback component is switched.
• When the connected component is not compatible with copyright protection technology (HDCP), the image and/or the sound from the HDMI OUT jack may be distorted or may not be output.
In this case, check the specification of the connected component.
• You can enjoy multi channel Linear PCM only with an HDMI connection.
• Set the image resolution of the playback component to 720p, 1080i or 1080p when you output 96 kHz multi-channel sound over an HDMI connection.
• You may need to make certain settings on the image resolution of the player before you can enjoy multi channel Linear PCM. Refer to the operating instructions of the player.
• Refer to the operating instructions of each component connected for details.
• We do not recommend using an HDMI-DVI conversion cable. When you connect an
HDMI-DVI conversion cable to a DVI-D component, the sound and/or the image may not be output.
21 GB
Connecting a DVD player
The following illustration shows how to connect a DVD player.
It is not necessary to connect all the cords.
Connect audio and video cords according to the jacks of your components.
Audio signals
Notes
• Be sure to change the factory setting of the DVD input button on the remote so that you can use the
button to control your DVD player. For details, see
“Changing button assignments” (page 74).
• To input multi channel digital audio from the DVD player, set the digital audio output setting on the
DVD player. Refer to the operating instructions supplied with the DVD player.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
DVD player
Video signals
A B C D
OPTICAL
TV ANTENNA
SAT IN DVD IN BD IN OUT
IN AM
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
SAT DVD
AUDIO
OUT
AUDIO
IN
VIDEO 1
AUDIO
OUT
SUB WOOFER
P
B
/
C
B
P
R
C
R
/
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
A Coaxial digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
22 GB
Connecting a satellite tuner/
Set-top box
The following illustration shows how to connect a satellite tuner or a set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to the jacks of your components.
Satellite tuner/Set-top box
Audio signals Video signals
Notes
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling frequencies.
A B C D
OPTICAL
TV
IN
ANTENNA
AM
SAT IN DVD IN BD IN
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
AUDIO
OUT
SAT DVD
AUDIO
IN
VIDEO 1
AUDIO
OUT
SUB WOOFER
OUT
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
23 GB
Connecting components with analog video and audio jack
The following illustration shows how to connect a component which has analog jacks such as a DVD recorder, VCR, etc.
Audio signals
DVD recorder, VCR
Video signals
It is not necessary to connect all the cords.
Connect audio and video cords according to the jacks of your components.
A B C
OPTICAL
TV ANTENNA
SAT IN DVD IN BD IN OUT
IN AM
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT IN IN
R
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
AUDIO
OUT
AUDIO
IN
SAT DVD VIDEO 1
AUDIO
OUT
SUB WOOFER
P
B
/
C
B
P
R
C
R
/
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
(On the front panel)
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
D
Camcorder/ video game
A Audio cord (not supplied)
B Video cord (not supplied)
C Component video cord (not supplied)
D Audio/video cord (not supplied)
24 GB
Notes
• Be sure to change the factory setting of the
VIDEO 1 input button on the remote so that you can use the button to control your DVD recorder.
For details, see “Changing button assignments”
• You can also rename the VIDEO 1 input so that it can be displayed on the receiver’s display. For
details, see “Naming inputs” (page 71).
25 GB
5: Connecting the antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting the antennas, be sure to disconnect the AC power cord (mains lead).
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial)
(supplied)
OPTICAL
TV ANTENNA
SAT IN DVD IN BD IN OUT
IN AM
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
SAT DVD
AUDIO
OUT
AUDIO
IN
VIDEO 1
AUDIO
OUT
SUB WOOFER
P
B
/
C
B
P
R
/
C
R
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
* The shape of the connector varies depending on the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop antenna (aerial) away from the receiver and other components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
26 GB
6: Preparing the receiver and the remote
Connecting the AC power cord
(mains lead)
Connect the AC power cord (mains lead) to a wall outlet.
AC power cord (mains lead)
Performing initial setup operations
Before using the receiver for the first time, initialize the receiver by performing the following procedure. This procedure can also be used to return settings you have made to their factory defaults.
Be sure to use the buttons on the receiver for this operation.
1,2
NT B
L
L
FRONT A
R
To the wall outlet
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT MUTING
3
1
Press ?/1 to turn off the receiver.
2
Hold down ?/1 for 5 seconds.
“PUSH” and “ENTER” appears on the display alternately.
3
Press MEMORY/ENTER.
After “CLEARING” appears on the display for a while, “CLEARED” appears.
All the settings you have changed or adjusted are reset to the initial settings.
27 GB
Inserting batteries into the remote
Insert two R6 (size-AA) batteries in the
RM-AAU023 Remote Commander.
Observe the correct polarity when installing batteries.
7: Selecting the speaker system
You can select the front speakers you want to drive.
Be sure to use the buttons on the receiver for this operation.
SPEAKERS (OFF/A/B)
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT MUTING
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of batteries.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
• When you replace the batteries, the remote buttons may be reset to their factory settings. If this
happens, reassign the buttons again (page 74).
Tip
Under normal conditions, the batteries should last for about 3 months. When the remote no longer operates the receiver, replace all the batteries with new ones.
Press SPEAKERS (OFF/A/B) repeatedly to select the front speaker system you want to drive.
To select
The speakers connected to the
SPEAKERS FRONT A terminals
The speakers connected to the
SPEAKERS FRONT B terminals
Light up
SP A
SP B
To turn off the speaker output, press
SPEAKERS (OFF/A/B) repeatedly until the
“SP A” and “SP B” indicators on the display light off.
Note
You cannot switch the front speaker system by pressing SPEAKERS (OFF/A/B) when the headphones are connected to the receiver.
28 GB
8: Calibrating the appropriate settings automatically
(AUTO CALIBRATION)
The DCAC (Digital Cinema Auto Calibration) function allows you to perform automatic calibration such as:
• Checking the connection between each speaker and the receiver.
• Adjusting the speaker level.
• Measuring the distance of each speaker from your listening position.
The DCAC is designed to obtain proper sound balance in your room. However, you can adjust the speaker levels and balance manually according to your preference. For details, see
“9: Adjusting the speaker levels and balance
Before you perform Auto
Calibration
Before you perform Auto Calibration, install
and connect the speakers (page 14, 15).
• The AUTO CAL MIC jack is used for the supplied optimizer microphone only. Do not connect other microphones to this jack.
Doing so may damage the receiver and the microphone.
• During calibration, the sound that comes out of the speakers is very loud. The volume of the sound cannot be adjusted. Pay attention to the presence of children or to the effect on your neighborhood.
• Perform Auto Calibration in a quiet environment to avoid the effect of noise and to get a more accurate measurement.
• If there are any obstacles in the path between the optimizer microphone and the speakers, the calibration cannot be performed correctly. Remove any obstacles from the measurement area to avoid measurement error.
Notes
• The Auto Calibration function does not work when headphones are connected.
• If the muting function has been activated before you perform Auto Calibration, the muting function will be set to off automatically.
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
DIMMER SLEEP 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT
MUTING
Optimizer microphone
1
Connect the supplied optimizer microphone to the AUTO CAL
MIC jack.
2
Set up the optimizer microphone.
Place the optimizer microphone at your listening position.You can also use a stool or tripod so that the optimizer microphone remains at the same height as your ears.
29 GB
Performing Auto Calibration
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
?/1 switch
Input buttons
2
1
MUTING
MASTER
VOL +/–
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
1
Press AMP MENU.
2
Press AUTO CAL.
Measurement starts in 5 seconds and the display changes as follows:
A.CAL [5] t A.CAL [4] t A.CAL [3] t A.CAL [2] t A.CAL [1]
While the time is counting down, stand away from the measurement area to avoid measurement error.
3
Measurement starts.
The measurement process will take a few minutes to complete.
The table below shows the display when measurement starts.
Measurement for Display
Environment noise level
NOISE.CHK
Speaker connection MEASURE and SP
DET. appears alternately*
Speaker level MEASURE and GAIN appears alternately*
Speaker distance MEASURE and
DISTANCE appears alternately*
* The corresponding speaker indicator lights up in the display during measurement.
4
Measurement ends.
“COMPLETE” appears on the display and the settings are registered.
When you have finished
Disconnect the optimizer microphone from the
AUTO CAL MIC jack.
Notes
• Auto Calibration cannot detect the sub woofer.
Therefore, all sub woofer settings will be maintained.
• If you have changed the position of the speakers, it is recommended that you perform Auto Calibration again in order to enjoy the surround sound.
30 GB
Tips
• When Auto Calibration starts:
– Stand some distance from the speakers and the listening position to avoid measurement failure.
This is because test signals are output from the speakers during measurement.
– Avoid making noise to get a more accurate measurement.
• The Auto Calibration function will be canceled when you do the following during the measurement process:
– Press ?/1 or MUTING.
– Press the input buttons or turn the INPUT
SELECTOR on the receiver.
– Change the volume level.
– Connect the headphones.
– Press AUTO CAL again.
Error and warning codes
When error codes appear
When an error is detected during Auto
Calibration, an error code will appear on the display cyclically after each measurement process as follows:
Error code t blank display t (error code t blank display) a) t PUSH t blank display t ENTER a)
Appears when there are more than one error code.
To rectify the error
1
Record down the error code.
2
Press .
3
Press ?/1 to turn off the receiver.
4
Rectify the error.
For details, see “Error codes and remedies”
below.
5
Turn on the receiver and perform Auto
Error codes and remedies
Error code Cause and remedy
ERROR 10
ERROR 11
ERROR 12
ERROR 20
ERROR 21
ERROR 22
ERROR 23
The environment is too noisy.
Make sure the environment is quiet during Auto Calibration.
The speakers are placed too near the optimizer microphone. Place your speakers further away from the optimizer microphone.
None of the speakers are detected.
Make sure that the optimizer microphone is connected properly and perform Auto Calibration again.
Front speakers are not detected or only one front speaker is detected.
Check the front speakers connection.
Only one surround speaker is detected. Check the surround speakers connection.
The surround back speaker is connected only to the SPEAKERS
SURROUND BACK R terminals.
When you connect only one surround back speaker, connect it to the SPEAKERS SURROUND
BACK L terminals.
Surround back speaker is detected but surround speakers are not connected. Be sure to connect the surround speakers.
When warning codes appear
During Auto Calibration, the warning code provides information on the measurement result. The warning code will appear on the display cyclically as follows:
Warning code t blank display t (warning code t blank display) b) t PUSH t blank display t ENTER b)
Appears when there are more than one warning code.
You can choose to ignore the warning code as the Auto Calibration function will automatically adjust the settings. You can also change the settings manually.
continued
31 GB
To change the settings manually
1
Record down the warning code.
2
Press .
3
Press ?/1 to turn off the receiver.
4
Follow the solution provided in the
“Warning codes and solutions” below.
5
Turn on the receiver and perform Auto
Warning codes and solutions
Explanation and solution Warning code
WARN. 40
WARN. 60
WARN. 62
WARN. 63
WARN. 64
WARN. 65
WARN. 66
WARN. 70
WARN. 72
WARN. 73
WARN. 74
The environment is noisy.
Make sure the environment is quiet during Auto Calibration.
The front speaker balance is out of range. Reposition your front speakers.
c)
The center speaker level is out of range. Reposition your center speaker.
d)
The surround left speaker level is out of range. Reposition your surround left speaker.
d)
The surround right speaker level is out of range. Reposition your surround right speaker.
d)
The surround back left speaker level is out of range. Reposition your surround back left speaker.
d)
The surround back right speaker level is out of range. Reposition your surround back right speaker.
d)
The front speaker distance is out of range. Reposition your front speakers.
c)
The center speaker distance is out of range. Reposition your center speaker.
d)
The surround left speaker distance is out of range. Reposition your surround left speaker.
d)
The surround right speaker distance is out of range. Reposition your surround right speaker.
d)
Warning code
WARN. 75
Explanation and solution
WARN. 76
The surround back left speaker distance is out of range. Reposition your surround back left speaker.
d)
The surround back right speaker distance is out of range. Reposition your surround back right speaker.
d) c)
For details, refer “Front speaker distance”
d)
For details, refer “Tip” on page 49.
32 GB
9: Adjusting the speaker levels and balance
(TEST TONE)
You can adjust the speaker levels and balance while listening to the test tone from your listening position.
Tip
The receiver employs a test tone with a frequency centered at 800 Hz.
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
2-5
Input button
MASTER
VOL +/–
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press menu.
3
Press
V/v repeatedly to select
“T. TONE”.
4
Press parameter.
5
Press
V/v repeatedly to select
“T. TONE Y”.
The test tone is output from each speaker in sequence as follows:
Front left t Center t Front right t
Surround right t Surround back right* t Surround back left* t Surround left t Sub woofer
* You will only hear the test tone from the
– surround back left and right speakers when surround back speakers are set to “DUAL”.
– surround back left speaker when surround back speakers are set to “SINGLE”.
6
Adjust the speaker levels and balance using the LEVEL menu so that the level of the test tone sounds the same from each speaker.
For details, see “Adjusting the level
Tips
• To adjust the level of all speakers at the same time, press MASTER VOL +/–. You can also use MASTER VOLUME on the receiver.
• The adjusted value is shown on the display during adjustment.
7
Repeat steps 1 to 5 to select
“T. TONE N”.
You can also press any input buttons.
The test tone turns off.
When a test tone is not output from the speakers
• The speaker cords may not be connected securely.
• The speaker cords may have the short-circuit problem.
Note
The test tone does not work when ANALOG
DIRECT is selected.
33 GB
Playback
Selecting a component
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
MUTING
3
O
RETURN/EXIT MENU/HOME
1
Press the input button to select a component.
You can also use INPUT SELECTOR on the receiver.
The selected input appears on the display.
Selected input
[Display]
DMPORT
[DMPORT]
VIDEO 1
VIDEO 2
[VIDEO 2/
PORTABLE
AV]*
BD
[BD]
[VIDEO 1]
Components that can be played back
DIGITAL MEDIA PORT adapter connected to the
DMPORT jack
DVD recorder, VCR, etc., connected to the VIDEO
1 jack
Camcorder, video game, etc., connected to the
VIDEO 2 IN/
PORTABLE AV IN jack
Blu-ray disc player, etc., connected to the BD jack
Selected input
[Display]
DVD
[DVD]
SAT
[SAT]
Components that can be played back
DVD player, etc., connected to DVD jack
Satellite tuner, etc. connected to the SAT jack
TV
[TV]
SA-CD/CD
[SA-CD/CD/
CD-R]*
TV, etc. connected to the
TV jack
Super Audio CD/CD player/CD recorder, etc., connected to the SA-CD/
CD/CD-R jack
TUNER
[FM or AM band]
Built-in radio tuner
* “VIDEO 2/PORTABLE AV” and “SA-CD/
CD/CD-R” scroll across the display, then
“VIDEO 2” and “SA-CD/CD” appear respectively.
2
Turn on the component and start playback.
3
Press MASTER VOL +/– to adjust the volume.
You can also use MASTER VOLUME on the receiver.
To activate the muting function
Press MUTING.
The muting function will be canceled when you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
To avoid damaging your speakers
Before you turn off the receiver, be sure to turn down the volume level.
34 GB
Listening/Watching a component
Listening to a Super Audio CD/CD
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
TUNING – m H
TUNING +
M
TV
X
FM MODE x
2
3
5
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating instructions supplied with the
Super Audio CD player or CD player.
Tip
You can select the sound field to
suit the music. Refer to page 53
for details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT MUTING
1
Turn on the Super Audio CD player/CD
2
3
player, then place the disc on the tray.
Turn on the receiver.
Press SA-CD/CD.
5
3
You can also use INPUT SELECTOR on the receiver to select “SA-CD/CD/CD-R”.
4
Play back the disc.
5
Adjust to a suitable volume.
6
After you have finished listening to the
Super Audio CD/CD, eject the disc and turn off the receiver and Super Audio CD player/
CD player.
35 GB
Watching a DVD/Blu-ray disc
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
TUNING – m H
TUNING +
M
TV
X
FM MODE x
2
3
6
Notes
• Refer to the operating instructions supplied with the
TV and DVD player/Blu-ray disc player.
• Check the following if you cannot listen to multi channel sound.
– Be sure this receiver is connected to the DVD player/
Blu-ray disc player via a digital connection.
– Be sure the digital audio output of the DVD player/
Blu-ray disc player is set up properly.
Tips
• Select the sound format of the disc to be played, if necessary.
• You can select the sound field to suit the movie/music. Refer to
Recommended sound fields:
Movie: C.ST.EX
Music: CONCERT
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT MUTING
1
6
3
Turn on the TV and DVD player/Blu-ray disc player.
2
Turn on the receiver.
3
Press DVD to watch a DVD or press BD to watch a Blu-ray disc.
You can also use INPUT SELECTOR on this receiver to select “DVD” or “BD”.
Be sure to change the factory setting of the DVD input button on the remote so that you can use the button to
control your DVD player. For details, see “Changing button assignments” (page 74).
4
Switch the input of the TV so that an image of the DVD/Blu-ray disc is displayed.
5
Play back the disc.
6
Adjust to a suitable volume.
7
After you have finished watching the DVD/
Blu-ray disc, eject the disc and turn off the receiver, TV and DVD player/Blu-ray disc player.
36 GB
Amplifier Operations
Navigating through menus
By using the amplifier menus, you can make various adjustments to customize the receiver.
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
2-6
1
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press
V/v repeatedly to select
the menu you want.
3
Press menu.
4
Press
V/v repeatedly to select
the parameter you want to adjust.
5
Press parameter.
6
Press
V/v repeatedly to select
the setting you want.
The setting is entered automatically.
To return to the previous display
Press B.
To exit the menu
Press AMP MENU.
Note
Some parameters and settings may appear dimmed on the display. This means that they are either unavailable or fixed and unchangeable.
37 GB
Overview of the menus
The following options are available in each menu. For details on navigating through
Menu
[Display]
LEVEL
[1-LEVEL]
EQ
[2-EQ]
SUR
[3-SUR]
Parameters
[Display]
Test tone a)
[T. TONE]
Front speaker balance a)
[FRT BAL]
Center speaker level
[CNT LVL]
Surround left speaker level
[SL LVL]
Surround right speaker level
[SR LVL]
Surround back speaker level b)
[SB LVL]
Surround back left speaker level c)
[SBL LVL]
Surround back right speaker level c)
[SBR LVL]
Sub woofer level
[SW LVL]
Dynamic range compressor a)
[D. RANGE]
Equalizer on/off a)
[EQ]
Front speaker bass level a)
[BASS LVL]
Front speaker treble level a)
[TRE LVL]
Sound field selection a)
[S.F. SELCT]
Settings Initial setting
T. TONE N T. TONE N, T. TONE Y
BAL. L +1 to BAL. L +8, BALANCE,
BAL. R +1 to BAL. R +8
BALANCE
CNT –10 dB to CNT +10 dB
(1 dB step)
SUR L –10 dB to SUR L +10 dB
(1 dB step)
CNT 0 dB
SUR L 0 dB
SUR R –10 dB to SUR R +10 dB
(1 dB step)
SB –10 dB to SB +10 dB
(1 dB step)
SBL –10 dB to SBL +10 dB
(1 dB step)
SBR –10 dB to SBR +10 dB
(1 dB step)
SW –10 dB to SW +10 dB
(1 dB step)
COMP. OFF, COMP. STD,
COMP. MAX
SUR R 0 dB
SB 0 dB
SBL 0 dB
SBR 0 dB
SW 0 dB
COMP. OFF
EQ OFF, EQ ON
BASS –6 dB to BASS +6 dB
(1 dB step)
TRE –6 dB to TRE +6 dB
(1 dB step)
For details, see “Enjoying Surround
EQ OFF
BASS 0 dB
TRE 0 dB
SB OFF, SB AUTO, SB ON
A.F.D. AUTO for:
VIDEO 1, 2,
BD, DVD,
SAT;
2CH ST. for:
TV, SA-CD/
CD, TUNER,
DMPORT
SB AUTO Surround back decoding mode a)
[SB DEC]
Effect level a)
[EFFECT] EFCT. MIN, EFCT. STD,
EFCT. MAX
EFCT. STD
38 GB
Menu
[Display]
TUNER
[4-TUNER]
AUDIO
[5-AUDIO]
VIDEO
[6-VIDEO]
Parameters
[Display]
FM station receiving mode a)
[FM MODE]
Naming preset stations a)
[NAME IN]
Digital audio input decoding priority a)
[DEC. PRI.]
Settings
FM AUTO, FM MONO
For details, see “Naming preset stations” (page 60).
DEC. PCM, DEC. AUTO
Initial setting
FM AUTO
Digital broadcast language selection a)
[DUAL]
DUAL M/S, DUAL M, DUAL S,
DUAL M+S
Synchronizes audio with video output a)
[A.V. SYNC.]
A.V.SYNC. N, A.V.SYNC. Y
Digital audio input assignment a)
[D. ASSIGN]
For details, see “Listening to digital sound from other inputs (DIGITAL
Naming inputs a)
[NAME IN]
For details, see “Naming inputs”
Audio for HDMI a)d)
[AUDIO FOR HDMI]
AMP, TV+AMP
Control for HDMI a)d)
[CONTROL FOR HDMI]
CTRL OFF, CTRL ON
Naming inputs a)
[NAME IN]
For details, see “Naming inputs”
DEC. PCM for:
SA-CD/CD;
DEC. AUTO for:
VIDEO 1, 2,
BD, DVD,
SAT, TV
DUAL M
A.V.SYNC. N
AMP
CTRL OFF continued
39 GB
Menu
[Display]
SYSTEM
[7-SYSTEM]
Parameters
[Display]
Sub woofer a)
[SW SPK]
Front speakers a)
[FRT SPK]
Center speaker a)
[CNT SPK]
Surround speakers a)
[SUR SPK]
Surround back speakers a)
[SB SPK]
Settings
NO, YES
SMALL, LARGE
NO, SMALL, LARGE
NO, SMALL, LARGE
NO, SINGLE, DUAL
Front speaker distance a)
[FRT DIST.]
Center speaker distance a)
[CNT DIST.]
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
Surround left speaker distance a)
[SL DIST.]
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
Surround right speaker distance a)
[SR DIST.]
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
Surround back speaker distance a)b)
[SB DIST.]
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
Surround back left speaker distance a)c)
[SBL DIST.]
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
DIST. 1.0 m to DIST. 7.0 m
(0.1 m step)
Surround back right speaker distance a)c)
[SBR DIST.]
Surround speaker position a)
[SUR POS.]
Speaker crossover frequency a)
[CRS. FREQ]
Brightness of the display a)
[DIMMER]
Auto Calibration a)
[AUTO CAL]
BEHD/HI, BEHD/LO, SIDE/HI,
SIDE/LO
CRS > 40 Hz to CRS > 160 Hz
(10 Hz step)
0% dim, 40% dim, 70% dim
A.CAL NO, A.CAL YES
Initial setting
YES
LARGE
LARGE
LARGE
DUAL
DIST. 3.0 m
DIST. 3.0 m
DIST. 3.0 m
DIST. 3.0 m
DIST. 3.0 m
DIST. 3.0 m
DIST. 3.0 m
SIDE/LO
CRS > 100 Hz
0% dim
A. CAL
[8-A. CAL]
A.CAL NO a) c)
For details, refer to the page in the parentheses.
b)
You can only select this parameter when the surround back speakers are set to “SINGLE”.
You can only select this parameter when the surround back speakers are set to “DUAL”.
d)
“AUDIO FOR HDMI” and “CONTROL FOR HDMI” scroll across the display, then “AUDIO” and
“CONTROL” appear respectively.
40 GB
Adjusting the level
(LEVEL menu)
You can use the LEVEL menu to adjust the balance and level of each speaker. These settings are applied to all sound fields.
Select “1-LEVEL” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
LEVEL menu parameters
x T. TONE (Test tone)
Lets you adjust the speaker levels and balance while listening to the test tone from your listening position. For details, see
“9: Adjusting the speaker levels and balance
x FRT BAL (Front speaker
balance)
Lets you adjust the balance between front left and right speakers.
x CNT LVL (Center speaker level) x SL LVL (Surround left speaker
level)
x SR LVL (Surround right speaker
level)
x SB LVL (Surround back speaker
level)
a) x SBL LVL (Surround back left
speaker level)
b) x SBR LVL (Surround back right
speaker level)
b) x SW LVL (Sub woofer level) a)
You can only select this parameter when the surround back speakers are set to “SINGLE” in
SYSTEM menu.
b)
You can only select this parameter when the surround back speakers are set to “DUAL” in
SYSTEM menu.
x D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the sound track. This may be useful when you want to watch movies at low volumes late at night. Dynamic range compression is possible with Dolby Digital sources only.
• COMP. OFF
The dynamic range is not compressed.
• COMP. STD
The dynamic range is compressed as intended by the recording engineer.
• COMP. MAX
The dynamic range is compressed dramatically.
Tip
Dynamic range compressor lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only enacts light compression. Therefore, we recommend using the “COMP. MAX” setting. This greatly compresses the dynamic range and lets you view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression.
41 GB
Adjusting the equalizer
(EQ menu)
You can use the EQ menu to adjust the tonal quality (bass/treble level) of the front speakers.
Select “2-EQ” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
EQ menu parameters
x EQ (Equalizer on/off)
Lets you turn the equalizer on or off.
• EQ OFF
The equalizer is turned off.
• EQ ON
The equalizer is turned on.
x BASS LVL (Front speaker bass
level)
x TRE LVL (Front speaker treble
level)
Notes
• This function does not work for signals with a sampling frequency of more than 48 kHz.
• If you adjust the equalizer during DTS 96/24 signal reception, the signal will be output only at 48 kHz.
Settings for the surround sound
(SUR menu)
You can use the SUR menu to select the sound field you want for your listening pleasure.
Select “3-SUR” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
SUR menu parameters
x S.F. SELCT (Sound field
selection)
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
Note
The receiver lets you apply the last selected sound field to an input whenever it is selected (Sound Field
Link). For example, if you select “HALL” for the
DVD input, then change to a different input and then return to DVD, “HALL” will automatically be applied again.
x SB DEC (Surround back
decoding mode)
Lets you select the surround back decoding
mode. For details, see “Using the surround back decoding mode (SB DEC)” (page 43).
x EFFECT (Effect level)
Lets you adjust the “presence” of the surround effect for sound fields selected with the
MOVIE or MUSIC buttons and for “HP
THEA” sound field.
• EFCT. MIN
The surround effect is minimum.
• EFCT. STD
The surround effect is standard.
• EFCT. MAX
The surround effect is maximum.
42 GB
Using the surround back decoding mode (SB DEC)
By decoding the surround back signal of DVD software (etc.) recorded in Dolby Digital
Surround EX, DTS-ES Matrix, DTS-ES
Discrete 6.1, etc., format, you can enjoy the surround sound intended by the filmmakers.
Select the surround back decoding mode using
“SB DEC” on the SUR menu (page 42).
Types of the surround back decoding functions
x SB OFF
Surround back decoding is not performed.
x SB AUTO
When the input stream contains the 6.1 channel decode flag a)
, the appropriate decoding is performed on the surround back signal.
Input stream Output channel
Dolby Digital
5.1
5.1
e)
Dolby Digital
Surround EX b)
6.1
e)
Surround back decoding
—
Matrix decoder that conforms to Dolby
Digital EX
DTS 5.1
DTS-ES
Matrix 6.1
c)
5.1
e)
6.1
e)
—
DTS Matrix decoding
6.1
e)
DTS-ES
Discrete 6.1
d)
Dolby Digital
Surround EX b)
7.1
DTS Discrete decoding
Matrix decoder that conforms to Dolby
Pro Logic IIx
DTS Matrix decoding DTS-ES Matrix
6.1
c)
7.1
DTS-ES
Discrete 6.1
d)
7.1
DTS Discrete decoding x SB ON
To decode the surround back signal regardless of the 6.1 channel decode flag a)
, Dolby Digital
EX is applied when the output channel is 6.1.
Input stream Output channel
Dolby Digital
5.1
6.1
e)
Surround back decoding
Matrix decoder that conforms to Dolby
Digital EX
Dolby Digital
Surround EX b)
6.1
e)
Matrix decoder that conforms to Dolby
Digital EX
DTS 5.1 6.1
e)
Matrix decoder that conforms to Dolby
Digital EX
DTS-ES
Matrix 6.1
c)
6.1
e)
Matrix decoder that conforms to Dolby
Digital EX
DTS-ES
Discrete 6.1
d)
6.1
e)
Matrix decoder that conforms to Dolby
Digital EX
Dolby Digital
5.1
Dolby Digital
Surround EX
DTS 5.1
DTS-ES
Matrix 6.1
c) b)
7.1
7.1
7.1
7.1
Matrix decoder that conforms to Dolby
Pro Logic IIx
Matrix decoder that conforms to Dolby
Pro Logic IIx
Matrix decoder that conforms to Dolby
Digital EX
Matrix decoder that conforms to Dolby
Digital EX
DTS-ES
Discrete 6.1
d)
7.1
Matrix decoder that conforms to Dolby
Digital EX a)
A 6.1 channel decode flag is information recorded b) in software such as DVDs.
A Dolby Digital DVD that includes a Surround EX flag. The Dolby Corporation web page can help c) you distinguish Surround EX films.
Software encoded with a flag to denote it has both d)
DTS-ES Matrix and 5.1 channel signals.
Software encoded with both 5.1 channel signals and an extension stream designed for returning those signals to 6.1 discrete channels. Discrete 6.1 channel signals are DVD specific signals not used e) in movie theaters.
When two surround back speakers are connected, the output channel will be 7.1 channel.
continued
43 GB
Notes
• There may be no sound from the surround back speaker in Dolby Digital EX mode. Some discs have no Dolby Digital Surround EX flag even though the packages have Dolby Digital EX logos.
In this case, select “SB ON”.
• You can select the surround back decoding mode only when A.F.D. mode is selected. However, this function is canceled when Dolby Pro Logic IIx is selected.
Settings for the tuner
(TUNER menu)
You can use the TUNER menu to set the FM station receiving mode and to name preset stations.
Select “4-TUNER” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
TUNER menu parameters
x FM MODE (FM station receiving
mode)
• FM AUTO
This receiver will decode the signal as stereo signal when the radio station is broadcast in stereo.
• FM MONO
This receiver will decode the signal as mono signal regardless of the broadcast signal.
x NAME IN (Naming preset
stations)
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
44 GB
Settings for the audio
(AUDIO menu)
You can use the AUDIO menu to make settings for the audio to suit your preference.
Select “5-AUDIO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
AUDIO menu parameters
x DEC. PRI. (Digital audio input
decoding priority)
Lets you specify the input mode for the digital signal input to the DIGITAL IN and HDMI IN jacks.
• DEC. PCM
When signals from the DIGITAL IN jack are selected, PCM signals are given priority (to prevent interruption when playback starts).
However, when other signals are input, there may be no sound, depending on the format.
In this case, set this item to “DEC. AUTO”.
When signals from the HDMI IN jack are selected, only PCM signals are output from the connected player. When signals in any other format are received, set this item to
“DEC. AUTO”.
• DEC. AUTO
Automatically switches the input mode between DTS, Dolby Digital, or PCM.
Note
When set to “DEC. AUTO” and the sound from the digital audio jacks (for a CD, etc.) is interrupted when playback starts, set to “DEC. PCM”.
x DUAL (Digital broadcast
language selection)
Lets you select the language you want to listen to during digital broadcast. This feature only functions for Dolby Digital sources.
• DUAL M/S (Main/Sub)
Sound of the main language will be output through the front left speaker and sound of the sub language will be output through the front right speaker simultaneously.
• DUAL M (Main)
Sound of the main language will be output.
• DUAL S (Sub)
Sound of the sub language will be output.
• DUAL M+S (Main + Sub)
Mixed sound of both the main and sub languages will be output.
x A.V. SYNC. (Synchronizes audio
with video output)
• A.V.SYNC. N (No) (Delay time: 0 ms)
The audio output is not delayed.
• A.V.SYNC. Y (Yes) (Delay time: 60 ms)
The audio output is delayed so that the time gap between the audio output and visual display is minimized.
Notes
• This parameter is useful when you use a large LCD or plasma TV or a projector.
• This parameter is valid only when you use a sound field selected with the 2CH or A.F.D. buttons.
• This parameter is not valid when
– signals with a sampling frequency of more than
48 kHz is input.
– the multi channel Linear PCM signals are received via an HDMI IN jack.
– ANALOG DIRECT function is selected.
x D. ASSIGN
(Digital audio input assignment)
Lets you assign the digital audio input to other
input source. For details, see “Listening to digital sound from other inputs (DIGITAL
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details,
see “Naming inputs” (page 71).
45 GB
Settings for the video
(VIDEO menu)
You can use the VIDEO menu to make various adjustments for HDMI and to name inputs.
Select “6-VIDEO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
VIDEO menu parameters
x AUDIO FOR HDMI (Audio for
HDMI)
Lets you set the audio output for HDMI from the playback component connected to the receiver via an HDMI connection.
• AMP
The HDMI audio signals from the playback component is only output to speakers connected to the receiver. Multi-channel sound can be played back as it is.
Note
Audio signals are not output from the TV’s speakers when “AUDIO FOR HDMI” is set to
“AMP”.
• TV+AMP
The sound is output from TV’s speaker and the speakers connected to the receiver.
Notes
• The sound quality of the playback component depends on the TV’s sound quality, such as the number of channels, and the sampling frequency, etc. When the TV has stereo speakers, the sound output from the receiver is also stereo as that of the TV, even if you play back multi-channel source.
• When you connect the receiver to a video component (projector, etc.), sound may not be output from the receiver. In this case, select
“AMP”.
x CONTROL FOR HDMI (Control
for HDMI)
Lets you turn the Control for HDMI function
on or off. For details, see “Control for HDMI”
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details, see
46 GB
Settings for the system
(SYSTEM menu)
You can use the SYSTEM menu to set the size and distance of the speakers connected to this system.
Select “7-SYSTEM” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 37) and
“Overview of the menus” (page 38).
SYSTEM menu parameters
x SW SPK (Sub woofer)
• NO
If you have not connected a sub woofer, select “NO”. This activates the bass redirection circuitry and outputs the LFE signals from other speakers.
• YES
If you have connected a sub woofer, select
“YES”.
Tip
In order to take full advantage of the Dolby Digital bass redirection circuitry, we recommend setting the sub woofer’s cut off frequency as high as possible.
x FRT SPK (Front speakers)
• SMALL
If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the front channel bass frequencies from the sub woofer. When the front speakers are set to
“SMALL”, the center and surround speakers are also automatically set to “SMALL”
(unless previously set to “NO”).
• LARGE
If you connect large speakers that will effectively reproduce bass frequencies, select “LARGE”. Normally, select
“LARGE”. When the sub woofer is set to
“NO”, the front speakers are automatically set to “LARGE”.
x CNT SPK (Center speaker)
• NO
If you have not connected a center speaker, select “NO”. The sound of the center channel will be output from the front speakers.
• SMALL
If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the center channel bass frequencies from the front speakers (if set to “LARGE”) or sub woofer.
• LARGE
If you connect a large speaker that will effectively reproduce bass frequencies, select “LARGE”. Normally, select
“LARGE”. However, if the front speakers are set to “SMALL”, you cannot set the center speaker to “LARGE”.
x SUR SPK (Surround speakers)
The surround back speakers will be set to the same setting.
• NO
If you have not connected surround speakers, select “NO”.
• SMALL
If the sound is distorted, or you feel a lack of surround effects when using multi channel surround sound, select “SMALL” to activate the bass redirection circuitry and output the surround channel bass frequencies from the sub woofer or other “LARGE” speakers.
• LARGE
If you connect large speakers that will effectively reproduce bass frequencies, select “LARGE”. Normally, select
“LARGE”. However, if the front speakers are set to “SMALL”, you cannot set the surround speakers to “LARGE”.
continued
47 GB
x SB SPK (Surround back
speakers)
When the surround speakers are set to “NO”, the surround back speakers are also automatically set to “NO” and the setting cannot be changed.
• NO
If you have not connected a surround back speaker, select “NO”.
• SINGLE
If you connect only one surround back speaker, select “SINGLE”. The sound will be output to a maximum of 6.1 channel.
• DUAL
If you connect two surround back speakers, select “DUAL”. The sound will be output to a maximum of 7.1 channel.
Tip
The “LARGE” and “SMALL” settings for each speaker determine whether the internal sound processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass redirection circuitry sends the corresponding bass frequencies to the sub woofer or other “LARGE” speakers.
However, since bass sounds have a certain amount of directionality, it is best not to cut them, if possible. Therefore, even when using small speakers, you can set them to “LARGE” if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to “SMALL”.
If the overall sound level is lower than you prefer, set all speakers to “LARGE”. If there is not enough bass, you can use the equalizer to boost the bass
levels. For details, see page 38.
x FRT DIST. (Front speaker
distance)
Lets you set the distance from your listening position to the front speakers (A).
If both front speakers are not placed an equal distance from your listening position, set the distance to the closest speaker.
With only one surround back speaker
With two surround back speakers
(The angle B should be the same)
x CNT DIST. (Center speaker
distance)
Lets you set the distance from your listening position to the center speaker.
x SL DIST. (Surround left speaker
distance)
x SR DIST. (Surround right
speaker distance)
Lets you set the distance from your listening position to the surround speakers.
x SB DIST. (Surround back
speaker distance)
a) x SBL DIST. (Surround back left
speaker distance)
b)
48 GB
x SBR DIST. (Surround back right
speaker distance)
b)
Lets you set the distance from your listening position to the surround back speakers.
a)
You can only select this parameter when the surround back speakers are set to “SINGLE” in
SYSTEM menu.
b)
You can only select this parameter when the surround back speakers are set to “DUAL” in
SYSTEM menu.
Tip
The distance between the center speaker and the listening position B cannot be more than 1.5 meters closer than the one between the listening position and the front speaker A. Place the speakers so that the difference in the length of B in the following diagram is no more than 1.5 meters closer than the length of A.
Example: Adjust the distance B to 4.5 meters or more when the distance A is 6 meters.
Also, the distance between the surround speakers/ surround back speakers and the listening position
C cannot be more than 4.5 meters closer than the distance between the listening position and the front speakers A. Place the speakers so that the difference in the length of C in the following diagram is no more than 4.5 meters closer than the length of A.
Example: Adjust the distance C to 1.5 meters or more when the distance A is 6 meters.
This is important because incorrect speaker placement is not conductive to the enjoyment of surround sound. Please note that placing the speakers closer than the required will cause a delay in the output of the sound from that speaker. In other words, the speaker will sound like it is farther away.
Adjusting these parameter while listening to the sound often results in much better surround sound.
Give it a try!
x SUR POS.
(Surround speaker position)
Lets you specify the location of your surround speakers for proper implementation of the surround effects in the CINEMA STUDIO EX
modes (page 54). This setup item is not
available when the surround speakers are set to
• BEHD/HI
Select if the location of your surround speakers corresponds to sections B and D.
• BEHD/LO
Select if the location of your surround speakers corresponds to sections B and C.
• SIDE/HI
Select if the location of your surround speakers corresponds to sections A and D.
• SIDE/LO
Select if the location of your surround speakers corresponds to sections A and C.
continued
49 GB
Tip
Surround speaker position is designed specifically for implementation of the CINEMA STUDIO EX modes. For other sound fields, speaker position is not so critical.
Those sound fields were designed under the premise that the surround speakers would be located behind the listening position, but presentation remains fairly consistent even with the surround speakers positioned at a rather wide angle. However, if the speakers are pointing toward the listener from the immediate left and right of the listening position, the surround effects become unclear unless set to
“SIDE/LO” or “SIDE/HI”.
Nevertheless, each listening environment has many variables, such as wall reflections, and you may obtain better results using “BEHD/HI” if your speakers are located high above the listening position, even if they are located to the immediate left and right.
Therefore, although it may result in a setting contrary to the above explanation, we recommend that you play back multi channel surround encoded software and select the setting that provides a good sense of spaciousness and that best succeeds in forming a cohesive space between the surround sound from the surround speakers and the sound of the front speakers. If you are not sure which sounds best, select “BEHD/LO” or “BEHD/HI” and then use the speaker distance parameter and speaker level adjustments to obtain proper balance.
x CRS. FREQ (Speaker crossover
frequency)
Lets you set the bass crossover frequency of the speakers that have been set to “SMALL” on the SYSTEM menu. This setup item is only available when at least one speaker is set to
“SMALL” and the corresponding speaker indicator flashes on the display.
x DIMMER (Brightness of the
display)
Lets you adjust the brightness in 3 steps.
Calibrating the appropriate settings automatically
(A. CAL menu)
For details on Auto Calibration, see
“8: Calibrating the appropriate settings automatically (AUTO CALIBRATION)”
50 GB
Enjoying Surround Sound
Enjoying Dolby Digital and DTS Surround sound
(AUTO FORMAT DIRECT)
The Auto Format Direct (A.F.D.) mode allows you to listen to higher fidelity sound and select the decoding mode for listening to a 2 channel stereo sound as multi channel sound.
A.F.D.
VIDEO1
SAT
VIDEO2 BD DVD
TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
2
5
THEATRE
3
6
DVD/BD
MENU
AUTO CAL
Press A.F.D. repeatedly to select the sound field you want.
For details, see “Types of A.F.D. mode” (page
continued
51 GB
Types of A.F.D. mode
A.F.D. mode
[Display]
Multi channel audio after decoding
A.F.D. AUTO
[A.F.D. AUTO]
(Detecting automatically)
Effect
PRO LOGIC
[DOLBY PL]
[PLIIX MV]
PRO LOGIC II MOVIE
[PLII MV]
PRO LOGIC II MUSIC
[PLII MS]
PRO LOGIC II GAME
[PLII GM]
PRO LOGIC IIx MOVIE*
PRO LOGIC IIx MUSIC*
[PLIIX MS]
4 channel
5 channel
5 channel
5 channel
7 channel
7 channel
Presents the sound as it was recorded/encoded without adding any surround effects. However, this receiver will generate a low frequency signal for output to the sub woofer when there is no LFE signals.
Performs Dolby Pro Logic decoding. The source recorded in 2 channel format is decoded into 4.1 channels.
Performs Dolby Pro Logic II Movie mode decoding. This setting is ideal for movies encoded in Dolby Surround. In addition, this mode can reproduce sound in 5.1 channel for watching videos of overdubbed or old movies.
Performs Dolby Pro Logic II Music mode decoding. This setting is ideal for normal stereo sources such as CDs.
Performs Dolby Pro Logic II Game mode decoding. This setting is ideal for game softwares.
Performs Dolby Pro Logic IIx Movie mode decoding.
This setting expands Dolby Pro Logic II Movie or Dolby
Digital 5.1 to discrete 7.1 movie channels.
Performs Dolby Pro Logic IIx Music mode decoding.
This setting is ideal for normal stereo sources such as
CDs.
Performs Dolby Pro Logic IIx Game mode decoding.
PRO LOGIC IIx GAME*
[PLIIX GM]
Neo:6 Cinema
[NEO6 CIN]
Neo:6 Music
[NEO6 MUS]
MULTI STEREO
[MULTI ST.]
7 channel
6 channel
6 channel
(Multi Stereo)
Performs DTS Neo:6 Cinema mode decoding.
Performs DTS Neo:6 Music mode decoding. This setting is ideal for normal stereo sources such as CDs.
Outputs 2 channel left/right signals from all speakers.
However, sound may not be output from certain speakers depending on the speaker settings.
* You cannot select this decoding mode if the surround back speakers are set to “NO”.
52 GB
If you connect a sub woofer
This receiver will generate a low frequency signal for output to the sub woofer when there is no LFE signal, which is a low-pass sound effect output from a sub woofer to a 2 channel signal. However, the low frequency signal is not generated for “NEO6 CIN” or “NEO6
MUS” when all speakers are set to “LARGE”.
Notes
• This function does not work when ANALOG
DIRECT is selected.
• DTS Neo:6 does not work for DTS 2CH audio, the sound is played back as 2 channel.
• Dolby Pro Logic IIx decoding does not function for
DTS format signals or for signals with a sampling frequency of more than 48 kHz.
Tip
When a multi channel signal is input, only Dolby
Pro Logic IIx decoding is effective. When you select decoding modes other than Dolby Pro Logic IIx, multi channel sound (being encoded) is output.
Selecting a preprogrammed sound field
You can take advantage of surround sound simply by selecting one of the receiver’s pre- programmed sound fields. They bring the exciting and powerful sound of movie theaters and concert halls into your home.
2CH
A.F.D.
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
2
5
8
THEATRE
3
6
9
DVD/BD
MENU
AUTO CAL
D.TUNING
D.SKIP
MUSIC
MOVIE
Press MOVIE repeatedly to select a sound field for movies or press
MUSIC repeatedly to select a sound field for music.
For details, see “Types of sound field available” (page 54).
continued
53 GB
Types of sound field available
Sound field for
Movie
Sound field
[Display]
CINEMA STUDIO EX A
DCS [C.ST.EX A]
Effect
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching almost any type of movie.
CINEMA STUDIO EX B
DCS [C.ST.EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.
CINEMA STUDIO EX C
DCS [C.ST.EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching musicals or films where orchestra music is featured in the soundtrack.
Music
Headphone*
HALL [HALL]
JAZZ CLUB [JAZZ]
LIVE CONCERT
[CONCERT]
Reproduces the acoustics of a classical concert hall.
Reproduces the acoustics of a jazz club.
Reproduces the acoustics of a 300-seat live house.
STADIUM [STADIUM]
SPORTS [SPORTS]
Reproduces the feeling of a large open-air stadium.
Reproduces the feeling of sports broadcasting.
PORTABLE AUDIO
ENHANCER [PORTABLE]
Reproduces a clear enhanced sound image from your portable audio device. This mode is ideal for MP3 and other compressed music.
HEADPHONE 2CH
[HP 2CH]
This mode is selected automatically if you use headphones
when 2 channel mode (page 55)/A.F.D. mode (page 52) is
selected. Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channels.
HEADPHONE DIRECT
[HP DIR]
Outputs the analog signals without processing by the tone, sound field, etc.
HEADPHONE THEATER
DCS [HP THEA]
This mode is selected automatically if you use headphones when a sound field for movie/music is selected. It allows you to experience a theater-like environment while listening through a pair of headphones.
* You can only select this sound field if the headphones are connected to the receiver.
54 GB
Notes
• The effects provided by the virtual speakers may cause increased noise in the playback signal.
• When listening with sound fields that employ the virtual speakers, you will not be able to hear any sound coming directly from the surround speakers.
• This function does not work when:
– ANALOG DIRECT is selected.
– signals with a sampling frequency of more than
48 kHz is input.
– the multi channel Linear PCM signals are received via an HDMI IN jack.
• When one of the sound fields for music is selected, no sound is output from the sub woofer if all the speakers are set to “LARGE” on the SYSTEM menu. However, the sound will be output from the sub woofer if
– the digital input signal contains LFE signals.
– the front and surround speakers are set to
“SMALL”.
– the sound field for movie is selected.
Tips
• You can identify the encoding format of DVD software, etc., by looking at the logo on the package.
• Sound fields with DCS mark use DCS
technology. See “Glossary” (page 75).
To turn off the surround effect for movie/music
Press 2CH to select “2CH ST.” or press A.F.D. repeatedly to select “A.F.D. AUTO”.
Using only the front speakers
(2CH STEREO)
In this mode, the receiver outputs the sound from the front left/right speakers only. There is no sound from the sub woofer.
Standard 2 channel stereo sources completely bypass the sound field processing and multi channel surround formats are downmixed to 2 channel.
DVD VIDEO1 VIDEO2 BD
SAT TV SA-CD/CD TUNER
2CH
2CH A.F.D.
MOVIE MUSIC
1 2 3
THEATRE
Press 2CH.
Note
No sound is output from the sub woofer in the 2CH
STEREO mode. To listen to 2 channel stereo sources using the front left/right speakers and a sub
woofer, select “A.F.D. AUTO” (page 52).
55 GB
Listening to the sound without any adjustment
(ANALOG DIRECT)
You can switch the audio of the selected input to two channel analog input. This function enables you to enjoy high quality analog sources.
When using this function, only the volume and front speaker balance can be adjusted.
Resetting sound fields to the initial settings
Be sure to use the buttons on the receiver for this operation.
1,2
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT MUTING
?/1
TUNING MODE
TUNING
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER DIMMER SLEEP
SUR BACK
DECODING 2CH A.F.D.
MOVIE MUSIC
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
ANALOG
DIRECT MUTING
Sound field buttons
1 2
1
Turn INPUT SELECTOR on the receiver to select the input you want to listen to in analog audio.
You can also use the input buttons on the remote.
2
Press ANALOG DIRECT on the receiver.
The analog audio is output.
To cancel ANALOG DIRECT
Press ANALOG DIRECT on the receiver again.
You can also press any sound field buttons.
Notes
• When headphones are connected, “HP DIR” appears on the display.
• This function is not available when DMPORT and
BD input is selected.
2
1
Press ?/1 to turn off the power.
2
While holding down 2CH, press
?/1.
“S.F. CLR.” appears on the display and all sound fields are reset to their initial setting.
56 GB
Tuner Operations
Listening to FM/AM radio
You can listen to FM and AM broadcasts through the built-in tuner. Before operation, make sure you have connected the FM and
AM antennas (aerials) to the receiver (page
Tip
The tuning scale for direct tuning differs depending on the area code as shown in the following table. For
details on area codes, see page 3.
Area code
CEL, CEK, TH1
FM
50 kHz
AM
9 kHz
Automatic tuning
VIDEO1
SAT
VIDEO2 BD DVD
TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
1
Press TUNER repeatedly to select the FM or AM band.
2
Press TUNING + or TUNING –.
Press TUNING + to scan from low to high; press TUNING – to scan from high to low.
The receiver stops scanning whenever a station is received.
Using the controls on the receiver
1
Turn INPUT SELECTOR to select the FM or AM band.
2
Press TUNING MODE repeatedly to select
“AUTO T.”.
3
Turn TUNING + or TUNING –.
In case of poor FM stereo reception
If the FM stereo reception is poor and “ST” flashes on the display, select monaural audio so that the sound will be less distorted.
Press FM MODE repeatedly until the
“MONO” indicator lights up on the display.
To return to stereo mode, press FM MODE repeatedly until the “MONO” indicator on the display does not light up.
2
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
TUNING – m H
TUNING +
M
TV
X
FM MODE x
FM MODE
57 GB
Direct tuning
Enter the frequency of a station directly by using the numeric buttons.
VIDEO1 VIDEO2 BD DVD
SAT TV SA-CD/CD TUNER 1
2CH A.F.D.
MOVIE MUSIC
3
1
4
7
>10
-
CLEAR
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
2
4
1
Press TUNER repeatedly to select the FM or AM band.
You can also use INPUT SELECTOR on the receiver.
2
Press D.TUNING.
3
Press the numeric buttons to enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
If you have tuned in an AM station, adjust the direction of the AM loop antenna
(aerial) for optimum reception.
4
Press ENTER.
You can also use MEMORY/ENTER on the receiver.
If you cannot tune in a station
Make sure you have entered the right frequency. If not, repeat steps 2 to 4. If you still cannot tune in a station, the frequency is not used in your area.
Presetting radio stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the stations you often listen to.
Presetting radio stations
4
VIDEO1
SAT
VIDEO2 BD DVD
TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
3,5
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
TUNING – m H
TUNING +
M
PRESET
+/–
1
Press TUNER repeatedly to select the FM or AM band.
You can also use INPUT SELECTOR on the receiver.
2
Tune in the station that you want to preset using Automatic
Tuning (page 57) or Direct
Tuning (page 58).
In case of poor FM stereo reception, switch the FM reception mode (page 57).
58 GB
3
Press MEMORY.
You can also use MEMORY/ENTER on the receiver.
“MEMORY” lights up for a few seconds.
Perform steps 4 and 5 before
“MEMORY” goes out.
4
Press the numeric buttons to select a preset number.
You can also press PRESET + or
PRESET – to select a preset number.
If “MEMORY” goes out before you select the preset number, start again from step 3.
5
Press ENTER.
You can also use MEMORY/ENTER on the receiver.
The station is stored as the selected preset number.
If “MEMORY” goes out before you press
ENTER, start again from step 3.
6
Repeat steps 1 to 5 to preset another station.
Tuning to preset stations
Numeric buttons
VIDEO1
SAT
VIDEO2 BD DVD
TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
ENTER
2
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
1
Press TUNER repeatedly to select the FM or AM band.
2
Press PRESET + or PRESET – repeatedly to select the preset station you want.
Each time you press the button, you can select a preset station as follows:
01 02 03 04 05 ...
27
30 29 28
You can also press the numeric buttons to select the preset station you want. Then, press ENTER to enter the selection.
Using the controls on the receiver
1
Turn INPUT SELECTOR to select the FM or AM band.
2
Press TUNING MODE repeatedly to select
“PRESET T.”.
3
Turn TUNING + or TUNING – to select the preset station you want.
59 GB
Naming preset stations
VIDEO1
SAT
VIDEO2 BD DVD
TV SA-CD/CD TUNER 1
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
3
4-7
O
RETURN/EXIT MENU/HOME
1
Press TUNER repeatedly to select the FM or AM band.
You can also use INPUT SELECTOR on the receiver.
2
Tune in the preset station you want to create an index name
for (page 59).
3
Press AMP MENU.
“1-LEVEL” appears on the display.
4
Press
V/v repeatedly to select
“4-TUNER”.
5
Press menu.
6
Press
V/v repeatedly to select
“NAME IN”.
7
Press parameter.
The cursor flashes and you can select a character. Follow the procedure given in
“To create an index name” below.
To create an index name
1
Use V/v/B/b to create an index name.
Press V/v to select a character, then press
B/b to move the cursor to the next position.
If you made a mistake
Press B/b until the character you want to change flashes, then press V/v to select the correct character.
Tips
• You can select the character type as follows by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without selecting a character.
2
Press .
The entered name is registered.
Note (Models of area code CEL, CEK only)
When you name an RDS station and tune in that station, the Program Service name appears instead of the name you entered. (You cannot change the
Program Service name. The name you entered will be overwritten by the Program Service name.)
60 GB
Using the Radio Data
System (RDS)
(Models of area code CEL, CEK only)
This receiver also allows you to use RDS
(Radio Data System), which enables radio stations to send additional information along with the regular program signal. You can display RDS information.
Notes
• RDS is operable only for FM stations.
• Not all FM stations provide RDS service, nor do they provide the same type of services. If you are not familiar with the RDS services in your area, check with your local radio stations for details.
Receiving RDS broadcasts
Simply select a station on the FM
band using direct tuning (page 58),
automatic tuning (page 57), or
preset tuning (page 59).
When you tune in a station that provides RDS services, “RDS” lights up and the program service name appears on the display.
Note
RDS may not work properly if the station you tuned to is not transmitting the RDS signal properly or if the signal strength is weak.
Displaying RDS information
While receiving an RDS station, press DISPLAY repeatedly on the receiver.
Each time you press the button, RDS information on the display changes cyclically as follows:
Program Service name t Frequency t
Program Type indication a) t Radio Text indication b) t Current Time indication (in
24-hour system mode) t Sound field currently applied a)
Type of program being broadcast.
b)
Text messages sent by the RDS station.
Notes
• If there is an emergency announcement by government authorities, “ALARM” flashes in the display.
• When the message consists of 9 characters or more, the message scrolls across the display.
• If a station does not provide a particular RDS service, “NO XXXX” (such as “NO TEXT”) appears on the display.
Description of program types
Program type indication
Description
NEWS
AFFAIRS
News programs
Topical programs that expand on current news
INFO
SPORT
EDUCATE
DRAMA
CULTURE
Programs offering information on a wide spectrum of subjects, including consumer affairs and medical advice
Sports programs
Educational programs, such as
“how-to” and advice programs
Radio plays and serials
SCIENCE
Programs about national or regional culture, such as language and social concerns
Programs about the natural sciences and technology continued
61 GB
Program type indication
Description
VARIED Other types of programs such as celebrity interviews, panel games, and comedy
POP M
ROCK M
EASY M
LIGHT M
Popular music programs
Rock music programs
Easy Listening
Instrumental, vocal, and choral music
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL
RELIGION
PHONE IN
Performances of major orchestras, chamber music, opera, etc.
Music that does not fit into any categories above, such as Rhythm
& Blues and Reggae
Weather information
Stock market reports and trading, etc.
Programs for children
Programs about people and the things that affect them
Programs of religious content
TRAVEL
LEISURE
JAZZ
COUNTRY
NATION M
Programs where members of the public express their views by phone or in a public forum
Programs about travel. Not for announcements that are located by TP/TA.
Programs on recreational activities such as gardening, fishing, cooking, etc.
Jazz programs
Country music programs
Programs featuring the popular music of the country or region
OLDIES
FOLK M
Programs featuring oldies music
Folk music programs
DOCUMENT Investigative features
NONE Any programs not defined above
Control for HDMI
Using the Control for
HDMI function for
“BRAVIA” Sync
To use “BRAVIA” Sync, set the Control for
HDMI function as explained below.
By connecting Sony components that are compatible with the Control for HDMI function with an HDMI cable (not supplied), operation is simplified as follows:
• One-Touch Play: When you play back a component such as a DVD/Blu-ray disc player, the receiver and the TV are turned on automatically and switched to the appropriate HDMI input.
• System Audio Control: While watching TV, you can select to output the sound from the
TV speaker or the speakers connected to the receiver.
• System Power Off: When you turn off the
TV, the receiver and connected components are also turned off simultaneously.
Control for HDMI is a mutual control function standard used by HDMI CEC (Consumer
Electronics Control) for HDMI (High-
Definition Multimedia Interface).
The Control for HDMI function does not work in the following cases:
• When you connect the receiver to a component which does not correspond with
Sony Control for HDMI function.
• When you connect the receiver and components using other than HDMI connection.
We recommend that you connect the receiver to products featuring “BRAVIA” Sync.
Note
Depending on the connected component, the
Control for HDMI function may not work. Refer to the operating instructions of the component.
62 GB
Connecting a TV and other components
Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
Satellite tuner/Set-top box
Audio/video signals
To enjoy TV multi channel surround sound broadcasting
You can listen to TV multi channel surround sound broadcasting from the speakers connected to the receiver.
Connect the OPTICAL output jack of the TV to the OPTICAL IN jack of the receiver.
DVD player Blu-ray disc player
Audio/video signals
Audio/video signals
A A A
OPTICAL
TV ANTENNA
SAT IN DVD IN BD IN OUT
IN AM
HDMI
SAT IN DVD IN VIDEO 1 IN MONITOR OUT
Y
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT IN IN
R
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
AUDIO
OUT
SAT DVD
AUDIO
IN
VIDEO 1
AUDIO
OUT
SUB WOOFER
P
B
/
C
B
P
R
C
R
/
COMPONENT VIDEO
SURROUND BACK SURROUND
R L R L
CENTER
SPEAKERS
FRONT B
R L
R
L
FRONT A
B C A
Audio signals
TV, etc.
A HDMI cable (not supplied)
B
We recommend that you use a Sony HDMI cable.
Optical digital cord (not supplied) a)
C Audio cord (not supplied) a) a)
Connect at least one of the audio cords (B or C).
Audio/video signals
63 GB
Preparing Control for
HDMI function
This receiver supports the Control for HDMI-
Easy Setting function.
This function is only available for certain types of TV. When you perform the Control for HDMI-Easy Setting from the TV, the
Control for HDMI setting on this receiver will automatically change accordingly.
During the Control for HDMI-Easy Setting operation, “CONTROL”, “SCAN FOR” and
“HDMI” appear sequentially in the display.
This receiver will automatically change the input to HDMI input. When the setting is completed, “COMPLETE” appears on the display.
For details, refer to the operating instructions of the TV.
If your TV does not support the Control for
HDMI-Easy Setting function, do the following procedures. For details on setting the TV and connected components, refer to the operating instructions of the respective components.
1
Make sure that the receiver is connected to the TV and components (compatible with
Control for HDMI function) via HDMI connection.
2
Turn on the receiver, TV and connected components.
3
Set the respective Control for HDMI function for the receiver and TV to on.
See “To set Control for HDMI” (page 65).
For details on setting the TV, refer to the operating instructions of the TV.
4
Select the HDMI input of the receiver and
TV to match the HDMI input of the connected component, so that the image from the connected component is displayed.
5
Set the Control for HDMI function for the connected component to on.
If the Control for HDMI function for the connected component is already set to on, you do not need to change the setting.
6
Repeat steps 4 and 5 for other components that you want to use the Control for HDMI function.
Notes
• If you unplug and reconnect the HDMI cable, be sure to repeat steps 1 to 6 above.
• You cannot perform One-Touch Play and System
Audio Control during the Control for HDMI-Easy
Setting operation.
• Before you do the Control for HDMI-Easy Setting from the TV, be sure to turn on the TV, connected components and receiver.
• If the playback components cannot function after you have made the settings for Control for HDMI-
Easy Setting, check the Control for HDMI setting on your TV.
• If the connected components do not support the
Control for HDMI-Easy Setting, you need to set the Control for HDMI function for the connected components to on before you perform the Control for HDMI-Easy Setting from the TV.
64 GB
To set Control for HDMI
7
>10
-
CLEAR
DISPLAY
8
0/10
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
1
2-6
O
RETURN/EXIT MENU/HOME
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press
V/v repeatedly to select
“6-VIDEO”.
3
Press or
b to enter the
menu.
4
Press
V/v repeatedly to select
“CONTROL FOR HDMI”.
“CONTROL FOR HDMI” scrolls across the display, then “CONTROL” appears.
5
Press or
b to enter the
parameter.
6
Press
V/v repeatedly to select
“CTRL ON”.
Control for HDMI function is activated.
Watching a DVD
(One-Touch Play)
You can enjoy sound and image from the components connected to the receiver via
HDMI connections by a simple operation.
Play back a connected component.
The receiver and the TV are turned on automatically and switched to the appropriate
HDMI input.
Watching a DVD by simple operation
You can also select a connected component, such as a DVD/Blu-ray disc player using the
TV menu. In this case, the receiver and the TV switch to the appropriate HDMI input.
Note
Depending on the TV, the start of the content may not be output.
65 GB
Enjoying the TV sound from the speakers connected to the receiver
(System Audio Control)
You can enjoy the TV sound from the speakers connected to the receiver by a simple operation.
You can operate System Audio Control function using the TV menu. For details, refer to the operating instructions of the TV.
When System Audio Control function is turned on, the receiver will turns on and switches to the appropriate input automatically.
TV sound is output from the speakers connected to the receiver, and the volume of the TV is minimized simultaneously.
You can also use the System Audio Control function as follows.
• If you turn on the receiver while the TV is turned on, the System Audio Control function will automatically be set to on and the TV sound will output from the speakers connected to the receiver. However, if you turn off the receiver, the sound will output from the TV speakers.
• You can adjust the receiver’s volume when you adjust the TV volume.
Notes
• If System Audio Control does not function according to your TV setting, refer to the operating instructions of the TV.
• When “CONTROL FOR HDMI” is set to “CTRL
ON”, the “AUDIO FOR HDMI” settings in the
VIDEO menu will set automatically depending on the System Audio Control settings.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control function does not work.
• If the TV is turned on before turning on the receiver, the TV sound will not be output for a moment.
• When you switch to an input other than HDMI or
TV, the System Audio Control function will automatically be set to off.
• If you switch from other input to HDMI or TV input, the System Audio Control function will automatically be set to on.
66 GB
Turning off the receiver with the TV
(System Power Off)
When you turn the TV off by using the
POWER button on the TV’s remote, the receiver and the connected components turn off automatically.
You can also use the receiver’s remote to turn off the TV.
Notes
• Set the TV Standby Synchro to “ON” before using the System Power Off function. For details, refer to the operating instructions of the TV.
• Depending on the status, the connected components may not be turned off. For details, refer to the operating instructions of the connected components.
TV INPUT
SLEEP DMPORT
TV ?/1
AV ?/1
?/1
VIDEO1 VIDEO2
SYSTEM STANDBY
BD DVD
SAT TV SA-CD/CD TUNER
2CH A.F.D.
MOVIE MUSIC
1
4
7
>10
-
CLEAR
DISPLAY
2
5
8
0/10
THEATRE
3
DVD/BD
MENU
6
AUTO CAL
D.TUNING
9
MEMORY
ENTER
D.SKIP
AMP MENU
TOOLS/
OPTIONS MUTING
TV VOL
MASTER VOL
TV ?/1
TV
O
RETURN/EXIT
TV CH –
PRESET –
.
MENU/HOME
REPLAY ADVANCE
< <
TV CH +
PRESET +
>
TUNING – m H
TUNING +
M
TV
X
FM MODE x
Press TV and TV ?/1 at the same time.
The TV, receiver and the components connected via HDMI are turned off.
67 GB
Other Operations
Switching between digital and analog audio
(INPUT MODE)
When you connect components to both digital and analog audio input jacks on the receiver, you can fix the audio input mode to either of them, or switch from one to the other, depending on the type of material you intend to watch.
1
Turn INPUT SELECTOR on the receiver to select the input.
You can also use the input buttons on the remote.
2
Press INPUT MODE repeatedly on the receiver to select the audio input mode.
The selected audio input mode appears on the display.
Audio input modes
• AUTO
Gives priority to digital audio signals when there are both digital and analog connections.
If there are more than one digital connection,
HDMI audio signals have priority over
COAXIAL and OPTICAL audio signals.
If there are no digital audio signals, analog audio signals are selected.
• ANALOG
Specifies the analog audio signals input to the AUDIO IN (L/R) jacks.
Notes
• Some audio input modes may not be set up depending on the input.
• When the ANALOG DIRECT function is being used, the audio input mode is set to “ANALOG” automatically. You cannot select other modes.
Listening to digital sound from other inputs
(DIGITAL ASSIGN)
You can reassign digital audio input that has
OPTICAL or COAXIAL (SAT IN, DVD IN) signals to another input when they are not currently being used.
For example, to output the sound source for the DVD player using the OPTICAL IN jack on the receiver:
• Connect the optical output jack of the DVD player to the OPTICAL SAT IN jack of the receiver.
• Assign “SAT OPT” to “DVD” in the
“D. ASSIGN” setting.
1
Press AMP MENU.
“1-LEVEL” appears on the display.
2
Press
V/v repeatedly to select
“5-AUDIO”.
3
Press menu.
4
Press
V/v repeatedly to select
“D. ASSIGN”.
5
Press parameter.
6
Press
V/v repeatedly to select a
vacant digital audio input
(“SAT OPT” in the example).
7
Press selection.
68 GB
8
Press
V/v repeatedly to select
the input (“SAT- DVD” in the example) you want to assign to the digital audio input jack selected in step 6.
When “DVD” input is selected, the sound of the DVD player will become a digital sound through the OPTICAL SAT IN jack.
The input you can assign varies for each audio input. For details, see the following
“Assignable inputs for digital audio input”.
Assignable inputs for digital audio input
The initial setting is marked with an underscore.
Digital audio input
Assignable inputs
[Display]
COAXIAL
DVD IN
[DVD COAX]
VIDEO 1
VIDEO 2
BD
OPTICAL
SAT IN
[SAT OPT]
DVD
SAT
SA-CD/CD
VIDEO 1
VIDEO 2
BD
DVD
SAT
SA-CD/CD
Display
DVD– VD1
DVD– VD2
DVD– BD
DVD– DVD
DVD– SAT
DVD– CD
SAT– VD1
SAT– VD2
SAT– BD
SAT– DVD
SAT– SAT
SAT– CD
Notes
• You cannot reassign more than one digital audio input to the same input.
• You cannot use the digital audio input as the original input when it has been reassigned to another input.
• When you assign the digital audio input, the
INPUT MODE setting may change automatically
Enjoying the DIGITAL
MEDIA PORT
(DMPORT)
The DIGITAL MEDIA PORT (DMPORT) allows you to enjoy sound and image from a network system such as a portable audio/video source or computer.
By connecting a DIGITAL MEDIA PORT adapter (not supplied), you can enjoy sound and image from the connected component on the receiver.
For details, refer to the operating instructions supplied with the DIGITAL MEDIA PORT adapter.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Before connecting the cords, be sure to disconnect the AC power cord (mains lead).
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is turned on.
• Depending on the DIGITAL MEDIA PORT adapter, video output may not be possible.
• The DIGITAL MEDIA PORT adapters are available for purchase depending on the area.
69 GB
Connecting the DIGITAL MEDIA
PORT adapter
You can listen to the sound and view the images from the component connected through the DIGITAL MEDIA PORT adapter to the DMPORT jack on the receiver.
TV
DIGITAL MEDIA
PORT adapter
OPTICAL
TV
IN
ANTENNA
SAT IN DVD IN
HD
AM
SAT
IN
OPTICAL
DVD
IN
COAXIAL
DIGITAL (ASSIGNABLE)
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
MONITOR
DC5V
0.7A MAX
DMPORT
L
OUT
R
IN IN
SA-CD/CD/CD-R TV
AUDIO
IN
AUDIO
IN
SAT DVD
AUDIO
OUT
AUDIO
IN
VIDEO 1
AUDIO
OUT
SUB WOOF
A
A Video cord (not supplied)
To detach the DIGITAL MEDIA
PORT adapter from DMPORT jack
DC5V
0.7A MAX
DMPORT
2
1
Press and hold both sides of the connector and then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT adapter, be sure the connector is inserted with the arrow mark facing towards the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly, insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT adapter is fragile, be sure to handle with care when placing or moving the receiver.
70 GB
Listening/watching a connected component through DMPORT connection
1
Press DMPORT.
You can also use the INPUT SELECTOR on the receiver to select “DMPORT”.
2
Start playback of the connected component.
The sound is played back on the receiver and the image appears on the TV.
For details, refer to the operating instructions supplied with the DIGITAL
MEDIA PORT adapter.
Notes
• Depending on the type of DIGITAL MEDIA
PORT adapter, you can operate the connected component by using the remote. For details on the
remote button operation, see page 10.
• Be sure you have connected the MONITOR OUT
of the receiver to the TV (page 70).
Tip
When listening to MP3 or other compressed music using a portable audio source, you can enhance the sound. Press MUSIC repeatedly to select
Naming inputs
You can enter a name of up to 8 characters for inputs and display it on the receiver’s display.
This is convenient for labeling the jacks with the names of the connected components.
1
Press the input button to select the input you want to create an index name for.
You can also use INPUT SELECTOR on the receiver.
2
Press AMP MENU.
“1-LEVEL” appears on the display.
3
Press
V/v repeatedly to select
“5-AUDIO” or “6-VIDEO”.
4
Press menu.
5
Press
V/v to select “NAME IN”.
6
Press parameter.
The cursor flashes and you can select a character. Follow the procedure given in
“To create an index name” (page 60).
71 GB
Changing the display
You can check the sound field, etc., by changing the information on the display.
Be sure to use the buttons on the receiver for this operation.
Press DISPLAY repeatedly.
Each time you press the button, the display changes cyclically as follows.
All inputs except the FM and AM band
Index name of the input a) t Selected input t Sound field currently applied
FM and AM band
Program Service name b)
or preset station name a) t Frequency t Program Type indication b) t Radio Text indication b) t
Current Time indication (in 24-hour system mode) b) t Sound field currently applied a)
Index name appears only when you have assigned
one to the input or preset station (page 60, 71).
Index name does not appear when only blank spaces have been entered, or it is the same as the input name.
b)
During RDS reception only (models of area code
Note
Character or marks may not be displayed for some languages.
Using the Sleep Timer
You can set the receiver to turn off automatically at a specified time.
Press SLEEP repeatedly while the power is on.
Each time you press the button, the display changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t 0-30-00 t OFF
When sleep timer is activated, the display dims.
Note
If you press any buttons on the remote or receiver after the display dims, the display brightens up.
After a while, the display dims again if no button is pressed.
Tip
To check the remaining time before the receiver turns off, press SLEEP. The remaining time appears on the display. If you press SLEEP again, the sleep timer will be canceled.
72 GB
Recording using the receiver
You can record from an audio/video component using the receiver. Refer to the operating instructions supplied with your recording component.
Recording onto a CD-R
You can record onto a CD-R using the receiver. Refer to the operating instructions supplied with your CD recorder.
1
Press one of the input buttons to select the playback component.
You can also use INPUT SELECTOR on the receiver.
2
Prepare the playback component for playing.
For example, tune to the radio station you
3
Prepare the recording component.
Insert a blank CD-R into the CD recorder and adjust the recording level.
4
Start recording on the recording component, then start playback on the playback component.
Note
Sound adjustments do not affect the signal output from the SA-CD/CD/CD-R OUT jacks.
Recording onto a recording media
1
Press one of the input buttons to select the playback component.
You can also use INPUT SELECTOR on the receiver.
2
Prepare the playback component for playing.
For example, insert the video tape you want to copy into the VCR.
3
Prepare the recording component.
Insert a blank video tape, etc. into the recording component (VIDEO 1) for recording.
4
Start recording on the recording component, then start playback on the playback component.
Note
Some sources contain copy guards to prevent recording. In this case, you may not be able to record from the source.
73 GB
Using the Remote
Changing button assignments
You can change the factory settings of the input buttons to suit the components in your system. For example, if you connect a DVD recorder to the VIDEO 1 jacks on the receiver, you can set the VIDEO 1 button on this remote to control the DVD recorder.
1
Hold down the input button of which you want to change the assignment.
Example: Hold down VIDEO 1.
2
Referring to the table below, press the corresponding button for the category you want.
Example: Press 4.
Now you can use the VIDEO 1 button to control the DVD recorder.
Categories and the corresponding buttons
Categories
VCR (command mode VTR 3) a)
VCR (command mode VTR 2) a)
Press
1
2
3 DVD player/DVD recorder
(command mode DVD1) b)
DVD recorder
(command mode DVD3) b)
CD player
4
5
Euro Digital Satellite Receiver 6
DVR (Digital CATV terminal) 7
DSS (Digital Satellite Receiver) 8
Blu-ray disc player
(command mode BD1) c)
9
Blu-ray disc recorder
(command mode BD3) c)
0/10
TV
Not assigned
-/--/>10/
CLEAR
ENTER/
MEMORY a)
Sony VCRs are operated with a VTR 2 or VTR 3 setting which corresponds to 8 mm and VHS respectively.
b)
Sony DVD recorders are operated with a DVD1 or
DVD3 setting. For details, refer to the operating instructions supplied with the DVD recorders.
c)
For details on the BD1 or BD3 setting, refer to the operating instructions supplied with the Blu-ray disc player or Blu-ray disc recorder.
To clear all remote button assignments
Press ?/1, DMPORT and MASTER VOL – at the same time.
The remote is reset to its factory settings.
74 GB
Additional Information
Glossary x Cinema Studio EX
A surround sound mode that can be regarded as the compilation of Digital Cinema Sound technology, delivers the sound of a dubbing theater using three technologies: “Virtual
Multi Dimensions”, “Screen Depth
Matching”, and “Cinema Studio
Reverberation”.
“Virtual Multi Dimensions”, the virtual speaker technology, creates a virtual multisurround environment with actual speakers up to 7.1 channels, and brings the surround sound experience of a theater with the latest facilities into your home.
“Screen Depth Matching” reproduces treble attenuation, fullness, and depth of sound usually created in a theater using sound emission from behind the screen. This is then added to the front and center channels.
“Cinema Studio Reverberation” reproduces the sound characteristics of state-of-the-art dubbing theaters and recording studios, including Sony Pictures Entertainment’s dubbing studios. There are three modes, A/B/
C, available according to the studio type.
x Component video
A format for transmitting video signal information consisting of three separate signals: luminance Y, chrominance Pb, and chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted more faithfully. The three jacks are color - coded green, blue and red.
x Composite video
A standard format for transmitting video signal information. The luminance signal Y and chrominance signal C are combined and transmitted together.
x Digital Cinema Sound (DCS)
A unique sound reproduction technology for home theater developed by Sony, in cooperation with Sony Pictures Entertainment, for enjoying the exciting and powerful sound of movie theaters at home. With this “Digital
Cinema Sound” developed by integrating a
DSP (Digital Signal Processor) and measured data, the ideal sound field intended by filmmakers can be experienced at home.
x Dolby Digital
Digital audio encoding/decoding technology developed by Dolby Laboratories, Inc. It consists of front (left/right), center, surround
(left/right) and sub woofer channels. It is a designated audio standard for DVD-video and also known as 5.1 channel surround. Since surround information is recorded and reproduced in stereo, more realistic sound with fuller presence is delivered than with Dolby surround.
x Dolby Digital Surround EX
Acoustic technology developed by Dolby
Laboratories, Inc. Surround back information is matrixed into regular left and right surround channels so that the sound can be reproduced in 6.1 channel. Active scenes, especially, are recreated with a more dynamic and realistic sound field.
x Dolby Pro Logic II
This technology converts 2 channel stereo recorded audio into 5.1 channel for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as music. Old movies encoded in the traditional stereo format can be enhanced with 5.1 channel surround sound.
continued
75 GB
x Dolby Pro Logic IIx
Technology for 7.1 channel (or 6.1 channel) playback. Along with audio encoded in Dolby
Digital Surround EX, 5.1 channel Dolby
Digital encoded audio can be reproduced in
7.1 channel (or 6.1 channel). Furthermore, existing stereo recorded content can also be reproduced in 7.1 channel (or 6.1 channel).
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono surround information is matrixed into two stereo channels. When reproduced, audio is decoded and output in 4 channel surround sound. This is the most common audio processing method for DVD-video.
x DTS 96/24
A high sound quality digital signal format. It records audio at a sampling frequency and bit rate of 96kHz/24bit which is the highest possible for DVD-video. The number of playback channels varies depending on the software.
x DTS Digital Surround
Digital audio encoding/decoding technology for theaters developed by DTS, Inc. It compresses audio less than Dolby Digital, delivering a higher quality sound reproduction.
x DTS-ES
Format for 6.1 channel playback with surround back information. There are two modes, “Discrete 6.1” which records all channels independently, and “Matrix 6.1” which matrixes surround back channel into LS
(left surround) and RS (right surround) channels. It is ideal for playback of motion picture soundtracks.
x DTS Neo:6
This technology converts 2 channel stereo recorded audio for 6.1 channel playback.
There are two modes to select according to the playback source or your preference, CINEMA for movies, and MUSIC for stereo sources such as music.
x HDMI (High-Definition
Multimedia Interface)
HDMI (High-Definition Multimedia
Interface) is an interface that supports both video and audio on a single digital connection, allowing you to enjoy high quality digital picture and sound. The HDMI specification supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection technology that incorporates coding technology for digital video signals.
x PCM (Pulse Code Modulation)
A method of converting analog audio to digital audio for easy enjoyment of digital sound.
x Sampling frequency
To convert analog audio to digital, analog data should be quantified. This process is called sampling, and the number of times per second the analog data is quantified is called the sampling frequency. A standard music CD stores data quantified at 44,100 times per second, which is expressed as a sampling frequency of 44.1 kHz. Generally speaking, a higher sampling frequency means better sound quality.
x x.v.Colour x.v.Colour is a more familiar term for the xvYCC standard proposed by Sony, and is a trademark of Sony. xvYCC is an international standard for colour space in video.
This standard can express a wider colour range than the currently used broadcast standard.
76 GB
Precautions
On safety
Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further.
On power sources
• Before operating the receiver, check that the operating voltage is identical with your local power supply.
The operating voltage is indicated on the nameplate on the back of the receiver.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• The AC power cord (mains lead) must be changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during operation, this is not a malfunction. If you continuously use this receiver at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver.
• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.
• Do not place the receiver near equipment such as a television, VCR, or tape deck. If the receiver is being used in combination with a television, VCR, or tape deck, and is placed too close to that equipment, noise may result, and picture quality may suffer.
This is especially likely when using an indoor antenna (aerial). Therefore, we recommend using an outdoor antenna
(aerial).
• Use caution when placing the receiver on surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or discoloration of the surface may result.
On operation
Before connecting other components, be sure to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
If you have any questions or problems concerning your receiver, please consult your nearest Sony dealer.
77 GB
Troubleshooting
If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem.
Audio
There is no sound, no matter which component is selected, or only a very low-level sound is heard.
• Check that the speakers and components are connected correctly and securely.
• Check that all speaker cords are connected correctly.
• Check that both the receiver and all components are turned on.
• Check that MASTER VOLUME is not set to “VOL MIN”.
• Check that the SPEAKERS (OFF/A/B) is not set to OFF.
• Check that headphones are not connected.
• Press MUTING to cancel the muting function.
• Check that you have selected the correct component with the input buttons.
• The protective device on the receiver has been activated. Turn off the receiver, eliminate the short-circuit problem, and turn on the power again.
There is no sound from a specific component.
• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cord(s) used for the connection is (are) fully inserted into the jacks on both the receiver and the component.
There is no sound from one of the front speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is output from the headphones. If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component. If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly. Check the connection of the front speaker which is not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and not only to either the L or R jack. Use an audio cord (not supplied).
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is set to
• Check that ANALOG DIRECT is not set to on.
The left and right sounds are unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
• Adjust the balance parameters using the
LEVEL menu.
There is severe hum or noise.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least
3 meters away from a TV set or fluorescent light.
• Move your audio components away from the TV.
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.
78 GB
There is no sound, or only a very lowlevel sound is heard from the center/ surround/surround back speakers.
• Select a CINEMA STUDIO EX mode
• Adjust the speaker level (page 33).
• Make sure the center/surround speakers are set to either “SMALL” or “LARGE”
• Make sure the surround back speakers are
set to “SINGLE” or “DUAL” (page 40).
There is no sound from the surround back speaker.
• Some discs have no Dolby Digital
Surround EX flag even though the packages have Dolby Digital Surround EX
logos. In this case, select “SB ON” (page
There is no sound from the sub woofer.
• Check that the sub woofer is connected correctly and securely.
• Make sure you have turned on your sub woofer.
• Make sure the sub woofer is set to “YES”
• There is no sound from the sub woofer depending on the sound field.
The surround effect cannot be obtained.
• Make sure the sound field function is on
(press MOVIE, or MUSIC).
• Sound fields do not function for signals with a sampling frequency of more than
48 kHz.
Dolby Digital or DTS multi channel sound is not reproduced.
• Check that the DVD, etc. you are playing is recorded in Dolby Digital or DTS format.
• When connecting the DVD player, etc., to the digital input jacks of this receiver, check the audio setting (the settings for the audio output) of the connected component.
There is no sound from the component connected to the DIGITAL MEDIA
PORT adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter and/or component is not connected correctly. Turn off the receiver, then reconnect the DIGITAL MEDIA PORT adapter and/or component.
• Check the DIGITAL MEDIA PORT adapter and/or component device to make sure it supports this receiver.
Video
There is no picture or an unclear picture appears on the TV screen.
• Select the appropriate input using the input buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from the TV.
• Depending on the DIGITAL MEDIA
PORT adapter, video output may not be possible.
Recording cannot be carried out.
• Check that the components are connected
• Select the source component using the input buttons.
continued
79 GB
HDMI
The source sound input to the HDMI jack on the receiver is not output from the receiver or the TV speaker.
• Check the HDMI connection.
• You cannot listen to the Super Audio CD by connecting HDMI.
• Depending on the playback component, you may need to set up the component.
Refer to the operating instructions supplied with each component.
The source image input to the HDMI jack on the receiver is not output from the TV.
• Check the HDMI connection.
• Depending on the playback component, you may need to set up the component.
Refer to the operating instructions supplied with each component.
The control for HDMI function does not work.
• Check the HDMI connection (page 20).
• Make sure “CONTROL FOR HDMI” is set to “CTRL ON” in VIDEO menu.
• Make sure the connected component is compatible with the Control for HDMI function.
• Check the Control for HDMI settings on the connected component. See the operating instructions of the connected component.
• If you change the HDMI connection, connect/disconnect the AC power cord, or there is a power failure, repeat the
procedures of “Preparing Control for
No sound is output from the receiver and TV speaker while using the System
Audio Control function.
• Make sure the TV is compatible with the
System Audio Control function.
• If the TV does not have System Audio
Control function, set the “AUDIO FOR
HDMI” settings in VIDEO menu to
– “TV+AMP” if you want to listen to the sound from the TV speaker and receiver.
– “AMP” if you want to listen to the sound from the receiver.
• If you cannot listen to the sound of a component connected to the receiver
– Select the appropriate input when you want to watch a program on a component connected via HDMI connection to the receiver.
– Change the TV channel when you want to watch a TV broadcast.
– Select the component or input you want to watch when you watch a program on the component connected to the TV.
Refer to the operating instructions of the
TV on this operation.
The TV’s remote cannot be used to control the connected component when using the Control for HDMI function.
• Change the input of the receiver to the
HDMI input connected to the component.
80 GB
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna (aerial) as shown below. If you connect the receiver to an outdoor antenna
(aerial), ground it against lightning. To prevent a gas explosion, do not connect the ground wire to a gas pipe.
Outdoor FM antenna (aerial)
Receiver
ANTENNA
AM
Ground wire
(not supplied)
To ground
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.
• Make sure you set the tuning interval correctly (when tuning in AM stations with direct tuning).
• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the
• Press DISPLAY repeatedly on the receiver so that the frequency appears on the display.
RDS does not work.*
• Make sure that you are tuned to an FM
RDS station.
• Select a stronger FM station.
The RDS information that you want does not appear.*
• Contact the radio station and find out whether they actually provide the service in question. If so, the service may be temporarily out of order.
* Models of area code CEL, CEK only.
Remote commander
The remote does not function.
• Point the remote at the remote sensor on the receiver.
• Remove any obstacles in the path between the remote and the receiver.
• Replace all the batteries in the remote with new ones, if they are weak.
• Make sure you select the correct input on the remote.
continued
81 GB
Error messages
If there is a malfunction, the display shows a message. You can check the condition of the system by the message. Refer to the following table to solve the problem. If any problem persists, consult your nearest Sony dealer.
If an error message appears while you perform
Auto Calibration, see “Error and warning codes” (page 31) to solve the problem.
PROTECT
Irregular current is output to the speakers.
The receiver will automatically turn off after a few seconds. Check the speaker connection and turn on the power again.
If you are unable to remedy the problem using the troubleshooting guide
Clearing the receiver’s memory may remedy
the problem (page 27). However, note that all
memorized settings will be reset to their initial settings and you will have to readjust all settings on the receiver.
If the problem persist
Consult your nearest Sony dealer. Note that if service personnel changes some parts during repair, these parts may be retained.
Reference sections for clearing the receiver’s memory
To clear
All memorized settings
Customized sound fields
See
Specifications
Amplifier section
Models of area code CEL, CEK
1)
Minimum RMS Output Power (8 ohms, 20 Hz –
20 kHz, THD 0.09%)
85 W + 85 W
Stereo Mode Output Power (8 ohms, 1 kHz,
THD 1%)
100 W + 100 W
Surround Mode Output Power
2)
(8 ohms, 1 kHz,
THD 10%)
140 W/ch
Models of area code TH1
Minimum RMS Output Power (8 ohms, 20 Hz –
20 kHz, THD 0.09%)
70 W + 70 W
1)
60 W + 60 W
3)
Stereo Mode Output Power (8 ohms, 1 kHz,
THD 1%)
80 W + 80 W
1)
70 W + 70 W
3)
Surround Mode Output Power
2)
(8 ohms, 1 kHz,
THD 10%)
120 W/ch
1)
105 W/ch
3)
1)
Measured under the following conditions:
Area code
CEL, CEK, TH1
Power requirements
230 V AC, 50 Hz
2)
Reference power output for front, center, surround and surround back speakers. Depending on the sound field settings and the source, there may be no sound output.
3)
Measured under the following conditions:
Area code
TH1
Power requirements
220 V AC, 50 Hz
82 GB
Frequency response
Analog 10 Hz – 70 kHz
+0.5/–2 dB (with sound field and equalizer bypassed)
Inputs
Analog Sensitivity: 500 mV/
50 kohms
S/N
4)
: 96 dB
(A, 500 mV
5)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Outputs (Analog)
AUDIO OUT Voltage: 500 mV/
10 kohms
SUB WOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±6 dB, 1 dB step
4)
INPUT SHORT (with sound field and equalizer bypassed).
5)
Weighted network, input level.
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Area code
CEL, CEK, TH1
Tuning scale
10 kHz step 9 kHz step
– 531 –
1,602 kHz
Antenna Loop antenna
Intermediate frequency
450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p/75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p/75 ohms
P B /C B : 0.7 Vp-p/75 ohms
P
R
/C
R
: 0.7 Vp-p/75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code
CEL, CEK
TH1
Power requirements
230 V AC, 50/60 Hz
220 – 230 V AC, 50/60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7 A MAX
Power consumption
Area code
CEL, CEK
TH1
Power consumption
220 W
210 W
Power consumption (during standby mode)
0.3 W (when “CONTROL
FOR HDMI” in VIDEO menu is set to “CTRL
OFF”)
Dimensions (w/h/d) (Approx.)
430 × 157.5 × 318 mm including projecting parts and controls
Mass (Approx.) 8.1 kg
Supplied accessories
Operating instructions (this manual)
Quick Setup Guide (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
RM-AAU023 Remote Commander (1)
R6 (size-AA) batteries (2)
Optimizer microphone (ECM-AC2 or
ECM-AC2a) (1)
For details on the area code of the
component you are using, see page 3.
Design and specifications are subject to change without notice.
83 GB
Index
Numerics
A
B
Blu-ray disc player
C
Camcorder
CD player
CD recorder
Control for HDMI
D
DIGITAL MEDIA PORT
DVD player
DVD recorder
E
H
HDMI
I
M
Menu
N
O
R
Recording
onto a CD-R 73 onto a recording media
S
Satellite tuner
Selecting
Set-top box
Sound fields
Speakers
Super Audio CD player
T
Tuner
Tuning
TV
V
VCR
Video game
(1)
Sony Corporation Printed in Malaysia
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 5 Getting Started
- 5 Description and location of parts
- 14 1: Installing the speakers
- 15 2: Connecting the speakers
- 17 3: Connecting the TV
- 18 4a: Connecting the audio components
- 19 4b: Connecting the video components
- 26 5: Connecting the antennas (aerials)
- 27 6: Preparing the receiver and the remote
- 28 7: Selecting the speaker system
- 29 8: Calibrating the appropriate settings automatically (AUTO CALIBRATION)
- 33 9: Adjusting the speaker levels and balance (TEST TONE)
- 34 Playback
- 34 Selecting a component
- 35 Listening/Watching a component
- 37 Amplifier Operations
- 37 Navigating through menus
- 41 Adjusting the level (LEVEL menu)
- 42 Adjusting the equalizer (EQ menu)
- 42 Settings for the surround sound (SUR menu)
- 44 Settings for the tuner (TUNER menu)
- 45 Settings for the audio (AUDIO menu)
- 46 Settings for the video (VIDEO menu)
- 47 Settings for the system (SYSTEM menu)
- 50 Calibrating the appropriate settings automatically (A. CAL menu)
- 51 Enjoying Surround Sound
- 51 Enjoying Dolby Digital and DTS Surround sound (AUTO FORMAT DIRECT)
- 53 Selecting a pre- programmed sound field
- 55 Using only the front speakers (2CH STEREO)
- 56 Listening to the sound without any adjustment (ANALOG DIRECT)
- 56 Resetting sound fields to the initial settings
- 57 Tuner Operations
- 57 Listening to FM/AM radio
- 58 Presetting radio stations
- 61 Using the Radio Data System (RDS)
- 62 Control for HDMI
- 62 Using the Control for HDMI function for “BRAVIA” Sync
- 64 Preparing Control for HDMI function
- 65 Watching a DVD (One-Touch Play)
- 66 Enjoying the TV sound from the speakers connected to the receiver (System Audio Control)
- 67 Turning off the receiver with the TV (System Power Off)
- 68 Other Operations
- 68 Switching between digital and analog audio (INPUT MODE)
- 68 Listening to digital sound from other inputs (DIGITAL ASSIGN)
- 69 Enjoying the DIGITAL MEDIA PORT (DMPORT)
- 71 Naming inputs
- 72 Changing the display
- 72 Using the Sleep Timer
- 73 Recording using the receiver
- 74 Using the Remote
- 74 Changing button assignments
- 75 Additional Information
- 75 Glossary
- 77 Precautions
- 78 Troubleshooting
- 82 Specifications
- 84 Index
