Sony XM-2252HX Marketing Specifications

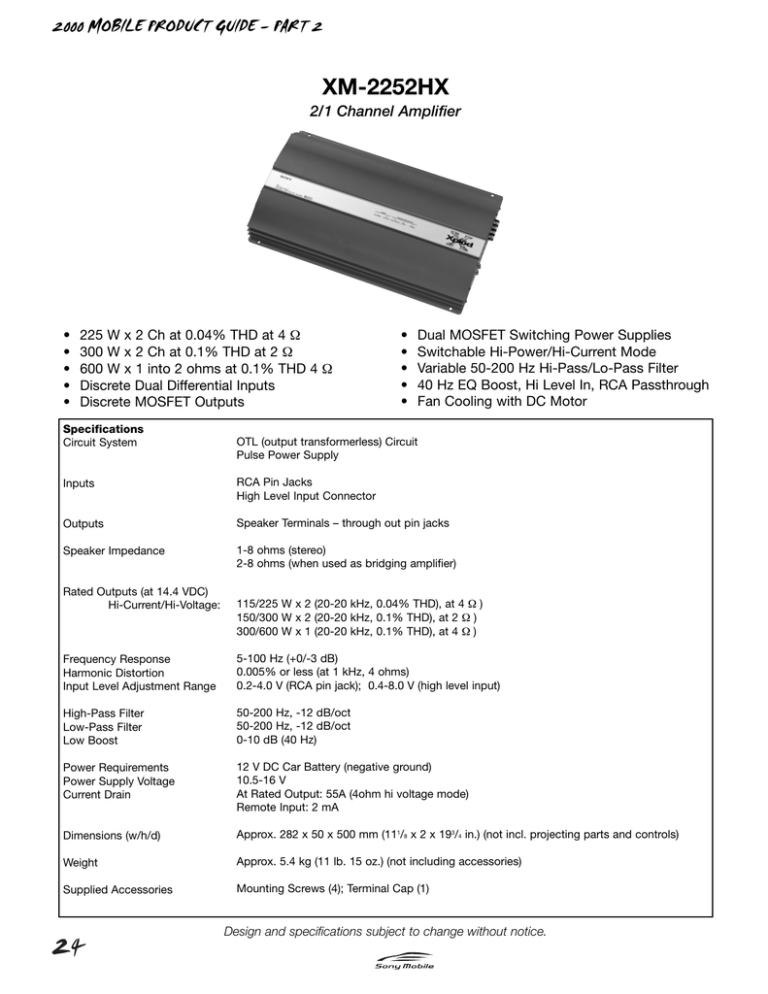

2000 MOBILE PRODUCT GUIDE – PART 2
XM-2252HX
2/1 Channel Amplifier
•
•
•
•
•
225 W x 2 Ch at 0.04% THD at 4 Ω
300 W x 2 Ch at 0.1% THD at 2 Ω
600 W x 1 into 2 ohms at 0.1% THD 4 Ω
Discrete Dual Differential Inputs
Discrete MOSFET Outputs
Specifications
Circuit System
•
•
•
•
•
Dual MOSFET Switching Power Supplies
Switchable Hi-Power/Hi-Current Mode
Variable 50-200 Hz Hi-Pass/Lo-Pass Filter
40 Hz EQ Boost, Hi Level In, RCA Passthrough
Fan Cooling with DC Motor
OTL (output transformerless) Circuit
Pulse Power Supply
Inputs
RCA Pin Jacks
High Level Input Connector
Outputs
Speaker Terminals – through out pin jacks
Speaker Impedance
1-8 ohms (stereo)
2-8 ohms (when used as bridging amplifier)
Rated Outputs (at 14.4 VDC)
Hi-Current/Hi-Voltage:
115/225 W x 2 (20-20 kHz, 0.04% THD), at 4 Ω )
150/300 W x 2 (20-20 kHz, 0.1% THD), at 2 Ω )
300/600 W x 1 (20-20 kHz, 0.1% THD), at 4 Ω )
Frequency Response
Harmonic Distortion
Input Level Adjustment Range
5-100 Hz (+0/-3 dB)
0.005% or less (at 1 kHz, 4 ohms)
0.2-4.0 V (RCA pin jack); 0.4-8.0 V (high level input)
High-Pass Filter
Low-Pass Filter
Low Boost
50-200 Hz, -12 dB/oct
50-200 Hz, -12 dB/oct
0-10 dB (40 Hz)
Power Requirements
Power Supply Voltage
Current Drain
12 V DC Car Battery (negative ground)
10.5-16 V
At Rated Output: 55A (4ohm hi voltage mode)
Remote Input: 2 mA
Dimensions (w/h/d)
Approx. 282 x 50 x 500 mm (111/8 x 2 x 193/4 in.) (not incl. projecting parts and controls)
Weight
Approx. 5.4 kg (11 lb. 15 oz.) (not including accessories)
Supplied Accessories
Mounting Screws (4); Terminal Cap (1)
24
Design and specifications subject to change without notice.
