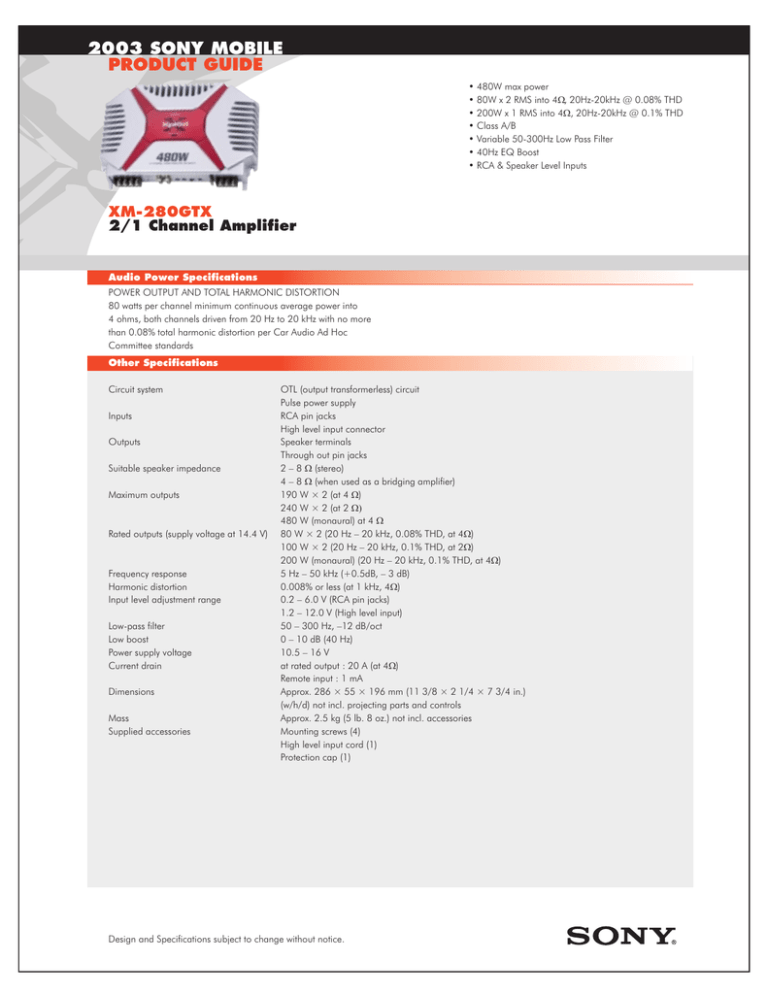

Sony XM-280GTX Marketing Specifications

2003 SONY MOBILE
PRODUCT GUIDE
• 480W max power
• 80W x 2 RMS into 4W, 20Hz-20kHz @ 0.08% THD
• 200W x 1 RMS into 4W, 20Hz-20kHz @ 0.1% THD
• Class A/B
• Variable 50-300Hz Low Pass Filter
• 40Hz EQ Boost
• RCA & Speaker Level Inputs
XM-280GTX
2/1 Channel Amplifier
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
80 watts per channel minimum continuous average power into
4 ohms, both channels driven from 20 Hz to 20 kHz with no more
than 0.08% total harmonic distortion per Car Audio Ad Hoc
Committee standards
Other Specifications
Circuit system
Inputs
Outputs
Suitable speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
Frequency response
Harmonic distortion
Input level adjustment range
Low-pass filter
Low boost
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
Through out pin jacks
2 – 8 W (stereo)
4 – 8 W (when used as a bridging amplifier)
190 W × 2 (at 4 W)
240 W × 2 (at 2 W)
480 W (monaural) at 4 W
80 W × 2 (20 Hz – 20 kHz, 0.08% THD, at 4W)
100 W × 2 (20 Hz – 20 kHz, 0.1% THD, at 2W)
200 W (monaural) (20 Hz – 20 kHz, 0.1% THD, at 4W)
5 Hz – 50 kHz (+0.5dB, – 3 dB)
0.008% or less (at 1 kHz, 4W)
0.2 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
10.5 – 16 V
at rated output : 20 A (at 4W)
Remote input : 1 mA
Approx. 286 × 55 × 196 mm (11 3/8 × 2 1/4 × 7 3/4 in.)
(w/h/d) not incl. projecting parts and controls
Approx. 2.5 kg (5 lb. 8 oz.) not incl. accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and Specifications subject to change without notice.
2003 SONY MOBILE
PRODUCT GUIDE
XM-280GTX
2/1 Channel Amplifier
Filter Off/LPF Select
Connections
Car Audio Input
30A Fuse
12V Car Battery
Through Audio Output
Ground
Filter Frequency Select
Left Speaker OUT
Right Speaker OUT
High Level Input Connection
Dimensions
Design and Specifications subject to change without notice.
Low Boost Control
Input Level Control
Remote Output
Unit: mm (in.)
