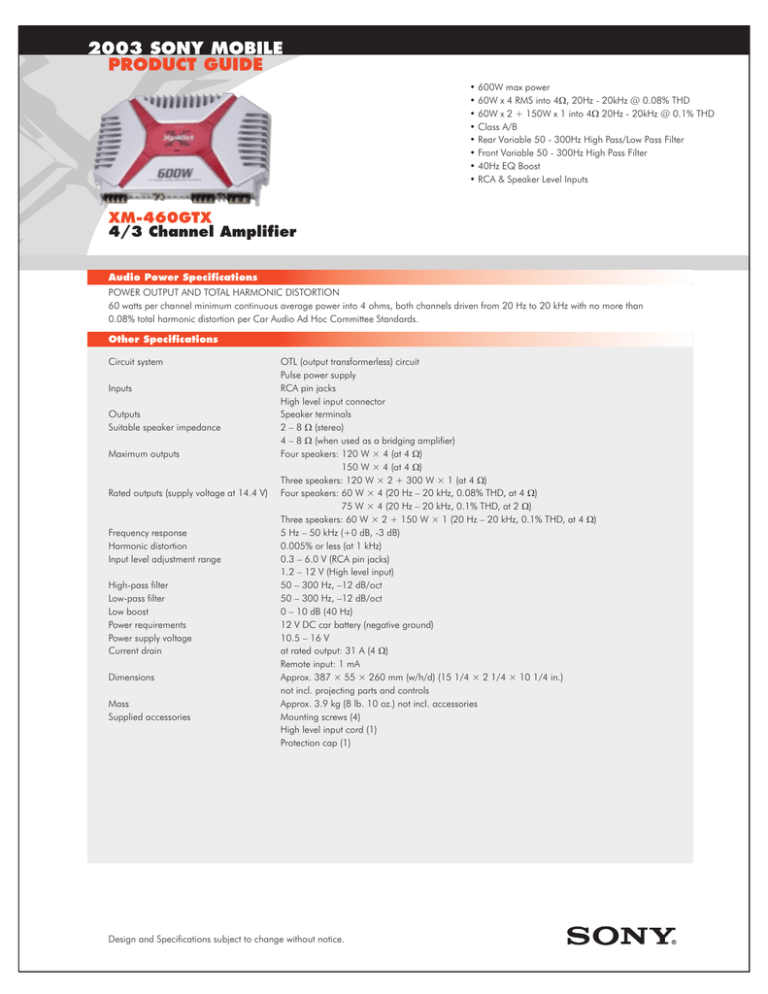

Sony XM-460GTX Marketing Specifications

2003 SONY MOBILE
PRODUCT GUIDE
• 600W max power
• 60W x 4 RMS into 4W, 20Hz - 20kHz @ 0.08% THD
• 60W x 2 + 150W x 1 into 4W 20Hz - 20kHz @ 0.1% THD
• Class A/B
• Rear Variable 50 - 300Hz High Pass/Low Pass Filter
• Front Variable 50 - 300Hz High Pass Filter
• 40Hz EQ Boost
• RCA & Speaker Level Inputs
XM-460GTX
4/3 Channel Amplifier
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
60 watts per channel minimum continuous average power into 4 ohms, both channels driven from 20 Hz to 20 kHz with no more than
0.08% total harmonic distortion per Car Audio Ad Hoc Committee Standards.
Other Specifications
Circuit system
Inputs
Outputs
Suitable speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
Frequency response
Harmonic distortion
Input level adjustment range
High-pass filter
Low-pass filter
Low boost
Power requirements
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
OTL (output transformerless) circuit
Pulse power supply
RCA pin jacks
High level input connector
Speaker terminals
2 – 8 W (stereo)
4 – 8 W (when used as a bridging amplifier)
Four speakers: 120 W × 4 (at 4 W)
150 W × 4 (at 4 W)
Three speakers: 120 W × 2 + 300 W × 1 (at 4 W)
Four speakers: 60 W × 4 (20 Hz – 20 kHz, 0.08% THD, at 4 W)
75 W × 4 (20 Hz – 20 kHz, 0.1% THD, at 2 W)
Three speakers: 60 W × 2 + 150 W × 1 (20 Hz – 20 kHz, 0.1% THD, at 4 W)
5 Hz – 50 kHz (+0 dB, -3 dB)
0.005% or less (at 1 kHz)
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12 V (High level input)
50 – 300 Hz, –12 dB/oct
50 – 300 Hz, –12 dB/oct
0 – 10 dB (40 Hz)
12 V DC car battery (negative ground)
10.5 – 16 V
at rated output: 31 A (4 W)
Remote input: 1 mA
Approx. 387 × 55 × 260 mm (w/h/d) (15 1/4 × 2 1/4 × 10 1/4 in.)
not incl. projecting parts and controls
Approx. 3.9 kg (8 lb. 10 oz.) not incl. accessories
Mounting screws (4)
High level input cord (1)
Protection cap (1)
Design and Specifications subject to change without notice.
2002 SONY MOBILE
PRODUCT GUIDE
XM-460GTX
4/3 Channel Amplifier
Connections
High Level Input Connection
Right Speakers OUT
Left Speakers OUT
Low Boost Control
Rear Left Speaker OUT
Rear Right Speaker OUT
Filter Controls
2 - 25A Fuses
Low Boost Control
Filter Off/LPF Select
Frequency
Level
Frequency
Level
Car Audio OUT Rear
Car Audio OUT Front
Dimensions
55
(2 1/4 )
Ground
12V Car Battery
Remote
Unit: mm (in.)
387 (15 1/4)
260 (10 1/4)
187 (7 3/8)
328 (13)
ø 6 (1/4)
360 (14 1/4)
Design and Specifications subject to change without notice.
