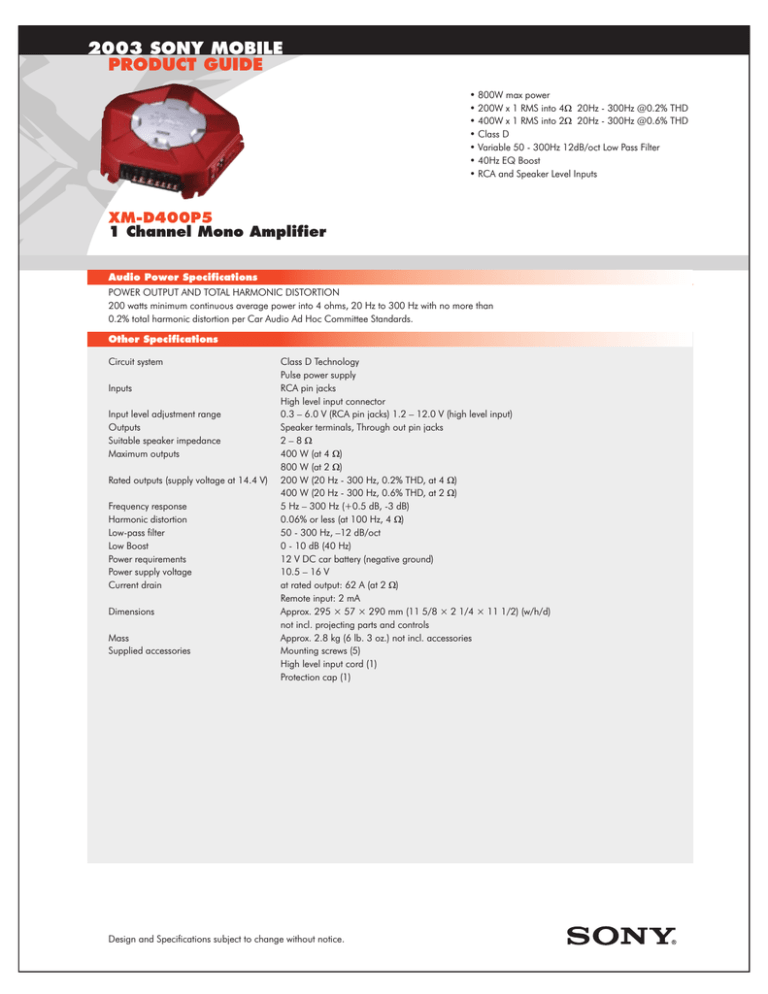

2003 SONY MOBILE
PRODUCT GUIDE
• 800W max power
• 200W x 1 RMS into 4W 20Hz - 300Hz @0.2% THD
• 400W x 1 RMS into 2W 20Hz - 300Hz @0.6% THD
• Class D
• Variable 50 - 300Hz 12dB/oct Low Pass Filter
• 40Hz EQ Boost
• RCA and Speaker Level Inputs
XM-D400P5
1 Channel Mono Amplifier
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
200 watts minimum continuous average power into 4 ohms, 20 Hz to 300 Hz with no more than
0.2% total harmonic distortion per Car Audio Ad Hoc Committee Standards.
Other Specifications
Circuit system
Inputs
Input level adjustment range
Outputs
Suitable speaker impedance
Maximum outputs
Rated outputs (supply voltage at 14.4 V)
Frequency response
Harmonic distortion
Low-pass filter
Low Boost
Power requirements
Power supply voltage
Current drain
Dimensions
Mass
Supplied accessories
Class D Technology
Pulse power supply
RCA pin jacks
High level input connector
0.3 – 6.0 V (RCA pin jacks) 1.2 – 12.0 V (high level input)
Speaker terminals, Through out pin jacks
2–8W
400 W (at 4 W)
800 W (at 2 W)
200 W (20 Hz - 300 Hz, 0.2% THD, at 4 W)
400 W (20 Hz - 300 Hz, 0.6% THD, at 2 W)
5 Hz – 300 Hz (+0.5 dB, -3 dB)
0.06% or less (at 100 Hz, 4 W)
50 - 300 Hz, –12 dB/oct
0 - 10 dB (40 Hz)
12 V DC car battery (negative ground)
10.5 – 16 V
at rated output: 62 A (at 2 W)
Remote input: 2 mA
Approx. 295 × 57 × 290 mm (11 5/8 × 2 1/4 × 11 1/2) (w/h/d)
not incl. projecting parts and controls
Approx. 2.8 kg (6 lb. 3 oz.) not incl. accessories
Mounting screws (5)
High level input cord (1)
Protection cap (1)
Design and Specifications subject to change without notice.
2003 SONY MOBILE
PRODUCT GUIDE
XM-D400P5
1 Channel Mono Amplifier
Connections
Remote Output
12V Car Battery
Ground
Subwoofer OUT
2 - 30A fuses
High Level Input Connection
Through Output
Line Input
Dimensions
Unit: mm (in.)
7
278(12
(11)
327
/ 8)
57 (2 1 / 4 )
1
264(12
(111//24 ))
311
339 (13 3 / 8 )
290 (111/2 )
119
101
(4 3 /(4)
4)
6 ( 1/ 4)
7/ )
202(6(8)
172
8
295(13
(1135/84 )
347
Design and Specifications subject to change without notice.
