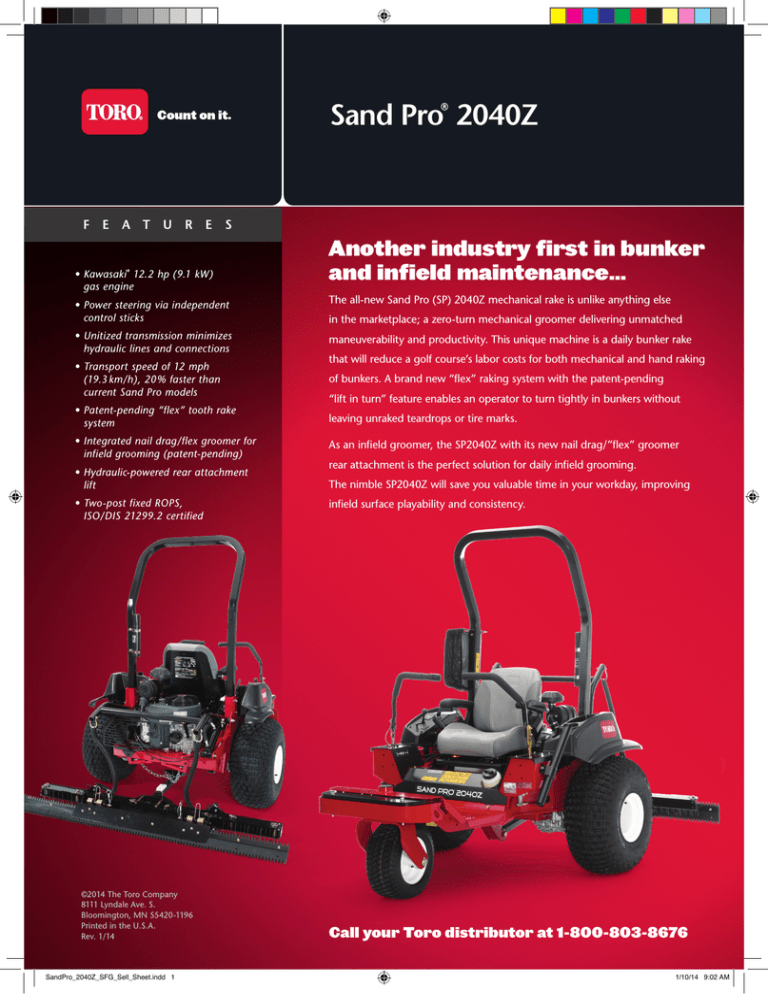

Toro 2040Z Sell Sheet

Sand Pro 2040Z
®
F
E
A T
U
R
E
S
• Kawasaki 12.2 hp (9.1 kW)
gas engine
®
•P
ower steering via independent
control sticks
Another industry first in bunker
and infield maintenance…
The all-new Sand Pro (SP) 2040Z mechanical rake is unlike anything else
in the marketplace; a zero-turn mechanical groomer delivering unmatched
•U
nitized transmission minimizes
hydraulic lines and connections
maneuverability and productivity. This unique machine is a daily bunker rake
•T
ransport speed of 12 mph
(19.3 km/h), 20% faster than
current Sand Pro models
of bunkers. A brand new “flex” raking system with the patent-pending
• Patent-pending “flex” tooth rake
system
• Integrated nail drag/flex groomer for
infield grooming (patent-pending)
• H ydraulic-powered rear attachment
lift
• Two-post fixed ROPS,
ISO/DIS 21299.2 certified
©2014 The Toro Company
8111 Lyndale Ave. S.
Bloomington, MN 55420-1196
Printed in the U.S.A.
Rev. 1/14
SandPro_2040Z_SFG_Sell_Sheet.indd 1
that will reduce a golf course’s labor costs for both mechanical and hand raking
“lift in turn” feature enables an operator to turn tightly in bunkers without
leaving unraked teardrops or tire marks.
As an infield groomer, the SP2040Z with its new nail drag/”flex” groomer
rear attachment is the perfect solution for daily infield grooming.
The nimble SP2040Z will save you valuable time in your workday, improving
infield surface playability and consistency.
Call your Toro distributor at 1-800-803-8676
1/10/14 9:02 AM
Sand Pro 2040Z Specifications*
®
SAND PRO 2040Z, MODEL 08706
ENGINE
AIR CLEANER SYSTEM
FUEL CAPACITY
TRACTION DRIVE
HYDRAULIC OIL
GROUND SPEED
TIRES/WHEELS
MAIN FRAME
BRAKES
STEERING
CONTROLS/GAUGES
REAR ATTACHMENT
HYDRAULIC LIFT
SEAT
ROPS
STORAGE
ELECTRICAL FEATURES
SOUND LEVEL
DIMENSIONS/WEIGHT
GROUND CLEARANCE
TIE DOWNS
WARRANTY
SAFETY CERTIFICATIONS
Kawasaki 2 cylinder, air cooled, gasoline engine; Gross HP 13.6 HP (10.1 kW), Governed HP 12.2 HP (9.1 kW) @ 2400 rpm; Max torque 27.3 ft-lbs (37.0 Nm)
@1800 rpm; Displacement 36.7 cu-in. (603 cc); Oil capacity w/filter 1.7qts. w/filter (1.5 w/o filter); Oil Filter External, spin-on
Heavy duty single stage cyclonic air filter with replacement element
4.5 gals (17 liters) of unleaded gas (maximum 10% ethanol)
Belt driven independent infinitely variable unitized transmission, with automatic tensioning system.
Factory fill Mobil fluid 424 tractor transmission fluid; Left hand transmission section: 3.1qt (3.25 liters); Right hand transmission section: 3.55 qt (3.75 liters)
Forward 0-12 mph (0-19.3 km/h), Reverse 0-4 mph (0-6.4 km/h)
With optional speed limiter(Model 08720) installed: Forward 0-7 mph (0-11.3 km/h), Reverse 0-4 mph (0-6.4 km/h)
Drive Wheels 25x12- 9, 3 ply rating pneumatic tubeless demountable with a Turf Tamer (knobby) tread. Front Wheel 16x7.5-8 4 ply rating pneumatic tubeless
demountable with turf traction tread. Recommended tire pressure: 7 psi all tires
Rectangular structured steel tube and high strength steel plate welded construction.
Twin levers with dynamic braking through hydrostatic transmission. Hand actuated parking brake lever that controls two integral wet disc brakes contained within
transmission.
Power steering, controlled through two independent control sticks with integrated dampeners. Min. turning radius: 0 in (0 cm)
Ignition: Off/Run/Start; Throttle: Low - High Idle; Choke: Open /Closes choke plate; Parking Brake: Off - On
LCD logic cluster includes hour meter and safety interlocks for operator presence, neutral and parking brake.
Raise/Lower switch mounted at end of right handle.
High back cushion vinyl seat with drain hole, integrated armrest and retractable seat belt; adjustment is 4 inches fore and aft.
Two post fixed ROPS, certified per ISO/DIS 21299.2 specifications
Built-in cup holder, rake holder and personal storage reached from seat.
12-volt system, 20-amp alternator at 3600rpm. Battery Voltage is displayed when key switch is moved from off to run (Low Battery LED will illuminate if key
voltage is less than 12.3V in run position)
88dBA (Operator Ear)
Length: Width: Overall Height: Weight: with Flex Tooth Rake
89.0 in (226 cm)
84.0 in (213 cm)
73.0 in (185 cm)
920 lbs (417 kg)
with Nail Drag 84.8 in (215 cm)
71.5 in (182 cm)
73.0 in (185 cm)
970 lbs (439 kg)
Wheelbase: 58.0 in 147 cm
Tread width (to centerline of tire): 46.9 in (119 cm)
5.5 in (14 cm) (at machine centerline 24 in tire)
Four loops, one located on each corner of the machine.
2-year limited warranty. Refer to the Operator’s Manual for further details.
Certified to meet ANSI specification B71.4 - 2012 standards when equipped with weight kits supplied with attachments. Certified to meet ISO/DIS 21299 for ROPS.
Engine meets all applicable emission standards per the manufacturer. Certified to meetC-Tick 2004/108/EC/(EMC) and the CE Machinery Directive.
REAR ATTACHMENTS
(NOTE: Unit must always have a rear attachment installed to meet ANSI and CE specifications)
FLEX TOOTH RAKE (08716)
(GOLF APPLICATIONS)
OPTIONAL ACCESSORIES
FOR TOOTH RAKE
NAIL DRAG (08717)
(INFIELD GROOMING
APPLICATIONS)
OPTIONAL ACCESSORIES
FOR NAIL DRAG
• 84 inches wide tooth rake with three reversible rubber trowels that will not tear bunker liners
• Convex Trowel Design is able to continuously groom a 70” radius surface
• Lift-in-turn design allows for continuous grooming during a zero radius turn
• Rubber trowel design reduces damage to bunker edges and liners
Broom Finishing Kit (three section brush), Model 08719
• 66” wide with 88 Removable nails arranged in diamond pattern
• 3 height position for nails increases material flow and extends nail wear
• 71.5” rubber groomer
• Back blade allows for moderate or small area leveling of infield surface
Drag mat finishing kit (08718): (78”W X 18”L 1”square steel mat); includes cradles to store mat during transport. Model 08718
OTHER TRACTION UNIT ACCESSORIES
LIGHT KIT
SPEED LIMITER KIT
SEAT SUSPENSION KIT
MESH BAG KIT
TURF TRAC TIRE
BIMINI SUNSHADE
RAKE HOLDER
2 LED lights, one in front one mounts to ROPS and points rearward. 3 Position switch, all lights on, front on or off. Model 08721
Automatically reduces maximum speed of the traction unit when the rear attachment is lowered. Adjustable to maximum speed of 3 – 7 mph (4.8 – 11.3 km/h).
Model 08720, available in January 2014.
Rubber isolators provide cushioning. PN 125-6469
Storage bag for maintenance tools, trash, debris, etc.; mounts to ROPS. PN 127-0359
Less aggressive tread for rear drive tires. PN 125-6462
Canvas sunshade that mounts to ROPS. Model 30358
SP2040Z has a standard rake holder mounted on left hand side, a second optional rake holder can mount to right hand side of SP2040Z. PN 127-0353-03
*Specifications and design subject to change without notice. Products depicted in this literature are for demonstration purposes only.
Actual products offered for sale may vary in use, design, required attachments and safety features. See distributor for details on all warranties.
