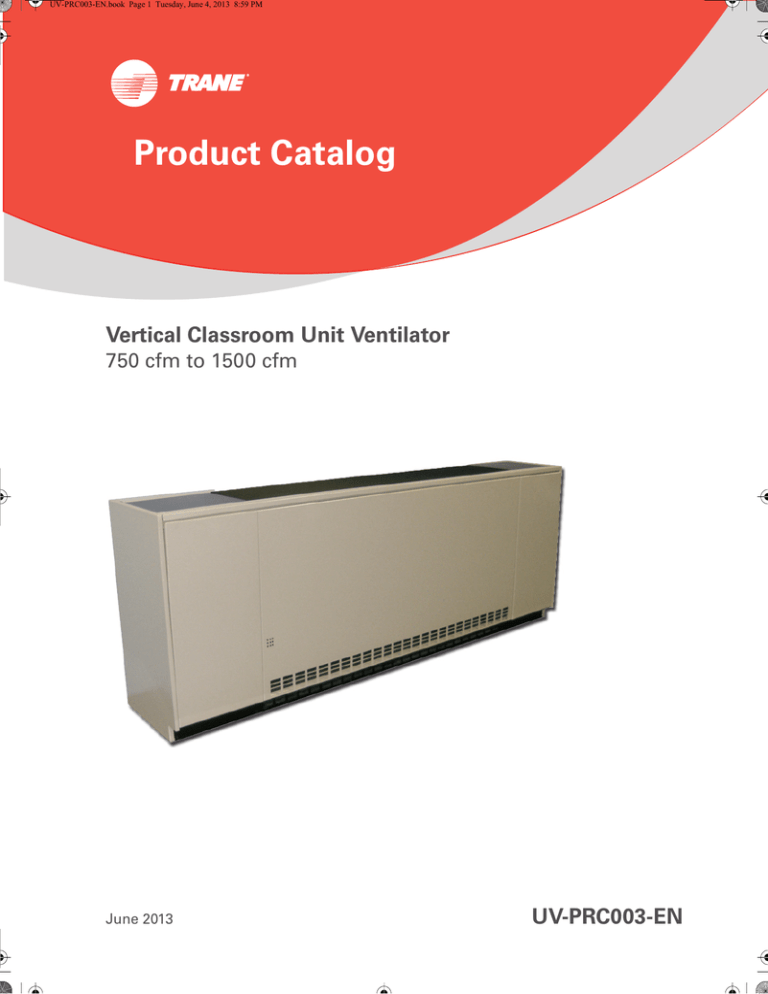

UV-PRC003-EN.book Page 1 Tuesday, June 4, 2013 8:59 PM

Product Catalog

Vertical Classroom Unit Ventilator

750 cfm to 1500 cfm

June 2013

UV-PRC003-EN

UV-PRC003-EN.book Page 2 Tuesday, June 4, 2013 8:59 PM

Introduction

The Trane Classroom Unit Ventilator

Academic performance of U.S. students depends, in part, on the ability to create a comfortable learn-friendly surrounding. Being too hot or too cold could hinder a students ability to achieve academic excellence.

Seasonal changes, mechanical/building disrepair, and even class attendance provide real challenges to HVAC mechanical systems. The only thing consistent about today’s classroom is its ability to constantly change. With this in mind, Trane introduces a NEW classroom unit ventilator design to support today’s changing environment.

Figure 1.

Back view of unit ventilator

Figure 2.

Vertical classroom unit ventilator

Roomy end-pockets for install-ability and system customization

Maintenance-free

EC motor with direct-drive fans

Blow-through design provides freeze protection, sound attenuation, and safety

Sealed coil, but quickly accessed for cleaning and visual inspection

Hassle-free piping

Linkage-free outside air damper

Off-the-shelf filter sizing

Larger fans for lower sound levels

Auxiliary drain pan option

© 2013 Trane All rights reserved UV-PRC003-EN

UV-PRC003-EN.book Page 3 Tuesday, June 4, 2013 8:59 PM

Introduction

Trademarks

EarthWise, Integrated Comfort, Rover, Trane, the Trane logo, TOPSS, Tracer, and Tracer Summit are trademarks or registered trademarks of Trane in the United States and other countries. All trademarks referenced in this document are the trademarks of their respective owners.

BACnet is a registered trademark of American Society of Heating, Refrigerating and Air-

Conditioning Engineers (ASHRAE); Echelon, L ON M ARK , LonTalk, and L ON W ORKS are registered trademarks of Echelon Corporation.

UV-PRC003-EN 3

UV-PRC003-EN.book Page 4 Tuesday, June 4, 2013 8:59 PM

Table of Contents

Features and Benefits

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Fit and Finish

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Install-ability, Service-ability and Maintain-ability

. . . . . . . . . . . . . . . . . . . . . . 5

IAQ Features

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Acoustics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Application Considerations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

A Choice in System Design

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Selection Procedure

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Model Number Descriptions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

General Data

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Performance Data

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Controls

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Fan Speed Switch

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Customer Supplied Terminal Interface (CSTI)

. . . . . . . . . . . . . . . . . . . . . . . . . 68

Tracer ZN520 Zone Controller

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Tracer UC400

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Zone Sensors

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Valves/Piping Package

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Jobsite Connections

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Dimensional Data

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Mechanical Specifications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

4 UV-PRC003-EN

UV-PRC003-EN.book Page 5 Tuesday, June 4, 2013 8:59 PM

Features and Benefits

Fit and Finish

Equipment Size

The vertical unit ventilator delivers from 750 cfm to 1500 cfm. It is physically sized to fit the replacement or new construction application.

Cabinet Finish

The unit cabinetry is made of a durable industrial grade metal to withstand even the most rigorous classrooms. A smooth/glossy, appliance grade paint treatment increases the aesthetics of the equipment while making it durable and easy to maintain.

Access

A three panel front access of the unit ventilator is ergonomically safe for lifting/removal, and allows speedy set up during field commissioning. This design allows for the end pocket of the unit ventilator to be open while the fan (airside) section stays closed. The panel design supports a clean fit and finish while providing effortless access for filter change-out.

Top access to the unit mounted fan speed/sensor option was developed with the teacher or administrative staff in mind. Access to the sensor may be made through a lock/key, or through an easy open door.

Figure 3.

Fit and finish

Install-ability, Service-ability and Maintain-ability

Spacious End Pockets

Easy access to piping and controls is made through the roomy equipment end pocket design. The coil headers and drain connections are made within the unit chassis, freeing-up valuable space in the end pockets for piping or field add-ins. This also grants a tighter seal to prevent air leakage.

The roomy end pocket design

Figure 4, p. 6 allows for application requirements such as an optional

auxiliary drain pan. The auxiliary pan may be placed under the factory or field piping package.

UV-PRC003-EN 5

UV-PRC003-EN.book Page 6 Tuesday, June 4, 2013 8:59 PM

Features and Benefits

Sliding Fan Deck

Convenient access to the fan motor and fan wheels for maintenance and serviceability is made in part of the easy-slide design of the unit ventilator fan board,

Figure 5

. The fan board assembly offers hassle free access to the contractor or maintenance technician. As an added benefit, Trane’s unit ventilator includes Electronically Commutated Motors (ECM) as standard.

Figure 4.

Spacious end pockets Figure 5.

Sliding fan board

6

Energy Efficiency

Trane has a commitment to providing premium quality products that has led to the exclusive use of Electronically Commutated Motors (ECM) in all unit ventilator models. These brushless DC motors incorporate the latest technology for optimized energy efficiency, acoustical abatement, maintenance free and extended motor life. Each motor has a built-in microprocessor that allows for programmability, soft ramp-up, better airflow control, and serial communication.

• Trane units equipped with ECMs are significantly more efficient than a Permanent Split

Capacitor (PSC) motor.

• Lower operating costs on average of 50 percent (versus a PSC motor).

• The Reduced FLA option allows units to ship with a nameplate FLA rating much lower than a typical ECM unit.

Filters

Trane unit ventilators utilize an off-the-shelf filter design to reduce or eliminate local stocking of

filters in the school. See “General Data,” p. 25 for standard filter sizes.

Note: High efficiency options, MERV 8 and MERV 13, are available. These filters provide greater resistance and dust holding capabilities.

Hinged Control Box

The hinged control box design maintains easy access to the electrical for connection while supporting less potential for damage on the job site from the different construction trades.

UV-PRC003-EN

UV-PRC003-EN.book Page 7 Tuesday, June 4, 2013 8:59 PM

Features and Benefits

Piping

Hydronic piping for the unit ventilator may be factory installed or field provided. It fits freely inside the unit end pockets, supplying quick hook-up during the installing phase. The motorized valves include a trouble-free, pop-top allowing the maintenance or service technician access to the motor without removing the valve body from the piping package.

IAQ Features

Indoor air quality (IAQ) has become a top priority in classroom design. Giving students a healthy place to learn and develop is crucial in every school district. It is also crucial to maintaining the building’s overall construction and furnishings. Several features of Trane’s unit ventilator attribute to improved IAQ.

Removable Drain Pan

The unit ventilator drain pan is dual sloped for effective condensate removal. This non-corrosive pan eliminates the problems associated with leaking or standing water and is removable for cleaning.

Ease of Maintenance

Internal components such as the fan and coils are accessible for visual inspection and cleaning.

Maintaining a clean system increases the efficiency of the unit and is important to good, sustainable indoor air quality.

This design also places the coils farther away from the outside air opening, virtually eliminating the potential for coil freezing and the added hassles of nuisance freeze-trips.

OA/RA Damper Design

The outside/return air damper is a one-piece design which is linkage free resulting in a superior air seal (see

Figure 4, p. 6

). This results in lower infiltration of outside air during off cycles thus lowering the risk of freezing equipment in the winter or the intrusion of humid air into the building during the summer.

OA/RA Actuator

The OA/RA actuator provides true spring return operation for positive close-off of the OA/RA damper. The spring return system of the actuator closes the outside damper if power is lost to the building. When ordered with factory controls, the actuator is a 3-point floating design. A 2 to 10-Vdc actuator is available when other than Trane controls are specified.

Figure 6.

OA/RA Actuator and OA insulated damper

OA insulated damper

OA/RA actuator

UV-PRC003-EN 7

UV-PRC003-EN.book Page 8 Tuesday, June 4, 2013 8:59 PM

8

Features and Benefits

Unit Filter

Each classroom unit ventilator comes equipped with a standard-size throwaway filter to support job site installation and start-up. However, the Trane unit ventilator is designed to accommodate the use of a MERV 8 or MERV 13 high capacity filter to provide greater filtration of airborne contaminants.

Dehumidification

Trane unit ventilators provide a broad range of dehumidification solutions. Active humidity control involves monitoring and managing both the dry bulb temperature and the humidity in the classroom. With this strategy, a reheat coil is placed downstream of the cooling coil to temper

(reheat) the cold, dehumidified air leaving the cooling coil to avoid over-cooling the space. Reheat configurations are available in a variety of coil combinations.

Alternately, the Tracer™ UC400 or Tracer ZN520 controller can be configured to automatically reduce the fan speed at part-load conditions. This helps improve the coincidental dehumidification performance of the unit at part-load, and also lowers sound levels. To help ensure proper ventilation in the classroom at lower fan speeds, the controller adjusts the outside air being supplied to the classroom.

Economizer

One big advantage of a Unit Ventilator system is the ability to provide energy savings through an economizer cycle. During mild seasons outside air is used to provide “free” cooling, thereby, minimize or eliminate the need to run mechanical cooling equipment. To truly have an effective economizer a Unit Ventilator must be able to bring in up to 100 percent of the design airflow through the outside air damper opening. Trane Unit Ventilators are tested and certified to exceed the industry standard, as defined by AHRI 840, for economizer effectiveness. This ensures the school will realize the energy savings available through the economizer strategy.

Face and Bypass Actuator

The face and bypass damper actuator incorporates a direct couple design. It provides electronic protection against overload. A limit switch is not included, nor required as part of the design. When reaching the damper end position, the actuator automatically stops. The gears can be manually disengaged with a button on the housing.

Acoustics

Quiet systems are extremely important in today’s classrooms. Trane offers many different system solutions to balance the requirements of sound, cost, IAQ and efficiency. The Trane vertical unit ventilator takes a comprehensive approach to delivering one of the quietest units available.

Fan and Blower Motor Assembly

Several innovative ideas have gone into the quiet design of the Trane vertical unit ventilator. The fans diameters have been maximized to reduce the motor rpm and thus lower the noise, while still maintaining the cfm requirements to support ventilation and capacity requirements. The unique direct-drive fan and blower design diminishes vibration from occurring further ensuring quiet operation.

Fan Speed Control

Trane provides the capability to vary airflow for suitable applications either with three speeds or with a 0–10 Vdc input. This lowers the sound in the space and improves the dehumidification in the cooling season at part-load. With field installed controls, this is accomplished with a unit-mounted manual fan speed switch (allowing either 2- or 3-speed control) or variable speed control with a

0–10 Vdc input. ECM controls provide a soft ramp between speed changes—a significant contributor to overall quiet operation.

UV-PRC003-EN

UV-PRC003-EN.book Page 9 Tuesday, June 4, 2013 8:59 PM

Features and Benefits

With the inclusion of the Tracer UC400 unit controller, the speed of the fan is infinitely varied automatically in response to the load condition in the space. The controller also will adjust the outside air being provided to properly ventilate the classroom at the lower airflow conditions.

Quiet Blow-Through Design

The Trane blow-through unit design enables additional sound attenuation by eliminating the fan noise from entering the space directly. The position of the internal components is optimized to enhance The performance and casing construction of Trane vertical unit ventilators further adds to this acoustically superior design.

Certification/Standards

Comfort, energy and IAQ are all major issues that need to be woven into today’s school designs.

Therefore, it is important that designers of these systems have accurate information to make system decisions. That is why the industry has developed performance standards and certification programs which ensure that the equipment information provided to the design community is correct and comparable across different manufacturers. The following list of certifications identifies the commitment by Trane to providing the highest quality equipment and information to our customers:

• AHRI-840

• ETL

• Tested in accordance to AHRI 350 (acoustics)

• L ON M ARK®

UV-PRC003-EN 9

UV-PRC003-EN.book Page 10 Tuesday, June 4, 2013 8:59 PM

Application Considerations

A Choice in System Design

The beauty of the classroom unit ventilator goes beyond its ability to heat and cool. The unit ventilator design provides an opportunity to create a comfortable atmosphere for living, learning and playing, while supporting energy efficiency savings. Some of the featured benefits of a unit ventilator are:

• Individual room control.

• Fresh air ventilation and filtration.

• Individual dehumidification sequences per zone.

• Energy savings solutions through economizing functions and Electronically Commutated

Motors.

• A choice in heating/cooling applied systems.

• And, because the equipment is mounted directly in the living space, expense associated to installed mechanical ductwork may be avoided.

Wide Variety of Heating/Cooling Coils

Trane’s unit ventilator offers a wide variety of coil configurations to be used in many design considerations.

In environments where cooling needs are of main interest, a two-pipe coil coupled with a chiller, or a direct expansion coil joined with a condensing unit may be used.

For heat specific applications, Trane offers a two-pipe hot water only unit to be combined with a boiler. Electric heat and steam options are also available for heating selections.

When there is seasonal heating and cooling, a two-pipe chilled water/hot water changeover system may be applicable to the mechanical design. This system requires a chiller and a boiler to support the changeover necessity. However, where space constraints may present a concern, the Trane unit ventilator may be equipped with a direct expansion coil for cooling, with an auxiliary electric heat coil, hot water coil, or steam coil for heating.

Four-pipe chilled water/hot water systems are also available. This system is typically applied when both heating and cooling may be simultaneously called for in the school.

Building Automation

As part of the building automation system, the mechanical HVAC system equipment may be optimized to lower energy consumption. By running only the mechanical devices that are required to support the building load at a given time of day or night, true energy consumption savings may be achieved.

Maintenance and service information through the unit sensing devices are easily defined and cured with an automated system.

With factory shipped direct digital controls, installation and start-up of the system are more simple.

Condensate

Proper condensate trapping is required for the classroom unit ventilator’s with hydronic and direct expansion coils (steam coils do not require a trapped condensate setup). In a properly trapped system, when condensate forms during normal operation, the water level in the trap rises until there is a constant flow of water through the pipe. It is imperative to maintain water in the trap, and not allow the trap to dry out during heating season.

Equipment should be installed level to avoid condensate build-up around the coil.

Performance

Application of this product should be within the catalogs airflow and unit performance. The Trane

Official Product Selection System (TOPSS™) will aid in the selection process for a set of given

10 UV-PRC003-EN

UV-PRC003-EN.book Page 11 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Indoor Air Quality

conditions. If this program has not been made available, ask a local Trane account manager to supply the desired selections or provide a copy of the program.

Figure 7.

System choice for the classroom unit ventilator

AND/OR

CONDENSER

FOR COOLING

CLASSROOM UNIT

VENTILA

TOR

BOILER

FOR HEAT ADD

AND/OR

CHILLER FOR

COOLING

The Importance of Air Quality

Indoor air quality (IAQ) should be considered a top priority in the school environment. School institutes contain a diverse day of activities that have a potential for air impurity sources including cafeterias, art and science classrooms, vocational education areas, pools and locker rooms. Proper ventilation and filtration of these spaces can pose some challenges.

Occupant density in classrooms is much higher than that found in office or retail spaces. The amount of outdoor air required to ventilate a classroom is based predominantly on the number of students expected to occupy the space. Students also move in large groups, frequently throughout the building, resulting in widely varied thermal loads within the zones. To compound the situation, a classroom mechanical system is typically run for 9 months of the year, and vacated for 3 months

(either by turning up or off the HVAC system). To increase the IAQ challenge even more, building construction techniques that help reduce energy costs, also tightly seal the school. This can lead to uncirculated/unfiltered air.

Ventilation

Ventilation is an important factor in the maintenance of healthy air. In a poor ventilated school building, fumes and vapors are not properly exhausted allowing particles to develop. A healthier building is a building where the air is exchanged more frequently and properly filtered. Through ventilation, stale indoor air is exhausted and fresh treated outdoor air is drawn into the building.

The amount of ventilation air required is established by building codes and industry standards.

Most building codes reference ASHRAE Standard 62

Quality

–

Ventilation for Acceptable Indoor Air

– as the minimum requirement for ventilation system design. Architects, engineers and contractors utilize this standard when determining and calculating the type of load the building environment will place on the mechanical system.

Trane Unit Ventilators Support Indoor Air Quality

The Trane unit ventilator is tested and designed to exceed ASHRAE Standard 62. This includes the use of a higher efficiency filtration to help introduce proper levels of “fresh” diluted air for contaminant removal.

UV-PRC003-EN 11

UV-PRC003-EN.book Page 12 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Energy Efficiency

Beyond the ventilation and filtration performance of the classroom unit ventilator, maintenance of the HVAC system is a must. Several enhancements placed on the Trane unit ventilator to support superior IAQ performance include:

• Coil presentation allows for ease of maintenance and cleaning.

• A dual sloped non-corrosive drain pan (removable) helps keep moisture in the system to a minimum.

• Ultra low leak damper that results in a fixed air seal of the damper assembly.

• Air exchange performance that goes beyond code while maintaining the AHRI-840 certification for economizing requirements.

• An upgrade-able MERV rated filters help reduce contaminants and increase filtration.

• Side-wall power exhaust support system to help remove the stale air from the classroom and better support the air exchange.

• Energy recovery unit ventilator to further pretreat and dehumidify the fresh air before it enters the classroom unit ventilator.

• Options for improved dehumidification at part-load, including automatic fan-speed control, face and bypass dampers, and active humidity control through reheat.

A Choice in Energy Optimization

The energy consumption of a unit ventilator system can be significantly reduced through the use of an economizer cycle. To better understand the basic function of how an outside air economizer works, it is important to fully understand how it operates.

The economizer functions by opening an outside air damper, and bringing cooler outside air into the space. The economizer cycle is controlled with a modulating damper motor, which opens at specified increments dependent upon readings from outside air sensors.

Economizers also utilize a return-air damper that closes as the outside air damper opens.

Depending on the room requirements, the modulating damper motor may mix the return air with the outside air to provide the maximum energy cost efficiencies without sacrificing comfort.

When the room thermostat calls for cooling, the economizer control provides the right mix of outside and return air to cool the classroom. The equipment’s airflow is generated from both fan energy and the economizing dampers. This design supports optimum ventilation and provides the greatest energy savings. As the outside air temperature rises (typically above 55°F), the outside damper closes to the minimum position, activating the second cooling stage on the room thermostat—the cooling-generating device (compressor, water pump, chiller, cooling tower). The return-air and outside air dampers modulate to support the discharged air temperature.

Dampers working together with the cooling coil is called integrated economizing, which allows a unit ventilator to mix outside air with return air, delivering an energy-efficient, cost-savings solution to a school.

Industry Standards

The Air-Conditioning, Heating, and Refrigeration Institute (AHRI) created the AHRI-840 standard for classroom unit ventilators to provide a consistent method of rating the unit ventilators design performance. To achieve AHRI-840 certification, the unit ventilator must be capable of providing a minimum of 80 percent of its ventilation (airflow) through the outside air economizer function (see

Figure 8

). This measurement ensures that the expected energy savings by the economizer is realized in actual operation.

Only AHRI-840 certified equipment has been independently tested for compliance to the minimum requirement. Trane was the first, and continues to be one of the few manufacturers that meet this certification. By meeting this certification, the designer can be assured that the Trane unit ventilator will perform with energy conservation in mind.

12 UV-PRC003-EN

UV-PRC003-EN.book Page 13 Tuesday, June 4, 2013 8:59 PM

Figure 8.

Unit ventilator economizer

Application Considerations

Acoustics

Acoustics

A growing population, and an increase in economic pressure to maximize building footprints have resulted in higher building occupancies and less space to place the HVAC equipment. Often times the close proximity of the equipment—such as a floor mounted unit ventilator—may cause noise related complaints. Reducing the likelihood of these complaints requires careful planning:

• In the equipment sizing (under sizing and over sizing could increase noise level).

• And equipment placement (absorption and number of sound sources in the room greatly affect noise).

Room NC is the sum of all sounds entering the room. Its value is based on assumptions about the room’s characteristics. Given the complexity of various building systems, it is extremely important to assure that the design goals (commissioning) for classroom acoustics, IAQ, and moisture control are met through all aspects of the space.

For example, it is not uncommon for a school to install unit ventilators that are manufacturer-rated for a specified airflow (cfm), but which are not AHRI-840 certified. These units may ship with a fanspeed setting that delivers a lower than specified airflow, perhaps to reduce sound levels. Without an overall building design goal, these units will be installed without delivering the specified airflow needed to support the fresh air circulation, and possibly compromise IAQ.

Note: Unless the equipment is tested at the specified airflow, it is extremely difficult to determine whether the unit meets the specified sound level.

Trane’s unit ventilator will not compromise air quality to support a minor reduction in airflow noise.

We encourage our engineers to specify their airflow needs at full building load requirements. Finetuning of the speed setting may be interchanged through the unit’s 3-speed fan sensor quickly and easily. This mechanical feature ensures that the equipment supplies proper cfm to support IAQ in the classroom, while giving complete control of equipment noise to the administrative staff.

Technology that Supports Acoustic Enhancements

Another solution to airflow noise is through Trane direct digital controls (Tracer UC400). With the

Tracer UC400 controller, an infinitely variable speed fan control for the unit ventilator delivers the airflow output customized to support the cfm space needs. When less cfm is necessary to meet the

UV-PRC003-EN 13

UV-PRC003-EN.book Page 14 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Ventilation

load of the classroom, the equipment operates at an optimum speed, keeping sound levels to a minimum. Another solution for acoustically sensitive application is the option for “Low Acoustics,” which uses the ECM technology to manage the fan speeds. However, if the room temperature rises above the setpoint, the controller will switch to high speed for sustaining the space needs. As part of this strategy, ventilation must also be considered. The Tracer UC400 controller will reposition the outside air damper to confirm the minimum outside air cfm is met at both operating conditions.

This setup allows the unit ventilator to meet the space comfort condition, while providing a lower sound level and proper ventilation.

Figure 9.

Equipment placement

Ventilation for Acceptable IAQ

Supplying proper ventilation to a classroom is challenging. The various rooms that make up a school are forever changing in their proper ventilation needs. Building occupants and their activities generate pollutants that heighten the ventilation requirements. And because of this intermittent occupancy, the ventilation frequency of a classroom is constantly on the move.

Ventilation systems dilute and remove indoor contaminants, while mechanical heating and cooling systems control the indoor temperature and humidity. Supplying an adequate amount of fresh air to an occupied classroom is necessary for good indoor air quality. IAQ should be considered a top priority in the school environment because children are still developing physically and are more likely to suffer the consequences of indoor pollutants. For this reason, air quality in schools is of particular concern. Proper conditioning of the indoor air is more than a quality issue; it encompasses the safety and stewardship of our investment in the students, staff and facility.The beauty of a classroom unit ventilator is its ability to provide heating, cooling, ventilation and dehumidification as a single-zone system.

ASHRAE Control Cycles

There is a variety of control systems available today in unit ventilators. The exact method of controlling the amount of outside air and heating capacity can vary. However, all systems provide a sequence of operation designed to provide rapid classroom warm-up and increasing amount of ventilation air to offset classroom load.

To help supply proper ventilation to these fluctuating heat gains, the Trane unit ventilator is designed to provide rapid classroom warm-up and increasing amounts of ventilation air to offset classroom overheating.

14 UV-PRC003-EN

UV-PRC003-EN.book Page 15 Tuesday, June 4, 2013 8:59 PM

Figure 10. ASHRAE Cycle graph

Application Considerations

Ventilation

UV-PRC003-EN

ASHRAE Cycle I

All standard unit ventilator cycles automatically close the outside air damper whenever maximum heating capacity is required. As room temperature approaches the comfort setpoint, the outside air damper opens fully, and the unit handles 100 percent outside air. Unit capacity is then controlled by modulating the heating element capacity.

ASHRAE Cycle I is typically used in areas where a large quantity of outdoor air is required to offset the air being exhausted to relieve the room of unpleasant odors and particles.

ASHRAE Cycle II

ASHRAE Cycle II is the most widely used ventilation control. Similar to Cycle I, the outside air damper is closed during warm-up. But with Cycle II, the unit handles recirculated air through the return air system. As temperature approaches the comfort setting, the outside air damper opens to admit a predetermined minimum amount of outside air. This minimum has been established by local code requirements and good engineering practices. Unit capacity is controlled by varying the heating output. If room temperature rises above the comfort setting, the heating is turned off and an increasing amount of outside air is admitted until only outside air is being delivered.

ASHRAE Cycle II is a very economical control sequence often referred to as integrated economizing. This design supports optimum ventilation and provides the greatest energy savings.

This is further proof of why AHRI-840 certification is important in minimizing energy consumption through economizer performance.

Freeze Protection

The most important advantage the Trane blow-through design provides is additional protection against coil freeze-up. In contrast, draw-through configurations allow little mixing of the return and outside air stream while locating the coil very close to the outside air inlet. This process creates

“cold spots” on the coil which could lead to coil freeze-up.

With a blow-through design, face and bypass with isolation valve control is not necessary to provide proper freeze protection to the unit vent. The placement of the coil above the fan allows enough space for the coil to avoid “cold spots” that could cause freezing.

15

UV-PRC003-EN.book Page 16 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Dehumidification

Constant Volume System

A typical unit ventilator is a constant-volume, variable-temperature device. It uses a constant fan speed and modulates water flow through a chilled water coil to maintain the dry bulb temperature in the space based off of a setpoint. Outdoor air is introduced at the back of the unit ventilator, and distributed with the supply air. At design cooling load conditions, a system controlled in this manner typically has a leaving air temperature that is cold enough (and, therefore dry enough) to sufficiently dehumidify the space, but its ability to dehumidify can decrease significantly at partload conditions.

When the sensible load in the space decreases (part-load), the constant-volume system responds by raising the dry-bulb temperature of the supply air. In a chilled water unit ventilator, this is accomplished by modulating a valve to reduce the rate at which water flows through the coil.

Figure 11 shows how this affects the supply air leaving the coil—the warmer coil surface that results

from less water flow provides less sensible cooling (raising the supply air temperature) and removes less moisture from the passing air stream.

Figure 11. Part-load dehumidification with modulated chilled water

16

The sensible cooling capacity of a constant volume system decreases to match the smaller sensible cooling load. Any latent cooling (dehumidification) capacity is purely coincidental, whether the cooling-coil medium is chilled water or refrigerant. As the load diminishes, the system delivers even warmer supply air. Some dehumidification can occur in this situation, but only if the sensible load is high enough.

Some designers attack this problem by oversizing the unit ventilators. This does not solve the problem; in fact, it can make the situation worse. Increasing the capacity of the unit ventilator may also require increasing the supply airflow. A higher-than-necessary supply airflow results in warmer supply air and, in non arid climates, less dehumidification. It’s important to understand, this is not just a unit, coil, or fan-sizing challenge. Rather, it’s an issue of properly controlling the system in a manner provides sufficient dehumidification at all operating conditions. Proper dehumidification with terminal units is a matter of proper control.

Active Humidity Control

A common method used to address this part-load humidity control challenge in a constant-volume system is active humidity control through supply air tempering (reheat). Active humidity control involves monitoring and controlling both the dry bulb temperature and humidity in the occupied space. Whenever the space humidity is below the preset upper limit (typically 60 percent relative humidity), the system operates just like a normal constant-volume system. However, if the space humidity reaches or exceeds the upper limit, the cooling coil control valve is driven open regardless of the need for sensible cooling in the space. The coil over-cools the air, increasing the dehumidification capacity of the system.

With this control sequence, a reheat coil is placed downstream of the cooling coil to temper (reheat) the cold, dry air leaving the cooling coil in order to avoid over-cooling the space. The key to cost-

UV-PRC003-EN

UV-PRC003-EN.book Page 17 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Dehumidification

effectively applying an active humidity control system is to use reheat only when it is needed. This requires the sensing of both the humidity and temperature in the occupied space.

When the space humidity falls below the upper limit, the system returns to the standard cooling mode and again operates as a traditional constant-volume system.

Basic components of Trane’s reheat system, include a (1) classroom unit ventilator with a main coil and an auxiliary coil downstream, (2) the Tracer ZN520 digital controller, and (3) two

sensors, one for the temperature and one for relative humidity. Sensors may be located in the zone, or in the return air stream.

If after hours operation is required, the addition of a building automation system (BAS) such as

Tracer Summit™ is recommended to coordinate the chillers, pumps, boiler and unit ventilators. It also assures proper operation of the exhaust fans.

Reheat may come from new energy (electric resistance heat or boilers fueled by gas or oil) or recovered energy.

Recovered energy reheat refers to the process of salvaging or transferring energy from another process within the facility. In this case, the recovered energy is the by-product of a cooling process which would normally be rejected or wasted. A common example may include a plate and frame heat exchanger in the condenser water loop of a water-cooled chiller system.

Automatic Fan-Speed Adjustment

Reducing the fan speed (supply airflow) at part-load conditions is a way to improve the coincidental dehumidification performance of a unit ventilator. The Tracer ZN520 digital controller can be

configured to automatically reduce fan speed when the sensible load is decreased, Figure 12, p. 18 .

At full load, the fan operates at high speed and the control valve’s flow is wide open. As the cooling load decreases, the controller modulates the valve to throttle the rate of chilled water flow through the coil. At some point, based on valve position, the unit controller switches the fan to low speed.

Less airflow means that colder supply air is needed to maintain the target space temperature. The control valve opens allowing the coil to remove more moisture from the passing air stream.

The controller will also adjust the outside air damper to help properly ventilate the classroom at the lower fan speed condition.

Face and Bypass Dampers

Face and bypass control is a common and accepted method of capacity control.

The face and bypass damper, consists of a single blade installed immediately upstream of the cooling coil. The bypass is sized to have the same pressure drop as the cooling coil so that a constant air quantity can be maintained at all times during system operation.

Bypass control maintains the dry bulb temperature in the space by modulating the amount of air flowing through the cooling coil, thus varying the supply air temperature to the space. As the face and bypass damper begins to close some of the outside/return air mix is diverted around the coil and mixed with air coming off the coil to obtain a supply air temperature that is proportional to the reduction in space load. Because the chilled water valve remains wide open, the portion of the air passing through the coil is dehumidified further, improving part-load dehumidification.

However, face and pass control does not actively control space humidity. It still allows the space humidity level to rise at part-load, often higher than desired.

For more information on various methods for improving dehumidification performance of unit ventilator systems, refer to Trane “Dehumidification in HVAC Systems” application manual

SYS-APM004-EN.

UV-PRC003-EN 17

UV-PRC003-EN.book Page 18 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Dehumidification

Figure 12. Face and bypass damper

Figure 13. Basic components of active dehumidification control

18 UV-PRC003-EN

UV-PRC003-EN.book Page 19 Tuesday, June 4, 2013 8:59 PM

Figure 14. Reheat system and auto fan speed adjustment

Reheat System

Application Considerations

Draft Barrier and OA Preconditioning

Auto Fan Speed Adjustment with Tracer ZN520

Dynamic Air Barrier

In areas that contend with colder climates for a significant period of time, a school may wish to employ a dynamic air barrier package. With this dynamic (draft) barrier system, the cold air is captured off of the window, and drawn into the classroom unit ventilator’s normal airflow cycle.

The unit ventilator treats/warms the air as if it were part of a return-air makeup system. This captured air is then discharged into the space providing comfort to the classroom’s occupants.

This draft barrier shield should be utilized when:

• Almost 50 percent of the wall includes windows.

• Outside air temperatures fall below 35°F for a significant period of time

• Or, in retrofit applications where the windows are of a single pane thickness.

Figure 15. Dynamic air barrier

Captured

Cold Air

Unit Ventilator

UV-PRC003-EN

Outdoor Air Preconditioning

Conditioning the large amounts of outdoor air required for proper classroom ventilation can significantly increase building cooling and heating loads. It also raises the system’s first cost and operating cost. One way to reduce the impact of the outdoor air load on the unit ventilator is to use energy recovered from the exhaust air stream to precondition the outdoor air as it’s brought into the building.

A total-energy recovery (enthalpy) wheel consists of a revolving cylinder filled with a desiccant-

coated medium suitable for sensible and latent (moisture) heat transfer, Figure 16, p. 20 . The

19

UV-PRC003-EN.book Page 20 Tuesday, June 4, 2013 8:59 PM

Application Considerations

Draft Barrier and OA Preconditioning

adjacent outdoor and exhaust air streams pass through the wheel in a counterflow arrangement that transfers energy from one air stream to the other.

During the cooling season, the drier, sensible heat and moisture transfer from the outdoor air to the cooler, drier exhaust air. Conversely, during the heating season, sensible heat and moisture transfers from the exhaust air to preheat and humidify the entering outdoor air stream.

Figure 16

psychrometric ally depicts the impact of a preconditioning total-energy wheel on a unit ventilator.

This approach can’t directly control humidity in the space, but it can significantly reduce the capacity (and operating cost) of the cooling and heating equipment required to condition the outdoor air. Capable of recovering 65 to 75 percent of the energy in the exhaust air stream, totalenergy wheels used in conjunction with unit ventilators can be an attractive alternative when upgrading existing classroom to meet ASHRAE’s ventilation requirements; they reduce, perhaps even eliminate, the extra capacity needed at the chiller plant or boiler.

Figure 16. Energy recover wheel

The Trane ERS energy recovery unit ventilator is one example of a “cold coil” unit with outdoor air preconditioning.

Note: Both preconditioning (energy recovery) and post conditioning (reheat) may be applied in the same system.

For more information on outdoor-air preconditioning and energy recovery, refer to the Trane application engineering manual, Air-to-Air Energy Recovery in HVAC Systems (SYS-APM003-EN).

Figure 17. Cold coil with outdoor air preconditioning

20 UV-PRC003-EN

UV-PRC003-EN.book Page 21 Tuesday, June 4, 2013 8:59 PM

Selection Procedure

Trane vertical classroom unit ventilators provide air delivery and capacities necessary to meet the requirements of modern school classrooms. They are available with the industry’s widest selection of coils to precisely satisfy heating, ventilating and air conditioning loads with the best individual type of system. Unit ventilator selection involves three basic steps.

• Determine the classroom/space unit cooling and/or heating loads

• Determine the unit size

• Select the coil

Capacity Required

The first step in unit ventilator selection is to determine room heating and air conditioning loads.

The calculation of this load is essential if the equipment is to be economical in first cost and operating cost.

Adequate ventilation is mandatory in classroom air conditioning design. The amount is often specified by local or state codes and, in air conditioned schools, may be either the same or less than that specified for heating systems. The usual requirement is between 15 and 25 cfm of outside air per occupant, based on the intended use of the room. For instance, a chemistry laboratory normally requires more ventilation for odor control than a low occupancy speech clinic.

Ventilation is an important concern and should be accurately determined to assure good indoor air quality. Purposely oversizing units should be avoided, since it can cause comfort and control issues.

Unit Size

Unit ventilator size is determined by three factors:

• Total air circulation

• Ventilation cooling economizer capacity required

• Total cooling or heating capacity required

Total air circulation, if not specified by code, should be sufficient to ensure comfort conditions throughout the room. This is usually from six to nine air changes per hour, but can vary with room design and exposure. Often rooms with large sun exposure require additional circulation to avoid hot spots.

Ventilation cooling capacity is determined by the amount of outside air delivered with the outside air damper fully open, and the temperature difference between the outside air and the classroom.

In air conditioning applications, ventilation cooling capacities should maintain the comfort setting in the classroom whenever the outside air temperature is below the unit or system changeover temperature.

UV-PRC003-EN 21

UV-PRC003-EN.book Page 22 Tuesday, June 4, 2013 8:59 PM

Selection Procedure

Example:

Ventilation cooling capacity = 1.085 x cfm t

x (T

1

- T

2

) cfm t

= Total air capacity of unit with outside air damper open 100 percent.

T

1

= Room temperature.

T

2

= Outside air temperature.

In classrooms with exceptionally heavy air conditioning loads, unit size may be determined by the total cooling requirement. Good practice dictates 375 to 425 cfm per ton of hydronic cooling capacity. Normally, however, Trane classroom air conditioner coils have sufficient capacities.

Example:

Given: Air circulation specified = 8 air changes per hour.

Classroom size = 35 ft long x 25 ft wide x 10 ft high

Inside design air temperature = 75 degrees F

Ventilation cooling required at 58 degrees F = 29,000 BTU

CFM required = 8 changes/hr x (35 x 25 x 10)ft 3 = 1170 cfm

60 Minutes/hr

Checking ventilation cooling capacity:

29,800 BTU = 1.085 x CFM x (80-58)

CFM = 1250

This indicates that a 1250 cfm unit would have satisfactory ventilation cooling capacity at the design changeover point of 58°F. Coil capacity will become confirmed when the coil is selected.

Coil Selection

Selecting the correct coil is done through Trane’s Official Product Selection System (TOPSS) For your convenience, TOPSS has a mixed air calculator built into the program.

22 UV-PRC003-EN

UV-PRC003-EN.book Page 23 Tuesday, June 4, 2013 8:59 PM

Model Number Descriptions

Vertical Unit Ventilator

Model Number

Digits 1, 2, 3 — Unit

Configuration

VUV= Vertical Unit Ventilator

Digit 4 — Development

Sequence

E

Digits 5, 6, 7 — Nominal Airflow

075 = 750 cfm

100 = 1000 cfm

125 = 1250 cfm

150 = 1500 cfm

Digit 8 — Voltage (Volts/Hz/

Phase)

0 = 115/60/1

1 = 208/60/1

2 = 230/60/1

3 = 208/60/3

4 = 460/60/3

7 = 277/60/1

8 = 230/60/3

Digit 9 — Open Digit

Digits 10, 11 — Current Design

Sequence

Digit 12 — Face & Bypass

Y = Yes, Include Damper

N = No Damper

Digit 13 — Unit Arrangement

1 = Return Air Front / Fresh Air Back

2 = 100% Return Air Front

3 = 100% Fresh Air Back

4 = Dynamic Air Barrier

5 = ERS-Compatible w/RH

Connection

6 = ERS-Compatible w/LH Connection

Digit 14 — Preheat / Reheat /

Changeover

A = 4-Pipe Preheat (RH Clg/LH Htg)

B = 4-Pipe Preheat (LH Clg/RH Htg)

C = 4-Pipe Reheat (RH Clg/LH Htg)

D = 4-Pipe Reheat (LH Clg/RH Htg)

E = 2-Pipe (RH Connections)

F = 2-Pipe (LH Connections)

Digit 15 — Cooling / 2-Pipe Coil

0 = None

B = 2-Row, 12 F.P.I.

C = 2-Row, 16 F.P.I.

D = 3-Row, 12 F.P.I.

E = 3-Row, 16 F.P.I.

F = 4-Row, 12 F.P.I.

G = 4-Row, 14 F.P.I.

H = 3-Row, 16 F.P.I, EarthWise™ Coil

J = 3-Row, DX (R-410A) Cooling Coil

Digit 16 — Heating Coil

0 = None

A = 1-Row, 12 F.P.I.

B = 2-Row, 12 F.P.I.

C = 2-Row, 16 F.P.I.

D = 3-Row, 12 F.P.I.

E = 3-Row, 16 F.P.I.

F = 4-Row, 12 F.P.I.

G = 4-Row, 14 F.P.I.

H = 3-Row, 16 F.P.I, EarthWise Coil

K = Steam Low

L = Steam High

M = Electric Heat - Low

N = Electric Heat - Med

P = Electric Heat - High

Digit 17 — Motor

0 = Electronically Commutated Motor

(ECM)

1 = ECM & Low Acoustic Option

2 = ECM & Low FLA Option

3 = ECM & Low Acoustic & Low FLA

Option

Digit 18 — Other Motor Items

A = None

B = Toggle

C = Circuit Breaker

Digit 19 — 2- or 3-Way Valve -

Cooling Changeover Coil

0 = None

2 = 2-Way; 3-Point Floating

3 = 3-Way; 3-Point Floating

4 = 2-Way; 2–10 Volt

5 = 3-Way; 2–10 Volt

6 = Isolation Valve; 2-Way

7 = Isolation Valve; 3-Way

Digit 20 — CV - Cooling or

Changeover Coil

0 = None

L = Low Cv

M = Medium Cv

H = High Cv

Digit 21 — 2- or 3-Way Valve -

Preheat or Reheat Heating Coil

0 = None

2 = 2-Way; 3-Point Floating

3 = 3-Way; 3-Point Floating

4 = 2-Way; 2–10 Volt

5 = 3-Way; 2–10 Volt

6 = Isolation Valve; 2-Way

7 = Isolation Valve; 3-Way

Digit 22 — CV - Preheat or

Reheat Heating Coil

0 = None

L = Low Cv

M = Medium Cv

H = High Cv

Digit 23 — Discharge

Arrangement

0 = Opening Only, No Grille

A = Discharge Grille

B = Double Deflection Discharge

Grille

C = Grille Discharge with Wire Mesh

Digit 24 — Outside Air Damper

Control

0 = None

A = 3-Wire Actuator

B = 2–10 Volt Actuator

Digit 25 — Face and Bypass

Damper Control

0 = None

A = 3-Wire Actuator

B = 2–10 Volt Actuator

Digit 26 — Controls

0 = None, Unit-Mounted Speed

Switch

2 = Customer Supplied Terminal

Interface (CSTI)

3 = CSTI w/Low Temp Detection

4 = Tracer ZN520

5 = Tracer ZN520 w/Time Clock

6 = Tracer ZN520 with w/Fan Status

7 = Tracer UC400

8 = Tracer UC400 w/Time Clock

Digit 27 — Unit- or Wall-Mounted

Controls

0 = None

1 = Unit-Mounted

2 = Wall-Mounted

3 = Unit-Mounted Fan Speed

Switch & Wall-Mounted

Temperature Sensor

4 = Wireless Zone Sensor

Note: The wall-mounted room sensor is ordered as separate line item.

Digit 28 — Internal or External

Set Point

0 = None

2 = External

3 = Digital Display

Digit 29 — Timed Override

0 = No

1 = Yes

Digit 30 — Exhaust Control

A = No Exhaust Control with 3-Speed

Supply Fan

B = Exhaust Control with 2-Speed

Supply Fan

Digit 31 — Control Programming

(Sensor Included)

0 = None

1 = Humidity Sensor Programming

2 = CO

2

Sensor Programming

UV-PRC003-EN 23

UV-PRC003-EN.book Page 24 Tuesday, June 4, 2013 8:59 PM

Model Number Descriptions

Digit 32 — Unit Depth

A = Standard (16-5/8 in.)

B = 21-1/4 in. Depth with Baffle

C = 21-1/4 in. Depth with Full Sheet

Metal Back and Baffle

D = 21-1/4 in. Depth with 25 in. High

Falseback

E = 21-1/4 in. Depth with 26 in. High

Falseback

F = 21-1/4 in. Depth with 27 in. High

Falseback

G = 21-1/4 in. Depth with 28 in. High

Falseback

H = 21-1/4 in. Depth with 29 in. High

Falseback

J = 21-1/4 in. Depth without Baffle

Note: Selection “J” should be applied if

OA opening is raised above standard baffle location.

Digit 33 — End Covers

0 = None

1 = 16-5/8 in. Depth without Cutouts

2 = 16-5/8 in. Depth with 3 x 7-1/4 in.

Cutout

4 = 21-1/4 in. Depth without Cutouts

5 = 21-1/4 in. Depth with 3 x 7-1/4 in.

Cutout

6 = 21-1/4 in. Depth with 3-1/4 in. x

16-7/8 in. Cutout

Digit 34 — Front Panel

1 = Standard Front Panel

2 = Heavy Gauge Front Panel

Digit 35 — Subbase

0 = No Subbase

2 = 2 in. Subbase

4 = 4 in. Subbase

6 = 6 in. Subbase

Digit 36 — Piping Package

0 = None

1 = Ball Valves & P/T Ports

2 = Ball Valve & Circuit-Setter with

P/T Ports

3 = Ball Valve, Circuit-Setter with

P/T Ports & Strainer

Digit 37 — Flow Control -

Cooling/Changeover Coil

0 = None

Digit 38 — Flow Controls -

Heating Coil

0 = None

Digit 39 — Auxiliary Drain Pan -

Piping

Y = Yes, Auxiliary Drain Pan

N = No Auxiliary Drain Pan

Digit 40 — Crossover Piping

0 = None

1 = Internal

2 = External 1-3/8 in. Crossover

Piping

3 = External 2-1/8 in. Crossover

Piping

Digit 41 — Filter

1 = Standard Throwaway Filter

2 = MERV 8 Filter

3 = MERV 13 Filter

Digit 42 — Color

1 = Deluxe Beige

2 = Cameo White

3 = Soft Dove

4 = Stone Gray

5 = Driftwood Gray

24 UV-PRC003-EN

UV-PRC003-EN.book Page 25 Tuesday, June 4, 2013 8:59 PM

General Data

Table 1.

General data

Description

Unit length without end covers (in.)

Unit depth—standard (in.)

Unit depth—with false back (in.)

Unit height—standard (in.)

Shipping weight (lb)

Nominal filter size (in.) and quantity

Dynamic air filter nominal size (in.) and quantity

Drain connection size (in.)

Fan type / quantity

Motor data

E

F

C

D

G

H

Quantity

Horsepower (ea.)

Coil volume (gal) by coil type

A

B

Table 2.

Control methodology

FSS

CSTI

Tracer ZN520

Tracer UC400

Fan Speed

3 or infinite (a)

3 or infinite (a)

3

Infinite

(a) With a field-supplied 2–10 Vdc controller.

Table 3.

Control sequences

Fan Speeds

DX operation (a)

Electric heat operation

Sidewall Exhaust

ERSA (b)

(b)

(a)

2

2

1

1

(a) Fan speed during sequence operation.

(b) Unit Ventilator when operating with option.

0750

69

16-5/8

21-1/4

30

320

14 x 20 x 1 (2)

7 x 42 x 1 (1)

7/8 ID Hose

FC / 2

1

1/4

0.178

0.311

0.311

0.444

0.444

0.610

0.610

0.395

Unit size

1000

81

16-5/8

21-1/4

30

405

14 x 24 x 1 (1)

14 x 30 x 1 (1)

7 x 54 x 1 (1)

1250

93

16-5/8

21-1/4

30

450

14 x 20 x 1 (2)

14 x 24 x 1 (1)

7 x 66 x 1 (1)

7/8 ID Hose

FC / 2

1

1/4

0.228

0.410

0.410

0.571

0.571

0.809

0.809

0.593

7/8 ID Hose

FC / 4

2

1/4

0.277

0.510

0.510

0.704

0.704

1.014

1.014

0.742

1500

105

16-5/8

21-1/4

30

470

14 x 24 x 1 (2)

14 x 30 x 1 (1)

7 x 78 x 1 (1)

7/8 ID Hose

FC / 4

2

1/4

0.327

0.610

0.610

0.931

0.931

1.213

1.213

0.837

UV-PRC003-EN 25

UV-PRC003-EN.book Page 26 Tuesday, June 4, 2013 8:59 PM

General Data

Discharge and Inlet Arrangements

Figure 18. Discharge and inlet arrangements

Inlet Arrangement

Available in:

16 5/8" Depth

21 1/4" Depth

Discharge Arrangement

Available in:

16 5/8" Depth

21 1/4" Depth

Digit 23 = 0, A, B, C

0 = Opening Only

A = Grille Discharge

B = Double Deflection Discharge Grille

C = Discharge Grille with Wire Mesh

Available in:

16 5/8" Depth

21 1/4" Depth

Available in:

16 5/8" Depth

21 1/4" Depth

Digit 13 = 1

RA Front with FA Back

Available in:

21 1/4" Depth

ONLY

Digit 13 = 2

100% Return Air Front

Available in:

21 1/4" Depth

ONLY

Digit 13 = 3

100% Fresh Air Back

Digit 13 = 4

Dynamic Air Barrier

Digit 13 = 5, 6

(5) RH Energy Recovery System

ERS Compatible

(6) LH Energy Recovery System

ERS Compatible

26 UV-PRC003-EN

UV-PRC003-EN.book Page 27 Tuesday, June 4, 2013 8:59 PM

Figure 19. Falseback and subbase

General Data

Coil Combinations

UV-PRC003-EN 27

UV-PRC003-EN.book Page 28 Tuesday, June 4, 2013 8:59 PM

Performance Data

Table 4.

Coil combination selection chart (cooling, 2-pipe changeover or heating-only coils)

Coil type Coil description

J

K

L

M

N

P

E

F

G

H

A

B

C

D

1-row, 12 fpi

2-row, 12 fpi

2-row, 16 fpi

3-row, 12 fpi

3-row, 16 fpi

4-row, 12 fpi

4-row, 16 fpi

3-row, 16 fpi (EarthWise)

3-row, DX (R-410A)

Steam, low capacity

Steam, high capacity

Electric heat – 3-element

Electric heat – 4-element

Electric heat – 6-element

B and C cooling data available in TOPSS

A x x x x x x x x

B x x x x x x

Preheat or reheat coils

C x x x x x x

K L

Heating only x x x x x x

Heating only

Heating only

M x x x x x

Notes:

1. All coil types on the left side of the grid are available in single-coil, heating only, or 2-pipe changeover with exception of coil type A.

2. For 2-coil or 4-pipe systems, select the cooling coil on the left side of the grid. An X corresponds to a valid heating coil combination.

3. Shaded areas signify valid selections with face and bypass dampers.

N x x x x x

Example 1:

P x x x x x

4-pipe, chilled water / hot water

Type E, 3-row (16 fpi) cooling coil, may be selected with

Type B, 2-Row (12 fpi) preheat or reheat coil

Example 2:

4-pipe, DX cooling / steam heating

Type J, 3-row DX cooling coil, may be selected with

Type L, high-capacity steam heating coil

Notes:

• Supply and return coil connections are on the same side.

• In 4-pipe systems, the cooling coil connections are on the opposite end from the heating coil connections.

• DX coils are always left-hand connections.

• Electric heat coils are always right-hand connections.

• Heating coils (hot water or steam) are right-hand when in the reheat position with DX cooling coils.

28 UV-PRC003-EN

UV-PRC003-EN.book Page 29 Tuesday, June 4, 2013 8:59 PM

UV-PRC003-EN

Coil combination

B & N

C & N

D & N

E & N

H & N

J & N

B & P

C & P

D & P

E & P

H & P

J & P

H & L

J & L

B & M

C & M

D & M

E & M

H & M

J & M

D & K

E & K

H & K

J & K

B & L

C & L

D & L

E & L

D & A

E & A

F & A

G & A

H & A

J & A

B & K

C & K

B & H

B & J

C & A

C & C

C & D

C & E

C & H

C & J

J

K

L

B & A

B & B

B & C

B & D

B & E

E

F

G

H

A

B

C

D

Table 5.

Airflow through coil combination

Unit size

1250

1169

1182

1142

1135

1135

1142

1156

1169

1128

1121

1121

1128

1094

1102

1182

1195

1156

1149

1149

1156

1122

1114

1114

1335

1136

1153

1102

1094

1143

1134

1126

1320

1134

1357

1157

1174

1253

1263

1196

1339

1282

1272

1272

1282

1253

1377

1350

1178

1301

1320

1263

1253

1406

1293

1315

1253

1243

1233

1215

1243

0750

759

736

729

707

707

729

751

729

721

699

699

721

639

692

767

744

736

714

714

736

684

650

650

699

717

684

673

639

695

662

627

779

662

707

728

695

808

669

706

818

808

779

779

808

748

825

816

738

684

650

639

808

833

788

759

748

717

684

627

717

1000

1084

1066

1047

994

994

1047

1075

1057

1037

983

983

1037

923

983

1093

1075

1057

1005

1005

1057

994

935

935

994

1027

1005

983

923

1016

959

947

923

959

1016

1037

1016

911

971

1037

971

947

885

885

947

989

1052

1042

1057

1016

994

971

911

1072

1032

1011

989

934

1005

983

934

1500

1350

1311

1296

1251

1251

1456

1338

1296

1282

1544

1544

1437

1442

1504

1362

1324

1311

1266

1266

1475

1524

1463

1463

1524

1583

1524

1504

1442

1564

1504

1504

1421

1504

1564

1602

1544

1421

1484

1583

1442

1421

1356

1356

1421

1495

1623

1600

1638

1564

1504

1484

1421

1669

1578

1515

1495

1437

1437

1524

1437

Performance Data

Airflow by Coil Combination

29

UV-PRC003-EN.book Page 30 Tuesday, June 4, 2013 8:59 PM

Performance Data

Hydronic Coil Performance

Table 6.

Hydronic coil performance summary

Size Coil Rows CFM

0750

1000

E

F

G

H

A

B

C

D

E

F

G

H

A

B

C

D

4

3

3

4

2

3

1

2

4

3

3

4

2

3

1

2

1250

E

F

G

H

A

B

C

D

4

3

3

4

2

3

1

2

1406

1293

1315

1253

1243

1233

1215

1243

1500 A

B

C

D

2

3

1

2

1669

1578

1515

1495

E

F

G

H

3

4

4

3

1437

1437

1524

1437

EAT = entering air temperature (°F)

EWT = entering water temperature (°F)

CFM = tate of airflow (ft 3 /min)

GPM = water flow (gal/min)

QT = total capacity (MBh)

QS = sensible cooling capacity (MBh)

DP = waterside pressure drop (ft H

2

O)

1071

1035

1013

990

933

1007

984

933

833

788

759

748

717

684

627

717

GPM

8.3

9.1

10.4

10.9

11.9

12.6

12.2

6.5

7.3

8.0

8.4

7.7

8.3

9.0

5.1

5.8

5.9

6.3

7.8

8.3

7.4

3.2

3.6

4.8

5.2

4.7

4.8

5.7

Cooling Performance

80/67°F EAT, 45–55°F

QT QS DP

15.4

Not available

12.7

17.3

23.4

25.2

22.8

13.7

16.2

16.7

15.1

23.2

27.9

15.0

17.3

24.7

Not available

20.1

28.0

28.7

30.7

38.2

21.7

20.7

20.7

25.8

40.7

36.0

26.7

24.2

31.5

Not available

24.6

35.4

38.9

41.1

37.4

26.5

27.3

27.5

27.0

40.3

43.8

28.1

29.2

40.5

Not available

27.6

44.2

50.8

53.4

58.3

61.6

59.7

29.0

34.4

35.0

36.6

38.1

35.8

1.6

1.9

3.4

3.9

2.2

2.3

10.3

3.7

4.8

2.9

3.3

6.7

7.5

8.8

6.0

7.4

6.2

6.7

4.0

4.6

15.0

11.2

13.3

9.1

10.0

8.8

9.8

14.5

Heating Performance

60°F EAT, 160°F EWT

6.4

5.8

6.0

6.4

7.1

7.1

7.0

7.2

7.7

7.2

5.1

4.7

6.0

5.5

5.8

6.0

5.8

5.8

3.8

3.4

4.0

4.2

4.5

4.7

4.6

4.7

GPM

4.0

3.0

3.3

3.5

3.4

3.5

95.6

101.8

77.7

103.9

110.3

117.4

117.2

118.5

126.9

125.1

79.4

79.7

63.2

81.0

90.3

95.1

94.8

92.0

53.5

61.5

45.6

70.8

76.0

74.6

73.9

76.2

QT

36.9

51.6

55.6

57.4

57.2

53.5

2.8

7.0

17.4

6.9

8.4

4.6

4.5

3.6

4.1

5.7

2.9

4.0

15.5

4.4

4.9

3.8

3.6

2.3

1.6

4.1

6.4

2.5

2.9

1.9

1.8

2.5

DP

5.4

1.4

1.6

1.9

1.8

1.4

30 UV-PRC003-EN

UV-PRC003-EN.book Page 31 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 075 - Coil D

Table 7.

VUV 075, cooling coil cell D, 3-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

67

70

75

80

85

90

75

80

85

90

75

80

85

90 40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

2

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

11.6

11.0

10.1

9.2

12.7

12.0

11.0

10.0

14.1

13.3

12.2

11.1

15.7

14.9

13.6

12.4

17.5

16.6

15.2

13.8

15.9

15.0

13.8

12.5

16.7

15.8

14.4

13.1

17.7

16.8

15.4

14.0

19.0

18.0

16.5

15.0

18.1

17.1

15.7

14.2

18.6

17.6

16.1

14.6

19.4

18.4

16.8

15.3

20.4

19.3

17.7

16.1

9.5

9.2

8.7

8.2

12.3

11.9

11.0

10.0

14.1

13.3

12.2

11.1

15.7

14.9

13.6

12.4

17.5

16.6

15.2

13.8

10.2

9.9

9.4

8.8

13.2

12.8

12.1

11.4

16.1

15.6

14.8

13.9

18.9

18.0

16.5

15.0

8.9

8.6

8.2

7.7

12.0

11.6

11.0

10.4

15.0

14.5

13.8

13.0

18.0

17.4

16.5

15.5

12.3

17.3

11.7

16.4

10.8

14.9

9.8

13.4

13.4

12.7

11.7

10.7

14.8

21.0

14.0

19.8

12.9

18.0

11.8

16.2

16.4

15.6

14.3

13.1

18.2

26.1

17.3

24.6

15.9

22.4

14.5

20.2

16.6

15.7

14.5

13.2

17.4

16.5

15.1

21.3

13.8

19.2

18.4

17.5

16.1

14.7

19.7

18.7

17.2

15.7

18.8

17.8

16.4

14.9

19.3

27.7

18.3

26.1

16.8

23.8

15.3

21.4

20.1

19.0

17.5

15.9

18.9

17.8

16.2

14.6

23.4

22.1

20.1

18.1

23.7

22.3

20.3

18.3

24.8

23.4

26.4

24.9

22.7

20.4

28.3

26.8

24.3

21.9

26.9

25.4

23.1

20.8

28.9

27.2

24.8

22.3

21.1

30.4

20.0

28.7

18.4

26.1

16.8

23.5

12.0

11.7

11.1

10.4

15.6

15.1

14.3

13.5

18.9

18.3

17.3

16.2

22.0

21.3

20.1

18.1

24.9

24.1

22.4

20.2

13.0

12.5

11.9

11.2

16.8

16.2

15.4

14.5

20.5

19.8

18.8

17.8

24.1

23.3

22.1

20.9

11.3

11.0

10.4

9.8

15.2

14.7

14.0

13.2

19.1

18.5

17.5

16.5

22.9

22.1

21.0

19.8

Flow Rate (gpm)

4

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

9.0

8.5

7.8

7.0

9.8

9.3

8.5

7.7

11.0

9.9

14.5

13.7

12.5

11.3

13.8

13.0

11.9

10.8

14.2

13.4

12.2

11.0

14.8

14.0

12.7

11.5

15.6

14.7

13.4

12.1

Total

Capacity

(MBh)

21.3

20.1

18.2

16.2

23.3

21.9

19.8

17.7

10.8

25.8

10.2

24.3

9.3

8.5

12.2

11.5

10.5

9.5

22.0

19.6

12.0

28.8

11.4

27.1

10.4

24.5

9.4

21.9

13.4

32.1

12.7

30.2

11.5

27.3

10.4

24.4

29.1

27.4

24.8

22.1

12.8

30.6

12.1

28.7

26.0

23.2

13.6

32.5

12.8

30.6

11.7

27.7

10.6

24.7

34.9

32.8

29.7

26.5

33.1

31.2

28.2

25.2

34.0

32.0

29.0

25.9

35.5

33.4

30.2

27.0

37.5

35.2

31.9

28.4

6

Sensible

Capacity

(MBh)

13.5

13.0

12.3

11.6

17.5

16.9

15.9

15.0

21.2

20.4

19.3

18.2

24.7

23.8

22.5

21.1

28.0

26.9

25.4

23.9

14.5

14.0

13.2

12.5

18.8

18.2

17.1

16.1

23.0

22.2

20.9

19.7

27.0

26.0

24.6

23.1

12.7

12.3

11.6

10.9

17.1

16.5

15.6

14.6

21.4

20.7

19.5

18.3

25.7

24.7

23.4

22.0

ΔT

(°F)

8.8

8.3

7.5

6.8

9.8

9.3

8.4

7.5

7.3

6.9

6.3

5.6

8.0

7.5

6.8

6.1

8.9

8.0

11.1

10.4

9.4

8.5

9.6

8.6

9.9

8.8

12.1

42.8

11.4

40.0

10.3

35.7

9.2

9.7

31.4

12.7

45.1

12.0

42.2

10.8

37.7

33.1

10

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

25.7

24.0

21.5

18.9

28.0

26.2

23.4

20.6

31.1

29.1

26.0

22.8

34.7

32.4

29.0

25.5

10.9

38.7

10.3

36.1

9.3

8.4

32.3

28.4

9.9

9.4

8.5

7.6

35.1

32.8

29.3

25.8

10.4

36.8

9.8

34.4

30.7

27.0

39.2

36.6

32.7

28.8

11.9

42.0

11.2

39.3

10.1

35.1

9.1

30.9

11.3

39.9

10.6

37.3

33.3

29.3

11.6

41.0

10.9

38.3

34.2

30.1

15.2

14.5

13.6

12.7

19.7

18.8

17.6

16.4

23.8

22.8

21.3

19.8

27.7

26.5

24.8

23.1

31.4

30.1

28.1

26.2

16.3

15.6

14.6

13.6

21.2

20.3

18.9

17.6

25.8

24.7

23.1

21.5

30.4

29.1

27.1

25.3

14.3

13.7

12.8

11.9

19.2

18.4

17.2

16.0

24.1

23.0

21.5

20.0

28.8

27.6

25.8

24.0

8.3

7.8

7.0

6.2

8.7

8.1

7.3

6.4

8.5

8.0

7.2

6.3

8.1

7.6

6.8

6.0

7.5

7.0

6.3

5.5

8.0

7.5

6.7

5.9

7.9

7.4

6.6

5.8

7.1

6.7

6.0

5.3

6.4

5.9

5.3

4.7

7.1

6.6

5.9

5.2

5.3

4.9

4.4

3.9

5.7

5.4

4.8

4.3

9.2

8.6

7.7

6.8

UV-PRC003-EN 31

UV-PRC003-EN.book Page 32 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 075 - Coil E

Table 8.

VUV 075, cooling coil E, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

67

70

75

80

85

90

75

80

85

90

75

80

85

90 40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

Total

Capacity

(MBh)

12.0

11.3

10.4

9.4

13.0

12.3

11.3

10.3

2

Sensible

Capacity

(MBh)

9.5

9.2

8.8

8.3

12.4

12.0

11.3

10.3

ΔT

(°F)

Flow Rate (gpm)

4

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

6

Sensible

Capacity

(MBh)

ΔT

(°F)

12.6

17.9

12.0

16.9

11.1

15.4

10.1

13.9

13.7

19.5

13.0

18.4

12.0

16.8

11.0

15.1

12.1

11.7

11.1

10.5

15.7

15.2

14.4

13.6

9.3

8.8

8.0

7.3

22.0

20.8

18.8

16.8

10.1

24.0

9.6

22.6

13.6

13.1

12.4

11.6

17.7

17.0

16.0

15.1

14.5

13.7

12.5

11.4

16.1

15.3

14.0

12.7

14.5

13.7

12.5

11.4

16.1

15.3

14.0

12.7

15.1

14.4

13.2

12.1

16.8

16.0

14.7

13.4

21.6

20.4

18.6

16.8

24.2

22.8

20.8

18.7

19.0

18.4

17.5

16.5

22.1

21.4

20.3

18.7

8.7

7.9

20.5

18.3

11.2

26.7

10.6

25.1

9.7

8.7

22.7

20.3

12.4

29.8

11.8

28.0

10.7

25.4

9.7

22.7

21.4

20.6

19.4

18.3

24.9

24.0

22.6

21.2

7.6

7.1

6.5

5.8

8.2

7.8

7.1

6.3

26.4

24.8

22.2

19.5

28.8

27.0

24.2

21.3

9.1

8.6

7.8

7.0

32.0

29.9

26.8

23.6

10.1

35.7

9.6

33.4

10

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

15.3

14.7

13.7

12.7

19.9

19.0

17.7

16.5

24.1

23.0

21.5

19.9

28.0

26.8

25.0

23.2

5.4

5.1

4.6

4.0

5.9

5.5

5.0

4.4

18.0

17.0

15.6

14.2

16.3

15.4

14.2

12.9

17.1

16.2

14.8

13.5

18.2

17.3

15.8

14.4

18.0

17.0

15.6

14.2

10.3

9.9

9.4

8.9

13.3

12.9

12.2

11.5

16.2

15.7

14.9

14.1

18.7

17.7

16.3

14.9

17.0

16.1

14.8

13.5

17.8

16.9

15.5

14.2

18.9

17.9

16.5

15.0

26.9

25.4

23.2

20.9

24.4

23.1

21.0

18.9

25.6

24.2

22.0

19.9

27.3

25.8

23.5

21.2

25.1

24.3

23.0

20.9

13.1

12.6

12.0

11.3

16.9

16.3

15.5

14.6

20.6

19.9

18.9

17.9

13.8

13.1

11.9

10.8

12.5

11.9

10.8

9.8

13.2

12.4

11.4

10.3

14.0

13.2

12.1

10.9

33.2

31.2

28.3

25.3

30.1

28.3

25.6

22.9

31.6

29.7

26.9

24.1

33.6

31.6

28.6

25.6

28.2

27.1

25.6

24.1

14.7

14.1

13.3

12.5

19.0

18.3

17.2

16.2

23.2

22.3

21.1

19.8

8.7

7.8

29.9

26.3

11.3

39.8

10.6

37.2

9.7

8.7

33.3

29.4

10.3

36.1

9.7

33.8

8.8

7.9

30.2

26.6

10.7

37.9

10.1

35.4

9.2

8.2

31.7

27.9

11.4

40.3

10.8

37.7

31.7

30.3

28.3

26.3

16.5

15.8

14.7

13.7

21.4

20.4

19.1

17.7

26.1

24.9

23.3

21.6

8.1

7.6

6.8

6.0

7.4

6.9

6.2

5.5

6.5

6.1

5.5

4.9

7.3

6.8

6.1

5.4

19.5

18.5

17.0

15.4

18.6

17.6

16.1

14.6

19.1

18.5

17.0

15.4

9.0

8.7

8.3

7.8

20.2

19.2

17.6

16.1

19.2

18.3

16.8

15.3

29.3

27.6

25.2

22.7

27.8

26.3

23.9

21.6

24.2

23.4

22.2

21.0

11.4

11.0

10.5

9.9

15.0

14.2

12.9

11.7

14.2

13.5

12.3

11.1

36.0

33.9

30.7

27.5

34.2

32.2

29.2

26.1

27.2

26.2

24.7

23.3

12.8

12.4

11.7

11.0

9.8

8.8

33.8

29.7

12.2

43.2

11.5

40.5

10.5

36.2

9.4

31.9

11.6

41.1

11.0

38.4

30.6

29.3

27.3

25.4

14.4

13.8

12.9

12.0

7.7

7.2

6.5

5.7

8.2

7.7

6.9

6.1

19.1

18.1

16.5

15.0

19.9

18.8

17.3

15.7

21.0

19.9

18.2

16.5

12.1

11.7

11.1

10.5

15.1

14.7

13.9

13.1

18.1

17.5

16.7

15.7

19.8

18.7

17.2

15.7

20.6

19.5

17.9

16.4

21.7

20.6

18.9

17.2

28.5

27.0

24.6

22.2

29.8

28.1

25.6

23.1

31.4

29.7

27.0

24.4

15.3

14.8

14.1

13.3

19.2

18.6

17.6

16.7

23.0

22.3

21.1

20.0

14.6

13.8

12.6

11.4

15.2

14.4

13.2

11.9

16.0

15.2

13.9

12.5

35.2

33.1

30.0

26.8

36.7

34.5

31.3

28.0

38.7

36.4

33.0

29.5

17.2

16.6

15.7

14.7

21.6

20.8

19.6

18.4

25.9

24.9

23.5

22.1

10.0

34.4

8.9

30.3

11.9

42.2

11.3

39.5

10.2

35.3

9.2

31.1

12.5

44.0

11.7

41.2

10.7

9.6

36.9

32.5

13.1

46.4

12.4

43.4

11.2

38.9

10.1

34.2

19.4

18.6

17.3

16.1

24.3

23.2

21.7

20.1

29.1

27.8

26.0

24.1

8.6

8.0

7.2

6.4

8.9

8.4

7.5

6.6

8.8

8.2

7.4

6.5

8.4

7.8

7.0

6.2

9.4

8.8

7.9

7.0

32 UV-PRC003-EN

UV-PRC003-EN.book Page 33 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 075 - Coil F

Table 9.

VUV 075, cooling coil F, 4-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

67

70

75

80

85

90

75

80

85

90

75

80

85

90 40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

2

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

11.9

11.2

10.2

9.2

13.0

12.3

11.2

10.1

14.4

13.6

12.4

11.2

16.0

15.2

13.8

12.5

17.9

16.9

15.4

13.9

16.2

15.3

14.0

12.6

17.0

16.1

14.7

13.2

18.1

17.1

15.6

14.1

19.4

18.4

16.7

15.1

18.5

17.4

15.9

14.3

19.0

17.9

16.3

14.7

19.8

18.7

17.0

15.4

20.9

19.7

18.0

16.2

9.1

8.8

8.4

7.9

11.8

11.4

10.8

10.1

14.3

13.6

12.4

11.2

16.0

15.2

13.8

12.5

17.9

16.9

15.4

13.9

9.8

9.5

9.0

8.5

12.7

12.3

11.7

11.0

15.5

15.0

14.2

13.4

18.2

17.6

16.7

15.1

8.6

8.3

7.9

7.4

11.5

11.2

10.6

10.0

14.4

14.0

13.3

12.5

17.3

16.7

15.9

14.9

13.6

12.9

11.9

10.8

16.7

15.8

14.5

13.1

16.9

16.0

14.7

13.3

17.7

16.8

18.8

17.8

16.3

14.8

20.1

19.1

19.1

18.1

16.6

15.0

19.6

18.6

20.5

19.4

17.7

16.1

Flow Rate (gpm)

4

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

12.6

17.1

11.9

16.1

10.9

14.7

9.9

13.2

18.7

17.6

16.0

14.4

15.1

20.7

14.3

19.5

13.1

17.7

11.9

15.9

23.1

21.8

19.8

17.8

18.6

25.7

17.6

24.3

16.1

22.1

14.6

19.8

23.3

22.0

20.0

18.0

24.5

23.1

15.3

21.0

13.9

18.8

26.1

24.6

22.4

20.1

28.0

26.4

17.4

24.0

15.8

21.5

26.6

25.1

22.8

20.4

27.3

25.7

17.0

23.4

15.4

21.0

28.5

26.9

24.4

21.9

21.5

30.0

20.4

28.3

18.7

25.7

16.9

23.1

11.4

11.0

10.4

9.8

14.7

14.2

13.5

12.7

17.8

17.2

16.3

15.3

20.7

20.0

18.9

17.8

23.5

22.7

21.5

19.8

12.2

11.8

11.2

10.5

15.8

15.3

14.5

13.6

19.3

18.7

17.7

16.6

22.7

21.9

20.7

19.5

10.7

10.3

9.8

9.2

14.4

13.9

13.1

12.4

18.0

17.4

16.5

15.5

21.6

20.8

19.7

18.6

8.9

8.4

7.7

6.9

9.7

9.1

8.3

7.5

10.8

9.8

14.3

13.5

12.3

11.1

13.6

12.9

11.7

10.6

14.0

13.2

12.0

10.8

14.6

13.8

12.6

11.3

15.4

14.5

13.2

11.9

Total

Capacity

(MBh)

20.9

19.6

17.8

15.9

22.8

21.4

19.4

17.3

10.7

25.2

10.1

23.8

9.2

8.3

12.0

11.4

10.3

9.3

21.5

19.2

11.9

28.2

11.2

26.5

10.2

24.0

9.2

21.4

13.2

31.4

12.5

29.6

11.4

26.7

10.2

23.9

28.5

26.8

24.2

21.6

12.6

29.9

11.9

28.1

25.4

22.7

13.4

31.8

12.6

29.9

11.5

27.1

10.4

24.2

34.1

32.1

29.1

25.9

32.4

30.5

27.6

24.6

33.3

31.3

28.3

25.3

34.7

32.7

29.6

26.4

36.6

34.5

31.2

27.8

6

Sensible

Capacity

(MBh)

12.7

12.3

11.5

10.8

16.5

15.9

14.9

14.0

20.0

19.2

18.1

17.0

23.2

22.4

21.0

19.7

26.3

25.3

23.8

22.3

13.7

13.2

12.4

11.6

17.7

17.1

16.1

15.1

21.7

20.8

19.6

18.4

25.4

24.5

23.0

21.6

12.0

11.5

10.9

10.2

16.1

15.5

14.6

13.7

20.2

19.4

18.3

17.1

24.2

23.3

21.9

20.5

ΔT

(°F)

8.6

8.1

7.4

6.6

9.6

9.1

8.2

7.4

7.2

6.8

6.2

5.5

7.8

7.4

6.7

6.0

8.7

7.8

10.8

10.2

9.3

8.3

9.9

8.9

11.0

10.4

9.4

8.4

9.7

8.7

9.5

33.7

29.7

11.8

41.8

11.1

39.2

10.1

35.1

9.0

31.0

12.4

44.1

11.7

41.3

10.6

37.0

32.7

10

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

25.1

23.5

21.1

18.6

27.4

25.7

23.0

20.3

30.4

28.5

25.5

22.5

33.9

31.8

28.5

25.1

10.7

37.8

10.1

35.4

9.1

8.2

31.8

28.0

9.7

9.2

8.3

7.4

34.3

32.1

28.8

25.4

10.2

35.9

9.6

33.7

30.2

26.7

38.3

35.9

32.2

28.4

11.6

41.0

10.9

38.5

34.5

30.4

39.0

36.5

32.8

28.9

11.3

40.0

10.7

37.5

14.3

13.7

12.8

11.8

18.6

17.8

16.5

15.3

22.5

21.5

20.0

18.6

26.2

25.0

23.3

21.6

29.7

28.3

26.4

24.5

15.4

14.8

13.7

12.7

20.0

19.1

17.8

16.5

24.4

23.3

21.7

20.1

28.7

27.4

25.5

23.7

13.5

12.9

12.0

11.2

18.2

17.3

16.2

15.0

22.7

21.7

20.2

18.8

27.2

26.0

24.2

22.5

8.1

7.6

6.9

6.1

8.5

8.0

7.2

6.3

8.3

7.8

7.0

6.2

7.9

7.4

6.7

5.9

7.3

6.9

6.2

5.5

7.8

7.3

6.6

5.8

7.7

7.2

6.5

5.7

7.0

6.6

5.9

5.2

6.2

5.8

5.2

4.6

6.9

6.5

5.8

5.2

5.2

4.8

4.4

3.9

5.6

5.3

4.7

4.2

8.9

8.4

7.5

6.7

UV-PRC003-EN 33

UV-PRC003-EN.book Page 34 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 075 - Coil G

Table 10. VUV 075, coil G, 4-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

67

70

75

80

85

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

2

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

12.0

11.4

10.4

9.3

13.1

12.4

11.3

10.2

9.0

8.7

8.2

7.7

11.6

11.2

10.7

10.0

Total

Capacity

(MBh)

12.7

17.3

12.0

16.3

11.0

14.8

10.0

13.3

13.8

18.9

13.1

17.8

12.0

16.2

10.9

14.5

Sensible

Capacity

(MBh)

11.2

10.8

10.2

9.6

4

14.5

14.0

13.2

12.4

Flow Rate (gpm)

ΔT

(°F)

9.0

8.5

7.8

7.0

9.8

9.2

8.4

7.6

Total

Capacity

(MBh)

21.0

19.8

17.9

16.0

22.9

21.6

19.6

17.5

6

Sensible

Capacity

(MBh)

12.6

12.1

11.3

10.6

16.3

15.7

14.7

13.8

ΔT

(°F)

7.2

6.8

6.2

5.6

7.9

7.4

6.7

6.0

40

42

45

48

40

42

45

48

40

42

45

48

14.6

13.7

12.5

11.3

16.2

15.3

14.0

12.6

18.1

17.1

15.6

14.0

16.4

15.5

14.1

12.7

17.2

16.3

14.8

13.3

18.3

17.3

15.8

14.2

19.7

18.6

16.9

15.2

18.7

17.6

16.1

14.5

19.2

18.1

16.5

14.9

20.0

18.9

17.2

15.5

21.1

19.9

18.2

16.4

14.1

13.6

12.5

11.3

16.2

15.3

14.0

12.6

18.1

17.1

15.6

14.0

9.6

9.3

8.9

8.3

12.5

12.1

11.5

10.8

15.2

14.8

14.0

13.2

17.9

17.3

16.4

15.2

8.4

8.2

7.7

7.3

11.3

11.0

10.4

9.8

14.2

13.7

13.0

12.3

17.0

16.5

15.6

14.7

15.2

14.4

13.2

12.0

16.9

16.0

14.7

13.3

18.8

17.8

16.3

14.7

17.1

16.2

14.8

13.4

17.9

17.0

15.5

14.0

19.0

18.0

16.5

14.9

20.4

19.3

17.6

15.9

19.4

18.3

16.8

15.2

19.9

18.8

17.2

15.6

20.7

19.6

17.9

16.2

21.8

20.6

18.9

17.0

20.9

19.8

18.0

16.1

23.4

22.0

20.0

18.0

26.0

24.6

22.3

20.1

23.6

22.3

20.3

18.2

24.8

23.4

21.3

19.1

26.4

24.9

22.6

20.3

28.3

26.7

24.3

21.8

26.9

25.4

23.1

20.7

27.6

26.0

23.7

21.3

28.8

27.2

24.7

22.2

30.4

28.7

26.1

23.4

17.6

17.0

16.0

15.1

20.5

19.7

18.6

17.5

23.2

22.4

21.1

19.9

12.1

11.6

11.0

10.3

15.6

15.1

14.2

13.4

19.1

18.4

17.4

16.3

22.4

21.6

20.4

19.2

10.6

10.2

9.6

9.0

14.2

13.7

12.9

12.1

17.8

17.1

16.2

15.2

21.3

20.5

19.4

18.2

10.8

25.4

10.2

24.0

9.3

8.4

21.7

19.4

12.0

28.4

11.4

26.7

10.4

24.2

9.3

21.6

13.4

31.6

12.6

29.8

11.5

27.0

10.4

24.1

12.1

11.5

10.5

9.4

14.5

13.7

12.5

11.2

13.8

13.0

11.9

10.7

14.1

13.4

12.2

11.0

14.7

13.9

12.7

11.4

15.5

14.7

13.4

12.0

28.7

27.0

24.5

21.8

12.7

30.1

12.0

28.4

11.0

25.7

9.9

22.9

13.5

32.1

12.8

30.2

11.7

27.3

10.5

24.4

34.4

32.4

29.3

26.2

32.7

30.8

27.9

24.9

33.5

31.6

28.6

25.5

35.0

33.0

29.9

26.7

36.9

34.8

31.5

28.1

19.7

19.0

17.8

16.7

22.9

22.0

20.7

19.4

26.0

25.0

23.5

21.9

13.5

13.0

12.2

11.4

17.5

16.8

15.8

14.8

21.4

20.5

19.3

18.0

25.1

24.1

22.7

21.2

11.8

11.4

10.7

10.0

15.9

15.3

14.4

13.4

19.9

19.1

18.0

16.8

23.9

22.9

21.5

20.1

8.7

8.2

7.5

6.7

9.7

9.1

8.3

7.4

10.8

37.7

10.2

35.4

9.2

8.3

31.8

28.0

9.8

9.2

8.4

7.5

34.2

32.1

28.8

25.4

10.3

35.9

9.7

33.7

30.3

28.4

25.5

22.5

33.8

31.7

28.5

25.2

8.8

7.9

9.1

12.5

44.0

11.8

41.3

10.7

9.6

10

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

25.1

23.5

21.1

18.6

27.3

25.6

23.0

20.3

14.1

13.5

12.6

11.6

18.3

17.5

16.3

15.0

5.2

4.8

4.4

3.9

5.6

5.3

4.7

4.2

30.2

26.7

10.9

38.2

10.3

35.8

9.3

8.4

32.2

28.4

11.7

41.0

11.0

38.4

10.0

9.0

11.1

38.9

10.5

36.5

9.5

8.5

34.5

30.5

32.8

28.9

11.4

40.0

10.8

37.5

9.8

8.7

33.7

29.7

11.9

41.7

11.2

39.1

10.2

35.1

31.0

37.0

32.7

22.2

21.2

19.7

18.2

25.8

24.6

22.9

21.2

29.2

27.9

26.0

24.0

15.2

14.5

13.5

12.5

19.7

18.8

17.5

16.2

24.1

23.0

21.3

19.7

28.3

27.0

25.1

23.2

13.3

12.7

11.8

10.9

17.9

17.1

15.9

14.7

22.4

21.4

19.9

18.4

26.8

25.6

23.8

22.0

8.3

7.8

7.0

6.2

7.9

7.4

6.7

5.9

7.3

6.9

6.2

5.5

7.8

7.3

6.6

5.8

7.7

7.2

6.5

5.7

7.0

6.6

5.9

5.2

6.2

5.8

5.2

4.6

6.9

6.5

5.8

5.2

8.1

7.6

6.9

6.1

8.5

8.0

7.2

6.3

8.9

8.4

7.5

6.7

34 UV-PRC003-EN

UV-PRC003-EN.book Page 35 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 075 - Coil H

Table 11. VUV 075, cooling coil H, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

67

70

75

80

85

90

75

80

85

90

75

80

85

90 40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

Total

Capacity

(MBh)

13.8

13.2

12.1

11.0

15.0

14.3

13.2

12.0

16.7

15.9

14.7

13.3

9.9

9.5

2

Sensible

Capacity

(MBh)

10.5

10.3

13.6

13.3

12.8

12.0

16.4

15.9

14.7

13.3

ΔT

(°F)

14.5

13.8

Flow Rate (gpm)

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

12.8

17.2

11.7

15.4

15.7

15.0

13.9

18.8

12.7

16.8

17.4

16.6

20.1

19.0

21.9

20.7

24.3

22.9

15.4

20.8

14.0

18.6

4

12.7

12.3

11.7

11.1

16.5

15.9

15.1

14.3

19.9

19.3

18.3

17.4

10.4

23.2

9.8

21.8

8.9

8.0

11.3

25.3

10.7

23.8

9.7

8.7

12.5

28.1

11.8

26.4

10.8

9.6

Total

Capacity

(MBh)

19.8

17.6

21.5

19.2

23.9

21.3

6

Sensible

Capacity

(MBh)

13.8

13.3

12.5

11.8

17.9

17.2

16.2

15.2

21.7

20.8

19.6

18.5

ΔT

(°F)

8.0

7.5

6.8

6.1

8.7

8.2

7.4

6.6

9.6

9.0

8.2

7.3

18.6

17.8

16.4

14.9

18.6

17.8

16.4

14.9

19.3

18.4

17.1

15.6

27.1

25.6

23.2

20.8

23.2

22.4

21.3

20.2

13.9

13.1

12.0

10.7

31.3

29.5

26.7

23.7

25.2

24.2

22.8

21.5

Total

Capacity

(MBh)

26.1

24.6

22.2

19.7

28.5

26.8

24.2

21.5

31.6

29.7

26.8

23.8

10.7

35.3

10.1

33.1

9.1

8.1

29.9

26.6

10

Sensible

Capacity

(MBh)

14.9

14.2

13.3

12.4

19.2

18.4

17.2

16.1

23.3

22.3

20.9

19.5

27.1

25.9

24.3

22.7

ΔT

(°F)

6.5

6.1

5.5

4.9

7.2

6.8

6.1

5.5

5.4

5.0

4.6

4.1

5.8

5.5

5.0

4.4

20.8

19.8

18.3

16.6

18.8

17.9

16.5

15.0

19.8

18.8

17.4

15.8

21.0

20.0

18.5

16.8

22.6

21.5

19.8

18.0

21.4

20.4

18.8

17.1

20.8

19.8

18.3

16.6

11.3

11.0

10.7

10.2

14.6

14.3

13.8

13.3

17.8

17.4

16.8

16.2

20.9

20.5

19.8

18.0

9.9

9.7

9.3

9.0

21.4

20.5

18.9

17.3

19.5

18.6

17.2

15.7

20.4

19.5

18.0

16.5

21.7

20.7

19.2

17.5

23.2

22.2

20.5

18.7

22.1

21.1

19.5

17.8

30.3

28.5

25.9

23.2

27.4

25.9

23.5

21.0

28.8

27.2

24.6

22.0

30.6

28.9

26.2

23.5

32.9

31.0

28.2

25.2

31.2

29.5

26.7

23.9

26.3

25.4

24.1

22.9

13.7

13.2

12.6

11.9

17.7

17.1

16.2

15.4

21.6

20.9

19.8

18.8

25.4

24.6

23.3

22.1

12.0

11.6

11.0

10.4

15.5

14.6

13.3

11.9

14.1

13.3

12.1

10.8

14.7

13.9

12.7

11.4

15.7

14.8

13.5

12.1

16.8

15.9

14.4

12.9

16.0

15.1

13.7

12.3

34.9

32.9

29.7

26.5

31.7

29.8

27.0

24.0

33.2

31.3

28.3

25.2

35.4

33.3

30.1

26.8

38.0

35.7

32.3

28.8

36.0

33.9

30.7

27.3

28.6

27.5

25.8

24.3

14.9

14.3

13.5

12.7

19.2

18.5

17.4

16.4

23.5

22.6

21.3

20.0

27.6

26.5

25.0

23.5

13.0

12.5

11.8

11.1

11.9

39.3

11.2

37.0

10.1

33.3

9.1

29.6

10.8

35.6

10.2

33.5

9.2

8.2

12.0

11.3

10.3

9.2

10.5

9.3

30.2

26.9

11.3

37.4

10.7

35.2

9.7

8.6

31.7

28.2

39.8

37.4

33.8

30.0

12.9

42.7

12.1

40.2

11.0

36.2

9.8

32.2

12.2

40.6

11.5

38.1

34.4

30.6

12.6

41.7

11.8

39.2

30.7

29.4

27.5

25.7

16.0

15.3

14.3

13.4

20.7

19.8

18.5

17.3

25.3

24.2

22.6

21.1

29.7

28.4

26.6

24.8

14.0

13.4

12.5

11.7

7.6

7.2

6.5

5.8

8.1

7.6

6.9

6.1

8.0

7.5

6.8

6.1

7.3

6.8

6.2

5.5

22.0

21.0

19.3

17.6

23.0

21.9

20.2

18.4

13.3

13.0

12.5

12.0

16.6

16.3

15.7

15.1

22.7

32.1

21.7

30.3

20.0

27.5

18.3

24.6

23.7

33.5

22.6

31.6

20.9

28.7

19.0

25.6

16.1

15.6

14.8

14.0

20.1

19.5

18.5

17.5

16.4

37.0

15.5

34.8

14.1

31.5

12.6

28.1

17.1

38.6

16.1

36.4

14.7

32.9

13.2

29.3

17.5

16.8

15.8

14.9

21.9

21.0

19.8

18.6

10.7

9.6

35.3

31.4

13.1

43.5

12.4

40.9

11.2

36.9

10.0

32.8

18.8

18.0

16.8

15.7

23.5

22.5

21.1

19.7

8.7

8.2

7.4

6.6

8.3

7.8

7.0

6.3

8.5

8.0

7.2

6.4

8.8

8.3

7.5

6.7

24.2

23.1

21.3

19.4

19.9

19.5

18.8

18.1

24.9

35.3

23.8

33.3

22.0

30.2

20.0

27.0

24.1

23.3

22.1

21.0

18.0

40.7

17.0

38.3

15.4

34.7

13.8

30.9

26.2

25.2

23.7

22.3

13.8

45.8

13.0

43.1

11.8

38.9

10.5

34.5

28.2

27.0

25.2

23.6

9.3

8.8

7.9

7.0

UV-PRC003-EN 35

UV-PRC003-EN.book Page 36 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 075 - Coil (DX)

Table 12. VUV 075, cooling coil J (DX)

Size

750

EWB

61

64

Suct

Temp

40

45

50

40

45

EDB = 70°F EDB = 75°F EDB = 80°F EDB = 85°F

TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB

22.8

15.0

51.4

50.0

25.0

19.9

50.4

48.8

27.7

24.3

49.9

47.2

30.9

28.5

49.7

45.4

19.1

13.7

53.0

52.0

20.9

18.1

52.6

51.0

23.2

22.1

52.6

49.7

25.9

25.9

52.9

48.2

15.4

12.3

54.8

53.8

16.9

16.2

54.9

53.1

18.7

18.7

56.9

52.1

20.9

20.9

59.1

50.9

27.1

13.0

53.9

51.6

28.6

18.3

52.3

50.8

30.4

23.2

51.3

49.8

32.7

27.9

50.5

48.5

22.7

11.8

55.4

53.9

23.9

16.6

54.5

53.2

25.5

21.1

53.9

52.3

27.4

25.3

53.7

51.3

67

70

73

50

40

45

50

40

45

50

40

18.3

10.6

56.9

56.0

19.3

14.9

56.6

55.5

20.6

19.0

56.5

54.8

22.1

22.1

57.6

54.0

32.1

10.4

57.1

53.1

33.1

16.0

55.2

52.5

34.3

21.3

53.6

51.8

35.9

26.3

52.4

50.9

26.9

9.4

21.7

8.5

58.4

59.5

55.7

58.1

27.8

22.4

14.5

13.1

57.1

58.8

55.1

57.7

28.8

23.2

19.3

17.4

56.1

58.5

54.6

57.2

30.1

24.3

23.9

21.5

55.4

58.4

53.9

56.7

38.4

13.2

58.7

54.1

39.2

18.7

56.9

53.6

40.3

24.0

55.3

53.0

32.2

12.0

60.1

57.0

32.9

17.0

59.0

56.6

33.7

21.9

57.9

56.2

26.0

10.8

61.6

59.8

26.5

15.3

61.1

59.5

27.2

19.7

60.6

59.2

44.8

15.6

60.7

55.3

45.6

21.1

58.9

54.8

37.6

14.2

62.4

58.6

38.2

19.2

61.2

58.3

30.3

12.8

64.2

61.8

30.8

17.3

63.6

61.5

45

50

EDB = Entering Air Temperature, Dry Bulb (°F)

EWB = Entering Air Temperature, Wet Bulb (°F)

TC = Total Capacity (MBh)

SC = Sensible Capacity (MBh)

LDB = Leaving Air Temperature, Dry Bulb (°F)

LWB = Leaving Air Temperature, Wet Bulb (°F)

%

120

110

100

90

80

Table 13. Airflow correction (% of design airflow)

Total Capacity

(MBh)

1.025

1.012

1.000

0.987

0.974

Sensible Capacity

(MBh)

1.105

1.051

0.998

0.945

0.892

Table 14. Airflow through coil J

Unit Model

Rated cfm

0750

748

36 UV-PRC003-EN

UV-PRC003-EN.book Page 37 Tuesday, June 4, 2013 8:59 PM

UV-PRC003-EN

Performance Data

Heating - 075 - Coil A, B, C

Entering

Air Temp,

Dry Bulb

(°F)

50

55

60

65

70

50

55

60

65

70

50

55

60

65

70

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

Entering

Water

Temp (°F)

120

140

160

180

23.8

33.5

43.3

53.4

22.2

31.3

40.6

50.0

26.8

37.7

48.9

60.2

25.3

35.6

46.1

56.8

21.5

30.1

39.0

48.1

28.3

39.9

51.7

63.6

24.4

34.3

44.4

54.6

22.9

32.2

41.7

51.4

27.3

38.4

49.7

61.2

25.9

36.3

47.0

57.9

16.5

23.1

29.7

36.5

15.4

21.6

27.8

34.2

18.6

26.0

33.5

41.2

17.5

24.6

31.6

38.8

Total

Capacity

(MBh)

19.7

27.5

35.5

43.5

Table 15. VUV 075, hydronic heating coils A (1-row / 12 fpi), B (2-row / 12 fpi), C (2-row / 16 fpi)

Coil

A

B

C

23.1

32.8

42.6

52.7

21.5

30.6

39.9

49.3

26.1

37.0

48.2

59.5

24.6

34.9

45.4

56.1

20.8

29.4

38.3

47.4

27.6

39.2

51.0

62.9

23.7

33.6

43.7

53.9

22.2

31.5

41.0

50.7

26.6

37.7

49.0

60.5

25.2

35.6

46.3

57.2

15.8

22.4

29.0

35.8

14.7

20.9

27.1

33.5

17.9

25.3

32.8

40.5

16.8

23.9

30.9

38.1

2

Waterside

Temp Drop

(°F)

19.0

26.8

34.8

42.8

32.2

45.4

58.7

72.0

30.3

42.7

55.1

67.7

36.1

50.9

65.7

80.7

34.2

48.1

62.2

76.3

28.3

39.9

51.6

63.4

28.9

40.7

52.6

64.6

27.0

38.1

49.2

60.4

32.5

45.9

59.3

72.8

30.7

43.3

55.9

68.7

18.0

25.2

32.5

39.8

34.4

48.5

62.7

77.0

20.4

28.7

36.9

45.3

19.2

26.9

34.7

42.6

Flow Rate (gpm)

Total

Capacity

(MBh)

4

Waterside

Temp Drop

(°F)

22.9

32.1

41.4

50.8

21.7

30.4

39.2

48.0

11.1

15.7

20.4

25.1

10.5

14.9

19.3

23.7

9.9

14.0

18.1

22.3

9.3

13.1

17.0

21.0

8.7

12.3

15.9

19.6

16.9

23.9

31.0

38.2

15.8

22.4

29.0

35.7

14.8

21.0

27.2

33.5

17.7

25.1

32.5

40.0

16.8

23.7

30.8

37.8

13.8

19.6

25.5

31.4

14.1

20.0

26.0

32.0

13.2

18.7

24.3

29.9

15.9

22.6

29.3

36.1

15.0

21.3

27.6

34.0

33.1

46.6

60.1

73.7

31.0

43.6

56.2

68.9

37.3

52.5

67.8

83.1

35.2

49.5

63.9

78.4

29.5

41.5

53.6

65.7

39.5

55.5

71.6

87.8

33.5

47.2

60.9

74.7

31.5

44.4

57.3

70.2

37.6

52.9

68.2

83.7

35.5

50.0

64.6

79.2

20.4

28.6

36.8

45.1

19.1

26.7

34.4

42.2

23.0

32.2

41.5

50.8

21.7

30.4

39.2

47.9

Total

Capacity

(MBh)

24.3

34.1

43.9

53.7

10.8

15.3

19.8

24.3

10.1

14.3

18.5

22.7

12.2

17.3

22.4

27.5

11.5

16.3

21.1

25.9

9.6

13.6

17.6

21.7

12.9

18.3

23.6

29.0

10.9

15.5

20.1

24.7

10.3

14.6

18.9

23.2

12.3

17.4

22.5

27.7

11.6

16.4

21.3

26.2

6.6

9.3

12.0

14.8

6.1

8.7

11.2

13.8

7.4

10.5

13.6

16.7

7.0

9.9

12.8

15.7

6

Waterside

Temp Drop

(°F)

7.9

11.1

14.4

17.7

37

UV-PRC003-EN.book Page 38 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 075 - Coil K, L

Table 16. VUV 075, steam heating coil K (low-capacity), L (high-capacity)

Size

750

Coil

K

L 0

10

20

30

40

50

60

70

0

10

20

30

Entering

Air Temp,

Dry Bulb

(°F)

40

50

66.9

63.3

60

70 psig = Steam Pressure (lb/in.

2 gage)

59.7

56.2

56.6

53.6

50.6

47.5

81.2

77.6

74.0

70.4

Total

Capacity

(MBh)

68.7

65.7

62.7

59.7

5

Airside

Temp Rise

(°F)

84.8

81.1

77.4

73.6

69.9

66.2

62.4

58.7

100.2

95.8

91.4

87.0

82.6

78.2

73.7

69.4

85.4

81.8

78.2

74.7

71.1

67.5

63.9

60.4

Steam Pressure (psig)

Total

Capacity

(MBh)

10

Airside

Temp Rise

(°F)

72.3

69.3

66.2

63.2

60.2

57.1

54.1

51.1

89.2

85.5

81.8

78.0

74.3

70.6

66.8

63.1

105.4

101.0

96.6

92.2

87.8

83.4

78.9

74.6

63.2

60.2

57.2

54.2

89.0

85.4

81.8

78.3

Total

Capacity

(MBh)

75.3

72.3

69.3

66.3

74.7

71.1

67.5

64.0

15

Airside

Temp Rise

(°F)

93.0

89.2

85.5

81.8

78.1

74.3

70.6

66.9

109.9

105.4

101.0

96.6

92.2

87.8

83.4

79.0

38 UV-PRC003-EN

UV-PRC003-EN.book Page 39 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 100 - Coil E

Table 17. VUV 100, cooling coil E, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

20.1

19.2

17.6

15.9

21.0

20.0

18.4

16.6

22.1

21.1

19.4

17.5

20.6

19.6

18.1

16.3

19.6

18.7

17.1

15.4

18.0

17.2

15.8

14.2

19.2

18.3

16.8

15.2

19.0

18.1

16.6

15.0

17.2

16.4

15.1

13.6

15.2

14.5

13.4

12.0

17.0

16.2

14.9

13.4

2

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

12.6

12.0

11.0

9.9

13.7

13.1

12.0

10.9

11.3

11.0

10.4

9.7

13.7

13.1

12.0

10.9

Total

Capacity

(MBh)

13.5

18.6

12.9

17.7

11.9

16.2

10.9

14.7

14.7

20.3

14.0

19.3

12.9

17.7

11.8

16.1

4

Flow Rate (gpm)

Sensible

Capacity

(MBh)

14.3

13.9

13.4

12.7

18.5

18.1

17.3

16.1

ΔT

(°F)

9.7

9.3

8.6

7.8

10.6

25.3

10.1

24.0

9.3

8.5

Total

Capacity

(MBh)

23.2

22.0

20.2

18.3

22.0

19.9

6

Sensible

Capacity

(MBh)

16.1

15.6

14.9

14.2

20.8

20.2

19.3

18.4

ΔT

(°F)

8.0

7.6

7.0

6.4

8.7

8.3

7.6

6.9

15.2

14.5

13.4

12.0

17.0

16.2

14.9

13.4

19.0

18.1

16.6

15.0

12.2

11.8

11.2

10.5

16.2

15.4

14.3

12.9

17.9

17.1

15.8

14.3

19.9

19.0

17.5

15.9

18.1

17.3

16.0

14.5

22.5

21.4

19.7

17.8

25.1

23.9

21.9

19.9

28.0

26.6

24.4

22.2

25.4

24.1

22.2

20.1

22.4

21.4

19.7

17.8

25.1

23.9

21.9

19.9

28.0

26.6

24.4

22.2

15.4

15.0

14.4

13.7

11.7

11.1

10.3

9.4

28.1

26.7

24.4

22.1

13.0

31.4

12.4

29.8

11.4

27.3

10.4

24.7

14.4

35.0

13.8

33.2

12.7

30.4

11.5

27.5

25.2

24.5

23.4

22.1

29.3

28.5

27.2

24.7

33.2

32.3

30.4

27.5

17.3

16.8

16.1

15.3

9.7

9.2

8.4

7.7

35.4

33.4

30.4

27.3

10.8

39.5

10.2

37.3

9.4

8.5

33.9

30.4

12.0

44.0

11.4

41.5

10.4

37.8

9.5

33.9

10

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

29.2

27.6

25.1

22.5

31.9

30.1

27.4

24.6

18.1

17.5

16.6

15.6

23.5

22.7

21.5

20.3

6.0

5.7

5.2

4.7

6.6

6.2

5.7

5.1

28.5

27.5

26.0

24.5

33.1

31.9

30.2

28.5

37.5

36.2

34.3

32.3

19.5

18.8

17.8

16.8

15.8

15.3

14.5

13.6

19.2

18.3

16.8

15.2

20.6

19.6

18.1

16.3

10.7

10.4

9.8

9.2

18.9

18.1

16.7

15.1

20.1

19.2

17.7

16.1

21.5

20.5

19.0

17.2

20.5

19.6

18.0

16.4

26.6

25.3

23.3

21.1

28.3

26.9

24.8

22.4

30.4

28.9

26.6

24.1

28.9

27.5

25.2

22.9

19.9

19.4

18.6

17.7

24.3

23.7

22.7

21.6

28.6

27.9

26.6

24.1

13.5

13.1

12.6

12.0

13.1

31.7

12.5

30.1

11.5

27.6

10.5

24.9

13.8

33.3

13.1

31.5

12.1

28.9

11.0

26.2

14.6

35.4

13.9

33.6

12.8

30.8

11.7

27.9

15.7

38.0

14.9

36.0

13.7

33.0

12.5

29.9

22.4

21.8

20.8

19.8

27.3

26.6

25.4

24.1

32.1

31.2

29.8

28.4

15.1

14.7

14.1

13.4

10.9

39.9

10.3

37.7

9.5

8.6

34.2

30.8

11.4

41.9

10.8

39.5

9.9

9.0

35.9

32.3

12.1

44.6

11.5

42.1

10.6

38.2

9.6

34.4

13.0

47.8

12.3

45.1

11.3

41.0

10.3

36.9

25.3

24.4

23.1

21.8

30.8

29.8

28.2

26.6

36.3

35.0

33.1

31.2

17.1

16.5

15.6

14.7

9.0

8.5

7.7

7.0

8.2

7.7

7.0

6.3

7.3

6.9

6.3

5.6

8.1

7.6

7.0

6.3

14.3

13.9

13.2

12.3

17.9

17.4

16.5

15.4

21.5

20.9

19.4

17.5

21.0

20.1

18.5

16.8

21.9

20.9

19.3

17.5

23.0

22.0

20.3

18.4

29.7

28.2

25.9

23.5

31.0

29.4

27.0

24.5

32.6

31.0

28.5

25.8

18.1

17.6

16.9

16.1

22.7

22.1

21.2

20.1

27.1

26.5

25.4

24.1

14.9

36.1

14.2

34.2

13.1

31.4

11.9

28.4

15.3

37.1

14.6

35.2

13.4

32.2

12.2

29.2

15.9

38.7

15.2

36.7

14.0

33.6

12.7

30.4

16.8

40.8

16.0

38.7

14.7

35.4

13.4

32.1

20.3

19.8

18.9

18.0

25.5

24.8

23.7

22.5

30.5

29.6

28.3

26.9

12.3

45.4

11.7

42.9

10.8

39.0

9.8

35.0

12.7

46.6

12.0

44.0

11.0

40.0

10.0

36.0

13.2

48.7

12.5

45.9

11.5

41.8

10.4

37.5

13.9

51.3

13.2

48.4

12.1

44.0

11.0

39.6

23.0

22.1

21.0

19.8

28.7

27.7

26.3

24.8

34.4

33.2

31.4

29.7

9.7

9.2

8.4

7.6

9.3

8.8

8.0

7.2

8.6

8.1

7.4

6.6

9.1

8.6

7.8

7.1

9.5

9.0

8.2

7.4

9.9

9.4

8.5

7.7

10.4

9.9

9.0

8.1

UV-PRC003-EN 39

UV-PRC003-EN.book Page 40 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 100 - Coil F

Table 18. VUV 100, cooling coil F, 4-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

19.3

18.3

16.7

15.1

19.8

18.8

17.2

15.5

18.9

18.0

16.4

14.8

20.3

19.3

17.6

15.9

20.7

19.6

17.9

16.1

21.8

20.7

18.9

17.0

17.0

16.1

14.7

13.2

17.8

16.9

15.4

13.9

Total

Capacity

(MBh)

12.4

11.8

10.8

9.7

13.6

12.9

11.7

10.6

15.0

14.3

13.0

11.7

16.8

15.9

14.5

13.1

18.7

17.7

16.2

14.6

2

Sensible

Capacity

(MBh)

11.3

11.0

10.4

9.7

13.6

12.9

11.7

10.6

15.0

14.3

13.0

11.7

16.8

15.9

14.5

13.1

18.7

17.7

16.2

14.6

ΔT

(°F)

13.3

12.7

14.5

13.8

15.9

15.2

17.7

16.8

19.6

18.6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

19.3

18.4

11.7

16.9

10.6

15.3

21.1

20.0

12.7

18.4

11.5

16.7

23.4

22.2

13.9

20.4

12.6

18.5

26.1

24.8

15.4

22.8

14.0

20.7

29.1

27.6

17.1

25.4

15.5

23.0

4

14.1

13.8

13.2

12.6

18.3

17.8

17.1

16.3

22.2

21.6

20.4

18.5

25.8

24.8

22.8

20.7

29.1

27.6

25.4

23.0

Flow Rate (gpm)

10.1

24.1

9.6

22.8

8.9

8.1

11.0

26.2

10.5

24.9

9.7

8.8

12.1

29.1

11.6

27.6

10.7

9.7

13.5

12.8

11.8

10.8

15.0

14.3

13.1

12.0

Total

Capacity

(MBh)

20.9

19.0

22.8

20.7

25.3

23.0

32.5

30.8

28.3

25.7

36.2

34.4

31.5

28.6

6

Sensible

Capacity

(MBh)

15.8

15.4

14.7

14.0

20.5

19.9

19.0

18.1

24.8

24.1

23.0

21.9

28.9

28.0

26.8

25.5

32.8

31.8

30.3

28.6

ΔT

(°F)

8.3

7.9

7.3

6.6

9.0

8.6

7.9

7.2

10.0

9.5

8.7

8.0

11.1

40.0

10.6

37.8

9.7

8.9

12.4

44.6

11.8

42.2

10.8

9.8

Total

Capacity

(MBh)

29.7

28.0

25.5

23.0

32.3

30.6

27.9

25.1

35.9

33.9

30.9

27.8

34.5

31.0

38.4

34.6

10

Sensible

Capacity

(MBh)

17.9

17.3

16.3

15.3

23.2

22.4

21.1

19.9

28.1

27.1

25.5

24.0

32.7

31.5

29.7

28.0

37.1

35.7

33.7

31.7

ΔT

(°F)

6.1

5.8

5.3

4.8

6.7

6.3

5.8

5.2

7.4

7.0

6.4

5.7

8.2

7.7

7.1

6.4

9.1

8.6

7.9

7.1

12.2

11.8

11.2

10.6

15.7

15.3

14.6

13.7

17.9

17.0

15.6

14.1

18.7

17.8

16.3

14.8

26.4

25.1

23.0

20.9

27.7

26.3

24.1

21.9

15.2

14.8

14.2

13.5

19.7

19.2

18.4

17.5

13.6

13.0

12.0

10.9

14.3

13.6

12.5

11.4

32.8

31.1

28.6

25.9

34.4

32.7

30.0

27.2

17.0

16.5

15.8

15.0

22.1

21.4

20.4

19.4

11.2

40.5

10.7

38.2

9.8

8.9

34.8

31.4

11.8

42.5

11.2

40.1

10.3

36.6

9.4

32.9

19.3

18.6

17.5

16.5

25.0

24.1

22.7

21.3

8.3

7.8

7.1

6.5

8.7

8.2

7.5

6.8

18.9

18.0

16.4

14.8

20.3

19.3

17.6

15.9

10.6

10.3

9.8

9.3

14.3

13.9

13.2

12.5

17.9

17.4

16.6

15.6

21.4

20.7

18.9

17.0

19.8

18.9

17.3

15.7

21.2

20.2

18.5

16.8

20.2

19.2

17.6

16.0

20.7

19.7

18.1

16.4

21.6

20.5

18.8

17.0

22.7

21.6

19.8

17.9

29.5

28.0

25.7

23.3

31.6

30.0

27.6

25.0

30.0

28.5

26.2

23.8

30.8

29.3

26.9

24.4

32.2

30.6

28.1

25.5

33.9

32.2

29.6

26.9

24.0

23.4

22.4

21.4

28.2

27.5

26.3

25.0

13.3

13.0

12.4

11.8

17.9

17.4

16.7

15.9

22.4

21.8

20.9

19.9

26.8

26.1

25.0

23.9

15.2

14.4

13.3

12.1

16.3

15.5

14.2

13.0

15.5

14.7

13.6

12.3

15.9

15.1

13.9

12.7

16.5

15.7

14.5

13.2

17.4

16.6

15.3

13.9

36.7

34.8

31.9

29.0

39.3

37.3

34.3

31.1

37.4

35.5

32.5

29.5

38.4

36.4

33.4

30.3

40.0

38.0

34.9

31.6

42.2

40.1

36.8

33.4

26.9

26.1

24.9

23.7

31.7

30.7

29.3

27.9

14.9

14.5

13.8

13.1

20.0

19.4

18.6

17.7

25.1

24.4

23.2

22.1

30.1

29.2

27.8

26.5

12.5

11.9

10.9

10.0

13.4

12.7

11.7

10.7

12.8

12.1

11.1

10.1

13.1

12.4

11.4

10.4

13.7

13.0

11.9

10.8

14.4

13.7

12.6

11.4

45.2

42.7

38.9

35.0

48.5

45.8

41.8

37.6

46.1

43.5

39.7

35.7

47.3

44.7

40.7

36.7

49.4

46.7

42.5

38.3

52.0

49.2

44.8

40.3

30.5

29.4

27.7

26.1

35.8

34.5

32.5

30.6

16.9

16.3

15.3

14.4

22.7

21.8

20.6

19.4

28.4

27.4

25.8

24.3

34.0

32.8

30.9

29.1

10.1

9.5

8.7

7.8

10.6

10.0

9.1

8.2

9.4

8.9

8.1

7.3

9.6

9.1

8.3

7.5

9.2

8.7

8.0

7.2

9.9

9.3

8.5

7.7

40 UV-PRC003-EN

UV-PRC003-EN.book Page 41 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 100 - Coil G

Table 19. VUV 100, cooling coil G, 4-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

Total

Capacity

(MBh)

23.9

22.6

20.7

18.7

24.9

23.6

21.6

19.5

24.5

23.2

21.2

19.1

23.3

22.0

20.1

18.2

21.5

20.3

18.5

16.8

22.8

21.6

19.7

17.8

22.6

21.3

19.5

17.6

20.4

19.3

17.7

16.0

18.1

17.2

15.7

14.2

20.2

19.1

17.5

15.8

15.0

14.2

13.0

11.7

16.3

15.5

14.1

12.8

26.3

24.9

22.7

20.5

2

Sensible

Capacity

(MBh)

13.1

12.7

12.0

11.3

16.3

15.5

14.1

12.8

18.1

17.2

15.7

14.2

20.2

19.1

17.5

15.8

22.6

21.3

19.5

17.6

14.1

13.7

12.9

12.2

18.3

17.7

16.8

15.8

22.3

21.6

19.7

17.8

24.5

23.2

21.2

19.1

12.3

12.0

11.3

10.7

16.6

16.1

15.2

14.3

20.8

20.1

19.1

17.9

24.9

24.1

22.7

20.5

ΔT

(°F)

19.0

18.1

16.6

15.1

21.1

20.0

18.4

16.7

23.5

22.2

20.4

18.5

21.4

20.3

18.6

16.9

22.4

21.2

19.4

17.7

23.7

22.5

20.6

18.8

25.4

24.1

22.1

20.1

24.2

22.9

21.0

19.1

24.8

23.5

21.6

19.6

25.9

24.5

22.5

20.4

27.2

25.8

23.6

21.5

Flow Rate (gpm)

4

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

6

Sensible

Capacity

(MBh)

ΔT

(°F)

15.9

22.9

15.1

21.7

13.9

19.7

12.6

17.8

17.2

25.0

16.4

23.6

15.0

21.5

13.7

19.4

27.7

26.2

23.9

21.5

31.0

29.2

26.6

24.0

34.5

32.6

29.7

26.7

31.3

29.6

26.9

24.2

32.8

31.0

28.3

25.4

35.0

33.0

30.1

27.1

37.5

35.4

32.3

29.1

35.6

33.6

30.7

27.6

36.6

34.6

31.5

28.3

38.2

36.1

32.9

29.6

40.2

38.0

34.6

31.2

17.1

16.5

15.7

14.8

22.1

21.4

20.3

19.2

26.8

25.9

23.9

21.5

31.0

29.2

26.6

24.0

34.5

32.6

29.7

26.7

18.4

17.8

16.9

16.0

23.8

23.0

21.9

20.7

29.1

28.1

26.7

25.2

34.1

33.0

31.4

29.1

16.1

15.6

14.8

14.0

21.6

20.9

19.9

18.8

27.1

26.2

24.9

23.5

32.4

31.4

29.8

28.1

11.9

28.8

11.3

27.2

10.3

24.6

9.3

22.1

13.0

12.3

11.2

10.1

31.4

29.6

26.9

24.1

14.3

34.9

13.6

32.9

12.4

29.8

11.2

26.7

15.9

15.1

13.8

12.4

38.9

36.7

33.3

29.8

17.7

43.4

16.8

40.9

15.3

37.1

13.8

33.2

16.1

15.2

13.9

12.6

39.3

37.1

33.6

30.1

16.9

41.3

16.0

38.9

14.6

35.3

13.2

31.6

17.9

17.0

15.5

14.0

43.9

41.4

37.6

33.6

19.2

47.1

18.2

44.4

16.6

40.3

15.0

36.1

18.3

17.3

15.8

14.3

44.8

42.2

38.3

34.3

18.7

46.0

17.7

43.3

16.2

39.3

14.6

35.2

19.5

18.5

16.9

15.2

48.0

45.2

41.0

36.7

20.6

50.6

19.5

47.7

17.8

43.2

16.0

38.7

19.4

18.7

17.7

16.6

25.2

24.3

22.9

21.6

30.5

29.4

27.8

26.1

35.5

34.2

32.3

29.8

40.2

38.8

36.6

33.2

20.9

20.2

19.0

17.9

27.1

26.1

24.7

23.2

33.1

31.9

30.1

28.3

38.9

37.5

35.4

33.3

18.3

17.7

16.7

15.7

24.6

23.7

22.4

21.1

30.8

29.7

28.0

26.4

36.9

35.6

33.6

31.6

9.9

9.4

8.5

7.7

35.9

33.7

30.3

26.8

10.8

39.1

10.2

36.7

9.3

8.3

33.0

29.2

11.9

11.3

10.2

9.2

13.3

12.5

11.4

10.2

14.8

13.9

12.7

11.4

13.4

12.7

11.5

10.3

14.1

13.3

12.1

10.8

14.9

14.1

12.8

11.5

16.0

15.1

13.7

12.3

15.2

14.4

13.1

11.7

15.6

14.7

13.4

12.0

16.3

15.4

14.0

12.5

17.2

16.2

14.7

13.2

Total

Capacity

(MBh)

43.4

40.7

36.6

32.4

48.4

45.4

40.9

36.2

54.0

50.7

45.6

40.3

48.9

45.9

41.3

36.6

51.4

48.2

43.3

38.4

54.7

51.3

46.1

40.9

58.7

55.0

49.5

43.8

55.7

52.3

47.0

41.6

57.2

53.7

48.3

42.8

59.7

56.0

50.4

44.6

63.0

59.1

53.1

47.0

10

Sensible

Capacity

(MBh)

22.3

21.3

19.9

18.5

28.9

27.6

25.8

24.0

34.9

33.4

31.2

29.0

40.7

38.9

36.3

33.8

46.1

44.1

41.1

38.2

24.0

22.9

21.4

19.9

31.0

29.7

27.7

25.8

37.9

36.2

33.8

31.5

44.5

42.6

39.8

37.0

21.0

20.1

18.7

17.4

28.2

27.0

25.2

23.4

35.3

33.8

31.5

29.3

42.3

40.5

37.8

35.1

ΔT

(°F)

11.6

10.9

9.8

8.7

12.1

11.4

10.3

9.1

11.9

11.2

10.1

8.9

11.3

10.6

9.6

8.5

10.5

9.8

8.8

7.9

11.1

10.4

9.4

8.4

11.0

10.3

9.3

8.2

10.0

9.4

8.4

7.5

8.9

8.3

7.5

6.7

9.9

9.3

8.4

7.4

7.4

6.9

6.2

5.5

8.0

7.5

6.8

6.0

12.8

12.0

10.8

9.6

UV-PRC003-EN 41

UV-PRC003-EN.book Page 42 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 100 - Coil H

Table 20. VUV 100, cooling coil H, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

22.3

21.1

19.4

17.6

23.3

22.0

20.2

18.4

22.8

21.7

19.9

18.1

21.7

20.6

18.9

17.1

24.5

23.2

21.3

19.4

20.0

19.0

17.4

15.8

21.3

20.2

18.5

16.8

21.0

19.9

18.3

16.6

19.1

18.1

16.6

15.1

15.6

15.1

14.3

13.5

19.5

18.9

17.9

16.9

22.8

21.7

19.9

18.1

11.6

11.2

10.7

10.0

23.4

22.6

21.3

19.4

Total

Capacity

(MBh)

16.9

16.0

14.7

13.4

18.9

17.9

16.4

14.9

14.0

13.2

12.1

11.0

15.2

14.4

13.2

12.0

2

Sensible

Capacity

(MBh)

12.3

11.9

11.3

10.7

15.2

14.4

13.2

12.0

16.9

16.0

14.7

13.4

18.9

17.9

16.4

14.9

ΔT

(°F)

Flow Rate (gpm)

4

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

6

Sensible

Capacity

(MBh)

ΔT

(°F)

14.9

21.6

14.1

20.4

13.1

18.6

11.9

16.8

16.1

23.6

15.3

22.3

14.2

20.3

12.9

18.3

17.8

16.9

15.6

14.3

19.8

18.8

17.3

15.8

26.2

24.7

22.6

20.3

29.2

27.6

25.2

22.7

16.1

15.5

14.7

13.9

20.8

20.1

19.1

18.1

25.2

24.4

22.6

20.3

29.2

27.6

25.2

22.7

11.3

27.0

10.7

25.4

9.8

8.9

13.5

12.8

11.7

10.6

15.1

14.3

13.0

11.8

23.0

20.6

12.3

29.5

11.6

27.7

10.6

25.1

9.6

22.5

32.7

30.8

27.9

24.9

36.5

34.3

31.1

27.8

18.2

17.5

16.5

15.6

23.6

22.7

21.4

20.2

28.5

27.5

25.9

24.4

33.2

32.0

30.2

27.8

10

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

9.3

8.8

8.0

7.2

32.8

30.7

27.5

24.2

10.1

35.8

9.6

33.5

8.7

7.8

30.0

26.4

11.2

39.7

10.6

37.1

9.6

8.6

33.3

29.3

12.5

44.3

11.7

41.4

10.7

37.1

9.6

32.7

20.6

19.7

18.4

17.1

26.7

25.5

23.8

22.1

32.3

30.9

28.8

26.8

37.6

36.0

33.6

31.2

6.7

6.3

5.7

5.0

7.3

6.9

6.2

5.5

8.1

7.6

6.8

6.0

9.0

8.5

7.6

6.7

17.2

16.6

15.8

14.8

20.9

20.2

18.5

16.8

21.0

19.9

18.3

16.6

13.3

12.8

12.2

11.5

21.9

20.8

19.2

17.5

20.0

19.0

17.5

16.0

20.9

19.9

18.3

16.7

22.2

21.1

19.4

17.7

23.7

22.6

20.8

19.0

22.6

21.5

19.8

18.1

32.6

30.8

28.1

25.3

29.5

27.9

25.4

22.9

31.0

29.3

26.7

24.1

33.0

31.2

28.4

25.6

35.4

33.4

30.5

27.5

33.6

31.8

29.0

26.1

23.2

34.5

22.0

32.6

20.3

29.7

18.5

26.8

24.2

36.0

23.0

34.0

21.1

31.0

19.3

28.0

25.4

38.0

24.1

35.9

22.2

32.7

20.3

29.5

32.6

30.8

28.1

25.3

17.3

16.7

15.9

15.0

22.4

21.6

20.5

19.4

27.3

26.4

25.1

23.7

32.1

31.0

29.5

27.5

15.1

14.6

13.9

13.1

20.3

19.7

18.7

17.6

25.5

24.6

23.4

22.1

30.5

29.5

28.0

26.4

16.7

15.8

14.5

13.1

15.2

14.4

13.2

11.9

15.9

15.1

13.8

12.5

16.9

16.0

14.7

13.3

18.1

17.2

15.7

14.2

17.3

16.3

14.9

13.5

17.7

16.8

15.3

13.9

18.5

17.5

16.0

14.4

19.4

18.4

16.8

15.2

40.6

38.3

34.7

31.0

36.9

34.7

31.4

28.1

38.7

36.4

33.0

29.5

41.2

38.8

35.1

31.4

44.2

41.6

37.7

33.7

42.0

39.5

35.8

32.0

43.1

40.6

36.8

32.9

45.0

42.4

38.4

34.3

47.4

44.6

40.4

36.2

37.6

36.2

34.2

31.0

19.6

18.9

17.8

16.7

25.3

24.4

23.0

21.7

30.9

29.8

28.1

26.4

36.3

35.0

33.1

31.1

17.1

16.5

15.6

14.7

23.0

22.2

20.9

19.7

28.8

27.8

26.2

24.6

34.5

33.3

31.4

29.5

13.9

49.4

13.1

46.2

11.9

41.4

10.6

36.4

12.6

44.8

11.9

41.9

10.8

37.5

9.7

33.0

13.2

12.4

11.3

10.1

14.0

13.2

12.0

10.8

15.0

53.6

14.2

50.2

12.9

45.0

11.5

39.6

14.3

50.9

13.5

47.7

12.2

42.7

11.0

37.6

14.7

13.8

12.6

11.3

15.3

14.4

13.1

11.7

16.1

15.2

13.8

12.4

47.0

43.9

39.4

34.7

50.0

46.8

41.9

36.9

52.3

49.0

43.9

38.6

54.6

51.1

45.8

40.3

57.6

53.9

48.2

42.5

42.6

40.8

38.0

35.3

22.2

21.2

19.8

18.4

28.7

27.5

25.6

23.8

35.0

33.5

31.3

29.1

9.6

9.0

8.1

7.1

10.2

9.5

8.6

7.6

10.1

9.4

8.5

7.5

9.1

8.6

7.7

6.8

26.1

24.9

23.3

21.6

32.7

31.2

29.1

27.1

41.2

39.4

36.7

34.2

19.4

18.6

17.3

16.1

39.1

37.4

34.9

32.4

10.6

10.0

9.0

7.9

11.1

10.4

9.3

8.2

10.9

10.2

9.2

8.1

10.4

9.7

8.7

7.7

11.7

11.0

9.8

8.7

42 UV-PRC003-EN

UV-PRC003-EN.book Page 43 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 100 - Coil (DX)

Table 21.

VUV 100, cooling coil J (DX)

Size EWB

1000 61

64

Suct

Temp

40

45

50

40

45

EDB = 70°F EDB = 75°F EDB = 80°F EDB = 85°F

TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB

29.1

19.1

52.1

50.5

31.8

25.3

51.3

49.3

35.2

31.0

51.0

47.9

39.4

36.3

51.0

46.0

24.4

17.4

53.7

52.3

26.7

23.0

53.5

51.4

29.5

28.1

53.7

50.2

33.0

33.0

54.1

48.7

19.7

15.6

55.4

54.1

21.5

20.7

55.6

53.4

23.8

23.8

57.7

52.5

26.6

26.6

60.1

51.3

34.6

16.5

54.6

52.1

36.4

23.2

53.3

51.4

38.7

29.5

52.4

50.4

41.6

35.5

51.8

49.1

29.0

15.0

56.0

54.2

30.5

21.1

55.2

53.6

32.5

26.8

54.9

52.8

34.9

32.2

54.9

51.8

67

70

73

50

40

45

50

40

45

50

40

23.4

13.5

57.4

56.3

24.6

19.0

57.2

55.8

26.2

24.1

57.4

55.2

28.2

28.2

58.6

54.4

40.9

13.2

57.6

53.7

42.2

20.3

56.0

53.1

43.7

27.1

54.6

52.5

45.7

33.5

53.6

51.6

34.3

12.0

58.8

56.1

35.4

18.5

57.7

55.6

36.7

24.6

57.0

55.1

38.3

30.5

56.4

54.4

27.7

10.8

59.9

58.4

28.5

16.6

59.5

58.1

29.6

22.2

59.2

57.6

30.9

27.4

59.3

57.1

48.9

16.8

59.3

54.8

50.0

23.8

57.7

54.3

51.3

30.6

56.4

53.7

41.0

15.2

60.8

57.6

41.9

21.6

59.8

57.2

43.0

27.8

59.0

56.7

33.1

13.7

62.2

60.2

33.8

19.5

61.7

60.0

34.7

25.0

61.6

59.6

57.2

19.9

61.4

56.0

58.1

26.9

59.8

55.6

47.9

18.1

63.1

59.2

48.7

24.4

62.2

58.9

38.7

16.2

64.8

62.2

39.3

22.0

64.4

61.9

45

50

EDB = Entering Air Temperature, Dry Bulb (°F)

EWB = Entering Air Temperature, Wet Bulb (°F)

TC = Total Capacity (MBh)

SC = Sensible Capacity (MBh)

LDB = Leaving Air Temperature, Dry Bulb (°F)

LWB = Leaving Air Temperature, Wet Bulb (°F)

%

120

110

100

90

80

Table 22.

Airflow correction (% of design airflow)

Total Capacity

(MBh)

1.025

1.012

1.000

0.987

0.974

Sensible Capacity

(MBh)

1.105

1.051

0.998

0.945

0.892

Table 23. Airflow through coil J

Unit Model

Rated cfm

1000

989

UV-PRC003-EN 43

UV-PRC003-EN.book Page 44 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 100 - Coil A, B, C

44

28.3

40.1

52.0

63.7

26.5

37.6

48.6

59.6

31.9

45.3

58.6

71.8

30.1

42.7

55.3

67.8

25.6

36.3

47.0

57.5

33.7

47.9

62.0

75.9

29.1

41.3

53.4

65.4

27.3

38.8

50.2

61.5

32.6

46.2

59.8

73.3

30.8

43.7

56.6

69.3

20.0

27.9

36.0

44.1

18.7

26.1

33.7

41.3

22.5

31.5

40.6

49.7

21.2

29.7

38.3

46.9

Total

Capacity

(MBh)

23.8

33.3

42.9

52.6

Entering Air

Temp, Dry

Bulb (°F)

50

55

60

65

70

50

55

60

65

70

50

55

60

65

70

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

Entering

Water

Temp (°F)

120

140

160

180

Table 24. VUV 100, hydronic heating coils A (1-row / 12 fpi), B (2-row / 12 fpi), C (2-row / 16 fpi)

Coil

A

B

C

27.4

39.2

51.1

62.8

25.6

36.7

47.7

58.7

31.0

44.4

57.7

70.9

29.2

41.8

54.4

66.9

24.7

35.4

46.1

56.6

32.8

47.0

61.1

75.0

28.2

40.4

52.5

64.5

26.4

37.9

49.3

60.6

31.7

45.3

58.9

72.4

29.9

42.8

55.7

68.4

19.1

27.0

35.1

43.2

17.8

25.2

32.8

40.4

21.6

30.6

39.7

48.8

20.3

28.8

37.4

46.0

2

Waterside

Temp Drop

(°F)

22.9

32.4

42.0

51.7

40.5

57.0

73.5

90.0

38.1

53.5

69.1

84.6

45.4

63.8

82.4

100.9

42.9

60.4

77.9

95.4

35.6

50.1

64.7

79.2

36.2

50.9

65.7

80.5

33.9

47.6

61.5

75.3

40.8

57.4

74.1

90.8

38.5

54.2

69.9

85.6

22.3

31.2

40.2

49.2

43.1

60.7

78.3

96.0

25.3

35.5

45.6

55.9

23.8

33.3

42.9

52.5

Flow Rate (gpm)

Total

Capacity

(MBh)

4

Waterside

Temp Drop

(°F)

28.4

39.7

51.2

62.6

26.8

37.6

48.4

59.2

13.7

19.4

25.1

30.8

12.9

18.3

23.7

29.1

12.2

17.3

22.3

27.5

11.4

16.2

21.0

25.8

10.7

15.1

19.6

24.1

21.1

29.9

38.7

47.5

19.8

28.0

36.3

44.5

18.6

26.3

34.1

41.8

22.2

31.4

40.7

50.0

21.0

29.7

38.5

47.2

17.3

24.6

31.9

39.1

17.6

25.0

32.4

39.8

16.5

23.3

30.3

37.2

19.9

28.2

36.6

44.9

18.8

26.6

34.5

42.3

42.1

59.2

76.4

93.6

39.4

55.4

71.5

87.6

47.5

66.8

86.1

105.5

44.8

63.0

81.2

99.5

37.4

52.6

67.8

83.1

50.2

70.6

91.0

111.6

42.5

59.7

77.1

94.5

40.0

56.2

72.5

88.8

47.6

66.9

86.4

105.9

45.1

63.3

81.7

100.1

25.5

35.6

45.9

56.1

23.8

33.4

42.9

52.5

28.7

40.2

51.7

63.3

27.1

37.9

48.8

59.7

Total

Capacity

(MBh)

30.4

42.5

54.7

66.9

13.7

19.4

25.2

30.9

12.8

18.2

23.5

28.9

15.5

22.0

28.4

34.9

14.6

20.7

26.8

32.9

12.2

17.2

22.3

27.4

16.4

23.2

30.0

36.9

13.9

19.6

25.4

31.2

13.0

18.4

23.9

29.3

15.6

22.0

28.5

35.0

14.7

20.8

26.9

33.1

8.2

11.6

15.0

18.4

7.6

10.8

14.0

17.2

9.3

13.1

16.9

20.8

8.7

12.3

16.0

19.6

6

Waterside

Temp Drop

(°F)

9.8

13.9

17.9

22.0

UV-PRC003-EN

UV-PRC003-EN.book Page 45 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 100 - Coil K, L

Table 25. VUV 100, steam heating coils K (low-capacity), L (high-capacity)

Size

1000

Coil

K

L 0

10

20

30

40

50

60

70

0

10

20

30

Entering

Air Temp,

Dry Bulb

(°F)

Total

Capacity

(MBh)

92.9

88.8

84.7

80.6

76.5

72.4

68.3

64.3

131.0

125.3

119.5

113.7

40

50

107.9

102.2

60

70 psig = steam pressure (lb/in.

2 gage)

96.4

90.7

5

Airside

Temp Rise

(°F)

86.0

82.2

78.4

74.6

70.8

67.0

63.3

59.5

121.3

116.0

110.6

105.3

99.9

94.6

89.3

84.0

137.8

132.0

126.3

120.5

114.7

108.9

103.2

97.4

Steam Pressure (psig)

Total

Capacity

(MBh)

10

Airside

Temp Rise

(°F)

97.7

93.6

89.5

85.4

81.3

77.2

73.1

69.1

90.5

86.7

82.9

79.1

75.3

71.5

67.7

64.0

127.6

122.3

116.9

111.6

106.2

100.9

95.6

90.2

Total

Capacity

(MBh)

101.8

97.7

93.6

89.5

85.4

81.3

77.3

73.2

143.6

137.8

132.0

126.3

120.5

114.7

109.0

103.2

15

Airside

Temp Rise

(°F)

94.3

90.5

86.7

82.9

79.1

75.3

71.5

67.8

132.9

127.6

122.3

116.9

111.6

106.2

100.9

95.6

UV-PRC003-EN 45

UV-PRC003-EN.book Page 46 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 125 - Coil D

Table 26. VUV 125, cooling coil D, 3-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

43.9

41.6

38.0

34.3

45.8

43.4

39.6

35.8

45.0

42.6

38.9

35.2

42.7

40.5

37.0

33.4

39.4

37.3

34.1

30.8

41.9

39.7

36.3

32.8

41.4

39.2

35.8

32.4

37.5

35.5

32.5

29.4

33.3

31.5

28.8

26.0

37.1

35.2

32.1

29.0

27.5

26.0

23.8

21.5

30.0

28.4

26.0

23.5

48.3

45.7

41.8

37.8

19.8

19.2

18.4

17.6

25.6

24.9

23.9

22.8

31.0

30.2

28.8

26.0

36.1

35.1

32.1

29.0

40.9

39.2

35.8

32.4

21.3

20.7

19.8

18.9

27.5

26.8

25.7

24.5

33.6

32.7

31.3

29.9

39.5

38.4

36.8

35.2

18.6

18.1

17.4

16.6

25.0

24.3

23.3

22.3

31.3

30.5

29.2

27.9

37.5

36.5

35.0

33.4

Flow Rate (gpm)

8

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

10

Sensible

Capacity

(MBh)

ΔT

(°F)

9.5

9.1

8.3

7.5

31.6

29.8

27.1

24.4

10.4

34.5

9.8

32.5

9.0

8.2

29.6

26.6

11.5

38.2

10.9

36.1

10.0

32.8

9.0

29.5

12.7

12.1

11.1

10.1

42.7

40.3

36.6

32.9

14.2

47.6

13.4

44.9

12.3

40.9

11.2

36.7

12.9

12.2

11.2

10.2

43.1

40.7

37.0

33.3

13.5

45.2

12.8

42.7

11.7

38.9

10.6

34.9

14.3

13.6

12.5

11.3

15.4

14.6

48.2

45.5

41.4

37.2

51.7

48.8

13.3

44.4

12.1

39.9

14.6

13.9

12.7

11.5

15.0

14.2

49.1

46.3

42.2

37.9

50.4

47.6

13.0

43.3

11.8

38.9

15.6

14.8

13.6

12.3

52.6

49.7

45.2

40.6

16.5

55.5

15.6

52.4

14.3

47.6

13.0

42.8

21.2

20.6

19.6

18.7

27.5

26.7

25.4

24.2

33.3

32.3

30.8

29.3

38.7

37.5

35.8

32.9

43.9

42.5

40.6

36.7

22.8

22.1

21.1

20.1

29.6

28.7

27.3

26.0

36.1

35.0

33.4

31.8

42.4

41.1

39.2

37.3

20.0

19.4

18.5

17.6

26.8

26.0

24.8

23.6

33.6

32.6

31.1

29.6

40.3

39.0

37.2

35.5

8.2

7.7

7.1

6.4

8.9

8.4

7.7

6.9

9.8

9.3

8.5

7.7

10.9

46.5

10.3

43.8

9.4

8.5

12.2

51.8

11.5

48.8

10.5

44.3

9.5

11.1

47.0

10.5

44.3

9.5

8.6

11.6

11.0

10.0

9.0

10.6

9.6

12.5

11.9

10.8

9.7

12.9

12.2

11.1

10.0

13.4

12.7

11.6

10.4

14.1

13.4

12.2

11.0

34.4

32.4

29.4

26.4

37.5

35.4

32.1

28.8

41.6

39.3

35.6

31.9

39.8

35.6

39.7

40.2

36.0

49.3

46.5

42.2

37.8

12.3

52.5

11.6

49.5

44.9

40.2

13.2

56.3

12.5

53.1

11.4

48.2

10.2

43.1

53.5

50.4

45.7

41.0

54.9

51.8

47.0

42.1

57.3

54.0

49.0

43.9

60.4

56.9

51.7

46.3

22.3

21.5

20.4

19.3

28.9

27.9

26.5

25.1

34.9

33.8

32.0

30.3

40.7

39.3

37.3

35.3

46.1

44.5

42.2

39.7

24.0

23.2

22.0

20.8

31.0

30.0

28.5

27.0

37.9

36.6

34.7

32.9

44.5

43.0

40.8

38.7

21.0

20.3

19.2

18.2

28.2

27.2

25.8

24.5

35.3

34.1

32.4

30.7

42.3

40.9

38.8

36.7

8.5

8.1

7.3

6.6

9.5

9.0

8.2

7.3

7.1

6.7

6.1

5.5

7.7

7.3

6.6

6.0

8.7

7.8

10.7

10.1

9.2

8.3

9.9

8.8

10.9

10.3

9.4

8.4

9.6

8.6

9.5

51.6

46.1

11.7

63.2

11.0

59.5

10.0

53.9

9.0

48.1

12.3

66.7

11.6

62.8

10.6

56.8

50.7

14

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

38.0

35.8

32.4

28.9

41.4

39.0

35.3

31.5

45.9

43.3

39.2

35.0

51.3

48.3

43.7

39.0

10.6

57.2

10.0

53.8

9.1

8.2

48.7

43.5

9.6

9.1

8.3

7.4

51.8

48.8

44.2

39.5

10.1

54.4

9.5

51.2

46.3

41.4

57.9

54.5

49.3

44.1

11.5

62.1

10.8

58.5

52.9

47.3

59.0

55.5

50.3

44.9

11.2

60.6

10.6

57.0

23.8

22.9

21.5

20.1

30.9

29.6

27.8

26.0

37.4

35.9

33.7

31.5

43.5

41.7

39.2

36.7

49.3

47.3

44.4

41.6

25.6

24.6

23.1

21.6

33.2

31.8

29.9

28.0

40.5

38.9

36.5

34.2

47.6

45.7

42.9

40.2

22.4

21.5

20.2

18.9

30.1

28.9

27.1

25.4

37.8

36.2

34.0

31.8

45.2

43.4

40.7

38.1

8.8

8.3

7.5

6.7

9.2

8.7

7.9

7.0

9.0

8.5

7.7

6.9

8.6

8.1

7.3

6.6

7.9

7.5

6.8

6.1

8.4

7.9

7.2

6.5

8.3

7.8

7.1

6.4

7.6

7.1

6.5

5.8

6.7

6.3

5.8

5.2

7.5

7.1

6.4

5.7

5.6

5.3

4.8

4.3

6.1

5.7

5.2

4.7

9.7

9.1

8.3

7.4

46 UV-PRC003-EN

UV-PRC003-EN.book Page 47 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 125 - Coil E

Table 27. VUV 125, cooling coil E, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

45.5

43.1

39.5

35.8

47.5

45.0

41.2

37.3

46.7

44.2

40.5

36.7

44.3

42.0

38.5

34.8

40.8

38.7

35.5

32.1

43.5

41.2

37.8

34.2

42.9

40.7

37.3

33.7

38.9

36.9

33.8

30.6

34.5

32.7

30.0

27.1

38.5

36.5

33.4

30.3

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

28.5

27.0

24.8

22.4

31.1

29.5

27.0

24.5

19.6

19.1

18.3

17.4

25.5

24.7

23.6

22.5

50.1

47.5

43.5

39.4

30.8

29.9

28.6

27.1

35.9

34.8

33.3

30.3

40.6

39.5

37.3

33.7

21.1

20.5

19.6

18.7

27.4

26.6

25.4

24.2

33.4

32.5

31.0

29.5

39.3

38.2

36.5

34.7

18.5

18.0

17.2

16.4

24.9

24.2

23.1

22.0

31.1

30.3

28.9

27.5

37.3

36.2

34.6

33.0

Total

Capacity

(MBh)

9.9

9.4

8.6

7.8

32.7

30.9

28.2

25.4

10.7

35.6

10.2

33.7

9.4

8.5

30.7

27.7

11.9

11.3

39.5

37.4

10.4

34.1

9.4

30.7

13.2

12.5

11.5

10.5

14.7

13.9

12.8

11.6

13.3

12.7

11.6

10.6

44.1

41.7

38.0

34.2

49.2

46.5

42.4

38.2

44.6

42.1

38.4

34.6

14.0

46.8

13.3

44.2

12.2

40.3

11.1

36.3

14.9

14.1

13.0

11.8

15.9

15.1

13.9

12.6

15.1

14.4

13.2

12.0

49.8

47.1

42.9

38.7

53.4

50.5

46.1

41.5

50.7

48.0

43.7

39.4

15.5

52.1

14.8

49.3

13.5

44.9

12.3

40.5

16.2

15.4

14.1

12.8

54.4

51.4

46.9

42.2

17.1

57.3

16.2

54.2

14.9

49.4

13.5

44.5

8

(MBh)

21.3

20.6

19.5

18.4

27.6

26.7

25.3

23.9

33.4

32.3

30.6

28.9

38.8

37.5

35.6

33.6

44.0

42.5

40.3

38.1

22.9

22.1

21.0

19.8

29.7

28.7

27.2

25.7

36.2

35.0

33.2

31.3

42.5

41.1

39.0

36.8

20.1

19.4

18.4

17.4

26.9

26.0

24.7

23.3

33.7

32.6

30.9

29.2

40.4

39.0

37.0

35.0

Flow Rate (gpm)

Sensible

Capacity ΔT

(°F)

8.4

8.0

7.3

6.6

9.2

8.7

8.0

7.2

Total

Capacity

(MBh)

35.5

33.5

30.5

27.4

38.7

36.5

33.2

29.8

10.2

42.9

9.6

40.5

8.8

7.9

11.3

10.7

9.8

8.8

36.9

33.1

47.9

45.2

41.1

36.9

12.6

53.4

11.9

50.4

10.9

45.8

9.8

41.2

11.4

48.4

10.8

45.7

9.9

8.9

11.0

9.9

13.0

12.3

11.2

10.1

13.3

12.6

11.5

10.4

13.9

13.1

12.0

10.8

14.6

13.8

12.6

11.4

41.6

37.3

12.0

50.8

11.3

48.0

10.4

43.6

9.4

39.2

12.7

54.1

12.0

51.1

46.4

41.7

13.6

58.0

12.9

54.8

11.8

49.8

10.6

44.7

55.1

52.0

47.3

42.5

56.6

53.4

48.6

43.6

59.1

55.8

50.7

45.5

62.3

58.8

53.5

48.0

10

Sensible

Capacity

(MBh)

22.4

21.6

20.4

19.2

29.1

28.0

26.4

24.8

35.2

33.9

32.0

30.1

40.9

39.4

37.2

35.0

46.4

44.7

42.2

39.6

24.1

23.3

22.0

20.6

31.3

30.1

28.4

26.7

38.2

36.8

34.7

32.6

44.8

43.2

40.8

38.3

21.1

20.4

19.2

18.1

28.4

27.3

25.8

24.2

35.6

34.3

32.3

30.4

42.6

41.0

38.7

36.4

ΔT

(°F)

8.8

8.3

7.6

6.8

9.8

9.3

8.4

7.6

7.3

6.9

6.3

5.7

8.0

7.5

6.9

6.2

8.9

8.1

11.0

10.4

9.5

8.6

9.7

8.7

9.9

8.9

12.0

65.0

11.4

61.2

10.4

55.5

9.3

9.8

49.7

12.7

68.5

12.0

64.5

10.9

58.5

52.4

14

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

39.0

36.8

33.4

29.9

42.6

40.1

36.4

32.6

47.2

44.5

40.4

36.1

52.7

49.7

45.0

40.3

10.9

58.7

10.3

55.3

9.4

8.5

50.2

45.0

9.9

9.4

8.5

7.7

53.2

50.2

45.5

40.8

10.4

55.9

9.8

52.7

47.8

42.8

59.5

56.1

50.9

45.5

11.8

63.8

11.2

60.1

10.2

54.6

9.2

48.8

11.2

60.6

10.6

57.1

51.8

46.4

11.5

62.3

10.9

58.7

53.2

47.7

23.9

23.0

21.5

20.1

31.0

29.8

27.9

26.1

37.5

36.0

33.8

31.6

43.7

41.9

39.3

36.7

49.5

47.5

44.5

41.6

25.8

24.7

23.2

21.7

33.3

32.0

30.0

28.0

40.7

39.1

36.6

34.2

47.8

45.9

43.1

40.2

22.5

21.6

20.3

19.0

30.3

29.1

27.3

25.5

37.9

36.4

34.1

31.9

45.4

43.6

40.9

38.2

9.1

8.5

7.8

7.0

9.4

8.9

8.1

7.3

9.3

8.8

8.0

7.1

8.8

8.3

7.6

6.8

8.1

7.7

7.0

6.3

8.7

8.2

7.4

6.7

8.5

8.1

7.3

6.6

7.8

7.3

6.7

6.0

6.9

6.5

5.9

5.3

7.7

7.3

6.6

5.9

5.7

5.4

4.9

4.4

6.2

5.9

5.4

4.8

9.9

9.4

8.5

7.6

UV-PRC003-EN 47

UV-PRC003-EN.book Page 48 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 125 - Coil F

Table 28. VUV 125, cooling coil F, 4-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

42.0

39.7

36.0

32.3

43.9

41.4

37.6

33.7

43.1

40.7

36.9

33.1

40.9

38.6

35.1

31.5

37.7

35.6

32.3

29.0

40.2

37.9

34.4

30.9

39.7

37.4

34.0

30.5

36.0

33.9

30.8

27.6

31.9

30.1

27.3

24.5

35.6

33.6

30.5

27.3

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

26.4

24.9

22.6

20.3

28.7

27.1

24.6

22.1

19.5

18.9

18.0

17.0

25.2

24.4

23.3

22.1

Flow Rate (gpm)

8

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

10

Sensible

Capacity

(MBh)

ΔT

(°F)

9.2

8.7

7.9

7.1

31.3

29.4

26.6

23.8

10.0

34.1

9.4

32.1

21.4

20.7

19.6

18.5

27.7

26.8

25.4

24.0

8.1

7.6

6.9

6.2

8.8

8.3

7.5

6.8

34.9

32.8

29.7

26.4

38.1

35.8

32.4

28.8

22.9

22.1

20.8

19.6

29.7

28.6

27.0

25.3

30.5

29.6

27.3

24.5

35.5

33.6

30.5

27.3

8.6

7.7

29.0

25.9

11.0

37.8

10.4

35.6

9.5

8.5

32.2

28.7

12.2

42.2

11.6

39.7

10.5

35.9

9.5

32.1

33.6

32.4

30.8

28.7

39.0

37.7

35.8

32.1

9.7

9.2

8.3

7.5

10.8

47.1

10.2

44.3

9.3

8.3

42.2

39.7

35.9

32.0

40.0

35.7

35.9

34.6

32.7

30.7

41.8

40.3

38.0

35.7

7.2

6.8

6.2

5.5

7.8

7.4

6.7

6.0

8.7

8.2

7.4

6.6

9.6

9.1

8.2

7.4

46.3

43.6

39.6

35.5

39.7

37.4

34.0

30.5

20.9

20.3

19.3

18.3

27.1

26.3

25.0

23.7

33.1

32.1

30.5

29.0

24.6

23.9

22.7

21.5

30.8

29.9

28.5

27.0

38.9

37.7

35.9

33.1

18.3

17.8

16.9

16.0

36.9

35.8

34.1

32.3

13.6

12.8

11.7

10.5

12.4

11.7

10.6

9.6

12.9

12.2

11.2

10.0

13.8

13.0

11.8

10.7

14.7

51.1

13.9

48.1

12.7

43.5

11.4

38.8

14.0

48.6

13.2

45.7

12.1

41.4

10.9

36.9

14.4

49.9

13.6

46.9

12.4

42.5

11.1

37.9

15.0

52.0

14.2

49.0

12.9

44.3

11.6

39.5

15.8

14.9

13.6

12.2

47.0

44.3

40.1

35.7

42.7

40.2

36.3

32.4

44.8

42.1

38.1

34.0

47.7

44.9

40.6

36.2

54.9

51.6

46.7

41.7

44.2

42.7

40.1

35.7

23.0

22.3

21.1

19.9

29.8

28.8

27.3

25.8

36.4

35.2

33.3

31.5

27.1

26.2

24.8

23.4

33.9

32.8

31.1

29.3

42.7

41.3

39.2

37.0

20.1

19.5

18.5

17.4

40.6

39.2

37.2

35.1

12.0

11.3

10.3

9.2

52.5

49.4

44.6

39.8

10.9

47.6

10.3

44.8

9.4

8.4

40.5

36.1

11.5

50.0

10.8

47.0

9.8

8.8

12.2

11.5

10.4

9.3

42.5

37.8

53.2

50.0

45.2

40.3

13.1

57.1

12.3

53.7

11.2

48.5

10.0

43.2

12.4

11.7

10.6

9.5

54.2

51.0

46.1

41.0

12.7

55.7

12.0

52.4

10.9

9.8

47.3

42.2

13.3

58.1

12.5

54.6

11.4

49.4

10.2

44.0

14.0

13.2

12.0

10.7

61.2

57.6

52.1

46.4

47.4

45.6

43.0

39.8

24.7

23.8

22.4

21.1

31.9

30.7

29.0

27.3

39.0

37.5

35.4

33.3

29.0

27.9

26.3

24.8

36.3

35.0

33.0

31.0

45.8

44.1

41.6

39.1

21.6

20.8

19.6

18.4

43.5

41.9

39.5

37.1

10.7

59.8

10.1

56.2

9.1

8.2

50.8

45.3

9.7

9.2

8.3

7.4

54.2

51.0

46.1

41.0

10.2

56.9

9.6

53.5

48.1

45.2

40.8

36.4

53.6

50.4

45.6

40.6

8.7

7.8

10.9

10.2

9.3

8.3

48.3

43.0

60.6

57.0

51.5

45.8

11.6

65.0

11.0

61.1

9.9

8.9

11.1

10.4

9.4

8.4

11.4

10.7

9.7

8.7

11.8

11.2

10.1

9.0

55.2

49.2

61.7

58.0

52.4

46.7

63.4

59.6

53.9

48.0

66.2

62.2

56.2

50.1

12.5

69.7

11.7

65.6

10.6

59.2

9.5

52.8

14

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

39.7

37.4

33.8

30.1

43.3

40.8

36.8

32.8

25.1

24.1

22.5

20.9

32.6

31.2

29.1

27.1

5.8

5.5

5.0

4.5

6.4

6.0

5.4

4.8

39.4

37.8

35.3

32.8

45.9

43.9

41.0

38.2

52.0

49.8

46.5

43.2

27.1

25.9

24.2

22.5

35.0

33.5

31.3

29.1

42.8

40.9

38.2

35.6

50.3

48.1

44.9

41.8

23.7

22.7

21.2

19.7

31.8

30.5

28.4

26.5

39.9

38.1

35.6

33.1

47.7

45.7

42.7

39.7

9.4

8.9

8.0

7.2

9.0

8.4

7.6

6.8

8.3

7.8

7.1

6.3

8.8

8.3

7.5

6.7

8.7

8.2

7.4

6.6

7.9

7.4

6.7

6.0

7.0

6.6

6.0

5.4

7.8

7.4

6.7

6.0

10.1

9.5

8.6

7.7

9.2

8.7

7.9

7.0

9.6

9.0

8.2

7.3

48 UV-PRC003-EN

UV-PRC003-EN.book Page 49 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 125 - Coil G

Table 29. VUV 125, cooling coil G, 4-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

43.4

41.0

37.3

33.5

45.3

42.8

38.9

34.9

44.5

42.0

38.2

34.3

42.3

39.9

36.3

32.6

39.0

36.8

33.5

30.0

41.5

39.2

35.6

32.0

41.0

38.7

35.2

31.6

37.2

35.1

31.9

28.6

32.9

31.1

28.3

25.4

36.8

34.7

31.6

28.3

27.2

25.7

23.4

21.0

29.7

28.0

25.5

22.9

47.8

45.1

41.0

36.8

19.8

19.2

18.3

17.3

25.6

24.9

23.7

22.4

31.0

30.1

28.3

25.4

36.1

34.7

31.6

28.3

40.9

38.7

35.2

31.6

21.3

20.7

19.7

18.6

27.6

26.7

25.5

24.1

33.7

32.6

31.1

29.5

39.5

38.4

36.5

34.3

18.6

18.1

17.2

16.3

25.0

24.3

23.1

21.9

31.4

30.4

29.0

27.4

37.6

36.4

34.7

32.9

8.9

8.0

11.4

10.7

14.0

13.3

12.1

10.9

12.8

12.1

11.0

9.9

13.4

12.6

11.5

10.4

14.2

13.4

12.2

11.0

15.2

14.4

13.1

11.8

14.5

13.7

12.5

11.2

14.9

14.0

12.8

11.5

15.5

14.6

13.3

12.0

16.3

15.4

14.0

12.6

Flow Rate (gpm)

8

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

10

Sensible

Capacity

(MBh)

ΔT

(°F)

9.4

8.9

8.2

7.4

32.3

30.5

27.6

24.6

10.3

35.3

9.7

33.2

30.1

26.9

39.1

36.8

9.8

8.8

33.4

29.8

12.6

43.7

11.9

41.1

10.9

37.2

9.8

33.3

48.7

45.8

41.5

37.1

44.1

41.6

37.6

33.6

46.3

43.6

39.5

35.3

49.3

46.4

42.0

37.5

52.9

49.8

45.1

40.3

50.2

47.3

42.8

38.3

51.6

48.6

44.0

39.3

53.8

50.7

45.9

41.0

56.7

53.5

48.4

43.2

21.8

21.1

20.0

18.8

28.2

27.3

25.9

24.4

34.2

33.0

31.3

29.6

39.8

38.4

36.4

33.3

45.1

43.5

41.3

37.1

23.5

22.7

21.5

20.3

30.4

29.3

27.8

26.2

37.1

35.8

33.9

32.0

43.6

42.1

39.9

37.6

20.5

19.8

18.8

17.7

27.6

26.7

25.3

23.8

34.5

33.4

31.6

29.9

41.4

40.0

37.9

35.8

8.4

7.9

7.2

6.4

9.1

8.6

7.8

7.0

36.1

34.0

30.7

27.4

39.4

37.1

33.5

29.9

10.1

43.7

9.5

41.1

8.6

7.7

11.2

10.6

9.6

8.6

37.2

33.2

48.7

45.9

41.5

37.0

12.4

54.3

11.7

51.1

10.7

46.3

9.5

41.2

11.3

49.3

10.7

46.4

9.7

8.7

41.9

37.4

11.9

51.7

11.2

48.6

10.2

44.0

9.1

39.2

12.6

55.0

11.9

51.8

10.8

9.7

46.8

41.8

13.5

59.0

12.7

55.6

11.6

50.3

10.3

44.8

12.8

12.1

11.0

9.8

13.2

12.4

11.3

10.1

13.7

13.0

11.8

10.5

14.5

13.6

12.4

11.1

56.1

52.8

47.7

42.6

57.6

54.2

49.0

43.7

60.1

56.6

51.2

45.6

63.3

59.6

53.9

48.1

23.4

22.5

21.2

19.9

30.3

29.2

27.5

25.8

36.7

35.3

33.3

31.2

42.7

41.1

38.7

36.3

48.3

46.5

43.9

41.2

25.2

24.2

22.8

21.4

32.6

31.4

29.5

27.7

39.8

38.3

36.1

33.9

46.7

45.0

42.4

39.8

22.0

21.2

20.0

18.8

29.6

28.5

26.8

25.2

37.0

35.7

33.6

31.6

44.4

42.7

40.3

37.8

7.4

7.0

6.4

5.7

8.1

7.6

6.9

6.2

8.5

7.6

11.1

10.4

9.5

8.5

10.1

9.5

9.6

8.6

9.8

8.7

10.5

9.3

14

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

41.1

38.7

35.0

31.2

44.8

42.2

38.2

34.0

9.0

8.4

7.7

6.9

49.7

46.8

42.3

37.7

10.0

55.5

9.4

52.2

47.2

42.1

61.9

58.2

52.6

46.9

56.1

52.8

8.6

7.7

47.7

42.5

10.6

58.9

10.0

55.4

9.0

8.1

50.1

44.6

11.2

62.7

10.6

59.0

53.3

47.5

12.0

67.2

11.3

63.3

10.3

57.2

9.2

51.0

11.4

63.8

10.8

60.1

54.3

48.4

11.7

65.6

11.1

61.7

10.0

55.8

9.0

49.7

12.2

68.4

11.5

64.4

58.2

51.9

12.9

72.1

12.1

67.9

11.0

61.4

9.8

54.7

25.7

24.6

22.9

21.3

33.3

31.9

29.7

27.6

40.3

38.6

36.0

33.4

46.9

44.9

41.8

38.9

53.2

50.8

47.4

44.0

27.7

26.5

24.7

22.9

35.8

34.2

31.9

29.7

43.7

41.8

39.0

36.2

51.4

49.1

45.8

42.6

24.2

23.2

21.6

20.1

32.5

31.1

29.0

26.9

40.7

39.0

36.3

33.7

48.8

46.7

43.5

40.4

9.5

9.0

8.1

7.3

9.9

9.4

8.5

7.6

9.8

9.2

8.3

7.4

9.3

8.7

7.9

7.1

8.6

8.1

7.3

6.5

9.1

8.6

7.8

6.9

9.0

8.5

7.7

6.9

8.2

7.7

7.0

6.2

7.3

6.8

6.2

5.5

8.1

7.6

6.9

6.2

6.0

5.7

5.2

4.6

6.6

6.2

5.6

5.0

10.5

9.9

8.9

8.0

UV-PRC003-EN 49

UV-PRC003-EN.book Page 50 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 125 - Coil H

Table 30. VUV 125, cooling coil H, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

30.5

28.7

26.0

23.2

33.3

31.3

28.3

25.2

36.9

34.7

31.4

28.0

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

21.0

20.2

19.1

17.9

27.2

26.2

24.7

23.2

32.9

31.7

29.9

28.0

9.0

8.1

9.8

8.8

10.8

9.7

Total

Capacity

(MBh)

10.5

34.7

9.9

32.6

29.3

26.0

11.5

37.9

10.8

35.5

32.0

28.3

12.7

42.0

12.0

39.4

35.5

31.4

8

Sensible

Capacity

(MBh)

22.8

21.8

20.5

19.1

29.5

28.3

26.5

24.7

35.7

34.3

32.1

29.9

Flow Rate (gpm)

ΔT

(°F)

9.0

8.4

7.6

6.8

9.7

9.2

8.3

7.4

10.8

45.5

10.1

42.6

9.1

8.1

Total

Capacity

(MBh)

37.6

35.2

31.6

27.9

41.0

38.4

34.5

30.5

38.2

33.8

10

Sensible

Capacity

(MBh)

24.0

23.0

21.4

19.9

31.1

29.8

27.8

25.8

37.7

36.0

33.6

31.2

ΔT

(°F)

7.7

7.3

6.5

5.8

8.4

7.9

7.1

6.3

9.3

8.7

7.9

7.0

41.2

38.8

35.1

31.3

45.9

43.2

39.1

34.8

41.7

39.2

35.4

31.6

43.7

41.1

37.2

33.1

46.5

43.8

39.6

35.3

49.9

47.0

42.5

37.9

47.4

44.6

40.3

36.0

48.7

45.8

41.4

36.9

50.8

47.8

43.2

38.5

38.3

36.9

34.8

31.3

43.4

41.8

39.1

34.8

22.6

21.8

20.5

19.3

29.2

28.2

26.6

25.0

35.7

34.4

32.4

30.5

41.9

40.4

38.1

35.8

19.8

19.0

18.0

16.9

26.5

25.6

24.1

22.7

33.2

32.0

30.2

28.4

14.1

13.3

12.1

10.8

15.7

14.8

13.4

12.0

14.3

13.4

12.2

10.9

14.9

14.1

12.8

11.4

15.9

15.0

13.6

12.1

17.0

16.0

14.5

13.0

16.2

15.2

13.8

12.4

16.6

15.6

14.2

12.7

17.3

16.3

14.8

13.2

46.9

44.0

39.6

35.1

52.2

49.0

44.1

39.1

47.4

44.4

40.0

35.4

49.7

46.6

42.0

37.2

52.9

49.6

44.7

39.6

56.8

53.3

47.9

42.5

53.9

50.6

45.5

40.3

55.4

52.0

46.8

41.4

57.8

54.2

48.8

43.2

41.6

39.9

37.3

34.8

47.1

45.2

42.3

39.1

24.5

23.5

22.0

20.5

31.7

30.4

28.5

26.6

38.7

37.1

34.8

32.5

45.5

43.6

40.9

38.1

21.5

20.6

19.3

18.0

28.8

27.6

25.9

24.2

36.1

34.6

32.4

30.2

12.0

11.3

10.2

9.0

13.3

12.5

11.3

10.0

12.1

11.4

10.3

9.1

12.7

53.8

11.9

50.4

10.8

9.6

13.5

12.7

11.4

10.2

14.5

13.6

12.3

10.9

13.8

12.9

11.7

10.4

14.1

13.3

12.0

10.6

14.7

13.8

12.5

11.1

50.7

47.5

42.7

37.7

56.6

53.0

47.6

42.0

51.3

48.1

43.1

38.1

45.3

40.0

57.3

53.7

48.2

42.6

61.5

57.6

51.7

45.7

58.4

54.7

49.1

43.4

60.0

56.2

50.4

44.6

62.6

58.6

52.6

46.5

43.8

41.9

39.1

36.3

49.7

47.5

44.3

41.1

25.8

24.7

23.1

21.4

33.5

32.0

29.8

27.7

40.8

39.1

36.4

33.8

48.0

45.9

42.8

39.8

22.6

21.6

20.2

18.7

30.4

29.1

27.1

25.2

38.1

36.4

33.9

31.5

8.8

7.8

9.7

8.6

8.8

7.8

9.3

8.2

9.9

8.7

10.6

9.4

10.0

8.9

10.3

9.1

10.7

9.5

Total

Capacity

(MBh)

41.2

38.6

34.6

30.5

45.0

42.1

37.7

33.2

49.9

46.7

41.8

36.9

10.4

55.6

9.7

52.1

46.6

41.1

11.5

62.0

10.8

58.0

52.0

45.8

10.5

56.2

9.8

52.6

47.1

41.6

11.0

59.0

10.3

55.2

49.5

43.6

11.7

62.8

11.0

58.8

52.7

46.4

12.5

67.4

11.7

63.1

56.5

49.8

11.9

64.0

11.2

59.9

53.7

47.3

12.2

65.8

11.5

61.5

55.1

48.6

12.7

68.6

11.9

64.2

57.5

50.7

14

Sensible

Capacity

(MBh)

25.6

24.4

22.7

20.9

33.2

31.6

29.4

27.1

40.2

38.3

35.5

32.8

46.7

44.5

41.3

38.2

52.9

50.5

46.8

43.3

27.6

26.3

24.4

22.5

35.7

34.0

31.6

29.2

43.5

41.5

38.5

35.6

51.2

48.8

45.3

41.8

24.1

23.0

21.3

19.7

32.4

30.9

28.7

26.5

40.6

38.7

35.9

33.2

ΔT

(°F)

7.3

6.8

6.1

5.4

8.1

7.6

6.8

6.0

9.0

8.5

7.6

6.7

8.2

7.7

6.9

6.1

8.6

8.0

7.2

6.4

9.1

8.6

7.7

6.8

9.8

9.2

8.2

7.3

9.3

8.7

7.8

6.9

9.6

8.9

8.0

7.1

10.0

9.3

8.4

7.4

6.0

5.7

5.1

4.5

6.6

6.2

5.5

4.9

53.6

50.4

45.6

40.6

39.8

38.4

36.2

34.0

18.2

60.9

17.2

57.2

15.6

51.4

13.9

45.6

43.2

41.5

38.8

36.2

15.5

66.0

14.6

61.8

13.1

55.5

11.7

49.0

45.6

43.6

40.7

37.8

13.4

72.3

12.6

67.7

11.3

60.6

10.0

53.5

48.6

46.3

43.0

39.7

10.5

9.8

8.8

7.8

50 UV-PRC003-EN

UV-PRC003-EN.book Page 51 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 125 - Coil (DX)

Table 31. VUV 125, cooling coil J (DX)

Size EWB

1250 61

64

Suct

Temp

40

45

50

40

45

EDB = 70°F EDB = 75°F EDB = 80°F EDB = 85°F

TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB

35.1

23.4

52.7

51.0

38.4

30.9

52.2

49.9

42.5

37.8

52.1

48.5

47.5

44.3

52.3

46.8

29.4

21.2

54.3

52.8

32.2

28.1

54.2

51.9

35.6

34.4

54.6

50.8

39.8

39.8

55.6

49.4

23.7

19.1

55.9

54.5

25.9

25.3

56.3

53.8

28.7

28.7

58.8

52.9

32.1

32.1

61.3

51.8

41.7

20.2

55.1

52.8

43.9

28.4

54.0

52.0

46.7

36.1

53.3

51.1

50.2

43.4

52.9

49.9

34.9

18.3

56.5

54.8

36.8

25.8

55.9

54.2

39.1

32.8

55.8

53.4

42.1

39.4

55.9

52.5

67

70

73

50

40

45

50

40

45

50

40

28.2

16.5

57.8

56.7

29.7

23.2

57.9

56.2

31.6

29.5

58.2

55.6

34.0

34.0

59.9

54.9

49.3

16.2

58.0

54.4

50.9

24.9

56.6

53.9

52.8

33.1

55.5

53.3

55.1

41.0

54.7

52.5

41.3

14.7

59.1

56.7

42.7

22.6

58.3

56.2

44.2

30.1

57.8

55.8

46.2

37.2

57.5

55.1

33.3

13.2

60.2

58.9

34.4

20.3

60.0

58.5

35.7

27.1

60.0

58.1

37.3

33.5

60.2

57.6

59.0

20.5

59.9

55.6

60.3

29.1

58.5

55.2

61.9

37.4

57.4

54.6

49.4

18.6

61.3

58.3

50.5

26.4

60.5

57.9

51.9

34.0

59.9

57.5

39.9

16.8

62.6

60.8

40.8

23.8

62.4

60.5

41.9

30.6

62.4

60.1

68.9

24.3

62.0

57.0

70.1

32.8

60.8

56.6

57.8

22.1

63.7

60.0

58.7

29.8

63.0

59.7

46.6

19.9

65.3

62.8

47.4

26.9

65.1

62.5

45

50

EDB = Entering Air Temperature, Dry Bulb (°F)

EWB = Entering Air Temperature, Wet Bulb (°F)

TC = Total Capacity (MBh)

SC = Sensible Capacity (MBh)

LDB = Leaving Air Temperature, Dry Bulb (°F)

LWB = Leaving Air Temperature, Wet Bulb (°F)

%

120

110

100

90

80

Table 32. Airflow correction (% of design airflow)

Total Capacity

(MBh)

1.025

1.012

1.000

0.987

0.974

Sensible Capacity

(MBh)

1.105

1.051

0.998

0.945

0.892

Table 33. Airflow through coil J

Unit Model

Rated CFM

1250

1253

UV-PRC003-EN 51

UV-PRC003-EN.book Page 52 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 125 - Coil A, B, C

52

Entering

Air Temp,

Dry Bulb

(°F)

50

55

60

65

70

50

55

60

65

70

50

55

60

65

70

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

Entering

Water

Temp (°F)

120

140

160

180

30.9

43.7

56.4

69.0

28.9

40.9

52.7

64.5

34.9

49.2

63.6

77.7

32.9

46.5

60.0

73.3

27.4

38.6

49.8

60.9

36.9

52.1

67.2

82.2

31.1

43.9

56.6

69.2

29.2

41.3

53.2

65.1

34.8

49.2

63.4

77.6

33.0

46.5

60.0

73.4

24.6

34.4

44.3

54.3

23.1

32.2

41.5

50.8

27.8

38.8

50.0

61.2

26.2

36.6

47.2

57.7

Total

Capacity

(MBh)

29.4

41.1

52.8

64.7

Table 34. VUV 125, hydronic heating coils A (1-row / 12 fpi), B (2-row / 12 fpi), C (2-row/ 16 fpi)

Coil

A

B

C

29.8

42.6

55.3

67.9

27.8

39.8

51.6

63.4

33.8

48.1

62.5

76.6

31.8

45.4

58.9

72.2

26.3

37.5

48.7

59.8

35.8

51.0

66.1

81.1

30.0

42.8

55.5

68.1

28.1

40.2

52.1

64.0

33.7

48.1

62.3

76.5

31.9

45.4

58.9

72.3

23.5

33.3

43.2

53.2

22.0

31.1

40.4

49.7

26.7

37.7

48.9

60.1

25.1

35.5

46.1

56.6

2

Waterside

Temp Drop

(°F)

28.3

40.0

51.7

63.6

44.9

63.1

81.3

99.6

42.2

59.3

76.5

93.6

50.3

70.7

91.1

111.6

47.6

66.9

86.2

105.6

39.5

55.5

71.5

87.6

38.7

54.3

70.0

85.8

36.2

50.8

65.6

80.3

43.6

61.3

79.0

96.7

41.1

57.8

74.5

91.2

28.5

39.9

51.3

62.8

46.1

64.8

83.5

102.2

32.4

45.3

58.3

71.4

30.4

42.6

54.8

67.1

Flow Rate (gpm)

Total

Capacity

(MBh)

4

Waterside

Temp Drop

(°F)

36.3

50.8

65.3

80.0

34.3

48.0

61.8

75.7

17.6

24.8

32.1

39.4

16.6

23.4

30.3

37.3

15.6

22.1

28.6

35.1

14.6

20.7

26.8

33.0

13.7

19.4

25.1

30.8

22.5

31.8

41.2

50.5

21.9

31.0

40.1

49.2

20.5

29.1

37.7

46.2

24.6

34.8

45.0

55.2

23.2

32.9

42.5

52.2

19.2

27.2

35.2

43.2

18.8

26.6

34.4

42.3

17.5

24.8

32.2

39.6

21.2

30.1

38.9

47.8

20.0

28.3

36.7

45.0

47.2

66.3

85.6

104.8

44.2

62.1

80.1

98.1

53.3

74.8

96.5

118.2

50.2

70.6

91.0

111.5

40.1

56.3

72.6

88.9

56.3

79.1

102.0

124.9

45.6

64.0

82.5

101.1

42.9

60.2

77.6

95.0

51.1

71.8

92.5

113.3

48.4

67.9

87.5

107.2

33.0

46.2

59.4

72.7

30.9

43.2

55.6

68.1

37.2

52.1

67.0

82.0

35.1

49.1

63.2

77.4

Total

Capacity

(MBh)

39.4

55.1

70.9

86.7

15.4

21.7

28.2

34.6

14.4

20.3

26.3

32.3

17.4

24.6

31.8

39.0

16.4

23.2

30.0

36.8

13.0

18.4

23.8

29.3

18.4

26.0

33.6

41.3

14.8

21.0

27.1

33.3

13.9

19.7

25.5

31.3

16.7

23.6

30.5

37.4

15.8

22.3

28.8

35.4

10.6

15.0

19.4

23.9

9.9

14.0

18.2

22.3

12.0

17.0

22.0

27.0

11.3

16.0

20.7

25.4

6

Waterside

Temp Drop

(°F)

12.8

18.0

23.3

28.5

UV-PRC003-EN

UV-PRC003-EN.book Page 53 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 125 - Coil K, L

Table 35. VUV 125, steam heating coils K (low-capacity), L (high-capacity)

Size

1250

Coil

K

L 0

10

20

30

40

50

60

70

0

10

20

30

Entering

Air Temp,

Dry Bulb

(°F)

Total

Capacity

(MBh)

116.9

111.8

106.6

101.6

96.5

91.3

86.1

81.0

138.1

132.1

126.0

119.9

40

50

113.8

107.7

60

70 psig = steam pressure (lb/in.

2 gage)

101.7

95.6

5

Airside

Temp Rise

(°F)

86.6

82.7

79.0

75.2

71.5

67.6

63.7

60.0

102.3

97.8

93.3

88.8

84.3

79.8

75.3

70.8

145.3

139.2

133.1

127.0

121.0

114.9

108.8

102.8

Steam Pressure (psig)

Total

Capacity

(MBh)

10

Airside

Temp Rise

(°F)

123.0

117.8

112.7

107.6

102.5

97.4

92.1

87.0

91.1

87.2

83.5

79.7

76.0

72.1

68.2

64.5

107.6

103.1

98.6

94.1

89.6

85.1

80.6

76.1

Total

Capacity

(MBh)

128.1

122.9

117.8

112.8

107.7

102.5

97.3

92.2

151.4

145.3

139.2

133.2

127.1

121.0

115.0

108.9

15

Airside

Temp Rise

(°F)

94.9

91.1

87.3

83.6

79.8

76.0

72.1

68.3

112.1

107.6

103.1

98.6

94.1

89.7

85.2

80.7

UV-PRC003-EN 53

UV-PRC003-EN.book Page 54 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 150 - Coil D

Table 36. VUV 150, cooling coil D, 3-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

49.3

46.5

42.5

38.4

51.4

48.6

44.3

40.1

54.2

51.2

46.7

42.2

Total

Capacity

(MBh)

50.5

47.7

43.5

39.4

48.0

45.3

41.3

37.4

44.2

41.8

38.1

34.5

47.1

44.5

40.6

36.7

46.5

43.9

40.1

36.2

42.1

39.8

36.3

32.8

37.3

35.3

32.2

29.1

41.7

39.4

35.9

32.5

30.9

29.2

26.6

24.1

33.7

31.8

29.0

26.2

6

Sensible

Capacity

(MBh)

23.0

22.2

21.1

19.9

29.8

28.8

27.3

25.8

36.0

34.9

32.2

29.1

41.7

39.4

35.9

32.5

46.5

43.9

40.1

36.2

24.7

23.9

22.7

21.5

32.0

31.0

29.4

27.8

39.1

37.8

35.8

33.9

45.9

44.4

42.1

39.4

21.6

20.9

19.9

18.8

ΔT

(°F)

10.7

36.5

10.1

34.5

9.3

8.4

31.3

28.1

11.6

39.9

11.0

37.6

10.1

34.1

9.1

30.7

12.8

12.2

11.1

10.1

14.3

13.5

12.4

11.2

15.9

15.0

13.8

12.5

14.4

13.7

12.5

11.3

15.1

14.3

13.1

11.9

16.1

15.2

13.9

12.6

17.2

16.3

14.9

13.5

16.4

15.5

14.2

12.9

Flow Rate (gpm)

8

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

Total

Capacity

(MBh)

10

Sensible

Capacity

(MBh)

ΔT

(°F)

25.3

24.4

23.1

21.7

32.7

31.6

29.9

28.2

9.4

8.9

8.1

7.3

41.0

38.5

34.9

31.2

10.3

44.7

9.7

42.0

27.0

26.0

24.5

23.0

34.9

33.6

31.7

29.8

44.2

41.7

37.9

34.0

49.3

46.5

42.3

38.0

55.0

51.8

47.1

42.3

49.9

47.0

42.7

38.4

52.3

49.3

44.8

40.3

55.7

52.5

47.7

42.9

59.7

56.3

51.2

46.0

56.7

53.5

48.6

43.7

39.6

38.2

36.2

34.0

46.1

44.5

42.1

38.0

52.2

50.4

47.1

42.3

27.2

26.2

24.8

23.4

35.2

34.0

32.1

30.3

42.9

41.5

39.2

37.0

50.5

48.7

46.1

43.4

23.8

23.0

21.7

20.5

8.8

8.0

38.0

34.0

11.3

49.5

10.7

46.6

9.8

8.8

42.2

37.7

12.6

55.3

11.9

52.0

10.9

47.1

9.8

42.1

14.0

13.3

12.1

10.9

12.8

12.0

11.0

9.9

13.4

12.6

11.5

10.4

14.2

13.4

12.2

11.0

15.2

14.4

13.1

11.8

14.5

13.7

12.5

11.2

61.6

58.0

52.5

46.9

55.9

52.6

47.6

42.5

58.6

55.2

49.9

44.6

62.4

58.7

53.1

47.5

67.0

63.0

57.0

51.0

63.6

59.8

54.1

48.4

42.3

40.7

38.4

36.0

49.2

47.4

44.6

41.9

55.7

53.7

50.6

46.9

29.0

27.9

26.3

24.7

37.5

36.1

34.1

32.0

45.8

44.1

41.6

39.1

53.9

51.9

48.9

45.9

25.4

24.4

23.0

21.6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

8.4

7.9

7.2

6.5

9.2

8.6

7.8

7.0

46.9

43.9

39.4

34.9

51.1

47.9

43.0

38.0

10.1

56.7

9.6

53.1

8.7

7.8

11.3

10.6

9.7

8.7

47.7

42.2

63.3

59.3

53.2

47.1

12.6

70.5

11.8

66.1

10.7

59.3

9.6

52.5

11.4

63.9

10.8

59.9

9.8

8.7

53.8

47.6

12.0

67.1

11.3

62.9

10.2

56.5

9.2

49.9

12.7

71.4

12.0

66.9

10.9

9.7

13.6

76.6

12.8

71.8

11.6

64.5

10.4

57.0

13.0

12.2

11.1

9.9

60.1

53.2

72.8

68.2

61.2

54.2

14

29.3

28.1

26.3

24.5

38.0

36.4

34.0

31.8

46.0

44.0

41.2

38.5

53.5

51.2

48.0

44.8

60.6

58.0

54.3

50.7

31.5

30.2

28.3

26.4

40.8

39.1

36.6

34.2

49.8

47.7

44.7

41.7

58.5

56.1

52.5

49.0

27.6

26.4

24.8

23.1

9.8

9.2

8.2

7.3

10.4

9.7

8.8

7.8

10.2

9.6

8.6

7.7

9.3

8.7

7.9

7.0

8.3

7.8

7.0

6.2

9.2

8.6

7.8

6.9

6.9

6.4

5.8

5.2

7.5

7.0

6.3

5.6

11.1

10.4

9.4

8.3

10.6

9.9

8.9

7.9

29.1

28.1

26.7

25.2

36.4

35.2

33.4

31.6

43.6

42.2

40.0

37.8

16.8

15.9

14.6

13.2

17.5

16.6

15.2

13.8

18.5

17.5

16.0

14.5

58.3

55.0

49.9

44.9

60.8

57.4

52.1

46.8

64.1

60.5

54.9

49.4

32.0

30.8

29.2

27.5

40.0

38.6

36.5

34.4

47.9

46.3

43.8

41.3

14.9

14.0

12.8

11.5

15.5

14.6

13.3

12.0

16.3

15.4

14.0

12.6

65.3

61.5

55.6

49.7

68.2

64.2

58.0

51.9

71.9

67.6

61.2

54.7

34.1

32.8

30.9

29.1

42.7

41.1

38.7

36.4

51.2

49.3

46.4

43.6

13.3

12.5

11.4

10.2

13.9

13.1

11.8

10.6

14.6

13.8

12.5

11.2

74.8

70.1

62.9

55.7

78.0

73.1

65.7

58.1

82.2

77.1

69.2

61.2

37.1

35.5

33.2

31.0

46.4

44.5

41.6

38.9

55.6

53.3

49.9

46.5

10.9

10.2

9.2

8.1

11.3

10.6

9.5

8.5

11.9

11.2

10.1

8.9

54 UV-PRC003-EN

UV-PRC003-EN.book Page 55 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 150 - Coil E

Table 37. VUV 150, cooling coil E, 3-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

50.7

48.0

43.8

39.5

52.9

50.0

45.7

41.3

52.0

49.2

44.9

40.5

49.4

46.7

42.6

38.5

45.5

43.0

39.3

35.5

48.5

45.8

41.8

37.8

47.9

45.2

41.3

37.3

43.4

41.0

37.4

33.8

38.5

36.4

33.2

30.0

42.9

40.6

37.0

33.5

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

31.8

30.1

27.4

24.8

34.7

32.8

29.9

27.0

23.1

22.4

21.2

20.1

30.0

29.0

27.5

26.0

Total

Capacity

(MBh)

11.0

37.7

10.4

35.5

9.5

8.7

32.3

29.0

12.0

41.1

11.3

38.7

10.4

35.2

9.4

31.6

8

Flow Rate (gpm)

Sensible

Capacity

(MBh)

25.4

24.6

23.2

21.9

33.0

31.8

30.1

28.3

ΔT

(°F)

9.7

9.2

8.4

7.6

10.6

46.0

10.0

43.3

9.1

8.2

Total

Capacity

(MBh)

42.2

39.7

36.0

32.2

39.2

35.1

10

Sensible

Capacity

(MBh)

27.2

26.1

24.6

23.1

35.2

33.9

31.9

29.9

ΔT

(°F)

55.8

52.8

48.1

43.5

36.3

35.1

33.2

30.0

42.2

40.6

37.0

33.5

47.8

45.2

41.3

37.3

24.9

24.1

22.9

21.6

32.2

31.2

29.6

28.0

39.3

38.1

36.1

34.1

46.2

44.7

42.4

40.1

21.8

21.1

20.0

18.9

29.3

28.3

26.9

25.4

36.6

35.5

33.6

31.8

43.9

42.5

40.3

38.1

13.2

12.5

11.5

10.4

14.7

13.9

12.7

11.6

16.3

15.5

14.2

12.8

14.9

14.1

12.9

11.7

15.6

14.7

13.5

12.2

16.6

15.7

14.3

13.0

17.7

16.8

15.4

13.9

16.9

16.0

14.6

13.2

17.3

16.4

15.0

13.6

18.0

17.1

15.6

14.2

19.0

18.0

16.4

14.9

45.5

43.0

39.1

35.1

50.8

48.0

43.6

39.2

56.7

53.5

48.6

43.7

51.4

48.5

44.1

39.6

53.9

50.8

46.2

41.5

57.4

54.1

49.2

44.2

61.6

58.1

52.8

47.5

58.5

55.2

50.1

45.1

60.1

56.7

51.5

46.3

62.7

59.1

53.8

48.3

66.1

62.3

56.7

50.9

39.9

38.5

36.4

34.3

46.4

44.8

42.4

39.2

52.6

50.8

48.0

43.7

27.4

26.4

25.0

23.5

35.4

34.2

32.3

30.4

43.3

41.7

39.5

37.2

50.8

49.1

46.4

43.7

24.0

23.1

21.9

20.6

32.2

31.1

29.4

27.6

40.3

38.9

36.8

34.6

48.3

46.6

44.0

41.5

11.7

11.0

10.1

43.5

9.1

38.9

13.0

12.3

11.2

10.1

14.5

13.7

12.4

54.1

11.2

48.4

13.1

12.4

11.3

10.2

13.8

60.4

13.0

56.9

11.9

51.5

10.7

46.0

14.6

13.8

12.6

11.4

15.7

69.0

14.8

65.0

13.5

58.8

12.2

52.6

14.9

14.1

12.8

11.6

15.3

67.3

14.5

63.4

13.2

57.4

11.9

51.3

16.0

15.1

13.7

12.4

51.0

48.1

57.0

53.6

48.6

43.4

63.5

59.8

57.6

54.2

49.1

43.9

64.3

60.5

54.8

49.0

65.5

61.7

55.9

49.9

70.2

66.1

59.9

53.5

16.8

74.0

15.9

69.7

14.5

63.1

13.0

56.4

42.6

41.0

38.6

36.2

49.6

47.7

44.9

42.1

56.1

54.0

50.9

47.7

29.2

28.1

26.5

24.8

37.8

36.4

34.3

32.2

46.2

44.4

41.8

39.3

54.3

52.2

49.2

46.1

25.6

24.6

23.2

21.7

34.4

33.1

31.1

29.2

43.0

41.4

39.0

36.6

51.5

49.6

46.7

43.8

8.9

8.0

11.6

11.0

9.9

8.9

11.1

9.9

61.2

54.1

11.8

65.8

11.1

61.7

10.1

55.5

9.0

49.1

12.3

69.0

11.6

64.7

10.5

9.4

14.0

13.2

12.0

10.8

13.3

12.6

11.4

10.2

13.7

12.9

11.7

10.5

14.3

13.5

12.2

10.9

15.0

14.2

12.9

11.5

Total

Capacity

(MBh)

8.7

8.2

7.4

6.7

9.4

8.9

8.1

7.3

48.2

45.2

40.6

36.0

52.6

49.3

44.3

39.2

10.4

58.3

9.8

54.7

49.2

43.5

65.1

61.0

54.9

48.6

12.9

72.6

12.2

68.0

58.2

51.5

13.1

73.5

12.3

68.9

11.2

61.9

10.0

54.8

78.8

73.9

66.5

58.8

74.9

70.2

63.1

55.9

76.9

72.1

64.8

57.4

80.3

75.3

67.7

59.9

84.6

79.4

71.3

63.1

14

Sensible

Capacity

(MBh)

29.5

28.3

26.4

24.6

38.3

36.7

34.3

31.9

46.4

44.4

41.5

38.6

53.9

51.6

48.3

44.9

61.1

58.5

54.7

50.9

31.8

30.5

28.5

26.5

41.2

39.4

36.8

34.3

50.2

48.1

45.0

41.9

59.0

56.6

52.8

49.2

27.8

26.7

24.9

23.2

37.4

35.8

33.5

31.2

46.8

44.8

41.9

39.0

56.1

53.7

50.2

46.7

ΔT

(°F)

11.2

10.5

9.4

8.4

11.6

10.9

9.8

8.7

11.4

10.7

9.7

8.6

10.9

10.2

9.2

8.2

10.0

9.4

8.5

7.5

10.7

10.0

9.0

8.0

10.5

9.9

8.9

7.9

9.6

9.0

8.1

7.2

8.5

8.0

7.2

6.4

9.5

8.9

8.0

7.1

7.1

6.6

6.0

5.3

7.7

7.2

6.5

5.8

12.3

11.5

10.4

9.2

UV-PRC003-EN 55

UV-PRC003-EN.book Page 56 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 150 - Coil F

Table 38.

VUV 150, cooling coil F, 4-row / 12 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

54.6

51.7

47.1

42.5

57.6

54.5

49.7

44.8

51.0

48.2

44.0

39.7

52.3

49.5

45.2

40.8

50.0

47.3

43.2

38.9

53.7

50.7

46.3

41.8

44.8

42.3

38.6

34.9

47.0

44.4

40.5

36.6

44.3

41.9

38.2

34.5

49.4

46.7

42.6

38.5

Total

Capacity

(MBh)

32.8

31.0

28.3

25.6

35.8

33.8

30.9

27.9

39.7

37.5

34.3

30.9

6

Sensible

Capacity

(MBh)

23.5

22.7

21.6

20.4

30.4

29.4

28.0

26.5

36.8

35.6

33.9

30.9

ΔT

(°F)

9.8

8.9

12.3

11.7

10.7

9.7

13.6

12.9

42.5

40.1

36.5

32.8

8

Flow Rate (gpm)

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

11.3

39.0

10.7

36.8

33.5

30.1

47.2

44.5

11.8

40.5

10.7

36.4

25.9

25.0

23.6

22.3

33.5

32.4

30.6

28.9

40.6

39.2

37.1

35.0

Total

Capacity

(MBh)

10.0

44.0

9.5

41.5

8.7

7.8

37.6

33.7

10.9

48.0

10.3

45.3

9.4

8.5

41.0

36.7

12.1

53.2

11.4

50.2

10.4

9.4

45.5

40.7

10

Sensible

Capacity

(MBh)

27.7

26.7

25.2

23.6

35.9

34.6

32.6

30.6

43.4

41.9

39.5

37.1

ΔT

(°F)

9.0

8.5

7.8

7.0

9.8

9.3

8.4

7.6

10.9

10.3

9.3

8.4

Total

Capacity

(MBh)

51.2

48.1

43.4

38.5

55.9

52.5

47.3

42.0

62.0

58.2

52.5

46.6

14

Sensible

Capacity

(MBh)

30.4

29.2

27.3

25.4

39.4

37.8

35.4

33.0

47.7

45.7

42.8

39.9

ΔT

(°F)

7.5

7.0

6.4

5.7

8.2

7.7

6.9

6.2

9.0

8.5

7.7

6.8

42.8

41.5

38.2

34.5

48.5

46.7

42.6

38.5

15.2

14.4

13.1

11.9

16.9

16.0

14.6

13.2

52.6

49.7

45.2

40.6

58.7

55.4

50.4

45.3

47.2

45.6

43.1

40.6

53.4

51.6

48.9

45.3

13.5

12.7

11.6

10.5

15.0

14.1

12.9

11.6

59.4

56.0

50.8

45.5

66.2

62.4

56.6

50.7

50.5

48.7

45.9

43.1

57.3

55.2

52.0

48.9

12.1

11.4

10.4

9.3

69.2

65.0

58.6

52.0

13.5

77.1

12.7

72.4

11.6

65.3

10.4

58.0

55.5

53.2

49.8

46.4

62.9

60.3

56.4

52.6

10.1

9.5

8.5

7.6

11.2

10.5

9.5

8.5

25.2

24.4

23.2

22.0

32.7

31.6

30.1

28.5

39.9

38.6

36.7

34.8

46.9

45.4

43.2

40.9

15.3

14.5

13.3

12.0

16.1

15.2

13.9

12.6

17.1

16.2

14.8

13.4

18.3

17.3

15.8

14.3

53.2

50.2

45.7

41.1

55.8

52.7

47.9

43.1

59.4

56.1

51.0

45.9

63.7

60.2

54.8

49.2

27.8

26.9

25.4

24.0

36.0

34.8

32.9

31.1

44.0

42.5

40.2

37.9

51.7

49.9

47.2

44.6

13.6

12.9

11.7

10.6

14.3

13.5

12.3

11.1

15.2

14.3

13.1

11.8

16.2

15.3

14.0

12.6

60.1

56.6

51.3

46.0

63.0

59.4

53.9

48.2

67.1

63.2

57.3

51.3

72.0

67.8

61.5

55.1

29.8

28.7

27.1

25.4

38.6

37.2

35.0

32.9

47.1

45.4

42.8

40.2

55.3

53.3

50.3

47.2

12.2

69.9

11.6

65.7

10.5

59.2

9.4

52.6

12.8

73.4

12.1

68.9

11.0

62.1

9.9

55.2

13.7

78.1

12.9

73.4

11.7

66.1

10.5

58.7

32.7

31.4

29.4

27.4

42.4

40.6

38.0

35.4

51.7

49.6

46.4

43.3

60.8

58.3

54.5

50.8

22.1

21.4

20.3

19.3

29.7

28.7

27.3

25.9

37.2

36.0

34.2

32.4

44.5

43.1

41.0

38.8

17.4

16.5

15.1

13.6

17.8

16.9

15.5

14.0

18.6

17.6

16.1

14.6

19.6

18.5

17.0

15.3

60.5

57.2

52.0

46.7

62.2

58.7

53.4

48.0

64.9

61.3

55.7

50.1

68.4

64.6

58.8

52.8

24.4

23.5

22.3

21.0

32.7

31.6

29.9

28.2

41.0

39.6

37.5

35.3

49.1

47.4

44.9

42.3

15.4

14.6

13.3

12.0

15.8

15.0

13.7

12.3

16.5

15.6

14.2

12.8

17.4

16.4

15.0

13.5

68.4

64.4

58.4

52.3

70.2

66.2

60.0

53.7

73.3

69.1

62.6

56.1

77.2

72.8

66.0

59.1

26.1

25.1

23.7

22.3

35.0

33.8

31.8

29.9

43.9

42.3

39.9

37.5

52.6

50.6

47.8

44.9

14.6

83.8

13.8

78.7

12.5

71.0

11.3

63.0

13.9

79.6

13.1

74.8

11.9

67.4

10.7

59.9

14.3

81.7

13.5

76.8

12.2

69.2

11.0

61.5

14.9

85.3

14.1

80.1

12.8

72.3

11.5

64.2

15.7

89.9

14.8

84.5

13.4

76.2

12.1

67.6

28.6

27.5

25.7

24.0

38.5

36.9

34.5

32.2

48.2

46.2

43.2

40.3

57.7

55.3

51.8

48.3

11.3

10.7

9.6

8.6

12.1

11.4

10.3

9.2

10.2

9.6

8.6

7.7

10.6

10.0

9.0

8.1

12.4

11.6

10.5

9.3

13.0

12.2

11.1

9.8

11.5

10.9

9.8

8.7

11.8

11.1

10.1

9.0

56 UV-PRC003-EN

UV-PRC003-EN.book Page 57 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 150 - Coil G

Table 39. VUV 150, cooling coil G, 4-row / 16 fpi

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

53.7

50.8

46.6

42.1

56.0

53.0

48.6

43.9

59.0

55.8

51.3

46.3

55.0

52.0

47.8

43.1

52.2

49.4

45.4

40.9

48.2

45.6

41.8

37.7

51.3

48.5

44.5

40.2

50.6

47.9

44.0

39.7

45.9

43.4

39.9

36.0

Total

Capacity

(MBh)

33.6

31.8

29.2

26.4

36.7

34.7

31.9

28.8

40.7

38.5

35.3

31.9

45.4

43.0

39.4

35.6

6

Sensible

Capacity

(MBh)

24.0

23.2

22.2

21.0

31.1

30.1

28.7

27.2

37.6

36.5

34.8

31.9

43.8

42.4

39.4

35.6

ΔT

(°F)

11.6

11.0

10.1

9.2

12.6

12.0

14.0

13.2

15.5

14.7

40.1

37.8

34.5

31.1

8

Flow Rate (gpm)

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

43.8

41.3

11.0

37.7

10.0

33.9

48.6

45.8

12.2

41.8

11.0

37.6

54.2

51.1

13.5

46.6

12.3

42.0

26.5

25.6

24.3

22.9

34.4

33.1

31.5

29.7

41.6

40.1

38.1

36.0

48.4

46.7

44.3

41.8

10.3

45.5

9.8

42.7

8.9

8.1

11.2

49.6

10.6

46.6

9.7

8.8

12.4

55.0

11.7

51.7

10.7

9.7

13.8

13.1

12.0

10.8

Total

Capacity

(MBh)

38.8

34.8

42.3

38.0

47.0

42.1

61.4

57.7

52.4

47.0

10

Sensible

Capacity

(MBh)

28.5

27.4

25.8

24.3

36.9

35.4

33.5

31.5

44.7

42.9

40.5

38.1

52.0

49.9

47.2

44.3

ΔT

(°F)

9.3

8.8

8.0

7.2

10.2

9.6

8.7

7.8

11.2

10.6

9.6

8.7

10.7

9.6

Total

Capacity

(MBh)

53.1

49.7

44.8

39.9

58.0

54.2

48.8

43.5

64.3

60.1

54.2

48.3

12.5

71.7

11.8

67.0

60.5

53.9

14

Sensible

Capacity

(MBh)

31.4

29.9

28.0

26.2

40.6

38.8

36.3

33.9

49.2

47.0

44.0

41.0

57.2

54.6

51.1

47.8

ΔT

(°F)

7.8

7.3

6.6

5.9

8.4

7.9

7.1

6.4

9.4

8.8

7.9

7.1

10.4

9.7

8.8

7.9

49.6

47.9

44.0

39.7

25.8

25.0

23.9

22.6

17.3

16.4

15.1

13.6

15.7

14.9

13.7

12.4

60.4

56.9

52.0

46.8

54.8

51.6

47.1

42.4

54.8

52.9

50.2

46.8

28.5

27.5

26.1

24.7

15.4

14.5

13.3

12.0

14.0

13.2

12.1

10.9

68.4

64.3

58.4

52.4

62.0

58.3

53.0

47.5

58.9

56.6

53.4

50.2

30.6

29.4

27.8

26.2

13.9

13.1

11.9

10.7

12.6

11.9

10.8

9.7

80.0

74.7

67.4

60.1

72.5

67.8

61.1

54.4

64.8

61.9

57.9

54.1

33.7

32.2

30.2

28.2

11.6

10.8

9.8

8.7

10.5

9.8

8.9

7.9

33.4

32.4

30.9

29.3

40.8

39.5

37.7

35.7

47.9

46.5

44.3

42.0

22.6

21.9

20.9

19.8

16.5

15.6

14.3

13.0

17.5

16.6

15.2

13.8

18.7

17.7

16.3

14.8

17.8

16.9

15.5

14.0

57.5

54.2

49.4

44.5

61.2

57.7

52.6

47.4

65.6

61.9

56.5

50.8

62.3

58.8

53.6

48.3

36.9

35.6

33.8

31.9

45.1

43.5

41.3

39.0

53.0

51.1

48.5

45.8

25.0

24.1

22.9

21.6

14.7

13.8

12.7

11.4

15.6

14.7

13.5

12.1

16.7

15.8

14.4

13.0

15.9

15.0

13.7

12.4

65.1

61.1

55.6

49.9

69.3

65.1

59.2

53.1

74.3

69.8

63.5

56.9

70.6

66.3

60.3

54.1

39.7

38.1

36.0

33.9

48.4

46.5

43.9

41.3

56.9

54.7

51.6

48.6

26.8

25.8

24.3

22.9

13.3

12.5

11.4

10.2

14.1

13.3

12.1

10.9

15.1

14.2

12.9

11.6

14.4

13.5

12.3

11.1

76.1

71.1

64.1

57.1

81.0

75.7

68.2

60.8

86.9

81.2

73.2

65.3

82.5

77.1

69.5

62.0

43.7

41.7

39.0

36.5

53.3

50.9

47.7

44.5

62.7

59.8

56.0

52.3

29.5

28.2

26.4

24.6

12.6

11.8

10.6

9.5

12.0

11.2

10.1

9.0

11.0

10.3

9.3

8.3

11.7

11.0

9.9

8.9

30.4

29.4

28.1

26.6

38.0

36.8

35.1

33.3

45.5

44.1

42.1

39.9

18.3

64.0

17.3

60.3

15.9

55.1

14.4

49.6

19.1

66.8

18.1

63.0

16.6

57.5

15.0

51.8

20.1

70.5

19.0

66.4

17.5

60.6

15.8

54.6

33.6

32.4

30.7

29.0

42.0

40.5

38.5

36.3

50.3

48.6

46.1

43.5

16.3

72.5

15.4

68.1

14.1

61.9

12.7

55.6

17.0

75.7

16.0

71.1

14.7

64.6

13.2

58.0

17.9

79.8

16.9

74.9

15.5

68.1

13.9

61.1

36.0

34.6

32.7

30.7

45.1

43.4

40.9

38.5

54.0

51.9

49.0

46.1

14.7

84.8

13.9

79.2

12.6

71.4

11.3

63.7

15.4

88.5

14.5

82.7

13.2

74.5

11.8

66.4

16.2

93.2

15.2

87.1

13.9

78.6

12.5

70.0

39.7

37.9

35.5

33.1

49.7

47.4

44.4

41.5

59.5

56.8

53.2

49.7

12.3

11.5

10.4

9.3

12.8

12.0

10.8

9.7

13.5

12.6

11.4

10.2

UV-PRC003-EN 57

UV-PRC003-EN.book Page 58 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 150 - Coil H

Table 40. VUV 150, cooling coil H, 3-row / 16 fpi, EarthWise

Entering

Wet Bulb

Temp

(°F)

61

Entering

Dry Bulb

Temp

(°F)

70

75

80 40

42

45

48

40

42

45

48

40

42

45

48

Entering

Water

Temp

(°F)

85

67

70

90

75

80

85

90

75

80

85

90

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

40

42

45

48

6

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

56.5

53.7

49.3

44.8

59.0

56.0

51.4

46.7

57.9

55.0

50.5

45.9

55.0

52.2

48.0

43.6

50.7

48.2

44.2

40.2

54.0

51.3

47.1

42.8

53.3

50.6

46.5

42.2

48.3

45.9

42.1

38.3

42.9

40.7

37.4

33.9

47.8

45.4

41.7

37.9

35.4

33.6

30.9

28.1

38.7

36.7

33.7

30.6

62.2

59.0

54.2

49.2

23.7

23.0

21.9

20.7

30.8

29.8

28.4

26.9

37.3

36.1

34.4

32.5

43.3

42.0

40.0

37.8

49.1

47.6

45.3

42.2

25.6

24.8

23.6

22.3

33.1

32.1

30.5

28.9

40.4

39.2

37.3

35.3

47.5

46.0

43.8

41.4

22.4

21.7

20.6

19.5

30.0

29.1

27.7

26.2

37.6

36.5

34.7

32.9

45.1

43.7

41.6

39.4

13.3

12.6

11.6

10.6

16.3

15.5

14.3

13.0

16.5

15.7

14.4

13.2

18.4

17.5

16.1

14.7

18.7

17.8

16.4

14.9

20.1

19.1

17.5

16.0

Flow Rate (gpm)

8

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

12.2

41.3

11.6

39.1

10.7

35.8

9.7

32.4

45.0

42.6

39.0

35.3

14.7

49.9

14.0

47.3

12.9

43.3

11.7

39.2

55.7

52.8

48.3

43.7

18.2

62.1

17.3

58.8

15.9

53.8

14.5

48.7

56.3

53.3

48.8

44.2

17.3

59.1

16.4

55.9

15.1

51.2

13.8

46.4

62.9

59.6

54.5

49.4

19.7

67.5

18.7

63.9

17.2

58.5

15.7

53.0

64.1

60.7

55.5

50.3

19.2

65.8

18.3

62.3

16.8

57.1

15.3

51.7

68.7

65.1

59.5

53.9

21.1

72.4

20.1

68.6

18.5

62.8

16.8

56.8

25.7

24.9

23.6

22.3

33.4

32.3

30.6

28.9

40.4

39.1

37.0

35.0

47.0

45.4

43.1

40.7

53.2

51.5

48.8

46.1

27.7

26.8

25.4

24.0

35.9

34.7

32.9

31.1

43.8

42.3

40.1

37.9

51.4

49.8

47.2

44.6

24.3

23.5

22.2

21.0

32.6

31.5

29.9

28.2

40.8

39.5

37.4

35.3

48.9

47.3

44.8

42.3

Total

Capacity

(MBh)

10.6

45.5

10.1

43.0

9.2

8.4

12.8

12.1

11.1

10.1

14.2

13.5

12.4

11.2

15.8

15.0

13.8

12.5

14.4

13.6

12.5

11.3

15.1

14.3

13.1

11.9

16.0

15.2

13.9

12.6

17.2

16.3

14.9

13.5

16.3

15.5

14.2

12.9

16.7

15.9

14.6

13.2

17.5

16.6

15.2

13.8

18.4

17.4

16.0

14.5

39.2

35.4

11.5

49.6

11.0

46.9

10.1

42.8

9.1

38.6

55.0

52.0

47.4

42.8

61.4

58.1

52.9

47.7

68.5

64.7

59.0

53.2

62.1

58.7

53.5

48.2

65.1

61.6

56.1

50.6

69.3

65.5

59.8

53.9

74.4

70.3

64.1

57.8

70.7

66.8

60.9

54.9

72.6

68.6

62.6

56.4

75.7

71.6

65.3

58.9

79.8

75.5

68.8

62.1

10

Sensible

Capacity

(MBh)

27.2

26.2

24.8

23.3

35.2

34.0

32.1

30.2

42.7

41.1

38.9

36.6

49.6

47.9

45.2

42.6

56.2

54.2

51.2

48.2

29.3

28.2

26.7

25.1

37.9

36.5

34.5

32.5

46.2

44.6

42.1

39.7

54.3

52.4

49.5

46.6

25.6

24.7

23.3

22.0

34.4

33.2

31.3

29.5

43.1

41.6

39.3

37.0

51.6

49.8

47.0

44.3

ΔT

(°F)

13.9

13.2

12.0

10.9

12.7

12.0

10.9

9.9

76.0

71.6

64.7

57.8

69.0

64.9

58.7

52.4

14

Total

Capacity

(MBh)

Sensible

Capacity

(MBh)

ΔT

(°F)

9.3

8.8

8.1

7.3

50.5

47.5

43.0

38.4

10.2

55.1

9.6

51.9

8.8

8.0

11.2

10.6

9.7

8.8

46.9

41.9

61.1

57.5

52.0

46.5

12.5

68.2

11.8

64.2

10.8

58.1

9.8

51.9

13.3

12.6

11.5

10.4

14.1

13.3

12.2

11.0

15.1

14.3

13.1

11.8

14.4

13.6

12.4

11.2

14.8

14.0

12.7

11.5

15.4

14.6

13.3

12.0

16.2

15.3

14.0

12.6

72.3

68.1

61.6

55.0

77.0

72.5

65.6

58.6

82.6

77.8

70.3

62.8

78.5

73.8

66.8

59.7

80.6

75.9

68.6

61.3

84.1

79.2

71.6

64.0

88.7

83.4

75.5

67.4

29.2

28.0

26.2

24.5

37.8

36.2

34.0

31.8

45.7

43.9

41.2

38.5

53.2

51.1

47.9

44.8

60.3

57.8

54.2

50.7

31.4

30.1

28.2

26.4

40.6

39.0

36.5

34.2

49.6

47.6

44.6

41.7

58.3

55.9

52.4

49.0

27.5

26.4

24.7

23.1

36.9

35.4

33.2

31.0

46.2

44.3

41.6

38.9

55.3

53.1

49.8

46.6

11.7

11.0

10.0

8.9

12.2

11.5

10.4

9.3

12.0

11.3

10.2

9.1

11.4

10.7

9.7

8.7

10.5

9.9

9.0

8.0

11.2

10.5

9.5

8.5

11.0

10.4

9.4

8.4

10.0

9.4

8.6

7.7

8.9

8.4

7.6

6.8

9.9

9.3

8.5

7.6

7.4

7.0

6.3

5.7

8.0

7.6

6.9

6.2

12.8

12.1

11.0

9.8

58 UV-PRC003-EN

UV-PRC003-EN.book Page 59 Tuesday, June 4, 2013 8:59 PM

Performance Data

Cooling - 150 - Coil (DX)

Table 41.

VUV 150, cooling coil J (DX)

Size EWB

1500 61

64

Suct

Temp

40

45

50

40

45

EDB = 70°F EDB = 75°F EDB = 80°F EDB = 85°F

TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB TC SC LDB LWB

41.7

27.5

53.0

51.1

45.6

36.3

52.5

50.0

50.5

44.5

52.4

48.6

56.5

52.2

52.7

46.9

34.9

25.0

54.5

52.8

38.2

33.0

54.6

51.9

42.4

40.5

54.9

50.8

47.3

47.3

55.7

49.4

28.2

22.5

56.1

54.5

30.9

29.7

56.6

53.8

34.2

34.2

58.8

52.9

38.2

38.2

61.3

51.9

49.5

23.7

55.3

52.8

52.2

33.4

54.3

52.1

55.5

42.4

53.7

51.2

59.7

51.0

53.4

50.0

41.5

21.6

56.6

54.8

43.7

30.4

56.2

54.2

46.5

38.6

56.1

53.5

50.1

46.4

56.3

52.5

67

70

73

50

40

45

50

40

45

50

40

33.5

19.4

58.0

56.7

35.3

27.3

58.1

56.2

37.6

34.7

58.5

55.6

40.4

40.4

60.0

54.9

58.6

19.0

58.2

54.5

60.5

29.2

56.9

53.9

62.7

38.9

55.9

53.3

65.6

48.2

55.1

52.5

49.1

17.3

59.3

56.8

50.7

26.6

58.5

56.3

52.6

35.4

58.1

55.8

55.0

43.8

57.9

55.2

39.7

15.5

60.4

58.9

40.9

23.9

60.2

58.6

42.4

31.8

60.3

58.2

44.4

39.4

60.6

57.7

70.1

24.1

60.1

55.7

71.7

34.2

58.8

55.2

73.6

44.0

57.7

54.7

58.8

21.9

61.4

58.3

60.1

31.1

60.7

58.0

61.7

40.0

60.2

57.5

47.4

19.7

62.8

60.8

48.5

28.0

62.7

60.5

49.8

36.0

62.7

60.2

82.0

28.6

62.3

57.1

83.3

38.6

61.1

56.7

68.7

26.0

63.9

60.0

69.8

35.1

63.3

59.7

55.4

23.4

65.5

62.8

56.4

31.6

65.4

62.6

45

50

EDB = Entering Air Temperature, Dry Bulb (°F)

EWB = Entering Air Temperature, Wet Bulb (°F)

TC = Total Capacity (MBh)

SC = Sensible Capacity (MBh)

LDB = Leaving Air Temperature, Dry Bulb (°F)

LWB = Leaving Air Temperature, Wet Bulb (°F)

%

120

110

100

90

80

Table 42. Airflow correction (% of design airflow)

Total Capacity

(MBh)

1.025

1.012

1.000

0.987

0.974

Sensible Capacity

(MBh)

1.105

1.051

0.998

0.945

0.892

Table 43. Airflow through coil J

Unit Model

Rated cfm

1500

1495+

UV-PRC003-EN 59

UV-PRC003-EN.book Page 60 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 150 - Coil A, B, C

60

Entering

Air Temp,

Dry Bulb

(°F)

50

55

60

65

70

50

55

60

65

70

50

55

60

65

70

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

120

140

160

180

Entering

Water

Temp (°F)

120

140

160

180

33.1

45.7

58.4

71.2

31.0

42.8

54.7

66.7

37.3

51.6

65.9

80.3

35.2

48.6

62.2

75.8

30.6

42.3

54.1

65.9

39.5

54.5

69.7

84.9

34.8

48.1

61.5

75.0

32.7

45.2

57.8

70.5

39.0

53.9

68.9

84.0

36.9

51.0

65.2

79.5

29.5

41.0

52.6

64.2

27.6

38.4

49.2

60.0

33.2

46.3

59.3

72.4

31.3

43.6

55.9

68.3

Total

Capacity

(MBh)

35.1

48.9

62.7

76.5

Table 44. VUV 150, hydronic heating coils A (1-row / 12 fpi), B (2-row / 12 fpi), C (2-row / 16 fpi)

Coil

A

B

C

31.9

44.5

57.2

70.0

29.8

41.6

53.5

65.5

36.1

50.4

64.7

79.1

34.0

47.4

61.0

74.6

29.4

41.1

52.9

64.7

38.3

53.3

68.5

83.7

33.6

46.9

60.3

73.8

31.5

44.0

56.6

69.3

37.8

52.7

67.7

82.8

35.7

49.8

64.0

78.3

28.3

39.8

51.4

63.0

26.4

37.2

48.0

58.8

32.0

45.1

58.1

71.2

30.1

42.4

54.7

67.1

2

Waterside

Temp Drop

(°F)

33.9

47.7

61.5

75.3

50.0

70.6

91.2

111.8

47.0

66.3

85.7

105.1

56.0

79.1

102.2

125.3

53.0

74.8

96.7

118.6

44.0

62.1

80.2

98.4

45.7

64.5

83.4

102.3

42.7

60.3

78.0

95.7

51.5

72.7

94.0

115.4

48.6

68.6

88.7

108.8

34.6

48.5

62.5

76.5

54.5

76.9

99.4

122.0

39.3

55.2

71.0

87.0

37.0

51.9

66.8

81.8

Flow Rate (gpm)

Total

Capacity

(MBh)

4

Waterside

Temp Drop

(°F)

44.1

61.8

79.6

97.5

41.7

58.5

75.3

92.2

21.5

30.3

39.2

48.2

20.3

28.7

37.1

45.5

19.1

27.0

34.9

42.9

17.9

25.4

32.8

40.3

16.7

23.7

30.7

37.7

26.7

37.9

49.1

60.4

24.4

34.7

45.0

55.3

22.9

32.6

42.3

52.0

27.4

39.0

50.5

62.1

25.9

36.8

47.8

58.7

21.4

30.5

39.5

48.6

22.3

31.7

41.1

50.6

20.8

29.6

38.4

47.3

25.2

35.8

46.4

57.1

23.7

33.7

43.8

53.8

54.6

76.8

99.0

121.3

51.1

71.8

92.7

113.5

61.5

86.6

111.7

136.8

58.0

81.7

105.3

129.1

49.4

69.6

89.8

110.0

65.0

91.5

118.1

144.6

56.2

79.1

102.1

125.1

52.8

74.4

96.0

117.6

63.0

88.7

114.4

140.2

59.6

83.9

108.2

132.6

40.5

56.8

73.1

89.4

37.9

53.1

68.4

83.7

Total

Capacity

(MBh)

48.3

67.7

87.1

106.6

45.7

64.0

82.4

100.8

43.1

60.4

77.7

95.1

17.8

25.2

32.6

40.0

16.6

23.5

30.5

37.4

20.1

28.5

36.8

45.2

18.9

26.8

34.7

42.6

16.1

22.8

29.5

36.3

21.3

30.1

39.0

47.8

18.3

26.0

33.6

41.3

17.2

24.4

31.6

38.8

20.6

29.2

37.7

46.3

19.5

27.6

35.7

43.8

13.1

18.5

24.0

29.4

12.2

17.3

22.4

27.5

14.8

20.9

27.1

33.2

14.0

19.7

25.5

31.3

6

Waterside

Temp Drop

(°F)

15.7

22.2

28.6

35.1

UV-PRC003-EN

UV-PRC003-EN.book Page 61 Tuesday, June 4, 2013 8:59 PM

Performance Data

Heating - 150 - Coil K, L

Table 45. VUV 150, steam heating coils K (low-capacity), L (high-capacity)

Size

1500

Coil

K

L 0

10

20

30

40

50

60

70

0

10

20

30

Entering

Air Temp,

Dry Bulb

(°F)

Total

Capacity

(MBh)

141.1

134.8

128.6

122.4

116.2

110.0

103.8

97.6

208.2

199.0

189.9

180.8

40

50

171.6

162.5

60

70 psig = steam pressure (lb/in.

2 gage)

153.3

144.1

5

Airside

Temp Rise

(°F)

87.1

83.2

79.4

75.6

71.7

67.9

64.1

60.2

128.5

122.9

117.2

111.6

105.9

100.3

94.6

89.0

219.0

209.9

200.7

191.6

182.4

173.2

164.1

154.9

Steam Pressure (psig)

Total

Capacity

(MBh)

10

Airside

Temp Rise

(°F)

148.4

142.1

135.9

129.7

123.5

117.3

111.1

104.9

91.6

87.7

83.9

80.1

76.2

72.4

68.6

64.8

135.2

129.5

123.9

118.2

112.6

106.9

101.3

95.6

Total

Capacity

(MBh)

154.7

148.4

142.2

136.0

129.8

123.6

117.4

111.2

228.2

219.1

209.9

200.8

191.6

182.5

173.3

164.1

15

Airside

Temp Rise

(°F)

95.5

91.6

87.8

83.9

80.1

76.3

72.5

68.6

140.9

135.2

129.6

123.9

118.3

112.6

107.0

101.3

UV-PRC003-EN 61

UV-PRC003-EN.book Page 62 Tuesday, June 4, 2013 8:59 PM

Performance Data

Electrical

Table 46. VUV 075–150, electrical performance

Blower Motor

Model #

VUVE075

VUVE100

230/60/3

277/60/1

277/60/1

277/60/1

277/60/1

460/60/3

460/60/3

460/60/3

460/60/3

115/60/1

208/60/1

208/60/1

208/60/1

208/60/1

Unit

Voltage

115/60/1

208/60/1

208/60/1

208/60/1

208/60/1

208/60/3

208/60/3

208/60/3

208/60/3

230/60/1

230/60/1

230/60/1

230/60/1

230/60/3

230/60/3

230/60/3

208/60/3

208/60/3

208/60/3

208/60/3

230/60/1

230/60/1

230/60/1

230/60/1

230/60/3

230/60/3

230/60/3

230/60/3

277/60/1

277/60/1

277/60/1

277/60/1

460/60/3

460/60/3

460/60/3

460/60/3

2.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

3.5

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

FLA

(ea.)

3.5

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

# Fan

Motors

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

6

0

3

4

6

0

3

4

0

3

4

6

6

0

6

0

3

4

6

0

3

4

6

0

3

4

0

0

3

4

# Heating

Elements

6

0

3

4

6

0

3

4

3

4

6

6

0

4

6

0

3

0

3

4

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

HP

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

Electric Heat

37.75

2

28.25

37.25

54.75

2

10.75

19.625

19.625

4.375

2.625

37.875

49.5

73

Minimum

Circuit

Ampacity

4.375

2.625

29

37.875

55.5

2.625

17.875

25.9875

33.125

2.625

33.125

43.25

63.625

2.625

20.25

29.4875

2.625

23

33.6125

43.25

2.625

43.25

56.75

83.875

2.625

26.125

38.45

49.5

2

37.25

48.875

72.375

2

13.75

25.5

25.5

30.2

1.6

22.6

29.8

43.8

1.6

8.6

15.7

15.7

3.5

2.1

30.3

39.6

58.4

26.5

2.1

26.5

34.6

50.9

2.1

16.2

23.6

Total

FLA

3.5

2.1

23.2

30.3

44.4

2.1

14.3

20.8

67.1

2.1

20.9

30.8

39.6

1.6

29.8

39.1

2.1

18.4

26.9

34.6

2.1

34.6

45.4

57.9

1.6

11.0

20.4

20.4

11.7

0

5.85

7.8

11.7

0

0

5.86

7.81

11.72

11.7

0

5.85

7.8

11.7

0

5.82

7.8

kW

0

0

4.39

5.86

8.79

0

4.39

5.86

8.79

0

5.85

7.8

15.6

0

7.8

10.4

15.6

0

7.8

10.4

0

5.86

7.81

11.72

0

7.8

10.4

15.6

0

7.8

10.4

15.6

42.2

0

7

14.1

14.1

0

0

28.2

37.5

56.3

48.8

0

14.1

21.49

28.1

0

21

28.2

Amp

0

0

21.1

28.2

42.3

0

12.2

18.69

24.4

0

24.4

32.5

0

16.3

24.79

32.5

0

32.5

43.3

65

0

18.8

28.66

37.5

0

28.2

37.5

56.3

0

9.4

18.8

18.8

60

15

15

20

40

15

30

40

20

15

15

40

50

80

70

15

20

30

40

15

40

50

60

15

20

30

Overcurrent

Protection

Device

15

15

30

40

50

15

40

50

90

15

30

40

80

15

15

30

30

15

25

40

50

15

50

60

43.48

1.28

8.28

15.38

15.38

2.8

1.68

29.88

39.18

57.98

50.48

1.68

15.78

23.17

29.78

1.28

22.28

29.48

1.68

17.98

26.47

34.18

1.68

34.18

44.98

66.68

1.68

20.48

30.34

39.18

1.28

29.48

38.78

57.58

1.28

10.68

20.08

20.08

43.98

1.68

13.88

20.37

26.08

1.68

26.08

34.18

Low FLA Option

Total

FLA

Minimum

Circuit

Ampacity

2.8

1.68

22.78

29.88

3.5

2.1

28.475

37.35

54.975

2.1

17.35

25.4625

32.6

2.1

32.6

42.725

2.1

22.475

33.0875

42.725

2.1

42.725

56.225

83.35

2.1

25.6

37.925

48.975

1.6

36.85

48.475

71.975

1.6

13.35

25.1

25.1

63.1

2.1

19.725

28.9625

37.225

1.6

27.85

36.85

54.35

1.6

10.35

19.225

19.225

3.5

2.1

37.35

48.975

72.475

62 UV-PRC003-EN

UV-PRC003-EN.book Page 63 Tuesday, June 4, 2013 8:59 PM

Performance Data

Electrical

Table 46. VUV 075–150, electrical performance (continued)

Blower Motor Electric Heat

Model #

VUVE125

VUVE150

3

4

6

0

3

4

6

0

3

4

6

0

3

4

6

0

3

4

6

3

4

6

0

4

6

0

0

4

6

0

3

3

4

6

0

6

0

3

6

0

3

4

3

4

3

4

6

0

0

0

# Heating

Elements

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

# Fan

Motors

2

2

208/60/1

208/60/1

208/60/1

208/60/3

208/60/3

208/60/3

208/60/3

230/60/1

230/60/1

230/60/1

230/60/1

230/60/3

230/60/3

230/60/3

230/60/3

277/60/1

277/60/1

277/60/1

277/60/1

460/60/3

460/60/3

460/60/3

460/60/3

230/60/1

230/60/3

230/60/3

230/60/3

230/60/3

277/60/1

277/60/1

277/60/1

277/60/1

460/60/3

460/60/3

460/60/3

460/60/3

115/60/1

208/60/1

Unit

Voltage

115/60/1

208/60/1

208/60/1

208/60/1

208/60/1

208/60/3

208/60/3

208/60/3

208/60/3

230/60/1

230/60/1

230/60/1

4.2

4.2

4.2

4.2

4.2

4.2

4.2

3.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

7.0

4.2

4.2

4.2

4.2

4.2

4.2

3.2

3.2

4.2

4.2

4.2

4.2

4.2

4.2

FLA

(ea.)

7.0

4.2

4.2

4.2

4.2

4.2

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

HP

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

0.25

56.75

73.875

108.25

5.25

35

50.7

64.625

5.25

64.625

84.375

124

5.25

39.5

57.5875

73.75

4

55.5

72.625

106.875

4

21.125

38.25

38.25

106.875

5.25

34.625

50.025

63.875

4

48

62.625

92

4

18.625

33.375

33.375

8.75

5.25

Minimum

Circuit

Ampacity

8.75

5.25

49.25

63.875

93.25

5.25

30.625

44.0375

56.125

5.25

56

73

51.7

67.5

99.2

4.2

31.6

46.1

59.0

3.2

45.4

59.1

86.6

4.2

28.0

40.6

51.7

4.2

44.4

58.1

85.5

3.2

16.9

30.6

30.6

50.1

73.6

3.2

14.9

26.7

26.7

7.0

4.2

85.5

4.2

27.7

40.0

51.1

3.2

38.4

24.5

35.2

44.9

4.2

44.8

58.4

Total

FLA

7.0

4.2

39.4

51.1

74.6

4.2

11.4

15.2

22.8

0

11.4

15.2

22.8

11.4

15.2

22.8

0

11.4

15.2

22.8

0

8.56

11.42

17.13

0

8.56

11.42

17.13

0

13

19.5

0

9.75

0

0

13

19.5

19.5

0

9.75

13

19.5

0

9.75

kW

0

0

7.32

9.76

14.65

0

7.32

9.76

14.65

0

9.75

13

41.2

54.9

82.3

0

13.7

27.4

27.4

47.5

63.3

95

0

27.4

41.87

54.8

0

41.2

54.9

82.4

0

23.8

36.36

47.5

0

46.9

70.4

0

11.7

0

0

23.5

23.5

81.3

0

23.5

35.82

46.9

0

35.2

Amp

0

0

35.2

46.9

70.4

0

20.3

31.03

40.7

0

40.6

54.2

50.86

66.66

98.36

3.36

30.76

45.23

58.16

2.56

44.56

58.26

85.76

3.36

27.16

39.72

50.86

3.36

43.76

57.46

84.86

2.56

16.26

29.96

29.96

84.66

3.36

26.86

39.18

50.26

2.56

37.76

49.46

72.96

2.56

14.26

26.06

26.06

3.5

3.36

Low FLA Option

Minimum

Total

FLA

Circuit

Ampacity

3.5

3.36

4.375

4.2

38.56

50.26

73.76

3.36

48.2

62.825

92.2

4.2

23.66

34.39

44.06

3.36

43.96

57.56

29.575

42.9875

55.075

4.2

54.95

71.95

105.825

4.2

33.575

48.975

62.825

3.2

47.2

61.825

91.2

3.2

17.825

32.575

32.575

4.375

4.2

55.7

72.825

107.2

4.2

33.95

49.65

63.575

4.2

63.575

83.325

122.95

4.2

38.45

56.5375

72.7

3.2

54.7

71.825

106.075

3.2

20.325

37.45

37.45

40

60

80

15

70

90

125

15

40

50

70

15

60

80

125

15

60

80

125

15

20

40

40

40

40

15

15

70

100

15

20

125

15

40

50

70

15

50

30

50

60

15

60

80

Overcurrent

Protection

Device

15

15

50

70

100

15

UV-PRC003-EN 63

UV-PRC003-EN.book Page 64 Tuesday, June 4, 2013 8:59 PM

Controls

Why Trane Controls?

Whether involved in a retrofit or in new construction applications, Trane has the control design to fit the systems requirements. The broad range of control packages offer a range from a field convertible end-device package, to a complete building automation system solution with LonTalk ® controls.

The good news is Trane ® controls are factory-mounted, -wired, -tested and configured or programmed with Trane ® application expertise to provide comfort, efficiency, and reliability, as well as, single-source warranty and service. With Trane’s integrated controls, the installed costs are lower because the equipment has turn-key factory controls and every component of the system is optimized to fit with the controller. Trane installs not only the controller, but also the hardware that works intimately with the controller to allow the system to function properly (i.e., piping package, valves, dampers, actuators, etc.). When a classroom unit ventilator with Trane ® controls arrives to the jobsite, it is completely ready for quick installation.

Table 47. Controller input/output summary

ZN520

Binary Outputs

3-Speed Fan

2-Position Hydronic Valve

2-Position Fresh Air Damper

1-Stage Electric Heat

3-Wire Economizer Damper

3-Wire Hydronic Valve

2-Stage Electric Heat

Reheat (hydronic or electric)

Generic

Binary Inputs

Condensate Overflow Detection

Low Temperature Detection

Occupancy

Generic Input

Analog Inputs

Zone Temperature

Setpoint

Fan Mode: Auto, High, Medium, Low

Entering Water

Discharge Air

Outside Air

Generic

Analog Outputs

Variable speed fan

Field supplied analog valves

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

(a)

X

X

(a) The generic input and output are for use with a Tracer Summit system only.

X

X

X

X

X

X

(a)

UC400

X

X

X

X

X

X

X

X

X

(a)

Table 48. Controller function summary

Control Functions

Entering Water Temp. Sampling (Purge)

Auto Changeover

Fan Cycling

Warm-Up

Pre-Cool

Data Sharing (Master/Slave)

Random Start

Dehumidification

Single Zone VAV

Staged Capacity (2-Stage Electric Supplementary)

Other Functions

Manual Test

Maintenance Timer

Setpoint Limits

ZN520

X

X

X

X

X

X

X

X

X

X

X

UC400

X

X

X

X

X

X in TU

X

X

64 UV-PRC003-EN

UV-PRC003-EN.book Page 65 Tuesday, June 4, 2013 8:59 PM

Controls

ECM Engine Controller

ECM Engine Controller

The Electronically Commutated Motor (ECM) engine controls and reports the performance of up to two Trane Brushless DC (BLDC) motors.

Figure 20. ECM engine controller

• The engine also coordinates the operation of the fan in response to electric heat behavior and electric behavior in response to hydronic heat behavior.

• The engine incorporates a user interface that allows adjustment of certain unit parameters and provides constant feedback on motor operation.

• The engine integrates service and troubleshooting tools.

• The engine integrates a versatile configurable auxiliary temperature sensor.

• The engine incorporates various safety and lockout features, such as maintaining proper fan speeds if electric heat is called for.

Status Display

Figure 21. Status display

The ECM engine board contains a four-digit, seven-segment display that is used to present information in a format close to real-world language, while having a small-form factor. Most characters are immediately recognizable; however, please consult

Table 49

and

Table 50 for the

graphical representation of each alphanumeric character.

Table 49. Screen representation of alphabetical characters

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

                         

Table 50. Screen representation of numeric characters

1



2



3



4



5



6



7



8



9



0



UV-PRC003-EN 65

UV-PRC003-EN.book Page 66 Tuesday, June 4, 2013 8:59 PM

Controls

End Device Controls

Fan Speed Switch

Figure 22. Fan speed switch

Figure 23. Adapter board

Note: Customer Low-Voltage Interface for

Fan Speeds, Variable Fan Speed, and

24 Vac Supply

66 UV-PRC003-EN

UV-PRC003-EN.book Page 67 Tuesday, June 4, 2013 8:59 PM

Controls

End Device Controls

The adapter allows direct customer interfacing through the use of terminal strips. Standard interfacing includes:

• Fan Speeds (H, M, L) (for wall mounted fan speed switches)

• Variable speed (0–10V) inputs

The standard adapter board eliminates many separate wiring harnesses in the panel and allows simple, mistake-proofed single-plug interfacing of:

• The ECM engine controller

• Transformers

• Motors

• Valves

• Dampers

• Electric heat control

• Fan speed switches

• Main power (except electric heat)

The manual fan mode switch is available for fan-coil units that do not have Trane factory-mounted control packages. This four-position switch (off, high, medium, low) allows manual fan mode selection and is available unit or wall mounted. The unit-mounted option operates on line voltage.

The wall-mounted option is low-voltage and has three 24-volt relays using a factory-wired transformer and relays to control the fan motor.

UV-PRC003-EN 67

UV-PRC003-EN.book Page 68 Tuesday, June 4, 2013 8:59 PM

Controls

CSTI

Customer Supplied Terminal Interface (CSTI)

Figure 24. CSTI adapter board

Customer Low-Voltage Interface for

Valves, Electric Heat, Dampers, Fan

Speeds, Variable Fan Speed, and

24 Vac Supply

Valve(s), Electric Heat, and Changeover

Configuration Switches (Factory-Set)

68

Figure 25. CSTI adapter board field connections

3 2 1 13 12 11 10 9 8 7 6 5 4 3 2 1

1.

VSP 10V

2.

VSP 0–10V

3.

VSP DC COM

1.

24 Vac Y (hot)

2.

24 Vac Y (gnd)

3.

High

4.

Medium

5.

Low

6.

V1Op/Cooling

7.

V1C1 (not std)

8.

Not used

9.

Not used

10. V2Op/EH1St/Heating

11. V2C1/EH2St (not std)

12. Damper Open

13. Dmp Cl (not std)

The control interface is intended to be used with a field-supplied, low-voltage thermostat or controller. The control box contains a relay board which includes a line voltage to 24-volt transformer, quiet contactors (for electric heat units), and an optional disconnect switch. All end devices are wired to a low-voltage terminal block and are run-tested, so the only a power connection and thermostat connection is needed to commission the unit. Changeover sensors and controls are provided whenever a change-over coil is selected. When N.O. valves are selected, inverting relays are provided for use with standard thermostats.

The CSTI adapter board provides all the hookups of the standard adapter board, but in addition, provides hookups for valve control (main and auxiliary coils), electric heat control, and damper control. Screw terminal blocks provide convenient access to fan controls and to end device control.

In addition, a courtesy 10-Vdc supply is provided for use with an external potentiometer or rheostat.

The 10-Vdc supply supports up to 10 mA draw.

UV-PRC003-EN

UV-PRC003-EN.book Page 69 Tuesday, June 4, 2013 8:59 PM

Controls

Tracer ZN520 (LonTalk)

Tracer ZN520 Zone Controller

Features Include

• Automatic fan-speed reset

• Automatic ventilation reset

• Active dehumidification

• Manual output test

• Filter maintenance

• Master slave

• Water valve override

• Freeze avoidance

• Interoperability

• Three generic I/O ports

The Tracer ZN520 is a factory-installed, -tested and -commissioned LonTalk ® control board designed to provide control of the classroom unit ventilator and the fan-coil products (see

Figure 26 ).

Figure 26. Tracer ZN520 control board

UV-PRC003-EN

The Tracer ZN520 controller is designed to be used in the following applications:

• As part of the Trane Tracer Summit building automation system, the Tracer ZN520 becomes an important part of the Trane Integrated Comfort system (ICS).

• The Tracer ZN520 can function as a completely standalone controller in situations where a building automation system (BAS) is not present.

• For situations when a non-Trane BAS is present, the Tracer ZN520 can be where ever a LonTalk front-end system is present.

Through building management of the HVAC system, optimizing energy consumption becomes possible at a classroom level. Each unit is capable of functioning independently of one another during occupied and unoccupied hours of the day. This allows the temperature setpoint and ventilation setting to be changed automatically based on classroom usage (see

Figure 27, p. 70 ).

69

UV-PRC003-EN.book Page 70 Tuesday, June 4, 2013 8:59 PM

Controls

Tracer ZN520 (LonTalk)

Figure 27. Tracer ZN520 system

70

Two Systems in One

In an ICS environment, the Tracer ZN520 is pre-designed to install quickly and easily into the system. Since the controller and the unit are factory tested and commissioned, the start-up time for the entire system is minimized. Trane becomes the single source of responsibility for the equipment, unit controls, and building automation system.

As a standalone controller, the Tracer ZN520 is ideally suited for fix-on-fail replacement of units with old pneumatic controllers, or in situations where a BAS will be added at a later date. Once power is applied to the controller, it will automatically start up and run based upon the setpoint on the local zone sensor. An individual time clock can be added to the unit for local scheduling.

The Tracer ZN520 is certified to the interoperable L ON M ARK® Space Comfort Controller profile. This allows the controller to be used with another vendor’s BAS and thereby still provide the high quality of factory installation and testing. In addition, the Tracer ZN520 provides one of the most extensive interoperable data lists of any controller of its type in the industry.

Tracer ZN520 Features Include

Automatic Fan and Ventilation Reset.

With the Tracer ZN520 controller, a multi-speed fan control for the unit ventilator delivers the airflow output customized to support the cfm space needs. When less cfm is necessary to meet the load of the classroom (typically 75 to 80 percent of the time), the equipment operates on low speed. However, if the room temperature rises, the controller will switch to high speed, and the outside air damper will adjust to satisfy the space needs. This helps maintain the proper amount of ventilation air to the occupants independent of the fan speed. As part of the ventilation strategy, the controller will reposition the outside air damper to confirm the minimum outside air cfm is met at both operating conditions.

Manual Output Test .

The Tracer ZN520 controller includes a manual output test function. This function may be initiated from the blue test push button on the controller or through the Rover™ service tool. This feature is used to manually exercise the outputs in a defined sequence.

The purpose of this test sequence is to verify output and end device operation. The manual output test function may also be used in the following situations:

• Reset latching diagnostics

• Verify output wiring and operation

UV-PRC003-EN

UV-PRC003-EN.book Page 71 Tuesday, June 4, 2013 8:59 PM

UV-PRC003-EN

Controls

Tracer ZN520 (LonTalk)

• Force the water valve(s) open to balance the hydronic system during installation set-up or service.

Filter Maintenance.

Filter status for the controller is based on the cumulative run hours of the unit fan. The controller compares the amount of fan run time against an adjustable fan run hour

(stored in the controller) to determine when maintenance is recommended for the unit. The runhours value may be user edited as required (through Rover). The valid range for the fan run hours limit is 0 to 5000 hours with a default of 600 hours. Once the run hours limit has been exceeded, the controller generates a maintenance required diagnostic (unit will not shut-down). The user will be notified of this diagnostic through the building automation system or when a Trane Service Tool is communicating with the controller.

Active Dehumidification.

On unit ventilators with reheat coils, the Tracer ZN520 can provide active dehumidification to the classroom. This means that the classroom relative humidity can be kept below an adjustable setpoint independent outdoor weather conditions. Indoor humidity levels are recommended by ASHRAE to be kept below 60 percent in order to minimize microbial growth and the life span of airborne illness causing germs.

Master Slave (Data Sharing).

Because the Tracer ZN520 controller utilizes L ON W ORKS® technology, the controller can send or receive data (setpoint, heat/cool mode, fan request, space temperature, etc.) to and from other controllers on the communication link with or without the existence of a building automation system. This applies to applications where multiple units might share one zone sensor for both stand-alone (with communication wiring between units) and a building automation system.

Water Valve Override.

The Tracer ZN520 can be commanded via the Rover service tool to open all hydronic valves 100 percent. This allows for the faster water balancing of each unit and the entire system when the command is sent globally to all controllers. A properly balanced system is essential for proper and efficient operation.

Hydronic Coil Freeze Protection (Freeze Avoidance).

Unit ventilator systems in cold climates need to take precautions to avoid hydronic coil freeze-up. The Tracer ZN520 does this from three different aspects. Any of these methods of protections will result in the unit fan being disabled, the outside air damper being shut, and the hydronic valves being opened 100 percent.

The three methods of freeze avoidance include:

1.

A binary freeze protection thermostat is mounted on the coil and will cause a latching diagnostic if the coil temperature falls below 35°F.

2. An analog discharge air sensor monitors the temperature of the air coming off of the coil and if the temperature falls below 40°F the outside air damper is closed, the fan is turned off and the valves are fully opened.

3. When in the unoccupied mode the Tracer ZN520 has an adjustable freeze avoidance setpoint.

If the outside air temperature is below the setpoint the unit will open the valves to allow water to flow through the coils.

Interoperability.

Interoperability allows the owner freedom to select multiple vendors, and multiple products. With this advantage, the owner can choose the best products, the best application, and the best service from a variety of suppliers to meet their evolving building control needs in a cost effective manner.

Generic Binary Input/Output.

The three generic binary inputs/outputs are not part of the normal control, but are actually controlled through the Tracer Summit system (when present) to issue commands to the Tracer ZN520 control to turn the generic inputs/outputs of add-on equipment (such as baseboard heating, exhaust fans, occupancy sensor, lighting, etc.) on and off.

This binary port is not affected when other binary diagnostics interrupt unit operation.

71

UV-PRC003-EN.book Page 72 Tuesday, June 4, 2013 8:59 PM

Controls

Tracer UC400

Tracer UC400

Figure 28.

72

The Tracer UC400 controller delivers single zone VAV control and can be used in a stand-alone application or as part of a Trane Integrated Comfort System (ICS).

In the stand-alone configuration, Tracer UC400 receives operation commands from the zone sensor and/or the auto changeover sensor (on auto changeover units). The entering water temperature is read from the auto changeover sensor and determines if the unit is capable of cooling or heating.

The zone sensor module is capable of transmitting the following information to the controller:

• Timed override on/cancel request

• Zone setpoint

• Current zone temperature

• Fan mode selection (off-auto-high-med-low)

For optimal system performance, unit ventilators can operate as part of an Integrated Comfort

System (ICS) building automation system controlled by Tracer Summit. The controller is linked directly to the Summit control panel via a twisted pair communication wire, requiring no additional interface device (i.e., a command unit). The Trane ICS system can monitor or override Tracer UC400 control points. This includes such points as temperature and output positions.

Tracer UC400 Zone Controller Features Include

• Single Zone VAV

• Automatic ventilation reset

• Active dehumidification

• Filter maintenance

• Water valve override

• Freeze avoidance

• Interoperability

• Unused I/O can be as generic I/O

The Tracer UC400 is a factory-installed, -tested, and -commissioned BACnet ® MS/TP control

designed to provide control of the classroom unit ventilator (see Figure 28

). The Tracer UC400 controller is designed to be used in the following applications: as stand-alone operation, part of the

Trane Tracer SC building automation system, or part of another BACnet MS/TP Building

Automation System. The Tracer UC400 can function as a completely standalone controller in situations where a building automation system (BAS) is not present.

The Tracer UC400 is designed to install quickly and easily into the system. Since the controller and the unit are factory-tested and -commissioned, the start-up time for the entire system is minimized.

Trane becomes the single source of responsibility for the equipment, unit controls, and building automation system. As a standalone controller, the Tracer UC400 is ideally suited for fix-on-fail

UV-PRC003-EN

UV-PRC003-EN.book Page 73 Tuesday, June 4, 2013 8:59 PM

UV-PRC003-EN

Controls

Tracer UC400

replacement of units with old pneumatic controllers, or in situations where a BAS will be added at a later date. Once power is applied to the controller, it will automatically start up and run based upon the setpoint on the local zone sensor. An individual time clock can be added to the unit for local scheduling. The Tracer UC400 is BTL listed as B-ASC profile. This ensures the controller to be used with other BACnet ® building automation systems.

Tracer UC400 Features Include

Single Zone VAV with Fully Modulating Fan Speed.

The Tracer UC400 will minimize fan speed, and in turn energy usage, by only delivering the air flow needed.

Figure 29. Cool mode nominal hydronic cooling control

Max. Flow = 100%

80

70

100

80

60

60

Min. Flow = 0%

Min. discharge setpoint = 50°F

40

20

0

50

45

Csp

No cooling load

Design cooling ibl l d

Ventilation Reset.

With the Tracer UC400 the unit ventilator delivers the airflow the space needs.

When the air flow adjusts the outside air damper will also adjust to satisfy the space needs. This helps maintain the proper amount of ventilation air to the occupants independent of the fan speed.

As part of the ventilation strategy, the controller will reposition the outside air damper to confirm the minimum outside airflow is met at both operating conditions.

Filter Maintenance.

Filter status for the controller is based on the cumulative run hours of the unit fan. The controller compares the amount of fan run time against an adjustable fan run hour

(stored in the controller) to determine when maintenance is recommended for the unit. The runhours value may be user edited as required. The valid range for the fan run hours limit is 0 to

5000 hours with a default of 600 hours. Once the run hours limit has been exceeded, the controller generates a maintenance required diagnostic (unit will not shut-down). The user will be notified of this diagnostic through the building automation system or when a Trane ® service tool is communicating with the controller.

Active Dehumidification.

On unit ventilators with reheat coils, the controller can provide active dehumidification to the classroom. This means that the classroom relative humidity can be kept below an adjustable setpoint independent outdoor weather conditions. Indoor humidity levels are recommended by ASHRAE to be kept below 60 percent in order to minimize microbial growth and the life span of airborne illness causing germs.

Hydronic Coil Freeze Protection (Freeze Avoidance).

Unit ventilator systems in cold climates need to take precautions to avoid hydronic coil freeze-up. The controller does this from three different aspects. Any of these methods of protections will result in the unit fan being disabled, the outside air damper being shut, and the hydronic valves being opened 100 percent.

The three methods of freeze avoidance include:

1.

A binary freeze protection thermostat is mounted on the coil and will cause a latching diagnostic if the coil temperature falls below 35°F.

73

UV-PRC003-EN.book Page 74 Tuesday, June 4, 2013 8:59 PM

Controls

Zone Sensors

2. An analog discharge air sensor monitors the temperature of the air coming off of the coil and if the temperature falls below 40°F the outside air damper is closed, the fan is turned off and the valves are fully opened.

3. When in the unoccupied mode, the controller has an adjustable freeze avoidance setpoint. If the outside air temperature is below the setpoint, the unit will open the valves to allow water to flow through the coils.

Zone Sensors

Zone sensors are available as either unit, wall, or split-mounted options for design flexibility. Unit ventilators with the unit-mounted zone sensor option include a thermistor in the unit’s return air path. Wall-mounted zone sensor options have an internal thermistor. Zone sensors operate on

24 Vac.

Figure 30. Unit mtd temp sensor

(SP, OCC/UNOCC, OALMH)

(Electric heat with auto and off speeds)

Figure 31. Unit mtd display sensor

(SP, OCC/UNOCC, COMM)

X13790844-01 (unit)

X13790886-04 (unit; 3-speed)

Figure 32. Unit mtd display sensor

(SP, OCC/UNOCC, COMM)

X13790886-03 (unit; 2-speed)

Figure 33. Wall mtd temp sensor

(SP, OCC/UNOCC, OALMH, COMM)

X13790842-02 (wall)

X13651467-01 (comm)

Figure 34. Wall mtd display sensor

(SP, OCC/UNOCC, COMM)

X13790886-04 (wall; 3-speed)

Figure 35. Wall mtd display sensor

(SP, OCC/UNOCC, COMM)

X13790886-03 (wall; 2-speed)

74 UV-PRC003-EN

UV-PRC003-EN.book Page 75 Tuesday, June 4, 2013 8:59 PM

Figure 36. Unit mtd FSS (OALMH), wall mtd temp sensor

(SP, OCC/UNOCC, COMM)

X13511527-01 (wall)

X13790849-01 (unit)

X13651467-01 (comm)

Figure 37. Unit mtd FSS (OALMH), wall mtd display temp sensor

(SP, OCC/UNOCC, COMM)

Controls

Zone Sensors

X13790886-04 (wall)

X13790841-02 (unit)

Figure 38. Unit mtd FSS (OLH), wall mtd display temp sensor

(SP, OCC/UNOCC, COMM)

X13790886-03 (wall)

X13790475-01 (unit)

Figure 39. Wireless temp sensor

(SP, OCC/UNOCC, OALMH, COMM)

X13790492-01 (wall)

X13790855-01 (unit)

Figure 40. Wireless temp sensor with display

(SP, OCC/UNOCC, COMM)

X13790822-04 (wall)

X13790855-01 (unit; 3-speed)

Figure 41. Wireless temp sensor with display

(SP, OCC/UNOCC, COMM)

X13790822-01 (wall)

X13790855-01 (unit; 2-speed)

UV-PRC003-EN 75

UV-PRC003-EN.book Page 76 Tuesday, June 4, 2013 8:59 PM

Controls

Piping Valve Options

Valves/Piping Package

Control valves are mounted in a factory piping package to include unions at the coil, p/t ports on the supply and return lines, and shut-off ball valve on the supply and return.

Cooling and heating coil valves are only available as 3-point modulating, non-spring return type valves. The ambient temperature range is -32°F to 150°F.

Water Pressure Drops in feet for Unit Vent 2- and 3-way Piping Packages

Table 51. 1.9 Cv-rated valves in 1/2-in. piping packages

Piping package

1 Basic package

2 with CBV

3 with strainer and CBV

Cv rating

1.9

1.9

1.9

2

3.2

5.2

5.5

3

Gallons per minute

4 5 6 7

7.1

12.6 19.5 28.0 38.1

11.7 20.7 32.3 46.4 63.1

12.4 22.0 34.2 49.2 66.8

Table 52. 4.7 Cv-rated valves in 1/2-in. piping packages

Piping package

1 Basic package

2 with CBV

3 with strainer and CBV

Cv rating

4.7

4.7

4.7

5 6 7 8

Gallons per minute

9 10 11 12 13 14

4.5

6.3

8.5

11.0 13.7 16.8 20.2 23.9 27.9 32.1

17.2 24.7 33.5 43.6 55.1 67.9 – – – –

19.1 27.4 37.2 48.5 61.3 75.5 – – – –

Table 53. 6.6 Cv-rated valves in 3/4-in. piping packages

Piping package

1 Basic package

2 with CBV

3 with strainer and CBV

Cv rating

6.6

6.6

6.6

9

Gallons per minute

10 11 12 13 14 15 16 17 18 19 20

4.8

5.9

7.1

8.4

9.8

11.4 13.0 14.8 16.7 18.7 20.8 23.0

16.8 20.7 25.1 29.8 34.9 40.5 46.5 – – – – –

21.2 26.2 31.7 37.7 44.2 51.2 58.8 – – – – –

76 UV-PRC003-EN

UV-PRC003-EN.book Page 77 Tuesday, June 4, 2013 8:59 PM

Controls

Piping Valve Options

Table 54. Control valve pressure drop (feet)

2- or 3-way water valves 2 3 4 5 6 7 8 9

Gallons per minute

10 11 12 13 14 15 16 17 18 19 20

1/2-in. - 1.9 Cv 2.85 6.42 11.41 17.82 25.67 34.94 –

1/2-in. - 4.7 Cv – – –

– – – – – – – – –

2.73 3.93 5.35 6.99 8.84 10.92 13.21 15.72 18.45 21.4 24.56 27.95 –

3/4-in. - 6.6 Cv – – – – – – –

–

–

–

–

–

–

3.51 4.33 5.25 6.24 7.33 8.50 9.75 11.10 12.53 14.04 15.65 17.34

Table 55. Vertical unit ventilator valve offering

2-position

2-way

1/2-in. 2-way, 1.9 Cv Hydronic - Normally Open - Close off 30 psi

3/4-in. 2-way, 3.5 Cv Hydronic - Normally Closed - Close off 20 psi

3/4-in. 2-way, 3.5 Cv Hydronic - Normally Open - Close off 20 psi

Steam Normally Open - close off 15 psi; 1.0 NPTI 1.0-in. 2-way, 8.0 Cv

3-wire modulating

2-way

1/2-in. 2-way, 1.9 Cv Hydronic - Low Cv - heat

1/2-in. 2-way, 3.3 Cv Hydronic - Low Cv - cooling

3/4-in. 2-way, 4.7 Cv Hydronic - Med Cv - cool/heat

1.0-in. 2-way, 6.6 Cv Hydronic - High Cv - cool/heat

1/2-in. 2-way, 1.8 Cv Steam Only 1/2 NPTI

1/2-in. 2-way, 4.6 Cv Steam Only 1/2 NPTI

3/4-in. 2-way, 7.3 Cv Steam Only 3/4 NPTI

2–10 Vdc modulating

2-way

1/2-in. 2-way, 1.9 Cv Hydronic - Low Cv - heat

1/2-in. 2-way, 3.3 Cv Hydronic - Low Cv - cooling

3/4-in. 2-way, 4.7 Cv Hydronic - Med Cv - cool/heat

1.0-in. 2-way, 6.6 Cv Hydronic - High Cv - cool/heat

3-way

1/2-in. 3-way, 1.9 Cv

3/4-in. 3-way, 7.0 Cv

Hydronic - Close off 28 psi

Hydronic - Close off 10 psi

3-way

1/2-in. 3-way, 1.5 Cv

1/2-in. 3-way, 3.8 Cv

3/4-in. 3-way, 6.6 Cv

Hydronic - Low Cv - cooling

Hydronic - Med Cv - cool/heat

Hydronic - High Cv - cool/heat

3-way

1/2-in. 3-way, 1.5 Cv

1/2-in. 3-way, 3.8 Cv

3/4-in. 3-way, 6.6 Cv

Hydronic - Low Cv - cooling

Hydronic - Med Cv - cool/heat

Hydronic - High Cv - cool/heat

UV-PRC003-EN 77

UV-PRC003-EN.book Page 78 Tuesday, June 4, 2013 8:59 PM

Controls

Piping Valve Options

Table 56. 3-Wire modulating water valve specifications

Power supply

Power consumption

Maximum duty cycle

Nominal timing

24 Vac - 50/60 Hz

4 W

15%

120 sec

Operating ambient temperature 0°C to 65°C

32°F to 150°F

Min/Max fluid temperature 1°C to 95°C

Operating pressure differential

34°F to 203°F

Maximum - 4 bar (60 psi)

Pressure rating

Flow characteristic

Static - 20 bar (300 psi)

Burst - 100 bar (1500 psi)

Linear

Table 57. Isolation valve specifications

Power supply

Power consumption

Maximum fluid temperature

Minimum fluid temperature

Maximum operating pressure

Maximum close-off pressure

24 Vac - 50/60 Hz

5 W

94°C

200°F

1°C

34°F

300 psi

1/2 in. = 30 psi

3/4 in.= 20 psi

1 in.= 15 psi

78 UV-PRC003-EN

UV-PRC003-EN.book Page 79 Tuesday, June 4, 2013 8:59 PM

Controls

Piping Valve Options

Figure 42. Dimensional data for right hand piping with 3-way valve (typical)

UV-PRC003-EN 79

UV-PRC003-EN.book Page 80 Tuesday, June 4, 2013 8:59 PM

Controls

Actuators

Face and Bypass Damper Actuator

An optional face and bypass actuator is 24 volt, 3-point modulating, non-spring return. In-coming power is 24 Vac with a consumption of 2 watts. Maximum torque of 35 in·lb.

Note: Face and bypass is available with all units ventilator coils, with exception of DX and electric heat.

Table 58. Face and bypass actuator specification

Power supply

Power consumption

Transformer sizing

Angle of rotation

Torque

Direction of rotation

Position indication

Run time (nominal)

Manual override

Noise level

Control signal

24 Vac ±20% - 50/60 Hz

24 Vac ±10%

2 W

3 VA (class 2-power source)

Maximum 95°, adjustable with mechanical stop

35 in·lb

Reversible with switch L/R

Clip-on indicator

90-second constant

External push button

Less than 35 dB

3-point floating

Outside/Return-Air Damper Actuator

Optional outside-air/return-air actuator is spring return and takes a 3-point floating signal.

A 2–10 Vdc option is also available. It provides 25 in·lb of torque. The power consumption is 7 VA with temperature limits of -25°F to 125°F.

Table 59. Outside air actuator specifications

80

Power supply

Power consumption

Transformer sizing

Overload protection

Control signal

Angle of rotation

Torque

Direction of rotation

Position indication

Run time (nominal)

Noise level

24 Vac ±20% - 50/60 Hz

24 Vac ±10%

Running: 2.5 W

Holding: 1 W

5 VA (class 2-power source)

Electronic throughout 0 to 95° rotation

2 to 10 Vdc

3-point floating with Trane ® controls

Maximum 95°, adjustable with mechanical stop

35 in·lb

Spring return reversible with CW/CCW mounting

Visual indicator, 0 to 95°

90-second constant (independent of load)

Running: 30 dB

UV-PRC003-EN

UV-PRC003-EN.book Page 81 Tuesday, June 4, 2013 8:59 PM

Jobsite Connections

Coil Type/Specification Header Sizes

Hydronic Main/Auxiliary Reheat Coils

(Cooling Coil or Heating/Cooling Changeover Coil)

• Wavy plate finned.

• Hydrostatically tested at 350 psig.

• All piping packages for the main coil and auxiliary reheat coil assemblies are always supplied as a 3/4 in. package.

• 3/4 in. Nominal

• 7/8 in. ID

Hydronic Auxiliary Preheat Coils

(Heating Coil)

• Wavy plate finned.

• Hydrostatically tested at 350 psig.

• All piping packages for the auxiliary preheat coil assemblies are always supplied as a 1/2 in. package.

• 1/2 in. Nominal

• 5/8 in. I.D.

Steam Heating Coils

• 1-row, tube-in-tube distributing coil.

• Piping packages for steam coils are field provided.

• Equipment specified with Trane controls will benefit from an optional 2-position isolation valve (Main Coil) to be used for close-off of the steam coil when the damper is in full bypass position.

• The modulating piping valve (option) is shipped loose and field installed.

• 1 in. FNPT

Electric Heat Coils

• Electric preheat coils consist of special finned element for maximum life, heat transfer and safety.

• Units include a high temperature cut-out with a continuous sensing element. This device interrupts electrical power whenever excessive temperatures are sensed along the leaving air side of the coil.

• Power connection is made in the right-hand end pocket.

• A circuit breaker option is available through the equipment model number.

Direct Expansion (DX) Coils

(Refrigerant Cooling Coil)

• The DX refrigerant coil includes a factory mounted thermal expansion valve (TXV) and equalizing tube, 24 Vac transformer, time delay relay, frost detection, outside air sensor.

• TXV is sized for R-410A refrigerant. The type of coil is order specific through the unit model number selection.

• 3/8 in. OD liquid line

• 7/8 in. OD suction line

Figure 43. Coil header location

UV-PRC003-EN 81

UV-PRC003-EN.book Page 82 Tuesday, June 4, 2013 8:59 PM

Dimensional Data

Standard Depth Unit

(4)K.O. FOR PIPING

OR ELECTRICAL

A

5 3/4"

22 5/8"

12 1/2"

5"

2 1/4" 9"

13 1/2"

FRESH AIR OPENING

(OPTIONAL)

B

BACK VIEW

(2)9" x 9"[229mm x 229mm]

KNOCKOUTS IN BOTTOM

7/8" O.D.

DRAIN CONN.

16 5/8"

2 3/8"

8 1/8"

12 1/4"

3 3/4"

5 1/4"

3/4"

7"

11"

14 3/8"

SIDE VIEW

16 5/8"

2 1/4"

2"

13"

UNIT MOUNTED

FAN SWITCH

(OPTIONAL)

3 3/4"

10 7/8"

GRILLE

TOP VIEW

RETURN AIR

(OPTIONAL)

FRONT OF UNIT

UNIT SIZE NO. FANS

2 075

100

125

150

2

4

4

A

69"

81"

93"

105"

B

42"

54"

66"

78"

NOTE:

1. THE UNIT LENGTH DOES NOT INCLUDE 5/8" END PANELS.

2. THE POWER CONNECTION IS MADE IN THE LEFT HAND

END POCKET FOR ALL OPTIONS BUT ELECTRIC HEAT.

3. THE POWER CONNECTION FOR ELECTRIC HEAT OPTION

IS MADE IN THE RIGHT HAND END POCKET.

PIPE

CHASE

7/8" O.D.

AUX.

30"

DRAIN CONN.

(optional)

2 1/2"

2 1/4"

82 UV-PRC003-EN

UV-PRC003-EN.book Page 83 Tuesday, June 4, 2013 8:59 PM

Dimensional Data

Falseback Unit

22 5/8"

12 1/2"

5"

5 3/4"

2 1/4" 9"

13 1/2"

2"

13"

2 1/4"

TOP VIEW

STEP-DOWN

FALSEBACK

A

21 1/4"

16 5/8"

2 3/8"

(4)K.O. FOR PIPING

OR ELECTRICAL

7/8" O.D.

DRAIN CONN.

7/8" O.D.

AUX.

DRAIN CONN.

(optional)

FRESH AIR OPENING

(OPTIONAL)

B

BACK VIEW

(2)9" x 9"[229mm x 229mm]

KNOCKOUTS IN BOTTOM

FALSEBACK

3 3/4"

8 1/8"

12 1/4"

3/4"

STEP-DOWN

IS IN 1"

INCREMENTS

7"

11"

14 3/8"

SIDE VIEW

21 1/4"

16 5/8"

2 3/8"

2 1/4"

FALSEBACK

FRONT OF UNIT

RETURN AIR

(OPTIONAL)

3 3/4"

C

18"

10 7/8"

2 1/2"

14 3/8"

SIDE VIEW

Depicting Step-down

Falseback

2 1/4"

UNIT SIZE NO. FANS A

075 2 69"

B

42"

C

25" to 29"

100

125

150

2

4

4

81"

93"

105"

54"

66"

78"

25" to 29"

25" to 29"

25" to 29"

30"

STEP-DOWN

FALSEBACK

FOR RETROFIT

APPLICATIONS

WHERE WINDOW

SEAL MAY INTERFERE

WITH UNIT INSTALLATION

(OPTIONAL)

NOTE:

1. THE UNIT LENGTH DOES NOT INCLUDE 5/8" END PANELS.

2. THE POWER CONNECTION IS MADE IN THE LEFT HAND

END POCKET FOR ALL OPTIONS BUT ELECTRIC HEAT.

3. THE POWER CONNECTION FOR ELECTRIC HEAT OPTION

IS MADE IN THE RIGHT HAND END POCKET.

4. THE UNIT SHOWN INCLUDES THE INSULATED HORIZONTAL

BAFFLE OPTION.

UV-PRC003-EN 83

UV-PRC003-EN.book Page 84 Tuesday, June 4, 2013 8:59 PM

Dimensional Data

Dynamic Air Barrier Unit

22 5/8"

12 1/2"

5"

5 3/4"

2 1/4"

9"

13 1/2"

2"

2 1/4"

(4)K.O. FOR PIPING

OR ELECTRICAL

A

RETURN AIR OPENING

FRESH AIR OPENING

B

BACK VIEW

(2)9" x 9"[229mm x 229mm]

KNOCKOUTS IN BOTTOM

FALSEBACK

21 1/4"

16 5/8"

7/8" O.D.

DRAIN CONN.

PIPE

7/8" O.D.

AUX.

DRAIN CONN.

(optional)

8 1/8"

12 1/4"

3 3/4"

3/4"

5 1/4"

7"

11"

14 3/8"

SIDE VIEW

2 1/4"

3 3/4"

10 7/8"

13"

FALSEBACK

TOP VIEW

UNIT SIZE NO. FANS

075

100

125

150

2

2

4

4

A

69"

81"

93"

105"

B

42"

54"

66"

78"

NOTE:

1. THE UNIT LENGTH DOES NOT INCLUDE 5/8" END PANELS.

2. THE POWER CONNECTION IS MADE IN THE LEFT HAND

END POCKET FOR ALL OPTIONS BUT ELECTRIC HEAT.

3. THE POWER CONNECTION FOR ELECTRIC HEAT OPTION

IS MADE IN THE RIGHT HAND END POCKET.

BARRIER

84 UV-PRC003-EN

UV-PRC003-EN.book Page 85 Tuesday, June 4, 2013 8:59 PM

Dimensional Data

End Covers

UV-PRC003-EN 85

UV-PRC003-EN.book Page 86 Tuesday, June 4, 2013 8:59 PM

Dimensional Data

Crossover Piping

16 5/8" DEPTH UNIT

FLUSH

21 1/4" DEPTH UNIT

FLUSH

TOP VIEW

TOP VIEW

S R

7/8" I.D. FIELD

CONN. W/ SHUT

OFF VALVE

1 1/2"

3 1/2"

4 1/2"

RETURN

3"

SUPPLY

19 3/8"

24"

SIDE VIEW

3 5/8"

5 3/8"

S R

7/8" I.D. FIELD

CONN. W/ SHUT

OFF VALVE

1 1/4"

3 1/2"

4 1/2"

8 1/4"

10"

SIDE VIEW

RETURN

3"

SUPPLY

19 3/8"

24"

Note: 1-3/8 in. OD and 2-1/8 in. OD crossover piping

• Crossover piping is available for all 2- or 4-pipe coils selections. Trane provides the crossover for the hot water only. The crossover pipe is factory-insulated with 3/8 in.-thick insulation.

• Expansion compensation between the factory piping package and the crossover piping is achieved using a flex hose rated at 250 psi working pressure. Flex hose is only available with factory-mounted piping packages.

• Expansion compensation for the crossover piping must be handled external to the unit ventilator.

• Crossover connections terminate in the same end pocket as the heating coil on all 2- and 4-pipe coils.

86 UV-PRC003-EN

UV-PRC003-EN.book Page 87 Tuesday, June 4, 2013 8:59 PM

Mechanical Specifications

General

Deliver and install a complete unit ventilator certified for ventilation at AHRI-840, or tested by an independent testing and balancing lab witnessed by owner’s representative.

Safety

All standard units are UL-listed in the United States and Canada and comply with NFPA 90A requirements.

The unit ventilator is certified or rated in accordance to the following listings for performance proof and safety: ETL, AHRI-840, AHRI-350, L ON M ARK® , BACnet ®

Equipment Construction

Exterior cabinetry is constructed of heavy-gauge metal for strength and durability. All exposed edges shall be rounded to safeguard against injury. All interior sheet metal shall be of galvanized steel to restrain against deterioration.

The front plane of the unit consists of a three panel design. The control compartment is accessible without removing the entire front panel. The discharge air grille contains rounded edged steel bars, and are placed at a 15° slope to provide proper airflow deflection.

Access for inspection and cleaning of the unit drain pan, coils, and fan section is provided. The unit shall be installed for proper access. Procedures for proper maintenance of the unit shall is included in the installing, operation manual.

Cabinet insulation is closed cell to maximize thermal performance. It is suitable for use in air streams up to 4500 feet per minute (fpm). Insulation will meet the Underwriters Laboratories Fire

Hazard Classification and long term thermal resistance (LTTR) classification per CAN/ULC S770 standard.

Piping and control end pockets are a minimum of 12 inches wide to facilitate piping, auxiliary drain pan, and service access.

Final finish of the cabinet is cleaned, phosphatized and painted with an electrostatic powder spray system, with a minimum thickness of 1.5 mil to avoid visible runs and resist abrasion.

Unit Fans

The unit fan board assembly shall ship from the factory wired to the commission schedule for engineered cfm expectancy. A motor speed switch is on the unit or wall for motor speed adjustment.

The fan board is a single, rigid construction, made from corrosion resistive material. It is a troublefree slide design to provide cleaning and serviceability ease to maintenance personnel.

The fans contain a double width/double inlet, forward curved centrifugal design to sustain appropriate air throw into the space. The wheels are galvanized metal to resist corrosion. The dynamically balanced fan and motor are of direct drive style.

The fan and coil arrangement are of a blow-thru configuration to supply unvarying coil face velocity avoiding cold spots on the coil.

Motors

All motors are brushless DC (BLDC)/electronically commutated motors (ECM) factoryprogrammed and run-tested in assembled units. The motor controller is mounted in a touch-safe control box with a built-in integrated user interface and LED tachometer. If adjustments are needed, motor parameters can be adjusted through momentary contact switches accessible without factory service personnel on the motor control board. Motors will soft-ramp between speeds to lessen the acoustics due to sudden speed changes. Motors can be operated at three speeds or with a field-supplied variable speed controller. The motor will choose the highest speed if there are simultaneous/conflicting speed requests. All motors have integral thermal overload protection

UV-PRC003-EN 87

UV-PRC003-EN.book Page 88 Tuesday, June 4, 2013 8:59 PM

Mechanical Specifications

88 with a maximum ambient operating temperature of 104°F and are permanently lubricated. Motors are capable of starting at 50 percent of rated voltage and operating at 90 percent of rated voltage on all speed settings. Motors can operate up to 10 percent over voltage.

Drain Pan(s)

The unit drain pan consists of a corrosion resistant, environmentally friendly, dual sloped design to facilitate condensate removal quickly. The pan is removable for cleaning. Hook-up to the drain pan for condensate removal is made on the cooling coil union side. The drain side connection shall be easily field-inverted by removing and rotating the pan 180°.

An auxiliary drain pan (optional accessory) is factory-provided, and field-installed under the main, cooling piping package. It is constructed of the same corrosion resistance material found in the main unit drain pan. The auxiliary pan will effortlessly fit into the end pocket for condensate disposal of the piping package.

Hydronic Coils (option)

All hydronic coils are a plate-fin type, mechanically bonded to tubes. The coils are hydrostatically tested to 350 psig and burst tested to 450 psig. The coils are rated in accordance with AHRI-840.

A threaded drain plug is provided at the header’s lowest point, and a manual air vent provided at its highest point.

The standard 4-pipe heating coil is placed in the preheat location. Optional 4-pipe heating coils are available in the reheat position for dehumidification control.

Refrigerant Coils (option)

Direct expansion coils contain copper tubes mechanically expanded into evenly spaced aluminum fins. All coils are proof and leak tested before leaving the manufacturer. The proof test is performed at 1.5 times the maximum operating pressure, and leak tested at the maximum operating pressure.

In addition, the tubes are completely evacuated of air to check for leaks in the vacuum.

The refrigerant coil distributor assemblies is Venturi or orifice style with round copper distributor tubes.

Distributors are sized consistently with capacity of coil. Suction headers are fabricated from round copper pipe.

A thermostatic expansion valve (TXV) is factory selected and installed for a wide-range of control to maintain optimum control of superheat. All coils are shipped with a dry nitrogen holding charge.

Electric Coil (option)

Units equipped for electric heat contain a special resistance, heating element design inserted in an extended surface fin-tube bundle for maximum element life and safety. Units specifying electric heat include (as standard) a high temperature cut out with a continuous sensing element. This device interrupts electrical power whenever excessive temperatures are sensed anywhere along the leaving side of the coil. A contactor (also provided) ensure positive disconnect of electrical power whenever the fan motor power is interrupted. All electric heat units have a power wiring console in the right hand end-pocket to better facilitate field wiring of the unit.

Steam Coil (option)

Units including a steam coil are of a 5/8-inch, sigma-flow, tube-in-tube, distributing coil design.

Steam coil tubing is mechanically expanded into evenly spaced aluminum fins. The supply and return connections are on the same side, and include a 1-inch female pipe thread (FPT) termination.

The coil is pitched by the manufacturer to provide condensate drainage for freeze protection.

Outside Air/Return Air Damper

Each unit ventilator is equipped with a linkage free, air-tight damper design. This linkage free design results in a fixed air seal of the damper assembly.

UV-PRC003-EN

UV-PRC003-EN.book Page 89 Tuesday, June 4, 2013 8:59 PM

Controls

UV-PRC003-EN

Mechanical Specifications

Face and Bypass Damper (option)

The face and bypass damper control is utilized for economizing and dehumidification of the equipment during seasonal or morning warm-up. The damper is constructed of aluminum grade metal. The damper is tightly sealed and designed to minimize heat pickup in the bypass position.

Controls options are: unit-mounted fan speed switch, customer supplied terminal interface (CSTI),

Tracer ZN520, and Tracer UC400. A variety of inputs and outputs are available for the CSTI and

Tracer controller options. A disconnect switch (for non-electric heat units), fused transformer, contactor(s), and terminal strip are provided with the CSTI and Tracer controller options.

Customer Supplied Terminal Interface (CSTI)

The control interface is intended to be used with a field-supplied, low-voltage thermostat or controller. The control box contains a relay board which includes a line voltage to 24-volt transformer, and an optional disconnect switch. All end devices are wired to a low-voltage terminal block and are run-tested, so the only a power connection and thermostat/controller connection is needed to commission the unit. Changeover sensors and controls are provided whenever a change-over coil is selected. When N.O. valves are selected, inverting relays are provided for use with standard thermostats.

Unit-mounted Fan Speed Switch (FSS)

The fan speed switch is available with or without the control interface option. The unit-mounted

FSS will employ a low-voltage fan switch. The low-voltage fan speed option will provide an interface to factory wiring, including variable speed/high-medium-low (HML) control. The control box contains a line voltage to 24-volt transformer, EC motor controller, and an optional disconnect switch.

Tracer ZN520

The Tracer ZN520 discrete speed controller can be used in a stand-alone application or used as part of a Trane Integrated Comfort System (ICS) with LonTalk ® communication. The Tracer ZN520 offers the combined advantages of simple and dependable operation. Standard control features include options normally available on more elaborate control systems. All control options are available factory-mounted, -wired, and -configured and can also be field-configured using a service tool.

Tracer UC400

The Tracer UC400 controller delivers single zone VAV control in a stand-alone application or as part of a Trane Integrated Comfort system with BACnet ® communication. The Trace UC400 offers the combined advantages of a factory-mounted, -wired, and -programmed controller for dependable out-of-the box operation. Standard control features include options normally available on more elaborate control systems. All control options are available factory-programmed with additional configuration and programming in the field using a service tool.

Zone Sensors (option)

Trane offers a full line of wired and wireless temperature sensors. Wired temperature sensors are the suitable alternative for locations that cannot accommodate wireless sensors or that require a service tool connection. Wireless temperature sensors, which provide easy and flexible installation, are a cost-effective alternative to wired sensors.

Some additional options available with the sensors include:

• Easy-to-use display interface for clear and simple monitoring and control.

• Temperature setpoint control to allow the tenant to choose a temperature setpoint that satisfies their personal preference.

• Fan speed switch to allow the tenant to locally control the fan speed to better satisfy their preference.

89

UV-PRC003-EN.book Page 90 Tuesday, June 4, 2013 8:59 PM

Mechanical Specifications

Filter

• Occupancy override to allow the tenant to request temporary timed override system operation that keeps the building conditions in occupied comfort conditions.

• COMM module that is compatible with all Trane ® wired temperature sensors. This accessory provides a local RJ22 connection to Trane ® service tools for easy, low-cost maintenance.

Units equipped with a standard throwaway filter have an average resistance of 76 percent and dust holding capacity of 26 grams per square foot.

Units equipped with 1-in. MERV 8 filters have a rating based on ASHRAE Standard 52.2. The average dust spot efficiency is no less than 35 to 40 percent when tested in accordance with

ASHRAE Standard 52.1 atmospheric dust spot method.

Units equipped with 1-in. MERV 13 filters have a rating based on ASHRAE Standard 52.2. The average dust spot efficiency is no less than 90 percent efficiency on 1–3 micron particles and greater than 90 percent efficiency on 3–10 micron particles when tested in accordance with

ASHRAE Test Standard 52.2.

90 UV-PRC003-EN

UV-PRC003-EN.book Page 91 Tuesday, June 4, 2013 8:59 PM

Trane optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader in creating and sustaining safe, comfortable and energy efficient environments, Trane offers a broad portfolio of advanced controls and HVAC systems, comprehensive building services, and parts.

For more information, visit www.Trane.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.

© 2013 Trane All rights reserved

UV-PRC003-EN 04 Jun 2013

Supersedes UV-PRC003-EN (20 Dec 2012)

We are committed to using environmentally conscious print practices that reduce waste.
