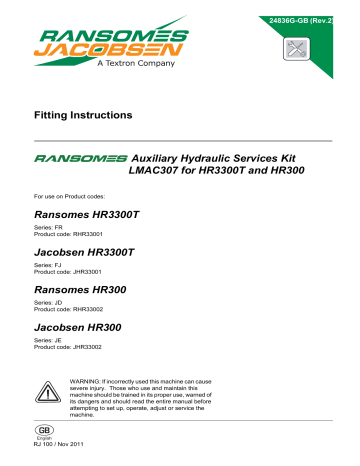

24836G-GB (Rev.2)

Fitting Instructions

Auxiliary Hydraulic Services Kit

LMAC307 for HR3300T and HR300

For use on Product codes:

Ransomes HR3300T

Series: FR

Product code: RHR33001

Jacobsen HR3300T

Series: FJ

Product code: JHR33001

Ransomes HR300

Series: JD

Product code: RHR33002

Jacobsen HR300

Series: JE

Product code: JHR33002

WARNING: If incorrectly used this machine can cause severe injury. Those who use and maintain this machine should be trained in its proper use, warned of its dangers and should read the entire manual before attempting to set up, operate, adjust or service the machine.

RJ 100 / Nov 2011

©

2011, Ransomes Jacobsen Limited. All Rights Reserved

1 CONTENTS

FITTING INSTRUCTIONS - LMAC307

2.3

2.3.2

3.1

3.2

4.1

4.2

4.4

4.5

4.6

GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS .......... 5

END OF SERVICE LIFE ..................................................................... 5

OPERATING INSTRUCTIONS ........................................................... 6

SAFETY SIGNS .................................................................................. 6

PREPARATION .................................................................................. 8

DESCRIPTION ................................................................................... 8

MACHINE PREPARATION ................................................................. 9

INSTALLATION OF VALVE ................................................................ 9

REPLACEMENT OF FUSE ............................................................... 11

PARTS LIST

LMAC307 KIT-AUXILIARY HYDRAULIC SERVICES ....................... 12

GB-3

2 INTRODUCTION

FITTING INSTRUCTIONS - LMAC307

2.1 IMPORTANT

IMPORTANT: This is a precision machine and the service obtained from it depends on the way it is operated and maintained.

This SAFETY AND OPERATORS MANUAL should be regarded as part of the machine. Suppliers of both new and second-hand machines are advised to retain documentary evidence that this manual was provided with the machine.

This machine is designed solely for use in customary grass cutting operations. Use in any other way is considered as contrary to the intended use. Compliance with and strict adherence to the conditions of operation, service and repair as specified by the manufacturer, also constitute essential elements of the intended use.

Before attempting to operate this machine, ALL operators MUST read through this manual and make themselves thoroughly conversant with Safety Instructions, controls, lubrication and maintenance.

Accident prevention regulations, all other generally recognized regulations on safety and occupational medicine, and all road traffic regulations shall be observed at all times.

Any arbitrary modifications carried out on this machine may relieve the manufacturer of liability for any resulting damage or injury.

It is important that during the life of the machine wearing and replaceable parts are disposed of in an environmentally responsible way using the resources available in the country where it is used. There are guidelines in this manual for the eventual decommissioning of the mower once it has no further use. Hardware provided.

A Maximum front axle load in Kg (for machines being driven on the highway)

B Gross weight (mass) in Kg

C Maximum rear axle load in Kg (for machines being driven on the highway)

D Power in Kw

E Date code

F Machine type (Designation)

J Serial number

West Road

Ransomes Europark

Ipswich IP3 9TT

England

A B

C D

E

Kg Kg Kg Kw

F

H

G

J

GB-4

2 INTRODUCTION

FITTING INSTRUCTIONS - LMAC307

2.3

GUIDELINES FOR THE DISPOSAL OF

SCRAP PRODUCTS

2.3.1 DURING SERVICE LIFE

Used oil, oil filters and engine coolant are hazardous materials and should be handled in a safe and environmentally responsible way.

In the event of a fluid leak, contain the spill to prevent it entering the ground or drainage system. Local legislation will dictate how such spills are to treated.

Following the maintenance procedures laid out in this manual will ensure that the impact the machine has on the local environment is controlled.

When it has been identified that a turf care product has no further functional value and requires disposal, the following actions should be taken.

2.3.2 END OF SERVICE LIFE

These guidelines should be used in conjunction with applicable Health, Safety and Environmental legislation and use of approved local facilities for waste disposal and recycling.

• Position the machine in a suitable location for any necessary lifting equipment to be used.

•

•

Use appropriate tools and Personal Protective Equipment (PPE) and take guidance from the technical manuals applicable to the machine.

Remove and store appropriately:

1. Batteries

2. Fuel residue

3. Engine coolant

4. Oils

• Disassemble the structure of the machine referring to the technical manuals where appropriate. Special attention should be made for dealing with ‘stored energy’ within pressurised elements of the machine or tensioned springs.

•

•

•

Any items that still have a useful service life as second hand components or can be re-serviced should be separated and returned to the relevant centre.

Other worn out items should be separated into material groups for recycling and disposal consistent with available facilities.

More common separation types are as follows:

• Steel

• Non ferrous metals

• Aluminium

• Brass

• Copper

•Plastics

•Identifiable

• Recyclable

• Non recyclable

• Not identified

• Rubber

• Electrical & Electronic Components

Items that cannot be separated economically into different material groups should be added to the ‘General waste’ area.

• Do not incinerate waste.

Finally update machinery records to indicate that the machine has been taken out of service and scrapped. Provide this serial number to Jacobsen

Warranty department to close off relevant records.

GB-5

3 SAFETY INSTRUCTIONS

FITTING INSTRUCTIONS - LMAC307

This safety symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury, carefully read the message that follows, and inform other operators.

3.1 OPERATING INSTRUCTIONS

• Ensure that the instructions in this book are

• read and fully understood.

No person should be allowed to operate this

• machine unless they are fully acquainted with all the controls and the safety procedures.

Never allow children or people unfamiliar with these instructions to use this machine. Local regulations may restrict the age of the operator.

3.2 SAFETY SIGNS

• It is essential all safety labels are kept legible, if they are missing or illegible they must be replaced. If any part of the machine is replaced and it originally carried a safety label, a new label must be affixed to the replacement part. New safety labels are obtainable from Ransomes dealers.

•

•

•

•

•

•

•

•

MAINTENANCE & CLEANING

Stop the engine and make sure all moving parts are stationary.

Apply brakes and disengage all drives.

Read all the appropriate servicing instructions.

Use only the replacement parts supplied by the original manufacturer.

When adjusting the cutting cylinders take care not to get hands and feet trapped when rotating cylinders.

Make sure that other people are not touching any cutting units, as rotation of one cylinder can cause the others to rotate.

To reduce the fire hazard, keep the engine, silencer and battery compartments free of grass, leaves or excessive grease.

Replace worn or damaged parts for safety.

GB-6

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

When working underneath lifted parts or machines, make sure adequate support Is provided.

Do not dismantle the machine without releasing or restraining forces which can cause parts to move suddenly.

Do not alter engine speed above maximum quoted in Engine Specification. Do not change the engine governor settings or overspeed the engine. Operating the engine at excessive speed may increase the hazard of personal injury.

When refuelling, STOP THE ENGINE, DO

NOT SMOKE. Add fuel before starting the engine, never add fuel while the engine is running.

Use a funnel when pouring fuel from a can into the tank.

Do not fill the fuel tank beyond the bottom of the filler neck.

Replace all fuel tank and container caps securely.

Store fuel in containers specifically designed for this purpose.

Refuel outdoors only and do not smoke while refuelling.

If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapours have dissipated.

Allow the engine to cool before storing in any enclosure.

Never store the equipment with fuel in the tank inside a building where fumes may reach an open flame or spark.

If the fuel tank has to be drained, this should be done outdoors.

Do not spill fuel onto hot components.

When servicing batteries, DO NOT SMOKE, and keep naked lights away.

Do not place any metal objects across the terminals.

When Pressure Washing the Mower. Turn the engine off and remove the starter key.

If the engine has been running, it should be allowed to cool sufficiently to prevent damage to the block and exhaust manifold. Never force water into any electrical components,

3 SAFETY INSTRUCTIONS

the air cleaner or exhaust muffler as water could enter the engine cylinder and cause damage.

DANGER:

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING:

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury and property damage. It may also be used to alert against unsafe practices.

IMPORTANT:

Transport speed is for highway use only. Never select transport speed on grass areas or uneven or unsurfaced roads or tracks.

FITTING INSTRUCTIONS - LMAC307

GB-7

4 FITTING INSTRUCTIONS

FITTING INSTRUCTIONS - LMAC307

4.1 PREPARATION

CAUTION: Read the rotary mower’s manual and become familiar with the rotary mower, the controls and proper use of the equipment.

Stay alert for potential hazards and follow all safety precautions. Read all instructions completely and make sure you understand them before proceeding with the assembly

1. Park the rotary mower on a flat and level surface, fully lower the implements to the ground, engage parking brake, stop the engine and remove key from ignition switch.

2. Wait for all movement to stop before making any adjustments or modifications.

3.

Take this opportunity to thoroughly inspect the equipment and perform other maintenance.

The “Right” and “Left”, “Front” and “Rear” of the machine are referenced from the operator’s right and left when seated in the operator’s seat facing the direction of forward travel.

4.2 DESCRIPTION

The following instruction details the process of installing the Auxiliary Hydraulic Services Kit.

4.2.1 HR3300T

This kit activates functions C & D (double Axis) of the control joystick, enabling the ability to ‘slew’ an attachment fitted to the machine in a clockwise or anticlockwise direction (viewed from above), for example when a rotary brush or snow blade is fitted.

C Used to slew the rotary brush or snow blade in a clockwise direction.

D Used to slew the rotary brush or snow blade in an anticlockwise direction.

When the joystick is moved to position C oil flows to port B on the valve, and when the joystick is moved to position D it flows to port A.

Maximum flow available : 9 l/min

Maximum pressure available : 125 bar (1800 psi)

4.2.2 HR300

This kit adds a switch to the instrument panel enabling the ability to ‘slew’ an attachment (i.e. a rotary brush or snow blade) fitted to the machine in a clockwise or anticlockwise direction (viewed from above).

C Used to slew the rotary brush or snow blade in a clockwise direction.

D Used to slew the rotary brush or snow blade in an anticlockwise direction.

When the machine is shipped from the factory the joystick (HR3300T) or switch lever (HR300) is configured to operate in 2 directions (single Axis) A & B, for use with a rotary cutter deck.

A One touch lowers the lift arms.

B Raise the lift arms. (Needs to be held at position

B for lifting arms into transport position).

K Joystick (HR3300T), Switch Lever (HR300)

K

HR3300T

D C

C

When the switch is moved to position C oil flows to port B on the valve, and when the switch is moved to position D it flows to port A.

A

B

K

HR300

D

Maximum flow available : 9 l/min

Maximum pressure available : 125 bar (1800 psi)

A

B

GB-8

4 FITTING INSTRUCTIONS

4.3 VALVE PREPARATION

Assemble the valve, bracket and hydraulic fittings as shown on the diagram in the parts list section.

Leave the hydraulic fittings loose to allow for adjustment once the assembly is on the machine. Do not insert the screws for attaching the bracket to the operators platform at this stage.

4.4 MACHINE PREPARATION

1.

Remove any attachments (for example a deck) from the front of the machine to provide access to the underside of the operators platform.

2.

Remove the hydraulic hose connected to the

‘SP’ port on the Lift Valve and feed it back under the operators platform (See Fig. 1).

4.5 INSTALLATION OF VALVE

1.

Attach the hose removed from the Lift Valve to port ‘P’ on the new valve (see the parts list section for location of port ‘P’).

FOR HR3300T

2a. Locate the two Ø 7 holes in the stiffening ribs underneath the operators platform. There should be one hole in each (See Fig. 2a).

Note these holes are not available on machines with serial numbers FR000322 & FY000312 and below and therefore will need to be drilled in the position shown opposite (See Fig. 3).

FOR HR300

2b. Locate the four Ø 9 holes in the stiffening ribs underneath the operators platform. There should be two holes in each (See Fig. 2b).

FITTING INSTRUCTIONS - LMAC307

Fig. 1

Fig. 3

SP

Fig. 2a

Fig. 2b

GB-9

4 FITTING INSTRUCTIONS

FOR HR3300T

3a. Attach the valve and bracket to the stiffening ribs in the orientation shown in Fig. 4a using the two M6 x 25 screws and the M6 washers provided in the kit.

FOR HR300

3b. Attach the valve and bracket to the stiffening ribs in the orientation shown in Fig. 4b using the threaded spacers, M8 x 20 screws and the M8 washers provided in the kit.

Position the hydraulic hoses as necessary and tighten all fittings. Note that it will be necessary to curl the hose that runs from the Lift Valve to the new valve under the operator platform.

4.

Connect the jumper harness in the kit to the solenoid connections on the valve and to the relevant connection on the harness. The connector can be found on the harness in between the Cutter & Brake Valve and the Lift

Valve (See Fig. 5).

FITTING INSTRUCTIONS - LMAC307

Fig. 4a

CUTTER & BRAKE VALVE

Fig. 4b

LIFT VALVE

CONNECTOR

Fig. 5

GB-10

4 FITTING INSTRUCTIONS

4.6 REPLACEMENT OF FUSE

NOTE: this step is only necessary on HR3300T machines with serial numbers of FR000322/FY000312 and below.

1.

Unscrew and remove the four M6x16 Pan.Hd screws plus hardware securing the Instrument

Panel Cover to the Instrument Panel and lift the Cover off. Retain all hardware (See Fig 6).

2.

Locate the Relay/Fuse Mounting Panel.

3.

Replace the 2A Fuse at position 7 with the 5A fuse included in the kit (See Fig. 7).

4.

Replace the Instrument Panel Cover and fasten in place with the M6x16 Pan.Hd screws plus hardware removed in Step 1.

FITTING INSTRUCTIONS - LMAC307

Fig. 6

Fig. 7

GB-11

PARTS MANUAL

LMAC307 KIT-AUXILIARY HYDRAULIC SERVICES

Illustration Number: LMAC307-1

Parts-12

PARTS MANUAL

LMAC307 KIT-AUXILIARY HYDRAULIC SERVICES

ITEM

*

16

17

18

19

20

13

14

15

*

9

10

11

12

6

7

8

*

*

*

*

5

*

*

*

*

1

2

3

4

PART NO.

DESCRIPTION

002591040

4152478

4166700

4173283

4171467

4171468

4171469

4173700

4173701

4173703

4171464

4176920

4177121

4177184

4177201

002218065

1/4" BSP Dowty Seal

Wldmt-Platform

Hose Assembly

Valve

• Solenoid Valve

•• Seal Kit (Solenoid Valve)

• Coil

• Check Valve

•• Seal Kit (Check Valve)

• Relief Valve

•• Seal Kit (Relief Valve)

Hose-Lift Valve 'SP' to Aux Valve 'P'

Harness-Jumper, Aux Hyd Valve

Assembly-Aux Hyd Valve Bracket

Ftg-M/M 1/4 BSPP X 9/16 SAE

• O-Ring

4177202

450009

450172

450377

QRC-1/4"BSPP Female

Bolt-Hex M6 X 70

Scrw-Hex M6 X 25

Nut-Hex M6 Nyloc

450389

450410

Wshr-M6 X 12.5 X 1.8

Wshr-Slw M6

W158006-01 Ftg-M/M 11/16 ORS X 9/16 SAE

158061-01 • O-Ring

002218065

008233156

4211920

450191

450411

4252554

• O-Ring

Fuse-5 Amp

Spacer-Hex M8 x 40

Scrw-Hex M8 x 20

Lockwshr-M8 x 12.75 x 2

Spacer Plate

QTY.

4

8

1

1

8

1

2

1

6

2

2

2

2

2

2

1

1

1

A/R

1

A/R

1

1

A/R

2

1

1

1

2

1

Not included in Kit LMAC307

Not Illustrated

9/16" SAE

11/16" ORFS

9/16" SAE

Not Illustrated

Parts-13

PARTS MANUAL

LMAC307 KIT-AUXILIARY HYDRAULIC SERVICES - FOR HR300 ONLY

Illustration Number: LMAC307-2

Parts-14

PARTS MANUAL

LMAC307 KIT-AUXILIARY HYDRAULIC SERVICES - FOR HR300 ONLY

ITEM

1

2

PART NO.

4262593

4263052

DESCRIPTION

Switch

Decal-Slew Control

QTY.

1

1

Parts-15

Ransomes Jacobsen Limited

West Road, Ransomes Europark, Ipswich,

England, IP3 9TT

English Company Registration No. 1070731 www.ransomesjacobsen.com

Jacobsen, A Textron Company

11108 Quality Drive, Charlotte,

NC 28273, USA

www.Jacobsen.com
