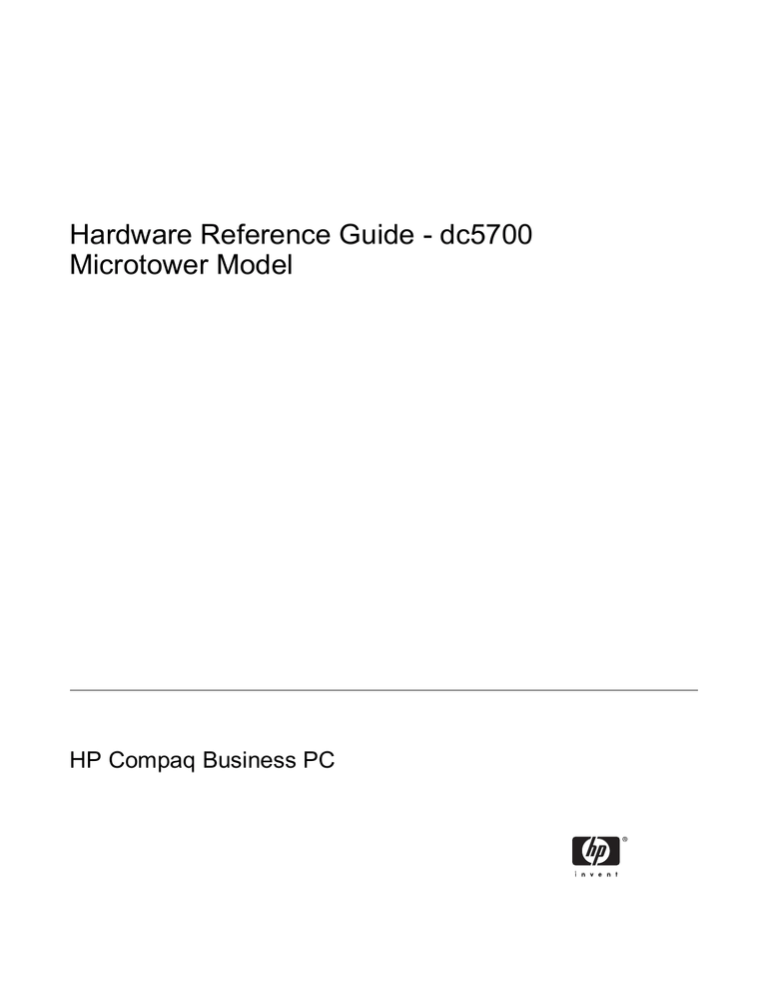

Hardware Reference Guide - dc5700
Microtower Model
HP Compaq Business PC
© Copyright 2006 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Hardware Reference Guide
HP Compaq Business PC
dc5700 Microtower Model
First Edition (October 2006)
Document Part Number: 433185-001
About This Book
This guide provides basic information for upgrading this computer model.
WARNING! Text set off in this manner indicates that failure to follow directions could result in
bodily harm or loss of life.
CAUTION Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE Text set off in this manner provides important supplemental information.
ENWW
iii
iv
About This Book
ENWW
Table of contents
1 Product Features
Standard Configuration Features ......................................................................................................... 1
Front Panel Components ..................................................................................................................... 2
Rear Panel Components ...................................................................................................................... 3
Keyboard .............................................................................................................................................. 4
Using the Windows Logo Key .............................................................................................. 5
Special Mouse Functions ..................................................................................................................... 6
Serial Number Location ........................................................................................................................ 6
2 Hardware Upgrades
Serviceability Features ......................................................................................................................... 7
Warnings and Cautions ........................................................................................................................ 7
Removing the Computer Access Panel ................................................................................................ 8
Replacing the Computer Access Panel ................................................................................................ 9
Removing the Front Bezel .................................................................................................................. 10
Replacing the Front Bezel .................................................................................................................. 11
Installing Additional Memory .............................................................................................................. 12
DIMMs ............................................................................................................................... 12
DDR2-SDRAM DIMMs ...................................................................................................... 12
Populating DIMM Sockets ................................................................................................. 13
Installing DIMMs ................................................................................................................ 14
Removing or Installing an Expansion Card ........................................................................................ 16
Drive Positions ................................................................................................................................... 22
Installing Additional Drives ................................................................................................................. 23
Removing an External 5.25-inch or 3.5-inch Drive ............................................................ 24
Installing an External 5.25-inch or 3.5-inch Drive .............................................................. 26
Removing an Internal 3.5-inch Hard Drive ......................................................................... 29
Installing an Internal 3.5-inch Hard Drive ........................................................................... 31
Appendix A Specifications
Appendix B Battery Replacement
Appendix C External Security Devices
Installing a Security Lock .................................................................................................................... 39
Cable Lock ......................................................................................................................... 39
Padlock .............................................................................................................................. 40
ENWW
v
Appendix D Electrostatic Discharge
Preventing Electrostatic Damage ....................................................................................................... 41
Grounding Methods ............................................................................................................................ 41
Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care ............................................................................ 43
Optical Drive Precautions ................................................................................................................... 44
Operation ........................................................................................................................... 44
Cleaning ............................................................................................................................. 44
Safety ................................................................................................................................. 44
Shipping Preparation .......................................................................................................................... 44
Index ................................................................................................................................................................... 45
vi
ENWW
1
Product Features
Standard Configuration Features
The HP Compaq Microtower features may vary depending on the model. For a complete listing of the
hardware and software installed in the computer, run the diagnostic utility (included on some computer
models only). Instructions for using the utility are provided in the Troubleshooting Guide on the
Documentation and Diagnostics CD.
Figure 1-1 Microtower Configuration
ENWW
Standard Configuration Features
1
Front Panel Components
Drive configuration may vary by model.
Table 1-1 Front Panel Components
1
5.25-inch Optical Drives1
7
Optical Drive Eject Buttons
2
Optical Drive Activity Lights
8
Diskette Eject Button (optional)
3
3.5-inch Diskette Drive (optional)2
9
Dual-State Power Button
4
Diskette Drive Activity Light (optional)
10
Power On Light
5
Hard Drive Activity Light
11
Headphone Connector
6
Microphone Connector
12
USB (Universal Serial Bus) 2.0 Ports
NOTE An optical drive is a CD-ROM , CD-R/RW, DVD-ROM , DVD+R/RW, or CD-RW/DVD Combo drive.
The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the
computer and it is displaying a diagnostic code. Refer to the Troubleshooting Guide on the Documentation and
Diagnostics CD to interpret the code.
1
2
2
Some models have bezel blanks covering one or both of the 5.25-inch drive bays.
Some models have a bezel blank covering the 3.5-inch drive bay. An optional media card reader is
available from HP for this drive bay.
Chapter 1 Product Features
ENWW
Rear Panel Components
Table 1-2 Rear Panel Components
1
Power Cord Connector
7
RJ-45 Network Connector
2
Voltage Select Switch
8
Parallel Connector
3
PS/2 Mouse Connector (green)
9
Monitor Connector
4
PS/2 Keyboard Connector (purple)
10
Line-Out Connector for powered audio
devices (green)
5
Universal Serial Bus (USB)
11
Line-In Audio Connector (blue)
6
Serial Connector
NOTE Arrangement and number of connectors may vary by model.
If a PCI graphics card is installed, the connectors on the card and the system board may be used at the same
time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics
CD.
The Line-In and Line-Out audio connectors can be “retasked” to work as either Line-In, Line-Out, or
Microphone connectors by clicking the Realtek HD Audio Manager icon (a red speaker) in the task tray or
the Realtek entry in the operating system's Control Panel and selecting the Retasking Enable option.
ENWW
Rear Panel Components
3
Keyboard
Table 1-3 Keyboard Components
1
4
1
Function Keys
Perform special functions depending on the software application being used.
2
Editing Keys
Includes the following: Insert, Home, Page Up, Delete, End, and Page Down.
3
Status Lights
Indicate the status of the computer and keyboard settings (Num Lock, Caps Lock,
and Scroll Lock).
4
Numeric Keys
Work like a calculator keypad.
5
Arrow Keys
Used to navigate through a document or Web site. These keys allow you to move
left, right, up, and down, using the keyboard instead of the mouse.
6
Ctrl Keys
Used in combination with another key; their effect depends on the application
software you are using.
7
Application Key1
Used (like the right mouse button) to open pop-up menus in a Microsoft Office
application. May perform other functions in other software applications.
8
Windows Logo Keys1
Used to open the Start menu in Microsoft Windows. Used in combination with other
keys to perform other functions.
9
Alt Keys
Used in combination with another key; their effect depends on the application
software you are using.
Keys available in select geographic regions.
Chapter 1 Product Features
ENWW
Using the Windows Logo Key
Use the Windows Logo key in combination with other keys to perform certain functions available in the
Windows operating system. Refer to the Keyboard section to identify the Windows Logo key.
ENWW
Windows Logo Key
Displays or hides the Start menu
Windows Logo Key + d
Displays the Desktop
Windows Logo Key + m
Minimizes all open applications
Shift + Windows Logo Key + m
Undoes Minimize All
Windows Logo Key + e
Launches My Computer
Windows Logo Key + f
Launches Find Document
Windows Logo Key + Ctrl + f
Launches Find Computer
Windows Logo Key + F1
Launches Windows Help
Windows Logo Key + l
Locks the computer if you are connected to a network domain, or
allows you to switch users if you are not connected to a network
domain
Windows Logo Key + r
Launches the Run dialog box
Windows Logo Key + u
Launches the Utility Manager
Windows Logo Key + Tab
Activates the next Taskbar button
Keyboard
5
Special Mouse Functions
Most software applications support the use of a mouse. The functions assigned to each mouse button
depend on the software applications you are using.
Serial Number Location
Each computer has a unique serial number and product ID number that are located on the top cover of
the computer. Keep these numbers available for use when contacting customer service for assistance.
Figure 1-2 Serial Number and Product ID Location
6
Chapter 1 Product Features
ENWW
2
Hardware Upgrades
Serviceability Features
The computer includes features that make it easy to upgrade and service. No tools are needed for most
of the installation procedures described in this chapter.
Warnings and Cautions
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and
warnings in this guide.
WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire:
Disconnect the power cord from the wall outlet and allow the internal system components to cool
before touching.
Do not plug telecommunications or telephone connectors into the network interface controller
(NIC) receptacles.
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides
important electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo and on the Documentation and Diagnostics CD.
CAUTION Static electricity can damage the electrical components of the computer or optional
equipment. Before beginning these procedures, ensure that you are discharged of static
electricity by briefly touching a grounded metal object. See Appendix D, Electrostatic
Discharge for more information.
When the computer is plugged into an AC power source, voltage is always applied to the system
board. You must disconnect the power cord from the power source before opening the computer
to prevent damage to internal components.
ENWW
Serviceability Features
7
Removing the Computer Access Panel
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5.
Loosen the captive thumbscrew (1) that secures the access panel to the computer chassis.
6.
Slide the access panel back (2) about 1.3 cm (1/2 inch), then lift it off the unit.
NOTE You may want to lay the computer on its side to install internal parts. Be sure the
side with the access panel is facing up.
Figure 2-1 Removing the Computer Access Panel
8
Chapter 2 Hardware Upgrades
ENWW
Replacing the Computer Access Panel
Place the access panel on the chassis with about 1.3 cm (1/2 inch) of the panel hanging off the back of
the chassis and slide it into place (1). Ensure that the hole for the thumbscrew is aligned with the hole
in the chassis and tighten the thumbscrew (2).
Figure 2-2 Replacing the Computer Access Panel
ENWW
Replacing the Computer Access Panel
9
Removing the Front Bezel
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5.
Remove the computer access panel.
6.
Press the green latch on the bottom right of the chassis (1) to release the bottom of the bezel, then
swing the bottom of the bezel away from the chassis (2) to release the top of the bezel.
Figure 2-3 Removing the Front Bezel
10
Chapter 2 Hardware Upgrades
ENWW
Replacing the Front Bezel
Position the chassis in the upright position. Insert the two hooks on the top of the bezel into the
rectangular holes on the chassis (1) then rotate the bottom of the bezel onto the chassis (2) so that the
bottom two hooks on the bezel snap into place.
Figure 2-4 Replacing the Front Bezel
ENWW
Replacing the Front Bezel
11
Installing Additional Memory
The computer comes with double data rate 2 synchronous dynamic random access memory (DDR2SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 4 GB of memory configured in a highperforming dual channel mode.
DDR2-SDRAM DIMMs
For proper system operation, the DDR2-SDRAM DIMMs must be:
●
industry-standard 240-pin
●
unbuffered PC2-5300 667 MHz-compliant
●
1.8 volt DDR2-SDRAM DIMMs
The DDR2-SDRAM DIMMs must also:
●
support CAS latency 4 and 5 for DDR2/667 MHz
●
contain the mandatory JEDEC SPD information
In addition, the computer supports:
●
256Mbit, 512Mbit, and 1Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
supported
NOTE The system will not start if you install unsupported DIMMs.
12
Chapter 2 Hardware Upgrades
ENWW
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled XMM1, XMM2, XMM3, and XMM4. Sockets XMM1 and XMM2 operate in memory channel A.
Sockets XMM3 and XMM4 operate in memory channel B.
Figure 2-5 DIMM Socket Locations
Item
Description
Socket Color
1
DIMM socket XMM1, Channel A
(populate first)
Black
2
DIMM socket XMM2, Channel A
White
3
DIMM socket XMM3, Channel B
(populate second)
Black
4
DIMM socket XMM4, Channel B
White
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
ENWW
●
The system will operate in single channel mode if the DIMM sockets are populated in one channel
only.
●
The system will operate in a higher-performing dual channel mode if the total memory capacity of
the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The
technology and device width can vary between the channels. For example, if Channel A is
populated with two 256MB DIMMs and Channel B is populated with one 512MB DIMM, the system
will operate in dual channel mode.
●
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not
equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated
with the least amount of memory describes the total amount of memory assigned to dual channel
and the remainder is assigned to single channel. For optimal speed, the channels should be
balanced so that the largest amount of memory is spread between the two channels. For example,
if you are populating the sockets with one 1GB DIMM, two 512MB DIMMs, and one 256MB DIMM,
Installing Additional Memory
13
one channel should be populated with the 1GB DIMM and one 256MB DIMM and the other channel
should be populated with the two 512MB DIMMs. With this configuration, 2 GB will run as dual
channel and 256 MB will run as single channel.
●
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
Installing DIMMs
CAUTION You must disconnect the power cord and wait approximately 30 seconds for the
power to drain before adding or removing memory modules. Regardless of the power-on state,
voltage is always supplied to the memory modules as long as the computer is plugged into an
active AC outlet. Adding or removing memory modules while voltage is present may cause
irreparable damage to the memory modules or system board. If you see an LED light on the
system board, voltage is still present.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it
is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching
a grounded metal object. For more information, refer to Appendix D, Electrostatic Discharge.
When handling a memory module, be careful not to touch any of the contacts. Doing so may
damage the module.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION You must disconnect the power cord and wait approximately 30 seconds for
the power to drain before adding or removing memory modules. Regardless of the poweron state, voltage is always supplied to the memory modules as long as the computer is
plugged into an active AC outlet. Adding or removing memory modules while voltage is
present may cause irreparable damage to the memory modules or system board. If you see
an LED light on the system board, voltage is still present.
5.
Remove the computer access panel.
6.
Locate the memory module sockets on the system board.
WARNING! To reduce risk of personal injury from hot surfaces, allow the internal system
components to cool before touching.
14
Chapter 2 Hardware Upgrades
ENWW
7.
Open both latches of the memory module socket (1), and insert the memory module into the socket
(2).
Figure 2-6 Installing a DIMM
NOTE A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B. Refer to Populating DIMM
Sockets for more information.
8.
Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
9.
Repeat steps 7 and 8 to install any additional modules.
10. Replace the computer access panel.
11. Reconnect the power cord and any external devices, then turn on the computer. The computer
should automatically recognize the additional memory when you turn on the computer.
12. Lock any security devices that were disengaged when the access panel was removed.
ENWW
Installing Additional Memory
15
Removing or Installing an Expansion Card
The computer has two standard PCI expansion slots that can accommodate an expansion card up to
17.46 cm (6.875 inches) in length. The computer also has one PCI Express x1 expansion slot and one
ADD2/SDVO expansion slot.
Figure 2-7 Expansion Slot Locations
Item
Description
1
PCI expansion slot
2
PCI expansion slot
3
PCI Express x1 expansion slot
4
ADD2/SDVO expansion slot
NOTE The dc5700 platform only supports the use of normal (or non-reversed) layout ADD2
(Advanced Digital Display 2) adapter cards inserted into the SDVO (Serial Digital Video Output)
connector on the platform's system board. ADD2 cards are used to give multi-monitor capabilities
to the integrated graphics controller.
The ADD2/SDVO connector on the system board has the physical appearance of a PCI Express
x16 connector; however, the platform does NOT support the use of conventional PCI Express
cards or reversed-layout ADD2 cards.
To remove, replace, or add an expansion card:
16
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
Chapter 2 Hardware Upgrades
ENWW
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5.
Remove the computer access panel.
6.
Locate the correct vacant expansion socket on the system board and the corresponding expansion
slot on the back of the computer chassis.
7.
On the rear of the computer, a sliding slot cover lock secures the expansion card brackets and
expansion slot covers in place. Loosen the captive thumbscrew that holds the slot cover lock in
place (1) and slide the slot cover lock up and off the chassis (2).
Figure 2-8 Releasing the Slot Cover Lock
8.
ENWW
Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
Removing or Installing an Expansion Card
17
NOTE Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a.
If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside
of the chassis.
Figure 2-9 Removing an Expansion Slot Cover
18
Chapter 2 Hardware Upgrades
ENWW
b.
If you are removing a standard PCI card, hold the card at each end, and carefully rock it back
and forth until the connectors pull free from the socket. Pull the expansion card straight up
from the socket (1) then away from the inside of the chassis (2) to release it from the chassis
frame. Be sure not to scrape the card against the other components.
Figure 2-10 Removing a Standard PCI Expansion Card
c.
If your are removing a ADD2/SDVO card, pull the retention arm on the back of the expansion
socket away from the card and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against
the other components.
Figure 2-11 Removing a ADD2/SDVO Expansion Card
ENWW
Removing or Installing an Expansion Card
19
9.
Store the removed card in anti-static packaging.
10. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
11. To install a new expansion card, hold the card just above the expansion socket on the system
board then move the card toward the rear of the chassis (1) so that the bracket on the card is
aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion
socket on the system board (2).
Figure 2-12 Installing an Expansion Card
NOTE When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
20
Chapter 2 Hardware Upgrades
ENWW
12. While holding the expansion card bracket against the chassis, slide the slot cover lock down toward
the expansion card brackets and slot covers (1) to secure them in place then replace the
thumbscrew (2) that secures the slot cover lock.
Figure 2-13 Securing the Expansion Cards and Slot Covers
13. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
14. Replace the computer access panel.
15. Reconnect the power cord and any external devices, then turn on the computer.
16. Lock any security devices that were disengaged when the access panel was removed.
17. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide on the
Documentation and Diagnostics CD for instructions about using Computer Setup.
ENWW
Removing or Installing an Expansion Card
21
Drive Positions
Figure 2-14 Drive Positions
1
Two 5.25-inch external drive bays for optional drives (optical drives shown)
2
One 3.5-inch external drive bay for optional drive (diskette drive shown)
3
Primary 3.5-inch internal hard drive bay
4
Secondary 3.5-inch internal hard drive bay for optional hard drive
To verify the type and size of the storage devices installed in the computer, run Computer Setup. Refer
to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD for more
information.
22
Chapter 2 Hardware Upgrades
ENWW
Installing Additional Drives
When installing additional drives, follow these guidelines:
●
The primary Serial ATA (SATA) hard drive must be connected to the dark blue SATA connector
on the system board labeled SATA0.
●
Connect the first SATA optical drive to the white SATA connector on the system board labeled
SATA1.
●
Always populate the dark blue SATA0 and white SATA1 connectors before the light blue SATA4
and orange SATA5 connectors.
●
Connect a second SATA optical drive to the orange SATA5 connector.
●
Connect additional SATA hard drives to the next available (unpopulated) SATA connector on the
system board in the following order: SATA0, SATA1, SATA5, SATA4.
●
Connect a diskette drive to the connector labeled FLOPPY P10.
●
The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.
●
You may install either a third-height or a half-height drive into a half-height bay.
●
You must install guide screws to ensure the drive will line up correctly in the drive cage and lock
in place. HP has provided eight extra guide screws installed on the chassis behind the front bezel.
Four of the guide screws are silver 6-32 standard screws used for hard drives only. The other four
guide screws are black M3 metric screws used for all other drives.
CAUTION To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the
computer, and unplug the power cord. Do not remove a drive while the computer is on or in
standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a
drive, avoid touching the connector. For more information about preventing electrostatic damage,
refer to Appendix D, Electrostatic Discharge.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
fields such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging
and label the package “Fragile: Handle With Care.”
ENWW
Installing Additional Drives
23
Removing an External 5.25-inch or 3.5-inch Drive
CAUTION All removable media should be taken out of a drive before removing the drive from
the computer.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5.
Remove the access panel and front bezel.
6.
Disconnect the drive cables, as indicated in the following illustrations.
a.
If you are removing a 5.25-inch optical drive, disconnect the power cable (1) and data cable
(2) from the back of the drive.
Figure 2-15 Disconnecting the Optical Drive Cables
24
Chapter 2 Hardware Upgrades
ENWW
b.
If you are removing a diskette drive, disconnect the data cable (1) and power cable (2) from
the back of the drive.
Figure 2-16 Disconnecting the Diskette Drive Cables
7.
A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on
the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay
(2).
Figure 2-17 Removing the External Drives
8.
ENWW
Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
Installing Additional Drives
25
Installing an External 5.25-inch or 3.5-inch Drive
NOTE An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD
Combo drive.
The system does not support Parallel ATA (PATA) optical drives.
1.
Install the four guide screws (two on each side) that were removed from the old drive into the new
drive. The screws help guide the drive into its proper position in the bay. Extra guide screws are
provided on the front of the chassis under the front bezel.
Figure 2-18 Installing Guide Screws (Optical Drive Shown)
NOTE There are a total of eight extra guide screws on the front of the chassis under the
bezel. Four have 6-32 standard threads and four have M3 metric threads. Standard screws
are used for hard drives and have a silver finish. Metric screws are used for all other drives
and have a black finish. Make sure to install the appropriate guide screws into the drive.
2.
Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
Figure 2-19 Sliding the External Drives into the Drive Cage
26
Chapter 2 Hardware Upgrades
ENWW
3.
Connect the power and data cables to the drive as indicated in the following illustrations.
a.
If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back
of the drive.
Figure 2-20 Connecting the Optical Drive Cables
CAUTION Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in)
radius. A sharp bend can break the internal wires.
b.
If you are installing a diskette drive, connect the data cable (1) and power cable (2) to the back
of the drive.
Figure 2-21 Connecting the Diskette Drive Cables
4.
ENWW
If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
Installing Additional Drives
27
NOTE If you are installing a SATA optical drive, connect the first optical drive to the white
SATA connector on the system board labeled SATA1. Connect a second optical drive to the
orange SATA connector labeled SATA5.
If you are installing a diskette drive, connect it to the connector on the system board labeled
FLOPPY P10.
5.
If necessary, remove the appropriate drive bezel blank from the front bezel by pressing the two
retaining tabs towards the outer left edge of the bezel (1) and pull the bezel blank inwards to remove
it (2).
Figure 2-22 Removing Bezel Blanks
6.
Replace the removed drive bezel with the appropriate bezel by pushing the bezel into place.
NOTE The type of bezel you need will depend on the type of drive you plan to install.
28
7.
Replace the front bezel and computer access panel.
8.
Reconnect the power cord and any external devices, then turn on the computer.
9.
Lock any security devices that were disengaged when the access panel was removed.
Chapter 2 Hardware Upgrades
ENWW
Removing an Internal 3.5-inch Hard Drive
NOTE Before you remove the old hard drive, be sure to back up the data from the old hard drive
so that you can transfer the data to the new hard drive. Also, if you are replacing the primary hard
drive, make sure you have the Restore Plus! CD set that you created when you initially set up
the computer to restore the operating system, software drivers, and any software applications
that were preinstalled on the computer. If you do not have this CD set, create it now. Refer to
the HP Backup and Recovery Manager User Guide in the Windows Start menu for more
information. You may wish to print this guide for easy reference.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
5.
Remove the access panel and front bezel.
6.
Disconnect the power cable (1) and data cable (2) from the back of the hard drive.
Figure 2-23 Disconnecting the Hard Drive Cables
ENWW
Installing Additional Drives
29
7.
Remove the power cable (1) and primary data cable (2) and secondary data cable (if necessary)
(3) from the cable retainers to make it easier to access the drive.
Figure 2-24 Removing Cables from Cable Retainers
8.
Release the drive by pulling the green release tab away from the drive (1) and sliding the drive out
of the bay (2).
Figure 2-25 Removing a Hard Drive
9.
30
Remove the four guide screws (two on each side) from the old drive. You will need these screws
to install a new drive.
Chapter 2 Hardware Upgrades
ENWW
Installing an Internal 3.5-inch Hard Drive
NOTE The system does not support Parallel ATA (PATA) hard drives
1.
Install the four guide screws (two on each side) that were removed from the old drive into the new
drive. The screws help guide the drive into its proper position in the bay. Extra guide screws are
provided on the front of the chassis under the front bezel.
Figure 2-26 Installing Hard Drive Guide Screws
NOTE There are a total of eight extra guide screws on the front of the chassis under the
bezel. Four have 6-32 standard threads and four have M3 metric threads. Standard screws
are used for hard drives and have a silver finish. Metric screws are used for all other drives
and have a black finish. Make sure to install the appropriate guide screws into the drive.
2.
Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place. The upper bay is for the primary hard drive. The bottom bay is for an
optional secondary hard drive.
Figure 2-27 Sliding a Hard Drive into the Drive Bay
ENWW
Installing Additional Drives
31
3.
Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE If you are installing a primary hard drive, use the power connector labeled P4. If
you are installing a secondary hard drive, use the power connector labeled P5.
Figure 2-28 Connecting the Hard Drive Cables
CAUTION Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
A sharp bend can break the internal wires.
4.
If installing a new drive, connect the opposite end of the data cable to the appropriate system board
connector.
NOTE If your system has only one SATA hard drive, you must connect the hard drive data
cable to the dark blue connector labeled SATA0 to avoid any hard drive performance
problems. If you are adding a second hard drive, connect the data cable to the next available
(unpopulated) SATA connector on the system board in the following order: SATA0, SATA1,
SATA5, SATA4.
5.
Route the power and data cables in their cable retainers.
6.
Replace the front bezel and computer access panel.
7.
Reconnect the power cord and any external devices, then turn on the computer.
8.
Lock any security devices that were disengaged when the access panel was removed.
NOTE If you replaced the primary hard drive, use the Restore Plus! CD set that you created
when you initially set up the computer to restore the operating system, software drivers, and any
software applications that were preinstalled on the computer. When the restore process has
completed, reinstall any personal files that you backed up before replacing the hard drive.
32
Chapter 2 Hardware Upgrades
ENWW
A
Specifications
Desktop Dimensions
Height
19.94 in
50.65 cm
Width
6.98 in
17.73 cm
Depth
16.88 in
42.87 cm
Approximate Weight
23.5 lb
10.66 kg
Operating
50° to 95°F
10° to 35°C
Nonoperating
-22° to 140°F
-30° to 60°C
Operating
10-90%
10-90%
Nonoperating (38.7°C max wet bulb)
5-95%
5-95%
Operating
10,000 ft
3048 m
Nonoperating
30,000 ft
9144 m
Temperature Range
Relative Humidity (noncondensing)
Maximum Altitude (unpressurized)
NOTE Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level;
no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type
and number of options installed.
Heat Dissipation
ENWW
Maximum
1575 BTU/hr
397 kg-cal/hr
Typical (idle)
315 BTU/hr
80 kg-cal/hr
Power Supply
115V
230V
Operating Voltage Range1
90-132 VAC
180-264 VAC
Rated Voltage Range
100-127 VAC
200-240 VAC
Rated Line Frequency
50-60 Hz
50-60 Hz
Power Output
300 W
300 W
33
Rated Input Current (maximum)1
1
34
8A @ 100 VAC
4A @ 200 VAC
This system utilizes a passive power factor corrected power supply. The power factor correction is
present in the 230V operating mode only. This allows the system to pass the CE mark requirements
for use in the countries of the European Union. This supply requires the use of an input voltage range
select switch.
Appendix A Specifications
ENWW
B
Battery Replacement
The battery that comes with the computer provides power to the real-time clock. When replacing the
battery, use a battery equivalent to the battery originally installed in the computer. The computer comes
with a 3-volt lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a
risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION Before replacing the battery, it is important to back up the computer CMOS settings.
When the battery is removed or replaced, the CMOS settings will be cleared. Refer to the
Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD for information
on backing up the CMOS settings.
Static electricity can damage the electronic components of the computer or optional equipment.
Before beginning these procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object.
NOTE The lifetime of the lithium battery can be extended by plugging the computer into a live
AC wall socket. The lithium battery is only used when the computer is NOT connected to AC
power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as diskettes or compact discs, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION Regardless of the power-on state, voltage is always present on the system
board as long as the system is plugged into an active AC outlet. You must disconnect the
power cord to avoid damage to the internal components of the computer.
ENWW
35
5.
Remove the computer access panel.
6.
Locate the battery and battery holder on the system board.
NOTE On some computer models, it may be necessary to remove an internal component
to gain access to the battery.
7.
Depending on the type of battery holder on the system board, complete the following instructions
to replace the battery.
Type 1
a.
Lift the battery out of its holder.
Figure B-1 Removing a Coin Cell Battery (Type 1)
b.
Slide the replacement battery into position, positive side up. The battery holder automatically
secures the battery in the proper position.
Type 2
a.
36
To release the battery from its holder, squeeze the metal clamp that extends above one edge
of the battery. When the battery pops up, lift it out (1).
Appendix B Battery Replacement
ENWW
b.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).
Figure B-2 Removing and Replacing a Coin Cell Battery (Type 2)
Type 3
a.
Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
b.
Insert the new battery and position the clip back into place.
Figure B-3 Removing a Coin Cell Battery (Type 3)
NOTE After the battery has been replaced, use the following steps to complete this
procedure.
8.
Replace the computer access panel.
9.
Plug in the computer and turn on power to the computer.
10. Reset the date and time, your passwords, and any special system setups using Computer Setup.
Refer to the Computer Setup (F10) Utility Guide on the Documentation and Diagnostics CD.
11. Lock any security devices that were disengaged when the access panel was removed.
ENWW
37
38
Appendix B Battery Replacement
ENWW
C
External Security Devices
NOTE For information on data security features, refer to the Computer Setup (F10) Utility
Guide and the Desktop Management Guide on the Documentation and Diagnostics CD and
the HP ProtectTools Security Manager Guide (some models) at http://www.hp.com.
Installing a Security Lock
The security locks displayed below and on the following page can be used to secure the computer.
Cable Lock
Figure C-1 Installing a Cable Lock
ENWW
Installing a Security Lock
39
Padlock
Figure C-2 Installing a Padlock
40
Appendix C External Security Devices
ENWW
D
Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other
static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
●
Avoid hand contact by transporting and storing products in static-safe containers.
●
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
●
Place parts on a grounded surface before removing them from their containers.
●
Avoid touching pins, leads, or circuitry.
●
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
●
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm +/- 10 percent resistance in the ground
cords. To provide proper ground, wear the strap snug against the skin.
●
Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
●
Use conductive field service tools.
●
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized
dealer, reseller, or service provider.
NOTE For more information on static electricity, contact an HP authorized dealer, reseller, or
service provider.
ENWW
Preventing Electrostatic Damage
41
42
Appendix D Electrostatic Discharge
ENWW
E
Computer Operating Guidelines,
Routine Care and Shipping Preparation
Computer Operating Guidelines and Routine Care
Follow these guidelines to properly set up and care for the computer and monitor:
ENWW
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented
sides of the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software, including
sleep states.
●
Turn off the computer before you do either of the following:
●
Wipe the exterior of the computer with a soft, damp cloth as needed. Using cleaning products
may discolor or damage the finish.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other
foreign matter can block the vents and limit the airflow.
Computer Operating Guidelines and Routine Care
43
Optical Drive Precautions
Be sure to observe the following guidelines while operating or cleaning the optical drive.
Operation
●
Do not move the drive during operation. This may cause it to malfunction during reading.
●
Avoid exposing the drive to sudden changes in temperature, as condensation may form inside the
unit. If the temperature suddenly changes while the drive is on, wait at least one hour before you
turn off the power. If you operate the unit immediately, it may malfunction while reading.
●
Avoid placing the drive in a location that is subject to high humidity, extreme temperatures,
mechanical vibration, or direct sunlight.
Cleaning
●
Clean the panel and controls with a soft, dry cloth or a soft cloth lightly moistened with a mild
detergent solution. Never spray cleaning fluids directly on the unit.
●
Avoid using any type of solvent, such as alcohol or benzene, which may damage the finish.
Safety
If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an
authorized HP service provider.
Shipping Preparation
Follow these suggestions when preparing to ship the computer:
1.
Back up the hard drive files on PD discs, tape cartridges, CDs, or diskettes. Be sure that the backup
media is not exposed to electrical or magnetic impulses while stored or in transit.
NOTE The hard drive locks automatically when the system power is turned off.
2.
Remove and store all removable media.
3.
Insert a blank diskette into the diskette drive to protect the drive while in transit. Do not use a diskette
on which you have stored or plan to store data.
4.
Turn off the computer and external devices.
5.
Disconnect the power cord from the electrical outlet, then from the computer.
6.
Disconnect the system components and external devices from their power sources, then from the
computer.
NOTE Ensure that all boards are seated properly and secured in the board slots before
shipping the computer.
7.
44
Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation
ENWW
Index
A
access panel
locking and unlocking 39
removing 8
replacing 9
ADD2/SDVO card 16, 19
audio connectors 2, 3
B
backup and recovery 29
battery replacement 35
C
computer operating guidelines 43
connecting drive cables 23
D
DIMMs. See memory
diskette drive
installing 26
removing 24
drives
connecting cables 23
installing 23
locations 22
E
electrostatic discharge, preventing
damage 41
expansion card
installing 16
removing 16
slot locations 16
expansion slot cover
removing 18
replacing 20
ENWW
F
front bezel
removing 10
replacing 11
front panel components 2
G
guide screws 23
H
hard drive
installing 31
removing 29
restoring software 29, 32
headphone connector 2
I
installation guidelines 7
installing
battery 35
diskette drive 26
drive cables 23
expansion card 16
guide screws 23
hard drive 31
memory 12
optical drive 26
restore software 29, 32
security locks 39
K
keyboard
components 4
connector 3
L
line-in connector 3
line-out connector 3
locks
cable lock 39
padlock 40
M
memory
installing 12
populating sockets 13
specifications 12
microphone connector 2
monitor connector 3
mouse
connector 3
special functions 6
N
network connector 3
O
optical drive
defined 2
cleaning 44
installing 26
precautions 44
removing 24
P
parallel connector 3
PCI card 16, 19
PCI Express card 16
power supply 33
product ID location 6
R
rear panel components 3
removing
ADD2/SDVO card 19
battery 35
computer access panel 8
diskette drive 24
Index
45
expansion card 16
expansion slot cover 18
front bezel 10
hard drive 29
optical drive 24
PCI card 19
S
security
cable lock 39
padlock 40
serial connector 3
serial number location 6
shipping preparation 44
specifications
computer 33
memory 12
U
unlocking access panel
USB ports
front panel 2
rear panel 3
39
V
ventilation guidelines 43
W
Windows Logo key 5
46
Index
ENWW
