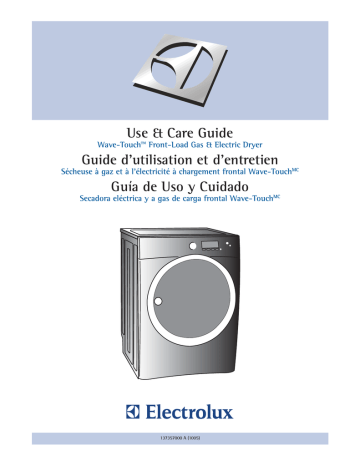

Electrolux EWMGD70JIW Use & care guide

Use & Care Guide
Wave-Touch™ Front-Load Gas & Electric Dryer
Guide d’utilisation et d’entretien
Sécheuse à gaz et à l’électricité à chargement frontal Wave-TouchMC
Guía de Uso y Cuidado
Secadora eléctrica y a gas de carga frontal Wave-TouchMC
137357000 A (1005)
2
Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the service life of your
new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number
NOTE
Registering your product with Electrolux enhances
our ability to serve you. You can register online at
www.electroluxappliances.com or by dropping
your Product Registration Card in the mail.
Questions?
For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit http://www.electroluxappliances.com
Table of contents
Finding information......................................................... 2
SAFETY ....... .............................................................. 3-5
Features.......................................................................... 6
Operating Instructions ............................................... 7-29
• Getting Started ........................................................... 7
• Normal Operating Sounds .......................................... 7
• Operating Your Dryer ............................................. 8-10
• Cycle Selection .................................................... 11-16
• Drying Temperature .................................................. 17
• Dryness Level ........................................................... 18
• Drying Time............................................................... 18
• Options ................................................................ 19-22
©2010 Electrolux Major Appliances
• Cycle Chart ............................................................... 22
Operating User Interface Features .......................... 23-28
• User Interface Features ............................................ 23
• Saving Favorites ....................................................... 24
• Setting Preferences ............................................. 25-27
• Other Features .......................................................... 28
Care & Cleaning............................................................ 29
Solutions to Common Problems ............................. 30-31
• Common Drying Problems ....................................... 30
• Service Prevention Checklist .................................... 31
Warranty Information .................................................... 32
All rights reserved.
Safety
Important Safety Instructions
Recognize safety symbols, words and
labels
Your safety and the safety of others is very
important.
We have provided many important safety
messages in the Use and Care Guide, Installation
Instructions and on your appliance. Always read
and obey all safety messages.
Safety items throughout this manual are labeled
with a WARNING or CAUTION based on the risk
type as described below:
This symbol alerts you to situations that may cause serious body
harm, death or property damage.
This symbol alerts you to situations that may cause bodily injury
or property damage.
NOTE
The instructions appearing in this Use and
Care Guide are not meant to cover every
possible condition and situation that may occur.
Common sense and caution must be practiced
when installing, operating and maintaining any
appliance.
WARNING
For your safety the following information in this
manual must be followed to minimize the risk of
fire or explosion or to prevent property damage,
personal injury or death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Save these instructions for future reference.
240 v Electric Dryer
10-30R
3-wire
(fused 30 amp)
14-30R
4-wire
120 v Gas Dryer
Grounding type
wallll receptacle
wa
receptacl
UL-approved service
cord must be installed
on electric dryers (not
provided with unit
except those
manufactured for sale
in Canada).
Do not, under
anyy circumstances,
an
circumstances,
cut, remo
remove
ve,
or b
bypass
ypass the
grounding
gr
ounding pr
prong.
ong.
(fused 30 amp)
Power cord with
Power
3-prong gr
grounded
ounded plug
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord
or remove grounding prong from electrical power cord. Failure to follow this warning
can cause serious injury, fire or death.
3
4
Safety
WARNING - RISK OF FIRE
To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the
basic warnings listed below. Failure to comply with these warnings could result in serious personal
injuries.
You can be killed or seriously injured if you don’t follow these Important Safety Instructions:
PREVENT FIRE
• Do not dry items that have been previously
cleaned in, soaked in, or spotted with gasoline,
cleaning solvents, kerosene, waxes, etc. Do not
store these items on or near the dryer. These
substances give off vapors that could ignite or
explode.
• Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a load to catch fire.
• Do not dry articles containing rubber, plastic
or similar materials such as bras, galoshes,
bath mats, rugs, bibs, baby pants, plastic bags
and pillows that may melt or burn. Some rubber materials, when heated, can under certain
circumstances produce fire by spontaneous
combustion.
• Clean the lint screen before or after each load.
The interior of the dryer, lint screen housing and
exhaust duct should be cleaned approximately
every 18 months by qualified service personnel.
An excessive amount of lint build-up in these areas could result in inefficient drying and possible
fire. See Care and Cleaning.
WARNING
FIRE HAZARD
A clothes dryer produces combustible lint.
The dryer must be connected to an outdoors
exhaust. Regularly inspect the outdoor exhaust
opening and remove any accumulation of lint
around the opening and in the surrounding area.
• Do not operate the dryer if the lint screen is
blocked, damaged or missing. Fire hazard, overheating and damage to fabrics can occur.
• Do not obstruct the flow of ventilating air. Do not
stack or place laundry or throw rugs against the
front or back of the dryer.
• Do not spray any type of aerosol into, on or near
dryer at any time.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
• Do not continue to use the dryer if you hear
squeaking, grinding, rubbing or other unusual
noises. This could be a sign of mechanical
breakdown and lead to fire or serious injury.
Contact a qualified technician immediately.
• Failure to comply with these warnings could
result in fire, explosion, serious bodily injury and/
or damage to the rubber or plastic parts of the
dryer.
PROTECT CHILDREN
• Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. As children grow,
teach them the proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing materials after the dryer is unpacked. Children might use them for play. Cartons covered
with rugs, bedspreads or plastic sheets can
become airtight chambers.
• Keep laundry products out of children’s reach.
To prevent personal injury, observe all warnings
on product labels.
• Before the dryer is removed from service or
discarded, remove the dryer door to prevent accidental entrapment.
• Failure to comply with these warnings could
result in serious personal injuries.
Safety
Important Safety Instructions, continued
PREVENT INJURY
• To prevent shock hazard and assure stability
during operation, the dryer must be installed
and electrically grounded by a qualified service
person in accordance with local codes. Installation instructions are packed in the dryer for the
installer’s reference. Refer to INSTALLATION
INSTRUCTIONS for detailed grounding procedures. If the dryer is moved to a new location,
have it checked and reinstalled by a qualified
service person.
• To prevent personal injury or damage to the
dryer, the electrical power cord of a gas dryer
must be plugged into a properly grounded and
polarized 3-prong outlet. The third grounding
prong must never be removed. Never ground
the dryer to a gas pipe. Do not use an extension
cord or an adaptor plug.
PREVENT INJURY AND DAMAGE TO THE
DRYER
• All repairs and servicing must be performed by
an authorized servicer unless specifically recommended in this Use & Care Guide. Use only
authorized factory parts.
• Do not tamper with controls.
• Do not install or store the dryer where it will be
exposed to the weather.
• A thermal limiter switch automatically turns off
the motor in the unlikely event of an overheated
situation (electric dryers only). A service technician must replace the thermal limiter switch after
correcting the fault.
• Failure to comply with these warnings could
result in serious personal injuries.
• ALWAYS disconnect the dryer from the electrical
supply before attempting any service or cleaning. Failure to do so can result in electrical shock
or injury.
• Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or electrical
shock could occur.
• To prevent injury, do not reach into the dryer
if the drum is moving. Wait until the dryer has
stopped completely before reaching into the
drum.
CAUTION
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and
requires businesses to warn customer of potential exposure to such substances. Included in this list are
soot and carbon monoxide, both of which may be produced by the use of this product.
5
6
Features
Touch-2-Open™
Cycle Selector
Multi-language
LCD Interface
Control Lock
3 Drum Vanes
(2 tumbling)
(1 mixing)
Dual Stage,
Wide-Angle
Door Hinge
Reversible,
Touch-2-Open™
Door System
Theater-Style,
Luxury-Lighting™
System
Large Surface
Moisture Sensor
Door Strike
Exhaust Channel
Outlet
Touch-2-Open™
Door Latch
Reversing-Action,
Perfect Tumble™
Drying System
Touch-2-Open™
Latch Indicator
Adjustable
Leveling Legs
Collapsible
Drying Rack*
Lint Filter
Stacking Kit for Mounting
on Matching Washer*
*Not all models come with drying rack and
stacking kit from the factory. They may be
purchased as accessories.
Operating Instructions
Getting Started
To operate your dryer, follow these basic steps:
1. Check and clean the lint filter. (See page 8.)
2. Load the dryer. (See page 8.)
3. Select the desired cycle. (See page 9, pages
11-14 and page 22.)
4. Select desired settings and options. (See page
9, page 17, page 18, and pages 19-20.)
5. Start the dryer. (See page 10.)
Normal Operating Sounds
You may or may not hear the following sounds
from your new dryer:
A
A. WATER VALVE The flow of water is controlled by
electric solenoids. During operation there may be
a clicking sound as the valve opens and closes to
control the water flow.
B. SUSPENSION ROLLERS The dryer drum
is supported by a set of suspension rollers.
At times there may be a thumping or rolling
sound when the dryer starts. This may happen
if the dryer has not been in use for a period of
time, or after a heavy load has remained in the
dryer drum for an extended period, creating
a temporary flat spot on the edge of the
roller. The noise should dissipate as the dryer
operates and the flat spots smooth out.
C. PERFECT TUMBLE™ When the reversingaction option of perfect tumble™ is selected,
you will hear the intermittent sound of the dryer
stopping, momentarily pausing, then restarting in
the opposite direction.
D. AIR FLOW SYSTEM Your dryer is equipped
with a high volume air handling system. In
some installations there may be some sounds
associated with air movement throughout
the dryer, including the air duct, blower, and
exhaust system. This is normal and can vary
with load size and type.
E. GAS VALVE (Gas models only.) The flow of gas is
controlled by electric solenoids. During operation
B
C
F
E
D
there may be a clicking sound as the valve opens
and closes to control the gas flow.
F. GAS BURNER (Gas models only.) When the
burner is operating, there may be sounds
generated as the air flow mixes with the gas
flame. This noise is normal and will only occur
when the gas is ignited in the combustion tube.
7
8
Operating Instructions
Operating Your Dryer
BEFORE USING YOUR DRYER
Read the important instructions in this section of the
Use and Care Guide before operating your dryer.
WARNING
To reduce the risk of fire, electric shock or injury
to persons, read the IMPORTANT SAFETY
INSTRUCTIONS in this Use and Care Guide
before operating your dryer.
OPERATING YOUR DRYER
1. Prepare load for drying.
Dry items of similar fabric, weight and construction in the same load.
Separate dark items from light-colored items.
Separate items that shed lint from those that
attract lint.
Check for stains which may not have been
removed in washing. Repeat stain removal
process and wash again before drying. Dryer
heat may permanently set some stains.
Place delicate or small items in a mesh bag.
Be sure buckles, buttons and trim are heatproof and won’t damage the drum finish. Close
zippers; fasten hooks and Velcro®-like fasteners. Tie strings and sashes to prevent snagging and tangling.
2. Check that the lint filter is clean and
in place.
A clean lint filter allows the dryer to operate
more efficiently.
3. Load the dryer and close the door.
Load items loosely. The average wet load will
fill the drum 1/3 to 1/2 full. Items need room to
tumble freely for even drying and less wrinkling.
If desired, place a dryer fabric softener sheet
on top of the load at the beginning of the
cycle.
To save energy and time and avoid uneven
drying and wrinkling, do not overload the dryer.
When drying large items, dry only two or three
items at a time. Fill out the load with small and
medium sized items.
For delicate or very small loads, add two or
three similar items to improve tumbling action.
(Mesh bag not included.)
Operating Instructions
OPERATING YOUR DRYER, continued
4. Select the appropriate cycle and
settings for each load.
NOTE
Overdrying can cause wrinkles, shrinkage, lint,
harshness and a build up of static electricity.
Turn the cycle selector knob in either direction to select the cycle desired. The icon for
that cycle will be illuminated and if the cycle
description feature is turned on, the cycle and
estimated cycle time are displayed on the User
Interface screen for 5 seconds. Press any key
to advance the User Interface to select settings and options. See the “Cycle Selection”
section in this guide for descriptions of each
cycle.
If no buttons are pressed, the User Interface
screen will automatically advance after 5 seconds and display the preset drying temperature, dryness level (Auto Dry) or drying time
(Time Dry), extended tumble time, and options
for the cycle selected will be displayed. See
the “Cycle Settings Chart” in this guide for settings available for each cycle.
As the Cycle Selector knob is turned, the
cycle and estimated cycle time are displayed
on the User Interface screen for 5 seconds.
Press any key to advance the User Interface
and select settings and options.
To change the settings, press the temp, dryness level (Auto Dry) or drying time (Time Dry)
and extended tumble buttons to scroll to the
desired settings. Press the scroll up or scroll
down buttons under options to scroll through
the options menu. Press the select button to
add or delete options. The estimated cycle
time will be displayed at the top of the screens.
NOTE
To provide the best care of your laundry, not
every setting or option is available with every
cycle. If a setting is not available for the cycle
selected, it will not be displayed.
Adjustments made to a cycle will be remembered and recalled each time that cycle is
selected in the future.
To return to the factory default settings, select
RESET in set prefs under the options scroll
buttons.
To customize and save up to 3 cycles in noncustom mode plus 9 more cycles for custom
users, see save as favorite and CUSTOM
MODE in the User Interface sections of this
guide.
TEMPERATURE
DRYING TIME or
DRYNESS LEVEL
EXTENDED TUMBLE
OPTIONS SCROLL & SELECT
9
10
Operating Instructions
OPERATING YOUR DRYER, continued
5. Start the cycle.
Close the door and press start to begin the
cycle. The dryer will not operate with the door
open. To interrupt the cycle, press pause or
simply open the door. Press start again to resume the cycle. Press cancel to stop the cycle.
To change the cycle once the cycle has begun,
press cancel, select a new cycle, and restart
the dryer
To change the temperature, dryness level or
drying time, extended tumble time or options
once the cycle has begun, press pause, make
the new selections and restart dryer.
A signal will sound at the end of the cycle,
periodically during extended tumble and
wrinkle release, when the damp alert option
is selected and to notify you that the load has
finished.
When the cycle ends, COMPLETE will be
displayed and the drum light will come on.
Remove the items promptly and hang or fold.
IMPORTANT
Clean the lint filter after every load. CLEAN
FILTER will be displayed at the end of the cycle
to remind you to remove lint from the filter.
Operating Instructions
Cycle Selection
Turn the cycle selector in either direction to the
cycle desired. The icon for that cycle will be illuminated. Press on the cycle selector knob to extend
it or return it flush to the console.
For best results
Follow the fabric care label instructions
on items to be dried.
To change the cycle once it has begun, press the
cancel button before selecting a new cycle. Just
turning the cycle selector knob to another selection will not change the cycle.
AUTO DRY CYCLES
Auto Dry cycles take the guesswork out of selecting the correct drying time for each load. Moisture
sensing bars at the back of the dryer drum sense
the moisture level of the load as it tumbles through
the heated air. With Auto Dry cycles, the load will
automatically be dried at the selected temperature
to the desired dryness level.
Auto Dry cycles save time and energy and protect
fabrics. When the load has reached the selected
dryness level, it will continue to tumble, unheated,
during a cool down period. This helps reduce
wrinkling and makes items easier to handle during
unloading.
Drying time varies depending on size and dampness of load and fabric type. If the load is too small
or almost dry, the moisture sensing bars may not
detect enough moisture to continue the cycle and
the cycle may end after a few minutes. If this occurs, then select the time dry cycle to dry such
loads.
Room temperature and humidity, type of installation and electrical voltage or gas pressure can also
affect drying time.
AUTO DRY CYCLES
TEMPERATURE
DRYNESS LEVEL
EXTENDED TUMBLE
OPTIONS SCROLL & SELECT
11
12
Operating Instructions
AUTO DRY CYCLES, continued
NORMAL
Select this cycle to dry everyday fabrics including
cottons, linens and sheets.
TOWELS
Select this cycle to dry heavy loads such as towels
and non-rubber-backed bath mats.
MIXED LOAD
Select this cycle to dry loads containing a mix of
fabrics.
HEAVY DUTY
Select this cycle to dry durable fabrics such as
jeans and overalls.
BULKY/BEDDING
Select this cycle to dry bedding and bulky items
such as comforters, blankets, sleeping bags and
parkas.
CASUAL
Select this cycle to dry cottons, blends and permanent press items with a no-iron finish.
ACTIVE WEAR
Select this cycle to dry lightweight synthetic athletic apparel including stretch fabrics.
AUTO DRY CYCLES
DELICATE
Select this cycle to dry knits and delicates.
TEMPERATURE
DRYNESS LEVEL
EXTENDED TUMBLE
OPTIONS SCROLL & SELECT
Operating Instructions
TIME DRY CYCLES
TIME DRY
To manually select the drying time for any load,
turn the cycle selector knob to time dry and press
the drying time button to select up to 90 minutes
of drying time in 15-minute increments. Select any
drying temperature. Dryness levels are not selectable with Time Dry cycles.
WARNING
FIRE HAZARD
To avoid fire hazard, do not use heat to dry items
containing feathers or down, foam rubber, plastics
similarly textured, rubber-like materials. Use the
time dry cycle and the air (no heat) setting.
FAST DRY
Select this cycle to quickly dry small loads in 14
minutes.
TIME DRY CYCLES
PERFECT STEAM
Select this cycle to refresh fabrics, remove odors
and reduce static by injecting the perfect amount
of steam into clothing that has been left in the
dryer, stored in crowded closets, drawers, or
unpacked luggage. The load will tumble for 15
minutes on high temp heat while steam is injected
into the drum.
TEMPERATURE
NOTE
It is not recommended to use fabric softener
sheets with Steam Cycles or Options as it may
cause staining on clothes.
DRYING TIME
EXTENDED TUMBLE
OPTIONS SCROLL & SELECT
13
14
Operating Instructions
Cycle Selection, continued
SPECIALTY CYCLES
To access you dryer’s specialty cycles:
• Turn the cycle selector knob to favorites/specialty.
• Press the button under the LCD corresponding
to specialty cycles.
• Rotate the cycle selector knob to scroll through
the list available specialty cycles to choose from.
• Press the start button to begin the cycle.
JEANS
Select this specialty cycle for drying an entire load
of denim jeans.
WARM UP
Quickly warm up an entire dry load left in a cold
dryer or a few dry items you want warm with this
specialty cycle.
STUFFED ANIMALS
Select this specialty cycle for drying stuffed animals and soft toys that can be tumble dried. Protect
your dryer drum finish and maximize toy life by
placing it in a pillow case and tying the end closed
before drying it.
PET BEDS
Select this specialty cycle for drying soft-sided pet
beds, pet pillows or pet blankets.
FAST STEAM
Quickly refresh a load of dry clothes with steam in
just 15 minutes.
NOTE
To avoid stains in FAST STEAM, do not use
fabric softener sheets with steam.
COMFORTER
For use with large and king size comforters, uses
low heat to thoroughly dry comforter without damaging stuffing or fillers.
KIDS WEAR
Select this specialty cycle for drying kids clothing
and baby wear where allergen-reduction is desired.
AIR CLEAN
For dry laundry items that have been used or
worn, but are still clean and do not need to be
washed through a full wash cycle. This cycle uses
a combination of steam and high temperatures to
reduce allergens, while refreshing a full load of dry
clothing.
NOTE
Inspect all items for stains before placing in dryer.
Unseen stains may become set with applied heat.
Thoroughly treat stains in washer before placing
in dryer. Also, to avoid stains in air clean, do not
use fabric softener sheets with steam.
WOOL
Use the WOOL cycle with washable woolens - check
your fabric care label to ensure proper garment care.
To help your wool items keep their shape, use of your
drying rack is recommended.
Operating Instructions
Cycle Selection, continued
MY FAVORITES
To select one of your 3 favorite cycles:
• Turn the cycle selector knob to favorites/specialty.
• Press the button under the LCD corresponding
to my favorites to display the favorites cycles.
• Press the button corresponding to the favorite
cycle desired. The custom cycle, settings, and
options you saved will automatically be displayed.
• Press the start button to begin the cycle.
For example, to select your my shirts cycle, turn
the cycle selector knob to favorites/specialty.
Press the button under my favorites. Press the
button corresponding to my shirts, and then press
start.
(See save as favorite in the “Operating User Interface Preferences” section of this guide for instructions on customizing up to 3 cycles.)
If more than one user has been entered in
15
16
Operating Instructions
MY FAVORITES
, continued
CUSTOM MODE:
• The current user’s name will be displayed when the
washer is turned on if CUSTOM MODE is on.
• Press the button under OK to continue using that
user’s favorite cycles.
• The icon for the last cycle run will light up.
• Turn the cycle selector knob to favorites/specialty.
• Press the button under the LCD corresponding to
my favorites to display the favorites cycles.
• Select one of the 3 customized cycles by pressing
the corresponding button.
• Press the start button.
To change users:
• Press the select button when the washer turns on
and shows the current user’s name.
• Press the button under change users.
• Select another user’s name.
• Press the button under EXIT.
• The icon for the last cycle run will light up.
• Turn the cycle selector knob to favorites/specialty.
• Press the button under the LCD corresponding to
my favorites to display the favorites cycles.
• Select one of the 3 customized cycles by pressing
the corresponding button.
• Press the start button.
To select a user if a user’s name is not displayed
when the dryer is turned on:
• Press the options buttons to scroll to set prefs and
then press the select button.
• If necessary, press the options buttons to scroll to
CUSTOM MODE and then press the select button.
• Press the button corresponding to the user’s name.
• The icon for the last cycle run will light up.
• Turn the cycle selector knob to favorites/specialty.
• Press the button under the LCD corresponding to
my favorites to display the favorites cycles.
• Select one of the 3 customized cycles by pressing
the corresponding button.
• Press the start button.
(See CUSTOM MODE in “Operating User Interface
Preferences” in this guide for instructions entering
new users and naming favorite cycles.)
Operating Instructions
Drying Temperature
The appropriate drying temperature will automatically be indicated for the cycle selected.
For best results
Follow the fabric care label instructions
on items to be dried.
To change the preset temperature, press the temperature button to scroll to the desired setting.
To protect your fabrics, not all temperatures are
available with every cycle. If a temperature is not appropriate for the cycle, it will not be displayed.
The temperature selected for the cycle will be
remembered each time that cycle is selected in the
future.
NOTE
To change the temperature once the cycle has
begun, press the pause button, make the new
selection and press start again.
MAXIMUM TEMP
Recommended to use with the sanitize option for
towels and heavy duty loads.
HIGH TEMP
Recommended for durable fabrics.
MED HIGH TEMP
Recommended for most cotton fabrics.
MEDIUM TEMP
Recommended for wrinkle free, easy care lightweight fabrics and bulky loads.
MED LOW TEMP
Recommended for knits.
LOW TEMP
Recommended for delicate fabrics.
AIR FLUFF TEMP
This setting (no heat) should only be used with a
time dry cycle to dry items containing feathers,
down, foam rubber, plastics or rubber-like materials; to refresh clothing, stuffed animals, pillows or
blankets; and to dust draperies.
17
18
Operating Instructions
Dryness Level (Auto Dry)
The appropriate dryness level will automatically
be indicated when the cycle is selected.
To change the preset level, press the dryness level
button to scroll to the degree of dryness desired.
To protect your fabrics, not all dryness levels are
available with every cycle. If a dryness level is not
recommended for the cycle, it will not be displayed.
The dryness level selected for the cycle will be
remembered and recalled each time that cycle is
selected in the future.
NOTE
To change the dryness level once the cycle has
begun, press the pause button, make the new
selection and press start again.
Select the normal dryness level for most Auto Dry
cycles.
Occasionally a load may seem too damp or overdried at the end of the cycle. To increase the drying
time for similar loads in the future, press the dryness
button to select more dry or maximum dry. For
loads requiring less drying time, select less dry.
Select damp dry for items you wish to partially dry
before hanging or ironing.
Drying Time (Time Dry)
Press the drying time button to select up to 90
minutes of drying time in 15-minute increments. This
setting is only available with the time dry cycle.
Operating Instructions
Options
Suitable options will automatically be indicated
when the cycle is selected.
To select or clear the add steam, wrinkle release,
extended tumble, delicate heat, perfect tumble,
sanitize, shrink guard and damp alert options,
press the options buttons until the desired option
is displayed. Press select and
will be displayed
in the upper right corner. To clear the option, press
select again and
will disappear.
To protect your fabrics, not all options are available
with every cycle. If an option is not appropriate for
the cycle, it will not be displayed. Occasionally, two
options in the same cycle will conflict with each
other, like eco friendly and sanitize. When this happens, the option selected first will cause the conflicting option to not be selectable.
NOTE
To change the options once the cycle has
begun, press the pause button, make the new
selections and press start again.
All options selected for the cycle, except sanitize,
will be remembered each time that cycle is selected
in the future. To prevent unintentional and accidental
exposure of delicate material to sanitize heat, the
sanitize option will not be remembered and must
be reselected each time.
NOTE
The sanitize option will be retained and recalled if
it is selected and saved in the my favorite cycle.
19
20
Operating Instructions
Options, continued
ADD STEAM
The add steam option injects steam into the clothing prior to cool down to reduce wrinkling, ironing
and static cling.
NOTE
It is not recommended to use fabric softener
sheets with Steam Cycles or Options as it may
cause staining on clothes.
WRINKLE RELEASE
The wrinkle release option helps prevent wrinkles
and tangling by alternately tumbling the load without heat for 5 minutes in a clockwise direction, then
5 minutes in a counterclockwise direction, for a total
of 45 minutes. A signal will sound every 5 minutes
to remind you to remove the dry load at any time.
The extended tumble option can be selected with
wrinkle release to increase the amount of time the
load will tumble without heat. Use this combination
if you know it could be up to 3 hours before you
can remove the load.
EXTENDED TUMBLE
Select the extended tumble option if the dried
load might not be removed promptly at the end of
the cycle. The dry load will tumble without heat in
a clockwise direction only for the selected time to
help reduce wrinkling. Press the extended tumble
button to select 10 or 30 minutes or 1, 2 or 3 hours
tumbling. A signal will sound periodically to remind
you to remove the dry load at any time.
The wrinkle release option can be selected with
extended tumble option to increase the amount
of time the load will tumble without heat. Use this
combination if you know it could be up to 3 hours
before you can remove the load.
ECO FRIENDLY
The eco friendly option reduces the drying temperature a few degrees to save energy. In conjunction with automatic moisture sensors, cycle times
will increase slightly, but overall energy usage will
decrease.
PERFECT TUMBLE
The perfect tumble option uses reverse tumble
action during cool down to reduce tangling and
wrinkling.
SANITIZE
Select the sanitize option for loads that may contain harmful bacteria. An extended drying time at
high heat will kill 99.9% of bacteria with no carryover of bacteria between loads. Check fabric care
labels to prevent damage caused by high heat.
NOTE
This option has been certified by NSF
International®, an independent, third-party testing
and certification organization dedicated to public
health, safety and environmental protection.
NSF Protolcol P154
Sanitization Performance of
Residential Clothes Dryers
SHRINK GUARD
The shrink guard option reduces the initial drying
temperature and gradually lowers the drying temperature during the cycle to protect fabrics from
shrinking.
DAMP ALERT
For loads that contain some items you plan to hang
dry, flat dry or iron, add the damp alert option to
any Auto Dry cycle. If the VOLUME is turned up in
your preferences (see “Setting Preferences” on the
next page), a chime will sound when the load has
reached the damp dry dryness level to remind you
to remove those items to hang dry, dry flat or iron
dry. Open the door, remove those items, close the
door and press the start button to continue drying
the remaining items.
ALLERGEN
Use this option to reduce allergens as you dry your
load. Not recommended for items prone to heat
damage.
Operating Instructions
Options, continued
LINE DRY
Select this option to simulate hanging your laundry
in a summer breeze combined with the wrinkle-releasing benefits of tumble action. Since drying times
are calculated with the dryer’s automatic moisture
sensors and heat is radically reduced or eliminated,
cycle time will be lengthened. As a result, depending
on moisture content of load, overall energy consumption decreases.
ANTI STATIC
The anti static option injects steam into the clothing
just before cycle completion to reduce static.
DELAY START
Use delay start to select a drying time convenient
to your schedule or during off-peak energy hours.
The start of any cycle can be delayed for 30 minutes to 22 hours. Select the delay start option and
then press the button under the plus (+) or minus
(-) symbols to scroll to the delayed time setting desired. Press the select button and the delay time
will be displayed. Time will begin counting down
when you press start.
NOTE
While counting down during delay start, you will
notice your dryer periodically tumbling for a few
minutes without heat to redistribute the load,
maximizing load freshness.
21
Operating Instructions
Dryer Setting Chart
These temperature, dryness levels and options are available with the following cycles:
wool
air clean
kids wear
comforter
fast steam
pet beds
stuffed animals
warm up
jeans
time dry
perfect steam™
delicate
fast dry
active wear
casual
normal
towels
mixed load
heavy duty
specialty cycles
bulky/bedding
22
Temperature
9
maximum temp
9
high temp
med high temp
medium temp
9
9
9 9
9 9
9
med low temp
low temp
air fluff temp
9
9
9
9
9
9
9
9 9
9
9
9
9
9
9
9
9
9
Dryness
maximum dry
more dry
normal dry
less dry
damp dry
9 9 9 9 9
9 9 9
9 9 9
9
9 9 9
9 9 9
9 9
9
9
9
9
9
9
9
9 9
9
Options
add steam
extended tumble
wrinkle release
eco friendly
perfect tumble™
sanitize
shrink guard
damp alert
allergen
line dry
anti static
delay start
9
9 9 9
9 9 9
9 9
9 9
9
9 9
9
9
9
9 9
9 9 9
9 = Available selections.
9
9 9
9
9
9
9 9
9
9
9 9
9
9
9 9
9
9
9
9
9
9 9
9 9 9
9
9
9 9 9 9
9
9
9
9 9
9
9
9 9
9
9
9
9
9 9
9
9 9
9
9 9 9 9
= Factory presets.
9
9
9 9
9
9 9
9
9
9 9
9
9 9 9 9 9 9 9 9 9
= Non-modifiable presets.
Operating User Interface Features
User Interface Features
SAVE AS FAVORITE
The save as favorite feature allows you to personalize up to 3 custom cycles for each saved user.
See save as favorite in “Operating User Interface
Preferences” for more details.
SET PREFS
The set prefs feature allows you to personalize
cycles, hide cycle descriptions, select language,
volume, brightness and contrast of the display,
reset settings and run the installation cycle. See
SET PREFS in “Operating User Interface Features”
for more details.
USER GUIDES
Scroll through this option for the CYCLES GUIDE,
SETTINGS GUIDE, OPTIONS GUIDE, and SET
PREFS GUIDE for descriptions of the cycles, drying temperatures, dryness levels, cycle options
and features for user preferences.
CONTROL LOCK
To lock the controls between cycles, scroll to the
control lock feature press select and CONTROL
LIST OF SAVED FAVORITES
CUSTOM MODE
INSTALL CYCLE
RESET
LOCK OFF - press SELECT to lock the control
panel will be displayed. Press the select button to
CONTRAST
lock the controls. To unlock the controls, press and
hold select again for 3 seconds. Use this feature
to reduce the likelihood of accidental operation by
children.
BRIGHTNESS
VOLUME
LANGUAGE
CYCLE DESC ON
CYCLES GUIDE
SETTINGS GUIDE
OPTIONS GUIDE
SET PREFS GUIDE
CONTROL LOCK ON
CONTROL LOCK OFF
23
24
Operating User Interface Features
Saving Favorites
Use the save as favorite feature to name and save a
custom cycle to memory with all options and settings
preferred. Up to 3 favorites may be saved for each
custom user. Follow these steps:
• Select a cycle, drying temperature, dryness level
(Auto Dry) or drying time (Time Dry), extended
tumble time and other options desired.
• Use the scroll up or scroll down button until you
reach save as favorite.
• Press the select button to enter the favorite cycle
choice screen.
• Choose 1 of the 3 buttons for naming the cycle.
• See the next page for naming your favorite cycle.
For example, to customize the normal cycle for your
shirt loads using med high drying temperature, normal
dry dryness level and 10 minutes of extended tumble:
• Turn the cycle selector knob to normal.
• Press the temp button to select med high temp.
• Press the dryness level button to select normal
dryness.
• Press the extended tumble button to select 10
minutes.
• Press the scroll up or scroll down button until you
reach save as favorite.
• Press the select button to enter the favorite cycle
choice screen.
• Press the button under my favorite 1.
• See the next page for naming your favorite cycle.
To name the customized cycle for shirts, press my
favorite 1.
Press the button under ABC to name the favorite
cycle alphabetically. Use the button under 1A# to
add numbers, foreign language characters or symbols to the name.
Rotate the cycle selector knob in either direction to
select the letters S-H-I-R-T-S, pausing after each character to let the cursor advance. Press the button under
DELETE to erase incorrect entries. There is a blank
character between Z and A for inserting spaces in your
custom name. Pause momentarily on this character as
you would to insert any other character, then continue.
Press select to save the favorite cycle name.
Repeat the steps to customize 2 other cycles as my
favorite 2 and my favorite 3. Any of the favorite
cycle names can be changed in the future by turning
the cycle selector knob to my favorites and pressing
the button under EDIT NAMES.
See my favorites in the “Cycle Selection” section of this
guide for instructions on using your customized cycles.
Operating User Interface Features
Setting Preferences
CUSTOM MODE
CUSTOM MODE allows up to 3 household members to personalize up to 3 favorite cycles each.
To enter custom users and personalize favorite
cycles:
• Use the scroll up or scroll down buttons until you
reach set prefs. Press the select button to enter
the preference menu.
• Press select again to enter CUSTOM MODE.
• Press the button for user 1, user 2 or user 3.
• Press select.
Press the button under ABC to name the favorite
cycle alphabetically. Use the button under 1A#
to add numbers, foreign language characters or
symbols to the name.
Rotate the cycle selector knob in either direction
to select the characters in the name, pausing after
each character to let the cursor advance. Press the
button under DELETE to erase incorrect entries.
There is a blank character between Z and A for
inserting spaces in your custom name. Pause momentarily on this character as you would to insert
any other character, then continue.
When the name has been entered, press select to
save the name.
To edit names while in CUSTOM MODE, turn
the dryer off by pressing cancel. Press any other
button to wake the dryer up. Screen will display
to change or turn off USERS press SELECT.
You must press select within 5 seconds or dryer
will return to normal operation with previous user
selected. After pressing select you have the choice
of change users, edit names, turn off or EXIT.
Make your selection and follow the directions
displayed.
Each custom user may select up to 3 favorite
cycles. The dryer will remember cycle settings,
options, preferences, etc. for each user. This allows each user to customize without the hassle of
selecting all items each time.
25
26
Operating User Interface Features
Setting Preferences, continued
INSTALL CYCLE
Run the INSTALL CYCLE before operating the dryer
the first time. Remove all items from the dryer drum
and press start. For more information on performing
the dryer INSTALL CYCLE, refer to the Installation
Instructions accompanying this dryer.
If the dryer has been installed according to Installation Instructions, INSTALL PASS! will be displayed
and the dryer is ready to use.
If the dryer was not installed properly, SERVICE
CORD, NO GAS or CALL SERVICE 877 435 3287
will be displayed to indicate the installation error.
The errors may result from the following conditions:
• SERVICE CORD (electric dryer)—The power sup-
ply cord has been installed improperly or the house
wiring to the receptacle is incorrect.
• NO GAS (gas dryer)—There is no connection between
the dryer and the gas line or the valve is closed.
• CALL SERVICE—Error can only be corrected by
calling a qualified technician (1-877-435-3287).
Repeat the INSTALL CYCLE when corrections are
completed.
RESET
Press the buttons indicated to restore only cycle settings, reset only factory preferences (users, language,
brightness, volume, etc.) or restore all factory defaults
(both cycle settings and factory preferences). Press
the button under EXIT to return to normal operation or press the cancel button to turn the dryer off
without making any changes. If you do not make a
selection within 30 seconds the dryer will return to
normal operation without any changes. If you reset
all settings, INSTALL CYCLE will be displayed as
though the dryer were just turned on for the first time.
You may press the button under CANCEL if you do
not wish to rerun the INSTALL CYCLE.
CONTRAST
Press the button beneath plus (+) or minus (-) symbols to increase or decrease the contrast of the
display. Press select to accept the change or press
the button under EXIT to return to normal operation
without any changes.
NOTE
The INSTALL CYCLE is prompted automatically
only once when the dryer is turned on the
first time at the end of installation. After that,
if you wish to run a subsequent INSTALL
CYCLE when moving the dryer or modifying
your installation, you may perform your own
INSTALL CYCLE by selecting it in the set prefs
feature and then following the screen prompts.
Operating User Interface Features
Setting Preferences, continued
BRIGHTNESS
Press the button beneath the plus (+) or minus (-)
symbols to increase or decrease the brightness of
the display. Press select to accept the change or
press the button under EXIT to return to normal
operation without any changes.
VOLUME
Press the button beneath the plus (+) or minus (-)
symbols to increase or decrease the volume of the
chime. Press select to accept the change or press
the button under EXIT to return to normal operation without any changes.
LANGUAGE
Select English, French or Spanish for the display
language.
CYCLE DESCRIPTION
The name, an icon and a brief description are displayed for each cycle. To delete the display, press
select. To restore the display, press select and
CYCLE DESC ON - press SELECT to turn OFF
will appear in the LCD User Interface.
27
28
Operating User Interface Features
Other Features
STATUS DISPLAY
The estimated total cycle time will be displayed
when the cycle is selected. The estimated remaining cycle time is displayed during the cycle.
DRUM LIGHT
The drum light will come on whenever the door is
opened to illuminate the drum during loading and
unloading. Closing the door turns off the light. The
drum light will automatically turn off if the door is
left open more than 3 minutes.
To activate the drum light during a cycle, press the
button under LIGHT. The light will stay on during
the cycle for 3 minutes. To turn it off, press the
button under LIGHT again.
DRYING RACK
Use the drying rack to dry items which should not
be tumble dried. Fold down the metal support on
the back of the rack and slowly extend the rack
until the lock tabs click into place. Insert the rack
into the dryer drum, resting the back support on
the moisture sensor bars and the front legs on the
air grill.
STATUS DISPLAY
The following will also be displayed at the
appropriate times during the cycle:
DRYING...
PERFECT STEAM (on Steam Model only)
DAMP ALERT - DRYING WILL CONTINUE...
COOLING...
SANITIZING...
ADDING STEAM... (on Steam Model only)
COMPLETE - WRINKLE RELEASE IS ON
COMPLETE - EXT. TUMBLE WILL CONTINUE
COMPLETE
CLEAN FILTER
Place items to be dried on top of the rack, leaving space between items and not allowing them
to hang over the sides or through the holes. The
weight should not exceed 10 lbs (4.5 kg). Select
the air (no heat) setting for items containing plastic, foam rubber, rubber-like materials, feathers or
down.
When items are dry, remove the rack, push the two
center tabs to collapse the rack and fold up the
back support. Store the drying rack in a convenient location.
REVERSIBLE DOOR
Your dryer is equipped with a reversible door. The
door can be hinged on the right or left side.
Extend rack until tabs
click. Press tabs down
to collapse rack.
NOTE
For step-by-step instructions on DOOR
REVERSAL, refer to the Installation Instructions
supplied with this dryer.
moisture
sensing bars
Care & Cleaning
WARNING
To reduce risk of fire or serious injury to persons
or property, comply with the basic warnings listed
in the Important Safety Instructions and those
listed below.
• Before cleaning the dryer interior, unplug the
electrical power cord to avoid electrical shock
hazards.
• Do not use any type spray cleanser when cleaning the dryer interior. Hazardous fumes or electrical shock could occur.
WARNING
FIRE HAZARD
A clothes dryer produces combustible lint.
The dryer must be connected to an outdoors
exhaust. Regularly inspect the outdoor exhaust
opening and remove any accumulation of lint
around the opening and in the surrounding area.
INSIDE
• Clean the lint filter after every load. Lint buildup on the filter restricts air flow, which causes
longer drying times. The filter is located at the
bottom of the door opening. Remove by pulling
straight up. Remove the lint and replace the filter.
• Occasionally a waxy build-up may form on the
lint filter and/or moisture sensing bars from
using dryer-added fabric softener sheets. To
remove this build-up, wash them with warm,
soapy water. Dry the filter thoroughly and replace. Do not operate the dryer without the lint
filter in place.
• If the dryer drum becomes stained from noncolorfast fabrics, clean the drum with a damp cloth
and a mild liquid household cleanser. Remove
cleanser residue before drying the next load.
• Every 18 months an authorized servicer should
clean the dryer cabinet interior and exhaust
duct. These areas can collect lint and dust
over time. An excessive amount of lint build-up
could result in inefficient drying and possible
fire hazard.
IMPORTANT
Clean lint screen after every load.
OUTSIDE
• Clean the cabinet with mild soap and water.
Never use harsh, gritty or abrasive cleansers.
• If the cabinet becomes stained, clean with
diluted chlorine bleach (1 part bleach to 8 parts
water). Rinse several times with clear water.
• Remove glue residue from tape or labels with a
mixture of warm water and mild detergent. Or,
touch residue with the sticky side of the tape or
label.
• When cleaning chrome parts use a window
cleaner with ammonia or mild soap and water.
• Before moving the dryer, place a strip of cardboard or thin fiberboard under the front leveling
legs to prevent damage to the floor.
IMPORTANT
Do not store or place laundry products on top of
dryer at any time. They can damage the finish or
controls.
29
30
Solutions to Common Problems
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and
scum, and fabric damage. For satisfactory drying results, follow these suggestions provided by The
Soap and Detergent Association.
PROBLEM
POSSIBLE CAUSES
SOLUTIONS
PREVENTIVE MEASURES
Greasy, oily
stains
• Fabric softener sheet.
• Rub fabric softener stains
with bar soap. Rinse and
rewash.
• Add a few bath towels
to small loads for proper
tumbling.
• Some “silk-like” fabrics
should be air dried.
• Use proper drying temperature.
• Place fabric softener sheet
on top of load before starting the dryer.
Lint
• Overloading.
• Overdrying causes static
electricity.
• Lint screen not clean when
cycle began.
• Lint is attached to “pills.”
• Reduce load size and
rewash using liquid fabric
softener in the final rinse.
• Or, add a fabric softener
sheet and tumble without
heat.
• Use lint brush or roller to
remove lint.
• Do not overload dryer.
• Use fabric softener in
washer or dryer to reduce
static electricity.
• Remove items when they
are slightly damp to avoid
overdrying.
• Check that lint filter is clean
and in place.
Pilling
(Fibers break
off, ball up and
cling to fabric.)
• Overdrying.
• Use a lint brush or shaver to • Use fabric softener to lubriremove pills.
cate fibers.
• When ironing, use spray
starch or fabric finish on
collars and cuffs.
• Turn items inside out to
reduce abrasion.
Shrinking
• Temperature too high.
• Overdrying.
• Irreversible condition.
• Follow fabric care label
directions.
• If shrinking is a concern,
check load often.
• Remove items while slightly
damp and hang or lay flat to
complete drying.
• Block knits into shape.
Wrinkling
• Overloading.
• Leaving items in dryer after
cycle ends.
• Reduce load size and
tumble at medium or low
heat for 5-10 minutes.
• Remove items immediately.
Hang or fold.
• Do not overload dryer.
• Remove items as soon as
cycle ends.
Isolated wet
spots on fabrics
after completed
Steam cycle
• Low water line pressure in
home is not sufficient to
atomize incoming water
during Steam cycle
• Check water line pressure
• Ensure water line pressure
is minimum of 30 psi. Do
not exceed 120 psi.
Solutions to Common Problems
Service Prevention Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common
occurrences that are not the result of defective workmanship or materials in this dryer.
OCCURRENCE
POSSIBLE CAUSE
SOLUTION
Dryer does not start.
Electrical power cord is not securely plugged
in or plug may be loose.
Make sure the plug fits tightly in wall outlet.
House fuse blown or circuit breaker tripped.
Reset circuit breaker or replace fuse.
Make sure electrical line is not overloaded and the
dryer is on a separate circuit.
Thermal limiter tripped.
Call authorized service person for replacement.
LCD displays
DEMO MODE.
Dryer has been programmed to temporarily
perform a repeating demo cycle.
To return to the factory default settings, press and hold
the temperature and dryness buttons at the same for 5
seconds.
Dryer runs but won’t
heat.
There are 2 house fuses in the dryer circuit. If 1
of the 2 fuses is blown, the drum may turn but
the heater will not operate. (electric models)
Replace fuse.
Gas supply valve is not open (gas models).
Check to make sure supply valve is open. See INSTALLATION INSTRUCTIONS for procedure.
Dryer does not have enough air supply to
support the burner flame (gas models).
See INSTALLATION INSTRUCTIONS.
LP gas supply tank is empty or there has been Refill or replace tank.
a utility interruption of natural gas (gas models). Dryer should heat when utility service is restored.
Drying cycle takes too
long, outside of the
dryer feels too hot or
smells hot.
Lint filter is clogged with lint.
Make sure all lint has been removed from the dryer lint
filter before starting each cycle.
Exhaust duct requirements have not been
met.
Exhaust duct must be at least 4 inches in diameter and
made of rigid or semi-rigid metal.
When in place, the duct must have no more than
four 90° bends and must not exceed length listed in
INSTALLATION INSTRUCTIONS.
Excessive wrinkling.
Scratching or chipping
of the drum finish.
Electric dryer is connected to a 208 volt
circuit.
Drying time will be 20% longer than drying on a 240
volt circuit.
Drying procedures have not been followed.
See “Operating Instructions.”
Outside exhaust hood or exhaust duct may
be clogged or restricted.
Clean out any obstruction.
High humidity.
Use a dehumidifier near the dryer.
Dryer is overloaded.
Do not overload. See “Operating Instructions.”
Items left in dryer too long.
Remove items as soon as cycle ends.
Insufficient sorting of items.
See “Operating Instructions.”
Drying temperature too high.
Follow fabric care label instructions.
Foreign objects such as coins, pins, clips or
buttons are inside the dryer.*
Always remove foreign objects from pockets before
laundering. Remove objects from drum and restart dryer.
Permanently attached items such as belt
buckles, zippers and fasteners may be hitting
the inside of the drum.*
It may be necessary to sew a scrap of material
securely around ornaments before drying to prevent
scratching and damage to the dryer.
*Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.
31
32
Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used, and maintained in accordance with the provided instructions. In addition, your appliance is covered by an
additional one year, parts only, limited warranty. During the 2nd year from your original date of purchase, Electrolux will pay
for parts needed for this appliance that have proven to be defective in materials or workmanship when your appliance is
installed, used, and maintained in accordance with the provided instructions.
Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it is shipped from the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles,
or other cosmetic parts.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to
floors, cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as
abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM
ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS
ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service
be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty
must be obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance
is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Home Products, Inc.,
North America
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
