Electrolux EIED55H Service manual

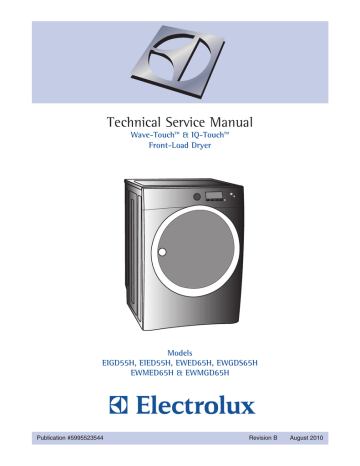

Technical Service Manual
Wave-Touch™ & IQ-Touch™
Front-Load Dryer
Models
EIGD55H, EIED55H, EWED65H, EWGDS65H
EWMED65H & EWMGD65H
Publication #5995523544
Revision B
August 2010
Basic Information
Safe Servicing Practices For All Appliances
Avoid personal injury and/or property damage by observing important Safe Servicing Practices.
Following are some limited examples of safe practices:
1. DO NOT attempt a product repair if you have any doubts as to your ability to complete the repair in a safe and
satisfactory manner.
2. Always use the correct Replacement Parts as indicated in the parts documentation. Substitutions may defeat
compliance with Safety Standards Set For Home Appliances. Do not exceed maximum recommended wattage
on light bulb replacements. Doing so could blow fuses and/or damage transformers.
3. Before servicing or moving an appliance:
• Remove power cord from the electrical outlet, trip circuit breaker to the OFF position, or remove fuse.
• Turn off water supply if applicable.
4. Never interfere with the proper operation of any safety device.
5. Use ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE. Substitutions may defeat
compliance with Safety Standards Set For Home Appliances.
6. GROUNDING: The standard color coding for safety ground wires is GREEN, or GREEN with YELLOW
STRIPES. Ground leads are not to be used as current carrying conductors. It is EXTREMELY important that
the service technician reestablish all safety grounds prior to completion of service. Failure to do so will create
a hazard.
7. Prior to returning the product to service, ensure that:
• All electrical connections are correct and secure.
• All electrical leads are properly dressed and secured away from sharp edges, high-temperature components,
and moving parts.
• All non-insulated electrical terminals, connectors, heaters, etc. are adequately spaced away from all metal
parts and panels.
• All safety grounds (both internal and external) are correctly and securely connected.
• All panels are properly and securely reassembled.
• Gas and water supplies are turned ON if shut off prior to service.
ATTENTION!!!
This service manual is intended for use by persons having electrical and mechanical training and a level
of knowledge of these subjects generally considered acceptable in the appliance repair trade. Electrolux
Home Products, Inc. cannot be responsible, nor assume any liability, for injury or damage of any kind
arising from the use of this manual.
© 2010 Electrolux Home Products, Inc.
1-1
Basic Information
Table of Contents
Section 1 Basic Information .................................. 1-1
Safe Servicing Practices............................................
Table of Contents ......................................................
Important Safety Instructions .....................................
Protect Children .........................................................
Prevent Fire ...............................................................
Product Specifications Wave-Touch™ ......................
Product Specifications IQ-Touch™ ...........................
Serial Number Breakdown.........................................
Quick Reference Sheet .............................................
Language of Laundry.................................................
1-1
1-2
1-4
1-4
1-4
1-5
1-5
1-5
1-6
1-7
Section 2 Installation............................................... 2-1
Important Safety Instructions .....................................
Safety Precautions ....................................................
Tools and Materials Needed for Installation ..............
Dryer Installation Dimensions ....................................
Exhaust System Requirements .................................
Install Male Fittings in Correct Direction ....................
Exhaust Direction ......................................................
Manufactured or Mobile Home Installation ................
Clearance Requirements ...........................................
Installation in a Recess or Closet ..............................
Electrical System Requirements................................
3-Wire Power Supply Cord Kit ...................................
4-Wire Power Supply Cord Kit ...................................
Outlet Receptacle ......................................................
Electrical Requirements for Gas Dryer ......................
Electrical Installation ..................................................
For a Grounded, Cord-connected Dryer:
(U.S.A. Electric Dryer) ...............................................
For a Grounded, Cord-connected Dryer:
(Canada Electric Dryer) .............................................
Gas Dryer ..................................................................
Electrical Connection (non-Canada) 3 Wire Cord .....
Electrical Connection (non-Canada) 4 Wire Cord .....
Gas Supply Requirements.........................................
Gas Connection .........................................................
Water Connection (Steam Model Only) .....................
General Installation....................................................
Wave-Touch™ Installation Cycle ..............................
IQ -Touch™ Installation Cycle ...................................
Reversing Door..........................................................
Preparing to Reverse Door Swing .............................
Removing Trim Ring ..................................................
Removing Door from Hinge .......................................
Removing Hinge from Front Panel ...........................
Removing Door Lock from Front Panel .....................
Reattaching Door Lock to Font Panel........................
Reattaching Hinge to Front Panel ..............................
Removing Striker Plate ..............................................
Removing Latch Indicator ..........................................
Removing Hole Plug ..................................................
Reinserting Latch Indicator ........................................
Reattaching Striker Plate ...........................................
2-1
2-1
2-2
2-3
2-4
2-5
2-5
2-5
2-6
2-6
2-7
2-7
2-7
2-7
2-7
2-8
2-8
2-8
2-8
2-9
2-10
2-11
2-11
2-12
2-13
2-14
2-14
2-15
2-15
2-15
2-15
2-16
2-16
2-17
2-17
2-18
2-18
2-19
2-19
2-20
Reinserting Hole Plug ................................................
Reattaching Door Assembly ......................................
Reversing Trim Ring ..................................................
Reinstalling Trim Ring ...............................................
Reinstalling Trim Plug................................................
Accessories ...............................................................
Matching Storage Pedestal........................................
Dryer Stacking Kit ......................................................
Dryer Stacking Instructions........................................
Kit Components .........................................................
Preparing to Stack .....................................................
Preparing Dryer for Stacking .....................................
Preparing Washer for Stacking ..................................
Prepare Top Surface of Washer .................................
Stacking Dryer ...........................................................
Removing Stacked Dryer ...........................................
2-20
2-20
2-21
2-21
2-21
2-22
2-22
2-22
2-23
2-23
2-23
2-23
2-24
2-24
2-24
2-25
Section 3 Electronic Control................................... 3-1
Control Panel (User Interface Layout)
Wave-Touch™ ...........................................................
Selecting the Appropriate Cycle and Settings
Overview....................................................................
Demo Mode ...............................................................
Wave-Touch™ Dryer Options Chart ..........................
Wave-Touch™ Dryer Options Chart (Steam Model).
Control Panel (User Interface Layout) IQ-Touch™ ....
Selecting the Appropriate Cycle and Settings
Overview....................................................................
Demo Mode ...............................................................
IQ-Touch™ Dryer Options Chart ...............................
Cycle Selection ..........................................................
Auto Dry Cycles .........................................................
Normal .......................................................................
Towels ........................................................................
Mixed Load ................................................................
Heavy Duty ................................................................
Bulky/ Bedding...........................................................
Casual .......................................................................
Active Wear ...............................................................
Delicate......................................................................
Time Dry Cycles ........................................................
Time Dry ....................................................................
Fast Dry .....................................................................
Touch Up (non-steam models only) ...........................
Perfect Steam (steam models only) ...........................
My Favorites (Wave-Touch™)....................................
Drying Temperature ..................................................
Auto Dry....................................................................
Maximum Temp ........................................................
High Temp.................................................................
Med High Temp.........................................................
Medium Temp ...........................................................
Med Low Temp .........................................................
Low Temp .................................................................
Air Fluff Temp............................................................
Time Dry ...................................................................
1-2
3-1
3-1
3-1
3-2
3-3
3-4
3-4
3-4
3-5
3-6
3-6
3-6
3-6
3-7
3-7
3-7
3-7
3-7
3-7
3-7
3-7
3-7
3-7
3-7
3-8
3-9
3-9
3-9
3-9
3-9
3-9
3-9
3-9
3-9
3-9
Basic Information
Options .....................................................................
Add Steam (steam models only) ..............................
Extended Tumble ......................................................
Wrinkle Release (IQ-Touch™) ..................................
Wrinkle Release (Wave-Touch™ ) ............................
Gentle Tumble...........................................................
Delicate Heat ............................................................
Sanitize .....................................................................
Chime .......................................................................
Delicate Heat ............................................................
Damp Alert ...............................................................
Shrink Guard ............................................................
User Interface Features ............................................
Save as Favorite .......................................................
Set Prefs ...................................................................
User Guides..............................................................
Stain Guides .............................................................
Control Lock (Wave-Touch™) ...................................
Control Lock (IQ-Touch™) ........................................
My Favorites (Wave-Touch™)...................................
Save as Favorite .......................................................
Setting Preferences ..................................................
Custom Mode ...........................................................
Install Cycle (Wave-Touch™)....................................
Install Cycle (IQ -Touch™)........................................
Reset (Wave-Touch™) .............................................
Reset (IQ-Touch™)...................................................
Contrast ....................................................................
Brightness ................................................................
Volume......................................................................
Language..................................................................
Cycle Description......................................................
Status Display ...........................................................
Drum Light ................................................................
Diagnostics and Error Codes....................................
Reading Error Codes ................................................
To Clear Latest Stored Error Code ...........................
Exiting Diagnostic Mode ...........................................
Diagnostic Mode .......................................................
To Start the Diagnostic Mode ...................................
Error Code Chart .....................................................
IQ-Touch™ Available Cycle Settings, Pre-Sets
and Options Chart ....................................................
Wave-Touch™ Available Cycle Settings,
Pre-Sets and Options Chart .....................................
Wave-Touch™ with Steam, Available Cycle
Settings, Pre-Sets and Options Chart ......................
3-10
3-10
3-10
3-10
3-10
3-11
3-11
3-11
3-11
3-11
3-11
3-11
3-12
3-12
3-12
3-12
3-12
3-12
3-12
3-12
3-13
3-14
3-14
3-15
3-15
3-16
3-16
3-16
3-17
3-17
3-17
3-17
3-17
3-17
3-18
3-18
3-18
3-18
3-19
3-19
3-20
Section 4- Component Teardown ..........................
4-1
Warnings and Cautions .............................................
Door Components .....................................................
Door Trim Ring ...........................................................
Door Assembly ..........................................................
Latch Plate and Door Latch .......................................
Inner Door Glass .......................................................
Door Latch Assembly ................................................
4-1
4-2
4-2
4-2
4-3
4-3
4-3
Latch Indicator ...........................................................
Door Strike.................................................................
Outer Door Glass.......................................................
Door Hinge ................................................................
Lint Trap .....................................................................
Air Duct Cover ...........................................................
Top Panel ...................................................................
Console and User Interface .......................................
Front Panel ................................................................
Door Switch ...............................................................
Control Assembly ......................................................
Control Box Bracket ...................................................
Interior Light ..............................................................
Top Rear Brace..........................................................
Rear Panel .................................................................
Inlet Thermistor..........................................................
Moisture Sensing Bar ................................................
Belt Removal (Wave Touch™) ...................................
Belt Removal (IQ Touch™) ........................................
Front Inner Panel and Drum ......................................
Roller Assembly.........................................................
Front Air Duct.............................................................
Exhaust Thermal Limiter ............................................
Exhaust Tube .............................................................
Outlet (Exhaust) Thermistor ......................................
Belt Tensioner (Wave Touch™) ..................................
Belt Tensioner (IQ Touch™) .......................................
Motor and Blower Assembly ......................................
Motor and Blower Assembly Separation....................
Drum Vane .................................................................
Rear Heat Duct ..........................................................
Heat Shield ................................................................
Electric Heater Function ............................................
Heater Assembly .......................................................
Thermal Limiter and Safety Thermostat ....................
Gas Heater Assembly Breakdown .............................
Thermal Limiters ........................................................
Gas Valve Wire Harness Connections .......................
Gas Valve Coil ...........................................................
Manifold and Burner Assembly Breakdown ...............
Combustion Tube .......................................................
4-4
4-4
4-4
4-5
4-5
4-5
4-6
4-6
4-7
4-7
4-8
4-8
4-9
4-9
4-9
4-10
4-10
4-11
4-11
4-11
4-12
4-12
4-13
4-13
4-13
4-14
4-14
4-15
4-16
4-17
4-17
4-17
4-18
4-18
4-18
4-19
4-19
4-19
4-19
4-20
4-21
3-22
Section 5- Troubleshooting ..................................... 5-1
3-23
3-24
Troubleshooting Chart ...............................................
Electrical Tests For Gas And Electric Dryers .............
Electrical Tests For Electric Dryers ............................
Electrical Tests For Gas Dryers .................................
5-1
5-3
5-4
5-5
Section 6- Wiring Diagrams .................................... 6-1
Wiring Diagram Model EIED55H ...............................
Wiring Diagram Model EIGD55H...............................
Wiring Diagram Model EWED65H.............................
Wiring Diagram Model EWGD65H ............................
Wiring Diagram Model EWMED65 ............................
Wiring Diagram Model EWMGD65 ............................
1-3
6-1
6-2
6-3
6-4
6-5
6-6
Basic Information
Before the dryer is removed from service or discarded,
remove the dryer door to prevent accidental
entrapment.
Failure to comply with these warnings could result in
serious personal injuries.
Important Safety Instructions
Safety Precautions
Do not attempt to install, operate or service the unit until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with a
Danger, Warning, or Caution based on the risk type.
Prevent Fire
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible
injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
Indicates installation, operation, or maintenance
information which is important but not hazard
related.
Child Safety
Do not allow children to play on or in the dryer.Close
supervision of children is necessary when the dryer
is used near children. As children grow, teach them the
proper, safe use of all appliances.
Destroy the carton, plastic bag and other packing
materials after the dryer is unpacked.
Children might use them for play. Cartons covered with
rugs, bedspreads or plastic sheets can become
airtight chambers.
Keep laundry products out of children’s reach. To prevent
personal injury, observe all warnings on product
labels.
Do not dry items that have been previously cleaned in,
soaked in, or spotted with gasoline, cleaning solvents,
kerosene, waxes, etc. Do not store these items on or near
the dryer. These substances give off vapors that could
ignite or explode.
Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
To prevent fire, do not use heat to dry items containing
plastic, foam rubber or similarly textured rubberlike
materials, or items containing feathers or down. Use Air
Fluff (No Heat) only.
Clean the lint screen before or after each load. The
interior of the dryer, lint screen housing and exhaust
duct should be cleaned approximately every 18 months
by qualified service personnel. An excessive amount of
lint buildup in these areas could result in inefficient drying
and possible fire.
Do not operate the dryer if the lint screen is blocked,
damaged or missing. Fire hazard, overheating and
damage to fabrics can occur. If your dryer has a drying
rack, always replace the lint screen when finished using
the drying rack.
Keep area around exhaust opening and surrounding
areas free from the accumulation of lint, dust and dirt.
Do not obstruct the flow of ventilating air. Do not stack or
place laundry or throw rugs against the front or back of
the dryer.
Do not spray any type of aerosol into, on or near dryer at
any time.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
Failure to comply with these warnings could result in fire,
explosion, serious bodily injury and/or damage
to the rubber or plastic parts of the dryer.
1-4
Basic Information
Product Specifications Wave
Touch™ Dryer
Product Specifications IQ
Touch™ Dryer
2 Premium Colors
Enhanced LCD Controls (with larger trilingual display)
Reversing Drum
Quiet (56 dBA maximum)
11 Standard and 3 Favorite Cycles with custom
settings to reach 42 Total Cycles
Multiple User Mode – 3 User Modes with Favorite
and Custom Cycles
8 Timed Dry Options
Shrink Guard
Drum Light with manual switch
2 Temperature Selections (7 total)
Steam
Fastest Cycle Time
White and 1 Premium Color
Superior drying – Even & Gentle
Reversible Door
Push2Open: Door & Pedestal
Large Capacity (8 cu. ft.)
Intelligent and Adaptive LCD Controls
Electrolux Blue LEDs
Custom Cycles Including My Favorite
Quiet (59 dBA maximum)
Top CU Rating
11 Cycles with 4 Dryness levels and 5
Temperature Selections
NSF Rated Sanitary Cycle
Fastest Cycle Time
Cycles
NSF Certified
Heavy Duty
Bulky/Bedding
Mixed Load
Towels
Normal
Active Wear – Use for sports/workout gear
Quick Dry – The fastest cycle in the industry
Casual – Use for Permanent Press items
Delicate – Gentler than any cycle available
Touch Up
Time Dry – Up to 90 minutes
My Favorite – Programmable by consumer
Cycles
NSF Certified
Heavy Duty
Bulky/Bedding
Mixed Load
Towels
Normal
Quick Dry – The fastest cycle in the industry
Casual – Use for Permanent Press items
Delicate – Gentler than any cycle available
Touch Up
Time Dry – Up to 90 minutes
My Favorite – Programmable by consumer
Additional Options
Damp Alert – For items that will be ironed.
Control Lock – to prevent accidental operation by
children
7 Temperature Selections
Wrinkle Rid – Extends tumble time so wrinkles do
not set.
Soft Heat – Reduces the temperature as the cycle
progresses to prevent damage.
Additional Options
Damp Alert – For items that will be ironed.
Control Lock – to prevent accidental operation by
children
5 Temperature Selections
Wrinkle Rid – Extends tumble time so wrinkles do
not set.
Soft Heat – Reduces the temperature as the cycle
progresses to prevent damage.
Model Number Breakdown
Serial Number Breakdown
Each model follows the following nomenclature:
E ..................for Electrolux
I ..................for IQ Touch
W ..................for Wave Touch
FLW ..............for Front Load Washer
ED ................for Electric Dryer
GD ................for Gas Dryer
MED/MGD ....Steam Electric/Steam Gas Dryer
P ....................for Pedestal
4 D 8 2 8 1 2 3 4 5
Incremented unit number
Production Week
Last Digit of Production Year
Product Identification
Manufacturing Facility
1-5
Basic Information
QUICK REFERENCE SHEET
SPECIFICATION
ELECTRIC MODELS
GAS MODELS
Electrical
Volts 120/208 or 120/240
Amps (circuit)
Motor wattage
Heat input (Watts @ 240 VAC)
Heat input (BTU/Hr.)
Auto. Elec. Ignition
120/208 or 120/240
30
200-290 Watts
4300/5500
-----
120
15
200-290 Watts
--22,000
Yes
Drum
Size (Cu. Ft.)
Finish
R.P.M.
8.0
Powder Paint Epoxy
48 - 54
8.0
Powder Paint Epoxy
48 - 54
Airflow CFM
200
200
120° - 160°
110° - 140°
95° - 130°
120° - 180°
105° - 145°
95° - 130°
38”
27”
31.5”
38”
27”
31.5”
4-Way
4-Way
Powder Paint Enamel
Powder Paint Enamel
235
235
DRUM TEMPERATURES
(Max. opening on 3rd cycle)
Maximum
Medium
Low
Dimension (Inches)
Height
Width
Depth
Vent Capability
Top Finish
Port Opening (Sq. In.)
Electric Models
Gas Models
Drive motor (120 volt, 60 Hz, 1/4 h.p. 1725 rpm)
Motor Start Winding
Motor Run Winding
4.5 Ohms
3.8 Ohms
4.5 Ohms
3.8 Ohms
Heating Element
26.4 Ohms
Component Resistances*
Control Thermistor
50K Ohms
+/- 5% @ 77° F
50K Ohms
+/- 5% @ 77° F
-------
50 - 400 Ohms
1200 Ohms
1320 Ohms
Burner Assembly
Ignitor
Secondary Coil
Booster Coil
* +/- 10% @ 77° F
1-6
Basic Information
The Language of Laundry
Machine Wash
Instructions
Special
Care
Bleaching
Instructions
Dryer
Instructions
Normal
Wash
Hand
Wash
Bleach
as Needed
Normal
Dry
DO NOT
Machine Dry
Permanent
Press
DO NOT
Wring
Non-chlorine
Bleach as Needed
Permanent
Press
Line Dry
Ironing
Instructions
Dry
Cleaning
Low Heat
Dry Clean
Med. Heat
Dry Clean
w/ Any
Solvent
High Heat
Drip Dry
Gentle
Cycle
DO NOT
Bleach
Dry Clean
w/Petroleum
Solvent
Gentle
Setting
Dry Flat
DO NOT
Machine Wash
DO NOT
Tumble Dry
Dry in
Shade
Cold
(<85ºF)
DO NOT
Steam
DO NOT
Iron
Dry Clean
w/Solvents
Other Than
Trichloroethylene
No Heat
DO NOT
Dry Clean
Low Heat
Warm
(<105ºF)
Normal/
Med. Heat
Hot
(<120ºF)
High
Heat
Hot
(<140ºF)
1-7
Basic Information
Notes
1-8
Installation Information
Recognize safety symbols, words and labels:
Safety items throughout this manual are labeled with a WARNING or CAUTION based on the risk type as described
below:
This symbol alerts you to situations that may cause serious body harm, death or
property damage.
This symbol alerts you to situations that may cause bodily injury or property damage.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN USING A WAVE-TOUCH™ OR
IQ-TOUCH™ DRYER, FOLLOW BASIC SAFETY PRECAUTIONS INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE OPERATING THE DRYER.
BEFORE PERFORMING ANY TYPE OF SERVICE OR INSTALLATION, MAKE SURE THAT ELECTRIC
POWER TO THE DRYER IS DISCONNECTED.
TO AVOID THE POSSIBILITY OF EXPLOSION OR FIRE, DO NOT STORE OR USE COMBUSTIBLE,
FLAMMABLE, OR EXPLOSIVE LIQUIDS OR VAPORS (SUCH AS GASOLINE) INSIDE OR IN THE VICINITY
OF THIS OR ANY OTHER APPLIANCE.
THIS APPLIANCE IS EQUIPPED WITH A THREE-PRONG GROUNDING PLUG FOR PROTECTION AGAINST
POSSIBLE ELECTRIC SHOCK HAZARDS. PLUG IT ONLY INTO A DEDICATED, GROUNDED ELECTRICAL
OUTLET. WHEN ONLY A STANDARD TWO-PRONG ELECTRICAL OUTLET IS AVAILABLE, THE CUSTOMER
MUST HAVE IT REPLACED WITH A DEDICATED, PROPERLY GROUNDED THREE-PRONG ELECTRICAL
OUTLET BEFORE USING THIS APPLIANCE. DO NOT UNDER ANY CIRCUMSTANCES, CUT OR REMOVE
THE THIRD (GROUND) PRONG FROM THE POWER CORD. DO NOT USE AN ADAPTER PLUG. DO NOT
USE AN EXTENSION CORD. DO NOT USE A POWER CORD THAT IS FRAYED OR DAMAGED.
THE USE OF A GROUND FAULT INTERRUPTER (GFI) IS NOT RECOMMENDED.
DO NOT INSTALL OR USE A DAMAGED APPLIANCE. IF YOU RECEIVE A DAMAGED APPLIANCE,
IMMEDIATELY CONTACT YOUR DEALER OR BUILDER.
DO NOT USE THE DRYER UNTIL IT HAS BEEN PROPERLY INSTALLED BY A QUALIFIED INSTALLER
ACCORDING TO THESE INSTALLATION INSTRUCTIONS. THE INSTALLER MUST SHOW THE CUSTOMER
THE LOCATION OF THE POWER PLUG SO THAT THEY KNOW WHERE AND HOW TO DISCONNECT
POWER TO THE DRYER.
DO NOT INSTALL, REPAIR, OR REPLACE ANY PART OF THE DRYER UNLESS SPECIFICALLY
RECOMMENDED IN THE LITERATURE ACCOMPANYING IT. A QUALIFIED SERVICE TECHNICIAN SHOULD
PERFORM ALL OTHER SERVICE.
Electrolux Home Products Inc. cannot be held responsible for damage to property or injury to persons
caused by failure to comply with the installation, maintenance and safety instructions contained in this
Service Manual.
2-1
Installation Information
DESTROY CARTON, PLASTIC BAGS, AND ANY EXTERIOR WRAPPING MATERIAL IMMEDIATELY
AFTER THE DRYER IS UNPACKED. CHILDREN SHOULD NEVER USE THESE ITEMS FOR PLAY.
CARTONS COVERED WITH RUGS, BEDSPREADS, PLASTIC SHEETS OR STRETCH WRAP MAY
BECOME AIR TIGHT CHAMBERS AND CAN QUICKLY CAUSE SUFFOCATION.
KEEP LAUNDRY PRODUCTS OUT OF CHILDREN’S REACH. TO PREVENT PERSONAL INJURY,
OBSERVE ALL WARNINGS ON PRODUCT LABELS.
CUT HAZARD. TO PREVENT SERIOUS INJURY FROM SHARP EDGES, WEAR WORK GLOVES
WHEN HANDLING, UNPACKING OR DISASSEMBLING UNIT.
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one person move or lift the dryer.
The electrical service to the dryer must conform with local codes and ordinances and the latest
edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code
C22.1 part 1.
What To Do If You Smell Gas:
•
•
•
•
•
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Pre-installation Requirements
Tools and materials needed for installation:
or
or
Adjustable
pliers
Phillips, straight, &
square bit screwdrivers
4 inch, rigid metal or
semi-rigid metal exhaust duct work
Adjustable
wrench
Pipe wrench
for gas
supply
3-wire or 4-wire
4 in.
240 volt cord kit (10.2 cm)
(electric dr yer)
clamp
2-2
LP-resistant
thread tape
(for natural gas
or LP supply)
gas line
shutoff valve
(gas dr yer)
Carpenter’s level
½” NPT union flare
adapters (x2) and
flexible gas supply line
(gas dr yer)
External
vent hood
Metal foil tape
(not duct tape)
Installation Information
Dryer Installation Dimensions
50.6” (128.5cm)*
To clear open door
27.00”
(68.5cm)
31.50” (80cm)*
To front of closed door
38.00”
(96.5cm)
Electrical
supply on
rear of unit
53.00”
(134.5cm)
Freestand dryer
on floor
Centerline
height for
rear vent
Gas supply
pipe on rear
of gas unit
3.40”
(8.5cm)
Floor line
1.4”
(3.5cm)
Dryer mounted on
optional pedestal
18.25”
(46.5cm)
16.25”
(41.5cm)
Floor line
* To obtain these minimal depth dimensions, dryer must either be vented straight back
or with a quick-turn90° elbow. Connection of water inlet hose on Steam Models
adds 3/4 in. (2 cm) to installation depth.
3.75”
(9.5cm)
13.50”
(34.5cm)
To center ofrear vent
50.6” (128.5cm)*
To clear open door
27.00”
(68.5cm)
31.50” (80cm)*
To front of closed door
75.75”
(192.5cm)
Electrical
supply on
rear of unit
Gas supply
pipe on rear
of gas unit
Centerline
height for
rear vent
41.00”
(104cm)
39.00”
(99cm)
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
Figure 2-1.
2-3
Installation Information
Exhaust System Requirements
Use only 4 inch (10.2 cm) diameter (minimum) rigid
or flexible metal duct and approved vent hood which has
a swing-out damper(s) that open when the dryer is in
operation. When the dryer stops, the dampers automatically close to prevent drafts and the entrance of insects
and rodents. To avoid restricting the outlet, maintain a
minimum of 12 inches (30.5 cm) clearance between the
vent hood and the ground or any other obstruction.
If the present system is made up of plastic duct or metal
foil duct, replace it with a rigid or semi-rigid metal duct.
In Canada and the United States if metal (foil type) duct
is installed, it must be of a specific type identified by the
appliance manufacturer as suitable for use with clothes
dryers and in the United States must also comply with
the Outline for Clothes Dryer Transition Duct, UL
standard 2158A. Also, ensure the present duct is free of
any lint prior to installing dryer duct.
The dryer must be connected to an exhaust outdoors.
Regularly inspect the outdoor exhaust opening and
remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area. (See
Figure 2-2 & 2-3)
Figure 2-2.
Number of 90° turns
DO NOT ALLOW COMBUSTIBLE MATERIALS
(FOR EXAMPLE: CLOTHING, DRAPERIES AND
CURTAINS, PAPER) TO COME IN CONTACT WITH
EXHAUST SYSTEM. THE DRYER MUST NOT BE
EXHAUSTED INTO A CHIMNEY, WALL, CEILING,
OR ANY CONCEALED SPACE OF A BUILDING
WHICH CAN ACCUMULATE LINT, RESULTING IN A
FIRE HAZARD.
MAXIMUM LENGTH
of 4” (10.2cm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4”
(10.2cm)
0
125 ft. (38.10m)
110 ft. (33.53m)
1
115 ft. (35.05m)
100 ft. (30.48m)
2
105 ft. (32.00m)
90 ft. (27.43m)
3
95 ft. (28.96m)
80 ft. (24.38m)
4
85 ft. (25.91m)
70 ft. (21.34m)
Number of 90° turns
DO NOT SCREEN THE EXHAUST ENDS OF THE
VENT SYSTEM, OR USE ANY SCREWS, RIVETS
OR OTHER FASTENERS THAT EXTEND INTO THE
DUCT TO ASSEMBLE THE EXHAUST
SYSTEM. LINT CAN BECOME CAUGHT IN THE
SCREEN, ON THE SCREWS OR RIVETS,
CLOGGING THE DUCT WORK AND CREATING
A FIRE HAZARD AS WELL AS INCREASING
DRYING TIMES. USE AN APPROVED VENT HOOD
TO TERMINATE THE DUCT OUTDOORS, AND
SEAL ALL JOINTS WITH DUCT TAPE. ALL MALE
DUCT PIPE FITTINGS MUST BE INSTALLED
DOWNSTREAM WITH THE FLOW OF AIR.
MAXIMUM LENGTH
of 4” (10.2cm) Semi-Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4”
(10.2cm)
louvered
2.5”
(6.35cm)
0
60 ft. (18.29m)
45 ft. (13.72m)
1
50 ft. (15.24m)
35 ft. (10.67m)
2
40 ft. (12.19m)
25 ft. (7.62m)
3
NOT RECOMMENDED
Figure 2-3.
2-4
2.5”
(6.35cm)
louvered
Installation Information
Install Male Fittings in Correct Direction:
Exhaust Direction
In installations where the exhaust system is not
described in the charts, the following method must be
used to determine if the exhaust system is acceptable:
(See Figure 2-4)
Directional exhausting can be accomplished by
installing a quick-turn 90° dryer vent elbow directly
to exhaust outlet of dryer. Dryer vent elbows are
available through your local parts distributor or
hardware store. (See Figure 2-5)
Figure 2-4.
Exhaust System Requirements
1. Connect an inclined or digital manometer between
the dryer and the point the exhaust connects to the
dryer.
2. Set the dryer timer and temperature to air fluff
(cool down) and start the dryer.
3. Read the measurement on the manometer.
4. The system back pressure MUST NOT be higher
than 1.0 inch of water column. If the system back
pressure is less than 1.0 inch of water column, the
system is acceptable. If the manometer reading is
higher than 1.0 inch of water column, the system is
too restrictive and the installation is unacceptable.
Figure 2-5.
]
Although vertical orientation of the exhaust system
is acceptable, certain extenuating circumstances
could affect the performance of the dryer:
1. Only the rigid metal duct work should be used.
2. Venting vertically through a roof may expose the
exhaust system to down drafts causing an increase
in vent restriction.
3. Running the exhaust system through an uninsulated
area may cause condensation and faster
accumulation of lint.
4. Compression or crimping of the exhaust system will
cause an increase in vent restriction.
5. The exhaust system should be inspected and
cleaned a minimum of every 18 months with normal
usage. The more the dryer is used, the more often
you should check the exhaust system and vent hood
for proper operation.
Manufactured or Mobile Home Installation
1. Installation MUST conform to current Manufactured
Home Construction & Safety Standard, Title 24 CFR,
Part 32-80 (formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD Part
280) or Standard CAN/CSAZ240 MH.
2. Dryer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducting that
will not support combustion. Metal ducting must be
4 inches (10.16 cm) in diameter with no obstructions.
Rigid metal duct is preferred.
3. If dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the exhaust
system MUST terminate outside the enclosure with
the termination securely fastened to the mobile home
structure.
4. Refer to previous sections in this guide for other
important exhaust venting system requirements.
5. When installing a gas dryer into a mobile home, a
provision must be made for outside make up air.
This provision is to be not less than twice the area of
the dryer exhaust outlet.
6. Installer MUST anchor this (1) dryer or (2) dryer
mounted on pedestal to the floor with approved
Mobile Home Installation Kit.
2-5
Installation Information
Clearance Requirements
Installation in a Recess or Closet
DO NOT INSTALL THE DRYER:
1. In an area exposed to dripping water or out
side weather conditions.
2. In an area where it will come in contact with
curtains, drapes, or anything that will obstruct
the flow of combustion and ventilation air.
3. On carpet. Floor MUST be solid with a
maximum slope of 1 inch (2.54 cm).
1. A dryer installed in a bedroom, bathroom, recess or
closet, MUST be exhausted outdoors.
2. No other fuel burning appliance shall be installed in
the same closet as the gas dryer.
3. The dryer needs the space around it for proper
ventilation. DO NOT install dryer in a closet with a
solid door.
4. Closet door ventilation required: A minimum of
120 square inches (774.2 cm²) of opening, equally
divided at the top and bottom of door, is required.
Openings should be located 3 inches (7.6 cm) from
bottom and top of door. Openings are required to be
unobstructed when a door is installed. A louvered
door with equivalent air openings for the full length of
door is acceptable. (See Figure 2-6 & 2-7)
Figure 2-7.
To achieve an installation with 0” (0cm) clearance
for the back of the dryer (for other than straight
back venting), a quick-turn 90° dryer vent elbow
must be installed as described previously in this
manual.
Figure 2-6.
2-6
Installation Information
Electrical System Requirements
Circuit - Individual 30 amp. branch circuit fused with 30
amp. time delay fuses or circuit breakers. Use separately
fused circuits for washer and dryer. DO NOT operate a
washer and a dryer on the same circuit.
Power Supply - 3-wire or 4-wire, 240 volt, single phase,
60 Hz, Alternating Current.
Because of potentially inconsistent voltage capabilities, the use of this dryer with power created
by gas powered generators, solar powered generators, wind powered generators or any other
generator other than the local utility company is
not recommended.
This dryer is internally grounded to neutral
unless it was manufactured for sale in Canada.
Grounding through the neutral link is prohibited for: (1) new branch circuit installations, (2)
mobile homes, (3) recreational vehicles, and (4)
areas where local codes do not permit grounding
through the neutral.
Dryers manufactured for sale in Canada have
factory-installed, 4-wire power supply cord
(NEMA 14-30R).
Outlet Receptacle
GFI (Ground Fault Interrupter) receptacle is not
required.
NEMA 10-30R or NEMA 14-30R receptacle to be located
so the power supply cord is accessible when the dryer is
in the installed position.
3-Wire Power Supply Cord Kit (not supplied)
The dryer MUST employ a 3-conductor power supply
cord NEMA 10-30 type SRDT rated at 240 volt AC
minimum, 30 amp, with 3 open end spade lug connectors with upturned ends or closed loop connectors and
marked for use with clothes dryers. For 3-wire cord
connection instructions see Electrical Connections
For A 3-Wire System.
Electrical Requirements for Gas Dryer:
4-Wire Power Supply Cord Kit (not supplied)
The dryer MUST employ a 4-conductor power supply
cord NEMA 14-30 type SRDT or ST (as required) rated
at 240 volt AC minimum, 30 amp, with 4 open end spade
lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For
4-wire cord connection instructions see Electrical
Connections For A 4-Wire System.
Circuit - Individual, properly polarized and grounded 15
amp. branch circuit fused with 15 amp. time delay fuse
or circuit breaker.
Power Supply - 2-wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current.
Power Supply Cord - The dryer is equipped with a 120
volt 3-wire power cord.
Grounding Connection - See “Grounding Requirements”
in Electrical Installation section.
2-7
Installation Information
Electrical Installation
DO NOT USE AN EXTENSION CORD WITH THIS DRYER. SOME EXTENSION CORDS ARE NOT
DESIGNED TO WITHSTAND THE AMOUNTS OF ELECTRICAL CURRENT THIS DRYER UTILIZES AND
CAN MELT, CREATING ELECTRICAL SHOCK AND/OR FIRE HAZARD. LOCATE THE DRYER WITHIN
REACH OF THE RECEPTACLE FOR THE LENGTH POWER CORD TO BE PURCHASED, ALLOWING SOME
SLACK IN THE CORD.
A U.L.-APPROVED STRAIN RELIEF MUST BE INSTALLED ONTO POWER CORD. IF THE STRAIN RELIEF
IS NOT ATTACHED, THE CORD CAN BE PULLED OUT OF THE DRYER AND CAN BE CUT BY ANY
MOVEMENT OF THE CORD, RESULTING IN ELECTRICAL SHOCK.
DO NOT USE AN ALUMINUM WIRED RECEPTACLE WITH A COPPER WIRED POWER CORD AND PLUG
(OR VICE VERSA). A CHEMICAL REACTION OCCURS BETWEEN COPPER AND ALUMINUM AND CAN
CAUSE ELECTRICAL SHORTS. THE PROPER WIRING AND RECEPTACLE IS A COPPER WIRED POWER
CORD WITH A COPPER WIRED RECEPTACLE.
For a Grounded, Cord-connected Dryer:
(U.S.A. Electric Dryer)
For a Grounded, Cord-connected Dryer:
(Canada Electric Dryer)
1. The dryer MUST be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electrical shock by a path of least resistance
for electrical current.
2. After you purchase and install a 3 wire or 4 Wire
power supply cord having an equipment grounding
conductor and a grounding plug that matches your
wiring system, the plug MUST be plugged into an
appropriate, copper wired receptacle that is properly
installed and grounded in accordance with all local
codes and ordinances. If in doubt, call a licensed
electrician.
1. The dryer MUST be grounded. In the event of a
malfunction or breakdown, grounding will reduce the
risk of electrical shock by a path of least resistance
for electrical current.
2. Since your dryer is equipped with a power supply
cord having an equipment-grounding conductor and
a grounding plug, the plug must be plugged into
an appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. If in doubt, call a licensed electrician.
DO NOT modify the plug you’ve installed on this
appliance.
Gas Dryer
For a permanently connected dryer:
1. The dryer MUST be connected to a grounded
metal, permanent wiring system; or an equipment
grounding conductor must be run with the circuit
conductors and connected to the equipmentgrounding terminal or lead on the appliance.
DO NOT modify the plug provided with the appliance.
1. The dryer is equipped with a three-prong (grounding)
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle.
DO NOT cut or remove ground prong from the plug.
2-8
Installation Information
Electrical Connection
(non-Canada) - 3 Wire Cord
ELECTRICAL SHOCK HAZARD
FAILURE TO DISCONNECT POWER SOURCE
BEFORE SERVICING COULD RESULT IN
PERSONAL INJURY OR EVEN DEATH.
1. Turn off power supply to outlet.
2. Remove the screw securing the terminal block
access cover in the lower corner on the back of the
dryer.
3. Install a UL-approved strain relief according to the
power cord/strain relief manufacturer’s instructions in
the power cord entry hole below the access panel.
At this time, the strain relief should be loosely in
place.
4. Thread an UNPLUGGED, UL-approved, 30
amp. power cord, NEMA 10-30 type SRDT,
through the strain relief.
5. Attach the power cord neutral (center wire)
conductor to the SILVER colored center
terminal on the terminal block. Tighten the
screw securely. (See Figure 2-8 & 2-9)
6. Attach the remaining two power cord outer
conductors to the outer, BRASS colored
terminals on the terminal block. Tighten both
screws securely.
7. Follow manufacturer’s guidelines for firmly
securing the strain relief and power cord.
Figure 2-8.
If a terminal screw falls during cord installation,
it can be retrieved in the terminal screw recovery
slot below the access panel.
ELECTRICAL SHOCK HAZARD
DO NOT MAKE A SHARP BEND OR CRIMP
WIRING/ CONDUCTOR AT CONNECTIONS.
8. Reinstall the terminal block cover.
If moving dryer from a 4-wire system and installing it in a 3-wire system, move the internal ground
from the center terminal back to the GREEN
screw next to the terminal block.
Figure 2-9.
2-9
Installation Information
Electrical Connection
(non-Canada) - 4 Wire Cord
Ground
Green
wire
30 Amp
NEMA 14-30
Neutral
White wire
ELECTRICAL SHOCK HAZARD
FAILURE TO DISCONNECT POWER SOURCE
BEFORE SERVICING COULD RESULT IN
PERSONAL INJURY OR EVEN DEATH.
Access Cover
Screw
1. Turn off power supply to outlet.
2. Remove the screw securing the terminal block
access cover in the lower corner on the back of the
dryer.
3. Install a UL-approved strain relief according to the
power cord/strain relief manufacturer’s instructions in
the power cord entry hole below the access panel. At
this time, the strain relief should be loosely in place.
4. Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 14-30 type ST or SRDT, through
the strain relief. (See Figure 2-10)
5. Disconnect the internal (BLACK) dryer harness
ground wire from the (GREEN) ground screw next to
the terminal block. (See Figure 2-11)
6. Attach the ground (GREEN) power cord wire to the
cabinet with the ground (GREEN) screw. Tighten
the screw securely.
7. Move the internal dryer harness ground
(BLACK) wire to the terminal block and attach
it along with the neutral (WHITE) power cord
wire conductor to the center, SILVER colored
terminal on the terminal block. Tighten the
screw securely.
8. Attach the RED and BLACK power cord
conductors to the outer, BRASS colored
terminals on the terminal block. Tighten both
screws securely.
Terminal
Block
Line 2
Brass Terminal
Neutral
Silver Terminal
Line 1
Brass Terminal
Internal Ground
Green Screw
Install
UL-approved
strain relief here
Terminal Screw
Recovery Slot
2
Figure 2-10.
If a terminal screw falls during cord installation,
it can be retrieved in the terminal screw recovery
slot below the access panel.
Move internal ground (Black)
wire to neutral (Silver)
terminal for 4-wire system
Neutral terminal
Neutral
White wire
Green
ground screw
ELECTRICAL SHOCK HAZARD
DO NOT MAKE A SHARP BEND OR CRIMP
WIRING/ CONDUCTOR AT CONNECTIONS.
9. Follow manufacturer’s guidelines for firmly
securing the strain relief and power cord.
10. Reinstall the terminal block cover..
Black or Red
power wire
Green
ground wire
Black or Red
power wire
Figure 2-11.
2-10
Installation Information
Gas Supply Requirements
Gas Connection
1. Installation MUST conform with local codes, or in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition).
2. The gas supply line should be 1/2 inch (1.27cm)
pipe.
1. Remove the shipping cap from gas pipe at the rear
of the dryer.
2. Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or
approved pipe from gas supply line to the 3/8 inch
(0.96 cm) pipe located on the back of the dryer. Use
a 1/2 inch to 3/8 inch (1.27 cm to 0.96 cm) reducer
for the connection. Apply an approved thread sealer
that is resistant to the corrosive action of liquefied
gases on all pipe connections. (See Figure 2-12)
EXPLOSION HAZARD
UNCOATED COPPER TUBING WILL CORRODE
WHEN SUBJECTED TO NATURAL GAS,
CAUSING GAS LEAKS. USE ONLY BLACK IRON,
STAINLESS STEEL, OR PLASTIC
COATED BRASS PIPING FOR GAS SUPPLY.
3. If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing MUST be constructed of stainless steel or
plastic-coated brass.
4. The gas supply line MUST have an individual
shutoff valve.
5. A 1/8 inch (0.32 cm) N.P.T. plugged tapping,
accessible for test gauge connection, MUST be
installed immediately upstream of the gas supply
connection to the dryer.
6. The dryer MUST be disconnected from the gas
supply piping system during any pressure testing of
the gas supply piping system at test pressures in
excess of 1/2 psig (3.45 kPa).
7. The dryer MUST be isolated from the gas supply
piping system during any pressure testing of the
gas supply piping system at test pressures equal to
or less than 1/2 psig (3.45 kPa).
8. Connections for the gas supply must comply with the
Standard for Connectors for Gas Appliances, ANSI
Z21.24.
Figure 2-12.
3. Open the shutoff valve in the gas supply line to
allow gas to flow through the pipe. Wait a few
minutes for gas to move through the gas line.
The supply line must be equipped with an
approved manual shutoff valve. This valve
should be located in the same room as the dryer
and should be in a location that allows ease of
opening and closing. Do not block access to the
gas shutoff valve.
to
dry
er
fro
m
EXPLOSION HAZARD
NEVER TEST FOR GAS LEAKS WITH AN OPEN
FLAME.
ga
ss
up
ply
Valve Open position
Figure 2-13.
DO NOT connect the dryer to L.P. gas service
without converting the gas valve. An L.P.
conversion kit must be installed by a qualified
gas technician.
4. Check for gas system leaks with a manometer.
If a manometer is not available, test all
connections by brushing on a soapy water
solution.
2-11
Installation Information
Water Connection
(Steam Model Only)
1. Turn off COLD water supply to washer,
2. Remove COLD inlet hose from COLD water supply
and inspect for rubber washer. Replace washer if it
is torn or worn out.
3. Momentarily turn on COLD supply and run some
water into a bucket or container to clear any
contaminants in the line.
4. Remove hose kit from dryer drum and inspect hose
couplings for proper placement of rubber washers.
(See Figure 2-14)
5. If your installation has room for the COLD water
supply to accept the “Y” connector directly, thread
the “Y” connector to the COLD water supply and
snug it by hand; then tighten it another 2/3 turn with
pliers.
Figure 2-14.
If you were able to install the “Y” connector
directly to the COLD water supply, please skip to
step 8.
6. If there is not room to install the “Y” connector
directly, thread the short extension hose on to the
COLD water supply and snug it by hand; then tighten
it another 2/3 turn with pliers.
7. Thread the “Y” connector to the short extension hose
and snug it by hand; then tighten it another 2/3 turn
with pliers.
8. Connect the COLD inlet hose for the washer to the
“Y” connector and snug it by hand; then tighten it
another 2/3 turn with pliers.
9. Connect the straight end of the long hose from the
kit to the other outlet on the “Y” connector and snug
it by hand. Connect the hose’s 90° coupling to the
brass water inlet on the back of the dryer and snug
it by hand. Tighten each connection of the dryer inlet
hose another 2/3 turn with pliers.
10. Turn on the water and check for leaks at all
connections.
2-12
Installation Information
General Installation
1. Connect exhaust duct to the outside exhaust
system. Use of a 4” (10.2 cm) clamp is
recommended to connect the dryer to the exhaust
vent system. Use metal foil tape to seal all other
joints. (See Figure 2-15)
2. Carefully slide the dryer to its final position. Adjust
one or more of the legs until the dryer is resting
solidly on all four legs. Place a level on top of the
dryer. The dryer MUST be level and resting solidly
on all four legs. Rock alternating corners to check
for stability. Remove and discard door tape. (See
Figure 2-16)
4” Clamp
Figure 2-15.
Be sure power is off at a circuit breaker/fuse
box before plugging power cord into an outlet.
3. Plug the power cord into a grounded outlet.
4. Turn on power at the circuit breaker/fuse box.
5. Perform the “Installation Cycle” to verify proper
installation.
On gas dryers, before the burner will light, it is
necessary for the gas line to be bled of air. If the
burner does not light within 45 seconds the first
time the dryer is turned on, the safety switch will
shut the burner off. If this happens, press cancel
and wait 5 minutes before making another attempt
to light.
2-13
Figure 2-16.
Installation Information
Wave-Touch™ Installation Cycle
IQ -Touch™ Installation Cycle
1. After plugging in the dryer the first time: wake up
the dryer by pressing any button and then follow the
prompts on the LCD User Interface, including
language selection.
2. The Installation Cycle will automatically test for
correct cord connection (on electric models),
presence of gas supply (on gas models) and free
flow of exhaust vent. At cycle completion, the
LCD user interface may display INSTALL PASS!,
meaning the dryer is properly installed and ready
for use. If it prompts an action such as SERVICE
CORD, NO GAS or Call Service 877-435-3287,
review the installation steps and make the necessary
corrections before attempting to use the dryer.
3. The dryer will exit the Installation Cycle and
return to normal operation the next time the
dryer is used.
1. Empty dryer’s drum and close door.
2. After you plug in the dryer the first time: wake up the
dryer by pressing any button, rotate cycle knob to
touch up cycle, press the start button and then the
cancel button.
3. Wake up the dryer again by pressing any button,
then immediately and simultaneously press and
hold both the sanitize and my favorite buttons for 5
seconds, or until the LCD display changes.
4. The LCD window will display INSTAL CYCLE
and show estimated time of cycle completion.
Press the start button. The Installation Cycle will
automatically test for correct cord connection (on
electric models) and presence of gas supply (on
gas models). At cycle completion, the LCD window
may display INSTAL PASS!, meaning the dryer is
properly installed and ready for use. If it prompts an
action such as SERVICE CORD, NO GAS or
Call Service 877-435-3287, review the installation
steps and make the necessary corrections before
attempting to use the dryer.
5. The washer will exit the Installation Cycle and
return to normal operation the next time the washer
is used.
Dryer will stay awake for 3 minutes after the
Installation Cycle. If you wish to immediately run
the dryer through a drying cycle, press the cancel
button to put the unit to sleep and then rewake
it immediately, to continue the normal operating
mode.
2-14
Installation Information
Reversing Door
Preparing to Reverse Door Swing
1. Be sure you have adequate swing area before
reversing door.
2. You will need a screw driver with a #2 square bit.
3. Protect flat work surface, such as top of washer or
floor near washer, with a soft cloth or towel.
4. Be sure washer is unplugged from power source.
Removing Trim Ring
Figure 2-17.
1. Open the door to a 90 degree angle.
2. Remove and save the trim plug and long, coursethread, panhead screw. (See Figure 2-17)
3. Close the door.
4. Rotate the door trim approximately ¾” counter-clock
wise and pull it away from the front of the door.
(See Figure 2-18)
Removing Door from Hinge
1. Reopen door to 90 degree angle.
2. Remove 4 long, course-thread, counter-sunk hinge
screws from door. (See Figure 2-19)
3. While supporting the weight of the door with both
hands, separate the door from the hinge.
(See Figure 2-20)
4. Gently place the door face down on a flat, covered
work surface.
Figure 2-18.
Figure 2-19.
Figure 2-20.
2-15
Installation Information
Removing Hinge from Front
Panel
Removing Door Lock from Front
Panel
1. With the hinge in open position, remove 2 short,
course-thread, panhead screws on hinge plate.
(See Figure 2-21)
2. Remove 3 short, fine-thread, counter-sunk screws in
hinge side. (See Figure 2-22)
3. Slide the hinge toward the center of the front panel,
and then pivot the hinge inward while slowly pulling
it away from the front panel to expose the attached
harness.
4. Lift up on the tab and the release harness from the
retainer, allowing the harness to lay outside the front
panel. (See Figure 2-23)
1. Remove 2 short, course-thread, panhead
screws from the door lock. (See Figure 2-24)
2. Slide the lock toward the outer edge of the
front panel. Pivot the lock slightly outward
while slowly pulling it through opening to
expose the attached harness.
(See Figure 2-25)
3. Release the harness from the terminal with
the small lever on back of the lock. Separate
the harness from the lock, allowing the harness to
lay outside the front panel. (See Figure 2-26)
Figure 2-24.
Figure 2-21.
Figure 2-25.
Figure 2-22.
Figure 2-23.
Figure 2-26.
2-16
Installation Information
Reattaching Door Lock to Font
Panel
Reattaching Hinge to Front Panel
1. Rotate the door lock and move it to the opposite
opening.
2. Connect the harness to the door lock by inserting it
in the terminal and firmly pushing it in place. (See
Figure 2-27)
3. Insert the harness connection through the front panel
first, and then pivot the lock until it is flush. Slide the
lock toward the center of the front panel until the
screw holes line up. (See Figure 2-28)
4. Secure the lock with 2 short, course-thread, panhead
screws. (See Figure 2-29)
1. Rotate the hinge and move it to the opposite
opening.
2. Connect the harness to the hinge retainer by
inserting it in the retention terminal and gently
pushing until you hear the fastening tab click.
(See Figure 2-30)
3. Gently pull on the harness to be sure it is secure.
4. Use the side locating pins to align the hinge and
install 1 short, fine-thread, counter-sunk screw in the
center hole of hinge side. (See Figure 2-31)
5. Install the other 2 short, fine-thread, countersunk
screws in upper and lower holes of hinge side.
6. Install 2 short, course-thread, panhead screws
through hinge plate. (See Figure 2-32)
Figure 2-27.
Figure 2-30.
Figure 2-28.
Figure 2-31.
Figure 2-29.
Figure 2-32.
2-17
Installation Information
Removing Striker Plate
Removing Latch Indicator
1. Remove 2 long, course-thread, counter-sunk screws
and striker plate. (See Figure 2-33)
2. Set the striker plate to the side for later.
1. Grasp the indicator on the latch side between finger
and thumb and rock it upward, pivoting away from
the center of the glass. (See Figure 2-34)
2. Gently push the indicator toward the center of the
lens to release the tab.
3. Rock the tab upward. (See Figure 2-35)
4. Pull the indicator out and set it aside.
(See Figure 2-36)
Figure 2-33.
Figure 2-34.
Figure 2-35.
Figure 2-36.
2-18
Installation Information
Removing Hole Plug
Reinserting Latch Indicator
1. Grasp the hole plug between finger and thumb and
rock it upward, pivoting it away from the center of the
glass, releasing the tab. (See Figure 2-37)
2. Connect the harness to the door lock by inserting it
in the terminal and firmly pushing it in place.
3. Insert the harness connection through the front panel
first, and then pivot the lock until it is flush. Slide the
lock toward the center of the front panel until the
screw holes line up. (See Figure 2-38)
4. Secure the lock with 2 short, course-thread,
panhead screws.
1. Rotate the latch indicator and move it to the
opposite hole in the door.
2. Grasp the indicator between finger and thumb and
slide it through the opening. (See Figure 2-39)
3. Gently push the indicator toward the center of the
glass and pivot the tab downward into the retaining
slot. (See Figure 2-40)
4. Pivot the indicator downward toward the center of
the glass until it is in place.
Figure 2-39.
Figure 2-37.
Figure 2-40.
Figure 2-38.
2-19
Installation Information
Reattaching Striker Plate
Reattaching Door Assembly
1. Rotate the striker plate and move it to the opposite
side of door above the indicator.
2. Reattach with 2 long, course-thread, counter-sunk
screws. (See Figure 2-41)
1. Open the hinge to a 90 degree angle.
2. Install the door onto the hinge locating pins.
(See Figure 2-43)
3. Secure the door with 4 long, course-thread,
counter-sunk screws. (See Figure 2-44)
4. Close the door and test the operation of the latch.
Figure 2-41.
Figure 2-43.
Reinserting Hole Plug
1. Rotate the hole plug and move it to the opposite hole
in the door.
2. Grasp the hole plug between finger and thumb and
insert the tab into the retaining slot.
(See Figure 2-42)
3. Pivot the hole plug downward toward the center of
the glass until it is in place.
Figure 2-44.
Figure 2-42.
2-20
Installation Information
Reversing Trim Ring
Reinstalling Trim Plug
1. Trim ring orientation is marked on the back.
2. Remove the trim ring cover plate. To remove the
cover plate from the right, pivot point is up. To
remove the cover plate from the left, pivot point is
down. (See Figure 2-45)
1. Open the door to a 90 degree angle.
2. Install the trim plug with 1 long, course thread,
panhead screw. (See Figure 2-47)
3. Plug in washer and continue operation.
UP
Figure 2-45.
Figure 2-47.
Reinstalling Trim Ring
1. Close the door.
2. Orient the trim so 12 position is approximately
¾” to the left of top center. The opening in the
trim ring should be on the hinge side.
3. Insert the trim ring in the slots and rotate it
clockwise approximately ¾”. (See Figure 2-46)
Figure 2-46.
2-21
Installation Information
Accessories
Matching Storage Pedestal
Island White Pedestal - P/N EPWD15IW
Mediterranean Blue - P/N EPWD15MB
Silver Sands Pedestal - P/N EPWD15SS
Turquoise Sky Pedestal - P/N EPWD15TS
Storage Pedestal
A storage pedestal accessory, specifically designed for
this washer may be used to elevate the dryer for ease
of use. This pedestal will add about 15” (38.1cm) to the
height of your unit for a total height of 53” (134.62 cm).
Figure 2-48.
Dryer Stacking Instructions
A
Kit Components: (See Figure 2-49)
• 1 Dryer Stacking Instructions.
A. 1 Front bracket with adhesive strip.
IMPORTANT - DO NOT remove RED backing from
adhesive strip until instructed to do so.
B. 2 rear brackets.
C. 2 strips of self-adhesive protective film.
D. (6) #10 (16 x 3.75) screws.
B
C
D
Preparing to Stack
1. Be sure there is adequate space to stack dryer on
top of washer.
2. You will need a screw driver with a #2 square bit,
isopropyl alcohol and a clean cloth.
3. Read washer and dryer installation instructions
packed with each appliance prior to stacking.
4. Be sure washer and dryer are both unplugged.
Figure 2-49.
Preparing Dryer for Stacking
1. If already installed, disconnect dryer from electrical
and gas connections and exhaust venting. On
models with Steam Option, disconnect water supply
to dryer.
2. Protect floor with cardboard or other covering and
carefully tip dryer onto its back. (See Figure 2-50)
3. Remove adjustable leveling legs and save for future
use.
4. Attach front stacking bracket to dryer front with (2) #10 screws. (See Figure 2-51)
5. Carefully return dryer to upright position.
Figure 2-50.
Do not remove red backing from Adhesive strip yet!
Do not remove any existing screws from front panel.
Figure 2-51.
2-22
Installation Information
Prepare Top Surface of Washer:
Stacking Dryer
1. Wipe front portion of top with isopropyl alcohol and a
clean cloth. (See Figure 2-52)
2. Carefully remove BLUE backing from clear self
adhesive strips. Apply to each side edge of the
washer top. (See Figure 2-53)
3. Attach each rear bracket to washer top with two (2)
#10 screws. (See Figure 2-54)
1. When washer is within 4 feet of its final installation
site, electrical and water connections have been
completed, and washer is level, have two or more
people lift the dryer onto washer.
2. Hold the front of the dryer up slightly carefully slide
the dryer back.
3. Slide hook tabs on rear brackets into slots in back
sheet of dryer. Dryer will be approximately ¼” left of
center. Continue sliding dryer back until tabs are fully
engaged. (See Figure 2-55)
4. Slide dryer approximately ¼” to the right, centering
it on washer and hooking rear bracket tabs into slots
on back.
5. Lift front of dryer and remove RED backing from
adhesive strip on front bracket. (See Figure 2-56)
6. Gently lower dryer to adhere front bracket to washer
top. Align dryer side panel to washer side panel as
you lower dryer.
7. Refer to installation instructions to connect dryer
venting, power and accessories.
Figure 2-52.
Figure 2-53.
Figure 2-55.
Figure 2-54.
Figure 2-56.
2-23
Installation Information
Removing Stacked Dryer
1. Disconnect dryer from electrical and gas
connections and exhaust venting. On models with
Steam Option, disconnect water supply to dryer.
2. Disconnect washer from electrical source.
3. With #2 square bit screwdriver, remove two front
bracket screws and save for reinstallation. (See
Figure 2-57)
4. Slide the dryer approximately ¼” to the left to
disengage dryer from rear brackets.
5. Support the front of the dryer, clearing the front
bracket, while sliding the dryer forward. Have two or
more people lift the dryer off the washer and gently
place it on the floor.
If laundry appliances must be moved, front and
rear mounting brackets may remain attached to
the washer top until the dryer is restacked. To
permanently unstack the units and remove the
front bracket, use a 24” piece of monofilament
(fishing) line to carefully saw back and forth under
the adhesive strip. Remove residue with a general
adhesive remover.
2-24
Figure 2-57.
Electronic Control
Control Panel (User Interface Layout) Wave-Touch™
Cycle Selector
User Interface
Display
Temperature
Extended Tumble
Options Scroll
Dryness Level
Figure 3-1. Wave-Touch™ Control Panel
Selecting the Appropriate Cycle and Settings Overview
Turn the cycle selector knob in either direction to select the cycle desired. The icon for that cycle will be illuminated
and if the cycle description feature is turned on, the cycle and estimated cycle time are displayed on the User Interface
screen for 5 seconds. Press any key to advance the User Interface to select settings and options.
Press any key or the User Interface screen will automatically advance after 5 seconds and display the preset drying
temperature, dryness level (Auto Dry) or drying time (Time Dry), extended tumble time, and options for the cycle
selected will be displayed.
To change the settings, press the temp, dryness level (Auto Dry) or drying time (Time Dry) and extended tumble
buttons to scroll to the desired settings. Press the scroll up or scroll down buttons under options to scroll through the
options menu. Press the select button to add or delete options. The estimated cycle time will be displayed at the top
of the screens.
Adjustments to a cycle will be remembered and recalled each time that cycle is selected in the future. To return to the
factory default settings, select RESET in set prefs under the options scroll buttons.
Demo Mode
Demo Mode will standby for 10 minutes then perform an LED on/off sequence for 3 minutes. During the standby
sequence the drum light and start button will be activated. The controls will be fully functional during Demo Mode
with abbreviated cycles lasting about 1 minute. Some features will be deactivated during Demo Mode for safety
purposes. When the units are in Demo Mode the text “DEMO MODE” will be displayed in the LCD screen. Demo
mode will be saved if the units are unplugged or if there is a power outage. To deactivate Demo Mode repeat steps
1-3 below.
NOTE: Set the controls to the desired language in the SET PREFS menu. After the unit has been set to DEMO
mode the language can not be changed.
1.
2.
3.
4.
5.
6.
Turn the cycle selector knob to TIME DRY cycle, press the START button then the CANCEL button.
Activate the controls by turning the cycle selector knob and turn to TIME DRY cycle.
Press and hold CANCEL button and EXTENDED TUMBLE (Third button from the left) for 3 seconds.
DEMO MODE instructions have to be completed by 7 seconds of the control activation.
Press the CANCEL button to begin DEMO MODE.
To deactivate DEMO MODE repeat steps 1 – 3.
3-1
Electronic Control
Wave-Touch™ Dryer Options Chart
3-2
Electronic Control
Wave-Touch™ Dryer Options Chart Steam Model)
3-3
Electronic Control
Control Panel (User Interface Layout) IQ-Touch™
Cycle Selector
User Interface
Display
Temperature Scroll
Dryness Scroll
Options
Figure 3-2. IQ-Touch™ Control Panel
Selecting the Appropriate Cycle and Settings Overview
Turn the cycle selector knob in either direction to select the cycle desired. The indicator for that cycle will
be illuminated.
A suitable drying temperature, dryness level and options will automatically be indicated for the cycle
selected.
To change settings, press the temperature, dryness and options buttons to scroll to the desired settings.
To select or delete an option, press the button for that option. The indicator will light when the option has
been selected. It will no longer be lighted when the option has been deleted.
Adjustments to a cycle will be remembered and recalled each time that cycle is selected in the future.
To return to factory settings, press the temperature and dryness buttons at the same time and hold for 5
seconds.
Demo Mode
Demo Mode will standby for 10 minutes then perform an LED on/off sequence for 3 minutes. During the
standby sequence the drum light and start button will be activated. The controls will be fully functional during Demo Mode with abbreviated cycles lasting about 1 minute. Some features will be deactivated during
Demo Mode for safety purposes. When the units are in Demo Mode the text “DEMO MODE” will be displayed in the LCD screen. Demo mode will be saved if the units are unplugged or if there is a power outage. To deactivate Demo Mode repeat steps 1-3 below.
1.
2.
3.
4.
5.
6.
Turn the cycle selector knob to TIME DRY cycle, press the START button then the CANCEL button.
Activate the controls by turning the cycle selector knob and turn to TIME DRY cycle.
Press and hold CANCEL button and CTRL LOCK button for 3 seconds
DEMO MODE instructions have to be completed by 7 seconds of the control activation.
Press the CANCEL button to begin DEMO MODE.
To deactivate DEMO MODE repeat steps 1 – 3.
3-4
Electronic Control
IQ-Touch™ Dryer Options Chart
3-5
Electronic Control
Cycle Selection
The following cycle descriptions are for the Wave
Touch™ and IQ Touch™ Dryers.
The IQ Touch ™ models do not feature the steam
option and the active wear preset.
Turn the cycle selector in either direction to the cycle
desired. The icon for that cycle will be illuminated. Press
on the cycle selector knob to extend it or return it flush to
the console.
To change the selection after the cycle begins, press
cancel before making another choice. Just turning the
cycle selector knob to another selection will not change
the cycle.
Auto Dry Cycles
Moisture sensing bars at the back of the dryer drum
sense the moisture level of the load as it tumbles
through the heated air. With Auto Dry cycles, the load
will automatically be dried at the selected temperature to
the desired dryness level. When the load has reached
the selected dryness level, it will continue to tumble,
unheated, during a cool down period.
Drying time varies depending on size and dampness of
load and fabric type. If the load is too small or almost
dry, the moisture sensing bars may not detect enough
moisture to continue the cycle and the cycle may end
after a few minutes. If this occurs, then select the time
dry cycle to dry such loads.
Normal
Select this cycle to dry everyday fabrics including
cottons and sheets with high temp, med high temp or
medium temp heat. All dryness levels except maximum
dry and all options including sanitize are available with
this Auto Dry cycle. If equipped with Perfect Steam™,
the add steam option is also available with this cycle.
Towels
Select this cycle to dry heavy loads such as towels
and bath mats with maximum temp, high temp or med
high temp heat. The maximum dry, more dry and normal
dry dryness levels and the gentle tumble and sanitize
options are available with this Auto Dry cycle.
3-6
Electronic Control
Mixed Load
Time Dry Cycles
Select this cycle to dry loads containing a mix of fabrics
with med high temp, medium temp, or med low temp
heat. All dryness levels except maximum dry and all
options except sanitize are available with this Auto Dry
cycle. If equipped with Perfect Steam™, the add steam
option is also available with this cycle.
Heavy Duty
Select this cycle to dry durable fabrics such as jeans and
overalls with maximum temp, high temp, or med high
temp heat. All dryness levels except damp dry and all
options including sanitize are available with this Auto Dry
cycle.
FIRE HAZARD
TO AVOID FIRE HAZARD, DO NOT USE HEAT
TO DRY ITEMS CONTAINING FEATHERS OR
DOWN, FOAM RUBBER, PLASTICS SIMILARLY
TEXTURED, RUBBER-LIKE MATERIALS. USE
THE TIME DRY CYCLE AND THE AIR (NO HEAT)
SETTING.
Time Dry
Select this cycle to dry bedding and bulky items such as
comforters, blankets, sleeping bags and parkas with med
high temp, medium temp, or med low temp heat. Normal
dry and less dry dryness levels and all options except
sanitize are available with this Auto Dry cycle.
To manually select the drying time for any load, turn
the cycle selector knob to time dry and press the drying
time button to select up to 90 minutes of drying time in
15-minute increments. Select any drying temperature.
Dryness levels are not selectable with Time Dry cycles.
The extended tumble, wrinkle release, delicate heat
and shrink guard options are available with the time dry
cycle.
Casual
Fast Dry
Select this cycle to dry cottons and blends with a no-iron
finish using med high temp, medium temp, or med low
temp heat. Normal dry, less dry, and damp dry dryness
levels and all options except sanitize are available with
this Auto Dry cycle. If equipped with Perfect Steam™,
the add steam option is also available with this cycle.
Select this cycle to quickly dry small loads in 18 minutes
with maximum temp, high temp, or med high temp heat.
No options are available with this Time Dry cycle.
Bulky/ Bedding
Active Wear
Select this cycle to dry lightweight synthetic athletic
apparel including stretch fabrics with medium temp, med
low temp or low temp heat. Normal dry, less dry, and
damp dry dryness levels and all options except sanitize
are available with this Auto Dry cycle.
Delicate
Select this cycle to dry knits and delicates with med low
temp or low temp heat. Normal dry, less dry, and damp
dry dryness levels and all options except sanitize are
available with this Auto Dry cycle.
Touch Up (non-steam models only)
Select this cycle to remove wrinkles from clean, dry
items that may have been left in the dryer, stored in
crowded closets or drawers or unpacked from luggage.
The load will tumble for 15 minutes on low temp heat.
The gentle tumble option is available with this Time Dry
cycle.
Perfect Steam (steam models only)
Select this cycle to refresh fabrics, remove odors and
reduce static by injecting the perfect amount of cold
water into clothing that has been left in the dryer, stored
in crowded closets, drawers, or unpacked luggage. The
load will tumble for 15 minutes on low temp heat while
cold water is injected into the drum. The gentle tumble
option is available with this Time Dry cycle.
3-7
Electronic Control
My Favorites (Wave Touch™)
To select one of your 3 favorite cycles:
•
•
•
Turn the cycle selector knob to my favorites.
Press the button corresponding to the favorite
cycle desired. The custom cycle, settings, and
options saved will automatically be displayed.
Press the start button to begin the cycle.
For example, to select your my shirts cycle, turn the
cycle selector knob to my favorites. Press the
button corresponding to my shirts, and then press start.
If more than one user has been entered in
CUSTOM MODE:
To select a user if a user’s name is not displayed when
the washer is turned on:
1. Press the options buttons to scroll to set prefs and
then press the select button.
2. If necessary, press the options buttons to scroll to
CUSTOM MODE and then press the select button.
3. Press the button corresponding to the user’s name.
4. The icon for the last cycle run will light up.
5. Turn the cycle selector knob to my favorites.
6. Select one of the 3 customized cycles by pressing
the corresponding button.
7. Press the start button.
1. The current user’s name will be displayed when the
washer is turned on if CUSTOM MODE is on.
2. Press the button under OK to continue using that
user’s favorite cycles.
3. The icon for the last cycle run will light up.
4. Turn the cycle selector knob to my favorites.
5. Select one of the 3 customized cycles by pressing
the corresponding button.
6. Press the start button.
To change users:
1. Press the select button when the washer turns on
and shows the current user’s name.
2. Press the button under change users.
3. Select another user’s name.
4. Press the button under EXIT.
5. The icon for the last cycle run will light up.
6. Turn the cycle selector knob to my favorites.
7. Select one of the 3 customized cycles by pressing
the corresponding button.
8. Press the start button.
3-8
Electronic Control
Drying Temperature
Auto Dry
The appropriate drying temperature will automatically be
indicated for the cycle selected.
To change the preset temperature, press temperature
button to scroll to the desired setting.
To protect fabrics, not all temperatures are available with
every cycle. If a temperature is not appropriate for the
cycle, it will not be displayed.
The temperature selected for the cycle will be
remembered each time that cycle is selected in the
future.
Maximum Temp
Recommended to use with the sanitize option for towels
and heavy duty loads.
High Temp
Recommended for durable fabrics.
Med High Temp
Recommended for most cotton fabrics.
Medium Temp
Recommended for wrinkle free, easy care lightweight
fabrics and bulky loads.
Med Low Temp
Recommended for knits.
Low Temp
Recommended for delicate fabrics.
Air Fluff Temp
This setting (no heat) should only be used with a time
dry cycle to dry items containing feathers, down, foam
rubber, plastics or rubber-like materials;to refresh
clothing, stuffed animals, pillows or blankets; and to dust
draperies.
Time Dry
Press the drying time button to select up to 90 minutes
of drying time in 15-minute increments. This setting is
only available with the time dry cycle.
3-9
Electronic Control
Options
Suitable options will automatically be indicated when the
cycle is selected.
To add options, press the corresponding options buttons
to illuminate the selections desired. To delete options,
press the options buttons again and the indicator lights
will turn off. Not all options are available with every
cycle. The indicator will not light if the option is not
available with that Cycle.
All options selected for the cycle, except sanitize, will be
remembered and recalled each time that cycle is
selected in the future. To prevent unintentional and
accidental exposure of delicate material to sanitize heat,
the sanitize option will not be remembered and must be
reselected each time.
Add Steam (steam models only)
The add steam option injects steam into the clothing
prior to cool down to reduce wrinkling, ironing and static
cling.
Extended Tumble
Select the extended tumble option if the dried load might
not be removed promptly at the end of the cycle. The
dry load will tumble continuously without heat for 30
minutes. “Ext. Tumble” will be displayed and a chime
will sound every 5 minutes to remind you to remove the
dried load. The wrinkle release option can be selected
with extended tumble to increase the amount of time the
load will tumble without heat.
Wrinkle Release (IQ Touch)
Select the wrinkle release option if the dried load might
not be removed promptly at the end of the cycle. To
help prevent wrinkles, the dry load will intermittently tumble for a total of 45 minutes. “Wrinkle Rel.” will be displayed and a chime will sound every 5 minutes to remind
you to remove the dried load.
The extended tumble option can be selected with wrinkle
release to add another 30 minutes of tumbling without
heat.
Wrinkle Release (Wave Touch)
The wrinkle release option helps prevent wrinkles and
tangling by alternately tumbling the load without heat
for 5 minutes in a clockwise direction, then 5 minutes in
a counterclockwise direction, for a total of 45 minutes.
A signal will sound every 5 minutes to remind you to
remove the dry load at any time.
Add steam option available on Steam Model only.
3-10
Electronic Control
Gentle Tumble
The gentle tumble option uses reverse tumble action
during cool down to reduce tangling and wrinkling.
Delicate Heat
Select this option to protect a load from excessive heat.
The drying temperature will be gradually reduced as the
load dries.
Sanitize
Select this option for loads that may contain harmful
bacteria. An extended drying time at high heat will kill
99.9% of bacteria with no carryover of bacteria between
loads. Check fabric care labels to prevent damage
caused by high heat.
Chime
Select this option to add a chime to the end of the cycle,
to indicate when load is damp in the damp alert option,
and as a reminder to remove the load during extended
tumble and wrinkle release. Press the chime button to
select volume level desired or to turn off the signal.
Damp Alert
For loads that contain some items you plan to hang dry,
flat dry or iron, add the damp alert option to any Auto Dry
cycle. A signal will sound when the load has reached
the damp dryness level to remind you to remove those
items to hang dry, dry flat or iron dry. Open the door,
remove those items, close the door and press the start
button to continue drying the remaining items.
Shrink Guard
The shrink guard option reduces the initial drying
temperature and gradually lowers drying temperature
during the cycle to protect fabrics from shrinking.
Add steam option available on Steam Model only.
3-11
Electronic Control
User Interface Features
Save as Favorite
The save as favorite feature allows you to
personalize up to 3 custom cycles for each custom user.
Set Prefs
The set prefs feature allows you to personalize cycles,
hide cycle descriptions, select the language, volume,
brightness and contrast of the display, reset settings, and
run the installation cycle.
LIST OF SAVED FAVORITES
User Guides
Scroll through this option for the CYCLES GUIDE,
SETTINGS GUIDE, OPTIONS GUIDE, and SET PREFS
GUIDE for descriptions of the cycles, water temperatures, spin speeds, soil levels, cycle options and features
for user preferences.
CUSTOM MODE
Control Lock (WaveTouch™)
INSTALL CYCLE
To lock the controls between cycles, scroll to the control
lock feature press select and “CONTROL LOCK OFF PRESS SELECT TO LOCK THE CONTROL PANEL”
will be displayed. Press the select button to lock the controls. To unlock the controls, press and hold select again
for 3 seconds. Use this feature to reduce the likelihood of
accidental operation by children.
RESET
CONTRAST
BRIGHTNESS
VOLUME
Control Lock (IQTouch™)
LANGUAGE
To lock the controls between cycles, press and hold the
control lock button for 5 seconds. Repeat to unlock the
controls when you are ready to operate the dryer.
CYCLE DESC ON
CYCLES GUIDE
SETTINGS GUIDE
OPTIONS GUIDE
SET PREFS GUIDE
CONTROL LOCK ON
CONTROL LOCK OFF
3-12
Electronic Control
Save as Favorite
The save as favorite feature allows you to personalize up
to 3 custom cycles for each custom user.
1. Select a cycle, drying temperature, dryness level
(Auto Dry) or drying time (Time Dry), extended
tumble time and other options desired.
2. Use the scroll up or scroll down button until you
reach save as favorite.
3. Press the select button to enter the favorite cycle
choice screen.
4. Choose 1 of the 3 buttons for naming cycle.
5. See below for naming your favorite cycle.
For example, to customize the normal cycle for shirt
loads using med high drying temperature, normal dry
dryness level and 10 minutes of extended tumble:
1. Turn the cycle selector knob to normal.
2. Press the temp button to select medium temp.
3. Press the dryness level button to select normal
dryness.
4. Press the extended tumble button to select 10
minutes.
5. Press the scroll up or scroll down button until you
reach save as favorite.
6. Press the select button to enter the favorite cycle
choice screen.
7. Press the button under my favorite 1.
To name the customized cycle for shirts, press my
favorite 1.
Press the button under ABC to name the favorite cycle
alphabetically. Use the button under 1A# to add numbers,
foreign language characters or symbols to the name.
Rotate the cycle selector knob in either direction to select
the letters S-H-I-R-T-S, pausing after each character to
let the cursor advance. Press the button under DELETE
to erase incorrect entries. There is a blank character
between Z and A for inserting spaces in your custom
name. Pause momentarily on this character as you
would to insert any other character, then continue. Press
select to save the favorite cycle name. Repeat the steps
to customize 2 other cycles as my favorite 2 and my
favorite 3. Any of the favorite cycle names can be
changed in the future by turning the cycle selector knob
to my favorites and pressing the button under EDIT
NAMES.
3-13
Electronic Control
Setting Preferences
Custom Mode
CUSTOM MODE allows up to 3 household members to
personalize up to 3 favorite cycles each.
To enter custom users and personalize favorite cycles:
1. Use the scroll up or scroll down buttons until you
reach set prefs. Press the select button to enter the
preference menu.
2. Press select again to enter CUSTOM MODE.
3. Press the button for user 1, user 2 or user 3.
4. Press select.
Press the button under ABC to name the favorite cycle
alphabetically. Use button under 1A# to add numbers,
foreign language characters or symbols to the name.
Rotate the cycle selector knob in either direction to
select the characters in the name, pausing after each
character to let the cursor advance. Press button under
DELETE to erase incorrect entries. There is a blank
character between Z and A for inserting spaces in your
custom name. Pause momentarily on this character as
you would to insert any other character, then continue.
When the name has been entered, press select to save
the name.
To edit names while in CUSTOM MODE, turn the dryer
off by pressing cancel. Press any other button to wake
the dryer up. Screen will display “TO CHANGE OR
TURN OFF USERS PRESS SELECT”. You must press
select within 5 seconds or dryer will return to normal
operation with previous user selected. After pressing
select you have the choice of change users, edit names,
turn off or EXIT. Make your selection and follow the
directions displayed.
Each custom user may select up to 3 favorite cycles.
The washer will remember cycle settings, options,
preferences, etc. for each user.
3-14
Electronic Control
Install Cycle (WaveTouch™)
1. After plugging in the dryer the first time: wake up
the dryer by pressing any button and then follow the
prompts on the LCD User Interface, including
language selection.
2. The Installation Cycle will automatically test for
correct cord connection (on electric models),
presence of gas supply (on gas models) and free
flow of exhaust vent. At cycle completion, the
LCD user interface may display INSTALL PASS!,
meaning the dryer is properly installed and ready
for use. If it prompts an action such as SERVICE
CORD, NO GAS or Call Service 877-435-3287,
review the installation steps and make the
necessary corrections before attempting to use the
dryer.
3. The dryer will exit the Installation Cycle and return to
normal operation the next time the dryer is used.
The INSTALL CYCLE is prompted automatically only
once when the dryer is turned on the first time at the
end of installation. After that, if you wish to run a
subsequent INSTALL CYCLE when moving the dryer
or modifying your installation, you may perform your
own INSTALL CYCLE by selecting it in the set prefs
feature and then following the screen prompts.
Install Cycle (IQ Touch™)
1. Empty dryer’s drum and close door.
2. After you plug in the dryer the first time: wake up
the dryer by pressing any button, rotate cycle knob
to touch up cycle, press the start button and then
the cancel button.
3. Wake up the dryer again by pressing any button,
then immediately and simultaneously press and
hold both the sanitize and my favorite buttons for 5
seconds, or until the LCD display changes.
4. The LCD window will display INSTAL CYCLE
and show estimated time of cycle completion.
Press the start button. The Installation Cycle will
automatically test for correct cord connection (on
electric models) and presence of gas supply (on
gas models). At cycle completion, the LCD window
may display INSTAL PASS!, meaning the dryer is
properly installed and ready for use. If it prompts
an action such as SERVICE CORD, NO GAS or
Call Service 877-435-3287, review the installation
steps and make the necessary corrections before
attempting to use the dryer.
5. The washer will exit the Installation Cycle and
return to normal operation the next time the
washer is used.
Dryer will stay awake for 3 minutes after the
Installation Cycle. If you wish to immediately run the
dryer through a drying cycle, press the cancel button
to put the unit to sleep and then rewake it immediately, to continue the normal operating mode.
The errors may result from the following
conditions:
• SERVICE CORD error (electric dryer)—The power
supply cord has been installed improperly or the house
wiring to the receptacle is incorrect.
• NO GAS error (gas dryer)—There is no connection
between the dryer and the gas line or the valve is closed.
• CALL SERVICE—Troubleshoot and repair as needed.
Repeat the INSTALL CYCLE when corrections are
completed.
3-15
Electronic Control
Reset (WaveTouch™)
Press the buttons indicated to restore only cycle settings,
reset only factory preferences (users, language, brightness, volume, etc.) or restore all factory defaults (both
cycle settings and factory preferences). Press the button
under EXIT to return to normal operation or press the
cancel button to turn the dryer off without making any
changes. If you do not make a selection within 30 seconds the dryer will return to normal operation without any
changes. If you reset all settings, INSTALL CYCLE will
be displayed as though the dryer were just turned on for
the first time. Press the button under CANCEL if you do
not wish to rerun the INSTALL CYCLE.
Reset (IQTouch™)
To return to factory settings, press the temperature
and dryness buttons at the same time and hold for 5
seconds.
Contrast
Press the button beneath plus (+) or minus (-) symbols to
increase or decrease the contrast of the display. Press
select to accept the change or press the button under
EXIT to return to normal operation without any changes.
3-16
Electronic Control
Brightness
Press the button beneath the plus (+) or minus (-)
symbols to increase or decrease the brightness of the
display. Press select to accept the change or press the
button under EXIT to return to normal operation without
any changes.
Volume
Press the button beneath the plus (+) or minus (-)
symbols to increase or decrease the volume of the
chime. Press select to accept the change or press the
button under EXIT to return to normal operation without
any changes.
Language
Select English, French or Spanish for the display
language.
Cycle Description
The name, an icon and a brief description are displayed
for each cycle. To delete the display, press select. To
restore the display, press select and “CYCLE DESC
ON - PRESS SELECT TO TURN OFF” will appear in the
LCD User Interface.
Status Display
The estimated total cycle time will be displayed when the
cycle is selected. The estimated remaining cycle time is
displayed during the cycle.
Drum Light
The drum light will come on whenever the door is
opened to illuminate the drum during loading and
unloading. Closing the door turns off the light. The
drum light will automatically turn off if the door is left
open more than 3 minutes.
To activate the drum light during a cycle, press the
button under LIGHT. The light will stay on during the
cycle for 3 minutes. To turn it off, press the button under
LIGHT again.
3-17
Electronic Control
Diagnostics and Error Codes
Acronyms:
MB – Main Board (Board located inside machine on right side just behind control panel.)
MC – Motor Control
UI – User interface board (board located inside the front control panel)
DL – Door Lock
Reading Error Codes
1. Wake the dryer up by pressing any button (except the cancel button).
2. Press and hold the “CANCEL” and “START/ PAUSE” buttons simultaneously for 6 seconds. The failure code will
appear in the display as an E followed by two numbers.
NOTE: E00 means no failure code experienced.
3. To view the last 5 error codes recorded, refer to the Diagnostic Mode listed below.
4. Troubleshoot problem by using the chart on page 3-20.
To Clear Latest Stored Error Code
Press the “CANCEL” button to enter standby mode and enable diagnostic entry.
1. Within 10 seconds after pressing “CANCEL”, press any button to wake up the control.
2. Within 5 seconds of wake up, turn the selector knob to the far left cycle and press and hold the “CANCEL” and the
far left button under the display simultaneously for 3 seconds to enter the Diagnostic Mode.
‘
NOTE: To save time at wake up, the welcome screen can be bypassed by turning the selector knob.
3. Turn the program knob counter clockwise 9 turns (clicks) from the Start Position. The control will signal the last 5
error codes with E00 meaning no error experienced.
4. Press and hold the far left key under the display and “CANCEL” buttons simultaneously for 3 seconds. The
code(s) will be cleared.
5. To return the washer to normal operation.
a) Unplug the power cord, wait 5-8 seconds, then reconnect the power cord OR
b) Turn the program knob clockwise 2 turns (clicks) back to the Start Position (LEDs are flashing).
Press the “CANCEL” and far left button under the display until the LEDs stop flashing.
Exiting Diagnostic Mode
To return the washer to normal operation:
1. Unplug the power cord, wait 5-8 seconds, then reconnect the power cord OR
2. Turn the program knob clockwise back to the Start Position. Press the “CANCEL” and far left button under the
display until the LEDs stop flashing.
3-18
Electronic Control
Diagnostic Mode
To Start the Diagnostic Mode
1. Press the “CANCEL” button to enter standby mode and enable diagnostic entry.
2. Within 10 seconds after pressing “CANCEL”, press any button to wake up the control.
3. Within 5 seconds of wake up, turn the selector knob to the far left cycle and press and hold the “CANCEL” and the
far left button under the display simultaneously for 3 seconds to enter the Diagnostic Mode.
NOTE: To save time at wake up, the welcome screen can be bypassed by turning the selector knob.
4. Upon entering Diagnostic Mode, all lights should flash for IQ Touch™ models and all lights on for the Wave
Touch™ models.
5. The following steps can be cycled through by turning the selector knob clockwise:
Diagnostic Mode
Selector
Position
Test Activated Component
Gas
Electric
0
Lights / Buttons test
1
Operator Check
LCD row
Motor Counter-Clockwise
(CCW)
Check Motor function. Look for Drum
rotation in counter-clockwise direction.
“MOTOR
CCW”
Contact Sensor
Check moisture reading. Place fingers
across Contact Sensor and look for digit
display to change from “1111” to “8888”
“MOIST.
BARS”
Check Motor function. Look for Drum
rotation in clockwise direction.
“MOTOR
CW”
2
3
4
Motor Clockwise (CW)
Check all buttons and lights. Press all
Lights/Buttons Lights / Buttons
test + Motor test + Motor CW buttons and check for beep and button
ID number in digit display. Check to see
+ igniter
CW
that all Lights function
LCD digits
“1111” if Contact
Sensor open circuit;
”8888” if Contact
Sensor short circuited
Button id number
5
Motor CW +
Heater
1
Motor CW +
Heater
Check Motor and Heater function. Check “HEAT1 Outlet Control Thermistor value in digit
NTC1”
display.
Outlet Control
Thermistor value
(degrees F)
6
Motor CW +
Heater
1 + Heater 2
Motor CW +
Heater
Check Motor and Heater function. Check “HEAT2 Inlet Control Thermistor value in digit
NTC2”
display.
Inlet Control
Thermistor value
(degrees F)
7
Motor CW
+ Heater1 +
Heater 2 +
Heater 3
Motor CW +
Heater
Check Motor and Heater function. Check “HEAT3 Outlet Control Thermistor value in digit
NTC1”
display.
Outlet Control
Thermistor
value (degrees F)
8
Motor CW
Check for Mist
9
Error code history display
Check last 5 error codes displayed
(See Error Code Table )
10
Software version
Software version
11
Lights / Buttons test
3-19
“MIST
VALVE”
error code
Software
version
Software
version
Electronic Control
Error
Code
Fault
Possible Fault
Conditions
Possible Solutions
E31
Contact Sensor
frequency too high.
Electronic Control Board
defective or foreign object
interfering with contact sensor.
Check Contact Sensor and wiring. If no problems are found with
Contact Sensor, replace Electronic Control Board.
E32
Contact Sensor
frequency too low.
Electronic Control Board
defective or foreign object
interfering with contact sensor.
Check Contact Sensor and wiring. If no problems are found with
Contact Sensor, replace Electronic Control Board.
E42
Door Sensing
failure.
Electronic Control Board
defective.
Replace Electronic Control Board.
Motor Relay failure
Motor Relay stuck open or
closed; Wiring defective.
If motor runs continuously with power applied check for short circuit
across motor relay (RL2), or L1 applied to motor relay output (J3-1)
with cycle stopped. If motor does not start when “start” key is pressed,
check for open circuit between L1 and motor relay connection (J3-2).
If no wiring problems found, replace Electronic Control Board.
Motor Fault –
motor stopped or
not starting.
Motor overheating; Laundry
load too heavy; Low power
supply; Motor, or Wiring defective.
Remove any load from dryer and check if drum turns freely by hand.
Check L1 power supply voltage, motor wiring, and motor thermal
protector (if motor thermal protector has tripped, it may take up to 30
minutes to reset).
E53
Motor Centripetal
Switch Failure
Motor Centripetal Switch,
Electronic Control Board
Defective, or wiring defective.
Check wiring. Check if Motor Centripetal Switches are stuck in open
or closed positions. Replace motor. Replace Electronic Control Board.
E54
Motor Sensing
failure
Electronic Control Board
defective
Replace Electronic Control Board and retest.
E61
Heater Relay failure. Heater relay stuck open or
closed; Wiring defective.
Check for short circuit across heater relay(s) (RL5, RL6, RL7) or L1
applied to heater relay output(s) (J5-2, J7-1, J7-3) with cycle stopped.
Check for open circuit between L1 and heater relay connection(s)
(J5-1, J5-3, J7-2). If no wiring problems are found, replace Electronic
Control Board and retest.
E63
Heater to Earth
Ground
Heating element or wiring
defective
Check heater coils and connections for short circuits to the cabinet.
Replace heater and/or wiring and retest.
E64
Heater Open
Circuit
Heating element or wiring
defective.
Check heater coils and connections for open circuits. Replace heater
and/or wiring and retest.
High Limit
Thermostat trip
count too high
High vent restriction, High
Limit Thermostat defective or
Inlet Thermal Limiter tripped
(Electric Model only)
For Electric Model, check Inlet Thermal Limiter for continuity. If
Thermal Limiter is open, check for evidence of high temperature event
and any resulting damage. If no further damage is evident, replace
Thermal Limiter. If no problems are found with Thermal Limiter,
check exhaust vent system for air blockages. If no problems with vent
restrictions, check/replace High Limit Thermostat, and retest.
E66
Thermal Limiter
Open Circuit
Outlet Thermal Limiter tripped
Inlet Thermal Limiter tripped
(Gas Model only) or wiring
defective.
Check Outlet Thermal Limiter for continuity. For Gas Model, also
check Inlet Thermal Limiter for continuity. If Thermal Limiter is open,
check for evidence of high temperature event and any resulting damage. If no further damage is evident, replace Thermal Limiter and
retest.
E67
Heaters Sensing
Failure
Electronic Control Board
defective.
Replace Electronic Control Board and retest.
Outlet Control
Thermistor open
circuit
Outlet Control Thermistor or
wiring defective
Check resistance of Outlet Control Thermistor, and check wiring for
open circuit. Resistance should be between 4.9K Ohm and 6.2K Ohm
at room temperature (68-77° F or 20-25° C). Replace Outlet Control
Thermistor and/or wiring and
retest.
E51
E52
E65
E71
3-20
Electronic Control
Error
Code
Fault
Possible Fault Conditions
Possible Solutions
E72
Outlet Control
Thermistor short
circuit
Outlet Control Thermistor or wiring defective.
Check resistance of Outlet Control Thermistor, and check wiring for
short circuit across Thermistor connections. Resistance should be
between 4.9K Ohm and 6.2K Ohm at room temperature (68-77° F or
20-25° C). Replace Outlet Control Thermistor and/or wiring and retest.
E73
Inlet Control
Thermistor open
circuit.
Inlet Control Thermistor or wiring
defective.
Check resistance of Inlet Control Thermistor, and check wiring for
open circuit. Resistance should be between 47K Ohm and 66K Ohm
at room temperature (68-77° F or 20-25° C). Replace Inlet Control
Thermistor and/or wiring and retest.
E74
Motor Relay failure Motor Relay stuck open or
closed; Wiring defective.
E91
Communication
Error
Wiring, Electronic Control Board,
or Interface Board defective
Check connections between Electronic Control Board and Interface
Board. If no wiring problems, replace Electronic Control Board or
Interface Board.
E92
Incompatible
protocol
Electronic Control Board incompatible with Interface Board
Check if correct Interface Board console and Electronic Control Board
are installed. Replace appropriate hardware.
E93
Machine configuration checksum
error
Wrong configuration data loaded,
Interface Board or Electronic
Control Board or wiring defective.
Check if correct Interface Board and console are installed. Replace
Interface Board and/or console.
E94
Cycle configuration Wrong configuration data loaded
or Electronic Control Board defecchecksum error.
tive
Replace Electronic Control Board.
E97
Program mismatch Wrong configuration data loaded,
Electronic Control Board
defective
Replace Electronic Control Board.
EA1
Main Supply
Frequency out of
Range
Line frequency out of limits or
Electronic Control Board faulty.
EA2
Voltage too high
Line voltage too high or Electronic Check amplitude of line voltage.
Control Board faulty.
EA3
Voltage too low
Line voltage too low or Electronic
Control Board faulty.
Check amplitude of line voltage.
EA4
Improper home
wiring
Line connections in home faulty,
wiring or Electronic Control Board
defective.
Check wiring at terminal block for L1-N-L2 wired incorrectly.
EA5
Main V Sensing
failure
Electronic Control Board
defective
Replace Electronic Control Board.
EF1
Vent Blocked
High vent restriction, Exhaust
Control Thermistor, Inlet Control
Thermistor, or Electronic Control
Board defective.
Check vent restrictions and resistance values of Exhaust Control
Thermistor and Inlet Control Thermistor.
EF3
Max Timeout Timer Exhaust blocked; Exhaust Control
Thermistor, Inlet Control
Thermistor, Contact Sensor or
Electronic Control Board
defective.
EF8
Key Stuck
Console button or Interface Board
defective
If motor runs continuously with power applied check for short circuit
across motor relay (RL2), or L1 applied to motor relay output (J3-1)
with cycle stopped. If motor does not start when “start” key is pressed,
check for open circuit between L1 and motor relay connection (J3-2). If
no wiring problems found, replace Electronic Control Board.
Check frequency of line voltage.
Check vent restriction, Contact Sensor, and resistance values of
Exhaust Control Thermistor and Inlet Control Thermistor.
Check buttons for activation when pressed. Replace console or
Interface Board as appropriate
3-21
PROGRAMS
3-22
COMPATIBILITY WHEN
AVAILAWITH
BLE
OPTIONS
Factory Defaults Are Highlighted BLUE
Execution (paused)
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Damp Dry
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Low
Set-up
TIMED/AUTO DRY
X
X
X
X
X
X
X
X
X
Air Fluff
Damp Alert
Extended Tumble
Wrinkle Release
Delicate Heat
Sanitize
Damp Alert
X
Extended Tumble
X
Wrinle Release
X
X
Delicate Heat
X
X
Sanitize
X
More Dry
(aka Max)
X
X
X
X
X
X
Normal Dry
X
X
X
Less Dry
X
X
X
High
X
X
X
Medium / High
X
X
X
T E M PE R A T UR E
Medium
A
A
A
A
A
A
T
A
T
T
DRYNESS LEVEL
Any
King size comforter
16# Jeans
8# Cotton Mix + 6# Perm Press
12# T owels
12# Cotton Mix CU
8# Perm Press CU
T BD by testing
3# Delicate CU
Intended Load
Bulky
Heavy Duty
Mixed Load
Towels
Normal
Casual
Fast Dry
Delicate
Touch Up
Time Dry
EDM OPTIONS - PROGRAMS
MATRIX
OPTIONS
Electronic Control
IQ Touch Available Cycle Settings, Pre-Sets and Options
TIMED/AUTO DRY
PROGRAMS
3-23
COMPATIBILITY
WITH
OPTIONS
WHEN
AVAILABLE
X
X
Factory Defaults Are Highlighted BLUE
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Low
Execution (paused)
Damp Alert
X
X
X
X
X
X
X
TBD by testing
3# Delicate CU
King size comforter
16# Jeans
8# Cotton Mix + 6# Perm Press
12# Towels
12# Cotton Mix CU
8# Perm Press CU
3# spandex + 3# lgt. cotton
X
X
X
X Any
X
X
X
Air Fluff
Set-up
Extended Tumble
X
Wrinle Release
X
Delicate Heat
X
X
X
Shrink Guard
X
X
X
Sanitize
X
X
X
Perfect Tumble
X
X
X
X
Damp Dry
X
X
X
Maximum Dry
X
More Dry
X
X
X
X
X
X
X
Normal Dry
X
Less Dry
X
X
X
Maximum
X
X
X
High
X
X
X
Medium / High
X
X
X
Medium
X
X
X
T E M PE R A T UR E
Medium / Low
A
A
A
A
A
A
A
T
A
T
T
DRYNESS LEVEL
Intended Load
Bulky
Heavy Duty
Mixed Load
Towels
Normal
Casual
Active Wear
Fast Dry
Delicate
Touch Up
Time Dry
Damp Alert
Extended Tumble
Wrinkle Release
Delicate Heat
Shrink Guard
Sanitize
Perfect Tumble
MATRIX
- PROGRAMS
EDM OPTIONS
OPTIONS
Electronic Control
Wave Touch Available Cycle Settings, Pre-Sets and Options
TIMED/
AUTO DRY
PROGRAMS
3-24
COMPATIBILITY
WITH
OPTIONS
WHEN
AVAILABLE
X
X
X
X
X
X
Unchangeable Options = U
Factory Defaults Are Highlighted BLUE
Execution (paused)
Damp Alert
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
U
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
