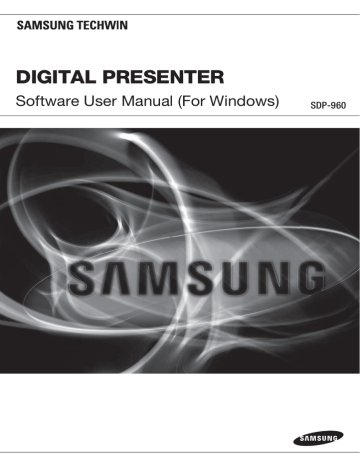

DIGITAL PRESENTER
Software User Manual (For Windows)
SDP-960
CONTENTS
INSTALLATION
3
3
3
4
RUNNING THE PROGRAM
9
Running the Samsung Digital Presenter
program
23
24
Commonly Used Shortcuts
Troubleshooting
9
APPENDIX
23
Installing Samsung Digital Presenter
installer program
System Requirements
Installing the program
installation
INSTALLING SAMSUNG DIGITAL PRESENTER INSTALLER PROGRAM
With Samsung Digital Presenter, you can connect it to the PC and save the video image incoming from the
lens of the camera in a picture format or in a video format.
❖ Design and specifications are subject to change without prior notice.
SYSTEM REQUIREMENTS
• CPU: Pentium 4 or higher (recommendation: Core 2 Duo or higher)
• Windows XP Service Pack3 or later
- Windows OS compatibility: Windows XP(Service Pack 3)/Windows Vista(Service Pack 1)/Windows 7
• RAM: 512MB or more (more than 2GB recommended)
• USB 2.0 Port
• Graphic adaptor supporting XGA (1024x768) in more than 65,536 colors
- Video RAM 256MB or more
- SXGA or higher recommended
• CD-ROM Drive
M
 A PC into which a PCI/PCMCIA-type USB 2.0 card is inserted may not exert USB 2.0 communication performance
of the digital presenter properly.
 If you use a specific theme supported in Windows 7, the USB viewer may not perform the display functions
properly. It is recommended to use the default Windows 7 theme.
 For Windows 7 users, it is recommended to specify at least 5.0 for the Windows Experience Index (WEI).
J
 The Windows 7 64 bit edition may not support the viewer in some languages excluding English and Korean.
English _3
● INSTALLATION
Use the provided USB cable to connect the digital presenter to the PC. Install the Samsung Digital Presenter
program on your PC, which is contained in the provided CD.
installation
INSTALLING THE PROGRAM
Following the instructions below to install the program.
1. Use the USB cable to connect between Samsung Digital Presenter and PC. Then, turn on the digital
presenter.
2. Install the Samsung Digital Presenter program.
For more information, refer to “Installing Samsung Digital Presenter installer program”. (page 5)
Connecting Samsung Digital Presenter to the PC
Connect one end of the USB cable to the USB port of the PC, and the other end to that of the digital
presenter.
Plug the power cable and turn on the presenter.
USB
DVI
VGA OUT
VGA IN 1
VGA IN 2
USB
DC 12V OUT
C-VIDEO
DC 12V IN
0.6A
Digital Presenter
J
 It is recommended to connect the USB cable to the USB port on the main board of your PC.
(Using an extension front port or the bus-power USB hub may cause a problem, depending on the manufacturer.)
Use only the USB cable of less than 4.0m in length.
4_ installation
Installing Samsung Digital Presenter installer program
1. Before connecting the digital presenter to the PC, you must install the provided installer software on
your PC before making USB connection so that the presenter can display video properly.
3. From the start screen of the Wizard, click [Next].
4. The end-user license agreement will be displayed. Click [Yes].
English _5
● INSTALLATION
2. Insert the installation CD to start Auto Run –supported installation. Select a preferred language and
click Install Viewer to start installation.
installation
5. Specify the folder path to save the installation program.
6. To proceed with the next step, click [Next].
7. SDP960 USB Viewer will be installed.
6_ installation
8. When the installation is completed, click [Finish] to exit the installer program.
● INSTALLATION
9. On your desktop, the shortcut to Samsung Digital Present will be created. The
program shortcut menu and product manual shortcut will be created in the [Start]
menu.
J
 You may encounter an error message related to .NET FRAMEWORK during the installation.
This is because .NET FRAMEWORK is not installed on your PC. Install the .NET FRAMEWORK provided in the
installation CD before installing the program. The error message will be displayed.
(.Net Framework 2.0 or later required)
English _7
installation
Questions & Answers
How can I check that my computer supports USB protocols?
1. Let us respond to your question based on Windows Vista. For other Windows system users, locate
the Device Manager through a different path.
2. On desktop of the Windows Vista system, select [Control Panel] [System] [Device Manager].
3. If you can see the USB Universal Host Controller and USB root hub as shown below, your PC has
installed and is running the USB protocols properly.
4. USB 2.0 protocol is supported on your PC if the USB Enhance Host Controller item is displayed as
shown.
How can I uninstall the USB driver and Samsung Presenter Program?
Select [Control Panel] [Add/Delete Programs]. Select SDP960 USB Viewer from the list and click [Add/
Delete] to start uninstalling or restoring the program to your preference. Follow the on-screen instructions
to uninstall the program.
M
 Samsung Digital Presenter does not require you to install/uninstall the USB driver.
Unlike other conventional models, the presenter that supports UVC protocols can be connected directly to your
PC via USB cable without the installation process.
J
 If you want to use the TWAIN feature, install the TWAIN driver provided in the installation CD. You can use the
features of Viewer and TWAIN. However, if you do not want to use TWAIN, it is recommended not to install the
TWAIN driver. And use the product with no other UVC driver than the default.
8_ installation
running the program
RUNNING THE SAMSUNG DIGITAL PRESENTER PROGRAM
Following the instructions below to run the program.
1. Turn on both Samsung Digital Presenter and PC.
3. You will see the start screen of the digital presenter consisting of: main screen and control pane.
J
 If you fail to start the program, check if the presenter is turned on and connected to the PC properly using the
USB cable. Check also if the USB MODE under MISC. SETTING of the digital presenter menus is set to IMAGE.
If it is set to DISK, the presenter will not be launched.
 Do not unplug the power cable or disconnect the USB cable while playing/capturing/saving a video clip using the
digital presenter. Otherwise, it may cause a failure or damage to the digital presenter or PC.
Main Panel of Samsung Digital Presenter at a Glance
b
c
Item
Description
Menu Bar
Consists of 4 menus: Function, View, Option, Help.
b
Toolbar
A collection of frequently used menus. You can hide the tool bar for a larger view of
the image. (Use the applicable button in the menu bar.)
English _9
● RUNNING THE PROGRAM
2. Simply double-click the shortcut to Samsung Digital Presenter on your desktop, or select [Start] [Programs] [SDP960 USB Viewer].
running the program
Item
Description
c
Video Playback
The display area of the image from the lens of the digital presenter.
You can move to the preview screen that enables you to save the image or record
the video.
Video Saving Path
Display the saving path of the current video. (You can change the path in the
recording options.)
Main Menu At a Glance
❖ [Function] Menu
• Clip board
You can capture the current video and save it to the clipboard. Then, the video clip can be inserted in
various programs using the Windows paste menu. (Shortcut Key: F12)
• Quick save
Save the current video clip to the specified path in JPEG format. You can change the saving path and
quality using the Quick Save options. (Shortcut Key: F6)
The file name will be created automatically in the format of: YYYYMMDDHHMMSS.jpg based on the
current time, and you cannot change the name at your own.
(Ex: captured at 19:27:12 April 04, 2011 -> 20110404192712.jpg)
• Still image
You can capture and save the current image. Specify the saving path and file format (JPEG, BMP).
(Shortcut Key: F7)
10_ running the program
• Capture AVI
Start recording the current video in the defined settings. For more information, refer to the recording
section later in this manual. (Shortcut Key: F8)
• Time Lapse
Select this to display the following window.
Frame Record will record one frame of the currently being recorded video at a specified time. If you set
the time to 5 seconds, one frame for every 5 seconds will be recorded. The video recorded by Frame
Record can be played as in the high-speed cinematography effect.
You can specify the recording time to your preference. The recording quality will be set as you specified
in the record options. (Playback of the video clip recorded by Frame Record will be limited to 15 frames
per second.)
J
 If the video clip is not played properly, upgrade the player’s CODEC with the latest version and try again.
 The video clip recorded by the presenter is compressed using MJPG CODEC. It is recommended to upgrade the
player with the latest CODEC supporting MJPEG.
• Print
Print out the current image. You can print out the current image using a selected printer.
• Control Panel
You can show or hide the control panel in the top right corner of the viewer. (Shortcut Key: F10)
English _11
● RUNNING THE PROGRAM
• Stop AVI
This will be activated when video recording is started. If you press the Stop Record button, recording
will end and the recording file will be saved in a safe path. (Shortcut Key: F9)
running the program
❖ [View] Menu
• Fit to window
Fit the current image to the width of the window. Regardless of the window size, the image or video
clip will be displayed according to the input source. The height of the video will extended in proportion
to the width. (Shortcut Key: F3)
• Stretch to window
Fit the current image to the window. (Shortcut Key: F4)
• 50% View
Zoom out the image to 50% of the original. (Shortcut Key: F1)
• 100% View
Restore the original size of the image. (Shortcut Key: F2)
• Full Screen
Display the current image in full screen.
Normal Full Screen (shortcut: F5), Full Screen Normal (shortcut: ESC)
• Portrait mode
Cut the current image to a specific size as appropriate to the portrait.
(The default size is: 3 in width, 4 in height.)
In Portrait mode, video recording will be disabled. You can just capture the current image.
You can change the aspect ratio in [Option] [Portrait]. For more information, refer to the Portrait
Option.
• Input signal Setup
Samsung Digital Presenter supports three quality modes: SXGA, XGA and VGA. For a faster real-time
recording, select VGA; for a sharper and bigger image, select SXGA; for the best picture quality, select
XGA. The video resolution used in saving the video or image will be set to the resolution of the input
source.
M
 Video recording of VGA input source allows you to save the video in a higher frame than SXGA or XGA but it may cause
deterioration of the sharpness or quality of the video.
 SXGA or XGA supports 15FPS while VGA supports playing video in 30FPS.
• Tool Bar ON/OFF
You can show or hide the toolbar under the menu bar. (Shortcut Key: F11)
12_ running the program
❖ [Option] Menu
● RUNNING THE PROGRAM
• Capture Option
You can configure the video recording settings in detail.
- Specify the saving path of the recorded video.
The default path is set to “C:\Samsung T echwin\SDP960 USB Viewer\AVI”.
- You can select to include the audio signal in the video. You will need a microphone when recording
video including the audio signal.
English _13
running the program
- Specify the quality of the video that you want to record. “High” quality will cost you more storage
space.
- Specify the frame rate/sec of the video that you want to record.
However, the frame rate of 30 is not available in SXGA or XGA input mode.
- Specify the video recording time. Select “Manual” if you want to save the recording at a desired
moment by pressing the Stop button. You can specify the time as you want without limitation.
- If you use the functions of ZOOM, FOCUS and BRIGHTNESS, the applicable gauge indicator will be
displayed on the screen. Select this option if you want to hide the OSD gauge during the recording.
14_ running the program
• Quick save Option
You can specify the saving path and quality of the video that you want to save quickly.
● RUNNING THE PROGRAM
- Specify the saving path of the video.
The default path is set to “C:\Samsung Techwin\SDP960 USB Viewer\QuickSave”.
- Select a quality of the video that will be saved by Quick Save.
The better the quality is, the greater the file size is.
• Portrait Option
Specify the width and height of an ID picture. 4 choices commonly used are available, or you can
specify the aspect ratio manually by custom setting.
English _15
running the program
• Hide Panel Option
In full screen mode, you can specify the time the mini control panel is hidden.
Selecting 0 second will not hide the control panel.
❖ [Help] Menu
You can check the program version of the current SDP960 USB Viewer.
Press [About SDP960 Viewer] to display the message below where you can check the program version.
16_ running the program
Toolbar
A collection of frequently used buttons is located under the menu bar.
● RUNNING THE PROGRAM
Input signal selection button. (SXGA, XGA, VGA)
Change the view mode. (50%, 100%, fixed ratio, fit the window)
Full screen mode.
Saving options: Quick Save, Still Image, and Quick Save options.
From the left, Save video, Stop Recording and Record options.
You can show or hide the control panel in the top right corner.
Press this to hide the tool bar under the menu bar.
For more information, refer to the Menu Bar section in this manual. (page 12)
Status Display
Information of the current video will be displayed including resolution, frame rate and recording time.
If recording is yet to start, the status bar displays 30FPS for VGA, and 15FPS for SXGA or XGA. The
recording time displayed is the last recording time. (The default is set to 00:00:00.)
When the recording gets started, the current frame rate and recording time will be displayed.
(During the recording, the two items will be highlighted in green.)
English _17
running the program
Learning about the control panel of Samsung Digital Presenter
You can use Samsung Digital Presenter program to change the settings of the video image from the
presenter and configure the menu settings.
Using the control panel
• In the control panel, you can perform or set: Zoom, Brightness, Focus, Color, lamp, and Freeze.
• The configuration of the control panel buttons is the same as the control panel of the presenter or the
buttons on the remote control. For more information, refer to the user manual of the digital presenter.
b
c
Item
Description
Hide Control Panel
Hide the control panel.
b
AF
Fit the focus automatically.
Each time you press this button, it will toggle between Freeze On and Off.
c
FREEZE
18_ running the program
 If FREEZE is set to DVI/VGA/CVBS ONLY in MISC. SETTING, the video on the
USB viewer will not be frozen. Select ALL DISPLAY if you want to freeze the USB
video.
Item
Display of Function,
Status and Mode
LIVE
If the current mode of the presenter is set to LIVE, the
indicator will be displayed. However, it will not displayed in
PICTURE LIST or MOVIE LIST mode. The upper 10 function
buttons will be deactivated in other than LIVE mode.
Freeze
Display the status of the freeze function: ON/OFF.
Micro
It will be displayed in Microscope mode. Press ESC to exit the
mode.
Macro
It will be displayed in Macro mode. Press ESC to exit the
mode.
Internal/External
Display the internal video of the digital presenter or the
external video from an external player.
Use to exit the OSD menu mode. You can also exit the Microscope or Macro mode
and return to the standard mode by pressing ESC.
ESC
OSD Menu Setup
Lamp On/Off
AWB
 This is available only if WB MODE under IMAGE ADJUSTMENT of the OSD
menu is set to AWB(KEY).
Near / Far
You can adjust the focus manually.
BRIGHTNESS +/-
Open or close the iris of the digital presenter to adjust the screen brightness.
Wide / Tele
Zoom in or out the current image.
Select an OSD menu and use the direction buttons to make your settings.
 If this menu is open, the digital function buttons will be disabled.
Turn on/off the upper lamp.
Adjust or correct the colors automatically.
English _19
● RUNNING THE PROGRAM
Description
running the program
Using the mini control panel
• In full screen mode, the mini control panel smaller than the normal will be displayed.
b
c
Item
Description
Show/Hide Window
Show or hide the mini control panel, or switch to the normal control panel view.
b
Quick save
Save the current video quickly.
c
Freeze
Each time you press this button, it will toggle between Freeze On and Off.
(If FREEZE under MISC. SETTING of the OSD menu is set to DVI /VGA/CVBS
ONLY, the video on the USB viewer will not be frozen. Select ALL DISPLAY if you
want to freeze the USB video.)
Video Status Display
Show the video information such as the current frame rate or recording time.
Video Setup
Record or stop recording a selected video.
Brightness + / -
Open or close the iris of the digital presenter to adjust the screen brightness.
Wide / Tele
Zoom in or out the current image.
ESC
Switch from Full Screen mode to normal mode.
Using only the control panel
• You can use other programs (Skype, Twain, AMCAP) than the provided SDP960
USB Viewer to view the USB video of the digital presenter. If this is the case, click the
SDP960 Control icon on your desktop to launch the control panel only.
J
 The SDP960 Control program will run only if the digital presenter is turned on and connected
to the PC using the USB cable.
20_ running the program
Using the TWAIN driver of the digital presenter
2. Select the TWAIN driver in the graphic application program.
1) For Adobe Photoshop
Move to [File] [Import] and select Samsung Digital Presenter.
2) For Microsoft Office Word 2003
Select [Insert] [Picture] [Insert Picture from Scanner or Camera].
Select Samsung Digital Presenter, and press [Custom Insert].
3) For other applications supporting the TWAIN driver, refer to the user manual of the applicable
application program.
English _21
● RUNNING THE PROGRAM
1. If you want to use the TWAIN driver of the digital presenter, the following system requirements should
be met:
• Install the driver specific to the digital presenter TWAIN (provided in the installation CD)
• Graphic application program in compliance with TWAIN (ex: Photoshop, ACDSEE, MS Office, etc)
• Device Menu: MISC. SETTING USB TWAIN USE
 If USB TWAIN is not set to USE, the video will not be played properly.
If you install the TWAIN driver, be sure to set the USB TWAIN option to USE.
running the program
❖ Scan Image
1. Owing to the TWAIN driver, the video from the digital presenter will be displayed on the screen. Select
a size of the image that you want to scan using TWAIN.
2. When done, click [Capture] to start scanning.
3. When the screen capture is completed, the captured video will be transferred to the graphic
application.
4. According to the graphic application, you can exit the TWAIN driver or select to keep running the
program for a continuous transfer of scanned images. For more information, refer to the user manual
of the graphic application.
J
 Not all of the graphic applications will support the TWAIN driver.
22_ running the program
appendix
COMMONLY USED SHORTCUTS
• [F1]
50% View
● APPENDIX
• [F2]
100% View
• [F3]
Fit to window
• [F4]
Stretch to window
• [F5]
Full Screen
• [F6]
Quick save
• [F7]
Still image
• [F8]
Capture AVI
• [F9]
Stop AVI
• [F10]
Turn the control panel on/off
• [F11]
Turn the toolbar on/off
• [F12]
Save to clipboard
English _23
appendix
TROUBLESHOOTING
Problem
Solution
This is mainly because the digital presenter is not connected to the PC properly using
the USB cable.
If the digital presenter fails to
operate
y Ensure that the presenter is connected properly using the USB cable.
y Terminate all other graphic applications (occupying the USB or system resources in
large portion) that may affect the digital presenter program.
y Turn off the digital presenter and restart it after 10 seconds. Then, run the program
again.
This is because the digital presenter is not connected to the PC properly using the
USB cable.
y Check if the digital presenter turns off or if the USB cable is disconnected.
“Error in USB connection. Connect y Ensure that the length of the USB cable that is connected between presenter and
PC is less than 4m.
the USB cable and try again. ( The
USB 1.1 protocol is not supported. y If too many application programs are running on your PC, the video transfer may
Use USB 2.0 protocols.)” Error
fail due to insufficient memory or resource.
Message
y Check if the USB MODE of MISC. SETTING is set to IMAGE. If it’s set to DISK, the
video transfer will be deactivated. Set it to IMAGE and try again.
y The USB 1.1 protocol is not supported by the digital presenter. Using the USB 1.1
port will fail to transfer the video. Use USB 2.0 port.
This is the case that you simply run the program again that is currently running.
“The program is already running.”
Error Message
y If you re-run the currently running program, it does not open another instance of
the program. You will just see an error message.
y If the program is terminated abnormally, disconnect the USB cable and connect it
back, or reboot the Windows OS.
If the device is not recognized
y If the digital presenter is not recognized by the system, reboot your system and try
again.
“You have no access to the
folder.” Error Message
y In Windows Vista or Windows 7, you may have limited access to the file depending
on the user permission. Try again with the administrator account, or save the file in
the folder (normally, C:\~) that you have access to.
24_ appendix
Problem
Solution
“The SP version of the current OS
is low.” Error Message
y In Windows XP or Vista, the USB device may not be recognized or fail to operate by
system default. If this is the case, install the latest service pack on your PC and try
again.
“Fail to save the image.” Error
Messa
y You have specified the Quick Save or image saving path to an unavailable folder
such as CD-ROM drive, or try to save a write-protection removable disk. Change it
to an internal HDD path and try again.
y The library required to save the image is deleted or damaged. Uninstall the digital
presenter and install it again.
The video playback is too slow.
y The USB device uses CPU resources for data transfer. If your PC has a low
specification or you are running background applications that occupy much of
the system resources, the USB viewer may be deteriorated in performance. It is
recommended to run the USB Viewer of the digital presenter alone if possible.
y If you are using an integrated graphic adapter of DVMT (Dynamic Video Memory
Technology) type, the low-specification graphic adapter has a limit to process the
image, causing deteriorated performance or unintended overlap of images.
The video is not played properly.
y If the video clip is not played properly, upgrade the player’s CODEC with the latest
version and try again.
y The video clip recorded by the presenter is compressed using MJPG CODEC. It is
recommended to upgrade the player with the latest CODEC supporting MJPEG.
English _25
● APPENDIX
You will see the error message in the following cases:
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Toll Free : +1-877-213-1222 FAX : +1-310-632-2195
www.samsungpresenterusa.com
www.samsungtechwin.com
www.samsungpresenter.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
