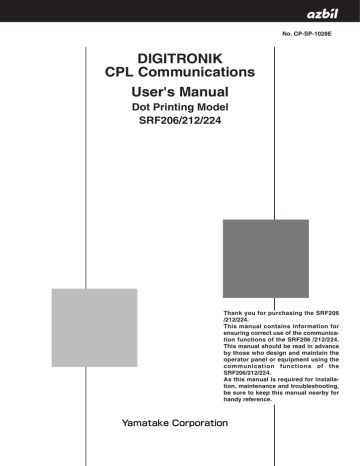

DIGITRONIK

CPL Communications

User's Manual

Dot Printing Model

SRF206/212/224

No. CP-SP-1028E

Thank you for purchasing the SRF206

/212/224.

This manual contains information for ensuring correct use of the communication functions of the SRF206 /212/224.

This manual should be read in advance by those who design and maintain the operator panel or equipment using the communication functions of the

SRF206/212/224.

As this manual is required for installation, maintenance and troubleshooting, be sure to keep this manual nearby for handy reference.

RESTRICTIONS ON USE

This product has been designed, developed and manufactured for general-purpose application in machinery and equipment. Accordingly, when used in the applications outlined below, special care should be taken to implement a fail-safe and/or redundant design concept as well as a periodic maintenance program.

• Safety devices for plant worker protection

• Start/stop control devices for transportation and material handling machines

• Aeronautical/aerospace machines

• Control devices for nuclear reactors

Never use this product in applications where human safety may be put at risk.

IMPORTANT

Writing to EEPROM address is guaranteed only up to 100,000 times.

NOTICE

Be sure that the user receives this manual before the product is used.

Copying or duplicating this user’s manual in part or in whole is forbidden. The information and specifications in this manual are subject to change without notice.

Considerable effort has been made to ensure that this manual is free from inaccuracies and omissions. If you should find an error or omission, please contact Yamatake Corporation.

In no event is Yamatake Corporation liable to anyone for any indirect, special or consequential damages as a result of using this product.

©1998 Yamatake Corporation ALL RIGHTS RESERVED

The DIGITRONIK

TM is a trademark of Yamatake Corporation in Japan.

SAFETY PRECAUTIONS

About Icons

The safety precautions described in this manual are indicated by various icons.

Please be sure you read and understand the icons and their meanings described below before reading the rest of the manual.

Safety precautions are intended to ensure the safe and correct use of this product, to prevent injury to the operator and others, and to prevent damage to property. Be sure to observe these safety precautions.

WARNING

CAUTION

Warnings are indicated when mishandling this product might result in death or serious injury.

Cautions are indicated when mishandling this product might result in minor injury to the user, or only physical damage to the product.

Examples

Use caution when handling the product.

The indicated action is prohibited.

Be sure to follow the indicated instructions.

i

WARNING

Ground the FG (Frame Ground) terminal to a terminal resistance of

100or less before you connect the SRF206/212/224 to the input circuit

or control circuit.

Failure to do so might cause electric shock or fire.

Be sure to turn the source power OFF before wiring the

SRF206/212/224.

Failure to do so might cause electric shock.

Do not touch power terminals and other electrically charged parts.

Doing so might cause electric shock.

Do not disassemble the SRF206/212/224.

Doing so might cause electric shock or faulty operation.

CAUTION

Wire the SRF206/212/224 according to predetermined standards. Also wire the SRF206/212/224 using specified power leads according to recognized installation methods.

Failure to do might cause electric shock, fire or faulty operation.

Use the SRF206/212/224 within the operating ranges recommended in the specifications (temperature, humidity, voltage, vibration, shock, atmosphere, etc.). Failure to do so might cause faulty operation.

Do not allow lead scraps, chips or water to enter the SRF206/212/224.

Doing so might cause fire or faulty operation.

Tighten the terminal screws to the specification torque.

Incomplete tightening might cause electric shock or fire.

Do not use unused terminals on the SRF206/212/224 as relay terminals.

Doing so might cause electric shock or fire.

We recommend attaching the terminal covers after wiring the

SRF206/212/224.

Failure to do so might cause electric shock.

ii

The Role of This Manual

In all, 2 manuals have been prepared for the SRF206/212/224. Read the manual according to your specific requirements.

The following lists all the manuals that accompany the SRF206/212/224 and gives a brief outline of the manual:

If you do not have the required manual, contact Yamatake Corporation or your dealer.

Dot Printing Model Smart Recorder SRF206/212/224

Installation/Operation Manual No.CP-SP-1027E

This manual is required reading for those who use the SRF206/212/224, those who design hardware for integrating the SRF206/212/224 into operator control panels, those who carry out maintenance, and those who operate instruments in which the SRF206/212/224 is integrated. It outlines the hardware configuration, product features and the other products used in combination with the SRF206/212/224.

It also describes how to install and wire the SRF206/212/224 for integrating into instruments, method of operation, maintenance and inspection, troubleshooting, and hardware specifications.

DIGITRONIK CPL Communications Dot Printing Model

SRF206/212/224 Manual No.CP-SP-1028E

This manual.

This manual is required reading for those who use the CPL communication functions of the SRF206/212/224.

It briefly describes CPL communications, how to wire the SRF206/212/224, communication procedures, communication data for the SRF206/212/224, troubleshooting and communication specifications.

iii

Organization of This User's Manual

This manual is organized as follows:

Chapter 1. COMMUNICATION FUNCTIONS

This chapter lists communication functions and model numbers of the

SRF206/212/224.

Chapter 2. WIRING

This chapter describes RS-232C and RS-485 wiring methods to make a communication link between the

SRF206/212/224 and other instruments.

Chapter 3. SETTINGS

This chapter describes

SRF206/212/224 communication settings.

Chapter 4. COMMUNICATION PROCEDURE

This chapter describes communication procedures, message configuration, data read/write and signal timing operations.

Chapter 5. COMMUNICATION DATA TABLE

This chapter provides various data tables for communications on the

SRF206/212/224

.

Chapter 6. MAINTENANCE AND TROUBLESHOOTING

This chapter describes checkpoints to diagnose failures in

SRF206/212/224 communications.

Chapter 7. SPECIFICATIONS

This chapter lists communication specifications for the

SRF206/212/224

.

Appendix

The appendix provides code tables and network configurations using the

CMC10L

RS-232C/RS485 converter.

iv

Contents

SAFETY PRECAUTIONS

Unpacking

The Role of This Manual

Organization of This User's Manual

Conventions Used in This Manual

Chapter 1.

COMMUNICATION FUNCTIONS

Chapter 2.

WIRING

2-1 RS-232C Connection

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

2-1

2-2 RS-485 Connection

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

2-3

Connection with 5-wire system

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

2-3

3-wire system used together

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

2-4

2-3 RS-232C Models

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

2-5

2-4 RS-485 Models

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

2-6

Chapter 3.

SETTINGS

3-1 Communication Setup Items

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

3-1

System Setup

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

3-1

3-2 Initial Setup

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

3-2

Station Address

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

3-2

Transmission Rate and Data Format

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

3-2

Chapter 4.

COMMUNICATION PROCEDURE

4-1 Outline of Communication Procedure and Messages

• • • • • • • • • • • • • • • • • • • • • •

4-1

Communication Procedure

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-1

Message Configuration

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-1

Examples

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-2

Data Address Concept

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-2

4-2 Data Link Layer

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-3

Description

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-3

4-3 Application Layer

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-6

Outline

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-6

4-4 Data Read

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-7

Description of Read Instruction

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-7

Read Response

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-8

Decimal Numeric Expression (numeric data)

• • • • • • • • • • • • • • • • • • • • • • • • • •

4-9

4-5 Data Write

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-10

Description of Write Instruction

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-10

Write Response

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-11

v

4-6 Termination Code Table

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-12

Normal and Abnormal Termination

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-12

4-7 Timing Specifications

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

4-13

Timing Specifications for Instruction and Response Messages

• • • • • •

4-13

RS-485 Driver Control Timing Specifications

• • • • • • • • • • • • • • • • • • • • • • • • •

4-13

Chapter 5.

COMMUNICATION DATA TABLE

5-1 Basic Communication Data Processing

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-1

Communication Data Types and Formats

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-1

Communication Data Storage Memory

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-1

Data Address

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-2

Data Read/Write Count

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-2

Data Unit and Decimal Point Position

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-2

5-2 Communication Data Table

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-3

Control Data

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-3

Process Data Area

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-6

Event Data

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-7

Digital I/O Area (data area)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-8

Common Data Area (common setup items)

• • • • • • • • • • • • • • • • • • • • • • • • • •

5-10

Common Data Area (schedule demand printing)

• • • • • • • • • • • • • • • • • • • •

5-12

Common Data Area (messages)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-13

Common Data Area (digital input)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-14

Common Data Area (digital output)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-15

Common Data Area (user functions)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-16

Common Data Area (copy)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-17

Common Data Area (extended setup)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-17

Segment Table Area

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-18

Channel-independent (range)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-21

Channel-independent (calculation)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-23

Channel-independent (scale)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-24

Channel-independent (event)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-25

Communication Data Area

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-26

Bitmap Data

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-27

Range Code Tables

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

5-30

Chapter 6.

MAINTENANCE AND TROUBLESHOOTING

Check Items in Case Communication is Disabled

• • • • • • • • • • • • • • • • • • • • • •

6-1

Chapter 7.

SPECIFICATIONS

RS-232C Specifications

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

7-1

RS-485 Specifications

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

7-1

vi

APPENDIX

Code Table

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

App.-1

SRF Character Code Table

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

App.-2

Connection With CMC10L

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

App.-3

Conventions Used in This Manual

The following conventions are used in this manual:

Handling Precaution

: Handling Precautions indicate items that the user should pay attention to when handling the xxx.

Note

: Notes indicate useful information that the user might benefit by knowing.

(1), (2), (3) : The numbers with the parenthesis indicate steps in a sequence or indicate corresponding parts in an explanation.

vii

Chapter 1.

COMMUNICATION FUNCTIONS

• On a system operating on the RS-232C interface, a master station (a host computer, usually a PC) is connected to the instrument in a point-to-point configuration. At this time, only one instrument can communicate with the master station using a preset station address.

• On a system operating on the RS-485 interface, up to 31 instruments (see * 1) can be connected to a master station. Station addresses are then used to identify other stations for communication.

• The communication protocol and format conform to the RS-232C and RS-485 interfaces.

When the following procedure is established during communication, instrument data can be read or written:

1. The master station (host computer) transmits a request message to the slave station.

2. The master station receives a response message from the slave station.

The master station issues two types of requests to a slave station: read and write.

The type of read/write data can be optionally selected with a data address.

• CPL (Controller Peripheral Link) Communications isYamatake host communication protocol.

RS-232C connection example RS-485 connection example RS-485 connection example

Master station Master station

Master station

RS-232C

RS-232C

RS-232C/RS-485 converter

RS-485 (5-wire system)

RS-232C

CMC10L001A000

*2

RS-485 (35-wire system)

Slave station

Slave station

Slave station

Connection between master station and slave station

Connection between master station and slave station

• The high-performance communication controller CMC10L is available for conversion between the RS-232C and

RS-485 interfaces.

* 1 : When the master station is an MA500 DIM or CMC10L , it can be connected to up to 16 slave stations.

*

2 : The communication adapter

CMC10L is an RS-232C/RS-485 converter available from Yamatake .

1-1

Chapter 2.

WIRING

2 - 1 RS-232C Connection

WARNING

Ground the FG (Frame Ground) terminal to a terminal resistance of

100or less before you connect the SRF206/212/224 to the input circuit

or control circuit.

Failure to do so might cause electric shock or fire.

Be sure to turn the source power OFF before wiring the SRF206/212/224.

Failure to do so might cause electric shock.

Do not touch power terminals or other electrically charged parts.

Doing so might cause electric shock.

CAUTION

Wire the SRF206/212/224 according to predetermined standards. Also wire the SRF206/212/224 using specified power leads according to recognized installation methods.

Failure to do might cause electric shock, fire or faulty operation.

Do not allow lead scraps, chips or water to enter the SRF206/212/224.

Doing so might cause fire or faulty operation.

Tighten the terminal screws to the specification torque.

Incomplete tightening might cause electric shock or fire.

Do not use unused terminals on the SRF206/212/224 as relay terminals.

Doing so might cause electric shock or fire.

We recommend attaching the terminal covers after wiring the

SRF206/212/224.

Failure to do so might cause electric shock.

An SRF206/212/224 supporting an RS-232C communication function is wired for communication as shown below.

Communication with the master station in a point-to-point configuration

The SRF206/212/224 is provided with three communication terminals (RD,

SD and SG). Data may not be output unless the other terminals of the master station RS-232C interface are short-circuited as shown in figure on the next page.

Usually, the pin array of the RS-232C connector of a PC is as shown in the figure on the next page (terminal mode). The locations of pins SD and RD, RS and CS and DR and ER may be reversed (MODEM mode), but this is rare.

Check the RS-232C pin array in the host computer instruction manual.

2-1

Chapter 2. WIRING

RD

SD

SG

RS

CS

DR

CD

ER

8

6

5

7

2

3

1

4

SD

RD

SG

Host computer (master station)

DIGITRONIK control (slave station)

Example of connection using

Yamatake CBL232FNZ02

Note

Cable model No.

: CBL232FNZ02

(2m cable for RS-232C, 9pin D-Sub socket↔contact-crimptype terminal lug)

RS-232C connector signals

9 pins

Pin No. JIS Code Name

5

6

3

4

1

2

7

8

CD

RD

SD

ER

SG

DR

RS

CS

DCD

RxD

TxD

DTR

GND

DSR

RTS

CTS

Signal Direction

Host-station

2-2

Chapter 2. WIRING

2 - 2 RS-485 Connection

Connection with 5-wire system

The following is an example of a system connection of a DIGITRONIK control supporting the RS-485 communication function using the 5-wire system:

Terminating resistor

Terminating resistor

DIGITRONIK control or

5-wire system(slave station)

SDA

SDB

RDA

RDB

SG

FG

Shielded cable

Master station

RDA

RDB

SDA

SDB

SG

FG Shielded cable

DIGITRONIK control or

5-wire system(slave station)

SDA

SDB

RDA

RDB

SG

FG

Shielded cable

Terminating resistor

Terminating resistor

DIGITRONIK control or

5-wire system(slave station)

SDA

SDB

RDA

RDB

SG

FG

Connect a terminating resistor of 150Ω±5%, 1/2W min. to the instrument at each end of the transmission line. Connect only one end of the shielded wire to the frame ground.

Other 3-wire system DIGITRONIK units of Yamatake can be used on the same communication line. Conduct the wiring shown at the item "

■ 3-wire system used together" on next page.

Handling Precautions

Be sure to connect SG terminals each other. Failure to do so might cause unstable communications.

2-3

Chapter 2. WIRING

3-wire system used together

An SRF206/212/224 supporting the RS-485 communication function can also be used in a 3-wire system. The following is an example of such a connection:

Terminating resistor

DIGITRONIK control or

5-wire system (slave station)

SDA

*

*

SDB

RDA

RDB

SG

FG

Master station

RDA

RDB

SDA

SDB

SG

*

*

FG

Shielded cable

Shielded cable

3-wire system (slave station)

DA

DB

Shielded cable

Terminating resistor

SG

FG

DIGITRONIK control or

5-wire system (slave station)

SDA

*

*

SDB

RDA

RDB

SG

FG

Connect one terminating resistor of 150Ω±5%, 1/2W min. to the instrument at each end of the transmission line. Connect only one end of the shielded wire to the frame ground.

(*) must be wired externally.

On 3-wire system, the CMC10L001A000 of Yamatake can be used as a coverter for master station.

See, "

■ Connection with CMC10L" (Page App.-3) for details.

Handling Precautions

Be sure to connect SG terminals each other. Failure to do so might cause unstable communications.

2-4

Chapter 2. WIRING

2 - 3 RS-232C Models

The communication terminal array of an RS-232C model supporting the communication function is as follows:

1

2

3

N

1

2

3

4

5

6

7

8

9

10

11

14

15

12

13

16

17

18

19

20

21

24

25

22

23

26

27

28

29

30

Communication terminals

Option unit 1

RS-232C

(Yamatake CPL communications)

SD

RD

SG

9

10

19

20

29

30

Connection example :

RD

SD

SG

RS

CS

DR

CD

ER

2

3

5

7

8

6

1

4

SD

RD

SG

Host computer (master station)

DIGITRONIK control (slave station)

Note

Cable model No. :

CBL232FNZ02

(2m cable for RS-232C, 9pin D-Sub socket contact-crimptype terminal lug)

2-5

Chapter 2. WIRING

2 - 4 RS-485 Models

The communication terminal array of an RS-485 model supporting the communication function is as follows:

Connection example:

1

2

3

RS-485

N

3

4

5

6

1

2

7

8

9

10

25

26

23

24

21

22

27

28

29

30

15

16

13

14

11

12

17

18

19

20

Option unit 1

(Yamatake CPL communications)

SDA

SDB

SG

Terminating resistor

Terminating resistor

Communication terminals

Shielded cable

Master station

RDA

RDB

SDA

SDB

SG

FG

DIGITRONIK control (slave station)

SDA

SDB

RDA

RDB

SG

FG

Shielded cable

DIGITRONIK control (slave station)

SDA

SDB

RDA

RDB

SG

FG

9

10

19

20

29

30

(internally connected at terminal)

RDB

RDA

Shielded cable

Terminating resistor

Terminating resistor

DIGITRONIK control (slave station)

SDA

SDB

RDA

RDB

SG

FG

Connect a terminating resistor of 150

Ω±5%, 1/2W min. to the station at each end of the transmission line. Connect only one end of the shielded wire to the frame ground.

2-6

Chapter 3.

SETTINGS

3 - 1 Communication Setup Items

System Setup

Communication setup items are displayed in system setup screen Nos. “ ”, “ ” and “ ”.

These setup items are not displayed on models that do not support the communications option.

DATA

LOCK

EVNT

COPY

SPD

CLK

SYS

RNG SCL

CH

EVNT

Display No.

Description

Configuration lock

List printing ON/OFF

Menu level

Recording format

Recorder ID No.

Recording time ON/OFF

Scale recording ON/OFF

Recording color selection

Communication access rights

Station address

Communications method

Extended menu entry

Setup Details

Communication access rights : “1” read only

“2” read/write

Station address

Communication method

: “0 to 127”. Communication is inhibited when set to “0”.

: “1” 4800bps, 8bits, even parity, 1 stop bit

“2” 4800bps, 8bits, no parity, 2 stop bits

“3” 9600bps, 8bits, even parity, 1 stop bit

“4” 9600bps, 8bits, no parity, 2 stop bits

3-1

Chapter 3. SETTINGS

3 - 2 Initial Setup

Before starting communication, set up the communication conditions for the SRF206/212/224 and master station.

Station Address

Set a decimal numeric within the range “0” to “127” to system setup screen No.

“ ” on the SRF206/212/224 .

Slave stations connected in a multi-drop configuration on the same transmission line in an RS-485 system must have unique addresses.

The default address is “0”.

Since the communication function is not activated at address “0”, be sure to set a value other than “0” to execute communication.

Transmission Rate and Data Format

Set a decimal numeric within the range “1” to “4” to system setup screen No. “ ” on the SRF206/212/224 .

Use the same transmission rate and data format as on the master station. The default is “1”.

1: 4800bps, 8bits, even parity, 1 stop bit

2: 4800bps, 8bits, no parity, 2 stop bits

3: 9600bps, 8bits, even parity, 1 stop bit

4: 9600bps, 8bits, no parity, 2 stop bits

3-2

Chapter 4.

COMMUNICATION PROCEDURE

4 - 1 Outline of Communication Procedure and Messages

This chapter outlines communication procedures and the concept behind message configuration.

Communication Procedure

The following is a simple breakdown of the communication procedure:

1. The master station transmits an instruction message to a slave station to specify a station for communication.

2. The slave station processes the instruction message, and executes read and write operations.

3. The slave station transmits a response message according to the contents of processing.

4. The master station receives the response message and executes processing.

Message Configuration

A message consists of two layers as shown below. Both the instruction message from a master station and the response message from a slave station take this form.

Data link layer

This layer contains the basic information required for communication.

It also contains message destination and check information.

● Application layer

• This layer is where data read and write operations are executed.

• The content of this layer varies according to the purpose of the operation.

The figure below shows the individual layers.

Application layer

Data link layer

A total of 31 stations

Instruction message from master station

Response message from slave station

Slave stations

Master station

The driver of the data link layer knows:

¥ Destination (station address)

¥ Load check sheet (checksum)

Application layer

Data link layer

The load (data) of the application layer changes every time according to the purpose of the operation.

4-1

Chapter 4. COMMUNICATION PROCEDURE

Examples

Messages have the following structure:

Read instruction

・Instruction message

STX 0 1 0 0 X R S , 1 0 0 1 W , 2 ETX 9 A CR LF

Data link layer Application layer Data link layer

・Response message

STX 0 1 0 0 X 0 0 , 0 , 4 2 ETX 9 4 CR LF

Data link layer Application layer Data link layer

Write instruction

・Instruction message

STX 0 1 0 0 X W S , 1 0 0 1 W , 5 8 ETX 5 A CR LF

Data link layer Data link layer Application layer

・Response message

STX 0 1 0 0 X 0 0 ETX 8 2 CR LF

Data link layer

Application layer

Data link layer

The following sections describe in detail the data link layer and application layer:

Data Address Concept

The SRF206/212/224 uses “data addresses” to read and write data. Data addresses allow data to be written and read to and from a corresponding address for the data.

Data A

Data B

Data C

:

501W

502W

503W

:

See Chapter 5. “COMMUNICATION DATA TABLE” for information on the relationship between data and address.

4-2

Chapter 4. COMMUNICATION PROCEDURE

4 - 2 Data Link Layer

Description

• The data link layer contains eight types of basic message transmission information.

• The instruction message and response message have the same structure in the data link layer.

STX

Station address

Subaddress

Device ID code

The underlined SRF200 parameters ( ) are set to fixed values.

ETX

Checksum

CR

LF

02H 30H 41H 30H 30H 58H 52H 53H 2CH 31H 30H 30H 31H 57H 2CH 32H 03H 38H 41H 0DH 0AH

STX 0 A 0 0 X R S , 1 0 0 1 W , 2 ETX 8 A CR LF

Data link layer Application layer Data link layer

The following describes each function of the data link layer:

STX (Start of TeXt)

◆ Role

: Indicates the beginning of a message.

Description • Fixed at 02H.

• When the instrument receives an STX, it is identified as the first character of a new instruction message regardless of location with a message.

Station address

◆ Role

: Specifies the destination station, and allows communication with the specified station.

Description • If “0” is set as the station address, the communication function is stopped.

So, to enable communication be sure to set an address value of

“1” or more.

• Two hexadecimal characters. For details, see the example.

• See

Chapter 3. “SETTINGS”

for information on station address settings.

Example : When the station address of the other instrument is “10”:

1. 10 (decimal) = 0AH (hexadecimal)

2. This can be converted into character codes:

0 = 30H, A = 41H

3. “0A” (30H, 41H) calculated in example 2 is used as the station address.

Handling Precautions

Note that the function of the station address differs entirely from that of the data address of the application layer.

Subaddress

Description

:

The subaddress is meaningless on the SRF206/212/224 .

Be sure to set a subaddress of “00” (30H, 30H) that has the same format as the station address.

Device ID code

Description

:

Only character codes “X” (58H) or “x” (78H) can be set on the

SRF206/212/224 .

4-3

Chapter 4. COMMUNICATION PROCEDURE

ETX (End of TeXt)

◆ Role

: Indicates the end of the application layer.

Description : Fixed at 03H.

Checksum

◆ Role

: A value to be used to check whether or not a message has been corrupted by an error (such as noise) during communication.

Description

Two hexadecimal characters.

This function operates as follows:

1. Add one byte each to the character codes of the message from

STX to ETX.

2. Derive the two’s complement of the result of this addition.

3. Convert the result into character codes.

Example : The instruction message on the preceding page is used in the following example:

1. Add one byte each to the character codes from STX to ETX.

The lower-order one byte of the calculation result is 76H.

2. The result of two’s complement addition is 8AH.

3. 85H is converted into character codes and used as the checksum value. The result is “8A”, (38H) and (41H).

See the station address example (on the preceding page) for information on character code conversion.

Handling Precautions

The checksum in the instruction message can be omitted, but no checksum is then included in the response message. The checksum function should not be omitted to ensure proper message reception and transmission.

4-4

Chapter 4. COMMUNICATION PROCEDURE

CR and LF (Carriage Return/Line Feed)

◆ Role

: Indicates the end of a message.

Description • “CR” is (0DH), and “LF” is (0AH).

• Be sure to use CR and LF in pair.

Handling Precautions

● If any of the following errors occur in the data link layer, the instrument respond:

• The communication conditions for both stations do not match (different transmission speeds or the occurrence of a parity error).

• The address of the transmitting station differs from the station address for the receiving station.

• The station address is “00”.

• STX, ETX, CR and LF are not placed at the specified positions.

• The device ID code is neither “X” nor “x”.

• The station address, subaddress or checksum is not two charactersdoes not long.

• The calculation result of the checksum does not match the checksum of the message.

• Non-specified characters are included in the message.

● The data link layer contains a response message which is identical to the instruction message except for the checksum function.

● Use upper-case characters “A” to “F” in the hexadecimal numerics for the station address and checksum.

4-5

Chapter 4. COMMUNICATION PROCEDURE

4 - 3

Outline

Application Layer

• The application layer contains instructions, data, data count and termination code.

• In the application layer, the instruction message and response message have a different structure.

• There are two types of instruction messages: read instructions and write instructions. Each of these instruction messages have their own responses.

• A termination code indicates how an instruction message has been processed.

Application layer Instruction message

Read instruction

Instruction code (RS)

Leading data address

Read data count

Write instruction Instruction code (WS)

Leading data address

Write data

Response message

Read response

Write response

Termination code

Read data

Termination code

4-6

Chapter 4. COMMUNICATION PROCEDURE

4 - 4 Data Read

Description of Read Instruction

• This instruction permits the contents of continuous data addresses starting from the specified leading read data address to be read in one message.

• The application layer of a read instruction consists of the following three types of data:

Read instruction code

Leading read data address

Read data count

02H 30H 31H 30H 30H 58H 52H 53H 2CH 31H 30H 30H 31H 57H 2CH 32H 03H 39H 41H 0DH 0AH

STX 0 1 0 0 X R S , 1 0 0 1 W , 2 ETX 9 A CR LF

Data link layer Application layer Data link layer

• Individual data items are delimited by a comma “,” (character code 2CH).

• An upper-case character code is used for each numeric or character in the application layer.

• A decimal number is used for each numeric.

• Additional “0”s or spaces cannot be added to each data item.

Example : The underlined portion of “RS,01001W,2” is not allowed

Example incorrect.

: The underlined portions of “RS, 1001W,02” are not allowed

Example incorrect.

: The above example shows that two-data items are read from

1001W as one message.

Read instruction code (RS)

◆ Role

: A read command

Description : Two “RS” (52H, 53H) characters

Leading read data address

◆ Role

: Specifies the leading read data address.

Description

See

Chapter 5. “COMMUNICATION DATA TABLE”

for information on the relationship between data addresses and read data.

Be sure to append the numeric representing the data address with

“W” (57H).

Read data count

◆ Role

: Specifies how many data items are read continuously, starting with the specified data address.

Handling Precautions

See Chapter 5.“COMMUNICATION DATA TABLE” for information on the upper limit of the read data count.

4-7

Chapter 4. COMMUNICATION PROCEDURE

Read Response

Termination Code

◆ Role

: When the message in the data link layer is correct, a response message is sent back according to the contents of the instruction message.

Description : All data in the application layer is expressed in decimal character code.

◆ Role

: A numeric which specifies how the instruction message has been processed by the instrument.

Different values are set according to the processing result.

Description : The response message must include a termination code. The termination codes are classified as follows:

Termination code Normal

Warning

* The termination code is a

2-digit decimal.

Abnormal

Normal response/warning response

◆ Role

: Sends back the read data.

Description : Information in the application layer

Termination code : See

4-6 “Termination Code Table”

for information on

Read data termination codes.

: Only the specified number of data items are input.

: The decimal point is removed from a numeric when it is entered.

Example : “55.6” is converted to “556” when entered.

: Individual data items are delimited by a comma “,”(2CH).

: The range and number of digits of each data item depend upon the read data.

Example : A normal response (when two data items are read properly)

Termination code (00 = normal)

Read data

02H 30H 31H 30H 30H 58H 30H 30H 2CH 31H 32H 33H 2CH 38H 37H 30H 03H 46H 35H 0DH 0AH

STX 0 1 0 0 X 0 0 , 1 2 3 , 8 7 0 ETX F 5 CR LF

Data link layer Application layer Data link layer

Example : A warning response (❈❈ indicates the warning code numeric.)

Termination code (

❈❈

= warning)

Read data

02H 30H 31H 30H 30H 58H

H

H 2CH 30H 2CH 38H 37H 30H 03H ??H ??H 0DH 0AH

STX 0 1 0 0 X

❈ ❈

, 0 , 8 7 0 ETX ?

?

CR LF

Data link layer Application layer Data link layer

4-8

Chapter 4. COMMUNICATION PROCEDURE

Abnormal response

◆ Role

: Indicates that there is an abnormality in an instruction message, which contains no data and cannot be normally read.

Description : Information in the application layer

Termination code : Indicates an abnormality type.

: See

4-6 “Termination Code Table”

for details.

Example : An abnormal response

Termination code

(

❈❈

= error)

02H 30H 31H 30H 30H 58H

H

H 03H ??H ??H 0DH 0AH

STX 0 1 0 0 X

❈ ❈

ETX ??

??

CR LF

Data link layer Application layer Data link layer

Decimal Numeric Expression (numeric data)

◆ Role

: All the numerics, read count, write value (see the description of the WS command) and read data in the data address follow the rules given below.

(1) When a numeric is negative, prefix the numeric with a minus sign “-” (2DH).

Example : “-123” (2DH, 31H, 32H, 33H)

(2) When a numeric is “0”, use one “0”.

Example : “0” (30H)

Example : “00” (30H, 30H) is not allowed.

(3) When a numeric is positive, never prefix the numeric with a plus sign “+”.

(4) Never add additional “0”s or spaces before a numeric.

Example : “0123” (30H, 31H, 32H, 33H) is not allowed.

Example : “ 123” (20H, 31H, 32H, 33H) is not allowed.

4-9

Chapter 4. COMMUNICATION PROCEDURE

4 - 5 Data Write

Description of Write Instruction

• This instruction permits the contents of continuous data addresses starting with the specified leading write data address to be simultaneously written in one message.

• The application layer of a write instruction consists of the following three types of data:

Write instruction code

Leading write data address

Write data (1st data item)

Write data (2nd data item)

02H 30H 31H 30H 30H 58H 57H 53H 2CH 31H 30H 30H 31H 57H 2CH 32H 2CH 36H 35H

STX 0 1 0 0 X W S , 1 0 0 1 W , 2 ,

6

5

Data link layer Application layer

03H 46H 45H 0DH 0AH

ETX F E CR LF

Data link layer

Individual data items are delimited with a comma “,” (character code 2CH).

The write data count need not be specified.

• An upper-case character code is used for each numeric or character in the application layer.

A decimal number is used for each numeric.

Additional “0”s (30H) or spaces cannot be added to each data item.

Example

Example

Example

: The underlined portion of “WS,01001W,2” is not allowed.

: The underlined portions of “WS, 1001W,02” are not allowed.

: The above example shows that “2” and “65” are written at address 1001W and 1002W in one message.

Write instruction code (WS)

◆ Role

: A write command

Description : Two “WS” (57H, 53H) characters

Leading write data address

◆ Role

: Specifies the leading write data address.

See

Chapter 5. “COMMUNICATION DATA TABLE”

for information on the relationship between data addresses and write data.

Be sure to append the numeric representing the data address with

“W” (57H).

Write data

◆ Role

: Data to be written to continuous addresses starting with the specified data address.

Description

The range of a numeric to be written differs according to each data address.

• Individual data are delimited by a comma “,” (2CH).

The data address at which the corresponding data is written is incremented by 1 sequentially, starting with the leading data address (see the example given on the preceding page).

• The number of data item which can be written in one message is limited. See

Chapter 5. “COMMUNICATION DATA

TABLE”

for details.

4-10

Chapter 4. COMMUNICATION PROCEDURE

Write Response

◆ Role

: When the message in the data link layer is correct, only the termination code is sent back.

Description : The termination codes are classified as follows:

Termination code Normal

Warning

* The termination code is a

2-digit decimal.

Abnormal

Normal response/warning response

◆ Role

: Returns how the write instruction message has been processed.

Only a normal termination code or warning termination code is returned.

Description : Information in the application layer

Termination code : A numeric specifying how the instruction message has been processed by the instrument.

Example : Normal response (when all data items are correctly written)

Termination code (00 = normal)

02H 30H 31H 30H 30H 58H 30H 30H 03H 38H 32H 0DH 0AH

STX 0 1 0 0 X 0 0 ETX 8 2 CR LF

Data link layer Application layer Data link layer

Example : A warning response (❈❈ indicates the warning code numeric.)

Termination code (

❈❈

= warning)

02H 30H 31H 30H 30H 58H ??H ??H 03H ??H ??H 0DH 0AH

STX 0 1 0 0 X

❈ ❈

ETX ?

?

CR LF

Data link layer Application layer Data link layer

Abnormal response

◆ Role

: Only the abnormal termination code is returned.

Description : Information in the application layer

Termination code : Indicates that there is an abnormality in the instruction message, and that write processing cannot be executed.

See

4-6 “Termination Code Table”

for details.

Example : An abnormal response (❈❈ indicates an abnormal response.)

Termination code (

❈❈

= error)

02H 30H 31H 30H 30H 58H

H

H 03H ??H ??H 0DH 0AH

STX 0 1 0 0 X

❈ ❈

ETX ?

?

CR LF

Data link layer Application layer Data link layer

4-11

Chapter 4. COMMUNICATION PROCEDURE

4 - 6 Termination Code Table

Normal and Abnormal Termination

Type

Normal

Abnormal

Abnormal

Abnormal

Abnormal

Abnormal

Abnormal

Warning

Response

Code

00

99

40

41

42

43

44

46

Description

Normal termination

Command error

Format error

Data item number error

Address range error

Numeric abnormality error

Numeric value range abnormal error

Write inhibit status error

Warning

Warning

Warning

81

30

31

Write inhibit data error

Instrument control error

Write busy error

Reason for Occurrence Read Data

Command has been processed normally.

Undefined command has been received.

CPL application error

Too many or too few read data items

Write address contains access inhibit flag.

Write data whose value is not within range

-32768 to +32767 is included.

Write data other than the specified value is included.

The write command was received in a write inhibit status.

Write address contains a read-only address or an address relating to an unmounted channel.

A nonexecutable control command has been received.

The write command was received during writing on the instrument.

Present

Not present

Not present

Not present

* A “nonexecutable control command” is a control command that cannot be executed depending to the operating status of the recorder such as a feed request issued during printing.

* When two or more errors occur simultaneously, the response code having the higher priority is returned first.

4-12

Chapter 4. COMMUNICATION PROCEDURE

4 - 7 Timing Specifications

Timing Specifications for Instruction and Response Messages

When a slave station is connected with the master station directly via the RS-232C interface, the following precautions regarding the transmission timing of instruction messages from the master station and response messages from the slave station should be observed:

Response time-out

The maximum response time from the end of the instruction message transmission by the master station until when the master station receives a response message from the slave station is one second ((1) in figure). So, the response time-out should be set to one second.

Generally, when a response time-out occurs, the instruction message is resent.

For details, see Chapter 6. “COMMUNICATION PROGRAM FOR MASTER

STATION.”

Transmission start time

A wait time of 10ms or more is required before the master station starts to transmit the next instruction message (to the same slave station or a different slave station) after the end of receiving a response message ((2) in figure).

RS-485 3-wire system

(1) (2)

Transmission line

Instruction message

Response message

Instruction message

Response message

RS-485 5-wire system and RS-232C

(1) (2)

Master station, transmission line

Slave station, transmission line

Instruction message

Response message

Instruction message

Response message

(1) End of master station transmission - Transmission start time of slave station = 1s max.

(2) End of slave station transmission - Transmission start time of master station = 10ms min.

RS-485 Driver Control Timing Specifications

When the transmission/reception on the RS-485 3-wire system is directly controlled by the master station, care should be paid to the following timing:

(1) (4)

Master station

Driver control

(enable)

(disable)

Transmission line

Effective data

(instruction message)

Slave station

Driver control (disable)

(2)

Effective data

(response message)

(enable)

(3)

End of master station transmission

End of slave station transmission

(1) End of master station transmission - Driver disable time = 500 s max.

(2) End of slave station reception - Driver enable time = 1ms min.

(3) End of slave station transmission - Driver disable time = 10ms max.

(4) End of master station reception - Driver enable time = 10ms min.

4-13

Chapter 5.

COMMUNICATION DATA TABLE

5 - 1 Basic Communication Data Processing

Communication Data Types and Formats

Types of communication data

There are two types of communication data:

Run status: Data indicating the run status (PV, event, etc.) of the instrument.

Configuration: Data (event setting values, etc.) for setting the instrument status.

Format of communication data

Communication data is classified into the following formats:

Numeric data: Data indicating a numeric value (PV, etc.).

Bit data: Data where each bit is significant (alarms, etc.). Bit data must

Text data: be composed by transmission and decomposed by reception.

Data indicating text.

Text data (unit, tag name, etc.) must be converted according to the character code table.

For details on character data, see ■

SRF Character Code

Table (App.-2)

.

IMPORTANT

Writing to EEPROM addresses is guaranteed only up to 100,000 times.

Communication Data Storage Memory

Memory type

The communication data handled on the

SRF206/212/224

(excluding some data items such as time data) is stored in the following two types of memory:

• RAM:

EEPROM:

Stored data is cleared when the power is turned OFF. However data can be written to this memory any number of times.

Stored data is retained even when the power is turned OFF, whereas data write operations are limited to a total of 100,000 times owing to device characteristics.

When data is written to RAM by communications on the

SRF206/212/224

, the data is also automatically written to EEPROM excluding control data and other data items.

Communication memory devices

Data is transferred automatically between RAM and EEPROM as required. For this reason, there is no need to be conscious of these two types of memory.

5-1

Chapter 5. COMMUNICATION DATA TABLE

Data Address

The data addresses are allocated as in the table below.

Communication Data

Control data

Process data

Event data

Digital I/O

Common data

Segment table data

Channel data

Communication data

Address

300 to 399

400 to 449

450 to 499

500 to 599

600 to 999

1000 to 1099 nn00 to nn99 *

3500 to 3999

* Address “nn” is a value obtained by adding “10” to channels “1” to “24”.

For example, “nn” becomes “11” in the case of channel 1.

Data Read/Write Count

The number of data items that can be read and written continuously in a single communication operation is determined within a range in which the command frame length is less than 256bytes.

Data in the continuous data that does not exist due to differences in model Nos. is handled as follows:

• Reading: “0” is read as dummy data (warning response is returned).

• Writing: Data is not written (warning response is returned).

Handling Precautions

Command frames up to 256bytes in length sometimes cannot be handled depending on the hardware and software of the master station in use. (For example, N88 BASIC can handle only up to 255bytes.) If this happens, limit the command frame length to match the limitations of the master station.

Data Unit and Decimal Point Position

Read/write data is not appended with a decimal point.

The unit and decimal point position is determined for each data item.

For details on the data unit and decimal point position, see the SRF206/212/224

Installation/Operation Manual.

Example:

Let’s assume that the data to be read and written is numeric data “105”. The data unit and decimal point position is automatically determined by the data address and instrument setup items.

So, the numeric data “105” can have various meaning such as 10.5% and 105°C depending on the data address to be read and written.

5-2

Chapter 5. COMMUNICATION DATA TABLE

5 - 2 Communication Data Table

The address and read/write (R/W) enable status of each data item to be determined are shown in the table below.

Meaning of R/W column symbol

« R/W enabled

X R/W disabled

Control Data

Item

Address

R W Meaning of Data

Recording start/stop 300 X

«

Starts/stops recording.

0: Stop recording

1: Start recording

• If “1” is written before a complete recording stop status (wire dot head is at home position) after “0” is written, response code 30 is returned.

• If a write is carried out during chart feeding, response code 30 is returned.

• If “1” is written during printing, the recording standby status is entered, and recording is resumed when printing ends.

If “1” is written during recording standby, response code 30 is returned.

• An error response is not returned even if “1” is written in a recording start status.

Demand printing start/stop 301 X

«

Starts/stops demand printing.

0: Stop demand printing

1: Start demand printing

• If “1” is written during printing or chart feeding, response code 30 is returned.

List printing start/stop 302 X

«

Starts/stops list printing.

0: Stop list printing

1: Start specified list printing

2: Start range/scale settings printing

3: Start event and DI/DO settings printing

4: Start MSG, S.DMD, UF and communications settings printing

5: Start segment table settings printing

6: Start all list printing

7: Start communications list printing

• If “1” to “7” is written during printing, chart feeding or recording, response code 30 is returned.

Chart feed 303 X

«

Feeds chart by about 40mm.

0: Feed OFF

1: Starts chart feed

• Chart feed automatically stops when chart is fed 40mm.

• Chart feed does not stop even if “0” is written during feeding.

• If “1” is written during printing, chart feeding and recording, response code 30 is returned.

• When the feed key on the instrument body is manipulated during chart feeding by this command, feed stops when the key is released.

Start message printing 304 X

« Prints eight messages

0: Printing OFF

1 to 8: Starts printing of No.1 to No.8 messages.

• Printing does not stop even if “0” is written during message printing.

• If “1” is written with the message print buffer full, response code 30 is returned.

Chart feed speed/scale selection 305 X

«

Switches chart feed speed/scale.

1: No.1 chart feed speed/No.1 scale

2: No.2 chart feed speed/No.2 scale

• The scale is switched according to the channel whose scale switching method is preset to contact input/communications.

• When the power is turned OFF, this item is reset to 1 (No.1 chart feed speed/No.1 scale).

5-3

Chapter 5. COMMUNICATION DATA TABLE

Item

Address

R W Meaning of Data

Reset integrating calculation 306 X

«

Clears integrating calculation or F value calculation

Bitmap data No.1 (see page 5-27)

0 to 63

• If “0” is written, the reset status stays as it is, and integrating calculation is not started unless “1” is written.

• The initial status after the power is turned ON is “0” (reset).

• If one of internal DI, external DI or communications is continuing when a DI function is set to integrating calculation reset, the integrating calculation is continued. (Integrating calculation is reset by all reset.)

Clear batch counter 307 X

« Clears the batch count to “0”

0: Continues count.

1: Clears count.

• If “1” is written, the count status is automatically returned to after it is cleared.

• By clearing the batch counter, the batch count value is cleared to “0”.

• If the batch count value is read before start of recording immediately after the batch counter is cleared, “0” is read.

• The counter is incremented by “1” when recording is started. So, batch count “0” is never printed by recording printing.

Recording status 310

«

X

Reads recording status.

0: Recording stopped

1: Recording in progress

• When recording is stopped during movement of the wire dot head, “0” is read even if a complete recording status is not entered.

Demand printing status 311

«

X

Reads the demand printing status.

0: Demand printing stopped

1: Demand printing in progress

• When printing is stopped during movement of the wire dot head, “0” is read even if a complete printing status is not entered.

List printing status 312

«

X

Chart feed status

Message print status

Chart feed speed/ scale selection status

Integrating calculation status

313

314

315

316

«

«

«

«

X

X

X

X

Reads the list printing status.

0: Stop list printing

1: Specified list printing

2: Range/scale settings printing

3: Event and DI/DO settings printing

4: MSG, S.DMD, UF and communications settings printing

5: Segment table settings printing

6: All list printing

7: Communications list printing

Reads the chart feed status.

0: Chart feed stopped

1: Chart feed in progress

Reads the message printing status.

0: Message printing stopped

1 to 8: No.1 to No.8 message printing in progress

Reads the currently selected chart feed speed.

1: No.1 chart feed speed/No.1 scale

2: No.2 chart feed speed/No.2 scale

Reads integrating calculation or F value calculation

Bitmap data No.2 (see page 5-27)

0 to 16191

• Bits b0 to b5 indicate the status of integrating calculation reset (306W) that is written by communications.

Integrating calculation sometimes is continued by DI even these bits are in a reset status.

• Bits b8 to b13 indicate the status of the actual integrating calculation.

These become “1” when one of communications, internal DI and external DI.

5-4

Chapter 5. COMMUNICATION DATA TABLE

Item

Address

R W Meaning of Data

Batch count value 317

«

X

Reads the current batch count value.

0 to 99

• By clearing the batch counter, the batch count value is cleared to “0”.

• If the batch count value is read before the start of recording, immediately after the batch counter is cleared,

“0” is read.

• The counter is incremented by “1” when recording is started. So, batch count “0” is never printed by recording printing.

Binary count value

Instrument alarm status

Basic catalog No. information

Option information

318

380

397

398

«

«

«

«

X

X

X

X

Reads the binary count value.

0 to 99

Reads the information of alarms that occur on the instrument.

Bitmap data No.3 (see page 5-27)

-32768 to +32767

Reads the basic catalog No. information of the instrument.

206: 6-dot model

212: 12-dot model

224: 24-dot model

Reads options that can be operated on the instrument.

Bitmap data No.4 (see page 5-28)

0 to 254

• Optional functions that can be operated on the instrument may vary from the currently mounted optional functions.

Software information 399

«

X

Reads the software version.

100h onwards

The software version is expressed in Hexadecimal.

For example: Version 1.13 = 113h,

Version 0.25 = 25h

5-5

Chapter 5. COMMUNICATION DATA TABLE

Process Data Area

Item

Address

R W Meaning of Data

Event status summary 400

401

X

Reads the summary of the event occurrence status of channels 1 to 24.

Bitmap data No.5 (see page 5-28)

-32768 to +32767

Bitmap data No.6 (see page 5-28)

0 to 256

• Even if one of the upper and lower limit events of events No.1 to No.4 occurs, the assigned bit becomes “1”.

PV value (channel 1)

PV value (channel 2)

PV value (channel 3)

PV value (channel 4)

PV value (channel 5)

PV value (channel 6)

PV value (channel 7)

PV value (channel 8)

PV value (channel 9)

PV value (channel 10)

PV value (channel 11)

PV value (channel 12)

PV value (channel 13)

PV value (channel 14)

PV value (channel 15)

PV value (channel 16)

PV value (channel 17)

PV value (channel 18)

PV value (channel 19)

PV value (channel 20)

PV value (channel 21)

PV value (channel 22)

PV value (channel 23)

PV value (channel 24)

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Reads the PV values of channels 1 to 24.

-32767: Recording mode OFF

-32768: Relative humidity calculation error

-20000: Minus-side overload or overflow

-19999 to +29999: Normal input

30000: Plus-side overload or overflow

32767: Non-measured data

• The PV value after calculation is read when the calculation has been set.

• In the case of the ON/OFF range, 0 = OFF and 1 = ON.

• For details on the decimal point in linear scale ranging, refer to the engineering range decimal point (page 5-

21).

Note

: The content of the event status summary in the process data area

(address 400W) is same as the event status summary in the event data

(address 450W). And the content of the event status summary in the process data area (address 401W) is same as the event status summary in the event data (address 451W).

5-6

Chapter 5. COMMUNICATION DATA TABLE

Event Data

Item

Address

R W Meaning of Data

Event status summary 450

451

X Reads the summary of the event occurrence status of channels 1 to 24.

Bitmap data No.5 (see page 5-28)

-32768 to +32767

Bitmap data No.6 (see page 5-28)

0 to 256

• Even if one of the upper and lower limit events of events No.1 to No.4 occurs, the assigned bit becomes “1”.

Event status (channel 1)

Event status (channel 2)

Event status (channel 3)

Event status (channel 4)

Event status (channel 5)

Event status (channel 6)

Event status (channel 7)

Event status (channel 8)

Event status (channel 9)

Event status (channel 10)

Event status (channel 11)

Event status (channel 12)

Event status (channel 13)

Event status (channel 14)

Event status (channel 15)

Event status (channel 16)

Event status (channel 17)

Event status (channel 18)

Event status (channel 19)

Event status (channel 20)

Event status (channel 21)

Event status (channel 22)

Event status (channel 23)

Event status (channel 24)

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Reads the event occurrence status of channels 1 to 24.

Bitmap data No.7 (see page 5-29)

If the upper limit event or the lower limit event of

No.1 to No.4 of each channel occurs, the assigned bit becomes ''1''.

Note

: The content of the event status summary in the process data area

(address 400W) is same as the event status summary in the event data

(address 450W). And the content of the event status summary in the process data area (address 401W) is same as the event status summary in the event data (address 451W).

5-7

Chapter 5. COMMUNICATION DATA TABLE

Digital I/O Area (data area)

Item

External switch input status summary

No.1 external switch input

No.2 external switch input

No.3 external switch input

No.4 external switch input

No.5 external switch input

No.6 external switch input

No.7 external switch input

No.8 external switch input

No.9 external switch input

No.10 external switch input

No.11 external switch input

No.12 external switch input

Internal contact input status summary

No.1 internal contact input

No.2 internal contact input

No.3 internal contact input

No.4 internal contact input

No.5 internal contact input

No.6 internal contact input

No.7 internal contact input

No.8 internal contact input

No.9 internal contact input

No.10 internal contact input

No.11 internal contact input

No.12 internal contact input

«

«

«

«

«

«

«

«

«

«

«

«

«

Address

500

R W

«

X

508

509

510

511

512

520

501

502

503

504

505

506

507

X

X

X

X

X

X

X

X

X

X

X

X

X

Meaning of Data

Reads the summary of No.1 to No.12 external switch input status.

Bitmap data No.8 (see page 5-29)

0 to 4095

Reads the status of No.1 to No.12 external switch input status.

0: OFF

1: ON

Reads the summary of No.1 to No.12 internal switch input status.

Bitmap data No.8 (see page 5-29)

0 to 4095

Reads the No.1 to No.12 internal contact input status.

0: OFF

1: ON

«

«

«

«

«

«

«

«

«

«

«

«

526

527

528

529

530

531

532

521

522

523

524

525

X

X

X

X

X

X

X

X

X

X

X

X

5-8

Chapter 5. COMMUNICATION DATA TABLE

No.1 relay output

No.2 relay output

No.3 relay output

No.4 relay output

No.5 relay output

No.6 relay output

No.7 relay output

No.8 relay output

No.9 relay output

No.10 relay output

No.11 relay output

No.12 relay output

Open collector output status summary

No.1 open collector output

No.2 open collector output

No.3 open collector output

No.4 open collector output

No.5 open collector output

No.6 open collector output

No.7 open collector output

No.8 open collector output

No.9 open collector output

No.10 open collector output

No.11 open collector output

No.12 open collector output

Item

Relay output status summary

566

567

568

569

570

571

572

561

562

563

564

565

«

«

«

«

«

«

«

«

«

«

«

«

«

Address

540

R W

«

X

548

549

550

551

552

560

541

542

543

544

545

546

547

X

X

X

X

X

X

X

X

X

X

X

X

X

Meaning of Data

Reads the summary of the No.1 to No.12 relay output status.

Bitmap data No.8 (see page 5-29)

0 to 4095

Reads the No.1 to No.12 relay output status.

0: OFF

1: ON

Reads the summary of the No.1 to No.12 open collector output status.

Bitmap data No.8 (see page 5-29)

0 to 4095

Reads the No.1 to No.12 open collector output status.

0: OFF

1: ON

«

«

«

«

«

«

«

«

«

«

«

«

X

X

X

X

X

X

X

X

X

X

X

X

5-9

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (common setup items)

Item

Address

R W Meaning of Data

No.1 chart feed speed

No.2 chart feed speed

Fixed date interval timer

Fixed time interval timer (h)

600

601

602

603

«

«

«

«

«

«

«

«

Sets and reads the No.1 chart feed speed.

1 to 480 (mm/h)

Sets and reads the No.2 chart feed speed.

1 to 480 (mm/h)

Sets and reads the fixed date interval timer.

1: 10min

2: 20min

3: 30min

4: 1h

5: 2h

6: 3h

7: 6h

8: 12h

9: 24h

Sets and reads the fixed time interval timer.

H: 0 to 23

Min: 0 to 59

Fixed time interval timer (min) 604

« «

The possible setting range is 00:05 to 23:59.

If an attempt is made to set less than 5min, a numerical value range error (response code 44) is returned.

Clock: Year 605

« «

Sets and reads the clock date and time.

Year: 0 to 99

Clock: Month

Clock: Day

606

607

«

«

«

«

Month: 1 to 12

Day: 1 to 31

Clock: H

Clock: Min

608

609

«

«

«

«

H:

Min:

0 to 23

0 to 59

• Non-existent dates (e.g. February 30th) cannot be set.

• If an attempt is made to set a non-existent date, a numerical value range error (response code 44) is returned.

• If “0” to “89” is written, the year becomes 2000 onwards, and if “90” to “98” is written, the year becomes 1990 onwards.

Configuration lock 610

« «

Menu level

Recording format

Recorder ID No.

611

612

613

«

«

«

«

«

«

Reads the setting inhibited (lock), setting permitted

(unlock) and configuration lock setup on the SRF display setup unit.

0: Unlock

1: Lock

Sets and reads the menu level.

0: Level 0 displayed

1: Levels 0 and 1 displayed

2: All items displayed

Sets and reads the recording format.

1: Trend

2: Trend + tabulation

3: Trend + schedule demand

4: Fixed interval tabulation

5: Fixed time tabulation

Writes and reads the recorder ID No.

0 to 99

5-10

Chapter 5. COMMUNICATION DATA TABLE

Item

Address

R W Meaning of Data

Recording time ON/OFF

Scale recording ON/OFF

Recording color selection

Communications access rights

614

615

616

617

«

«

«

«

«

«

«

X

Sets and reads recording time ON/OFF.

0: OFF

1: ON

Sets and reads scale recording ON/OFF.

0: OFF

1: ON

Selects and reads the recording color.

1: Standard type

2: DIN type

Reads the communications access rights when the area is accessed by CPL communications.

1: Read only

2: Read/Write

• Only during reading, writing is not possible even on write-accessible areas.

• Even during reading and writing, writing is not possible on only read-accessible areas, and reading is not possible on only write-accessible areas.

Station address

618

«

X

Reads the communications address used in CPL communications.

0 to 127

• When “0” is set, CPL communications is not possible.

Communications method

619

«

X

Reads the communications method for CPL communications.

1: 4800bps, even parity, 1 stop bit

2: 4800bps, no parity, 2 stop bits

3: 9600bps, even parity, 1 stop bit

4: 9600bps, no parity, 2 stop bits

5-11

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (schedule demand printing)

Item

Address

R W Meaning of Data

Time setup ON/OFF

630

635

636

637

638

631

632

633

634

« « Sets and reads the No.1 to No.8 time setup used in schedule demand printing.

0: OFF

1: No.1 time setup ON (enabled)

2: No.1 and No.2 time setup ON (enabled)

3: No.1 to No.3 time setup ON (enabled)

4: No.1 to No.4 time setup ON (enabled)

5: No.1 to No.5 time setup ON (enabled)

6: No.1 to No.6 time setup ON (enabled)

7: No.1 to No.7 time setup ON (enabled)

8: No.1 to No.8 time setup ON (enabled)

Sets and reads the time when schedule demand printing is carried out.

h: 0 to 23 min: 0 to 59

No.1 time setup: h

No.1 time setup: min

No.2 time setup: h

No.2 time setup: min

No.3 time setup: h

No.3 time setup: min

No.4 time setup: h

No.4 time setup: min

« «

No.5 time setup: h

No.5 time setup: min

No.6 time setup: h

No.6 time setup: min

639

640

641

642

No.7 time setup: h

No.7 time setup: min

No.8 time setup: h

No.8 time setup: min

643

644

645

646

• If the time setup is not set to ON by 630W, demand printing is not carried out at the set time.

5-12

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (messages)

Item

No.1 message

(1st character) to (12th character)

No.2 message

(1st character) to (12th character)

No.3 message

(1st character) to (12th character)

No.4 message

(1st character) to (12th character)

No.5 message

(1st character) to (12th character)

No.6 message

(1st character) to (12th character)

No.7 message

(1st character) to (12th character)

No.8 message

(1st character) to (12th character)

Address

R W

650 to 661

« «

662 to 673

674 to 685

686 to 697

698 to 709

710 to 721

722 to 733

734 to 745

Meaning of Data

Character codes by which 12 characters used for printing messages are set and read

Refer to Appendix, SRF Character Codes.

5-13

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (digital input)

Item

No.1 external switch input

Address

751

R W

« «

No.2 external switch input

No.3 external switch input

No.4 external switch input

No.5 external switch input

No.6 external switch input

No.7 external switch input

No.8 external switch input

No.9 external switch input

No.10 external switch input

No.11 external switch input

No.12 external switch input

752

753

754

755

756

757

758

759

760

761

762

Meaning of Data

Sets and reads the No.1 to No.12 external switch inputs.

0: Function setup OFF

1: Recording ON/OFF (all channels unconditionally)

2: Print on demand

3: Print all lists

4: Print specified lists

5: Chart feed

6: Print communications list

7: Chart feed speed/scale selection

8: Clear batch counter

11 to 16: Clear integrating calculation No.1 to No.6

21 to 28: Print No.1 to No.8 messages

31: Recording ON/OFF (channels 1 to 3)

32: Recording ON/OFF (channels 4 to 6)

33: Recording ON/OFF (channels 7 to 9)

34: Recording ON/OFF (channels 10 to 12)

35: Recording ON/OFF (channels 13 to 18)

36: Recording ON/OFF (channels 19 to 24)

40: BIN code input (bit 0)

41: BIN code input (bit 1)

42: BIN code input (bits 2)

43: BIN code input (bits 3)

44: BIN code input (bits 4)

45: BIN code input (bits 5)

• Channels in which the scale is selected by digital inputs is set by the scale switching method for each channel.

No.1 internal contact input

771

« «

No.2 internal contact input

No.3 internal contact input

No.4 internal contact input

No.5 internal contact input

No.6 internal contact input

No.7 internal contact input

No.8 internal contact input

No.9 internal contact input

No.10 internal contact input

No.11 internal contact input

No.12 internal contact input

772

773

774

775

776

777

778

779

780

781

782

Sets and reads the No.1 to No.12 internal switch inputs.

0: Function setup OFF

1: Recording ON/OFF (all channels unconditionally)

2: Print on demand

3: Print all lists

4: Print specified lists

5: Chart feed

6: Print communications list

7: Chart feed speed/scale selection

8: Clear batch counter

11 to 16: Clear integrating calculation No.1 to No.6

21 to 28: Print No.1 to No.8 messages

31: Recording ON/OFF (channels 1 to 3)

32: Recording ON/OFF (channels 4 to 6)

33: Recording ON/OFF (channels 7 to 9)

34: Recording ON/OFF (channels 10 to 12)

35: Recording ON/OFF (channels 13 to 18)

36: Recording ON/OFF (channels 19 to 24)

40: BIN code input (bit 0)

41: BIN code input (bit 1)

42: BIN code input (bits 2)

43: BIN code input (bits 3)

44: BIN code input (bits 4)

45: BIN code input (bits 5)

• Channels in which the scale is selected by digital inputs is set by the scale switching method for each channel.

5-14

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (digital output)

Item

No.1 relay output

No.2 relay output

No.3 relay output

No.4 relay output

No.5 relay output

No.6 relay output

No.7 relay output

No.8 relay output

No.9 relay output

No.10 relay output

No.11 relay output

No.12 relay output

No.1 open collector output

No.2 open collector output

No.3 open collector output

No.4 open collector output

No.5 open collector output

No.6 open collector output

No.7 open collector output

No.8 open collector output

No.9 open collector output

No.10 open collector output

No.11 open collector output

No.12 open collector output

Address

811

812

821

822

807

808

809

810

801

802

803

804

805

806

827

828

829

830

823

824

825

826

831

832

R W

« «

« «

Meaning of Data

Sets and reads the No.1 to No.12 relay outputs.

0: OR action/excitation/non-hold

1: OR action/excitation/hold

2: OR action/non-excitation/non-hold

3: OR action/non-excitation/hold

4: AND action/excitation/non-hold

5: AND action/excitation/hold

6: AND action/non-excitation/non-hold

7: AND action/non-excitation/hold

8: OR action/excitation/non-hold/event re-output

9: OR action/non-excitation/non-hold/event reoutput

Sets and reads the No.1 to No.12 open collector outputs.

0: OR action/excitation/non-hold

1: OR action/excitation/hold

2: OR action/non-excitation/non-hold

3: OR action/non-excitation/hold

4: AND action/excitation/non-hold

5: AND action/excitation/hold

6: AND action/non-excitation/non-hold

7: AND action/non-excitation/hold

8: OR action/excitation/non-hold/event re-output

9: OR action/non-excitation/non-hold/event reoutput

5-15

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (user functions)

Item

Address

R W Meaning of Data

User function 1 key basic registration

User function 1 assignment 1

User function 1 assignment 2

User function 1 assignment 3

User function 1 assignment 4

User function 1 assignment 5

User function 1 assignment 6

User function 1 assignment 7

User function 1 assignment 8

850

851

852

853

854

855

856

857

858

« «

Sets and reads the basic registration of the user function 1 key.

0: OFF

1: Output to internal contact input No.1

2: Call up setup items

Sets and reads the user function 1 key.

Value obtained by adding the following cardinal numbers to the screen No. of the setup to be registered as “0”.

Setup 0: No assignment

Setup Item Cardinal Number

Event • • • • • • • • • • • • • • • • • • • • 1nn00

Chart feed speed • • • • • • • • • • • • • 1000

Date/time • • • • • • • • • • • • • • • • • • 1500

System • • • • • • • • • • • • • • • • • • • • 2000

Range • • • • • • • • • • • • • • • • • • • 2nn00

(Calculation setup is range setup + 5000)

Scale • • • • • • • • • • • • • • • • • • • • 3nn00

Copy • • • • • • • • • • • • • • • • • • • • • 6500

Schedule demand • • • • • • • • • • • • 2500

Message • • • • • • • • • • • • • • • • • • 3000

Extended • • • • • • • • • • • • • • • • • • 3500

External switch input • • • • • • • • • • 4000

Internal contact input • • • • • • • • • • 4100

Relay output • • • • • • • • • • • • • • • • 4200

Open collector output • • • • • • • • • • 4300

Segment 1 X-axis • • • • • • • • • • • • 5000

Segment 1 Y-axis • • • • • • • • • • • • 5100

Segment 2 X-axis • • • • • • • • • • • • 5200

Segment 2 Y-axis • • • • • • • • • • • • 5300

Segment 3 X-axis • • • • • • • • • • • • 5400

Segment 3 Y-axis • • • • • • • • • • • • 5500

User function 2 key basic registration

860

« «

“nn” indicates the channel No.

Values converted to decimal from hexadecimal are used for the screen No.

Sets and reads the basic registration of the user function 2 key.

0: OFF

1: Output to internal contact input No.2

2: Call up setup items

User function 2 assignment 1

861

« «

Same as user function 1 assignment

User function 2 assignment 2

862

User function 2 assignment 3

863

User function 2 assignment 4

864

User function 2 assignment 5

865

User function 2 assignment 6

866

User function 2 assignment 7

867

User function 2 assignment 8

868

The calculation setup cardinal number is the value obtained by adding “5000” to the range setup cardinal number.

5-16

Chapter 5. COMMUNICATION DATA TABLE

Common Data Area (copy)

Item

Address

R W Meaning of Data

Copy source channel

Copy destination channel lower limit

900

901

«

«

«

«

Sets and reads the copy source channel in channel data copying.

1 to number of channels

Sets and reads the copy destination channel lower limit in channel data copying.

1 to (902W) value

• When 901W and 902W are written simultaneously by a single write command, the 902W data to be written simultaneously is written normally, if it is greater than the 901W data to be written, even if the 901W data to be written is greater than the 902W data before it is written.

For example, when 901W=1 and 902W=2, 901W=3/902W=4 can be written simultaneously.

Copy destination channel upper limit

902

« «

Copy execution

903

« «

Sets and reads the copy destination channel upper limit in channel data copying.

(901W) value to number of channels

Executes copying and reads the copy state.

0: Execution OFF/end copy

1: Copy all data

2: Copy range, calculation and scale data

3: Copy event data

4: Copy tag data

5: Copy engineering unit data

• When writing to EEPROM is started by copy execution, the response is returned before writing is completed.

If the command (even other than the copy execution command) for writing to EEPROM is received before writing is completed, response code 31 is returned.

• When a read is carried out, “0” is always read.

Accordingly, read does not become an error response. However, it is meaningless.

• When addresses 900W to 903W contain erroneous data, not all data from 900W to 903W is written, and an error is returned.

• The data (0 to 5) to be written to 903W is not written to EPPROM. However, the data to be copied is written to

EEPROM.

• When the values of the upper and lower limits of the copy destination channel are inverted, a numerical value range error (response code 44) is returned.

Common Data Area (extended setup)

Item

Initial printing ON/OFF

Count function switching

Date type selection

Address

910

911

912

R W

« «

« «

« «

Meaning of Data

Switches initial printing (printing of various parameters carried out when recording is started)

ON/OFF.

0: OFF 1: ON

Switches the type of count to be printed.

0: Batch count 1: BIN code

Selects the format of the date to be printed.

0: JP (YY, MM, DD) 1: US (MM, DD, YY)

2: EU (DD, MM, YY)

• JP (Japanese format): The date is printed out as “1997/09/29”

• US (American format): The date is printed out as “SEP,29,'97”.

• EU (European format): The date is printed out as “29,09,1997”.

Atmosphere

913

« «

Thermal resistance

Reference contact compensation

914

915

«

«

«

«

Sets and reads the atmospheric pressure of the parameters used for calculating the relative humidity.

670 to 1330 (hPa)

Sets and reads the resistance of the parameters used for calculating the F value.

10 to 200

Sets reference contact compensation inside the instrument.

0: Internally OFF 1: Internally ON

5-17

Chapter 5. COMMUNICATION DATA TABLE

Segment Table Area

Item

Address

R W Meaning of Data

Segment table 1 X-axis point 01

Segment table 1 X-axis point 02

1000

1001

« « Sets and reads the break points in the segment table.

Segment table 1 X-axis point 03

Segment table 1 X-axis point 04

1002

-1000 to +11000

-1000 means -10.00%, and 11000 means 110.00%.

Segment table 1 X-axis point 05

Segment table 1 X-axis point 06

Segment table 1 X-axis point 07

Segment table 1 X-axis point 08

Segment table 1 X-axis point 09

Segment table 1 X-axis point 10

Segment table 1 X-axis point 11

Segment table 1 X-axis point 12

Segment table 1 X-axis point 13

Segment table 1 X-axis point 14

Segment table 1 X-axis point 15

1003

1004

1005

1006

1007

1008

1009

1010

1011

1012

1013

1014

• Writing is possible even if the segment table is not used (nn19W=0).

Segment table 1 Y-axis point 01

Segment table 1 Y-axis point 02

Segment table 1 Y-axis point 03

Segment table 1 Y-axis point 04

Segment table 1 Y-axis point 05

Segment table 1 Y-axis point 06

Segment table 1 Y-axis point 07

1015

« «

1016

1017

1018

1019

1020

1021

1022

Sets and reads the break points in the segment table.

-1000 to +11000

-1000 means -10.00%, and 11000 means 110.00%.

Segment table 1 Y-axis point 08

Segment table 1 Y-axis point 09

Segment table 1 Y-axis point 10

Segment table 1 Y-axis point 11

Segment table 1 Y-axis point 12

Segment table 1 Y-axis point 13

Segment table 1 Y-axis point 14

Segment table 1 Y-axis point 15

1023

1024

1025

1026

1027

1028

1029

• Writing is possible even if the segment table is not used (nn19W=0).

5-18

Chapter 5. COMMUNICATION DATA TABLE

Item

Address

R W Meaning of Data

Segment table 2 X-axis point 01

1030

« «

Sets and reads the break points in the segment table.

Segment table 2 X-axis point 02

1031

Segment table 2 X-axis point 03

1032

-1000 to +11000

-1000 means -10.00%, and 11000 means 110.00%.

Segment table 2 X-axis point 04

1033

Segment table 2 X-axis point 05

1034

Segment table 2 X-axis point 06

1035

Segment table 2 X-axis point 07

1036

Segment table 2 X-axis point 08

1037

Segment table 2 X-axis point 09

1038

Segment table 2 X-axis point 10

1039

Segment table 2 X-axis point 11

1040

Segment table 2 X-axis point 12

1041

Segment table 2 X-axis point 13

1042

Segment table 2 X-axis point 14

1043

Segment table 2 X-axis point 15

1044

• Writing is possible even if the segment table is not used (nn19W=0).

Segment table 2 Y-axis point 01

Segment table 2 Y-axis point 02

Segment table 2 Y-axis point 03

Segment table 2 Y-axis point 04

1045

« «

1046

1047

1048

Sets and reads the break points in the segment table.

-1000 to +11000

-1000 means -10.00%, and 11000 means 110.00%.

Segment table 2 Y-axis point 05

Segment table 2 Y-axis point 06

Segment table 2 Y-axis point 07

Segment table 2 Y-axis point 08

1049

1050

1051

1052

Segment table 2 Y-axis point 09

Segment table 2 Y-axis point 10

Segment table 2 Y-axis point 11

Segment table 2 Y-axis point 12

1053

1054

1055

1056

Segment table 2 Y-axis point 13

Segment table 2 Y-axis point 14

1057

1058

Segment table 2 Y-axis point 15

1059

• Writing is possible even if the segment table is not used (nn19W=0).

5-19

Chapter 5. COMMUNICATION DATA TABLE

Item

Address

R W Meaning of Data

Segment table 3 X-axis point 01

1060

« «

Sets and reads the break points in the segment table.

Segment table 3 X-axis point 02

1061

Segment table 3 X-axis point 03

1062

-1000 to +11000

-1000 means -10.00%, and 11000 means 110.00%.

Segment table 3 X-axis point 04

1063

Segment table 3 X-axis point 05

1064

Segment table 3 X-axis point 06

1065

Segment table 3 X-axis point 07

1066

Segment table 3 X-axis point 08

1067

Segment table 3 X-axis point 09

1068

Segment table 3 X-axis point 10

1069

Segment table 3 X-axis point 11

1070

Segment table 3 X-axis point 12

1071

Segment table 3 X-axis point 13

1072

Segment table 3 X-axis point 14

1073

Segment table 3 X-axis point 15

1074

• Writing is possible even if the segment table is not used (nn19W=0).

Segment table 3 Y-axis point 01

Segment table 3 Y-axis point 02

Segment table 3 Y-axis point 03

Segment table 3 Y-axis point 04

1075

1076

1077

1078

1079

« «

Sets and reads the break points in the segment table.

-1000 to +11000

-1000 means -10.00%, and 11000 means 110.00%.

Segment table 3 Y-axis point 05

Segment table 3 Y-axis point 06

Segment table 3 Y-axis point 07

Segment table 3 Y-axis point 08

1080

1081

1082

1083 Segment table 3 Y-axis point 09

Segment table 3 Y-axis point 10

Segment table 3 Y-axis point 11

Segment table 3 Y-axis point 12

1084

1085

1086

1087 Segment table 3 Y-axis point 13

Segment table 3 Y-axis point 14

Segment table 3 Y-axis point 15

1088

1089

• Writing is possible even if the segment table is not used (nn19W=0).

5-20

Chapter 5. COMMUNICATION DATA TABLE

Channel Data (range)

Address “nn” is a value obtained by adding “10” to channels “1” to “24”.

For example, “nn” becomes “11” in the case of channel 1.

Range code

Item

Recording mode

Address nn00

❍ nn01

R

W

Meaning of Data

Sets and reads the recording mode.

0: OFF

1: Display

2: Display + recording

3: Digital input-dependent

Sets and reads the range codes to be used.

See Range Code Table (page 5-30).

• If the range code is written, the following are initialized to their defaults: measurement range decimal point/lower limit/upper limit, engineering range decimal point/lower limit/upper limit, PV bias value, No.1 and

No.2 scale lower limit/upper limit, scale switching method, auto-switching point and auto-switching differential.

• When the range code is set to the communications input B or ON/OFF, a sub-code number is required.

Sub-code No.

nn02

❍ ❍

If set for ON/OFF input range;

Sets and reads the sub-code No.

See table for “Digital data acquisition point address” (page 5-31).

If set for communications input B;

Sets and reads the sub-code No.

See table for “PV data acquisition point address“ (page 5-31).

• Settings are enabled only in the case of the communications input B or ON/OFF input range.

Burnout nn03

❍ ❍

Sets and reads operation at burnout.

0: OFF

1: UP

2: DOWN

Measurement range decimal point nn04

X Reads the measurement range decimal point.

0: No digits past the decimal point XXXXX

1: 1 digit past the decimal point

2: 2 digits past the decimal point

XXXX.X

XXX.XX

3: 3 digits past the decimal point

4: 4 digits past the decimal point

XX.XXX

X.XXXX

Measurement range lower limit nn05

❍ ❍

Sets and reads the measurement range lower limit.

-19999 to +29999

• Set the measurement range lower limit so that it is smaller than the measurement range upper limit.

• When the range code is changed, settings are initialized to their defaults.

• For details on the decimal point, refer to the measurement range decimal point (address: nn04W).

Measurement range upper limit nn06

❍ ❍

Sets and reads the measurement range upper limit.

-19999 to +29999

• Set the measurement range lower limit so that it is smaller than the measurement range upper limit.

• When the measurement range lower limit is set so that it is equal to or greater than the measurement range upper limit, a numerical value range error (response code 44) is returned.

• When the range code is changed, settings are initialized to their defaults.

• For details on the decimal point, refer to the measurement range decimal point (address: nn04W).

5-21

Chapter 5. COMMUNICATION DATA TABLE

Item

Address

R W Meaning of Data

Engineering range decimal point nn07

« «

Sets and reads the engineering range decimal point.

0: No digits past the decimal point XXXXX

1: 1 digit past the decimal point XXXX.X

2: 2 digits past the decimal point

3: 3 digits past the decimal point

4: 4 digits past the decimal point

XXX.XX

XX.XXX

X.XXXX

• If the scaling is not linear the range code setting is disabled.

• When the range code is changed, settings are initialized to their defaults.

Engineering range lower limit nn08

« « Sets and reads the engineering range lower limit.

-19999 to +29999

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W).

• When the range code is changed, settings are initialized to their defaults.

Engineering range upper limit nn09

« « Sets and reads the engineering range upper limit.

-19999 to +29999

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W).

• When the range code is changed, settings are initialized to their defaults.

PV filter nn10

« «

Sets and reads the PV filter.

0 to 15

• Settings are disabled in the case of the communications input range and ON/OFF input range.

PV bias nn11

« « Sets and reads the PV bias.

-19999 to +29999

• Settings are disabled in the case of the communications input range and ON/OFF input range.

• When the range code is changed, settings are initialized to their defaults.

5-22

Chapter 5. COMMUNICATION DATA TABLE

Channel Data (calculation)

Address “nn” is a value obtained by adding “10” to channels “1” to “24”.

For example, “nn” becomes “11” in the case of channel 1.

Item

Address

R W Meaning of Data

Input calculation type nn15

❍ ❍

Sets and reads the input calculation type.

0: OFF (PV value)

1: Channel A - channel B

2: Fixed value - current channel

3: Current channel - fixed value

4: Integrating calculation

5: F value calculation

6: Relative humidity calculation

• When the input calculation type is changed, calculation parameters 1 to 3 are initialized to their defaults.

Calculation parameter 1 nn16

❍ ❍

Sets and reads calculation parameter 1.

• When input calculation type is set to “1”:

1 to number of channels: Ach of inter-channel deviation

• When input calculation type is set to “2”:

-19999 to +29999:fixed value of fixed value deviation

• When input calculation type is set to “3”:

-19999 to +29999:fixed value of fixed value deviation

• When input calculation type is set to “4”:

0: Integrating unit set to “s”

1: Integrating unit set to “min”

2: Integrating unit set to “h”

• When input calculation type is set to “5”:

0 to 2000: Value 10 times the standard reference temperature of F value calculation

(Example: “121.1°C” becomes “1211”.)

• When input calculation type is set to “6”:

1 to number of channels: dry-bulb temperature input channel

• This setting is disabled when the input calculation type is set to OFF.

In this case, the numerical value range is in error if a value other than “0” is written.

• When the input calculation type is changed, the settings are initialized to their defaults.

Calculation parameter 2 nn17

❍ ❍

Sets and reads the calculation parameter 2.

• When input calculation type is set to “1”:

1 to number of channels: Bch of inter-channel deviation

• When input calculation type is set to “4”:

1 to 6: reset number of integrating calculation

• When input calculation type is set to “5”:

1 to 6: reset number of F value calculation

• When input calculation type is set to “6”:

0: Large wind speed (2.5m/s or more)

1: Medium wind speed (0.5 to 2.5m/s)

2: Small wind speed (0.5m/s or less)

• This setting is disabled when the input calculation type is set to OFF or fixed value deviation.

In this case, the numerical value range is in error if a value other than “0” is written.

• When the input calculation type is changed, the settings are initialized to their defaults.

Calculation parameter 3 nn18

❍ ❍

Sets and reads integrating parameter 3.

0 to 10: Integration weighting

• This setting is disabled when the input calculation type is set to other than integrating type.

In this case, “0” to “10” can be written.

• When the input calculation type is changed, the settings are initialized to their defaults.

Segment table use nn19

❍ ❍

Sets and reads segment table use.

0: Use disabled

1: Use segment table 1

2: Use segment table 2

3: Use segment table 3

5-23

Chapter 5. COMMUNICATION DATA TABLE

Channel Data (scale)

Address “nn” is a value obtained by adding “10” to channels “1” to “24”.

For example, “nn” becomes “11” in the case of channel 1.

Item

No.1 scale lower limit

Address

R nn20

W

Meaning of Data

Sets and reads the No.1 scale lower limit value.

-19999 to +29999

• When the range code is changed, settings are initialized to their defaults.

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W).

No.1 scale upper limit nn21

❍ ❍

Sets and reads the No.1 scale upper limit value.

-19999 to +29999

• When the range code is changed, settings are initialized to their defaults.

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W).

Scale switching method nn22

❍ ❍

Sets and reads the scale switching method

0: OFF

1: Automatic

2: External switch input, internal contact input or

CPL communications

• When the range code is changed, settings are initialized to their defaults.

No.2 scale lower limit nn23

❍ ❍

Sets and reads the No.2 scale lower limit value.

-19999 to +29999

• When the range code is changed, settings are initialized to their defaults.

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W).

No.2 scale upper limit nn24

❍ ❍

Sets and reads the No.2 scale upper limit value.

-19999 to +29999

• When the range code is changed, settings are initialized to their defaults.

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W).

Auto-switching point nn25

❍ ❍

Sets and reads the auto-switching point.

-19999 to +29999

• When the range code is changed, settings are initialized to their defaults.

Settings are not initialized even if the scale switching method is changed.

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W)

Auto-switching differential nn26

❍ ❍

Sets and reads the auto-switching differential.

0 to 29999

• When the range code is changed, settings are initialized to their defaults.

Settings are not initialized even if the scale switching method is changed.

• For details on the decimal point, refer to the engineering range decimal point (address: nn07W)

Scale selection status nn27

❍ ❍

Reads the scale selection status.

1: No.1 scale

2: No.2 scale

5-24

Chapter 5. COMMUNICATION DATA TABLE

Channel Data (event)

Address “nn” is a value obtained by adding “10” to channels “1” to “24”.

For example, “nn” becomes “11” in the case of channel 1.

For details on the decimal point, refer to the engineering range decimal point

(address: nn07W).

Item

No.1 event setting value

No.2 event setting value

No.3 event setting value

No.4 event setting value

No.1 event type selection

No.2 event type selection

No.3 event type selection

No.4 event type selection

Address nn40 nn41 nn42 nn43 nn44 nn45 nn46 nn47

R W

❍ ❍

Meaning of Data

Sets and reads the No.1 to No.4 event setting values.

-19999 to +29999

Sets and reads the No.1 to No.4 event type selection.

0: OFF

1: LOW

2: HIGH

❍ ❍

No.1 event differential

No.2 event differential

No.3 event differential

No.4 event differential

No.1 event recording ON/OFF

No.2 event recording ON/OFF

No.3 event recording ON/OFF

No.4 event recording ON/OFF

No.1 event output destination nn48 nn49 nn50 nn51 nn52 nn53 nn54 nn55 nn56

Sets and reads the No.1 to No.4 event differential value.

0 to 29999

Sets and reads the No.1 to No.4 event recording

ON/OFF.

0: OFF

1: ON

No.2 event output destination

No.3 event output destination nn57 nn58

Sets and reads the No.1 to No.4 event output destination.

0: OFF

1 to 12: No.1 to No.12 relay output

13 to 24: No.1 to No.12 open collector output

25 to 36: No.1 to No.12 internal contact input

No.4 event output destination nn59

Tag (1st character) to (12th character)

❍ ❍

Engineering unit (1st character) to

(6th character) nn60 to nn71 nn80 to nn85

❍ ❍

Writes and reads the tag character string (12 characters).

Refer to Appendix, SRF Character Codes.

Writes and reads the engineering unit string (6 characters).

Refer to Appendix, SRF Character Codes.

5-25

Chapter 5. COMMUNICATION DATA TABLE

Communication Data Area

Item

Address

R W Meaning of Data

Communications PV value

(communications input A

*1 communications input B

*2

) or

3500

« « to

3523

Writes and reads the communications PV value.

-19999 to +29999

• The communications PV value becomes “not fixed” when the power is turned ON again.

Communication list 1st line

(1st character) to (85th character)

Communication list 2nd line

(1st character) to (85th character)

Communication list 3rd line

(1st character) to (85th character)

3600 to

3684

3700 to

3784

3800 to

3884

«

«

«

«

«

«

Writes and reads the printed characters on the 1st and 3rd lines of the communications list.

Refer to Appendix, SRF Character Codes.

• The 1st to the 3rd line are printed together.

• If a complete line is not all characters (20H, 84H to 8FH, A0H), that line is not printed, and the next line is printed pushed up.

*1 Communications input A

Range code PV data acquisition point address

(CPL address)

80

81

82

83

84

85

86

87

3500W

3501W

3502W

3503W

3504W

3505W

3506W

3507W

*2 Communications input B

Range code Sub-code PV data acquisition

No.

point address

(CPL address)

88

2

3

0

1

4

5

6

9

10

7

8

11

3500W

3501W

3502W

3503W

3504W

3505W

3506W

3507W

3508W

3509W

3510W

3511W

See "

Range code tables" (Page 5-30) for details.

Range code Sub-code PV data acquisition

No.

point address

(CPL address)

88

12

13

14

15

16

17

18

19

20

21

22

23

3512W

3513W

3514W

3515W

3516W

3517W

3518W

3519W

3520W

3521W

3522W

3523W

5-26

Chapter 5. COMMUNICATION DATA TABLE

Bitmap Data

No.1

Clear integrating calculation (address: 306W) b5 b4 b3 b2 b1 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : Clear integrating calculation No.1

2 : Clear integrating calculation No.2

3 : Clear integrating calculation No.3

4 : Clear integrating calculation No.4

5 : Clear integrating calculation No.5

6 : Clear integrating calculation No.6

7 to 16 : —

No.2

Integrating calculation status (address: 316W) b13 b12 b11 b10 b9 b8 b5 b4 b3 b2 b1 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : 0 to 5 : Clear integration by communications No.1

2 : 0 to 5 : Clear integration by communications No.2

3 : 0 to 5 : Clear integration by communications No.3

4 : 0 to 5 : Clear integration by communications No.4

5 : 0 to 5 : Clear integration by communications No.5

6 : 0 to 5 : Clear integration by communications No.6

7, 8: —

9 : Clear integration by DI and communications No.1

10 : Clear integration by DI and communications No.2

11 : Clear integration by DI and communications No.3

12 : Clear integration by DI and communications No.4

13 : Clear integration by DI and communications No.5

14 : Clear integration by DI and communications No.6

15, 16: —

No.3

Instrument alarm information (address: 380W) b15 b14 b13 b12 b11 b10 b9 b8 b6 b5 b4 b3 b2 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : ROM diagnosis

2 : —

3 : EEPROM diagnosis

4 : Calibration data diagnosis

5 : Configuration data diagnosis

6 : Auto-zero input diagnosis

7 : Reference voltage diagnosis

8 : —

9 : Reference contact temperature diagnosis

10 : Model No. information diagnosis

11 : A/D converter diagnosis

12 : Printer position diagnosis

13 : Ribbon position diagnosis

14 : Mode selection pin diagnosis

15 : Clock backup battery diagnosis

16 : Processing cycle diagnosis

5-27

Chapter 5. COMMUNICATION DATA TABLE

No.4

Option information (address: 398W) b7 b6 b5 b4 b3 b2 b1 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : RS-485 communication

2 : RS-232C communication

3 : No.1 to No.4 external switch input

4 : No.5 to No.8 external switch input

5 : No.9 to No.12 external switch input

6 : No.1 to No.6 relay output

7 : No.7 to No.12 relay output

8 : No.1 to No.12 open collector output

9 to 16 : —

No.5

Event status summary (address: 400, 450W) b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : Channel 1

2 : Channel 2

3 : Channel 3

4 : Channel 4

5 : Channel 5

6 : Channel 6

7 : Channel 7

8 : Channel 8

9 : Channel 9

10 : Channel 10

11 : Channel 11

12 : Channel 12

13 : Channel 13

14 : Channel 14

15 : Channel 15

16 : Channel 16

No.6

Event status summary (address: 401, 451W) b23 b22 b21 b20 b19 b18 b17 b16

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : Channel 17

2 : Channel 18

3 : Channel 19

4 : Channel 20

5 : Channel 21

6 : Channel 22

7 : Channel 23

8 : Channel 24

9 to 16 : —

5-28

Chapter 5. COMMUNICATION DATA TABLE

No.7

Event status (address: 461 to 484W) b7 b6 b5 b4 b3 b2 b1 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 : No.1 lower-limit event status

2 : No.1 upper-limit event status

3 : No.2 lower-limit event status

4 : No.2 upper-limit event status

5 : No.3 lower-limit event status

6 : No.3 upper-limit event status

7 : No.4 lower-limit event status

8 : No.4 upper-limit event status

9 to 16 : —

No.8

External switch input status summary (address: 500W)

Internal contact input status summary (address: 520W)

Relay output status summary (address: 540W)

Open collector output status summary (address: 560W) b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

7

8

9

10

11

12

13 to 16

5

6

3

4

1

2

External Switch Input

Status Summary

No.1 external switch input

No.2 external switch input

No.3 external switch input

No.4 external switch input

No.5 external switch input

No.6 external switch input

No.7 external switch input

No.8 external switch input

No.9 external switch input

No.10 external switch input

No.11 external switch input

No.12 external switch input

Internal Contact Input

Status Summary

No.1 internal switch input

No.2 internal switch input

No.3 internal switch input

No.4 internal switch input

No.5 internal switch input

No.6 internal switch input

No.7 internal switch input

No.8 internal switch input

No.9 internal switch input

No.10 internal switch input

No.11 internal switch input

No.12 internal switch input

Relay Output

Status Summary

No.1 relay output

No.2 relay output

No.3 relay output

No.4 relay output

No.5 relay output

No.6 relay output

No.7 relay output

No.8 relay output

No.9 relay output

No.10 relay output

No.11 relay output

No.12 relay output

Open Collector Output

Status Summary

No.1 open collector output

No.2 open collector output

No.3 open collector output

No.4 open collector output

No.5 open collector output

No.6 open collector output

No.7 open collector output

No.8 open collector output

No.9 open collector output

No.10 open collector output

No.11 open collector output

No.12 open collector output

5-29

Chapter 5. COMMUNICATION DATA TABLE

Range Code Tables

Input Type

DC voltage

Linear scaling range

DC voltage

Input voltage direct-reading range

*1

Thermocouple

Resistance temperature detector

Communications input A *2

Communications input B *2

ON/OFF *3 mV

V mV

V

T

N

WRe0-26

WRe5-26

PR40-20

PL II

Ni-Ni•Mo

Pt100

E

J

B

K

R

S

JPt100

JPt50

Ni508

No sub-code setting required

Sub-code setting required

Range Code

27/57

28/58

29/59

30/60

31/61

32/62

40/70

41/71

16

20/50

21/51

22/52

23/53

24/54

25/55

26/56

42/72

43/73

80 to 87

88

90

12

13

14

15

05

06

10

11

00

01

02

03

04

Measurement Range

-20.00 to +20.00

-40.00 to +40.00

-60.00 to +60.00

-200.0 to +200.0

-2.000 to +2.000

-5.000 to +5.000

0.000 to 10.000

-20.00 to +20.00

-40.00 to +40.00

-60.00 to +60.00

-200.0 to +200.0

-2.000 to +2.000

-5.000 to +5.000

0.000 to 10.000

0.0 to 1760.0°C

0.0 to 1760.0°C

0.0 to 1820.0°C

-200.0 to +1370.0°C

-220.0 to +800.0°C

-200.0 to +1100.0°C

-200.0 to +400.0°C

0.0 to 1300.0°C

0.0 to 2320.0°C

0.0 to 2320.0°C

0.0 to 1880.0°C

0.0 to 1290.0°C

0.0 to 1200.0°C

-200.0 to +650.0°C

-200.0 to +550.0°C

-200.0 to +550.0°C

-50.0 to +150.0°C

32 to 3308°F

-328 to +2498°F

-328 to +1472°F

-328 to +2012°F

-328 to +752°F

32 to 2372°F

32 to 4208°F

32 to 4208°F

32 to 3416°F

32 to 2354°F

32 to 2192°F

-328.0 to +1202.0°F

-328.0 to +1022.0°F

-328.0 to +1022.0°F

-58.0 to +302.0°F

-19999 to +29999

-19999 to +29999

32 to 3200°F

32 to 3200°F

*1 Voltage value can be read directly without linear scaling.

5-30

*2 The value acquired by CPL communications is handled as a PV input value, and is processed for recording in the same way as in usual processing.

Acquisition point address of the communications input data is set as follows:

Communications input A : If the communications input is used in less than 8 channels, the PV data acquisition point address can be designated by setting the range codes from

"80" through to "87". Sub-code setting is not required.

Range code PV data acquisition point address

(CPL address)

80

81

82

83

84

85

86

87

3500W

3501W

3502W

3503W

3504W

3505W

3506W

3507W

Chapter 5. COMMUNICATION DATA TABLE

Communications input B : The PV data acquisition point address can be set by selecting the range code

" 88 " and setting the sub-code when the communications input is used in more than 9 channels.

Range code Sub-code PV data acquisition

No.

point address

(CPL address)

0 3500W

88

3

4

1

2

5

6

7

3501W

3502W

3503W

3504W

3505W

3506W

3507W

10

11

8

9

3508W

3509W

3510W

3511W

Range code Sub-code PV data acquisition

No.

point address

(CPL address)

12 3512W

88

13

14

15

16

17

18

19

3513W

3514W

3515W

3516W

3517W

3518W

3519W

20

21

22

23

3520W

3521W

3522W

3523W

*3 ON/OFF type digital signal is recorded as an input. The ON/OFF input data acquisition point address is designated by setting the range code "90" and by the following sub-code No.:

Sub-code No.

0

1 to 12

13 to 24

31 to 42

51 to 62

Digital data acquisition point address

OFF

Relay output No.1 to No.12

Open collector output No.1 to No.12

External switch input No.1 to No.12

Internal contact input No.1 to No.12

Supplement

A digital data acquisition point address can be designated regardless of the presence of actual digital input and output. However, the "OFF" status is fixed when a digital input that is not installed is designated.

5-31

Chapter 6.

TROUBLESHOOTING

Check Items in Case Communication is Disabled

1. Make sure that the RS-232C and RS-485 connections are correctly wired.

2. Make sure that the communication conditions for the SRF206/212/224 match those of the host computer.

If any one of the below settings between stations differ, communication is disabled.

Settings that can be used on the SRF206/212/224 are underlined.

Transmission speed:

Data length:

Parity:

Stop bit:

4800, 9600bps

8bits

No parity, even parity

1 stop bit, 2 stop bits

3. Make sure that the destination address of the command frame transmitted from the host computer matches the address of the

SRF206/212/224

.

The

SRF206/212/224 default address is “0”. The

SRF206/212/224 will not respond even when the destination address of the command frame is set to “00”

(30H, 30H).

4. Use the upper-case for all characters other than the device ID code (“X” or “x” on the

SRF206/212/224

).

6-1

Chapter 7.

SPECIFICATIONS

RS-232C Specifications

Name

Transmission mode

Transmission line

Transmission speed (bps)

Transmission distance

Communications flow

Synchronization

Data format

Error detection

Station address

Network type

Other

Remarks

Unbalanced

3-wire system

1200, 2400, 4800, 9600

15m max.

Half duplex

Start-stop synchronization

8 data bits, 1 stop bit, even parity

8 data bits, 2 stop bits, no parity

Parity check, checksum

0 to 127 (Communication function is inhibited when set to “0”.)

1-to-1

Conforms to RS-232C interface specifications.

RS-485 Specifications

Name

Transmission mode

Transmission line

Transmission speed (bps)

Transmission distance

Communications flow

Synchronization

Data format

Error detection

Station address

Network type

Other

Remarks

Balanced

5-wire system/3-wire system

1200, 2400, 4800, 9600

500m max.

(300m when connected with the

MA500DIM and CMC410.)

Half duplex

Start-stop synchronization

8 data bits, 1 stop bit, even parity

8 data bits, 2 stop bits, no parity

Parity check, checksum

0 to 127 (Communication function is inhibited when set to “0”.)

1-to-N (31 units or less, however 16 units or less for MA500 DIM or

CMC410)

Conforms to RS-485 interface specifications.

7-1

APPENDIX

Code Table

0

0

1

2 STX

3 ETX

6

7

4

5

8

9

A LF

B

E

F

C

D CR

1 2 3 4 5 6 7

SPACE

0 @ P p

!

1 A Q

`

a

"

2 B R b r q

# 3 C S c s

$

%

4

5

D

E

T

U d e t u

(

& 6 F V f v

'

7 G W g w

8 H X h x

/

) 9 I Y i y

*

+

:

J Z j z

;

K [ k {

,

< L ¥ l

— = M ] m

.

> N ^ n

?

O _ o

}

~

^

The shaded areas ( ) are not used by this communication system. (The codes depend on the station.)

App.-1

APPENDIX

SRF Character Code Table

Lower

Bits

Upper

Bits

0

1

2

3

4

5

6

7

8

9

A

B

C

D

E

F

2

,

(44)

(45)

.

(46)

/

(47)

(

(40)

)

(41)

*

(42)

+

(43)

$

(36)

%

(37)

&

(38)

´

(39)

(32)

!

(33)

(34)

#

(35)

4

L

(76)

M

(77)

N

(78)

O

(79)

H

(72)

I

(73)

J

(74)

K

(75)

D

(68)

E

(69)

F

(70)

G

(71)

@

(64)

A

(65)

B

(66)

C

(67)

3

<

(60)

=

(61)

>

(62)

?

(63)

8

(56)

9

(57)

:

(58)

;

(59)

4

(52)

5

(53)

6

(54)

7

(55)

0

(48)

1

(49)

2

(50)

3

(51)

5 6 7 8 t

(116) u

(117) v

(118) w

(119) p

(112) q

(113) r

(114) s

(115) x

(120) y

(121) z

(122)

(123) l

(108) m

(109) n

(110) o

(111) h

(104) i

(105) j

(106) k

(107) d

(100) e

(101) f

(102) g

(103)

`

(96) a

(97) b

(98) c

(99)

(124)

µ

(125)

2

(126)

2

(127)

(132)

(133)

(134)

(135)

(136)

(137)

(138)

(139)

(140)

(141)

(142)

(143)

3

(128)

°

(129)

°

(130)

(131)

¥

(92)

]

(93)

^

(94)

_

(95)

X

(88)

Y

(89)

Z

(90)

[

(91)

T

(84)

U

(85)

V

(86)

W

(87)

P

(80)

Q

(81)

R

(82)

S

(83)

App.-2

APPENDIX

Connection With CMC10L

The

CMC10L001A000 is available as an RS-232C/RS-485 (5-wire system) converter from Yamatake. The following diagram shows an example of wiring, using a straight cable for a host computer in the terminal mode:

Terminating resistor

DIGITRONIK control or

5-wire system (slave station)

SDA

SDB

RDA

*

*

RDB

SG

FG

DA

DB

Shielded cable

RD

SD

2

3

MOD.

2

TER.

MOD.

3

TER.

SG

RS

CS

DR

SG

ER

7

8

6

5

4

CD

1

Host computer

7

8

6

5

4

1

CMC10L

Shielded cable

Shielded cable

Terminating resistor

3-wire system (slave station)

DA

DB

SG

FG

DIGITRONIK control or

5-wire system (slave station)

SDA

SDB

RDA

*

*

RDB

SG

FG

Connect two terminating resistors of 150 Ω±5%, 1/2W min. to the instrument at each end of the transmission line. Connect only one end of the shielded wire to the frame ground.

(*) must be wired externally.

App.-3

APPENDIX

Connect the master station SD to the slave station RD, and the master station RD to the slave station SD.

So, set the MODE switch on the front of the CMC10L as (MODEM/TERMI

NAL) of the host computer RS-232C connector and the type of cable

(crossover/straight) used.

RS-232C

TERMINAL

TERMINAL

MODE

MODE

Cable type MODE switch

Straight

Crossover

Straight

Crossover

MODEM

TERMINAL

TERMINAL

MODEM

RS-232C cable

Straight: An RS-232C cable with a D-Sub (9-pin) connector at each end where pins with the same number are mutually connected (for example, pin 2 to pin 2, and pin 3 to pin 3).

CD

RD

SD

ER

SG

DR

RS

CS

6

7

8

3

4

5

1

2

6

7

8

3

4

5

1

2

CD

RD

SD

ER

SG

DR

RS

CS

Crossover: An RS-232C cable with a D-Sub (9-pin) connector at each end where different number pins are connected (for example, pin 2 to pin 3, and pin 3 to pin 2).

RD

SD

RS

CS

DR

ER

CD

SG

2

3

7

8

6

4

1

5

2

3

7

8

6

4

1

5

RD

SD

RS

CS

DR

ER

CD

SG

App.-4

APPENDIX

D-Sub (25-pin) ↔D-Sub (9-pin) conversion cable :

An RS-232C cable for conversion between D-Sub (25-pin) and D-Sub (9-pin).

FG

SD

RD

RS

CS

DR

ER

CD

SG

1

2

3

4

5

6

20

8

7

3

8

6

4

2

7

1

5

SD

RD

RS

CS

DR

ER

CD

SG

App.-5

Revision History

Printed Manual Number Edition

Date

Revised pages Description

98-08 CP-SP-1028E 1st Edition

99-11

02-08

08-03

2nd Edition

4-3

4-4

Appendix-2

Communication frame changed from 5 35H to

A 41H.

Checksum Example changed:

7BH→76H, 85H→8AH,

“85”, (38H) and (35H)Æ“8A”, (38H) and (41H)

Character code (124) removed.

3rd Edition

1-4

2-1

2-2

2-3, 2-4

2-5

2-6

4-2

4-12

4-13

5-21

Description of CPL communications changed,

Figure changed.

Description changed, Handling Precautions deleted.

Figure of Example of connection using changed,

Layout of RS-232C connector signals changed.

Section 2-2 RS-485 Connection Overall changed.

Figure of connection example changed,

Cable model No.changed.

Description changed.

Frame of Read instruction, EXT→ETX changed.

Item of Priority deleted.

CMA50 deleted.

Address of Range code "nn00"→"nn01" changed,

Digital signal No.→Sub-code No. changed, description of Digital signal No.chaged,

5-26

5-30, 5-31

Description of communication input B added.

Address of communication PV value 3500 to

3507→3500 to 3523 changed, Description of communication input A and communication input

B added.

Description of communication input A and communication input B added.

Old chapter 6. COMMUNICATION PROGRAM Chapter 6

FOR MASTER STATION deleted, old chapter 7. TROUBLESHOOTING.

Chapter 7

App.-3

Old chapter 8. SPECIFICATIONS.

Description of connection with CMA50→ connection with CMC10L changed.

App.-4, App.-5 Description of RS-232C cable changed.

4th Edition

2-2

2-3, 2-4, 2-6

5-6, 5-7

App.-2

App.-4

Signal table (25 pins, 14 pins) deleted.

Handling Precautions added.

Note and comment added.

Upper bits row and lower bits column corrected.

Assigned signals RD and SD changed.

Advanced Automation Company

1-12-2 Kawana, Fujisawa

Kanagawa 251-8522 Japan

URL: http://www.azbil.com

Printed on recycled paper.

(07)

Specifications are subject to change without notice.

Printed in Japan.

1st Edition: Issued in Aug. 1998(M)

4th Edition: Issued in Mar. 2008(G)

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF

advertisement
