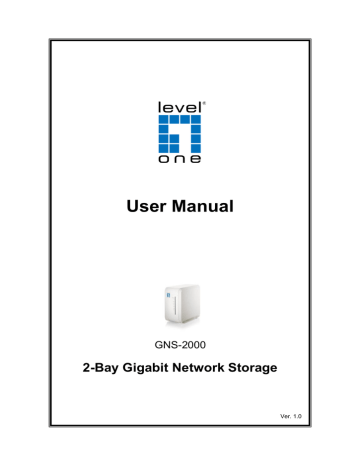

User Manual
GNS-2000
2-Bay Gigabit Network Storage
Ver. 1.0
Table of Contents
ii
Copyright 2009. All Rights Reserved.
Document Version: 1.0
All trademarks and trade names are the properties of their respective owners. iii
Introduction
The NAS Server
Congratulations on the purchase of GNS-2000. The NAS inserts Gigabytes of storage space into your network without the cost, space, and maintenance hassles of a full-fl edged file server. The NAS provides solid data transfer performance for multiple client connections. And you can add as many NAS Servers to your network as you like. Compared to using a standard PC as a File Server, GNS-2000 offers lower cost, easier management, and increased reliability.
Windows utility software is provided for the NAS Administrator. Also, the Web-based Ad-
ministration interface offers a wide array of management options.
Web-based file system
WEB-based file sharing allows access and downloading of files from any PC on the network, including non-Windows PCs.
Windows users can also use Microsoft networking features to make NAS folders appear as drive letters on their PCs.
NAS Features
Provides Gigabytes of external hard disk space.
Supports standard USB 2.0 ports that can connect to Hard Disk Drives or USB flash
Drive (USB key).
Support NTFS (Read only) and FAT file format for USB HDD.
Built-in Printer Server (via USB port) gives your network a fully shareable network printer.
Provided with a Windows utility program for speedy configuration.
WEB-based configuration and diagnostic interface is accessible from any PC on the network.
The LAN Administrator can limit the amount of available disk space available to individual users.
High performance file system automatically maintains itself to provide file system integrity.
Additional NAS Servers can be added to the network at any time.
1
Raid 0 for striping and Raid 1 for mirroring.
Download function (BT, FTP and HTTP).
Package Contents
The following items should be included in the NAS packaging.
If any of these items are damaged or missing, please contact your dealer for replacements.
GNS-2000
Quick Installation Guide
CD Manual / Utility
LAN Cable
Power Adapter and cord
System Requirements
Windows NT 4.0, Windows 95, Windows 98, 2000, ME, XP and Vista.
Ethernet Network employing 10/100/1000 Base.
TCP/IP protocol.
2
Specifications
Hardware specifications:
CPU
Memory
Flash
LAN
HDD interface
USB port
RAID
LED
Switch
Size
Max. HDD Capacity
Reset button
Operating temperature
Storage temperature
Related humidity
Marvell 88F5182, 500MHZ
64M bytes SDRAM
16M bytes flash memory
Gigabit LAN, auto negotiation, auto MDIX
Support SATAII * 2
USB2.0*2
Support Soft Raid 0, 1 and LVM (JBOD)
8 LED
Power on/off switch, USB eject
95mm(W)*176mm(L)*180mm(H)
3TB (total)
1
0 o
C to 40
-20 o
o
C
C to 70
o
C
10% to 80%RH
Power: External power supply, 12V/5A.
Software specifications:
System
Operation system
Networking Protocols
File Sharing Protocols
Network Clients
Web browser support
File System
Disk Management
User Management
Group Management
Log
Language
Description
Linux Kernel: 2.6.12
TCP/IP, HTTP, HTTPS, FTP, FTPS
CIFS/SMB over TCP/IP, NFS
Windows 98/ME/NT/2000/2003/XP/Vista/
Mac OS
Linux
Unix
IE, Firefox, Safari
Journaling file system XFS
FAT16/32 (for USB device)
NTFS Read Only (for USB device)
Format:
Format/Prepare internal HDD (for XFS)
Format/Prepare/Partition USB device (for FAT32, can partition up to 4 partitions)
Disk Scan (Manual/Schedule)
Disk S.M.A.R.T (Manual/Schedule)
Disk Usage(Status Bar)
HDD Standby mode
Disk Full Alarm
Max user accounts: 255
Disk Quota by user
Password authentication
Max Groups: 255
Group member management
Admin group or administrator
System/Event log/Disk log
Unicode support for CIFS
Multiple language support for FTP/HTTP
3
System Function
Vista support
DDNS
Print Server support
Media Function support
Photo Album
Backup
Recycle bin
FTP Server
LAN
Download Manager
RAID Management
E-mail Alert
Date/Time/Daylight
NTP
LLTD
PnP-X
Dynamic DNS, TZO
Network printer sharing
IPP(Internet Printing Protocol)
CIFS (Samba)
Media Server(UPnP/DLNA)
Audio
Video
iTune Server support
Audio Format: MP3, M4A, M4P, WAV, AIF
Playlist Format: M3U, WPL
Music broadcast
SONY PS3/Xbox360/DMA support
Audio Format: AAC, FLAC,M4A,MP3, Ogg Vorbis,
WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
Video Format: AFP, AVI,DAT, DivX, MP4, MPEG1,
MPEG2, MPEG4, VOB, WMV, XviD
Image Format: BMP, JPG(jpe, jpeg), GIF, ICO, PNG,
PSD, TIF(tiff), UFO
Playlist Format: WPL, M3U
Via HTTP to review the photos
Data backup without utility on PC
Full backup
Incremental
Synchronize
Server Backup/Client Backup (Schedule)
Driver Backup (Internal HDD vs. USB HDD)
Up to 10 backup jobs
For each share folder
FTP, FTPS
Jumbo Frame setting(9000)
BT (P2P)
FTP
HTTP
RAID 0,1
JBOD/LVM
Single disk mode
Auto rebuild
Disclaimer
We highly recommend that you regularly backup the files on your NAS.
4
Getting Familiar with your GNS-2000
LEDs
LED
Ready/Status
LAN
Disk Active
Disk Full
Function
Ready (Green)
ON
– Normal operation.
OFF
– No power.
Blinking
– This LED blinking during startup and shutdown.
Status (Amber)
ON
– This LED will be On during the Startup self-test; it will turn
Off once the self-test is completed. If it stays ON, there is a hardware error.
OFF
– Normal operation.
Blinking
– During a software upgrade, both the Status and Ready
LEDs will blink.
ON
– LAN connection established.
OFF
– No LAN connection.
Blinking
– Data is transmitted or received via the LAN.
OFF
– Idle.
Blinking
– Hard disk is being accessed.
ON - Disk is completely full. No more data can be stored on this disk.
OFF -Normal operation, disk is not full.
Blinking - Disk is 98% full (The Buzzer will also beep 3 times.)
5
Disk 1
Disk 2
USB 1
USB 2
Rear Panel
ON
– Disk 1 installed.
OFF
– Disk 1 not installed.
Blinking
– Raid 1 Rebuilding.
ON
– Disk 2 installed.
OFF
– Disk 2 not installed.
Blinking
– Raid 1 Rebuilding.
ON - USB device connected to the USB port.
OFF - No USB device installed.
Fast Blinking - Data being transferred to or from the USB device.
ON - USB device connected to the USB port.
OFF - No USB device installed.
Fast Blinking - Data being transferred to or from the USB device.
Power Switch
Power Input
Reset Button
(IP/Password)
Rear Panel
This is a spring-loaded "Soft Switch".
If power is Off, press once to turn On.
If power is On, press once to start the Shutdown sequence.
During Shutdown, the Ready LED will blink. When Shutdown is completed, all LEDs will turn off.
Connect the supplied power adapter here.
This button has 2 functions:
If the
NAS Server’s IP Address is lost, press and hold this button for 2 seconds. The IP Address will be set to the de-
6
USB Eject Button 1
USB Port 1 & 2
(Up/Down)
USB Eject Button 2
LAN connector
fault (DHCP client) and it will beep once to indicate the reset has occurred
If the NAS administrator’s password is lost, press and hold this button for 10 seconds. The password will then be cleared
(no password), and the NAS will beep twice.
Press and release to prepare the USB device for removal. When the USB LED turns off, it is safe to remove the USB device.
Connect your USB Hard Disk Drive or USB Flash Drive here.
The USB HDD support FAT and NTFS (Read only) file format.
Connect USB printer.
Press and release to prepare the USB device for removal. When the USB LED turns off, it is safe to remove the USB device.
Use this to connect the NAS to your 10/100/1000BaseT hub.
Audible Warnings
Audible warnings are given by the following signals.
1 Beep
3 Beeps
Repeated every 5 seconds for 3 minute.
Reset button or power switch is pressed or system is ready to use
Hard disk usage exceeds 98%
7
Basic Installation & Setup
The following section instructs you on how to physically connect the NAS to the network, and how to configure the NAS for basic operation in your Windows environment. Everything you need to do to get your NAS up and running is covered here.
Installation
Requirements
Windows 95, 98, ME, NT 4.0, 2000, XP or Vista.
Ethernet Network employing 10/100/1000Base
TCP/IP protocol.
Procedure
Installation
1. Connect the network cable to the GNS-2000.
Connect the network cable to the LAN port on the rear of GNS-2000. Connect the other end to your hub or switch.
2. Connect the USB device to USB port.
3. Connect the supplied power adapter to a power outlet and plug the power cord into the
Power input on the rear panel.
4. Power on
8
Locate the power switch on the GNS-2000
’s rear panel. Press it once to power on the
NAS.
5. Self-test
The GNS-2000 will run a brief self-test (2 or 3 seconds). During the self-test, all LEDs of the NAS will be illuminated or flashing.
6. Booting up
When the self-test is complete, boot up will start. The Ready LED will blink continuously, and the LAN LED will blink occasionally. Boot up should take approximately 1-3 minutes.
7. Boot up completed
When the Ready LED stops blinking, and remains on, boot up is complete. If the Status (Orange) LED stays on, or if the GNS-2000 repeatedly beeps, there is a hardware problem. Consult the Troubleshooting section of this User Guide for possible solutions
Shutdown
To shutdown GNS-2000, press the power switch to start the shutdown sequence. Wait for all LEDs to turn off.
9
USB Devices
You can insert either USB HDD or USB Memory Disk (Flash Memory Disk) to USB port at any time. Once the “USB 1” or “USB 2” LED on the front panel comes on and stays on, the
USB device is available for use.
For USB HDD, the NAS can recognize FAT and NTFS (Read only) file format
.
Removing a USB device - Method A
1. Press the USB Eject button on the rear panel (Eject 1 for USB 1, Eject 2 for USB 2).
The GNS-2000 will beep.
2. Wait for the "USB" LED turn off.
3. Remove the USB device.
Removing a USB device - Method B
1. Run the Windows utility.
2. Select "Safely Remove Drive".
3. Select the desired GNS-2000.
4. Click the "Eject" button.
5. Wait for the "USB" LED turn off. (The Windows program will also display a message when it is safe to physically detach the USB device.)
6. Remove the USB device.
Note: If the USB device is not removed, it will not be re-connected. You must remove and reinsert the USB device to have it re-connected.
To share a printer, connect USB printer to this USB port. Install the driver of printer on your
PC. GNS-2000 supports printer server function.
10
Configuring Your GNS-2000
Now that everything is connected and powered on, you are ready to configure your GNS-
2000 so that it is accessible to the users on your network.
This procedure only needs to be done ONCE, by the NAS Server's Administrator.
Other LAN users should follow the Client PC Setup procedure described in the following chapter.
Quick Setup with the GNS-2000 Wizard
1. Insert the NAS CD into your CD-ROM drive of your computer.
If the installation program does not start automatically, run the program
NAS_Setup.exe in the root (top) folder of your CD-ROM.
2. Click "Setup" to start the Setup Utility. The Utility will begin scanning your network for installed GNS-2000 Servers, and a screen like the following will be displayed.
Detected server list.
Select preferred one to setup.
Current settings of selected server.
Please make a note.
Press “ Refresh” to re-scan whole network for available interNAS/USB.
A list of all GNS-2000 Servers on your network will show on the left side. The right side displays details of the currently selected NAS.
If the desired GNS-2000 is not listed, check the following:
GNS-2000 has finished the start up and boot process.
Your PC and GNS-2000 are on the same LAN segment (there is no Router between your PC and GNS-2000).
Otherwise, select the desired GNS-2000, and click the "Next" button.
11
3. The following screen will then be displayed.
Select this if your LAN has a DHCP server, otherwise select “ Fixed IP
Address” .
Suggested values are compatible with your LAN. Suggested IP address is currently unused.
Obtain an IP address automatically
(DHCP Client)
Fixed IP Address
Select this only if your LAN has a DHCP Server. Normally, it is better for servers to use a Fixed IP address (see below)
This option is recommended. If this option is used, the IP address or
GNS-2000
will never change. You need to enter the following data.
IP address - The utility will suggest an unused IP address within the address range used on your LAN. If you wish, you can change this, but you must ensure the address is unused.
Network Mask - This must match the value used by
PCs on your LAN.
Gateway - This must match the value used by PCs on your LAN.
4. Click "Next" to continue. The following screen will then be displayed:
Each interNAS/USB comes with an unique server name. You may change it if you wish.
All workgroups on the network are listed. You may select one from the pull-down menu, or create a new one.
Set the proper Time-Zone, Date and
Time here.
The following data is required.
Server Name:
The Default Name is shown. Change this if you wish.
Workgroup
Name:
Normally, this name should match the Workgroup name used by
PCs on your LAN.
12
Time Zone
Local
Date/Time
Select your time zone from the list.
Enter the local date (mm/dd/yyyy format) and time.
5. Click "Next" to continue. The following screen is displayed.
All settings are displayed.
Please confirm they are corrected, then click “ Save” .
After saving, a final screen will be displayed.
Click “ Exit” to close the Setup
Utility.
6. Click "Save" to save your data to GNS-2000.
On the resulting screen, click "Exit" to close the Setup Utility. GNS-2000 is now operational.
Other Configuration
After the configuration above, all Windows users can access the NAS with "guest" access rights. This allows access to the public shares (by default, DISK and FLASH or USB HDD).
However, we recommend creating a GNS-2000 "User" for each person on your LAN. This will provide each person on your LAN with their own login (name and password) as well as their own personal folder on GNS-2000.
See the Administration chapter for details on creating users via the Web-based interface.
13
Client PC Setup
Overview
Supported versions of Windows are:
Windows 95/98/ME or later
Windows NT 4.0, Windows 2000, Windows XP and Windows Vista
The following items need to be checked or configured:
Network Logon (Windows 95/98/ME only)
Locating the NAS on your LAN.
Mapping to the NAS Server's storage.
14
Network Logon (Windows 95/98/ME only)
If using Windows 95, Windows 98, or Windows ME, you must Logon to the Network correctly in order to use GNS-2000.
To check your Network Logon, following this procedure:
1. Check your Window logon using Start - Settings - Control Panel - Network.
Ensure the Primary Network Logon is set to "Client for Microsoft Networks", as shown below.
Window Logon
Windows will prompt you to Logon to the Network when it starts (boots).
You must logon!
If you press ESC, or click Cancel, no network resources will be available.
When you logon, you need to use a valid User Name and Password. If GNS-2000 Administrator has defined users on GNS-2000, use the User Name and password they supply.
15
Using the GNS-2000's Storage
To use GNS-2000's storage, you should "Map" a drive letter to each folder on GNS-2000 folder, which you wish to access. The "Network Drive" will then be available to all Windows programs. The procedure is as follows:
1. Open Network Neighborhood (or My Network Places).
On the "View" menu, select Details. The Comment column will now be visible.
2. Locate GNS-2000, as shown below.
If it is not listed, double-click Entire Network. Then double-click the Workgroup that the
NAS is in. (By default, the NAS is in Workgroup.)
Network Browse
3. Double click on the NAS icon. You will then see a list of shares (shared folders). You can read and write files to these shares, unless the NAS administrator has blocked access.
4. To create a shortcut to GNS-
2000’s folder, drag its icon to the desktop, and accept
Windows offer to create a shortcut.
16
Mapping a Network Drive
You can give a share (shared folder) on GNS-2000 a drive letter on your PC; such as "F:"
This is called "mapping" the drive letter. To do this, follow this procedure:
1. Right-click on the desired share on GNS-2000.
2. On the pop-up menu, select "Map Network Drive..."
Map Network Drive
17
3. Select a drive letter for this folder, check the Reconnect at Logon checkbox, then click
"OK".
4. This drive will now be available in Windows Explorer, and from the File- Open or File-
Save As dialog in all Windows applications.
Notes:
When you try to access a folder, you may be prompted for a password, as shown below:
Network Resource Password Dialog
If your Windows logon name is the same as your user name on GNS-2000, but the passwords are different, you can enter your GNS-2000 password here.
But if your Windows logon name does not exist on GNS-2000, you will have only
guest access rights, and there is no password that you can enter in this dialog. You must ask GNS-2000 administrator to create a username and password for you on
GNS-2000.
Even if your username and password are correct, you can't gain access if GNS-2000 administrator has not allowed access.
You can also use the Windows utility installed from the CD-ROM:
1. Select "Share Folder Mapping", and a screen like the following will be displayed.
18
2. A list of all the NAS Servers on your network will show on the left side. The right side displays share folders of the currently selected NAS
3. Select which share folder you want to map and select a drive letter for this share folder then click “Map” button.
4. This drive will now be available in Windows Explorer, and from the File- Open or File-
Save As dialog in all Windows applications.
19
Tips for Storing Data on GNS-2000
Change your Windows logon so it matches the user name & password assigned to you on GNS-2000. This will allow you to login only once.
You can "map" multiple folders to drive letters on your PC, as described above.
You can backup your data to GNS-2000 by copying files from your PC to GNS-2000.
If you have Windows ME, 2000, XP or Vista, there is a backup program supplied with
Windows. You can use this backup program to automate the process of backing up your data to GNS-2000. Please read the instructions and help file supplied with this program for details of correct usage.
20
Using the NAS Server’s Printer
1. Find out what printer is connected to the printer port on GNS-2000.
Use Network Neighborhood (or My Network Places) to locate the NAS, as shown in
Network Browse earlier.
2. Double-click the NAS icon. A printer icon should be shown.
Install Printer
3. Right-click the printer icon, and select Install, as shown above. The Add Printer wizard will start.
4. Select the Manufacturer and Printer matching the printer connected to GNS-2000.
5. Follow the prompts to complete the installation.
If prompted about sharing this printer, do NOT enable sharing.
6. The new printer will then appear in your Printer list, and can be used from any Windows application.
Use Start - Settings - Printers to list all your printers.
Double-click the printer to view or delete the documents in the print queue.
Use File - Set as Default to make the selected printer the default printer.
Use File - Properties to view or modify the properties of the selected printer.
21
Using the Web File Sharing
You can access and download files on GNS-2000 using your Web Browser, even from non-Windows platforms.
To access data stored on GNS-2000 using your Web Browser:
1. Start your WEB browser.
2. In the Address box, enter "HTTP://" and the NAS Server's IP Address.
Note: If the port number used by GNS-2000 has been changed (on the System screen) from the default (80), you must specify the correct port number when you connect.
For example, if the current port is 8080:
HTTP://192.168.0.100:8080
3. The following screen will be displayed.
NAS Home Page
4. To browse the files and folders on GNS-2000, click Public Data on the home screen above.
Shares (Folders) to which everyone has access are listed. You can access these folders, and files by clicking on the folder name or filename.
22
If your Browser displays the file when you prefer it to be downloaded, right-click on the file and choose "Save Target as…"
5. To access data which is password-protected, click the User Login (Private Data) link.
You will then be prompted for your user name and password.
Enter the user name and password assigned to you by the Administrator of the
NAS.
The screen will then update, and list all Shares (folders) to which you have access.
You can now navigate through these folders by clicking on the folder name, and download any file by right clicking in and choos ing "Save Target as …".
Changing your Password
Although the Administrator of GNS-2000 must create your User Name and initial password, you can then change your own password whenever you wish, as follows:
To change your password, click on the "Change Password" link on home page. The following screen will be displayed.
Enter the required data:
Change User Password
23
User name - your login name on GNS-2000, created by the GNS-2000's administrator.
Existing password - your current password
New password - the password you now wish to use.
Confirm new password - reenter the new value to ensure it is correct.
Click "Save" to save your changes.
Click "Home" to return to the main screen.
24
Administration
Overview
This Chapter describes using the Web-based Administration interface.
For details on using the Windows utility, see the Basic Installation & Setup Chapter.
The Web-based Administrative Interface
To access the Administration interface, click the "Administration" link on the home page.
You will then be prompted for a password, as shown below.
Password Dialog
Enter
“admin” for the name, and leave the password blank.
To gain access, you must enter the User Name and Password of a user in the
"Administrators" User Group.
By default, the only user in the "Administrators" User Group is "admin". (You can add other users as you wish.)
25
The default password for the "admin" user is blank (no password). This should be changed. Click the User Password link on the Home Page to change the password.
The "Users" screen will be displayed, as described in the following section. Use the menu tabs to select the other screens as desired.
26
Users Screen
This is the first screen that appears after selecting "Administration". This screen allows you to manage the Users, which exist on GNS-2000.
The "guest," and "admin" users are pre-defined, and cannot be deleted.
Users can be members of many user Groups.
Users Screen
Existing Users
User List This list shows all existing users. As you scroll through the list of users, details of the selected user are displayed in the "Properties" area.
Groups
Button
Click this to view and/or modify the Groups which the selected user is in.
Delete
Button
Use this to delete the selected user. When deleting a user, you have the option of deleting the Group and Share with the same name as the user (if they exist).
User Properties
Name User Name. Note that punctuation and other special characters (e.g. * / | \ ) cannot be used in the name.
27
Comment
(Optional)
Password
Verify password
Create
Private Folder
(Share)
Enter a comment if you wish.
Enter the user's password in these fields.
These fields are also used to change an existing user's password, as follows:
1. Select the desired user
2. Clear the existing values in the password fields.
3. Enter the desired password in both the "Password" and "Verify Password" fields. If no password is required, leave both fields blank.
4. Click the "Save" button.
When creating a new user, enter the desired password in both of these fields.
If creating a new user:
Checking this option will create a Group and a Private Folder (Share) with the same name as the user.
Read/Write access will be granted to the Share.
If changing an existing user:
The checkbox has no effect - it will neither create nor delete. This option is only available when creating a new user.
Enable Disk
Quota
Enable the checkbox if you want to set the disk usage for the user, and then enter the maximum amount of disk space this user is allowed to use.
Note! Unless the checkbox is checked, the Disk Quota field has no effect.
Buttons
Groups
Delete
Clear
Clicking this button will display the Groups of which the selected user is a member. You can then add this user to other Groups, or remove existing membership.
Click this button to delete the selected user.
Use this button to clear the form, preparing the form for the entry of a new user.
Use this button to create a new user, after entering their data in the "User
Properties" fields.
Save as
New User
Save Use this Button to save any changes you have made to the "User Properties" for an existing user.
Modifying an existing user
To modify the properties for an existing user
Select the desired user from the list. Their details will be displayed in the "User
Properties" fields.
Edit the "User Properties" fields as required. Note that you cannot change the
"Create Private Folder (Share)" option when modifying a user.
28
Click the "Save" button to save your changes.
Groups button
To click Groups button, it will pop up following screen:
This screen allows you to check which Groups this user is a member of, and to add or revoke membership.
Data
User Name
Member of
Other Groups
The name of the User being modified is shown at the top of the screen.
The "Member of" column on the left shows the Groups that this user is currently in.
The "Other Groups" column on the right shows all other Groups. The current User is not a member of these Groups.
Operation
To Add Membership of a Group
Select the Group or Groups in the right-hand column, then click the "<<"
Button. Multiple Groups can be selected by holding down the CTRL Key while selecting.
29
To Revoke Membership of a Group
Select the Group or Groups in the left-hand column, then click the ">>"
Button. Multiple Groups can be selected by holding down the CTRL Key while selecting.
When finished, click the "Close" Button.
30
Status Screen
This screen used to check the details and status of GNS-2000
Data
System
Status Screen
Server Name - Current name of the NAS. This name will be shown in
"Network Neighborhood" or "My Network Places". GNS-2000 has one default server name. Server Name is restored to default one after configuration restore.
31
Printer Server
Internal Disks
USB Disks
Firmware Version - Current version of the firmware in the NAS.
Hardware Address - Hardware Address of the NAS.
IP Address - IP Address currently used by the NAS.
Date - Current date of the NAS.
Time - Current time of the NAS.
Current Status - Indicates the current status of the NAS. This will usually state "Ready".
If the NAS is not ready, the message will say why the NAS is not ready.
The NAS supports USB printer, and it can share the printer after you connect one printer into one USB port.
Current Status - Possible states are On Line, Off Line, and Out of
Paper or No Printer.
No. of Print Jobs - The total number of print jobs in the Print Queue, waiting to be printed.
Display the status of Internal Disks.
Disk Mode - The current mode of the disk.
Disk Status
– Displays the current status of the internal disks.
Free Space - Amount of the disk space still available to users.
Total Space - Total amount of the disk space.
Disk - Number of USB disk.
Model - Model name of the disk, it's provided by the manufacturer.
Capacity - Total space of the disk which can be used.
Status - The current status of the disk.
Display the status of USB Disks.
Model - Model name of the disk, it's provided by the manufacturer.
Partition - Partition number of USB disk.
File System
– File system used in the partition.
Share - Corresponding share of the partition.
Total Size - Total size of the partition.
Free Size - Free size of the partition.
Buttons
32
Shutdown Now
Restart Now
View Log
Shutdown the Server immediately. This will break all existing connections, including this one.
Clicking this button does NOT save any data you have entered.
Restart (reboot) the Server. This will break all existing connections, including this one. The NAS Server will immediately restart, but could take a few minutes before it is available again.
Clicking this button does NOT save any data you have entered.
Click this button to view the log file in separate window. The log file is a record of activity on the NAS Server, which can help in management and troubleshooting.
Delete Current Job Clicking this button will delete the Print Job currently being printed. Use this if the document is not printing correctly.
Delete All Jobs Clicking this button will delete all Print Jobs in the Print Queue. Use this to clear the Print Queue.
Refresh Click this to update the data shown on screen.
33
Network Screen
This screen allows you to set the IP Address and related information required for TCP/IP networks.
Network Screen
IP Address
Obtain IP Address automatically
(DHCP Client)
Fixed IP Address
IP Address
Network Mask
Do NOT select this unless you have a DHCP Server on your LAN. A
DHCP Server can provide an IP Address to PCs and other devices when they boot.
Select this if your LAN does not have a DHCP Server, and enter the following data.
The IP Address must be unused, and compatible with the PCs on your
LAN.
Enter the same Network Mask (Subnet Mask) used by PCs on your LAN.
34
Gateway If your LAN has a Router or Gateway, enter its IP Address here. Otherwise, leave this blank.
DNS
A DNS (Domain Name Server) translates Internet addresses (e.g. microsoft.com) to IP
Addresses. Use the same values as on your PC, or recommended by your ISP (Internet
Service Provider).
At least one (1) DNS entry is required if using either the "E-Mail Alert" feature.
Otherwise, the DNS entries may be left blank.
Obtain DNS Server
Addresses from
DHCP Server
Select this if you want to obtain DNS Server Addresses from DHCP server when DHCP Client is enabled.
Use Fixed DNS Server Addresses
Select this if you want to specify some DNS Server Addresses.
Primary
Backup 1
Backup 2
IP Address of the first DNS Server.
IP Address of the DNS Server to be tried if the first server is busy.
IP Address of the DNS Server to be tried if the second server is busy.
DHCP Server
GNS-2000 can act as a DHCP (Dynamic Host Configuration Protocol) Server, providing IP
Addresses and related data to PCs and other devices.
Enable
Start Address
Finish Address
DHCP Client Table
Use this to Enable/Disable the DHCP Server. If you already have a DHCP
Sever, do not enable this feature.
Enter the beginning of the range of IP Addresses to be allocated by the
DHCP Server.
Enter the last address of range of IP Addresses to be allocated by the
DHCP Server.
Click this button to open a sub-screen which displays the IP Addresses which have been allocated by the DHCP Server function.
WINS
Enable WINS
WINS Server
Enable this if your LAN has a WINS Server.
If enabled, this device will register with the WINS Server. This will allow users on the LAN to locate this device through a Router. (Without WINS,
"Network Neighborhood" or "My Network Places" only scans the local LAN segment.)
If WINS is enabled, enter the IP Address of your WINS Server. Normally, this will be a Windows NT/2000/XP Server.
35
Jumbo Frame
Frame Size The NAS support large frame, you select different frame size for your need.
36
System Screen
This screen contains some basic information about your GNS-2000. After initial configuration, no changes should be required.
37
System Screen
Identification
Server Name
Comment
Workgroup
Printer Name
If you wish, you can change the name of the NAS Server. Note that punctuation and other special characters (e.g. * " / \ [ ] : ; | = , + ? < > ' ` ( ) #
$ %) cannot be used in the name.
Enter a comment if you wish (e.g. the location of the NAS Server). Note that special characters (e.g. | \ , ' : ") cannot be used in it.
This should match the "Workgroup Name" on your PCs. If the Workgroup name does not match, access to the NAS Server is still possible, but the
NAS Server will not appear when you click the "Browse Network" button
(for example, when adding a Network Printer). Note that punctuation and other special characters (e.g. / ] \ [ : ; | = , + * ? " > < ' ` ) cannot be used in the name.
Specify one name for the Printer Server. After you plug one printer into one USB port, the Printer Name will occur in Network Neighborhood and you can click it to install the Printer Server.
Date & Time
Time Zone Select the correct time zone for your location.
Change System Date and Time as Following
Check this box for data and time update. The date and time setting is not sent to the server without check this box.
Date
Time
Enter the local date. The NAS Server will set it own calendar according to the date you provide.
Enter the local time at your location. The NAS Server will set its own clock according to the time you provide. Remember that this is not sent to the
Server until you click "OK".
NTP (Network Time Protocol)
Synchronize with Time
Server
If enabled, the NAS Server will synchronize its clock with a NTP (Network
Time Protocol) Server.
NTP Server Enter the domain name or IP address of the NTP server you wish to use.
The NTP server can be a public server (on the Internet) or a local server
(on your own network). Note that special characters (e.g. " / \ [ ] : ; | = , +
* ? < > ' `) cannot be used in it.
Status
Synchronize ...
Sync Now
This shows the status of the NTP update procedure.
Select how often you want the NAS Server to synchronize its clock with the specified NTP server. You can also specify the time of the next synchronization. This allows you to specify that the synchronization should be performed (for example) at 11.00 pm each day.
Use this button to synchronize with the NTP server immediately.
38
Language
Language Environment
DDNS
DDNS Service
Specify the language environment for FTP clients and Download Manager.
E-Mail Address
TZO Key
User Name
Password
Domain Name
Update Period
Status
Select the desired DDNS service provider form the drop-down list and enter the required data in the following fields. The default is Disabled.
Enter the E-Mail address of the TZO service.
Enter the key here.
Enter the user name for the DynDNS service.
Enter the password here.
Enter the Domain Name of the DDNS service.
Select the interval to update the DDNS service.
Displays the update status of the DDNS service.
Download Manager
Enable Download
Manager
If enabled, you can use Download Manager function on homepage to download files with FTP and HTTP URLs. If a special language exists in the URLs, you must make sure the Language Environment above is correct, or they possibly fail to be downloaded.
Maximum Running BT
Tasks
Specify maximum number of BT tasks that can run at same time. It's up to
5 tasks.
Maximum Running
HTTP/FTP Tasks
Enable Schedule
Day
Time
Specify maximum number of HTTP/FTP tasks that can run at same time.
It's up to 10 tasks.
If enabled, Download Manager only runs on the specified time period. If disabled, Download Manager always runs. The option only takes effect when Download Manager is enabled.
Day of the schedule. If you want Download Manager to run in specified period every day, you need select "Every Day", or you can select others to limit Download Manager to run on one specified day.
Time of the schedule. If selection of Day is not "Every Day", the End Time cannot be after Start Time.
E-Mail Alert
Send E-Mail... Check this to enable the sending of e-mail alerts by the NAS. Alerts will be sent when there is some problem requiring the Administrator's attention.
39
E-Mail Address
From Address (Optional)
Enter from 1 to 3 E-Mail Addresses. The messages generated by the NAS will be sent to these destinations. Note that special characters (e.g. " / \
[ ] : ; | = , + * ? < > ' `) cannot be used in them.
Specify one E-Mail Address that appear in the "From" field of e-mail alert generated by the NAS. Usually it's helpful for e-mail alerts to avoid being filtered as junk mails.
Subject (Optional) Enter the text you wish to appear in the "Subject" field of e-mail alert generated by the NAS. Note that special characters (e.g. " / \ [ ] : ; | = . , + * ? < > '
`) cannot be used in it.
Send Test Mail Send test mail to specified e-mail address to verify whether the e-mail address can be reached.
Use Specified SMTP
Mail Server
You can specify one SMTP (Simple Mail Transport Protocol) server to be used to send E-Mail. It's optional.
SMTP Mail Server Specify the address of the SMTP Mail Server.
SMTP Port Number Specify the port number used by SMTP server. It's 25 by default.
Mail Server requires
Authentication
If the SMTP Server requires a "login" in order to send mail, check it and enter your login name and password for the SMTP server. This is usually the same as the POP3 server used to receive e-mail. Meanwhile, you need specify the "From Address" as the E-Mail Address that is correlative with the Account Name.
Account Name
Password
Specify the login name that is used to login the SMTP server.
Specify the password that is used to login the SMTP server.
Result of Test Mail Displays the result of the test mail.
Options
Enable 'guest' account If enabled, then user can use "guest" as user ID to login to the NAS. If disabled, then "guest" will not be accepted as a login. If enabled, you can configure following options:
Allow anonymous Login for Windows Networking
If enabled, then all Windows users will be able to access the
NAS via Network Neighborhood/My Network Places, with "guest" access rights. By default, the "guest" user has Read/Write permission for all USB disks.
Allow anonymous access to "Public Data"
If enabled, then user can access files on Public Data on homepage anonymously.
Enable NFS Server
Enable AFP Server
Enable FTP Server
If enabled, then it will be possible for users to access files using a NFS
(Network File System) client.
If enabled, then it will be possible for users to access files using a Mac
OS through AFP(Apple Filing Protocol ).
If enabled, then it will be possible for users to upload and download files using a FTP client program on their PC. The FTP server supports UTF-8.
40
Allow anonymous
FTP login
Support SSL
Bandwidth Limit
Enable UPnP
Support
Enable HTTPS
Enable Recycle Bin
Clear Recycle Bin
Termly
Port Number
If the FTP clients don't support UTF-8, please specify right Language
Environment above.
The FTP server will prompt for a Username and Password when clients attempt to connect. If this option is Enabled, users will be able to enter
"anonymous" as the Username, and any string as the Password. If this option is Disabled, users must provide their correct Name and Password.
Enable SSL encryption support for the FTP server. To use this function, you must use FTP clients with SSL supported also.
Limit the maximum speed of data transfer for every FTP client. Value must be equal to or larger than 0. 0 means no limit.
If enabled, the NAS will broadcast its availability. For LAN users with systems which support UPnP (e.g. Windows ME, Windows XP), an icon for the NAS will be automatically generated.
If enabled, you can access the NAS Server’s web pages with HTTPS
(HTTP over SSL). This function can make sure all connections are encrypted and secure.
If enabled, deleted files are removed to folders 'Recycle Bin' in every share. If you want to delete the files permanently, you need delete them from folders 'Recycle Bin' again.
Set up a schedule to clear files that exist in the Recycle Bin termly.
This port number is used for HTTP (Web Browser) connections to this
Server. The default is 80, as used by Web Servers. If this is changed, you should use a number greater than 1024 (8080 is often used). Also, if the port is not 80, you must specify the port in your Web browser, in order to connect. To do this, add a ":" and the port number after the address: e.g.
HTTP://192.168.0.100:8080
This example assumes the NAS Server’s IP Address is 192.168.0.100, and the port number is 8080.
Buttons
Save
Cancel
Restore to Default
Clear Now
Click this button to save the settings on the page.
Click this button to cancel the modifications on the page.
Click this button to restore all system and network settings to default.
Click this button to delete all files that exist in the Recycle Bin immediately.
41
Media Screen
This screen allows you to configure the settings for media functions.
Media Screen
Photo Album
Enable Photo
Album
If enabled, then the user can enjoy the photos that stored in the NAS Server.
Content Directory Specify the location in which photos are stored.
iTunes Server
Enable iTunes
Server
Server Name
If enabled, then the user can listen music that stored in the NAS via iTunes client. This iTunes Server supports files with extensions .mp3, .m4a, and .m4p. And the iTunes Server uses port number 3689.
Specify the name of the iTunes Server.
42
Content Directory Specify the location in which music need be served iTunes Server.
MP3 Broadcast
Enable MP3 Broadcast
If enabled, then the NAS will broadcast MP3 in specified folder, and user can listen to them by music players such as WinAMP etc. This MP3 Broadcast supports files with extension .mp3.
Server Name Specify the name of the MP3 Broadcast.
Port Number
Play by
This port number is used for HTTP connections to MP3 Broadcast. The default is 1234. If this is changed, you should use a number greater than
1024. In order to connect to the music broadcast via WinAMP etc, need add a ":" and the port number after the address, e.g.:
HTTP://192.168.0.100:1234
This example assumes the NAS Server’s IP Address is 192.168.0.100, and the port number is 1234.
Specify the order that MP3 should be broadcasted.
Order - Play by order.
Shuffle - Play by shuffle.
Content Directory Specify the location in which MP3 need be broadcasted.
Media Server
Enable Media
Server
If enabled, the NAS can be located by compatible Media Adapters, using the
UPnP AV standard developed by Intel and its partners. Media content on the
NAS (in the Content Directories specified below) can then be accessed and played by the Media Adapters.
Server Name Name of the Media Server that is displayed on client devices.
Content Directory Directories where the Media Server shall scan for media content. You can specify four Content Directories at most. You should click the "Browse" button to select the desired folder. Each directory can be limited to a certain media type. The default setting will scan for all content types.
Buttons
Browse
Save
Cancel
Click this button to select Content Directory.
Click this button to save the settings on the page.
Click this button to cancel the modifications on the page.
43
Advanced Menu
Groups Screen
This screen allows you to manage the User Groups that exist on GNS-2000.
Groups Screen
Data
New Group
Existing Groups
Use this area to create a new group.
This shows the list of all Groups.
Two groups - "everyone" and "administrators" - always exist. These groups cannot be deleted.
Buttons
Create
Access
Members
Use this Button to create a new Group. Enter the desired name for the new
Group in the "Name" field, then click this button.
Clicking this will display the shares which members of the current Group are able to access. You can then assign, remove or modify access rights for this
Group.
Note: The "administrators" Group ALWAYS has Read/Write access to ALL
Shares.
Clicking this will display the users who are members of the selected Group.
You can then add or delete members.
Note: The "everyone" Group ALWAYS contains all users. You cannot add or
44
Delete remove members.
Click this Button to Delete the selected Group.
Note: The "administrators" and "everyone" Groups can not be deleted.
45
Access Rights Screen
This screen allows you to view and modify the Groups which can access this Share.
Note: The administrators group ALWAYS has Read/Write (R/W) access to ALL shares.
Groups Access Rights Screen
Data
Group Name
Accessible Shares
Other Shares
The name of the Group being modified is shown above the 2 lists of shares.
The "Accessible Shares" column on the left shows which Shares this
Group can currently access. The type of access is shown in brackets. (R
= Read Only, R/W = Read-Write).
Note: The "administrators" Group has R/W access to ALL shares.
The "Other Shares" column on the right shows all other Shares. The current Group has no access to these Shares.
Operation
To Add Access Rights: Select the Share or Share in the right-hand column, then click the "<<
Read Access" to provide Read-Only access, or the "<< R/W Access"
Button to provide Read-Write access. Multiple Shares can be selected by holding down the CTRL Key while selecting.
46
To Remove Access Rights: Select the Share or Shares in the left-hand column, then click the "No
Access >>" Button. Multiple Shares can be selected by holding down the CTRL Key while selecting.
When finished, click the "Close" Button.
47
Group Members
This screen allows you to check which users are members of the group, and to add or revoke membership of this group.
Note: The "everyone" Group ALWAYS contains all users. You cannot add or remove members.
Group Members Screen
Data
Group Name
Members
(users)
Other Users
The name of the Group being modified is shown at the top of the screen.
The "Members" column on the left shows the users who are currently members of this Group.
The "Other Users" column on the right shows users who are not currently members of this Group.
Operation
To Add a Member:
To Delete a Member:
Select the User or Users in the right-hand column, then click the "<<"
Button. Multiple Users can be selected by holding down the CTRL Key while selecting.
Select the User or Users in the left-hand column, then click the ">>"
Button. Multiple Users can be selected by holding down the CTRL Key
48
while selecting.
When finished, click the "Close" Button.
49
Shares Screen
This screen allows you to manage the Shares that exist on the NAS Server. A "Share" is a folder (directory) on the NAS Server that a User Group can access.
Only the NAS Server Administrators can create Shares. However, within a Share, users who have access to that Share can create other folders (directories) as well as files.
A Share can be accessed by many User Groups, and a User Group can access many
Shares.
If a folder within a Share is also a Share, then all users with access to the outer share will ALWAYS have the same access to the inner share.
Shares Screen
Existing Shares
Share List
Access Button
All existing shares are listed. When an existing Share is selected in the list of Shares, its details are displayed in the "Share Properties" area.
Click this Button to view the Groups that have access to the selected
Share, and change these access rights as required.
50
Delete Button Click this Button to Delete the selected Share. Deleting a Share does NOT delete its folder or any data. The folder and its data are still accessible by the "administrators" group.
Properties
Name The current name will be displayed. The Share Name can be changed if you wish. This does not change the name of the folder (directory) associated with the Share. Note that punctuation and other special characters
(e.g. " / \ [ ] : ; | = , + * ? < > ' ` $ % @ #) cannot be used in the name.
Comment (Optional) Change or enter a comment if you wish. Note that special characters (e.g.
" \ : , | ' ) cannot be used in it.
Location The Location associated with the Share. Note that once a Share is created, its location can not be changed.
Option regarding location:
If "Default Folder" is selected, the share is created in the root folder (directory).
If "Specify" is selected, you can specify the folder (directory) where you want the share. If the folder does not exist, it will be created. Note that special characters (e.g. " : ; | = , + * ? < > ' `) cannot be used in it.
Operations
Access Click this button to view the Groups, which have access to the selected
Share, and change these access rights as required.
Delete Click this Button to delete the selected Share.
Save as New Share After entering the required data in the "Share Properties" area, use this
Button to create a new Share.
Clear the form, preparing it for the creation of a new Share. Clear Form
Save Use this Button change the properties of a Share, as follows:
1. Select the desired Share in the Share list. Its details will be displayed in the "Share Properties" area.
2. Change the Share properties as required. Note that you can NOT change the location.
3. Click the "Save" button to save your changes.
51
Share Access
This screen allows you to view and modify the Groups, which can access this share.
Note: The administrators group ALWAYS has R/W access to ALL shares
Share Access Rights
Data
Share Name
Groups with
Access
Other Groups
The name of the Share being modified is shown above the 2 lists of
Groups.
The "Groups with Access" column on the left shows, which group, can currently access this Share. The type of access is shown in brackets. (R =
Read Only, R/W = Read-Write).
Note: The "administrators" Group has R/W access to ALL shares.
The "Other Groups" column on the right shows all other Groups on the current Disk Drive. The current Share cannot be accessed by these
Groups.
Operation
To Add Access
Rights
Select the Group or Groups in the right-hand column, then click the "<<
Read Access" to provide Read-Only access, or the "<< R/W Access" Button to provide Read-Write access. Multiple Groups can be selected by holding
52
down the CTRL Key while selecting.
To Remove Access
Rights
Select the Group or Groups in the left-hand column, then click the "No
Access >>" Button. Multiple Groups can be selected by holding down the
CTRL Key while selecting.
When finished, click the "Close" Button.
53
Backup Screen
There are 3 types of backup:
Configuration Backup - This facility allows you to Backup (Download) and Restore
(Upload) the NAS Server’s configuration file. The configuration file contains all network information, as well as the User, Group, and Share information. It does NOT include any information about the files stored on GNS-2000
NOTE: Using this feature will overwrite (destroy) any existing configuration information.
USB Backup - Backed up data from specified USB disk into specified folder in Internal Disk by pushing the USB Eject buttons.
NOTE: Push the Eject buttons and then release after GNS-2000 beeps twice. GNS-
2000 will beep three times if backup succeeds, and beep once if backup fails.
Data Backup - Data files can be backed up from GNS-2000 to another network device, or from another network device to the NAS.
Backup Screen
Configuration Backup
Back Up Button Click this to download the configuration file and save it on your PC.
Restore Button Use this to restore a previously-saved configuration file from your PC to
GNS-2000
54
USB Backup
Storage Directory
Backup Type
Specify the folder which data in USB disks will be backed up. Click 'Browse' button to select the desired folder.
Select the desired backup type:
Full - One new folder will be created in the specific folder of the USB disk in the Storage folder, and then all files will be backed up into the new folder. But if no file changes from last backup, files will not be backed up. Specific folder of the USB disk is created according to its model name and the new folder's format is "YYYYMMHHmm".
Incremental - Only changed files will be backed up and files are always backed up into the specific folder of the USB disk in the Storage folder.
Specific folder of the USB disk is created according to its model name.
Data Backup
Backup Jobs
Backup Now
Stop
Status
Add New Job
Modify
Delete
View Log
This lists any Backup jobs you have defined. If you have not defined any jobs, the list will be empty. For each job which has been defined, the following data is shown:
Name - the name you assigned to this backup job.
Source & Destination - The name of the source and destination devices are shown in the form Source => Destination.
Date/Time - The date and time of the last backup are shown.
Run the selected backup job immediately.
Click this button to stop the selected backup job.
This button will open a sub-window that shows the status of all Backup jobs.
This button will open a sub-window where you can define a new backup job.
This button will open a sub-window where you can change the settings of the selected backup job.
Delete the selected backup job.
View the log of completed backup jobs in a sub-window.
55
Add Backup Job
From this screen, you can add new backup jobs, which be displayed on the Backup screen.
Add Backup Job Screen
Data
Name
Backup Type
Direction
Local Location
Enter a suitable name for this job.
Select the desired backup type.
Full - all files will be backed up.
Incremental - only changed files will be backed up.
Synchronize - all files are backed up, then any files on the destination which do not exist on the source are deleted.
Select the desired option:
From this NAS to another device.
From another device to this NAS
Select the desired folder in this NAS. Click 'Browse' button to select the desired folder.
If backing up from this NAS, select the folder you wish to backup.
If backing up from another device to this NAS, select the folder where you want the backed-up data to be stored.
56
Remote Location
Schedule
Enter the details of the remote device.
Server Name - enter the name of the other device, as seen on the network.
Shared Folder - Enter the name of the shared folder. Depending on the direction of the backup, this is either the share to be backed up, or the destination for the backed-up data.
The Server Requires Authentication - If the share is passwordprotected, enable this checkbox and enter the User Name and
Password required to gain access to the share.
Select the desired option from the list:
Never - This will disable this backup job.
Every Day - Select this to have the backup job performed each day, at the specified time.
Every Monday, Every Tuesday, ... Select this to have the backup performed once per week, on the specified day.
Use the time fields (hour, minute, am/pm) to specify when the backup job should be performed.
Buttons
Browse
Save
Close
Click it to select one folder in GNS-2000.
Click it to apply modifications in this window.
Close the window.
57
Disk Screen
This screen allows you to maintain the disks in GNS-2000
Disk Mode - Disk mode select: Separate Disk, JBOD/LVM, Raid 0 and Raid 1. Any data
on the disk will be lost it if change disk mode.
Format Disk - use this after installing a new disk. The disk will be partitioned and quick-formatted. Any data on the disk will be lost!
Scandisk - running the Scandisk (Disk Check) program will check the file system, and correct any errors found. This program should be run regularly. The Scandisk program will also run automatically if an error condition is detected, such as an abnormal shutdown due to loss of power.
S.M.A.R.T. - S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) can warn of impending problems with the Hard Disk, before it actually fails. This test should be performed regularly.
Disk Screen
58
Data
Disk Mode
Format
Scandisk
This indicates the current working mode of Internal Disks. It can be one following modes:
Separate Disks
Disk 1 and Disk 2 work separately (Recommended).
JBOD/LVM
Disk 1 and Disk 2 are bound into one logical volume. Total capacity is equal to the capacity of the existing drive(s). To work in this configuration, at least one drive must exist. If this configuration is selected with only one drive installed, the second drive will be configured to extend the capacity of the logical volume when it is installed.
Mirroring (Raid 1)
Disk 1 is mirrored into Disk 2. Total capacity is equal to the capacity of smaller drive. To select this mode, both drives must exist.
Striping (Raid 0)
Disk 1 and Disk 2 are striped into one logical volume. Total capacity is equal to two times the smaller capacity of the two drives. To select this mode, both drives must exist.
This includes status of Internal Disk and USB Disks.
Internal Disk:
No Installed - No disk is inserted, or connection or disk has failed.
Not Formatted - Disk has been detected, but it is not ready for use.
Use the "Format" button to prepare the disk for use.
Formatting - This message will only be displayed after you have clicked the "Format" button. (See below for details of this button.)
Formatted - Disk is ready for use.
USB Disks:
No Installed - No disk is inserted into this USB port.
Not Formatted - This USB disk hasn't been formatted into FAT or
NTFS file system. You can click "Format" button to format it.
Formatted - Disk is ready for use.
This can have any of the following values:
N/A - No disk is available.
No Scanned - No Scandisk has been performed recently on this drive.
Scanning - Scandisk operation is in progress. The disk cannot be used while a Scandisk is in progress. If required, use the "Stop" button to terminate the Scandisk operation and gain access to data on the disk. (To see the results of the Scandisk operation, use the
"View Disk Log" button.)
Completed - The last Scandisk operation has been completed. You
59
S.M.A.R.T.
Standby
Buttons
Change
Format
Scandisk can use the "View Disk Log" button to view the results.
Terminated - The last Scandisk operation was cancelled by the
Administrator before it was completed.
Schedule
Use these fields to set up a schedule to run Scandisk regularly, if desired.
The available options are:
Never - Scandisk will not be scheduled to run.
Every Day - select this to have scandisk run each day, at the specified time.
Every Monday, Every Tuesday, ... - Select this to have the scandisk run once per week, on the specified day.
Use the time fields (hour, minute, am/pm) to specify when the scandisk operation should be performed.
This can have any of the following values:
Not Installed - No disk is available.
Not Checked - No S.M.A.R.T. check has been performed on this drive since system boots up.
OK - No errors were found in the last test.
Going to fail - The S.M.A.R.T. check found errors on the drive and the disk is going to fail.
Schedule
Use these fields to set up a schedule to run S.M.A.R.T. check regularly, if desired. The available options are:
Never - S.M.A.R.T. check will not be scheduled to run.
Every Day - Select this to have S.M.A.R.T. check to run each day, at the specified time.
Every Monday, Every Tuesday, ... - Select this to have the scandisk run once per week, on the specified day.
Use the time fields (hour, minute, am/pm) to specify when the S.M.A.R.T. check should be performed.
Use the "Set
Hard Disk to standby mode…" setting to determine if and when the hard disk drives should be switched to "Standby" mode.
Use the "Turn off the fan…" setting to determine if and when the fan should be turned off.
Click this button to enter the screen of changing Disk Mode.
Use this button to format the disk. This will partition and quick-format the new disk.
WARNING! This will destroy any data on the disk. Once started, this process can NOT be halted or reversed.
Start - Click the button to start the Scandisk. The Scandisk could take
60
S.M.A.R.T.
Save
Cancel
View Log long time, and the disk is unavailable to users while the Scandisk is in progress.
Stop - If a Scandisk is in progress, click this button to terminate the
Scandisk immediately.
Check - Click this button to run the S.M.A.R.T. check immediately.
Click it to save the modifications in this window.
Restore the settings on the screen to their values after the last "Save" operation. Clicking "Cancel" has NO EFFECT on any operations in progress.
View the log messages of disk maintenance.
61
Upgrade Screen
The Upgrade facility allows you to upgrade the software of GNS-2000. You need to obtain the upgrade file from your dealer or supplier.
Note that GNS-2000 is unavailable during the upgrade process, and all connections will be lost, including this one.
GNS-2000 will reboot once the upgrade installation is completed. The procedure may take from 5 to 10 minutes.
Upgrade Screen
Data
Current Firmware
Version
Firmware File
This displays the version number of the NAS Server's current firmware.
Click the "Browse" button to browse the folders on your PC and select the
Firmware file (e.g. C:\downloads\NAS SERVER_V36R01.bin).
Note: Implementation of this feature is Browser-dependent.
Buttons
Start Upgrade Button Click this button to start upgrading the firmware.
62
Download Manager
Overview
Download manager allow you to download file via FTP, HTTP or BT without PC. Just set on GNS-2000 and will base on your setting to download file automatically.
The Web-base Download Management Interface
To access the Download Manager interface, click the "Download Manager" link on the home page. You will then be prompted for a password, as shown below.
Password Dialog
Enter
“admin” for the name, and leave the password blank or user ID and password which registered on GNS-2000
Download Management Screen
This screen allows you to manage your download tasks.
63
Download Management Screen
Data
Manager Status Status of the Download Manager, it can be 'Enabled' or 'Disabled'.
Owner Name of the user that logins the Download Manager.
File Name
File Size
Name of the saved file in the NAS for the task.
Total size of the downloaded file for the task.
Speed
Percent
Status
Admin
Download speed of the task.
Completed percentage of the downloaded file from the URL.
Download status of the URL, it can be "Waiting", "Connecting", "Failed",
"Stopped", "Transferring" or "Done".
Select the operation on the task.
Action
Task Details
Run Task
View the detailed information of the task.
Start to run the selected task.
64
Stop Task
Delete Task
Move Up
Move Down
Logout
Add New Task
Refresh
Help
Stop the selected task.
Delete selected tasks.
Increase the priority of the task.
Decrease the priority of the task.
Leave the screen of Download Manager.
Open the window to add new task.
Refresh the status of tasks.
Click it to view on-line help.
Add New Task Screen
This screen allows you define download task of Download Manager.
Add New Task Screen
Source
Type
URL (HTTP/FTP)
Torrent File
Specify type of the file to be downloaded. It can be HTTP/FTP or BT (Bit
Torrent).
Specify the URL if type is HTTP/FTP.
Specify the torrent file with which you need download files. You can upload it from local pc or provide one HTTP/FTP URL for it.
Authentication
Authentication
Required (Optional)
If authentication is needed to access the URL, need enable it and input the account and password.
65
Account
Password
Account name that is used to access the URL if necessary.
Password that is used to access the URL if necessary.
66
Destination
Share Folder
Subdirectory
Action
Save
Cancel
Close
Select name of the share where downloaded file will be saved.
Select the subdirectory under the selected share where downloaded file will be saved.
Save the new task.
Cancel the modifications on the web page.
Close the window.
67
Photo Album
Overview
GNS-2000 allows you to share photos with select users on the Internet. You must enable
this feature in the Media screen, then you will be able to share photos located in your pictures folder.
The Web-base Photo Album Interface
To access the Photo Album interface, click the "Photo Album" link on the home page. You will then be prompted for a password, as shown below.
Password Dialog
Enter
“admin” for the name, and leave the password blank. or user ID and password which registered on GNS-2000.
Photo Album Screen
This screen allows you to manage your photos.
68
Photo Album Screen
Data
Folders
Files
Sort by Name
Sort by Date
Sort by Size
New Folder
Select All
Unselect All
Delete
Play
New Photo
The number of the folders currently exists.
The number of the files currently exists.
Click this button to sort the files by name (A~Z).
Click this button to sort the files by date.
Click this button to sort the files by the photo’s size.
Add a new folder in the current location.
Select all the files by clicking this button.
Unselect all the files by clicking this button.
Select the image and click this button to delete.
Click this button to continue playing the images in the folder.
Use the
“
Browse…
“
button to find the photo image you want to add, then click the
“
Upload
“
button.
Use these buttons to change pages. Page
69
NAS via the Internet
Overview
If your LAN is connected to the Internet, typically by a Broadband Gateway/Router and
Broadband modem, you can make GNS-2000 available via the Internet. Features available to Internet users include:
Using a Web browser to view and download files.
Remote management
Making the NAS available via the Internet
If your LAN is connected to the Internet via a Router or Gateway, you can make GNS-2000 available from the Internet.
No changes to the NAS configuration are required, unless you wish to use a port number other than the default value of 80 for Web connections.
Your Router or Gateway must be configured to pass incoming HTTP connections (and optionally, IPP connections) to the NAS. This feature is normally called Port Forwarding or
Virtual Servers, and is illustrated below.
Connecting via the Internet
70
The default port number for Web browser connections is 80. If you prefer to use a different port number, you can specify the port number on the NAS System screen.
The "Web" entry for /Port Forwarding / Virtual Server must then use the port number specified on the NAS System screen.
To connect to the NAS, Internet users need to know and use the Internet IP address of your Router/Gateway. (If the port number is not 80, they also need to know the port number.)
If you have a domain name, users can connect using the domain name instead of the
IP address. If your Router/Gateway supports Dynamic DNS, you can use a domain name even if you get a different IP address every time you connect to your ISP
. Check the documentation of your Router/Gateway for further information.
Using your Web Browser from the Internet
This is identical to using your Web browser from the LAN. See
“Using the Web File Shar-
ing
” for details.
But remember:
You must use the Internet IP address to connect to the NAS, NOT the LAN IP address.
If the port number used by the NAS has been changed from the default (80), you must specify the correct port number when you connect.
For example, if the port is 8080, and the Internet IP address is 203.70.212.52, enter the following as your browser's Address or Location:
HTTP://203.70.212.52:8080
71
Printing via IPP (Internet Printing Protocol)
To print to GNS-2000 via the Internet, the port used for IPP (TCP port 631) must be asso-
ciated with GNS-2000. See Making the NAS available via the
for details.
The NAS is an IPP Server. To use IPP, your PC must be an IPP client. Windows 2000 and XP have built-in support for IPP, so there is no need to use the provided IPP client program.
IPP Setup - Windows 2000/XP
1. Start the Add Printer wizard.
2. Select Network Printer, and click "Next" to see the Locate your Printer screen, as shown below.
Windows 2000 - Locate your Printer
3. Select Connect to a printer on the Internet or on your Intranet, and enter the URL of
GNS-2000 as follows. http://ip_address:631/printers/printer_name
Where:
ip_address represents the IP Address used to access the NAS. (As explained earlier, this may be the Internet address of a Gateway, rather than the NAS itself.)
printer_name is the name of the printer, as set on the NAS System screen.
The other text is fixed, and can NOT be changed. It must be entered exactly as shown, including the same case. (The path is case sensitive.)
Example:
72
http://203.70.212.52:631/printers/LKLKG974163_p1
4. Click "Next"
If the connection can be established, and the printer on that port is on-line, the following dialog will be displayed.
Windows 2000: No printer driver
5. Click "OK", and then select the printer manufacturer and model to match the printer connected to the port on the IPP Server.
6. Click "Next", and complete the Wizard.
The IPP printer is now ready for use.
IPP Client Setup (Windows 9x, ME)
You need to install the supplied IPP client program, as follows:
1. Insert the NAS CD-ROM in your drive. If the program does not start automatically, run the NAS_Setup.exe program in the top-level folder.
2. On the first screen, click the icon for IPP Client.
3. Follow the prompts to complete the installation.
IPP Client Configuration
1. Click the "Add IPP Port" icon. (In future, you can use the program entry created in the
Start Menu)
2. A screen like the following will be displayed.
73
IPP Port
3. Configure this screen as follows:
IPP Server Enter the Internet IP address used to connect to GNS-2000, as follows. http://ip_address:631/printers/printer_name
Where:
ip_address represents the IP Address used to access the NAS.
(As explained earlier, this may be the Internet address of a Gateway, rather than the NAS itself.)
printer_name is the name of the printer, as set on the NAS
System screen.
The other text is fixed, and can NOT be changed. It must be entered exactly as shown.
Example:
http://203.70.212.52:631/printers/LKLKG974163_p1
Proxy Server
If Internet access from your PC is via a Proxy Server, check Access
IPP Server via Proxy Server, and enter details of your Proxy Server.
(These will be the same as your Browser configuration, so check your Browser settings.)
4. Click Save to create the IPP port on your system. You will see the following dialog:
74
Select Printer for IPP Port
5. Either selects an existing printer to use the new port, and click OK.
OR a) Click the "Add New Printer" button to start the Add Printer wizard. b) Complete the Wizard, installing the desired printer as a local printer on your PC. c) When returned to this screen, select the new printer and click OK.
6. The selected printer is now associated with the remote NAS, and installation is complete.
Changing the IPP Port Settings
After the IPP port is created, you can reach the IPP Port screen via the Windows Port
Settings button:
1. Open the Printers folder (Start - Settings - Printers)
2. Right-click the IPP Printer, and select Properties.
3. Locate and click the Port Settings button (on the Details or Port tab, depending on your version of Windows).
Using the IPP Printer
The IPP Printer can be selected and used like any other Windows printer, but your Internet connection needs to be active.
An NAS may be unavailable for IPP printing for any of the following reasons:
It is powered off.
The IP Address of the Router/Gateway for the remote LAN has changed.
75
The Internet connection used by the IPP Server is down.
Network congestion causes the connection attempt to time out.
76
Remote Management
Connection via your Web browser from the Internet is the same as connecting via the LAN.
Remember:
You must use the Internet IP address to connect to the NAS, NOT the LAN IP address.
If the port number used by the NAS has been changed from the default (80), you must specify the correct port number when you connect.
For example, if the port is 8080, and the Internet IP address is 203.70.212.52, enter the following as your browser's Address or Location:
HTTP://203.70.212.52:8080
Once connected to the NAS via the Internet, all the Web-based management features are available.
However, the "Browse" button on the Shares screen only allows Web-based file browsing.
(If using Internet Explorer on Windows, LAN users can browse shares using Windows
Explorer.)
77
Troubleshooting
This chapter lists some common problems, and the solution to them.
Problem 1:
The NAS Utility doesn't list any NAS Servers.
Solution 1:
Check the following:
The NAS is installed, LAN connections are OK, and it is powered ON and startup is complete.
Ensure that your PC and the NAS are on the same network segment. (If you don't have a router, this must be the case.)
Ensure that your PC has the TCP/IP network protocol loaded. In Windows, this is done by using Control Panel-Network. If an entry for TCP/IP -> Network card is not listed, use Add - Protocol - Microsoft - TCP/IP to add it.
You then need to select the new entry (TCP/IP -> Network card), click
Properties, and configure the IP Address tab.
If your LAN has a DHCP Server, you can select "Obtain an IP Address automatically".
Otherwise, you must select "Specify an IP Address", and enter values for IP Address and Subnet Mask. The IP Address range commonly used is 192.168.0.1 to 192.168.0.254, with a Subnet Mask of
255.255.255.0. (The NAS Server's default IP Address is 192.168.0.2, with a Subnet Mask of 255.255.255.0). Remember that each device needs a unique IP Address, and the same Subnet Mask.
Problem 2:
The NAS is configured, but I can't find it in Network Neighborhood.
Solution 2
Try using Start - Find - Computer, and enter the NAS Server's name. If this does not work, use Control Panel - Network to check the following:
TCP/IP protocol is installed. If not, use Add - Protocol - Microsoft - TCP/IP to install it.
Check the network Bindings:
Ensure the TCP/IP protocol is bound to your Network card (NIC).
Select your Network card, click Properties, and then the Bindings tab.
If TCP/IP is not bound (checked), check it.
Ensure the TCP/IP -> Network card entry is bound to the Client for
Microsoft Networks service.
Select the TCP/IP entry for your Network Card, click Properties, and then the Bindings tab. If Client for Microsoft Networks is not bound
(checked), check it.
If you don't have a router, check that your IP Address is compatible with the NAS Server's. This means it needs to be from the same address range
(e.g. 192.168.0.1 to 192.168.0.254) and using the same Subnet Mask (e.g.
255.255.255.0)
If you DO have a router, check that your Gateway IP Address is set correctly. Ask your LAN administrator for the correct value.
Problem 3
Solution 3
When I click on an NAS folder icon in Network Neighborhood, I get prompted for a password.
This can happen in the following situations:
The Logon name you used on your PC is recognized by the NAS, but the password is not. Simply enter your NAS password, or make your Windows password the same as the NAS password.
78
The logon name you used on your PC is NOT recognized by the NAS, and was converted to guest, with guest access rights. Ask the NAS Administrator to create a user name for you. (Use the same name as on your PC.)
You do NOT have access permission for this share.
Ask the NAS Administrator to grant you access.
Note: Windows uses the Computer name, as shown on Control Panel - Net-
work - Identification, as the default Logon Name. But you can create a new
Windows logon name by merely entering a new name and password at the
Logon prompt.
79
FCC Statement
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
80
Appendix A - Licenses
Overview
Many software components are covered by the GNU GPL (General Public License). Some are covered by the BSD License.
The following table provides details of the various components.
The text of both Licenses is below.
Package Name
bash bftpd
BusyBox
CUPS e2fsprogs gawk gdbm glibc hdparm
Kernel libtermcap
Lilo
LPRng mod-utils net-tools openssl pam quota
Samba server sh-util smtpclient sysVinit telnet-server textutils thttpd
Tinylogin
GPL
GPL
GPL
BSD
GPL
BSD
GPL
BSD
GPL
GPL
GPL
BSD
BSD or GPL
BSD
GPL
License
GPL
GPL
GPL
GPL
GPL
GPL
GPL
LGPL
BSD
GPL
LGPL
Ucsc-smartsuite udhcp upnpsdk util-linux vixie-cron
XFS patch xfsdump xfsprogs xinetd
GPL
GPL
BSD
GPL
Distributable
GPL
GPL
GPL
Distributable
BSD License
BSD License Information
Copyright (c) 2002. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the BSD organization nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
82
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
GNU General Public License
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free
Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General
Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.
83
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
Terms And Conditions For Copying, Distribution And Modification
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public
License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program
(independent of having been made by running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
84
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program
(or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
85
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License.
However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
86
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this
License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
87
9. The Free Software Foundation may publish revised and/or new versions of the General
Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE
LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
88
REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR
A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN
IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
END OF TERMS AND CONDITIONS
89
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- Home & Home Office NAS Desktop White
- Number of storage drives supported: 2 HDD
- 0.5 GHz
- 0.0625
- Ethernet LAN Jumbo frames support
Related manuals
Frequently Answers and Questions
How do I connect the NAS to my network?
How do I access the files on the NAS?
Can I use the NAS to share printers?
advertisement
