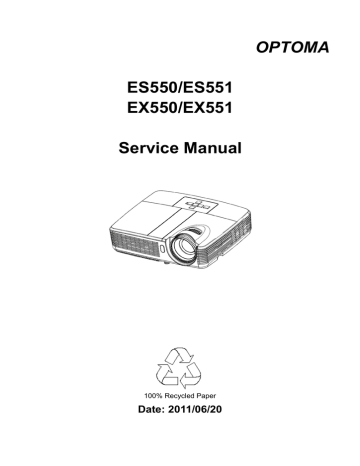

OPTOMA

ES550/ES551

EX550/EX551

Service Manual

100% Recycled Paper

Date: 2011/06/20

Update History

Date of issue Published by Version

2011/05/30 Ciom A

2011/06/20 Ciom B

Desc.

New version released.

Updated the Chapter 2 Firmware Upgraded

Flow

I

Safety Instructions

SAFETY PRECAUTIONS

WARNING:

The chassis of this projector is isolated (COLD) from AC line by using the converter transformer. Primary side of the converter and lamp power supply unit circuit is connected to the AC line and it is hot, which hot circuit is iden- tified with the line ( ) in the schematic diagram. For continued product safety and protection of personnel injury, servicing should be made with qualified personnel.

The following precautions must be observed.

1:An isolation transformer should be connected in the power line between the projector and the AC line before any service is performed on the projector.

2:Comply with all caution and safety-related notes provided on the cabinet back, cabinet bottom, inside the cabinet or on the chassis.

3:When replacing a chassis in the cabinet, always be certain that all the protective devices are installed

DO NOT OPERATE THIS PROJECTOR

WITHOUT THE PROTECTIVE SHIELD

IN POSITION AND PROPERLY SECURED

4:Before replacing the cabinet cover, thoroughly inspect the inside of the cabinet to see that no stray parts or tools have been left inside

Before returning any projector to the customer, the service personnel must be sure it is

properly, such as, control knobs, adjustment covers

completely safe to operate without danger of

or shields, barriers, etc.

electric shock

PRODUCT SAFETY NOTICE

Product safety should be considered when a component replacement is made in any area of the projector.

Components indicated by mark in the parts list and the schematic diagram designate components in which safety can be of special significance. It is, therefore, particularly recommended that replacement of there parts must be made by exactly the same parts.

SERVICE PERSONNEL WARNING

Eye damage may result from directly viewing the light produced by the lamp used in this equipment. Always turn off lamp before opening cover .The Ultraviolet radiation eye protection required during this servicing.

Never turn the power on without the lamp to avoid electric-shock or damage of the devices since the stabilizer generates high voltages (15kV-25kV) at its starts.

Since the lamp is very high temperature during units operation replacement of the lamp should be done at least

45 minutes after the power has been turned off, to allow the lamp cool-off.

DO NOT ATTEMPT TO SERVICING THE REMOTE CONTROL UNIT.

Laser Beam may be leaked out when in disassemble the Unit. As the Laser Beam used in this Remote control unit is harmful to the eyes.

II

TABLE OF CONTENTS

1 System Introduction ............................................................................................................ 1

1.1 Technical Specification........................................................................................................... 1

1.2 ES550/ES551/EX550/EX551 System Block Diagram............................................................ 3

2 Firmware Upgraded Flow .................................................................................................... 4

2.1 Setup Tool/Equipment ............................................................................................................ 5

2.2 Upgrading Procedure............................................................................................................. 5

3 Machine Disassembly and Replacement ......................................................................... 16

3.1 Tools ................................................................................................................................... 16

3.2 Disassembly Procedure ....................................................................................................... 17

4 Troubleshooting and Verifying the Repair ....................................................................... 25

4.1 Troubleshooting ................................................................................................................... 25

4.2 Verifying the Repair ............................................................................................................ 31

5 Connector Information ...................................................................................................... 39

5.1 Main Board .......................................................................................................................... 39

5.2 The backside of mainboard.................................................................................................. 40

5.3 Ballast Board........................................................................................................................ 41

5.4 Power board......................................................................................................................... 41

6 FRU (Field Replaceable Unit) List..................................................................................... 42

6.1 Mechanical Drawing............................................................................................................. 43

6.2 Board/Module....................................................................................................................... 44

6.3 Case/Cover/Bracket Assembly............................................................................................. 44

6.4 Optical Device...................................................................................................................... 44

6.5 Fans..................................................................................................................................... 44

6.6 Speaker................................................................................................................................ 44

IV

1 System Introduction

1.1 Technical Specification

Item

Display Type Single 0.55” DLP panel

Resolution(Pixels)

Lamp

CONTENT

ES550/ES551: SVGA (800x600pixels)

EX550/EX551: XGA (1024x768 pixels)

180W

Zoom Ratio

F/No.

Focal length

1.1X

1.97 - 2.17

21.95 - 24.18mm

Screen size

Projection Type

Input Source

Output Source

Control terminal

30” - 300”

Front, Rear, Ceiling

D-Sub 15-pin x 2,

S-Video x 1,

Video x 1,

Audio signal input (3.5mm stereo mini jack) x 1,

HDMI (ES551/EX551 only)

D-Sub 15 pin x 1,

Audio signal output (3.5 mm stereo mini jack) x1

RS-232 x 1, Mini USB type x1 (supports firmware upgrade and remote mouse control)

2 watt x 1 Speaker

Scanning frequency

Horizontal frequency

Vertical frequency

Power requirement

Power consumption

Digital Keystone Correction

Environment

31 - 100 KHz

50 - 120 Hz

AC 100-240 V, 50 - 60 Hz, 2.6A

245 W (Max.)

Vertical + / - 30

Operating:

Temperature:0

C to 40

C

Humidity: 10-80% maximum

Storage:

Temperature: -20

C to 60

C

Humidity: 30-85%

282.9 x 231.1 x 94.7 mm Dimension (W x D x H)

Weight 2.2 Kg

Note: Designs and specifications are subject to change without prior notice

1

Attention for handing

 Do not touch the lamp until it has cooled completely, because the lamp is very hot during operation and immediately after turned off.

 The lamp has to be fixed firmly to the base or socket.

 Turn off the power supply during maintenance.

 Do not hold the lamp except outer surface of the reflector.

 Wear protective gloves and eyeglasses when handling the lamp.

 Any unusual shock or vibration to the lamp should be avoided.

 The lamp contains the mercury. Its breakage might cause mercury to flow out of the reflector. Please manage provision at the customer’s product.

 Do not pull the lead wire and plug by more than 24.5N.

 Please be careful of handling the lamp because it is made of glass.

 Please notice for keeping or handling the lamp, because there is a projection of this lamp with reflector ahead.

 Do not touch the bulb and the mirror area of the reflector.

Attention for use

 Do not close or cover the lamp with any flammable stuff.

 During operation, the lamp is under extremely high pressure. Please manage provision at the customer’s product to prevent fragments of bulb and mercury from flowing out of it. If the lamp bursts in case of an emergency, the sound will be occurred.

 Lamp operation should be with the specified lamp driver and the system only.

 Do not look at the lamp directly during operations.

 Do not expose your skin directly. We recommend to you to put on something for protection for your skin. For example, long sleeve shirt, gloves, glassed and so on.

 Do not modify the lamp and never use a lamp that has been modified.

 Any unusual shock or vibration to the lamp should be avoided during operation.

 Do not use any broken lamps.

 Dispose of used lamps according to your local instruction.

 Do not turn on the lamp while the system is opened.

 The lamp contains mercury. If the lamp bursts during operation ventilate the area sufficiently to avoid inhaling harmful mercury fumes.

 Use the lead below 200℃ to prevent a deterioration of cladding clad of the fluorocarbon resin.

 The lead wire insulation clad shouldn’t touch the reflector.

 Exchange the lamp that has already passed the life time immediately.

2

1.2 ES550/ES551/EX550/EX551 System Block Diagram

3

2 Firmware Upgraded Flow

This provides the information regarding relevant equipments and upgrading procedure for firmware upgrade.

Purpose:

Flash Loader vX.X.exe flash loader is for upgrading image file to projector and is be designed to execute on Windows 2000/Windows XP/Windows Vista/Win 7.

Note:

Please check the firmware version before any firmware upgrade procedures. During firmware download period, please do not shut down PC or projector, this will cause flash memory’s damage. And need to return the unit to manufacturer for flash memory recovery.

4

2.1 Setup Tool/Equipment

Computer

Power Cord

USB Cable

2.2 Upgrading Procedure

1) Upgrading the Firmware on the Unit

To update the firmware on your ES550/ES551/EX550/EX551 projector, you first need to install the Firmware Update Utility software DPL Composer Lite v10.x.x on your PC.

Open Windows Explorer, locate the DLP Composer Lite v10.x.x Setup, and then double-click the icon to launch installation procedure, and follow the on-screen instructions to finish the installation procedure.

Verify you have opened the DPL Composer , then click

Next >

5

Once you have read the License Agreement and agree, select the I Agree radio button , then click

Next >.

In the box of Readme Information, after read click

Next>

6

Select which features you would like to install, and then click

Next>

Click

Next

to begin installation

7

You’ll see a progress bar as the DLP Composer is installed

Once the installation is complete, select

Finish

The DLP Composer Icon will appear on desktop of WindowsTM after successful installation.

8

2) Install DLP Processor USB Driver

1. If DLP Composer Lite does not be installed yet, please follow the description of section DLP

Composer Lite Installation to install it first.

2. Please click the ”Install DLP Processor USB Driver” (as below graphic) to install USB Driver.

During installation, the installer will show a DOS screen. This screen will close itself and the install will continue automatically.

9

3) Upgrade the firmware on the projector

To update firmware, you need a USB type A to USB type B cable (available at any electronics store). Don’t connect the cable until these instructions tell you to do so.

IMPORTANT! While the firmware is being downloaded to the projector, do not shut down the computer or projector or disconnect the USB cable. This could result in flash memory damage, requiring the projector to be returned for service.

Firmware upgrade procedure:

1. If DLP Composer Lite does not be installed yet, please follow the description of section DLP

Composer Lite Installation to install it first.

2. If USB Driver does not be installed yet, please follow the description of section Install DLP

Composer USB Driver to install it.

3. Please press and hold (do not release) both

POWER

and

MENU/EXIT

button of projector, then connect AC power to projector. After few seconds, the LEDs, which on the up-cover of projector, will become POWER LED blue/solid light and TEMP/LAMP LED purple/flash light.

It denotes that the projector is ready for firmware update.

4. Please connect laptop and projector with USB cable. After connect laptop and projector, you may find Jungo\Texas Instruments DLP

TM

Processor at Device Manager of Windows OS.

5. Please locate file FlashDeviceParameters.txt and image file of firmware in folder

C:\dev\Library\.

6. Launch DLP Composer Lite, manipulate Edit\Preferences… menu, and change the Library path of DLP Composer Lite to be C:\dev\Library\.

10

7. Change the USB Device Identification of DLP Composer Lite to be Vendor:

0x451

, Product:

0x2000

.

11

8. Click DLP Composer Lite\Flash Loader, and change Flash Image File to be C:\dev\Library\.

Comment:

I. If the target projector is SVGA with HDMI (ES551/OPD-S5001) then use firmware image file PC337-9660-00--V0.10--OPD-S5000--0x10BA991C.img.

II. If the target projector is XGA with HDMI (EX551/OPD-X5001) then use firmware image file PC437-9660-00--V0.10--OPD-X5000--0x10C86D1A.img.

12

9. Select the Skip Boot Loader Area check box, when you do not want to overwrite boot loader of projector, as picture 1 (recommend). Otherwise, do not select the Skip Boot Loader

Area check box, when you want to overwrite the boot loader, as picture 2.

Picture 1: Skip boot loader

Picture 2: Overwrite boot loader

13

10. Press to start download firmware into projector.

11. Projector will turn on automatically when FW update is finished ("Download complete" will appear). Press "MENU" or "4-direction" navigator button to turn off the projector (NOTE:

"Power" button does not function at this point). Cooling process (fans spinning) will then start.

Unplug the power cord when the cooling process is complete; otherwise, the projector will automatically switch back on again.

14

12. Plug in the power cord, press "Power" button to turn on the projector. The projector will function as usual

15

3 Machine Disassembly and Replacement

3.1 Tools

Item Photo

Long Nose Nipper

Hex Sleeves 5mm

Screw Bit(+):107

Screw Bit(+):101

Screw Bit(+):102

Anti-static wrist strap

Anti-static wrist gloves

16

3.2 Disassembly Procedure

Warning

Put on the Static Electricity Ring when starting for repair.

Repair Environment suggest in Clean-room class 10000. Do not remove Optical

Engine or DMD panel outside the clean room. Please return the optical engine to supplier if your repair condition can not meet the requirement.

While screwing or unscrewing screws, please keep the screwdriver straight. Keeping screwdriver inclined will damage the screw holes.

Please turn off the power before replacing any parts.

Please wait for the projector lamp cooling down and turn off the power before changing it. Never touch or hit the lamp module when replacing the lamp.

When you replace the projector lamp, never touch the new lamp with your bare hands.

The invisible residue left by the oil on your hands may shorten the lamp life. Use lint-free gloves or finger cots are recommended.

17

Step

1

2

Screw

Sliding the lamp cover rightward, and lifting the lamp cover off

Figure Description

.

Shown you the projector.

Rotate the focus ring left and remove it.

1. Unscrew the screw on the side of the lamp cover.

2. Sliding the lamp cover forward, and lifting the lamp cover off.

18

Step

3

Figure Description

Disconnect the lamp connecter as shown.

4

Screws x 8

Flip the projector on the table.

Removing screws x 8 on the bottom cover as show.

19

Step

5

6

7

Figure Description

Lifting the top cover off upward gently, disconnect the front IR wire and the safety switch wire then remove the top cover.

Disconnect the two wires and remove the ballast module.

Remove the screws*5 on the main board plate, disconnect the two wires and take the MB plate off

Screws*5

20

Step

8

Black Screw*1

Figure

Screws x 8

Black Screws x 3

9

Description

Removing the screws on the back cover as shown

Show you the main board and the connectors.

Disconnect all wires connected on the main board and remove the main board.

Please note there are 3 wires connect with the behind of main board.

Behind of main board

21

Step

10

Figure Description

Remove the metal plate.

Metal plate

11

Unscrew the 3 screws and remove the Optical Engine.

Screws x 3

22

Step

12

Figure Description

Unscrew the 3 screws then remove Fin outlet.

11

Screws x 3

Fan2

2 Fan module

Remove the 2 Fan module.

23

Step

12

Figure

Screws x 2

Description

Removing the 2 screws and take off the Fan3 module.

13

Screws x 5

Unscrew the 5 screws and remove the power board.

14

Power holder

24

Speaker

Remove the power holder and the speaker.

4 Troubleshooting and Verifying the Repair

This chapter provides technicians with electronic background how to maintain the product.

Moreover, you can get the appropriate operation to solve some complicated problems of component repairing and professional problems.

4.1 Troubleshooting

Warning

Do not directly look into the lens to avoid eyesight damages.

The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector.

Confirm Software and hardware

(1) Confirm lamp using hours

(2) Confirm LED indicator

The Status Indicator Panel on top of the projector indicates the state of the projector and can help you troubleshoot.

Projector Status

Standby mode

Normal running mode

POWER

Blue solid Off

Flashing 30 seconds after powering on and then Off become solid

Blue

TEMP

Off

Off

LAMP

Normal cooling

Lamp ignition failed

Lamp life end

Temp error

Blue solid

Blue solid

Blue solid

Blue solid

Blue

Off

Off solid Red solid

Red flashing

Red

Blue flashing Off solid

Fan error Blue solid Blue solid Off

Blue flashing

Red

flashing Color wheel or DMD error Blue flashing

(3) Confirm cable connection well.

25

Note: Swapping modules that may be defective with others known to be good is generally an ideal way to find the module responsible for the problem. A failure symptom is rarely caused by more than one module, so you will not usually need to replace more than one to correct a particular failure. Whatever main board, ballast, IR board, power board, lamp module or optical engine are all suitable to check by swapping modules.

Power Source Troubleshooting:

No Power Source after turning on

Check connector

NG

OK

Check

Safety Switch

OK

Check LED and button

OK

Check 12 pin

Power output

OK

Replace mainboard

NG

NG

NG

Replug power cord or replace power cord

Replace Safety Switch or reinstall lamp cover

Replace button

Check

Fuse

OK

Replace power board

NG

Replace fuse

26

Fan failure after turning on

Check fan connection

OK

NG

NG

Check

Fan

OK

Check

Mainboard

NG

Reconnect fan

Replace fan

Replace

Mainboard

Fail to light up

Check LED indication

NG

Refer to LED indicator and follow indicative actions

OK

Check

Lamp

NG

Replace

Lamp Module

OK

Check

Mainboard

NG

Replace

Mainboard

OK

Check Ballast

NG

Replace

Ballast

OK

Check Power board 380V output

NG

Replace

Power board

OK

Check CW

Rotation while power on

NG

Replace

Color Wheel

27

No Volume

Check button

OK

Check

Speaker

OK

Check

Mainboard

NG Replace button

NG

Replace

Speaker

NG Replace

Mainboard

Video Signal Troubleshooting

Computer

No Signal

Check

Source

OK

Check

Cable

OK

Check monitor

out signal

NG

NG

NG

Turn on

Source

Replace

Cable

Replace

Mainboard

Video

No Signal

Check

Source

NG Turn on

Source

OK

Check

Cable

NG

Replace

Cable

OK

Check

Mainboard

NG Replace

Mainboard

28

Image abnormal

Power on again and reset OSD

OK

Check input cable and signal setting

NG

Adjust

Input signal

OK

Check

Mainboard

NG

Replace

Mainboard

OK

Check

Optical Engine

NG

Replace

Optical Engine

29

Color abnormal

Check input cable and signal setting

NG Adjust

Input signal

OK

Check Color

Wheel Index

NG

Adjust Color

Wheel Index

OK

Check

Mainboard

NG Replace

Mainboard

OK

Check

Optical Engine

NG

Replace

Optical Engine

Operation Function Troubleshooting

Remote Control

Failure

Check

Battery Level

OK

Check

Remote Control

OK

Check

IR

OK

Check

Mainboard

NG

NG

NG

NG

Replace

Battery

Replace

Remote Control

Replace

IR

Replace

Mainboard

Button Failure

Check button

OK

NG

Replace button

Check

Mainboard

NG

Replace

Mainboard

30

4.2 Verifying the Repair

After repairing projector (Dissembling and assembling projector), Repair center should verify the quality of repaired unit.

(1) Signal test (Each I/O can function normally)

Connect all connector to the jacks one after the other to check whether each channel can project normally

VGA In (SVGA/XGA) I/O port

Test Equipment

Signal format

Standard Pattern generator (Ex. Quantum data)

800*600 60Hz for ES550/ES551

1024*768 60Hz for EX550/EX551

I/O port

Test Equipment

Signal format

I/O port

Test Equipment

Signal format

Audio input

Connect audio input to audio output from video equipment

480i

Video input

Video source device

NTSC

S-Video input

S-Video source device

NTSC

I/O port

Test Equipment

Signal format

I/O port

Test Equipment

HDMI(ES551/EX551 only)

HDMI source device (DVD player)

31

(2) Operation test

Buttons operation

Button description

Power button

Menu/Enter

4-way button

Test criteria

1. Touch “power” button and projector will switch on, and in standby mode the LED should solid.

2. Touch the “power” button (Up & Down) should be sensitive

3. The LED indicator lighteness and uniformity normally

1. Touch Menu/Enter button can make projector function normally.

2. Touch the button (Up & Down) should be sensitive

3. The LED indicator lighteness and uniformity normally

1. Mechanical motion (Up & Down) should be sensitive when touch the

4-way button.

2. Touch 4-way button button can make projector function normally.

3. The LED indicator lighteness and uniformity normally

Foot adjuster operation

Foot adjuster. Test criteria

Foot adjuster button

Foot adjusters should stretch downward smoothly by rotate the foot adjuster feet

Zoom ring and Focus ring

Ring

Zoom ring

Focus ring

Test criteria

Mechanical motion of rotating Zoom ring to the end of right and left by hand should be free from getting stuck.

The feeling of rotating Focus ring to the end of right and left by hand should free from seizing

32

(3) Image Quality

Projected image size: 60 inches (diagonal length)

Zoom ring: Adjust zoom ring to wide (Maximum projection size)

VGA

I/O port

Test Equipment

Signal format

Monitor In (SVGA/XGA/WXGA)

Standard Pattern generator (Ex. Quantum data)

800*600 60Hz for ES550/ES551

1024*768 60Hz for EX550/EX551

Projected image size

60” in diagonal length

TOP SMPTE133

Use to confirm overall image quality.

• Verify there is no noise, tint in the gray background, duplicated columns or other general image abnormalities.

• No twinkling pixels allowed.

• Verify the 5% box is visible within the black square.

• Verify the 95% box is visible within the white square.

RGB Ramps

Use to confirm correct colorwheel index delay setting and DMD data line integrity.

• Verify proper red, green, and blue chromaticity.

• Verify transition from dark to light in each ramp is smooth and consistent.

• Verify there are no missing parts (vertical black bars) of any ramp due to stuck bits.

• Verify there are no light or faded areas in ramps.

If there are colorwheel index delay is not correctly set.

33

BLUE 120

Use for dark blemish and ghost inspection.

• Confirm there are no more than four blemishes darker than Blue 120.

• No blemish greater than one inch or 25mm in length/diameter is allowed.

• Confirm there is no ghosting.

• No ghosting is allowed.

GRAY 50

Use for light blemish inspection including bright (stuck ON) pixels.

• Confirm there are no more than four visible blemishes brighter than Gray50.

• No blemish greater than one inch or 25mm in length/diameter is allowed.

• Confirm there are no stuck ON (bright) pixels brighter than Gray50.

• Confirm there are no flickering pixels.

• No more than one bright pixel is allowed in the Pond of Mirrors.

34

WHITE

Use for lumens and uniformity measurements, banding adjustment and inspection of

dark (stuck OFF) pixels, minor blemishes.

• Confirm there are no more than six total of light and dark blemishes

• Confirm no blemish is greater than five inches in length/diameter.

• Confirm there are no more than four stuck off pixels.

• Verify no banding.

 If banding adjustment can’t completely eliminate banding use Banding Referee image to make final determination.

BANDING REFEREE GRAY 245

The goal is always to completely eliminate banding. If there still is a very small

amount of residual banding after the best banding adjustment has been made use the Banding Referee to make final determination of acceptance.

35

Set UUT to Film gamma when using this image

• Distance from edge of image to Gray 245 band is 20 pixels.

• No banding appearing beyond the outer rectangle is allowed.

• No banding appearing darker than the Gray 245 band is allowed.

 Both of the above two conditions must be satisfied for acceptance.

FOCUS

Use to evaluate focus sharpness and uniformity.

• Focus on the center icon. Then adjust focus to achieve best overall focus.

• Verify all icons have clear resolution and white space can be seen between the green lines.

• Zoom to full Tele (small image) and verify all icons have clear resolution and white space can be seen between the green lines.

36

Audio

I/O port

Test Equipment

Signal format

Criteria

Video

I/O port

Test Equipment

Signal format

Criteria

S-Video

I/O port

Test Equipment

Signal format

Criteria

HDMI

I/O port

Test Equipment

Criteria

(4) Resolution

I/O port

Test Equipment

Test Method

Audio

Speaker &DVD player

480i

The audio out is normal

Video

Standard Pattern generator (Ex. Quantum data)&DVD player

NTSC

No apparent color deviation on the projected image

S-Video

Standard Pattern generator (Ex. Quantum data)&DVD player

NTSC

No apparent color deviation on the projected image

HDMI(ES551/EX551 only)

HDMI source device, standard Pattern generator or DVD player

No apparent color deviation on the projected image

VGA

PC

1. Rotate Zoom ring to wide mode (Maximum projected image)

2. Fix projector to set diagonal length of projected image to 60”.

3. Adjust focus ring to make resolution of 4 corners and center are balanced.

4. Check he characters should be recognized easily.

5. Rotate Zoom ring to tele mode (Minimum projected image)

6. Adjust focus ring to make resolution of 4 corners and center are balanced.

7. Check the characters should be recognized easily.

37

(5) Front infrared sensor

Device

Test Equipment

Test method and Criteria

Front infrared

Remote controller

Operate remote controller to test front sensor is normal

(6) Brightness measurements

Test items

Test Equipment

Brightness measurements

Chroma automatic system (The alternative is CL-200)

Measure 9 points

Marketing spec 20% off

Test method

Criteria

(7) Safety test equipments

Test items

Test Equipment

Test method

Safety test

Safety analyzer

1. Clamp the metal shell of VGA connector

2. Plug the power cord to socket

Test criteria

GND 30A 3sec 100mΩ

DCW 2506V 1sec 10mA

Single Step OFF

38

5 Connector Information

This section provides each connector location on boards and function of each board. They will be useful for your detecting the defective boards.

5.1 Main Board

No 07 No 06

No 05 No 04

No 02

No 03 No 01

Connector

No 1

No 2

No 3

No 4

No 5

No 6

No 7

Description

Safety switch

Thermal sensor

Fan3

Fan1

Color Wheel control

Front IR

Speaker

39

5.2 The backside of mainboard

No 05

No 04

No 03

No 02

No 01

No 06

Connector

No 1

No 2

No 3

No 4

No 5

No 6

Description

/

Connect to DMD Board

Fan2

Color Wheel Sensor

Connect to Power Board

Ballast control

40

5.3 Ballast Board

No 3

No 1

No 2

Connector

No 1

No 2

No 3

5.4 Power board

Description

Lamp power supply

Ignite signal connected to Mainboard

Power supply

No 3

No 1

No 2

Connector

No 1

No 2

No 3

41

Description

AC Input

Ballast Power Supply

Connect to Main Board

6 FRU (Field Replaceable Unit) List

Introduction

This section is a list of all the FRU removal. Following the FRU table of contents is an enlarged view of the entire projector, which shows the primary FRUs in the projector.

When working on the projector, use appropriate anti-static precautions such as anti-static mats, wrist straps and grounded work surfaces. Failure to do this can destroy static-sensitive components and make the product inoperable.

42

6.1 Mechanical Drawing

43

6.2 Board/Module

Key No. P/N

PA784-7100

B01

PA884-7100

PC384-7100

PC484-7100

PA884-8100

B02

B03

B04

PA884-9000

PA884-7500

ES550_MAIN_DIP_PCB

EX550_MAIN_DIP_PCB

ES551_MAIN_DIP_PCB

EX551_MAIN_DIP_PCB

POWER_ASY

BALLAST_ASY

FIR_DIP_PCB_ASY

Description

6.3 Case/Cover/Bracket Assembly

Key No. P/N

C01

PA884-4540

LAMP-COVER_ASY

C02

PA884-4500

TOP-COVER_ASY

C03

C04

PA134-4540-99

PA884-4510

KEY_ASY

BOTTOM-COVER_ASY

6.4 Optical Device

Key No. P/N

PA784-2200

O01

PA884-2200

PC384-2200

O02

PC484-2200

PA884-2400

PC484-2400

Description

Description

OPTICAL ENGINE SIMPLE_ ES550

OPTICAL ENGINE SIMPLE_ EX550

OPTICAL ENGINE SIMPLE_ ES551

OPTICAL ENGINE SIMPLE_ EX551

LAMP MODULE_ES550_EX550

LAMP MODULE_ES551_EX551

6.5 Fans

Key No.

F01

F02

F03

P/N

02394-0151-00

02394-0150-00

FAN.1

FAN 2

02394-0152-00

FAN 3

Description

6.6 Speaker

Key No.

SP01

P/N

02413-0117-00 SPEAKER

Description

44

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

advertisement
