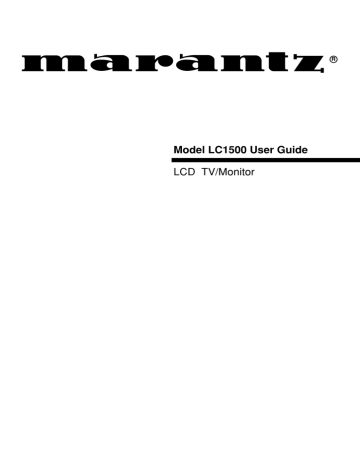

Model LC1500 User Guide

LCD TV/Monitor

R

RECORD YOUR MODEL NUMBER

(Now, while you can see it)

The model and serial number of your new TV are located on the back of the TV cabinet. For your future convenience, we suggest that you record these numbers here:

MODEL

NO.____________________________________

SERIAL

NO.____________________________________

2

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING :

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING :

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from

MARANTZ Unauthorized modification could void the user’s authority to operate this product.

206-3652

IMPORTANT SAFETY INSTRUCTIONS

Important safeguards for you and your new product

Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the

Canadian Standards Association.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Water and Moisture

Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

7. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

8. Transporting Product

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Line-Cord Polarization

This product is equipped with a three-wire grounding type alternating-current line plug (a plug having one blade wider than the other).

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

(Continued on next page)

PORTABLE CART WARNING

206-3652

3

4

IMPORTANT SAFETY INSTRUCTIONS

(Continued from previous page)

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National

Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Example of Grounding According to National

Electrical Code Instructions

Ground Clamp

Antenna Lead in Wire

Electric Service

Equipment

NEC - National Electrical Code

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

15. Lightning

For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and powerline surges.

16. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. If the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f. If the product exhibits a distinct change in performance.

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

24. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

206-3652

CONTENTS

INDEX

1

Safety warnings

Important safety instructions

Controls

Basic composition of LCD TV

2

Connecting antenna

Connecting external equipment

Connecting DVD player

Connecting DTV

3 Connecting PC as monitor

Function checking in PC mode

13

14

16

17

2

3

6

10

18

20

206-3652

Before operating the set, please read this manual carefully.

4

Using remote control

Turning on the set

Function checking in TV mode

Setting language

Closed caption function

Parental control function

Programming / Erasing channels

5

Setting current time

Setting Off-Timer function

Setting On-Timer function

Setting sleep time function

6

Adjusting audio condition

Adjusting video condition

7

Product specifications

41

44

46

34

36

38

40

21

23

24

25

26

30

32

5

6

Controls

F ront of the set

* Remove vinyl coating for protection from staining before using.

Bac k of the set

On indicator

Power button

Remote control sensor

206-3652

F ront control panel

Menu button

TV/Video button Enter button

Volume buttons

Channel buttons

Power button

On indicator

Remote control sensor

Connecting por ts

DC 12V

ANT IN

+ 75

Ω

PC/DTV INPUT

COMPONENT INPUT(480i)

C

B

C

R

H/P S-VIDEO

VIDEO (MONO)

IN

L AUDIO R

206-3652

Power input PC / D-TV input

Antenna input

Headphone jack

Component input

Audio/Video

S-Video input input

7

Controls

POWER BUTTON

NUMBER BUTTONS

FLASHBK BUTTON

MENU BUTTON

CHANNEL ( 5

,

∞ ) BUTTONS

TV/PC BUTTON

● Press the FLASHBK button to view the last programme you were watching.

8

206-3652

206-3652

TV/VIDEO b utton on Remote Contr ol

TV/VIDEO BUTTON

PAGE 15~19

* Each press of this button changes the mode as below.

TV programs

/ Cable TV

VIDEO

CC BUTTON

MUTE BUTTON

ENTER BUTTON

PAGE 28

PAGE 43

VOLUME ( 2 , 3 ) BUTTONS

SLEEP BUTTON

PAGE 40

DVD S-VIDEO

* VIDEO, S-VIDEO, DVD : Select each mode for watching the corresponding external equipment.

9

Basic composition of LCD TV

Accessor ies

10

Hole

Table style stand

1.5V

1.5V

Batteries Power cord

AC Adaptor

PC signal cable

Remote Control

RC1500LC

User guide

Warranty Card

(For USA)

Warranty Card

(For CANADA)

206-3652

W atching TV prog r r ams

* Please make sure to connect the power plug to the wall outlet socket after connecting the TV to the adaptor.

a. Install the LCD TV in the correct using the installation accessories. Refer to page 12, 13.

b. Connect the antenna cable to the antenna input port of the set.

c. Connect the adaptor to the power input port of the set.

d. Connect the power plug to the wall outlet socket after connecting the power cord to the adaptor.

c a b

Note : If TV/monitor is cold, there may be a small “flicker” when turned on.

This is normal, there is nothing wrong with TV/monitor.

206-3652 d

11

Basic composition of LCD TV

* For safety, use with table style stand only.

a. Place the table stand in the position you wish to install the set.

b. Put the set in the table stand.

* When you assemble the TV set with table style stand, please match the stick of TV set to the hole of the table style stand so as not to allow movement of the joint.

206-3652

12

Connecting antenna

* To get better picture quality, adjust the direction of antenna.

Connecting to w all antenna soc k et

●

In case of wall antenna socket in apartment houses, connect the antenna cable as shown below.

(Use the correct type of antenna cable to the type of wall antenna socket.)

Turn clock arise to tighten.

75 Ω round cable bronze wire

DC 12V

ANT IN

+ 75

PC/DTV INPUT

C

300

Ω flat cable antenna converter

Apartments wall connecting port antenna input port

* In case of 75

Ω round cable, insert the bronze wire and then tighten the connecting nut.

And in case of 300 Ω flat cable, connect the twisted wire to the antenna converter and then connect the converter to the antenna input port.

* When using 75 Ω round cable, do not bend bronze. It may cause poor picture quality.

● This type of antenna is usually used at common private houses.

VHF antenna

Turn clock arise to tighten.

75

Ω round cable

UHF antenna bronze wire

300 Ω flat cable

Private house antenna converter

* In poor signal area, you can get better picture quality if you install the antenna like the figure as shown right.

* If an antenna is divided to two TV sets, use “signal divider” for connecting.

VHF UHF signal amplifier

206-3652

DC 12V

ANT IN

+ 75

Ω

PC/DTV INPUT

C antenna input port

DC 12V

ANT IN

+ 75

Ω

PC/DTV INPUT

C

13

Connecting external equipment

* TV screen is automatically converted to TV mode by pressing the channel ( 5 , ∞ ) buttons, flashbk or number buttons (0~9) when using VIDEO.

* Please connect to other AV equipment by using input ports of the set.

Connecting VCR

1 How to connect

● Connect the audio/video output ports of VCR to the corresponding input ports of the set.

14

DC 12V

ANT IN

+ 75 Ω

PC/DTV INPUT

COMPONENT INPUT(480i)

C

B

C

R

H/P S-VIDEO

VIDEO (MONO)

IN

L AUDIO R

Antenna cable shapes or

Antenna converter

Direct connection

ANT IN

S-VIDEO

< Back panel of VCR >

ANT OUT

CH3 CH4

OUT

IN

(R) AUDIO (L) VIDEO

1

2

2 How to use

Watching TV programs

Turn the set on and select the channel you want.

Watching VCR a. Press tv/video button of the remote control to select [VIDEO].

b. Insert a video tape into the VCR and press the PLAY button.

206-3652

Only w atching e xter nal A V source

1 How to connect

●

Connect the audio/video output ports of external A/V equipment to the corresponding input ports of the set.

DC 12V

ANT IN

+

75 Ω

PC/DTV INPUT

COMPONENT INPUT(480i)

C

B

C

R

< TV connection panel >

H/P S-VIDEO

VIDEO (MONO)

IN

L AUDIO R

< Back panel of external equipment >

R AUDIO L VIDEO

Camcorder

Video Game set

2 How to use

●

Turn the set on and press TV/VIDEO button to select [VIDEO].

DVD

VIDEO

206-3652

< On remote control >

●

Try this after turning on the external AV equipment.

VCR

15

Connecting DVD player

● Connect component video inputs to Y, C

B

, C

R

(480i) and audio inputs to right and left port of AV ports.

1 How to connect

DC 12V

ANT IN

+ 75

Ω

< TV connection panel >

PC/DTV INPUT

COMPONENT INPUT(480i)

C

B

C

R

H/P S-VIDEO

VIDEO (MONO)

IN

L AUDIO R

< Back panel of DVD >

R AUDIO L

2 How to use

●

Turn the set on and press TV/VIDEO button to select [DVD].

DVD

16

< On remote control >

● Try this after turning on the DVD set.

206-3652

Connecting DTV

* Make sure to select PC mode before operating.

1 How to connect

DC 12V

ANT IN

+ 75 Ω

< TV connection panel >

PC/DTV INPUT

COMPONENT INPUT(480i)

C

B

C

R

H/P S-VIDEO

VIDEO (MONO)

IN

L AUDIO R

L H V R G B or

< Back panel of DTV >

R AUDIO L

2 How to use

●

Turn the set on and press TV/PC button to select [PC].

PC

< On remote control >

206-3652

● Try this after turning on the DTV set.

17

Connecting PC as monitor

* Make sure to select PC mode on before operating.

1 How to connect

● Make sure to set resolution of the PC to be available before connecting. Refer to page 19.

● Connect the set to the PC with PC signal cable.

● Connect the audio ports to the PC to get PC sound.

18

DC 12V

ANT IN

+

75 Ω

PC/DTV INPUT

COMPONENT INPUT(480i)

C

B

C

R

H/P S-VIDEO

VIDEO (MONO)

IN

L AUDIO R

< TV connection panel >

< Accessories >

< PC >

206-3652

2 How to use

● Turn the set on and press TV/PC button to select [PC].

PC

< On remote control >

●

Try this after turning on the PC.

MODE

VGA

SVGA

(MAC)

XGA

Resolution

640x480

640x480

640x480

640x480

640x480

720x400

800x600

800x600

800x600

800x600

800x600

832x624

1024x768

1024x768

1024x768

1024x768

Horizontal Vertical

Frequency(KHz) Frequency(Hz)

31.5KHz

35KHz

37.9KHz

37.5KHz

43.3KHz

31.5KHz

35.2KHz

37.9KHz

48.1KHz

46.9KHz

53.7KHz

49.7KHz

48.4KHz

56.5KHz

60.2KHz

68.7KHz

56Hz

60Hz

72Hz

75Hz

85Hz

75Hz

60Hz

70Hz

75Hz

85Hz

60Hz

67Hz

72Hz

75Hz

85Hz

70Hz

Note : If TV/monitor is cold, there may be a small “flicker” when turned on.

This is normal, there is nothing wrong with TV/monitor.

206-3652

19

20

Function checking in PC mode

* Make sure to select PC mode on before operating.

1 Press the MENU button. Each time you press the button you can see menus as below.

Contrast

Brightness

H-Poisition

V-Poisition

Clock

Phase

Auto

Reset

: 71

: 74

: 0

: 0

: 40

: 16

Use 5 3 And ENTER

2 Press the channel ( 5 , ∞ ) buttons to select a function you want to use.

206-3652

Using remote control

Inser ting batteries

1 Pull the battery cover upward in the arrow direction to remove.

2 Insert the batteries with correct polarity.

3 Replace the battery compartment cover.

remote control sensor

* Apply two 1.5V alkaline batteries of AAA type. Don’t mix the used batteries with new batteries.

* Remove batteries when you don’t use the remote control for long time. Liquid leakage from old battery may cause operation failure.

206-3652

21

Using remote control

Notes f or using remote contr ol

Make sure these are no objects between the remote control and its sensor.

Don’t place the remote control near a heater or damp place.

Strong impact on remote control may cause operation failure.

Signal from the remote control may be disturbed by sun light or other strong light. In this case, turn the set to other direction.

206-3652

22

Turning on the set

* First, connect antenna cable and power cord with the adaptor.

* Press the power button and you will get stable picture and sound in a few seconds.

1 Press the POWER button to turn the set on.

displayed only in stereo signal

ST.

7 channel number displayed only if present time display is set

12:30 PM

2 Press the channel ( 5 , ∞ ) or number buttons to select a channel you want after memorizing received broadcasting signals in the local area.

● Direct selecting channels

Press number of the program as one or two digits with number buttons.

ex: channel 7 7 or 07

● Refer to page 32 ~ 33 to memorize channels.

3 Adjust Volume level.

206-3652

●

Volume ( 3 ) button increases the level of sound.

●

Volume ( 2 ) button decreases the level of sound.

Volume 3

23

Function checking in TV mode

1 Press the MENU button. Each time you press the button you can see menus shown below.

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

Use 5 3 And ENTER

Auto Program

Manual Program

Fine

Use 5 3 And ENTER

Clock --:--AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

Contrast

Brightness

Color

Tint

Sharpness

APC

100

100

85

0

7

Clear

Use 5 3 And ENTER

MTS

AVL

DASP

Equalizer

Strero

Off

User

Use 5 3 And ENTER

24

2 Press the channel ( 5

,

∞ ) buttons to select a function you want to use.

206-3652

Setting language

1 Press the MENU button to select the screen display as below.

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

3 Press the ENTER button.

Use 5 3 And ENTER

2 Press the channel ( 5

,

∞ ) buttons to select a language you want to adjust.

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

Use 5 3 And ENTER

●

Each press of volume ( 2 , 3 ) buttons changes the screen display as below.

English Español Français

206-3652

25

Closed caption function

Closed captioning is a process which converts the audio portion of a television program into written words which then appear on the television screen in a form similar to subtitles. Closed captions allow viewers to read the dialogue and narration of television programs.

Using Closed Captions

FOLLOW ME

Captions are the subtitles of the dialogue and narration of television programs. For prerecorded programs, program dialogue can be arranged into captions in advance. It’s possible to caption a live program by using a process called real-time captioning, which creates captions instantly. Real-time captioning is normally done by professional reporters using a machine shorthand system and computer for translation into English.

Captioning is an effective system for the hearing-impaired, and it can also aid in teaching language skills.

• The picture at left shows a typical caption.

Caption Tips

• Not all TV broadcasts include closed caption signals.

• Sometimes TV stations broadcast four different caption signals on the same channel. By selecting FROM CC1

TO CC4 , you can choose which signal you view.

CC1 is usually the signal with the captions, while Another mode might show demonstration or programming information.

• Your TV might not receive caption signals normally in the following situations.

Poor reception conditions are encountered:

• IGNITION:

Picture may flutter, drift, suffer from black spots or horizontal streaking. Usually caused by interference from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.

• GHOSTS:

Ghosts are caused when the TV signal splits and follows two paths. One is the direct path and the other is reflected off tall buildings, hills or other objects. Changing the direction or position of the antenna may improve reception.

• SNOW:

If your receiver is located at the weak, fringe area of a TV signal, your picture may be marred by small dots.

It may be necessary to install a special antenna to improve the picture.

An old, bad, or illegally recorded tape is played.

Strong, random signals from a car or airplane interfere with the TV signal.

The signal from the antenna is weak.

The program wasn’t captioned when it was produced, transmitted, or taped.

206-3652

26

Oper ating the Caption

1 Press the MENU button to select the screen display as below.

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

●

Each time you press the volume ( 2

,

3 ) buttons, the caption mode is displayed one by one as shown below.

CAPTION CC1

CAPTION CC2

Use 5 3 And ENTER

CAPTION CC3

2 Press the channel select [Caption/Text].

( 5 , ∞ ) buttons to

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

CAPTION CC4

CAPTION TEXT1

CAPTION TEXT2

Use 5 3 And ENTER

CAPTION TEXT3

CAPTION TEXT4

3 Press the volume ( 3 ) button.

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

Use 5 And ENTER

Press the ENTER button.

4

●

This TV is programmed to remember which mode it was last set to, even if you switch the

POWER off.

206-3652

27

28

Closed caption function

Oper ating the Caption

1 Press the CC button to select

[Captions].

Captions

Use 2

Off

And ENTER

2 Press the volume ( 2 , 3 ) buttons to select [On] and press the ENTER button.

● Each press of volume ( 2

,

3 ) buttons changes the screen display as below.

Off On EZ Mute

● Captions function setting is Completed.

206-3652

Using the T e xt Function

Text services give a wide variety of information on all kind of subjects (ex. captioned program lists, weather forecasts, stock exchange topics, news for hearing-impaired---) through the half TV screen.

But not all stations offer text services, even though they might offer captioning.

1 Repeat the steps 1-2 at page 27.

2 Press the volume ( 2 , 3 ) buttons to select [Text 1], [Text 2], [Text 3] or [Text 4].

Language

Captions

Caption/Text

Parental Ctl

English

Off

Text1

Use 5 And ENTER

Press the ENTER button.

3

●

In the event you receive a poor signal, an empty black box may appear and disappear, even when the text mode is selected. This is normal function in such an event.

206-3652

29

Parental control function

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast station. The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories chosen to be blocked. It is also possible to block all program viewing for a time period. To use the Parental Control Function, the following must be set :

1. Ratings and categories to be blocked.

2. Number of hours to lock the television viewing control

3. Set a password

4. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcast stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or directto-video movies use the Movie Rating System(MPAA) only.

30

For Movies previously shown in theaters:

Movie Ratings:

* Unblocked

* G and Above

* PG and Above

(general audience)

(parental guidance suggested)

* PG-13 and Above (13 years and up)

* R and Above (restricted)

* NC-17 and Above (18 years and up)

* X (adult)

If you set PG-13 and Above ; G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

For Television programs including made-for-TV movies:

General TV Ratings:

* Unblocked

* TV-G and Above

* TV-PG and Above

* TV-14 and Above

* TV-MA

(general audience) (individual categories do not apply)

(parental guidance suggested)

(14 years and up)

(mature audience)

Children TV Ratings:

* Unblocked

* TV-Y and Above

* TV-Y7

(youth) (individual content categories do not apply)

(youth, 7 years and up)

Content Categories:

* Dialog - sexual dialogue

* Language - adult language

* Sex scenes - sexual situations

* Violence

* F Violence - fantasy violence

* No Rating

(applies to TV-PG and Above, TV-14 and Above)

(applies to TV-PG and Above, TV-14 and Above, TV-MA)

(applies to TV-PG and Above, TV-14 and Above, TV-MA)

(applies to TV-PG, TV-14 and TV-MA)

(applies only to TV-Y7)

(blocks all viewing)

206-3652

Setting up Bloc king

1 Press the MENU button to select the screen display as below.

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

4 Press the channel ( 5

,

∞ ) buttons to select the types of blocking to be set.

Press the volume ( 2 , 3 ) buttons to select the types of ratings to block.

●

[MPAA], [Age] and/or [Content block] may be set.

Press the MENU button to return from

[Age Block] or [Content Blk] setting screens.

Use 5 3 And ENTER

2 Press the channel ( select [Parental Ctl].

5

,

∞ ) buttons to

Language

Captions

Caption/Text

Parental Ctl

English

Off

CC1

Use 5 3 And ENTER

5 Press the channel ( select [Set Hours].

5

,

∞ ) buttons to

Press the volume ( 2 , 3 ) buttons to set the number of hours for the blocking.(Up to 99)

Press the channel ( 5 select [Set Password].

, ∞ ) buttons to

Enter a four digit password. Enter it again when requested.

●

A new password may be chosen each time blocking is set up.

3 Press the volume ( 3 ) button.

Aux. Block Sources Unblocked

MPAA Unblocked

Age Block

Content Blk

Set Hours 00 Hours

Set Password 2 To Set

Lock On/Off Must Set Hours

Use 5 And ENTER

●

If parental control is already set then enter the password when requested.

206-3652

6 Press the channel ( select [Lock On/Off].

5 , ∞ ) buttons to

Press the volume ( the lock [On].

2 , 3 ) buttons to set

Press the MENU button to save the blocking setup and exit.

31

32

Programming / Erasing channels

A uto prog r r amming channels

* This function can be operated only when the set can receive input signal from broadcasting stations and the antenna cable is connected.

* [Auto programming] function memorizes all the receiving channels of terestrial TV signals or cable TV programs.

* If channels of general wireless TV and cable TV are duplicated, press the number buttons (0 ~ 9) to change as general wireless TV Cable TV

1 Press the MENU button to select the screen display as below.

Auto Program

Manual Program

Fine

Use 5 3 And ENTER

2 Press the volume ( 3 ) button.

Auto Program TV 7

89%

Scanning channel number is displayed.

Stop ENTER

* Press the channel ( 5

,

∞ ) buttons to check the memorized channels after auto programming is finished.

* If you press the ENTER button in auto programming, the function will stop and only channels programming up to that time will remain.

* Auto programming function can memorize only the channels which are being received at that time.

206-3652

Right master page

Memor izing / Er asing current channel

*You can select [Add] or [Del] for the current channel.

1 Press the MENU button to select the screen display as below. Then press the channel ( 5

,

∞

[Manual Program].

) buttons to select

3 Press the channel ( 5

,

∞ ) buttons to select a channel you want and then press the volume ( 2 , 3 ) buttons to select [Memory] or [ Erase ].

Manual Program

TV 7 Memory

Erase

Auto Program

Fine

Use 5 And ENTER

2 Press the volume ( 2 , 3 ) buttons.

The current channel number is displayed.

4 Press the ENTER button.

● The current channel is to be added / deleted.

Manual Program

TV 7 Memory

Use 5 And ENTER

● Each time you press the volume ( 2 , 3 ) buttons, you can select as below alternatively.

Memory Erase

Use 5 And ENTER

206-3652

33

Setting current time

* If current time setting is erased by power failure or TV is unplugged, reset it.

34

T o set current time as 10:30 AM

1 Press the MENU button to select the screen display as below.

Clock --:--AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

2 Press the channel ( 5 , ∞ ) buttons to select [Clock ].

Clock --:--AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 And ENTER

3 Press the volume ( 3 ) button.

Clock 00:00 AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

206-3652

4 Press the channel ( select current hour.

5 , ∞ ) buttons to

●

If you hold the 3 button, the hour display is changed in the sequence of AM 1

➔

AM 2

➔

....PM12

➔

PM 1 ....

➔

AM 12, and changed in the reverse sequence for ∞ button.

●

Select [AM 10].

5 Press the volume ( 3 ) button.

Clock 10:00AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

To check current channel, time and sound status (stereo or dual)

●

Press the ENTER button.

ST.SAP 7 current channel

10:30AM current sound status current time

● Press the ENTER button again to release.

* Current time is not displayed if current time is not set.

* Stereo or dual sound is displayed only when receiving the correspondent input signal.

* Above displays disappear after a few seconds.

6 Press the channel ( 5 , ∞ ) buttons to select current minute. And press the

ENTER button.

●

If you hold the 3 button, the minute display is changed in the sequence of 00 ➔ 01 ➔ 02

...58

➔

59, and changed in the reverse sequence for 3 button.

●

Select [30] and press the ENTER button to complete the setting.

●

Time is progressed from the point of pressing the ENTER button.

●

Press the ENTER button again and the screen display is disappears.

206-3652

35

Setting Off-Timer function

*Timer function can be operated only if current time has been already set.

*Off-timer function is prior to on-timer function if they are set to the same time.

T ur ning off at 11:30 PM b y off-timer function

1 Press the MENU button to select the screen display as below.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

2 Press the channel (

Timer].

5 , ∞ ) buttons to select [Off-

Clock

Off-Timer

10:30AM

--:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

36

3 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 2 3 5 ∞ And ENTER

206-3652

4 Press the channel ( 5 , ∞ ) buttons to select hour you want to set.

●

If you hold the 5 button, the hour display is changed in the sequence of AM 1

➔

AM 2

➔

....PM12

➔

PM 1 ....

➔

AM 12, and changed in the reverse sequence for ∞ button.

●

Select [PM 11].

7 Press the volume ( 3

[Hold] or [Run].

) button to select

5 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 2 ∞ And ENTER

8 Press the channel ( select [Run].

5

,

∞ ) buttons to

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

6

Press the channel ( 5 , ∞ ) buttons to select minute you want to set.

● If you hold the 5 button, the minute display is changed in the sequence of 00

➔

01

➔

02 ...58

➔ 59, and changed in the reverse sequence for ∞

● Select [30].

button.

9

Press the ENTER button.

● Each press of channel ( 5 , ∞ ) button changes the screen display as below.

Run Hold

● The screen display will disappear if you press the ENTER button once more.

● The screen display of [ Sleep ] appears on the screen for one minute untill TV automatically turns off.

* When [Auto Off] is set to [RUN] with 5 and ENTER buttons, the TV is switched to standby mode automatically in 10 minutes if there is no inptsignal.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Use 5 3 And ENTER

206-3652

37

Setting On-Timer function

*Timer function can be operated only if current time has been already set.

T ur ning on at 7:10 AM with v olume 40 on channel 8 b y on-timer function

1 Press the MENU button to select the screen display as below.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

TV 3 Vol 30 Run

Auto Off : Hold

Use 5 3 And ENTER

4 Press the channel select hour you want.

( 5 , ∞ ) buttons to

● If you hold the 5 button, the hour display is changed in the sequence of AM 1

➔

AM 2

➔ ....PM12

➔ PM 1 ....

➔ AM 12, and changed in the reverse sequence for ∞ button.

●

Select [AM 7].

2 Press the channel ( select [On-Timer].

5 , ∞ ) buttons to

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

Auto Off : Hold

Use 5 3 And ENTER

5 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

Auto Off : Hold

Use 2 ∞ And ENTER

38

3 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

Auto Off : Hold

Use 2 ∞ And ENTER

6 Press the channel ( 5 select minute you want.

, ∞ ) buttons to

●

If you hold the 5 button, the minute display is changed in the sequence of 00 ➔ 01 ➔

02 ...58

➔

59, and changed in the reverse sequence for ∞

●

Select [10].

button.

206-3652

7 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

Auto Off : Hold

Use 5 3 And ENTER

11 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

Auto Off : Hold

Use 5 3 And ENTER

8 Press the channel ( 5 , ∞ ) buttons to select the channel you want .

9 Press the volume ( 3 ) button.

Clock 10:30AM

Off-Timer --:--AM Hold

On-Timer --:--AM

Auto Off : Hold

Use 5 3 And ENTER

12 Press the channel ( 5

,

∞ ) buttons to select [Run] and press the ENTER button.

●

Each press of volume ( 2 , 3 ) buttons changes the screen display as below.

Run Hold

●

On-Timer function setting is completed.

●

If you press the ENTER button once more, the screen display disappear and the set will be turned automatically on with volume level 40 on channel

8 at 7:10 AM.

10 Press the channel ( 5 , ∞ ) buttons to select the volume you want .

206-3652

* If on-timer function is active, the current channel will change to the set channel when on-timer is activated.

* Unless any button is pressed within two hours after turning on the TV by on-timer function, the set is automatically turned off.

39

Setting sleep time function

* This function will automatically turn the set off after a set time.

1 Press the SLEEP button to set sleep time function.

● Each press of the button changes setting time status as below.

40

Sleep ---

Use 2 And ENTER

- - -

240

180

10

20

30

120 90 60

● To release sleep time setting, press the SLEEP button repeatedly to select [ --- ].

● The screen display of [ Sleep ] appears on the screen for one minute untill automatically turning off.

* When a sleep time you want is displayed on the screen, don’t press the SLEEP button. The screen display disappears and sleep time is to be set.

* To check remaining sleep time after setting, press the SLEEP button just once.

* To change sleep time setting, press the SLEEP button repeatedly to select time setting you want.

* If you turn the set off after setting sleep time, the setting will be erased. Set it again.

206-3652

Adjusting audio condition

Adjusting audio condition b y user

1 Press the MENU button to select the screen display as below.

3 Press the volume ( 2 , 3 ) buttons to adjust the audio condition as you want.

MTS

AVL

DASP

Equalizer

Strero

Off

User

Use 2 ∞ And ENTER

MTS

AVL

DASP

Equalizer

Strero

Off

User

Use 2 ∞ And ENTER

2

206-3652

Press the channel ( 5 , ∞ ) buttons to select a audio item you want to adjust.

MTS :

● Refer to page 42 for the details.

AVL (Auto Volume Level) :

● This function keeps the volume at the same level even when the channels are changed.

DASP (Digital Audio Signal Process) :

●

This function makes it possible for the user to adjust the audio characteristics in each mode (Cinema, Music or Sports) just as he or she desires.

Equalizaer :

● This function enables the user to make adjustments to the frequency bands listed below just as he or she desires.

100Hz, 500Hz, 1.5kHz, 5kHz, 10kHz.

4 Press the ENTER button.

Adjusting audio condition

Screen display in stereo signal : Stereo

Screen display in bilingual signal : SAP

* Bilingual (dual language) signal

● This signal contains the secondary language signal in addition to the primary language.

●

There are the primary and secondary language and stereo modes in bilingual signal.

● [Mono] : The primary language is output from left and right speaker. Signal mode is mono.

●

[Stereo] : The primary language is output from left and right speaker. Signal mode is stereo.

● [SAP] : The secondary language is output from left and right speaker.

1 Press the MENU button to select the screen display as below.

MTS

AVL

DASP

Equalizer

Strero

Off

User

3 Press the volume ( 2 , 3 ) buttons to select an audio mode you want.

MTS

AVL

DASP

Equalizer

Strero

Off

User

Use 5 3 And ENTER

Use 5 3 And ENTER

● Each press of volume ( 2 , 3 ) buttons changes the screen display as below.

Mono Stereo SAP

42

2 Press the channel ( select [MTS].

5

,

∞ ) buttons to

4 Press the ENTER button.

* If some strange sound is heard when watching TV programs on stereo mode in poor signal areas, or if in non-dual signal service area, make sure to select mono mode.

* [Stereo] or [Mono] mode can be available only when broadcasting signal contains the data.

206-3652

* This function cuts off speaker sound. It’s convenient when getting phone calls.

1 Press the MUTE button.

Mute

●

To release muted sound, press the MUTE button or volume ( 2 ,

) buttons.

●

If muted sound is released, volume level is displayed on the screen.

●

Headphone is an optional item.

● You can adjust headphone sound with volume( 2 , 3 ) buttons. While you are listening to sound through headphone, speaker sound is cut off.

206-3652

INPUT

COMPONENT INPUT(480i)

C

B

C

R

H/P S-VIDEO

VIDEO (MONO)

IN

L A

43

44

Adjusting video condition

APC (A uto Picture Control)

1 Press the MENU button to select the screen display as below.

Contrast

Brightness

Color

Tint

Sharpness

APC

100

100

70

0

4

Clear

Use 5 3 And ENTER

2 Press the channel ( 5

,

∞ ) buttons to select [APC].

Contrast

Brightness

Color

Tint

Sharpness

APC

100

100

70

0

4

Clear

Use 5 3 And ENTER

● Each press of volume ( 2 , 3 ) buttons changes the screen display as below.

Clear Optimum

User Soft

3 Press the ENTER button.

206-3652

Man ual picture control

1 Press the MENU button to select the screen display as below.

3 Press the volume ( 2 , 3 ) buttons to adjust the picture condition as you want.

Contrast

Brightness

Color

Tint

Sharpness

Use 5

100

100

70

0

4

And ENTER

Contrast

Brightness

Color

Tint

Sharpness

100

100

70

0

4

Use 5 And ENTER

●

[Contrast], [Brightness], [Color] are adjusted from 0 to 100.

●

[Tint] is adjusted from Red 50 to Green 50.

● [Sharpness] is adjusted from 0 to 10.

2 Press the channel ( 5

,

∞ ) buttons to select a picture item you want to adjust.

Contrast :

●

Adjust the different between the light and dark levels of the picture..

Brightness :

● Adjust the white or light of the overall picture..

Sharpness:

●

Adjust the levels of crispness in the edges between the light and dark area of the picture. The lower the level, the softer the image.

Color:

● Adjust the richness of all colors.

4 Press the ENTER button.

* APC setting is to be released if you use this function.

206-3652

Fine:

●

This function is to adjust the picture to stable condition when it is poor, for example, a horizontal stripe, twisted picture or no color in brodcasting.

Auto Program

Manual Program

45

Use 5 And ENTER

Product specifications

46

Model

Main body

:

:

LC1500

Horizontal size (mm) : 394

Height (mm) : 384

Thickness (mm)

Weight (kg)

: 105.5

: 5.2

Including table stand : Horizontal size (mm) : 394

Height (mm) : 413

Thickness (mm)

Weight (kg)

: 194

: 7.9

Power requirements : DC 12V/3A

* CAUTION : For use only with Model No. CAM-1230 AC Adaptor, manufactured by Chang-Nam Electronics.

Television system

Television channels

:

:

: NTSC

VHF : 2 ~ 13, UHF : 14 ~ 69

Cable : 01 ~ 125

LCD Panel Tube

Power consumption

External antenna impedance :

Audio output :

Speaker outputs

External input ports

:

:

:

:

See the back of the set

75

Ω

1.0W + 1.0W

8

Ω

X 2

VIDEO input port set 1

S-VIDEO input 1

Headphone jack 1

PC/D-TV input 1

Component video input set 1

Power input 1

Antenna input 1

Adaptor (DC power) : In : AC 100-240V ~ 1.3A-0.7A

50/60Hz, 85VA

Out : DC 12V, 3A

* CAUTION : For use only with Model No. CAM-1230 AC Adaptor, manufactured by Chang-Nam Electronics.

Power supply cordset : Standard North America three wire earth-grounding with flexible cord SJT type or higher type.

* CAUTION : If replacement becomes necessary, replace it with an exact duplicate.

Contact any MARANTZ authorized service center.

206-3652

206-3652

Memo

COUNTRY

ALGERIE

ARMENIA

AUSTRALIA

AUSTRIA

BAHREIN

BANGLADESH

BELGIUM

BULGARIA

COMPANY

Azur 2000

NGYIG Ltd.

Jamo Australia Pty. Ltd.,

Huber & Prohaska GmbH

Ambassador Stores

Target

Van der Heyden Audio N.V.

Ariescommerce GmbH

ADDRESS

8, Lotissement Ben Hatadi, Alger, Algerie

47 A/75 St. Lalaiants, 375000 Yerevan, Armenia

24 Lionel Road, Mt. Waverley, VIC 3149, Australia

Taborstraße 95 / Ladestraße 1, Gebäude Hangartner, A-1200 Wien, Austria

P.O. Box 237,141, Government Avenue, Manama,Bahrein

1078, Ramjoy Mohanja Lane Asadgonj, Chittagong 4000, Bangladesh

Brusselbaan 278, 9320 Erembodegem, Belgium

Makedonia Blvd. 16, 1606 Sofia, Bulgaria

CANADA

CHINA

CYPRUS

CZECH REPUBLIC

DENMARK

DUBAI

EGYPT

ESTONIA

F.Y.R.O.M.

FINLAND

FRANCE

GERMANY

GREECE

Lenbrook Industries Limited 633 Granite Court, Pickering, Ontario

Guang Chang Audio International Co., Ltd. No.38 Yushan Road, ShiQiao, Pan Yu, Guang Dong, China

Empire Hifi systems Ltd.

Audio International

Audio Nord

V.V.& SONS

Solimco

HiFi Club Estonia

T.P. KODI

Audio Nord

Marantz France

Marantz Deutschland

Adamco S.A.

HEADQUARTERS EUROPE: Marantz Europe B.V.

HONG KONG Marantz Asia Ltd.

HUNGARY

ICELAND

INDIA

Infovox Ltd.

ID Electronics Ltd.

NOVA Audio Private

P.O. Box 5604, Nicosia, Cyprus

Sokolska 41, 67902 Rajecko, OKR,Blansko, Czech Republic

Dali Allé 1, 9610 Noerager, Denmark

P.O. Box 105, Dubai, U.A.E.

9, El Attibaa St. Doki, Cairo, Egypt

Ehte 4, 90503 Haapsalu, Estonia ul.Cedomir Kantargiev 21a, Skopje, Former Yugoslavian Republic of Macedonija

Uudenmaankatu 4-6, Helsinki SF-00120, Finland

A division of Marantz Europe B.V., P.O. Box 301, 92 156 Suresnes Cedex, France

Hakenbusch 3, 49078 Osnabrück, Germany

188, Hippocratous Street, 11471 Athens, Greece

Building SFF-2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands

Unit 1706, Metroplaza II, 223 Hing Fong Road, Kwai Fong, N.T., Kowloon, Hong Kong

Terez Krt.31, 1067 Budapest, Hungary

Armula 38, 108 Reykjavik, Iceland

8,Punam Co-op.Society 29/30 Road#5, Union Park MUMBAI 400052, India

IRAN

IRELAND

ISRAEL

ITALY

IVORY COAST

JAPAN

KOREA

KUWAIT

LATVIA

LEBANON

LITHUANIA

MALAYSIA

MALTA

MAURITIUS

MILITARY MARKET EUROPE PASCO GmbH

NETHERLANDS Marantz Domestic Sales

NEW ZEALAND

NORWAY

OMAN

Wildash Audio Systems

Audio Nord

Mustafa & Jawad Trading CO.

POLAND

PORTUGAL

PROFESSIONAL EUROPE

PROFESSIONAL U.S.A.

Philips Polska Sp. z.o.o.

Corel2

Marantz Professional Products

Marantz Professional Products

QATAR

REUNION

ROMANIA

RUSSIA

SAUDI ARABIA

SINGAPORE

SLOVAKIA

SLOVENIA

SOUTH AFRICA

SPAIN

Almana & Partners W.W.L.

Vision +

Nova Music Entertainment

Absolute Audio

Adawlia Univ. Electr. Apl

Wo Kee Hong Distribution PTE Ltd.

Bis Audio s.r.o.

Bofex

Coherent Imports (PTY) Ltd.

Marantz Spain

SRI LANKA

SWEDEN

SWITZERLAND

SYRIA

TAHITI

TAIWAN

THAILAND

TUNESIA

TURKEY

U.K.

U.S.A.

YUGOSLAVIA

Home Co.

Marantz Ireland

Elmor Ltd.

Marantz Italy

Hifivoir

Marantz Japan Inc.

Mk Enterprises Ltd.

alAlamiah Electronics Intl.

5th floor no 878 Philips Building Enghelab ave, P.O. 11365/7844 Tehran, Iran

Clonskeagh, Dublin 14, Ireland

52 Heh Beiyar Street, Kikar Hamedina, Tel Aviv, Israel

Via Casati 23, 20052 Monza (Milano), Italy, Servizio Consumatori 1678-20026, Numero Verde

B.P. 2428, Abidjan 01, Ivory Coast

35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan

121-210, 2F Shinhan Bldg., 247-17 Seokyo-dong, Mapo-ku, Seoul, Korea

P.O. Box 8196, Salmiah 22052, Kuwait

Ace Ltd.

AZ Electronics S.A., 1,

61, LacPlesa Str., Riga LV 1011, Latvia

P.O. Box 11 2833, Beirut, Lebanon

Accapella Ltd.

Ausros, Vartu G/5, Pasazo SKG., 2001 Vilnius, Lithuania

Wo Kee Hong Electronics Sdn. Bhd.

Suite 8.1, Level 8, Menara Genesis, No. 33, Jalan Sultan Ismail, 50250 Kuala Lumpur, Malaysia

Doneo Co Ltd.

78 The Strand, Sliema SLM07, Malta

SKR Electronics Ltd.

P.O. Box 685, Bell Village, Port Louis, Mauritius

The listening Room

Audio Nord

Sound Company AG

Hamzeh & Partners

Covecolor

Pai-Yuing Co. Ltd.

MRZ Standard Co. Ltd.

Societe EDEVIG

Türk Philips Ticaret A.S.

Marantz Hifi UK Ltd.

Marantz America Inc.

ITM Company

PO BOX 1280, Sandhausen 69200, Germany

A division of Marantz Europe B.V., Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands

14 Malvern Road, Mt. Albert, Auckland, New Zealand

Sandkerveien 64, Oslo 0483, Norway

P.O. Box 1918, Ruwi, Oman

Al.Jerozolimskie 195b, 02 222 Warszawa, Poland

Comércio de Electrónica Lda., Av. Luís Bívar, No 85 A, 1050 Lisboa, Portugal

Kingsbridge House, Padbury Oaks, 575-583 Bath Road, Longford, Middlesex UB7 0EH, U.K.

Distributed by: Superscope Technologies Inc., 1000 Corporate Blvd. Ste.D, Aurora, IL

P.O. Box 49, Doha, Qatar

180 Rue du Marechal Leclerc, 97400 Saint Denis, Ile de la Reunion

5, Zagazului Str. Bl.1G,apt.18, sector 1,Bucharest, Romania

7/2, Montazhnaya Street, 107497 Moscow, Russia

P.O. Box 2154, Alkhobar 31952, Saudi Arabia

130 Joo Seng Road, #03-02 Olivine Building, Singapore 368357

Nam. SNP 10, 96001 Zvolem, Slovakia

Smartinska 152, HALA V/3, 61000 Ljubljana, Slovenia

P.O. Box 1614, Alberton, 1450, South Africa

Martinez Villergas 2, Apartado 2065, Madrid 28027, Spain

Mezzanine Floor, The Landmark 385, Galle Road, Colombo - 3, Sri Lanka

Almedalsvagen 4, Gotenborg 402-23, Sweden

Postfach, 8010 Zürich, Switzerland

Hafez Ibrahim Str. No 117, Damascus Shalan, Syria

Av. Prince Hinoi, Cours de l'union sacré, P.O. Box 2334, Papeete, Tahiti

6th No 148 Sung Kiang Road, Taipei 10429, Taiwan R.O.C.

746-750 Mahachai Road, Wangburapa, Bangkok 10200, Thailand

40, Avenue du Golfe Arabe, El Menzah, 1004, Tunesia

Yukari Dudullu Organize sanayi Bolgesi, 2.Cadde no.28, 81260 Umraniye-Istanbul, Turkey

Kingsbridge House, Padbury Oaks, 575-583 Bath Road, Longford, Middlesex UB7 0EH, U.K.

1100 Maplewood Drive Itasca, IL 60143, U.S.A.

Omladinskih Brigada 86, 11070 Belgrade, Yugoslavia

EXPORT www.marantz.com

Marantz Domestic Sales A division of Marantz Europe BV,Building SFF2, P.O. Box 80002, 5600 JB Eindhoven, TheThe Netherlands

Printed in Korea

R is a registered trademark.

07/2001 MITi 347W851210
