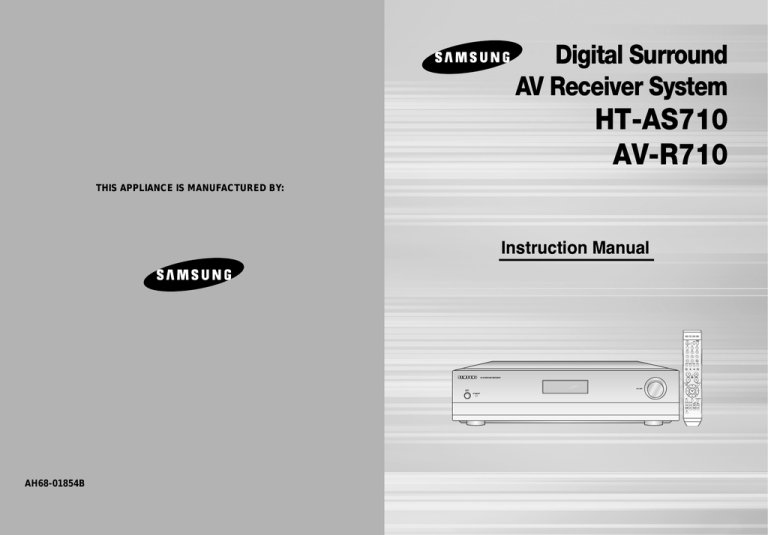

Digital Surround
AV Receiver System
HT-AS710
AV-R710
THIS APPLIANCE IS MANUFACTURED BY:
Instruction Manual
AH68-01854B
Safety Warnings
GB
Precautions
PREPARATION
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install
your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure
the ventilation slots are not covered. Do not stack anything on top of the amplifier. In order to disconnect the player completely
from the power supply, remove the mains plug from the wall outlet, especially when left unused for a long period of time.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
plug shall be readily operable.
Wiring the Main Power Supply Plug(UK Only)
IMPORTANT NOTICE
The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug
and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse
fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable
safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main
socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.
During thunderstorms, disconnect AC main plug from
the wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of
the unit.
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic
or electric fields (i.e.speakers...). Disconnect the power
cable from the AC supply if the player malfunctions. Your
player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been
stored in cold temperatures.
If transporting the player during the winter, wait
approximately 2 hours until the unit has reached room
temperature before using.
The battery used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
IMPORTANT
The wires in the main lead are coloured in accordance with the following code:–
BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured
BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL
, OR COLOURED GREEN OR GREEN AND YELLOW.
2
This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
3
Features
Contents
PREPARATION
This product is a pure digital AV receiver that performs digital signal processing to minimise
signal distortion and loss.
Safety Warnings ..............................................................................................................2
Precautions......................................................................................................................3
Features ..........................................................................................................................4
Description ......................................................................................................................6
Dolby Pro Logic llx
CONNECTIONS
Dolby Pro Logic llx is a new type of multiple channel audio signal decoding method that
improves upon existing Dolby Pro Logic ll.
Connecting the speakers.................................................................................................10
Connecting external components ...................................................................................12
Connecting the FM and AM antennas .............................................................................17
DTS 96/24
OPERATION
DTS-ES
Before using the AV receiver ...........................................................................................18
Selecting digital/HDMI/analogue input ............................................................................19
Setting the speaker mode................................................................................................20
Setting the speaker listening distance ...........................................................................22
Setting digital input ..........................................................................................................24
Setting HDMI input ..........................................................................................................26
Setting HDMI audio .........................................................................................................28
Setting DRC (Dynamic Range Compression) .................................................................30
Test tone .........................................................................................................................32
Setting speaker level .......................................................................................................36
Dolby Pro Logic llx mode.................................................................................................38
Setting Dolby Pro Logic llx effect ....................................................................................40
NEO:6 mode....................................................................................................................42
Setting EX/ES mode........................................................................................................44
SFE mode........................................................................................................................46
Stereo mode ....................................................................................................................48
DTS-ES is the surround format which implements 6.1 channel while preserving
compatibility with existing DTS Digital Sound formats.
RADIO OPERATION
DTS
Listening to radio ............................................................................................................50
Setting tuner ....................................................................................................................51
Presetting radio stations .................................................................................................52
About RDS broadcasting .................................................................................................53
DTS is the surround format implementing 5.1 channel multi channel sounds at 96KHz/24bit.
In addition, it can reproduce the matrix 6.1 of DTS 96/24 decoder signals.
DOLBY DIGITAL EX
Adds a surround back channel for more spacious sound compared to regular 5.1 channel
Dolby Digital.
DTS (Digital Theater Systems)
DTS plays back 5.1 channel sound with less compression than Dolby Digital for richer
sound.
Reproduces digital PCM or analogue stereo over 6.1 channel using a high precision
DTS digital matrix.
PREPARATION
Digital AV Receiver
GB
MISCELLANEOUS
SFE (Sound Field Effect) Using 24bit Audio Digital Signal Processing
Provides more realistic surround sound with normal stereo audio sources.
4
Convenient functions ......................................................................................................55
Operating your TV with the remote control......................................................................58
Operating your DVD (VCR) with the remote control........................................................60
Before calling for service .................................................................................................62
Specifications ..................................................................................................................64
5
GB
Description
POWER STANDBY Indicator
SELECT (
TUNING (
INPUT MODE button
,
,
) button
) button
FM ANTENNA JACK
AM ANTENNA JACK
5.1 CH ANALOGUE
AUDIO INPUT JACKS
POWER button
AUX IN buttons
HEADPHONE Jack
SETUP button
HDMI OUTPUT JACK
CD AUDIO INPUT JACKS
FUNCTION button
VCR AUDIO
VCR VIDEO INPUT JACK
INPUT JACKS
VCR VIDEO OUTPUT JACK
HDMI INPUT
JACK
FRONT SPEAKER TERMINALS
SURROUND SPEAKER TERMINALS
VOLUME CONTROL
Remote control sensor
SURROUND button
CENTRE SPEAKER TERMINALS
DVD OPTICAL DIGITAL
AUDIO INPUT JACK
[ Display ]
DTS INDICATOR
L.PCM INDICATOR
DTS ES 96/24
MPEG2
DOLBY INDICATOR
DIGITAL INDICATOR
INDICATOR
INDICATOR
DOLBY DIGITAL EX INDICATOR
LIVE SURROUND
SPEAKER INDICATORS
INDICATOR
RADIO FREQUENCY
INDICATOR
RDS INDICATOR
RT INDICATOR
TA INDICATOR
FRONT DISPLAY
NEO:6 INDICATOR
6
MONITOR VIDEO OUTPUT JACK
DVD VIDEO INPUT JACK
SAT VIDEO INPUT JACK
SAT OPTICAL DIGITAL
AUDIO INPUT JACK
DOLBY PRO LOGIC IIX
INDICATOR
PREPARATION
[ Rear panel ]
[ Front panel ]
COOLING FAN
SUBWOOFER AUDIO OUTPUT JACK
CD COAXIAL DIGITAL
AUDIO INPUT JACK
VCR AUDIO OUTPUT JACKS
DVD AUDIO INPUT JACKS
SAT AUDIO INPUT JACKS
√√ Accessories œœ
Remote control
AM antenna
FM antenna
User’s manual
RADIO STEREO INDICATOR
RADIO BROADCASTING
RECEIVING INDICATOR
7
GB
Description (Cont'd)
TV button
AMP button
Insert remote control batteries
DVD button
VCR button
DIMMER button
POWER button
NUMBER (0~9) buttons
SLEEP button
SUBWOOFER button
EX/ES button
PREPARATION
[ Remote control ]
1
TV/VIDEO, FUNCTION button
CD button
VCR button
DVD button
Remove the battery
cover in the direction
of the arrow.
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
5.1 CH button
SAT button
AUX button
INPUT MODE button
MO/ST button
TUNER button
EXTERNAL DEVICE PLAYBACK button
MUTE button
VOLUME CONTROL button
SETUP/MENU button
TUNING/CHANNEL button
TUNING MODE button
NEO : 6 MODE button
STEREO button
Range of operation of the remote control
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated
at a horizontal angle of up to 30° from the remote control sensor.
CURSOR/ENTER button
DRC button
INFO button
Follow these precautions to avoid leaking or cracking batteries:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
TUNER MEMORY button
MODE button
EFFECT button
TEST TONE button
RDS selection buttons
SPK LEVEL button
SPK SELECT button
SFE MODE button
8
9
GB
Connecting the speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
ACTIVE SUBWOOFER
(BUILT-IN POWER AMPLIFIER)
PS-AW710
FRONT (R)
PS-AF710
SURROUND (R) SURROUND (L) SURROUND BACK
PS-AR710
PS-AR710
PS-AB710
CONNECTIONS
SL
FRONT (L)
PS-AF710
SR
MAIN UNIT
AV-R710
SYSTEM MODEL NAME : HT-AS710
Position of AV Receiver
Surround Speakers
• Place AV Receiver on a dedicated stand or rack.
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they
face each other.
• Place them about 60 to 90cm (2 to 3feet) above your
ears, facing slightly downward.
❈ Unlike the front and centre speakers, the surround
speakers are used to handle mainly sound effects and
sound will not come from them all the time.
Front Speakers
• Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at
the same height as your ears.
• Align the front face of the front speakers with the
front face of the centre speaker or place them
slightly in front of the centre speaker.
Surround Back Speaker
Centre speaker
• Place it so it faces forward towards the back of the listener.
• Place the surround back speaker about 70 cm to 1 m
(2.3~3.3feet) above surround speakers, facing slightly
downwards.
• It is best to install it at the same height as the front
speakers.
• You can also install it directly over or under the TV.
Subwoofer
MAIN UNIT
FRONT SPEAKER
CENTRE SPEAKER
SURROUND SPEAKER
SURROUND BACK SPEAKER
ACTIVE SUBWOOFER
CENTRE
PS-AC710
Subwoofer function
Active subwoofer with integrated 150W amplifier provides rich bass sound.
1
Connect the SW OUT terminal of the amplifier (AV-R710) to the INPUT
terminal of the subwoofer speaker.
2
Press the POWER button on the rear side of the subwoofer to turn
the power on.
3
Using the subwoofer’s VOLUME control, you can set the desired bass level
(See pages 36-37 "Setting Speaker Level" to set the subwoofer level in the menu).
√ Connecting Speaker Wire
the speaker port by
1 Release
turning it counterclockwise.
2
Insert the end of the speaker
wire into the speaker port.
3
Fasten the speaker port by
turning it clockwise.
• When you attach the speakers to a wall, make sure to
fasten them tightly so they do not fall off.
• The position of the subwoofer is not so critical.
Place it anywhere you like.
Caution
10
AV-R710
PS-AF710
PS-AC710
PS-AR710
PS-AB710
PS-AW710
• Keep the subwoofer speaker out of reach of children to
prevent them from inserting their hands or objects
into the duct (hole) of the subwoofer speaker.
• Never touch speaker terminals while the power is on.
Doing so could result in electric shock.
• Make sure the polarities (+ and -) are correct.
11
GB
Connecting external components
Connecting video component
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
SAT(Settop Box)
DVD Player
CONNECTIONS
• If the external component has only one audio output
jack, connect it to either the right or left audio input
jack of the main unit.
• Connect the audio cable's red plug to the red jack
and white cable to the white jack.
or
or
TV
• Disconnect the power plug from the outlet if you will not use this unit for a long period of time.
• Even though the Digital Audio inputs are labelled DVD, SAT and CD, you can connect your DVD/SAT/CD player
to either the OPTICAL or COAXIAL digital audio input (as long as it matches the Digital audio output on your
player).
12
TV
VCR
13
GB
Connecting external components
Connecting audio component/5.1 channel
Connecting HDMI Component
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
By connecting through the HDMI(High-Definition Multimedia Interface) interface, you can exchange digital video and audio data
without converting them into analogue.
DVD Player
CONNECTIONS
SAT(settop box)
CD Player
• The audio data in the SACD multi/stereo area is not
played. To play a DVD disk whose copyright is
protected by CPPM, use a player supporting CPPM.
• The quality of the audio output through the HDMI jack
(sampling frequency and bit rate) may be limited by
the performance of the connected device.
• Since HDMI connection supports both video and
audio, you don’t have to connect an audio cable
additionally.
TV
High-bandwidth Digital Content Protection System (HDCP) support
To play digital contents through the HDMI connection, both of the connected external device and TV must support High-bandwidth Digital Content
Protection System (HDCP). This product supports HDCP.
TV
COMPATIBILITY WITH A TV SUPPORTING HDMI
DVD or 5.1 channel player
14
A TV with a HDMI jack.
Video/Audio
A TV with a DVI-D jack (TV supporting HDCP)
Video
A TV with a DVI-D jack (TV not supporting HDCP)
-
15
Connecting external components
Connecting AUX component
GB
Connecting the FM and AM antennas
If AM reception is poor, connect an
outdoor AM antenna (not supplied).
You can connect an external device (camcorder, game console, mobile equipment, etc.) to this product and use it.
FM antenna (supplied)
FM antenna connection
Camcorder
1. Connect the FM antenna supplied to the FM 75Ω
COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you
find a location where reception is good, then
fasten it to a wall or other rigid surface.
COOLING FAN
Snap the tabs on the loop into
the slots of the base to assemble
the AM loop antenna.
AM antenna connection
1. Connect the AM loop antenna supplied
to the AM
and terminals.
2. If reception is poor, connect an outdoor single
vinyl-covered wire to the AM terminal.
(Keep the AM loop antenna connected).
The cooling fan dissipates the heat generated inside the unit so that the unit can
be operated normally. The cooling fan is activated automatically to supply cool air
to the unit.
Please observe the following precautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside may
rise and cause damage to it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)
16
17
CONNECTIONS
AM loop antenna(supplied)
Before using the AV receiver
GB
Selecting digital/HDMI/analogue Input
You can listen to sound in 2 channel analogue or Dolby Digital 5.1 channel using this unit.
Turning On/Off
REMOTE CONTROL
Press the POWER button of the remote control.
• This unit will be turned on or set to Standby mode.
MAIN UNIT
1 Connect the power plug to the outlet.
2 Press the POWER button of the main unit.
• This unit will be turned on or set to Standby mode.
You can operate your AMP (this AV receiver), TV, DVD and VCR with this
remote control.
See pages 58-61 for more details.
MAIN UNIT
Press the INPUT MODE button.
Press the INPUT MODE button.
• Each time you press this button, input mode
• Each time the button is pressed, input mode
changes as follows:
changes as follows:
For DVD/SAT function
For CD function
OPERATION
Functions of dedicated remote control
REMOTE CONTROL
To select a function
Press the FUNCTION button.
or
or
or
√
Method 1
or
√
REMOTE CONTROL
• Each time you press this button, FM ➝ AM ➝ 5. 1 MULTI CH ➝ CD ➝
DVD ➝ SAT ➝ VCR ➝ AUX will be selected in turn.
Method 2
Press CD, VCR, DVD, 5.1CH, SAT, AUX or TUNER button.
• You can directly select CD, VCR, DVD, 5.1CH, SAT, AUX or TUNER.
or
MAIN UNIT
√
Press FUNCTION button.
• Each time you press this button, FM ➝ AM ➝ 5. 1 MULTI CH ➝ CD ➝
DVD ➝ SAT ➝ VCR ➝ AUX will be selected in turn.
• You can change the digital input setting for DVD, SAT and CD functions in the “DIGITAL IN” setup.
(See pages 24~25)
18
• You can change the HDMI input setting for DVD and SAT functions in “HDMI SETUP.” (See pages 26~27)
• You can enjoy Dolby Digital or DTS if you connect the digital audio output jack of an external audio
component to the optical/coaxial digital audio input jack on the main unit.
19
GB
Setting the speaker mode
Signal outputs and frequency response from the speaker will be adjusted according to your speaker configuration
and whether certain speakers are used or not.
√
REMOTE CONTROL
SETUP/MENU button, and then press ENTER button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
MAIN UNIT
button to select the “SPK SETUP”, and then
2 Press
press ENTER button.
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
button to select the speaker you want.
3 Press
Each time you press this button, FRONT ➝ CEN ➝ SURR ➝ SBACK ➝
SUB ➝ CROVR will be selected in turn.
…† button to set the mode (Large, Small etc.)
4 Press
for the selected speaker.
OPERATION
2 Press FUNCTION button to select the “SPK SETUP”.
3 Press SURROUND button to select the speaker you
•
want.
• Each time you press this button, FRONT ➝ CEN ➝ SURR ➝ SBACK ➝
SUB ➝ CROVR will be selected in turn.
5 Repeat steps 1-2 to set the mode for each speaker.
4 Press SELECT (
) button to set the mode
for the selected speaker.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
,
5 Repeat steps 3-4 to adjust each speaker.
Using the SPK SELECT button
1 Press SPK SELECT button to select the speaker you want.
To exit setup mode
• Each time you press this button, FRONT ➝ CEN ➝ SURR ➝ SBACK ➝
• Wait for about 5 seconds or press SETUP button.
SUB ➝ CROVR will be selected in turn.
“SETUP OFF” appears on the display and Setup Mode is exited.
2 Press …† button to set the mode (Large, Small etc.)
for the selected speaker.
3 Repeat steps 1-2 to set the mode for each speaker.
To turn the SUBWOOFER on or off.
Press SUBWOOFER button on the remote.
• Each time you press this button, SUB : YES, SUB : NO will be selected in turn.
• If FRONT is set to LARGE, you can select YES or NO for SUB.
• If FRONT is set to SMALL, SUB is automatically set to YES.
NO cannot be selected.
20
Setting the Speaker
SPEAKER
FRONT(Front)
CEN(Centre)
SURR(Surround)
SBACK(SurroundBack)
SUB(Subwoofer)
CROVR
(Crossover Frequency)
Possible Settings
LARGE,SMALL
LARGE,SMALL,NONE
LARGE,SMALL,NONE
LARGE,SMALL,NONE
YES,NO
60,80,100,120,
150,180,200(Hz)
Default Setting
SMALL
SMALL
SMALL
SMALL
YES
150Hz
• LARGE : Select when using large speakers You can listen to full
range sound.
• SMALL : Select this when using small speakers
• NONE : Select when you use no speaker.
• YES (subwoofer) : Select when using the subwoofer speaker.
• NO (subwoofer) : Select when not using the subwoofer speaker.
• CROVR : Select the crossover frequency for the best bass
response in your room.
21
GB
Setting the speaker listening distance
If the speakers cannot be placed at equal distances from the listening position, you can adjust the
delay time of the audio signals from the centre and surround speakers.
√
REMOTE CONTROL
1 Press SETUP/MENU button, and then press ENTER
button.
MAIN UNIT
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
button to select the “DIST SETUP”, and then
press ENTER button.
•
•
S.W will be selected in turn.
4
•
Press …† button to set the speaker distance.
S.W will be selected in turn.
• For F.L, CEN, F.R, S.W, S.R, S.B, S.L Speaker, you can set the distance from
SELECT( , ) button to set the speaker distance.
4 Press
For F.L, CEN, F.R, S.W, S.R, S.B, S.L Speaker, you can set the distance from
the speaker to listening position between 0.3~9.0m in intervals of 0.3m.
•
the speaker to listening position between 0.3~9.0m in intervals of 0.3m.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
To exit setup mode
“SETUP OFF” appears on the display and Setup Mode is exited.
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Setting Speaker Distance
• If the listening position is beyond the range of speaker distance setup
when you place the speaker, set the speaker distance to the maximum.
22
Set the distance from the speaker to listening position in intervals of 0.3m.
• F.L (front left) : 0.3m ~ 9m
• CEN (centre) : 0.3m ~ 9m
• F.R (front right) : 0.3m ~ 9m
• S.R (surround right) : 0.3m ~ 9m
• S.B (surround back) : 0.3m ~ 9m
• S.L (surround left) : 0.3m ~ 9m
• SW (subwoofer) : 0.3m ~ 9m
23
OPERATION
2 Press FUNCTION button to select the “DIST SETUP”.
SURROUND button to select the speaker you want.
3 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B➝ S.L ➝
button to select the speaker you want.
3 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
GB
Setting digital input
You can set the digital input for a DVD/SAT/CD player to either OPTICAL or COAXIAL.
√
REMOTE CONTROL
1 Press SETUP/MENU button, and then press ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “DIGITAL IN”, and then
press ENTER button.
button to select the the CD, DVD or SAT
function.
• Each time you press this button, CD ➝ DVD ➝ SAT will be selected in turn.
…† button to set the digital input.
4 Press
Each time you press this button, COAXIAL ➝ OPTICAL2 ➝ OPTICAL1
•
will be selected in turn.
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
2 Press FUNCTION button to select the “DIGITAL IN”.
SURROUND button to select the CD, DVD or
3 Press
SAT function.
OPERATION
3 Press
MAIN UNIT
• Each time you press this button, CD ➝ DVD ➝ SAT will be selected in turn.
4 Press SELECT(
,
) button to set the digital input.
• Each time you press this button, COAXIAL ➝ OPTICAL2 ➝ OPTICAL1
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
will be selected in turn.
To exit setup mode
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and the unit Setup Mode is exited.
• You can select only one digital input for each function.
Example) If you have selected COAXIAL for the CD function,
you cannot select COAXIAL for the DVD or SAT function.
Function
DVD
SAT
CD
24
Digital input
OPTICAL1
OPTICAL2
COAXIAL
25
GB
Setting HDMI input
You can set the HDMI input for a DVD/SAT player to either HDMI 1 or HDMI 2.
√
REMOTE CONTROL
1 Press SETUP/MENU button, and then press ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “HDMI SETUP”, and
then press ENTER button.
button to select the DVD or SAT function.
• Each time you press this button, DVD ➝ SAT will be selected in turn.
…† button to set the HDMI input.
4 Press
Each time you press this button, HDMI1 ➝ HDMI2 will be selected in turn.
•
To exit setup mode
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
2 Press FUNCTION button to select the “HDMI SETUP”.
SURROUND button to select the DVD or SAT
3 Press
function.
OPERATION
3
Press
MAIN UNIT
• Each time you press this button, DVD ➝ SAT will be selected in turn.
SELECT( , ) button to set the HDMI input.
4 Press
Each time you press this button, HDMI1 ➝ HDMI2 will be selected in turn.
•
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
To exit setup mode
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
• You can select only one HDMI input for each function.
Example) If you have selected HDMI1 for the DVD function, you
cannot select HDMI1 for the SAT function.
26
Function
DVD
SAT
HDMI input
HDMI1
HDMI2
Function
DVD
SAT
HDMI input
HDMI2
HDMI1
27
GB
Setting HDMI AUDIO
You can set HDMI audio settings.
√
Before using!
• Press the INPUT MODE button to select HDMI or HDNI2. (see page 19)
• If you select Digital (Optical, Coaxial) or Analogue, the HDMI audio setting will
be deactivated.
REMOTE CONTROL
1 Press SETUP/MENU button, and then press ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
button to select the “HDMI AUDIO”, and
then press ENTER button.
• “HDMI : AVR” appears on the display.
…† button to set the HDMI audio.
3 Press
Each time you press this button, HDMI : AVR ➝ HDMI : TV will be selected
•
in turn.
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
2 Press FUNCTION button to select the “HDMI SETUP”.
SURROUND button.
3 Press
“HDMI : AVR” appears on the display.
OPERATION
2 Press
MAIN UNIT
•
4 Press SELECT(
,
) button to set the HDMI audio.
• Each time you press this button, HDMI : AVR ➝ HDMI : TV will be selected
in turn.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
To exit setup mode
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Setting HDMI AUDIO
• AVR : Audio is played on this product.
• TV : Audio is played on a TV connected to the HDMI OUT jack and no audio is
played on this product.
• This function is available when both video input and output are all HDMI.
• HDMI AUDIO setting is available only when the HDMI output is
connected to a TV.
• If you couldn’t hear sound from the TV, you should change the HDMI
audio output setting for DVD PLAYER and SAT to PCM.
28
29
GB
Setting DRC (Dynamic Range Compression)
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
√
REMOTE CONTROL
1 Press SETUP/MENU button, and then press ENTER
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “DRC”, and then press
ENTER button.
• “DRC:STD” appears on the display.
•
will be selected in turn.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
2 Press FUNCTION button to select the “DRC SETUP”.
SURROUND button.
3 Press
“DRC : STD” appears on the display .
OPERATION
…† button to set the DRC.
3 Press
Each time you press this button, DRC : STD ➝ DRC : MAX ➝ DRC : MIN
MAIN UNIT
•
4 Press SELECT(
,
) button to set DRC.
• Each time you press this button, DRC : STD ➝ DRC : MAX ➝ DRC : MIN
will be selected in turn.
To exit setup mode
Using the DRC button
Press DRC button.
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and the unit Setup Mode is exited.
• Each time you press this button, DRC : STD ➝ DRC : MAX ➝ DRC : MIN will be
selected in turn.
Setting DRC
• STD : Sets DRC effect to standard.
• MAX : Sets DRC effect to maximum.
• MIN : Sets DRC effect to minimum.
30
31
GB
Test tone
Use test tone to check the speaker connection status or level.
To automatically output test tone
√
REMOTE CONTROL
Press SETUP/MENU button, and then press ENTER
1 button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
MAIN UNIT
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝
S.R ➝ S.B ➝ S.L ➝ S.W .
• During test signal output, press …† button to adjust the speaker output level
from -10 to +10 dB by 1 step.
2 Press FUNCTION button to select the “TEST-T AUTO”.
3 Press SURROUND button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝
S.R ➝ S.B ➝ S.L ➝ S.W .
• During test signal output, press SELECT (
,
) button to adjust the speaker
output level from -10 to +10 dB by 1 step.
To exit setup mode
• Press SETUP/MENU button once time.
“SETUP OFF” appears on the display and test tone stops.
To stop test tone
• Press SETUP button once time.
“SETUP OFF” appears on the display and test tone stops.
Using the Test Tone button
Press TEST TONE button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R ➝
S.B ➝ S.L ➝ S.W.
• During test tone output, press …† button to adjust the speaker output level from
-10 to +10 dB by 1 step.
32
33
OPERATION
2
Press
button to select the “TEST-T AUTO”,
and then press ENTER button.
GB
Test tone(cont’d)
Use test tone to check the speaker connection status or level.
To Manually Output Test Tone
√
REMOTE CONTROL
MAIN UNIT
Press SETUP/MENU button, and then press ENTER
1 button.
SETUP button.
1 Press
“SETUP MODE” appears on the display and the unit goes into Setup Mode.
• “SETUP MODE” appears on the display and goes into Setup Mode.
•
button to select the “TEST-T MANU”,
2 Press
and then press ENTER button.
button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝
S.L ➝ S.W will be selected in turn.
• Each time you press
OPERATION
2 Press FUNCTION button to select the “TEST-T MANU”.
3 Press SURROUND button.
• You can adjust the speaker output level from -10 to +10dB by 1 step.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
S.W will be selected in turn.
…† button to set the test tone as you want.
3 Press
You can adjust the speaker output level from -10 to +10dB by 1 step.
4 Press SELECT(
•
• The sound gets quieter at -10dB and louder at +10dB.
,
) button to set the test tone as you
want.
• You can adjust the speaker output level from -10 to +10dB by 1 step.
• The sound gets quieter at -10dB and louder at +10dB.
To exit setup mode
To stop test tone
• Press SETUP/MENU button once time.
• Press SETUP button 1 time.
“SETUP OFF” appears on the display and test tone stops.
“SETUP OFF” appears on the display and test signal stops.
Test Tone Output
34
• F.L (front left) : -10 ~ +10dB
• CEN (centre) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB
• S.B (surround back) : -10 ~ +10dB
• S.L (surround left) : -10 ~ +10dB
• S.W (subwoofer) : -10 ~ +10dB
35
GB
Setting speaker level
You can set the balance and level of speakers.
√
REMOTE CONTROL
SETUP/MENU button, and then press ENTER
1 Press
button.
MAIN UNIT
• “SETUP MODE” appears on the display and goes into Setup Mode.
button to select the “LEVEL SETUP”, and
2 Press
then press ENTER button.
3 Press
1 Press SETUP button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
button to select the speaker you want.
4 Press …† button to set the speaker mode.
OPERATION
2 Press FUNCTION button to select the “LEVEL SETUP”.
SURROUND button.
3 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
S.W will be selected in turn.
• Each time you press
•
• You can adjust it from -10 to +10dB by 1 step.
S.W will be selected in turn.
• The sound gets smaller at -10dB and louder at +10dB.
4 Press SELECT(
,
) button to set the speaker level
you want.
To exit setup mode
• You can adjust it from -10 to +10dB by 1 step.
• The sound gets smaller at -10dB and louder at +10dB.
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
To exit setup mode
Using the SPK LEVEL button
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and exits Setup Menu.
1 Press SPK LEVEL button to select the speaker you want.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
S.W ➝ SPK LVL OFF will be selected in turn.
2 Press …† button to set the speaker level you want.
• You can adjust it from -10 to +10dB by 1 step.
• The sound gets quieter at -10dB and louder at +10dB.
Setting Speaker Level
36
• F.L (front left) : -10 ~ +10dB
• CEN (centre) : -10 ~ +10dB
• F.R (front right) : -10 ~ +10dB
• S.R (surround right) : -10 ~ +10dB
• S.B (surround back) : -10 ~ +10dB
• S.L (surround left) : -10 ~ +10dB
• S.W (subwoofer) : -10 ~ +10dB
37
GB
Dolby Pro Logic llx mode
This mode provides 6.1 channel sound from 2 channel sources
REMOTE CONTROL
Press
MODE button.
• Each time you press this button, CINEMA ➝ MATRIX ➝ GAME
➝ PL ➝ MUSIC will be selected in turn.
MAIN UNIT
1 Press SURROUND button to select “DPLIIx” mode.
• Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO
will be selected in turn.
,
OPERATION
2 Press SELECT(
) button.
) button, CINEMA ➝ MATRIX ➝
GAME ➝ PL ➝ MUSIC will be selected in turn.
• Each time you press SELECT (
) button, MUSIC ➝ PL ➝ GAME ➝
MATRIX ➝ CINEMA will be selected in turn.
• Each time you press SELECT (
To exit setup mode
To exit setup mode
• Wait for about 5 seconds.
• Wait for about 5 seconds.
Dolby Pro Logic llx mode
• MUSIC : Provides 6.1 channel surround sound to digital,
analogue or existing stereo sources such as CD, TAPE, FM, TV
and stereo VCR.
• CINEMA : Adds realism to the movie soundtrack.
• MATRIX : You will hear 6.1 channel surround sound.
• GAME : Enhances the excitement of the game's sound.
• PL : You will experience a surround effect with just the front left
and right speakers.
38
• You cannot use Dolby Pro Logic llx mode for multi channel
signals such as Dolby Digital and DTS.
• Pro Logic works only for PCM audio signals with sampling
frequencies of 32KHz, 44KHz or 48KHz.
• Sound will not be output from surround back speaker if
PCM audio signal is mono.
39
GB
Setting Dolby Pro Logic llx effect
This function works only in Dolby PRO LOGIC IIx MUSIC Mode.
REMOTE CONTROL
SETUP/MENU button, and then press ENTER
1 Press
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “
and then press ENTER button.
MODE”,
MAIN UNIT
button.
3 Press
Each time you press this button,
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
•
•
C-WIDTH ➝ DIMENSION ➝
PANORAMA will be selected in turn.
…† button to set the
4 Press
Dolby Pro Logic llx effect
you want.
OPERATION
2 Press FUNCTION button to select the “DPLIIx MODE”.
SURROUND button.
3 Press
Each time you press this button, C-WIDTH ➝ DIMENSION ➝ PANORAMA
•
will be selected in turn.
SELECT( , ) button to set the Dolby
4 Press
Pro Logic llx effect you want.
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Using the
To exit setup mode
EFFECT button
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
1 Press
2 Press
MODE button to select ‘MUSIC’ Mode.
EFFECT button.
• Each time you press this button, C-WIDTH ➝ DIMENSION ➝ PANORAMA
will be selected in turn.
3 Press …† button to select Dolby Pro Logic IIx effect you
want.
• C-WIDTH : You can set from 0 to 7.
• DIMENSION : You can set from -7 to +7.
• PANORAMA : You can set it ON or OFF.
Dolby Pro Logic llx effect
• C-WIDTH : This sets the width of the centre image. The higher the setting, the less sound comes
from the centre speaker.
• DIMENSION : Incrementally adjusts the sound field (DSP)from the front or surround.
• PANORAMA : This mode extends the front stereo image to include the surround speakers for an
40
exciting "wraparound" effect with side wall imaging.
41
GB
NEO:6 mode
You can play back 2 channel sound over 6.1 channel when enjoying music or a movie.
REMOTE CONTROL
Press NEO:6 MODE button.
• Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
MAIN UNIT
To set sound image of centre speaker
SURROUND button briefly to select “NEO:6” mode.
1 Press
Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO will be
•
If TV (or screen) is installed high on a wall, you can raise the sound image
of the centre speaker to compensate.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “NEO:6 MODE”, and
then press ENTER button.
• “CEN : IMG : 2” appears on the display.
SELECT( , ) button.
2 Press
Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
•
OPERATION
SETUP/MENU button, and then press ENTER
1 Press
button.
selected in turn.
To set sound image of centre speaker
If TV (or screen) is installed high on a wall, you can raise the sound image
of the centre speaker to compensate.
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
2 Press FUNCTION button to select the “NEO:6 mode”.
SURROUND button.
3 Press
“CEN : IMG : 2” appears on the display.
SELECT( , ) button to set the sound image you want.
4 Press
You can set the sound image from 0 to 5.
•
…† button to set the sound image you want.
3 Press
You can set the sound image from 0 to 5.
•
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
•
•
To exit setup mode
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
NEO : 6 Mode
This mode decodes 2 channel signals to high precision digital matrix decoder.
DTS NEO:6 decoder discretes 2 channel sound to discrete 6.1 channel sound.
• MUSIC : NEO:6 MUSIC mode is optimized for music playback
• CINEMA : NEO:6 CINEMA mode is optimized for movie playback.
42
• NEO:6 mode can be used with DTS and Dolby Digital multi channel signals.
• Pro Logic works only for PCM audio signals with sampling frequency of
32KHz, 44KHz or 48KHz.
• You can use this function to set the sound image of centre speaker
only via the main unit.
43
GB
Setting EX/ES mode
This mode enable you to listen to 6.1 channel surround from Dolby Digital-EX and DTS-ES sources.
This function works when a Dolby Digital 5.1 channel source is input, and does not work with LPCM and Dolby
Digital 2 channel sources.
REMOTE CONTROL
SETUP/MENU button, and then press ENTER
1 Press
button.
• “SETUP MODE” appears on the display and goes into Setup Mode.
2 Press
button to select the “EX/ES SETUP”, and
then press ENTER button.
MAIN UNIT
• “EX/ES : AUTO” appears on the display.
SETUP button.
1 Press
“SETUP MODE” appears on the display and goes into Setup Mode.
…† button to set
3 Press
the EX/ES you want.
•
• Each time you press this button,
OPERATION
2 Press FUNCTION button to select the “EX/ES SETUP”.
SURROUND button.
3 Press
Each time you press this button, EX/ES : AUTO ➝ EX/ES : ON ➝
EX/ES : AUTO ➝ EX/ES : ON ➝
EX/ES : OFF will be selected in turn.
•
EX/ES : OFF will be selected in turn.
To exit setup mode
To exit setup mode
• Wait for about 5 seconds or press SETUP/MENU button.
“SETUP OFF” appears on the display and Setup Mode is exited.
• Wait for about 5 seconds or press SETUP button.
“SETUP OFF” appears on the display and Setup Mode is exited.
Using the EX/ES button
Press EX/ES button.
• Each time you press this button, EX/ES : AUTO ➝ EX/ES : ON ➝ EX/ES : OFF will be
selected in turn.
EX/ES Mode
• AUTO : 6.1 channel sound will be played back at 6.1 channel and 5.1 channel
sound will be output as 5.1 channel.
• ON : 5.1 channel sound will be converted to and output as 6.1 channel.
• OFF : 6.1 channel sound will be converted to and output as 5.1 channel.
Dolby Digital - EX
Movie sound track encoded with Dolby Digital EX can play back
the surround back channel added during program mixing.
Surround back channel provides fine image, in-depth and realistic feeling.
• You cannot use Dolby Digital-EX in the system without
DTS-ES (Discrete 6.1, Matrix 6.1)
Surround back channel is added to DTS 5.1 channel, improving
the sense of direction and space for sound. Since DTS-ES
decoder is built-in in the main unit, you can play back the disc
encoded with DTS-ES Discrete and DTS-ES Matrix. DTS-ES
Discrete 6.1 can record the sound of all channels including
surround back channel digitally and play back the recorded
sound as they are.
Surround Back speaker.
• You need to set it to EX/ES Mode when playing back disc
encoded to Dolby Digital-EX in 6.1 channel.
• Some discs encoded with Dolby Digital-EX do not contain
44
identification signal. In this case, set EX/ES to ON.
• You cannot use DTS-ES in the system without
surround back speaker.
45
GB
SFE mode
The SFE (Sound Field Effect) function uses 7 different DSP sound field effects to digitally simulate actual music
environments such as concert halls or cinemas.
REMOTE CONTROL
Press SFE MODE button.
• Each time you press this button, HALL ➝ THEATER ➝ ARENA ➝ CLUB ➝
DOME ➝ STADIUM ➝ CHURCH will be selected in turn.
MAIN UNIT
SURROUND button to select ‘SFE’ Mode.
1 Press
Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝ STEREO
•
will be selected in turn.
OPERATION
SELECT( , ) button.
2 Press
Each time you press Select ( ) button, HALL ➝ THEATER ➝ ARENA ➝
•
CLUB ➝ DOME ➝ STADIUM ➝ CHURCH will be selected in turn
) button, CHURCH ➝ STADIUM ➝
DOME ➝ CLUB ➝ ARENA ➝ THEATER ➝ HALL will be selected in turn.
• Each time you press Select (
To exit setup mode
• Wait for about 5 seconds.
To exit setup mode
• Wait for about 5 seconds.
46
47
GB
Stereo mode
You can select this mode when listening to sound through the front left and right speakers and subwoofer.
For Surround Mode and Input Signal
o = active, – = inactive
Surround Mode
DOLBY
(MUSIC,
CINEMA,
MATRIX,
GAME,
PRO LOGIC)
NEO:6
(MUSIC,
CINEMA)
MAIN UNIT
SFE
Decoding
Dolby D Surr. EX
Dolby D (5.1ch)
L/R
Output Channel
SL
C
SB SubW
SR
Dolby Digital 5.1
O
O
O
Dolby Digital 5.1
O
O
O
Dolby D (2ch)
Pro Logic II x
O
O
Dolby D (2ch Surr)
Pro Logic II x
O
L.PCM (Audio)
Pro Logic II x
Analog
Display Information
Display Signal Format
Channel Status
–
O
DIGITAL
L, C, R, SL, SR, SB, SW
–
O
DIGITAL
L, C, R, SL, SR, SW
O
O
O
DIGITAL
L, C, R, SL, SR, SB, SW
O
O
O
O
DIGITAL
L, C, R, SL, SR, SB, SW
O
O
O
O
O
L.PCM
L, C, R, SL, SR, SB, SW
Pro Logic II x
O
O
O
O
O
ANALOGUE
L, C, R, SL, SR, SB, SW
L.PCM (Audio)
Neo:6
O
O
O
O
–
L.PCM
L, C, R, SL, SR, SB, SW
Analog
Neo:6
O
O
O
O
–
ANALOGUE
L, C, R, SL, SR, SB, SW
Dolby D (2ch)
Neo:6
O
O
O
O
–
DIGITAL
L, C, R, SL, SR, SB, SW
Dolby D (2ch Surr)
Neo:6
O
O
O
O
–
DIGITAL
L, C, R, SL, SR, SB, SW
Dolby D (2ch)
DD+SFE
O
O
O
O
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch Surr)
DD+SFE
O
O
O
O
O
L.PCM (Audio)
SFE
O
O
O
O
O
L.PCM
L, C, R, SL, SR, SW
L, C, R, SL, SR, SW
DIGITAL
L, C, R, SL, SR, SW
Press STEREO button.
Press SURROUND button to select ‘STEREO’.
Analog
SFE
O
O
O
O
O
ANALOGUE
• “STEREO” appears in the display and Stereo Mode is
• Each time you press this button, DPLIIx ➝ NEO:6 ➝ SFE ➝
Dolby D Surr. EX
Dolby Digital EX
O
O
O
O
O
DIGITAL
Dolby D (5.1ch)
Dolby Digital EX
O
O
O
O
O
DIGITAL
DTS-ES
DTS-ES
O
O
O
O
O
dts, ES
L, C, R, SL, SR, SB, SW
DTS (5.1ch)
DTS-ES
O
O
O
O
O
dts
L, C, R, SL, SR, SB, SW
Dolby D (2ch)
Stereo
O
–
–
–
–
DIGITAL
Dolby D (2ch Surr)
Stereo
O
–
–
–
–
DIGITAL
L.PCM (Audio)
Stereo
O
–
–
–
–
L.PCM
L, R, SW
L.PCM 96KHz
Stereo
O
–
–
–
–
L.PCM
L, R, SW
Analog
Stereo
O
–
–
–
–
ANALOGUE
L, R, SW
selected.
STEREO will be selected in turn.
EX/ES
To exit setup mode
• Wait for about 5 seconds.
To exit setup mode
STEREO
OPERATION
REMOTE CONTROL
Input Signal
L, C, R, SL, SR, SB, SW
L, C, R, SL, SR, SB, SW
L, R, SW
L, R, SW
L/R : front speaker (left/right) C : centre speaker SL/SR : surround speaker (left/right) SB : surround back speaker SW : subwoofer
• Wait for about 5 seconds.
• Channel status displays are dependent on the speaker configuration.
• SFE mode works with 2-ch signals.
48
49
Listening to radio
GB
Setting Tuner
You can listen to the chosen band (FM, AM) by using either automatic or manual tuning.
REMOTE CONTROL
MAIN UNIT
REMOTE CONTROL
MAIN UNIT
1 Press TUNER button.
1 Press FUNCTION button to select
1 Press SETUP/MENU button, and then
1 Press SETUP button.
2 Press FUNCTION button to select
• Each time you press this button, FM ➝ AM will be
repetitively selected.
2 Selected frequency.
• Automatic tuning :
Press and hold TUNING( , ) button to
automatically tune in frequency.
:
1) Press TUNING MODE button to select PRESET.
2) Press TUNING/CH ( , ) button to select the preset
frequency.
• Automatic tuning 2
2 Select the frequency.
• Manual tuning :
:
1) Press TUNING MODE button to select MANUAL
2) Press and hold TUNING/CH ( , ) button to
automatically tune in frequency.
• Manual tuning
Press TUNING( , ) button briefly to
increase or decrease the frequency step by step.
press ENTER button
• “SETUP MODE” appears on the display and goes into
Setup Mode.
button to select the “TUNER
2 Press
SETUP”, and then press ENTER button
the“TUNER SETUP”.
the SURROUND button.
3 Press
“TUNER PRESET” appears on the display.
RADIO OPERATION
• Automatic tuning 1
FM or AM.
•
• “TUNER PRESET” appears on the display.
…† button to set the MANUAL or
3 Press
PRESET you want.
• Each time you press this button, MANUAL ➝ PRESET
Select ( , ) button.
4 Press
Each time you press this button, MANUAL ➝
•
PRESET will be selected in turn.
will be selected in turn.
:
1) Press TUNING MODE button to select MANUAL.
2) Press TUNING/CH ( , ) button briefly to increase or
decrease the frequency step by step.
To Listen to mono/stereo
Press MO/ST button on the remote.
• Each time you press this button, STEREO ➝ MONO will be selected in turn.
• If you select MONO in the area with weak reception,
it will help to reduce noise.
• This function works only with the Remote Control.
50
51
Presetting radio Stations
GB
About RDS broadcasting
You can preset up to 30 FM and AM stations.
REMOTE CONTROL
E.g.: Setting station FM 89.10 in preset 2 .
TUNER button.
1 Press
Each time you press this button, FM ➝ AM
•
will be selected in turn.
2 Press TUNING MODE button to
select MANUAL and then press
TUNING/CH( ,
) button to
select 89.10.
• Refer to step 2, page 50, to tune in
automatically and manually.
3 Press TUNER MEMORY button.
• Tuner number will blink on the display.
4 Press TUNING/CH(
)
,
button to select preset 2.
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with their regular program signals.
For example, the stations send their station names, as well as information about what type of
program they broadcast, such as sports or music, etc.
When tuned to an FM station which provides the RDS service,the RDS indicator
lights up on the display.
• Description on RDS function
1. PTY (Program Type) : Displays the type of programme currently being broadcast
2. PS NAME (Program Service Name) : Indicates the name of broadcasting station
and is composed of 8 characters.
3. RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed
of maximum 64 characters.
4. CT (Clock Time) : Decodes the real time clock from the FM frequency.
• Some stations may not transmit PTY, RT or CT information therefore this may not be
displayed in all cases.
5. TA (Traffic Announcement) : When this symbol flashes it shows that the traffic
announcement is in progress.
• RDS may not operate correctly if the station tuned is not transmitting
RDS signal properly or if the signal strength is weak.
• You can select from presets 1 to 30.
• Tuner number will disappear and station 89.10
RADIO OPERATION
5 Press TUNER MEMORY button.
What information can RDS signals provide?
will be saved in preset 2.
You can see the RDS signals the station sends on the display.
6 To preset other stations, repeat
steps 2 to 5.
TO show the RDS signals
Press RDS DISPLAY while listening to an FM station.
Each time you press the button, the display change to show you the following information :
To Listen to Preset Station
• Press TUNING MODE button of the remote control to select the PRESET
and press TUNING/CH (
,
) button.
PS (Program Service) : While searching, "PS" appears and then the station names will be
displayed. "NO PS" appears if no signal is sent.
RT(Radio Text) : while searching, "RT" appears and then text messages the station
sends will be displayed. "NO RT" appears if no signal is sent.
Frequency : station frequency (non-RDS service)
About characters shown in the display
When the display shows PS, or RT signals, the following characters are used.
• The display window cannot differentiate upper case and lower case letters and always
uses upper case letters.
• The display window cannot show accented letters, “A,” for instance, may stands for
accented “A’s” like “À, Â, Ä, Á, Åand Ã.”
• If searching finishes at once, “PS”, and “RT” will not appear on the display.
52
53
About RDS broadcasting (cont’d)
GB
Convenient functions
Sleep timer function
PTY (Program Type) indication and PTY-SEARCH function
You can set the time that this unit will shut itself off.
REMOTE CONTROL
One of the advantages of the RDS service is that you can locate a particular kind of programme from
the preset channels by specifying the PTY codes.
• SLEEP : OFF ➝ 15 ➝ 30 ➝ 45 ➝ 60 ➝ 90 ➝ 120 M (MIN) will be selected in turn.
To search for a programme using the PTY codes
Display
Before you start, remember...
NEWS
• News including an announced opinion and
report
AFFAIRS
• Several subjects including current affairs,
documentary, discussion and analysis.
• The PTY Search is only applicable to preset
•
•
•
stations.
To stop searching any time during the process,
press PTY SEARCH while searching.
There is a time limit in doing the following steps.
If the setting is cancelled before you finish, start
from step 1 again.
When pressing the buttons on the primary remote
control, make sure that you have selected the FM
station using the primary remote control.
1
2
Press the PTY-or PTY+until the PTY code
you want appears on the display.
• The display gives you the PTY codes described
to the right.
Press PTY SEARCH again, while the PTY
code selected in the previous step is still on
the display.
• The centre unit searches 15 preset FM
stations, stops when it finds the one you
have selected, and tunes in that station.
INFO
SPORT
EDUCATE
DRAMA
• Information including weights and measures,
returns and forecasts, matters interesting the
customer, medical information, etc.
To check sleep timer
Press SLEEP button.
• The remaining time before this unit will shut itself off is shown on the display.
• Pressing the button again changes the sleep time from what you set previously.
• Sports
To cancel sleep timer
• Education
• Press SLEEP button until “SLEEP : OFF” appears on the display.
• Drama, radio serial etc.
CULTURE
• Culture : national or local culture including the
religious problem, social science, language,
theatre,etc.
SCIENCE
• Natural science and technology
Mute function
This function is useful when answering a doorbell or telephone call.
VARIED
• Others: lectures, entertainment programmes
(quiz and game shows), interviews, comedy
and satirical plays etc.
POP M
• Pop music
ROCK M
• Rock music
Press the MUTE button.
M.O.R.M
• Current contemporary music considered to be
“easy listening.”
• MUTE appears on the display.
LIGHT M
• Light classical music - classical music and
instrumental and chorus music
CLASSICS
• Heavy classical music - orchestra music,
symphony, chamber music and opera
OTHER M
• Other music - jazz, R&B country music
WEATHER
• Weather
FINANCE
• Finance
CHILDREN
• Children’s programmes
SOCIAL A
• Social affairs
RELIGION
• Religion
PHONE IN
• Phone in
TRAVEL
• Travel
LEISURE
• Leisure
JAZZ
REMOTE CONTROL
To output sound again
Press MUTE button again.
• MUTE will disappear and sound will output.
• SLEEP, Mute and the Adjust Display function can only be
operated with the remote control.
• Jazz music
COUNTRY
• Country music
NATION M
• National music
OLDIES
• Oldies music
FOLK M
• Folk music
DOCUMENT
54
Program Type
MISCELLANEOUS
3
Press PTY SEARCH while listening to an
FM station.
Press the SLEEP button.
• Documentary
55
GB
Convenient functions (cont’d)
Reset function
Adjust the display
You can adjust the brightness of the display.
REMOTE CONTROL
MAIN UNIT
the MUTE button.
1 Press
MUTE appears on the display.
2 Press “0” button five times and then
Turn off the power and hold the
SELECT( ) button for longer than
5 seconds.
•
press ENTER button.
REMOTE CONTROL
Using headphone
Use headphones (not supplied) for private listening pleasure.
Connect the headphone to the
headphone jack and listen to music.
Press the DIMMER button.
• Each time you press this, the brightness changes as
follows : DARK ➝ BRIGHT.
• POWER STANDBY indicator will flash.
• “INITIAL : YES” appears on the display.
…† buttons to select “YES”.
3 Press
The unit will turn off after 5 seconds.
•
Caution!
MISCELLANEOUS
• Using the RESET function will erase all stored settings.
• Do not use this unless necessary.
• Do not turn the volume up too high when you use
headphones as It may damage your hearing.
• In the 5.1 channel mode, if you connect
headphones, the “NOT IN USE” message is
displayed and sound cannot be heard through
the headphones.
56
57
GB
Operating your TV with the remote control
TV Brand Code List
1
2
3
4
Brand
Press TV button to set the remote
to TV mode.
Press POWER button to turn on the TV.
Point the remote control toward the TV.
While holding down POWER button,
enter the code corresponding to your
brand of TV.
• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table,
enter one at a time to determine which code works.
• You can use the TV POWER, VOLUME, CHANNEL, MENU and
Numeric buttons (0~9).
Code Number
056, 057, 058
001, 015
001, 002, 003, 004,005,
006, 007, 008, 009, 010,
011, 012, 013, 014
AOC
001, 018, 040, 048
BELL & HOWELL (M.WARDS) 057, 058, 081
BROCSONIC
059, 060
CANDLE
018
CETRONIC
003
CITIZEN
003, 018, 025
CINEMA
097
CLASSIC
003
CONCERTO
018
CONTEC
046
CORONADO
015
CRAIG
003, 005, 061, 082, 083,
084
CROSLEX
062
CROWN
003
CURTIS MATHES 059, 061, 063
CXC
003
DAEWOO
002, 003, 004, 015,016,
017, 018, 019, 020, 021,
022, 023, 024, 025, 026,
027, 028, 029, 030, 032,
034, 035, 036, 040, 048,
059, 090, 099, 100
DAYTRON
040
DYNASTY
003
EMERSON
003, 015, 040, 046, 059,
061, 064, 082, 083, 084,
085
FISHER
019, 065, 103
FUNAI
003
FUTURETECH
003
GENERAL ELECTRIC (GE) 006, 040, 056, 059, 066,
067, 068
HALL MARK
040
HITACHI
015, 018, 050, 059, 069
INKEL
045
JC PENNY
056, 059, 067, 086
JVC
070
KTV
059, 061, 087, 088
KEC
003, 015, 040
KMC
015
LG (GOLDSTAR)
001, 015, 016, 017, 037,
038, 039, 040, 041, 042,
043, 044, 054, 086
Brand
LUXMAN
LXI (SEARS)
MAGNAVOX
MARANTZ
MATSUI
MGA
MITSUBISHI/MGA
MTC
NEC
NIKEI
ONKING
ONWA
PANASONIC
PENNEY
PHILCO
PHILIPS
PIONEER
PORTLAND
PROTON
QUASAR
RADIO SHACK
RCA/PROSCAN
REALISTIC
SAMPO
SAMSUNG
SANYO
SCOTT
SEARS
SHARP
SIGNATURE 2000 (M.WARDS)
SONY
SOUNDESIGN
SPECTRICON
SSS
Code Number
018
019, 054, 056, 059, 060,
062, 063, 065, 071
015, 017, 018, 048, 054,
059, 060, 062, 072, 089
040, 054
054
018, 040
018, 040, 054, 059, 060,
075, 101
018
018, 019, 020, 040, 059,
060
003
003
003
006, 007, 008, 009, 054,
066, 067, 073, 074
018
003, 015, 017, 018, 048,
054, 059, 062, 069, 090
015, 017, 018, 040, 048
054, 062, 072, 112, 114,
117, 118
063, 066, 080, 091
015, 018, 059
040
006, 066, 067
017, 048, 056, 060, 061,
075
018, 059, 067, 076, 077
078, 092, 093, 094
003, 019
040
000, 015, 016, 017, 040,
043, 046, 047, 048, 049,
054, 059, 060, 098
019, 061, 065, 101, 102,
103, 104
003, 040, 060, 061
015, 018, 019
015, 057, 064, 101, 105,
106, 115
057, 058
050, 051, 052, 053, 055,
101
003, 040
001
018
Brand
SYLVANIA
SYMPHONIC
TATUNG
TECHWOOD
TEKNIKA
TMK
TOSHIBA
VIDTECH
VIDECH
WARDS
YAMAHA
YORK
YUPITERU
ZENITH
ZONDA
DONGYANG
LOWE
FINLUX
YOKO
LOEWE OPTA
PHONOLA
RADIOLA
SCHNEIDER
AKAI
GRUNDIG
BLAUPUNKT
SIEMENS
CGE
IMPERIAL
MIVAR
SABA
BANG&OLUFSEN
BRIONVEGA
FORMENTI
METZ
WEGA
RADIOMARELLI
SINGER
SINUDYNE
TELEFUNKEN
Code Number
018, 040, 048, 054, 059,
060, 062
061, 095, 096
006
018
003, 015, 018, 025
018, 040
019, 057, 063, 071, 101
107, 109, 110, 111, 113
018
059, 060, 069
015, 017, 018, 040, 048,
054, 060, 064
018
040
003
058, 079
001
003, 054
054
054, 109, 114
054
054, 114
054, 112, 114
054, 112
054
103
108, 109, 113, 119, 120,
121
108
108
113
113
113
114
114
114
114
114
114
114
114
114
116
MISCELLANEOUS
5
If TV is turned on or off when you press
the power button of the remote control,
the setting is completed.
ADMIRAL (M.WARDS)
A MARK
ANAM
• The remote control may not work on some brands of TVs. Also, some operations
may not be possible depending on your brand of TV.
• The remote control will work with Samsung TVs by default.
58
59
GB
Operating your DVD (VCR) with the remote control
VCR Brand Code List
Brand
1
2
3
4
Press DVD button to set the remote to
DVD mode.
• If you operate VCR, press VCR button to set the remote to VCR mode.
Press POWER button to turn on the DVD
(VCR).
Point the remote control toward the DVD
(VCR).
While holding down POWER button, enter
the code corresponding to your brand of
DVD (VCR).
• If the code matches the DVD (VCR)'s code, the DVD (VCR)
will be turned off.
• If there is more than one code listed for your DVD (VCR) in
the table, enter one at a time to determine which code works.
• You can use DVD (VCR) POWER, VOLUME, PLAY, PAUSE,
STOP, SKIP, MENU and Numeric button (0~9).
AOC
AUDIO DYNAMIC
BELL & HOWELL (M.WARDS)
BROKSONIC
CANON
CAPEHART
CITIZEN
CRAIG
CRITERION
CURTIS MATHES
DAEWOO
DAYTRON
DBX
EMERSON
FISHER
FUNAI
GENERAL ELECTRIC (GE)
GO VIDEO
HARMAN KARDON
HITACHI
HQ
INSTANT REPLAY
JCL
JCP
JC PENNY
JVC
KENWOOD
LG (GOLDSTAR)
LXI (SEARS)
MAGIN
MAGNAVOX
• The remote control may not work on some brands of DVD (VCR).
Also, some operations may not be possible depending on your brand
of DVD (VCR).
• The remote control will work with Samsung DVD (VCR) by default.
60
MARANTZ
MARTA
043, 106
044, 045, 046
088, 089, 090
001, 002, 003, 004, 005,
033
091
019, 047, 092
048, 093
092, 094, 095
001, 033, 049, 091
011
050
050, 072, 096
051
001, 031, 032, 033, 044,
091
006, 007, 008, 009, 010,
011, 012, 013, 014, 015,
016, 017, 018, 046, 051,
091
011
019, 047, 052, 092
025, 031, 032, 044, 046,
094, 095, 097, 098, 099
009, 048, 053, 054, 055,
100
044
001, 031, 032, 033, 056,
091
059, 060, 061
019
020, 021, 049, 054, 062,
100
051
001, 033, 049, 091
001, 033
025
047, 048, 052, 062, 091,
092
001, 033, 047, 052, 063,
064, 065, 092
047, 050, 052, 092
019, 020, 021, 022, 023,
024, 025, 026, 027, 028,
029, 030, 050
020, 025, 044, 048, 050,
053, 054, 055, 062, 100
072
001, 031, 032, 033, 049,
066, 067, 091
001, 019, 033, 047, 052,
092, 110
025, 050
Brand
MEI
MEMOREX
MINOLTA
MITSUBISHI/MGA
MTC
MULTITECH
NEC
OLYMPIC
OPTIMUS
ORION
PANASONIC
PENNEY
PENTAX
PHILCO
PHILIPS
PILOT
PIONEER
PORTLAND
QUASAR
RICO
RCA/PROSCAN
REALISTIC
SAMSUNG
SANYO
SANSUI
SCOTT
SEARS
SHARP
SINGER
SIGNATURE 2000 (M.WARDS)
SHINTOM
SONY
STS
SYLVANIA
SYMPHONIC
TANDY
Code Number
001, 033
001, 025, 033, 054, 091,
100
020, 021, 062
068, 069, 070, 101, 102
072
044, 057, 069
019, 047, 052, 057, 092
049, 091
101
103
001, 004, 033, 049, 067,
091, 107
019, 020, 072
001, 020, 021, 033, 062
001, 033, 046, 049, 091,
094
001, 030, 033, 049, 050,
066, 091
025
049
011
001, 033, 049, 067, 091,
107, 108
036
001, 020, 021, 031, 032,
033, 049, 051, 062, 066,
070, 091, 104
001, 009, 025, 033,
044, 048, 054, 091,
101, 105
000, 006, 031, 032, 057,
058, 071, 072, 073, 074,
075, 076, 077, 078, 079,
080, 081
008, 009, 046, 048, 050,
054, 058, 093, 100
092
006, 051, 054, 057, 069,
070, 100, 101
020, 021, 025
043, 105, 106
096
043, 044, 054, 100, 106
096
034, 035, 036, 037, 038,
039, 040, 041, 042,082,
083, 084, 085, 086
020
001, 033, 044, 049, 066,
091
044
009
Brand
TASHIRO
TATUNG
TEAC
TECHNICS
TEKNIKA
TOSHIBA
TOTEVISION
TAEKWANG
UNITECH
VECTOR RESEARCH
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH
Code Number
050
047, 052, 092
044, 047, 052, 092
001, 033, 049, 091
001, 025, 033
006, 051
025, 072
087
072
019
019
072
001, 020, 031, 032, 033,
043, 050, 054, 072, 100,
105, 106, 109
019, 047,048, 052, 092,
019, 047,048, 052, 092
DVD Brand Code List
Brand
DENON
DOONOON
DMTECH
FISHER
GE
HARMAN/KARDON
JVC
KENWOOD
LG
MAGNAVOX
MITSUBISHI
ONKYO
OPTIMUS
PANASONIC
PROSCAN
PHILIPS
PIONEER
RCA
SAMSUNG
SANYO
SONY
THETA DIGITAL
TOSHIBA
YAMAHA
ZENITH
TAEGWANG
PS2
X-BOX
APEX
MARANTZ
Code Number
003, 032
019
017
002
006
012
010, 013
008
001
004
005, 016
004, 014
011
021
006
004, 023
007, 011, 022, 025
006
000, 027
002
015, 020
011
004, 018
009, 033
004, 024
026
028
029
030
031
MISCELLANEOUS
5
If DVD (VCR) is turned on or off when you
press the power button of the remote
controller, the setting is completed.
ADMIRAL (M.WARDS)
AWIA
AKAI
ANAM
Code Number
61
GB
Before calling for service
Check
Symptom
Can't turn it on.
• Is the power cord plugged into the outlet?
Remedy
Symptom
Check
• Is the surround back speaker
• Connect the power plug to the outlet.
connected properly?
It does not work when the
button is pressed.
• Is there static electricity in the air?
• Disconnect the power plug and connect it
again.
There is no sound from
surround back speaker
• Is the SB SPK selected to NONE in
Speaker Setup?
• Is Surround Mode set to EX/ES?
• Are the speakers and external
components connected properly?
• Is the Mute function on?
Sound is not produced.
• Is the volume set to minimum?
• Is the speaker setup set incorrectly to
NONE?
• Is the external component connected
Remote controller does
not work.
• Are the batteries drained?
• Is the distance between remote
• Press Mute button to cancel the function.
• Adjust the volume.
• Is SB SPK selected to NONE in
Can't select EX/ES mode.
• Refer to pages 20~21 to select LARGE,
SMALL or YES.
The sound from each
device is changed during
stereo playback.
Can't receive radio
• Are the left/right speaker or left/right
input/output cables connected
properly?
• Is AM or FM antenna connected
properly?
properly?
There is no sound from
surround speakers.
• Is SBACK (surround back) incorrectly
set to NONE in speaker setup?
• Is surround mode selected to stereo?
There is no sound from
centre speaker
• Operate at close distance.
• Check the left/right channel and connect
Can't select Dolby Pro
• Refer to pages 11~12 to select LARGE or
SMALL.
Speaker Setup?
• Is the input signal selected properly?
• Use 5.1 channel external component.
• Is the input signal selected properly?
• Select 2 channel Dolby Digital, PCM, and
Analogue input signal.
Can't select NEO:6 mode.
• Is the input signal selected properly?
• Use PCM and Analogue input signal.
There is no sound when
playing a DTS encoded
DVD.
• Is Digital input selected?
• Check whether digital external component
is properly connected and refer to page 24
to select the digital input.
• Connect the antenna correctly.
• If the input strength of antenna connector
• Refer to pages 10~11 to connect it properly.
• Refer to pages 20~21 to select LARGE or
SMALL.
• Refer to pages 40~49 to select other
Surround Mode.
• Refer to pages 10~11 to connect it properly.
• Is CEN (centre) incorrectly selected to
• Refer to pages 20~21 to select LARGE or
NONE in speaker setup?
Mode to EX/ES.
it/them correctly.
• Is the centre speaker connected properly?
• Is the surround mode selected to stereo?
• Refer to pages 35~36 to set Surround
SMALL.
• Refer to pages 40~49 to select other
MISCELLANEOUS
• Is the surround speaker connected
SMALL.
• Replace with new batteries.
is weak, install the FM antenna in a place
with good reception.
broadcasts.
• Refer to pages 11~12 to select LARGE or
• Connect them correctly.
properly?
control and main unit too great?
• Refer to pages 9~10 to connect it properly.
• Connect them correctly.
Logic llx mode.
Picture does not appear when
the function is selected.
Remedy
Product protection function
Heat protection
• The protection function will come on if the main unit or power
transformer overheats.
"
" will appear in the display .
This function will come on :
- If speaker terminal is shorted
- If speaker cable is shorted
If there is no problem when you turn the unit on again after
turning it off, PROTECTION mark will disappear on the
display and the unit will work properly.
If the cooling fan is out of order, the “
"
message would be displayed on the display.
• If PROTECTION appears on the display,
check whether the speaker terminal is shorted
and then turn on the unit
Surround Modes.
62
63
GB
Specifications
GENERAL
FM TUNER
AM TUNER
AMPLIFIER
FREQUENCY
RESPONSE
230V, 50 Hz
0.9W
Weight
Dimensions (W x H x D)
Operating temperature range
Operating humidity range
Frequency response
Usable sensitivity
S/N ratio
Distortion
Stereo separation
Tuner output level
Frequency response
S/N ratio
Usable sensitivity
Distortion
Rated output
Front speaker(left+right)
Centre speaker
Surround speaker(left+right)
Surround back
Input sensitivity/impedance
S/N ratio (analogue input)
Separation (1kHz)
Analogue input
Digital input/96kHz PCM
TV format
Input level/impedance
Output level/impedance
Video frequency response
S/N ratio
4.8 kg
353 x 89 x 381 mm
+5°C~+35°C
10%~75%
87.50~108.00MHz
12dBf
MONO/STEREO 55/55dB
MONO/STEREO 0.3/0.8%
30dB
1kHz, 75kHz Dev
522~1611kHz
40dB
60dBµV/m (loop antenna)
2% (MOD:80%)
20Hz~20kHz/THD = 10%
4 Ω 100W/CH
4 Ω 100W/CH
4 Ω 100W/CH
4 Ω 100W/CH
450mV/47kΩ
80dB
60dB
20Hz~20kHz(±3dB)
20Hz ~44kHz(±3dB)
NTSC/PAL
1Vp-p/75 Ω
1Vp-p/75 Ω
5Hz to 10kHz(-3dB)
60dB
S
P
E
A
K
E
R
S
Speaker system
Front / Surround / Surround back
Impedance
4Ω x 5
Rated input
100W
Maximum input
200W
Dimensions (W x H x D)
89 x 150 x 89 mm
Weight
0.65/0.5 Kg
Centre
4Ω
100W
200W
198 x 89 x 91 mm
0.77 Kg
Subwoofer speaker
8Ω
150W
300W
305 x 384 x 370 mm
12.97 Kg
MISCELLANEOUS
VIDEO
OUTPUT
Power supply
Standby power consumption
❈ S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering Society) guidelines.
64
65
