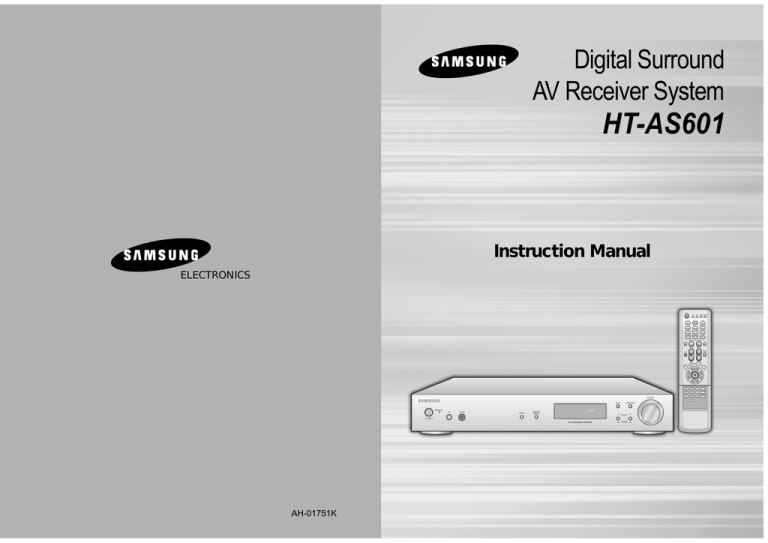

Digital Surround
AV Receiver System
HT-AS601
Instruction Manual
ELECTRONICS
AH-01751K
Safety Warnings
GB
Precautions
PREPARATION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
1
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install
your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the
ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other
equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for
continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to
disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused
for a long period of time.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
During thunderstorms, disconnect AC main plug from
the wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the
unit.
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic or
electric fields (i.e.speakers...). Disconnect the power cable from
the AC supply if the player malfunctions. Your player is not
intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been
stored in cold temperatures.
If transporting the player during the winter, wait approximately 2
hours until the unit has reached room temperature before using.
The battery used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
2
Features
GB
Contents
PREPARATION
PREPARATION
Dolby Pro Logic ll x
Dolby Pro Logic ll x is a new type of multiple channel audio signal decoding method that
improves upon existing Dolby Pro Logic.
Safety Warnings ..............................................................................................................1
Precautions......................................................................................................................2
Features ..........................................................................................................................3
Description ......................................................................................................................5
CONNECTIONS
DTS 96/24
DTS is the surround format implementing 5.1 channel multi channel sounds at 96KHz/24bit
without losing the image quality of DVD. In addition, it can reproduce the matrix 6.1 of DTS
96/24 decoder signal.
Connecting the Speakers ................................................................................................9
Connecting External Components ..................................................................................11
Connecting the FM and AM Antennas.............................................................................14
OPERATION
DOLBY DIGITAL EX
Adds a rear center channel for more spacious sound compared to regular 5.1 channel Dolby
Digital.
DTS (Digital Theater Systems)
DTS play backs 5.1 channel sound with less compression than Dolby Digital for richer
sound.
DTS-ES
DTS-ES is the surround format implementing 6.1 channels while preserving compatibility to
existing DTS Digital Sound formats.
Before Using the AV Receiver .........................................................................................15
Selecting External Component Input ..............................................................................16
Setting the Speaker Mode ...............................................................................................17
Setting the Speaker Listening Distance...........................................................................19
Setting DRC (Dynamic Range Compression) .................................................................21
Test Tone ........................................................................................................................22
Setting Speaker Level .....................................................................................................25
Dolby Pro Logic llx Mode................................................................................................27
Dolby Pro Logic llx Effect................................................................................................29
NEO:6 Mode....................................................................................................................31
SFE Mode........................................................................................................................33
EX/ES Mode ....................................................................................................................35
Stereo Mode ....................................................................................................................37
RADIO OPERATION
DTS
Reproduces digital PCM or analog stereo over 6.1 channels using a high precision DTS
digital matrix.
Listening to Radio ...........................................................................................................39
Presetting Radio Stations ...............................................................................................40
MISCELLANEOUS
Convenient Functions .....................................................................................................41
Operating TV with Remote Control..................................................................................43
Operating your VCR (DVD) with Remote Control............................................................45
Before Calling for Service................................................................................................47
Specifications ..................................................................................................................49
3
4
GB
Description
INPUT button
HEADPHONE Jack
POWER STANDBY Indicator
SETUP button
AM ANTENNA
JACK
SURROUND button
POWER button
VOLUME CONTROL
REMOTE CONTROL Sensor
ANALOG / DIGITAL BUTTON
SELECTION button
TUNER ( , ) button
5.1 CH ANALOG
AUDIO JACKS
FM ANTENNA
JACK
CD COAXIAL DIGITAL
AUDIO INPUT JACK
VCR/SAT VIDEO INPUT
JACK
VCR VIDEO OUTPUT
JACK
DVD VIDEO INPUT FRONT SPEAKER
JACK
TERMINALS
DVD OPTICAL DIGITAL
AUDIO INPUT JACK
SAT(SETTOP BOX) OPTICAL
DIGITAL AUDIO INPUT JACK
[ Display ]
MPEG2
INDICATOR
DTS ES 96/24
INDICATOR
DOLBY
INDICATOR
PREPARATION
[ Rear Panel ]
[ Front Panel ]
COOLING FAN
SURROUND BACK SPEAKER TERMINALS
SURROUND SPEAKER TERMINALS
CENTER SPEAKER TERMINALS
MONITOR VIDEO
OUTPUT JACK
DVD AUDIO INPUT JACKS
LIVE SURROUND
INDICATOR
L.PCM
INDICATOR
VCR/SAT AUDIO INPUT JACKS
SPEAKER INDICATOR
VCR AUDIO OUTPUT JACKS
SUBWOOFER OUTPUT JACKS 1, 2
CD AUDIO INPUT JACKS
DOLBY DIGITAL
EX INDICATOR
RADIO FREQUENCY
INDICATOR
DOLBY PRO
LOGIC IIX
INDICATOR
DIGITAL INDICATOR
Remote Control
AM Antenna
FM Antenna
User’s Manual
RADIO STEREO INDICATOR
NEO:6
INDICATOR
FRONT DISPLAY
5
√√ Accessories œœ
RADIO BROADCASTING
RECEIVING INDICATOR
6
GB
Description
POWER button
TV VIDEO, FUNCTION button
SLEEP button
TUNER button
NEO : 6 button
DIMMER button
MODE button
PREPARATION
[ Remote Control ]
Insert Remote Batteries
TV Indicator
VCR Indicator
AV RECEIVER Indicator
DVD Indicator
MODE button
MO/ST button
SUBWOOFER button
SFE MODE button
EX/ES button
EFFECT button
1
Remove the battery
cover on the back of
the remote by
pressing down and
sliding the cover in
the direction of the
arrow.
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
EXTERNAL DEVICE PLAYBACK button
MUTE button
VOLUME CONTROL button
MENU button
ANALOG/DIGITAL button
TUNER MEMORY button
TUNING/CHANNEL button
SPEAKER LEVEL button
STEREO button
MOVE/SELECT button
Follow these precautions to avoid leaking or cracking batteries:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Range of Operation of the Remote Control
Direct Function Select button
SPEAKER SETUP button
TEST TONE button
SPEAKER DISTANCE button
7
The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control
sensor.
To open the remote control cover,
push the top of the cover, then slide
downward.
8
GB
Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
ACTIVE SUBWOOFER
(BUILT-IN POWER AMPLIFIER)
PS-AW601
SYSTEM MODEL NAME : HT-AS601
Position of AV Receiver
Surround Speakers
• Place AV Receiver on a dedicated stand or rack.
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they
face each other.
• Place them about 60 to 90cm (2 to 3feet) above your ear,
facing slightly downward.
❈ Unlike the front and center speakers, the surround
speakers are used to handle mainly sound effects and
sound will not come from them all the time.
Front Speakers
• Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at
the same height as your ear.
• Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
Center Speaker
MAIN UNIT
AV-R601
SR
SB
CONNECTIONS
SL
FRONT (R) FRONT (L) SURROUND(R) SURROUND (L)
PS-AF601 PS-AF601
PS-AR601 PS-AR601
MAIN UNIT
FRONT SPEAKER
CENTER SPEAKER
SURROUND SPEAKER
SURROUND BACK SPEAKER
ACTIVE SUBWOOFER
CENTER
PS-AC601
SURROUND
BACK
PS-AB601
√ Connecting Speaker Wire
1
Surround Center Speaker
AV-R601
PS-AF601
PS-AC601
PS-AR601
PS-AB601
PS-AW601
Press the tab of the
speaker connector.
2
Insert the black wire into the black(-)
terminal and the gray wire into the
gray(+) terminal.
• Place it so it faces forward towards the back of the listener.
• Place the surround center speaker about 70 cm to 1 m
(2.3~3.3feet) above rear speakers, facing slightly
downwards.
• It is best to install it at the same height as the front
speakers.
• You can also install it directly over or under the TV.
• When you place the speaker on the wall, make sure to
fasten it tightly so that it may not fall off.
Subwoofer
• Never touch speaker terminals while the power is on.
Doing so could result in electric shock.
• Make sure the polarities (+ and -) are correct.
• The position of the subwoofer is not so critical.
Place it anywhere you like.
9
10
GB
Connecting External Components
Connecting Video Component
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
SAT(Settop Box)
CONNECTIONS
DVD Player
Video Projector
• Since Analog Audio In and Video In jack of the main
unit are used for both SAT and VCR, you cannot
connect 2 devices at the same time.
• If the external component has only one Audio Output
jack, connect it to either the right or left Audio Input jack
of the main unit.
• Connect the audio cable's red plug to the red jack and
white cable to the white jack.
TV
• Disconnect the power plug from the outlet if you do not use this unit for long period of time.
11
VCR
12
Connecting External Component
Connecting Audio Component/ 5.1 Channel
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
GB
Connecting the FM and AM Antennas
If AM reception is poor, connect an
outdoor AM antenna(not supplied).
CONNECTIONS
CD Player
AM Loop Antenna
(supplied)
FM Antenna (supplied)
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.
FM antenna connection
1. Connect the FM antenna supplied to the FM
75ΩCOAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you find
a location where reception is good, then fasten it to
a wall or other rigid surface.
COOLING FAN
DVD or 5.1 Channel Player
AM antenna connection
1. Connect the AM loop antenna supplied to the AM
and terminals.
2. If reception is poor, connect an outdoor single vinylcovered wire to the AM terminal.
(Keep the AM loop antenna connected).
The cooling fan dissipates the heat generated inside the unit so that the unit can
be operated normally. The cooling fan is activated automatically to supply cool air
to the unit.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the
unit could rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)
13
14
Before Using the AV Receiver
Turning On/Off
Selecting External Component Input
To Select the Function
REMOTE CONTROL
MAIN UNIT
Method 1
1 Connect the power plug to the outlet.
the POWER (
) button of the main unit.
2 Press
This unit will be turned on or off.
Press the FUNCTION button.
• Each time you press the this button, 5.1CH MULTI CH ➝ CD ➝ DVD ➝ VCR/SAT ➝
•
FM ➝ AM will be selected in turn.
Method 2
REMOTE CONTROL
Press the POWER (
GB
) button of the remote control while main unit is turned on.
• This unit will be turned on or set to Standby mode.
MAIN UNIT
) button on the
remote control while the main unit is turned off.
• When you turn off the power by pressing the POWER (
) button on the remote
control, the unit will be in standby mode.To completely turn off the power, press the
POWER (
) button of the main unit. Standby indicator will be turned off.
Press INPUT button.
• Each time you press the this button, 5.1CH MULTI CH ➝ CD ➝ DVD ➝ VCR/SAT ➝
FM ➝ AM will be selected in turn.
To Select Analog/Digital Input
You can listen to sound in Analog 2 Channels or Dolby Digital 5.1 Channel using this unit.
Functions of Dedicated Remote Control
You can operate TV, VCR, DVD, AV Receiver with one remote control.
See pages 45-48 for more details.
Press the ANALOG/DIGITAL button.
• For DVD, VCR/SAT Function
ANALOG and OPTICAL (DVD OPTICAL, V/S OPTICAL) will be selected repetitively.
REMOTE CONTROL
Press MODE button.
• For CD Function
ANALOG and COAXIAL will be selected repetitively.
• Each time you press this button, it will select and blink TV indicator ➝ VCR indicator
➝ DVD indicator ➝ AV Receiver indicator in turn.
• You can enjoy Dolby Digital only if you connect the Audio Output jack of an
external audio component to the optical/coaxial digital Audio Input jack on the
main unit.
• You can operate this function only with the remote control.
• This function will be selected in analog only for VCR function, and will not work for 5.1CH
MULTI CH function.
15
16
OPERATION
• This unit will not turned on or off even if you press the POWER (
Press DIRECT FUNCTION Select button.
• You can directly select 5.1CH, VCR/SAT, DVD, CD.
GB
Setting the Speaker Mode
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.Signal outputs
and frequency response from the speaker will automatically be adjusted according to your speaker configuration
and whether certain speakers are used or not.
√
REMOTE CONTROL
SPK SEL. button to select the speaker you want.
1 Press
Each time you press this button, F.SPK ➝ C.SPK ➝ S.SPK ➝ SB SPK ➝
•
SW SPK ➝ CROVR ➝ SPK MODE OFF will be selected in turn.
MAIN UNIT
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press …† button to set the speaker mode.
•
•
“SPEAKER SETUP” appears in the display.
SURROUND button to select the speaker you want.
3 Press
Each time you press this button, F.SPK ➝ C.SPK ➝ S.SPK ➝ SB SPK ➝
•
SW SPK ➝ CROVR will be selected in turn.
4 Press SELECT (
) button to set the speaker mode.
To Exit Setup Mode
To Exit Setup Mode
• Wait for about 5 seconds or press the SPK SEL. button of the remote control to
• Wait for about 5 seconds or turn the VOLUME CONTROL of the main unit.
“SETUP MODE OFF” appears on the display and exits Setup Mode.
select SPK MODE OFF.
To turn the SUBWOOFER On or Off.
Press SUBWOOFER button.
• Each time you press this button, SW SPK : YES, SW SPK : NO will be selected in turn.
• If you play in 2 Channel Stereo, select 'YES' to use Subwoofer and 'NO' not to use.
• If F.SPK is set to ‘SMALL’, SW SPK is fixed to ‘YES’.
• If S.SPK is set to ‘NONE’, SB SPK is fixed to ‘NONE’.
• You cannot use Speaker Setup Mode in 5.1CH MULTI CH function.
17
,
Setting the Speaker
• F.SPK (Front) : LARGE, SMALL
• C.SPK (Center) : LARGE, SMALL, NONE
• S.SPK (Surround) : LARGE, SMALL, NONE
• SB SPK (Surround Center) : LARGE, SMALL, NONE
• SW SPK (Subwoofer) : YES, NO
• CROVR (Crossover Frequency): 60, 80, 100, 120, 150, 180, 200Hz
CROVR(Crossover Frequency) for this unit is 150Hz.
• LARGE : Select when you use large speaker. You can listen to full
range sound.
• SMALL : Select this when you use small speaker.
Bass below 100Hz will not be output.
• NONE : Select this when you use no speaker.
• YES : Select this when you use Subwoofer Speaker if you play
back in 2 Channel Stereo.
• NO : Select when you do not use Subwoofer Speaker if you play
back in 2 Channel Stereo.
• CROVR: Select the crossover frequency depending on the size of
speaker connected when you use subwoofer.
Select 60Hz if cone paper speaker is 5.6inch, select 80Hz
for 4.8inch, 100Hz for 4inch, 120Hz for 3.2inch, 150Hz for
2.4inch, 180Hz and 200Hz for 1.6inch.
18
OPERATION
2 Press INPUT button one time.
GB
Setting the Speaker Listening Distance
√
REMOTE CONTROL
1 Press the SPEAKER DISTANCE button to select the
speaker you want.
MAIN UNIT
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝
S.W ➝ DISTANCE OFF will be selected in turn.
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 2 times.
…† button to set the speaker distance.
2 Press
For F.L, CEN, F.R, S.W Speaker, you can set the distance from the speaker to
•
•
• “DISTANCE SETUP” appears on the display.
SURROUND button to select the speaker you want.
3 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W
•
will be selected in turn.
4 Press SELECT(
,
OPERATION
listening position between 0.0~5feet in intervals of 1feet.
• For S. R, S.B, S.L Speaker, you can set the distance from the speaker to
listening position between 0.0~15feet in intervals of 1feet.
) button to set the speaker distance.
• For F.L, CEN, F.R, S.W Speaker, you can set the distance from the speaker to
listening position between 0.0~5feet in intervals of 1feet.
• For S.R, S.B, S.L Speaker, you can set the distance from the speaker to listening
position between 0.0~15feet in intervals of 1feet.
To Exit Setup Mode
• Wait for about 5 seconds or press the SPEAKER DISTANCE button of remote control
To Exit Setup Mode
to select DISTANCE OFF.
• Wait for about 5 seconds or turn the VOLUME CONTROL of the main unit. “SETUP MODE
OFF” appears on the display and exit Setup Mode.
Setting Speaker Distance
• If the listening position is beyond the range of speaker
distance setup when you place the speaker, set the
speaker distance to the maximum.
19
Set the distance from the speaker to listening position in intervals of 0.3m.
• F.L (Front-Left) : 0.0m ~ 1.5m
• CEN (Center) : 0.0m ~ 1.5m
• F.R (Front-Right) : 0.0m ~ 1.5m
• S.R (Surround-Right) : 0.0m ~ 4.5m
• S.B (Surround Center): 0.0m ~ 4.5m
• S.L (Surround-Left): 0.0m ~ 4.5m
• SW (Subwoofer): 0.0m ~ 1.5m
20
GB
Setting DRC (Dynamic Range Compression)
Test Tone
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
Use test tone to check the speaker connection status or level.
To Automatically Output Test Tone
√
REMOTE CONTROL
√
1 Press TEST TONE button.
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R
➝ S.B ➝ S.L ➝ S.W.
MAIN UNIT
• During test tone output, press …† button to adjust the speaker output level
from -10 to +10 dB by 1 step.
OPERATION
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 3 times.
•
• “DRC SETUP” appears on the display.
3 Press SURROUND button to set DRC.
• Each time you press this button, DRC : STD ➝ DRC : MAX ➝ DRC : MIN will be
selected in turn.
To Exit Setup Mode
To Stop Test Tone
• Wait for about 5 seconds or turn the VOLUME CONTROL of the main unit.
• Press TEST TONE button again.
“SETUP MODE OFF” appears on the display and exits Setup Mode.
Setting DRC
• STD : Sets DRC effect to standard.
• MAX : Sets DRC effect to maximum.
• MIN : Sets DRC effect to minimum.
21
• You can only set this function via the main unit.
22
GB
Test Tone
Use test tone to check speaker connection status or level.
To Automatically Output Test Tone
To Manually Output Test Tone
√
MAIN UNIT
MAIN UNIT
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 4 times.
“TEST-T AUTO” appears in the display.
3 Press SURROUND button.
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 5 times.
•
•
• “TEST-T MANU” appears in the display.
•
3 Press SURROUND button.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W
• Test signal will be automatically output as follows; F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B
➝ S.L ➝ S.W .
• During test signal output, press SELECT (
OPERATION
√
will be selected in turn.
,
SELECT( , )button to set the test tone as you want.
4 Press
You can adjust the speaker output level from -10 to +10dB by 1 step.
) button to adjust the speaker output
level from -10 to +10 dB by 1 step.
•
To Stop Test Tone
To Stop Test Tone
Method 1) Press INPUT button 2 times.
Method 1) Press INPUT button 1 time.
• “TEST-T OFF” appears on the display and test tone stops.
• “TEST-T OFF” appears on the display and test signal stops.
Method 2) Turn VOLUME CONTROL.
Method 2) Turn VOLUME CONTROL.
• “SETUP MODE OFF” appears on the display and test tone stops.
• “SETUP MODE OFF” appears on the display and test tone stops.
Test Tone Output
23
• F.L (Front-Left) : -10 ~ +10dB
• CEN (Center) : -10 ~ +10dB
• F.R (Front-Right) : -10 ~ +10dB
• S.R (Surround-Right) : -10 ~ +10dB
• S.B (Surround Center): -10 ~ +10dB
• S.L (Surround-Left): -10 ~ +10dB
• S.W (Subwoofer): -10 ~ +10dB
24
GB
Setting Speaker Level
You can set the balance and level of speakers
√
Remote Control
SPK LEVEL button to select the speaker you want.
1 Press
Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W ➝
•
MAIN UNIT
SPK LEVEL OFF will be selected in turn.
…† button to set the speaker level you want.
2 Press
You can adjust it from -10 to +10dB by 1 step.
1 Press SETUP button.
•
• “SETUP MODE” appears on the display and enters into Setup Mode.
• The sound gets quieter at -10dB and louder at +10dB.
•
3 Press SURROUND button.
• Each time you press this button, F.L ➝ CEN ➝ F.R ➝ S.R ➝ S.B ➝ S.L ➝ S.W
will be selected in turn.
4 Press SELECT(
,
) button to set to the speaker level you
want.
• You can adjust it from -10 to +10dB by 1 step.
• The sound gets smaller at -10dB and louder at +10dB.
• Default setting value is 00dB
To Exit Setup Mode
• Wait for about 5 seconds or press SPK LEVEL button on the remote control to select
To Exit Setup Mode
SPKLEVEL OFF.
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. “SETUP
MODE OFF” appears on the display and exits Setup Menu.
Setting Speaker Level
• F.L (Front-Left) : -10 ~ +10dB
• CEN (Center) : -10 ~ +10dB
• F.R (Front-Right) : -10 ~ +10dB
• S.R (Surround-Right) : -10 ~ +10dB
• S.B (Surround Center): -10 ~ +10dB
• S.L (Surround-Left): -10 ~ +10dB
• S.W (Subwoofer): -10 ~ +10dB
25
26
OPERATION
INPUT button 7 times.
2 Press
“LEVEL SETUP” appears on the display.
• Default setting value is 00dB.
GB
Dolby Pro Logic llx Mode
This mode provides 5.1 channel sound from 2 channel sources
REMOTE CONTROL
MODE button.
1 Press
Each time you press this button, MUSIC ➝ CINEMA ➝ MATRIX ➝ GAME ➝
•
PROLOGIC will be selected in turn.
MAIN UNIT
1 Press SURROUND button briefly to select “DPL llx” Mode.
• Each time you press this button, DPL ll x ➝ NEO:6 ➝ SFE ➝ STEREO will be
selected in turn.
,
) button.
) button, MUSIC ➝ CINEMA ➝ MATRIX ➝
GAME ➝ PROLOGIC will be selected in turn.
• Each time you press SELECT (
) button, PROLOGIC ➝ GAME ➝ MATRIX
➝ CINEMA ➝ MUSIC will be selected in turn.
• Each time you press SELECT (
To Exit Setup Mode
To Exit Setup Mode
• Wait for about 5 seconds.
• Wait for about 5 seconds.
Dolby Pro Logic ll x Mode
• MUSIC : Provides 5.1 Channel Surround sound to digital,
analog or existing stereo sources such as CD, TAPE, FM, TV
and Stereo VCR.
• CINEMA : Adds realism to the movie soundtrack.
• MATRIX : You will hear 5.1 Channel Surround sound.
• GAME : Enhances the excitement of the game's sound.
• PROLOGIC : You will experience a surround effect with just
the front left and right speakers.
27
• You cannot use Dolby Pro Logic ll x Mode for multi channel
signals such as Dolby Digital and DTS.
• Pro Logic works only for PCM audio signals with sampling
frequencies of 32KHz, 44KHz or 48KHz.
• Sound will not be output from rear center speaker if PCM
audio signal is mono.
28
OPERATION
2 Press SELECT(
GB
Dolby Pro Logic llx Effect
This function works only in Dolby PRO LOGIC IIX MUSIC Mode.
REMOTE CONTROL
MODE button to select ‘MUSIC’ Mode.
1 Press
EFFECT button.
2 Press
Each time you press this button, C-WIDTH ➝ DIMENSION ➝ PANORAMA ➝
•
DPL llx EFT OFF will be selected in turn.
MAIN UNIT
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
•
•
SURROUND button.
3 Press
Each time you press this button, C-WIDTH ➝ DIMENSION ➝ PANORAMA
Press …† button to select Dolby Pro Logic IIx effect you
3 want.
•
will be selected in turn.
4 Press SELECT(
• C-WIDTH: You can set from 0 to 7.
• DIMENSION: You can set from -7 to +7.
• PANORAMA: You can Set it ON or OFF.
,
) button to select Dolby Pro Logic llx
effect you want.
To Exit Setup Mode
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. “SETUP
To Exit Setup Mode
• Wait for about 5 seconds or press
MODE OFF” appears on the display and exits Setup Mode.
Effect button of remote control to select
DLP ll x EFT OFF.
Dolby Pro Logic llx Effect
• C-WIDTH : This sets the width of the center image. The higher the setting, the less
sound comes from the center speaker.
• DIMENSION : Incrementally adjusts the sound field (DSP)from the front or rear.
• PANORAMA : This mode extends the front stereo image to include the surround
speakers for an exciting "wraparound" effect with side wall imaging.
29
30
OPERATION
INPUT button 9 times.
2 Press
“DPL ll x MODE”appears on the display.
GB
NEO:6 Mode
You can play back 2 channel sound over 6.1 channels of when enjoying music or a movie.
REMOTE CONTROL
NEO:6 MODE button.
1 Press
Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
•
MAIN UNIT
SURROUND button briefly to select “NEO:6” Mode.
1 Press
Each time you press this button, DPL ll x ➝ NEO:6 ➝ SFE ➝ STEREO will be
•
selected in turn.
,
) button.
• Each time you press this button, MUSIC ➝ CINEMA will be selected in turn.
OPERATION
2
Press SELECT(
To Set Sound Image of Center Speaker
If TV (or screen) is installed high, you can feel the balance of sound and image by
raising the sound image of Center Speaker.
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
INPUT button 10 times.
2 Press
“NEO:6 MODE” appears on the display.
SURROUND button.
3 Press
“CEN-IMG” appears on the display.
SELECT( , ) button to set the sound image you want.
4 Press
You can set the sound image from 0 to 5.
•
•
•
To Exit Setup Mode
• Wait for about 5 seconds.
•
To Exit Setup Mode
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. ‘SETUP MODE OFF’ appears
on the display and exits Setup Mode.
NEO : 6 Mode
• NEO:6 Mode can be used with DTS and Dolby
Digital multi channel signals.
• Pro Logic works only for PCM audio signals with
This mode decodes 2 channel signals to high precision digital matrix
decoder.
DTS NEO:6 decoder discretes 2 channel sound to Discrete 6.1
channel sound.
• MUSIC : NEO:6 MUSIC Mode is optimized for music playback
• You can use this function to set the sound image of Center Speaker
only via the main unit.
• CINEMA : NEO:6 CINEMA Mode is optimized for movie playback.
sampling frequency of 32KHz, 44KHz or 48KHz.
31
32
GB
SFE Mode
Refer to the unique sound existing at specific place and you can feel live sound as if you are listening at
actual site.
REMOTE CONTROL
SFE MODE button.
1 Press
Each time you press this button, HALL ➝ THEATER ➝ ARENA ➝ CLUB ➝
•
DOME ➝ STADIUM ➝ CHURCH will be selected in turn.
MAIN UNIT
1 Press SURROUND button briefly to select ‘SFE’ Mode.
• Each time you press this button, DPL II x ➝ NEO:6 ➝ SFE ➝ STEREO will be
selected in turn.
,
) button.
) button, HALL ➝ THEATER ➝ ARENA ➝
CLUB ➝ DOME ➝ STADIUM ➝ CHURCH will be selected in turn
• Each time you press Select (
) button, CHURCH ➝ STADIUM ➝ DOME
➝ CLUB ➝ ARENA ➝ THEATER ➝ HALL will be selected in turn.
• Each time you press Select (
33
To Exit Setup Mode
To Exit Setup Mode
• Wait for about 5 seconds.
• Wait for about 5 seconds.
34
OPERATION
2 Press SELECT(
GB
EX/ES Mode
This mode enable you to listen to 6.1 channel surround from Dolby Digital-EX, DTS-ES sources.
This function works when Dolby Digital 5.1 channel source is inputted, and does not work with
LPCM and Dolby Digital 2 channel sources.
REMOTE CONTROL
Press EX/ES button.
• Each time you press this button, EX/ES AUTO ➝ EX/ES ON ➝ EX/ES OFF
will be selected in turn.
MAIN UNIT
Method 1
1 Press and hold SURROUND button for about 5 seconds.
“SETUP MODE” appears on the display and enters into Setup Mode.
Press
button.
2 Each timeSURROUND
you press this button, EX/ES : AUTO ➝ EX/ES : ON ➝ EX/ES :
•
OFF will be selected in turn.
Method 1
SETUP button.
1 Press
“SETUP MODE” appears on the display and enters into Setup Mode.
2 Press INPUT button 11 times.
•
• “EX/ES SETUP” appears on the display.
SURROUND button.
3 Press
Each time you press this button, EX/ES : AUTO ➝ EX/ES : ON ➝ EX/ES :
•
To Exit Setup Mode
OFF will be selected in turn.
• Wait for about 5 seconds or press EX/ES button of the remote control to select EX/ES
To Exit Setup Mode
: OFF.
• Wait for about 5 seconds or turn VOLUME CONTROL of the main unit. ‘SETUP
MODE OFF’ appears on the display and exits Setup Mode.
EX/ES Mode
• AUTO : 6.1 channel sound will be played back to 6.1 channel and 5.1 channel
sound will be automatically converted to and output as 5.1 channel.
• ON : 5.1 channel sound will be converted to and output as 6.1 channel.
• OFF : 6.1 channel sound will be converted to and output as 5.1 channel.
Dolby Digital - EX
Movie sound track encoded with Dolby Digital EX can play back the
rear center channel added during program mixing. Rear center
channel provides fine image, in-depth and realistic feeling.
DTS-ES (Discrete 6.1, Matrix 6.1)
Rear center channel is added to DTS 5.1 channel, improving the
sense of direction and space for sound. Since DTS-ES decoder
is built-in in the main unit, you can play back the disk encoded
with DTS-ES Discrete and DTS-ES Matrix. DTS-ES Discrete 6.1
can record the sound of all channels including rear center
channel digitally and play back the recorded sound as they are.
• You cannot use Dolby Digital-EX in the system without rear
center speaker.
• You need to set it to EX/ES Mode when playing back disk
encoded to Dolby Digital-EX in 6.1 channel.
• Some disks encoded with Dolby Digital-EX do not contain
identification signal. In this case, set EX/ES to ON.
35
• You cannot use DTS-ES in the system without rear
center speaker.
36
OPERATION
•
GB
Stereo Mode
You can select this mode when you listen to sound through the Front Left and Right speakers and subwoofer.
For Surround Mode and Input Signal
o = active, – = inactive
Surround Mode
DOLBY
(MUSIC,
CINEMA,
MATRIX,
GAME,
PROLOGIC)
NEO:6
(MUSIC,
CINEMA)
Press STEREO button.
• “STEREO” appears in the display and Stereo Mode is
selected.
MAIN UNIT
Press SURROUND button briefly to select
‘STEREO’.
• Each time you press this button, DPL ll x ➝ NEO:6 ➝ SFE ➝
STEREO will be selected in turn.
To Exit Setup Mode
• Wait for about 5 seconds.
• Wait for about 5 seconds.
Dolby D Surr. EX
Dolby Digital 5.1
O
O
O
-
O
DIGITAL
L, C, R, SL, SR, SC, SW
Dolby D (5.1ch)
Dolby Digital 5.1
O
O
O
-
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
Pro Logic II x
O
O
O
O
O
DIGITAL
L, R
Dolby D (2ch Surr)
Pro Logic II x
O
O
O
O
O
DIGITAL
L.PCM (Audio)
Pro Logic II x
O
O
O
O
O
L.PCM
L, R
Analog
Pro Logic II x
O
O
O
O
O
ANALOG
-
DTS-ES
DTS 5.1
O
O
O
O
O
dts, ES
L, C, R, SL, SR, SC, SW
DTS 96/24
DTS 96/24
O
O
O
O
O
DTS 96/24
L, C, R, SL, SR, SW
DTS (5.1)
DTS 5.1
O
O
O
-
O
dts
L, C, R, SL, SR, SW
L.PCM (Audio)
Neo:6
O
O
O
O
-
L.PCM
L, R
Analog
Neo:6
O
O
O
O
-
ANALOG
-
Dolby D (2ch)
Neo:6
O
O
O
O
-
DIGITAL
Dolby D (2ch Surr)
Neo:6
O
O
O
O
-
DIGITAL
L, R, SC
Dolby Surr. EX
SFE
-
-
-
-
-
DIGITAL
L, C, R, SL, SR, SC, SW
L/R
Display Signal Format
Channel Status
L, R, SC
L, R
Dolby D (5.1ch)
SFE
-
-
-
-
-
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
SFE
O
O
O
O
O
DIGITAL
L, R
Dolby D (2ch Surr)
SFE
O
O
O
O
O
DIGITAL
DTS-ES
SFE
-
-
-
-
-
dts, ES
L, C, R, SL, SR, SC, SW
DTS (5.1ch)
SFE
-
-
-
-
-
dts
L, C, R, SL, SR, SW
L.PCM (Audio)
SFE
O
O
O
O
O
L.PCM
L, R
Analog
SFE
O
O
O
O
O
ANALOG
-
Dolby D Surr. EX
Dolby Digital EX
O
O
O
O
O
DIGITAL
Dolby D (5.1ch)
Dolby Digital EX
O
O
O
O
O
DIGITAL
DTS-ES
DTS-ES
O
O
O
O
O
dts, ES
L, C, R, SL, SR, SC, SW
DTS (5.1ch)
DTS-ES
O
O
O
O
O
dts
L, C, R, SL, SR, SW
Dolby Surr. EX
Stereo
O
-
-
-
O
DIGITAL
L, C, R, SL, SR, SC, SW
Dolby D (5.1ch)
Stereo
O
-
-
-
O
DIGITAL
L, C, R, SL, SR, SW
Dolby D (2ch)
Stereo
O
-
-
-
-
DIGITAL
L, R,
Dolby D (2ch Surr)
Stereo
O
-
-
-
-
DIGITAL
DTS-ES
Stereo
O
-
-
-
O
dts, ES
L, C, R, SL, SR, SC, SW
DTS 96/24
Stereo
O
-
-
-
O
dts 96/24
L, C, R, SL, SR, SW
DTS (5.1ch)
Stereo
O
-
-
-
O
dts
L, C, R, SL, SR, SW
L.PCM (Audio)
Stereo
O
-
-
-
-
L.PCM
L, R
L.PCM 96KHz
Stereo
O
-
-
-
-
L.PCM
L, R
Analog
Stereo
O
-
-
-
-
ANALOG
-
L, R, SC
SFE
EX/ES
To Exit Setup Mode
Display Information
Decoding
OPERATION
REMOTE CONTROL
Output Channel
SL
C
SC SubW
SR
Input Signal
L, C, R, SL, SR, SC, SW
L, C, R, SL, SR, SW
L, R, SC
STEREO
• When PCM and Analog Stereo signals are input,
the left and right channels are played back in Stereo
Mode.
L/R : Front Speaker (Left/Right) C : Center Speaker SL/SR : Surround Speaker (Left/Right) SC : Surround Center Speaker SW : Subwoofer
• 2 channel Dolby Digital signal has Dolby Digital Pro Logic. Speaker Setup is set to LARGE, SMALL, or YES.
• If there is no surround signal in DVD disk, sound will not output from rear-left speaker, rear-right speaker,
center speaker, and subwoofer.
37
38
Listening to Radio
Presetting Radio Stations
You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or manual
tuning operation.
You can preset up to 30 FM and AM stations.
GB
REMOTE CONTROL
Ex) Presetting FM station 89.1
TUNER button.
1 Press
Each time you press this button, FM ➝ AM will be selected in turn.
•
2 Press Select button and then TUNING/CH(
,
) button to
select 89.1.
• Refer to step 2, page 39, to tune in automatically and manually.
•
REMOTE CONTROL
MAIN UNIT
1 Press TUNER button.
1 Press INPUT button to select FM or
• Each time you press this button, FM ➝ AM will be repetitively
selected.
2 Select frequency.
:
1) Press ENTER button to select PRESET.
2) Press TUNING/CH( , ) button to select the preset
frequency.
• Automatic Tuning 2 :
1) Press ENTER button to select MANUAL
2) Press and hold TUNING/CH( , ) button to
automatically tune in frequency.
• Manual Tuning :
1) Press ENTER button to select MANUAL.
2) Press TUNING/CH( , ) button briefly to increase or
decrease frequency by step by step.
AM.
2 Select the frequency.
Press and hold TUNING/CH( ,
automatically tune in frequency.
) button to
• Manual Tuning :
Press TUNING/CH( , ) button briefly to
increase or decrease frequency step by step.
it will help to reduce noise.
•
6 To preset other stations, repeat steps 2 to 5.
• Press Select button of the remote control to select the PRESET and press
TUNING/CH (
1. Press the SETUP button.
2. Press the INPUT button 8 times.
3. Press the SURROUND button and
select Manual or Preset.
• This function works only with the Remote Control.
TUNER MEMORY button.
5 Press
Tuner number will disappear and station 89.1 will be saved in preset 2.
To Listen to Preset Station
Press MO/ST button on the remote.
be selected in turn.
) button to select preset 2.
• Automatic Tuning :
How to select PRESET, MANUAL
• If you select MONO in the area with weak reception,
,
• You can select from presets 1 to 30.
To Listen to Mono/Stereo
• Each time you press this button, STEREO, MONO will
4 Press TUNING/CH(
RADIO OPERATION
• Automatic Tuning 1
39
TUNER MEMORY button.
3 Press
Tuner number will blink on the display.
,
) button.
• This function operates only with the main unit.
40
GB
Convenient Functions
Sleep Timer Function
Reset Function
You can set the time that this unit will shut itself off.
REMOTE CONTROL
Press the SLEEP button.
• SLEEP : OFF ➝ 15 ➝ 30 ➝ 45 ➝ 60 ➝ 90 ➝ 120MIN will be selected in turn.
To Check Sleep Timer
Press SLEEP button.
• The remaining time before this unit will shut itself off is shown on the display.
• Pressing the button again changes the sleep time from what you have set earlier.
To Cancel Sleep Timer
• Press SLEEP button until SLEEP : OFF appears on the display.
REMOTE CONTROL
1
2
3
Press the MUTE button.
• MUTE appears on the display.
Press “0” button five times and then
press ENTER button.
Press …† buttons to select “YES”.
• The unit will turn automatically back on in 5 seconds.
Caution!
• Using the RESET function will erase all stored settings.
• Do not use this unless necessary.
Adjust the Display
You can adjust the brightness of the display.
Mute Function
This function is useful when answering a doorbell or telephone call.
REMOTE CONTROL
Press the MUTE button.
• MUTE appears on the display.
REMOTE CONTROL
Press the DIMMER button.
• Each time you press this, the brightness of the display will be adjusted.
Using Headphone
Use headphones (not supplied) for private listening pleasure.
MISCELLANENOUS
Connect the headphone to the headphone jack and listen to
music.
To Output Sound Again
Press MUTE button again.
• MUTE will disappear and sound will Output.
• Do not turn the volume up too high when you use headphone.
• It may damage your hearing.
• SLEEP, Mute and Adjust Display function can only be
operated with the remote control.
41
42
GB
Operating TV with Remote Control
TV Brand Code List
1
2
3
4
Brand
Press MODE button to make the TV
indicator on the remote control flash.
Press POWER(
TV.
) button to turn on the
Point the remote control toward the TV.
While holding down POWER( ) button,
enter the code corresponding to your brand
of TV.
• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table, enter
one at a time to determine which code works.
• You can use the TV POWER, VOLUME, CHANNEL, and Numeric
buttons (0~9).
AOC
BELL & HOWELL(M.WARDS)
BROCSONIC
CANDLE
CETRONIC
CITIZEN
CINEMA
CLASSIC
CONCERTO
CONTEC
CORONADO
CRAIG
CROSLEX
CROWN
CURTISMATES
CXC
DAEWOO
DAYTRON
DYNASTY
EMERSON
FISHER
FUNAI
FUTURETECH
GENERAL ELECTRIC(GE)
HALL MARK
HITACHI
INKEL
JC PENNY
JVC
KTV
KEC
KMC
LG(GOLDSTAR)
Code Number
056, 057, 058
001, 015
001, 002, 003, 004,005,
006, 007, 008, 009, 010,
011, 012, 013, 014
001, 018, 040, 048
057, 058, 081
059, 060
018
003
003, 018, 025
097
003
018
046
015
003, 005, 061, 082, 083,
084
062
003
059, 061, 063
003
002, 003, 004, 015,016,
017, 018, 019, 020, 021,
022, 023, 024, 025, 026,
027, 028, 029, 030, 032,
034, 035, 036, 040, 048,
059, 090, 099, 100
040
003
003, 015, 040, 046, 059,
061, 064, 082, 083, 084,
085
019, 065, 103
003
003
006, 040, 056, 059, 066,
067, 068
040
015, 018, 050, 059, 069
045
056, 059, 067, 086
070
059, 061, 087, 088
003, 015, 040
015
001, 015, 016, 017, 037,
038, 039, 040, 041, 042,
043, 044, 054, 086
Brand
LUXMAN
LXI(SEARS)
MAGNAVOX
MARANTZ
MATSUI
MGA
MITSUBISHI/MGA
MTC
NEC
NIKEI
ONKING
ONWA
PANASONIC
PENNEY
PHILCO
PHILIPS
PIONEER
PORTLAND
PROTON
QUASAR
RADIO SHACK
RCA/PROSCAN
REALISTIC
SAMPO
SAMSUNG
SANYO
SCOTT
SEARS
SHARP
SIGNATURE 2000 (M.WARDS)
SONY
SOUNDESIGN
SPECTRICON
SSS
Code Number
018
019, 054, 056, 059, 060,
062, 063, 065, 071
015, 017, 018, 048, 054,
059, 060, 062, 072, 089
040, 054
054
018, 040
018, 040, 054, 059, 060,
075, 101
018
018, 019, 020, 040, 059,
060
003
003
003
006, 007, 008, 009, 054,
066, 067, 073, 074
018
003, 015, 017, 018, 048,
054, 059, 062, 069, 090
015, 017, 018, 040, 048
054, 062, 072, 112, 114,
117, 118
063, 066, 080, 091
015, 018, 059
040
006, 066, 067
017, 048, 056, 060, 061,
075
018, 059, 067, 076, 077
078, 092, 093, 094
003, 019
040
000, 015, 016, 017, 040,
043, 046, 047, 048, 049,
054, 059, 060, 098
019, 061, 065, 101, 102,
103, 104
003, 040, 060, 061
015, 018, 019
015, 057, 064, 101, 105,
106, 115
057, 058
050, 051, 052, 053, 055,
101
003, 040
001
018
Brand
SYLVANIA
SYMPHONIC
TATUNG
TECHWOOD
TEKNIKA
TMK
TOSHIBA
VIDTECH
VIDECH
WARDS
YAMAHA
YORK
YUPITERU
ZENITH
ZONDA
DONGYANG
LOWE
FINLUX
YOKO
LOEWE OPTA
PHONOLA
RADIOLA
SCHNEIDER
AKAI
GRUNDIG
BLAUPUNKT
SIEMENS
CGE
IMPERIAL
MIVAR
SABA
BANG&OLUFSEN
BRIONVEGA
FORMENTI
METZ
WEGA
RADIOMARELLI
SINGER
SINUDYNE
TELEFUNKEN
Code Number
018, 040, 048, 054, 059,
060, 062
061, 095, 096
006
018
003, 015, 018, 025
018, 040
019, 057, 063, 071, 101
107, 109, 110, 111, 113
018
059, 060, 069
015, 017, 018, 040, 048,
054, 060, 064
018
040
003
058, 079
001
003, 054
054
054, 109, 114
054
054, 114
054, 112, 114
054, 112
054
103
108, 109, 113, 119, 120,
121
108
108
113
113
113
114
114
114
114
114
114
114
114
114
116
MISCELLANENOUS
5
If TV is turned on or off when you press the
power button of the remote control, the
setting is completed.
ADMIRAL(M.WARDS)
A MARK
ANAM
• The remote control may not work on some brands of TVs. Also, some operation may not be
possible depending on your brand of TV.
• The remote control will work with Samsung TVs by default.
43
44
GB
Operating your VCR (DVD) with Remote Control
VCR Brand Code List
Brand
1
Press MODE button to make VCR indicator
on the remote control flash.
• If you operate DVD, press Device Select button to make DVD
ADMIRAL(M.WARDS)
AWIA
AKAI
ANAM
indicator on the remote control flash.
2
3
4
Press POWER(
VCR (DVD).
) button to turn on the
Point the remote control toward the VCR
(DVD).
While holding down POWER( ) button,
enter the code corresponding to your brand
of VCR (DVD).
• If the code matches the VCR (DVD)'s code, the VCR (DVD) will
be turned off.
• If there is more than one code listed for your VCR (DVD) in the
table, enter one at a time to determine which code works.
DAEWOO
DAYTRON
DBX
EMERSON
FISHER
FUNAI
GENERAL ELECTRIC(GE)
GO VIDEO
HARMAN KARDON
HITACHI
If VCR (DVD) is turned on or off when you
press the power button of the remote
controller, the setting is completed.
HQ
INSTANT REPLAY
JCL
JCP
JC PENNY
• You can use VCR (DVD) POWER, VOLUME, PLAY, PAUSE,
JVC
STOP, SKIP and Numeric button (0~9).
KENWOOD
LG(GOLDSTAR)
LXI(SEARS)
MAGIN
MAGNAVOX
MARANTZ
• The remote control may not work on some brands of VCR (DVD)s.
Also, some operations may not be possible depending on your brand of VCR (DVD).
• The remote control will work with Samsung VCRs (DVDs) by default.
45
MARTA
Brand
MEI
MEMOREX
MINOLTA
MITSUBISHI/MGA
MTC
MULTITECH
NEC
OLYMPIC
OPTIMUS
ORION
PANASONIC
PENNEY
PENTAX
PHILCO
PHILIPS
PILOT
PIONEER
PORTLAND
QUASAR
RICO
RCA/PROSCAN
REALISTIC
044, 048, 054, 091,
SAMSUNG
SANYO
SANSUI
SCOTT
SEARS
SHARP
SINGER
SIGNATURE 2000 (M.WARDS)
SHINTOM
SONY
STS
SYLVANIA
SYMPHONIC
TANDY
Code Number
001, 033
001, 025, 033, 054, 091,
100
020, 021, 062
068, 069, 070, 101, 102
072
044, 057, 069
019, 047, 052, 057, 092
049, 091
101
103
001, 004, 033, 049, 067,
091, 107
019, 020, 072
001, 020, 021, 033, 062
001, 033, 046, 049, 091,
094
001, 030, 033, 049, 050,
066, 091
025
049
011
001, 033, 049, 067, 091,
107, 108
036
001, 020, 021, 031, 032,
033, 049, 051, 062, 066,
070, 091, 104
001, 009, 025, 033,
101, 105
000, 006, 031, 032, 057,
058, 071, 072, 073, 074,
075, 076, 077, 078, 079,
080, 081
008, 009, 046, 048, 050,
054, 058, 093, 100
092
006, 051, 054, 057, 069,
070, 100, 101
020, 021, 025
043, 105, 106
096
043, 044, 054, 100, 106
096
034, 035, 036, 037, 038,
039, 040, 041, 042,082,
083, 084, 085, 086
020
001, 033, 044, 049, 066,
091
044
009
Brand
TASHIRO
TATUNG
TEAC
TECHNICS
TEKNIKA
TOSHIBA
TOTEVISION
TAEKWANG
UNITECH
VECTOR RESEARCH
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH
Code Number
050
047, 052, 092
044, 047, 052, 092
001, 033, 049, 091
001, 025, 033
006, 051
025, 072
087
072
019
019
072
001, 020, 031, 032, 033,
043, 050, 054, 072, 100,
105, 106, 109
019, 047,048, 052, 092,
019, 047,048, 052, 092
DVD Brand Code List
Brand
DENON
DOONOON
DMTECH
FISHER
GE
HARMAN/KARDON
JVC
KENWOOD
LG
MAGNAVOX
MITSUBISHI
ONKYO
OPTIMUS
PANASONIC
PROSCAN
PHILIPS
PIONEER
RCA
SAMSUNG
SANYO
SONY
THETA DIGITAL
TOSHIBA
YAMAHA
ZENITH
TAEGWANG
PS2
X-BOX
APEX
MARANTZ
Code Number
003, 032
019
017
002
006
012
010, 013
008
001
004
005, 016
004, 014
011
021
006
004, 023
007, 011, 022, 025
006
000, 027
002
015, 020
011
004, 018
009, 033
004, 024
026
028
029
030
031
MISCELLANENOUS
5
AOC
AUDIO DYNAMIC
BELL & HOWELL(M.WARDS)
BROKSONIC
CANON
CAPEHART
CITIZEN
CRAIG
CRITERION
CURTIS MATHES
Code Number
043, 106
044, 045, 046
088, 089, 090
001, 002, 003, 004, 005,
033
091
019, 047, 092
048, 093
092, 094, 095
001, 033, 049, 091
011
050
050, 072, 096
051
001, 031, 032, 033, 044,
091
006, 007, 008, 009, 010,
011, 012, 013, 014, 015,
016, 017, 018, 046, 051,
091
011
019, 047, 052, 092
025, 031, 032, 044, 046,
094, 095, 097, 098, 099
009, 048, 053, 054, 055,
100
044
001, 031, 032, 033, 056,
091
059, 060, 061
019
020, 021, 049, 054, 062,
100
051
001, 033, 049, 091
001, 033
025
047, 048, 052, 062, 091,
092
001, 033, 047, 052, 063,
064, 065, 092
047, 050, 052, 092
019, 020, 021, 022, 023,
024, 025, 026, 027, 028,
029, 030, 050
020, 025, 044, 048, 050,
053, 054, 055, 062, 100
072
001, 031, 032, 033, 049,
066, 067, 091
001, 019, 033, 047, 052,
092, 110
025, 050
46
GB
Before Calling for Service
Check
Symptom
Can't turn it on.
• Is the power code plugged into the outlet?
Symptom
Remedy
Check
• Is the rear center speaker connected
• Connect the power plug to the outlet.
properly?
It does not work when the
button is pressed.
• Is there static electricity in the air?
• Disconnect the power plug and connect it
again.
There is no sound from
surround center speaker
• Is the SB SPK (Surround Center)
selected to NONE in Speaker Setup?
• Is Surround Mode set to EX/ES?
• Are the speaker and external
component connected properly?
• Does the Mute function work?
Sound is not produced.
• Is the volume set to minimum?
• Is the speaker setup selected to
NONE?
• Isn’t the external component connected
Remote controller does not
work.
• Are the batteries exhausted?
• Is the distance between remote
• Press Mute button to cancel the function.
• Adjust the volume.
Can't select EX/ES Mode.
• Refer to pages 11~12 to select LARGE,
SMALL or YES.
The sound from each device
is changed during stereo
playback.
• Is the left/right speaker or left/right
input/output code connected
properly?
• Is AM or FM antenna connected
Can't receive broadcasting.
properly?
• Is S.SPK (Surround) set to NONE in
Speaker Setup?
• Is Surround Mode selected to Stereo?
There is no sound from
center speaker
to EX/ES.
Can't select Dolby Pro Logic
• Is SB SPK (Surround Center) selected
• Refer to pages 11~12 to select LARGE or
to NONE in Speaker Setup?
• Is the input signal selected properly?
• Use 5.1 channel external component.
• Is the input signal selected properly?
• Select 2 channel Dolby Digital, PCM, and
SMALL.
Analog input signal.
Can't select NEO:6 Mode.
• Is the input signal selected properly?
• Use PCM and Analog input signal.
There is no sound when
playing DTS encoded DVD
and CD.
• Is analog input selected?
• Check whether digital external component
• Replace with new batteries.
• Operate at close distance.
• Check the left/right channel and properly
is properly connected and refer to page 19
to select the digital input.
connect it.
• Properly connect the antenna.
• If the input strength of antenna connector is
• Refer to pages 11~12 to connect it properly.
• Refer to pages 11~12 to select LARGE or
SMALL.
• Refer to pages 27~38 to select other
Surround Mode.
• Is the center speaker connected properly?
• Refer to pages 9~10 to connect it properly.
• Is C.SPK (Center) selected to NONE in
• Refer to pages 11~12 to select LARGE or
Speaker Setup?
• Is the Surround Mode selected to Stereo?
SMALL.
• Refer to pages 27~38 to select other
MISCELLANENOUS
properly?
surround speaker.
SMALL.
• Refer to pages 35~36 to set Surround Mode
weak, install the FM antenna in a place
with good reception.
• Is the surround speaker connected
There is no sound from
• Refer to pages 11~12 to select LARGE or
• Properly connect it.
properly?
control and main unit proper?
• Refer to pages 9~10 to connect it properly.
• Properly connect it.
llx Mode.
Picture does not appear when
the function is selected.
Remedy
Product Protection Function
Heat Protection
• Protection function works if the main unit is overheated or power
transformer is overheated.
appears in the display when the “
” function
works.
- If speaker terminal is shorted
- If speaker cord is shorted
If there is no problem when you turn it on again after turning it
off, PROTECTION mark will disappear on the display and the
unit will work properly.
• If PROTECTION appears on the display,
check whether speaker terminal is shorted
and then turn on the device.
Surround Modes.
47
48
GB
Specifications
GENERAL
FM TUNER
AM TUNER
AMPLIFIER
VIDEO
OUTPUT
49
0.9W
Power Consumption
95W
Weight
4.2 kg
Dimensions (W x H x D)
429 x 66 x 348 mm
Operating Temperature Range
+5°C~+35°C
Operating Humidity Range
10%~75%
Frequency Response
87.5~108.0MHz
Usable Sensitivity
12dBf
S/N Ratio
MONO/STEREO 55/55dB
Distortion
MONO/STEREO 0.3/0.8%
Stereo Separation
30dB
Tuner Output Level
1KHz, 75KHz Dev
Frequency Response
522~1611KHz
S/N Ratio
40dB
Usable Sensitivity
60dBµV/m(Loop Antenna)
Distortion
2% (MOD:80%)
Rated Output
20Hz~20KHz/THD = 10%
Front Speaker(Left+Right)
4 Ω 100W/CH
Center Speaker
4 Ω 100W/CH
Surround Speaker(Left+Right)
4 Ω 100W/CH
Surround Back Speaker
4 Ω 100W/CH
Subwoofer Speaker
8 Ω 150W/CH
Input Sensitivity/Impedance
1V/47kΩ
S/N Ratio(Analog Input/6.1CH Analog Input)
80dB
Separation(1KHz)
60dB
Analog Input/6.1CH Analog Input
20Hz~20KHz(±3dB)
Digital Input/96KHz PCM
20Hz ~44KHz(±3dB)
TV Format
NTSC/PAL
Input Level/Impedance
1Vp-p/75 Ω
Output Level/Impedance
1Vp-p/75 Ω
Video Frequency Response
5Hz to 10KHz(-3dB)
Component Video Frequency Response
5Hz to 40KHz(-3dB)
S/N Ratio
60dB
❈ S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES-17 filter.
S
P
E
A
K
E
R
S
Speaker system
Front / Surround / Surround Back
Center
Subwoofer speaker
Impedance
4Ω x 5
4Ω
8Ω
Rated input
100W
100W
150W
Maximum input
200W
200W
300W
91 x 135 x 98.5 mm
200 x 107 x 100 mm
305 x 345 x 391 mm
0.62 Kg
0.77 Kg
13 Kg
Dimensions (W x H x D)
Weight
MISCELLANENOUS
FREQUENCY
RESPONSE
Standby Power Consumption
50
Contact Multi-all
2005.11.18
3:42 PM
Page 8
XEU (ENG)
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Region
North America
Latin America
Europe
CIS
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
RUSSIA
UKRAINE
AUSTRALIA
CHINA
HONG KONG
INDIA
Asia Pacific
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
Middle East & Africa
TAIWAN
VIETNAM
SOUTH AFRICA
U.A.E
Customer Care Center ☎
1-800-SAMSUNG (7267864)
01-800-SAMSUNG (7267864)
1-800-SAMSUNG (7267864)
0800-333-3733
0800-124-421
800-726-7864(SAMSUNG)
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-7267-864
1-800-100-5303
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (0,15€/Min)
01805 - 121213 (€ 0,12/Min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 (€ 0.10/Min)
231 627 22
0 801 801 881
80 8 200 128
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-200-0400
8-800-502-0000
1300 362 603
800-810-5858, 010- 6475 1880
2862 6001
3030 8282
1600 1100 11
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG (7267864)
1800-SAMSUNG (7267864)
1800-29-3232
02-689-3232
0800-329-999
1 800 588 889
0860 7267864 (SAMSUNG)
800SAMSUNG (7267864)
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.ru
www.samsung.com/ur
www.samsung.com/au
www.samsung.com.cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/za
www.samsung.com/mea
