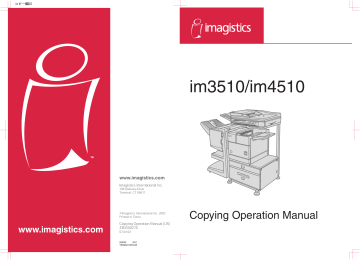

imagistics im4510 Operation Manual

im3510/im4510

www.imagistics.com

Imagistics International Inc.

www.imagistics.com

2002G KS1

TINSE2315FCZZ

Copying Operation Manual

INTRODUCTION

This manual describes only copier features. For operation procedures relating to both the basic printer and copier features, refer to the “Printing Operation Manual”. General information required for loading paper, adding toner, misfeed removal, and operation of peripheral devices are described in that manual.

Separate manuals are provided for the operation of network scanning and facsimile functions. Refer to the “Network

Scanning Operation Manual” and “Facsimile Operation Manual” for these descriptions.

1

CONTENTS

Page

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PART NAMES AND FUNCTIONS (B/W scanner module/DSPF) . . . . 3

● Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

● Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

● Touch Panel (basic screen of copy mode) . . . . . . . . . . . . . . . . . . 5

AUTOMATIC DOCUMENT FEEDER . . . . . . . . . . . . . . . . . . . . . . . . . 6

● Acceptable originals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SETTING ORIGINALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

NORMAL COPYING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

● Copying from the automatic document feeder . . . . . . . . . . . . . . . 9

● Automatic two-sided copying from the automatic document feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

● Copying from the document glass . . . . . . . . . . . . . . . . . . . . . . . 12

● Automatic two-sided copying from the document glass . . . . . . . 14

EXPOSURE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

REDUCTION/ENLARGEMENT/ZOOM . . . . . . . . . . . . . . . . . . . . . . 16

● Automatic selection (auto image) . . . . . . . . . . . . . . . . . . . . . . . 16

● Manual selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SPECIAL PAPERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SPECIAL MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

● Common operation procedure for using the special functions . . 19

● Margin shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

● Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

● Dual page copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

● Booklet copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

● Job build . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

● Multi shot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

JOB PROGRAM MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

● Storing a job program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

● Recalling a job program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

● Deleting a stored job program . . . . . . . . . . . . . . . . . . . . . . . . . . 27

INTERRUPTING A PRINT OR COPY RUN . . . . . . . . . . . . . . . . . . . 28

MISFEED REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

● Misfeed in the scanner module . . . . . . . . . . . . . . . . . . . . . . . . . 29

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

● Copier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

● Scanner module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

KEY OPERATOR PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

● Key operator program list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

● Using the key operator programs . . . . . . . . . . . . . . . . . . . . . . . 32

● Setting programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

2

PART NAMES AND FUNCTIONS

(B/W scanner module/DSPF)

Exterior

DSPF exit area

Scanned originals are deposited here.

Document feeding area cover (page 29)

Open to remove misfed originals in this area.

Original guides (page 7)

Adjust to the size of the originals.

Document feeder tray (page 7)

Set the originals here for automatic feeding.

Operation panel (next page)

Use for operation of copier, network scanner, and facsimile features and for printer configuration operations.

Document cover

Document scanning windows

Sheet type originals are scanned here.

Document glass

All originals which cannot be copied from the document feeder tray must be copied here.

3


Operation Panel

4

Touch panel (next page)

The machine status, messages and touch keys are displayed on the panel. When the machine is in the standby state, the display will change if the [PRINT] key, [IMAGE SEND] key or [COPY] key is pressed to show the current status of these modes.

Mode select keys

Use to select the basic modes of the product.

[COPY] key

Press to select the copy mode and display the basic screen of the copy mode. (next page)

Even when the machine is busy in another mode, the basic copy mode screen will appear when the

[COPY] key is pressed. If this key is pressed and held while the basic screen of the copy mode is displayed, the total output count and the quantity of toner remaining (percentage) will be displayed.

Numeric keys

Use to select the number of copies and to make numerical entries for setting operations.

[C] key (clear key)

Press to clear a copy quantity entry. If this key is pressed while the automatic document feeder is being used, any originals in progress will be automatically output.

[CA] key (clear all key)

Press to clear all selected settings and return the machine to the initial settings for the currently selected mode. Before starting a copy operation, press the [CA] key first.

[ACC.#-C] key

If the auditing mode has been set, press this key to close an open account after finishing a copy, facsimile scanning or network scanning job. For setting of the auditing mode, see page 7 of the Key

Operator’s Guide.

[#/P] key (page 26)

Press to select the job memory mode.

[START] key (page 10)

When the indicator is lit, copying, facsimile scanning and network scanning jobs can be started. Press to start copying.


Touch Panel (basic screen of copy mode)

When the copy mode key is pressed, this display screen will appear showing the basic copy mode selections.

(For the display screens for other modes, see the respective operation manuals for those modes.)

READY TO SCAN FOR COPY.

SPECIAL MODES

2-SIDED COPY

OUTPUT

8

1

2

/ x

11

1.

2.

8

1

2

/ x

11

8

1

2

/ x

11

3.

4.

8

1

2

/ x

11 R

ORIGINAL

8

1

2

/ x

11

AUTO

EXPOSURE

AUTO

8

1

2

/

X

11

PAPER SELECT

100

%

COPY RATIO

Message display

Basic status messages are displayed here.

[INTERRUPT] key display area

When interrupt copy is available, the [INTERRUPT] key will be displayed here. When an interrupt copy job is being run, a [CANCEL] key will be displayed here to be used for canceling the interrupt copy job.

Copy quantity display

Displays the selected number of copies before the

[START] key is pressed or the number of completed copies after the [START] key is pressed. A single copy can be made when “0” displayed.

[2-SIDED COPY] key (page 9)

Touch to display the duplex copy mode setting screen. A highlighted selection on the screen will indicate the currently selected mode. The setting screen can be closed by touching the [OK] key on the setting screen whether or not a selection change was made.

[OUTPUT] key (page 10)

Touch to display the output mode setting screen. A highlighted selection on the screen will indicate the currently selected mode. The setting screen can be closed by touching the [OK] key on the setting screen whether or not a selection change was made.

[SPECIAL MODES] key

Touch to display the special modes selection screen.

The functions that can be selected by touching this key are described on page 19.

Paper size display

The display shows the location of the paper trays, the size of the paper in the trays and the approximate amount of paper loaded in each tray. The approximate amount of paper in a tray is indicated by .

For changing the paper size in a tray refer to page

1-16 of the “Printing Operation Manual”.

Original size display

The original paper size will be displayed when originals are placed on the document glass or in the document feeder.

Exposure display and [EXPOSURE] key (page 15)

A touch of the [EXPOSURE] key will open the exposure selection window. A highlighted key on the exposure window indicates which exposure mode

(AUTO, TEXT, TEXT/PHOTO or PHOTO) is currently selected. When an exposure mode other than AUTO is selected, an exposure level scale will also appear in the window.

Paper select display and [PAPER SELECT] key

(page 9)

Displays the selected paper size. When the auto paper select mode has been selected, “AUTO” will be displayed.

A touch of the [PAPER SELECT] key will open the paper selection window. When a selection is made, the selection window will close. To close the window without making a selection touch the key again

Copy ratio display and [COPY RATIO] key

(page 17)

Displays the selected copy ratio.

Touch to display the reduction and enlargement copy ratio selection screen.

5

AUTOMATIC DOCUMENT FEEDER

Originals set in the automatic document feeder will be automatically fed and copied sequentially.

The automatic document feeder will simultaneously scan both sides of originals when two-sided to one-sided or twosided to two-sided copying is being done.

Acceptable originals

A stack of up to 50 original sheets (30 original sheets* 1 for 8-1/2" x 14" (B4) or larger) of the same size paper can be set in the document feeder tray provided the stack height is within the limit shown below.

A stack of up to 30 mixed size originals can be set if the width of the originals is the same and the stack height is within the limit shown below. In this case, however, stapling and duplex will not function and some special functions may not give the expected result.

*1 For paper heavier than 28 lbs. (105 g/m 2 ), only a stack of up to 15 sheets can be set. Setting 16 or more sheets may cause incorrect scanning of original and scanned image may become expanded compared with original itself.

originals

Original size:

5-1/2" x 8-1/2" or A5

(148 x 210 mm)

Weight (thickness):

11" x 17" or A3

(297 x 420 mm)

14 lbs. or 50g/m 2 34 lbs. or g/m ... Weight of a sheet of paper of 1 m 2

128g/m 2

set in the document feeder tray

Total aggregate thickness must not exceed 1/4" or

6.5 mm (for 14 to 21 lbs. or 50 to 80 g/m 2 paper).

1/4" or 6.5 mm or less

Total aggregate thickness must not exceed 3/16" or

5.0 mm (for 21 to 34 lbs. or 80 to 128 g/m 2 paper).

3/16" or 5.0 mm or less

Notes on use of the automatic document feeder

●

●

●

●

●

Use originals within the specified size and weight ranges. Use of originals out of the specified range may cause an original misfeed.

Before loading originals into the document feeder tray, be sure to remove any staples or paper clips.

If originals have damp spots from correction fluid, ink or glue from pasteups, be sure they are dried before they are fed. If not, the interior of the document feeder or the document glass may be soiled.

To prevent incorrect original size detection, original misfeeds or smudges on copies, use the following as a guide for feeding originals.

Transparency film, tracing paper, carbon paper, thermal paper or originals printed with thermal transfer ink ribbon should not be fed through the document feeder. Originals to be fed through the feeder should not be damaged, crumpled or folded or have loosely pasted paper on them or cutouts in them. Originals with multiple punched holes other than two-hole or three-hole punched paper may not feed correctly.

When using originals with two or three holes, place them so that the punched edge is at a position other than the feed slot.

Hole positions

Hole positions

Hole positions

6

SETTING ORIGINALS

feeder

1

Ensure that there is no original on the document glass.

Open the document cover, place an original face down on the document glass, and then gently close the document cover.

2

Adjust the original guides to the size of the originals.

Original size detector

NOTE

Do not place any objects under the original size detector, because they may damage it or the original size may not be detected properly.

Original scale mark

Original scale mark

3

Place the originals face down in the document feeder tray.

Set the originals all the way into the feed slot. Do not exceed the maximum height line marked on the original guide.

5 1

/

2 x

8 or A5

1

/

2

8 11 or A4

8

1

/ x

14 or B4

11x17 or A3

8 11R or A4R

●

Set an original by aligning its corner with the tip of the scale ( ) mark at the left rear corner of the glass as shown in the illustrations.

7

SETTING ORIGINALS

Descriptions of functions that follow in this manual assume that originals are oriented as shown.

Document feeder tray Document glass

Top Top

Place originals in the document feeder tray or on the document glass so that the top of the original is positioned to the rear side of the machine. If not, staples will be incorrectly positioned and some special features may not give the expected result.

Bottom

Bottom

Top

Top

Bottom

Bottom

If the orientation of the originals and copy paper are different, the original image will be automatically rotated 90° and copied. (When an image is rotated, a message will be displayed.) When enlargement of originals larger than

8-1/2" x 11" or A4 is selected, rotation cannot be done.

[Example]

Orientation of original Orientation of paper Copy after rotation

Face down Face down

●

This function operates in the auto paper select or auto image mode. (Rotation copying can be disabled with a key operator program. See page 33.)

8

NORMAL COPYING

This section describes the normal copying procedure.

Copying from the automatic document feeder

Original Copy

1

Place the originals in the document feeder tray.

(page 7)

5

Touch the [OK] key.

0

OK

2

Ensure that the 1-sided to 1-sided copy mode is selected.

ORIGINAL 8

1

2

/ x

11

The one-sided to one-sided mode is selected when no

8

1

/

2 x

11

1.

2.

3.

8

8

1

/

2 x

1

2 x

11

11

11 17

4.

8

1

2

/ x

11 R icon for a two-sided mode appears in the dashed area on the display. If the 1-sided to 1-sided copy mode is already selected, steps 3 to

5 are not needed.

3

Touch the [2-SIDED COPY] key.

2-SIDED COPY

OUTPUT

4

Touch the [1-sided to 1-sided copy] key.

The [1-sided to 1-sided] key will be highlighted.

6

Ensure that paper of the same size as the

originals is automatically selected. (

✼Note)

The selected tray will be highlighted or the message

AUTO

8

1

2

X

11

PAPER SELECT

“LOAD xxxxxx PAPER.” will appear. If the message appears, load paper in a paper tray or the bypass tray

100 %

COPY RATIO

with paper of the required size. Even if the message above is displayed, copying can be performed onto the currently selected paper.

(

✼Note) The following requirements must be satisfied.

●

Originals of a standard size (11" x 17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2", A3, B4, A4, A4R or

A5) are set and the auto paper select function is enabled.

If originals of a size other

1.

2.

8

1

/

2

X

11

8

1

/

2

X

11

PLAIN

TRANSPA than the sizes above are to be copied, manually select the desired paper size.

3.

PLAIN

9

NORMAL COPYING

7

Select the desired output mode (see below).

2-SIDED COPY

OUTPUT

The sort mode is the default mode. To select the group mode, touch the [OUTPUT] key, then touch the

[GROUP] key on the output setting screen, and then touch the [OK] key on the setting screen.

8 Use the numeric keys to set the desired number of copies.

Up to 999 can be set.

Use the [C] (clear) key to cancel an entry if a mistake has been made.

9

Press the [START] key.

If the [C] key is pressed while originals are being scanned, scanning will stop.

If copying had already star ted, copying and scanning will stop after the original in progress is output to the original exit area. In these cases the copy quantity will be reset to “0”.

If scanning has been completed but copying is still in progress, copying will continue.

NOTE

The 1-sided to 1-sided copying mode is set as the default in the initial settings. This setting can be changed by a key operator program (initial status setting ).

Output modes (sort mode and group mode)

[Example] Five sets of copies from three originals

● Sort copy

When originals are placed in the document feeder tray, a sort icon will appear on the touch panel and the sort copy mode will be automatically selected. In this case, copies will be delivered as shown in the upper illustration to the left. For output in the group mode as shown in the lower left illustration, the group mode must be selected on the output setting screen.

Originals Five sets of copies

● Group copy

10

Originals Five copies of each original

NORMAL COPYING

Automatic two-sided copying from the automatic document feeder

A duplex module must be installed for automatic 1-sided to 2-sided or 2-sided to 2-sided copying. A duplex module is not needed for 2-sided to 1-sided copying.

Original

Copy

1. Automatic two-sided copying from one-sided originals

2. Automatic two-sided copying from two-sided originals

3. Automatic one-sided copying from two-sided originals

1

Place the originals in the document feeder tray.

(page 7)

2 Touch the [2-SIDED COPY] key.

2-SIDED COPY

OUTPUT

4


OK

BINDING

CHANGE

Follow step 6 on page 9 to step 9 on page 10.

3

Select the desired duplex copy mode.

BIN

CHA

The illustration to the left shows the screen displayed when a duplex module is installed.

The image to be copied onto the second side of 2-sided copies can be inverted so that the resultant 2-sided copies are in the correct orientation for binding at the top. For top binding, touch the [BINDING CHANGE] key on the 2-sided copy selection screen.

11

NORMAL COPYING

Copying from the document glass

When copying originals which cannot be fed from the automatic document feeder such as thick originals, open the document cover and copy the originals from the document glass

Original Copy

1

Set an original on the document glass. (page 7)

Original size detector

Original scale mark

5

1

/

2 x 8 or A5

/

2

8 1

/ x

11 or A4

8 14 or B4

11x17 or A3

Original scale mark

8 1

/ x

11R or A4R

●

Set an original by aligning its corner with the tip of the scale ( ) mark at the left rear corner of the glass as shown in the illustrations.

2

Ensure that the 1-sided to 1-sided copy mode is selected.

ORIGINAL 8

1

2

/ x

11

The one-sided to one-sided mode is selected when no

8

1

2

/ x

11

1.

2.

3.

4.

8

1

2 x

11

8

11 17

8

1

/

2 x

1

/

2 x

11

11 R icon for a two-sided mode appears in the dashed area on the display. If the 1-sided to 1-sided copy mode is already selected, steps 3 to

5 are not needed.

3

Ensure that paper of the same size as the

original is automatically selected. (

✼Note)

The selected tray will be

AUTO

8

1

2

/

X

11

PAPER SELECT

100 %

COPY RATIO

highlighted or the message

“LOAD xxxxxx PAPER.” will appear. If the message appears, load paper in a paper tray or the bypass tray with paper of the required size. Even if the message above is displayed, copying can be performed onto the currently selected paper.

(

✼Note) The following conditions must be satisfied.

●

Originals of a standard size (11" x 17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2", A3, B4, A4, A4R or

A5) are set and the auto paper select function is enabled.

If originals of a size other

1.

8

1

/

2

X

11

PLAIN than the sizes above are to be copied, manually select the desired paper size.

2.

8

1

/

2

X

11 TRANSPA

3.

PLAIN

12

NORMAL COPYING

4

Select the desired output mode (see below).

2-SIDED COPY

OUTPUT

When a document is detected on the document glass, the group mode will be automatically selected.

To select sort copy, touch the [OUTPUT] key, then touch the [SORT] key on the displayed screen, and then touch the [OK] key.

NOTE

If you touch the [SORT] or [GROUP] key, its corresponding icon will appear on the touch panel. To change the selection, touch the icon to return the display to the output setting screen.

5

Use the numeric keys to set the desired number of copies.

Up to 999 can be set.

Use the [C] (clear) key to cancel an entry if a mistake has been made.

6

Press the [START] key.

Replace the original with the next original and press the [START] key. Repeat this operation until all originals have been scanned.

If sort was selected in step

4, go to the next step.

7

Touch the [READ-END] key.

PLACE NEXT ORIGINAL. PRESS [START].

WHEN FINISHED

, PRESS [READ-END].

READ-END

Output mode (sort copy and group copy)

[Example] Five sets of copies from three originals

Sort copy

When originals are placed in the document feeder tray, a sort icon will appear on the touch panel and the sort copy mode will be automatically selected. In this case, copies will be delivered as shown in the upper illustration to the left. For output in the group mode as shown in the lower left illustration, the group mode must be selected on the output setting screen.

Originals Five sets of copies

Group copy

Originals Five copies of each original

13

NORMAL COPYING

Automatic two-sided copying from the document glass

A duplex module must be installed for automatic 1-sided to 2-sided or 2-sided to 2-sided copying. A duplex module is not needed for 2-sided to 1-sided copying.

Original Copy

1

Place an original on the document glass.

(page 7)

2

Touch the [2-SIDED COPY] key.

2-SIDED COPY

OUTPUT

3 Touch the [1-sided to 2-sided copy] key.

4


OK

BINDING

CHANGE

Follow step 3 on page 12 to step 7 on page 13.

The image to be copied onto the second side of 2-sided copies can be inverted so that the resultant 2-sided copies are in the correct orientation for binding at the top. For top binding, touch the [BINDING CHANGE] key on the 2-sided copy selection screen.

14

EXPOSURE ADJUSTMENTS

Select the exposure mode to be consistent with the type of originals to be copied. The selections are AUTO, TEXT,

TEXT/PHOTO and PHOTO.

AUTO

EXPOSURE

0

The automatic exposure mode is the default initial setting for this machine. In this mode, the characteristics of an original being copied are “read” by the exposure system, and exposure adjustments are made automatically. To select an exposure mode more suitable for originals to be copied or to adjust the exposure manually, follow the procedure below.

manual exposure adjustment

1

Touch the [EXPOSURE] key.

0

AUTO

EXPOSURE

AUTO

8

1

/

X

11

2

Select [TEXT], [TEXT/PHOTO] or [PHOTO] based on the original to be copied.

TEXT

TEXT

/



NOTE

Exposure mode selection

TEXT: This mode is useful for producing dark text copies with minimum background.

TEXT/PHOTO: This provides the best balance for copying an original which contains both text and photos. This mode is also useful for

PHOTO: copying printed photographs.

This mode provides the best copies of photographs with fine details.

3

Adjust the exposure level.

1

3

5

Touch the key to make darker copies. Touch the

key to make lighter copies.

NOTE

Exposure levels in the text mode

1 to 2: Dark originals such as newspaper

3: Normal density originals

4 to 5: Originals written with pencils or light color characters

After adjusting the exposure, follow any of the copying procedures.

To return to the automatic exposure mode, touch the

[EXPOSURE] key and select [AUTO]. The automatic exposure level can be adjusted using a key operator program. (page 33)

15

REDUCTION/ENLARGEMENT/ZOOM

Reduction and enlargement ratios can be selected either automatically or manually as described in this section.

●

●

Automatic selection will enlarge or reduce images based upon the original size and copy paper size to give the best possible fit of the image to the copy paper.

Manual selections can be made in the range of 25% to 400%. There are three preset reduction ratios (25%, 64% and 77%) and three preset enlargement ratios (121%, 129% and 400%) available for the inch system. There are four preset reduction ratios (25%, 70%, 81%, 86%) and four preset enlargement ratios (115%, 122%, 141%, 400%) available for the AB system.

Automatic selection (auto image)

The reduction or enlargement ratio will be selected automatically based on the original size and the selected paper size.

1 Place the original in the document feeder tray or on the document glass. (page 7)

The detected original size will be displayed.

Automatic selection can be used only for 11" x 17", 8-

1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2" size originals and copy paper in the inch system and

A3, B4, A4, A4R or A5 in the AB system.

2 Touch the [PAPER SELECT] key and then select the desired paper size.

1.

2.

3.

8

1

2

X

11

8

1

2

X

11

PLAIN

TRANSPA

PLAIN

When the desired paper size key is touched, the paper size will be highlighted and the paper size setting window will be closed.

If paper of the desired size is not loaded in any tray, load paper of the required size in a paper tray and enter the paper size.

4 Make all other desired settings such as exposure or the number of copies, and press the [START] key.

When copying from the document glass in the sort mode, touch the [READ-

END] key after all originals have been scanned. (step 7 on page 13)

To cancel the auto image mode, touch the [AUTO IMAGE] key again to clear the highlighted display.

3

Touch the [AUTO IMAGE] key.

AUTO

8

2

1

The [AUTO IMAGE] key will

PAPER SELEC be highlighted and the best

AUTO

IMAGE COPY RATIO reduction or enlargement ratio for the original size and the selected paper size will be selected and displayed in the copy ratio display.

NOTE

If the message “ROTATE ORIGINAL FROM TO ” is displayed, change the orientation of the original as indicated in the message. When the message above is displayed, copying can be done without changing the orientation, but the image will not fit the paper correctly.

16

REDUCTION/ENLARGEMENT/ZOOM

Manual selection

1 Place the original in the document feeder tray or on the document glass. (page 7)

NOTE

When the document feeder is being used, the available copy ratio range is 25% to 200%.

2

Touch the [COPY RATIO] key.

100 %

COPY RATIO

The preset copy ratio keys for reduction and enlargement, the keys for

[ZOOM] and the [100%] key will be displayed.

5 Make all other desired settings such as exposure or the number of copies and press the [START] key.



3

Select the desired copy ratio by touching a fixed copy ratio key for reduction or enlargement and touch the [OK] key. Use the and keys to make fine adjustments as needed.

If the message “IMAGE IS

25 %

11 17

8

1

2 x

11

11 17

8

1

2 x

14

8

1

2

5

1

2 x x

11

8

1

2

8

8

1

2

1

2 x

14 x

11

64 %

77 %

100

ZOOM

%

8

1

2 x

14

8

5

1

2

1

2 x x

11

8

1

2

400 %

121 %

8

1

2 x

11

129 %

OK

10

AUT

IMAG

LARGER THAN THE COPY

PAPER.” appears, image loss will occur. In this case either continue with image loss or change the copy paper size or copy ratio.

4 Ensure that the desired paper size has been automatically selected based on the selected copy ratio or select another size as needed.

P PER SELECT

If another size paper is selected, the auto paper

77

%

COPY RATIO

select display will be cleared.

17

SPECIAL PAPERS

If a bypass tray and a duplex module, a duplex module/bypass tray or a multi purpose drawer* 1 is installed, special papers can be fed. These include transparency film, postcards, labels, envelopes* 2 , and plain paper.

*1 The upper tray of a stand/3 x 500 sheet paper drawer or a stand/MPD & 2000 sheet paper drawer is equivalent to the multi purpose drawer.

*2 Envelopes can be set in the multi purpose drawer and in the upper tray of a stand/paper drawer.

1

Place the original in the document feeder tray or on the document glass. (page 7)

2

Load the special paper in the bypass tray or in the multi purpose drawer.

For the paper loading instructions see “Loading paper in the bypass tray” (page 5-3) of the “Printing Operation

Manual” or “Loading paper in the multi purpose drawer”

(page 1-21) of the “Printing Operation Manual”.

3

Touch the [PAPER SELECT] key and then select the bypass tray or the multi purpose drawer.

1.

8

1

/

2

X

11

2.

COLOR

8

1

/

2

X

11

3.

4

1.

2.

3.

When loading paper in the bypass tray, the desired paper type can be set by touching the [PAPER TYPE] key.

COLOR

4.

4

Make all other desired settings such as exposure or the number of copies, and press the [START] key.



18

SPECIAL MODE

When the [SPECIAL MODES] key on the basic screen of the copy mode is touched, the special modes screen containing six special function touch keys will appear. These functions are shown below.

SPECIAL MODES

MARGIN SHIFT

BOOKLET COPY

ERASE

JOB BUILD

DUAL PAGE

COPY

MULTI SHOT

OK

Margin shift: page 20

Erase: page 21

Dual page copy: page 22

Booklet copy: page 23

Job build: page 24

Multi shot: page 25

When using the multi shot function, set the original, select the desired paper, and select one-sided or two-sided copying before selecting the multi shot function on the special modes screen.

[OK] key on the special modes screen

Touch the [OK] key, to return to the basic screen of the copy mode.

Common operation procedure for using the special functions

1

Touch the [SPECIAL MODES] key.

SPECIAL MODES

2-SIDED COPY

2

Touch the key for the desired special mode.

MARGIN SHIFT

Example:

To set the margin shift function:

BOOKLET COPY

Setting procedures for modes requiring setting screens start on the next page. The dual page copy and job build functions do not require setting screens.

19

SPECIAL FUNCTIONS

Margin shift

The margin shift function will automatically shift the text or image on the copy paper approximately 1/2" (10 mm) in its initial setting.

One-sided copying

Original

Image shifted to the right

Image shifted to the left

●

The shift direction can be selected from right or left shift as shown in the illustration.

Two-sided copying

Original

Margin Margin

Image shifted to the right

Image shifted to the left or

Margin Margin

1 Touch the [MARGIN SHIFT] key on the SPECIAL

MODES screen.

The margin shift setting screen will appear.

MARGIN SHIFT

BOOKLET COPY

2 Select the shift direction.

RIGHT LEFT

Touch a shift direction key to select right or left. The selected key will be highlighted.

3

Set the shift amount as needed and touch the

[OK] key.

OK

Use the key and the keys to set the shift amount.

SIDE 1

3

/

8

CANCEL

(0 1) inch

1

/

2

OK

SIDE 2

(0 1) inch

The shift amount can be set from 0" to 1" in 1/8" increments ( 0 mm to 20 mm in 1 mm increments for the AB system). If a duplex module is not installed, the shift amount setting for the reverse side is not displayed.

4

Touch the [OK] key on the special modes screen.


To cancel the margin shift function, touch the [CANCEL] key on the margin shift setting screen.

20


Erase

The erase function is used to erase the shadow lines on copies produced when copying thick originals or books. The erase modes that can be selected are shown below. The erase width is approximately 1/2" (10 mm) in it’s initial setting.

Original

Copy

Edge erase

Eliminates shadow lines around the edges of copies caused when thick paper or a book is used as an original.

Center erase

Eliminates shadow lines produced by the bindings of bound documents.

Edge + center erase

Eliminates shadow lines around the edges of copies and eliminates the shadow at the center of copies.

1

Touch the [ERASE] key on the SPECIAL MODES screen.

The erase setting screen will appear.

ERASE

JOB BUILD

2

Select the desired erase mode.

ERASE

EDGE

ERASE

CENTER

ERASE

EDGE+CENTER

ERASE

Select one of the three erase modes. The selected key will be highlighted.

4



3

Adjust the amount of erase and touch the [OK] key.

CANCEL OK

Use the and keys to adjust the erase width and then touch the [OK] key.

EDGE

1 / 2

(0 1) inch

To cancel the erase function, touch the [CANCEL] key on the erase setting screen.

21


Dual page copy

The dual page copy function produces separate copies of two documents placed side by side on the document glass.

It is especially useful when copying books and other bound documents.

[Example] Copying right and left pages of a book

Book original Dual page copy

●

The dual page copy function can be used with reduction copying but cannot be used with enlargement copying.

●

The dual page copy function can be done only from the document glass. The automatic document feeder cannot be used with this function.

●

Only 8-1/2" x 11" or A4 paper can be used.

When copying book originals:

Index

8 11 or A4

This page is copied first.

Center line of

original

When copying a thick book, press down lightly on the document cover.

1

Touch the [DUAL PAGE COPY] key on the

SPECIAL MODES screen.

The [DUAL PAGE COPY] key will be highlighted.

DUAL PAGE

COPY

MULTI SHOT

2


OK

DUAL PAGE

COPY

3

Place the originals on the document glass.

4

Ensure that 8-1/2" x 11" or A4 size paper is selected.

AUTO 8

1

2

/ x

11

PAPER SELECT

If 8-1/2" x 11" or A4 size paper is not selected, touch the [PAPER SELECT] key to select 8-1/2" x 11" or A4 size paper.

100 %

COPY RATIO

After adjusting the exposure, follow any of the copying procedures. When copying onto two sides of paper, follow steps 2 to 4 on page 14 and then follow steps 4 to 7 on page 13.

When copying onto one side of paper, follow steps

4 to 7 on page 13.

To cancel the dual page copy function, touch the [DUAL

PAGE COPY] key on the special modes screen (step 1).

(The highlighted display will be canceled.)

NOTE

To erase shadows caused by document binding, use the edge erase function (page 21).

22


Booklet copy

The booklet copy function is used to arrange copies in proper order for eventual center-stapling and folding into a booklet. Two original pages are copied onto each side of copy paper. Four pages are, therefore, copied onto one sheet.

[Example] Copying eight originals in the booklet copy mode

Originals (one-sided)

1

2

3

4

5

6

7

8

Left binding

For left to right turning

Finished copies are folded in two.

Originals (two-sided)

2

4

6

8

1

3

5

7

Right binding

For right to left turning

First page

First page

●

●

●

Scan the originals from the first page to the last page.

The order of copying will be automatically adjusted by the machine.

Either left binding (right to left turning) or right binding

●

(left to right turning) can be selected.

Four originals will be copied onto one sheet. Blank pages may be automatically produced at the end depending on the number of the originals.

●

When using this function, a duplex module must be installed.

If a saddle stitch finisher is installed, copies can be stapled in two positions along the center of copies and folded at the center.

1

Touch the [BOOKLET COPY] key on the

SPECIAL MODES screen.

The booklet copy setting screen will appear.

BOOKLET COPY

2

Designate the type of originals to be copied: 1sided or 2-sided.

ORIGINAL

1-SIDED 2-SIDED

3

Select the binding position (left binding or right binding) and touch the [OK] key.

CANCEL

LEFT

BINDING

OK

RIGHT

BINDING

6

Ensure that the desired paper size has been automatically selected based on the original size.

To select another size paper,

AUTO

11

X

17

PAPER SELECT

select the desired size and touch the [AUTO IMAGE] key.

The appropriate copy ratio will be selected automatically based on the original size and

100

%

COPY RATIO

the paper size. (See steps 2 and 3 on page 16.)

7

Make all other desired settings such as exposure or the number of copies, and press the [START] key.

8

[When using the automatic document feeder:]

Copying will start after all originals have been scanned.

(The next step is not needed.)

[When using the document glass:]

Replace the original with the next original and press the

[START] key. Repeat this operation until all originals have been scanned.

9

Touch the [READ-END] key. (only if the document glass is used)


WHEN FINISHED

, PRESS [READ-END].

READ-END

4


5

Copy from the first page to the last page from either the document feeder or the document glass.

When the booklet copy function is set, the twosided copying mode will be automatically selected and cannot be changed.

To cancel the booklet copy function, touch the [CANCEL] key on the booklet copy setting screen.

23


Job build

The number of originals that can be copied into a set of copies in a single run is limited by the capacity of the memory available* 1 for scanned originals. Normally the number of originals is further limited by the number of originals that can be set into the document feeder tray* 2 .

The job build function allows scanning and copying of up to 100 originals. For scanning more than 50 originals, the originals must be separated into sections not exceeding 50 originals, scanned in sections and stored in memory. After all sections are in memory, they can be copied as a continuous set .

*1 The number of originals that can be copied into a set of copies in a single run is limited by the capacity of the memory available for scanned originals.

*2 Up to 50 sheets (30 sheets for 8-1/2" x 14" or larger) can be set into the document feeder tray at one time.

[Example] Copying 100 pages of 8-1/2" x 11" or A4 originals

Originals

Page 1 Page 51

50 sheets 50 sheets

✽

Divide the originals in sections of 50 sheets and scan the originals starting from the first page of section A and then scan section B. Be sure to keep the correct page order when setting section B.

1

Touch the [JOB BUILD] key on the SPECIAL

MODES screen.

The [JOB BUILD] key will be highlighted.

JOB BUILD

2

Touch the [OK] key on the special modes screen while JOB BUILD is highlighted.

ERASE

JOB BUILD

DUAL PAGE

COPY

MULTI SHOT

OK

3

Place the first section originals in the document feeder tray. (page 7)

4

Make all other desired settings such as the number of copies, and press the [START] key.

Scanning of originals will start. After scanning of the first section of originals (“A in the example above) is completed, remove the scanned originals, place the next section of originals

(section B in the example) and press the [START] key.

Repeat this operation until all blocks of originals have been scanned.

5

Touch the [READ-END] key after the last section of originals has been scanned.


WHEN FINISHED

, PRESS [READ-END].

READ-END

To cancel the job build function, touch the [JOB BUILD] key on the special modes screen as in step 1. The highlighted display will be canceled.

24


Multi shot

The multi shot function is used to copy up to four originals, collectively in a specified order, per sheet of copy paper in any one of four layout patterns.

[Example] Copying seven originals using the 4 in 1 MULTI SHOT selection in a layout pattern starting from the upper left to lower right.

One-sided copies from one-sided originals

One-sided copies from two-sided originals

Copies

●

When using the multi shot function, place the originals, select the desired paper size, and select the copying mode (page 9) before selecting the multi shot function on the special modes screen.

●

When using the multi shot function, the appropriate copy ratio will be automatically set based on the original size, paper size, and the number of originals to be copied onto one sheet. The minimum reduction ratio is 25%. Depending on the original size, paper size, and the number of originals to be copied onto one sheet, the appropriate copy ratio may be smaller than 25%. In this case, portions of original images may not be copied.

1

Touch the [MULTI SHOT] key on the SPECIAL

MODES screen.

The multi shot setting screen will appear.

MULTI SHOT

2

Select the number of originals to be copied onto one sheet of copy paper on the multi shot selection screen.

The orientation of copy

2in1 4in1

paper and the image of the originals may be rotated as needed.

4

[When using the automatic document feeder:]

Copying will start after all originals have been scanned.

(The next step is not needed.)

[When using the document glass:]

Replace the original with the next original and press the

[START] key. Repeat this operation until all originals have been scanned.

5

If scanning is being done from the document glass, touch the [READ-END] key after the last original has been scanned to start copying.


WHEN FINISHED

, PRESS [READ-END].

READ-END

3

Select the layout.

LAYOUT

Select the order in which the originals will be arranged on the copy.

To cancel the multi shot function, touch the [CANCEL] key on the multi shot setting screen.

25

JOB PROGRAM MEMORY

Frequently used job programs can be stored in each of ten storage registers. This is convenient for quick job recall without losing time manually reprogramming each aspect of a job.

●

Selection for functions stored as part of a job program, will not be recalled as part of the program if the function has been disabled or changed by a key operator program.

●

To exit the job memory mode, press the [CA] (clear all) key on the operation panel or touch the [EXIT] key on the touch panel.

Storing a job program

1

Press the [#/P] key on the operation panel to display the [STORE/DELETE] selection screen.

2

Touch the [STORE/DELETE] key to obtain the storage register screen.

M NUMBER.

2

7

RECALL

3

8

4

9

STORE

/

DELETE

1

5

3 Touch a number key from 1 to 10 on the storage register screen.

Highlighted storage register

PROGRAMS

ESS PROGRAM NUMBER.

numbers are registers which already have

1 2 3 4

6

RECALL

7 8 9

STORE

/ programs stored. If a highlighted number is selected, a screen will appear with selections for deleting the selected program, storing (replacing the selected program with a new one) or canceling to go back to the STORE/

DELETE screen to select a different storage register.

4

Make all copier selections to be stored.

TO STORE, MAKE SELECTIONS AND PRESS [OK],

TO DELETE, PRESS [CANCEL].

The number of copies cannot be stored.

SPECIAL MODES

2-SIDED COPY

OUTPUT

8

1 X

11

1.

8

1 X

11

2.

3.

4.

8 1

2

X x

11

11 17

8 1

2

X

11R

X

11

5


D PRESS [OK].

CANCEL OK

1.

2.

3.

8

8

4.

8

1

1

1

X

X

11

11

X

11R

AUTO

EXPOSURE

AUTO

8

1

2

X

11

PAPER SELECT

100%

COPY RATIO

The selected settings will be stored under the register number selected in step 3.

26

JOB PROGRAM MEMORY

Recalling a job program

1

Press the [#/P] key.

2

Touch the desired storage register number key to recall the job from memory.

JOB PROGRAMS

PRESS PROGRAM NUMBER.

1

6

2

7

RECALL

3

8

When a number key is touched, the selection screen will be closed and the stored job program will be recalled. A number for which no job program has been stored cannot be selected.

3

Set the number of copies as needed and press the [START] key.

Copying will start with the settings of the recalled job program.

Deleting a stored job program

1

Follow steps 1 and 2 in “Storing a job program” on the previous page.

2 Select a storage register number of the program to be deleted.

3

8

4

9

STORE / DELETE

5

10

EXIT

If a number key for which no job program has been stored is selected, the screen will change to the screen of step 4 on the previous page (for storing a program). The message “TO

STORE, SELECT AND

PRESS [OK]. TO DELETE,

PRESS [CANCEL].” will appear. When [CANCEL] is pressed, the screen will retur n to the selection screen shown to the left.

3

Touch the [DELETE] key.

A JOB PROGRAM HAS BEEN ALREADY STORED.

STORE ANOTHER PROGRAM?

CANCEL

REC LL

DELETE STORE

STORE/DELETE

When the [DELETE] key is touched, the screen in step

2 will retur n and the program will be deleted. If the [CANCEL] key is touched, the screen in step

2 will return but the program will not be deleted. If no other programs are to be deleted, touch the [EXIT] key on the screen displayed in step 2 to exit the job program mode.

27

INTERRUPTING A PRINT OR COPY RUN

INTERRUPT can be used to temporarily stop a long print or copy job so that another copy job can be run. Only copy jobs can be run during interrupt.

1

Place the original in the document feeder tray or on the document glass. (page 7)

2

Touch the [INTERRUPT] key.

INTERRUPT

ORIGINAL

8

1

2

/

X

11

AUTO

EXPOSURE

0

When it is possible to interrupt a print or copy job in progress, the [INTERRUPT] key will appear as shown in the illustration.

AUTO

8

1

2

X

11

PAPER SELECT

100 %

CANCEL

ORIGINAL

8

1

2

X

11

AUTO

EXPOSURE

TO

8

1

2

X

11

PER SELECT

100 %

0

When the [INTERRUPT] key is touched in step 2, the

[INTERRUPT] touch key will be replaced by the

[CANCEL] key as shown in the illustration. To cancel interrupt copying at any time, touch the [CANCEL] key.

3

Make all other desired settings such as exposure, paper size and number of copies and then press the [START] key.

When using the document glass, replace the original with the next original and press the [START] key.

Repeat this operation until all originals have been scanned. Then, touch the

[READ-END] key.


WHEN FINISHED

, PRESS [READ-END].

READ-END

■ When step 3 is completed, a copy job icon will appear at the top of the job icon queue at the left side of the screen and interrupt copying will start. After the interrupt job is completed, the interrupted job will automatically resume.

28

MISFEED REMOVAL

Misfeed in scanner module

When an original has misfed in the scanner module, remove the misfed original following the procedure below.

NOTES

●

●

For misfeed removal in the main unit and other peripheral devices, see the “Printing Operation Manual”.

If you press the [INFORMATION] key, detailed information for misfeed removal will be displayed on the touch panel.

1

Open the document feeding area cover and remove any misfed originals.

Document feeding area cover

■ A message may appear indicating the number of originals which must be returned to the document feeder tray. Return the originals to the document feeder tray and press the [START] key.

2

Close the document feeding area cover.

Close the cover securely so that cover clicks into place.

3

Open the document cover and turn the green rotating knob in the direction of the arrow to remove any misfed originals.

4

Close the document cover.

29

TROUBLESHOOTING

Whenever the machine stops or operation is not possible, check the operation panel display for messages. In most cases, these messages will give sufficient information to return the machine to an operating condition. In cases where this information is not enough, check the list below for more information. This section describes problems concerning copier features. For troubleshooting specific problems related to printer, facsimile, or network scanner features, see the separate manuals provided for them. For problems related to other peripheral devices, see chapter 5 of the

“Printing Operation Manual”.

Problem

Machine does not operate.

Check

●

Is the START key indicator off?

Copies are too dark or too light.

●

Is the original image too dark or too light?

●

Is the exposure mode set to AUTO?

Smudges appear on copies.

Image cannot be rotated.

●

●

Is the exposure mode set to PHOTO?

Document glass or document transport area dirty?

●

Black stripes on copies when the document feeder is used?

●

●

Original smudged or blotchy?

Is the auto paper select or auto image function set?

Par t of original image is not copied.

●

●

Is the original positioned correctly?

Is the copy ratio proper for the original and paper sizes?

Blank copies

●

Is the original placed face down?

Order of copies incorrect

●

Is the order of originals correct?

Job cancelation needed

Scanning of originals is incomplete.

●

Is a message requesting cancelation of job displayed?

●

Is a message indicating memory is full displayed?

Solution or cause

If the indicator is not on, the machine may be warming up. Warm-up should be completed in approximately 80 seconds.

Adjust the exposure in the manual mode. (See page

15.)

The exposure level in the AUTO mode can be adjusted using a key operator program. Contact your key operator. (See page 33.)

Cancel the PHOTO exposure mode. (See page 15.)

Clean regularly. (See page 4-12 of the “Printing

Operation Manual”.)

Clean the original scanning window. (See page

4-12 of the “Printing Operation Manual”.)

Use a clean original.

Rotation copy functions only if the machine is either in the auto paper select mode or in the auto image mode. (See pages 8 and 16.)

Set the original properly. (page 7)

Use the auto image function to select the appropriate copy ratio based on the original and copy sizes. (See page 16.)

Place the original face down in the document feeder tray or on the document glass. (See page 7.)

When using the document glass, set the originals from the first page one sheet at a time.

When using the automatic document feeder, set the originals with the first page down.

Press the [CA] (clear all) key to cancel the current job.

If the data amount exceeds the limit when using the booklet copy or multi shot copy which requires scanning of all originals, scanning will be canceled and copying will not be performed. If you install a hard disk drive, the storage capacity will increase.

30

SPECIFICATIONS

Copier

Resolution

Gradation

Originals

Copy sizes

Warm-up time

First-copy time*

Copy ratio

Continuous copy

Scan: 600 dpi or 300 dpi, output: 600 dpi

Scan: 256 levels, output: 2 levels

Sheets, bound documents

Maximum size: 11" x 17" or A3

Max. 11" x 17" or A3, min. 5-1/2" x 8-1/2" or A5

Image loss: Max 21/64" or 8 mm (leading edge and trailing edge in total), max. 21/

64" or 8 mm (along all other edges in total)

Approx. 80 seconds

35 copy/min. type: 5.3 seconds

45 copy/min. type: 4.6 seconds

* Paper is fed from paper tray 1, quick scan from document glass (page 33) is set, the original scanning resolution on the document glass is set to 600 x 300 dpi and no optional hard disk drive is installed.

Variable: 25 to 400% in 1% increments, total 376 steps

Fixed presets: 25%, 64%, 77%, 100%, 121%, 129%, and 400% for inch system,

25%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, and 400% for AB system

999 copies; subtractive counter

Copying speed 35 copy/min. type

11" x 17" or A3

8-1/2" x 14" or B4

17 copies/min.

20 copies/min.

8-1/2" x 11" or A4 35 copies/min.

8-1/2" x 11"R or A4R 25 copies/min.

Copying speed

11" x 17" or A3

8-1/2" x 14" or B4

8-1/2" x 11" or A4

45 copy/min. type

20 copies/min.

22 copies/min.

45 copies/min.

8-1/2" x 11"R or A4R 30 copies/min

Scanner module

Name

Type

Original weight

Capacity

B/W scanner module/DSPF

Two-side simultaneous scanning system from the document feeder.

One-sided scanning from the document glass

Original feed system

Original exit system

Automatic continuous feeding

Face down output

Original transport system DSPF: sheet through type (reference position: center), document glass: reference position is left rear

Original setting direction

Original sizes

Face down

5-1/2" x 8-1/2" to 11" x 17" or A5 to A3

14 to 34 lbs. or 50 to 128 g/m

2

Up to 50 sheets (30 sheets*

1

for 8-1/2" x 14" or B4 or larger originals) provided the total aggregate thickness does not exceed 1/4" or 6.5 mm (14 to 20 lbs. or 50 to 80 g/m

2

) or 3/16" or 5 mm (21 to 34 lbs. or 80 to 128 g/m

2

)

Power supply

Dimensions

Weight

Drawn from the main unit

31-13/16" (W) x 24-3/8" (D) x 7-3/32" (H) or

808 mm (W) x 619 mm (D) x 180 mm (H)

Approx. 43 lbs. or 19.5 kg

*1 For paper heavier than 28 lbs. (105 g/m 2 ), only a stack of up to 15 sheets can be set. If 16 or more sheets are set, image can not be scanned properly and scanned image can be expanded compared with original itself.

31

KEY OPERATOR PROGRAMS

This section describes all key operator programs relating only to the copier and facsimile functions. For the key operator programs which relate to copier, printer and facsimile functions, see the “Printing Operation Manual” and

“Facsimile Operation Manual”.

Key operator program list

Program name

Copy function settings

Initial status settings

Exposure adjustment

Rotation copy setting

Auto paper selection setting

600dpi x 600dpi scanning mode

Quick scan from document glass

Device control

Original size detector setting

Disabling of document feeder

Page

33

33

33

33

33

33

34

34

Using the key operator programs

To use of the key operator programs, follow the procedures described in the “Printing Operation Manual” on page 7-

6. Also read “Supplementary explanation of key operation for key operator programs”.

32


Setting programs

This section describes the setting of programs common to copier, facsimile and network scanning features. For programs dedicated to facsimile, network scanning and programs common to both the copier and printer features, see their respective manuals.

Copy function settings

The following programs can be set in “Copy function settings”.

●

●

●

●

●

●

Initial status settings

Exposure adjustment

Rotation copy setting

Auto paper selection setting

600dpi x 600dpi scanning mode

Quick scan from document glass

Initial status settings

The copier settings will be reset when the main switch is turned off, when the [CA] key is pressed or when the auto clear interval has elapsed. Use this program to establish new initial settings or to return the initial settings to the factory default settings.

Paper tray, exposure mode, copy ratio, duplex mode, and output mode default settings can be made.

NOTE

If a duplex mode other than 1-sided to 1-sided is set as the default and either the duplex or scanner mode is disabled*, the default will change to the 1-sided to 1-sided mode.

* Disable duplex unit (page 7-10 of the “Printing Operation

Manual”)

* Disabling of document feeder (page 34)

Auto paper selection setting

Use this program to set the paper type* for the auto paper select mode to “Plain paper” or “Plain paper and recycle paper”.

* Paper type specified in Tray setting of the custom setting function (page 1-20 of “Printing Operation

Manual”)

600dpi x 600dpi scanning mode

Use this program to change the original scanning resolution of the automatic document feeder from

600 x 300 dpi to 600 x 600 dpi.

If this mode is set, the copy quality for fine characters and fine lines will be improved but the original scanning speed will be slower.

NOTE

If the original scanning speed is more important than higher resolution, do not set this program.

Exposure adjustment

Use this program to lighten or darken copies in the automatic exposure mode. The factory setting is “5”.

“1” indicates lighter density and “9” indicates darker density on the touch panel.

Rotation copy setting

If this program is set, the image of originals will rotate when the orientation of the originals does not match that of the copy paper.

(Rotation copy will function only if the auto paper select or auto image mode has been selected.)

NOTE

For copying from 5-1/2 x 8-1/2 or A5 size originals onto 5-

1/2 x 8-1/2R or A5R paper, this program must be set.

Quick scan from document glass

Use this program to change the original scanning resolution on the document glass from 600 x 600dpi to 600 x 300 dpi.

If you set this program, the first copy time will be shorter but the copy image will become a little more coarse.

NOTE

If the copy image quality is more important than first copy time, do not set this program.

33


Device control

Original size detection and disabling of the document feeder can be set.

Original size detector setting

This program is used to select the group of original sizes to be detected. Original size detection from the document glass can be disabled using the program CANCEL DETECTION AT DOCUMENT

GLASS.

1

2

3

4

Group

INCH - 1

INCH - 2

AB - 1

AB - 2

Detectable original sizes

Document feeder tray (for automatic document feeding)

Document glass

11 x 17, 8-1/2 x 14,

8-1/2 x 11, 8-1/2 x 11R, A4

5-1/2 x 8-1/2

11 x 17, 8-1/2 x 13,

8-1/2 x 11,8-1/2 x 11R,

5-1/2 x 8-1/2

A4

A3, A4, A4R, A5,

B4, B5, B5R

A3, A4, A4R, A5,

B5, B5R, 216 x 330

8-1/2 x 11,

216 x 330

8-1/2 x 11,

B4

If CANCEL DETECTION AT DOCUMENT GLASS is set, originals will be regarded as EXTRA for all copier functions and no original size will be displayed.

Disabling of document feeder

This program is used to prevent use of the automatic document feeder when the scanner module malfunctions. In this case scanning can still be done off the document glass.

34

MEMO

MEMO

im3510/im4510

www.imagistics.com

Imagistics International Inc.

www.imagistics.com

2002G KS1

TINSE2315FCZZ

Copying Operation Manual

No results
