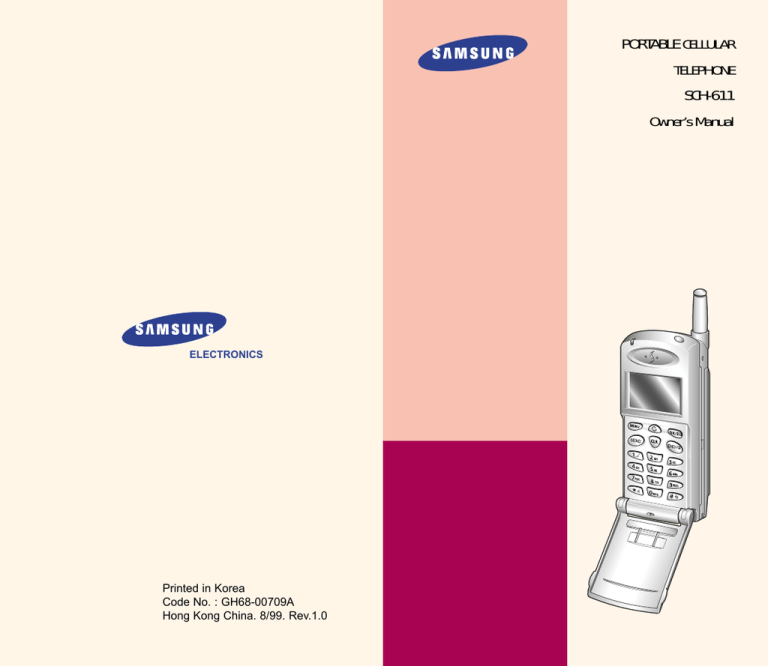

PORTABLE CELLULAR
TELEPHONE
SCH-611
Owner’s Manual
ELECTRONICS
Printed in Korea
Code No. : GH68-00709A
Hong Kong China. 8/99. Rev.1.0
Table of Contents
GETTING STARTED
Unpacking .............................................................................................. 7
Phone Layout ......................................................................................... 8
Key Functions ...................................................................................... 9
Display ................................................................................................. 10
Icons ................................................................................................. 10
Installing Battery ................................................................................... 11
To Install the Battery ......................................................................... 11
To Remove the Battery ...................................................................... 12
Charging a Battery ................................................................................ 13
Low Battery Indicator ........................................................................ 14
Switching the Phone On/Off .................................................................. 15
GENERAL FUNCTIONS
Making a Call ........................................................................................ 16
Correcting the Number ...................................................................... 16
Ending a Call ..................................................................................... 16
Emergency Dialing ............................................................................ 17
Prepend Dialing ................................................................................ 17
Making a Call from the Phone Book .................................................. 18
Voice Dialing ..................................................................................... 19
Last Number Redial ............................................................................... 20
Answering a Call .................................................................................... 21
Viewing Missed Calls .............................................................................. 22
In-Call Options ....................................................................................... 23
Call Waiting ...................................................................................... 23
Three-Way Calling .............................................................................. 23
Call Forwarding.................................................................................. 24
Adjusting the Volume .............................................................................. 24
Quick Switching to Vibration Mode ......................................................... 25
Recording Voice Memo ........................................................................... 25
USING THE MENUS
Using the Scroll Keys ............................................................................. 26
Using the Index System ......................................................................... 27
Menu Map ............................................................................................. 28
Contents
1
CALLS
VOICE MEMO
Outgoing (MENU 1-1) .....................................................................
Incoming (MENU 1-2) .....................................................................
Erase Logs (MENU 1-3) ...................................................................
Air Time (MENU 1-4) ......................................................................
30
31
32
32
Review (MENU 5-1) ........................................................................ 40
Record (MENU 5-2) ......................................................................... 41
Erase All (MENU 5-3) ...................................................................... 41
VOICE DIAL
PHONE BOOK
Find Name (MENU 2-1) ................................................................... 33
My Phone Number (MENU 2-2) ....................................................... 34
Add Entry (MENU 2-3) .................................................................... 34
Storing Phone Numbers at Call End ..................................................... 34
Entering a Name ................................................................................ 35
Find Entry (MENU 2-4) .................................................................... 35
SOUNDS
Ring (MENU 3-1) ............................................................................ 36
Ring Volume ...................................................................................... 36
Ring Type ........................................................................................... 36
Ring Tone ........................................................................................... 37
Key Volume (MENU 3-2) ................................................................. 37
Alert (MENU 3-3) ............................................................................ 37
Minute Beep ..................................................................................... 37
Service Area ..................................................................................... 37
Alarm (MENU 3-4) .......................................................................... 37
Differential Ring (MENU 3-5) .......................................................... 38
DISPLAY
Backlight (MENU 4-1) .....................................................................
Greeting (MENU 4-2) ......................................................................
Language (MENU 4-3) ....................................................................
Contrast (MENU 4-4) .......................................................................
2
Contents
39
39
39
39
Record (MENU 6-1) ......................................................................... 42
Tips on Recording Name ..................................................................... 42
Review/Erase (MENU 6-2) .............................................................. 43
Erase All (MENU 6-3) ...................................................................... 44
Set Active (MENU 6-4) .................................................................... 44
SETUP
Auto Retry (MENU 7-1) ...................................................................
Auto Receive (MENU 7-2) ................................................................
Auto Hyphen (MENU 7-3) ...............................................................
Any Key Answer (MENU 7-4) ...........................................................
Tone Length (MENU 7-5) .................................................................
Tone (MENU 7-6) ............................................................................
Set Time (MENU 7-7) ......................................................................
Vocoder (MENU 7-8) .......................................................................
45
45
45
45
46
46
46
46
XGX MENU .............................................................................47
SECURITY
Lock (MENU 0-1) ............................................................................
Restrict (MENU 0-2) ........................................................................
Lock Code (MENU 0-3) ....................................................................
Emergency Number (MENU 0-4) .....................................................
Send PIN (MENU 0-5) .....................................................................
Clear Memory (MENU 0-6) ..............................................................
NAM Mode (MENU 0-7) ...................................................................
Block Own Number (MENU 0-8) ......................................................
System Selection (MENU 0-9) ..........................................................
Reset Phone (MENU 0-0) .................................................................
Contents
47
48
48
48
49
49
50
50
51
51
3
Safety Precautions and Important Notices
MESSAGES
Voicemail (
1-1) ........................................................................... 52
Page (
1-2) .................................................................................. 53
Text (
1-3) ................................................................................... 54
Alert (
1-4) ................................................................................... 54
Erase All (
1-5) .............................................................................. 54
Read these simple guidelines. Failure to comply with these
guidelines may be dangerous or illegal.
For more detailed safety information, see Safety Information
on page 58.
ROAD SAFETY COMES FIRST
ACCESSORIES
Batteries ............................................................................................... 55
Dual-Slot Desktop Charger ..................................................................... 55
Cigarette Lighter Adapter ....................................................................... 55
Ear-Microphone ..................................................................................... 55
USING THE BATTERIES
Precautions When Using Batteries .......................................................... 56
SAFETY INFORMATION
Road Safety .......................................................................................... 58
Operating Environment .......................................................................... 58
Care and Maintenance ........................................................................... 60
Emergency Calls .................................................................................... 61
Do not use a hand-held phone while driving; park the vehicle
first.
SWITCH OFF IN AIRCRAFT
Mobile phones can cause interference. Using them on aircraft
is illegal.
SWITCH OFF NEAR BLASTING
Do not use the phone where a blasting operation is in
progress. Observe restrictions, and follow any regulations or
rules in force.
SWITCH OFF WHEN REFUELLING
GLOSSARY OF TERMS ........................................................................ 62
Do not use the phone at a refuelling point or near fuels or
chemicals.
QUICK REFERENCE CARD .................................................................. 65
INTERFERENCE
All mobile phone may be subject to radio interference, which
may affect their performance.
4
Contents
Safety Precautions
5
Getting Started
QUALIFIED SERVICE
Only qualified service personnel must install or repair cellular
equipment. Use only approved accessories and batteries.
USE SENSIBLY
Use only in the normal position (to ear).
Avoid unnecessary contact with the antenna when the phone
is switched on.
IMPORTANT! Use only accessories approved by the phone
manufacturer. This apparatus is intended for use when
supplied with power from SAMSUNG approved Travel adapter
and Desktop charger. The use of any other types will
invalidate any approval or warranty applying to the phone,
and may be dangerous.
Unpacking
Your package contains the following items.
Handset
Travel Charger
Battery
Hand Strap
When you disconnect the power cord of any accessory, grasp
and pull the plug, not the cord.
User’s Manual
In addition, you can obtain the
accessories for your phone
from your local SAMSUNG
dealer. For information on the
accessories, see page 55.
6
Safety Precautions
Getting Started
7
Phone Layout
The following illustrations shows the main elements of your
phone.
Key Functions
Enters the menu facility. Also, scrolls through the menu
options.
MENU
In the menu facility, scrolls through the menu options.
In the idle mode, displays Phone Book names.
Lamp
Antenna
In the idle mode, enters message menu.
In the menu facility, selects a menu function or stores
information that you have entered (such as a name in
the phone memory).
OK/
Strap hole
Earpiece
Earphone jack
Memo key
Display
Makes or answers call.
In the idle mode, enters Outgoing call log.
SEND
Volume keys
Deletes characters from the display. In the menu
facility, returns to the previous menu level.
CLR
See the opposite
page
OK/
MENU
CLR
END/
2 ABC
3 DEF
5 JKL
6 MNO
8 TUV
9 WXYZ
SEND
1.
´
4 GHI
7 PQRS
Voice Dial key
Microphone
Flip Cover
0
OPER
Alphanumeric
keys
Vibration mode
key
Ends a call. Also switches the phone on and off when
pressed and held. In the menu facility, returns to the
idle mode and cancels your input.
END/
OPER
~
WXYZ
Enters numbers, letters and some special characters.
In the idle mode , enters Voice Dial mode when pressed
and held. In name input mode, moves cursor to left.
In the idle mode, quickly changes to Vibration mode
when pressed and held. In name input mode, moves
cursor to right.
(On the side of the phone)
Enters Voice Memo menu. Holding down the key starts
recording voice memo.
Adjusts voice volume during conversation and key beep
volume in the idle mode. In the menu facility, scrolls
through the menu options.
8
Getting Started
Getting Started
9
Display
Installing Battery
The display comprises two areas: an upper line of static icons,
and the lower text and graphic area. The following icons
display at power-on:
To Install the Battery
Icons
Text and
graphic area
1. Hold the battery so that the metal contacts on the bottom
of the battery line up with the metal contacts on the back
of the phone.
2. Place the battery on the back of the phone with the top pf
the battery about a quarter of an inch from the latch.
Icons
Shows the received signal strength. The greater the
number of bars, the better the signal strength.
Indicates that the phone is outside a service area
and cannot send or receive calls.
Appears when you are out of your home area and
have registered with a different network (when
travelling in other countries, for example).
3. Gently slide the battery toward the top of the phone until
snaps into place.
Appears when a new message has been received.
Indicates a Digital mode.
Indicates a Vibrate mode.
Shows the level of your battery. The more bars you
see, the more power you have left.
10
Getting Started
Getting Started
11
Charging a Battery
To Remove the Battery
If you want to remove the battery, do as follows:
1. If necessary, switch off the phone by holding down the
END/
key until power-off message is displayed.
2. Push and hold down the catch above the battery on the
back of the phone, and slide the battery down the phone.
Then lift the battery away.
Your phone is powered by a rechargeable Li-ion battery.
A travel adapter is provided with your phone. Use only
approved batteries and chargers. Ask you local SAMSUNG
dealer for further details.
The phone can be used while the battery is charging.
Note: You must fully charge the battery before using your
phone for the first time. A discharged battery is fully
recharged in approximately 180 minutes.
1. Check the lead from the travel adapter to the bottom of the
phone. Check that the arrow on the lead connector is facing
towards the front of the phone.
2. Connect the adapter to a standard AC wall outlet.
12
Getting Started
Getting Started
13
Switching the Phone On/Off
3. When charging is finished, disconnect the adapter from the
power outlet.
Disconnect the adapter from the phone by pressing the grey
tabs on either side of the connector and pulling the
connector out.
Low Battery Indicator
When the battery is weak and only a few minutes of talk time
remain, a clear battery icon (no bars displayed) flashes in the
upper right corner of the screen. You will hear a warning tone.
1. Open the flip cover.
2. Hold down END/ key for more than one second to switch
the phone on.
The red light flashes, an alert sounds:
• When the system locates services, the greeting message
displays along with the date and time. You can now
place and receive calls.
• If the system cannot locate service, the greeting
message displays without the date and time. In this
case, you cannot place and receive calls. Power off the
phone, then try again later when service is available.
• If your phone is locked, ‘-Locked-’ displays. Press
MENU
key, and enter the four-digit lock code to unlock
the phone.
3. When you wish to switch the phone off, hold down the
END/
key for more than two seconds.
When the battery becomes too weak for the phone to operate,
it switches off automatically.
14
Getting Started
Getting Started
15
General Functions
Making a Call
When the idle screen is displayed, key in the area code and
phone number and press SEND key.
Note: If you have set Auto Retry option (7-1) to On (see page
45) and the call does not connect, the phone automatically retries to make the call.
Emergency Dialing
You can place calls to 100 or one of the three emergency
numbers that are in your emergency number list even if your
phone is locked. For further information on emergency number
list, refer to page 48.
Prepend Dialing
Correcting the Number
The Prepend option enables you to add up to three digits,
such as area codes and network feature activation codes, to a
phone number of up to 10 digits. You can prepend an existing
entry in the Phone Book or Call Logs before dialing.
To clear...
Then
The last digit displayed
Press the
The whole display
Hold down the CLR key for
more than one second.
CLR
key.
To prepend existing phone numbers in the Phone Book or Call
Logs:
1. Access the phone number entry.
Ending a Call
When you have finished your call, briefly press the
or close the flip.
END/
key
2. When the desired phone number displays, press
to access Options.
3. Press
DEF
MENU
key
key to select Prepend option.
4. Enter the area code or feature code.
5. Press
16
General Functions
SEND
key to dial the number.
General Functions
17
Making a Call from the Phone Book
TWO-TOUCH DIALING BY MEMORY LOCATION
You can store the phone numbers called regularly in memory,
called the Phone Book. You then simply recall the number to dial.
For further information on Phone Book, refer to page 33.
Once you have stored phone numbers in the phone book
memory, you can dial them easily whenever you want.
1. Press the first digit briefly, then hold down the second digit
of the memory cell.
FINDING ENTRIES BY NAME, THEN DIAL
1. Press
key in the idle mode.
The screen shows the names stored in the Phone Book in the
alphabetical order.
2. Use
key to find the desired name. You can also enter the
first letter of the name by pressing the associated
alphanumeric key.
3. Press
SEND
key to dial the stored number with the name.
ONE-TOUCH DIALING BY MEMORY LOCATION
Memory locations 00 through 09 are special one-touch locations.
You can dial the phone numbers stored in the Phone Book memory
from 00 through 09 simply by pressing one button.
1. Press and hold the second digit of the memory location
containing the number to be dialed.
For example: Location no. 09
Press
and hold.
WXYZ
For example: Location no. 23
Press
briefly and hold down
ABC
DEF
.
The number (and name) stored is displayed, then dialed.
Voice Dialing
1. To place the call, press and hold
key, or open the
flip, depending on the Set Active option (see page 44).
2. At the voice prompt, say the name into the phone.
• If the phone recognizes the name, the phone attempts a
connection.
• If the phone does not recognize the name, the screen
prompts for the name again.
• If the phone is unable to recognize the name after two
attempts, the message Cannot Recognize Name.
Please check name displays. Try the call again later, or
check the recorded name.
The number (and name) stored is displayed, then dialed.
18
General Functions
General Functions
19
Last Number Redial
Answering a Call
The phone stores the last 10 numbers dialled. To recall any of
these numbers, proceed as follows.
When somebody calls you, the phone rings and CALL in the
middle of the screen is displayed.
1. If there are any characters on the display, clear the display
by holding down the CLR key for more than one second.
2. Press
SEND
key. The list of outgoing calls are displayed.
3. Use the
key (or or key on the left side of the
phone) to scroll through the numbers until you select the
required number.
4. Press
SEND
CALL
key to dial the number displayed.
If the caller can be identified, the caller’s phone number (or
name if stored in your Phone Book) is displayed. If the caller
cannot be identified, only the CALL message appears.
1. To answer a call, open the flip cover. If the flip is already
open, press SEND key.
If the Any key Ans menu option (7-4) is set to On, you can
press any key to answer a call except for END/ key.
2. End the call by closing the flip cover or pressing
END/
key.
Note: You can answer a call while using the phone book
or menu features.
20
General Functions
General Functions
21
Viewing Missed Calls
In-Call Options
If you are unable to answer a call for any reason, you can find
out who was calling you, if this service is available. In this
way, you can call the person back, if necessary.
Call Waiting
This feature enables you to receive a second call during
conversation. When a waiting call comes, the incoming call
alert sounds, when set, and a text notification displays.
Contact you service provider to activate Call Waiting.
To answer a waiting call:
The number of missed calls is displayed on the idle screen
immediately after the call was missed.
1. To answer the call, Press SEND key. The phone connects the
calling party, and places the current party on hold.
2. Press
SEND
key again to switch between two parties.
To view the missed call, refer to ‘Incoming’ (1-2) under
‘Calls’ on page 31.
Three-Way Calling
This feature enables you to conduct conference calls with two
separate parties at the same time. You are billed airtime for
each outgoing call separately.
Contact your service provider to activate Three-Way Calling.
To place a Three-Way call:
1. During conversation, press SEND key, enter the phone
number for the third party, and then press SEND key again.
The phone places the other party on hold.
2. When the third party answers, press
connect with the original party.
22
General Functions
SEND
key again, to
General Functions
23
Call Forwarding
Quick Switching to Vibration Mode
This feature provides the option of forwarding incoming calls
to another phone number, even while your phone is off.
Activating Call Forwarding does not affect outgoing calls
made from this phone. Contact your service provider to
activate Call Forwarding.
You can quickly switch your phone to Vibration mode with a
touch of
key. Press and hold the key until
icon
appears in the display. Your phone goes to the vibration mode
immediately.
Adjusting the Volume
During a call, if you want to adjust the earpiece volume, use
the volume keys on the left side of the phone. Press key
to increase and key to decrease the volume.
Press the keys to adjust
the volume.
Press and hold
key again to resume the phone’s alert
type which was previously set through the Ring menu under
SOUND menu; see page 36 for further details.
This feature is convenient when you are in a hurry to mute the
phone’s ringer in a theater for example.
Recording Voice Memo
You can access VOICE MEMO menu by pressing
the left side of the phone in the idle mode.
key on
If you want to record voice memo, press and hold the
key.
Your phone records voice up to 60 seconds while the key is
pressed and held.
In the idle mode, you can adjust the key tone volume using
the same keys.
Press the
key when
you record a memo.
For more information on VOICE MEMO menu, refer to page 40.
24
General Functions
General Functions
25
Using the Menus
Example: Connecting the Record option in VOICE DIAL menu
A three-level menu structure is available to set the various
options available on your phone. You can set the menu
options in two different ways.
Using the Scroll Keys
The following keys are used to set menu option by scrolling
then selecting an option.
Key
MENU
1. Press
MENU
key to access the main menu.
2. Press MENU or
key repeatedly until VOICE DIAL is
displayed, then press OK/ key. The VOICE DIAL menus
are displayed.
3. Press OK/ key to select Record highlighted. You are
connected to Record option.
Purpose
Enters the menu structure.
In the idle mode, moves to the next menu
in the main menu level and moves to the
next screen in the sub-menu levels.
In the menu mode, moves to the next
menu or option.
You can also use the or key on the
left side of the phone to move to the next
or previous option.
Using the Index System
Each menu option is assigned a hierarchical number. You can
use this number to access the corresponding option directly.
Simply press MENU and key in the required number.
Example: Connecting the Record option in VOICE DIAL menu.
1. Press
MENU
key to access the main menu.
2. Press 6
key to access VOICE DIAL menu. The VOICE
DIAL menus are displayed.
MNO
OK/
Access the menu displayed or the
highlighted option.
3. Press 1 . ´ key to select Record. You are automatically
connected to Record option.
The numbers assigned to each option are indicated on the
following menu map.
26
Using the Menus
Using the Menus
27
Menu Map
5. Voice Memo
Main Menu
Menu Level 1
1. Calls
1: Outgoing
2: Incoming
3: Erase Logs
4: Air Time
2. Phone Book
3. Sounds
1: Find Name
2: My Phone #
3: Add Entry
4: Find Entry
1: Ring
2: Key Volume
3: Alert
4: Alarm
5: Diff. Ring
4. Display
28
1: Backlight
2: Greeting
3: Language
4: Contrast
Using the Menus
1: Review
Menu Level 2
2: Record
3: Erase All
1: Outgoing
2: Incoming
3: All
1: Last Call
2: Total
3: EraseTotal
6. Voice Dial
1: Record
2: Rev/Erase
3: Erase All
4: Set Active
7. Setup
1: Auto Retry
2: Auto Receive
3: AutoHyphen
4: Anykey Ans
5: ToneLength
6: Tone
7: Set Time
8: Vocoder
1: Talk
2: Edit
3: Prepend
4: Erase
8. XGX Menu
1: Ring Vol
2: Ring Type
3: Ring Tone
0. Security
1: MinuteBeep
2: Svc Area
1: Set
2: Release
1: Lock
2: Restrict
3: Lock Code
4: Emergency#
5: Send PIN
6: Clr Memory
7: NAM Mode
1: Replay
2: Erase
3: Next Memo
4: Prev Memo
1: Phone Book
2: Incoming
3: Outgoing
1: Manual NAM
2: Auto NAM
8: Block Own #
9: System Select
0: ResetPhone
Using the Menus
29
Calls
You can use the CALLS menu to:
• View and dial the last outgoing or incoming numbers.
• Erase the numbers in the CallLog memory
• View the duration of calls.
Outgoing
MENU 1-1
The phone stores up to nine outgoing calls you dialed. When
you access this menu, the list of outgoing calls are displayed.
To...
Press...
Select an entry
key
Dial the selected entry
SEND
key
OK/
key
Incoming
MENU 1-2
This option lets you view the last 9 calls received. When you
access this menu, the last of incoming calls are displayed.
To...
Press...
Select entry
key
Dial the selected entry
View the date and time
at which the call was received
and use option features
SEND
key
OK/
key
When you press
key, you can view the date/time
stamp for the selected entry. If there is a Phone Book match,
the name displays.
OK/
View the date and time
at which the call was dialed
and use option features
Press
available:
MENU
When you press
key, you can view the date/time stamp
for the selected entry. If there is a Phone Book match, the
name displays.
OK/
Press
available:
MENU
key to access Options. The following options are
Talk: dials the selected number.
Show Entry (or Store if the phone number is not currently
stored in the Phone Book): shows Phone Book
entry or stores the number in the Phone Book.
key to access Options. The following options are
Talk: dials the selected number.
Show Entry (or Store if the phone number is not currently
stored in the Phone Book): shows Phone Book
entry or stores the number in the Phone Book.
Prepend: allows to add an area code or feature code to the
number before calling or saving the number.
Prepend: allows to add an area code or feature code to the
number before calling or saving the number.
30
Calls
Calls
31
Phone Book
Erase Logs
MENU 1-3
You can erase the numbers stored in the Call Log memory.
Outgoing: The numbers you called are erased.
Incoming: The numbers you received are erased.
Find Name
MENU 2-1
This option displays the stored names in the Phone Book in
alphabetical list.
All: All calls you dialed and received are erased.
Air Time
The Phone book allows you to store frequently used phone
numbers and the associated names in your personal directory to
make it easy for you to make a call without having to remember
or enter the phone number. You can store up to 79 numbers.
MENU 1-4
Using this option, you can view the call time of the last call,
as well as total air time for all calls since you last reset
the timer.
Press
key to scroll to the desired name. You can also
enter the first letter of the name by pressing the associated
alphanumeric key. Using this method, the phone searches for
the names in the list beginning with that letter, and then
displays the first name in that section of the list. If desired,
you can also enter the second letter in the name by pressing
the associated alphanumeric key.
Last Call: duration of the last call
When the desired entry displays, press SEND key to place a
call. If you press
key, then
key, you can access
the following options:
Total: total duration of all calls made since the timer was last
reset.
Talk: dials the number.
EraseTotal: resets the call timers.
OK/
MENU
Edit: allows you to edit phone number, name, or entry
number. Secret option prevents the number from being
displayed on the screen.
Prepend: prepends the number to add an area code or
feature code to the number before dialing.
Erase: erases the number.
Note: You can locate Phone Book entries quickly when the
phone is in the idle mode. Press
key to access
Find Name menu in one step and then press
key to scan entries.
32
Calls
Phone Book
33
My Phone Number
MENU 2-2
You can check your own phone number. If you have more than
one phone number, press
key to check the next
number.
Note: You can block this feature by setting Block Own
Number option to ON. Refer to page 50.
Add Entry
MENU 2-3
Using this option, you can store a phone number with a name
in your Phone Book.
Enter the phone number and press
available location displays.
key. The first
OK/
To accept the displayed location, press
key. To select
another location, press
key to scroll to the desired
location or enter the location number using number keys, then
press
key.
OK/
Entering a Name
1. Press the key labeled with required letter.
Since each key has three or more letters, press the key
repeatedly until the desired letter appears in the display.
2. Select the other letters in the same way.
Note: The cursor moves to the right when you press a
different key. When entering the same letter twice
(or a different letter on the same key), just wait for
a second for the cursor to move right
automatically, and then select the next letter. You
can also move the cursor by using
and
keys. To delete letters, press
key.
CLR
OK/
To include a name with the phone number entry, enter the
desired name, then press
key. For information on how
to enter a name, see page 35.
Find Entry
MENU 2-4
OK/
This option allows you to find an entry by location number.
To store a phone number following conversation:
Enter the location by pressing the number keys or press
key to scroll to the desired location, then press
key to
display the selected entry.
1. Press END/ key to end the call. The call time and the
phone number display.
When the desired entry displays, press
call.
Storing Phone Numbers at Call End
OK/
2. To store the phone number, press
available location displays.
OK/
key. The first
3. To finish this process, follow above mentioned instructions.
34
Phone Book
SEND
key to place a
If you press
key, then
key, you can access
Options. For details on Options, refer to Find Name menu on
page 33.
OK/
MENU
Phone Book
35
Sounds
You can use the Sounds feature to customize various sound
settings, such as the:
• Ring volume, type, and tone
• Alert sounds
This option allows you to select the required ringing tone. You
can choose among 13 different tones or melodies. Each time
you select a tone, it is played for a few seconds.
Key Volume
Ring
MENU 3-2
MENU 3-1
Ring Volume
This option allows you to adjust the ringing volume to one of
nine levels. You can also turn the ringer off. Use the or
key on the left side of the phone. The greater the number of
bars, the greater the volume. You will also hear a sample
tone.
Note: During an incoming call, you can mute the ringer by
pressing END/ key.
Ring Type
This option allows you to indicate how you are to be informed
of any incoming calls. The following options are available.
Bell: The phone rings using the ring tone selected via the
menu option.
Lamp: The backlight is switched on and the lamp blinks; the
phone neither rings nor vibrates.
Vibrator: The phone vibrates but does not ring.
Vib + Bell: The phone vibrates first, then rings.
36
Ring Tone
Sounds
This option allows you to adjust the tone volume that the
keypad generates when you press a key. You can also use
or key on the left side of the phone to adjust key
volume in the idle mode.
Alert
MENU 3-3
Minute Beep
With this menu option set to ON, the phone beeps every
minute during an outgoing call to keep you informed of the
duration of your call.
Service Area
With this menu option set to ON, the phone beeps when you
exit service area or when you return to a service area.
Alarm
MENU 3-4
The option allows you to set the alarm to ring at a specific
time.
The following options are available.
Daily: the alarm rings every day at the same time.
One Time: the alarm rings only once and is then deactivated.
Sounds
37
Display
Backlight
To set the alarm, proceed as follows.
MENU 4-1
You can select whether or not the phone uses the LCD
backlight. The following options are available.
1. Select Set.
2. Choose the alarm frequency option.
8 SECONDS: The backlight comes on when you press a key
or receive a call and switches off 8 seconds
after the last key is pressed.
3. Enter the required time.
4. Press
OK/
key.
To stop the alarm when it rings, simply open the flip cover or
press any key.
OFF: The backlight is not used.
To deactivate the alarm, select Release.
Greeting
Differential Ring
MENU 3-5
This option allows you to designate a unique ring to signal an
incoming call by a stored caller number.
You can specify up to 5 callers and select a unique ring type
for each caller from 13 different tones and melodies.
MENU 4-2
This option allows you to set a greeting message to be
displayed in the idle mode. It is preset to HK HUTCHISON.
You can change the greeting message according to your own
preference.
Enter your personal greeting up to 16 digits by using the
alphanumeric keys. For more information on entering a name,
refer to page 35.
Language
MENU 4-3
You can select a display language on your phone.
Contrast
MENU 4-4
This option allows you to adjust the LCD contrast by using
or key on the left side of the phone.
38
Sounds
Display
39
Voice Memo
You can use the Voice Memo feature to:
• Record up to 10 voice memos
• Play the recorded voice memos
• Erase one or all voice memos
Review
Record
MENU 5-2
This option allows you to record a memo. You can record up
to 10 different memos.
MENU 5-1
This option allows you to play back all memos recorded,
starting with the most recent memo. The screen displays the
label if you have entered. If not, the screen displays the date
and time when the memo was recorded.
While the memos are playing, the following options are
available.
Press
key on the left side of the phone. You can record a
memo for a maximum of 60 seconds.
To stop recording, press the key again. The following options
display.
Erase: erases the memo currently being played.
Add Label: allows you to add a label for the memo you have
just recorded. Enter a proper name up to 16 digits
using the number keypad. If you do not add a
label, the recorded date and time will be used to
identify the memo.
Next Memo: skips to the next memo.
Continue: allows you to continue recording the memo.
Prev Memo: skips to the previous memo.
Erase: allows you to erase the memo you have just
recorded.
Replay: plays the current memo once again.
Erase All
MENU 5-3
This option allows you to erase all the memos. Press
key when you are asked to confirm.
40
Voice Memo
Voice Memo
OK/
41
Voice Dial
You can call up to 20 stored entries by speaking the name into
the microphone. Before using the Voice Dialing feature, you
must record the name in your phone.
• Speak clearly and naturally.
• The person who will use the phone should record the name.
The phone does not recognize the name if the voice sounds
differently.
• Avoid too long or too short name. It is recommended to
contain 2 to 5 syllables.
Record
MENU 6-1
This option allows you to register numbers for subsequent
voice dialing. The phone provides voice prompts and screen
displays to guide you through the recording process.
Respond to the prompt by saying the name you want to save.
The phone stores the name as a first sample, and then
prompts for the name again.
• If this feature does not work properly, erase the name, and
record with another name.
• It is recommended to practice several times to obtain best
result.
• You can record up to 20 names. If you try to record more
than 20, the phone announces ’Memory is full’.
Respond to the prompt by repeating the name after the beep.
The phone stores the name as a second sample, and then
requests the phone number.
Review/Erase
Enter the phone number by pressing the digit keys.
This option allows you to check or erase an individual voice
dial entry. A list of entries displays.
To store the phone number, press
key. The name (if
matched up to Phone Book) and number display, along with
the notification Recorded.
Press the digit key to select the desired entry, or press the
key to scan entries.
MENU 6-2
OK/
Tips on Recording Name
• Avoid recording similar names phonetically. If you record a
similar name to the one already in memory, the phone
requests another name.
42
Voice Dial
When you select the desired entry, the recorded name plays
audibly.
If you want to erase the selected entry, press
while the name is playing.
OK/
key
Voice Dial
43
Setup
Erase All
MENU 6-3
This option allows you to delete all voice dialing entries.
Press
key, when you asked to confirm. Otherwise, press
CLR
or
key to exit the function without deleting the
voice dialing entries.
OK/
END/
Set Active
MENU 6-4
Voice Dialing is always active once you have recorded a name
and have entered the associated phone number. To place a
call using Voice Dialing, simply press and hold
key in
the idle mode and then say the name into the phone after you
hear the prompt.
You can also initiate a Voice Dialing call just by opening the
flip, when you select this option.
[ ] only: Enables Voice Dialing only by pressing and holding
key.
[ ]/Flip: Enables Voice Dialing by pressing and holding
key or by opening the flip.
Many different features of your phone can be customized to
suit your preferences.
Auto Retry
MENU 7-1
With this menu option set to ON, when you place a call and
the call does not connect, your phone continues to place the
call to the entered phone number.
Auto Receive
MENU 7-2
With this menu option set to ON and ‘Any key Answer’ set to
ON, the phone automatically answers calls.
When a call comes in, your phone will answer the call
automatically after 2 rings. The feature does not work if you
have chosen Vibrate or Off as your ring volume.
Auto Hyphen
MENU 7-3
With this menu option set to ON, your phone automatically
hyphenates numbers as follows: 012-345-6789.
Digits following a pause are not hyphenated.
Any Key Answer
MENU 7-4
With this menu option set to ON, you can answer an incoming call by pressing any key except SEND key.
With this menu option set to OFF, you can answer an incoming call by pressing SEND key or reject a call by pressing
key.
END/
44
Voice Dial
Setup
45
Tone Length
XGX Menu
MENU 7-5
Some phones you call can recognize only longer tones. You
may have to change the length to LONG for some calls.
When calling a paging system, your phone should be in the
SHORT mode.
Tone
MENU 7-6
Release Tone: You can set your phone to sound the release
tone when a call is released or dropped.
Connect Tone: You can set your phone to sound the connect
tone when your call is connected to the
system.
Set Time
MENU 7-7
The option enables you to set the current date and time. Enter
the time and date.
MENU 8
You can use the Phone Tool Kit Service(XGX Menu)’s features
in your phone.
To use this service, Press MENU , 8
key.
TUV
For more information, please contact with your local provider.
Security
Your phone provides many security options, including a
user-programmable lock code and call restriction features.
To access the security menu, you must enter a four-digit lock
code.
MENU 0-1
Lock
Locking the phone restricts outgoing calls to emergency
numbers.
The following options are available:
OFF: the phone remains unlocked.
The current time, if set, displays. The month, day, hour and
minute must be entered with 2 digits. The year requires all
four digits. If you do not input the time or you input the wrong
time, Invalid Time displays.
Vocoder
Setup
ON POWER-UP: the phone locks automatically at the next
power-up.
To place an emergency call on Lock mode:
MENU 7-8
This phone is set to ‘EVRC FORCED’ for the best quality of
your call. If you use this phone abroad, please refer to the
network service provider for more information.
46
NOW: the phone locks immediately
• To call an emergency number, enter the number and then
press SEND key.
• To place normal outgoing calls, press MENU key to display
the Lock Code screen, and then enter the lock code. When
the Standby screen displays, enter the phone number, and
then press SEND key.
Security
47
Restrict
MENU 0-2
This feature allows you to restrict your calls. Call Restriction
can be set up in the following ways.
Phone Book: the phone restricts the use of the Phone Book.
Incoming: calls cannot be received.
Send PIN
MENU 0-5
This feature prevents the phone from being used by
unauthorized persons. The feature is only available when if
your system supplier provides this service and you have a PIN
assigned by the system supplier.
These options are available:
Outgoing: calls cannot be made.
Never: The option is not activated
Each option can be restricted or unrestricted individually.
Lock Code
For information about this service in detail, contact your service provider.
MENU 0-3
This feature allows you to change your current lock code to a
new one. The lock code is preset to 0000 at factory.
Enter a new, four-digit lock code.
Emergency Number
Prompt: When you make a call, you are asked to send PIN.
Clear Memory
MENU 0-6
This menu option allows you to erase all numbers in the
Phone Book memory.
MENU 0-4
This feature allows you to call to emergency numbers when
the phone is locked or when the outgoing call is restricted.
This menu provides the option of storing three emergency
numbers. Select a location and enter the desired number.
To dial emergency numbers in Lock mode; enter the
emergency number, then press SEND key.
48
Security
Security
49
NAM Mode
MENU 0-7
The NAM (Number Assignment Module) enables you to
subscribe to one or more service networks.
The following options are available:
Manual NAM: You set the phone to the network you want to
use. You can select a NAM from a maximum
of 4 NAMs. If you select a new network
manually, the phone shows the greeting
message and sounds the starting beep, and
then returns to the Standby mode. For details,
contact your service provider.
Auto NAM: The phone selects the networks automatically
based on system information for the area you are
in.
Block Own Number
MENU 0-8
This feature allows you to block your own number display, and
others cannot view your phone number. If you turn this feature
on, the message Blocked for phone number displays when
the My phone # feature is accessed.
System Selection
MENU 0-9
With this menu option, you can select the system service
mode between FM(analog) and CDMA(digital). Each service
mode allows you to select a roaming option. Roaming is a
feature which is only relevant in areas where there are at
least two cellular service providers and having valid roaming
agreements.
Roaming, when available, allows you to register your phone
on one of the networks, but use the facilities of the other if
your own network is not available. This system priority
feature allows you to program your phone for optimum
operation when within your home service area or when
outside your home service area.
Contact your home cellular service provider for information on
the availability of this feature and roaming agreements they
have with other cellular service providers.
There are five different roaming options:
A Only: the phone uses A system only.
A Pref: the phone tries A system first, then tries the other.
B Only: the phone uses B system only.
B Pref: the phone tries B system first, then tries the other.
Home Only: the phone uses your home network only.
Reset Phone
MENU 0-0
With this menu option, you can easily reset your phone to its
default configuration. Also, all phone memories are cleared.
50
Security
Security
51
Messages
Your phone receives voicemail notification, text messages,
and pages. And your phone transmits text messages and
pages if your system supplier provides this service. When the
phone receives a message, an alert sounds, and a text
notification displays. The
icon remains on the screen
until you read the pending text messages or until you listen to
the voicemail notification messages
Page
1-2
An indexed list of page messages displays. An exclamation
point next to an entry indicates an urgent message. A check
mark next to an entry indicates that you have read and stored
the message.
Select the desired message to review, then press
key.
After reviewing the message, press
key to access the
following options.
OK/
Your phone can store up to 20 pages and text messages,
depending on the length of the message. If the message
memory is full, an error message is displayed and you cannot
receive any new messages. Delete obsolete messages.
Voicemail
MENU
Talk: To call the phone number.
Save #: To store the phone number in your Phone Book.
1-1
The screen displays Voicemail, the time, date and the
number of new, unread messages.
Press
key to access the following options.
Erase: To erase the phone number.
Next Msg: To review the next message.
Prev Msg: To review the previous message.
MENU
Listen: You can listen to the voicemail.
Reset: You can reset the counter for voicemail messages, if
desired. (The system resets the counter automatically
after you listen to all new messages.)
52
Messages
Messages
53
Accessories
Text
1-3
Batteries
An indexed list of text messages displays. An exclamation
point next to an entry indicates an urgent message. A check
mark next to an entry indicates that you have read and stored
the message.
Three types of Li-ion batteries are available for use with your
phone:
• SLIM Battery
• STANDARD Battery
• EXTENDED Battery
Select the desired message to review, then press
key.
After reviewing the message, press
key to access the
following options.
Dual-Slot Desktop Charger
OK/
MENU
Talk: To call the phone number.
The Dual-Slot Desktop Charger Charges the battery at your
home or office.
Save #: To store the phone number in your Phone Book.
Cigarette Lighter Adapter
Erase: To erase the phone number.
The Cigarette Lighter Adapter charges your phone in a vehicle
while you drive and enables you to operate the phone from a
vehicle cigarette lighter socket.
Next Msg: To review the next message.
Prev Msg: To review the previous message.
Ear-Microphone
Alert
1-4
The Ear-Microphone includes both the earpiece and microphone in a convenient, lightweight unit.
The phone alerts you when a message is received. You can
choose how frequently this happens. The three options are :
EVERY 2 MIN, OFF, ONCE.
Erase All
1-5
This menu option allows you to erase all stored messages.
54
Messages
Accessories
55
Using the Batteries
Your phone is powered by a rechargeable Li-ion 1000 mAh
standard battery.
The following batteries are also available (ask your
SAMSUNG dealer for further details):
– SLIM Battery (500 mAh)
– STANDARD Battery (1000 mAh)
– EXTENDED Battery (1600 mAh)
Precautions When Using Batteries
• Never use any charger or battery that is damaged in any
way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base station, it
uses less power; talk and standby times are greatly affected by the signal strength on the cellular network and the
parameters set by the network operator.
• Battery charging times depend on the remaining battery
charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but
it will gradually wear out. When the operation time (talk
time and standby time) is noticeably shorter than normal, it
is time to buy a new battery.
• Use only Samsung-approved batteries and recharge your
battery only with Samsung-approved chargers. When a
charger is not in use, disconnect it from the power source.
Do not leave the battery connected to a charger for more
than a week, since overcharging may shorten its life.
• Extreme temperatures will affect the charging capacity of
your battery: it may require cooling or warming first.
• Do not leave the battery in hot or cold places, such as in a
car in summer or winter conditions, as you will reduce the
capacity and life-time of the battery. Always try to keep
the battery at room temperature. A phone with a hot or
cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly
affected by temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental short circuiting
can occur when a metallic object (coin, clip or pen) causes
a direct connection between the + and - terminals of the
battery (metal strips on the back of the battery), for example when you carry a spare battery in a pocket or bag.
Short-circuiting the terminals may damage the battery or
the object causing the short-circuit.
• Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire.
• If left unused, a fully charged battery will discharge itself
over time.
56
Using the Batteries
Using the Batteries
57
Safety Information
Road Safety
• Remember, road safety always comes first!
• Do not use a hand-held phone while driving a vehicle.
Always park the vehicle before having a conversation.
• Make sure that the phone is stored safely and will not fall
or be broken in the event of a collision or emergency stop.
• The use of an alert device to operate a vehicle’s lights or
horn on public roads is not permitted.
• Only qualified personnel should install or service the phone
in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the unit.
• Electronic fuel injection, anti-skid braking, electronic cruise
control or any other electronic systems may malfunction
due to the lack of protection from radio signals. Check
regularly that all cellular phone equipment in your vehicle
is mounted and operating correctly.
Operating Environment
• Operation of any radio transmitting equipment, including
cellular phones, may interfere with inadequately protected
medical devices. Consult a physician or the manufacturer
of the medical device if you have any questions. Other
electronic equipment may also be subject to interference.
• As with other mobile radio transmitting equipment, you are
advised that for satisfactory operations and personal
safety, the equipment should only be used in the normal
operating position.
• Always switch off the phone when at a refuelling point
(service station). You are reminded of the need to observe
restrictions on the use of radio equipment in fuel depots
(fuel storage and distribution areas), chemical plants or
where blasting operations are in progress.
• Do not store or carry flammable liquids, gases or explosive
materials in the same compartment as the phone, its parts
or accessories.
• Switch off your cellular phone when in an aircraft. The use
of cellular phones in an aircraft is illegal and may be
dangerous to the operation of the aircraft or disrupt the
cellular network. Failure to observe these instructions may
lead to the suspension or denial of cellular telephone services to the offender, legal action or both.
• Remember to follow any special regulations in force in any
area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example).
58
Safety Information
Safety Information
59
Care and Maintenance
Your phone is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will
help you fulfill the warranty obligations and enjoy this product
for many years.
• Keep the phone and all its parts and accessories out of the
reach of small children.
• Keep the phone dry. Precipitation, humidity and liquids containing minerals will corrode the electronic circuits.
• Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the phone. Wipe it with a soft cloth
slightly dampened in mild, soapy water.
• If the phone or any of its accessories are not working
properly, take them to your nearest qualified service centre.
The personnel there will assist you, and if necessary,
arrange for the phone to be repaired.
Emergency Calls
Important! This phone, like any cellular phone, uses radio
• Do not use or store the phone in dusty, dirty areas as its
components may be damaged.
• Do not store the phone in hot areas. High temperatures can
shorten the life of electronic devices, damage batteries and
warp or melt certain plastics.
signals, cellular and landline networks, as well
as user-programmed functions that cannot
guarantee connection in all conditions.
Therefore, you should never rely solely on any
cellular phone for essential communications
(medical emergencies for example).
• Do not store the phone in cold areas. When the phone
warms up (to its normal temperature), moisture can form
inside the phone, which may damage the electronic circuits.
Remember, to make or receive any calls, the phone must be
switched on and in a service area with adequate cellular
signal strength.
• Do not attempt to open the phone. Non-expert handling of
the phone may damage it.
Emergency calls may not be possible on all cellular phone
networks or when certain network services and/or phone
features are in use. Check with local cellular service
providers.
• Do not drop or knock the phone. Rough handling may
damage the internal circuits.
60
Safety Information
Safety Information
61
Glossary of Terms
Airtime - Actual time spent talking on the wireless phone.
Most carriers bill customers based on how many
minutes of airtime they use each month.
Antenna - A device for transmitting or receiving signals. The
size and shape of antennas is determined, in part,
by the frequency of the signal they receive.
Wireless phones and the base station must have
antennas.
EVRC - (Enhanced Variable Rate Codec) EVRC is a new global
standard for compressing and decompressing voice
signals. EVRC uses a lower bit rate (the number of bits
sent per second) than existing CDMA vocoders, while
providing significant improvements in voice quality.
This technology enables your phone to provide superb
voice quality while benefiting from the ability to
process more cellular voice calls using less bandwidth
than the voice codecs in CDMA networks today.
Base Station - The fixed radio transmitter/receiver that
maintains communications with mobile radio
telephones within a given area. (Typically
seen as cell or cell site)
Frequency - A measure based on time, as one or more waves
per second, in an electrical or light wave information signal. A signal’s frequency is stated in
cycles-per-second or Hertz (Hz).
CDMA - (Code Division Multiple Access) A spread-spectrum
approach to digital transmission. With CDMA, each
conversion is digitized and then tagged with a code.
The mobile phone deciphers only a particular code
to pick the right conversation off the air. The transmitted signal is just above noise level across the
available bandwidth.
Channel - Communications signals transmit along paths
called channels.
Codec - Compression & Decompression.
Deactivation - The process of rendering a wireless phone
inactive.
DTMF - (Dual-tone Modulated Frequency ) You send DTMF
signals when you enter numbers by pressing the
digit keys.
62
Glossary of Te r m s
Hands-Free - A feature that permits a driver to use a wireless phone without lifting or holding the
handset - an important safety feature for
automobiles, tractors and most other motorized
vehicles.
LCD - (Liquid Crystal Display) Commonly used to refer to the
screen display on the wireless phone.
LED - (Light Emitting Diode) Commonly used to refer to a
small light on the wireless phone or on the Desktop
Charger. The LED lights on the phone to indicate an
incoming call. The lights on the charger to indicate that
battery charging is taking place.
Prepend - The addition of a prefix, such as an area code, to a
phone number.
RF - Radio Frequency
Glossary of Te r m s
63
Phone number + SEND
Quick Reference Card
INTERNAL PHONE BOOK
Store numbers
into memory
Phone number + OK
+ OK + (or assign
another location + OK)
+ name + OK
0-9 (Hold the last digit
of the hot line memory
00-09)
10-99 (Briefly press
the first digit, and
hold the last digit.)
65
SCH-611
Make a call
SEND or Open the flip
Calling by
one-touch
Calling by
two-touch
10-99 (Briefly press
+ Name + OK
Quick Reference Card
BASIC OPERATION
Receive a call
(in conversation mode)
„/
+ SEND
Adjust speaker
volume
Scan the last calls SEND +
and dial
Scan memories
• name
Glossary of Te r m s
+
64
• location
Wireless - Radio-based Systems that allow transmission of
telephone or data signals through the air without
a physical connection, such as a metal wire
(copper) or fiber optic cable.
+
+ OK
+ MEMU + 4 + OK
Voicemail - A computerized answering service that answers
a call, plays a greeting and records a message.
Depending on the sophistication of the service, it
can notify the subscriber, via a pager, of an
incoming call or message. (Also called voice
messaging)
Erasing a specific
memory
Vocoder - Voice Coder. A device used to convert speech into
digital signals.
Switch to Vibration ( Press and hold
mode
Talk Time - The length of time a person can talk on a
portable or transportable wireless phone without
recharging the battery.
Press and hold
Standby Time - The amount of time a fully charged wireless
portable or transportable phone can be on
and idle without being in use. (See Talk Time)
Voice dial
Service Charge - The amount paid each month to receive
wireless service.
Record voice memo Press and hold
Roaming - The ability to use a wireless phone to make and
receive calls in places outside of the home service
area.
Licensed by QUALCOMM Incorporated under one or more
of the following Patents.
U.S Patent No. 4,901,307 5,056,109 5,099,204
5,101,501 5,103,459 5,107,225
5,109,390
66
Quick Reference Card
MENU TREE
1:
2:
3:
4:
1 : Review
2 : Record
3 : Erase All
4 : Display
5 : Voice Memo
Backlight
Greeting
Language
Contrast
Ring
Key Vol
Alert
Alarm
Diff. Ring
1:
2:
3:
4:
5:
3 : Sounds
Find Name
My Phone #
Add Entry
Find Entry
1:
2:
3:
4:
2 : Phone Book
Main Menu (To access, press MENU)
1 : Calls
1 : Outgoing
2 : Incoming
3 : Erase Logs
4 : Air Time
0 : Security
8 : XGX Menu
7 : Setup
6 : Voice Dial
1:
2:
3:
4:
5:
6:
7:
8:
9:
0:
1:
2:
3:
4:
5:
6:
7:
8:
1:
2:
3:
4:
Lock
Restrict
Lock Code
Emergency #
Send PIN
Clear Memory
NAM Mode
Block Number
Vocoder
ResetPhone
Auto Retry
Auto Receive
AutoHyphone
Anykey Answer
ToneLength
Tone
Set Time
Vocoder
Record
Rev/Erase
Erase All
Set Active
