Ports
Information About Ports
A port is a physical entity that is used for connections on the Cisco WLC platform. Cisco WLCs have two
types of ports:
• Distribution system ports
• Service port

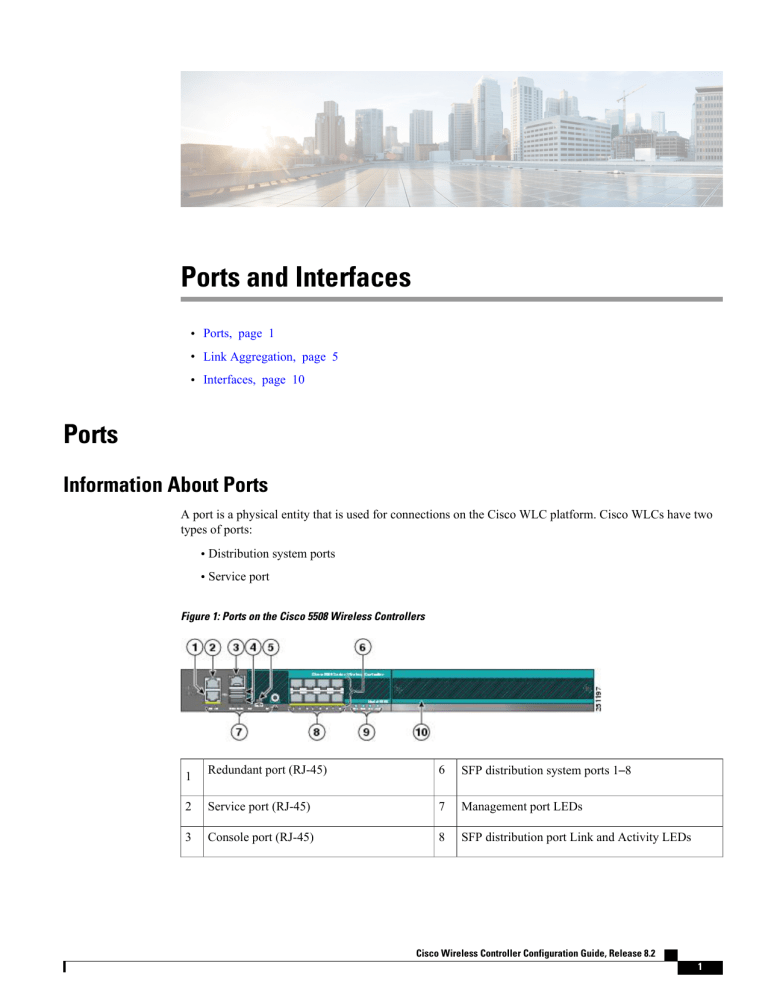

Figure 1: Ports on the Cisco 5508 Wireless Controllers
1
Redundant port (RJ-45)
6
SFP distribution system ports 1–8
2
Service port (RJ-45)
7
Management port LEDs
3
Console port (RJ-45)
8
SFP distribution port Link and Activity LEDs
Cisco Wireless Controller Configuration Guide, Release 8.2
1
Ports and Interfaces
Information About Distribution System Ports
4
USB ports 0 and 1 (Type A)
9
5
Console port (Mini USB Type B)
10 Expansion module slot
Note
Power supply (PS1 and PS2), System (SYS), and
Alarm (ALM) LEDs
You can use only one console port
(either RJ-45 or mini USB). When
you connect to one console port, the
other is disabled.
For more information about Cisco Unified Wireless Network Protocol and Port Matrix, see http://
www.cisco.com/c/en/us/support/docs/wireless/5500-series-wireless-controllers/113344-cuwn-ppm.html.
Information About Distribution System Ports
A distribution system port connects the controller to a neighbor switch and serves as the data path between
these two devices.
Restrictions for Configuring Distribution System Ports
• Cisco 5508 WLCs have eight Gigabit Ethernet distribution system ports, through which the Controller
can manage multiple access points. The 5508-12, 5508-25, 5508-50, 5508-100, and 5508-250 models
allow a total of 12, 25, 50, 100, or 250 access points to join the controller. Cisco 5508 WLCs have no
restrictions on the number of access points per port. However, we recommend using link aggregation
(LAG) or configuring dynamic AP-manager interfaces on each Gigabit Ethernet port to automatically
balance the load. If more than 100 access points are connected to the Cisco 5508 WLC, ensure that more
than one Gigabit Ethernet interface is connected to the upstream switch.
Note
The Gigabit Ethernet ports on the Cisco 5508 WLCs accept these SX/LC/T small
form-factor plug-in (SFP) modules: • 1000BASE-SX SFP modules, which provide a 1000-Mbps wired connection to a
network through an 850nM (SX) fiber-optic link using an LC physical connector
• 1000BASE-LX SFP modules, which provide a 1000-Mbps wired connection to a
network through a 1300nM (LX/LH) fiber-optic link using an LC physical
connector
• 1000BASE-T SFP modules, which provide a 1000-Mbps wired connection to a
network through a copper link using an RJ-45 physical connector
• GLC-SX-MM, a 1000BASE-SX connector should be in auto-negotiation mode to function as desired
because all SFP modules using LC physical connecters must ideally be in auto-negotiation mode on
Cisco 5508 Series Controllers to function properly. However, when Cisco ASR is connected using the
fiber port, GLC-SX-MM does not come up between Cisco ASR and Cisco 5508 as Cisco ASR requires
the connector to be in fixed mode to function properly.
Cisco Wireless Controller Configuration Guide, Release 8.2
2
Ports and Interfaces
Information About Distribution System Ports
• Each distribution system port is, by default, an 802.1Q VLAN trunk port. The VLAN trunking
characteristics of the port are not configurable.
Note
Some controllers support link aggregation (LAG), which bundles all of the controller’s
distribution system ports into a single 802.3ad port channel. Cisco 5508 WLCs support
LAG, and LAG is enabled automatically on the controllers within the Cisco WiSM2.
• Cisco WLC configuration in access mode is not supported. We recommend that you configure Cisco
WLC in trunk mode when you configure Cisco WLC ports on a switch.
• In Cisco Flex 7510 and 8510 Controllers:
◦If a port is unresponsive after a soaking period of 5 seconds, all the interfaces for which the port
is the primary and the active port, fail over to the backup port, if a backup is configured and is
operational. Similarly, if the unresponsive port is the backup port, then all the interfaces fail over
to the primary port if it is operational.
◦After the unresponsive port is restored, there is a soaking period of 60 seconds after which if the
port is still operational, then all the interfaces fall back to this port, which was the primary port. If
the port was the backup port, then no change is done.
• You must ensure that you configure the port before you connect a switch or distribution system in the
Cisco 2504 WLC.
• If an IPv6 packet is destined to controller management IPv6 address and the client VLAN is different
from the controller management VLAN, then the IPv6 packet is switched out of the WLC box. If the
same IPv6 packet comes as a network packet to the WLC, management access is not denied.
Information About Service Port
Cisco 5500 Series Controllers also have a 10/100/1000 copper Ethernet service port. The service port is
controlled by the service-port interface and is reserved for out-of-band management of the controller and
system recovery and maintenance in the event of a network failure. It is also the only port that is active when
the controller is in boot mode. The service port is not capable of carrying 802.1Q tags, so it must be connected
to an access port on the neighbor switch. Use of the service port is optional.
The service port of the Cisco Flex 7510 and 8510 WLC models is a one Gigabit Ethernet port. To verify the
speed of service port, you must connect the service port to a Gigabit Ethernet port on the switch.
Note
The service port is not auto-sensing. You must use the correct straight-through or crossover Ethernet cable
to communicate with the service port.
Caution
Do not configure wired clients in the same VLAN or subnet of the service port of the controller on the
network. If you configure wired clients on the same subnet or VLAN as the service port, it is not possible
to access the management interface of the controller.
For information about service ports in the applicable Cisco WLCs, see the respecitve Cisco WLC
documentation:
Cisco Wireless Controller Configuration Guide, Release 8.2
3
Ports and Interfaces
Configuring Ports (GUI)
• Cisco 3504 WLC Deployment Guide
• Cisco 5508 WLC Installation Guide
• Cisco WiSM2 Deployment Guide
• Cisco Flex 7510 WLC Deployment Guide
• Cisco 5520 WLC Deployment Guide
• Cisco 8510 WLC Installation Guide
• Cisco 8540 WLC Deployment Guide
Configuring Ports (GUI)
The controller’s ports are configured with factory-default settings designed to make the controllers’ ports
operational without additional configuration. However, you can view the status of the controller’s ports and
edit their configuration parameters at any time.
Step 1
Choose Controller > Ports to open the Ports page.
This page shows the current configuration for each of the controller’s ports.
If you want to change the settings of any port, click the number for that specific port. The Port > Configure page appears.
If the management and AP-manager interfaces are mapped to the same port and are members of the same VLAN,
you must disable the WLAN before making a port-mapping change to either interface. If the management and
AP-manager interfaces are assigned to different VLANs, you do not need to disable the WLAN.
Note
The number of parameters available on the Port > Configure page depends on your controller
type.
The following show the current status of the port:
Note
• Port Number—Number of the current port.
• Admin Status—Current state of the port. Values: Enable or Disable
• Physical Mode—Configuration of the port physical interface. The mode varies by the controller type.
• Physical Status—The data rate being used by the port. The available data rates vary based on controller type.
◦Cisco 2504 WLC—1 Gbps full duplex
◦Cisco WiSM2—10 Gbps full duplex
◦Cisco 7510 WLC—10 Gbps full duplex
• Link Status—Link status of the port. Values: Link Up or Link Down
• Link Trap—Whether the port is set to send a trap when the link status changes. Values: Enable or Disable
• Power over Ethernet (PoE)—If the connecting device is equipped to receive power through the Ethernet cable and
if so, provides –48 VDC. Values: Enable or Disable
Note
Some older Cisco access points do not draw PoE even if it is enabled on the controller port. In such cases,
contact the Cisco Technical Assistance Center (TAC).
Cisco Wireless Controller Configuration Guide, Release 8.2
4
Ports and Interfaces
Link Aggregation
The following is a list of the port’s configurable parameters.
1 Admin Status—Enables or disables the flow of traffic through the port. Options: Enable or Disable, with default
option of Enable.
Note
When a primary port link goes down, messages may get logged internally only and not be posted to a syslog
server. It may take up to 40 seconds to restore logging to the syslog server.
2 Physical Mode—Determines whether the port’s data rate is set automatically or specified by the user. The supported
data rates vary based on the controller type. Default: Auto.
3 Link Trap—Causes the port to send a trap when the port’s link status changes. Options: Enable or Disable, with
default option of Enable.
Step 2
Click Apply.
Step 3
Click Save Configuration.
Step 4
Click Back to return to the Ports page and review your changes.
Step 5
Repeat this procedure for each additional port that you want to configure.
Link Aggregation
Information About Link Aggregation
Link aggregation (LAG) is a partial implementation of the 802.3ad port aggregation standard. It bundles all
of the controller’s distribution system ports into a single 802.3ad port channel. This reduces the number of IP
addresses required to configure the ports on your controller. When LAG is enabled, the system dynamically
manages port redundancy and load balances access points transparently to the user.
LAG simplifies controller configuration because you no longer require to configure primary and secondary
ports for each interface. If any of the controller ports fail, traffic is automatically migrated to one of the other
ports. As long as at least one controller port is functioning, the system continues to operate, access points
remain connected to the network, and wireless clients continue to send and receive data.
Cisco WLC does not send CDP advertisements on a LAG interface.
Note
LAG is supported across switches.
Link Aggregation for Cisco Aironet 1850 Series Access Points
Cisco Aironet 1850 Series 802.11ac Wave 2 Access Points have two Gigabit Ethernet interfaces, the PoE port
and the AUX port, which, by using Link Aggregation, can together accommodate the greater than 1 Gbps of
throughput expected with Wave 2.
Cisco Wireless Controller Configuration Guide, Release 8.2
5
Ports and Interfaces
Restrictions on Link Aggregation
Note
Only Link Aggregation Control Protocol (LACP) is supported; Port Aggregation Protocol (PAgP) is not
supported.
LAG is supported on Cisco Aironet 1850 Series APs with the following switches:
• Cisco Catalyst 3850 Series Switches—All models (non-CA mode)
• Cisco Catalyst 3650 Series Switches—All models (non-CA mode)
• Cisco Catalyst 4500E Supervisor Engine 8-E
Restrictions on Link Aggregation
• You can bundle all eight ports on a Cisco 5508 Controller into a single link.
• Terminating on two different modules within a single Catalyst 6500 series switch provides redundancy
and ensures that connectivity between the switch and the controller is maintained when one module
fails. The controller’s port 1 is connected to Gigabit interface 3/1, and the controller’s port 2 is connected
to Gigabit interface 2/1 on the Catalyst 6500 series switch. Both switch ports are assigned to the same
channel group.
• LAG requires the EtherChannel to be configured for 'mode on' on both the controller and the Catalyst
switch.
• Once the EtherChannel is configured as on at both ends of the link, the Catalyst switch should not be
configured for either Link Aggregation Control Protocol (LACP) or Cisco proprietary Port Aggregation
Protocol (PAgP) but be set unconditionally to LAG. Because no channel negotiation is done between
the controller and the switch, the controller does not answer to negotiation frames and the LAG is not
formed if a dynamic form of LAG is set on the switch. Additionally, LACP and PAgP are not supported
on the controller.
Cisco Wireless Controller Configuration Guide, Release 8.2
6
Ports and Interfaces
Restrictions on Link Aggregation
• If the recommended load-balancing method cannot be configured on the Catalyst switch, then configure
the LAG connection as a single member link or disable LAG on the controller.
Figure 2: Link Aggregation with the Catalyst 6500 Series Neighbor Switch
• You cannot configure the controller’s ports into separate LAG groups. Only one LAG group is supported
per controller. Therefore, you can connect a controller in LAG mode to only one neighbor device.
• When you enable LAG or make any changes to the LAG configuration, you must immediately reboot
the controller.
• When you enable LAG, you can configure only one AP-manager interface because only one logical port
is needed. LAG removes the requirement for supporting multiple AP-manager interfaces.
• When you enable LAG, all dynamic AP-manager interfaces and untagged interfaces are deleted, and all
WLANs are disabled and mapped to the management interface. Also, the management, static AP-manager,
and VLAN-tagged dynamic interfaces are moved to the LAG port.
• Multiple untagged interfaces to the same port are not allowed.
• When you enable LAG, you cannot create interfaces with a primary port other than 29.
• When you enable LAG, all ports participate in LAG by default. You must configure LAG for all of the
connected ports in the neighbor switch.
• When you enable LAG, if any single link goes down, traffic migrates to the other links.
• When you enable LAG, only one functional physical port is needed for the controller to pass client
traffic.
• When you enable LAG, access points remain connected to the controller until you reboot the controller,
which is needed to activate the LAG mode change, and data service for users continues uninterrupted.
• When you enable LAG, you eliminate the need to configure primary and secondary ports for each
interface.
• When you enable LAG, the controller sends packets out on the same port on which it received them. If
a CAPWAP packet from an access point enters the controller on physical port 1, the controller removes
Cisco Wireless Controller Configuration Guide, Release 8.2
7
Ports and Interfaces
Configuring Link Aggregation (GUI)
the CAPWAP wrapper, processes the packet, and forwards it to the network on physical port 1. This
may not be the case if you disable LAG.
• When you disable LAG, the management, static AP-manager, and dynamic interfaces are moved to port
1.
• When you disable LAG, you must configure primary and secondary ports for all interfaces.
• When you disable LAG, you must assign an AP-manager interface to each port on the controller.
Otherwise, access points are unable to join.
• Cisco 5508 WLC supports a single static link aggregation bundle.
• LAG is typically configured using the Startup Wizard, but you can enable or disable it at any time through
either the GUI or CLI.
• When you enable LAG on Cisco 2504 WLC to which the direct-connect access point is associated, the
direct connect access point is disconnected since LAG enabling is still in the transition state. You must
reboot the controller immediately after enabling LAG.
• In Cisco 8510 WLCs, when more than 1000 APs join the Cisco WLC, flapping occurs. To avoid this,
we recommend that you do not add more than 1000 APs on a single Cisco Catalyst switch for CAPWAP
IPv6.
Configuring Link Aggregation (GUI)
Step 1
Step 2
Step 3
Step 4
Step 5
Choose Controller > General to open the General page.
Set the LAG Mode on Next Reboot parameter to Enabled.
Save the configuration.
Reboot Cisco WLC.
Assign the WLAN to the appropriate VLAN.
Configuring Link Aggregation (CLI)
Step 1
Step 2
Enter the config lag enable command to enable LAG.
Note
Enter the config lag disable command if you want to disable
LAG.
Enter the save config command to save your settings.
Step 3
Reboot Cisco WLC.
Cisco Wireless Controller Configuration Guide, Release 8.2
8
Ports and Interfaces
Verifying Link Aggregation Settings (CLI)
Configuring Link Aggregation for Cisco 1850 Series APs (CLI)
• Configure the Cisco Aironet 1850 Series AP link aggregation by entering this global configuration
command:
config ap lag-mode support {enable | disable}
Disabling global link aggregation for the APs will result in a reboot of all the lag enabled APs.
• Configure link aggregation for a specific Cisco AP by entering this command:
config ap lag-mode support {enable | disable} ap-name
Enabling or disabling link aggregation for the Cisco AP resets and reboots the specified Cisco AP.
• Enable and configure Port Channel mode on switches connected to the Cisco AP. For optimal traffic
load balancing on the LAG ports to the Cisco AP, ensure that the switch supports balancing based purely
on the L4 source and destination ports.
Configuration Example:
interface Port-channel20
description 1852I lag
switchport access vlan 1107
switchport mode access
interface GigabitEthernet1/0/1
switchport access vlan 1107
switchport mode access
channel-group 20 mode active
interface GigabitEthernet1/0/2
switchport access vlan 1107
switchport mode access
channel-group 20 mode active
For more information about this step, see the Cisco Aironet 1850 Series Access Point Deployment Guide
at http://www.cisco.com/c/en/us/td/docs/wireless/controller/technotes/8-1/1850_DG/b_Cisco_Aironet_
Series_1850_Access_Point_Deployment_Guide.html.
After link aggregation is enabled on the Cisco AP, the Cisco WLC and the Cisco AP use multiple
CAPWAP data tunnels to send and receive wireless client traffic.
• View the link aggregation status by entering these commands:
a) View the status of link aggregation on the Cisco AP by entering this command on the AP console:
show configuration
b) View the status of link aggregation on Cisco WLC by entering these commands on the Cisco WLC
CLI:
• show ap lag-mode
• show ap config general ap-name
Verifying Link Aggregation Settings (CLI)
To verify your LAG settings, enter this command:
show lag summary
Cisco Wireless Controller Configuration Guide, Release 8.2
9
Ports and Interfaces
Configuring Neighbor Devices to Support Link Aggregation
Information similar to the following appears:
LAG Enabled
Configuring Neighbor Devices to Support Link Aggregation
The controller’s neighbor devices must also be properly configured to support LAG.
• Each neighbor port to which the controller is connected should be configured as follows:
interface GigabitEthernet <interface id>
switchport
channel-group <id> mode on
no shutdown
• The port channel on the neighbor switch should be configured as follows:
interface port-channel <id>
switchport
switchport trunk encapsulation dot1q
switchport trunk native vlan <native vlan id>
switchport trunk allowed vlan <allowed vlans>
switchport mode trunk
no shutdown
Choosing Between Link Aggregation and Multiple AP-Manager Interfaces
Cisco WLCs have no restrictions on the number of access points per port, but we recommend that you use
link aggregation (LAG) or multiple AP-manager interfaces on each Gigabit Ethernet port to automatically
balance the load.
The following factors should help you decide which method to use if your Cisco WLC is set for Layer 3
operation:
• With LAG, all of the Cisco WLC ports need to connect to the same neighbor switch. If the neighbor
switch goes down, the Cisco WLC loses connectivity.
• With multiple AP-manager interfaces, you can connect your ports to different neighbor devices. If one
of the neighbor switches goes down, the Cisco WLC still has connectivity. However, using multiple
AP-manager interfaces presents certain challenges when port redundancy is a concern.
Interfaces
Information About Interfaces
An interface is a logical entity on the controller. An interface has multiple parameters associated with it,
including an IP address, default gateway (for the IP subnet), primary physical port, secondary physical port,
VLAN identifier, and DHCP server.
These five types of interfaces are available on the controller. Four of these are static and are configured at
setup time:
Cisco Wireless Controller Configuration Guide, Release 8.2
10
Ports and Interfaces
Information About Dynamic AP Management
• Management interface (static and configured at setup time; mandatory)
• AP-manager interface (static and configured at setup time; mandatory)
Note
You are not required to configure an AP-manager interface on Cisco 5508 WLCs.
• Virtual interface (static and configured at setup time; mandatory)
• Service-port interface (static and configured at setup time; optional)
• Dynamic interface (user-defined)
Note
Typically, you define the management, AP-manager, virtual, and service-port interface parameters using
the Startup Wizard. However, you can display and configure interface parameters through either the GUI
or CLI after the controller is running.
When LAG is disabled, each interface is mapped to at least one primary port, and some interfaces (management
and dynamic) can be mapped to an optional secondary (or backup) port. If the primary port for an interface
fails, the interface automatically moves to the backup port. In addition, multiple interfaces can be mapped to
a single controller port.
In Cisco Wireless LAN Controller 5508 Series, the controller marks packets greater than 1500 bytes as long.
However, the packets are not dropped. The workaround to this is to configure the MTU on a switch to less
than 1500 bytes.
Note
Interfaces that are quarantined are not displayed on the Controller > Interfaces page. For example, if
there are 6 interfaces and one of them is quarantined, the quarantined interface is not displayed and the
details of the other 5 interfaces are displayed on the GUI. You can get the total number of interfaces that
is inclusive of quarantined interfaces through the count displayed on the top-right corner of the GUI.
Restrictions on Configuring Interfaces
• Each physical port on the wireless controller can have only one AP-manager configured with it. For the
Cisco 5508 WLCs, the management interface with AP-management enabled cannot fail over to the
backup port, which is primary for the AP-manager on the management or dynamic VLAN interface.
• Cisco 5508 WLCs do not support fragmented pings on any interface.
• When the port comes up in VMware ESXi with configuration for NIC teaming, the vWLC may lose
connectivity. However, the Cisco vWLC resumes connectivity after a while.
Information About Dynamic AP Management
A dynamic interface is created as a WLAN interface by default. However, any dynamic interface can be
configured as an AP-manager interface, with one AP-manager interface allowed per physical port. A dynamic
interface with the Dynamic AP Management option enabled is used as the tunnel source for packets from the
Cisco Wireless Controller Configuration Guide, Release 8.2
11
Ports and Interfaces
Information About WLANs
controller to the access point and as the destination for CAPWAP packets from the access point to the controller.
The dynamic interfaces for AP management must have a unique IP address and are usually configured on the
same subnet as the management interface.
Note
If link aggregation (LAG) is enabled, there can be only one AP-manager interface.
We recommend having a separate dynamic AP-manager interface per controller port.
Information About WLANs
A WLAN associates a service set identifier (SSID) to an interface or an interface group. It is configured with
security, quality of service (QoS), radio policies, and other wireless network parameters. Up to 512 WLANs
can be configured per controller.
Figure 3: Relationship between Ports, Interfaces, and WLANs
Cisco Wireless Controller Configuration Guide, Release 8.2
12
Ports and Interfaces
Management Interface
Each controller port connection is an 802.1Q trunk and should be configured as such on the neighbor switch.
On Cisco switches, the native VLAN of an 802.1Q trunk is an untagged VLAN. If you configure an interface
to use the native VLAN on a neighboring Cisco switch, make sure you configure the interface on the controller
to be untagged.
Note
A zero value for the VLAN identifier (on the Controller > Interfaces page) means that the interface is
untagged.
The default (untagged) native VLAN on Cisco switches is VLAN 1. When controller interfaces are configured
as tagged (meaning that the VLAN identifier is set to a nonzero value), the VLAN must be allowed on the
802.1Q trunk configuration on the neighbor switch and not be the native untagged VLAN.
We recommend that tagged VLANs be used on the controller. You should also allow only relevant VLANs
on the neighbor switch’s 802.1Q trunk connections to controller ports. All other VLANs should be disallowed
or pruned in the switch port trunk configuration. This practice is extremely important for optimal performance
of the controller.
Note
We recommend that you assign one set of VLANs for WLANs and a different set of VLANs for
management interfaces to ensure that controllers properly route VLAN traffic.
Management Interface
Information About the Management Interface
The management interface is the default interface for in-band management of the controller and connectivity
to enterprise services such as AAA servers. It is also used for communications between the controller and
access points. The management interface has the only consistently “pingable” in-band interface IP address on
the controller. You can access the GUI of the controller by entering the management interface IP address of
the controller in the address field of your browser.
For CAPWAP, the controller requires one management interface to control all inter-controller communications
and one AP-manager interface to control all controller-to-access point communications, regardless of the
number of ports.
If the service port is in use, the management interface must be on a different supernet from the service-port
interface.
Note
To prevent or block a wired or wireless client from accessing the management network on a controller
(from the wireless client dynamic interface or VLAN), the network administrator must ensure that only
authorized clients gain access to the management network through proper CPU ACLs, or use a firewall
between the client dynamic interface and the management network.
Cisco Wireless Controller Configuration Guide, Release 8.2
13
Ports and Interfaces
Management Interface
Caution
Do not map a guest WLAN to the management interface. If the EoIP tunnel breaks, the client could obtain
an IP and be placed on the management subnet.
Caution
Do not configure wired clients in the same VLAN or subnet of the service port of the controller on the
network. If you configure wired clients on the same subnet or VLAN as the service port, it is not possible
to access the management interface of the controller.
Authentication Type for Management Interfaces
For any type of management access to the controller, bet it SSH, Telnet, or HTTP, we recommend that you
use any one authentication type, which can be TACACS+, RADIUS, or Local, and not a mix of these
authentication types. Ensure that you take care of the following:
• Authentication type (TACACS+, RADIUS, or Local), must be the same for all management access and
for all AAA authentication and authorization parameters.
• The method list must be explicitly specified in the HTTP authentication.
Example
Follow these steps to configure Telnet:
1 Configure TACACS+ server by entering these commands:
a tacacs server server-name
b address ipv4 ip-address
c key key-name
2 Configure the server group name by entering these commands:
a aaa group server tacacs+ group-name
b server name name
3 Configure authentication and authorization by entering these commands:
a aaa authentication login method-list group server-group
b aaa authorization exec method-list group server-group
Note
These and all the other authentication and authorization parameters must be using the same database, be
it RADIUS, TACACS+, or Local. For example, if command authorization has to be enabled, it also needs
to be pointing to the same database.
4 Configure HTTP to use the above method lists:
1 ip http authentication aaa login-auth method-list
You must explicitly specify the method list, even if the method list is "default".
2 ip http authentication aaa exec-auth method-list
Cisco Wireless Controller Configuration Guide, Release 8.2
14
Ports and Interfaces
Management Interface
Note
• Do not configure any method-lists on the "line vty" configuration parameters. If the above steps and
the line vty have different configurations, then line vty configurations take precedence.
• The database should be the same across all management configuration types such as SSH/Telnet
and webui.
• You must explicitly define the method list for HTTP authentication.
Workaround
As a workaround, enter the following commands:
1 aaa authentication login default group server-group local
2 aaa authorization exec default group server-group local
Configuring the Management Interface (GUI)
Step 1
Step 2
Choose Controller > Interfaces to open the Interfaces page.
Click the management link.
The Interfaces > Edit page appears.
Step 3
Set the management interface parameters:
Note
The management interface uses the controller’s factory-set distribution system MAC address.
• Quarantine and quarantine VLAN ID, if applicable
Select the Quarantine check box if you want to configure this VLAN as unhealthy or you want to configure
network access control (NAC) out-of-band integration. Doing so causes the data traffic of any client that
is assigned to this VLAN to pass through the controller.
• NAT address (only Cisco 2504 and 5508 WLCs are configured for dynamic AP management.)
Note
Check the Enable NAT Address check box and enter the external NAT IP address if you want to be able
to deploy your Cisco 2504 and 5508 WLCs behind a router or other gateway device that is using one-to-one
mapping network address translation (NAT). NAT allows a device, such as a router, to act as an agent
between the Internet (public) and a local network (private). In this case, it maps the controller’s intranet
IP addresses to a corresponding external address. The controller’s dynamic AP-manager interface must
be configured with the external NAT IP address so that the controller can send the correct IP address in
the Discovery Response.
Note
If a Cisco 2504 or 5508 WLC is configured with an external NAT IP address under the management
interface, the APs in local mode cannot associate with the controller. The workaround is to either ensure
that the management interface has a globally valid IP address or ensure that external NAT IP address is
valid internally for the local APs.
Note
The NAT parameters are supported for use only with one-to-one-mapping NAT, where each private client
has a direct and fixed mapping to a global address. The NAT parameters do not support one-to-many NAT,
which uses source port mapping to enable a group of clients to be represented by a single IP address.
• VLAN identifier
Note
Note
Enter 0 for an untagged VLAN or a nonzero value for a tagged VLAN. We recommend using tagged
VLANs for the management interface.
Cisco Wireless Controller Configuration Guide, Release 8.2
15
Ports and Interfaces
Management Interface
• Configuring Management Interface using IPv4— Fixed IP address, IP netmask, and default gateway.
◦Configuring Management Interface using IPv6—Fixed IPv6 address, prefix-length (interface subnet mask
for IPv6) and the link local address of the IPv6 gateway router.
Note
• In a setup where IPv6 is used, we recommend the APs to be at least one hop away from the Cisco
WLC. As the IPv6 packets are always sent to the Gateway, if the AP and WLC are in the same subnet,
it increases the packet hops and impacts the performance.
• Once the primary IPv6 Address, prefix length, and primary IPv6 gateway are configured on the
management interface, they cannot be changed back to default values (:: /128).
• A configuration backup must be carried out before configuring IPv6 in case the user wants to revert
back to IPv4 only management interface.
• When more than 1300 IPv6 APs are in use, on a single Catalyst 6000 Switch, then assign APs on
multiple VLANs.
• In Cisco 8510 WLC running an HA pair, IPv6 primary gateway (link local) configured though Cisco
Aironet 3600 AP joined with the IPv6 address tears down the CAPWAP. Using the test capwap
command though the AP joined with IPv6 address, it is seen that when the link local address is not
reachable, CAPWAP should not be formed.
If APs are joined on IPv6 tunnel and if IPv6 gateway is misconfigured then IPv6 tunnel will not be
torn down. The APs will still be on IPv6 tunnel and will not fall back to IPv4 tunnel.
• Dynamic AP management (for Cisco 2504 or 5508 WLCs only)
For Cisco 5508 WLCs, the management interface acts like an AP-manager interface by default. If desired,
you can disable the management interface as an AP-manager interface and create another dynamic interface
as an AP manager.
• Physical port assignment (for all controllers except the Cisco 2504 or 5508 WLCs)
Note
• Primary and secondary DHCP servers
• Access control list (ACL) setting, if required
Step 4
Step 5
Click Save Configuration.
If you made any changes to the management or virtual interface, reboot the controller so that your changes take effect.
Configuring the Management Interface (CLI)
Step 1
Enter the show interface detailed management command to view the current management interface settings.
Note
The management interface uses the controller’s factory-set distribution system MAC address.
Step 2
Enter the config wlan disable wlan-number command to disable each WLAN that uses the management interface for
distribution system communication.
Enter these commands to define the management interface:
Step 3
Cisco Wireless Controller Configuration Guide, Release 8.2
16
Ports and Interfaces
Management Interface
a) Using IPv4 Address
• config interface address management ip-addr ip-netmask gateway
• config interface quarantine vlan management vlan_id
Note
Use the config interface quarantine vlan management vlan_id command to configure a quarantine
VLAN on the management interface.
• config interface vlan management {vlan-id | 0}
Note
Enter 0 for an untagged VLAN or a nonzero value for a tagged VLAN. We recommend using tagged
VLANs for the management interface.
• config interface ap-manager management {enable | disable}
Note
Use the config interface ap-manager management {enable | disable} command to enable or disable
dynamic AP management for the management interface. For Cisco 5508 WLCs, the management
interface acts like an AP-manager interface by default. If required, you can disable the management
interface as an AP-manager interface and create another dynamic interface as an AP manager.
• config interface port management physical-ds-port-number (for all controllers except the 5500 series)
• config interface dhcp management ip-address-of-primary-dhcp-server [ip-address-of-secondary-dhcp-server]
• config interface acl management access-control-list-name
b) Using IPv6 Address
Note
we recommend the APs to be at least one hop away from the Cisco WLC. As the IPv6 packets are always
sent to the Gateway, if the AP and WLC are in same subnet, it increases the packet hops and impacts the
performance.
• config ipv6 interface address management primary ip-address prefix-length IPv6_Gateway_Address
Once the Primary IPv6 Address, Prefix Length, and Primary IPv6 Gateway are configured on the
management interface, they cannot be changed back to default values (:: /128). A configuration backup
must be carried out before configuring IPv6 in case the user wants to revert back to IPv4 only
management interface.
• config interface quarantine vlan management vlan_id
Note
Note
Use the config interface quarantine vlan management vlan_id command to configure a quarantine
VLAN on the management interface.
• config interface vlan management {vlan-id | 0}
Note
Enter 0 for an untagged VLAN or a nonzero value for a tagged VLAN. We recommend using tagged
VLANs for the management interface.
• config interface ap-manager management {enable | disable}
Note
Use the config interface ap-manager management {enable | disable} command to enable or disable
dynamic AP management for the management interface. For Cisco 5508 WLCs, the management
interface acts like an AP-manager interface by default. If desired, you can disable the management
interface as an AP-manager interface and create another dynamic interface as an AP manager.
• config interface port management physical-ds-port-number (for all controllers except the 5500 series)
• config interface dhcp management ip-address-of-primary-dhcp-server [ip-address-of-secondary-dhcp-server]
• config ipv6 interface acl management access-control-list-name
Cisco Wireless Controller Configuration Guide, Release 8.2
17
Ports and Interfaces
Virtual Interface
Step 4
Enter these commands if you want to be able to deploy your Cisco WLC behind a router or other gateway device that is
using one-to-one mapping network address translation (NAT):
• config interface nat-address management {enable | disable}
• config interface nat-address management set public_IP_address
NAT allows a device, such as a router, to act as an agent between the Internet (public) and a local network (private). In
this case, it maps the Cisco WLC's intranet IP addresses to a corresponding external address. The controller’s dynamic
AP-manager interface must be configured with the external NAT IP address so that the controller can send the correct
IP address in the Discovery Response.
Step 5
These commands are supported for use only with one-to-one-mapping NAT, where each private client has a
direct and fixed mapping to a global address. These commands do not support one-to-many NAT, which uses
source port mapping to enable a group of clients to be represented by a single IP address.
Enter the save config command.
Step 6
Enter the show interface detailed management command to verify that your changes have been saved.
Step 7
If you made any changes to the management interface, enter the reset system command to reboot the controller in order
for the changes to take effect.
Note
Virtual Interface
Information About the Virtual Interface
The virtual interface is used to support mobility management, Dynamic Host Configuration Protocol (DHCP)
relay, and embedded Layer 3 security such as guest web authentication and VPN termination. It also maintains
the DNS gateway host name used by Layer 3 security and mobility managers to verify the source of certificates
when Layer 3 web authorization is enabled.
Specifically, the virtual interface plays these two primary roles:
• Acts as the DHCP server placeholder for wireless clients that obtain their IP address from a DHCP
server.
• Serves as the redirect address for the web authentication login page.
The virtual interface IP address is used only in communications between the controller and wireless clients.
It never appears as the source or destination address of a packet that goes out a distribution system port and
onto the switched network. For the system to operate correctly, the virtual interface IP address must be set (it
cannot be 0.0.0.0), and no other device on the network can have the same address as the virtual interface.
Therefore, the virtual interface must be configured with an unassigned and unused gateway IP address. The
virtual interface IP address is not pingable and should not exist in any routing table in your network. In addition,
the virtual interface cannot be mapped to a physical port.
Restrictions
• All controllers within a mobility group must be configured with the same virtual interface IP address.
Otherwise, inter-controller roaming may appear to work, but the handoff does not complete, and the
client loses connectivity for a period of time.
Cisco Wireless Controller Configuration Guide, Release 8.2
18
Ports and Interfaces
Virtual Interface
• When Virtual Interface and Management Interface have the same IP address until the third octet, the
Virtual Interface IP address will change to 0.0.0.0 after Cisco WLC is rebooted. Therefore, we recommend
that you use /32 format of the IP address for the Virtual Interface.
Configuring Virtual Interfaces (GUI)
Step 1
Step 2
Choose Controller > Interfaces to open the Interfaces page.
Click Virtual.
The Interfaces > Edit page appears.
Step 3
Enter the following parameters:
• Any valid unassigned, and unused gateway IP address
• DNS gateway hostname
Note
Step 4
Step 5
To ensure connectivity and web authentication, the DNS server should always point to the virtual interface.
If a DNS hostname is configured for the virtual interface, then the same DNS host name must be configured
on the DNS server(s) used by the client.
Click Save Configuration.
If you made any changes to the management or virtual interface, reboot the controller so that your changes take effect.
Configuring Virtual Interfaces (CLI)
Step 1
Enter the show interface detailed virtual command to view the current virtual interface settings.
Step 2
Enter the config wlan disable wlan-number command to disable each WLAN that uses the virtual interface for distribution
system communication.
Enter these commands to define the virtual interface:
Step 3
• config interface address virtual ip-address
Note
For ip-address, enter a valid, unassigned, and unused gateway IP address.
• config interface hostname virtual dns-host-name
Step 4
Step 5
Enter the reset system command. At the confirmation prompt, enter Y to save your configuration changes to NVRAM.
The controller reboots.
Enter the show interface detailed virtual command to verify that your changes have been saved.
Cisco Wireless Controller Configuration Guide, Release 8.2
19
Ports and Interfaces
Service-Port Interfaces
Service-Port Interfaces
Information About Service-Port Interfaces
The service-port interface controls communications through and is statically mapped by the system to the
service port.
The service port can obtain an IPv4 address using DHCP, or it can be assigned a static IPv4 address, but a
default gateway cannot be assigned to the service-port interface. Static IPv4 routes can be defined through
the controller for remote network access to the service port.
If the service port is in use, the management interface must be on a different supernet from the service-port
interface.
Similarly, the service port can be statically assigned an IPv6 address or select an IPv6 address using Stateless
Address Auto-Configuration (SLAAC). The default gateway cannot be assigned to the service-port interface.
Static IPv6 routes can be defined through the controller for remote network access to the service port.
Note
While IPv6 addressing is used along with stateless address auto-configuration, the controller does not
perform the subnet verification; however, you must not connect the service-port in the same subnet as the
other interfaces in the controller.
Note
This is the only SLAAC interface on the controller, all other interfaces must be statically assigned (just
like for IPv4).
Note
User does not require IPv6 static routes to reach service port from the same network, but IPv6 routes
requires to access service port from different network. The IPv6 static routes should be as same as IPv4.
Restrictions on Configuring Service-Port Interfaces
• Only Cisco Flex 7510 and Cisco 5508 WLCs have a physical service-port interface that is reachable
from the external network.
Configuring Service-Port Interfaces Using IPv4 (GUI)
Step 1
Choose Controller > Interfaces to open the Interfaces page.
Step 2
Step 3
Click the service-port link to open the Interfaces > Edit page.
Enter the Service-Port Interface parameters:
Note
The service-port interface uses the controller’s factory-set service-port MAC address.
• DHCP protocol (enabled)
Cisco Wireless Controller Configuration Guide, Release 8.2
20
Ports and Interfaces
Service-Port Interfaces
• DHCP protocol (disabled) and IP address and IP netmask
Step 4
Click Save Configuration to save your changes.
Step 5
If you made any changes to the management or virtual interface, reboot the controller so that your changes take effect.
Configuring Service-Port Interfaces Using IPv4 (CLI)
Step 1
To view the current service-port interface settings, enter this command:
show interface detailed service-port
Note
The service-port interface uses the controller’s factory-set service-port MAC address.
Step 2
Enter these commands to define the service-port interface:
• To configure the DHCP server, enter this command:
config interface dhcp service-port enable
• To disable the DHCP server, enter this command:
config interface dhcp service-port disable
• To configure the IPv4 address, enter this command:
config interface address service-port ip-addr ip-netmask
Step 3
The service port is used for out-of-band management of the controller. If the management workstation is in a remote
subnet, you may need to add a IPv4 route on the controller in order to manage the controller from that remote workstation.
To do so, enter this command:
config route add network-ip-addr ip-netmask gateway
Step 4
To remove the IPv4 route on the controller, enter this command:
config route delete ip_address
Step 5
Enter the save config command to save your changes.
Step 6
Enter the show interface detailed service-port command to verify that your changes have been saved.
Configuring Service-Port Interface Using IPv6 (GUI)
Step 1
Choose Controller > Interfaces to open the Interfaces page.
Step 2
Step 3
Click the service-port link to open the Interfaces > Edit page.
Enter the Service-Port Interface parameters:
Cisco Wireless Controller Configuration Guide, Release 8.2
21
Ports and Interfaces
Service-Port Interfaces
The service-port interface uses the controller’s factory-set service-port MAC address. Service Port can be
statically assigned an address or select an address using SLAAC.
• SLACC(enabled)
Note
• SLACC (disabled) and Primary Address and Prefix Length
Step 4
Click Save Configuration to save your changes.
Step 5
If you made any changes to the management or virtual interface, reboot the controller so that your changes take effect.
Configuring Service-Port Interfaces Using IPv6 (CLI)
Step 1
To view the current service-port interface settings, enter this command:
show interface detailed service-port
Note
The service-port interface uses the controller’s factory-set service-port MAC address.
Step 2
Enter these commands to define the service-port interface:
• To configure the service port using SLACC , enter this command:
config ipv6 interface slacc service-port enable
• To disable the service port from using SLACC, enter this command:
config ipv6 interface slacc service-port disable
• To configure the IPv6 address, enter this command:
config ipv6 interface address service-port iipv6_address prefix-length
Step 3
The service port is used for out-of-band management of the controller. If the management workstation is in a remote
subnet, you may need to add a route on the controller in order to manage the controller from that remote workstation.
To do so, enter this command:
config ipv6 route add network_ipv6_addr prefix-len ipv6_gw_addr
Step 4
To remove the IPv6 route on the controller, enter this command:
config ipv6 route delete network _ipv6 addr
Step 5
Enter the save config command to save your changes.
Step 6
Enter the show interface detailed service-port command to verify that your changes have been saved.
Cisco Wireless Controller Configuration Guide, Release 8.2
22
Ports and Interfaces
Dynamic Interfaces
Dynamic Interfaces
Information About Dynamic Interface
Dynamic interfaces, also known as VLAN interfaces, are created by users and designed to be analogous to
VLANs for wireless LAN clients. A controller can support up to 512 dynamic interfaces (VLANs). Each
dynamic interface is individually configured and allows separate communication streams to exist on any or
all of a controller’s distribution system ports. Each dynamic interface controls VLANs and other communications
between controllers and all other network devices, and each acts as a DHCP relay for wireless clients associated
to WLANs mapped to the interface. You can assign dynamic interfaces to distribution system ports, WLANs,
the Layer 2 management interface, and the Layer 3 AP-manager interface, and you can map the dynamic
interface to a backup port.
You can configure zero, one, or multiple dynamic interfaces on a distribution system port. However, all
dynamic interfaces must be on a different VLAN or IP subnet from all other interfaces configured on the port.
If the port is untagged, all dynamic interfaces must be on a different IP subnet from any other interface
configured on the port.
For information about maximum number of VLANs supported on a Cisco WLC platform, see the respective
Cisco WLC platform's datasheet.
Note
You must not configure a dynamic interface in the same network as that of Local Mobility Anchor (LMA).
If you do so, the GRE tunnel between the controller and LMA does not come up.
Prerequisites for Configuring Dynamic Interfaces
While configuring on the dynamic interface of the controller, you must ensure the following:
• You must use tagged VLANs for dynamic interfaces.
Restrictions on Configuring Dynamic Interfaces
The following restrictions apply for configuring the dynamic interfaces on the controller:
• Wired clients cannot access management interface of the Cisco 2504 WLC using the IP address of the
AP Manager interface .
• For SNMP requests that come from a subnet that is configured as a dynamic interface, the controller
responds but the response does not reach the device that initiated the conversation.
• If you are using DHCP proxy and/or a RADIUS source interface, ensure that the dynamic interface has
a valid routable address. Duplicate or overlapping addresses across controller interfaces are not supported.
• You must not use ap-manager as the interface name while configuring dynamic interfaces as ap-manager
is a reserved name.
Cisco Wireless Controller Configuration Guide, Release 8.2
23
Ports and Interfaces
Dynamic Interfaces
Configuring Dynamic Interfaces (GUI)
Step 1
Step 2
Choose Controller > Interfaces to open the Interfaces page.
Perform one of the following:
• To create a new dynamic interface, click New. The Interfaces > New page appears. Go to Step 3.
• To modify the settings of an existing dynamic interface, click the name of the interface. The Interfaces > Edit
page for that interface appears. Go to Step 5.
• To delete an existing dynamic interface, hover your cursor over the blue drop-down arrow for the desired interface
and choose Remove.
Step 3
Step 4
Step 5
Enter an interface name and a VLAN identifier, as shown in the figure above.
Note
You cannot enter ap-manager as the interface name while configuring a dynamic interface as ap-manager is a
reserved name.
Click Apply to commit your changes. The Interfaces > Edit page is displayed.
Configure the following parameters:
• Guest LAN, if applicable
• Quarantine and quarantine VLAN ID, if applicable
Note
Select the Quarantine check box if you want to configure this VLAN as unhealthy or you want to configure
network access control (NAC) out-of-band integration. Doing so causes the data traffic of any client that
is assigned to this VLAN to pass through the controller.
• Physical port assignment (for all controllers except the 5500 series)
• NAT address (only for Cisco 5500 Series Controllers configured for dynamic AP management)
Note
Note
Check the Enable NAT Address check box and enter the external NAT IP address if you want to be able
to deploy your Cisco WLC behind a router or other gateway device that is using one-to-one mapping
network address translation (NAT). NAT allows a device, such as a router, to act as an agent between the
Internet (public) and a local network (private). In this case, it maps the controller’s intranet IP addresses
to a corresponding external address. The controller’s dynamic AP-manager interface must be configured
with the external NAT IP address so that the controller can send the correct IP address in the Discovery
Response.
The NAT parameters are supported for use only with one-to-one-mapping NAT, where each private client
has a direct and fixed mapping to a global address. The NAT parameters do not support one-to-many NAT,
which uses source port mapping to enable a group of clients to be represented by a single IP address.
• Dynamic AP management
Note
Note
When you enable this feature, this dynamic interface is configured as an AP-manager interface (only one
AP-manager interface is allowed per physical port). A dynamic interface that is marked as an AP-manager
interface cannot be used as a WLAN interface.
Set the APs in a VLAN that is different than the dynamic interface configured on the controller. If the APs
are in the same VLAN as the dynamic interface, the APs are not registered on the controller and the
“LWAPP discovery rejected” and “Layer 3 discovery request not received on management VLAN” errors
are logged on the controller.
• VLAN identifier
Cisco Wireless Controller Configuration Guide, Release 8.2
24
Ports and Interfaces
Dynamic Interfaces
• Fixed IP address, IP netmask, and default gateway
Note
Enter valid IP addresses in these
fields.
• Primary and secondary DHCP servers
• Access control list (ACL) name, if required
Note
Step 6
Step 7
To ensure proper operation, you must set the Port Number and Primary DHCP Server parameters.
Click Save Configuration to save your changes.
Repeat this procedure for each dynamic interface that you want to create or edit.
Configuring Dynamic Interfaces (CLI)
Step 1
Enter the show interface summary command to view the current dynamic interfaces.
Step 2
View the details of a specific dynamic interface by entering this command:
show interface detailed operator_defined_interface_name.
Note
Interface names that contain spaces must be enclosed in double quotes. For example: config interface create
"vlan 25"
Step 3
Enter the config wlan disable wlan_id command to disable each WLAN that uses the dynamic interface for distribution
system communication.
Enter these commands to configure dynamic interfaces:
Step 4
• config interface create operator_defined_interface_name {vlan_id | x}
• config interface address interface ip_addr ip_netmask [gateway]
• config interface vlan operator_defined_interface_name {vlan_id | o}
• config interface port operator_defined_interface_name physical_ds_port_number
• config interface ap-manager operator_defined_interface_name {enable | disable}
Note
Use the config interface ap-manager operator_defined_interface_name {enable | disable} command
to enable or disable dynamic AP management. When you enable this feature, this dynamic interface is
configured as an AP-manager interface (only one AP-manager interface is allowed per physical port). A
dynamic interface that is marked as an AP-manager interface cannot be used as a WLAN interface. You
cannot use ap-manager as the operator_defined_interface_name while configuring a dynamic interface
as ap-manager is a reserved name.
• config interface dhcp operator_defined_interface_name ip_address_of_primary_dhcp_server
[ip_address_of_secondary_dhcp_server]
• config interface quarantine vlan interface_name vlan_id
Note
Use the config interface quarantine vlan interface_name vlan_id command to configure a quarantine
VLAN on any interface.
Cisco Wireless Controller Configuration Guide, Release 8.2
25
Ports and Interfaces
AP-Manager Interface
• config interface acl operator_defined_interface_name access_control_list_name
Step 5
Enter these commands if you want to be able to deploy your Cisco WLC behind a router or other gateway device that is
using one-to-one mapping network address translation (NAT):
• config interface nat-address dynamic-interface operator_defined_interface_name {enable | disable}
• config interface nat-address dynamic-interface operator_defined_interface_name set public_IP_address
NAT allows a device, such as a router, to act as an agent between the Internet (public) and a local network (private). In
this case, it maps the controller’s intranet IP addresses to a corresponding external address. The controller’s dynamic
AP-manager interface must be configured with the external NAT IP address so that the controller can send the correct
IP address in the Discovery Response.
Note
Step 6
These commands are supported for use only with one-to-one-mapping NAT, whereby each private client has a
direct and fixed mapping to a global address. These commands do not support one-to-many NAT, which uses
source port mapping to enable a group of clients to be represented by a single IP address.
Step 7
Enter the config wlan enable wlan_id command to reenable each WLAN that uses the dynamic interface for distribution
system communication.
Enter the save config command to save your changes.
Step 8
Enter the show interface detailed operator_defined_interface_name command and show interface summary command
to verify that your changes have been saved.
Note
If desired, you can enter the config interface delete operator_defined_interface_name command to delete a
dynamic interface.
AP-Manager Interface
Information About AP-Manager Interface
A controller configured with IPv4 has one or more AP-manager interfaces, which are used for all Layer 3
communications between the controller and lightweight access points after the access points have joined the
controller.
Note
Release 8.2 does not support multiple non-AP Manager dynamic interfaces, untagged management
interfaces, management interfaces mapped to physical ports, and non-LAG scenarios.
Note
A controller configured with IPv6 has only one AP-manager and is applicable on management interface.
You cannot remove the AP-manager configured on management interface.
The AP-manager IP address is used as the tunnel source for CAPWAP packets from the controller to the
access point and as the destination for CAPWAP packets from the access point to the controller.
Cisco Wireless Controller Configuration Guide, Release 8.2
26
Ports and Interfaces
AP-Manager Interface
Note
The controller does not support transmitting the jumbo frames. To avoid having the controller transmit
CAPWAP packets to the AP that will necessitate fragmentation and reassembly, reduce MTU/MSS on
the client side.
The AP-manager interface communicates through any distribution system port by listening across the Layer
3 network for access point CAPWAP or LWAPP join messages to associate and communicate with as many
lightweight access points as possible.
A controller configured with IPv6 does not support Dynamic AP-Manager. By default, the management
interface acts like an AP-manager interface. Link Aggregation (LAG) is used for IPv6 AP load balancing.
Restrictions for Configuring AP Manager Interface
• For IPv4—The MAC address of the management interface and the AP-manager interface is the same
as the base LAG MAC address.
• If only one distribution system port can be used, you should use distribution system port 1.
• An AP-manager interface is not required to be configured. The management interface acts like an
AP-manager interface by default, and the access points can join on this interface.
• If link aggregation (LAG) is enabled, there can be only one AP-manager interface. But when LAG is
disabled, one or more AP-manager interfaces can be created, generally one per physical port.
◦When LAG is enabled—Supports only one AP Manager, which can either be on the management
or dynamic interface with AP management.
◦When LAG is disabled—Supports one AP Manager per port. The Dynamic Interface tied to a
VLAN can act as an AP Manager (when enabled).
Note
When you enable LAG, all the ports would lose their AP Manager status and the AP
management reverts back onto the Management interface.
• Port redundancy for the AP-manager interface is not supported. You cannot map the AP-manager
interface to a backup port.
Configuring the AP-Manager Interface (GUI)
Step 1
Choose Controller > Interfaces to open the Interfaces page.
Step 2
Click AP-Manager Interface.
The Interface > Edit page is displayed.
For IPv6 only—A controller configured with IPv6 address does not support Dynamic AP-Manager. By default,
the management interface acts like an AP-manager interface.
Set the AP-Manager Interface parameters:
Note
For Cisco 5508 WLCs, you are not required to configure an AP-manager interface. The management interface
acts like an AP-manager interface by default.
Note
Step 3
Cisco Wireless Controller Configuration Guide, Release 8.2
27
Ports and Interfaces
AP-Manager Interface
• Physical port assignment
• VLAN identifier
Note
Enter 0 for an untagged VLAN or a nonzero value for a tagged VLAN. We recommend using tagged
VLANs for the AP-manager interface.
Note
The gig/wired subinterface is numbered with VLAN number and dot11 subinterface is numbered with the
WLAN ID. The first configured WLAN becomes dot11 0.1 & dot11 1.1 and second WLAN ID subinterface
becomes dot11 0.2 & dot11 1.2 onwards. This dot11 sub interface number cannot be mapped with a VLAN
ID because multiple WLANs can be assigned with a same VLAN number. We cannot have duplicate
subinterface created in the system. The native subinterface configuration in wired interface is the AP native
VLAN configuration, if VLAN support is enabled in FlexConnect mode or else the native interface is
always gig prime interface in AP (Local / Flex with no VLAN support).
• Fixed IP address, IP netmask, and default gateway
• Primary and secondary DHCP servers
• Access control list (ACL) name, if required
Step 4
Click Save Configuration to save your changes.
Step 5
If you made any changes to the management or virtual interface, reboot the controller so that your changes take effect.
Configuring the AP Manager Interface (CLI)
Before You Begin
For Cisco 5508 WLCs, you are not required to configure an AP-manager interface. The management interface
acts like an AP-manager interface by default.
A controller configured with IPv6 address does not support Dynamic AP-Manager. The management interface
acts like an AP-manager interface by default.
Step 1
Enter the show interface summary command to view the current interfaces.
Note
If the system is operating in Layer 2 mode, the AP-manager interface is not
listed.
Step 2
Enter the show interface detailed ap-manager command to view the current AP-manager interface settings.
Step 3
Enter the config wlan disable wlan-number command to disable each WLAN that uses the AP-manager interface for
distribution system communication.
Enter these commands to define the AP-manager interface:
Step 4
• config interface address ap-manager ip-addr ip-netmask gateway
• config interface vlan ap-manager {vlan-id | 0}
Note
Enter 0 for an untagged VLAN or a nonzero value for a tagged VLAN. We recommend using tagged
VLANs for the AP-manager interface.
Cisco Wireless Controller Configuration Guide, Release 8.2
28
Ports and Interfaces
AP-Manager Interface
• config interface port ap-manager physical-ds-port-number
• config interface dhcp ap-manager ip-address-of-primary-dhcp-server [ip-address-of-secondary-dhcp-server]
• config interface acl ap-manager access-control-list-name
Step 5
Enter the save config command to save your changes.
Step 6
Enter the show interface detailed ap-manager command to verify that your changes have been saved.
Configuration Example: Configuring AP-Manager on a Cisco 5500 Series Controller
For a Cisco 5508 WLC, we recommend that you have eight dynamic AP-manager interfaces and associate
them to the eight Gigabit ports of the controller when LAG is not used. If you are using the management
interface, which acts like an AP-manager interface by default, you must create only seven more dynamic
AP-manager interfaces and associate them to the remaining seven Gigabit ports.
Note
For IPv6 only—A controller configured with IPv6 address does not support Dynamic AP-Manager. By
default, the management interface acts like an AP-manager interface. Use LAG for IPv6 AP load balancing.
Cisco Wireless Controller Configuration Guide, Release 8.2
29
Ports and Interfaces
AP-Manager Interface
This figure shows a dynamic interface that is enabled as a dynamic AP-manager interface and associated to
port number 2.
Figure 4: Dynamic Interface Example with Dynamic AP Management
Cisco Wireless Controller Configuration Guide, Release 8.2
30
Ports and Interfaces
AP-Manager Interface
This figure shows a Cisco 5508 WLC with LAG disabled, the management interface used as one dynamic
AP-manager interface, and seven additional dynamic AP-manager interfaces, each mapped to a different
Gigabit port.
Figure 5: Cisco 5508 WLC Interface Configuration Example
Multiple AP-Manager Interfaces
Information About Multiple AP-Manager Interfaces
When you create two or more AP-manager interfaces, each one is mapped to a different port. The ports should
be configured in sequential order so that AP-manager interface 2 is on port 2, AP-manager interface 3 is on
port 3, and AP-manager interface 4 is on port 4.
Before an access point joins a controller, it sends out a discovery request. From the discovery response that
it receives, the access point can tell the number of AP-manager interfaces on the controller and the number
of access points on each AP-manager interface. The access point generally joins the AP-manager with the
least number of access points. In this way, the access point load is dynamically distributed across the multiple
AP-manager interfaces.
Note
Access points may not be distributed completely evenly across all of the AP-manager interfaces, but a
certain level of load balancing occurs.
Restrictions on Configuring Multiple AP Manager Interfaces
The following restrictions apply while configuring the multiple AP manager interfaces in the controller:
• You must assign an AP-manager interface to each port on the controller.
• Before implementing multiple AP-manager interfaces, you should consider how they would impact your
controller’s port redundancy.
• AP-manager interfaces do not need to be on the same VLAN or IP subnet, and they may or may not be
on the same VLAN or IP subnet as the management interface. However, we recommend that you configure
all AP-manager interfaces on the same VLAN or IP subnet.
• If the port of one of the AP-manager interfaces fails, the controller clears the state of the access points,
and the access points must reboot to reestablish communication with the controller using the normal
Cisco Wireless Controller Configuration Guide, Release 8.2
31
Ports and Interfaces
AP-Manager Interface
controller join process. The controller no longer includes the failed AP-manager interface in the CAPWAP
or LWAPP discovery responses. The access points then rejoin the controller and are load balanced among
the available AP-manager interfaces.
In the case of management interface, because there is support for backup port, APs already connected
to management interface continue to be in connected state (falling to backup port) rather than dropping
off. However, AP-Mgr will get disabled any new APs will associate with the current AP-Mgr.
Creating Multiple AP-Manager Interfaces (GUI)
Step 1
Choose Controller > Interfaces to open the Interfaces page.
Step 2
Click New.
The Interfaces > New page appears.
Step 3
Step 4
Enter an AP-manager interface name and a VLAN identifier.
Click Apply to commit your changes. The Interfaces > Edit page appears.
Step 5
Enter the appropriate interface parameters.
Note
Every interface supports primary and backup port with the following exceptions
• Dynamic interface is converted to AP manager which does not support backup of port configuration.
• If AP manager is enabled on management interface and when management interface moves to backup port
because of primary port failure, the AP manager will be disabled.
Step 6
Step 7
To make this interface an AP-manager interface, select the Enable Dynamic AP Management check box.
Note
Only one AP-manager interface is allowed per physical port. A dynamic interface that is marked as an AP-manager
interface cannot be used as a WLAN interface.
Click Save Configuration to save your settings.
Step 8
Repeat this procedure for each additional AP-manager interface that you want to create.
Creating Multiple AP-Manager Interfaces (CLI)
Step 1
Enter these commands to create a new interface:
• config interface create operator_defined_interface_name {vlan_id | x}
• config interface address operator_defined_interface_name ip_addr ip_netmask [gateway]
• config interface vlan operator_defined_interface_name {vlan_id | o}
• config interface port operator_defined_interface_name physical_ds_port_number
• config interface dhcp operator_defined_interface_name ip_address_of_primary_dhcp_server
[ip_address_of_secondary_dhcp_server]
• config interface quarantine vlan interface_name vlan_id
Cisco Wireless Controller Configuration Guide, Release 8.2
32
Ports and Interfaces
Interface Groups
Note
Use this command to configure a quarantine VLAN on any
interface.
• config interface acl operator_defined_interface_name access_control_list_name
Step 2
Step 3
To make this interface an AP-manager interface, enter this command:
{config interface ap-manager operator_defined_interface_name enable | disable}
Note
Only one AP-manager interface is allowed per physical port. A dynamic interface that is marked as an AP-manager
interface cannot be used as a WLAN interface.
Enter save config command to save your changes.
Step 4
Repeat this procedure for each additional AP-manager interface that you want to create.
Interface Groups
Information About Interface Groups
Interface groups are logical groups of interfaces. Interface groups facilitate user configuration where the same
interface group can be configured on multiple WLANs or while overriding a WLAN interface per AP group.
An interface group can exclusively contain either quarantine or nonquarantine interfaces. An interface can be
part of multiple interface groups.
A WLAN can be associated with an interface or interface group. The interface group name and the interface
name cannot be the same.
This feature also enables you to associate a client to specific subnets based on the foreign controller that they
are connected to. The anchor controller WLAN can be configured to maintain a mapping between foreign
controller MAC and a specific interface or interface group (Foreign maps) as needed. If this mapping is not
configured, clients on that foreign controller gets VLANs associated in a round robin fashion from interface
group configured on WLAN.
You can also configure AAA override for interface groups. This feature extends the current access point group
and AAA override architecture where access point groups and AAA override can be configured to override
the interface group WLAN that the interface is mapped to. This is done with multiple interfaces using interface
groups.
This feature enables network administrators to configure guest anchor restrictions where a wireless guest user
at a foreign location can obtain an IP address from multiple subnets on the foreign location and controllers
from within the same anchor controller.
Controller marks VLAN as dirty when the clients are unable to receive IP address using DHCP. The VLAN
interface is marked as dirty based on two methods:
Aggressive Method—When only one failure is counted per association per client and controller marks VLAN
as dirty interface when a failure occurs three times for a client or for three different clients.
Non-Aggressive Method—When only one failure is counted per association per client and controller marks
VLAN as a dirty interface only when three or more clients fail.
Cisco Wireless Controller Configuration Guide, Release 8.2
33
Ports and Interfaces
Interface Groups
Restrictions on Configuring Interface Groups
• The priority order for configuring VLAN interface select for WLAN is:
◦AAA override
◦AP group
◦DHCP server override
◦Interface group
• While you configure VLAN-ACL mapping using the native VLAN identifier as part of Flex group
configuration, the ACL mapping does not take place. However, if you use the same VLAN to configure
ACL mapping at the access point level, the configuration is allowed.
Creating Interface Groups (GUI)
Step 1
Choose Controller > Interface Groups.
The Interface Groups page appears with the list of interface groups already created.
Note
To remove an interface group, hover your mouse pointer over the blue drop-down icon and choose Remove.
Step 2
Click Add Group.
The Add New Interface Group page appears.
Step 3
Enter the details of the interface group:
• Interface Group Name—Specify the name of the interface group.
• Description—Add a brief description of the interface group.
Step 4
Click Add.
Creating Interface Groups (CLI)
• config interface group {create | delete} interface_group_name—Creates or deletes an interface group
• config interface group description interface_group_name description—Adds a description to the
interface group
Adding Interfaces to Interface Groups (GUI)
Step 1
Choose Controller > Interface Groups.
Cisco Wireless Controller Configuration Guide, Release 8.2
34
Ports and Interfaces
Interface Groups
The Interface Groups page appears with a list of all interface groups.
Step 2
Click the name of the interface group to which you want to add interfaces.
The Interface Groups > Edit page appears.
Step 3
Step 4
Choose the interface name that you want to add to this interface group from the Interface Name drop-down list.
Click Add Interface to add the interface to the Interface group.
Step 5
Repeat Steps 2 and 3 if you want to add multiple interfaces to this interface group.
Note
To remove an interface from the interface group, hover your mouse pointer over the blue drop-down arrow and
choose Remove.
Adding Interfaces to Interface Groups (CLI)
To add interfaces to interface groups, use the config interface group interface add interface_group
interface_name command.
Viewing VLANs in Interface Groups (CLI)
To view a list of VLANs in the interface groups, use the show interface group detailed interface-group-name
command.
Adding an Interface Group to a WLAN (GUI)
Step 1
Choose the WLAN tab.
The WLANs page appears listing the available WLANs.
Step 2
Step 3
Click the WLAN ID of the WLAN to which you want to add the interface group.
In the General tab, choose the interface group from the Interface/Interface Group (G) drop-down list.
Step 4
Click Apply.
Note
Suppose that the interface group that you add to a WLAN has RADIUS Server Overwrite interface enabled. In
this case, when a client requests for authentication, the controller selects the first IP address from the interface
group as the RADIUS server.
Adding an Interface Group to a WLAN (CLI)
To add an interface group to a WLAN, enter the config wlan interface wlan_id interface_group_name
command.
Cisco Wireless Controller Configuration Guide, Release 8.2
35
Ports and Interfaces
Interface Groups
Cisco Wireless Controller Configuration Guide, Release 8.2
36
Download PDF
Similar pages
