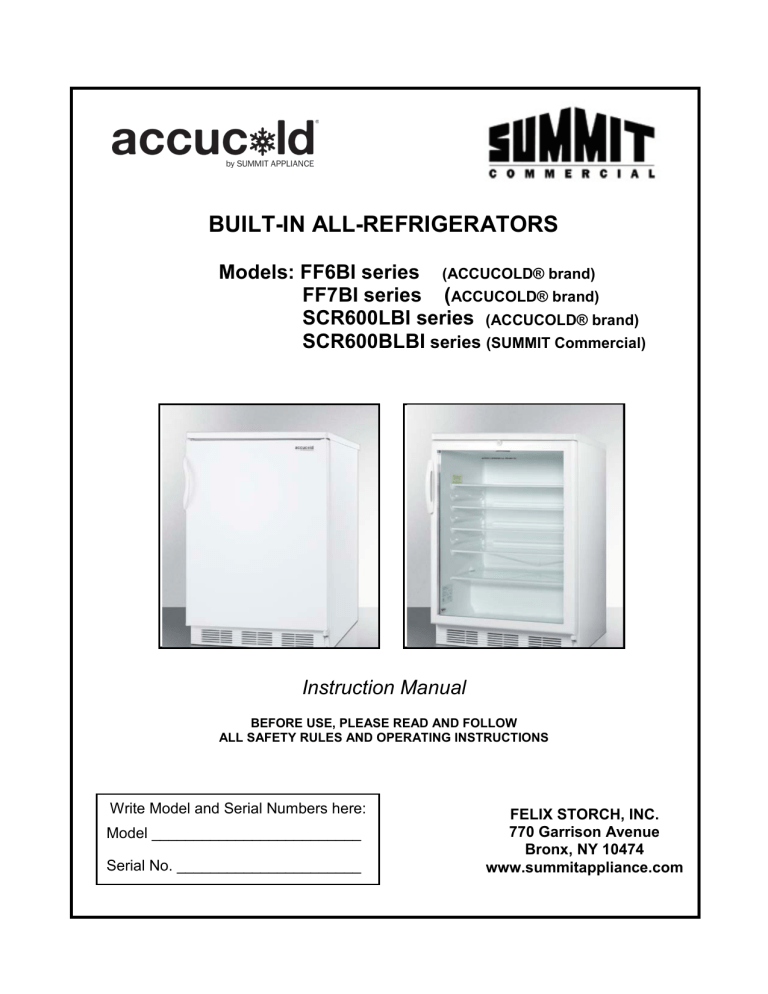

BUILT-IN ALL-REFRIGERATORS
Models: FF6BI series (ACCUCOLD® brand)
FF7BI series (ACCUCOLD® brand)
SCR600LBI series (ACCUCOLD® brand)
SCR600BLBI series (SUMMIT Commercial)
M405
CM411L
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Write Model and Serial Numbers here:
Model _________________________
Serial No. ______________________
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
IMPORTANT SAFEGUARDS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages will
follow the Safety Alert Symbol and either the words ”DANGER” or
“WARNING”.
DANGER means that failure to heed this
safety statement may result in severe
personal injury or death.
WARNING means that failure to heed
this safety statement may result in
extensive product damage, serious
personal injury, or death.
Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.
Before the refrigerator is used, it must be properly positioned and installed
as described in this manual, so read the manual carefully. To reduce the
risk of fire, electrical shock or injury when using the appliance, follow basic
precautions, including the following:
• Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect the power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
1
• Use two or more people to move and install the refrigerator. Failure to do so can result in back
or other injury.
• To ensure proper ventilation for your appliance, the front of the unit must be completely
°
°
unobstructed. Choose a well-ventilated area with temperatures above 60 F (16 C) and below
°
°
90 F (32 C). This unit must be installed in an area protected from the elements, such as wind,
rain, water spray or drips.
• The appliance should not be located next to ovens, radiators or other sources of high heat.
• The appliance must be installed with all electrical connections in accordance with state and
local codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
• Do not kink or pinch the power supply cord of the appliance.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to
make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.
THE FF6BI AND FF7BI SERIES MODELS, AS WELL AS MODEL SCR600LBI, ARE DESIGNED
FOR MEDICAL OR PHARMACEUTICAL USE ONLY. THEY ARE NOT INTENDED FOR USE
AS HOUSEHOLD REFRIGERATORS. MODEL SCR600BLBI IS DESIGNED AS A
COMMERCIAL BEVERAGE MERCHANDISER.
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few
days.”
• Before you throw away your old refrigerator or freezer: Take off the doors. Leave
the shelves or drawers in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the refrigerator/freezer.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERONS
UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO
ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE
SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
- SAVE THESE INSTRUCTIONS -
2
Table of Contents
Important Safeguards ....................................................................................................1 - 2
Location of Parts ............................................................................................................3 - 4
Technical Information ......................................................................................................... 5
Installation Instructions .................................................................................................6 - 8
Before Using Your Appliance .......................................................................................... 6
Installing the Refrigerator ............................................................................................... 6
Electrical Connection / Extension Cord ...................................................................... 6 - 7
Reversing the Door Swing .........................................................................................7 - 8
Door Handle Installation .................................................................................................. 8
Operating Your Refrigerator ............................................................................................... 9
Temperature Control
Defrosting Your Appliance
Care and Maintenance ...................................................................................................... 10
Cleaning Your Appliance / Power Failure / Vacation Time /
Moving your Appliance / Energy-Saving Tips
Troubleshooting ................................................................................................................ 11
Limited Warranty ............................................................................................................... 15
Location of Parts
Temperature control dial
(thermostat) and interior
light
FF6BI series
Handle
Crisper and
glass cover
Door with storage
compartments
Adjustable shelves
(wire for FF6 & FF6L;
glass for FF6B)
Front ventilation
slots (kick plate)
Leveling legs
NOTE: Lock on model FF6LBI is located on the front of
the door, near the top center.
3
Defrost water
outlet
(behind crisper)
Temperature control dial
(thermostat), light switch
and interior light
FF7BI series
Handle
Door
Adjustable shelves
(wire for FF7 & FF7L;
glass for FF7B & FF7LBL)
Front ventilation
slots (kick plate)
Defrost water
outlet
Leveling legs
NOTE: Lock on models FF7LBI and FF7LBLBI is located
on the front of the door, near the top center.
SCR600BI series
Temperature control dial
(thermostat), light switch
and interior light
Lock
Handle
Glass door
Adjustable shelves
(wire for SCR600LBI;
glass for SCR600BLBI)
Front ventilation
slots (kick plate)
Defrost water
outlet
Leveling legs
4
Technical Information
Model Numbers
and
Descriptions
FF6BI (white with wire shelves and no lock; door storage)
FF6LBI (white with wire shelves and lock; door storage)
FF6BBI (black with glass shelves and no lock; door storage)
FF7BI (white with wire shelves and no lock; flat door liner)
FF7LBI (white with wire shelves and lock; flat door liner)
FF7BBI (black with glass shelves and no lock; flat door liner)
FF7LBLBI (black with glass shelves and lock; flat door liner)
SCR600LBI (white with wire shelves and lock; glass door)
SCR600BLBI (black with glass shelves and lock; glass door)
Capacity
5.5 cu. ft.
Electrical Input
115V AC/60Hz
Rated Current
1.0A
Refrigerant
R134a (1.8 oz.)
Installation
Built-in or Freestanding
Unit Dimensions
(W x D x H)
23.63" x 23.5" x 33.5"
NOTES: 1. FF6BI and FF7BI series models and SCR600LBI are suitable for storing
vaccines, pharmaceuticals and other temperature-sensitive materials. They
can also store foodstuffs at an ideal temperature. However, they are not
designed for household use since they utilize an oversized commercial
compressor.
Model SCR600BLBI is designed as a commercial beverage merchandiser.
2. Specifications are subject to change without notice.
5
Installation Instructions
Before Using Your Appliance:
• Remove the exterior and interior packing.
• Before connecting the unit to a power source, let it stand for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
• Remove the shelves and clean them and the interior surfaces of the unit with
lukewarm water using a soft cloth.
Installing the Refrigerator:
• Place the unit on a floor that is strong enough to support the appliance when it is fully
loaded. To level the unit, adjust the two leveling legs at the front.
• Your appliance can be installed either free-standing, recessed or built into an
enclosure. When installing as a free-standing unit, allow at least 2” (51mm) of space
at the sides, top and rear of the unit to allow for proper air circulation to cool the
compressor and condenser. Even when built in, the unit requires at least 2” of
clearance at the back, 1/8” (3mm) at both sides and 1/16” (1.6mm) at the top. Take
care that the air vents at the front of the appliance are never covered or blocked in
any way.
• Locate the unit away from direct sunlight and sources of heat
(oven, heater, radiator, etc.). Direct sunlight may affect the
acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also
affect the unit's performance.
• Avoid locating the unit in moist areas. Too much moisture in
the air will cause frost to form quickly on the evaporator,
requiring more frequent defrosting of the interior.
• Plug the unit into an exclusive, properly installed and
grounded wall outlet. Do not under any circumstances cut or
remove the third (ground) prong from the power cord. Any questions concerning
power and/or grounding should be directed toward a certified electrician or authorized
service center.
Electrical Connection:
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
This unit should be properly grounded for your safety. The power cord of this unit is
equipped with a three-prong plug which mates with a standard three-prong wall outlet to
minimize the possibility of electrical shock.
6
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied. For personal safety, this appliance must be properly grounded.
This unit requires a standard 115-volt AC/60Hz electrical outlet with three-prong ground.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet
is properly grounded. When a standard 2-prong wall outlet is encountered, it is your
responsibility and obligation to have it replaced with a properly grounded 3-prong wall
outlet.
To prevent accidental injury, the cord should be secured behind the unit and not left
exposed or dangling.
The unit should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best
performance and also prevents overloading house wiring circuits that could cause a fire
hazard from overheated wires. Never unplug the unit by pulling on the power cord.
Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately any power cord that has become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length or at either end. When
moving the unit, be careful not to damage the power cord.
Extension Cord:
Do not use an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance.
Reversing the Door Swing (select models only):
If you find the direction of opening the door of the appliance inconvenient, you can change it.
Holes on the opposite side have already been prepared at the factory.
This appliance can be opened from either the right side or the left. By default, the door hinge is on
the right side. If you prefer it on the left, please follow the appropriate instructions:
For models FF6BBI, FF7BI and FF7BBI:
1.
2.
3.
4.
5.
Take off the upper hinge cover from the door and remove the screws that hold the top hinge.
Lift the hinge straight up to free the hinge pin from the socket in the top of the door.
Lift the door up and away to free its bottom socket from the hinge pin.
Remove the screws to the bottom hinge.
Remove the decorative caps from the opposite side and plug the holes from the original side
with the decorative caps.
6. Move the bottom hinge to the opposite side and tighten the screws. Use any lock washers or
nuts if they were installed in the original installation.
7. Replace door onto the hinge pin on the bottom hinge. Place top hinge pin into door. Insert
screws into the top hinge and tighten.
If you notice the door not hanging straight, loosen the top hinge screws, adjust the door
until it is level and tighten the screws.
7
For models FF6BI, FF6LBI, FF7LBI, FF7LBLBI, SCR600LBI and SCR600BLBI:
NOTES: See illustration below.
All of the parts that are removed must be kept for the reinstallation of the door.
1. Unscrew the lower hinge and take off the door.
2. Push the kick plate to the right in the new position.
3. Undo the upper hinge fastener and fix it to the opposite side of the housing, where you
have already removed and replaced the fastener with the hole to the opposite side.
4. Put the door on the upper hinge fastener.
5. Fix the lower hinge in the new position.
6. Unscrew the handle and place it on the opposite side.
7. Some screws are covered with caps. Take off these caps before undoing the screws.
8. Check the door gasket. It should not be creased and should seal well.
Models FF6, FF6L,
FF7L, FF7LBL,
SCR600L and
SCR600BL
1. Upper hinge fastener
2. Lower hinge
3. Kick plate
4. Handle
5. Door hinge fixture
6. Door hinge fixture plug
Door Handle Installation:
The door has two screw holes on each side, allowing you to install a handle (included). To
do so, align the handle with the screw holes on the side you prefer. Fix the handle in place
with the included screws, then cover the screw heads with the handle seal (included).
8
Operating Your Refrigerator
Temperature Control:
• Your appliance’s evaporator system is out of sight behind the interior rear wall.
• The interior temperature is controlled with a thermostat knob
•
•
•
•
•
located inside the unit, towards the upper right-hand corner.
Turn the knob clockwise from the STOP (0) position toward
the higher numbers for colder temperatures. Higher settings
on the knob (higher numbers) mean lower temperatures
(colder) in the refrigerator.
On the coldest settings, temperatures in some spots inside
the cabinet may drop below 32°F. Use higher thermostat settings only when required
or recommended. When the ambient temperature is normal, we recommend a
medium setting.
Changes in the ambient temperature affect the temperature inside the refrigerator so
choose an appropriate setting of the thermostat knob, depending on ambient
conditions.
In the STOP (0) position, the appliance does not operate (the cooling system is
switched off), yet the power supply is not interrupted (the light still works).
The temperature inside the refrigerator also depends on how often you open the
door.
In all small refrigerators without interior fans, temperatures are coldest near the
bottom, and occasionally near the rear. Place contents accordingly. It is best not to
operate these units mostly empty. If temperatures are erratic, try putting some water
bottles inside to create a load for the compressor.
NOTES:
1. Shelves are adjustable. Certain models include glass shelves (see Technical
Information, page 5). These shelves stop short an inch before the back wall, which is
essential for air flow and the proper operation of the automatic defrost system. Do not
block these gaps.
2. a) Interior lighting on the FF6BI series models is controlled by a switch that is
activated
by the opening and closing of the refrigerator door.
b) Lights in the FF7 and SCR600 units are controlled by a manually-operated rocker
switch. To maintain the proper interior temperature, keep the light on only as long as
necessary. Leaving the light on for long periods of time may damage stored contents.
3. If the refrigerator is unplugged, has lost power, or is turned off, you must wait 3 to 5
minutes before restarting it. If you attempt to restart before this time delay, the unit will
not start.
Defrosting Your Appliance:
This appliance operates with an automatic defrost system, so the refrigerator defrosts itself. While
the compressor is operating, ice will build along the rear cold wall (the evaporator plate is behind
the wall). During the compressor’s off-cycle, ice will melt, drip down, collect in the trough at the
bottom and drain through a small hole into a tray above the compressor; where the compressor’s
heat will evaporate the water. If you notice excessive ice build-up on the rear wall, try setting the
thermostat to a slightly warmer setting; be sure that the door gasket is sealing well and that there
is no obstruction of the drain hole at the bottom rear of the interior cabinet.
9
Care and Maintenance
Cleaning Your Appliance:
1. Unplug the appliance, turn the thermostat to STOP (0) and remove all contents,
including shelves.
2. Wash the inside surfaces with a solution of lukewarm water and vinegar. Wipe dry
with a clean, soft cloth.
3. Wash the shelves, drip tray and crisper with a mild detergent solution, then rinse and
dry thoroughly.
4. Wash the outside cabinet with a solution of warm water and mild liquid detergent.
Rinse well and wipe dry with a clean soft cloth.
5. Wring excess water out of the sponge or cloth before cleaning the area of the
temperature control or any electrical parts.
6. From time to time, wipe the condenser on the rear wall with a soft
non-metallic brush or vacuum cleaner.
7. After you have cleaned the appliance, reconnect it to the power
supply, reset the thermostat and return all contents to their place.
CAUTION: Failure to unplug the unit could result in electrical shock or
personal injury.
Power Failure:
Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is opened. If
the power is going to be off for a longer period of time, you need to take the proper steps
to protect your frozen and chilled items.
Vacation Time:
During long absences, remove all contents. Unplug the appliance, clean it and leave the
door open slightly to avoid possible formation of condensation, mold or odors.
Moving Your Appliance:
1.
2.
3.
4.
5.
Remove the contents.
Securely tape down all shelving inside your unit.
Turn the leveling legs up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation.
Energy-Saving Tips:
• The unit should be located in the coolest area of the room, away from heat-producing
•
•
•
•
appliances or heating ducts and out of direct sunlight.
Try not to open the door too often, especially when the weather is damp and hot.
Once you open the door, close it as soon as possible.
Occasionally check if the appliance is sufficiently ventilated (adequate air circulation
behind the appliance).
Set the thermostat from higher to lower settings as soon as possible (depending on
how loaded the appliance is, ambient temperature, etc.).
Before loading items into the unit, be sure they have cooled to ambient temperature.
10
Troubleshooting
When using this appliance, you may come across some problems that in many cases
result from improper handling and can easily be eliminated.
TROUBLESHOOTING GUIDE
The appliance fails to operate after being connected to the power source.
• Check whether the power supply is active and that the thermostat is not set to the
STOP (0) position.
The compressor is running continuously.
• The door was opened frequently or it was left open too long.
• The door is not properly closed (the door may sag, the gasket may be dirty or
damaged).
• The power supply has been interrupted for a long period of time.
• The appliance may have been overloaded with items above room temperature.
• There may be inadequate ventilation of the compressor and condenser. (Assure
there is adequate air circulation behind the appliance and wipe the dust from the
condenser.)
Noise
• Cooling in refrigeration appliances is enabled by the refrigerating system with a
compressor, which produces noise. How noisy the appliance is depends on where
it is placed, how it is used and how old the appliance is.
• During the operation of the compressor, the noise of liquid is heard and when the
compressor is not operating, the refrigerant flow is heard. This is a normal
condition and has no influence whatsoever on the lifetime of the appliance.
• After starting the appliance, the operation of the compressor and the refrigerant
flow may be louder. This does not mean that something is wrong. Gradually the
noise is reduced.
• Sometimes a louder noise is heard, which is unusual for the appliance. This noise
is often a consequence of improper placement of the unit. (The unit should be
placed and leveled firmly on a solid base and it should not touch the wall or
cabinets standing next to it.)
11
Notes
12
Notes
13
Notes
14
Limited Warranty
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a designated service company. Outside the 48 states, all parts are warranted for one year
from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to
commercially acceptable standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
WARNING! This product may contain chemicals known to the state of California to
cause cancer or birth defects or other reproductive harm. For more information, visit:
www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in concentrations
higher than threshold limits: NONE.
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (844) 478-8799
www.medicalrefrigerators.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
Printed in the USA
15
Download PDF
Similar pages
