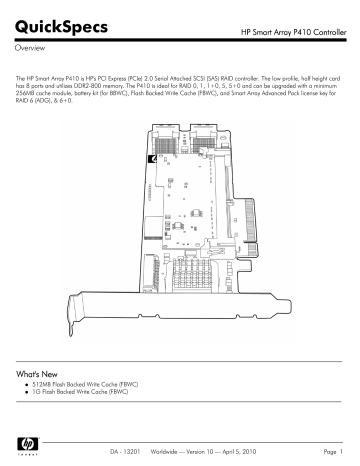

QuickSpecs
HP Smart Array P410 Controller
Overview
The HP Smart Array P410 is HP's PCI Express (PCIe) 2.0 Serial Attached SCSI (SAS) RAID controller. The low profile, half height card
has 8 ports and utilizes DDR2-800 memory. The P410 is ideal for RAID 0, 1, 1+0, 5, 5+0 and can be upgraded with a minimum
256MB cache module, battery kit (for BBWC), Flash Backed Write Cache (FBWC), and Smart Array Advanced Pack license key for
RAID 6 (ADG), & 6+0.
What's New
512MB Flash Backed Write Cache (FBWC)
1G Flash Backed Write Cache (FBWC)
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 1
QuickSpecs
HP Smart Array P410 Controller
Overview
Models
HP Smart Array P410
Controller
HP Smart Array P410/256MB Controller
HP Smart Array P410/512MB with BBWC
HP Smart Array P410/512MB with FBWC
HP Smart Array P410/1G with FBWC
462862-B21
462864-B21
578230-B21
572532-B21
512MB BBWC
Battery Kit upgrade
NOTE: To enable BBWC on the 256MB cache.
462967-B21
462969-B21
512MB Flash Backed Write Cache
1G Flash Backed Write Cache
HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7
Technical Support
NOTE: This part number can be used to purchase a single license or to order multiple
licenses with a single activation key. Customers will receive a license entitlement
certificate via e-mail. The license entitlement certificate must be redeemed online or
via fax in order to obtain the license activation key(s). Include one year of 24x7 HP
Software Technical Support Services.
NOTE: A license key and a minimum of 256MB cache with battery kit or FBWC are
required to enable features. For more information go to: http://www.hp.com/go/saap
534916-B21
534562-B21
516471-B21
Upgrade Options
HP Optional Upgrades
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 2
QuickSpecs
HP Smart Array P410 Controller
Standard Features
The Smart Array
Advantage
Key Features
HP's innovative design and integration work of the Smart Array family of products creates customer value
that is unmatched in the industry. Use of Smart Array products across multiple applications results in a
much lower Total Cost of Ownership (TCO) than any other server storage RAID product. The HP Smart
Array family brings an unparalleled return on investment through:
Data Compatibility among all models of Smart Array controllers allows simple and easy upgrades any
time needs for higher performance, capacity, and availability increase. Even successive generations of
Smart Array controllers understand the data format of other Smart Array Controllers.
Consistent Configuration and Management Tools.
Tools All Smart Array products utilize a standard set of
management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing
training requirements and technical expertise necessary to install and maintain the HP server storage.
Universal Hard Drive form factor is for use across multiple HP servers, disk enclosures and storage
systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these
drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage
spare drives.
Pre-Failure Warranty means HP Insight Manager not only reports when a drive is going to fail but allows
replacement of failing drives prior to actual failure. For complete details, consult the HP Support Center
or refer to your HP Server documentation.
The SA-P410 Controller supports up to 24 drives depending on the server implementation.
Additional drives can be supported with cache and connection to the HP SAS Expander Card.
Seamless upgrades from past generations and upgrades to next generation HP high performance
and high capacity Serial Attached SCSI Smart Array controllers.
6Gb/s SAS technology delivers high performance and data bandwidth and contains full
compatibility with 3Gb/s SATA technology.
x8 PCI Express gen 2 host interface technology delivers high performance and data bandwidth up
to 2 GB/s maximum bandwidth.
Modular, easy-to-upgrade design lets you optimize performance by upgrading from 40-bit 256MB
cache to 72-bit 512MB battery-backed write cache (BBWC) or 72-bit 512MB/1G Flash Backed
Write Cache (FBWC).
Addition of the battery or flash backed cache upgrade enables array expansion, logical drive
extension, RAID migration, and stripe size migration.
Additionally, Smart Array Advanced Pack License key enables RAID 6 (ADG), 6+0, Advanced
Capacity Expansion, Mirror Splitting and Recombining in Offline Mode, Drive Erase, Performance
Optimization-Degraded Reads and Read Coalescing (VOD).
Mix-and-match SAS and SATA hard drives, lets you deploy drive technology as needed to fit your
computing environment.
Software consistency among all Smart Array family products: Array Configuration Utility (ACU),
Option ROM Configuration for Arrays (ORCA), Systems Insight Manager, Array Diagnostic Utility
(ADU) and SmartStart.
Low-profile PCI Express form factor - ships with a full size bracket for deployment in either a lowprofile or full sized slot.
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 3
QuickSpecs
HP Smart Array P410 Controller
Standard Features
Management Features
Online array expansion (with BBWC/FBWC upgrade)
Online Advanced Capacity Expansion (with BBWC/FBWC and Smart Array Advanced Pack
upgrade)
Online logical drive extension (with BBWC/FBWC upgrade)
Online RAID level migration (with BBWC/FBWC upgrade)
Online strip size migration (with BBWC/FBWC upgrade)
Offline Mirror splitting and recombining (with BBWC/FBWC and Smart Array Advanced Pack
upgrade)
Unlimited global online spare assignment
User selectable expand and rebuild priority
User selectable RAID level and stripe size
User selectable read and write cache sizes
Ports
Eight (8) SAS physical links distributed across 2 internal x4 wide port connectors.
Performance
HP's High Performance Architecture sets new boundaries of industry performance expectations!
6Gb/s SAS [(600MB/s bandwidth per physical link)]
x8 6Gb/s SAS physical links (compatible with 3Gb/s SATA )
256 MB 40-bit wide DDR2-800MHz cache upgradeable to 512 MB 72-bit wide DDR2-800MHz
battery-backed write cache or 512 MB / 1 G 72-bitwide DDR2 flash backed write cache provides
up to 4.2 GB/s maximum bandwidth
x8 PCI Express gen 2 host interface provides maximum bandwidth
Gen 2.0
Read ahead caching
Write-back caching (with BBWC/FBWC)
Native Command
Queuing
Native Command Queuing (NCQ) is a technology designed to increase performance of SATA hard disk
drives by allowing the individual hard disk to internally optimize the order in which received read and
write commands are executed. This can reduce the amount of unnecessary going back-and-forth on the
drive's heads, resulting in increased performance for workloads where multiple simultaneous read/write
requests are outstanding, most often occurring in server or storage-type applications. Without NCQ the
drive has to process and complete one command at a time. For NCQ to be enabled, it must be
supported and turned on in the controller and in the hard drive itself.
NOTE: Please see the SATA Hard Drive QuickSpecs for specific SATA hard drive capacities that support
NCQ: http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html
Capacity
Given the increasing need for high performance and rapid capacity expansion, the SA-P410 Controller
offers:
Up to 12TB of total internal storage with 24 x 500GB SFF SATA hard drives
Up to 7.2TB of total internal storage 300GB SFF SAS hard drives
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 4
QuickSpecs
HP Smart Array P410 Controller
Standard Features
Availability
Provides increased server uptime by providing advanced storage functionality:
Online RAID level migration (between any RAID level/with BBWC/FBWC )
Online stripe size migration
Online array expansion
Online logical drive extension
Online drive firmware upgrade
Unlimited global online spare
Pre-Failure Warranty
Fault Prevention
The following features offer detection of possible failures before they occur, allowing preventive action to
be taken:
S.M.A.R.T.: Self Monitoring Analysis and Reporting Technology first developed at HP detects
possible hard disk failure before it occurs, allowing replacement of the hard drive before a real
failure occurs.
Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying
the administrator.
Dynamic Sector Repairing continually performs background surface scans on the hard disk drives
during inactive periods and automatically remaps bad sectors, ensuring data integrity.
Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure
preventative maintenance.
Fault Tolerance
Keeps data available and server running while a failed drive is being replaced; several fault tolerance
configurations are supported including:
RAID 6 with ADG (Advanced Data Guarding): This is the highest level of fault tolerance. It
allocates two sets of parity data across drives and allows simultaneous write operations. This level
of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
RAID 6+0:
6+0 Supported with min of 8 drives, but would have 4 available. Target benefit is to split
RAID across the external boxes
NOTE: RAID 6, 6+0 can be enabled with either
Minimum of 256 MB cache with Battery and Smart Array Advanced Pack License key option
upgrades
Minimum of 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option
upgrades
RAID 5 (Distributed Data Guarding): This allocates one set of parity data across drives and allows
simultaneous write operations. This level of fault tolerance can withstand a single drive failure
without downtime or data loss.
RAID5 is available on the SA P410/P410i with a minimum of 256MB cache
RAID 5+0:
5+0 This is a RAID 0 array striped across 5 elements. Combines the straight block-level
striping of RAID 0 with the distributed parity of RAID 5.
RAID 1, 1+0 (Drive Mirroring): This allocates half of the drive array to data and the other half to
mirrored data, providing two copies of every file. It is a high-performance RAID.
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 5
QuickSpecs
HP Smart Array P410 Controller
Standard Features
Fault Recovery
Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure
Recovery ROM: This feature protects the user from a firmware image corruption by storing a
redundant copy of the firmware image. If the active firmware image becomes corrupt, the
controller will use the redundant firmware image and continue operating.
On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive
failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed
automatically.
DRAM ECC detects and corrects data bit errors.
Battery-backed write cache upgrade provides for up to two days of battery power for data cache
retention. The data backup duration could be extended anytime the server's auxiliary power is
available during system power down.
Flash Backed Write Cache upgrade provides indefinite data retention.
Ease of Use
Consistency and Upgradeability make the Smart Array family unique in the industry:
GUI based configuration, management and diagnostic software tools
Common data format between generations of products
Data migration between servers and external StorageWorks Modular Smart Array enclosures
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 6
QuickSpecs
HP Smart Array P410 Controller
Compatibility
Server Compatibility
For up to date compatibility, please see the following URL for complete Smart Array 1Controller
compatibility and support information:
http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html
Operating Systems
Microsoft Windows 2003 x64 Edition
Microsoft Windows 2003 x84 Edition
Microsoft Windows 2008 Server x64
Microsoft Windows 2008 Server x84
Novell Open Enterprise Server, NetWare 6.5
Red Hat Enterprise Linux 4 & 5 (x64 & x84)
SUSE Linux Enterprise Server 9 (x64 & x84)
SUSE Linux Enterprise Server 10 (x64 & x84)
SUSE Linux Enterprise Server 11 (x64 & x84)
VMWare
NOTE: For more Linux OS support & certification information, please visit our the ProLiant &
BladeSystem Server Linux matrix: http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html
Software Suite
All Smart Array products share a common set of configuration, management and diagnostic tools,
including Array Configuration Utility, Array Diagnostic Utility (ADU), and Systems Insight Manager. This
software consistency of tools reduces the cost of training for each successive generation of product and
takes much of the guesswork out of troubleshooting field problems. These tools lower the total cost of
ownership by reducing training and technical expertise necessary to install and maintain HP server
storage.
Systems Insight Manager
Powerful server and server options/storage manager tool
Monitors over 1200 system wide parameters
Configuration/Diagnostic Utilities
HP Array Configuration Utility (ACU)
Powerful Web based configuration utility for all Smart Array controllers
Provides a graphical view of HP drive array configurations
Allows for management of multiple arrays over a secure internet connection from anywhere in the
world
Easy to use Wizards for configuration
Runs offline for all supported Operating Systems and runs online for Windows and Linux. For
online configuration of NetWare, use CPQONLIN
HP Option ROM Configuration for Arrays (ORCA)
A simple method for managing logical drives during system power up by pressing F8 during POST
Allows the ability to create arrays, logical drives, and assign an online spare drive
Allows the ability to view and delete logical drives
Allows the ability to select the boot controller
For advanced array configurations use ACU
HP Array Diagnostic Utility (ADU)
In depth diagnostic and reporting utility for all Smart Array controllers
Runs offline for all supported Operating Systems, and runs online for Windows and Linux
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 7
QuickSpecs
HP Smart Array P410 Controller
Service and Support, HP Care Pack, and Warranty Information
Warranty
The warranty for this device is 3-years parts only.
Pre-Failure Warranty:
Warranty Drives attached to the Smart Array Controller and monitored under Insight
Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP
Support Center or refer to your HP Server Documentation.
Software Product Services Standalone telephone support
Rights to new license version
Media and documentation updates
Hardware Product
Services
Installation services
On-site maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
NOTE: For additional hardware installation and maintenance information, please refer to the URL:
http://www.hp.com/hps/hardware/
Warranty Upgrade
Options
Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration - Select duration of coverage for a period of 1, 3, or 5 years
Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System level
this product attaches too.
HP Care Pack Information HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage. Care Packs for this option is sold at the system level this option attaches
too.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the Warranty Start Date (delivery date to end user customer).
Proof of purchase may be required.
HP Care Pack services are prepaid.
NOTE: For additional HP Care Pack (hardware & software) information, as well as orderable part
numbers, please refer to the URL: http://www.hp.com/hps/carepack/
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 8
QuickSpecs
HP Smart Array P410 Controller
Related Options
NOTE: This is a list of supported options. Some may be discontinued.
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller,
HP Hard Drives
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 300GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 3G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 6G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 3G SAS 15K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 72GB 3G SAS 15K 3.5" DP ENT HDD
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 450GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 450GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 300GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 300GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
HP 146GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty Hard
Drive
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5inch) Midline 1yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 1TB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
DA - 13201
Worldwide — Version 10 — April 5, 2010
507127-B21
492620-B21
512547-B21
504062-B21
507125-B21
418367-B21
512545-B21
418371-B21
516828-B21
516816-B21
454232-B21
516814-B21
416127-B21
384854-B21
384852-B21
516830-B21
516826-B21
454234-B21
516824-B21
417950-B21
417855-B21
507610-B21
507616-B21
507614-B21
461137-B21
Page 9
QuickSpecs
HP Smart Array P410 Controller
Related Options
HP 750GB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
SATA Non-Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard Drive
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive
SATA Non-Hot Plug SFF (2.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1y Wty Hard Drive
HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Non-hot Plug Entry 1y Wty Hard
Drive
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard Drive
DA - 13201
Worldwide — Version 10 — April 5, 2010
461135-B21
507750-B21
530888-B21
507753-B21
530891-B21
507632-B21
454146-B21
458930-B21
458928-B21
458926-B21
507774-B21
507772-B21
462595-B21
458941-B21
458939-B21
460355-B21
458924-B21
460357-B21
459357-B21
571230-B21
458945-B21
571232-B21
458947-B21
Page 10
QuickSpecs
HP Smart Array P410 Controller
Related Options
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA 2.5in MDL 1y Wty SSD
HP 120GB 3G SATA 2.5in MDL 1y Wty SSD
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA 3.5in MDL 1y Wty SSD
HP 120GB 3G SATA 3.5in MDL 1y Wty SSD
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html
(Worldwide)
NOTE: Go to the HP Hard Drive Compatibility table for complete drive compatibility
information (http://www.hp.com/products/harddiskdrives). Using hard drives in
unsupported configurations will result in voiding the warranty and could result in
damage to the drive and/or loss of data.
HP Tape Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries
and media see: http://www.hp.com/go/tape.
NOTE: For tape drives mounted in an internal peripheral bay an internal SAS cable is
used to connect the tape drive to the P410 controller. For external (desktop) tape
drives, tape drives in Rack-Mount Kits, tape autoloaders and tape libraries a split SAS
cable is used with the external cable routed from the P410 controller through an
unoccupied server PCI expansion slot to the tape drive.
SAS Tape Drives
HP StorageWorks DAT 160 SAS Internal Tape Drive
HP StorageWorks DAT 160 SAS External Tape Drive
HP StorageWorks DAT 320 SAS Internal Tape Drive
HP StorageWorks DAT 320 SAS External Tape Drive
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
HP StorageWorks LTO-2 Ultrium 448 SAS External Tape Drive
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
HP StorageWorks LTO-3 Ultrium 920 SAS External Tape Drive
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive
HP StorageWorks LTO-4 Ultrium 1760 SAS External Tape Drive
HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive
HP StorageWorks LTO-4 Ultrium 1840 SAS External Tape Drive
SAS Rack-mount Tape Drive Enclosures
DA - 13201
Worldwide — Version 10 — April 5, 2010
572071-B21
572073-B21
570761-B21
570763-B21
Q1587A
Q1588A
AJ830A
AJ828A
DW085A
DW086A
EH847A
EH848A
EH919A
EH920A
EH946A
EH860A
EH861A
Page 11
QuickSpecs
HP Smart Array P410 Controller
Related Options
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and
is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920
SAS and LTO-4 Ultrium 1760 SAS tape drives.
HP StorageWorks 3U SAS Rack-mount Kit
NOTE: The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape
drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2
Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, LTO-4 Ultrium 1760 SAS and LTO-4
Ultrium 1840 SAS tape drives.
SAS Tape Autoloaders
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Autoloader
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
SAS Tape Libraries
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library
SAS Cables for Tape Drives
1 meter internal SAS SFF8087, split to 1 x internal SFF8087 + 1 x SFF8482 cable
NOTE: Use this cable to connect HP StorageWorks Ultrium 448, 920, 960, 1760
and1840 SAS internal tape drives to Mini-SAS (SFF8087) ports. This replaces the
existing cable connecting the HBA/controller to the disk backplane. This replacement
cable has three channels for disks and 1 channel for the tape drive (SFF8482 port).
4 meter internal Mini-SAS (SFF8087), split to 3 x internal Mini-SAS (SFF8087) + 1x
SFF8088
NOTE: This split cable connects internally to SAS Hard Drive Cage (3 channels) and
externally to the tape drive (1channel) with other connector attaching to the controller.
The external cable, for the drive, requires a PCI slot to exit the server.
HP Cable Options
SAS to Mini SAS Cables
Mini-SAS to Mini-SAS, 28.00"
Mini-SAS to Mini-SAS, 33.00"
Mini-SAS to SFF8484, 18.00"
Mini-SAS to SFF8484, 24.00"
Mini-SAS to SFF8484, 32.00"
Mini-SAS to SFF8484, 35.00"
Additional Cables
HP 15 POS 24in SFP Battery Cable Assy
DA - 13201
Worldwide — Version 10 — April 5, 2010
AE459A
AG576A
AK377A
AH558A
AK378A
AH559A
AK380A
AH560A
AK382A
AH561A
AP746A
AG452A
496013-B21
496014-B21
496015-B21
496015-B21
496016-B21
496016-B21
496029-B21
Page 12
QuickSpecs
HP Smart Array P410 Controller
Technical Specifications
Dimensions
(not including bracket)
Disk Drive and Enclosure
Interface - Transfer rate
SAS Connectors
Cache Memory Speed
Server Interface
SAS Speed
Cache Memory
Low Profile PCIe Form Factor
7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
2 internal (Mini-SAS) x8 wide port connectors
DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth
x8 6Gb/s SAS provides 4.8GB/s maximum bandwidth
40-bit 256MB ECC protected cache (72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC module
upgrades available); transportable with battery-backed or flash upgrade
Logical Drives Supported Zero Memory, Up to 2 logical volumes
256MB cache and greater, Up to 64 logical volumes
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID 6, 6+0 (Advanced Data Guarding)
RAID Support
NOTE: RAID 6, 6+0 can be enabled with either
Upgradeable Firmware
Minimum of 256 MB cache, Battery kit and Smart Array Advanced Pack License key option
upgrades
Minimum of 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades
RAID 5, 5+0 (Distributed Data Guarding)
NOTE: A minimum or 256 MB cache is required to enable RAID 5, 5+0 support of the Smart Array
P410i
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware with recovery ROM feature
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 13
QuickSpecs
HP Smart Array P410 Controller
Technical Specifications
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13201
Worldwide — Version 10 — April 5, 2010
Page 14
Download PDF
Similar pages
