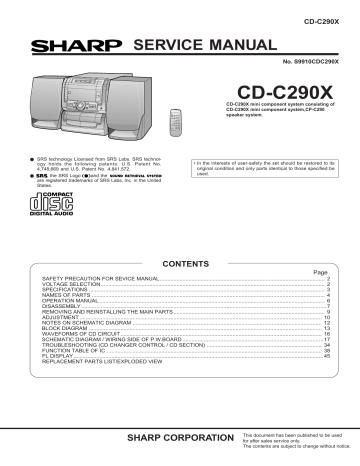

CD-C290X
SERVICE MANUAL
No. S9910CDC290X
CD-C290X
CD-C290X mini component system consisting of
CD-C290X mini component system,CP-C290
speaker system.
● SRS technology Licensed from SRS Labs. SRS technology holds the following patents: U.S. Patent No.
4,748,669 and U.S. Patent No. 4,841,572.
● SRS, the SRS Logo (●) and the Sound Retrieval System
are registered trademarks of SRS Labs, Inc. in the United
States.
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
CONTENTS
Page
SAFETY PRECAUTION FOR SEVICE MANUAL ............................................................................................................. 2
VOLTAGE SELECTION .................................................................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................ 3
NAMES OF PARTS .......................................................................................................................................................... 4
OPERATION MANUAL ..................................................................................................................................................... 6
DISASSEMBLY .................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS .................................................................................................... 9
ADJUSTMENT ................................................................................................................................................................ 10
NOTES ON SCHEMATIC DIAGRAM ............................................................................................................................. 12
BLOCK DIAGRAM .......................................................................................................................................................... 13
WAVEFORMS OF CD CIRCUIT ..................................................................................................................................... 16
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD ............................................................................................. 17
TROUBLESHOOTING (CD CHANGER CONTROL / CD SECTION) ............................................................................ 34
FUNCTION TABLE OF IC .............................................................................................................................................. 38
FL DISPLAY ..................................................................................................................................................................... 45
REPLACEMENT PARTS LIST/EXPLODED VIEW
SHARP CORPORATION
–1–
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CD-C290X
SAFETY PRECAUTION FOR
SERVICE MANUAL
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
for this model is specified to be lower than Class I Requirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outer than the lead-in position, the Laser will light for several
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacement service parts have already been adjusted prior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5) CAUTION - Use of controls or adjustments, or performance
of procedures other than those specified herein may result
in hazardous radiation exposure.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
CAUTION
This Mini Component System is classified as a CLASS
1 LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear cover.
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
As the laser beam used in this compact disc player is
harmful to the eyes, do not attempt to disassemble the
cabinet. Refer servicing to qualified personnel only.
VOLTAGE SELECTION
The voltage selector is located on the AC voltage selector box. If adjustment is necessary, ensure to remove plug of AC cord from
AC socket and use a screwdriver to turn the selector in either direction. The correct voltage figure is displayed in the window below
to the adjustment screw.
QACCE0007AW00
QPLGA0004AWZZ
Figure 2 POWER SUPPLY CORD AND PLUG ADAPTOR
–2–
CD-C290X
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
SPECIFICATIONS
General
Power source:
Power consumption:
Dimensions:
Weight:
Compact disc player section
AC 110/127/220/230-240 V,
50/60 Hz
47 W
Width; 270 mm (10-5/8")
Height; 303 mm (11-13/16")
Depth; 341 mm (13-7/16")
5.6 kg (12.3 lbs.)
Type:
Signal readout:
PMPO; 600 W (total)
MPO; 60 W (30 W + 30 W)
(10 % T.H.D.)
RMS; 40 W (20 W + 20 W)
(10 % T.H.D.)
RMS; 28 W (14 W + 14 W)
(0.9 % T.H.D.)
Speakers; 4 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Video/Auxiliary (audio signal);
245 mV/47 kohms
Type:
D/A converter:
Frequency response:
Dynamic range:
Speaker section
Amplifier section
Output power:
Output terminals:
Input terminals:
2-way [10 cm (4") woofer and 5 cm
(2") tweeter]
Rated input power:
20 W
Maximum input power: 40 W
Impedance:
4 ohms
Dimensions:
Width; 180 mm (7-1/8")
Height; 300 mm (11-13/16")
Depth; 204 mm (8-1/16")
Weight:
2.1 kg (4.6 lbs.)/each
Specifications for this model are subject to change
without prior notice.
Tuner section
Frequency range:
FM; 88-108 MHz
AM; 531-1,602 kHz
Cassette deck section
Frequency
response:
Signal/noise ratio:
Wow and flutter:
3-disc multi-play compact disc player
Non-contact, 3-beam semiconductor laser pickup
1-bit D/A converter
20 - 20,000 Hz
90 dB (1 kHz)
50-14,000 Hz (Normal tape)
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/
playback)
0.15 % (WRMS)
–3–
CD-C290X
NAMES OF PARTS
CD-C290X
Front panel
11.
12.
13.
14.
1
Disc Tray
Disc Number Select Buttons
Disc Skip Button
Open/Close Button:
5
15.
16.
17.
18.
19.
10.
11.
12.
13.
14.
15.
16.
Disc Number Indicator
Timer Indicator
Record Indicator
Sleep Indicator
Extra Bass Indicator: X-BASS
Memory Indicator
FM Stereo Mode Indicator: ST
FM Stereo Indicator:
CD Play Indicator:
CD Repeat Indicator:
SRS Indicator: SRS ( )
CD Pause Indicator:
17.
18.
19.
20.
21.
22.
23.
24.
25.
3
26.
27.
28.
3
29.
30.
31.
On/Stand-by Button
Memory/Set Button
Record Pause Button:
Extra Bass/Equalizer Mode Button: X-BASS
Volume Up/Down Buttons:
/
Function Selector Buttons
Clock Button
Timer/Sleep Button
(CD) Track Down/Review Button:
(TUNER) Preset Down Button:
Stop Button:
Play/Repeat Button:
(CD) Track Up/Cue Button:
(TUNER) Preset Up Button:
3D Surround Mode Button
Tuning and Time Up/Down Buttons:
Headphone Socket
32.
33.
(TAPE 1) Cassette Compartment
(TAPE 2) Cassette Compartment
1
2
3
6 7 8
9
REC
X-BASS
SLEEP
3 4
2
13
14
15
10 1112
MEMORY ST
SRS (
)
kHz
MHz
16
17 18
19 20 21
22
30
31
23
24 25 26
32
–4–
27 28 29
33
CD-C290X
Rear panel
11.
12.
13.
14.
15.
16.
17.
18.
Span Selector Switch
Speaker Terminals
AC Voltage Selector
AC Power Input Socket
Video/Auxiliary (Audio Signal) Input Sockets
FM 75 Ohms Aerial Terminal
Aerial Earth Terminal
AM Aerial Terminal
1
5
2
3
4
6
7
8
CP-C290
Speaker section
19.
10.
11.
12.
Tweeter
Woofer
Bass Reflex Duct
Speaker Wire
9
10
11
12
Remote control
11.
Remote Control Transmitter LED
1
CD control section
12.
13.
14.
15.
16.
17.
18.
19.
10.
11.
Disc Number Select Buttons
Track Down/Review Button:
Track Up/Cue Button:
/
Disc Skip Button
Play/Repeat Button:
Stop Button:
Memory Button
Clear Button
Random Button
Pause Button:
/
3
4
Preset Up/Down Buttons:
/
13
14
15
19
21
22
Tape control section
13.
14.
15.
16.
17.
18.
(TAPE
(TAPE
(TAPE
(TAPE
(TAPE
(TAPE
19.
20.
21.
22.
23.
Function Selector Buttons
Extra Bass/Equalizer Mode Button
3D Surround Mode Button
On/Stand-by Button
Volume Up/Down Buttons:
/
7
8
Tuner control section
12.
5
6
2
1/2) Stop Button:
1) Play Button:
2) Record Pause Button:
2) Play Button:
2) Rewind Button:
2) Fast Forward Button:
9 10 11
12
16
17
18
20
23
–5–
–6–
9
8
7
6
5
4
3
2
CLOCK
MEMORY/
SET
AM 12:00
ON/
STAND-BY
AM 0:00
0:00
TUNING/
TIME
(
)
In this example, the clock is set for the
24-hour (0:00) system.
(Main unit operation)
SETTING THE CLOCK
or
) button to adjust the hour.
or
) button to adjust the
The clock starts operating from "0" seconds. (Seconds are
not displayed.)
Press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance
the time by 1 minute. Hold it down to change the time in 5
minute intervals.
The hour setting will not advance even if minutes advance
from "59" to "00".
Press the TUNING/TIME (
minutes.
Press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance
the time by 1 hour. Hold it down to advance continuously.
When the 12-hour display is selected, "AM" will change automatically to "PM".
Press the TUNING/TIME (
Press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button to select the time
display mode.
"AM 12:00"
The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00"
The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"0:00"
The 24-hour display will appear.
(0:00 - 23:59)
Note that this can only be set when the unit is first installed
or it has been reset (see page 17).
Within 5 seconds, press the MEMORY/SET button.
Press the CLOCK button.
Press the ON/STAND-BY button to enter the stand-by mode.
Perform steps 1 - 9 above.
Perform steps 1 - 2 in the section "RESETTING THE MICROCOMPUTER", on page 17.
To change the time display mode:
Press the CLOCK button.
● The time display will appear for about 5 seconds.
To see the time display:
Perform steps 6 - 9 above.
Within 5 seconds, press the MEMORY/SET button.
Press the CLOCK button.
Perform steps 6 - 9 above.
When the unit is on:
Press the MEMORY/SET button.
When the unit is in the stand-by mode:
To change the clock time:
Note:
In the event of a power failure or when the AC power lead
is disconnected, the clock display will go out.
When the AC power supply is restored, the clock display will
flash on and off to indicate the time when the power failure
occurred or when the AC power lead was disconnected.
If this happens, follow the procedure below to change the
clock time.
9
7
8
5
6
1
2
3
4
15
15
1,2
2
2
RESETTING THE MICROCOMPUTER
0.2 m - 6 m
(8" - 20')
PREPARTION FOR USE
Caution:
The operation explained above will erase all data stored in
memory including clock and timer settings, and tuner and CD
presets.
button, hold down the ON/STAND-BY button for at least
1 second.
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 While pressing down the VOLUME button and the
Reset the microcomputer under the following conditions:
To erase all of the stored memory contents (clock and timer
settings, and tuner and CD presets).
If the display is not correct.
If the operation is not correct.
Notes concerning use:
Replace the batteries if the operating distance becomes reduced or if operation becomes erratic.
Periodically clean the transmitter LED on the remote control
and the sensor on the main unit with a soft cloth.
Exposing the sensor on the main unit to strong light may
interfere with operation. Change the lighting or the direction
of the unit.
Keep the remote control away from moisture, excessive heat,
shock, and vibrations.
CD-C290X
OPERATION MANUAL
CD-C290X
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
CD-C290X
STEP
REMOVAL
PROCEDURE
FIGURE
1
Top Cabinet
1. Screw ..................... (A1) x4
7-1
2
Side Panel
(Left/right)
1. Screw ..................... (B1) x2
2. Screw ..................... (B2) x4
7-1
3
CD Player Unit/
CD Tray Cover
1. Turn on the power supply,
open the disc tray, take out
the CD cover, and close.
(Note 1)
2. Hook ...................... (C1) x3
3. Hook ...................... (C2) x2
4. Socket ................... (C3) x4
5. Flat Wire ................ (C4) x1
4. Socket ................... (C5) x1
7-2
Top Cabinet
( A1 ) x2
ø3 x12mm
( A1 ) x2
ø3 x12mm
( B1 ) x1
ø3 x10mm
Side Panel
(Right)
( B2 ) x2
ø3 x12mm
Side Panel
(Left)
Back Board
( B1 ) x1
ø3 x10mm
( B2 ) x2
ø3 x12mm
Figure 7-1
7-3
4
Back Board
1. Screw .................... (D1) x6
7-2
5
Tuner PWB
1. Screw .................... (E1) x3
2. Socket ................... (E2) x1
8-1
6
Switch PWB/
Display PWB/
1. Screw .................... (F1) x6
2. Screw .................... (F2) x1
3. Screw .................... (F3) x1
4. Socket ................... (F4) x4
8-1.2
Main PWB/
CD-C290X
CD Tray Cover
(C2) x1
Pull
Hook
( C1) x3
1
A
1
CD Player Unit
2
( C2 ) x1
7
Front Panel
1. Screw .................... (G1) x3
2. Hook ...................... (G2) x2
8-2
8
Tape Mechanism 1. Open the cassette holder.
2. Screw .................... (H1) x6
8-2
Back Board
9
SRS PWB
1.Screw ..................... (J1) x1
8-3
10
Turntable
1. Screw .................... (K1) x1
2. Cover .................... (K2) x1
8-4
11
Disc Tray
1. Screw .................... (L1) x2
2. Guide .................... (L2) x2
8-4
12
CD Changer
Mechanism
1. Screw .................... (M1) x4
8-5
13
CD Mechanism
1. Screw .................... (N1) x1
8-5
Front Panel
( C3 ) x4
( D1 ) x6
ø3 x8mm
Main PWB
Figure 7-2
Note 1:
How to open the changer manually. (Fig.7-4)
1. Insert the tip of fine screwdriver into the hole of CD player
base, and press down the worm wheel < A > .
2. Then, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom in this state.
After that, push forward the CD player base.
<A>
SRS PWB
CD Player Unit
Front
Panel
( C4 ) x1
LOCK
LEVER
( C5 ) x1
Figure 7-3
Figure 7-4
–7–
CD-C290X
( F1 ) x3
ø3 x10mm
( K1 ) x1
ø3 x10mm
Switch PWB
( F2 ) x1
ø3 x10mm
( K2 ) x1
( F1 ) x3
ø3 x10mm
Front Panel
Washer
Display
PWB
Turntable
Main PWB
( E2 ) x1
Disc Tray
( L1 ) x1
ø2 x 4mm
( F4 ) x2
Tuner PWB
( E1 ) x2
ø3 x8mm
( F3 ) x1
ø3 x8mm
( L2 ) x1
( F4 ) x1
( E1 ) x1
ø3 x8mm
( L1 ) x1
ø2 x 4mm
Figure 8-1
CD Player Unit
( L2 ) x1
( F4 ) x1
Figure 8-4
Front Panel
(G2 ) x1
( M1 ) x4
ø2.6 x 5mm
( H1 ) x6
ø3x10mm
( N1 ) x1
ø2.6 x10mm
Open
Cassette
Holder
Shift Lever
Tape
Mechanism
CD Changer
Mechanism
Power PWB
( G1 ) x3
ø3x10mm
(G2 ) x1
CD Player Base
Figure 8-2
CD Mechanism
Be careful when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
( J1 ) x1
ø3 x10mm
Figure 8-5
SRS PWB
Loading Chassis
Figure 8-3
–8–
CD-C290X
CP-C290X
Tweeter
STEP
1
REMOVAL
PROCEDURE
Front Speaker
1. Net Frame ..............
2. Duct Panel .............
3. Screw .....................
4. Screw .....................
FIGURE
(A1) x1
(A2) x1
(A3) x4
(A4) x4
9-1
Net Frame
( A1 ) x1
( A3 ) x4
ø4x14mm
Notes:
The Surround speakers can be easily disassembled.Therefore
the disassembling method is not discribed.For details refer to
the disassembling drawing in the Parts Guide.
( A4 ) x4
ø4x14mm
Woofer
Screwdriver
Duct Panel
( A2 ) x1
Figure 9-1
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 13 and 14 of the disassembly method
to remove the CD mechanism.
Loading / Up
/ Down Motor
How to remove the loading motor
(See Fig. 9-2)
Motor
PWB
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
( A1 ) x2
ø2.6 x5mm
Figure 9-2
How to remove the pickup (See Fig. 9-3)
Stop Washer
( B1 ) x2
( B3 ) x1
ø2.6 x6mm
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2)
x 1 pc.
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4) x 1 pc.
3. Remove the pickup.
Pickup
Shaft
( B2 ) x1
CD Mechanism
Gear
( B4 ) x1
Figure 9-3
–9–
CD-C290X
ADJUSTMENT
TUNER SECTION
MECHANISM SECTION
• Driving Force Check
Torque Meter
fL: Low-range frequency
fH: High-renge frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
Specified Value
Play: TW-2412
Tape 1: Over 80 g
Tape 2: Over 80 g
Torque Meter
Specified Value
IF
Tape 1
Tape 2
Play: TW-2111
30 to 60 g. cm
30 to 60 g.cm
Fast forward: TW-2231
—
60 to 120 g.cm
Rewind: TW-2231
—
60 to 120 g.cm
Test Tape
Adjusting
Point
Specified
Value
MTT-111
Volume in
motor.
(MM1)
3,000 ±
30 Hz
Instrument
Connection
450 kHz
1,602 kHz
T351
—
531 kHz
(fL): T306 *2
1.1 ± 0.1 V
*1
AM
Tracking
990 kHz
990 kHz
(fL): T302
*1
Output: TP302
Output: TP301
• FM
Notes:
1: Description of the "FM IF Adjustment" is not carried on this
Manual. It is because the IF coil in the FM front end section
has been best adjusted in the factory so that its further
adjustment is not needed at the field. When replacing the
FM front end assembly, no adjustment is needed either.
2: The parts in the FM front end section are prepared in a
complete unit, so you can't obtain each part individually
• FM Mute Level
Signal generator: 1 kHz, 40 kHz dev., FM modulated
Speaker
terminal
(Load
resistance:
8 ohms)
TAPE MECHANISM
Frequency
Display
Frequency
MM 1
Motor
98.00 MHz
(25 dBµV)
Volume in motor
AM IF
Setting/ Instrument
Adjusting Connection
Parts
AM Band
Coverage
*1. Input: Antenna,
*2. Input: Antenna,
• Tape Speed
Normal
speed
Frequency
Display
Test Stage Frequency
• Torque Check
FM MUTE
LEVEL
98.00 MHz
Adjusting
Parts
VR351*
Instrument
Connection
Input: Antenna
Output: Speaker
Terminal
TUNER PWB
TP301
R336
FE301
VR351
SO301
ANTENNA
TERMINAL
T306
T351
TP302
T302
R357
AM BAND
COVERAGE
AM
TRACKING
Figure 10 ADJUSTMENT POINTS
– 10 –
CD-C290X
TEST MODE
• Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<REC. PAUSE> + <DISC SKIP> + <POWER>
TEST: CD operation test
• TEST mode
Function — CD test mode
Setting of TEST mode
Indication of CD TST mode (Fig. 11-1)
IL is not performed.
OPEN/CLOSE operation is manual operation.
The pickup can be moved by using the (è) or (È) key.
<MEMORY>
LASER ON
<MEMORY>
Tracking on the spot.
SERVO OFF PLAY
<PLAY> key input
<MEMORY>
Tracking on the spot.
SERVO ON PLAY
<STOP>
STOP
TOC. IL is performed, and the ordinary PLAY is performed.
If the following key is pressed during PLAY, it is possible
to specify directly any Track No.
<Disc Number 1> key: Track 4
<Disc Number 2> key: Track 9
<Disc Number 3> key: Track 15
Press <STOP> key.
Stop
Note:
Only in STOP state it is possible to slide the pickup with the (è) or (È) key.
VOL. --- Last memory
BAL. --- CENTER
R.GEQ. --- FLAT
X-BAS --- OFF
1
2
3
Canceling method - POWER OFF
Figure 11-1
CD SECTION
Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary
to readjust it.
Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.
• Automatic adjustment item
1. Focus offset (Fig. 11-2)
2. Tracking offset (Fig. 11-3)
3. E/F balance (tracking error balance) (Fig. 11-4)
4. RF level AGC function (HF level: constant)
5. RF level automatic follow-up of the tracking gain
This automatic adjustment is performed each time a disc is changed. Therefore,
each disc is played back using the optimal settings.
0.1s
0.50 V
IC1 20 FE
Enlarged
View
10ms
0.50 V
IC1 20 FE
FOCUS
OFF-SET
ADJUST
0.1s
0.50 V
IC1 7 TE
10ms
0.50 V
IC1 7 TE
TRACKING
OFF-SET
1 ADJUST
TRACKING
OFF-SET
1 ADJUST
2
2
Figure 11-3
Figure 11-2
TRACKING/
ERROR
BARANCE
1 ADJUST
200 ms
1V/diV
IC 1 15
TO
200 ms
1V/diV
IC 1 7
TE
2
Figure 11-4
– 11 –
CD-C290X
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO
DESCRIPTION
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chassis with no signal given.
1. In the tuner section,
( ) indicates AM
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “
”(
) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
POSITION
REF. NO
SW1
OPEN/CLOSE
ON—OFF
SW714
TIMER/SLEEP
ON—OFF
SW2
MECHA UP
ON—OFF
SW715
MEMORY
ON—OFF
SW3
DISC NUMBER
ON—OFF
SW716
CD
ON—OFF
SW4
PICKUP IN
ON—OFF
SW717
TUNER/BAND
ON—OFF
SW701
3D SURROUND
ON—OFF
SW718
TAPE 1-2
ON—OFF
SW702
VOLUME DOWN
ON—OFF
SW719
VIDEO/AUX
ON—OFF
SW703
X-BASS/EQUALIZER
ON—OFF
SW720
DISC 1
ON—OFF
SW704
VOLUME UP
ON—OFF
SW721
DISC 2
ON—OFF
SW705
REC/PAUSE
ON—OFF
SW722
DISC 3
ON—OFF
SW706
FF
ON—OFF
SW723
DISC SKIP
ON—OFF
SW707
STOP
ON—OFF
SW724
OPEN/CLOSE
ON—OFF
SW708
PLAY
ON—OFF
SW725
SPAN SELECTOR
100/10—50/9
SW709
REW
ON—OFF
SW901
VOLTAGE SELECTOR
SW710
TUNING UP/TIME
ON—OFF
110—127—
220—230-240
SW711
TUNING DOWN/TIME
ON—OFF
SWM 3
FOOL PROOF
ON—OFF
F.A.S
ON—OFF
CAM
ON—OFF
SW712
ON/STAND-BY
ON—OFF
SWM 4
SW713
CLOCK
ON—OFF
SWM 5
KRC102 M
FRONT KRC104 M
VIEW KRC107 M
KTA1266 GR
KTA1271 Y
KTC3199 GR
E C B KTC3203 Y
(1)(2)(3)
(S)(G)(D) 2SK246 GR
FRONT
VIEW
DESCRIPTION
POSITION
FRONT VIEW
KTA1273 Y
KTC3200 GR
FRONT
VIEW
B C E
(3)(2)(1)
KV1236Z23F
Figure 12 TYPES OF TRANSISTOR AND LED
– 12 –
333GTH2
– 13 –
Figure 13 BLOCK DIAGRAM (1/3)
M
M2
SLED
MOTOR
M
PICKUP IN
SW4
M1
DISC
MOTOR
TRACKING COIL
24
25
30
31
12
13
6
7
1
2
3
4
8 9
10 11
IC5
M56748FP
DRIVER
14 22 32
26
27
28
29
20
17
30 31 54
5
56 55
SERVO AMP.
15 16 27 23 29
FIN2
FIN1
E
F
TO
FD
SPO
SP
SLD
FOCUS COIL
LA9241M
IC1
64
VCC1
62
LDO
Q1
SL–
SL+
DRF
PU-IN SW
+B1
SL+. SL–. DRF
CL, DAT, SELIAL CONTROL/CE
51 52 53
20 JP–
23 36 41 43
53 ~ 58
Q91
Q93
26
RES. CQCK. COIN
SQOUT. RWC. WRQ
10 EFMIN
12 CLV+
CV+ 40
SLC 43
SLI 44
9 EFMO
JP– 32
6
LCHO 37
LVSS 38
RVSS 39
RCHO 40
+B5
9
CONT2 25
+12V
1
+B1
CONT1 24
IC2
LC78622K
SERVO/SIGNAL
CONTROL
44
XOUT
45
XIN
XL1
~
CL
DAT
CE
~
VVDD
VDD
LVDD
RVDD
XVDD
PICKUP UNIT
3
7
+5V
9
8
7
6
5
4
3
2
1
+B1
CNS10
9
8
7
6
5
4
3
2
1
10
M
SOLM2
SOLENOID
M3
LOADING
SW1
OPEN/CLOSE
SW3
DISC No.
SW2
MECHA UP
TO MAIN(IC601) &
DISPLAY SECTION
MECHA UP
GND (D)
DISK NO.
OPEN/CLOSE
GND (D)
M–
M+
GND (M)
SOL
10 GND (D)
5
6
CNP10
IC91
TA7291
LODING MOTOR
DRIVER
( TO IC401 )
TO MAIN SECTION
CD-C290X
CD-C290X
SO301
ANTENNA
TERMINAL
+B4
CF351
X351
FM IF
1
CF302
AM IF
FM IF IN
1 2
+B4
FM FRONT END
FE301
8
FM
75 OHMS
T351
3
5
AM
6
3
7
4
1
VT
FM
OSC.
2
2
OUT
IC303
LA1832
VR351
FM MUTE LEVEL
4
8
5
IN GND
3
REG
18
16
FM/AM
OUT
MPX
IN
6
13
10
12
11
VF2
(AC)
14 15
MPX
VCO
CUT
SD
STEREO
AFC
IN
OUT
FMOSC
20
29
IF
OUT
7
21
MONO/ST
22
AM RF IN
23
17
FM IF DET/FM MPX/AM IF
AM OSC
24
9
VCC
L
R
MUTING
Q353
Q354
AM RF
TUNER MUTE
AM OSC.
AM ANT.
SD
T306
FM +B
20
1
22
OSC.
FM
Q360
7
15
11
16
VOLTAGE
REGURATER
+B4
IF IN
FM MONO/ST
AM IN
X352
4.5MHz
+B4
FM IN
XT21
T302
10
13
+5V
12
17
IC302
LC72131
PLL(TUNER)
3 4 5
6
21
CE
DI
CL
SRS ON/OFF
SRS 1/2
8 9
DO
Q371
CNP303
MPX
PHASE Q361
+B4
CN7
MM1
TAPE
MOTOR
Q703
TA MOT SW
M
FOOL PROOF
FOOL PROOF
SWM3
SO401
AUX IN
T1 RUN
F.A.S
SWM4
VIDEO
MECHA STOP
CAM
SWM5
TAPE
+B5
PHM1
T2 RUN
TUNER
FROM CD SECTION
CD
PLAYBACK&RECORD/
PLAYBACK AMP.
IC501
AN7345K
TAPE 1
PB HEAD
L-CH
R-CH
L (T1) 1
R (T1) 24
L (T2) 2
R (T2) 23
SWITCHING
Q511
~
TAPE 2
REC/PB
HEAD
L-CH
R-CH
TA SOL
Q706
SOLENOID
SOLM1
Q514
L NF 3
R NF 4
POP REDUCE 6
REC
P.B
L REC 9
R REC 16
AC BIAS
REF
14
12
+B4
13
P.B.
L 4
R 21
P.B
L
R
5
20
T1/T2
REC
H/N
7 L REC
R
MUTING
8 L NF
17 R NF
NOR/
HIGH T1/T2
15
10
REC MUTE
Q575
Q576
18
ALC
19
+B4
+
+B4
T1/T2
Q584
TO CD SECTION +B5
SWITCHING
Q515
Q516
Q583
+B6
SWITCHING
REC/P.B.
+
+
(
TO
Q581
ERASE
HEAD
Q582
SWITCHING
BIAS
OCS
+B4
BIAS
Q571
L501
Q565
Q566
SWITCHING
Figure 14 BLOCK DIAGRAM (2/3)
– 14 –
BIAS
CD-C290X
+B8
+B7
FL701
3
~
30
31 32 33
+B3
–VP
MEMORY
BACK UP
Q701 VF1
(AC)
TO CD SECTION
TAPE BIAS
TAPE REC
T1/T2
CD DSP WRQ
CD DSP RWC
CD DSP CQCK
CD DSP COIN
CD DSP SQOUT
RESET
CD DSP RES
CD T/T OPEN/CLOSE
10 11 12 13 14 15 16 17 18 19 20
21 22 23 24
~
~
25
1
KEY
SW701
SW720
SW724
27
80
79
VDD
IC701
IX0191AW
SYSTEM CONTROL
MICROCOMPUTER
~
77
72
71
70
30
34
+B7
XL702
4.19MHz
35
36
~
37
38
64
~
39
40
61
CL
CE
DI
DO
DRF
TO CD SECTION
RESET
TUN SD
POWER
CD SL–
CD SL+
CD PUIN
48 47 46 45 44 43 42 41
VDD
TAPE MOTOR
TAPE SOL
TAPE MECHA STOP
T1 RUN PLSE
TAPE F.P.
SW719
+B8
33
65
60 59 58 57 56 55 54 53 52 51 50 49
AVDD
AVREF
29
~
9
7 8
6
TO POWER SECTION
~
+B8
CD UP DOWN/DISC NO
T2 RRUN PLSE
L-CH INPUT
R-CH INPUT
TO CD SECTION
TO CD SECTION
RESET
Q702
Q704
Q705
ZD701
SYSTEM STOP
+B8
TO CD SECTION
1
RX701 3
REMOTE
SENSOR
2
+B7
LED810
~
Q810
Q811
Q812
LED815
CL
DI
CE
+B4
23 24 25
17
32
TUNER
L
R
19
30
CD
L
R
21
28
R
45
7
5
42
44
8
41
6
IC401
LC75394E
AUDIO PROCESSOR
43
9
40
OUT
L
R
14
35
56
63
50
26 27
37
11
38
L-OUT
2
5
R-OUT
MUTE
7 VCC
14
8
NF
3
12
12
L-IN
9 R-IN
13
58
55
VOLUME
GRAPHIC EQUALIZER
VSS
AVSS
L
R
RVREF
TAPE
4
57
VDD
16
33
LVREF
L
VREF
VIDEO
10
39
13
36
14
4
35
11
JA961
HEADPHONES
IC961
LA4450
POWER AMP.
SO961
SPEAKER TERMINAL
+
–
–
+
SPEAKERS
MIN. 4 OHMS
R/L IN
R/L OUT
X-BASS
Q201
17 18
Q206
1
VCC
26
MODE
25 24
8
7
IC201
SRS5250S
SRS
11 10
3
2
19
F901
T3.15A L 250V
D901 ~ D904
15
Q205
+12V (AUDIO)
ION +B5
+B6
+12V
(MECHA)
TO CD SECTION
Q941
IC941
VOLTAGE
REGULATOR
+B1
+B2
+B3
+5V
(UCOM)
+5V
+5V
110V
127V
220V
230V-240V
D905 ~ D908
VOLTAGE
REGULATOR
+12V (DRIVER)
ZD901
VOLTAGE
REGULATOR
IC942
F941
T500mA L 250V
D909
Q901
~
+B4
D911
F902
T1.6A L 250V
VOLTAGE
REGULATOR
TF901
SW901
VOLTAGE
SELECTOR
AC POWER
SO901 SUPPLY CORD
VF1
–VP
VF2
AC 110/127/220/
230-240V 50/60Hz
PT901
POWER TRANSFORMER
Figure 15 BLOCK DIAGRAM (3/3)
– 15 –
CD-C290X
WAVEFORMS OF CD CIRCUIT
STOP
FOCUS
1
2
PLAY
SERCH
5ms
0.50 V
IC1 20 F.E
5ms
5.0 V
IC1 54 DRF
0.5ms
10.0 V
JP+
7
0.5ms
10.0 V
JP-
8
0.5ms
0.50 V
JP
9
0.5ms
1.00 V
TE
3
1
3
6
PLAY
CUE
0.5ms
1.00 V
HF
NORMAL DISC
TN0=01
4
0.5ms
5.0 V
HFL
1
5
0.5ms
5.0 V
TES
3
3
0.5ms
1.00 V
HF
10
20ms
1.00 V
SPO
11
20ms
2.00 V
CLV+
2
REVIEW
PLAY
TCD-712 (140mm)
TN0=01
4
5
0.5ms
5.0 V
HFL
1
0.5ms
5.0 V
TES
3
6
50ms
10.0 V
JP+
7
50ms
10.0 V
JP-
8
50ms
0.50 V
JP
9
2
0.5ms
10.0 V
JP+
7
0.5ms
10.0 V
JP-
8
0.5ms
0.50 V
JP
9
0.5ms
1.00 V
TE
6
50ms
10.0 V
JP+
7
50ms
10.0 V
JP-
8
50ms
0.50 V
JP
9
50ms
1.00 V
TE
50ms
1.00 V
SPO
11
50ms
2.00 V
CLV+
CUE
PLAY
TCD-712
12
50ms
1.00 V
TE
6
10
5s
100mV
SLD
1
12
0.5s
100mV
SLD
REVIEW
1
– 16 –
CD-C290X
A
R712
R711
SWITCH PWB-A3
DISPLAY PWB-A2
SW702
VOLUME DOWN
SW703
X-BASS
EQUALIZER
SW710
TUNING UP
/TIME
R723
1
D701
R785
R782
SW724
OPEN/CLOSE
R787
C720
R814
RX701
C719
R801
SW701
3D
SURROUND
1
2
3
R802
R759
D705
R800
Q704
3 2 1
1 2 3
R707
R781
D704
C702
C714
R717
R724
R725
R730
R731
R727
SW708
PLAY
R732
C701
R715
R702
R726
R719
R718
R720
R721
R716
11
R733
R734
1 80
1
5
R735
R736
70
IC701
20
R750 24
R751 25
R740
R741
R742
65
R752
R753
50
35
45
C715
R807
R795
R808
R793
R809
R757
R790
R791
F
LED812
LED813
SW721
DISC 2
3 2 1
Q810
LED810
LED811
1
CNS701
R789
6
11
1
E
C
B
C716
Q706
G
R803
R813
E
C
B
Q703
R783
D707
SW712
ON/STAND-BY
R805
C717
D706
CNS702
SW713
CLOCK
1
R746
D708
MELF
SW719
VIDEO/AUX
SW718
TAPE
(1
2)
SW717
TUNER
(BAND)
R747
8
R748
1
R749
CNS705
SW716
CD
H
WH
12
GY 11
WH 10
9
GY
8
7
WH
6
GY 5
4
3
WH
2
RD
1
CNSM1
1
2
1
2
3
6
R788
C712
SW714
TIMER/SLEEP
TO MAIN PWB
P19 10-A
LED815
SW720
DISC 1
R766
R745
FW702
LED814
SW722
DISC 3
1
R777
R776
R775
R774
R773
R771
R779
R744
Q812
2
R762
SW715
MEMORY
/SET
R758
3 2 1
R756
R765
R778
R763
R743
C707
C708
R764
R760
R796
C713
64
XL701 40 41
SW707
STOP
SW709
REW/
PRESET
60
55
30
R739
E
75
10
15
R804
R770
R769
R768
R767
TO MAIN PWB
P19 7-A
FL701
CNS703
R728
R729
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
CNPM1
TO TAPE MECHANISM PWB
P20 5-D
R722
SW706
FF/PRESET
R780
Q811
SW705
REC PAUSE
DEMO
C
R810
L701
R812
R784
R811
R806
D
SW723
DISC SKIP
C710
Q701
Q702
R797
Q705 B C E
FW702
R798
R786 B C E
R799
C709
C718
ZD701
SW711
TUNING DOWN
/TIME
R761
C711
CNS701
B
D703
R710
TO MAIN PWB
P18 4-A
D702
9
CNS704
FW702
SW704
VOLUME UP
3
4
Figure 17 WIRING SIDE OF P.W.BOARD (1/6)
– 17 –
5
6
CD-C290X
C511
B C E
B C E
R511
R520
R538
1
C554
R542
R554
B C E
R556
R558
LUG961
15
Q576
C560
C562
R539
R537
C535
C544
C553
R551
R577
R553
E C B
C555
R557
R561
C561
R560
HEADPHONE PWB-A4
R531
R533
C543
C556
R578
C533
C503
C531
C539
C540
C536
R552
Q575
R575
R555
C557
R559
R562
C565
C559
C563
D81
C564
C558
C403
C404
R563
JK961
HEADPHONES
D
R502
C532
R540
CNS901
R535
13
C
R532
R534
20
TO
POWER PWB
P20 1-B
C502
R501
C519
24
R536
C501
R519
C520
C534
C583
Q513
R513
E C B
B C E
E C B
R584
R514
CNP501
1 2 3
Q565
B C E
Q515
3 2 1
R567
Q512
R512
R585
R516
R517
Q516
R566
E C B
R515
5
C571
IC501
Q566
Q584
E C B
10
R568
B
11
3
2
1
12
L501
CNP502
7 6 5 4 3 2 1
R565
R569
C504 Q511
R571
3
2
1
R510
C512
B C E
CNS7
Q582 Q583
C513
R518
C514
R576
C572
Q514
Q571
R541
C570
R570
FW703
C92
B
C
E
TO DISPLA
P17 1
CNS501
R583
1
R582
Q581
C581
CNS704
9
R581
FW704
A
TO
TAPE
MECHANISUM
TAPE1 HEAD
P20 4-H
TO
TAPE
MECHANISUM
TAPE2 HEAD
P20 5-H
CNS502
TO DISPLAY PWB
P17 1-B
R942
R404
2
IC942
1
R941
C946
C945
COLOR TABLE
VIOLET
GY
GRAY
WH(W)
WHITE
BK
BLACK
PK
PINK
C462
C418
49 48
R45
R420
C4
D401
R431
C991
1
LUG962
SPAN
SO962
SPEAKER TERMINAL
50
RIGHT
LEFT
SPEAKERS
4 OHMS MIN.
H
• The numbers 1 to 12 are waveform numbers shown in page 16.
1
C424
C975
R975
C992
BLUE
VL
C976
C965
C449
C452
C450
5
R973
GREEN
BL
R965
R972
YELLOW
R432
R962
C961
C980
YL
GR
C448
C962
R961
C978
RED
ORANGE
C446
C964
R966
C967
R967
BROWN
OR
G
14
C442
C444
C977
C966
C451
13
C948
R968
11
12
C949
R971
C979
10
R969
7
6
5
4
3
2
1
C969
CNS902
F
C970
C963
1
2
3
4
5
6
7
8
9
RD(R)
C941
C942
C973
IC961
CNS902
BR
B C E
C430 C428
C944
3
5
1
F941
T500mA L 250V
Q941
CNP901
2
L963
C974
R981
C968
E
1
IC941
C947
R982
C432 C426
C943
C454
R943
3
2
3
4
Figure 18 WIRING SIDE OF P.W.BOARD (2/6)
– 18 –
5
6
CD-C290X
TO DISPLAY PWB
P17 1-D
TO DISPLAY PWB
P17 1-G
5
11 2
FW703
10
7
FW702
3
4
6
12
CNS703
CNS702
11
11
1
D2
1
R54
R98
C456
C406
R405
CNS201
R421
R703
CNP201
TO
TUNER PWB
P22 1-G
C455
C411
R411
C412
R414
C992
C461
C402
C429
C451
R431
C427
R417
R401
R402
C401
C417
C425
C445
C441
D401
R415
C423
C431
C421
C443
R453
16 17
25
15
1
64
C447
C449
C415
10
5
60
20
IC401
45
55
49 48
R420
C448
C452
C450
R407
R426
R427
C446
R432
R406
32
R408
33 C416
35
C422
R425
40
30
C418
C424
C432 C426
C430 C428
C442
C444
CNS3
CNP303
C407
C408
R416
R418
C462
C454
9
1
C991
CNP901
7
6
5
4
3
2
1
TO
CD MECHANISUM
P21 8-C-G
C25
5
4
3
2
1
R42
CNS1
R43
C50
CNP1
C405
6
CNS2
1
2
1
Q1
R75
11
10
9
8
7
6
5
4
3
8
TO
TUNER PWB
P22 3-C
1
C4
C1
E C B
CNS10
CNP10
18
15
10
5
IC5
19
30
C11
C94 36
35
16 17
R14
15
5
C7
R1
C2
C37
C35
C404
R404
R403
R941
C8
R9
R6
C5
1
2
3
4
5
6
R7
C24
R73
C69
R74
R76
C70
R31
32
30
25
20
10
C39
CNP3
C9
R5
R2
C40
CNP2
1
R11
R8
C10
C3
R18
R45
C403
25
C44
C15
33
35
40
55
C38
10
R40
R39
R13
R4
C41
R79
R12
C13
C6
D81
1
2
3
4
5
6
7
8
9
C14
R28
R3
1
2
3
4
5
6
7
8
R29
C12
CNS303
R559
R41
C59
C42
R58
R47
R46
7
R16
R15
64
C22
R60
R72
R575
R10
R17
IC1
C34
R57
Q575
R555
R36
C33
R38
C57
R70
R71
R77
C30
R37
R19
R20
60
R551
R577
C95
Q93
R56
C55
E C B
16 17
15
10
1
64
C54
C56
R33
R34
C32
R35
C31
R78
544
C16
C45
R537
C535
C17
R23
R22
C20
R32
5
R539
C19
R30
R27
R21
32
20
45
60
R531
55
XL1
49 48
C533
IC2
C18
R25
R61
C53
25
40
35
R87
30
33
C67
R88
Q91
L1
R82
C51
C92
2
1
2
3
R96
R86
C52
E
C
B
R95
C43
C21
R24
20
R97
C91
45
C58
D7
R26
1 2 3 4 5 6 7 8 9
49 48
C68
R99
D91
IC91
D5
R413
R701 R412
SW725
SPAN SELECTOR
SO401
50/9
100/10
FM/AM(KHz)
MAIN PWB-A1
LEFT
RIGHT
VIDEO/AUX
7
8
9
10
Figure 19 WIRING SIDE OF P.W.BOARD (3/6)
– 19 –
11
12
CD-C290X
POWER PWB-B
A
SW901
VOLTAGE
SELECTOR
110V
230-240V
PT901
POWER TRANSFORMER
D905
220V
F902
T1.6A L 250V
C909
R907
D911
R901
R903
C901
R902
Q901
ZD901
E
C
B
C905
D910
C910
ZD902
C
127V
D907
C906
C902
7
D906
D908
1
C903
RD
WH
BK
WH
BK
WH
BK
D909
1
2
3
4
5
6
7
TO
MAIN PWB
P18 3-C
CNP901
C904 CNS901
B
F901
T3.15A L 250V
C907
C908
D901
D904
D902
D903
TF901
S0901
AC POWER
INPUT SOCKET
AC 110/127/220/230-240V
50/60Hz
R905
R904
TAPE MECHANISM ASSEMBLY
TO MAIN PWB
P17 6-H
CNSM1
D
SWM3
F. P.
R
12 11 10 9 8 7 6 5 4 3 2 1
1
2
1
2
CNPM1
FWM2
FWM1
PHM1
SWM4
F. A. S
CNPM2
4
3
BK
E
WH
1
2
BK
SOLM1
SOLENOID
(203-8)
TAPE MECHANISM
PWB-D
WH
SWM5
CAM
-
MM1
TAPE MOTOR(203-7)
+
F
TAPE 1
PLAYBACK HEAD(203-6)
WH
TAPE 2
RECORD/PLAYBACK
HEAD(203-6)
ERASE HEAD(203-5)
WH
BK
YL
BK
PK
WH
PK
BL
GY
GY
GY
1 2 3 4 5 6 7
CNP502
TO MAIN PWB
P18 4-A
CNP501
TO MAIN PWB
P18 5-A
H
1
2
3
4
Figure 20 WIRING SIDE OF P.W.BOARD (4/6)
– 20 –
CNS502
CNS501
3 2 1
BK
WH
PK
BK
WH
YL
BL
PK
BK
WH
G
5
6
CD-C290X
PICKUP UNIT(306)
CNS1A
TO MAIN PWB
P19 12-E
CNP1
1
2
3
4
5
TO MAIN PWB
P19 12-C
CNP2
1
2
3
4
5
6
7
8
CNS1B
BK
WH
PK
YL
BL
GY
BL
PK
WH
YL
BK
1
2
3
4
5
RD
WH
GY
WH
GY
WH
GY
WH
1
2
3
4
5
6
7
8
CNS2A
CNS2B
CNS5
SW2
MECHA UP
2
1
SENSOR PWB-E
SW1
OPEN/CLOSE
M3
T/T UP/DOWN LOADING
CNS10
TO MAIN PWB
P19 12-C
CNP10
OR
BR
WH
GY
WH
GY
WH
GY
WH
RD
1
-
SOLENOID
SOLM2
BIM5
10
9
8
7
6
5
4
3
2
1
SW3
DISC NUMBER
2
1
+
6
CD MOTOR PWB-F
M2
SLED MOTOR
-
RD
WH
GY
WH
GY
WH
1
2
3
4
5
6
CNS3A
1
2
3
4
5
6
SW4
PICK UP IN
CNP3A
1
2
3
4
5
6
TO MAIN PWB
P23 12-D
CNP3
+
CNS3B
+
M1
DISC MOTOR
7
8
9
10
Figure 21 WIRING SIDE OF P.W.BOARD (5/6)
– 21 –
11
12
CD-C290X
TUNER PWB-C
R366
R365
R362
E C B
YL
YELLOW
GR
GREEN
BL
BLUE
WH(W)
WHITE
BK
BLACK
PK
PINK
CNS202
P19 12-F
TP302
C357
R355 R393
C358
R359
IC303
C353
C366
C399
C351
R353
C398
R384
C350
3
2
1
C364
C363
C361
R358
C343
C362
C336
C335
C334
CN7
2
1
C337
R383
C341
T302
AM ANT.
R344
R345
C323
C346
C331
C321
22
C397
C381
C394
5
6
7
8
R369
C347
FE301
R379
R381
C392
C330
C345
R380
L351
C393
IC302
C387
VD301-1
D301 C323
D302
X352
D304
2
1
20
1
C382
1
2
3
4
L342
CNS7
R336
C385
R376
C386
R360
R371
R372
D201
Q206
R228
R233
15
R378
5
R213
3 2 1
R209
12
TP301
Q371
Q201
R208
Q205
D
G
S
11
10
E C B
C332
CHASSIS
GND
C301
C338
CHASSIS
GND
D303
SO301
TO
MAIN PWB
24
R319
C380
C223
R207
28
R234
R215
C224
C220
25
1 2 3 4 5 6
C365
R351
1
T306
AM OSC.
C210
R374
5
CNP201
20
R323
R373
1
C201
C219
R200
C200
IC201
R218
R217
R216
E C B
1
C202
15
5
15
FM MUTE
LEVEL
VR351
Q360
R205
R203
R201
20
10
L353
E
C
B
C203
R210
10
R356
13
R324
R206
14
R395
C384
SRS PWB-G
R212
T351
AM IF
C368
R357
R385
D351
GRAY
R387
R382
VIOLET
C391
D352
VL
GY
1 2 3
C374
R350
Q361
C373
X351
C367
ORANGE
C352
OR
L352
C371
CF302
R391
CF352 1 2 3
VD301-2
RED
R352
C342
R392
RD(R)
C395
ZD352
BROWN
R202
C354
C396
BR
E C B
R361
CF35112
C356
ZD351
COLOR TABLE
R204
C370
CNS303
C355
TO MAIN PWB
P19 12-E
R354
11
10
9
8
7
6
5
4
3
2
1
R364
D353
R368
R363
C375
R367
R398
CNP303
C372
Q353
R377
Q354
FM75 OHMS
GND
ANTENNA
Figure 22 WIRING SIDE OF P.W.BOARD (6/6)
– 22 –
AM
CD-C290X
IC1
PIN VOLTAGE
NO.
1 2V
2 2V
3 2.1V
4 2.1V
5 2V
6 2V
7 2V
8 2V
9 2V
10 2V
11 2V
12 2V
13 2V
14 2V
15 2V
16 2V
17 2V
18 2V
19 2V
20 2V
21 2V
22 0V
23 2V
24 2V
25 2V
26 2V
27 2V
28 2V
29 2V
30 1.8V
31 1.8V
32 0V
33 0V
34 4V
35 4V
36 0V
37 0V
38 4V
39 0V
40 0V
41 0.3V
42 2V
43 2.1V
44 2.1V
45 0V
46 2V
47 2V
48 0V
49 0V
50 2V
51 4V
52 4V
53 0V
54 4V
55 4V
56 4V
57 2.1V
58 2.1V
59 0V
60 0V
61 2V
62 3.4V
63 0V
64 4V
IC2
PIN VOLTAGE
NO.
1 0V
2 0V
3 0V
4 0V
5 1.8V
6 4V
7 0V
8 0V
9 2V
10 2V
11 0V
12 0V
13 0V
14 4V
15 0V
16 0V
17 4V
18 4V
19 0V
20 0V
21 2V
22 0V
23 4V
24 0V
25 0V
26 0V
27 0V
28 0V
29 0V
30 4V
31 2V
32 0V
33 0V
34 0V
35 4V
36 3.8V
37 1.7V
38 0V
39 0V
40 1.7V
41 4V
42 4V
43 4V
44 1.8V
45 1.7V
46 0V
47 0V
48 1.8V
49 0V
50 2V
51 0V
52 2V
53 0V
54 0V
55 0V
56 4.4V
57 4.4V
58 4.4V
59 0V
60 1.6V
61 2V
62 0V
63 0V
64 0V
IC5
PIN VOLTAGE
NO.
1 2V
2 2V
3 0V
4 2V
5 2V
6 2.2V
7 2.2V
8 0V
9 0V
10 0V
11 0V
12 0V
13 2.2V
14 0V
15 2V
16 0V
17 0V
18 0V
19 0.7V
20 5.2V
21 2V
22 2V
23 2V
24 2V
25 2.2V
26 0V
27 0V
28 0V
29 0V
30 2.2V
31 2.2V
32 2V
33 2V
34 0V
35 0V
36 0V
IC91
PIN VOLTAGE
NO.
1 0V
2 5.1V
3 0.1V
4 0V
5 0V
6 5.1V
7 0V
8 4.2V
9 0V
IC501
PIN VOLTAGE
NO.
1 0V
2 0V
3 0.6V
4 3V
5 0V
6 1.3V
7 0V
8 0.6V
9 3V
10 3V
11 0V
12 0V
13 6V
14 3.7V
15 0V
16 3V
17 0.6V
18 0V
19 0.8V
20 0V
21 3V
22 0.6V
23 0V
24 0V
IC303
PIN VOLTAGE
NO.
1 2V(2V)
2 2V(2V)
3 7.2V(8.2V)
4 0.5V(0.8V)
5 2V(2V)
6 0V(0V)
7 5.5V(5.5V)
8 0V(0V)
9 2.6V(2.6V)
10 2.6V(2.6V)
11 6.3V(8.2V)
12 1.2V(1.2V)
13 1.4V(0V)
14 2.2V(2V)
15 1.3V(1.4V)
16 2V(1.9V)
17 2V(2V)
18 1.6V(1.6V)
19 0.6V(0.7V)
20 7.2V(8.2V)
21 7.2V(8.2V)
22 2V(2V)
23 2V(2V)
24 2V(2V)
IC302
PIN VOLTAGE
NO.
1 1.2V(1.2V)
2 0V(0V)
3 0V(0V)
4 4.6V(4.6V)
5 0V(0V)
6 4.5V(4.5V)
7 0.4V(11.3V)
8 0V(0V)
9 0V(0V)
10 1.1V(0V)
11 5.5V(5.5V)
12 0V(0V)
13 0.5V(0.1V)
14 0V(0V)
15 0V(2.6V)
16 1.5V(0V)
17 5.6V(5.3V)
18 1.2V(1V)
19 1.2V(1V)
20 3.8V(1.2V)
21 0V(0V)
22 2.8V(2.6V)
IC201
PIN VOLTAGE
NO.
1 9.5V
2 4.9V
3 4.9V
4 4.9V
5 4.9V
6 4.9V
7 4.9V
8 9V
9 4.9V
10 4.9V
11 4.9V
12 4.9V
13 4.9V
14 4.9V
15 0V
16 4.9V
17 4.9V
18 4.9V
19 4.9V
20 4.9V
21 4.9V
22 4.9V
23 4.9V
24 4.9V
25 4.9V
26 4.9V
27 4.9V
28 4.9V
IC401
PIN VOLTAGE
NO.
1 5V
2 5V
3 5V
4 5V
5 5V
6 5V
7 5V
8 5V
9 5V
10 5V
11 5V
12 5V
13 5V
14 5V
15 5.1V
16 4.7V
17 4.7V
18 0V
19 4.7V
20 0V
21 4.7V
22 0V
23 0V
24 4.4V
25 0V
26 0V
27 0V
28 4.7V
29 0V
30 4.7V
31 0V
32 4.7V
33 4.7V
34 5.1V
35 5.1V
36 5.1V
37 5.1V
38 5.1V
39 5.1V
40 5.1V
41 5.1V
42 5.1V
43 5.1V
44 5.1V
45 5.1V
46 5.1V
47 5.1V
48 5V
49 5.1V
50 5.1V
51 5.1V
52 5.1V
53 5.1V
54 0V
55 5.1V
56 5.1V
57 10.2V
58 5.1V
59 0V
60 5.1V
61 5.1V
62 5.1V
63 5.1V
64 5.1V
IC701
PIN VOLTAGE PIN VOLTAGE
NO.
NO.
1 –24.7V
41 0.41V
2 –24.7V
42 0V
3 –24.7V
43 0V
4 –24.7V
44 4.4V
5 –24.7V
45 0V
6 –24.7V
46 4.4V
7 –24.7V
47 4.4V
8 4.4V
48 0V
9 0V
49 2.7V
10 4.4V
50 11.7V
11 4.4V
51 11.7V
12 0.24V
52 4.4V
13 0V
53 4.4V
14 4.4V
54 4.4V
4.4V
15
55 0V
16 0.12V
56 0V
17 0V
57 4.4V
18 4.4V
58 0V
19 0V
59 0V
20 0V
60 0V
21 0V
61 –21.2V
22 3.8V
62 –18V
23 0V
63 –11.5V
24 0V
64 –27.8V
25 4.4V
65 –24.5V
26 4.4V
66 –14.8V
27 4.4V
67 –24.5V
28 0.6V
68 –21.2V
29 4.4V
69 –27.8V
30 0V
70 –18V
31 4.4V
71 –28V
32 0V
72 –11.5V
33 2V
73 –24.4V
2V
34
74 –24.4V
35 0V
75 14.7V
36 0V
76 –27.8V
37 0V
77 –24.4V
38 4.4V
78 –27.8V
39 4.4V
79 –27.8V
40 0V
80 –24.8V
IC961
PIN
NO. VOLTAGE
1 24.7V
2 14.19V
3 0V
4 0V
5 14.05V
6 24.8V
7 31.8V
8 1.24V
9 5.3mV
10 26.7V
11 0V
12 2.25V
13 5.2mV
14 1.23V
IC941
PIN VOLTAGE
NO.
1 17.2V
2 0V
3 12V
IC942
PIN VOLTAGE
NO.
1 17.2V
2 0V
3 5V
Figure 23 SCHEMATIC DIAGRAM (1/11)
– 23 –
CD-C290X
C412
390P
R414
1.5K
R412
39K
C424
0.056 (ML)
C426
0.18 (ML)
C428
0.18 (ML)
C430
0.033 (ML)
C432
0.0039
(ML)
C418
100P
C422
0.33/50
C401 R401
0.047 1K
(ML)
RF4C2
RF4C3
RFS
RVref
RINVIN2
RTOUT
RVRIN
RTEST
RVROUT
Vref
VDD
LVROUT
LTEST
LVRIN
LTOUT
LINVIN2
LVref
LFS
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
9 8 7 6 5 4 3 2 1
C442
0.0027 C448
22/16
R420
100K
C444
100P
C446
10/16
R453
1.2K
C450
100/1
C449
22/16
C445
10/16
C443
100P
C447
C441 22/16
0.0027
R421
100K
C423
0.056 (ML)
C425
0.18 (ML)
C427
0.18 (ML)
C429
0.033 (ML)
C431
0.0039
(ML)
C411
390P
RF2C1
RF2C2
RF2C3
RF3C1
RF3C2
RF3C3
RF4C1
RINVIN1
RSEL0
RTIN
RF1C1
RF1C2
RF1C3
IC401
LC75394E
AUDIO PROCESSOR
C417
100P
C421
0.33/50
R411
39K
LEFT
R3
NC
R2
NC
R1
AVSS
VSS
CE
DI
CL
VSS
L1
NC
L2
NC
L3
16 15 14 13 12 11 10
R413
1.5K
C
1
2
3
4
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
L4
LINVIN1
LSEL0
LTIN
LF1C1
LF1C2
LF1C3
LF2C1
LF2C2
LF2C3
LF3C1
LF3C2
LF3C3
LF4C1
LF4C2
LF4C3
C404 R404
0.047 1K
(ML)
C406
0.047 R406
(ML)
1K
C408
R408
0.047 (ML) 1K
R425 1K
R426 1K
R427 1K
C407 R407
0.047 (ML) 1K
C405 R405
0.047 (ML) 1K
C403
0.047 (ML)
R403
1K
B
SO401
VIDEO/AUX
RIGHT
R402
1K
R416
3.3K
C402
0.047
(ML)
CD_L
R4
17
A_GND
R417 R415
15K 3.3K
16
R418
15K
C416
22/16
TO MAIN PWB(2/3)
P27 12-C
CD_R
C415
22/16
15
A
OUT_L
TAPE_R
TAPE_L
GND
D
REC_R
CNS704
BIAS
T1_T2
R578
100K
Q513
KTC3200 GR
R510
10K
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.
1
2
3
4
Figure 24 SCHEMATIC DIAGRAM (2/11)
– 24 –
5
6
R561
C561
1/50
Nor/CrO2
15
10
R559
10K
R537
5.6K
9
C559
0.0033
C533
0.033
(ML)
R533
3.9K
8
7
R557
56
R531
100K
6
5
C553 C555
0.001 22/16
4
C557
0.068
R535
56
3
C544
3.3/25
2
56K
Hich=CHROME
56K
+
–
R553
6.8K
1
16
–
+
112K
Hich=T1
112K
+
–
C503 330P
C556
22/16
ALC
–
+
17
C562
1/50 R560
10K
C554
0.001
R556
560
C558
0.068
C560
0.0033
18
C563
19
R558
56
C532
47/16
R534
3.9K
R542
68K
R540
4.7K
20
KTC
R554
6.8K
R551
4.7K
R513
2.2K
C540
1/50
21
C543
0.022
R511
3.3K
22
C539
1/50
Q512
KTC3200 GR
23
R538
5.6K
C531
47/16
CNP502
CNS502
TAPE MECHANISM
ASSEMBLY
R512
3.3K
R532
100K
C520
R520
330P
1K
C504
330P
24
R576
10K
R552
4.7K
R539
4.7K
L-CH
TAPE2
RECORD/
PLAYBACK HEAD
1
2
3
4
5
6
7
C512
180P
R584
10K
C535
560P
G
M_GND
ERASE
TAPE2_R2
A_GND
TAPE2_R1
TAPE2_L1
TAPE2_L2
Q514
KTC3200 GR
R514
2.2K
Q576
KTC3199 GR
C534
R536 0.033 C536
56
(ML) 560P
R502
1K
R501
1K
1
2
3
C511
180P
Q511
KTC3200 GR
R-CH
1
2
3
4
5
6
7
R583
10K
C502
0.001
C501
0.001
ERASE HEAD
3
Q583
KRC104 M
C519
330P
TAPE1_R
A_GND
TAPE1_L
2
C514 0.001
L-CH
1
2
3
Q581
KTA1266 GR
3
1
C513 0.001
F
2
R518
10K
R516
10K
Q516
KTC3199 GR
R-CH
CNP501
TAPE1
PLAYBACK
HEAD
CNS501
R581
10K
Q584
KTC3199 GR
R585
2.2K
C583
22/16
R541
22K
Q582
KRC104 M
C581 R582
0.047 10K
R519
1K
E
TAPE_R
REC
R555
560
2
3
4
R515
R517
10K
10K
Q515
KTC3199 GR
TO DISPLAY PWB
P31 9-G
CD-C290X
8
6
R420
100K
R453
1.2K
C452
1/50
D401
1SS133
C450
100/16
+B
+12V(AUDIO)
C451
1/50
R432
4.7K
5
MAIN_R
3
A_GND
2
MAIN_L
7
6
C462
2.2/50
R421
100K C454
2.2/50
TO MAIN
PWB(3/3)
P28 1-E
TO MAIN
PWB(3/3)
P28 1-B
1
R431
4.7K
R_IN
1
R_OUT
TO
SRS PWB
CNP201
P33 12-A
A_GND
)
L_OUT
(
L_IN
+12V(AUDIO)
C461
2.2/50
REC_L
6
CNS201
C456
0.022
C455
2.2/50
GND
CNS303
D_GND
+12V(AUDIO)
A_GND
TAPE_L
TUN_L
TUN_R
R577
100K
R562
1K
C559
0.0033
R565
1K
R563
470
2
R567
4.7K
D_GND
Q565
KRC104 M
R566
4.7K
C572
0.027
(ML)
8
19
TO MAIN
PWB(2/3)
P27 9-G
RECORD SIGNAL
CD SIGNAL
GND(MOTOR)
R570
47K R571
12
TO MAIN
PWB(2/3)
P27 12-E
PLAYBACK SIGNAL
R568
150
(1/2W)
R569
100K
18
FM SIGNAL
Q566
KTA1266 GR
C570
0.0039
(ML)
7
TO
DISPLAY PWB
P30 1-F
P31 8-G
3
Q571
KTC3203 Y
Vcc
12
11
CL
C571
47/16
L501
330µH
RIPPLE
GND
13
ALC
10
R559
10K
C561
1/50
9
14
Nor/CrO2
56K
ME
56K
15
CE
1
IC501
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP
C562
1/50 R560
10K
C564
22/16
C565
220/10
Q575
KTC3199 GR
ALC
16
8
7
6
5
4
2
DI
R575
10K
C563
0.082
6
6
10
11
CNS702
R561
10K
56
C560
0.0033
R576
10K
TO
TUNER PWB
CNP303
P33 11-H
+B
REC
9 GR
1
2
3
4
5
6
7
8
9
MAIN PWB-A1(1/3)
9
10
Figure 25 SCHEMATIC DIAGRAM (3/11)
– 25 –
11
12
CD-C290X
R1 1K
+B
R42
560
PD
VR
LD
F
1
2
3
4
5
6
7
8
TR+
FO+
FO–
GND
PD
VR
LD
6
5
4
3
2
1
6
5
4
3
2
1
C35
0.1/50
C37
220/6.3
6
5
4
3
2
1
C30
2.2P
37
+
36
+
34
JP+
33
SL+
JP–
SLD
29 30 31 32
6
C18
1/50
7
R30
15K
R27
220K
R26
220K
R25 R24
1.2K 10K
R61
15K
SLEO
35
TGL
12
C19
47/16
470 0.0027
C53
220P
–
C16
0.001
27 28
R22
6.8K
R23
R19 1.2K
39K
R16
1.5K
SPO
SP–
SPG
REF
SPI
R20 10K
R21 56K
R17
82K
C14
0.01
1
24 25 26
HF R35 C31
38
HFL
TES
–
R32
56K
39
–
REF
4
40
SLOF
OR
SLOF
–
–
20 21 22 23
C33
0.001
+
–
SLOF
SLOF
REF
REF
FE1
+
–
+
+
FSTA
CV–
10
11
12
13
14
15
R34
1K
41
TP1
CV+
REF
C17
0.47/50
R15
47K
R41
4.7K
C45
4.7/25
CL
CLK
DEF
CE
DAT
FSS
VCC2
DRF
VR
+
+
+
+
S.Q.R
THD
R14
10K
C13 R12
0.1 15K
18 19
RFSM
TOFF
SP
FA
FD–
17
R29
1K
R39 R28
22K 1K
1
2
3
4
5
6
7
8
CNP3
M
6
5
4
3
2
1
CNS3A
M2
SLED
MOTOR
CNP3A
M
CNS3B
M1
DISC
MOTOR
R13
33K
1
2
3
4
5
6
7
8
9
C44
100/10
CD MOTOR PWB-F
+
+
+
–
FE–
13 TD
14 JP
RF
JP+
JPCLO
FSC
FOSTA
+ REF
–
TO GEN
+ REF
–
+ GEN
–
R33 C32
5.6K 27P
42
GND
D2
1SS133
C21
1/50
CNP2
TR–
LF2
RF
+
GEN
TD–
JP
–
R36 R37
47K 47K
43
R10
82K
36
35
34
33
32
+5V
31
30
29
28
27
26
25
24
23
22
16
21
17
20
18
19
R31
10K
+B
SP+
SP–
SL+
R54
1K
SL–
PU-IN
CNS702
11
H
• The numbers 1 to 12 are waveform numbers shown in page 16.
• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.
1
2
3
4
Figure 26 SCHEMATIC DIAGRAM (4/11)
– 26 –
5
6
SL–
FO–
GND
1
2
3
4
5
6
7
8
PHI
BHI
11
CV+
JP–
C11
0.1
LD
CNS2
CNS2
TR+
FO+
G
THDL
+
REF
JP
10
E
TR–
–
–
VREF
PICKUP UNIT
SW4
PICKUP IN
REF
10 TH
REF
GL
R38
33K
C34
0.033
PUIN
ACTUATOR
TGL1
44
REF
CV–
REF
IC5
M56748FP
FOCUS/TRACKING/
SPIN/SLIDE DRIVER
FO–
TR–
TR–
TR+
FO+
FO–
GND
PD
VR
RFS–
–
–
FO+
1
2
3
4
5
6
7
8
8
SLC
VCC
–
R8 C10
R11 12K 180P
3.3K
R40
22K
TR+
K
E
A
B
F
–
C94
0.001
1M
0.0022
1M
5
4
3
2
1
REF
45
3
SLOF
SL–
SCI
C50
0.1
46
8/12CM
C20
0.0033
9
–
FSTA
SLI
+
TESI
15 TO +
16 FD
220P
LTOH30M1
+
+
8
+
D
+
REF
C6
0.033
IC1
LA9241M
SERVO AMP.
VCR
–
+
A
F
C
MON
REF
LASER
VCR
TE
CE REF
CL
2FREQ
DRF
–
+
LD
K
E
B
LD GND
VCR
–
FSC
DGND
TOSTA
LATOH
TE–
48
EFBAL
FOSTA
VCR
+
6
7
12
R9
27K
HFL
–
C5
0.033
C7
0.1/50
C9
C8
0.047
0.068
R7
1K
DEF
–
REF
C
TE
R4
2.2K
R5
6.8K
–
FA–
FE
R6
100
R2
100K
REF
5
55 54 53 52 51 50 49
TBC 47
FE1
F
TB
56
REF
C12
330P
C4
0.001
R3
15K
–
–
AGND
C3
0.1/50
57
REF
C15
0.0047
3
4
F
58
–
+
E
+
VCC1
2
B
–
REF
CNS1A
CNS1B
F
1
+
B
9
A
59
+
B
1
2
3
4
5
FIN2
REF
FIN1
REF
E
–
A
1
2
3
4
5
CNP1
E
K
REF
5
4
3
2
1
K
2
64 63
62
61 60
LDS LDO
–
REF1
C24
1/50
C25
0.01
C39
0.47/50
R43
12
C38
0.01
+B
Q1
C2 KTA1266 GR
47/16
C1
0.01
C40
0.33/50
A
CD-C290X
MAIN PWB-A1(2/3)
+B
R45
1K
CD SIGNAL
R46
1K
+B
IC2
LC78622K
SERVO/SIGNAL
CONTROL
C56
100P
C57
100P
R60
1K
C55
100P
C22
0.01
C54
100P
R47
1K
+B
17
PW
FSX
SFSY
SBCK
RWC
WRQ
COIN
SQOUT
/RES
/CQCK
4M
16M
TEST11
R76
270
R75
270
DIGITAL
OUT
EXTERNAL
OUTPUT
C58
32
D5
1SS133
R86 1K
R87 1K
R88 1K
SURR
24 25 26 27 28 29 30 31
D7
1SS133
SERVO
COMMAND
TEST3
TES
17 18 19 20 21 22 23
R82
100
(DRIVER)
TO MAIN
4 PWB(3/3)
P28 2-D
+5V
D_5V (UCOM)
TO MAIN
6 PWB(3/3)
P28 2-F
+12V
L1
2.7µH
D2
1SS133
C59
0.022
C51
0.022
D_GND
+4.3V
D81
1SS133
C52
47/16
GND
D_GND
+B
FM/AM(KHz)
TO MAIN
PWB (1/3)
P25 12-E
TO MAIN
PWB (3/3)
P28 2-F
SOLM2
SOLENOID
LOCK
BIM5
SOL
1
GND(M)
2
M+
3
M–
4
GND(D)
5
OPEN CLOSE 6
DISC NO.
7
GND(D)
8
MECHA UP 9
10 GND(D)
10
DISC_NO
MECHA_UP/DOWN
D_GND
M_GND
CD_OPEN/CLOSE
C95
0.001
DSP_RES
WRQ
RWC
1
2
3
4
5
6
7
8
9
R99
56
1K
1K
1K
1K
1K
1K
R70
R71
R72
R77
R78
R79
CQCK
COIN
SQOUT
DRF
SL+
SL–
PUIN
R54
K
R95
2.2K
1
R98
10K
SW725
50/9 SPAN
SELECTOR
R703
23K
R96
10K
2
CNS10
100/10
C91
47/16
R701
15K
R97
2.2K
3
CNP10
1 2 3 4 5 6 7 8 9
Q93
KRC102 M
+5V
20
(SERVO)
Q91
KTA1271 Y
+B
18
D91
1SS133
IC91
TA7291S
LOADING MOTOR DRIVER
CD-LD(M+)
CD-LD(M–)
+5V
MAIN PWB(1/3)
P24 1-A
C92
0.022
16
TEST4 33
DOUT
11
CD_L
15
V/P
HLF
TOFF
C53
220P
16
C69
220P
GND
A_GND
C43
100/10
34
CLV
CLV– DIGITAL SERVO
EMPH
15
CLV+
CD_R
C70
220P
R73
2.7K
LVDD 36
MUTEL
35
TEST2
CONT5
14
SYNC-DETECT
EFM DEMODULATE
SLICE LEVEL
CONTROL
EFMIN
CONT4
13
LVSS 38
LCHO
37
FILTER
EFMO
C68
10/16
C67
10/16
1BIT RVSS 39
DAC
DIGITAL
VSS
R74
2.7K
+B
S_MUTE
12
44
RVDD 41
RCHO
40
4FS
FSEQ
VDD
5
45
XOUT
ERROR COERECT
FLAG CONTROL
VVDD
FR
PCK
10
11
47
XVDD 43
MUTER
42
JP_
6
7
8
9
R56
1.2K
R35 C31
470 0.0027
VVSS
ISET
2KX8
RAM
VCO CLOCK
OSC CONTROL
R57
27K
R32
56K
4
5
XL1
16.93MHz
48
XIN
X-TAL
GENERATOR
CONT3
C42
0.047
PDO
EFLG
SBSY
SUB-CODE
XVSS 46
JP+
R34
1K
3
49
TA1
CONT2
C41 R58
0.047 680
DEF1
TGL
R36 R37
47K 47K
1
2
U-COM
INTERFACE
CONT1
R18
3.3M
TEST5
TEST1
R38
33K
C34
0.033
C32
27P
/CS
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50
C2F
C50
0.1
6
5
4
3
2
1
+
–
M
M3 T/T
UP/DOWN
LOADING
SW1
CLOSE/OPEN
SENSOR PWB-E
SW2
MECHA UP
1
2
CNS5
1
2
SW3
DISC NO.
19
NS702
CNS703
11
1 2
10
5 6 7 8 4 9
11
TO MAIN PWB(1/3)
P25 12-E
TO DISPLAY PWB
P31 8-G
7
CNS703
CNS702
3
TO DISPLAY PWB
P31 8-G
8
9
10
9
TO DISPLAY PWB
P31 8-G
10
Figure 27 SCHEMATIC DIAGRAM (5/11)
– 27 –
11
12
CD-C290X
MAIN PWB-A1(3/3)
A
–
+
IC961
LA4450
POWER AMP.
C970
47/50
C967
100/50
R975
270
(1/2W)
C974
0.022
R973
270
(1/2W)
+12V
(MECHA)
+12V
AUDIO
IC941
KIA7812P
VOLTAGE REGULATOR
3
1
C949
2200/50
TO MAIN PWB(1/3) 5
P25 12-B
Q941
2SD2012 Y
C941
0.022
+12V
DRIVER
R941
10K
TO MAIN PWB(2/3) 4
P27 12-D
2
E
C942
47/16
C947
0.1
(ML)
C944
0.1
(ML)
M_GND
TO MAIN PWB(2/3)
P27 12-D,E
20
6
IC942
KIA7805P
VOLTAGE REGULATOR
+5V SERVO
3
POWER-CONT
C943
47/16
F
C948
3300/25
1
2
C945
0.022
(ML)
GND
R942
3.3
C946
0.1
(ML)
R943
3.3
F941
T500mA
L 250V
GND (D)
VF1
7
–VP
6
TO DISPLAY PWB
P30 1-E
P31 8-G
G
VF2
5
9
POWER
TO DISPLAY MICOM
8
+5V
UCOM
CNS704
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.
1
C979
0.1
(ML)
R971
4.7
R968
220
C973
100/50
CNS702
TO
DISPLAY PWB 2
P30 1-F
C966
100/50
C965
100/50
C
D
C977
0.1
(ML)
C978
0.1 (ML)
R969
10K
R967
220
C961
0.0015
R961
33K
C962
0.0015
R962
33K
C964
1/50
C976
1000/25
R972
4.7
A_GND
MAIN_R
C975
1000/25
C980
0.1 (ML)
GND
R966
1K
MAIN_L
R965
1K
1
2
3
C963
1/50
C968
0.001
B
9 8 7 6 5 4 3 2 1
C969
47/50
14 13 12 11 10
FM SIGNAL
TO MAIN PWB(1/3)
P25 12-C
+
–
2
3
4
Figure 28 SCHEMATIC DIAGRAM (6/11)
– 28 –
5
6
1
2
3
4
5
6
7
CD-C290X
HEADPHONE PWB-A4
5
JK961
HEADPHONES
R981
330 (1/2W)
R982
L963
2.2mmH 330 (1/2W)
C979
0.1
(ML)
R971
4.7
R973
270
(1/2W)
5
CNS902
R975
270
(1/2W)
1
CNS902
C977
0.1
(ML)
1
SO962
SPEAKER TERMINAL
+
–
–
+
L-CH
SPEAKERS
MIN. 4 OHMS
R-CH
D901
IN5402
D902
IN5402
C907
0.22
(PWR)
(PWR)
D904
IN5402
D905
RL104A
D906
RL104A
D907
RL104A
D908
RL104A
Q901
KTA1266 GR
C909
0.047 (ML)
D910
RL104A
110V
C910
0.047 (ML)
TF901
SW901
VOLTAGE
SELECTOR
C905
100/50
C904
47/50
D909
RL104A
R905 ZD902
3.3K MTZJ30B
ZD901
MTZJ6.2A
R903
220
(1/2W)
C908
0.22
F902
T1.6A L 250V
R904
100
C901
100/35
R901
220 (1/2W)
D903
IN5402
230V-240V
(AUDIO)
1
2
GND
3
+B
4
VF1
5
–VP
6
VF2
7
127V
220V
(AUDIO)
GND
R902
12K
1
mA
0V
+B
C903
47/50
CNP901
8
0/25
1
2
3
4
5
6
7
C902
47/50
1
2
3
4
5
6
7
CNS901
C949
2200/50
PT901
POWER TRANSFORMER
F901
T3.15A L 250V
SO901
INPUT
AC110/127/
220/230-240V
50/60Hz
D911
RL104A
C906
100/50
AC POWER
CORD
R907
3.3
POWER PWB-B
7
8
9
10
Figure 29 SCHEMATIC DIAGRAM (7/11)
– 29 –
11
12
CD-C290X
A
3 4 5 6 7 8 9
F
F
9G
4G
3G
2G
1G
P17
P18
P19
P12
P1
8G
P2
P3
7G
6G
P4
P5
5G
P6
P7
NC
NC
NC
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
NC
1 2
P8
P9
P10
P11
P14
P20
P13
P16
P15
F
F
FL701
DISPLAY
Q701
KRC107 M
2
B
3
1
9G
L-CH INPUT
T2 RUN PLSE
AVSS
CD UP/DOWN,DISC NO
CD T.T OPEN/CLOSE
RESET
CD DSP RES
CD DSP COIN
CD DSP SQOUT
CD DSP CQCK
T1/T2
CD DSP RWC
CD DSP WRQ
TAPE BIAS
VDD
T0
T1
T2
T3
S2
IC701
IX0191AW
SYSTEM MICROCOMPUTER
S3
S4
S5
CD SL+
CD SL–
POWER
TUNER SD
SYSTEM STOP
REMOCON
IC
P.B. MUTE
TAPE SOL
TAPE MOTOR
VDD
MIC
TAPE F.P.
DISC 1
DISC 2
S11
S15
S9
S10
DISC 3
S8
T1 RUN PLSE
S7
TAPE MECHA STOP
S6
S14
C709
1/50
S1
S13
D
10 11 12 13 14 15 16 17 18 19 20 21 22 23
S0
S12
78
P17 77
P18
76
P19
75
P12
74
P1
73
P6
72
VLOAD
71
P7
70
P8
69
P9
68
P10
67
P11
66
P14
65
T4
80 T7
5G
79 T8
T5
T6
1 2 3 4 5 6 7 8 9
6G
TAPE REC
4G
3G
2G
1G
C
8G
7G
R724 1K
R725 1K
R726 1K
R727 1K
R728 1K
R729 1K
R730 1K
R731 1K
R732 1K
R733 1K
R734 1K
+B
R735 1K
R736 1K
C701
0.022
R707
100K
+B
R803
10K
R773 1K
D708
1SS133
GND
M_GND
2+
CNPM1
4
2
1
3
MM1
TAPE MOTOR
G
1
2
3
4
5
6
7
8
9
PHM1
RUN PALS
SENSOR
SWM3
F.P.
SWM4
F.A.S
SOLM1
SOLENOID
CNPM2
1
2
3
4
5
6
7
8
9
1 2 3 4 5 6 7 8
CNP705
1 2
GND
+B
T2 RUNPALS
FOOL PROOF
T1 RUNPALS
10
SOLENOID
11
MECHA STOP
12
10
11
12
SWM5
CAM
MOTOR
CNSM1
TAPE MECHANISM PWB-D
FWM2
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.
2
3
4
Figure 30 SCHEMATIC DIAGRAM (8/11)
– 30 –
SL+
FWM1
M
SL–
MOTOR
GND
+B
T2 RUN
FOOL PROOF
T1 RUN
SOLENOIDO
MECHA STOP
R805
1.2K
TAPE MECHANISM ASSEMBLY
1
R774 10K
R775 1K
R776 1K
R777 10K
R778 10K
R793
5.6K
R770 2.2K
R769 1K
R771 2.2K
R791
10K
Q706
KTA1271 Y
R790
10K
R766 1K
R767 1K
R768 1K
R789 10K
P15
P16
Q703
KTA1273 Y
R813
10
(1/2W)
+12V
(MECHA)
2
3
R807 1K
R808 1K
R809 1K
R783
10K
R788
10K
POWER
C716
47/16
VF2
C717 0.022
–VP
D706 1SS133
VF1
D707 1SS133
CNS704
7
6
5
9
CNS702
F
TO MAIN PWB(1/3,3/3) TO MAIN PWB(3/3)
P28 1-D,P25 12-E
P28 2-G
E
P13
P20
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42
C710
1/50
5
6
CD-C290X
R711
1.2K
R710
1K
DISPLAY PWB-A2
R712
1.8K
SW702 SW703 SW704
VOLUME X-BASS/ VOLUME
DOWN EQUALIZER
UP
SW701
3D
SURROUND
R719
1.2K
R718
1K
R720
1.8K
R721
2.2K
R722
3.9K
SW711
SW710 TUNING
SW709 TUNING DOWN
REW UP/TIME /TIME
SW705
SW706 SW707 SW708
REC
STOP
PLAY
FF
PAUSE
R715
10K
R716
10K
R717
3.3K
C701
0.022
R702
1K
R746
2.2K
R745
1.8K
R747
3.9K
+B
SW712
ON
/STAND-BY
R742 8.2K
R741 8.2K
R740 8.2K
R735 1K
R736 1K
R739 10K
SWITCH PWB-A3
KEY-2
28
1
SRS ON/OFF
32 XT2
VSS
33
X1
34
X2 R760
35
CL 1K
36
CE
37
DI
38
DO
39
DRF
40
CD PUIN
R757
12K
R758
5.6K
SW720
DISC
1
SW721
DISC
2
SW722
DISC
3
SW723 SW724
DISC OPEN/
SKIP CLOSE
C707
15P
(CH)
1
R810
820
R811
820
1 R812
820
3
2
XL701
R762 1K
R763 1K
R764 1K
R761
2.2K
1
6
C708
18P
(CH)
6
1
3
Q810
2
KRC102 M
3
Q811
2
KRC102 M
Q812
KRC102 M
LED810 LED811
LED812 LED813
LED814 LED815
R765
1K
R774 10K
R775 1K
R776 1K
R777 10K
R778 10K
R779 1K
46 45 44 43 42 41
+B
Q702
KRC102 M
R780 R781
1K
1K 2
R782
1K
D701
1SS133 +B
D704
1SS133
R797
3.3K
D705
1SS133
R798
100K
C711
C715
3.3/25
0.01
3
C714
0.01
R796 10K
C713 0.022
R795 10K
C712 0.001
1
L701
2.2mmH
Q704
KTC3199 GR
R784
10K
R799
100
R786
10K
Q705
KTC3199 GR
R800
82
R802
1K
ZD701
R785
MTZJ3.3B
12
RX701
REMOTE
SENSOR
1 2 3
C720 0.001
D702
1SS133
R787
150
R801 2.2K
+B
R793
5.6K
R759
3.9K
C719
100/6.3
CD SL+
CD SL–
R756
33K
AVREF
CNS701
30
AVDD
CNS701
29
TER
POWER
KEY-3
D703
1SS133
C718
220/6.3
L-CH INPUT
R-CH INPUT
T2 RUN PLSE
CD UP/DOWN,DISC NO
AVSS
CD T.T OPEN/CLOSE
R750 1K
R751 1K
26
KEY-1 R752 1K
27
SET UP R753 1K
25
31
TUNER SD
R749
12K
+B
19 20 21 22 23 24
SYSTEM STOP
R748
5.6K
SW717 SW718 SW719
SW714
SW713 TIMER SW715 SW716 TUNER TAPE VIDEO
CLOCK /SLEEP MEMORY CD
/BAND
1-2
/AUX
C702
220/6.3
R734 1K
R744
1.2K
R743
1K
R723
5.6K
8 11 5 7 6 4 1 10 9
TO MAIN PWB(1/3,3/3)
P25 12-E,P27 7-G/10-G
7
8
CNS703
+5V(MICOM)
BIAS
REC
T1_T2
MECHA_UP
/DOWN
SD
CNS702
SL+
DRF
SL–
CNS703
1 2 10
PUIN
DO
DI
CE
CL
GND D_GND
DISC_NO
R806
10K
R804
100K
CD_OPEN/CLOSE
DSP_RES
SQOUT
COIN
CQCK
RWC
WRQ
R814 220K
CNS704
3 9 5 6 7 8 4 11
3 4 2 8
TO MAIN PWB(1/3,3/3)
P24 1-E,P28 2-G
9
10
Figure 31 SCHEMATIC DIAGRAM (9/11)
– 31 –
11
12
CD-C290X
+B
B
22 FM
REG
AFC
OSC AM MIX
23 AM
IN
OUT
OSC
24 AM
FM IF
OUT
IN
C362
3.3/50
R351
5.6K
+B
T302
R383
5.6K
+B
12.1V
R391
390
Q360
KTA1266 GR
R392
390 +B
11.3V
(12.1V)
CE
3
R382
150
R374
1K
2
1
C381 X352
12P 4.5MHz
(CH)
R344
470
C382
15P
(CH)
C384
0.001
1 IF OUT
C347
0.022
C334
18P(UJ)
L342
2.2µH
C345
0.022
C321
100/16
C346
0.022
R369
1.2K
2 GND
3 F OUT
4 VT
5
6
7
8
VCC
GND
GND
ANT
D304
1SS133
D302
1SS133
C338
0.001
FM
75ohms
GND
D303
1SS133
CHASSIS
GND
C301
0.001
CHASSIS
GND
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.
1
2
3
4
Figure 32 SCHEMATIC DIAGRAM (10/11)
– 32 –
TO SRS PWB
P33 10-B
5
6
CN7
CNS7
D351
1SS133
ZD352
MTZJ3.9B
Q361
KRC107 M
MPX PHASE
0V
(3.6V)
0V
(0V)
3.9V
R360
4.7K
D352
1SS133
R372
1K
AM SIGNAL
R345
4.7K
C323
0.022
AM
4
IC302
LC72131
PLL (TUNER)
G
SO301
ANTENNA
TERMINAL
5
DI
FM SIGNAL
C337
0.022
D301
1SS133
6
CL
R336
4.7K
C335
18P
(CH)
R323
68K
1
R371
1K
+B
AM
OSC.
VD301-2
KV1236Z23F
C330
10P
(UJ)
2
TP301
C336
470P
T306
VD301-1
KV1236Z23F
2
Q371
KTA1266 GR
7
DO
20 AOUT
21 VSS
22 X OUT
R381
10K
3
R324
100K
R319
100K
C331
0.047
C386
330P
C351
0.022
1
PD
19 AIN
R380
1.5K
C393
1/50
C352
10/16
CF302
C332
0.022
C396
100/10
C350
0.022
1
IC303
LA1832
FM IF DET/
FM MPX/AM IF
VR351
10K(B)
C342
0.022
2
R379 18
2.2K
C392
0.001
2 1
ST IND 11
12 IF IN
13
MO/ST 10
14
FM 9
15 AM IN
MW 8
16 FM IN
17 VDD FM
+B
FM MUTE
LEVEL
L353
1mH
3
C385
0.01
L351
100µH
C387
0.022
2
T351
AM IIF
0.022
R358
8.2K
AM ANT.
ZD351
MTZJ5.1B
MUTING
Q354
KTC3199 GR
CF352
3
R352
1K 1
RF
21 AM
IN
C343
33P
F
C353
0.022
2
+B
0.022
4
R377
47K
R393
1K
3
1
+B
10/16
5
CF351
C354
0.022
R376
1K
R373
1K
6
0.022
R378
82K
SD
18 FM/AM
OUT
GND
19 AM LOW
CUT
AM IF
20 VSM
IN
C399
R395
47K
FE301
FM FRONTEND
0.022
C364
0.7V (0V)
7
R387
22K
C341
0.022
C365
0V
R367 C375
1K 3.3/50
R368
33K
0V
R366
10K
8
100/10
C380
10/16
0.001
C361
E
FM
DET
R353
270
C398
C394
47/16
C366
9
STEREO
R350 C367
2.7K 1/50
TP302
C363
VCC
R384
5.6K
R359
1.8K
R398
1.2K +B
C397
0.022
X351
456KHz
PHASE 11
IF OUT 10
16 MPX
IN
MPX
17 VCO
C368
1/50
C391
47/16
R385
5.6K
11.3V
(0V)
+B
R357 470K
D
C358
1/50
PHASE
13 MO/ST (FM/AM) 12
L-CH
14 OUT
15 R-CH
OUT
R356
1K
C374 0.022
C395
0.022
10
11
C370
1/50
C356
0.001
C
L352
100µH
C355
22P
C371
1/50
R354
3.9K
C357 R355
2.2/50 3.3K
C373
0.022
0.7V
(0V)
R362
4.7K
C372
1/50
R361
4.7K
R364
1.2K
0V
R363
1.2K
X IN
MUTING
Q353
KTC3199 GR
0V
R365
10K
SD
1
2
3
4
5
6
7
8
9
CNS303
CNP303
D353
1SS133
D GND
CLK
DO
CE
DI
A+12V
A GND
TUN MUTE
L
R
TO MAIN PWB
P25 12-D
TUNER PWB-C
A
7
SRS PWB-G
R209
10
C200
100/16
R233
22K
Q201
KTC3203Y
R213
2.2K
8
C210
100/16
R200
10K
C201
0.022
VCC
R–IN
28
2
PN–IN
L–IN
27
R207
1K
C–OUT
25
6
C3
C–IN
24
7
C4
CL4
23
Vref
19
GND
15
R218
1K
A–GND
L–OUT
6
CNP201
6
12
CD-C290X
5
L–IN
+12V
CNS201
P25 12-C
R–IN
R–OUT
TO MAIN PWB(1/3)
16
14
CR2
C224
2.2/50
1
CR1
4
17
13
CR3
C220
100/16
3
R–OUT
R217
1K
2
CR4
C223
2.2/50
1
18
12
11
L–OUT
TO TUNER PWB
CNS7
20
11
S–OUT
SRS–1/2
P32 6-D
21
10
S–IN
SRS–ON/OFF
CN7
22
9
CL2
CL1
R216
4.7K
2
CL3
C6
Q205
K246GR
1
8
C5
R234
100
R215
4.7K
3
2
5
C2
R210 C219
1.2K 0.33/50
R228
1K
S
C1
D
4
G
MODE
26
3
10
R212
4.7K
PN–OUT
Q206
KRC107M
1
R201
33K
R204
1.5K
R202
100K
C203
0.0047
R206
3.9K
D201
1SS133
R208
1K
1
R203
22K
R205
47K
C202
0.47/50
9
Figure 33 SCHEMATIC DIAGRAM (11/11)
– 33 –
IC201
SRS5250S
SRS
CD-C290X
TROUBLESHOOTING (CD SECTION)
When the CD does not function
When the CD section does not operate When the objective lens of the optical pickup is dirty,this section may not operate.Clean
the objective lens,and check the playback operation.When this section does not operate even after the above step is taken,check
the following items.
Remove the cabinet and follow the troubleshooting instructions.
"Track skipping and/or no TOC(Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens.
Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
• When the turntable fails to stop.
Check the SWM3 and the wiring from the IC701 pin 21 to the
SWM3.
Check the MECHA UP SW and the wiring from the IC701 pin
21 to the MECHA UP SW.
Û
Check the MECHA UP SW and the wiring from the IC701 pin
21 to the MECHA UP SW.
Û
No
Û
5 V till 2.5V down pulse (approx. 300 ms)
0V
Û
5V
Is from 2.5V
Check the wiring of IC2 pin 26 and Q93 pin 2.
input into the IC701 pin 21 when the turntable is rotating?
Û
Yes
Is there following voltage input on the IC701 pin 21 in the
specific state?
When the CD mechanism is moved up: 0V
In other states: 4.3V
No
Û
Yes
Check IC2 pin26 Q91 and Q93 and the periphery.
Û
Yes
IC701 defective.
• When turntable fails to move.
Is there following voltage input on the IC701 pin 21 in the
specific state?
When the CD mechanism is moved up: 0V
In other states: 4.3V
No
Û
Yes
Is L output from the IC2 pin 26 during SEC when the disc skip
switch is pressed?
No
Û
OK
Yes
Û
IC2 defective.
No
Û
Yes
Check turntable motor and turntable mechanism.
– 34 –
Û
Is 4V output from the Q91 emitter during operation stated
above?
Check Q91, Q93 and the periphery.
CD-C290X
• When the CD tray fails to open or close.
Check the OPEN CLOSE SW and the wiring from the IC701
pin 19 to the OPEN CLOSE SW.
Û
No
Û
Is there following voltage input in specific state of IC701 pin 19?
Open state: 0V
Close state: 0V
Intermediate state between open state and close state: 4.3V
Check the wiring of the IC2 pins 24 and 25, IC91 pins 1 and 3.
Û
Yes
Is H output to IC2 pin 24 or 25 for 7 seconds when the OPEN/
CLOSE key is pressed?IC91 is defective. Replace it.
No
Û
OK
IC2 defective.
Û
Yes
Û
Is 4V output between IC91 pins 3 and 7 during operation
stated above?
No
Check the periphery of IC91.
Û
OK
Yes
Û
IC91 defective.
Check the loading motor (M3) and the loading mechanism.
• The CD function will not work.
The CD operating keys don't work.
Û
Yes
Check the CD, DSP, power supply, and 16.93 MHz clock, and
reset terminal.
Û
Yes
Check the waveform of SCK, SO (DATA) and SI (COMM).
Û
Yes
See if the pick-up is in the PICKUP IN SW position.
Û
Yes
If the items mentioned above are OK, check the main
microcomputer IC701.
• The CD operating keys work.
Check the Focus - HF system.
Focus search is
performed two
times when play
operation is done
without disc.
0.5s
0.50 V
IC1 16 FD
0.5s
0.50 V
IC1 7 TE
1
Playback can be performed without a disc.
2
Figure 35
Û
Yes
Focus search OK
Û
Yes
Û
Does the pick-up move up and down twice?
Check the area around IC5-CNP2.
Û
No
Û
Does the output waveform of IC1(16)(FD) match that shown in
Fig. 35?
Yes
No
Check the IC1(50)(CLK) line, 4MHz.
Check the microcomputer data on pins (51)(CL), (52)(DAT)
and (53)CE.
– 35 –
CD-C290X
• Playback can only be performed when a disc is
loaded.
Check the laser diode driver.
Check the area around IC1(16) - (21) (focus servo circuit).
Û
No
Û
Is the Focus servo active? (Can you hear it working?)
If the disc is not turning, the DRF
should not change to "H".
Û
Yes
No
Yes
Û
Does the DRF signal change from "L" to "H"?
Check the spin system.
Yes
Level is abnormal.
Û
Waveform is unstable.
Yes
Check the periphery of
IC1 pins 41 and 42.
Yes
Check the tracking system.
HF
1.0V/DIV
0.5µsec/DIV(DC)
(When playing
back the disc)
Û
Û
Û
Is HF waveform normal (see the Fig.36-1, 2)?
Û
Û
Yes
No
Check the spin system.
Waveform in case of
normal play-back
0.5s
1.00 V
IC1 16 FD
0.5s
10.0 V
IC2 13 CLV+
2
1
3
0.5s
10.0 V
IC1 54 DRF
4
0.5s
2.00 V
IC1 7 TE
Figure 36-1
Figure 36-2
• Check the tracking system.
Check waveform of IC1 pin 7 (TE).
Û
Yes
Yes
Û
Û
Û
Data cannot be read.
Although IL is possible,
play is impossible.
Yes
Check the periphery of IC 1
pin 8 to pin 15, and IC 5 to
CNP2.
Normal jump is impeded,
and the program top
cannot be reached.
Check the VCO-PLL system.
5ms
1.00 V
IC1 7 TE
4
5 ms
5.0 V
IC1 54 DRF
3
Figure 36-3
– 36 –
Yes
Û
Û
Yes
Û
Play is possible in
TEST mode.
Yes
Tracking servo is
inoperative.
Û
The waveform shown in
Fig.36-3 appears, and nodisc state appears soon.
Check the periphery
of IC 1 pin 14.
Û
CD-C290X
• Checking the spin system.
Play operation is performed without disc.
Û
Yes
Yes
Û
The spin driver circuit is normal.
Û
Check the periphery of IC1 pins 23 to 27, pin 39, and pin 40, IC2
pin 12 and pin 13, IC5 to CNP3.
Û
The turntable rotates a little.
Check PDO waveform (Fig. 37).
Û
No
Yes
The turntable fails to rotate or rotates at high speed.
• Checking the VCO-PLL system
Play operation is performed when disc exits.
Û
Yes
Although HF waveform is normal, TOC data cannot be read.
Yes
Û
Abnormal
Check the IC1 pins 43 and 44, IC2 pins 3, 5, 7, 10, and 11.
Stop --> Play
As VCO frequency is locked at
4.32 M Hz, voltage
of PDO rises and
stabilizes.
0.5s
1.00 V
IC2 3 PDO
2
0.5s
1.00 V
IC2 16 FD
3
Figure 37
• Although HF waveform is normal and the time
indication is normal, no sound is emitted.
Û
No
Check IC 2 pin 48 (EFLG).
Û
Yes
Û
Check IC2 pins 37, 40.
Abnomal
Check IC 401 and POWER AMP IC 961.
– 37 –
Usually, the number of pulses of flawless disc is 100 pulses/sec
or less.
CD-C290X
FUNCTION TABLE OF IC
IC2 VHiLC78622K-1:Servo/Signal Control(LC78622K) (1/2)
Pin No.
Terminal Name Input/Output
1
DEFI
Input
Input terminal of defect detection signal (DEF). (Connected to OV when not used.)
2
TAI
Input
For PLL
3
PDO
4
VVSS
—
5
ISET
Input
6
VVDD
—
7
FR
8
VSS
Output
Input
—
Function
Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
Output terminal of phase comparison for external VCO control.
Ground terminal for integrated VCO. Surely connected to 0V.
Resistance connection terminal for current adjustment of PDO output.
Power terminal for integrated VCO.
VCO frequency range adjustment.
Ground terminal of digital system. Surely connected to 0V.
9
EFMO
Output
10
EFMIN
Input
11
TEST2
Input
12
CLV+
Outout
Output for disk motor control. 3 values can be output with the commands.
13
CLV-
Output
Output for disk motor control. 3 values can be output with the commands.
14
V/P
Output
Monitor output terminal for automatic switch of rough servo/phase control.
"H" for rough servo, and "L" for phase servo.
15
HLF
Intput
Input terminal of track detection signal. Schmit input.
16
TES
Input
Input terminal of tracking error signal. Schmit input.
17
TOFF
Output
Tracking OFF output terminal.
18
TGL
Output
Output terminal for switch of tracking gain "L" increases the gain.
19
JP+
Output
Output for track jump control. 3 values can be output with the commands.
20
JP-
Output
Output for track jump control. 3 values can be output with the commands.
21*
PCK
Output
Clock monitor terminal for EFM data replay. 4,3218MHz as the phase clock.
22*
FSEQ
Output
Output terminal synchronous signal detection. "H" is output when synchronous signal detected
by EFM signal matches synchronous signal internally generated.
—
For slice level control
EFM signal output terminal.
EFM signal input terminal.
Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
23
VDD
24
CONT1
Input/Output
General purpose input/output terminal 1
Power terminal of digital system.
25
CONT2
Input/Output
General purpose input/output terminal 2
26
CONT3
Input/Output
General purpose input/output terminal 3
27*
CONT4
Input/Output
General purpose input/output terminal 4
28*
CONT5
Input/Output
General purpose input/output terminal 5
29*
EMPH
Output
Controlled with serial data command
from micro computer.
When not used, set it as the input terminal and
open it by connecting to 0V, or set it as the output
terminal and open it.
Difference monitor terminal At "H", deemphasis disk is being replayed.
30*
C2F
Output
C2 flag output terminal.
31*
DOUT
Output
Output terminal of digital OUTPUT. (EIAJ format)
32
TEST3
Input
33
TEST4
Input
34
N.C.
35*
MUTEL
—
Output
36
LVDD
—
37
LCHO
Output
38
LVSS
—
39
RVSS
—
40
RCHO
Output
41
RVDD
42*
MUTER
—
Output
Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.
Terminal not used. Open during operation.
L channel 1 bit DAC
Mute output terminal for L channel.
Power terminal for L channel.
L channel output terminal.
Ground terminal for L channel Surely connected to 0V.
R channel 1 bit DAC
Ground terminal for R channel Surely connected to 0V.
R channel output terminal.
Power terminal for R channel.
Mute output terminal for R channel.
43
XVDD
—
44
XOUT
Output
Ground terminal of 16.9344 MHz quartz oscillator.
Power terminal for quartz oscillation.
45
XIN
Input
Ground terminal of 16.9344 MHz quartz oscillator.
46
XVSS
—
47*
SBSY
Output
Output terminal of synchronous signal of subcode block.
48*
EFLG
Output
Correction monitor terminal of C1, C2, single and double.
Ground terminal for quartz oscillation. Surely connected to 0V.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
– 38 –
CD-C290X
IC2 VHiLC78622K-1:Servo/Signal Control(LC78622K) (2/2)
Pin No.
Terminal Name Input/Output
49*
PW
Output
50*
SFSY
Output
51
SBCK
Input
52*
FSX
Output
53
WRQ
Output
54
RWC
Input
55
SQOUT
56
COIN
Input
Command input terminal from microcomputer.
57
CQCK
Input
Clock input terminal to fetch command input, or pick up subcode from SQOUT. Schmit input
58
RES
Input
59*
TEST11
Output
Output
Function
Output terminal of subcodes P, A, R, S, T, U and W.
Output terminal of synchronous signal of subcode frame. It drops when subcode stands by.
Clock input terminal to read subcode. Schmit input (Connected to 0V when not used.)
Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.
Output terminal to stand by output of subcode Q.
Input terminal of read/write. Schmit input.
Output terminal of subcode Q.
Reset input terminal of LC78622. When turning on power, set it at "L".
Output terminal for test. Used in the open state ("L" output as ordinary).
60*
16M
Output
Output terminal of 16.9344Hz.
61
4.2M
Output
Output terminal of 4.2336MHz.
62
TEST5
Input
Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.
63
CS
Input
Chip selection input terminal. Pull-down resistor is integrated.
Connected to 0when not controlled.
64
TEST1
Input
Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.
Note: The same potential must be supplied to the power terminals (VDD, VVDD, LVDD, RVDD, XVDD).
DEFI
EFMIN
FSEQ
Slice level
control
Vss
VDD
TAI
TSTI1
TEST1
TEST2
TEST3
TEST4
TEST5
PCK
FR
I SET
PDO
VVDD
VVss
EFMO
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
RAM address
generator
2Kx 8bit
RAM
VCO colck oscillation
clock control
Sync detection
EFM demodulation
Interpolation mute
C2F
Bilingual
Digital OUT
CLV+
CLV-
CLV
Digital servo
Flag processing of C1/C2
error detection and correction
DOUT
Digital
attenuator
V/P
PW
SBCK
SBSY
SFSY
CS
WRQ
SQOUT
Subcode division
QCRC
X4 oversampling
digital filter
(NC)
µ COM
Interface
1bitDAC
CQCK
Figure 39 BLOCK DIAGRAM OF IC
– 39 –
LCHO
MUTEL
LVss
LVDD
RCHO
RVss
RVDD
MUTER
EFLG
EMPH
CONT1
CONT2
CONT3
CONT4
CONT5
TGL
JPJP+
RES
RWC
HFL
TES
TOFF
L.P.F
XTAL system timing
generator
General-use port
Servo commander
16M
4.2M
XVss
FSX
XIN
XOUT
XVDD
COIN
CD-C290X
IC1 VHiLA9241M/-1:Servo Amp.(LA9241M) (1/2)
Pin No.
Function
Port Name
1
FIN2
Connection pin for photodiode of pickup.
RF signal is generated through addition with FIN pin, and FE signal is generated through subtraction.
2
FIN1
Connection pin for photodiode of pickup.
3
E
Connection pin for photodiode of pickup. TE signal is generated through subtraction with F pin.
4
F
Connection pin for photodiode of pickup.
5
TB
Pin for input of DC component of TE signal.
6
TE-
Pin to connect gain setting resistor of TE signal to TE signal.
7
TE
TE signal output pin.
8
TESI
TES (Track error sense) comparator input pin. TE signal is band-passed and input.
9
SCI
Input pin for shock detection.
10
TH
Pin to set time constant of tracking gain.
11*
TA
TA amplifier output pin.
12
TD-
Pin to compose tracking phase compensation constant between TD and VR pins.
13
TD
Pin to set tracking phase compensation.
14
JP
Pin to set amplitude of tracking jump signal (kick pulse).
15
TO
Tracking control signal output pin.
16
FD
Focusing control signal output pin.
17
FD-
Pin to compose focusing phase compensation constant between FD and FA pins.
18
FA
Pin to compose focusing phase compensation constant between FD-/FA-pins.
19
FA-
Pin to compose focusing phase compensation constant between FA and FE pins.
20
FE
Output pin of FE signal.
21
FE-
Pin to connect gain setting resistor of FE signal across TE pin.
22
AGND
GND for analog signal.
23
SP
Single and output for CV+ and CV- pin input.
24
SPI
Spindle amplifier input.
25
SPG
Pin to connect gain setting resistor in the 12cm mode of spindle.
26
SP-
Pin to connect spindle phase compensation constant together with SPD pin.
27
SPO
Spindle control signal output pin.
28
SLEO
Pin to connect thread phase compensation constant.
29
SLD
Thread control signal output pin.
30
SL-
Input pin of thread feed signal from micro computer.
31
SL+
Input pin of thread feed signal from micro computer.
32
JP-
Input pin of tracking jump signal from DSP.
33
JP+
Input pin of tracking jump signal from DSP.
34
TGL
Input pin of tracking gain control signal from DSP. TGL = Gain low at "H"
35
TOFF
Input pin of tracking off control signal from DSP. TOFF = Off at "H"
36
TES
Output pin of TES signal to DSP.
37
HFL
(HIGH FREQUENCY LEVEL) is used to judge whether main beam is positioned on the bit or on the mirror.
38
SLOF
Thread servo off control input pin.
39
CV-
Pin to input CLV error signal from DSP.
40
CV+
Pin to input CLV error signal from DSP.
41
RFSM
RF output pin.
42
RFS-
Pin to set gain of RF and set 3T compensation constant together with RFSM pin.
43
SLC
(SLICE LEVEL CONTROL) is the output pin to control of the level of the data slice with RF waveform DSP.
44
SLI
Input pin to control the level of data slice with DSP.
45
DGND
GND pin in the digital system.
46
FSC
Output pin for focus search smoothening capacitor.
47
TBC
(Tracking Balance Control) Pin to set EF balance variable range.
48*
NC
No connect.
49
DEF
Defect detection output pin of disk.
50
CLK
Reference clock input pin. 4.23MHz of DSP is input.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
– 40 –
CD-C290X
IC1 VHiLA9241M/-1:Servo Amp.(LA9241M) (2/2)
Pin No.
Function
Port Name
51
CL
Micro computer command clock input pin.
52
DAT
Micro computer command data input pin.
53
CE
Micro computer command chip enable input pin.
54
DRF
(DETECT RF) RF level detection output.
55
FSS
(Focus Serch Select) Pin to switch focus search mode. (± search/+ search for reference voltage)
56
VCC2
VCC pin for servo system and digital system.
57
REFI
Pin to connect pass control for reference voltage.
58
VR
Reference voltage output pin.
59
LF2
Pin to set defect detection time constant of disk.
60
PHI
Pin to connect capacitor for peak hold of RF signal.
61
BHI
Pin to connect capacitor for bottom hold of RF signal.
62
LDD
APC circuit output pin.
63
LDS
APC circuit output pin.
64
VCC1
RF system VCC pin.
LDS
63
VCC1
64
LDD
62
BH1
61
PH1
60
APC
FIN2
1
FIN1
2
3
F
4
TB
5
TE-
6
TE
7
TESI
8
SCI
9
VR
58
REFI
57
VCC2
56
FSS DRF CE DAT CL CLK
55 54 53 52 51 50
DEF
49
REF
RF DET
48 NC
47 TBC
VCA
I/V
E
LP2
59
46 FSC
BAL
µ-COM
VCA
45 DGND
SLC
INTER FACE
44 SLI
43 SLC
42 RFS-
TE
41 RFSM
RF AMP
40 CV+
39 CV-
T.SERVO & T.LOGIC
38 SLOF
TH 10
37 HFL
36 TES
TA 11
35 TOFF
34 TGL
TD- 12
F.SERVO & F.LOGIC
SPINDLE SERVO
33 JP+
SLED SERVO
TD 13
JP 14
TO 15
FD 16
17
FD-
18
FA
19
FA-
20
FE
21
22 23
FE- AGND SP
NC
NC
24
SPI
25
SPG
Figure 41 BLOCK DIAGRAM OF IC
– 41 –
26
SP-
27
SPD
28
SLEQ
29
SLD
30 31
SL- SL+
32
JP-
CD-C290X
IC701 RH-iX0191AWZZ:System Microcomputer (IX0191AW) (1/2)
Pin No.
Port Name
1-7
FIP6-0
Terminal Name
FL DRIVER
Input/Output
Output
—
Function
Segment Output
8
VDD
VDD
9
P27
TAPE BIAS
Output
TAPE BIAS ON: H
Connect with BACK UP VDD
10
P26
TAPE REC
Output
TAPE REC. ON:L
11
P25
T1/T2
Output
TAPE2 PLAY:L
12
P24
CD DSP WRQ
Input
13
P23
CD DSP RWC
Output
14
SCK1
CD DSP CQCK
Output
CD DSP Clock
15
SO1
CD DSP COIN
Output
CD DSP Comand
16
SI1
CD DSP SQOUT
17
RESET
RESET
18
P74
CD DSP RES
19
P73
CD T/T OPEN/CLOSE
20
AVSS
AVSS
21
ANI7
CD UP/DOWN
CD DISC NO
CD DSP Write request
CD DSP Read write control
Input
CD DSP Code Q out
Input
Reset Input: L
Outout
Input
—
Intput
CD Dsplay Reset
CD Turntable open close
Connect with GND
CD mecha up/down CD disc no
22
ANI6
T2 RUN PLSE
Input
23*
ANI5
L-CH CHECK
Input/Output
For TEST mode
24*
ANI4
R-CH CHECK
Input/Output
For TEST mode
25
ANI3
KEY INPUT 3
Input
Key input 3
26
ANI2
KEY INPUT 2
Input
Key input 2
27
ANI1
KEY INPUT 1
Input
Key input 1
28
ANI0
Initial setting input
Input
Initial setting input
29
AVDD
AVDD
—
30
AVREF
AVREF
—
31
P04
SRS
Input
TAPE2 Run pulse
Connect with BACK UP VDD
Connect with UNBACK UP VDD
SRS provided/not provided
32*
XT2
—
—
Not connect
33
VSS
VSS
—
Connect with GND
34
X1
X1
35
X2
X2
Output
MAIN CLOCK 4.19NHz
36
P37
C2B CL
Output
C2B Bus clock
37
P36
C2B CE
38
P35
Input
MAIN CLOCK 4.19MHz
Output
C2B Bus chip enable
2
Output
C2B Bus comand
2
C B DI
39
P34
C B DO
Input
C2B Bus data
40
P33
CD DRF
Input
Data read flug from DSP.
41
P32
CD PUIN
Input
42
P31
CD SL+
Output
CD PICKUP Slide motor control.
43
P30
CD SL-
Output
CD PICKUP Slide motor control.
44
P03
POWER
Output
POWER ON: H
45
P02
TUNER SD
Input
Tuner SD Signal
46
INPT1
SYSTEM STOP
Input
System Stop Signal
47
INPT0
REMOCON
Input
Remote Control Code Input
48
IC
INTERNALLY
CONECTED
—
L: Innermost periphery
Connect with GND
49*
P72
P.B MUTE
Output
P.B MUTE ON: H
50
P71
TAPE SOL.
Output
TAPE SOL. ON: L
51
P70
TAPE MOTOR
Output
TAPE MOTOR ON: L
52
VDD
VDD
53
P127
MIC MUTE
54*
P126
VOL.0 MUTE
55
P125
TAPE F.P.
—
Input
Output
Input
Connect with BACK UP VDD
MIC MUTE: L
CD STOP, TAPE STOP state: Mute cancel
VOL.0 MUTE
TAPE FOOL PROOF
REC: L
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
– 42 –
CD-C290X
IC701 RH-iX0191AWZZ:System Microcomputer (IX0191AW) (2/2)
Pin No.
Port Name
56
Function
Terminal Name
Input/Output
P124
TAPE1 RUN PULSE
Input
57
P123
TAPE MECHA STOP
58-60
P122-P120
DISC1-DISC3
Output
LED drive output
61-70
FIP25-16
FL DRIVER
Output
Segment Output
71
VLOAD
VLOAD
Output
Connect with VPP
72-77
FIP15-FIP10 FL DRIVER
Output
Segment Output
78*
P97
Output
Not connect
79,80
FIP8,FIP7
Output
Segment Output
TAPE1 Run pluse
Input
FL DRIVER
Tape mecha up state: L
FIP21
FIP20
FIP19
FIP18
FIP17
FIP16
V.LOAD
FL DRIVER
SEGMENT
FIP15
FIP14
FIP13
FIP12
FIP11
FL DRIVER
SEGMENT
FIP10
FIP8
FIP7
FL DRIVER
DIGIT
P97
PB CrO2
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
FIP4
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65
64 FIP22
63 FIP23
2
62 FIP24
3
FIP3
4
FIP2
5
FIP1
6
FIP0
7
CONNECT WITH VDD
VDD
8
TAPE BIAS
P27
9
TAPE REC
P26
10
T1/T2
P25
11
CD DSP WRQ
P24
12
CD DSP RWC
P23
13
SCK1
14
SO1
15
SI1
16
FIP6
FIP5
CD DSP CQCK
CD DSP COIN
CD DSP SQOUT
RESET INPUT
CD DSP RES
1
61 FIP25
60 P120
DISC2
57 P123
56 P124
TAPE MECHA STOP
55 P125
54 P126
TAPE F.P.
53 P127
52 VDD
MIC MUTE
51 P70
50 P71
TAPE MOTOR
49 P72
48 IC
RESET 17
P74
18
20
AN17
21
AN16
22
AN15
23
AN14
24
41 P32
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
– 43 –
P33
DRF
C B DO
P34
2
C B DI
P35
2
P36
C2 B CE
C B CL
P37
2
X2
MAIN CLOCK
X1
Vss
GND TERMINAL
XT2
XT1
SRS
CONNECT WITH UN BACK UP VDD
AVREF
ANI0
AVDD
CONNECT WITH VDD
KEY INPUT 1
Initial Setting Input
ANI1
ANI2
43 P30
42 P31
KEY INPUT 2
KEY INPUT 3
ANI3
AVSS
Figure 43 BLOCK DIAGRAM OF IC
CONNECT WITH VDD
TAPE SOL.
P.B MUTE
CONNECT WITH GND
TUNER SD
CONNECT WITH GND
Rch INPUT
VOL.0 MUTE
45 P02
44 P03
19
Lch INPUT
T1 RUN PLSE
REMOCON INPUT
P73
T2 RUN PLSE
DISC1
47 INTP0
46 INTP1
CD T.T OPEN/CLOSE
CD UP/DOWN DISC NO
DISC3
59 P121
58 P122
SYSTEM STOP
POWER
CD SLCD SL+
CD PUIN
CD-C290X
IC201 VHiSRS5250S-1:SRS(SRS5250S)
Pin No.
Terminal Name Input/Output
1
VCC
—
2
PN IN
Input
Function
8 to 13V supply
Signal Input from Perspective Network
3
PN OUT
4*
C1
Output
Input
Constant Phase Filter Capacitor 1
Signal Output to Perspective Network
5*
C2
Input
Constant Phase Filter Capacitor 2
6*
C3
Input
Constant Phase Filter Capacitor 3
7*
C4
Input
Constant Phase Filter Capacitor 4
8*
C5
Input
Constant Phase Filter Capacitor 5
9*
C6
Input
Constant Phase Filter Capacitor 6
10
S IN
Input
Signal Input from SPACE CONTROL
11
S OUT
12*
Outout
Signal Output to SPACE CONTROL
CR4
Input
3D Output Filter(Right) Capacitor 3
13*
CR3
Input
3D Output Filter(Right) Capacitor 2
14*
CR2
Input
15
GND
—
16*
CR1
Output
3D Output Filter(Right) Capacitor 1 out
17
R OUT
Output
Right Signal Output
18
L OUT
Output
Left Signal Output
3D Output Filter(Right) Capacitor 1 in
Ground
19
VREF
Output
Vcc/2
20*
CL1
Output
3D Output Filter(Left) Capacitor 1 out
21*
CL2
Input
3D Output Filter(Left) Capacitor 1 in
22*
CL3
Input
3D Output Filter(Left) Capacitor 2
23*
CL4
Input
3D Output Filter(Left) Capacitor 3
24
C IN
Input
Signal Input from CENTER CONTROL
25
C OUT
Output
Signal Output to CENTER CONTROL
26
MODE
Input
27
L IN
Input
Left Signal Input
28
R IN
Input
Right Signal Input
SRS/3D/PASS Mode Select
PN OUT
PN IN
S OUT
4 5 6 7 8 9
3 2
11 10
S IN
C1
C2
C3
C4
C5
C6
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Bypass
L IN 27
Sun
Generator
SRS
∑
R IN 28
∑
SRS
3D
Constant Phase Filter
18 L OUT
Output Filter L 3D
3D
L.R
Perspectiv Buffer
SRS
Deffarence
Generator
L+R
Output Filter R 3D
15
19
GND
VREF
MODE
C IN
C OUT
1
VCC
Bypass
26
Figure 44 BLOCK DIAGRAM OF IC201
– 44 –
CL1
CL2
CL3
CL4
16
14
13
12
CR1
CR2
CR3
CR4
17 R OUT
SRS
25 24
20
21
22
23
CD-C290X
IC5 VHiM56748FP-1: Focus/Tracking/Spin/Slide Driver (M56748FP)
15K
Vref-in
Vref-in
1
Stand
TSD
by
OP1
23K
Vref-out
2
23K
Vref-out
Gain1
4
Vctl1(–)
5
VM1(–)
6
VM1(+)
7
5K
Gain1
5K
OP1
10K
OP1
10K
VM1(–)
PA
VM1(+)
10K
PA
Pre-driver
3
Standby
35
SS.GND
34
Standby
33
Gain4
32
Vctl4(–)
31
VM4(–)
30
VM4(+)
15K
Pre-driver
NC
36
2K
Gain4
10K
PA
PA
VM4(–)
VM4(+)
8
GND
GND
29
9
GND
GND
28
GND
GND
GND
27
11
GND
GND
26
VM2(+) 12
VM2(–) 13
VM2(+)
PA
VM2(–)
PA
Pre-driver
GND
Pre-driver
10
PA
PA
Vctl2(–) 14
10K
Gain2 15
NC 16
10K
10K
OP1
Gain2
OP1
VM3(–)
Vctl3(out)
Vctl3(–)
25
VM3(+)
24
VM3(–)
23
Vctl3(out)
22
Vctl3(–)
21
Vctl3(+)
20
Vcc
19
Regbase
Vcc
NC
5K
Vctl3(+)
1.23V
Vcc 17
VM3(+)
Vcc
10K
Vcc
OP1
10K
Reg5V 18
Reg5V
Regbase
Figure 45-1 BLOCK DIAGRAM OF IC5
FL701 : VVKFiP9EM7R-1
1
2
FL Display
3
REC SLEEP
X-BASS MEMORY ST
WIDE
SRS
kHz
MHz
Figure 45-2 FL DISPLAY
– 45 –
DOLBY
NR
TA
TP
RDS
CD-C290X
PARTS GUIDE
CD-C290X
CD-C290X mini component system consisting of
CD-C290X mini component system,CP-C290
speaker system.
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER
2. REF. No.
3. PART NO.
4. DESCRIPTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
MARK: SPARE PARTS-DELIVERY SECTION
Explanation of capacitors/resistors parts codes
Capacitors
Resistors
VCC ....................... Ceramic type
VCK ........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN ............... Cylindrical type (without lead wire)
VC • • TV ................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
VRD ....................... Carbon-film type
VRS ........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN ............... Cylindrical type (without lead wire)
VR • • TV ................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
– 46 –
CD-C290X
NO.
PRICE
RANK
PART CODE
DESCRIPTION
NO.
INTEGRATED CIRCUITS
T306
T351
IC1
IC2
IC5
VHILA9241M/-1
VHILC78622K-1
VHIM56748FP-1
J
J
J
IC91
IC201
IC302
IC303
VHITA7291S/-1
VHISRS5250S-1
VHILC72131/-1
VHILA1832//-1
J
J
J
J
IC401
IC501
VHILC75394E-1
VHIAN7345K/-1
J
J
IC701
RH-IX0191AWZZ
J
IC941
IC942
IC961
VHIKIA7812P-1
VHIKIA7805P-1
VHILA4450//-1
J
J
J
AS Servo Amp.,LA9241M
AY Servo/Signal Control,LC78622K
AR Focus/Tracking/Spin/Slide
Driver,M56748FP
AH Loading Motor Driver,TA7291S
BL SRS,SRS5250S
AP PLL (Tuner) LC72131
AR FM IF Det./FM Mpx./AM IF,
LA1832
AX Audio Processor LC75394E
AM Playback and Record/Playback
Amp.,AN7345K
AZ System Microcomputer,
IX0191AW
AE Voltage Regulator,KIA7812P
AF Voltage Regulator,KIA7805P
AH Power Amp.,LA4450
TRANSISTORS
Q1
Q91
Q93
Q201
Q205
Q206
Q353,354
Q360
Q361
Q371
Q511~514
Q515,516
Q565
Q566
Q571
Q575,576
Q581
Q582,583
Q584
Q701
Q702
Q703
Q704,705
Q706
Q810~812
Q901
Q941
VSKTA1266GR-1
VSKTA1271Y/-1
VSKRC102M//-1
VSKTC3203Y/-1
VS2SK246GR/-1
VSKRC107M//-1
VSKTC3199GR-1
VSKTA1266GR-1
VSKRC107M//-1
VSKTA1266GR-1
VSKTC3200GR-1
VSKTC3199GR-1
VSKRC104M//-1
VSKTA1266GR-1
VSKTC3203Y/-1
VSKTC3199GR-1
VSKTA1266GR-1
VSKRC104M//-1
VSKTC3199GR-1
VSKRC107M//-1
VSKRC102M//-1
VSKTA1273Y/-1
VSKTC3199GR-1
VSKTA1271Y/-1
VSKRC102M//-1
VSKTA1266GR-1
VS2SD2012Y/-1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AC
AC
AC
AB
AC
AB
AB
AC
AB
AC
AB
AC
AB
AC
AB
AB
AC
AB
AC
AC
AE
AB
AC
AC
AB
AF
Silicon,PNP,KTA1266 GR
Silicon,PNP,KTA1271 Y
Digital,NPN,KRC102 M
Silicon,NPN,KTC3203 Y
FET,2SK246 GR
Digital,NPN,KRC107 M
Silicon,NPN,KTC3199 GR
Silicon,PNP,KTA1266 GR
Digital,NPN,KRC107 M
Silicon,PNP,KTA1266 GR
Silicon,NPN,KTC3200 GR
Silicon,NPN,KTC3199 GR
Digital,NPN,KRC104 M
Silicon,PNP,KTA1266 GR
Silicon,NPN,KTC3203 Y
Silicon,NPN,KTC3199 GR
Silicon,PNP,KTA1266 GR
Digital,NPN,KRC104 M
Silicon,NPN,KTC3199 GR
Digital,NPN,KRC107 M
Digital,NPN,KRC102 M
Silicon,PNP,KTA1273 Y
Silicon,NPN,KTC3199 GR
Silicon,PNP,KTA1271 Y
Digital,NPN,KRC102 M
Silicon,PNP,KTA1266 GR
Silicon,NPN,2SD2012 Y
D2
D81
D91
D201
D301~304
D351~353
D401
D701~708
D901~904
D905~908
D909~911
LED810~815
VD301-1,2
VHD1SS133//-1
VHD1SS133//-1
VHD1SS133//-1
VHD1SS133//-1
VHD1SS133//-1
VHD1SS133//-1
VHD1SS133//-1
VHD1SS133//-1
VHD1N5402M/-1
VHDRL104A//-1
VHDRL104A//-1
VHP333GTH2/-1
VHCKV1236Z23F
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AE
AB
AB
AD
AS
ZD351
ZD352
ZD701
ZD901
ZD902
VHEMTZJ5R1B-1
VHEMTZJ3R9B-1
VHEMTZJ3R3B-1
VHEMTZJ6R2A-1
VHEMTZJ300B-1
J
J
J
J
J
AC
AC
AA
AA
AB
Silicon,1SS133
Silicon,1SS133
Silicon,1SS133
Silicon,1SS133
Silicon,1SS133
Silicon,1SS133
Silicon,1SS133
Silicon,1SS133
Silicon,1N5402M
Silicon,RL104A
Silicon,RL104A
LED,Green,333GTH2
Variable Capacitance,
KV1236Z23F
Zener,5.1V,MTZJ5.1B
Zener,3.9V,MTZJ3.9B
Zener,3.3V,MTZJ3.3B
Zener,6.2V,MTZJ6.2A
Zener,30V,MTZJ30B
!
RFILF0124AFZZ
RFILF0003AWZZ
RFILA0009AWZZ
J
J
J
AD FM IF
AK FM IF
AE AM IF
PT901
T302
RTRNP0219AWZZ J
RCILA1064AFZZ
J
L1
L342
L351,352
L353
L501
L701
L963
J
J
AC OSC,AM
AD AM IF
VP-CH270K0000
VP-DH2R2K0000
VP-DH101K0000
VP-DH102K0000
VP-MK331K0000
VP-DH2R2K0000
VP-DH2R2K0000
J
J
J
J
J
J
J
AB
AB
AB
AB
AB
AB
AB
J
AC 10 kohm (B),Semi-VR [FM Mute
Level]
J
J
J
J
AF
AH
AH
AH
Crystal,456 kHz
Crystal,4.5 MHz
Crystal,16.93 MHz
Crystal,4.19 MHz
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AB
AB
AA
AA
AB
AA
AA
AA
AB
AA
AB
AA
AA
AA
AB
AB
AB
AA
AB
AA
AB
AA
AB
AA
AA
AA
AA
AB
AC
AA
AB
AB
AA
AB
AC
AB
AA
AB
AA
AA
AA
AC
AA
AB
AA
AA
AC
AA
AB
AA
AC
AB
AC
AB
0.01 µF,16V
47 µF,16V,Electrolytic
0.1 µF,50V,Electrolytic
0.001 µF,50V
0.033 µF,16V
0.1 µF,50V,Electrolytic
0.068 µF,16V
0.047 µF,16V
180 pF,50V
0.1 µF,16V
330 pF,50V
0.1 µF,16V
0.01 µF,16V
0.0047 µF,16V
0.001 µF,50V
0.47 µF,50V,Electrolytic
1 µF,50V,Electrolytic
47 µF,16V,Electrolytic
0.0033 µF,16V
1 µF,50V,Electrolytic
0.01 µF,16V
1 µF,50V,Electrolytic
0.01 µF,16V
2.2 pF,50V
0.0027 µF,16V
27 pF,50V
0.001 µF,50V
0.033 µF,16V
0.1 µF,50V,Electrolytic
220 µF,6.3V,Electrolytic
0.01 µF,16V
0.47 µF,50V,Electrolytic
0.33 µF,50V,Electrolytic
0.047 µF,16V
100 µF,10V,Electrolytic
4.7 µF,25V,Electrolytic
0.1 µF,16V
0.022 µF,25V
47 µF,16V,Electrolytic
220 pF,50V
100 pF,50V
0.022 µF,50V
10 µF,16V,Electrolytic
220 pF,50V
47 µF,16V,Electrolytic
0.022 µF,25V
0.001 µF,50V
100 µF,16V,Electrolytic
0.022 µF,50V
0.47 µF,50V,Electrolytic
0.0047 µF,16V
100 µF,16V,Electrolytic
0.33 µF,50V,Electrolytic
100 µF,16V,Electrolytic
2.2 µF,50V,Electrolytic
2.7 µH,Choke
2.2 mmH,Peaking
100 µH,Choke
1 mH,Choke
330 µH
2.2 mmH,Peaking
2.2 mmH,Peaking
VARIABLE RESISTOR
VR351
RVR-M0026AWZZ
VIBRATORS
C1
C2
C3
C4
C5,6
C7
C8
C9
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C24
C25
C30
C31
C32
C33
C34
C35
C37
C38
C39
C40
C41,42
C43,44
C45
C50
C51
C52
C53
C54~57
C59
C67,68
C69,70
C91
C92
C94,95
C200
C201
C202
C203
C210
C219
C220
C223
TRANSFORMERS
!
RCILB1074AFZZ
RCILI0011AWZZ
92LCRSTL1425A
RCRSP0002AWZZ
92LCRSTL1746AT
RCRSP0003AWZZ
CAPACITORS
FILTERS
CF302
CF351
CF352
DESCRIPTION
COILS
X351
X352
XL1
XL701
DIODES
!
PRICE
RANK
PARTS CODE
BD Power
AD AM Antenna
–1–
VCTYMN1CY103N
VCEAZA1CW476M
VCEAZA1HW104M
VCKYMN1HB102K
VCTYPA1CX333K
VCEAZA1HW104M
VCTYPA1CX683K
VCTYPA1CX473K
VCKYMN1HB181K
VCTYPA1CX104K
VCKYMN1HB331K
VCTYPA1CX104K
VCTYMN1CY103K
VCTYMN1CX472K
VCKYMN1HB102K
VCEAZA1HW474M
VCEAZA1HW105M
VCEAZA1CW476M
VCTYMN1CX332K
VCEAZA1HW105M
VCTYMN1CY103N
VCEAZA1HW105M
VCTYMN1CY103N
VCCSMN1HL2R2C
VCTYMN1CX272K
VCCSMN1HL270J
VCKYMN1HB102K
VCTYPA1CX333K
VCEAZA1HW104M
VCEAZA0JW227M
VCTYMN1CY103K
VCEAZA1HW474M
VCEAZA1HW334M
VCTYPA1CX473K
VCEAZA1AW107M
VCEAZA1EW475M
VCTYPA1CX104K
VCTYMN1EF223Z
VCEAZA1CW476M
VCKYMN1HB221K
VCKYMN1HB101K
VCKZPA1HF223Z
VCEAZA1CW106M
VCKYMN1HB221K
VCEAZA1CW476M
VCTYMN1EF223Z
VCKYMN1HB102K
VCEAZA1CW107M
VCKZPA1HF223Z
VCEAZA1HW474M
VCTYPA1CX472K
VCEAZA1CW107M
VCEAZA1HW334M
VCEAZA1CW107M
VCEAZA1HW225M
CD-C290X
NO.
C224
C301
C321
C323
C330
C331
C332
C334
C335
C336
C337
C338
C341,342
C343
C345~347
C350,351
C352
C353,354
C355
C356
C357
C358
C361
C362
C363
C364
C365
C366
C367,368
C370~372
C373,374
C375
C380
C381
C382
C384
C385
C386
C387
C391
C392
C393
C394
C395
C396
C397
C398
C399
C401~408
C411,412
C415,416
C417,418
C421,422
C423,424
C425~428
C429,430
C431,432
C441,442
C443,444
C445,446
C447~449
C450
C451,452
C454,455
C456
C461,462
C501,502
C503,504
C511,512
C513,514
C519,520
C531,532
C533,534
C535,536
C539,540
C543
C544
C553,554
C555,556
C557,558
C559,560
C561,562
PART CODE
★ PRICE
RANK
VCEAZA1HW225M
VCKYMN1HB102K
VCEAZA1CW107M
VCTYMN1EF223Z
VCCUMN1HJ100J
VCKYPA1HF473Z
VCTYMN1EF223Z
VCCUMN1HJ180J
VCCCMN1HH180J
VCKYMN1HB471K
VCTYMN1EF223Z
VCKYMN1HB102K
VCTYMN1EF223Z
VCCSMN1HL330J
VCTYMN1EF223Z
VCTYMN1EF223Z
VCEAZA1CW106M
VCTYMN1EF223Z
VCCSMN1HL220J
VCKYMN1HB102K
VCEAZA1HW225M
VCEAZA1HW105M
VCTYMN1EF223Z
VCEAZA1HW335M
VCTYMN1EF223Z
VCEAZA1CW106M
VCTYPA1CX223K
VCKYMN1HB102K
VCEAZA1HW105M
VCEAZA1HW105M
VCTYPA1CX223K
VCEAZA1HW335M
VCEAZA1CW106M
VCCCMN1HH120J
VCCCMN1HH150J
VCKYMN1HB102K
VCTYMN1CY103K
VCKYMN1HB331K
VCTYMN1EF223Z
VCEAZA1CW476M
VCKYMN1HB102K
VCEAZA1HW105M
VCEAZA1CW476M
VCTYMN1EF223Z
VCEAZA1AW107M
VCTYMN1EF223Z
VCEAZA1AW107M
VCTYMN1EF223Z
VCQYKA1HM473K
VCKYMN1HB391K
VCEAZA1CW226M
VCKYMN1HB101K
VCEAZA1HW334M
VCQYKA1HM563K
VCFYHA1HA184J
VCTYPA1CX333K
VCQYKA1HM392K
VCTYMN1CX272K
VCKYMN1HB101K
VCEAZA1CW106M
VCEAZA1CW226M
VCEAZA1CW107M
VCEAZA1HW105M
VCEAZA1HW225M
VCTYMN1EF223Z
VCEAZA1HW225M
VCKYMN1HB102K
VCKYMN1HB331K
VCKYMN1HB181K
VCKYMN1HB102K
VCKYMN1HB331K
VCEAZA1CW476M
VCTYPA1CX333K
VCKYMN1HB561K
VCEAZA1HW105M
VCTYMN1EF223Z
VCEAZA1EW335M
VCKYMN1HB102K
VCEAZA1CW226M
VCTYPA1CX683K
VCTYMN1CX332K
VCEAZA1HW105M
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AA
AC
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
AA
AA
AB
AB
AA
AB
AA
AC
AA
AA
AB
AB
AA
AB
AC
AA
AA
AA
AA
AA
AA
AB
AA
AB
AB
AA
AB
AA
AB
AA
AB
AA
AC
AA
AB
AB
AC
AA
AA
AA
AA
AC
AC
AC
AB
AB
AA
AB
AA
AA
AA
AA
AA
AB
AA
AA
AB
AA
AB
AA
AC
AA
AA
AB
DESCRIPTION
NO.
2.2 µF,50V,Electrolytic
0.001 µF,50V
100 µF,16V,Electrolytic
0.022 µF,25V
10 pF (UJ),50V
0.047 µF,50V
0.022 µF,25V
18 pF (UJ),50V
18 pF (CH),50V
470 pF,50V
0.022 µF,25V
0.001 µF,50V
0.022 µF,25V
33 pF,50V
0.022 µF,25V
0.022 µF,25V
10 µF,16V,Electrolytic
0.022 µF,25V
22 pF,50V
0.001 µF,50V
2.2 µF,50V,Electrolytic
1 µF,50V,Electrolytic
0.022 µF,25V
3.3 µF,50V,Electrolytic
0.022 µF,25V
10 µF,16V,Electrolytic
0.022 µF,16V
0.001 µF,50V
1 µF,50V,Electrolytic
1 µF,50V,Electrolytic
0.022 µF,25V
3.3 µF,50V,Electrolytic
10 µF,16V,Electrolytic
12 pF (CH),50V
15 pF (CH),50V
0.001 µF,50V
0.01 µF,16V
330 pF,50V
0.022 µF,25V
47 µF,16V,Electrolytic
0.001 µF,50V
1 µF,50V,Electrolytic
47 µF,16V,Electrolytic
0.022 µF,25V
100 µF,10V,Electrolytic
0.022 µF,25V
100 µF,10V,Electrolytic
0.022 µF,25V
0.047 µF,50V,Mylar
390 pF,50V
22 µF,16V,Electrolytic
100 pF,50V
0.33 µF,50V,Electrolytic
0.056 µF,50V,Mylar
0.18 µF,50V,Thin Film
0.033 µF,16V
0.0039 µF,50V,Mylar
0.0027 µF,16V
100 pF,50V
10 µF,16V,Electrolytic
22 µF,16V,Electrolytic
100 µF,16V,Electrolytic
1 µF,50V,Electrolytic
2.2 µF,50V,Electrolytic
0.022 µF,25V
2.2 µF,50V,Electrolytic
0.001 µF,50V
330 pF,50V
180 pF,50V
0.001 µF,50V
330 pF,50V
47 µF,16V,Electrolytic
0.033 µF,16V
560 pF,50V
1 µF,50V,Electrolytic
0.022 µF,25V
3.3 µF,25V,Electrolytic
0.001 µF,50V
22 µF,16V,Electrolytic
0.068 µF,16V
0.0033 µF,16V
1 µF,50V,Electrolytic
C563
C564
C565
C570
C571
C572
C581
C583
C701
C702
C707
C708
C709,710
C711
C712
C713
C714,715
C716
C717
C718
C719
C720
C901
C902~904
C905,906
C907,908
C909,910
C941
C942,943
C944
C945
C946,947
C948
C949
C962
C963,964
C965~967
C968
C969,970
C973
C974
C975,976
C977~980
C991,992
PARTS CODE
★ PRICE
DESCRIPTION
RANK
VCTYPA1CX823K
VCEAZA1CW226M
VCEAZA1AW227M
VCQYKA1HM392K
VCEAZA1CW476M
VCQYKA1HM273K
VCKZPA1HF473Z
VCEAZA1CW226M
VCTYMN1EF223Z
VCEAZA0JW227M
VCCCMN1HH150J
VCCCMN1HH180J
VCEAZA1HW105M
VCEAZA1EW335M
VCKYMN1HB102K
VCTYMN1EF223Z
VCTYMN1CY103N
VCEAZA1CW476M
VCTYMN1EF223Z
VCEAZA0JW227M
VCEAZA0JW107M
VCKYMN1HB102K
VCEAZA1VW107M
VCEAZA1HW476M
VCEAZA1HW107M
VCFYHA1HA224J
VCQYKA1HM473K
VCKZPA1HF223Z
VCEAZA1CW476M
VCQYKA1HM104K
VCQYKA1HM223K
VCQYKA1HM104K
VCEAZW1EW338M
VCEAZW1HW228M
VCTYMN1CX152K
VCEAZA1HW105M
VCEAZA1HW107M
VCKYBT1HB102K
VCEAZA1HW476M
VCEAZA1HW107M
VCKZPA1HF223Z
VCEAZV1EW108M
VCQYKA1HM104K
VCEAZA1HW226M
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AB
AC
AC
AA
AB
AB
AA
AC
AA
AC
AA
AA
AB
AB
AA
AA
AA
AB
AA
AC
AC
AA
AC
AB
AC
AC
AB
AA
AB
AB
AB
AB
AG
AH
AA
AB
AC
AA
AB
AC
AA
AE
AB
AB
0.082 µF,16V
22 µF,16V,Electrolytic
220 µF,10V,Electrolytic
0.0039 µF,50V,Mylar
47 µF,16V,Electrolytic
0.027 µF,50V,Mylar
0.047 µF,50V
22 µF,16V,Electrolytic
0.022 µF,25V
220 µF,6.3V,Electrolytic
15 pF (CH),50V
18 pF (CH),50V
1 µF,50V,Electrolytic
3.3 µF,25V,Electrolytic
0.001 µF,50V
0.022 µF,25V
0.01 µF,16V
47 µF,16V,Electrolytic
0.022 µF,25V
220 µF,6.3V,Electrolytic
100 µF,6.3V,Electrolytic
0.001 µF,50V
100 µF,35V,Electrolytic
47 µF,50V,Electrolytic
100 µF,50V,Electrolytic
0.22 µF,50V,
0.047 µF,50V,Mylar
0.022 µF,50V
47 µF,16V,Electrolytic
0.1 µF,50V,Mylar
0.022 µF,50V,Mylar
0.1 µF,50V,Mylar
3300 µF,25V,Electrolytic
2200 µF,50V,Electrolytic
0.0015 µF,16V
1 µF,50V,Electrolytic
100 µF,50V,Electrolytic
0.001 µF,50V
47 µF,50V,Electrolytic
100 µF,50V,Electrolytic
0.022 µF,50V
1000 µF,25V,Electrolytic
0.1 µF,50V,Mylar
22 µF,50V,Electrolytic
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
0 ohm,Jumper,ø1.4×3.5mm,Ivory
1 kohm,1/8W
100 kohm,1/8W
15 kohms,1/8W
2.2 kohms,1/8W
6.8 kohms,1/8W
100 ohm,1/8W
1 kohm,1/8W
12 kohms,1/8W
27 kohms,1/8W
82 kohms,1/6W
3.3 kohms,1/8W
15 kohms,1/8W
33 kohms,1/8W
10 kohm,1/8W
47 kohms,1/8W
1.5 kohms,1/8W
82 kohms,1/8W
3.3 Mohms,1/6W
39 kohms,1/8W
10 kohm,1/8W
56 kohms,1/8W
6.8 kohms,1/8W
1.2 kohms,1/8W
10 kohm,1/8W
1.2 kohms,1/8W
220 kohms,1/6W
220 kohms,1/8W
1 kohms,1/6W
15 kohms,1/8W
10 kohm,1/8W
56 kohms,1/8W
5.6 kohms,1/8W
1 kohm,1/8W
470 ohms,1/8W
RESISTORS
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
R16
R17
R18
R19
R20
R21
R22
R23
R24
R25
R26
R27
R28,29
R30
R31
R32
R33
R34
R35
–2–
VRD-MN2BD000C
VRD-MN2BD102J
VRD-MN2BD104J
VRD-MN2BD153J
VRD-MN2BD222J
VRD-MN2BD682J
VRD-MN2BD101J
VRD-MN2BD102J
VRD-MN2BD123J
VRD-MN2BD273J
VRD-ST2CD823J
VRD-MN2BD332J
VRD-MN2BD153J
VRD-MN2BD333J
VRD-MN2BD103J
VRD-MN2BD473J
VRD-MN2BD152J
VRD-MN2BD823J
VRD-ST2CD335J
VRD-MN2BD393J
VRD-MN2BD103J
VRD-MN2BD563J
VRD-MN2BD682J
VRD-MN2BD122J
VRD-MN2BD103J
VRD-MN2BD122J
VRD-ST2CD224J
VRD-MN2BD224J
VRD-ST2CD102J
VRD-MN2BD153J
VRD-MN2BD103J
VRD-MN2BD563J
VRD-MN2BD562J
VRD-MN2BD102J
VRD-MN2BD471J
CD-C290X
NO.
!
R36,37
R38
R39,40
R41
R42
R43
R45~47
R54
R56
R57
R58
R60
R61
R70~72
R73,74
R75,76
R77~79
R82
R86~88
R95
R96
R97
R98
R99
R200
R201
R202
R203
R204
R205
R206
R207,208
R209
R210
R212
R213
R215,216
R217,218
R228
R233
R234
R319
R323
R324
R336
R344
R345
R350
R351
R352
R353
R354
R355
R356
R357
R358
R359
R360~362
R363,364
R365,366
R367
R368
R369
R371~374
R376
R377
R378
R379
R380
R381
R382
R383~385
R387
R391,392
R393
R395
R398
R401~408
R411,412
R413,414
R415,416
R417,418
PRICE
RANK
PART CODE
VRD-MN2BD473J
VRD-MN2BD333J
VRD-ST2CD223J
VRD-MN2BD472J
VRD-MN2BD561J
VRD-MN2BD120J
VRD-MN2BD102J
VRD-ST2CD102J
VRD-MN2BD122J
VRD-MN2BD273J
VRD-MN2BD681J
VRD-MN2BD102J
VRD-MN2BD153J
VRD-MN2BD102J
VRD-MN2BD272J
VRD-MN2BD271J
VRD-MN2BD102J
VRD-MN2BD101J
VRD-MN2BD102J
VRD-MN2BD222J
VRD-ST2CD103J
VRD-MN2BD222J
VRD-ST2CD103J
VRD-ST2EE560J
VRD-ST2CD103J
VRD-ST2CD333J
VRD-ST2CD104J
VRD-ST2CD223J
VRD-ST2CD152J
VRD-ST2CD473J
VRD-ST2CD392J
VRD-ST2CD102J
VRG-ST2EF100J
VRD-ST2CD122J
VRD-ST2CD472J
VRD-ST2CD222J
VRD-ST2CD472J
VRD-ST2CD102J
VRD-ST2CD102J
VRD-ST2CD223J
VRD-ST2CD101J
VRD-MN2BD104J
VRD-MN2BD683J
VRD-MN2BD104J
VRD-ST2CD472J
VRD-MN2BD471J
VRD-MN2BD472J
VRD-ST2CD272J
VRD-MN2BD562J
VRD-MN2BD102J
VRD-MN2BD271J
VRD-ST2CD392J
VRD-MN2BD332J
VRD-MN2BD102J
VRD-ST2CD474J
VRD-MN2BD822J
VRD-MN2BD182J
VRD-MN2BD472J
VRD-MN2BD122J
VRD-MN2BD103J
VRD-MN2BD102J
VRD-ST2CD333J
VRD-MN2BD122J
VRD-MN2BD102J
VRD-MN2BD102J
VRD-ST2CD473J
VRD-MN2BD823J
VRD-MN2BD222J
VRD-MN2BD152J
VRD-MN2BD103J
VRD-ST2EE151J
VRD-MN2BD562J
VRD-MN2BD223J
VRD-ST2EE391J
VRD-ST2CD102J
VRD-ST2CD473J
VRD-ST2CD122J
VRD-ST2CD102J
VRD-MN2BD393J
VRD-MN2BD152J
VRD-MN2BD332J
VRD-MN2BD183J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
NO.
47 kohms,1/8W
33 kohms,1/8W
22 kohms,1/6W
4.7 kohms,1/8W
560 ohms,1/8W
12 ohms,1/8W
1 kohm,1/8W
1 kohm,1/6W
1.2 kohms,1/8W
27 kohms,1/8W
680 ohms,1/8W
1 kohm,1/8W
15 kohms,1/8W
1 kohm,1/8W
2.7 kohms,1/8W
270 ohms,1/8W
1 kohm,1/8W
100 ohm,1/8W
1 kohm,1/8W
2.2 kohms,1/8W
10 kohm,1/6W
2.2 kohms,1/8W
10 kohm,1/6W
56 ohms,1/4W
10 kohm,1/6W
33 kohms,1/6W
100 kohm,1/6W
22 kohms,1/6W
1.5 kohms,1/6W
47 kohms,1/6W
3.9 kohms,1/6W
1 kohm,1/6W
10 ohm,1/4W,Fusible
1.2 kohms,1/6W
4.7 kohms,1/6W
2.2 kohms,1/6W
4.7 kohms,1/6W
1 kohm,1/6W
1 kohm,1/6W
22 kohms,1/6W
100 ohm,1/6W
100 kohm,1/8W
68 kohms,1/8W
100 kohm,1/8W
4.7 kohms,1/6W
470 ohms,1/8W
4.7 kohms,1/8W
2.7 kohms,1/6W
5.6 kohms,1/8W
1 kohm,1/8W
270 ohms,1/8W
3.9 kohms,1/6W
3.3 kohms,1/8W
1 kohm,1/8W
470 kohms,1/6W
8.2 kohms,1/8W
1.8 kohms,1/8W
4.7 kohms,1/8W
1.2 kohms,1/8W
10 kohm,1/8W
1 kohm,1/8W
33 kohms,1/6W
1.2 kohms,1/8W
1 kohm,1/8W
1 kohm,1/8W
47 kohms,1/6W
82 kohms,1/8W
2.2 kohms,1/8W
1.5 kohms,1/8W
10 kohm,1/8W
150 ohms,1/4W
5.6 kohms,1/8W
22 kohms,1/8W
390 ohms,1/4W
1 kohm,1/6W
47 kohms,1/6W
1.2 kohms,1/6W
1 kohm,1/6W
39 kohms,1/8W
1.5 kohms,1/8W
3.3 kohms,1/8W
18 kohms,1/8W
R420
R421
R425~427
R431
R453
R432
R501
R502
R510
R511,512
R513,514
R515
R516~518
R519
R520
R531,532
R533,534
R535,536
R537,538
R539,540
R541
R542
R551,552
R553,554
R555,556
R557,558
R559~561
R562
R563
R565
R566,567
R568
R569
R570
R571
R575
R576
R577,578
R581~583
R584
R585
R701
R702
R703
R707
R710
R711
R712
R715
R716
R717
R718
R719
R720
R721
R722
R723
R724~726
R727~731
R732
R733,734
R735,736
R739
R740~742
R743
R744
R745
R746
R747
R748
R749
R750~753
R756
R757
R758
R759
R760
R761
R762~764
R765~769
R770,771
R773
–3–
PRICE
RANK
PARTS CODE
VRD-MN2BD104J
VRD-ST2CD104J
VRD-ST2CD102J
VRD-ST2CD102J
VRD-MN2BD122J
VRD-MN2BD102J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-ST2CD103J
VRD-MN2BD332J
VRD-MN2BD222J
VRD-ST2CD103J
VRD-MN2BD103J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-MN2BD104J
VRD-MN2BD392J
VRD-ST2CD560J
VRD-ST2CD562J
VRD-MN2BD472J
VRD-MN2BD223J
VRD-MN2BD683J
VRD-MN2BD472J
VRD-MN2BD682J
VRD-MN2BD561J
VRD-MN2BD560J
VRD-MN2BD103J
VRD-MN2BD102J
VRD-ST2EE471J
VRD-MN2BD102J
VRD-MN2BD472J
VRD-RT2HD151J
VRD-MN2BD104J
VRD-MN2BD473J
VRD-MN2BD120J
VRD-ST2CD103J
VRD-MN2BD103J
VRD-ST2CD104J
VRD-MN2BD103J
VRD-ST2CD103J
VRD-MN2BD222J
VRD-ST2CD153J
VRD-MN2BD102J
VRD-MN2BD273J
VRD-MN2BD104J
VRD-MN2BD102J
VRD-MN2BD122J
VRD-MN2BD182J
VRD-ST2CD103J
VRD-MN2BD103J
VRD-ST2CD332J
VRD-MN2BD102J
VRD-MN2BD122J
VRD-MN2BD182J
VRD-MN2BD222J
VRD-MN2BD392J
VRD-MN2BD562J
VRD-MN2BD102J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-MN2BD103J
VRD-MN2BD822J
VRD-MN2BD102J
VRD-ST2CD122J
VRD-ST2CD182J
VRD-ST2CD222J
VRD-MN2BD392J
VRD-MN2BD562J
VRD-MN2BD123J
VRD-MN2BD102J
VRD-MN2BD333J
VRD-MN2BD123J
VRD-MN2BD562J
VRD-MN2BD392J
VRD-ST2CD102J
VRD-MN2BD222J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-MN2BD222J
VRD-MN2BD102J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
100 kohm,1/8W
100 kohm,1/6W
1 kohm,1/6W
1 kohm,1/6W
1.2 kohms,1/8W
1 kohm,1/8W
1 kohm,1/6W
1 kohm,1/8W
10 kohm,1/6W
3.3 kohms,1/8W
2.2 kohms,1/8W
10 kohm,1/6W
10 kohm,1/8W
1 kohm,1/6W
1 kohm,1/8W
100 kohm,1/8W
3.9 kohms,1/8W
56 ohms,1/6W
5.6 kohms,1/6W
4.7 kohms,1/8W
22 kohms,1/8W
68 kohms,1/8W
4.7 kohms,1/8W
6.8 kohms,1/8W
560 ohms,1/8W
56 ohms,1/8W
10 kohm,1/8W
1 kohm,1/8W
470 ohms,1/4W
1 kohm,1/8W
4.7 kohms,1/8W
150 ohms,1/2W
100 kohm,1/8W
47 kohms,1/8W
12 ohms,1/8W
10 kohm,1/6W
10 kohm,1/8W
100 kohm,1/6W
10 kohm,1/8W
10 kohm,1/6W
2.2 kohms,1/8W
15 kohms,1/6W
1 kohm,1/8W
27 kohms,1/8W
100 kohm,1/8W
1 kohm,1/8W
1.2 kohms,1/8W
1.8 kohms,1/8W
10 kohm,1/6W
10 kohm,1/8W
3.3 kohms,1/6W
1 kohm,1/8W
1.2 kohms,1/8W
1.8 kohms,1/8W
2.2 kohms,1/8W
3.9 kohms,1/8W
5.6 kohms,1/8W
1 kohm,1/8W
1 kohm,1/6W
1 kohm,1/8W
1 kohm,1/6W
1 kohm,1/8W
10 kohm,1/8W
8.2 kohms,1/8W
1 kohm,1/8W
1.2 kohms,1/6W
1.8 kohms,1/6W
2.2 kohms,1/6W
3.9 kohms,1/8W
5.6 kohms,1/8W
12 kohms,1/8W
1 kohm,1/8W
33 kohms,1/8W
12 kohms,1/8W
5.6 kohms,1/8W
3.9 kohms,1/8W
1 kohm,1/6W
2.2 kohms,1/8W
1 kohm,1/6W
1 kohm,1/8W
2.2 kohms,1/8W
1 kohm,1/8W
CD-C290X
NO.
!
PART CODE
R774
R775,776
R777,778
R779
R780~782
R783,784
R785
R786
R787
R788~791
R793
R795
R796
R797
R798
R799
R800
R801
R802
R803
R804
R805
R806
R807~809
R810~812
R813
R814
R901
R902
R903
R904
R905
R907
R941
R942,943
R961,962
R965,966
R967,968
R969
R971,972
R973
R975
R981,982
★ PRICE
DESCRIPTION
RANK
VRD-MN2BD103J
VRD-MN2BD102J
VRD-MN2BD103J
VRD-ST2CD102J
VRD-MN2BD102J
VRD-MN2BD103J
VRD-ST2EE120J
VRD-MN2BD103J
VRD-MN2BD151J
VRD-MN2BD103J
VRD-MN2BD562J
VRD-MN2BD103J
VRD-ST2CD103J
VRD-MN2BD332J
VRD-MN2BD104J
VRD-MN2BD101J
VRD-MN2BD820J
VRD-MN2BD222J
VRD-MN2BD102J
VRD-MN2BD103J
VRD-MN2BD104J
VRD-MN2BD122J
VRD-MN2BD103J
VRD-MN2BD102J
VRD-MN2BD821J
VRD-RT2HD100J
VRD-MN2BD224J
VRD-ST2EE221J
VRD-ST2CD123J
VRD-ST2EE221J
VRD-ST2CD101J
VRD-ST2CD332J
VRG-ST2EG3R3J
VRD-MN2BD103J
VRS-VV3AA3R3J
VRD-MN2BD333J
VRD-MN2BD102J
VRD-MN2BD151J
VRD-MN2BD103J
VRD-ST2EE4R7J
VRD-RT2HD271J
VRD-RT2HD271J
VRD-RT2HD331J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
NO.
10 kohm,1/8W
1 kohm,1/8W
10 kohm,1/8W
1 kohm,1/6W
1 kohm,1/8W
10 kohm,1/8W
12 ohms,1/4W
10 kohm,1/8W
150 ohms,1/8W
10 kohm,1/8W
5.6 kohms,1/8W
10 kohm,1/8W
10 kohm,1/6W
3.3 kohms,1/8W
100 kohm,1/8W
100 ohm,1/8W
82 ohms,1/8W
2.2 kohms,1/8W
1 kohm,1/8W
10 kohm,1/8W
100 kohm,1/8W
1.2 kohms,1/8W
10 kohm,1/8W
1 kohm,1/8W
820 ohms,1/8W
10 ohm,1/2W
220 kohms,1/8W
220 ohms,1/4W
12 kohms,1/6W
220 ohms,1/4W
100 ohm,1/6W
3.3 kohms,1/6W
3.3 ohms,1/4W,Fusible
10 kohm,1/8W
3.3 ohms, ,Metal Oxide Film
33 kohms,1/8W
1 kohm,1/8W
150 ohms,1/8W
10 kohm,1/8W
4.7 ohms,1/4W
270 ohms,1/2W
270 ohms,1/2W
330 ohms,1/2W
FWM2
!
OTHER CIRCUITRY PARTS
BIM5/CNS10/CNS5 QCNWN0894AWZZ
CN7
92LCONE2P52287
CNP1
92LCONE5P53253
CNP2
92LCONE8P53253
CNP3
92LCONE6P53253
CNP3A
92LCONE6P53254
CNP10
92LCONEAP53253
CNP201
92LCONE6P52287
CNP303
QCNCW010LAWZZ
CNP501
92LCONE3P5267X
CNP502
92LCONE7P5267X
CNP901
QCNCM035GAWZZ
CNPM1
————
CNPM2
!
!
!
CNS1A/B
CNS2A/B
CNS3A/B
CNS7
CNS201
CNS501
CNS502
CNS701
CNS702,703
CNS704
CNS705/CNSM1
CNS901
CNS902
F901
F902
F941
FE301
FL701
FWM1
J
J
J
J
J
J
J
J
J
J
J
J
————
QCNWN0891AWZZ
QCNWN0892AWZZ
QCNWN0893AWZZ
QCNWN1052AWZZ
QCNWN1246AWZZ
QCNWN0895AWZZ
QCNWN0896AWZZ
QCNWN0946AWZZ
QCNWN1250AWZZ
QCNWN1251AWZZ
QCNWN0897AWZZ
QCNWN1248AWZZ
QCNWN1249AWZZ
92LFUSET312E
92LFUSE-T162-E
92LFUSE-T501E
RTUNS0008AWZZ
VVKFIP9EM7R-1
————
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AH Connector Ass’y,6-10-2Pin
Plug,2Pin
AB Plug,5Pin
AC Plug,8Pin
AC Plug,6Pin
AC Plug,6Pin
AC Plug,10Pin
AC Socket,6Pin
AD Socket,11Pin
AB Plug,3Pin
AC Plug,7Pin
AC Plug,7Pin
— Plug,12Pin
(Supplies at REF No.203)
— Pin Holder,2Pin
(Supplies at REF No.203)
AG Connector Ass’y,5-5Pin
AF Connector Ass’y,8-8Pin
AF Connector Ass’y,6-6Pin
Connector Ass’y,2-2Pin
Flat Wire,6Pin
AE Connector Ass’y,3Pin
AG Connector Ass’y,7Pin
AD Flat Cable,3Pin
AE Flat Wire,11Pin
AE Flat Wire,9Pin
AF Connector Ass’y,8-12Pin
AK Connector Ass’y,7-7Pin
AE Flat Wire,5Pin
AD Fuse,T3.15A L 250V
AD Fuse,T1.6A L 250V
AD Fuse,T500mA L,250V
AN FM Front End
AV FL Display
— Flat Cable,2Pin
(Supplies at REF No.203)
!
PARTS CODE
★ PRICE
DESCRIPTION
RANK
————
—
JK961
M1
M2
M3
QJAKM0004AWZZ
92LMTR1858CASY
92LMTR1854BASY
92LMTR2037AS1
J
J
J
J
AK
AS
AP
AP
MM1
PHM1
RMOTV0006AWM1 J
————
AR
—
RX701
SO301
SO401
SO901
SO962
SOLM1
SOLM2
SW1
SW2
VHLN63H380A-1
QTANC0301AWZZ
92LJACKL1676A
QSOCA0204AWZZ
QTANA0407AWZZ
RPLU-0002AWZZ
RPLU-0002AWZZ
QSW-P0004AWZZ
QSW-F0001AWZZ
J
J
J
J
J
J
J
J
J
AK
AH
AF
AF
AE
AH
AH
AE
AD
SW3
QSW-P0005AWZZ
J
AD
SW4
SW701
QSW-F9001AW01 J
92LSWICH1401AT J
AD
AC
SW702
92LSWICH1401AT J
AC
SW703
SW704
SW705
SW706
SW707
SW708
SW709
SW710
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
J
J
J
J
J
J
J
J
AC
AC
AC
AC
AC
AC
AC
AC
SW711
92LSWICH1401AT J
AC
SW712
92LSWICH1401AT J
AC
SW713
SW714
92LSWICH1401AT J
92LSWICH1401AT J
AC
AC
SW715
SW716
SW717
92LSWICH1401AT J
92LSWICH1401AT J
92LSWICH1401AT J
AC
AC
AC
SW718
SW719
SW720
SW721
SW722
SW723
SW724
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
92LSWICH1401AT
J
J
J
J
J
J
J
AC
AC
AC
AC
AC
AC
AC
SW725
QSW-S0024AWZZ
J
AE
SW901
SWM3
QSOCE0008AWZZ J
————
AH
—
SWM4
————
—
SWM5
————
—
Flat Cable,2Pin
(Supplies at REF No.203)
Jack,Headphones
Motor with Chassis [Disc]
Motor with Gear [Sled]
Motor with Pulley
[T/T Up/Down Loading]
Motor with Pulley [Tape] (203-7)
Phote Interrupter
(Supplies at REF No.203)
Remote Sensor,N63H380A
Terminal,Antenna
Jack,AUX/VIDEO
Socket,AC Power Input
Terminal,Speaker
Solenoid Ass’y. [TAPE] (203-8)
Solenoid Ass’y. [CD]
Switch,Push Type [Open/Close]
Switch,Leaf/Skeleton Type
[Mecha Up]
Switch,Push Type
[DISC Number]
Switch,Leaf Type [Pickup In]
Switch,Key Type
[3D SURROUND]
Switch,Key Type
[VOLUME DOWN]
Switch,Key Type [X-BASS/E.Q.]
Switch,Key Type [VOLUME UP]
Switch,Key Type [REC/PAUSE]
Switch,Key Type [FF]
Switch,Key Type [STOP]
Switch,Key Type [Play]
Switch,Key Type [REW]
Switch,Key Type
[TUNING UP/TIME]
Switch,Key Type
[TUNING DOWN/TIME]
Switch,Key Type
[ON/STAND-BY]
Switch,Key Type [CLOCK]
Switch,Key Type
[TIMER/SLEEP]
Switch,Key Type [MEMORY]
Switch,Key Type [CD]
Switch,Key Type
[TUNER/BAND]
Switch,Key Type [TAPE 1-2]
Switch,Key Type [VIDEO/AUX]
Switch,Key Type [DISC 1]
Switch,Key Type [DISC 2]
Switch,Key Type [DISC 3]
Switch,Key Type [DISC SKIP]
Switch,Key Type
[OPEN/CLOSE]
Switch,Slide Type
[Span Selector]
Switch,Voltage Selector
Switch,Leaf Type [Fool Proof]
(Supplies at REF No.203)
Switch,Leaf Type [F.A.S]
(Supplies at REF No.203)
Switch,Leaf Type [CAM]
(Supplies at REF No.203)
CD MECHANISM PARTS
–4–
301
302
303
304
305
306
306- 1
NGERH0011AWZZ
NGERH0012AWZZ
MLEVP0010AWZZ
NSFTM0002AWFW
92LM-CUSN1524A
92LHPC1MASY
————
J
J
J
J
J
J
AC
AC
AC
AE
AC
BG
—
306- 2
306- 3
701
702
703
704
NGERR0043AFZZ
MSPRC0961AFZZ
XBSSD26P06000
XHBSD20P05000
XBBSD20P03000
LX-WZ1070AFZZ
J
J
J
J
J
J
AC
AA
AA
AA
AA
AA
Gear,Middle
Gear,Drive
Rail,Guide
Shaft,Guide
Cushion
Pickup Unit Ass’y
Pickup Unit
(Not Replacement Item)
Gear,Rack
Spring,Rack
Screw,ø2.6×6mm
Screw,ø2×5mm
Screw,ø2×3mm
Washer,ø1.5×ø3.8×0.25mm
CD-C290X
NO.
M1
M2
SW4
PRICE
RANK
PART CODE
92LMTR1858CASY J
92LMTR1854BASY J
QSW-F9001AW01 J
DESCRIPTION
NO.
AS Motor with Chassis [Disc]
AP Motor with Gear [Sled]
AD Switch,Leaf Type [Pickup In]
263
264
265
266
267
267
CABINET PARTS
!
201
201- 1
92LCAB3092AASY J
————
—
201- 2
201- 3
202
203
203- 1
203- 2
203- 3
203- 4
203- 5
203- 6
JKNBZ0473AWSA
PCUSG0022AWZZ
LHLDM1003AWZZ
92LMECHA2823A
NBLTK0011AWZZ
NBLTK0012AWZZ
NBLTK0030AWZZ
NROLY0002AWZZ
RHEDA0001AWZZ
92LMRPH1746A
J
J
J
J
J
J
J
J
J
J
AD
AB
AF
BL
AC
AB
AC
AF
AG
AM
203- 7
203- 8
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
RMOTV0006AWM1
RPLU-0002AWZZ
92LN-BAND1318A
GCAB-1044AWSA
GCAB-1050AWSB
GCOVA1186AWSB
GCOVA1187AWSB
GCOVA1215AWSA
GDORF0054AWSC
GDORF0055AWSC
GITAR0531AWSA
GITAS0050AWSB
GITAS0051AWSB
HDECQ0296AWSA
HDECQ0297AWSA
HDECQ0299AWSA
HDECQ0474AWSA
JKNBZ0516AWSB
JKNBZ0517AWSB
JKNBZ0518AWSA
JKNBZ0519AWSA
JKNBZ0520AWSA
JKNBZ0521AWSA
JKNBZ0522AWSA
LANGF0032AWZZ
LANGT0051AWFW
LCHSM0074AWFW
LCHSZ0010AWZZ
LCHSZ0011AWZZ
LHLDZ1087AWSA1
LHLDZ1139AWSA
LHLDZ1140AWZZ
LHLDZ1141AWZZ
MLEVP0066AWZZ
MLEVP0067AWZZ
MLEVP0068AWZZ
MLEVP0070AWZZ
MLIFP0003AWZZ
MSPRC0020AWFJ
MSPRC0024AWFW
MSPRD0044AWFJ
MSPRD0092AWFJ
MSPRD0093AWFJ
NBLTK0029AWZZ
NGERH0064AWZZ
NGERH0065AWZZ
NGERK0003AWZZ
NGERK0004AWZZ
NGERK0005AWZZ
NGERW0006AWZZ
NPLYD0001AWZZ
NROLP0009AWZZ
NTNT-0018AWSA
PCUSG0022AWZZ
PRDAR0113AWFW
QFSHD0001AWZZ
QLUGP0001AWZZ
LHLDZ1188AWZZ
LANGT0049AWFW
LANGT0050AWFW
92LCAUT1706A1
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AR
AH
AA
AM
AS
AF
AF
AG
AK
AK
AH
AM
AM
AF
AF
AG
AH
AG
AF
AD
AH
AH
AE
AE
AC
AF
AS
AM
AG
AC
AD
AB
AB
AE
AC
AB
AB
AE
AB
AB
AB
AB
AB
AB
AD
AB
AC
AB
AB
AC
AB
AB
AK
AB
AV
AB
AC
RTRNP0219AWZZ
AK
AG
AC
-
Front Panel Ass’y
Front Panel
(Not
Replacement Item)
Button [OPEN/CLOSE]
Cushion,Leg
Stabilizer
Cassette Mechanism Ass’y
Belt,Main,Tape 1
Belt,Main,Tape 2
Belt,Sub
Pinch Roller Ass’y
Head,Erase [Tape 2]
Haed,Record/Playback [Tape 1/
Tape 2]
Motor with Pulley [TAPE], [MM1]
Solenoid Ass’y [TAPE], [SOLM1]
Nylon Band,80mm
Cabinet,CD Player Base
Top Cabinet
Cover,CD Tray Panel,Left
Cover,CD Tray Panel,Right
Cover,CD Tray
Cassette Holder,Tape 1
Cassette Holder,Tape 2
Back Board
Side Panel,Left
Side Panel,Right
Panel,Cassette,Tape 1
Panel,Cassette,Tape 2
CD Top Panel
Display Panel
Button Function
Button [X-BASS]
Button [CLOCK/TIMER/SLEEP]
Button,OPERATION A
Button,OPERATION B
Button [TUNING/TIME]
Button [RANDOM/DEMO]
Support,T/T Lock Lever
Bracket,Heat Sink
Chassis,Bottom
Chassis,Loading
Chassis,CD Mechanism
Holder,FL Display
Support,Stabilizer
Guide
Support,Pitch
Lever,Shift
Lever,Lock
Lever,Change
Lever,T/T Lock
Damper
Spring,T/T Lock Lever
Spring,Solenoid
Spring,Lock Lever
Spring,Cassette,Tape 1
Spring,Cassette,Tape 2
Belt,Drive
Gear,Cam
Gear,Turntable
Gear,Drive
Gear,Bevel
Gear,Loading
Gear,Worm Wheel
Pulley
Roller
Turntable
Cushion
Heat Sink
Holder,Fuse
Lug Terminal [Lug 961]
Holder,LED
Bracket,Tuner and Main PWB
Bracket,Tuner PWB
Label,CD Laser Caution
Power Trans
–5–
92LCAUT1706B
PMAGF0001AWZZ
92LSUPT1749D
JKNBZ0472AWSB
268
269
269
269
270
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
PRICE
RANK
PARTS CODE
LANGF0039AWFWI
LX-EZ0005AWFD
LX-JZ0002AWFD
LX-JZ0003AWFF
LX-JZ0022AFFD
LX-TZ0019AFZZ
XBPSD26P05JS0
XEBSD26P12000
XEBSD30P10000
XEBSD30P12000
XHBSD40P08000
XEBSF30P10000
XEBSF30P12000
XESSD30P10000
XHBSF30P08000
XJBSD30P08000
XJBSD30P10000
XJSSF30P10000
XWHJZ62-09510
XJBSF30P10000
XJBSF30P08000
J
J
J
J
J
J
AA
AF
AA
AG
AD
J
J
J
J
AC
AB
AB
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
DESCRIPTION
Label,CD Laser Caution Mark
Magnet
Support,Magnet
Button,DISC No.
Label,Specification [For Taiwan]
Label,Specification
[Except for Taiwan]
Label,CPA
Label,Caution
Caution Label [For Hong Kong]
Panel,MADE IN MALAYSIA
[For Kuwait and Saudi Arabia]
Support Power transformer
Screw,Special
Screw,ø3×10mm
Screw,ø3×12mm
Screw,ø3×8mm
Screw,Special
Screw,ø2.6×5mm
Screw,ø2.6×12mm
Screw,ø3×10mm
Screw,ø3×12mm
Screw,ø4×8mm
Screw,ø3×10mm
Screw,ø3×12mm
Screw,ø3×10mm
Screw,ø3×8mm
Screw,ø3×8mm
Screw,ø3×10mm
Screw,ø3×10mm
Washer,ø6.2×ø10×0.9mm
Screw,ø3×10mm
Screw,ø3×8mm
FRONT SPEAKER BOX PARTS (CP-C290X)
901
902
903
904
905
906
907
SP1,2
SP3,4
92LB3CPC290XX1
92L121-0154
92L122-0038
92L372-0006
92L351-0348
92L394-0043
92L316-0065
VSP0010WBW84A
VSP0050TBL64A
J
J
J
J
J
J
J
J
J
Speaker Box Ass’y.
Net Frame Ass’y.
Speaker Cord Ass’y
AD Screw,ø4×14mm
AD Label,Specification
AF Port Cushion
AS Duct Panel
Speaker,Woofer
Speaker,Tweeter
ACCESSORIES/PACKING PARTS
J
!
!
QACCE0007AW00
QANTL0009AWZZ
SPAKA0197AWZZ
SPAKC0878AWZZ
SPAKP0013AWZZ1
SPAKZ0383AWZZ
SPAKZ0393AWZZ
TGANE0011AW30
TINSZ0495AWZZ
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
UBATU0001AWZZ
412-0123
J
J
J
J
AY AC Power Supply Cord,
[For Hong Kong Only]
AH AC Power Supply Cord
AG AM Loop Antenna
AN Packing Add.,Unit,Left/Right
AR Packing Case
AC Polyethylene Bag,Unit
AB Sheet
AD Pad
Caution Sheet [For Taiwan]
AD Warranty Card
[For Phillippines Only]
Warranty Card [For Taiwan]
AL Operation Manual
AB Label,Bar Code [For Taiwan]
AB Label,Packing Case,Hong Kong
AH Sheet,E/C Comparison A
[For Taiwan]
AH Sheet,E/C Comparison B
[For Taiwan]
AH Sheet,E/C Comparison C
[For Taiwan]
AB Label,Bar Code
[Except for Taiwan]
Label,Caution,Packing Case
[For Taiwan]
AB S/S List [For Taiwan Only]
AC Schematic Diagram
AE Battery,UM/SUM-3
AN Packing Add.,Top and Bottom
[Front Speaker]
CD-C290X
NO.
PART CODE
★ PRICE
92LBAG1460C1
J
J
J
!
J
!
J
FANT1746A
DESCRIPTION
RANK
J
J
!
J
!
QPLGA0004AWZZ J
92L353-0081
J
NO.
AB Polyethylene Bag,Operation
Manual
AB Polyethylene Bag,AC Power
Supply Cord [Hong Kong Only]
AA Bag,Plug Adaptor
[Saudi Arabia Only]
AM AC Power Supply Cord[For
Taiwan Only]
AM AC Power Supply Cord[For
Saudi Arabia Only]
AD FM Antenna
AA Label,Packing Case,MADE IN
MALAYSIA [For Brasil]
AD AC Plug Adaptor
[For Saudi Arabia Only]
AG AC Plug Adaptor
Label,Feature
PARTS CODE
★ PRICE
RANK
411-0064
J
RRMCG0161AWSA J
92LLID1782A
J
DESCRIPTION
Polyethylene Bag
[Front Speaker]
AU Remote Control
AQ Battery Lid,Remote Control
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~4
92LPWB2948MANS J
PWB-B
PWB-C
PWB-D
PWB-E
PWB-F
PWB-G
92LPWB2828PWRS
92LPWB2948TUNS
QPWBF0106AWZZ
QPWBF0341AWZZ
QPWBF0027AWZZ
92LPWB2948SRSS
J
J
J
J
J
J
—
Main/Display/Switch/
Headphone (Combined
Ass’y)
— Power
— Tuner
AF Tape Mechanism (PWB Only)
AB Sensor (PWB Only)
AD CD Motor (PWB Only)
— SRS
CD-C290X
306-2
306
A
306-1
701
306-3
B
304
701
302
704
C
702
702
301
D
303
703
E
M1
F
305
M2
305x2
G
SW4
H
PWB-F
1
2
3
4
Figure 6 CD MECHANISM EXPLODED VIEW
–6–
5
6
CD-C290X
CD-C290X
603
A
212
620x6
268
213
269
619
603
603
B
267
611x2
615x2
613x3
217
PWB-A1
PWB-A2
257x2
a
614x2
C
231
PWB-A3
266
258x2
(LUG961,962)
219
b
201
D
PWB-A4
222
221
201-1
604
613x3 FL701
259
220
616x2
616x2
201-2
613x6
223
608
Silicon
Grease
239
256
225
E
224
608
218
239
260
615
201-3
TAPE
MECHANISM
b
615
270x2
610x6
615x2
a
227
261
620
F
203
(203-1,203-2,
203-3,203-4,
203-5,203-6,
203-7,203-8)
201-3
PWB-B
257x4
210
615x3
PWB-C
603
211
G
619
215
214
228
243
216
204
244
H
1
2
3
4
Figure 7 CABINET EXPLODED VIEW (1/2)
–– 53
7 ––
5
6
615
CD-C290X
CD-C290X
232
617
A
265
264
612x2
618
202
206
B
254
238
262
SW3
263
253
C
253
240
253
207
612x2
209
D
208
205
602
CD
MECHANISM
242
605
233
253x2
615
607
247
E
608
226
245
234
248
236
249
253
605
249
601
252
246
251
F
235
237
SW2
233
255
250
606x2
G
253
229
608 230
M3
241
PWB-G
609x4
608
PWB-E
253
SOLM2
H
1
2
3
4
Figure 8 CABINET EXPLODED VIEW (2/2)
8 ––
––54
5
6
CD-C290X
CP-C290
A
905
SP3,4
904x4
B
903
Capacitor
902
C
904x4
D
901
SP1,2
E
TWEETER
SP3 (L-CH)
SP4 (R-CH)
906
907
F
RED
Capacitor
TWEETER
SP3 (L-CH)
SP4 (R-CH)
RED
BLACK
Capacitor
G
WOOFER
SP1 (L-CH)
SP2 (R-CH)
WOOFER
SP1 (L-CH)
SP2 (R-CH)
H
1
2
3
4
Figure 9 SPEAKER EXPLODED VIEW
––55
9 ––
5
6
CD-C290X
COPYRIGHT © 1999 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
SHARP-ROXY CORP. (M) SDN BHD
Engineering 1 Department
Lot 202, Bakar Arang Ind. Est,
08000, Sungai Petani, Kedah, Malaysia.
Printed in Malaysia
A9910-0050SMQ•M
EX
– 56 –
Download PDF
Similar pages
