19/8/2016
LG External DVD Burner AP70NS50 | LG Electronics US
AGO1816CG

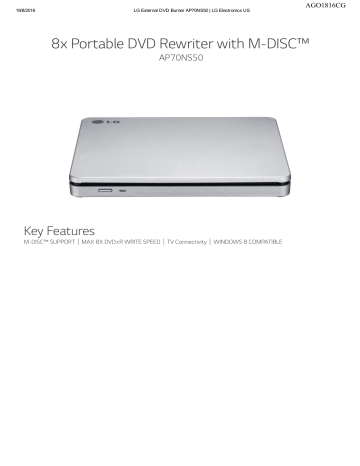

8x Portable DVD Rewriter with M-DISC™
AP70NS50
Key Features
M-DISC™ SUPPORT
MAX 8X DVD±R WRITE SPEED
TV Connectivity
WINDOWS 8 COMPATIBLE
☆
19/8/2016
LG External DVD Burner AP70NS50 | LG Electronics US
DVD-rom
Supermulti
M-DISC™
Compact-Disc-ReWritable
Slide Load In Style
The sleek looking slot drive loads discs with a simple glide that’s fast and smooth
compared to drives with a disc tray. By removing the complexities of the disc tray
we’ve simplified the drive to operate in tight spaces and run silently without
needing to open or close. Give your ultrabook a companion that looks slick and
works quick.
Superior data protection with
M-DISC™ Support
The M-DISC™uses a patent rock-like recording surface instead of organic dye to
etch your data onto a disc. The M-DISC has been tested and proven to outlast
standard DVDs currently on the market.
Learn More
8x DVD-R Writing Speed
Burn more discs in less time with 8x DVD-Max writing speed.
19/8/2016
LG External DVD Burner AP70NS50 | LG Electronics US
tv connectivity
Quickly and easily connect to TVs, digital photo frames and PCs via USB for the playback.
Nonstop playability
Jamless Play automatically prevents stop video playback in case of damaged disc,
such as scratches or fingerprints by jumping through the erroneous data or
damaged areas.
Play in peace
As a disc is being read, Silent Play technology automatically controls the disc read
speed for optimal noise reduction.
Win8 & Mac OS Compatible
Enjoy complete freedom in use with compatible support for both Windows 8 and MAC OS.
19/8/2016
LG External DVD Burner AP70NS50 | LG Electronics US
Download Spec Sheet
Summary
Drive Type
External
SUSTAINED TRANSFER RATE
CD-ROM
3,600 kB/s (24x) max.
DVD-ROM
11.08 Mbytes/s (8x) max.
BUFFER TRANSFER RATE
USB High-Speed
480Mbps(60Mbyte/s)
USB Full -Speed
12Mbps(1.5Mbyte/s)
BUFFER SIZE
BUFFER SIZE
0.75MB Under-run prevention function embedded
TRANSFER RATES - WRITE (MAX)
Type
Portable DVD Rewriter
CD-R
10x CLV, 16x PCAV, 24x CAV
CD-RW
4x, 10x CLV, 16x ZCLV, 24x ZCLV (High Speed: 10x
CLV,Ultra Speed: 24x ZCLV, Ultra Speed plus: 24x ZCLV)
DVD+R
2.4x CLV, 4x PCAV, 8x CAV
DVD+R DL
2.4x CLV, 4x PCAV, 6x PCAV
DVD+RW
2.4x, 3.3x CLV, 4x ZCLV, 8x ZCLV (8x Speed disc: 3.3x CLV,
8x ZCLV)
DVD-R
2x CLV, 4x PCAV, 8x CAV
19/8/2016
LG External DVD Burner AP70NS50 | LG Electronics US
DVD-R DL
2x CLV, 4x PCAV, 6x PCAV
DVD-RAM
2x, 3x ZCLV, 5x PCAV (Ver.2.2) (12x disc: No support)
DVD-RW
2x CLV, 4x, 6x ZCLV
M-DISC
4x
HOST INTERFACE
External (Host)
USB 2.0 (480Mbits/s)
COMPLIANCE
EMC/EMI
CE Marking, C-Tick Mark, Korean EMC(KCC), Taiwan
EMC(BSMI), VCCI, FCC
Safety UL
TUV, SEMKO, CB & IEC60825-1 Report, FDA, GOST, NOM,
CSA
Laser Safety
Class 1 laser product comply with DHHS rules 21 CFR
Subchapter J Class 1 laser product to EN60825-1 / IEC
60825-1
TRANSFER RATES - READ (MAX)
DVD-R/RW/ROM
8x/8x/8x max.
DVD-R DL
8x max.
DVD-Video(CSS Compliant Disc)
4x max (Single/Dual layer)
DVD+R/+RW
8x/8x max.
DVD+R DL
8x max
M-DISC
8x
DVD-RAM (Ver.2.2)
6x
CD-R/RW/ROM
24x/24x/24x max.
CD-DA (DAE)
24x max.
19/8/2016
LG External DVD Burner AP70NS50 | LG Electronics US
ACCESS TIME (RANDOM)
CD-ROM
139 ms typ
DVD-RAM (Ver. 2.2)
203 ms typ
DVD-ROM
167 ms typ
DIMENSIONS (W x H x D)
Dimensions (WxHxD)
5.72" x 5.35" x 0.59" (145mm x 136mm x 15mm)
OPERATING SYSTEMS Windows
Windows
Windows 7, Windows 8, Windows Vista™, Windows XP,
Mac OS® X
WEIGHT
Weight
0.52 lbs (240g)
UPC
AP70NS50
058231310863
Download PDF
