HP rp5700 Point of Sale (POS) System or HP rp5700

HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC

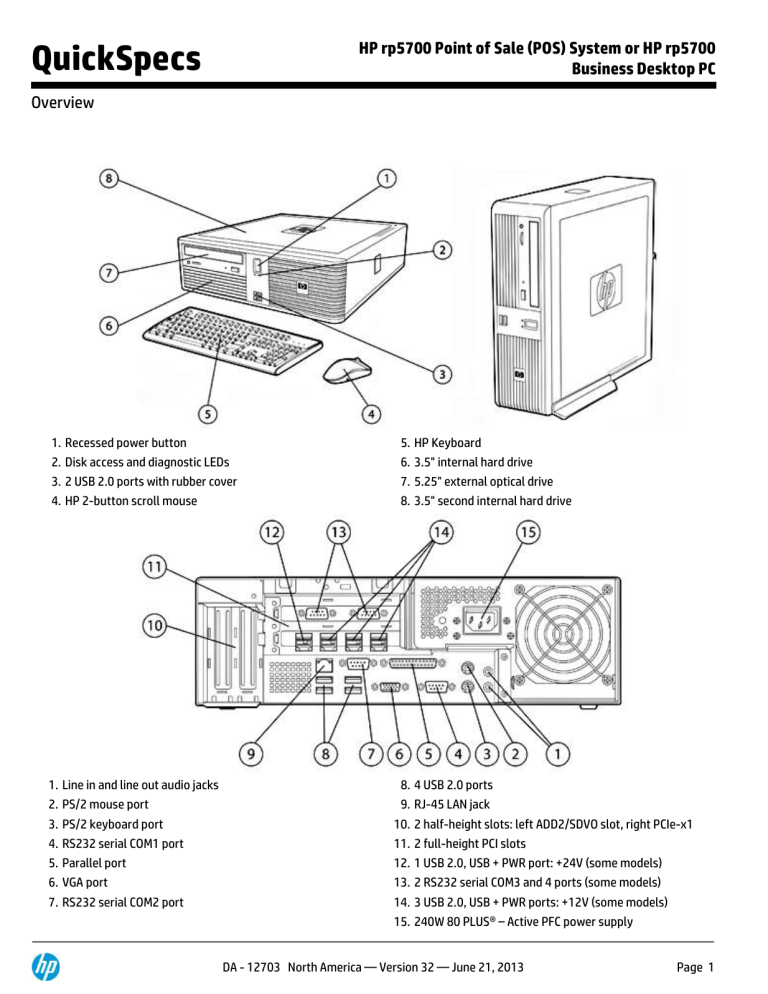

QuickSpecs
Overview
1.
2.
3.
4.
Recessed power button
Disk access and diagnostic LEDs
2 USB 2.0 ports with rubber cover
HP 2-button scroll mouse
1.
2.
3.
4.
5.
6.
7.
Line in and line out audio jacks
PS/2 mouse port
PS/2 keyboard port
RS232 serial COM1 port
Parallel port
VGA port
RS232 serial COM2 port
5.
6.
7.
8.
HP Keyboard
3.5" internal hard drive
5.25" external optical drive
3.5" second internal hard drive
8. 4 USB 2.0 ports
9. RJ-45 LAN jack
10. 2 half-height slots: left ADD2/SDVO slot, right PCIe-x1
11. 2 full-height PCI slots
12. 1 USB 2.0, USB + PWR port: +24V (some models)
13. 2 RS232 serial COM3 and 4 ports (some models)
14. 3 USB 2.0, USB + PWR ports: +12V (some models)
15. 240W 80 PLUS® – Active PFC power supply
DA - 12703 North America — Version 32 — June 21, 2013
Page 1
QuickSpecs
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
Overview
At A Glance
Intel® Core™2 Duo processor, Intel Pentium® Dual-Core processor, or Intel Celeron® processor
One of the following operating systems:
Genuine Windows 7 Professional 32-bit
Genuine Windows 7 Professional 64-bit
Genuine Windows Vista Business 32-bit
Genuine Microsoft Windows Embedded POSReady 2009
Genuine Windows Embedded for Point of Service (WEPOS)
FreeDOS
Intel Q963 chipset with Intel GMA 3000 and support for dual independent displays
Dual Channel, DDR2 667 MHz system memory
Integrated Broadcom 5755 NIC 10/100/1000 with integrated TPM support
SMART III serial ATA 3.0Gb/s Hard Drives
RAID level 0, 1 (HP factory ship standard), and 5 (requires three hard drives) support
Manageability tools
5 year long lifecycle Point of Sale System
80 PLUS® highly efficient power supply rating standard on all models
Protected by HP Services, including a 3-3-3, standard warranty. Terms and conditions vary by country. Certain restrictions and
exclusions apply.
NOTE: All models and features may not be available in all countries.
DA - 12703 North America — Version 32 — June 21, 2013
Page 2
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Standard and Configurable Components
Model Key and Example
NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available
configuration choice specified in the body of this document and may include references to modules that are out of date and no longer
available.
DA - 12703 North America — Version 32 — June 21, 2013
Page 3
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Standard and Configurable Components
Operating System –
One of the following
Genuine Windows 7 Professional 32-bit*
Genuine Windows 7 Professional 64-bit*
Genuine Windows Vista Business 32-bit**
Genuine Microsoft Windows Embedded POSReady 2009***
Genuine Windows Embedded for Point of Service (WEPOS)
FreeDOS
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/ for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and:
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To download
the tool, visit: http://www.windowsvista.com/upgradeadvisor.
*** DVD drive required to install Multilingual User Interface software
Value-added Software (not HP ProtectTools Security Software Suite*
included with FreeDOS) Not HP Client Management Solutions (visit
all software included with http://www.hp.com/go/easydeploy)
HP Backup and Recovery Manager
all models.
HP Insight Diagnostics
Computer Setup Utility
McAfee Total Protection Anti-Virus*
Intervideo WinDVD (supplied with DVD drive)
Microsoft Office Starter 2010+
Microsoft Office 2010++
Microsoft Office Home & Business 2010**
Microsoft Office Professional 2010**
Microsoft Internet Explorer
HP Client Automation Enterprise
Altiris Deployment Solution Agent
Roxio Creator Business (included with DVD R/W
drive)
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
+ Includes Microsoft Word Starter 2010 and Microsoft Excel Starter 2010. This system is preloaded with
reduced-functionality versions of Word and Excel that include advertising. It does not include PowerPoint
or Outlook. Purchase an Office 2010 Product Key to activate the full-featured Office software on this
system.
++ Office 2010 preloaded; purchase product key to activate. License-to-use not included and must be
purchased separately.
** Sold separately.
Value-added Services and HP Stable Platform Program with Product Change
Factory Express Deployment and Lifecycle Services
Notification
(sold separately)
Features
Business-to-Business Portals
TPM 1.2* Vista Bit-Locker Ready
* TPM module disabled where use is restricted by law; for example, Russia.
DA - 12703 North America — Version 32 — June 21, 2013
Page 4
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Standard and Configurable Components
Service and Support
On-site Warranty and ServiceNOTE 1This three-year, limited warranty and service offering delivers three
years of on-site, next business-dayNOTE 2 service for parts and labor and includes free telephone
supportNOTE 3 24 x 7. Global coverageNOTE 2 ensures that any product purchased in one country and
transferred to another non-restricted country will remain fully covered under the original warranty and
service offering. The rp5700 is available for sale in the Americas and EMEA only
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP
third-party provider, and is not available in certain countries. Global service response times are based on
commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
Dimensions and Weight
Chassis Dimensions
3.94 x 13.4 x 15 in (10 x 34 x 38 cm)
(HxWxD)
System weight*
19.62 lb (8.9 kg) POS models, 18.64 lb (8.433 kg) PC models
System volume
approximately 13 liters (13.74 quarts)
Shipping weight*
27.3 lb (12.355 kg) POS models, 26.52 lb (11.998 kg) PC models
Shipping box dimensions 23.38 x 19.68 x 9.00 inches (59.38 x 49.99 x 22.85 cm)
Monitor weight supported 77 lb (35 kg) maximum
* Configured with 2 hard drives, 1 optical drive, no diskette drive, USB and COM cards (POS models), and
tower stand.
Power Supply
240W 80 PLUS – Active PFC Power Supply. No line switching required.
Ports
USB
6 USB 2.0 (2 front, 4 rear)
Plus 4 additional USB+POWER; 3 @ 12V, 1 @ 24V
2 RS232 individually configurable to power 5V & 12 V. COM1 can be configured
for 5V, 9V, and 12V
Plus 2 additional RS232 on some models via PCI card. Individually configurable
to power 5V and 12V
1
2
1
2, line in and line out
RJ-45
available via HP ADD2 SDVO DVI-D Adapter
Serial
Parallel
PS/2
Video
Audio
NIC
Support for MultiMonitor*
* The rp5700 supports normal (or non-reversed) layout (Advanced Digital Display 2) adapter cards inserted
into the SDVO (Serial Digital Video Output) connector on the system board. This connector has the physical
appearance of a PCIe- x16 connector; however, conventional PCIe cards are not supported in this
connector.
Chipset
Intel Q963 with ICH8-RAID
DA - 12703 North America — Version 32 — June 21, 2013
Page 5
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Standard and Configurable Components
Processor and
Intel Core2 Duo Processor E7400 (2.80-GHz, 3-MB L2 cache, 1066-MHz FSB)
Speed*
Intel Pentium Dual-Core Processor E2160 (1.80-GHz, 1-MB L2 cache, 800-MHz FSB)
One of the following
Intel Celeron Processor 440 (2-GHz, 512-KB L2 cache, 800-MHz FSB)
* Intel processor numbers are not a measure of performance. Processor numbers differentiate features within each processor family,
not across different processor families.
Memory
DDR2 SYNCH DRAM NON-ECC MEMORY
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This
chart does not represent all possible memory configurations. The rp5700 supports non-ECC DDR2 PC25300 (667-MHz) and PC2-6400 (800 MHz) memory.*
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds. For
dual-channel symmetric performance, the total amount of memory in each channel must be equal. If
speeds are mixed, speed will default to the slowest DIMM.
1-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (1 x 1 GB)
2-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (1 x 2 GB)
2-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (2 x 1 GB)
3-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (3 x 1 GB)
4-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (4 x 1 GB)
4-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (1 x 4 GB)
8-GB DDR2 Synch DRAM 667-MHz or 800-MHz* Non ECC (4 x 2 GB)
Maximum Memory
Supports up to 8 GB of DDR2 Synch DRAM.
Slot 1 is black and must always be populated. Not all memory configurations possible are represented
below.
* All supported memory modules run at system maximum of 667 MHz.
NOTE: Above 3-GB, all memory may not be available due to system resource requirements.
DIMM Size
Slot
Channel A
1 (black)
1 GB
1 GB
2 GB
1 GB
2 GB
1 GB
4 GB
2 GB
1 GB
2 GB
2 GB
3 GB
3 GB
4 GB
4 GB
8 GB
Slots
PCI
SDVO/ADD2
Channel B
2 (white)
3 (black)
4 (white)
1 GB
1 GB
2 GB
1 GB
1 GB
1 GB
2 GB
2 GB
2 GB
2 full-height, half-length PCI, 1 half-height PCIe-1x
1
DA - 12703 North America — Version 32 — June 21, 2013
Page 6
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Standard and Configurable Components
Storage
Internal bays
External bay
Hard Drive Interfaces
Supported
Hard Drive Controller
Supported
Serial-ATA connectors
Hard Drive –
One of the following
Removable Storage –
One of the following
Front View
Diskette Drives
3.5-inch Serial ATA Hard Drive
Optical Drive Bay or Carrier for
Hard Drive
2 3.5-inch ATA hard drive
1 5.25-inch optical drive
2 Serial ATA interfaces with RAID controller option. Supports RAID 0, 1, and 10.
SATA 3.0 Gb/s and 1.5 Gb/s
3
160-GB, 250-GB, 500-GB, 1TB SATA 3.0 Gb/s, 7200 rpm
160-GB, 250-GB, 500-GB, 1TB SATA 3.0 Gb/s, 7200 rpm with RAID 1
80GB Solid State Drive
80GB Solid State Drive with RAID
16X/48X SATA DVD-ROM
16X SATA SuperMulti LightScribe Drive
Quantity Supported
0
3
1
Position
0
1, 2*, 3
2
Controller
N/A
SATA
SATA
* Requires optional Hard Drive Carrier
DA - 12703 North America — Version 32 — June 21, 2013
Page 7
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Standard and Configurable Components
Security
TPM 1.2 Embedded Security Chip integrated with Broadcom NIC
HP ProtectTools Security Software Suite with BIOS Configuration (serial, parallel, USB enable/disable),
Credential Manager, Smart Card Manager (sold separately)
HP Desktop Security Lock Kit (lock and cable) (sold separately)
Security cable with Kensington lock (sold separately)
Wall Mount/Security Sleeve (sold separately)
Security loop hole
0.212 inch (0.538 cm)
diameter
NIC
Broadcom 5755 10/100/1000 NIC with TPM 1.2 support
Communications
Wireless 801.11 b/g/n PCIe x1 Card (optional)
2006 LSI PCIe x1 56K International SoftModem (optional)
2006 Agere PCI 56K International SoftModem (optional)
Graphics
Integrated Intel Graphics Media Accelerator 3000. Support for dual display via optional HP ADD2 SDVO DVID Adapter
NVIDIA Quadr4 290 Graphics card (256MB DH) PCIe x1 - 1st
Audio
Intel integrated high-definition audio with 2-channel Realtek ALC 262 codec and internal amplified chassis
speaker
Input/Output Devices
Keyboard –
One of the following
Mouse –
One of the following
Miscellaneous
PS/2 keyboard
USB keyboard
No keyboard optional
PS/2 scroll mouse
USB scroll mouse
Optical scroll mouse
No mouse optional
Tower stand standard
DA - 12703 North America — Version 32 — June 21, 2013
Page 8
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
After-Market Options
Office 2007 Media-less
License Kits (MLKs)
MS Office Basic Edition 2007 – Media-less License Kit
MS Office Small Business Edition 2007 – Media-less License Kit
MS Office Professional Edition 2007 – Media-less License Kit
Communications
HP Wireless 802.11 b/g/n PCIe x1
LSI PCIe x1 Hi-Speed 56K International SoftModem
Broadcom NetXtreme Gigabit Ethernet PCIe NIC Card
HP Surge Protector, LAN & Printer Cable
Broadcom NetXtreme Gigabit Ethernet Plus NIC
FH971AA
FH970AA
EA833AA
RT174AA
FS215AA
Graphics
HP ADD2 SDVO DVI-D Adapter
NVIDIA NVS 300 (512mb) PCIe x1 Card
(includes DMS-59 to Dual-VGA cable, Low-Profile bracket)
Single-DVI to Single-DVI Cable
DMS-59 to Dual-DVI cable
DMS-59 to Dual DisplayPort Cable Kit
DY674A
BV457AA
Hard Drives
HP 160-GB SATA 3.0 Gb/s
HP 250-GB SATA 3.0 Gb/s
320GB SATA 3.0Gb/s SMART IV Hard Drive
500GB SATA 3.0Gb/s SMART IV Hard Drive
HP Removable SATA Hard Drive Enclosure (Frame & Carrier)
PY277AA
PY278AA
FH963AA
KW347AA
RY102AA
Solid State Drive
HP 64GB 2.5" Solid State Drive
HP 80GB 2.5" Solid State Drive
VG679AA
BM848AA
Optical Drives
16X SATA SuperMulti LightScribe Drive (Carbonite color)
16X/48X SATA DVD-ROM (Carbonite color)
GF343AA
AH047AA
Removable Storage
HP 1.44-MB External USB Diskette Drive
DA - 12703 North America — Version 32 — June 21, 2013
RZ361A#ABA
RZ365A#ABA
RZ363A#ABA
DC198A
DL139A
XP612AA
DC141B
Page 9
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
After-Market Options
Input/Output Devices
HP PS/2 Keyboard
HP USB Keyboard
HP Business Mouse Pad
USB Mini Keyboard
HP 2.4 GHz Wireless Keyboard and Mouse
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
POS Model Options
HP Cash Drawer
HP USB Barcode Scanner
FK182AA
EY022AA
HP POS Pole Display
HP USB Mini MSR with Brackets
HP POS Keyboard
HP POS MSR Keyboard
HP USB Single Station Thermal Receipt Printer
HP USB Multifunction Thermal Receipt Printer with MICR
HP Serial USB Thermal Receipt Printer
FK225AA
FK186AA
FK221AA
FK218AA
FK224AA
FK184AA
BM476AA
Monitors
CRTs
DT527A
DT528A
AT485AA
AS601AA#ABA
NB896AA#ABA
EY703AA
DC172B
3PO Offering
Business LCD Monitors
HP L1506 15-inch LCD Monitor
HP w15v 15-inch Widescreen LCD Monitor
HP w17e 17-inch LCD Monitor
HP L1710 17-inch LCD Monitor
HP L1910 19-inch LCD Monitor
HP L1910i 19-inch LCD Monitor with Integrated Work Stand
HP L1908w 19-inch Widescreen LCD Monitor
HP L1908wm 19-inch Widescreen LCD Monitor with multimedia
HP L1908wi 19-inch Widescreen LCD Monitor with Integrated Work Stand
HP L2208w 22-inch Widescreen LCD Monitor
Advantage Series Monitors
PX848AA#ABA
FM745AA#ABA
GV537AA#ABA
GS917AA#ABA
GS918AA#ABA
GS581AA#ABA
GP536AA#ABA
KA214AA#ABA
GP537AA#ABA
GX007AA#ABA
HP L1745 17-inch LCD Monitor
HP L1750 17-inch LCD Monitor
HP L1750 17-inch LCD Monitor - TAA Compliant
HP L1950g 19-inch LCD Monitor
HP L1950g TAA 19-inch LCD Monitor - TAA Compliant
HP L1945w 19-inch Widescreen LCD Monitor
HP L2045w 20-inch Widescreen LCD Monitor
HP L2245wg 22-inch Widescreen LCD Monitor
HP L2445w 24-inch Widescreen LCD Monitor
GE178AA#ABA
GF904AA#ABA
GF904A2#ABA
KR145AA#ABA
KR145A2#ABA
KD286AA#ABA
RD125AA#ABA
FL472AA#ABA
KT931AA#ABA
DA - 12703 North America — Version 32 — June 21, 2013
Page 10
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
After-Market Options
Performance Series Monitors
HP LP1965 19-inch LCD Monitor
HP LP2065 20-inch LCD Monitor
HP LP2275 22-inch Widescreen LCD Monitor
HP LP2275 22-inch Widescreen LCD Monitor Bulk Pack (6 baseless units)
HP LP2475w 24-inch Widescreen LCD Monitor
HP LP2480zx 24-inch DreamColor Widescreen LCD Monitor
HP LP3065 30-inch Widescreen LCD Monitor
Digital Signage
HP LD4200 42-inch LCD Monitor
RA373AA#ABA
EF227A4#ABA
KE289A4#ABA
KD289A6#ABA
KD911A4#ABA
GV546A4#ABA
EZ320A4#ABA
NH322AA#ABA
(launching March
9th)
Touchscreen Monitor
HP L5006tm 15-inch Touch Screen LCD Monitor
Options
RB146AA#ABA
HP Quick Release Kit
HP Integrated Work Stand (stand alone)
HP DreamColor Advanced Profiling Solution (aka Puck)
HP LCD Hood Kit
3M 1 7-in Privacy Screen Filter
3M 19-in Privacy Screen Filter
Digital Signage Speakers (LD4200 and LD4700)
Digital Signage Stand (supports LD4200 Monitor)
Digital Signage Stand (supports LD4700 Monitor)
EM870AA
GN783AA
KZ300AA
KZ301AA
KM218AA
KZ310AA
NK352AA
NK353AA
EM896AA
Audio
Thin USB Powered Speakers
LCD Speaker Bar (Black)
KK912AA
NQ576AA
Memory (DIMMs)
HP 2-GB PC2-6400 (DDR2 800 MHz) DIMM
HP 1-GB PC2-6400 (DDR2 800 MHz) DIMM
* All supported memory modules run at system maximum of 667 MHz.
** Desktop PC memory AH058AA also compatible
*** Desktop PC memory AH060AA also compatible
Security
Kensington Security Lock Kit
HP Business PC Security Lock Kit
HP (SFF) Wall Mount security sleeve
HP ProtectTools Version 4.0
DA - 12703 North America — Version 32 — June 21, 2013
BZ723AA***
BZ722AA**
PC766A
PV606AA
GF344AA
FH974AA
Page 11
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
After-Market Options
Miscellaneous
Accessories
HP USB Graphics Adapter
HP ADD2 SDVO DVI-D Adapter
ADD2 SDVO PCIe VGA Adapter
Belkin USB to Serial Adapter
Cat5e Patch Cable
Firewire (1394) Cable
7-outlet Surge Protector
HP FireWire / IEEE 1394 PCI Card
HP DVI to DVI Cable
DMS-59 to Dual VGA Cable Kit
5.25" Blank Bezel Kit (50 u bulk pack)
DA - 12703 North America — Version 32 — June 21, 2013
NL571AA
DY674A
KH540AA
EM449AA
AH122AA
AH123AA
AG290AA#ABA
PA997A
DC198A
GS567AA
DC177B
Page 12
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications
Unit Environment and Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2-cm (4-in) clearance on front side and power supply side of the computer to permit the required airflow.
If within an enclosure, the front side should be 100% open. The clearance between the system and the cabinet must be at least
10 mm (0.4 inch) on the sides and top and at least 50-mm (2-inch) clearance in the rear with power supply venting area 100%
open per the above bullet.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's recirculated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
Temperature Range
Operating: 50° to 104 F (10° to 40° C)*
Non-operating: -22° to 140° F(-30° to 60° C)
Relative Humidity
Operating: 20% to 85% (non-condensing at ambient)
Non-operating: 5% to 90% (non-condensing at ambient)
Maximum Altitude
Operating: 10,000 ft (3048 m)
Non-operating: 30,000 ft (9144 m)
(unpressurized)
*NOTE: Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained
sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency Range
Rated Input Current
Heat Dissipation
Power Supply Fan
ENERGY STAR Compliant
FEMP Standby Power Compliant
(<2W in S5 – Power Off)**
Power Consumption in ES Mode –
Suspend to RAM (S3)
(Instantly Available PC)
Processor/Cache Memory Power Down (S3)
Optical Drive Spins Down When Not
In Use
240-watt – 80 PLUS power supply – Active PFC
90 to 264 VAC
100 to 240VAC
50/60 Hz
47 – 63 Hz
5 A @ 90 VAC (3.5 A @ 90 VAC with 80% efficient power supply*)
Standard power supply:
Typical 340 btu/hr (86 kg-cal/hr)
Maximum 1260 btu/hr (397 kg-cal/hr)
80% efficient power supply:
Typical 273 btu/hr (69 kg-cal/hr)
Maximum 1024 btu/hr (258 kg-cal/hr)
80 mm variable speed fan
Yes
Yes
<3W
<3W
Yes
DA - 12703 North America — Version 32 — June 21, 2013
Page 13
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications
NOTES:
** Power consumption in the Off/Apparent Off mode is measured and reported with the network interface controller "Wake on LAN"
feature disabled in F10 Setup (default is "enabled").
ROM BIOS Information
Key features of the HP BIOS in the rp5700 include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP POS system into the
enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced
change notification.
Security – HP BIOS offers a robust and flexible set of security features to help the system administrator secure their systems
from removal of sensitive data, and help prevent access by unauthorized users, subversion of OS security policies, removal of
hardware, flash of rogue BIOS images, and attacks on BIOS settings.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies to assist in
operating the HP POS system in any enterprise environment.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP POS system, including BIOS updates from within DOS
(Flashlite), BIOS updates from within Windows (HPQFlash, SSM), HP Client Manager, and fail-safe recovery. In addition, the HP
POS system BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is available from within the BIOS
software and from the support website.
Additional HP BIOS Features
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to
BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. Provides power
conservation features under Windows XP.
Ability to disable the internal speaker
Other Features
ACPI-Ready Hardware
SMBIOS Ver. 2.4
Wired for Management Support
Dual-State Power Button
Description
Advanced Configuration and Power Management Interface (ACPI).
Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and
peripherals in a low-power or powered-off state without affecting other elements of the
system.
System Management BIOS, previously known as DMI BIOS, for system management information
Intel-driven, industry-wide initiative to make Intel architecture-based PCs, servers and mobile
computers more inherently manageable right out of the box and over the network
Power button acts as both an on/off button and suspend-to-sleep button
DA - 12703 North America — Version 32 — June 21, 2013
Page 14
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications
Serviceability Features of System
Dual Color Power LED on Front of Computer (Indicates Normal Operations and Fault Conditions)
Diagnostic LED Explanation Table
Number of 1-second red LED blinks followed by 2-second pause, then repeats:
2-processor thermal protection activated
3-processor not installed
4-power supply failure
5-memory error
6-video error
7-PCA failure (ROM detected failure prior to video)
8-invalid ROM, bootblock recover mode
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy
Replacement
Flash Recovery with Video
3.3V Aux Power LED on System PCA
Processor ZIF Socket for easy
Upgrade
Over-Temp Warning on Screen
Clear Password Jumper
DIMM Connectors for easy Upgrade
(Requires IM Agents)
Restore CD
Clear CMOS Jumper
NIC LEDs (integrated) (Green & Amber)
Serviceability Features of Chassis
Dual Color Power LED – To indicate
normal operations and fault
conditions
Front power switch
Feature
ASF 2.0 support (Alert Standard
Format)
Towerable
Drive Self Tests (DPS)
DPS Access through F10 Setup
during Boot
SMART Technology
(Self-Monitoring, Analysis and
Reporting Technology)
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning
with Defect Reallocation
Color coordinated cables and
connectors
Tool-less removal of hood power
supply, slot cover, hard drive and
optical drive
System memory can be upgraded
without removing any internal
components
Description
Industry-standard specification for network alerting and remote control in operating systemabsent environments
Product can be oriented as a tower (in addition to desktop orientation)
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every sector of
the hard drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through a Windowsbased diagnostics utility or through the computer's setup procedure. It produces an
evaluation on whether the hard drive is the source of the problem and needs to be
replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART),
a continuously running systems diagnostic that alerts the user to certain types of failures.
Allows hard drives to monitor their own health and to raise flags if imminent failures were
predicted
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure
DA - 12703 North America — Version 32 — June 21, 2013
Page 15
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Audio
High Definition Audio
Type
High Definition Stereo
Codec
Audio Jacks
Integrated
Yes – Realtek ALC262 codec
Line-In (64-K ohm Input Impedance)
Line-Out * (200 ohms Output Impedance, expects at least a 10-K ohm load)
NOTE: *Internal speaker amplifier is for internal speaker only. External speakers need to be powered
externally.
Sampling
8 kHz – 192 kHz
Wavetable Syntheses
Yes - Uses OS soft wavetable
(software)
Analog Audio
Yes
Number of Channels on
Stereo (Left & Right channels)
Line-Out
(mono/stereo)
Internal Audio Speaker
1.5 W
Power Rating
Internal Speaker
Yes
External Speaker Jack
Yes
(Line-Out)
DA - 12703 North America — Version 32 — June 21, 2013
Page 16
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
Serial Ports
All serial (COM) ports can be custom configured in either standard mode or powered mode. By repositioning
the jumpers (provided) on the system board and on the COM port PCI add-in card (some models), each COM
power can achieve power on pin 1 or pin 9. The illustration and table below indicate the COM port
assignments and voltage supported for each COM port.
COM port assignment
1
2
3
4
Description
COM1 (yellow)
COM2
COM3 (some models)
COM4 (some models)
Standard Mode
Yes
Yes
Yes
Yes
+5V
Yes
Yes
Yes
Yes
+9V
Yes
No
No
No
+12V
Yes
Yes
Yes
Yes
The following illustrations show how to position the jumpers on the system board and on the COM port PCI
add-in card (available on some models) to achieve power on pin 1 or pin 9.
P16 and P127 are located on the system board behind the COM1 port.
DA - 12703 North America — Version 32 — June 21, 2013
Page 17
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
P17 and J4 are located on the optional COM port card
DA - 12703 North America — Version 32 — June 21, 2013
Page 18
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
Integrated Broadcom
5755 Gigabit Ethernet
Connector
RJ-45
Controller
Broadcom 5755 PCI-Express LAN Controller
Memory
Integrated 96Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
Bus architecture
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x
flow control
PCI-E
Data path width
Single channel, PCI-E
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States
Power requirement
1.33 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer mode
Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Network transfer rate
DA - 12703 North America — Version 32 — June 21, 2013
Page 19
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
Environmental
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
Management capabilities ASF 2.0, ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Alerting
LSI PCIe x1 Hi-Speed 56K Data Transmission
International SoftModem
ASF 2.0
Fax Speeds
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem speed.
FCC limitations allow a maximum of 53 Kbps during download transmissions.
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and
Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
Data Speeds
Data Standards
Error Correction and Data V.44, 42bis, V.42 and MNP2-5
Compression
Power Management
Upgradeability
PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2,
Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold. If the
power management event (PME) feature is enabled in D3cold, a modem can
wake the system via WAKE# (WAKEN) or beacon. Meets PCI Express 1.1
standard.
Driver upgradeable for future enhancements
Video
ITU-T V.80 video ready interface
Other
Operating Temperature
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI express bus
Uses only one PCI express load (i.e., one grant/request pair), one shared IRQ,
one electrical load
LSI SV92EX - Integrated PCI interface with 3.3-V tolerant buffers and CardBus
support
Complies with PCI express low profile specifications-6.7 x 2.3 in (17.0 x 5.8
cm) and supports high- and low-profile brackets
Single RJ-11 connector
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE
mark
DA - 12703 North America — Version 32 — June 21, 2013
Page 20
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
EMC
Telecom
HP Wireless 802.11b/g/n
PCIe
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-46, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Other
The SV92EX device is packaged in a 32-pin micro leadless chip carrier (MLCC).
The SV92EX is fully compliant with the PCI Express revision 1.1 specification.
WHQL approved; ASPM compliant.
Dimensions (LxH)
3.3 x 4.7 inches (8.5 x 12 cm)
Weight
0.08 pounds (40 g)
Controller
Ralink RT2790
System interface
PCIExpress x1
Network standard
802.11 b/g/n
Frequency band
2.400 - 2.497 GHz
Operating temperature
14° to 149°F, operating (-10° to 65°C, operating)
Storage temperature
-40° to 176°F, non-operating (-40° to 80°C, non-operating)
Humidity
10-90% operating
5-95% non-operating
3.3V +/- 9%
12V +/- 8%
Platform/WLAN Mode
Maximum Power
Consumption
Transmit Only
Transmit Packet or Active
Scanning
Receive Only Mode or Idle
without IEEE PSP mode
enabled
Idle, with IEEE PSP mode
enabled
Transmit Disabled (turned
off in software)
Platform in S3 or S4
(power removed from Low
Profile PCI Express Card)
802.11b modes
Operating voltage
Power consumption
Output power
(approximately)
Receive sensitivity
Power Consumption
10 Watts
4 Watts maximum averaged power over 1 second
1000 mA peak current for 100 microseconds or
longer
3 Watts maximum averaged over 1 second
1.0 Watts maximum averaged over 1 second
50 mW maximum, averaged over 1 second
5 mW maximum, averaged over 1 second
802.11g modes
EWC modes
+19 dBm +/- 1.0 dB
maximum
+17 dBm +/- 1.0 dB
maximum
Mode
Data rate
+17 dBm +/- 1.0 dB
maximum (total
power in all transmit
chains)
Sensitivity
802.11b
802.11b
1 Mbps
11 Mbps
-94 dBm
-85 dBm
DA - 12703 North America — Version 32 — June 21, 2013
Page 21
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
Data transfer rate
802.11g
802.11g
802.11g
802.11g
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
6 Mbps
18 Mbps
48 Mbps
54 Mbps
6.5 Mbps
54 Mbps
81 Mbps
162 Mbps
270 Mbps
300 Mbps
Data Rate (MCS)
Minimum Throughput
1 Mbps (802.11 b)
2 Mbps (802.11 b)
5.5 Mbps (802.11 b)
11 Mbps (802.11 b)
12 Mbps (802.11 g)
18 Mbps (802.11 g)
24 Mbps (802.11 g)
36 Mbps (802.11 g)
48 Mbps (802.11 g)
54 Mbps (802.11 g)
6.5 Mbps (20 MHz EWC)
13 Mbps (20 MHz EWC)
19.5 Mbps (20 MHz EWC)
26 Mbps (20 MHz EWC)
39 Mbps (20 MHz EWC)
52 Mbps (20 MHz EWC)
58.5 Mbps (20 MHz EWC)
65 Mbps (20 MHz EWC)
78 Mbps (20 MHz EWC)
104 Mbps (20 MHz EWC)
117 Mbps (20 MHz EWC)
130 Mbps (20 MHz EWC)
13.5 Mbps (40 MHz EWC)
27 Mbps (40 MHz EWC)
40.5 Mbps (40 MHz EWC)
54 Mbps (40 MHz EWC)
81 Mbps (40 MHz EWC)
108 Mbps (40 MHz EWC)
121.5 Mbps (40 MHz EWC)
135 Mbps (40 MHz EWC)
700 kbps
1.4 Mbps
3.5 Mbps
5.9 Mbps
6 Mbps
9 Mbps
12 Mbps
18 Mbps
21 Mbps
22.5 Mbps
4.5 Mbps
9 Mbps
13.5 Mbps
18 Mbps
27 Mbps
36 Mbps
40 Mbps
45 Mbps
54 Mbps
72 Mbps
81 Mbps
91 Mbps
8 Mbps
16 Mbps
24 Mbps
32 Mbps
48 Mbps
64 Mbps
72 Mbps
81 Mbps
DA - 12703 North America — Version 32 — June 21, 2013
-91 dBm
-85 dBm
-75 dBm
-72 dBm
-87 dBm
-82 dBm
-78 dBm
-74 dBm
-68 dBm
-64 dBm
Page 22
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
Security
Antenna
IEEE and WiFi compliant 64 / 128 bit WEP encryption
AES: CCM
802.1x authentication
WPA: 802.1x. WPA-PSK and TKIP
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
HP part number 497792-001
Certifications
Wi-Fi certified
Certifications for use by
country
United States, Canada, Peru
2006 Agere PCI 56K
Data Transmission
International SoftModem
Fax Speeds
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem speed.
FCC limitations allow a maximum of 53 Kbps during download transmissions.
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/12,000/
9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and
Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
Data Speeds
Data Standards
Error Correction and Data V.44, 42bis, V.42 and MNP2-5
Compression
Power Management
Upgradeability
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
Video
ITU-T V.80 video ready interface
Other
Operating Temperature
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Chipset
Dimensions (L X H)
Connection
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers
and CardBus support
Complies with PCI low profile specifications–6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Single RJ-11 connector
DA - 12703 North America — Version 32 — June 21, 2013
Page 23
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Communications
Other Features
Safety
EMC
Telecom
Other
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV, NEMKO,
DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-46, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
DA - 12703 North America — Version 32 — June 21, 2013
Page 24
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Graphics
Integrated Graphics
Media Accelerator 3000
Graphic Controller
Integrated GMA 3000
Bus type
Integrated
RAMDAC
Single 400 MHz integrated
Memory
UMA with DVMT 4.0 support for frame buffer sizes 8-256 MB
Controller clock speed
667 MHz
Overlay planes
One 16-bit video overlay plane
Maximum Color Depth
32 bpp
Maximum vertical refresh 85 Hz
rate
Multi-display Support
Graphics/Video API
Support
Resolutions Supported1
One VGA and one DVI-D in conjunction with an ADD2 card, clone and extended
desktop modes are enabled by the addition of the HP ADD2 DVI-D Adapter
DirectX 9.0c, WGF 1.0, DirectX VA 2.0, Shader Model 3.0, OpenGL 1.5
Resolution
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
Maximum Refresh Rate (Hz)
Analog Monitor
Digital Monitor
85
60
85
60
85
60
85
60
85
60
85
60-R2
85
60-R2
60
N/A
NOTES:
1 Modes listed are supported with a single active display. The supported mode list for multiple active
displays is a subset of this list. Not all modes will support video playback and some supported modes may
use software MC (motion compensation) rather than hardware MC. Not all modes will support 3D
acceleration depending on the system configuration (e.g., resolution selected, size of frame buffer,
number of installed memory modules, etc.).
2 -R denotes reduced blanking timings (some digital monitors may not support reduced blanking timings).
Other resolutions and refresh rates may be selectable but are not recommended.
DA - 12703 North America — Version 32 — June 21, 2013
Page 25
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Graphics
ADD2 SDVO DVI-D Adapter Form Factor
Dual head support
Yes
Host Interface Connector
Mechanically compliant with PCI-e standard
Complies with the Intel ADD2 and Intel Serial Digital Video Output
(SDVO) specifications
165 MHz maximum
Dot Clock
Display Modes
Resolutions Supported
NVIDIA NVS 300 PCIe x1
Graphics Cards
Low-profile card (full-height (ATX) and low-profile brackets included in kit)
Supports display modes that require up to 165-MHz bandwidth on the link, as
shown in the following table.
Resolutions
Blanking
640 x 480 VGA
800 x 600 SVGA
1024 x 768 XGA
1280 x 1024 SXGA
1600 x 1200 UXGA
1920 x 1200
60-Hz LCD
5% reduced
Yes
Yes
Yes
Yes
Yes
Yes
60-Hz
GTF
Yes
Yes
Yes
Yes
Yes
No
75-Hz
GTF
Yes
Yes
Yes
No
No
No
85-Hz
GTF
Yes
Yes
Yes
No
No
No
Color Depth
All modes support 8-bpp, 16-bpp, and 24-bpp color depths (up to 16.7 million
colors)
Bus type
PCIe x1; Low profile
Graphics Controller
Nvidia GT218 GPU
Memory
512 MB DDR3
Connector
Single high-density DMS-59 Flex Connector
Dimensions
Low-profile, 2.586 x 5.7 in (6.57 x 14.48 cm)
Multi-monitor support
RAMDAC
Dual analog (VGA) or digital (Single Link DVI or DisplayPort) monitors
(DVI support requires optional DVI cable kit DL139A;DisplayPort support
requires DMS-59 to Dual DisplayPort Cable Kit required
Dual 400 MHz (integrated)
Maximum pixel clock
400 MHz
Overlay planes
One 16-bit Video overlay plane
Video Acceleration
DirectX 10.1; OpenGL 3.3, CUDA, DirectCompute
High-defintion Video
Processor (HDVP)
Full screen, full frame video playback of HDTV, Blu-Ray and DVD content
Inbuilt video decoder for multiple video formats including MPEG2, VC-1,
WMV9, H.264, and MVC Capable of decoding dual Video Streams at HD (1080p)
resolutions
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
High-Quality in-built Filtering/Scaling
Stereo & HD Audio (LPCM 7.1) support for HDMI outputs (HDMI via optional
DVI-HDMI dongles) with the DMS-59 to DisplayPort Adapter
Specification
Description
Board configuration
GPU
Core clock
Memory clock
GT218
520 MHz
790 MHz
DA - 12703 North America — Version 32 — June 21, 2013
Page 26
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Graphics
Frame buffer
Resolutions supported
Resolution
640 x 480
800 x 600
1024 x 768
1280 x 720
1280 x 1024
1440 x 900
1600 x 1200
1680 x 1050
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
512MB DDR3, 64-bit wide
Maximum Refresh Rate (Hz)
Analog Monitor
Digital Monitor
85
85
85
85
85
75
85
75
85
85
85
75
60
60
60
60
60
60
60
60
60-R*
60-R*
N/A
N/A
DA - 12703 North America — Version 32 — June 21, 2013
Page 27
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Hard Drives
Serial ATA 3.0-Gb/s Hard
Drives (7200 rpm)
1 TB
Capacity
1,000,204,886,016 byte
Height
1 in (2.54 cm)
Width
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s
Interface
500 GB
Synchronous Transfer
Rate (Maximum)
Up to 3 Gb/s
Buffer
32 MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
Logical Blocks
1,953,525,168
Operating Temperature
41° to 131°F (5° to 55°C)
Capacity
500,107,862,016 bytes
Height
1 in (2.54 cm)
Width
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Interface
250 GB
7,200 rpm
Synchronous Transfer
Rate (Maximum)
Up to 3 Gb/s
Buffer
16 MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Single Track
2.0 ms
Average
11 ms
Full-Stroke
21 ms
Logical Blocks
976,773,168
Operating Temperature
41° to 131° F (5° to 55° C)
Capacity
250,059,350,016 bytes
Height
1 in (2.6 cm)
Width
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Interface
7,200 rpm
Synchronous Transfer
Rate (Maximum)
Up to 3 Gb/s
Buffer
8 MB
DA - 12703 North America — Version 32 — June 21, 2013
Page 28
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Hard Drives
160-GB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
Logical Blocks
488,397,168
Operating Temperature
41° to 131°F (5° to 55°C)
Capacity
163,928,604,672 bytes
Height
1 in (2.54 cm)
Width
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Interface
7,200 rpm
Synchronous Transfer
Rate (Maximum)
Up to 3 Gb/s
Buffer
8 MB
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Single Track
0.9 ms
Average
9.3 ms
Full-Stroke
18 ms
Logical Blocks
320,173,056
Operating Temperature
41° to 131°F (5° to 55°C)
7,200 rpm
DA - 12703 North America — Version 32 — June 21, 2013
Page 29
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Solid State Drives
2.5" Solid State Drives
80-GB
Unformatted Capacity*
80 GB
Architecture
Multi Level Cell (MLC) NAND Flash with wear leveling 10
channel controller
SATA 3Gb/sec
Interface type
Dimensions-external
(W x H x D)
Weight
2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)
Bandwidth Performance
Sustained Sequential
Read
Up to 250 MB/s
Sustained Sequential
Write
Up to 70 MB/s
Random Read (4KB)
up to 35K IOPs
Random Write (4KB)
up to 6.6K IOPs
Read
65 ms
Write
85 ms
Latency
Power
Useful drive life
Environmental
(all conditions, noncondensing)
0.18 lb (80 g)
Total power consumption 0.15 Watt (Active); 0.075 Watt
(Idle)
5 years
35TB written, up to 20GB/day for 5
years
Temperature (operating) 32° to 158° F (0° to 70° C)
Relative Humidity
(operating)
Maximum Wet Bulb
Temperature (operating)
5% to 95%
Shock (operating)
1,500 G/0.5 msec
DA - 12703 North America — Version 32 — June 21, 2013
84° F (29° C)
Page 30
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Input/Output Devices
USB Keyboard
Physical
characteristics
Electrical
Mechanical
Keys
Dimensions (L x W x H)
104, 105, 106, 107, 109 layout (depending upon
country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI – RFI
Conforms to FCC rules for a Class B computing
device
Microsoft PC 99 – 2001
Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Contamination-resistant switch membrane
Switch type
Key-leveling mechanisms For all double-wide and greater-length keys
Environmental
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating
temperature
–22° to 140° F (–30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration 4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
DA - 12703 North America — Version 32 — June 21, 2013
Page 31
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Input/Output Devices
PS/2 Keyboard
Physical
characteristics
Electrical
Mechanical
Keys
Dimensions (L x W x H)
104, 105, 106, 107, 109 layout (depending upon
country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
PS/2 6-pin mini din connector
ESD
CE level 4, 15-kV air discharge
EMI – RFI
Conforms to FCC rules for a Class B computing
device
Microsoft PC 99 – 2001
Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Contamination-resistant switch membrane
Switch type
Key-leveling mechanisms For all double-wide and greater-length keys
Environmental
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating
temperature
–22° to 140° F (–30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration 4-g peak acceleration
HP PS/2 Scroll Mouse
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Dimensions
1.5 x 2.5 x 4.6 in (3.8 x 6.3 x 11.6 cm)
Weight
4.44 oz (126 g)
Environmental
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating
temperature
–22° to 140° F (–30° to 60° C)
DA - 12703 North America — Version 32 — June 21, 2013
Page 32
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Input/Output Devices
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, 6 surfaces
Non-operating shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating vibration 4 g peak acceleration
Electrical
Drop (out-of-box)
26 in (66 cm) on carpet, 6-drop sequence
Drop (out-of-box)
Operating voltage
1 m on asphalt tile over concrete, 6-drop
sequence
5 VDC ± 10%
Power consumption
15 mA
System consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing
device
Functionally compliant
Microsoft
PC99 – 2001
Mechanical
Resolution
400 ± 20% DPI
Tracking speed
10 in/s (25.4 cm/s) maximum
Acceleration
100 in/s/s (2.54 m/s/s)
Switch actuation
65 g nominal peak force
Switch life
1,000,000 operations (using Hasco modified
tester)
Low force micro-switches
Switch type
Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s
Scroll wheel
Cable length
6 ft (1.8 m)
Microsoft PC99 – 2001
Mechanically compliant
Width
8 mm
Diameter
0.99 in (25.2 mm)
Maximum rotation speed 30 mm/s
Regulatory approvals
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, CTick, MIC
DA - 12703 North America — Version 32 — June 21, 2013
Page 33
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Input/Output Devices
USB Scroll Mouse
Environmental
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating
temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, 6 surfaces
Non-operating shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating vibration 4 g peak acceleration
Drop (out-of-box)
Electrical
Operating voltage
26 in (66 cm) on carpet, 6-drop sequence
1 m on asphalt tile over concrete, 6-drop
sequence
5 VDC ± 10%
Power consumption
15 mA
System consumption
USB Type-A plug connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing
device
Functionally compliant
Microsoft
PC99 – 2001
Mechanical
Resolution
400 ± 20% DPI
Tracking speed
10 in/s maximum
Acceleration
100 in/s
Switch actuation
65 g nominal peak force
Switch life
1,000,000 operations (using Hasco modified
tester)
Low force micro-switches
Switch type
Tracking mechanism life 155 mi (250 km) at average speed of 10 in/s
Scroll wheel
Cable length
6 ft (1.8 m)
Microsoft PC99 – 2001
Mechanically compliant
Width
8 mm
Diameter
0.99 in (25.2 mm)
Maximum rotation speed 30 mm/s
Regulatory approvals
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, CTick, MIC
DA - 12703 North America — Version 32 — June 21, 2013
Page 34
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Input/Output Devices
USB Optical Scroll Mouse Dimensions (H x L x W)
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
Weight
0.27 lb (0.12 kg)
Cable length
72.8 in (185 cm)
DA - 12703 North America — Version 32 — June 21, 2013
Page 35
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Optical Storage
SATA DVD+/-RW
SuperMulti Drive
Height
5.25-inch, half-height, tray-load
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc capacity
8.5 GB DL or 4.7 GB standard
Dimensions (HxWxD)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (maximum)
2.6 lb (1.2 kg)
Write speeds
DVD+R
Up to 16X
DVD+RW
Up to 8X
DVD+R DL
Up to 8X
DVD-R DL
Up to 4X
DVD-R
Up to 16X
DVD-RW
Up to 6X
CD-R
Up to 48X
CD-RW
Up to 32X
DVD-RAM
Up to 4X
Read speeds
DVD+RW, DVD-RW, DVD+R Up to 8X
DL, DVD-R DL
Access time
(typical reads, including
settling)
Power
DVD-ROM, DVD+R,
DVD-R
Up to 16X
CD-ROM, CD-R
Up to 48X
CD-RW
Up to 32X
Random
DVD: < 130 ms (typical), CD: < 120 ms (typical)
Full Stroke
DVD: < 240 ms (seek), CD: < 200 ms (seek)
Source
SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA maximum)
12 VDC (< 600 mA typical, < 1400 mA maximum)
41° to 122° F (5° to 50° C)
DC Current
Environmental conditions Temperature
(operating - nonRelative humidity
condensing)
Maximum wet bulb
temperature
10% to 90%
86° F (30° C)
DA - 12703 North America — Version 32 — June 21, 2013
Page 36
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Optical Storage
SATA DVD-ROM Drive
Height
5.25-inch, half-height, tray-load
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc capacity
Dimensions (W x H x D)
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
2.6 lb (1.2 kg)
Read speeds
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 8X
DVD-ROM
Up to 16X
DVD-RAM
Up to 4X
CD-ROM, CD-R
Up to 48X
CD-RW
Up to 32X
Removable Storage –
Media Compatibility –
DVD-ROM
Access times
(typical reads, including
setting)
Power
Media (READ ONLY – drive is not write capable)
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
DVD-R DL
Random
DVD: < 140 ms (typical), CD: < 125 ms (typical)
Full Stroke
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Cache Buffer
2 MB (minimum)
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA
mode 2 (16.7 MB/s); ATA UltraDMA Mode 3 (44.4
MB/s -default)
SATA DC power receptacle
Source
DC Power Requirement
Temperature
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA maximum)
12 VDC (< 600 mA typical, < 1400 mA maximum)
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 90%
Maximum Wet Bulb
Temperature
86° F (30° C)
DC Current
Environmental
(all conditions noncondensing)
DA - 12703 North America — Version 32 — June 21, 2013
Page 37
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Environmental Data
Eco-Label Certifications
and declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
US Federal Energy Management Program (FEMP)
IT ECO declaration
Energy Consumption
Normal Operation
Sleep (ENERGY low power
mode)
Off
Heat Dissipation*
Normal Operation
Sleep
Off
115 VAC, 60 Hz
62.9 W
3.1 W
230 VAC, 50 Hz
61.8 W
3.4 W
100 VAC, 60 Hz
63.1 W
3W
1.06 W
1.35 W
1.04 W
115 VAC, 60 Hz
214.614 BTU/hr
10.577 BTU/hr
3.616 BTU/hr
230 VAC, 50 Hz
210.861 BTU/hr
11.6 BTU/hr
4.606 BTU/hr
100 VAC, 60 Hz
215.297 BTU/hr
10.236 BTU/hr
3.548 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one
hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
Declared Noise Emissions
Sound Power
Sound Pressure
(in accordance with
System Fan Off
(LWad, bels)
(LpAm, decibels)
ISO 7779 and ISO 9296)
Idle
3.61
28.2 dB(A)
Fixed Disk
(random writes)
Optical Drive
(sequential reads)
3.8
30.2 dB(A)
4.9
44.3 dB(A)
Longevity and Upgrading This product can be upgraded, possibly extending its useful life by several years. Upgradeable features
and/or components contained in the product include:
Higher endurance capacitors for longer life.
Higher temperature rated capacitors for longer life and reliability
Improved gold plating on connectors, ports, and add-in cards for longer life and reliability
Over current protection using polyfuses for USB, serial, PS/2, and video ports for improved
reliability and hardware protection
On-board thermal sensors for improved reliability and thermal protection
More stringent thermal and humidity testing inside a special cabinet to simulate a thermally harsh
POS environment
Batteries
Spare parts are available throughout the warranty period and or for up to 5 years after the end of
production.
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5 ppm by weight
DA - 12703 North America — Version 32 — June 21, 2013
Page 38
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Environmental Data
Cadmium greater than 10 ppm by weight
Lead greater than 15 ppm by weight.
Additional Information
Material Usage
Packaging
Battery size: CR2032 (coin cell)
Battery type: Lithium/Manganese Dioxide
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –
2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water
and Toxic Enforcement Act of 1986).
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
The rp5700 Point of Sale System contains an average of 10% post-consumer recycled plastic.
This product is >91% recyclable when properly disposed of at end of life.
Packaging Materials
Corrugated Paper
1407 g
EPE Foam
290 g
LDPE Bag
63.5 g
HIPS Cushion
127.01 g
The EPE foam packaging material is made from no post consumer recycled content.
The corrugated paper packaging materials contain at least 25% post consumer recycled content.
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
DA - 12703 North America — Version 32 — June 21, 2013
Page 39
HP rp5700 Point of Sale (POS) System or HP rp5700
Business Desktop PC
QuickSpecs
Technical Specifications - Environmental Data
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to: http://www.hp.com/recycle or contact your nearest HP sales office.
and Recycling
Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
For more information about HP's commitment to the environment:
Hewlett-Packard
Corporate Environmental
Global Citizenship Report
Information
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
http://www.windowsvista.com/upgradeadvisor. For Windows Vista system requirements, visit
http://www.windowsvista.com/systemrequirements.
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U. S. registered trademarks of
Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States
and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be
liable for technical or editorial errors or omissions contained herein.
DA - 12703 North America — Version 32 — June 21, 2013
Page 40
Download PDF
Similar pages
